Shakespeare SE700 Ship Station Marine Transceiver User Manual
Shakespeare Company Ship Station Marine Transceiver Users Manual
Users Manual
SE700
HAND HELD
MARINE VHF RADIO OWNER’S HANDBOOK
- 1 -
TABLE OF CONTENS
1.0 INTRODUCTION
2.0 INSTALLATION
3.0 OPERATION
4.0 APPENDIX
- 2 -

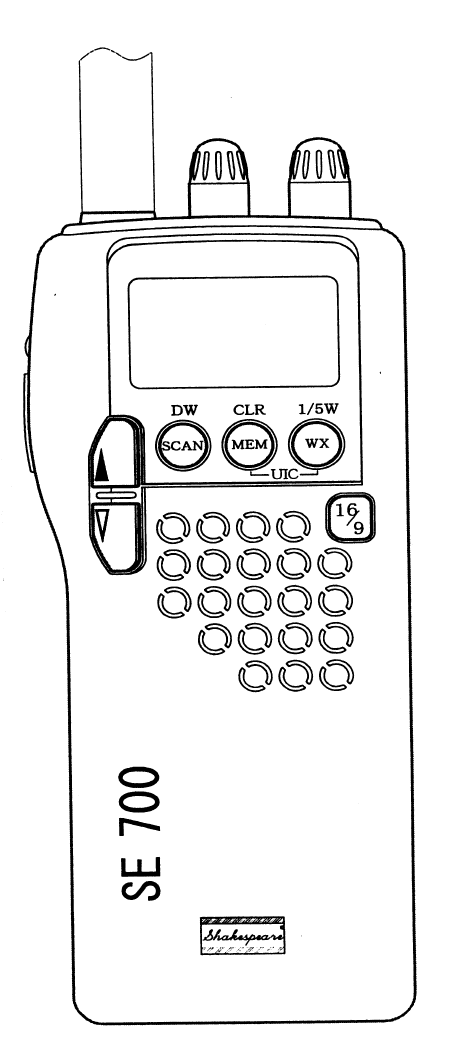

Figure1 Shakespeare SE700 Handheld Marine VHF Radio
1.0 INTRODUCTION
1.1 Purpose
1.2 Equipment Description
1.3 Supplied Parts
1.4 License
- 3 -
2.0 INSTALLATION
2.1 Unpacking And Inspection
2.2 Preparation for Use
2.3 Antenna Installation
2.4 Battery Pack Installation
2.5 Charging the Battery
2.6 Using the Belt Clip
3.0 OPERATION
3.1 INTRODUCTION
5
1
2
34
- 4 -

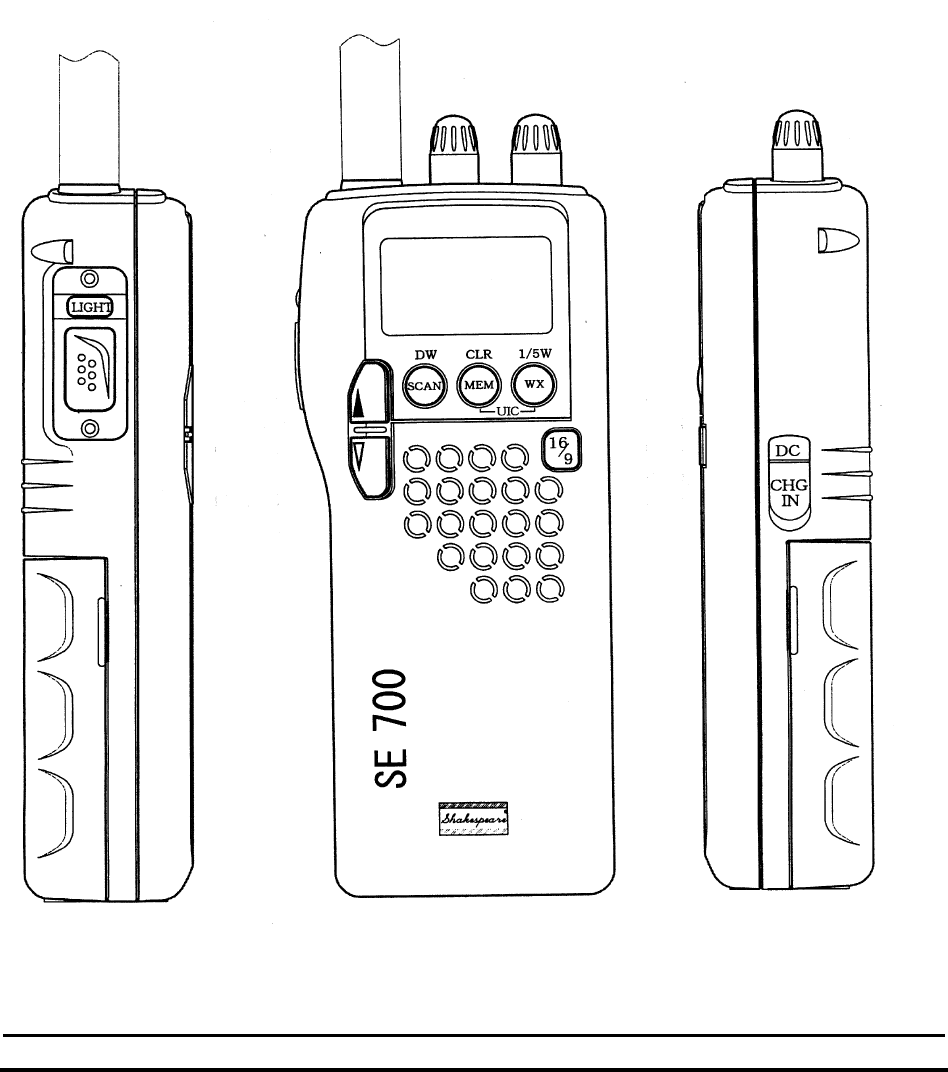

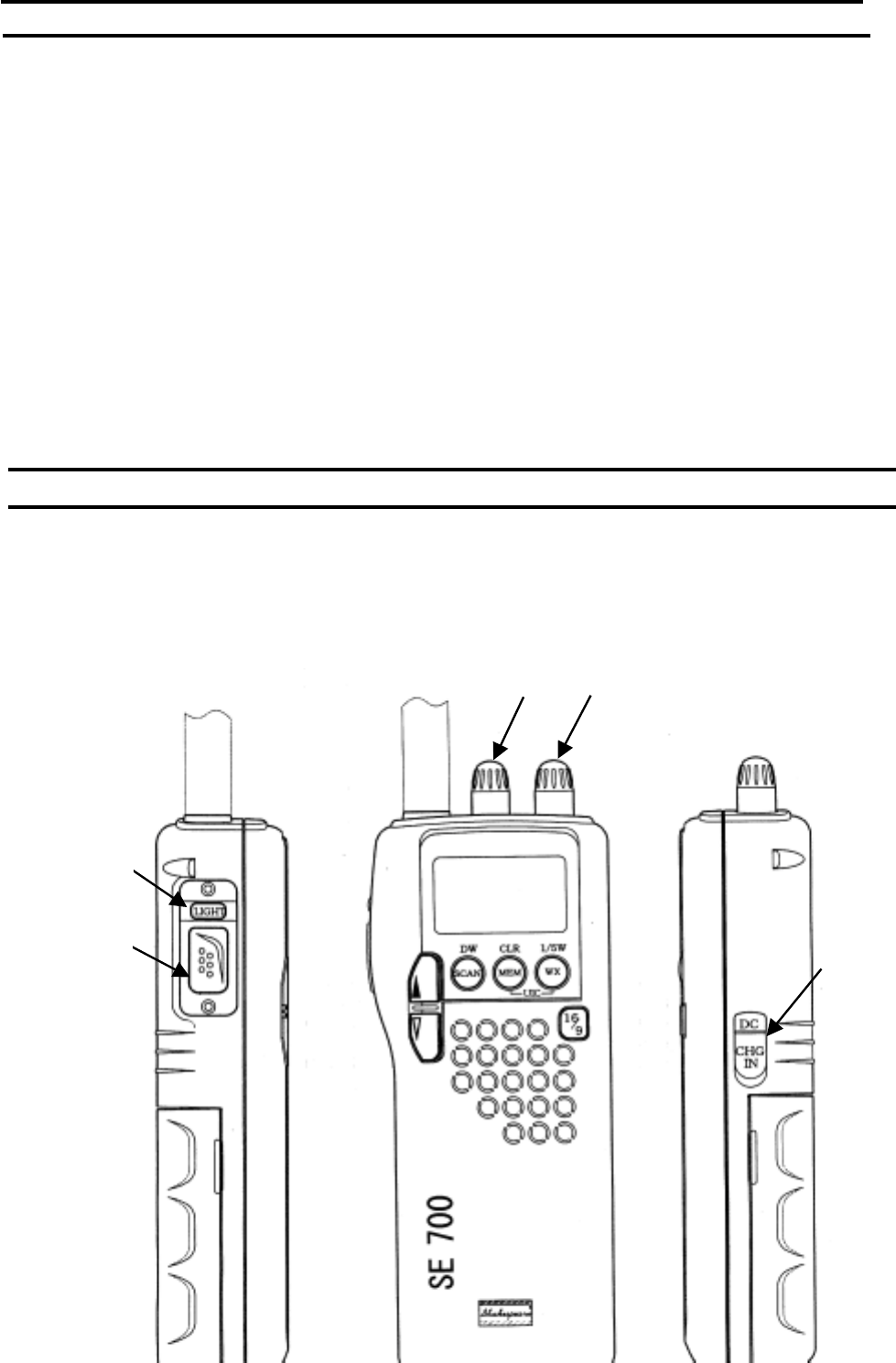

1, Light key & Lock key 2,PTT key
3, Squelch Knob 4,Power Switch & Volume Control
5, External Charge Jack
3.2 Controls And Display
3.2.1 Controls
(1)ON / OFF Volume Switch
Turns power OFF if turned fully CCW. Max audio output if turned fully CW.
All stored memory will be cleared by pressing “MEM” key and turning the power ON.
LCD display test mode will be activated by pressing “Light” key and “16/9” key at the same
time and turning the power ON.
Display when the power is turned ON.
Freq. Mode : Last used CH freq. mode. ( USA, INT, CANADA)
Channel : 16CH, WorkingCH
WX Channel :Last used WX CH.
Tx Power :HI 5W
LCD : All characters displayed for 2 sec.
(2)Squelch Knob
Squelch will get shallow when the knob is turned CCW. Squelch will get
deep when turned CW.
(3)Light Key
By pressing the Light key, Alarm 1 will sound and back light will get ON or OFF.
If pressed and held for 1.5 sec., alarm 1 will sound and all key operation will be locked.
(Key lock )
(4)PTT Key
Radio will Tx when pressed. When it is on either WX CH or Non-Tx CH, Alarm 2 will sound and
does not Tx.
When the radio is transmitting for continuous 5 min., radio will stop Tx and Alarm 2 will
sound until the PTT key is released.
(5)SCAN Key
If pressed, alarm 1 will sound and starts or ends ALL SCAN.
Except in SCAN MODE, radio will start SCAN if the button is pressed ( short press or long
press. ).
Short press during SCAN mode will pause SCAN and cancel SCAN mode. SCAN mode will also
be canceled if keys other than LIGHT key is pressed. After cancellation of SCAN mode, the
radio will operate on the channel that the SCAN mode was cancelled.
A long press during the SCAN mode will stop ALL scan and alarm 1 will sound and starts DW.
A short press during memory stand-by will start Memory scan.
Type of SCAN
(a) ALL SCAN : Scans all the channels.
(b) MEM-SCAN : Scans memory channels.
- 5 -
If only 1 or less channel is stored in memory, alarm 2 will sound and return to the
previous operation .
(6)MEM Key
At a short press, alarm 1 will sound and starts memory stand-by. If pressed again, then
it will show the channels stored in memory on the small CH display. It will show from the
smallest number. Other channels stored in memory can be seen by pressing UP/DOWN
key and during the time MEM will blink on the display.
At a long press, alarm 1 will sound and will store the current channel into memory. If the
current channel is already stored in memory, it will be deleted from memory.
MEM will be displayed on LCD if the channel is stored in memory. CLR will be displayed for
3 sec. and MEM will come off when channels are deleted from Memory.
(7)WX Key
If pressed, alarm 1 will sound and channel will toggle between working and WX channel
Long press will change the Tx power. ( toggle between 1W and 5W )
(8)UP Key
If pressed, alarm 1 will sound and channel will be changed (+1).
If pressed and hold for 0.5 sec. or more, the channels will be changed continuously by 100
msec. step.
(9)DOWN Key
If pressed, alarm 1 will sound and channel will be changed (-1).
If pressed and hold for 0.5 sec. or more, the channels will be changed continuously by 100
msec. step.
(10)16/9 Key
If pressed, alarm 1 will sound and the radio switches to priority channel .
At a long press, the set priority channel will toggle between CH16 and 9.
(11)MEM+WX Key
If pressed together, the frequency mode will be changed. The frequency mode consist of USA,
INT and CAN mode and will change as follows :. The display will show on which mode the radio
is :
( USA-INT, INT- CAN, CAN- USA)
- 6 -
3.2.2 Display

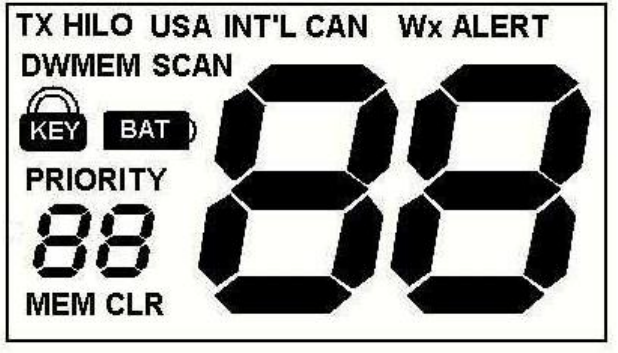

Fig. LCD Display
1) MEM (Memory):Displayed when the current channel is memory channel,and memory
SCAN mode.
2) SCAN (All scan/memory Scan) : displayed when the radio is in the All SCAN or
Memory SCAN mode.
3) WX : Will be displayed when Weather channel
4) ALERT : The “ALERT” indicator will blink when a weather alert tone is receive(in SCAN
mode or WX mode)
5) PRIORITY : will be displayed when small CH indicate display is priority.
6) USA : will be displayed when USA channel mode.
7) INT’L : will be displayed when international channel mode.
8) CAN : will be displayed when canada channel mode.
9) HI : will be displayed when high power output mode(TX)
10) LO : will be displayed when low power output mode(TX)
11) TX : will be displayed on the LCD when the Push-To-Talk(PTT) switch on the radio is
engaged and the transmitter circuits are providing RF signals to the antenna.
12) BAT (Battery) : will be displayed when battery voltage is low.
13) KEY : will be displayed when key locked.
14) LARGE CHANNEL # : displays the chanel number currently.
15) SMALL CHANNEL # : displays the channel number of priority channel or memory
channel.
3.3 Operation
(1) Operation to change frequency mode
Frequency mode is selectable from USA, International and Canada. The present mode will be
shown on LCD by “USA”, “INT” or “CAN”.
Press MEM and WX key at the same time for 1.5sec. or more, alarm 1 will sound and the
frequency mode will be changed. ( USA to INT, INT to CAN, CAN to USA) The changed
frequency mode will be stored in the EEPROM. If the radio if turned ON, it will start from
the last used frequency mode and the set priority channel ( CH 16 or 9 ).
When frequency modes are changed :
It will change to the same channel number of the channel it is changed from. If the
frequency mode does not have that channel number, the channel number next to it will be
used. But when the frequency mode is changed again, it will change back to the original
channel number.
- 7 -
ex. 1:
USA CH15 – INT CH15 – CAN CH15 – USA CH15 -
ex. 2:
CAN CH 2 – USA CH3 – INT CH2 – CAN CH2
ex. 3 :
CAN CH2 – USA CH3 – USA CH5 – CAN CH5
CH and it’s frequencies are attached.
(2) Rx of WX channels
WX channels consist of 10 channels. ( CH0 to CH9 )
Channel mode will toggle between working channel and WX channel
(3)Selecting Channels
Channels can be changed by pressing either UP or DOWN key.
( Alarm 1 will sound )
The channels that is not used in the frequency modes are skipped. The
channels change +1 or –1, but at the smallest number it will change to the biggest
number or at the largest number it will change to the smallest number.
(4) Store channel in memory
All channels can be stored in memory. Stored channels will be scanned during memory
scan. Channels has to be stored separate in every frequency mode.
Store or delete channels from memory
If MEM key is pressed for 1.5 sec. or more, alarm 1 will sound and the current
channel will be stored into or deleted from memory. If the current channel is
already stored, it will delete after displaying CLR for 3 sec. on LCD. On stored
channels, MEM will be displayed on LCD.
(5) Memory stand-by
Short press of MEM key will change the radio to memory stand-by mode. This mode will
last for 3 sec. and the MEM display will blink every 0.5sec.
If the SCAN key is pressed during the memory stand-by mode, alarm 1 will sound and
starts Memory Scan. If no channels are stored, alarm 2 will sound and revert to the
previous mode.
If the MEM key is pressed again during the memory stand-by mode, it will show the
channels stored in memory on the small CH display. Other channels can be seen by
pressing the UP or DOWN key. If MEM key is pressed during this mode, it will return
to the current channel.
(6) Priority Channel Call
The priority channel have to be set individually on every frequency mode.
CH16 is set as default.
If the 16/9 key is pressed, alarm 1 will sound and changes to priority channel.
The display is :
Big CH display : Priority channel
Small CH display : OFF
“PRIORITY” will be displayed
(7)Select Tx Power
Tx output power ( 1W or 5W )can be selected by a long press of WX key.
On WX channels, Tx prohibited channels, Tx power specified channels, key operation will
not be accepted and alarm 2 will sound.
- 8 -
(8)Backlight
Backlight of LCD can be lit by a long press of LIGHT key. Alarm 1 will sound and the light
stays ON for 5 sec. If any key is pressed ( except the PTT key ) within the 5 sec. from when
the LIGHT key has been pressed, the backlight will stay ON for another 5 sec. from the time
the other key has been pressed. If the LIGHT key is pressed during the time the backlight is
lit, alarm 1 will sound and will turn the light OFF.
(9)Key Lock
The Key Lock function will be started by a long press of LIGHT key. Alarm 1 will sound when
the Key is pressed and also the KEY icon will be displayed on LCD and the back light comes
ON for 5 sec.
A long press of the LIGHT key during the Key lock function will cancel that function. Alarm 1
will sound and the KEY icon will come OFF and the back light comes ON for 5 sec.
All key operation will be prohibited ( except the PTT and LIGHT key ) during this function.
The radio will continue the normal Tx and RX during this function.
(10) Scan
Scan Modes :
ALL SCAN : All the channels will be scanned.
MEM-SCAN: The memory channels will be scanned.
a) How to start and stop ALL SCAN
If the SCAN key is pressed, alarm 1 will sound and the radio start scanning from the channel
next to the current channel. SCAN will be displayed while scanning.
If the SCAN key is pressed again during scanning, alarm 1 will sound and stops scanning.
b) How to start and stop Memory Scan
A short press of MEM key and enter memory stand-by mode. A short press of SCAN key will
start scanning the memory channels from the memory channel next to the present following
alarm 1. If only 1 or less channel is stored in memory, alarm 2 will sound and return to
previous operation.
c) DW SCAN
A long press of SCAN key will start DW scan that will scan the current channel, priority
channel and the WX channels.
All scan search
The channels will be scanned as above. When it goes to CH88, then it will go back to CH1.
If carrier is detected on any of the channels during scanning , it will stop scanning on that
channel.
Memory Scan
All the channels in memory will be scanned. Others are same as above.
Key operation during Scan
a) PTT button : Stops scan and Tx on that channel
b) SCAN, MEM, UP, DOWN key : Alarm 1 will sound and stops scanning
c) 16/9 key : Alarm 1 will sound, stops scanning and changes to priority channel
d) WX key : Alarm 1 will sound, stops scanning and changes to WX channel
e) LIGHT key : Turn ON / OFF the back light.
SCAN key operation
a) During Scan
Short press : Alarm 1 will sound and stops scanning
Long press : Alarm 1 will sound and changes to monitor of DW.
- 9 -
b) During Scan pause
Short press : Stops scanning.
Long press : Set to skip the channel during scan. This will be reset when scan is stopped.
DW mode
Working channel, priority channel and WX channel will be scanned. During this mode,
“MON” & “WX” will be displayed on LCD. The working channel will be shown on the bigger
channel display, the priority channel will be displayed on the smaller channel display.
(11)Detection of Weather Alert
If a weather alert tone of 1050Hz is detected on a WX channel, alarm 3 will sound for 5 sec. and
“ALERT” will blink every 0.5 sec. on the LCD. If the weather alert is detected while you are on a
weather channel, only “ALERT” will blink.
(12) TX operation
TX will start when PTT key is pressed. If output power is detected on the detection terminal,
“TX” is displayed . If the PTT key is pressed on WX channel or No-Tx channel, alarm 2 will sound
to inform that the key operation is not accepted.
If Tx is continued for 5 min. or more, Tx will be stopped automatically and alarm 2 will sound
until the PTT key is released.
On high power channel, the radio transmits with 5W during the PTT is pressed and hold.
(13) Battery Monitor mode
The battery will be monitored and if the voltage is detected to be lower than the value set in the
EEPROM, the “BAT” will be displayed. The display does not go off until the unit is turned off.
If the voltage drops below it, the “BAT” display starts blinking.
(14)Alarm
The alarm sound will be made by ON / OFF the buzzer sound (2.048 Khz ) made at CPU.
The alarm 3 will be maximum of buzzer sound.
1) Alarm 1
Click sound of key operation.
Sound low.
2) Alarm 2
Error of key operation and after long press of key.
Sound low
3) Alarm 3
When weather alert is detected.
Sound maximum
(15) Un-lock
Detected at un-lock detection terminal. If detected, it operates as follows :
(16) Memory Clear
By pressing and holding the MEM key and turning ON power, the radio will start the Memory
Clear mode. “CL” will be displayed on the 7 segment display for 2 sec. and all the memory stored
in EEPROM will be erased.
- 10 -
4.0 APPENDIX
SE700 VHF Marine Radiotelephone
USA Frequency DATA
CH Tx Frequency Rx Frequency
1 156.050 156.050
2
3 156.150 156.150
4
5 156.250 156.250
6 156.300 156.300
7 156.350 156.350
8 156.400 156.400
9 156.450 156.450
10 156.500 156.500
11 156.550 156.550
12 156.600 156.600
13 156.650 156.650
14 156.700 156.700
15 156.750
16 156.800 156.800
17 156.850 156.850
18 156.900 156.900
19 156.950 156.950
20 157.000 157.000
21 157.050 157.050
22 157.100 157.100
23 157.150 157.150
24 157.200 161.800
25 157.250 161.850
26 157.300 161.900
27 157.350 161.950
28 157.400 162.000
60
61 156.075 156.075
62
63 156.175 156.175
64 156.225 156.225
65 156.275 156.275
66 156.325 156.325
67 156.375 156.375
68 156.425 156.425
69 156.475 156.475
70 156.525
71 156.575 156.575
72 156.625 156.625
73 156.675 156.675
74 156.725 156.725
75 156.775
76 156.825
- 11 -
77 156.875 156.875
78 156.925 156.925
79 156.975 156.975
80 157.025 157.025
81 157.075 157.075
82 157.125 157.125
83 157.175 157.175
84 157.225 161.825
85 157.275 161.875
86 157.325 161.925
87 157.375 161.975
88 157.425 157.425
INT Frequency DATA
CH Tx Frequency Rx Frequency
1 156.050 160.650
2 156.100 160.700
3 156.150 160.750
4 156.200 160.800
5 156.250 160.850
6 156.300 156.300
7 156.350 160.950
8 156.400 156.400
9 156.450 156.450
10 156.500 156.500
11 156.550 156.550
12 156.600 156.600
13 156.650 156.650
14 156.700 156.700
15 156.750
16 156.800 156.800
17 156.850 156.850
18 156.900 161.500
19 156.950 161.550
20 157.000 161.600
21 157.050 161.650
22 157.100 161.700
23 157.150 161.750
24 157.200 161.800
25 157.250 161.850
26 157.300 161.900
27 157.350 161.950
28 157.400 162.000
60 156.025 160.625
61 156.075 160.675
62 156.125 160.725
63 156.175 160.775
64 156.225 160.825
65 156.275 160.875
66 156.325 160.925
67 156.375 156.375
- 12 -
68 156.425 156.425
69 156.475 156.475
70 156.525
71 156.575 156.575
72 156.625 156.625
73 156.675 156.675
74 156.725 156.725
75 156.775
76 156.825
77 156.875 156.875
78 156.925 161.525
79 156.975 161.575
80 157.025 161.625
81 157.075 161.675
82 157.125 161.725
83 157.175 161.775
84 157.225 161.825
85 157.275 161.875
86 157.325 161.925
87 157.375 161.975
88 157.425 162.025
CAN Frequency DATA
CH Tx Frequency Rx Frequency
1 156.050 156.050
2 156.100 156.100
3 156.150 156.150
4 156.200 156.200
5 156.250 156.250
6 156.300 156.300
7 156.350 156.350
8 156.400 156.400
9 156.450 156.450
10 156.500 156.500
11 156.550 156.550
12 156.600 156.600
13 156.650 156.650
14 156.700 156.700
15 156.750
16 156.800 156.800
17 156.850 156.850
18 156.900 156.900
19 156.950 156.950
20 157.000 157.000
21 157.050 157.050
22 157.100 157.100
23 157.150 157.150
24 157.200 161.800
25 157.250 161.850
26 157.300 161.900
27 157.350 161.950
- 13 -
28 157.400 162.000
60 156.025 156.025
61 156.075 156.075
62 156.125 156.125
63 156.175 156.175
64 156.225 156.225
65 156.275 156.275
66 156.325 156.325
67 156.375 156.375
68 156.425 156.425
69 156.475 156.475
70 156.525
71 156.575 156.575
72 156.625 156.625
73 156.675 156.675
74 156.725 156.725
75 156.775
76 156.825
77 156.875 156.875
78 156.925 156.925
79 156.975 156.975
80 157.025 157.025
81 157.075 157.075
82 157.125 157.125
83 157.175 157.175
84 157.225 161.825
85 157.275 161.875
86 157.325 161.925
87 157.375 161.975
88 157.425 157.425
Wx Frequency DATA
CH Rx Frequency
0163.275
1162.550
2162.400
3162.475
4162.425
5162.450
6162.500
7162.525
8161.650
9161.775
