Shantou City Hengdi Industry 1327C REMOTE CONTROL FOR RC DRONE User Manual Xtreem FlyEye Drone Instruction Manual
Shantou City Hengdi Industry Co., Ltd REMOTE CONTROL FOR RC DRONE Xtreem FlyEye Drone Instruction Manual
15_1327C UserMan.pdf

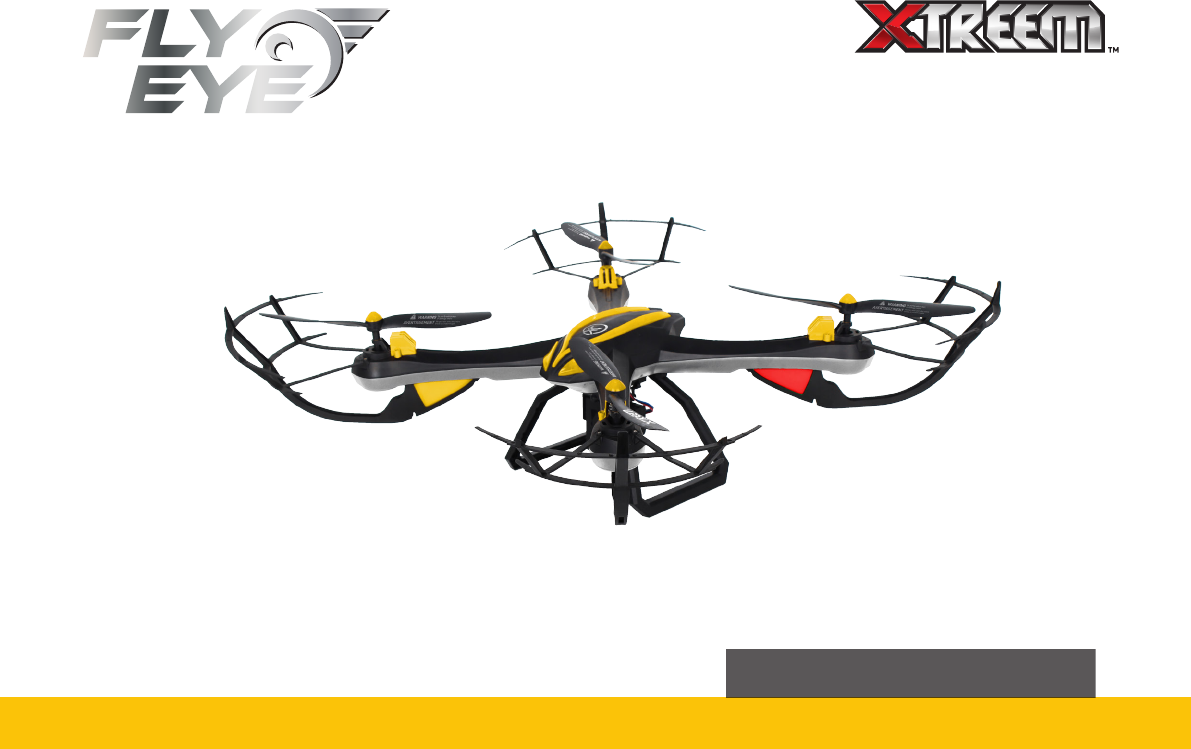

VIDEO DRONE THAT’S
YOUR EYE IN THE SKY
INSTRUCTION MANUAL
2
SAFETY PRECAUTIONS
NOTICE: Before using the Drone, read this instruction manual carefully, and obey all warnings and caution labels
- seriously, it’s no fun if someone gets hurt.
CHOKING HAZARD - SMALL PARTS, KEEP
OUT OF REACH OF SMALL CHILDREN.
WARNING - DO NOT FLY IN RESTRICTED OR
NO-FLY ZONES. CHECK YOUR LOCAL LAWS
AND REGULATIONS FOR INFORMATION
REGARDING THE USE OF UNMANNED
AERIAL VEHICLES.
WARNING - THIS DRONE IS NOT INTENDED
FOR USE BY CHILDREN UNDER 14 YEARS
OLD. ADULT SUPERVISION IS REQUIRED AT
ALL TIMES.
CAUTION - DO NOT TOUCH THE RUNNING
PROPELLERS OR FLY OVER SOMEONE’S
HEAD.
• Keep hands, hair and loose clothing away from the propellers when the power switch is turned on.
• Always lift off from a flat surface. Never hold the drone in your hand when lifting off.
• Stay away from obstacles and electrical hazards.
• Check the weather conditions. Do not operate the drone in rainy or snowy conditions, or when the wind
exceeds 5 MPH (8 KM/H).
• Make sure the controller’s antenna is pointing straight up.
• Keep the drone within line of sight - if line of sight to the controller is lost, you may lose control of the
drone.
• Always keep a safe distance in all directions around your drone to avoid collisions and/or injury. This
drone is controlled by a radio signal subject to interference from many sources outside your control.
Interference can cause momentary loss of control.
• Never completely exhaust the battery. When the drone starts to lose power, immediately bring it down
safely, and charge the battery as soon as practicable.
• Turn off the controller and drone when not in use.
• Read and obey all warnings and safety guidelines in this manual.
• Regularly examine for any damage to the plugs, propellers and other parts (loose or missing screws).
Replace any damaged or loose parts before attempting to fly.
3
SAFETY PRECAUTIONS
• Never charge battery unattended.
• Never charge batteries overnight.
• Charge battery in an isolated, controlled
environment. Keep far away from flammable
materials.
• Do not expose to direct sunlight; there is a risk
that the battery may overheat, ignite and/or
explode.
• Do not disassemble, modify, heat, or short circuit
the battery.
• Do not drop the battery or subject it to strong
impacts.
• Do not allow the battery to get wet.
• Only charge the battery with the supplied
charging equipment. Using other charging
equipment will void your warranty, may damage
the battery and poses a risk of fire or explosion.
• If the Drone is not being used for an extended
period of time, remove the battery and store it in
a cool, dry place out of the reach of children.
• In the unlikely event of leakage or explosion, use
sand or a chemical fire extinguisher to extinguish
the battery.
• The battery must be recycled or disposed of
properly.
• Controller requires 4 x 1.5V AA alkaline batteries
(not included).
• Installing/Replacing batteries must be undertaken
by a competent adult.
• Do not mix new and old batteries or types of
batteries (i.e. alkaline/standard).
• To avoid battery leakage, remove batteries from
the controller if the Drone is not being played for
a long period of time.
• Promptly remove exhausted batteries. Battery
leakage and corrosion can damage the controller.
• Recycle or dispose of used batteries responsibly.
The Drone is equipped with a Lithium Polymer battery. These kind of batteries are light and powerful, as their
chemistry is based on lithium, a light and extremely volatile metal.
SPECIAL LIPO BATTERY INSTRUCTIONS:
BATTERY SAFETY INSTRUCTIONS
WARNING - MODIFICATIONS NOT APPROVED BY THE PARTY RESPONSIBLE FOR COMPLIANCE
COULD VOID USER’S AUTHORITY TO OPERATE THE EQUIPMENT.
4

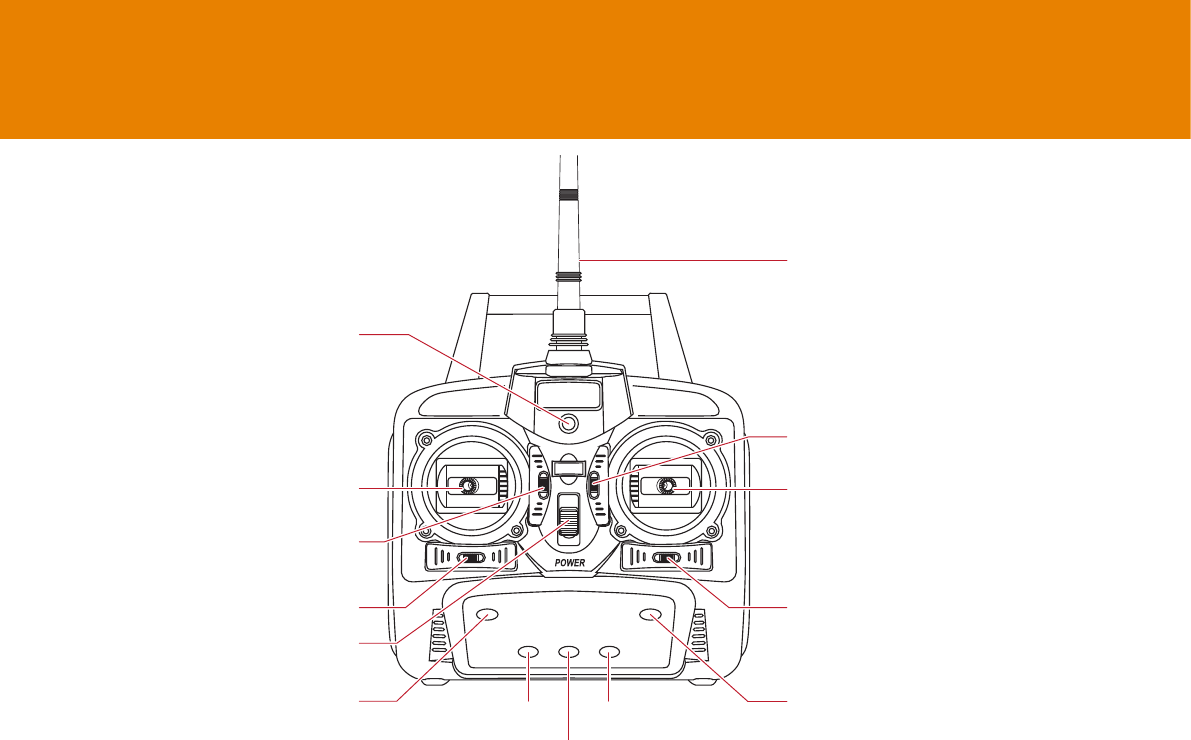

YOUR CONTROLLER
Power LED
Throttle Stick
Video (up)
Photo (down)
Rotation Trim
Power Switch
Speed Control 360° Flip
Sideway Trim
Direction Stick
Forward / Backward
Trim
Antenna
Headless Flight Return Home
Hover
Get acquainted with your controller.
Low = single beep
Medium = double beep
High = triple beep
Model:1327C/FCC ID:2AALA1327C
5
INSTALL CONTROLLER BATTERIES
Your controller requires 4 AA batteries (not included). Open the battery cover of the controller, insert 4 new
“AA” (1.5V) alkaline batteries following the polarity markings (+ and -) inside the battery compartment, and then
replace the battery cover.
AA 1.5V
AA 1.5V
AA 1.5V
AA 1.5V
6
PREPARE FOR FLIGHT

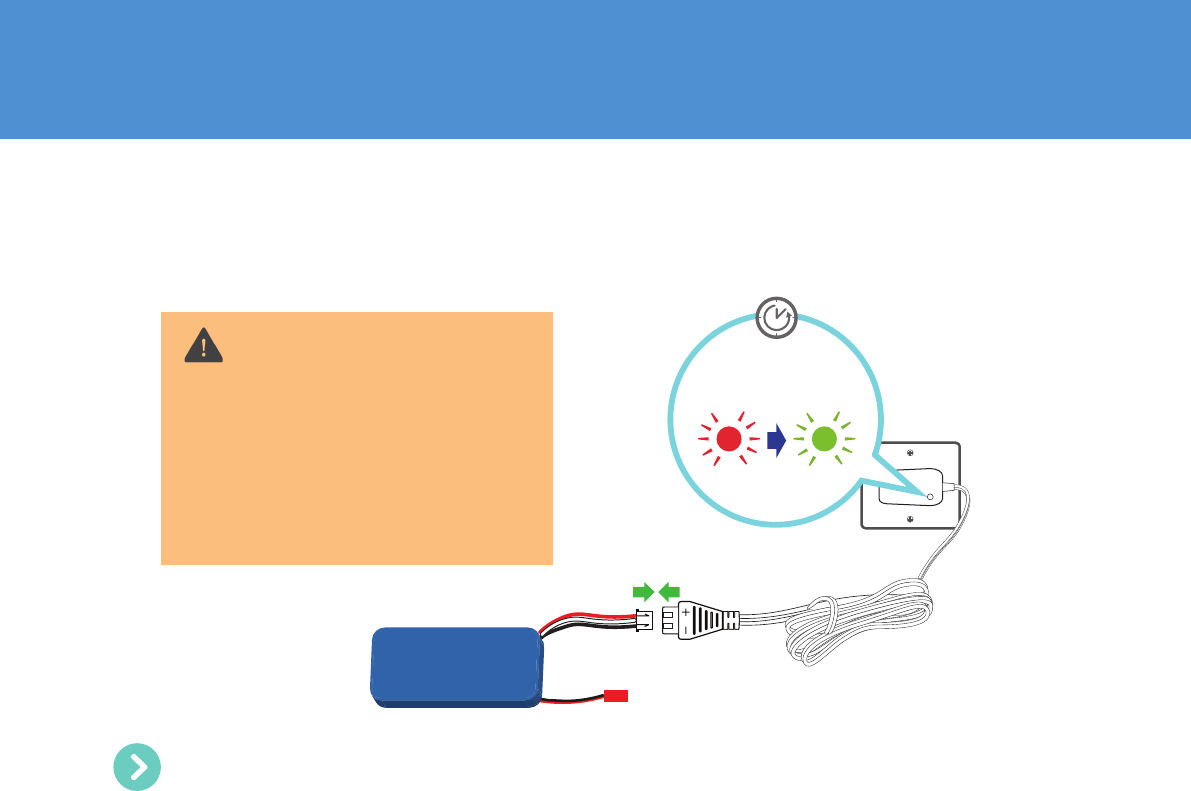

Charge the Drone LiPo battery
Plug the white (3-wire) connector on the LiPo battery into the charging connector on the charger, and then plug
the charger into a power outlet. While charging, the charger LED will be solid red. When charging is complete,
the charger LED turns green.
• Only charge the battery with the original
charger. Using other charging equipment
will void your warranty, may damage
the battery, and could result in fire or
explosion.
• Promptly remove the battery and
disconnect the charger from the power
outlet once charging is complete.
CAUTION
The LiPo battery which is partially charged at shipment. For longest flying time and best performance, fully
charge the battery before the first use.
~ 90 mins
charging time
(from empty)
7
PREPARE FOR FLIGHT

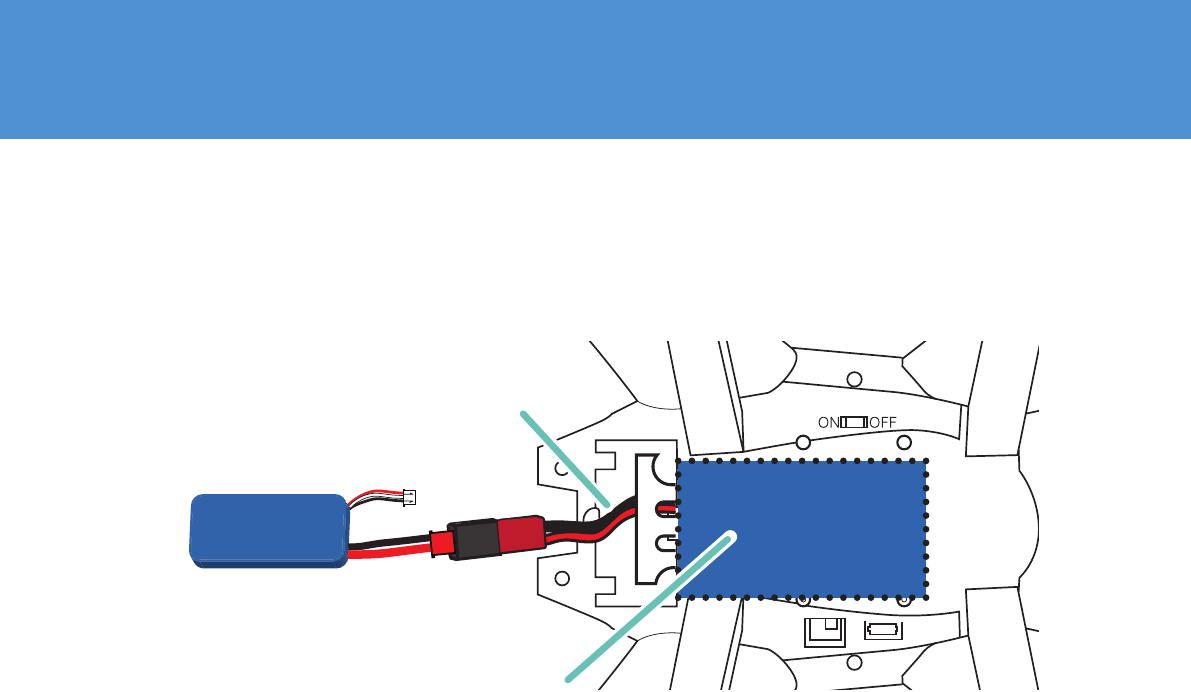

Install the Drone LiPo battery
Once fully charged, plug the red (2-wire) connector on the LiPo battery to the drone’s power cable located
inside the Drone battery compartment. Stow the LiPo battery and any excess cables inside the battery
compartment, and then close the cover.
power cable
battery compartment
(Black to Black,
Red to Red)
8
PREPARE FOR FLIGHT

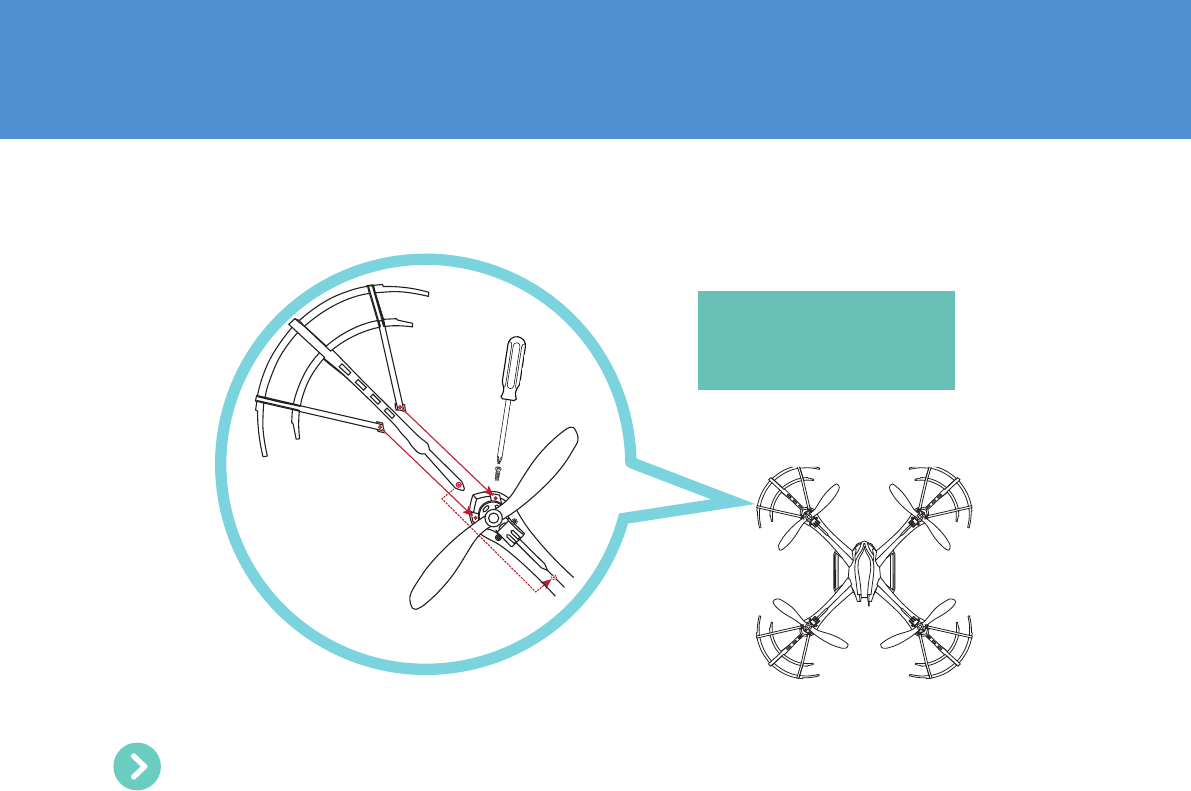

Attach the prop guards
Prop guards prevent propellers from getting damaged or hurting someone, in case of collision.
(under the arm)
Optional front and rear LED covers can be fitted together with the prop guards under the Drone arms, if
necessary. They make it easy to tell which way the Drone is flying.
Note: Do not over-tighten
screws as this can cause the
mounting holes to deform.
9

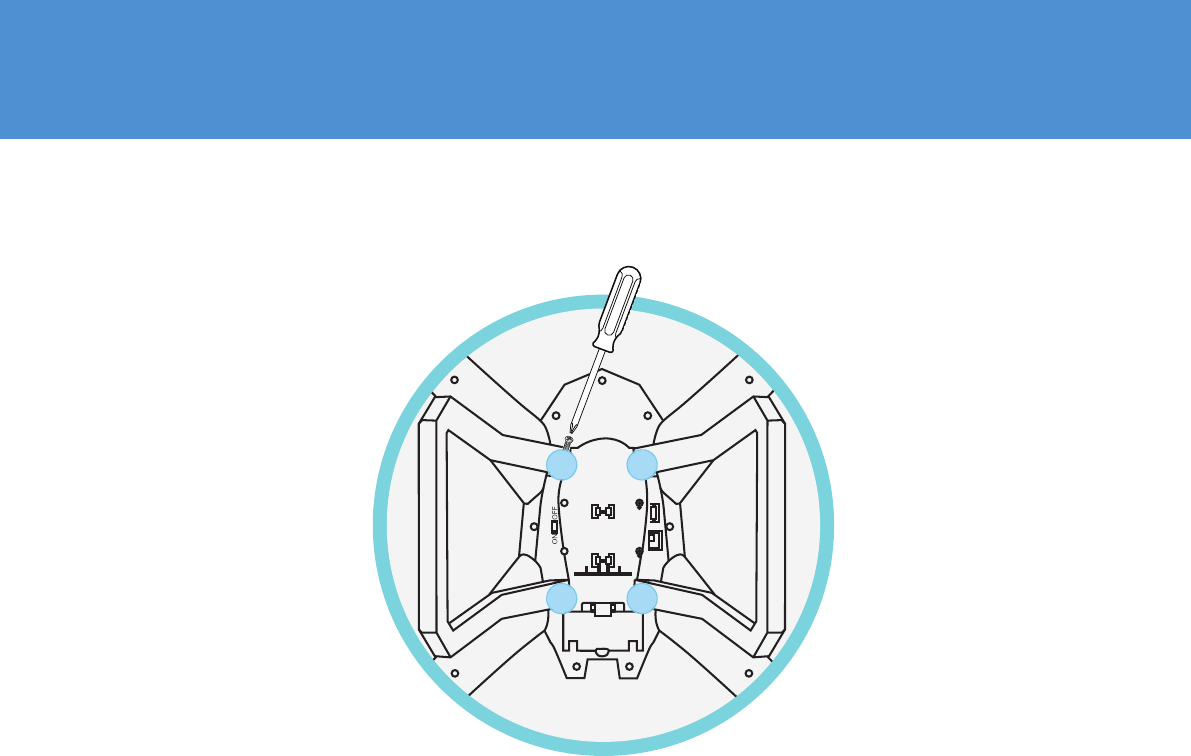

Attach the landing gear
The set of landing gear provides the Drone a stable platform and protects the bottom-mounted camera during
takeoff and landing.
PREPARE FOR FLIGHT
10

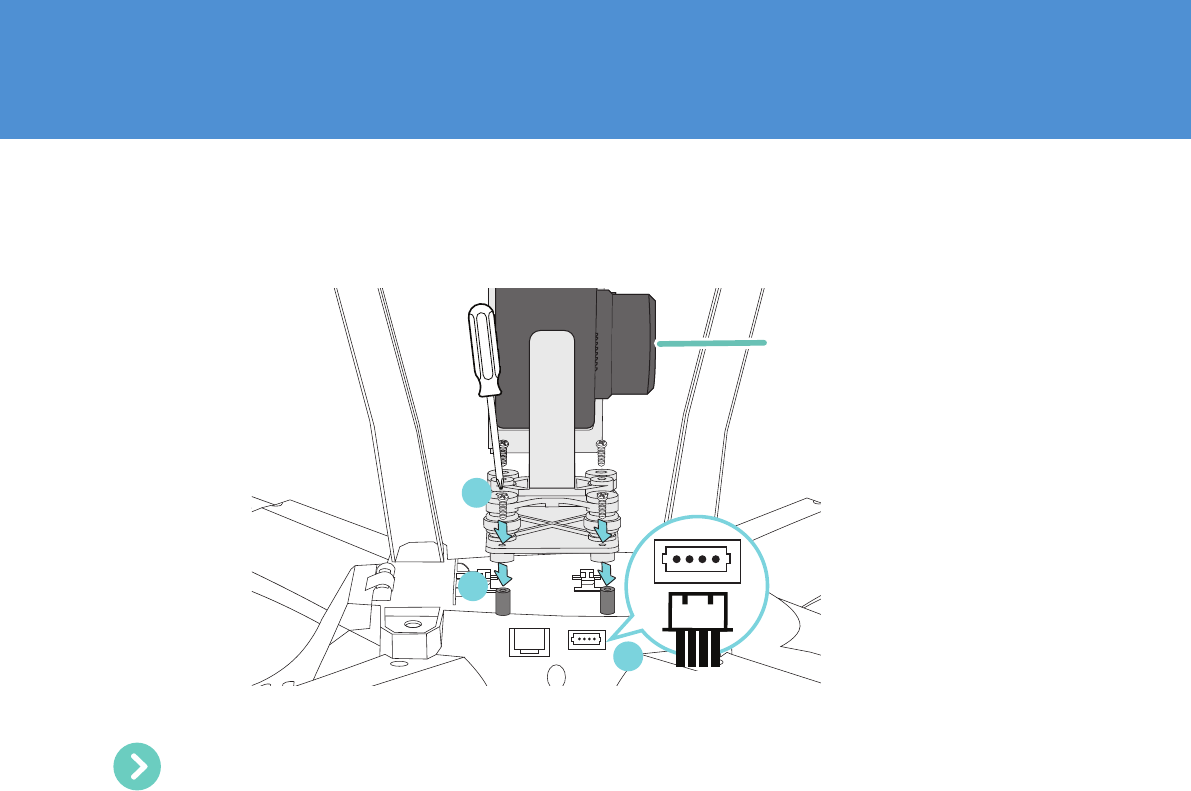

Install the Drone camera
The camera comes pre-fitted with a tilt mount. Simply attach the mount to the four screw posts located
underneath the Drone and secure in place using screws. Once mounted, plug the camera’s power connector
into the “CAMERA” port on the Drone.
PREPARE FOR FLIGHT
CAMERA
1
2
3
camera power
connector
The camera has no internal memory; instead photos and videos are stored on a microSD memory card. Be
sure to insert a microSD memory card into the microSD slot on top of the camera.
Peel off the transparent film
wrapped around the lens
11

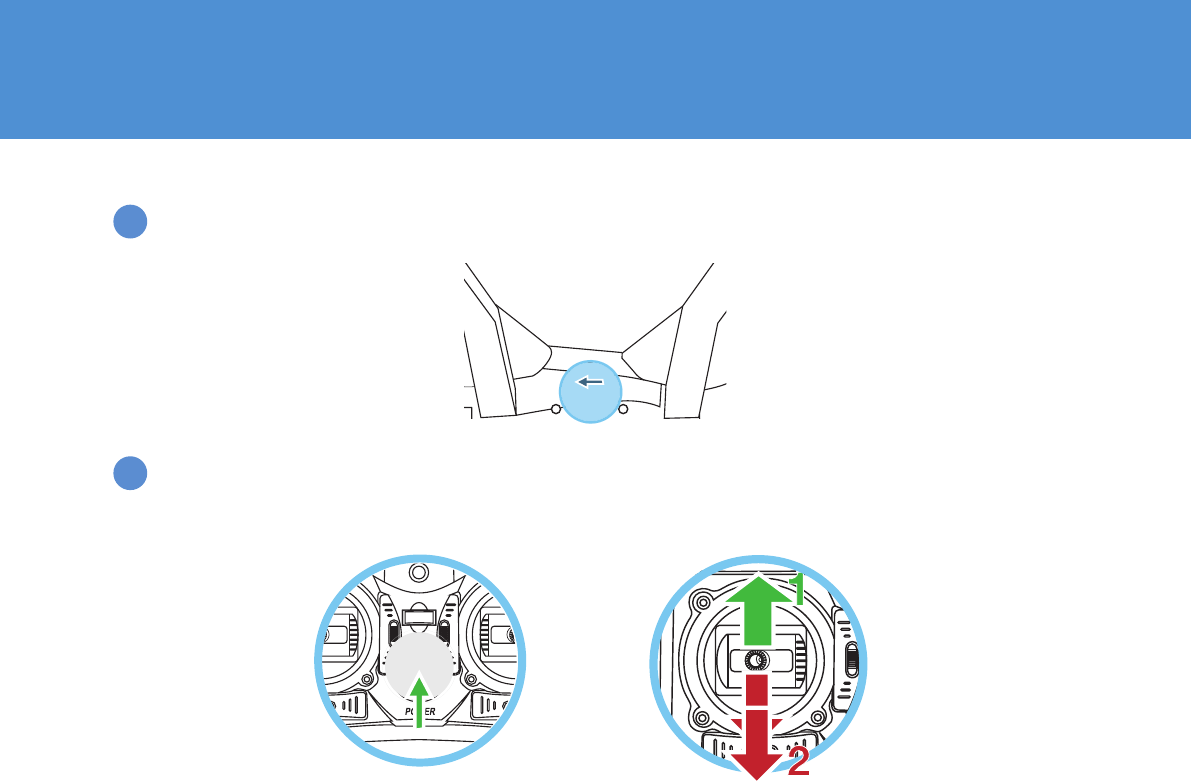

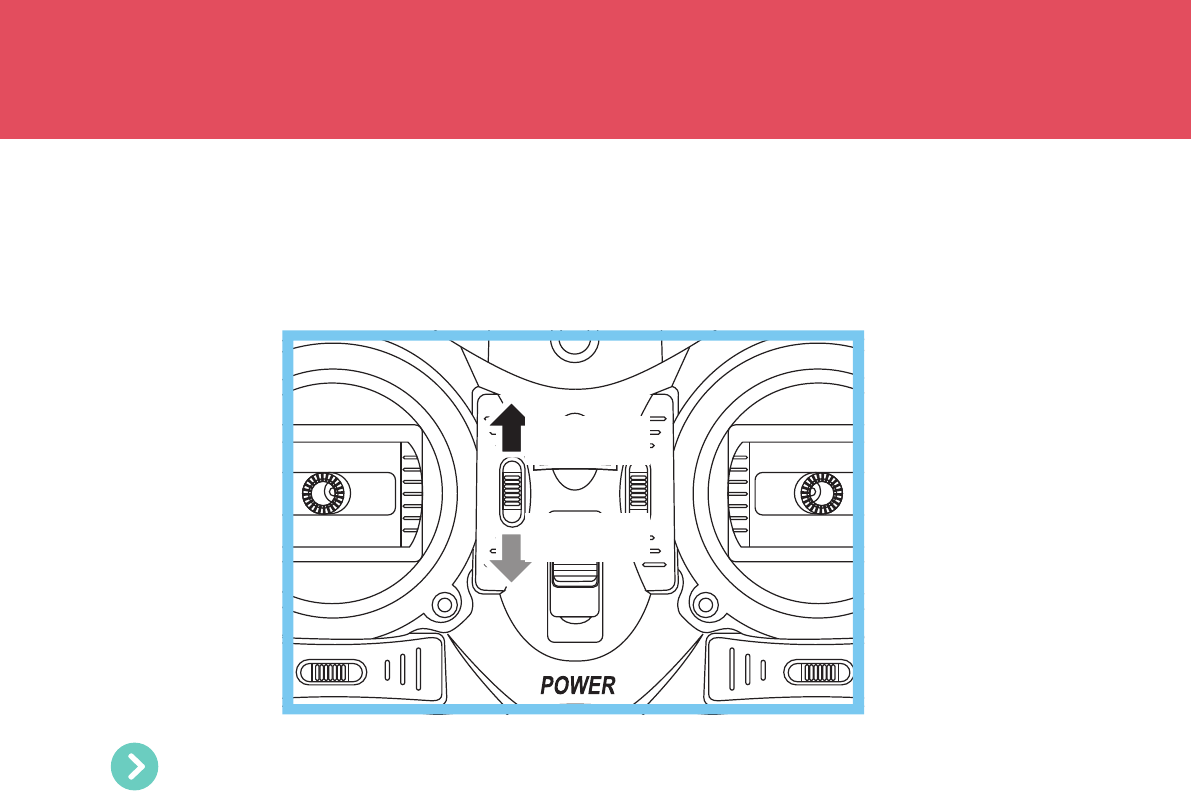

Pair the controller
Turn on the Drone and place it on a flat, level surface. Allow up to 10 seconds for the Drone’s digital
gyroscope to stabilize automatically.
PREPARE FOR FLIGHT
1
2 Turn on the controller. Beginning from a neutral position, move the Throttle stick all the way up and then all
the way down. After 2 seconds, the controller stops blinking and beeps once more to indicate successful
pairing. The Drone is ready for takeoff.
12

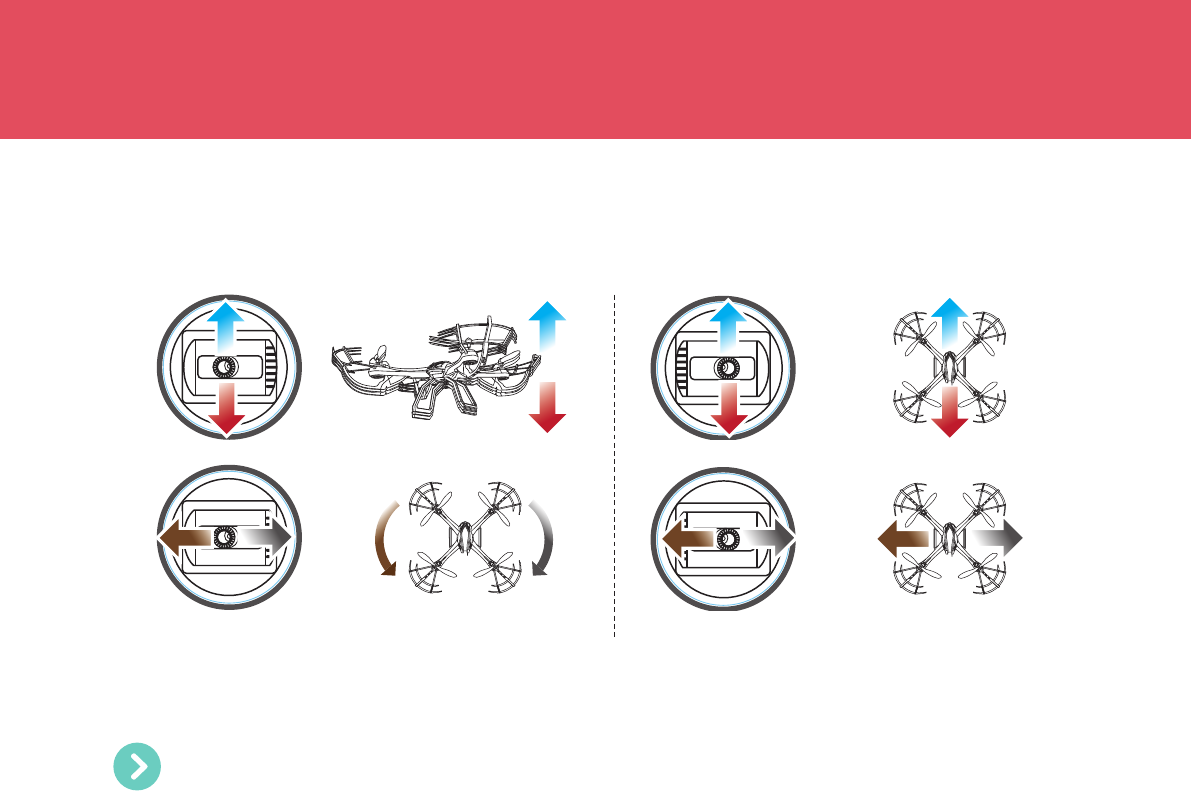

BASIC FLIGHT CONTROLS
The Throttle stick controls altitude (climb/descend) and rotation, while the Direction stick controls forward,
backward, and side to side movements.
Throttle stick Direction stick
Small adjustments made slowly and carefully are the best way to get the Drone to fly well.
13
CAPTURE PHOTOS & VIDEOS
Capture awesome aerial action shots and videos with the HD camera.
• To start recording a video, push the Video/Photo button up. While recording is in progress, the Drone’s rear
LEDs will be blinking. To stop recording, push the Video/Photo button up again.
• To take a photo, push the Video/Photo button down. The Drone’s front and rear LEDs will blink once every
time a photo is taken.
Video
Don’t forget to insert a microSD memory card into the microSD slot located on top of the camera before
taking off.
14

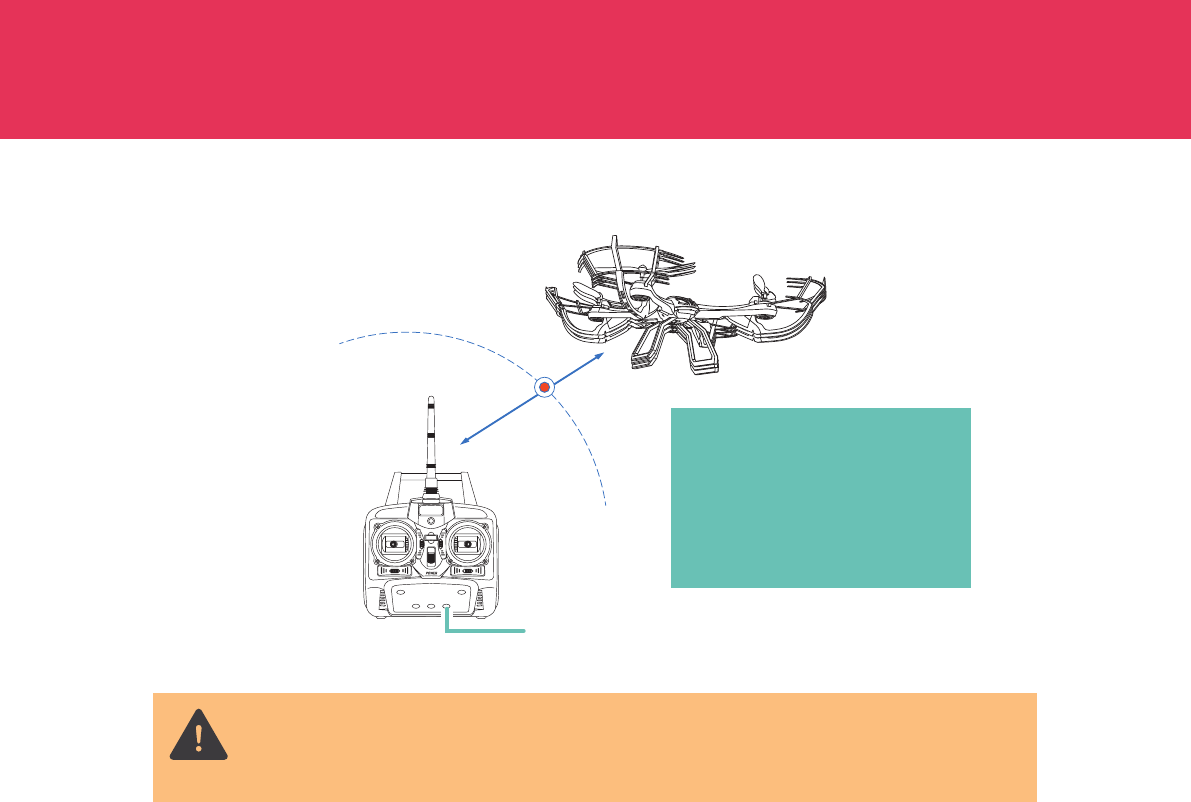

RETURN HOME
If you start to lose sight of the Drone during flight, simply press the Return Home button once and the Drone will
automatically fly back towards the general vicinity of the controller.
Return Home button
You can control the altitude using
the Throttle stick, but any forward
or backward movement with the
Direction stick will deactivate
Return Home. You can also press
the Return Home button again to
resume control of the Drone.
CAUTION - THE DRONE DOES NOT DETECT TREES AND OTHER OBSTACLES IN ITS
RETURN TO HOME FLIGHT PATH. TO REDUCE RISK OF COLLISION, BE AWARE OF YOUR
SURROUNDINGS AND MAKE SURE THE RETURN PATH IS CLEAR BEFORE ACTIVATING
RETURN HOME.
15

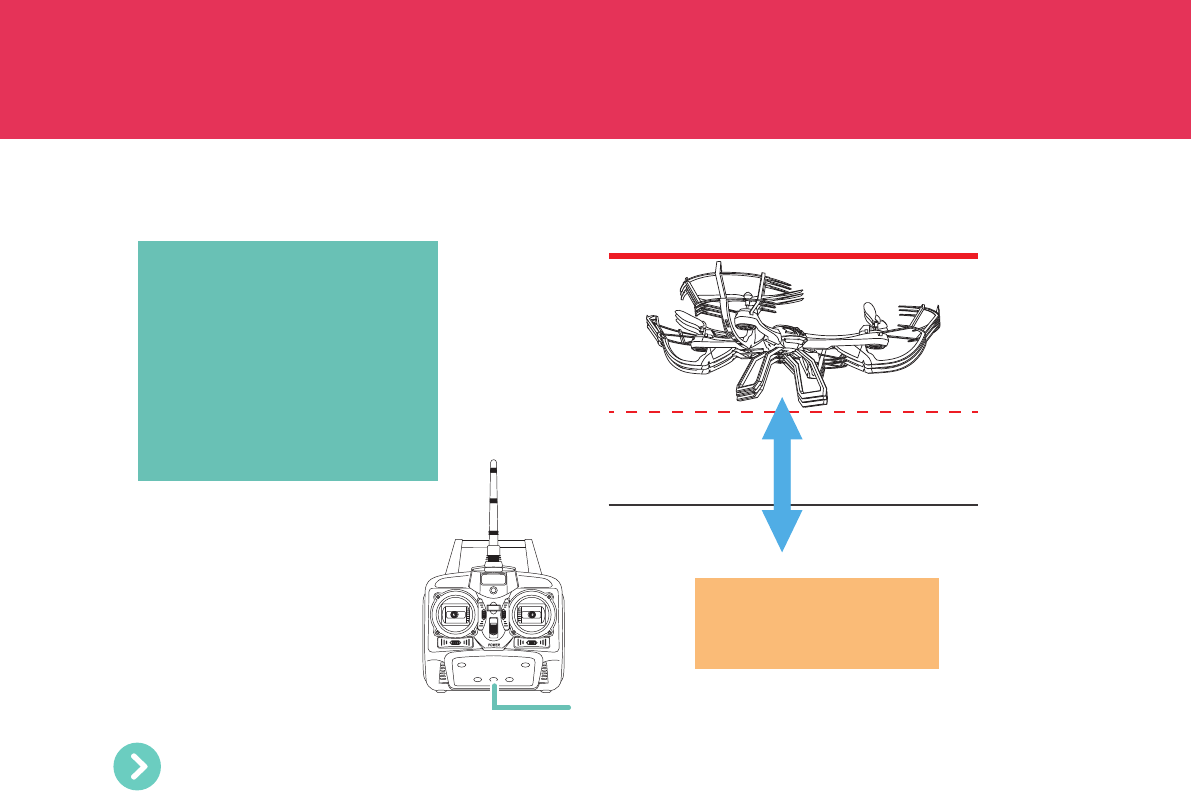

Hover mode is a great way for beginners to learn how to fly! This feature maintains the Drone at a consistent
altitude while allowing you to rotate and control directional movements normally.
HOVER
Hover button
Bring the Drone up to the altitude
you want, then press the Hover
button. The throttle is automatically
controlled and the current altitude
is maintained. All other controls
(forward, backward, sideway, rotate)
will continue to work as usual.
To resume control of the throttle and
end Hover mode, press the Hover
button again.
Note: While Hover mode is
enabled, the Return Home
button does not function.
Make sure the Throttle stick is in the neutral position before turning Hover mode off. This prevents the
Drone from dropping or rising suddenly when the throttle control becomes operative again.
16

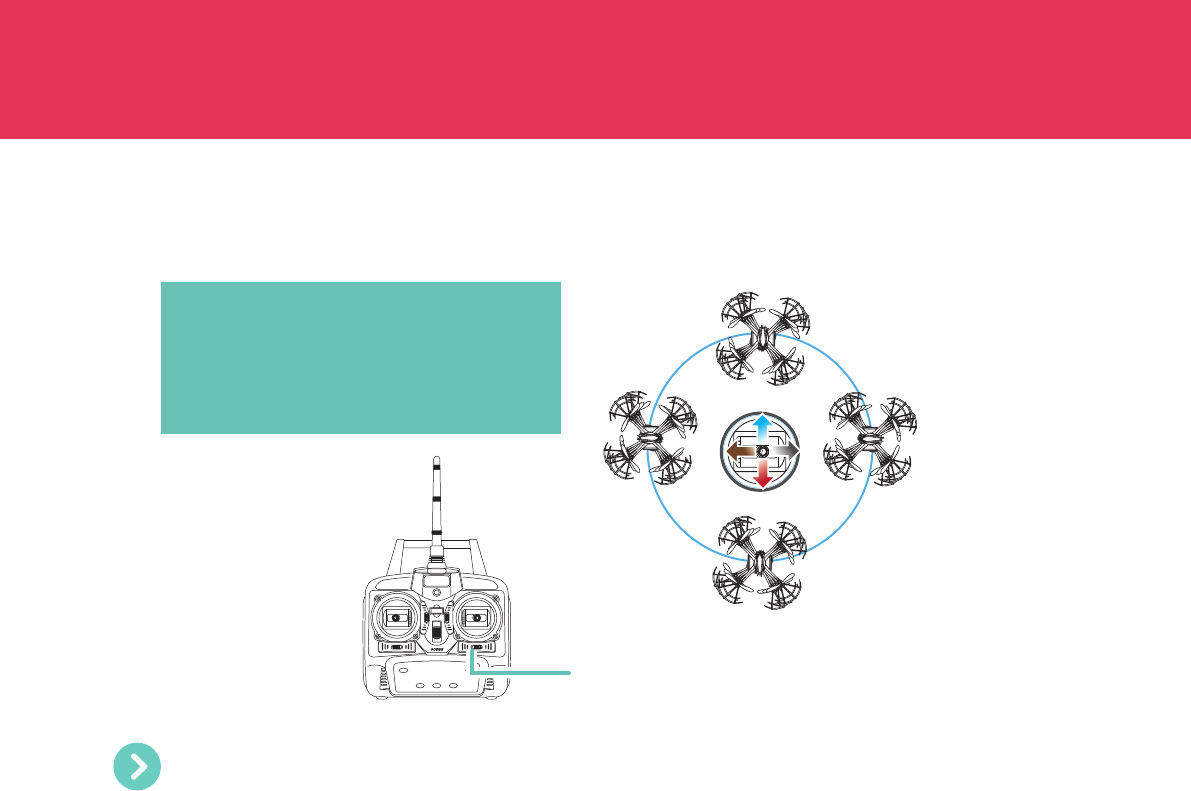

HEADLESS FLIGHT
In Headless Flight Mode, the Drone will fly the direction you move the right stick, as seen from your viewpoint, no
matter which way the nose is pointed. Push the right stick forward, and the Drone will fly away from you, or push the
right stick backward and the Drone will head towards you. Push the right stick left or right and the Drone will move to
the left or right relative to you.
Headless Flight button
Face the Drone, then press the Headless Flight
button. The controller beeps continuously to
indicate you have activated Headless Flight
mode. To cancel this mode, press the Headless
Flight button again. Right stick
It’s super easy to fly when you combine Hover with Headless Flight mode - no throttle control required!
17

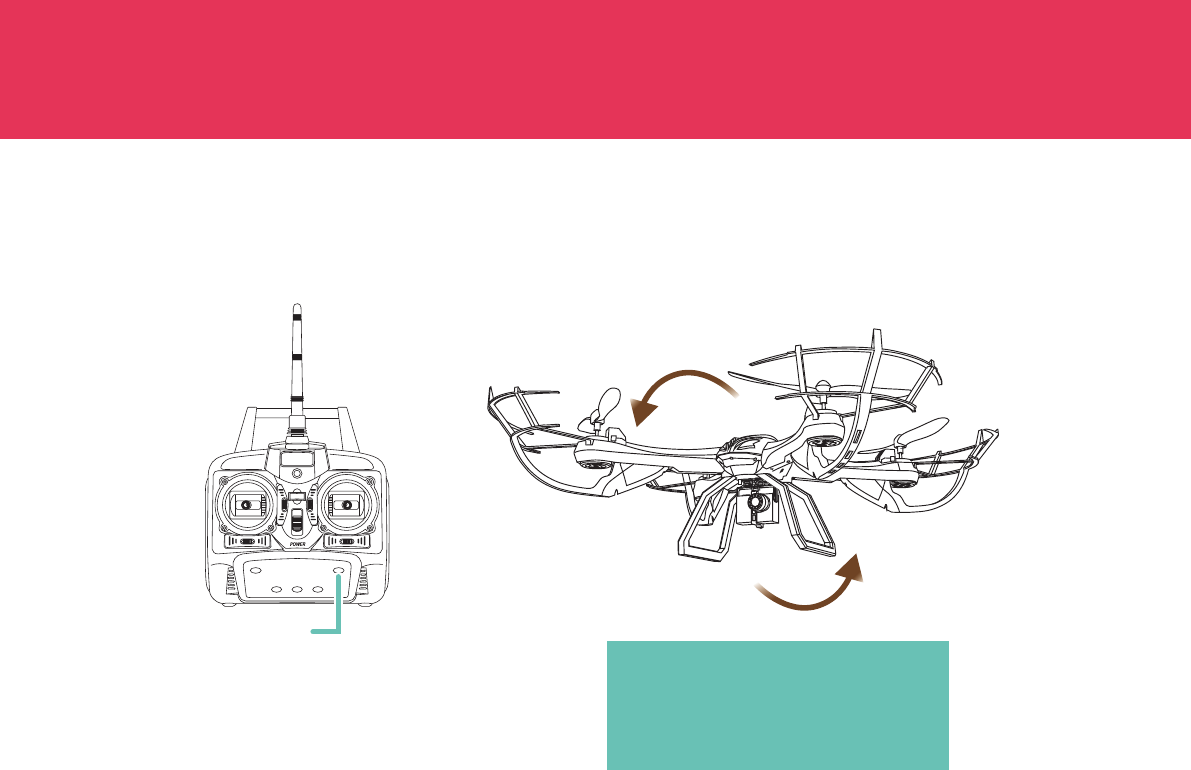

360° Flip button
Immediately after flipping the Drone, you
need to quickly apply some throttle to
restore balance and minimize a sudden
loss of altitude.
360° FLIP
Perform a 360° flip maneuver by pressing the 360° flip button and moving the Direction
stick in the direction you want the Drone to flip. This stunt is best done at least 3 meters above ground in wide-
open spaces that are free of obstructions.
18
HELP
Propellers are spinning, but the Drone will not lift off the ground.
• Check the propellers for any sign of damage. Bent or broken propellers should be replaced promptly with the spare propellers included
in your package.
• The Drone battery has insufficient power. Make sure the Drone battery has been fully recharged.
The Drone keeps drifting in a certain direction during flight even in calm wind conditions.
• Check for trapped dirt around the motors driving the propellers. Just a little strand of hair could make the Drone difficult to control.
• Adjust the trim to compensate for the drifting. Repeatedly push the appropriate trim adjuster opposite to the direction the Drone is
drifting towards until drifting stops. For example, if the Drone drifts forward, push the Forward/Backward Trim adjuster down, and vice-
versa. If the Drone drifts to the left, push the Sideway Trim adjuster to the right, and vice-versa. If the Drone spins counter-clockwise,
push the Rotation Trim adjuster to the right, and vice-versa.
• Recalibrate the gyro sensor after a heavy landing. First, place the Drone on a flat, level surface, and then hold both control sticks to the
lower left corner until the status lights on the Drone blink rapidly. When the lights turn solid, the calibration process is complete.
The Drone responds slowly and does not maintain altitude easily.
• Battery voltage (power) is running low. Before power to the motors is cut off entirely, gradually lower the throttle stick until the Drone
descends and lands safely, and immediately charge the battery.
• The Drone has flown outside of the range of the controller. Bring the Drone closer to your position.
Video recording is not smooth. Horizontal lines intermitently appear.
• Signal interference with other 2.4GHz devices in the vicinity of the Drone may cause horizontal lines to appear in the video recording.
The lines may also appear when the camera is in challenging lighting conditions such being exposed to bright light and dark shadows
simultaneously.
• If your GoPro® camera is mounted to the Drone with the included GoPro® bracket, try changing your GoPro® video resolution setting to
60fps to reduce any rolling shutter effect in the video recording.
The controller is blinking and beeping continuously.
• Batteries need replacing. Insert a new set of AA batteries into the controller.
19
FAQ
How do I clean and maintain my Drone?
• Regularly inspect and clean any dirt trapped around the propellers using a soft brush. Accumulation of dirt puts additional stress on the
motor and may cause the propeller to spin unevenly or even stop spinning completely.
• Wipe clean with a slightly damp cloth.
• Do not submerge in water. This will damage the electronic components.
How long can my Drone fly for?
• You should be able to fly your Drone for at least 10 minutes based on typical conditions before another battery recharge is needed. We
have included an extra battery in the package, so you can enjoy double the playing time.
How do I access the photos and videos taken with the Drone camera?
• Turn off the Drone. Eject the microSD card from the Drone camera, then insert it into the included USB card reader. Plug the USB card
reader into the USB port on your computer. Playing videos directly from the memory card may cause the videos to be slow or jerky. It is
best to copy or transfer files to your computer before trying to watch them.
Do I need to register my Drone?
• Registration is mandatory in the United States because the Drone weighs more than 0.55 lbs. For more information on registering your
Drone, please visit www.faa.gov/uas/registration/faqs
• For other parts of the world, please check with your country’s civil aviation authority regarding the operation of the Drone in your local
airspace. Here are some useful links:
Australia: www.casa.gov.au/aircraft/landing-page/remotely-piloted-aircraft-system
Canada: www.tc.gc.ca/eng/civilaviation/standards/standards-4179.html
UK: www.caa.co.uk/Commercial-Industry/Aircraft/Unmanned-aircraft/Unmanned-Aircraft
MFLYEYE180416E
© XTREEM 2016
www.xtreemfun.com
Limited Warranty Terms & Conditions
Xtreem warrants this product against defects in workmanship and material for a period of one (1) year from it’s original purchase date. You must
present your receipt as proof of date of purchase for warranty validation. Any unit which proves defective during the stated period will be repaired
without charge for parts or labour or replaced at the sole discretion of Xtreem. The end user is responsible for all freight charges incurred to send
the product to Xtreem’s repair centres. The end user is responsible for all shipping costs incurred when shipping from and to any country other
than the country of origin.
The warranty does not cover any incidental, accidental or consequential damages arising from the use of or the inability to use this product.
Any costs associated with the fitting or removal of this product by a tradesman or other person or any other costs associated with its use are
the responsibility of the end user. This warranty applies to the original purchaser of the product only and is not transferable to any third party.
Unauthorized end user or third party modifications to any component or evidence of misuse or abuse of the device will render all warranties void.
By law some countries do not allow limitations on certain exclusions in this warranty. Where applicable by local laws, regulations and legal rights
will take precedence.
For Australia: Our goods come with guarantees which cannot be excluded under Australian Consumer Law. You are entitled to a replacement
or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods
repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to major failure.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
—Consult the dealer or an experienced radio/TV technician for help.
Thisdevicecomplieswithpart15oftheFCCrules.Operationissubjecttothefollowingtwo
conditions:
(1)thisdevicemaynotcauseharmfulinterference,and
(2)thisdevicemustacceptanyinterferencereceived,includinginterferencethatmaycause
undesiredoperation.
Changesormodificationstothisunitnotexpresslyapprovedbythepartyresponsiblefor
compliancecouldvoidtheuser'sauthoritytooperatetheequipment.
