Shaoxing Longxin Electronics SX-SP430A Tablet PC User Manual SX UE312 En O
Shaoxing Longxin Electronics Co., Ltd. Tablet PC SX UE312 En O
Contents
- 1. User Manual
- 2. user manual
user manual
![](/img.php?id=1533689&img=bg1.png)
• Operating System: Android2.2
• CPU:JZ4760B processors,Frequency 600MHz Support for
hardware 2D graphics acceleration.
• System Memory: DDR2 256MB
• Multi-touch and G-sensor
• WiFi b/g/n for fast web browsing and downloads.
• 4.3” Full Color Widescreen, Resolution 480 x 272.
2. Features
1. Introduction
3. Specification
5. Micro SD Card Installation
8. Troubleshooting
6. Part name and function
• Power Input: 5V 500mA
• Stock temperature: -20~60°C
• Operating temperature: 0~40°C
• Unit size: 115 x 78 x 12.5 mm
• System requirement:
- USB OTG Support Win7 / Vista / WinXP / 2003 / 2000
• One year limited Warranty on parts and labor
4. Package Contents
• 4.3”Primer Pocket X 1 • Mini-USB Cable X 1
• AC Power Adapter X 1
• Quickstart guide X 1
Quick Start Guide

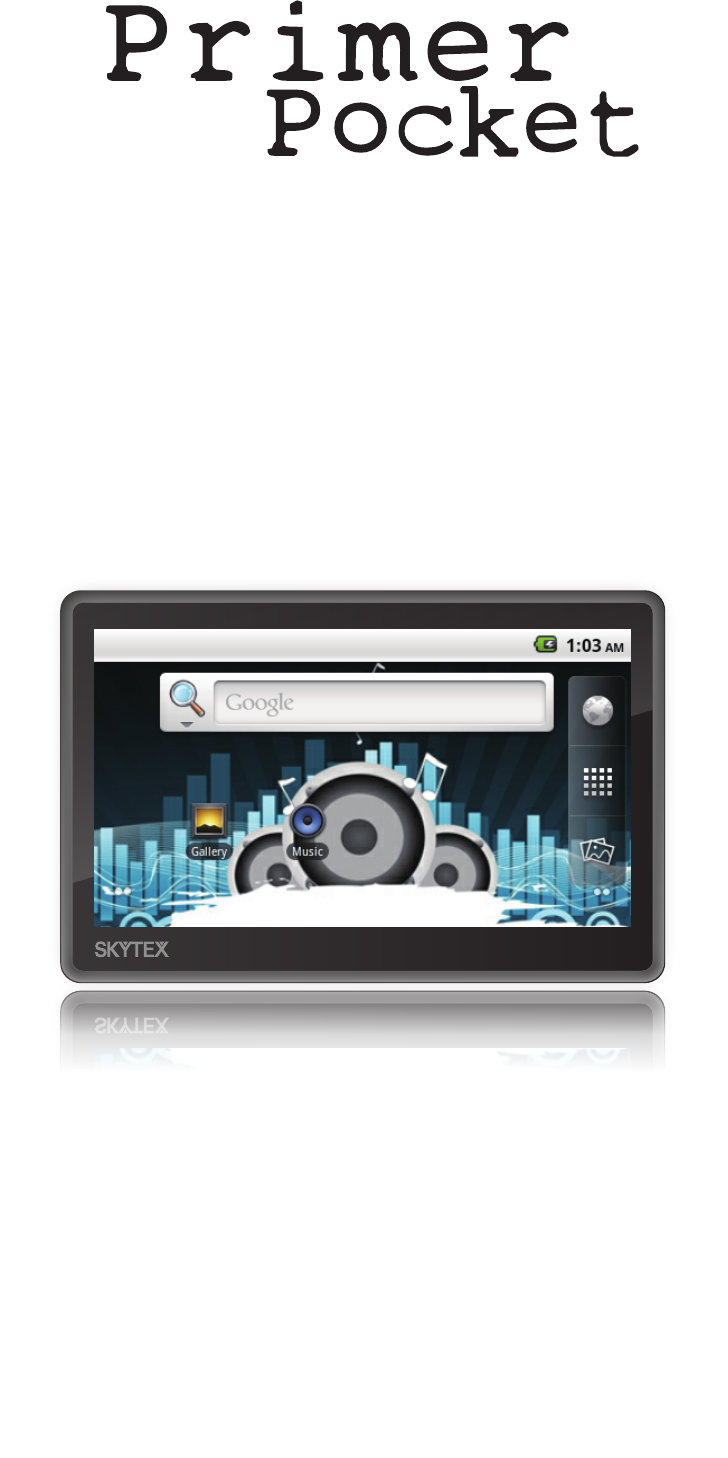

4.3”Primer Pocket
1. There is no sound in earphone.
• Please check there is no problem with the earphone connection.
2. How to obtain Apps (Apks) .
• Warranty card X 1
SX-SP430A
• eMusic gift card X 1
7. Charging
When removing the Micro SD card,
gently tap the card, it will pop out
- P1- - P2- - P3- - P4-
• USB Connector:
Mini-USB:This USB connector connects
to the USB interfaces into the Primer Pocket.
USB2.0 A Type: This USB connector connects
to the USB interfaces into a computer.
• USB Cable:
Connect the Primer Pocket and a computer.
USB Cable
Computer
Mini-USB
USB Connector
USB2.0 A Type
Primer Pocket
• LED Indicator:
Charging: LED ON
Charged: LED OFF LED Indicator
Using the AC Power Adapter.
USB
Micro SD
Earphone
Micro SD Card
When inserting the Micro SD card,
gently insert the card into the
open slot (Please see image)
• Browse the web,from the palm of your hand,anywhere wi-fi* is availble.
• Playback support for multiple audio and video formats,including mp3
and mp4.
• Multi-touch interface with pinch-to-zoom for an enjoyable touchscreen
exprience.
automatially.
• Headphone X 1
• You can download via PC and side load apps, or you can download online directly
from the device and install. (for more details, please check our website)
3. The Primer pocket does not turn on .
• Plug in the power adapter and try again
• If still does not turn on after battery is fully charged or while the device is
plugged in,please contact customer service/tech support.
4. Excess noise/distortion .
• Please check to see if the earphone plug is clean,dirt may cause noise or
distortion.
• Check that the audio file has not been damaged. Play other music files to see
if the issue is widespread. If the file is corrupt, delete it from the device.
• External Storage:MicroSD card storage up to 16GB
• Storage:Built-in flash memory 4GB
For contact information and/or troubleshooting, please visit our website at
“www.skytex.com”.
