Shark Ssg 503027E 503027G 503537E 503537G 603537E 603537G Users Manual SSGTNT 97 6134_6142

SSG-503027E, SSG-503027G, SSG-503537E, SSG-503537G, SSG-603537E, SSG-603537G to the manual 0b3b3f10-aa56-4d87-ba10-27716c868a4d

2015-01-21

: Shark Shark-Ssg-503027E-Ssg-503027G-Ssg-503537E-Ssg-503537G-Ssg-603537E-Ssg-603537G-Users-Manual-220547 shark-ssg-503027e-ssg-503027g-ssg-503537e-ssg-503537g-ssg-603537e-ssg-603537g-users-manual-220547 shark pdf

Open the PDF directly: View PDF .
Page Count: 34

SSG

OPERATOR’S MANUAL

For technical assistance or the SHARK dealer nearest you

visit our website at www.shark-pw.com #97-6134

■ SSG-503027E/G ■ SSG-503537E/G ■ SSG-603537E/G

CONTENTS

Model Number ______________________________

Serial Number ______________________________

Date of Purchase ___________________________

The model and serial numbers will be found on a decal attached to

the pressure washer. You should record both serial number and

date of purchase and keep in a safe place for future reference.

SHARK SSG • 97-6134 • REV. 7/05a

Introduction and Important Safety Information 4-5

Component Identification 6

Assembly Instructions 7

Operating Instructions 8-9

Detergents and Clean Up Tips 10

Shut Down and Clean-Up 11

Storage 11

Maintenance 12-14

Troubleshooting 15-18

Maintenance and Oil Change Charts 19

Exploded View, Left Side 20

Exploded View, Right Side 21

Exploded View, Parts List 22-24

Steam Pump, Exploded View and Parts List 25

Control Panel, Exploded View 26

Control Panel, Exploded View Parts List 26-27

Float Tank Assembly and Parts List 28

Hose and Spray Gun Assembly and Parts List 29

Pump Specifications 30-31

Burner Specifications 32

Warranty

SHARK SSG • 97-6134 • REV. 7/05a

OPERATOR’S MANUAL PRESSURE WASHER

Thank you for purchasing our pressure washer.

All information in this manual is based on the latest prod-

uct information available at the time of printing.

We reserves the right to make changes at any time

without incurring any obligation.

Owner/User Responsibility:

The owner and/or user must have an understanding of

the manufacturer’s operating instructions and warnings

before using this pressure washer. Warning information

should be emphasized and understood. If the operator

is not fluent in English, the manufacturer’s instructions

and warnings shall be read to and discussed with the

operator in the operator’s native language by the pur-

chaser/owner, making sure that the operator compre-

hends its contents.

Owner and/or user must study and maintain for future

reference the manufacturers’ instructions.

This manual should be considered a permanent

part of the machine and should remain with it if

machine is resold.

When ordering parts, please specify model and

serial number.

IMPORTANT SAFETY

INFORMATION

WARNING: When using this product basic precau-

tions should always be followed, including the

following:

CAUTION: To reduce the risk of

injury, read operating instruc-

tions carefully before using.

1. Read the owner’s manual thor-

oughly. Failure to follow in-

structions could cause a mal-

function of the machine and

result in death, serious bodily

injury and/or property damage.

2. Know how to stop the machine and bleed pressures

quickly. Be thoroughly familiar with the controls.

3. Stay alert — watch what you are doing.

4. All installations must comply with local codes. Con-

tact your electrician, plumber, utility company or

the selling distributor for specific details.

WARNING: Risk of asphyxiation.

Use this product outdoors only.

5. Avoid installing machines in

small areas or near exhaust

fans. Exhaust contains poi-

sonous carbon monoxide gas;

exposure may cause loss of

consciousness and may lead

to death. It also contains

chemicals known in certain

quantities, to cause cancer, birth defects, or other

reproductive harm.

WARNING: Flammable liquids

can create fumes which can ig-

nite, causing property damage or

severe injury.

CAUTION: Risk of fire. Do not add

fuel when machine is operating.

6. Allow engine to cool for 2 min-

utes before refueling. If any

fuel is spilled, make sure the

area is dry before testing the spark plug or starting

the engine. (Fire and/or explosion may occur if this

is not done.)

Gasoline engines on mobile or portable equipment

shall be refueled:

(a) outdoors;

(b) with the engine on the equipment stopped;

(c ) with no source of ignition within 10 feet of the

dispensing point; and

(d ) with an allowance made for expansion of the

fuel should the equipment be exposed to a

higher ambient temperature.

In an overfilling situation, additional precautions are

necessary to ensure that the situation is handled in a

safe manner.

WARNING: Risk of explosion – do not spray flam-

mable liquids.

7. Do not place machine near flammable objects as

the engine is hot.

WARNING: Risk of injection or se-

vere injury to persons - Keep

clear of nozzle - Do not touch or

direct discharge stream at per-

sons. This machine is to be used

only by trained operators.

CAUTION: Hot discharge fluid.

Do not touch or direct discharge

stream at persons.

WARNING

RISK OF

ASPHYXIATION.

USE THIS PRODUCT

ONLY IN A WELL

VENTILATED AREA.

WARNING

HIGH PRESSURE

STREAM CAN

PIERCE SKIN AND

TISSUES.

RISK OF EXPLOSION:

DO NOT USE WITH

FLAMMABLE

LIQUIDS.

WARNING

READ OPERATOR’S

MANUAL

THOROUGHLY

PRIOR TO USE.

CAUTION

INTRODUCTION AND IMPORTANT SAFETY INFORMATION

SHARK SSG • 97-6134 • REV. 7/05a

PRESSURE WASHER OPERATOR’S MANUAL

8. High pressure developed by these machines will

cause personal injury or equipment damage. Use

caution when operating. Do not direct discharge

stream at people, or severe injury or death will re-

sult.

WARNING: High pressure spray

can cause paint chips or other

particles to become airborne and

fly at high speeds.

9. Eye safety devices, safety

clothing; hand and foot pro-

tection must be worn when

using this equipment.

10. Never make adjustments on

machine while it is in opera-

tion.

WARNING: Spray gun kicks back. Hold with both

hands.

11. Grip cleaning wand securely with both hands be-

fore starting the cleaner. Failure to do this could

result in injury from a whipping wand.

12. Machines with spray gun should not be operated

with the spray gun in the off position for extensive

periods of time as this may cause damage to the

pump.

13. The best insurance against an accident is precau-

tion and knowledge of the machine.

14. We will not be liable for any changes made to our

standard machines, or any components not pur-

chased from us.

WARNING: Keep wand, hose and

water spray away from electrical

wiring or fatal electric shock may

result.

15. Read engine safety instruc-

tions provided.

16. Never run pump dry or leave

spray gun closed longer than

2 minutes.

17. Inlet water must be cold and clean fresh water.

18. Use No. 1 or No. 2 Heating Oil (ASTM D306) only.

NEVER use gasoline in your fuel oil tank. Gasoline

is more combustible than fuel oil and could result

in a serious explosion. NEVER use crankcase or

waste oil in your burner. Burner malfunction could

result from contamination.

19. Do not confuse gasoline and fuel oil tanks. Keep

proper fuel in proper tank.

20. Protect machine from freezing.

21. Be certain all quick coupler fittings are secured be-

fore using pressure washer. Coupler collar must

be pushed into the locked position.

22. Do not allow acids, caustic, or abrasive fluids to

pass through the pump.

23. To reduce the risk of injury, close supervision is

necessary when a product is used near children.

Do not allow children to operate the pressure

washer. This machine must be attended during

operation.

24. Do not operate this product when fatigued or un-

der the influence of alcohol or drugs. Keep operat-

ing area clear of all persons.

25. Protect discharge hose from vehicle traffic and

sharp objects. Inspect condition of high pressure

hose before using or bodily injury may result.

26. Before disconnecting discharge hose from water

outlet, turn burner off and open spray gun to allow

water to cool below 100°F before stopping the ma-

chine. Then open the spray gun to relieve pres-

sure. Failure to properly cool down or maintain the

heating coil may result in a steam explosion.

27. Do not overreach or stand on unstable support.

Keep good footing and balance at all times.

28. This machine must be attended during operation.

29. CAUTION: Risk of injury. Disconnect battery

ground terminal before servicing.

WARNING

KEEP WATER

SPRAY AWAY FROM

ELECTRICAL WIRING.

WARNING

USE PROTECTIVE

EYE WEAR

AND CLOTHING

WHEN OPERATING

THIS EQUIPMENT.

IMPORTANT SAFETY INFORMATION

SHARK SSG • 97-6134 • REV. 7/05a

OPERATOR’S MANUAL PRESSURE WASHER

COMPONENT IDENTIFICATION SMALL

Pump — Delivers a specific gpm to the high pressure

nozzle which develops pressure.

Starter Grip— Used for starting the engine manually.

Spray Gun — Controls the application of water and

detergent onto cleaning surface with trigger device. In-

cludes safety latch.

Unloader Valve— Safety device which allows pres-

sure to be released when spray gun is closed.

Wand — Must be connected to the spray gun.

High Pressure Hose — Connect one end to water

pump discharge nipple and the other end to spray gun.

Adjustable Thermostat — Safety control which pre-

vents temperatures from going above adjustable set-

ting.

Note: If trigger on spray gun is released for more than

2 minutes, water will leak from valve. Warm water will

discharge from pump protector onto floor. This sys-

tem prevents internal pump damage.

Note: if flue adapter is installed, the burner assembly

air adjustment must be adjusted.

Discharge

Nipple

High

Pressure

Hose

Quick

Coupler

Wand

Spray Gun Trigger

Nozzle Quick

Coupler

Burner Fuel

Tank

Water

Supply Hose

(not included)

Flue Adapter

Optional 7-10049

Insulation Gasket

Optional 7-01471

Burner

Switch

Pressure

Nozzles

Hour Meter

Adjustable

Thermostat

Starter Grip

Unloader Valve

Detergent

Valve

Pump

SHARK SSG • 97-6134 • REV. 7/05a

PRESSURE WASHER OPERATOR’S MANUAL

ASSEMBLY INSTRUCTIONS

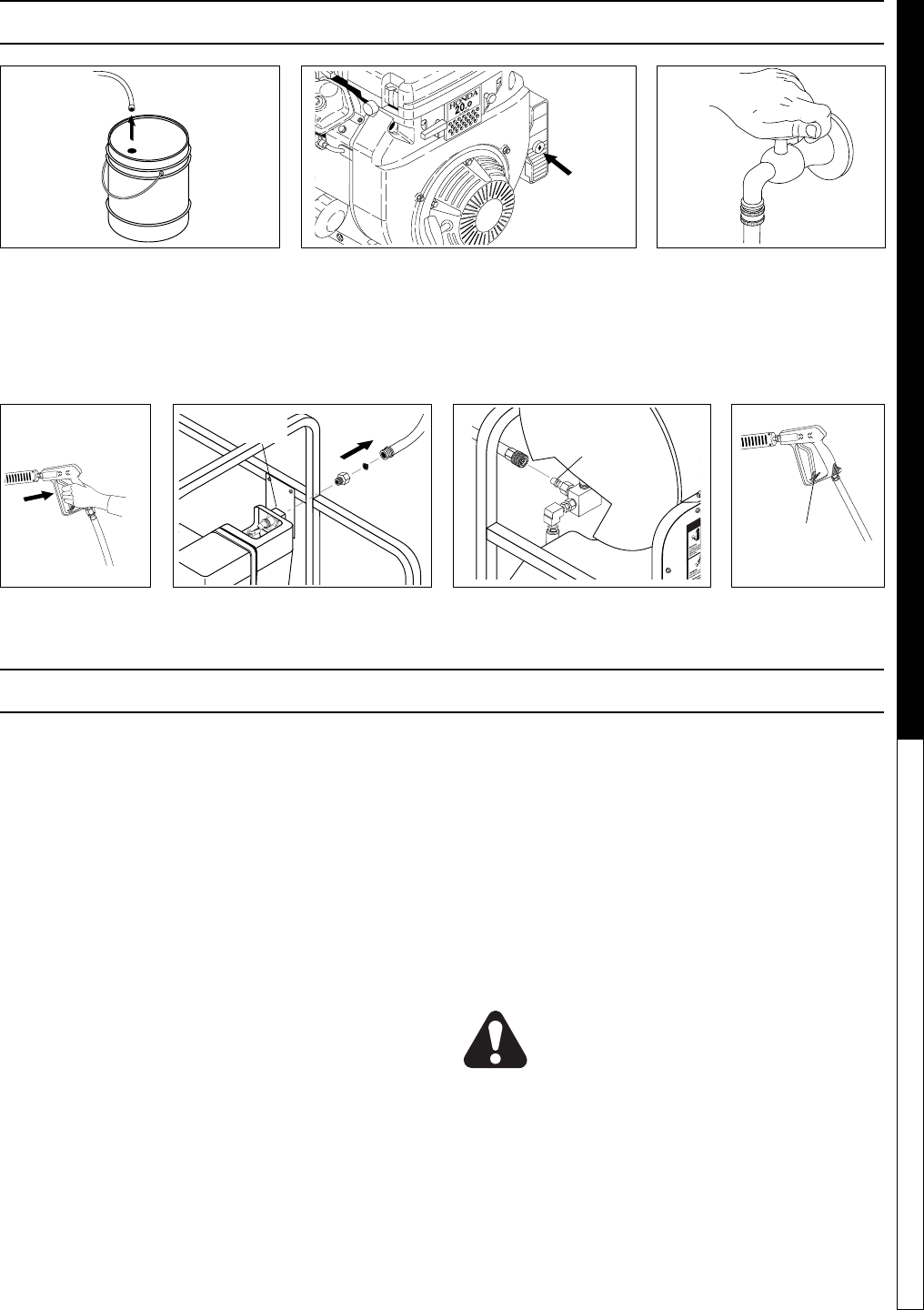

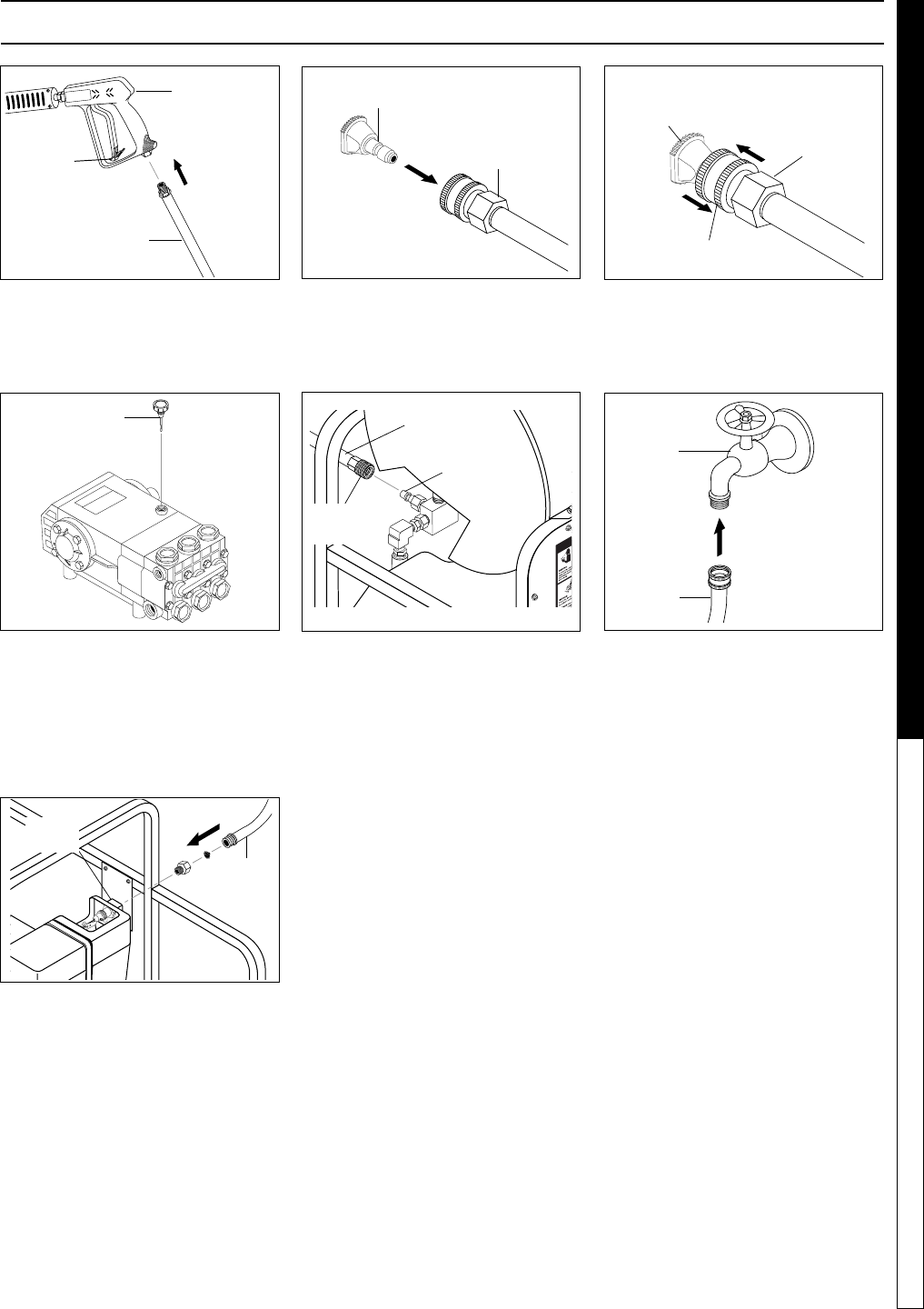

STEP 1: Attach the high pressure

hose to the spray gun using teflon

tape on hose threads.

STEP 3: Release the coupler col-

lar and push the nozzle until the

collar clicks. Pull the nozzle to

make sure it is seated properly.

STEP 5: Connect the high pressure

hose to the pump discharge fitting.

Push coupler collar forward until

secure.

STEP 2: Pull the spring-loaded col-

lar of the wand coupler back to in-

sert your choice of pressure nozzle.

STEP 6: Connect garden hose to

the cold water source.

STEP 7: Check inlet filters, remove

debris, then connect the garden

hose. CAUTION: Do not run the

pump without water or pump dam-

age will result.

Safety

Latch

Spray

Gun

High Pressure

Hose

Wand

Coupler

Pressure

Nozzle Pressure

Nozzle

Wand

Coupler

Wand

Collar

Discharge

Fitting

High Pressure

Hose Cold

Water

Source

Garden

Hose

Garden

Hose

Dipstick

STEP 4: Remove shipping cap and

install oil dipstick. Check pump oil

level by using dipstick or observe oil

level in oil window (if equipped). Use

30 wt. non detergent oil.

Coupler

Collar

Water

Inlet

SHARK SSG • 97-6134 • REV. 7/05a

OPERATOR’S MANUAL PRESSURE WASHER

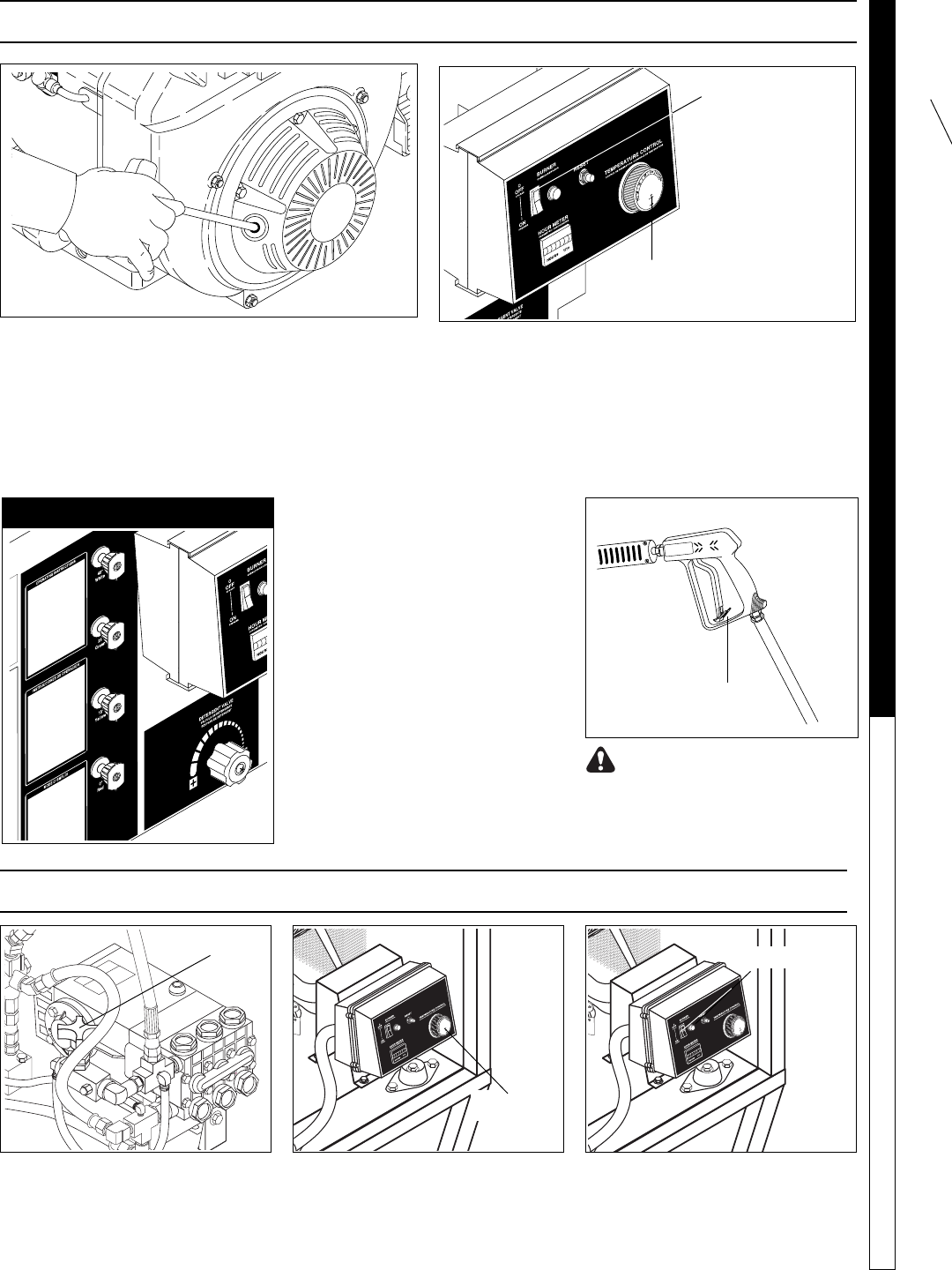

STEP 7: Turn the engine switch to "Start" position.

Engine

On-Off

Switch

OPERATING INSTRUCTIONS

STEP 1: Check engine oil level. Oil level should be level with the bottom of

the oil filler neck. Be sure the machine is level when checking the oil level.

(Refer to the engine's operating manual included with machine.) We recom-

mend that the oil be changed after the first 5 hours of use, then once every

50 hours. Note: Improper oil levels will cause low oil sensor to shut off

engine. IMPORTANT! Do not run engine with high or low oil levels as

this will cause engine damage.

STEP 3: Connect garden hose to

the cold water source and turn wa-

ter on completely. Never use hot

water.

STEP 5: Rotate the fuel shut-off

valve to the "On" position. Slide the

fuel valve lever to the "ON" position.

When the engine is not in use, leave

the fuel valve in the "OFF" position.

STEP 4: Trigger the spray gun to

eliminate trapped air then wait for a

steady flow of water to emerge from

the spray nozzle.

STEP 2: Fill gas tank with unleaded

gasoline. Do not use leaded gaso-

line.

STEP 6: Pull the choke lever out to the "Choke" posi-

tion (on a warm engine, leave the choke lever in the run

position). Push the choke lever to the "Closed" posi-

tion. To restart a warm engine, leave the choke lever in

the "Open" position.

Oil Dipstick

Gas

Tank

Cold

Water

Source

Garden

Hose

Choke

Lever

Fuel Valve

Lever

SHARK SSG • 97-6134 • REV. 7/05a

PRESSURE WASHER OPERATOR’S MANUAL

OPERATING INSTRUCTIONS

STEP 8: Pull the starter grip. If the engine fails to start

after 2 pulls, squeeze the trigger gun to release pres-

sure and repeat step. Return starter gently. After the

engine warms up enough to run smoothly, move choke

to run position and throttle to fast position.

CAUTION: Small engines may kick back. Do not hold

pull starter grip tightly in hand.

WARNING! Never replace

nozzles without engaging the

safety latch on the spray gun

trigger.

The four color-coded quick connect

nozzles provide a wide array of spray

widths from 0° to 45° and are easily

accessible when placed in the con-

venient rubber nozzle holder, which

is provided on the front of the ma-

chine.

NOTE: For a more gentle rinse, se-

lect the white 40° or green 25° nozzle.

To scour the surface, select the yel-

low 15° or red 0° nozzle. To apply de-

tergent select the black nozzle.

NOZZLES

Safety

Latch

STEP 9: Turn the burner “ON”. Turn temperature con-

trol dial to the 210° mark.

Burner

Temperature

Control

STEAM COMBINATION

Thermostat

Step 1: For steam, open the steam

valve counterclockwise.

This lowers the pressure and raises

the temperature.

Step 2: Turn the thermostat knob to

the 270° mark, (The thermostat is a

high limit device and does not regu-

late temperature.

Step 3: To stop, reverse steps. Set

all controls to their original settings.

Step 4: Turn burner switch off, open

trigger on spray gun and allow water

to cool.

Burner Switch

Steam Valve

SHARK SSG • 97-6134 • REV. 7/05a

OPERATOR’S MANUAL PRESSURE WASHER

WARNING: Some detergents may

be harmful if inhaled or in-

gested, causing severe nausea,

fainting or poisoning. The harm-

ful elements may cause property

damage or severe injury.

STEP 1: Use detergent designed

specifically for pressure washers.

Household detergents could damage

the pump. Prepare detergent solu-

tion as required by the manufacturer.

Fill a container with pressure washer

detergent. Place the filter end of de-

tergent suction tube into the deter-

gent container.

STEP 2: Open detergent metering valve. Detergent will

be drawn into the pump and coil and discharged under

pressure. Never use anything that will damage the pump

and coil.

STEP 3: With the engine running, pull

trigger to operate machine. Liquid

detergent is drawn into the machine

and mixed with water. Apply detergent

to work area. Do not allow detergent

to dry on surface.

IMPORTANT: You must flush the detergent from your

machine after each use by placing the suction tube

into a bucket of clean water and then running the

pressure washer for 1-2 minutes.

THERMAL PUMP

PROTECTION

If you run the engine on your pressure washer for 3-5

minutes without pressing the trigger on the spray gun,

circulating water in the pump can reach high tempera-

tures. When the water reaches this temperature, the

pump protector engages and cools the pump by dis-

charging the warm water onto the ground. This thermal

device prevents internal damage to the pump.

CLEANING TIPS

Pre-rinse cleaning surface with fresh water. Place de-

tergent suction tube directly into cleaning solution and

apply to surface at low pressure (for best results, limit

your work area to sections approximately 6 feet square

and always apply detergent from bottom to top). Allow

detergent to remain on surface 1-3 minutes. Do not al-

low detergent to dry on surface. If surface appears to

be drying, simply wet down surface with fresh water. If

needed, use brush to remove stubborn dirt. Rinse at

high pressure from top to bottom in an even sweeping

motion keeping the spray nozzle approximately 1 foot

from cleaning surface. Use overlapping strokes as you

clean and rinse any surface. For best surface cleaning

action spray at a slight angle.

Recommendations:

• Before cleaning any surface, an inconspicuous area

should be cleaned to test spray pattern and dis-

tance for maximum cleaning results.

• If painted surfaces are peeling or chipping, use ex-

treme caution as pressure washer may remove the

loose paint from the surface.

• Keep the spray nozzle a safe distance from the sur-

face you plan to clean. High pressure wash a small

area, then check the surface for damage. If no dam-

age is found, continue to pressure washing.

CAUTION - Never use:

• Bleach, chlorine products and other corrosive

chemicals

• Liquids containing solvents (i.e., paint thinner, gaso-

line, oils)

• Tri-sodium phosphate products

• Ammonia products

• Acid-based products

These chemicals will harm the machine and will dam-

age the surface being cleaned.

RINSING

• It will take a few seconds for the detergent to clear.

Apply safety latch to spray gun. Remove black soap

nozzle from the quick coupler. Select and install

the desired high pressure nozzle. NOTE: You can

also stop detergent from flowing by simply remov-

ing detergent siphon tube from bottle.

WARNING

APPLYING DETERGENT & GENERAL OPERATING TECHNIQUES

Detergent

Metering

Valve

SHARK SSG • 97-6134 • REV. 7/05a

PRESSURE WASHER OPERATOR’S MANUAL

SHUTTING DOWN AND CLEAN-UP

STORAGE

CAUTION: Always store your pressure washer in a

location where the temperature will not fall below

32°F (0°C). The pump in this machine is susceptible

to permanent damage if frozen. FREEZE DAMAGE

IS NOT COVERED BY WARRANTY.

1. Stop the pressure washer, squeeze spray gun trig-

ger to release pressure.

2. Detach water supply hose and high pressure hose.

3. Turn on the machine for a few seconds, until re-

maining water exits. Turn engine off immediately.

4. Drain the gas and oil from the engine.

5. Do not allow high pressure hose to become kinked.

6. Store the machine and accessories in a room which

does not reach freezing temperatures.

CAUTION: Failure to follow the above directions will

result in damage to your pressure washer.

When the pressure washer is not being operated or is being

stored for more than one month, follow these instructions:

1. Replenish engine oil to upper level.

2. Drain gasoline from fuel tank, fuel line, fuel valve

and carburetor.

3. Pour about one teaspoon of engine oil through the

spark plug hole, pull the starter grip several times

and replace the plug. Then pull the starter grip slowly

until you feel increased pressure which indicates

the piston is on its compression stroke and leave it

in that position. This closes both the intake and ex-

haust valves to prevent rusting of cylinder.

4. Cover the pressure washer and store in a clean, dry

place that is well ventilated away from open flame or

sparks. NOTE: The use of a fuel additive, such as

STA-BIL®, or an equivalent, will minimize the formu-

lation of fuel deposits during shortage. Such addi-

tives may be added to the gasoline in the fuel tank of

the engine, or to the gasoline in a storage container.

After Extended Storage

CAUTION: Prior to restarting, thaw out any

possible ice from pressure washer hoses,

spray gun or wand.

Engine Maintenance

During the winter months, rare atmospheric conditions

may develop which will cause an icing condition in the

carburetor. If this develops, the engine may run rough,

lose power and may stall. This temporary condition can

be overcome by deflecting some of the hot air from the

engine over the carburetor area. NOTE: Refer to the

engine manufacturer's manual for service and mainte-

nance of the engine.

STEP 1: Remove detergent suction

tube from container and insert into

one gallon of fresh water. Open de-

tergent metering valve. Pull trigger

on spray gun and siphon water for

one minute. Close detergent valve.

STEP 2: Turn off the engine. STEP 3: Turn off water

supply.

STEP 5: Disconnect the garden

hose from the water inlet on the

machine.

STEP 6: Disconnect the high

pressure hose from high pres-

sure outlet.

STEP 7: Engage

the spray gun safety

lock.

STEP 4: Press trig-

ger to release water

pressure.

Engine

On-Off

Switch

High

Pressure

Outlet

Safety

Latch

Water

Inlet

SHARK SSG • 97-6134 • REV. 7/05a

OPERATOR’S MANUAL PRESSURE WASHER

MAINTENANCE

PREVENTATIVE MAINTENANCE

1. Check to see that water pump is properly lubricated.

2. Follow winterizing instructions to prevent freeze

damage to pump and coils.

3. Always neutralize and flush detergent from sys-

tem after use.

4. If water is known to have high mineral content, use

a water softener in your water system, or de-scale

as needed.

5. Do not allow acidic, caustic or abrasive fluids to be

pumped through system.

6. Always use high grade quality cleaning products.

7. Never run pump dry for extended periods of time.

8. Use clean fuel: kerosene, No. 1 fuel oil, or diesel.

Clean or replace fuel filter every 100 hours of op-

eration. Avoid water contaminated fuel as it will

damage the fuel pump.

9. If machine is operated with smoky or eye burning

exhaust, coils will soot up, not letting water reach

maximum operating temperature.

10. Never allow water to be sprayed on or near engine

or burner assembly or any electrical component.

11. Periodically delime coils as per instructions.

12. Check to see that engine is properly lubricated.

It is advisable, periodically, to visually inspect the burner.

Check air inlet to make sure it is not clogged or blocked.

Wipe off any oil spills and keep equipment clean and dry.

The flow of combustion and ventilating air to the burner

must not be blocked or obstructed in any manner.

The area around the pressure washer should be kept

clean and free of combustible materials, gasoline and

other flammable vapors and liquids.

MAINTENANCE AND SERVICE

Unloader Valves:

Unloader valves are preset and tested at the factory

before shipping. Occasional adjustment of the unloader

may be necessary to maintain correct pressure.

Winterizing Procedure:

Damage due to freezing is not covered by warranty.

Adhere to the following cold weather procedures when-

ever the washer must be stored or operated outdoors

under freezing conditions.

During winter months, when temperatures drop below

32°F, protecting your machine against freezing is nec-

essary. Store the machine in a heated room. If this is

not possible then mix a 50/50 solution of anti-freeze

and water in the float tank. Turn the engine on to si-

phon the anti-freeze mixture through the machine. If

compressed air is available, an air fitting can be

screwed into the float tank by removing the float tank

strainer and fitting. Then inject the compressed air.

Water will be blown out of the machine when the trig-

ger on the spray gun is opened.

High Limit Hot Water Thermostat:

For safety, each machine is equipped with a tempera-

ture sensitive high limit control switch. In the event that

the water should exceed its operating temperature,

the high limit control will turn the burner off until the

water cools then it will automatically reset itself. The

thermostat sensor is located on the discharge side of

the heating coil. The thermostat control dial is located

on the control panel.

Pumps:

Before running the pump check the pump crankcase

for a proper oil level. A proper oil level is indicated by

the red dot in the sightglass or between the high and

low marks on the dipstick. Use only SAE 30 non-de-

tergent oil. Change the initial oil after the first 50 hours

and then change the oil every 500 hours or every three

months.

When draining oil, clean inside of crankcase to remove

all impurities. CAUTION: When operating in damp

places or with high temperature fluctuations oil must

be changed immediately.

Cleaning of Coils:

In alkaline water areas, lime deposits can accumulate

rapidly inside the heating coil. This growth is increased

by the extreme heat build up in the coil. The best pre-

ventative for liming conditions is to use high quality

cleaning detergents. In areas where alkaline water is

an extreme problem, periodic use of Coil Conditioner

will remove lime and other deposits before coil be-

comes plugged. (See Deliming instructions for use of

Coil Conditioner.)

Deliming Coils:

Periodic flushing of coils or optional float tank is rec-

ommended.

Step 1 Fill a container with 4 gallons of water, then

add 1 lb. of deliming powder. Mix thoroughly.

Pour mixture into float tank.

Step 2 Remove wand assembly from spray gun and

put spray gun into float tank. Secure the trig-

ger on the spray gun into the open position.

Step 3 Turn engine on, allowing solution to be

pumped through coils back into the float tank.

The solution should be allowed to circulate

2- 4 hours or until the color changes.

Step 4 After circulating solution, flush the entire sys-

tem with fresh water. Clean out float tank and

then reinstall wand assembly to spray gun.

SHARK SSG • 97-6134 • REV. 7/05a

PRESSURE WASHER OPERATOR’S MANUAL

MAINTENANCE

Removal of Soot from Heating Coil:

In the heating process, fuel residue in the form of soot

deposits may develop between the heating coil pipe,

and block air flow which will affect burner combustion.

When soot has been detected on visual observation,

the soot on the coil must be washed off after following

the coil removal steps (See Coil Removal section).

Rupture Disk:

If pressure from pump or thermal expansion should

exceed safe limits, the rupture disk will burst allowing

high pressure to be discharged through hose to ground.

When disk ruptures it will need to be replaced.

Fuel:

Use clean fuel oil that is not contaminated with water

and debris. Replace fuel filter and drain tank every 100

hours of operation.

Use No.1 or No 2 Heating Oil (ASTM D306) only.

NEVER use gasoline in your burner fuel tank. Gaso-

line is more combustible than fuel oil and could result

in a serious explosion. NEVER use crankcase or waste

oil in your burner. Fuel unit malfunction could result

from contamination.

Fuel Control System:

This machine utilizes a fuel solenoid valve located on

the fuel pump to control the flow of fuel to the combus-

tion chamber. The solenoid, which is normally closed,

is activated by a flow switch when water flows through

it. When the operator releases the trigger on the spray

gun, the flow of water through the flow switch stops,

turning off the electrical current to the fuel solenoid.

The solenoid then closes, shutting off the supply of fuel

to the combustion chamber. Controlling the flow of fuel

in this way gives an instantaneous burn-or-no-burn situ-

ation, thereby eliminating high and low water tempera-

tures and the combustion smoke normally associated

with machines incorporating a spray gun. Periodic in-

spection, to insure that the fuel solenoid valve func-

tions properly, is recommended. This can be done by

operating the machine and checking to see that the

burner is not firing when the spray gun is in the OFF

position.

Fuel Pressure Adjustment:

To control water temperature, adjust fuel pressure by

turning the regulating pressure adjusting screw clock-

wise to increase, counterclockwise to decrease. Do not

exceed 200 psi. NOTE: When changing fuel pump, a

bypass plug must be installed in return port or fuel pump

will not prime.

Burner Nozzle:

Keep the tip free of surface deposits by wiping it with a

clean, solvent saturated cloth, being careful not to plug

or enlarge the nozzle. For maximum efficiency, replace

the nozzle each season.

Air Adjustment:

Machines are preset and performance tested at the fac-

tory - elevation 100'. A one-time initial correction for your

location will pay off in economy, performance, and ex-

tended service life. If a smoky or eye-burning exhaust is

being emitted from the stack, two things should be

checked. First, check the fuel to be certain that kero-

sene or No. 1 home heating fuel is being used. Next,

check the air adjustment on the burner.

To adjust, start machine and turn burner ON. Loosen

two locking screws found in the air shutter openings (re-

fer to illustration) and close air shutter until black smoke

appears from burner exhaust vent. Note air band posi-

tion. Next, slowly open the air shutter until white smoke

just starts to appear. Turn air shutter halfway back to the

black smoke position previously noted. Tighten locking

screws.

If the desired position cannot be obtained using only the

air shutter, lock the air shutter in as close a position as

can be obtained, then repeat the above procedure on

the air band setting.

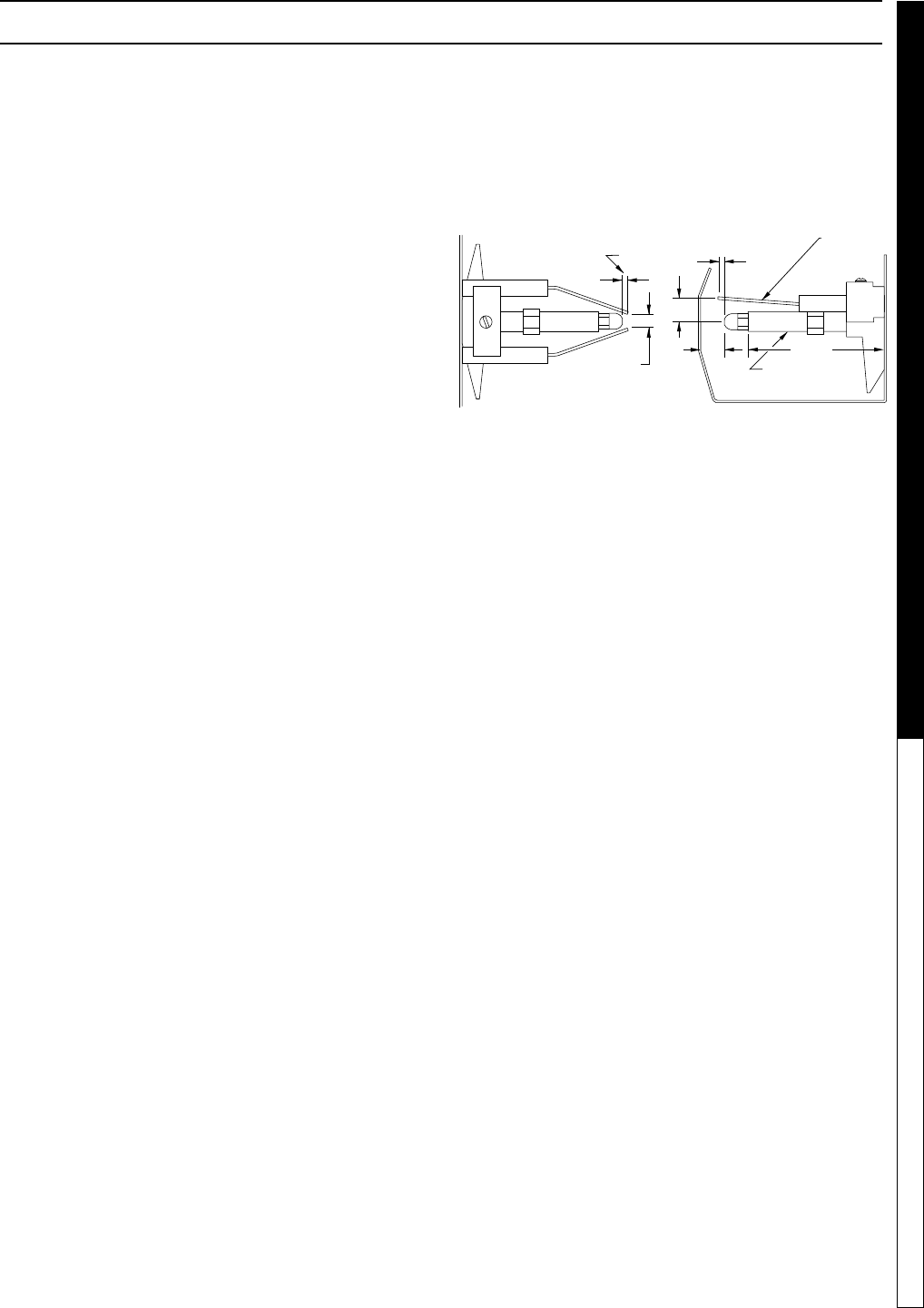

Electrode Setting: Wayne

1/16"

5/16"

Nozzle

5/32" Gap Electrode

Top View Side View

Gap

1/8"

3/8"

1/2"

3/16"

Top View Side View

Nozzle

Adapter

2-7/8"

Periodically Check Wiring Connections. If Necessary

To Adjust Electrodes, Use Diagram.

Electrodes

Electrode Setting: Beckett

SHARK SSG • 97-6134 • REV. 7/05a

OPERATOR’S MANUAL PRESSURE WASHER

Coil Removal:

Removal of coil because of freeze breakage, or to clean

soot from it can be done quickly and easily.

1. Disconnect hose from pump to inlet side of the coil.

2. Carefully disconnect the thermostat sensor mak-

ing sure you do not crimp the capillary tube.

3. Remove burner assembly from combustion cham-

ber.

4. Remove the 3-3/8" bolts from each side of coil and

tank assembly (these bolts are used to fasten tank

to chassis).

5. Remove fittings connected to the 1/2" pipe nipples

from inlet and discharge sides of coil.

6. Remove top tank wrap, bend back insulation tabs

and fold back blanket.

7. Remove bolts that hold down coil to bottom wrap.

8. Remove coil.

9. Replace or repair any insulation found to be torn or

broken.

10. Remove insulation retainer plates.

Coil Reinstallation:

Reinstall new or cleaned coil by reversing Steps 9

through 1.

MAINTENANCE

SHARK SSG • 97-6134 • REV. 7/05a

PRESSURE WASHER Troubleshooting Guide

PROBLEM POSSIBLE CAUSE SOLUTION

LOW OPERATING

PRESSURE Faulty pressure gauge Install new gauge.

Insufficient water supply Use larger supply hose; clean filter at water

inlet.

Old, worn or incorrect spray nozzle Match nozzle number to machine and/or

replace with new nozzle.

Belt slippage Tighten or replace; use correct belt.

Plumbing or hose leak Check plumbing system for leaks. Retape

leaks with teflon tape.

Faulty or misadjusted unloader valve Adjust unloader for proper pressure. Install

repair kit when needed.

Worn packing in pump Install new packing kit.

Fouled or dirty inlet or discharge

valves in pump Clean inlet and discharge valves.

Worn inlet or discharge valves Replace with valve kit.

Obstruction in spray nozzle Remove obstruction.

Leaking pressure control valve Rebuild or replace as needed.

Slow engine RPM Set engine speed at proper specifications.

Pump sucking air Check water supply and possibility of air

seepage.

Valves sticking Check and clean or replace if necessary.

Unloader valve seat faulty Check and replace if necessary.

BURNER WILL NOT

LIGHT Little or no fuel Fill tank with fuel.

Improper fuel or water in fuel Drain fuel tank and fill with proper fuel.

Clogged fuel line Clean or replace.

Plugged fuel filter Replace as needed.

Misadjusted burner air bands Readjust air bands for clean burn.

Little or no fuel pressure from fuel

pump Increase fuel pressure to specification and/or

replace fuel pump. Test with pressure gauge.

Faulty burner transformer Test transformer for proper arc between

contacts. Replace as needed.

(continued on next

page)

Disconnected or short in electrical

wiring All wire contacts should be clean and tight.

No breaks in wire.

TROUBLESHOOTING

SHARK SSG • 97-6134 • REV. 7/05a

PRESSURE WASHER Troubleshooting Guide

PROBLEM POSSIBLE CAUSE SOLUTION

BURNER WILL NOT

LIGHT

(continued from

previous page)

Flex coupling slipping on fuel pump

shaft or burner motor shaft Replace if needed.

On-Off switch defective Check for electrical current reaching burner

assembly with burner switch on.

Heavy sooting on coil and burner can

cause interruption of air flow and

shorting of electrodes

Clean as required.

Improper electrode setting Check and reset according to diagram in

Operator's Manual.

Fuel not reaching combustion

chamber Check fuel pump for proper flow. Check

solenoid flow switch on machines with spray

gun control, for proper on-off fuel flow

control.

Clogged burner nozzle Clean as required.

Thermostat faulty or slow engine

speed Increase engine RPM to increase voltage.

Flow switch malfunction Remove, test for continuity and replace as

needed.

Flow solenoid malfunction Replace if needed.

FLUCTUATING

PRESSURE Valves worn Check and replace if necessary.

Blockage in valve Check and replace if necessary.

Pump sucking air Check water supply and air seepage at

joints in suction line.

Worn piston packing Check and replace if necessary.

MACHINE SMOKES Improper fuel or water in fuel Drain tank and replace contaminated fuel.

Improper air adjustment Readjust air bands on burner assembly.

Low fuel pressure Adjust fuel pump pressure to specifications.

Plugged or dirty burner nozzle Replace nozzle.

Faulty burner nozzle spray pattern Replace nozzle.

Heavy accumulation of soot on coils

and burner assembly Remove coils and burner assembly, clean

thoroughly.

Misaligned electrode setting Realign electrodes to specifications.

Obstruction in smoke stack Check for insulation blockage or other

foreign objects.

Low engine RPM Increase RPM.

TROUBLESHOOTING

SHARK SSG • 97-6134 • REV. 7/05a

PRESSURE WASHER Troubleshooting Guide

PROBLEM POSSIBLE CAUSE SOLUTION

LOW WATER

TEMPERATURE Improper fuel or water in fuel Replace with clean and proper fuel.

Low fuel pressure Increase fuel pressure.

Weak fuel pump Check fuel pump pressure. Replace pump if

needed.

Fuel filter partially clogged Replace as needed.

Soot build-up on coils not allowing

heat transfer Clean coils.

Improper burner nozzle See burner specifications.

WATER

TEMPERATURE

TOO HOT

Incoming water to machine warm or

hot Lower incoming water temperature.

Fuel pump pressure too high See specifications for proper fuel pressure.

Fuel pump defective Replace fuel pump.

Detergent line sucking air Tighten all clamps. Check detergent lines for

holes.

Defective temperature switch Replace.

Incorrect fuel nozzle size See burner specifications for proper fuel

pressure.

Insufficient water supplied Check water G.P.M. to machine.

Restricted water flow Check nozzle for obstruction, proper size.

PUMP NOISY Air in suction line Check water supply and connections on

suction line.

Broken or weak inlet or discharge

valve springs Check and replace if necessary.

Excessive matter in valves Check and clean if necessary.

Worn bearings Check and replace if necessary.

PRESENCE OF

WATER IN OIL Oil seal worn Check and replace if necessary.

High humidity in air Check and change oil twice as often.

WATER DRIPPING

FROM UNDER

PUMP

Piston packing worn Check and replace if necessary.

O-Ring plunger retainer worn Check and replace if necessary.

Cracked piston Check and replace if necessary.

Pump protector Lower water supply pressure. Do not run with

spray gun closed longer than 2 minutes.

TROUBLESHOOTING

SHARK SSG • 97-6134 • REV. 7/05a

PRESSURE WASHER Troubleshooting Guide

PROBLEM POSSIBLE CAUSE SOLUTION

OIL DRIPPING Oil seal worn Check and replace if necessary.

EXCESSIVE

VIBRATION IN

DELIVERY LINE

Irregular functioning of the valves Check and replace if necessary.

DETERGENT NOT

DRAWING Air leak Tighten all clamps. Check detergent lines for

holes.

Restrictor in float tank is missing Replace restrictor. Check for proper orifice in

restrictor.

Filter screen on detergent suction

hose plugged Clean or replace.

Dried up detergent plugging metering

valve Disassemble and clean thoroughly.

High viscosity of detergent Dilute detergent to specifications.

Hole in detergent line(s) Repair hole.

Low detergent level Add detergent, if needed.

PUMP RUNNING

NORMALLY BUT

PRESSURE LOW ON

INSTALLATION

Pump sucking air Check water supply and possibility of air

seepage.

Valves sticking Check and clean or replace if necessary.

Nozzle incorrectly sized Check and replace if necessary (See serial

plate for proper size).

Unloader valve seat faulty Check and replace if necessary.

Worn piston packing Check and replace if necessary.

BURNER MOTOR

WILL NOT RUN Fuel pump seized Replace fuel pump.

Burner fan loose or misaligned Position correctly, tighten set screw.

Defective control switch Replace switch.

Loose wire Check and replace or tighten wiring.

Defective burner motor Replace motor.

RELIEF VALVE

LEAKS WATER Relief valve defective Replace or repair.

TROUBLESHOOTING

SHARK SSG • 97-6134 • REV. 7/05a

PRESSURE WASHER OPERATOR’S MANUAL

MAINTENANCE

Date Oil Changed

Month/Day/Year No. of Operating Hours

Since Last Oil Change Brand Name and

Type of Oil (see above)

Maintenance Operation Every 8 Hrs

or Daily 25 Hrs or

Weekly 50 Hrs or

Monthly 100 Hrs or

Yearly Yearly

Check Oil

Pump X

Engine X

Change Oil

Pump X

Engine X

Air Cleaner Check Clean

Spark Plug X

Check Valve Clearance X

Fuel Tank Filter X

Water Filter/Clean Check X

This pressure washer was produced with the best available materials and quality craftsmanship. However, you as

the owner have certain responsibilities for the correct care of the equipment. Attention to regular preventative

maintenance procedures will assist in preserving the performance of your equipment. Contact your dealer for

maintenance. Regular preventative maintenance will add many hours to the life of your pressure washer. Perform

maintenance more often under severe conditions.

Check pump oil level before first use of your new pressure washer. Change pump oil after first 50 hours and

every 3 months or 500 hours thereafter. Use SAE 30 weight oil, non-detergent.

PREVENTATIVE MAINTENANCE

SHARK SSG • 97-6134 • REV. 7/05a

OPERATOR’S MANUAL PRESSURE WASHER

63 25

68, 69

See

Control

Panel Illus.

For Detail

106

105

For

Detail See

Float Tank

Illus

Line To

Pump

50 82

114

104

113

114

9996

117

112

104

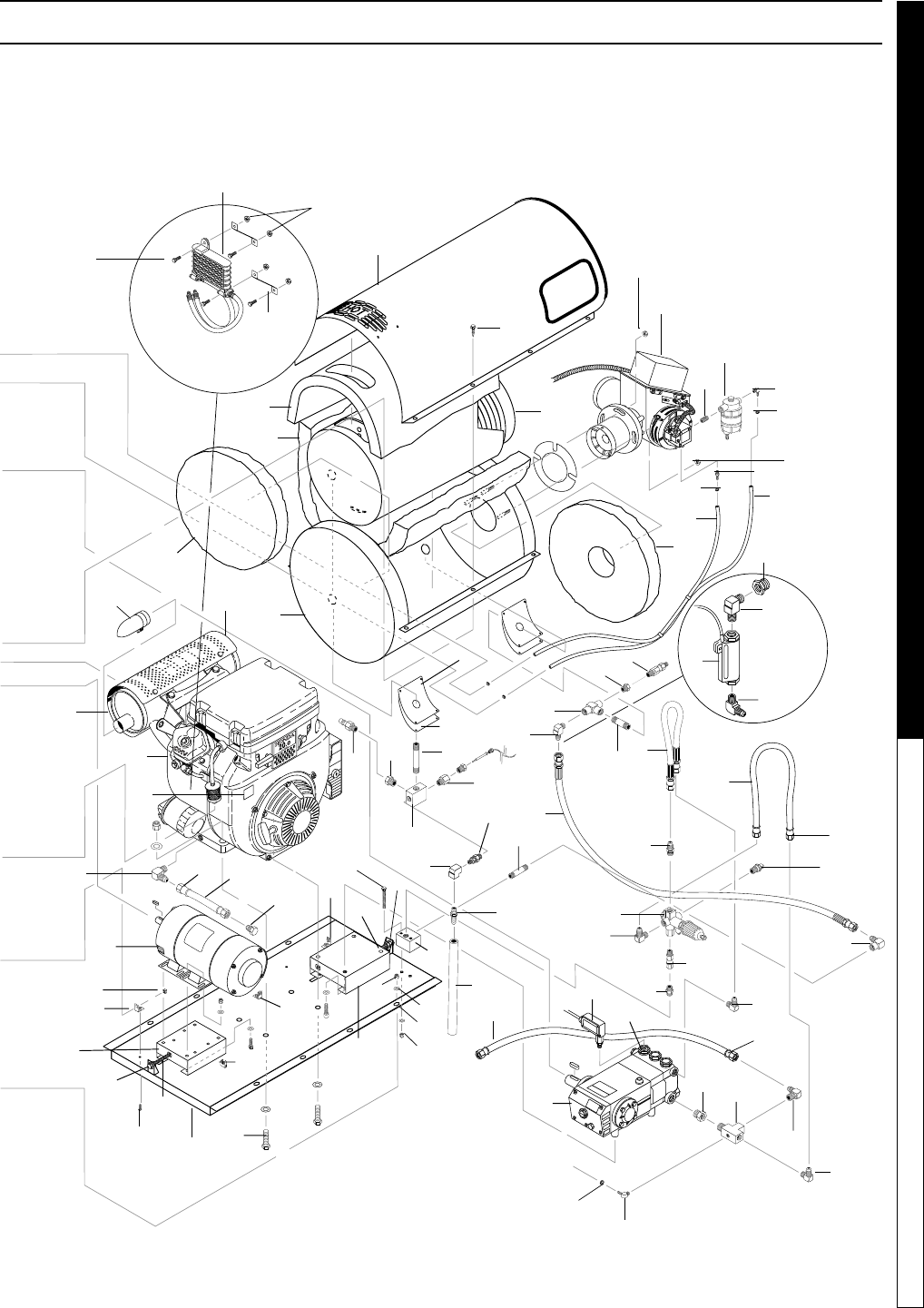

EXPLODED VIEW

SHARK SSG • 97-6134 • REV. 7/05a

PRESSURE WASHER OPERATOR’S MANUAL

51 85

45 42

107 101

103

116

100

To Float

Tank

102

Oil Cooler Assy.

24HP Honda

To Detergent

Valve

55 54

115 15

110

111

108

114

96 99

For Detail See

Steam Option

EXPLODED VIEW

118

119

Steam

Option

SHARK SSG • 97-6134 • REV. 7/05a

OPERATOR’S MANUAL PRESSURE WASHER

EXPLODED VIEW PARTS LIST

ITEM PART NO. DESCRIPTION QTY

1 95-07200055 Coil, Rodless 1

2 95-07200010 Top Wrap, SS 1

2-01104 ▲ Trim 6 ft.

3 7-01484 Insulation/Blanket,

Die Cut 28" x 24" 1

4 7-01430 Insulation/Blanket,

No Foil, 24" x 57" 1

5 7-0140 Insulation, Burner Head

No Hole 1

6 95-07200012 Weldment, Bottom Wrap, SS1

90-1019 ▲ Bolt, 3/8" - 16 x 1-3/4" 2

7 7-0141 Insulation, Burner Head,

w/Hole 1

8 90-19959 Screw, 3/8" x 1" HX Wash Head,

Sheet Metal 8

9 7-0144 Gasket, Burner Plate 2

10 95-07121113 Insulation Retainer Plate 2

90-2990 ▲ Screw, SS #10, HH Tek 8

11 2-010066 Elbow, Zinc 1

12 2-00101 Nipple, 1/2" x 4" Galv.

Sch 80 1

13 4-02047748 Hose 3/8" x 48", 2 Wire

Pressure 1

14 2-010061 Bushing, Rubber 3

15 2-1019 Elbow 3/8" Female 1

16 2-3409

Disk Rupture Assy, 7000 PSI

17 95-07101226 Block, Discharge, Brass,

1/2" x 1/2" 1

18 2-00681 Bushing, 1/2" x 3/8" 2

19 2-2007 Nipple, 3/8" x 3/8" NPT ST

Male 1

20 2-1108 Hose Barb, 1/2" Barb x 3/8"

MPT, Push-On 1

21 4-02110000 Hose, 1/2" Push-On 2 ft.

22 2-010067 Diptube, Plastic, 9.125" Long

(5030, 5035, 6035) 1

23 2-99050

Filter, Fuel Oil/H

O Separator

24 2-0054 Elbow, 1/2" MNPT x 1/2" MJIC,

Steel 1

25 2-9040 Clamp, Hose, UNI .46 - .54 6

26 2-1085 Hose Barb, 1/4" Barb x

1/4" Pipe 1

27 90-300210 Screw, #14 Tek, Black, Zinc 11

28 Pump, See Specifications Pages 30-31

29 5-3208 Unloader AL607 1

30 6-021720 Pressure Switch 1

ITEM PART NO. DESCRIPTION QTY

31 2-300816 Pump Protector, 3/8" FNPT 1

32 4-02047716 Pressure Hose 3/8" x 16" 1

33 4-02110000 Hose 1/2" Push On 17 in

34 4-02110000 Hose, 1/2" Push On 2 ft.

35 2-1105 Push On JIC, 1/2" 4

95-071012150/B

Block, Unloader, 1/2" x 1/2",

Brass 1

37 95-07200054 Rail, Pump 1

2-011981 ▲ Washer, Snubbing 3

90-1016 ▲ Bolt, 3/8 x 1" NC HH 3

90-4009 ▲ Washer, 3/8" Lock Split

Ring 3

38 2-10421

Tee, 1/2", w/1/8" Hole, Street

2-10422 Tee, 1/2", w/1/8" Hole, Street

(Steam Option) 1

39 1-190029 Cap, Valve, General Pump, 1

W/ Steam Option 2

15-070042532 Cap, Valve, Legacy Pump, 1

W/ Steam Option 2

40 2-1062 Elbow, 1/2" JIC x 1/2", 90° 1

41 2-1060 Elbow, 1/2" x 3/8, 90° 1

42 2-0053 Elbow, 1/2" MJIC x 3/8"

MNPT 1

43 2-0051 Nipple, 1/2" MJIC x 3/8"

MNPT 1

44 2-0079 Swivel, 1/2" JIC Fem, 3/8"

Male 1

45 2-0052 Nipple, 1/2" JIC, 1/2" Pipe 1

46 2-1050 Plug, 1/2" Flare

(5030, 5035, 6035) 1

47 95-07200015 Heat Shield (Honda)

(5035, 6035) 1

95-07200048 ▲ Heat Shield (Vanguard) 1

90-19925 ▲ Screw, M6 x 20mm, BH

(Honda) (5035, 6035) 4

48 77-VHRM4

Muffler (Honda) (5035, 6035)

79-11465813800 Exhaust Deflector (Honda)

(5035, 6035) 1

76-807965 ▲ Muffler (Vanguard) 1

90-805849 ▲ Screw, HH, 1/4" - 20 x 1/2"

(Vanguard) 4

48 90-19711 ▲ Screw, HH, WL, 1/4" -

20 x 1/2" (Vanguard) 5

95 -07101149 ▲ Muffler Guard (Vanguard)1

95-071011491 ▲ Brace (Vanguard) 2

95-07200048 ▲ Shield, Heat (Vanguard) 1

90-200012 ▲ Nut, 1/4 Flange, Zinc

(Vanguard) 3

90-20231 ▲ Nut, Cage, 1/4 x 12 Ga.

(Vanguard) 2

SHARK SSG • 97-6134 • REV. 7/05a

PRESSURE WASHER OPERATOR’S MANUAL

EXPLODED VIEW PARTS LIST

ITEM PART NO. DESCRIPTION QTY

49 Engine, See Specifications Pages 30-31

76-91540 ▲ Key, Shaft 1

50 10-02028 Label, Belt Guard (Long) 2

(Short) 1

51 95-07200009 Pump/Rail Generator 1

90-1016 ▲ Bolt, 3/8" x 1", NC HH

(w/Generator) 7

2-011981 ▲ Washer, Snubbing

(w/Generator) 3

90-4009 ▲ Washer, 3/8", Lock

(w/Generator) 3

52 95-07200016 Bracket, Belt Tension 1

(w/Generator) 2

90-2001 ▲ Nut, 5/16", ESNA, NC 2

(w/Generator) 4

90-1007 ▲ Bolt, 5/16", NC 2

(w/Generator) 4

90-4001 Washer, 5/16", Flat 2

(w/Generator) 4

53 2-01016 Mount, Rubber 6

54 90-10220 Bolt, 3/8" x 3-1/2" SAE 1

(w/Generator) 2

90-2007 ▲ Nut, 3/8" Hex, NC 2

(w/Generator) 4

90-4002 ▲ Washer, 3/8", SAE, Flat 2

(w/Generator) 4

55 95-07102101 Tab, Belt Guard 3

(w/Generator) 4

90-19710 ▲ Screw, HH, NC, 1/4" x 3/4" 6

(w/Generator) 7

56 90-20231 Cage, Nut, 1/4" x 12 GA 10

(w/Generator) 11

57 90-1020 Bolt, 3/8" x 2" NC HH

(Honda) 4

90-1011 Bolt, 5/16" x 2" NC, HH

(Vanguard) 4

57 90-4002 ▲ Washer, 3/8" SAE, Flat

(Honda) 9

90-2002 ▲ Nut, 3/8" ESNA, NC

(Honda) 4

90-2001 ▲ Nut, 5/16", ESNA, NC

(Vanguard) 4

90-4001 ▲ Washer, 5/16" Flat, SAE

(Vanguard) 9

58 6-0601 Winco Generator

(E/G models) 1

6-0107 ▲ Cord, Molded

(w/Generator) 1

59 95-07200003 Weldment, Sub-Frame 1

60 95-07200002 Weldment, Frame, Red 1

95-072000022 Weldment, Frame, w/Blk 1

61 2-0115090 Fuel Tank, 6 Ga. (Engine) 1

ITEM PART NO. DESCRIPTION QTY

62 2-01150800 Fuel Tank, 9 Ga. (Burner) 1

63 2-01167 Cap, Fuel, Plastic 2

64 10-020110 Label, Caution, Diesel 1

65 10-02011 Label, Caution, Unleaded 1

66 95-07200004 Weldment, Belt Guard, Long

(w/Generator) 1

95-07200006 ▲ Weldment, Belt Guard, Short

(5030, 5035, 6035) 1

67 95-07200005 Weldment, Face Plate, Long

Red (w/Generator) 1

95-072000052 Weldment, Face Plate w/Blk,

Long 1

95-07200007 ▲ Weldment, Face Plate,

Short 1

68 2-0115001 Battery Box, Large 1

69 2-011500 Plate, Battery Box, Large 1

70 90-1996 Screw, 3/8" x 3/4" HH NC

Whiz Loc 4

90-20040 ▲ Nut, 3/8", Flange Whiz

Loc 4

71 5-511063 Bushing, H x 5/8"

(Generator) 1

72 Bushing, Engine, See Specifications Page 30

73 5-512024 Bushing, Pump, H x 24 mm 1

74 Belt, See Specifications Pages 30-31

75 Pulley, See Specifications Pages 30-31

76 Pulley, See Specifications Pages 30-31

77 Belt, See Specifications Pages 30-31

78 Pulley, See Specifications Pages 30-31

79 Burner Assembly, See Burner Spec's Page 32

6-01011 ▲ Cord, SEO, 16/4

(w/Gen) 3.66 ft.

6-0516 ▲ Strain Relief, 1/2" 1

80 2-1088 Hose Barb, 1/4" x 1/8"

MNPT, 90° 1

81 2-1061 Elbow, 1/2" MJIC x 1/4" MNPT

(Honda) (5035, 6035) 1

2-0053 Elbow, 1/2" MJIC x 3/8" MNPT

(Vanguard) (5030) 1

82 10-02025A Label, HOT, Long Belt

Guard 2

Short Belt Guard 1

83 2-00602 Elbow, 1/2" FNPT x 1/2"

MJIC, 90° 1

84 2-0036 Tee, 1/2" FNPT, Steel 1

SHARK SSG • 97-6134 • REV. 7/05a

OPERATOR’S MANUAL PRESSURE WASHER

ITEM PART NO. DESCRIPTION QTY

85 2-9013 Clamp, 1/2" Ro-Clip 1

86 4-02110000 Hose, 1/2" Push-on 1 ft.

87 2-3245 Valve, Safety Relief,

4500 PSI 1

88 4-02100000 Hose, 1/4" Push-On

Fuel Line (60") 2

89 2-1105 Swivel, 1/2 JIC Fem

(5030, 5035, 6035) 2

90 2-10630 Elbow, 3/4" JIC x 1/2" Male 1

91 2-000891 Nipple, 1/2" x 2-1/2", Galv.

SCH 80 Pipe 2

92 2-00681 Bushing, 1/2" MNPT x 3/8"

FNPT Steel 1

93 2-0053 Elbow, 1/2 JIC x 3/8 Male Pipe

(Steam Option) 1

94 6-021730 Switch MV60(Steam Option)1

95 90-20040 Nut, Flange, Whiz Loc 3

96 90-2001 Nut, 5/16", ESNA, NC 12

97 2-00270 Elbow, 3/8 Male Pipe

(Steam Option) 1

98 2-00681 Bushing, 1/2" x 3/8", Steel

(Steam Option) 1

99 90-4001 Washer, 5/16", Flat, SAE 12

100 90-2002 Nut, 3/8" ESNA, NC 2

101 2-1089 Hose Barb, 1/4" x 1/4" Pipe,

90° 1

EXPLODED VIEW PARTS LIST

ITEM PART NO. DESCRIPTION QTY

102 90-1034 Bolt, M6 x 1.0 12 x Metric 8.8

SOC, (6035E/G) 2

103 2-1081 Bushing, 3/4" x 1/2" NPT 1

104 6-05134 Cable, TY, 48" 2

105 7-0139 Insulation, 1/2" Fiber

Sleeving 30"

106 4-02100000 Fuel Line, 1/4" x60" (All Models

Except 11 & 13 HP Hondas)1

107 2-1003 Nipple, 1/4" Hex 1

108 95-07200053 Bracket, Oil Cooler, 24 HP,

Honda, (6035E/G) 2

109 97-6134 ▲ Manual 1

110 90-1002 Bolt, 1/4" x 1" Hex Head

(6035E/G) 2

111 90-200012 Nut, 1/4" Flange (6035E/G) 2

112 2-010069 Dip Tube, 10.75" 1

113 10-02029 Label, Danger, Cool Engine1

114 90-1043 Thumb Screw, 1/4" x 20 x

1/2" 4

115 90-1021 Bolt, 3/8" x 2-1/2" Zinc 2

116 90-4002 Washer, 3/8", SAE, Flat 2

117 90-19711 Screw, 1/4"-20 x 1/2" HH,

WL 4

118 2-00742 Adapter, 1/2” x 1/2” Pipe,

STL 1

119 10-0624 Label, RPM Factory Set 1

▲ Not Shown

SHARK SSG • 97-6134 • REV. 7/05a

PRESSURE WASHER OPERATOR’S MANUAL

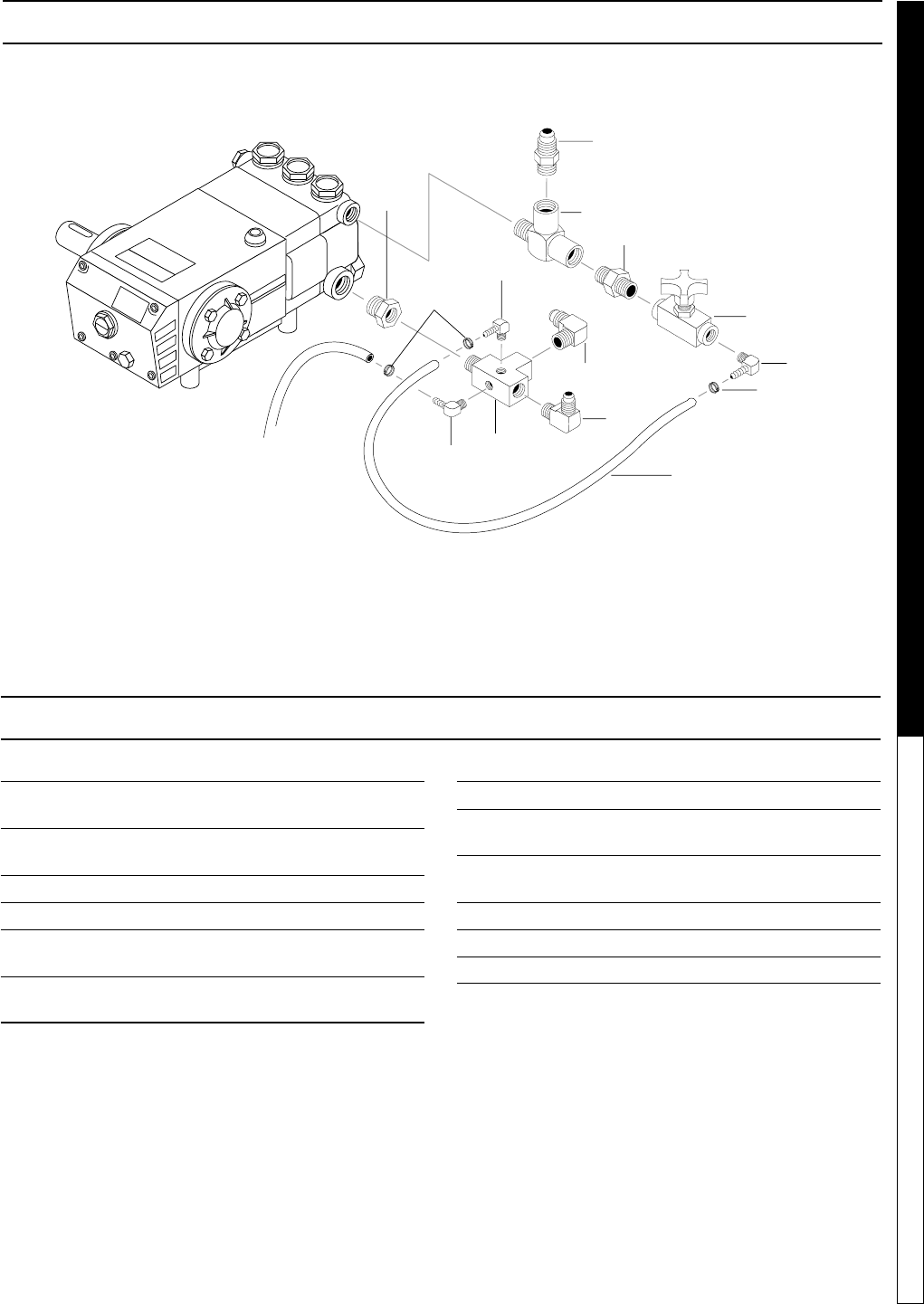

STEAM PUMP EXPLODED VIEW

ITEM PART NO. DESCRIPTION QTY

1 2-1081 Bushing, 3/4" x 1/2"

(Legacy Only) 1

2 2-0051 Nipple, 1/2 JIC x 3/8 MPT

Steel 1

3 2-0045 Tee, 3/8 Street, Steel 1

4 2-0018 Nipple, 3/8 x 1/4, Hex, Steel 1

5 2-30151 Valve, Flow Control

w/Metering 1

6 2-1089 Hose Barb, 90°,

1/4" Barb x 1/4" Pipe, 1

ITEM PART NO. DESCRIPTION QTY

7 2-1062 Elbow, 1/2 JIC x 1/2" MPT 1

8 2-10422 Tee, 1/2 Street w/Two 1/8" MPT

Holes 1

9 2-1088 Hose Barb, 90°,

1/4 x 1/8 NPT 2

10 4-02100000 Hose, 1/4 Push-on 8 "

11 2-9040 Hose Clamp 3

12 2-10630 Elbow, 3/4" JIC x 1/2" Male 1

Detergent

Valve

STEAM PUMP PARTS LIST

SHARK SSG • 97-6134 • REV. 7/05a

OPERATOR’S MANUAL PRESSURE WASHER

CONTROL PANEL EXPLODED VIEW

ITEM PART NO. DESCRIPTION QTY

1 6-039144 Box, Plastic, Back 1

2 6-0391601 Box, Plastic, Front,

Fabricated 1

3 4-05088 Thermostat, 302°F 1

6-01270 ▲ Conduit, Corrugated,

1/4" 3.3 ft

4 90-1001 Bolt, 1/4" x 3/4" HH NC 4

90-200012 Nut, 1/4" Flange Zn 4

5 11-1047 Decal, 12V Electrical Box 1

11-1045 Decal, 120V Electrical Box

(503027E/G, 503537E/G,

603537E/G) 1

(Reversed View of

Label)

Detergent

Valve

Pump

To Detergent

Valve

CONTROL PANEL PARTS LIST

ITEM PART NO. DESCRIPTION QTY

6 6-020590 12V Indicator Light, Green 1

6-020530 120V, Indicator Light, Green

(503027E/G, 503537E/G,

603537E/G) 1

7 4-050823 Hour Meter, 12V, DC 1

4-050822 Hour Meter, 120V (503537E/G,

503027E/G, 603537E/G) 1

8 6-020251 Switch, Curvette 1

9 70-030207 Nut 4

SHARK SSG • 97-6134 • REV. 7/05a

PRESSURE WASHER OPERATOR’S MANUAL

CONTROL PANEL PARTS LIST

ITEM PART NO. DESCRIPTION QTY

15 4-12806000 Nozzle, Red, 0°

(603537E/G) 1

4-12806015 Nozzle, Yellow, 15°

(603537E/G) 1

4-12806025 Nozzle, Green, 25°

(603537E/G) 1

4-12806040 Nozzle, White, 40°

(603537E/G) 1

16 11-0602 Decal, Stripe 1

17 11-1043 Label, Warning 1

18 10-9999 Lexan, Cover, Outdoor 1

19 10-08017 Label, Outdoor 1

20 70-180503 Screw, M4 x 10 4

21 2-30152 Valve, Metering 1

22 11-0711 Label, Metering Valve 1

23 4-02090000 Hose, Braided 2 ft.

24 2-9040 Clamp, Hose, UNI .46 - .54 3

25 4-02080000 Hose, Clear Vinyl 6 ft.

26 2-1905 Strainer, 1/4" Brass 1

27 90-017 ▲ Nut 10/32" 6

28 11-1042 ▲ Label, Ground 1

29 9.800-049.0 Label, Manufacturer's

Cleaning Solution 1

▲ Not Shown

ITEM PART NO. DESCRIPTION QTY

10 6-036711 Relay, 24VDC, 40 Amp

(503027E) 1

2-90220 ▲ Mounting Tape, Square

Backed 1

90-017 ▲ Nut 10/32 Keps 1

11 6-0611 Rectifier, Bridge (503027E) 1

90-1991 Screw, 10/32" x 1/2" BH SOC

Black 1

6-021595 Din Rail (12 VDC) 4"

12 95-07200008 Weldment, Control Panel,

Red 1

95-072000082 Weldment Control Panel,

Black 1

90-1994 ▲ Screw, Ground Post

10/32" x 1-1/4" 1

2-01411 ▲ Bushing, 1" Snap 1

13 11-1044

Decal, Operating Instructions

14 2-0103 Grommet, Rubber, Nozzle

Holder 4

15 4-12805000 Nozzle, Red, 0°

(503537E/G) 1

4-12805015 Nozzle, Yellow, 15°

(503537E/G) 1

4-12805025 Nozzle, Green, 25°

(503537E/G) 1

4-12805040 Nozzle, White, 40°

(503537E/G) 1

4-12805500 Nozzle, Red, 0° (503027E,

503027E/G ) 1

4-12805515 Nozzle, Yellow, 15° (503027E,

503027E/G) 1

4-12805525 Nozzle, Green, 25° (503027E,

503027E/G) 1

4-12805540 Nozzle, White, 40° (503027E,

503027E/G) 1

SHARK SSG • 97-6134 • REV. 7/05a

OPERATOR’S MANUAL PRESSURE WASHER

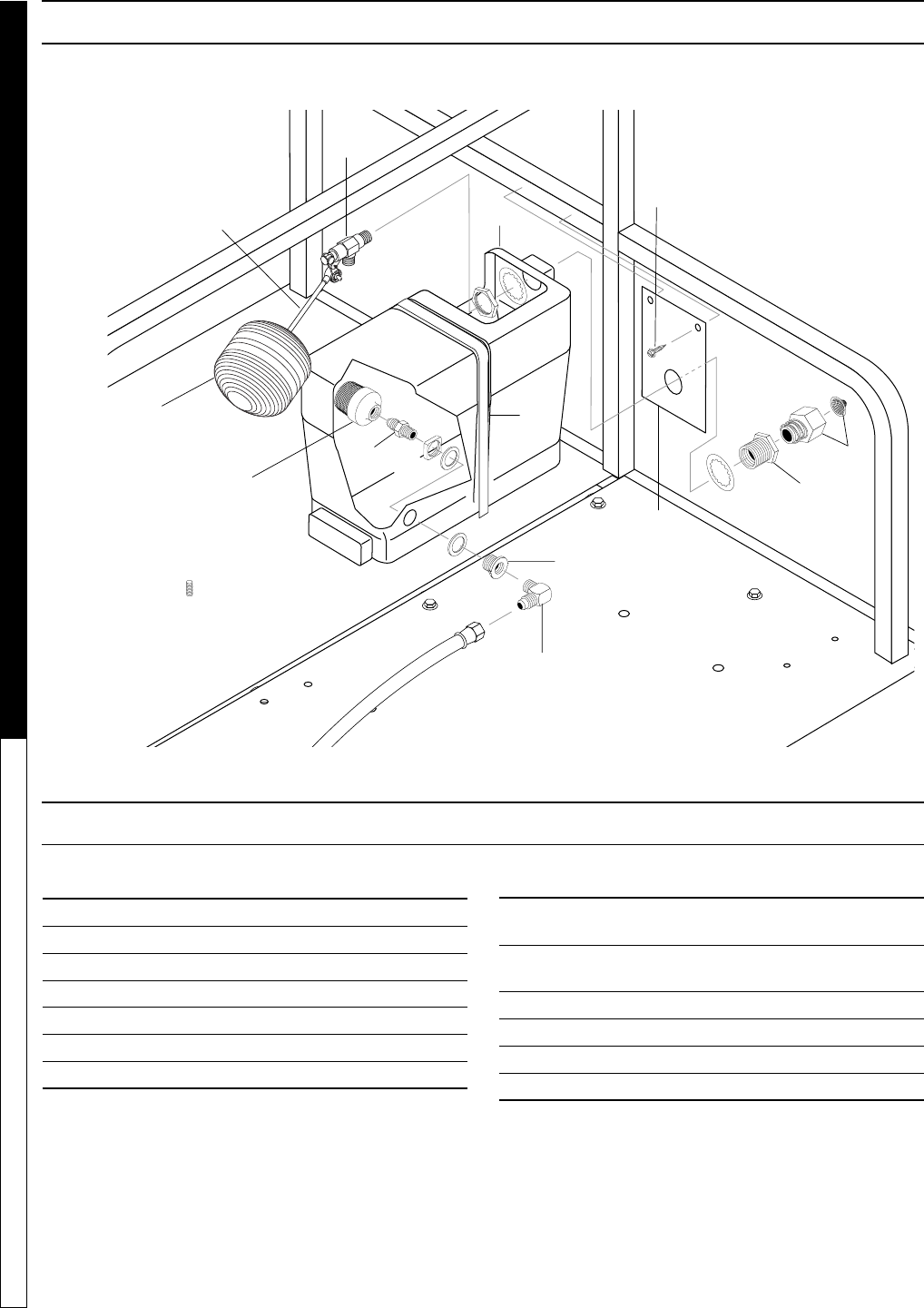

FLOAT TANK EXPLODED VIEW

ITEM PART NO. DESCRIPTION QTY

1 2-01164100

Tank, Float, 2-1/2 Gal., Blank

2 2-3011 Valve, Float Brass, 1

3 2-1906 Strainer, 1/2" Basket 1

4 2-1053 Nipple, 1/2" JIC x 1/2" MPT 1

5 2-010049 Bulkhead, 1/2" PVC 1

6 2-10630 Elbow, 3/4" JIC x 1/2", 90° 1

7 95-07200014 Support Plate, Float Tank 1

ITEM PART NO. DESCRIPTION QTY

8 90-300210 Screw, #14 x 1", TEK, Blk,

Zinc 2

9 2-10942 Swivel, 1/2" MP x 3/4"

GHF w/Strainer 1

10 2-11141 Stem, 5" Float 1

11 6-05134 Cable, TY, 48" 1

12 2-11041 Anchor, Connector, 1/2" 1

13 2-0102 Ball, Float, Black Plastic 1

Pump

FLOAT TANK PARTS LIST

SHARK SSG • 97-6134 • REV. 7/05a

PRESSURE WASHER OPERATOR’S MANUAL

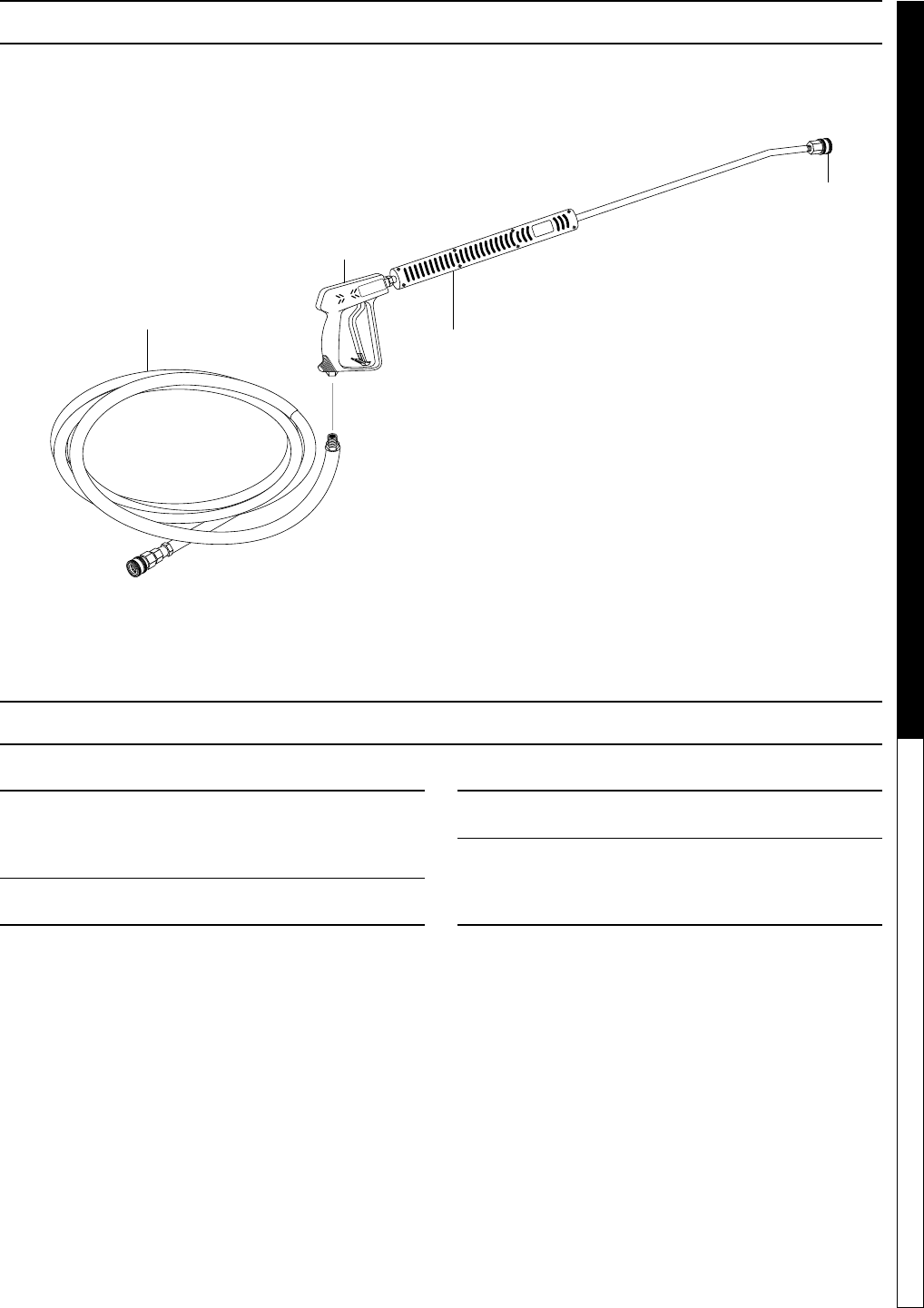

HOSE & SPRAY GUN EXPLODED VIEW

HOSE & SPRAY GUN PARTS LIST

ITEM PART NO. DESCRIPTION QTY

1 4-020750C Hose 3/8" x 50', Black

2 Wire W/Coupler 1

4-02073450RC Hose, 3/8" x 50', Blue

2 Wire w/Coupler 1

2 4-01246 Spray Gun, Shut Off,

10 GPM @ 4000 PSI 1

ITEM PART NO. DESCRIPTION QTY

3 4-0111021 Lance, Spray, Insulated,

35.5" SS 1

4 2-2000 Coupler, 1/4" Female, Brass1

2-0132 ▲ Seal, 1/4" Replacement

Only 1

2-0119 ▲ O-Ring Replacement Only

▲ Not Shown

SHARK SSG • 97-6134 • REV. 7/05a

PRESSURE WASHER Specifications

SPECIFICATIONS

Machine Pump Part Pulley Bushing Engine Engine Engine

Model Model Number Unloader Pulley Part # Bushing Part # Size Part # Pulley

503027E GT6035 5-1932 5-3208 2BK90H 5-4050900 25MM 5-512025 16 HP 5-0309 2BK34H

503027E/G

GT6035 5-1932 5-3208 2BK90H 5-4050900 25MM 5-512025 16 HP 5-0309 3TB34

503537E/G

GT6035 5-1932 5-3208 2BK100H 5-40510001 25MM 5-512025 20 HP 5-01093 3TB34

603537E/G

GT6035 5-1932 5-3208 2BK90H 5-4050900 25MM 5-512025 24 HP 5-01094 3TB36

PARTS SPECIFICATIONS: LEGACY PUMP

PUMP ENGINE

SHARK SSG • 97-6134 • REV. 7/05a

PRESSURE WASHER Specifications

SPECIFICATIONS

CONTROLS

Pulley Bushing Belt Belt Pulley Belt

Model Part # Bushing Part # Size Part # Pulley Part # Belts Part # Bushing

503027E 5-40503401 H x 1 5-511100 BX 43 5-604043 NA NA NA NA NA

503027E/G 5-407034 P2 X 1 5-531112 BX 43 5-604043 BK34H 5-4050340 BX32 5-604032 5-511063

503537E/G 5-407034 P2 X 1 5-531112 BX 44 5-604044 BK34H 5-4050340 BX34 5-604034 5-511063

603537E/G 5-407036 P2 X 1-1/8 5-531113 BX 44 5-604044 BK36H 5-4040360 BX34 5-604034 5-511063

ENGINE

SHARK SSG • 97-6134 • REV. 7/05a

PRESSURE WASHER Specifications

SPECIFICATIONS

Burner Burner Fuel/Pump Fuel

Model No. Assy No. Fuel Nozzle Transformer Motor Solenoid/Cord Solenoid Coil Electrode

503027E 7-00030 7-0103 7-515242 7-21699 7-00098 7-21854U 7-5780

503027E/G 7-00011 7-01284 7-51824 7-21344U 7-21844U 7-21755U 7-578703

503537E/G 7-00011 7-01284 7-51824 7-21344U 7-21844U 7-21755U 7-578703

603537E/G 7-00011 7-01284 7-51824 7-21344U 7-21844U 7-21755U 7-578703

BECKETT BURNER SPECIFICATIONS

Burner Burner Fuel/Pump Fuel

Model No. Assy No. Fuel Nozzle Transformer Motor Solenoid/Cord Solenoid Coil Electrode

503027E/G 7-00034 7-0127 7-20358 7-0005 7-0009 7-0009611 7-13286

503537E/G 7-00034 7-0127 7-20358 7-0005 7-0009 7-0009611 7-13286

03537E/G 7-00034 7-0127 7-20358 7-0005 7-0009 7-0009611 7-13286

WAYNE BURNER SPECIFICATIONS

SHARK SSG • 97-6134 • REV. 7/05a

PRESSURE WASHER WARRANTY

SHARK LIMITED NEW PRODUCT WARRANTY

PRESSURE WASHERS

WHAT THIS WARRANTY COVERS

All SHARK PRESSURE WASHERS are warranted by SHARK to the original purchaser to be free from defects in materials

and workmanship under normal use, for the periods specified below. This Limited Warranty is subject to the exclusions shown

below, is calculated from the date of the original purchase, and applies to the original components only. Any parts replaced

under this warranty will assume the remainder of the part’s warranty period. This warranty applies to the original purchaser

and is not transferable.

LIMITED LIFETIME PARTS WARRANTY:

Components manufactured by SHARK, such as frames, handles, and belt guards. Forged brass pump manifold. All heating

coils will have a three year warranty. Internal components (excluding oil seals) on the oil-end of all pressure washer pumps will

have a seven year warranty.

ONE YEAR PARTS WARRANTY:

All other components, excluding normal wear items as described below, will be warranted for one year on parts. Warranty on

these parts will be for one year regardless of the duration of the original component manufacturer’s part warranty.

WARRANTY PROVIDED BY OTHER MANUFACTURERS:

Motors, generators, and engines, which are warranted by their respective manufacturers, are serviced through these manu-

facturers’ local authorized service centers. SHARK cannot provide warranty on these items.

WHAT THIS WARRANTY DOES NOT COVER

This warranty does not cover the following items:

1. Normal wear items, such as nozzles, guns, discharge hoses, wands, quick couplers, seals, filters, gaskets, O-rings,

packings, pistons, pump valve assemblies, strainers, belts, brushes, rupture disks, fuses, pump protectors.

2. Damage or malfunctions resulting from accidents, abuse, modifications, alterations, incorrect installation, improper

servicing, failure to follow manufacturer’s maintenance instructions, or use of the equipment beyond its stated usage

specifications as contained in the operator’s manual.

3. Damage due to freezing, chemical deterioration, scale buildup, rust, corrosion, or thermal expansion.

4. Damage to components from fluctuations in electrical or water supply.

5. Normal maintenance service, including adjustments, fuel system cleaning, and clearing of obstructions.

6. Transportation to service center, shop labor charges, field labor charges, or freight damage.

WHAT YOU MUST DO TO OBTAIN WARRANTY SERVICE

While not required for warranty service, we request that you register your SHARK pressure washer by returning the com-

pleted registration card. In order to obtain warranty service on items, you must return the product to an Authorized SHARK

Dealer, freight prepaid, with proof of purchase, within the applicable warranty period. If the product is permanently installed,

you must notify your Authorized SHARK Dealer of the defect. The Authorized Dealer will file a claim, which must subsequently

verify the defect. In most cases, the part must be returned to SHARK freight prepaid with the claim. For warranty service on

components warranted by other manufacturers, the Authorized Dealer can help you obtain warranty service through these

manufacturers’ local authorized service centers.

LIMITATION OF LIABILITY

SHARK’S liability for special, incidental, or consequential damages is expressly disclaimed. In no event shall SHARK’S

liability exceed the purchase price of the product in question. SHARK makes every effort to ensure that all illustrations and

specifications are correct, however, these do not imply a warranty that the product is merchantable or fit for a particular

purpose, or that the product will actually conform to the illustrations and specifications. THE WARRANTY CONTAINED

HEREIN IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY IMPLIED WARRANTY OF

FITNESS FOR A PARTICULAR PURPOSE. SHARK does not authorize any other party, including authorized Dealers, to

make any representation or promise on behalf of SHARK, or to modify the terms, conditions, or limitations in any way. It is the

buyer’s responsibility to ensure that the installation and use of SHARK products conforms to local codes. While SHARK

attempts to assure that its products meet national codes, it cannot be responsible for how the customer chooses to use or

install the product.

SHARK PRESSURE WASHERS

1-800-771-1881 • www.shark-

w.com

Form #97-6134 • Revised 7/05a • Printed in U.S.A.

Shark Ssg 503027E 503027G 503537E 503537G 603537E 603537G Users Manual SSGTNT 97 6134_6142

SSG-503027E, SSG-503027G, SSG-503537E, SSG-503537G, SSG-603537E, SSG-603537G to the manual 0b3b3f10-aa56-4d87-ba10-27716c868a4d

Navigation menu

Versions of this User Manual:

Views

Navigation
