READ ALL INSTRUCTIONS CAREFULLY BEFORE USING THE OVEN.

CONTENTS

•For Customer Assistance ........

Inside Front Cover

•

Precautions to Avoid Possible Exposure to

Excessive Microwave Energy ..........

Inside Front Cover

•Limited Warranty ..................................... 1

•Product Information Card ........................ 1

•Important Safety Instructions .................. 2

•Unpacking and Installation Instructions... 3

•Grounding Instructions ............................ 4

•Information You Need to Know ............... 5-10

•Part Names ............................................. 11

•Control Panel .......................................... 12

•Important Instructions.............................. 13-15

•Before Operating ..................................... 16

•Clean the Oven Before First Use ............ 16

•Automatic Cooking .................................. 17-25

•Manual Cooking ...................................... 26-32

•Other Convenient Features ..................... 33-35

•Cleaning and Care .................................. 36-37

•Troubleshooting Chart............................. 38-40

•Service Call Check / Specifications ..

Back Cover

SUPERSTEAM OVEN

OPERATION MANUAL

MODEL

AX-1200

followed by letter indicating color

S= Stainless K= Black

DRAFT

TO PHONE:

DIAL 1-800- BE-SHARP ( 237-4277 ) for :

SERVICE (for your nearest Sharp Authorized Servicer)

PARTS (for your authorized parts distributor)

ADDITIONAL CUSTOMER INFORMATION

DIAL 1-800-642-2122 for :

REPLACEMENT ACCESSORIES

TO WRITE:

Sharp Electronics Corporation

Customer Assistance Center

1300 Naperville Drive

Romeoville, IL 60446-1091

TO ACCESS INTERNET:

www.sharpusa.com

To aid in reporting this SuperSteam Oven in case of loss or theft, please record below the model number and serial

number located on the unit. We also suggest you record all the information listed and retain for future reference.

Please provide the following information when you write or call: model number, serial number, date of

purchase, your complete mailing address (including zip code), your daytime telephone number (including

area code) and description of the problem.

MODEL NUMBER ________________________ SERIAL NUMBER ______________

DATE OF PURCHASE ______________________

DEALER ____________________________ TELEPHONE ________________

SERVICER ___________________________ TELEPHONE ________________

FOR CUSTOMER ASSISTANCE

PRECAUTIONS TO AVOID POSSIBLE

EXPOSURE TO EXCESSIVE

MICROWAVE ENERGY

(a) Do not attempt to operate this oven with the door open since open-door operation can result

in harmful exposure to microwave energy. It is important not to defeat or tamper with the

safety interlocks.

(b) Do not place any object between the oven front face and the door or allow soil or cleaner

residue to accumulate on sealing surfaces.

properly and that there is no damage to the: (1) door (bent), (2) hinges and latches (broken

or loosened), (3) door seals and sealing surfaces.

(d) The oven should not be adjusted or repaired by anyone except properly qualified service

personnel.

The product information card, which is inside of the SuperSteam Oven carton, should be completed within ten days

of purchase and returned. We will keep it on file and help you access the information in case of loss, damage or

theft. This will also enable us to contact you in the unlikely event that any adjustments or modifications are ever

required for your oven.

PRODUCT INFORMATION CARD

LIMITED WARRANTY

SHARP ELECTRONICS CORPORATION warrants to the first consumer purchaser that this Sharp brand

product (the Product), when shipped in its original container, will be free from defective workmanship and

materials, and agrees that it will, at its option, either repair the defect or replace the defective Product or

part thereof with a new or remanufactured equivalent at no charge to the purchaser for parts or labor for

the period(s) set forth below.

This warranty does not apply to any appearance items of the Product nor to the additional excluded

item(s) set forth below nor to any Product the exterior of which has been damaged or defaced, which has

been subjected to improper voltage or other misuse, abnormal service or handling, or which has been

altered or modified in design or construction.

In order to enforce the rights under this limited warranty, the purchaser should follow the steps set forth

below and provide proof of purchase to the servicer.

The limited warranty described herein is in addition to whatever implied warranties may be granted to

purchasers by law. ALL IMPLIED WARRANTIES INCLUDING THE WARRANTIES OF MERCHANTABIL-

ITY AND FITNESS FOR USE ARE LIMITED TO THE PERIOD(S) FROM THE DATE OF PURCHASE SET

FORTH BELOW. Some states do not allow limitations on how long an implied warranty lasts, so the above

limitation may not apply to you.

Neither the sales personnel of the seller nor any other person is authorized to make any warranties other

than those described herein, or to extend the duration of any warranties beyond the time period described

herein on behalf of Sharp.

The warranties described herein shall be the sole and exclusive warranties granted by Sharp and shall be

the sole and exclusive remedy available to the purchaser. Correction of defects, in the manner and for the

period of time described herein, shall constitute complete fulfillment of all liabilities and responsibilities of

Sharp to the purchaser with respect to the Product, and shall constitute full satisfaction of all claims,

whether based on contract, negligence, strict liability or otherwise. In no event shall Sharp be liable, or in

any way responsible, for any damages or defects in the Product which were caused by repairs or at-

tempted repairs performed by anyone other than an authorized servicer. Nor shall Sharp be liable or in any

way responsible for any incidental or consequential economic or property damage. Some states do not

allow the exclusion of incidental or consequential damages, so the above exclusion may not apply to you.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS

WHICH VARY FROM STATE TO STATE.

AX-1200K or AX-1200S Home Use SuperSteam Oven. Be sure to have

this information available when you need service for your Product.

One (1) year parts and labor. The warranty period continues for an

additional four (4) years, for a total of five (5) years, with respect to

the magnetron tube in the Product for parts only; labor and service

are not provided free of charge for this additional period.

Non-functional accessories and light bulb.

From a Sharp Authorized Servicer located In the United States. To

find the location of the nearest Sharp Authorized Servicer, call Sharp

toll free at 1-800-BE-SHARP (1-800-237-4277).

Ship prepaid or carry in your Product to a Sharp Authorized Servicer. Be

sure to have Proof of Purchase available. If you ship the Product, be

sure it is insured and packaged securely. If your Product is built-in using

Sharp Built-in Kit RK-12S30 you may obtain in-home service during the

initial one-year warranty period by contacting your Servicer. The Servicer

will come to your home and if it is necessary to remove the product, the

Servicer will reinstall it. Be sure to have Proof of Purchase available.

Your Product Model Number

& Description:

Warranty Period for this Product:

Additional Item(s) Excluded from

Warranty Coverage (if any):

Where to Obtain Service:

What to do to Obtain Service:

TO OBTAIN SUPPLY, ACCESSORY OR PRODUCT INFORMATION, CALL 1-800-BE-SHARP.

Save the Proof of Purchase as it is needed should your oven ever require warranty service.

SEC AX1200 O/M,P01- 08.9.24, 0:05 PM1

IMPORTANT SAFETY INSTRUCTIONS

1. Read all instructions before using the

appliance.

2. Read and follow the specific

“PRECAUTIONS TO AVOID

POSSIBLE EXPOSURE TO

EXCESSIVE MICROWAVE

ENERGY” on inside front cover.

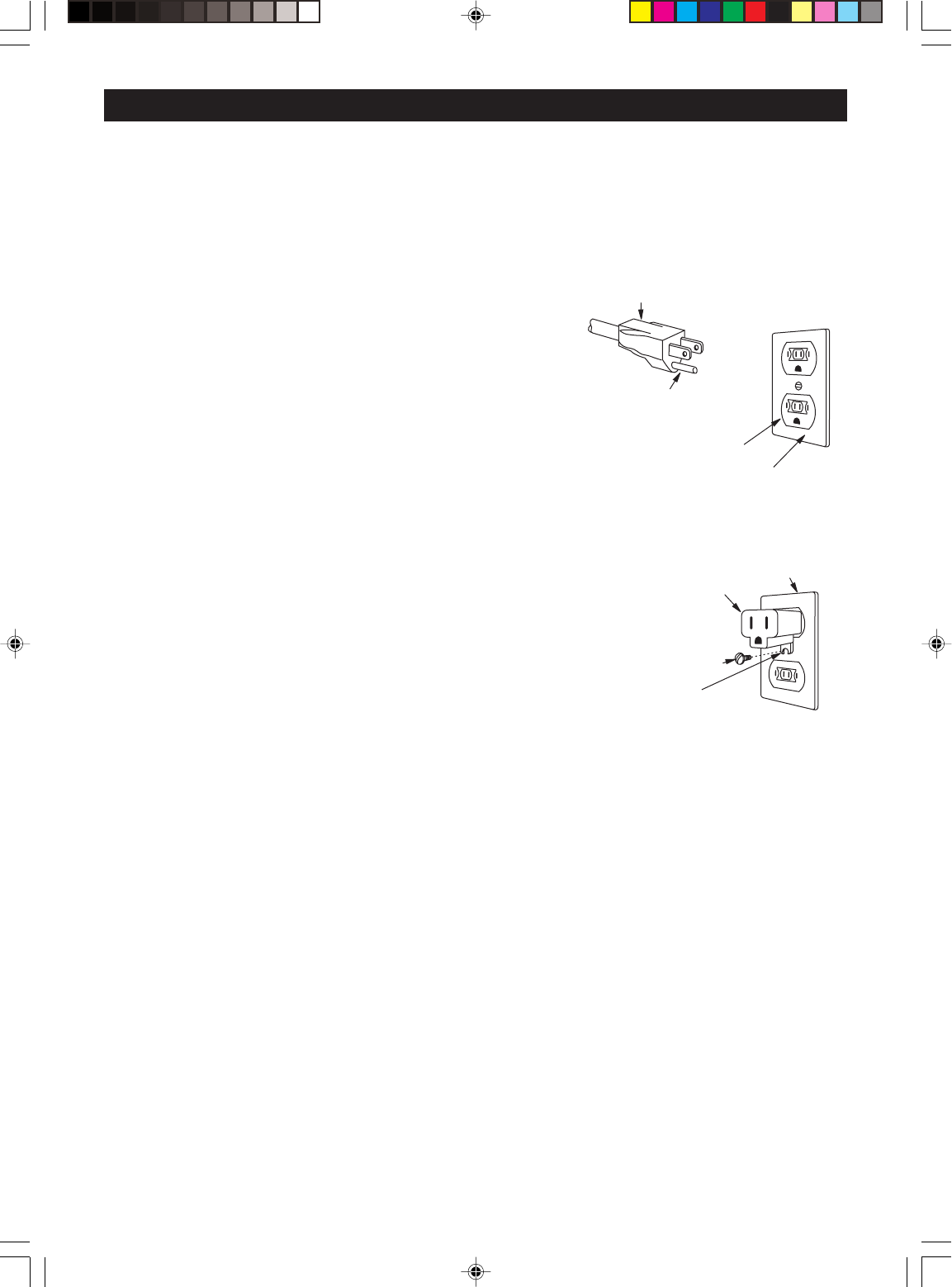

This appliance must be grounded. Connect only to

properly grounded outlet. See

“GROUNDING

INSTRUCTIONS”

on page 4.

4. Install or locate this appliance only in ac-

cordance with the provided installation

instructions.

5. Some products such as whole eggs and

sealed containers

for example, closed glass

jars

are able to explode and should not be

heated in this oven.

6. Use this appliance only for its intended use

as described in this manual. Do not use

corrosive chemicals or vapors in this

appliance. This type of oven is specifically

designed to heat, cook or dry food. It is not

designed for industrial or laboratory use.

7. As with any appliance, close supervision is

necessary when used by children.

8. Do not operate this appliance if it has a

damaged cord or plug, if it is not working

properly or if it has been damaged or dropped.

9. This appliance should be serviced only by

qualified service personnel. Contact nearest

Sharp Authorized Servicer for examination,

repair or adjustment.

10. Do not cover or block any openings on the

appliance.

11. Do not store or use this appliance outdoors.

Do not use this product near water, near a

kitchen sink, in a wet basement, near a

swimming pool or similar locations.

12. Do not immerse cord or plug in water.

13. Keep cord away from heated surfaces.

14. Do not let cord hang over edge of table or

counter.

15. See door surface cleaning instructions on

page 36.

When using electrical appliances basic safety precautions should be followed, including the following:

WARNING - To reduce the risk of burns, electric shock, fire, injury to persons or exposure to

excessive microwave energy:

16. To reduce the risk of fire in the oven cavity:

a. Do not overcook food. Carefully attend

appliance when paper, plastic or other

combustible materials are placed inside

the oven to facilitate cooking.

b. Remove wire twist-ties from paper or

plastic bags before placing bag in oven.

If materials inside the oven ignite, keep

oven door closed, turn oven off and

disconnect the power cord or shut off

power at the fuse or circuit breaker panel.

Do not use the cavity for storage purposes.

Do not leave paper products, cooking utensils

or food in the cavity when not in use.

17.

Liquids, such as water, coffee or tea are able to

be overheated beyond the boiling point without

appearing to be boiling. Visible bubbling or

boiling when the container is removed from the

microwave oven is not always present. THIS

COULD RESULT IN VERY HOT LIQUID

SUDDENLY BOILING OVER WHEN A SPOON

OR OTHER UTENSIL IS INSERTED INTO THE

LIQUID. To reduce the risk of injury to persons:

a. Do not overheat the liquid.

b. Stir the liquid both before and halfway

through heating it.

c. Do not use straight-sided containers

with narrow necks. Use a wide-mouthed

container.

After heating, allow the container to

stand in the microwave oven at least for

20 seconds before removing the container.

e. Use extreme care when inserting a spoon

or other utensil into the container.

18. If the oven light fails, consult a SHARP

AUTHORIZED SERVICER.

19.

Do not operate any heating or cooking appliance

beneath this appliance, except a properly

installed electric wall oven, a warming drawer

or a SHARP Microwave Drawer. See page 3.

20.

Do not mount unit over or near any portion of a

heating or cooking appliance, except a properly

installed electric wall oven, a warming drawer

or a SHARP Microwave Drawer. See page 3.

21. Do not mount over a sink.

22.

Do not store anything directly on top of the appliance

surface when the appliance is in operation.

SAVE THESE INSTRUCTIONS

SEC AX1200 O/M,P01- 08.9.24, 0:05 PM2

UNPACKING AND INSTALLATION INSTRUCTIONS

Unpacking and Examining Your Oven

Remove:

1. all packing materials from inside the oven cavity.

Read enclosures and SAVE the Operation Manual.

2. the feature sticker from the outside of the door, if

there is one.

Check the oven for any damage, such as misaligned or

bent door, damaged door seals and sealing surfaces,

broken or loose door hinges and latches and dents

inside the cavity or on the door. If there is any damage,

do not operate the oven and contact your dealer or

SHARP AUTHORIZED SERVICER.

Choosing a Location for Your Oven

You will use your oven frequently so plan its location for

ease of use. Do not place the oven on a mat, carpet or

tablecloth or block the ventilation openings. The oven

must be placed on a countertop which is a minimum of

36 inches from the floor. Allow at least 2 inches on the

sides, and 2 inches above the top of the oven (excluding

the air vent opening) for air circulation. Be sure to

position oven so that the rear cannot be touched

inadvertently.

Your SuperSteam oven can be built into a cabinet or

wall by itself, or above any electric wall oven, warming

drawer, Sharp microwave drawer models KB-6002,

KB-6015 or KB-6025 or other Sharp microwave drawer

models that specify the combination with this oven

in the drawer Installation Instructions using Sharp's

Built-in Kit, RK-12S30. It cannot be built in above

any gas wall oven.

MIN.

SuperSteam Oven

CUTOUT

ELECTRIC WALL OVEN /

WARMING DRAWER /

MICROWAVE DRAWER

CUTOUT

Illustration 1

MIN.

36"

Refer to Illustration 1 for proper location when building in above an electric wall oven, a warming drawer or SHARP

Microwave Drawer. Carefully follow both the electric wall oven/warming drawer/microwave drawer installation

instructions and Sharp’s Built-in Kit instructions. Be sure that the clearance of the floor between the SuperSteam

Oven and the electric wall oven/warming drawer/microwave drawer is a minimum of 2 inches.

Ordering a Built-in Kit

If your dealer does not stock the kit, it can be ordered directly from the Sharp Accessories and Supplies Center.

Have your credit card number available and call toll-free: 1-800-237-4277 for ordering the kit, RK-12S30 to be sent

to your address.

The kit includes ducts and finish trim strips and easy-to-follow instructions for installation as well as the location

of the power supply.

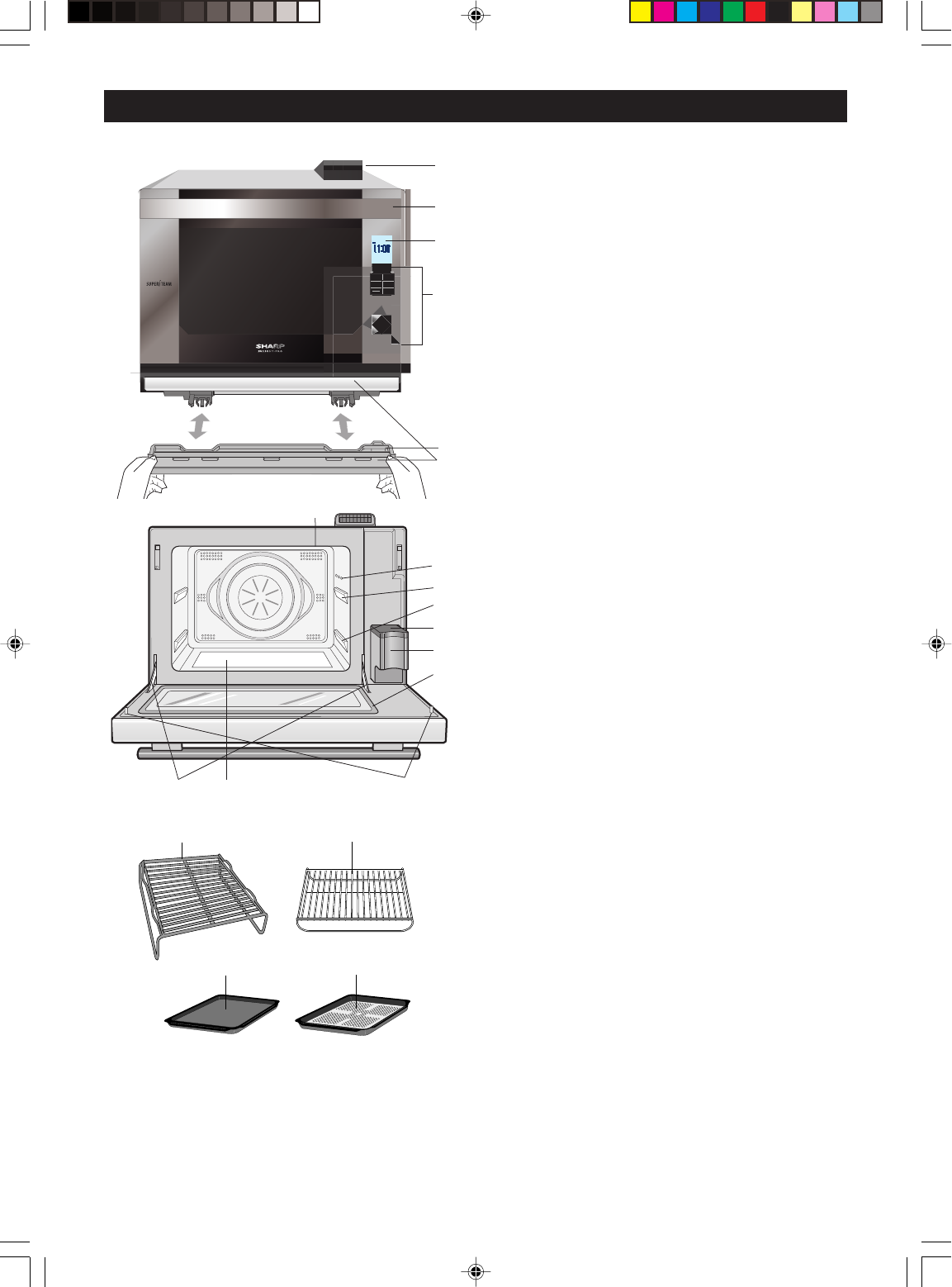

LatchesHingesOven Cavity

Door Seals and

Sealing Surfaces

SEC AX1200 O/M,P01- 08.9.24, 0:06 PM3

This appliance must be grounded. This oven is equipped with a cord having a grounding wire with a grounding plug.

It must be plugged into a wall receptacle that is properly installed and grounded in accordance with the National

Electrical Code and local codes and ordinances. In the event of an electrical short circuit, grounding reduces the

risk of electric shock by providing an escape wire for the electric current.

WARNING

Improper use of the grounding plug can result in a

risk of electric shock.

Electrical Requirements

The electrical requirements are a 120 volt 60 Hz, AC only, 15 amp. or

more protected electrical supply. It is recommended that a separate

circuit serving only this oven be provided.

The oven is equipped with a 3-prong grounding plug. It must be plugged

into a wall receptacle that is properly installed and grounded. Should

you only have a 2-prong outlet, have a qualified electrician install a

correct wall receptacle.

A 3-prong adapter may be purchased and used temporarily if local

codes allow. Follow package directions.

A short power-supply cord is provided to reduce risk of becoming

entangled in or tripping over a longer cord.

Extension Cord

If it is necessary to use an extension cord, use only a 3-wire extension

cord that has a 3-blade grounding plug and a 3-slot receptacle that will

accept the plug on the SuperSteam Oven. The marked rating of the

extension cord should be AC 115-120 volt, 15 amp. or more.

Be careful not to drape the cord over the countertop or table where it can

be pulled on by children or tripped over accidentally.

NOTES:

1. If you have any questions about the grounding or electrical

instructions, consult a qualified electrician or service person.

2. Neither Sharp nor the dealer can accept any liability for damage to

the oven or personal injury resulting from failure to observe the

correct electrical connection procedures.

Radio or TV Interference

Should there be any interference caused by the microwave part of the

oven to your radio or TV, check that the oven is on a different electrical

circuit, relocate the radio or TV as far away from the oven as feasible

or check position and signal of receiving antenna.

GROUNDING INSTRUCTIONS

3-Prong Plug

Grounded

Receptacle Box

Grounding

Adaptor

Grounded

Receplacle Box

Grounding Pin

3-Prong Receptacle

Tab for

Grounding Screw

Screw

Permanent and Correct Installation

Temporary Use

SEC AX1200 O/M,P01- 08.9.24, 0:06 PM4

INFORMATION YOU NEED TO KNOW

ABOUT YOUR OVEN

This Operation Manual is valuable: read it carefully and

always save it for reference.

The Sharp SuperSteam Oven Cookbook is a

valuable asset. Check it frequently for cooking

principles, techniques, hints and recipes.

Be aware that, unlike microwave-only ovens, Super

Steam Ovens have a tendency to become hot during

cooking with SuperSteam Convection, Convection

or Steam.

The oven is for food preparation only. It should not be

used to dry clothes or newspapers.

ABOUT COOKING OPTIONS

Your oven has a variety of cooking options that are divided into automatic and manual. SuperSteam Convection,

Steam and Microwave have both automatic and manual choices. Convection has only manual.

SuperSteam Convection

SuperSteam is combined with convection heating, which can roast or broil foods and allow excess fats to be

removed. These foods retain moisture. Meats and poultry are brown, juicy and flavorful.

Steam

Steam only gently cooks foods such as vegetables, fish, seafood and poached eggs while retaining moisture,

natural flavors and nutrients.

Convection

Convection browns, bakes, broils and crisps a wide variety of foods. Cookies, cakes, breads, muffins, biscuits and

rolls can be baked on one or two levels. There are no automatic settings for convection. Refer to your SuperSteam

Cookbook or to Convection in Manual Operations.

Microwave

Microwave is fast and convenient for cooking, defrosting and popping popcorn. With Sensor Reheat, Sensor Cook

and Sensor Popcorn, it is unnecessary to enter amount. The sensor eliminates guesswork.

SEC AX1200 O/M,P01- 08.9.24, 0:06 PM5

INFORMATION YOU NEED TO KNOW

ABOUT UTENSILS AND COVERINGS

The chart below will help you decide what utensils and coverings should be used in each mode.

Small flat pieces of aluminum foil

placed smoothly on food can be used

to shield areas from cooking or

defrosting too quickly. Keep foil at

least 1 inch from walls of oven.

Aluminium Foil,

Foil Containers

Metal

China, Ceramics,

Porcelain,

Pottery, Stoneware

Heat-resistant

Glassware

e.g. Pyrex®

Non-heat-resistant

Glassware

Heat-resistant

Plastic/Polystyrene

Plastic, Thermoset®

Microwave Plastic

Wrap

Paper Towels,

Paper Plates

Parchment Paper

Wax Paper

Roasting Rack

Roasting Bags

Silver Dishes and

Cooking Utensils or

Containers that

might rust inside the

oven.

Low Rack, High

Rack, Baking Tray,

Steam Basket

Utensils -

Coverings

SuperSteam Convection /

Convection

YES

Steam Microwave

YESYES

YESYESYES

Check manufacturer's recommendation

for being microwave safe. Do not use

the container if it has a flaw.

YESYESYES

NONONO

YESYESNO

Check manufacture's temperature

range.

Use microwave-safe plastic containers

for reheating and defrosting. Some

microwave-safe plastics are not

suitable for cooking foods with high

and sugar content.

Follow manufacturer's directions.

Care must be taken as some containers

warp, melt or discolor at high

temperatures.

YESYESNO

YESNONO

No need to cover for most steaming

foods.

Paper towels: To cover for reheating

and cooking. Do not use recycled paper

towels which may contain metal filings.

Paper plates: For reheating.

YESNONO

YESYESNO

YESNONO

Good covering for cooking and

reheating.

NONOYES

Roasting bags should only be used

with convection bake or roast.

NONONO

NOYESYES

Oven-proof porcelain, pottery, glazed earthenware and bone china are

usually suitable. Do not use the container if it has a flaw.

Care should be taken if using fine glassware as it can break or crack if heated

suddenly.

Cooking

Mode

YESNOYES

Follow manufacturer’s directions.

SEC AX1200 O/M,P01- 08.9.24, 3:33 PM6

DISH CHECK. If you wish to check if a dish is safe for microwaving, place the empty dish in the oven and microwave

on 100% power for 30 seconds. If the dish becomes very hot, do NOT use it for microwaving.

ACCESSORIES There are many microwave or heat-resistant accessories available for purchase. Evaluate

carefully before you purchase so that they meet your needs. A microwave-safe thermometer will assist you in

determining correct doneness and assure you that foods have been cooked to safe temperatures when using

microwave-only cooking. Sharp is not responsible for any damage to the oven when accessories are used.

For automatic cooking, use the recommended container in the cooking chart in this operation manual or the

cookbook.

INFORMATION YOU NEED TO KNOW

ABOUT SUPER STEAM CONVECTION AND STEAM COOKING

There are certain techniques for cooking with steam. It is essential that these techniques are followed for good

results. Many of them are similar to those used in conventional cooking so may require little change. Note information

in all of the charts in the cookbook for all cooking options that use SuperSteam Convection (Roast, Convenience

Foods, Broil) and Steam (Cook, Reheat, Keep Warm and Proof).

•Always attend the oven when in use.

•Use utensils/cookware suitable for the cooking mode as described on page 6.

•Ventilate the room to allow the steam to dissipate.

•Refer to the charts in the SuperSteam Oven Cookbook for recommended cooking settings and times.

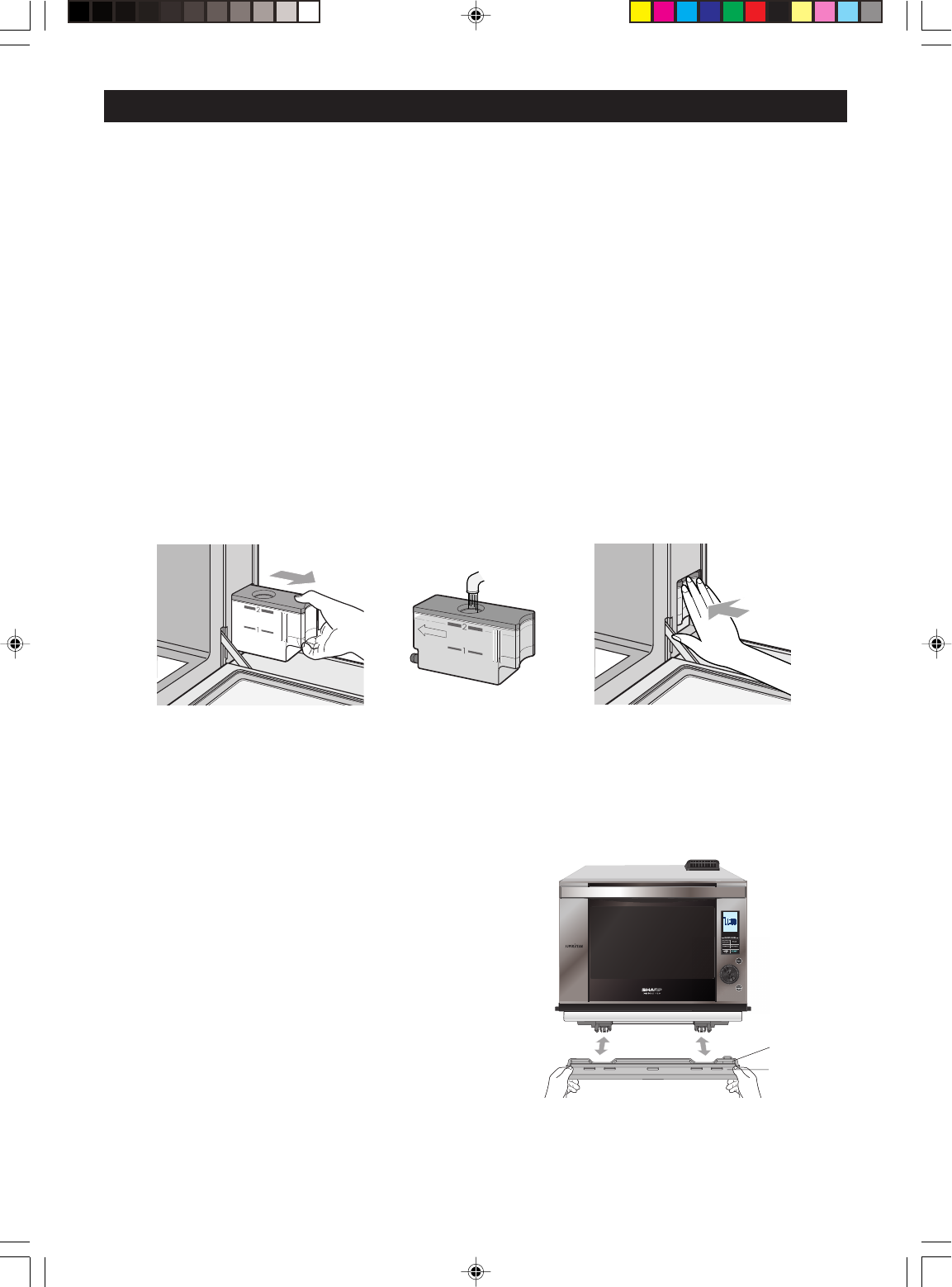

•After cooking and the oven has cooled, remove and empty the reservoir, wipe oven cavity with a soft

cloth or sponge, remove and empty the drip tray.

Place food in steam basket on high rack in baking tray so steam reaches all sides

and cooking is even. For faster cooking, use upper level in oven. Foods crowded

together will take longer to cook, so position with enough space between items to

allow the steam to circulate.

Covering is not necessary in most cases. If a cover is required, aluminum foil is

recommended to keep food from becoming wet.

For accurate cooking times, keep the door closed.

Sometimes soups or casseroles reheated without covering look watery after cooking.

Appearance will be better if stirred well.

Standing time is recommended after cooking to allow heat to disperse equally through-

out the food. Do not allow to stand in the oven for a long time; food may be over-

cooked or wet from the residual steam.

Baking Tray •

High Rack •

Steam Basket

Covering

Door

Stir

Stand

Cooking Techniques

Blanching Steam mode can be used to blanch vegetables to prepare them for freezing.

Place the prepared vegetables in the steam basket on the high rack in the baking tray.

Use upper level in oven. Press Steam, MANUAL and desired time 4 - 5 minutes. Press

START. After steaming, put in cold water to cool quickly. Drain and then freeze.

Cooking Hints

FOR STEAM COOKING

SEC AX1200 O/M,P01- 08.9.24, 0:06 PM7

INFORMATION YOU NEED TO KNOW

•Check that food is thoroughly cooked/reheated before serving.

•Cooking time will be affected by the shape, depth, quantity and temperature of food together with the size, shape

and material of the container.

•Never heat oil or fat for deep frying as this may lead to overheating and fire.

Density

Quantity

Size

Shape

Temperature of Food

Seasoning and

Flavoring

Food Characteristics

Food density will affect the amount of cooking time. Cut the food into thinner parts, if

possible, and arrange in single layer.

The cooking time must be increased as the amount increases.

Small foods and small pieces cook faster than large ones, as heat can penetrate from all

sides to the center. For even cooking make all the pieces the same size.

Foods which are irregular in shape, such as chicken breasts or drumsticks, may take

longer to cook in the thicker parts. Check that these parts are cooked thoroughly before

serving.

The initial temperature of food affects the cooking time. Chilled foods will take longer to

cook than foods at room temperature. The temperature of the container is not the actual

temperature of the food or drink.

Seasoning or flavoring are best added after cooking. If added as marinades or rubs, the

taste may become less pronounced when cooking with steam. Add seasoning or flavor-

ing again after cooking, if necessary.

CAUTION:

Always use dry pot holders or oven mitts to remove food or utensils from the oven. Be careful when

opening the oven door to allow steam to dissipate.

FOR SUPER STEAM CONVECTION AND STEAM COOKING

*ALWAYS have food in the oven when it is on to

absorb the microwave energy.

*Your oven is rated 700 watts using the IEC Test

Procedure. In using recipes or package directions,

check food at the minimum time and add time

accordingly.

*Condensation is a normal part of microwave cooking.

Room humidity and the moisture in food will influence

the amount of moisture that condenses in the oven.

Generally, covered foods will not cause as much

condensation as uncovered ones. Vents on the

oven back must not be blocked.

*Arrange food carefully. Place thickest areas toward

outside of dish.

*Watch cooking time. Cook for the shortest amount

of time indicated and add more as needed. Foods

severely overcooked can smoke or ignite.

*Cover foods while cooking. Check recipe or

cookbook for suggestions: paper towels, wax paper,

microwave plastic wrap or a lid. Covers prevent

spattering and help foods to cook evenly.

*Shield with small flat pieces of aluminum foil any

thin areas of meat or poultry to prevent overcooking

before dense, thick areas are cooked thoroughly.

ABOUT MICROWAVE COOKING

*Stir foods from outside to center of dish once or

twice during cooking, if possible.

*Turn foods over once during microwaving to speed

cooking of such foods as chicken and hamburgers.

Large items like roasts or turkey breasts must be

turned over at least once.

*Rearrange foods like meatballs halfway through

cooking both from top to bottom and from the center

of the dish to the outside.

*Add standing time. Remove food from oven and

stir, if possible. Cover for standing time which

allows the food to finish cooking without overcooking.

*Check for doneness. Look for signs indicating that

cooking temperatures have been reached.

Doneness signs include:

–Food steams throughout, not just at edge.

–Center bottom of dish is very hot to the

touch.

–Poultry thigh joints move easily.

–Meat and poultry show no pinkness.

–Fish is opaque and flakes easily with a fork.

SEC AX1200 O/M,P01- 08.9.24, 0:06 PM8

INFORMATION YOU NEED TO KNOW

ABOUT CHILDREN

Children below the age of 7 should use the oven with a

supervising person very near to them. Between the ages

of 7 and 12, the supervising person should be in the

same room.

The child must be able to reach the oven comfortably;

if not, he/she should stand on a sturdy stool.

At no time should anyone be allowed to lean or swing

on the oven door.

Children should be taught all safety precautions.

Don’t assume that because a child has mastered one

cooking skill he/she can cook everything.

Children need to learn that the oven is not a toy. Young

children should be supervised to ensure that they do

not play with the oven.

DON’T

*Cook eggs in shells.

*Reheat whole eggs.

*Dry nuts or seeds in shells.

*Pop popcorn in regular brown

bags or glass bowls.

*Exceed maximum time on

popcorn package.

*Heat baby food in original jars.

*Heat disposable bottles.

*Heat bottles with nipples on.

*Heat or cook in closed glass jars

or air tight containers.

*Can in the microwave as harmful

bacteria may not be destroyed.

*Deep fat fry.

*Dry wood, gourds, herbs or wet

papers.

*Puncture egg yolks before cooking to

prevent “explosion”.

*Pierce skins of potatoes, apples, squash,

hot dogs and sausages so that steam

escapes.

*Use specially bagged popcorn for the

microwave oven.

*Listen while popping corn for the popping

to slow to 1 or 2 seconds or use

SENSOR POPCORN for "no-guess"

popping.

*Transfer baby food to small dish and heat

carefully, stirring often. Check temperature

before serving.

*Put nipples on bottles after heating and

shake thoroughly. “Wrist” test before

feeding.

*Cut baked goods with filling after heating

to release steam and avoid burns.

*Stir liquid briskly before and after heating

to avoid “eruption”.

*Use deep bowl when cooking liquid or

cereal to prevent boilovers.

Eggs, sausages,

nuts, seeds, fruits

& vegetables

Popcorn

Baby food

General

ABOUT FOOD WHEN USING THE MICROWAVE MODE

•

Check foods to see that they are cooked to the United

States Department of Agriculture's recommended

temperatures.

ABOUT SAFETY

... for beef, lamb or veal cut into

steaks, chops or roasts cooked

to MEDIUM RARE

... for fresh pork, ground meat, fish,

seafood, egg dishes, frozen

prepared food and beef, lamb or

veal cut into steaks, chops or

roasts cooked to MEDIUM

... for leftover, ready-to-reheat

refrigerated, deli and carry out

“fresh” food, whole chicken or

turkey, chicken or turkey breasts

and ground poultry used in

chicken or turkey burgers,

boneless white poultry.

NOTE:

Do not cook whole, stuffed

poultry. Cook stuffing sepa-

rately to 165°F (74°C).

145°F

(63°C)

TEMP FOOD

160°F

(71°C)

165°F

(74°C)

SEC AX1200 O/M,P01- 08.9.24, 3:34 PM9

INFORMATION YOU NEED TO KNOW

To test for doneness, insert a meat thermometer in a

thick or dense area away from fat or bone. NEVER

leave the thermometer in the food during cooking,

unless it is approved for microwave oven use.

•Accessible parts (e.g. oven door, oven cavity, dishes

and accessories) may become hot during use. Use

dry pot holders or oven mitts when removing

container, food and oven accessories from the oven

and be careful not to touch the oven cavity to prevent

burns.

•Use care when opening door. Avoid steam burns by

directing steam away from the face and hands.

Always stand back from the oven when opening it.

•Stay near the oven while it's in use and check

cooking progress frequently so that there is no

chance of overcooking food.

•NEVER use the cavity for storing cookbooks or

other items.

•Select, store and handle food carefully to preserve

its high quality and minimize the spread of foodborne

bacteria.

•Use care when removing items from the oven so

that the utensil, your clothes or accessories do not

touch the door projection.

•Do not touch around the oven light. This part will

become hot when the oven light is on.

•To avoid burns, always be careful of splashing

grease from the baking tray when removing roasted

or broiled meats from the oven.

•To avoid burns, always test food and container

temperature and stir before serving. Pay special

attention to the temperature of containers, foods

and drinks. Do not drink beverage or soup without

checking the container’s temperature.

•Do not touch the oven door, outer cabinet, rear

cabinet, oven cavity, ventilation openings,

accessories, dishes and the escaping steam from

the air vent openings during operation because they

will become hot.

•Do not operate the oven if reservoir cracks and

water leaks. Call 1-800-BE-SHARP to purchase a

replacement part.

•After use, condensed water may be inside oven

cavity, especially on the oven floor. Dry any liquid

residue with a soft cloth and wipe out to keep the oven

clean.

•Do not place anything on the outer cabinet during

operation.

•Do not move the oven during the operation. If the

oven needs to be moved, always drain all water

inside the oven using the DRAIN WATER function

(See page 14). After draining, empty the drip tray.

•To prevent condensation, which could corrode the

appliance, do not leave cooked food in the oven for

an extended period.

•Clean the oven at regular intervals and remove any

food deposits in the oven or on the door.

•Do not heat oil or fat for deep frying.

•ALWAYS use potholders to prevent burns when

handling utensils that are in contact with hot food.

Enough heat from the food can transfer through

utensils to cause skin burns. In SuperSteam

Convection, Steam and Convection modes, cabinet,

interior and door may be too hot to touch.

•Keep aluminum foil used for shielding at least 1 inch

away from walls, ceiling and door for microwave

cooking.

•Do not pour cold water on the ceramic oven floor after

cooking as it might break.

•Do not pour cold water on the door as it might break.

•Do not touch hot surfaces.

•The use of accessory attachments not recommended

by the appliance manufacturer may cause injuries.

•The oven should not be left unattended during

operation. Oven temperatures that are too high or

cooking times that are too long may overheat foods

resulting in a fire.

•Do not insert fingers or objects in the steam outlets or

air vent openings, as this may damage the oven and

cause an electric shock or a hazard.

•If any objects drop inside the air vent openings, turn

off the oven immediately, unplug and consult a Sharp

Authorized Servicer.

•Do not touch the plug with wet hands when inserting

or removing from the outlet. Plug securely into the

electric wall receptacle and remove by gripping on

the plug end. Never pull using just the cord.

SEC AX1200 O/M,P01- 08.9.24, 3:34 PM10

PART NAMES

1Air vent opening

2Handle

3LCD display

4Control panel

5Oven light

6Upper level

7Lower level

8Reservoir lid (See page 13.)

9Reservoir (See page 13.)

10 Door gasket

11 Latches

12 Ceramic oven floor

13 Door hinges

14 Steam outlets to the oven cavity

15 Drip tray lid (See page 13.)

16 Drip tray (See page 13.)

ACCESSORIES

17 High rack

For SuperSteam Convection, Convection

and Steam.

Do not use when microwave cooking.

Always place on baking tray.

18 Low rack

For SuperSteam Convection, Convection

and Steam.

Do not use when microwave cooking.

Always place on baking tray.

19 Baking tray x2

For SuperSteam Convection, Convection,

Steam and Descale function. Do not use

when microwave cooking.

20 Steam basket

For Steam. You can also use for

SuperSteam Convection and Convection.

Do not use when microwave cooking.

Place on high rack in baking tray.

21 Drain Tank (See page 15.)

HEALTHY COOKING

Stop

Clear

START

Microwave

Convection

SuperSteam

Steam

HEALTHY COOKING

Stop

Clear

START

Microwave

Convection

SuperSteam

Steam

HEALTHY COOKING

Stop

Clear

START

Microwave

Convection

SuperSteam

Steam

Enter

Info

Back

17 18

111213

SEC AX1200 O/M,P01- 08.9.24, 0:06 PM11

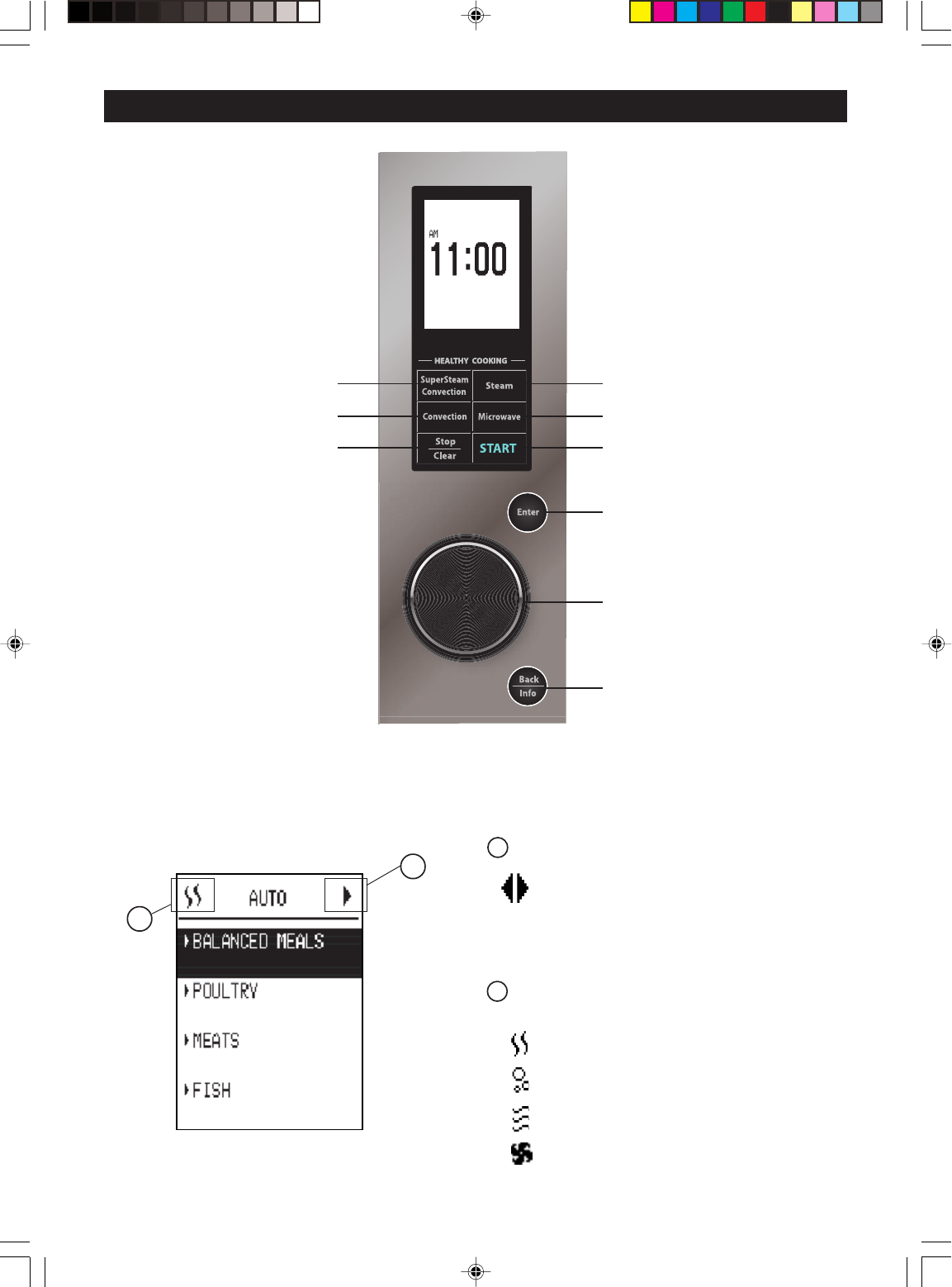

CONTROL PANEL

Number next to the control panel illustration indicates pages

on which there are feature descriptions and usage information.

DISPLAY INFORMATION

Arrows indicate more than one page; when

you see an arrow, you can turn the dial to

move back and forth between pages. When

there are no arrows, you can go back to the

previous page by touching Back/Info.

2The illustration at the top of display indicates the

selected cooking mode.

SuperSteam Convection was selected.

Steam was selected.

Microwave was selected.

Convection was selected.

21, 30

22, 32

START pad

17, 28

Enter pad

Dial

16, 35

SEC AX1200 O/M,P01- 08.9.24, 0:06 PM12

Drip tray lid

Drip tray

RESERVOIR

To fill the reservoir with fresh cold tap water is a

must for SuperSteam Convection and Steam in both

Automatic and Manual Cooking. Be sure to follow

the directions below.

1. Pull the reservoir toward you to remove.

2. Wash the reservoir and lid for the first time. (Figure

3. Fill the reservoir with fresh cold tap water through

the lid to the MAX each time you begin to cook.

(Figure 2) Do not fill the reservoir over the MAX mark.

4. Make sure the lid is closed firmly.

5. Install the reservoir by pushing firmly. (Figure 3)

6. After cooking, empty the reservoir and wash the

reservoir and the lid.

IMPORTANT INSTRUCTIONS

READ CAREFULLY BEFORE COOKING IN

SUPER STEAM CONVECTION & STEAM

NOTES:

1. Do not use distilled water or any other liquid.

2. An insufficient amount of the water in the reservoir

may cause an undesired result.

3. We recommend that you empty the reservoir every

time after cooking. Do not leave the reservoir filled

with water in the oven over a day.

4. If any messages such as “ Fill water reservoir”

is shown in the display during cooking, refer to

Troubleshooting Chart on page 38.

5. Do not drop or damage the reservoir. Heat may

cause the reservoir to change shape. Do not use a

damaged reservoir. Call 1-800-BE-SHARP to

purchase a replacement.

6. There may be a few water drops when removing

the reservoir. Wipe the oven dry with a soft cloth.

7. Do not block the air holes on the lid of the reservoir.

It will cause trouble during cooking.

8. A small amount of water will drain into the drip tray

when the reservoir is removed. Empty after cooking.

DRIP TRAY

Be sure to cook with drip tray in position and follow

the directions below.

The oven comes with the drip tray already in place under

the oven door. This drip tray collects the condensation

from the oven door.

To remove the drip tray: Pull the drip tray toward you

with both hands.

*Make sure water is not dripping down before removing

the drip tray.

To replace the drip tray: Place the drip tray onto the

right and left hooks under the oven and push firmly as

shown in Figure 4.

If “ Replace drip tray” or “Empty drip tray and

replace” is shown in the display, remove and then

replace the drip tray correctly.

Empty the drip tray after each time you cook. Empty,

rinse thoroughly, dry and replace. Failure to empty may

cause the drip tray to overflow. Cooking repeatedly

without emptying the drip tray may cause it to overflow.

WARNINGS:

1. The oven will become very hot after cooking and draining water function.

2. Do not open the oven with your face close to the oven. Steam from the oven may cause burns.

Make sure that the oven has cooled before emptying the reservoir and the drip tray and then wipe the oven cavity.

4. Do not touch the water directly as water in the drip tray may be hot.

Figure 2 Figure 3

Figure 1

Figure 4

SEC AX1200 O/M,P01- 08.9.24, 0:06 PM13

IMPORTANT INSTRUCTIONS

SUPER STEAM CONVECTION & STEAM IN

AUTOMATIC AND MANUAL COOKING

Before cooking

1. Make sure the reservoir is filled with fresh cold tap water and is installed. (See page 13.)

2. Make sure the empty drip tray is installed. (See page 13.)

3. Place food in the oven unless preheating is needed. (Refer to each chart to check if preheating in required in

automatic operations.)

After Cooking

1. After the oven has cooled, remove and empty the reservoir, wipe oven cavity, remove and empty the drip tray.

2. Perform the Drain Water function at least once a day after using SuperSteam Convection or Steam mode.

3. Check that water is not dripping down before removing the drip tray, as a small amount of water drains into the drip

tray when the reservoir is removed.

DRAIN WATER FUNCTION

Perform the Drain Water function at least once a day after

using SuperSteam Convection or Steam mode. It takes

from 1 to 8 minutes.

Drain Water function is very useful to keep oven clean, to

prevent scale build up and the use of stale water. It causes

evaporation of the internal steam system.

PROCEDURE

Make sure the reservoir is

removed and press START.

Press Back/Info,

turn the Dial to

select DRAIN

WATER and press

Enter.

After the oven has cooled, remove and empty

the reservoir, wipe oven cavity, remove and

empty the drip tray.

NOTE:

The reservoir must be removed for the Drain Water

function. If the reservoir is not removed, Drain Water

function does not start.

DESCALE FUNCTION

White or gray grains, also called scale, may form in

the water circuit inside the oven during steam

generation, which could cause the oven to malfunction.

When DESCALING NECESSARY is shown in the

display, be sure to carry out Descale function

immediately. It takes about 1 hour.

PROCEDURE

Citric acid, available at some drugstores, or

bottled lemon juice with no pulp are used for

descaling. Choose one and prepare the

descaling solution.

To use citric acid, dissolve 1 tablespoon of

citric acid crystals in 2 1/4 cups of water in a

non-porous container. Stir well and pour into

the reservoir.

To use 100% bottled lemon juice, check that

there is absolutely no pulp in it. If there is pulp

or you are not sure, strain through a fine

strainer. Measure 1/3 cup of the strained lemon

juice and add it to 2 1/4 cups of water. Stir well

and pour into the reservoir.

Place the reservoir in the oven correctly and

push firmly into place.

Set the empty drain tank in baking tray

on upper level in the oven.

Do not place any food in the oven.

Press START to begin descaling.

Press Back/Info,

turn the Dial to

select DESCALE

and press Enter.

When the oven stops with the audible signal, a

message will appear in the display.

Empty the drain tank and

replace. Remove reservoir and

refill with cold tap water up to

the MAX mark. Press START.

Rinsing will start.

When rinsing has ended and the oven has

cooled, remove and empty the drain tank,

remove and empty the reservoir, wipe oven

cavity, remove and empty the drip tray.

SEC AX1200 O/M,P01- 08.9.24, 0:06 PM14

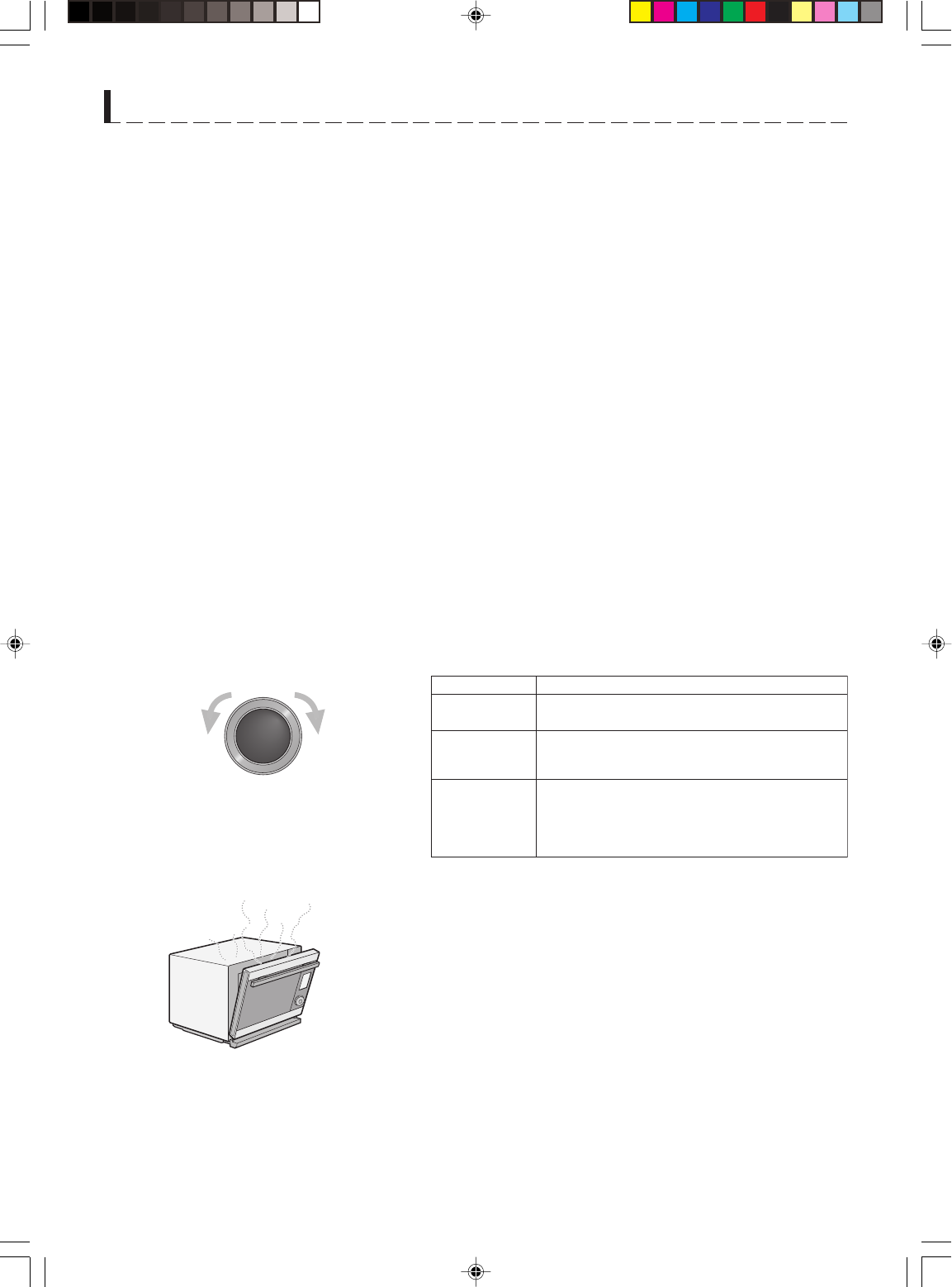

Oven Door Opening

You can stop the door with the upper part of the oven open to exhaust

steam, to cool or dry the oven cavity temporarily after cooking. (See Figure

WARNING: Do not open the oven with your face close to the oven. Steam

from the oven may cause burns.

NOTE: Avoid opening and closing the door during cooking as the oven

cavity temperature drops suddenly, which may affect the result.

TURN

Decrease --- TEMPERATURE --- Increase

Max→0→Max --- COOKING TIME --- 0→Max→0

More --- COOKING TIME ADJUSTMENT --- Less

Last→First→Last --- FOOD SELECTION --- First→Last→First

RIGHTLEFT Tem perature

Cooking Time

except Microwave

Cooking Time

Microwave

25°F per step (350°F is initial temperature)

(200, 225, 250, 275, 300, 325, 350, 375, 400, 425, 450)

0 - 15 min.

15 min. - 1 hour

1 hour - Max

0 - 2 min.

2 - 5 min.

5 - 10 min.

10 - 30 min.

30 - 90 min.

: 30 sec. per step

: 1 min. per step

: 5 min. per step

: 5 sec. per step

: 10 sec. per step

: 30 sec. per step

: 1 min. per step

: 5 min. per step

ITEM INPUT STEP

Figure 1

Cooking Temperature & Cooking Time Input

IMPORTANT INSTRUCTIONS

HOW TO SET DRAIN TANK

SEC AX1200 O/M,P01- 08.9.24, 0:06 PM15

BEFORE OPERATING

•

Before operating your SuperSteam oven, make sure

you read and understand this operation manual

completely.

•

Before the oven can be used, follow these procedures:

1. Place the drip tray correctly. See page 13.

2. Close the door. Plug in the oven. Check that the

display lights.

3. See below for how to set the clock.

4. Read pages 5 - 10 for important information necessary

for correct operation.

5. Follow directions on page 16 for cleaning before the

first use.

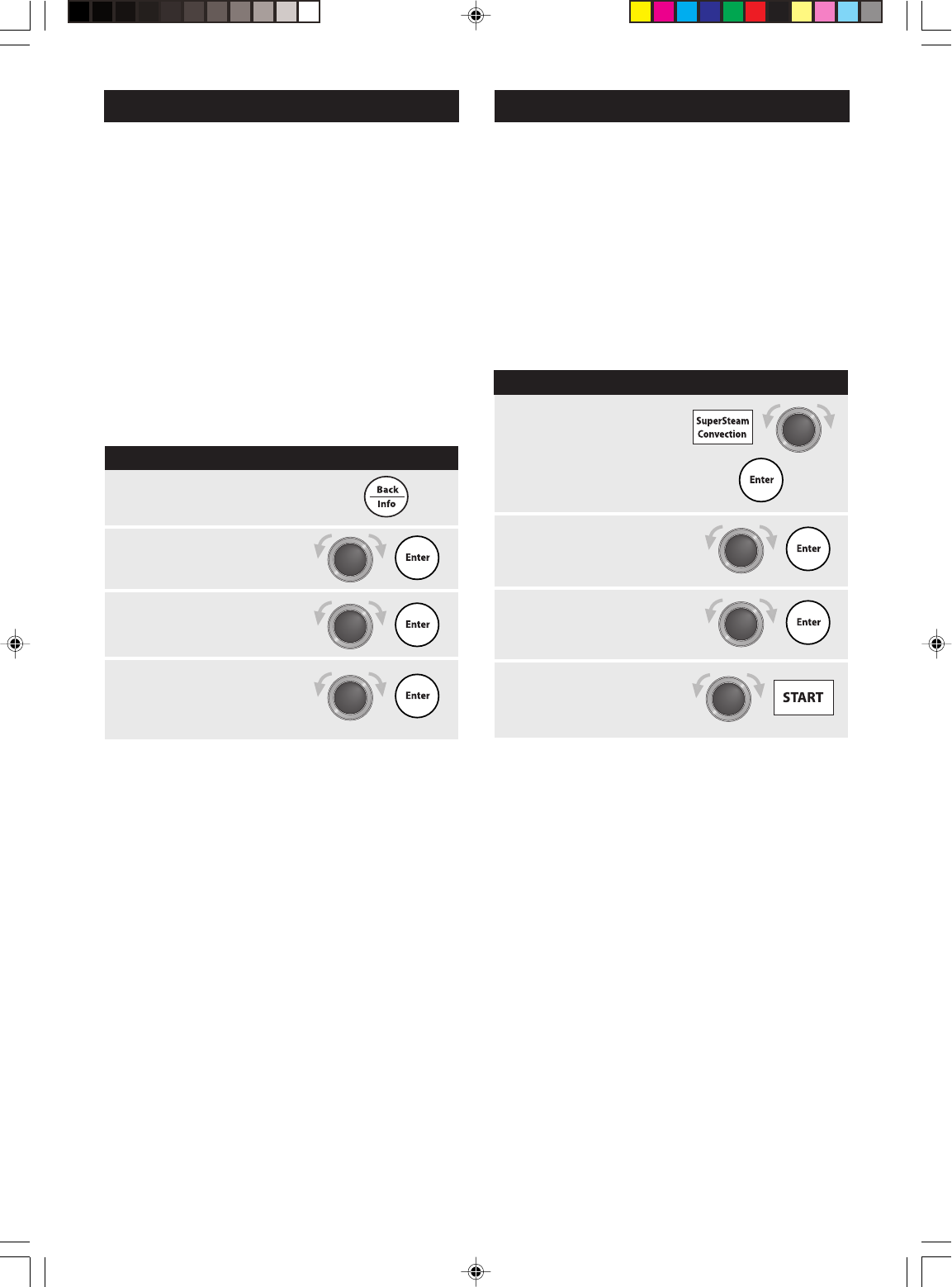

TO SET THE CLOCK

This is a 12 hour clock and AM or PM is shown in the display.

*Suppose you want to enter the correct time of day.

(EX: 11:30PM)

PROCEDURE

Turn the Dial to select

CLOCK and press Enter.

Press Back/Info.

Turn the Dial to set the

desired hour (PM 11:00)

and press Enter.

Turn the Dial to select

the desired minutes

(PM 11:30) and press

Enter.

NOTES:

1. If the electrical power supply to the oven should be

interrupted, the display will intermittently show

SuperSteam after the power is reinstated. If this occurs

during cooking, the program will be erased. The time of

day will also be erased. Simply press Stop/Clear and

reset the clock for the correct time of day.

2. The display backlight will be automatically turned off

in Sleep Mode ON, if the oven is not used for 15

minutes. See Sleep Mode on page 35.

When the desired option appears in the display, you do

not have to turn the dial to select it. Just press Enter.

STOP/CLEAR

1. Press Stop/Clear if you make a mistake during

programming.

2. Stop the oven temporarily during cooking.

3. Return the time of day to the display.

4. Cancel a program during cooking, press twice.

BACK

1. Press Back/Info if you want to go back to the previous

page during programming before pressing START.

2. After pressing START, it is not possible to return to a

previous page.

CLEAN THE OVEN BEFORE FIRST USE

The steam generator heats the water which is used for

cooking. It should be cleaned before the first use to get

rid of any odor in the oven cavity. Clean the oven with

SuperSteam Convection Broil in manual operation for

20 minutes without preheat and food. You may notice

some smoke and odor during this process. This is

normal. The oven is not out of order.

PREPARATION

1. Ventilate the room.

2. Make sure that the reservoir is filled with fresh cold

tap water and is installed.

3. Make sure that the emptied drip tray is installed.

PROCEDURE

Turn the Dial to select

SUPER STEAM BROIL

and press Enter.

Press SuperSteam

Convection, turn the

Dial to select

MANUAL and press

Enter.

Turn the Dial to select

WITHOUT PREHEAT

and press Enter.

Turn the Dial to enter

cooking time (20 min.)

and press START.

WARNINGS:

1. The oven door, outer cabinet and oven cavity will

become hot. Use potholders or oven mitts when

adding or removing foods to prevent burns.

2. Do not open the oven with your face close to the

oven. Steam from the oven may cause burns.

SEC AX1200 O/M,P01- 08.9.24, 0:07 PM16

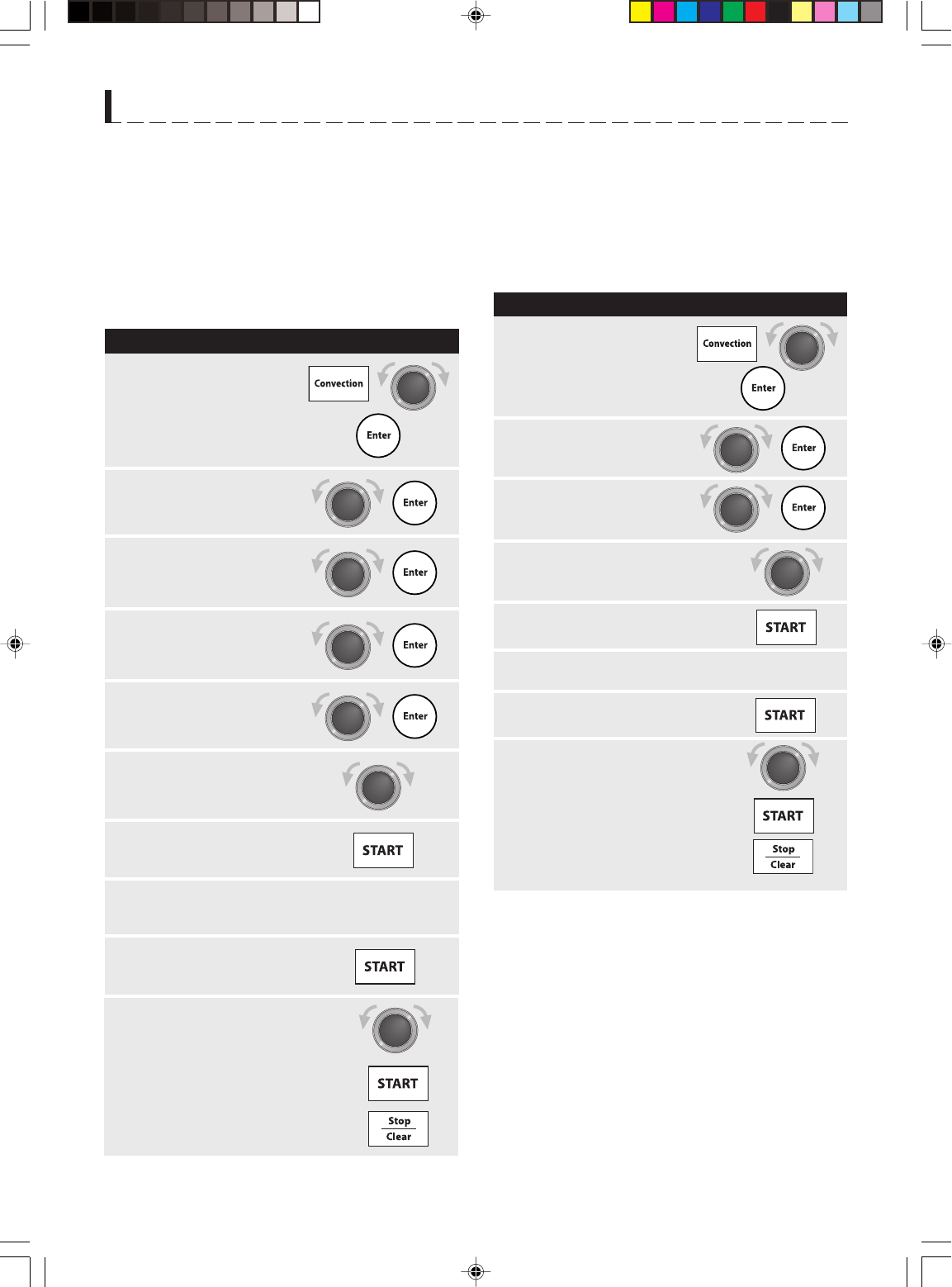

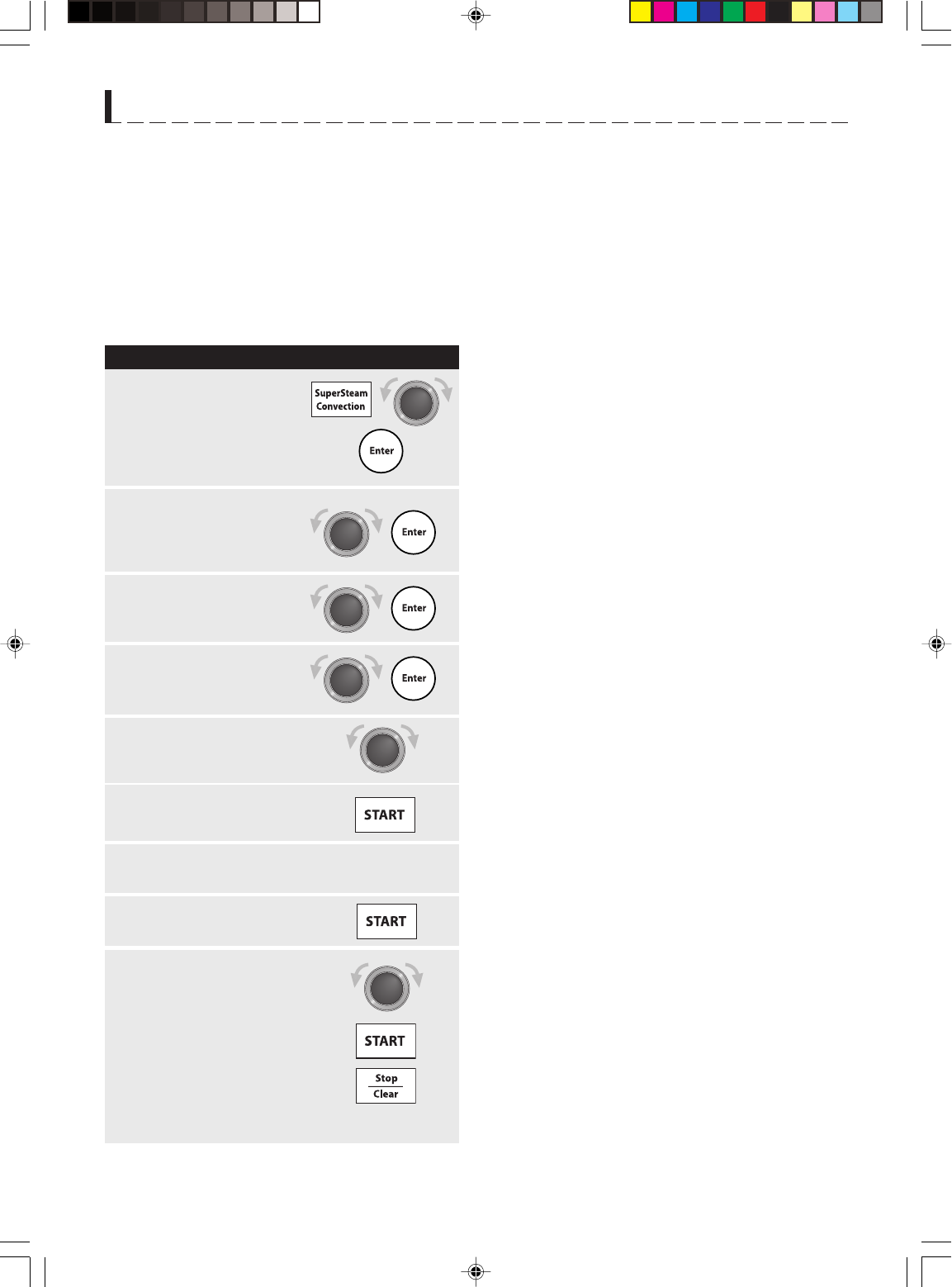

AUTOMATIC COOKING

Automatic Operation is available with SuperSteam Convection, Steam and Microwave. Refer to each function for the

details.

SUPER STEAM CONVECTION

SuperSteam Convection has 8 options: Balanced

Meals, Poultry, Meats, Fish Grilled Vegetables,

Potatoes, Frozen Pizza and Convenience Foods.

Refer to the SuperSteam Convection Chart for details

on page 20.

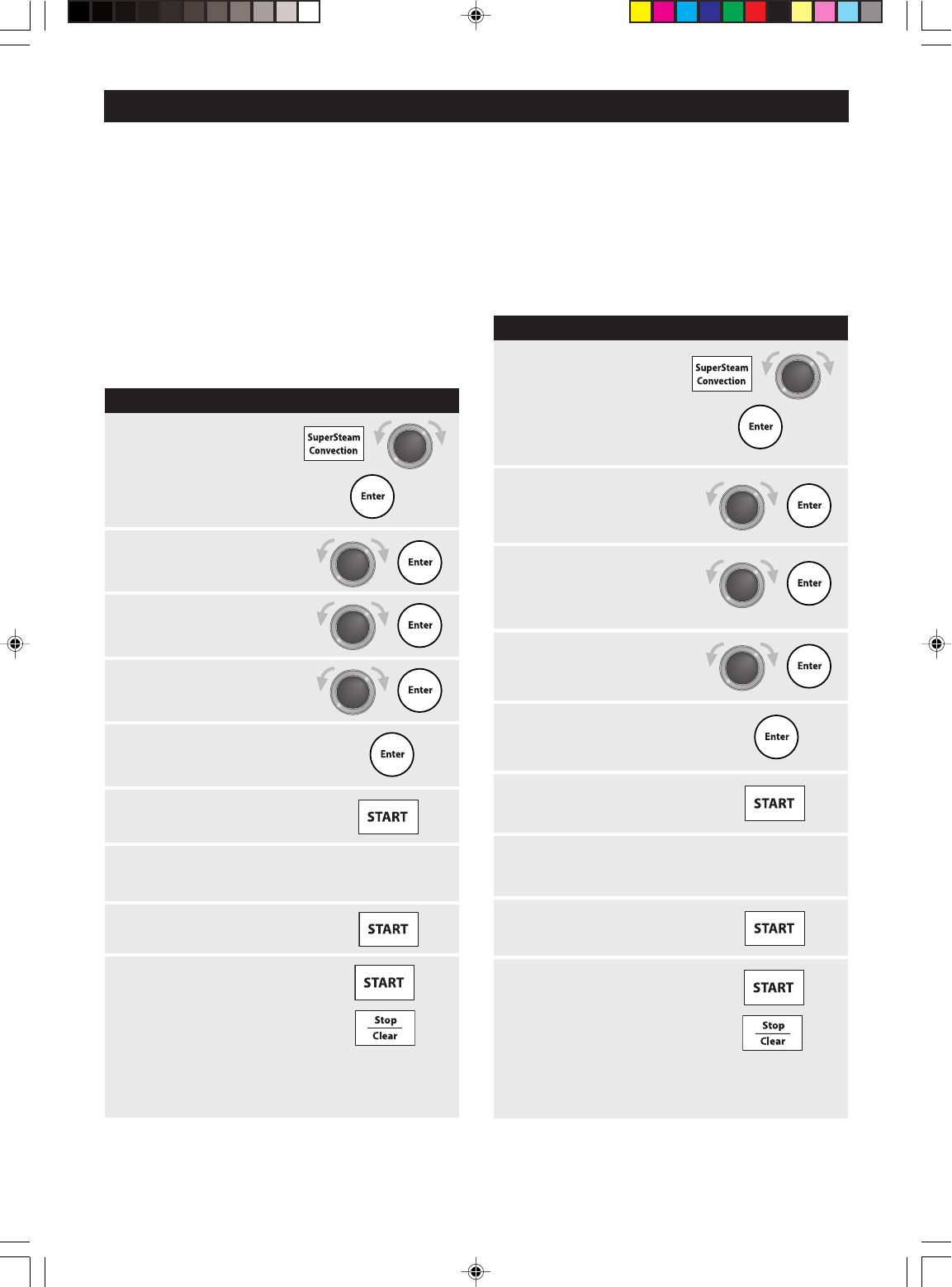

Balanced Meals

*Suppose you want to program Balanced Meals

Complete Dinners Chicken with Standard time.

PROCEDURE

Turn the Dial to select

BALANCED MEALS and

press Enter.

Press SuperSteam

Convection, turn the

Dial to select AUTO

and press Enter.

Turn the Dial to select

COMPLETE DINNERS

and press Enter.

Turn the Dial to select

CHICKEN and press

Enter.

Make sure STANDARD is

selected and then press Enter.

Press START to preheat.

No food in oven.

When preheat is over, place food in the oven

by following the directions in the display and

the cooking chart. Close the door.

Press START.

After cooking, EXTEND will

appear. If you wish to

extend cooking time, turn

the dial to add time and

press START.

If not, press Stop/Clear.

After the oven has cooled, remove and empty

the reservoir, wipe oven cavity, remove and

empty the drip tray.

*Suppose you want to cook 3.5 lb Chicken Pieces Bone-

in with Standard time.

POULTRY • MEATS • FISH • GRILLED VEGETABLES •

POTATOES • FROZEN PIZZA • CONVENIENCE FOODS

PROCEDURE

Turn the Dial to select

POULTRY and press

Enter.

Press SuperSteam

Convection, turn the

Dial to select AUTO

and press Enter.

Turn the Dial to select

CHICKEN PIECES

BONE-IN and press

Enter.

Turn the Dial to enter

amount (3.5 lb) and

press Enter.

Make sure STANDARD is

selected and then press

Enter.

Press START to preheat.

No food in oven.

When preheat is over, place food in the oven

by following the directions in the display and

the cooking chart. Close the door.

Press START.

After cooking, EXTEND will

appear. If you wish to

extend cooking time, turn

the dial to add time and

press START.

If not, press Stop/Clear.

After the oven has cooled, remove and empty

the reservoir, wipe oven cavity, remove and

empty the drip tray.

SEC AX1200 O/M,P01- 08.9.24, 0:07 PM17

NOTES:

1. Enter the weight or amount of the food only (except

Balanced Meal and Frozen Pizza). Do not include the

weight of the container.

2. For foods weighing more or less than weights given

in the cooking charts, cook manually.

3. If the oven door is not opened after preheating, the

oven will hold the preheat temperature for 30 minutes

and then time of day will be displayed.

4. Always follow the instructions in the display.

5. The programmed cooking times are average times.

To extend cooking times preprogrammed in the

automatic cooking, see EXTENDING COOKING

TIME AT THE END OF COOKING on page 33.

6. All selections can be programmed with More or Less

Time Adjustment. See page 33.

7. Keep the door closed. If opened during cooking,

steam will escape and a longer cooking time will be

required in SuperSteam Convection and Steam.

AUTOMATIC COOKING

8. The amount of water in the reservoir is sufficient for

one cooking operation. Water does not need to be

added during cooking.

9. During and after cooking, condensed water may be

on the door, oven walls and oven floor. Dry any

liquid residue with a soft cloth.

10. After cooking, the display may show "Now cooling".

The oven will automatically cool and you will hear

the sound of the cooling fan. The fan may continue

to operate up to 13 minutes depending on the oven

and parts temperature.

WARNINGS:

1. The oven door, outer cabinet and oven cavity will

become hot. Use pot holders or oven mitts when

adding or removing foods to prevent burns.

2. Do not open the oven with your face close to the

oven. Steam from the oven may cause burns.

Recipes for Balanced Meals

Place high rack in baking tray. Beat together eggs, egg whites,

half and half and Cheddar cheese until well blended. Divide into

2 greased custard cups. Place on high rack.

Sprinkle teaspoon of brown sugar on each grapefruit half and

put on high rack. Put sausage links on rack.

Place baking tray on upper level. Press SuperSteam

Convection and then program the oven for AUTO, BALANCED

MEALS, BRUNCH MEDLEY, and press START.

Brunch Medley Balanced Meal

2eggs

2egg whites

2teaspoons fat free half and half

4 tablespoons fat free Cheddar cheese

2grapefruit halves

2teaspoons brown sugar

4fully cooked turkey sausage links

Press SuperSteam Convection and then program the oven for

AUTO, BALANCED MEALS, COMPLETE DINNERS, CHICKEN

and press START to begin preheating.

Put high rack in baking tray. Put chicken breasts on one side.

Brush with mango curry sauce. Put sweet potato wedges and

asparagus spears on rack.

When preheat is over, place baking tray on upper level. Press

START.

Chicken Balanced Meal

2boneless chicken breasts,

approximately 12 ounces

1tablespoon mango curry sauce

1/2pound sweet potato wedges,

approximately 1/2 x 2 1/2 inches

12 fresh asparagus spears

Press SuperSteam Convection and then program the oven for

AUTO, BALANCED MEALS, COMPLETE DINNERS, SALMON

and press START to begin preheating.

Place brown rice in shallow 2-quart casserole. Pour hot tap water

over rice. Scatter thawed peas over rice, evenly. Season salmon

fillets with Asian hoisin glaze and place on top of rice mixture.

Place casserole in baking tray. When preheat is over, place on

upper level. Press START. After cooking, remove from oven,

cover with foil and allow to stand 5 minutes.

Salmon Balanced Meal

1/2cup 10-minute brown rice

1cup hot tap water

1cup frozen peas, thawed

24-ounce salmon fillets

1tablespoon Asian hoisin glaze

SEC AX1200 O/M,P01- 08.9.24, 0:07 PM18

Press SuperSteam Convection and then program the oven for

AUTO, BALANCED MEALS, COMPLETE DINNERS, FAJITAS

and press START to begin preheating.

Mix fajita seasoning mix, oil and water together. Add to mixture

of shrimp, chicken strips, beef strips, red and green pepper strips.

Mix well. Spray baking tray with nonstick cooking spray and put

fajita ingredients in tray.

Put refried beans in small oven-proof dish. Wrap tortillas in foil.

Place both on other baking tray.

When preheat is over, place baking tray of fajita mixture on upper

level. Place baking tray of refried beans and tortillas on lower

level. Press START.

After cooking, remove from oven. Stir fajita mix and put half in

each warm tortilla. Stir refried beans and serve with fajitas.

Fajita Balanced Meal

1tablespoon fajita seasoning mix

1tablespoon salad oil

1tablespoon water

1/2pound mixture of raw shrimp,

chicken breast strips and beef strips

1cup red pepper strips

1cup green pepper strips

1/2cup fat-free refried beans

28-inch whole wheat tortillas

Press SuperSteam Convection and then program the oven for

AUTO, BALANCED MEALS, COMPLETE DINNERS, BEEF

KABOBS and press START to begin preheating.

Alternate meat cubes and vegetable squares on skewers. Put

skewers on high rack in baking tray. Put ears of corn beside

kabobs. Brush all with olive oil.

When preheat is over, place baking tray on upper level. Press

START.

Beef Kabob Balanced Meal

1/2pound beef round,

cut into 8 11/2 inch cubes

81-inch squares red pepper

81-inch squares green pepper

81-inch squares onion

210-inch wooden skewers

2ears fresh corn on the cob

2teaspoon olive oil

Press SuperSteam Convection and then program the oven for

AUTO, BALANCED MEALS, COMPLETE DINNERS, PORK and

press START to begin preheating.

Put high rack in baking tray. Put chops on one side, zucchini and

potatoes on remainder of rack. Brush all with olive oil.

When preheat is over, place baking tray on upper level. Press

START.

Pork Balanced Meal

2boneless pork chops,

approximately 12 ounces

1/2pound zucchini strips,

approximately 1/2 x 2 1/2 inches

cupsnew potatoes,

cut into 1-inch wedges

1teaspoon olive oil

AUTOMATIC COOKING

SEC AX1200 O/M,P01- 08.9.24, 0:07 PM19

SUPER STEAM CONVECTION CHART

AUTOMATIC COOKING

FOOD CONTAINER/RACK

AMOUNT

Poultry

OVEN LEVEL

lower

upper

lower

upper

lower

upper

lower

upper

lower

upper

2.5 - 7.5 lb.

0.5 - 3.5 lb.

0.3 - 2 lb.

3 - 8 lb.

1 - 8 patties

2 - 3 lb.

1 - 2 lb.

2 - 4 lb.

0.5 - 2 lb.

0.5 - 2.5 lb.

1.3 - 2 lb.

0.3 - 2 lb.

1 - 6

servings

1 - 6

0.3 - 1.5 lb.

0.3 - 2 lb.

0.3 - 1.5 lb.

Whole chicken*

Chicken pieces - bone-in*

Chicken breasts - boneless*

Turkey breast - bone-in*

Beef Hamburgers - 0.25 lb, 1/2" thick*

Eye of round - medium rare

Meat loaf*

Pork Boneless loin

Chops - boneless*

Chops - bone-in*

Tenderloin*

Fish steaks*

Thick fillets (to 1 inch thick.) *

Baked white potatoes (6 - 8 oz)

Baked sweet potatoes (9 - 10 oz)

Regular crust 12-inch*

Thin crust 12-inch*

Rising crust 12-inch*

Frozen prepared poultry nuggets*

patties*

Refrigerated chicken nuggets*

Frozen prepared fish fish sticks*

fish pieces*

Frozen French fries*

Low rack in baking tray

High rack in baking tray

Spray both sides of the breasts

with nonstick cooking spray or

brush with olive oil.

Low rack in baking tray

High rack in baking tray

Low rack in baking tray

Baking tray

Low rack in baking tray

High rack in baking tray

Low rack in baking tray

High rack in baking tray

Baking tray

Low rack in baking tray

Rubbed with oil.

Low rack in baking tray

High rack in baking tray

Baking tray

Stir when the oven stops midway.

Meats

Fish

Grilled

vegetables*

Potatoes

Frozen

pizza

Convenience

foods

* Preheat is necessary.

SEC AX1200 O/M,P20- 08.9.24, 1:34 PM20

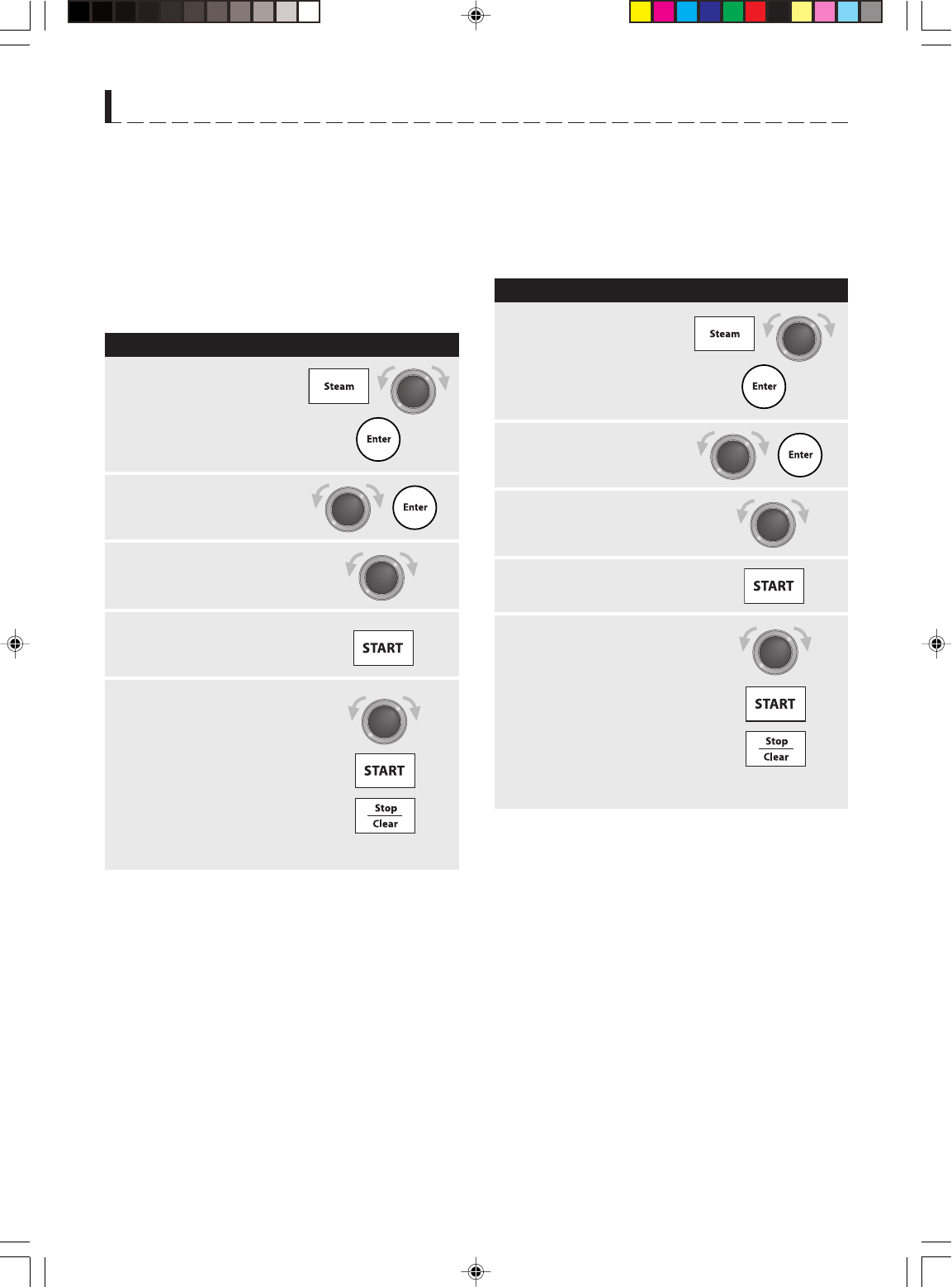

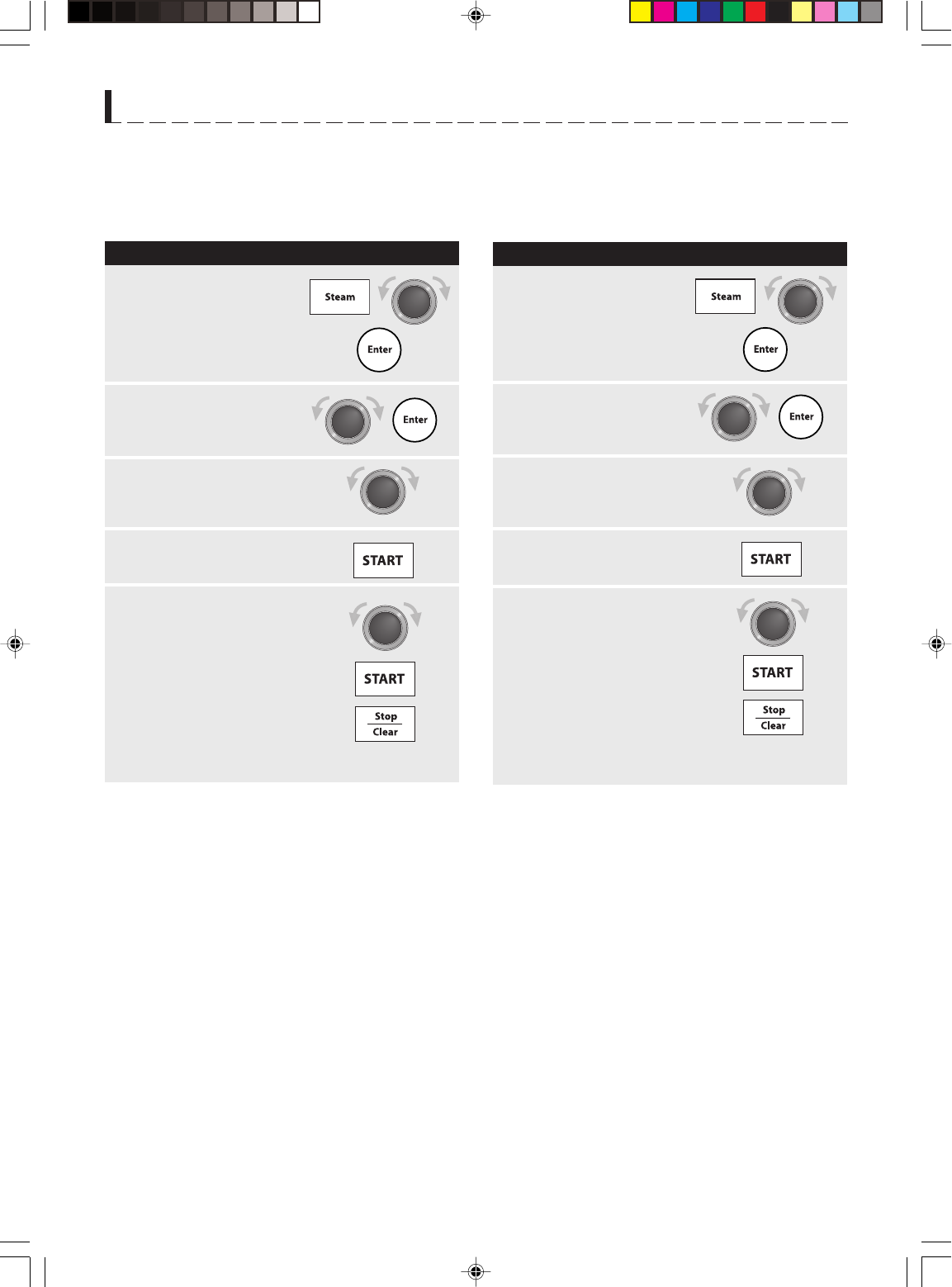

STEAM

AUTOMATIC COOKING

Steam has 3 options: Vegetables, Fish/Seafood and

Poached Eggs.

Refer to the Steam Chart for details.

Turn the Dial to select

VEGETABLES and press

Enter.

Turn the Dial to select

QUICK COOKING and

press Enter. See the

examples and press Enter.

Turn the Dial to enter

amount (6 servings) and

press Enter.

Make sure STANDARD is

selected and press Enter.

Place food in oven. Press

START.

After cooking, EXTEND will

appear. If you wish to

extend cooking time, turn

the dial to add time and

press START.

If not, press Stop/Clear.

After the oven has cooled, remove and empty

the reservoir, wipe oven cavity, remove and

empty the drip tray.

STEAM CHART

*Suppose you want to cook 6 servings of Quick

Cooking, Vegetables with Standard time.

PROCEDURE

Press Steam,

turn the Dial to

select AUTO and

press Enter.

NOTES:

1. Enter the weight or amount of the food only. Do not

include the weight of the container.

2. For foods weighing more or less than weights given

in the cooking charts, cook manually.

3. When the desired option is selected, you do not have

to turn the dial to select it. Just press Enter.

4. The programmed cooking times are average times.

To extend cooking times preprogrammed in the

automatic operation, see EXTENDING COOKING

TIME AT THE END OF COOKING on page 33.

5. Any Steam selection can be programmed with More

or Less Time Adjustment. See page 33.

6. Keep the door closed. If opened during cooking,

steam will escape and a longer cooking time will be

required.

7. The amount of water in the reservoir is sufficient for

one cooking operation. Water does not need to be

added during cooking.

8. During and after cooking, condensed water may be

on the door, oven walls and oven floor. Dry any liquid

residue with a soft cloth.

9. After cooking, the display may show "Now cooling".

The oven will automatically cool and you will hear the

sound of the cooling fan. The fan may continue to

operate up to 13 minutes depending on the oven and

parts temperature.

WARNINGS:

1. The oven door, outer cabinet and oven cavity will

become hot. Use pot holders or oven mitts when

adding or removing foods to prevent burns.

2. Do not open the oven with your face close to the

oven. Steam from the oven may cause burns.

FOOD CONTAINER/RACK

AMOUNT

OVEN LEVEL

upper

1 - 6 servings

0.5 - 2.5

lb.

0.3 - 2 lb.

1 - 6 eggs

Quick Cooking

Med. Cooking

(carrots, green beans)

Long Cooking

(corn on the cob, winter squash)

New potatoes

(cut - 1 1/2" pieces

whole 1 1/2" diameter)

Shellfish

Fish fillets

Steam basket on high rack in baking tray

Put each egg into a greased custard

cup and place custard cup(s) in steam

basket on high rack in baking tray

Vegetables

Fish/

Seafood

Poached eggs

SEC AX1200 O/M,P20- 08.9.24, 3:51 PM21

AUTOMATIC COOKING

MICROWAVE

Microwave has 3 sensor options, Sensor Reheat,

Sensor Cook and Sensor Popcorn and 2 non-sensor

options, Reheat and Defrost. Refer to the Microwave

Chart for details.

NOTES:

1. After cooking, the display may show "Now cooling".

The oven will automatically cool and you will hear the

sound of the cooling fan. The fan may continue to

operate up to 13 minutes depending on the oven and

parts temperature.

2. Do not use the baking tray and metal racks.

MICROWAVE COOKING WITH SENSOR

Sharp's Sensor is a semi-conductor device that detects

the vapor (moisture and humidity) emitted from the food

as it heats. The sensor adjusts the cooking times and

power level for various foods and quantities.

Using Sensor Settings:

1. After the oven is plugged in, wait 2 minutes before

using Sensor Cook.

2. Be sure the exterior of the cooking container and the

interior of the oven are dry. Wipe off any moisture with

a dry cloth or paper towel.

3. The oven works with foods at normal storage

temperature. For example, popcorn would be at

room temperature.

4. Any Sensor Cook selection can be programmed with

More or Less Time Adjustment. See page 33.

5. More or less food than the quantity listed in the chart

should be cooked following the guidelines in any

microwave cookbook.

6. During the first part of Sensor Cook, SENSING will

appear on the display. Do not open the oven door or

press Stop/Clear during this part of the cooking

cycle. The measurement of vapor will be interrupted.

If this occurs, an error message will appear. To

continue cooking, press Stop/Clear and cook

manually. When the sensor detects the vapor emitted

from the food, the remainder of cooking time will

appear.The door may be opened when remaining

cooking time appears on the display. At this time, you

may stir or season food, as desired.

7. If the sensor does not detect vapor properly when

popping popcorn, the oven will turn off, and the

correct time of day will be displayed. If the sensor

does not detect vapor properly when cooking other

foods, Error will be displayed, and the oven will turn

off.

8. Check food for temperature or doneness after cooking.

If food is not completely cooked, enter additional

cooking time manually. Do not press Sensor Cook

again as food may overcook.

Sensor Reheat can be set two ways:

1. Quick way

2. Microwave, MANUAL. REHEAT and then SENSOR

REHEAT

Covering Foods:

Some foods work best when covered. Use the cover

recommended in the Sensor Cook chart for these foods.

1. Casserole lid.

2. Plastic wrap: Use plastic wrap recommended for

microwave cooking. Cover dish loosely; allow

approximately 1/2-inch to remain uncovered to allow

steam to escape. Plastic wrap should not touch food.

3. Wax paper: Cover dish completely; fold excess wrap

under dish to secure. If dish is wider than paper,overlap

two pieces at least one inch to cover.

Be careful when removing any covering to allow

steam to escape away from you.

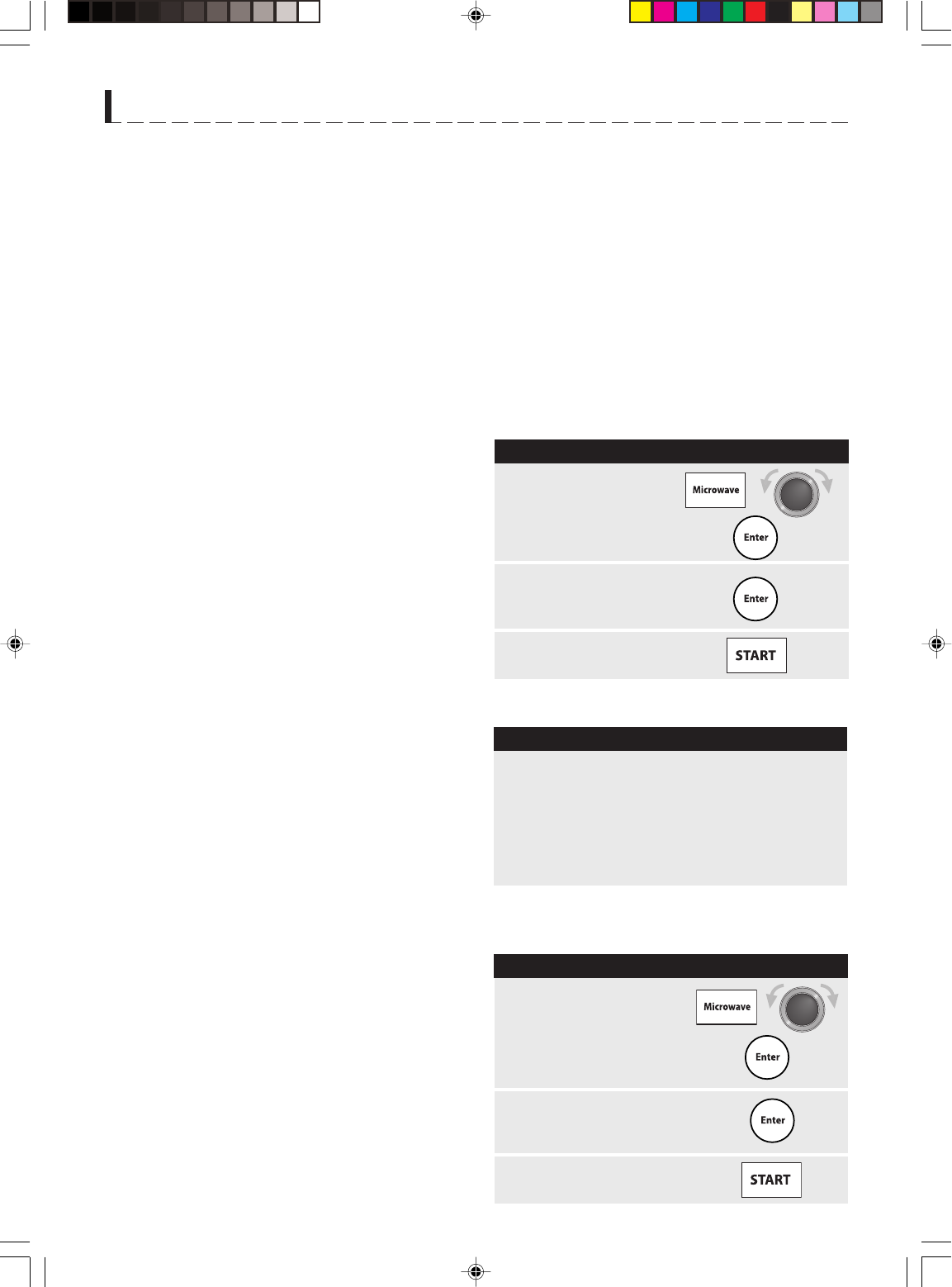

SENSOR POPCORN

Suppose you want to pop popcorn with Standard cooking time.

PROCEDURE

Make sure STANDARD is

selected and press Enter .

Press Microwave,

turn the Dial to

select SENSOR

POPCORN and

press Enter.

Press START.

SENSOR POPCORN CHART

SENSOR REHEAT (QUICK WAY)

* Suppose you want to reheat with Sensor Reheat with

Standard cooking time.

PROCEDURE

Make sure STANDARD is

selected and press Enter.

Press Microwave, turn

the Dial to select

SENSOR REHEAT

and press Enter.

Press START.

FOOD PROCEDURE

AMOUNT

POPCORN

1 package

Regular,

Regular

light

Mini, snack

2.85 - 3.5 oz

Use only popcorn

packaged for the

microwave. Try several

brands to decide which

you like. Do not try to

pop unpopped kernels.

1.2 - 1.75 oz

SEC AX1200 O/M,P20- 08.9.24, 1:35 PM22

AUTOMATIC COOKING

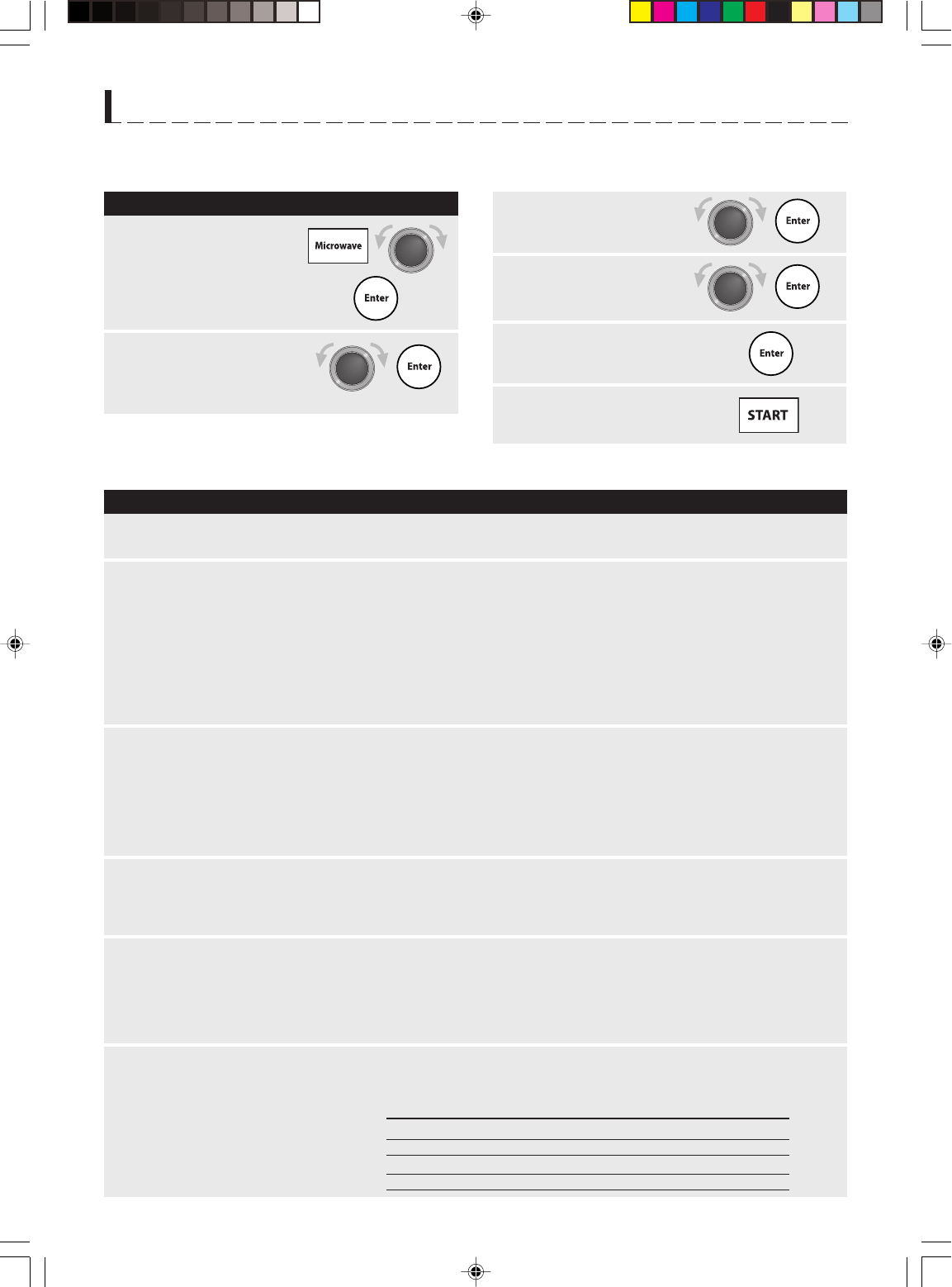

SENSOR COOK

* Suppose you want to cook 2 baked potatoes with Standard cooking time.

PROCEDURE

Turn the Dial to select

SENSOR COOK and

press Enter.

Press Microwave, turn

the Dial to select AUTO

and press Enter.

Make sure STANDARD is

selected and press Enter.

Turn the Dial to select

the desired number 2

and press Enter.

Press START.

SENSOR COOK CHART

Pierce. Place on paper towels on oven floor. After cooking, remove from

oven, wrap in aluminum foil and let stand 5 to 10 minutes.

Wash and place in casserole. Add no water if vegetables have just been

washed. Cover with lid for tender vegetables. Use plastic wrap for

tender-crisp vegetables. After cooking, stir, if possible. Let stand,

covered, for 2 to 5 minutes.

FOOD PROCEDURE

AMOUNT

BAKED

POTATOES

1 - 6 med.

FRESH VEGETABLES: Quick Cooking

.25 - 2.0 lb

1 med.

.25 - 1.0 lb

.25 - 2.0 lb

2 - 4 med.

Broccoli

Brussels sprouts

Cabbage

Caulif. (flowerets)

Cauliflower (whole)

Spinach

Zucchini

Baked apples

FRESH VEGETABLES: Longer Cooking

.25 - 1.5 lb

2 - 4

.25 - 1.5 lb

1 - 2

Carrots, sliced

Corn on the cob

Green beans

Winter squash:

diced

halves

Place in casserole. Add 1 - 4 tbsp. water. Cover with lid for tender

vegetables. Use plastic wrap cover for tender-crisp vegetables. After

cooking, stir, if possible. Let stand, covered, for 2 to 5 minutes.

Use this setting for frozen, convenience foods. It will give satisfactory

results for most brands. You may wish to try several and choose your

favorite. Remove package from outer wrapping and follow package

directions for covering. After cooking, let stand, covered for 1 to 3 minutes.

FROZEN

ENTREES

6 - 17 oz

Use this setting to cook ground beef or turkey as patties or in a casserole

to be added to other ingredients. Place patties on a microwave-safe rack

and cover with wax paper. Place ground meat in a casserole and cover with

wax paper or plastic wrap. When oven stops, turn patties over or stir meat

in casserole to break up large pieces. Re-cover and press START. After

cooking, let stand, covered, for 2 to 3 minutes.

GROUND MEAT .25 - 2.0 lb

Place rice into a deep casserole and add double quantity of water. Cover

with lid or plastic wrap. After cooking, stir, cover and let stand 3 to 5 minutes

or until all liquid has been absorbed.

RICE .5 - 2.0 cups

Rice Water Size of casserole

.5 cup 1 cup 1.5 quart

1 cup 2 cups 2 quart

1.5 cups 3 cups 2.5 or 3 quart

2 cups 4 cups 3 quart or larger

Turn the Dial to select

BAKED POTATOES

and press Enter.

SEC AX1200 O/M,P20- 08.9.24, 1:35 PM23

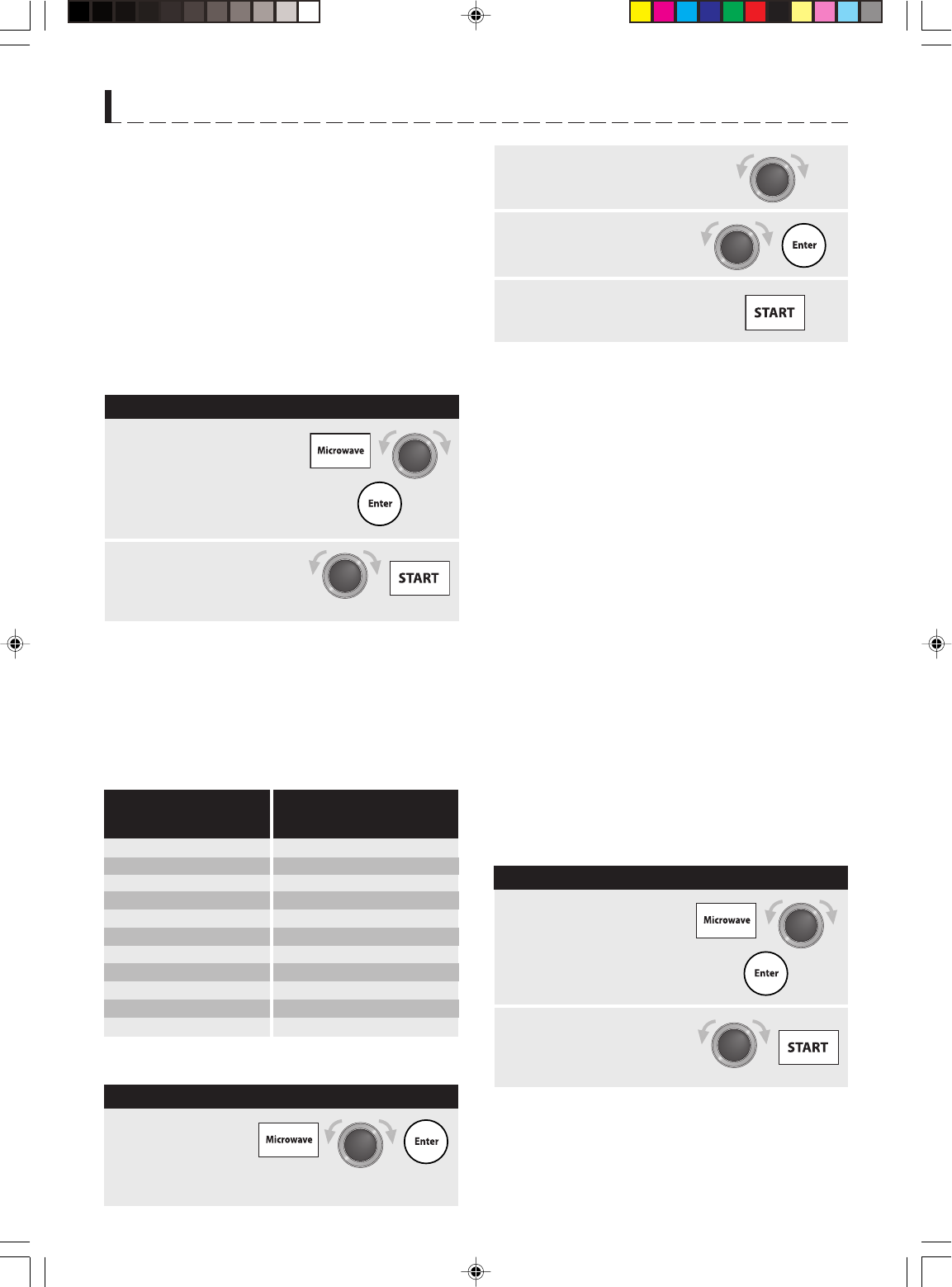

AUTOMATIC COOKING

REHEAT

Reheat allows you to heat many of your favorite foods.

*Suppose you want to reheat 6 muffins with Standard

time.

PROCEDURE

Turn the Dial to select

REHEAT and press

Enter.

Press Microwave,

turn the Dial to select

AUTO and press

Enter.

Turn the Dial to select

FRESH ROLL, MUFFIN

and press Enter.

Turn the Dial to

select the desired

amount (6 pieces )

and press Enter.

NOTES:

1. Any Reheat selection can be programmed with More

or Less Time Adjustment. See page 33.

2. Enter the amount of the food only.

3. More or less food than the quantity listed in the chart

should be cooked following the guidelines in any

microwave cookbook.

4. The final result will vary according to the food condition

(e.g. initial temperature, shape, quality). Check food

temperature after heating. If additional time is needed,

continue to heat manually.

REHEAT CHART

Place in dish or casserole slightly larger than amount to be

reheated. Flatten, if possible. Cover with lid, plastic wrap or wax

paper. Use covers such as plastic wrap or lids with larger quantities

of more dense foods such as stews. After reheating, stir well, if

possible. Re-cover and allow to stand 2 to 3 minutes. Foods should

be very hot. If not, continue to heat with variable power and time.

FOOD PROCEDURE

AMOUNT

SENSOR REHEAT 4 - 36 oz

This setting is good for restoring cooled beverage to a better drink-

ing temperature. Stir liquid briskly before and after heating to avoid

"eruption".

BEVERAGE .5 - 2.0 cups

Use this setting to warm rolls, muffins, biscuits, bagels, etc. Large

items should be considered as 2 or 3 regular size. Arrange on plate;

cover with paper towel. For refrigerated rolls or muffins, it may be

necessary to double the entered amount to ensure the proper

serving temperature. For example, enter quantity of 2 for 1

refrigerated muffin.

FRESH

ROLL, MUFFIN

1 - 8

Use this setting to warm rolls, muffins, biscuits, bagels, etc. Large

items should be considered as 2 or 3 regular size. Arrange on plate;

cover with paper towel.

FROZEN

ROLL, MUFFIN

1 - 8

Make sure STANDARD is

selected and press Enter.

Press START.

SEC AX1200 O/M,P20- 08.9.24, 1:35 PM24

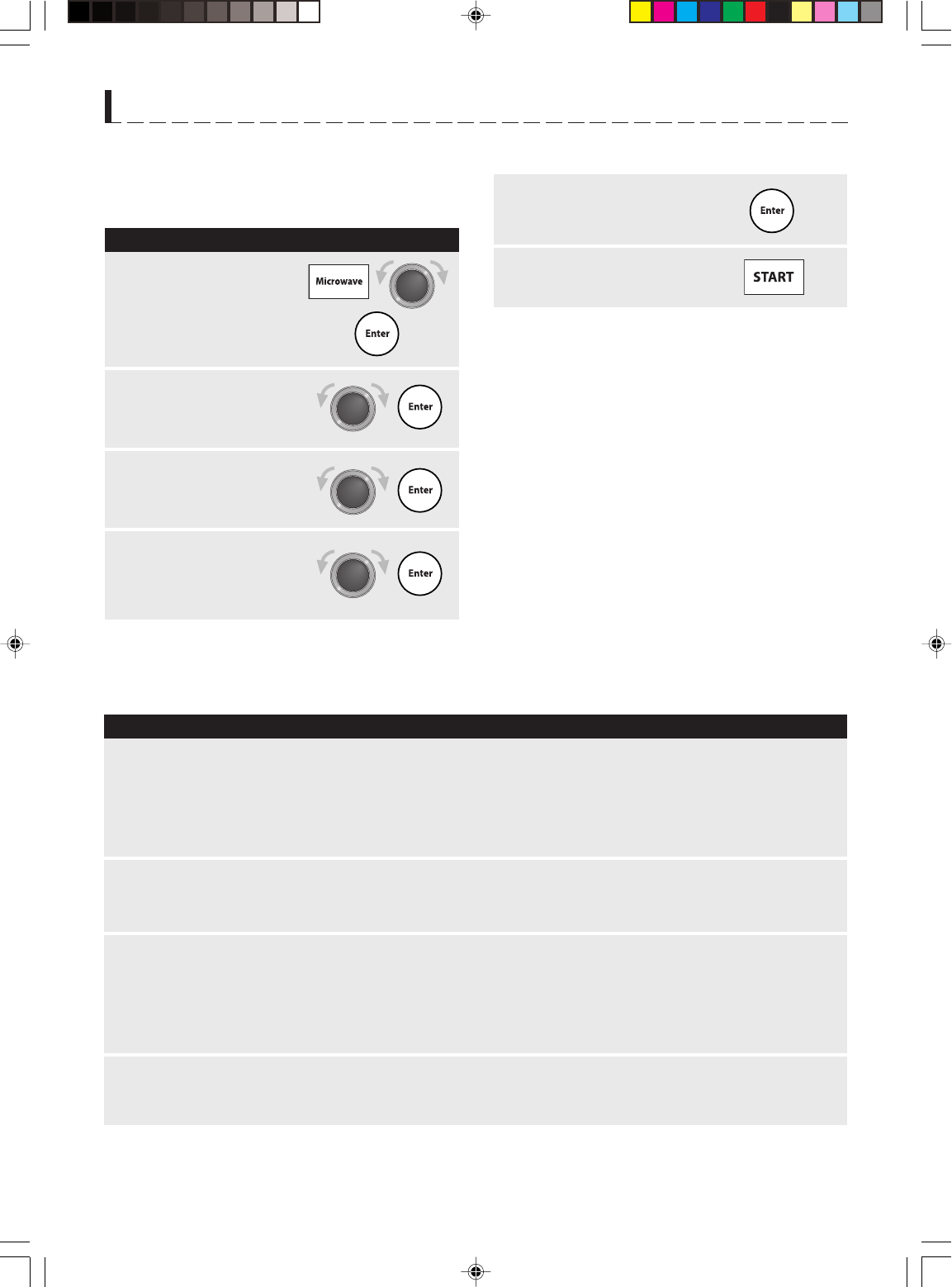

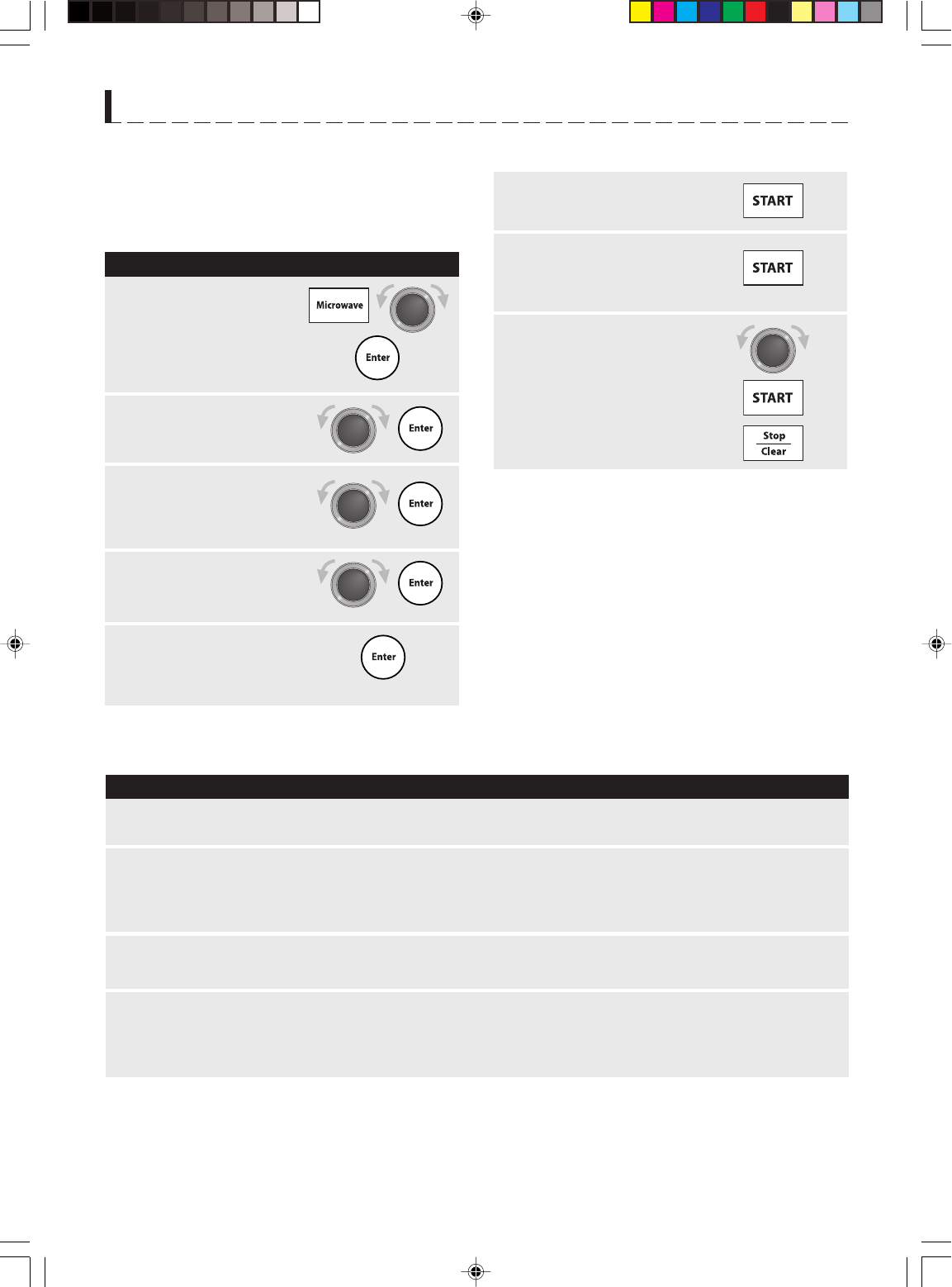

DEFROST

AUTOMATIC COOKING

Defrost automatically defrosts all the foods shown in

the DEFROST CHART.

*Suppose you want to defrost a 2.0 pound steak with

Standard cooking time.

PROCEDURE

Turn the Dial to select

DEFROST and press

Enter.

Press Microwave, turn

the Dial to select AUTO

and press Enter.

Turn the Dial to select

the desired food

STEAKS, CHOPS and

press Enter.

Turn the Dial to select the

desired amount 2.0 lb.

and press Enter.

Make sure STANDARD is

selected and press Enter.

NOTES:

1. Enter the weight of the food only. Do not include the

weight of the container.

2. Any Defrost selection can be programmed with

More or Less Time Adjustment. See page 33.

3. To defrost other foods or foods above or below the

weights allowed on DEFROST CHART below, use

time and 30% power. See MANUAL DEFROST on

page 32.

4. The programmed defrosting times are average times.

To extend defrosting times preprogrammed in the

automatic operation, see EXTENDING COOKING

TIME AT THE END OF COOKING on page 33.

DEFROST CHART

The oven will stop and

directions will be displayed.

Follow the indicated

message. Press START.

After cooking, EXTEND will

appear. If you wish to

extend defrosting time, turn

the Dial to add time and

press START. If not, press

Stop/Clear.

Remove any thawed pieces after each stage. Let stand, covered,

for 5 to 10 minutes.

FOOD PROCEDURE

AMOUNT

GROUND MEAT 0.5 - 2.0 lb

After each stage, rearrange and if there are warm or thawed

portions, shield with small flat pieces of aluminum foil. Remove any

meat or fish that is nearly defrosted. Let stand, covered, for 10 to

20 minutes.

STEAKS/ CHOPS 0.5 - 3.0 lb

Arrange pieces with meatiest portions toward outside of glass dish

or microwave-safe rack. After each stage, if there are warm or

thawed portions, rearrange or remove. Let stand, covered, for 10

to 20 minutes.

BONE-IN

CHICKEN

0.5 - 3.0 lb

After each stage, if there are warm or thawed portions, rearrange

or remove. Let stand, covered, for 10 to 20 minutes.

BONELESS

CHICKEN

0.5 - 2.0 lb

Press START.

SEC AX1200 O/M,P20- 08.9.24, 1:35 PM25

MANUAL COOKING

Manual Cooking is an option in Steam, SuperSteam Convection, Convection and Microwave.

Refer to the Manual Cooking Chart. The chart gives information on each setting.

NOTE:

Always check the charts and recipes in the separate SUPER STEAM OVEN COOKBOOK for recommended cooking

times, correct cooking option, hints and techniques.

COOKING TIME INPUT

Your oven can be programmed for up to 35 minutes or 2 hours 30 minutes depending on the cooking mode. Refer

to the chart. The input unit increment varies from 5 seconds to 5 minutes, depending on the total length of time and

cooking mode as shown in the table.

COOKING TIME INPUT

Your oven can be programmed for temperatures from 200°F to 450°F, which can be adjusted every 25°F with an

initial setting is 350°F.

Temperature

Cooking Time

except Microwave

Cooking Time

Microwave

25°F per step (350°F is initial temperature)

(200, 225, 250, 275, 300, 325, 350, 375, 400, 425, 450)

0 - 15 min.

15 min. - 1 hour

1 hour - Max

0 - 2 min.

2 - 5 min.

5 - 10 min.

10 - 30 min.

30 - 90 min.

: 30 sec. per step

: 1 min. per step

: 5 min. per step

: 5 sec. per step

: 10 sec. per step

: 30 sec. per step

: 1 min. per step

: 5 min. per step

ITEM INPUT STEP

Preheat

Roast

Broil

Convenience Food

Bake or Roast

Broil

Cook

Reheat

Keep Warm

Proof

Manual

Keep Warm

YES or NO

200 - 450°F

100°F

0 - 100% power

0 - 2h30m

0 - 35m

0 - 2h30m

0 - 1h30m

0 - 30m

YES

SuperSteam

Convection

Steam

Microwave

Convection

Temp range Adjustment temp

during cooking

Time

range

2 level

cooking

Preheat temperature is held for 30 minutes.

SEC AX1200 O/M,P20- 08.9.24, 1:35 PM26

MANUAL COOKING

SUPER STEAM CONVECTION

Manual SuperSteam Convection has 3 options: SuperSteam Roast, SuperSteam Broil and SuperSteam Convenience

Foods, and each function has 2 options, With Preheat or Without Preheat. Use SuperSteam Convection for cooking

foods that need to retain moisture and have a crisp brown exterior.

SUPER STEAM ROAST

Use SuperSteam Roast for roasting meat or poultry with

superheated steam. See SuperSteam Convection Roast

Chart in the cookbook.

SuperSteam Roast can be programmed for up to 2

hours 30 minutes. Oven temperature can be set between

200°F and 450°F in 25°F increments.

*Suppose you want to cook Cornish hens at a

temperature of 375°F for 70 minutes with preheating.

SUPER STEAM BROIL

Use SuperSteam Broil for broiling when desiring a moist

interior and brown exterior. See SuperSteam Broil/

Convection Broil Chart in cookbook. SuperSteam Broil

can be programmed for up to 2 hours 30 minutes. Oven

temperature cannot be changed.

* Suppose you want to broil a steak for 15 minutes with

preheating.

PROCEDURE

Turn the Dial to select

SUPER STEAM ROAST

and press Enter.

Press SuperSteam

Convection, turn the

Dial to select MANUAL

and press Enter.

Turn the Dial to select

WITH PREHEAT. Press

Enter.

Turn the Dial to enter

the desired temperature

375°F and press Enter.

Turn the Dial to enter the

desired cooking time 70

minutes.

Press START to preheat. No

food in oven.

When preheat is over, place food on low rack

in baking tray on lower level. Close the door.

Press START.

After cooking, EXTEND will

appear. If you wish to

extend cooking time, turn

the Dial to add time and

press START.

If not, press Stop/Clear.

After the oven has cooled,

remove and empty the

reservoir, wipe oven cavity,

remove and empty the drip

tray.

PROCEDURE

Turn the Dial to select

SUPER STEAM BROIL

and press Enter.

Press SuperSteam

Convection, turn the

Dial to select MANUAL

and press Enter.

Turn the Dial to select

WITH PREHEAT. Press

Enter.

Turn the Dial to enter the

desired cooking time 15

minutes.

Press START to preheat.

No food in oven.

Press START.

When preheat is over, place food on high rack

in baking tray on upper level. Close the door.

After cooking, EXTEND will

appear. If you wish to

extend cooking time, turn

the dial to add time and

press START.

If not, press Stop/Clear.

After the oven has cooled,

remove and empty the

reservoir, wipe oven cavity,

remove and empty the drip

tray.

SEC AX1200 O/M,P20- 08.9.24, 1:35 PM27

1 hour and 10

MANUAL COOKING

SUPER STEAM CONVENIENCE FOODS

Use SuperSteam Convenience Foods for cooking

convenience foods that should be moist on the inside

and brown and crisp on the outside. See the Bake Chart

in cookbook. SuperSteam Convenience Foods can be

programmed for up to 2 hours 30 minutes.

Oven temperature can be set between 200°F and 450°F

in 25°F increments. SuperSteam Convenience Foods

can cook with 2 levels cooking.

* Suppose you want to cook frozen chicken cutlets at

375°F for 10 minutes with preheating.

PROCEDURE

Turn the Dial to select

SUPER STEAM

CONVENIENCE FOODS

and press Enter.

Press SuperSteam

Convection, turn the

Dial to select MANUAL

and press Enter.

Turn the Dial to select

WITH PREHEAT. Press

Enter.

Turn the Dial to enter the

desired temperature

375°F and press Enter.

Turn the Dial to enter

the desired cooking time

10 minutes.

Press START.

When preheat is over, place food on high rack

in baking tray on upper level. Close the door.

After cooking, EXTEND will

appear. If you wish to

extend cooking time, turn

the Dial to add time and

press START.

If not, press Stop/Clear.

After the oven has cooled,

remove and empty the

reservoir, wipe oven cavity,

remove and empty the drip

tray.

Press START to preheat. No

food in oven.

NOTES:

1. If the oven door is not opened after preheating, the

oven will hold the preheat temperature for 30 minutes

and then time of day will be displayed.

2. To program only preheat, press START after step 3.

Preheat will start. When the oven reaches the

programmed temperature, follow the message in the

display.

3. To extend cooking time, see EXTENDING COOKING

TIME AT THE END OF COOKING on page 33.

4. Keep the door closed. If opened during cooking,

steam will escape and a longer cooking time will be

required.

5. The amount of water in the reservoir is sufficient for

one cooking time. Water does not need to be added

during cooking.

6. During and after cooking, condensed water may be

on the door, oven walls and oven floor. Dry any liquid

residue with a soft cloth.

7. After cooking, the display may show "Now cooling".

The oven will automatically cool and you will hear the

sound of the cooling fan. The fan may continue to

operate up to 13 minutes depending on the oven and

parts temperature.

WARNINGS:

1. The oven door, outer cabinet and oven cavity will

become hot. Use pot holders or oven mitts when

adding or removing foods to prevent burns.

2. Do not open the oven with your face close to the

oven. Steam from the oven may cause burns.

SEC AX1200 O/M,P20- 08.9.24, 1:35 PM28

instead of Enter at step 4.

directions

MANUAL COOKING

CONVECTION

Manual Convection has 2 functions, Bake or Roast and Broil, and each function has 2 options, With Preheat or Without Preheat.

Use Convection as you would a conventional oven. There is no need to change traditional cooking times. This mode

does not use steam. Convection can be programmed for up to 2 hours 30 minutes. Oven temperature for Bake or

Roast can be set between 200°F and 450°F in 25°F increments. Broil is a pre-set temperature, so oven temperature

cannot be changed. Bake or Roast can cook with 2-level cooking. It is necessary to select 1 or 2 levels in programming.

BAKE or ROAST

*Suppose you want to bake biscuits using 2 levels with

Bake or Roast at a temperature of 450°F for 10 minutes

with preheating.

WARNINGS:

The oven door, outer cabinet and oven cavity will become hot. Use pot

holders or oven mitts when adding or removing foods to prevent burns.

2. Do not open the oven with your face close to the oven.

Steam from the oven may cause burns.

NOTES:

1. If the oven door is not opened after preheating, the

oven will hold the preheat temperature for 30 minutes

and then time of day will be displayed.

To program only preheat, press START after step 3.

Preheat will start. When the oven reaches the programmed

temperature, follow the message in the display.

To extend cooking times, see EXTENDING COOKING

TIME AT THE END OF COOKING on page 33.

4. Keep the door closed. If opened during cooking, heat

will escape and a longer cooking time will be required.

After cooking, the display may show "Now cooling". The oven

will automatically cool and you will hear the sound of the

cooling fan. The fan may continue to operate up to 13 minutes

depending on the oven and parts temperature.

BROIL

Suppose you want to broil flank steak for 20 minutes with preheating.

After cooking, EXTEND will

appear. If you wish to extend

cooking time, turn the Dial to

add time and press START.

If not, press Stop/Clear.

After the oven has cooled,

remove and empty the

reservoir, wipe oven cavity,

remove and empty the drip tray.

PROCEDURE

Turn the Dial to select

WITH PREHEAT. Press

Enter.

Turn the Dial to select

BAKE OR ROAST and

press Enter.

Turn the Dial to enter the

desired temperature

450°F and press Enter.

Turn the Dial to enter the

desired cooking time 10

minutes.

Press START to preheat.

No food in oven.

When preheat is over, place baking trays on

upper and lower levels. Close the door.

Press Convection, turn

the Dial to select

MANUAL and press

Enter.

Turn the Dial to select 2

LEVELS cooking and

press Enter.

Press START.

PROCEDURE

Turn the Dial to select

WITH PREHEAT. Press

Enter.

Turn the Dial to select

BROIL and press Enter.

Press START to preheat.

No food in oven.

When preheat is over, place food in the oven.

Close the door.

Press START.

Press Convection, turn

the Dial to select

MANUAL and press

Enter.

Turn the Dial to enter the

desired cooking time 20

minutes.

After cooking, EXTEND will

appear. If you wish to extend

cooking time, turn the Dial to

add time and press START.

If not, press Stop/Clear.

After the oven has cooled,

remove and empty the

reservoir, wipe oven cavity,

remove and empty the drip tray.

SEC AX1200 O/M,P20- 08.9.24, 1:36 PM29

instead of Enter

at step 4 for BAKE

or ROAST , or at

step 2 for BROIL.

directions

MANUAL COOKING

STEAM

STEAM has 4 functions: Steam Cook, Steam Reheat,

Steam Keep Warm and Proof.

STEAM COOK

Use Steam Cook to steam foods such as fish, chicken

or vegetables. Steam cooks food gently without

destroying shape, color or aroma. The Steam mode can

be programmed for a maximum of 35 minutes.

* Suppose you want to Steam Cook for 20 minutes.

PROCEDURE

Turn the Dial to select

STEAM COOK and

press Enter.

Press Steam, turn the

Dial to select MANUAL

and press Enter.

Turn the Dial to enter

the desired cooking

time 20 minutes.

Put food in steam basket on

high rack on upper level.

Press START.

After cooking, EXTEND will

appear. If you wish to

extend cooking time, turn

the Dial to add time and

press START.

If not, press Stop/Clear.

After the oven has cooled,

remove and empty the

reservoir, wipe oven cavity,

remove and empty the drip

tray.

STEAM REHEAT

Use Steam Reheat to reheat gently without drying.

Steam Reheat can be programmed for a maximum of 35

minutes.

* Suppose you want to reheat rice for 20 minutes.

PROCEDURE

Turn the Dial to select

STEAM REHEAT and

press Enter.

Press Steam, turn the

Dial to select MANUAL

and press Enter.

Turn the Dial to enter

the desired cooking

time 20 minutes.

Press START.

After cooking, EXTEND will

appear. If you wish to

extend cooking time, turn

the Dial to add time and

press START.

If not, press Stop/Clear.

After the oven has cooled,

remove and empty the

reservoir, wipe oven cavity,

remove and empty the drip

tray.

SEC AX1200 O/M,P20- 08.9.24, 1:36 PM30

MANUAL COOKING

STEAM KEEP WARM

Use Steam Keep Warm to keep food warm without

drying. Steam Keep Warm can be programmed for up to

2 hours 30 minutes.

* Suppose you want to keep food warm for 20 minutes.

PROCEDURE

Turn the Dial to select

STEAM KEEP WARM

and press Enter.

Press Steam, turn the

Dial to select MANUAL

and press Enter.

Turn the Dial to enter the

desired time 20 minutes.

Press START.

After cooking, EXTEND will

appear. If you wish to

extend cooking time, turn

the Dial to add time and

press START.

If not, press Stop/Clear.

After the oven has cooled,

remove and empty the

reservoir, wipe oven cavity,

remove and empty the drip

tray.

PROOF

Use Proof to aid dough rising when making regular or

sweet yeast breads. Proof can be programmed for up to

2 hours 30 minutes.

* Suppose you want to proof bread dough for 20 minutes.

PROCEDURE

Turn the Dial to select

PROOF and press

Enter.

Press Steam, turn the

Dial to select MANUAL

and press Enter.

Turn the Dial to enter

the desired proofing

time 20 minutes.

Press START.

After cooking, EXTEND will

appear. If you wish to

extend cooking time, turn

the Dial to add time and

press START.

If not, press Stop/Clear.

After the oven has cooled,

remove and empty the

reservoir, wipe oven cavity,

remove and empty the drip

tray.

WARNINGS:

1. The oven door, outer cabinet and oven cavity will become hot. Use pot holders or oven mitts when adding or

removing foods to prevent burns.

2. Do not open the oven with your face close to the oven. Steam from the oven may cause burns.

NOTES:

1. To extend steaming times, see EXTENDING COOKING TIME AT THE END OF COOKING on page 33.

2. Keep the door closed. If opened during cooking, steam will escape and a longer cooking time will be required.

3. The amount of water in the reservoir is sufficient for one cooking time. Water does not need to be added during

cooking.

4. During and after cooking, condensed water may be on the door, oven walls and oven floor. Dry any liquid residue

with a soft cloth.

5. After cooking, the display may show "Now cooling". The oven will automatically cool and you will hear the sound

of the cooling fan. The fan may continue to operate up to 13 minutes depending on the oven and parts temperature.

SEC AX1200 O/M,P20- 08.9.24, 1:36 PM31

MANUAL COOKING

MICROWAVE

Manual Microwave has 2 functions: microwave cooking

and keep warm.

NOTES:

1. After cooking, the display may show "Now cooling".

The oven will automatically cool and you will hear the

sound of the cooling fan. The fan may continue to

operate up to 13 minutes depending on the oven and

parts temperature.

2. Do not use the baking tray and metal racks.

MICROWAVE TIME COOKING

*Suppose you want to cook for 5 minutes at 100%

power level.

PROCEDURE

Turn the Dial to enter the

desired cooking time 5

minutes and press

START.

Press Microwave, turn

the Dial to select

MANUAL and press

Enter.

TO SET POWER LEVEL

There are eleven preset power levels.

Using lower power levels increases the cooking time

which is recommended for foods such as cheese, milk

and long slow cooking of meats. Consult a microwave

cookbook or recipes for specific recommendations.

MANUAL DEFROST

If the food that you wish to defrost is not listed on the

DEFROST CHART or is above or below the limits in

the "Amount" column on the DEFROST CHART on page

25, you need to defrost manually.

You can defrost any frozen food, either raw or previously

cooked, by using Power Level 30%.

Follow the exact 4-step procedure found under

MICROWAVE TIME COOKING.

Estimate defrosting time and select 30% when you

select the power level.

For either raw or previously cooked frozen food the rule

of thumb is approximately 5 minutes per pound. For

example, defrost 5 minutes for 1 pound of frozen

spaghetti sauce. Always stop the oven periodically to

remove or separate the portions that are defrosted. If

food is not defrosted at the end of the estimated

defrosting time, program the oven in 1 minute

increments on Power Level 30% until totally defrosted.

When using plastic containers from the freezer, defrost

only long enough to remove from the plastic in order to

place in a microwave-safe dish.

KEEP WARM

Use Keep Warm to keep food at serving temperature.

*Suppose you want to keep a cup of soup warm for 15

minutes.

PROCEDURE

Turn the Dial to enter

the desired keep warm

time 15 minutes and

press START.

Press Microwave, turn

the Dial to select KEEP

WARM and press

Enter.

Turn the Dial to enter

defrosting time 5 minutes.

Turn the Dial to select

power level 30% and

press the Enter.

Press START.

POWER LEVEL CHART

APPROXIMATE

PERCENTAGE OF POWER

COMMON WORDS FOR

POWER LEVELS

100%

90%

80%

70%

60%

50%

40%

30%

20%

10%

High

Medium High

Medium

Med Low / Defrost

Low

*Suppose you want to defrost for 5 minutes at 30%

power level.

PROCEDURE

Press

Microwave, turn

the Dial to select

MANUAL and

press Enter.

SEC AX1200 O/M,P20- 08.9.24, 1:36 PM32

OTHER CONVENIENT FEATURES

AUTOMATIC COOKING

TIME ADJUSTMENT

(MORE OR LESS TIME ADJUSTMENT)

You can adjust cooking results as you like.

Should you discover that you like any automatic settings

slightly more done, select MORE in the cooking time

page before START.

The display will show MORE.

Should you discover that you like any Automatic

settings slightly less done, select LESS in the cooking

time page before START.

The display will show LESS .

TEMPERATURE

ADJUSTMENT

To change the oven temperature during cooking in

Manual Operations with SuperSteam Convection

Roast, SuperSteam Convection Convenience Foods

and Convection Bake or Roast, simply turn the Dial to

increase or decrease in 25°F increments and then press

Enter.

If Enter is not pressed within 5 seconds, the

temperature will revert to the initial temperature that

you selected.

EXTENDING COOKING TIME

AT THE END OF COOKING

Cooking results may vary depending on room

temperature, initial food temperature and other factors.

You can adjust cooking results by adding more cooking

time at the end. When cooking is finished, the display

will show "EXTEND". It is only possible to add extra

time during the 5 minutes when "EXTEND" is in the

display. The time can be extended up to 10-30 minutes

depending on cooking mode. Turn the Dial for the

desired time and then press START. The same cooking

mode will be continued. Carefully check the cooking

process.

NOTES:

1. If "Fill water reservoir" is displayed when START is

pressed, fill the reservoir to the MAX mark. Position

and push firmly into place.

2. Extend mode is canceled when Stop/Clear is

pressed.

3. EXTEND is available depending cooking mode. See

below. The Extending Cooking Time function can be

repeated until the food is cooked as you desire.

END OF COOKING

REMINDER

At end of cooking, the oven will signal and repeat after

2 and 4 minutes unless door is opened or Stop/Clear

is pressed.

FOOD REMOVAL SOUND

After 2 and 4 minutes from cooking completion, food

removal sound will sound until door open or Stop/Clear

is touched.

Auto

Manual

Auto

Manual

Auto: expect Defrost

Defrost

Manual

Keep Warm

0 - 30 min

0 - 10 min

SuperSteam

Convection

Steam

Microwave

Convection

Exend time at end

SEC AX1200 O/M,P20- 08.9.24, 1:36 PM33

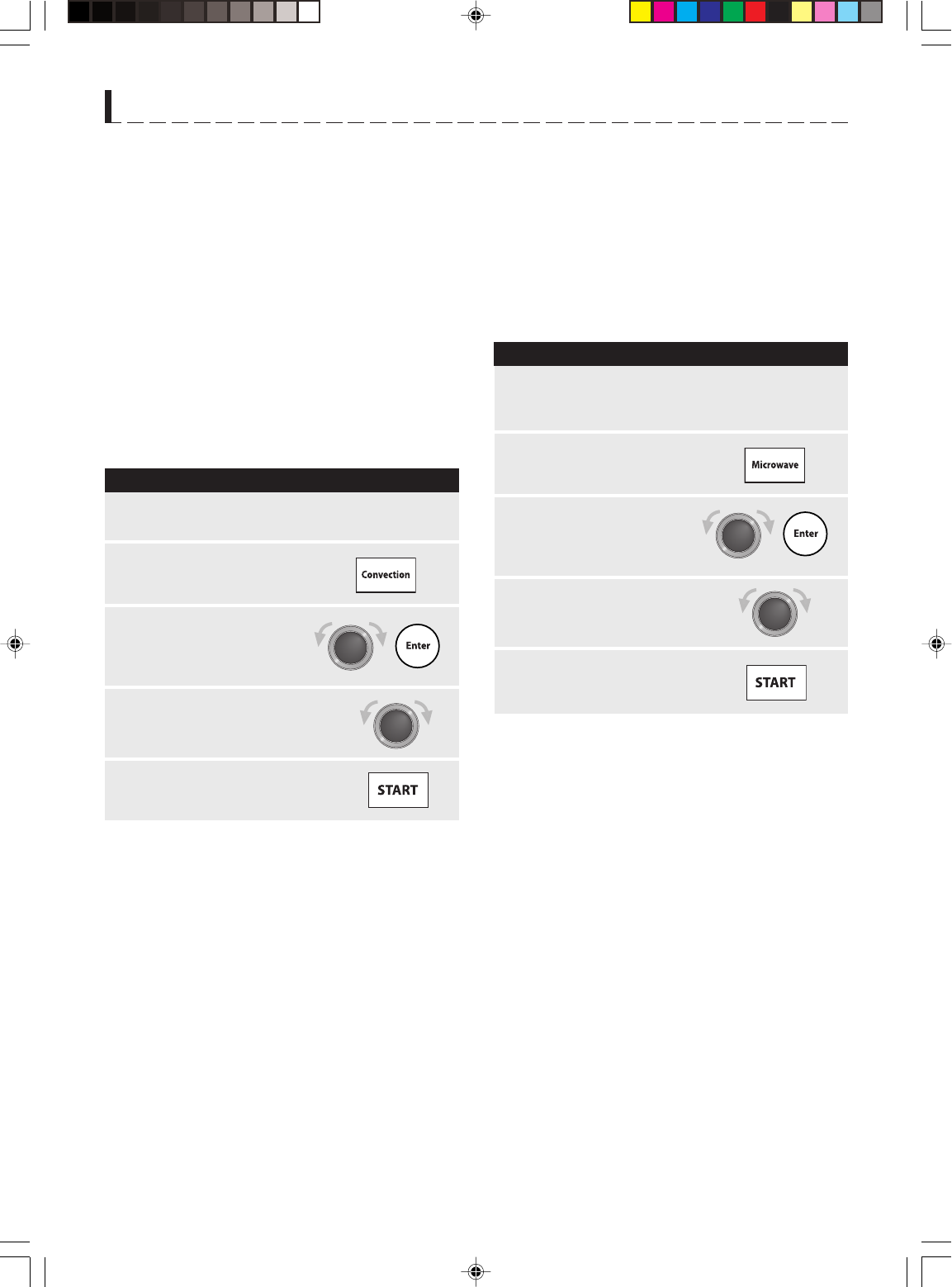

MULTIPLE SEQUENCE COOKING

OTHER CONVENIENT FEATURES

SUPER STEAM CONVECTION AND CONVECTION

There are 3 patterns in Super Steam Convection and

Convection which can be programmed into Multiple

Sequence Cooking.

1Preheat + Bake or Roast (Convection) + Bake or

Roast (Convection)

2Preheat + Roast (Super Steam Convection) + Bake

or Roast (Convection)

3Preheat + Convenience Foods (Super Steam

Convection) + Bake or Roast (Convection)

•Preheat can be omitted.

*Suppose you want to cook in Sequence Cooking with

Preheating.

1st stage is at a temperature of 375°F for 50 minutes.

2nd stage is at a temperature of 400°F for 10 minutes.

PROCEDURE

Press Convection to

program the second stage.

For 1st stage, follow the steps 1 to 5 in single

SuperSteam Convection. See page 17.

Turn the Dial to enter

the desired temperature

400°F and press Enter.

Turn the Dial to enter the

desired cooking time 10

minutes.

Press START .

MICROWAVE

Your oven can be programmed for up to 4 automatic

cooking sequences, switching from one power level

setting to another automatically. Sometimes cooking

directions tell you to start on one power level and then

change to a different power level.

•Suppose you want to cook for 5 minutes at 100% and

then continue to cook for 30 minutes at 50%.

PROCEDURE

Press Microwave to

program the second stage.

For 1st stage, follow step 1 to 3 in manual

microwave cooking under To Set Power

Level, page 32.

Turn the Dial to enter

cooking time 30 minutes

and press Enter to

proceed.

Turn the Dial to select

power level 30%.

Press START.

SEC AX1200 O/M,P20- 08.9.24, 1:36 PM34

the steps

堀川様

ページ32を引用するため30%に変更しました。

SOUND

You can mute the oven.

NOTES:

1. To cancel the mute setting, select SOUND ON at

Step 2.

2. The Sound setting is kept until the oven power is off.

INFO

Back/Info provides 9 features and step-by-step

instructions for special functions.

These features can be selected by pressing Info in time

of day or home page and then turning the Dial and

pressing Enter.

DRAIN WATER

The remaining water inside the steam generator can

be drained by using the DRAIN WATER function.

See page 14.

DESCALE

See page 14.

STEAM CLEAN

See page 36.

CLOCK

See page 16.

CONTRAST

Contrast can adjust display darkness or brightness.

OTHER CONVENIENT FEATURES

SETTINGS

CLOCK

LCD CONTRAST

SOUND ON/OFF

DEMO MODE

CHILD LOCK

SLEEP MODE

MAINTENANCE

DRAIN WATER

DESCALE

STEAM CLEAN

DEMONSTRATION MODE

Cooking operations and special features can be

demonstrated with no power in the oven.

NOTE:

To cancel Demonstration Mode, select DEMO OFF at

step 2 or unplug the oven from the electrical outlet and

re-plug.

PROCEDURE

Turn the Dial to select DEMO ON and press

Enter.

Press Back/Info, turn the Dial to select DEMO

MODE and press Enter.

CHILD LOCK

Child Lock prevents unwanted oven operation such as

by small children. The oven can be set so that the control

panel is deactivated or locked. LOCK ON is shown,

when any pads (except Info) are pressed or dial is

turned.

NOTE:

To cancel Child Lock, press Enter.

PROCEDURE

Press Enter.

Press Back/Info, turn the Dial to select CHILD

LOCK and press Enter.

PROCEDURE

Turn the Dial to adjust contrast and press Enter

to keep the adjustment.

The contrast setting is kept until the oven power

is off.

Press Back/Info, turn the Dial to select

CONTRAST and press Enter.

PROCEDURE

Turn the Dial to select SOUND OFF and press

Enter.

Press Back/Info, turn the Dial to select SOUND

and press Enter.

SLEEP MODE

Sleep Mode means that the display backlight will be

automatically turned off if the oven is not used for 15

minutes.

NOTES:

1. To cancel Sleep Mode, select SLEEP MODE OFF at

step 2.

2. You can press any pad, turn the Dial or open and

close the door when the display backlight is off in

Sleep Mode ON.

PROCEDURE

Turn the Dial to select SLEEP MODE ON and

press Enter.

Press Back/Info, turn the Dial to select SLEEP

MODE and press Enter.

SEC AX1200 O/M,P20- 08.9.24, 1:36 PM35

When the oven power is off, the setting returns to OFF.

CLEANING AND CARE

CLEAN THE OVEN REGULARLY. Spatters and

residue remaining from prolonged use, especially at

high temperatures, are hard to clean and may interfere

with good oven operation as well as decrease the

useful life of the oven.

IMPORTANT CAUTIONS:

•DISCONNECT THE POWER CORD IF POSSIBLE.

•ALLOW THE OVEN TO COOL BEFORE

CLEANING.

•DO NOT USE OVEN CLEANERS OR HARSH

SCOURING PADS ON ANY PART OF THE OVEN.

•DO NOT USE A STEAM CLEANER.

Oven Cleaning - Exterior

Prepare a solution of mild soap and water, immerse a

soft cloth or sponge into the solution and wring dry.

Wipe exterior. Do not use any type of harsh abrasive

cleaner. Rinse cloth or sponge in warm water and wring

dry. Wipe exterior again and polish dry.

Door

To remove all traces of dirt, regularly clean both sides

of the door with a soft damp cloth. Do not use harsh,

abrasive cleaners or sharp metal scrapers to clean the

oven door glass since they can scratch the surface,

which may result in shattering of the glass. Polish with

another soft cloth.

Control Panel

Care should be taken in cleaning the control panel. If

the control panel becomes soiled, open the oven door

before cleaning. Wipe the panel with a cloth dampened

slightly with water only. Dry with a soft cloth. Do not

scrub or use any sort of chemical cleaners. Close the

door and press Stop/Clear.

Oven Cleaning - Interior

STEAM CLEAN

The Steam Clean function helps to loosen any grease,

oil or food residue. The steam will make the oven easy

to clean; however, it is not a self-cleaning function. It will

take approximately 20 minutes for the cleaning cycle.

PREPARATION

1. Make sure that the reservoir is filled with fresh cold

tap water and is installed. (See page 13.)

2. Make sure that the empty drip tray is installed. (See

page 13.)

Allow the oven to cool to prevent the burns. Then open

the door and remove any residue carefully with soft,

damp cloth. Finally, remove and empty the reservoir and

drip tray. Replace both.

To clean the interior surfaces, wipe with a soft cloth and

warm water.

1. After every use while the oven is still warm, wipe

spatters or spills with a soft damp cloth or sponge.

DO NOT USE ABRASIVE OR HARSH CLEANERS

OR SCOURING PADS. For heavier soil, use mild

soap; rinse thoroughly with hot water. Carry out Steam

Clean function to clean thoroughly.

2. The cleaning cloth or sponge must be wrung dry to

prevent moisture or residue from entering the oven

vents.

3. Do not use spray type cleaners on the oven interior.

4. Any remaining food or fat could cause smoke or an

unpleasant smell. It is a good idea to heat the oven

with SuperSteam Convection Broil in manual

operation for 20 minutes without preheat and food

(See CLEAN THE OVEN BEFORE FIRST USE on

page 16) to remove any fat or residue from the interior

ducts and heaters and unpleasant smell.

PROCEDURE

Press Back/Info, turn the

Dial to select STEAM

CLEAN and press

START.

SEC AX1200 O/M,P36- 08.9.24, 1:56 PM36

See CLEAN THE OVEN BEFORE FIRST

USE on page 16.

Wipe the window on both sides with a damp cloth to

remove any spills or spatters. Metal parts will be easier

to maintain if wiped frequently with a soft damp cloth.

Avoid the use of spray and other harsh cleaners as they

may stain, streak or dull the door surface.

When cleaning surfaces of door and oven that come

together on closing the door, use only mild, non abrasive

soaps, or detergents applied with a sponge or soft cloth.

CLEANING AND CARE

Door Gasket

The door gasket is essential for a good seal. Always

keep the gasket clean to prevent any damage. If water

condenses inside the door gasket, wipe dry with a soft

cloth. Polish with another soft cloth. Do not use a

chemical or abrasive cleaner on these surfaces. Care

should be taken not to rub, damage, pull or move the

gasket. Before cooking, always check that door gasket

is lying smooth and flat. If not, steam will leak from the

door. Do not use SuperSteam Oven if it has a damaged

door gasket as steam would not be contained in the

oven. Consult a Sharp Authorized Service.

Baking Tray / High Rack / Low Rack / Steam

Basket

Wash baking tray, high rack, low rack, baking tray and

steam basket after cooking with a mild soap or detergent

solution, rinsing and polishing dry. Do not use harsh

cleaners, sharp metal scrapers or stiff brushes to

prevent damage to the easy clean surface. All the

accessories can be washed in the dishwasher. Place

on the top rack.

Reservoir and Reservoir Lid

After cooking, wash in a mild soap or detergent solution

with a soft damp cloth or sponge, rinse and polish dry.

Do not wash in the dishwasher. Note the filter in the

rear bottom of the reservoir. Use a very soft brush to

remove any build-up in the filter. The filter cannot be

removed nor replaced so special care should be taken

not to tear the mesh of the filter when cleaning it. Do

not use harsh cleaners, sharp metal scrapers or stiff

brushes on the reservoir, reservoir lid and reservoir filter.

Do not use a torn filter. Order replacement. See inside

front cover.

Drip Tray and Drip Tray Lid

Empty drip tray after cooking, wash in a mild soap or

detergent solution with a soft damp cloth or sponge,

rinse, polish dry and replace below the oven front. Do

not wash in the dishwasher.

Descaling within the Oven’s Steam Parts

During steam production, scale may form in the steam

generator. To remove scale, carry out descale function

when DESCALE IS NECESSARY is shown in the

display. See page 14 for complete instructions.

SEC AX1200 O/M,P36- 08.9.24, 1:56 PM37

them

TROUBLESHOOTING CHART

Due to technical error, call service for your nearest Sharp

Authorized Servicer.

The sensor does not detect vapor properly in microwave

sensor mode. Press Stop/Clear and finish cooking using

manual time.

The oven is too hot to use Microwave Defrost or Steam Proof.

Remove food from oven and allow to cool until the message

clears.

The oven may not operate properly.

Operate the oven with Convection Broil without food and

preheat for XX minutes.

See page 29.

After cooking, the oven and the parts will be hot.

Now cooling is shown in the display until the oven cavity

has cooled. The cooling fan may remain on up to 13 minutes.

Now cooling will disappear when the oven has cooled.

If you wish to use the warm oven, simply press Stop/Clear.

Remove and replace the drip tray correctly.

See page 13.

In case the drip tray is not installed correctly, Replace drip

tray will be shown in the display.

Empty drip tray and replace will be shown in the display

when water remains in the drip tray. You must empty the drip

tray and replace it before SuperSteam Convection or Steam

Cooking will start. See page 13.

Follow step-by-step instructions for decaling.

See page 14.

Remove reservoir and fill with water to the MAX mark.

Replace and push firmly into place.

Press START.

The oven cabinet and oven cavity are very hot.

Pay extra attention not to burn yourself.

If EE is displayed or you think the oven is not working properly, check the chart below before consulting a Sharp

Authorized Servicer. This will help to prevent unnecessary service calls.

TROUBLESHOOTING CHART

ERROR MESSAGE / INFORMATION MESSAGE

ERROR

MESSAGE

SENSOR

ERROR

INFORMATION

MESSAGE

Please refer to instructions in

operation manual.

Finish cooking by manual

time.

Press Stop/Clear.

Wait.

Oven is too warm to use.

Water is frozen.

Please refer to instructions in

operation manual.

Now cooling.

Replace drip tray

Remove and empty the drip

tray.

Replace.

Descaling is necessary.

Fill water reservoir.

Hot

MESSAGE ON DISPLAY ACTION

SEC AX1200 O/M,P36- 08.9.24, 1:56 PM38

TROUBLESHOOTING CHART

The following situations are normal and are not signs that the oven is malfunctioning.

*Check that power plug is connected to a suitable wall

outlet. See page 4.

*Check that fuse or circuit breaker is functioning properly.

If not, correct.

*Disconnect the oven from the power source, wait one

minute and then plug into the wall outlet. If the problem

exists, consult a Sharp Authorized Servicer.

*Open the door and close. Is the oven light off? Press

START again.

*If the display says, "Wait until oven is cool.", be sure to

wait until it disappears and then press START.

The cooking program will be cancelled. Continue to cook

with manual operation. Check food carefully as it cooks.

Normal operation to prevent bread dough from drying on

the surface.

Oven light lights for maximum 5 minutes when door is

opened.

Sleep Mode may be ON. Press any pad, turn the Dial or

open/close the door to activate display backlight. See page

35 to cancel Sleep Mode.

Control panel /

power supply

The display is black / blank.

The display is fine but START

will not function when pressed.

Electrical power supply is

interrupted during cooking.

Oven light is off during PROOF.

Oven light is off when door is

opened.

The display backlight is off.

QUESTION / SITUATION ANSWER

SEC AX1200 O/M,P36- 08.9.24, 1:56 PM39

TROUBLESHOOTING CHART

The following situations are normal and are not signs that the oven is malfunctioning.

Steam has condensed inside the oven. Wipe dry with a soft

cloth.

It is normal for used steam to come from the ventilation

cover on the top of the oven.

This operation is normal.

Steam has condensed on the oven floor. Wipe dry with a

soft cloth.

Check the door gasket to make sure it is lying smoothly

and flat.

When microwaving, you may hear the magnetron cycling

on and off depending on the power level.

*The cooling fan will operate until the oven is cool.

*The fan may continue to operate up to 13 minutes

depending on the oven and parts temperatures.

High temperatures may cause expansion of the oven's

components. This is normal.

Sound is turned OFF. See page 35 to cancel sound off.

See page 16 for step-by-step instructions for cleaning the

oven before the first use.

See CLEAN THE OVEN BEFORE FIRST USE on page 16

for step-by-step instructions for removing the aroma.

Check Demonstration Mode on page 35 and cancel.

Steam

Noise / Sound

Smoke / Aroma

Others

Water is found inside the oven

when the door is opened.

Steam comes out of the air

ventilation opening at the top of

the oven.

Condensed water can be seen

coming into the oven cavity.

Steam comes from the door

during cooking.

Noise during microwave

cooking.

Noise after cooking.

Noise when cooking with high

temperature.

No sound when the pads are

pressed.

When using the oven for the first

time, it may smoke or smell.

The oven cavity smells after

cooking.

Time appearing in the display is

counting down very rapidly.

ANSWER

QUESTION / SITUATION

SEC AX1200 O/M,P36- 08.9.24, 1:56 PM40

out of the air ventilation openings at

SERVICE CALL CHECK

Please check the following before calling for service:

1. Place one cup of water in a glass measuring cup in the oven and close the door securely.

Operate the oven for two minutes on Microwave, HIGH 100% power.

A. Does the oven light come on? YES _______ NO _______

B. Does the cooling fan work? YES _______ NO _______

(Put your hand over the air vent opening at the top.)

C. Is the water in the oven hot? YES _______ NO _______

2. Remove water from the oven and operate the oven for 5 minutes on Manual Convection, Bake or Roast 450°F.

A. Does the Convection icon

CONV

appear in the display? YES _______ NO _______

B. After the oven steps, is inside of the oven hot? YES _______ NO _______

3. Fill the reservoir with water and replace.

Operate the oven for 3 minutes on Manual Steam.

A. After the oven steps, is the inside of the oven filled with steam?

YES _______ NO _______

If “NO” is the answer to any of the above questions, please check electrical outlet, fuse and/or circuit

breaker. If they are functioning properly, CONTACT YOUR NEAREST SHARP AUTHORIZED SERVICER. A

microwave oven should never be serviced by a “do-it-yourself” repair person.

AC Line Voltage: Single phase 120V, 60Hz, AC only

AC Power Required: 1.04 kW 9.0A (Microwave)

1.50 kW 12.5A (Convection)

Output Power:

Microwave 700W*(IEC Test Procedure)

Convection Heater 1450W

Frequency: 2450 MHz

Outside Dimensions (WxHxD): 22 3/8”(W) x 17 1/4”(H) x 18 3/8”(D)

568 mm x 438 mm x 468 mm

Cavity Dimensions (WxHxD)**:14 1/8”(W) x 10 1/8”(H) x 13 3/8”(D)

359 mm x 256 mm x 339 mm

Oven Capacity **:1.1 cft

Weight: Approx. 60 lbs.

*The International Electrotechnical Commission’s standardized method for measuring output wattage. This test

method is widely recognized.

** Internal capacity is calculated by measuring maximum width, depth and height. Actual capacity for holding food

is less.

SPECIFICATIONS

SHARP ELECTRONICS CORPORATION

Sharp Plaza, Mahwah, NJ 07495-1163

TINSEB183WRRZ-D81

SEC AX1200 O/M,P36- 08.9.25, 8:48 AM41
