MICROWAVE OVEN OPERATION MANUAL
MODEL
R-120PK
SHARP ELECTRONICS CORPORATION
Sharp Plaza, Mahwah, NJ 07495-1163
TINSKA028WRRZ-D91
Printed in Thailand
•For Customer Assistance .................. 2
•
Precautions to Avoid Possible Exposure to
Excessive Microwave Energy...................
2
•Consumer Limited Warranty .............. 3
•Product lnformation Card................... 3
•Important Safety Instructions ............. 4
•
Unpacking and Installation Instructions ..
5
•Grounding Instructions ...................... 5
•Information You Need to Know.......... 6
•Part Names ........................................ 9
•Before Operating ............................. 11
READ ALL INSTRUCTIONS CAREFULLY BEFORE USING THE OVEN.
•Manual Operation ............................ 11
•Special Features.............................. 12
•Other Convenient Features ............. 14
•Cleaning and Care ........................... 14
• Specifications .................................. 15
•Cookbook Information ..................... 15
•Cooking Reference .......................... 16
•Cookbook Order Form ..................... 16
•Conversion Chart............................. 17
•Service Call Check .......................... 17
•Auto-Touch Guide ........................... 18
CONTENTS
SEC R120PK COVER EN 09.4.21, 2:26 PM1
![](/img.php?id=1102454&img=bg2.png)
2
To aid in reporting this microwave oven in case of loss or theft, please record below the model number and serial
number located on the unit. We also suggest you record all the information listed and retain for future reference.
FOR CUSTOMER ASSISTANCE
Please provide the following information when you write or call: model number, serial number, date of
purchase, your complete mailing address (including zip code), your daytime telephone number (including
area code) and description of the problem.
TO PHONE:
DIAL 1-800- BE-SHARP ( 237-4277 ) for :
SERVICE (for your nearest Sharp Authorized Servicer)
PARTS (for your authorized parts distributor)
ADDITIONAL CUSTOMER INFORMATION
ACCESSORIES and COOKBOOK
TO WRITE:
Sharp Electronics Corporation
Customer Assistance Center
1300 Naperville Drive
Romeoville, IL 60446-1091
TO ACCESS INTERNET:
www.sharpusa.com
MODEL NUMBER ________________________ SERIAL NUMBER ______________
DATE OF PURCHASE ______________________
DEALER ____________________________ TELEPHONE ________________
SERVICER ___________________________ TELEPHONE ________________
PRECAUTIONS TO AVOID POSSIBLE
EXPOSURE TO EXCESSIVE
MICROWAVE ENERGY
(a) Do not attempt to operate this oven with the door open since open-door operation can
result in harmful exposure to microwave energy. It is important not to defeat or tamper
with the safety interlocks.
(b) Do not place any object between the oven front face and the door or allow soil or
cleaner residue to accumulate on sealing surfaces.
(c) Do not operate the oven if it is damaged. It is particularly important that the oven door
close properly and that there is no damage to the: (1) door (bent), (2) hinges and
latches (broken or loosened), (3) door seals and sealing surfaces.
(d) The oven should not be adjusted or repaired by anyone except properly qualified service
personnel.
SEC R120PK P02-08 EN 09.4.8, 5:53 PM2
![](/img.php?id=1102454&img=bg3.png)
3
CONSUMER LIMITED WARRANTY
SHARP ELECTRONICS CORPORATION warrants to the first consumer purchaser that this Sharp brand
product (the “Product”), when shipped in its original container, will be free from defective workmanship and
materials, and agrees that it will, at its option, either repair the defect or replace the defective Product or part
thereof with a new or remanufactured equivalent at no charge to the purchaser for parts or labor for the
period(s) set forth below.
This warranty does not apply to any appearance items of the Product nor to the additional excluded item(s)
set forth below nor to any Product the exterior of which has been damaged or defaced, which has been
subjected to improper voltage or other misuse, abnormal service or handling, or which has been altered or
modified in design or construction.
In order to enforce the rights under this limited warranty, the purchaser should follow the steps set forth
below and provide proof of purchase to the servicer.
The limited warranty described herein is in addition to whatever implied warranties may be granted
to purchasers by law. ALL IMPLIED WARRANTIES INCLUDING THE WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR USE ARE LIMITED TO THE PERIOD(S) FROM THE DATE
OF PURCHASE SET FORTH BELOW. Some states do not allow limitations on how long an implied
warranty lasts, so the above limitation may not apply to you.
Neither the sales personnel of the seller nor any other person is authorized to make any warranties other
than those described herein, or to extend the duration of any warranties beyond the time period described
herein on behalf of Sharp.
The warranties described herein shall be the sole and exclusive warranties granted by Sharp and shall
be the sole and exclusive remedy available to the purchaser. Correction of defects, in the manner and for
the period of time described herein, shall constitute complete fulfillment of all liabilities and responsibilities
of Sharp to the purchaser with respect to the Product, and shall constitute full satisfaction of all claims,
whether based on contract, negligence, strict liability or otherwise. In no event shall Sharp be liable, or in any
way responsible, for any damages or defects in the Product which were caused by repairs or attempted
repairs performed by anyone other than an authorized servicer. Nor shall Sharp be liable or in any way
responsible for any incidental or consequential economic or property damage. Some states do not allow the
exclusion of incidental or consequential damages, so the above exclusion may not apply to you.
THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS
WHICH VARY FROM STATE TO STATE.
Your Product Model Number
& Description:
Warranty Period for this Product:
Additional Item(s) Excluded from
Warranty Coverage (if any):
Where to Obtain Service:
What to do to Obtain Service:
R-120PK, Home Use Carousel Microwave Oven. (Be sure to have this
information available when you need service for your Product.)
One (1) year parts and labor. The warranty period continues for an
additional four (4) years, for a total of five (5) years, with respect to the
magnetron tube in the Product for parts only; labor and service are not
provided free of charge for this additional period.
Non-functional accessories, turntable and light bulb.
From a Sharp Authorized Servicer located In the United States. To find
the location of the nearest Sharp Authorized Servicer, call Sharp toll
free at 1-800-BE-SHARP (1-800-237-4277).
Ship prepaid or carry in your Product to a Sharp Authorized Servicer.
Be sure to have Proof of Purchase available. If you ship the Product,
be sure it is insured and packaged securely.
PRODUCT INFORMATION CARD
The product information card which is on the inside of the microwave oven carton should be completed within
ten days of purchase and returned. We will keep it on file and help you access the information in case of
loss, damage or theft. This will also enable us to contact you in the unlikely event that any adjustments or
modifications are ever required for your oven.
TO OBTAIN SUPPLY, ACCESSORY OR PRODUCT INFORMATION, CALL
1-800-BE-SHARP
OR VISIT www.sharpusa.com
.
Save the proof of purchase as it is needed should your oven ever require warranty service.
SEC R120PK P02-08 EN 09.4.8, 5:53 PM3
![](/img.php?id=1102454&img=bg4.png)
4
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
When using electrical appliances basic safety precautions should be followed, including the following:
WARNING - To reduce the risk of burns, electric shock, fire, injury to persons or exposure to
excessive microwave energy:
1. Read all instructions before using the
appliance.
2. Read and follow the specific “PRECAU-
TIONS TO AVOID POSSIBLE EXPO-
SURE TO EXCESSIVE MICROWAVE
ENERGY” on page 2.
3. This appliance must be grounded. Connect
only to properly grounded outlet. See
“GROUNDING INSTRUCTIONS” on
page 5.
4. Install or locate this appliance only in ac-
cordance with the provided installation
instructions.
5. Some products such as whole eggs and
sealed containers — for example, closed
glass jars — are able to explode and should
not be heated in this oven.
6. Use this appliance only for its intended use
as described in this manual. Do not use
corrosive chemicals or vapors in this appli-
ance. This type of oven is specifically
designed to heat, cook or dry food. It is not
designed for industrial or laboratory use.
7. As with any appliance, close supervision is
necessary when used by children.
8. Do not operate this appliance if it has a
damaged cord or plug, if it is not working
properly or if it has been damaged or dropped.
9. This appliance should be serviced only by
qualified service personnel. Contact nearest
Sharp Authorized Servicer for examination,
repair or adjustment.
10. Do not cover or block any openings on the
appliance.
11. Do not store or use this appliance outdoors.
Do not use this product near water—for
example, near a kitchen sink, in a wet base-
ment or near a swimming pool, or similar lo-
cations.
12. Do not immerse cord or plug in water.
13. Keep cord away from heated surfaces.
14. Do not let cord hang over edge of table or
counter.
15. See door surface cleaning instructions on
page 14.
16. To reduce the risk of fire in the oven cavity:
a. Do not overcook food. Carefully attend
to appliance when paper, plastic or
other combustible materials are placed
inside the oven to facilitate cooking.
b. Remove wire twist-ties from paper or
plastic bags before placing bag in oven.
c. If materials inside the oven ignite,
keep oven door closed, turn oven off
and disconnect the power cord or
shut off power at the fuse or circuit
breaker panel.
d. Do not use the cavity for storage pur-
poses. Do not leave paper products,
cooking utensils or food in the cavity
when not in use.
17. Liquids, such as water, coffee or tea are able
to be overheated beyond the boiling point
without appearing to be boiling. Visible bub-
bling or boiling when the container is removed
from the microwave oven is not always
present. THIS COULD RESULT IN VERY
HOT LIQUIDS SUDDENLY BOILING OVER
WHEN A SPOON OR OTHER UTENSIL IS
INSERTED INTO THE LIQUID. To reduce the
risk of injury to persons:
a. Do not overheat the liquid.
b. Stir the liquid both before and halfway
through heating it.
c. Do not use straight-sided containers
with narrow necks. Use a wide-mouthed
container.
d. After heating, allow the container to
stand in the microwave oven at least
for 20 seconds before removing the
container.
e. Use extreme care when inserting a
spoon or other utensil into the container.
18. If the oven light fails, consult a SHARP AU-
THORIZED SERVICER.
SEC R120PK P02-08 EN 09.4.21, 2:56 PM4
![](/img.php?id=1102454&img=bg5.png)
5

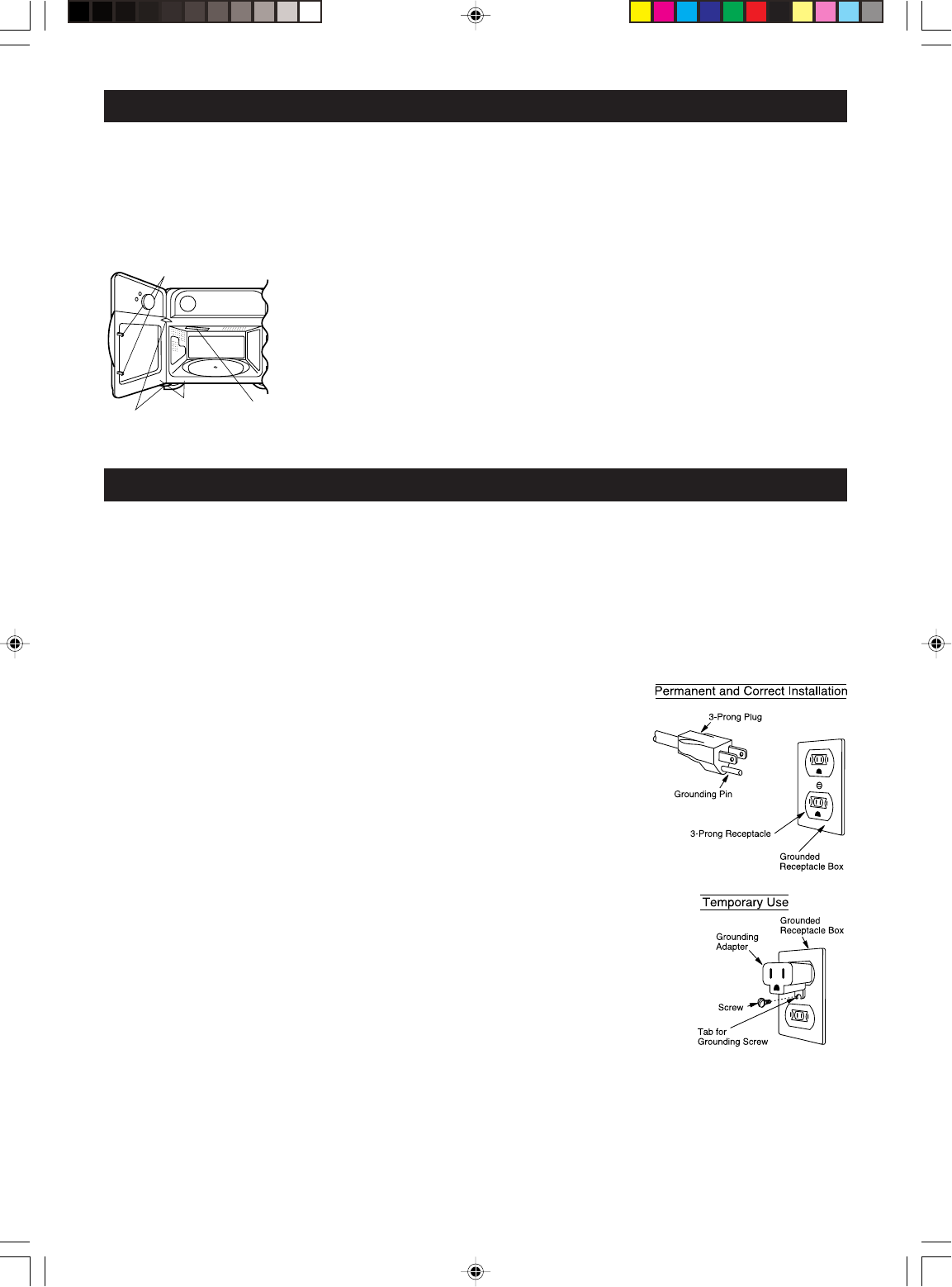

Safety door latches
Hinges
Door seals and
sealing surfaces Waveguide
cover
Unpacking and Examining Your Oven
1. Remove all packing materials from inside the
oven cavity; however, DO NOT REMOVE THE
WAVEGUIDE COVER, which is located on the
top cavity wall. Read enclosures and SAVE the
Operation Manual.
2. Remove the feature
sticker, if there is one,
from the outside of the
door.
Check the oven for any
damage, such as mis-
aligned or bent door,
damaged door seals and
sealing surfaces, broken
or loose door hinges and
latches and dents inside the cavity or on the door.
If there is any damage, do not operate the oven
and contact your dealer or SHARP AUTHORIZED
SERVICER.
Choosing a Location for Your Oven
You will use the oven frequently so plan its loca-
tion for ease of use. It's wise, if possible, to have
counter space on at least one side of the oven.
Allow at least 2 inches (50 mm) on the sides, top
and at the rear of the oven for air circulation. Do
not place or install the oven in any area where
heat and steam are generated; for example, next
to or above a conventional gas or electric range
or above a conventional wall oven. Heat and
steam may damage the electronics or the me-
chanical parts of the oven.
This appliance must be grounded. This oven is equipped with a cord having a grounding wire with a
grounding plug. It must be plugged into a wall receptacle that is properly installed and grounded in
accordance with the National Electrical Code and local codes and ordinances. In the event of an electri-
cal short circuit, grounding reduces risk of electric shock by providing an escape wire for the electric
current.
WARNING – Improper use of the grounding plug can result in a risk of electric shock.
Electrical Requirements
The electrical requirements are a 120 volt 60 Hz, AC only, 15 amp. or more
protected electrical supply. It is recommended that a separate circuit serv-
ing only this appliance be provided.
The oven is equipped with a 3-prong grounding plug. It must be plugged
into a wall receptacle that is properly installed and grounded. Should you
only have a 2-prong outlet, have a qualified electrician install a correct wall
receptacle.
A 3-prong adapter may be purchased and used temporarily with a grounded
receptacle box if local codes allow. Follow package directions.
A short power-supply cord is provided to reduce risk of becoming entangled
in or tripping over a longer cord.
Extension Cord
If it is necessary to use an extension cord, use only a 3-wire extension cord
that has a 3-blade grounding plug and a 3-slot receptacle that will accept
the plug on the microwave oven. The marked rating of the extension cord
should be AC 115-120 volt, 15 amp. or more.
Be careful not to drape the cord over the countertop or table where it can be
pulled on by children or tripped over accidentally.
Notes:1. If you have any questions about the grounding or electrical in-
structions, consult a qualified electrician or service person.
2. Neither Sharp nor the dealer can accept any liability for damage
to the oven or personal injury resulting from failure to observe the
correct electrical connection procedures.
Radio or TV Interference
Should there be any interference caused by the microwave oven to your radio or TV, check that the
microwave oven is on a different electrical circuit, relocate the radio or TV as far away from the oven as
feasible or check position and signal of receiving antenna.
UNPACKING AND INSTALLATION INSTRUCTIONS
GROUNDING INSTRUCTIONS
SEC R120PK P02-08 EN 09.4.21, 2:35 PM5
![](/img.php?id=1102454&img=bg6.png)
6
INFORMATION YOU NEED TO KNOW
ABOUT YOUR OVEN
This Operation Manual is valuable: read it carefully and
always save it for reference.
A good microwave cookbook is a valuable asset. Check
it for microwave cooking principles, techniques, hints
and recipes. See pages 15 and 16 for ordering the Cook
Information, the SHARP CAROUSEL MICROWAVE
COOKBOOK.
NEVER use the oven without the turntable and support
nor turn the turntable over so that a large dish could be
placed in the oven. The turntable will turn both clock-
wise and counterclockwise.
ALWAYS have food in the oven when it is on to absorb
the microwave energy.
When using the oven for Express Defrost, you may hear
the magnetron cycling on and off. It is normal for the
exterior of the oven to be warm to the touch when cook-
ing or reheating.
Condensation is a normal part of microwave cooking.
Room humidity and the moisture in food will influence
the amount of moisture that condenses in the oven.
Generally, covered foods will not cause as much con-
densation as uncovered ones. Vents on the oven back
must not be blocked.
The oven is for food preparation only. It should not be
used to dry clothes or newspapers.
Your oven is rated 600 watts by using the IEC Test Pro-
cedure. In using recipes or package directions, check
food at the minimum time and add time accordingly.
ABOUT FOOD
Eggs, sausages,
nuts, seeds
fruits &
vegetables
Popcorn
Baby food
General
•Puncture egg yolks before cooking
to prevent “explosion”.
•Pierce skins of potatoes, apples,
squash, hot dogs and sausages so
that steam escapes.
• Use specially bagged popcorn for the
microwave oven.
•Listen while popping corn for the
popping to slow to 1 or 2 seconds or
use special POPCORN pad.
•Place carefully so bag does not
touch oven walls. The corners of the
bag may be folded down.
•Transfer baby food to small dish and
heat carefully, stirring often. Check
temperature before serving.
•Put nipples on bottles after heating
and shake thoroughly. “Wrist” test
before feeding.
•Cut baked goods with filling after
heating to release steam and avoid
burns.
•Stir liquids briskly before heating
and allow to stand at least for 20
seconds after heating before stirring
or drinking to avoid eruption.
•Use deep bowl, when cooking liquids
or cereals, to prevent boilovers.
•Cook eggs in shells.
•Reheat whole eggs.
•Dry nuts or seeds in shells.
•Pop popcorn in regular brown bags
or glass bowls.
•Exceed maximum time on popcorn
package.
•Heat disposable bottles.
•Heat bottles with nipples on.
•Heat baby food in original jars.
•Heat or cook in closed glass jars or
air tight containers.
•Can in the microwave as harmful
bacteria may not be destroyed.
•Deep fat fry.
•Dry wood, gourds, herbs or wet papers.
DO DON’T
FOOD
SEC R120PK P02-08 EN 09.4.8, 5:53 PM6
![](/img.php?id=1102454&img=bg7.png)
7
It is not necessary to buy all new cookware. Many
pieces already in your kitchen can be used success-
fully in your new microwave oven. Make sure the uten-
sil does not touch the interior walls during cooking.
Use these utensils for safe microwave cooking
and reheating:
•glass ceramic (Pyroceram®), such as
Corningware®.
•heat-resistant glass (Pyrex®)
•microwave-safe plastics
•paper plates
•microwave-safe pottery, stoneware and
porcelain
•browning dish (Do not exceed recommended
preheating time. Follow manufacturer's
directions.)
These items can be used for short time reheat-
ing of foods that have little fat or sugar in them:
•wood, straw, wicker
DO NOT USE
•metal pans and bakeware
•dishes with metallic trim
•non-heat-resistant glass
•non-microwave-safe plastics (margarine tubs)
•recycled paper products
•brown paper bags
•food storage bags
•metal twist-ties
Should you wish to check if a dish is safe for
microwaving, place the empty dish in the oven and
microwave on HIGH for 30 seconds. A dish which
becomes very hot should not be used.
ABOUT UTENSILS AND COVERINGS
The following coverings are ideal:
•Paper towels are good for covering foods for re-
heating and absorbing fat while cooking bacon.
•Wax paper can be used for cooking and
reheating.
•Plastic wrap that is specially marked for micro-
wave use can be used for cooking and reheat-
ing. DO NOT allow plastic wrap to touch food.
Vent so steam can escape.
•Lids that are microwave-safe are a good choice
because heat is kept near the food to hasten
cooking.
•Oven cooking bags are good for large meats or
foods that need tenderizing. DO NOT use metal
twist ties. Remember to slit bag so steam can
escape.
How to use aluminum foil in your microwave
oven:
•Small flat pieces of aluminum foil placed
smoothly on the food can be used to shield
areas that are either defrosting or cooking too
quickly.
•Foil should not come closer than one inch to any
surface of the oven.
Should you have questions about utensils or coverings,
check a good microwave cookbook or follow recipe
suggestions.
ACCESSORIES There are many microwave accesso-
ries available for purchase. Evaluate carefully before
you purchase so that they meet your needs. A micro-
wave-safe thermometer will assist you in determining
correct doneness and assure you that foods have
been cooked to safe temperatures. Sharp is not
responsible for any damage to the oven when acces-
sories are used.
Children should be taught all safety precautions: use
potholders, remove coverings carefully, pay special
attention to packages that crisp food because they
may be extra hot.
Don’t assume that because a child has mastered one
cooking skill he/she can cook everything.
Children need to learn that the microwave oven is not
a toy.
ABOUT CHILDREN AND THE MICROWAVE
Children below the age of 7 should use the microwave
oven with a supervising person very near to them.
Between the ages of 7 and 12, the supervising person
should be in the same room.
The child must be able to reach the oven comfortably;
if not, he/she should stand on a sturdy stool.
At no time should anyone be allowed to lean or swing
on the oven door.
INFORMATION YOU NEED TO KNOW
SEC R120PK P02-08 EN 09.4.8, 5:53 PM7
![](/img.php?id=1102454&img=bg8.png)
8
ABOUT MICROWAVE COOKING
•Arrange food carefully. Place thickest areas towards
outside of dish.
•Watch cooking time. Cook for the shortest amount
of time indicated and add more as needed. Food
severely overcooked can smoke or ignite.
•Cover foods while cooking. Check recipe or cook-
book for suggestions: paper towels, wax paper,
microwave plastic wrap or a lid. Covers prevent
spattering and help foods to cook evenly.
•Shield with small flat pieces of aluminum foil any
thin areas of meat or poultry to prevent overcooking
before dense, thick areas are cooked thoroughly.
•Stir foods from outside to center of dish once or twice
during cooking, if possible.
•Turn foods over once during microwaving to
speed cooking of such foods as chicken and ham-
burgers. Large items like roasts must be turned over
at least once.
INFORMATION YOU NEED TO KNOW
•Rearrange foods such as meatballs halfway
through cooking both from top to bottom and from
the center of the dish to the outside.
•Add standing time. Remove food from oven and
stir, if possible. Cover for standing time which allows
the food to finish cooking without overcooking.
•Check for doneness. Look for signs indicating that
cooking temperatures have been reached.
Doneness signs include:
-Food steams throughout, not just at edge.
-Center bottom of dish is very hot to the touch.
- Poultry thigh joints move easily.
-Meat and poultry show no pinkness.
-Fish is opaque and flakes easily with a fork.
•ALWAYS use the door handle when opening / closing
the door.
•ALWAYS use potholders to prevent burns when
handling utensils that are in contact with hot food.
Enough heat from the food can transfer through
utensils to cause skin burns.
•Avoid steam burns by directing steam away from
the face and hands. Slowly lift the farthest edge of
a dish's covering and carefully open popcorn and
oven cooking bags away from the face.
•Stay near the oven while it's in use and check
cooking progress frequently so that there is no
chance of overcooking food.
•NEVER use the cavity for storing cookbooks or
other items.
•Select, store and handle food carefully to preserve
its high quality and minimize the spread of
foodborne bacteria.
•Keep waveguide cover clean. Food residue can
cause arcing and/or fires.
•Use care when removing items from the oven so
that the utensil, your clothes or accessories do not
touch the safety door latches.
ABOUT SAFETY
•
Check foods to see that they are cooked to the United
States Department of Agriculture's recommended
temperatures.
... for beef, lamb or veal cut into
steaks, chops or roasts, fish
... for fresh pork, ground meat, fish,
seafood, egg dishes, frozen
prepared food and beef, lamb or
veal cut into steaks, chops or
roasts
... for leftover, ready-to-reheat
refrigerated, deli and carry out
“fresh” food, whole chicken or
turkey, chicken or turkey breasts
and ground poultry used in
chicken or turkey burgers.
NOTE:
Do not cook whole, stuffed
poultry. Cook stuffing sepa-
rately to 165°F (74°C).
145°F
(63°C)
TEMP FOOD
160°F
(71°C)
165°F
(74°C)
To test for doneness, insert a meat thermometer in a
thick or dense area away from fat or bone. NEVER leave
the thermometer in the food during cooking, unless it is
approved for microwave oven use.
SEC R120PK P02-08 EN 09.4.8, 5:54 PM8
![](/img.php?id=1102454&img=bg9.png)
9
7
6
11 12 13
1
4
2
3
9
10 8
5

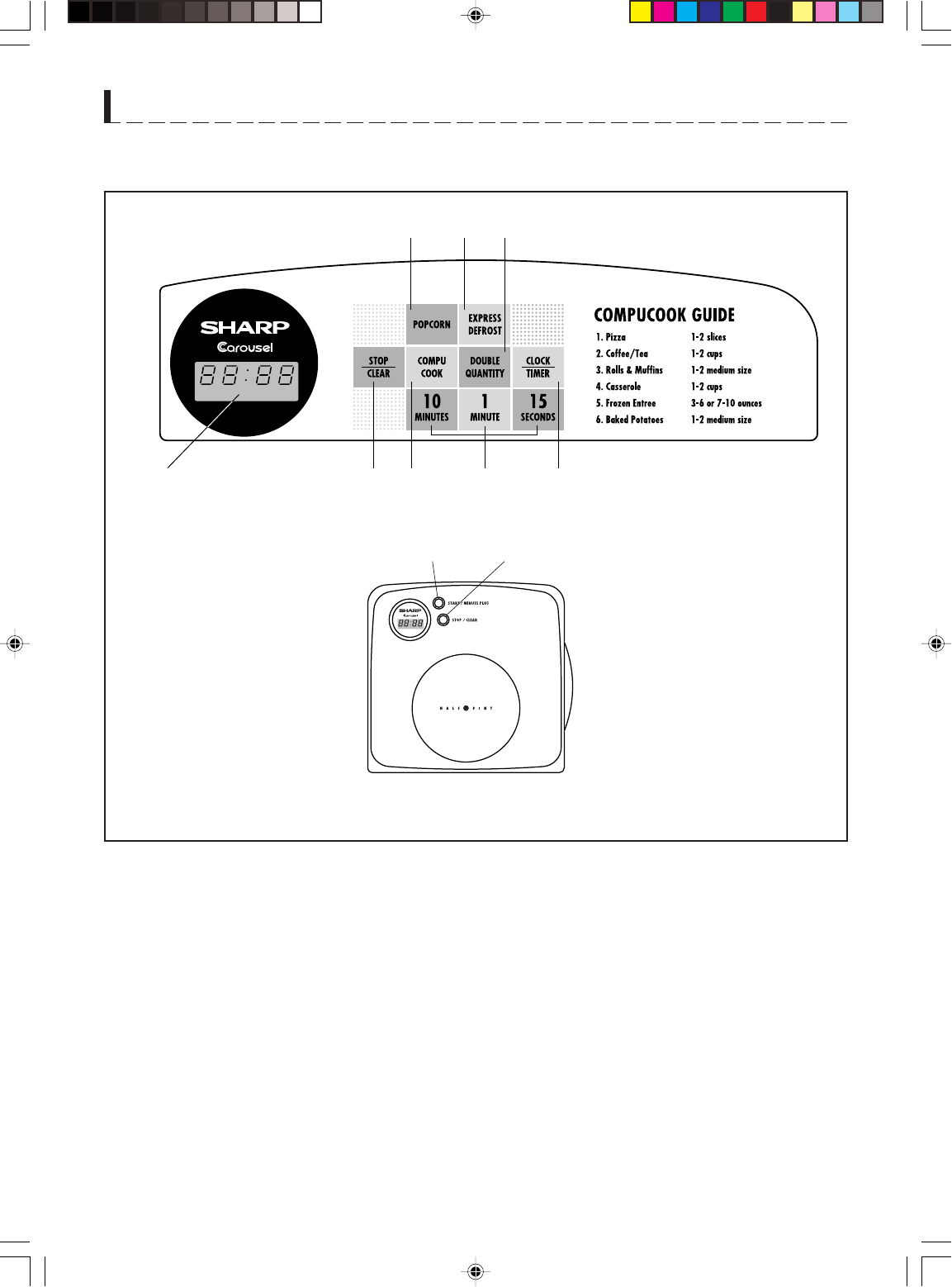

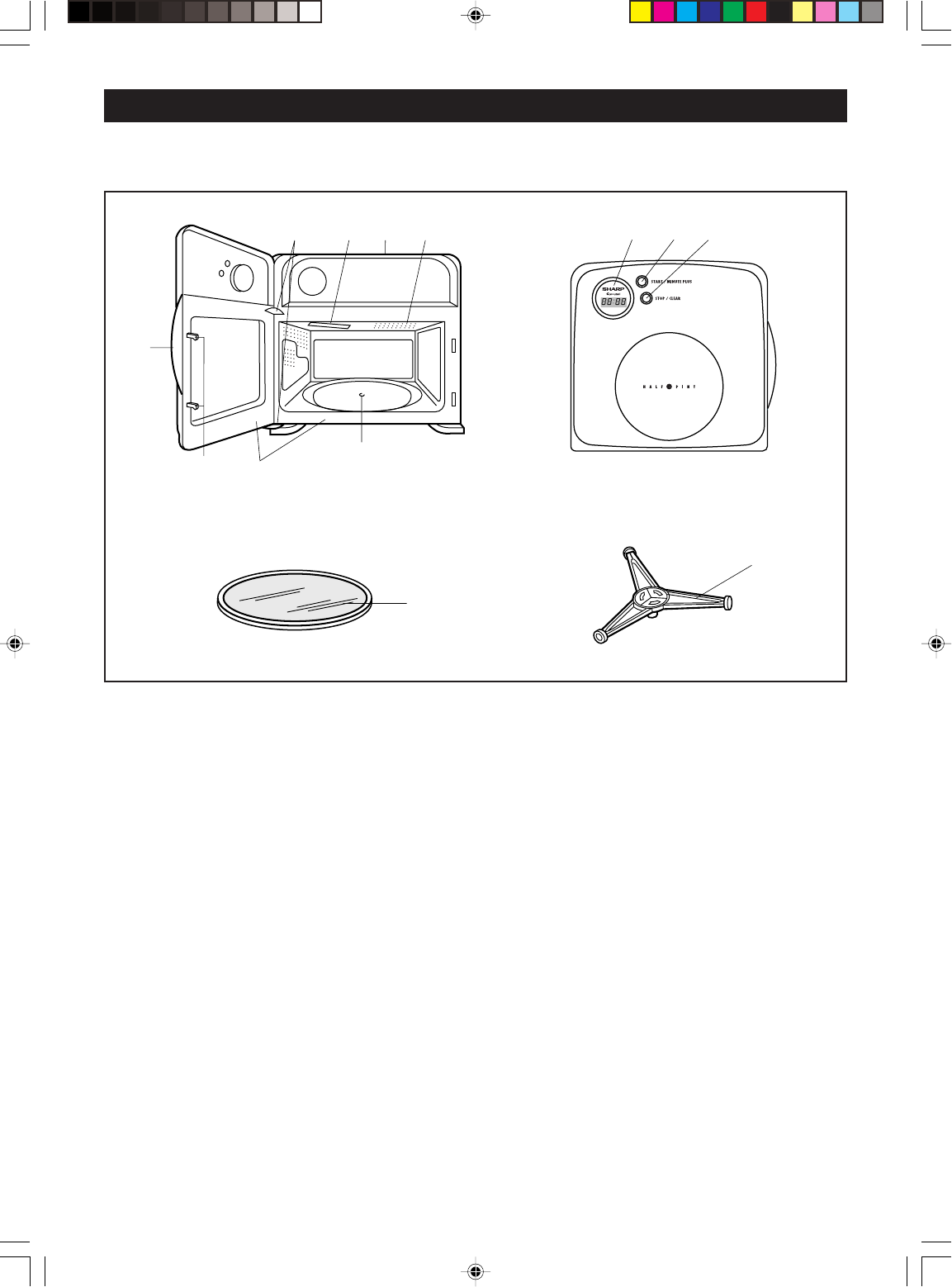

PART NAMES
1Safety door latches
The oven will not operate unless the door is securely closed.
2Door hinges
3Door seals and sealing surfaces
4Door handle
Pull to open door.
5Turntable motor shaft
6Removable turntable support
7Removable turntable
Place the turntable on the turntable support securely. The turntable will rotate clockwise or
counterclockwise. Only remove for cleaning.
8Ventilation openings (Rear)
9Oven light
It will light when oven is operating.
10 Waveguide cover: DO NOT REMOVE.
11 Control panel display
12 Start/Minute Plus pad
13 Stop/Clear pad
MICROWAVE OVEN PARTS
DOOR CLOSEDDOOR OPEN
SEC R120PK P09-14 EN 09.4.21, 2:40 PM9
![](/img.php?id=1102454&img=bga.png)
10
11,14 11
DEF. QTY.
CHECK
ON
131212
11,1411-12,1411 13
Control panel display
Words will light in the
display to indicate feature
and cooking instructions.
TOUCH CONTROL PANEL
Number indicates page on which there are a feature description and usage information.
NOTE:
Open the door to program the oven.
The STOP/CLEAR and the START/MINUTE PLUS pads can be used even if the
door is closed.
PART NAMES
DOOR CLOSED
SEC R120PK P09-14 EN 09.4.21, 2:40 PM10
![](/img.php?id=1102454&img=bgb.png)
11
CLOCK
TIMER
BEFORE OPERATING
•Before operating your new microwave oven, be sure
to read and understand this operation manual com-
pletely.
•Before the oven can be used, follow these
procedures:
1. Plug in the oven. Close the door. The oven display
will then begin flashing
88:88
.
2. Touch the STOP/CLEAR pad.
will appear.
3. Touch the CLOCK/TIMER pad to set clock.
:::::
TO SET THE CLOCK
•Suppose you want to enter the correct time of day
12:35 (A.M. or P.M.).
MANUAL OPERATION
Your oven can be programmed for 99 minutes 45 sec-
onds (99.45). The oven has only HIGH (100%) power
level.
•Suppose you want to cook 2 minutes 30 seconds.
TIME COOKING
STOP/CLEAR
Touch the STOP/CLEAR pad to:
1. Erase if you make a mistake during programming.
2. Cancel timer.
3. Stop the oven temporarily during cooking.
4. Return the time of day to the display.
5. Cancel a program during cooking, touch twice.
PROCEDURE DISPLAY
1
Open the door and enter
cooking time.
Close the door.
Touch the START pad.
2
2.30
2.30
x 2 x 2
START/MINUTEPLUS
1
MINUTE 15
SECONDS
This is a 12 hour clock.
•If the electrical power supply to your microwave
oven should be interrupted, the display will inter-
mittently show
88:88
after the power is reinstated.
If this occurs during cooking, the program will be
erased. The time of day will also be erased. Simply
touch the STOP/CLEAR pad and reset the clock for
the correct time of day.
0
PROCEDURE DISPLAY
1
Open the door and
touch the CLOCK pad.
2
3
12
Touch the CLOCK pad again.
12 35
x 1 x 2
12 00
10
MINUTES 1
MINUTE
x 3 x 5
10
MINUTES 1
MINUTE
4
Enter the correct time of
day (minutes) by touching
the 10 MINUTES and
1 MINUTE pads.
5
Touch the CLOCK pad again.
CLOCK
TIMER
12:35
Enter the correct time of
day (hours) by touching
the 10 MINUTES and
1 MINUTE pads.
CLOCK
TIMER
ON
SEC R120PK P09-14 EN 09.4.21, 2:40 PM11
![](/img.php?id=1102454&img=bgc.png)
12
1 bag
3.5 oz bag
(100 g)
3.0 or 3.5 oz bag
(90 - 100 g) (Light)
1.75 oz bag
(50 g)
1.5 or 1.75 oz bag
(45 - 50 g) (Light)
SPECIAL FEATURES
The popcorn settings automatically provide the correct
cooking time for most brands of microwave popcorn.
See the chart below.
•Suppose you want to pop 3.5 oz. bag of light micro-
wave popcorn.
POPCORN
PROCEDURE DISPLAY
1
Open the door and touch
the POPCORN pad twice.
Close the door and touch
the START pad.
2
2
x 2
START/MINUTEPLUS
QTY
POPCORN
Express Defrost automatically defrosts foods shown in
the chart below. Check the chart to determine appropri-
ate time.
•
Suppose you want to defrost a 2.0 pound steak (11/2”
thick) for 14 minutes.
EXPRESS DEFROST
PROCEDURE
Open the door and
enter the defrost time.
1
Touch the EXPRESS
DEFROST pad.
2
Close the door and
touch the START pad.
3
x 1 x 4
EXPRESS
DEFROST
14.00
START/MINUTEPLUS
DISPLAY
10
MINUTES 1
MINUTE
14.00
DEF.
The oven will stop and the CHECK indicator will
flash.
The food should be checked and turned over and/
or shielded.
After the 1st stage, open the door, turn steak
over and shield any warm portions. Close the
door.
Touch the START pad.
4
6
5
After the 2nd stage, open the door and shield
any warm portions. Close the door.
Touch the START pad.
After defrost cycle ends, cover and let stand
for time indicated in chart.
START/MINUTEPLUS
START/MINUTEPLUS
POPCORN CHART
PROCEDURE
AMOUNT
Use only popcorn packaged for
microwave oven use. Try several
brands to decide which is most
acceptable for your taste. Place
bag with only one fold slightly off
center and place bag with two
folds in the center of the turntable.
You may also fold down the
corners of the bag so it turns
freely.
Touch POPCORN pad once for
regular.
1
.
Touch POPCORN pad twice for
light regular.
2
.
Touch POPCORN pad three
times for snack.
3
.
Touch POPCORN pad four
times for light snack.
4
.
EXPRESS DEFROST CHART
After the 1st stage, turn over and shield the warm
portions with aluminum foil.
After the 2nd stage, if there are warm portions,
shield with aluminum foil. A “collar” of foil around
entire edge works well with thick steaks.
Allow to stand, covered, for 10 to 20 minutes.
Remove any thawed pieces after at pause.
Allow to stand, covered, for 5 to 10 minutes.
At pause, turn over and rearrange.
If there are warm portions, shield with aluminum foil.
Allow to stand, covered, for 10 to 20 minutes.
1. Steaks,
chops
2. Ground
meat
3. Chicken
pieces
FOOD PROCEDURE
AMOUNT
6 - 61/2
7 - 71/2
6 - 61/2
61/2 - 7
51/2 - 6
TIME (MIN/LB)
0.5 - 4.0 lb (0.3 - 1.8 kg)
Less than 1” 2.5 cm thick
More than 1” 2.5 cm thick
0.5 - 1.0 lb (0.3 - 0.5 kg)
1.1 - 3.0 lb (0.6 - 1.3 kg)
0.5 - 3.0 lb (0.3 - 1.3 kg)
SEC R120PK P09-14 EN 09.4.9, 8:59 AM12
![](/img.php?id=1102454&img=bgd.png)
13
SPECIAL FEATURES
CC-1
CC-2
CC-3
CC-4
CC-5
CC-6
COMPUCOOK CHART
DISPLAY PROCEDURE
MENU/AMOUNT
2 slices
2 cups
2 medium
2 cups
7 - 10 oz
(200 - 280 g)
2 medium
(DOUBLE QUANTITY)
Pizza (Reheat)
1 slice
Coffee/Tea
1 cup
Rolls & Muffins
1 medium
Casserole
1 cup
Frozen Entree
3 - 6 oz
(90 - 170 g)
Baked Potatoes
1 medium
The CompuCook setting will automatically provide the correct cooking/reheating time for foods shown in the chart
below.
•Suppose you want to use CompuCook to reheat a fresh roll.
COMPUCOOK
CC -3
COMPU
COOK
PROCEDURE DISPLAY
1
Open the door and touch
the COMPUCOOK pad
until the desired menu
number is displayed.
x 3
Close the door and touch
the START pad.
2
START/MINUTEPLUS
To cook double quantity, touch the DOUBLE QUAN-
TITY pad prior to touching the START pad.
NOTE:
More or less food than the quantity listed in
the chart should be cooked following the
guidelines in any microwave cookbook.
Use this pad to reheat refrigerated leftover pizza.
1 slice is approximately 1/8th of a 12 inch pizza or
1/12th of a 16 inch pizza. Place on paper towel.
Use this setting for heating COLD TAP WATER to
a temperature somewhat below the boiling point
to make instant coffee or tea. Stir liquid briskly
before and after heating to avoid “eruption”.
Wrap in paper towel.
Use this pad to reheat refrigerated canned or
homemade pasta with sauce or other cooked
casserole. For pasta without sauce, measure 2
cups of cooked noodles and program for 1 cup.
Cover with lid or plastic wrap. After cooking, stir
and let stand, covered, 2 to 3 minutes.
Use this pad for frozen, convenience foods. It will
give satisfactory results for most brands. You may
wish to try several and choose your favorite.
Remove package from outer wrapping and follow
package directions for covering. After cooking, let
stand covered for 1 to 3 minutes.
3 - 6 oz :Touch the COMPUCOOK pad five times
for packages weighing 3 - 6 oz.
7 - 10 oz : Touch the DOUBLE QUANTITY pad
prior to touching the START pad for packages
weighing 7 - 10 oz.
7-10
will appear in the display.
Pierce with fork in several places; place on paper
towel on turntable. At end of cooking time, remove
from oven, wrap in foil and let stand 10 minutes.
SEC R120PK P09-14 EN 09.4.9, 8:59 AM13
![](/img.php?id=1102454&img=bge.png)
14

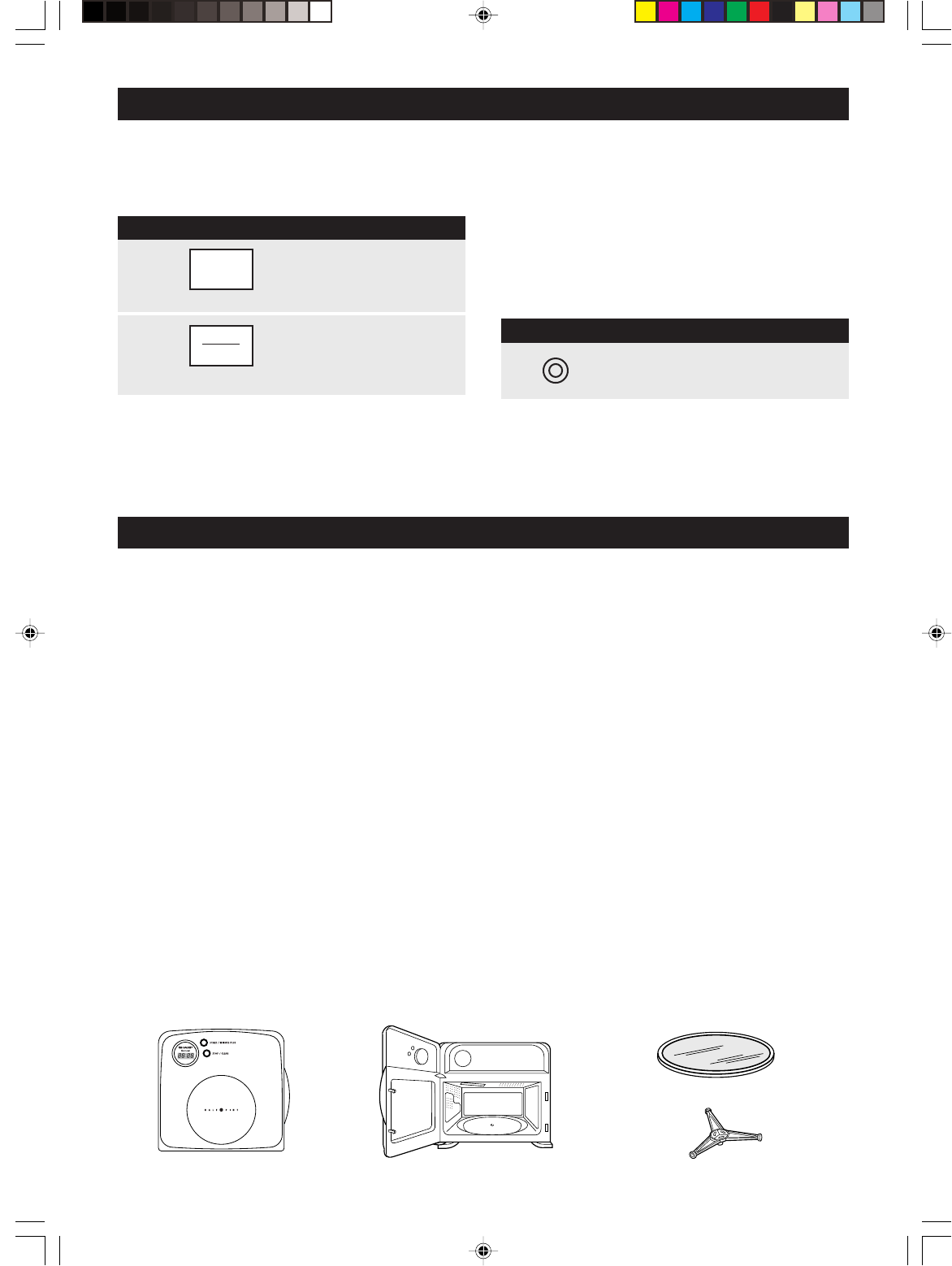

Interior
Turntable
Turntable Support
Exterior
The outside surface is painted. Clean the outside with
mild soap and water; rinse and dry with a soft cloth. Do
not use any type of household or abrasive cleaner.
Door
Wipe on both sides with a soft, damp cloth to remove
any spills or spatters. Metal parts will be easier to main-
tain if wiped frequently with a damp cloth. Avoid the
use of spray and other harsh cleaners as they may stain,
streak or dull the door surface.
Touch Control Panel
Care should be taken in cleaning the touch control
panel. If the control panel becomes soiled, open the
oven door and wipe the panel with a cloth dampened
slightly with water only. Dry with a soft cloth. Do not
scrub or use any sort of chemical cleaners. Close door
and touch the STOP/CLEAR pad.
Interior
Cleaning is easy because little heat is generated to
the interior surfaces; therefore, there is no baking and
setting of spills or spattering. To clean the interior sur-
faces, wipe with a soft cloth and warm water. DO NOT
USE ABRASIVE OR HARSH CLEANERS OR
SCOURING PADS. For heavier soil, use baking soda
or a mild soap; rinse thoroughly with hot water. NEVER
CLOCK
TIMER
OTHER CONVENIENT FEATURES
START/MINUTEPLUS
•
Suppose you want to time a 3-minute long distance
phone call.
TIMER
PROCEDURE
Open the door and
enter time.
1
Touch the TIMER pad.
The timer will start
automatically. You can
close the door.
2
x 3
1
MINUTE
The timer will operate even if the door is open or closed.
Minute Plus allows you to cook for a minute at HIGH
power level by simply touching the MINUTE PLUS pad.
You can also extend cooking time in multiples of 1
minute by repeatedly touching the MINUTE PLUS pad
during manual cooking. The door must be securely
closed to use Minute Plus.
•
Suppose you want to heat a cup of soup for one
minute.
MINUTE PLUS
PROCEDURE
Touch the MINUTE
PLUS pad.
1
NOTE:
1. To use Minute Plus, touch pad within 3
minutes after cooking, closing the door,
touching the STOP/CLEAR pad or dur-
ing cooking.
2. Minute Plus cannot be used with SPECIAL
FEATURES.
Exterior
CLEANING AND CARE
SPRAY OVEN CLEANERS DIRECTLY ONTO ANY
PART OF THE OVEN.
Waveguide Cover
The waveguide cover is made from mica so requires
special care. Keep the waveguide cover clean to as-
sure good oven performance. Carefully wipe with a damp
cloth any food spatters from the surface of the cover
immediately after they occur. Built-up splashes may
overheat and cause smoke or possibly catch fire. Do
not remove the waveguide cover.
Odor Removal
Occasionally, a cooking odor may remain in the oven.
To remove, combine 1 cup water, grated peel and juice
of 1 lemon and several whole cloves in a 2-cup glass
measuring cup. Boil for several minutes using 100%
power. Allow to set in oven until cool. Wipe interior with a
soft cloth.
Tu r ntable/ Turntable Support
The turntable and turntable support can be removed
for easy cleaning. Wash them in mild, sudsy water; for
stubborn stains use a mild cleanser and a non-abra-
sive scouring sponge. They are also dishwasher-safe.
The turntable motor shaft is not sealed, so excess wa-
ter or spills should be wiped up immediately.
SEC R120PK P09-14 EN 09.4.21, 2:41 PM14
![](/img.php?id=1102454&img=bgf.png)
15
SPECIFICATIONS
AC Line Voltage:
AC Power Required:
Output Power:
Microwave
Frequency:
Outside Dimensions:
Cavity Dimensions
★★★
:
Oven Capacity:
Cooking Uniformity:
Weight:
★The International Electrotechnical Commission’s standardized method for measuring output wattage. This
test method is widely recognized.
★★ This is the classification of ISM (Industrial, Scientific and Medical) equipment described in the International
Standard CISPR11.
★★★ Internal capacity is calculated by measuring maximum width, depth and height. Actual capacity for holding
food is less.
Single phase 120V, 60Hz, AC only
960W
600W
★
(IEC Test Procedure)
2450 MHz
(Group 2/Class B)
★★
365mm/143/8”(W) x 360mm/141/8”(H) x 357mm/14”(D)
299mm/113/4”(W) x 153mm/6”(H) x 302mm/117/8”(D)
0.5 Cu.Ft.
Turntable system
Approx. 11kg/24lbs
TO ORDER
Simply call this toll-free number : 1-800-237-4277.
Please have your credit card ready.
If you prefer to order by mail, complete and return the
order form on page 16. Please include check or money
order (payable to Sharp Electronics Corporation) for
$14.00 plus $4.50 shipping & handling and tax, if
applicable, per book.
SATISFACTION GUARANTEED
You must be completely satisfied with the Sharp
Microwave Oven Cookbook. If, within 14 days, you are
dissatisfied for any reason, simply return the book and
we'll gladly refund your $14.00 plus tax.
125 GREAT RECIPES
•
All about your
microwave
•
Color photos
•
Step-by-step
instructions
•
Durable wipe-clean
soft cover with 192
7” x 10” pages
•
Helpful tips and
special techniques
(SOLELY WRITTEN IN ENGLISH!)
MICROWAVE OVEN
COOKBOOK
COOKBOOK INFORMATION
In Compliance with Standards set by:
FCC – Federal Communications Commission Authorized.
DHHS – Complies with Department of Health and Human Services (DHHS) rule, CFR, Title 21 Chapter I,
Subchapter J.
Health Canada – Complies with Health Canada, Radiation Emitting Device Regulation for microwave oven.
– This symbol on the nameplate means the product is listed by Underwriters Laboratories, Inc. for both
the UL and CSA (Canadian Standard Association) standards.
SEC R120PK P15- EN 09.4.21, 2:43 PM15
![](/img.php?id=1102454&img=bg10.png)
16
COOKING REFERENCE
Allow standing time after cooking.
FOOD TIME
MEATS, POULTRY, FISH,
SEAFOOD
Bacon 3/4 - 11/4 min./slice
Frankfurter 3/4 - 11/2 minutes
in Bun
Ground Beef 4 - 6 minutes
for Casseroles 450 g
(1 lb)
Hamburger 1st side 2 minutes
Patties(2) 2nd side 11/2 to 21/2
minutes
Ham slice 450 g 4 - 7 minutes
(1 lb)
Meatloaf 700 g 12 - 18 minutes
(11/2 lbs)
Boneless 1st side 2 minutes
Chicken 2nd side 2 - 4 minutes
Breasts
Chicken 4 - 8 minutes/lb
Pieces
Fish 5 - 6 minutes
Fillets 450 g (1lb)
Fish Steaks 5 - 8 minutes
Scallops and 3 - 5 minutes
Shrimp 450 g (1lb)
Food should be very hot (165°F). Stir before serving, if possible.
FOOD TIME
REHEATING
Meat Slices 1/2 - 1 min./slice
Non-Stirrable
Casseroles
(1 serving) 2 - 3 minutes
(2 servings) 5 - 7 minutes
Pie (1 slice) 10 - 30 seconds
Soup
(1 serving) 2 - 3 minutes
(2 servings) 4 - 5 minutes
Vegetables
(1 serving) 3/4 - 11/2 minutes
(2 servings) 11/2 - 21/2 minutes
FOOD TIME
OTHER
Applesauce (4) 5 - 8 minutes
Baked Apples (4) 4 - 6 minutes
Chocolate 3/4 - 11/2 minutes
(melt 1 square)
Eggs,
scrambled (2) 1 - 11/2 minutes
Hot Cereal
(1 serving) 1 - 3 minutes
Nachos 3/4 - 11/2 minutes
(large plate)
Cut along this line.
PERSONAL RECIPES AND NOTES
Please send me ______ cookbooks at $18.50 each $ _______
Illinois sales tax, (if applicable) per book $.91 no. of books _____________ $ _______
TOTAL ORDER AMOUNT $ _______
Price is subject to change without notice.
COOKBOOK ORDER FORM
Mail to: Sharp Electronics Corporation
Attention: Customer Assistance Center
1300 NAPERVILLE DRIVE
Romeoville, IL 60446–1091
I have enclosed a check made payable to Sharp Electronics Corporation.
Please bill my VISA MASTERCARD AMERICAN EXPRESS
Acct. No. _______________________________________ Expiration date ____ / ____
Signature_________________________________________________________________
(All credit card orders must be signed.)
Name ____________________________________________________________________________
Address __________________________________________________________________________
City __________________________________ State ___________ Zip ________________________
Daytime Phone No. ( ) ___________________________________________________________
Check internal temperature after standing.
See chart on page 7.
SEC R120PK P15- EN 09.4.9, 10:42 AM16
![](/img.php?id=1102454&img=bg11.png)
17
CONVERSION CHART
Kilograms Pounds (1 Kg = 2.2 lbs)
kg = lbs kg = lbs kg = lbs
0.25 0.6 2.65 5.8 5.00 11.0
0.35 0.8 2.75 6.0 5.10 11.2
0.50 1.1 2.90 6.4 5.25 11.5
0.65 1.4 3.00 6.6 5.35 11.8
0.75 1.7 3.10 6.8 5.50 12.1
0.90 2.0 3.25 7.1 5.65 12.5
1.00 2.2 3.35 7.4 5.75 12.7
1.10 2.4 3.50 7.7 5.90 13.0
1.25 2.8 3.65 8.0 6.00 13.2
1.35 3.0 3.75 8.3 6.10 13.4
1.50 3.3 3.90 8.6 6.25 13.8
1.65 3.6 4.00 8.8 6.35 14.0
1.75 3.9 4.10 9.0 6.50 14.3
1.90 4.2 4.25 9.4 6.65 14.7
2.00 4.4 4.35 9.6 6.75 14.9
2.10 4.6 4.50 9.9 6.90 15.2
2.25 5.0 4.65 10.3 7.00 15.4
2.35 5.2 4.75 10.5 7.10 15.7
2.50 5.5 4.90 10.8 7.20 15.9
°F °C
°F = °C °F = °C °F = °C
100 40 160 71 250 120
110 43 165 74 275 135
120 49 170 77 300 150
130 54 175 79 325 165
135 57 180 82 350 175
140 60 185 85 375 190
145 63 190 88 400 205
150 65 200 93 425 220
155 68 225 107 450 230
Please check the following before calling for service:
Place one cup of water in a glass measuring cup in the oven and close the door securely.
Operate the oven for one minute.
A
Does the cooling fan work? YES _______ NO _______
(Put your hand over the rear ventilating openings.)
B
Does the turntable rotate? YES _______ NO _______
(It is normal for the turntable to turn in either direction.)
C
Is the water in the oven warm? YES _______ NO _______
If “NO” is the answer to any of the above questions, please check electrical outlet, fuse and/or circuit
breaker. If they are functioning properly, CONTACT YOUR NEAREST SHARP AUTHORIZED SERVICER.
A microwave oven should never be serviced by a “do-it-yourself” repair person.
SERVICE CALL CHECK
SEC R120PK P15- EN 09.4.9, 10:42 AM17
![](/img.php?id=1102454&img=bg12.png)
18
AUTO-TOUCH
® GUIDE
For more complete information and safety precautions, refer to your Operation Manual.
SET CLOCK
1
Open the door and touch
the CLOCK pad.
2
Enter correct time of the
day (hours) by touching
the time pads.
3
Touch the CLOCK pad
again.
4
Enter the correct time of
day (minutes) by touching
the time pads.
5
Touch the CLOCK pad
again.
If
88:88
is in display, first touch the STOP/CLEAR pad.
To set 12:35 for example:
MANUAL OPERATION
1
Open the door and enter
cooking time by touching
the time pads.
(Ex: 1 min. 30 sec.)
2
Close the door and touch
the START pad.
®
Carousel® and Auto-touch® are registered trademarks of Sharp Corporation.
FOOD/AMOUNT TIME(MIN/LB)
1. Steaks/chops (fish)
.5 to 4.0 lb (0.3 - 1.8 kg)
Less than 1” thick
More than 1” thick
2. Ground meat
.5-1.0 lb (0.3 - 0.5 kg)
1.1-3.0 lb (0.6 - 1.3 kg)
3. Chicken pieces
.5-3.0 lb (0.3 - 1.3 kg)
6 - 61/2
7 - 71/2
6 - 61/2
61/2 - 7
51/2 - 6
POPCORN
FOOD AMOUNT
CC-1 Pizza (Reheat)
CC-2 Coffee/Tea
CC-3 Rolls & Muffins
CC-4 Casserole
CC-5 Frozen Entree
CC-6 Baked Potatoes
1 slice 2 slices
1 cup 2 cups
1 medium 2 medium
1 cup 2 cups
3 - 6 oz. 7 - 10 oz.
(90-170 g) (200 - 280 g)
1 medium 2 medium
FOOD AMOUNT
Popcorn 3.5 oz. (100 g)
3.0 or 3.5 oz. (90 - 100 g) (Light)
1.75 oz. (50 g)
1.5 or 1.75 oz. (45 - 50 g) (Light)
CLOCK
TIMER
x 1 x 2
10
MINUTES 1
MINUTE
CLOCK
TIMER
x 3 x 5
10
MINUTES 1
MINUTE
CLOCK
TIMER
x 1 x 2
1
MINUTE 15
SECONDS
START/MINUTEPLUS
EXPRESS DEFROST
1
Open the door and enter
the defrost time.
(Ex: 14 min.)
2
Touch the EXPRESS
DEFROST pad.
3
Close the door and touch
the START pad.
x 1 x 4
10
MINUTES 1
MINUTE
EXPRESS
DEFROST
START/MINUTEPLUS
COMPUCOOK
1
Open the door and touch the
COMPUCOOK pad until the
desired CompuCook number is
displayed. (Ex: Touch 3 times to
reheat a roll.)
2
Close the door and
touch the START pad.
x 3
COMPU
COOK
START/MINUTEPLUS
DISPLAY
DOUBLE
QUANTITY
Touch the COMPUCOOK pad until the desired choice
shows on the display, touch the DOUBLE QUANTITY
pad, close the door and touch the START pad.
MINUTE PLUS
Touch the MINUTE PLUS pad
for one minute or to add a
minute during manual
cooking. Continue to touch
for additional minutes.
START/MINUTEPLUS
1
Open the door and touch the
POPCORN pad once for a
regular size.
Twice - light regular size
3 times - snack size
4 times - light snack size
2
Close the door and
touch the START pad.
START/MINUTEPLUS
POPCORN
SEC R120PK P15- EN 09.4.9, 10:51 AM18
