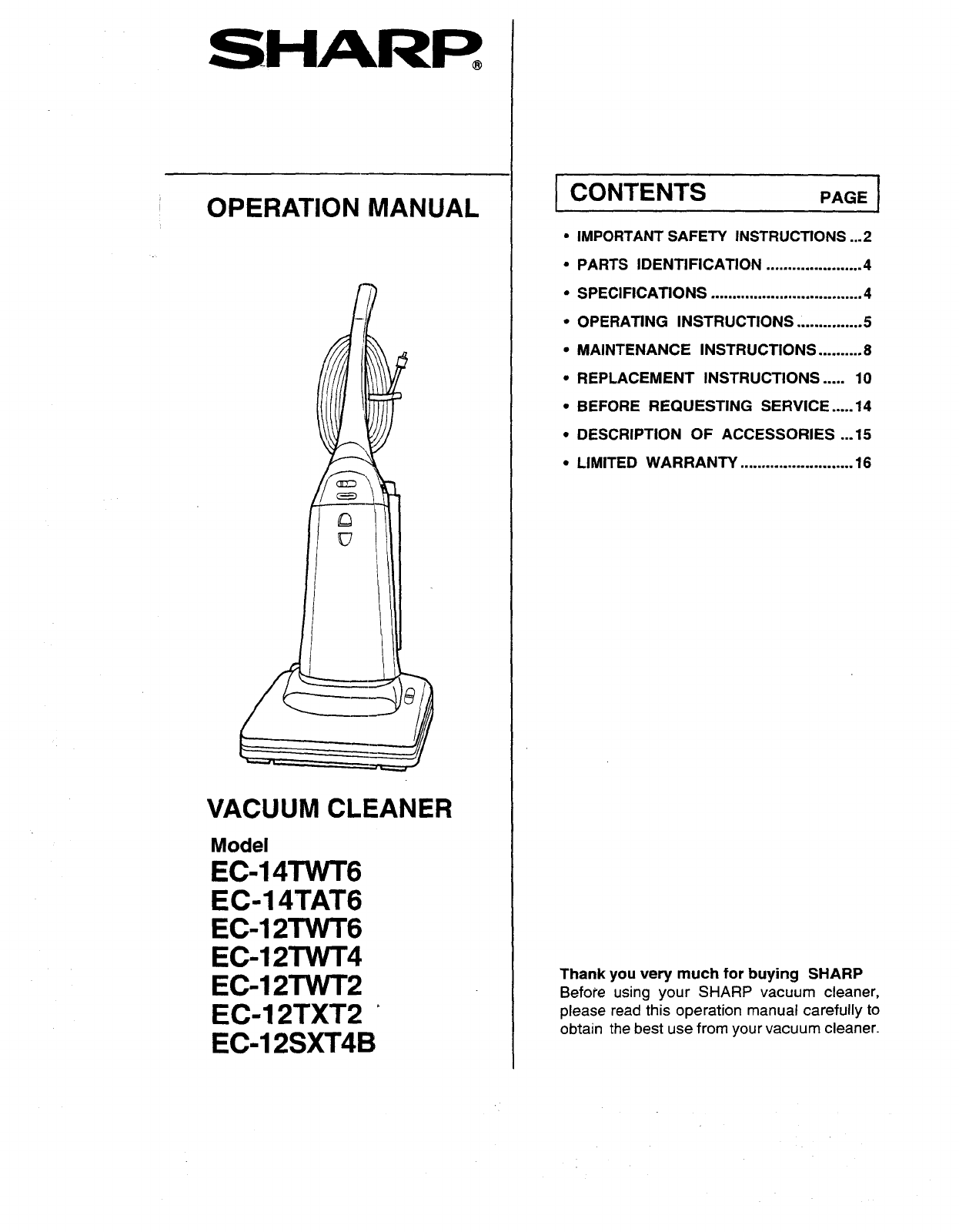

SHARP
OPERATION MANUAL
VACUUM CLEANER
Model
EC-14TWT6
EC-14TAT6
EC-12TWT6
EC-12TWT4
EC-12TWT2
EC-12TXT2
EC-12SXT4B
I CONTENTS PAGE I
•IMPORTANT SAFETY INSTRUCTIONS...2
•PARTS IDENTIFICATION ...................... 4
•SPECIFICATIONS ................................... 4
• OPERATING INSTRUCTIONS., ............. 5
•MAINTENANCE INSTRUCTIONS .......... 8
•REPLACEMENT INSTRUCTIONS ..... 10
•BEFORE REQUESTING SERVICE ..... 14

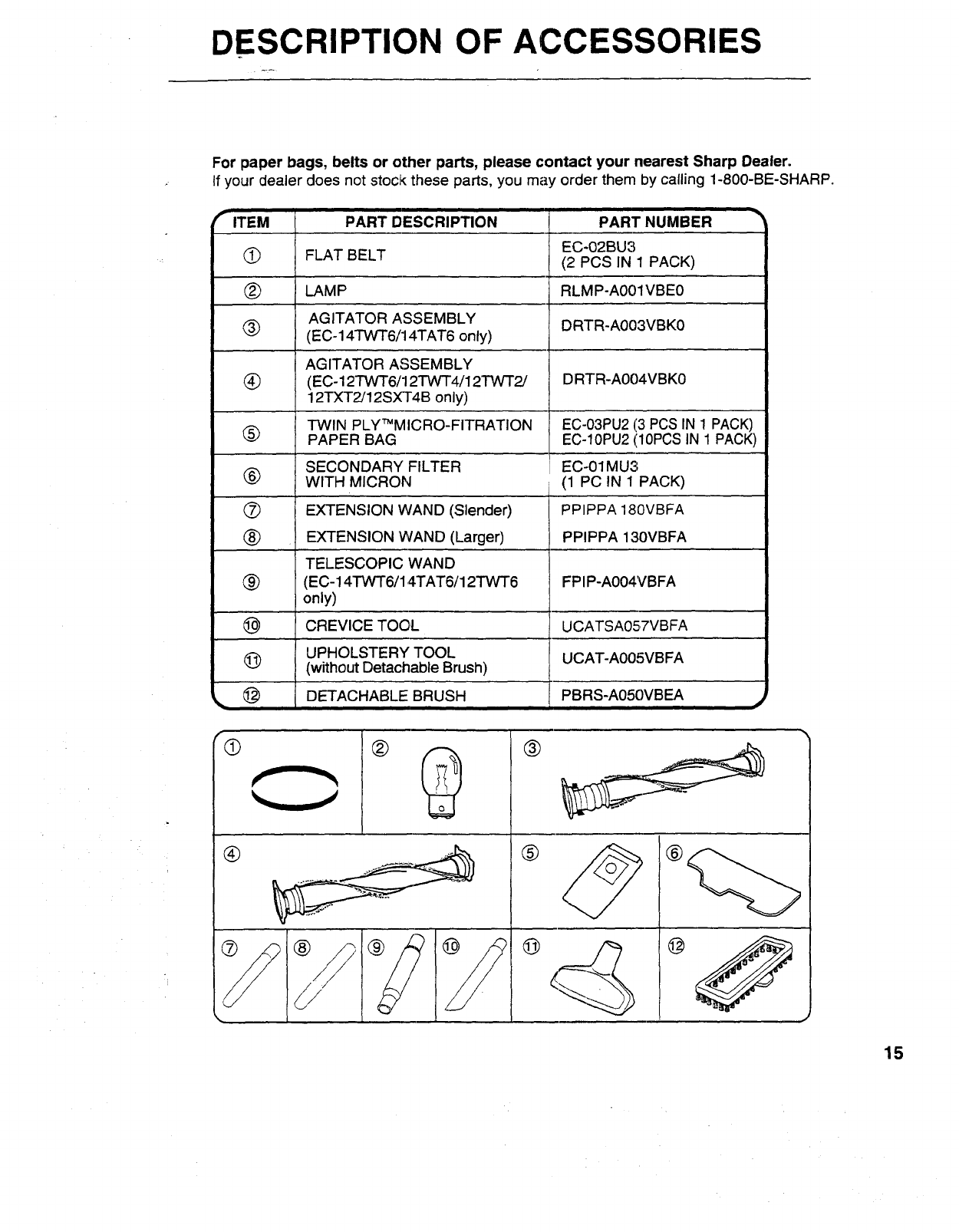

•DESCRIPTION OF ACCESSORIES ...15
•LIMITED WARRANTY .......................... 16
Thank you very much for buying SHARP
Before using your SHARP vacuum cleaner,
please read this operation manual carefully to
obtain the best use from your vacuum cleaner.

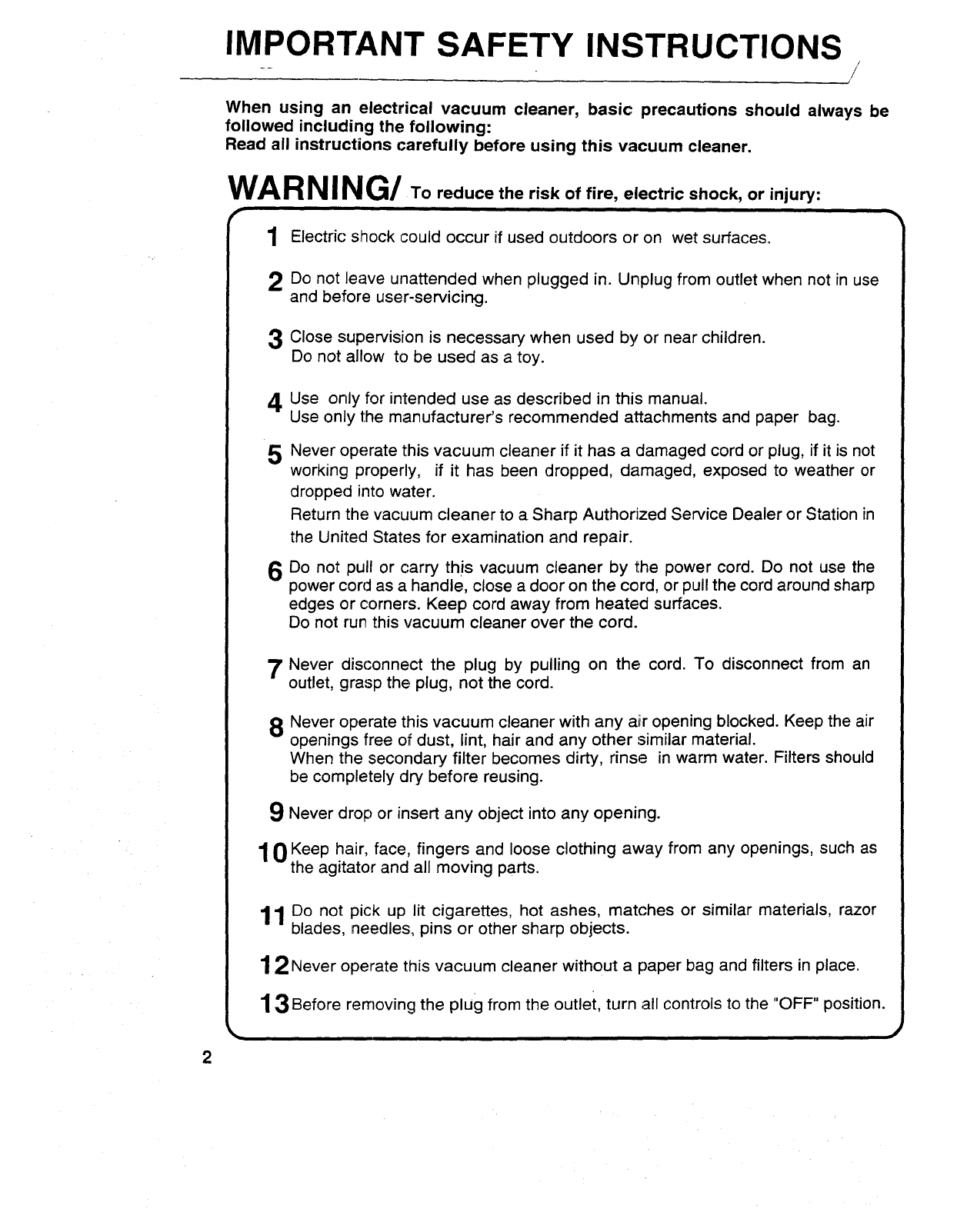

IMPORTANT SAFETY INSTRUCTIONS
When using an electrical vacuum cleaner, basic precautions should always be
followed including the following:
Read all instructions carefully before using this vacuum cleaner.
WAR NING/Toreduce the risk of fire, electric shock, or injury:
1 Electric shock could occur if used outdoors or on wet surfaces°
2Do not leave unattended when plugged in. Unplug from outlet when not in use
and before user-servicing.
3Close supervision is necessary when used by or near children.
Do not allow to be used as a toy.
4
5
6
Use only for intended use as described in this manual.
Use only the manufacturer's recommended attachments and paper bag.
Never operate this vacuum cleaner if it has a damaged cord or plug, if it is not
working properly, if it has been dropped, damaged, exposed to weather or
dropped into water.
Return the vacuum cleaner to a Sharp Authorized Service Dealer or Station in
the United States for examination and repair.
Do not pull or carry this vacuum cleaner by the power cord. Do not use the
power cord as a handle, close a door on the cord, or pull the cord around sharp
edges or corners. Keep cord away from heated surfaces.
Do not run this vacuum cleaner over the cord.
7 Never disconnect the plug by pulling on the cord. To disconnect from an
outlet, grasp the plug, not the cord.
8Never operate this vacuum cleaner with any air opening blocked. Keep the air
openings free of dust, lint, hair and any other similar material.
When the secondary filter becomes dirty, rinse in warm water. Filters should
be completely dry before reusing.
9Never drop or insert any object into any opening.
10Keep hair, face, fingers and loose clothing away from any openings, such as
--the agitator and all moving parts.
11Do not pick up lit cigarettes, hot ashes, matches or similar materials, razor
blades, needles, pins or other sharp objects.
12Never operate this vacuum cleaner without a paper bag and filters in place.
13Before removing the plug from the outlet, turn all controls to the "OFF" position.
2
1 4 Use extra caution when cleaning on stairs.
15 Never handle plug, cord or vacuum cleaner with wet hands.
1 6 Do not touch the, agitator while it is rotating.
17 Do not use in presence of flammable or combustible liquids or fumes.
18 Do not place heavy objects on the vacuum cleaner.
19 Do not step, on the hose or pull the hose forcibly'.
2{) Do not pick up large objects such as waste paper or cloth which may clog
the hose.
21 Do not expose this vacuum cleaner to high temperatures while operating
or during storage.
_)2 Store this vacuum cleaner in a dry place.
23 use the carrying handle at the back of the body to carry this vacuum
cleaner.
24 Before servicing this vacuum cleaner, allow all metal parts to cool first.
i i m
iiiii ii i
CAUTION: To reduce the risk of electric shock, this vacuum cleaner has a polarized plug "_
I(one blade is wider than the other). This plug will fit in a polarized outlet only one way. If the J
IPlug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact aqualified
1_electrician to install the,,proper outlet. Do not change the plug in any way.
SAVE THESE INSTRUCTIONS
This vacuum cleaner is intended for household use only.
3

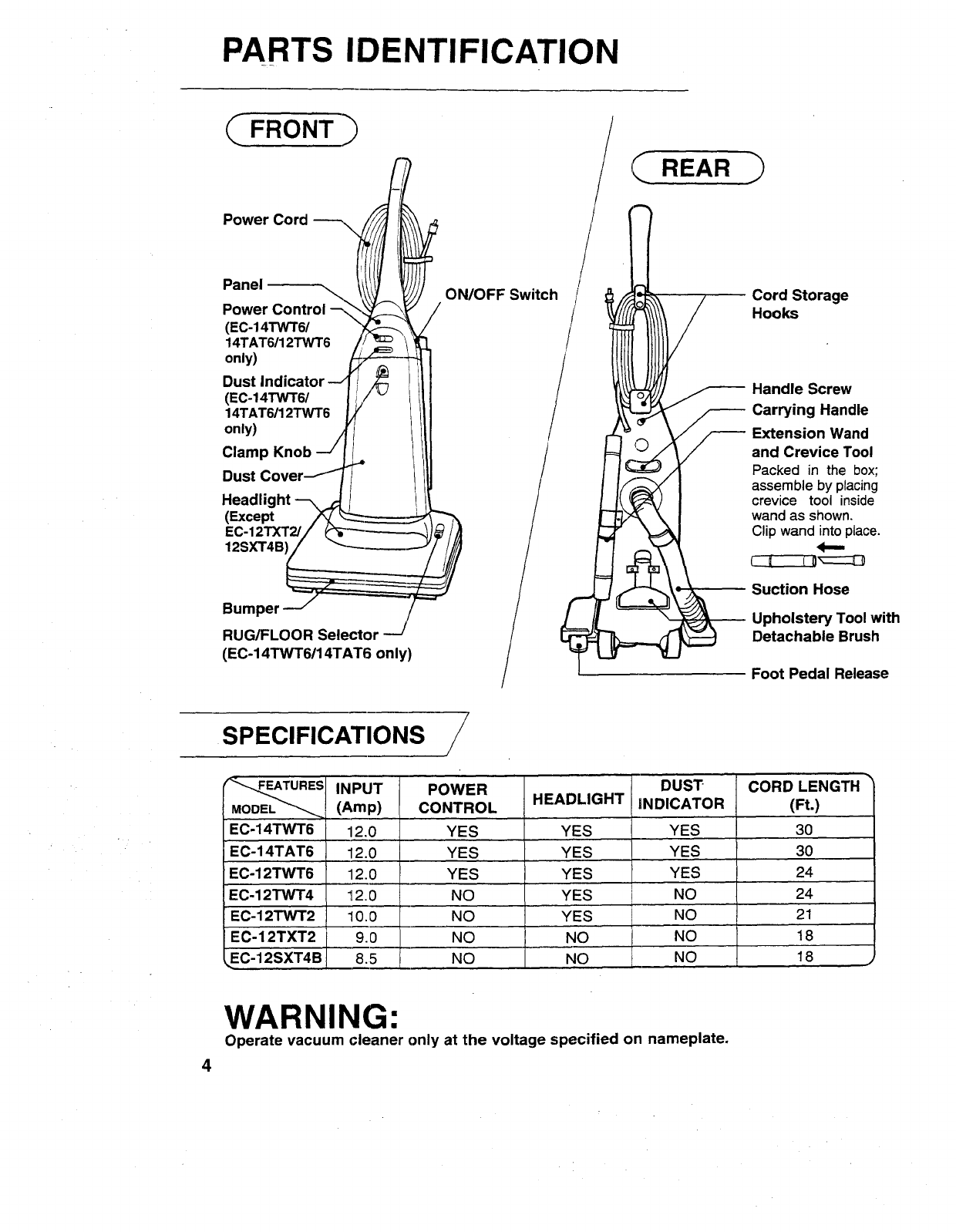

PARTS IDENTIFICATION
( FRONT ")
Power Cord __
Panel __ /1_
Power Control--_
(EC-14TWT6/ "_7--
14TAT6/12TWT6 /Y_
only) _
Dust indicator--/ J_
(EC-14"rw'r6/ i',/'_
14TAT6/12TWT6 _"
only) j
Clamp Knob ..
Headlight
(Except
EC-12TXT2/
12SXT4B
Bumper
RUG/FLOOR Selector
(EC-14TWT6/14TAT6 only)
ON/OFF Switch
F
L. REAR
Cord Storage
Hooks
Handle Screw
Carrying Handle
Extension Wand
and Crevice Tool
Packed in the box;
assemble by placing
crevice tool inside
wand as shown.
Clip wand into place.
C-q-'--'-_'_:::zZ3
Suction Hose
Upholstery Tool with
Detachable Brush
Foot Pedal Release
SPECIFICATIONS /
s
EC-14TWT6
EC-14TAT6
EC-12TWT6
EC-12TWT4
EC-12TWT2
EC-12TXT2
_EC-12SXT4B
INPUT
(AMP)
12.0
12.0
12.0
12.0
10.0
9.0
8.5
POWER
CONTROL
YES
YES
YES
NO
NO
NO
NO
HEADLIGHT DUST
iNDICATOR
YES
YES
YES
NO
NO
NO
I NO
YES
YES
YES
YES
YES
NO
NO j
CORD LENGTH
(Ft.)
3O
30
24
24
21
18
18
4
WARNING:
Operate vacuum cleaner only at the voltage specified on nameplate.
OPERATING INSTRUCTIONS

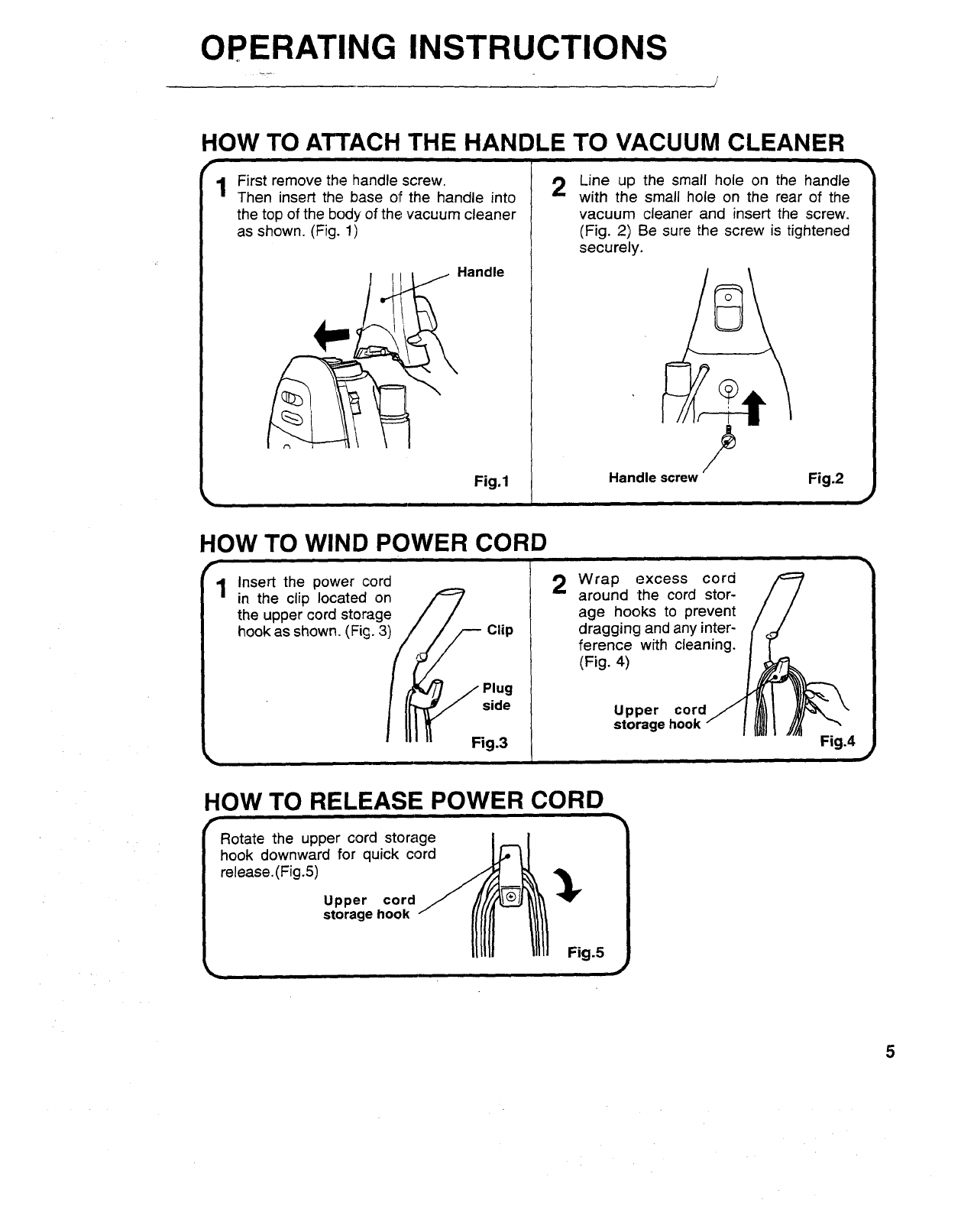

HOW TO ATTACH THE HANDLE TO VACUUM CLEANER
First remove the handle screw.
Then insert the base of the handle into
the top of the body' of the vacuum cleaner
as shown. (Fig. 1)
Handle
Fig.1
i , n
12Line up the small hole on the handle
with the small hole on the rear of the
vacuum cleaner and insert the screw.
(Fig. 2), Be sure the screw is tightened
securely.
Handle screw Fig.2
HOW TO WIND POWER CORD
1Insert the power cord
in the clip located on
the upper cord storage
hook as shown. (Ficj. 3) Clip
side
Fig.3
2Wrap excess cord
around the cord stor-
age hooks to prevent
dragging and any inter-
ference with cleaning.
(Fig. 4)
Upper cord
storage hook Fig.4
HOW TO RELEASE POWER CORD
r
Rotate the upper cord storage
hook downward for quick cord
release. (Fig .5)
Upper cord
storage hook
Fig.5
OPERATING INSTRUCTIONS
/
/
/
/,

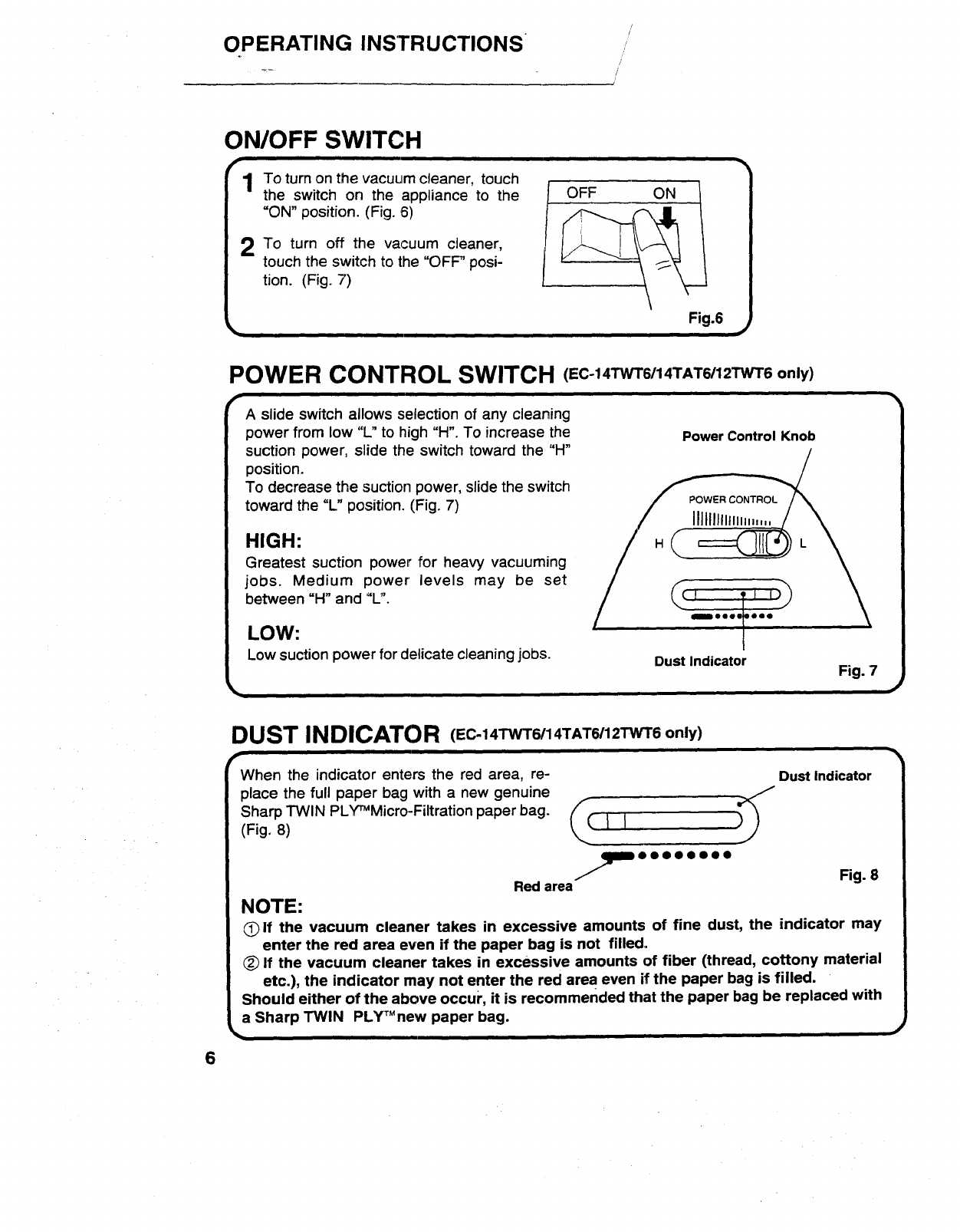

ON/OFF SWITCH
Ir 1To turn on the vacuum cleaner, touch
the switch on the appliance to the
=ON" position. (Fig. 6)
2To turn off the vacuum cleaner,
touch the switch to the "OFF" posi-
tion. (Fig. 7)
Fig.6
POWER CONTROL SWITCH (EC-14TWT6/14TAT6/12TWT6 only)
A slide switch allows selection of any cleaning
power from low "L" to high "H". To increase the
suction power, slide the switch toward the "H"
position.
To decrease the suction power, slide the switch
toward the "L" position. (Fig. 7)
Power Control Knob
HIGH:
Greatest suction powe_r for heavy vacuuming
jobs. Medium power levels may be set
between "H" and "L".
LOW:
Low suction power for delicate cleaning jobs.
•|1 ii i
Fig. 7
6
DUST INDICATOR (EC-14Tw'r6/14TAT6/12TWT6only)
#..-
When the indicator enters the red area, re-
place the full paper bag with a new genuine
Sharp TWIN PLY_Micro-Filtration paper bag.
(Fig. 8)
NOTE:
Dust Indicator
Red area
00000000 Fig. 8
If the vacuum cleaner takes in excessive amounts of fine dust, the indicator may
enter the red area even if the paper bag is not filled,.
If the vacuum cleaner takes in excessive amounts of fiber (thread, cottony material
etc.), the indicator may not enter the red area even if the paper bag is filled.
Should either of the above occur, it is recommended that the paper bag be replaced with
a Sharp TWIN PLYTMnew paper bag.
i | II I
RUG/FLOOR SELECTOR (EC-14TW'r6/14TAT6 only)
The RUG /FLOOR selector should only be
adjusted while the vacuum cleaner is in the
"ON" and in the upright position.
1When cleaning carpets, slide the selector to
the "RUG" position.
2When cleaning bare floors, slide the selector
to the "FLOOR" position. (Fig. 9)
NOTE:
Make sure The RUG /FLOOR selector is set
to either the extreme front or the extreme back
to avoid any problems that may occur.
Fig. 9
HOW TO ADJUST THE HANDLE
The handle of this vacuum cleaner can
be set to either of three positions-Up-
right, Normal or Parallel.
To release the handle, depress the pedal
at the left rear corner of the vacuum
cleaner. (Fig. 10)
Upright position
Normally the handle is locked in this position
for storage or when using the On Board
Tools. By pushing the handle forward until
the handle is locked, this vacuum cleaner
will stand on its legs and wheels. (Fig. 11)
Pedal __
/
Legs
Fig. 10
Fig. 11
i,i
Normal position
This position is used for normal cleaning.
(Fig. 12)
Fig. 12
Parallel position
This position is used for cleaning under furni-
ture.
To get to the Parallel position, depress the
pedal again. (Fig. 13)
EDGE CLEANING
This model has "Edge Cleaning " for the cleaning of carpet
edges near baseboards and stationary furniture. /
(EC-14TWT6 and 14TAT6 have edge cleaning with brush.) _)
Fig. 13
7
MAINTENANCE INSTRUCTIONS
Unplug this vacuum cleaner from the electrical outlet before servicing. •

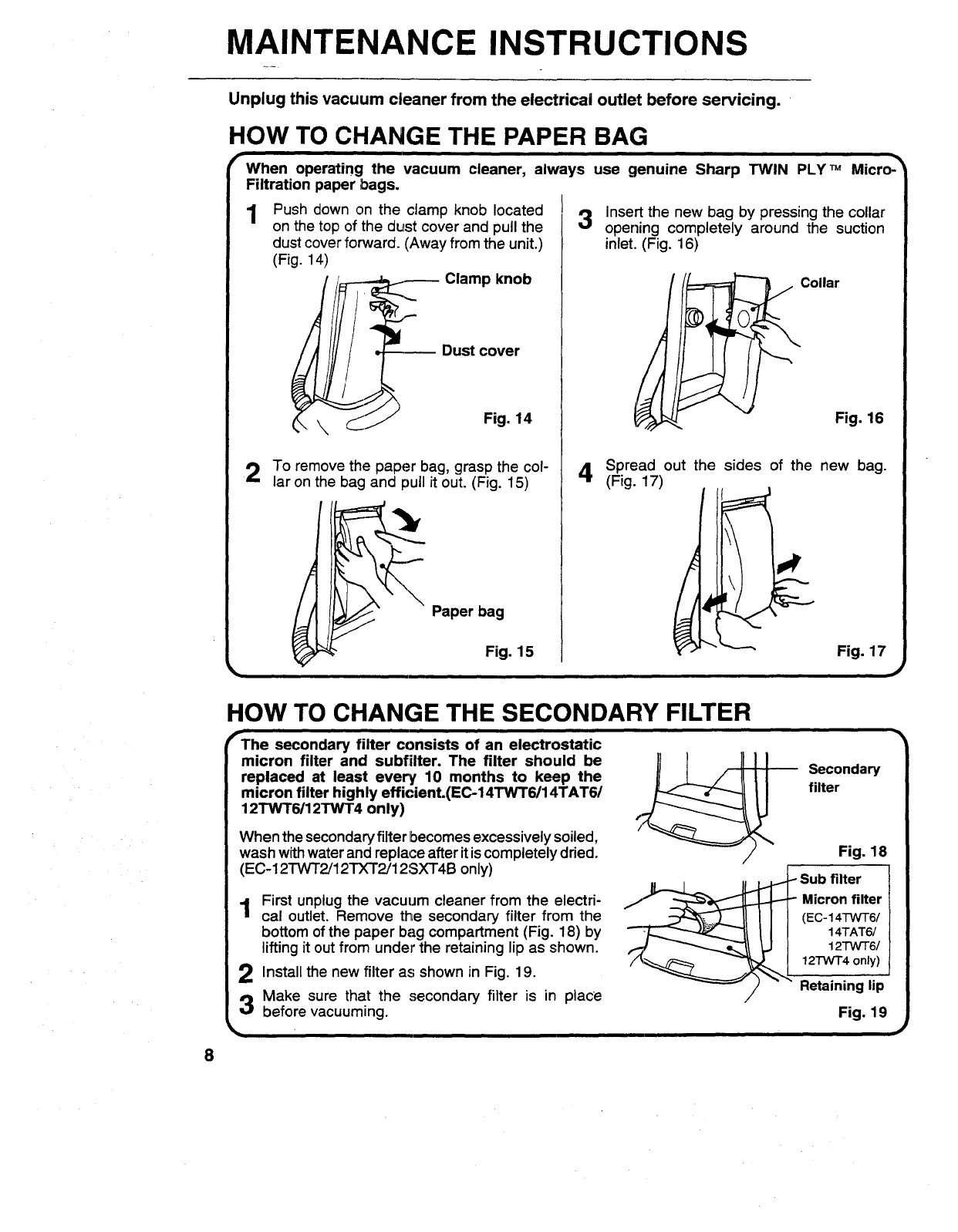

HOW TO CHANGE THE PAPER BAG
rWhen operating the vacuum cleaner, always use genuine Sharp TWIN PLY TM Micro -_
Filtration paper bags.
1Push down on the clamp knob located
on the top of the dust cover and pull the
dust cover forward. (Away from the unit.)
(Fig. 14)
_---- Clamp knob
Dust cover
Fig. 14
2To remove the paper bag, grasp the col-
lar on the bag and pull it out. (Fig. 15)
Paper bag
Fig. 15
3Insert the new bag by pressing the collar
opening completely around the suction
inlet.. (Fig. 16)
Collar
Fig. 16
4Spread out the sides of the new bag.
(Fig. 17)
__1. L,,_._, Fig. 17
,J
HOW TO CHANGE THE SECONDARY FILTER
i
fThe secondary filter consists of an electrostatic
micron filter and subfilter. The filter should be
replaced at least every 10 months to keep the
micron filter highly efficient.(EC-14TWT6/14TAT6/
12TWT6/12TWT4 only)
When the secondaryfilter becomes excessively soiled,
wash with water and replace after it is completely dried.
(EC-12TWT2/12TXT2/12SXT4B only)
1First unplug the vacuum cleaner from the electri-
cal outlet. Remove the secondary filter from the
bottom of the paper bag compartment (Fig. 18) by
lifting it out from under the retaining lip as shown.
2Install the new filter as shown in Fig. 19.
3 Make sure that the secondary filter is in place
before vacuuming.
Secondary
filter
Fig. 18
Sub filter
Micron filter
(EC-14TWT6/
14TAT6/
12TWT6/
12TWT4 only)
Retaining lip
Fig. 19

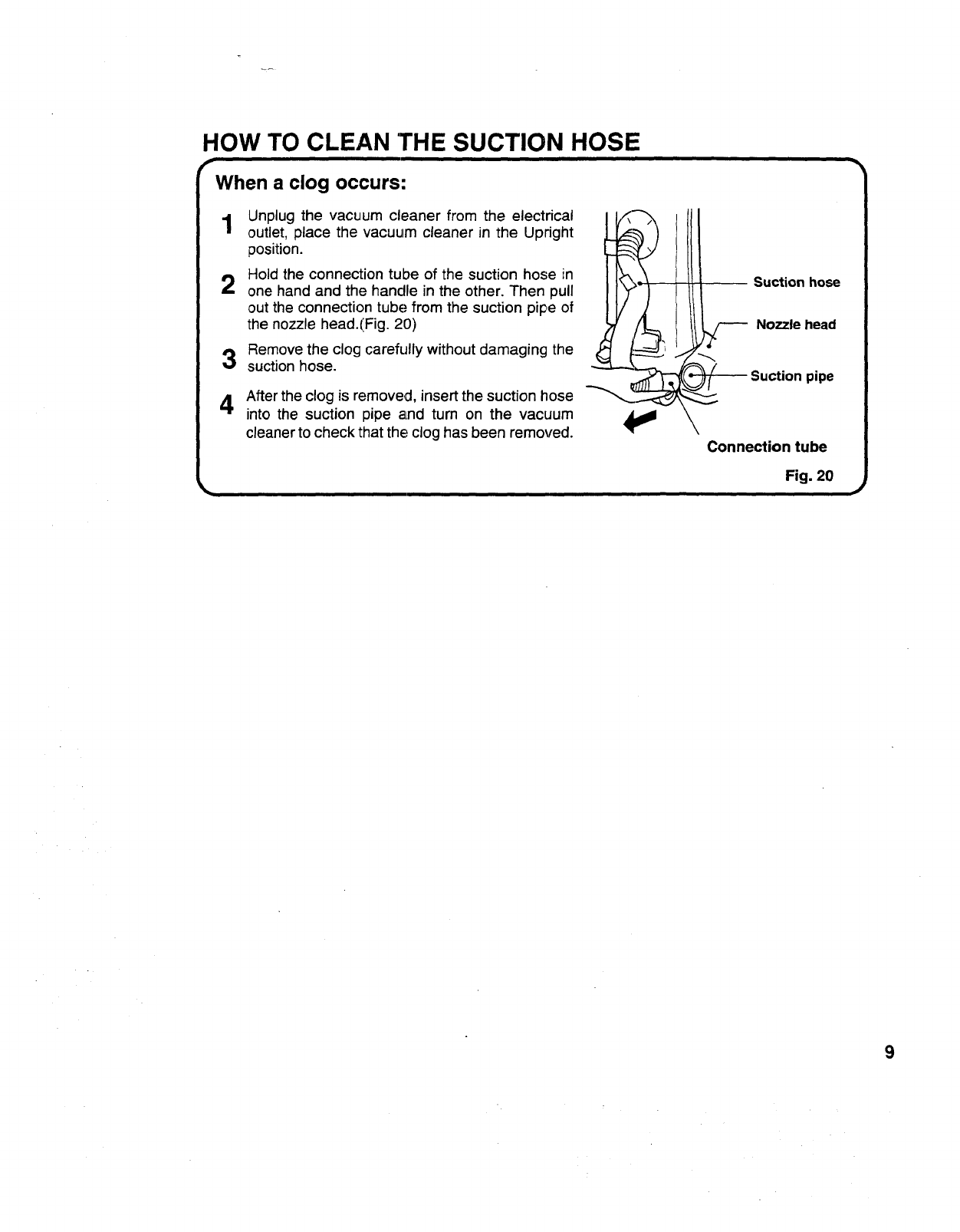

HOW TO CLEAN 'THE SUCTION HOSE
When a clog occurs,:
o ,u0t o o00 c,0aoor,ro ..oe,eo.r, a,'iIi
=outlet, place the vacuum cleaner in the Upright
position.
Hold the connection tube of the suction hose in
•_ one hand and the handle in the other. Then pull
out the connection tube from the suction pipe of
the nozzle head.(Fig. 20)
3 Remove the clog carefully without damaging the
suction hose.
/11 After the clog is removed, insert the suction hose
into the suction pipe and turn on the vacuum
cleaner to check that the clog has been removed.
Suction hose
Nozzle head
-- Suction pipe
Connection tube
Fig. 20
9
REPLACEMENT INSTRUCTIONS
HOW TO REMOVE THE BOTTOM PLATE
Before replacing any parts, unplug the
vacuum cleaner from the electrical outlet. To
replace any of the following parts, set the
handle to the Parallel position.
Then turn the vacuum cleaner over, expos-
ing the underside.
Loosen the bottom plate by sliding the latch
away from the mounting screw. (Fig. 21)
Then remove the bottom plate. ILatch
/,oon,,oO
screw
Fig. 21
HOW TO REPLACE THE HEADLIGHT LAMP
1
2
3
(EC-14TWT6/14TAT6/12TWT6/
12TWT4/12TWT2 only)
i ii
4
Remove the headlight mounting screws..
(Fig. 22)
Note the arrangement of the lead wires and
then carefully lift out the headlight assem-
bly. (Fig. 23)
.Remove the lamp from the socket by push-
mg in gently and turning it counterclockwise.
(Fig. 23a)
Install the new lamp by pushing it gently
into the socket and turning clockwise. (Fig.
23b)
Use any standard bayonet base vacuum
cleaner lamp rated 125V, 20W.
® ®
Headlight mounting Screws
Headlight assembly Fig. 22
Fig. 23a Fig. 23b
5 Reinsert the headlight assembly.
Secure it with the mounting screws.
10
Lamp Socket
i
Fig. 23

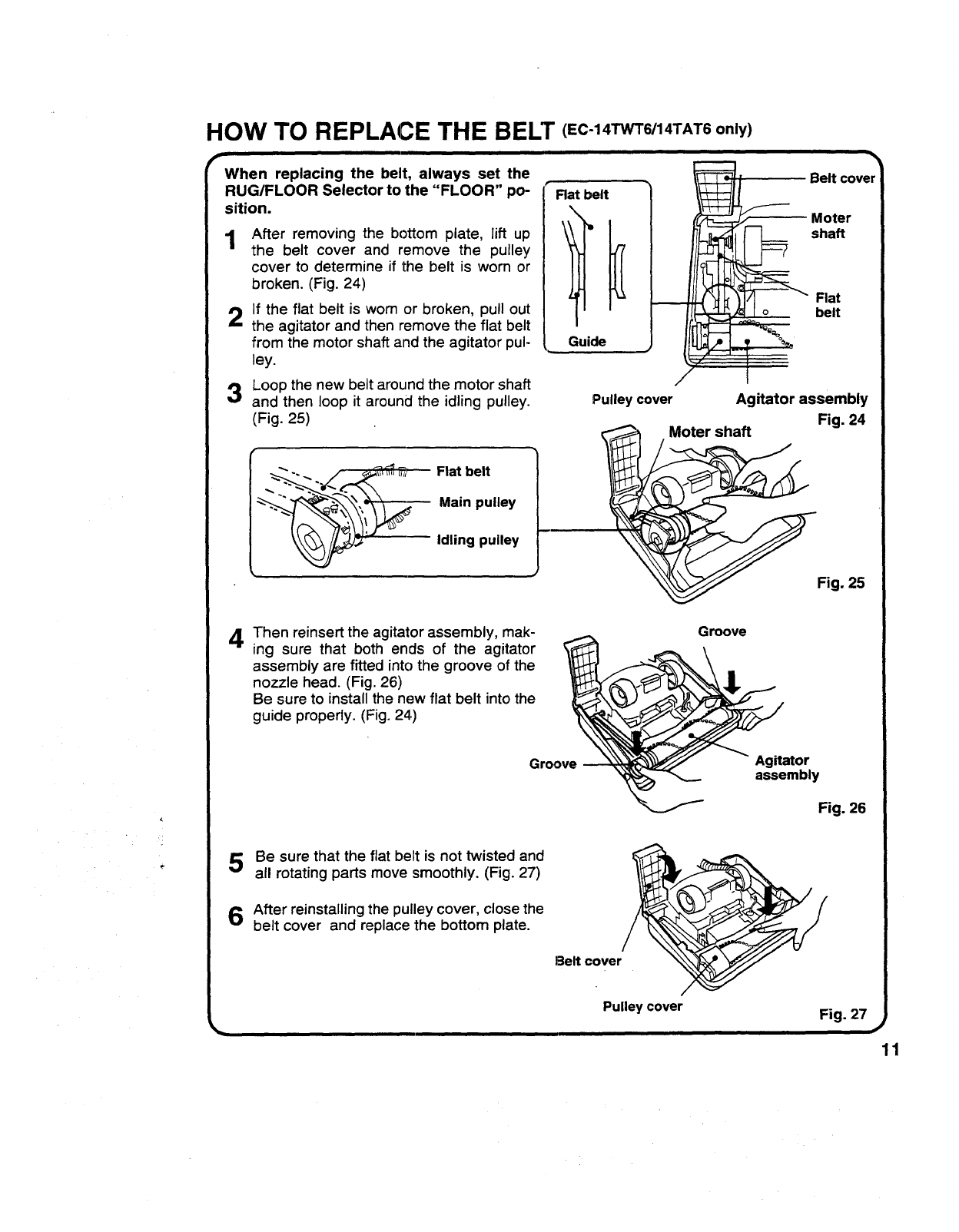

HOW TO REPLACE THE BELT (EC-14TWT6/14TAT6 only)
FWhen replacing the belt, always set the
RUG/FLOOR Selector to the "FLOOR" po-
sition.
1
2
After removing the bottom plate, lift up
the belt cover and remove the pulley
cover to determine if the belt is worn or
broken. (Fig. 24)
If the flat belt is worn or broken, pull out
the agitator and then remove the flat belt
from the motor shaft and the agitator pul-
ley.
Rat belt
Guide
ii
Belt cover
Moter
shaft
Flat
belt
3Loop the new belt around the motor shaft
and then loop it around the idling pulley. Pulley cover Agitator assembly
(Fig. 25) Fig. 24
t
_" -... _,,#,,,_,_ , Moter shaft
_"_,,_ _, Main pulley
L__... __- Idling pulley
Fig. 25
4 Then reinsert the agitator assembly, mak-
ing sure that both ends of the agitator
assembly are fitted into the groove of the
nozzle head. (Fig. 26)
Be sure to install the new flat belt into the
guide properly. (Fig. 24.)
Groove
Groove Agitator
assembly
Fig. 26
5 Be sure that the flat belt is not twisted and
all rotating parts move smoothly. (Fig. 27)
6 After reinstalling the pulley cover, close the
belt cover and replace the bottom plate.
Belt cover
Pulley cover Fig. 27
11
REPLACEMENT ]INSTRUCTIONS

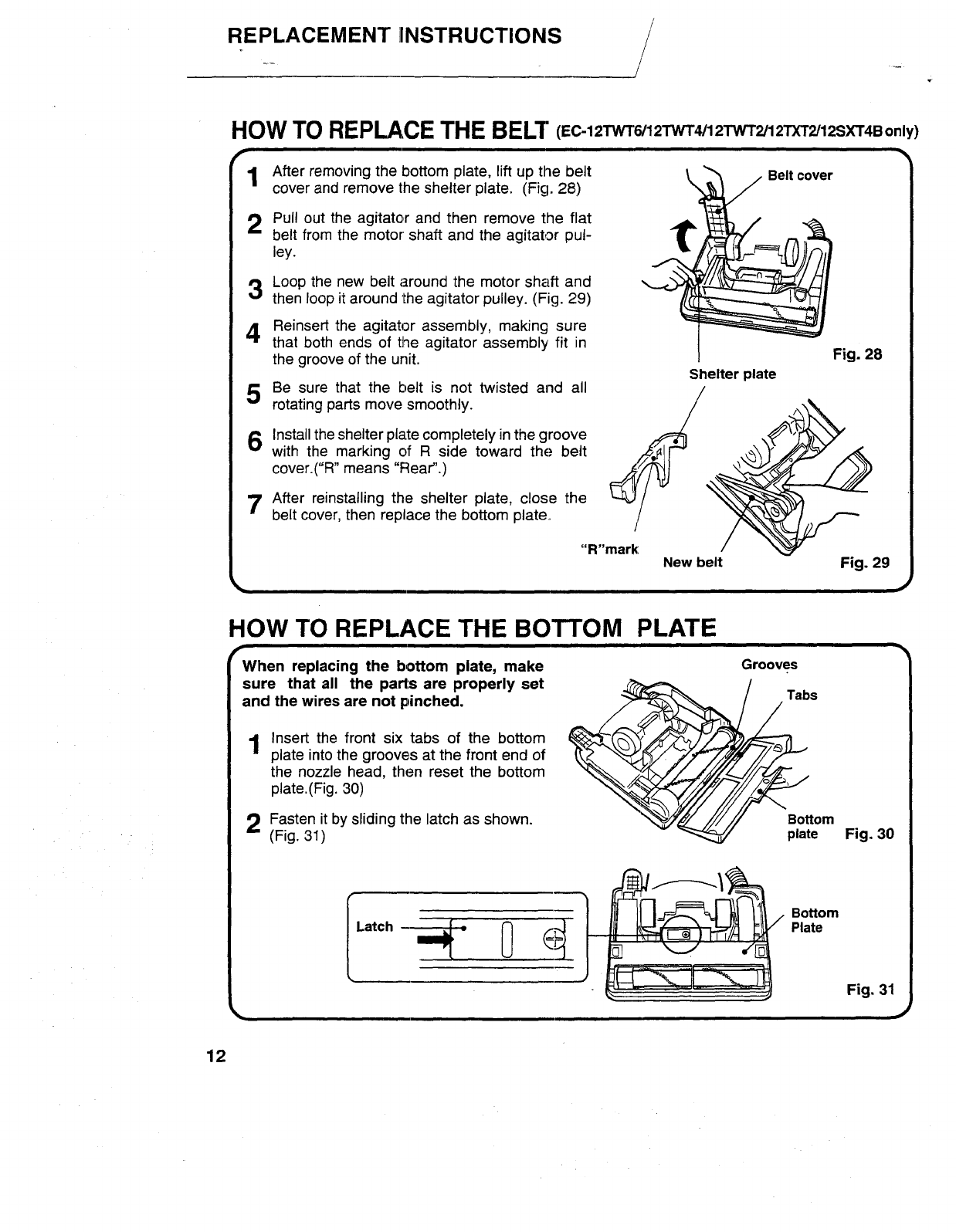

HOW TO REPLACE THE BELT (EC-12TWT6/12TWT4/12TWT2/12TXT2/12SXT4Bonly)
1
2
3
4
5
6
After removing the bottom plate, lift up the belt
cover and remove the shelter plate. (Fig. 28)
Pull out the agitator and then remove the flat
belt from the motor shaft and the agitator pul-
ley.
Loop the new belt around the motor shaft and
then loop it around the agitator pulley. (Fig. 29)
Reinsert the agitator assembly, making sure
that both ends of the agitator assembly' fit in
the groove of the unit.
Be sure that the belt is not twisted and all
rotating parts move smoothly.
Install the shelter plate completely in the groove
with the marking of R side toward the belt
cover.("R" means "Rear".)
7After reinstalling the shelter plate, close the
belt cover, then replace the bottom plate.
Belt cover
Fig. 28
Shelter plate
"R"mark New belt Fig. 29
HOW TO REPLACE THE BOTTOM PLATE
v_
When replacing the bottom plate, make
sure that all the parts are properly set
and the wires are not pinched.
1Insert the front six tabs of the bottom
plate into the grooves at the front end of
the nozzle head, then reset the bottom
plate.(Fig. 30)
2Fasten it by sliding the latch as shown.
(Fig. 31)
Grooves
Tabs
__tt__/ "ilatOm
ILatch -_ ,,
Bottom
Plate
Fig. 30
Fig. 31
12

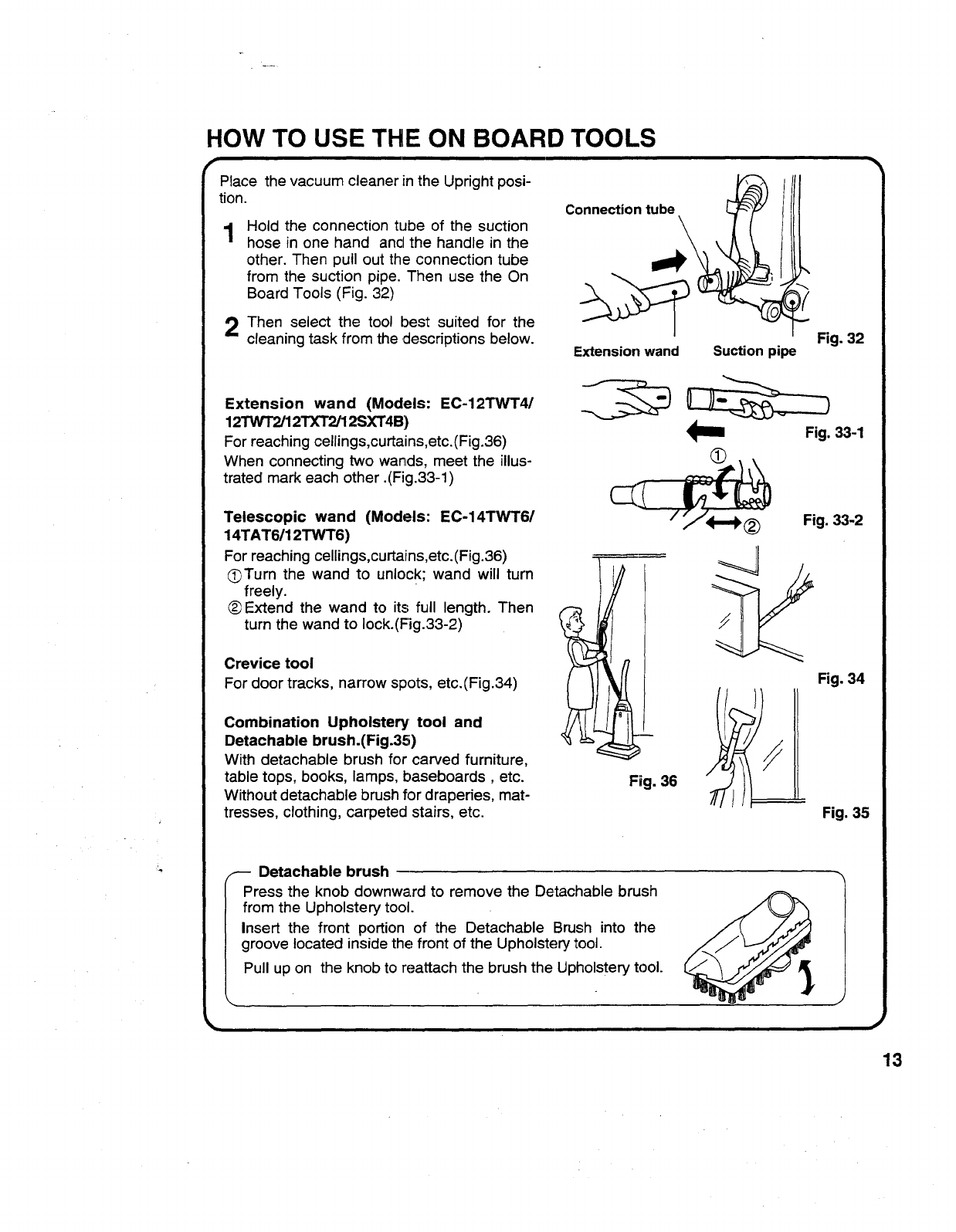

HOW TO USE THE ON BOARD TOOLS
Place the vacuum cleaner in the Upright posi-
tion.
1Hold the connection tube of the suction
hose in one hand and the handle in the
other. Then pull out the connection tube
from the suction pipe. Then use the On
Board Tools (Fig. 32)
2Then select the tool best suited for the
cleaning task from the descriptions below.
Connection tube
Extension wand Suction pipe Fig. 32
Extension wand (Models: EC-12TWT4/
12TWT2/12TXT2/12SXT4B)
For reaching ceilings,curtains,etc.(Fig.36)
When connecting two wands, meet the illus-
trated mark each other .(Fig.33-1)
Telescopic wand (Models: EC-14TWT6/
14TAT6/12TWT6)
For reaching cellings,curtai:ns,etc.(Fig.36)
_Turn the wand to unlock; wand will turn
freely.
Extend the wand to its full length. Then
turn the wand to Iock.(Fig.33-2)
Crevice tool
For door tracks, narrow spots, etc.(Fig.34)
Combination Upholstery' tool and
Detachable brush.(Fig.35)
With detachable brush for cawed furniture,
table tops, books, lamps, baseboards, etc.
Without detachable brush for draperies, mat-
tresses, clothing, carpeted stairs, etc.
Fig. 33-1
O
Fig. 34
Fig. 36
Fig. 35
Detachable brush
Press the knob downward to remove the Detachable brush
from the Upholstery tool.
Insert the front portion of the Detachable Brush into time
groove located inside the front of the Upholstery tool.
Pull up on the knob to reattach the brush the Upholstery tool.
13
BEFORE REQUESTING SERVICE
If you experience any difficulties with your vacuum cleaner, use this
Troubleshooting Chart first before requesting service.
NOTE:
Always remember to have the vacuum cleaner turned OFF and disconnect the plug from
the power outlet before working on the vacuum cleaner.
TROUBLESHOOTING CHART
Problem
Motor does not start when
the power switch is in the
ON position.
The agitator does not ro-
tate when the power
switch is in the ON posi-
tion.
Suction power is weak or
decreases suddenly.
Check
Check if the power cord plug
is completely inserted into
the outlet.
(_Check that the RUG/
FLOOR selector is posi-
tioned correctly.
(EC-14TWT6/14TAT6 only)
Be sure the flat belt is not
severed or installed incor-
rectly.
Q Does the paper bag need
changing?
(_ Check if the nozzle head,
suction hose, etc. is
clogged.
Possible Remedy
Insert the plug properly into
the outlet.
_Set the selector at the
RUG position.
(EC-14TWT6/14TAT6 only)
Replace the flat belt or in-
stall it properly.
O Change the paper bag.
Remove any foreign ob-
jects that may have be-
come jammed in the
nozzle head, suction hose,
etc.
Please request service iif the problem still persists or if=the problem is not defined in the
Troubleshooting Chart.
CALLING FOR SERVICE
For your nearest Sharp Authorized Servicer, any other assistance or
information about this product, please call Toll-Free: 1-800-BE-SHARP.
14
DESCRIPTION OF ACCESSORIES
For paper bags, belts or other parts, please contact your nearest Sharp Dealer.
If your dealer does not stock these parts, you may order them by calling 1-800-BE-SHARP°
rITEM
@
®
®
®
®
®
@
®
PART DESCRIPTION
FLAT BELT
PART NUMBER
EC-02BU3
(2 PCS IN 1 PACK)
RLM P-A001 VBE0LAMP
AGITATOR ASSEMBLY
(EC-14TWT6/14TAT6 only)
AGITATOR ASSEMBLY
(EC-12TWT6/12TWT4/12TWT2/
12TXT2/12SXT4B only)
TWIN PLY_MICRO-FITRATION
PAPER BAG
SECONDARY FILTER
WITH MICRON
EXTENSION VIAND (Slender)
EXTENSION WAND (Larger)
TELESCOPIC WAND
(EC-14TWT6/1,4TAT6/12TWT6
only)
CREVICE TOOL
UPHOLSTERY TOOL
(without Detachable Brush)
DETACHABLE BRUSH
DRTR-A003VBK0
DRTR-A004VBK0
EC-03PU2113PCS IN 1 PACK)
EC-10PU2 (10PCS IN 1 PACK)
EC°01MU3
(1 PC IN 1 PACK)
PPIPPA 180VBFA
PPIPPA 130VBFA
® FPIP-A004VBFA
(_ UCATSA057VBFA
@UCAT-A005VBFA
_. @ PBRS-A050VBEA •
r@ ® ® .
® ®
@
15
LIMITED WARRANTY
SHARP ELECTRONICS CORPORATION warrants to the first consumer purchaser that this Sharp brand
product (the "Product"), when shipped in its original container, willl be free from defective workmanship and
materials and agrees that it will, at its option, either repair the defect or replace the defective Product or part
thereof at no charge to the purchaser for parts or labor for the time period(s) set forth below.
This warranty does not apply to any appearance items of the Product nor to the additional excluded item(s)
set forth below nor to any Product the exterior of which has been damaged or defaced, which has been
subjected to misuse, abnormal service or handling or which has been altered or modified in design or
construction.
In order to enforce the right under this limited warranty, the purchaser should follow the steps set forth below
and provide proof of purchase to the servicer.
The limited warranty described herein is in addition to whatew.=r implied warranties may be granted to
purchasers by law. ALL IMPLIED WARRANTIES INCLUDING THE WARRANTIES OF MERCHANTABILITY
AND FITNESS FOR USE ARE LIMITED TO THE PERIOD(S) FROM THE DATE OF PURCHASE SET
FORTH BELOW. Some states do not allow limitations on how long an implied warranty lasts, so the above
limitation may not apply to you.
Neither the sales personnel of the seller nor any other person is authorized to make any warranties other than
those described herein or to extend the duration of any warranties beyond the time period described herein
on behalf of Sharp.
The warranties described herein shall be the sole and exclusive warranties granted by Sharp and shall be the
sole and exclusive remedy available to the purchaser. Correction of defects, in the manner and for the period
of time described herein:, shall constitute complete fulfillment of all liabilities and responsibilities of Sharp to
the purchaser with respect to the Product and shall constitute full satisfaction of all claims, whether based on
contract, negligence, striict liability or otherwise. In no event shall Sharp be liabte, or in any way responsible,
for any damages or defects in the Product which were caused by repairs o=;attempted repairs performed by
anyone other than an authorized service. Nor shall Sharp be liable, or in any way responsible, for any
incidental or consequential economic or property damage. Some states do not allow the exclusion of inciden-
tal or consequential damages, so the above exclusion may not apply to you.
THE WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS
WHICH VARY FROM STATE TO STATE.
Your Product model number: EC-14TWT6, EC-14TAT6, EC-12TWT6, EC-12TWT4, EC-12"I'WT2, EC-12TXT2
or EC-12SXT4B Home Use Vacuum Cleaner
(Be sure to have this information available when you need service for your product.)
Warranty period for this Product: one (1) year parts and labor.
Additional items excluded from warranty coverage: appearance items of the product, accessories, filters, or
any printed materials.
Where to obtain service: at a Sharp Authorized Service Station or Sharp Authorized Service Dealer located
in the United States. To find out the location of the nearest Sharp Authorized Service Station or
Dealer, call Sharp toll free at 1-800-BE-SHARP.
What to do to obtain service: ship (prepaid) or car.P/in your Product to a Sharp Authorized Service Station or
Dealer. Be sure to have proof of purchase available. If you ship or mail the Product, be sure it is
packaged carefully.
16
SHARP,
SHARP ELECTRONICS CORPORATION
Sharp Plaza, Mahwah, New Jersey 07430-2135
SHARP CORPORATION
Osaka, Japan Printed in Malaysia
