User Manual
取扱説明書
SH-09B
SH-09B 取扱説明書
環境保全のため、不要になった電池は
NTTドコモまたは代理店、リサイクル
協力店などにお持ちください。
大豆油インキを使用しています。 再生紙を使用しています
ユニバーサルナンバー用
国際識別番号
滞在国の国際電話
アクセス番号 -81-3-6718-1414＊（無料）
-8005931-8600＊
＊一般電話などでかけた場合には、日本向け通話料がかかります。
※SH-09Bからご利用の場合は、＋81-3-6718-1414でつながります。
（「＋」は「０」ボタンを１秒以上押します。）
＊滞在国内通話料などがかかる場合があります。
※主要国の国際電話アクセス番号／ユニバーサルナンバー用国際識別番号については、ドコ
モの「国際サービスホームページ」をご覧ください。
一般電話などからの場合
ドコモの携帯電話からの場合
海外での故障について
＜ネットワークオペレーションセンター＞（24時間受付）
＜ユニバーサルナンバー＞
◎公共の場所で携帯電話をご利用の際は、周囲の方への心くばりを忘れずに。
●紛失・盗難などにあわれたら、速やかに利用中断手続きをお取りください。
●お客様が購入されたFOMA端末に故障が発生した場合は、ご帰国後にドコモ指定の故障取扱窓口へご持参ください。
＊滞在国内通話料などがかかる場合があります。
※主要国の国際電話アクセス番号／ユニバーサルナンバー用国際識別番号については、ドコ
モの「国際サービスホームページ」をご覧ください。
＊一般電話などでかけた場合には、日本向け通話料がかかります。
※SH-09Bからご利用の場合は、＋81-3-6832-6600でつながります。
（「＋」は「０」ボタンを１秒以上押します。）
-8000120-0151＊
ユニバーサルナンバー用
国際識別番号
-81-3-6832-6600＊（無料）
滞在国の国際電話
アクセス番号
海外での紛失、盗難、精算などについて
＜ドコモ インフォメーションセンター＞（24時間受付）
ドコモの携帯電話からの場合
一般電話などからの場合
＜ユニバーサルナンバー＞
※
一般電話などからはご利用いただけません。
受付時間 24時間 （年中無休）
（局番なしの）113（無料）
■ドコモの携帯電話からの場合
故障お問い合わせ先
※ 一部のIP電話からは接続できない場合があ
ります。
0120-800-000
■一般電話などからの場合
※
一般電話などからはご利用いただけません。
（局番なしの）151（無料）
■ドコモの携帯電話からの場合
総合お問い合わせ先＜ドコモ インフォメーションセンター＞
●番号をよくご確認の上、お間違いのないようにおかけください。
●
各種手続き、故障・アフターサービスについては、上記お問い合わせ先にご連絡いただくか、ドコモホームページ、ｉモードサイトにてお近くのドコモショップなどにお問い合わせください。
※ 一部のIP電話からは接続できない場合があ
ります。
0120-800-000
■一般電話などからの場合
ｉモードサイト ⅰMenu お客様サポート ドコモショップドコモホームページ http://www.nttdocomo.co.jp/
受付時間 午前9:00～午後8:00 （年中無休）
’10.5
TINSJA710AFZZ
10E MS108
’10.5（評価完了版）
1
’10.5
8
j01_pr35.fm
[8/15] ~~~~~~~~~~~~~~~~~~~~ ~~~
は
じ
め
に
FOMA端末をアダプタに接続した
状態で長時間連続使用される場合
には特にご注意ください。
充電しながらｉアプリやテレビ電話、ワンセグ
視聴などを長時間行うとFOMA端末や電池パッ
ク・アダプタの温度が高くなることがあります。
温度の高い部分に直接長時間触れるとお客様の
体質や体調によっては肌に赤みやかゆみ、かぶれ
などが生じたり、低温やけどの原因となる恐れが
あります。
赤外線ポートを目に向けて送信し
ないでください。
目に悪影響を及ぼす原因となります。
赤外線通信使用時に、赤外線ポー
トを赤外線装置のついた家電製品
などに向けて操作しないでくださ
い。
赤外線装置の誤動作により、事故の原因となりま
す。
ピクチャーライトの発光部を人の
目に近づけて点灯発光させないで
ください。
視力障害の原因となります。また、目がくらんだ
り驚いたりしてけがなどの事故の原因となりま
す。
注意事項：
当製品に使用されているピクチャーライト光源
LEDは、指定されていない調整などの操作を意図
的に行った場合、眼の安全性を超える光量を放出
する可能性がありますので分解しないでくださ
い。
FOMA端末内のFOMAカードや
microSDカード挿入口に水などの
液体や金属片、燃えやすいものな
どの異物を入れないでください。
火災、やけど、けが、感電の原因となります。
自動車などの運転者に向けてライ
トを点灯しないでください。
運転の妨げとなり、事故の原因となります。
航空機内や病院など、使用を禁止
された区域では、FOMA端末の電
源を切ってください。
電子機器や医用電気機器に悪影響を及ぼす原因
となります。また、自動的に電源が入る機能を設
定している場合は、設定を解除してから電源を
切ってください。
医療機関内における使用については各医療機関
の指示に従ってください。
また、航空機内での使用などの禁止行為をした場
合、法令により罰せられます。
ハンズフリーに設定して通話する
際や、着信音が鳴っているときな
どは、必ずFOMA端末を耳から離
してください。
また、イヤホンマイクをFOMA端
末に装着し、ゲームや音楽再生を
する場合は、適度なボリュームに
調節してください。
音量が大きすぎると難聴の原因となります。
また、周囲の音が聞こえにくいと、事故の原因と
なります。
Earphone Signal Level
The maximum output voltage for the music
player function, measured in accordance with
EN 50332-2, is 46.0 mV.
心臓の弱い方は、着信バイブレー
タ（振動）や着信音量の設定に注意
してください。
心臓に悪影響を及ぼす原因となります。
FOMA
端末の取り扱いについて
警告

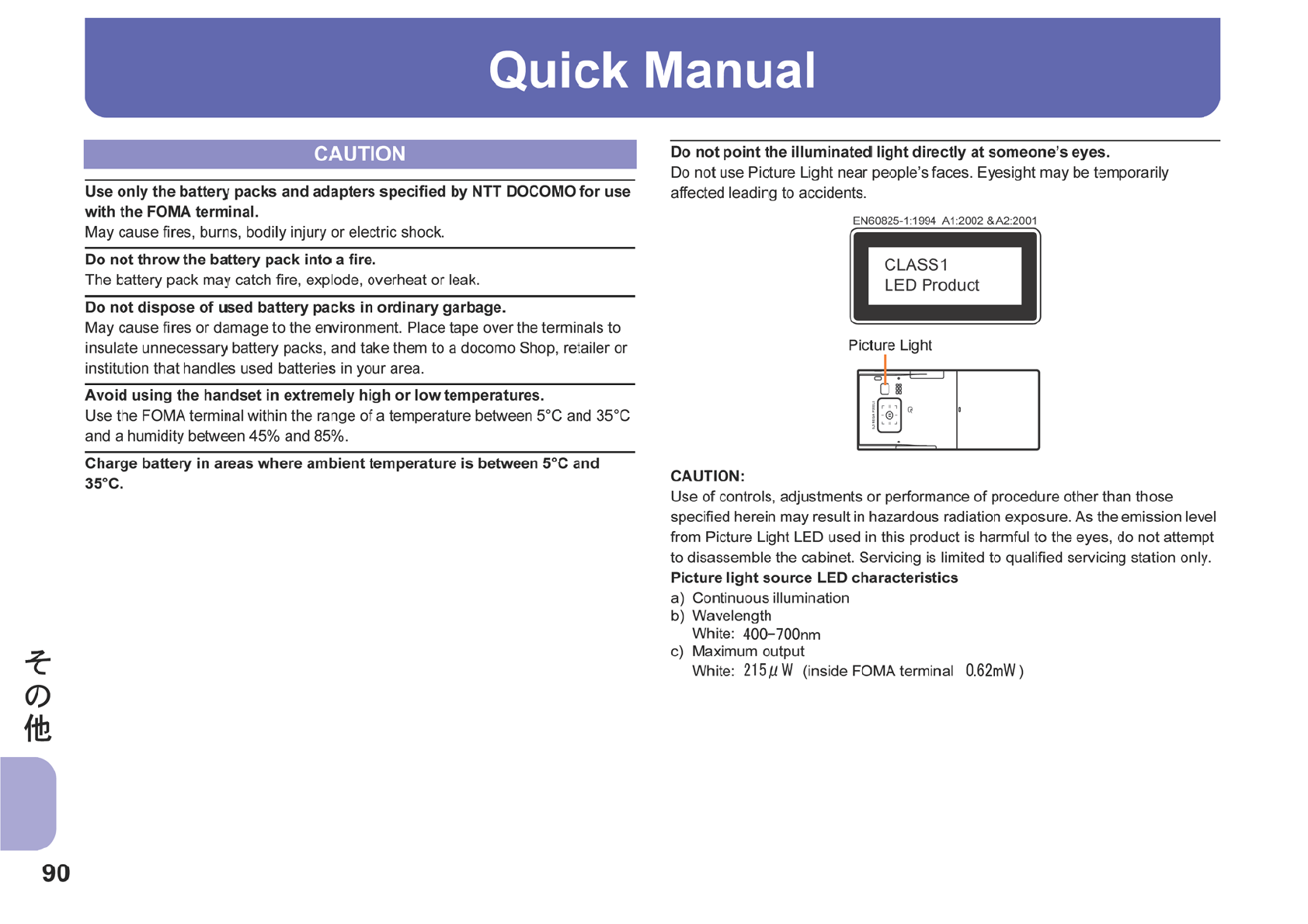

クラス 1 LED製品
EN60825-1:1994 A1:2002 & A2:2001
ピクチャーライト
pr35_uj.book 8 ページ ２０１０年５月１４日 金曜日 午前１０時３３分
91
j07_2_pr35.fm
[91/100] ~~~~~~~~~~~~~~~~~~~~ ~~~
そ
の
他
1Push the back cover in the direction of the arrow
(1), slide approximately 3 mm (2) and remove
the back cover (3)
2Pull out the tray straight (1). Set the UIM on the
tray with the IC (gold) side turned up (2) and push
the tray all the way in (3)
3Turn a recycle mark side up, match tabs and
attach the battery pack
4Place the back cover to the FOMA terminal slot
with the back cover open approximately 3 mm,
push it (1) and slide it to the direction of arrow
to insert (2)
1Insert the AC adapter into the connector terminal of the desktop holder
2Insert the AC adapter power plug into an outlet
3Place the FOMA terminal in the desktop holder in the direction of the
arrow until it clicks (1)
Charge start sound is heard, charging LED illuminates, and charging starts.
4Hold the desktop holder and lift the FOMA terminal out when charging is
complete
Charge end sound is heard and charging LED turns off when charging is
complete.
Before Use
Inserting UIM (FOMA card) and battery pack
Perform with the FOMA terminal turned off and closed while holding with your
both hands. Note that excessive force may damage the FOMA terminal, UIM
and battery pack.
Notch
IC (gold)
123
Tray
Notch
Tabs
Back cover
Securely close the back cover. If not closed securely, the back cover may
come off and the battery pack may fall out due to vibration.
Charging
Pull the AC adapter out of the outlet when left unused for a long period of
time.
When charge start sound is not heard or when charging LED does not
illuminate, check that the FOMA terminal is placed securely in the desktop
holder (except when terminal is turned off, manner mode is set or charge start
sound is silent).
When placing the FOMA terminal in the desktop holder, be careful not to
catch a strap, etc.
Connector (Turn the
side with the arrows up)
FOMA AC
Adapter 01/02
Charging LED
1
pr35_uj.book 91 ページ ２０１０年５月１７日 月曜日 午後４時１６分
92
j07_2_pr35.fm
[92/100] ~~~~~~~~~~~~~~~~~~~~ ~~~
そ
の
他 Key illustrations are examples and may look different from actual keys.

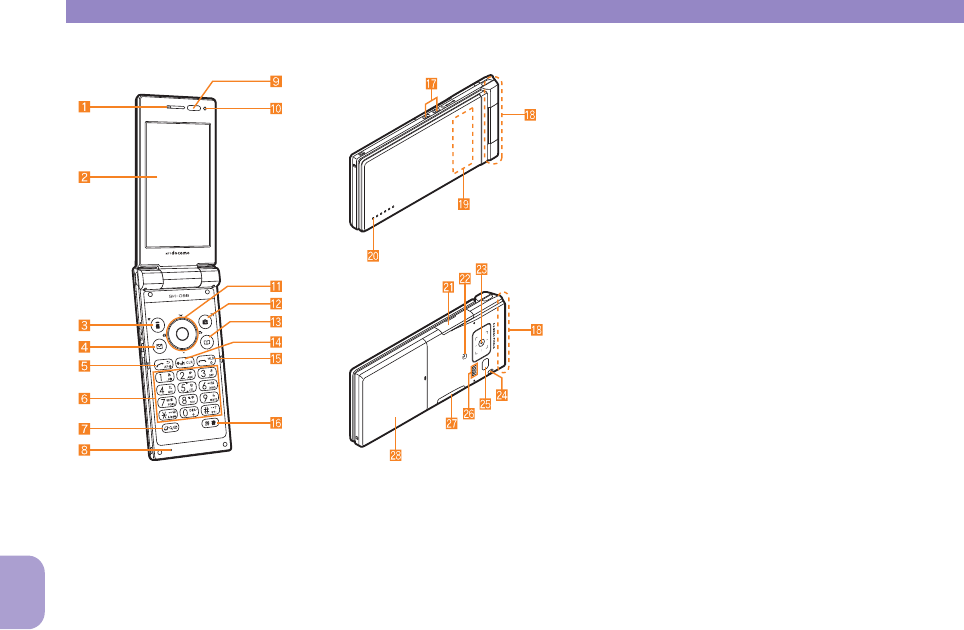

Part Names and Functions
1Earpiece
2Display
3i (,): i-mode/Operation guidance key
4m: Mail/Operation guidance key
5s: Start/Hands-free key
61 to 9, *, 0 and #: Dial/Character entry keys
7$: Multi/Quick search/VeilView key
8Mouthpiece/Microphone
9Infrared port
aBrightness sensor
bw&t&: Multi-guide key
cC: Camera/TV/Operation guidance key
da: Phonebook/Operation guidance key
ec (J): i-Channel/Clear key
fH: Power/End key
gy: Dictionary key
hCharger terminal
iFOMA antenna
j1Seg antenna
kCalled/Charging LED
lExternal connector terminal
mb mark
nCamera
oStrap hole
pPicture Light
qSpeaker
rmicroSD Card slot
sBack cover
pr35_uj.book 92 ページ ２０１０年５月１７日 月曜日 午後４時１６分
93
j07_2_pr35.fm
[93/100] ~~~~~~~~~~~~~~~~~~~~ ~~~
そ
の
他
Main icons
Turning power on
1H (for at least 2 seconds)
Turning power off
1H (for at least 2 seconds)
1][設定]/[一般設定]/[Bilingual]/[English]
The initial setting screen automatically appears when the power is turned on for
the first time. Make the initial setting according to instructions on the screen.
※Terminal security code (four to eight digits) is set to [0000] by default but can
be changed by user.
Viewing Display/Icon
Signal status
bbbb (Strong b Weak)
When [ ] appears, the handset is outside the service area
or in a place with no signal.
Battery level
bbbbb (High b Low)
i-mode/Full Browser
i-appli
Ir communication
i-mode mail/SMS/Area Mail received
microSD Card
1Seg being recorded
Record message
Silent
Vibrator
Manner mode
Public mode (Drive mode)
IC card lock
Restriction
Icon display area
Hands-free
Alarm
Music&Video Channel program reservation
UIM error
Self mode
VeilView
3G/GSM
ToruCa
Information received
Basic Operations
Turning power on/off
Changing screen display to English
Making initial setting
pr35_uj.book 93 ページ ２０１０年５月１７日 月曜日 午後４時１６分
94
j07_2_pr35.fm
[94/100] ~~~~~~~~~~~~~~~~~~~~ ~~~
そ
の
他
1]0
※Operate in the character entry screen.
Switching entry modes
1a/select the entry mode with w&/t&
Switching upper/lower case
1Enter a character/*
Deleting characters
1Move the cursor to the character and c
To delete all characters: At the end of the message, c (for at least 1
second)
Using phrases
1a (for at least 1 second)/select a phrase/t&/confirm the phrase/t&
Entering pictograms/symbols
1i
To switch between pictogram and Deco-mail pictogram: i
To switch between single- and double-byte symbols: C
2Select a pictogram/symbol/t&
Entering emoticons
1m (for at least 1 second)/select an emoticon/t&
Character entry example
Ex.) When entering “電話”
1a/[あ] with w&
24 (four times)/* (once)/0 (three times)/r&/0 (once)
3p& to move the cursor to the conversion candidates field
4Select “電話”/t&
1][Settings]/[Snd/Vibrator/Manner]/[Select sound]
2Select an item/t&
3Select a ring tone/i
1][Settings]/[Security]/[Change security code]/enter the current
terminal security code/t&
2Enter the new terminal security code/t&/enter the new terminal
security code again/t&
1^i/[お客様サポート]/[各種設定 (確 認・変 更・利 用 )]/[ネットワー
ク暗証番号変更]
1^i/[English]/[Options]/[Change i-mode Password]
1][Settings]/[Security]/[UIM Settings]/enter the terminal
security code/t&
2Select the PIN1 or PIN2 code/t&
3Enter the current PIN code/t&
4Enter the new PIN code/t&/enter the new PIN code again/t&
All lock
1][Settings]/[Security]/[Lock settings]/enter the terminal
security code/t&/[All lock]/[Yes]
Keypad dial lock
1][Settings]/[Security]/[Lock settings]/enter the terminal
security code/t&/[Keypad dial lock]/select the setting/t&
Function lock
1][Settings]/[Security]/[Lock settings]/enter the terminal
security code/t&/[Function lock]/select an item to lock/t&/C
Self mode
1][Settings]/[Phone settings]/[Self mode]/select the setting/
t&/[Yes]
Multi lock
1^t& (for at least 1 second)/[Multi lock]/[Yes]
Checking your own phone number
Character entry
Changing ring tone
Lock/Security
Changing terminal security code
Changing network security code
Changing i-mode password
Changing PIN1/PIN2 code
Various lock functions
pr35_uj.book 94 ページ ２０１０年５月１７日 月曜日 午後４時１６分
95
j07_2_pr35.fm
[95/100] ~~~~~~~~~~~~~~~~~~~~ ~~~
そ
の
他
IC card lock
1^t& (for at least 1 second)/[IC card lock]/[Yes]
Omakase Lock
Omakase Lock is a service to lock the personal data and IC card functions in case
of loss, etc. by only your request to DOCOMO via phone.
This is a paid service. Refer to “Mobile Phone User’s Guide [i-mode] FOMA
version” for details on Omakase Lock.
Set/Release Omakase Lock
s0120-524-360 Office hours: 24 hours (in Japanese only) (open all year
round)
※Unavailable from part of IP phones.
※Omakase Lock can also be set/released from the My docomo website using
PCs.
Rejecting a call with no caller ID
1][Settings]/[Security]/[Accept/Reject calls]/enter the terminal
security code/t&
2Select the reason/t&
3Select the setting/t&
Rejecting a call from a caller unset in phonebook
1][Settings]/[Security]/[Accept/Reject calls]/enter the terminal
security code/t&/[Reject unknown]
2Select the setting/t&
1^enter a phone number
2s (Phone)/i (V.phone)
3H to end the call
1When a call is received, the ring tone sounds and the called LED flashes
2s
3H to end the call
1^r& (I) (Redial)/q& (M) (Received calls)
2Select a phone number/t&
3s(Phone)/i(V.phone)
Making a call outside your country of stay (including Japan)
1^0 (for at least 1 second)/enter the country code, area code
(city code) and other party’s phone number/s (Phone)/i (V.phone)
When the area code (city code) begins with “0”, omit the “0” when dialing
(Include “0” when making a call to some countries or regions such as Italy).
Making a call in your country of stay
1^enter a phone number
2s (Phone)/i (V.phone)
Making a call to a WORLD WING subscriber overseas
Even when making a call to the phone in your country of stay, make an
international call to Japan if the call recipient is a WORLD WING subscriber
overseas.
1^0 (for at least 1 second)/enter “81”/enter the other party’s
mobile phone number excluding the first “0”/s (Phone)/i (V.phone)
Incoming call restriction
Voice/Videophone Calls
Making a voice/videophone call
Receiving a voice/videophone call
Making a call with redials/received calls
Overseas use
pr35_uj.book 95 ページ ２０１０年５月１７日 月曜日 午後４時１６分
96
j07_2_pr35.fm
[96/100] ~~~~~~~~~~~~~~~~~~~~ ~~~
そ
の
他
1^m/[Compose message]/select the [To] field/t&/[Direct
input]*1/enter an address/t&
2Select the [Sub] field/t&/enter a subject/t&/[Message]/enter
messages/t&/i*2
*1 To select a recipient from a phonebook, select [Search phonebook].
*2 To attach a file, select the attachment field/t&/select the file to attach.
1^m/[Check new messages]
1In the received mail details screen, C/[Reply/Forward]
2Select the reply method/t&
3Compose and send a mail
1In the received mail details screen, C/[Reply/Forward]/[Forward]
2Enter an address and send a mail
1^m
2Select the mailbox/t&
3Select a mail/t&
※[ ] appears in the stand-by display when a mail is received.
1^a/C/[New]/[Phone]
2Enter a name/t&/[]/enter a phone number/t&/select a phone
type icon/t&/[]/enter a mail address/t&/select a mail address
type icon/t&/i/t&
※Other items can be saved as well.
1][Camera]/[Shoot still pic]/t&/t&
1][Camera]/[Shoot movie]/t&/t&/[Save]
1][Data box]/[My picture]/select a still picture/t&
1][Data box]/[i-motion/Movie]/select a moving picture/t&
1][1Seg]/[Channel setting]
2Select the number to save/C/[Auto channel set]/[Yes]
3Select an area/t&/select a prefecture/district/t&/t&/[Yes]
1][1Seg]/[Channel setting]/select a channel list/t&
1][1Seg]/[Activate 1Seg]
To record a video of 1Seg programs: While watching 1Seg, i (for at least
1 second)/(record)/i
To record 1Seg programs as a still picture: While watching 1Seg, i
1][Data box]/[1Seg]
2[Video] folder/select a video/t&
Mail
Composing and sending i-mode mail
Checking new i-mode mail
Replying to i-mode mail
Forwarding i-mode mail
Displaying a mail in Inbox/Outbox/Unsent messages
Phonebook
Adding entries to phonebook
Camera
Shooting still pictures
Shooting moving pictures
Displaying still pictures
Playing moving pictures
Watching 1Seg
Performing automatic channel setting
Selecting a channel list
Watching 1Seg
Watching Videos
pr35_uj.book 96 ページ ２０１０年５月１７日 月曜日 午後４時１６分
97
j07_2_pr35.fm
[97/100] ~~~~~~~~~~~~~~~~~~~~ ~~~
そ
の
他
The Music&Video Channel service is provided in Japanese.
1][MUSIC]/[Music&Video ch]/select a program/t&
1][Data box]/[MUSIC]/select music data/t&
Voice Mail Service is a paid option (monthly fees apply) that requires subscription.
1][Settings]/[NW Services]/[Voice Mail]
2[Activate VoiceMail]/[Activate VoiceMail]/[Yes]
Call waiting service is a paid option (monthly fees apply) that requires
subscription.
1][Settings]/[NW Services]/[Call waiting]
2[Activate]/[Yes]
Call Forwarding Service is a free option (no monthly fees) that requires
subscription.
1][Settings]/[NW Services]/[Call Forwarding]
2[Activate]/[Activate]/[Yes]
Hold the b mark of the FOMA terminal over the scanning device to use as
electronic money or railway tickets, or retrieve ToruCa.
When the FOMA terminal is stolen or lost, immediately contact your provider of
Osaifu-Keitai compatible service for handling methods.
Battery Pack SH23 FOMA AC Adapter 01 for Global use
FOMA AC Adapter 01/02 Desktop Holder SH33
* Approximate value
Music Playback
Using Music&Video Channel
Using MUSIC Player
Network Services
Setting Voice Mail Service
Setting Call waiting service
Setting Call Forwarding Service
Osaifu-Keitai
General Notes
Introduction of options and related devices
Main specifications
Size $$ (H) × $$ (W) × $$ (D) mm
($$ at thickest point) (when folded)*
Weight $$ g (with battery pack attached)*
Continuous
talk time
FOMA/3G Voice call: $$ min*
Videophone: $$ min*
GSM Voice call: $$ min*
Continuous
stand-by time
FOMA/
3G
3G/GSM
setting: 3G When mobile: $$ hr*
3G/GSM
setting: AUTO
When mobile: $$ hr*
At rest: $$ hr*
GSM 3G/GSM
setting: AUTO At rest: $$ hr*
Charge time FOMA AC Adapter 01/02 $$ min*
FOMA DC Adapter 01/02 $$ min*
pr35_uj.book 97 ページ ２０１０年５月１７日 月曜日 午後４時１６分
98
j07_2_pr35.fm
[98/100] ~~~~~~~~~~~~~~~~~~~~ ~~~
そ
の
他
This model phone SH-09B meets the MIC’s* technical regulation for
exposure to radio waves.
The technical regulation established permitted levels of radio frequency energy,
based on standards that were developed by independent scientific organizations
through periodic and thorough evaluation of scientific studies.
The regulation employs a unit of measurement known as the Specific Absorption
Rate, or SAR. The SAR limit is 2 watts/kilogram (W/kg)** averaged over ten grams
of tissue. The limit includes a substantial safety margin designed to assure the
safety of all persons, regardless of age and health. The value of the limit is equal
to the international guidelines recommended by ICNIRP***.
All phone models should be confirmed to comply with the regulation, before they
are available for sale to the public. The highest SAR value for this model phone is
0.514 W/kg. It was taken by the Telecom Engineering Center (TELEC), a
Registered Certification Agency on the Radio Law. The test for SAR was
conducted in accordance with the MIC testing procedure using standard operating
positions with the phone transmitting at its highest permitted power level in all
tested frequency bands. While there may be differences between the SAR levels of
various phones and at various positions, they all meet the MIC’s technical
regulation. Although the SAR is determined at the highest certified power level, the
actual SAR of the phone during operation can be well below the maximum value.
For further information about SAR, please see the following websites:
* The tests are carried out in accordance with international guidelines for
testing.
Specific Absorption Rate (SAR) of mobile phone
World Health Organization (WHO)
http://www.who.int/peh-emf/en/
ICNIRP
http://www.icnirp.de/
MIC
http://www.tele.soumu.go.jp/e/sys/ele/index.htm
TELEC
http://www.telec.or.jp/ENG/Index_e.htm
NTT DOCOMO
http://www.nttdocomo.co.jp/english/product/sar/
SHARP Corporation
http://www.sharp.co.jp/products/menu/phone/cellular/sar/index.html
(in Japanese only)
* Ministry of Internal Affairs and Communications
** The technical regulation is provided in Article 14-2 of the Ministry Ordinance
Regulating Radio Equipment.
*** International Commission on Non-Ionizing Radiation Protection
European RF Exposure Information
Your mobile device is a radio transmitter and receiver. It is designed not to exceed
the limits for exposure to radio waves recommended by international guidelines.
These guidelines were developed by the independent scientific organization
ICNIRP and include safety margins designed to assure the protection of all
persons, regardless of age and health.
The guidelines use a unit of measurement known as the Specific Absorption Rate,
or SAR. The SAR limit for mobile devices is 2 W/kg and the highest SAR value for
this device when tested at the ear was 0.592 W/kg*.
As SAR is measured utilizing the devices highest transmitting power the actual
SAR of this device while operating is typically below that indicated above. This is
due to automatic changes to the power level of the device to ensure it only uses
the minimum level required to reach the network.
The World Health Organization has stated that present scientific information does
not indicate the need for any special precautions for the use of mobile devices.
They note that if you want to reduce your exposure then you can do so by limiting
the length of calls or using a hands-free device to keep the mobile phone away
from the head.
Hereby, Sharp Telecommunications of Europe Ltd, declares
that this SH-09B is in compliance with the essential
requirements and other relevant provisions of Directive
1999/5/EC.
A copy of the original declaration of conformity can be
found at the following Internet address:
http://www.sharp.co.jp/k-tai/ (in Japanese only)
Declaration of Conformity
pr35_uj.book 98 ページ ２０１０年５月２０日 木曜日 午後３時１２分
99
j07_2_pr35.fm
[99/100] ~~~~~~~~~~~~~~~~~~~~ ~~~
そ
の
他
Information to User
This equipment has been tested and found to comply with the limits of a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation; if this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following
measures:
1. Reorient/relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
4. Consult the dealer or an experienced radio/TV technician for help.
FCC RF Exposure Information
Your handset is a radio transmitter and receiver.
It is designed and manufactured not to exceed the emission limits for exposure to
radio frequency (RF) energy set by the Federal Communications Commission of
the U.S. Government.
The guidelines are based on standards that were developed by independent
scientific organisations through periodic and thorough evaluation of scientific
studies. The standards include a substantial safety margin designed to assure the
safety of all persons, regardless of age and health.
The exposure standard for wireless handsets employs a unit of measurement
known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is
1.6 W/kg.
The tests are performed in positions and locations (e.g., at the ear and worn on
the body) as required by the FCC for each model. The highest SAR value for this
model handset when tested for use at the ear is 0.651 W/kg and when worn on the
body, as described in this user guide, is 0.684 W/kg.
Body-worn Operation; This device was tested for typical body-worn operations
with the back of the handset kept 1.5 cm from the body. To maintain compliance
with FCC RF exposure requirements, use accessories that maintain a 1.5 cm
separation distance between the user’s body and the back of the handset. The
use of beltclips, holsters and similar accessories should not contain metallic
components in its assembly.
The use of accessories that do not satisfy these requirements may not comply
with FCC RF exposure requirements, and should be avoided.
The FCC has granted an Equipment Authorization for this model handset with all
reported SAR levels evaluated as in compliance with the FCC RF emission
guidelines. SAR information on this model handset is on file with the FCC and can
be found under the Display Grant section of http://www.fcc.gov/oet/ea/fccid/ after
searching on FCC ID APYHRO00122.
Additional information on Specific Absorption Rates (SAR) can be found on the
Cellular Telecommunications & Internet Association (CTIA) Website at http://
www.ctia.org/.
(Business hours: 9:00 a.m. to 9:00 p.m.)
s0120-005-250 (toll free)
※Service available in: English, Portuguese, Chinese, Spanish, Korean.
※Unavailable from part of IP phones.
(Business hours: 9:00 a.m. to 8:00 p.m. (open all year round))
From DOCOMO mobile phones
(In Japanese only)
r(No prefix) 151 (toll free)
※Unavailable from land-line phones, etc.
From land-line phones
(In Japanese only)
s0120-800-000 (toll free)
※Unavailable from part of IP phones.
Please confirm the phone number before you dial.
FCC Notice
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause
undesired operation.
Changes or modifications not expressly approved by the manufacturer
responsible for compliance could void the user’s authority to operate the
equipment.
Inquiries
General inquiries <docomo Information Center>
pr35_uj.book 99 ページ ２０１０年５月２０日 木曜日 午後３時１２分
100
j07_2_pr35.fm
[100/100] ~~~~~~~~~~~~~~~~~~~~ ~~~
そ
の
他
(Business hours: 24 hours (open all year round))
From DOCOMO mobile phones
(In Japanese only)
r(No prefix) 113 (toll free)
※Unavailable from land-line phones, etc.
From land-line phones
(In Japanese only)
s0120-800-000 (toll free)
※Unavailable from part of IP phones.
Please confirm the phone number before you dial.
For Applications or Repairs and After-Sales Service, please contact the
above-mentioned information center or the docomo Shop etc. near you on the
NTT DOCOMO website or the i-mode site.
NTT DOCOMO website: http://www.nttdocomo.co.jp/english/
i-mode site: iMenu/お客様サポート (user support)/ドコモショップ
(docomo Shop) (In Japanese only)
(available 24 hours a day)
From DOCOMO mobile phones
*
You are charged a call fee to Japan when calling from a land-line phone, etc.
※If you use SH-09B, you should dial the number +81-3-6832-6600
(to enter “+”, press the “0” key for at least 1 second).
From land-line phones
<Universal number>
* You might be charged a domestic call fee according to the call rate for the
country you stay.
※For international call access codes for major countries and universal number
international prefix, refer to DOCOMO International Services website.
(available 24 hours a day)
From DOCOMO mobile phones
* You are charged a call fee to Japan when calling from a land-line phone,
etc.
※If you use SH-09B, you should dial the number +81-3-6718-1414
(to enter “+”, press the “0” key for at least 1 second).
From land-line phones
<Universal number>
* You might be charged a domestic call fee according to the call rate for the
country you stay.
※For international call access codes for major countries and universal number
international prefix, refer to DOCOMO International Services website.
If you lose your FOMA terminal or have it stolen, immediately take the steps
necessary for suspending the use of the FOMA terminal.
If the FOMA terminal you purchased is damaged, bring your FOMA terminal to
a repair counter specified by DOCOMO after returning to Japan.
Repairs
Loss or theft of FOMA terminal or payment of
cumulative cost overseas <docomo Information Center>
International call access code for the
country you stay
-81-3-6832-6600* (toll free)
Universal number international prefix -8000120-0151*
Failures encountered overseas
<Network Support and Operation Center>
International call access code for the
country you stay
-81-3-6718-1414* (toll free)
Universal number international prefix -8005931-8600*
pr35_uj.book 100 ページ ２０１０年５月１７日 月曜日 午後４時１６分
