operational manual

’11.●

ɜġIf you lose your FOMA terminal or have it stolen, immediately take the steps necessary for suspending the use of the

FOMA terminal.

ɜġIf the FOMA terminal you purchased is damaged, bring your FOMA terminal to a repair counter specified by DOCOMO

after returning to Japan.

To prevent damage to the environment,

bring used battery packs to a docomo

service counter, a docomo agent or a

recycle center.

Sales:

Manufacturer: SHARP Corporation

Don’t forget your mobile phone… or your manners!

When using your mobile phone in a public place, don’t forget to show common courtesy and consideration for

others around you.

Universal number

international prefix

International call access code

for the country you stay

-81-3-6718-1414*

(toll free)

-8005931-8600*

From land-line phones

From DOCOMO mobile phones

Failures encountered overseas

* You might be charged a domestic call fee according to the call rate for the

country you stay.

For international call access codes for major countries and universal number

international prefix, refer to DOCOMO International Services website.

You are charged a call fee to Japan when calling from a land-line phone, etc.

ɦIf you use SH-10C, you should dial the number +81-3-6832-6600

(to enter “+”, press and hold the “0” key for at least one second).

*You might be charged a domestic call fee according to the call rate for the

country you stay.

For international call access codes for major countries and universal number

international prefix, refer to DOCOMO International Services website.

You are charged a call fee to Japan when calling from a land-line phone, etc.

ɦIf you use SH-10C, you should dial the number +81-3-6718-1414

(to enter “+”, press and hold the “0” key for at least one second).

-8000120-0151*

Universal number

international prefix

-81-3-6832-6600*

(toll free)

International call access code

for the country you stay

Loss or theft of FOMA terminal or

payment of cumulative cost overseas

From DOCOMO mobile phones

From land-line phones

(available 24 hours a day)(available 24 hours a day)

Unavailable from land-line phones, etc.

ɡFrom DOCOMO mobile phones

(In Japanese only)

Unavailable from land-line phones, etc.

(No prefix) 151 (toll free)

From DOCOMO mobile phones

(In Japanese only)

Repairs

(Business hours: 24 hours (open all year round))(Business hours: 9:00 a.m. to 8:00 p.m.)

ɦUnavailable from part of IP phones.

0120-800-000 (toll free)

ɡFrom land-line phones

(In Japanese only)

0120-005-250 (toll free)

ɦService available in: English, Portuguese, Chinese, Spanish, Korean.

(Business hours: 9:00 a.m. to 8:00 p.m. (open all year round))

ɦUnavailable from part of IP phones. (No prefix) 113 (toll free)

General Inquiries

ɜPlease confirm the phone number before you dial.

For Applications or Repairs and After-Sales Service, please contact the above-mentioned information center or the docomo Shop etc. near you on

the NTT DOCOMO website or the i-mode site.

i-mode siteȁiMenuȁ̤ݖအ΍εȜΠ (user support)ȁΡ΋κΏοΛίġ

(docomo Shop) ɦIn Japanese only

NTT DOCOMO websiteȁhttp://www.nttdocomo.co.jp/english/

ɦUnavailable from part of IP phones.

ɡFrom land-line phones

(In Japanese only)

0120-800-000 (toll free)

INSTRUCTION MANUAL

SH-10C

’11.5 (1st Edition)

11E SM118

’11.5

109

̷͈ఈ

Use only the battery packs and adapters specified

by NTT DOCOMO for use with the FOMA terminal.

May cause fires, burns, bodily injury or electric shock.

Do not throw the battery pack into a fire.

The battery pack may catch fire, explode, overheat or

leak.

Do not dispose of used battery packs in ordinary

garbage.

May cause fires or damage to the environment. Place

tape over the terminals to insulate unnecessary battery

packs, and take them to a docomo Shop, retailer or

institution that handles used batteries in your area.

Avoid using the handset in extremely high or low

temperatures.

Use the FOMA terminal within the range of a

temperature between 5°C and 40°C (for temperatures

of 36°C or higher, such as in a room with a bath, limit

usage to a short period of time) and a humidity between

45% and 85%.

Charge battery in areas where ambient temperature

is between 5°C and 35°C.

1Set docomo mini UIM card into

docomo mini UIM card slot with

the IC (gold) side turned down

(1)

Insert docomo mini UIM card

securely (2).

Quick Manual

CAUTION

Before Using

Inserting docomo mini UIM card

Note that pulling forcibly or adding forces on the

lever may damage it.

Note that inserting or removing the docomo mini

UIM card forcibly may damage the docomo mini

UIM card.

Notch

IC (gold)

Notch

110 ̷͈ఈ

Perform with the FOMA terminal turned off and

closed while holding with your both hands.

The battery pack is not waterproof/dust-proof.

1Slide the back cover lever in the direction of the

arrow (1) to unlock and remove the back cover

(2)

The FOMA terminal has a slot to remove the

back cover. Securely hold the FOMA terminal as

shown in the illustration to prevent excessive

force on the back cover and hook a nail on the

slot and remove the back cover upward.

2Attach the battery

pack

Turn the recycle

mark side of the

battery pack up,

match tabs and

attach the

battery pack.

3Insert the tab of the top of the back cover into

the FOMA terminal slot (1), attach it in the

direction of the arrow (2) and securely push

down with both hands (3)

The back of the back cover has also eight tabs to

insert the back cover. Securely push tab areas

down with both hands so that gaps are not left

between the FOMA terminal and the back cover.

4Slide the back cover lever in the direction of the

arrow (4) to lock

Attaching battery pack

Slot

Tabs

With a recycle mark

side up

Using unnecessary force when attaching or

removing the battery pack may damage the

connector terminal for the battery pack (charger

terminal) on the FOMA terminal.

Back cover

Slot

Tab

Securely push

tab areas down

with both hands

Lever

Basic Operation

Read the user’s guide of FOMA AC Adapter 01/

02 (sold separately).

1Open the external connector

terminal cover and insert the AC

adapter horizontally into the

external connector terminal (1)

2When inserting the AC adapter

power plug into an outlet, charge

alert is heard, charging LED

illuminates, and charging starts

3When charge alert is heard and

charging LED turns off, charging is

complete

When removing the connector, always hold

the release buttons on both sides (1) and

unplug it horizontally (2).

1H (for at least 2 seconds)

Stand-by display appears when initial

settings are complete.

Press H for at least 2 seconds to turn the

power off.

1In the Normal menu, [

ུఘ୭೰

]

(Setting)/[

໲লນা

වႁ

] (Text

display/input)/[Select

language]/[English]

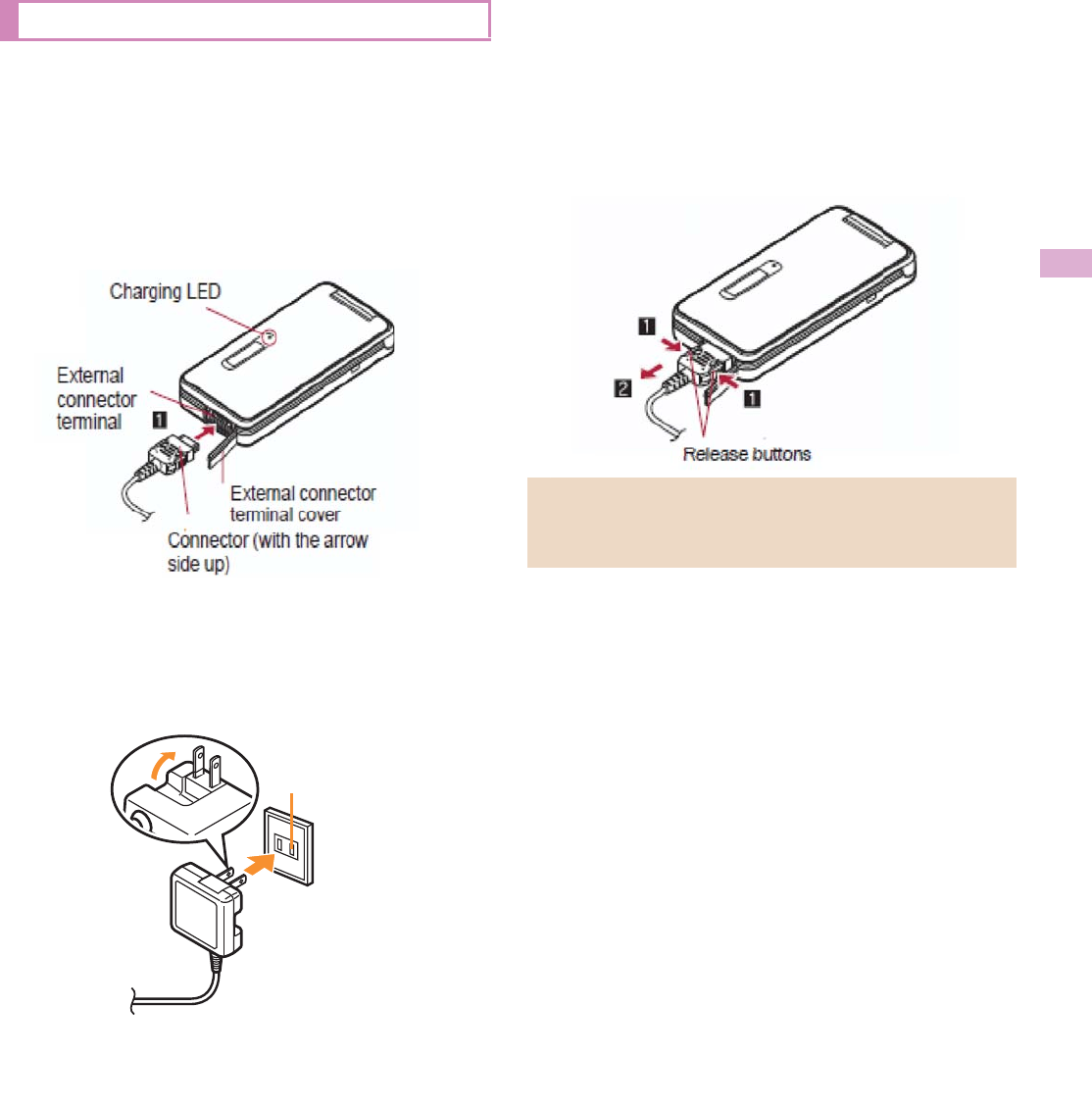

Charging by using AC adapter

Charging LED

Connector (with the arrow

side up)

External connector

terminal cover

External

connector

terminal

100V AC

outlet

Do not forcibly insert or remove. May cause

damage to the external connector terminal and

the connector or result in malfunction.

Turning power on

Changing screen display to

English

Release buttons

113

̷͈ఈ

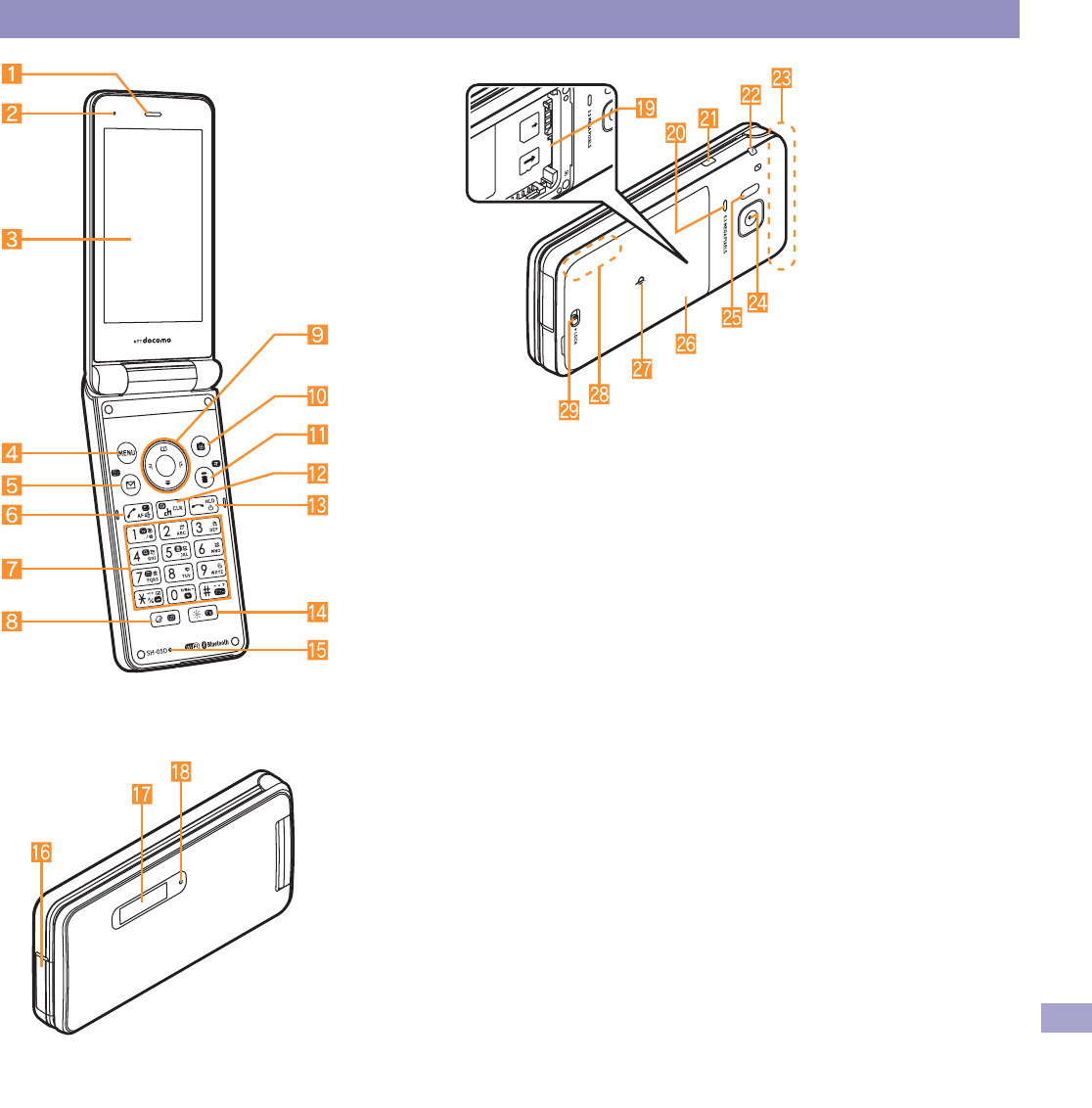

Part Names and Functions

1Earpiece

2Air vent

3Main display

4z: MENU/Operation

guidance key

5m: Mail/Operation guidance

key

6s: Start/Hands-free key

71 to 9, *, 0 and #:

Dial/Character entry keys

8$: Multi/VeilView key

9wt: Multi-guide key

aC: Camera/Operation

guidance key

bi (,): i-mode/Operation

guidance key

cc (J): i-Channel/Clear key

dH: Power/End key

ey: Bright/TV key

fMouthpiece/Microphone

gExternal connector terminal

hSub display

iCalled/Charging LED

jmicroSD Card slot

kSpeaker

l&: Side key

mStrap hole

nFOMA antenna

oCamera

pInfrared port

qBack cover

r@ mark

sBluetooth/Wi-Fi antenna

tBack cover lever

Key illustrations may look different from actual keys.

114 ̷͈ఈ

Main icons

1H (for at least 2 seconds)

Press H for at least 2 seconds to turn the power

off.

1In the Normal menu, [

ུఘ୭೰

] (Setting)/[

໲লນ

া

වႁ

] (Text display/input)/[Select

language]/[English]

1[Date and time setting]/set the date and time

2[Password]/register a terminal security code

3[Keypad sound]/set the keypad sound

4[Text size]/set the font size collectively

1In the Normal menu, [Profile]

Viewing display

Battery level

bbbb

(High Low)

Signal status

bbb

(

Strong Weak

)

When [ ] appears, the handset is

outside the service area or in a

place with no signal.

i-mode

Wi-Fi

Ir communication

Hands-free

i-mode mail/SMS/Area Mail/

Information received

i-Dppli

Alarm/Schedule

Software update

microSD Card

Public mode (Drive mode)

Silent/Vibrator

Manner mode

Keypad dial lock

Record message

VeilView

Icon display area

docomo mini UIM card error

Self mode

Music&Video Channel program

reservation

Brightmode

Bluetooth

Music&Video Channel

Personal data lock

1Seg recording

USB connection

Basic Operations

Turning power on

Changing screen display to English

Making initial setting

Checking your own phone number

115

̷͈ఈ



Switching entry modes

1In the character entry screen, m

2Select the entry mode



Entering characters

Ex.) When entering “ഩდ”

1In the character entry screen, enter “

́ͭͩ

”

́ͭͩ: 4 (four times)/* (once)/0 (three

times)/r/0 (once)

To enter multiple characters assigned to the

same key: Enter a character/r/enter a

character



Entering pictograms/symbols

1In the character entry screen, C

To switch between pictogram/Deco-mail

pictogram/Deco-mail picture: C

To switch between single- and double-byte

symbols: z

2Select a pictogram/symbol



Entering emoticons

1In the character entry screen, z/[Pict/Symbol/

Smiley]/[Smiley]

For a mail message: In the character entry

screen, z/[Quote phrase/data]/[Pict/Symbol/

Smiley]/[Smiley]

2Select a category/select an emoticon

1In the Normal menu, [Setting]/[Sound/

Vibration/Manner]/[Ring tone]

2Select an item

;[Call ring tone]

;[Videophone]

;[Mail]/select an item

3Set each item/C

1In the Normal menu, [Setting]/[Lock/

Security]/[Change security code]/enter the

current terminal security code

2Enter the new terminal security code

3Enter the new terminal security code again

1In stand-by, i/[

̤ݖအ΍εȜΠ

] (user

support)/[

ڎਅ୭೰

(

ږ෇Ȇ་ࢵȆ၌ဥ

)] (settings

(check/change/use))/[

ΥΛΠχȜ·ճબ๔࣢་

ࢵ

] (change network security code)

1In stand-by, i/[English]/[Options]/

[Change i-mode Password]

1In the Normal menu, [Setting]/[Lock/

Security]/[UIM setting]

2Select an item

;[Change PIN1 code]/enter the terminal security

code/enter the current PIN1 code/enter the

new PIN1 code/enter the new PIN1 code

again/C

;[Change PIN2 code]/enter the terminal security

code/enter the current PIN2 code/enter the

new PIN2 code/enter the new PIN2 code

again/C

;[PIN1 entry ON/OFF]/[ON]/enter the PIN1

code

Character entry

Changing ring tone

Lock/Security

Changing terminal security code

Changing network security code

Changing i-mode password

Setting PIN code

116 ̷͈ఈ



All lock

1In the Normal menu, [Setting]/[Lock/

Security]/[Lock settings]/[All lock]/enter the

terminal security code



Omakase Lock

Omakase Lock is a service to lock the personal data in

case of loss, etc. by only your request to DOCOMO via

phone.

Refer to “Mobile Phone User’s Guide [Basic Usage]”

for details on Omakase Lock.

Set/Release Omakase Lock

s0120-524-360

Office hours: 24 hours (in

Japanese only) (open all year round)

ɦUnavailable from part of IP phones.

ɦOmakase Lock can also be set/released from the

My docomo website using PCs.



Self mode

1In the Normal menu, [Setting]/[Other setting]/

[Self mode]/select the setting/[Yes]



Personal data lock

1In the Normal menu, [Setting]/[Lock/

Security]/[Lock settings]/[Personal data

lock]/enter the terminal security code/select

the setting



Keypad dial lock

1In the Normal menu, [Setting]/[Lock/

Security]/[Keypad dial lock]/enter the

terminal security code/select the setting



Auto-key lock

1In the Normal menu, [Setting]/[Lock/

Security]/[Lock settings]/[Auto-key lock]/

select the lock type/enter the terminal security

code/set each item/C



Setting response to a call with no caller ID

1In the Normal menu, [Setting]/[Lock/

Security]/[Call rejection setting]

2Select an item

;[Anonymous]/enter the terminal security code

/set each item/C

;[Payphone]/enter the terminal security code/

set each item/C

;[Unavailable]/enter the terminal security code

/set each item/C



Rejecting a call from a caller unset in phonebook

1In the Normal menu, [Setting]/[Lock/

Security]/[Call rejection setting]

2[Unregistered caller]/enter the terminal

security code/select the setting

1In stand-by, enter a phone number

2s (Phone)/C (V.phone)

3H to end the call

1When a call is received, the ring tone sounds

and the called LED flashes

3H to end the call

1In the Normal menu, [TEL function]/[Dialed/

Received calls]/[Received calls]/[Redial]

2Point the cursor to the history

3s (Phone)/i (V.phone)

Various lock functions Incoming call restriction

Voice/Videophone Calls

Making a voice/videophone call

Receiving a voice/videophone call

Making a call with redials/received

calls

117

̷͈ఈ



Making a call to outside the country you stay in

(including Japan)

1In stand-by, enter “+” (0 for at least 1 second),

country code, area code (city code) and other

party’s phone number

When the area code (city code) begins with “0”,

omit the “0” when dialing (Include “0” when

making a call to some countries or regions such

as Italy).

2s (Phone)/C (V.phone)



Making a call in country you stay

1In stand-by, enter a phone number

2s (Phone)/C (V.phone)



Making a call to WORLD WING user overseas

When you make a call to a WORLD WING user

overseas, you make a call as an international call to

Japan regardless of your country of stay.

1In stand-by, enter “+” (0 for at least 1 second),

country code “81” (Japan) and the other party’s

mobile phone number excluding the first “0”

2s (Phone)/C (V.phone)

1In stand-by, m/[Compose message]

2[<No address>]/enter an address

3Select the SUB field/enter a subject

4[Message]/enter a message

1In stand-by, m/[Check new mail/message]

1In the received mail details screen, z/[Reply/

Forward]

2Select the reply method

3Compose and send a mail

1In stand-by, m

2Select a box

3Select a mail

1In the Normal menu, [TEL function]/

[Phonebook]/[Add to phonebook]/[UIM

operation]

2Set each item/C

Using overseas Mail

Sending i-mode mail

Checking new i-mode mail

Replying to i-mode mail

Displaying a mail in Inbox/Outbox/

Unsent box

Phonebook

Adding phonebook entries

118 ̷͈ఈ

1In stand-by, C

2t/&

3t/&

1In the Normal menu, [CAMERA/TV/MUSIC]/

[Camera]/[Movie shooting]

2t/&

3t/& to end shooting

4[Save]

1In the Normal menu, [Data box]/[My picture]

2[Camera] folder/select a still picture

1In the Normal menu, [Data box]/[i-motion/

Movie]

2[Camera] folder/select a moving picture

1In the Normal menu, [CAMERA/TV/MUSIC]/

[1Seg]/[Channel setting]

When the confirmation screen appears: [Yes]/

proceed to step 3

2z/[Create]

3Select the registration method

;[Use preset]

;[Auto setting]/[Yes]

ƦIf you do not select an area: [No]/proceed to

step 6

4Select an area

5Select a prefecture/district

6[Yes]

1In the Normal menu, [CAMERA/TV/MUSIC]/

[1Seg]/[Activate 1Seg]

1In the Normal menu, [Data box]/[1Seg]

2[Video] folder/select a video

The Music&Video Channel service is provided in

Japanese.

1In the Normal menu, [CAMERA/TV/MUSIC]/

[Music&Video Channel]

2Select a program

1In the Normal menu, [Data box]/[MUSIC]

2Select music data

Voice Mail Service is a paid option (monthly fees apply)

that requires subscription.

1In the Normal menu, [TEL function]/[Voice mail

service]

2[Activate]/[Yes]/[Yes]/enter the ringing

time/[OK]

Call waiting service is a paid option (monthly fees apply)

that requires subscription.

1In the Normal menu, [TEL function]/[Other

network service]/[Call waiting]

2[Activate]/[Yes]/[OK]

Camera

Shooting still pictures

Shooting moving pictures

Displaying shot still pictures

Playing shot moving pictures

Watching 1Seg

Setting channels

Watching 1Seg

Playing recorded videos

Music Playback

Using Music&Video Channel

Using MUSIC Player

Network Services

Setting Voice Mail Service

Setting Call waiting service

119

̷͈ఈ

Call Forwarding Service is a free option (no monthly

fees) that requires subscription.

1In the Normal menu, [TEL function]/[Other

network service]/[Call forwarding]

2[Activate]/[Yes]/[Yes]/enter a phone

number/C/[Yes]/enter the ringing time/

[OK]

The Bluetooth word mark and logos are owned by

the Bluetooth SIG, INC. and any use of such marks

by NTT DOCOMO, INC. is under license.

Other trademarks and trade names are those of their

respective owners.

Switch the other party’s Bluetooth device to the

registration stand-by status in advance.

1In the Normal menu, [Tool]/[Bluetooth]/[List/

cnnct/discnct]

The device list screen appears when registered

device exists. Press C and proceed to step 3.

2[Yes]

3Point the cursor to the Bluetooth device to

4Enter the Bluetooth passkey

1In the Normal menu, [Tool]/[Bluetooth]/[List/

cnnct/discnct]

2Select a Bluetooth device to connect to

Battery Pack SH34

FOMA AC Adapter 01 for Global use

FOMA AC Adapter 01/02

Wireless Charger SH01

* Approximate value

Setting Call Forwarding Service

Bluetooth function

Registering Bluetooth devices on

FOMA terminal

Connecting with Bluetooth devices

General Notes

Options and related devices

Main specifications

Size

110 (H) × 50 (W) ×

17.3 (D) mm (18.1 mm

at thickest point) (when

folded)*

Weight 132 Ũ (with battery

pack attached)*

Continuous

talk time FOMA/3G Voice call: 270 min*

Videophone: 130 min*

Continuous

stand-by

time

FOMA/3G At rest : 770 hr*

Charge

time

FOMA AC

Adapter 01/02 ɜɜ min*

FOMA DC

Adapter 01/02 ɜɜ min*

Wireless

Charger SH01 220 min*

More Convenient

To register a Bluetooth device, the Bluetooth

passkey must be entered. Before starting the

registration, enter the same user-specified 4- to

16-digit number on the FOMA terminal and the

other party’s Bluetooth device.

Switch the other party’s Bluetooth device to the

registration stand-by status in advance.

1In the Normal menu, [Tool]/

[Bluetooth]/[List/cnnct/discnct]

The device list screen appears when

registered device exists. Press C and

proceed to step 3.

2[Yes]

3Point the cursor to the Bluetooth

device to register/z/[Register

Devices]

4Enter the Bluetooth passkey

1In the Normal menu, [Tool]/

[Bluetooth]/[List/cnnct/discnct]

2Select a Bluetooth device to

connect to

The FOMA terminal supports Wi-Fi and

allows you to connect to the Internet using

Full Browser via the access point at home or

public wireless LAN service.

Set the FOMA terminal to the access point (base

unit) and connect the Wi-Fi compatible device (sub

unit) to use services such as playing games.

Also, use the FOMA terminal as an access point to

connect Wi-Fi compatible devices within local area

network.

An access point mode is not available overseas.

The Internet service provider, compatible with

Wi-Fi connection such as mopera U, is used for

an access point mode.

Packet communication charges when using an

access point mode are same as when

connecting a PC or PDA, etc. Note that making

a communication with large-volume data will

lead to higher communication charges.

Registering Bluetooth devices on

FOMA terminal

Entering the Bluetooth passkey may not be

required depending on the other party’s

Bluetooth device.

Connecting with Bluetooth devices

Using Wi-Fi

IEEE 802.11n

5.2GHz/5.3GHz/5.6GHz (W52/W53/W56) is

not supported.

MIMO (Multiple Input Multiple Output) is not

supported.

40MHz radio-frequency bandwidth system

(HT40) is not supported.

Using access point mode

80 More Convenient

Setting use of access point mode

1In the Normal menu, [Tool]/

[Wi-Fi]/[AP mode (base unit)]

The access point mode screen appears.

2Select an item

;[Start AP mode]/[Start AP mode (local)]

;[Cnncted dev(sub) list]/select the Wi-Fi

compatible device/set each item/C

;[Stop AP mode]/[Yes]

Setting access point mode

1In the access point mode screen,

2Select an item

;[Wireless setting]/enter the terminal

security code/set each item/C

;[Host (APN) list]

;[External device list]/select a Wi-Fi

compatible device/set each item/C

;[Set local transmission]/select the

setting

;[Reset settings]/enter the terminal

security code/[Yes]

You can connect to the access point at home or

public wireless LAN service via Wi-Fi and use the

Internet.

Setting use of client mode

1In the Normal menu, [Tool]/

[Wi-Fi]/[Client mode (sub)]

2Select an item

;[Connection(automatic)]

;[Register new host]/select the

registration method

;[Host list]/point the cursor to the

access point/C/set each item/C

;[Disconnect/Stop]

Display an electronic compass to check the

direction that the FOMA terminal is headed to.

1In the Normal menu, [Tool]/

[Compass]

Using client mode

Checking azimuth

84 More Convenient

Example: Phonebook

1In stand-by, p

2Point the cursor to the name/

z/[Send data]/

[iC transmission]

3Select the sending method

;[Send]

;[Send all]/enter the terminal security

code/enter the authentication

password

4[Yes]

5Place the b mark on that of the

other party’s FOMA terminal

1In stand-by, place the b mark on

that of the other party’s FOMA

terminal

2[Yes]

By connecting the FOMA terminal and your

PC, exchange WMA files and images in the

microSD Card. In addition, connect to the

Internet and perform data communication.

FOMA USB Cable with Charge Function 02

(sold separately) or FOMA USB Cable (sold

separately) is required.

For a data communication, installation of the

“FOMA communication configuration file”

(Driver) is required.

Refer to “Manual for PC Connection” for details.

You can download “FOMA communication

configuration file” and “Manual for PC

Connection” from the DOCOMO website.

http://www.nttdocomo.co.jp/support/ (in

Japanese only)

“DOCOMO Connection Manager” is a software

which is convenient for using data communication

of DOCOMO. Easily set the PC depending on the

subscription. In addition, use the charge counter

function to check the approximate amounts of data

communication or usage fee.

Refer to the DOCOMO website for details.

http://www.nttdocomo.co.jp/support/utilization/

application/service/connection_manager/ (in

Japanese only)

Sending data

Receiving data

Connecting to PC

DOCOMO Connection Manager

120 ̷͈ఈ

This model SH-05D mobile phone complies with

Japanese technical regulations and international

guidelines regarding exposure to radio waves.

This mobile phone was designed in observance of

Japanese technical regulations regarding exposure to

radio waves (*1) and limits to exposure to radio waves

recommended by a set of equivalent international

guidelines. This set of international guidelines was set

out by the International Commission on Non-Ionizing

Radiation Protection (ICNIRP), which is in collaboration

with the World Health Organization (WHO), and the

permissible limits include a substantial safety margin

designed to assure the safety of all persons, regardless

of age and health condition.

The technical regulations and international guidelines

set out limits for radio waves as the Specific Absorption

Rate, or SAR, which is the value of absorbed energy in

any 10 grams of tissue over a 6-minute period. The

SAR limit for mobile phones is 2.0 W/kŨ. The highest

SAR value for this mobile phone when tested for use at

the ear is ɜɜ W/kŨ. There may be slight differences

between the SAR levels for each product, but they all

satisfy the limit.

The actual SAR of this mobile phone while operating

can be well below that indicated above. This is due to

automatic changes to the power level of the device to

ensure it only uses the minimum required to reach the

network. Therefore in general, the closer you are to a

base station, the lower the power output of the device.

This mobile phone can be used in positions other than

against your ear. This mobile phone satisfies the

international guidelines when used with a carrying case

or a wearable accessory approved by NTT DOCOMO,

INC. (*2). In case you are not using the approved

accessory, please use a product that does not contain

any metals, and one that positions the mobile phone at

least 1.5 cm away from your body.

The World Health Organization has stated that “a large

number of studies have been performed over the last

two decades to assess whether mobile phones pose a

potential health risk. To date, no adverse health effects

have been established as being caused by mobile

phone use.”

Please refer to the WHO website if you would like more

detailed information.

(http://www.who.int/docstore/peh-emf/publications/

facts_press/fact_english.htm)

Please refer to the websites listed below if you would

like more detailed information regarding SAR.

Specific Absorption Rate (SAR) of

Mobile Phone

Ministry of Internal Affairs and Communications

Website:

(http://www.tele.soumu.go.jp/e/sys/ele/index.htm)

Association of Radio Industries and Businesses

Website:

(http://www.arib-emf.org/index02.html) (in Japanese

only)

NTT DOCOMO, INC. Website:

(http://www.nttdocomo.co.jp/english/product/sar/)

SHARP Corporation Website:

(http://www.sharp.co.jp/products/menu/phone/cellular/

sar/index.html)

(in Japanese only)

*1 Technical regulations are defined by the Ministerial

Ordinance Related to Radio Law (Article 14-2 of

Radio Equipment Regulations).

*2 Regarding the method of measuring SAR when

using mobile phones in positions other than against

the ear, international standards (IEC62209-2) were

set in March of 2010. On the other hand, technical

regulation is currently being deliberated on by

national council (As of January, 2012).

r i

There

121

̷͈ఈ

* The tests are carried out in accordance with

international guidelines for testing.

Information to User

This equipment has been tested and found to comply

with the limits of a Class B digital device, pursuant to

Part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful

interference in a residential installation. This equipment

generates, uses and can radiate radio frequency

energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to

radio communications.

However, there is no guarantee that interference will not

occur in a particular installation; if this equipment does

cause harmful interference to radio or television

reception, which can be determined by turning the

equipment off and on, the user is encouraged to try to

correct the interference by one or more of the following

measures:

European RF Exposure Information

Your mobile device is a radio transmitter and receiver. It

is designed not to exceed the limits for exposure to

radio waves recommended by international guidelines.

These guidelines were developed by the independent

scientific organization ICNIRP and include safety

margins designed to assure the protection of all

persons, regardless of age and health.

The guidelines use a unit of measurement known as the

Specific Absorption Rate, or SAR. The SAR limit for

mobile devices is 2 W/kŨ and the highest SAR value for

this device when tested at the ear was ɜɜ W/kŨ*.

As SAR is measured utilizing the devices highest

transmitting power the actual SAR of this device while

operating is typically below that indicated above. This is

due to automatic changes to the power level of the

device to ensure it only uses the minimum level

required to reach the network.

The World Health Organization has stated that present

scientific information does not indicate the need for any

special precautions for the use of mobile devices. They

note that if you want to reduce your exposure then you

can do so by limiting the length of calls or using a

hands-free device to keep the mobile phone away from

the head.

Declaration of Conformity

This declaration relates to the handset only.

In some countries/regions, such as France, there are

restrictions on the use of Wi-Fi. If you intend to use

Wi-Fi on the handset abroad, check the local laws

and regulations beforehand.

FCC Notice

This device complies with part 15 of the FCC Rules.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference,

and (2) this device must accept any interference

received, including interference that may cause

undesired operation.

Changes or modifications not expressly approved by

the manufacturer responsible for compliance could

void the user’s authority to operate the equipment.

Hereby, Sharp Telecommunications of Europe

Ltd, declares that this SH-05D is in compliance

with the essential requirements and other

relevant provisions of Directive 1999/5/EC.

A copy of the original declaration of conformity

can be found at the following Internet address:

(http://www.sharp.co.jp/k-tai/) (in Japanese only)

122 ̷͈ఈ

1. Reorient/relocate the receiving antenna.

2. Increase the separation between the equipment and

receiver.

3. Connect the equipment into an outlet on a circuit

different from that to which the receiver is

connected.

4. Consult the dealer or an experienced radio/TV

technician for help.

FCC RF Exposure Information

Your handset is a radio transmitter and receiver.

It is designed and manufactured not to exceed the

emission limits for exposure to radio frequency (RF)

energy set by the Federal Communications

Commission of the U.S. Government.

The guidelines are based on standards that were

developed by independent scientific organizations

through periodic and thorough evaluation of scientific

studies. The standards include a substantial safety

margin designed to assure the safety of all persons,

regardless of age and health.

The exposure standard for wireless handsets employs

a unit of measurement known as the Specific

Absorption Rate, or SAR. The SAR limit set by the FCC

is 1.6 W/kŨ.

The tests are performed in positions and locations (e.g.,

at the ear and worn on the body) as required by the

FCC for each model. The highest SAR value for this

model handset when tested for use at the ear is ɜɜ

W/kŨ and when worn on the body, as described in this

user guide, is ɜɜ W/kŨ.

Body-worn Operation; This device was tested for typical

body-worn operations with the back of the handset kept

1.5 cm from the body. To maintain compliance with

FCC RF exposure requirements, use accessories that

maintain a 1.5 cm separation distance between the

user’s body and the back of the handset. The use of

beltclips, holsters and similar accessories should not

contain metallic components in its assembly.

The use of accessories that do not satisfy these

requirements may not comply with FCC RF exposure

requirements, and should be avoided.

The FCC has granted an Equipment Authorization for

this model handset with all reported SAR levels

evaluated as in compliance with the FCC RF emission

guidelines. SAR information on this model handset is on

file with the FCC and can be found under the Display

Grant section of (http://www.fcc.gov/oet/ea/fccid/) after

searching on FCC ID APYHRO00ɜɜ.

Additional information on Specific Absorption Rates

(SAR) can be found on the Cellular

Telecommunications & Internet Association (CTIA)

Website at (http://www.ctia.org/).

(Business hours: 9:00 a.m. to 8:00 p.m.)

s0120-005-250 (toll free)

ɦService available in: English, Portuguese, Chinese,

Spanish, Korean.

ɦUnavailable from part of IP phones.

(Business hours: 9:00 a.m. to 8:00 p.m. (open all year

round))

From DOCOMO mobile phones

(In Japanese only)

r(No prefix) 151 (toll free)

ɦUnavailable from land-line phones, etc.

From land-line phones

(In Japanese only)

s0120-800-000 (toll free)

ɦUnavailable from part of IP phones.

Please confirm the phone number before you dial.

Inquiries

General inquiries

123

̷͈ఈ

(Business hours: 24 hours (open all year round))

From DOCOMO mobile phones

(In Japanese only)

r(No prefix) 113 (toll free)

ɦUnavailable from land-line phones, etc.

From land-line phones

(In Japanese only)

s0120-800-000 (toll free)

ɦUnavailable from part of IP phones.

Please confirm the phone number before you dial.

For Applications or Repairs and After-Sales Service,

please contact the above-mentioned information

center or the docomo Shop etc. near you on the NTT

DOCOMO website or the i-mode site.

NTT DOCOMO website:

(http://www.nttdocomo.co.jp/english/)

i-mode site: iMenu/̤ݖအ΍εȜΠ (user

support)/Ρ΋κΏοΛί (docomo Shop) (In

Japanese only)

(available 24 hours a day)

From DOCOMO mobile phones

You are charged a call fee to Japan when calling

from a land-line phone, etc.

ɦIf you use SH-05D, you should dial the number

+81-3-6832-6600

(to enter “+”, press the “0” key for at least 1

second).

From land-line phones

* You might be charged a domestic call fee

according to the call rate for the country you

stay.

ɦFor international call access codes for major

countries and universal number international prefix,

refer to DOCOMO International Services website.

(available 24 hours a day)

From DOCOMO mobile phones

* You are charged a call fee to Japan when

calling from a land-line phone, etc.

ɦIf you use SH-05D, you should dial the number

+81-3-6718-1414

(to enter “+”, press the “0” key for at least 1

second).

From land-line phones

* You might be charged a domestic call fee

according to the call rate for the country you

stay.

ɦFor international call access codes for major

countries and universal number international prefix,

refer to DOCOMO International Services website.

If you lose your FOMA terminal or have it stolen,

immediately take the steps necessary for

suspending the use of the FOMA terminal.

If the FOMA terminal you purchased is damaged,

bring your FOMA terminal to a repair counter

specified by DOCOMO after returning to Japan.

Repairs

Loss or theft of FOMA terminal or

payment of cumulative cost overseas

International call access

code for the country you

stay

-81-3-6832-6600*

(toll free)

Universal number

international prefix

-8000120-0151*

Failures encountered overseas

International call access

code for the country you

stay

-81-3-6718-1414*

(toll free)

Universal number

international prefix

-8005931-8600*

109

̷͈ఈ

Use only the battery packs and adapters specified

by NTT DOCOMO for use with the FOMA terminal.

May cause fires, burns, bodily injury or electric shock.

Do not throw the battery pack into a fire.

The battery pack may catch fire, explode, overheat or

leak.

Do not dispose of used battery packs in ordinary

garbage.

May cause fires or damage to the environment. Place

tape over the terminals to insulate unnecessary battery

packs, and take them to a docomo Shop, retailer or

institution that handles used batteries in your area.

Avoid using the handset in extremely high or low

temperatures.

Use the FOMA terminal within the range of a

temperature between 5°C and 40°C (for temperatures

of 36°C or higher, such as in a room with a bath, limit

usage to a short period of time) and a humidity between

45% and 85%.

Charge battery in areas where ambient temperature

is between 5°C and 35°C.

1Set docomo mini UIM card into

docomo mini UIM card slot with

the IC (gold) side turned down

(1)

Insert docomo mini UIM card

securely (2).

Quick Manual

CAUTION

Before Using

Inserting docomo mini UIM card

Note that pulling forcibly or adding forces on the

lever may damage it.

Note that inserting or removing the docomo mini

UIM card forcibly may damage the docomo mini

UIM card.

Notch

IC (gold)

Notch

6Introduction

nStrap hole

oFOMA antenna*

pCamera

Use to shoot still pictures or moving pictures.

qInfrared port (nP. 80)

rBack cover (nP. 23)

s@ mark

When charging, place the FOMA terminal

slowly so that @ mark of the wireless charger

faces that of the FOMA terminal.

tBluetooth/Wi-Fi antenna*

uBack cover lever (nP. 23)

* The antenna is built in the terminal. Covering the

antenna area with your hand may influence the

quality.

Before use, read these “Precautions” carefully and

use your FOMA terminal properly.

Keep this manual in a safe place for future

reference.

These precautions contain information intended to

prevent bodily injury to the user and to surrounding

people, as well as damage to property, and must be

observed at all times.

The following symbols indicate the different

degrees of injury or damage that may occur if

information provided is not observed and the

FOMA terminal is used improperly.

The 1Seg antenna is built in the terminal. The

whole FOMA terminal works as the antenna.

Precautions (Always follow

these directions)

Danger

This symbol indicates

that “death or serious

bodily injury may

directly and

immediately result

from improper use”.

Warning

This symbol indicates

that “death or serious

bodily injury may

result from improper

use”.

Caution

This symbol indicates

that “minor injury and/

or property damage

may result from

improper use”.

Introduction

The following symbols indicate specific

directions.

“Precautions” is explained in the following six

sections.

Handling the FOMA terminal, battery pack,

adapters, wireless charger, and docomo mini UIM

card (general) . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 7

Handling the FOMA terminal . . . . . . . . . . . . . . .P. 9

Handling battery pack. . . . . . . . . . . . . . . . . . . . P. 11

Handling adapters and wireless charger . . . . . P. 12

Handling docomo mini UIM card. . . . . . . . . . . . P. 13

Handling near electronic medical equipment

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 14

Do not use, store or leave the

equipment in locations subject to

high temperatures (near a fire or

heating unit, in a kotatsu, under

direct sunlight, inside a vehicle on a

hot day, etc.).

May cause fires, burns or bodily injury.

Do not place the equipment inside

cooking appliances such as

microwave ovens or pressure

cookers.

May cause fires, burns, bodily injury or electric shock.

Do not attempt to disassemble or

modify the equipment.

May cause fires, burns, bodily injury or electric shock.

Do not get the equipment wet with

water, drinking water, pet urine, etc.

May cause fires, burns, bodily injury or electric shock.

Refer to the following for details on waterproofness.

n“Waterproof/Dust-proof function” on P. 22

Use only the battery packs and

adapters specified by NTT DOCOMO

for use with the FOMA terminal.

May cause fires, burns, bodily injury or electric shock.

Indicates a prohibited action.

Indicates not to disassemble the

device.

Indicates not to handle the device with

wet hands.

Indicates not to use the device near

water or get it wet.

Indicates that instructions

specified are compulsory (must

be followed).

Indicates that the power cord must be

unplugged from the outlet.

Handling the FOMA terminal, battery

pack, adapters, wireless charger, and

docomo mini UIM card (general)

Danger

8Introduction

Do not subject the equipment to

strong force or impacts or throw it.

May cause fires, burns, bodily injury or electric shock.

Do not allow conductive materials

(such as metal objects and pencil lead)

to come into contact with the charger

terminal or external connector terminal.

In addition, do not insert such objects.

May cause fires, burns, bodily injury or electric shock.

Do not cover or wrap the equipment

with bedding, etc. when using or

charging.

May cause fires or burns.

Do not use the FOMA terminal near

high-precision electronic devices or

devices that use weak electronic

signals.

May interfere with the operation of electronic devices.

Take particular care with the following devices

Hearing aids, implanted cardiac pacemakers, implanted

cardioverter-defibrillators or other electronic medical

equipment. Fire alarms, automatic doors, and other

equipment controlled by electronic signals. If you use

an implanted cardiac pacemaker, implanted

cardioverter-defibrillator or other electronic medical

equipment, contact the respective manufacturer or

vendor to check whether the operation of the equipment

is affected by signals.

Make sure to turn off the FOMA

terminal and not to charge the battery

in locations such as gas stations

where flammable gas is generated.

May cause a gas explosion or fire.

If you notice anything unusual, such

as an unusual odor, overheating,

discoloration or deformation during

use, charging or storage, immediately

follow the instructions below.

Unplug the power cord from the

outlet or cigarette lighter socket.

Turn off the FOMA terminal.

Remove the battery pack from the

FOMA terminal.

May cause fires, burns, bodily injury or electric shock.

Do not leave the equipment on

unstable surfaces, such as on a

wobbling table or sloped surface.

May fall and cause injury.

Do not store the equipment in

locations that are subject to

humidity, dust or high temperatures.

May cause fires, burns or electric shock.

If being used by a child, have a guardian

teach him/her the proper handling

procedures. In addition, check that the

child is using the equipment as directed.

May result in bodily injury.

Keep the equipment out of the reach

of young children.

A young child may swallow the equipment or suffer

other bodily injury.

Warning

Caution

Introduction

Be very careful when using the FOMA

terminal connected to adapters

repeatedly or for a long time.

The FOMA terminal, battery pack or

adapters may become warm if i-appli, videophone or

1Seg is used for a long time while charging.

Touching high temperature areas for a long time may

cause skin irritations, itchiness or low-temperature burn

in some people.

Do not aim the infrared port towards

the eyes.

May cause eye injury.

Do not aim the infrared port towards

home electric appliances with an

infrared device during Ir

communication.

May interfere with the operation of infrared devices and

cause an accident.

Do not allow water or other liquids,

metal, flammable material or other

foreign objects to enter the docomo

mini UIM card or microSD Card slot

on the FOMA terminal.

May cause fires, burns, bodily injury or electric shock.

Turn off the FOMA terminal in areas

where the use of mobile phones is

prohibited, such as in aircraft or

hospitals.

May interfere with the operation of electronic devices

and electronic medical equipment.

In addition, if auto power on function is set to on,

disable this function before turning off your mobile

phone.

Follow the instructions given by the respective medical

facilities regarding the use of mobile phones on their

premises.

Actions such as using a mobile phone aboard aircraft

are prohibited and punishable by law.

However, follow the instructions on use of the FOMA

terminal given by the airline if the mobile phone can be

used aboard aircraft by setting the mobile phone such

as setting it not to emit radio wave.

Keep the FOMA terminal away from

the ears during a call in which

hands-free is set or while the ring

tone is ringing.

When you attach the earphone/

microphone, etc. to the FOMA

terminal to play games, music, etc.,

do not make the volume too loud.

Excessive high volume may damage your hearing.

Also, it may prevent you from hearing the ambient

sounds and cause an accident.

Earphone Signal Level

The maximum output voltage for the music player

function, measured in accordance with EN 50332-2, is

34.0 mV.

If you have a weak heart, take extra

precautions when setting functions

such as the vibrator and ring tone

volume for incoming calls.

May have harmful effects on your heart.

Handling the FOMA terminal

Warning

10 Introduction

If you are using electronic medical

equipment, contact the respective

manufacturer or vendor to check

whether the operation of the

equipment is affected by signals.

May interfere with the operation of electronic medical

equipment, etc.

In case that the display part or camera

lens is damaged, make sure to pay

attention to a broken glass and the

exposed inside of the FOMA terminal.

The surfaces of the display part and the camera lens are

covered by plastic panels so as to minimize the possibility of

glass scattering. However, touching the broken or exposed

parts may cause injury.

Do not swing the FOMA terminal by

its strap etc.

May hit you or others around you, resulting in bodily injury.

Do not use the damaged FOMA

terminal.

May cause fires, burns, bodily injury or electric shock.

If the display is broken and internal

substances such as liquid crystal

then leaks, do not get the liquid on

your skin (face, hands, etc.).

May result in loss of eyesight and harm to your skin.

If internal substances such as liquid crystal come into

contact with your eyes or mouth, immediately rinse your

eyes or mouth with clean water and see a doctor.

If the liquid comes into contact with your skin or clothes,

immediately wipe it off with alcohol, and wash with

water and soap.

If you use the FOMA terminal in an

automobile, contact the automobile

manufacturer or vendor to check

whether the operation of the electronic

equipment is affected by signals.

May interfere with the operation of electronic equipment

in some vehicle models. In such cases, stop using the

FOMA terminal.

Use of the FOMA terminal may cause

skin irritations such as itchiness,

rashes or eczema in some people. If

this occurs, immediately stop using

the FOMA terminal and seek medical

treatment.

For details on materials of each part n“Material list”

on P. 14

Do not close the FOMA terminal on

your fingers or objects such as the

strap.

May result in bodily injury.

Look at the display in a well-lit place,

keeping a certain distance from the

screen.

Otherwise, eyesight may be decreased.

Caution

Introduction

Check the type of battery using the information

printed on the battery pack label.

Do not touch terminals with metallic

objects such as wires. In addition,

do not carry or store the battery

pack with metallic necklaces, etc.

The battery pack may catch fire, explode, overheat or leak.

Check that the battery pack is facing

the correct direction before you

attach it to the FOMA terminal. If you

are having difficulty fitting the

battery pack to the FOMA terminal,

do not use excessive pressure to

force the battery into place.

The battery pack may catch fire, explode, overheat or leak.

Do not throw the battery pack into a

fire.

The battery pack may catch fire, explode, overheat or leak.

Do not puncture, hit with a hammer

or step on the battery pack.

The battery pack may catch fire, explode, overheat or leak.

If the battery fluid, etc. comes into

contact with your eyes, do not rub

your eyes but immediately rinse

your eyes with clean water. Then

seek prompt medical treatment.

May result in loss of eyesight.

If any trouble such as a deformation

or scratches caused by a drop is

found, never use it.

The battery pack may catch fire, explode, overheat or leak.

If the battery pack leaks, emits an

unusual odor, etc., immediately stop

use and move it away from any flame

or fire.

The battery fluid is flammable and could ignite, causing

a fire or explosion.

Prevent your pet from biting the

battery pack.

The battery pack may catch fire, explode, overheat or leak.

Do not dispose of used battery

packs in ordinary garbage.

May cause fires or damage to the environment. Place

tape over the terminals to insulate unnecessary battery

packs, and take them to a docomo Shop, retailer or

institution that handles used batteries in your area.

Handling battery pack

Label Battery type

Li-ion00 Lithium-ion

Danger

Warning

Caution

12 Introduction

Do not use or charge a wet battery

pack.

The battery pack may catch fire, explode, overheat or leak.

If the battery fluid, etc. leaks, do not

get the liquid on your skin (face,

hands, etc.).

May result in loss of eyesight and harm to your skin.

If the liquid, etc. comes into contact with your eyes,

mouth, skin or clothes, immediately rinse them with

clean water.

If the liquid comes into contact with your eyes or mouth,

see a doctor immediately after rinsing your eyes or mouth.

Do not use if the cord of the adapter

or of the wireless charger is

damaged.

May cause fires, burns or electric shock.

Never use the AC adapter or the

wireless charger in humid locations

such as a bathroom.

May cause fires, burns or electric shock.

The DC adapter should only be used

in negative grounded vehicles.

Never use this adapter in positive

grounded vehicles.

May cause fires, burns or electric shock.

Do not touch adapters or the

wireless charger if you hear thunder.

May cause electric shock.

Take care not to short-circuit the

charging terminal when it is connected

to an outlet or cigarette lighter socket.

Also, take care not to allow any part of

your body (hands, fingers, etc.) to come

into contact with the charging terminal.

May cause fires, burns or electric shock.

Do not place heavy objects on the

cord of the adapter or of the wireless

charger.

May cause fires, burns or electric shock.

When plugging/unplugging the AC

adapter into/from the outlet, do not allow

metallic straps or other metallic objects

to come into contact with the terminal.

May cause fires, burns or electric shock.

Do not place foreign objects

between the wireless charger and

the FOMA terminal.

May cause overheat or burns or catch fire.

Do not paste stickers such as

aluminium or metallic objects on the

wireless charger.

May cause overheat or burns or catch fire.

Do not connect the voltage

converter for overseas travel (Travel

converter) to the wireless charger.

May cause overheat or electric shock or catch fire.

Handling adapters and wireless

charger

Warning

Introduction

Do not handle the cord of the

adapters, the wireless charger or the

outlet with wet hands.

May cause fires, burns or electric shock.

Do not charge any parts wet with

water with the wireless charger.

May cause fires, burns, bodily injury or electric shock.

Always use the specified power

supply and voltage.

When using overseas, use the AC

adapter that is available overseas.

Using the incorrect voltage may cause fire, burns or

electric shock.

AC adapter: 100V AC

DC adapter: 12/24V DC (for negative grounded vehicles only)

AC adapter available overseas: 100 to 240V AC (Connect

only with household AC outlet)

If the fuse in the DC adapter blows,

always replace it with a fuse of the

specified type.

May cause fires, burns or electric shock. Refer to the

respective manuals for information on the correct fuse

specifications.

Wipe off any dust on the power plug.

May cause fires, burns or electric shock.

Fully plug the AC adapter or the

power plug into the outlet.

May cause fires, burns or electric shock.

Always grasp the adapters when

unplugging the power plug from the

outlet or cigarette lighter socket. Do

not forcibly pull by the cord of the

adapter or of the wireless charger.

May cause fires, burns or electric shock.

If you have an implanted cardiac

pacemaker or an implanted

cardioverter-defibrillator, consult a

doctor about the use of the wireless

charger.

Electromagnetic signals may have harmful effects on

the operation of implanted cardiac pacemakers and

implanted cardioverter-defibrillators.

Unplug the power plug from the

outlet or cigarette lighter socket

when not using for a long time.

May cause fires, burns or electric shock.

Should water or other liquids enter

the equipment, remove the power

plug from the outlet or cigarette

lighter socket immediately.

May cause fires, burns or electric shock.

Always unplug the power plug from

the outlet or cigarette lighter socket

before cleaning the adapters.

May cause fires, burns or electric shock.

Be careful with the cutting surface

when detaching the docomo mini

UIM card.

May cause bodily injury.

Handling docomo mini UIM card

Caution

14 Introduction

The precautions detailed here conform to the

guidelines drawn up by the Electromagnetic

Compatibility Conference Japan, regarding the

protection of electronic medical equipment

from signals emitted by mobile phones.

Observe the following in hospitals or

other medical facilities.

Do not take your FOMA terminal into operating

rooms, ICUs (Intensive Care Units) or CCUs

(Coronary Care Units).

Turn off your FOMA terminal inside hospital wards.

Turn off your FOMA terminal even when you are in

an area outside hospital wards, such as a hospital

lobby, since electronic medical equipment may be in

use nearby.

Where a medical facility has specific instructions

prohibiting the carrying and use of mobile phones,

observe those instructions strictly.

If auto power on function is set to on, disable this

function before turning off your mobile phone.

Turn off your FOMA terminal in

crowded places such as rush-hour

trains in case somebody nearby is

using an implanted cardiac

pacemaker or implanted

cardioverter-defibrillator.

Electromagnetic signals may have harmful effects on

the operation of implanted cardiac pacemakers and

implanted cardioverter-defibrillators.

If you have electric medical

equipments such as an implanted

cardiac pacemaker or an implanted

cardioverter-defibrillator, always

carry or use your FOMA terminal at

least 22 cm away from your implant.

Electromagnetic signals may have harmful effects on

the operation of the electric medical equipments.

Patients receiving medical treatment

away from a hospital or medical facility

(e.g. home treatment) who are using

electronic medical equipment other than

implanted cardiac pacemakers or

implanted cardioverter-defibrillators

should consult the respective

manufacturers for information regarding

the effects of signals on the equipment.

Electromagnetic signals may have harmful effects on

the operation of electronic medical equipment.

Terminal/Back cover/Battery pack

Handling near electronic medical

equipment

Warning

Material list

Part

Material/Surface

treatment

Surface

FOMA

terminal

Display side

PC, PMMA

resin/Hard

coating

Back of display side

PMMA resin/

Hard coating

Side surface of display

side, Surrounding

section of keyboard side

Polyamide resin

with glass/UV

coating

Left side, Right side,

Back of keyboard side

PC+ABS-GF20

resin/UV coating

Keyboard side UV cured resin

Hinge section ABS resin/UV

coating

88 Others

Up to five error names appear. Error names after

the sixth are skipped and the total number of

errors appears when six or more are detected. If

same error is detected more than once, it is only

listed once.

Displaying scanned results

Combine the FOMA terminal with various

optional accessories (sold separately) for

expanded personal and business use.

Some products may not be available in

certain areas. Contact a docomo Shop or

retailer for details.

Refer to the user’s guide of each product for

more details on optional parts.

FOMA AC Adapter 01*1/02*1

Battery Pack SH34

Back Cover SH60

Earphone Terminal P001*2

Flat-plug Stereo Earphone Set P01*3

Flat-plug Earphone/Microphone with Switch

P01*3/P02*3

Stereo Earphone Set P001*2

Earphone/Microphone with Switch P001*2/

P002*2

Earphone/Microphone 01

Stereo Earphone Set 01

Earphone Plug Adapter P001*3

Earphone Plug Adapter for External connector

terminal 01

Earphone Plug Adapter 01

FOMA USB Cable*4

Wireless Earphone Set 02

FOMA AC Adapter 01 for Global use*1

FOMA DC Adapter 01/02

FOMA Indoor Booster Antenna*5

In-Car Hands-Free Kit 01*6

FOMA In-Car Hands-Free Cable 01

In-Car Holder 01

FOMA Dry Battery Adapter 01

Carry Case S 01

Level 0 Level 1

[OK]: To display/

activate/call

[No]: To display/

activate/call

[Yes]: To cancel

operation

Level 2 Level 3

[OK]: To end [Yes]: To delete the

data

[No]: To end without

deleting

Level 4

[OK]: To delete the data

Options and related devices

Others

Carry Case 02

Bone conduction microphone/receiver 01*3/02

FOMA USB Cable with Charge Function 02*4

FOMA Portable Charging Adapter 01/02/03

FOMA Indoor Booster Antenna (Stand Type)*5

FOMA eco Solar Panel 01

Wireless Charger SH01*5

Wireless Charger 01*5

*1 Refer to P. 31 for details on charging with an

AC adapter.

*2 Earphone Plug Adapter for External connector

terminal 01 and Earphone Plug Adapter are

required.

*3 Earphone Plug Adapter for External connector

terminal 01 is required.

*4 The use of USB HUB may prevent working

correctly.

*5 For use only in Japan.

*6 FOMA In-Car Hands-Free Cable 01 is required

to charge SH-05D.

When settings are reset by Reset (nP. 48),

functions return to default settings (marked with

• Some items may include functions which do not

return to default settings.

Depending on the Kisekae tool set in the Normal

menu, the function names may differ from those

described.

Mail menu

Appendix

Menu list

Normal menu/Basic menu list

Inbox

Outbox

Unsent messages

Compose message

Create new Decome-Anime

Decome-Template Deco-mail

Decome-Anime

Compose new SMS

Check new mail/message

Check new SMS

Receive option

Decome-Item Pattern conversion

Font

Sharp HRO00167 Cellular Phone User Manual FCC 08 SH 05D Operation Manual

Sharp Corporation Cellular Phone FCC 08 SH 05D Operation Manual

operational manual

Navigation menu

Namespaces

Views

Navigation
