Thank you for buying the “AQUOS PAD SHT21” (simply
called the “SHT21” or the “product” from here on).
Before using the product, be sure to read the “Basic
Manual” (this PDF manual) on the au homepage to
ensure correct use. After you have finished reading this
PDF manual, be sure to store it and the printed manuals
(Accessories) in safe places so that you can retrieve
them whenever you need them. If you lose the printed
manuals (Accessories), contact an au shop or
Customer Service Center.
■“Basic Manual” (This PDF Manual)
This manual describes basic operations of major
functions.
For detailed descriptions of various functions, refer to
the “Instruction Manual application” (Japanese) that
can be used on the product or “Full Instruction Manual”
(Japanese) on the au homepage:
(http://www.au.kddi.com/torisetsu/index.html)
■“Instruction Manual Application”
(Japanese)
You can use the “Instruction Manual application” on the
product to check detailed operational procedures.
Also, you can activate intended functions from an
explanation screen depending on the functions.
On the home screen, tap [APPS] [[Instruction
Manual].
•To use the application for the first time, you need to
download and install it by following on-screen
instructions.
■Downloading Manuals
You can download the “Basic Manual” (this PDF
manual) and the “Instruction Manual” (Accessory)
(Japanese) or “Full Instruction Manual” (Japanese) in
PDF format from the au homepage.
Before you start using the product, be sure to read the
“Safety Precautions” to ensure correct use.
Before you assume that the product is malfunctioning,
check for possible remedies in the following au
Customer Support site of au homepage:
(http://cs.kddi.com/support/komatta/kosho/
index.html)
Preface
Operating Instructions
Safety Precautions
sht21_e.book ii ページ ２０１２年１１月２６日 月曜日 午前１１時１９分
1
sht21_e_01.fm
[1/8]
•Communication is not possible even inside the
service area in places where the signal does not
reach (e.g. tunnels and basements). Also,
communication may not be possible in poor reception
areas. Communication may be interrupted if you
move into a poor reception areas during
communications.
•Since this product uses radio waves, the possibility of
communication intercepts by third parties cannot be
eliminated. (Though the LTE/CDMA system has highly
secure confidential communication features.)
•Since the product is a radio station under the Radio
Law, you may be asked to temporarily submit the
product for inspection in accordance with the Radio
Law.
•The IMEI information of the product is automatically
sent to KDDI CORPORATION for maintenance and
monitoring operational status of the product.
•Since the battery is built into the product, you cannot
replace it yourself. For replacing the battery, contact
an au shop or Customer Service Center.
•Take care not to inconvenience people around you
when you use the product in a public place.
•If you are using the product overseas, check the
relevant laws and regulations of the country/region
you visit.
•When the product is used by a child, parents or
guardians should thoroughly read this PDF manual
and teach the child how to use it.
The product always emit weak radio waves when power
is on. Use the product in an enjoyable and safe manner
without forgetting to be considerate of others around
you.
■Use of the product is not allowed in the
following places!
•Do not use the product while driving a car or riding a
motorbike or bicycle. It may cause a traffic accident.
Use of the product while driving a car or motorbike is
prohibited by law. Use of the product while riding a
bicycle may be punishable by some regulations.
•Be sure to turn off the product while you are aboard
an airplane. Otherwise, safety of your flight may be
compromised.
When Using the Product
Etiquette
sht21_e.book 1 ページ ２０１２年１１月２６日 月曜日 午前１１時１９分
2
sht21_e_01.fm
[2/8]
■Be considerate of where you use the
product and the volume!
In theaters, museums, libraries, and other similar
places, turn the power off or turn on the manner mode
so as not to disturb others around you by reception
sounds.
•Do not use the product on a street where you might
interrupt the flow of pedestrians.
•Move to areas where you will not inconvenience
others on trains, in hotel lobbies, etc.
•Obtain the permission of other people before you take
their photos with the product’s camera.
■Be considerate of people around you!
•Some people close to you in crowded places such as
packed trains may be using a cardiac pacemaker.
Turn the product off in such places.
•Abide by the rules of hospitals and other medical
institutions where it is forbidden to use or carry the
product.

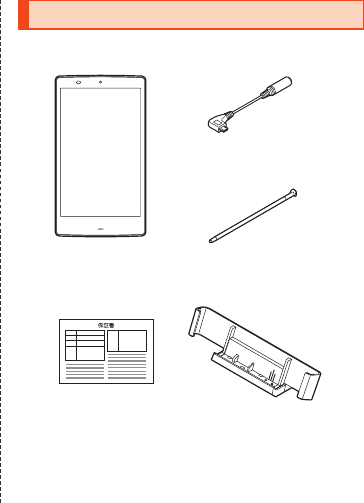

Before you start using the product, make sure that you
have all the following packaged items with the product.
•Instruction Manual (Japanese)
•Setting Guide (Japanese)
•Before Using the Product (Japanese)
List of Packaged Items
SHT21
microUSB-3.5φ L-Shaped
Conversion Cable (Sample)
* This is inserted into the SHT21
at the time of purchase.
Stylus Pen* (SHT21KBA)
Warranty
(Japanese) Desktop Holder
(SHT21PUA)
sht21_e.book 2 ページ ２０１２年１１月２６日 月曜日 午前１１時１９分
3
sht21_e_01.fm
[3/8]
The following items are not included in the package.
•Purchase a specified charger (sold separately).
•Illustrations in this manual are only for reference. They
may look different from the actual product.
au Disaster Countermeasure is an application in which
you can use Disaster Message Board, Emergency
Rapid Mail (Earthquake Early Warning, Disaster and
Evacuation Information, and Tsunami Warning) and
Disaster Voice Messaging Service.
AOn the home screen, [APPS]
[[au災害対策] (au Disaster
Countermeasure).
The au Disaster Countermeasure menu is displayed.
■Using Disaster Message Board
Disaster Message Board is a service to enable
customers in disaster areas to register their safety
information via LTE NET when large-scale disasters,
such as an earthquake whose Japan seismic scale is
approximately 6-lower or more, occur. The registered
safety information can be checked by customers using
au terminals, and also from other carriers’ cell phones,
PCs, etc.
•AC adapter
•Earphone
•microUSB cable
•microSD memory card
memo
◎The battery is built into the product.
Using au Disaster
Countermeasure Application
《au Disaster Countermeasure menu》
sht21_e.book 3 ページ ２０１２年１１月２６日 月曜日 午前１１時１９分
4
sht21_e_01.fm
[4/8]
For details, refer to “Disaster Message Board Service”
on the au homepage.
AFrom the au Disaster Countermeasure
menu, [災害用伝言板] (Disaster Message
Board).
Follow the on-screen instructions for registration/
confirmation.
■Using Emergency Rapid Mail
Emergency Rapid Mail is a service to collectively
deliver Earthquake Early Warning and Tsunami
Warning provided by the Japan Meteorological
Agency, and Disaster and Evacuation Information
provided by the national government or the local
governments to au terminals in the specified areas.
At the time of purchase, receiving setting of Emergency
Rapid Mail (Earthquake Early Warning, and Disaster
and Evacuation Information) is set to “受信する”
(Receive). You can receive Tsunami Warning by setting
災害・避難情報 (Disaster and Evacuation Information).
When receiving Earthquake Early Warning, secure your
safety and act composedly according to the
surrounding situations.
When receiving Tsunami Warning, leave sea coasts
immediately and evacuate to safe places such as hills
and strongly-built tall buildings.
memo
◎To register the safety information, an e-mail address
(~ezweb.ne.jp) is required. Set the mail address in
advance.
◎Deletion of the safety information and configurations for
Safety Notification Mail are not available during the wireless
LAN (Wi-Fi®) connection.
◎The Company does not guarantee the quality of this service.
The Company, regardless of the cause, shall not be liable
for any problems related to registration of safety information
due to the concentration of access to this service or
equipment errors, any loss due to the damage, ruination,
etc. of safety information, or any loss arising from registered
safety information.
sht21_e.book 4 ページ ２０１２年１１月２６日 月曜日 午前１１時１９分
5
sht21_e_01.fm
[5/8]
AFrom the au Disaster Countermeasure
menu, [緊急速報メール] (Emergency
Rapid Mail).
The inbox is displayed.
Select a mail to check to display the details of the mail.
削除
(Delete)
Delete received mails.
設定
(Settings)
緊急地震速報 (Earthquake Early
Warning)
Set whether to receive Earthquake
Early Warning.
•Tap [受信する] (Receive)/[受信し
ない] (Not receive) [[OK].
災害・避難情報 (Disaster and
Evacuation Information)
Set whether to receive Disaster and
Evacuation Information, and
Tsunami Warning.
•Tap [受信する] (Receive)/[受信し
ない] (Not receive) [[OK].
音量 (Volume)
Set the volume of the receiving
sound.
バイブ (Vibrator)
Set whether to activate the vibrator
at the time of reception.
設定
(Settings)
マナー時の鳴動 (Linkage to the
manner mode)
Set whether to notify you with the
manner mode settings applied in
the manner mode.
緊急地震速報 (Earthquake Early
Warning)
Check the operations of the
receiving sound and vibrator for
Earthquake Early Warning.
災害・避難情報 (Disaster and
Evacuation Information)
Check the operations of the
receiving sound and vibrator for
Disaster and Evacuation
Information, and Tsunami Warning.
memo
◎This service is available only in Japan (Not available
overseas).
◎Emergency Rapid Mail is free of both information charges
and communication charges.
◎Emergency Rapid Mail cannot be received while the power
is turned off.
◎Emergency Rapid Mail may not be received during
communication such as while sending and receiving SMSs/
e-mails and while using the browser, or when you are in a
place where the signal cannot be received (e.g. tunnels and
basements) or the signal is weak, even within the service
area.
sht21_e.book 5 ページ ２０１２年１１月２６日 月曜日 午前１１時１９分
6
sht21_e_01.fm
[6/8]
■Using Disaster Voice Messaging Service
Disaster Voice Messaging Service is a service to record
voices with a smartphone, tablet, etc. and deliver them
as a voice message to people to whom you want to
deliver the information that you are safe when
large-scale disasters occur.
AFrom the au Disaster Countermeasure
menu, [災害用音声お届けサービス]
(Disaster Voice Messaging Service).
◎Emergency Rapid Mail which failed to be received will not
be able to be received again.
◎When you receive Emergency Rapid Mail, the dedicated
alarm tone rings. The alarm tone cannot be changed.
◎Information intended for the areas of other than your present
location may be received.
◎As for this service, the Company shall not be liable for any
damage incurred on the users resulted from failure or delay
of information delivery due to communication disturbance or
system failure, contents of the information or other problems
that are not supposed to be blamed on the Company.
◎For details on Earthquake Early Warning and Tsunami
Warning provided by the Japan Meteorological Agency,
refer to the agency’s homepage.
(http://www.jma.go.jp/)
Earthquake Early Warning
◎Earthquake Early Warning notifies areas where a strong
shaking (Japan seismic scale 4 or more) is expected when
an earthquake whose maximum Japan seismic scale is
predicted of 5-lower or more has been detected.
◎This service detects an earthquake (P-wave, preliminary
tremors) near the seismic center immediately after the
earthquake occurs and automatically calculates its location,
scale and predicted strength of the shaking. After that, you
will be notified of the earthquake as soon as possible within
a few seconds to dozens of seconds before a strong
shaking from the earthquake (S-wave, principal shock)
occurs.
◎In the vicinity of the seismic center, a strong shaking may
reach you before Earthquake Early Warning.
◎The Earthquake Early Warning distribution system provided
by this service is different from that provided by TV, radio
and other communication media and thus the arriving time
of Earthquake Early Warning may be different among those
media.
Tsunami Warning
◎Tsunami Warning notifies areas including target sea coasts
of Tsunami Warning (major tsunami and tsunami) provided
by the Japan Meteorological Agency.
Disaster and Evacuation Information
◎Disaster and Evacuation Information notifies information
related to the safety of citizens, such as evacuation
advisories, evacuation orders or various alarms delivered
by the national government or the local governments.
sht21_e.book 6 ページ ２０１２年１１月２６日 月曜日 午前１１時１９分
7
sht21_e_01.fm
[7/8]
■Sending voices (Send)
Tap “声をお届け” (Send voices) and operate in order of
“①お届け先を選択”* (Select to whom to send) [“②お
届けしたい声を録音” (Record voices to send).
* You can also select to whom to send your voices from the address book.
■Receiving voices (Receive)
You will be notified via a pop-up screen or an SMS that
a voice message has been received. You can listen to
the message by receiving (downloading) and playing
the voice message.
•If the receivers are using a tablet or smartphone on
which an au Disaster Countermeasure application
supporting Disaster Voice Messaging Service is not
enabled or using an au cell phone, they will be
notified via an SMS.
•If the receivers are notified via an SMS, the
information will not be saved in the au Disaster
Countermeasure application.
memo
◎Sending and receiving voice messages are available only
when you are using LTE/3G network. Disable wireless LAN
(Wi-Fi®) communication etc. before use.
◎Voice messages can be recorded for up to 30 seconds.
◎Voice messages can be exchanged only among au
terminals (interoperation with other carriers’ cell phones will
be available from the spring of 2013).
◎Voices may not be heard when the media sound volume is
set to low or the manner mode is set.
◎When no free space is left on the main unit (memory), voice
messages may not be saved or played.
◎Some terminals cannot receive voice messages. For details,
refer to the au homepage.
sht21_e.book 7 ページ ２０１２年１１月２６日 月曜日 午前１１時１９分
8
sht21_e_01.fm
[8/8]
Contents
Preface ......................................................................... ii
Operating Instructions ............................................... ii
Safety Precautions...................................................... ii
When Using the Product ............................................ 1
Etiquette....................................................................... 1
List of Packaged Items............................................... 2
Using au Disaster Countermeasure Application ..... 3
Contents ...................................................................... 8
Illustrations and Descriptions in This Manual.................... 9
Exemptions.......................................................................... 10
Safety Precautions (Observe Strictly)............................... 11
Handling Precautions ......................................................... 24
Available Security Codes ................................................... 31
Notes on Waterproof and Dustproof Properties .............. 33
Notes on Using Bluetooth®/Wireless LAN (Wi-Fi®)
Functions ............................................................................. 40
Notes on Packet Communication Charge......................... 43
Notes on Google Play/au Market/Applications................. 43
Names and Functions of Parts .......................................... 44
Using the au Micro IC Card (LTE) ...................................... 46
Using a microSD Memory Card ......................................... 48
Charging............................................................................... 50
Turning the Power On/Off................................................... 54
Sleep Mode .......................................................................... 55
Welcome Sheet(Lock Screen)............................................ 56
Switching the Display Language to English..................... 56
Using the Touch Panel........................................................ 57
Using the Stylus Pen........................................................... 58
Using the Touch Keys......................................................... 59
Using the 3-Line Home ....................................................... 60
Using the Status Area......................................................... 64
Switching Software Keyboards.......................................... 66
Viewing the Character Input Screen.................................. 66
Displaying Setting Menu..................................................... 70
Introduction of Peripheral Devices.................................... 71
Troubleshooting .................................................................. 73
Updating Software or OS.................................................... 74
After-Sales Service.............................................................. 76
Main Specifications............................................................. 78
CE Declaration of Conformity ............................................ 80
FCC Notice ........................................................................... 82
Export Administration Regulations................................... 83
Intellectual Property Rights................................................ 83
Contents
Safety Precautions
Getting Ready
Basic Operations
Character Input
Settings
Appendix
sht21_e.book 8 ページ ２０１２年１１月２６日 月曜日 午前１１時１９分
9
sht21_e_02.fm
[9/43]
Safety Precautions
■Note on Key Illustrations
In this manual, the key illustrations are simplified as
shown below.
■Description of Operations for Selecting
Item/Icon/Key etc.
In this manual, operation procedures are described as
below.
* Tapping is to select a key or icon displayed on the screen by lightly tapping
it with your finger or the stylus pen.
■Notes on Illustrations/Screenshots
The screenshots in this manual are simplified and may
look different from the actual screens. Also, part of the
screen may be omitted.
Illustrations and Descriptions in
This Manual
Description Explanation
On the home
screen, [APPS]
[[Browser].
Tap “APPS” at the top of the home
screen and tap “ Browser”.
f (hold down
for at least 2
seconds).
Hold f down for at least 2
seconds.
memo
◎Explanations of this manual are based on the case when the
product is held vertically. If you hold it horizontally, menu
items/icons/on-screen keys etc. may be different.
In this manual, part of the
screen such as icons are
omitted.
Actual screen In this manual
sht21_e.book 9 ページ ２０１２年１１月２６日 月曜日 午前１１時１９分
10
sht21_e_02.fm
[10/43]
Safety Precautions
•
The Company is not liable for any damages arising
from earthquakes, lightning, storms, floods or other
natural disasters, as well as fires, actions by third
parties, other accidents, intentional or mistaken
operation by the customer, or use under other unusual
conditions outside the responsibility of the Company.
•The Company is not liable for any incidental damages
(change/disappearance of saved content, loss of
business income, disruption of business, etc.) arising
from use of or inability to use the product.
It is recommended that you keep a copy of important
phone numbers etc.
•The Company is not liable for any damages arising
from failure to observe the described content of this
manual.
•The Company is not liable for any damages arising,
for example, from malfunction caused by combination
with connected devices or software not related to the
Company.
•Captured image data or downloaded data may
sometimes be altered or lost due to faults, repair or
other handling of the product. The Company is not
liable for any damage or lost income resulting from
recovery of these data.
•It is recommended you keep a copy of important data
in your PC’s hard disk, etc. Whatever the cause of
fault or malfunction may be, the Company assumes
no responsibility for alteration or loss of saved
information.
* “The Company” as appears in this manual refers to the following
companies:
Sold by: KDDI CORPORATION,
OKINAWA CELLULAR TELEPHONE COMPANY
Manufactured by: SHARP CORPORATION
◎Explanations of this manual are based on operations with
your finger when you can operate with either your finger or
the stylus pen.
◎
Menu items, layers and icons described in this manual may be
different according to functions being used, conditions, etc.
◎“microSD™ memory card (sold commercially)”,
“microSDHC™ memory card (sold commercially)” and
“microSDXC™ memory card (sold commercially)” are
abbreviated as “microSD memory card” or “microSD”.
Exemptions
memo
◎Reproduction of the content of this manual in part or in
whole is prohibited.
◎The content of this manual is subject to change without
notice.
◎Every effort has been made in the preparation of this
manual. Should you notice any unclear points, omissions,
etc., feel free to contact us.
sht21_e.book 10 ページ ２０１２年１１月２６日 月曜日 午前１１時１９分
11
sht21_e_02.fm
[11/43]
Safety Precautions
■Before using the product, thoroughly read these
safety precautions for proper use. After reading,
store the precautions in a safe place.
These “Safety Precautions” describe instructions that
should be observed to prevent damage to property or
injury to the customer or others using the product.
These instructions are divided into the following
categories.
■Explanation of Indications Used in This
Manual
*1 Serious injury: This refers to loss of sight, injury, burns (high- and
low-temperature), electric shock, broken bones, injuries
with residual aftereffects from poisoning, etc., and injuries
requiring hospital admission for treatment or long-term
hospital attendance as an outpatient.
*2 Injury: This refers to injuries, burns (high- and low-temperature), electric
shock, etc. that do not require hospital admission for treatment or
long-term hospital attendance as an outpatient.
*3 Physical damage: This refers to extended damage to buildings, furniture,
livestock or pets.
■Explanation of Graphic Symbols Used in
This Manual
Safety Precautions (Observe
Strictly)
DANGER
This symbol indicates the
potential and imminent
danger of death or serious
injury*1 to a person.
WARNING
This symbol indicates the
possibility of death or
serious injury*1 to a
person.
CAUTION
This symbol indicates the
possibility of personal
injury*2 to a person or
physical damage*3.
Indicates an action that is not allowed.
Indicates that handling with wet hands is not
allowed.
Indicates that disassembly is not allowed.
Indicates that use in a place where the product
is likely to get wet or allowing the product to get
wet is not allowed.
Prohibited
Wet hands
prohibited
Disassembly
prohibited
Wetting
with water
prohibited
sht21_e.book 11 ページ ２０１２年１１月２６日 月曜日 午前１１時１９分
12
sht21_e_02.fm
[12/43]
Safety Precautions
■Precautions Common to the Main Unit,
Charger, au Micro IC Card (LTE),
microUSB-3.5φ L-Shaped Conversion
Cable, Stylus Pen, Peripheral Devices
Indicates an action that must be done.
Indicates that the power plug must be
disconnected from the power outlet.
DANGER
Be sure to read the
following hazards
before use.
Be sure to use only the specified peripheral
devices. Use of other peripheral devices might
cause overheating, ignition, rupture, fault, or
leakage of liquid.
Do not use, store or leave the product in hot places
(e.g. by the fire, near a heater, under a kotatsu, in
direct sunlight, in a car in the hot sun). Doing so
might cause ignition, rupture, fault, fire or injury.
Instruction
Disconnect
plug from
power outlet
Instruction
Prohibited
Before entering an area where flammable gas is
generated such as a gas station, be sure to turn off
the product. Do not charge the battery. Failure to
observe these precautions might cause the gas to
catch fire. In addition, when using NFC payment
function at a gas station, be sure to turn off the
power in advance. (If NFC has been locked, cancel
the lock before turning off the power.)
Do not put the product in a cooking apparatus such
as microwave oven or a pressure vessel. Doing so
might cause leakage of liquid, ignition, rupture,
fault, fire or injury.
Do not throw the product into a fire or heat it. Doing
so might cause ignition, rupture or fire.
Do not short-circuit the charger terminal, the
external connection jack or the connection jack of
microUSB-3.5φ L-Shaped Conversion Cable
(sample). Do not allow conductive foreign objects
(metal fragments, pencil leads, etc.) to come into
contact with or get inside a terminal/jack. Doing so
might cause fire or a fault.
When using metal accessories, etc., do not allow
the metal part to come in contact with the
connection jack or power outlet. Doing so might
cause electric shock, ignition, injury or a fault.
Do not expose the camera lens to direct sunlight for
an extended period. Doing so might cause ignition,
rupture or fire by the light-collecting mechanism of
the lens.
Instruction
Prohibited
Prohibited
Prohibited
Prohibited
Prohibited
sht21_e.book 12 ページ ２０１２年１１月２６日 月曜日 午前１１時１９分
13
sht21_e_02.fm
[13/43]
Safety Precautions
The customer is not allowed to disassemble, modify
or repair the product. Doing so might cause a fault,
ignition, electric shock, or injury. The Company is
not liable even in the event of any nonconformities
arising on the product or peripheral devices as a
result of modification, etc. Modification of the
product is in violation of the Radio Law.
WARNING
Be sure to read the
following warnings
before use.
Do not drop or subject to strong impact, such as
throwing. Doing so might cause rupture,
overheating, ignition or a fault.
Do not use outside when you can hear thunder.
Doing so might risk lightning strikes and electric
shock.
Do not let your hands, fingers and other parts of the
body touch the external connection jack or
connection jack of microUSB-3.5φ L-Shaped
Conversion Cable (sample). Doing so might cause
electric shock, injury or a fault.
Disassembly
prohibited
Prohibited
Prohibited
Prohibited
If the product is damaged because it is dropped or
something, and its display is cracked or internal
parts are exposed, do not touch the cracked
display or exposed parts with your hands. Doing so
might cause electric shock or injury from damaged
parts. Contact an au shop or Secure cell phone
support center.
Although the product model has waterproof
property, stop use if liquid such as water gets
inside the main unit from the external connection
jack cover or microSD memory card/au Micro IC
Card (LTE) cover. Continued use of the product in
this state might cause overheating, ignition or a
fault.
If charging is not completed after the specified
charging time, stop charging. Failure to do so
might cause leakage of liquid, overheating, rupture
or ignition.
Do not leave in places within the reach of small
children. Small children might swallow part of the
equipment by mistake and choke on them, or might
drop them by mistake and cause accidents or
injury.
Prohibited
Wetting
with water
prohibited
Instruction
Prohibited
sht21_e.book 13 ページ ２０１２年１１月２６日 月曜日 午前１１時１９分
14
sht21_e_02.fm
[14/43]
Safety Precautions
CAUTION
Be sure to read the
following cautions
before use.
Do not store the product in places subject to direct
sunlight (e.g. in automobiles), places that get hot,
places that get extremely cold, and in humid or
dusty places. Doing so might cause overheating,
ignition, deformation or a fault.
Do not leave on unstable places such as rocky
stands or tilting surfaces especially while the
vibration mode is set. Dropping the product may
cause injury or damage. Also, pay sufficient
attention to impact, etc.
Do not cover or wrap the product with bedding, etc.
while using or charging the product. Doing so
might cause fire, fault or injury.
Do not touch the product or specified chargers
(sold separately) for a long time while charging.
Doing so might cause low-temperature burns.
Do not use power outlets or wiring apparatus
beyond its rating. Also, exceeding rating, for
example, by connecting multiple devices to a
single power strip might cause overheating and
fire.
Do not place near corrosive chemicals or in places
where corrosive gas is generated. Doing so might
cause a fault or loss of internal data.
Prohibited
Prohibited
Prohibited
Prohibited
Prohibited
Prohibited
Stop use if there is smoke, abnormal odor or noise,
excessive overheating, or other abnormalities.
During charging, disconnect the specified charger
(sold separately) from the power outlet or the
socket and make sure that the product is not
overheating. Also, when using microUSB-3.5φ
L-Shaped Conversion Cable (sample), disconnect
it from the product, earphone, etc. and make sure
that the product is not overheating. After that, turn
the power off and contact an au shop or Secure cell
phone support center. Also, if you have dropped or
damaged the product, do not continue to use it in
that state, and contact an au shop or Secure cell
phone support center.
When inserting an earphone, etc. into the product,
adjust the volume to the proper level. Setting too
loud a volume or using the earphone continuously
for a long period of time might adversely affect your
ears. Also, raising the volume too high might
prevent you from hearing sounds around you,
which might in turn lead to a traffic accident at a
railroad crossing or pedestrian crossing.
When adjusting the volume with an earphone, etc.
inserted into the product, raise the volume a little at
a time. If you raise the volume too much from the
outset, sudden loud noise from the earphone, etc.
might adversely affect your ears.
When using a charger or external device, insert/
remove the connector straight to/from the jack. Make
sure the orientation of the connector is correct.
Failure to do so might cause damage or a fault.
Instruction
Instruction
Instruction
Instruction
sht21_e.book 14 ページ ２０１２年１１月２６日 月曜日 午前１１時１９分
15
sht21_e_02.fm
[15/43]
Safety Precautions
■Main Unit
When small children use the equipment, have the
guardian teach them the proper handling
procedures so as to avoid potential dangerous
situations. In addition, check that they are using the
equipment as directed during use. Failure to do so
might cause injury etc.
DANGER
Be sure to read the
following hazards
before use.
Do not puncture the product with a nail, hit it with a
hammer or step on it.
Doing so might cause leakage, overheating,
rupture or ignition of the internal battery.
WARNING
Be sure to read the
following warnings
before use.
Be careful not to have the product bitten by your
pet.
Failure to do so might cause leakage, overheating,
rupture or ignition of the internal battery.
Instruction
Prohibited
Instruction
Do not use the product while driving a car or riding
a motorbike or bicycle. Doing so may cause a
traffic accident. Use of the product while driving a
car or motorbike is prohibited by law. Use of the
product while riding a bicycle may be punishable
by some regulations.
Turn off the product while you are aboard an
airplane.
Otherwise, the product may affect electronic
devices and safety of your flight may be
compromised. If the product is permitted to be
used on an airplane, use it appropriately by
following instructions from the airline company. Do
not connect the product with a PC aboard an
airplane using the microUSB cable 01 (sold
separately), since the product is automatically
turned on.
The product sometimes affects high-precision
electronic devices. So, turn it off near such devices.
(Examples of electronic devices that might be
affected by the product include cardiac
pacemakers, hearing aids, other electronic medical
devices, fire alarms, and automatic doors. If you
are using an electronic medical device, contact the
device manufacturer or retailer for information
about the possible effects of radio waves.)
Prohibited
Instruction
Instruction
sht21_e.book 15 ページ ２０１２年１１月２６日 月曜日 午前１１時１９分
16
sht21_e_02.fm
[16/43]
Safety Precautions
When using the product near an implanted pacemaker,
implanted cardioverter-defibrillator or other electronic
medical device, radio waves might affect these units
and devices. So, please observe the following.
1. Those with an implanted pacemaker or
implanted cardioverter-defibrillator should carry
or use the product at least 22 cm away from the
pacemaker or cardioverter-defibrillator.
2. Turn the product off in crowded trains or other
crowded places, since there may be people
with an implanted cardiac pacemaker or
implanted cardioverter-defibrillator nearby.
3. Pay attention to the following points when using
the product inside medical institutions.
•Do not bring the product into operating
theaters, intensive-care units (ICU) and
coronary care units (CCU).
•
Turn the product off in hospital wards. Do not
connect the product with a PC in hospital wards
using the microUSB cable 01 (sold separately),
since the product is automatically turned on.
•Even if you are in a lobby, etc., be sure to turn
the product off when there are electronic
medical devices nearby.
•
When a medical institution has laid down
designated areas where use of the product is
prohibited or is not allowed to be brought in, abide
by the instructions of that medical institution.
4. When using electronic medical devices other
than an implanted pacemaker and implanted
cardioverter-defibrillator outside a medical
institution (e.g. home medical treatment), check
individually with the manufacturer of the
electronic medical device regarding the
influence of radio waves.
Instruction
Stay alert to your surroundings when messaging,
browsing the Internet, shooting photos, playing
games, watching TV (1Seg) or listening to music.
Failure to do so might cause a fall or traffic
accident.
Do not point the illuminated light directly at
someone’s eyes. Be especially careful not to shoot
small children from a very close distance. Do not
use Mobile light near people’s faces.
Eyesight may be temporarily affected leading to
accidents.
Do not light the mobile light toward a driver of a car,
motorbike or bicycle. If dazzled by the light, the
driver might become unable to drive and cause an
accident.
Sometimes, very rarely some people demonstrate
symptoms such as temporary muscle spasms, loss
of consciousness, etc. by watching repeatedly
flickering screens. Those with a past history of this
should consult with a physician beforehand.
Instruction
Prohibited
Prohibited
Instruction
sht21_e.book 16 ページ ２０１２年１１月２６日 月曜日 午前１１時１９分
17
sht21_e_02.fm
[17/43]
Safety Precautions
The materials of parts used on the product are as follows.
The materials of parts used on the desktop holder are as follows.
CAUTION
Be sure to read the
following cautions
before use.
Use of the main unit in an automobile might
sometimes affect on-vehicle electronic devices,
though this rarely happens. If this happens, do not
use since this may impair safe travel.
If you feel any abnormality with your skin,
immediately consult a dermatologist. Itching,
rashes, eczema, etc. sometimes occurs depending
on your physical constitution and condition.
Part Material Surface treatment
Outer case (display
frame part)
PC/ASA resin +
GF30%
Black
discontinuous
deposition
Outer case (bottom) PC/ABS resin +
GF20%
Black coating
Back cover PC/ASA resin +
GF30%
Black coating
External connection
jack cover
PC resin
Elastomer resin
Black coating
None
microSD memory
card/au Micro IC
Card (LTE) cover
PC resin
Elastomer resin
Black coating
None
Prohibited
Instruction
TV antenna PA resin
SUS
Nickel-titanium
alloy
None
Power key PC resin Black coating
Volume up/down
key
PC resin Black coating
Display Hardened glass
(Shatterproof sheet
of surface: PET)
Acrylic hard
coating
Camera lens Acrylic resin Hard coating
Mobile light lens PC resin None
Mobile light lens
ring
PC resin None
Charger terminal SUS Gold plating
Stylus pen ABS resin
POM resin
SUS
None
Part Material Surface treatment
Outer case ABS resin None
Back plate PC resin None
Back rib (left/right) POM resin None
Front rib POM resin None
Holder (left/right) POM resin None
Switching knob POM resin None
Contact lever POM resin None
Part Material Surface treatment
sht21_e.book 17 ページ ２０１２年１１月２６日 月曜日 午前１１時１９分
18
sht21_e_02.fm
[18/43]
Safety Precautions
Contact terminal Phosphor bronze Gold plating
Connection jack
(microUSB)
SUS Tin plating
Rubber leg Polyurethane resin None
Do not bring the product close to magnetized
objects such as cash cards, floppy disks, credit
cards, and prepaid cards. Doing so might result in
loss of recorded information.
Do not allow liquids, metal objects, burnable items,
and other foreign matter to get inside the microSD
memory card slot. Doing so might cause fire,
electric shock or a fault.
Do not swing the product around by holding the TV
antenna or the stylus pen attached into the main
unit. Doing so might cause an accident or damage.
Use the product with the external connection jack
cover, microSD memory card/au Micro IC Card
(LTE) cover, etc. closed. If the covers are open, dirt
or water may get inside causing a fault.
Stow the TV antenna when not watching TV (1Seg).
If you use the product with the TV antenna
extended, it might cause unexpected injury by
hitting your face, etc.
If you have a weak heart, be careful when setting
the reception vibration and reception volume to
prevent adverse effects on your heart.
Part Material Surface treatment
Prohibited
Prohibited
Prohibited
Instruction
Instruction
Instruction
Pay attention to items becoming stuck to the main
unit. The speaker uses magnets, and so
thumbtacks, pins, craft knife blades, staples, and
other metal objects sometimes become stuck to the
main unit, and cause unexpected injury.
Do not put the product directly on sand at a beach,
etc. Sand or other small particles might get inside
the microphone, speaker, etc. causing the volume
to drop. If sand gets inside the product, it might
cause overheating or a fault.
The product may become hot by prolonged use
especially in high-temperature environment. Be
careful when using the product touching your skin
for a long time, as it might cause low-temperature
burns.
When using the product for data communication,
do not keep the product in direct contact with your
skin for a prolonged period, or do not cover the
product with paper, cloth, bedding, etc. The
product might get hot, causing fire, burns or a fault.
Do not swing the product with the TV antenna
pulled out. Doing so may cause injury or deform or
damage the TV antenna.
Instruction
Prohibited
Instruction
Prohibited
Prohibited
sht21_e.book 18 ページ ２０１２年１１月２６日 月曜日 午前１１時１９分
19
sht21_e_02.fm
[19/43]
Safety Precautions
■Internal Battery
(The internal battery of the product is a lithium-ion battery.)
The internal battery is not fully charged at the time of purchase.
Charge the battery before using the product.
■Charger
DANGER
Be sure to read the
following hazards
before use.
If the liquid leaking from inside gets on your skin or
clothes, immediately rinse it off with water to avoid
injury. If the liquid gets into your eyes, do not rub
but wash your eyes with water, and immediately
consult a doctor to avoid the risk of losing your
eyesight.
Instruction
The internal battery is a consumable item. If the
performance of the internal battery does not
recover (e.g. the usable time after each charge has
become extremely short), the internal battery is at
the end of service life, so stop using it. Failure to do
so might cause overheating, ignition, rupture or
leakage. Since the battery is built-in type, the
product will be kept at an au shop etc. and charges
will be incurred for repair. Also, you may not use
the product in certain period of time. Note that the
length of service life varies depending on the
usage condition, etc.
WARNING
Be sure to read the
following warnings
before use.
Do not use at other voltages than the specified
power supply voltage. Doing so might cause
ignition, fire, overheating or electric shock.
•Common AC adapter 01 (sold separately): 100 V
AC (for domestic use in Japan)
Do not charge with single-phase 200 V or voltage
converters for overseas travel.
•AC adapter (sold separately) available overseas
other than the adapters above: 100 V AC to 240 V
AC
•DC adapter (sold separately): 12/24 V DC (for
negative grounded vehicles only)
Instruction
Prohibited
sht21_e.book 19 ページ ２０１２年１１月２６日 月曜日 午前１１時１９分
20
sht21_e_02.fm
[20/43]
Safety Precautions
Firmly insert the power plug of the specified
charger (sold separately) into the power outlet or
cigarette lighter socket down to the base of its pins.
Incomplete insertion of the power plug might result
in electric shock or fire caused by overheating and
ignition. Do not use damaged specified charger
(sold separately) or loose power outlets or cigarette
lighter sockets.
If the fuse in the common DC adapter 01/03 (sold
separately) blows, replace it with a fuse of the
specified type (250 V, 1 A). Replacing with a
different type of fuse might cause overheating or
ignition. (For information about fuse replacement,
carefully read the manual for the common DC
adapter 01/03 (sold separately).)
Do not damage, modify, twist, pull or place a heavy
object on the cable of the specified charger (sold
separately). Do not use a damaged cable. Doing
so might cause an electric shock, short circuit or
fire.
Do not let your hands, fingers and other parts of the
body touch the charger terminal. Doing so might
cause electric shock, injury or a fault.
If you hear thunder, do not touch the power plug.
Doing so might cause an electric shock as a result
of a lightning strike.
Instruction
Instruction
Prohibited
Prohibited
Prohibited
Before cleaning the specified charger (sold
separately), unplug its power plug from the outlet or
cigarette lighter socket. If the plug remains
plugged in when you clean the charger, it might
cause an electric shock or short circuit. Also, wipe
off dust on the power plug of the specified charger
(sold separately). If the plug is left covered with
dust, it might cause fire.
Wipe off dust on the power plug. Failure to do so
might cause fire, burns or electric shock.
Install and position in-car devices where they do
not hinder driving or safety equipment such as
airbags. Failure to do so might cause a traffic
accident. Install in-car devices following the
instructions of their manuals.
When the charger is not to be used for a long time,
disconnect the charger’s power plug from the
power outlet or cigarette lighter socket. Failure to
do so might cause electric shock, fire or a fault.
The desktop holder, microUSB-3.5φ L-Shaped
Conversion Cable (sample), stylus pen and
specified charger (sold separately) are not
waterproof. Never use in places subject to direct
splashing with water, pet urine, etc. or in humid
places such as a bathroom. Doing so might cause
overheating, fire or electric shock. In the event that
a charger is splashed with liquid, immediately
disconnect its power plug.
Disconnect
plug from
power outlet
Instruction
Instruction
Disconnect
plug from
power outlet
Wetting
with water
prohibited
sht21_e.book 20 ページ ２０１２年１１月２６日 月曜日 午前１１時１９分
21
sht21_e_02.fm
[21/43]
Safety Precautions
■microUSB-3.5φ L-Shaped Conversion
Cable
Do not use the desktop holder inside a car. Doing
so may cause an accident because driving could
be hindered.
CAUTION
Be sure to read the
following cautions
before use.
Do not use in humid places such as bath areas.
Doing so might cause electric shock or a fault.
Do not plug or unplug the specified charger (sold
separately) with wet hands. Doing so might cause
electric shock or fault.
When unplugging the power plug of the specified
charger (sold separately) from the outlet or
cigarette lighter socket, hold the charger to do so. If
you pull the cable, it might be damaged, causing
overheating, ignition or electric shock.
Do not use the common DC adapter 01/03 (sold
separately) with the car engine stopped. Doing so
might result in draining of the car battery.
Prohibited
Wetting
with water
prohibited
Wet hands
prohibited
Disconnect
plug from
power outlet
Prohibited
DANGER
Be sure to read the
following hazards
before use.
Strictly observe warnings and cautions indicated
by the manufacturer of the earphone or peripheral
device you use and follow the descriptions on its
manuals to ensure correct use.
WARNING
Be sure to read the
following warnings
before use.
Do not play games, listen to music, watch TV
(1Seg), etc. while driving a car, riding a bicycle,
walking, etc. Doing so might impair the safety and
cause an accident.
CAUTION
Be sure to read the
following cautions
before use.
Do not allow liquids, metal fragments, flammable
materials, etc. to get inside or come into contact
with the connection jack of microUSB-3.5φ
L-Shaped Conversion Cable (sample). Doing so
might cause fire, electric shock or a fault.
Instruction
Prohibited
Prohibited
sht21_e.book 21 ページ ２０１２年１１月２６日 月曜日 午前１１時１９分
22
sht21_e_02.fm
[22/43]
Safety Precautions
The materials of parts used on microUSB-3.5φ L-Shaped
Conversion Cable (sample) are as follows.
■au Micro IC Card (LTE)
Do not damage, modify, twist, pull or place a heavy
object on the cable. Doing so might cause a fault,
electric shock or fire. Also, do not use a damaged
cable.
When inserting/removing the cable, hold the
connector part. Pulling the cable part might cause
damage or a fault of the cable.
If you feel any abnormality with your skin,
immediately consult a dermatologist. Itching,
rashes, eczema, etc. sometimes occurs depending
on your physical constitution and condition.
Part Material Surface treatment
Cable TPU (Urethane
elastomer)
None
Connector cover on
microUSB side
TPE (Olefin
elastomer)
None
Tip on microUSB
side
SUS301 Nickel plating
Connector cover on
3.5φ side
TPE (Olefin
elastomer)
None
Tip on 3.5φ side Brass Gold plating
Prohibited
Instruction
Instruction
WARNING
Be sure to read the
following warnings
before use.
Do not put the au Micro IC Card (LTE) in a cooking
apparatus such as a microwave oven or a pressure
vessel. Doing so might cause melting, overheating,
fuming, loss of data or a fault.
CAUTION
Be sure to read the
following cautions
before use.
Be careful not to injure your hand or finger when
attaching/removing the au Micro IC Card (LTE).
Use only the devices specified by the Company to
insert the au Micro IC Card (LTE) in. Using a device
not specified by the Company might cause loss of
data or a fault.
For the specified devices, contact an au shop or
Customer Service Center.
Do not disassemble or modify the au Micro IC Card
(LTE). Doing so might cause loss of data or a fault.
Prohibited
Instruction
Instruction
Disassembly
prohibited
sht21_e.book 22 ページ ２０１２年１１月２６日 月曜日 午前１１時１９分
23
sht21_e_02.fm
[23/43]
Safety Precautions
■Stylus Pen
Do not use or leave the au Micro IC Card (LTE) in
hot places such as by a fire or a heater. Doing so
might cause melting, fuming, loss of data or a fault.
Do not throw the au Micro IC Card (LTE) into a fire
or heat it. Doing so might cause melting, fuming,
loss of data or a fault.
Do not touch the IC (metal) part of the au Micro IC
Card (LTE) or short-circuit it. Doing so might cause
loss of data or a fault.
Do not drop the au Micro IC Card (LTE) or subject it
to strong impact. Doing so might cause loss of data
or a fault.
Do not fold, bend or place a heavy object on the au
Micro IC Card (LTE). Doing so might cause loss of
data or a fault.
Do not wet the au Micro IC Card (LTE). Doing so
might cause loss of data or a fault.
Do not scratch the IC (metal) part of the au Micro IC
Card (LTE). Doing so might cause loss of data or a
fault.
Do not store the au Micro IC Card (LTE) in dusty
places. Doing so might cause loss of data or a
fault.
Prohibited
Prohibited
Prohibited
Prohibited
Prohibited
Wetting
with water
prohibited
Prohibited
Prohibited
Do not store the au Micro IC Card (LTE) in places
exposed to direct sunlight or hot and humid places.
Doing so might cause loss of data or a fault.
Store the au Micro IC Card (LTE) out of reach of
small children. Accidental swallow might cause
asphyxiation, injury, etc.
WARNING
Be sure to read the
following warnings
before use.
Do not swing the stylus pen toward people. It might
hit yourself or other people and cause injury or loss
of eyesight.
Prohibited
Instruction
Prohibited
sht21_e.book 23 ページ ２０１２年１１月２６日 月曜日 午前１１時１９分
24
sht21_e_02.fm
[24/43]
Safety Precautions
These precautions are provided to ensure that
performance can be fully demonstrated.
Thoroughly read these precautions to ensure correct
use.
■Precautions common to the main unit, internal
battery, charger, au Micro IC Card (LTE),
microUSB-3.5φ L-Shaped Conversion Cable,
stylus pen, peripheral devices
Handling Precautions
●Do not apply excessive force to the product during use. Be
sure not to put the product into a tightly packed bag or place
a heavy object on the product in a bag. Doing so might
damage the display or internal circuit board resulting in a
malfunction.
Keeping an external device connected to the external
connection jack might damage the connector resulting in a
malfunction. Such damage and malfunction are not covered
by the warranty, even if there is no external damage.
●To ensure waterproof property (equivalent to IPX5 and IPX7)
of the product, use the product with the external connection
jack cover and microSD memory card/au Micro IC Card
(LTE) cover tightly closed.
Note that the waterproof property is not guaranteed in every
usage condition. Do not allow water to get inside the product
or splash water on the charger or optional accessories. Do
not open/close the external connection jack cover or
microSD memory card/au Micro IC Card (LTE) cover in the
rain or with water drops on the surface of the product. Doing
so might cause water intrusion resulting in internal corrosion.
Malfunctions determined to be caused by water intrusion are
not covered by the warranty.
●Do not use the product in extremely hot, cold or humid
places. (Use within an ambient temperature range of 5°C to
35°C and humidity range of 35% to 85%.)
•Charger
•Conversion cables
●Do not use the product in extremely hot, cold or humid
places. (Use within an ambient temperature range of 5°C to
35°C and humidity range of 35% to 85%. Using at a
temperature of 36°C to 40°C is allowed only when you use
the product temporarily.)
•SHT21
•au Micro IC Card (LTE) (inserted into the SHT21)
●Do not use in places subject to lots of dust or vibration.
sht21_e.book 24 ページ ２０１２年１１月２６日 月曜日 午前１１時１９分
25
sht21_e_02.fm
[25/43]
Safety Precautions
■Main unit
●Clean the charger terminal and external connection jack of
the product, connection jack of microUSB-3.5φ L-Shaped
Conversion Cable (sample), and connection jack of the
desktop holder with dry cotton swabs, etc. every now and
then. A soiled terminal/jack might cause poor connection.
When cleaning them, do not exert a strong force to prevent
deformation.
●Clean the product with a soft dry cloth (such as the type used
for eyeglasses). Forceful rubbing with a dry cloth may
scratch the display. The display may be stained if splash or
smear is left attached to the surface. Wiping the product
using alcohol, thinner, benzene, detergent, etc. might erase
the printing on the outer casing or cause discoloration.
●Use as far away as possible from fixed-line phones, TVs and
radios. Use nearby might affect them.
●The product may become warm while charging or during
other operations, depending on the situation, but this is not
abnormal.
●When the temperature of the product gets high during use,
the product may temporarily lower the screen brightness or
may stop part of its functions to protect the main unit.
●Do not forcefully press, tap or intentionally subject the
display to strong impact. Doing so might cause scratching or
damage.
●Do not forcefully press sharp objects or hard objects against
keys or display surface. Doing so might cause scratching or
damage.
The touch panel is designed to be lightly touched by fingers
or the stylus pen. Do not apply strong pressure with your
fingers, the stylus pen or sharp-pointed objects (such as
ballpoint pens and pins) on the touch panel.
In the following cases, the product may not respond to
touching the touch panel, or errors in operation may occur.
•Operation with gloved hands
•Operation with fingernails
•Operation with a foreign object placed on the touch panel
•Operation with a protective film or sticker on the touch
panel
•Operation with water drops left or condensation formed on
the surface
•Operation with wet or sweaty fingers
•Operation under water
sht21_e.book 25 ページ ２０１２年１１月２６日 月曜日 午前１１時１９分
26
sht21_e_02.fm
[26/43]
Safety Precautions
●Never use modified au terminals. Use of a modified device
violates the Radio Law.
You can perform the following operations on the product to
confirm the unique authentication and standard marks
(including certification/authentication numbers) for the
product.
On the home screen, tap [APPS] [[Settings] [[Device
info] [[Technical Regulations Conformity Certification].
The product has acquired the certification of conformity with
technical regulations for the specified radio station based on
the Radio Law and certification of conformity with technical
regulations for the terminal based on the
Telecommunications Business Law, and the “Technical
Conformity Mark ” can be confirmed in the product as a
certificate. Confirm contents of electrical certificates in the
product for information on certification.
If the screws of the product are removed and modifications
are made to the internal components, the certification of
conformity with technical regulations will become invalid.
Never use the product without the valid certification. Doing
so violates the Radio Law.
●To prevent unlawful modification, the product has been
designed so that it cannot be easily disassembled. Modifying
the product is prohibited by the Radio Law.
●Contents saved in the product, such as contacts, mails and
bookmarks might be altered or lost by an accident, fault,
repair or mishandling. Be sure to keep a copy of important
contents. Note that the Company assumes no responsibility
for any damages or lost profits resulting from altered or lost
contents.
●Note that content data (both charged or free content) saved
on the product cannot be returned to the customer when the
product is replaced for repair of a fault, for example.
●The product uses liquid crystal for its display. The display
response speed may become slow when the ambient
temperature is low, which is due to the property of liquid
crystal and not a malfunction. The display response speed
will return to normal at room temperature.
●Although the display used on the product is made using
high-precision technology, some pixels (dots) might be lit or
out at all times. This is not a malfunction.
●Take care not to inconvenience people around you when you
use the product in a public place.
●You are recommended to store copies of individual data
such as still pictures you took, videos and music in your PC
by sending each file as mail attachment, etc. Note, however,
that you may not be able to make copies of some
copyrighted data even by the above-mentioned means.
●Take care not to place magnetized items such as magnetic
cards, speakers and TV sets near the product, as it might
cause malfunction.
Putting strong magnetism close to the product might cause
false operation.
●When you put the product in your bag etc., take care so that
the display does not come in contact with metal objects or
other hard objects, as it might cause scratching or damage.
sht21_e.book 26 ページ ２０１２年１１月２６日 月曜日 午前１１時１９分
27
sht21_e_02.fm
[27/43]
Safety Precautions
●When suddenly brought into a warm place from a cold place,
or when in a humid location, or when used where
temperature suddenly changes (e.g. near the air discharge
port of an air conditioner), water drops (i.e. condensation)
sometimes are formed inside the product. Note that when
used under conditions such as this, humidity might cause
corrosion or a fault.
●When wiping the display, wipe with a soft, dry cloth. Use of a
moistened cloth, glass cleaner or other similar liquid might
cause a fault.
●When connecting/disconnecting an external device to/from
the external connection jack, make sure to insert/remove the
connector of the external device straight to/from the jack.
●Note that applying unnecessary force with an external device
connected to the external connection jack may cause
damage.
●Do not discard the product together with regular trash.
Please cooperate in the collection of the product when it is
no longer needed to protect the environment and effectively
use resources. Old products are collected at au shops and
other places.
●Insert only a microSD memory card into the microSD memory
card slot on the product.
●Do not exert excessive force when attaching/removing a
microSD memory card. Doing so might injure your hands or
fingers.
●While writing/reading data to/from a microSD memory card,
do not subject the product to vibration or impact or turn off
the power. Doing so might cause loss of data or a fault.
●Do not cover the light sensor with your finger or put a sticker
on it. Doing so may hinder the light sensor from detecting the
ambient brightness and functioning correctly.
●If the display gets damaged, immediately stop use and
contact an au shop or Secure cell phone support center.
Keeping using it may cause injury.
●Putting a sticker, etc. on the display or a key may cause
malfunction or shortened usage time. Also, doing so may
damage the product.
●When using the product while the TV antenna is pulled out or
it is kept standing (e.g. while you are watching TV (1Seg)),
take lots of care especially to the tip of the TV antenna so that
it will not do any harm on surrounding people nor touch your
own eye.
●If you put magnetized objects close to the product, the
speaker section sometimes emits sounds. This is not a fault.
●Note that if you forcefully pull the external connection jack
cover or microSD memory card/au Micro IC Card (LTE) cover
or apply excessive force on them, they may be damaged.
●When you put the product in your bag, do not forget to
replace the TV antenna to its original position. Also, do not
forcefully pull out or bend the TV antenna intentionally. Doing
so may cause scratching or damage.
●Bright places such as under the direct sunlight sometimes
make it hard to see the display. This is not a fault.
sht21_e.book 27 ページ ２０１２年１１月２６日 月曜日 午前１１時１９分
28
sht21_e_02.fm
[28/43]
Safety Precautions
■Touch panel
■Internal battery
●Use your finger or the stylus pen to operate the touch panel.
Do not use ballpoint pens, pencils or other sharp-pointed
objects. Using such objects does not only hinder correct
operation of the touch panel, but also might cause
scratching or damage to the display.
●Do not put an object such as the stylus pen on the touch
panel. The touch panel might respond to it, causing
unexpected operations of the touch panel.
●Do not put stickers or sheets (e.g. commercially available
protective films, peep prevention sheets) on the display.
Doing so might hinder correct operation of the touch panel.
●Operating the touch panel with fingernails might result in split
nails or jammed fingers.
●If the display surface is dirty or wet with sweat or water, it
may not function correctly. In such case, wipe the display
surface with a dry, soft cloth.
●When carrying the product in your bag, take care not to put
the touch panel close to metals or other conductive
materials, as it might cause false operation of the touch
panel.
●Use in very hot or cold environments, for example, when left
in an automobile with the windows closed in summer, will
cause the internal battery capacity to drop and shorten the
available battery usage time. This will also shorten the
internal battery’s service life. Try to use the internal battery as
much as possible at room temperature.
●The internal battery gradually discharges after charging even
if the product is not used. The internal battery may discharge
completely after long time no use. Charge before using the
product.
●Because the internal battery performance or service life will
become low, do not store the product in the following
conditions.
•Battery level is full (soon after charging is complete)
•Battery level is empty (to the extent that the product is not
powered on)
•In extremely hot or humid conditions
●Charge the battery before using the product for the first time
after purchase, or if you have not used the product for a long
time.
●The internal battery is a consumable item. If the performance
of the internal battery does not recover after charge, the
internal battery is at the end of service life, so stop using it.
Since the battery is built-in type, the product will be kept at
an au shop etc. and charges will be incurred for repair. Also,
you may not use the product in certain period of time. Note
that the length of service life varies depending on the usage
condition, etc.
●Internal batteries sometimes swell up as they approach the
end of their service life depending on the usage condition.
This is due to the properties of lithium-ion batteries, and is
not a problem in terms of safety.
sht21_e.book 28 ページ ２０１２年１１月２６日 月曜日 午前１１時１９分
29
sht21_e_02.fm
[29/43]
Safety Precautions
■Charger
■microUSB-3.5φ L-Shaped Conversion Cable
■au Micro IC Card (LTE)
●When not using the specified charger (sold separately),
remove its power plug from the power outlet or the cigarette
lighter socket.
●Do not wrap the power cord of the specified charger (sold
separately) around the power plug or desktop holder. Doing
so might cause electric shock, overheating or fire.
●Do not forcibly bend the charger’s plug or the connection
between the connector and power cord. Doing so might
cause electric shock, overheating or fire.
●Do not wrap microUSB-3.5φ L-Shaped Conversion Cable
(sample) around the product and use it.
●Do not dangle, pull or swing around the product by holding
the cable. Doing so might cause snapping of the cable or a
fault.
●When connecting the connector of microUSB-3.5φ
L-Shaped Conversion Cable (sample) to the product, an
earphone, etc., insert it all the way in. Failure to do so might
cause electric shock or fire due to overheating and ignition.
Also, insert/remove the connector in parallel with the
connection jack. Failure to do so might cause a fault or an
operational problem.
●When carrying or storing the cable, put it into a bag etc. so
as not to get dust to adhere to the connection jack or get the
connection jack deformed.
●The cable may become warm depending on the situation,
such as during communication or charging, but this is not
abnormal.
●Use as far away as possible from fixed-line phones, TVs,
radios, etc. Use nearby might affect them.
●When the cable gets dirty, wipe it with a soft and dry cloth.
Do not use benzene, thinner, alcohol, detergent, etc. as they
might alter the outer covering or characters.
●The au Micro IC Card (LTE) is lent to you by au. In case of
loss or damage, the card will be replaced at your expense.
When malfunction is suspected, or in case of theft or loss,
contact an au shop or PiPit.
●Do not forcibly remove or insert the au Micro IC Card (LTE).
Be careful not to exert excessive force when inserting the
card into your au terminal.
●You are responsible for any damage caused by inserting
your au Micro IC Card (LTE) into some other IC card reader/
writer, etc.
●Keep the IC (metal) part of your au Micro IC Card (LTE)
clean. Wipe the card with a dry, soft cloth (such as for
cleaning eyeglasses) for cleaning.
●Do not put stickers, etc. on the au Micro IC Card (LTE).
●Do not touch the IC (metal) part of the au Micro IC Card (LTE)
when inserting or removing it.
sht21_e.book 29 ページ ２０１２年１１月２６日 月曜日 午前１１時１９分
30
sht21_e_02.fm
[30/43]
Safety Precautions
■Stylus pen
■Camera
■Music, videos and TV (1Seg)
●When the tip of the stylus pen is broken or scraped, do not
use it. Doing so might damage the display or cause errors in
operation.
●Do not lift or swing around the main unit by holding the stylus
pen attached into the main unit. Also, do not forcibly pull,
attach or remove the stylus pen. Doing so might damage the
stylus pen and cause a fault of the main unit.
●Use only the supplied stylus pen when operating the main
unit with a stylus pen. Using unspecified one might damage
or contaminate the display.
●Do not use the stylus pen to operate other devices. Doing so
might cause a fault or damage of the devices.
●When using the camera, follow common rules of etiquette
regarding camera use.
●Image data might be altered or lost due to malfunction, repair
or mishandling of the product. The Company takes no
responsibility for recovery of altered or lost data, damages
resulting from altered or lost data, and lost profits.
●When photographing important occasions (such as a
wedding), take a trial shot and check the shot image to make
sure it is correctly shot.
●Do not use the camera for recording commercially available
books or information of which photographing is not allowed.
●Do not leave the camera lens exposed to direct sunlight.
Imaging elements might be discolored or burnt.
●Do not listen to music, watch videos or TV (1Seg) while
driving a car or motorbike, or riding a bicycle. Use of the
product while driving a car or motorbike is prohibited by law.
(Use of the product while riding a bicycle may also be
punishable by law.) In addition, stay alert to the traffic around
you even when walking. Surrounding sounds might not be
heard clearly, and gazing at the screen may distract your
attention causing a traffic accident. Be especially careful at
railroad crossings, station platforms and pedestrian
crossings.
●Take care not to listen at ear-splitting volume for a long time,
as it might affect hearing.
●Be careful of sound leakage from earphones in trains or other
places with many people around you.
sht21_e.book 30 ページ ２０１２年１１月２６日 月曜日 午前１１時１９分
31
sht21_e_02.fm
[31/43]
Safety Precautions
■Copyrights and rights of portrait
■Backup content on the product
The product has various security codes that you can
use.
The available security codes are as follows. Do not
forget the various security codes that are set as they
are necessary for various operations and contracts.
■Security code
■Security key
■PIN code
●If the data you shot or recorded using the product or part or
whole of the data you downloaded from the Internet etc. is
protected by the third party’s copyright, you are not allowed
to copy, distribute, publicly send, modify the data without
consent of the copyright holder, except for personal use,
under the copyright law.
In addition, do not use or modify portraits or names of other
individuals without their consent, as it may infringe on rights
of portrait.
Note that shooting and recording might be restricted at some
live performances, shows and exhibitions even for personal
use.
●Be careful about the copyright and portrait right when
posting still pictures you shot, etc. on Internet homepages.
●Please back up important content recorded or downloaded
to the product to an outside source. Content recorded to
memory on the product sometimes disappears or is altered
by unexpected factors, such as static electricity or a fault,
repair, mishandling, etc.
* How to make backups: Store important data such as phonebook data,
music, shot still pictures and videos on microSD memory cards. You
can also send files as mail attachment or transfer to your PC. Note,
however, that there are some data that cannot be copied by using
these means.
Available Security Codes
Security Codes
Example of usage To use Customer Service Center and to do
various inquiries, applications, and
modifications on the au homepage
Initial value A four digit number chosen by the
customer and noted on the application
form
Example of usage To set and release Restrict address book
etc.
Initial value 1234
Example of usage To prevent unauthorized use of the au
Micro IC Card (LTE) by third parties
Initial value 1234
sht21_e.book 31 ページ ２０１２年１１月２６日 月曜日 午前１１時１９分
32
sht21_e_02.fm
[32/43]
Safety Precautions
■Lock No. (NFC/Osaifu-Keitai lock)
The product has the following functions to protect the
privacy of saved data.
•Register secret folder
•NFC/Osaifu-Keitai lock
•Screen lock
•Restrict address book
■PIN Code
To prevent unauthorized use of the au Micro IC Card
(LTE) by a third party, you can set the product to
require PIN code entry every time the power is turned
on. You also need to enter PIN code when setting
whether PIN code entry is required.
If PIN code is incorrectly entered three times
consecutively, the PIN code will be locked. You can
unlock the PIN code using PUK code.
•PIN code is “1234” and PIN code entry is set to not be
required at the time of purchase. You can change PIN
code to any four- to eight-digit number, and set PIN
code entry to be required as necessary.
■PUK Code
In case PIN code is locked, you can unlock it by
entering PUK code.
•PUK code is an eight-digit number given at the time
of purchase, which is printed on the back side of the
plastic card on which your au Micro IC Card (LTE) is
attached.
•After entering PUK code, you need to set a new PIN
code.
•If PUK code is incorrectly entered ten times
consecutively, contact an au shop, PiPit or Customer
Service Center.
•“PIN code” is not reset by initializing the product.
Example of usage To use the NFC/Osaifu-Keitai lock
Initial value 1234
Functions to Protect Your Privacy
PIN
memo
◎When the PIN code is locked, the product may be restarted
for the security reasons.
sht21_e.book 32 ページ ２０１２年１１月２６日 月曜日 午前１１時１９分
33
sht21_e_02.fm
[33/43]
Safety Precautions
Before using the product, thoroughly read the contents
of “Notes on Waterproof and Dustproof Properties” to
ensure correct use. Failure to follow the contents
described in these sections may cause intrusion of
water, sand or other foreign material, resulting in
overheating, ignition, electric shock, injury or fault.
Proper operations of the product are not guaranteed in
every possible condition during actual use. Faults
determined, after an inspection, to be caused by
mishandling by the customer such as by using the
product without following the contents written on “Notes
on Waterproof and Dustproof Properties” are not
covered by the warranty.
■Waterproof and Dustproof Properties of
the Product
The product has a protection rating (JIS C 0920) for
waterproof property equivalent to IPX5*1 and IPX7*2 and
for dustproof property equivalent to IP5X*3 on the
condition that the external connection jack cover and
microSD memory card/au Micro IC Card (LTE) cover
are securely closed (Based on the experiments by the
Company).
*1 IPX5 means that the tablet continues to function as a tablet after being
subjected to a water jet (approximately 12.5 liters/min) discharged from a
water pouring nozzle (inner diameter: 6.3 mm), from all directions and
approximately 3 meters away from the tablet for at least 3 minutes.
*2 IPX7 means that the tablet continues to function as a tablet after being
gently lowered into a tank filled with still tap water (at room temperature) to
the depth of 1 meter, immersed at the bottom for approximately 30
minutes and then taken out of the tank.
*3 IP5X means the level of dust protection. The tablet continues to function
as a tablet in safety after it is left in a device containing dust (diameter: 75
μm or smaller) for 8 hours, agitated and then taken out.
■Waterproof and dustproof properties of the
product enable you
•To use the product in the rain without an umbrella.
(with a precipitation of 20 mm/hour or smaller)
•To use the product at the poolside. However, do not
get it wet with water other than tap water such as
water in the swimming pool or submerge it in water in
the swimming pool.
•To wash the product with the low-pressure water flow
of a tap water (up to 6 liters/min) at the room
temperature (5°C to 35°C).
Notes on Waterproof and
Dustproof Properties
sht21_e.book 33 ページ ２０１２年１１月２６日 月曜日 午前１１時１９分
sht21_e_02.fm
[34/43]
34
Safety Precautions
■Handling the product
•Close the external connection jack cover and
microSD memory card/au Micro IC Card (LTE) cover
securely. Even a fine obstacle (one hair, one grain of
sand, tiny fiber, etc.) put between contact surfaces
may cause intrusion of water or dust.
•If liquid such as water is splashed onto the product
with the external connection jack cover or microSD
memory card/au Micro IC Card (LTE) cover opened,
the liquid may seep inside and cause electric shock
or fault. Stop using it, turn off the power and then
contact an au shop near you or Secure cell phone
support center.
•When the product is wet, wipe it with a dry and clean
cloth.
•When your hand or the product is wet, never open/
close the external connection jack cover or microSD
memory card/au Micro IC Card (LTE) cover.
•The product is resistant to fresh and tap water at
room temperature (5°C to 35°C) only.
•Even if the stylus pen is removed from the stylus pen
holder, the waterproof property is maintained.
■Dustproof property of the product
•The dustproof property of the product only
guarantees a protection rating equivalent to IP5X and
does not guarantee its performance under other
using conditions such as when the product is directly
put on sand such as a beach.
•If dust is attached to the product, immediately wash it
away with water or otherwise clear it completely
before use.
■Notes on Using the Product
•Do not let the product get wet with or submerged into
the following liquids.
･Water containing soap, detergent or bath powder
･Seawater or water from a swimming pool
･Hot spring, hot water, etc.
•If the product gets wet with seawater, water from a
swimming pool, soft drink, etc. or dust, sand, mud,
etc. is attached on the product, immediately wash it
away. When it gets dry and coagulated on the
product, the stains get hard to get rid of and may
cause fault.
•Using the product without completely washing sand
or mud away may cause fault such as scratches and
damages on the product.
•Do not immerse the product in a bathtub or swimming
pool. Also, do not use it under water. (including key
operations.)
sht21_e.book 34 ページ ２０１２年１１月２６日 月曜日 午前１１時１９分
35
sht21_e_02.fm
[35/43]
Safety Precautions
•The product is not designed to withstand high water
pressure. Do not expose the product to a strong
water flow with tap water, shower, etc. (more than 6
liters/min) or submerge it under water.
•To prevent condensation, wait until the product
reaches room temperature before you bring it from a
cold place into a warm place. If condensation occurs,
leave it in room temperature until the condensation is
removed.
•Do not immerse the product in hot water, use it in
saunas or expose it to hot air from hair dryer etc.
•Do not place the product where it gets extremely hot
or cold such as near a stove or in a refrigerator.
•Volumes may temporarily become lower due to water
entering in the microphone and speaker. Drain water
and dry the product well before use.
•When water drops are attached on the touch panel or
you perform touch operations with your fingers wet,
the product may not properly function.
•The product does not float on water.
•Do not use the product in heavy rain.
•Do not leave the product wet. Doing so may cause
fault due to the liquid frozen in a cold place etc.
•Do not drop or otherwise subject the product to
strong impact or jab the microphone, speaker, etc.
with a cotton swab or any sharp object. Doing so may
cause scratching, deformation, etc. on/of the product,
resulting in impairment of waterproof/dustproof
property.
•Do not place the product directly on sand at a beach,
sandbox, etc. or on mud. Grains of sand may get into
the speaker etc., causing the volume to drop.
•Packaged items (desktop holder, microUSB-3.5φ
L-Shaped Conversion Cable (sample) and stylus pen)
and optional accessories are not waterproof/
dustproof. When you watch 1Seg etc. with the
product set on the desktop holder among packaged
items, do not use them in places where water is
regularly used such as a bathroom, shower room,
kitchen and lavatory even if the specified AC adapter
(sold separately) is not connected to the desktop
holder.
•If the external connection jack cover or microSD
memory card/au Micro IC Card (LTE) cover degrades
or is damaged, the waterproof and dustproof
properties cannot be maintained. In such case,
contact an au shop near you.
sht21_e.book 35 ページ ２０１２年１１月２６日 月曜日 午前１１時１９分
sht21_e_02.fm
[36/43]
36
Safety Precautions
■Maintaining the Waterproof and
Dustproof Properties
■Rubber seals
The rubber seals on the external connection jack cover
and microSD memory card/au Micro IC Card (LTE)
cover are important to maintain the waterproof
property. Be sure to observe the following items.
•Do not remove or scratch them.
•When closing the external connection jack cover and
microSD memory card/au Micro IC Card (LTE) cover,
do not get the rubber seals caught. Also, do not insert
sharp objects into gaps around the external
connection jack cover or microSD memory card/au
Micro IC Card (LTE) cover.
Doing so may damage the rubber seals and cause
intrusion of water or dust.
•It is recommended to replace the parts for
maintaining the waterproof and dustproof properties
(pay service) once every two years regardless of
whether any abnormality is present. For information
on part replacement, contact an au shop near you.
■Precautions on Charging
The desktop holder, microUSB-3.5φ L-Shaped
Conversion Cable (sample), stylus pen, specified
charger (sold separately) and optional accessories are
not waterproof/dustproof. Be sure to check the
following items before and after charging.
•Check that the product is not wet. If it is wet or after it
gets wet, drain water well and wipe remaining water
off with a clean dry cloth etc. before setting it on the
desktop holder among the packaged items or
opening the external connection jack cover.
•If you charge the battery with the external connection
jack cover opened, be sure to tightly close the cover
when charging is finished. It is recommended to use
the desktop holder among the packaged items to
charge the battery to prevent water and dust from
entering from the external connection jack cover.
•Never charge the battery if the product is wet. Doing
so may cause electric shock, short circuit, etc.,
resulting in fire or fault.
•Do not touch the desktop holder among the
packaged items or specified charger (sold
separately) with wet hands. Doing so may cause
electric shock.
sht21_e.book 36 ページ ２０１２年１１月２６日 月曜日 午前１１時１９分
37
sht21_e_02.fm
[37/43]
Safety Precautions
•Do not splash water onto the desktop holder,
microUSB-3.5φ L-Shaped Conversion Cable
(sample) and stylus pen among the packaged items,
specified charger (sold separately) or optional
accessories when using the equipment. Do not use
the equipment in places where water is regularly
used such as a bathroom, shower room, kitchen and
lavatory. Doing so may cause fire or electric shock.
■Washing the Product
If any stain, dust, sand, soft drink, etc. is attached to the
surface of the product, gently wipe it off with a cloth
and wash the product under a mild water flow (up to 6
liters/min) of tap water at room temperature (5℃ to
35℃) at a distance of approximately 10 cm away from
the faucet or shower head.
Hold the external connection jack cover and microSD
memory card/au Micro IC Card (LTE) cover so that they
do not open, and wash the product with your hands
without using a brush or sponge. After washing the
product, drain water off and then use the product.
•Make sure that the external connection jack cover
and microSD memory card/au Micro IC Card (LTE)
cover are securely closed before washing the
product.
•Do not wash the product with a washing machine or
an ultrasound bath.
•Never put the product in a microwave oven for drying
it. Doing so may cause the internal battery to leak
liquid, overheat, rupture or ignite. Also, doing so may
cause the product to overheat, emit smoke, ignite or
cause destruction of circuit components.
•Do not expose the product to hot air from a hair dryer
or leave it in a high temperature environment for
drying it. Doing so may cause the product to deform,
discolor, get out of order, etc.
■Draining Water
If the product gets wet, make sure to drain water
remaining in the “microphone”, “speaker section”,
“camera lens fringe section”, “key section”, “TV
antenna section”, “stylus pen holder”, etc.
sht21_e.book 37 ページ ２０１２年１１月２６日 月曜日 午前１１時１９分
sht21_e_02.fm
[38/43]
38
Safety Precautions
AWipe off water on the surface of the
product carefully with a dry and clean
cloth etc.
BPull out the TV antenna, wipe off water
remaining on it and stow it into the main
unit.
CRemove the stylus pen and wipe off water
remaining on it.
•For details on how to attach/remove the stylus pen,
refer to “Using the Stylus Pen” (zP.58).
DHold the product securely and shake it
approximately 20 times until there is no
more water splashing.
•Make sure of the safety around you and shake the
product while holding it securely not to let it drop.
Speaker
section Camera lens
fringe section
Key
section
Microphone
Stylus pen holder
sht21_e.book 38 ページ ２０１２年１１月２６日 月曜日 午前１１時１９分
39
sht21_e_02.fm
[39/43]
Safety Precautions
EWipe off water remaining in the grooves
of each section by gently putting the
product against a dry and clean cloth etc.
•Since water is sometimes left in the grooves of each
section, clear them of water by putting a cloth
against their openings and gently patting them.
Make sure that there is no more water or foreign
objects remaining in them.
FLay out a dry cloth etc. beneath and leave
the product on the cloth at room
temperature for approximately 2 to 3
hours to dry it.
•Water, if any, remaining in the product may ooze up
after wiping off.
•Do not wipe off water remaining in the grooves
directly by a cotton swab etc.
GAttach the stylus pen.
■Precautions to be taken after water draining
Do not use the product with water drops still left on it.
•Doing so may cause operational failure or cause
clothes or bags to get wet.
•Doing so may cause short circuit of a jack section.
•Doing so may cause fault due to the water drops
frozen in a cold place.
sht21_e.book 39 ページ ２０１２年１１月２６日 月曜日 午前１１時１９分
40
sht21_e_02.fm
[40/43]
Safety Precautions
Bluetooth® and wireless LAN (Wi-Fi®) functions (2.4
GHz band) of the product use frequencies in the 2.4
GHz band ranging from 2.402 GHz to 2.480 GHz.
•Bluetooth® function: 2.4FH1/XX4
The product uses the 2.4 GHz band.
FH1 uses FH-SS as the modulation scheme. The
interference distance is about 10 m or less.
XX4 uses other schemes. The interference distance is
about 40 m or less.
Bands of mobile unit identification devices cannot be
avoided.
•Wireless LAN (Wi-Fi®) function: 2.4DS/OF4
The product uses the 2.4 GHz band.
DS-SS and OFDM are used as the modulation
schemes. The interference distance is about 40 m or
less.
Bands of mobile unit identification devices can be
avoided.
Channels available with the 2.4 GHz band wireless
LAN (Wi-Fi®) of the product are between 1 to 13.
Available channels differ depending on the country.
For use in airplane, check with the airline company in
advance.
•The Bluetooth® function of the product conforms to
the domestic standards of Japan and FCC standards
and EC directives, and has been certified. Use of the
Bluetooth® function may be restricted in some
countries/regions. If you are using the Bluetooth®
function overseas, check the relevant laws and
regulations of the country/region you visit.
•The 2.4 GHz band used by wireless LAN (Wi-Fi®) and
Bluetooth® devices is shared by various other
devices. For this reason, Bluetooth® devices use
technologies for minimizing effects from other
devices using the same radio frequency band. In
some cases, however, the communication speed and
connectable range may be decreased, or
disconnection may occur, due to interference by
other devices.
•The communication speed and connectable range
vary depending on the distance between
communication devices, obstacles and the
Bluetooth® devices used.
Notes on Using Bluetooth®/
Wireless LAN (Wi-Fi®) Functions
Frequency Band
Precautions about Bluetooth®
sht21_e.book 40 ページ ２０１２年１１月２６日 月曜日 午前１１時１９分
41
sht21_e_02.fm
[41/43]
Safety Precautions
■Bluetooth® function precautions
The frequencies used by the Bluetooth® function of the
product are in the 2.4 GHz band. In this frequency
band, other similar wireless stations, in-plant wireless
stations for mobile unit identification that require a
license for use, such as factory production lines,
specific small power wireless stations that do not
require licenses and amateur wireless stations
(collectively called “other wireless stations” from here
on) are operated in addition to home electrical
appliances such as microwave ovens and industrial,
scientific and medical devices.
1. Before using the product, make sure that “other
wireless stations” are not in operation nearby.
2. In the event that instances of radio wave interference
have occurred between the product and “other
wireless stations”, immediately either relocate the
product or stop operation of the device (stop
emission of radio waves).
3. If you are unclear on any points or are troubled by
anything, contact an au shop or Customer Service
Center.
•The wireless LAN (Wi-Fi®) function of the product
conforms to the domestic standards of Japan, FCC
standards and EC directives, and has been certified.
Use of the wireless LAN (Wi-Fi®) function is restricted
in some countries/regions.
If you are using the wireless LAN (Wi-Fi®) function
overseas, check the relevant laws and regulations of
the country/region you visit.
•Do not use the product in places where
electromagnetic waves are generated or near electric
products, AV and OA equipment, or other
magnetized devices.
•Subjecting the product to magnetic or electrical noise
might increase noise and prevent it from performing
communications. (The product is particularly
susceptible to noise when it is used near a microwave
oven.)
•Using the product near a TV, radio or similar
appliance might cause reception interference and
disrupt TV images.
•Searching might not be successful if there are
multiple wireless LAN (Wi-Fi®) access points near the
product and the same channel is being used.
Precautions about Wireless LAN
(Wi-Fi®)
sht21_e.book 41 ページ ２０１２年１１月２６日 月曜日 午前１１時１９分
42
sht21_e_02.fm
[42/43]
Safety Precautions
■2.4 GHz band wireless LAN (Wi-Fi®) precautions
The frequencies used by the wireless LAN (Wi-Fi®)
function of the product are in the 2.4 GHz and 5 GHz
band. In the 2.4 GHz frequency band, other similar
wireless stations, in-plant wireless stations for mobile
unit identification that require a license for use, such as
factory production lines, specific small power wireless
stations that do not require licenses and amateur
wireless stations (collectively called “other wireless
stations” from here on) are operated in addition to
home electrical appliances such as microwave ovens
and industrial, scientific and medical devices.
1. Before using the product, make sure that “other
wireless stations” are not in operation nearby.
2. In the event that instances of radio wave interference
have occurred between the product and “other
wireless stations”, immediately either relocate the
product or stop operation of the device (stop
emission of radio waves).
3. If you are unclear on any points or are troubled by
anything, contact an au shop or Customer Service
Center.
■5 GHz band wireless LAN (Wi-Fi®) function
precautions
In the 5 GHz frequency band, three channels of 5.2
GHz/5.3 GHz/5.6 GHz band (W52/W53/W56) are
available.
•W52 (5.2 GHz band/36, 40, 44, 48 ch)
•W53 (5.3 GHz band/52, 56, 60, 64 ch)
•W56 (5.6 GHz band/100, 104, 108, 112, 116, 120,
124, 128, 132, 136, 140 ch)
Making a communication with 5.2 GHz/5.3 GHz band
(W52/W53) outdoors is prohibited by the Radio Law.
memo
◎Connections between the product and all other Bluetooth®
and wireless LAN (Wi-Fi®) devices have not been
confirmed. Therefore, connections with all Bluetooth® and
wireless LAN (Wi-Fi®) devices are not guaranteed.
◎The product supports security features for wireless
communications that are compliant with the Bluetooth® and
wireless LAN (Wi-Fi®) standard specifications, but the
security may not be sufficient depending on the usage
environment and configuration. Be careful when making
data communication using Bluetooth® or wireless LAN
(Wi-Fi®) function.
◎Wireless LAN (Wi-Fi®) has the advantage that it can be
freely connected anywhere within the radio wave range, as
it uses radio waves for exchanging information. At the same
time, there is a risk that a malicious third party may obtain
unauthorized access if security settings have not been
configured. You are recommended to configure security
settings before using wireless LAN (Wi-Fi®) at your decision
and responsibility.
◎The Company assumes no responsibility for leakage of data
or information that may occur during Bluetooth®/wireless
LAN (Wi-Fi®) communication.
sht21_e.book 42 ページ ２０１２年１１月２６日 月曜日 午前１１時１９分
43
sht21_e_02.fm
[43/43]
Safety Precautions
•Since constant Internet connection is possible with
the product, packet communication may be
performed automatically by some applications,
resulting in high packet communication charges.
Therefore, subscription to the flat-rate/discount
service for packet communication charges is
recommended.
•To browse homepages, download applications,
communicate using applications, send/receive
e-mails and configure various settings, connection to
the Internet is required, to which packet
communication charge applies.
* Packet communication charge does not apply to Wi-Fi® connection.
•
Be sure to check the security of the application, then
install it at your own risk. Some applications might
cause virus infection, damage various data, and send
out your location information, usage history or personal
information etc. stored in the product via the Internet.
•The Company assumes no responsibility for any
problems that might be caused by applications you
have installed. In such case, you may be charged a
repair fee even during the warranty period.
•The Company assumes no responsibility for any
disadvantage brought to you or any third party by
applications you have installed.
•Insertion of a microSD memory card is necessary to
use some applications.
•Some applications prohibit the product from entering
sleep mode while they are active, or rapidly drain the
battery while running in the background.
•Operation procedures and screen appearances of
the applications preinstalled in the product and those
installed by you are subject to change without notice
as a result of version upgrade. In addition, operation
procedures described in this manual may differ from
the actual procedures.
•Applications are either installed on the microSD
memory card or the main unit (system).
◎Since Bluetooth® and wireless LAN (Wi-Fi®) functions use
the same frequency band, using the both functions at the
same time may cause radio wave interference resulting in
decreased communication speed or disconnection from the
network. If connection fails, stop using either of the
Bluetooth® and wireless LAN (Wi-Fi®) functions.
Notes on Packet Communication
Charge
Notes on Google Play/au Market/
Applications
sht21_e.book 43 ページ ２０１２年１１月２６日 月曜日 午前１１時１９分
44
sht21_e_03.fm
[44/56]
Getting Ready
■Front/Bottom
ALight sensor
Detects the ambient brightness and adjusts the
brightness of display.
BDisplay (Touch panel)
CCharging/Notification indicator
DIn camera lens
EmicroSD memory card slot
Fau Micro IC Card (LTE) slot
GmicroSD memory card/au Micro IC Card (LTE)
cover
HExternal connection jack
When you connect microUSB-3.5φ L-Shaped
Conversion Cable (sample), the common AC
adapter 04 (sold separately), the microUSB cable
01 (sold separately), the MHL cable (sold
commercially), etc. to the product, some
applications may not function properly since the
geomagnetic sensor is affected by the magnetism of
connected devices. Use the product after removing
the cable.
IExternal connection jack cover
Names and Functions of Parts
sht21_e.book 44 ページ ２０１２年１１月２６日 月曜日 午前１１時１９分
45
sht21_e_03.fm
[45/56]
Getting Ready
■Back/Right Side
JTV antenna
KInternal antennas area
Do not cover the internal antennas area with your
hand during communication.
Also, do not paste stickers etc. around the internal
antennas area. Doing so may make the quality of
communication deteriorate.
LSpeaker
MStylus pen
NMobile light
OOut camera lens
PNFC mark
Hold it over a reader/writer when using NFC.
Send and receive data using Android beam.
QCharger terminal
RMicrophone
Use it for recording sounds etc. Take care not to
cover the microphone with your fingers etc. when
using it.
Sf Power key
Set sleep mode.
Hold it down to turn on/off the power, set the manner
mode, etc.
Tud Volume up/down key
Adjust the volume for playing music or video. Tap
“ ” to adjust the volume of the alarm sound or
notification sound by the slide operation.
Hold u down on the Welcome Sheet(Lock Screen) to
turn on the mobile light.
memo
◎The back cover of the product is not removable.
◎The battery is built in the product.
sht21_e.book 45 ページ ２０１２年１１月２６日 月曜日 午前１１時１９分
46
sht21_e_03.fm
[46/56]
Getting Ready
The au Micro IC Card (LTE) records your personal
information such as phone numbers.
The product is compatible with au Micro IC Card (LTE)
only. You cannot use the product by inserting the au
IC-Card or micro au IC-Card for au phones and
smartphones instead.
■When the au Micro IC Card (LTE) is not
inserted
If the au Micro IC Card (LTE) is not inserted, the
following operations are unavailable.
•Sending/Receiving a mail
•Confirming your own phone number/own mail
address
•Setting UIM card lock
Besides the above, functions which require your phone
number etc. may not be available.
Before attaching the au Micro IC Card (LTE), turn the
product off.
AOpen the microSD memory card/au Micro
IC Card (LTE) cover.
BInsert slowly the au Micro IC Card (LTE)
into the au Micro IC Card (LTE) slot.
Confirm the direction of the au Micro IC Card (LTE) and
insert it in the direction of the arrow until you hear a
click and confirm it is locked.
Releasing your finger before the au Micro IC Card
(LTE) is locked may cause it to pop out.
Using the au Micro IC Card (LTE)
au Micro IC Card (LTE)
memo
◎Make sure to unplug the microUSB plug of the common AC
adapter 04 (sold separately) etc. from the product when
attaching or removing the au Micro IC Card (LTE).
au Micro IC Card (LTE)
IC (metal) part
Attaching the au Micro IC Card
(LTE)
sht21_e.book 46 ページ ２０１２年１１月２６日 月曜日 午前１１時１９分
47
sht21_e_03.fm
[47/56]
Getting Ready
CClose the microSD memory card/au Micro
IC Card (LTE) cover.
Before removing the au Micro IC Card (LTE), turn the
product off.
AOpen the microSD memory card/au Micro
IC Card (LTE) cover.
BPush slowly the au Micro IC Card (LTE)
towards inside.
After it clicks, pull back your finger without releasing it
from the au Micro IC Card (LTE) until it comes out a
little. Releasing your finger from the au Micro IC Card
(LTE) when it is pushed deeply into the slot may cause
it to pop out.
CPull slowly the au Micro IC Card (LTE)
straight out.
DClose the microSD memory card/au Micro
IC Card (LTE) cover.
memo
◎Inserting the au Micro IC Card (LTE) not deeply enough
may prevent the product from functioning properly.
Removing the au Micro IC Card
(LTE)
Cutout
IC (metal) part down
sht21_e.book 47 ページ ２０１２年１１月２６日 月曜日 午前１１時１９分
48
sht21_e_03.fm
[48/56]
Getting Ready
You can save, move and copy data by attaching one of
microSD memory cards (including microSDHC memory
cards and microSDXC memory cards) in the product.
■Handling Precautions
•Do not turn off the product or subject it to impact
while microSD memory card data is being accessed.
Doing so may cause data corruption.
•The product supports microSD/microSDHC/
microSDXC memory cards. For the supported
microSD/microSDHC/microSDXC memory cards,
contact each microSD memory card vendor or refer
to the au homepage.
Before attaching a microSD memory card, turn the
product off.
AOpen the microSD memory card/au Micro
IC Card (LTE) cover.
Using a microSD Memory Card
microSD Memory Card
memo
◎The maximum file size available on a microSD memory card
is 2 GB per file when saving data to a microSD memory
card.
◎A microSD memory card initialized on other devices may
not work on the product properly. On the home screen, tap
[APPS] [[Settings] [[microSD & tablet storage]
[[Erase microSD] [[Erase SD card] [Unlock
[[Erase everything] to initialize the microSD memory
card.
◎To play/display data on the microSD memory card, on the
home screen, tap [APPS] [[Contents Manager] and use
Contents Manager.
◎Some copyright protected data may not be played on the
product even if they can be moved/copied from a PC etc. to
a microSD memory card successfully.
◎microSDXC memory cards are available only on SDXC
compatible devices. If you attach a microSDXC memory
card to a device that does not support SDXC, the message
inducing you to initialize the card may be displayed.
However, do not initialize the card.
If you initialize a microSDXC memory card on a device that
does not support SDXC, it will erase data on the microSDXC
memory card and rewrite the file system. Part of space on
the microSDXC memory card may become unavailable.
Attaching a microSD Memory Card
sht21_e.book 48 ページ ２０１２年１１月２６日 月曜日 午前１１時１９分
49
sht21_e_03.fm
[49/56]
Getting Ready
BInsert slowly a microSD memory card into
the microSD memory card slot.
Confirm the direction of the microSD memory card and
insert it in the direction of the arrow until you hear a
click and confirm it is locked.
Releasing your finger before the microSD memory
card is locked may cause it to pop out.
CClose the microSD memory card/au Micro
IC Card (LTE) cover.
Before removing the microSD memory card, turn the
product off.
AOpen the microSD memory card/au Micro
IC Card (LTE) cover.
BPush slowly the microSD memory card
towards inside.
After it clicks, pull back your finger without releasing it
from the microSD memory card until it comes out a
little. Releasing your finger from the microSD memory
card when it is pushed deeply into the slot may cause
it to pop out.
CPull slowly the microSD memory card
straight out.
memo
◎Make sure that the top/bottom and front/rear of the microSD
memory card are facing correctly.
Trying to force a wrongly oriented card into the slot could
make it impossible to remove the card or result in damage.
◎Do not touch the terminal part of a microSD memory card.
microSD logo side up
Removing the microSD Memory
Card
sht21_e.book 49 ページ ２０１２年１１月２６日 月曜日 午前１１時１９分
50
sht21_e_03.fm
[50/56]
Getting Ready
DClose the microSD memory card/au Micro
IC Card (LTE) cover.
When you purchase the product, the internal battery is
not fully charged. Be sure to charge the internal battery
before use.
•If the performance of the battery does not recover
(e.g. the usable time after each charge has become
extremely short), the internal battery may be at the
end of service life. On the home screen, tap [APPS]
[[Settings] [[Device info] [[Status] [[Battery
status] to check the charging performance of the
internal battery.
•While charging, the charging/notification indicator
illuminates in red, and the battery icon is displayed
with superimposed. When charging is finished,
the charging/notification indicator goes out.
memo
◎Do not remove the microSD memory card forcefully. Doing
so may result in damage or data loss.
◎Applications installed to a microSD memory card cannot be
used when you remove the microSD memory card.
◎The microSD memory card may become warm after a long
time use, but this is not a fault.
Charging
Charging
memo
◎Depending on the operation procedure and usage
environment, the temperature inside the product may get
high and the product may even get heated. In such case,
charging may stop for security reasons.
◎Charging the internal battery while using the camera
function etc. may lengthen the charging time.
◎If you perform various operations with a specified charger
(sold separately) connected to the product, charging/
discharging may take place repeatedly in a short time.
Frequently charging the internal battery shortens its service
life.
◎If you charge the internal battery when the battery has run
out, the charging/notification indicator may not illuminate
soon. However, charging is in progress.
◎If the charging/notification indicator flashes in red, turn the
power off forcibly (zP.55) and turn it on. If the indicator
flashes even after that, stop charging the internal battery
and contact an au shop or Secure cell phone support
center.
◎If you stop charging while the charging/notification indicator
still illuminates during charging, the internal battery may be
left not fully charged even if is displayed. In such case,
the usage times shorten.
sht21_e.book 50 ページ ２０１２年１１月２６日 月曜日 午前１１時１９分
51
sht21_e_03.fm
[51/56]
Getting Ready
The followings are the explanation of how to connect
the desktop holder and the common AC adapter 04
(sold separately) to charge. For details on the specified
AC adapter (sold separately), refer to “Introduction of
Peripheral Devices” (zP.71).
AInsert the microUSB plug of the common
AC adapter 04 (sold separately) to the
connection jack of the desktop holder.
Confirm the direction of the microUSB plug and insert it
in the direction of the arrow.
BPlace the main unit on the desktop holder
with the charger terminal of the main unit
facing down.
CPlug the common AC adapter 04 (sold
separately) power plug into a 100 V AC
power outlet.
◎If you start charging when no application is activated,
Charging theater is activated and a slideshow is displayed.
Charging with the Desktop Holder
and the Specified AC Adapter (Sold
Separately)
Common AC adapter
04 (sold separately)
Connection jack
Protruding edges Common AC adapter 04
(sold separately)
sht21_e.book 51 ページ ２０１２年１１月２６日 月曜日 午前１１時１９分
52
sht21_e_03.fm
[52/56]
Getting Ready
DWhen charging is finished, remove the
main unit from the desktop holder and
unplug the common AC adapter 04 (sold
separately) power plug from the power
outlet.
Hold the desktop holder when removing the main unit.
Also, pull the microUSB plug of the common AC
adapter 04 (sold separately) straight out from the
desktop holder.
The followings are the explanation of how to connect
the common AC adapter 04 (sold separately)/common
DC adapter 03 (sold separately) to charge. For details
on the specified AC adapter (sold separately)/specified
DC adapter (sold separately), refer to “Introduction of
Peripheral Devices” (zP.71).
AOpen the external connection jack cover
of the product.
memo
◎When using the desktop holder, connect only the specified
AC adapter (sold separately). Connecting equipment not
specified such as a PC or portable charger to the desktop
holder may cause fault. Do not connect such equipment to
the desktop holder.
Charging with the Specified AC
Adapter (Sold Separately)/Specified
DC Adapter (Sold Separately)
External
connection jack
Protruding edges
Common AC adapter 04 (sold separately)/
Common DC adapter 03 (sold separately)
sht21_e.book 52 ページ ２０１２年１１月２６日 月曜日 午前１１時１９分
53
sht21_e_03.fm
[53/56]
Getting Ready
BConfirm the direction of the microUSB
plug of the common AC adapter 04 (sold
separately)/common DC adapter 03 (sold
separately) and insert it in the direction of
the arrow to the external connection jack
of the product.
CPlug the common AC adapter 04 (sold
separately) power plug into a 100 V AC
power outlet/Plug the common DC
adapter 03 (sold separately) plug into a
cigarette lighter socket.
DWhen charging is finished, pull the
microUSB plug of the common AC
adapter 04 (sold separately)/common DC
adapter 03 (sold separately) straight out
from the external connection jack of the
product.
EClose the external connection jack cover
of the product.
FUnplug the common AC adapter 04 (sold
separately) power plug from the power
outlet/Unplug the common DC adapter 03
(sold separately) plug from the cigarette
lighter socket.
Common DC adapter
03 (sold separately)
Common AC adapter
04 (sold separately)
memo
◎Although you can charge the internal battery while the
power is turned on, charging time lengthens.
sht21_e.book 53 ページ ２０１２年１１月２６日 月曜日 午前１１時１９分
54
sht21_e_03.fm
[54/56]
Getting Ready
The followings are the explanation of how to charge the
internal battery by connecting the product to a USB
port of a PC through which the battery can be charged.
AConnect the microUSB cable 01 (sold
separately) to a USB port of a PC after the
PC is activated completely.
BConnect the microUSB cable 01 (sold
separately) to the product after the
product is activated completely.
■Turning the Power On
Af (hold down for at least 2 seconds).
Charging with a PC
External
connection jack
USB port of a PC
microUSB cable 01
(sold separately)
Protruding edges
memo
◎If you use the microUSB cable to charge the internal
battery, it may take the internal battery longer to be fully
charged than if you use the specified AC adapter (sold
separately).
◎The product supports two microUSB plug shapes.
◎Turn the protruding side of the microUSB plug up and insert
the microUSB plug to the external connection jack of the
product straightly. Inserting the microUSB plug in the wrong
direction may result in damage to the external connection
jack of the product.
◎The product is turned on when it is connected to a PC while
the power is turned off.
◎If you charge the internal battery when the battery has run
out, the charging/notification indicator may not illuminate. In
such case, use the specified AC adapter (sold separately)
for charging.
Turning the Power On/Off
memo
◎The initial setting of the touch panel will be executed until
“AQUOS PAD” disappears from the screen after the power
is turned on. Do not touch the screen, otherwise touch
panel operations may not be performed properly.
sht21_e.book 54 ページ ２０１２年１１月２６日 月曜日 午前１１時１９分
55
sht21_e_03.fm
[55/56]
Getting Ready
■Turning the Power Off
Af (hold down for at least 2 seconds).
B[Power off] [[OK].
■Restarting the Product
You can restart the product after turning it off.
Af (hold down for at least 2 seconds).
B[Reboot] [[OK].
■Turning the Power Off Forcibly
Since the battery is built in the product, it cannot be
removed.
To turn the power off forcibly, follow the step below.
Af + d (hold down for at least 12
seconds).
If you press f or no operation is made for a
specified time, the screen is turned off temporarily, and
then sleep mode is set.
■Disabling Sleep Mode
Af while sleep mode is set.
memo
◎If the power is turned off forcibly, unsaved data will be
deleted. Do not turn the power off forcibly unless you
cannot operate the product.
Sleep Mode
memo
◎Do not touch the screen when you disable sleep mode.
Otherwise touch panel operations may not be performed
properly.
sht21_e.book 55 ページ ２０１２年１１月２６日 月曜日 午前１１時１９分
56
sht21_e_03.fm
[56/56]
Getting Ready
The Welcome Sheet(Lock Screen) is displayed if you
disable sleep mode.
Slide “ ” to the bottom of the screen to unlock.
Tap, long touch or slide “ ” up to display shortcuts.
AWallpaper
BOwner info key
Display texts according to items set for “Owner info”
in “Lock & Security”.
CInfo Area
Flick to the left/right to switch the weather, stock
prices information, media operation keys, and date
and time.
You can switch the display language for function
names and other items to English.
AOn the home screen, [アプリ] (APPS).
B[設定] (Settings).
C[言語と文字入力] (Language & input).
D[言語(Language)を選択] (Select language).
E[English].
Welcome Sheet(Lock Screen)
《Welcome Sheet(Lock Screen)》
Switching the Display Language
to English
sht21_e.book 56 ページ ２０１２年１１月２６日 月曜日 午前１１時１９分
57
sht21_e_04.fm
[57/65]
Basic Operations
The display on the product is a touch panel operated
by touching it with your finger or the stylus pen.
■Tap/Double Tap
Tap: Gently touch the screen and
then immediately release your
finger.
Double tap: Tap the same position
twice.
•Select an item or icon displayed
on the screen. Double tap on the
browser etc. to enlarge/reduce
the screen.
■Long Touch
Keep touching an item etc. with
your finger.
•Display context menu etc.
■Slide
While your finger is gently touching
the screen, trace it to the desired
direction to move over when all
items cannot be displayed within
the screen.
•Scroll screen or switch pages. In
addition, operate gauge and bar
when adjusting volume and
brightness.
■Flick
Operate the screen by quickly
moving (flicking) your finger up,
down, right or left.
•Switch pages, enter characters
by flick input, etc.
Using the Touch Panel
sht21_e.book 57 ページ ２０１２年１１月２６日 月曜日 午前１１時１９分
58
sht21_e_04.fm
[58/65]
Basic Operations
■Pinch
Touch the screen with two fingers
and widen (pinch-out) or narrow
(pinch-in) the fingers’ distance.
•Enlarge/Reduce the screen of the
browser etc.
■Drag
While your finger is gently touching
an item or icon, trace it to the
desired position to move or
perform other operations.
Basic operations which can be operated with your
finger are also can be operated with the stylus pen.
•If you tilt the stylus pen, operations may not be
recognized.
•When using the stylus pen, do not touch the touch
panel with your hand, finger, etc. The touch panel
may not function properly.
•The touch panel may not function properly depending
on the application.
•When not using the stylus pen, you can attach it into
the main unit.
Using the Stylus Pen
memo
◎The touch panel is designed to be lightly touched with the
supplied stylus pen. Operations with touch pens etc. other
than the supplied stylus pen are not guaranteed.
sht21_e.book 58 ページ ２０１２年１１月２６日 月曜日 午前１１時１９分
59
sht21_e_04.fm
[59/65]
Basic Operations
■Removing the Stylus Pen
ARemove the stylus pen.
■Attaching the Stylus Pen
AInsert the stylus pen into the stylus pen
holder of the main unit.
The following icons are displayed on the system bar
and can be used as touch keys.
•Touch keys with other than the following icons may be
displayed depending on the screen being displayed.
memo
◎Insert the stylus pen all the way in. Otherwise, it may fall off.
Stylus pen
Stylus pen
Stylus pen holder
Using the Touch Keys
Icon Description
^Return to the previous screen.
_Close the software keyboard or history of
activated applications being displayed.
#Display the home screen.
$Display the history of activated
applications.
&Use KAKU Notepad and KAKU Notebook.
sht21_e.book 59 ページ ２０１２年１１月２６日 月曜日 午前１１時１９分
60
sht21_e_04.fm
[60/65]
Basic Operations
The 3-Line Home is a home screen which consists of
the Apps Sheet, the Widget Sheet and the Shortcut
Sheet. You can use a function by tapping an icon/a
widget/shortcut on each sheet.
•You can switch each sheet by tapping “APPS”,
“WIDGETS” or “SHORTCUTS” on the Sheet Switcher,
or sliding/flicking the home screen to the left/right.
■Viewing the 3-Line Home
ASheet Switcher
Long touch Sheet Switcher, drag it to the destination
and release your finger to move it.
BApps Sheet/Widget Sheet/Shortcut Sheet
Using the 3-Line Home
3-Line Home
Switching sheets
《Apps Sheet》 《Widget Sheet》《Shortcut Sheet》
sht21_e.book 60 ページ ２０１２年１１月２６日 月曜日 午前１１時１９分
61
sht21_e_04.fm
[61/65]
Basic Operations
CSystem bar
Touch keys are displayed on the left side. The status
area is displayed on the right side. Notification/
Status icons and time are displayed on the status
area.
DScroller
Displayed when the screen is scrolled. You can
scroll the screen by sliding the displayed scroller
up/down.
ESeparator
Pinch out vertically on the home screen to add a
separator. You can delete the separator by pinching
in vertically.
memo
◎If the usage guide for handwriting notepad is displayed,
confirm the contents and follow the on-screen instructions.
◎If there is no item such as an application between
separators, you cannot add a separator.
Main Application List
Application Description
auテレビ.Gガイ
ド (au TV.
G-GUIDE
program table)
View TV program table or search
programs. Functions using 1Seg or
remote timer recording can be
used.
Friends Note
“Friends Note” can manage Native
Address Book and multiple social
networking services in just one
application.
Facebook
Use Facebook.
au Smart Pass
You can enjoy over 500 apps by
¥390 per month! Also coupon,
present, photo storage and security
apps are available! Please enjoy
your safety and comfortable tablet
life!
Uta Pass
Streaming music channel service
that enables you to listen to varieties
of preset channels and you can also
listen with your friends.
sht21_e.book 61 ページ ２０１２年１１月２６日 月曜日 午前１１時１９分
62
sht21_e_04.fm
[62/65]
Basic Operations
LISMO Player
Plays music or checks information
on the music using the LISMO
Player. Moreover, try listening to it
and purchase the investigated
music.
Karada
Manager
Karada Manager thoroughly helps
you keep dieting through “本格ダイ
エットモード” (Full-fledged dieting
mode) which has an upgraded
recording function and “スペシャル
トレーナー” (Special trainer) which
tells you special methods
introduced by famous people. It
supports sustainable dieting.
Play Books
Purchase books from Google Play
or read the books.
auお客さまサ
ポート (au
Customer
Support)
You can check the subscription
contents or monthly usage of your
au terminals etc. with this
application. You can change your
rate plan, apply for optional
services and so on at au Customer
Support website.
Application Description
au
災害対策
(au
Disaster
Countermeasure)
This is an application in which you
can use Disaster Message Board,
Emergency Rapid Mail (Earthquake
Early Warning, Disaster and
Evacuation Information, and
Tsunami Warning) and Disaster
Voice Messaging Service.
*
安心アクセス
(Safety Access)
This is an application which limits
the access to the inappropriate
application and web page so that
your child can use a tablet safety.
3LM
Delete data in the SHL21 and
microSD memory card or lock its
operations in case of loss of your
SHL21.
リモートサポー
ト (Remote
Support)
Call for technical supports on the
tablet operations by sharing the
tablet’s screen that you are
watching with au operators.
NFC Menu
Shows compatible applications list
with the NFC service, sets NFC
lock, or makes NFC settings.
Application Description
sht21_e.book 62 ページ ２０１２年１１月２６日 月曜日 午前１１時１９分
63
sht21_e_04.fm
[63/65]
Basic Operations
* Requires download and installation to use.
*
Instruction
Manual
Check the contents written in “Full
Instruction Manual” (Japanese).
You can search explanations of a
function that you want to use by
using the table of contents, index
and search engine.
Also, you can easily search
explanations often confirmed by
putting bookmarks on them.
au ID Setting
Set au ID.
au Market
You can install Android-based
applications offered with au Smart
Pass service.
au Easy Setting
“au Easy Setting” assists you to set
up au services and functions.
au Wi-Fi接続
ツール (au Wi-Fi
connection tool)
Connects to a Wi-Fi network easily
in an area where au Wi-Fi SPOT is
available.
Also, you can set Wi-Fi® easily with
a wireless LAN (Wi-Fi®) access
point on which “Simple connection”
is available.
Settings
From Settings, set up and manage
functions.
Application Description
memo
◎When you tap an application icon to use the corresponding
function, communication charges may be incurred
depending on the function.
◎The design of icons etc. may be changed without prior
notice.
◎Besides the above, some applications are installed on the
product. For details, refer to “Instruction Manual
application” (Japanese).
sht21_e.book 63 ページ ２０１２年１１月２６日 月曜日 午前１１時１９分
64
sht21_e_04.fm
[64/65]
Basic Operations
The status area is displayed on the right side of the
system bar.
The notification icons to notify you of a new mail
message, a running operation, etc. are displayed on
the left side of the status area, while the status icons to
show the status of the product are on the right side.
■Main Notification Icons
■Main Status Icons
Using the Status Area
Icons
Icon Description
New mail message (Mail)
New mail message (PC-mail)
New mail message (Gmail)
Manner mode status
: Standard manner mode
: Silent manner mode
Space on the main unit (system) available
less than approx. 10 %
Reading the main unit (memory)/a
microSD memory card
USB connecting
Update available
Software update available
Major Update (OS Update) available
Icon Description
Time
~Battery level
~ : Battery level display
: No battery
•While charging, the battery icon is
displayed with superimposed.
Airplane mode set
~Signal strength (Receiving electric field)
~ : Level display
: Out of service area
•The icon indicating network is displayed
at the upper left.
•During a communication, the icon is
displayed with superimposed.
sht21_e.book 64 ページ ２０１２年１１月２６日 月曜日 午前１１時１９分
65
sht21_e_04.fm
[65/65]
Basic Operations
In the notification/status panel, you can check the
details on notification icons and status icons or activate
an application corresponding to the icon.
You can also set the manner mode, VeilView, etc.
ATap the status area.
Alternatively, slide the status area up.
AStatus panel
Status icons are displayed. Tap it to display
“settings list”. For details on “settings list”, refer
to “Setting Guide”.
BNotification panel
Check the status of the product and contents of
notifications. You can activate a corresponding
application depending on the tapped
information.
CClear
Tap it to clear all the notifications.
Using the Notification/Status Panel
《Notification/Status panel》
sht21_e.book 65 ページ ２０１２年１１月２６日 月曜日 午前１１時１９分
66
sht21_e_05.fm
[66/69]
Character Input
AOn the character input screen, [ ]
[[Change input UI]
[[Set 12 keyboard]/[Set QWERTY
keyboard].
Switching Software Keyboards Viewing the Character Input
Screen
《Character input screen (QWERTY)》
sht21_e.book 66 ページ ２０１２年１１月２６日 月曜日 午前１１時１９分
67
sht21_e_05.fm
[67/69]
Character Input
ACharacter entry area
BInput candidates list
If the predictive conversion is enabled, the
predictive conversion candidates list is displayed
when characters are entered. If the relational
prediction is enabled, the relational prediction
candidates list is displayed when you determine the
entered characters.
Enter characters and tap “ ” to display the
normal conversion candidates list.
•You can enlarge the candidates list area by
tapping “ ”. If you tap “ ”, it returns to the
original display.
CCharacter entry key
DUndo key/Reverse toggle key
: Cancel the last operation such as returning the
determined characters to the undetermined state by
tapping the key.
: Display the characters assigned to the same
key in the reverse rotation.
《Character input screen (12 Key)》
sht21_e.book 67 ページ ２０１２年１１月２６日 月曜日 午前１１時１９分
68
sht21_e_05.fm
[68/69]
Character Input
EShift key
Switch uppercase character entry and lowercase
character entry by tapping the shift key. The display
changes as follows each time you tap it.
: Lowercase character entry
: Uppercase character entry
: Uppercase character entry lock
You can switch the symbols to enter by tapping the
key in numeric entry.
FInput mode key
When you switch the input modes, the display
changes as follows.
: Kanji
: Half Alphabet
: Half Numeric
: Half Katakana
: Full Alphabet
: Full Numeric
: Full Katakana
: Character Code
GDelete key
HOK key/Line feed key
: Determine the characters being entered.
: Insert a line feed at the cursor position.
IEmoji, symbol and facemark key/Kana and
alphanumeric key
: Display the emoji/decoration-emoji/symbol/
facemark list.
: Display katakana, alphabet, number, and
predicted date and time assigned to the entered
characters as conversion candidates. If you tap
“ ”, it returns to the previous display.
JSettings key
Display the iWnn IME menu.
KSpace key/Conversion key
: Enter a space.
: Display the normal conversion candidates
list.
LCursor key
Move the cursor to the left/right. You can enter a
space by moving the cursor to the right at the end of
a text. Also, you can change the range of the
characters for character input and conversion.
MSettings key/Space key/Conversion key
: Display the iWnn IME menu.
: Enter a space.
: Display the normal conversion candidates list.
sht21_e.book 68 ページ ２０１２年１１月２６日 月曜日 午前１１時１９分
69
sht21_e_05.fm
[69/69]
Character Input
NSpace key/Uppercase and lowercase characters
switch key
: Enter a space.
: Switch the entered alphabet to the uppercase/
lowercase one.
: Switch the entered character to the
uppercase/lowercase one or add dakuten/
handakuten to the character.
memo
◎While the predictive conversion candidates list/relational
prediction candidates list/normal conversion candidates list
is not displayed, tap “_” to hide the keyboard.
Flick operations
◎Flick the emoji, symbol and facemark key/kana and
alphanumeric key to the right to display Quote apps list.
You can activate an application by tapping it.
◎Flick the input mode key to the right to switch the input
mode to “Half Numeric”.
◎Flick the settings key to use the following functions.
/ : Set QWERTY keyboard/Set 12 keyboard
: Handwriting input
: Voice input
sht21_e.book 69 ページ ２０１２年１１月２６日 月曜日 午前１１時１９分
70
sht21_e_14.fm
[70/70]
Settings
From Settings, you can set up and manage functions.
AOn the home screen, [APPS]
[[Settings].
Displaying Setting Menu
Item Description
Sound settings Set the manner mode, adjust the
notification sound volume, playback
volume, etc.
Wallpaper &
display
Make settings for the brightness of
the screen, switch text fonts, etc.
Energy saving
settings
Activate Energy save.
au ID setting Set au ID.
microSD &
tablet storage
Check the memory space of the
microSD memory card and the main
unit, initialize the microSD memory
card, etc.
Battery Check the battery usage.
Profile Check or edit your profile.
Home
applications
Switch home applications to use.
Charging
theater
Make settings for Charging theater.
Application Uninstall applications etc.
Wi-Fi Make settings for Wi-Fi®.
au Wi-Fi
connection tool
Activate au Wi-Fi connection tool.
Wireless output Set wireless connection to TVs with
a wireless connection function.
Bluetooth Make settings for Bluetooth®.
Data usage Make settings for data traffic.
Network
settings
Make settings for network such as
Airplane mode and Home network
settings.
Accounts &
sync
Make settings for managing
accounts or synchronizing data.
Location
services
Make settings for location services.
Lock & Security Make settings for the lock or
security function of the product.
Language &
input
Set the language to be displayed and
make settings for character input.
Reset all Restore the default settings.
External
connection
Make settings for USB connection.
Date & time Make settings for the date and time.
Accessibility Set user support services.
Developer
options
Set tools etc. for developing
applications.
Device info Check the signal level etc.
Initial setting Make initial settings.
Item Description
sht21_e.book 70 ページ ２０１２年１１月２６日 月曜日 午前１１時１９分
71
sht21_e_17.fm
[71/91]
Appendix
■Desktop Holder (SHT21PUA)
■Stylus Pen (SHT21KBA)
■Common AC Adapter 01 (0202PQA) (sold
separately)*
Common AC Adapter 02 (0203PQA) (sold
separately)*
Common AC Adapter 03 (0301PQA) (sold
separately)
Common AC Adapter 04 (0401PWA) (sold
separately)
Common AC Adapter 03 Navy (0301PBA) (sold
separately)
Common AC Adapter 03 Green (0301PGA) (sold
separately)
Common AC Adapter 03 Pink (0301PPA) (sold
separately)
Common AC Adapter 03 Blue (0301PLA) (sold
separately)
AC Adapter MIDORI (0205PGA) (sold separately)*
AC Adapter AO (0204PLA) (sold separately)*
AC Adapter SHIRO (0204PWA) (sold separately)*
AC Adapter MOMO (0204PPA) (sold separately)*
AC Adapter CHA (0204PTA) (sold separately)*
AC Adapter REST (LS1P002A) (sold separately)*
AC Adapter RANGERS (LS1P003A) (sold
separately)*
AC Adapter CHARGY (LS1P001A) (sold
separately)*
AC Adapter WORLD OF ALICE (LS1P004A) (sold
separately)*
AC Adapter KiiRoll (L01P005A) (sold separately)*
AC Adapter JUPITRIS (White) (L02P001W) (sold
separately)
AC Adapter JUPITRIS (Red) (L02P001R) (sold
separately)
AC Adapter JUPITRIS (Blue) (L02P001L) (sold
separately)
AC Adapter JUPITRIS (Pink) (L02P001P) (sold
separately)
AC Adapter JUPITRIS (Champagne) (L02P001N)
(sold separately)
Introduction of Peripheral
Devices
sht21_e.book 71 ページ ２０１２年１１月２６日 月曜日 午前１１時１９分
72
sht21_e_17.fm
[72/91]
Appendix
•Illustrations and forms may not match depending
on the AC adapter you use.
•Common AC adapter 01 can only be used in
Japan. When you use an AC adapter overseas,
choose available one from among the
above-mentioned models (except for Common AC
adapter 01) to use.
■Common DC adapter 01 (0201PEA) (sold
separately)*
Common DC adapter 03 (0301PEA) (sold
separately)
■Portable charger 01 (0201PDA) (sold separately)*
Portable charger 02 (0301PFA) (sold separately)
■microUSB cable 01 (0301HVA) (sold separately)
microUSB cable 01 Navy (0301HBA) (sold
separately)
microUSB cable 01 Green (0301HGA) (sold
separately)
microUSB cable 01 Pink (0301HPA) (sold
separately)
microUSB cable 01 Blue (0301HLA) (sold
separately)
■SHARP microUSB-3.5φ conversion cable 01
(SHX11QVA) (sold separately)
■SHARP microUSB-18-pin (charger) conversion
cable 01 (SHI01HVA) (sold separately)
■18 pin-microUSB conversion adapter 01
(0301QYA) (sold separately)
* When using this with the product, you need to connect it to SHARP
microUSB-18-pin (charger) conversion cable 01 (sold separately) or 18
pin-microUSB conversion adapter 01 (sold separately).
Common AC adapter 04
Common DC adapter 03
memo
◎For the latest information about available peripheral
devices, check the au homepage (http://
www.au.kddi.com/) or contact Customer Service Center.
◎The product does not support ASYNC/Fax transmission.
◎The above-mentioned peripheral devices can be
purchased from au Online Shop.
(http://auonlineshop.kddi.com/)
sht21_e.book 72 ページ ２０１２年１１月２６日 月曜日 午前１１時１９分
73
sht21_e_17.fm
[73/91]
Appendix
Before you assume that the product is malfunctioning,
check the following:
Troubleshooting
Trouble Detail
Cannot turn on the
power.
•Is the internal battery charged?
(zP.50)
•Did you hold f down? (zP.54)
Cannot charge the
battery.
•Is the power plug of the specified
charger (sold separately) securely
plugged into an outlet or a cigarette
lighter socket? (zP.50)
•Are the desktop holder, charger
terminal, etc. clean? (zP.24)
Cannot operate/The
screen does not
respond/Cannot turn
off the power.
•Turn the power off forcibly by
pressing f and d simultaneously
for at least 12 seconds. Turn it on
after a while. (zP.55)
Cannot operate the
keys/touch panel.
•Turn off the power and then turn it
on.
•Is the power turned on? (zP.54)
Battery usage time is
short.
•Make sure you do not often use the
product in places where (out of
service area) is displayed. (zP.64)
•Make sure the internal battery does
not approach the end of its service
life. (zP.19)
•Is the internal battery charged
enough? (zP.50)
•Suspend the functions not being
used. (zP.65)
Cannot operate the
touch panel as
intended.
•Make sure you are not operating
with hands wearing gloves etc.
•Make sure you are not operating
with the tip of a fingernail or with
foreign object between the screen
and your fingers.
•Check the proper operation of touch
panel. (zP.57)
•Make sure you are not operating
with the stylus pen.
If the touch panel does not respond
to the stylus pen, operate with your
fingers.
•Restart the product. (zP.55)
Screen response is
slow when you tap on
the screen/press the
keys.
•Screen response may be slowed
down when a large amount of data
is stored in the product or being
transmitted between the main unit
and a microSD memory card.
Trouble Detail
sht21_e.book 73 ページ ２０１２年１１月２６日 月曜日 午前１１時１９分
74
sht21_e_17.fm
[74/91]
Appendix
For more details, contact Customer Service Center.
From a fixed-line phone, 0077-7-111
From an au cell phone, 157 without area code
The product supports the software update.
AOn the home screen, [APPS] [[Settings]
[[Device info] [[Software update].
B
■Notes on Software Update
•You are charged for data communication when
connecting to the Internet from the product by using
packet communication.
•When software update is necessary, you will be
informed on au homepage etc. For details, contact an
au shop or Customer Service Center (call toll-free
157). In addition, users of the SHT21 will receive a
notice from au, when the software update is
necessary to improve the functionality of the SHT21.
auIC Card(UIM) error.
is displayed.
•Is an au Micro IC Card (LTE)
inserted? (zP.46)
Cannot recognize a
microSD memory
card/Cannot find
target data.
•Is a microSD memory card inserted
properly? (zP.48)
•Make sure data is not saved on the
main unit (memory). Data can be
saved on the main unit (memory)
besides a microSD memory card.
The power is turned
off automatically.
•Make sure the battery has not run
out. (zP.50)
The power is turned
off while the wake-up
logo is displayed.
•Make sure the battery has not run
out. (zP.50)
(out of service
area) is displayed.
•Is reception good enough? (zP.64)
•Is the product within the service
area? (zP.64)
•Is your finger etc. off the area
around the internal antenna?
(zP.45)
A message indicating
that charging is
necessary is
displayed.
•The battery is almost empty.
(zP.50)
Trouble Detail Updating Software or OS
Software Update
Software
update
Check whether software update is
necessary or not. The confirmation
starts when you tap “Yes”. When it is
necessary, you can download data
for software update.
Auto-check
settings
Set whether to regularly check the
presence of data for software
update available.
sht21_e.book 74 ページ ２０１２年１１月２６日 月曜日 午前１１時１９分
75
sht21_e_17.fm
[75/91]
Appendix
•It is recommended to back up your data before
updating software.
•If the software update is performed, the product will
restart before and after the update.
•If the software update has failed or stopped, perform
the same procedures again.
•If the software update fails, it may become impossible
to operate the product. If this happens, bring it to an
au shop or PiPit (not accepted by some shops).
•Charge the battery sufficiently before starting update.
If the battery level is insufficient or the battery runs out
during the update, the software update will fail.
•Check out the signal reception status. The software
update may fail if the product is in a place with bad
signal reception status.
•Various data registered on the product (address
books, mails, still pictures, music data, etc.) and
information of settings will not be changed even after
software is updated. However, note that data may not
be protected depending on the state of the product
(fault, damage, getting wet with water, etc.).
•After software is updated, the download of next
update software may automatically start (consecutive
update).
Do not conduct the following operations during the
software update
•Do not move during software update.
The following operations are not available during
the software update
•Operations are not available during software update.
Also, the alarm etc. does not function.
Major update is a function to update the OS of the
product.
•Attach a microSD memory card in advance.
AOn the home screen, [APPS] [[Settings]
[[Device info] [[Major Update].
B
Major Update (OS Update)
Confirm
update
Manually check the presence of
data for OS update available.
Start update Carry out OS update via Wi-Fi®.
Check for
updates
Set whether to regularly and
automatically check the presence
of data for OS update available.
sht21_e.book 75 ページ ２０１２年１１月２６日 月曜日 午前１１時１９分
76
sht21_e_17.fm
[76/91]
Appendix
■When Asking for Repair
For repair, contact Secure cell phone support center.
■Performance Parts for Repair
The Company retains performance parts for repair of
the SHT21 main unit and its peripheral devices for 6
years after discontinuation of production. “Performance
parts for repair” refers to parts required for maintaining
the functions of the product.
■Warranty Card
At the store of purchase, thoroughly check and read
the name of the retailer, date of purchase and other
necessary details filled in on the warranty card, and be
sure to keep it in a safe place.
■Secure cell phone support plus LTE
An after-sales service membership program on a
monthly basis called “Secure cell phone support plus
LTE” (monthly fee: 399 yen including tax) is available
for using your au terminal for a long time without
worries. This service expands coverage for many
troubles including malfunction, theft and loss. For
details of this service, check on the au homepage or
contact Secure cell phone support center.
After-Sales Service
During the
warranty period
Repairs will be done based on the <terms of
services of the free-of-charge repair
warranty> described on the warranty card.
Outside the
warranty period
We shall repair the product for a charge as
requested by the customer if repair renders
it usable.
memo
◎Before handing in the product for repair, make a backup of
the contents of memory since they may disappear during
repair. Note that the Company shall not be liable for any
damages and loss of income should the contents of
memory be altered or lost.
◎Recycled parts that meet the Company’s quality standards
are sometimes used for repair.
◎au terminals collected by Replacement cell phone delivery
service which you used before are recycled to terminals for
replacement after repairs. Also parts replaced by au
after-sales service are collected and recycled by the
Company. They are not returned to customers.
memo
◎You can apply for the membership only at the time of
purchasing your au terminal.
◎Once you cancel the membership, you cannot reapply for it
until you purchase an au terminal next time.
sht21_e.book 76 ページ ２０１２年１１月２６日 月曜日 午前１１時１９分
77
sht21_e_17.fm
[77/91]
Appendix
■au Micro IC Card (LTE)
The au Micro IC Card (LTE) is lent to you by au. In case
of loss or damage, the card will be replaced at your
expense. When malfunction is suspected, or in case of
theft or loss, contact an au shop or PiPit.
■After-Sales Service
If you are unsure about anything regarding after-sales
service, contact the following service counter.
Customer Service Center (for service canceling
procedure or operation in case of loss or theft)
From a fixed-line phone, 0077-7-113 (toll free)
From an au cell phone, 113 without area code (toll
free)
Secure cell phone support center (for loss, theft or
damage)
From a fixed-line phone/an au cell phone,
0120-925-919 (toll free)
Business hours 9:00 to 21:00 (7 days a week)
■au After-Sales Service Information
◎Note that when changing the model or purchasing an extra
terminal, this service only covers the most recently
purchased au terminal.
◎When an au terminal is handed over to you or someone
else, the Secure cell phone support plus LTE membership
is also handed over to the successor of the terminal.
◎When you get a new au terminal by changing the model,
purchasing an extra terminal, etc., the “Secure cell phone
support plus” or “Secure cell phone support plus LTE”
membership for the old au terminal is automatically
canceled.
◎Service contents are subject to change without notice.
Service contents
Secure cell
phone support
plus LTE
member
Non-Secure
cell phone
support plus
LTE member
Replacement cell phone
delivery service
(spontaneous failure: 1st
year)
Free N/A
Replacement cell phone
delivery service
(spontaneous failure: 2nd
year and later)
Customer charge
1st: 5,250 yen
2nd: 8,400 yen
N/A
Replacement cell phone
delivery service
(partial damage, water
soak, irreparable
damage, theft and loss)
Customer charge
1st: 5,250 yen
2nd: 8,400 yen
N/A
Holding over and repair
(spontaneous failure: 1st
year)
Free Free
Holding over and repair
(spontaneous failure: 2nd
year and later)
Free (three-year
warranty) Actual cost
sht21_e.book 77 ページ ２０１２年１１月２６日 月曜日 午前１１時１９分
78
sht21_e_17.fm
[78/91]
Appendix
* All the prices written above include tax.
Holding over and repair
(partial damage)
Customer charge
Upper limit:
5,250 yen
Actual cost
Holding over and repair
(water soak and
irreparable damage)
Customer charge
10,500 yen Actual cost
Holding over and repair
(theft and loss) N/A
N/A
(model
change)
memo
Replacement cell phone delivery service
◎When you have trouble with your au terminal, you can have
a terminal for replacement (same model and color as your
old one) delivered to any destination that you specify by
calling us. Please return your old au terminal got out of
order within 14 days after the terminal for replacement is
delivered to you.
◎You can use this service up to twice within one year starting
from the day when you first use this service. If you have not
used this service over the past one year at the time of your
application for this service, the application will be regarded
as your first time. If you have, the application will be
regarded as your second time.
* For details, check on the au homepage.
Service contents
Secure cell
phone support
plus LTE
member
Non-Secure
cell phone
support plus
LTE member
Holding over and repair
◎Damages and malfunctions intentionally caused by the
customer as well as those due to modification (e.g.
disassembly, change of parts, painting, etc.) by the
customer are not covered by this service.
◎You cannot receive a refund for replacement of the outer
casing due to stains, scratches, paint removal, etc. on the
outer casing.
Main Specifications
Display Approx. 7 inches, approx. 16.77 million
colors, IGZO, 1,280×800 (WXGA)
Weight Approx. 272 g (including the internal
battery)
Size (W×H×D) Approx. 106 mm×190 mm×9.4 mm
CPU MSM8960 1.5 GHz Dual-core
Memory (built-in
(ROM))*1
Approx. 16 GB
Continuous
standby time
Approx. 980 hours (while LTE is used)
Approx. 1,040 hours (while 3G is used)
Continuous
tethering time
Approx. 500 min (LTE on WAN)
Approx. 850 min (3G on WAN)
Charging time Desktop holder: Approx. 320 min
Common AC adapter 04 (sold separately):
Approx. 330 min
Common DC adapter 03 (sold separately):
Approx. 590 min
sht21_e.book 78 ページ ２０１２年１１月２６日 月曜日 午前１１時１９分
79
sht21_e_17.fm
[79/91]
Appendix
1Seg
continuous
watching time*2
Approx. 11 hours (earphone)
Approx. 10 hours (speaker)
Camera device Out camera
CMOS image sensor
In camera
CMOS image sensor
Effective pixels Out camera
Approx. 8.08 million pixels
In camera
Approx. 0.31 million pixels
Picture size/
Magnification
and its steps of
still picture
Out camera
VGA: 640×480/4.0-fold and 13 steps
HD: 1,280×720/4.0-fold and 13 steps
2M: 1,600×1,200/4.0-fold and 13 steps
FULL HD: 1,920×1,080/4.0-fold and 13
steps
8M: 3,264×2,448/4.0-fold and 13 steps
In camera
VGA: 640×480/4.0-fold and 13 steps
Picture size/
Magnification
and its steps/
Recording
time*3 of video
Out camera
QVGA: 320×240/4.0-fold and 13 steps/
Max. approx 90 min
VGA: 640×480/4.0-fold and 13 steps/
Max. approx 90 min
HD: 1,280×720/4.0-fold and 13 steps/
Max. approx 45 min
FULL HD: 1,920×1,080/4.0-fold and 13
steps/Max. approx 16 min
In camera
QVGA: 320×240/4.0-fold and 13 steps/
Max. approx 90 min
VGA: 640×480/4.0-fold and 13 steps/
Max. approx 90 min
sht21_e.book 79 ページ ２０１２年１１月２６日 月曜日 午前１１時１９分
80
sht21_e_17.fm
[80/91]
Appendix
*1 Since data and applications share the saving space, available memory
capacity on the main unit decreases depending on how much space the
applications in use are taking up.
*2 The 1Seg continuous watching time varies depending on the usage.
*3
It varies depending on the recording condition, memory space of other
saved data, etc. Also, the recording time decreases depending on the
temperature at the location where the product is used and usage.
*4 It changes according to objects obstructing devices and signal reception.
*5 This is the specification provided in Bluetooth® standards for making
communication between Bluetooth® compatible devices in accordance
with their intended use.
*6 Some contents of address book data may not be properly displayed on
the device of the other party. Also, you may not be able to connect to the
device of the other party depending on its specifications.
*7 This profile supports Bluetooth® Standard Ver.4.0.
*8 The product will support this after the software update.
For details, refer to the support page in SH DASH.
(http://k-tai.sharp.co.jp/support/a/sht21/)
In some countries/regions including Europe, there are restrictions
on the use of 5GHz WLAN that may limit the use to indoors only.
If you intend to use 5GHz WLAN on the device, check the local
laws and regulations beforehand.
Bluetooth®
Function
Communication method: Bluetooth®
Standard Ver.4.0
Output: Bluetooth® Standard Power Class 2
Communication distance*4: Within 10 m with
no obstacles in the range
Compatible Bluetooth® profile*5: A2DP
(Advanced Audio Distribution Profile),
AVRCP (Audio/Video Remote Control
Profile) Ver.1.3, OPP (Object Push Profile),
SPP (Serial Port Profile), PBAP (Phone Book
Access Profile)*6, HID (Human Interface
Device Profile), HDP (Health Device Profile),
PAN (Personal Area Networking Profile),
PXP (Proximity Profile)*7, 8, FMP (Find Me
Profile)*7, 8, ANP (Alert Notification
Profile)*7, 8, TIP (Time Profile)*7
Frequency bands: 2.4 GHz band (2.402
GHz to 2.480 GHz)
Network
environment
Wireless LAN (Wi-Fi
®
) function: IEEE802.11a/
b/g/n (2.4 GHz/5 GHz) Standard
Interface microUSB jack
memo
◎
The continuous standby time may drop to less than half
depending on the battery charging status, usage environment
such as temperature, reception condition at the location where
the product is used, and the function settings.
CE Declaration of Conformity
Hereby, Sharp Telecommunications of Europe Ltd, declares that
this SHT21 is in compliance with the essential requirements and
other relevant provisions of Directive 1999/5/EC.
A copy of the original declaration of conformity can be found at the
following Internet address:
(http://www.sharp.co.jp/k-tai/)
sht21_e.book 80 ページ ２０１２年１１月２６日 月曜日 午前１１時１９分
81
sht21_e_17.fm
[81/91]
Appendix
■Mobile Light
Do not point the illuminated light directly at someone’s eyes.
Be especially careful not to shoot small children from a very
close distance.
Do not use Mobile light near people’s faces. Eyesight may be
temporarily affected leading to accidents.
■AC Adapter
Any AC adapter used with this device must be suitably approved
with a 5Vdc SELV output which meets limited power source
requirements as specified in EN/IEC 60950-1 clause 2.5.
■Battery - CAUTION
■Loudness Warning
Excessive sound pressure from earphones and headphones can
cause hearing loss.
■Headphone Signal Level
The maximum output voltage for the music player function,
measured in accordance with EN 50332-2, is 25 mV.
■European RF Exposure Information
Your mobile device is a radio transmitter and receiver. It is
designed not to exceed the limits for exposure to radio waves
recommended by international guidelines. These guidelines
were developed by the independent scientific organization
ICNIRP and include safety margins designed to assure the
protection of all persons, regardless of age and health.
The guidelines use a unit of measurement known as the Specific
Absorption Rate, or SAR. The SAR limit for mobile devices is 2
W/kg. The SAR for this device is compliant with these SAR
exposure requirements.
The World Health Organization has stated that present scientific
information does not indicate the need for any special
precautions for the use of mobile devices.
Use specified Charger only.
Non-specified equipment use may cause malfunctions, electric
shock or fire due to battery leakage, overheating or bursting.
The battery is embedded inside the product. Avoid removing
the embedded battery since this may cause overheating or
bursting.
Do not dispose of the product with ordinary refuse. Take the
product to an au Shop, or follow the local disposal regulations.
Charge battery in ambient temperatures between 5°C and 35°C;
outside this range, battery may leak/overheat and performance
may deteriorate.
sht21_e.book 81 ページ ２０１２年１１月２６日 月曜日 午前１１時１９分
82
sht21_e_17.fm
[82/91]
Appendix
- This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including
interference that may cause undesired operation.
- Changes or modifications not expressly approved by the
manufacturer responsible for compliance could void the
user’s authority to operate the equipment.
■Information to User
This equipment has been tested and found to comply with the
limits of a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that interference will not occur in
a particular installation; if this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of
the following measures:
1. Reorient/relocate the receiving antenna.
2. Increase the separation between the equipment and
receiver.
3. Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
4. Consult the dealer or an experienced radio/TV technician for
help.
■FCC RF Exposure Information
Your device is a radio transmitter and receiver. It is designed
and manufactured not to exceed the emission limits for exposure
to radio frequency (RF) energy set by the Federal
Communications Commission of the U.S. Government.
The guidelines are based on standards that were developed by
independent scientific organizations through periodic and
thorough evaluation of scientific studies. The standards include
a substantial safety margin designed to assure the safety of all
persons, regardless of age and health.
The exposure standard for wireless devices employs a unit of
measurement known as the Specific Absorption Rate, or SAR.
The SAR limit set by the FCC is 1.6 W/kg. The SAR for this device
is compliant with these SAR exposure requirements.
FCC Notice
sht21_e.book 82 ページ ２０１２年１１月２６日 月曜日 午前１１時１９分
83
sht21_e_17.fm
[83/91]
Appendix
The product and its accessories may be subject to the Japan
Export Administration Regulations (“Foreign Exchange and
Foreign Trade Law” and its related laws). In addition, U.S.
Re-export Regulations (Export Administration Regulations) may
apply to the product and its accessories. To export and
re-export the product and its accessories, take the required
measures on your responsibility and at your expenses. For
details on the procedures, contact the Ministry of Economy,
Trade and Industry or the U.S. Department of Commerce.
■Trademarks
The company names and product names appearing in this
manual are trademarks or registered trademarks of their
respective holders.
•The microSD logo, microSDHC logo and microSDXC logo are
trademarks of SD-3C and LLC.
•The Bluetooth® word mark and logo are registered trademarks
owned by the Bluetooth SIG, Inc., and SHARP CORPORATION
is licensed to use these trademarks.
•This product is loaded with Bluetooth® Stack for Embedded
Systems Spec 5.0 by Toshiba Corp.
•Wi-Fi® is a registered trademark of Wi-Fi Alliance®.
•Wi-Fi Protected Setup™ and Wi-Fi Protected Setup logo are
trademarks of Wi-Fi Alliance®.
The Wi-Fi Protected Setup Mark is a mark of the Wi-Fi Alliance.
•Wi-Fi Direct™ is a trademark of Wi-Fi Alliance®.
Export Administration
Regulations
Intellectual Property Rights
sht21_e.book 83 ページ ２０１２年１１月２６日 月曜日 午前１１時１９分
84
sht21_e_17.fm
[84/91]
Appendix
•“ ” is a trademark of BUFFALO INC.
•The official name for Microsoft® Windows® is Microsoft®
Windows® Operating System.
•Microsoft®, Windows®, Windows Vista®, Microsoft® Excel®,
Microsoft® PowerPoint®, Windows Media® and Exchange® are
trademarks or registered trademarks of Microsoft Corporation
in the U.S.A. and other countries.
•Microsoft® Word and Microsoft® Office are product names of
Microsoft Corporation in the U.S.A.
•Music recognition technology and related data are provided
by Gracenote®.
Gracenote is a business standard for music recognition
technology and related contents delivery.
For details, refer to the following web page:
(www.gracenote.com)
CD and music data provided by Gracenote: Copyright © 2000
- present Gracenote.
Gracenote Software: Copyright 2000 - present Gracenote.
This product and services may include one or several of the
following US Patent. #5,987,525, #6,061,680, #6,154,773,
#6,161,132, #6,230,192, #6,230,207, #6,240,459, #6,330,593,
and other granted or applied patents.
Part of services are provided by Open Globe, Inc. for US
patent (#6,304,523) under license.
Gracenote and CDDB are registered trademarks of
Gracenote, Inc.
Logo and logo type of Gracenote and “Powered by
Gracenote” logo are either registered trademarks or
trademarks of Gracenote, Inc.
For information on the use of Gracenote services, refer to the
following web page: (www.gracenote.com/corporate)
•QR code is a registered trademark of DENSO WAVE
INCORPORATED.
•Osaifu-Keitai is a registered trademark of NTT DOCOMO, INC.
sht21_e.book 84 ページ ２０１２年１１月２６日 月曜日 午前１１時１９分
85
sht21_e_17.fm
[85/91]
Appendix
•Twitter and Twitter logo are trademarks or registered
trademarks of Twitter, Inc.
•Facebook® is a registered trademark of Facebook, Inc.
•Google, Google logo, Android, Android logo, Google Play™,
Google Play logo, Google+, Google+ logo, Gmail™, Gmail
logo, Calendar logo, Google Maps™, Google Maps logo,
Google Talk™, Google Talk logo, Google Chrome™, Google
Chrome logo, Google Voice Search™ logo, Picasa™, Picasa
logo, YouTube and YouTube logo are trademarks or registered
trademarks of Google Inc.
•“Jibe” is a trademark of Jibe Mobile K.K.
•GREE and the GREE logo are registered trademarks of GREE,
Inc. in Japan. All other trademarks are the property of their
respective owners.
•LINE is a trademark of NHN Japan Co. Ltd.
•Rovi, G-GUIDE, G-GUIDE MOBILE and G-Guide related logos
are trademarks or registered trademarks of Rovi Corporation
and/or its subsidiaries in Japan.
•Manufactured under license from Dolby Laboratories.
Dolby and the double-D symbol are registered trademarks of
Dolby Laboratories.
•TRENDMICRO, VirusBuster are trademarks of Trend Micro Inc.
•Copyright © 2010 - Three Laws of Mobility. All Rights
Reserved.
•The “RSA Secure” AND “Genuine RSA” logos are trademarks
of RSA Data Security, Inc.
•DLNA®, the DLNA Logo and DLNA CERTIFIED™ are
trademarks, service marks, or certification marks of the Digital
Living Network Alliance.
Sharp Corporation has acquired DLNA certification for the
device.
•Oracle and Java are registered trademarks of Oracle and/or its
affiliates. Other names may be trademarks of their respective
owners.
sht21_e.book 85 ページ ２０１２年１１月２６日 月曜日 午前１１時１９分
86
sht21_e_17.fm
[86/91]
Appendix
•“Chaku-uta”, “Chaku-uta full” and “Chaku-uta full plus” are
registered trademarks of the Sony Music Entertainment
(Japan) Inc.
•“VeilView”, “Best select photo”, “Egao focus shutter”, “Furimuki
shutter”, “AQUOS”, “AQUOS PAD”, “ファミリンク”,
“FAMILINK”, the “エコ技” symbol and “エコ技”, “アウトドア
ビュー”, “おまかせアルバム”, “OneTouch Shutter”,
“GALAPAGOS”, “SH SHOW”, “IGZO”, “LCフォント”,
“LCFONT” and the LC logo symbol are registered trademarks
or trademarks of Sharp Corporation.
•Included Document Viewer is Documents To Go provided by
DataViz,Inc.
© 2011 DataViz, Inc. and its licensors. All rights reserved.
DataViz, Documents To Go and InTact Technology are
trademarks or registered trademarks of DataViz, Inc.
•PhotoScouter® is a registered trademark of Morpho, Inc.
•MyScript® Stylus Mobile is a trademark of VISION OBJECTS.
•Content owners use Microsoft PlayReady™ content access
technology to protect their intellectual property, including
copyrighted content. This device uses PlayReady technology
to access PlayReady-protected content and/or
WMDRM-protected content. If the device fails to properly
enforce restrictions on content usage, content owners may
require Microsoft to revoke the device’s ability to consume
PlayReady-protected content. Revocation should not affect
unprotected content or content protected by other content
access technologies. Content owners may require you to
upgrade PlayReady to access their content. If you decline an
upgrade, you will not be able to access content that requires
the upgrade.
•iWnn of OMRON SOFTWARE Co., Ltd. is used for conversion
methods for Japanese language, and for phrase prediction
methods for English.
iWnn © OMRON SOFTWARE Co., Ltd. 2008-2012 All Rights
Reserved.
iWnn IME © OMRON SOFTWARE Co., Ltd. 2009-2012 All
Rights Reserved.
•Powered by emblend Copyright 2009-2010 Aplix Corporation.
All rights reserved.
emblend is a name of Japanese product provided by Aplix
Corporation.
•The font type pre-installed in this product, Shin Go M, is
licensed by Morisawa Inc. solely for the use with this product.
“Morisawa” and “Shin Go” are registered trademarks or
trademarks of Morisawa Inc.
sht21_e.book 86 ページ ２０１２年１１月２６日 月曜日 午前１１時１９分
87
sht21_e_17.fm
[87/91]
Appendix
•Portions Copyright ©2004 Intel Corporation
•The MHL logo, MHL and Mobile High-Definition Link are
trademarks or registered trade marks of MHL, LLC.
•aptX is a registered trademark of CSR plc.
•The product includes pictograms that SHARP CORPORATION
is licensed by NTT DOCOMO, INC.
■Open Source Software
•The product includes software based on GNU General Public
License (GPL), GNU Lesser General Public License (LGPL)
and other licenses.
For details on licenses of related software, on the home
screen, tap [APPS] [[Settings] [[Device info] [[Legal
information] [[Open source licenses].
•Source codes of software based on GPL, LGPL and Mozilla
Public License (MPL) can be referred to on the following site
for free. For details, refer to the following site.
(https://sh-dev.sharp.co.jp/android/modules/oss/)
■OpenSSL License
【OpenSSL License】
Copyright © 1998-2009 The OpenSSL Project. All rights
reserved.
This product includes software developed by the OpenSSL
Project for use in the OpenSSL Toolkit. (http://www.openssl.org/)
THIS SOFTWARE IS PROVIDED BY THE OpenSSL PROJECT
“AS IS” AND ANY EXPRESSED OR IMPLIED WARRANTIES,
INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT
SHALL THE OpenSSL PROJECT OR ITS CONTRIBUTORS BE
LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL,
EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING,
BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE
GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR
BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY
THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT
LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR
OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS
SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH
DAMAGE.
sht21_e.book 87 ページ ２０１２年１１月２６日 月曜日 午前１１時１９分
88
sht21_e_17.fm
[88/91]
Appendix
【Original SSLeay License】
Copyright © 1995-1998 Eric Young (eay@cryptsoft.com) All
rights reserved.
This product includes cryptographic software written by Eric
Young (eay@cryptsoft.com)
THIS SOFTWARE IS PROVIDED BY ERIC YOUNG “AS IS” AND
ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT
NOT LIMITED TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE
AUTHOR OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT,
INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR
CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED
TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES;
LOSS OF USE, DATA, OR PROFITS; OR BUSINESS
INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY
OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR
TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN
ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF
ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
■Windows Notations
The names of operating systems (Japanese versions) used in
this manual are as follows.
•Windows 8 is the abbreviation for Microsoft® Windows® 8,
Microsoft® Windows® 8 Pro and Microsoft® Windows® 8
Enterprise.
•Windows 7 is the abbreviation for Microsoft® Windows® 7
(Starter, Home Basic, Home Premium, Professional,
Enterprise, Ultimate).
•Windows Vista is the abbreviation for Microsoft® Windows
Vista® (Home Basic, Home Premium, Business, Enterprise,
Ultimate).
•Windows XP is the abbreviation for Microsoft® Windows® XP
Professional operating system and Microsoft® Windows® XP
Home Edition operating system.
sht21_e.book 88 ページ ２０１２年１１月２６日 月曜日 午前１１時１９分
89
sht21_e_17.fm
[89/91]
Appendix
■Gracenote® End User License
Agreement
This application or device contains software from Gracenote,
Inc. of Emeryville, California (“Gracenote”). The software from
Gracenote (the “Gracenote Software”) enables this application to
perform disc and/or file identification and obtain music-related
information, including name, artist, track, and title information
(“Gracenote Data”) from online servers or embedded databases
(collectively, “Gracenote Servers”) and to perform other
functions. You may use Gracenote Data only by means of the
intended End-User functions of this application or device.
You agree that you will use Gracenote Data, the Gracenote
Software, and Gracenote Servers for your own personal
non-commercial use only. You agree not to assign, copy,
transfer or transmit the Gracenote Software or any Gracenote
Data to any third party. YOU AGREE NOT TO USE OR
EXPLOIT GRACENOTE DATA, THE GRACENOTE
SOFTWARE, OR GRACENOTE SERVERS, EXCEPT AS
EXPRESSLY PERMITTED HEREIN.
You agree that your non-exclusive license to use the Gracenote
Data, the Gracenote Software, and Gracenote Servers will
terminate if you violate these restrictions. If your license
terminates, you agree to cease any and all use of the Gracenote
Data, the Gracenote Software, and Gracenote Servers.
Gracenote reserves all rights in Gracenote Data, the Gracenote
Software, and the Gracenote Servers, including all ownership
rights. Under no circumstances will Gracenote become liable for
any payment to you for any information that you provide. You
agree that Gracenote, Inc. may enforce its rights under this
Agreement against you directly in its own name.
The Gracenote service uses a unique identifier to track queries
for statistical purposes. The purpose of a randomly assigned
numeric identifier is to allow the Gracenote service to count
queries without knowing anything about who you are. For more
information, see the web page for the Gracenote Privacy Policy
for the Gracenote service.
The Gracenote Software and each item of Gracenote Data are
licensed to you “AS IS.” Gracenote makes no representations or
warranties, express or implied, regarding the accuracy of any
Gracenote Data from in the Gracenote Servers. Gracenote
reserves the right to delete data from the Gracenote Servers or to
change data categories for any cause that Gracenote deems
sufficient. No warranty is made that the Gracenote Software or
Gracenote Servers are error-free or that functioning of Gracenote
Software or Gracenote Servers will be uninterrupted. Gracenote
is not obligated to provide you with new enhanced or additional
data types or categories that Gracenote may provide in the
future and is free to discontinue its services at any time.
sht21_e.book 89 ページ ２０１２年１１月２６日 月曜日 午前１１時１９分
90
sht21_e_17.fm
[90/91]
Appendix
•GRACENOTE DISCLAIMS ALL WARRANTIES EXPRESS
OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, IMPLIED
WARRANTIES OF MERCHANTABILITY, FITNESS FOR A
PARTICULAR PURPOSE, TITLE, AND
NON-INFRINGEMENT. GRACENOTE DOES NOT
WARRANT THE RESULTS THAT WILL BE OBTAINED BY
YOUR USE OF THE GRACENOTE SOFTWARE OR ANY
GRACENOTE SERVER. IN NO CASE WILL GRACENOTE
BE LIABLE FOR ANY CONSEQUENTIAL OR INCIDENTAL
DAMAGES OR FOR ANY LOST PROFITS OR LOST
REVENUES.
© Gracenote, Inc. 2000-present
■IPA Font
The product includes IPA Font (IPAex Mincho).
Your agreement to “IPA Font License Agreement v1.0” is
required for using IPA Font.
You can confirm “IPA Font License Agreement v1.0” by
performing the following operations on the product.
On the home screen, tap [APPS] [[Settings] [[Device info]
[[Legal information] [[IPA Font License Agreement v1.0].
■More
The software installed on this product or part of it may not be
altered, translated/adapted, reverse-engineered, decompiled or
reverse-assembled and any such actions are prohibited.
Under the MPEG-4 Visual Patent Portfolio License, customers
have licensed permission for the following use of this product to
engage in non-profit personal use. Other uses are not permitted.
•Recording MPEG-4 Visual standard video (henceforth referred
to as MPEG-4 Video)
•Playing back MPEG-4 Video that a customer engaged in
personal and non-profit activities has recorded
•Playing back MPEG-4 Video obtained from a provider licensed
by MPEG-LA
When using for promotion, in-house use, profit use, and other
intended uses, contact MPEG LA. LLC.
sht21_e.book 90 ページ ２０１２年１１月２６日 月曜日 午前１１時１９分
91
sht21_e_17.fm
[91/91]
Appendix
•This product is licensed under the AVC patent portfolio license
for the personal and noncommercial use of a consumer to (i)
encode video in compliance with the AVC standard
(henceforth referred to as AVC video) and/or (ii) decode AVC
video that was encoded by a consumer engaged in a personal
and noncommercial activity and/or was obtained from a video
provider licensed to provide AVC video. No license is granted
or shall be implied for any other use. Additional information
may be obtained from MPEG LA, L.L.C.
Visit (http://www.mpegla.com)
•This product is licensed under the VC-1 Patent Portfolio
License for the personal and noncommercial use of a
consumer to (i) encode video in compliance with the VC-1
standard (henceforth referred to as VC-1 video) and/or (ii)
decode VC-1 video that was encoded by a consumer
engaged in a personal and noncommercial activity and/or was
obtained from a video provider licensed to provide VC-1 video.
No license is granted or shall be implied for any other use.
Additional information may be obtained from MPEG LA, L.L.C.
Visit (http://www.mpegla.com)
This product is licensed under the MPEG-4 Visual Patent
Portfolio License for the personal and non-commercial use of a
consumer to (i) encode video in compliance with the MPEG-4
Video Standard (“MPEG-4 Video”) and/or (ii) decode MPEG-4
Video that was encoded by a consumer engaged in a personal
and non-commercial activity and/or was obtained from a
licensed video provider. No license is granted or implied for any
other use. Additional information may be obtained from MPEG
LA. See (http://www.mpegla.com).
This product is licensed under the MPEG-4 Systems Patent
Portfolio License for encoding in compliance with the MPEG-4
Systems Standard, except that an additional license and
payment of royalties are necessary for encoding in connection
with (i) data stored or replicated in physical media which is paid
for on a title by title basis and/or (ii) data which is paid for on a
title by title basis and is transmitted to an end user for permanent
storage and/or use. Such additional license may be obtained
from MPEG LA, LLC. See (http://www.mpegla.com) for additional
details.
sht21_e.book 91 ページ ２０１２年１１月２６日 月曜日 午前１１時１９分
Contents
Safety Precautions
Getting Ready
Basic Operations
Character Input
Settings
Appendix
For inquiries, call:
Secure cell phone support center
Customer Service Center
For general information and charges (toll free)
For loss, theft or damage (toll free)
From fixed-line phones: From au cell phones:
From fixed-line phones: From au cell phones:
From fixed-line phones/au cell phones:
In case above numbers are not available,
call toll-free:
0120-925-919
0120-977-033
Business hours: 9:00 to 21:00 (7 days a week)
(except Okinawa)
0120-977-699 (Okinawa)
For service canceling procedure or operation
in case of loss or theft (toll free)
PRESSING ZERO WILL CONNECT YOU TO AN OPERATOR
AFTER CALLING 157 ON YOUR au CELL PHONE.
area code not required
area code not required
Sold by: KDDI CORPORATION,
OKINAWA CELLULAR TELEPHONE COMPANY
Manufactured by: SHARP CORPORATION
Cell phone and PHS operators collect and recycle
unused telephones, batteries and battery
chargers at stores bearing the logo regardless
of brand and manufacturer to protect the
environment and reuse valuable resources.
November 2012, 1st Edition
Basic Manual
