User Manual
![](/img.php?id=1836908&img=bg1.png)
ɜġIf you lose your FOMA terminal or have it stolen, immediately take the steps necessary for suspending the use of the
FOMA terminal.
ɜġIf the FOMA terminal you purchased is damaged, bring your FOMA terminal to a repair counter specified by DOCOMO
after returning to Japan.
To prevent damage to the environment,
bring used battery packs to a docomo
service counter, a docomo agent or a
recycle center.
Sales:
Manufacturer: SHARP Corporation
Don’t forget your mobile phone… or your manners!
When using your mobile phone in a public place, don’t forget to show common courtesy and consideration for
others around you.
Universal number
international prefix
International call access code
for the country you stay
-81-3-6718-1414
*
(toll free)
-8005931-8600*
From land-line phones
From DOCOMO mobile phones
Failures encountered overseas
<Network Support and Operation Center>
<Universal number>
* You might be charged a domestic call fee according to the call rate for the
country you stay.
ɦ
For international call access codes for major countries and universal number
international prefix, refer to DOCOMO International Services website.
*
You are charged a call fee to Japan when calling from a land-line phone, etc.
ɦ If you use SH-05D, you should dial the number +81-3-6832-6600
(to enter “+”, press and hold the “0” key for at least one second).
* You might be charged a domestic call fee according to the call rate for the
country you stay.
ɦ
For international call access codes for major countries and universal number
international prefix, refer to DOCOMO International Services website.
*
You are charged a call fee to Japan when calling from a land-line phone, etc.
ɦ If you use SH-05D, you should dial the number +81-3-6718-1414
(to enter “+”, press and hold the “0” key for at least one second).
-8000120-0151*
Universal number
international prefix
-81-3-6832-6600
*
(toll free)
International call access code
for the country you stay
Loss or theft of FOMA terminal or
payment of cumulative cost overseas
<docomo Information Center>
From DOCOMO mobile phones
From land-line phones
<Universal number>
(available 24 hours a day)(available 24 hours a day)
ɦ
Unavailable from land-line phones, etc.
ɡFrom DOCOMO mobile phones
(In Japanese only)
ɦ
Unavailable from land-line phones, etc.
(No prefix) 151 (toll free)
ɡ
From DOCOMO mobile phones
(In Japanese only)
Repairs
(Business hours: 24 hours (open all year round))(Business hours: 9:00 a.m. to 8:00 p.m.)
ɦ Unavailable from part of IP phones.
0120-800-000
(toll free)
ɡFrom land-line phones
(In Japanese only)
0120-005-250 (toll free)
ɦ Service available in: English, Portuguese, Chinese, Spanish, Korean.
(Business hours: 9:00 a.m. to 8:00 p.m. (open all year round))
ɦ Unavailable from part of IP phones. (No prefix) 113 (toll free)
General Inquiries
<docomo Information Center>
ɜ Please confirm the phone number before you dial.
ɜ
For Applications or Repairs and After-Sales Service, please contact the above-mentioned information center or the docomo Shop etc. near you on
the NTT DOCOMO website or the i-mode site.
i-mode siteȁiMenuȁ̤ݖအεȜΠ (user support)ȁΡκΏοΛίġ
(docomo Shop) ɦIn Japanese only
NTT DOCOMO websiteȁhttp://www.nttdocomo.co.jp/english/
ɦ Unavailable from part of IP phones.
ɡFrom land-line phones
(In Japanese only)
0120-800-000
(toll free)
INSTRUCTION MANUAL
SH-05D
’12.1 (1st Edition)
12A MS117
’12.1
1
㸭㸭∧
FCC ID: APYHRO00185
![](/img.php?id=1836908&img=bg2.png)

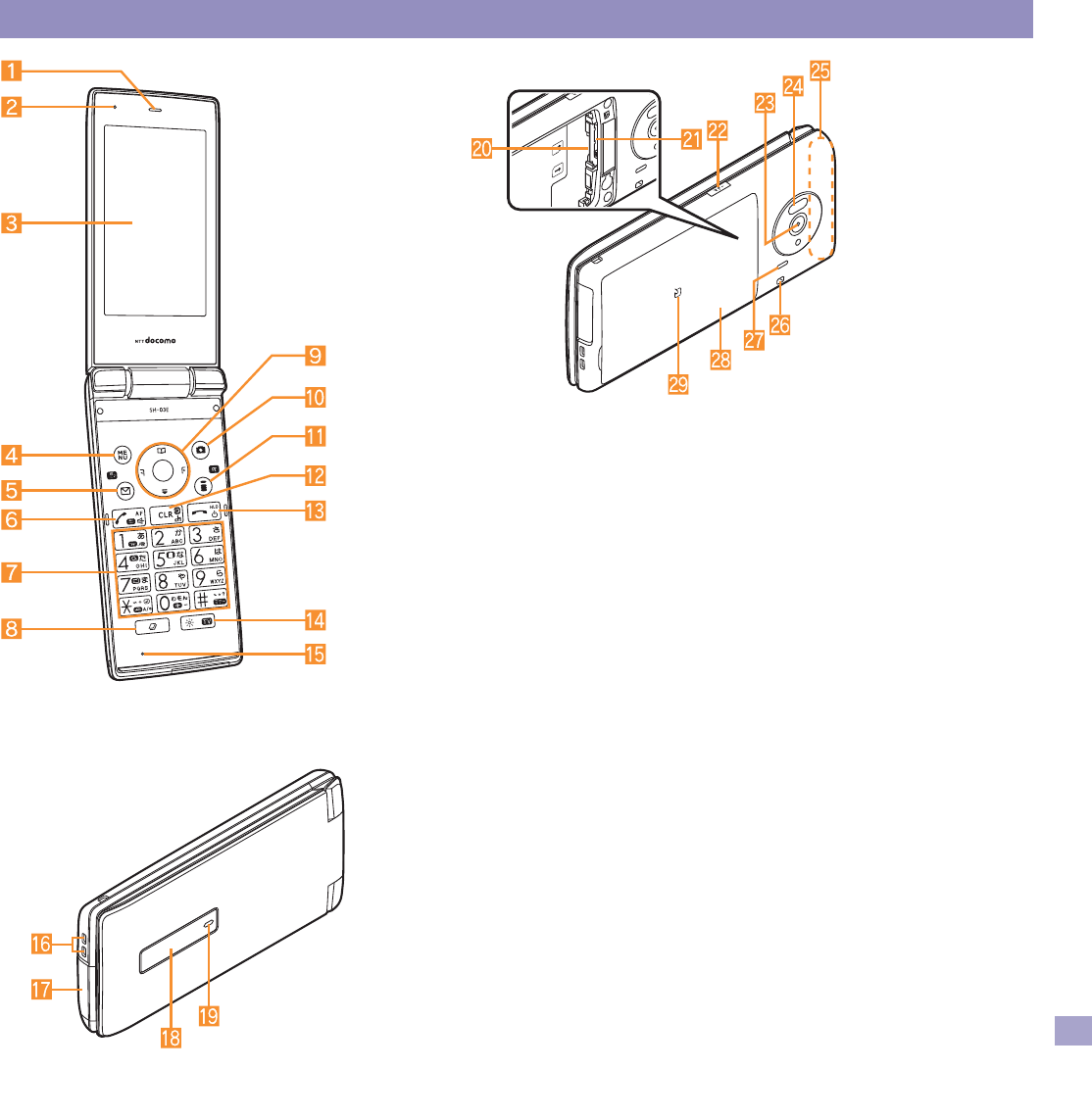

6Introduction
nStrap hole
oFOMA antenna*
pCamera
Use to shoot still pictures or moving pictures.
qInfrared port (nP. 80)
rBack cover (nP. 23)
s@ mark
When charging, place the FOMA terminal
slowly so that @ mark of the wireless charger
faces that of the FOMA terminal.
tBluetooth/Wi-Fi antenna*
uBack cover lever (nP. 23)
* The antenna is built in the terminal. Covering the
antenna area with your hand may influence the
quality.
Before use, read these “Precautions” carefully and
use your FOMA terminal properly.
Keep this manual in a safe place for future
reference.
These precautions contain information intended to
prevent bodily injury to the user and to surrounding
people, as well as damage to property, and must be
observed at all times.
The following symbols indicate the different
degrees of injury or damage that may occur if
information provided is not observed and the
FOMA terminal is used improperly.
The 1Seg antenna is built in the terminal. The
whole FOMA terminal works as the antenna.
Precautions (Always follow
these directions)
Danger
This symbol indicates
that “death or serious
bodily injury may
directly and
immediately result
from improper use”.
Warning
This symbol indicates
that “death or serious
bodily injury may
result from improper
use”.
Caution
This symbol indicates
that “minor injury and/
or property damage
may result from
improper use”.
![](/img.php?id=1836908&img=bg3.png)
7
Introduction
The following symbols indicate specific
directions.
“Precautions” is explained in the following six
sections.
Handling the FOMA terminal, battery pack,
adapters, wireless charger, and docomo mini UIM
card (general) . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 7
Handling the FOMA terminal . . . . . . . . . . . . . . . P. 9
Handling battery pack . . . . . . . . . . . . . . . . . . . . P. 11
Handling adapters and wireless charger . . . . . P. 12
Handling docomo mini UIM card. . . . . . . . . . . . P. 13
Handling near electronic medical equipment
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 14
Do not use, store or leave the
equipment in locations subject to
high temperatures (near a fire or
heating unit, in a kotatsu, under
direct sunlight, inside a vehicle on a
hot day, etc.).
May cause fires, burns or bodily injury.
Do not place the equipment inside
cooking appliances such as
microwave ovens or pressure
cookers.
May cause fires, burns, bodily injury or electric shock.
Do not attempt to disassemble or
modify the equipment.
May cause fires, burns, bodily injury or electric shock.
Do not get the equipment wet with
water, drinking water, pet urine, etc.
May cause fires, burns, bodily injury or electric shock.
Refer to the following for details on waterproofness.
n“Waterproof/Dust-proof function” on P. 22
Use only the battery packs and
adapters specified by NTT DOCOMO
for use with the FOMA terminal.
May cause fires, burns, bodily injury or electric shock.
Indicates a prohibited action.
Indicates not to disassemble the
device.
Indicates not to handle the device with
wet hands.
Indicates not to use the device near
water or get it wet.
Indicates that instructions
specified are compulsory (must
be followed).
Indicates that the power cord must be
unplugged from the outlet.
Handling the FOMA terminal, battery
pack, adapters, wireless charger, and
docomo mini UIM card (general)
Danger
![](/img.php?id=1836908&img=bg4.png)
8Introduction
Do not subject the equipment to
strong force or impacts or throw it.
May cause fires, burns, bodily injury or electric shock.
Do not allow conductive materials
(such as metal objects and pencil lead)
to come into contact with the charger
terminal or external connector terminal.
In addition, do not insert such objects.
May cause fires, burns, bodily injury or electric shock.
Do not cover or wrap the equipment
with bedding, etc. when using or
charging.
May cause fires or burns.
Do not use the FOMA terminal near
high-precision electronic devices or
devices that use weak electronic
signals.
May interfere with the operation of electronic devices.
Take particular care with the following devices
Hearing aids, implanted cardiac pacemakers, implanted
cardioverter-defibrillators or other electronic medical
equipment. Fire alarms, automatic doors, and other
equipment controlled by electronic signals. If you use
an implanted cardiac pacemaker, implanted
cardioverter-defibrillator or other electronic medical
equipment, contact the respective manufacturer or
vendor to check whether the operation of the equipment
is affected by signals.
Make sure to turn off the FOMA
terminal and not to charge the battery
in locations such as gas stations
where flammable gas is generated.
May cause a gas explosion or fire.
If you notice anything unusual, such
as an unusual odor, overheating,
discoloration or deformation during
use, charging or storage, immediately
follow the instructions below.
Unplug the power cord from the
outlet or cigarette lighter socket.
Turn off the FOMA terminal.
Remove the battery pack from the
FOMA terminal.
May cause fires, burns, bodily injury or electric shock.
Do not leave the equipment on
unstable surfaces, such as on a
wobbling table or sloped surface.
May fall and cause injury.
Do not store the equipment in
locations that are subject to
humidity, dust or high temperatures.
May cause fires, burns or electric shock.
If being used by a child, have a guardian
teach him/her the proper handling
procedures. In addition, check that the
child is using the equipment as directed.
May result in bodily injury.
Keep the equipment out of the reach
of young children.
A young child may swallow the equipment or suffer
other bodily injury.
Warning
Caution
![](/img.php?id=1836908&img=bg5.png)
9
Introduction
Be very careful when using the FOMA
terminal connected to adapters
repeatedly or for a long time.
The FOMA terminal, battery pack or
adapters may become warm if i-appli, videophone or
1Seg is used for a long time while charging.
Touching high temperature areas for a long time may
cause skin irritations, itchiness or low-temperature burn
in some people.
Do not aim the infrared port towards
the eyes.
May cause eye injury.
Do not aim the infrared port towards
home electric appliances with an
infrared device during Ir
communication.
May interfere with the operation of infrared devices and
cause an accident.
Do not allow water or other liquids,
metal, flammable material or other
foreign objects to enter the docomo
mini UIM card or microSD Card slot
on the FOMA terminal.
May cause fires, burns, bodily injury or electric shock.
Turn off the FOMA terminal in areas
where the use of mobile phones is
prohibited, such as in aircraft or
hospitals.
May interfere with the operation of electronic devices
and electronic medical equipment.
In addition, if auto power on function is set to on,
disable this function before turning off your mobile
phone.
Follow the instructions given by the respective medical
facilities regarding the use of mobile phones on their
premises.
Actions such as using a mobile phone aboard aircraft
are prohibited and punishable by law.
However, follow the instructions on use of the FOMA
terminal given by the airline if the mobile phone can be
used aboard aircraft by setting the mobile phone such
as setting it not to emit radio wave.
Keep the FOMA terminal away from
the ears during a call in which
hands-free is set or while the ring
tone is ringing.
When you attach the earphone/
microphone, etc. to the FOMA
terminal to play games, music, etc.,
do not make the volume too loud.
Excessive high volume may damage your hearing.
Also, it may prevent you from hearing the ambient
sounds and cause an accident.
Earphone Signal Level
The maximum output voltage for the music player
function, measured in accordance with EN 50332-2, is
34.0 mV.
If you have a weak heart, take extra
precautions when setting functions
such as the vibrator and ring tone
volume for incoming calls.
May have harmful effects on your heart.
Handling the FOMA terminal
Warning
![](/img.php?id=1836908&img=bg6.png)
10 Introduction
If you are using electronic medical
equipment, contact the respective
manufacturer or vendor to check
whether the operation of the
equipment is affected by signals.
May interfere with the operation of electronic medical
equipment, etc.
In case that the display part or camera
lens is damaged, make sure to pay
attention to a broken glass and the
exposed inside of the FOMA terminal.
The surfaces of the display part and the camera lens are
covered by plastic panels so as to minimize the possibility of
glass scattering. However, touching the broken or exposed
parts may cause injury.
Do not swing the FOMA terminal by
its strap etc.
May hit you or others around you, resulting in bodily injury.
Do not use the damaged FOMA
terminal.
May cause fires, burns, bodily injury or electric shock.
If the display is broken and internal
substances such as liquid crystal
then leaks, do not get the liquid on
your skin (face, hands, etc.).
May result in loss of eyesight and harm to your skin.
If internal substances such as liquid crystal come into
contact with your eyes or mouth, immediately rinse your
eyes or mouth with clean water and see a doctor.
If the liquid comes into contact with your skin or clothes,
immediately wipe it off with alcohol, and wash with
water and soap.
If you use the FOMA terminal in an
automobile, contact the automobile
manufacturer or vendor to check
whether the operation of the electronic
equipment is affected by signals.
May interfere with the operation of electronic equipment
in some vehicle models. In such cases, stop using the
FOMA terminal.
Use of the FOMA terminal may cause
skin irritations such as itchiness,
rashes or eczema in some people. If
this occurs, immediately stop using
the FOMA terminal and seek medical
treatment.
For details on materials of each part n“Material list”
on P. 14
Do not close the FOMA terminal on
your fingers or objects such as the
strap.
May result in bodily injury.
Look at the display in a well-lit place,
keeping a certain distance from the
screen.
Otherwise, eyesight may be decreased.
Caution
![](/img.php?id=1836908&img=bg7.png)
11
Introduction
Check the type of battery using the information
printed on the battery pack label.
Do not touch terminals with metallic
objects such as wires. In addition,
do not carry or store the battery
pack with metallic necklaces, etc.
The battery pack may catch fire, explode, overheat or leak.
Check that the battery pack is facing
the correct direction before you
attach it to the FOMA terminal. If you
are having difficulty fitting the
battery pack to the FOMA terminal,
do not use excessive pressure to
force the battery into place.
The battery pack may catch fire, explode, overheat or leak.
Do not throw the battery pack into a
fire.
The battery pack may catch fire, explode, overheat or leak.
Do not puncture, hit with a hammer
or step on the battery pack.
The battery pack may catch fire, explode, overheat or leak.
If the battery fluid, etc. comes into
contact with your eyes, do not rub
your eyes but immediately rinse
your eyes with clean water. Then
seek prompt medical treatment.
May result in loss of eyesight.
If any trouble such as a deformation
or scratches caused by a drop is
found, never use it.
The battery pack may catch fire, explode, overheat or leak.
If the battery pack leaks, emits an
unusual odor, etc., immediately stop
use and move it away from any flame
or fire.
The battery fluid is flammable and could ignite, causing
a fire or explosion.
Prevent your pet from biting the
battery pack.
The battery pack may catch fire, explode, overheat or leak.
Do not dispose of used battery
packs in ordinary garbage.
May cause fires or damage to the environment. Place
tape over the terminals to insulate unnecessary battery
packs, and take them to a docomo Shop, retailer or
institution that handles used batteries in your area.
Handling battery pack
Label Battery type
Li-ion00 Lithium-ion
Danger
Warning
Caution
![](/img.php?id=1836908&img=bg8.png)
12 Introduction
Do not use or charge a wet battery
pack.
The battery pack may catch fire, explode, overheat or leak.
If the battery fluid, etc. leaks, do not
get the liquid on your skin (face,
hands, etc.).
May result in loss of eyesight and harm to your skin.
If the liquid, etc. comes into contact with your eyes,
mouth, skin or clothes, immediately rinse them with
clean water.
If the liquid comes into contact with your eyes or mouth,
see a doctor immediately after rinsing your eyes or mouth.
Do not use if the cord of the adapter
is damaged.
May cause fires, burns or electric shock.
Never use the AC adapter
in humid locations
such as a bathroom.
May cause fires, burns or electric shock.
The DC adapter should only be used
in negative grounded vehicles.
Never use this adapter in positive
grounded vehicles.
May cause fires, burns or electric shock.
Do not touch adapters
if you hear thunder.
May cause electric shock.
Take care not to short-circuit the
charging terminal when it is connected
to an outlet or cigarette lighter socket.
Also, take care not to allow any part of
your body (hands, fingers, etc.) to come
into contact with the charging terminal.
May cause fires, burns or electric shock.
Do not place heavy objects on the
cord of the adapter
May cause fires, burns or electric shock.
When plugging/unplugging the AC
adapter into/from the outlet, do not allow
metallic straps or other metallic objects
to come into contact with the terminal.
May cause fires, burns or electric shock.
Do not place foreign objects
between the FOMA terminal.
May cause overheat or burns or catch fire.
Do not paste stickers such as
aluminium or metallic objects on the
wireless charger.
May cause overheat or burns or catch fire.
Do not connect the voltage
converter for overseas travel (Travel
converter) to the wireless charger.
May cause overheat or electric shock or catch fire.
Handling adapters and wireless
charger
Warning
![](/img.php?id=1836908&img=bg9.png)
13
Introduction
Do not handle the cord of the
adapters, the wireless charger or the
outlet with wet hands.
May cause fires, burns or electric shock.
Do not charge any parts wet with
water with the wireless charger.
May cause fires, burns, bodily injury or electric shock.
Always use the specified power
supply and voltage.
When using overseas, use the AC
adapter that is available overseas.
Using the incorrect voltage may cause fire, burns or
electric shock.
AC adapter: 100V AC
DC adapter: 12/24V DC (for negative grounded vehicles only)
AC adapter available overseas: 100 to 240V AC (Connect
only with household AC outlet)
If the fuse in the DC adapter blows,
always replace it with a fuse of the
specified type.
May cause fires, burns or electric shock. Refer to the
respective manuals for information on the correct fuse
specifications.
Wipe off any dust on the power plug.
May cause fires, burns or electric shock.
Fully plug the AC adapter or the
power plug into the outlet.
May cause fires, burns or electric shock.
Always grasp the adapters when
unplugging the power plug from the
outlet or cigarette lighter socket. Do
not forcibly pull by the cord of the
adapter or of the wireless charger.
May cause fires, burns or electric shock.
If you have an implanted cardiac
pacemaker or an implanted
cardioverter-defibrillator, consult a
doctor about the use of the wireless
charger.
Electromagnetic signals may have harmful effects on
the operation of implanted cardiac pacemakers and
implanted cardioverter-defibrillators.
Unplug the power plug from the
outlet or cigarette lighter socket
when not using for a long time.
May cause fires, burns or electric shock.
Should water or other liquids enter
the equipment, remove the power
plug from the outlet or cigarette
lighter socket immediately.
May cause fires, burns or electric shock.
Always unplug the power plug from
the outlet or cigarette lighter socket
before cleaning the adapters.
May cause fires, burns or electric shock.
Be careful with the cutting surface
when detaching the docomo mini
UIM card.
May cause bodily injury.
Handling docomo mini UIM card
Caution
![](/img.php?id=1836908&img=bga.png)
14 Introduction
The precautions detailed here conform to the
guidelines drawn up by the Electromagnetic
Compatibility Conference Japan, regarding the
protection of electronic medical equipment
from signals emitted by mobile phones.
Observe the following in hospitals or
other medical facilities.
Do not take your FOMA terminal into operating
rooms, ICUs (Intensive Care Units) or CCUs
(Coronary Care Units).
Turn off your FOMA terminal inside hospital wards.
Turn off your FOMA terminal even when you are in
an area outside hospital wards, such as a hospital
lobby, since electronic medical equipment may be in
use nearby.
Where a medical facility has specific instructions
prohibiting the carrying and use of mobile phones,
observe those instructions strictly.
If auto power on function is set to on, disable this
function before turning off your mobile phone.
Turn off your FOMA terminal in
crowded places such as rush-hour
trains in case somebody nearby is
using an implanted cardiac
pacemaker or implanted
cardioverter-defibrillator.
Electromagnetic signals may have harmful effects on
the operation of implanted cardiac pacemakers and
implanted cardioverter-defibrillators.
If you have electric medical
equipments such as an implanted
cardiac pacemaker or an implanted
cardioverter-defibrillator, always
carry or use your FOMA terminal at
least 22 cm away from your implant.
Electromagnetic signals may have harmful effects on
the operation of the electric medical equipments.
Patients receiving medical treatment
away from a hospital or medical facility
(e.g. home treatment) who are using
electronic medical equipment other than
implanted cardiac pacemakers or
implanted cardioverter-defibrillators
should consult the respective
manufacturers for information regarding
the effects of signals on the equipment.
Electromagnetic signals may have harmful effects on
the operation of electronic medical equipment.
Terminal/Back cover/Battery pack
Handling near electronic medical
equipment
Warning
Material list
Part
Material/Surface
treatment
Surface
of
FOMA
terminal
Display side
PC, PMMA
resin/Hard
coating
Back of display side
PMMA resin/
Hard coating
Side surface of display
side, Surrounding
section of keyboard side
Polyamide resin
with glass/UV
coating
Left side, Right side,
Back of keyboard side
PC+ABS-GF20
resin/UV coating
Keyboard side UV cured resin
Hinge section ABS resin/UV
coating
![](/img.php?id=1836908&img=bgb.png)
78 More Convenient
You can save data, such as the phonebook,
mail or bookmark in the FOMA terminal to
microSD Card or import data in microSD
Card to the FOMA terminal.
microSD Card is sold separately.
You can purchase microSD Card and its
adapter at home electronics shops.
SH-05D is compatible with commercially
available microSD Card of up to 2 GB and
microSDHC Card of up to 32 GB (as of January
2012). Refer to the following sites (in Japanese
only) for the latest information such as the
manufacturer, available capacity, etc. of the
microSD Card. In addition, for microSD Cards
that are not provided in the sites, contact the
manufacturer of each microSD Card.
From i-mode [SH-MODE] (as of January
2012)
[iMenu]/[ιΣνȜςΑΠ] (menu list)/
[ΉȜΗͼഩდιȜȜ] (mobile phone
manufacturer)/[SH-MODE]
From a PC
Ȫhttp://k-tai.sharp.co.jp/support/d/sh-0H/ȫȁ
Note that the provided information is the
information checked for operation. DOCOMO
shall not be liable for all operations.
Do not insert or remove a microSD Card while
the FOMA terminal is on. Data may be damaged
and operation may not work properly.
Do not remove the microSD Card or turn off the
FOMA terminal immediately after inserting the
microSD Card in the FOMA terminal or while
editing data on a microSD Card. Data may be
damaged and operation may not work properly.
Format unformatted microSD Cards on the
FOMA terminal before use. microSD Cards
formatted on PCs or other devices may not be
used properly by the FOMA terminal.
When a microSD Card formatted on another
FOMA terminal or PC is used, the displayed
folder name may differ.
Since some types of microSD Cards do not
support copyright protection functions, they may
not be formatted. There is no guarantee for the
save and copy of data of the microSD Card
because it is unsupported by FOMA terminal.
When a microSD Card used on another FOMA
terminal or PC is inserted, it may not be used.
Back up the data saved in a microSD Card and
store in another place. DOCOMO shall not be
liable for any loss or change of the saved data.
Data Management
Using microSD Card
![](/img.php?id=1836908&img=bgc.png)
79
More Convenient
1Slowly insert the microSD Card
with the metal terminal side turned
down
Push slowly with a finger until a click is
heard.
Gently push the microSD Card in before
removing.
Note that all the data in the microSD Card is
deleted when formatted.
1In the Normal menu, [Tool]/
[microSD]/C
2Enter the terminal security code/
[Yes]
Example: i-motion
1In the Normal menu, [Data box]/
[i-motion/Movie] (/[
b
microSD])*
* When the save destination is microSD
2Point the cursor to i-motion/z/
[Move/Copy]/[Copy to microSD]/
[Copy to the phone]
3Select the copying method
Inserting/Removing microSD Card
Note that excessive force may damage the
FOMA terminal or microSD Card.
Keep your face away from microSD Card when
inserting or removing card. When taking your
fingers off abruptly, card may pop out.
Formatting microSD Card
Copying data to microSD Card/
FOMA terminal
![](/img.php?id=1836908&img=bgd.png)
80 More Convenient
You can collectively backup data, such as
phonebook or mail, and each setting information.
1In the Normal menu, [Tool]/
[microSD]/[Backup/Restore]
2[Backup to microSD]/enter the
terminal security code/[Yes]
Face the infrared ports of the receiver’s and
sender’s FOMA terminal each other and set the
distance between them to approximately 20 cm
or less.
Example: Phonebook
1In stand-by, o
2Point the cursor to the name/
z/[Send data]/[Send Ir data]
3Select the sending method
;[Send]
;[Send all]/enter the terminal security
code/enter the authentication
password
4[Yes]
1In the Normal menu, [Tool]/
[Infrared]/[Receive infrared data]
2Select the receiving method
;[Receive]/[Yes]
;
[Receive all]
/
enter the terminal security
code
/
enter the same authentication
password as the sender’s
/
[Yes]
3[Yes]
Backing up data to microSD Card
When backing up the phonebook, a
confirmation screen asking whether to save the
profile appears.
Sending and receiving data via Ir
communication
15°
15°
Infrared port
Approx. 20 cm
or less
Sending data
Receiving data
![](/img.php?id=1836908&img=bge.png)
83
More Convenient
Face the infrared ports of the receiver’s and
sender’s FOMA terminal each other and set the
distance between them to approximately 20 cm
or less.
Example: Phonebook
1In stand-by, p
2Point the cursor to the name/
z/[Send data]/[Send Ir data]
3Select the sending method
;[Send]
;[Send all]/enter the terminal security
code/enter the authentication
password
4[Yes]
1In the Normal menu, [Tool]/
[Infrared/iC communications]/
[Receive infrared data]
2Select the receiving method
;[Receive]/[Yes]
;
[Receive all]
/
enter the terminal security
code
/
enter the same authentication
password as the sender’s
/
[Yes]
3[Yes]
Use while placing the
b
mark of receiver’s
FOMA terminal on that of sender’s FOMA terminal.
Sending and receiving data via Ir
communication
Sending data
15°
15° Infrared port
Approx. 20 cm
or less
Receiving data
Sending and receiving data via
iC communication
b mark
㻝㻟
![](/img.php?id=1836908&img=bgf.png)
84 More Convenient
Example: Phonebook
1In stand-by, p
2Point the cursor to the name/
z/[Send data]/
[iC transmission]
3Select the sending method
;[Send]
;[Send all]/enter the terminal security
code/enter the authentication
password
4[Yes]
5Place the b mark on that of the
other party’s FOMA terminal
1In stand-by, place the b mark on
that of the other party’s FOMA
terminal
2[Yes]
By connecting the FOMA terminal and your
PC, exchange WMA files and images in the
microSD Card. In addition, connect to the
Internet and perform data communication.
FOMA USB Cable with Charge Function 02
(sold separately) or FOMA USB Cable (sold
separately) is required.
For a data communication, installation of the
“FOMA communication configuration file”
(Driver) is required.
Refer to “Manual for PC Connection” for details.
You can download “FOMA communication
configuration file” and “Manual for PC
Connection” from the DOCOMO website.
http://www.nttdocomo.co.jp/support/ (in
Japanese only)
“DOCOMO Connection Manager” is a software
which is convenient for using data communication
of DOCOMO. Easily set the PC depending on the
subscription. In addition, use the charge counter
function to check the approximate amounts of data
communication or usage fee.
Refer to the DOCOMO website for details.
http://www.nttdocomo.co.jp/support/utilization/
application/service/connection_manager/ (in
Japanese only)
Sending data
Receiving data
Connecting to PC
DOCOMO Connection Manager
㻝㻠
![](/img.php?id=1836908&img=bg10.png)
102 ̷͈ఈ
Use only the battery packs and adapters specified
by NTT DOCOMO for use with the FOMA terminal.
May cause fires, burns, bodily injury or electric shock.
Do not throw the battery pack into a fire.
The battery pack may catch fire, explode, overheat or
leak.
Do not dispose of used battery packs in ordinary
garbage.
May cause fires or damage to the environment. Place
tape over the terminals to insulate unnecessary battery
packs, and take them to a docomo Shop, retailer or
institution that handles used batteries in your area.
Avoid using the handset in extremely high or low
temperatures.
Use the FOMA terminal within the range of a
temperature between 5°C and 40°C (for temperatures
of 36°C or higher, limit usage to a short period of time)
and a humidity between 45% and 85%.
Charge battery in areas where ambient temperature
is between 5°C and 35°C.
1Hold the docomo mini UIM card
with the IC (gold) side turned up
and set into the docomo mini
UIM card slot (1)
Push the docomo mini UIM
card all the way in (2).
Quick Manual
CAUTION
Before using
Inserting docomo mini UIM card
Note that pulling forcibly or adding forces on the
lever may damage it.
Note that inserting or removing the docomo mini
UIM card forcibly may damage it.
Notch
IC (gold)
Notch
![](/img.php?id=1836908&img=bg11.png)
103
̷͈ఈ
For attaching the battery pack, turn the FOMA
terminal off, close it and hold it with your both hands.
The battery pack is not waterproof/dust-proof.
1Hook the tip of a finger into the FOMA terminal
slot to remove the back cover upward
2Attach the battery pack
With the recycle mark side turned up, place the
tabs of the FOMA terminal to those of the battery
pack and attach the battery pack.
3Insert the tab of the top of the back cover into
the FOMA terminal slot (1), attach it in the
direction of the arrow (2) and securely push
down with both hands (3)
The back of the back cover has also nine tabs to
insert the back cover. Securely push tab areas
down with both hands so that gaps are not left
between the FOMA terminal and the back cover.
Attaching battery pack
Slot
Tabs
With recycle mark
side up
Using unnecessary force when attaching or
removing the battery pack may damage the
connector terminal for the battery pack (charger
terminal) on the FOMA terminal.
Back cover
Slot
Tab
Securely push
tab areas down
with both hands
![](/img.php?id=1836908&img=bg12.png)
104 ̷͈ఈ
It is recommended that the accompanying desktop
holder be used for charging to prevent water from
seeping or dust from getting in caused by forgetting
to close the external connector terminal cover.
The AC adapter (sold separately) and desktop
holder are not waterproof/dust-proof. Never try to
charge the battery pack when the FOMA terminal is
wet.
1Turn the arrow side of the AC adapter connector
up and insert it into the connector terminal of the
desktop holder (1)
Keep the connector parallel with the desktop
holder and securely push all the way in until a
click is heard.
2Insert the AC adapter power plug into an outlet
(2)
3When placing the FOMA terminal on the desktop
holder, the charge alert is heard, the charging
LED illuminates and charging starts
Place the FOMA terminal in the direction of the
arrow and make sure that a click is heard (3).
4When charging is complete, the charge alert is
heard and the charging LED turns off
Hold the desktop holder and lift the FOMA
terminal after tilting it towards you.
Securely close the back cover. If not closed
securely, the back cover may come off and the
battery pack may fall out due to vibration. Also, the
waterproof/dust-proof performance may be
impaired, resulting in allowing water to seep or
dust to get in.
Charging
Pull the AC adapter out of the outlet if it will not be
used for a long time.
When the charge alert is not heard or when the
charging LED does not illuminate, check that the
FOMA terminal is placed securely on the desktop
holder (except when the handset is turned off, the
manner mode is set or the charge alert is [OFF]).
When placing the FOMA terminal on the desktop
holder, be careful not to let a strap etc. caught.
Charging LED
Connector (with
the arrow side up)
100V AC
outlet
FOMA AC
Adapter 01/02
![](/img.php?id=1836908&img=bg13.png)
105
̷͈ఈ
Part names and functions
1Earpiece
2Air vent
3Main display
4z: MENU/Operation
guidance key
5m: Mail/Operation guidance
key
6s: Start/Hands-free key
71 to 9, *, 0 and #:
Dial/Character entry keys
8$: Multi key
9wt: Multi-guide key
aC: Camera/Operation
guidance key
bi (,): i-mode/Operation
guidance key
cc (J): i-channel/Clear key
dH: Power/End key
ey: Bright/TV key
fMouthpiece/Microphone
gCharger terminal
hExternal connector terminal
iSub display
jCalled/Charging LED
kdocomo mini UIM card slot
lmicroSD Card slot
m&: Side key
nCamera
oInfrared port
pFOMA antenna
qStrap hole
rSpeaker
sBack cover
tb mark
The design may look different depending on the handset
color. The explanations in this manual are based on the
case when the handset color is “White”.
Key illustrations may look different from actual keys.
![](/img.php?id=1836908&img=bg14.png)
106 ̷͈ఈ
Main icons
1H (for at least 2 seconds)
Press H for at least 2 seconds to turn the power
off.
1In the Normal menu, [
ུఘ୭
] (Setting)/[
লນ
া
/
වႁ
] (Text display/input)/[Select
language]/[English]
1[Date and time setting]/set the date and time
2[Password]/register a terminal security code
3[Keypad sound]/set the keypad sound
4[Text size]/set the font size collectively
5C
1In the Normal menu, [Profile]
Viewing display
Battery level
bbbb
(High Low)
Signal strength
bbb
(
Strong Weak
)
When [ ] appears, the handset is
outside the service area or in a
place with no signal.
i-mode
Kid-safe mode
Infrared communication
Hands-free
i-mode mail/SMS/Area Mail/
Information received
i-Dppli
Alarm/Schedule
Software update
microSD Card
IC card lock
Public Mode (Drive Mode)
Silent/Vibrator
Manner mode
Keypad dial lock
Record message
Icon display area
docomo mini UIM card error
Self mode
Brightmode
3G/GSM
Personal data lock
eco mode
1Seg recording
USB connection
Basic operations
Turning power on
Changing screen display to English
Making initial setting
Checking your own phone number
![](/img.php?id=1836908&img=bg15.png)
107
̷͈ఈ
Switching entry modes
1In the character entry screen, m
2Select the entry mode
Entering characters
Ex.) When entering “ഩდ”
1In the character entry screen, enter “
́ͭͩ
”
́ͭͩ: 4 (four times)/* (once)/0 (three
times)/r/0 (once)
To enter multiple characters assigned to the
same key: Enter a character/r/enter a
character
2C
3t
Entering pictograms/symbols
1In the character entry screen, C
To switch between Deco-mail pictogram/
pictogram/Deco-mail picture: C
To switch between half- and full-width symbols:
z
2Select a pictogram/symbol
Entering emoticons
1In the character entry screen, z/[Pict/Symbol/
Smiley]/[Smiley]
For a mail message: In the character entry
screen, z/[Quote phrase/data]/[Pict/
Symbol/Smiley]/[Smiley]
2Select a category/select an emoticon
1In the Normal menu, [Setting]/[Sound/
Vibration/Manner]/[Ring tone]
2Select an item
;[Call ring tone]
;[Videophone]
;[Mail]/select an item
3Set each item/C
1In the Normal menu, [Setting]/[Lock/
Security]/[Change security code]/enter the
current terminal security code
2Enter the new terminal security code
3Enter the new terminal security code again
4C
1In stand-by, i/[
̤ݖအεȜΠ
] (user
support)/[
ڎਅ୭
(
ږȆ་ࢵȆ၌ဥ
)] (settings
(check/change/use))/[
ΥΛΠχȜ·ճબ๔་
ࢵ
] (change network security code)
1In stand-by, i/[English]/[Options]/
[Change i-mode Password]
1In the Normal menu, [Setting]/[Lock/
Security]/[UIM setting]
2Select an item
;[Change PIN1 code]/enter the terminal security
code/enter the current PIN1 code/enter the
new PIN1 code/enter the new PIN1 code
again/C
;[Change PIN2 code]/enter the terminal security
code/enter the current PIN2 code/enter the
new PIN2 code/enter the new PIN2 code
again/C
;[PIN1 entry ON/OFF]/[ON]/enter the PIN1
code
Character entry
Changing ring tone
Lock/Security
Changing terminal security code
Changing network security code
Changing i-mode password
Setting PIN code
![](/img.php?id=1836908&img=bg16.png)
108 ̷͈ఈ
All lock
1In the Normal menu, [Setting]/[Lock/
Security]/[Lock settings]/[All lock]/enter the
terminal security code
Omakase Lock
Omakase Lock is a service to lock the personal data
and IC card functions in case of loss, etc. only by
requesting DOCOMO to do so via phone.
Refer to “Mobile Phone User’s Guide [Basic Usage]”
for details on Omakase Lock.
Set/Release Omakase Lock
s0120-524-360
ȁ
Office hours: 24 hours (in
Japanese only) (open all year round)
ɦUnavailable from part of IP phones.
ɦOmakase Lock can also be set/released from the
My docomo website using PCs.
Self mode
1In the Normal menu, [Setting]/[Other setting]/
[Self mode]/select the setting/[Yes]
Personal data lock
1In the Normal menu, [Setting]/[Lock/
Security]/[Lock settings]/[Personal data
lock]/enter the terminal security code/select
the setting
Keypad dial lock
1In the Normal menu, [Setting]/[Lock/
Security]/[Keypad dial lock]/enter the
terminal security code/select the setting
Auto-key lock
1In the Normal menu, [Setting]/[Lock/
Security]/[Lock settings]/[Auto-key lock]/
select the lock type/enter the terminal security
code/set each item/C
Kid-safe mode
1In the Normal menu, [Setting]/[Lock/
Security]/[Kid-safe mode]/enter the terminal
security code/[Kid-safe mode]/select the
setting
IC card lock
1In the Normal menu, [Osaifu-Keitai]/[IC card
lock setting]/[IC card lock]/enter the terminal
security code/select the setting
Setting response to a call with no caller ID
1In the Normal menu, [Setting]/[Lock/
Security]/[Call rejection setting]
2Select an item
;[Anonymous]/enter the terminal security code
/set each item/C
;[Payphone]/enter the terminal security code/
set each item/C
;[Unavailable]/enter the terminal security code
/set each item/C
Rejecting a call from a caller unset in phonebook
1In the Normal menu, [Setting]/[Lock/
Security]/[Call rejection setting]
2[Unregistered caller]/enter the terminal
security code/select the setting
1In stand-by, enter a phone number
2s (Phone)/C (V.phone)
3H to end the call
1When a call is received, the ring tone sounds
and the called LED flashes
2s
3H to end the call
Various lock functions
Incoming call restriction
Voice/Videophone calls
Making a voice/videophone call
Receiving a voice/videophone call
![](/img.php?id=1836908&img=bg17.png)
109
̷͈ఈ
1In the Normal menu, [TEL function]/[Dialed/
Received calls]/[Received calls]/[Redial]
2Point the cursor to the history
3s (Phone)/i (V.phone)
Making a call outside your country of stay
(including Japan)
1In stand-by, enter “+” (0 for at least 1 second),
country code, area code (city code) and the
other party’s phone number
When the area code (city code) begins with “0”,
omit the first “0” when dialing (Include the “0”
when making a call to some countries or regions
such as Italy).
2s (Phone)/C (V.phone)
Making a call in your country of stay
1In stand-by, enter a phone number
2s (Phone)/C (V.phone)
Making a call to a WORLD WING subscriber
overseas
When you make a call to a WORLD WING subscriber
overseas, the call is made as an international call to
Japan regardless of your country of stay.
1In stand-by, enter “+” (0 for at least 1 second),
country code “81” (Japan) and the other party’s
mobile phone number excluding the first “0”
2s (Phone)/C (V.phone)
1In stand-by, m/[Compose message]
2[<No address>]/enter an address
3Select the SUB field/enter a subject
4[Message]/enter a message
5C
1In stand-by, m/[Check new mail/message]
1In the received mail details screen, z/[Reply/
Forward]
2Select the reply method
3Compose and send a mail
1In stand-by, m
2Select a box
3Select a mail
1In the Normal menu, [TEL function]/
[Phonebook]/[Add to phonebook]/[UIM
operation]
2Set each item/C
Making a call with redials/received
calls
Using overseas
Mail
Sending i-mode mail
Checking new i-mode mail
Replying to i-mode mail
Displaying a mail in Inbox/Outbox/
Unsent box
Phonebook
Adding phonebook entries
![](/img.php?id=1836908&img=bg18.png)
110 ̷͈ఈ
1In stand-by, C
2t/&
3t/&
1In the Normal menu, [CAMERA/TV/MUSIC]/
[Camera]/[Movie shooting]
2t/&
3t/& to end shooting
4[Save]
1In the Normal menu, [Data box]/[My picture]
2[Camera] folder/select a still picture
1In the Normal menu, [Data box]/[i-motion/
Movie]
2[Camera] folder/select a moving picture
1In the Normal menu, [CAMERA/TV/MUSIC]/
[1Seg]/[Channel setting]
When the confirmation screen appears: [Yes]/
proceed to step 3
2z/[Create]
3Select the registration method
;[Use preset]
;[Auto setting]/[Yes]
ƦIf you do not select an area: [No]/proceed to
step 6
4Select an area
5Select a prefecture/district
6[Yes]
1In the Normal menu, [CAMERA/TV/MUSIC]/
[1Seg]/[Activate 1Seg]
1In the Normal menu, [Data box]/[1Seg]
2[Video] folder/select a video
1In the Normal menu, [Data box]/[MUSIC]
2Select music data
Camera
Shooting still pictures
Shooting moving pictures
Displaying shot still pictures
Playing shot moving pictures
Watching 1Seg
Setting channels
Watching 1Seg
Playing recorded videos
Music playback
Using MUSIC Player
![](/img.php?id=1836908&img=bg19.png)
111
̷͈ఈ
Voice Mail Service is a paid option (monthly fees apply)
that requires a subscription.
1In the Normal menu, [TEL function]/[Voice mail
service]
2[Activate]/[Yes]/[Yes]/enter the ringing
time/[OK]
Call Waiting Service is a paid option (monthly fees
apply) that requires a subscription.
1In the Normal menu, [TEL function]/[Other
network service]/[Call waiting]
2[Activate]/[Yes]/[OK]
Call Forwarding Service is a free option (no monthly
fees) that requires a subscription.
1In the Normal menu, [TEL function]/[Other
network service]/[Call forwarding]
2[Activate]/[Yes]/[Yes]/enter a phone
number/C/[Yes]/enter the ringing time/
[OK]
Hold the b mark of the FOMA terminal over the
scanning device to use as electronic money or
passenger tickets or to retrieve ToruCa.
When the FOMA terminal is stolen or lost,
immediately contact your provider of Osaifu-Keitai
compatible service for handling methods.
Battery Pack SH39
FOMA AC Adapter 01 for Global use
FOMA AC Adapter 01/02
Desktop Holder SH42
* Approximate value
Network services
Setting Voice Mail Service
Setting Call Waiting Service
Setting Call Forwarding Service
Osaifu-Keitai
General notes
Options and related devices
Main specifications
Size
110 (H) × 49 (W) ×
14.9 (D) mm (16.0 mm
at thickest point) (when
folded)*
Weight 109 Ũ (with battery
pack attached)*
Continuous
talk time
FOMA/3G Voice call: 210 min*
GSM Voice call: 220 min*
Continuous
stand-by
time
FOMA/3G
At rest (3G/GSM
setting: AUTO):
540 hr*
GSM
At rest (3G/GSM
setting: AUTO):
290 hr*
Charge
time
FOMA AC
Adapter 01/02 150 min*
FOMA DC
Adapter 01/02 150 min*
![](/img.php?id=1836908&img=bg1a.png)
112 ̷͈ఈ
This model SH-03E mobile phone complies with
Japanese technical regulations and international
guidelines regarding exposure to radio waves.
This mobile phone was designed in observance of
Japanese technical regulations regarding exposure to
radio waves (*1) and limits to exposure to radio waves
recommended by a set of equivalent international
guidelines. This set of international guidelines was set
out by the International Commission on Non-Ionizing
Radiation Protection (ICNIRP), which is in collaboration
with the World Health Organization (WHO), and the
permissible limits include a substantial safety margin
designed to assure the safety of all persons, regardless
of age and health condition.
The technical regulations and international guidelines
set out limits for radio waves as the Specific Absorption
Rate, or SAR, which is the value of absorbed energy in
any 10 grams of tissue over a 6-minute period. The
SAR limit for mobile phones is 2.0 W/kŨ. The highest
SAR value for this mobile phone when tested for use at
the ear is 0.363 W/kŨ. There may be slight differences
between the SAR levels for each product, but they all
satisfy the limit.
The actual SAR of this mobile phone while operating
can be well below that indicated above. This is due to
automatic changes to the power level of the device to
ensure it only uses the minimum required to reach the
network. Therefore in general, the closer you are to a
base station, the lower the power output of the device.
This mobile phone can be used in positions other than
against your ear. This mobile phone satisfies the
international guidelines when used with a carrying case
or a wearable accessory approved by NTT DOCOMO,
INC. (*2). In case you are not using the approved
accessory, please use a product that does not contain
any metals, and one that positions the mobile phone at
least 1.5 cm away from your body.
The World Health Organization has stated that “a large
number of studies have been performed over the last
two decades to assess whether mobile phones pose a
potential health risk. To date, no adverse health effects
have been established as being caused by mobile
phone use.”
Please refer to the WHO website if you would like more
detailed information.
(http://www.who.int/docstore/peh-emf/publications/
facts_press/fact_english.htm)
Please refer to the websites listed below if you would
like more detailed information regarding SAR.
Specific Absorption Rate (SAR) of
mobile phone
Ministry of Internal Affairs and Communications
Website:
(http://www.tele.soumu.go.jp/e/sys/ele/index.htm)
Association of Radio Industries and Businesses
Website:
(http://www.arib-emf.org/index02.html) (in Japanese
only)
NTT DOCOMO, INC. Website:
(http://www.nttdocomo.co.jp/english/product/sar/)
SHARP Corporation Website:
(http://www.sharp.co.jp/products/menu/phone/cellular/
sar/index.html)
(in Japanese only)
*1 Technical regulations are defined by the Ministerial
Ordinance Related to Radio Law (Article 14-2 of
Radio Equipment Regulations).
*2 Regarding the method of measuring SAR when
using mobile phones in positions other than against
the ear, international standards (IEC62209-2) were
set in March of 2010. On the other hand, technical
regulation is currently being deliberated on by
national council (As of October, 2011).
![](/img.php?id=1836908&img=bg1b.png)
113
̷͈ఈ
* The tests are carried out in accordance with
international guidelines for testing.
Information to User
This equipment has been tested and found to comply
with the limits of a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful
interference in a residential installation. This equipment
generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to
radio communications.
However, there is no guarantee that interference will not
occur in a particular installation; if this equipment does
cause harmful interference to radio or television
reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following
measures:
1. Reorient/relocate the receiving antenna.
2. Increase the separation between the equipment and
receiver.
3. Connect the equipment into an outlet on a circuit
different from that to which the receiver is
connected.
4. Consult the dealer or an experienced radio/TV
technician for help.
European RF Exposure Information
Your mobile device is a radio transmitter and receiver. It
is designed not to exceed the limits for exposure to
radio waves recommended by international guidelines.
These guidelines were developed by the independent
scientific organization ICNIRP and include safety
margins designed to assure the protection of all
persons, regardless of age and health.
The guidelines use a unit of measurement known as the
Specific Absorption Rate, or SAR. The SAR limit for
mobile devices is 2 W/kŨ and the highest SAR value for
this device when tested at the ear was 0.368 W/kŨ*.
As SAR is measured utilizing the devices highest
transmitting power the actual SAR of this device while
operating is typically below that indicated above. This is
due to automatic changes to the power level of the
device to ensure it only uses the minimum level
required to reach the network.
Declaration of Conformity
Hereby, Sharp Telecommunications of Europe
Ltd, declares that this SH-03E is in compliance
with the essential requirements and other
relevant provisions of Directive 1999/5/EC.
A copy of the original declaration of conformity
can be found at the following Internet address:
(http://www.sharp.co.jp/k-tai/) (in Japanese only)
FCC Notice
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference,
and (2) this device must accept any interference
received, including interference that may cause
undesired operation.
Changes or modifications not expressly approved by
the manufacturer responsible for compliance could
void the user’s authority to operate the equipment.
![](/img.php?id=1836908&img=bg1c.png)
114 ̷͈ఈ
FCC RF Exposure Information
Your handset is a radio transmitter and receiver.
It is designed and manufactured not to exceed the
emission limits for exposure to radio frequency (RF)
energy set by the Federal Communications
Commission of the U.S. Government.
The guidelines are based on standards that were
developed by independent scientific organizations
through periodic and thorough evaluation of scientific
studies. The standards include a substantial safety
margin designed to assure the safety of all persons,
regardless of age and health.
The exposure standard for wireless handsets employs
a unit of measurement known as the Specific
Absorption Rate, or SAR. The SAR limit set by the FCC
is 1.6 W/kŨ.
The tests are performed in positions and locations (e.g.,
at the ear and worn on the body) as required by the
FCC for each model. The highest SAR value for this
model handset when tested for use at the ear is 0.453
W/kŨ and when worn on the body, as described in this
user guide, is 0.627 W/kŨ.
For body worn operation, this phone has been tested
and meets the FCC RF exposure guidelines. Please
use an accessory designated for this product or an
accessory which contains no metal and which positions
the handset a minimum of 1.5 cm from the body.
The use of accessories that do not satisfy these
requirements may not comply with FCC RF exposure
requirements, and should be avoided.
The FCC has granted an Equipment Authorization for
this model handset with all reported SAR levels
evaluated as in compliance with the FCC RF emission
guidelines. SAR information on this model handset is on
file with the FCC and can be found under the Display
Grant section of (http://www.fcc.gov/oet/ea/fccid/) after
searching on FCC ID APYHRO00185.
Additional information on Specific Absorption Rates
(SAR) can be found on the FCC website at (http://
www.fcc.gov/).
(Business hours: 9:00 a.m. to 8:00 p.m.)
s0120-005-250 (toll free)
ɦService available in: English, Portuguese, Chinese,
Spanish, Korean.
ɦUnavailable from part of IP phones.
(Business hours: 9:00 a.m. to 8:00 p.m. (open all year
round))
From DOCOMO mobile phones
(In Japanese only)
r(No prefix) 151 (toll free)
ɦUnavailable from land-line phones, etc.
From land-line phones
(In Japanese only)
s0120-800-000 (toll free)
ɦUnavailable from part of IP phones.
Please confirm the phone number before you dial.
(Business hours: 24 hours (open all year round))
From DOCOMO mobile phones
(In Japanese only)
r(No prefix) 113 (toll free)
ɦUnavailable from land-line phones, etc.
From land-line phones
(In Japanese only)
s0120-800-000 (toll free)
ɦUnavailable from part of IP phones.
Please confirm the phone number before you dial.
Inquiries
General inquiries
<docomo Information Center>
Repairs
![](/img.php?id=1836908&img=bg1d.png)
115
̷͈ఈ
For Applications or Repairs and After-Sales Service,
please contact the above-mentioned information
center or the docomo Shop etc. near you on the NTT
DOCOMO website or the i-mode site.
NTT DOCOMO website:
(http://www.nttdocomo.co.jp/english/)
i-mode site: iMenu/̤ݖအεȜΠ (user
support)/ΡκΏοΛί (docomo Shop) (In
Japanese only)
(available 24 hours a day)
From DOCOMO mobile phones
*
You are charged a call fee to Japan when calling
from a land-line phone, etc.
ɦIf you use SH-03E, you should dial the number
+81-3-6832-6600
(to enter “+”, press the “0” key for at least 1
second).
From land-line phones
<Universal number>
* You might be charged a domestic call fee
according to the call rate for the country you
stay.
ɦFor international call access codes for major
countries and universal number international prefix,
refer to DOCOMO International Services website.
(available 24 hours a day)
From DOCOMO mobile phones
* You are charged a call fee to Japan when
calling from a land-line phone, etc.
ɦIf you use SH-03E, you should dial the number
+81-3-6718-1414
(to enter “+”, press the “0” key for at least 1
second).
From land-line phones
<Universal number>
* You might be charged a domestic call fee
according to the call rate for the country you
stay.
ɦFor international call access codes for major
countries and universal number international prefix,
refer to DOCOMO International Services website.
If you lose your FOMA terminal or have it stolen,
immediately take the steps necessary for
suspending the use of the FOMA terminal.
If the FOMA terminal you purchased is damaged,
bring your FOMA terminal to a repair counter
specified by DOCOMO after returning to Japan.
Loss or theft of FOMA terminal or
payment of cumulative cost overseas
<docomo Information Center>
International call access
code for the country you
stay
-81-3-6832-6600*
(toll free)
Universal number
international prefix
-8000120-0151*
Failures encountered overseas
<Network Support and Operation Center>
International call access
code for the country you
stay
-81-3-6718-1414*
(toll free)
Universal number
international prefix
-8005931-8600*
