SHARP

LC-26DV24U

COMBINATION LIQUID CRYSTAL TELEVISION

AND DVD/CD PLAYER

COMBIN_: T_:L_:VISEUR ACL ET LECTEUR DVD/CD

COMBINACION TELEVISOR CON PANTALLA DE

CRISTAL LiQUIDO CON DVD/DISCOS COMPACTOS

OPERATION MANUAL

MODE D'EMPLOI

MANUAL DE OPERACION

VIDEO

DIGITAL AUDIO

H=-tml ,_ PC

input

I']['1iDOLBYI

DIGITAL Digital Out

50Q0131A E.indb 1 \,_wj 3/3/2008 1:43:18 PM

LC-26DV24U

COMBINATION LIQUID CRYSTAL TELEVISION

AND DVD/CD PLAYER

ENGLISH

OPERATION MANUAL

IMPORTANT:

To aid reporting in case of loss or theft, please record the

TV/DVD's model and serial numbers in the space provided.

The numbers are located at the rear of the TV/DVD.

Model No.:

Serial No.:

• Manufactured under license from Dolby Laboratories. "Dolby" and the double-D symbol are trademarks of Dolby

Laboratories.

• "HDMt, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI

Licensing LLC."

• Manufactured under license under U.S. Patent #: 5,451,942 & other U.S. and worldwide patents issued & pending.

DTS and DTS Digital Out are registered trademarks and the DTS Iogos and Symbol are trademarks of DTS, Inc.

Products that have earned ®

• the ENERGY STAR are designed to protect the environment through superior energy efficiency.

IMPORTANT INFORMATION

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO

NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. ]

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK).

NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE

PERSONNEL.

The lightning flash with arrow-head

symbol, within an equilateral triangle,

is intended to alert the user to the

presence of uninsulated "dangerous

voltage" within the product's

enclosure that may be of sufficient

magnitude to constitute a risk of

electric shock to persons.

The exclamation point within a

triangle is intended to alert the user

to the presence of important

operating and maintenance

(servicing) instructions in the

literature accompanying the product.

50Q0131A E.indb 1 (#.b_ 3/3/2008 1:43:19 PM

IMPORTANT INFORMATION

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY

INSERT.

CAUTION:

DO NOT PLACE THIS PRODUCT ON AN UNSTABLE CART, STAND, TRIPOD, BRACKET, OR TABLE. THE

PRODUCT MAY FALL CAUSING SERIOUS PERSONAL INJURY AND SERIOUS DAMAGE TO THE PRODUCT.

USE ONLYWITH A CART, STAND, TRIPOD, BRACKET, ORTABLE RECOMMENDED BYTHE MANUFACTURER

OR SOLD WITH THE PRODUCT. FOLLOWTHE MANUFACTURER'S INSTRUCTIONS WHEN INSTALLING THE

PRODUCT AND USE MOUNTING ACCESSORIES RECOMMENDED BYTHE MANUFACTURER. A PRODUCT

AND CART COMBINATION SHOULD BE MOVED WITH CARE. QUICK STOPS, EXCESSIVE FORCE, AND

UNEVEN SURFACES MAY CAUSE THE PRODUCT AND CART COMBINATION TO OVERTURN.

WARNING: FCC Regulations state that any unauthorized changes or modifications to this equipment not expressly

approved by the manufacturer could void the user's authority to operate this equipment.

CAUTION:

This product satisfies FCC regulations when shielded cables and connectors are used to connect the unit to other

equipment. To prevent electromagnetic interference with electric appliances such as radios and televisions, use shielded

cables and connectors for connections.

"Note to CATV system installer: This reminder is provided to call the CATV system installer's attention to Article 820-40 of

the National Electrical Code that provides guidelines for proper grounding and, in particular, specifies that the cable ground

shall be connected to the grounding system of the building, as close to the point of cable entry as practical."

This product utilizes tin-lead solder, and fluorescent lamp containing a small amount

of mercury. Disposal of these materials may be regulated due to environmental

considerations. For disposal or recycling information, please contact your local

authorities, the Electronic Industries Alliance: www.eiae.org, the lamp recycling

organization: www.lamprecycle.org or Sharp at 1-800-BE-SHARP (For U.S.A. Only)

CAUTION:

THIS DIGITAL VIDEO PLAYER EMPLOYS A LASER SYSTEM.

TO ENSURE PROPER USE OF THIS PRODUCT, PLEASE READ THIS USER'S GUIDE CAREFULLY AND RETAIN FOR FUTURE

REFERENCE. SHOULD THE UNIT REQUIRE MAINTENANCE, CONTACT AN AUTHORIZED SERVICE LOCATION SEE SERVICE

PROCEDURE.

USE OF CONTROLS, ADJUSTMENTS OR THE PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY

RESULT IN HAZARDOUS RADIATION EXPOSURE.

TO PREVENT DIRECT EXPOSURE TO LASER BEAM, DO NOT TRY TO OPEN THE ENCLOSURE. VISIBLE LASER RADIATION MAY BE

PRESENT WHEN THE ENCLOSURE IS OPENED. DO NOT STARE INTO BEAM.

DECLARATION OF CONFORMITY

SHARP COMBINATION LIQUID CRYSTAL TELEVISION AND DVD CD PLAYER, MODEL LC-26DV24U.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference

that may cause undesired operation.

RESPONSIBLE PARTY:

SHARP ELECTRONICS CORPORATION

Sharp Plaza, Mahwah, New Jersey 07430-2135

TEL: 1-800-BE-SHARP

For Business Customers: URL http://www, sharpusa, com

INFORMATION:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment

generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause

harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment

off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

--Reorient or relocate the receiving antenna.

--Increase the separation between the equipment and receiver.

--Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

(_-2

50Q0131A E.indb 2 (_#.b_ 3/3/2008 1:43:20 PM

DEAR SHARP CUSTOMER

Thank you for your purchase of the Sharp Combination Liquid Crystal Television and DVD/CD player.

To ensure safety and many years of trouble-free operation of your product, please read the Important

Safety Instructions carefully before using this product.

IMPORTANT SAFETY INSTRUCTIONS

Electricity is used to perform many useful functions, but it can also cause personal injuries and property damage if

improperly handled, This product has been engineered and manufactured with the highest priority on safety, However,

improper use can result in electric shock and/or fire, In order to prevent potential danger, please observe the following

instructions when installing, operating and cleaning the product, To ensure your safety and prolong the service life of

your Liquid Crystal Television, please read the following precautions carefully before using the product,

1) Read these instructions,

2) Keep these instructions,

3) Heed all warnings,

4) Follow all instructions,

5) Do not use this apparatus near water,

6) Clean only with dry cloth,

7) Do not block any ventilation openings, Install in accordance with the manufacturer's instructions,

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including

amplifiers) that produce heat,

9) Do not defeat the safety purpose of the polarized or grounding-type plug, A polarized plug has two blades with

one wider than the other, A grounding type plug has two blades and a third grounding prong, The wide blade or

the third prong are provided for your safety, If the provided plug does not fit into your outlet, consult an electrician

for replacement of the obsolete outlet,

10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the

point where they exit from the apparatus,

11) Only use attachments/accessories specified by the manufacturer,

12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the

apparatus, When a cart is used, use caution when moving the cart/apparatus combination to avoid

injury from tip-over,

13) Unplug this apparatus during lightning storms or when unused for long periods of time,

14) Refer all servicing to qualified service personnel, Servicing is required when the apparatus has been damaged in

any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the

apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped,

Additional Safety Information

15) Power Sources--This product should be operated only from the type of power source indicated on the marking

label, If you are not sure of the type of power supply to your home, consult your product dealer or local power

company, For products intended to operate from battery power, or other sources, refer to the operating

instructions,

16) Overloading--Do not overload wall outlets, extension cords, or integral convenience receptacles as this can

result in a risk of fire or electric shock,

17) Object and Liquid Entry--Never push objects of any kind into this product through openings as they may touch

dangerous voltage points or short-out parts that could result in a fire or electric shock, Never spill liquid of any

kind on the product,

18) Damage Requiring Service--Unplug this product from the wall outlet and refer servicing to qualified service

personnel under the following conditions:

a) When the AC cord or plug is damaged,

b) If liquid has been spilled, or objects have fallen into the product,

c) If the product has been exposed to rain or water,

d) If the product does not operate normally by following the operating instructions,

Adjust only those controls that are covered by the operating instructions as an improper adjustment of other

controls may result in damage and will often require extensive work by a qualified technician to restore the

product to its normal operation,

e) If the product has been dropped or damaged in any way, and

f) When the product exhibits a distinct change in performance - this indicates a need for service,

19) Replacement Parts--When replacement parts are required, be sure the service technician has used replacement

parts specified by the manufacturer or have the same characteristics as the original part, Unauthorized

substitutions may result in fire, electric shock, or other hazards,

20) Safety Check--Upon completion of any service or repairs to this product, ask the service technician to perform

safety checks to determine that the product is in proper operating condition,

21 ) Wall or ceiling mounting--When mounting the product on a wall or ceiling, be sure to install the product according

to the method recommended by the manufacturer,

_-3

50Q0131A E,indb 3 K#.b_ 3/3/2008 1:43:20 PM

(_) - 4

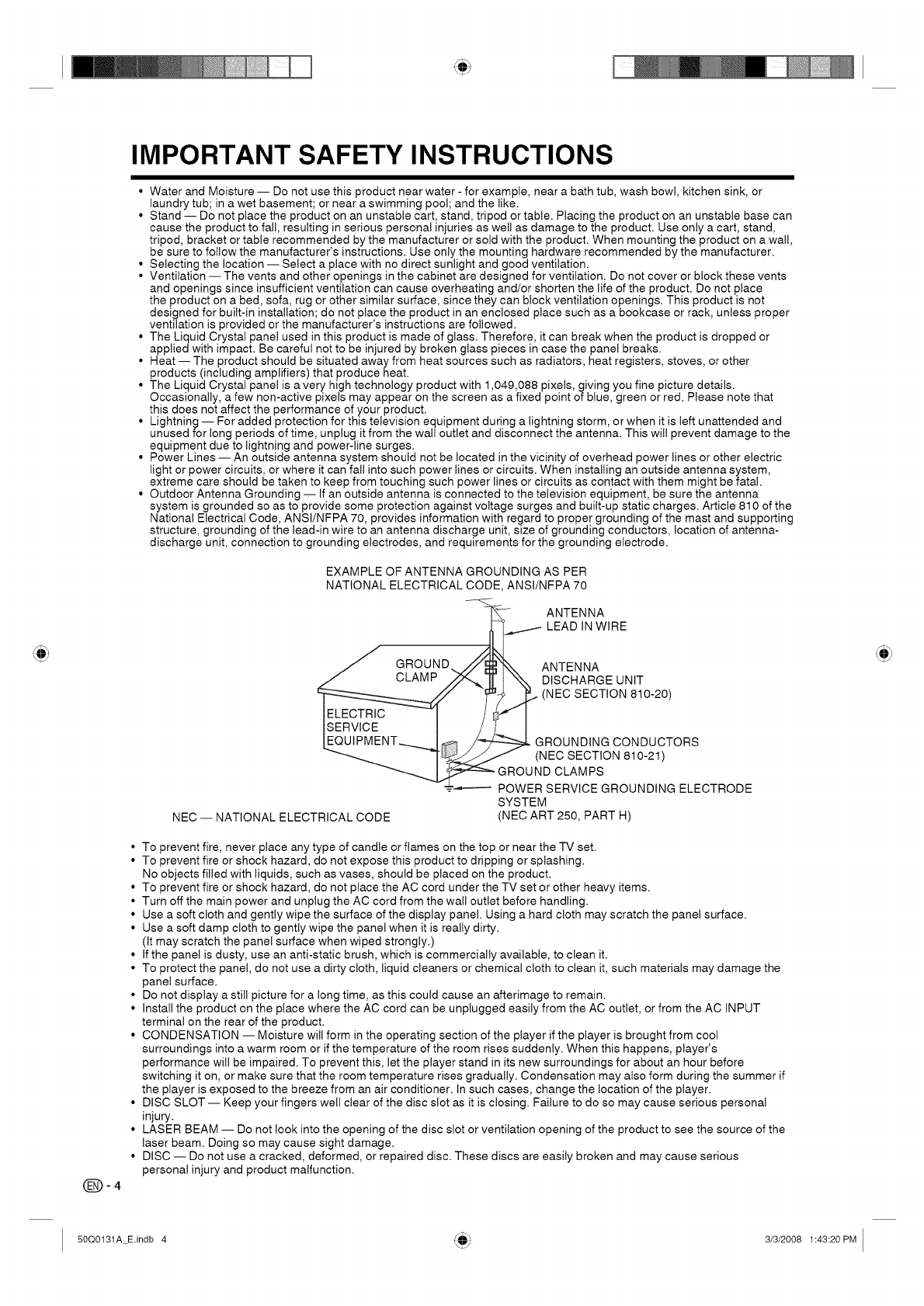

IMPORTANT SAFETY INSTRUCTIONS

• Water and Moisture -- Do not use this product near water - for example, near a bath tub, wash bowl, kitchen sink, or

laundry tub; in a wet basement; or near a swimming pool; and the like.

• Stand -- Do not place the product on an unstable cart, stand, tripod or table. Placing the product on an unstable base can

cause the product to fall, resulting in serious personal injuries as well as damage to the product. Use only a cart, stand,

tripod, bracket or table recommended by the manufacturer or sold with the product. When mounting the product on a wal!,

be sure to follow the manufacturer's instructions. Use only the mounting hardware recommended by the manufacturer.

• Selecting the location -- Select a place with no direct sunlight and good ventilation.

• Ventilation -- The vents and other openings in the cabinet are designed for ventilation. Do not cover or block these vents

and openings since insufficient ventilation can cause overheating and/or shorten the life of the product. Do not place

the product on a bed, sofa, rug or other similar surface, since they can block ventilation openings. This product is not

designed for built-in installation; do not place the product in an enclosed place such as a bookcase or rack, unless proper

ventilation is provided or the manufacturer's instructions are followed.

• The Liquid Crystal panel used in this product is made of glass. Therefore, it can break when the product is dropped or

applied with impact. Be careful not to be injured by broken glass pieces in case the panel breaks.

• Heat -- The product should be situated away from heat sources such as radiators, heat registers, stoves, or other

products (including amplifiers) that produce heat.

• The Liquid Crystal panel is a very high technology product with 1,049,088 pixels, giving you fine picture details.

Occasionally, a few non-active pixels may appear on the screen as a fixed point of blue, green or red. Please note that

this does not affect the performance of your product.

• Lightning -- For added protection for this television equipment during a lightning storm, or when it is left unattended and

unused for long periods of time, unplug it from the wal! outlet and disconnect the antenna. This wil! prevent damage to the

equipment due to lightning and power-line surges.

• Power Lines -- An outside antenna system should not be located in the vicinity of overhead power lines or other electric

light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system,

extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

• Outdoor Antenna Grounding -- If an outside antenna is connected to the television equipment, be sure the antenna

system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the

National Electrical Code, ANSt/NFPA 70, provides information with regard to proper grounding of the mast and supporting

structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna-

discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.

EXAMPLE OF ANTENNA GROUNDING AS PER

NATIONAL ELECTRICAL CODE, ANSI/NFPA 70

ANTENNA

LEAD IN WIRE

_GROUND

NEC -- NATIONAL ELECTRICAL CODE

ANTENNA

DISCHARGE UNIT

(NEC SECTION 810-20)

I J GROUNDING CONDUCTORS

(NEC SECTION 810-21)

GROUND CLAMPS

POWER SERVICE GROUNDING ELECTRODE

SYSTEM

(NEC ART 250, PART H)

• To prevent fire, never place any type of candle or flames on the top or near the TV set.

• To prevent fire or shock hazard, do not expose this product to dripping or splashing.

No objects filled with liquids, such as vases, should be placed on the product.

• To prevent fire or shock hazard, do not place the AC cord under the TV set or other heavy items.

• Turn off the main power and unplug the AC cord from the wall outlet before handling.

• Use a soft cloth and gently wipe the surface of the display panel. Using a hard cloth may scratch the panel surface.

• Use a soft damp cloth to gently wipe the panel when it is really dirty.

(It may scratch the panel surface when wiped strongly.)

• If the panel is dusty, use an anti-static brush, which is commercially available, to clean it.

• To protect the panel, do not use a dirty cloth, liquid cleaners or chemical cloth to clean it, such materials may damage the

panel surface.

• Do not display a still picture for a long time, as this could cause an afterimage to remain.

• Install the product on the place where the AC cord can be unplugged easily from the AC outlet, or from the AC INPUT

terminal on the rear of the product.

• CONDENSATION -- Moisture will form in the operating section of the player if the player is brought from cool

surroundings into a warm room or if the temperature of the room rises suddenly. When this happens, player's

performance will be impaired. To prevent this, let the player stand in its new surroundings for about an hour before

switching it on, or make sure that the room temperature rises gradually. Condensation may also form during the summer if

the player is exposed to the breeze from an air conditioner, tnsuch cases, change the location of the player.

• DISC SLOT -- Keep your fingers well clear of the disc slot as it is closing. Failure to do so may cause serious personal

injury.

• LASER BEAM -- Do not look into the opening of the disc slot or ventilation opening of the product to see the source of the

laser beam. Doing so may cause sight damage.

• DISC -- Do not use a cracked, deformed, or repaired disc. These discs are easily broken and may cause serious

personal injury and product malfunction.

50Q0131A E.indb 4 (#.b_ 3/3/2008 1:43:20 PM

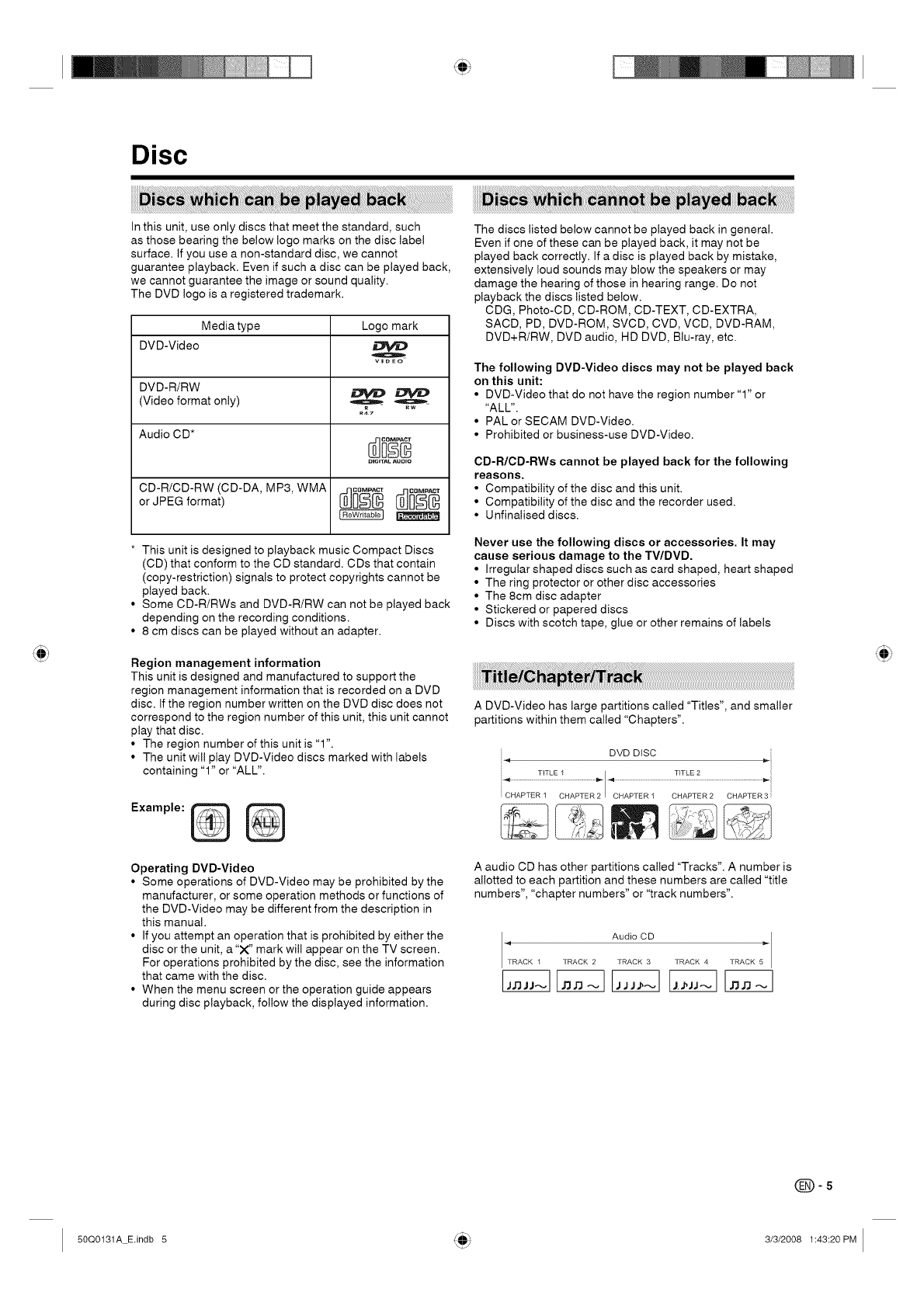

Disc

In this unit, use only discs that meet the standard, such

as those bearing the below logo marks on the disc label

surface, tf you use a non-standard disc, we cannot

guarantee playback. Even if such a disc can be played back,

we cannot guarantee the image or sound quality.

The DVD logo is a registered trademark.

Media type Logo mark

DVD-Video

VIDEO

DVD-R/RW

(Video format only) _

R47

Audio CD*

OIGITALAUOIO

orCD-R/CD-RWjPEGformat)(CD-DA' MP3, WMA _[j_ [_

This unit is designed to playback music Compact Discs

(CD) that conform to the CD standard. CDs that contain

(copy-restriction) signals to protect copyrights cannot be

played back.

• Some CD-R/RWs and DVD-R/RW can not be played back

depending on the recording conditions.

• 8 cm discs can be played without an adapter.

Region management information

This unit is designed and manufactured to support the

region management information that is recorded on a DVD

disc. If the region number written on the DVD disc does not

correspond to the region number of this unit, this unit cannot

play that disc.

• The region number of this unit is "1".

• The unit will play DVD-Video discs marked with labels

containing "1" or "ALL".

'xa 'e@

Operating DVD-Video

• Some operations of DVD-Video may be prohibited by the

manufacturer, or some operation methods or functions of

the DVD-Video may be different from the description in

this manual.

• If you attempt an operation that is prohibited by either the

disc or the unit, a "X" mark will appear on the TV screen.

For operations prohibited by the disc, see the information

that came with the disc.

• When the menu screen or the operation guide appears

during disc playback, follow the displayed information.

The discs listed below cannot be played back in general.

Even if one of these can be played back, it may not be

played back correctly. If a disc is played back by mistake,

extensively loud sounds may blow the speakers or may

damage the hearing of those in hearing range. Do not

playback the discs listed below.

CDG, Photo-CD, CD-ROM, CD-TEXT, CD-EXTRA,

SACD, PD, DVD-ROM, SVCD, CVD, VCD, DVD-RAM,

DVD+R/RW, DVD audio, HD DVD, Blu-ray, etc.

The following DVD-Video discs may not be played back

on this unit:

• DVD-Video that do not have the region number "1" or

"ALL".

• PAL or SECAM DVD-Video.

• Prohibited or business-use DVD-Video.

CD-R/CD-RWs cannot be played back for the following

reasons.

• Compatibility of the disc and this unit.

• Compatibility of the disc and the recorder used.

• Unfinalised discs.

Never use the following discs or accessories. It may

cause serious damage to the TV/DVD.

• Irregular shaped discs such as card shaped, heart shaped

• The ring protector or other disc accessories

• The 8cm disc adapter

• Stickered or papered discs

• Discs with scotch tape, glue or other remains of labels

A DVD-Video has large partitions called "Titles", and smaller

partitions within them called "Chapters".

DVD DISC

A audio CD has other partitions called "Tracks". A number is

allotted to each partition and these numbers are called "title

numbers", "chapter numbers" or "track numbers".

_'_TRACK Audio CD 5_

1 TRACK 2 TRACK 3 TRACK 4 TRACK

_-5

50QO131A E.indb 5 (#.b_ 3/3/2008 1:43:20 PM

Disc

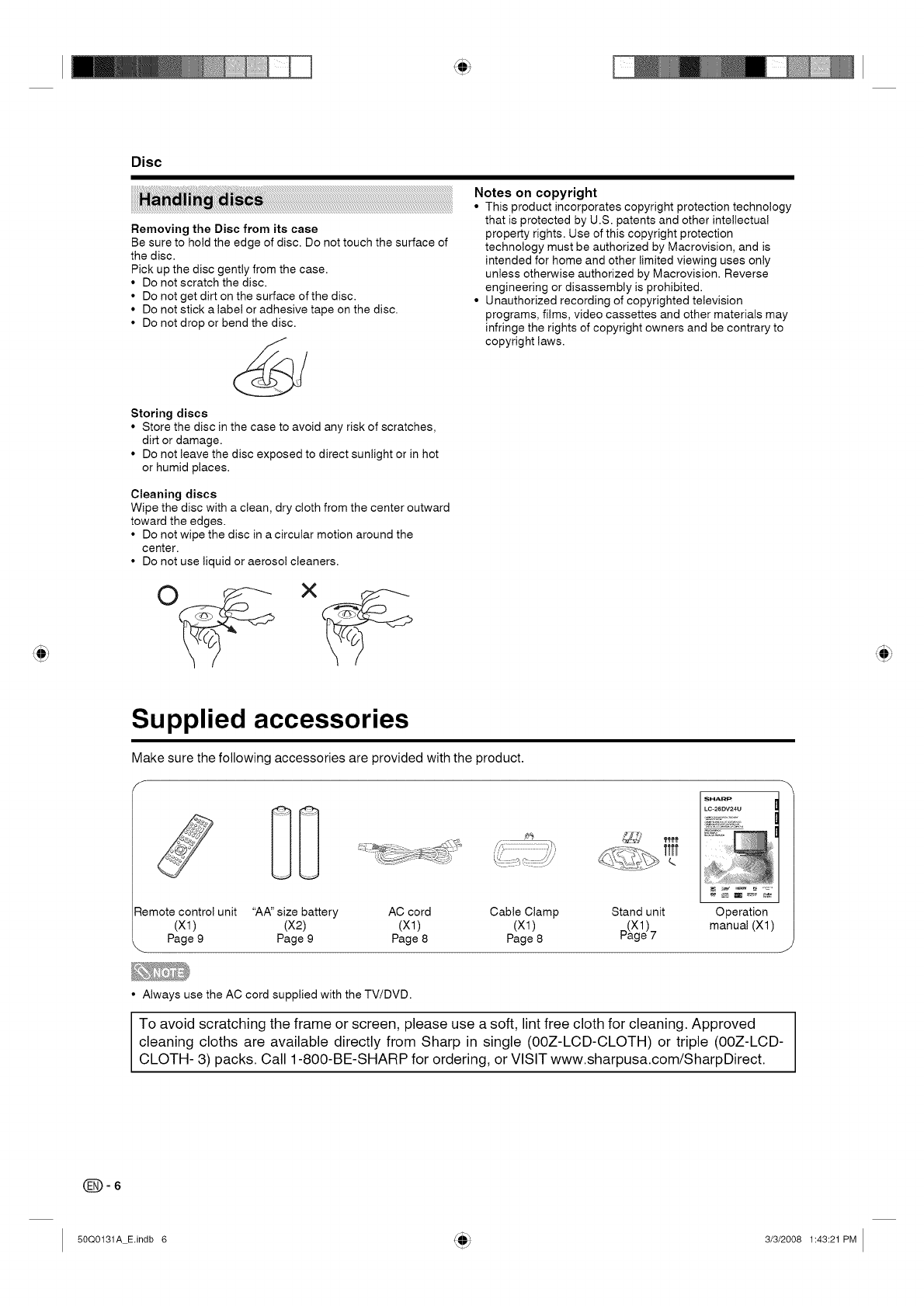

Removing the Disc from its case

Be sure to hold the edge of disc. Do not touch the surface of

the disc.

Pick up the disc gently from the case.

• Do not scratch the disc.

• Do not get dirt on the surface of the disc.

• Do not stick a label or adhesive tape on the disc.

• Do not drop or bend the disc.

Notes on copyright

• This product incorporates copyright protection technology

that is protected by U.S. patents and other intellectual

property rights. Use of this copyright protection

technology must be authorized by Macrovision, and is

intended for home and other limited viewing uses only

unless otherwise authorized by Macrovision. Reverse

engineering or disassembly is prohibited.

• Unauthorized recording of copyrighted television

programs, films, video cassettes and other materials may

infringe the rights of copyright owners and be contrary to

Storing discs

• Store the disc in the case to avoid any risk of scratches,

dirt or damage.

• Do not leave the disc exposed to direct sunlight or in hot

or humid places.

Cleaning discs

Wipe the disc with a clean, dry cloth from the center outward

toward the edges.

• Do not wipe the disc in a circular motion around the

center.

• Do not use liquid or aerosol cleaners.

Supplied accessories

Make sure the following accessories are provided with the product.

:{emote control unit "AA" size battery AC cord Cable Clamp Stand unit

(Xl) (X2) (Xl) (Xl) _(Xl)

Page 9 Page 9 Page 8 Page 8 rage 7

Operation

manual (Xl)

• Always use the AC cord supplied with the TV/DVD.

To avoid scratching the frame or screen, please use a soft, lint free cloth for cleaning. Approved

cleaning cloths are available directly from Sharp in single (OOZ-LCD-CLOTH) or triple (OOZ-LCD-

CLOTH- 3) packs. Call 1-800-BE-SHARP for ordering, or VISIT www.sharpusa.com/SharpDirect.

(_-6

50Q0131A E.indb 6 (#.b_ 3/3/2008 1:43:21 PM

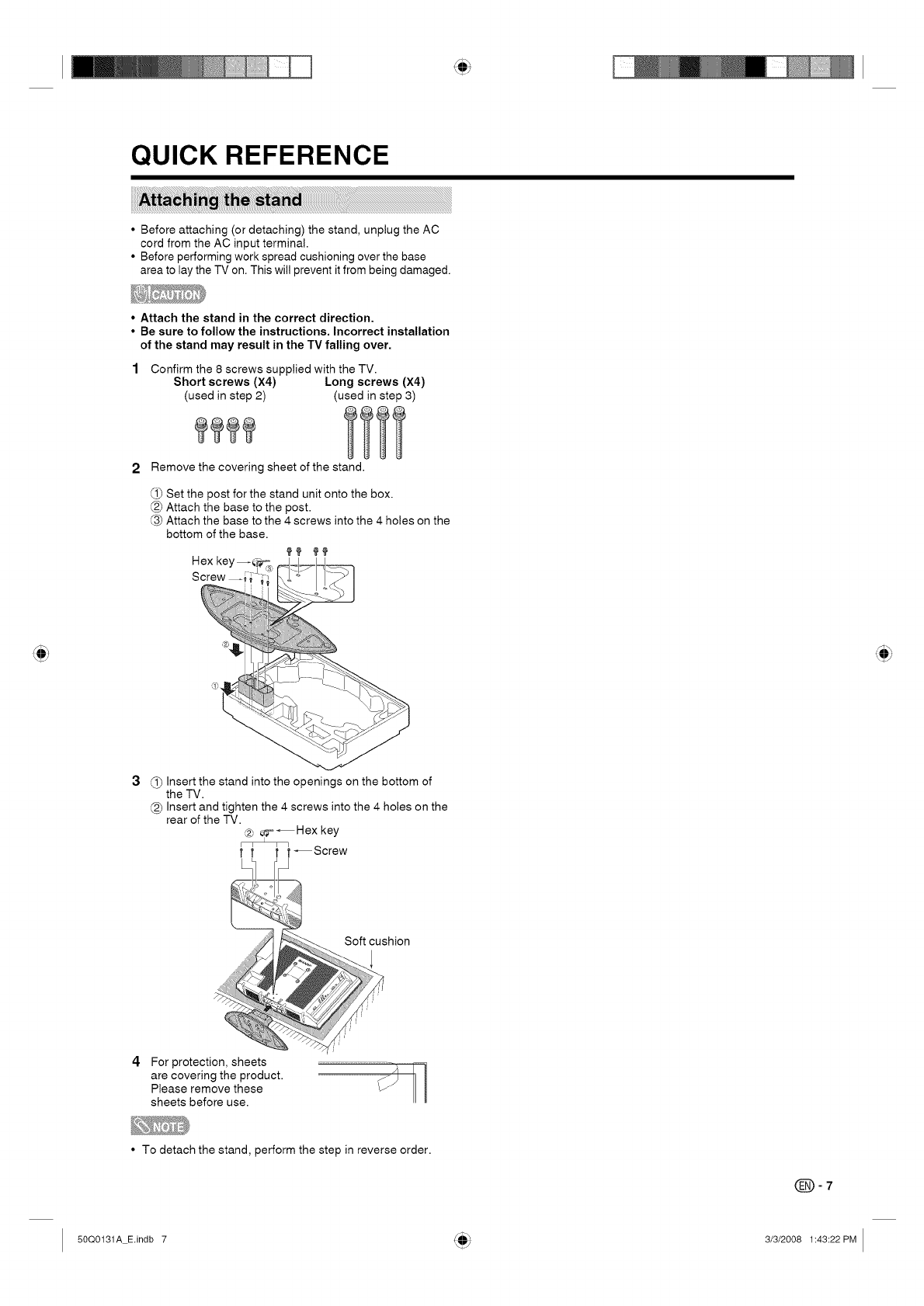

QUICK REFERENCE

• Before attaching (or detaching) the stand, unplug the AC

cord from the AC input terminal.

• Before performing work spread cushioning over the base

area to lay the TV on. This will prevent it from being damaged.

•Attach the stand in the correct direction.

•Be sure to follow the instructions. Incorrect installation

of the stand may result in the TV falling over.

1 Confirm the 8 screws supplied with the TV.

Short screws (X4) Long screws (X4)

(used in step 2) (used in step 3)

2 Remove the covering sheet of the stand.

Set the post for the stand unit onto the box.

Attach the base to the post.

_3_Attach the base to the 4 screws into the 4 holes on the

bottom of the base.

Hex key--_i

Screw --

_i_ Insert the stand into the openings on the bottom of

the TV.

Insert and tighten the 4 screws into the 4 holes on the

rear of the TV. @__ _Hex key

T If _ '_Screw

Soft cushion

For protection, sheets

are covering the product.

Please remove these

sheets before use.

• To detach the stand, perform the step in reverse order.

_-7

50Q0131A E.indb 7 (_#.b_ 3/3/2008 1:43:22 PM

QUICK REFERENCE

STOP! To safely remove the television from the box

• It's best to use 2 people to remove the television for stability.

• Lift onto installation location as the diagram illustrates.

Ventilation &Cleaning Tips

Keep your TV/DVD in a well ventilated area and make sure not to place it by a heat source or use near water.

The TV/DVD is designed for AC use only and should be used with supplied AC cord.

Clean the screen by spraying a soft lint free cloth with water to lightly moisten.

Gently wipe and avoid pressing on the screen. To clean the outer cabinet, use the same

method.

Do not use liquid or aerosol cleaners.

The screen is glass and can be scratched or broken when dropped or impacted.

QUICK INSTALLATION TIPS

1 Attach your antenna to the back of the TV/DVD.

(See page 13.)

2 Connect the AC plug for the TV/DVD into the wal! outlet.

• Place the TV/DVD close to the AC outlet, and keep the

power plug within reach.

•TO PREVENT RISK OF ELECTRIC SHOCK, DO NOT

TOUCH UN-INSULATED PARTS OF ANY CABLES

WITH THE AC CORD CONNECTED.

3 Bundle the cords properly with a cable clamp.

4 How to turn on the TV/DVD for the first time.

A) Press POWER on TV/DVD.

/.......................ooooo/

V , A INPUT POWER

POWER

B) POWER indicator on the front of the TV/DVD lights

GREEN.

SHARP 1

D T

POWER indicator

• Speaker cannot be detached from the TV/DVD.

• TV/DVD angle cannot be adjusted.

(_-8

50Q0131A EJndb 8 K#.b_ 3/3/2008 1:43:23 PM

QUICK REFERENCE

If the remote control fails to operate TV/DVD functions, replace the batteries in the remote control unit.

1 Open the battery cover. 2 Insert two "AA" size batteries 3 Close the battery cover.

(supplied with the product).

• Place the batteries with their terminals

corresponding to the (+) and (-)

indications in the battery compartment.

Improper use of batteries can result in chemical leakage or explosion. Be sure to follow the instructions below.

• Do not mix batteries of different types. Different types of batteries have different characteristics.

• Do not mix old and new batteries. Mixing old and new batteries can shorten the life of new batteries or cause chemical

leakage in old batteries.

• Remove batteries as soon as they are worn out. Chemicals that leak from batteries that come in contact with skin can

cause a rash. If you find any chemical leakage, wipe thoroughly with a cloth.

• The batteries supplied with this product may have a shorter life expectancy due to storage conditions.

• If you wi!! not be using the remote control unit for an extended period of time, remove batteries from it.

lu _ !l

Remote control 30° 30°

sensor

IMPORTANT:

The POWER indicator on the television should light GREEN indicating you have power to the TV/DVD.

If the POWER indicator on the television still does not light up, press POWER on the remote control to turn the

power on.

5v' E6 II

IMPORTANT:

IF THE UNIT DOES NOT POWER ON - UNPLUG THE TELEVISION FROM THE OUTLET AND REPEAT THE

INSTALLATION STEPS.

IF YOU STILL ENCOUNTER NO POWER, PLEASE CONTACT US AT 1-800-BE-SHARP.

_-9

50QO131A E.indb 9 (#.b_ 3/3/2008 1:43:23 PM

Contents

IMPORTANT INFORMATION ................................... 1

DEAR SHARP CUSTOMER ..................................... 3

IMPORTANT SAFETY INSTRUCTIONS .................. 3

Disc ........................................................................... 5

Discs which can be played back .......................... 5

Discs which cannot be played back ..................... 5

Title/Chapter/Track .............................................. 5

Handling discs ..................................................... 6

Supplied accessories ............................................. 6

QUICK REFERENCE ................................................ 7

Attaching the stand .............................................. 7

Contents ................................................................. 10

Part names ............................................................. 11

TV/DVD (Front) .................................................. 11

TV/DVD (Rear) .................................................. 11

TV/DVD (Right) .................................................. 11

Remote control unit............................................ 12

Preparation ............................................................ 13

Using the remote control unit ............................. 13

Cautions regarding remote control unit .............. 13

Antennas ........................................................... 13

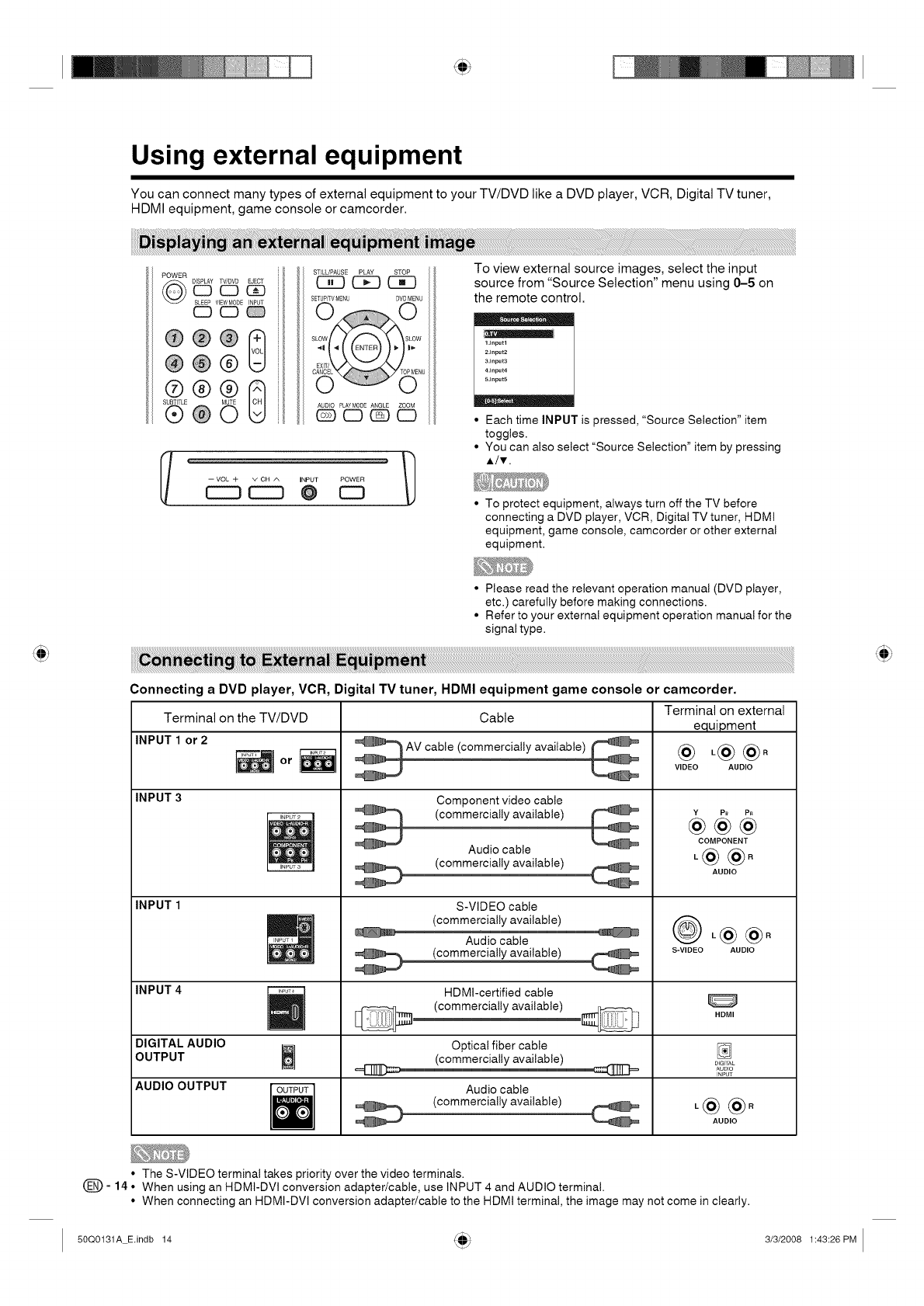

Using external equipment .................................... 14

Displaying an external equipment image ........... 14

Connecting to External Equipment .................... 14

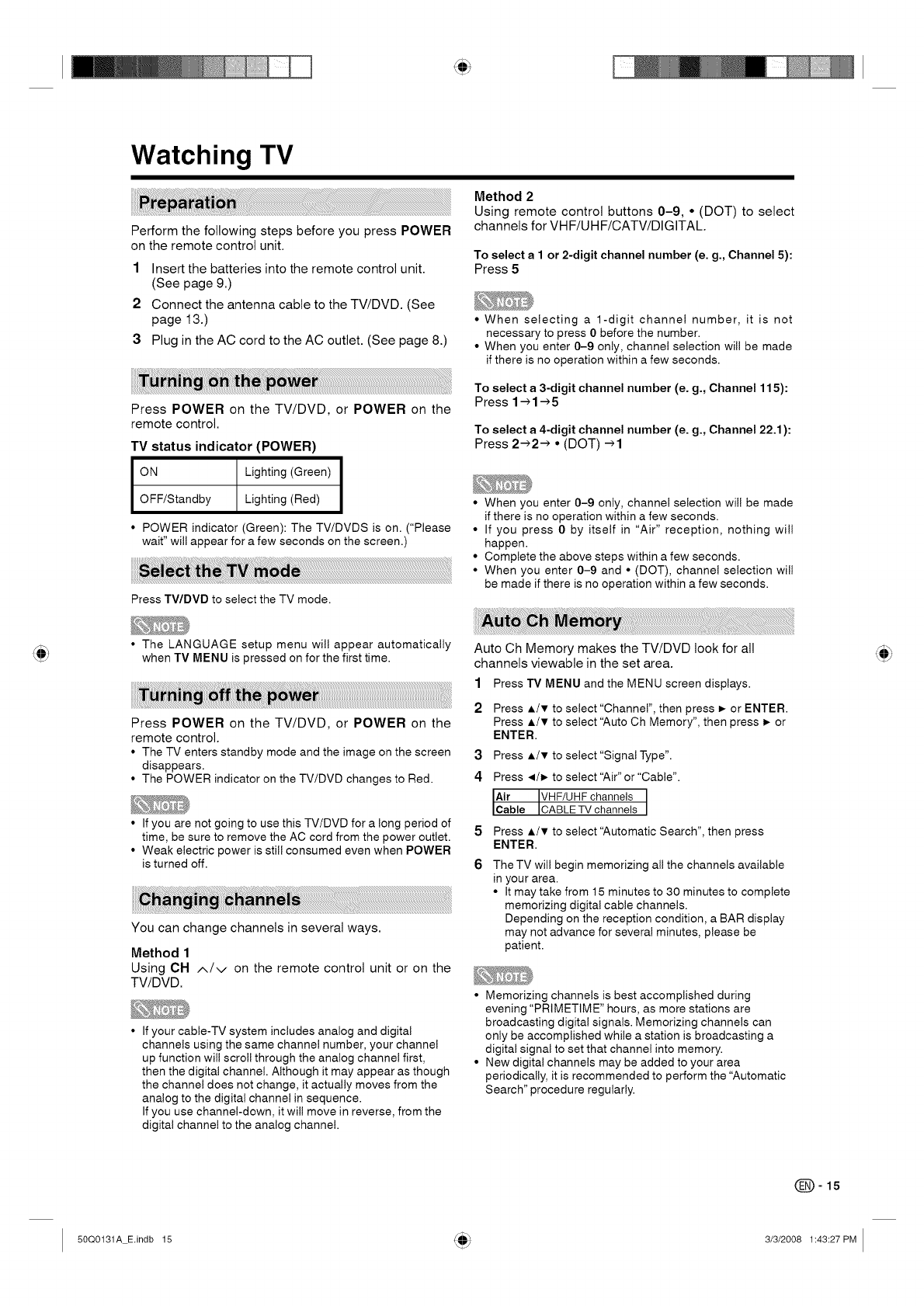

Watching TV ........................................................... 15

Preparation ........................................................ 15

Turning on the power ......................................... 15

Select the TV mode ........................................... 15

Turning off the power ......................................... 15

Changing channels ............................................ 15

Auto Ch Memory ................................................ 15

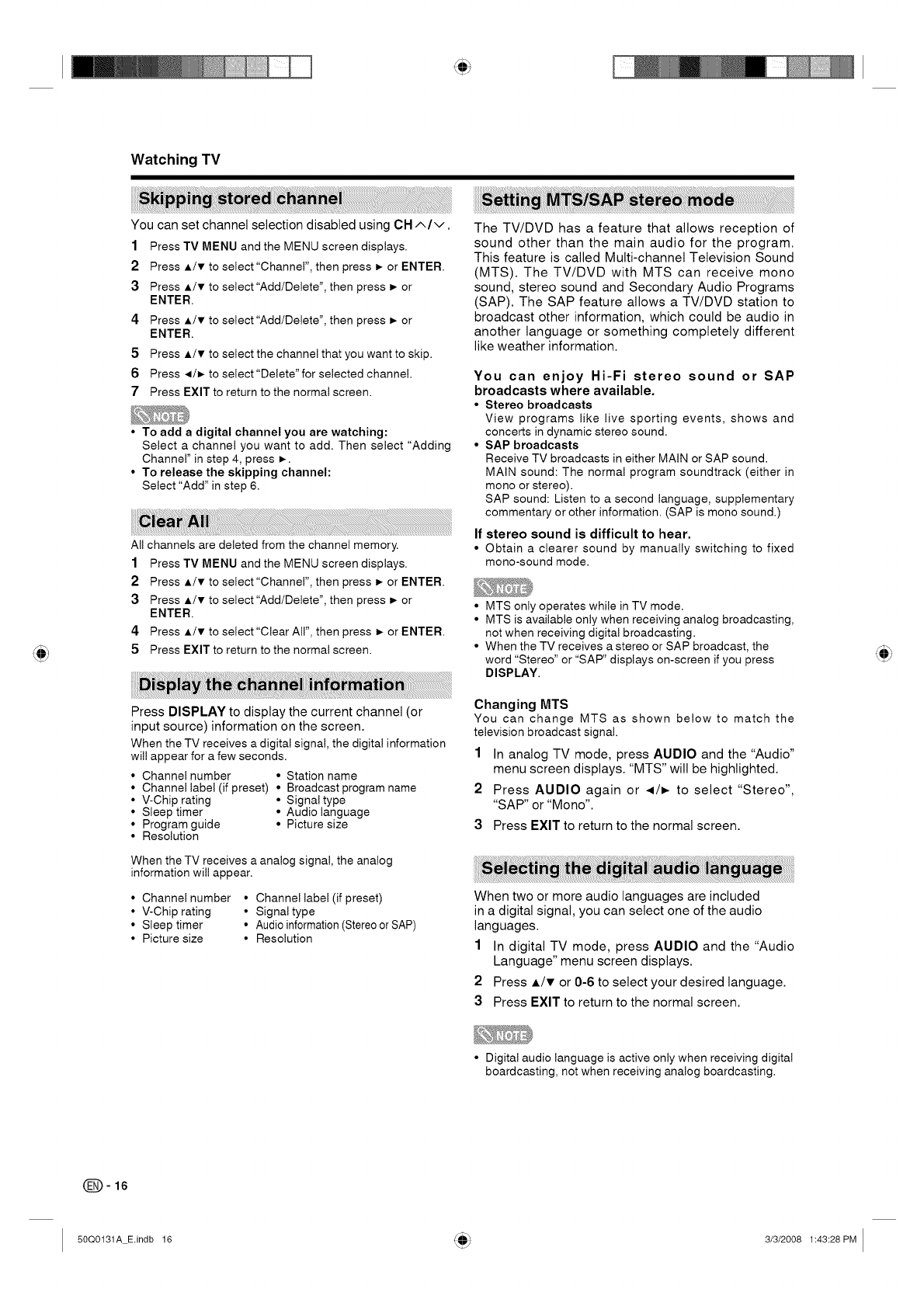

Skipping stored channel .................................... 16

Clear All ............................................................. 16

Display the channel information ......................... 16

Setting MTS/SAP stereo mode .......................... 16

Selecting the digital audio language .................. 16

View mode for 4:3 programs .............................. 17

View mode for HD programs .............................. 17

Labeling channels .............................................. 17

Closed captions and digital closed captions ...... 18

Caption setup .................................................... 19

Password setting for parental control ................. 19

How to enter the Lock menu .............................. 19

Parental control (V-CHIP) .................................. 20

TV Parental Guidelines (TV Guidelines) ........... 20

Voluntary movie rating system (MPAA) ............. 20

Canadian rating systems ................................... 21

Canadian English ratings ................................... 21

Canadian French ratings ................................... 21

How to temporarily release the V-Chip block ..... 21

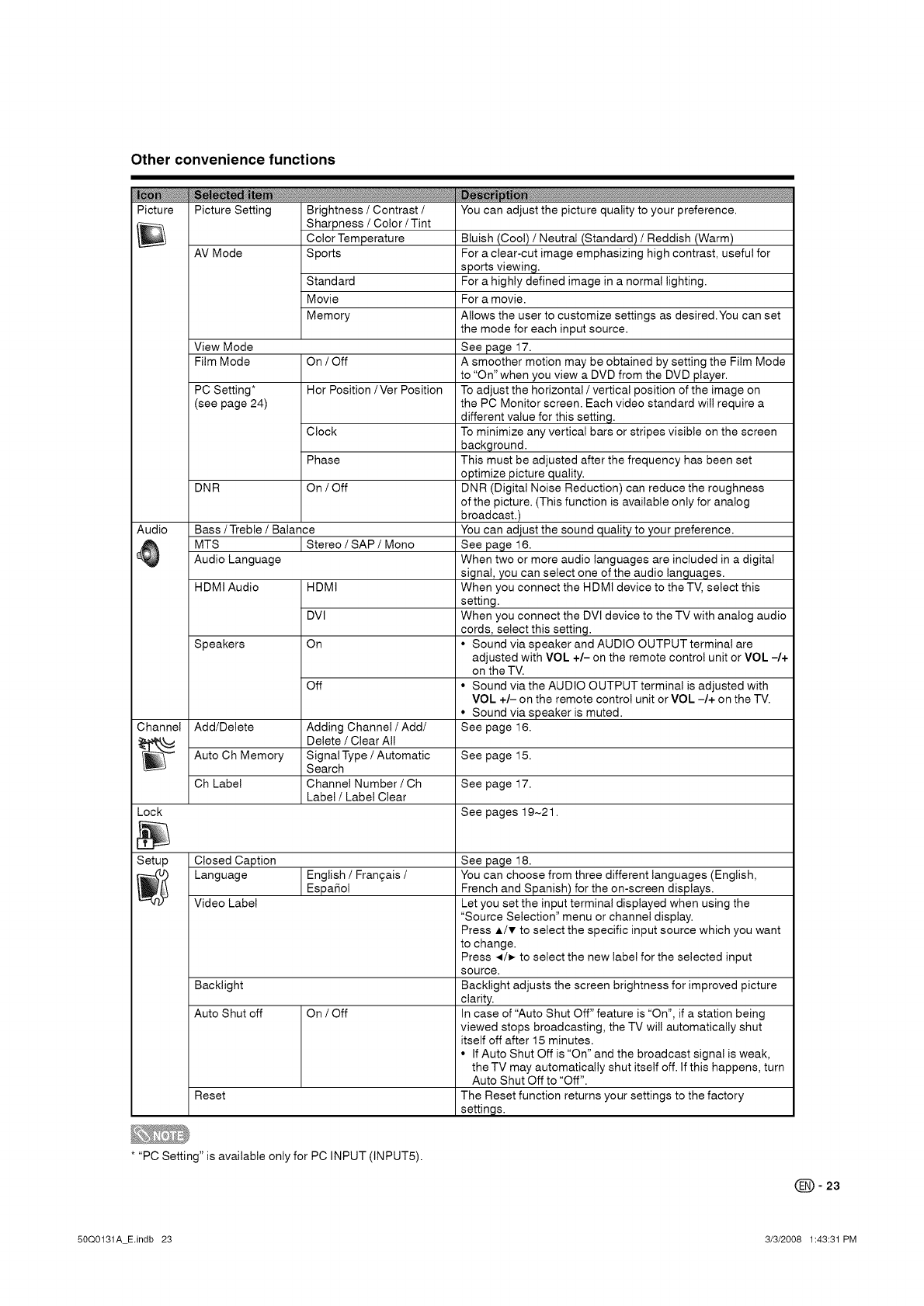

Other convenience functions ............................... 22

Menu operation buttons ..................................... 22

Quick guide for MENU operation ....................... 22

Connecting a PC (Personal computer) ............... 24

Viewing an image from a PC.............................. 24

Displaying an image from a PC.......................... 24

PC compatibility chart ........................................ 24

Watching the DVD ................................................. 25

Preparation ........................................................ 25

Turning on the power ......................................... 25

Playback procedure ........................................... 25

Status display of DVD disc ................................. 25

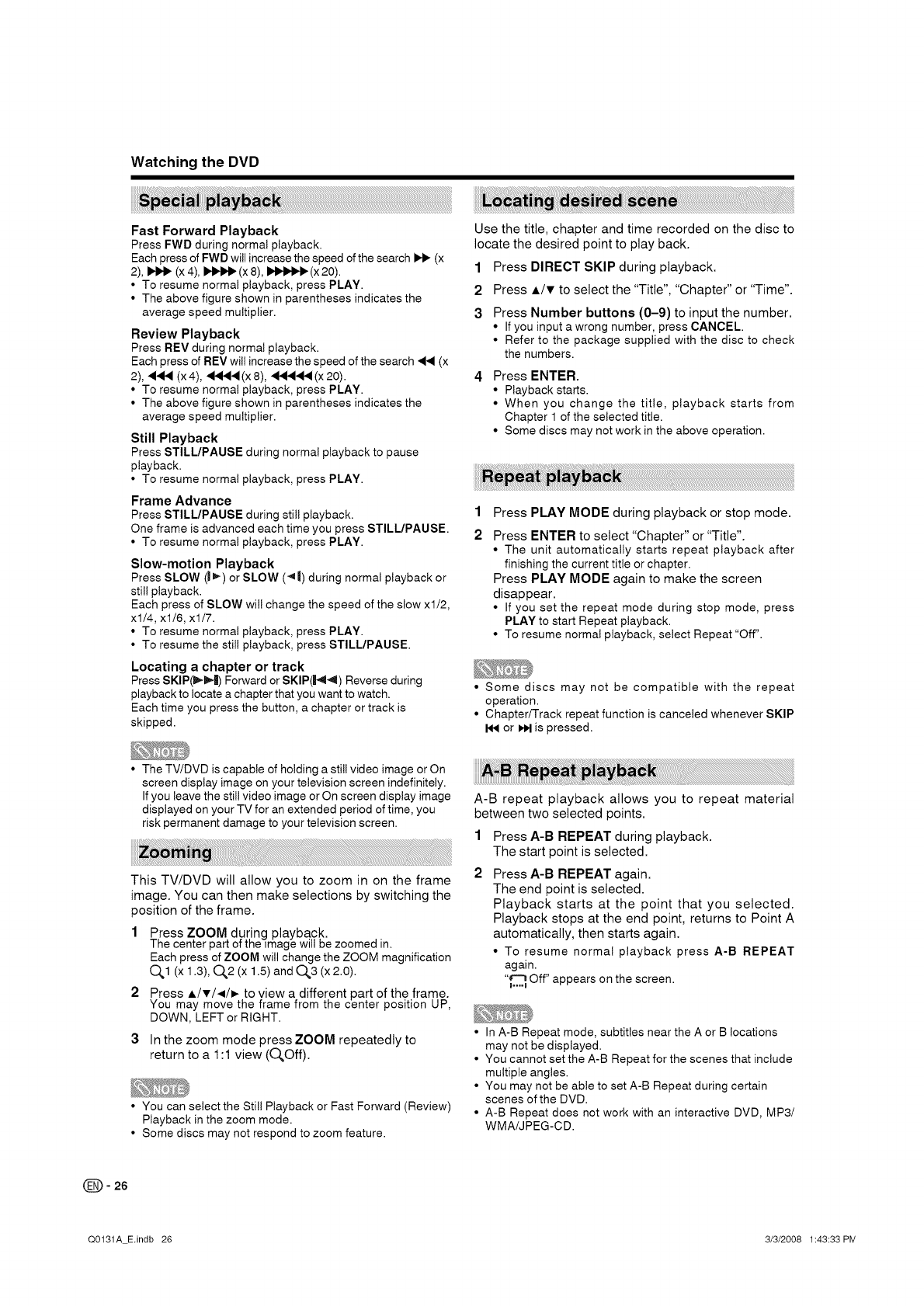

Special playback ............................................... 26

Zooming ............................................................ 26

Locating desired scene ...................................... 26

Repeat playback ................................................ 26

A-B Repeat playback ......................................... 26

Marking desired scenes ..................................... 27

Changing angles ................................................ 27

Changing soundtrack language ......................... 27

Subtitles ............................................................. 27

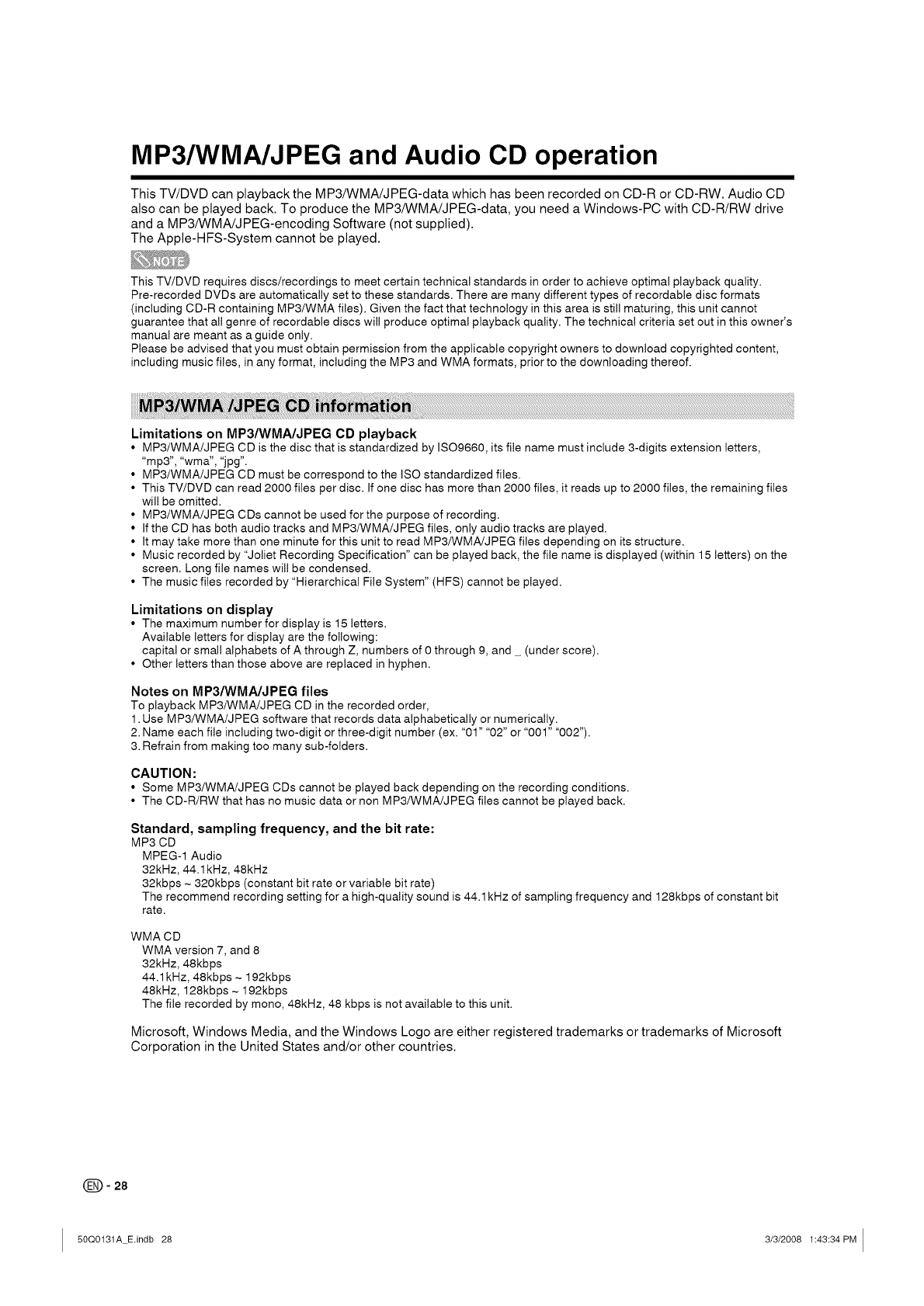

MP3/WMA/JPEG and Audio CD operation .......... 28

MP3/WMA/JPEG CD information ..................... 28

Loading CD ........................................................ 29

MP3/WMA and Audio CD playback ................... 29

Select Files ........................................................ 29

JPEG playback .................................................. 29

Slide show playback .......................................... 29

Repeat playback (CD) ....................................... 30

Random playback (CD) ..................................... 30

Program playback (CD) ..................................... 30

Function setup ....................................................... 30

Basic operation buttons ..................................... 30

Quick guide for DVD MENU operation ............... 30

Parental control setting ...................................... 32

Set the new password ....................................... 32

Temporary disabling of rating level by DVD disc 32

Appendix ................................................................ 33

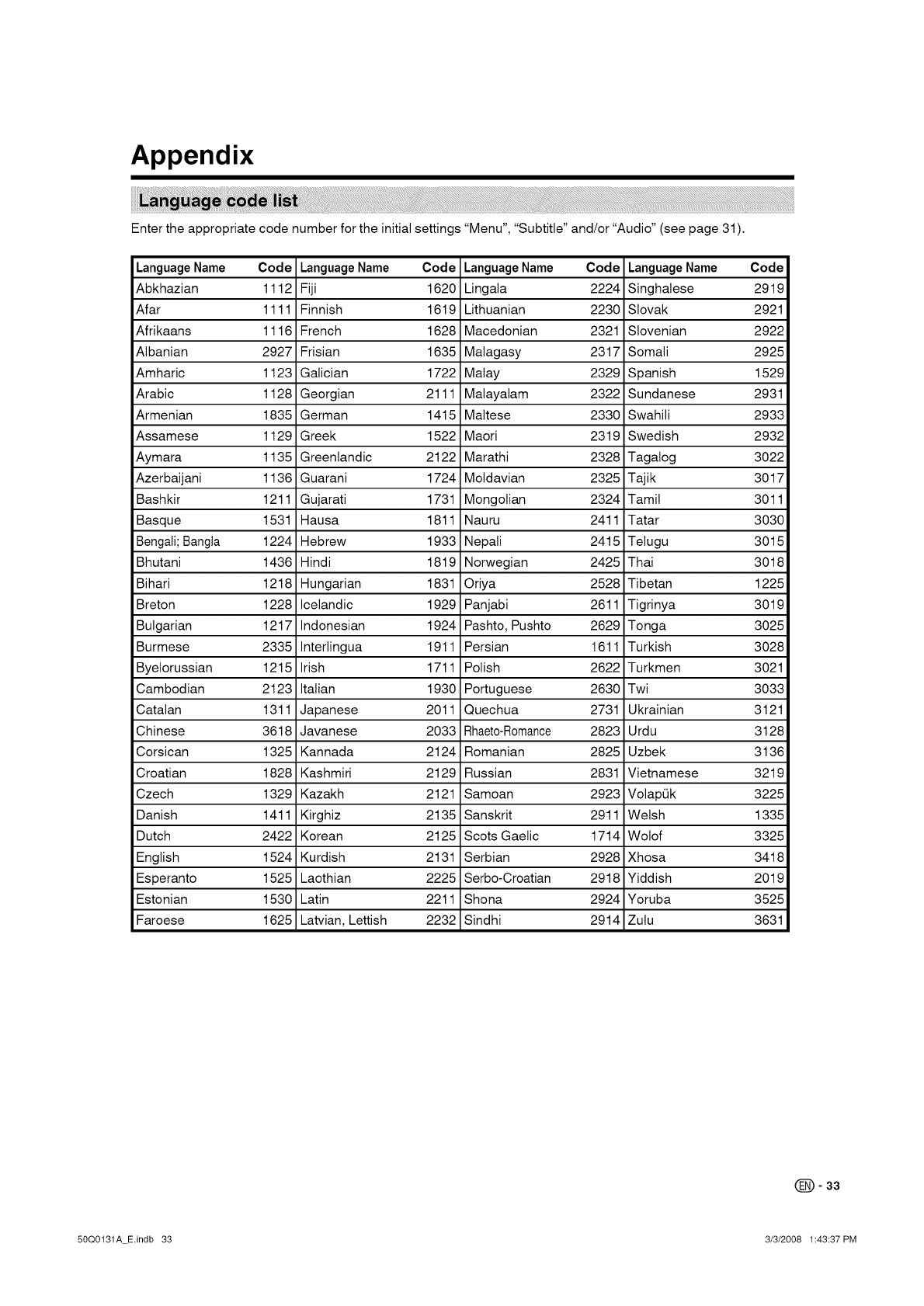

Language code list ............................................ 33

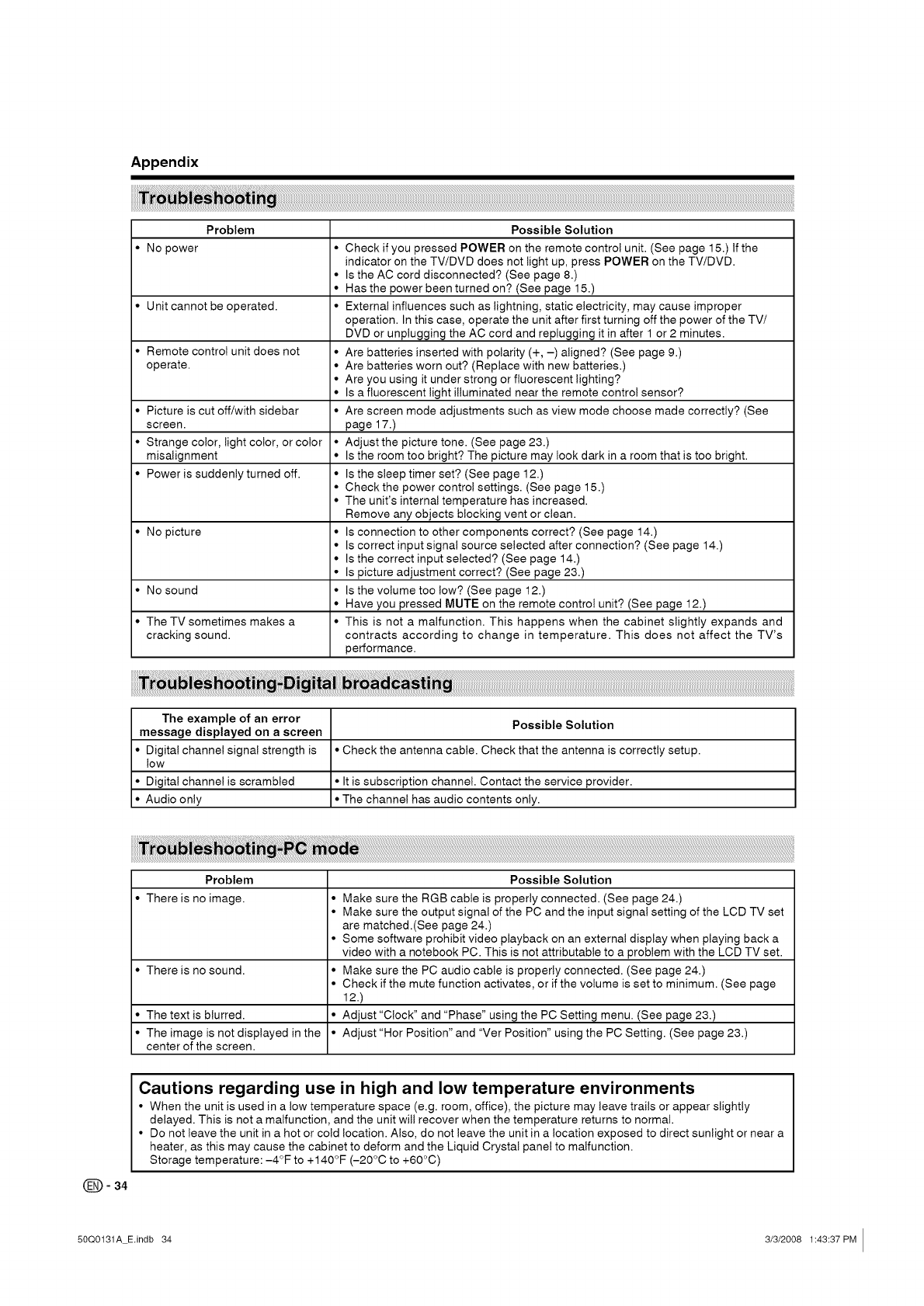

Troubleshooting ................................................. 34

Troubleshooting-Digital broadcasting ................ 34

Troubleshooting-PC mode ................................. 34

Troubleshooting-DVD ........................................ 35

Specifications .................................................... 36

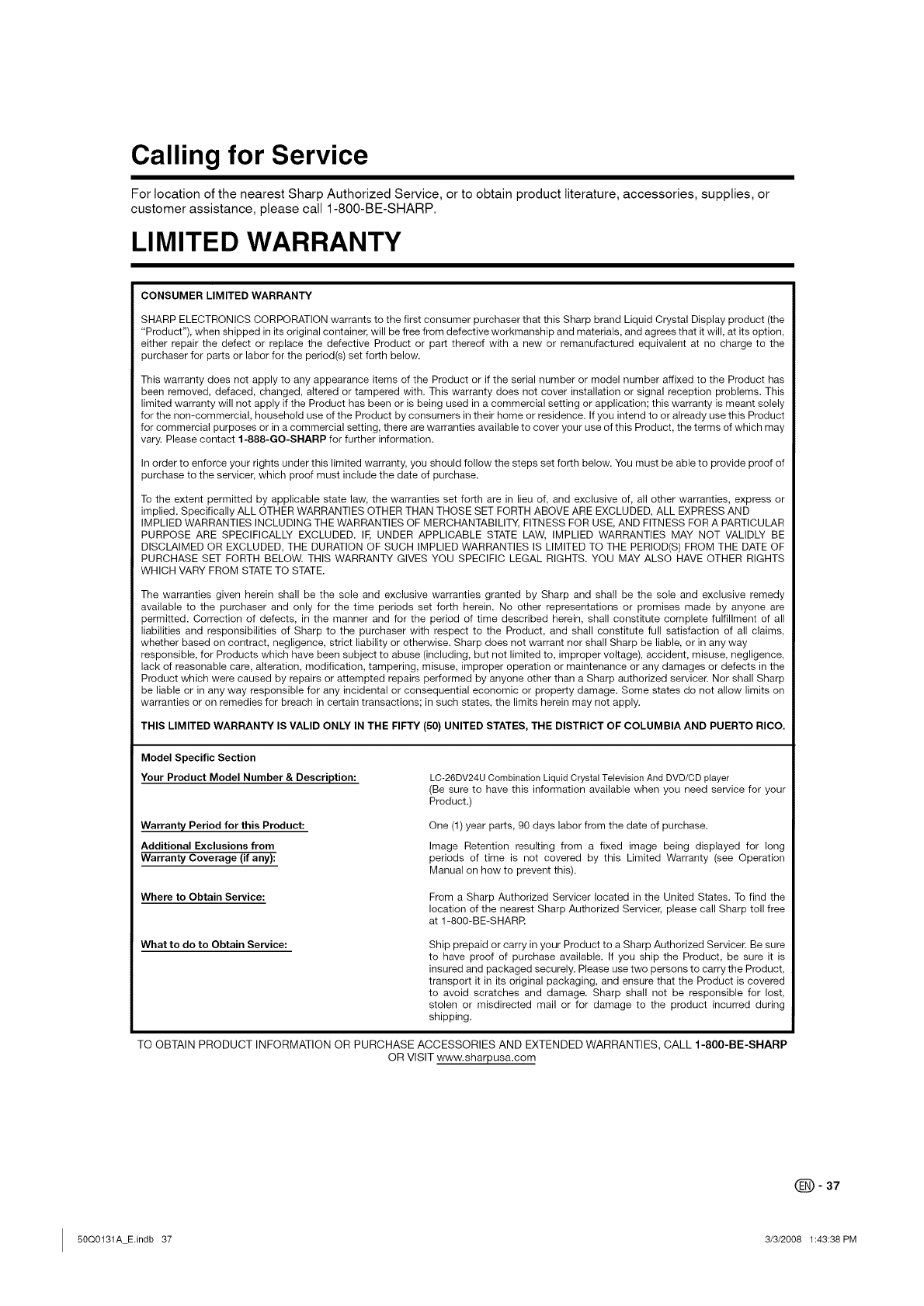

Calling for Service ................................................. 37

LIMITED WARRANTY ............................................ 37

Dimensional Drawings

°The dimensional drawings for the TV/DVD set are

shown on the inside back cover.

(_-10

50Q0131A E.indb 10 (_#.b_ 3/3/2008 1:43:24 PM

Part names

mSTOP _ SKIP_ ,EJECT I

I,,PLAYbuttOnSTOPbutton _]

l*d_,lSKIP button

_.AEJECT button

I - II

]

Remote control sensor POWER indicator

Volume buttons

(VOL-/+)

Channel buttons

(CH v/A) INPUT

•INPUT, CH (v)/(z-.), VOL (-)/(+) and POWER on the

main unit have the same functions as the same buttons on

the remote control. Fundamentally, this operation manual

provides a description based on operation using the

remote control.

_AUDIO OUTPUT terminals

COAXIAL DIGITAL AUDIO OUTPUT

minal

INPUT 4 terminals

INPUT 5 terminals

LINPUT 1 terminals

_ INPUT 2 terminals

INPUT 3 terminals

AC INPUT

• The illustrations in this operation manual are for explanation purposes and may vary slightly from the actual operations. _ - 11

50Q0131A E.indb 11 (#.b_ 3/3/2008 1:43:24 PM

Part names

14 15 16

13 3t

• When using the remote control unit, point it at the TV/DVD.

(See page 9.)

There is a protective film covering the face of the remote

control. Please remove this film before use.

(_-12

1 POWER: Switch the power on or enters standby mode.

(See page 15.)

2 0-9: Set the channel. (See page 15.)

3 • (DOT) /SUBTITLE: To select 4-digit channel number.

(See page 15.) /Set subtitle. (See page 27.)

4 REV : Review playback. (See page 26.)

5 SKIP 14_/_1:Skip chapter to reverse or forward direction.

(See page 26.)

6 STILL/PAUSE: Still picture of DVD /Pause CD sound.

(See page 26.)

7 SETUP/TV MENU: TV mode - Display menu of TV /

DVD mode - Cal! up initial setup mode. (See pages 22,

30.)

8 AITI_I_IENTER: Select a desired item on the screen.

SLOW _ I /I=": Reverse/Forward -slow motion. (See

page 26.)

9 EXIT/CANCEL: Turn off the menu screen /Reset

information in the menu.

10 PLAY MODE: Select playback mode. (See page 26.)

11 AUDIO: Switch the sound of TV /Change sound track

language. (See pages 16, 27.)

12 RETURN: Turn off the DVD setup menu screen.

13 A-B REPEAT: Repeat playback between A and B. (See

page 26.)

14 DISPLAY: Display the current channel (or input source)

information on the screen. (See page 16.)

15 TV/DVD: Switch between TV/AV and DVD. (See pages

15, 25.)

16 EJECT: Eject the disc. (See page 25.)

17 SLEEP: Allows you to set at!me when the TV/DVD

automatically switches to standby. Each time you press

this button, the remaining time setting switches by 10

minutes up to 2 hours. This display will disappear after

a few seconds, and the sleep timer automatically starts

counting down.

• If you want to adjust the sleep timer again, you can

press this button repeatedly then change the time

setting.

• Select "Off" by pressing SLEEP repeatedly to cancel

the sleep timer.

• The TV/DVD will enter the standby mode when the

remaining time reaches zero.

18 INPUT: Select input source. (See page 14.)

19 VIEW MODE: Select the screen size. (See page 17.)

20 VOL +/-: Set the volume.

• To increase the volume, press VOL+.

• To decrease the volume, press VOL-.

• VOL+/- on the TV/DVD operates the same as VOL+/-

on the remote control unit.

CH ^Iv : Select the channel. (See page 15.)

MUTE: Mute the sound. "Mute" will be displayed on the

screen, and the sound is silenced. The muting feature

can be released by pressing this button again or one of

the VOL +/- buttons.

23 FWD: Fast forward playback. (See page 26.)

24 PLAY: Playback. (See page 25.)

25 STOP: Stop. (See page 25.)

26 DVD MENU: Display DVD menu.

• Press A/T/_/_ to select desired title.

27 TOP MENU: Display title menu.

• Press A/T/_/_ to select desired title.

28 ANGLE: Change playback channel. (See page 27.)

29 ZOOM: Zoom. (See page 26.)

30 DIRECT SKIP: Locating desired scene of DVD. (See

page 26.)

31 MARKER: Index (DVD). (See page 27.)

50Q0131A E.indb 12 (#.b_ 3/3/2008 1:43:25 PM

Preparation

Use the remote control unit by pointing it towards the remote control sensor on

the TV/DVD. Objects between the remote control unit and the remote control

sensor may prevent proper operation.

• Do not expose the remote control unit to shock.

In addition, do not expose the remote control unit to liquids, and do not place in an area

with high humidity.

• Do not install or place the remote control unit under direct sunlight. The heat may cause

deformation of the remote control unit.

• The remote control unit may not work properly if the remote control sensor on the TV/DVD

is under direct sunlight or strong lighting, in such cases, change the angle of the lighting or

the TV/DVD, or operate the remote control unit closer to the remote control sensor.

To enjoy a clearer picture, use an outdoor antenna. The following is a brief explanation of the types of

connections that are used for a coaxial cable. If your outdoor antenna uses a 75-ohm coaxial cable with an

F-type connector, plug it into the antenna terminal at the rear of the TV set.

A 75-ohm system is generally a round cable with F-type _'

connector that can easily be attached to a terminal

without tools (Commercially available).

F-type connector

75-ohm coaxial cable (round)

2. A 300-ohm system is a flat "twin-lead" cable that can be

attached to a 75-ohm terminal through a 300/75-ohm

adapter (Commercially available).

300-ohm twin-lead cable (flat)

Connecting Antenna Cable

Home Antenna

(_) Cable without a Cable TV lead-In terminal (75-ohm)

CATV converter _[_ __-_J ""

Coaxial cable

(commercially available)

(_) VHF/UHF antenna -_

!Home Antenna

terminal (75-ohm)

G Combination VHF/'_

UHF antenna

F-type connector should be

fingertightened only.

When connecting the RF cable to the TV set, do not tighten

F-type connector with tools.

If tools are used, it may cause damage to your TV set. (The

breaking of internal circuit, etc.)

F-type connector

75-ohm coaxial cable (round)

Coaxial cable

(commercially available)

(_ Separate VHF/

UHF antenna

75-ohm coaxial cable

• Connect the antenna cable to the

TV using one of the methods in the

illustration as shown (0, (_), G or (_).

_300-ohm twin-lead cable (flat)

300/75-ohm adapter

VHF UHF (commercially available)

ANTENNA ANTENNA

300-ohm

bk .

300-ohm twin-lead cabl_

°/ 75-oh ..... ialcable/TO TV antenna terminal

_-13

50Q0131A Eindb 13 _#.b_ 3/3/2008 1:43:25 PM

Using external equipment

You can connect many types of external equipment to your TV/DVD like a DVD player, VCR, Digital TV tuner,

HDMI equipment, game console or camcorder.

POWER

DISPLAY TV/DVD EJECT

CD CD Cg3

SLEEP VIEWMODE INPUT

CD_

®®®0

®@®

STILUPAUSE PLAY STOP

SETUPiTV MENU DVD MENU

AUDIO PLAYNODE ANGLE ZOOM

v OH A INPUT POWER

CZ;3 @

To view external source images, select the input

source from "Source Selection" menu using 0-5 on

the remote control.

ii {

1.Input1

2.Input2

3.Input3

4.Input4

5.Input5

• Each time INPUT is pressed, "Source Selection" item

toggles.

• You can also select "Source Selection" item by pressing

A/T.

To protect equipment, always turn off the TV before

connecting a DVD player, VCR, Digital TV tuner, HDMt

equipment, game console, camcorder or other external

equipment.

• Please read the relevant operation manual (DVD player,

etc.) carefully before making connections.

• Refer to your external equipment operation manual for the

signal type.

Connecting a DVD player, VCR, Digital TV tuner, HDMI equipment game console or camcorder.

Terminal on the TV/DVD

INPUT 1or 2

INPUT 3

INPUT 1

INPUT 2

INPUT3

INPUT 4j

DIGITAL AUDIO

OUTPUT [1]

AUDIO OUTPUT OUTPUT

Cable

AV cable (commercially available)

Component video cable

Audio cable

(commercially available)

S-VIDEO cable

(commercially available)

Audio cable

(commercially available)

HDMl-certified cable

(commercially available)

Optical fiber cable

(commercially available)

=E]]]D_ -_13]]]3=

Audio cable

(commercially available)

Terminal on external

equipment

@ ,@ @=

VIDEO AUDIO

COMPONENT

,@@=

AUDIO

L@@=

S-VIDEO AUDIO

HDMI

DIGI]AL

AUDIO

INPUT

,@@°

AUDIO

• The S-VIDEO terminal takes priority over the video terminals.

(_ = 14 • When using an HDMt-DVl conversion adapter/cable, use INPUT 4 and AUDIO terminal.

• When connecting an HDMI-DVI conversion adapter/cable to the HDMI terminal, the image may not come in clearly.

50Q0131A E.indb 14 (#.b_ 3/3/2008 1:43:26 PM

Watching TV

1 Insert the batteries into the remote control unit.

(See page 9.)

2 Connect the antenna cable to the TV/DVD. (See

page 13.)

3 Plug in the AC cord to the AC outlet. (See page 8.)

Method 2

Using remote control buttons 0-9, • (DOT) to select

channels for VHF/UHF/CATV/DIGITAL.

To selecta Ior2-digitchannelnumber(e. g.,Channel 5):

Press 5

• When selecting a 1-digit channel number, it is not

necessary to press 0 before the number.

• When you enter 0-9 only, channel selection wi!! be made

if there is no operation within a few seconds.

Press POWER on the TV/DVD, or POWER on the

remote control.

TV status indicator (POWER)

ON Lighting (Green)

OFF/Standby Lighting (Red)

• POWER indicator (Green): The TV/DVDS is on. ("Please

wait" will appear for a few seconds on the screen.)

Press TV/DVD to select the TV mode.

To select a 3-digitchannelnumber (e. g., Channel 115):

Press 1_1_5

To select a 4-digit channelnumber (e. g., Channel 22.1):

Press 2-->2-->° (DOT) -->1

• When you enter 0-9 only, channel selection wi!! be made

if there is no operation within a few seconds.

• If you press 0 by itself in "Air" reception, nothing wil!

happen.

Complete the above steps within a few seconds.

When you enter 0-9 and • (DOT), channel selection will

be made if there is no operation within a few seconds.

• The LANGUAGE setup menu will appear automatically

when TV MENU is pressed on for the first time.

Press POWER on the TV/DVD, or POWER on the

remote control.

• The TV enters standby mode and the image on the screen

disappears.

• The POWER indicator on the TV/DVD changes to Red.

Auto Ch Memory makes the TV/DVD look for all

channels viewable in the set area.

1 Press TV MENU and the MENU screen displays.

• If you are not going to use this TV/DVD for a long period of 5

time, be sure to remove the AC cord from the power outlet.

• Weak electric power is still consumed even when POWER

is turned off. 6

You can change channels in several ways.

Method 1

Using CH ^/v on the remote control unit or on the

TV/DVD.

• If your cable-TV system includes analog and digital

channels using the same channel number, your channel

up function will scroll through the analog channel first,

then the digital channel. Although it may appear as though

the channel does not change, it actually moves from the

analog to the digital channel in sequence.

If you use channel-down, it will move in reverse, from the

digital channel to the analog channel.

Press A/T to select "Channel", then press _ or ENTER.

Press A/T to select "Auto Ch Memory", then press _ or

ENTER.

Press A/T to select "Signal Type".

Press ,/_ to select "Air" or "Cable".

Air VHF/UHF channels

Cab e CABLE TV channe s

Press A/T to select "Automatic Search", then press

ENTER.

The TV will begin memorizing all the channels available

in your area.

• It may take from 15 minutes to 30 minutes to complete

memorizing digital cable channels.

Depending on the reception condition, a BAR display

may not advance for several minutes, please be

patient.

• Memorizing channels is best accomplished during

evening "PRIMETtME" hours, as more stations are

broadcasting digital signals. Memorizing channels can

only be accomplished while a station is broadcasting a

digital signal to set that channel into memory.

• New digital channels may be added to your area

periodically, it is recommended to perform the "Automatic

Search" procedure regularly.

_-15

50Q0131A E.indb 15 (#.b_ 3/3/2008 1:43:27 PM

Watching TV

You can set channel selection disabled using CH ,,'.Iv.

1 Press TV MENU and the MENU screen displays.

2Press A/T to select"Channel", then press _ or ENTER.

3 Press A/T to select"Add/Delete", then press _ or

ENTER.

4Press A/T to select"Add/Delete", then press _ or

ENTER.

5 Press A/T to select the channel that you want to skip.

6 Press ,/_ to select "Delete" for selected channel.

7 Press EXIT to return to the normal screen.

•To add a digital channel you are watching:

Select a channel you want to add. Then select "Adding

Channel" in step 4, press _.

• To release the skipping channel:

Select "Add" in step 6.

The TV/DVD has a feature that allows reception of

sound other than the main audio for the program.

This feature is called Multi-channel Television Sound

(MTS). The TV/DVD with MTS can receive mono

sound, stereo sound and Secondary Audio Programs

(SAP). The SAP feature allows a TV/DVD station to

broadcast other information, which could be audio in

another language or something completely different

like weather information.

You can enjoy Hi-Fi stereo sound or SAP

broadcasts where available.

•Stereo broadcasts

View programs like live sporting events, shows and

concerts in dynamic stereo sound.

•SAP broadcasts

Receive TV broadcasts in either MAIN or SAP sound.

MAIN sound: The normal program soundtrack (either in

mono or stereo).

SAP sound: Listen to a second language, supplementary

iiiiiiiiii! iiiIi! i ! i !i!i i iii:i i:i:i:i:i: i i i i i i i i i i i i i i !i! ! !ii!!ii!iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii!i!iii!i !!ii!! !!!!!!!!iiiiiiiiiiiiiiiiiiii!!!i!i!!!i!i!i!!iiiiiiiiiiiiii ii ii!!iiiiiiiii!!!!!!iiiiiiiiiiiiiiiiiiiiiiii___!i__!!i!!!_i__i!i!iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii__ii__iicommenta orotherinformation/SAPismonosound/

_;_!_!_i_;_;_;_;_;_;;;;;;;;;;;;_;;_;__ If stereo sound is difficult to hear.

All channels are deleted from the channel memory.

1 Press TV MENU and the MENU screen displays.

2Press A/T to select"Channel", then press _ or ENTER.

3 Press A/T to select"Add/Delete", then press _ or

ENTER.

4Press A/T to select "Clear All", then press _ or ENTER.

5 Press EXIT to return to the normal screen.

• Obtain a clearer sound by manually switching to fixed

mono-sound mode.

• MTS only operates while in TV mode.

• MTS is available only when receiving analog broadcasting,

not when receiving digital broadcasting.

• When the TV receives a stereo or SAP broadcast, the

word "Stereo" or "SAP" displays on-screen if you press

DISPLAY.

Press DISPLAY to display the current channel (or

input source) information on the screen.

When the TV receives a digital signal, the digital information

wi!! appear for a few seconds.

• Channel number • Station name

• Channel label (if preset) • Broadcast program name

• V-Chip rating • Signal type

• Sleep timer • Audio language

• Program guide • Picture size

• Resolution

When the TV receives a analog signal, the analog

information wi!! appear.

• Channel number • Channel label (if preset)

• V-Chip rating • Signaltype

• Sleep timer • Audio information (Stereoor SAP)

• Picture size • Resolution

Changing MTS

You can change MTS as shown below to match the

television broadcast signal.

In analog TV mode, press AUDIO and the "Audio"

menu screen displays. "MTS" will be highlighted.

Press AUDIO again or -,I/_- to select "Stereo",

"SAP" or "Mono".

3 Press EXIT to return to the normal screen.

When two or more audio languages are included

in a digital signal, you can select one of the audio

languages.

1 In digital TV mode, press AUDIO and the "Audio

Language" menu screen displays.

2 Press A/T or 0-6 to select your desired language.

3 Press EXIT to return to the normal screen.

• Digital audio language is active only when receiving digital

boardcasting, not when receiving analog boardcasting.

(_-16

50Q0131A E.indb 16 (#.h_ 3/3/2008 1:43:28 PM

Watching TV

Press VIEW MODE.

•The View mode menu displays.

• The menu lists the view mode options selectable for

the type of video signal currently being received.

Press 0-3 to select each view mode directly while

the View mode menu is still on the screen.

• Each time VIEW MODE is pressed, View Mode item

toggles.

• You can also select View Mode item by pressing A/T.

• You can sequentially select a view mode that has its

own aspect ratio.

0.Side Bar

2.Zoom

3.Stretch

Side Bar:

Suitable for viewing conventional

4:3 programs in their normal

format.

S.Stretch (Smart stretch):

Suitable for stretching 4:3

programs to fi!! the screen.

Zoom:

Suitable for viewing wide-screen

2.35:1 anamorphic DVDs in ful!

screen.

Stretch:

This mode is useful for 1.78:1 DVDs.

When viewing 1.85:1 DVDs,

stretch mode will still show very

thin black bands at the top and

bottom of the screen.

• You can enter to the same menu screen from "Picture"

menu.

• You cannot select "Side Bar" and "S.Stretch" when a 720p

or 1080i signal is being input.

To create channel labels

1 Select a channel you want to label.

2 Press TV MENU, then press A/v to select

"Channel", then press I_ or ENTER.

Press A/v to select "Ch Label", then press _- or

ENTER. The Ch Label menu will appear.

3 Press -,I/_- to select a channel you want to label,

then press v.

Chh_b_

4Press -,I/_ repeatedly until the character you want

appears in the first space.

The characters rotation as follows:

_ 0""9 <-->A-"Z <-->- •,() @/+=- <-]

SPACE

If the character which you desire appears, press

ENTER. Repeat this step to enter the rest of the

characters.

When you finish inputting the label name, press

ENTER.

Press EXIT to return to the normal screen.

Repeat steps 1-5 for other channels. You can

assign a label to each channel.

To erase channel labels

1 Select a channel with a label which you want to

remove.

2 Press TV MENU, then press A/v to select

"Channel", then press I_ or ENTER.

Press A/v to select "Ch Label", then press _- or

ENTER to display the Ch Label menu.

3 Press A/v to select"Label Clear". Press _-.

4 Press EXIT to return to the normal screen.

5 Repeat steps 1-4 to erase other channel labels.

Stretch mode is available for HD programs.

Suitable for viewing wide-screen 1.78:1 aspect-ratio

programs. When viewing 1.85:1 programs, the stretch

mode will still show very thin black bands at the top

and bottom of the screen.

_-17

50Q0131A E.indb 17 (#.b_ 3/3/2008 1:43:28 PM

Watching TV

• Closed Caption might not appear according to the

condition of the signal from the broadcasting station.

Your TV/DVD is equipped with an internal Closed

Caption decoder. It allows you to view conversations,

narration and sound effects as subtitles on your

TV/DVD. Closed Captions are available on some TV

programs and on some VHS home video tapes at the

discretion of the program provider.

Digital Closed Caption service is a new caption

service available only on digital TV programs (also

at the discretion of the service provider). It is a more

flexible system than the original Closed Caption

system, because it allows a variety of caption sizes

and font styles. When the Digital Closed Caption

service is in use, it will be indicated by the appearance

of a 3-letter abbreviation that also indicates the

language of the Digital Closed Captions: ENG

(English), SPA (Spanish), FRA (French) or other

language codes.

Not all programs and VHS videotapes offer closed

captions. Please look for the "_" symbol to ensure

that captions will be shown.

In the Closed Caption system, there can be more than

one caption service provided. Each is identified by

its own number. The "C1" and "C2" services display

subtitles of TV programs superimposed over the

program's picture. Generally, Closed Captions in

English are transmitted on C1 and Closed Captions in

other languages are transmitted on C2.

In the Closed Caption system, the "Text1" or "Text2"

services display text that is unrelated to the program

being viewed (e.g., weather or news). These services

are also superimposed over the program currently

being viewed.

1 Tune the TV to the desired program.

2 Press TV MENU and the MENU screen displays.

3 Press A/v to select"Setup", then press • or ENTER.

4 Press A/v to select "Closed Caption", then press

or ENTER.

The Closed Caption menu will appear.

Press • or •to select "CC Setting", then press

or _ to select "On".

Press •/• to select "Analog Caption" or "Digital

Caption".

When you select "Analog Caption", you can choose

Cl, C2, C3, C4, T1, T2, T3 and T4.

When you select "Digital Caption", you can choose

from CS1, CS2, CS3, CS4, CS5 and CS6.

7 Press _/_ to select the desired Closed Caption

mode for both Digital and Analog Caption.

8 Press •/• to select "CC Priority", then press _ /

to select "Digital CC" or "Analog CC".

• Depending on the broadcast signal, some

Analog Captions will function with a Digital

broadcast signal. This step prevent that two kind

of captions are overlapping.

9 Press EXIT to return to the normal screen.

• To turn the Closed Caption feature off, setting the "CC

Setting" to "Off".

• If the program or video you selected is not closed-captioned, no captions will display on-screen.

• If text is not available in your viewing area, a black rectangle may appear on-screen. If this happens, setting the "CC

Setting" to "Off".

• When selecting Closed Captions, the captioning will be delayed approx. 10 seconds.

• If no caption signal is received, no captions will appear, but the television will remain in the Caption Mode.

• Misspellings or unusual characters may occasionally appear during Closed Captioning. This is normal with Closed

Captioning, especially with live programs. This is because during live programs, captions are also entered live. These

transmissions do not allow time for editing.

• When Captions are being displayed, on-screen displays, such as volume and mute may be seen but may interfere with

Closed Captions.

• Some Cable TV systems and copy protection systems may interfere with the Closed Captioned signal.

• If using an indoor antenna or if TV reception is very poor, the Closed Caption Decoder may not appear or may appear with

strange characters or misspelled words. In this case, adjust the antenna for better reception or use an outdoor antenna.

• When a Digital TV Program has both Digital Closed Caption and Analog Closed Caption signals, Digital Closed Caption is

displayed.

(_-18

50Q0131A E.indb 18 (_#.b_ 3/3/2008 1:43:29 PM

Watching TV

This function allows you to adjust the closed caption

screen appearance to suit your preference.

1 Press TV MENU and the MENU screen displays.

2 Press ,&/T to select"Setup", then press =,-or

ENTER.

Press ,&/T to select "Closed Caption", then press

or ENTER.

The Closed Caption menu displays.

Press A/T to select "Digital CC Preset", then press

.,=/_to select "Custom".

Press ,&/T to select "CC Advanced", then press =,-

or ENTER.

Press ,&/T to select the desired item, then press

,,=/_ to change the setting.

Press EXIT to return to the normal screen.

Selectable parameters available in each

adjustment item.

Text Size: Auto, Small, Standard, Large

Text Type: Auto, Style1, Style2, Style& Style4, Style&

Style& Style7

Text Edge: Auto, None, Raised, Depressed, Uniform,

Left Shadow, Right Shadow

Text Color: Auto, Black, White, Red, Green, Blue,

Yellow, Magenta, Cyan

Text Auto, Solid, Transparent, Translucent,

Opacity: Flashing

Background Auto, Black, White, Red, Green, Blue,

Color: Yellow, Magenta, Cyan

Background Auto, Solid, Transparent, Translucent,

Opacity: Flashing

• This feature is designed to customize Digital Captions

only.

• The "Auto" value depends on the broadcasting station.

Allows you to use a password to protect certain

settings from being accidentally changed.

IMPORTANT:

Three conditions must be met to enable the V-Chip

O Password is registered.

(_) V-Chip settings have been made.

(_ "V-Chip" is set to "On".

Setting a password

1 Press TV MENU and the MENU screen displays.

2 Press A/T to select "Lock", then press _ or

ENTER.

3 Select and enter a password (4 digits) using the

number buttons (0-9), then press ENTER.

• ":_" appears instead of the number.

4 Enter the same password again to confirm, then

press ENTER, the password is now registered and

the Lock menu will appear on the screen.

Changing the password

Allows you to change your current password.

1 Repeat steps 1 to 3 in Setting a password.

2 Press A/T to select"Change Password", then

press _ or ENTER.

Enter a new password using 0-9, then press

ENTER.

Enter the same password again to confirm, then

press ENTER.

The screen returns to Lock menu. Your new

password has been set.

•As a precautionary measure, make a note of your

password and keep it in a familiar place.

• The "V-Chip Set (DTV)" will only be selectable when

a new rating system can be downloaded via digital

broadcasting inthe U.S.

1 Press TV MENU and the MENU screen displays.

2 Press A/T to select "Lock", then press _ or

ENTER.

Input the 4-digit password by using 0-9, then press

ENTER.

The Lock menu displays.

_-19

50Q0131A Eindb 19 _#.b_ 3/3/2008 1:43:29 PM

Watching TV

V-CHIP might not function according to the condition of the signal from the broadcasting station.

V-CHIP is an electronic filtering device built into your TV/DVD. This tool gives parents a great degree of control

over broadcasts accessed by their children. It allows parents to select programs judged suitable for child viewing

while blocking ones judged not suitable. It does so automatically once you activate the V-CHIP feature in your

TV/DVD.

V-CHIP SET menu will not be selectable from the menu if you do not first configure your password.

(See page 19 for password setting for parental control.)

• The U.S. has two rating systems for viewing content: movie ratings and TV Parental Guidelines.

• The TV Parental Guidelines work in conjunction with the V-CHIP to help parents screen out inappropriate television shows

from their children.

• Movie ratings are used for original movies rated by the Motion Picture Association of America (MPAA) as watched on cable

TV and not edited for television. The V-CHIP can also be set to block MPAA-rated movies.

TV Parental Guidelines

FANTASY

VIOLENCE VIOLENCE

Content

SEXUAL

SITUATIONS SEXUAL

DIALOG

ADULT

LANGUAGE

TV-Y (All children) _ _ _

TV-Y7 (Directed to older children) X _ _

Suggested TV-G (General audience) _ _

age TV-PG (Parental Guidance suggested) X X X

TV-14 (Parents strongly cautioned) X X X

TV-MA (Mature audience only) X X

_: The content rating can be set, but this rating is not normally broadcast by TV stations.

X: Content rating can be set.

• If you select "TV-G", this wi!! automatically block the higher ratings "TV-PG", "TV-1 4" and "TV-MA".

Voluntary movie rating system (MPAA)

G General audiences.All ages admitted.

PG Parental guidancesuggested. Some material may not be suitable for children.

PG-13 Parentsstrongly cautioned.Some material maybe inappropriatefor children under 13.

Age R Restricted.Under 17 requiresaccompanying parent or adultguardian (age varies in some jurisdictions).

NC-17 No one 17 and under admitted.

X X is an older rating that is unified with N0-17 but may be encoded inthe data of older movies.

• If you select "PG-1 3", this wi!! automatically block the higher ratings "R", "NC-1 7" and "X".

• Voluntary movie rating system only uses an age-based rating.

In Lock menu, press A/v to select "V-Chip", then

press ,,I/_ to select "On".

Press A/v to select "V-Chip Set", then press _ or

ENTER.

Press A/v to select "TV Rating", then press _ or

ENTER.

Press A/v/41/I_ to select the desired rating, then

press ENTER.

Press EXIT to return to the normal screen.

Repeat steps 1 and 2 in TV parental Guidelines

(TV Guidelines).

Press A/v to select "Movie Rating", then press t,-

or ENTER,

Press A/v to select the desired rating, then press

ENTER.

Press EXIT to return to the normal screen,

(_ - 20

50Q0131A E.indb 20 (_#.b_ 3/3/2008 1:43:30 PM

Watching TV

• The TV rating systems in Canada are based on the Canadian Radio-Television and Telecommunications Commission

(CRTC) policy on violence in television programming.

• While violence is the most important content element to be rated, the structure developed takes into consideration other

program content like language, nudity, sexuality and mature themes.

• When setting the V-CHIP on the Canadian system you can choose either the Canadian English ratings or the Canadian

French ratings.

Canadian English ratings

i iii ....

E Exempt: Includes news, sports, documentaries and other information programming; talk shows, music

videos, and variety programming.

Children: Intended for younger children under the age of 8 years. Pays careful attention to themes that

Ccould threaten their sense of security and we!!-being.

C8+ Children over 8 years old: Contains no portrayal of violence as the preferred, acceptable, or only way to resolve

conflict; nor encourage children to imitate dangerous acts which they may see on the screen.

General: Considered acceptable for all age groups. Appropriate viewing for the entire family, contains very

Age little violence, physical, verbal or emotional.

Parental Guidance: Intended for a general audience, but may not be suitable for younger children (under

PG the age of 8) because it could contain controversial themes or issues.

Over 14 Years: Could contain themes where violence is one of the dominant elements of the storyline, but

14+ it must be integral to the development of plot or character. Language usage could be profane and nudity

present within the context of the theme.

Adults: Intended for viewers 18 years and older and might contain depictions of violence, which while

18+ related to the development of plot, character or themes, are intended for adult viewing.

Could contain graphic language and portrayals of sex and nudity.

Example: tf you select "G", this wi!! automatically block the higher ratings "PG", "14+" and "18+".

Canadian French ratings

E Exempt programming.

General: All ages and children, contains minimal direct violence, but may be integrated into the plot in a

Ghumorous or unrealistic manner.

General but inadvisable for young children: May be viewed by a wide public audience, but could contain

8 ans+ scenes disturbing to children under 8 who cannot distinguish between imaginary and real situations.

Age Recommended for viewing with parent.

13 ans+ Over 13 years: Could contain scenes of frequent violent scenes and therefore recommended for viewing

with parent.

16 ans+ Over 16 years: Could contain frequent violent scenes and intense violence.

18 ans+ Over 18 years: Only for adult viewing. Could contain frequent violent scenes and extreme violence.

Example: If you select "8 ans+", this will automatically block the higher ratings "13 ans+", "16 ans+" and "18 ans+".

1 Repeat steps 1 and 2 in TV parental Guidelines

(TV Guidelines).

2 Select"CAN ENG Rating", then press ENTER.

Press A/v to select E, C, C8+, G, PG, 14+ or 18+,

then press ENTER.

3 Press EXIT to return to the normal screen.

1 Repeat steps 1 and 2 in TV parental Guidelines

(TV Guidelines).

2 Select"CAN FRE Rating", then press ENTER.

Press A/v to select E ,G, 8 ans+, 13 ans+, 16 ans+

or 18 ans+, then press ENTER.

3 Press EXIT to return to the normal screen.

The V-Chip block is working and censors a broadcast,

"This program has been blocked!" displays.

1 Press MUTE while the V-Chip is working and then

the password entering menu displays.

2 Enter your 4-digit password with 0-9, then press

ENTER.

At this time V-Chip block temporarily releases.

Reactivating the temporarily released V-Chip block

Method 1: Change to the other channel.

Method 2: Switch off the TV power.

• Performing any of the two above wi!! activate the V-Chip

block.

_-21

50Q0131A E.indb 21 (#.b_ 3/3/2008 1:43:30 PM

Other convenience functions

Use the following buttons on the remote control to

operate the menu,

POWER

DISPLAY TV/DVD EJEOT

CD CD (3D

SLEEPVIEWMODEINPUT

CDCDD

®®®8

®®®

®@©

SKIP REV FWD SKIP

STILL/PAUSE PLAY STOP

CSD C5_ C_3

SETUP/TVMENU DVD MENU

AUDIO PLAYMODE ANGLE ZOOM

@CD _CD

R[TURN A-BREPEAT MARKER DIRECT SKIP

C3 CD C3

SHARP

example : Select Language

1 Press TV MENU and the MENU screen displays,

Audio

C h£nrlel

LOCk

Seep

Press A/T to select "Setup", then press _ or

ENTER.

Press &/v to select "Language",

Vid£_ L_el >>

BackHght 16 ..... _

Ab_o Shb4 Off Off

Reset >>

Press </_ to select the desired language.

...on the following pages the MENU can be called

in the same way as here.

Press EXIT to return to the normal screen,

• Some menu items may not displayed depending on the

selected input source.

• If no buttons are pressed for more than approx. 60

seconds, the menu screen wil! return to normal Monitor

screen automatically.

TV MENU: Press to open the menu screen.

AITI<Iv: Press to select a desired item on the

screen or adjust a selected item,

ENTER: Press to go to the next step or complete

the setting.

RETURN: Press to return to the previous step,

EXIT: Press to exit from the menu screen.

All changed settings will be saved,

lower part of the menu screen is an

ational guide for the remote control.

ghsange_.n accordance with each menu

- 22

50QO131A Eindb 22 3/3/2008 1:43:30 PM

Other convenience functions

Picture Picture Setting

AV Mode

View Mode

Film Mode

PC Setting*

(see page 24)

DNR

Brightness /Contrast /

Sharpness /Color/Tint

Co!or Temperature

Sports

Standard

Movie

Memory

On /Off

Hor Position/Ver Position

Clock

Phase

On /Off

Audio Bass /Treble / Balance

MTS Stereo /SAP /Mono

Audio Language

HDMI Audio

Speakers

Channel

Lock

Setup

Add/Delete

Auto Ch Memory

Ch Label

Closed Caption

Language

HDMI

DVI

Off

Adding Channel /Add/

Delete /Clear All

Signal Type /Automatic

Channel Number /Ch

Label /Label Clear

Video Label

Backlight

English /Francais /

EspaSo!

Auto Shut off On /Off

Reset

You can adjust the picture quality to your preference.

Bluish (Coo!) /Neutral (Standard) /Reddish (Warm)

For a clear-cut image emphasizing high contrast, useful for

sports viewing.

For a highly defined image in a normal lighting.

For a movie.

Allows the user to customize settings as desired.You can set

the mode for each input source.

See page 17.

A smoother motion may be obtained by setting the Film Mode

to "On" when you view a DVD from the DVD player.

To adjust the horizontal /vertical position of the image on

the PC Monitor screen. Each video standard wil! require a

different value for this setting.

To minimize any vertical bars or stripes visible on the screen

background.

This must be adjusted after the frequency has been set

optimize picture quality.

DNR (Digital Noise Reduction) can reduce the roughness

of the picture. (This function is available only for analog

broadcast.)

You can adjust the sound quality to your preference.

See page 16.

When two or more audio languages are included in a digital

signal, you can select one of the audio languages.

When you connect the HDMI device to the TV, select this

setting.

When you connect the DVI device to the TV with analog audio

cords, select this setting.

• Sound via speaker and AUDIO OUTPUT terminal are

adjusted with VOL +/- on the remote control unit or VOL -/+

on the TV.

• Sound via the AUDIO OUTPUT terminal is adjusted with

VOL +/- on the remote control unit or VOL -/+ on the TV.

• Sound via speaker is muted.

See page 16.

See page 15.

See page 17.

See pages 19-21.

See page 18.

You can choose from three different languages (English,

French and Spanish) for the on-screen displays.

Let you set the input terminal displayed when using the

"Source Selection" menu or channel display.

Press A/T to select the specific input source which you want

to change.

Press ,/_ to select the new label for the selected input

source.

Backlight adjusts the screen brightness for improved picture

clarity.

In case of "Auto Shut Off" feature is "On", if a station being

viewed stops broadcasting, the TV wil! automatically shut

itself off after 15 minutes.

• If Auto Shut Off is "On" and the broadcast signal is weak,

the TV may automatically shut itself off. If this happens, turn

Auto Shut Off to "Off".

The Reset function returns your settings to the factory

settings.

* "PC Setting" is available only for PC INPUT (INPUT5).

=23

50Q0131A E.indb 23 3/3/2008 1:43:31 PM

Connecting a PC (Personal computer)

Use the INPUT5 (PC) terminals to connect a PC.

• The PC input terminals are DDC1/2B-compatible.

• Refer to "PC compatibility chart" for a list of PC signals compatible with the System.

• Make sure to select the same signal values for the output signal of a PC and the input signal of the TV/DVD set before

connecting with the PC. (See page 23.)

• Depending on the PC being used, images may not be shown without converting the output signals into external output.

Please refer to your PC's manuals regarding converting to external output.

• Connect the RGBcable making sure

that it fits correctly into the terminal. J

Then, firmly secure the connectorsby

tightening the screws on both sides

of the plug.

To ANALOG RGB]

output terminal j ltermina_ j

_ (.... RGBal_ylleailable) V

3.5 mm stereo minijack cable

_tput _ (....... ialiy avalable)_DI_

]

Signal names for 15-pin mini D-sub connecter

Pin No. Signal name Pin No. Signal name

O R O +5V

(_) G _) GND (Ground)

O B @ Not connected

(_ Not connected @ SDA

O CSYNC @ HD

(_) GND (Ground) _) VD

0 GND (Ground) (_) SCL

(_) GND (Ground)

• Pin No. 5 is not used for inputting the signal.

• Pin No. 9 is not connected with the supplied RGB cable.

To view an image from a PC, perform the following

procedure.

O Select the tnput5 (PC) mode using INPUT on the remote

control or the TV/DVD set. (See page 14.)

(_) Select the PC input signal.

G Adjust the "Picture." items if the PC image does not come

in clearly. (See page 23.)

(_ - 24

31.5 60

640 x 400 37.9 85

31.5 60

720 x 400 31.5 70

VGA 37.9 85

31.5 60

37.9 72

640 x 480

37.5 75

43.3 85

WVGA 848 x 480 31.0 60

35.1 56

37.9 60

PC SVGA 800 x 600 48.1 72

46.9 75

53.7 85

48.4 60

56.5 70

XGA 1,024 x 788 60.0 75

68.7 85

1,280 x 720 44.8 60

47.8 60

WXGA 1,280 x 788 48.1 60

1,360 x 788 47.7 60

SXGA 1,280 x 1,024 64.0 60

MAC 13" VGA 640 x 480 34.9 67

MAC 16" SVGA 832 x 624 49.7 75

MAC 19" XGA 1,024 x 788 60.2 75

50Q0131A Eindb 24 3/3/2008 1:43:31 PM

Watching the DVD

Press POWER on the TV/DVD, or POWER on the

remote control.

• POWER indicator (Green): The TV/DVD is on.

("Please wait" will appear for a few seconds on the

screen.)

On the screen, "A" changes to "Reading" and then

playback will commence.

• A menu screen appear on the TV screen, if the disc

has a menu feature. In this case, press A/T/,/_ or

ENTER to operate a menu feature.

Press STOP to end playback.

• The unit memorizes the stopped point, depending on

the disc. "Ill" appears on the screen. Press PLAY to

resume playback (from the scene point).

• If you press STOP again ("11" appears on the screen)

or unload the disc, the TV/DVD wil! clear the stopped

point.

Press EJECT.

Remove the disc and then press POWER.

The TV/DVD turns off.

• When you eject the disc, you may hear mechanism

noise,but it is not malfunction.

Press TV/DVD to select the DVD mode.

Press POWER on the TV/DVD, or POWER on the

remote control.

• The TV/DVD enters standby mode and the image on the

screen disappears.

• The POWER indicator on the TV/DVD changes to Red.

• If you are not going to use this TV/DVD for a long period

of time, be sure to remove the AC cord from the power

outlet.

• Weak electric power is still consumed even when POWER

is turned off.

Press DISPLAY. The status display of the disc will

appear on the screen in order like the figure below.

DISC OPERATION

ELAPSED TOTAL

TIME TIME

TITLE NO. CHAPTER

NO.

ANGLE NO. SUBTITLE LANGUAGE

AUDIO LANGUAGE A KIND OF AUDIO

Place the disc in the disc slot with the label side

facing forward. (If the disc has a label.) Hold the

disc without touching its surface, align it with the

guides, and place it in position.

• Ifa disc is insertedduringsome modesother than DVD

mode, it may switchto DVD modeand then playback

maybe begunautomatically.

If the TV/DVD does not operate properly:

Static electricity, etc., may affect the player's operation.

Disconnect the AC power cord once, then connect it again.

If a non-compatible disc is loaded, "Incorrect Disc", "Region Code Error" or "Parental Error" will appear on the TV screen

according to the type of loaded disc. If these appear, check your disc again (see pages 5 and 32).

Some discs may take a minute or so to start playback.

When an 8 cm disc is placed into the disc slot, and the playback picture or menu display does not appear, press PLAY.

A "Prohibition" symbol "X" may appear at the upper right of the screen. This symbol means either the feature you tried is

not available on the disc, or the TV/DVD cannot access the feature at this time. This does not indicate a problem with the

TV/DVD.

When you set a single-faced disc label downwards (i.e. the wrong way up) "Reading" will appear on the display and then

"Incorrect Disc" will be displayed.

Some playback operations of DVDs may be intentionally fixed by software producers. Since this TV/DVD plays DVDs

according to the disc content recorded, some playback features may not be available. Also refer to the instructions supplied

with the DVDs.

Do not move the unit during playback. Doing so may damage the disc.

Use EJECT to unload and eject the disc.

Do not put any objects other than discs on the disc slot. Doing so may cause the unit to malfunction.

In many instances, a menu screen will appear after playback of a movie is completed. Prolonged display of an on-screen

menu may damage your television set, permanently etching that image onto its screen. To avoid this, be sure to press

POWER on your remote control once the movie is completed.

There may be a slight delay between the button is pressed and the function activates.

=25

50Q0131A Eindb 25 3/3/2008 1:43:32 PM

Watching the DVD

Fast Forward Playback

Press FWD during normal playback.

Each press of FWD will increasethe speed of the search _ (x

2), _ (x4), _ (x 8), _ (x 20).

• To resume normal playback, press PLAY.

• The above figure shown in parentheses indicates the

average speed multiplier.

Review Playback

Press REV during normal playback.

Each press of REV will increasethe speed of the search 44 (x

2), ,41_ (x4), _1444(x 8), _14441_(x 20).

• To resume normal playback, press PLAY.

• The above figure shown in parentheses indicates the

average speed multiplier.

Still Playback

Press STILL/PAUSE during normal playback to pause

playback.

• To resume normal playback, press PLAY.

Use the title, chapter and time recorded on the disc to

locate the desired point to play back.

1 Press DIRECT SKIP during playback.

Frame Advance

Press STILL/PAUSE during still playback. 1

One frame is advanced each time you press STILL/PAUSE. 2

• To resume normal playback, press PLAY.

Slow-motion Playback

Press SLOW (Jb,-)or SLOW (-,ll) during normal playback or

still playback.

Each press of SLOW wil! change the speed of the slow xl/2,

xl/4, xl/6, xl/7.

• To resume normal playback, press PLAY.

• To resume the still playback, press STILL/PAUSE.

Locating a chapter or track

Press SKIP(_-|) Forward or SKIP(|_-,9) Reverse during

playback to locate a chapter that you want to watch.

Each time you press the button, a chapter or track is

skipped.

Press A/v to select the "Title", "Chapter" or "Time".

Press Number buttons (0-9) to input the number.

• If you input a wrong number, press CANCEL.

• Refer to the package supplied with the disc to check

the numbers.

Press ENTER.

• Playback starts.

• When you change the title, playback starts from

Chapter 1 of the selected title.

• Some discs may not work in the above operation.

Press PLAY MODE during playback or stop mode.

Press ENTER to select "Chapter" or "Title".

• The unit automatically starts repeat playback after

finishing the current title or chapter.

Press PLAY MODE again to make the screen

disappear.

• If you set the repeat mode during stop mode, press

PLAY to start Repeat playback.

• To resume normal playback, select Repeat "Off".

• Some discs may not be compatible with the repeat

operation.

• Chapter/Track repeat function is canceled whenever SKIP

I_ or _ is pressed.

• The TV/DVD is capable of holding a still video image or On

screen display image on your television screen indefinitely.

If you leave the still video image or On screen display image

displayed on your TV for an extended period of time, you

risk permanent damage to your television screen.

This TV/DVD will allow you to zoom in on the frame

image. You can then make selections by switching the

position of the frame.

Press ZOOM during playback.

The center part of the image will be zoomed in.

Each press of ZOOM will change the ZOOM magnification

Q_I (x 1.3), O_2 (x 1.5) and O_3 (x 2.0).

Press A/v/.,i/),. to view a different part of the frame.

You may move the frame from the center position UP,

DOWN, LEFT or RIGHT.

3 In the zoom mode press ZOOM repeatedly to

return to a 1:1 view (O,off).

• You can select the Still Playback or Fast Forward (Review)

Playback in the zoom mode.

• Some discs may not respond to zoom feature.

A-B repeat playback allows you to repeat material

between two selected points.

1 Press A-B REPEAT during playback.

The start point is selected.

Press A-B REPEAT again.

The end point is selected.

Playback starts at the point that you selected.

Playback stops at the end point, returns to Point A

automatically, then starts again.

• To resume normal playback press A-B REPEAT

again.

"_ Off" appears on the screen.

• In A-B Repeat mode, subtitles near the A or B locations

may not be displayed.

• You cannot set the A-B Repeat for the scenes that include

multiple angles.

• You may not be able to set A-B Repeat during certain

scenes of the DVD.

• A-B Repeat does not work with an interactive DVD, MP3/

WMA/JPEG-CD.

(_ - 26

Q0131A E.indb 26 3/3/2008 1:43:33 PiV

Watching the DVD

The TV/DVD stores the points that you want to watch

again up to 3 points.

You can resume playback from each scene.

Marking the scenes

1 Press MARKER during playback.

2 Select the blank Marker using A/T, then press

ENTER at the desired scene.

• Up to 3 scenes can be selected.

• Repeat this procedure to set the other 2 scenes.

3 Press MARKER to return to the normal screen.

Returning to the scenes

1 Press MARKER during playback or stop mode.

2 Press A/T to select the Marker 1-3.

3 Press ENTER.

Playback starts from the marked scene.

To cancel the Marker

Follow the above steps 1-2, then press CANCEL.

You can select the language when you play a

multilingual disc.

1 Press AUDIO during playback.

The current soundtrack language will appear.

Press AUDIO repeatedly until the desired language

is selected.

The on-screen display will disappear after a few

seconds.

iiiiiiiiiiiiii_

• If the desired language is not heard after pressing AUDIO

several times, the language is not recorded on the disc.

• Changing soundtrack language is cancelled when you

eject the disc.

The initial default language or available language will be

heard ifthe disc is played back again.

• Some discs may not work with the marking operation.

• The marking is cancelled when you eject the disc or turn

the power off.

• Some subtitles recorded around the marker may fai! to

appear.

Changing the subtitle language

You can select the language when playing back a disc

recorded with multilingual subtitles.

1 Press SUBTITLE repeatedly during playback until

your desired language appears.

When playing back a disc recorded with multi-angle

facility, you can change the view angle.

1 Press ANGLE during playback.

The current angle will appear.

2 Press ANGLE repeatedly until the desired angle is

selected.

• In case of JPEG-playback, the JPEG-image is rotated

90 degrees to the right.

• Depending on the DVD, you may not be able to change

the angles even ifmulti-angles are recorded on the DVD.

2 The on-screen display will disappear after a few

seconds.

Turning the subtitles on and off

Press SUBTITLE during playback until "Off" appears.

• Changing subtitle language is cancelled when you eject

the disc.

• Some functions may not work on some DVDs. You may

not be able to turn subtitles on or off or change subtitles.

While playing the DVD, the subtitle may change when:

- you eject or insert the disc.

- you change the title.

• In some cases, the subtitle language is not changed to the

selected one immediately.

=27

50Q0131A Eindb 27 3/3/2008 1:43:34 PM I

MP3/WMA/JPEG and Audio CD operation

This TV/DVD can playback the MP3/WMA/JPEG-data which has been recorded on CD-R or CD-RW. Audio CD

also can be played back. To produce the MP3/WMA/JPEG-data, you need a Windows-PC with CD-R/RW drive

and a MP3/WMA/JPEG-encoding Software (not supplied).

The Apple-HFS-System cannot be played.

This TV/DVD requires discs/recordings to meet certain technical standards in order to achieve optimal playback quality.

Pre-recorded DVDs are automatically set to these standards. There are many different types of recordable disc formats

(including CD-R containing MP3/WMA files). Given the fact that technology in this area is still maturing, this unit cannot

guarantee that all genre of recordable discs will produce optimal playback quality. The technical criteria set out in this owner's

manual are meant as a guide only.

Please be advised that you must obtain permission from the applicable copyright owners to download copyrighted content,

including music files, in any format, including the MP3 and WMA formats, prior to the downloading thereof.

Limitations on MP3/WMA/JPEG CD playback

• MP3/WMA/JPEG CD is the disc that is standardized by ISO9660, its file name must include 3-digits extension letters,

"mp3", "wma", "jpg".

• MP3/WMA/JPEG CD must be correspond to the tSO standardized files.

• This TV/DVD can read 2000 files per disc. If one disc has more than 2000 files, it reads up to 2000 files, the remaining files

wil! be omitted.

• MP3/WMA/JPEG CDs cannot be used for the purpose of recording.

• If the CD has both audio tracks and MP3/WMA/JPEG files, only audio tracks are played.

• It may take more than one minute for this unit to read MP3/WMA/JPEG files depending on its structure.

• Music recorded by "Joliet Recording Specification" can be played back, the file name is displayed (within 15 letters) on the

screen. Long file names will be condensed.

• The music files recorded by "Hierarchical File System" (HFS) cannot be played.

Limitations on display

• The maximum number for display is 15 letters.

Available letters for display are the following:

capital or small alphabets of A through Z, numbers of 0 through 9, and _ (under score).

• Other letters than those above are replaced in hyphen.

Notes on MP3/WMA/JPEG files

To playback MP3/WMA/JPEG CD inthe recorded order,

1. Use MP3/WMA/JPEG software that records data alphabetically or numerically.

2. Name each file including two-digit or three-digit number (ex. "01" "02" or "001" "002").

3. Refrain from making too many sub-folders.

CAUTION:

• Some MP3/WMA/JPEG CDs cannot be played back depending on the recording conditions.

• The CD-R/RW that has no music data or non MP3/WMA/JPEG files cannot be played back.

Standard, sampling frequency, and the bit rate:

MP3 CD

MPEG-1 Audio

32kHz, 44.1 kHz, 48kHz

32kbps - 320kbps (constant bit rate or variable bit rate)

The recommend recording setting for a high-quality sound is 44.1 kHz of sampling frequency and 128kbps of constant bit

rate.

WMACD

WMA version 7, and 8

32kHz, 48kbps

44.1 kHz, 48kbps - 192kbps

48kHz, 128kbps - 192kbps

The file recorded by mono, 48kHz, 48 kbps is not available to this unit.

Microsoft, Windows Media, and the Windows Logo are either registered trademarks or trademarks of Microsoft

Corporation in the United States and/or other countries.

(_ =28

50Q0131A Eindb 28 3/3/2008 1:43:34 PM

MP3/WMA/JPEG and Audio CD operation

1 Load a disc on which MP3 or WMA files have been

recorded in the disc slot.

2 "Reading" will appear on the TV screen. Reading time

wil! depend on the number of files on the disc.

3 A file browser screen will appear on the TV screen.

Operat[onstatus F_Eenumber EEapsedfime SeFectedf_Eename

Cursor

File type

.b : Indicates Music file {Audio CD/MP3/WMA)

[] : Indicates Picture file {JPEG)

• In case the current directory includes 8 files or more,

press A/T to scroll in the file list.

• To see contents in folder, select the folder and then

press ENTER. To return to the parent directory, select

"[_ Go Up ..." then press ENTER.

• In case of a CD containing a mixture of MP3, WMA

and JPEG files, the files are played back by selecting

them from the file browser.

In the file browser, press A/T to select the desired file.

• When PLAY is pressed after displaying file browser

displayed, playback begins automatically starting from

the first file. In this case, if the first file is an MP3/WMA

file, only MP3/WMA files are played back in order. If

the first file is a JPEG file, the first JPEG file is played

back. If there is no file at a root directory, playback

does not begin automatically.

Press ENTER.

The selected file starts playing back.

Press STOP to end playback.

• The unit records the stopped point. "1_" appears on

the screen. Press PLAY to resume playback (from the

scene point).

• If you press STOP again or unload the disc, the unit

will clear the stopped point.

• MP3 or WMA file on the Kodak Picture CD is not

recognized on this unit.

• During MP3/WMA/JPEG-Playback, you cannot use JUMP

and A-B Repeat functions.

• You can use Repeat (Track or All), Random functions and

Program playback for MP3/WMA/JPEG-Playback (see

page 30).

The file type to make it display in the file browser can be

chosen.

Press ,/_ to select "Select Files" at right column in the

file browser.

• Press ENTER, then press A/T to select file type from

the list (Music or Picture).

2 Press ENTER to add/remove check mark. Checked file

type will be displayed in the file browser.

3 Press RETURN to save the setting.

In the file browser, press A/T to select the desired JPEG

file.

To display a thumbnail list, press DVD MENU.

Press ,/_/A/T to select the desired file.

(To return to the file browser, press TOP MENU.)

• When PLAY is pressed after displaying the file

browser, playback begins automatically starting from

the first file. In this case, if the first file is a JPEG file,

the first JPEG file is played back. If the first file is an

MP3/WMA file, only MP3/WMA files are played back

in order. If there is no file at a root directory, playback

does not begin automatically.

Press ENTER. The selected picture appears on the

screen.

Rotating an image

You can rotate an image by 90 degrees.

Press ANGLE during playback of the image.

"IN-", "_", "'_" or "li" appears on the screen.

Zooming an image

Zoom function also can be used in viewing JPEG files.

Press ZOOM (see "Zooming" on page 26).

Press STOP to end playback.

• The file browser appears on the screen. If you want to

watch the other file, repeat steps 1 -2.

• When an image exceeds 5760 x 3840 pixels, the entire

image cannot be displayed on a screen, preview window

or thumbnail list.

The slide show enables you to view pictures (files) one after

another automatically.

Preparation:

Set "JPEG Interval" setting to "5 Seconds", "10 Seconds" or

"15 Seconds" (see page 31 ).

1 Select your desired starting file for the slide show in step

1 on the left.

Press ENTER or PLAY to start slide show from the

selected file.

• If you press STILL/PAUSE during the slide show, the

slide show stops temporary. "I!" appears briefly on the

screen.

• If the picture appears upside down or sideways, press

ANGLE repeatedly until it's right side up. "1_-", "p",

"'_11" or "ll" appears on the screen.

• Press PLAY or SKIP _ again to resume the slide

show.

• When the slide show playback finished, the file list

appears.

• To stop the slide show, press STOP. The file list

appears.

• During JPEG playback, you cannot use Direct Skip and

A-B Repeat functions.

• It may have a longer interval due to a size of data.

=29

,0Q0131A E.indb 29 3/3/2008 1:43:35 PM

MP3/WMA/JPEG and Audio CD operation Function setup

1 In the file browser, press A/v/.,i/_ to select

"Repeat" during stop mode.

2 Press ENTER repeatedly to select "Track" or "All".

3 Press PLAY.

• The unit automatically starts repeat playback after

finishing the current track.

To resume normal playback

Select Repeat : "Off" in step 2.

• The repeat or random function is canceled when you eject

the disc or turn the power off.

• The track repeat function is canceled when SKIP H_ or

is pressed.

• In case of Audio CD, the function of A-B Repeat also can

be used. See "A-B Repeat playback" (see page 26).

Use the following buttons on the remote control to

operate the menu.

SETUP/TVMENU DVD MENU

AUDIO PLAYMODE ANGLE ZOOM

(Z) CD (2D CD

RETURN A-BREPEAT MARKER DIRECTSKIP

C3 CD C3

SHARP

In the file browser, press A/v/,.i/_ to select

"Mode" during stop mode.

Press ENTER to select "Random".

Press PLAY.

• The Randomplayback willstart.

To resume normal playback

Select Mode :"Off" in step 2.

1 In the file browser, press A/v/_/_ to select

"Edit Mode", then press ENTER.

• When "Edit Mode" is black color, you can mark the

files which you want to add into Program list.

2 Press _/_/A/v to select the file you want to add

into the program list.

• Press ENTER. Selected file was marked.

Repeat this procedure to select the other files.

3 Press _/_/A/v to select"Add To Program".

Then press ENTER. All marked files are added into

the program list.

• When you finish storing the files you want into the

Program list, select "Edit Mode" again and press

ENTER to release edit mode.

4 Press A/v to select "Program View", then press

ENTER. Program View shows only the programed

files that you have added in Step 2.

5 In the Program View, press PLAY. The files start to

playback in programmed order that were added by you.

To remove file from program list in stop mode

In the Edit Mode, switch to Program View. Select the

files you want to remove, then press ENTER. Select

"Clear Program" and press ENTER. Marked file is

removed from program list.

SETUP:

A/T/,/_:

ENTER:

RETURN:

Press to open or close the menu screen.

• During stop mode, the DVD SETUP

screen displays.

• During playback mode, the TV MENU

displays.

Press to select a desired item on the

screen or adjust a selected item.

Press to go to the next step or complete

the setting.

Press to return to the previous step.

example: Setting the language

1 Press SETUP and the SETUP screen displays.

2 Press A/v to select [] (LANGUAGE), then press

_/_ or ENTER.

Subtitle : English

Audio : English

3 Press A/v to select desired option, then press _ or

ENTER.

4 Press A/v to select your desired language (e.g.

English), then press ENTER.

5 Press SETUP to return to the normal screen.

• The program function is canceled when you eject the disc

or turn the power off.

-30

50QO131A Eindb 30 3/3/2008 1:43:35 PM I

Function Setup

Language *_


Audio

Setup

Menu *_

Subtitle *_

Audio .1

TV Screen *2

Display *3

Picture Mode

JPEG Interval *4

Night Mode *5

English /Francais

/Espanol The selected language will be heard or seen,

Other Other language can be selected (see the "Language code

list" on page 33).

Subtitles do not appear.

The unit will select the first priority language of each disc.

Off (subtitle)

Original (Audio)

4:3 _ (Letter

box)

4:3 r-] (Pan

scan)

16:9 i--'] (Wide)

Off /On

When playing back a wide screen-DVD disc, it displays

the wide picture with black bands at the top and bottom of

screen.

It displays the wide picture on the whole screen with left and

right edges automatically cut off.

Select this mode when connecting to a wide-screen TV.

A wide screen picture is displayed full size.

On screen display can be switched on or off when you press

the DISPLAY button.

There are two types of source content in pictures recorded in DVD video discs:

film content (pictures recorded from films at 24 frames per second) and video

content (video signals recorded at 30 frames per second). Make this selection

according to the ty _e of content being viewed.

Auto Select this position normally. The DVD player automatically

detects source content, film or video, of playback source.

Film Suitable for playback of film content pictures.

Video Suitable for playback of video content pictures.

You can continuously playback all JPEG files automatically.

Off Plays back one file at a time.

5/10 /15 Displays images in the form of a slide show.

Seconds Every 5 /10 /15 seconds the image changes.

Night Mode enables you to control the dynamic range so as to achieve a

suitable sound for /our equipment.

Off It plays back at the recording level on the disc.

On Loud sound such as explosion or similar is toned down

slightly when played back. This makes it suitable for when it

is connected to a stereo.

Digital Out *6 You can select the digital output sound format corresponding to your system

connection.

Off There is no sound output from DIGITAL AUDIO OUT jack.

PCM Change Dolby Digital to PCM for the output.

Select when connected to a 2 channel digital stereo

amplifier.

Bitstream Disc audio bitstream data will be output.

See page 32.

Parental

Password

_ If the selected language is not recorded on the disc, the first priority language is selected.

_2tf the DVD disc is not formatted in the pan & scan style, it displays 4:3 style.

_3If "Display" is not set to "On" on screen displays do not appear when you press any buttons except SUBTITLE, PLAY

MODE, MARKER, DIRECT SKIP, DISPLAY and AUDIO.

_4You cannot display DVD SETUP screen when disc is playback

_sThis function works only during playback of Dolby Digital recorded discs.

_sThe level of Dynamic Range Reduction may differ depending on DVD video disc.

_6Even if you select "Bitstream", MPEG audio wil! be output in PCM format.

_=31

50Q0131A E.indb 31 3/3/2008 1:43:36 F

Function setup

Some discs are specified as not suitable for children.

Playback of such discs can be restricted with this

TV/DVD.

1 Select"Parental", then press • or ENTER.

"Enter Password" screen will appear.

Press "0000" using Number buttons (0-9).

(Please note, this is pre-setting password of this

unit). Then press ENTER. The parental level list

will appear.

• Ifyou input a wrongnumber, pressCANCEL.

Level Off

Level 8

Level 1

The parental control setting does not

function.

Virtually all DVD software can be

played back.

DVD software for adults cannot

be played back.

• Select from level 1 to level 8. The limitation wil! be

more severe as the level number decreases.

3 Press A/T to select from the level 1 to level 8. The

limitation will be more severe as the level number

is lower. Then press ENTER.

4 Press SETUP to return to the normal screen.

• After the ratingis locked,the setting cannot be

changed unlessyouenterthe correct password.

Depending on the DVD disc, the disc may try to

temporarily cancel the rating level that you have set.

It is up to you to decide whether to cancel the rating

level or not.

1 Load a DVD disc. (See page 25.)

If the DVD disc has been designed to temporarily

cancel the rating level, the screen which follows the

"Reading" screen will change, depending on which

disc is played. If you select "YES" with pressing

ENTER, password input screen will then appear.

Enter the password with Number buttons (0-9).

Then press ENTER.

• Ifyou interruptthe entering,press RETURN.

4 Playback will commence if the entered password

was correct.

• This temporary cancellation of the rating level wil! be kept

until the disc is ejected.

When the disc is ejected, the original rating level wil! be

set again automatically.

• The password is required every time when you change the

parental level.

• Depending on the discs, the TV/DVD may not be able to

limit playback.

• Some discs may not be encoded with specific rating level

information though its disc jacket says "adult." For those

discs, the parental control feature will not work.

1 Select"Password", then press • or ENTER.

"Enter Current Password" screen will appear.

2 Press Number buttons (0-9) to enter the

password you have stored.

• Ifyou inputa wrong number,press CANCEL.

3 Then press ENTER. "Enter New Password" screen

will appear. Press Number buttons (0-9) to input

the new password.

4 Press ENTER. Now your new password has been

set. Be sure to remember this number!

If you forget the password...

1. Press EJECT to remove the disc.

2.While holding 7 down on the remote control and at the

same time press STOP on the front panel. "Password

Clear" appears on the screen. Now the password has

been returned to the initial value ("0000").

- 32

50Q0131A Eindb 32 3/3/2008 1:43:36 PM

Appendix

Enter the appropriate code number for the initial settings "Menu", "Subtitle" and/or "Audio" (see page 31 ).

Language Name Code Language Name Code Language Name Code Language Name Code

Abkhazian 1112 Fiji 1620 Lingala 2224 Singhalese 2919

Afar 1111 Finnish 1619 Lithuanian 2230 Slovak 2921

Afrikaans 1116 French 1628 Macedonian 2321 Slovenian 2922

Albanian 2927 Frisian 1635 Malagasy 2317 Somali 2925

Amharic 1123 Galician 1722 Malay 2329 Spanish 1529

Arabic 1128 Georgian 2111 Malayalam 2322 Sundanese 2931

Armenian 1835 German 1415 Maltese 2330 Swahili 2933

Assamese 1129 Greek 1522 Maori 2319 Swedish 2932

Aymara 1135 Greenlandic 2122 Marathi 2328 Tagalog 3022

Azerbaijani 1136 Guarani 1724 Moldavian 2325 Tajik 3017

Bashkir 1211 Gujarati 1731 Mongolian 2324 Tamil 3011

Basque 1531 Hausa 1811 Nauru 2411 Tatar 3030

Bengali; Bangla 1224 Hebrew 1933 Nepali 2415 Telugu 3015

Bhutani 1436 Hindi 1819 Norwegian 2425 Thai 3018

Bihari 1218 Hungarian 1831 Oriya 2528 Tibetan 1225

Breton 1228 Icelandic 1929 Panjabi 2611 Tigrinya 3019

Bulgarian 1217 Indonesian 1924 Pashto, Pushto 2629 Tonga 3025

Burmese 2335 Interlingua 1911 Persian 1611 Turkish 3028

Byelorussian 1215 Irish 1711 Polish 2622 Turkmen 3021

Cambodian 2123 Italian 1930 Portuguese 2630 Twi 3033

Catalan 1311 Japanese 2011 Quechua 2731 Ukrainian 3121

Chinese 3618 Javanese 2033 Rhaeto-Romance 2823 Urdu 3128

Corsican 1325 Kannada 2124 Romanian 2825 Uzbek 3136

Croatian 1828 Kashmiri 2129 Russian 2831 Vietnamese 3219

Czech 1329 Kazakh 2121 Samoan 2923 Volap_k 3225

Danish 1411 Kirghiz 2135 Sanskrit 2911 Welsh 1335

Dutch 2422 Korean 2125 Scots Gaelic 1714 Wolof 3325

English 1524 Kurdish 2131 Serbian 2928 Xhosa 3418

Esperanto 1525 Laothian 2225 Serbo-Croatian 2918 Yiddish 2019

Estonian 1530 Latin 2211 Shona 2924 Yoruba 3525

Faroese 1625 Latvian, Lettish 2232 Sindhi 2914 Zulu 3631

=33

50Q0131A E.indb 33 3/3/2008 1:43:37 PM

Appendix

Problem Possible Solution

•No power • Check if you pressed POWER on the remote control unit. (See page 15.) If the

indicator on the TV/DVD does not light up, press POWER on the TV/DVD.

• Is the AC cord disconnected? (See page 8.)

• Has the power been turned on? (See page 15.)

• Unit cannot be operated. • External influences such as lightning, static electricity, may cause improper

operation. In this case, operate the unit after first turning off the power of the TV/

DVD or unplugging the AC cord and replugging it in after 1 or 2 minutes.

• Remote control unit does not • Are batteries inserted with polarity (+, -) aligned? (See page 9.)

operate. • Are batteries worn out? (Replace with new batteries.)

• Are you using it under strong or fluorescent lighting?

• Is a fluorescent light illuminated near the remote control sensor?

• Picture is cut off/with sidebar • Are screen mode adjustments such as view mode choose made correctly? (See

screen, page 17.)

• Strange color, light color, or color • Adjust the picture tone. (See page 23.)

misalignment • Is the room too bright? The picture may look dark in a room that is too bright.

• Power is suddenly turned off. • Is the sleep timer set? (See page 12.)

• Check the power control settings. (See page 15.)

• The unit's internal temperature has increased.

Remove any objects blocking vent or clean.

• No picture • Is connection to other components correct? (See page 14.)

• Is correct input signal source selected after connection? (See page 14.)

• Is the correct input selected? (See page 14.)

• Is picture adjustment correct? (See page 23.)

• No sound • Is the volume too low? (See page 12.)

• Have you pressed MUTE on the remote control unit? (See page 12.)

• The TV sometimes makes a • This is not a malfunction. This happens when the cabinet slightly expands and

cracking sound, contracts according to change in temperature. This does not affect the TV's

performance.

The example of an error

message displayed on a screen

• Digital channel signal strength is

low

Possible Solution

• Check the antenna cable. Check that the antenna is correctly setup.

• Digital channel is scrambled

• Audio only

• It is subscription channel. Contact the service provider.

• The channel has audio contents only.

Problem Possible Solution

• There is no image. • Make sure the RGB cable is properly connected. (See page 24.)

• Make sure the output signal of the PC and the input signal setting of the LCD TV set

are matched.(See page 24.)

• Some software prohibit video playback on an external display when playing back a

video with a notebook PC. This is not attributable to a problem with the LCD TV set.

• There is no sound. • Make sure the PC audio cable is properly connected. (See page 24.)

• Check if the mute function activates, or if the volume is set to minimum. (See page

12.)

• The text is blurred. • Adjust "Clock" and "Phase" using the PC Setting menu. (See page 23.)

• The image is not displayed inthe • Adjust "Hor Position" and "Ver Position" using the PC Setting. (See page 23.)

center of the screen.

(_ =34

Cautions regarding use in high and low temperature environments

• When the unit is used in a low temperature space (e.g. room, office), the picture may leave trails or appear slightly

delayed. This is not a malfunction, and the unit will recover when the temperature returns to normal.

• Do not leave the unit in a hot or cold location. Also, do not leave the unit in a location exposed to direct sunlight or near a

heater, as this may cause the cabinet to deform and the Liquid Crystal panel to malfunction.

Storage temperature: -4°F to +140°F (-20°C to +60°C)

50QO131A Eindb 34 3/3/2008 1:43:37 PM

Appendix

Problem

• Playback doesn't start.

Possible Solution

• No disc is inserted. (See page 25.)

• The disc may be dirty. Clean up the disc. (See page 6.)

• The TV/DVD cannot play CD-ROMs, etc. (See page 5.)

• No picture. • TV/DVD selector is not set correctly. (See page 25.)

• No sound. • Check the input selector of the amplifier is set properly.

• The TV/DVD is in the special playback mode. (See page 26.)

• Select the correct Audio Output position on AV amplifier.

• Picture is distorted during fast • The picture wil! be distorted occasionally.

reverse/forward playback.

• Stopping playback, search, • Some discs may not do some of the functions.

slowmotion play, repeat play, or

program play, etc. cannot be

performed.

• No on-screen display. • Select Display to On. (See page 31 .)

• No surround sound. • The setup does not match your stereo system.

• The TV/DVD or remote operation • Turn off the TV/DVD and unplug the AC power cord for several minutes, then

key is not functioning, replug it.

• Playback does not start when the • Check the Parental setup. (See page 32.)

title is selected.

• Audio soundtrack and/or subtitle • Multilingual language is not recorded on the DVD disc. (See page 27.)

language is not changed when

you playback a DVD.

• No subtitle. • Some discs have no subtitles. (See page 27.)

• Subtitles are cleared. Press SUBTITLE. (See page 27.)

• Angle cannot be changed. • Multi-angles are not recorded on the DVD disc. (See page 27.)

• "X" appears on the screen. • The function is prohibited with the TV/DVD or the disc. (See page 25.)

CLEARING THE PASSWORD

If you forget the password, clear the password using the following procedure.

®@O

SKIP REV FWD SKIP

STILL/PAUSE PLAY STOP

CSD C_ CK3

1 Press and hold both VOL - on the TV/DVD and press 0 on the remote control simultaneously for a few

seconds until "Lock" menu appears on the screen.

2 Now the old password was cleared. You can set the new password.

thepasswo'oisllllI

• As a precautionary measure, make a note of your password above, cut it from this manual, and keep it in a safe place.

=35

50QO131A Eindb 35 3/3/2008 1:43:37 PM

Appendix

Item Model: LC-26DV24U

LCD panel 26" Active Matrix (a-Si TFT LCD)

(Diagonal Measurement : 26")

Resolution 1,049,088 pixels (1366 x 768)

TV TV-standard (CCIR) American TV Standard ATSC/NTSC System

Function Receiving VHF/UHF VHF 2-13ch, UHF 14-69ch

Channel CATV 1-125ch (non-scrambled channel only.)

Digital Terrestrial 2-69ch

Broadcast (8VSB)

Digital Cable .1 1-125ch (non-scrambled channel only.)

(64/256 QAM)

Audio multiplex BTSC System

Audio out 5W x 2

Terminals Side INPUT 1 AV in, S-VIDEO in

INPUT 2 AV in

INPUT 3 COMPONENT in, Audio in

INPUT 4 HDMI in with HDCP, Audio in

INPUT 5 15-pin mini D-sub female connector, Audio in (€ 3.5 mm jack)

OUTPUT Audio out

DIGITAL AUDIO Coaxial Digital audio output x 1 (PCM/Dolby Digital)

OUTPUT

ANT/CABLE 75 [3 Unbalance, FType x 1 for Analog (VHF/UHF/CATV)

and Digital (AIR/CABLE)

OSD language English/French/Spanish

Power Re( uirement AC 120 V, 60 Hz

Power Consumption 120 W (0.8 W Standby with AC 120V)

Weight TV + stand 25.9 Ibs./12.0 kg

TV only 22.8 Ibs./lO.5 kg

Dimension .2 TV + stand 26s/16x 1911/16x 99/18inch

(W x H x D) TV only 265/16x 173/4x 49/16inch

DVD Signal system NTSC

section Applicable disc DVD (12 cm, 8 cm), CD (12 cm, 8 cm)

Frequency response DVD : 4 Hz - 44K Hz /CD :4 Hz - 20K Hz

Wow and flutter Below Measurable Level

Pickup CD : Wavelength: 780- 790 nm

Maximum output power: 7 mW

DVD : Wavelength: 652 - 662 nm

Maximum output power: 5 mW

Operating temperature +41 °F to +104°F (+5°C to +40°C)

_ Emergency alert messages via Cable are unreceivable.

_2Thedimensional drawings are shown on the inside back cover.

• Typical time for power output decrease of about one-half assuming continuous use in a room with normal lighting, normal

brightness and temperature at 77°F/25°C

• As part of policy of continuous improvement, SHARP reserves the right to make design and specification changes for

product improvement without prior notice. The performance specification figures indicated are nominal values of production

units. There may be some deviations from these values in individual units.

(_ =36

50QO131A E.indb 36 3/3/2008 1:43:38 PM

Calling for Service

For location of the nearest Sharp Authorized Service, or to obtain product literature, accessories, supplies, or

customer assistance, please call 1-800-BE-SHARP.

LIMITED WARRANTY

CONSUMER LIMITED WARRANTY

SHARP ELECTRONICS CORPORATION warrants to the first consumer purchaser that this Sharp brand Liquid Crystal Display product (the

"Product"), when shipped in its original container, will be free from defective workmanship and materials, and agrees that it will, at its option,

either repair the defect or replace the defective Product or part thereof with a new or remanufactured equivalent at no charge to the

purchaser for parts or labor for the period(s) set forth below.

This warranty does not apply to any appearance items of the Product or if the serial number or model number affixed to the Product has

been removed, defaced, changed, altered or tampered with. This warranty does not cover installation or signal reception problems. This

limited warranty will not apply if the Product has been or is being used in a commercial setting or application; this warranty is meant solely

for the non-commercial, household use of the Product by consumers in their home or residence. If you intend to or already use this Product

for commercial purposes or in a commercial setting, there are warranties available to cover your use of this Product, the terms of which may

vary. Please contact 1-888-GO-SHARP for further information.

In order to enforce your rights under this limited warranty, you should follow the steps set forth below. You must be able to provide proof of

purchase to the servicer, which proof must include the date of purchase.

To the extent permitted by applicable state law, the warranties set forth are in lieu of, and exclusive of, all other warranties, express or

implied. Specifically ALL OTHER WARRANTIES OTHER THAN THOSE SET FORTH ABOVE ARE EXCLUDED, ALL EXPRESS AND

IMPLIED WARRANTIES INCLUDING THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR USE, AND FITNESS FOR A PARTICULAR

PURPOSE ARE SPECIFICALLY EXCLUDED. IE UNDER APPLICABLE STATE LAW, IMPLIED WARRANTIES MAY NOT VALIDLY BE

DISCLAIMED OR EXCLUDED, THE DURATION OF SUCH IMPLIED WARRANTIES IS LIMITED TO THE PERIOD(S) FROM THE DATE OF

PURCHASE SET FORTH BELOW. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS

WHICH VARY FROM STATE TO STATE.

The warranties given herein shall be the sole and exclusive warranties granted by Sharp and shall be the sole and exclusive remedy

available to the purchaser and only for the time periods set forth herein. No other representations or promises made by anyone are

permitted. Correction of defects, in the manner and for the period of time described herein, shall constitute complete fulfillment of all

liabilities and responsibilities of Sharp to the purchaser with respect to the Product, and shall constitute full satisfaction of all claims,

whether based on contract, negligence, strict liability or otherwise. Sharp does not warrant nor shall Sharp be liable, or in any way

responsible, for Products which have been subject to abuse (including, but not limited to, improper voltage), accident, misuse, negligence,

lack of reasonable care, alteration, modification, tampering, misuse, improper operation or maintenance or any damages or defects in the

Product which were caused by repairs or attempted repairs performed by anyone other than a Sharp authorized servicer. Nor shall Sharp

be liable or in any way responsible for any incidental or consequential economic or property damage. Some states do not allow limits on

warranties or on remedies for breach in certain transactions; in such states, the limits herein may not apply.

THIS LIMITED WARRANTY IS VALID ONLY IN THE FIFTY (50) UNITED STATES, THE DISTRICT OF COLUMBIA AND PUERTO RICO.

Model Specific Section

Your Product Model Number & Description:

Warranty Period for this Product:

Additional Exclusions from

Warranty Coverage (if any):

Where to Obtain Service:

What to do to Obtain Service:

LC-26DV24U Combination Liquid Crystal Television And DVD/CD player

(Be sure to have this information available when you need service for your

Product.)

One (1) year parts, 90 days labor from the date of purchase.

Image Retention resulting from a fixed image being displayed for long

periods of time is not covered by this Limited Warranty (see Operation

Manual on how to prevent this).

From a Sharp Authorized Servicer located in the United States. To find the

location of the nearest Sharp Authorized Servicer, please call Sharp toll free

at 1-800-BE-SHARR

Ship prepaid or carry in your Product to a Sharp Authorized Servicer. Be sure

to have proof of purchase available. If you ship the Product, be sure it is

insured and packaged securely. Please use two persons to carry the Product,

transport it in its original packaging, and ensure that the Product is covered

to avoid scratches and damage. Sharp shall not be responsible for lost,

stolen or misdirected mail or for damage to the product incurred during

shipping.

TO OBTAIN PRODUCT INFORMATION OR PURCHASE ACCESSORIES AND EXTENDED WARRANTIES, CALL 1-800-BE-SHARP

OR VISIT www.sharpusa.com

- 37

50Q0131A E.indb 37 3/3/2008 1:43:38 PM

VALID_IN CANADA ONLY SHARPce_

LiMiTED WARRANTY

Consumer E/ectronics Products

Congratulations on your purchase!

Sharp Electronics of Canada Ltd. (hereinafter called "Sharp") gives the following express warranty to the first consumer purchaser for this

Sharp brand product, when shipped in its original container and sold or distributed in Canada by Sharp or by an Authorized Sharp Dealer:

Sharp warrants that this product is free, under normal use and maintenance, from any defects in material and workmanship. If any such

defects should be found in this product within the applicable warranty period, Sharp shall, at its option, repair or replace the product as

specified herein.

This warranty shall not apply to:

(a) Any defects caused or repairs required as a result of abusive operation, negligence, accident, improper installation or inappropriate

use as outlined in the owner's manual.

(b) Any Sharp product tampered with, modified, adjusted or repaired by any party other than Sharp, Sharp's Authorized Service Centres

or Sharp's Authorized Servicing Dealers.

(c) Damage caused or repairs required as a result of the use with items not specified or approved by Sharp, including but not limited to

head cleaning tapes and chemical cleaning agents.

(d) Any replacement of accessories, glassware, consumable or peripheral items required through normal use of the product including but

not limited to earphones, remote controls, AC adapters, batteries, temperature probe, stylus, trays, filters, belts, ribbons, cables and

paper.

(e) Any cosmetic damage to the surface or exterior that has been defaced or caused by normal wear and tear.

(f) Any damage caused by external or environmental conditions, including but not limited to transmission line/power line voltage or liquid

spillage.

(g) Any product received without appropriate model, serial number and CSA/cUL markings.

(h) Any products used for rental or commercial purposes.

(i) Any installation, setup and/or programming charges.

Should this Sharp product fail to operate during the warranty period, warranty service may be obtained upon delivery of the Sharp product

together with proof of purchase and a copy of this LIMITED WARRANTY statement to an Authorized Sharp Service Centre or an

Authorized Sharp Servicing Dealer. In home warranty service may be provided at Sharp's discretion on any Sharp television with the

screen size of 27" or larger and on any Sharp Over-the-Range Microwave Oven.

This warranty constitutes the entire express warranty granted by Sharp and no other dealer, service centre or their agent or employee is

authorized to extend, enlarge or transfer this warranty on behalf of Sharp. To the extent the law permits, Sharp disclaims any and all

liability for direct or indirect damages or losses or for any incidental, special or consequential damages or loss of profits resulting from a

defect in material or workmanship relating to the product, including damages for the loss of time or use of this Sharp product or the loss

of information. The purchaser will be responsible for any removal, reinstallation, transportation and insurance costs incurred. Correction of

defects, in the manner and period of time described herein, constitute complete fulfillment of all obligations and responsibilities of Sharp

to the purchaser with respect to the product and shall constitute full satisfaction of all claims, whether based on contract, negligence, strict

liability or otherwise.

WARRANTY PERIODS: Parts & Labour (exceptions noted)

Audio Product 1 year

Camcorder 1 year

DVD Product 1 year

Projector 1 year (lamp 90 days)

LCD TV 1 year

Microwave Oven 1 year (magnetron component-4 additional years)

Air Purifier 1 year

Portable Air Conditioner 1 year

To obtain the name and address of the nearest Authorized Sharp Service Centre or Dealer, please contact:

SHARP ELECTRONICS OF CANADA LTD. 335 Britannia Road East, Mississauga, Ontario L4Z IW9

For more information on this Warranty, Sharp Extended Warranty

Offers, Sharp Canada Products, Accessory Sales, Dealer or Service SHARP

Locations, please call (905) 568-7140 _, _f

Visit our Web site: www.sharp.ca -T

SERVICE

Revision 12/16/05

(_ - 38

50Q0131A E.indb 38 (_#.h_ 3/3/2008 1:43:38 PM
