LC-26SB24U

LIQUID CRYSTAL TELEVISION

TC:LC:VISEURACL

TELEVISOR CON PANTALLA DE CRISTAL LiQUIDO

OPERATION MANUAL

MODE D'EMPLOI

MANUAL DE OPERACl0N

H..,,,,,im iTM PC

input

r'][IIDOLBYI

DIGITAL

LC-26SB24U

LIQUID CRYSTAL TELEVISION

ENGLISH

OPERATION MANUAL

IMPORTANT:

To aid reporting in case of loss or theft, please record the

TV's model and serial numbers in the space provided. The

numbers are located at the rear of the TV.

Model No.:

Serial No.:

• Manufactured under license from Dolby Laboratories. "Dolby" and the double-D symbol are trademarks of Dolby

Laboratories.

• "HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI

Licensing LLC."

• Products that have earned the ENERGY STAR ®are designed to protect the environment through superior energy efficiency.

IMPORTANT INFORMATION

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO

NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK).

NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE

PERSONNEL.

The lightning flash with arrow-head

symbol, within an equilateral triangle,

is intended to alert the user to the

presence of uninsulated "dangerous

voltage" within the product's

enclosure that may be of sufficient

magnitude to constitute a risk of

electric shock to persons.

The exclamation point within a

triangle is intended to alert the user

to the presence of important

operating and maintenance

(servicing) instructions in the

literature accompanying the product.

(_ml

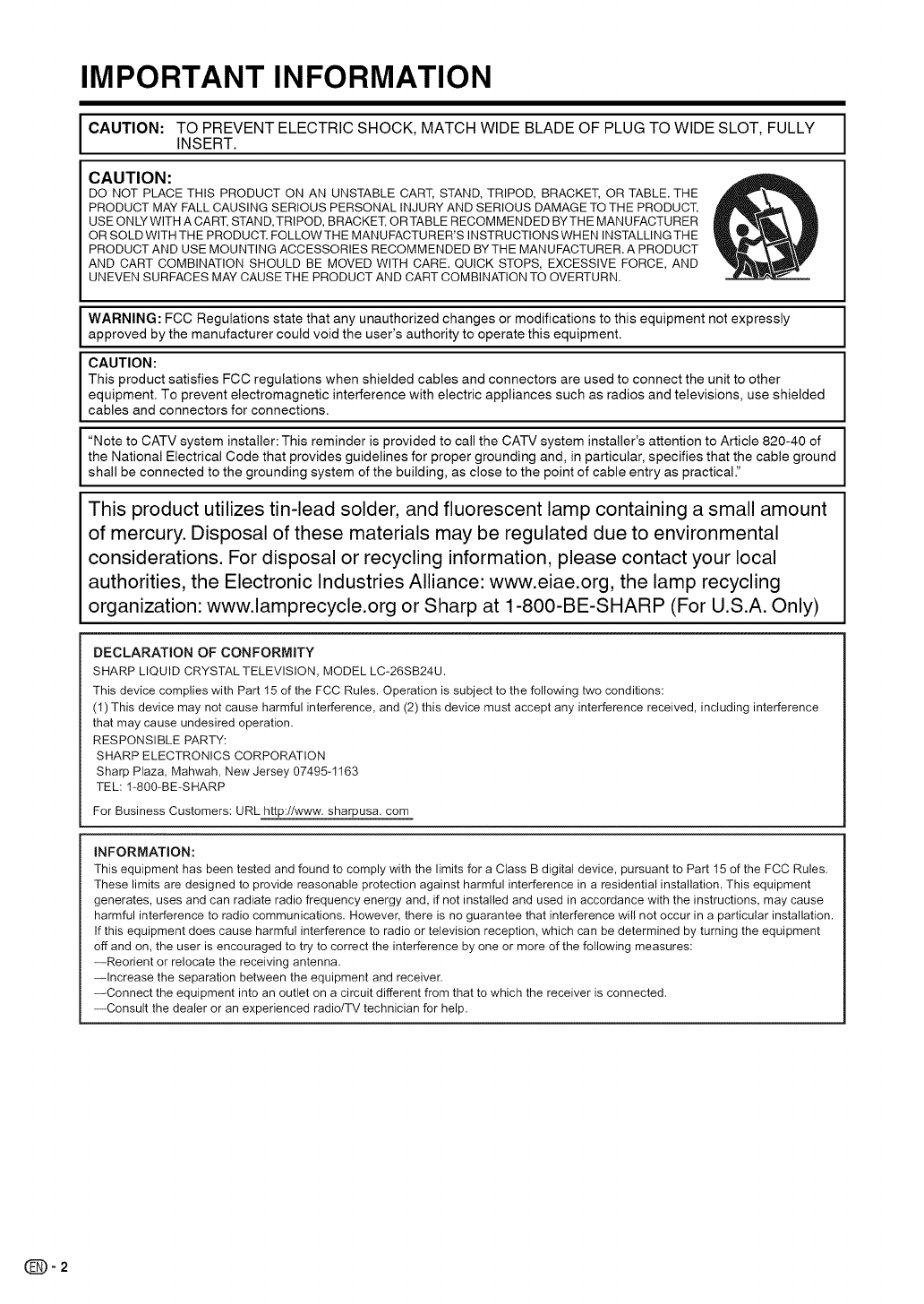

IMPORTANT INFORMATION

ICAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY

INSERT,

CAUTION:

DO NOT PLACE THIS PRODUCT ON AN UNSTABLE CART, STAND, TRIPOD, BRACKET, OR TABLE. THE

PRODUCT MAY FALL CAUSING SERIOUS PERSONAL INJURY AND SERIOUS DAMAGE TO THE PRODUCT.

USE ONLYWITH A CART, STAND, TRIPOD, BRACKET, ORTABLE RECOMMENDED BYTHE MANUFACTURER

OR SOLD WITH THE PRODUCT. FOLLOWTHE MANUFACTURER'S INSTRUCTIONS WHEN INSTALLING THE

PRODUCT AND USE MOUNTING ACCESSORIES RECOMMENDED BY THE MANUFACTURER. A PRODUCT

AND CART COMBINATION SHOULD BE MOVED WITH CARE. QUICK STOPS, EXCESSIVE FORCE, AND

UNEVEN SURFACES MAY CAUSE THE PRODUCT AND CART COMBINATION TO OVERTURN.

WARNING: FCC Regulations state that any unauthorized changes or modifications to this equipment not expressly

approved by the manufacturer could void the user's authority to operate this equipment.

CAUTION:

This product satisfies FCC regulations when shielded cables and connectors are used to connect the unit to other

equipment. To prevent electromagnetic interference with electric appliances such as radios and televisions, use shielded

cables and connectors for connections.

"Note to CATV system installer: This reminder is provided to cal! the CATV system installer's attention to Article 820-40 of

the National Electrical Code that provides guidelines for proper grounding and, in particular, specifies that the cable ground

shall be connected to the grounding system of the building, as close to the point of cable entry as practica!."

This product utilizes tin-lead solder, and fluorescent lamp containing a small amount

of mercury. Disposal of these materials may be regulated due to environmental

considerations. For disposal or recycling information, please contact your local

authorities, the Electronic Industries Alliance: www.eiae.org, the lamp recycling

organization: www.lamprecycle.org or Sharp at 1-800-BE-SHARP (For U.S.A. Only)

DECLARATION OF CONFORMITY

SHARP LIQUID CRYSTAL TELEVISION, MODEL LC-26SB24U.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference

that may cause undesired operation.

RESPONSIBLE PARTY:

SHARP ELECTRONICS CORPORATION

Sharp Plaza, Mahwah, New Jersey 07495-1163

TEL: 1-800-BE-SHARP

For Business Customers: URL http://www, sharpusa, com

INFORMATION:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment

generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause

harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment

off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

---Reorient or relocate the receiving antenna.

---Increase the separation between the equipment and receiver.

---Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

--Consult the dealer or an experienced radio/TV technician for help.

_-2

DEAR SHARP CUSTOMER

Thank you for your purchase of the Sharp Liquid Crystal Television. To ensure safety and many years

of trouble-free operation of your product, please read the Important Safety Instructions carefully

before using this product.

IMPORTANT SAFETY INSTRUCTIONS

r Electricity is used to perform many useful functions, but it can also cause personal injuries and property damage if

improperly handled. This product has been engineered and manufactured with the highest priority on safety. However,

improper use can result inelectric shock andlor fire. In order to prevent potential danger, please observe the following

instructions when installing, operating and cleaning the product. To ensure your safety and prolong the service life of

your Liquid Crystal Television, please read the following precautions carefully before using the product.

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including

amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with

one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or

the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician

for replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the

point where they exit from the apparatus.

11) Only use attachmentslaccessories specified by the manufacturer.

12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the

apparatus. When a cart is used, use caution when moving the cartlapparatus combination to avoid

injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of time.

14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in

any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the

apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

Additional Safety Information

15) Power Sources--This product should be operated only from the type of power source indicated on the marking

label. If you are not sure of the type of power supply to your home, consult your product dealer or local power

company. For products intended to operate from battery power, or other sources, refer to the operating

instructions.

16) Overloading--Do not overload wall outlets, extension cords, or integral convenience receptacles as this can

result in a risk of fire or electric shock.

17) Object and Liquid Entry--Never push objects of any kind into this product through openings as they may touch

dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any

kind on the product.

18) Damage Requiring Service--Unplug this product from the wall outlet and refer servicing to qualified service

personnel under the following conditions:

a) When theAC cord or plug is damaged,

b) If liquid has been spilled, or objects have fallen into the product,

c) If the product has been exposed to rain or water,

d) If the product does not operate normally by following the operating instructions.

Adjust only those controls that are covered by the operating instructionsas an improper adjustment of other

controls may result in damage and will often require extensive work by a qualified technician to restore the

product to its normal operation,

e) If the product has been dropped or damaged in any way, and

f) When the product exhibits a distinct change in performance - this indicates a need for service.

19) Replacement Parts--When replacement parts are required, be sure the service technician has used replacement

parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized

substitutions may result in fire, electric shock, or other hazards.

20) Safety Check--Upon completion of any service or repairs to this product, ask the service technician to perform

safety checks to determine that the product is in proper operating condition.

21 ) Wall or ceiling mounting--When mounting the product on a wall or ceiling, be sure to install the product according

to the method recommended by the manufacturer.

(_m3

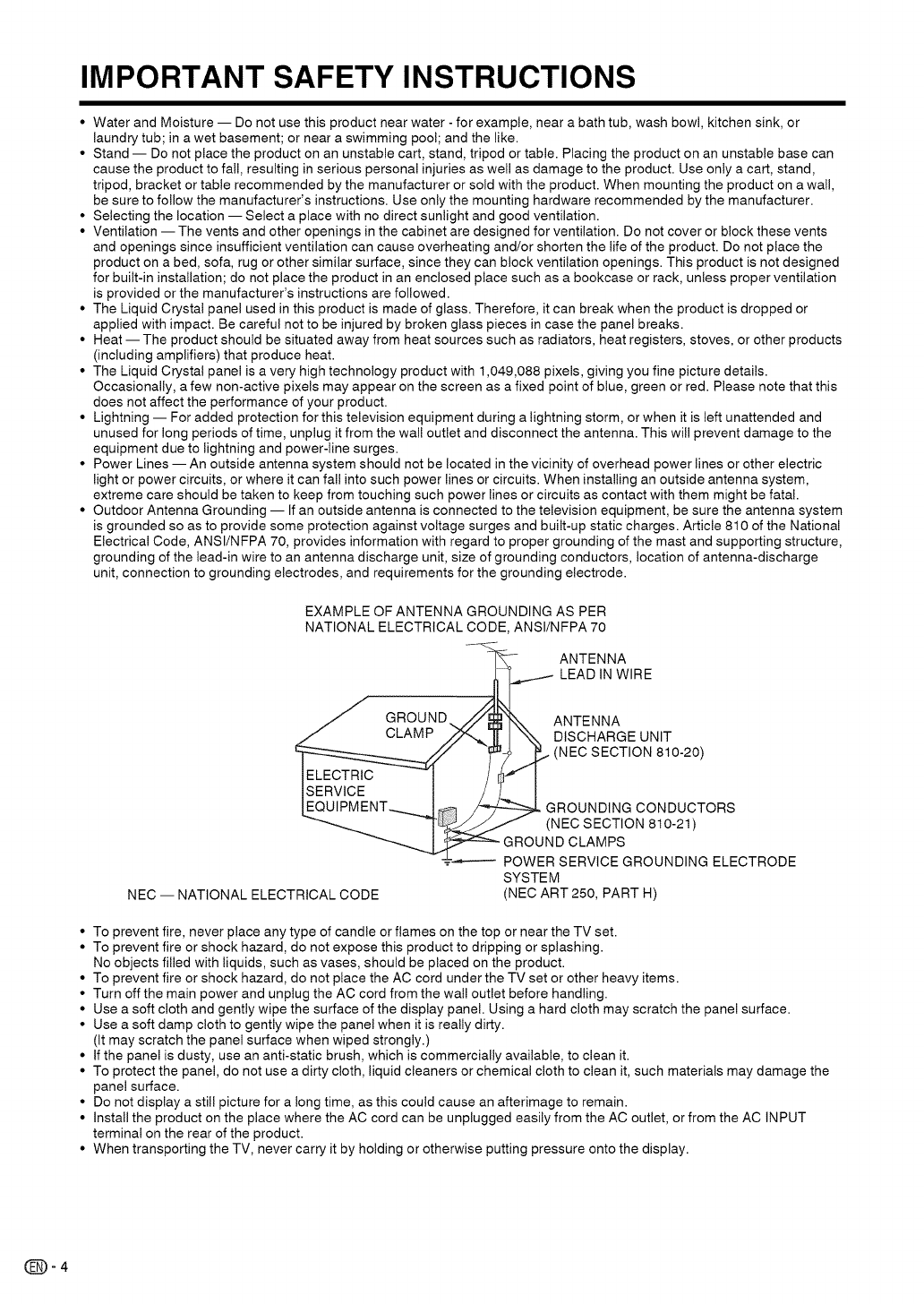

IMPORTANT SAFETY INSTRUCTIONS

• Water and Moisture -- Do not use this product near water - for example, near a bath tub, wash bowl, kitchen sink, or

laundry tub; in a wet basement; or near a swimming pool; and the like.

• Stand -- Do not place the product on an unstable cart, stand, tripod or table. Placing the product on an unstable base can

cause the product to fall, resulting in serious personal injuries as well as damage to the product. Use only a cart, stand,

tripod, bracket or table recommended by the manufacturer or sold with the product. When mounting the product on a wall,

be sure to follow the manufacturer's instructions. Use only the mounting hardware recommended by the manufacturer.

• Selecting the location -- Select a place with no direct sunlight and good ventilation.

• Ventilation -- The vents and other openings in the cabinet are designed for ventilation. Do not cover or block these vents

and openings since insufficient ventilation can cause overheating and/or shorten the life of the product. Do not place the

product on a bed, sofa, rug or other similar surface, since they can block ventilation openings. This product is not designed

for built-in installation; do not place the product in an enclosed place such as a bookcase or rack, unless proper ventilation

is provided or the manufacturer's instructions are followed.

• The Liquid Crystal panel used in this product is made of glass. Therefore, it can break when the product is dropped or

applied with impact. Be careful not to be injured by broken glass pieces in case the panel breaks.

• Heat -- The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products

(including amplifiers) that produce heat.

• The Liquid Crystal panel is a very high technology product with 1,049,088 pixels, giving you fine picture details.

Occasionally, a few non-active pixels may appear on the screen as a fixed point of blue, green or red. Please note that this

does not affect the performance of your product.

• Lightning -- For added protection for this television equipment during a lightning storm, or when it is left unattended and

unused for long periods of time, unplug it from the wall outlet and disconnect the antenna. This will prevent damage to the

equipment due to lightning and power-line surges.

• Power Lines -- An outside antenna system should not be located in the vicinity of overhead power lines or other electric

light or power circuits, or where it can fal! into such power lines or circuits. When installing an outside antenna system,

extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

• Outdoor Antenna Grounding -- If an outside antenna is connected to the television equipment, be sure the antenna system

is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National

Electrical Code, ANSl/NFPA 70, provides information with regard to proper grounding of the mast and supporting structure,

grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna-discharge

unit, connection to grounding electrodes, and requirements for the grounding electrode.

EXAMPLE OF ANTENNA GROUNDING AS PER

NATIONAL ELECTRICAL CODE, ANSI/NFPA 70

ANTENNA

LEAD IN WIRE

_GROUND

NEC -- NATIONAL ELECTRICAL CODE

ANTENNA

DISCHARGE UNIT

(NEC SECTION 810-20)

/=GROUNDING CONDUCTORS

(NEC SECTION 810-21)

GROUND CLAMPS

= POWER SERVICE GROUNDING ELECTRODE

SYSTEM

(NEC ART 250, PART H)

• To prevent fire, never place any type of candle or flames on the top or near the TV set.

• To prevent fire or shock hazard, do not expose this product to dripping or splashing.

No objects filled with liquids, such as vases, should be placed on the product.

• To prevent fire or shock hazard, do not place the AC cord under the TV set or other heavy items.

• Turn off the main power and unplug the AC cord from the wall outlet before handling.

• Use a soft cloth and gently wipe the surface of the display panel. Using a hard cloth may scratch the panel surface.

• Use a soft damp cloth to gently wipe the panel when it is really dirty.

(It may scratch the panel surface when wiped strongly.)

• If the panel is dusty, use an anti-static brush, which is commercially available, to clean it.

• To protect the panel, do not use a dirty cloth, liquid cleaners or chemical cloth to clean it, such materials may damage the

panel surface.

• Do not display a still picture for a long time, as this could cause an afterimage to remain.

• Install the product on the place where the AC cord can be unplugged easily from the AC outlet, or from the AC INPUT

terminal on the rear of the product.

• When transporting the TV, never carry it by holding or otherwise putting pressure onto the display.

_-4

IMPORTANT SAFETY INSTRUCTIONS

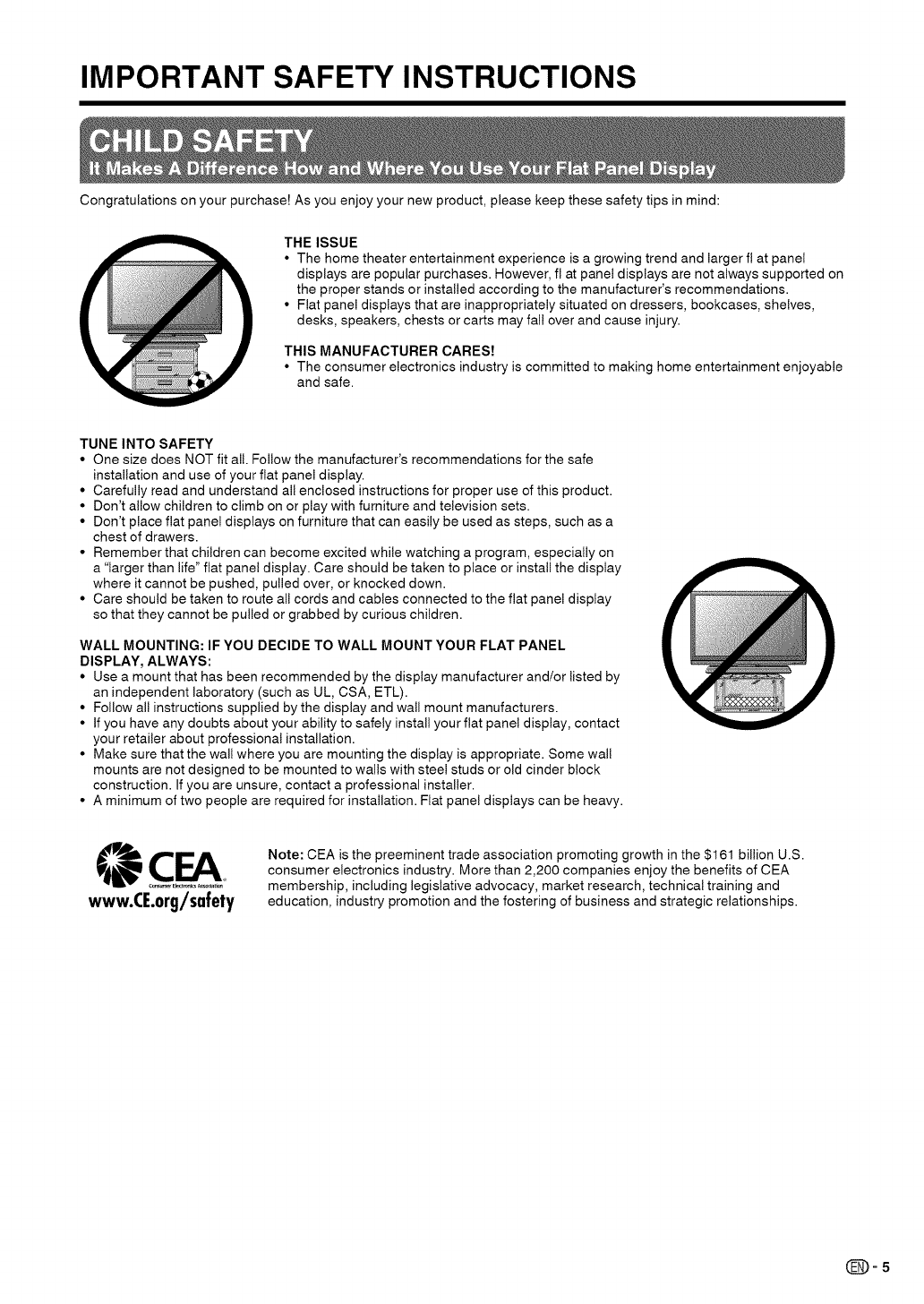

Congratulations on your purchase! As you enjoy your new product, please keep these safety tips in mind:

THE ISSUE

• The home theater entertainment experience is a growing trend and larger fi at panel

displays are popular purchases. However, fi at panel displays are not always supported on

the proper stands or installed according to the manufacturer's recommendations.

• Flat panel displays that are inappropriately situated on dressers, bookcases, shelves,

desks, speakers, chests or carts may fall over and cause injury.

THIS MANUFACTURER CARES!

• The consumer electronics industry is committed to making home entertainment enjoyable

and safe.

TUNE INTO SAFETY

• One size does NOT fit all. Follow the manufacturer's recommendations for the safe

installation and use of your flat panel display.

• Carefully read and understand all enclosed instructions for proper use of this product.

• Don't allow children to climb on or play with furniture and television sets.

• Don't place flat panel displays on furniture that can easily be used as steps, such as a

chest of drawers.

• Remember that children can become excited while watching a program, especially on

a "larger than life" flat panel display. Care should be taken to place or install the display

where it cannot be pushed, pulled over, or knocked down.

• Care should be taken to route all cords and cables connected to the flat panel display

so that they cannot be pulled or grabbed by curious children.

WALL MOUNTING: IF YOU DECIDE TO WALL MOUNT YOUR FLAT PANEL

DISPLAY, ALWAYS:

• Use a mount that has been recommended by the display manufacturer and/or listed by

an independent laboratory (such as UL, CSA, ETL).

• Follow al! instructions supplied by the display and wall mount manufacturers.

• If you have any doubts about your ability to safely install your flat panel display, contact

your retailer about professional installation.

• Make sure that the wall where you are mounting the display is appropriate. Some wall

mounts are not designed to be mounted to walls with steel studs or old cinder block

construction. If you are unsure, contact a professional installer.

• A minimum of two people are required for installation. Flat panel displays can be heavy.

()

CEA

www.CE.org/safety

Note: CEA is the preeminent trade association promoting growth in the $161 billion U.S.

consumer electronics industry. More than 2,200 companies enjoy the benefits of CEA

membership, including legislative advocacy, market research, technical training and

education, industry promotion and the fostering of business and strategic relationships.

(_)-5

Supplied accessories

Make sure the following accessories are provided with the product.

:{emote control unit "AA" size battery AC cord Cable Clamp Stand unit Operation

(Xl) (X2) (Xl) (Xl) _(Xl) manual (Xl)

Page 8 Page 8 Page 7 Page 7 i-'age 6

• Always use the AC cord supplied with the TV.

To avoid scratching the frame or screen, please use a soft, lint free cloth for cleaning. Approved I

cleaning cloths are available directly from Sharp in single (OOZ-LCD-CLOTH) or triple (OOZ-LCD- ICLOTH- 3) packs. Call 1-800-BE-SHARP for ordering, or VISIT www.sharpusa.com/SharpDirect.

QUICK REFERENCE

i_ii,_ili_!iii_!i_i!_i_iiiiiii_i_!ii!_i__i_iiii!!i_!!:__i_!i!_i,i_iii_ii_ii_ii!!_i!i_iii_!_!ii!_i!ililiil,_ii!il_i!_i!ii!ii_ii_!i!i!i_i_!!i!!ii_ii_ii_i_i_ii!ii!iii_i_ii_!!!iiiii!i_i!_i:!!ii!i_i_i!ili_i_i_i_i!i,!_iiliii!_!i,i_i_i!_!_ii_!ii!!_i_i_ii_ii_!i_i__iii!_i_i_i_ii_i!_ii_ii!i_:!_i_ii_i_ii_ii:i_i!ilii_iii!ii_;ilili!iiii!i:ii_iliii_!iill!ii_ii_iiii!!!i_ili_i!_i!!iiiii:!i_iliii!ii_i!_!i!_i_i!i!!i!!ii_i!i!ii!iiiiiii_ii!_i_ii_i!ii!i!iii_:_i_i!!!!ii_ii_i!_!ii_ii!i_!iiii!_i!i!i!!ii!iliii_i_i_ii_ii_ii_ii_!ii!i_ii!iiiiii!i_iiilli_iii_i!!!ill!i_ii!_ii_!_ii!iii!i_!_i_ii_iii!ii_i_il!_i_!!!iiiiiii!:!iili__!_i!!i_i!ii!,i!_ii!!_ii_i!iiii_i_!i_!!_i_!!iiii_iliiii!_i!;!ii!!i_i!!_ii_!_i_ii_!iiii!!!ii!i!i_i__ili_!!_iii_!!iiii!_ii;i_ii!_i_i!i!ii_!_i_i!ii!iilliiili_i_i_i_i!iiii,iiili!i_ii_i_ii_!i_i__iii!_i_i_i_ii_i!ili__iii_i_i_iili_i!ili__iii_i_i_iili_i!ili__iii_i_i_iili_i!ili__iii_i_i_iili_i!ili__iii_i_i_iili_i!ili__iii_i_i_iili_i!ili__iii_i_i_iili_i!ili__iii_i_i_iili_i!ili__iii_i_i_iili_i!ili__iii_i_i_iili_i!ili__iii_i_i_iili_i!ili__iii_i_i_iili_i!ili__iii_i_i_iili_i!ili__iii_i_i_iili_i!ili__iii_i_i_iili_i!ili__iii_i_i_iili_i!ili__iii_i_i_iili_i!i_i_filli_i_!_ii_ii

• Before attaching (or detaching) the stand, unplug the AC cord from the AC input terminal.

• Before performing work spread cushioning over the base area to lay the TV on. This will prevent it from being damaged.

•Attach the stand in the correct direction.

•Be sure to follow the instructions. Incorrect installation of the stand may result in the TV falling over.

1 Confirm the 8 screws supplied with the TV.

Short screws (X4)

(used in step 2)

Long screws (X4)

(used in step 3)

Remove the covering sheet of the stand.

(_ Set the post for the stand unit onto the box.

_) Attach the base to the post.

(_ Attach the base to the 4 screws into the 4 holes on the

bottom of the base.

3 (_ Insert the stand into the openings on the bottom of

the TV.

_2_Insert and tighten the 4 screws into the 4 holes on the

rear of the TV.

--Hex key

]--Screw

Hex key--_

Screw --

4For protection, sheets

are covering the product.

Please remove these

sheets before use.

• To detach the stand, perform the step in reverse order.

_-6

QUICK REFERENCE

STOP! To safely remove the television from the box

• It's best to use 2 people to remove the television for stability.

• Lift onto installation location as the diagram illustrates.

Ventilation &Cleaning Tips

Keep your TV in a welt ventilated area and make sure not to place it by a heat source or use near water. The TV

is designed for AC use only and should be used with supplied AC cord.

Clean the screen by spraying a soft lint free cloth with water to lightly moisten.

Gently wipe and avoid pressing on the screen. To clean the outer cabinet, use the same

method.

Do not use liquid or aerosol cleaners.

The screen isglass and can be scratched or broken when dropped or impacted.

QUICK INSTALLATION TIPS

1 Attach your antenna to the back of the TV.

(See page 12.)

2Connect the AC plug for the TV into the wall outlet.

• Place the TV close to the AC outlet, and keep the power

plug within reach.

• TO PREVENT RISK OF ELECTRIC SHOCK, DO NOT

TOUCH UN-INSULATED PARTS OF ANY CABLES

WITH THE AC CORD CONNECTED.

3 Bundle the cords properly with a cable clamp.

4 How to turn on the TV for the first time.

A) Press POWER on TV.

-- VOL ¥ V A INPUT

POWER

B) POWER indicator on the front of the TV lights GREEN.

POWER indicator

• Speaker cannot be detached from the TV.

• TV angle cannot be adjusted.

(_-7

QUICK REFERENCE

If the remote control fails to operate TV functions, replace the batteries in the remote control unit.

1 Open the battery cover. 2Insert two "AA" size batteries

(supplied with the product). 3 Close the battery cover.

• Place the batteries with their terminals

corresponding to the (+) and (-)

indications in the battery compartment.

Improper use of batteries can result in chemical leakage or explosion. Be sure to follow the instructions below.

• Do not mix batteries of different types. Different types of batteries have different characteristics.

• Do not mix old and new batteries. Mixing old and new batteries can shorten the life of new batteries or cause chemical

leakage in old batteries.

• Remove batteries as soon as they are worn out. Chemicals that leak from batteries that come in contact with skin can

cause a rash. If you find any chemical leakage, wipe thoroughly with a cloth.

• The batteries supplied with this product may have a shorter life expectancy due to storage conditions.

• If you will not be using the remote control unit for an extended period of time, remove batteries from it.

Remote control 30° 30°

sensor

IMPORTANT:

The POWER indicator on the television should light GREEN indicating you have power to the TV.

If the POWER indicator on the television still does not light up, press POWER on the remote control to turn the

power on.

IMPORTANT:

IF THE UNIT DOES NOT POWER ON - UNPLUG THE TELEVISION FROM THE OUTLET AND REPEAT THE

INSTALLATION STEPS.

IF YOU STILL ENCOUNTER NO POWER, PLEASE CONTACT US AT 1-800-BE-SHARP.

_-8

Contents

IMPORTANT INFORMATION ................................... 1

DEAR SHARP CUSTOMER ..................................... 3

IMPO RTANT SAFETY INSTRUCTIONS .................. 3

Supplied accessories ............................................. 6

QUICK REFERENCE ................................................ 6

Attaching the stand .............................................. 6

Contents ................................................................... 9

Part names ............................................................. 10

TV (Front) .......................................................... 10

TV (Rear) ........................................................... 10

Remote control unit............................................ 11

Preparation ............................................................ 12

Using the remote control unit ............................. 12

Cautions regarding remote control unit .............. 12

Antennas ........................................................... 12

Using external equipment .................................... 13

Displaying an external equipment image ........... 13

Connecting to External Equipment .................... 13

Watching TV ........................................................... 14

Preparation ........................................................ 14

Turning on the power ......................................... 14

Turning off the power ......................................... 14

Changing channels ............................................ 14

Auto Ch Memory ................................................ 14

Display the channel information ......................... 14

Skipping stored channel .................................... 15

Clear All ............................................................. 15

Setting MTS/SAP stereo mode .......................... 15

Selecting the digital audio language .................. 15

View mode for 4:3 programs .............................. 15

View mode for HD programs .............................. 16

Labeling channels .............................................. 16

Favorite channel setting ..................................... 16

Closed captions and digital closed captions ...... 17

Caption setup .................................................... 18

Password setting for parental control ................. 18

How to enter the Lock menu .............................. 18

Parental control (V-CHIP) .................................. 19

TV Parental Guidelines (TV Guidelines) ........... 19

Voluntary movie rating system (MPAA) ............. 19

Canadian rating systems ................................... 20

Canadian English ratings ................................... 20

Canadian French ratings ................................... 20

How to temporarily release the V-Chip block ..... 20

Other convenience functions ............................... 21

Menu operation buttons ..................................... 21

Quick guide for MENU operation ....................... 21

Connecting a PC (Personal computer) ............... 23

Viewing an image from a PC.............................. 23

Displaying an image from a PC.......................... 23

PC compatibility chart ........................................ 23

Appendix ................................................................ 24

Troubleshooting ................................................. 24

Troubleshooting-Digital broadcasting ................ 24

Troubleshooting-PC mode ................................. 24

Specifications .................................................... 25

Calling for Service ................................................. 26

LIMITED WARRANTY ............................................ 26

Dimensional Drawings

= The dimensional drawings for the TV set are shown

on the inside back cover.

(_) - 9

Part names

L¸ -ol

I I

Remote control sensor POWER indicator

• The buttons on the main unit have the same functions as

the same buttons on the remote control. Fundamentally,

this operation manual provides a description based on

operation using the remote control.

COAXIAL DIGITAL AUDIO OUTPUT

terminal

INPUT 5 terminals

INPUT 4 terminals

INPUT 6 terminals

-INPUT 1 terminals

_ INPUT 2 terminals

INPUT 3 terminals

INPUT

• The illustrations in this operation manual are for explanation purposes and may vary slightly from the actual operations.

_=10

Part names

POWER

DISPLAY INPUT

_13

FREEZE

SLEEP

FLASHBACK 16

MENU /

8--

-- 21

• When using the remote control unit, point it at the TV. (See

page 8.)

There is a protective film covering the face of the remote

control. Please remove this film before use.

POWER: Switch the power on or enters standby mode.

(See page 14.)

0-9: Set the channel. (See page 14.)

• (DOT): (See page 14.)

FREEZE: Set the still image. Press again to return to

normal screen.

• The still image automatically goes out after 30 minutes.

SLEEP: Allows you to set a time when the TV

automatically switches to standby. Each time you press

this button, the remaining time setting switches by 10

minutes up to 2 hours. This display will disappear after

a few seconds, and the sleep timer automatically starts

counting down.

• If you want to adjust the sleep timer again, you can

press this button repeatedly then change the time

setting.

• Select "Off" by pressing SLEEP repeatedly to cancel

the sleep timer.

• The TV will enter the standby mode when the remaining

time reaches zero.

EXIT: Turn off the menu screen.

CO: Display captions during closed-caption source.

(See page 17.)

AUDIO: Display the MTS setting menu. (See page 15.)

FAVORITE OH

A, B, C, D: Select 4 preset favorite channels in 4

different categories. (See page 16 for details.)

While watching, you can toggle the selected channels

by pressing A, B, C and D.

DISPLAY: Display the current channel (or input source)

information on the screen. (See page 14.)

INPUT: Select a TV input source. (See page 13.)

MUTE: Mute the sound. "Mute" will be displayed on the

screen, and the sound is silenced. The muting feature

can be released by pressing this button again or one of

the VOL +/- buttons.

• Sound via the COAXIAL DIGITAL AUDIO OUTPUT

terminal is not muted.

VOL +/-: Set the volume.

• To increase the volume, press VOL+.

• To decrease the volume, press VOL-.

• VOL+/- on the TV operates the same as VOL+/- on

the remote control unit.

14 CH ^/v : Select the channel. (See page 14.)

15 ENT: Jumps to a channel after selecting with the 0-9

buttons.

16 FLASHBACK: Press to switch to the previously tuned

channel. Press again to switch back to the currently

tuned channel.

• This function will not work if no channel has been

changed after the TV is turned on.

17 MENU: Display the menu screen.

18 A/T/,/P-/ENTER: Select a desired item on the screen.

19 RETURN: Return to the previous menu screen.

20 VIEW MODE: Select the screen size. (See page 15.)

21 AV MODE: Select an adjusted picture setting. (Sports,

Standard, Movie, Memory.) (See page 22.)

(_-11

Preparation

Use the remote control unit by pointing it towards the remote control sensor on

the TV. Objects between the remote control unit and the remote control sensor

may prevent proper operation,

• Do not expose the remote control unit to shock.

in addition, do not expose the remote control unit to liquids, and do not place in an area

with high humidity.

• Do not install or place the remote control unit under direct sunlight. The heat may cause

deformation of the remote control unit.

• The remote control unit may not work properly if the remote control sensor on the TV is

under direct sunlight or strong lighting. In such cases, change the angle of the lighting or

the TV, or operate the remote control unit closer to the remote control sensor.

/-x ¸"

_-12

To enjoy a clearer picture, use an outdoor antenna. The following is a brief explanation of the types of

connections that are used for a coaxial cable. If your outdoor antenna uses a 75-ohm coaxial cable with an

F-type connector, plug it into the antenna terminal at the rear of the TV set.

'-1. A 75-ohm system is generally a round cable with F-type

connector that can easily be attached to a terminal

without tools (Commercially available).

F-type connector

75-ohm coaxial cable (round)

2. A 300-ohm system is a flat "twin-lead" cable that can be

attached to a 75-ohm terminal through a 300/75-ohm

adapter (Commercially available).

300-ohm twin-lead cable (flat)

Connecting Antenna Cable

Home Antenna

C) Cable without aCable TV lead-In terminal (75-ohm)

CATV converter _ [_@ r__s m

Coaxial cable

(commercially available)

VHF/UHF antenna _/Home Antenna

terminal (75-ohm)

Coaxiat cabte

(commercially available)

0 Combination VHF/_/_/

UHF antenna

_axiai cable (round)

_-type connector should be

fingertightened only.

When connecting the RF cable to the TV set, do not tighten

F-type connector with tools.

if tools are used, it may cause damage to your TV set. (The

breaking of internal circuit, etc.)

(_ Separate VHF/

UHF antenna

_300-ohm twin-lead cable (flat)

75-ohm coaxial cable

F-type connector

300/75-ohm adapter

VHF UHF (commercially available)

ANTENNA ANTENNA

00-ohm

ble

o!" =-? "%TVantennatormina,

75-ohm coaxial cable /

• Connect the antenna cable to the

TV using one of the methods in the

illustration as shown ((_, (_, 0or _).

Using external equipment

You can connect many types of external equipment to your TV like a DVD player, VCR, Digital TV tuner, HDMI

equipment, game console or camcorder.

[

POWER

DISPLAY INPUT

MUTE

@@@

@@@8

@@@

FREEZE FLASHBACK

C2D CD

SLEEP MENU

I/ r--n r--n C3

VOL + v CH _ INPUT POWER

To view external source images, select the input

source from "Source Selection" menu using 0-6 on

the remote control.

1.Input1

2.Input2

3.Input3

4.Input4

5.Input5

6.Input6

Each time INPUT is pressed, "Source Selection" item

toggles.

• You can also select "Source Selection" item by pressing

A!v.

To protect equipment, always turn off the TV before

connecting a DVD player, VCR, Digital TV tuner, HDMI

equipment, game console, camcorder or other external

equipment.

• Please read the relevant operation manual (DVD player,

etc.) carefully before making connections.

• Refer to your external equipment operation manual for the

signal type.

Connecting a DVD player, VCR, Digital TV tuner, HDMI equipment game console or camcorder.

Terminal on the TV

INPUT 2

INPUT 3

INPUT 1 or 2

INPUT 3

INPUT 1

INPUT 4 or 5 jor l

DIGITAL AUDIO

OUTPUT

AUDIO OUTPUT OUTPUT

Cable

_}AV cable (commercially available) _

Component video cable

(commercially available)

Audio cable

(commercially available)

S-VIDEO cable

(commercially available)

Audio cable

(commercially available)

HDMI-certified cable

(commercially available)

Coaxial cable

(commercially available)

Audio cable

(commercially available)

Terminal on external

equipment

@ ,@ @°

VIDEO AUDIO

YPB PR

@@@

COMPONENT

,@@.

AUDIO

S-VIDEO

HDMI

DIGITAL

AUDIO

INPUT

,@@.

AUDIO

• The S-VIDEO terminal takes priority over the video terminals.

• When using an HDMI-DVl conversion adapter/cable, use INPUT 4 and AUDIO terminal.

• When connecting an HDMI-DVl conversion adapter/cable to the HDMI terminal, the image may not come in clearly.

(_-13

Watching TV

Perform the following steps before you press POWER

on the remote control unit.

1 Insert the batteries into the remote control unit.

(See page 8.)

2 Connect the antenna cable to the TV. (See page

12.)

3 Plug in the AC cord to the AC outlet. (See page 7.)

Press POWER on the TV, or POWER on the remote

control.

TV status indicator (POWER)

ON Lighting (Green)

OFF/Standby Lighting (Red)

• POWER indicator (Green): The TV is on. ("Please wait"

will appear for a few seconds on the screen.)

i ,i¸i¸il¸:i

!i_!_ilii!i,!ii!_iiiii_il!i__,'_!i_!_'_i!!!;i,_i!_!_i!i_!_!_ii,_i!_!_;_ii_i_!_i__i!_!i_ili!_i_i,__!_iii_i!i'_!_i____i_;__i_i_!!ii,_i!_!_i!i_!_!_ii,_i!_!_i!i_!_!_;i,_i!_!_i!i_!_!_ii,_i!_!_;_'i_ili_i!iii!i_!__i__iii_iii_'_!_Ii_ii_!;i_,_;J__i_i!_i_,il!!_il!i_!_!_ii,_i!_!_i!i_!_!_;_,_i!_!_i!i_!_!_ii,_i_i!ii_ii_i_i!ii,i_!_il!i_!_!i!i!i_ili_i_!!_ii_ii_i!,_!ii_i_iii_iiii_!i_!i_ill_i_i_i!i_!i;!i,i_i_!;i_i!i_ili_!_,i_i_!;i_i!i_ili_!_,i_i_!;i_i!i_ili_!_,i_i_i!!i!!ii'ii_ii!_i_iiiiii!_i_iiiiliiiiiiiiiiiij_ii_i_i_!!!,i_i_i_iii_ii_i!!i_,!_i_i_iii_ii_i!!i_,!_i_i_iii_ii_i!!i_,!_i_i_iii_ii_i!!i_,!_i_i_iii_ii_i!_

Press POWER on the TV, or POWER on the remote

control.

• The TV enters standby mode and the image on the screen

disappears.

• The POWER indicator on the TV changes to Red.

• If you are not going to use this TV for a long period of time,

be sure to remove the AC cord from the power outlet.

• Weak electric power is still consumed even when POWER

is turned off.

You can change channels in several ways.

Method 1

Using CH ^/v on the remote control unit or on the

TV.

• If your cable-TV system includes analog and digital

channels using the same channel number, your channel

up function will scroll through the analog channel first,

then the digital channel. Although it may appear as though

the channel does not change, it actually moves from the

analog to the digital channel in sequence.

If you use channel-down, it will move in reverse, from the

digital channel to the analog channel.

Method 2

Using remote control buttons 0-9, • (DOT) to select

channels for VH F/UH F/CATV/DIG ITAL.

To select a 1 or 2-digitchannelnumber(e. g., Channel 5):

Press 5

• When selecting a 1-digit channel number, it is not

necessary to press 0 before the number.

• When you enter 0-9 only, channel selection will be made

if there is no operation within a few seconds.

To select a 3-digit channel number(e. g., Channel 115):

Press 1-el-e5

To select a4-digit channel number (e. g., Channel 22.1):

Press 2-->2-->° (DOT) -->1

• When you enter 0-9 only, channel selection will be made

if there is no operation within a few seconds.

• If you press 0 by itself in "Air" reception, nothing will

happen.

• Complete the above steps within a few seconds.

• When you enter 0-9 and • (DOT), channel selection wil!

be made if there is no operation within a few seconds.

Auto Ch Memory makes the TV look for all channels

viewable in the set area.

1 Press MENU and the MENU screen displays.

Press A/v to select "Channel", then press _ or ENTER.

Press A/T to select "Auto Ch Memory", then press _ or

ENTER.

Press A/v to select "Signal Type".

Press _/_ to select "Air" or "Cable".

Air VHF/UHF channels

Cab e CABLE TV channe s

Press A/T to select "Automatic Search", then press

ENTER.

The TV will begin memorizing all the channels available

in your area.

• It may take from 15 minutes to 30 minutes to complete

memorizing digital cable channels.

Depending on the reception condition, a BAR display

may not advance for several minutes, please be

patient.

• Memorizing channels is best accomplished during

evening "PRIMETIME" hours, as more stations are

broadcasting digital signals. Memorizing channels can

only be accomplished while a station is broadcasting a

digital signal to set that channel into memory.

• New digital channels may be added to your area

periodically, it is recommended to perform the "Automatic

Search" procedure regularly.

Press DISPLAY to display the current channel (or

input source) information on the screen.

When the TV receives a digital signal, the digital information

will appear for a few seconds.

• Channel number • Station name

• Channel label (if preset) • Broadcast program name

• V-Chip rating • Signal type

• Sleep timer • Audio language

• Program guide • Picture size

• Resolution

When the TV receives a analog signal, the analog

information will appear.

• Channel number

• V-Chip rating

• Sleep timer

• Picture size

• Channel label (if preset)

• Signal type

• Audio information (Stereo or SAP)

• Resolution

_-14

Watching TV

You can set channel selection disabled using OH/,.Iv.

1 Press MENU and the MENU screen displays.

2 Press A/v to select"Channel", then press _ or ENTER.

3 Press A/v to select"Add/Delete", then press _ or

ENTER.

4 Press A/v to select"Add/Delete", then press _ or

ENTER.

5 Press A/v to select the channel that you want to skip.

6 Press ,/_ to select "Delete" for selected channel.

7 Press EXIT to return to the normal screen.

•To add a digital channel you are watching:

Select a channel you want to add. Then select "Adding

Channel" in step 4, press _ or ENTER.

• To release the skipping channel:

Select "Add" in step 6.

All channels are deleted from the channel memory.

1 Press MENU and the MENU screen displays.

2 Press A/T to select"Channel", then press _ or ENTER.

3 Press A/v to select"Add/Delete", then press _ or

ENTER.

4 Press A/v to select "Clear All", then press _ or ENTER.

5 Press EXIT to return to the normal screen.

The TV has a feature that allows reception of sound

other than the main audio for the program. This feature

is called Multi-channel Television Sound (MTS).

The TV with MTS can receive mono sound, stereo

sound and Secondary Audio Programs (SAP). The

SAP feature allows a TV station to broadcast other

information, which could be audio in another language

or something completely different like weather

information.

You can enjoy Hi-Fi stereo sound or SAP

broadcasts where available.

•Stereo broadcasts

View programs like live sporting events, shows and

concerts in dynamic stereo sound.

• SAP broadcasts

Receive TV broadcasts in either MAIN or SAP sound.

MAIN sound: The normal program soundtrack (either in

mono or stereo).

SAP sound: Listen to a second language, supplementary

commentary or other information. (SAP is mono sound.)

If stereo sound is difficult to hear.

• Obtain a clearer sound by manually switching to fixed

mono-sound mode.

• MTS only operates while inTV mode.

• MTS is available only when receiving analog broadcasting,

not when receiving digital broadcasting.

• When the TV receives a stereo or SAP broadcast, the

word "Stereo" or "SAP" displays on-screen if you press

DISPLAY.

Changing MTS

You can change MTS as shown below to match the

television broadcast signal.

1 In analog TV mode, press AUDIO and the "Audio"

menu screen displays. "MTS" wilt be highlighted.

2 Press AUDIO again or _/_ to select "Stereo",

"SAP" or "Mono".

3 Press EXIT to return to the normal screen.

When two or more audio languages are included

in a digital signal, you can select one of the audio

languages.

1 In digital TV mode, press AUDIO and the "Audio

Language" menu screen displays.

2Press A/v or 0-6 to select your desired language.

3 Press EXIT to return to the normal screen.

• Digital audio language is active only when receiving digital

boardcasting, not when receiving analog boardcasting.

Press VIEW MODE,

• The View mode menu displays.

• The menu lists the view mode options selectable for

the type of video signal currently being received.

Press 0-3 to select each view mode directly while

the View mode menu is still on the screen.

• Each time VIEW MODE is pressed, View Mode item

toggles.

• You can also select View Mode item by pressing A/T.

• You can sequentially select a view mode that has its

own aspect ratio.

m'\ _' - " _"J m

__/ \r., Side Bar:

Suitable for viewing conventional 4:3

m'\\ j' m programs in their normal format.

r-,_j _ S.Stretch (Smart stretch):

Suitable for stretching 4:3 programs to fill

( _, _-_ the screen.

LJ_ _ LJ Zoom:

Suitable for viewing wide-screen 2.35:1

C-) "_-J Y) anamorphic DVDs in full screen.

Stretch:

This mode is useful for 1.78:1 DVDs.

When viewing 1.85:1 DVDs, stretch mode

will still show very thin black bands at the

top and bottom of the screen.

• You can enter to the same menu screen from "Picture"

menu.

• You cannot select "Side Bar" and "S.Stretch" when a 720p

or 1080i signal is being input.

(_=15

Watching TV

Stretch mode is available for HD programs.

Suitable for viewing wide-screen 1.78:1 aspect-ratio

programs. When viewing 1.85:1 programs, the stretch

mode wilt still show very thin black bands at the top

and bottom of the screen.

To create channel labels

1 Select a channel you want to label.

2 Press MENU, then press A/v to setect"Channel",

then press _ or ENTER.

Press A/v to select "Ch Label", then press _ or

ENTER. The Ch Label menu wilt appear.

3 Press ,,_/_,-to select a channel you want to label,

then press v.

Ch Labe_

LabeF CFear >_

4Press _/_ repeatedly until the character you want

appears in the first space.

The characters rotation as follows:

r0""9 <-->A'"Z <-->- • ,()@/+=-q

:_ SPACE

If the character which you desire appears, press

ENTER. Repeat this step to enter the rest of the

characters.

When you finish inputting the label name, press

ENTER.

Press EXIT to return to the normal screen.

Repeat steps 1-5 for other channels. You can

assign a label to each channel.

erase channel labels

Select a channel with a label which you want to

remove.

Press MENU, then press A/v to select "Channel",

then press _ or ENTER.

Press A/T to select "Ch Label", then press =,-or

ENTER to display the Ch Label menu.

Press A/T to select "Label Clear". Press _,-or

ENTER.

Press EXIT to return to the normal screen,

iiiiiiiiiii!iiii i i i iii iiii i !iiiii!i i

This function allows you to program 4 favorite

channels in 4 different categories. By setting the

favorite channels in advance, you can select your

favorite channels easily.

Programming favorite channel

1 Select the channel you want to register as a

favorite channel.

Press MENU, then press A/v to select "Channel",

then press _ or ENTER.

Press A/v to select "Favorite Ch', then press =,-or

ENTER. The Favorite Ch menu wilt appear.

Press A/v to select "Set", and then press _ or

ENTER.

Press _/_,- to select the position, and then press

ENTER to register.

Press EXIT to return to the normal screen.

You can jump to the registered favorite channels

directly using four FAVORITE CH.

AUDIO CC VlEWMODE AVMODE

C:::)C::) C::) C::)

FAVORITE CH

Deleting a favorite channel

Repeat steps 1 to 2 in above procedure.

Press A/v to select "Clear", and then press _,-or

ENTER.

Press .,_/_ to select the registered favorite channel

you want to release, and then press ENTER.

Press EXIT to return to the normal screen.

5 Repeat steps 1-4 to erase other channel labels.

_-16

Watching TV

• Closed Caption might not appear according to the

condition of the signal from the broadcasting station.

Your TV is equipped with an internal Closed Caption

decoder. It allows you to view conversations, narration

and sound effects as subtitles on your TV. Closed

Captions are available on some TV programs and on

some VHS home video tapes at the discretion of the

program provider.

Digital Closed Caption service is a new caption

service available only on digital TV programs (also

at the discretion of the service provider). It is a more

flexible system than the original Closed Caption

system, because it allows a variety of caption sizes

and font styles. When the Digital Closed Caption

service is in use, it wilt be indicated by the appearance

of a 3-letter abbreviation that also indicates the

language of the Digital Closed Captions: ENG

(English), SPA (Spanish), FRA (French) or other

language codes.

Not all programs and VHS videotapes offer closed

captions. Please took for the "_@' symbol to ensure

that captions wilt be shown.

In the Closed Caption system, there can be more than

one caption service provided. Each is identified by

its own number. The "C1" and "C2" services display

subtitles of TV programs superimposed over the

program's picture. Generally, Closed Captions in

English are transmitted on C1 and Closed Captions in

other languages are transmitted on C2.

In the Closed Caption system, the "Text 1" or "Text2"

services display text that is unrelated to the program

being viewed (e.g., weather or news). These services

are also superimposed over the program currently

being viewed.

1 Tune the TV to the desired program.

2 Press CC and the Closed Caption screen displays.

3Press _ or )- to setting the "CC Setting" to "On".

4 Press A/v to select"Analog Caption" or"Digital

Caption".

When you select "Analog Caption", you can choose

Cl, C2, C3, C4, T1, T2, T3 and T4.

When you select "Digital Caption", you can choose

from CSl, CS2, CS3, CS4, CS5 and CS6.

5 Press 41/1_to select the desired Closed Caption

mode for both Digital and Analog Caption.

6 Press A/v to select "CC Priority", then press 4 /)-

to select "Digital CC" or "Analog CC".

• Depending on the broadcast signal, some

Analog Captions wilt function with a Digital

broadcast signal. This step prevent that two kind

of captions are overlapping.

7 Press EXIT to return to the normal screen.

• To turn the Closed Caption feature off, setting the "CC

Setting" to "Off".

• You can enter the Closed Caption menu from setup menu.

• If the program or video you selected is not closed-captioned, no captions will display on-screen.

• If text is not available in your viewing area, a black rectangle may appear on-screen. If this happens, setting the "CC

Setting" to "Off".

• When selecting Closed Captions, the captioning will be delayed approx. 10 seconds.

• If no caption signal is received, no captions wil! appear, but the television will remain in the Caption Mode.

• Misspellings or unusual characters may occasionally appear during Closed Captioning. This is normal with Closed

Captioning, especially with live programs. This is because during live programs, captions are also entered live. These

transmissions do not allow time for editing.

• When Captions are being displayed, on-screen displays, such as volume and mute may be seen but may interfere with

Closed Captions.

• Some Cable TV systems and copy protection systems may interfere with the Closed Captioned signal.

• If using an indoor antenna or if TV reception is very poor, the Closed Caption Decoder may not appear or may appear with

strange characters or misspelled words. In this case, adjust the antenna for better reception or use an outdoor antenna.

• When a Digital TV Program has both Digital Closed Caption and Analog Closed Caption signals, Digital Closed Caption is

displayed.

(_-17

Watching TV

This function allows you to adjust the closed caption

screen appearance to suit your preference.

1 Press MENU and the MENU screen displays.

2 Press A/v to setect"Setup", then press • or

ENTER.

Press A/v to select "Closed Caption", then press

• or ENTER.

The Closed Caption menu displays.

Press A/v to select "Digital CC Preset", then press

,,I/_ to select "Custom".

Press A/v to select "CC Advanced", then press •

or ENTER.

Press A/T to select the desired item, then press

_/_ to change the setting.

Press EXIT to return to the normal screen.

Selectable parameters available in each

adjustment item.

Text Size: Auto, Small, Standard, Large

Text Type: Auto, Style1, Style2, Style3, Style4, Style5,

Style& Style7

Text Edge: Auto, None, Raised, Depressed, Uniform,

Left Shadow, Right Shadow

Text Color: Auto, Black, White, Red, Green, Blue,

Yellow, Magenta, Cyan

Text Auto, Solid, Transparent, Translucent,

Opacity: Flashing

Background Auto, Black, White, Red, Green, Blue,

Color: Yellow, Magenta, Cyan

Background Auto, Solid, Transparent, Translucent,

Opacity: Flashing

• This feature is designed to customize Digital Captions

only.

• The "Auto" value depends on the broadcasting station.

Allows you to use a password to protect certain

settings from being accidentally changed.

IMPO RTA NT:

Three conditions must be met to enable the V-Chip

0 Password is registered.

(_ V-Chip settings have been made.

(_ "V-Chip" is set to "On".

Setting a password

1 Press MENU and the MENU screen displays.

2 Press A/v to select "Lock", then press • or

ENTER.

3 Select and enter a password (4 digits) using the

number buttons (0-9), then press ENTER.

• "•" appears instead of the number.

4 Enter the same password again to confirm, then

press ENTER, the password is now registered and

the Lock menu wilt appear on the screen.

Changing the password

Allows you to change your current password.

1 Repeat steps 1 to 3 in Setting a password.

2 Press A/v to setect"Change Password", then

press • or ENTER.

Enter a new password using 0-9, then press

ENTER.

Enter the same password again to confirm, then

press ENTER.

The screen returns to Lock menu. Your new

password has been set.

•As a precautionary measure, make a note of your

password and keep it in a familiar place.

• The "V-Chip Set (DTV)" will only be selectable when

a new rating system can be downloaded via digital

broadcasting in the U.S.

ii !ili iiiii!iiiiiii i!12 i !i!i'i i!i ! i'ii i!;i i!ii i! i i!i i iii ii i it' i i! iii!ii ii ili i i i! i!i¸i!i i i ii ! i !iii! iiiii i i ! !ii!iii i!!i!ii!i ili!i!i i il¸

1 Press MENU and the MENU screen displays.

2 Press A/v to select "Lock", then press • or

ENTER.

Input the 4-digit password by using 0-9, then press

ENTER.

The Lock menu displays.

_-18

Watching TV

V-CHIP might not function according to the condition of the signal from the broadcasting station.

V-CHIP is an electronic filtering device built into your TV. This toot gives parents a great degree of control over

broadcasts accessed by their children. It allows parents to select programs judged suitable for child viewing

while blocking ones judged not suitable. It does so automatically once you activate the V-CHIP feature in your

TV.

V-CHIP menu will not be selectable from the menu if you do not first configure your password.

(See page 18for password setting for parental control.)

• The U.S. has two rating systems for viewing content: movie ratings and TV Parental Guidelines.

• The TV Parental Guidelines work in conjunction with the V-CHIP to help parents screen out inappropriate television shows

from their children.

• Movie ratings are used for original movies rated by the Motion Picture Association of America (MPAA) as watched on cable

TV and not edited for television. The V-CHIP can also be set to block MPAA-rated movies.

TV ParentalGuidelines

FANTASY

VIOLENCE

TV-Y (A!I children) _

TV-Y7 (Directed to older children) X

TV-G (General audience)

Suggested

age TV-PG (Parental Guidance suggested) X

TV-14 (Parents strongly cautioned) X

TV-MA (Mature audience only) X

Content

SEXUAL

SITUATIONS

ADULT

LANGUAGE

_: The content rating can be set, but this rating is not normally broadcast by TV stations.

X: Content rating can be set.

SEXUAL

DIALOG

• If you select "TV-G", this wil! automatically block the higher ratings "TV-PG", "TV-14" and "TV-MA".

Voluntary movie rating system (MPAA)

G General audiences. All ages admitted.

PG Parental guidance suggested.Some material maynot be suitable for children.

PG-13 Parentsstrongly cautioned.Some material may be inappropriatefor children under 13.

Age R Restricted. Under 17requires accompanyingparent or adult guardian(age varies in some jurisdictions).

NC-17 No one 17and under admitted.

X X is an older ratingthat is unified with NO-17but may be encoded inthe data of older movies.

• If you select "PG-13", this will automatically block the higher ratings "R", "NC-17" and "X".

• Voluntary movie rating system only uses an age-based rating.

In Lock menu, press A/v to select "V-Chip", then

press ,,I/D,-to select "On".

Press A/v to select "V-Chip Set", then press _ or

ENTER.

Press A/v to select "TV Rating", then press _,-or

ENTER.

Press A/T/,,I/I,- to select the desired rating, then

press ENTER.

Press EXIT to return to the normal screen.

Repeat steps 1 and 2 in TV parental Guidelines

(TV Guidelines).

Press A/v to select "Movie Rating", then press

or ENTER.

Press A/v to select the desired rating, then press

ENTER.

Press EXIT to return to the normal screen.

(_)- 19

Watching TV

• The TV rating systems in Canada are based on the Canadian Radio-Television and Telecommunications Commission

(CRTC) policy on violence in television programming.

• While violence is the most important content element to be rated, the structure developed takes into consideration other

program content like language, nudity, sexuality and mature themes.

• When setting the V-CHIP on the Canadian system you can choose either the Canadian English ratings or the Canadian

French ratings.

Canadian English ratings

E Exempt: Includes news, sports, documentaries and other information programming; talk shows, music

videos, and variety programming.

Children: Intended for younger children under the age of 8 years. Pays careful attention to themes that

Ccould threaten their sense of security and well-being.

Children over 8 years old: Contains no portrayal of violence as the preferred, acceptable, or only way to resolve

C8+ conflict; nor encourage children to imitate dangerous acts which they may see on the screen.

General: Considered acceptable for all age groups. Appropriate viewing for the entire family, contains very

Glittle violence, physical, verbal or emotional.

Age Parental Guidance: Intended for a general audience, but may not be suitable for younger children (under

PG the age of 8) because it could contain controversial themes or issues.

Over 14 Years: Could contain themes where violence is one of the dominant elements of the storyline, but

14+ it must be integral to the development of plot or character. Language usage could be profane and nudity

present within the context of the theme.

Adults: Intended for viewers 18 years and older and might contain depictions of violence, which while

18+ related to the development of plot, character or themes, are intended for adult viewing.

Could contain graphic language and portrayals of sex and nudity.

Example: If you select "G", this will automatically block the higher ratings "PG", "14+" and "18+".

Canadian French ratings

E Exempt programming.

General: All ages and children, contains minimal direct violence, but may be integrated into the plot in a

Ghumorous or unrealistic manner.

General but inadvisable for young children: May be viewed by a wide public audience, but could contain

8 ans+ scenes disturbing to children under 8 who cannot distinguish between imaginary and real situations.

Age Recommended for viewing with parent.

Over 13 years: Could contain scenes of frequent violent scenes and therefore recommended for viewing

13 ans+ with parent.

16 ans+ Over 16 years: Could contain frequent violent scenes and intense violence.

18 ans+ Over 18 years: Only for adult viewing. Could contain frequent violent scenes and extreme violence.

Example: If you select "8 ans+", this will automatically block the higher ratings "13 ans+", "16 ans+" and "18 ans+".

_- 20

1 Repeat steps 1 and 2 in TV parental Guidelines

(TV Guidelines).

2 Setect"CAN ENG Rating", then press _ or

ENTER.

Press A/v to select E, C, C8+, G, PG, 14+ or 18+,

then press ENTER.

3 Press EXIT to return to the normal screen.

The V-Chip block is working and censors a broadcast,

"This program has been btockedr displays.

1 Press MUTE while the V-Chip is working and then

the password entering menu displays.

2Enter your 4-digit password with 0-9, then press

ENTER.

At this time V-Chip block temporarily releases.

Reactivating the temporarily released V-Chip block

Method 1: Change to the other channel.

Method 2: Switch off theTV power,

1 Repeat steps 1 and 2 in TV parental Guidelines

(TV Guidelines).

2Select"CAN FRE Rating", then press , or ENTER. • Performingany of thetwo above willactivate the V-Chip

Press AiT to select E ,G, 8 ans+, 13 ans+, 16 ans+ block.

or 18 ans+, then press ENTER.

3 Press EXIT to return to the normal screen.

Other convenience functions

ii}i iii! !ii i i }

Use the following buttons on the remote control to

operate the menu.

POWER

DISPLAY INPUT

CDCD

MUTE

@@@

®@@8

®@@

FREEZE FLASHBACK

® ®

SLEEP MENU

_ 6_'_E6 _

OD CD CD CD

FAVORITE CH

SHARP

i!ii!!!!i i i!iii' i ilijii !i iii i iii i i!ii !!i!ia !i !i i ii!!!i i

example : Select Language

1 Press MENU and the MENU screen displays.

Audio

Char,r,el

Look

Setup

,. • • :

Press A/v to select"Setup", then press _- or

ENTER,

Press A/v to select"Language".

°_ ".. i

Video bzbel >>

B_klig_ 16 _,

Auto ShutOff Off

Reset >>

3 Press </_ to select the desired language.

,.,on the following pages the MENU can be called

in the same way as here.

4 Press EXIT to return to the normal screen.

• Some menu items may not displayed depending on the

selected input source.

• If no buttons are pressed for more than approx. 60

seconds, the menu screen will return to normal Monitor

screen automatically.

MENU:

AIvI<Iv :

ENTER:

RETURN:

EXIT:

Press to open the menu screen.

Press to select a desired item on the

screen or adjust a selected item.

Press to go to the next step or complete

the setting.

Press to return to the previous step.

Press to exit from the menu screen.

All changed settings wilt be saved.

I he lower part of the menu screen is an

operational guide for the remote control.

It wilt change in accordance with each menu

setting screen.

(_- 21

Other convenience functions

Picture Picture Setting

AV Mode

View Mode

Film Mode

PC Setting*

(see page 23)

DNR

Brightness /Contrast /

Sharpness /Color/Tint

Color Temperature

Sports

Standard

Movie

Memory

On /Off

Her Position/Ver Position

Clock

Phase

On /Off

Audio Bass/Treble /Balance

MTS Stereo /SAP /Mono

Audio Language

HDMI Audio

Channel

Lock

Setup

Speakers

Add/Delete

Auto Ch Memory

Ch Label

Favorite Channel

HDMI

DVI

Off

Adding Channel /Add/

Delete /Clear All

Signal Type /Automatic

Channel Number /Ch

Label /Label Clear

Closed Caption

Language

Video Label

English /Frangais /

Espadol

Backlight

Auto Shut off On /Off

Reset

Bluish (Cool) /Neutral (Standard) /Reddish (Warm)

For a clear-cut image emphasizing high contrast, useful for

sports viewing.

For a highly defined image in a normal lighting.

For a movie.

Allows the user to customize settings as desired. You can set

the mode for each input source.

See page 15.

A smoother motion may be obtained by setting the Film Mode

to "On" when you view a DVD from the DVD player.

To adjust the horizontal /vertical position of the image on

the PC Monitor screen. Each video standard wil! require a

different value for this setting.

To minimize any vertical bars or stripes visible on the screen

background.

This must be adjusted after the frequency has been set

optimize picture quality.

DNR (Digital Noise Reduction) can reduce the roughness

of the picture. (This function is available only for analog

broadcast.)

You can adjust the sound quality to your preference.

See page 15.

When two or more audio languages are included in a digital

signal, you can select one of the audio languages.

When you connect the HDMI device to the TV,select this setting.

When you connect the DVl device to the TV with analog audio

cords, select this setting.

• Sound via speaker and AUIDO OUTPUT terminal are

adjusted with VOL +/- on the remote control unit or VOL -/+

on the TV.

• Sound via the AUDIO OUTPUT terminal is adjusted with

VOL +/- on the remote control unit or VOL -/+ on the TV.

• Sound via speaker is muted.

See page 15.

See page 14.

See page 16.

See pages 18-20.

See page 17.

You can choose from three different languages (English,

French and Spanish)for the on-screen displays.

Let you set the input terminal displayed when using the

"Source Selection" menu or channel display.

Press A/v to select the specific input source which you want

to change.

Press _/_ to select the new label for the selected input source.

Backlight adjusts the screen brightness for improved picture

clarity.

In case of "Auto Shut Off" feature is "On", if a station being

viewed stops broadcasting, the TV will automatically shut

itself off after 15 minutes.

• If Auto Shut Off is "On" and the broadcast signal is weak,

theTV may automatically shut itself off. If this happens, turn

Auto Shut Off to "Off".

The Reset function returns your settings to the factory settings.

* "PC Setting" is available only for PC INPUT (INPUT6).

_= 22

Connecting a PC (Personal computer)

Use the INPUT6 (PC) terminals to connect a PC.

• The PC inputterminals are DDC1/2B-compatible.

• Refer to "PC compatibility chart" for a list of PC signals compatible with the System.

• Make sure to select the same signal values for the output signal of a PC and the input signal of the TV set before

connecting with the PC. (See page 22.)

• Depending on the PC being used, images may not be shown without converting the output signals into external output.

Please refer to your PC's manuals regarding converting to external output.

To ANALOG RGB

output terminal j Ltermtnal j

\t _com_2a_;l'&,ab,e,V

_3=mmst.....iniiackcableS_

I TOrAUdaiOs out put I ( ......... ially available)ITOpAtUtDIO HaD M l/pc I

[

Signal names for 15-pin mini D-sub connecter iiii!!i!ili !i!i!P ii i!!i i i! i!!i!!i!i !iiii'i!!i! iii i il ii i!! !! ii iiii ii i!! !! ii iiii ii i!! !! ii iiii ii i!! !! ii iiii ii i!! !! ii iiii ii i!! !! ii iiii ii i!! !! ii iiii ii i!! !!iii iill !i'iiii i i! i i

Pin No. Signal name Pin No. Signal name

O R O Not connected

O G (_ GND (Ground)

O B @ Not connected

O Not connected @ Not connected

O GND (Ground) @ VGAHS

(_) GND (Ground) (_ VGAVS

O GND (Ground) (_) Not connected

(_) GND (Ground)

To view an image from a PC, perform the following

procedure.

C) Select the Input6 (PC) mode using INPUT on the remote

control or the TV set. (See page 13.)

(_) Select the PC input signal.

(_) Adjust the "Picture." items if the PC image does not come

in clearly. (See page 22.)

31.5

640 x 400 37.9

31.5

720 x 400 31.5

VGA 37.9

31.5

37.9

640 x 480 37.5

43.3

WVGA 848 x 480 3t .O

35.t

37.9

PC SVGA 8OO x 6OO 48.t

46.9

53.7

48.4

56.5

XGA 1,024 x 768 60.0

68.7

t,280 x 720 44.8

47.8

WXGA t,280 x 768 48.t

t ,360 x 768 47.7

SXGA t ,280 x 1,024 64.0

MAC 13" VGA 640 x 480 34.9

MAC 16" SVGA 832 x 624 49.7

MAC 19" XGA t ,024 x 768 60.2

(_)- 23

Appendix

Problem Possible Solution

•No power •Check if you pressed POWER on the remote control unit. (See page 14.) If the

indicator on the TV does not light up, press POWER on the TV.

• Is the AC cord disconnected? (See page 7.)

• Has the power been turned on? (See page 14.)

• Unit cannot be operated. • External influences such as lightning, static electricity, may cause improper

operation. In this case, operate the unit after first turning off the power of the TV or

unplugging the AC cord and replugging it in after I or 2 minutes.

• Remote control unit does not •Are batteries inserted with polarity (+, -) aligned? (See page 8.)

operate. • Are batteries worn out? (Replace with new batteries.)

• Are you using it under strong or fluorescent lighting?

• Is a fluorescent light illuminated near the remote control sensor?

• Picture is cut off/with sidebar • Are screen mode adjustments such as view mode choose made correctly? (See

screen, page 15.)

• Strange color, light color, or color • Adjust the picture tone. (See page 22.)

misalignment • Is the room too bright? The picture may look dark in a room that is too bright.

• Power is suddenly turned off. •Is the sleep timer set? (See page 11 .)

• Check the power control settings. (See page 14.)

• The unit's internal temperature has increased.

Remove any objects blocking vent or clean.

• No picture • Is connection to other components correct? (See page 13.)

• Is correct input signal source selected after connection? (See page 13.)

• Is the correct input selected? (See page 13.)

• Is picture adjustment correct? (See page 22.)

• No sound • Is the volume too low? (See page 11 .)

• Have you pressed MUTE on the remote control unit? (See page 11.)

• The TV sometimes makes a • This is not a malfunction. This happens when the cabinet slightly expands and

cracking sound, contracts according to change in temperature. This does not affect the TV's

performance.

The example of an error Possible Solution

message displayed on a screen

• Digital channel signal strength is • Check the antenna cable. Check that the antenna is correctly setup.

low

• Digital channel is scrambled •It is subscription channel. Contact the service provider.

• Audio only •The channel has audio contents only.

Possible SolutionProblem

• There is no image.

• There is no sound.

• The text is blurred.

• The image is not displayed in the

center of the screen.

• Make sure the RGB cable is properly connected. (See page 23.)

• Make sure the output signal of the PC and the input signal setting of the LCD TV set

are matched.(See page 23.)

• Some software prohibit video playback on an external display when playing back a

video with a notebook PC. This is not attributable to a problem with the LCD TV set.

• Make sure the PC audio cable is properly connected. (See page 23.)

• Check if the mute function activates, or if the volume is set to minimum. (See page

11.)

• Adjust "Clock" and "Phase" using the PC Setting menu. (See page 22.)

• Adjust "Hor Position" and "Ver Position" using the PC Setting menu. (See page 22.)

_- 24

Cautions regarding use in high and low temperature environments

• When the unit is used in a low temperature space (e.g. room, office), the picture may leave trails or appear slightly

delayed. This is not a malfunction, and the unit will recover when the temperature returns to normal.

• Do not leave the unit in a hot or cold location. Also, do not leave the unit in a location exposed to direct sunlight or near a

heater, as this may cause the cabinet to deform and the Liquid Crystal panel to malfunction.

Storage temperature: -4°F to +140°F (-20°C to +60°C)

Appendix

Item Model: LC-26SB24U

LCD panel 26" Active Matrix (a-Si TFT LCD) (Diagonal Measurement : 26")

Resolution 1,049,088 pixels (1366 x 768)

TV TV-standard (CCIR) American TV Standard ATSC/NTSC System

Function Receiving VHF/UHF VHF2-13ch, UHF 14-69ch

Channel CATV 1-125ch (non-scrambled channel only.)

Digital Terrestrial 2-69ch

Broadcast (8VSB)

Digital Cable .1 1-125ch (non-scrambled channel only.)

(64/256 QAM)

Audio multiplex BTSC System

Audio out 5W x 2

Terminals Side INPUT 1 AV in, S-VIDEO in

INPUT 2 AV in

INPUT 3 COMPONENT in, Audio in

INPUT 4 HDMI inwith HDCP, Audio in

INPUT 5 HDMI in with HDCP

INPUT 6 15-pin mini D-sub female connector, Audio in (€ 3.5 mm jack)

OUTPUT Audio out

DIGITAL AUDIO Coaxial Digital audio output x 1 (PCM/Dolby Digital)

OUTPUT

ANT/CABLE 75 _ Unbalance, F Type x 1 for Analog (VHF/UHF/CATV)

and Digital (AIR/CABLE)

OSD language English/French/Spanish

Power Requirement AC 120 V, 60 Hz

Power Consumption 115 W (0.8 W Standby with AC 120V)

Weight TV + stand 24.3 Ibs./11.0 kg

TV only 20.9 Ibs./9.5 kg

Dimension 2 TV + stand 26s/le x 1911/16x 99/1_inch

(W x H x D) TV only 26s/le x 173/4x 49/16inch

Operating temperature +32°F to +104°F (0°C to +40°C)

Emergency alert messages via Cable are unreceivable.

*2The dimensional drawings are shown on the inside back cover.

• Typical time for power output decrease of about one-half assuming continuous use in a room with normal lighting, normal

brightness and temperature at 77°F/25°C

• As part of policy of continuous improvement, SHARP reserves the right to make design and specification changes for

product improvement without prior notice. The performance specification figures indicated are nominal values of production

units. There may be some deviations from these values in individual units.

CLEARING THE PASSWORD

If you forget the password, clear the password using the following _rocedure.

®@@0

®@@

Press and hold both VOL - on the TV and press 0 on the remote control simultaneously for a few

seconds until "Lock" menu appears on the screen.

Now the old password was cleared. You can set the new password.

Z"epasswordisllllI • As a precautionary measure, make a note of your

password above, cut it from this manual, and keep it in a

safe place.

(_- 25

Calling for Service

For location of the nearest Sharp Authorized Service, or to obtain product literature, accessories, supplies, or

customer assistance, please call 1-800-BE-SHARP.

LIMITED WARRANTY

CONSUMER LIMITED WARRANTY

SHARP ELECTRONICS CORPORATION warrants to the first consumer purchaser that this Sharp brand Liquid Crystal Display product (the

"Product"), when shipped in its original container, will be free from defective workmanship and materials, and agrees that it will, at its option,

either repair the defect or replace the defective Product or part thereof with a new or remanufactured equivalent at no charge to the

purchaser for parts or labor for the period(s) set forth below.

This warranty does not apply to any appearance items of the Product or if the serial number or model number affixed to the Product has

been removed, defaced, changed, altered or tampered with. This warranty does not cover installation or signal reception problems. This

limited warranty will not apply if the Product has been or is being used in a commercial setting or application; this warranty is meant solely

for the non-commercial, household use of the Product by consumers in their home or residence. If you intend to or already use this Product

for commercial purposes or in a commercial setting, there are warranties available to cover your use of this Product, the terms of which may

vary. Please contact f-888-GO-SHARP for further information.

In order to enforce your rights under this limited warranty, you should follow the steps set forth below. You must be able to provide proof of

purchase to the servicer, which proof must include the date of purchase.

To the extent permitted by applicable state law, the warranties set forth are in lieu of, and exclusive of, all other warranties, express or

implied. Specifically ALL OTHER WARRANTIES OTHER THAN THOSE SET FORTH ABOVE ARE EXCLUDED, ALL EXPRESS AND

IMPLIED WARRANTIES INCLUDING THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR USE, AND FITNESS FOR A PARTICULAR

PURPOSE ARE SPECIFICALLY EXCLUDED. IF, UNDER APPLICABLE STATE LAW, IMPLIED WARRANTIES MAY NOT VALIDLY BE

DISCLAIMED OR EXCLUDED, THE DURATION OF SUCH IMPLIED WARRANTIES IS LIMITED TO THE PERIOD(S) FROM THE DATE OF

PURCHASE SET FORTH BELOW. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS

WHICH VARY FROM STATE TO STATE.

The warranties given herein shall be the sole and exclusive warranties granted by Sharp and shall be the sole and exclusive remedy

available to the purchaser and only for the time periods set forth herein. No other representations or promises made by anyone are

permitted. Correction of defects, in the manner and for the period of time described herein, shall constitute complete fulfillment of all

liabilities and responsibilities of Sharp to the purchaser with respect to the Product, and shall constitute full satisfaction of all claims,

whether based on contract, negligence, strict liability or otherwise. Sharp does not warrant nor shall Sharp be liable, or in any way

responsible, for Products which have been subject to abuse (including, but not limited to, improper voltage), accident, misuse, negligence,

lack of reasonable care, alteration, modification, tampering, misuse, improper operation or maintenance or any damages or defects in the

Product which were caused by repairs or attempted repairs performed by anyone other than a Sharp authorized servicer. Nor shall Sharp

be liable or in any way responsible for any incidental or consequential economic or property damage. Some states do not allow limits on

warranties or on remedies for breach in certain transactions; in such states, the limits herein may not apply.

THIS LIMITED WARRANTY IS VALID ONLY IN THE FIFTY (50} UNITED STATES, THE DISTRICT OF COLUMBIA AND PUERTO RICO.

Model Specific Section

Your Product Model Number & Description:

Warranty Period for this Product:

Additional Exclusions from

Warranty Coverage (if any):

Where to Obtain Service:

What to do to Obtain Service:

LC-26SB24U Liquid Crystal Television

(Be sure to have this information available when you need service for your

Product.)

One (1) year parts, 90 days labor from the date of purchase.

Image Retention resulting from a fixed image being displayed for long

periods of time is not covered by this Limited Warranty (see Operation

Manual on how to prevent this).

From a Sharp Authorized Servicer located in the United States. To find the

location of the nearest Sharp Authorized Servicer, please call Sharp toll free

at 1-800-BE-SHARR

Ship prepaid or carry in your Product to a Sharp Authorized Servicer. Be sure

to have proof of purchase available. If you ship the Product, be sure it is

insured and packaged securely. Please use two persons to carry the Product,

transport it in its original packaging, and ensure that the Product is covered

to avoid scratches and damage. Sharp shall not be responsible for lost,

stolen or misdirected mail or for damage to the product incurred during

shipping.

TO OBTAIN PRODUCT INFORMATION OR PURCHASE ACCESSORIES AND EXTENDED WARRANTIES, CALL 1-800-BE-SHARP

OR VISIT www.sharpusa.com

_- 26

VALID IN CANADA ONLY

LiMiTED WARRANTY

Consumer E/ectronics Products

Congratulations on your purchase!

Sharp Electronics of Canada Ltd. (hereinafter called "Sharp") gives the following express warranty to the first consumer purchaser for this

Sharp brand product, when shipped in its original container and sold or distributed in Canada by Sharp or by an Authorized Sharp Dealer;

Sharp warrants that this product is free, under normal use and maintenance, from any defects in material and workmanship. If any such

defects shouM be found in this product within the applicable warranty period, Sharp shall, at its option, repair or replace the product as

specified herein.

This warranty shall not apply to:

(e) Any defects caused or repairs required as a result of abusive operation, negligence, accident, improper instaflation or inappropriate

use as outlined in the owner's manual.

(b) Any Sharp product tampered with, modified, adjusted or repaired by any party other than Sharp, Sharp's Authorized Service Centres

or Sharp's Authorized Servicing Dealers.

(c) Damage caused or repairs required as a result of the use with items not specified or approved by Sharp, including but not limited to

head cleaning tapes and chemical cleaning agents.

(d) Any replacement of accessories, glassware, consumable or peripheral items required through normal use of the product including but

not limited to earphones, remote controls, AC adapters, batteries, temperature probe, stylus, trays, filters, belts, ribbons, cables and

paper.

(e) Any cosmetic damage to the surface or exterior that has been defaced or caused by normal wear and tear.

(f) Any damage caused by external or environmental conditions, including but not limited to transmission line/power line voltage or liquid

spillage.

(g) Any product received without appropriate model, serial number and CSA/cUL markings.

(h) Any products used for rental or commercial purposes.

(i) Any installation, setup and/or programming charges.

Should this Sharp product fail to operate during the warranty period, warranty service may be obtained upon delivery of the Sharp product

together with proof of purchase and a copy of this LIMITED WARRANTY statement to an Authorized Sharp Service Centre or an

Authorized Sharp Servicing Dealer. In home warranty service may be provided at Sharp's discretion on any Sharp television with the

screen size of 27" or larger and on any Sharp Over-the-Range Microwave Oven.

This warranty constitutes the entire express warranty granted by Sharp and no other dealer, service centre or their agent or employee is

authorized to extend, enlarge or transfer this warranty on behalf of Sharp. To the extent the law permits, Sharp disclaims any and all

liability for direct or indirect damages or losses or for any incidental, special or consequential damages or loss of profits resulting from a

defect in material or workmanship relating to the product, including damages for the loss of time or use of this Sharp product or the loss

of information. The purchaser will be responsible for any removal, reinstaflation, transportation and insurance costs incurred. Correction of

defects, in the manner and period of time described herein, constitute complete fulfillment of all obligations and responsibilities of Sharp

to the purchaser with respect to the product and shall constitute full satisfaction of all claims, whether based on contract, negligence, strict

liability or otherwise.

WARRANTY PER|ODS: Parts & Labour (exceptions noted)

Audio Product 1 year

Camcorder f year

DVD Product 1 year

Projector 1 year (lamp 90 days)

LCD TV 1 year

Microwave Oven 1 year (magnetron component-4 additional years)

Air Purifier 1 year

Portable Air Conditioner 1 year

To obtain the name and address of the nearest Authorized Sharp Service Centre or Dealer, please contact:

SHARP EI.ECTRONICS OF CANADA LTD. 335 Britannia Road East, Mississauga, Ontario L4Z 1W9

For more information on this Warranty, Sharp Extended Warranty

Offers, Sharp Canada Products, Accessory Sales, Dealer or Service SHARP

Locations, please call (905) 568=7140 ,_

Visit our Web site: www,sharp,ea _._ s_Rw¢_-_,_

Revision 12/16/05

(_)- 27

Dimensional drawings

Unit: inch/(mm)

19w16 (500)

49/16(116)_1/8(79) 265/16(663)

225/16(567,5)

:84

-'-3'

SHARP

SHARP ELECTRONICS CORPORATION

Sharp Plaza, Mahwah, New Jersey 07495-1163

SHARP CORPORATION

IIIIIIIIIIIIIIIIMIIIIIIIIIIIiIlll

J34N0131A SH 08/04 []

Printed in Thailand

Imprime en Thaflande

Impreso en Tailandia

9JDJ34N0131A

08P04-TH-NO

LC-26SB24U

LIQUID CRYSTAL TELEVISION

TC:LC:VISEURACL

TELEVISOR CON PANTALLA DE CRISTAL LiQUIDO

OPERATION MANUAL

MODE D'EMPLOI

MANUAL DE OPERACl0N

H..,,,,,im iTM PC

input

r'][IIDOLBYI

DIGITAL

LC-26SB24U

LIQUID CRYSTAL TELEVISION

ENGLISH

OPERATION MANUAL

IMPORTANT:

To aid reporting in case of loss or theft, please record the

TV's model and serial numbers in the space provided. The

numbers are located at the rear of the TV.

Model No.:

Serial No.:

• Manufactured under license from Dolby Laboratories. "Dolby" and the double-D symbol are trademarks of Dolby

Laboratories.

• "HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI

Licensing LLC."

• Products that have earned the ENERGY STAR ® are designed to protect the environment through superior energy efficiency.

IMPORTANT INFORMATION

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO

NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK).

NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE

PERSONNEL.

The lightning flash with arrow-head

symbol, within an equilateral triangle,

is intended to alert the user to the

presence of uninsulated "dangerous

voltage" within the product's

enclosure that may be of sufficient

magnitude to constitute a risk of

electric shock to persons.

The exclamation point within a

triangle is intended to alert the user

to the presence of important

operating and maintenance

(servicing) instructions in the

literature accompanying the product.

(_ml
