SHARR AQUOS

LC-32D44U

LC-37D44U

LIQUID CRYSTAL

TELEVISION

Hle_EH_ITIONTEL_VlSlO_

DDIDOLBY]

DiGiTAL HTM

HIGH-DEFINITION MULTIMEDIA INTERFACE

_0_ 1245 NYCE

IMPORTANT : Please read this operation manual

before starting operating the equipment.

Supplied Accessories

Make sure the following accessories are provided with the product.

LC-32D44U _ _ r==_ 1

a,I

Remotecontrol unit "AA"size battery AC cord Cableclamp Stand unit Operationmanu

(×1) (×2) (>41) (×1) p(a_le)6 (×1) J

Page 7 Page 8 Page 7 Page 7

Always use theAC cord suppliedwith the TV.

To avoid scratching the frame or screen, please use a soft, lint free cloth for cleaning. Approved

cleaning cloths are available directly from Sharp in single (00Z-LCD-CLOTH) or triple (00Z-LCD-

CLOTH-3) packs. Call 1-800 BE SHARP for ordering, or VISIT www.sharpusa.com/SharpDirect.

IMPORTANT:

To aid reporting in case of loss or theft, please record

the TV's model and serial numbers in the space

provided. The numbers are located at the rear of the TM.

Model No.:

Serial No.:

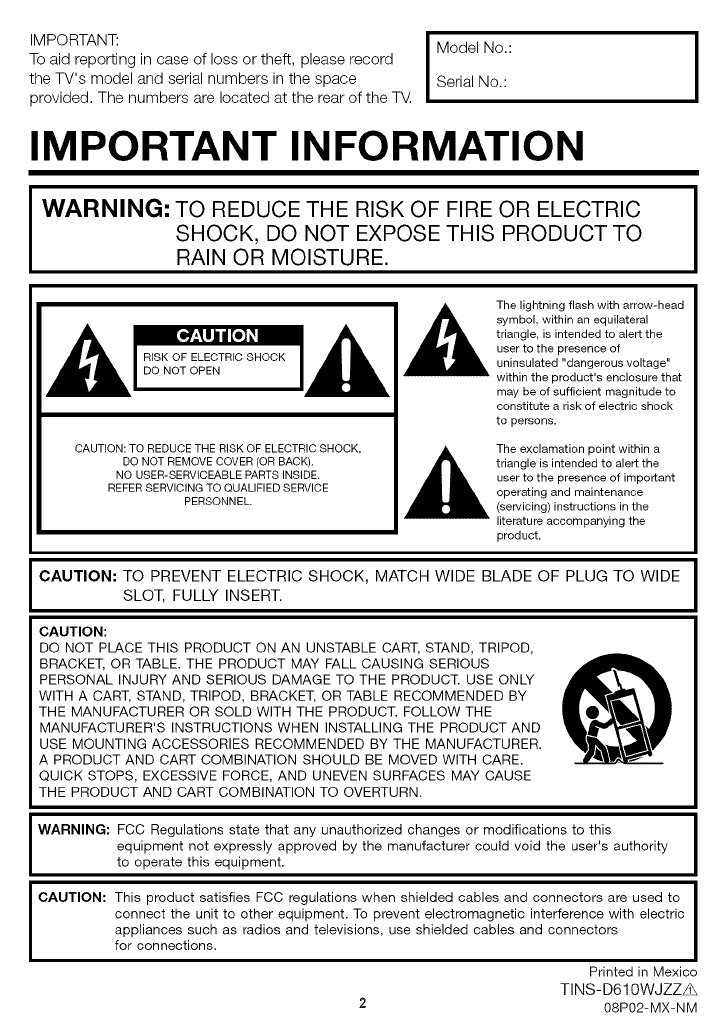

IMPORTANT INFORMATION

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC

SHOCK, DO NOT EXPOSE THIS PRODUCT TO

RAIN OR MOISTURE.

[*,,]'_,_UJi [o]ZI

RISK OF ELECTRIC SHOCK

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK).

NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE

PERSONNEL.

The lightning flash with arrow-head

symbol, within an equilateral

triangle, is intended to alert the

user to the presence of

uninsulated "dangerous voltage"

within the product's enclosure that

may be of sufficient magnitude to

constitute a risk of electric shock

to persons.

The exclamation point within a

triangle is intended to alert the

user to the presence of important

operating and maintenance

(servicing) instructions in the

literature accompanying the

product.

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE

SLOT, FULLY INSERT.

CAUTION:

DO NOT PLACE THIS PRODUCT ON AN UNSTABLE CART, STAND, TRIPOD,

BRACKET, OR TABLE. THE PRODUCT MAY FALL CAUSING SERIOUS

PERSONAL INJURY AND SERIOUS DAMAGE TO THE PRODUCT. USE ONLY

WITH A CART, STAND, TRIPOD, BRACKET, OR TABLE RECOMMENDED BY

THE MANUFACTURER OR SOLD WITH THE PRODUCT. FOLLOW THE

MANUFACTURER'S INSTRUCTIONS WHEN INSTALLING THE PRODUCT AND

USE MOUNTING ACCESSORIES RECOMMENDED BY THE MANUFACTURER.

A PRODUCT AND CART COMBINATION SHOULD BE MOVED WITH CARE.

QUICK STOPS, EXCESSIVE FORCE, AND UNEVEN SURFACES MAY CAUSE

THE PRODUCT AND CART COMBINATION TO OVERTURN.

WARNING: FCC Regulations state that any unauthorized changes or modifications to this

equipment not expressly approved by the manufacturer could void the user's authority

to operate this equipment.

CAUTION: This product satisfies FCC regulations when shielded cables and connectors are used to

connect the unit to other equipment. To prevent electromagnetic interference with electric

appliances such as radios and televisions, use shielded cables and connectors

for connections.

Printed in Mexico

TINS-D610WJZZ/l\

08P02-MX-NM

IMPORTANT INFORMATION

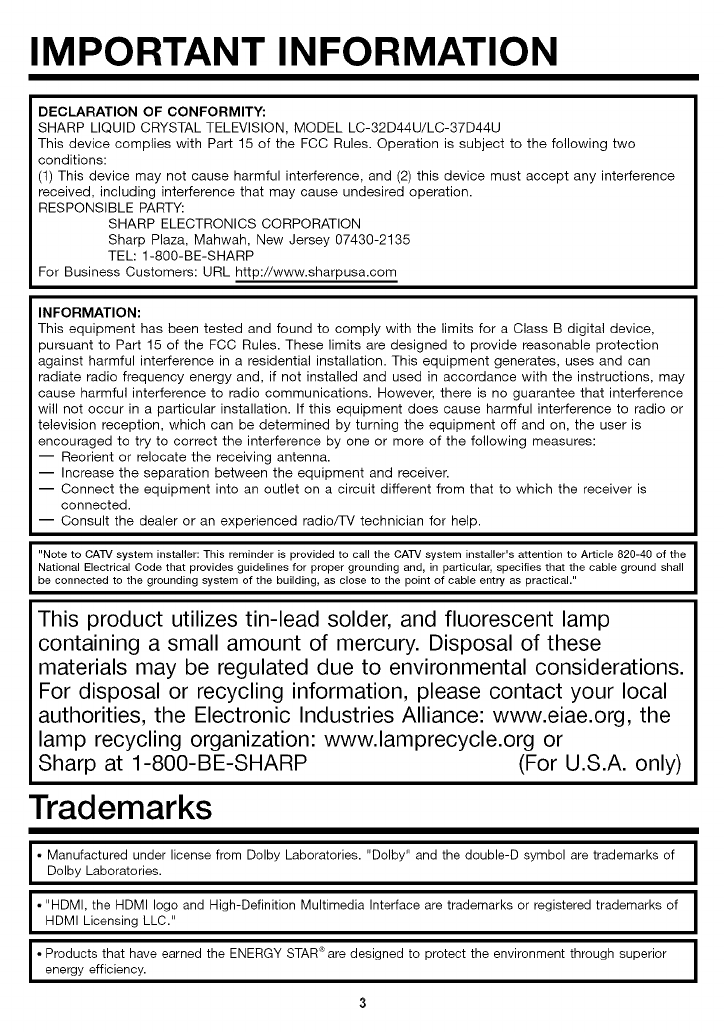

DECLARATION OF CONFORMITY:

SHARP LIQUID CRYSTAL TELEVISION, MODEL LC-32D44U/LC-37D44U

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two

conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference

received, including interference that may cause undesired operation.

RESPONSIBLE PARTY:

SHARP ELECTRONICS CORPORATION

Sharp Plaza, Mahwah, New Jersey 07430-2135

TEL: 1-800-BE-SHARP

For Business Customers: URL http://www.sharpusa.com

INFORMATION:

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equipment generates, uses and can

radiate radio frequency energy and, if not installed and used in accordance with the instructions, may

cause harmful interference to radio communications. However, there is no guarantee that interference

will not occur in a particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of the following measures:

-- Reorient or relocate the receiving antenna.

-- Increase the separation between the equipment and receiver.

-- Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

-- Consult the dealer or an experienced radio/TV technician for help.

"Note to CATV system installer: This reminder is provided to call the CATV system installer's attention to Article 820-40 of the

National Electrical Code that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall

be connected to the grounding system of the building, as close to the point of cable entry as practical."

This product utilizes tin-lead solder, and fluorescent lamp

containing a small amount of mercury. Disposal of these

materials may be regulated due to environmental considerations.

For disposal or recycling information, please contact your local

authorities, the Electronic Industries Alliance: www.eiae.org, the

lamp recycling organization: www.lamprecycle.org or

Sharp at 1-800-BE-SHARP (For U.S.A. only)

Trademarks

° anufactured under license from Dolby Laboratories. "Dolby" and the double-D symbol are trademarks of IDolby Laboratories.

° HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of IHDMI Licensing LLC."

, roducts that have earned the ENERGY STAR"_are designed to protect the environment through superior I

energy efficiency.

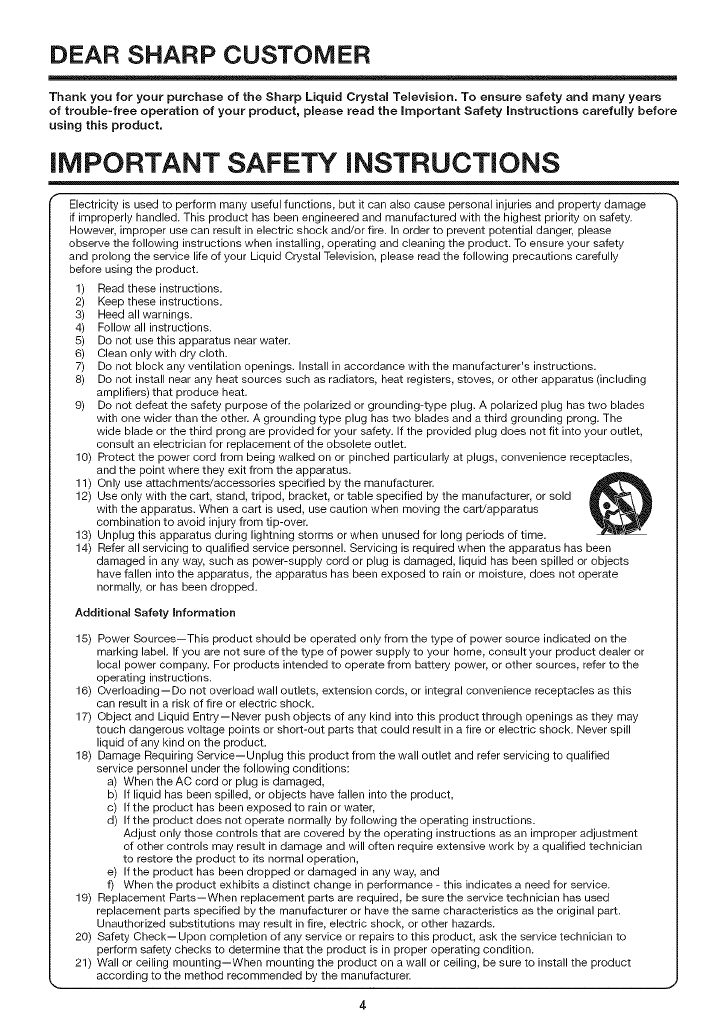

DEAR SHARP CUSTOMER

Thank you for your purchase of the Sharp Liquid Crystal Television. To ensure safety and many years

of trouble-free operation of your product, please read the Important Safety instructions careful}y before

using this product,

IMPORTANT SAFETY INSTRUCTIONS

Electricity is used to perform many useful functions, but it can also cause personal injuries and property damage

if improperly handled. This product has been engineered and manufactured with the highest priority on safety.

However, improper use can result in electric shock and/or fire. In order to prevent potential danger, please

observe the following instructions when installing, operating and cleaning the product. To ensure your safety

and prolong the service life of your Liquid Crystal Television, please read the following precautions carefully

before using the product.

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including

amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades

with one wider than the other. A grounding type plug has two blades and a third grounding prong. The

wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet,

consult an electrician for replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles,

and the point where they exit from the apparatus.

11) Only use attachments/accessories specified by the manufacturer.

12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold

with the apparatus. When a cart is used, use caution when moving the cart/apparatus

combination to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of time.

14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been

damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects

have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate

normally, or has been dropped.

Additional Safety Information

15) Power Sources--This product should be operated only from the type of power source indicated on the

marking label. If you are not sure of the type of power supply to your home, consult your product dealer or

local power company. For products intended to operate from battery power, or other sources, refer to the

operating instructions.

16) Overloading--Do not overload wall outlets, extension cords, or integral convenience receptacles as this

can result in a risk of fire or electric shock.

17) Object and Liquid Entry--Never push objects of any kind into this product through openings as they may

touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill

liquid of any kind on the product.

18) Damage Requiring Service--Unplug this product from the wall outlet and refer servicing to qualified

service personnel under the following conditions:

a) When the AC cord or plug is damaged,

b) If liquid has been spilled, or objects have fallen into the product,

c) If the product has been exposed to rain or water,

d) If the product does not operate normally by following the operating instructions.

Adjust only those controls that are covered by the operating instructions as an improper adjustment

of other controls may result in damage and will often require extensive work by a qualified technician

to restore the product to its normal operation,

e) If the product has been dropped or damaged in any way, and

f) When the product exhibits a distinct change in performance - this indicates a need for service.

19) Replacement Parts--When replacement parts are required, be sure the service technician has used

replacement parts specified by the manufacturer or have the same characteristics as the original part.

Unauthorized substitutions may result in fire, electric shock, or other hazards.

20) Safety Check-- Upon completion of any service or repairs to this product, ask the service technician to

perform safety checks to determine that the product is in proper operating condition.

21) Wall or ceiling mounting--When mounting the product on a wall or ceiling, be sure to install the product

according to the method recommended by the manufacturer.

iMPORTANT SAFETY iNSTRUCTiONS

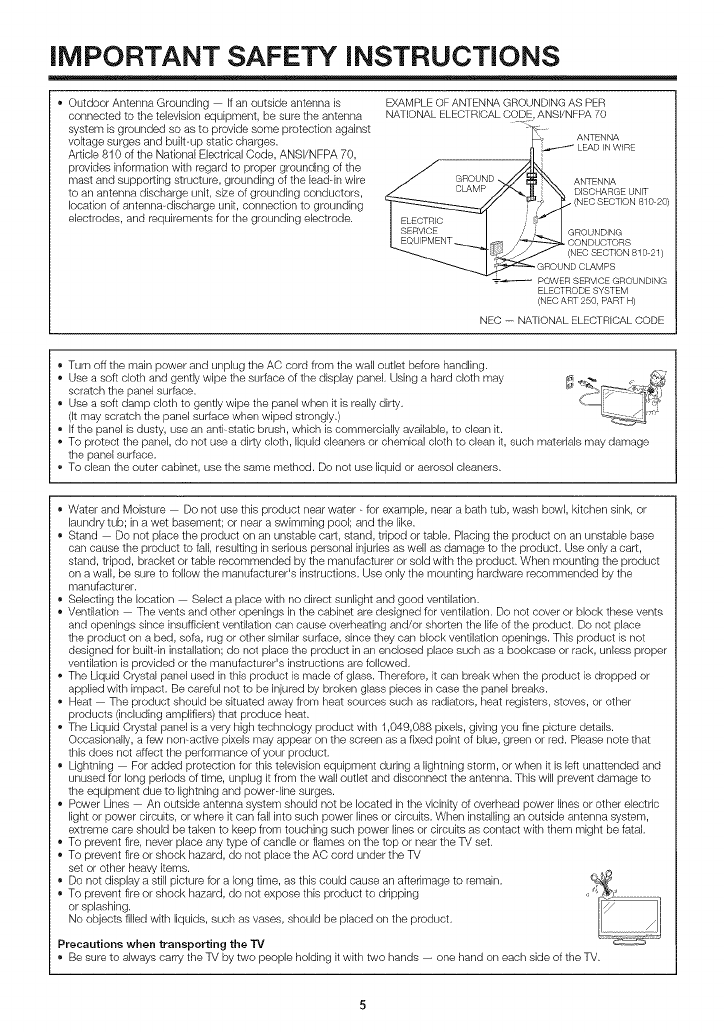

• Outdoor Antenna Grounding If an outside antenna is

connected to the television equipment, be sure the antenna

system is grounded so as to provide some protection against

voltage surges and built-up static charges.

Article 810 of the National Electrical Code, ANSVNFPA 70,

provides information with regard to proper grounding of the

mast and supporting structure, grounding of the leadqn wire

to an antenna discharge unit, size of grounding conductors,

location of antenna-discharge unit, connection to grounding

electrodes, and requirements for the grounding electrode.

EXAMPLE OF ANTENNA GROUNDING AS PER

NATIONAL ELECTRICAL CODE, ANSVNFPA 70

ELECTRODE SYSTEM

(NEC ART 250, PART H}

NEC -- NATIONAL ELECTRICAL CODE

• Turn off the main power and unplug the AC cord from the wall outlet before handling.

• Use a soft cloth and gently wipe the surface of the display panel. Using a hard cloth may

scratch the panel surface.

• Use a soft damp cloth to gently wipe the panel when it is really dirty.

(It may scratch the panel surface when wiped strongly.)

• If the panel is dusty, use an anti-static brush, which is commercially available, to clean it.

• To protect the panel, de not use a dirty cloth, liquid cleaners or chemical cloth to clean it, such materials may damage

the panel surface.

• To clean the outer cabinet, use the same method. Do not use liquid or aerosol cleaners.

• Water and Moisture Do not use this product near water - for example, near a bath tub, wash bowl, kitchen sink, or

laundry tub; in a wet basement; or near a swimming pool; and the like.

• Stand Do net place the product on an unstable cart, stand, tripod or table. Placing the product on an unstable base

can cause the product to fall, resulting in serious personal injuries as well as damage to the product. Use only a cart,

stand, tripod, bracket or table recommended by the manufacturer or sold with the product. When mounting the product

on a wall, be sure to follow the manufacturer's instructions. Use only the mounting hardware recommended by the

manufacturer.

• Selecting the location Select a place with no direct sunlight and good ventilation.

• Ventilation The vents and other openings in the cabinet are designed for ventilation. Do not cover or block these vents

and openings since insufficient ventilation can cause overheating and/or shorten the life of the product. Do not place

the product on a bed, sofa, rug or other similar surface, since they can block ventilation openings. This product is net

designed for built-in installation; de not place the product in an enclosed place such as a bookcase or rack, unless proper

ventilation is provided or the manufacturer's instructions are followed.

• The Liquid Crystal panel used in this product is made of glass. Therefore, it can break when the product is dropped or

applied with impact. Be careful not to be injured by broken glass pieces in case the panel breaks.

• Heat The product should be situated away from heat sources such as radiators, heat registers, stoves, or other

products (including amplifiers) that produce heat.

• The Liquid Crystal panel is a very high technology product with 1,049,088 pixels, giving you fine picture details.

Occasionally, a few non-active pixels may appear on the screen as a fixed point of blue, green or red. Please note that

this does not affect the performance of your product.

• Lightning For added protection for this television equipment during a lightning storm, or when it is left unattended and

unused for long periods of time, unplug it from the wall outlet and disconnect the antenna. This will prevent damage to

the equipment due to lightning and pewerqine surges.

• Power Lines An outside antenna system should not be located in the vicinity of overhead power lines or other electric

light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system,

extreme care should be taken to keep from touching such power lines or circuits as contact with thers] might be fatal.

• To prevent fire, never place any type of candle or flames on the top or near the TV set.

• To prevent fire or shock hazard, do net place the AC cord under the TV

set or other heavy items.

• Do not display a still picture for a long time, as this could cause an afterimage to remain.

• To prevent fire or shock hazard, do net expose this product to dripping

or splashing.

No objects filled with liquids, such as vases, should be placed on the product.

Precautions when transporting the "IV

• Be sure to always carry the %/by h,ve people holding it with h,vo hands -- one hand on each side of the TV.

QUICK REFERENCE

o Before attaching (or detaching) the stand, unplug the AC

cord from the AC INPUT terminal.

o Before performing work spread cushioning over the base

area to lay the TV on. This will prevent it from being

damaged.

o Attach the stand in the correct direction.

o Do not remove the stand from the TV unless using an

optional wall mount bracket to mount it.

o Be sure to follow the instructions, incorrect installation

of the stand may result in the TV falling over.

I Confirm that there are 9 screws and a hex key

supplied with the stand unit.

2 Attach the supporting post for the stand unit onto

the base using the box for the stand unit as shown

below.

Hexkey_ (_) _

/

II I II

3(_) Insert the stand into the openings on the bottom

of the TV.

(_" Insert and tighten the 4 screws into the 4 holes

on the rear of the TV.

To detach the stand, perform the steps in reverse order.

-® |- e| G" _-

• This TV should be mounted on the wall only with the

AN-gTAG5 (SHARP} wail mount bracket. The use of

other wall mount brackets may result in an unstable

installation and may cause serious injuries,

• Installing the TV requires special skill that should

only be performed by qualified service personnel.

Customers should not attempt to do the work

themselves, SHARP bears no responsibility for

improper mounting or mounting that results in

accident or injury.

Using an optional bracket to mount the iV

You can ask a qualified service professional about

using an optional AN-37AG5 bracket to mount the TV

to the wall.

Carefully read the instructions that corrle with the

bracket before beginning work.

fHanging on the wall

AN-37AG5 wall mount bracket.

(See the bracket instructions for details.)

Vertical mounting Angular mounting

About eetting the TV angle

0/5/10/15/20 ° LC-32D44U

The center of the display:

"/_4 inch (4.0 mm) under

the "A" position.

LC-37D44U

The center of the display:

_/4 inch (6.0 mm) above

the "A" position.

Refer to the operation

manual of AN-37AG5 for

details.

• Detach the cable clamp on the rear of the TV when using

the optional mount bracket.

• Due to the terminal configuration on this TV, when you

walhr_ount this model, make sure there is enough space

between the wall and the TV for the cables.

• To use this TV mounted on a wall, first remove the

adhesive tape at the 4 locations on the rear of the TV, and

then use the screws supplied with the wall mount bracket

to secure the bracket to the rear of the TV.

QUICK REFERENCE

1 Attach your antenna to the back of the AQUOS

television. (See page 8.)

2 Connect the AC plug for the AQUOS television into

the AC outlet.

• Place the TV close to the AC outlet, and keep the power

plug within reach.

•TO PREVENT RiSK OF ELECTRIC SHOCK, DO NOT

TOUCH UN-INSULATED PARTS OF ANY CABLES

WiTH THE AC CORD CONNECTED.

3Bundle the cords properly with the cable clamp.

4 How to turn on the AQUOS television for the first time.

A) Press POWER on the AQUOS television.

/

B) The POWER indicator on the front of tile

AQUOS television lights GREEN.

POWER

indicator

• Speakers cannot be detached from the TV.

• TV angle cannot be adjusted.

Use the remote control unit by pointing it towards the remote control sensor on the TV. Objects between the

remote control unit and the remote control sensor may prevent proper operation.

[] Cautions regarding the remote control unit

eDo not expose the remote cor/troI unit to shock. In addition,

do not expose the remote control unit to liquids, and do not

place in an area with high humidity.

o Do not install or place the remote control unit under direct

sunlight. The heat may cause deformation of the remote

control unit.

o The remote control unit may not work properly if the remote

control sensor on the TV is under direct sunlight or strong

17"(5m) lighting. In such cases, change the angle of the lighting

or the TV, or operate the remote control unit closer to the

remote control sensor.

IMPORTANT:

The POWER indicator on the AQUOS television should light GREEN indicatingyou have power to the AQUOS television.

If the POWER indicator on the AQUOS television still does not light up, press POWER on the remote control to turn the power

on,

IMPORTANT:

IF THE UNIT DOES NOT POWER ON UNPLUG THE AQUOS TELEVISDN FROM THE OUTLET AND REPEAT THE

INSTALLATION STEPS.

IF YOU STILL ENCOUNTER NO POWER, PLEASE CONTACT US AT 1 800 BE-SHARP.

Preparation

To enjoy a clearer picture, use an outdoor antenna. The following is a brief explanation of tile types of connections

that are used for a coaxial cable. If your outdoor antenna uses a 75-ohm coaxial cable with an F-type connector,

plug it into the antenna terminal at the rear of the TV set.

"1.A 75_ohm system is generally a round cable with F4ype connector _ Fqype connector "1

that can easily be attached to a terminal without tools (Commercially _ 75 ohm coaxial cable (round)

avaNable).

2.A 300-ohm system is a flat "twinqead" cable that can be attached

to a 75-ohm terminal through a 300/75-ohm adapter (Commercially

available). 300 ohm twinqead cable (fiat)

F-type connector should be finger-tightened only.

When connecting the RF cable to the TV set, do not tighten F-type

connector with tools.

If tools are used, it may cause damage to your TV set. (The breaking 75+ohm coaxial cable

of internal circuit, etc.)

Connecting Antenna Cable

•Connect the antenna came to the "IV using one of the methods in the illustration as shown (1, ,2), <3 or ,_)).

Home Antenna

_1) Cable without a CATV Cablew]eadqn t:{_i+_at(75+ohm)

converter oo_al cable

(commercially available)

_,2) VHF/UHF antenna T7 HomeAntenl_ater m_nat (75+ohm)

5 ohm coax[at c_ble (round) _

Co_ial cable

,,3, Combination VHF/

UHF antenna

_,4_, Separate VHF/UHF

antenna

I

or 300/75 ohm adapter

I (commercia_Fy available)

300+o+_m

VHF twin Eeadcable

ANTENNA

Combiner

SOO+ohmtw_n4ead cable (commerc_aEEyavailable)

TO TV antenna

I°r 75+°hm c°_ial cable terminal

If the remote control fails to operate TV functions, replace the batteries in the remote control unit.

I Open the battery cover. 2 Insert two "AA" size batteries 3 Close the battery cover.

(supplied with the product).

, Place the batteries with their terminals

corresponding to the ( t ) and (-)

indications in the battery compartment.

Improper use of batteries can resGt in chemical leakage or explosion. Be sure to follow the instructions below.

, Do not mix batteries ot different types. Different types ot batteries have different characteristics.

, Do not mix old and new batteries. Mixing old and new batteries can shorten the lite ot new batteries or cause chemical leakage

in old batteries.

, Remove batteries as soon as they are worn out. Chemicals that leak from batteries that come in contact with skin can cause a

rash. If you find any chemical leakage, wipe thoroughly with a cloth.

, The batteries supplied with this product may have a shorter life expectancy due to storage conditions.

, If you will not be using the remote control unit tor an extended period of time, remove batteries from it.

Oh :ttonsMENUbutton

Volume buttons INPUT button POWER button

(VOL-/+)

.AC INPUT terminal

L AUDIO OUTPUT terminals

l-- DIGITAL AUDIO OUTPUT terminal

-- INPUT 6 terminals (PC-IN)

-- INPUT 5 terminals (HDMI)

-- INPUT 4 terminal (HDMI)

-- INPUT 1 terminals

SERVICE terminal

INPUT 2 terminals

Antenna/Cable in

INPUT 3 terminals

Part Names

i -22

S

1 POWER: Switch the TV power on or enters

standby. (See page 12.)

2 CC: Display captions from a closed-caption

source. (See page 15.)

3 AUDIO: Selects the MTS/SAP or the audio mode

during multi-channel audio broadcasts. (See page

14.)

4 0-9: Set the channel. (See page 13.)

5 • (DOT): (See page 13.)

6 FLASHBACK: Return to the previous channel or

external input mode. (See page 14.)

7 VIEW MODE: Select the screen size. (See page 16.)

8 FREEZE: Set the still image. Press again to return

to normal screen. (See page 13.)

9 A/T/_I/I_, ENTER: Select a desired item on the

screen,

10 EXIT: Turn offthe menu screen.

11 DISPLAY: Display the channel information.

12 SLEEP: Set the sleep timer. (See page 13.)

13 AV MODE: Select an audio or video setting.

(When the input source is TV, INPUT 1, 2 or 3:

STANDARD, MOVIE, GAME, USER, DYNAMIC

(Fixed), DYNAMIC. When the input source is INPUT

4, 5 or 6: STANDARD, MOVIE, GAME, PC, USER,

DYNAMIC (Fixed), DYNAMIC) (See page 14.)

14 MUTE: Mute the sound. (See page 13.)

15 VOL +/- : Set the volume. (See page 13.)

16 CRA/V: Select the channel. (See page 13.)

17 ENT: Jumps to a channel after selecting with the

0-9 buttons.

18 INPUT: Select a TV input source. (TV, INPUT 1,

INPUT 2, INPUT 3, INPUT 4, INPUT 5, INPUT 6)

(See page 13.)

19 PC: Quickly access to PC mode.

20 MENU: Display the menu screen.

21 RETURN: Return to the previous menu screen.

22 FAVORITE CN

A, B, C, D: Select 4 preset favorite channels in 4

different categories. (See page 25.)

While watching, you can toggle the selected

channels by pressing A, B, C and D.

• When using the remote control unit, point it at the TV.

10

Connecting to External Equipment

You can connect many types of external equipment to your TV like a Bh-ray disc player, HD-DVD player, DVD

player, VCR, Digital TV tuner, HDMI equipment, game console or camcorder. To view external source images,

select the input source from INPUT on tile remote control unit or on tile TV. (See page 13.)

• To protect equipment, always turn off the TV before connecting any external equipment.

• Please read the relevant operation manual (BID-ray disc player, etc.) carefully before making connections.

Connecting a Blu-ray disc player, HD-DVD player, DVD player, Digital TV STB (Air or Cable), VCR,

ame console or eameorder

Terminal on external

Terminal on the TV Cable equipment

INPUT 1 or 2 AV came (cornrnerl;ially available)

INPUT 1 or 3

INPUT2

VIDEO AUDIO

® i(.)

o®

COM_O_E_rAUOIO

s-riD O AUDIO

OR®

INPUT 4 or 5Haml

DIGITAL AUDIO

OUTPUT

Component video (;able (oommercially available)j_

Audio cable (commercially available}

S-VIDEO cable (commerl;ially available)

Audio i;able (commerl;ially available)

HDMI-certified i;able (commerl;ially available)

_,_:_ Optical fiber i;able (i;ommerl;ially available) _p_

® L®®R

VIDEO AUDIO

CO_PONFNT

AUDIO

S-VIDEO AUDIO

H_:alml

DIGITAL

AUDIO

INPUT

'1 • The S-VIDEO terminal takes priority over the video terminals. (INPUT 2 only)

•2 • When using an HDMI-DVI conversion cable, input the audio signal to AUDIO terminal of INPUT 5.

•3 • Depending on the connected equipment, audio will not output from the DIGITAL AUDIO OUTPUT terminal in HDMI

connection. In this case, set the audio formats of the connected equipment to PCM, 32/44.f/48 kHz and f 6 bits.

Connecting aPC

Terminal on the TV

INPUT 6 A.A_OGRG[_ AUDIO

(PCIN)

INPUT 4 or 5HDml

Cable

RGB cable (commer(;ially available)

(b 3.5 mm stereo minijack cable (commer(;ially available)

HDMk;ertified cable (commercially available)

Terminal on PC

ANAOG RGB

M_l'n|

• The HDMI terminals only support digital signal.

• Refer to page 30 for a list of PC signals compatible with the TV.

*2

"3

11

Watching TV

POWER

n

Press POWER on tile TV or oil the remote control unit to turn the

power on.

o POWER indicator (Green): The TV is on. (After a few seconds, a window

appears with sound.)

o The initial setup starts when the TV powers on for the first time. If the TV has

been turned on before, the EZ Setup will not be invoked. See page 20 for

performing E7 Setup from the Setup menu.

Press POWER on tile TV or oil the remote control unit again to turn the

POWER power off.

(On/Standby) o The TV enters standby and the image on the screen disappears.

• The POWER indicator on the TV tarns oft.

o if you are not going to use this TV for a long period of time, be sure to remove

the AC cord from the AC oatbt.

• Weak electric power is still consumed even when the TV is turned oft.

When you turn on the TV for the first time, it will

automatically memorize the broadcasting channels

available in the region where you live. Perform the

following steps before you press POWER on the

remote control unit.

1. Insert the batteries into the remote control unit. (See page 8.}

2. Connect the antenna cable to the TV. (See page 8.)

3. PhJgin the AC cord to the AC outlet. (See page 7.)

Language (Language setting)

Select trom among 3 languages: English, French and Spanish.

1 Press A/T to select the desired language listed on the

screen, and then press ENTER.

Air/Cable (Antenna setting}

Make sure what kind of connection is made with your TV

when selecting "Air" or "Cable".

3 Press 4/P" to select "Air" or "Cable".

Press ENTER to enter the setting.

Example

CH Search (Channel search)

Channel auto search makes the TV look for all channels

viewabb in the set area.

4 When "Air" is selected in Antenna setting:

Press _1/_ to sebct "Start", and then press ENTER.

TV Location

Select "Home" or "Store" for the location where you plan to

install the TV.

2 Press _/_ to select "Home" or "Store".

Press ENTER to enter the setting.

Example

When "Cable" is selected in Antenna setting:

Press .J./T to sebct "Analog & Digital Search Start" to

search both analog and digital broadcasts, or to select

"Analog Search Start" to search only analog broadcasts,

and then press ENTER.

o The Channel search will start automatically.

• To exit the Channel search screen, select "Cancel", and

then press ENTER.

o If you select "Home", AV MODE is set to "STANDARD".

o If you select "Store", AV MODE is set to "DYNAMIC (Fixed)". o K no channel is found, confirm the type dconnection made

In case no remote control signal is received within 30 minutes, with your TV and try E7 Setup again.

AV MODE will change to "DYNAMIC(Fixed)" automatically. (See page 20.)

o For changing the TV Location after the setting, see "E7

Setup" on page 20.

12

Direct Button Operation

You can change channels by pressing CNA/V or 0-9,

(DOT).

Examples:

To select a t or 2-digit channel number (e. g., Channel 5):

Press 5 F ENT.

To select a 3=digit channel number (e. g., Channel 115);

Press t _ 1 F 5 _ ENT.

To select a 4-digit channel number (e. g., Channel 22.1):

Press 2 _ 2 _ o (DOT) _ 1 _ENT.

o When selecting a 1 digit channel number, it is not

necessary to press 0 before the number.

o When you enter 0-9 only, channel selection will be made if

there is no operation within a few seconds.

o If you push "0" by itself, nothing will happen.

o Complete the above steps within a few seconds.

o When you enter 0 9 and o (DOT), channel selection will be

made if there is no operation within a few seconds.

You can change the volume by pressing VOL +/- on

the TV or on the remote control unit.

o To increase the vohJrne, press VOL +.

o To decrease the vohJme, press VOL-.

I_ _:2 I

Audio status

o When "Output Select" is set to "Variable", the indicator on

the screen changes as shown below.

I M _1_01

o See page 25 for details on the Output Select function.

Mutes the current sound output.

Press MUTE.

o . rD" will be displayed on the screen for 30 minutes, and

the sound is silenced.

o Within 30 minutes of pressing MUTE, mute can be

canceled by using one of the methods below.

Mute will be canceled if you press VOL +/- or MUTE.

o Mute will be canceled after 30 minutes have passed.

However, the TVwill not suddenly output a loud sound as

the volume level is set to 0 automatically.

Allows you to set a time when the TV automatically

switches to standby.

Press SLEEP.

o The remaining time displays when the sleep timer has been set.

o Each time you press SLEEP, the remaining time switches

as shown below.

Off _30 _ 60._ 90._ 120

't !

o When set, the time automatically starts counting down.

o If you want to adjust the sleep timer, you can press SLEEP

twice then change the time setting.

o Five minutes before the time expires, the remaining time

displays every minute.

o Select "Oft" by pressing SLEEP to cancel the sleep timer.

o The TVwill enter standby when the remaining time reacheszero.

o When the sleep timer is set, its indicator on the TV lights red.

Allows you to capture and freeze a moving image that

you are watching.

Press FREEZE.

o A moving image is captured.

o Press FREEZE again to cancel the function.

o When this function is not available, "No displaying still

image available." will display.

o The still image automatically goes out after 30 minutes.

o If you are using the freeze function and a broadcast

activates the V CHIP BLOCK, the freeze function will be

canceled and a V-CHIP BLOCK message will appear.

To view external source images, select the input source

using INPUT on the remote control unit or on the TV.

1 Press INPUT.

• A list of selectable sources appears.

2 Press INPUT again or press A/_' to select the

input source.

An image from the selected source automatically displays.

Each time INPUT is pressed, the input source toggles.

If the corresponding input is not plugged in, you cannot change

the input.Be sure to connect the equipment beforehand.

See page 11 for external equipment connection.

Press PC to switch to an image from the PC.

13

Direct Button Operation

AV MODE gives you 7 viewing options to choose from

to best match the surrounding environment of the TV,

which can vary due to factors like room brightness,

type of program watched or the type of image input

from external equipment.

Press AV MODE. Current AV MODE displays.

o Press AV MODE again before the mode displayed on the

screen disappears. The mode changes as shown below:

Example:

When the input source is TV, INPUT 1, 2 or 3 terminals

SI_,NDARD ,m MOVIE _GAME _ USER [TV]

I l

DYNAMIC I DYNAMIC (Fixed)

Example:

When the input source is INPUT 4, 5 or 6 terminals

S]_,N DARD ,_ MOVIE ,_ GAM E,_ pC

I !

DYNAMIC _ DYNAMIC (Fixed)_ USER[,,,_]

STANDARD: For a highly de.fined image in a normal

lighting.

[Enhanced Picture Contrast: on]

MOVIE: For a movie.

[Enhanced Picture Contrast: oft]

GAME: Lowers image brightness tor easier viewing.

[Enhanced Picture Contrast: oft]

PC: For PC.

[Enhanced Picture Contrast: oft]

USER: Allows the user to customize settings as desired.

You carl set the mode for each input source.

[Enhanced Picture Contrast: oft]

DYNAMIC (Fixed): Changes the image and sound

settings to the tactory preset values. No adjustments

are allowed.

[Enhanced Picture Contrast: on]

DYNAMIC: For a clear-cut image emphasizing high

contrast, useful for sports viewing.

[Enhanced Picture Contrast: on]

[] MTS/SAP stereo mode

The TV has a feature that allows reception of sound

other than the main audio for the program. This feature

is called Multi-channel Television Sound (MTS). The TV

with MTS can receive mono sound, stereo sound

and Secondary Audio Programs (SAP). The SAP

feature allows a TV station to broadcast other

information, which could be audio in another language

or something corrlpleteiy different like weather

information.

You can enjoy Hi-Fi stereo sound or SAP broadcasts

where available.

•Stereo broadcasts: View programs like live sporting

events, shows and concerts in dynamic stereo sound.

• SAP broadcasts: Receive TV broadcasts in either MAIN or

SAP sound.

MAIN sound: The normal program soundtrack (either in

mono or stereo).

SAP sound: Listen to a second language, suppbmentary

commentary or other information. (SAP is mono sound.

If stereo sound is difficult to hear.

, Obtain a clearer sound by manually switching to fixed

mono sound mode.

You can change MTS as shown below to match the television

broadcast signal.

Press AUDIO to toggb between audio modes.

Examples: when receiving MTS and SAP

STEREO mode: S_[EREO_ MONO

STEREO + SAP mode: S_[(SAP) _ SAP(Sf)_ MONO

tt !

MAIN + SAP mode: MAIN',_ SAP

MONO mode: MONO

[] Digital broadcasting audio mode

The types of audio transmitted in a digital broadcast include

SURROUND as well as MONO and STEREO. In addition, it

is possible tot multiple audio tracks to accompany a single

video track.

o You can select a different AV MODE item for each input

mode. (For example, select STANDARD for TV input and

DYNAMIC for INPUT 1.)

o When you play games, "GAME" is recommended for AV

MODE.

o "Enhanced Picture Contrast" technology detects the source

video characteristics and smoothly adjusts the screen

brightness accordingly to realize deeper black levels.

Press AUDIO to toggb between audio modes.

Example: when receiving Digital broadcasting

STEREO (Audiot) _ STEREO (Audio2)

SURROUND (Audio3)

o MTS only operates while in TV mode.

Press FLASHBACK to switch to the previously tuned

channel.

o Press FLASHBACK again to switch back to the currently

tuned channel

• FLASHBACK will not work if no channel has been changed

after the TV is turned on.

14

DirectButtonOperation

Your TV is equipped with an internal Closed Caption 1

decoder. It allows you to view conversations, narration

and sound effects as subtitles on your TV. Closed

Captions are available on sorne TV programs and on

some VHS home video tapes at the discretion of the 2

program provider.

Digital Closed Caption service is a new caption service

available only on digital TV prograrns (also at the

discretion of the service provider). It is a more flexible

system than the original Closed Caption system,

because it allows for a variety of caption sizes and font

styles. When the Digital Closed Caption service is in

use, it will be indicated by the appearance of a 3qetter

abbreviation that also indicates the language of the

Digital Closed Captions: ENG (English), SPA (Spanish),

FRA (French) or other language codes.

Not all programs and VHS videotapes offer closed

captions. Please look for the "[_]" symbol to ensure

that captions will be shown.

In the Closed Caption systern, there can be more than

one caption service provided. Each is identified by its

own number. The "CC1" and "CC2" services display

subtitles of TV programs superimposed over the

program's picture.

In the Closed Caption system, the "Text1" or "Text2"

services display text that is unrelated to the program

being viewed (e.g., weather or news). These services

are also superimposed over the program currently

being viewed.

Press CC.

o This will present the Closed Caption intormation

display.

Press CC while the Closed Caption information is

still on the screen.

o Press repeatedly until you select the desired closed

caption service.

Closed Caption

information

o Depending on the number ot caption services in the

signal being received, you will see intormation such as

1/2 or 1/4 displayed.

1/2 means "the first of two services".

Example:

If a program has three services (Digital CC(ENG), CC1

and Text1), the closed caption display will toggle in this

sequence:

o The CC button keeps a record of the last service

selected in its memory.

If the last closed caption mode (e.g. 1/3ENG) you

selected is net available for the next program, or on

another channel, the closed caption service that is

available is automatically selected, and this service

appears in parentheses, e.g. "1/3(CC1)".

Closed Caption services that appear in parentheses will

not be stored in the CO button's memory as year last

selected service. Only services that you have selected

with the CC button are stored.

Examples:

In a case where there are two closed caption

services provided (for instance, Digital CC(ENG)

and CC1), and Digital CC(ENG)is displayed

as your current selection, if Digital CC(ENG) is

not broadcast for the next program, the other

closed caption service, CC1, will be displayed in

parentheses.

A closed caption service appears in parentheses

because the service you selected is not available

and a different service is displayed on your screen.

"1/1 (CC1)" is displayed instead of "1/2/ENG".

o See page 25 for detailed closed caption settings.

o When the program contains no closed caption, "- " displays

in the closed caption information.

o If the language code, e.g. "ENG", is not tound on Digital TV

programs, " -" will be shown.

o Four kinds of closed caption service (CC1, CC2, Text1,

Text2) are potentially available, but a broadcast may contain

none or only some ot these services at the discretion ot the

program provider.

15

Direct Button Operation

You can select the screen size.

1 PressVIEW MODE.

o The View Mode menu dispbys.

o The menu lists the View Mode options sebctable for the type of video signal currently being received.

2 Press VIEW MODE or A/_' while the View Mode menu is displayed to select a desired item on the menu.

• You can sequentially select a View Mode that has its own aspect ratio.

[] For 4:3 programs

Example: Screen size images

Side Bar

Suitabb for viewing

conventional 4:3 programs in

their normal format.

S.Stretch (Smart stretch)

Suitable tor stretching 4:3

programs to fill the screen.

Zoom

Suitabb tot viewing wide

screen 2.35:1 anamorphic

DVDs in tall screen.

Stretch

Thismode is usetul for 1.78:1

DVDs.When viewing 1.85:1

DVDs, stretch mode will still show

verythin black bands at the top

and bottomof the screen.

[] For HD programs

Stretch: Suitable tor vbwing wide-screen 1.78:1 aspect ratio program, stretch mode will still show very thin black bands at

the top and bottom ot the screen.

Full Screen: Displays an image taithful to the input signal in full screen.

S.Stretch (Srnart stretch}: Suitable. tor stretching 4:3 programs to fill the screen.

Zoom: Suitable for viewing wide screen 2.35:1 aspect ratio programs in full screen.

o When using Full Screen, it is possible to see noise or bars around different outer portions ot the screen. Please change view

mode to correct this.

[] For PC input mode

o Connect the PC betore making adjustments. (See page 11 ,)

o Sebctable screen size may vary with input signal type.

Example: Screen size images

Input signal

4:3

Normal Zoom Stretch

[-03

Keeps the original

aspect ratio in a full

screen display.

R-q

For viewing

widescreen

programs. The top

and bottom ot the

image is cropped.

C>

An image fully fills the

screen.

Dot by Dot

El

Detects the resolution

of the signal and

dispbys an imagewith

the same number d

I pkeb on the screen.

Input signal

©

16:9

Stretch

©

An image tally fills the

screen.

Dot by Dot

Detects the re.solution

of the signal and

displays an image with

the same number of

pixels on the screen.

16

On-Screen Display Menu

]R_ ,,,

Example Example

(2)

T_he bar above is an operational guide for

the remote control. The bar will change in

l accordance with each menu setting screen.

Press 4/1_ to select the desired item.

Press A/T" to select the desired item.

Press 4/1_ to adjust the item.

J

®

Item displayed in yellow

o This indicates the item currently selected.

o Press ENTER to go to the adjustment screen tot this

item.

Item in brackets

o This indicates the current setting for the item.

Item displayed in white

o This indicates that the item can be selected.

Item displayed in gray

o This indicates that the item cannot be selected.

There are various reasons why the items cannot be

selected, but the main reasons are as follows:

--Nothing is connected to the selected input terminal.

--The function is not compatible with the current input

signal.

o Menu options differ in the selected input modes, but the

operating procedures are the same.

o The screens in the operation manual are for explanation

purposes (some are enlarged, others cropped) and may

vary slightly from the actual screens.

ill,,

Using the remote control Using the control panel of the main unit

Use the following buttons on the remote control to You can also operate the menu with the control panel

operate the menu. of the main unit.

Button operations on the control panel correspond to

the ones on the remote control as shown below.

\

MENU: Press to open or close the menu screen.

A/T/4/_ : Press to select a desired item on the screen or

adjust a selected item.

ENTER: Press to go to the next step or complete the

setting.

RETURN: Press to return to the previous step.

VOL-/+ :Cursor _/D,- on the remote centre].

cHV/A: cursor T/A on the remote control.

INPUT: ENTER on the remote control

MENU: MENU on the remote control.

17

On-Screen Display Menu

Adjusts tile picture to your preference with the

following picture settings.

Example E r_ Picture

1 Press MENU to display the MENU screen, and then

press 4/_- to select "Picture".

2 Press A/_" to select a specific adjustment item.

o Select "Advanced" and then press ENTER to set

"C.M.S. Hue", "C.M.S. Saturation", "Color Temp.",

"Active Contrast", "Film Mode", "Digital Noise

Reduction", "3D Y/C", "Monochrome" or "Range of

OPC".

3 Press ,_/Y(or .,q/_.) to select the desired setting,

The screen

brightens

Contrast For more contrast

Brightness For more

brightness

Color For more color

intensity

Tint Skin tones

become greenish

Sharpness For more

sharpness

and then press ENTER.

4 Press MENU to exit.

Backlight The screen dims

For less contrast

For less

brightness

For less color

intensity

Skin tones

become reddish

For less

sharpness

For resetting all Picture adjustment items to the factory

preset values, press A/T to select "Reset", press ENTER,

press 41/D,-to select "Yes", and then press ENTER.

Automatically adjusts the brightness of the screen.

Off: The brightness is fixed at the value set in "Backlight".

On: Automatically adjusts.

On: Display: Displays the OPC effect on the screen while

adjusting the brightness of the screen.

o When set to "On", the OPC senses the surrounding light

and automatically adjusts the backlight brightness. Make

sure nothing obstructs the OPC sensor, which could affect

its ability to sense surrounding light.

o When set to "On: Display", OPC effect displays on the

screen while the OPC adjusts the screen brightness.

o When set to "On" or "On: Display", the OPC indicator on

the TV lights green.

This TV provides various advanced functions for

optimizing the picture quality.

Color tone is managed using the six-color adjustrnent

setting.

C.M.S.-Hue: Thb is a standard to adjust the color either

more reddish or more bluish in tone.

C.M.S.-Saturatiom Increases or decreases the

saturation ot a selected color.

o For resetting all adjustment items to the factory preset

values, press A/'V to select "Reset", and then press

ENTER.

For a better white balance, use color temperature

correction.

High: White with bluish tone

Mid-High:

Middle:

Mid-Low:

Low: White with reddish tone

Automatically adjusts the irrlage contrast according to

the scene.

On: Automatically adjusts the image contrast.

Off: No adjustment.

18

On-Screen Display Menu

Automatically detects a film-based source (originally

encoded at 24 frames/second), analyzes it then

recreates each still film frame for high-definition picture

quality.

On: Detects, analyzes, converts film soume.

Off: Normal viewing mode.

o "Film Mode" does not tunction when you set the "AV Mode"

to "Game".

o "Film Mode" is not selectable when channel display shows

an input resolution ot 480P or 720P.

Produces a clearer video irrlage.

Off: No adjustment

High: For enhanced Digital Noise Reduction

Low: For moderate Digital Noise Reduction

Provides high quality images with minimal dot crawl

and cross color noise.

Slow: For still images.

Standard: Normal adjustment.

Fast: For moving images.

Off (21)}: For Game Mode.

o 3D Y/C is available for input signal from Composite Video

and analog broadcasts (air and cable).

For viewing a video in monochrome.

On: For viewing in monochrome.

Off: Normal color.

The brightness level range of the OPC sensor's

automatic adjustments can be set according to your

preferences.

The adjustment range of the OPC sensor can be set to

a maximum of +16 and a minimum of-16.

Max.: -15 through +16

Min.: 16through +15

o The range of OPC settings are active only when the OPC is

set to "On".

o The maximum setting cannot be set to a smaller number

than the minimum setting.

o The minimum setting cannot be set to a bigger number

than the maximum setting.

o Depending on the brightness of the surrounding light, the

OPC sensor might not operate if the adjustment range is

small.

You can adjust the sound quality to your preference

with the following settings.

ExampleJ _ Audio

1 Press MENU to display the MENU screen, and then

press -_1/1_ to select "Audio".

2 Press A/Y to select a specific adjustment item.

• Select "Surround" or "Bass Enhancer" and then press

ENTER to set each item.

3 Press A/_' (or _1/_-) to select the desired setting,

and then press ENTER.

4 Press MENU to exit.

Treble For weaker treble For stronger treble

Bass For weaker bass For stronger bass

Balance Decreaseaudio from Decreaseaudiofrom

the right speaker the left speaker

, Audio menu is grayed out when Output Select is set to

"Variable".

, For resetting all Audio adjustment items to the factory

preset values, press A/T to select "Reset", press ENTER,

press _1/_ to select "Yes", and then press ENTER.

Surround function allows you to enjoy realistic "live" sound.

On: Surround function is on.

Off: Normal sound.

o Audio menu is grayed out when Output Select is set to

"Variable".

o For some discs, setup may be required on your DVD player.

In this case, please refer to the operation manual of your

DVD player.

This function allows you to enjoy bass-enhanced sound.

On: Bass Enhancer function is on.

Off: Normal sound.

o Audio menu is grayed out when Output Select is set to

"Variable".

19

On-Screen Display Menu

=o - • • -

Power control setting allows you to save energy.

ExampNe I _ Power Control

1 Press MENU to display the MENU screen, and then

press _/_. to select "Power CentroV'.

2 Press A/Y to select a "No Signal Off" or "No

Operation Off", and then press ENTER.

3 Press _/1_ to select "Enable", and then press

ENTER.

4 Press MENU to exit.

When set to"Enable", the power ,will automatically shut

down if there is no signal for 15 minutes.

_J_y

o Five minutes before the power shuts down, the remaining

time displays every minute.

o "Disable" is the factory preset value.

o When a TV program finishes, this function may not operate.

When set to "Enable", the power will automatically shut

down if there is no operation for 3 hours.

o Five minutes before the power shuts down, the remaining

time displays every minute.

o "Disable" is the factory preset vahJe.

" • k_'|

ExarnpNe [ _qlgl_Setup

1 Press MENU to display the MENU screen, and then

press ..9/_. to select "Setup".

2 Press ,&/V to select a specific adjustment item,

and then press ENTER.

o When you select "EZ Setup", "CH Setup", "Parental

CTRL" and "Reset", you can enter the 4 digit secret

number here. See page 22 tot setting a secret number.

3 Press ,&/V (or ".9/I_) to select the desired setting,

and then press ENTER.

4 Press MENU to exit.

You can run EZ Setup again, even after setting up the

preset channels.

Language; Select from among 3 languages (English,

French and Spanish).

TV Location: Select "Home" or "Store" for the location

where you plan to install the TV.

Ifyou select "Home", AV MODE isset to "STANDARD".

= Ifyou select "Store", AV MODEis setto "DYNAMIC(Fixed)".

In caseno remote control signal is receivedwithin 30

minutes,AVMODE will change to "DYNAMIC(Fixed)"

automatically.

Air/Cable: Make sure what kind of connection is made

with your TV when selecting "Air" or "Cable".

OH Search: Channel auto search makes the TV look for

all channels viewable in the set area.

o See "Initial Setup" on page 12 for setting each item.

o If no channel is found, confirm the type of connection made

with your TV and try EZ Setup again.

o If you select "Analog Search Start" and initiate the channel

search, the CH Memory for Cable Digital will be deleted.

If initial setup does not memorize all the channels in

your region, follow the instructions below to manually

memorize the channels.

Air/Cable: Make sure what kind of connection is made

with your TV when selecting "Air" or "Cable".

OH Search: Channel auto search makes the TV look for

all channels viewable in the set area.

OH Memory: You can select the channels to skip in each

ANALOG (Air), ANALOG (Cable), DIGITAL (Air) and

DIGFAL (Cable).

On: SkJpschannels.(Channel selectiondisabledusing CH

A/V.)

Off: Doesnot skip channels.(Channel selectionenabledusing

CHA/V.)

o See "Initial Setup" on page 12 for setting each item.

o If no channel is found, confirm the type of connection made

with your TV and try channel search again.

o If you select "Analog Search Start" and initiate the channel

search, the CH Memory for Cable Digital will be deleted.

In order to receive digital air broadcasts, you need

a digital broadcast antenna. You can confirm the

antenna configuration through the "Antenna Setup -

DIGITAL" screen. If necessary, adjust the direction of

the antenna to obtain the maximum signal strength.

Signal Strength: The signal strength of DIGITAL channel

is displayed. The signal information is based on the

current channel.

Channel Strength; Input the 2-digit channel number

to check the signal strength of the selected channel.

Make sure the signal is strong enough for each

channel.

= Thisfunction is availablefor DIGITAL(Air)only.

2O

On-Screen Display Menu

This setting allows you to skip the HDMI or PC-IN Input

("Input 4 (HDMI)", "Input 5 (HDMI)" and "Input 6 (RGB)")

on the Input Selection operation.

Yes: Skips the input.

No: Does not skip input.

Some input signals may have to be registered manually

to display properly. The pair of input signals (resolutions)

in the list below is not distinguishable when received.

In such a case, you have to set the correct signal

manually. After setting once, it will display when the

same signal (resolution) is input again.

[1024 x 768 1360 x 768 ]

o You can only select the "Input Signal" on the Setup menu

when receiving one of the 2 input signals listed above.

For automatically adjusting the PC irrlage.

Yes: Auto Sync. starts and "Now adjusting the image."

displays.

No: This function does not work.

o When Auto Sync. is successful, "Completed" displays. If

not, Auto Sync. failed.

o Auto Sync. may fail even if "Completed" displays.

o Auto Sync. may fail if the computer image has low

resolution, has unclear (black) edges, or is moved while

executing Auto Sync.

o Be sure to connect the PC to the TV and switch it on before

starting Auto Sync.

Ordinarily you can easily adjust the picture as

necessary to change irrlage position using Auto Sync.

In some cases, however, manual adjustment is needed

to optimize the image.

H-Poe.: Centers the image by moving it to the left or

right.

V-Poe.: Centers the image by moving it up or down.

Clock: Adjust when the image flickers with vertical

stripes.

Phase: Adjust when characters have low contrast or

when the image flickers.

o For resetting all Fine Sync. adjustment items to the factory

preset values, press ._./T to select "Reset", and then press

ENTER.

o It is not necessary to adjust the "Clock" or "Phase" when a

digital signal is being input, so it cannot be selected.

o The default cursor position may not be in the center,

because the screen position variable ranges may be

asymmetrical.

o The screen position variable ranges depend on the View

Mode or the signal type. The ranges can be seen on the

position-setting screen.

Lets you set the input terminal displayed when using

the INPUT SOURCE menu or channel display. Press

A/V/41/I_ to select the new name for the input

mode.

o You cannot change labels if the INPUT SOURCE is TV.

For adjusting a picture's horizontal and vertical

position.

N-Poe.: Centers the image by moving it to the left or

right.

V-Poe.: Centers the image by moving it up or down.

o For resetting adjustments to the factory preset values,

press a./T to select "Reset", and then press ENTER.

o When connecting a PC to the HDMI terminal, the image

position will be automatically adjusted. It cannot be

manually adjusted.

o The screen position variable ranges depend on the View

Mode or the signal type. The ranges can be seen on the

position-setting screen.

o Adjustments are stored separately according to input

source.

You can also select a language from the Setup menu.

Select from among 3 languages: English, French and

Spanish.

If complex adjustments are made and the settings

cannot be restored to normal, you can reset the

settings to the factory preset values.

1 "Return to the factory preset values" displays on the

screen.

o Kyou have already set the Secret No., input the 4-digit

secret number here. See page 22 for setting a secret

number.

2 Select "Yes".

• "Now, TV will restart automatically. OK?" displays on the

screen.

3 Select "Yes".

o "Now initializing..." displays on the screen and blinks.

After the reset has been completed, the power shuts oft

and then comes back on. The screen will have returned

to its original settings.

o The Channel Setup settings will not be changed.

o The Language settings will not be changed.

o The Secret number settings will not be changed.

o The TV Location Settings will not be changed.

21

On-Screen DispJay Menu

V-CHIP is an electronic filtering device built into your

TV. This tool gives parents a great degree of control

over broadcasts accessed by their children. It allows

Allows you to use a secret number to protect certain

settings from being accidentally changed.

IMPORTANT:

Three conditions must be met to enable the V-Chip (see

pages 22 to 24):

1. Secret No. is registered.

2. V Chip/V Chip (DTV Only) settings have been made.

o The "V-Chip (DTV Only)" will only be sebctabb when

a new rating system can be downloaded via digital

broadcasting in the U.S.

3. "Status" is set to "On".

[] New Secret No.

You can set and change the secret number by using 0-9.

Input Secret No,: When you change the secret number,

enter the okJ4 digit secret number here. The cursor

moves to "New Secret No.".

New Secret No.: When you set the new secret number,

enter the new 4-digit secret number here. The cursor

moves to "Reconfirm".

Reconfirm: Enter the same 4 digit number you set in

"New Secret No.".

[] Secret No. Clear

YOU can clear your seo[et number.

Yes: Your secret number is chafed.

Ne: Your secret number is not cleared.

parents to select programs judged suitable for child

viewing while blocking ones judged not suitable. It

does so automatically once you activate the V-CHIP

feature in your TV. "V-Chip" and "Status" will not be

selectable from the menu if you do not first configure

your secret number.

o The U.S. has two rating systems for viewing content: TV

Parental Guidelines and movie ratings.

o The TV Parental Guidelines work in conjunction with the

V CHIP to help parents screen out inappropriate tebvision

shows from their children.

o Movie ratings are used for original movies rated by the

Motion Picture Association of America (MPAA) as watched

on cable TV and not edited for television. The V CHIP can

also be set to block MPAA rated movies.

o The setting automatically enters "Block" for any ratings

bebw your selection.

o If Status is not set to "On", the configuration settings will

not work.

[] MPAA (VoJuntary movie rating system}

Example

o As a precautionary measure, make a note ot your secret

number and keep it in a familiar place.

o If the secret number is cleared, the Status setting

automatically sets to "Off". "V-Chip" and "Status" will not be

sebctabb from the menu.

Used to enable or disable the parental control function.

This function will not be selectable from the menu if

you do not first configure your secret number.

On: Enables Parental CTRL

Off: Disables Parental CTRL.

Press A/_" to adjust the item to your desired position.

"_" indicates the item is blocked. Press MENU to exit.

G: General aadbnces. All ages admitted.

PG: Parental guidance suggested. Some material may not be

suitable for children.

PG-13: Parents strongly cautioned. Some material may be

inappropriate for children under 13.

R: Restricted. Under 17 requires accompanying parent or

adult guardian (age varies in some jurisdictions).

NC-17: No one 17 and under admitted.

X: X is an older rating that is anmed with NC 17 but may be

encoded in the data of older movies.

o Voluntary movie rating system only uses an age based

rating.

22

On-Screen Display Menu

[] TV Parental Guidelines

Example

PressA/Y to adjust the itern to your desired position.

"_" indicates the item is blocked. Press MENU to exit.

Suggested age

TV-Y: All children.

TV-Y7: Directed to older children.

"IV-G: General audience.

TV-PG: Parental Guidance suggested.

TV-14: Parents strongly cautioned.

TV-MA: Mature audience only.

Example

Canadian Rating Systems (Canadian English ratings

and Canadian French ratings)

o The TV rating systems in Canada are based on the

Canadian Radio Television and Tebcommanications

Commission (CRTC) policy on violence Jntelevision

programming.

o While violence is the most important content element to

be rated, the structure developed takes into consideration

other program content like language, nudity, sexuality and

mature themes.

o When setting the V CHIP on the Canadian system you can

choose either the Canadian English ratings or the Canadian

French ratings.

[] Canadian English Ratings

Example

When setting an individual content-based rating item:

1 Press _ or ENTER to access blocked content

items from the currently selected age-based rating

item.

2 PressA/_' to select an individual item, and then

press ENTER to unblock it ("f," is removed). Repeat

the same steps for the other items.

3 Press 4 or RETURN to register after all individual

content rating items are set.

Content

FV: Fantasy violence.

V: Violence.

S: Sexual situation.

L: Adult language.

D: Sexually suggestive dialog.

FV V S L D

TVY [] [] [] [] []

TV Y7 X [] [] [] []

TVG [] [] [] []

TV PG X X X X

TV14 X X X X

TV MA X X X

[] : The content rating can be set, but this rating is not

normally broadcast by TV stations.

X : Content rating can be set.

23

Press A/T" to adjust the item to your desired position.

"_," indicates the item is blocked. Press MENU to exit.

E: Exempt: Includes news, sports, docamentades and other

intormation programming; talk shows, music videos, and

variety programming.

C: Children: Intended tot younger children under the age ot 8

years. Pays caretul attention to themes that could threaten

their sense of security and well being.

C8+: Children over 8 years old: Contains no portrayal

of violence as the preterred, acceptable, or only way

to resolve conflict; nor encourage children to imitate

dangerous acts which they may see on the screen.

G: General: Considered acceptable tot all age groups.

Appropriate viewing tot the entire tamily, contains very little

violence, physical, verbal or emotional

PG: Parental Guidance: Intended for a general audience, but

may not be suitabb tot younger children (under the age of 8)

because it could contain controversial themes or issues.

14+: Over 14 years: Could contain themes where violence

is one ot the dominant ebments of the storyline, but it

mast be integral to the development ot plot or character.

Language usage could be profane and nudity present

within the context of the theme.

18+: Adults: Intended for viewers 18 years and older and

might contain depictions ot violence, which while related to

the development ot plot, character or themes, are intended

tot adult viewing. Could contain graphic language and

portrayals of sex and nudity.

On-Screen Display Menu

[] Canadian French Ratings • • • L_ " I

Example Example I_l Option

Press A/_" to adjust the item to your desired position.

"_," indicates the item is blocked. Press MENU to exit.

E: Exempt programming.

G: General: All ages and children, contains minimal direct

violence, but may be integrated into the plot in a humorous

or unrealistic manner.

8arts+: General but inadvisable for young children: May

be viewed by a wide public aadbnce, but could contain

scenes disturbing to children under 8 who cannot

distinguish between imaginary and real situations.

Recommended for viewing with parent.

13arts+: Over 13 years: Could contain scenes of frequent

violent scenes and therefore recommended tot viewing with

parent.

16arts+: Over 16 years: Could contain frequent violent scenes

and intense viobnce.

18arts+: Over 18 years: One/tot adult viewing. Could contain

frequent violent scenes and extreme violence.

[] Now to temporarily release the V-CHiP BLOCK

When the V-CHIP BLOCK is working and censors a

broadcast, "V-CHIP HAS BEEN ACTIVATED." displays.

1 Press ENTER while the V-CHIP is working, and

then the secret number setting menu displays.

2 Input the 4-digit secret number by using 0-9. At this

time V-CHIP BLOCK temporarily releases.

[] Reactivating the temporarily released V-CHIP

BLOCK

You can reactivate the temporarily released V-CHIP

BLOCK as shown below.

o Select "Status" setting trom the Parental CTRL menu to

reactivate BLOCK. (See page 22.)

o Select "V Chip" setting ("MPAA", "TV Guidelines", "Can.

English Ratings" or "Can. French Ratings") trom the

Parental CTRL to reactivate BLOCK. (See pages 22 and

2S.)

o Switch o_ the TV power.

o Perteming any ot the three above will activate the V CHIP

BLOCK.

1 Press MENU to display the MENU screen, and then

press _/:_ to select "Option".

2 Press _./T to select a specific adjustment item and

then press ENTER.

3 Press A/T (or _/_,,) to select the desired setting,

and then press ENTER.

4 Press MENU to exit.

Skip this step for "Audio Only".

When listening to music from a music program, you

can turn the screen off and enjoy audio only.

On: Audio is output without screen image.

Off: Both screen images and audio are output.

o The screen image will return to normal when a button

(except those for audio adjustment, such as VOL, MUTE,

SURROUND, AUDIO) is pressed.

@ _@ _÷_ _s _ _ ......

This function displays the elapsed game time so you

do not lose track of the time. To display the elapsed

time, select "GAME" for the AV MODE before starting

the game.

On: The elapsed time is displayed every 30 minutes when

you switch to GAME mode in external input mode.

Off: No adjustment.

This function locks the operation buttons on the TV

and the rernote control.

Off: No adjustment.

RC Control Lock: All buttons on the remote control are

locked.

Button Control Lock: All buttons on the TV, except

POWER, are locked.

o To unlock the buttons on the remote control, press MENU

on the TV, and then select "Off" on the MENU screen.

o To unlock the buttons on the TV, press MENU on the

remote control, and then select "Off" on the MENU screen.

24

On-Screen Display Menu

If tile image does not come in clearly from the external

equipment connected to INPUT 1, you may need to

change the input signal type setting from the list below:

Auto/COMPONENT/VIDEO

o If the selected signal type is incorrect, images are not

displayed at all or are displayed without any color.

o Refer to your external equipment operation manual for the

signal type.

o If you set INPUT 1 to Auto, the TV will automatically select

the input signal.

o Setting INPUT 1 signal selection to "Auto" when other

equipment is connected will result in the following

connection priority.

INPUT 1:

% COMPONENT VIDEO

_2 VIDEO

To watch an HDMI or PCqN equipment image, select

"INPUT4" or "INPUT5" from "INPUT SOURCE" menu

using iNPUT on the remote control unit or on the TV.

Auto View:

Enabae: To use View Mode based on signal

recognition, including an HDMI signal.

Disable: No function.

Audio Select:

Digital: For an audio signal via the HDMI terminal

Analog: For an audio signal via the R-AUDIO -L

terminal.

o Refer to your external equipment operation manual for the

signal type.

o "Audio Select" is only available for INPUT 5.

o When connecting an HDMI DVI conversion adapter/cable

to the HDMI terminal, the image may not come in clearly.

Allows you to select what controls the audio output.

Fixed: Sound via speaker is adjusted with VOL +/- on

the remote control unit or VOL-/+ on the TV.

Sound via the AUDIO OUTPUT terminal is not

adjustable and outputs at a consistent level.

Variable: Sound via the AUDIO OUTPUT terminal is

adjusted with VOL +/- on the remote control unit or

VOL-/+ on the TV.

Sound via speaker is muted.

'_ ,_ _

Select the video signal system compatible with your

equipment from the list below:

Auto/NTSC/PAL- M/PAL- N

o "Color System" car/only be set for the INPUT 1 VIDEO and

INPUT 2.

o If you have already set the Secret No., input the 4 digit

secret number here. See page 22 for setting a secret

number.

This function allows you to adjust the closed

caption screen appearance to suit your preference.

You can adjust 7 items: "Caption Size", "Font

Style", "Foreground Color", "Foreground Opacity",

"Background Color", "Background Opacity" and

"Character Edge".

Example:

Selectable items available for "Font Style".

Default: The font specified by broadcasting station or

default font.

Type 0: Proportional font used in the MENU screen.

Type 1: Monospaced with serifs.

Type 2: Proportionally spaced with serifs.

Type 3: Monospaced without serifs.

Type 4: Proportionally spaced without serifs.

Type 5: Casual font type.

Type 6: Cursive font type.

Type 7: Small capitals.

o For resetting adjustments to the factory preset values,

press _,/T to select "Reset", and then press ENTER.

o The default value depends on the broadcasting station.

This function allows viewing of digital closed caption

information for the digital broadcast program being

viewed.

o This list is not displayed for analog broadcasts or external

input audio/video.

o This information is not included in CC1, CC2, Text1, or

Text2, and is not displayed in a list.

Select the CH display when changing channels for

digital broadcasting.

Yes: "Program Info." displays.

No: "Program Info." does not display.

This function allows you to program 4 favorite

channels, in 4 different categories. By setting the

favorite channels in advance, you can select your

favorite channels easily.

To register your favorite channel:

Select "Register" and then press ENTER. Press A,/T/_/

to select the position in the category, and then press

ENTER to register.

To delete your favorite channeE

Select "1 Data Clear" and then press ENTER. Press

A/T/_/_,- to select the channel you want to delete, and

then press ENTER. Select "Yes" and then press ENTER.

To delete all the tavonte channels, select "All Data Clear".

o Before setting the channel, select the channel you want to

register as a favorite channel.

25

On-Screen Display Menu

D • _ - •

This setting allows you to optimize the settings of

Digital broadcasting.

Example I _ DigRalSetup

1 Press MENU to display the MENU screen, and then

press 4/_" to select "Digital Setup".

2 Press ,_/V to select a specific adjustment item,

and then press ENTER.

3 Press ,_/V (or _1/I_) to select tile desired setting,

and then press ENTER.

4 Press MENU to exit.

You can output digital audio to an AV amplifier or

similar device whose DIGITAL AUDIO INPUT terminal

is connected to the DIGITAL AUDIO OUTPUT terminal

on the TV. Please select an audio output format

cerrlpatible with the audio format of the program you

are watching and tile equipment connected.

PCM: The optical output terminal outputs audio signal

in PCM form. If your digital audio system does not

support Dolby Digital, select "PCM".

Delby Digital: The optical output terminal outputs audio

signal in Dolby Digital form. It reproduces sound from

surround program of digital.

The current version of the TV software is displayed.

This function allows software updates by inserting

a USB mernery device with the update file into the

SERVICE terminal on the TV.

To check for the availability of a software update, visit

www.sharpusa.com, if you have any questions, please

call 1-800-BE-SHARP (800-237-4277).

• DO not remove the USB memory device or unplug the

AC cord while the software is being updated.

• Be sure to property follow the whole procedure

described beNow, step by step. Otherwise, for

example, the "IV cannot read the data in the USB

memory device and software updating will fail.

1 Insert the USB memory device with the update file

into the SERVICE terminal on the TV.

2

3

Press MENU to display the MENU screen, and

then press _1/1_ to select "Digital Setup".

Press A/Y to select "Software Update", and then

press ENTER.

o If you have already set the Secret No., go to step 4.

I _',_ Digital Setup

Software Update !

Input the 4-digit secret number by using 0-9.

I i_} Digital Setup

Press ENTER to start checking the data in the

USB memory device.

26

On-Screen Display Menu

6 During the data checking, "Checking" blinks. 7Press ENTER to start updating.

o The screen becomes dark for a while until the update

screen can be displayed. Phase wait for the update

screen to appear. Do not unplug the AC cord.

o The current version of the TV software and the version

of the update file on the USB memory device are

displayed. To update the TV software with the update

fib, select "Yes", and then press ENTER.

Example

o if the USB memory device is not properly instalbd or

the correct update fib cannot be tound on the USB

memory device, an error message is displayed.

o Check the fib on the USB memory device, and then

reinsert the USB memory device correctly.

!!

Example

•DO not remove the USE} memory device or unplug the

AC cord while the software is being updated.

8 When the software is successfully updated, a

screen is displayed indicating that the update

process is completed.

After this screen is displayed, the TV automatically

turns off and then turns on again.

Exam

o If the update has tailed, check the file in the USB

memory device and try Sol.are Update again.

g After the screen shown below is displayed, press

ENTER.

10 Remove the USB memory device.

27

Appendix

Possible SolutionProblem

o NO power

o Unit cannot be operated.

o Remote control unit does not

operate.

o Picture is cat off/with sidebar

screen,

o Strange color, light color, or color

misalignment

o Power is suddenly tamed of/.

o No picture

o No sound

o The TV sometimes makes a

cracking sound.

o Check if you pressed POWER on the remote control unit. (See page 12.) Ifthe

indicator on the TV does not light up, press POWER on the TV.

o Is the AC cord disconnected? (See page 7.)

o Has the power been turned on? (See page 12.)

o External influences such as lightning, static electricity, may cause improper operation.

In this case, operate the unit after first taming oft the power ot the TV or unphJgging

the AC cord and replugging it in after 1 or 2 minutes.

o APebatteries inserted with polarity ( I , - ) aligned? (See page 8.)

o APebatteries worn out? (Replace with new batteries.)

o APeyou using it under strong or fluorescent lighting?

o Is a fluorescent light illuminated near the remote control sensor?

o Is the image position correct? (See page 21 .)

o Are screen mode adjustments such as picture size made correctly? (See page 16.)

o Adjust the picture tone. (See pages 18 and 19.)

o Is the room too bright? The picture may look dark in a room that is too bright.

o Check the input signalsetting. (See page21.)

o bthesbeptimer set? (See page 13.)

o Check the power control settings. (See page 20.)

o The unit's internal temperature has increased. Remove any objects blocking vent or

dean.

o Is connection to other components correct? (See page 11 .)

o Is correct input signal source selected after connection? (See page 25.)

o Is the correct input selected? (See page 25.)

o b picture adjustment correct? (See pages 18and 19.)

o Is "On" selected in "Audio Only"? (See page 24.)

o Is a non compatible signal being input? (See page 30.)

o Is the volume too low? (See page 13.)

o Is "Variable" selected in "Output Select"? (See page 25.)

o Have you pressed MUTE on the remote control unit? (See page 13.)

o This is not a malfanction. This happens when the cabinet slightly expands and

contracts according to change in temperature. This does not affect the TV's

performance.

I

•e- jee eo |*o _ e.e o_ eo

The error message about receptbn of broadcast

The example of an error message Error code Possible Solution

displayed on a screen

o Failed to receive broadcast. E202 o Check the antenna cable. Check that the antenna is correctly

setup.

• No broadcast now. E203 • Check the broadcast time in the program guide.

Cautions regarding use in high and low temperature environments

When the unit is used in a low temperature space (e.g. room, office), the picture may leave trails or appear slightly delayed.

This is not a malfunction, and the unit will recover when the temperature returns to normal.

Do not leave the unit in a hot or cold location. Also, do not leave the unit in a location exposed to direct sunlight or near a

heater, as this may cause the cabinet to deform and the Liquid Crystal panel to malfunction.

h Storage temperature: - 4°F to I 140°F - 20°C to I 60°C

28

Appendix

Item Model: LC-32D44U Model: LC-37D44U

32" screen size class Advanced Super 37" screen size class Advanced Super

LCD panel View & BLACK TFT LCD View & BLACK TFT LCD

(Diagonal Measurement : 31 1/2") (Diagonal Measurement : 37")

ResohJtion 1,049,088 pixels (1,366 x 768)

TV standard (CCIR) American TV Standard ATSC/NTSC System

VHF/UHF VHF 243ch, UHF 14 69ch

CATV 1 135ch (non scrambled channel only)

TV Receiving DigitalTerrestrial

Function Channel Broadcast(SVSB) 2-69ch

Digitalcable*_

(64/256CAM) 1-135ch (non scrambled channel only)

Audio multiplex BTSC System

Backlight 60,000 hours (at Backlight Standard position)

Audio out t0W x 2

AV in, COMPONENT in

AV in, S VIDEO in

COMPONENT in

HDMI in with HDCP

Audio in, HDMI in with HDCP

15 pin mini D sub female connector, Audio in (G3.5 mm jack)

75 _).Unbalance, F Type x 1 for Analog (VHF/UHF/CATV) and Digital (AIR/CABLE)

Optical Digital audio output >( 1 (PCM/Dolby Digital)

Audio out

Software update

English/French/Spanish

AC 120 V, 60 Hz

135 W (0.3 W Standby with AC 120V) 165 W (0.3 W Standby with AC 120V)

29.8 Ibs./13.5 kg 35.3 Ibs./16.0 kg

25.4 Ibs./11.5 kg 30.9 Ibs./14.0 kg

30 9/16 X 22 41/64>( 9 1/16inch 35 19/S2 X 25 $/32 _( 9 1/16inch

30 9/16 x 20 19/S2 X 3 45/64inch 35 19/_2 X 23 1/s2>( 3 s/4inch

132°Fto 104°F(0°Cto 40°C)

INPUT 1

INPUT 2

INPUT 3

INPUT 4

INPUT 5

Terminals Rear INPUT 6

ANT/OABLE

DIGITALAUDIOOUTPUT

OUTPUT

SERVICE

OSD language

Power Requirement

Power Consumption

TV + stand

Weight TV only

Dimension,2 TV +stand

{W x H x D) TV only

Operating temperature

Emergency alert messages via Cabb are unreceivable,

,2 The dimensional drawings are shown on the Spanish operation manual,

, As part of policy ot continuous improvement, SHARP reserves the right to make design and specification changes for product

improvement without prior notice. The performance specification figures indicated are nominal values ol production units.

There may be some deviations from these values in individual units.

The listed optional accessory is available for the Liquid

Crystal Television. Please purchase it at your nearest shop.

, Additional optional accessories may be available in the near

future. When purchasing, please read the newest catalogue tot

compatibility and check the availability.

iiii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_i!_i!_!_!_!!_!_i!_!_i_i_!_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i@_!_i!_ii!!!_!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i_i_i_!ii_i_i_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_!_i_i_iI

[ Wall mount bracket _ AN 87AG5 J

29

it is necessary to set the PC correctly to display XGA and WXGA signal. Refer to page 21 to set PC input signals.

PC Resolution Horizontal Frequency

720 x 400 31.5 kHz

31.5 kHz

VGA 640 x 480 37.9 kHz

37.5 kHz

35.1 kHz

37.9 kHz

PC SVGA 800 x 600 48.1 kHz

46.9 kHz

48.4 kHz

XGA 1024 x 768 56.5 kHz

60.0 kHz

WXGA 1360 x 768 47.7 kHz

*These 3 formats are not supported by the analog RGB terminal.

Vertical Frequency

70 Hz

60 Hz

72 Hz

75 Hz

56 Hz

60 Hz

72 Hz

75 Hz

60 Hz

70 Hz

75 Hz

60 Hz

VESA Standard

O

O

O

O

O

O

O

O

O

O

O

DDC is a registered trademark of Video Electronics Standards Association.

Power Management is a registered trademark of Sun Microsystems, Inc.

VGA and XGA are registered trademarks of International Business Machines Corp.

[] Software composition

The software included in this product is cornpdsed of various software components whose individual copyrights

are held by SHARP or by third parties.

[] Software developed by SHARP and open source software

The copyrights for the software components and various relevant documents included with this product that were

developed or written by SHARP are owned by SHARP and are protected by the Copyright Act, international treaties,

and other relevant laws. This product also makes use of freely distributed software and software components

whose copyrights are held by third parties. These include software components covered by a GNU General Public

License (hereafter GPL), a GNU Lesser General Public License (hereafter LGPL) or other license agreement.

[] Obtaining source code

Some of the open source software licensors require the distributor to provide the source code with the executable

software components. GPL and LGPL include similar requirements. For information on obtaining the source code

for the open source software and for obtaining the GPL, LGPL, and other license agreement information, visit the

following website:

http://www.sharpusa.corn/gpl

We are unable to answer any questions about the source code for the open source software. The source code for

the software cornponents whose copyrights are held by SHARP is not distributed.

[] Acknowledgements

The following open source software components are included in this product:

* Iinux kemel/busybox/uClibc/zlib/libpng/libjpeg

CLEARING THE SECRET NUMBER

If you forget the secret number, clear the secret number using the following procedure.

1 Press MENU to display the MENU screen, and then press _1/_,, to select "Setup".

2 PressA/Tt_se_ect"EZSetupÈ,``CHSetupÈ,``Parenta_CTRL,,,``Reset,,,``C_rSystem_,_r``S_ftware

Update", and the Secret number input screen displays.

:3 Press and hold both CH/X, and VOL+ on the TV simultaneously until the message appears on the screen.

The secret number is I I I I I M

o As a precautionary measure, make a note of your secret number above, cut it from this nlanual, and keep it in a safe place.

3O

Calling for Service

For location of the nearest Sharp Authorized Sewice, or to obtain product literature, accessories, supplies, or

customer assistance, please call 1-800-BE-SHARP.

LiMiTED WARRANTY

SHARP ELECTRONICS CORPORATION warrants to the first consumer purchaser that this Sharp brand Uqu_d Crystal Display product (the "Product"), when

shipped in its odg_nal container, will be free from defective workmanship and materials, and agrees that it will, at its option, either repair the defect or replace the

defective Product or part thereof with a new or remanufacturod equivalent at no charge to the purchaser for parts or labor for the pebed(s) set forth below.

This warranty does not apply to any appearance ffems of the Product or Efthe serial number or model number affixed to the Product has been removed, defaced,

changed, altered or tampered wffh. This warranty does not cover _nst alEat_on or signal reception proMems. Th_s E_mffod warranty will not apply Efthe Product has

been or is being used in a commerdaJ setting or application; tHs warranty _s meant sMely for the non commercial, household use of the Product by consumers in

their home or residence. If you _ntend to or already use this Product for commercial purposes or _n a commerciaJ setting, there are warranties avaElabEe to cover

_our use of this Product, the terms of which may vary. Please contact 1-888-GO-SHARP for further information.

In order to enforce your rights under tMs Eimffod warranty, you should follow the steps set forth below. You must be aMe to provEde proof of purchase to the servEcer,

which proof must _nclude the date of purchase.

To the extent permgtod by appEEcable state law, the warranties set forth are in lieu of, and exclusive of, aJE other warranties, express or implied. SpecEfically ALL

OTHER WARRANTIES OTHER THAN THOSE SET FORTH ABOVE ARE EXCLUDED, ALL EXPRESS AND

IMPLIED WARRANTIES INCLUDING THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR USE, AND FITNESS FOR A PARTICULAR PURPOSE ARE

SPECIHCALLY EXCLUDED. IF, UNDER APPMCABLE STATE LAW, IMPMEB WARRANTIES MAY NOT VAMDLY BE DISCLAIMED OR EXCLUDED, THE DURATION

OF SUCH IMPMEB WARRANTIES IS LIMITED TO THE PERIOD(S) FROM THE DATE OF PURCHASE SET FORTH BELOW. THIS WARRANTY GIVES YOU

SPEC_HC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE.

The warranties given here_n shah be the sole and exclusive warrant_es granted by Sharp and shall be the sole and exclusive remedy available to the purchaser and

only for the time pebeds set forth here_n. No other representations or promises made by anyone are permitted. Correction of defects, in the manner and for the

_ebed of time described bere_n, shal_ constitute complete fulf[[ff_ent of a]] _[ab[_ffies and responsib_ffies of Sharp to the purchaser with respect to the Product, and

sbel_ constitute fuji satisfaction of a]_ claims, whether based on contract, negligence, stdct HabiHty or otherwise. Sharp does not warrant nor shah Sharp be _ab_e,

or in any way

responsible, for Products which have been subject to abuse (including, but not Hmgod to, improper voltage), accident, m_suse, negligence, lack of reasonable care,

alteration, modification, tampering, m_suse, improper operation or maff_tenance or any damages or defects _n the Product which were caused by repe_rs or

attempted repairs performed by anyone other than a Sharp autber_zed serv_ce_ Nor shah Sharp be _ab_e or _n any way responsible for any incidental or consequen

tia_ economic or property damage. Some states do not allow Hmits on warranties or on remedies for breach _n certain transactions; in such states, the _m_ts herein

may not apply.

THIS LIMITED WARRANTY IS VALID ONLY IN THE FIFTY (50} UNITED STATES, THE DISTRICT OF COLUMBIA AND PUERTO RICO,

Model Specific Section

Your Product Model Humber & Description: LC+32D44U/LC+37D44U LCD Color Television

(Be sure to have th_s _nformation available when you need service for your Product.)

Warranty Period for this Product:

Additional Exclusions from

Warranty Coverage (if any):

One (1) year parts and labor from the date of purchase.

In order for the Product to be serviced, the Product must be readily avai_aMe to the

sewicer, free and clear of any complex or non standard installation, mounting or other

encumbrance which would unreasonably _nterfere with servicing the Product. The

Servicer will remount the Product after service, provided that such remounting is not into

a complex or non standard _nsta_ation. Any addgiona_ labor and materials required to

remove and/or reinstall a Product above and beyond the foregoing are not covered by th_s

warranty, may resuff _n addgiona_ charges and are the responsibility of the consumer.

Image Retention resuffing from a fixed image being d_sp_ayed for _ong periods of time _s

not covered by this Lff_ffod Wart anty (see Operation Manua_ on how to prevent this).

Where to Obtain Service:

What to do to Obtain Service:

From a Sharp Author_ed Servicer located in the United States. To find the location of the

nearest Sharp Autber_ed Servicer, please call Sharp toll free at 1 8OO BE-BHARR

Contact your Sharp Authodzod Servicer to obtain in home service for this product. The

Servicer w_ll come to your location and if necessary remove the unff for repeir at the

Servicer's facBity and return the set to you once completed. Be sure to have Proof of

Purchase available.

TO OBTAIN PRODUCT INFORMATION OR PURCHASE ACCESSORIES AND EXTENDED WARRANTIES CALL 1-800-BE-SHARP

OR VISIT www,sharpusa,com

SHA +

SHARP ELECTRONICS CORPORATION

Sharp Plaza, Mahwah, New Jersey 07430-2135

SHARP CORPORATION

31

VALID IN CANADA ONLY

LiMiTED WARRANTY

Consumer Electronics Products

Congratulations on your purchase!

Sharp Electronics of Canada Ltd. (hereinafter called 'Sharp") gives the following express warranty to the first consumer purchaser for this

Sharp brand product, when shipped in its original container and sold or distributed in Canada by Sharp or by an Authorized Sharp Dealer:

Sharp warrants that this product is free, under normal use and maintenance, from any defects in material and workmanship. If any such

defects should be found in this product within the apNicable warranty period, Sharp shall, al its option, repair or replace the product as

specified herein.

This warranty shall not apply to:

(a) Any defects caused or repairs required as a result of abusive operation, negligence, accident, improper instaBation or inappropriate

use as outlined in the owner's manual

(b) Any Sharp product tampered with, modified, adjusted or repaired by any party other than Sharp, Sharp's Authorized Service Centres

or Sharp's Authorized Servicing Dealers.

(c) Damage caused or repairs required as a result of the use with items not specified or approved by Sharp, including but not limited to

head cleaning tapes and chemical cleaning agents.

(d) Any replacement of accessories, glassware, consumable or peripheral items required through normal use of the product including but

not limited to earphones, remote controls, AC adapters, batteries, temperature probe, stylus, trays, filters, belts, ribbons, cables and

paper.

(e) Any cosmetic damage to the surface or exterior that has been defaced or caused by normal wear and tear.

(f) Any damage caused by external or environmental conditions, including but not limited to transmission line/power line voltage or liquid

spillage,

(g) Any product received without appropriate model, serial number and CSA/cUL markings.

(h) Any products used for rental or commercial purposes.

(i) Any installation, setup and/or programming charges.

Should this Sharp product fail to operate during the warranty period, warranty service may be obtained upon delivery of the Sharp product

together with proof of purchase and a copy of this LIMITED WARRANTY statement to an Authorized Sharp Service Centre or an

Authorized Sharp Servicing Dealer. In home warranty service may be provided at Sharp's discretion on any Sharp television with the

screen size of 27" or larger and on any Sharp Over-the-Range Microwave Oven.

TNs warranty constitutes the entire express warranty granted by Sharp and no other dealer, service centre or their agent or employee is

authorized to extend, enlarge or transfer this warranty on behalf of Sharp. To the extent the law permits, Sharp disclaims any and aB

liability for direct or indirect damages or losses or for any incidental, special or consequential damages or loss of profits resulting from a

defect in material or workmanship relating to the product, including damages for the loss of time or use of this Sharp product or the loss

of information. The purchaser will be responsible for any removal, reinslallation, transportation and insurance costs incurred. Correction of

defects, in the manner and period of time described herein, constitute complete fulfillment of all obligations and responsibilities of Sharp

to the purchaser with respect to the product and shall constitute full satisfaction of all claims, whether based on contract, negligence, strict

liability or otherwise.

WARRANTY PERIODS: Parts & Labour (exceptions noted)

Audio Product 1 year

Camcorder 1 year

DVD Product 1 year

Projector 1 year (lamp 90 days)

LCD TV 1 year

Microwave Oven 1 year (magnetron component-4 additional years)

Air Purifier 1 year

Portable Air Conditioner 1 year

To oblam the name and address of the llealcst Allthorized Shaq_ Service Carnie or Dealer, please contact:

SHARP ELECTRONICS OF CANADA LTD 335 Britannia Road East, Mississauga, Ontario [AZ IW9

For more information ORthis Warranty, Sharp Extended Warranty

Offers, Sharp Canada Products, Accessory Sales, Dealer or Service NHArCP

Locations, please call (905) 568-7140 _, _[_ $

Visit our Web site: www.eharp.ca _%^ S_RWCE_ /_

Revision 12/16/05

32
