SHARR

LC-32D62U

LC-37D62U

LIQUID CRYSTAL TELEVISION

TC:LEVISEUR ACL

TELEVISOR CON PANTALLA DE

CRISTAL LJQUIDO

OPERATION MANUAL

MODE D'EMPLOI

MANUAL DE OPERACION

AQUOS

H_lrn| TM

HlaH-D_INITION _ULTI_EDIA I_TE_FACE

NYCE

HUGH-_INITIO_ T_LEVlSlON

i i_i!!!_i_!_i!i!ii!ilili_i!i!

IMPORTANT : Please read

starting

IMPORTANTE : Lea este manual de 0peraci6n antes de

comenzar a 0perar el equipo.

LC-32D62U

LC-37D62U

LIQUID CRYSTAL TELEVISION

ENGLISH

OPERATION MANUAL

• The illustrations and on-screen displays in this operation

manual are for explanation purposes and may vary slightly from

the actual operations.

• Menu items that are not selectable are grayed out.

• The examples used throughout this manual are based on the

LC-37D62U model.

IMPORTANT:

To aid reporting in case of loss or theft, please record the

TV's model and serial numbers in the space provided. The

numbers are located at the rear of the TV. I odel No.:

Serial No.:

IMPORTANT INFORMATION

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO

NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

RISK OF ELECTRICSHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK).

NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE

PERSONNEL.

The lightning flash with arrow-head

symbol, within an equilateral triangle,

is intended to alert the user to the

presence of uninsulated "dangerous

voltage" within the product's

enclosure that may be of sufficient

magnitude to constitute a risk of

electric shock to persons.

The exclamation point within a

triangle is intended to alert the user

to the presence of important

operating and maintenance

(servicing) instructions in the

literature accompanying the product.

Q-I

IMPORTANT INFORMATION

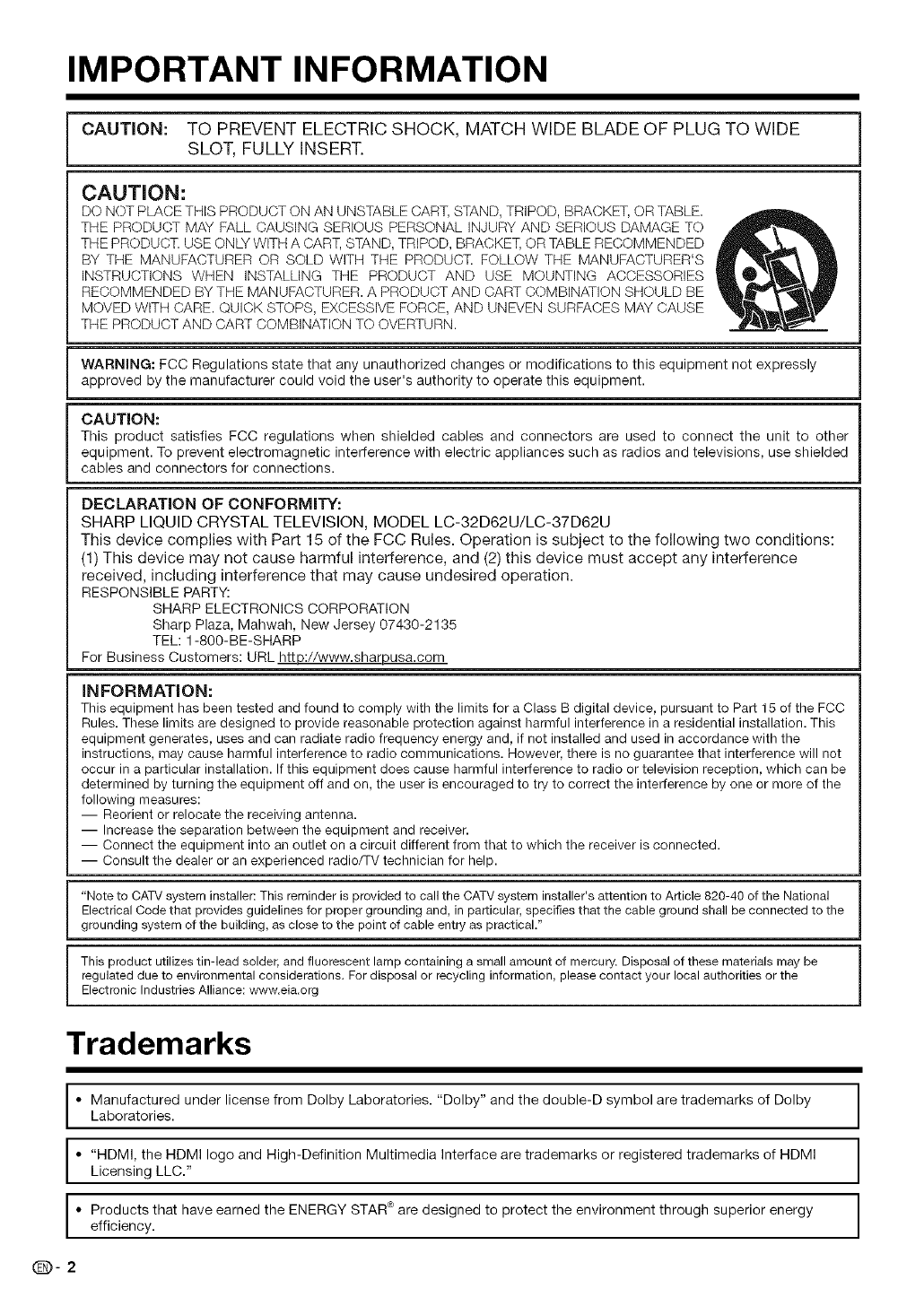

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE

SLOT, FULLY INSERT.

CAUTION:

DO NOT PLAC, E THIS PRODUCT ON AN UNSTABLE CART, STAND, TRIPOD, BRAC, KET, OR TABLE.

THE PRODUCT MAY FALL CAUSING SERIOUS PERSONAL INJURY AND SERIOUS DAMAGE TO

THE PRODUCT. USE ONLY WITH A CART, STAND, TRIPOD, BRACKET, OR TABLE RECOMMENDED

BY THE MANUFACTURER OR SOLD WITH THE PRODUCT. FOLLOW THE MANUFACTURER'S

INSTRUCTIONS WHEN INSTALLING THE PRODUCT AND USE MOUNTING ACCESSORIES

RECOMMENDED BY THE MANUFACTURER. A PRODUCT AND CART COMBINATION SHOULD BE

MOVED WITH CARE. QUICK STOPS, EXCESSIVE FORCE, AND UNEVEN SURFACES MAY CAUSE

THE PRODUCT AND CART COMBINATION TQ OVERTURN.

WARNING: FCC Regulations state that any unauthorized changes or modifications to this equipment not expressly

approved by the manufacturer could void the user's authority to operate this equipment.

CAUTION:

This product satisfies FCC regulations when shielded cables and connectors are used to connect the unit to other

equipment. To prevent electromagnetic interference with electric appliances such as radios and televisions, use shielded

cables and connectors for connections.

DECLARATION OF CONFORMITY:

SHARP LIQUID CRYSTAL TELEVISION, MODEL LC-32D62U/LC-37D62U

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference

received, including interference that may cause undesired operation.

RESPONSIBLEPARTY:

SHARP ELECTRONICSCORPORATION

Sharp Plaza, Mahwah, New Jersey 07430-2135

TEL: 1-800-BE-SHARP

For Business Customers: URL http://www.sharpusa.com

INFORMATION:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC

Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This

equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not

occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the

following measures:

-- Reorient or relocate the receiving antenna.

-- Increase the separation between the equipment and receiver.

-- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

-- Consult the dealer or an experienced radio/TV technician for help.

"Note to CATV system installer: This reminder is provided to call the CATV system installer's attention to Article 820-40 of the National

Electrical Code that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the

grounding system of the building, as close to the point of cable entry as practical."

This product utilizes tin-lead solder, and fluorescent lamp containing a small amount of mercury. Disposal of these materials may be

regulated due to environmental considerations. For disposal or recycling information, please contact your local authorities or the

Electronic Industries Alliance: www.eia.org

Trademarks

" anufactured under license from Dolby Laboratories. "Dolby" and the double-D symbol are trademarks of DolbyLaboratories.

,, HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI

Licensing LLC."

,, roducts that have earned the ENERGY STAR ® are designed to protect the environment through superior energy

efficiency.

(D-2

DEAR SHARP CUSTOMER

Thank you for your purchase of the Sharp Liquid Crystal Television. To ensure safety and many years

of trouble-free operation of your product, please read the Important Safety Instructions carefully before

using this product.

IMPORTANT SAFETY INSTRUCTIONS

Electricity is used to perform many useful functions, but it can also cause personal inJuries and property damage

if improperly handled. This product has been engineered and manufactured with the highest priority on safety.

However, improper use can result in electric shock and/or fire. In order to prevent potential danger, please

observe the following instructions when installing, operating and cleaning the product. To ensure your safety

and prolong the service life of your Liquid Crystal Television, please read the following precautions carefully

before using the product.

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including

amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades

with one wider than the other. A grounding type plug has two blades and a third grounding prong. The

wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet,

consult an electrician for replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles,

and the point where they exit from the apparatus.

11) Only use attachments/accessories specified by the manufacturer.

12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold

with the apparatus. When a cart is used, use caution when moving the cart/apparatus

combination to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of time.

14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been

damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects

have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate

normally, or has been dropped.

Additional Safety Information

15) Power Sources--This product should be operated only from the type of power source indicated on the

marking label. If you are not sure of the type of power supply to your home, consult your product dealer or

local power company. For products intended to operate from battery power, or other sources, refer to the

operating instructions.

16) Overloading--Do not overload wall outlets, extension cords, or integral convenience receptacles as this

can result in a risk of fire or electric shock.

17) Object and Liquid Entry--Never push objects of any kind into this product through openings as they may

touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill

liquid of any kind on the product.

18) Damage Requiring Service--Unplug this product from the wall outlet and refer servicing to qualified

service personnel under the following conditions:

a) When the AC cord or plug is damaged,

b) if liquid has been spilled, or objects have fallen into the product,

c) if the product has been exposed to rain or water,

d) If the product does not operate normally by following the operating instructions.

Adjust only those controls that are covered by the operating instructions as an improper adjustment

of other controls may result in damage and will often require extensive work by a qualified technician

to restore the product to its normal operation,

e) If the product has been dropped or damaged in any way, and

f) When the product exhibits a distinct change in performance - this indicates a need for service.

19) Replacement Parts--When replacement parts are required, be sure the service technician has used

replacement parts specified by the manufacturer or have the same characteristics as the original part.

Unauthorized substitutions may result in fire, electric shock, or other hazards.

20) Safety Check--Upon completion of any service or repairs to this product, ask the service technician to

perform safety checks to determine that the product is in proper operating condition.

21) Wall or ceiling mounting--When mounting the product on a wall or ceiling, be sure to install the product

according to the method recommended by the manufacturer.

Q-3

IMPORTANT SAFETY INSTRUCTIONS

o Water and Moisture -- Do not use this product near water - for example, near a bath tub, wash

bowl, kitchen sink, or laundry tub; in a wet basement; or near a swimming pool; and the like.

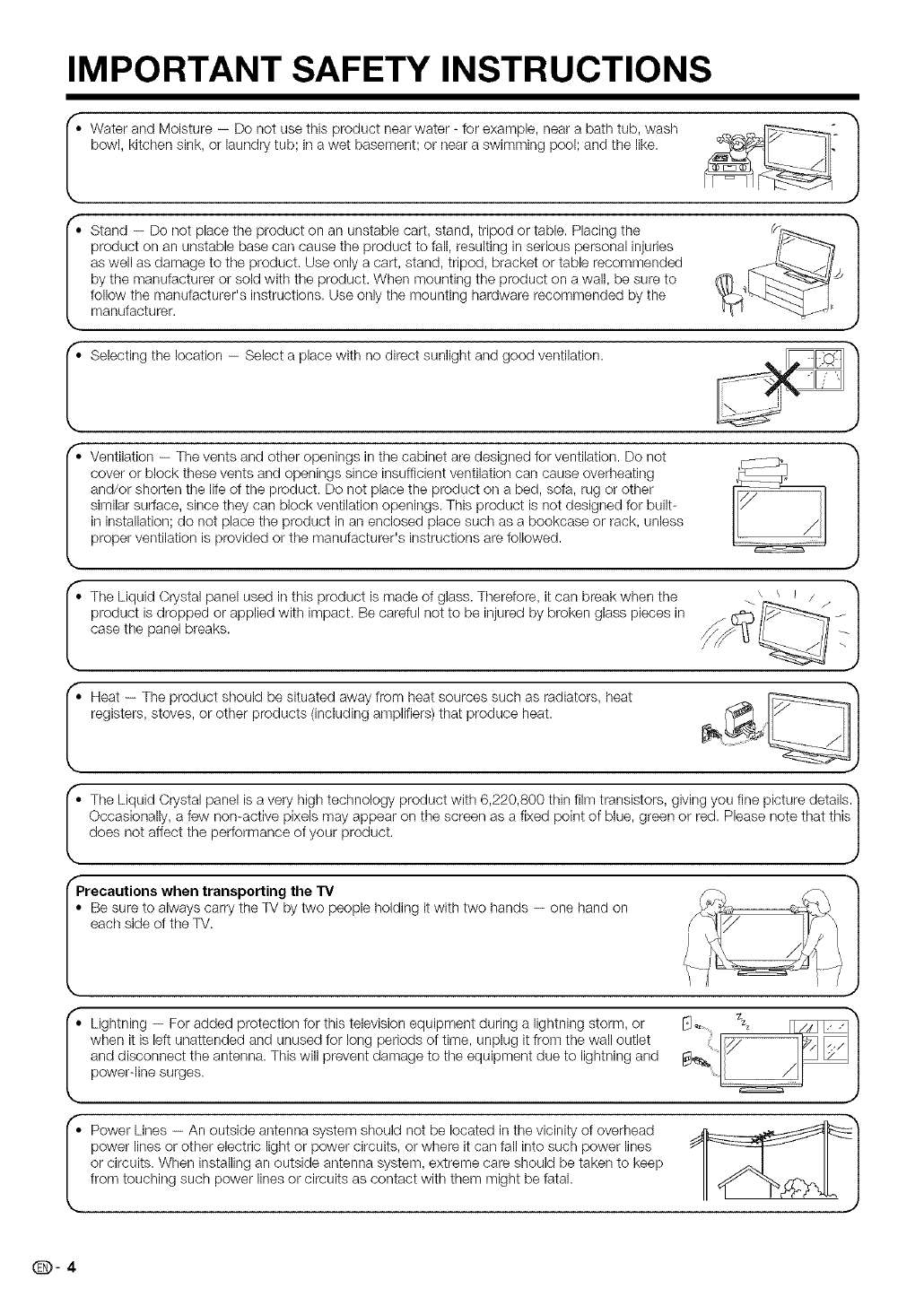

* tand -- Do not place the product on an unstable cart, stand, tripod or table. Placing the

product on an unstable base can cause the product to fall, resulting in serious personal injuries

as well as damage to the product. Use only a cart, stand, tripod, bracket or table recommended

by the manufacturer or sold with the product. When mounting the product on a wall, be sure to

follow the manufacturer's instructions. Use only the mounting hardware recommended by the

manufacturer.

* Selecting the location -- Select a place with no direct sunlight and good ventilation.

* entilatior7 -- The vents and other openings in the cabinet are designed for ventilation. Do not

cover or block these vents and openings since insufficient ventilation can cause overheating

and/or shorten the life of the product. Do not place the product on a bed, sofa, rug or other

similar surface, since they can block ventilation openings. This product is not designed for built-

in installation; do not place the product in an enclosed place such as a bookcase or rack, unless

proper ventilation is provided or the manufacturer's instructions are followed.

o tTeLiquid Crystal panel used in this product is made of glass. Therefore, it can break when the

product is dropped or applied with impact. Be careful not to be injured by broken glass pieces in

case the panel breaks.

o eat -- The product should be situated away from heat sources such as radiators, heat

registers, stoves, or other products (including amplifiers) that produce heat.

°The Liquid Crystal panel is a very high technology product with 6,220,800 thin film transistors, giving you fine picture details.}

Occasionally, a few non-active pixels may appear on the screen as a fixed point of blue, green or red. Please note that this l

does not affect the performance of your product. |

)

Precautions when transporting the TV

Be sure to always carry the TV by two people holding it with two hands -- one hand on

each side of the TV.

o ightning -- For added protection for this television equipment during a lightning storm, or

when it is left unattended and unused for long periods of time, unplug it from the wall outlet

and disconnect the antenna. This will prevent damage to the equipment due to lightning and

power-line surges.

°ower Lines -- An outside antenna system should not be located in the vicinity of overhead

power lines or other electric light or power circuits, or where it can fail into such power lines

or circuits. When installing an outside antenna system, extreme care should be taken to keep

from touching such power lines or circuits as contact with them might be fatal.

Q-4

IMPORTANT SAFETY INSTRUCTIONS

• Outdoor Antenna Grounding -- Ifan outside antenna is connected to the television equipment, be sure the antenna

system is grounded so as to provide some protection against voltage surges and built-up static charges.

Article 810 of the National Electrical Code, ANSI/NFPA 70, provides information with regard to proper grounding of the mast

and supporting structure, grounding of the leadqn wire to an antenna discharge unit, size of grounding conductors, location

of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.

EXAMPLE OF ANTENNA GROUNDING AS PER

NATIONAL ELECTRICAL (}ODE, ANSI/NFPA 70

GROUND

NEC -- NATIONAL ELECTRICAL (}ODE

....-_i_-- ANTENNA

INWIRE

-,_/N bx_ ANTENNA

]_ I _N_ DISCHARGE UNIT

/_ (NEO SECTION 810-2O)

I,_"_-_,L GROUNDING CONDUCTORS

GROUND CLAMPS

_ POWER SERVICE GROUNDING ELECTRODE

SYSTEM

(NEC ART 250, PART H)

, To prevent fire, never place any type of candle or flames on the top or near the TV set.

, o prevent fire or shock hazard, do not expose this product to dripping or splashing.

No objects filled with liquids, such as vases, should be placed on the product.

, o prevent fire or shock hazard, do not place the AC cord under the TV set or other heavy

items.

• Turn off the main power and unplug the AC cord from the wall outlet before handling.

• Use a soft cloth and gently wipe the surface of the display panel. Using a hard cloth may

scratch the panel surface.

• Use a soft damp cloth to gently wipe the panel when it is really dirty.

(it may scratch the panel sur[ace when wiped strongly.)

• if the panel is dusty, use an anti-static brush, which is commercially available, to clean it.

• To protect the panel, do not use a dirty cloth, liquid cleaners or chemical cloth to clean it,

such materials may damage the panel surface.

• To clean the outer cabinet, use the same method. Do not use liquid or aerosol cleaners.

, Do not display a still picture for a long time, as this could cause an afterimage to remain.

,,e

)

Q-5

Supplied accessories

Make sure the following accessories are provided with the product.

Remotecontrol unit "AAA" size battery

(×1) (×2)

Page 8 Page 8

AC cord CableClamp (× 1) Stand unit

(× 1) Oabletie (× 1) (x 1)

Page 7 Page7 Page 6

Operation manual

(xl)

• Always use the AC cord supplied with the TV.

QUICK REFERENCE

• Before attaching (or detaching) the stand, unplug the AC cord from the AC INPUT terminal.

• Before performing work spread cushioning over the base area to lay the TV on. This will prevent it from being

damaged.

•Attach the stand in the correct direction.

•Be sure to follow the instructions. Incorrect installation of the stand may result in the TV falling over.

Confirm that there are 9 screws (all the same

size) supplied with the 77/.

Set the post for the stand unit onto the

box.

Attach the base to the post.

Insert and tighten the 5 screws into the 5

holes on the bottom of the base.

Hex key_ (_

Screw_

(_ Insert the stand into the openings on the

bottom of the TV.

(_ Insert and tighten the 4 screws into the 4

holes on the rear of the TV.

(_) _ _Hex key

_ _Screw

Soft cushion

• To detach the stand, perform the steps in reverse order.

Q-6

QUICK REFERENCE

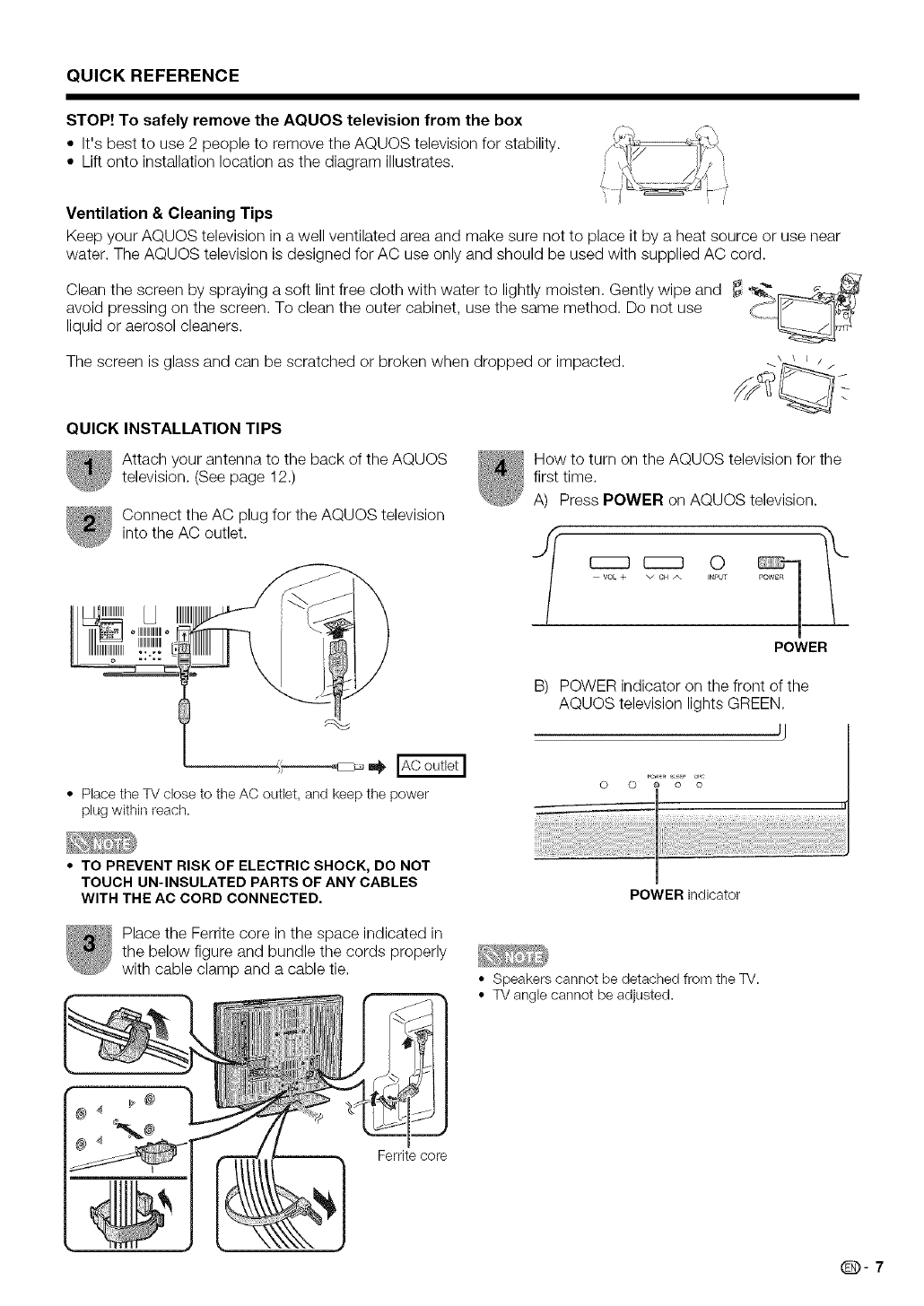

STOP! To safely remove the AQUOS television from the box

• It's best to use 2 people to remove the AQUOS television for stability.

• Lift onto installation location as the diagram illustrates.

Ventilation & Cleaning Tips

Keep your AQUOS television in a well ventilated area and make sure not to place it by a heat source or use near

water. The AQUOS television is designed for AC use only and should be used with supplied AC cord.

Clean the screen by spraying a soft lint free cloth with water to lightly moisten, Gently wipe and I_ ,_- _

avoid pressing on the screen. To clean the outer cabinet, use the same method. Do not use G................

liquid or aerosol cleaners.

The screen is glass and can be scratched or broken when dropped or impacted. _ _ J ' /

QUICK INSTALLATION TIPS

Attach your antenna to the back of the AQUOS

television. (See page 12.)

Connect the AC plug for the AQUOS television

into the AC outlet.

• Placethe TV closeto the AC outlet, and keep the power

plug within reach.

How to turn on the AQUOS television for the

first time,

A) Press POWER on AQUOS television.

VOL _- v CH _ INPUT

POWER

B) POWER indicator on the front of the

AQUOS television lights GREEN,

0 0 _ o o

•TO PREVENT RISK OF ELECTRIC SHOCK, DO NOT

TOUCH UN-INSULATED PARTS OF ANY CABLES

WITH THE AC CORD CONNECTED.

Place the Ferrite core in the space indicated in

the below figure and bundle the cords properly

with cable clamp and a cable tie,

POWER indicator

• Speakers cannot be detached from the TV.

• TV angle cannot be adjusted.

Ferrite core

Q-7

QUICK REFERENCE

If the remote control fails to operate TV functions, replace the batteries in the remote control unit,

1 Open the battery cover. 2 Insert two "AAA" size batteries

(supplied with the product).

• Place the batteries with their terminals

corresponding to the (+) and ( )

indications in the battery compartment.

3 Close the battery cover.

Improper use of batteries can result in chemical leakage or explosion. Be sure to follow the instructions below.

• Do not mix batteries of different types. Different types of batteries have different characteristics.

• Do not mix old and new batteries. Mixing old and new batteries can shorten the life of new batteries or cause chemical

leakage in old batteries.

• Remove batteries as soon as they are worn out. Chemicals that leak from batteries that come in contact with skin can cause a

rash. If you find any chemical leakage, wipe thoroughly with a cloth.

• The batteries supplied with this product may have a shorter life expectancy due to storage conditions.

• If you will not be using the remote control unit for an extended period of time, remove batteries from it.

IMPORTANT:

The POWER indicator on the AQUOS television should light GREEN indicating you have power to the AQUOS

television. f _

If the POWER indicator on the AQUOS television still does not light up, press "IV POWER on

the remote control to turn the power on.

IMPORTANT:

IF THE UNIT DOES NOT POWER ON - UNPLUG THE AQUOS TELEVISION FROM THE OUTLET AND REPEAT

THE INSTALLATION STEPS.

IF YOU STILL ENCOUNTER NO POWER, PLEASE CONTACT US AT 1-800-BE-SHARP.

Please refer to the BASIC ADJUSTMENT SETI-INGS SECTION for EZ Setup and basic channel setup functions

and USING EXTERNAL EQUIPMENT SECTION for other device connections (DVD, VCR, AUDIO, etc.) in your

AQUOS operation manual.

Q-8

Contents

IMPORTANT INFORMATION ................................. 1

Trademarks ............................................................. 2

DEAR SHARP CUSTOMER .................................... 3

IMPORTANT SAFETY INSTRUCTIONS ................. 3

Supplied accessories ............................................. 6

QUICK REFERENCE ............................................... 6

Attaching the stand ............................................. 6

Contents .................................................................. 9

Part names ............................................................. 10

TV (Front)........................................................... 10

TV (Rear)............................................................ 10

Remote control unit ........................................... 11

Preparation ............................................................ 12

Using the remote control unit ............................. 12

Cautions regarding the remote control unit._.12

Antennas ........................................................... 12

Connecting a Blu-ray disc player, HD-DVD player,

DVD player or a Digital TV STB (Air or Cable),..13

Connecting a VCR, game console

or camcorder ................................................... 14

Using Digital Audio Output ................................. 14

Connecting HDMI equipment ............................. 14

Connecting a PC ............................................... 15

PC compatibility chart ........................................ 15

Watching _ ........................................................... 16

Turning on the power ......................................... 16

Turning off the power ......................................... 16

Initial setup ........................................................ 17

Simple button operations for

changing channels ......................................... 18

Simple button operations for

changing volume/sound ................................. 19

Setting MTS/SAP stereo mode .......................... 20

Setting Digital broadcasting audio mode ............ 20

Basic adjustment settings ................................... 21

Menu operation buttons .................................... 21

On-Screen Display ............................................ 21

Menu items for TV/INPUT 1/2/3 ........................ 22

Menu items for HDMI ........................................ 22

EZ Setup .......................................................... 23

Channel Setup .................................................. 23

Antenna Setup-DIGITAL ................................... 24

Favorite channel setting .................................... 25

Picture adjustments .......................................... 26

OPC setting ................................................. 26

Advanced picture adjustments ..................... 27

Color Temperature ....................................... 27

Black ............................................................ 27

3D-Y/C ........................................................ 27

Monochrome ............................................... 27

Film Mode (3:2 pull-down) ............................ 27

Range of OPC .............................................. 27

Sound adjustment ............................................ 28

Surround .......................................................... 28

Power Control .................................................. 29

Digital Setup ..................................................... 29

Audio Setup ................................................. 29

Using external equipment .................................... 30

Displaying an external equipment image ........... 30

Input Select ...................................................... 30

Displaying an image from HDMI equipment ....... 31

Input Skip ......................................................... 31

Useful adjustment settings .................................. 82

Language setting .............................................. 32

Image position .................................................. 32

Reset ................................................................ 32

Input Label ........................................................ 33

Sleep Timer ...................................................... 33

View Mode for 4:3 Programs ............................ 34

View Mode for HD Programs ............................ 34

View Mode (for PC input mode) ........................ 35

Advanced Option settings ................................. 36

Audio Only ................................................... 36

Digital Noise Reduction ................................ 36

Output Select ............................................... 36

Color System ............................................... 36

Program Title Display ................................... 36

AV MODE ......................................................... 37

Input Signal (for PC input mode) ....................... 37

Closed Captions and Digital Closed Captions.., 38

Caption Setup .................................................. 39

Secret number setting for parental control ........ 40

Parental control (setting V-CHIP level)............... 42

How to temporarily release

the V-CHIP BLOCK ........................................ 45

Reactivating the temporarily released

V-CHIP BLOCK .............................................. 45

Other viewing options .......................................... 46

Freezing images ................................................ 46

Presetting remote control function .................... 46

Appendix ............................................................... 50

Removing the stand .......................................... 50

Setting the TV on the wall ................................. 50

Troubleshooting ................................................ 51

Troubleshooting-Digital broadcasting ................ 51

Specifications .................................................. 52

Optional accessory ............................................ 52

Calling for Service ................................................ 54

LIMITED WARRANTY ........................................... 54

Dimensional drawings

•The dimensional drawings for the LCD TV set are shown on

the inside back cover.

Q-9

Part names

POWER SLEEP ORC 7

Remote control sensor _ _ _ _ _ OPC indicator*

/OPC sensor* _ _ _ SLEEP indicator** /

........................................................................POWER indicator**

*OPC: Optical Picture Control (See page 26.)

**See page 16 for TV status indicator.

__ HDMI terminal (INPUT 4)

HDMI terminal (INPUT 5)

__ DIGITAL AUDIO OUTPUT terminal

I I

I I[ * ii

I IF-_

--AUDIO terminals (INPUT 5)

-- Antenna/Cable in

Channel buttons 7

(cHV/A)

Volume

buttons

_OL-J÷/__l

vok + ,.z CH _

INPUT button

CI POWER button

INPUT eOWER

INPUT 3 terminals

INPUT 2 terminals

AC INPUT terminal

INPUT 1 terminals

Q- 10

Part names

I 14

11 _oO 23

•When using the remote control unit, point it at the TV.

1"IV POWER: Switch the TV power on or enters

standby. (See page 16.)

2 DISPLAY: Display tile channe{ information.

3SOURCE POWER: Turns tile power of the external

equipment on and off.

4 External equipment operational buttons: Operate

the external equipment.

5 0 - 9: Set the channel. (See page 18.)

6 • (DOT}: (See pages 18 and 48.)

7 INPUT: Select a TV input source. (TV, iNPUT 1,

INPUT 2, INPUT 3, INPUT 4, iNPUT 5) (See page 30.)

8 VOL +/-: Set the volume. (See page 19.)

9 SURROUND: Select Surround settings. (See page

19.)

10 FREEZE: Set the sti{I image. Press again to return to

normal screen. (See page 46.)

11 EXIT: Turn off the menu screen.

12 SLEEP: Set the sleep timer. (See page 33.)

13 AUDIO: Se{ects the MTS/SAP or the audio mode

during multi-channel audio broadcasts. (See page 20.)

14 FUNCTION: Switches the remote control for TV,

CBL/SAT, VCR, DVD and AUDIO operation. Indicator

lights up for the current mode. (See pages 46 to 49

for details.)

• To enter the code registration mode, you need to

press FUNCTION and DISPLAY at the same time.

15 LIGHT ,O?:When pressed all buttons on the remote

control unit will light. The lighting will turn off if no

operations are performed within about 5 seconds.

This button is used for pedorming operations in Iow-

{ight situations.

16 VIEW MODE: Select the screen size. (See pages 34

and 35.)

17 ENT: Jumps to a channel after selecting with the 0-9

buttons.

18 FLASHBACK: Return to the previous channel or

external input mode. (See page 18.)

19 CHA/V: Select the channel. (See page 18.)

20 MUTE: Mute the sound. (See page 19.)

21 MENU: Display the menu screen.

22 A/T/_/I_/ENTER: Select a desired item on the

screen.

23 RETURN: Return to the previous menu screen.

24 FAVORITE OH

A, B, C, D: Select 4 preset favorite channels in 4

different categories. (See page 25 for details.)

While watching, you can toggle the selected channels

by pressing A, B, C and D.

25 FAVORITE: Set the favorite channels. (See page 25.)

26 CO: Display captions from a closed-caption source.

(See page 38.)

27 AV MODE: Select an audio or video setting.

(When the input source is TV, INPUT 1,2 or 3:

STANDARD, MOVIE, GAME, USER, DYNAMIC (Fixed),

DYNAMIC. When the input source is INPUT 4 or 5:

STANDARD, MOVIE, GAME, PC, USER, DYNAMIC

(Fixed), DYNAMIC.) (See page 37.)

Q-11

Preparation

Use the remote control unit by pointing ittowards the remote control sensor on the

TV. Objects between the remote control unit and the remote control sensor may

prevent proper operation.

• Do not expose the remote control unit to shock, in addition, do not expose the remote

control unit to liquids, and do not place in an area with high humidity.

• Do not install or place the remote control unit under direct sunlight. The heat may cause

deformation of the remote control unit.

• The remote control unit may not work properly if the remote control sensor on the TV is

under direct sunlight or strong lighting, in such cases, change the angle of the lighting or

the %/, or operate the remote control unit closer to the remote control sensor. /

To enjoy a clearer picture, use an outdoor antenna. The following is a brief explanation of the types of connections

that are used for a coaxial cable. If your outdoor antenna uses a 75-ohm coaxial cable with an F-type connector,

plug it into the antenna terminal at the rear of the TV set,

"1. A 75+ohmsystem is generallya round cablewith Fqype "_

connector that can easilybe attachedto a terminal

without tools (Commemiallyavailable).

F-type connector

75+ohm coaxial cable (round)

2. A 300+ohm system is a flat "twinqead" cable that can be

attached to a 75+ohm terminal through a 300/75+ohm

adapter (Commemially available).

300+ohm twimlead cable (flat)

_., J

Connecting Antenna Cable

Cable without a CA'IV

converter

VHF/UHF antenna

Combination VHF/

UHF antenna

Separate VHF/UHF

antenna

_ -type connector should be finger -_

tightened only.

When connecting the RF cable to the TV set, do not

tighten F-type connector with tools.

If tools are used, it may cause damage to your TV

set, (The breaking of internal circuit, etc.)

Home Antenna

terminal (75 ohm)

[2 _ =

Ce_;al cable

(commeroial_y available)

F4ype connector

75+ohm coaxial cable

Home AntelTna

terminal (75 ohm)

Ce_;al cable

(commeroial_y available)

_ ohrr7 coaxial cable (round) _[]_

300/75-ohm adapter

VHF UHF (commercially available)

ANTENNA ANTENNA

•Connect the antenna cable

to the TV using one of the

methods in the illustration

as shown (_, _, _ or _).

To TV antenna _1

terminal

Q- 12

Preparation

You can connect many types of external equipment to your TV like a Blu-ray disc player, HD-DVD player, DVD player,

VCR, Digital TV tuner, HDMI equipment, game console or camcorder. To view external source images, select the input

source from INPUT on the remote control unit or on the TV. (See pages 30 and 31 .)

• To protect equipment, always turn off the TV before connecting any external equipment.

• Please read the relevant operation manual (Blu-ray disc player, etc.) carefully before making connections.

You can use the INPUT 1, INPUT 2 or INPUT 3 terminals when connecting to a Blu-ray disc player, HD-DVD

player, DVD player, a Digital TV STB (Air or Cable) and other audiovisual equipment.

When using composite cable. (INPUT 1 or 2)

Example

Blu-ray disc player/HD-DVD player/

DVDplayer/Digital TV STB

AV cable

(commercially available)

When using component cable. (INPUT 1 or 3)

Example

Component video cable

(commercially available)

Blu-ray disc player/HD-DVD player/

DVD player/Digital TV STB

• To enjoy the AQUOS 1080p display capability, connect your external equipment using a component cable and set the

equipment to 1080p output.

• See page 14 for connecting a DVD player or a Digital TV STB to the HDMI terminal.

Q- 13

Preparation

A VCR, game console, camcorder and other audiovisual equipment can be conveniently connected using the

INPUT 1 or 2 terminals.

When using S-VIDEO cable. (INPUT 2)

SWIDEO cable

(commercially available)

Audio cable

(commercially available)

VCR/Game console/Camcorder

When using composite cable. (INPUT1 or 2)

Example

AV cable

y available)

VCR/Game console/Camcorder

• The SWIDEO terminal takes priority over the video terminals. (INPUT 2 only)

It is possible to output audio through the DIGITAL AUDIO OUTPUT terminal. (See page 29 for details.) PCM audio

outputs from the terminal.

Optical fiber cable

(commercially available)

External audio devices

You can use the INPUT 4 or INPUT 5 terminal when connecting HDMI equipment,

HDMI cable Example

(commercially available)

HDMI equipment

• When using an HDMI DVI conversion cable, input the audio signal to AUDIO terminal of INPUT 5.

• To enjoy the AQUOS 1080p display capability, connect your Blu ray disc player, HD-DVD player or other external equipment using an HDM[

cable and set the equipment to 1080p output.

Q- 14

Preparation

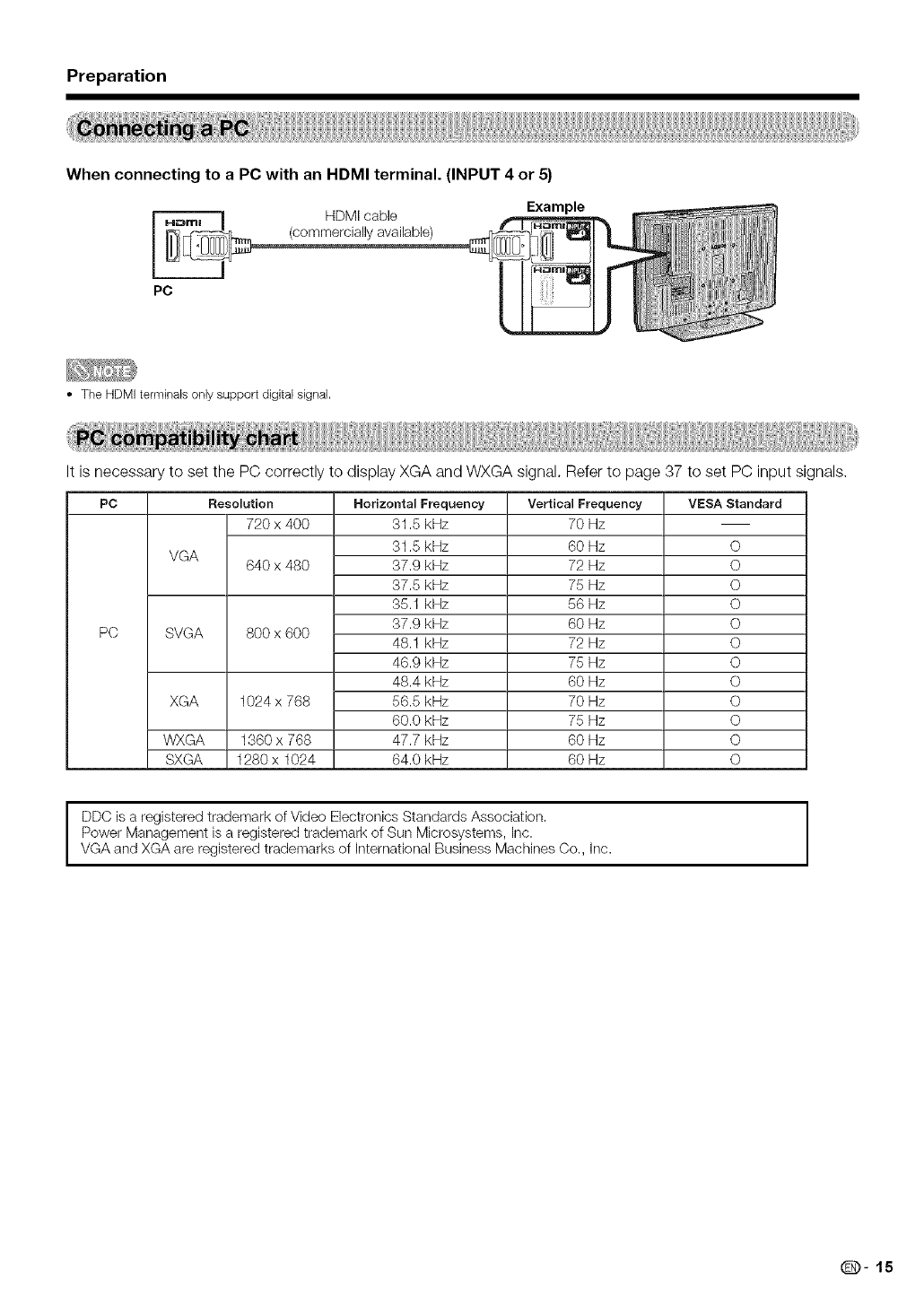

When connecting to a PC with an HDMI terminal. (INPUT 4 or 5)

HDMI cable Example

(commercially available)

• The HDMI terminals only support digital signal.

It is necessary to set the PC correctly to display XGA and WXGA signal. Refer to page 37 to set PC input signals.

PC Resolution Horizontal Frequency Vertical Frequency VESA Standard

VGA

SVGA

XGA

WXGA

SXGA

720 x 400

640 x 480

800 x 600

1024 x 768

1360 x 768

1280 x1024

31.5 kHz

37.9 kHz

37.5 kHz

35.1 kHz

37.9 kHz

48.1 kHz

46.9 kHz

48.4 kHz

56.5 kHz

60.0 kHz

47.7 kHz

64.0 kHz

70 Hz

60 Hz

72 Hz

75 Hz

56 Hz

60 Hz

72 Hz

75 Hz

60 Hz

70 Hz

75 Hz

60 Hz

I DC is a registered trademark of Video Electronics Standards Association.

Power Management is a registered trademark of Sun Microsystems, Inc.

VGA and XGA are registered trademarks of international Business Machines Co., inc.

(D-15

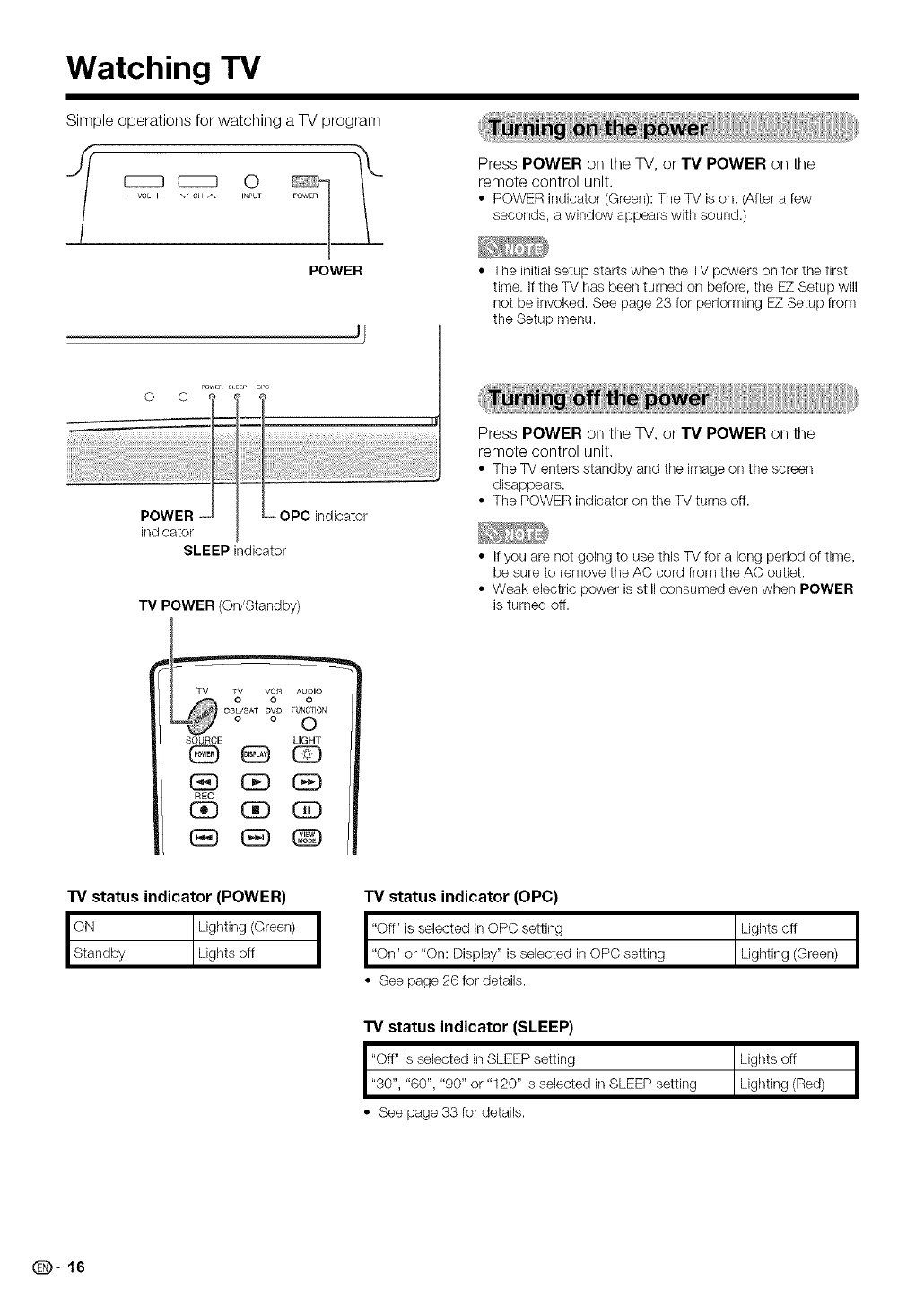

Watching TV

Simple operations for watching a TV program

fPOWER

POWER indicator

indicator

SLEEP indicator

TV POWER (On/Standby)

2;SAToV! o

SOURCE LIGHT

6E) GD EE)

REC

C_ (3D C_

6E) (_E} @

Press POWER on the TV, or "IV POWER on the

remote control unit,

• POWERindicator (Green):The TV is on. (Aftera few

seconds, a window appearswith sound.)

• The initial setup starts when the TV powers on for the first

time. if the TV has been turned on before, the EZ Setup will

not be invoked. See page 23 for performing EZ Setup from

the Setup menu.

Press POWER on the TV, or TV POWER on the

remote control unit,

• The TV enters standby and the image on the screen

disappears.

• The POWER indicator on the TV turns off.

• If you are not going to use this TV for a long period of time,

be sure to remove the AC cord from the AC outlet.

• Weak electric power is still consumed even when POWER

is turned off.

TV status indicator (POWER)

Os_tNa Lighting (Green)

ndby Lights off tTV status indicator (OPC)

I "Off" isselectedin OPC setting Lights off

"On" or "On: Display" is selected in OPC setting Lighting (Green)

• See page 26 for details.

Lights off t

Lighting (Red)

TV status indicator (SLEEP)

I "Off" is selected in SLEEP setting

"30", "60", "90" or "120" is selected in SLEEP setting

• See page 33 for details.

Q- 16

Watching TV

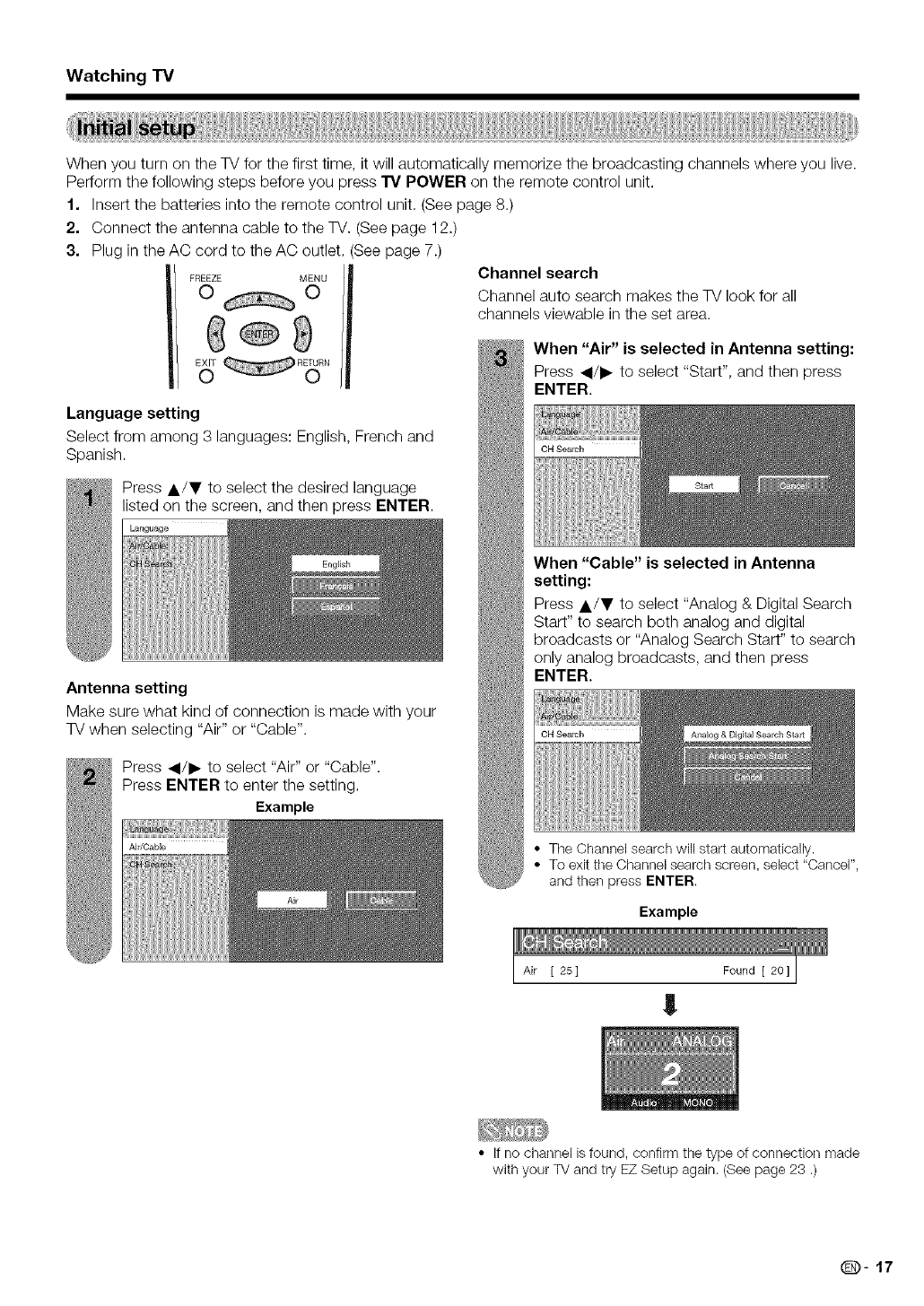

When you turn on the TV for the first time, it will automatically memorize the broadcasting channels where you live.

Perform the following steps before you press "IV POWER on the remote control unit,

Insert the batteries into the remote control unit, (See page 8.)

Connect the antenna cable to the TV. (See page 12.)

Plug in the AC cord to the AC outlet, (See page 7.)

Language setting

Select from among 3 languages: English, French and

Spanish.

Press &/T to select the desired language

listed on the screen, and then press ENTER.

Language

Antenna setting

Make sure what kind of connection is made with your

TV when selecting "Air" or "Cable".

Press _1/I_ to select "Air" or "Cable".

Press ENTER to enter the setting,

Example

Channel search

Channel auto search makes the TV look for all

channels viewable in the set area.

When "Air" is selected in Antenna setting:

Press 4/I_ to select "Start", and then press

ENTER.

OH Search

When "Cable" is selected in Antenna

setting:

Press A/T to select "Analog & Digital Search

Start" to search both analog and digital

broadcasts or "Analog Search Start" to search

only analog broadcasts, and then press

ENTER.

OH Search

•The Channel search will start automatically.

• To exit the Channel search screen, select "Cancel",

and then press ENTER.

Example

Air [ 25] Found [ 20] J

• If no channel is found, confirm the type of connection made

with your TV and try EZ Setup again. (See page 23 .)

(D- 17

Watching TV

You can change channels in several ways.

" r--q O c:3 "_

VOL + v CH ,_ IP4PUT POWER

TV TV VCR AUDIO

000

CBL/SAT DVD FUNCTION

o o O

SOURCE LIGHT

(_E) OE) GE)

REC

(3E) (3D CE)

(_ EB @

INPUT FLASHBACK

©@

VOL CH

FREEZE MENU

o_o

C®9

-- FAVORITE CH --

®®@®

AQUOS

Method 1

Using OH A/V on the remote control unit or on the

TV.

Method 2

Press FLASHBACK to switch to the previously

tuned channel.

Press FLASHBACK again to switch back to the

currently tuned channel.

•FLASHBACKwill notwork if no channelhasbeen

changed afterthe TV is turned on.

Method 3

Using remote control buttons 0-9, • (DOT) to select

channels for VHF/UHF/CATV/DIGITAL

To select a1 or 2-digit channel number

(e. g., Channel 5):

Press 5_ENT

•When selecting a 1-digit channel number, it is not

necessary to press 0 before the number.

• When you enter 0-9 only, channel selection will be made if

there is no operation within a few seconds.

To select a 3-digit channel number

(e. g., Channel 115):

Press I_I_5_ENT

To select a4-digit channel number

(e. g., Channel 22.1):

Press 2_2_ • (DOT) _I_ENT

•When you enter 0-9 only, channel selection will be made if

there is no operation within a few seconds.

• If you push "0" by itself, nothing will happen.

• Complete the above steps within a few seconds.

• When you enter 0-9 and • (DOT), channel selection will be

made if there is no operation within a few seconds.

(D- 18

Watching TV

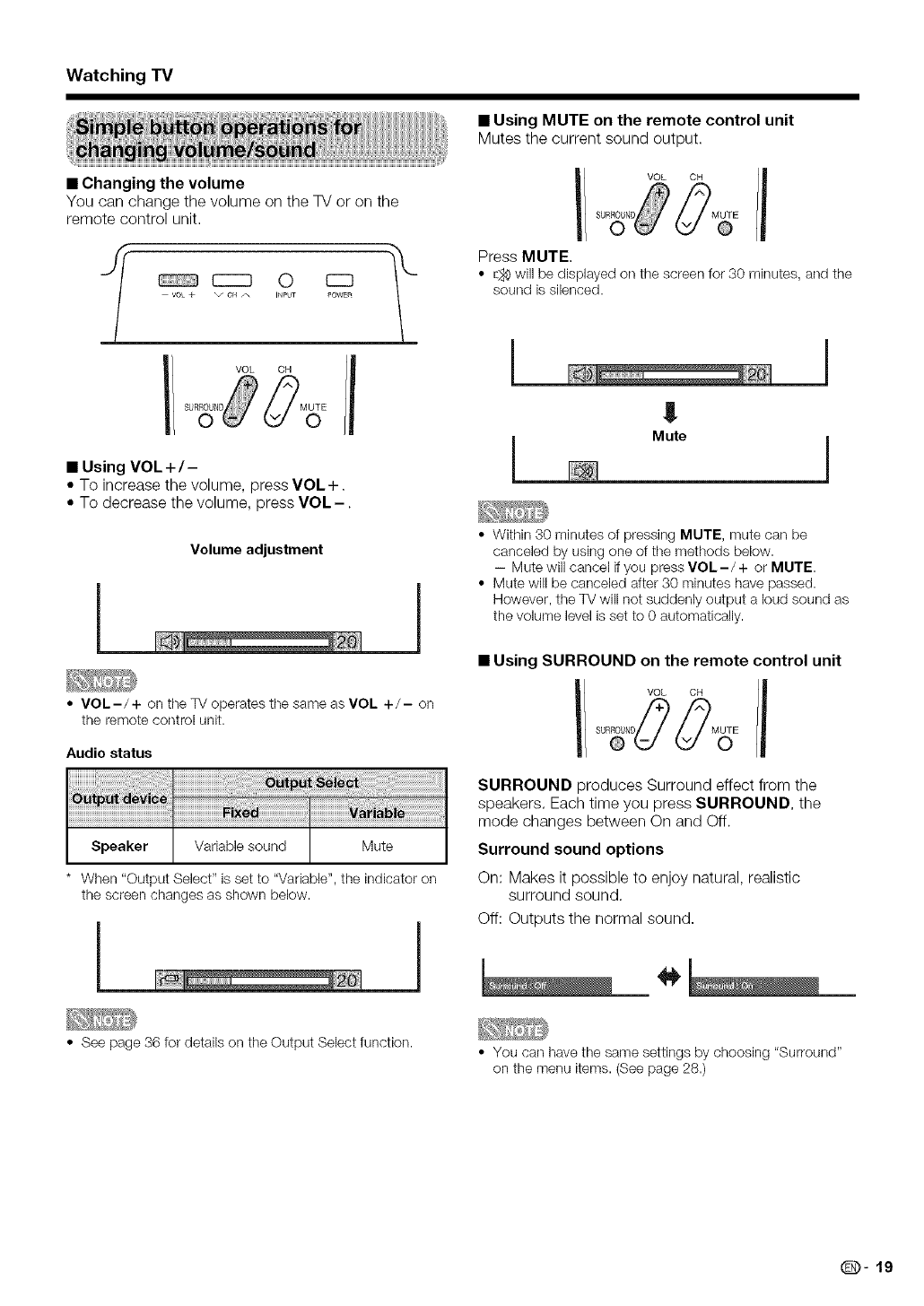

• Changing the volume

You can change the volume on the TV or on the

remote control unit,

VOL + _ OH A INPUT

VOL CH

power

• Using VOL+/-

• To increase the volume, press VOL+.

• To decrease the volume, press VOL-.

Volume adjustment

•Using MUTE on the remote control unit

Mutes the current sound output.

,%N

Press MUTE,

• E_ will be displayed on the screen for 80 minutes, and the

sound is silenced.

Mute j

• Within 30 minutes of pressing MUTE, mute can be

canceled by using one of the methods below.

-- Mute will cancel if you press VOL-/+ or MUTE.

• Mute will be canceled after 80 minutes have passed.

However, the TV will not suddenly output a loud sound as

the volume level is set to 0 automatically.

•VOL-/+ on the TV operates the same as VOL +/- on

the remote control unit.

Audio status

Speaker Variable sound Mute

When "Output Select" is set to "Variable", the indicator on

the screen changes as shown below.

•Using SURROUND on the remote control unit

SUR_N

SURROUND produces Surround effect from the

speakers, Each time you press SURROUND, the

mode changes between On and Off.

Surround sound options

On: Makes it possible to enjoy natural, realistic

surround sound.

Off: Outputs the normal sound.

• See page 86 for details on the Output Select function. • You can have the same settings by choosing "Surround"

on the menu items. (See page 28.)

(D- 19

Watching TV

The TV has a feature that allows reception of sound

other than the main audio for the program, This feature

is called Multi-channel Television Sound (MTS). The TV

with MTS can receive mono sound, stereo sound and

Secondary Audio Programs (SAP). The SAP feature

allows a TV station to broadcast other information,

which could be audio in another language or something

completely different like weather information.

You can enjoy Hi-Fi stereo sound or SAP

broadcasts where available.

•Stereo broadcasts

View programs like live sporting events, shows and

concerts in dynamic stereo sound.

•SAP broadcasts

Receive TV broadcasts in either MAiN or SAP sound.

MAiN sound: The normal program soundtrack (either in

mono or stereo).

SAP sound: Listen to a second language, supplementary

commentary or other information. (SAP is mono sound.)

If stereo sound is difficult to hear.

•Obtain a clearer sound by manually switching to

fixed mono-sound mode.

The types of audio transmitted in a digital broadcast

include SURROUND as well as MONO and STEREO.

In addition, it is possible for multiple audio tracks to

accompany a single video track,

Press AUDIO to toggle

between audio modes.

Example: when receiving Digital broadcasting

• MTS only operates while in %/mode.

I'1FAV0 T//IYoucanch lgeMTSas

C_ shown belowto matchthe

SLEEPAUDIOAVMOUECC televisionbroadcastsignal.

O _ _ _ PressAUDIO to toggle

betweenaudio modes.

Examples:when receiving MTS and SAP

STEREO mode MAIN + SAP mode

STEREO +SAP mode MONO mode

Q- 20

Basic adjustment settings

Use the following buttons on the remote control to

operate the menu,

;7 VoO_A0#_o

GB_2SAT _D FUNOTIO_

SOURCE LIGHT

dE) OD GE)

REC

CE) _ CE)

OO(Z)

dbOO

QOO

Q@@INPUT FLASNBAC_

VOL OH

FREEZE MENU

0 O

-- FAVORITE OH --

®®@@

AQUOS

MENU: Press to open or close the menu screen.

A/T/_I/I_: Press to select a desired item on the

screen or adjust a selected item.

ENTER: Press to go to the next step or complete

the setting,

RETURN: Press to return to the previous step.

Example

Item displayed in yellow

• This indicates the item currently selected.

• Press ENTER to go to the adjustment screen for this

item.

Item in brackets

• Thisindicates the currentsetting for the item.

Item displayed in white

• Thisindicates an item can beselected.

Item displayed in gray

• This indicates that the item cannot be selected.

There are various reasons why items cannot be

selected, but the main reasons are as follows:

-- Nothing is connected to the selected input terminal.

--The function is not compatible with the current input

signal.

• Menu options differ in the selected input modes, but the

operating procedures are the same.

• The screens in the operation manual are for explanation

purposes (some are enlarged, others cropped) and may

vary slightly from the actual screens.

Ueamrctbeovanilsoa117_hPeeruStirOiw__11g?idg feTrn

rdance with each menu setting screen.

Q- 21

Basic adjustment settings

[ _ p_oture I

OPC .............................................................................. Page 26

Backlight ..................................................................... Page 26

Contrast ...................................................................... Page 26

Brightness .................................................................. Page 26

Color ........................................................................... Page 26

Tint .............................................................................. Page 26

Sharpness .................................................................. Page 26

Advanced

Color Temp ..................................................... Page 27

Black ............................................................... Page 27

3D-Y/C ............................................................ Page 27

Monochrome ................................................... Page 27

Film Mode ....................................................... Page 27

Range of OPC ................................................. Page 27

Reset ........................................................................... Page 26

I_ ,uo,oI

Treble .......................................................................... Page 28

Bass ............................................................................. Page 28

Balance ........................................................................ Page 28

Surround ...................................................................... Page 28

Reset ............................................................................ Page 28

I_ P0werC0,tro,I

No Signal Off ............................................................... Page 29

No Operation Off ........................................................ Page 29

I_ SetupI

EZ Setup ...................................................................... Page 23

CH Setup ..................................................................... Page 23

Antenna Setup-DIGITAL ............................................. Page 24

Input Skip .................................................................... Page 31

Input Label ................................................................. Page 33

Parental CTRL ...................................................... Pages 40-45

Position ........................................................................ Page 32

Language ..................................................................... Page 32

Reset ............................................................................ Page 32

I_ °pt'°nI

Audio Only ................................................................... Page 36

Digital Noise Reduction ............................................. Page 36

Input Select ................................................................. Page 30

Output Select .............................................................. Page 36

Color System .............................................................. Page 36

Caption Setup ............................................................. Page 39

Program Title Display ................................................ Page 36

Favorite CH ................................................................. Page 25

=u DigitamSetup

=U_

[ ,oture]!

OPC .............................................................................. Page 26

Backlight ..................................................................... Page 26

Contrast ...................................................................... Page 26

Brightness .................................................................. Page 26

Color ........................................................................... Page 26

Tint .............................................................................. Page 26

Sharpness .................................................................. Page 26

Advanced

Color Temp ..................................................... Page 27

Black ............................................................... Page 27

Monochrome ................................................... Page 27

Film Mode ....................................................... Page 27

Range of OPC ................................................. Page 27

Reset ........................................................................... Page 26

_______________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________....

[_ Audio

Treble .......................................................................... Page 28

Bass ............................................................................. Page 28

Balance ........................................................................ Page 28

Surround ...................................................................... Page 28

Reset ............................................................................ Page 28

[_ p0w0_c00t_0,]

No Signal Off ............................................................... Page 29

No Operation Off ........................................................ Page 29

[_ sotop

Input Skip .................................................................... Page 31

Input Signal ................................................................. Page 37

Input Label ................................................................. Page 33

Position ........................................................................ Page 32

Language ..................................................................... Page 32

Reset ............................................................................ Page 32

[_ Opt,on]

Audio Only ................................................................... Page 36

Digital Noise Reduction ............................................. Page 36

HDMI Setup ................................................................. Page 31

Output Select .............................................................. Page 36

• Some menu items may not be displayed depending on the

selected input source.

Q- 22

Basic adjustment settings

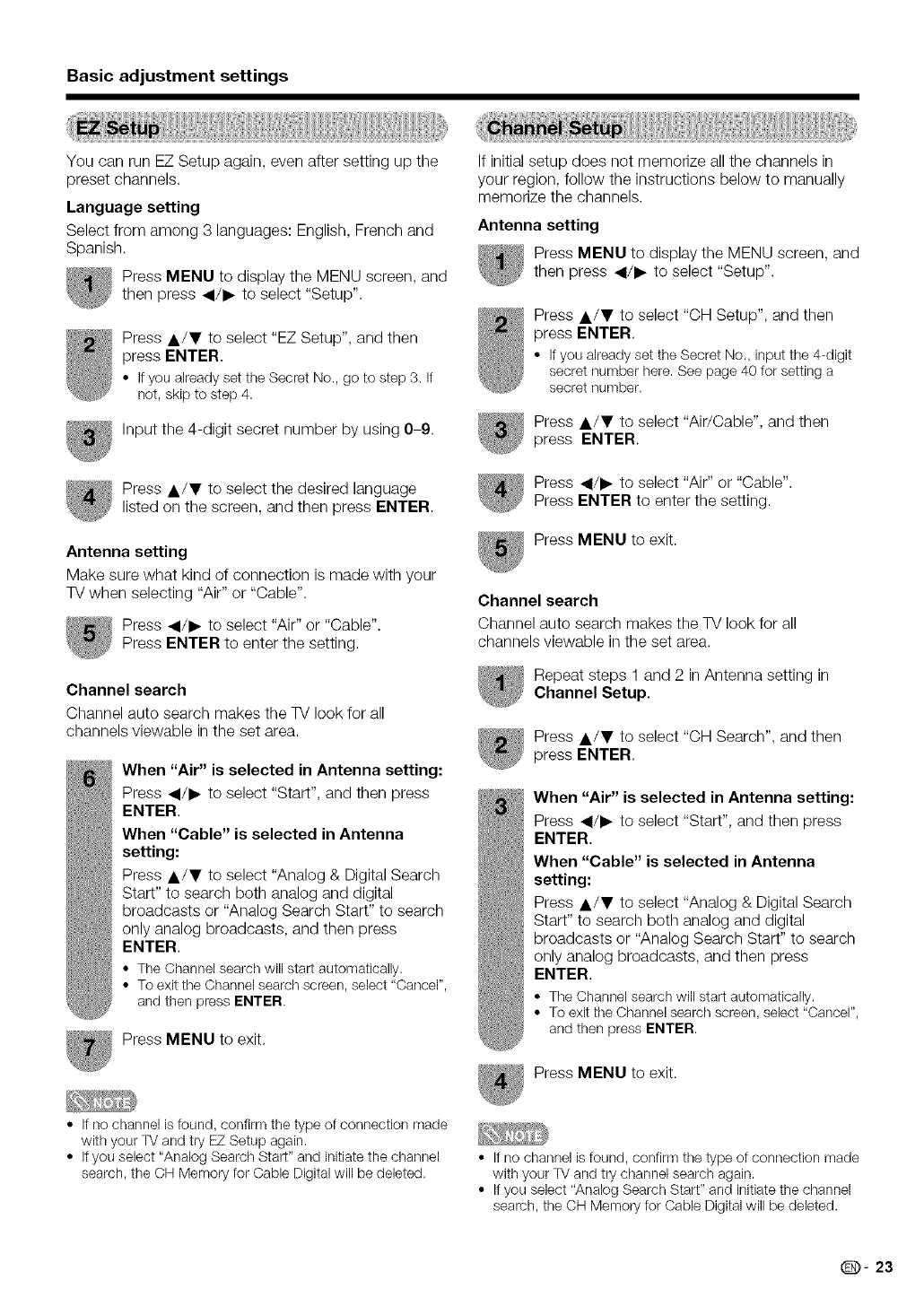

You can run EZ Setup again, even after setting up the

preset channels.

Language setting

Select from among 3 languages: English, French and

Spanish.

Press MENU to display the MENU screen, and

then press </I_ to select "Setup".

Press A/V to select "EZ Setup", and then

press ENTER.

• ifyou alreadyset tile Secret No., go to step 3. If

not, skip to step 4.

Input the 4-digit secret number by using 0-9.

Press A/V to select the desired language

listed on the screen, and then press ENTER.

Antenna setting

Make sure what kind of connection is made with your

TV when selecting "Air" or "Cable".

Press </I_ to select "Air" or "Cable".

Press ENTER to enter the setting,

Channel search

Channel auto search makes the TV look for all

channels viewable in the set area.

When "Air" is selected in Antenna setting:

Press </I_ to select "Start", and then press

ENTER,

When "Cable" is selected in Antenna

setting:

Press A/V to select "Analog & Digital Search

Start" to search both analog and digital

broadcasts or "Analog Search Start" to search

only analog broadcasts, and then press

ENTER,

• The Channelsearchwill start automatically.

• To exit the Channelseamhscreen,select "Cancel",

and then press ENTER.

Press MENU to exit.

If initial setup does not memorize all the channels in

your region, follow the instructions below to manually

memorize the channels.

Antenna setting

Press MENU to display the MENU screen, and

then press _/I_ to select "Setup".

Press A/V to select "CH Setup", and then

press ENTER,

• if you already set the Secret No., input the 4-digit

secret number here. See page 40 for setting a

secret number.

Press A/V to select "Air/Cable", and then

press ENTER.

Press </I_ to select "Air" or "Cable".

Press ENTER to enter the setting.

Press MENU to exit.

Channel search

Channel auto search makes the TV look for all

channels viewable in the set area.

Repeat steps 1 and 2 in Antenna setting in

Channel Setup.

Press A/V to select "CH Search", and then

press ENTER,

When "Air" is selected in Antenna setting:

Press 4/I_ to select "Start", and then press

ENTER.

When "Cable" is selected in Antenna

setting:

Press A/V to select "Analog & Digital Search

Start" to search both analog and digital

broadcasts or "Analog Search Start" to search

only analog broadcasts, and then press

ENTER.

• TheChannelsearchwill start automatically.

• To exitthe Channelsearchscreen,select "Cancel",

and then press ENTER.

Press MENU to exit.

• If no channel is found, confirm the type of connection made

with your TV and try EZ Setup again.

• If you select "Analog Search Start" and initiate the channel

search, the CH Memory for Cable Digital will be deleted. • If no channel is found, confirm the type of connection made

with your TV and try channel search again.

• If you select "Analog Search Start" and initiate the channel

search, the CH Memory for Cable Digital will be deleted.

Q- 23

Basic adjustment settings

Channel memory setting

Press MENU to display the MENU screen, and

then press </I_ to select "Setup".

Press A/• to select "CH Setup", and then

press ENTER.

• if you already set the Secret No., input the 4-digit

secret number here. See page 40 for setting a

secret number.

Press A/• to select "CH Memory", and then

press ENTER.

Press A/• to select ANALOG (Air), ANALOG

(Cable), DIGITAL (Air) or DIGITAL (Cable), and

then press ENTER.

When viewing ANALOG broadcasts:

Press </I_ to select the channel to skip,

and then press • to move down.

Press 4/I_ to select "On", and then press

ENTER,

When viewing DIGITAL broadcasts:

Press A/• to select the channel to skip,

and then press </1_ to select "On".

• On: Skips channels.(Channelselection disabled usingCH

A/V.)

• off: Does not skip channels.(Channelselectionenabled

using CH A/V.)

Press MENU to exit.

• Make sure what kind of connection is made with your TV.

Press A/• to select "Signal Strength".

• The signal strength of DiGiTAL channel is

displayed. The signal information is based on the

current channel.

Press MENU to exit.

Channel Strength

The channel signal strength can also be checked

separately.

Repeat steps 1 and 2 in Signal Strength in

Antenna Setup -DIGITAL,

Press A/• to select "Channel Strength", and

then press ENTER.

Input the 2-digit channel number to check the

signal strength of the selected channel.

• Make sure the signal is strong enoughfor each

channel.

Ohannel 9trength

In order to receive digital air broadcasts, you need

a digital broadcast antenna. You can confirm the

antenna configuration through the "Antenna Setup -

DIGITAL" screen.

If necessary, adjust the direction of the antenna to

obtain the maximum signal strength.

Signal Strength

Press MENU to display the MENU screen, and

then press </I_ to select "Setup".

Press A/• to select "Antenna Setup -

DIGITAL", and then press ENTER.

Press MENU to exit.

• This function is available for DIGITAL (Air) only.

Q- 24

Basic adjustment settings

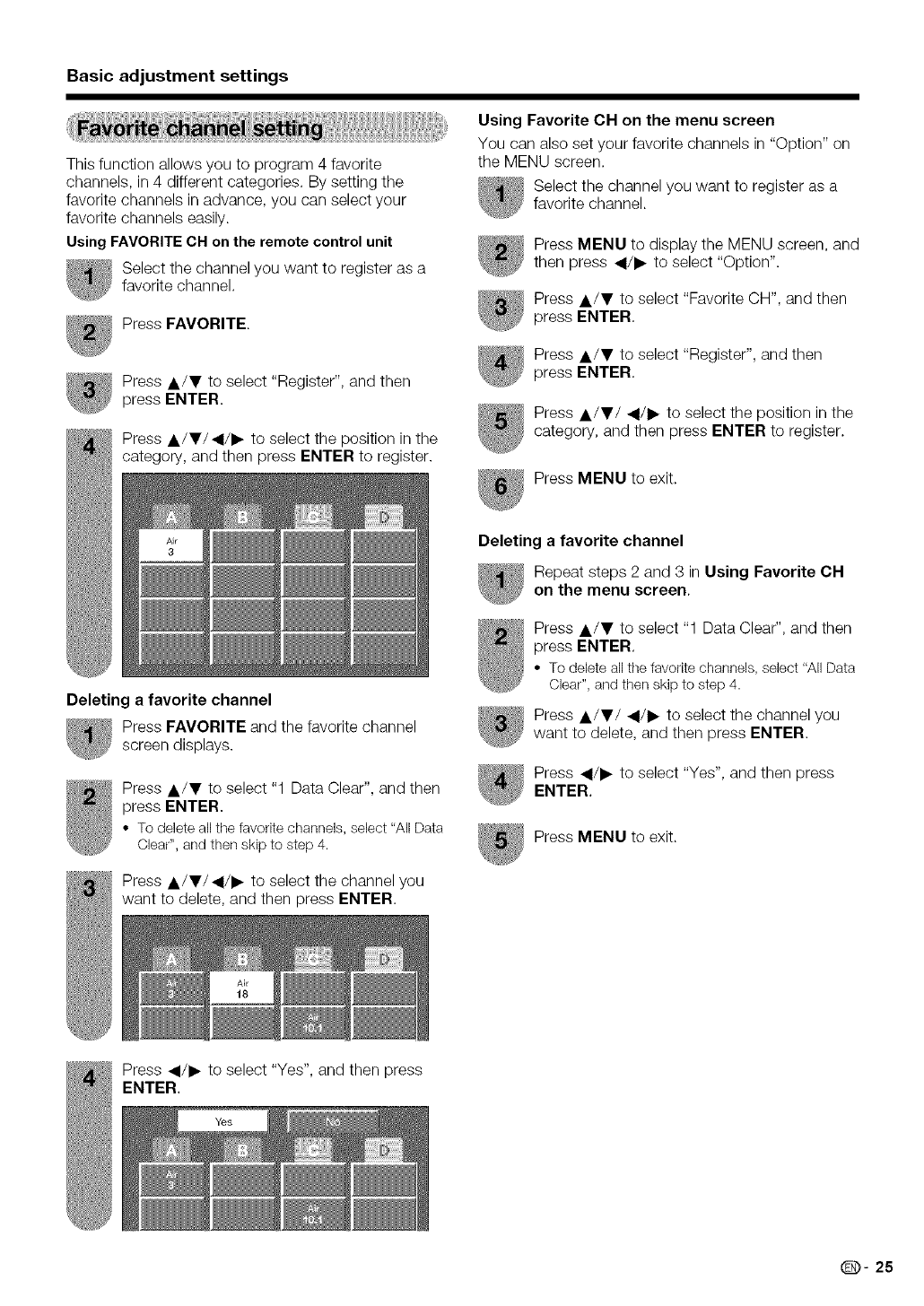

This function allows you to program 4 favorite

channels, in 4 different categories. By setting the

favorite channels in advance, you can select your

favorite channels easily.

Using FAVORITE OH on the remote control unit

Select the channel you want to register as a

favorite channel.

Press FAVORITE.

Press A/V to select "Register", and then

press ENTER.

Press A/V/_/I_ to select the position inthe

category, and then press ENTER to register.

Using Favorite CH on the menu screen

You can also set your favorite channels in "Option" on

the MENU screen.

Select the channel you want to register as a

favorite channel.

Press MENU to display the MENU screen, and

then press _/I_ to select "Option".

Press A/V to select "Favorite OH", and then

press ENTER,

Press A/V to select "Register", and then

press ENTER,

Press A/V/_/1_ to select the position in the

category, and then press ENTER to register.

Press MENU to exit.

Deleting a favorite channel

Press FAVORITE and the favorite channel

screen displays.

Press A/V to select "1 Data Clear", and then

press ENTER.

•To delete all the favoritechannels,select "All Data

Clear", and then skip to step 4.

Press A/V/</I_ to select the channel you

want to delete, and then press ENTER.

Deleting a favorite channel

Repeat steps 2 and 3 in Using Favorite CH

on the menu screen.

Press A/V to select "1 Data Clear", and then

press ENTER,

• To deletealltile favoritechannels, select"All Data

Clear",and then skip to step 4.

Press A/V/4/1_ to select the channel you

want to delete, and then press ENTER.

Press 4/I_ to select "Yes", and then press

ENTER.

Press MENU to exit.

Press <1/I_ to select "Yes", and then press

ENTER,

Yes

Q- 25

Basic adjustment settings

Adjusts the picture to your preference with the

following picture settings,

Press MENU to display the MENU screen, and

then press </I_ to select "Picture".

Press &/T to select a specific adjustment

item.

Press </I_ to adjust the item to the desired

level.

Press MENU to exit.

• For resetting all Picture adjustment items to the factory

preset values, press A/T to select "Reset", press ENTER,

press 4/1_ to select "Yes", and then press ENTER.

Automatically adjusts the brightness of the screen.

Press MENU to display the MENU screen, and

then press _/I_ to select "Picture".

Press A/T to select "OPC".

Press </I_ to select "On" or "On: Display".

Off

On: Display

The brightness is fixed at the value set in

"Backlight".

Automatically adjusts

Displays the OPC effect on the screen

while adjusting the brightness of the

screen.

Press MENU to exit.

• When set to "On", the OPC senses the surrounding light

and automatically adjusts the backlight brightness. Make

sure nothing obstructs the OPC sensor, which could affect

its ability to sense surrounding light.

• When set to "On: Display", OPC effect displays on the

screen while the OPC adjusts the screen brightness.

.i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!ii'ii ii ii !! i i ii ii ii il ii ii ii ii ii ii ii il ii ii ii ii ii ii ii i!

Backlight

Contrast

Brightness

Color

Tint

Sharpness

The screen dims

For less contrast

For less brightness

For less color

intensity

Skin tones become

reddish

For less sharpness

The screen

brightens

For more contrast

For more brightness

For more color

intensity

Skin tones become

greenish

For more sharpness

• Select "Advanced" and then press ENTER to set "Color

Temp.", "Black", "3D-Y/C", "Monochrome", "Film Mode" or

"Range of OPC". See page 27.

(D- 26

Basic adjustment settings

This TV provides various advanced functions for

optimizing the picture quality.

Press MENU to display the MENU screen, and

then press </I_ to select "Picture".

Press A/T to select "Advanced", and then

press ENTER.

Press A/T to select a specific adjustment

item, and then press ENTER,

• You can select "ColorTemp.", "Black", "3D-Y/C",

"Monochrome", "FilmMode" or "Rangeof OPC".

Press A/T (or </I_) to select the desired

parameter.

• See the table for the selectableparameters.

Press MENU to exit.

For viewing a video in monochrome.

On For viewing in monochrome

Off Normal color

Automatically detects a film-based source (originally

encoded at 24 frames/second), analyzes it then

recreates each still film frame for high-definition picture

quality.

On Detects, analyzes, converts film source

Off Normal viewing mode

For a better white balance, use color temperature

correction.

High

Mid-High

Middle

Mid-Low

Low

White with Bluish tone

White with Reddish tone

The brightness level range of the OPC sensor's

automatic adjustments can be set according to your

preferences. The adjustment range of the OPC sensor

can be set to a maximum of + 1G and a minimum of

1G.

Max. 15 through + 16

Min. 16 through +15

Changes the viewing depth by automatically adjusting

the dark portion of an image for easier viewing.

On For high detail in black portions

Off No adjustment

• The range of OPC settings are active only when the OPC is

set to On.

• The maximum setting cannot be set to a smaller number

than the minimum setting.

• The minimum setting cannot be set to a bigger number

than the maximum setting.

• Depending on the brightness of the surrounding light, the

OPC sensor might not operate if the adjustment range is

small.

Provides high quality images with minimal dot crawl

and cross color noise.

Standard Normal adjustment

Fast For moving images

Slow For still images

• 3D-Y/C is available for input signal from Composite Video

and analog broadcasts (air and cable).

Q- 27

Basic adjustment settings

You can adjust the sound quality to your preference

with the followinc settings.

FREEZE MENU

0 O

_ R_N

-- FAVORITE CH --

®®@@

Press MENU to display the MENU screen, and

then press </I_ to select "Audio".

Surround function allows you to enjoy realistic "live"

sound.

Press MENU to display the MENU screen, and

then press _/I_ to select "Audio".

Press A/V to select "Surround", and then

press ENTER,

Press 4/I_ to select "On", and then press

ENTER.

Press MENU to exit.

Press A/V to select a specific adjustment

item.

Press </I_ to adjust the item to the desired

level.

Treble For weaker treble For stronger treble

Bass For weaker bass For stronger bass

Balance Decrease audio from Decrease audio

the right speaker from the left

speaker

Press MENU to exit.

•You can choose Surround by pressing SURROUND on

the remote control unit. (See page 19.)

• Audio menu is grayed out when Output Select is set to

"Variable".

• For some discs, setup may be required on your DVD

player. In this case, please refer to the operation manual of

your DVD player.

• Audio menu is grayed out when Output Select is set to

"Variable".

• For resetting allAudio adjustment items to the factory

preset values, press A/V to select "Reset", press ENTER,

press <1/1_ to select "Yes", and then press ENTER.

Q- 28

Basic adjustment settings

Power control setting allows you to save energy.

No signal off

When set to "Enable", the power will automatically shut

down if there is no signal for 15 minutes.

Press MENU to display the MENU screen, and

then press </I_ to select "Power Control".

Press A/T to select "No Signal Off", and then

press ENTER,

Press 4/1_ to select "Enable", and then press

ENTER.

•Five minutes before the power shuts down, the

remaining time displays every minute.

Press MENU to exit.

This setting allows you to optimize the settings of

Digital broadcasting,

You can output digital audio to an AV amplifier or

similar device whose DIGITAL AUDIO INPUT terminal

is connected to the DIGITAL AUDIO OUTPUT terminal

on the TV. Please select an audio output format

compatible with the audio format of the program you

are watching and the equipment connected,

Press MENU to display the MENU screen, and

then press _/I_ to select "Digital Setup".

Press A/T to select "Audio Setup", and then

press ENTER,

Press A/T to select "PCM" or "Dolby Digital",

and then press ENTER.

• "Disable" is the factory preset value.

• When a TV program finishes, this function may not operate.

No operation off

When set to "Enable", the power will automatically shut

down if there is no operation for 3 hours.

Press MENU to display the MENU screen, and

then press <1/I_ to select "Power Control".

Press A/1' to select "No Operation Off", and

then press ENTER.

Press <1/I_ to select "Enable", and then press

ENTER,

• Fiveminutesbefore the power shuts down, the

remainingtime displaysevery minute.

Press MENU to exit.

•"Disable" is the factory preset value.

Q- 29

Using external equipment

To view external source images, select the input

source from INPUT on the remote control unit or on

the TV.

INPUT FLASHBACK

@©

VOL CH

FREEZE MENU

0 @

f ® c3

Press INPUT.

• A list of selectable sources appears,

_e INPUT1

If the image does not come in clearly from the external

equipment connected to INPUT 1 you may need to

change the input signal type setting on the "Input

Select" menu,

Selecting input signal type (INPUT 1)

Press MENU to display the MENU screen, and

then press _/I_ to select "Option".

Press A/T to select "Input Select", and then

press ENTER,

Press A/T to select the signal type you want

to set, and then press ENTER.

• If the selectedsignaltype is incorrect, imagesare

not displayed or displayedwithout any color.

Press MENU to exit.

• The setting is stored and can be selected on the

"INPUT SOURCE" menu.

Press INPUT again to select the input source.

• An image from the selected source automatically

displays.

• Each time INPUT is pressed, the input source

toggles.

• You can also select the input source by pressing

A/T.

• if the corresponding input is not plugged in, you

cannot change the input. Be sure to connect the

equipment beforehand.

• Refer to your external equipment operation manual for the

signal type.

• If you set INPUT 1 to Auto, the TV will automatically select

the input signal.

• Check the operation manual of the external equipment for

the signal type.

• Setting INPUT 1 signal selection to "Auto" when other

equipment is connected will result in the following

connection priority.

INPUT 1:

COMPONENT VIDEO

VIDEO

• See pages 13 to 15 for external equipment connection.

(D- 30

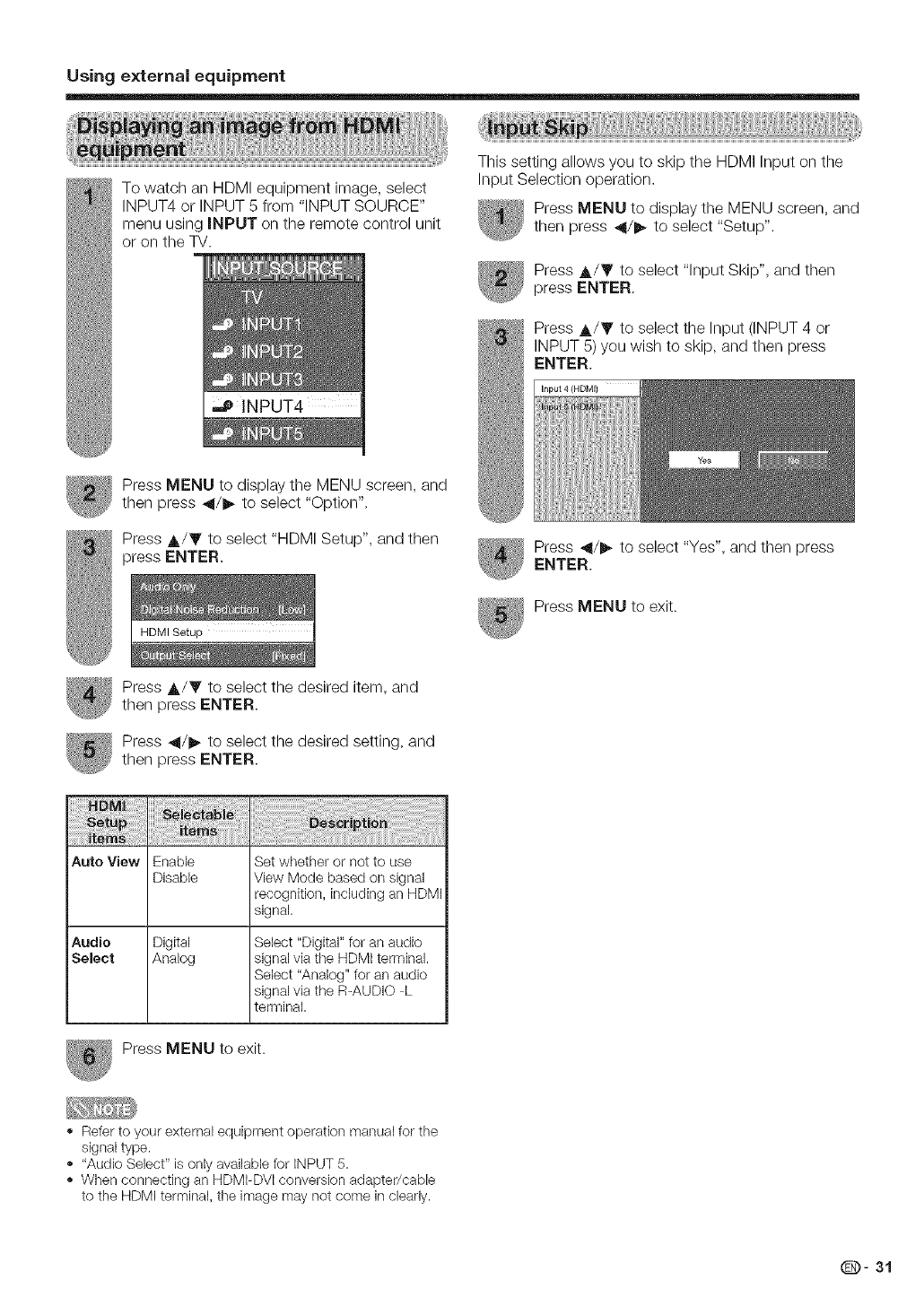

Usingexternalequipment

To watch an HDMI equipment image, select

INPUT4 or INPUT 5 from "INPUT SOURCE"

menu using INPUT on the remote control unit

or on the TV.

Press MENU to display the MENU screen, and

then press _11/i_to select "Option".

Press A/Y to select "HDMI Setup", and then

press ENTER.

HDMI Setup

This setting allows you to skip the HDMI Input on the

Input Selection operation.

Press MENU to display the MENU screen, and

then press _/1_ to select "Setup".

Press A/Y to select "Input Skip", and then

press ENTER.

Press A/Y to select the Input (INPUT 4 or

INPUT 5) you wish to skip, and then press

ENTER.

Input 4 (HDMI}

Press _1/1_ to select "Yes", and then press

ENTER.

Press MENU to exit.

Press A/Y to select the desired item, and

then press ENTER.

Press _11/I_to select the desired setting, and

then press ENTER.

Auto View

Audio

Select

Enable

Disable

Digital

Analog

Set whether or not to use

View Mode based on signal

recognition, including an HDMI

signal.

Select "Digital" for an audio

signal via the HDMI terminal.

Select "Analog" for an audio

signal via the R-AUDIO -L

terminal.

Press MENU to exit.

,, Refer to your external equipment operation manual for the

signal type.

,, "Audio Select" is only available for INPUT 5.

,, When connecting an HDMFDVI conversion adapter/cable

to the HDMI terminal, the image may not come in clearly.

Q- 31

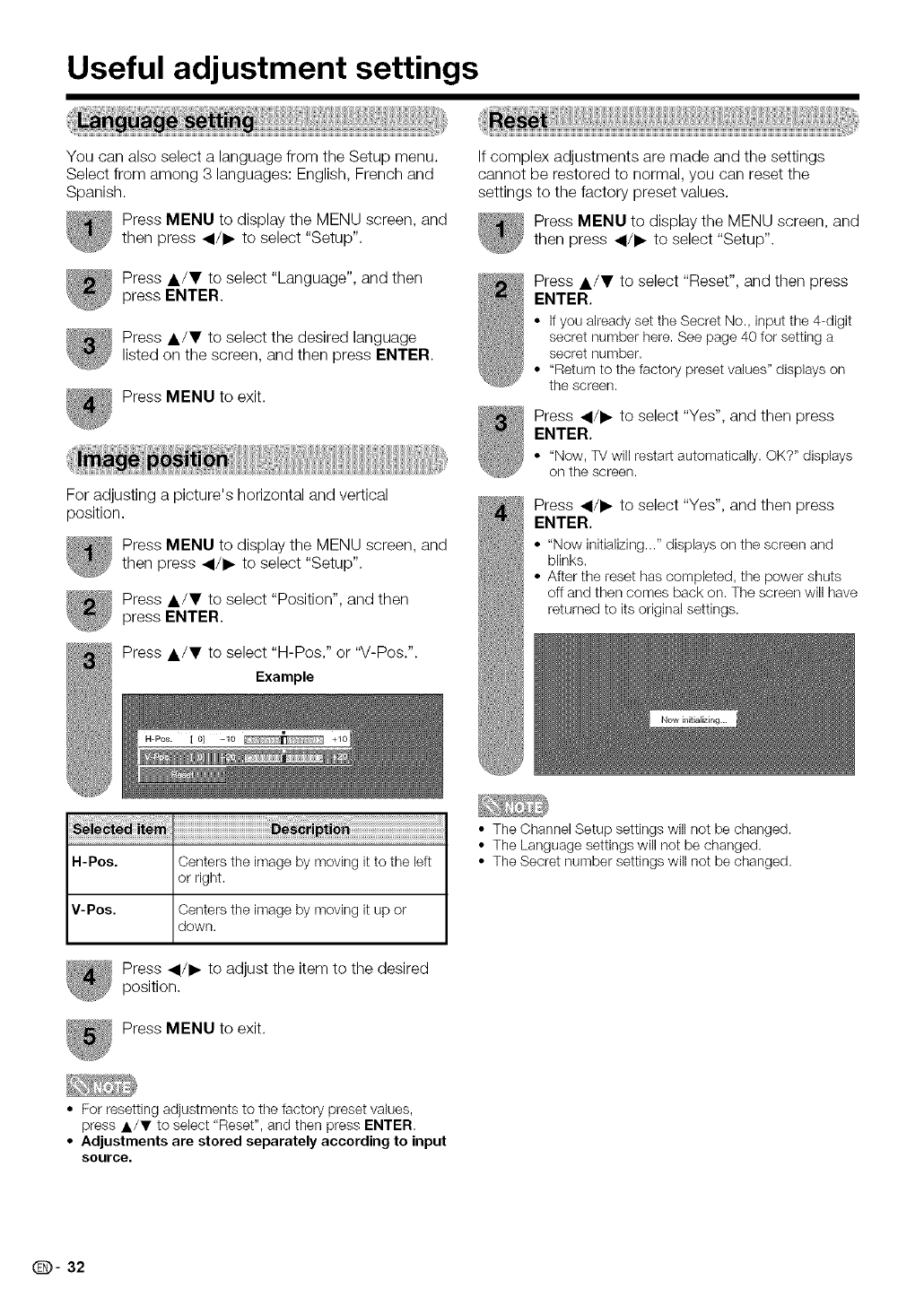

Useful adjustment settings

You can also select a language from the Setup menu.

Select from among 3 languages: English, French and

Spanish.

Press MENU to display the MENU screen, and

then press </I_ to select "Setup".

Press A/V to select "Language", and then

press ENTER.

Press A/V to select the desired language

listed on the screen, and then press ENTER.

Press MENU to exit.

For adjusting a picture's horizontal and vertical

position,

Press MENU to display the MENU screen, and

then press <1/I_ to select "Setup".

Press A/V to select "Position", and then

press ENTER.

Press A/V to select "H-Pos," or "V-Pos.".

Example

If complex adjustments are made and the settings

cannot be restored to normal, you can reset the

settings to the factory preset values,

Press MENU to display the MENU screen, and

then press _/I_ to select "Setup".

Press A/V to select "Reset", and then press

ENTER.

•if you already set the Secret No., input the 4-digit

secret number here. See page 40 for setting a

secret number.

• "Return to the factory preset values" displays on

the screen.

Press 4/I_ to select "Yes", and then press

ENTER.

• "Now, TVwill restart automatically. OK?"displays

oil the screen.

Press 4/I_ to select "Yes", and then press

ENTER.

• "Now initializing..."displays on the screen and

blinks.

• After the reset has completed, the power shuts

off and then comes back on. The screen will have

returned to its original settings.

H-Pos. (}enters the image by moving it to the left

or right.

V-Pos. Centers the image by moving it up or

down.

Press _/I_ to adjust the item to the desired

position.

Press MENU to exit.

• The Channel Setup settings will not be changed.

• The Language settings will not be changed.

• The Secret number settings will not be changed.

• For resetting adjustments to the factory preset values,

press A/T to select "Reset", and then press ENTER.

•Adjustments are stored separately according to input

source.

Q- 32

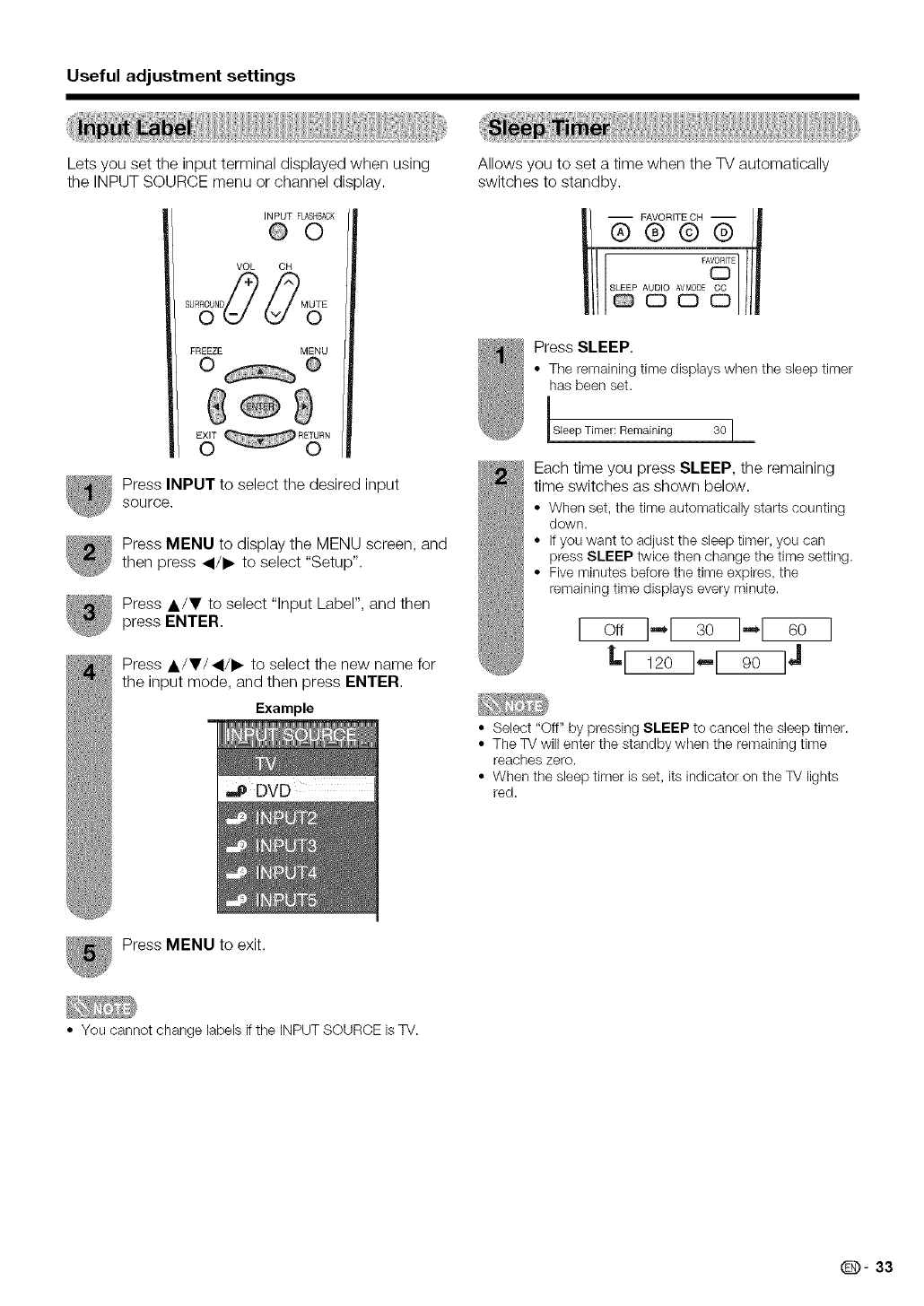

Useful adjustment settings

Lets you set the input terminal displayed when using

the INPUT SOURCE menu or channel display.

INPUT FLASHBACK

@©

VOL CN

FREEZE MENU

0 ®

Press INPUT to select the desired input

source.

Press MENU to display the MENU screen, and

then press _1/I_ to select "Setup".

Press A/T to select "Input Label", and then

press ENTER.

Press A/T/_/I_ to select the new name for

the input mode, and then press ENTER,

Example

Allows you to set a time when the TV automatically

switches to standby.

-- FAVORITECH -- II

Press SLEEP.

• The remaining time displays when the sleep timer

has been set.

I Sleep Timer: Remaining 30 •

Each time you press SLEEP, the remaining

time switches as shown below.

• When set, the time automatically starts counting

down.

• if you want to adjust the sleep timer, you can

press SLEEP twice then change the time setting.

• Five minutes before the time expires, the

remaining time displays every minute.

[Z Z-'I so I-I 60 I

• Select "Off" by pressing SLEEP to cancel the sleep timer.

• The TV will enter the standby when the remaining time

reaches zero.

• When the sleep timer is set, its indicator on the TV lights

red.

Press MENU to exit.

• You cannot change labels if the INPUT SOURCE is TV.

Q- 33

Useful adjustment settings

TV TV VCR AU_IO

000

C%/SATDVD FUNCTION

SOUROE LIGHI

GD (3D EE)

REC

(3D (3D CE)

FREEZE M£NU

C®9°ES "

Press VIEW MODE.

• The View Mode menu displays.

• The menu lists the View Mode options selectable

for the type of video signal currently being

received.

Side Bar

Press VIEW MODE or A/T while the View

Mode menu is displayed to select a desired

item on the menu.

• You can sequentiallyselecta View Modethat has

itsown aspect ratio.

oL-o|

Side Bar:

Suitable for viewing conventional

4:3 programs in their normal

format.

S.Stretch (Smart stretch):

Suitable for stretching 4:3

programs to fill the screen.

Zoom:

Suitable for viewing wide-screen

2.35:1 anamorphic DVDs in full

screen.

The following modes are available for HD programs.

Stretch:

Suitable for viewing wide-screen 1.78:1 aspect ratio

program, stretch mode will still show very thin black

bands at the top and bottom of the screen.

Dot by Dot (1080i/p only):

Detects the resolution of the signal and displays an

image with the same number of pixels on the screen.

Full Screen (720p only):

You can select "Full Screen" only when receiving a

720p signal.

S.Stretch (Smart stretch):

Suitable for stretching 4:3 programs to fill the screen.

Zoom:

Suitable for viewing wide-screen 2.35:1 aspect-ratio

programs in full screen.

• When using Dot by Dot, it is possible to see noise or

bars around different outer portions of the screen. Please

change view mode to correct this.

Stretch:

This mode is useful for 1.78:1

DVDs.

When viewing 1.85:1 DVDs, stretch

mode will still show very thin black

bands at the top and bottom of the

screen.

Q- 34

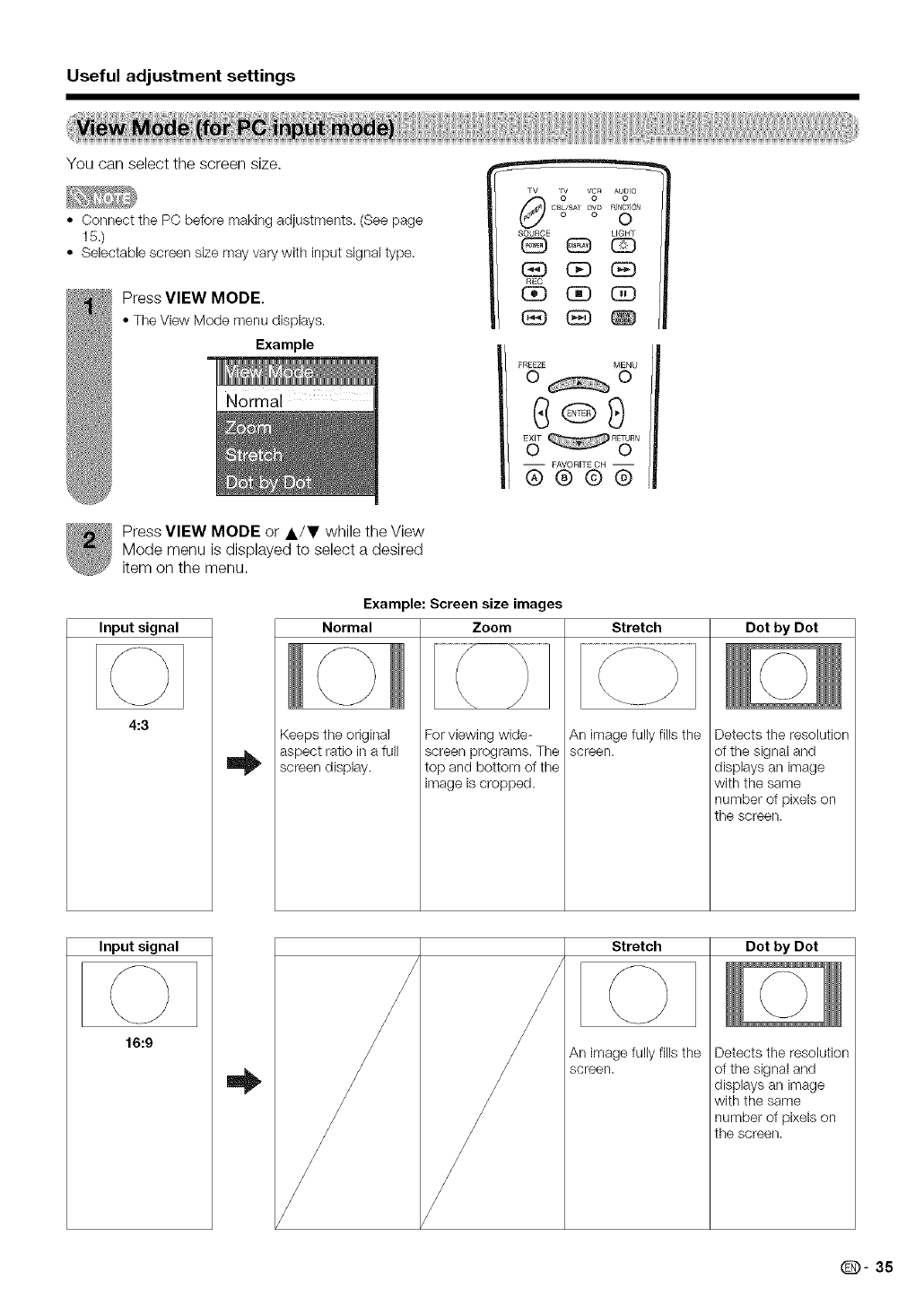

Useful adjustment settings

You can select the screen size.

• Connect the PC before making adjustments. (See page

15.)

• Selectable screen size may vary with input signal type.

Press VIEW MODE.

• The View Mode menu displays.

Example

_ v_ A_,o

C_/_AI D_D FUNCTION

SOURCE LIGHT

REC

FREEZE MENU

-- FAVORITECH --

®®©@

Press VIEW MODE or A/T while the View

Mode menu is displayed to select a desired

item on the menu.

Input signal

4:3

Example: Screen size images

Normal Zoom Stretch Dot by Dot

Keeps the original

aspect ratio in a full

screen display.

For viewing wide-

screen programs. The

top and bottom of the

image is cropped.

An image fully fills the

screen.

Detects the resolution

of the signal and

displays an image

with the same

number of pixels on

the screen.

Input signal

16:9

Stretch

An image fully fills the

screen.

Dot by Dot

Detects the resolution

of the signal and

displays an image

with the same

number of pixels on

the screen.

Q- 35

Useful adjustment settings

Perform the following steps to set the Option menu

items on this page.

FREEZE MENU

0 O

_ R_N

-- FAVORITE CH --

®®@@

Press MENU to display the MENU screen, and

then press _1/I_ to select "Option".

Press A/T to select a specific adjustment

item, and then press ENTER.

Press A/T (or 4/1_) to select the desired

setting, and then press ENTER,

Press MENU to exit.

• Skip this stop for "AudioOnly".

Allows you to select what controls the audio output,

Fixed • Sound via speaker is adjusted with

VOL +/- on the remote control

unit or VOL- /+ on the TV.

• Sound via the AUDIO OUTPUT

terminal is not adjustable and

outputs at a consistent level.

Variable • Sound via the AUDIO OUTPUT

terminal is adjusted with VOL +/-

on the remote control unit or VOL

-/+ on the TV.

• Sound via speaker is muted.

Select the video signal system compatible with your

equipment from the list below;

-- Auto

-- NTSC

-- PAL-M

-- PAL-N

When listening to music from a music program, you

can set the screen off and enjoy audio only.

On Audio is output without screen image.

Off Both screen images and audio are output.

• "Color System" can only be set for the INPUT 1 VIDEO and

INPUT 2.

Select the CH display when changing channels for

digital broadcasting.

• The screen image will return to normal when a button

(except those for audio adjustment, such as VOL, MUTE,

SURROUND, AUDIO) is pressed.

Yes "Program hTfo."displays

No "Program hTto."does not display

Produces a clearer video image.

Off No adjustment

High For enhanced Digital Noise Reduction

Low For moderate Digital Noise Reduction

Q- 36

Useful adjustment settings

AV MODE gives you 7 viewing options to choose from

to best match the surrounding environment of the TV,

which can vary due to factors like room brightness,

type of program watched or the type of image input

from external equipment.

SLEEP AUDIO AVMODE CC

00_0

Press AV MODE.

• Current AV MODEdisplays.

i iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii; D!

STANDARD For a highly defined image in a normal

lighting

[Enhanced Picture Dontrast: on]

MOVIE For a movie

[Enhanced Picture Dontrast: off]

GAME Lowers image brightness for easier viewing

[Enhanced Picture Contrast: off]

PC For PC

[Enhanced Picture Dontrast: off]

USER Allows the user to customize settings as

desired. You can set the mode for each

input source.

[Enhanced Picture Dontrast: off]

DYNAMIC Changes the image and sound settings to

(Fixed) the factory preset values. No adjustments

are allowed.

[Enhanced Picture Dontrast: on]

DYNAMIC For a clear-cut image emphasizing high

contrast, useful for sports viewing

[Enhanced Picture Dontrast: on]

Press AV MODE again before the mode

displayed on the screen disappears.

• The mode changes as shown below.

When the input source is TV, INPUT 1, 2 or 3 terminals

(Example)

When the input source is INPUT 4 or 5terminals

(Example)

• You can select a different AV MODE item for each input

mode. (For example, select STANDARD for TV input and

DYNAMIC for INPUT 1.)

• "Enhanced Picture Contrast" technology detects the source

video characteristics and smoothly adjusts the screen

brightness accordingly to realize deeper black levels.

Some input signals may have to be registered manually

to display properly.

The pair of input signals (resolutions) in the list below

are not distinguishable when received. In such case,

you have to set the correct signal manually, After

setting once, it will display when the same signal

(resolution) is input again.

I 1024 x 768 1360 x 768

• You can only select the "Input Signal" on the Setup menu

when receiving one of the 2 input signals listed above.

Press MENU to display the MENU screen, and

then press _/I_ to select "Setup".

Press A/T to select "Input Signal", and then

press ENTER,

Press A/I' to select the desired input signal

on the display.

Press MENU to exit.

Q- 37

Usefuladjustmentsettings

Your TV is equipped with an internal Closed Caption

decoder, it allows you to view conversations, narration

and sound effects as subtitles on your W. Closed

Captions are available on some TV programs and on

some VHS home video tapes at the discretion of the

program provider.

Digital Closed Caption service is a new caption service

available only on digital TV programs (also at the

discretion of the service provide0. It is a more flexible

system than the original Closed Caption system,

because it allows for a variety of caption sizes and font

styles. When the Digital Closed Caption service is in

use, it will be indicated by the appearance of a 3-letter

abbreviation that also indicates the language of the

Digital Closed Captions: ENG (English), SPA (Spanish),

FRA (French) or other language codes.

Not all programs and VHS videotapes offer closed

captions. Please look for the "[_]" symbol to ensure

that captions will be shown.

In the Closed Caption system, there can be more than

one caption service provided. Each is identified by its

own number. The "OO1" and "0C2" services display

subtitles of TV programs superimposed over the

program's picture.

In the Closed Caption system, the "Text1" or "Text2"

services display text that is unrelated to the program

being viewed (e.g., weather or news). These services

are also superimposed over the program currently

being viewed. ll s% Jl

I// F V°l/fi°

SLEEP AUDIO AVMODE CC

C3 C3 C3 G

Press CO.

• This will present the Closed Caption information

display.

Press CO while the Closed Caption information

is still on the screen.

• Press repeatedlyuntilyou select the desired

closed captionservice.

Closed Caption

information

• Depending on the numberof caption servicesin

the signal being received,you will seeinformation

such as 1/2 or 1/4 displayed.

1/2 means "the first of two services".

Example:

If a programhas three services(DigitalCC(ENG),

CC1 and Text1),the closed captiondisplaywill

toggle inthis sequence:

• The CC button keeps a record of the last service

selectedin its memory.

If the last closed caption mode (e.g.1/3ENG)you

selectedis not availablefor the next program,or

on anotherchannel,the closed caption service

that is availableisautomaticallyselected,and this

serviceappears in parentheses,e.g. "1/3(CC1)".

ClosedCaption servicesthat appear in

parentheseswill not bestored inthe CC button's

memoryas your last selected service.Only

servicesthat you have selectedwith the CC

button are stored.

Examples:

In a case where there are two closed caption

services provided, (for instance, Digital

CO(ENG) and CO1), and Digital CO(ENG)

is displayed as your current selection, if

Digital CC(ENG) is not broadcast for the next

program, the other closed caption service,

CO1, will be displayed in parentheses.

A closed caption service appears in

parentheses because the service you selected

is not available and a different service is

displayed on your screen. "1/1 (CC1)" is

displayed instead of "I/2/ENG".

,, See page 39 for detailed closed caption settings.

,, When the program contains no closed caption, "--"

displays in the closed caption information.

,, If the language code, e.g. "ENG', is not found on Digital TV

programs, ''--'' will be shown.

,, Four kinds of closed caption service (CC1, CC2, Text1,

Text2) are potentially available, but a broadcast may contain

none or only some of these services at the discretion of the

program provider.

Q- 38

Useful adjustment settings

This function allows you to adjust the closed caption

screen appearance to suit your preference.

Press MENU to display the MENU screen, and

then press </I_ to select "Option".

Press A/T to select "Caption Setup", and

then press ENTER.

Press A/T to select a specific adjustment

item.

•You can adjust 7 items here;they are,

"Oaption Size",

"Font Style",

"Foreground Oolor",

"Foreground Opacity",

"Background Color",

"Background Opacity" and

"Oharacter Edge".

Oapt fan Size _ E Defaldt _

Default

• For resetting adjustments to the factory preset values,

press A/T to select "Reset", and then press ENTER.

• The default value depends on the broadcasting station.

Selectable items available for "Font Style".

Default The font specified by broadcasting station

or default font.

Type 0Proportional font used in the MENU

screen.

Type 1 Monospaced with serifs.

Type 2 Proportionally spaced with serifs.

Type 3Monospaced without serifs.

Type 4 Proportionally spaced without serifs.

Type 5Casual font type.

Type 6 Cursive font type.

Type 7Small capitals.

Press </I_ to select the desired parameter.

Press MENU to exit.

Q- 39

Useful adjustment settings

Allows you to use a secret number to protect certain

settings from being accidentally changed.

IMPORTANT:

Three conditions must be met to enable the V-Chip (see

pages 40 to 45):

Secret No. is registered,

V-Chip/V-Chip (DTV Only) settings have been

made.

"Status" is set to "On",

Setting a secret number

Press MENU to display the MENU screen,

and then press </1_ to select "Setup".

Press A/I' to select "Parental CTRL", and

then press ENTER,

Press A/T to select "Secret No,", and then

press ENTER,

Input the same 4-digit number on the

"Reconfirm" screen as in step 4 to confirm.

New Secret No.

Press RETURN to start configuring the V-Chip

settings. (See pages 43 and 45 for details.)

Press MENU to exit.

Setting parental control status

Used to enable or disable the parental control function.

Repeat steps 1 and 2 in Setting a secret

number.

• Thesecret numbersetting menudisplays.

_ Input the 4-digit secret number by using 0-9.

Press A/I' to select "Status", and then press

ENTER.

Select "New Secret No.", and then press

ENTER,

Input the new 4-digit secret number by using

0-9.

New Secret No.

Press 4/I_ to select "On" or "Off", and then

press ENTER,

• Select "On" to enableand "Off" to disable Parental

CTRL.

Status

Press MENU to exit.

• You can skip steps 1 and 2 above while in the Parental

CTRL screen.

• The "V-Chip (DTV Only)" will only be selectable when a new

rating system can be downloaded via digital broadcasting

in the U.S.

Q- 40

Useful adjustment settings

Changing the secret number

Allows you to change your current secret number.

Repeat steps 1 and 2 in Setting asecret

number.

•The secret number setting menudisplays.

Input the 4-digit secret number by using 0-9.

Clearing the secret number

Allows you to clear your secret number.

Repeat steps 1 and 2 in Setting a secret

number.

• Thesecret numbersetting menudisplays.

Input the 4-digit secret number by using 0-9.

Press A/T to select "Secret No.", and then

press ENTER.

Press A/1' to select "New Secret No.", and

then press ENTER,

Input the old 4-digit secret number by using

0-9.

New Secret No.

Press A/1' to select "Secret No.", and then

press ENTER.

Press A/1' to select "Secret No. Clear", and

then press ENTER.

Press 4/I_ to select "Yes", and then press

ENTER.

• Your secret number is cleared.

Secret No. Clear

Input the new 4-digit secret number by using

0-9.

New Secret No.

Input the same 4-digit number on the

"Reconfirm" screen as in step 6 to confirm.

New Secret No.

Press MENU to exit.

• See page 40 for re-registering a new secret number after

being cleared.

•As aprecautionary measure, make a note of your

secret number and keep it in a familiar place.

• If the secret number is cleared, the Status setting

automatically sets to "Off". "V-Chip" and "Status" will not

be seiectabie from the menu.

Press MENU to exit.

Q- 41

Useful adjustment settings

V-CHIP is an electronic filtering device built into your TV. This tool gives parents a great degree of control over

broadcasts accessed by their children, It allows parents to select programs judged suitable for child viewing while

blocking ones judged not suitable, It does so automatically once you activate the V-CHIP feature in your TV.

"V-Chip" and "Status" will not be selectable from the menu if you do not first configure your secret

number. (See page 40 for Secret number setting for parental control.)

*The U.S. has two rating systems for viewing content: TV Parental Guidelines and movie ratings.

*The TV Parental Guidelines work in conjunction with the V-CHIP to help parents screen out inappropriate

television shows from their children.

*Movie ratings are used for original movies rated by the Motion Picture Association of America (MPAA) as

watched on cable TV and not edited for television. The V-CHIP can also be set to block MPAA-rated movies.

Voluntary movie rating system (MPAA)

G General audiences. All ages admitted.

PG Parental guidance suggested. Some material may not be suitable for children.

PG-13 Parents strongly cautioned. Some material may be inappropriate for children under 13.

Age

R Restricted. Under 17 requires accompanying parent or adult guardian (age varies in some

jurisdictions).

NC-17 No one 17 and under admitted.

X X is an older rating that is unified with ND-17 but may be encoded in the data of older movies.

MPAA [EXAMPLE_

•If you select "PG-13", this will automatically block the higher

ratings "R", "NC- 17" and "X".

• Voluntary movie rating system only uses an age-based rating.

TV Parental Guidelines

TV-Y (All children)

TV-Y7 (Directed to older children)

Suggested TV-G (General audience)

age

TV-PG (Parental Guidance suggested)

TV-14 (Parents strongly cautioned)

TV-MA (Mature audience only)

_: The content rating can be set, but this rating is not normally broadcast by TV stations.

× : Content rating can be set.

FV V

(Fantasy (Violence)

violence)

Dontent

(Sexual

situation)

(Adult

language)

(Sexually

suggestive

dialog)

Q- 42

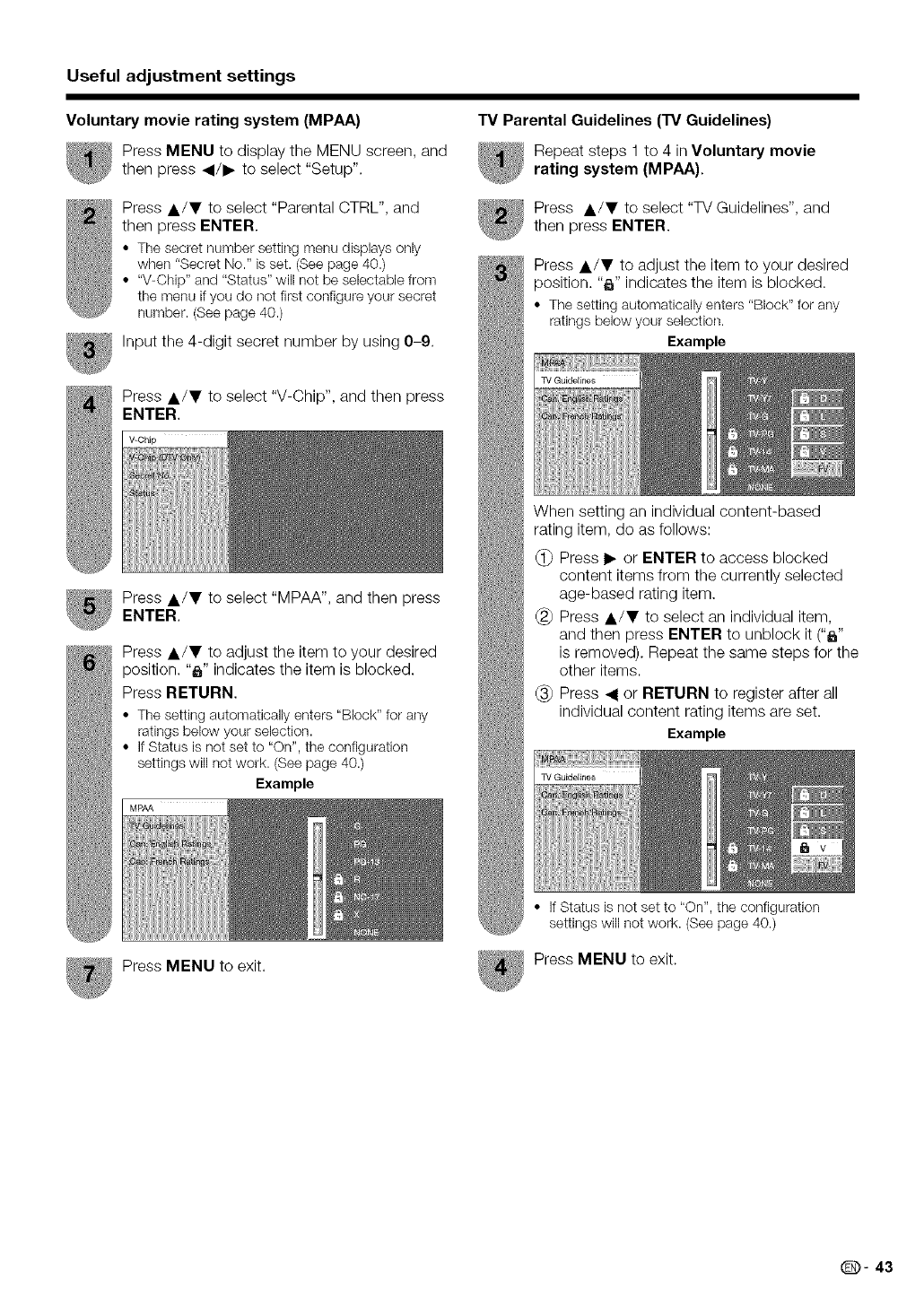

Useful adjustment settings

Voluntary movie rating system (MPAA)

Press MENU to display the MENU screen, and

then press </I_ to select "Setup".

Press A/T to select "Parental CTRL", and

then press ENTER.

• The secret number setting menu displays only

when "Secret No." is set. (See page 40.)

• "V-Chip" and "Status" will not be selectable from

the menu if you do not first configure your secret

number. (See page 40.)

hTputthe 4-digit secret number by using 0-9.

Press A/T to select "V-Chip", and then press

ENTER,

Press A/T toselect"MPAA",andthenpress

ENTER,

Press A/T to adjust the item to your desired

position. "_" indicates the item is blocked.

Press RETURN.

• The setting automatically enters "Block" for any

ratingsbelowyour selection.

• ifStatus isnot set to "On", the configuration

settings will not work. (Seepage 40.)

Example

MPAA

TV Parental Guidelines (TV Guidelines)

_ epeat steps fto 4 inVoluntary movierating system (MPAA).

Press A/T to select "TV Guidelines", and

then press ENTER.

Press A/T to adjust the item to your desired

position. "_" indicates the item is blocked.

• The setting automatically enters "Block" for any

ratings below your selection.

Example

TV Guidelines

When setting an individual content-based

rating item, do as follows:

Press I_ or ENTER to access blocked

content items from the currently selected

age-based rating item.

(_ Press A/T to select an individual item,

and then press ENTER to unblock it ("_"

is removed). Repeat the same steps for the

other items.

(_ Press _ or RETURN to register after all

individual content rating items are set.

Example

TV Guidelines

Press MENU to exit.

• If Status is not set to "On", the configuration

settings will not work. (See page 40.)

Press MENU to exit.

Q- 43

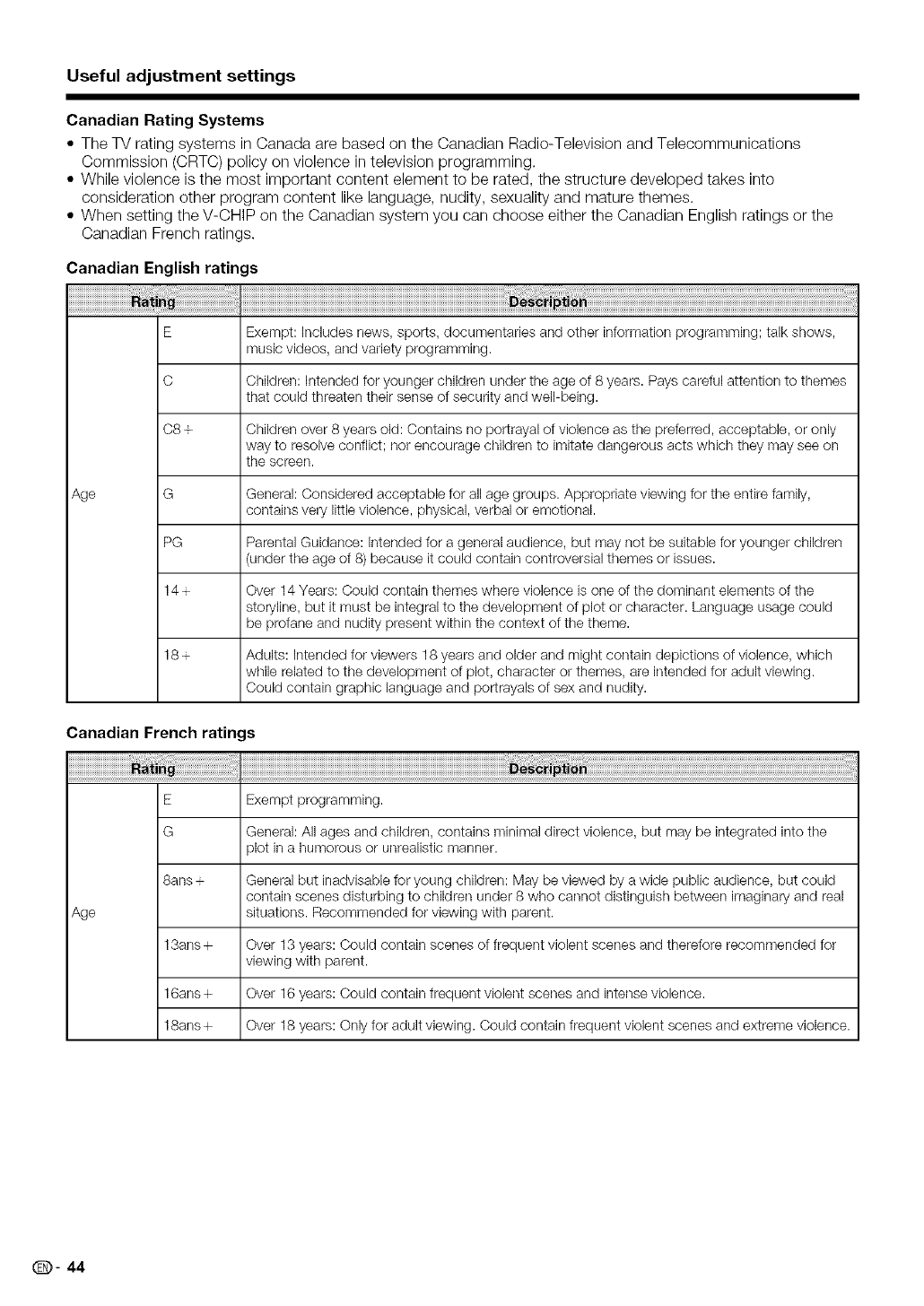

Useful adjustment settings

Canadian Rating Systems

• The 77/rating systems in Canada are based on the Canadian Radio-Television and Telecommunications

Commission (CRTC) policy on violence in television programming.

• While violence is the most important content element to be rated, the structure developed takes into

consideration other program content like language, nudity, sexuality and mature themes.

• When setting the V-CHIP on the Canadian system you can choose either the Canadian English ratings or the

Canadian French ratings.

Canadian English ratings

Age

C8 +

14+

18÷

Exempt: includes news, sports, documentaries and other information programming; talk shows,

music videos, and variety programming.

Children: intended for younger children under the age of 8 years. Pays careful attention to themes

that could threaten their sense of security and well-being.

Children over 8 years old: Contains no portrayal of violence as the preferred, acceptable, or only

way to resolve conflict; nor encourage children to imitate dangerous acts which they may see on

the screen.

General: Considered acceptable for all age groups. Appropriate viewing for the entire family,

contains very little violence, physical, verbal or emotional.

Parental Guidance: Intended for a general audience, but may not be suitable for younger children

[under the age of 8) because it could contain controversial themes or issues.

Over 14 Years: Could contain themes where violence is one of the dominant elements of the

storyline, but it must be integral to the development of plot or character. Language usage could

be profane and nudity present within the context of the theme.

Adults: Intended for viewers 18 years and older and might contain depictions of violence, which

while related to the development of plot, character or themes, are intended for adult viewing.

Could contain graphic language and portrayals of sex and nudity.

Canadian French ratings

E Exempt programming.

G General: All ages and children, contains minimal direct violence, but may be integrated into the

91otin a humorous or unrealistic manner.

8ans ÷ General but inadvisable for young children: May be viewed by a wide public audience, but could

contain scenes disturbing to children under 8 who cannot distinguish between imaginary and real

Age situations. Recommended for viewing with parent.

13ans + Over 13 years: Could contain scenes of frequent violent scenes and therefore recommended for

viewing with parent.

16ans + Over 16 years: Could contain frequent violent scenes and intense violence.

18ans + Over 18 years: Only for adult viewing. Could contain frequent violent scenes and extreme violence.

Q- 44

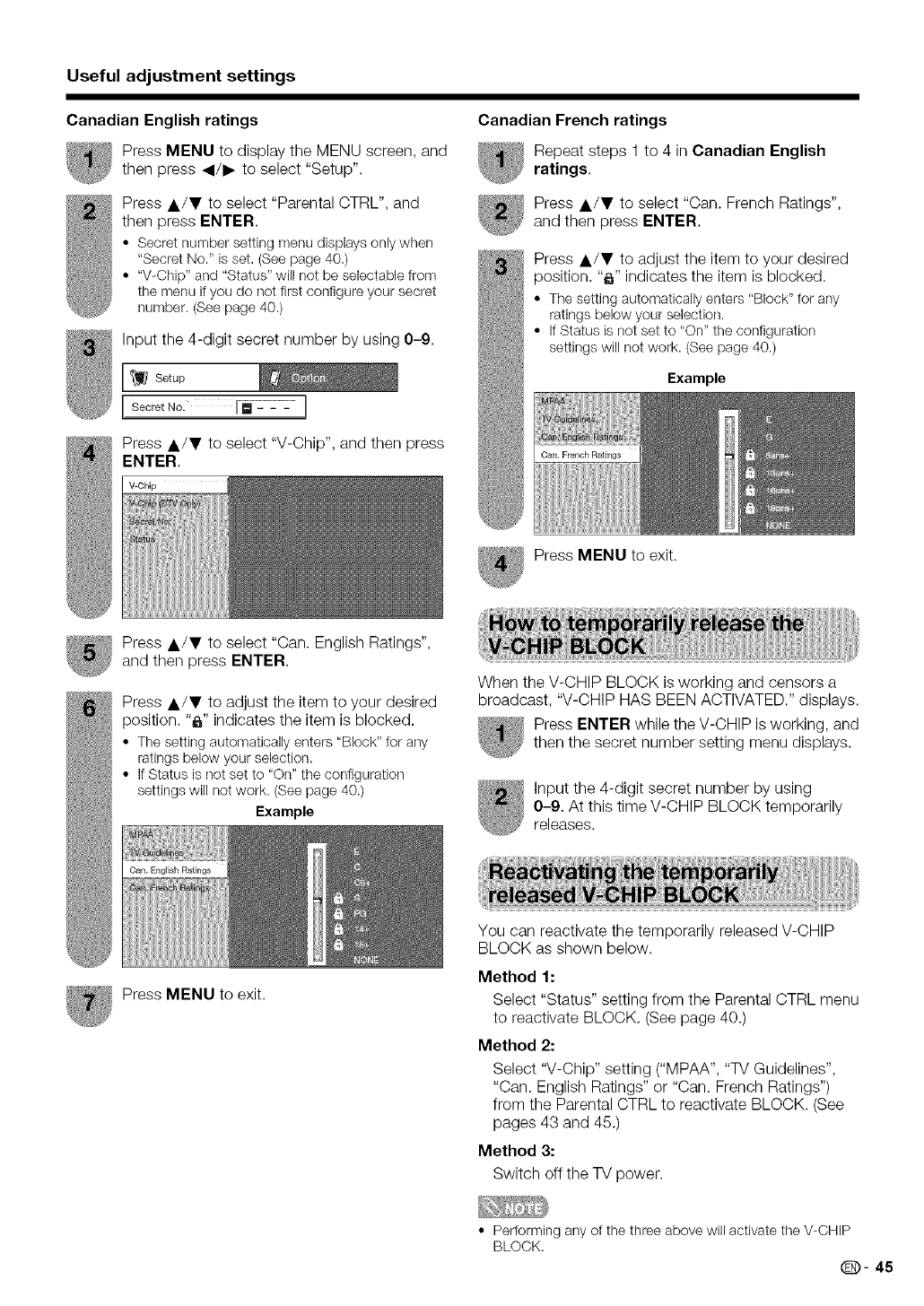

Useful adjustment settings

Canadian English ratings

Press MENU to display the MENU screen, and

then press </I_ to select "Setup".

Press A/, to select "Parental CTRL", and

then press ENTER.

• Secret number setting menu displays onlywhen

"Secret No." is set. (See page 40.)

• "V-Chip" and "Status" will not be selectable from

the menu if you do not first configure your secret

number. (See page 40.)

hTput the 4-digit secret number by using 0-9.

I Secret No. I-i °:°':°-Z° ]

Press A/T to select "V-Chip", and then press

ENTER,

V=Ohip

Canadian French ratings

Repeat steps 1to 4 in Canadian English

ratings.

Press A/T to select "Can. French Ratings",

and then press ENTER.

Press A/T to adjust the item to your desired

position. "_" indicates the item is blocked.

• The setting automatically enters "Block" for any

ratings below your selection.

• if Status is not set to "On" the configuration

settings will not work. (See page 40.)

Example

Press MENU to exit.

Press A/T to select "Can. English Ratings",

and then press ENTER,

Press A/T to adjust the item to your desired

position. "_" indicates the item is blocked.

• The setting automatically enters "Block" for any

ratings below your selection.

• if Status is not set to "On" the configuration

settings will not work. (See page 40.)

Example

When the V-CHIP BLOCK is working and censors a

broadcast, "V-CHIP HAS BEEN ACTIVATED." displays.

Press ENTER while the V-CHIP is working, and

then the secret number setting menu displays.

Input the 4-digit secret number by using

0-9. At this time V-CHIP BLOCK temporarily

releases.

Press MENU to exit.

You can reactivate the temporarily released V-CHIP

BLOCK as shown below.

Method 1:

Select "Status" setting from the Parental CTRL menu

to reactivate BLOCK. (See page 40.)

Method 2:

Select "V-Chip" setting ("MPAA", "TV Guidelines",

"Can, English Ratings" or "Can. French Ratings")

from the Parental CTRL to reactivate BLOCK. (See

pages 43 and 45.)

Method 3:

Switch off the TV power.

• Performinganyof the threeabovewill activate the V-CHIP

BLOCK.

®- 45

Other viewing options

Allows you to capture and freeze a moving image that

you are watching.

FREEZE MENU

C@8

-- FAVORITE CH --

®®@@

AQUOS

Press FREEZE.

• A moving imageis captured.

Press FREEZE again to cancel the function.

• When this function is not available, "No displaying still

image available." will display.

• The still image automatically goes out after 30 minutes.

• If you are using the freeze function and a broadcast

activates the V-CHIP BLOCK, the freeze function will be

cancelled and a V-CHIP BLOCK message will appear.

You can operate the connected AV products (AV

Receiver, Cable Box, SAT tuner, DTV, VCR, DVD, LD)

using the presetting manufacturer function of your

remote control unit.

TV TV VCR AUDIO

000

CB_/SAT D(_D FUNCTION

SOURCE LIGHT

GD CE) _

REC

(3D (3E) _

GE) GE) @

G) Q

INPUT FLASHBACK

Presetting manufacturer codes

Press FUNCTION until the LED for your

device lights up.

After the LED for your device lights up, press

FUNCTION and DISPLAY at the same time

to enter the code registration mode. The LED

will blink,

Press 0-9 to enter the manufacturer code. (See

page 47.)

• Presetmode is finishedonce the LED no longer

lights up.

After registering the code, the LED will stop

blinking then turn off after one second. (If you

perform an incorrect operation, the LED will

blink quickly then turn off.)

(D- 46

Other viewing options

Manufacturer codes

REMOTE CONTROL CODE

VCR BRAND

Akai

Audio

Broksonic

Canon

Capehart

Craig

Curtis Mathis

Daewoo

DBX

Dynatech

Emerson

Fisher

Funai

G.E.

Goldstar

Hitachi

instant Replay

JC Penney

JVC

Kenwood

Lioyds

Magnavox

Magnin

Marantz

Memorex

Minolta

Mitsubishi

Montgomery Ward

Multitech

NEC

Panasonic

Pentax

Philco

Philips

RCA

Realistic

Samsung

Sanyo

Scott

Sears

Sharp

Shintom

Sony

Sound Design

Sylvania

Symphonic

Tatung

Teac

Teknika

Thomas

TMK

Toshiba

Video Concepts

Yamaha

Zenith

NUMBER

25, 26, 37

15, 22, 30

10, 31

15, 22, 30

21,32, 35

09, 10, 11

28, 29

06, 47

04, 06, 24, 30

15, 41,42, 53

14, 15

04, 05, 08

04, 10, 24, 29

17, 18, 39, 40

02, 43

15, 22, 30

44, 45

05, 06

05, 08

06, 07, 33, 51

01,02, 10, 24

23, 31

10, 14, 52

06, 11, 24

01,02, 03

12, 13, 38

05, 08

15, 29

27, 29

19, 20

15, 29, 30

DVD/LD BRAND

Denon

JVC

Kenwood

Magnavox

Marantz

Mitsubishi

Panasonic

Philips

Pioneer

Proscan

RCA

Samsung

Sharp

Sony

Toshiba

Yamaha

Zenith

REMOTE CONTROL CODE

NUMBER

09, 13

02, 22

04, 23

08, 11,20

03, 24

07, 12

01, 10

05, 25

REMOTE CONTROL CODE

CATV/SAT BRAND NUMBER

Anvision

Cable Star

Eagle

General instrument

Jerrold

Magnavox

Oak Sigma

Panasonic

Philips

Pioneer

Randtek

RCA

Scientific Atlanta

Sony

Viewstar

04,05

02,03,07,12,13, t4,

19,22

02,03,07,12,13, t4,

19,22,31,32,33,34,

35,36,37,38,39,40

04,05,09,14,17,18,

20,21,24,25

16,23

04,05,09,15,17,18,

20,21,24,25

08,10,29,30,43",46

04,05

16,27,44",45"

01, 26

04,05,09,15,17,18,

20,21,24,25

06,14Zenith

•Numbers marked with * are SAT codes, all others are

CATV codes.

AUDIO BRAND REMOTE CONTROL CODE

NUMBER

Sharp 01

Q- 47

Other viewing options

(_ C£) (3D

OO--

_l_Z_ MENU

o_%o

FAVORITECH

®®©®

AQUOS

•Cable control buttons

the TV can be operated using 1 to 4.

1 SOURCE POWER

Turns the cable converter power on and off.

2 0-9

Press a button (or buttons) that corresponds to the channel that you wish

to watch.

3 FLASHBACK *

Press to switch between the current channel and the channel you were

watching immediately before.

4OH A/V

Press CHA or CH v to tune in a higher or lower channel.

* Some manufacturers do not preset FLASHBACK.

• CABLE and SAT cannot be selected at the same time.

F_VO_IrE CH

®®@@

AQUOS

--3

•SAT control buttons

1 SOURCE POWER

Turns the cable converter power on and off.

2 0-0, • (DOT)

Press a button (or buttons) that corresponds to the channel that you wish

to watch,

3 ENTER, &/T/_/I_

ENTER: Press to activate the selected function,

A/T/<I/I_: Press the button to select items on the SAT GUIDE screen

or SAT MENU screen.

• CABLE and SAT cannot be selected at the same time.

Q- 48

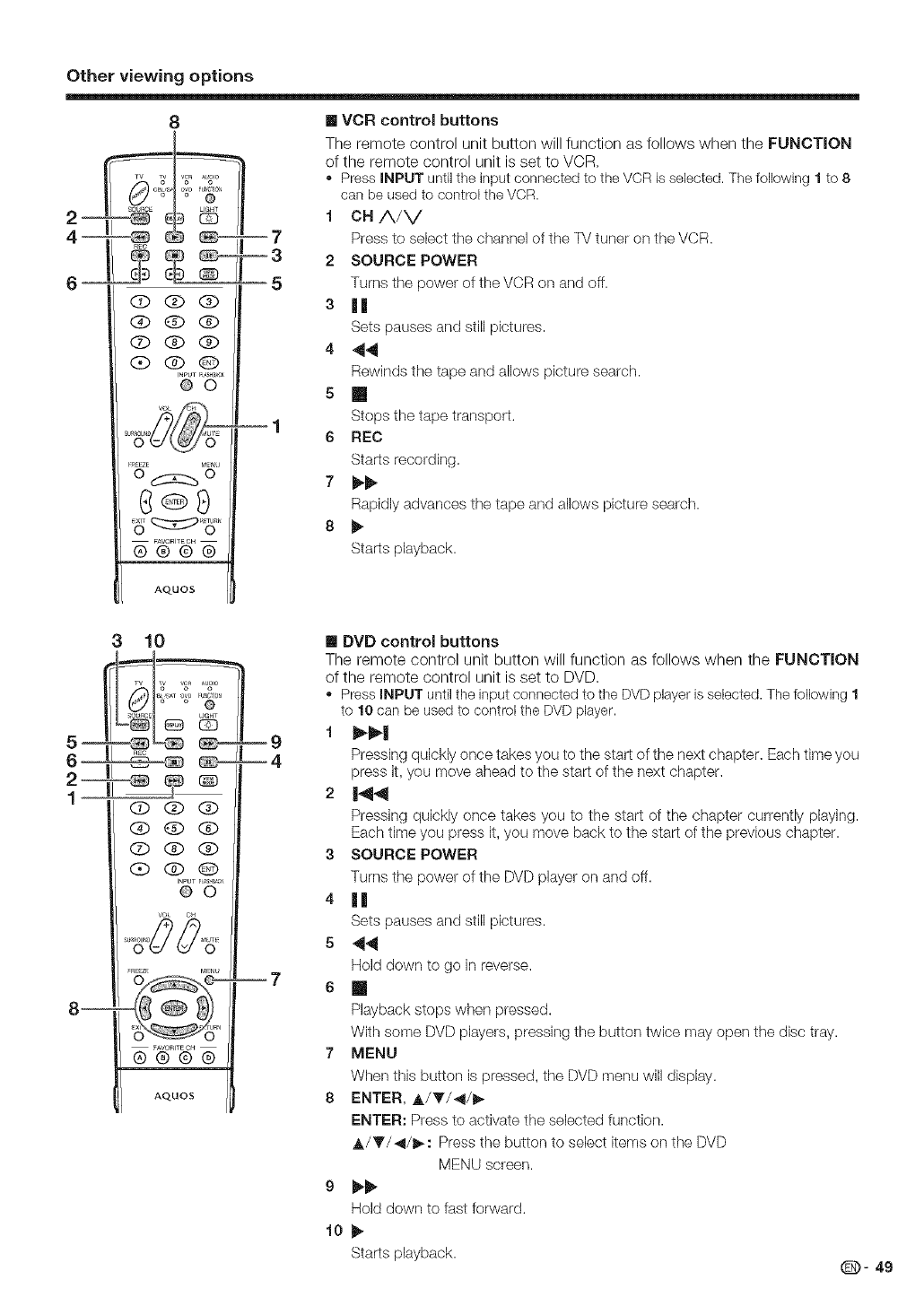

Other viewing options

TV To_v_R_u_,o

6 _'3 __5

@(2)(i)

(g) @ (g)

Q (i) (g)

(D (g) @

@©

o_o

C®9

FAVORITECH

®®@®

AQUOS

--I

[] VCR control buttons

The remote control unit button will function as follows when the FUNCTION

of the remote control unit is set to VCR.

• Press INPUT until the input connected to the VCR is selected. The following 1 to 8

can be used to control the VCR.

i CH A/V

Press to select the channel of the TV tuner on the VCR.

2 SOURCE POWER

Turns the power of the VCR on and off.

s||

Sets pauses and still pictures.

4 "_4

Rewinds the tape and allows picture search.

s []

Stops the tape transport.

6 REC

Starts recording.

7 _

Rapidly advances the tape and allows picture search.

Starts playback.

310

00(2)

QQQ

(2) QQ

INPUTn _S_C_

vow' c_

_R_ZE M_U

0 "_ 0

_AVORITEC_

®®@®

AQUOS

--7

[] DVD control buttons

The remote control unit button will function as follows when the FUNCTION

of the remote control unit is set to DVD.

• Press INPUT until the input connected to the DVD player is selected. The following 1

to 10 can be used to control the DVD player.

PressingquickJy once takes you to the start of the next chapter. Each time you

press it, you move ahead to the start of the next chapter.

Pressing quickly once takes you to the start of the chapter currently playing.

Each time you press it, you move back to the start of the prevk>us chapter.

3 SOURCE POWER

Turns the power of the DVD player on and off.

4 |l

Sets pauses and still pictures.

Hold down to go in reverse.

6 []

Playback stops when pressed.

With some DVD players, pressing the button twice may open the disc tray.

7MENU

When this button is pressed, the DVD menu will display.

8ENTER, _/_/_/_

ENTER: Press to activate the selected function.

A/T/_I/_: Press the button to select items on the DVD

MENU screen.

Hold down to fast forward.

10_

Starts playback. Q- 49

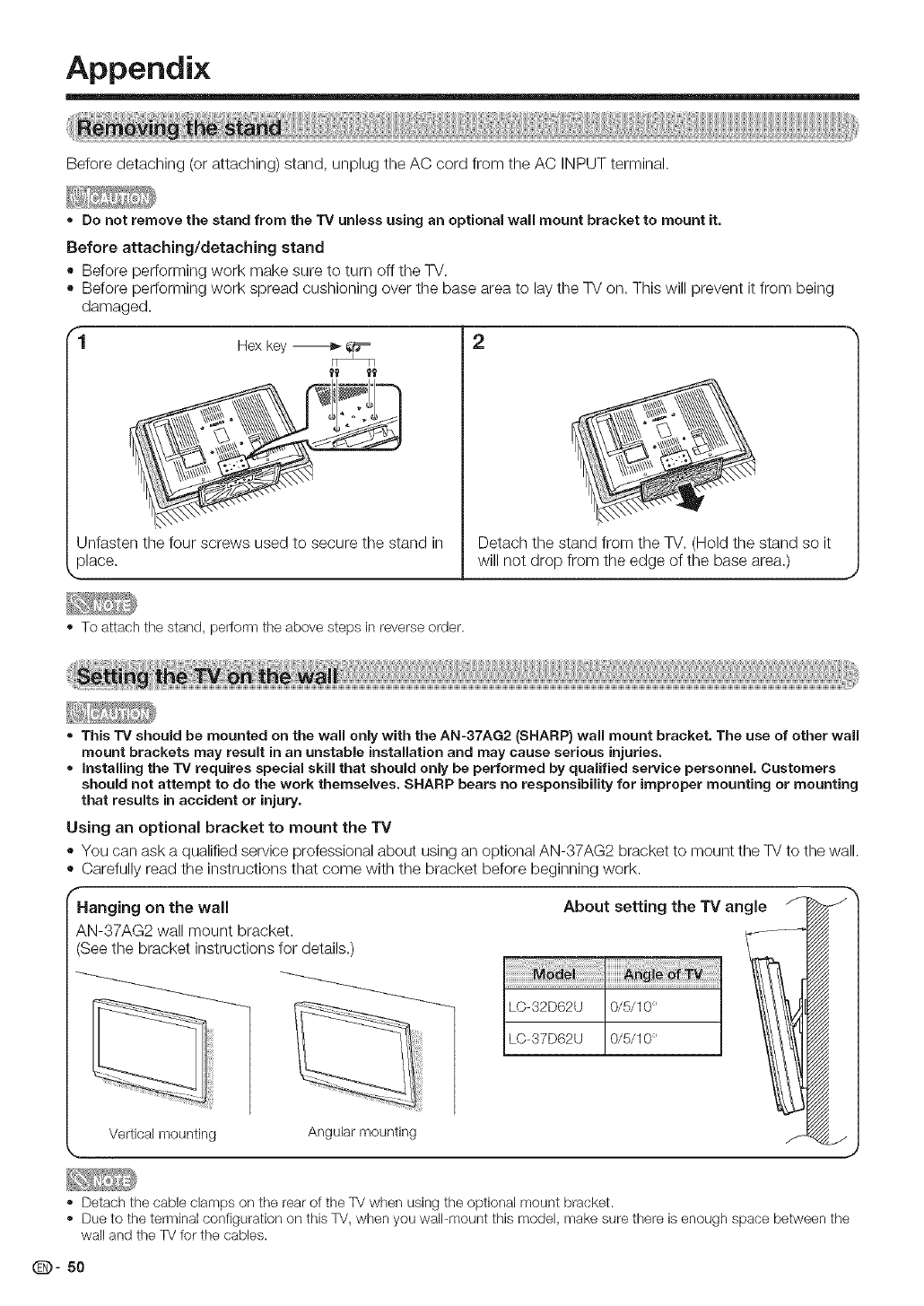

Appendix

Before detaching (or attaching) stand, unplug the AC cord from the AC INPUT terminal.

® Do not remove the stand from the TV unless using an optional wall mount bracket to mount it.

Before attaching/detaching stand

, Before performing work make sure to turn off the TV.

, Before performing work spread cushioning over the base area to lay the TV on. This will prevent it from being

damaged.

r1 Hex key -_F_ _

lil -q

Unfasten the four screws used to secure the stand in

place.

Detach the stand from the TV. (Hold the stand so it

will not drop from the edge of the base area.)

,, To attach the stand, perform the above steps in reverse order.

• This TV should be mounted on the wall only with the AN-37AG2 (SHARP) wall mount bracket. The use of other wall

mount brackets may result in an unstable installation and may cause serious injuries.

® Installing the TV requires special skill that should only be performed by qualified service personnel. Customers

should net attempt to do the work themselves. SHARP bears no responsibility for improper mounting or mounting

that results in accident or injury.

Using an optional bracket to mount the TV

• You can ask a qualified service professional about using an optional AN-37AG2 bracket to mount the TV to the wall.

• Carefully read the instructions that come with the bracket before beginning work.

Hanging on the wall

AN-37AG2 wall mount bracket.

(See the bracket instructions for details,)

Vertical mounting Angular mounting

About setting the TV angle

...................................................

LC_32D62U 0/5/10 °

LC-37D62U 0/5/10 °

• Detach the cable clamps on the rear o1 the TV wlqen using the optional mount bracket.

Due to the terminal configuration on this TV, when you wall-mount this model, make sure there is enough space between the

wall and the TV for the cables.

Q- 50

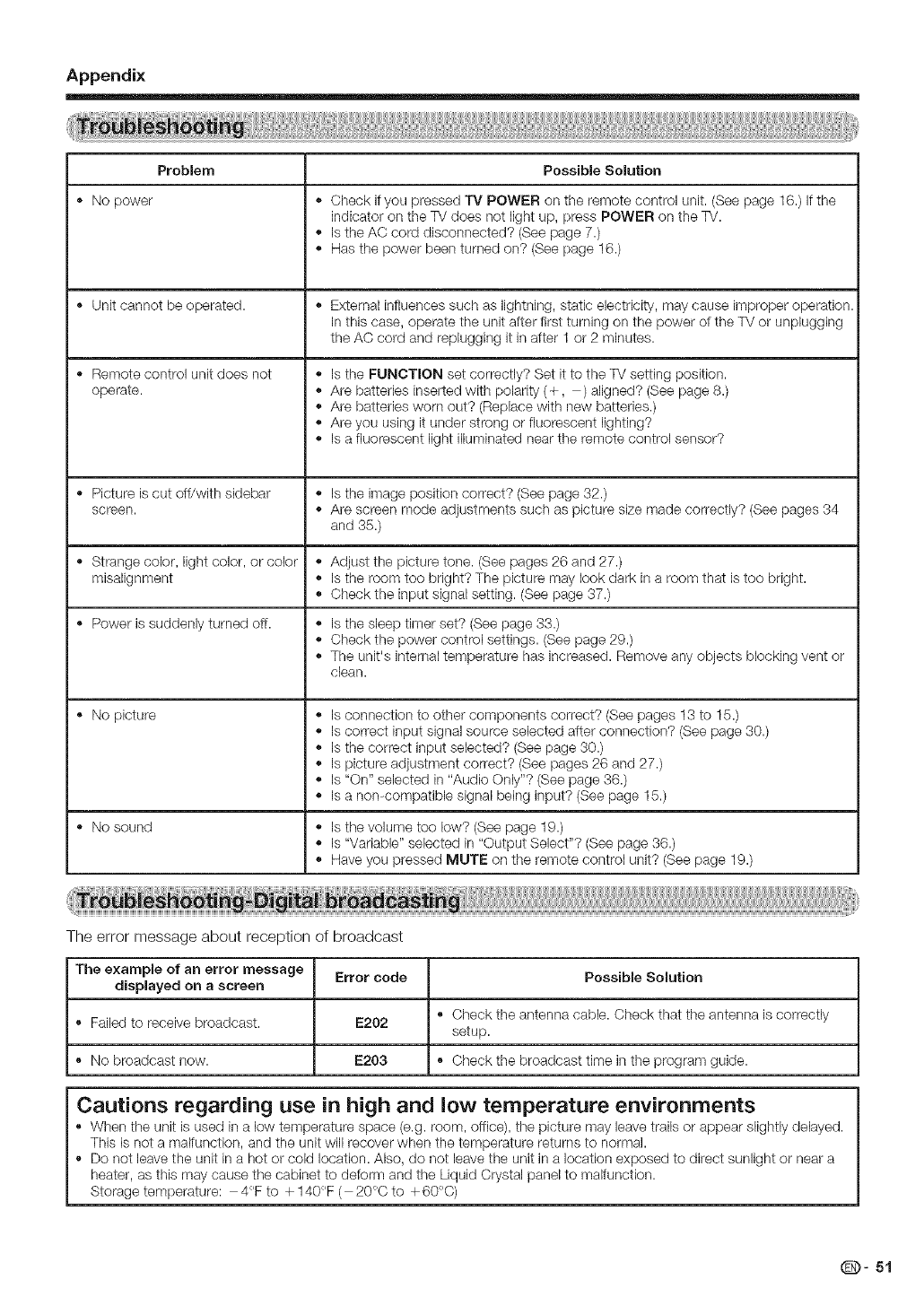

Appendix

Problem Possible Solution

• No power • Check if you pressed "IV POWER on the remote control unit. (See page 16.) If the

indicator on the TV does not light up, press POWER on the TV.

• Is the AC cord disconnected? (See page 7.)

• Has the power been turned on? (See page 16.)

• Unit cannot be operated. • External influences such as lightning, static electricity, may cause improper operation.

In this case, operate the unit after first turning on the power of the TV or unplugging

the AC cord and replugging it in after 1 or 2 minutes.

• Remote control unit does not

operate.

• Picture is cut off/with sidebar

screen.

• Strange color, light color, or color

misalignment

• Power is suddenly turned off.

• No picture

• is the FUNCTION set correctly? Set it to the TV setting position.

• Are batteries inserted with polarity (+, ) aligned? (See page 8.)

• Are batteries worn out? (Replace with new batteries.)

• Are you using it under strong or fluorescent lighting?

• Is a fluorescent light illuminated near the remote control sensor?

• Is the image position correct? (See page 32.)

• Are screen mode adjustments such as picture size made correctly? (See pages 34

and 35.)

• Adjust the picture tone. (See pages 26 and 27.)

• Is the room too bright? The picture may look dark in a room that is too bright.

• Check the input signal setting. (See page 37.)

• is the sleep timer set? (See page 33.)

• Check the power control settings. (See page 29.)

• The unit's internal temperature has increased. Remove any objects blocking vent or

clean.

• is connection to other components correct? (See pages 13 to 15.)

• is correct input signal source selected after connection? (See page 30.)

• is the correct input selected? (See page 30.)

• is picture adjustment correct? (See pages 26 and 27.)

• Is "On" selected in "Audio Only"? (See page 36.)

• Is a non-compatible signal being input? (See page 15.)

• No sound • is the volume too low? (See page 19.)

• Is "Variable" selected in "Output Select"? (See page 36.)

• Have you pressed MUTE on the remote control unit? (See page 19.)

The error message about reception of broadcast

The example of an error message Error code Possible Solution

displayed on a screen

• Check the antenna cable. Check that the antenna is correctly

• Failed to receive broadcast. E202 setup.

• No broadcast now. E203 • Check the broadcast time in the program guide.

Cautions regarding use in high and low temperature environments

• When the unit is used in a low temperature space (e.g. room, office), the picture may leave trails orappear slightly delayed.

This is not a malfunction, and the unit will recover when the temperature returns to normal.

• Do not leave the unit in a hot or cold location. Also, do not leave the unit in a location exposed to direct sunlight or near a

heater, as this may cause the cabinet to deform and the Liquid Crystal panel to malfunction.

Storage temperature: 4°Fto +140°F( 20'Cto +60°C)

Q- 51

Appendix

item Model: LC-32D62U Model: LC-37D62U

LCD panel 32" Advanced Super View & BLACK TFT 37" Advanced Super View & BLACK TFT

LCD LCD

Number of dots 6,220,800 dots (1920 x 1080 x 3 dots)

TV TV-standard (CCIR) American TV Standard ATSC/NTSC System

Function Receiving VHF/UHF VHF 2-13ch, UHF 14-69ch

Channel

CAW 1-135ch (non-scrambled channel only)

DigitalTerrestrial 2-69ch

Broadcast{SVSB)

Digitalcable'_

(64/256QAM) 1 135ch (non scrambled channel only)

Audio multiplex BTSC System

Backlight 60,000 hours (at Backlight Standard position)

Audio out 10W x 2

Terminals Rear INPUT 1 AV in, COMPONENT in (Recommend to connect game console)

INPUT 2 S VIDEO in, AV in

INPUT 3 Audio in, COMPONENT in

INPUT 4 HDMI in with HDCP

INPUT 5 Audio in, HDMI in with HDCP

DIGITALAUDI00UTPUTOptical Digital audio output x 1 (PCM/Dolby Digital)

OUTPUT Audio out

ANTENNA 75 £_Unbalance, F Type )< 1 for Analog (VHF/UHF/CATV) and Digital (AIR/CABLE)

OSD language English/French/Spanish

Power Requirement AC 120 V, 60 Hz

Power Consumption 160 W (0.9 W Standby with AC 120V) 198 W (0.9 W Standby with AC 120V)

44.1 Ibs./20.0 kg 52.9 Ibs./24.0 kg

36.4 Ibs./16.5 kg 44.1 Ibs./20.0 kg

312_'/64x 239/s2 x 10s/4inch 36s/16 x 25s/4 x 111/2inch

3125/64x 2059/64x 35s/64inch 36s/16 x 235/s x 35s/64inch

+ 32°F to + 104°F (0'C to + 40°C)

TV + stand

Weight TV only

Dimension*2 TV + stand

W x H x D) TVonly

Operating temperature

Emergency alert messages via Cable are unreceivable.

The dimensional drawings are shown on the inside back cover.

• As part of policy of continuous improvement, SHARP reserves the right to make design and specification changes for product

improvement without prior notice. The pertormance specification figures indicated are nominal values of production units.

There may be some deviations from these values in individual units.

Wall mount bracket AN-37AG2

Crystal Television. Please purchase it at your nearest shop.

• Additional optional accessories may be available in the near

future. When purchasing, please read the newest catalogue for

compatibility and check the availability.

The listed optional accessory is available for the Liquid

Q- 52

CLEARINGTHE SECRET NUMBER

If you forget the secret number, clear the secret number using the following procedure.

Press MENU to display the MENU screen, and then press ,4/11.-to select "Setup".

Press A/I' to select "EZ Setup", "CH Setup", "Parental CTRL" or "Reset", and the Secret number

input screen displays.

I Secret No, [°i "'-''_7_=" ]

Press and hold both CHA and VOL+ on the TV simultaneously until the message appears on the

screen.

rot + INPUT POWER

T"e'ecretnumberi'llllI-

• As a precautionary measure, make a note of your secret number above, cut it from this manual, and keep it in a safe place.

Q- 53

Calling for Service

For location of the nearest Sharp Authorized Service, or to obtain product literature, accessories, supplies, or

customer assistance, please call 1-800-BE-SHARP.

LIM ITED WARRANTY

Q- 54

CONSUMER LIMITED WARRANTY

SHARP ELECTRONICS CORPORATION warrants to the first consumer purchaser that this Sharp brand product (the

"Product"), when shipped in its original container, will be free from defective workmanship and materials, and agrees that

it will, at its option, either repair the defect or replace the defective Product or part thereof with a new or remanufactured

equivalent at no charge to the purchaser for parts or labor for the period(s) set forth below.

This warranty does not apply to any appearance items of the Product nor to the additional excluded item(s) set forth below

nor to any Product the exterior of which has been damaged or defaced, which has been subjected to improper voltage or

other misuse, abnormal service or handling, or which has been altered or modified in design or construction.

In order to enforce the rights under this limited warranty, the purchaser should follow the steps set forth below and provide

proof of purchase to the servicer.

The limited warranty described herein is in addition to whatever implied warranties may be granted to purchasers by law.

ALL IMPLIED WARRANTIES INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR USE ARE

LIMITED TO THE PERIOD(S) FROM THE DATE OF PURCHASE SET FORTH BELOW. Some states do not allow limitations

on how long an implied warranty lasts, so the above limitation may not apply to you.

Neither the sales personnel of the seller nor any other person is authorized to make any warranties other than those

described herein, or to extend the duration of any warranties beyond the time period described herein on behalf of Sharp.

The warranties described herein shall be the sole and exclusive warranties granted by Sharp and shall be the sole and

exclusive remedy available to the purchaser. Correction of defects, in the manner and for the period of time described

herein, shall constitute complete fulfillment of all liabilities and responsibilities of Sharp to the purchaser with respect to

the Product, and shall constitute full satisfaction of all claims, whether based on contract, negligence, strict liability or

otherwise. In no event shall Sharp be liable, or in any way responsible, for any damages or defects in the Product which

were caused by repairs or attempted repairs performed by anyone other than an authorized servicer. Nor shall Sharp be

liable or in any way responsible for any incidental or consequential economic or property damage. Some states do not

allow the exclusion of incidental or consequential damages, so the above exclusion may not apply to you.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM

STATE TO STATE.

Model Specific Section

Your Product Model Number & Description:

Warranty Period for this Product:

Additional Item(s} Excluded from

Warranty Coverage (if anyL:

LC-32D62U/LC-37D62U LCD Color Television

(Be sure to have this information available when you need

service for your Product.)

One (1) year parts and labor from the date of purchase.

Non-rechargeable batteries.

Where to Obtain Service:

What to do to Obtain Service:

From a Sharp Authorized Servicer located in the United

States. To find the location of the nearest Sharp Authorized

Servicer, call Sharp toll free at 1-800-BE-SHARR

Contact your Sharp Authorized Servicer to obtain in-home

service for this Product. The Servicer will come to your home

and if it is necessary to remove the Product, the Servicer will

reinstall it. Be sure to have Proof of Purchase available.

TO OBTAIN PRODUCT INFORMATION, CALL 1-800-BE-SHARP OR VISIT www.sharpusa.com

sH,a r R

SHARP ELECTRONICS CORPORATION

Sharp Plaza, Mahwah, New Jersey 07430-2135

SHARP CORPORATION

VALID IN CANADA ONLY

¢------------SHAR|

LiMiTED WARRANTY

Consumer E/ectron/cs Products

Congratulations on your purchase!

Sharp Electronics of Canada Ltd. (hereinafter called "Sharp") gives the following express warranty to the first consumer purchaser for this

Sharp brand product, when shipped in its original container and sold or distributed in Canada by Sharp or by an Authorized Sharp Dealer:

Sharp warrants that this product is free, under normal use and maintenance, from any defects in material and workmanship, if any such

defects should be found in this product within the applicable warranty period, Sharp shaB, at its option, repair or replace the product as

specified herein.

This warranty shall net apply to:

(a) Any defects caused or repairs required as a result of abusive operation, negligence, accident, improper installation or inappropriate

use as outlined in the owner's manual.

(b) Any Sharp product tampered with, modified, adjusted or repaired by any party other than Sharp, Sharp's Authorized Service Centres

or Sharp's Authorized Servicing Dealers.

(c) Damage caused or repairs required as a result of the use with items not specified or approved by Sharp, including but not limited to

head cleaning tapes and chemical cleaning agents.

(d) Any replacement of accessories, glassware, consumable or peripheral items required through normal use of the product including but

not fimited to earphones, remote controls, AC adapters, batteries, temperature probe, stylus, trays, filters, belts, ribbons, caMes and

paper.

(e) Any cosmetic damage to the surface or exterior that has been defaced or caused by normal wear and tear.

(f) Any damage caused by external or environmental conditions, including but not fimited to transmission fine/power fine voffage or fiquid

spiBage.

(g) Any product received without appropriate model serial number end CSA/cUL markings.

(h) Any products used for rentN or commercial purposes.

(i) Any installation, setup and/or programming charges.

Should this Sharp product fail to operate during the warranty period, warranty service may be obtained upon delivery of the Sharp product

together with proof of purchase and a copy of this LIMITED WARRANTY statement to an Authorized Sharp Service Centre or an

Authorized Sharp Servicing Dealer. mn home warranty service may be provided at Sharp's discretion on any Sharp television with the

screen size of 27" or larger and on any Sharp Over-the-Range Microwave Oven.

This warranty constitutes the entire express warranty granted by Sharp and no other dealer, service centre or their agent or employee is

authorized to extend, eNarge or transfer this warranty on behalf of Sharp. To the extent the law permits, Sharp disclaims any and all

fiability for direct or indirect damages or losses or for any incidental special or consequentiN damages or moss of profits resulting from a

defect in material or workmanship relating to the product, including damages for the loss of time or use of this Sharp product or the loss

of information. The purchaser wiB be responsible for any removal, reinstaHation, transportation and insurance costs incurred. Correction of

defects, in the manner and period of time described herein, constitute complete fuffiHment of all obligations and responsibilities of Sharp

to the purchaser with respect to the product and shah constitute full satisfaction of aft claims, whether based on contract, negligence, strict

fiability or otherwise.

WARRANTY PERIODS: Parts & Labour (exceptions noted)

Audio Products 1 year

Camcorder 1 year

DVD Products 1 year

Projector 1 year (lamp 90 days)

LCD &Plasma Display TV 1 year

Microwave Oven 1 year (magnetren component-4 additional years)

Television Products 1 year (picture tube component-1 additional year)

VCR Products 1 year

Vacuum Cleaner 1 year

n i

To obtain the name and address of rbc nearest Authorized Sharp Service Centre or Dealer, please contact:

SHARP ELECTRONICS OF CANADA LTD 335 Britannia Road East, Mississauga, Ontario L4Z tW9

For more information on this Warranty, Sharp Extended Warranty

Offers, Sharp Canada Products, Accessory Sales, Dealer or Service SHARP

Locations, please call (905) 568-7140 .,

Visit our Web site: www=sharp=ca _ -C

SERVICE

Revision 04/22/03

Q- 55

NOTE

Dimensional drawings

LC-32D62U Unit: Inch/(mm)

31 2s/64(797)

, I

27 5/8 (701.4) I

o7 7/8 (200)

I, 19 31/32(507)

3W32 3 53/64

(88)

10 s/4 (273)

LC-37D62U

cqv

36 :_/16(919)

..... i

32 25/64(822.6)

I _,........ ,,

7 7/8 (200)

I. 2117j64/5oo/.1

4:_7/64 3 53/64

(116) ..... (97)

11 1/2 (292)

SHARP

SHARP ELECTRONICS CORPORATION

Sharp Plaza, Mahwah, New Jersey 07430-2135

SHARP CORPORATION

Printed in Mexico

Imprime au Mexique

Impreso en Mexico

TINS-C976WJZZ

07P02-MX-NM

Sharp LC 32D62U User Manual LCD TELEVISION Manuals And Guides L0704205

SHARP LCD Television Manual L0704205 SHARP LCD Television Owner's Manual, SHARP LCD Television installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
