SHARR

LC-42D64U

LC-46D64U

LC-52D64U

AQUOS

LIQUID CRYSTAL TELEVISION

TELI_VISEUR ACL

TELEVISOR CON PANTALLA

DE CRISTAL LiQUIDO

OPERATION MANUAL

MODE D'EMPLOI

MANUAL DE OPERACION

DB[DOLBYI

DIGITAL

HBGH._FINI IO T_L_VISION

IMPORTANT : Please read this operation manual before starting operating the equipment.

IMPORTANTE : Lea este manual de operaci6n antes de comenzar a operar el equipo.

Hii:3rlrllll TM

HIGH DEfINItION MULTIMEDIA I_TER_ACE

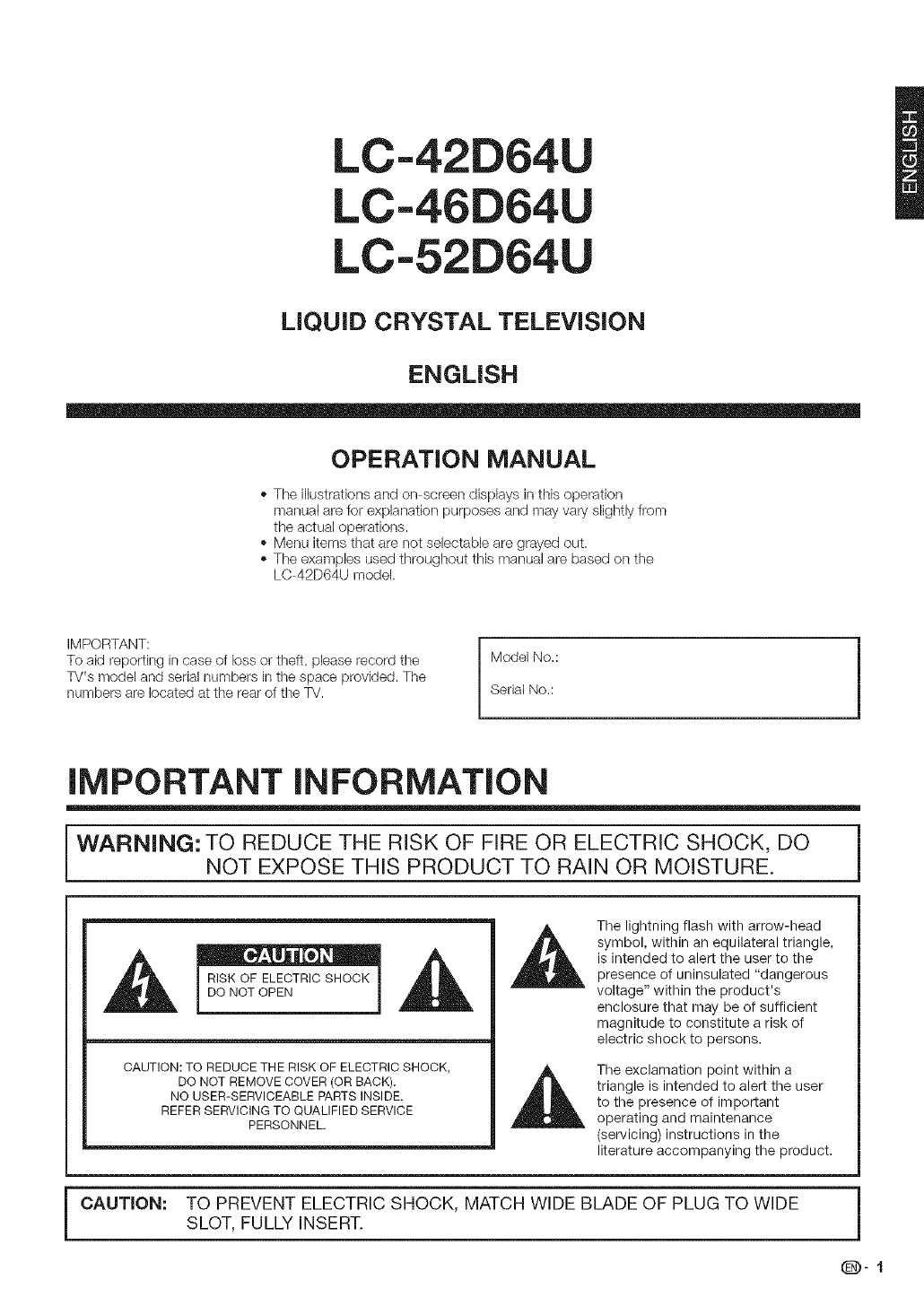

LC-42D64U

LC-46D64U

LC-52D64U

LiQUiD CRYSTAL TELEViSiON

ENGLISH

OPERATION MANUAL

- The ilkJstrationsand on screen displays in this operation

manual are for explanation purposes and may vary slightly from

the actual operations.

- Menu items that are not selectable are grayed out.

- The examples used throughout this manual are based on the

LC 42D64U model.

iMPORTANT:

To aid reporting in case of loss or theft, please record the

TV's model and serial numbers in the space provided. The

numbers are located at the rear of the TV. Model No.:

Serial No.: i

iMPORTANT iNFORMATiON

[ WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO i

NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE,

RISK OF ELECTRICSHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK).

NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE

PERSONNEL.

The lightning flash with arrow-head

symbol, within an equilateral triangle,

is intended to alert the user to the

presence of uninsulated "dangerous

voltage" within the product's

enclosure that may be of sufficient

magnitude to constitute a risk of

electric shock to persons.

The exclamation point within a

triangle is intended to alert the user

to the presence of important

operating and maintenance

(servicing) instructions in the

literature accompanying the product.

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE

SLOT, FULLY INSERT.

(D-I

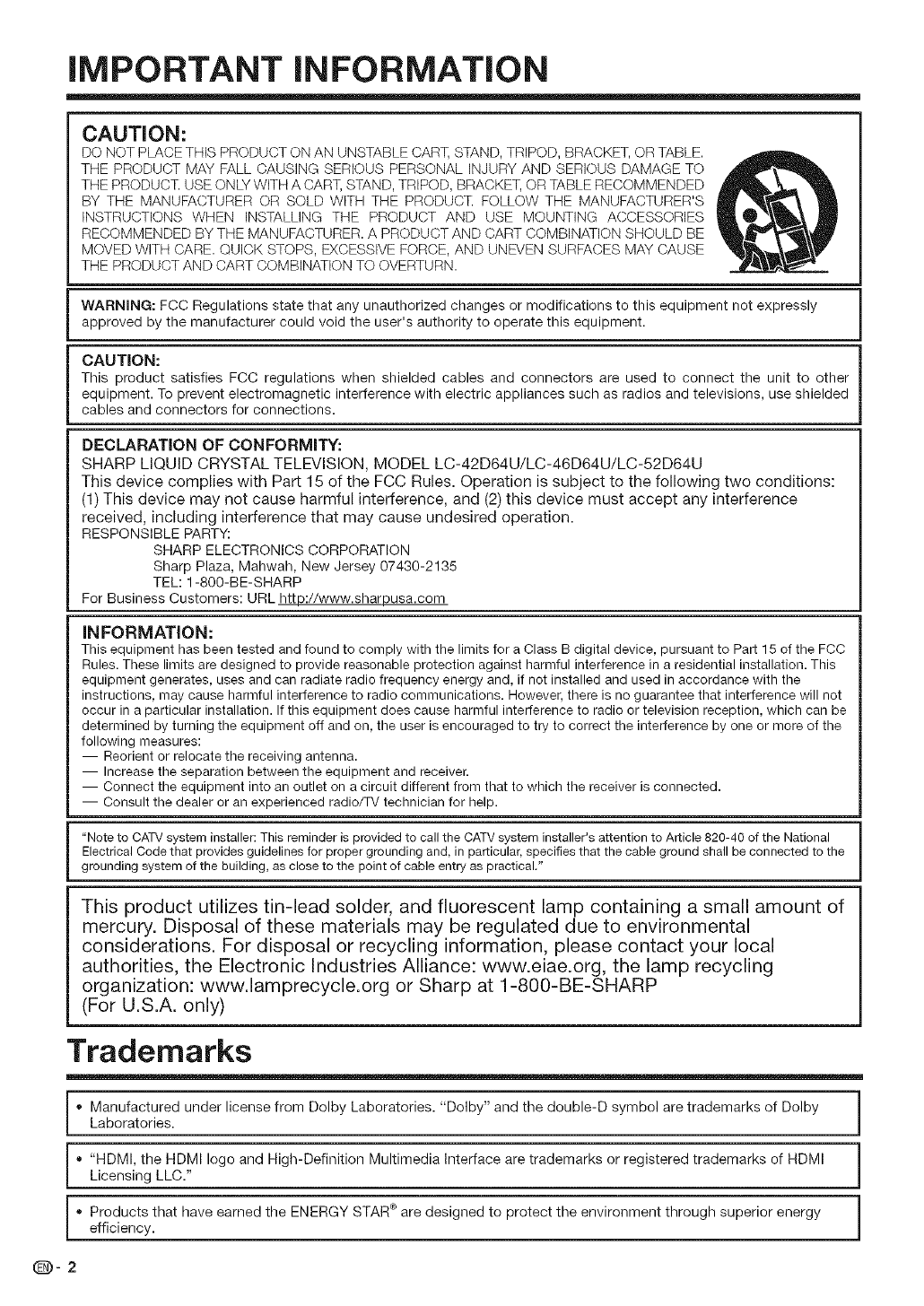

iMPORTANT iNFORMATiON

CAUTION:

DO NOT PLACE THIS PRODUCT ON AN UNSTABLE CART, STAND, TRIPOD, BRADKET, OR TABLE.

THE PRODUCT MAY FALL CAUSING SERIOUS PERSONAL INJURY AND SERIOUS DAMAGE TO

THE PRODUD]_ USE ONLY WITH A DART, STAND, TRIPOD, BRACKET, OR TABLE RECOMMENDED

BY THE MANUFACTURER OR SOLD WITH THE PRODUD]_ FOLLOW THE MANUFACTURER'S

INSTRUCTIONS WHEN INSTALLING THE PRODUCT AND USE MOUNTING ACCESSORIES

RECOMMENDED BY THE MANUFACTURER, A PRODUCT AND DART COMBINATION SHOULD BE

MOVED WITH CARE. QUICK STOPS, EXCESSIVE FORCE, AND UNEVEN SURFACES MAY CAUSE

THE PRODUCT AND CART COMBINATION TO OVERTURN.

WARNING: FCC Regulations state that any unauthorized changes or modifications to this equipment not expressly

approved by the manufacturer could void the user's authority to operate this equipment.

CAUTION:

This product satisfies FCC regulations when shielded cables and connectors are used to connect the unit to other

equipment. To prevent electromagnetic interference with electric appliances such as radios and televisions, use shielded

cables and connectors for connections.

DECLARATION OF CONFORMITY:

SHARP LIQUID CRYSTAL TELEVISION, MODEL LC-42D64U/LC-46D64U/LC-52D64U

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference

received, including interference that may cause undesired operation.

RESPONSIBLEPARTY:

SHARP ELECTRONICSCORPORATION

Sharp Plaza, Mahwah, New Jersey 07430-2135

TEL: 1-800-BE-SHARP

For Business Customers: URL http://www.sharpusa.com

INFORMATION:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC

Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This

equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not

occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the

following measures:

-- Reorient or relocate the receiving antenna.

-- Increase the separation between the equipment and receiver.

-- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

-- Consult the dealer or an experienced radio/TV technician for help.

"Note to CATV system installer: This reminder is provided to call the CATV system installer's attention to Article 820-40 of the National

Electrical Code that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the

grounding system of the building, as close to the point of cable entry as practical."

This product utilizes tin-lead solder, and fluorescent lamp containing a small amount of

mercury. Disposal of these materials may be regulated due to environmental

considerations. For disposal or recycling information, please contact your local

authorities, the Electronic Industries Alliance: www.eiae.org, the lamp recycling

organization: www.lamprecycle.org or Sharp at 1-800-BE-SHARP

(For U.S.A. only)

Trademarks

, anufactured under license from Dolby Laboratories. "Dolby" and the double-D symbol are trademarks of Dolby i

Laboratories. J

" "HDMI, the HDMI logo and High-Definition Multirnedia Interface are trademarks or registered tradernarks of HDMI 1

Licensing LLC." 1

_ roducts that have earned the ENERGY STAR ®are designed to protect the environment through superior energy i

efficiency. J

(D-2

DEAR SHARP CUSTOMER

Thank you for your purchase of the Sharp Liquid Crystal Television. To ensure safety and many years

of troubme=free operation of your product, please read the important Safety instructions carefully before

using this product.

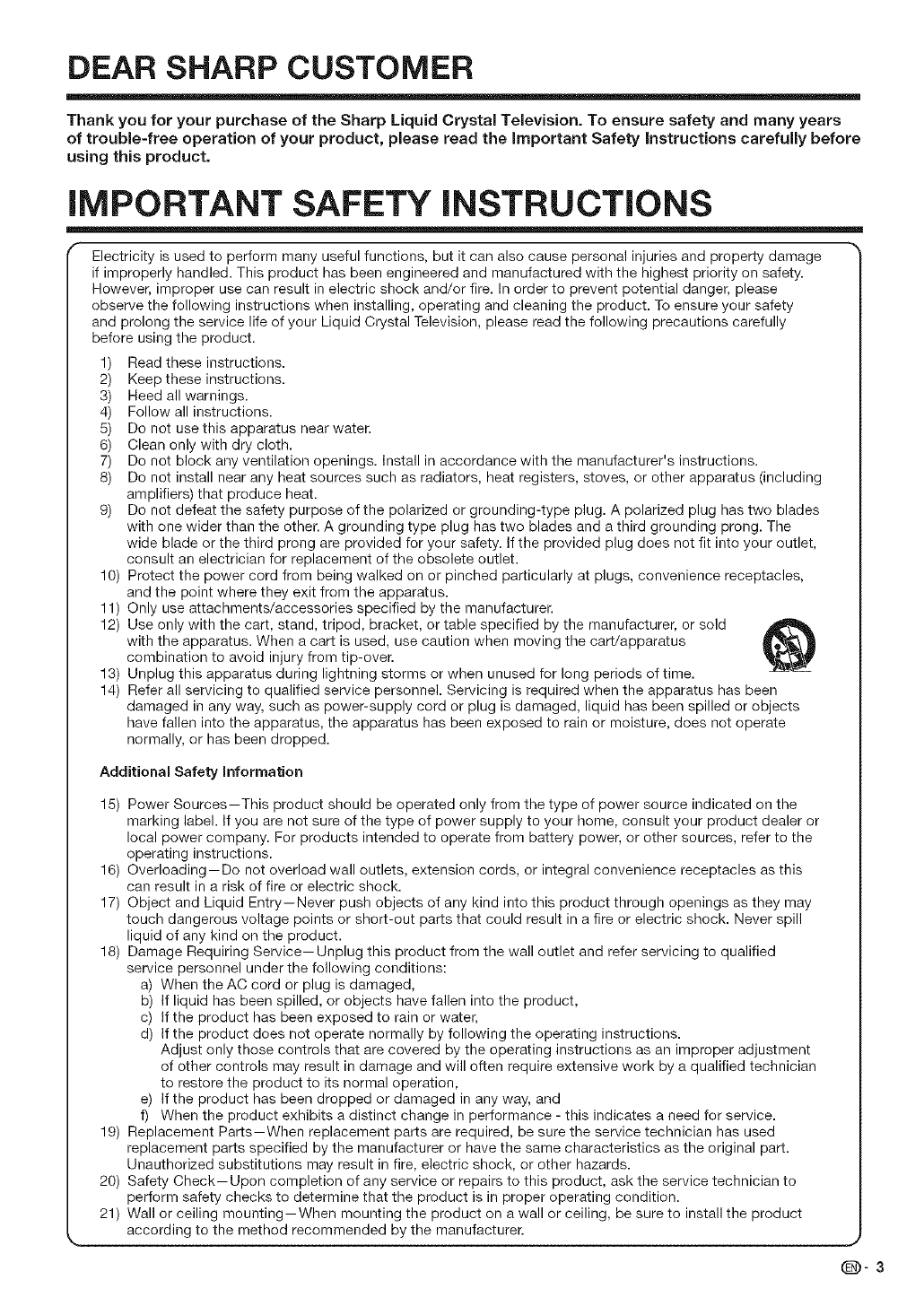

iMPORTANT SAFETY iNSTRUCTiONS

Electricity is used to perform many useful functions, but it can also cause personal injuries and property damage

if improperly handled, This product has been engineered and manufactured with the highest priority on safety,

However, improper use can result in electric shock and/or fire, In order to prevent potential danger, please

observe the following instructions when installing, operating and cleaning the product, To ensure your safety

and prolong the service life of your Liquid Crystal Television, please read the following precautions carefully

before using the product,

1) Read these instructions,

2) Keep these instructions,

3) Heed all warnings,

4) Follow all instructions,

5) Do not use this apparatus near water,

6) Clean only with dry cloth,

7) Do not block any ventilation openings, Install in accordance with the manufacturer's instructions,

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including

amplifiers) that produce heat,

9) Do not defeat the safety purpose of the polarized or grounding-type plug, A polarized plug has two blades

with one wider than the other, A grounding type plug has two blades and a third grounding prong, The

wide blade or the third prong are provided for your safety, If the provided plug does not fit into your outlet,

consult an electrician for replacement of the obsolete outlet,

10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles,

and the point where they exit from the apparatus,

11) Only use attachments/accessories specified by the manufacturer,

12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold

with the apparatus, When a cart is used, use caution when moving the cart/apparatus

combination to avoid injury from tip-over,

13) Unplug this apparatus during lightning storms or when unused for long periods of time,

14) Refer all servicing to qualified service personnel, Servicing is required when the apparatus has been

damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects

have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate

normally, or has been dropped,

Additional Safety information

15) Power Sources--This product should be operated only from the type of power source indicated on the

marking label. If you are not sure of the type of power supply to your home, consult your product dealer or

local power company. For products intended to operate from battery power, or other sources, refer to the

operating instructions.

16) Overloading-Do not overload wall outlets, extension cords, or integral convenience receptacles as this

can result in a risk of fire or electric shock.

17) Object and Liquid Entry--Never push objects of any kind into this product through openings as they may

touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill

liquid of any kind on the product.

18) Damage Requiring Service--Unplug this product from the wall outlet and refer servicing to qualified

service personnel under the following conditions:

a) When the AC cord or plug is damaged,

b) If liquid has been spilled, or objects have fallen into the product,

c) If the product has been exposed to rain or water,

d) If the product does not operate normally by following the operating instructions.

Adjust only those controls that are covered by the operating instructions as an improper adjustment

of other controls may result in damage and will often require extensive work by a qualified technician

to restore the product to its normal operation,

e) If the product has been dropped or damaged in any way, and

f) When the product exhibits a distinct change in performance - this indicates a need for service.

19) Replacement Parts-When replacement parts are required, be sure the service technician has used

replacement parts specified by the manufacturer or have the same characteristics as the original part.

Unauthorized substitutions may result in fire, electric shock, or other hazards.

20) Safety Check-Upon completion of any service or repairs to this product, ask the service technician to

perform safety checks to determine that the product is in proper operating condition.

21) Wall or ceiling mounting-When mounting the product on a wall or ceiling, be sure to install the product

according to the method recommended by the manufacturer.

(D-3

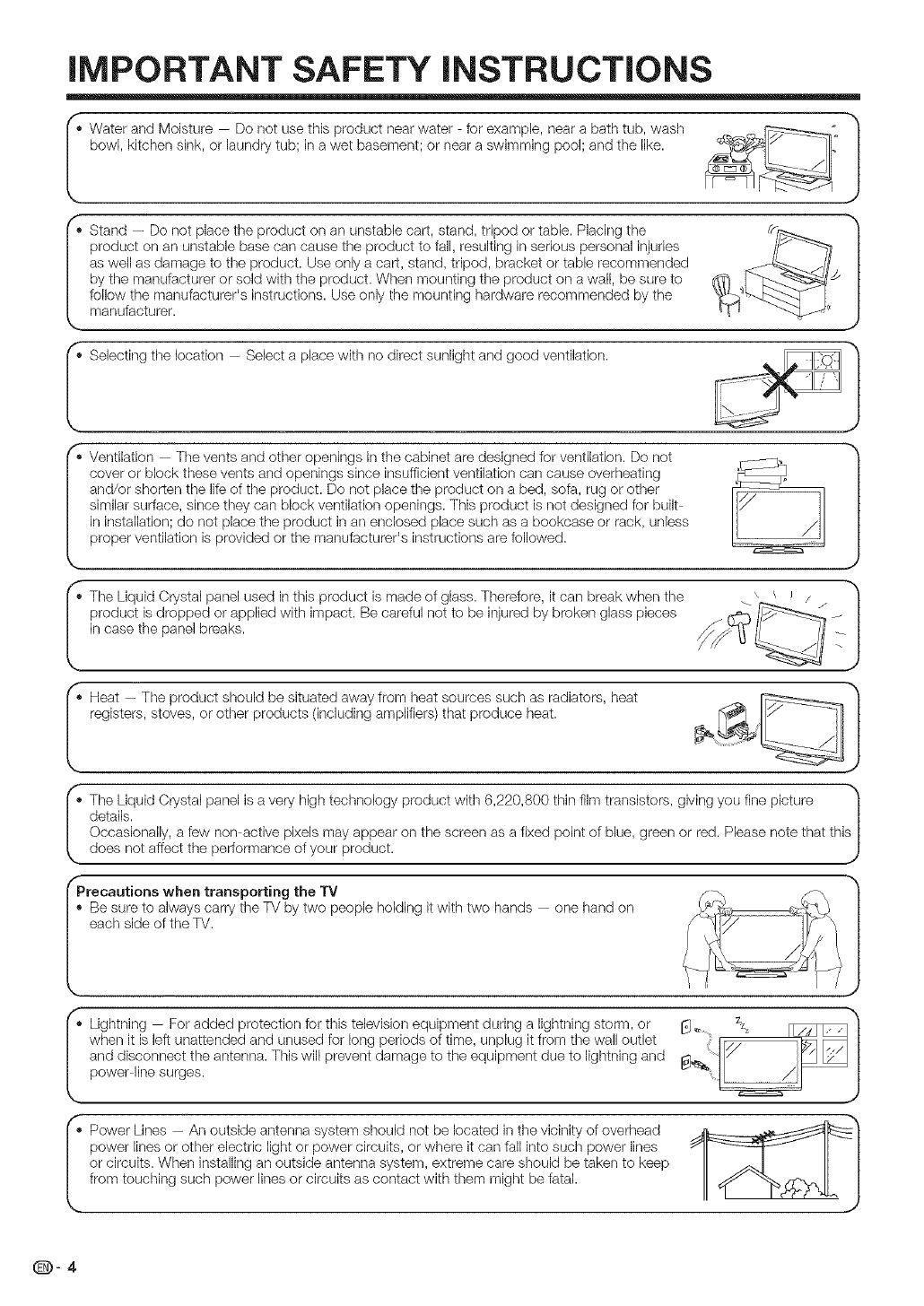

iMPORTANT SAFETY iNSTRUCTiONS

! bowl,kitchWaterand Moisture -- Do not use this product near water for example, near a bath tub, wash _ _

en sink, or laundry tub; in a wet basement; or ,lear a swimming pool; and tile like. ___

, Starld -- Do not place tile product oil an unstable cart, stand, tripod or table. Placing the "_

product on an unstable base can cause ttle product to fall, resulting in serious personal injuries |

as well as damage to tile product. Use only a cart, stand, tripod, bracket or table recommended |

by tile manufacturer or sold wittl tile product. When mounting tile product on a wall, be sure to |

follow the manufacturer's instructions. Use only tile mounting tlardware recommended by the |

manufacturer. )

Selecthlg ttle ,ocation - Se,ect a place wittl no direct sun,ight and good ventilation. V_ "/

, eiltilation -- Tile vents and other openings in tile cabinet are designed for ventilation. Do not

cover or block these vents and openings since insufficient ventilation can cause overheating

and/or shorten the life of tile product. Do not place tile product on a bed, sofa, rug or ottler

similar surface, since ttley carl block ventilation openings. This product is not designed for built

in installation; do not place tile product in an enclosed place such as a bookcase or rack, unless

proper ventilation is provided or the manufacturer's instructions are followed.

product is dropped or applied wittl impact. Be careful not to be injured by broken glass pieces

in case tile panel breaks.

, eat -- Tile product should be situated away from heat sources such as radiators, heat __}

registers, stoves, or ottler products (including amp#Jets) that produce heat.

, The Liquid Crystal panel is a very high tectlnology product wittl 6,220,800 ttlin film transistors, giving you fine picture

details. |

Occasionally, a few non active pixels may appear on the screen as a fixed point of blue, green or red. Please note that this I

does not affect the performance of your product. )

Preeautions when transporting the TV

Be sure to always carry the TV by two people holding it with two hands - one hand on

each side of the TV.

, Lightlling - For added protection for this television equipment during a lightning storm, or _ _ _ _l

when it is left unattended and unused for long periods of time, unplug it from ttle wall outlet 1177--_ _|

and disconnect the antenna This will prevent damage to the equipment due to lightning and ,-s lY r" :#" !

power linesurges. ' 19m_ _J

, Power Lines -- An outside antenna system should not be located in the vicinity of overhead __

power lines or other electric light or power circuits, or wtlere it can fall into suctl power lines

or circuits. When installing an outside antenna system, extreme care should be taken to keep

from touching such power lines or circuits as contact with tilem might be fatal.

189-4

iMPORTANT SAFETY iNSTRUCTiONS

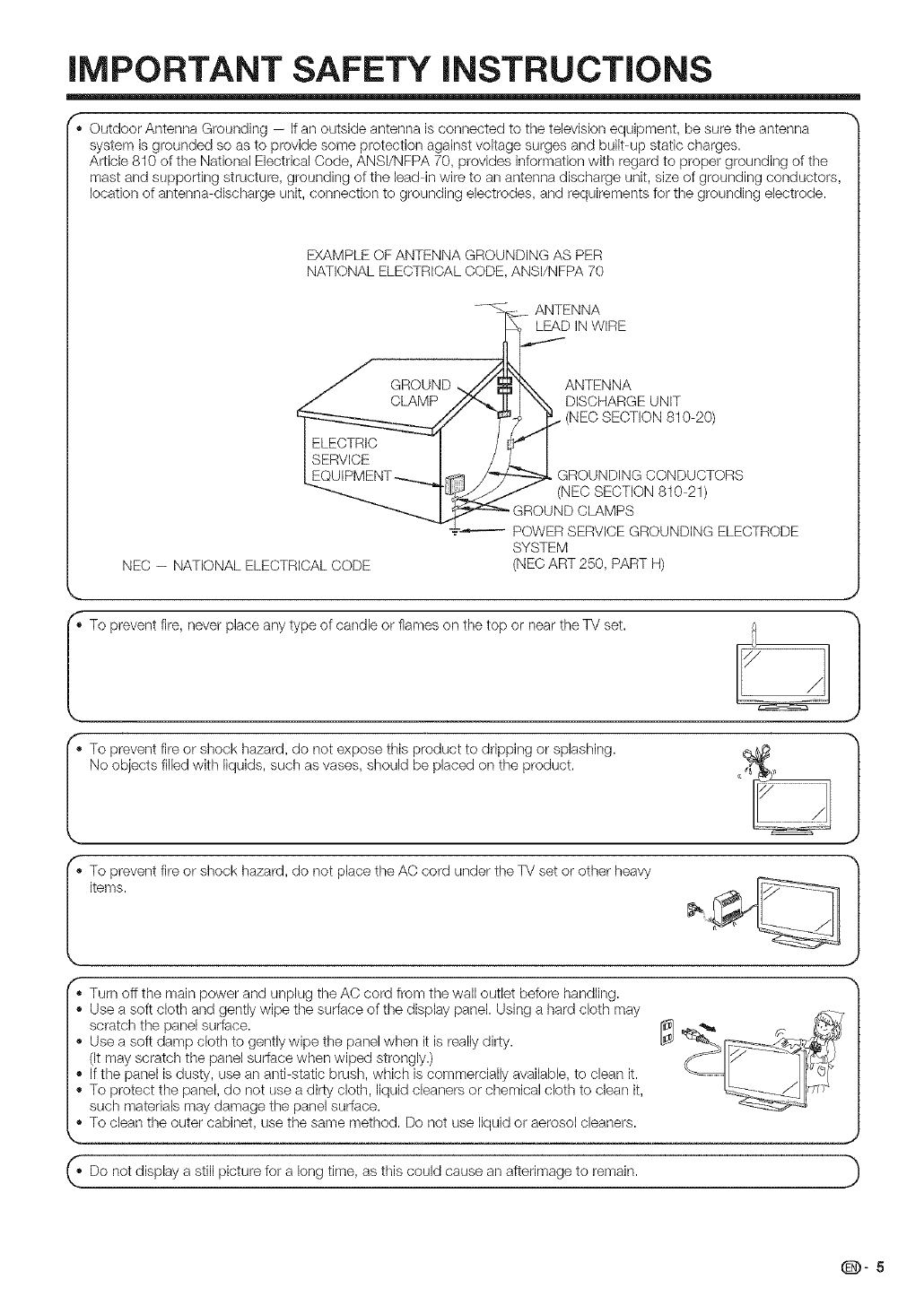

Outdoor Antenna Grounding -- If an outside antenna is connected to the televbion equipment, be sure the antenna

system is grounded so as to provide some protection agaklst voltage surges and buibup static charges. |

Article 810 of tile National Electrical Code, ANSI/NFPA 70, provides information with regard to proper grounding of tile |

mast and supporting structure, grounding of tile lead in wire to an antenna discharge unit, size of grounding conductors, |

location of antenna disctlarge unit, connection to grounding electrodes, and requirements for tile grounding electrode. /

EXAMPLE OF ANTENNA GROUNDING AS PER |

NATIONAL ELECTRICAL CODE, ANSI/NFPA 70 /

--___ ANTENNA |

//_:_.._D IN WIR E /

J GROUND ,,,_/_ ]'N_ ANTENNA |

Z/ CLAMP /,/_. _ I "x_N DISCHARGE UNIT |

_____ _£ (NEC SECTION 810 20) /

LEQUIPMENT--__._.J_ _ GROUNDING CONDUCTORS |

--------_..._ lL_f____________...,.--"_(NEC SECTION 810 21) |

--_ --'_ _/UEF_DsCRLOM_SGRoU NDING ELECTRODE /

SYSTEM |

NEC -- NATIONAL ELECTRICAL CODE (NEC ART 250, PART H) /

-To prevent fire, never place type of candle or flames on the top or near the TV set.

any A

.To prevent fire or shock hazard, do not expose this product to dripping or splashing. "_

No objects filled with liquids, such as vases, should be placed on the product. |

.o prevent fire or shock hazard, do not place the AC cord under the TV set or other heavy

items.

*Turn off the main power and unplug the AC cord from the wall outlet before handling.

*Use a soft cloth and gently wipe tile surface of tile display panel. Using a tlard cloth may

scratch the panel surface.

*Use a soft damp dottl to gently wipe tile panel wtlen it is really dirty.

(It may scratch the panel surface when wiped strongly.)

*If the panel is dusty, use an anti static brust% which is commercially available, to clean it.

*To protect the panel, do not use a dirt)/cloth, liquid cbaners or chemical clottl to clean it,

such materials may damage the panel surface.

*To clean tile outer cabinet, use tile same method. Do not use liquid or aerosol cleaners.

__ J

"Do not display a still picture for a long time, as this could cause an afterimage to remain. }

@-5

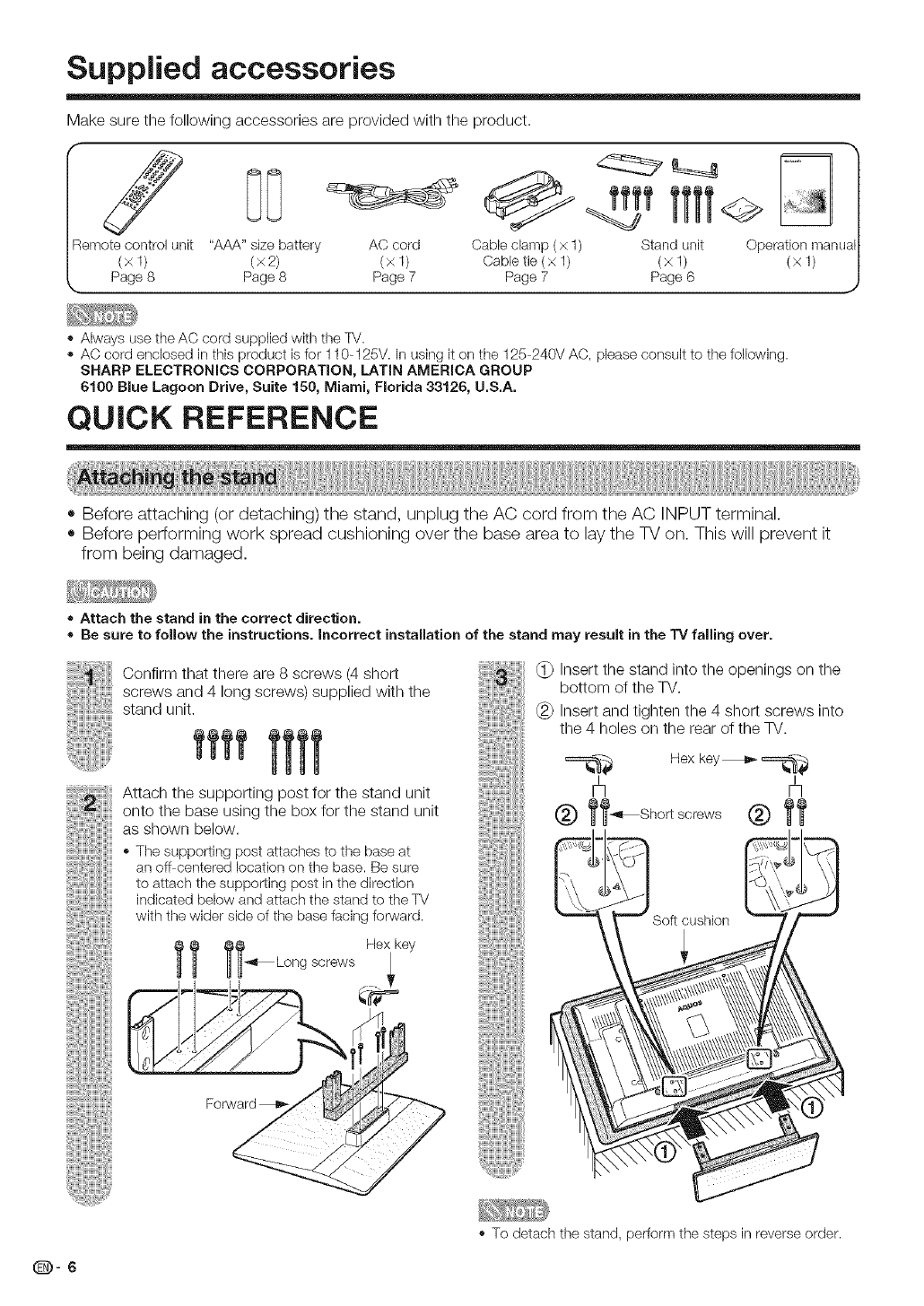

Supplied accessories

Make sure the following accessories are provided with the product.

Remote control unit "AAA" size battery AC cord

(xl) (x2) (xl)

Page 8 Page 8 Page 7

Cable clamp (x 1) Stand unit Operatbn manual

Cable tie (x 1) (x 1) (x 1)

Page 7 Page 6 ,J

,, Always use the AC cord supp[bd with the TV.

,, AC cord enclosed in this product is for 110-125V. In using it on the 125 240V AC, phase consult to the following.

SHARP ELECTRONICS CORPORATION, LATIN AMERICA GROUP

6100 Blue Lagoon Drive, Suite 150, Miami, Florida 33126, U.S.A.

QUICK REFERENCE

• Before attaching (or detaching) the stand, unplug the AC cord from the AC INPUT terminal.

• Before performing work spread cushioning over the base area to lay the TV on. This will prevent it

from being damaged.

•Attach the stand in the correct direction.

• Be sure to follow the instructions. Incorrect installation of the stand may result in the TV falling over.

Confirm that there are 8 screws (4 short

screws and 4 long screws) supplied with the

stand unit.

Attach the supporting post for the stand unit

onto the base using the box for the stand unit

as shown below.

,, The supporting post attaches to the base at

an off centered location on the base. Be sure

to attach the supporting post in the direction

indicated bebw and attach the stand to the TV

with the wider side of the base facing forward.

Hex key

screws _

(_ Insert the stand into the openings on the

bottom of the TV.

(_) Insert and tighten the 4 short screws into

the 4 holes on the rear of the TV.

,, To detach tile stand, perform the steps in reverse order.

(@)-6

QUICK REFERENCE

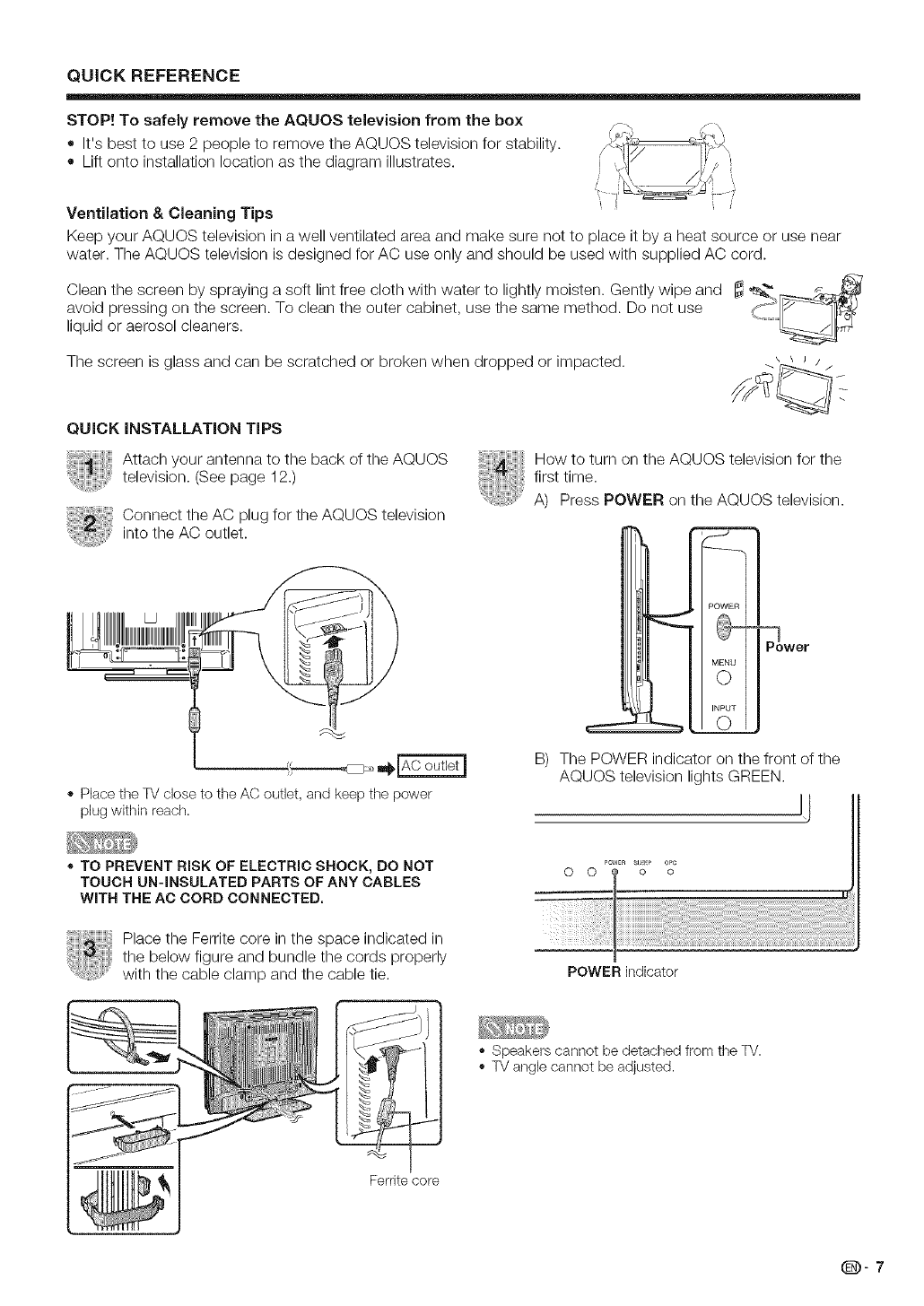

STOP! To safely remove the AQUOS television from the box

* It's best to use 2 people to remove the AQUOS television for stability.

e Lift onto installation location as the diagram illustrates.

Ventilation & Cleaning Tips

Keep your AQUOS television in a well ventilated area and make sure not to place it by a heat source or use near

water. The AQUOS television is designed for AC use only and should be used with supplied AC cord.

Clean the screen by spraying a soft lint free cloth with water to lightly moisten. Gently wipe and IX_ _

avoid pressing on the screen. To clean the outer cabinet, use the same method. Do not use _-_' [_--_-__

liquid or aerosol cleaners.

The screen is glass and can be scratched or broken when dropped or impacted. _ _ J //

QUICK iNSTALLATiON TiPS

Attach your antenna to the back of the AQUOS

television. (See page 12.)

Connect the AC plug for the AQUOS television

into the AC outlet.

,, PlacettqeTV close to tile AC outlet, and keep tile power

plugwithin reactq.

How to turn on the AQUOS television for the

first time.

A) Press POWER on the AQUOS television.

_ower

INPUT

B) The POWER indicator on the front of the

AQUOS television lights GREEN,

• TO PREVENT RISK OF ELECTRIC SHOCK, DO NOT

TOUCH UN-INSULATED PARTS OF ANY CABLES

WITH THE AC CORD CONNECTED.

Place the Ferrite core in the space indicated in

the below figure and bundle the cords properly

with the cable clamp and the cable tie.

0 0 o o

POWER indicator

,, Speakers cannot be detached from ttqe TV.

• TV angb cannot be adjusted.

Ferrite core

(D-7

QUICK REFERENCE

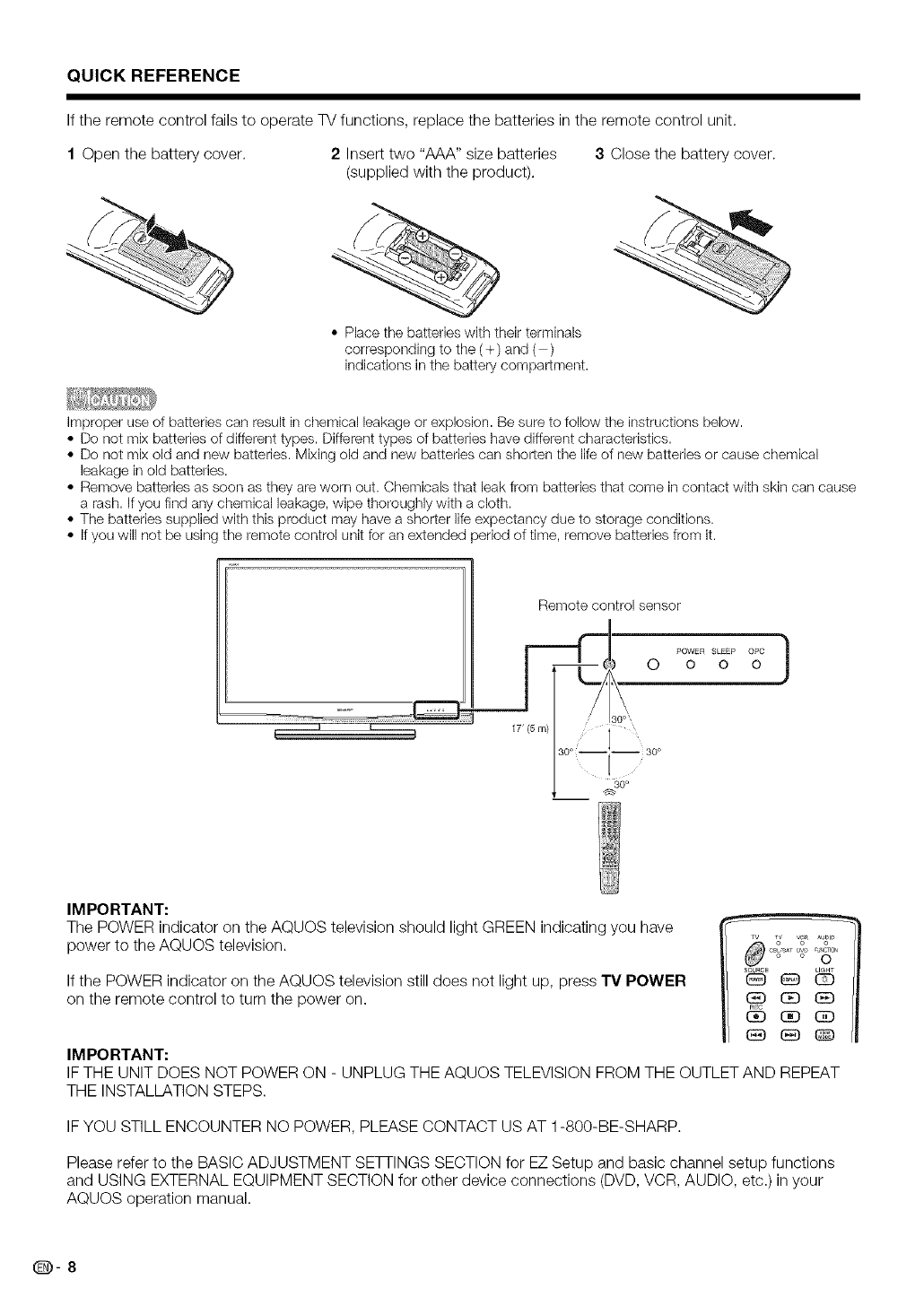

If the remote control fails to operate TV functions, replace the batteries in the remote control unit,

1 Open the battery cover. 2 hTserttwo "AAA" size batteries

(supplied with the product),

• Place the batteries with their terminals

corresponding to the (+) and ( )

indications in the battery compartment.

3 Close the battery cover.

Improper use of batteries can result in chemical leakage or explosion. Be sure to follow the instructions below.

• Do not mix batteries of different types. Different types of batteries have different characteristics.

• Do not mix old and new batteries. Mixing old and new batteries can shorten the life of new batteries or cause chemical

leakage in old batteries.

• Remove batteries as soon as they are worn out. Chemicals that leak from batteries that come in contact with skin can cause

a rash. If you find any chemical leakage, wipe thoroughly with a cloth.

• The batteries supplied with this product may have a shorter life expectancy due to storage conditions.

• If you will not be using the remote control unit for an extended period of time, remove batteries from it.

Remote control sensor

1T(5 m)

30°

POWER SLEEP ()PC m

) O o o o

30 °`

30 °

30°

IMPORTANT:

The POWER indicator on the AQUOS television should light GREEN indicating you have

power to the AQUOS television.

If the POWER indicator on the AQUOS television still does not light up, press TV POWER

on the remote control to turn the power on.

IMPORTANT:

IF THE UNIT DOES NOT POWER ON - UNPLUG THE AQUOS TELEVISION FROM THE OUTLET AND REPEAT

THE INSTALLATION STEPS.

IF YOU STILL ENCOUNTER NO POWER, PLEASE CONTACT US AT 1-800-BE-SHARP.

Please refer to the BASIC ADJUSTMENT SETi-INGS SECTION for EZ Setup and basic channel setup functions

and USING EXTERNAL EQUIPMENT SECTION for other device connections (DVD, VCR, AUDIO, etc.) in your

AQUOS operation manual.

(D-8

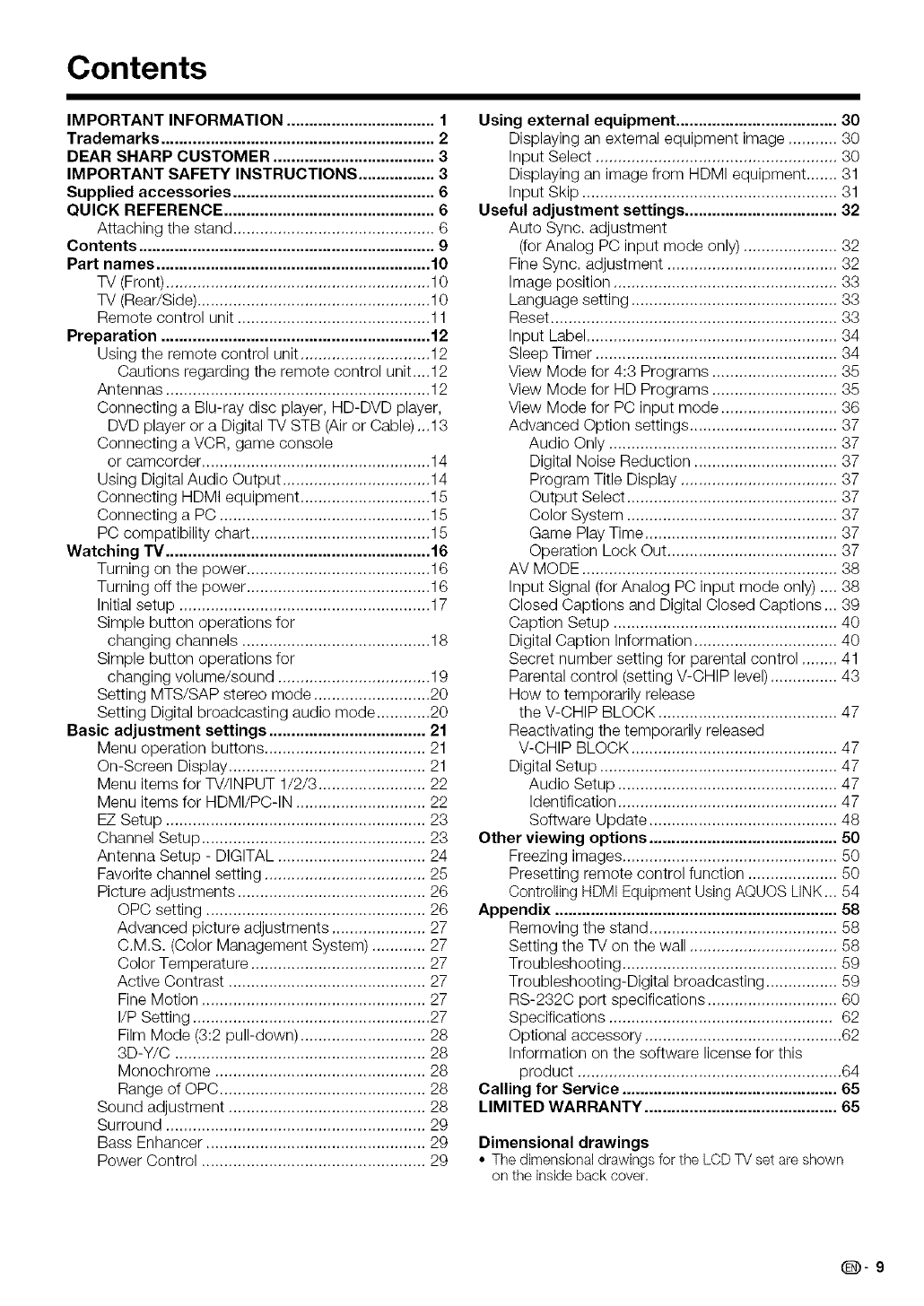

Contents

IMPORTANT INFORMATION ................................. 1

Trademarks ............................................................. 2

DEAR SHARP CUSTOMER .................................... 3

IMPORTANT SAFETY INSTRUCTIONS ................. 3

Supplied accessories ............................................. 6

QUICK REFERENCE ............................................... 6

Attaching the stand ............................................. 6

Contents .................................................................. 9

Part names ............................................................. 10

TV (Front) ........................................................... 10

TV (Rear/Side) .................................................... 10

Remote control unit ........................................... 11

Preparation ............................................................ 12

Using the remote control unit ............................. 12

Cautions regarding the remote control unit_..12

Antennas ........................................................... 12

Connecting a Blu-ray disc player, HD-DVD player,

DVD player or a Digital TV STB (Air or Cable)...13

Connecting a VCR, game console

or camcorder ................................................... 14

Using Digital Audio Output ................................. 14

Connecting HDMI equipment ............................. 15

Connecting a PC ............................................... 15

PC compatibility chart ........................................ 15

Watching _ ........................................................... 16

Turning on the power ......................................... 16

Turning off the power ......................................... 16

Initial setup ........................................................ 17

Simple button operations for

changing channels .......................................... 18

Simple button operations for

changing volume/sound .................................. 19

Setting MTS/SAP stereo mode .......................... 20

Setting Digital broadcasting audio mode ............ 20

Basic adjustment settings ................................... 21

Menu operation buttons .................................... 21

On-Screen Display ............................................ 21

Menu items for TV/INPUT 1/2/3 ........................ 22

Menu items for HDMI/PC-IN ............................. 22

EZ Setup .......................................................... 23

Channel Setup .................................................. 23

Antenna Setup - DIGITAL ................................. 24

Favorite channel setting .................................... 25

Picture adjustments .......................................... 26

OPC setting ................................................. 26

Advanced picture adjustments ..................... 27

C.MS (Color Management System) ............ 27

Color Temperature ....................................... 27

Active Contrast ............................................ 27

Fine Motion .................................................. 27

I/P Setting ..................................................... 27

Film Mode (3:2 pull-down) ............................ 28

3D-Y/C ........................................................ 28

Monochrome ............................................... 28

Range of OPC .............................................. 28

Sound adjustment ............................................ 28

Surround .......................................................... 29

Bass Enhancer ................................................. 29

Power Control .................................................. 29

Using external equipment .................................... 30

Displaying an external equipment image ........... 30

Input Select ...................................................... 30

Displaying an image from HDMI equipment ....... 31

Input Skip ......................................................... 31

Useful adjustment settings .................................. 32

Auto Sync. adjustment

(for Analog PC input mode only) ..................... 32

Fine Sync. adjustment ...................................... 32

Image position .................................................. 33

Language setting .............................................. 33

Reset ................................................................ 33

Input Label ........................................................ 34

Sleep Timer ...................................................... 34

View Mode for 4:3 Programs ............................ 35

View Mode for HD Programs ............................ 35

View Mode for PC input mode .......................... 36

Advanced Option settings ................................. 37

Audio Only ................................................... 37

Digital Noise Reduction ................................ 37

Program Title Display ................................... 37

Output Select ............................................... 37

Color System ............................................... 37

Game Play Time ........................................... 37

Operation Lock Out ...................................... 37

AV MODE ......................................................... 38

Input Signal (for Analog PC input mode only) .... 38

Closed Captions and Digital Closed Captions. 39

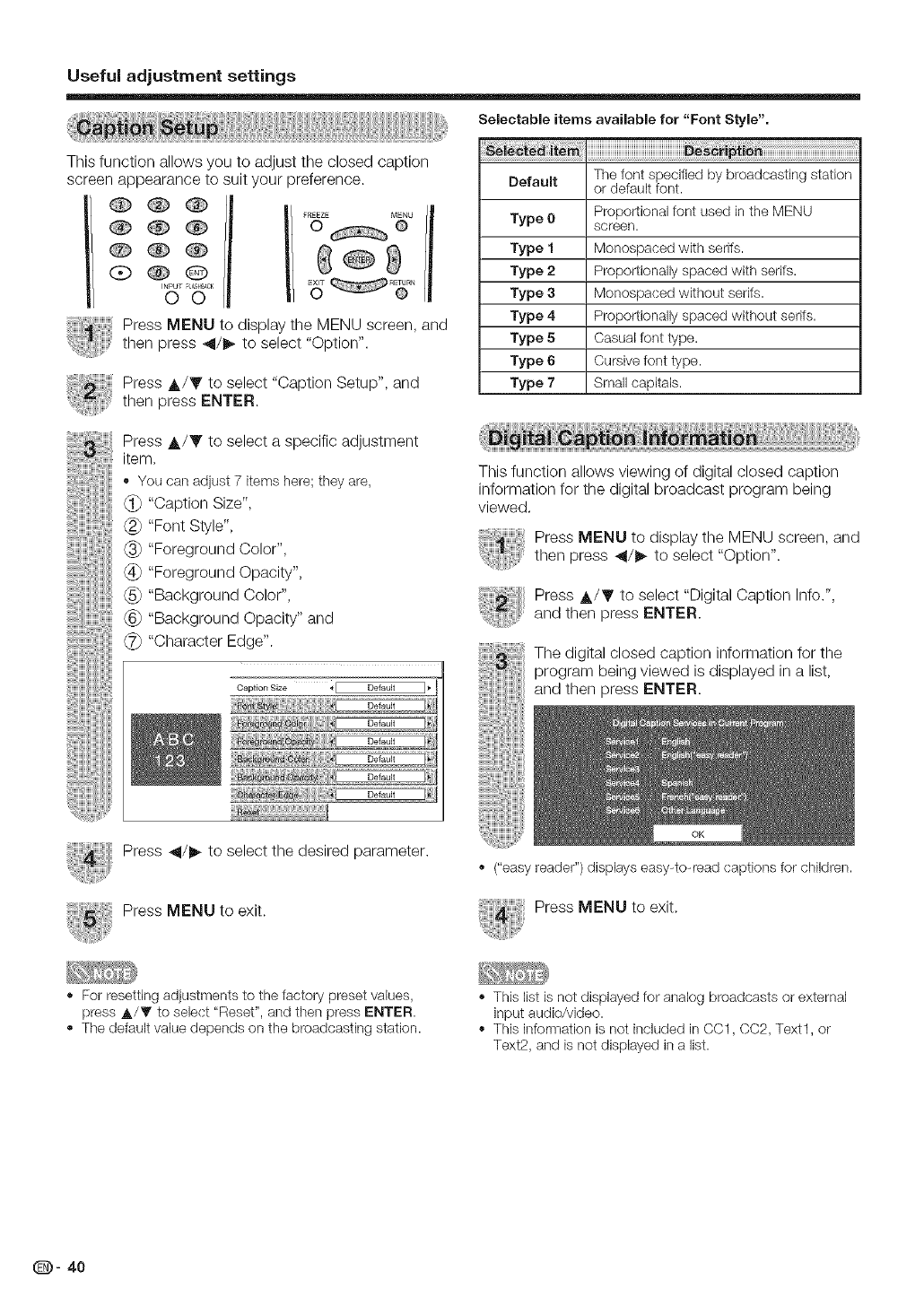

Caption Setup .................................................. 40

Digital Caption Information ................................ 40

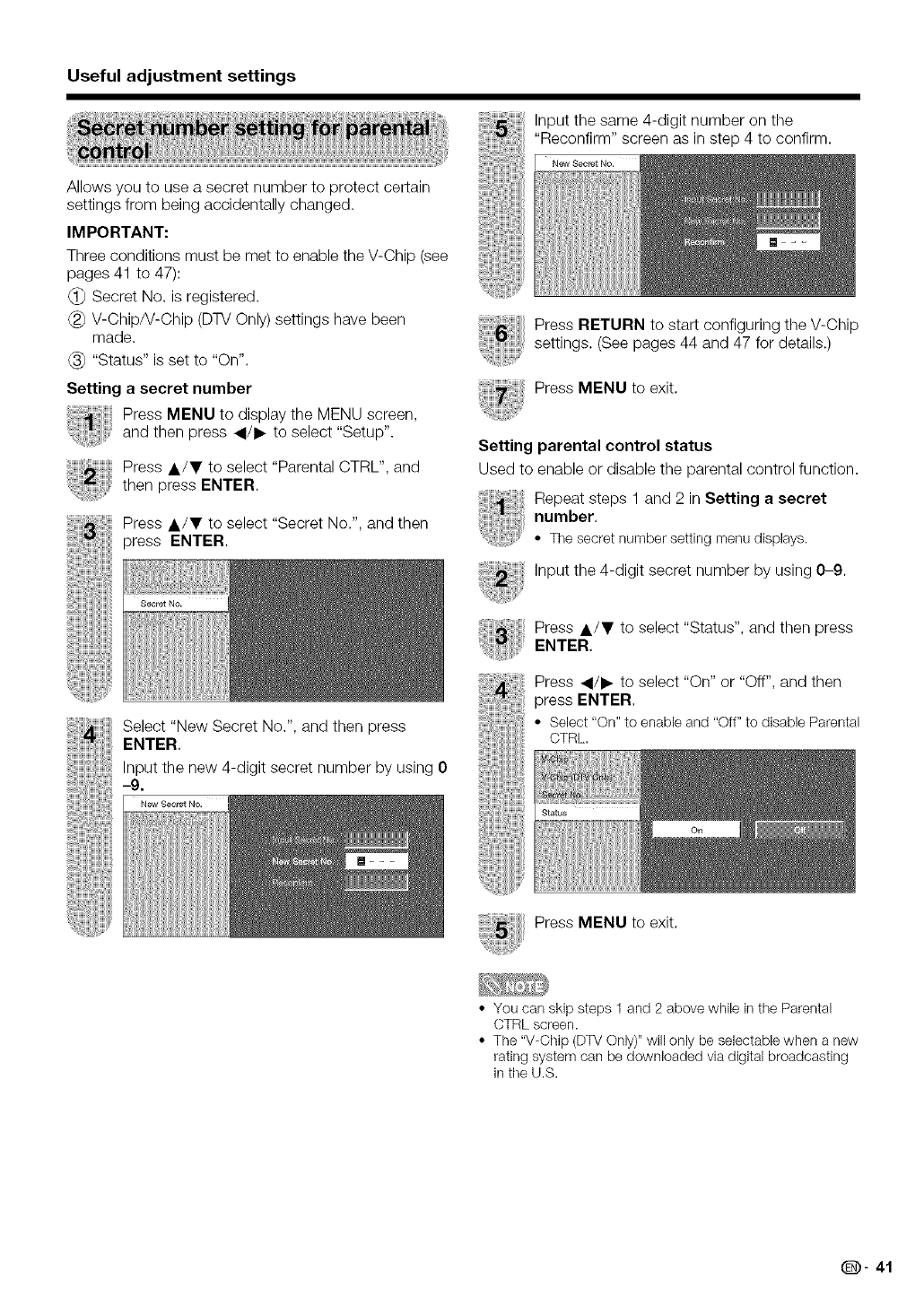

Secret number setting for parental control ........ 41

Parental control (setting V-CHIP level) ............... 43

How to temporarily release

the V-CHIP BLOCK ........................................ 47

Reactivating the temporarily released

V-CHIP BLOCK .............................................. 47

Digital Setup ..................................................... 47

Audio Setup ................................................. 47

Identification ................................................. 47

Software Update .......................................... 48

Other viewing options .......................................... 50

Freezing images ................................................ 50

Presetting remote control function .................... 50

Controlling HDMI Equipment Using AQUOS LINK. 54

Appendix ............................................................... 58

Removing the stand .......................................... 58

Setting the TV on the wall ................................. 58

Troubleshooting ................................................ 59

Troubleshooting-Digital broadcasting ................ 59

RS-2320 port specifications ............................. 60

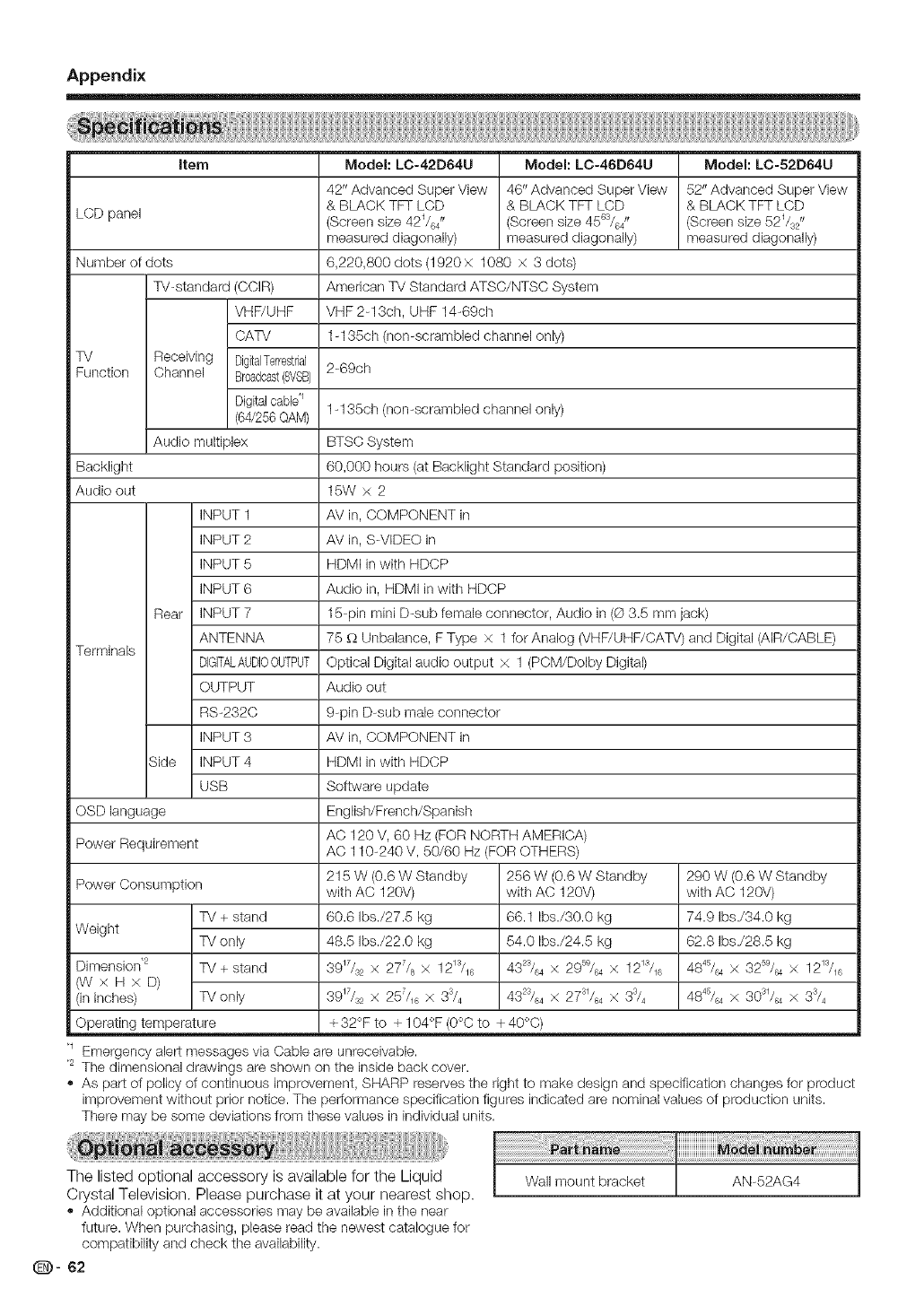

Specifications .................................................. 62

Optional accessory ............................................ 62

Information on the software license for this

product ........................................................... 64

Calling for Service ................................................ 65

LIMITED WARRANTY ........................................... 65

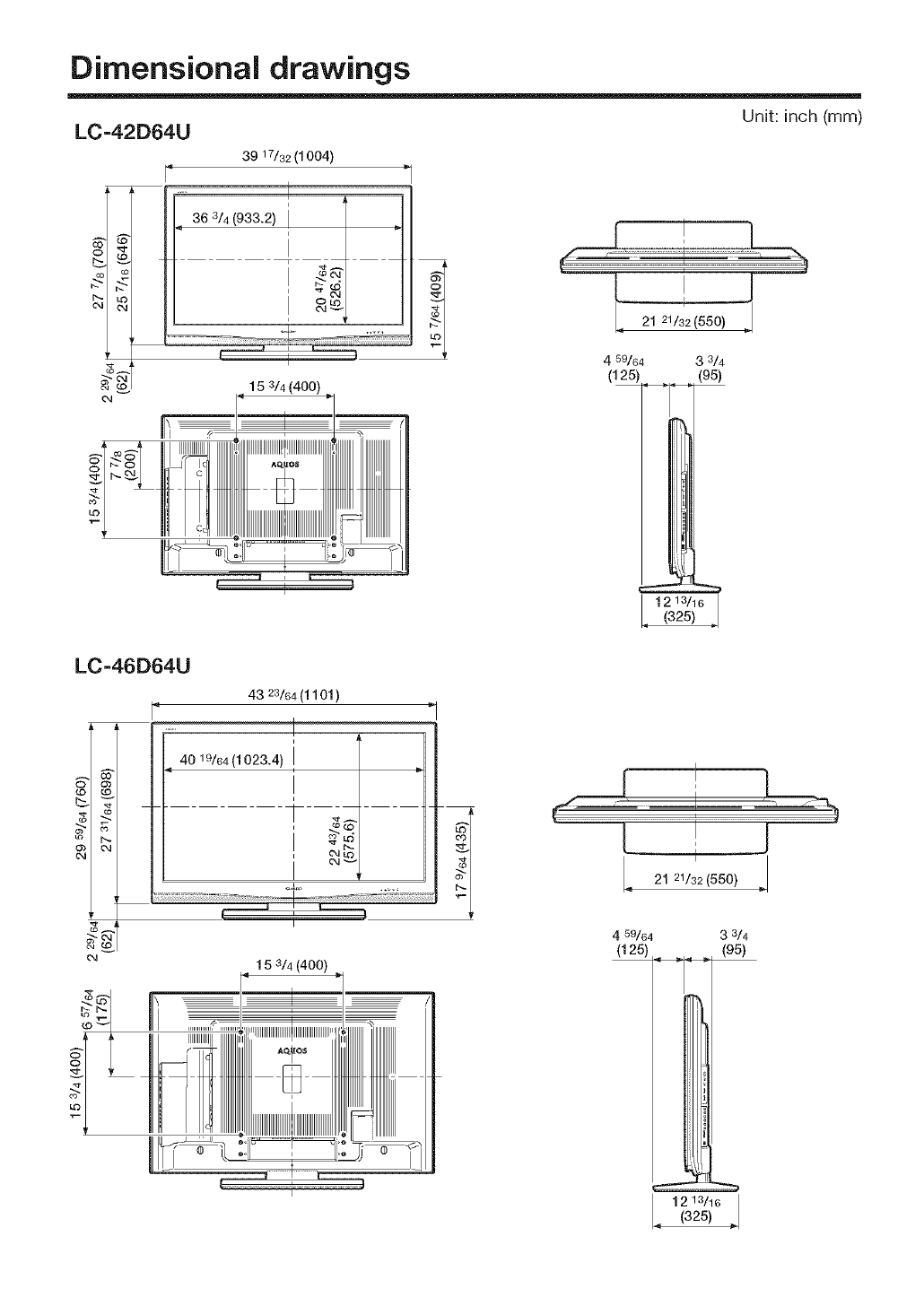

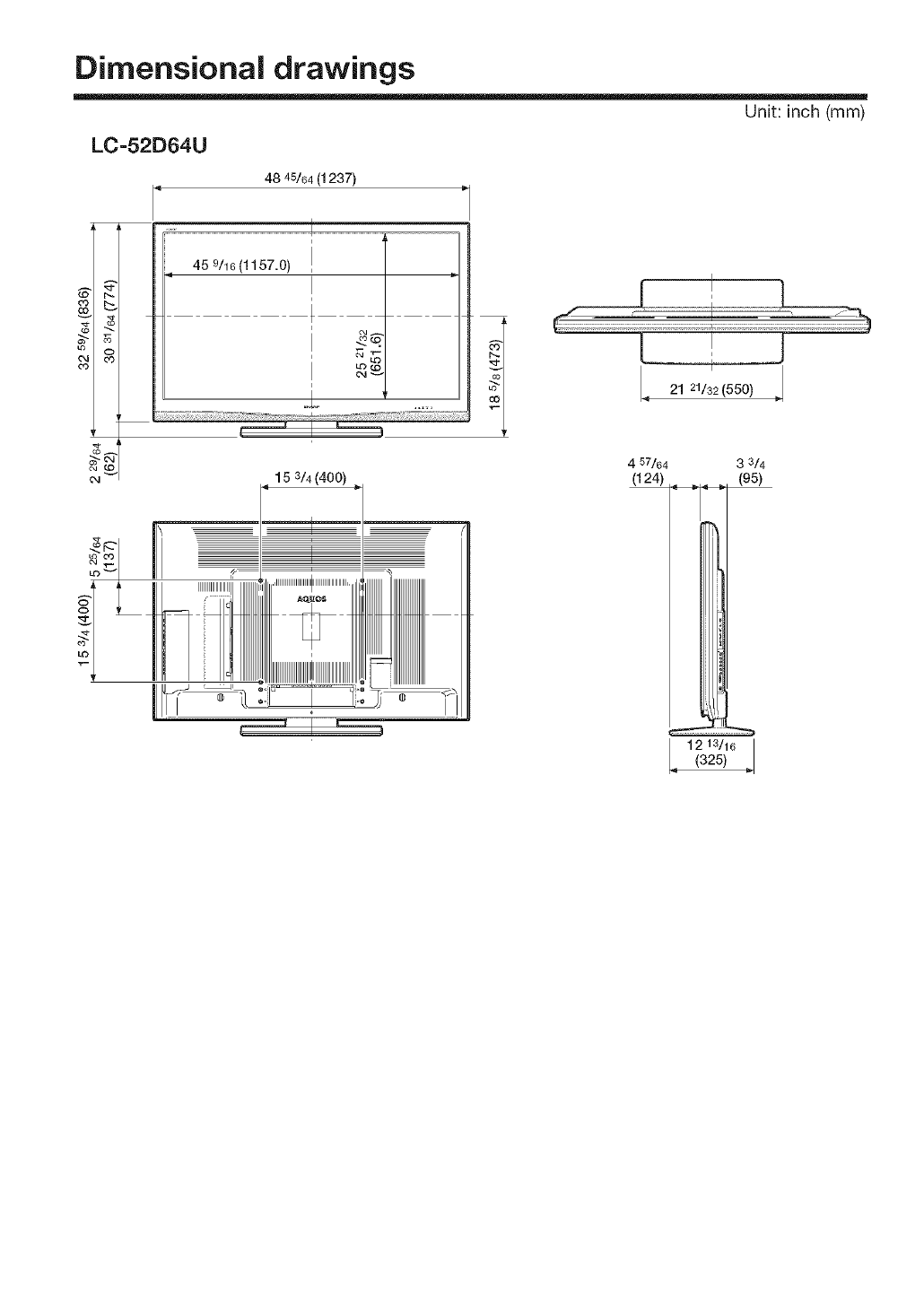

Dimensional drawings

• The dimensional drawings for tile LCD TV set are shown

on the inside back cover

(D-9

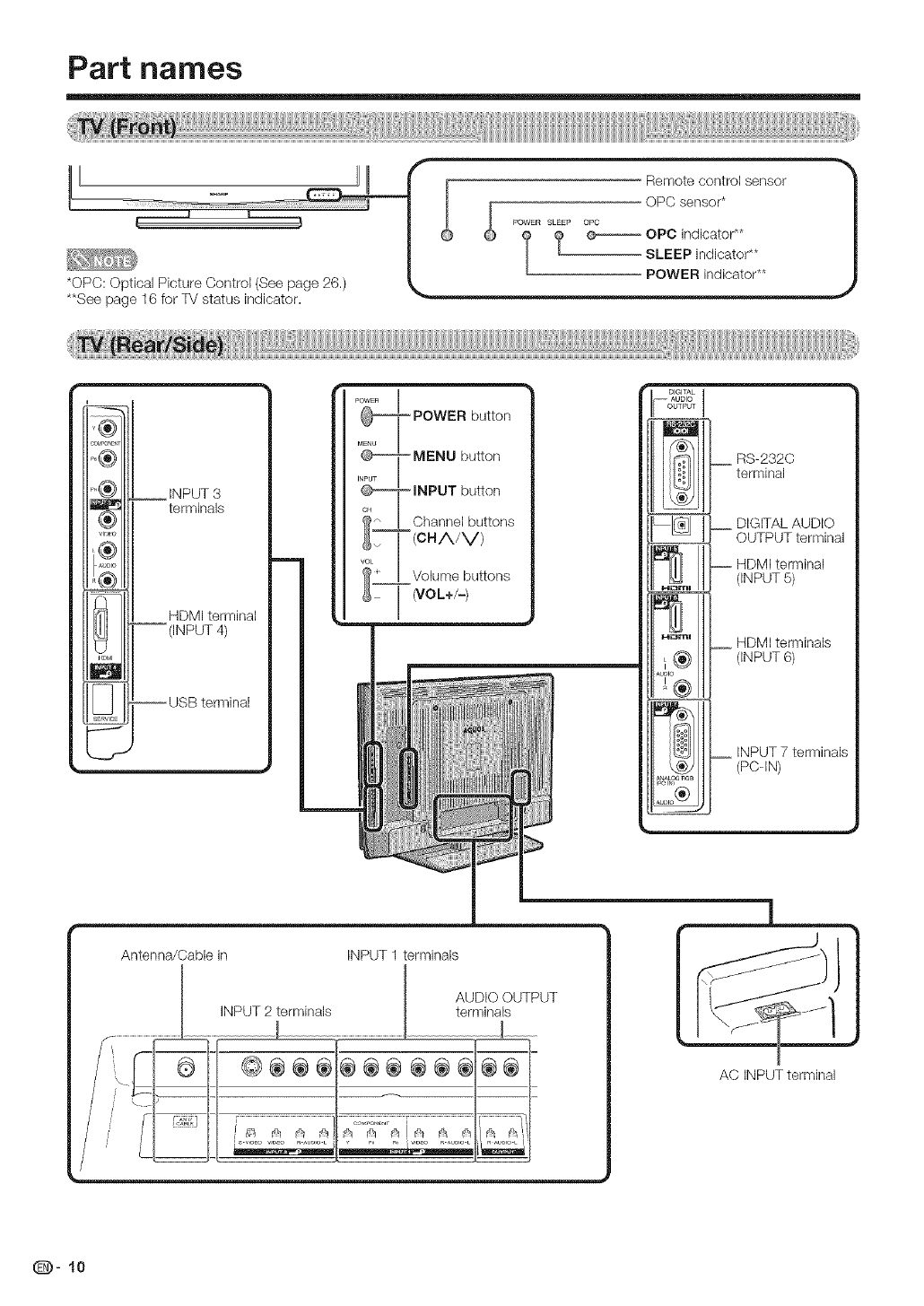

PaPt names

*OPC: Optical Picture Control (See page 26.)

**See page 16 for TV status indicator.

i _ Remote control sensor

OPC sensor*

f_OWER SLEEP OPC

I t _ OPC indicator**

SLEEP indicator**

POWER indksator**

__ INPUT 3

terminals

HDMI terminal

-- (INPUT 4)

-- USB terminal

button

Channel buttons

(CHA/V)

volume buttons

(VOL+/-)

RS-232C

terminal

DIGITAL AUDIO

OUTPUT terminal

HDMI terminal

(INPUT 5)

HDMI terminals

(INPUT 6)

INPUT 7 terminals

(PC-IN)

Antenna/Cable in INPUT 1 terminals

AUDIO OUTPUT

INPUT 2 terminals terminals

©®®®®@®@@®

AC INPUT terminal

(D- 10

PaN names

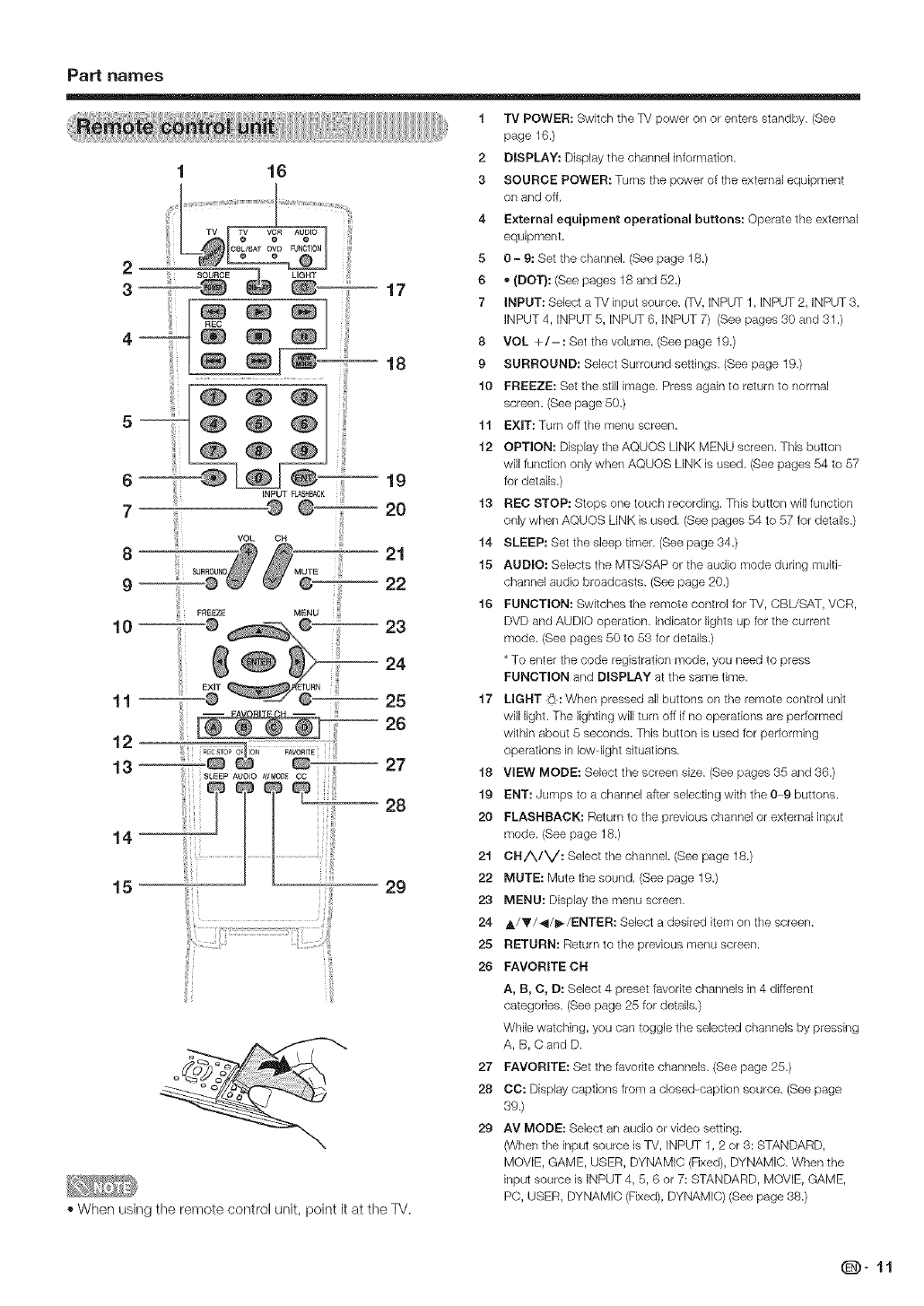

1 rv POWER: Switch the TV power on or enters standby. (See

page 16.)

2DISPLAY: Display the channel information.

3SOURCE POWER: Turns the power of the external equipment

on and eft.

2/°;

3 souooE

619

7 IN_T FL_ACK 20

VOL CH

FREEZE MENU

10 _8 23

11 _T 25

ii_ 26

13--

4 External equipment operational buttons: Operate the external

equipment.

5 0 - 9: Set the channel. (See page 18.)

6*(DOT): (See pages 18 and 52.)

7 INPUT: Select a-IV input source. (TV, INPUT 1, INPUT 2, INPUT 3,

INPUT 4, INPUT 5, INPUT 6, INPUT 7) (See pages 30 and 31 .)

8 VOL +/- :Set the vokJme. (See page 19.)

9 SURROUND: Select Surround settings. (See page 19.)

10 FREEZE: Set the still image. Press again to return to normal

screen. (See page 50.)

11 EXIT: Turn off the menu screen.

12 OPTION: Display the AQUOS LiNK MENU screen. This button

will function only when AQUOS LINK is used. (See pages 54 to 57

for details.)

13 REC STOP: Stops one touch recording. This button will function

only when AQUOS LINK is used. (See pages 54 to 57 for details.)

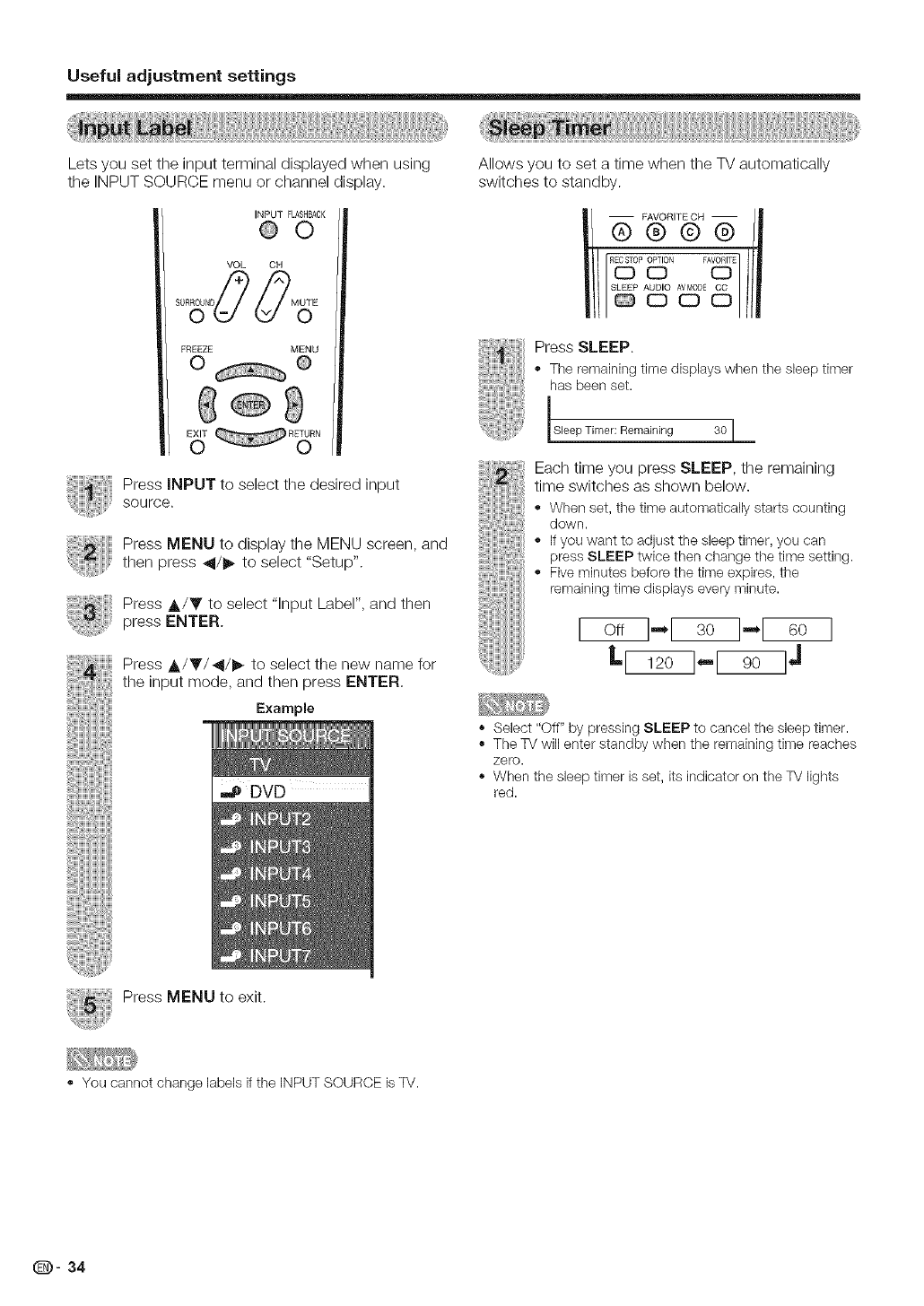

14 SLEEP: Set the sleep timer. (See page 34.)

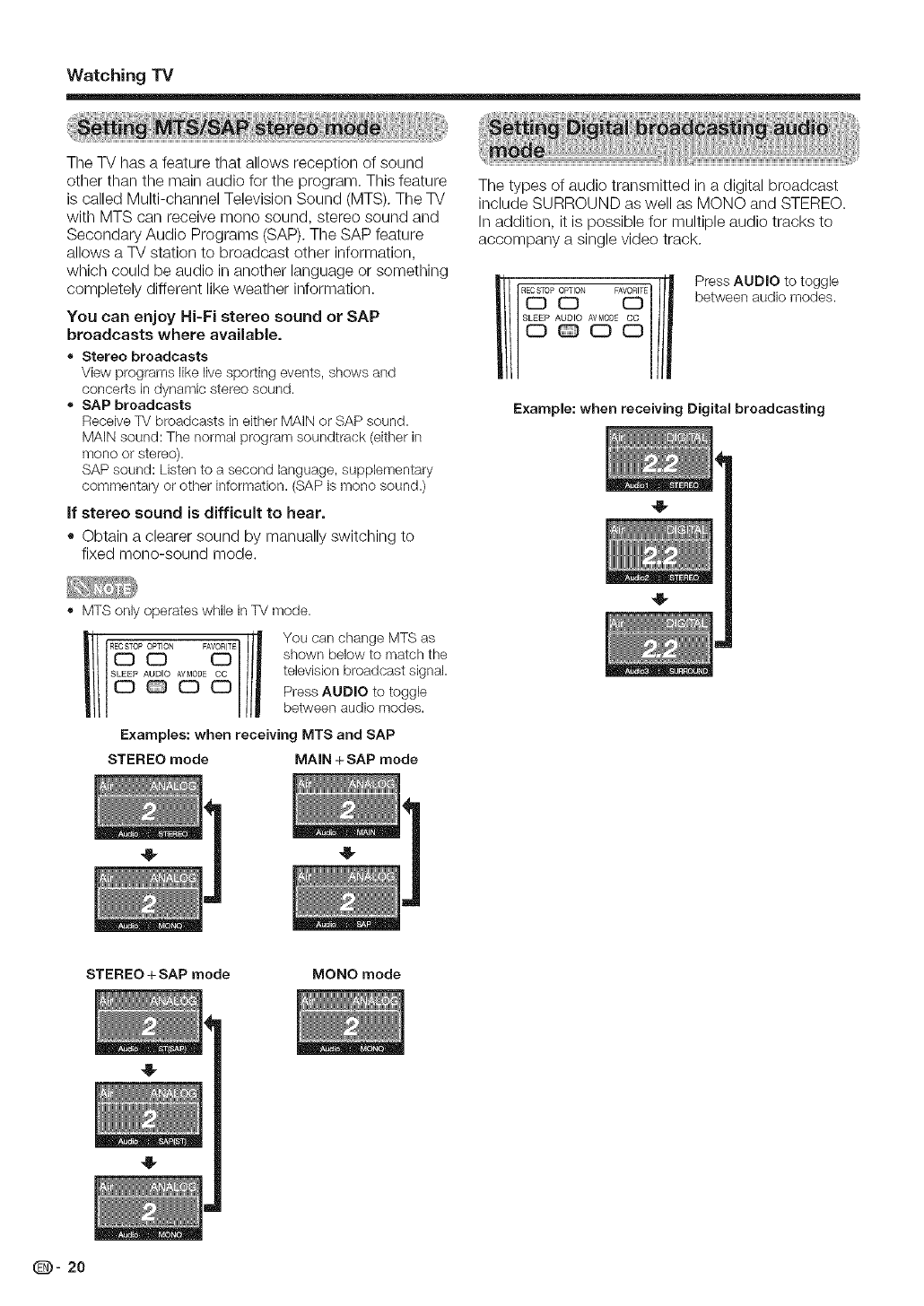

15 AUDIO: Selects the MTS/SAP or the audio mode during multi

channel audio broadcasts. (See page 20.)

16 FUNCTION: Switches the remote control for TV, CBL/SAT, VCR,

DVD and AUDIO operation. Indicator lights up for the current

mode. (See pages 50 to 53 for details.)

• To enter the code registration mode, you need to press

FUNCTION and DISPLAY at the same time.

17 LIGHT _: When pressed all buttons en the remote control unit

will light. The lighting will turn off if no eperations are performed

within about 5 seconds. This button is used for performing

operations in lew light situations.

18 VIEW MODE: Select the screen size. (See pages 35 and 36.)

19 ENT: Jumps to a channel after selecting with the 0 9 buttons.

20 FLASHBACK: Return to the previous channel or external input

mode. (See page 18.)

21 CH/X/V: Select the channel. (See page 18.)

22 MUTE: Mute the sound. (See page 19.)

23 MENU: Display the menu screen.

24 A/_'/_/I_/ENTER: Select a desired item on the screen.

25 RETURN: Return to the previous menu screen.

26 FAVORITE CH

e _" o

,, When using the remote control unit, point it at the TV.

A, B, C, D: Select 4 preset favorite channels in 4 different

categories. (See page 25 for details.)

While watching, you can toggle the selected channels by pressing

A, B, Cand D.

27 FAVORITE: Set the favorite channels. (See page 25.)

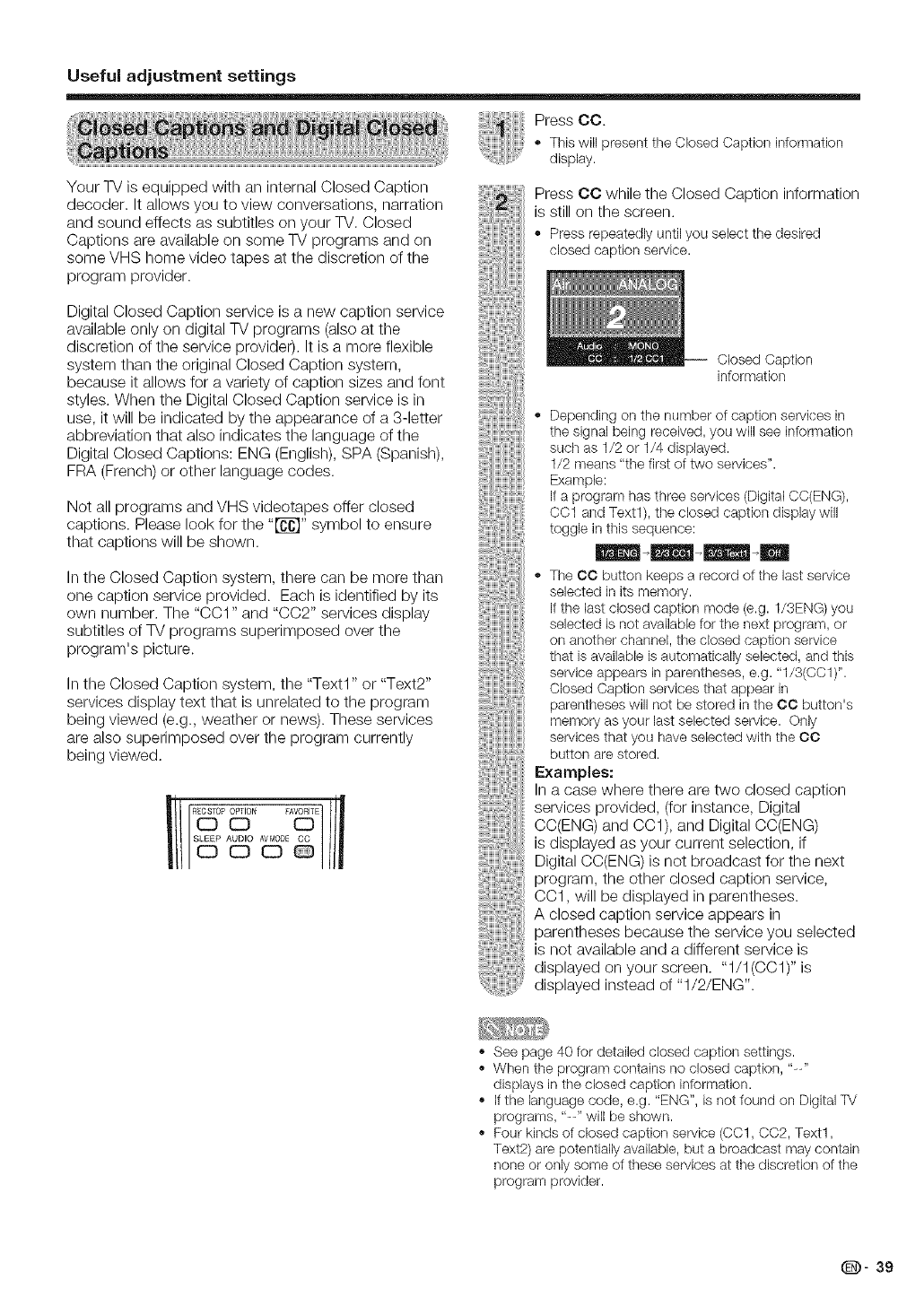

28 CC: Display captions from a closed caption source. (See page

39.)

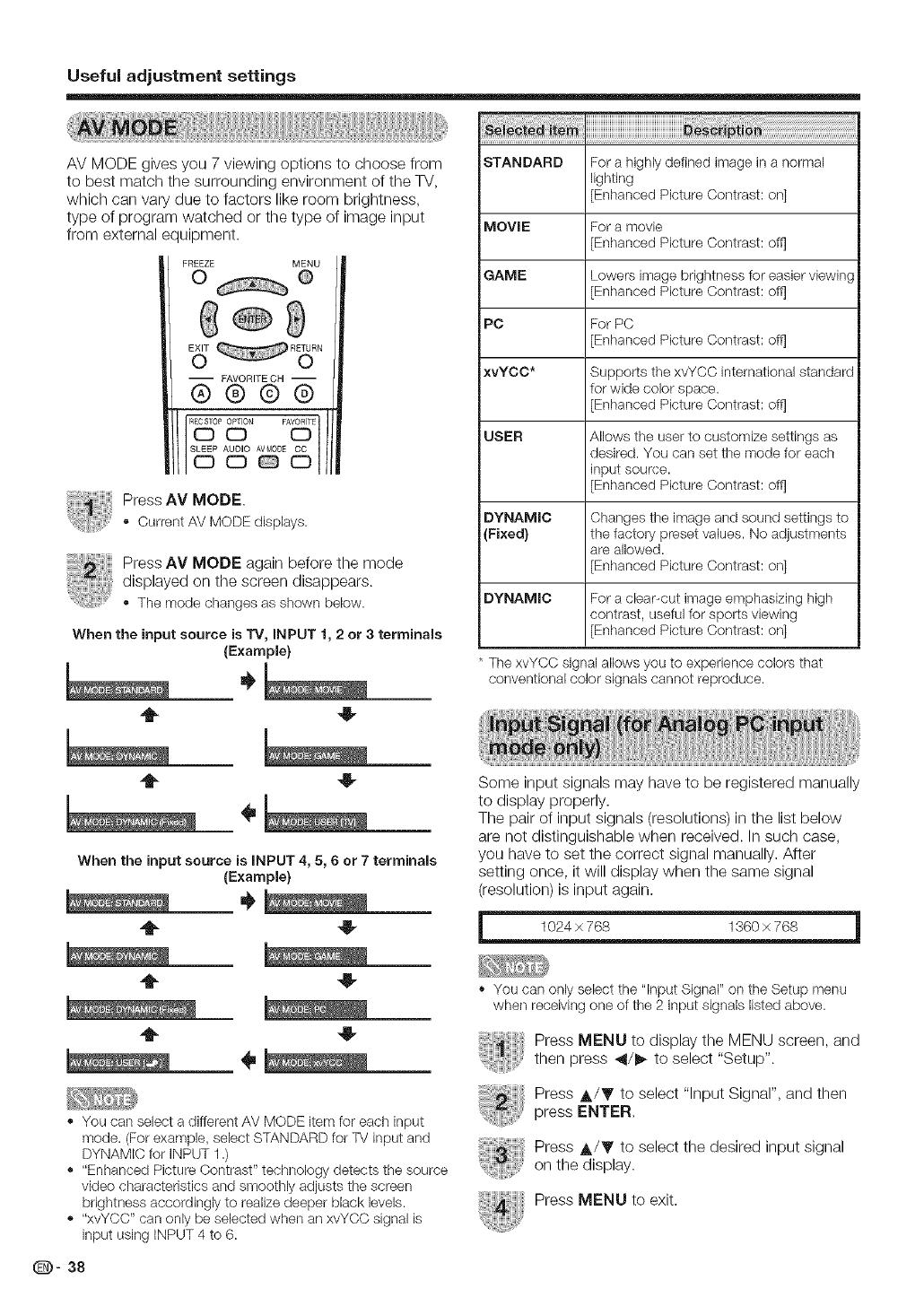

29 AV MODE: Select an audio or video setting.

(When the input source is -IV, INPUT 1,2 or 3: STANDARD,

MOVIE, GAME, USER, DYNAMIC (Fixed), DYNAMIC. When the

input source is INPUT 4, 5, 6 or 7: STANDARD, MOVIE, GAME,

PC, USER, DYNAMIC (Fixed), DYNAMIC) (See page 38.)

(D-11

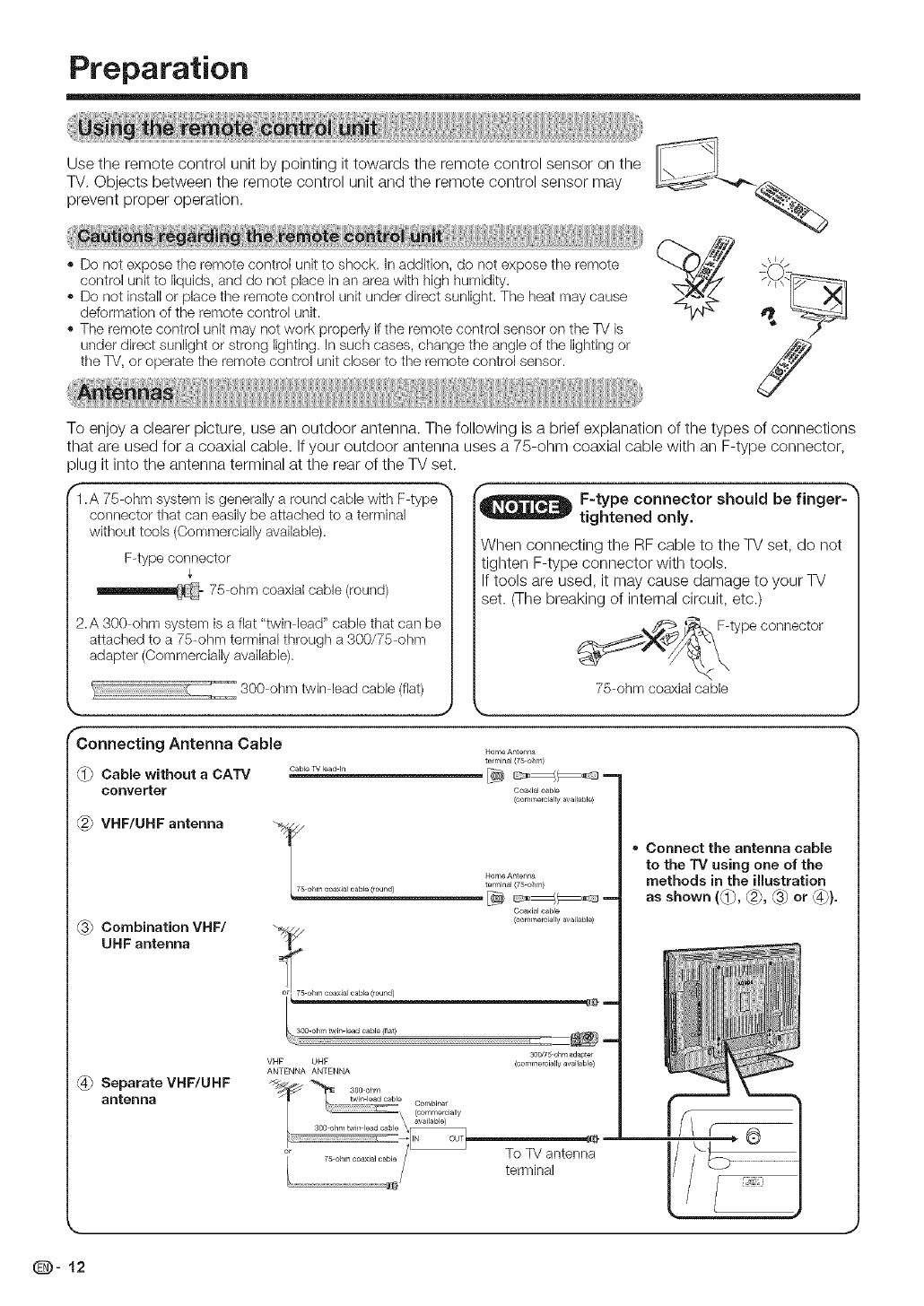

Preparation

Use the remote control unit by pointing it towards the remote control sensor on the

TV. Objects between the remote control unit and the remote control sensor may

prevent proper operation.

,,I/

Do not expose the remote control unit to shock. In addition, do not expose tile remote 2 --

control unit to liquids, and do not pBce hi an area wittl high humidity. ., ,.-

,, Do not install or place ttqe remote control unit under direct sunlight. The heat may cause

deformation of the remote control unit.

,, The remote control unit may not work properly if ttqe remote control sensor on ttqe TV is

under direct sunlight or strong lighting. In suctq cases, ctlange the angle of the lighting or

the TV, or operate the remote control unk closer to the remote control sensor. J

To enjoy a clearer picture, use an outdoor antenna. The following is a brief explanation of the types of connections

that are used for a coaxial cable. If your outdoor antenna uses a 75-ohm coaxial cable with an F-type connector,

plug it into the antenna terminal at the rear of the TV set.

"I.A 75 ohm system is generallya round cable with F type _

connector that can easilybe attached to a terminal

without tools (Commerciallyavailable).

F-type connector

75-ohm coaxial cable (round)

2.A 300 ohm system is a flat "twin lead" cable that can be

attactqed to a 75 ohm terminal ttqrough a 300/75 ohm

adapter (Commercially available).

300-ohm twinqead cable (flat)

,._ J

Connecting Antenna Cable

@Cable without a CATV Cob_eWiead_n

converter

VHF/UHF antenna

Combination VHF/

UHF antenna

Separate VHF/UHF

antenna

_ F-type connector should be finger=

tightened only.

When connecting the RF cable to the TV set, do not

tighten F-type connector with tools.

If tools are used, it may cause damage to your TV

set. (The breaking of internal circuit, etc.)

F-type connector

75-ohm coaxialcable

k_ _,

Home Antenna

terminal (75 ohm}

Coaxisl cable

(oommemial_y available}

_4J_75 Home Antenna

ohm coaxJaJ cable (round) terminal (75 ohm)

Co_ial cable

(commercially available}

300/75-ohm adapt_

VHF UHE (commemially available)

ANTENNA ANTENNA

• Connect the antenna cable

to the TV using one of the

methods in the illustration

as shown (_}, (2}, _3) or (4}}.

To TV antenna

terminal

Preparation

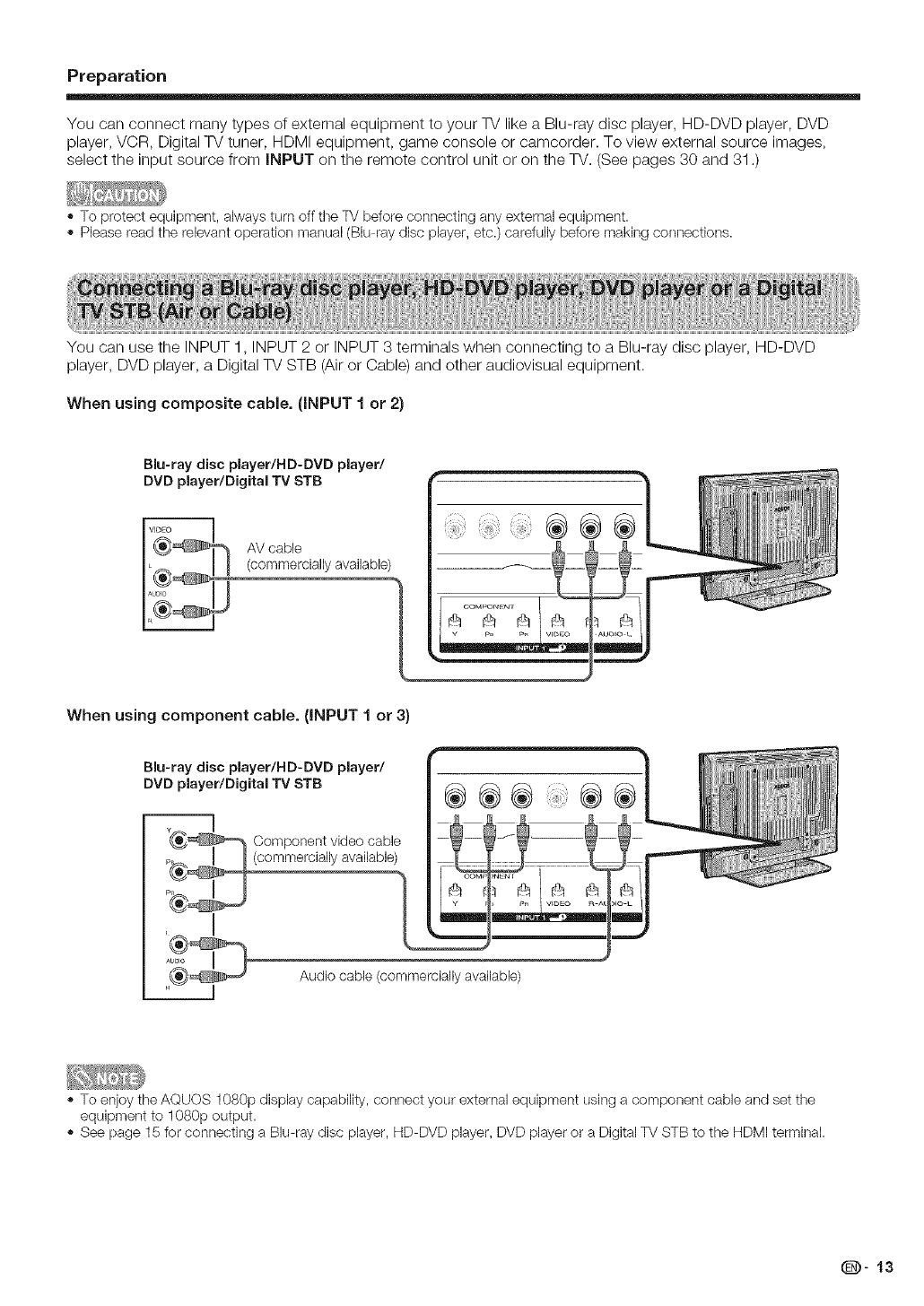

You can connect many types of external equipment to your TV like a Blu-ray disc player, HD-DVD player, DVD

player, VCR, Digital TV tuner, HDMI equipment, game console or camcorder. To view external source images,

select the input source from INPUT on the remote control unit or on the TV. (See pages 30 and 31 .)

,, To protect equipment, always turn off the TV before connecting any external equipment.

,, Please read the relevant operation manual (Blu ray disc player, etc.) carefully before making connections.

You can use the INPUT 1, INPUT 2 or INPUT 3 terminals when connecting to a Blu-ray disc player, HD-DVD

player, DVD player, a Digital TV STB (Air or Cable) and other audiovisual equipment.

When using composite cable. (INPUT 1 or 2)

Blu-ray disc player/HD-DVD player/

DVD player/Digital TV STB

AV cable

(commercially available)

When using component cable. (INPUT 1 or 3)

Blu-ray disc player/HD-DVD player/

DVD player/Digital TV STB

__ Component video cable

p_commercially availabl_e)

_ Audio cable (commercially available)

,, To enjoy the AQUOS 1080p display capability, connect your external equipment using a component cable and set the

equipment to 1080p output.

,, See page 15 for connecting a Blu ray disc player, HD DVD player, DVD player or a Digital TV STB to the HDMI terminal.

(D-13

Preparation

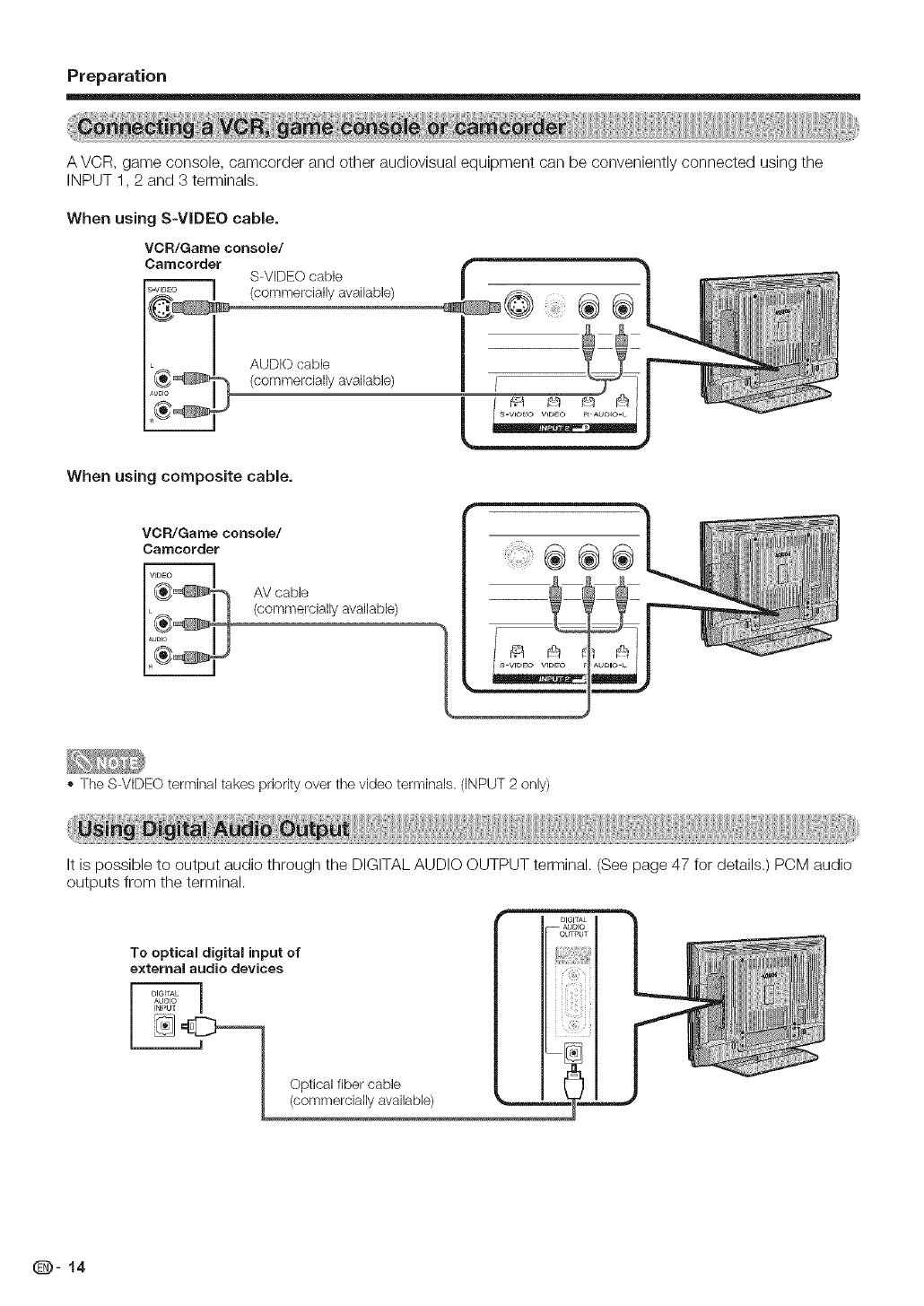

A VCR, game console, camcorder and other audiovisual equipment can be conveniently connected using the

INPUT 1,2 and 3 terminals.

When using S-VIDEO cable.

VCR/Garne console/

Carncerder S-VIDEO cable

(commercially available)

AUDIO cable

(commercially available)

When using composite cable.

VCR/Garne console/

Carncorder

__ AV cable

(commercially available)

,, The S VIDEO terminal takes priority over the video terminals. (iNPUT 2 only)

It is possible to output audio through the DIGITAL AUDIO OUTPUT terminal. (See page 47 for details.) PCM audio

outputs from the terminal.

To optical digital input of

external audio devices

Optical fiber cable

(commercially available)

(D- 14

Preparation

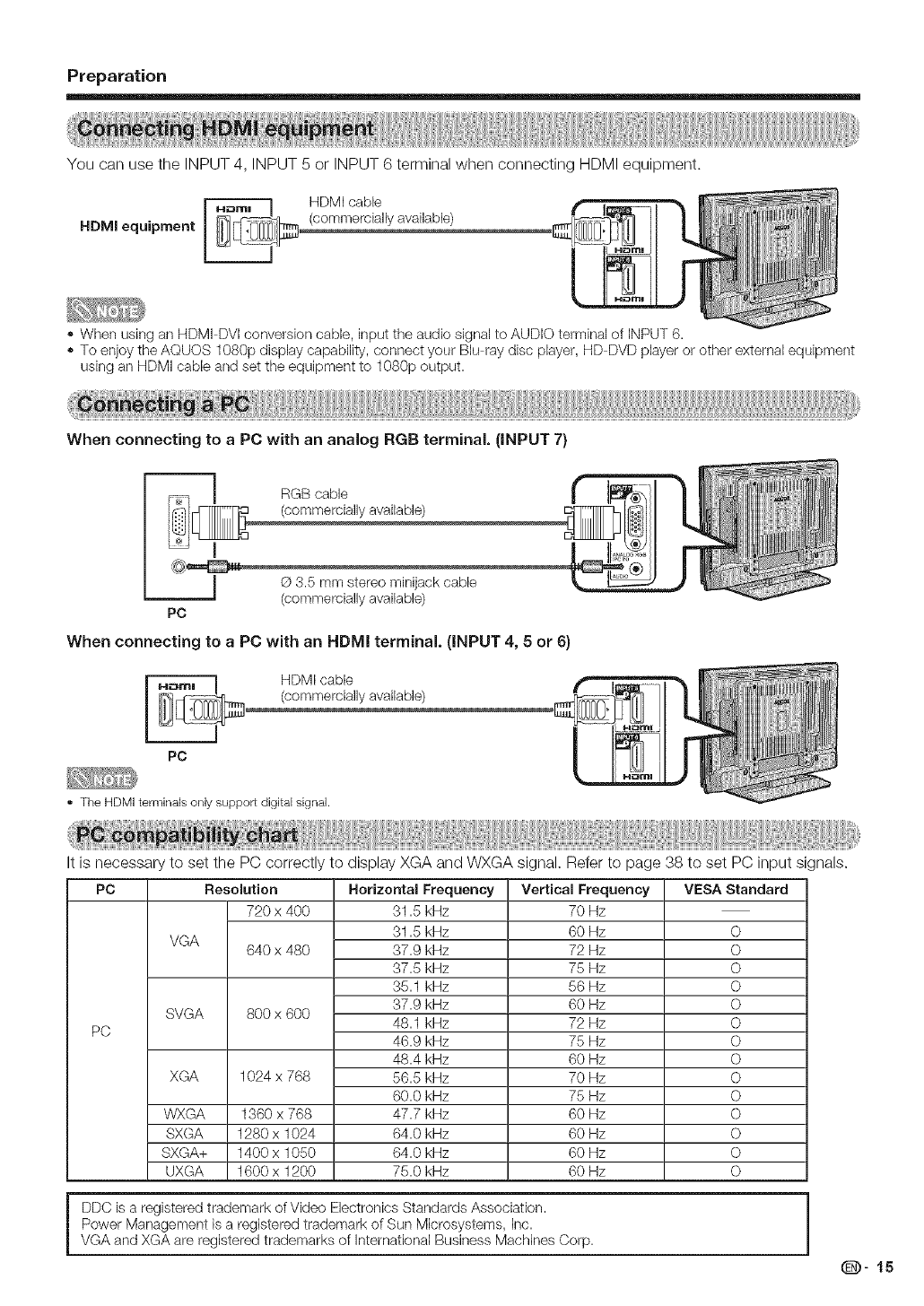

You can use the INPUT 4, INPUT 5 or INPUT 6 terminal when connecting HDMI equipment.

HDMI equipment

HDMI cable

(commercially available)

•When using an HDMI DVl conversion cable, input the audio signal to AUDK} terminal of iNPUT 6.

•To enjoy the AQUOS 1080p display capability, connect your BkJ ray disc player, HD DVD player or other external equipment

usklg an HDMI cable and set the equipment to 1080p output.

When connecting to a PC with an analog RGB terminal. (INPUT 7)

RGB cable

(commercially available)

When connecting to a PC with an HDMI terminal. (INPUT 4, 5 or 6)

HDMI cable

(commercially available)

• The HDMI terminals only support digital signal.

is necessary to set the PC correctly to display XGA and WXGA signal. Refer to page 38 to set PC input signals.

PC VESA Standard

VGA

SVGA

XGA

Resolutien Horizontal Frequency

720 x 400 31.5 kHz

31.5 kHz

640 x 480 37.9 kHz

37.5 kHz

35.1 kHz

37.9 kHz

800 x 600 48.1 kHz

46.9 kHz

48.4 kHz

1024 x 768 56.5 kHz

60.0 kHz

1360 x 768 47.7 kHz

1280 x 1024 64.0 kHz

1400 x 1050 64.0 kHz

1600 x 1200 75.0 kHz

WXGA

SXGA

SXGA+

UXGA

DDC is a registered trademark of Video Electronics Standards Association.

Power Management is a registered trademark of Sun Microsystems, inc.

VGA and XGA are registered trademarks of International Business Machines Corp.

Vertical Frequency

70 Hz

60 Hz

72 Hz

75 Hz

56 Hz

60 Hz

72 Hz

75 Hz

60 Hz

70 Hz

75 Hz

60 Hz

(D-15

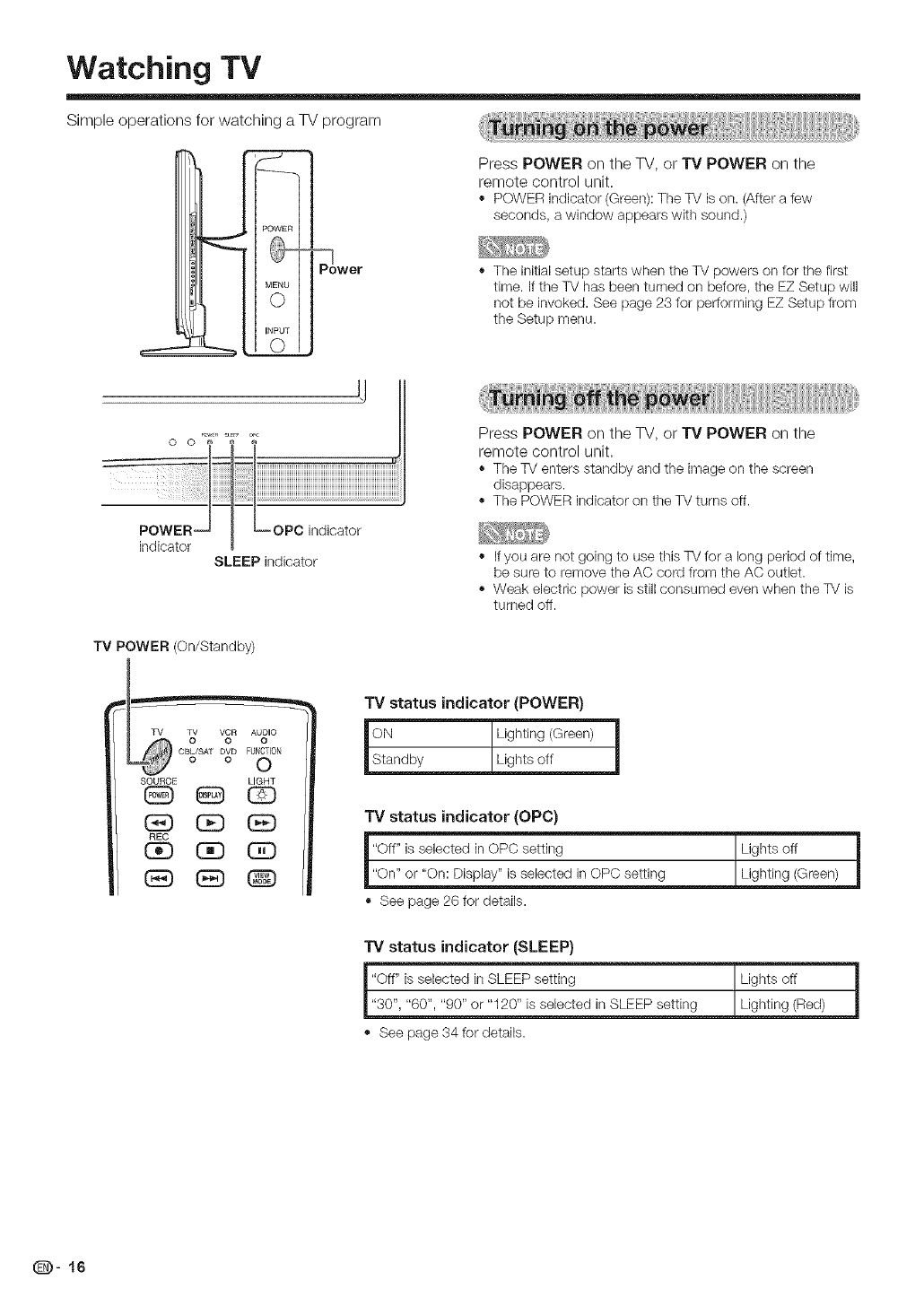

Watching TV

Simple operations for watching a TV program

INPUT

_wer

Press POWER on the TV, or TV POWER on the

remote control unit.

,' POWERindicator(Green):TheTV is on. (Aftera few

seconds, a window appearswith sound.)

,, The initial setup starts when the TV powers on for the first

time. if the TV has been turned on before, the EZ Setup will

not be invoked. See page 23 for per%truing EZ Setup from

the Setup menu.

Press POWER on the TV, or TV POWER on the

remote control unit.

The TV enters standby and the image on the screen

disappears.

The POWER indicator on the TV turns off.

SLEEP indicator

TV POWER (On/Standby)

h_ c BTL_/sATO _ O F_OTII_ NO

SOURCE LIGHT

REC

CE)

If you are not going to use this TV for a long period of time,

be sure to remove the AC cord from the AC outlet.

,, Weak electric power is still consumed even when the TV is

turned off.

TV status indicator (POWER)

lsOt:ndby T U_h_'n_,G_n, i

_ _/Lights off _j

TV status indicator (OPC)

,, See page 26 for details.

TV status indicator (SLEEP)

"Off" is selected in SLEEP setting

"30", "60", "90" or "120" is selected in SLEEP setting

See page 34 for details.

Lights off

Lighting (Red)

(D- 16

WatchingTV

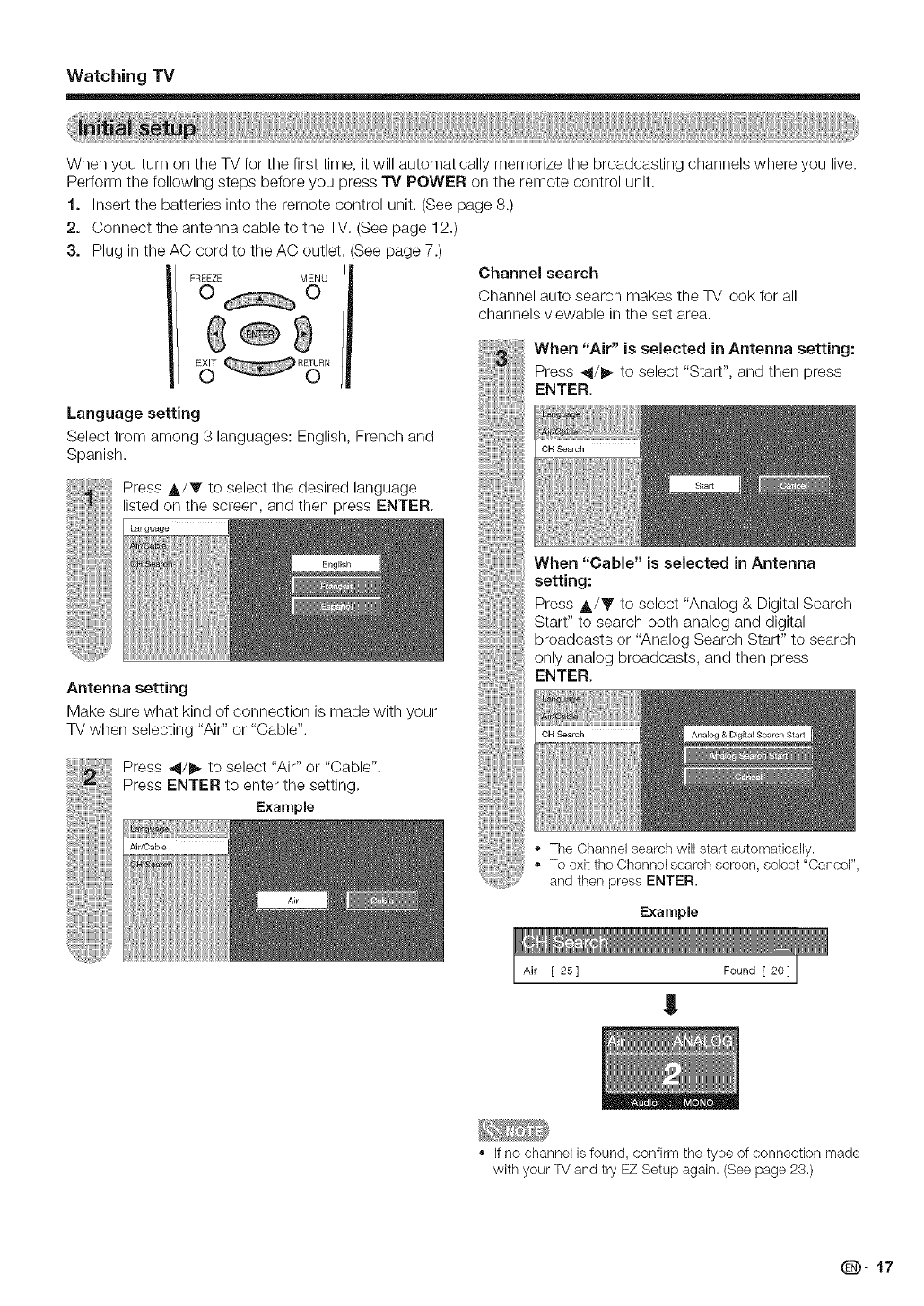

When you turn on the TV for the first time, it will automatically memorize the broadcasting channels where you live.

Perform the following steps before you press TV POWER on the remote control unit.

t. Insert the batteries into the remote control unit. (See page 8.)

2. Connect the antenna cable to the TV. (See page 12.)

3. Plug in the AC cord to the AC outlet. (See page 7.)

Language setting

Select from among 3 languages: English, French and

Spanish.

Press A/Y to select the desired language

listed on the screen, and then press ENTER.

Channel search

Channel auto search makes the TV look for all

channels viewable in the set area.

When "Air" is selected in Antenna setting:

Press 4/1_ to select "Start", and then press

ENTER.

OH See_ch

Start

Antenna setting

Make sure what kind of connection is made with your

TV when selecting "Air" or "Cable".

Press _11/1_ to select "Air" or "Cable".

Press ENTER to enter the setting.

Example

When "Cable" is selected in Antenna

setting:

Press A/Y to select "Analog & Digital Search

Start" to search both analog and digital

broadcasts or "Analog Search Start" to search

only analog broadcasts, and then press

ENTER.

OH See_ch

,, The Channel search will start automatically.

,, To exit the Channelsearchscreen,select "Cancel",

and then press ENTER.

Example

Air [ 25] Found [ 20] ]

,, If no channel is found, confirm the type of connection made

with your TV and try EZ Setup again. (See page 23.)

(D-17

WatchingTV

Method t

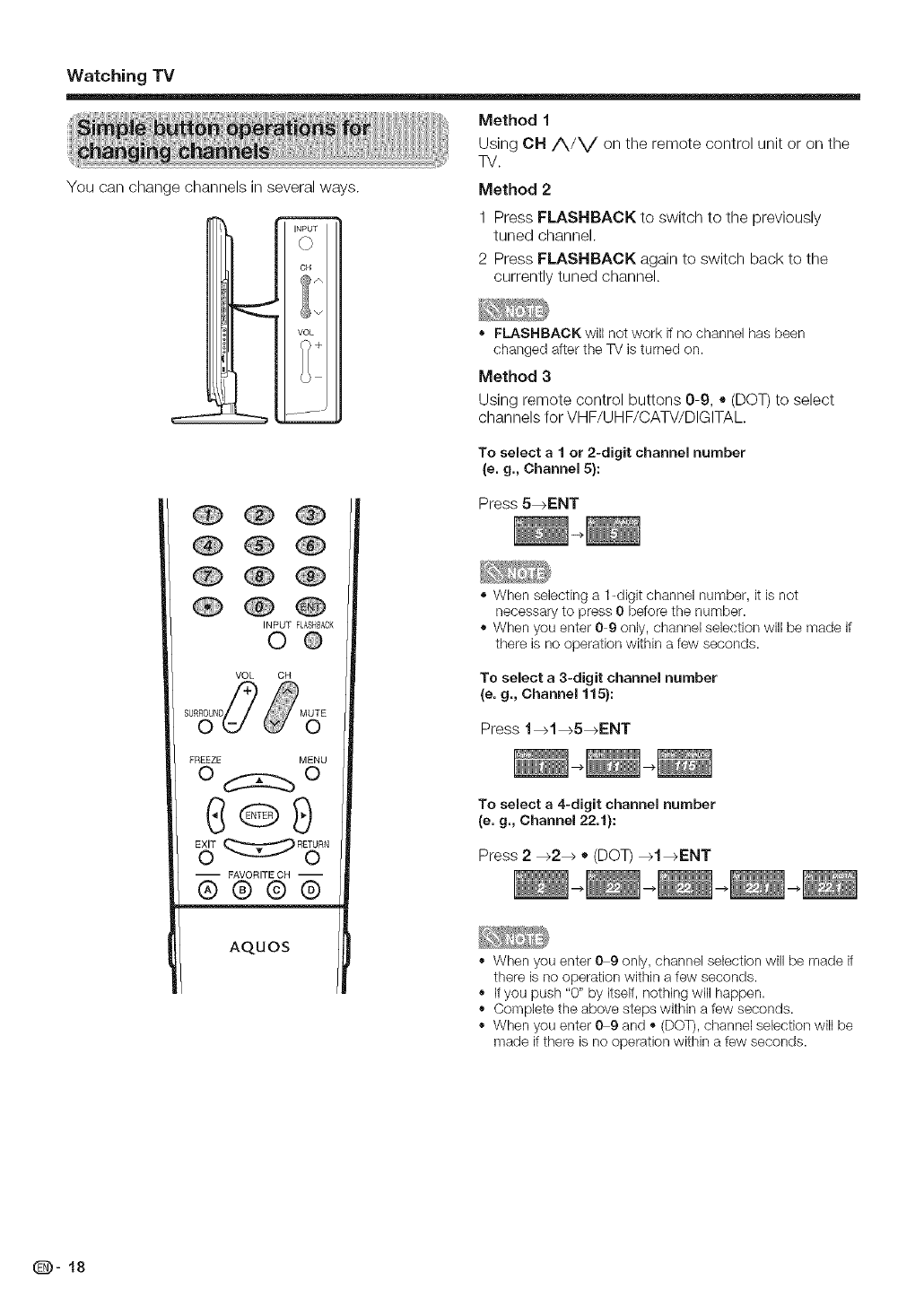

Using OH A/V on the remote control unit or on the

TV.

You can change channels in several ways. Method 2

INPUT

VOL

1 Press FLASHBACK to switch to the previously

tuned channel.

2 Press FLASHBACK again to switch back to the

currently tuned channel.

FLASHBACKwill not work if no channelhas been

changed after the TVis turned on.

Method 3

Using remote control buttons 0-9, • (DOT) to select

channels for VHF/UHF/CATV/DIGITAL.

To select a 1 or 2-digit channel number

(e. g., Channel 5}:

Press 5_ENT

INPUT FLASiCBACK

VOL CH

FREEZE MENU

C®9

-- FAVORITECH --

®®@@

AQUOS

., When selecting a 1-digit channel number, it is not

necessary to press 0before the number.

When you enter 0-9 only, channel selection will be made if

there is no operation within a few seconds.

To select a 3-digit channel number

(e. g., Channel 115}:

Press t_1 _5_ENT

To select a 4-digit channel number

(e. g., Channel 22.1}:

Press 2_2_ * (DOT) _I_ENT

When you enter 0-9 only, channel selection will be made if

there is no operation within a few seconds.

., If you push "0" by itself, nothing will happen.

Complete the above steps within a few seconds.

When you enter 0-9 and - (DOT), channel selection will be

made if there is no operation within a few seconds.

@- 18

WatchingTV

[] Using MUTE on the remote control unit

Mutes the current sound output.

[] Changing the volume

You can change the volume oil the TV or on the

remote control unit,

INPUT

VOL

C)+

)

[] Using VOL+/-

• To increase the volume, press VOL+.

• To decrease the volume, press VOL-.

I/ oH/i

Press MUTE.

., E_) will be displayed on the screen for 30 minutes, and the

sound is silenced.

Mute

Within 30 minutes of pressing MUTE, mute can be

canceled by using one of the methods below.

-- Mute will be canceled if you press VOL +/- or MUTE.

Mute will be canceled after 30 minutes have passed.

However, the TV will not suddenly output a loud sound as

the volume level is set to 0 automatically.

Volume adjustment [] Using SURROUND on the remote control unit

VOL+/- on the TV operates the same as VOL +/- on

the remote control unit.

Audio status

.................................................................................................. I......................

Speaker Variable sound Mute

When "Output Select" is set to "Variable", the indicator on

the screen changes as shown below.

SURROUND produces Surround effect from the

speakers. Each time you press SURROUND, the

mode changes between OIl and Off.

Surround sound options

On: Makes it possible to enjoy natural, realistic

surround sound.

Off: Outputs the normal sound.

• You can have the same settings by choosing "Surround"

on the menu items. (See page 29.)

See page 37 for details on the Output Select function.

(D-19

Watching TV

The TV has a feature that allows reception of sound

other than the main audio for the program. This feature

is called Multi-channel Television Sound (MTS). The TV

with MTS can receive mono sound, stereo sound and

Secondary Audio Programs (SAP). The SAP feature

allows a TV station to broadcast other information,

which could be audio in another language or something

completely different like weather information.

You can enjoy Hi-Fi stereo sound or SAP

broadcasts where available.

•Stereo broadcasts

View programs like live sporting events, shows and

concerts in dynamic stereo sound.

• SAP broadcasts

Receive TV broadcasts in either MAiN or SAP sound.

MAiN sound: The normal program soundtrack (either in

mono or stereo).

SAP sound: Listen to a second language, supplementary

commentary or other information. (SAP is mono sound.)

if stereo sound is difficult to hear.

• Obtain a clearer sound by manually switching to

fixed mono-sound mode.

The types of audio transmitted in a digital broadcast

include SURROUND as well as MONO and STEREO.

In addition, it is possible for multiple audio tracks to

accompany a single video track.

OPTION FAVORITE

Press AUDIO to toggle

between audio modes.

Example: when receiving Digital broadcasting

MTS only operates while in TV mode.

li I_° _ _1 /I Y°u can change MTS aS

R P N FA shown below to match the

Examples: when receiving MTS and SAP

STEREO mode MAIN + SAP mode

STEREO + SAP mode MONO mode

(D- 20

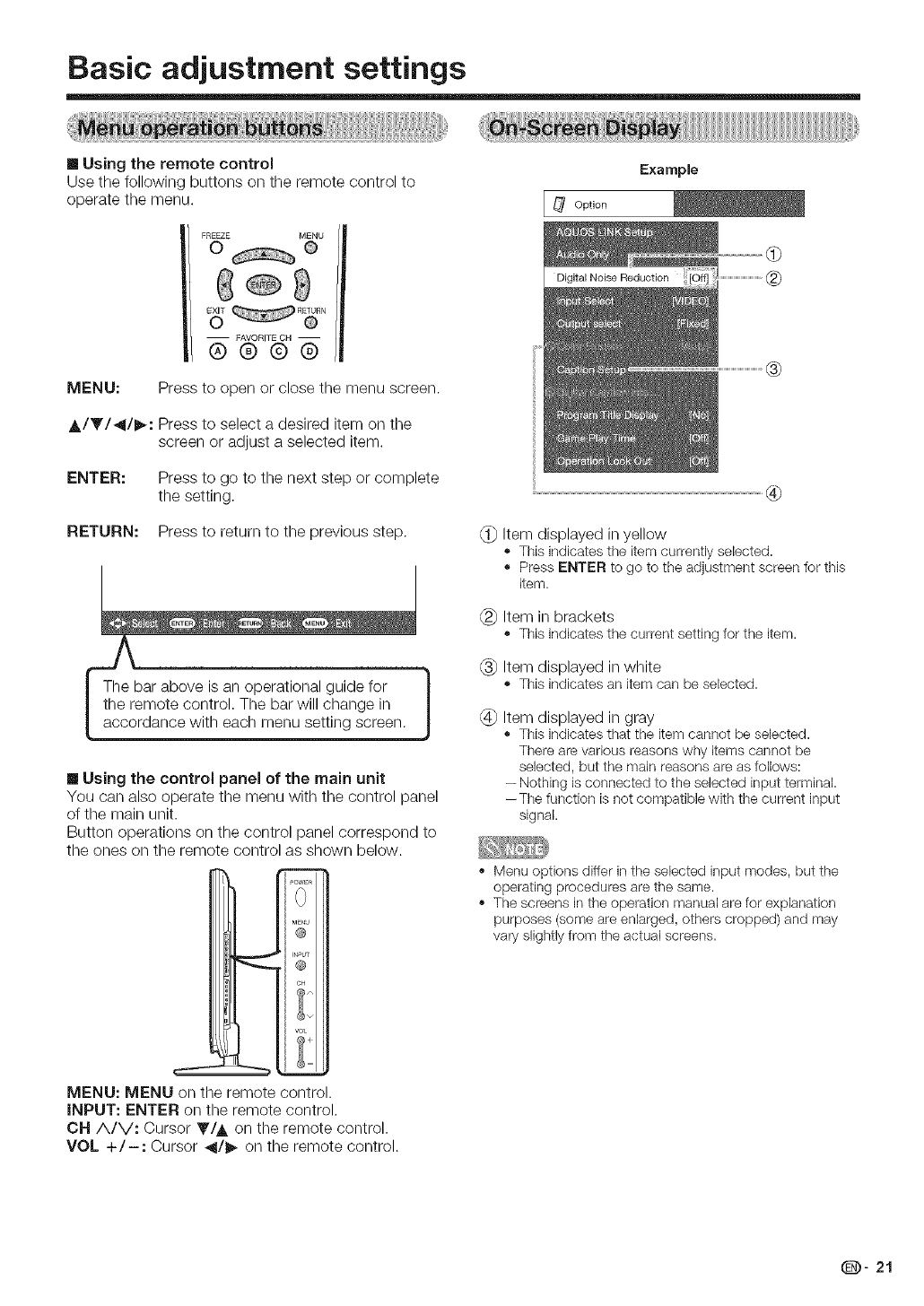

Basic adjustment settings

[] Using the remote control

Use the following buttons on the remote control to

operate the menu.

FREEZE MENU

0 @

-- FAVORITE OH --

®®@®

MENU: Press to open or close the menu screen.

A/Y/_/D,-: Press to select a desired item on the

screen or adjust a selected item.

ENTER: Press to go to the next step or complete

the setting.

RETURN: Press to return to the previous step.

I the re_ will change in I

[ accordance with each menu setting screen. J

[] Using the control panel of the main unit

You can also operate the menu with the control panel

of the main unit.

Button operations on the control panel correspond to

the ones on the remote control as shown below.

Example

Option

Item displayed in yellow

•This indicates tile item currently selected.

,, Press ENTER to go to the adjustment screen for this

item.

Item in brackets

•This indicatestile current setting for tile item.

Item displayed in white

,, This indicatesan item can be selected.

Item displayed in gray

•This indicates that the item cannot be selected.

There are various reasons why items cannot be

selected, but the main reasons are as follows:

-- Nothing is connected to the selected input terminal.

--The function is not compatible with the current input

signal.

,, Menu options differ in the selected input modes, but the

operating procedures are the same.

,, The screens in the operation manual are for explanation

purposes (some are enlarged, others cropped) and may

vary slightly from the actual screens.

MENU: MENU on the remote control.

INPUT: ENTER on the remote control.

CN A/V: Cursor Y/A on the remote control.

VOL +/-: Cursor _/_ on the remote control.

(D- 21

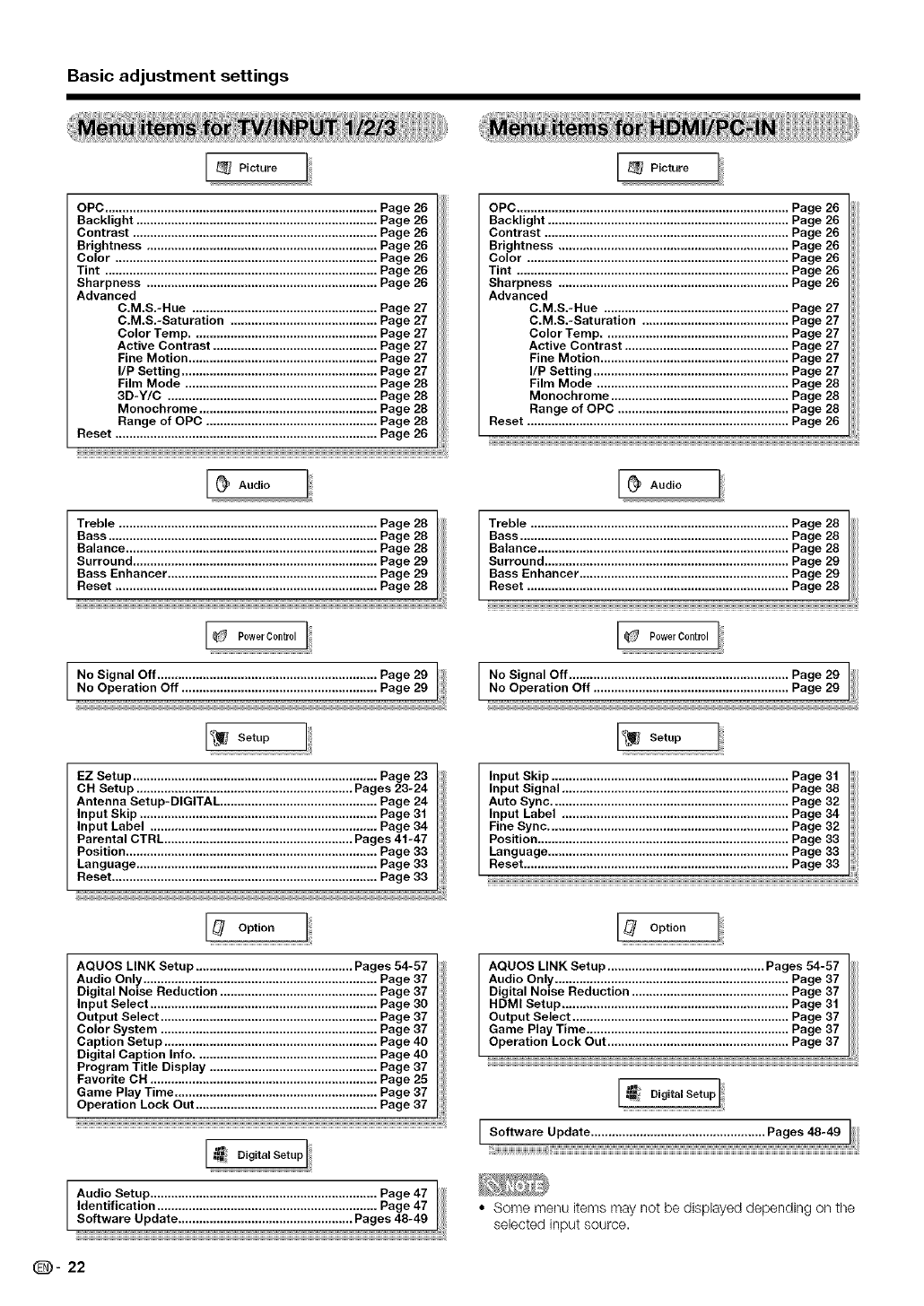

Basic adjustment settings

OPC .............................................................................. Page 26

Backlight ..................................................................... Page 26

Contrast ...................................................................... Page 26

Brightness .................................................................. Page 26

Color ........................................................................... Page 26

Tint .............................................................................. Page 26

Sharpness .................................................................. Page 26

Advanced

C,M,S,-Hue ..................................................... Page 27

C,M,S,-Saturation .......................................... Page 27

Color Temp ..................................................... Page 27

Active Contrast ............................................... Page 27

Fine Motion ...................................................... Page 27

I/P Setting ........................................................ Page 27

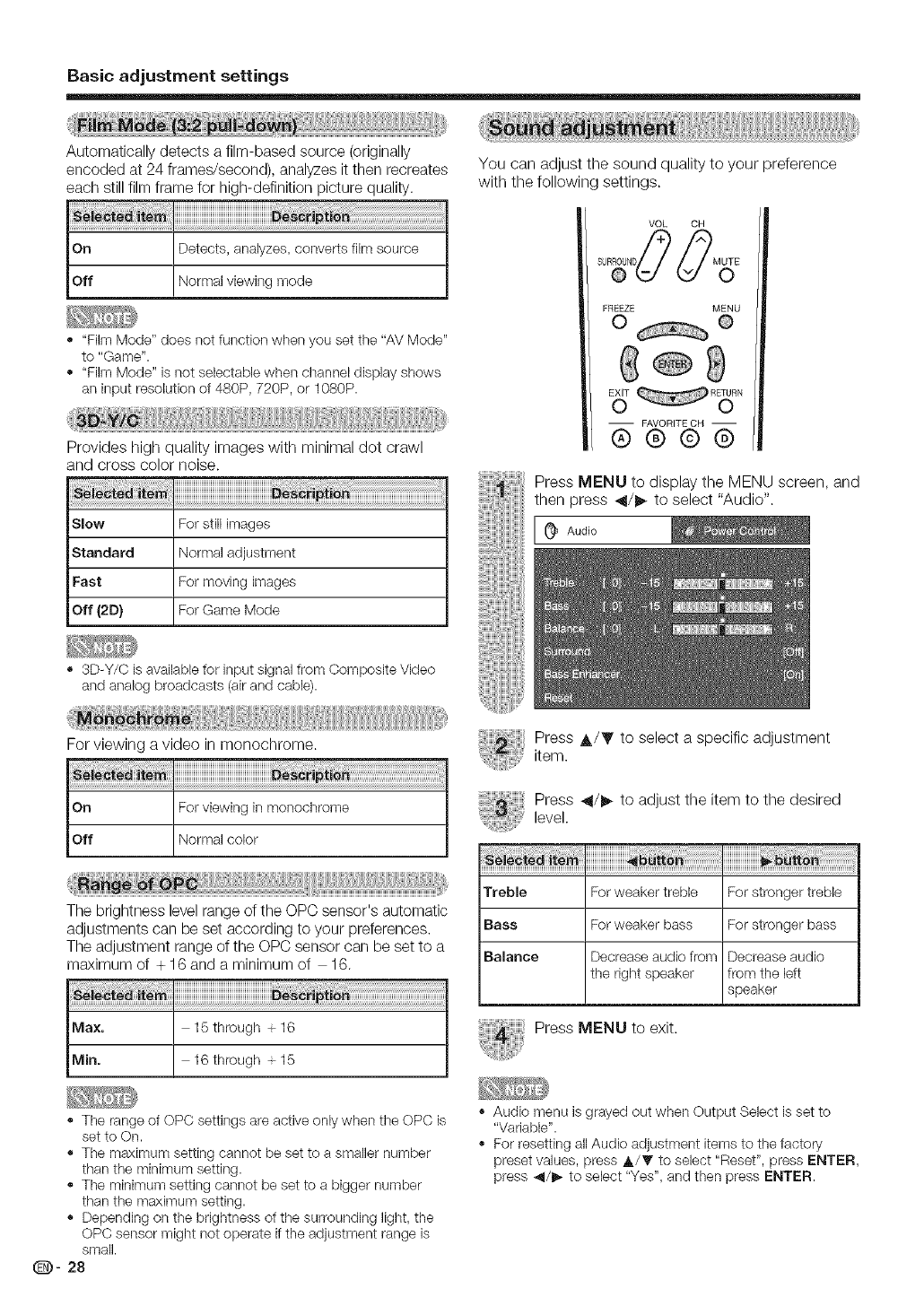

Film Mode ....................................................... Page 28

3D-Y/C ............................................................ Page 28

Monochrome ................................................... Page 28

Range of OPC ................................................. Page 28

Reset ........................................................................... Page 26

[PowerI

EZ Setup ...................................................................... Page 23

CH Setup .............................................................. Pages 23-24

Antenna Setup-DIGITAL ............................................. Page 24

Input Skip .................................................................... Page 31

Input Label ................................................................. Page 34

Parental CTRL ...................................................... Pages 41-47

Position ........................................................................ Page 33

Language ..................................................................... Page 33

Reset ............................................................................ Page 33

°or'CoI

AQUOS LINK Setup ............................................. Pages 54-57

Audio Only ................................................................... Page 37

Digital Noise Reduction ............................................. Page 37

Input Select ................................................................. Page 30

Output Select .............................................................. Page 37

Color System .............................................................. Page 37

Caption Setup ............................................................. Page 40

Digital Caption Info .................................................... Page 40

Program Title Display ................................................ Page 37

Favorite CH ................................................................. Page 25

Game Play Time .......................................................... Page 37

Operation Lock Out .................................................... Page 37

Audio Setup ................................................................. Page 47 ]

Identification ............................................................... Page 47 /

Software Update .................................................. Pages 48-49

_ Picture

OPC .............................................................................. Page 26

Backlight ..................................................................... Page 26

Contrast ...................................................................... Page 26

Brightness .................................................................. Page 26

Color ........................................................................... Page 26

Tint .............................................................................. Page 26

Sharpness .................................................................. Page 26

Advanced

C.M,S,-Hue ..................................................... Page 27

C.M.S,-Saturation .......................................... Page 27
