L|QUiD CRYSTAL TELEV][S|ON

T_L_VISEUR _ CRISTAU×

L|Q ii

DIG_TAL PLUS ............ ........

1. Part Names

1-1. TV

1-2. Remote Control Unit

2. Watching TV

2-1. Displaying an External Equipment Image

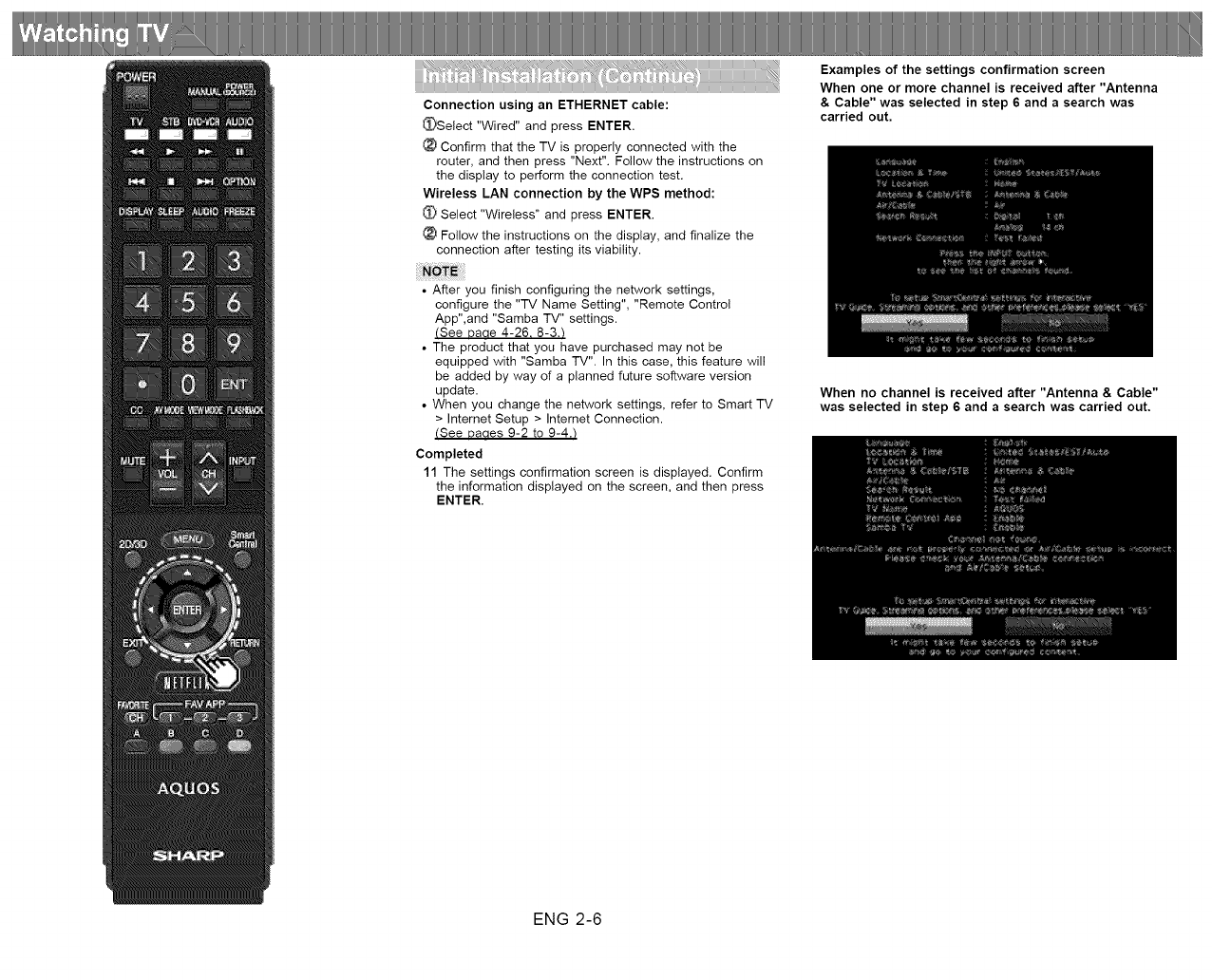

2-2. Initial Installation

3. Direct Button Operation

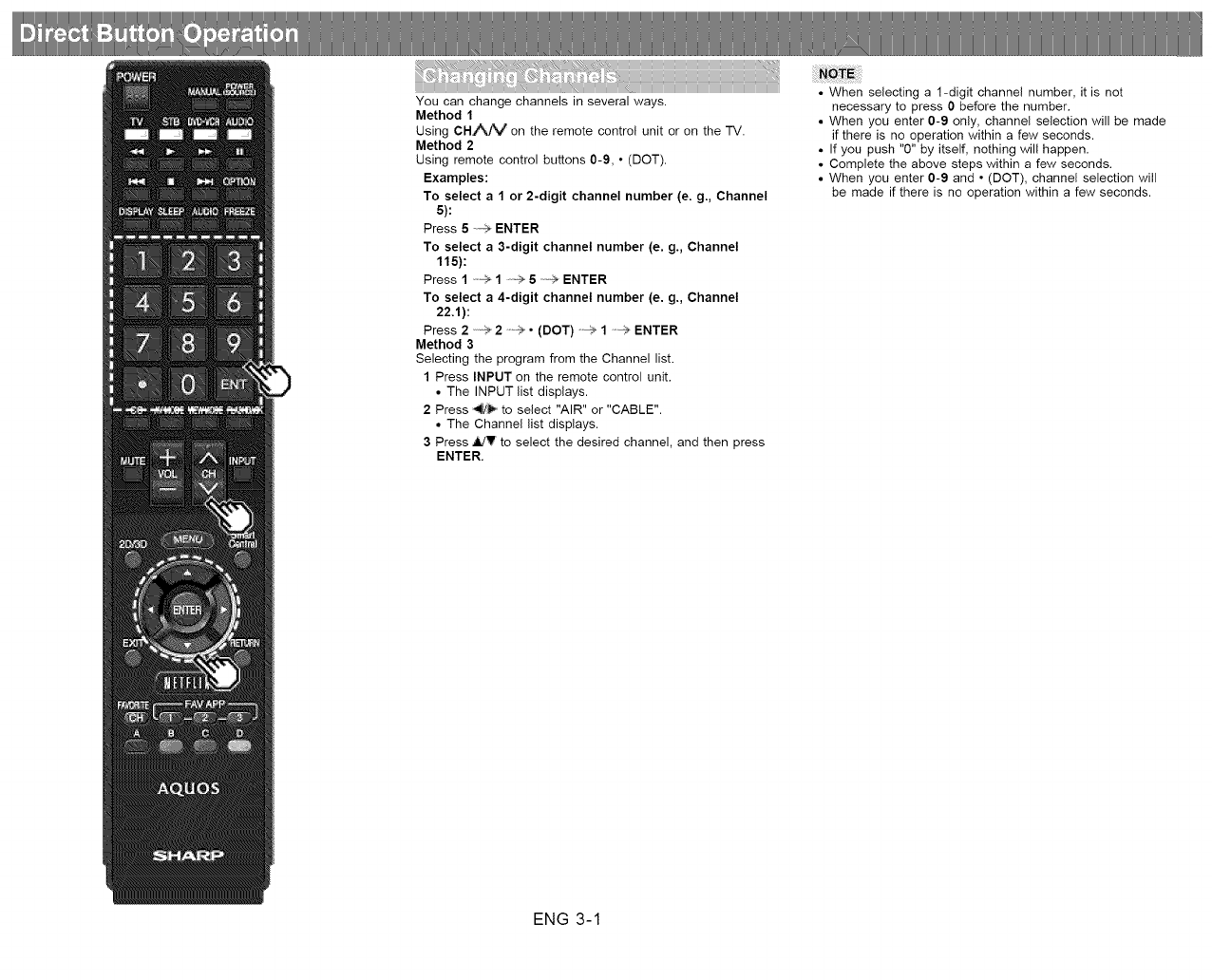

3-1. Changing Channels

3-2. Changing Volume

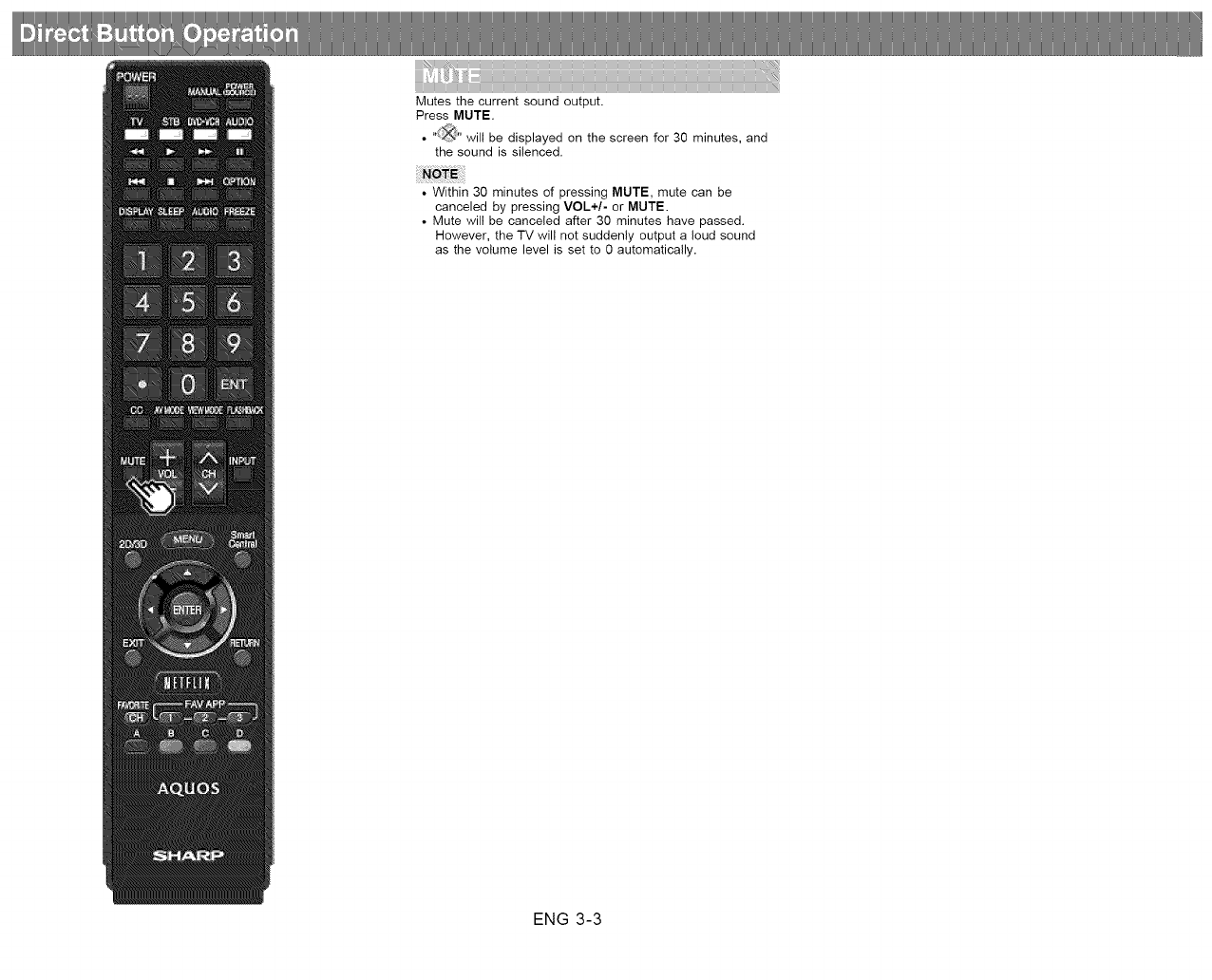

3-3. MUTE

3-4. FREEZE

3-5. FLASHBACK

3-6. SmartCentral

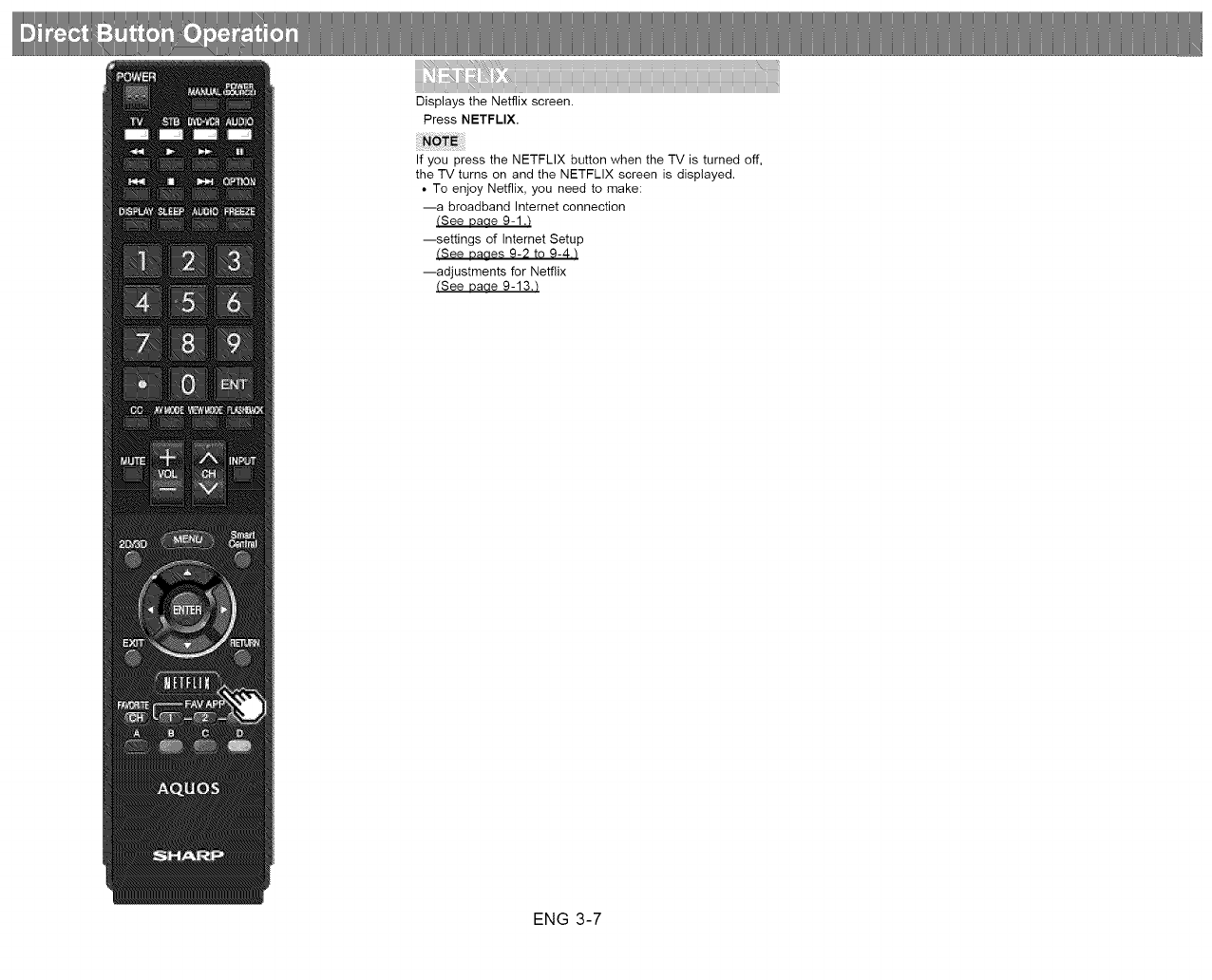

3-7. NETFLIX

3-8. AUDIO

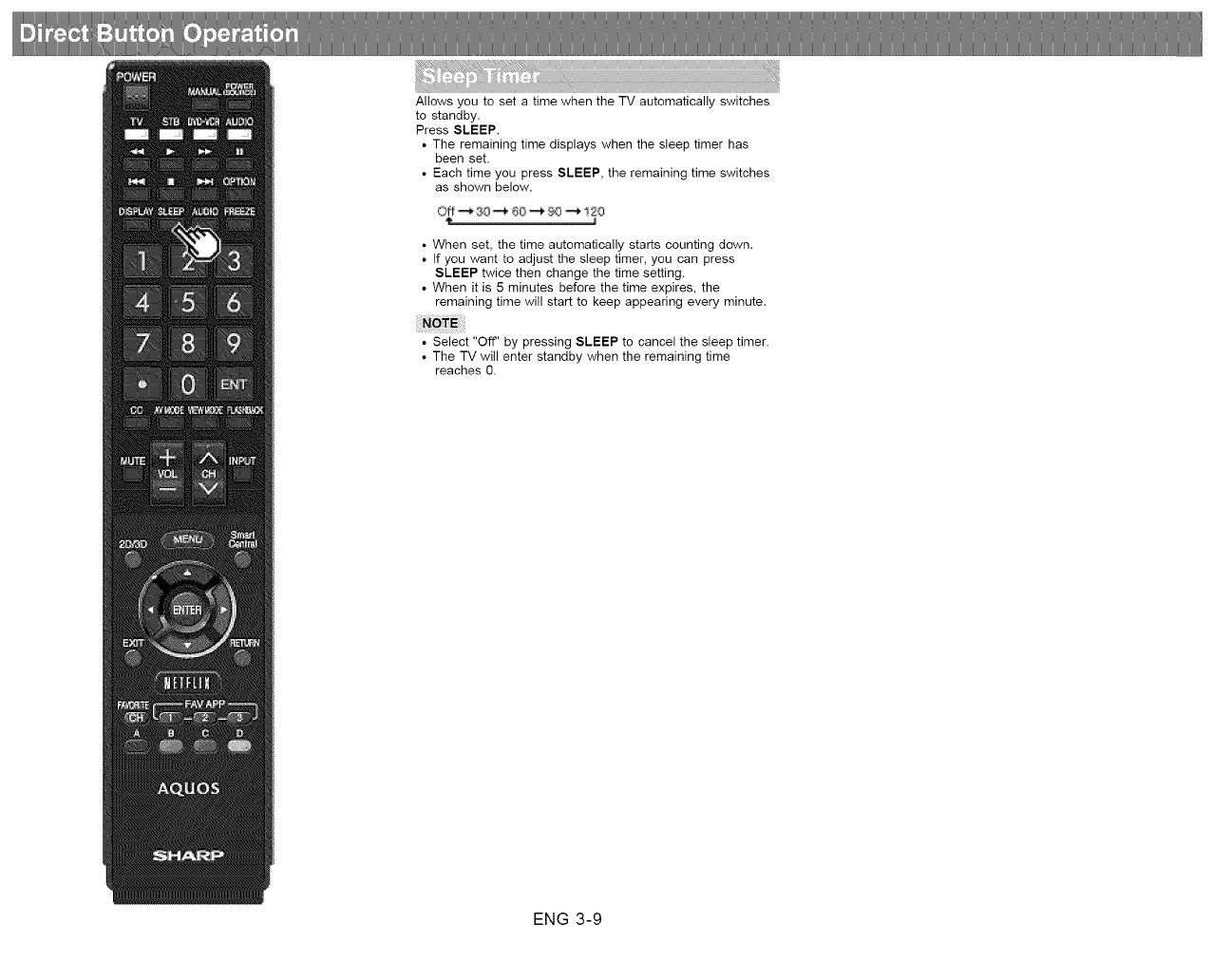

3-9. Sleep Timer

3-10. AV MODE

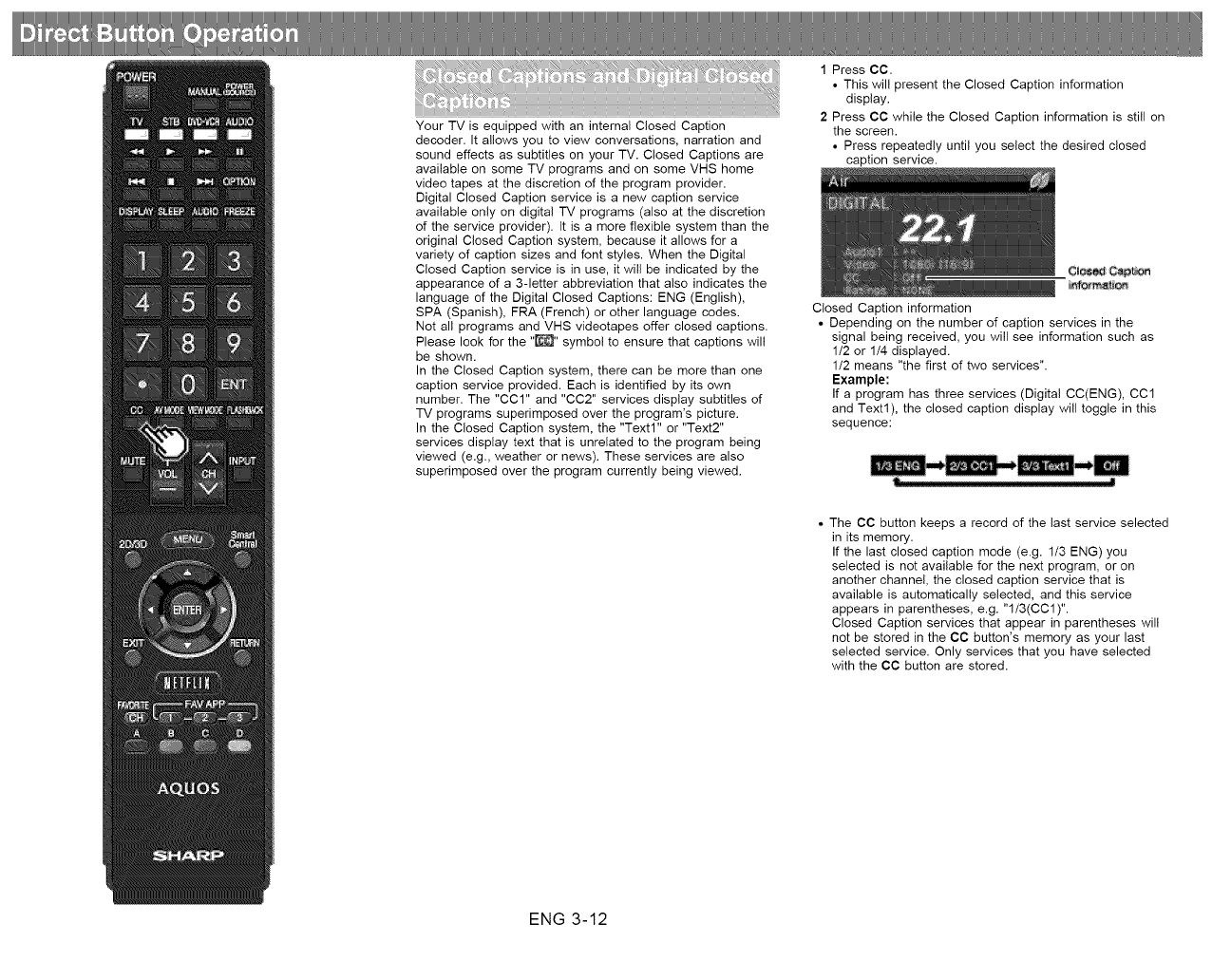

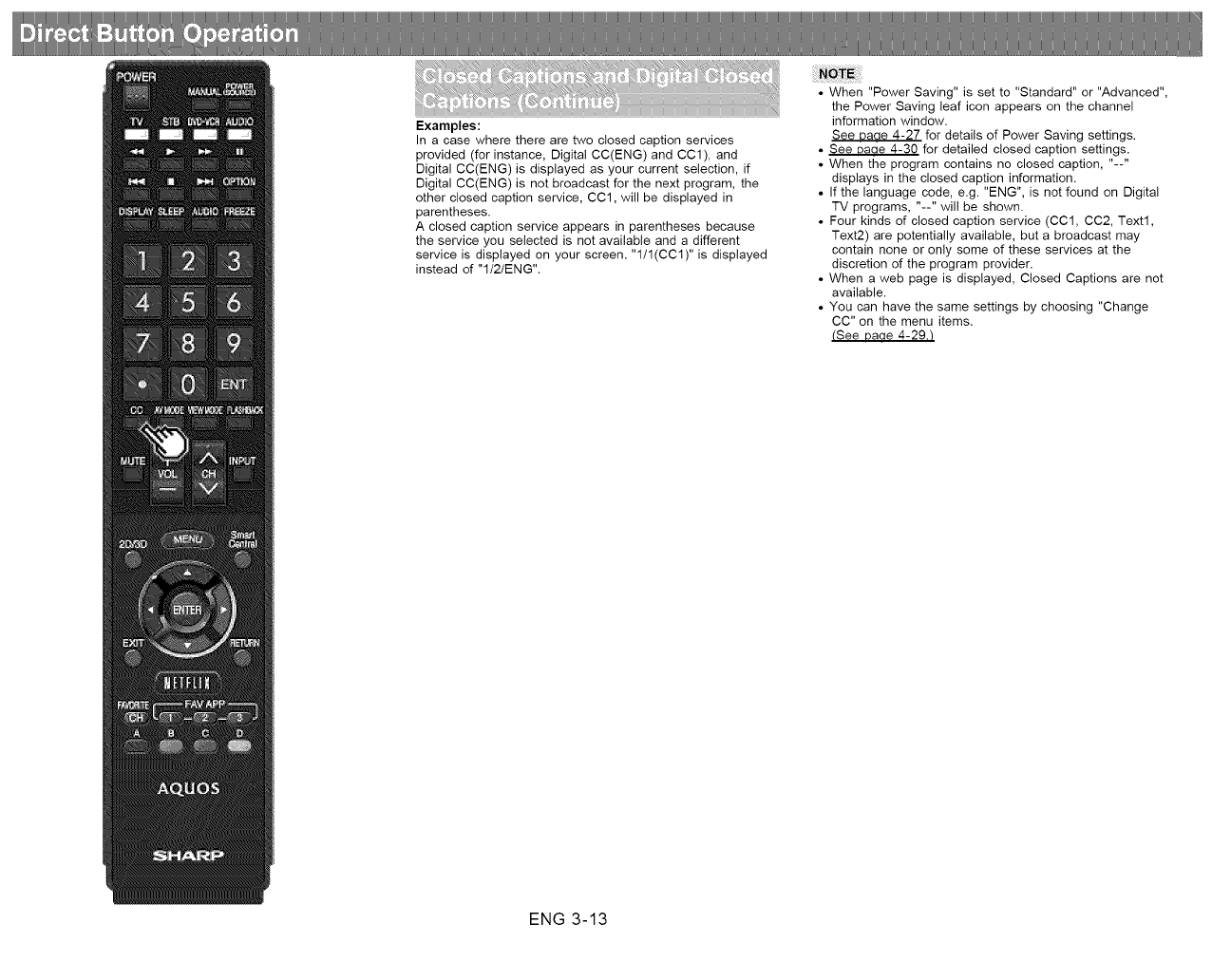

3-12. Closed Captions and Digital Closed Captions

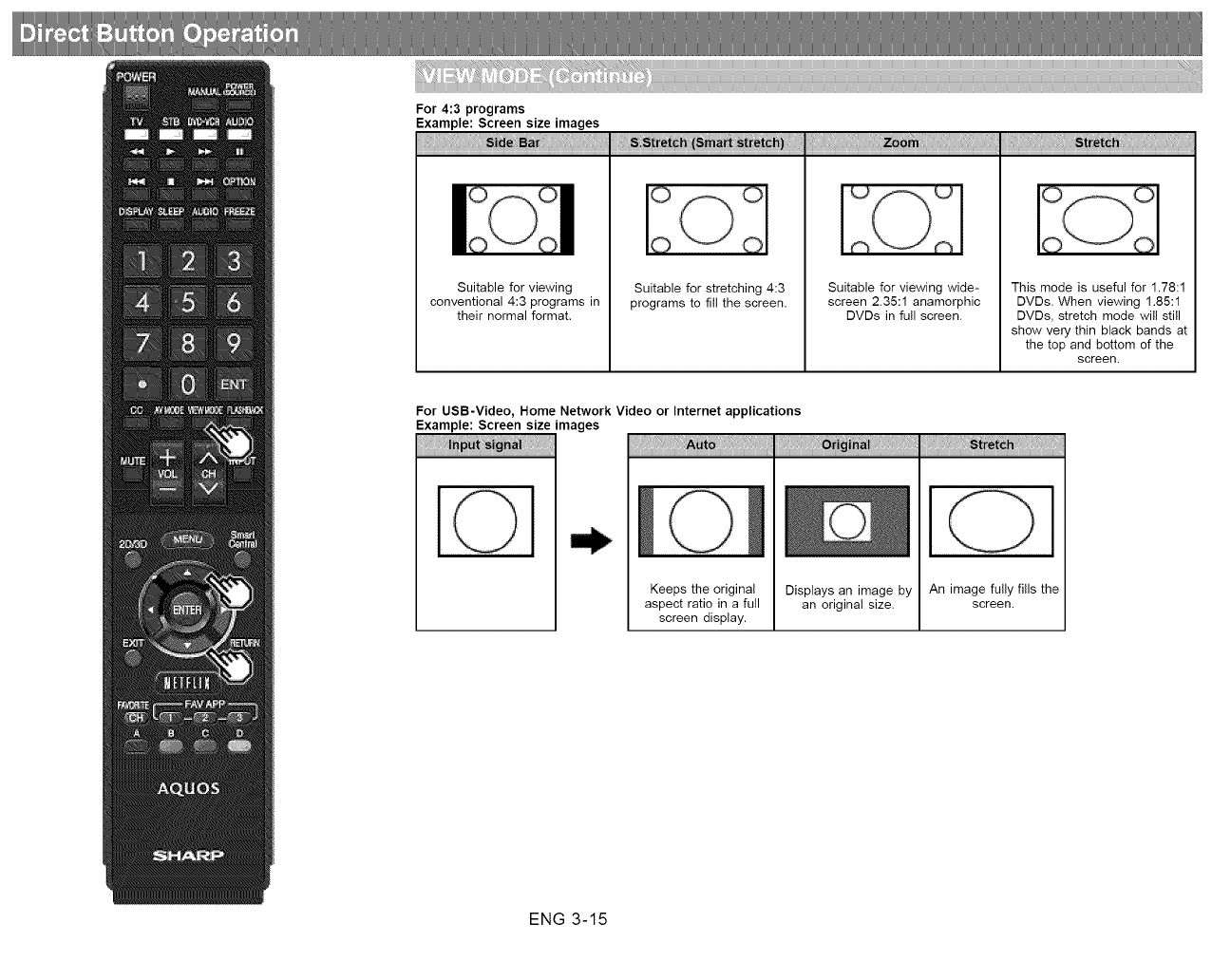

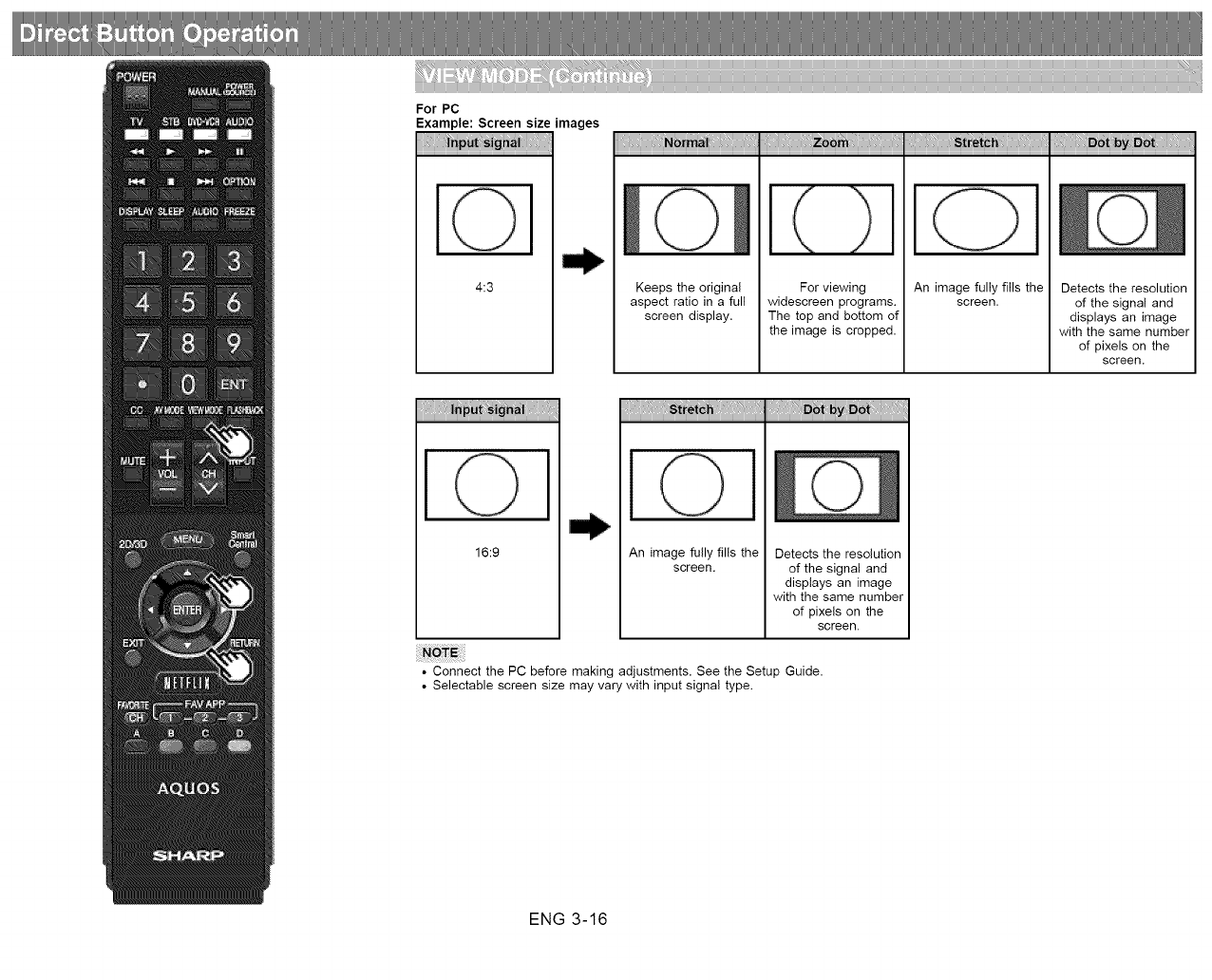

3-14. VIEW MODE

4. On-Screen Display Menu

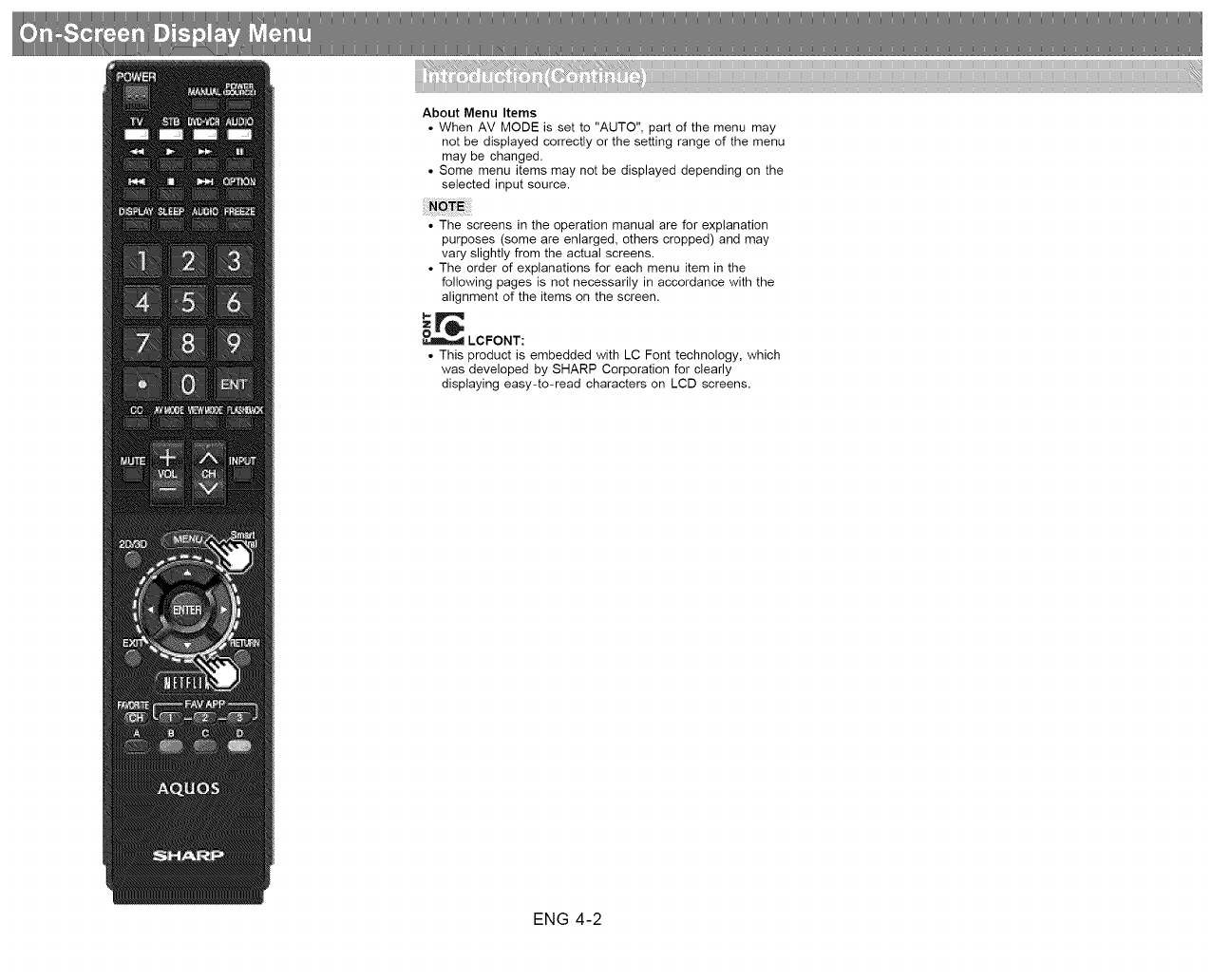

4-1. Introduction

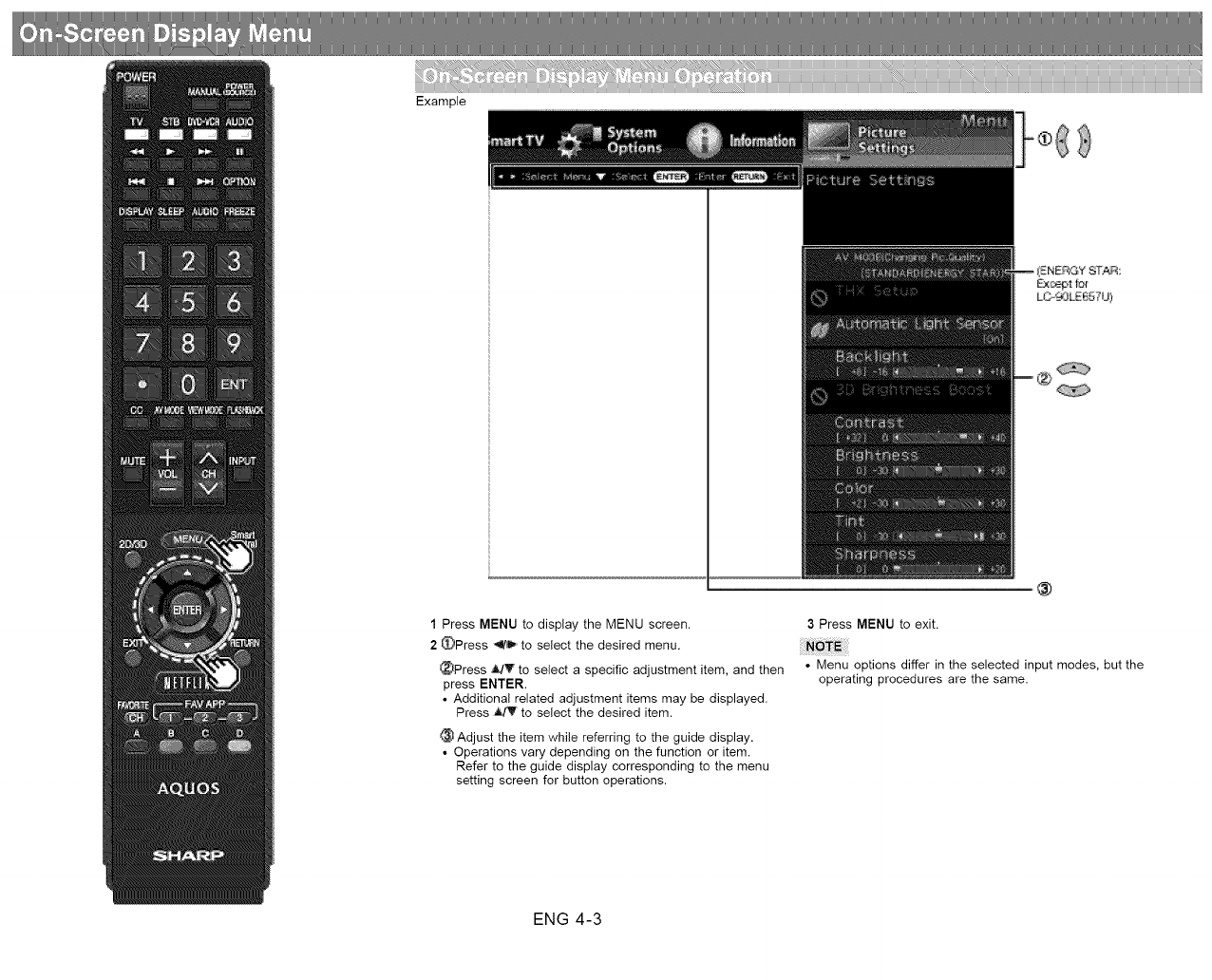

4-3. On-Screen Display Menu Operation

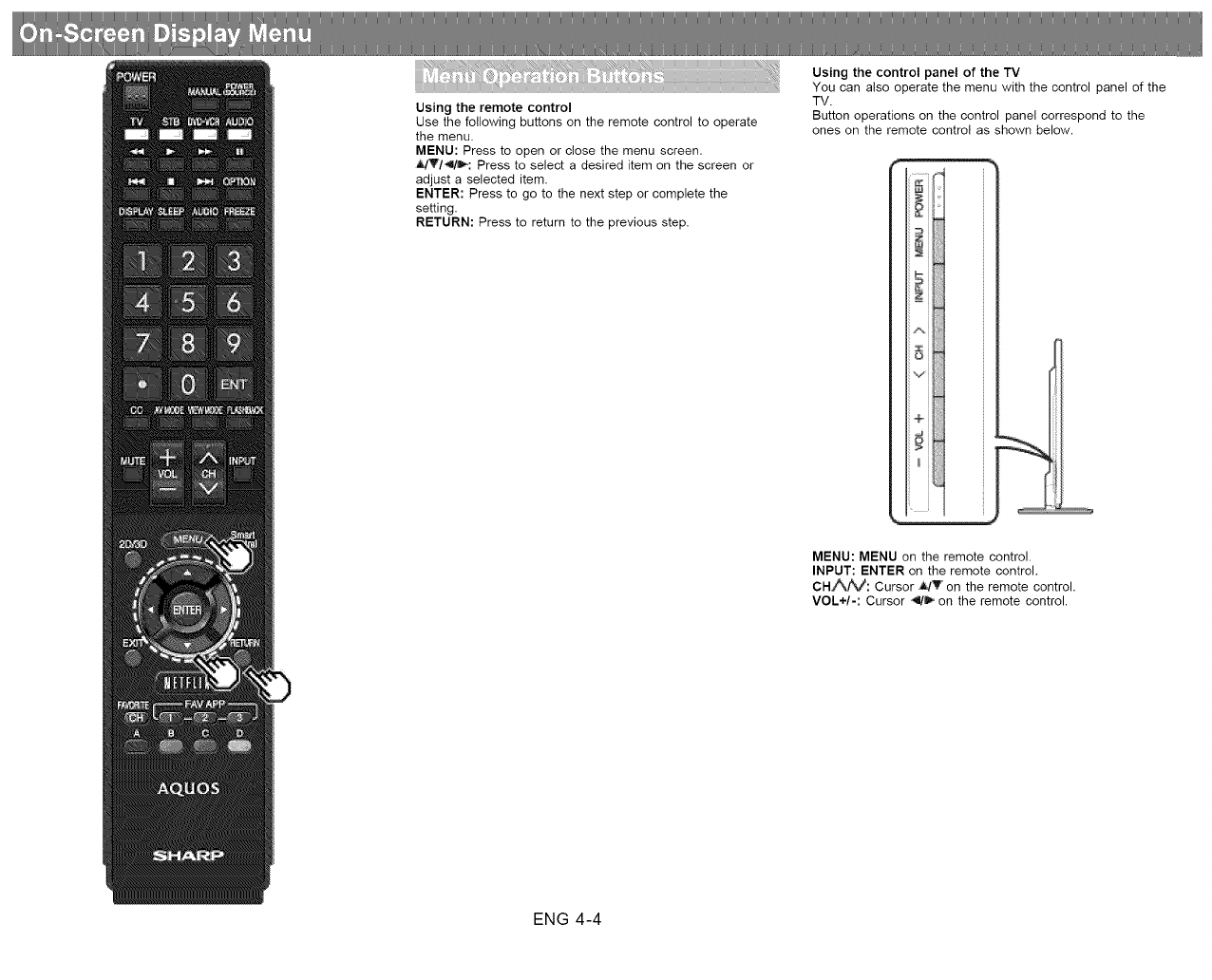

4-4. Menu Operation Buttons

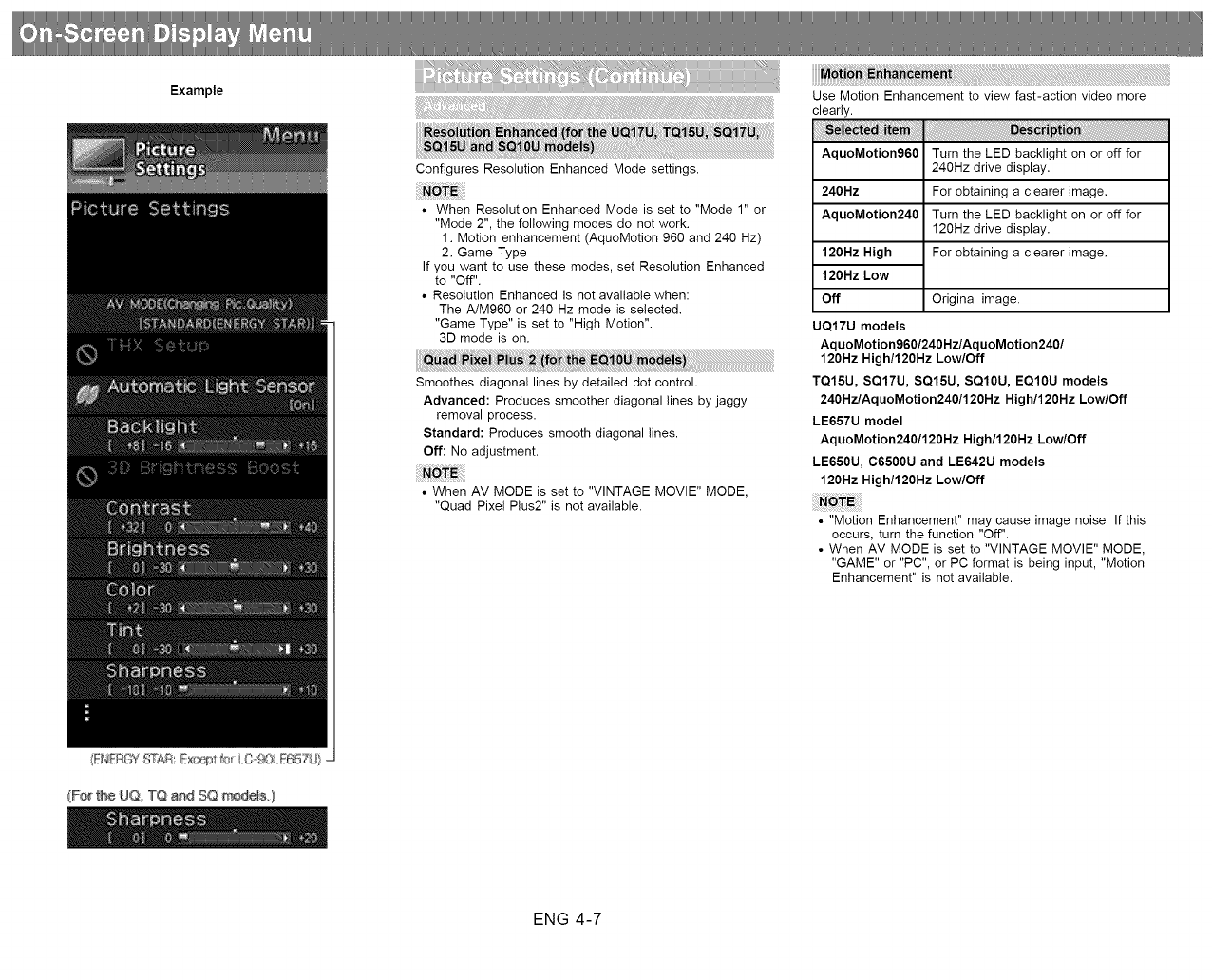

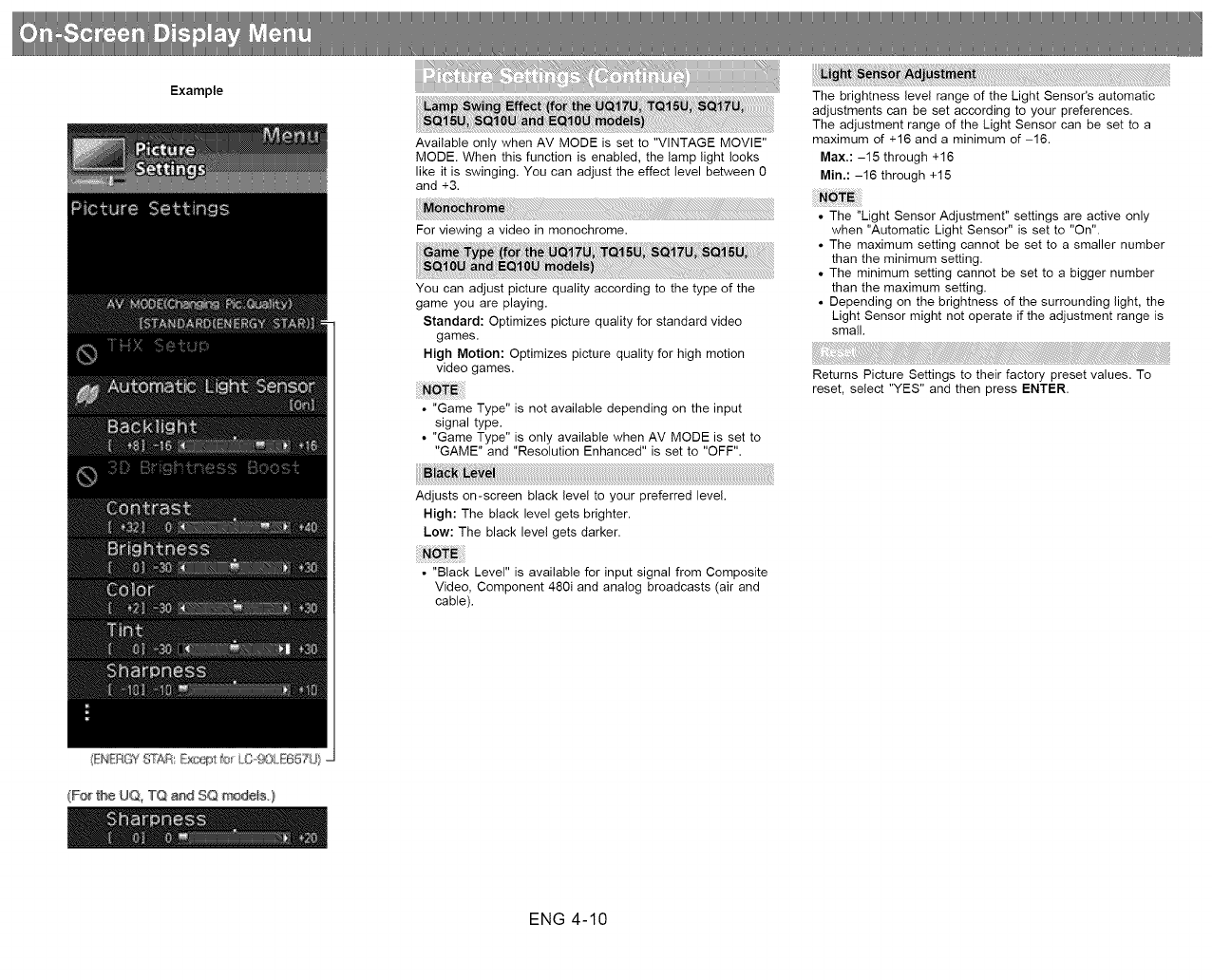

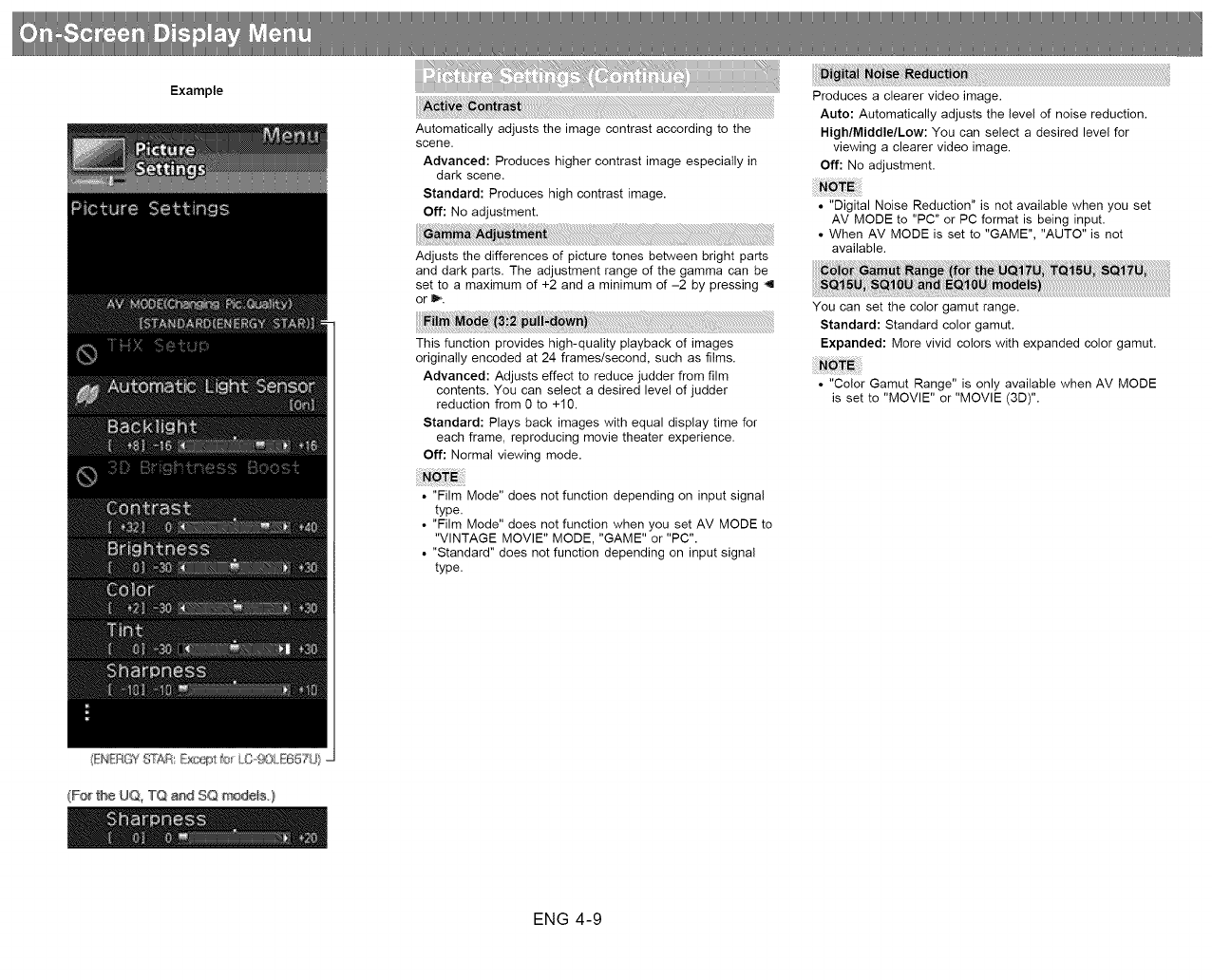

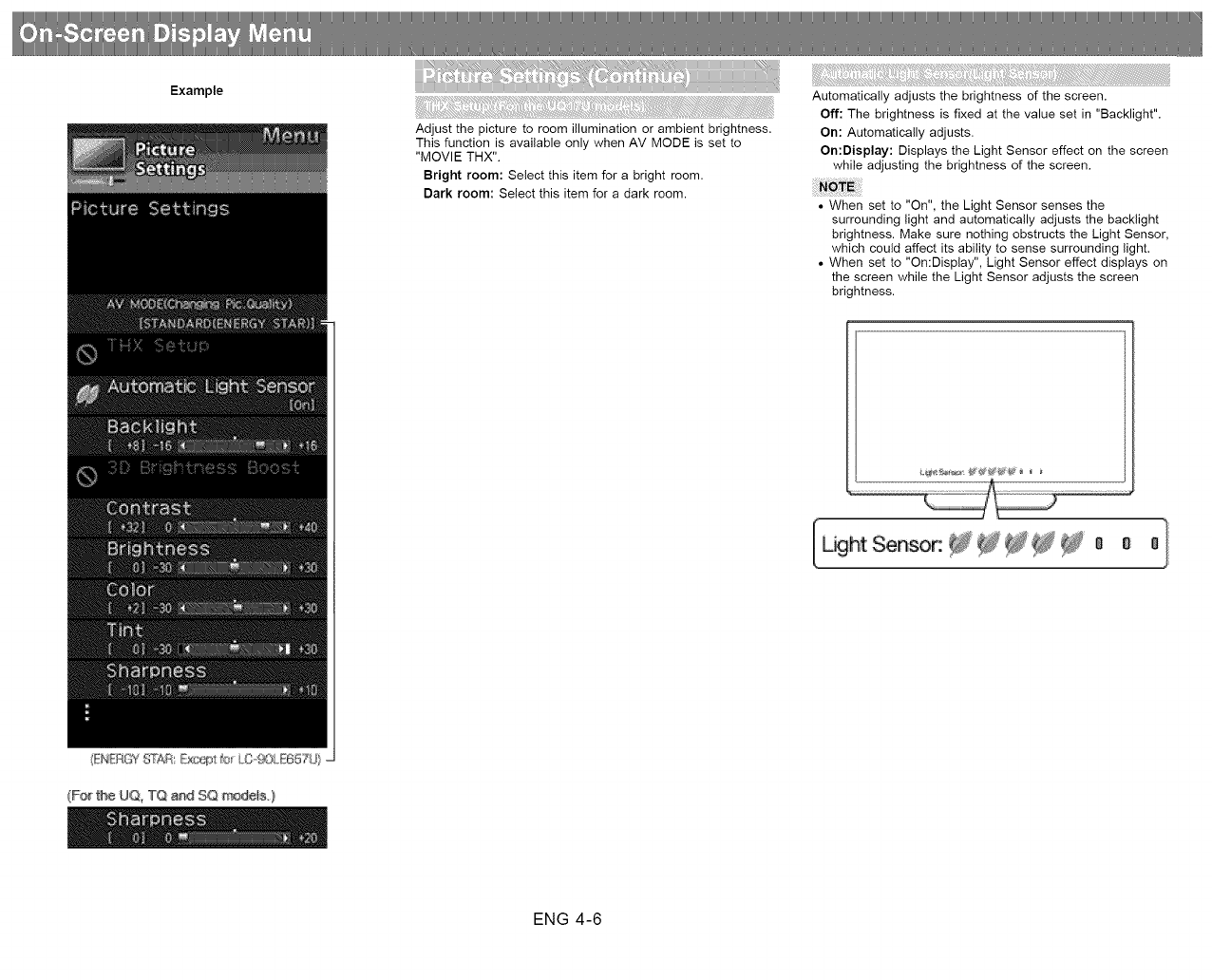

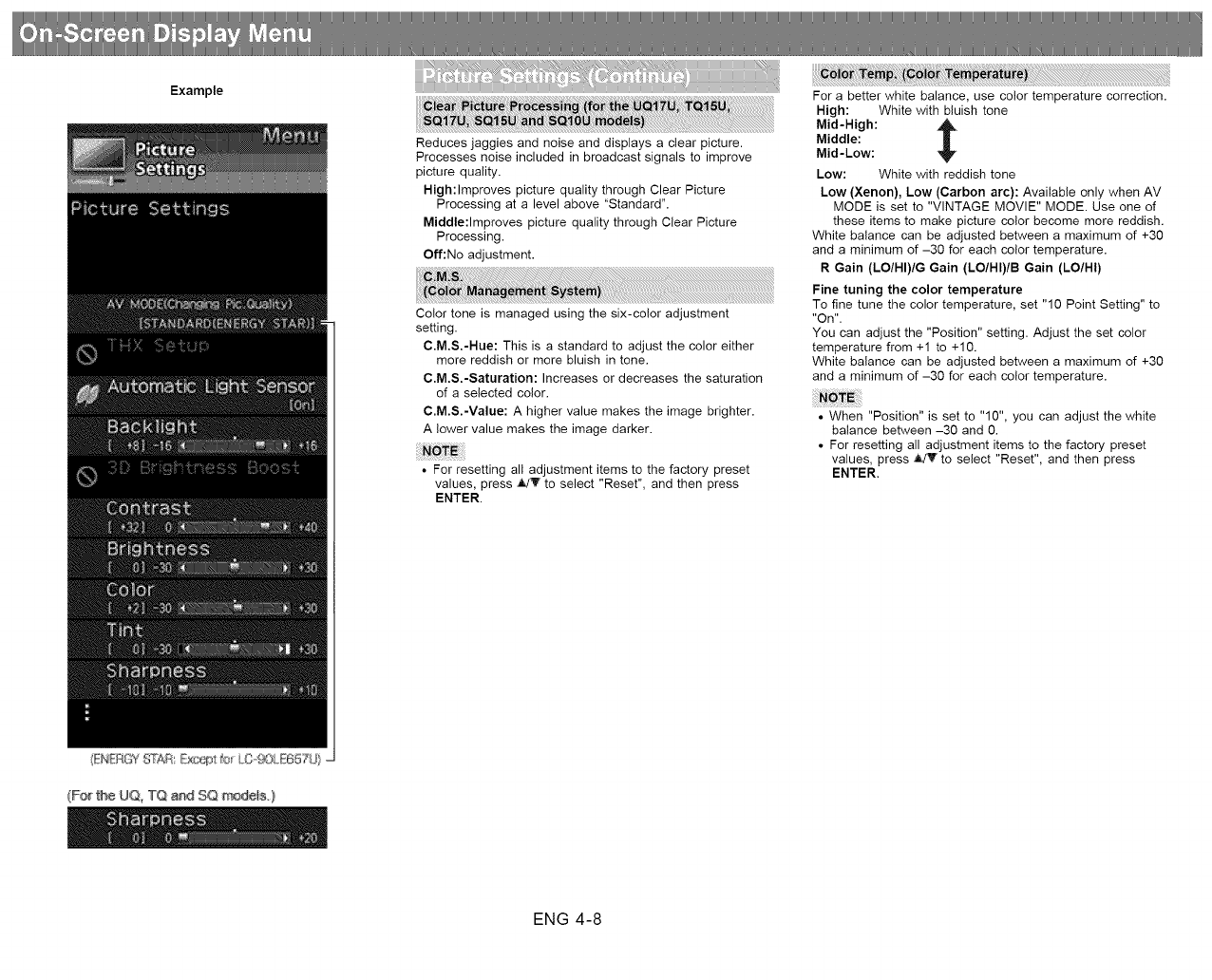

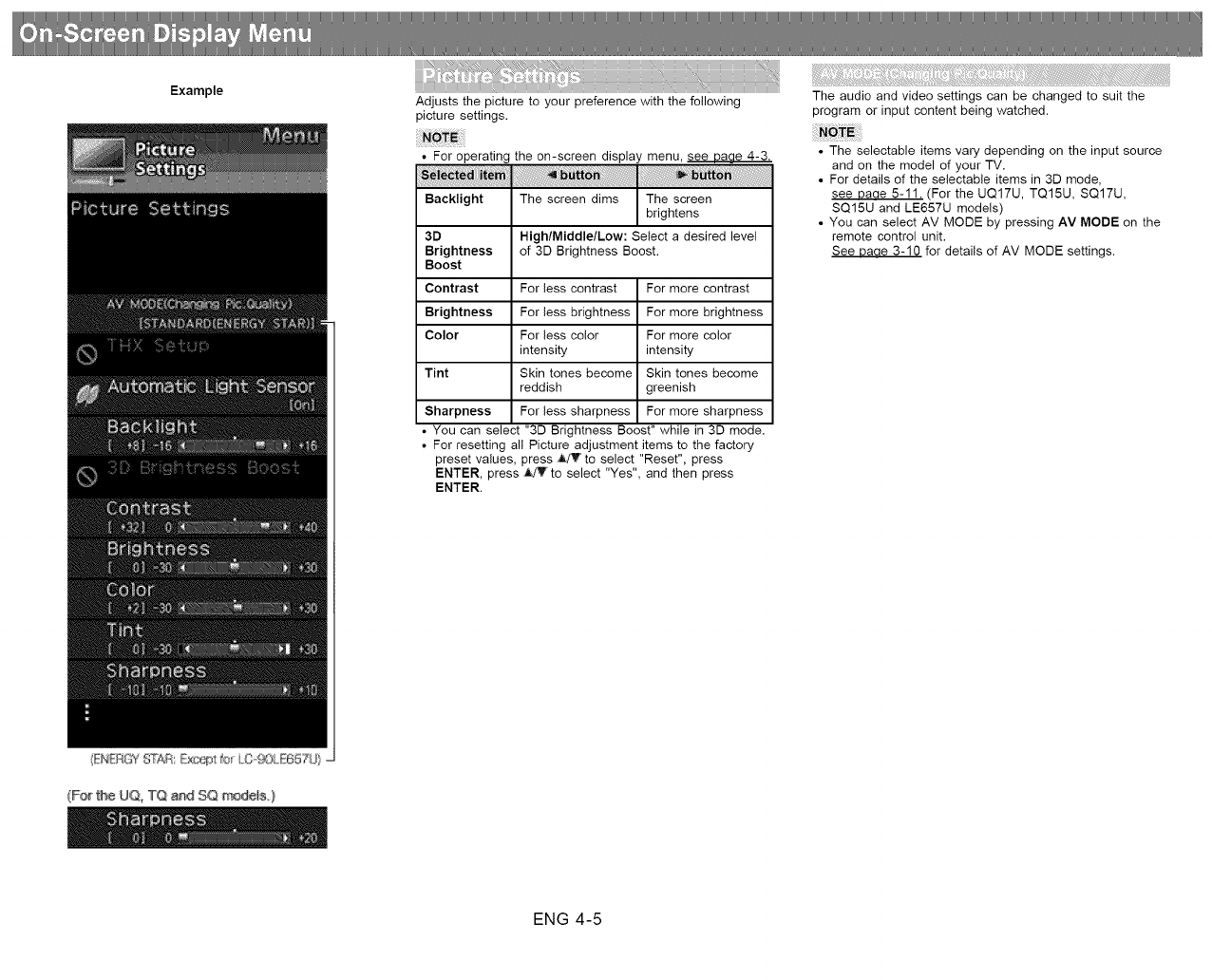

4-5. Picture Settings

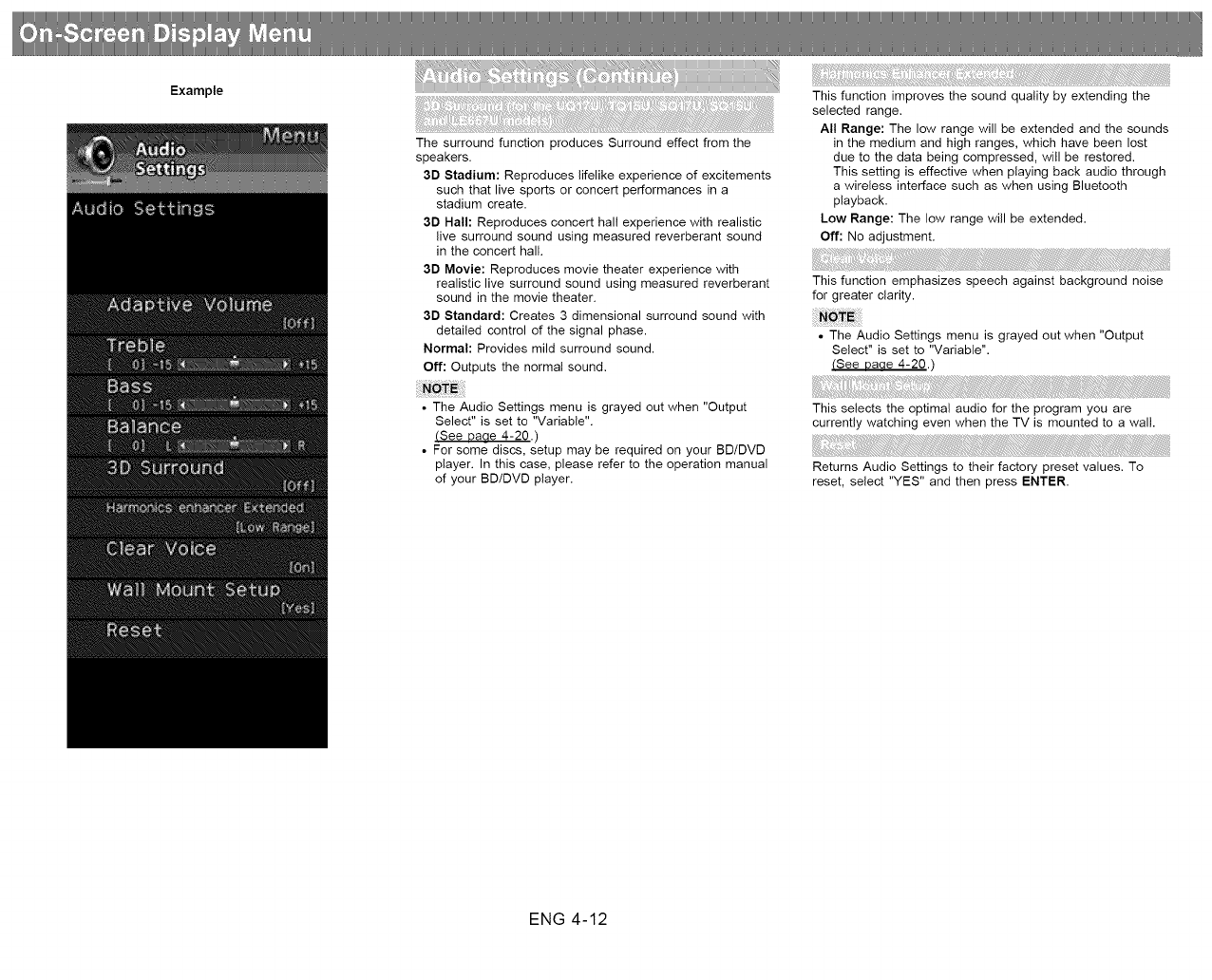

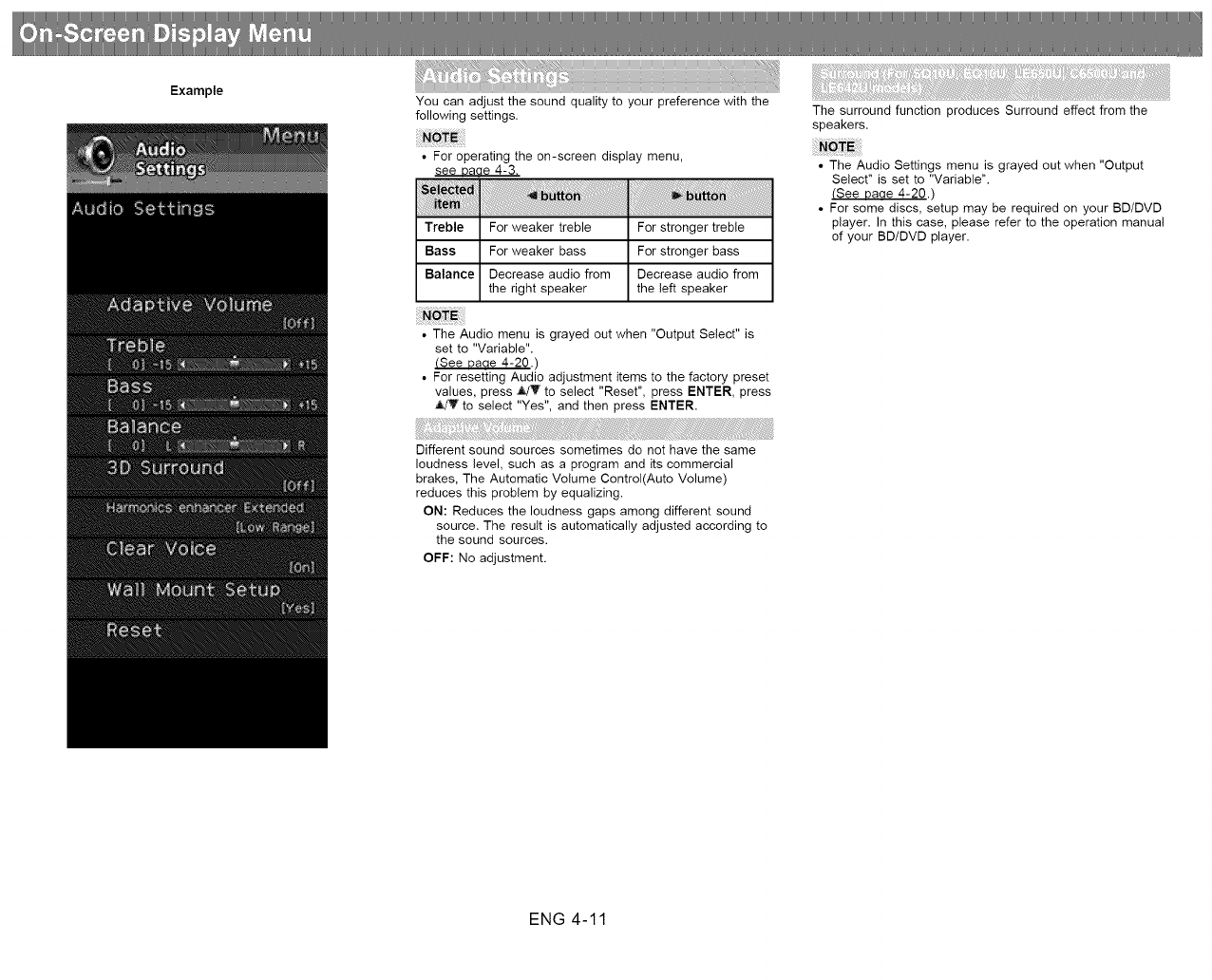

4-11. Audio Settings

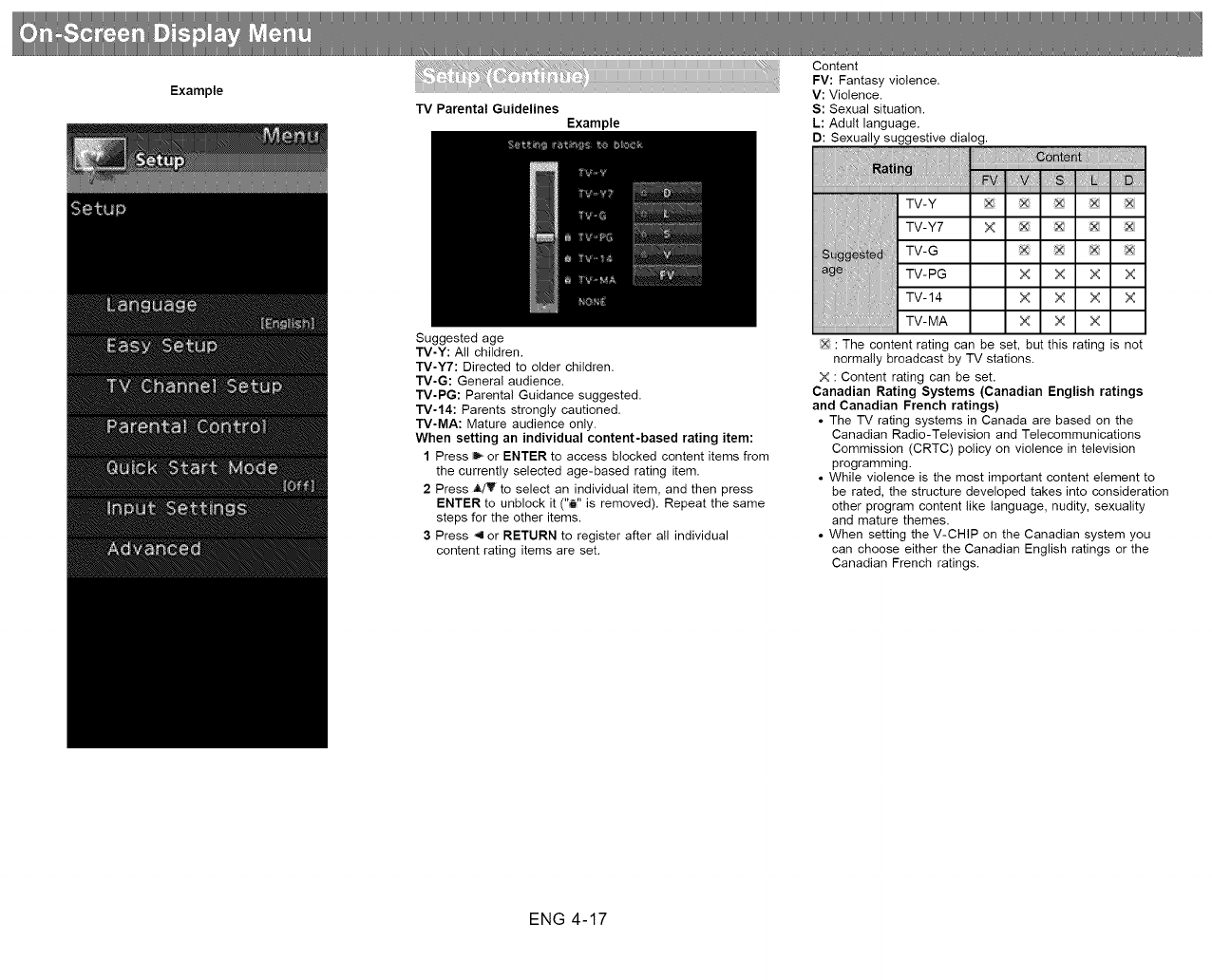

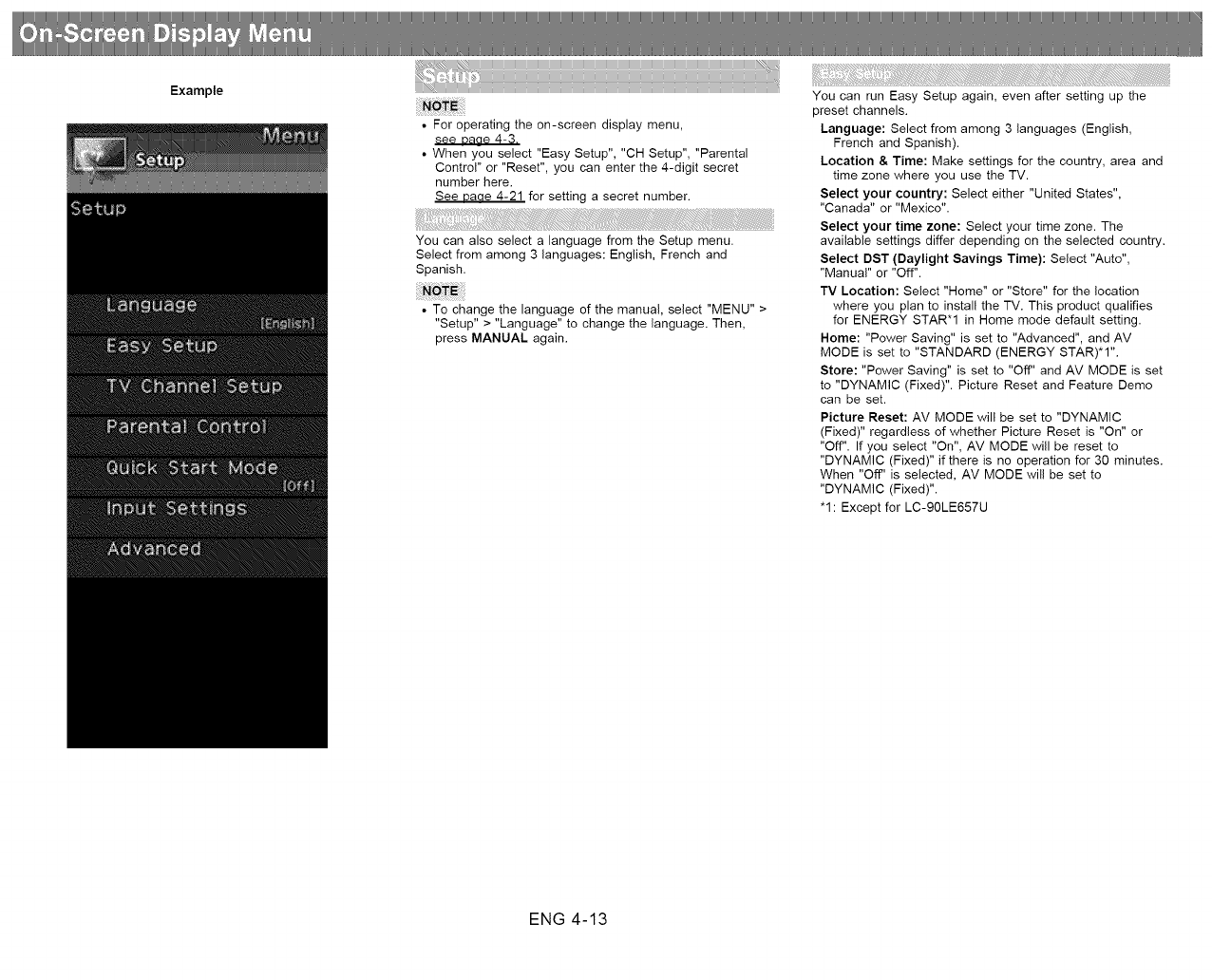

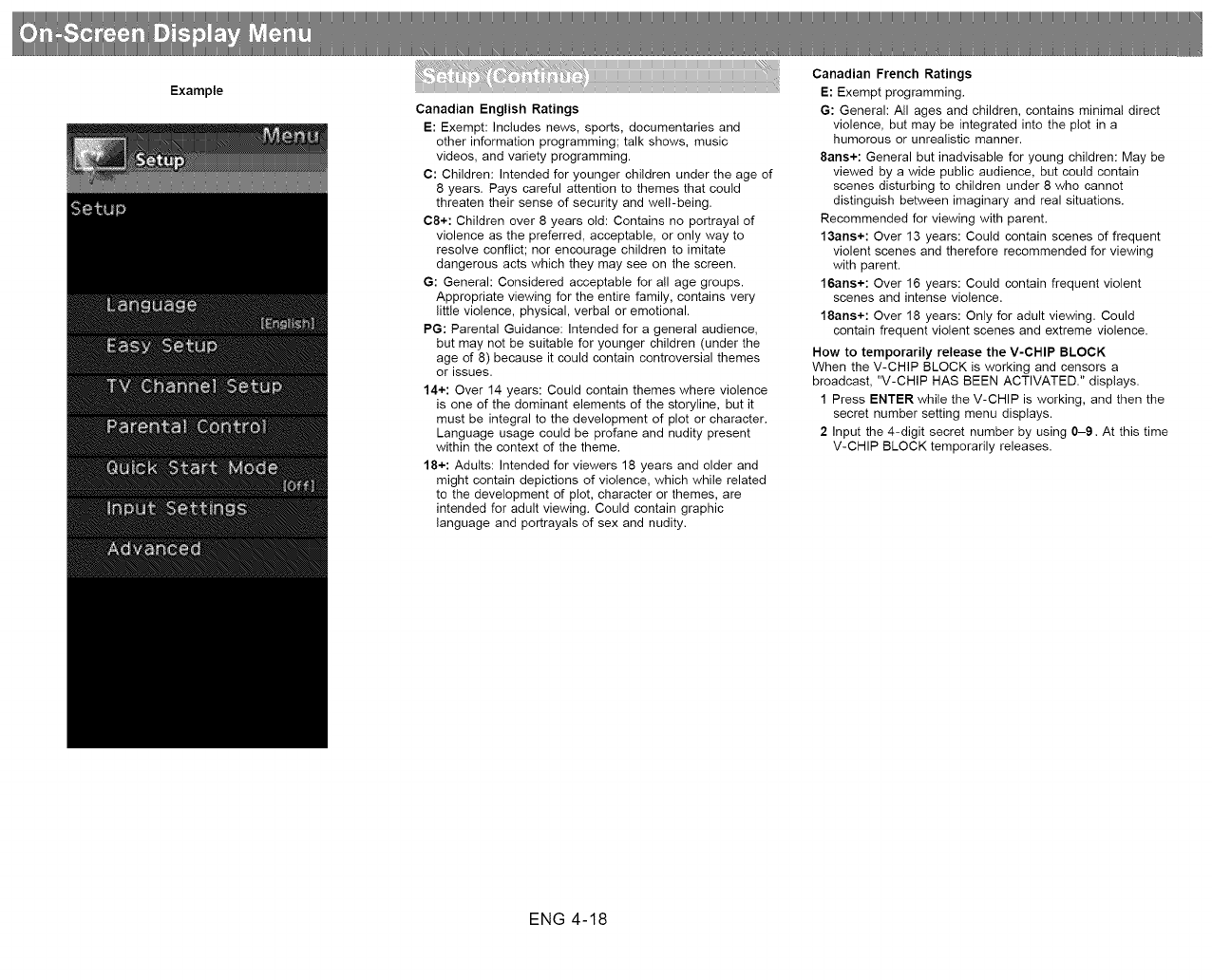

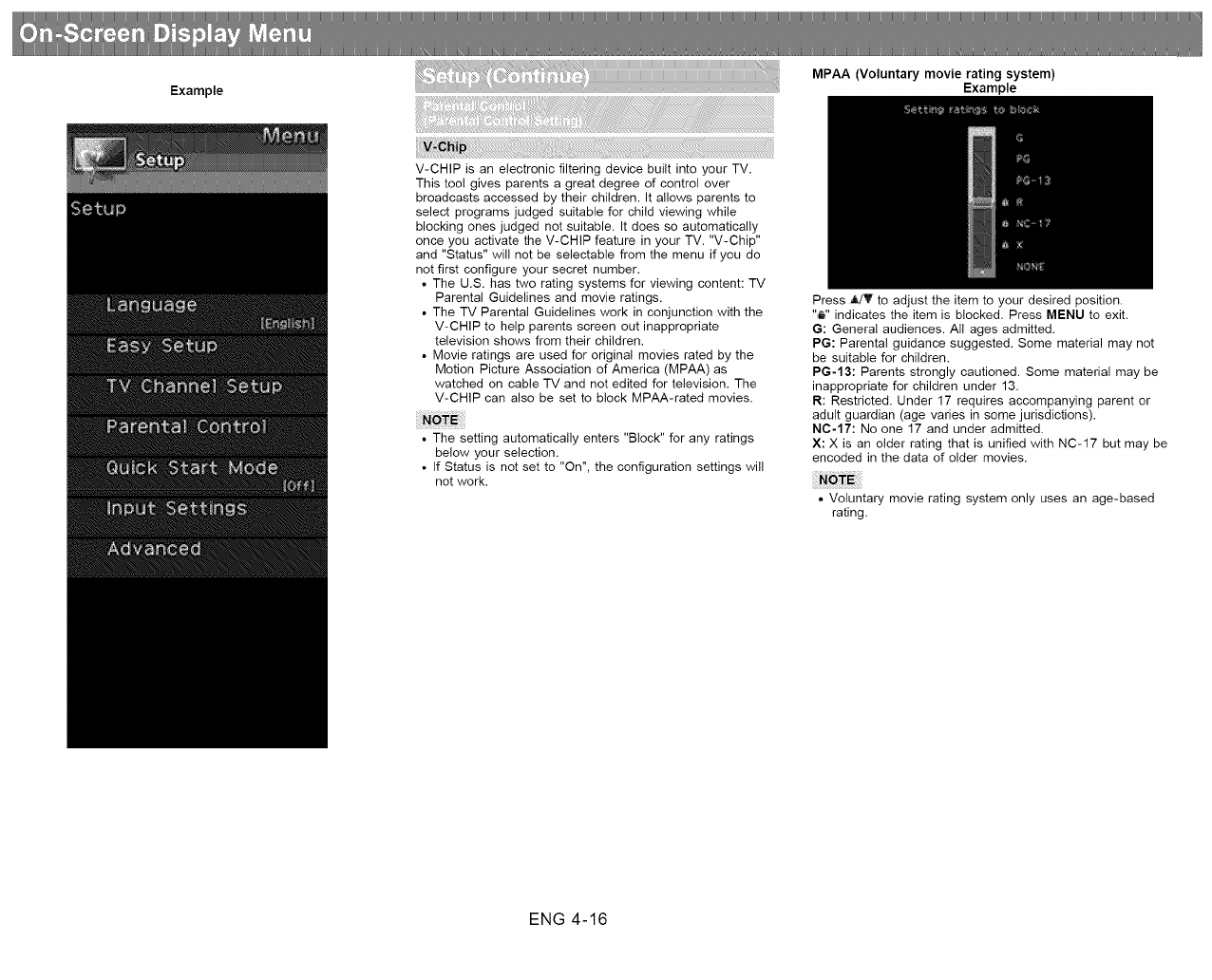

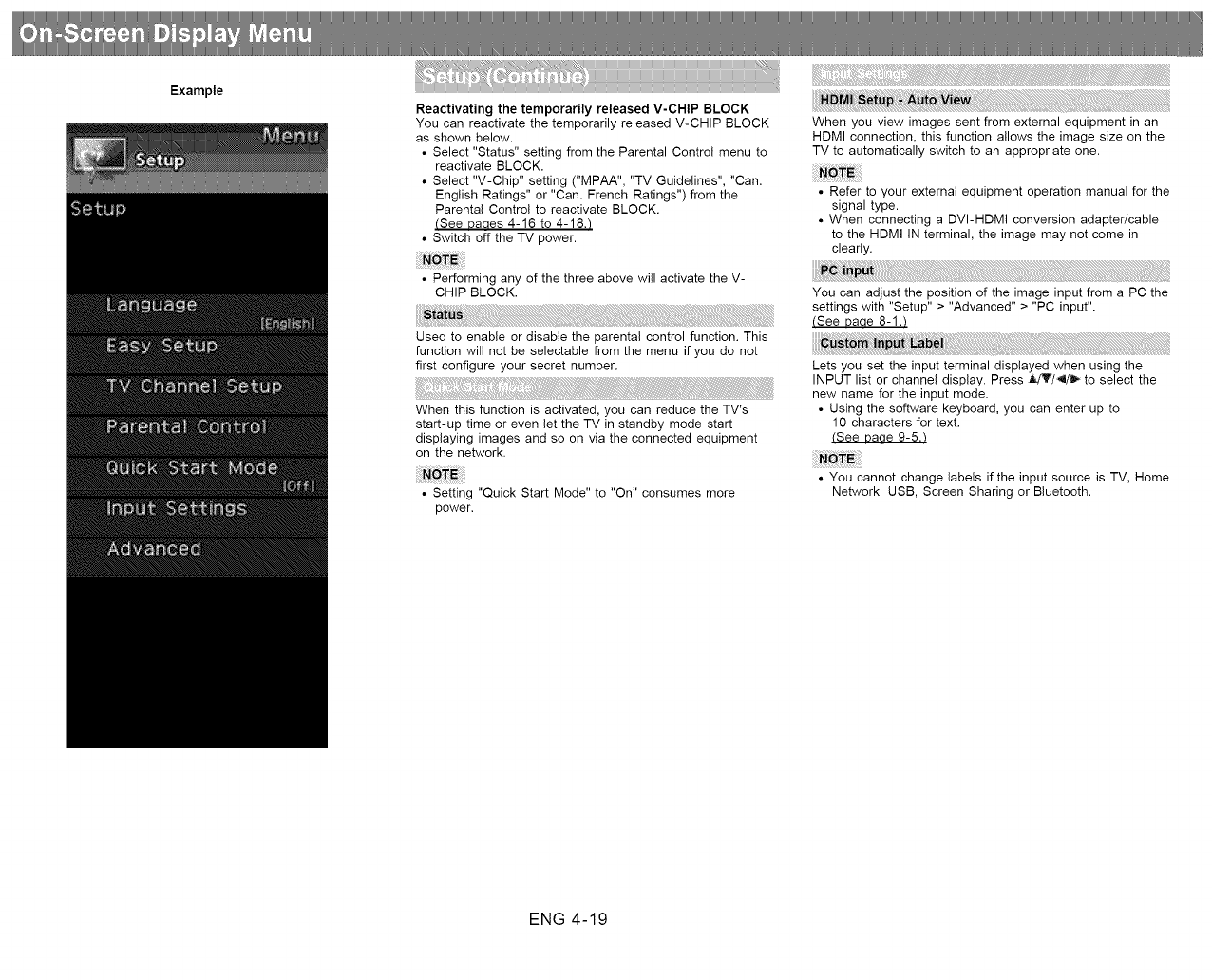

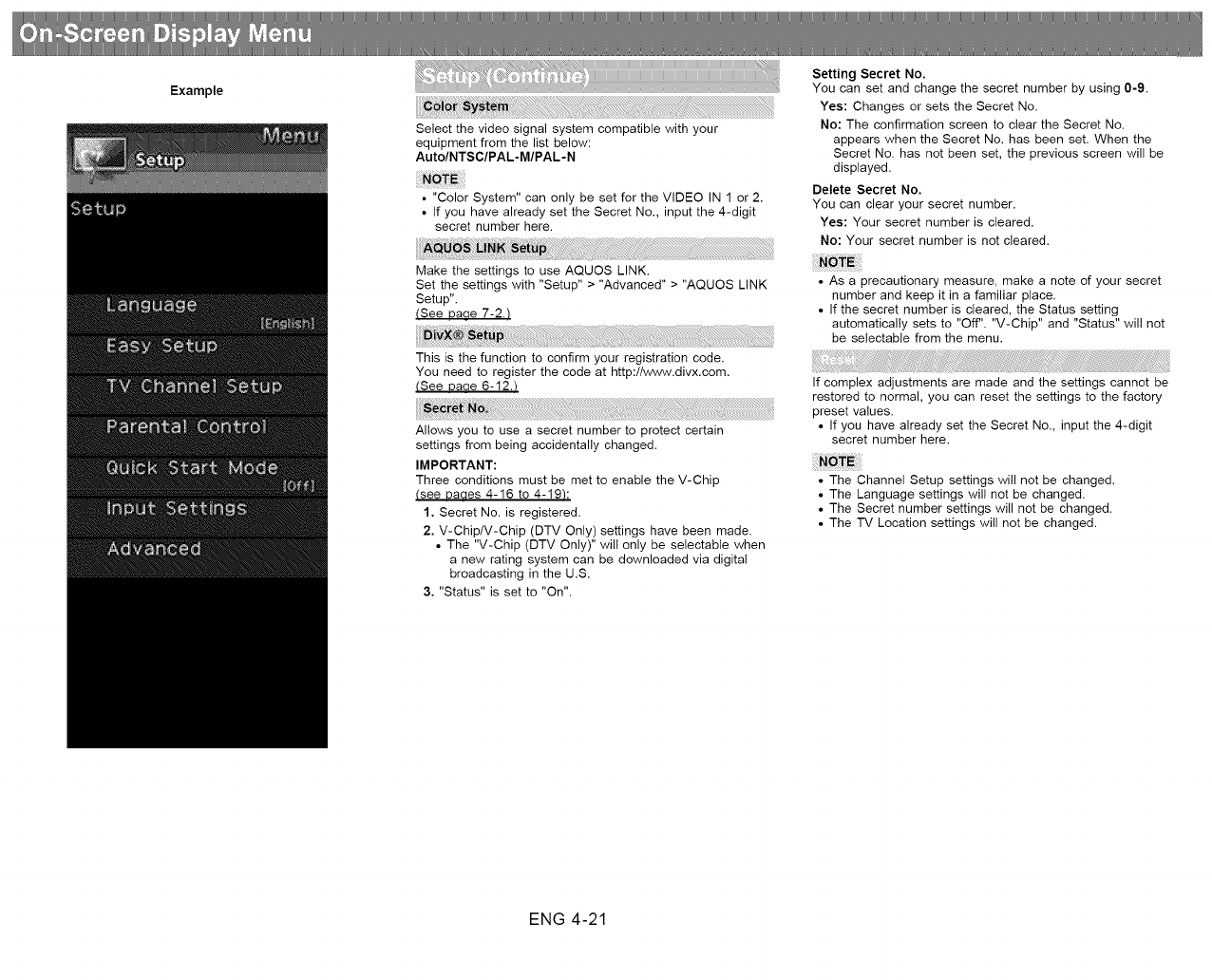

4-13. Setup

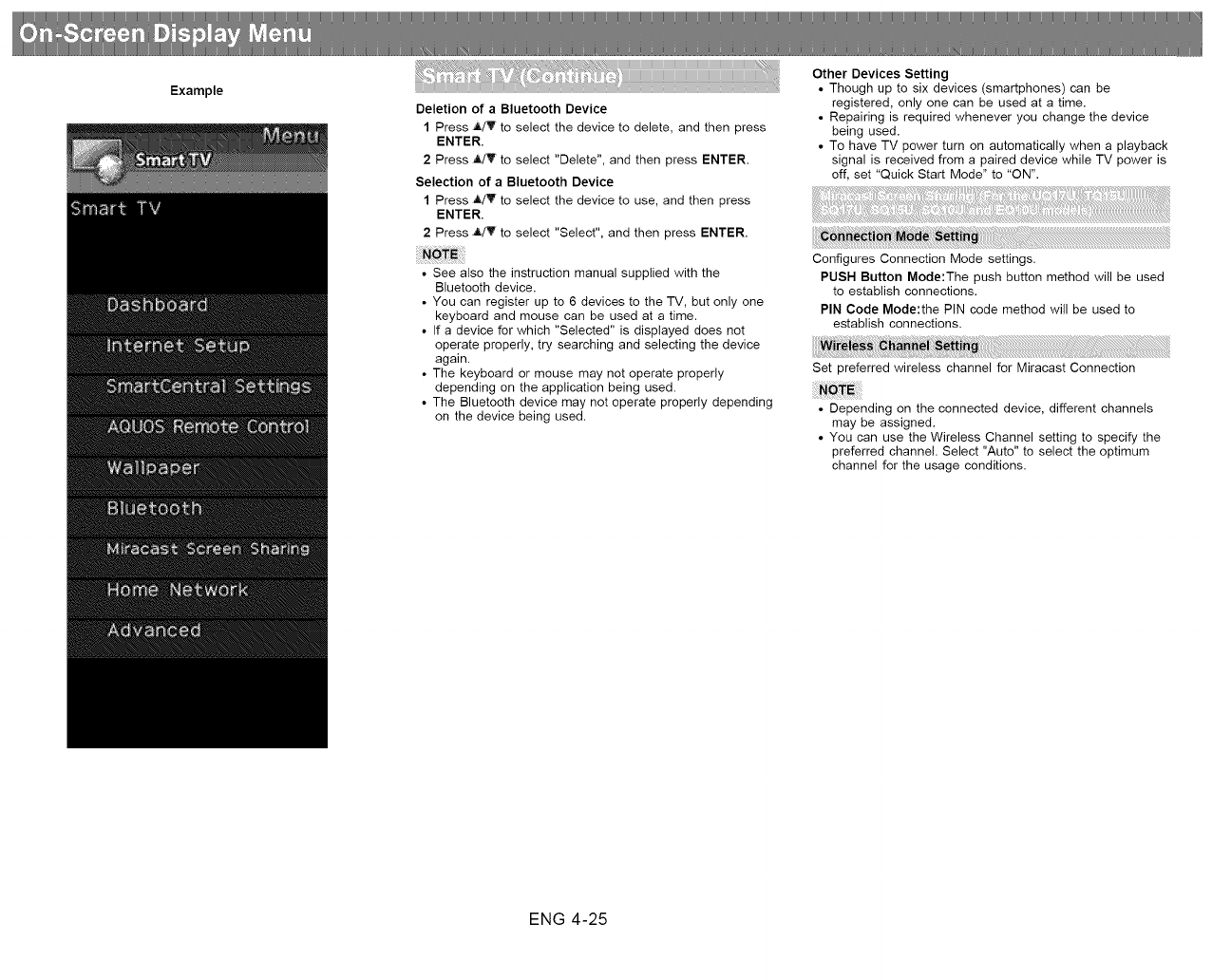

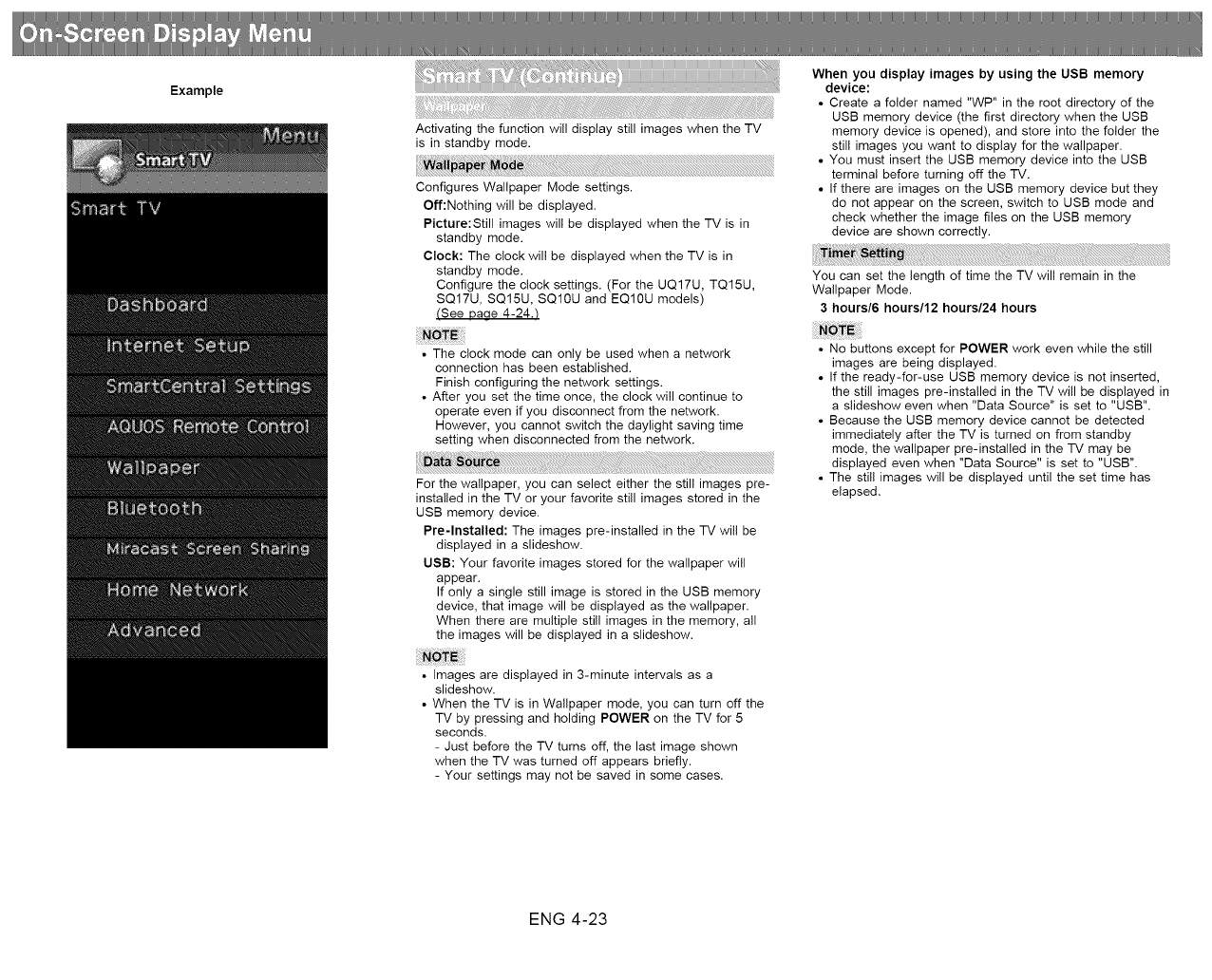

4-22. Smart "IV

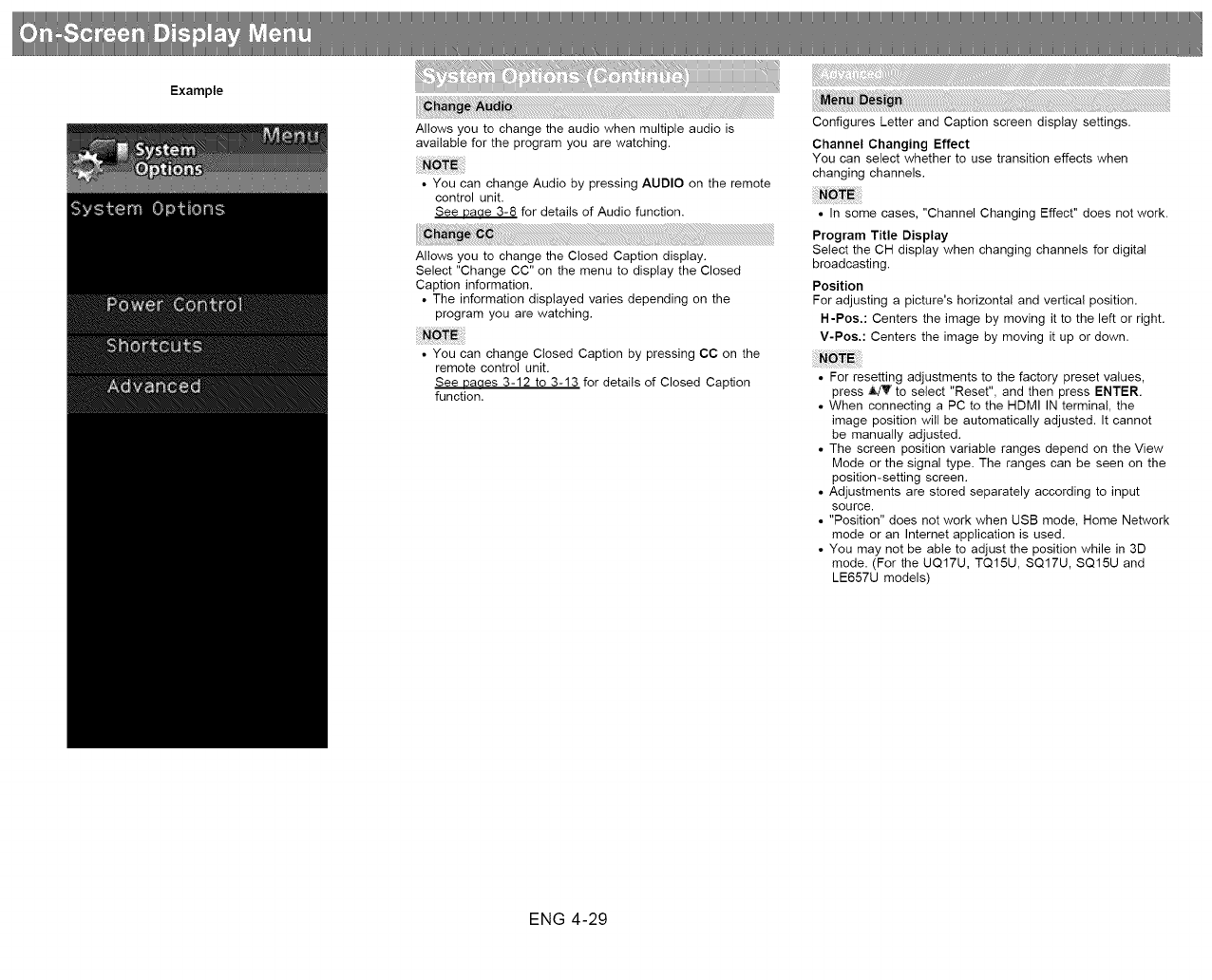

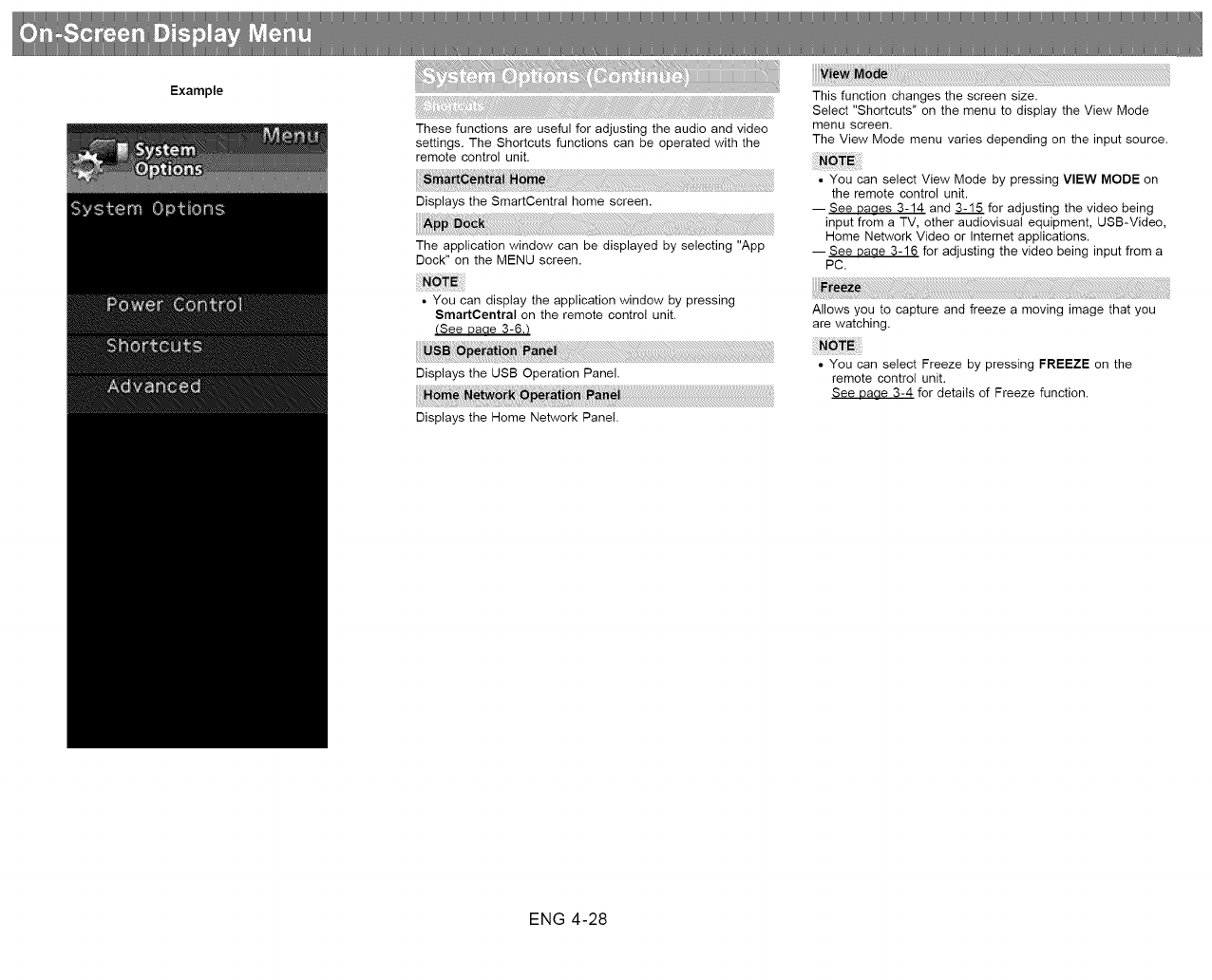

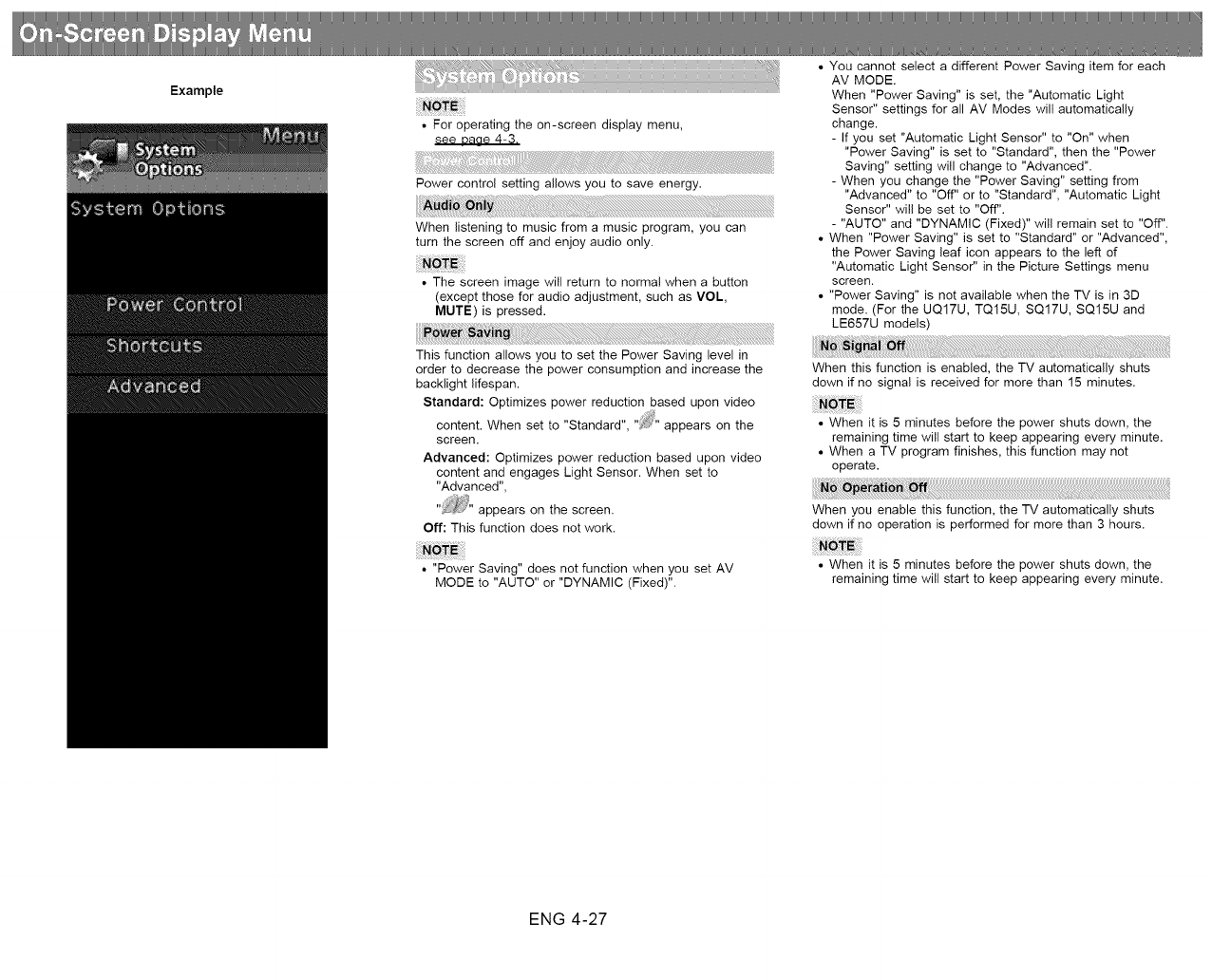

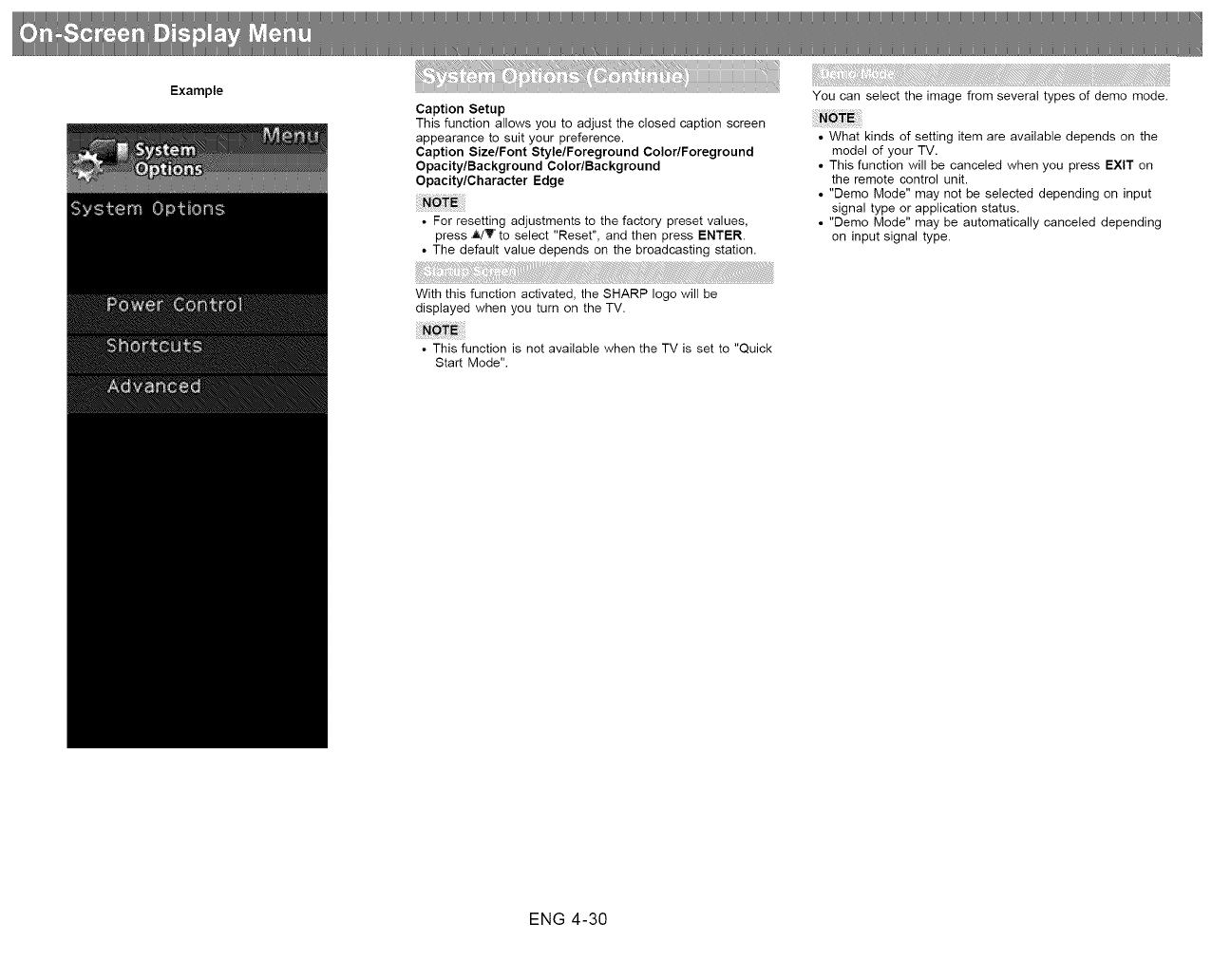

4-27. System Options

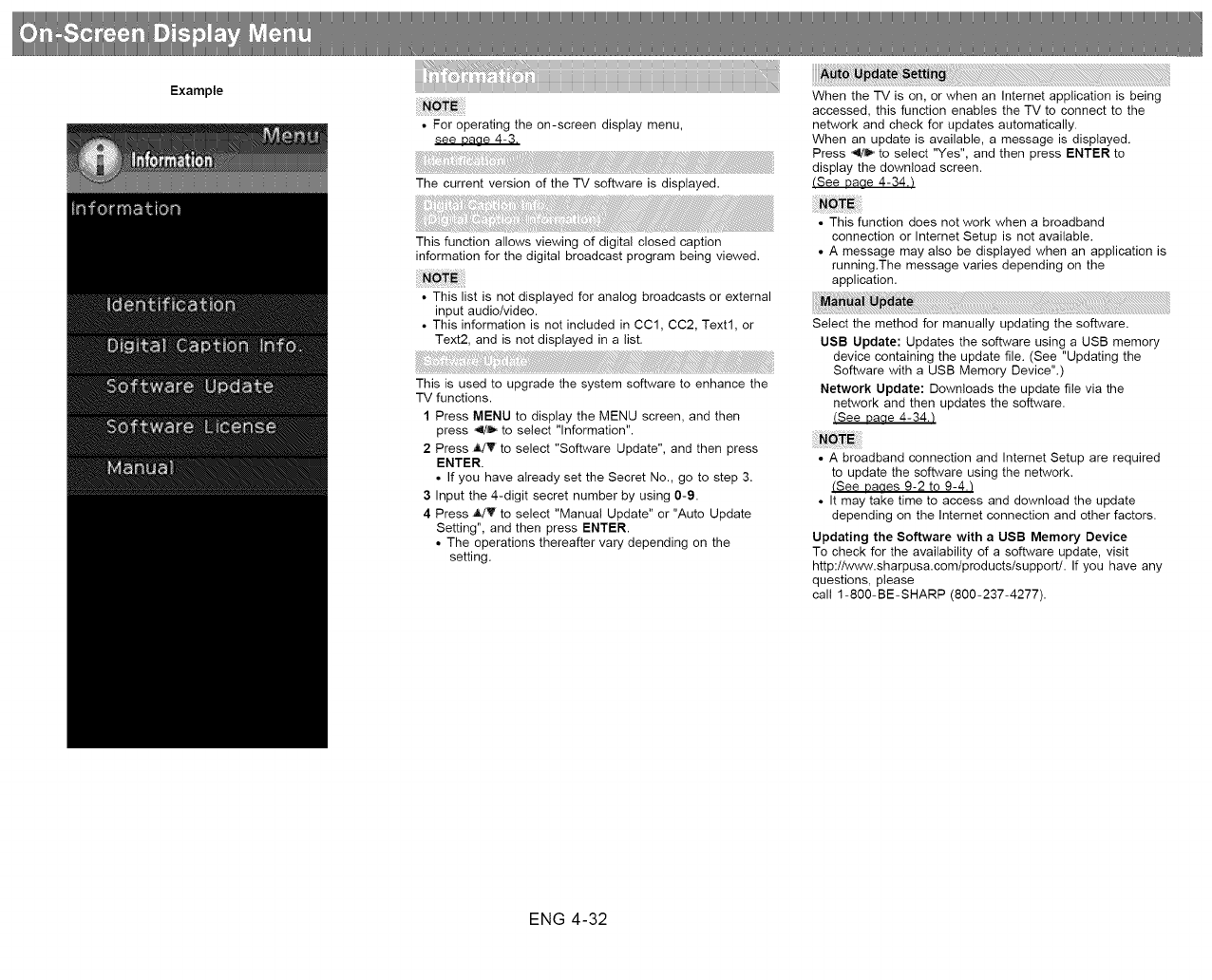

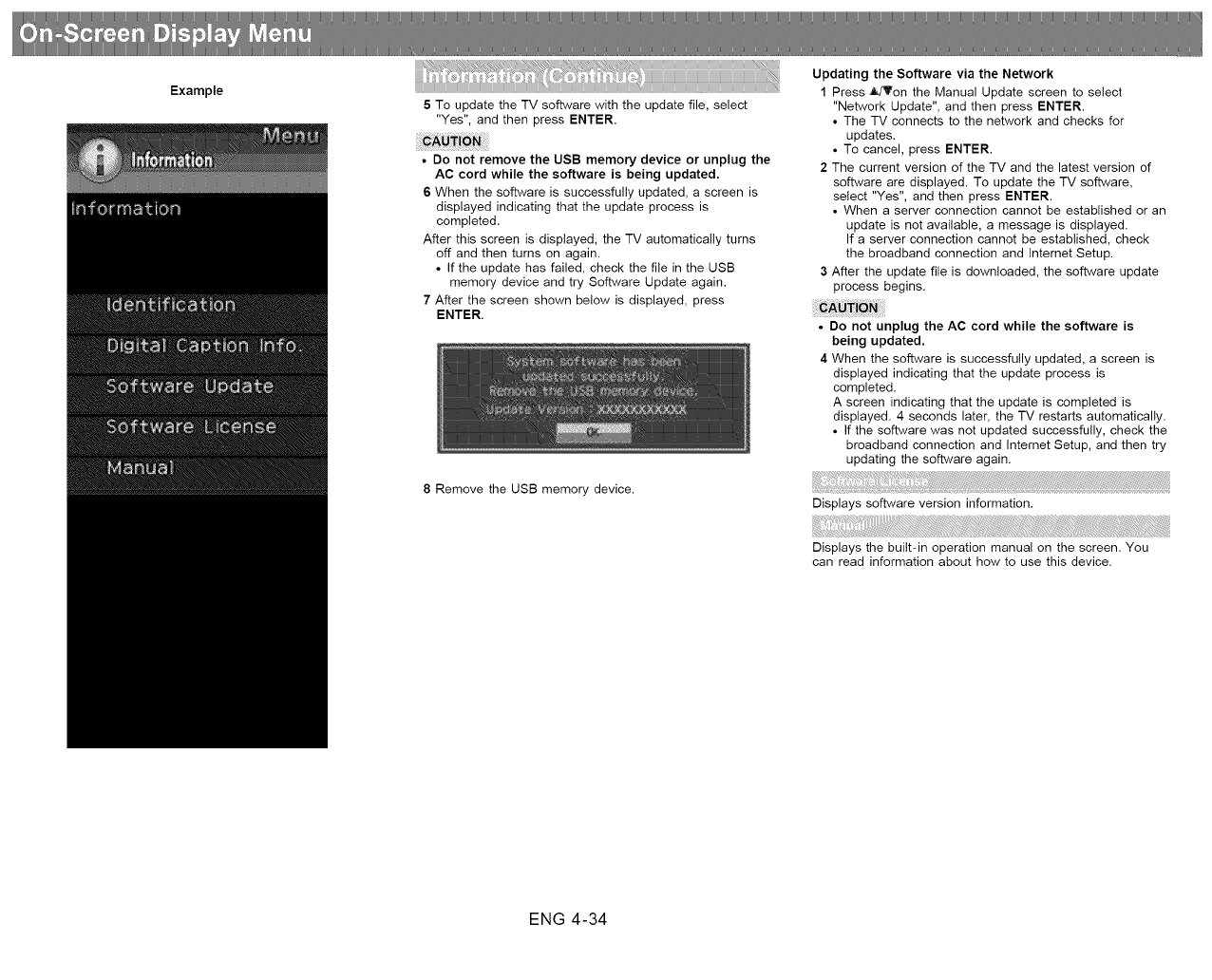

4-32. Information

5. Enjoying 3D Image Viewing (For the UQ17U, TQ15U,

SQ17U, SQ15U and LE657U models)

5-1. Information

5-2. Preparing for the 3D glasses

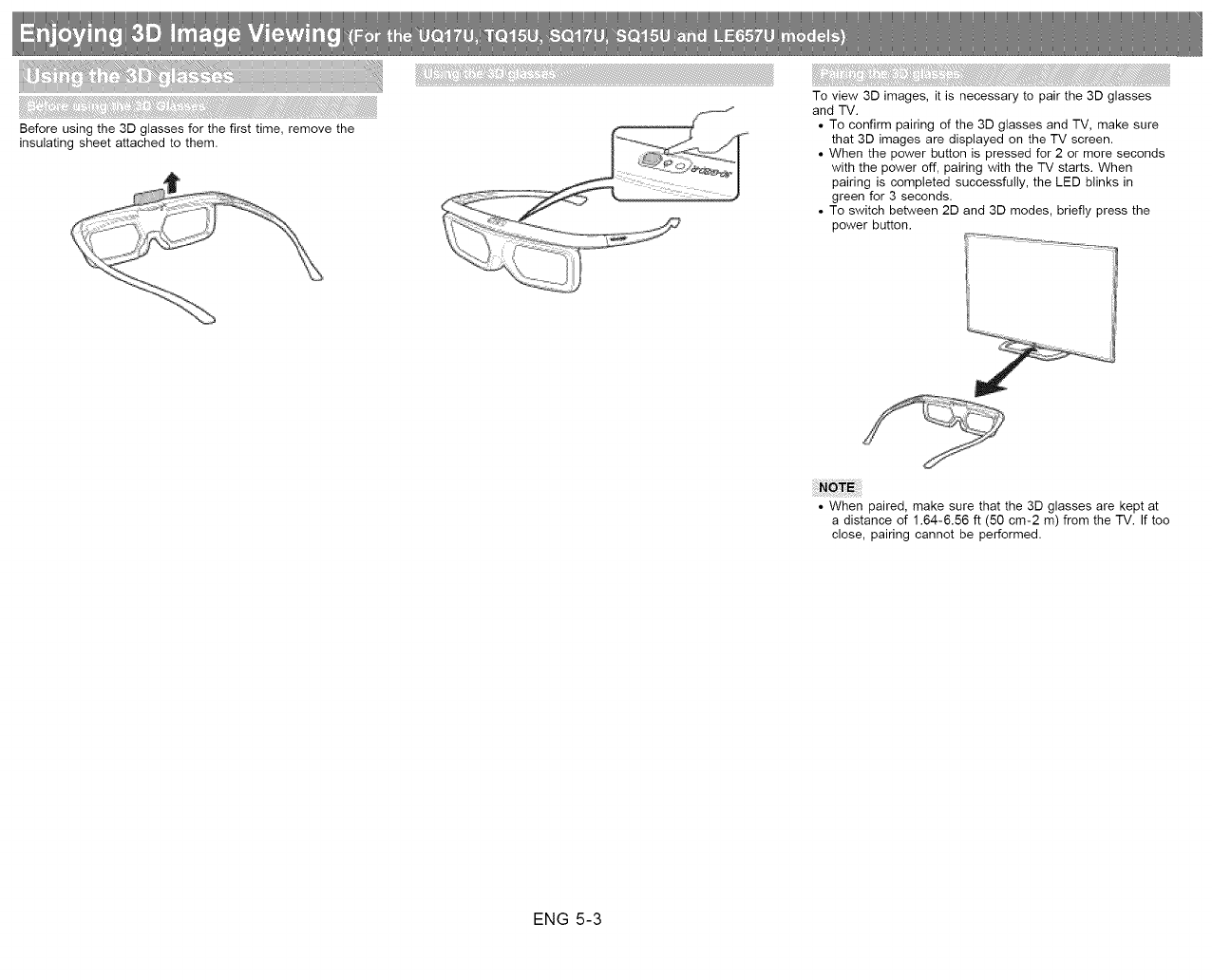

5-3. Using the 3D glasses

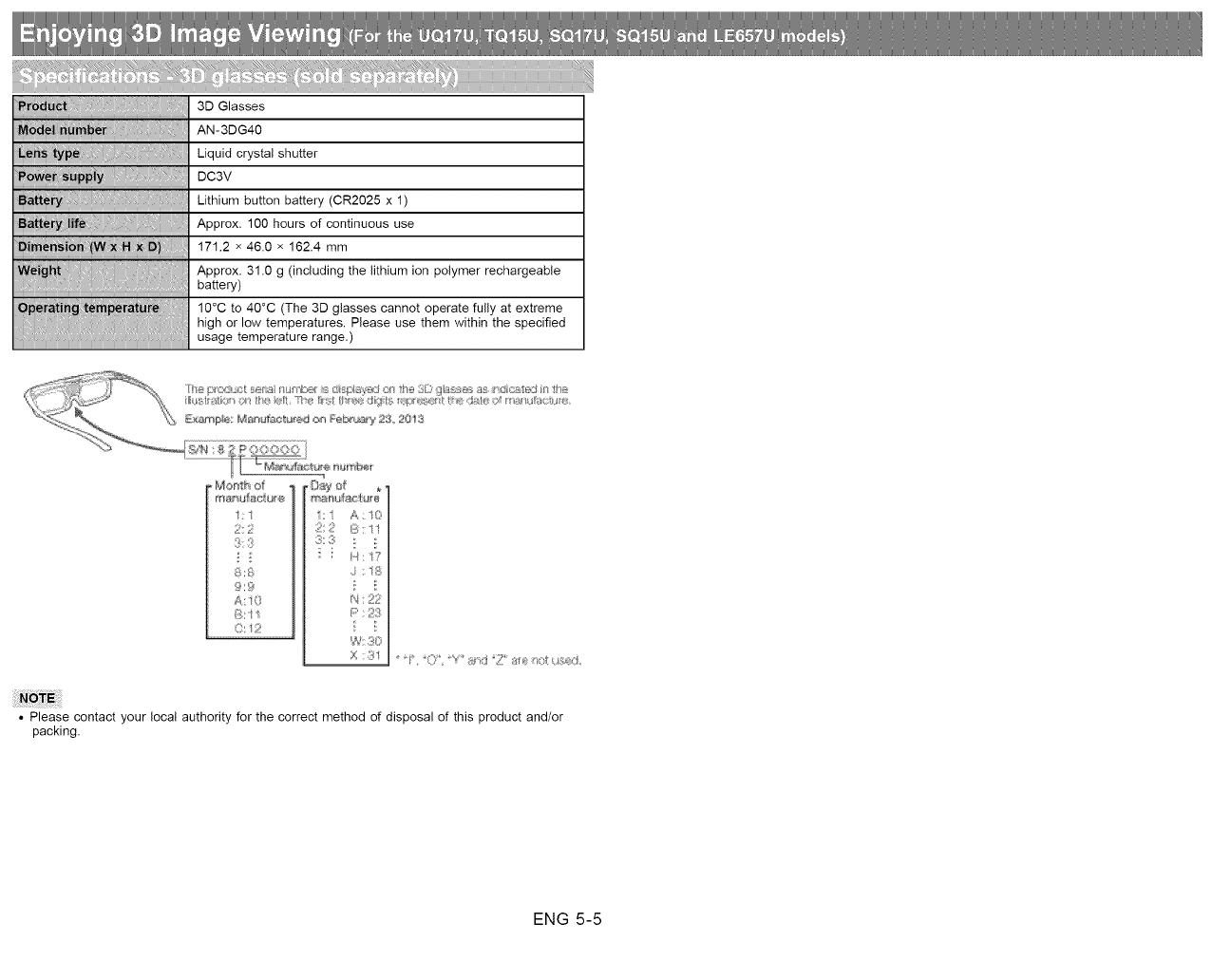

5-5. Specifications - 3D glasses (sold separately)

5-6. Troubleshooting - 3D Images

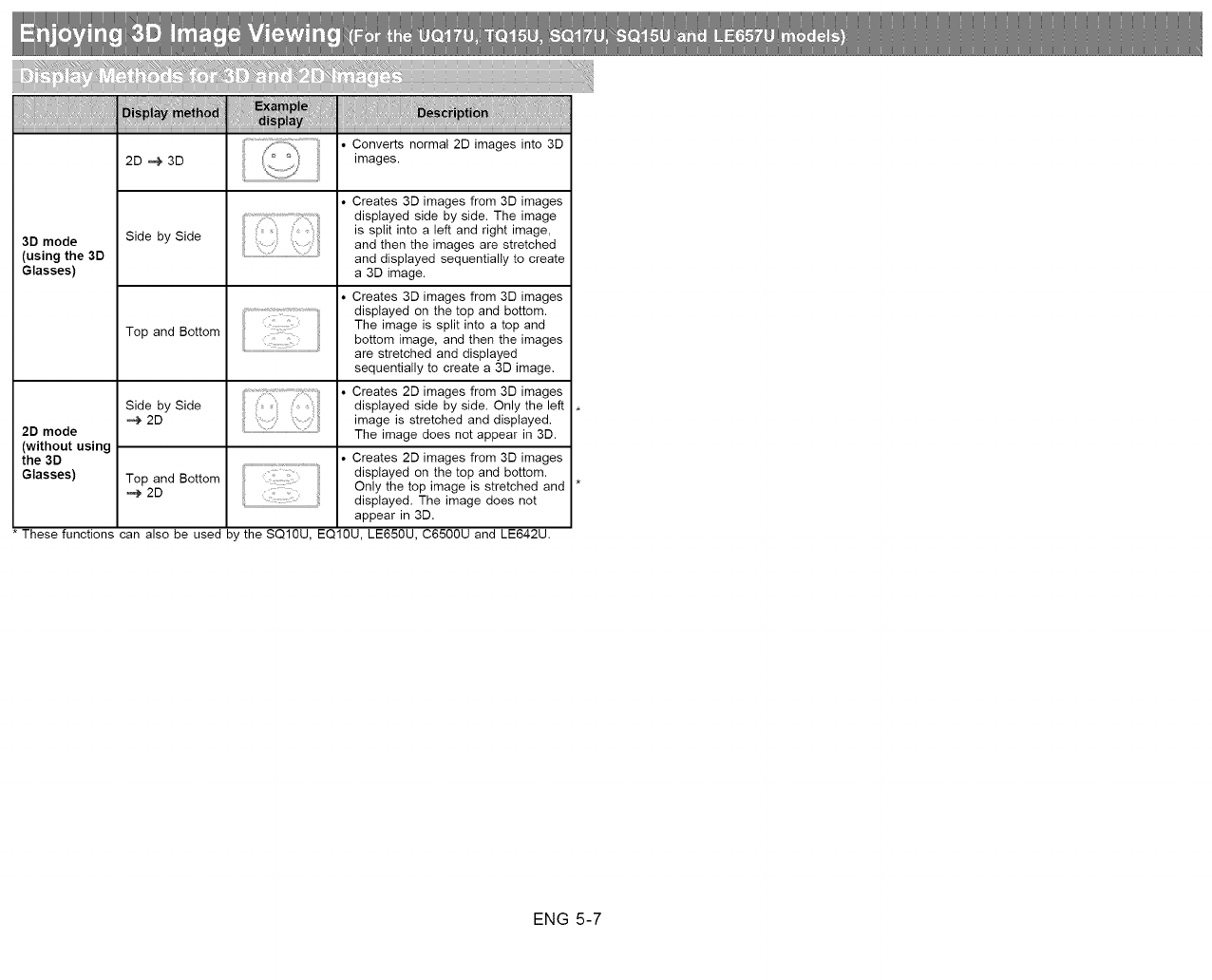

5-7. Display Methods for 3D and 2D Images

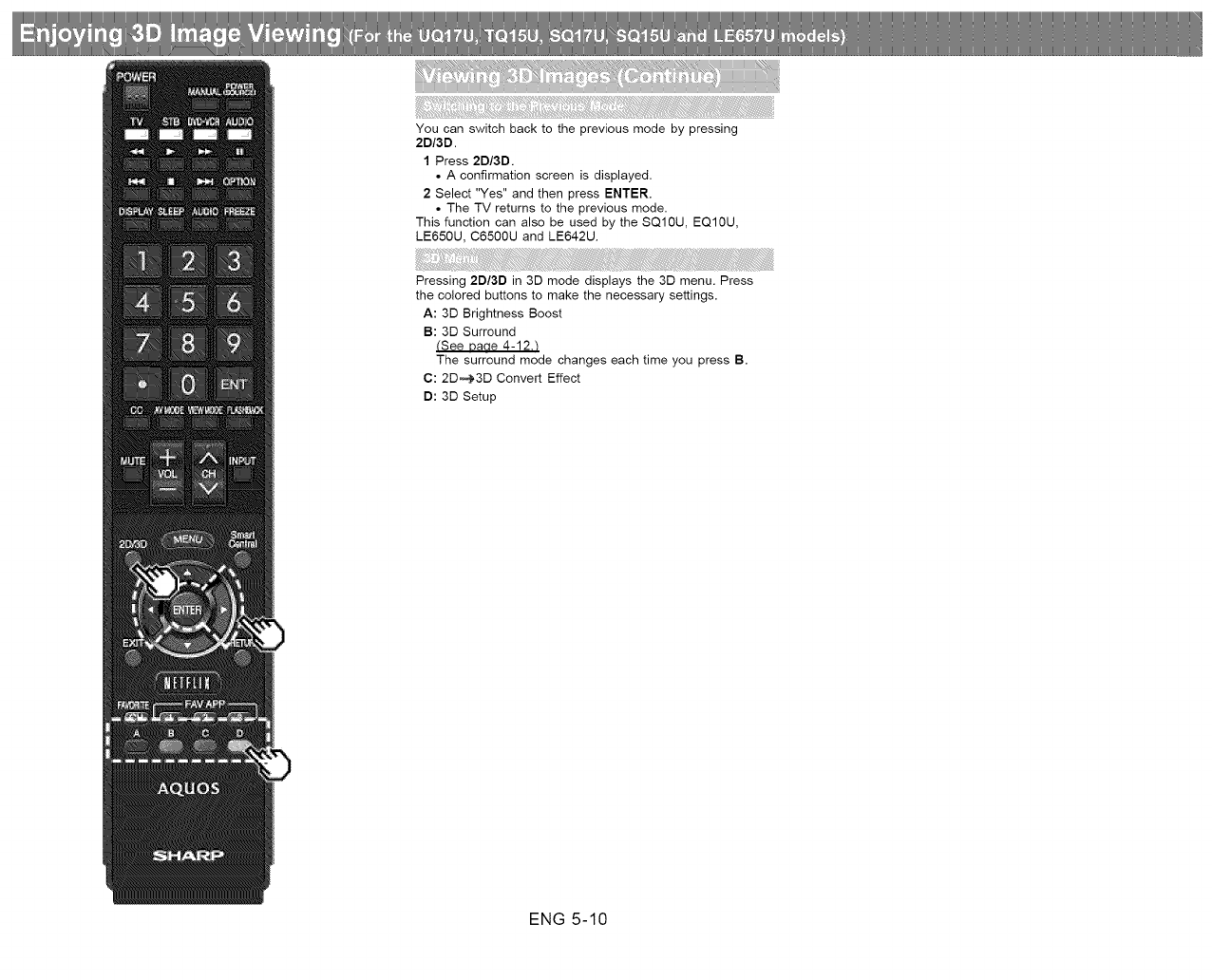

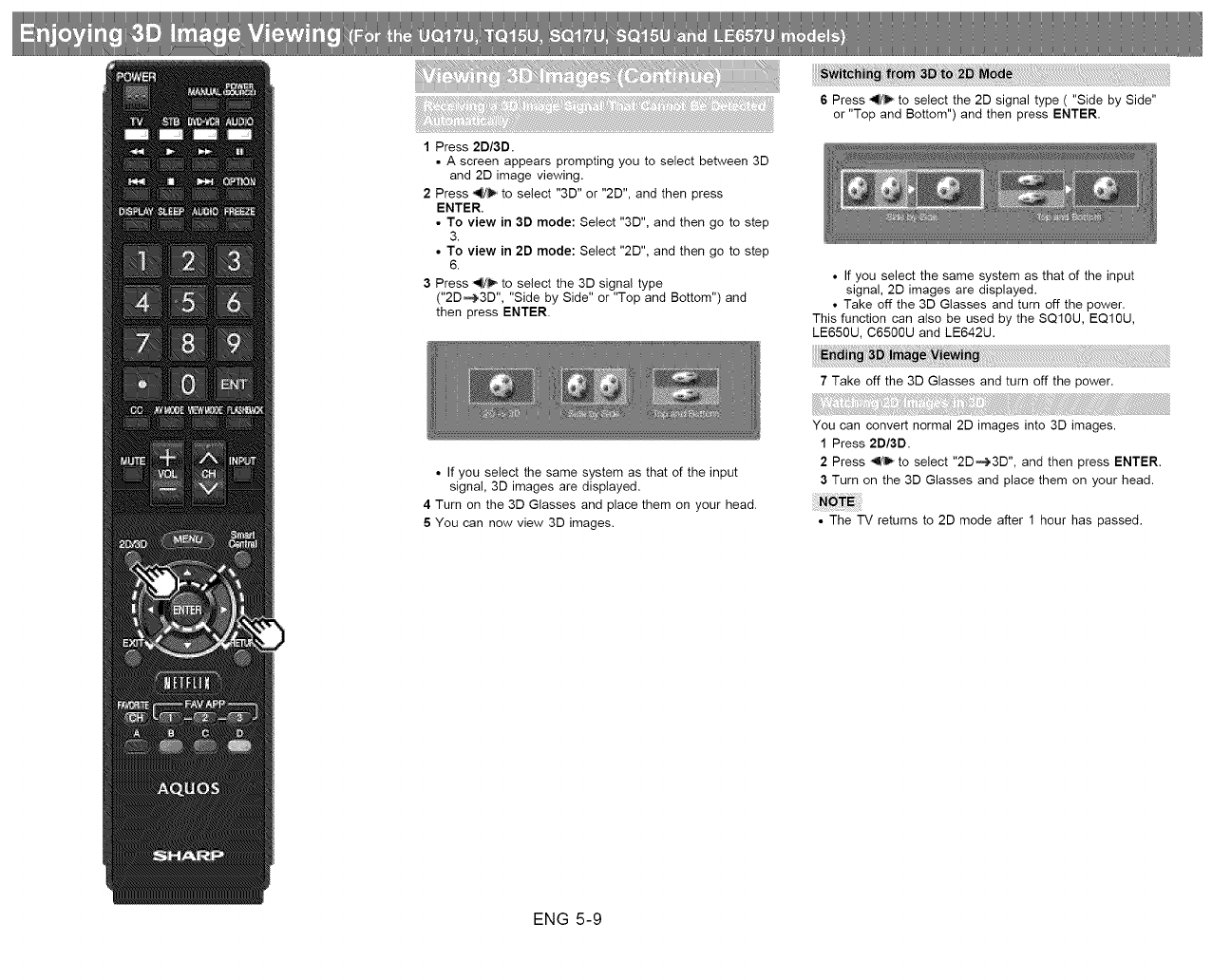

5-8. Viewing 3D Images

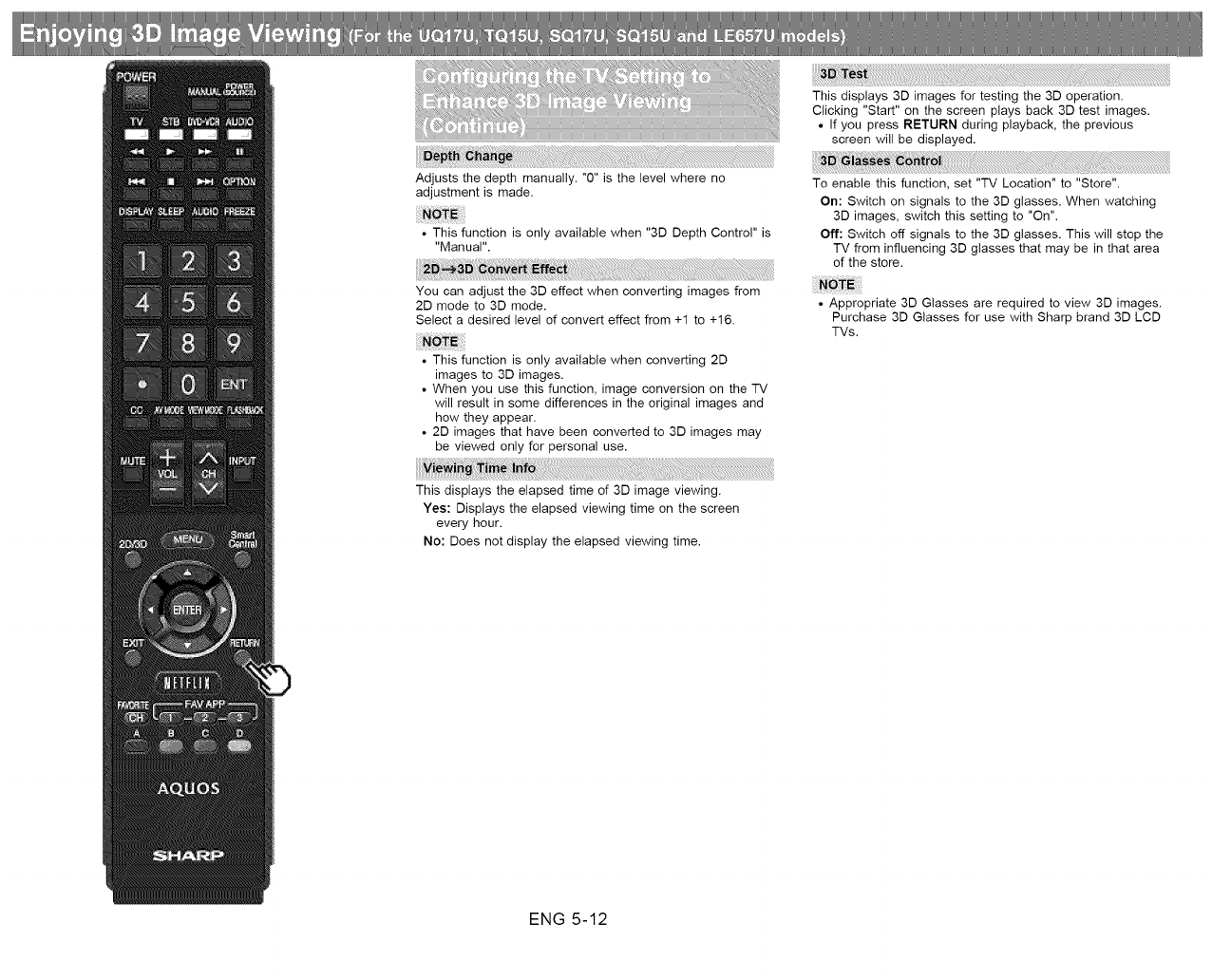

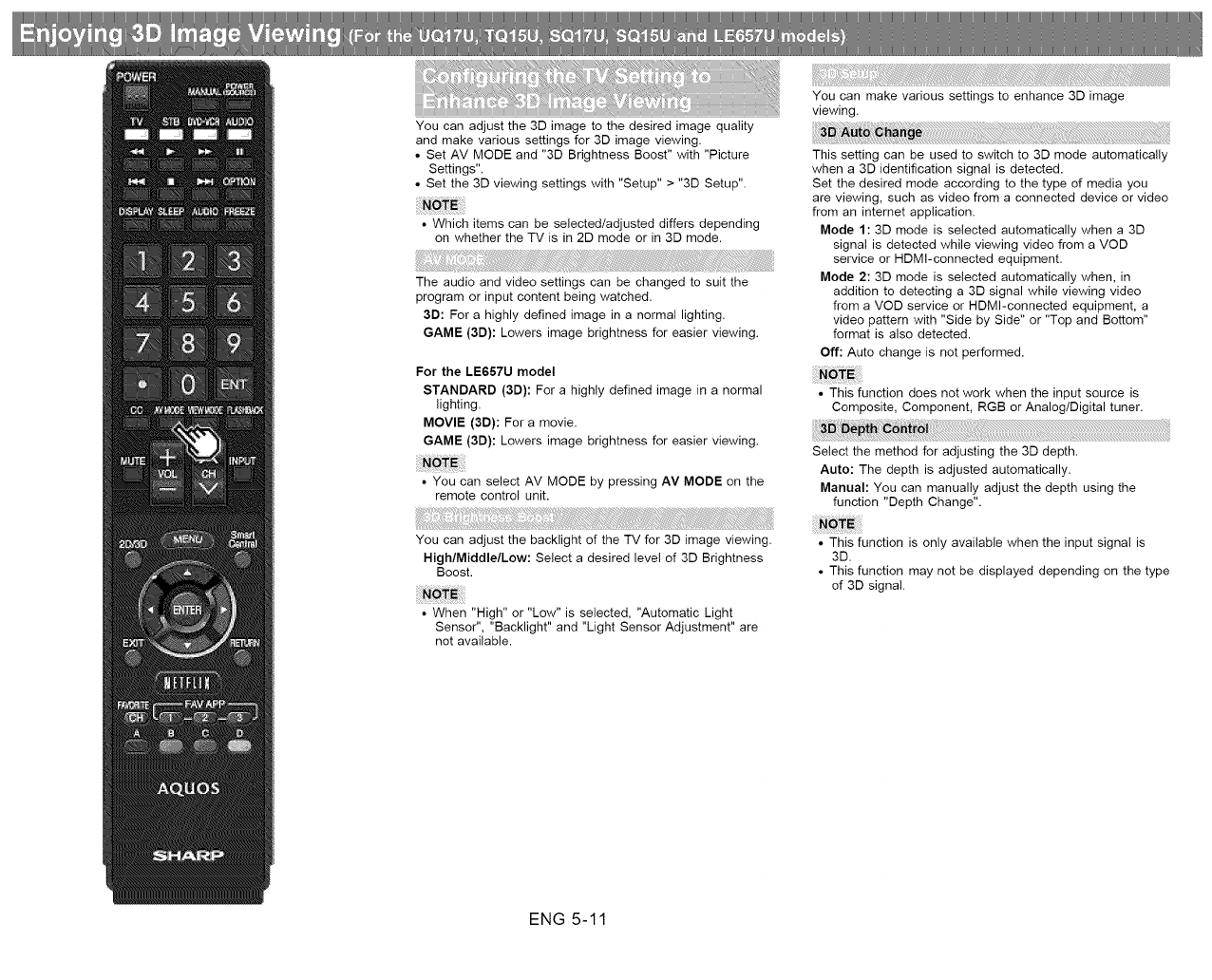

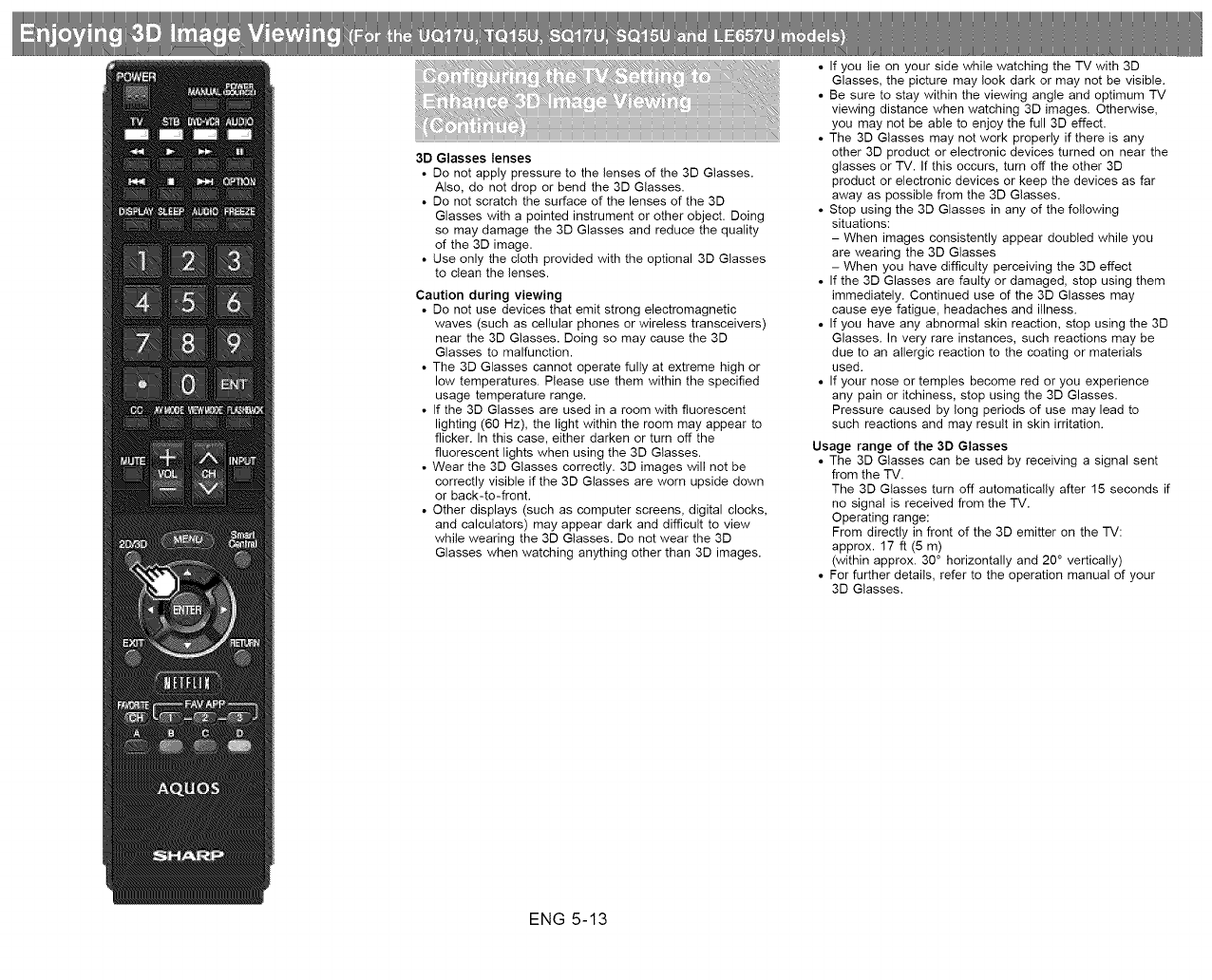

5-11. Configuring the TV Setting to Enhance 3D Image

Viewing

6. Enjoying Photo/Music/Video Playback

6-1. Preparation

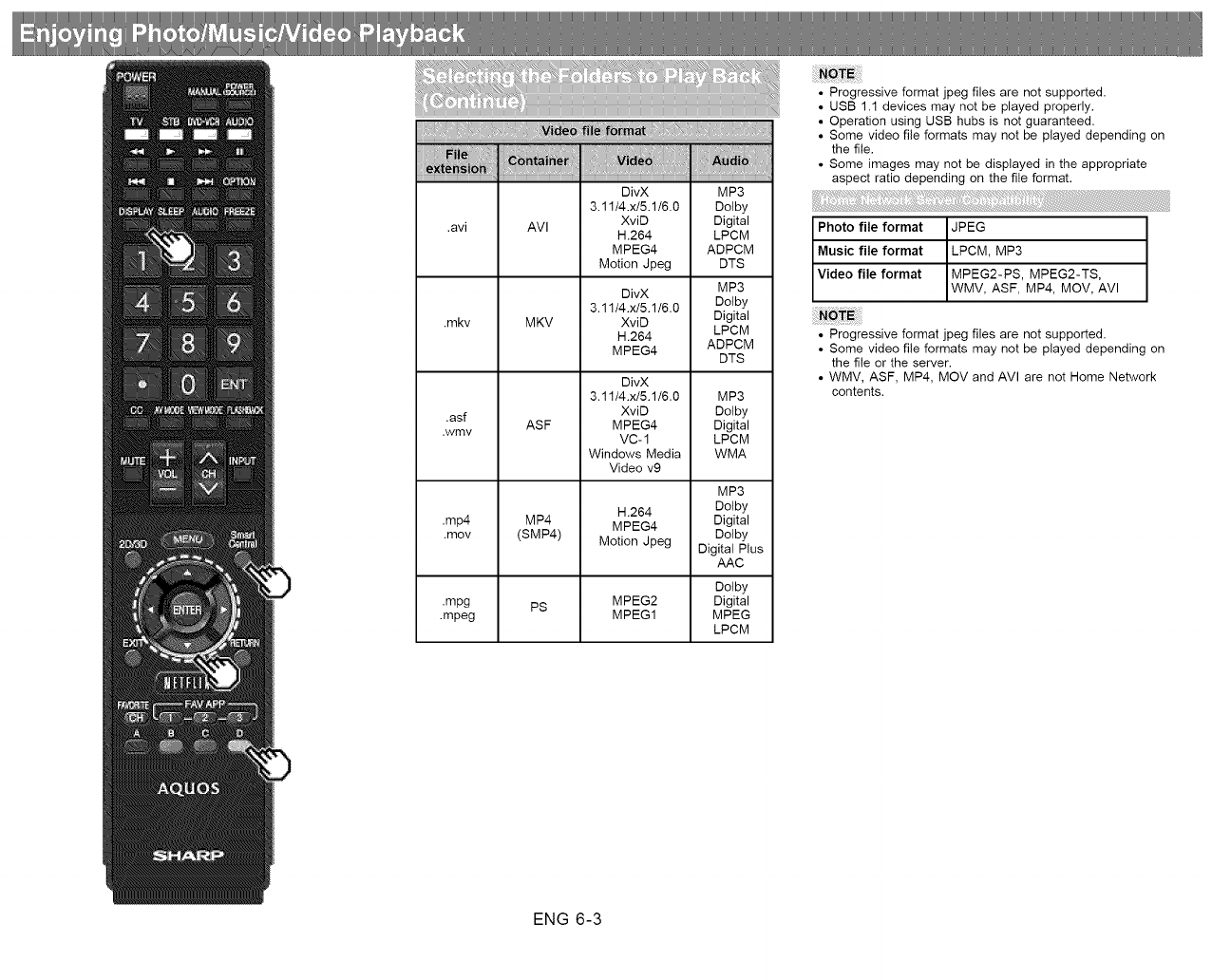

6-2. Selecting the Folders to Play Back

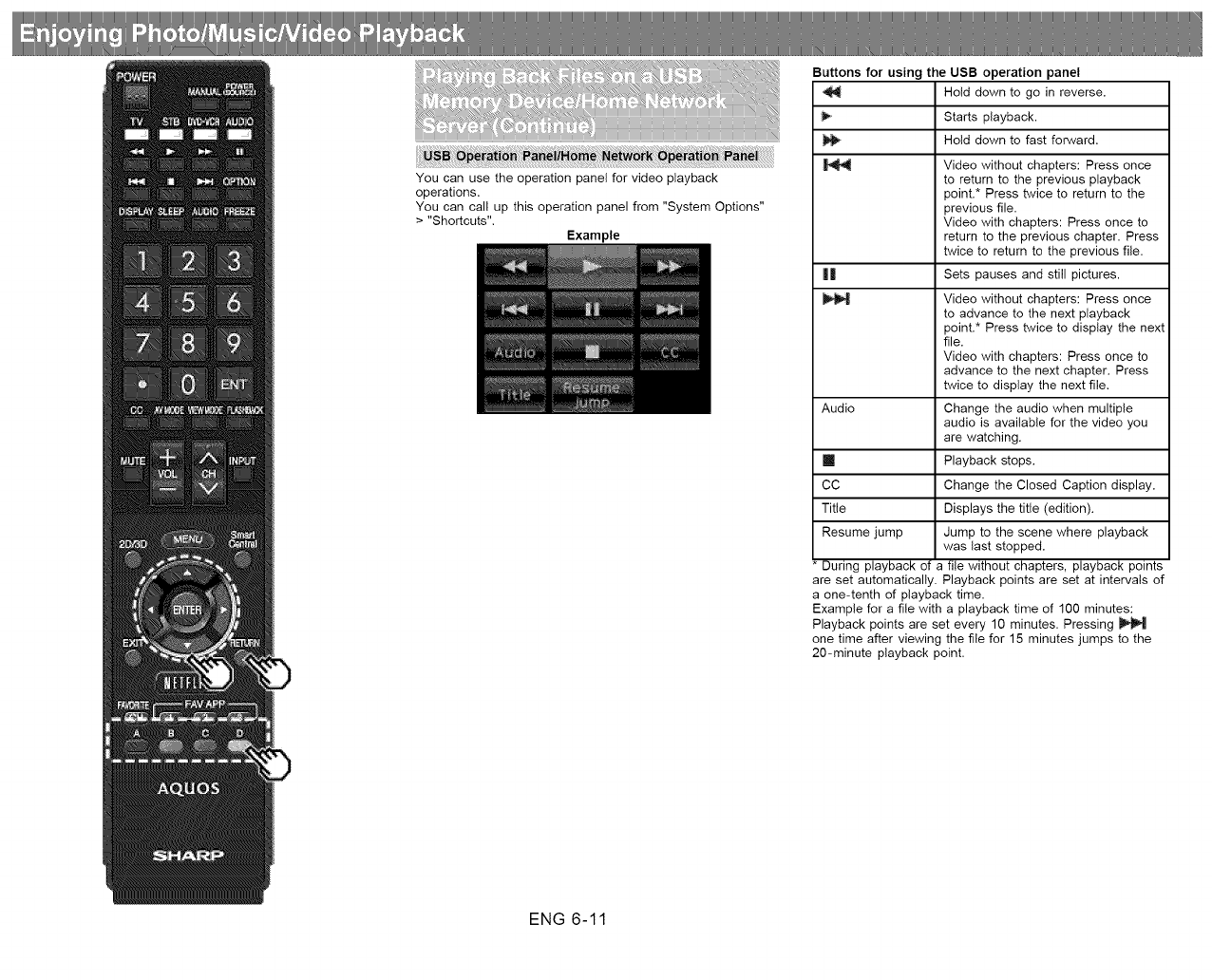

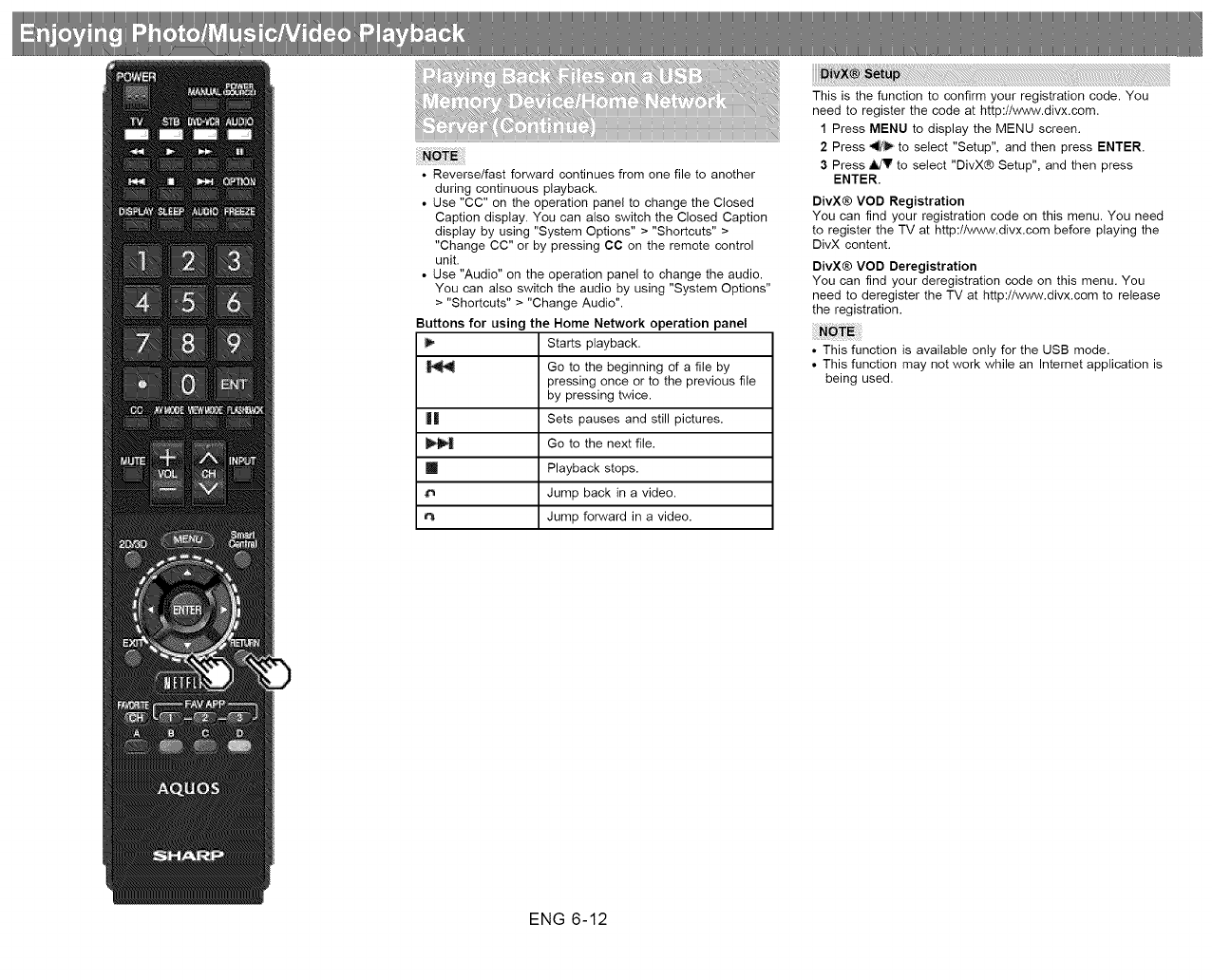

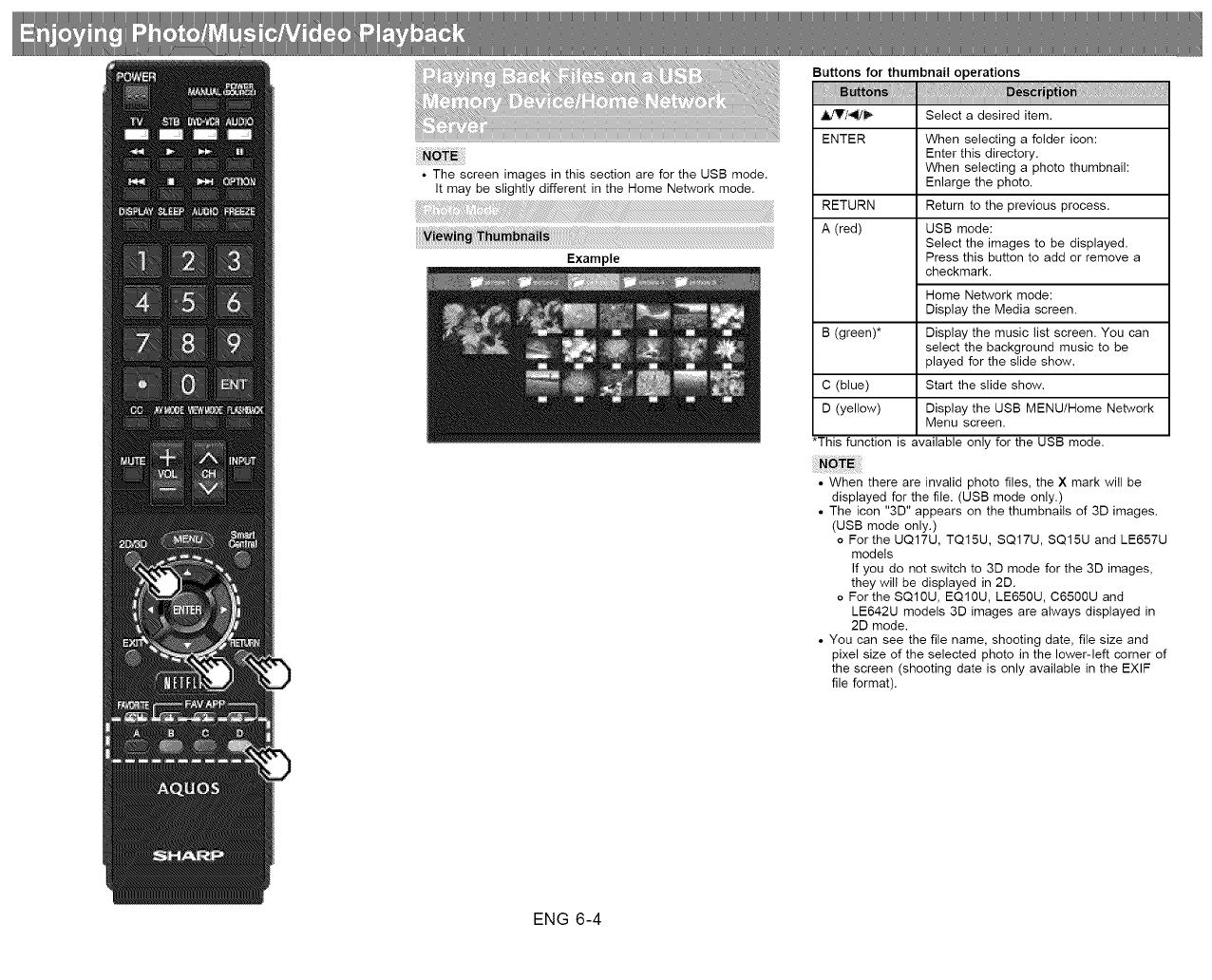

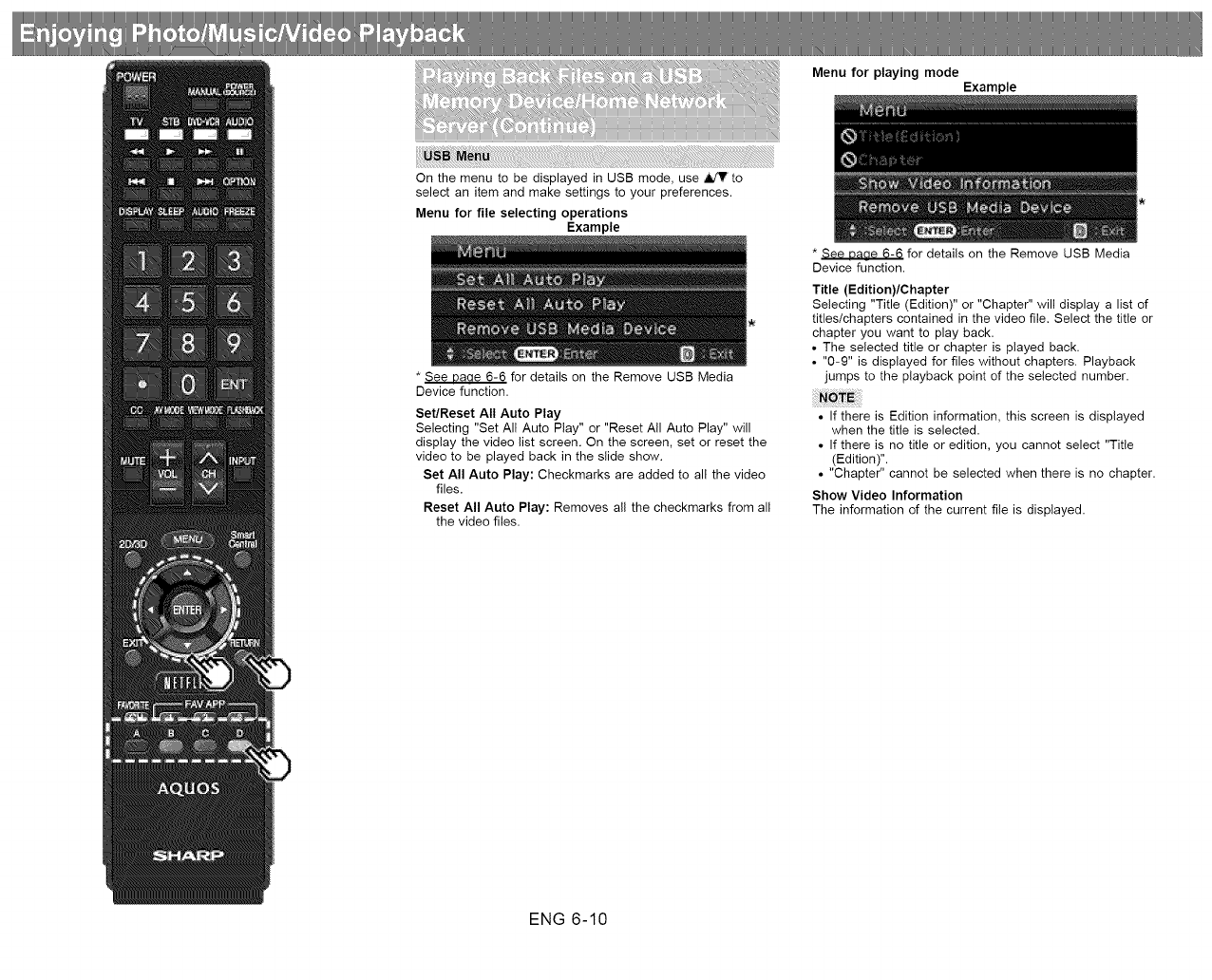

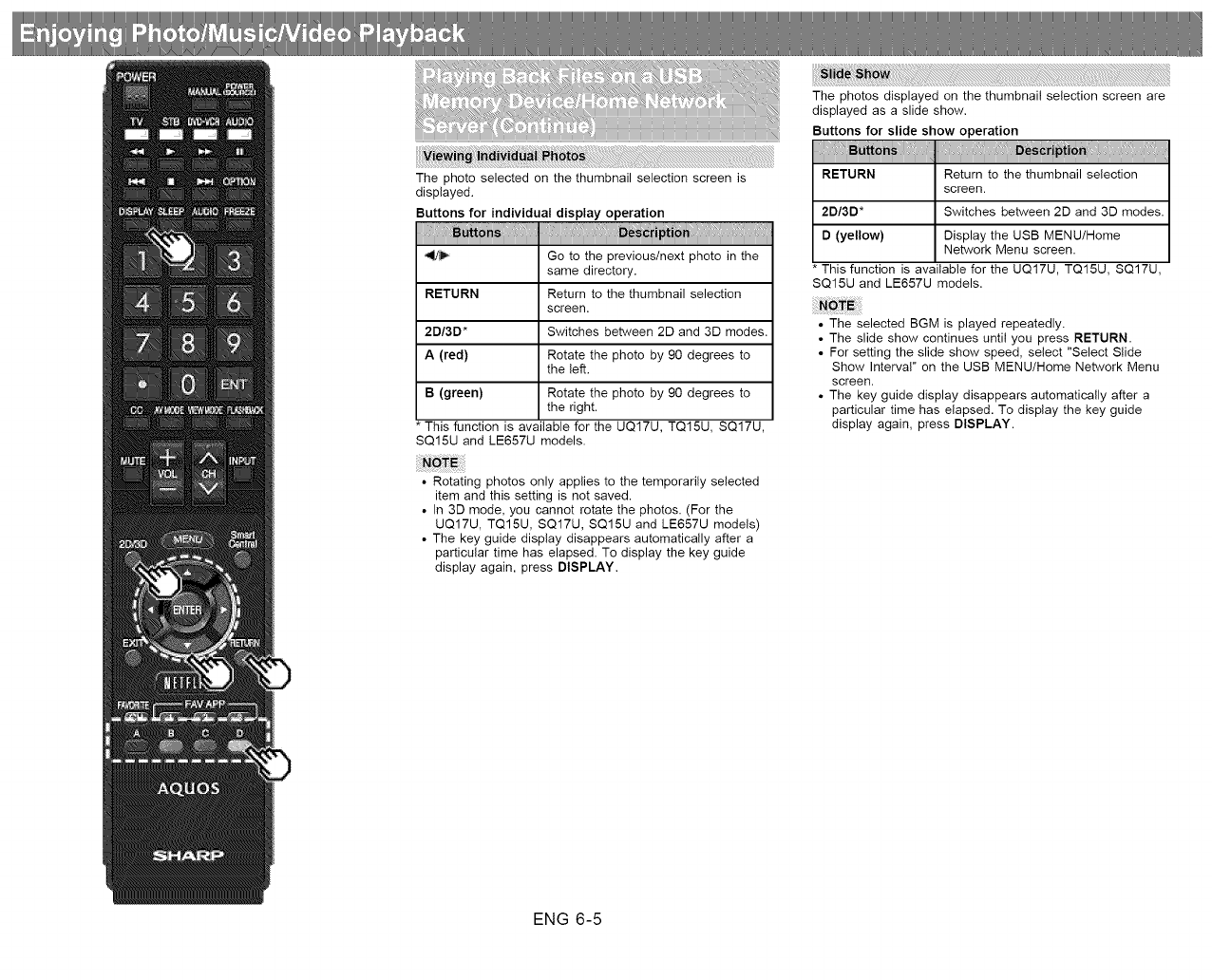

6-4. Playing Back Files on a USB Memory

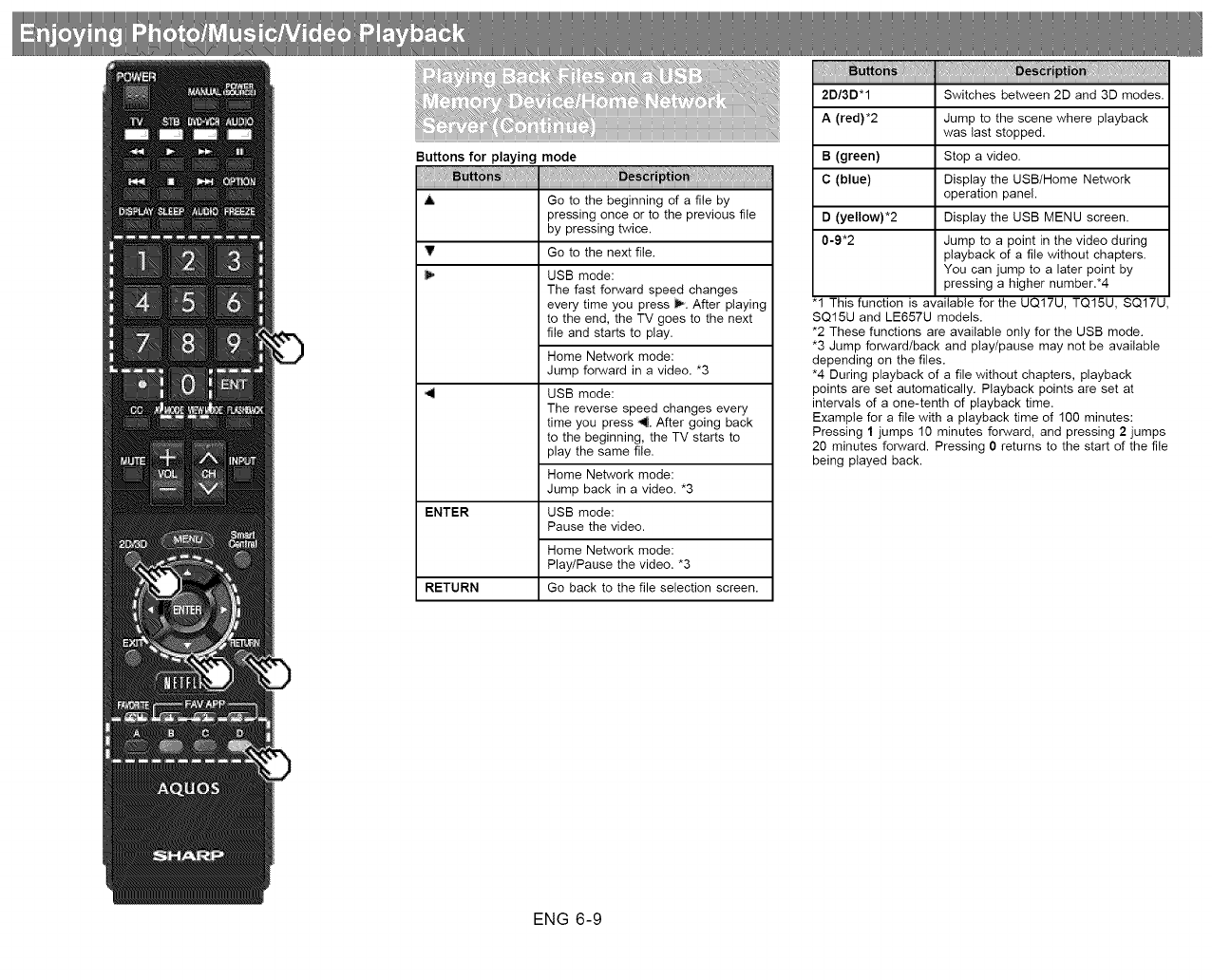

Device/Home Network Server

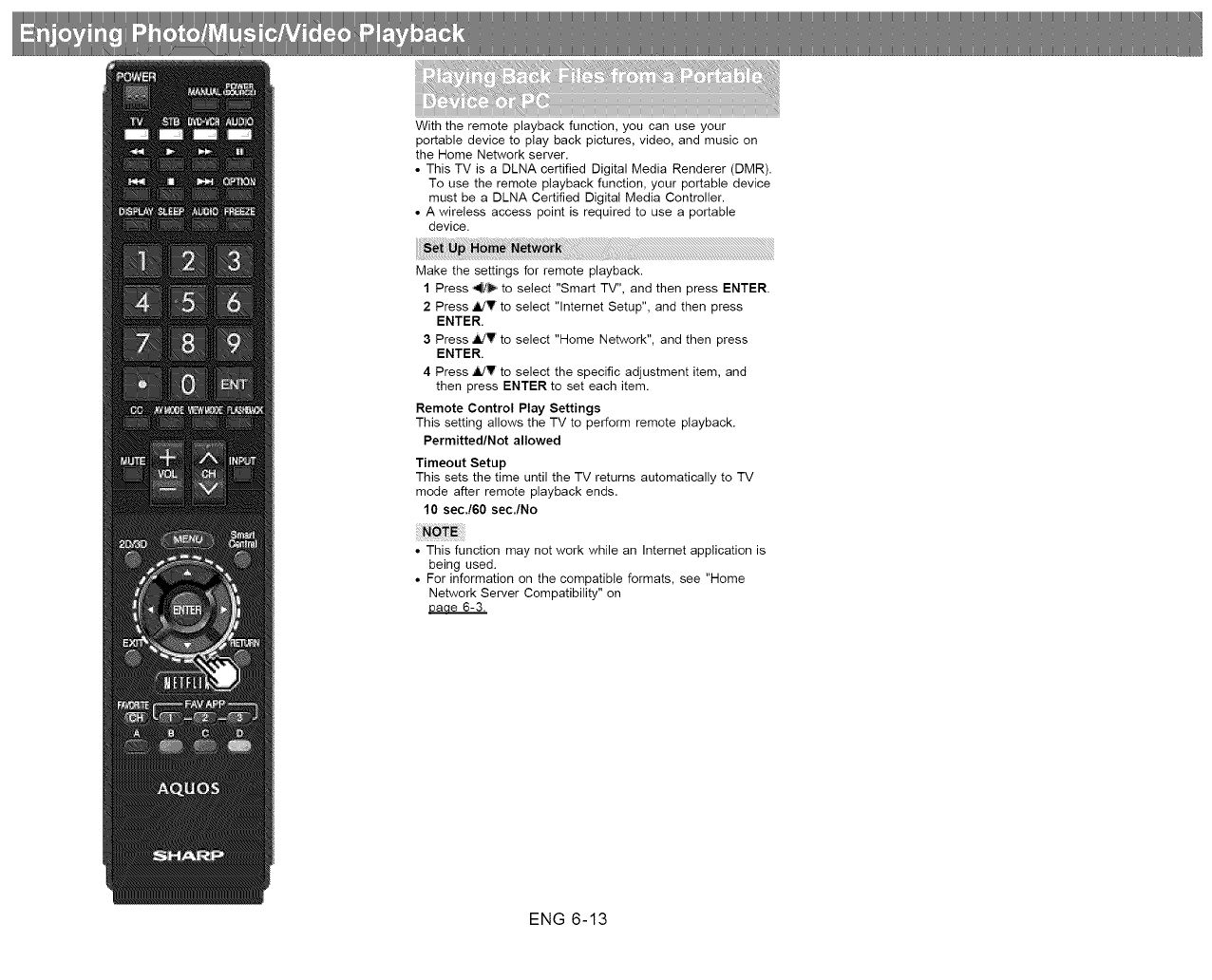

6-13. Playing Back Files from a Portable Device or PC

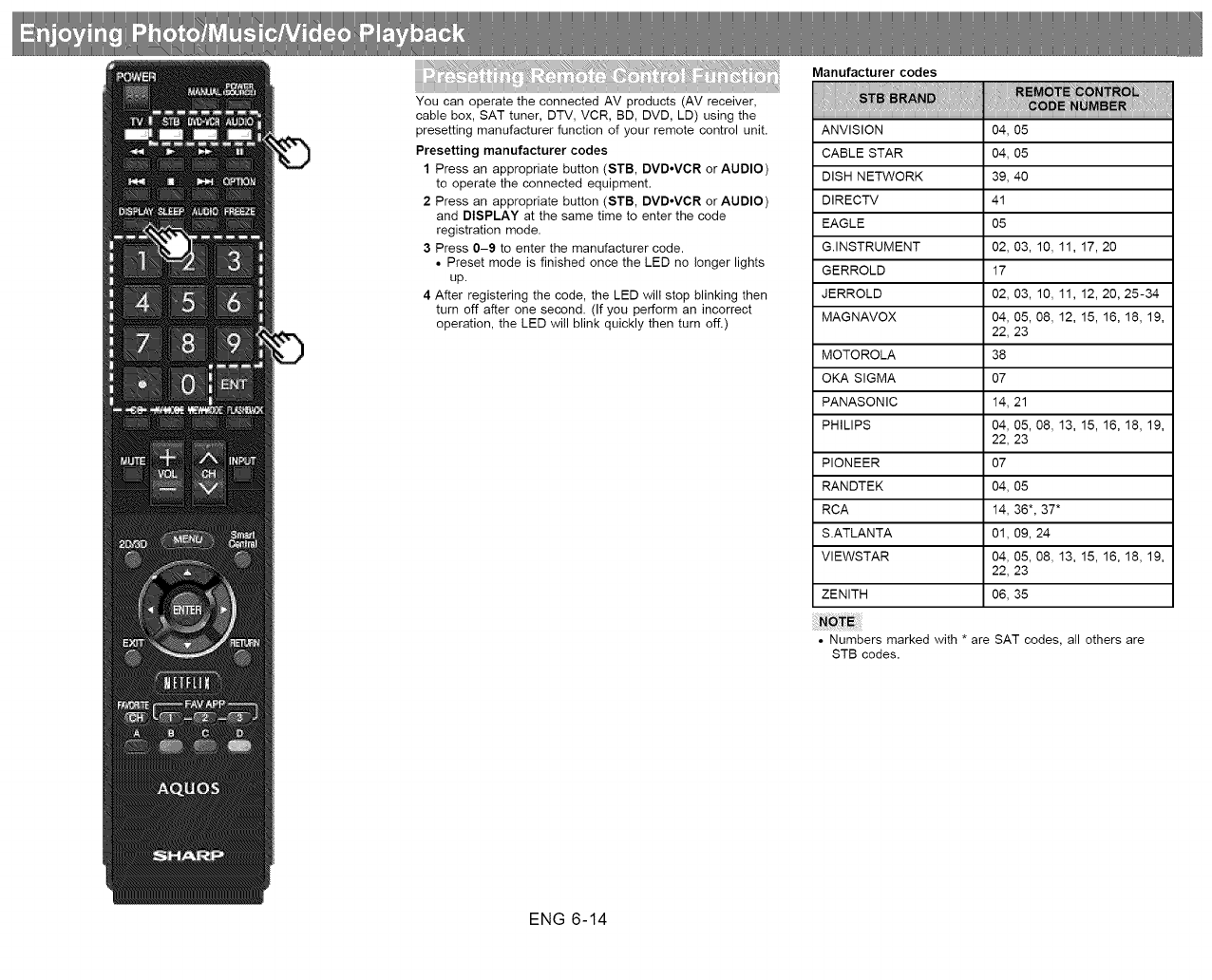

6-14. Presetting Remote Control Function

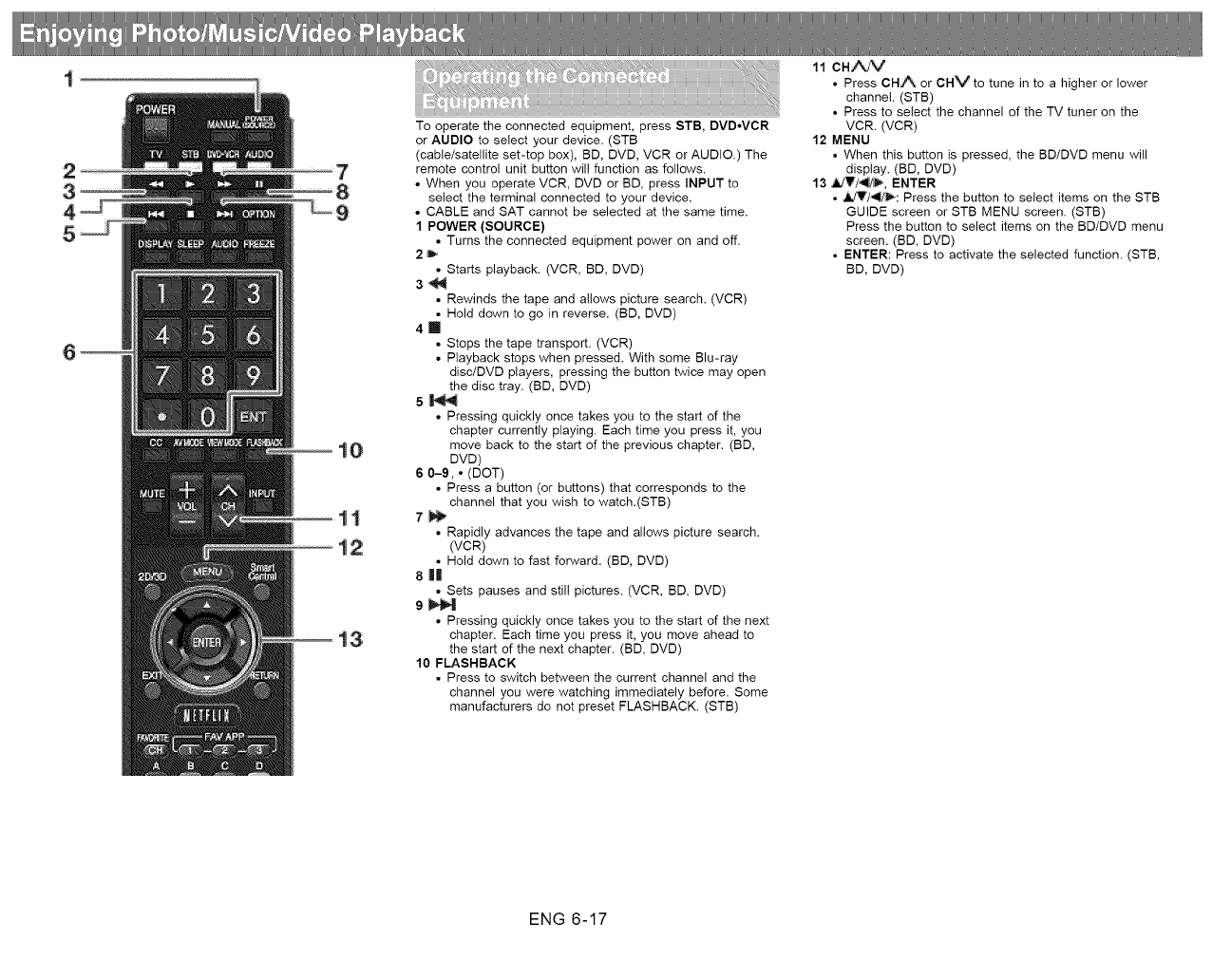

6-17. Operating the Connected Equipment

7. Using AQUOS LINK

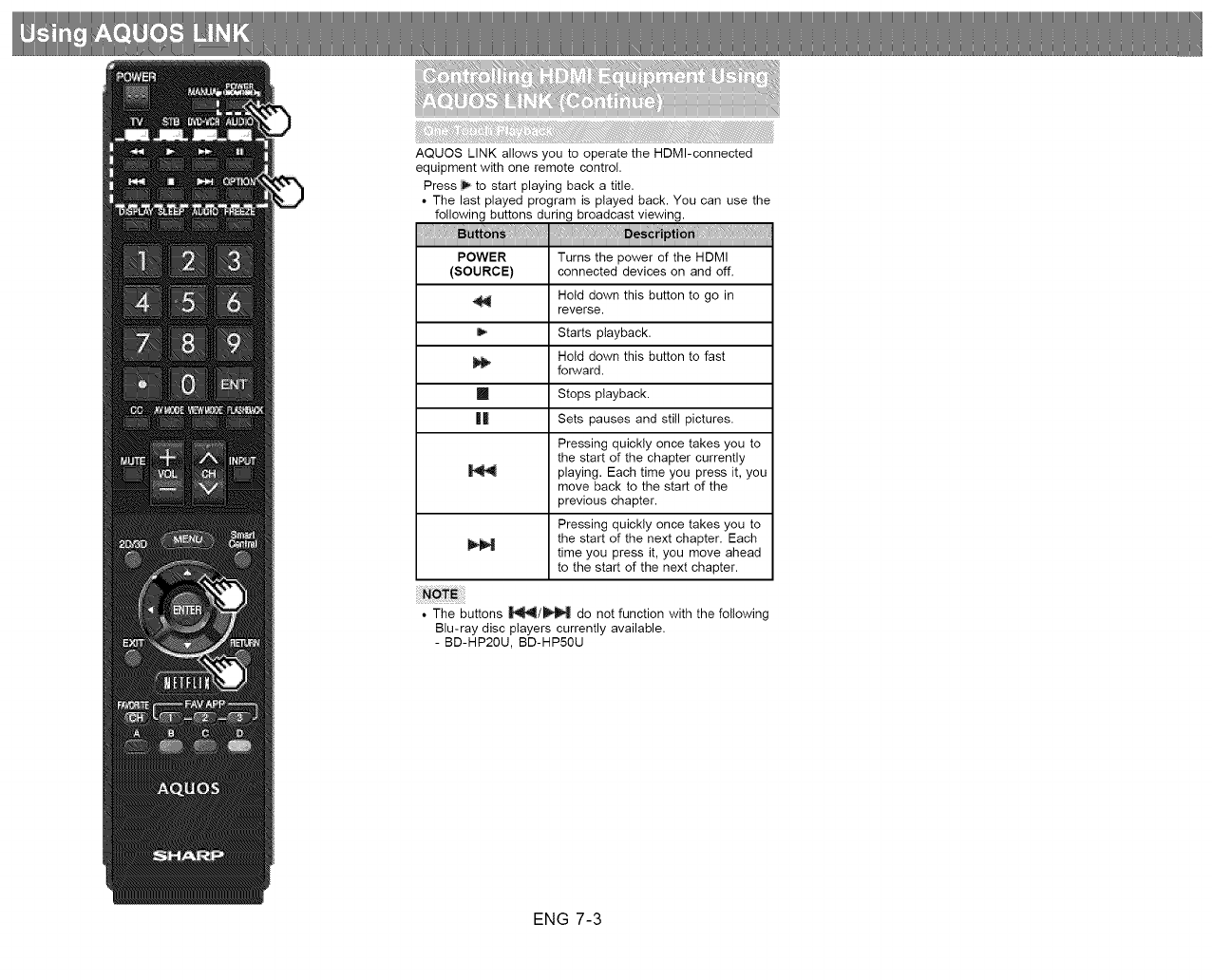

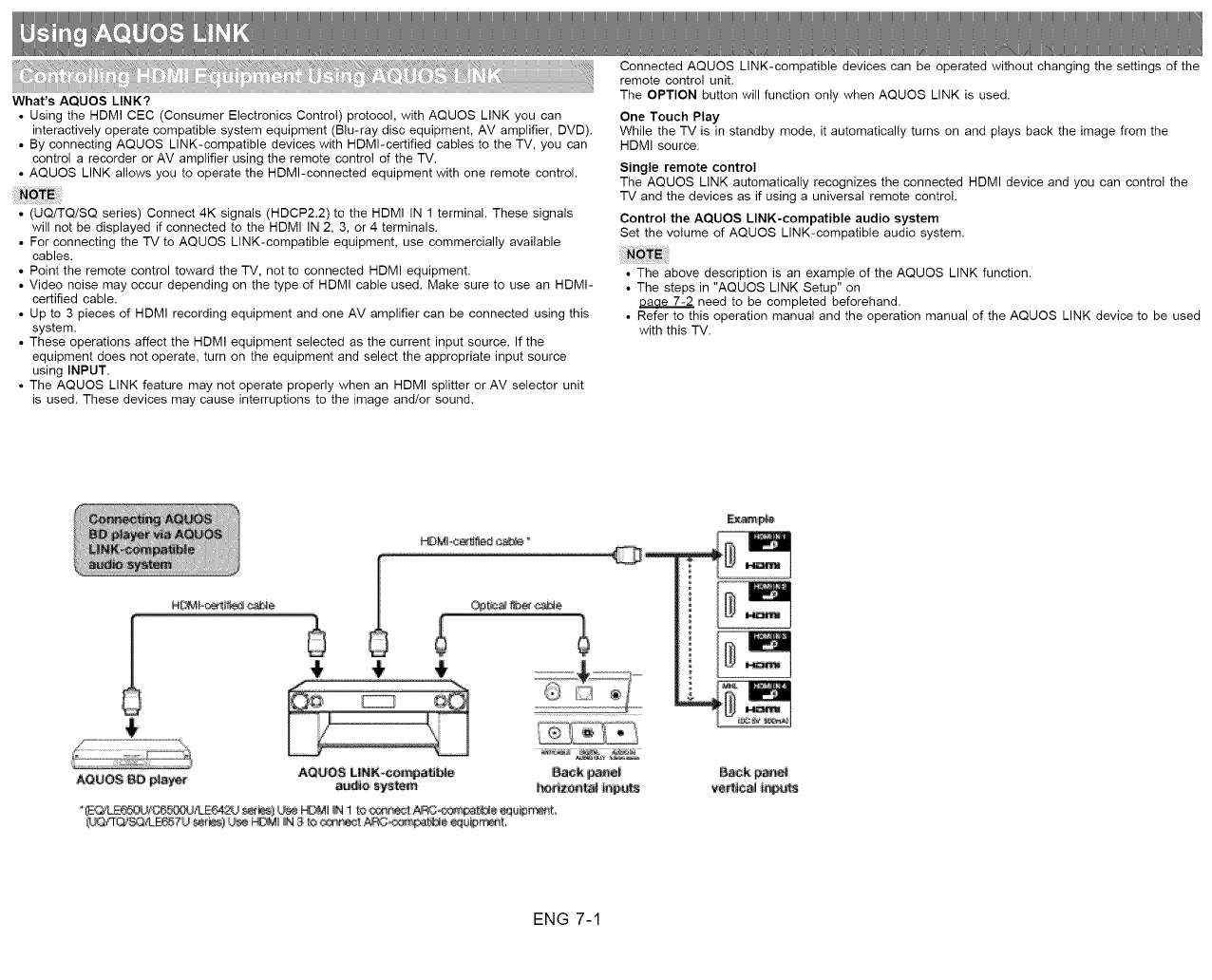

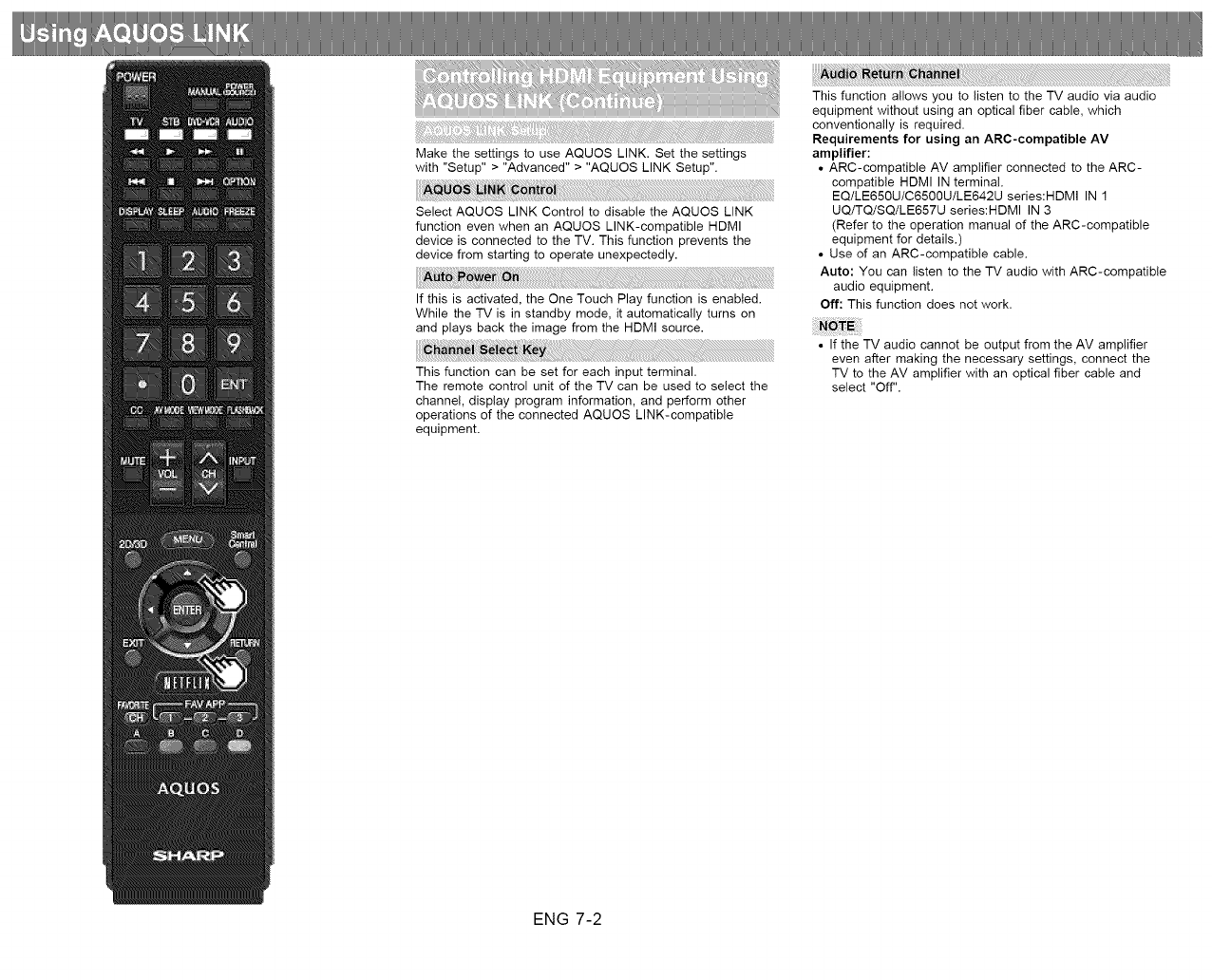

7-1. Controlling HDMI Equipment Using AQUOS LINK

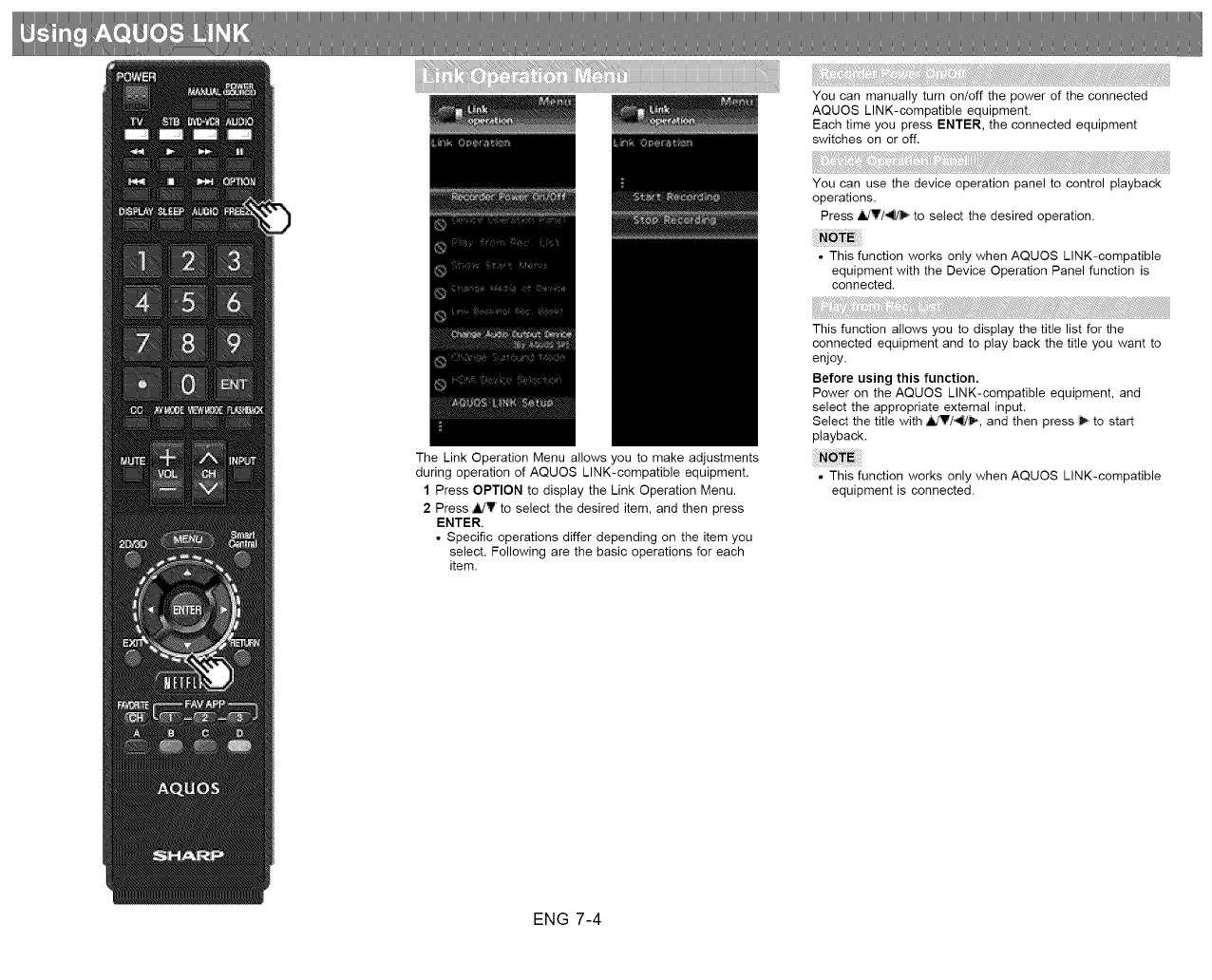

7-4. Link Operation Menu

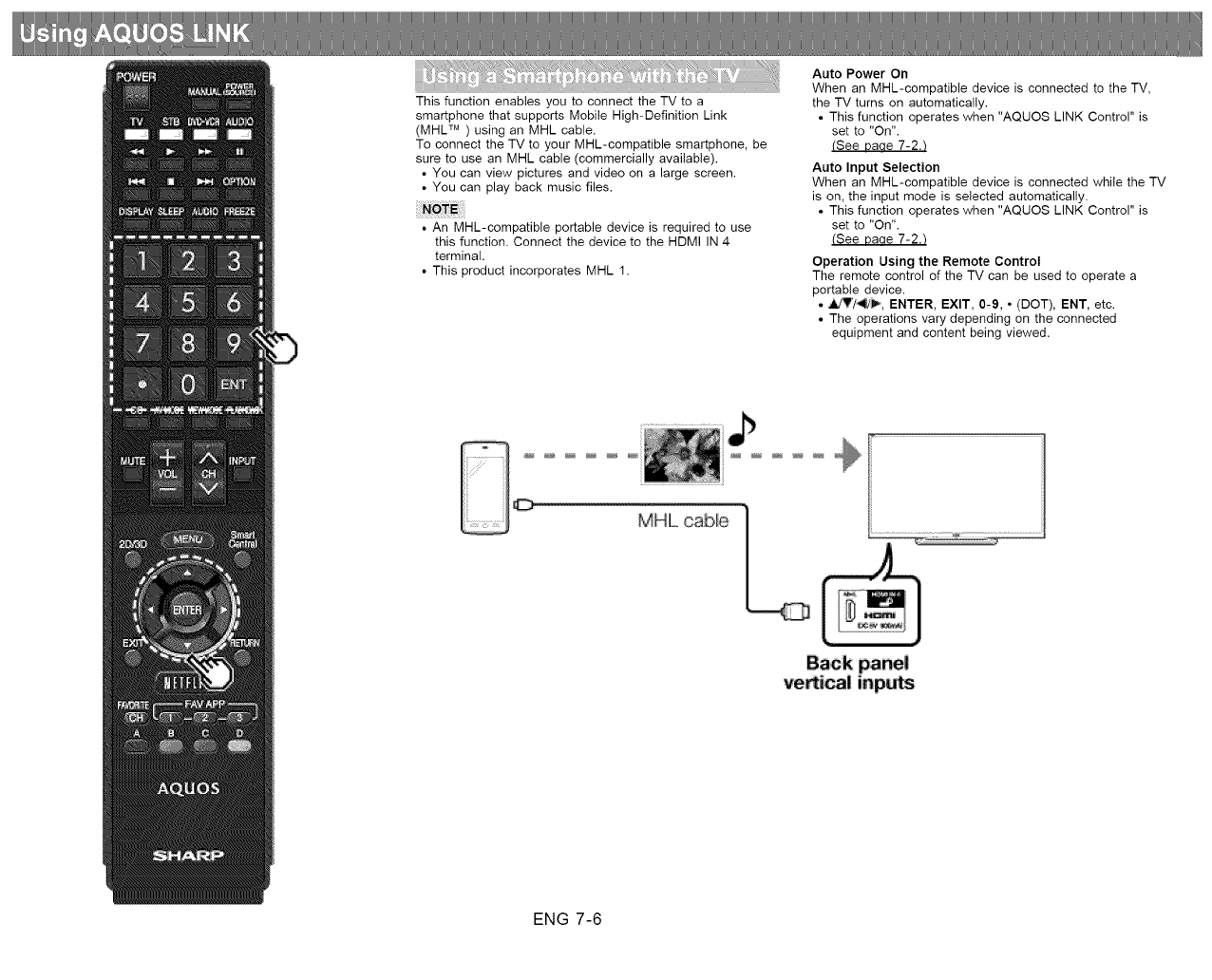

7-6. Using a Smartphone with the TV

8. Using a PC

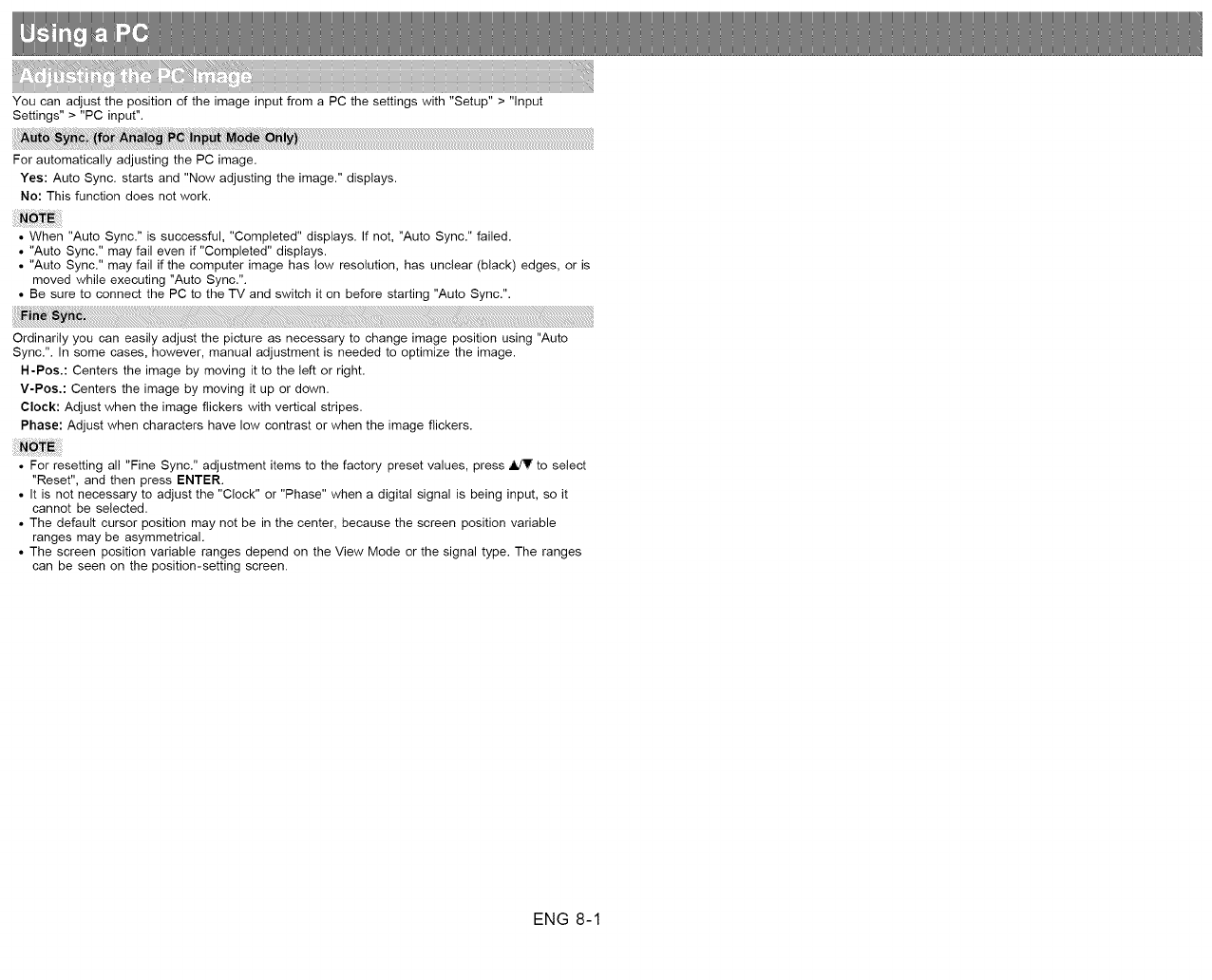

8-1. Adjusting the PC Image

8-2. Setting Audio Input

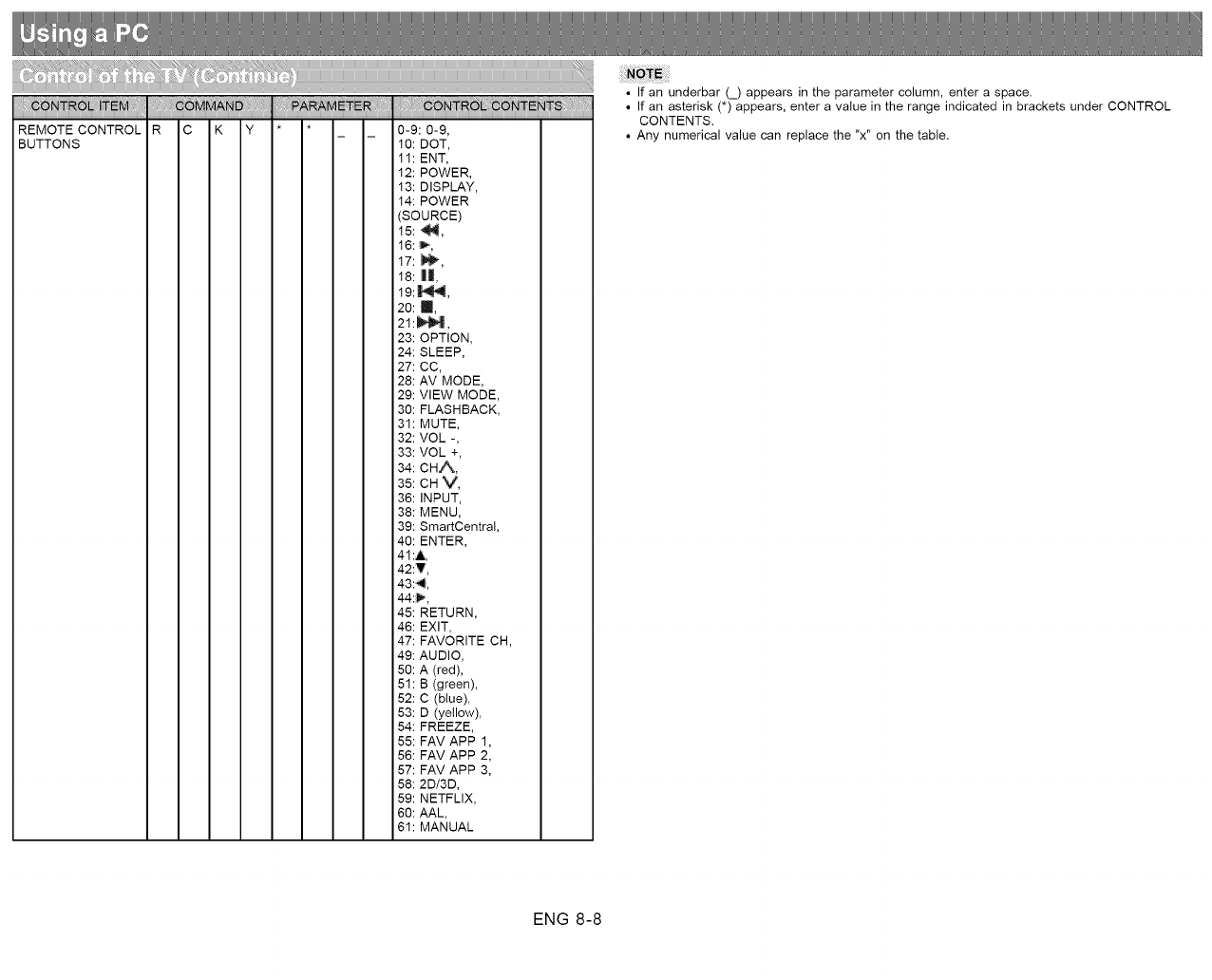

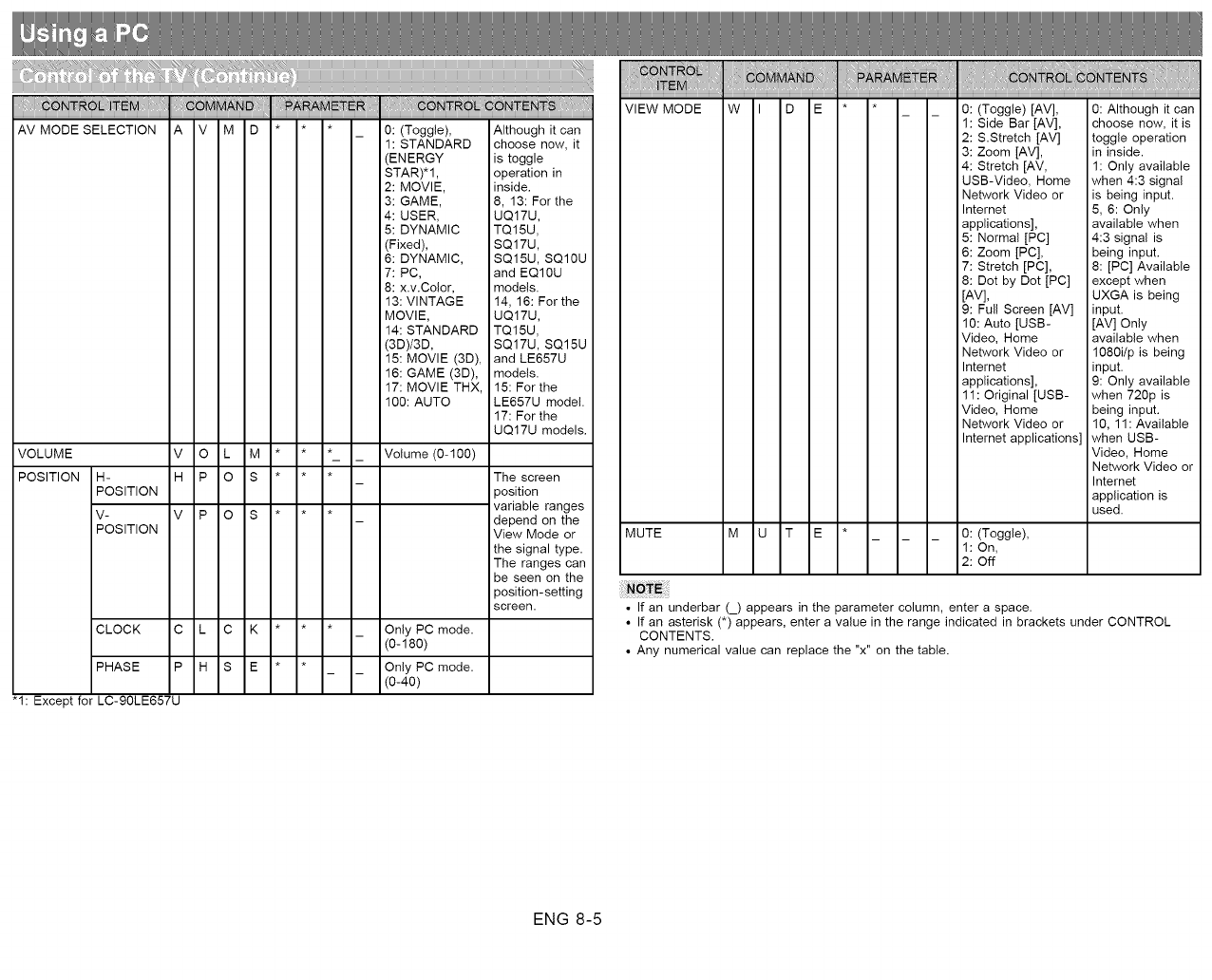

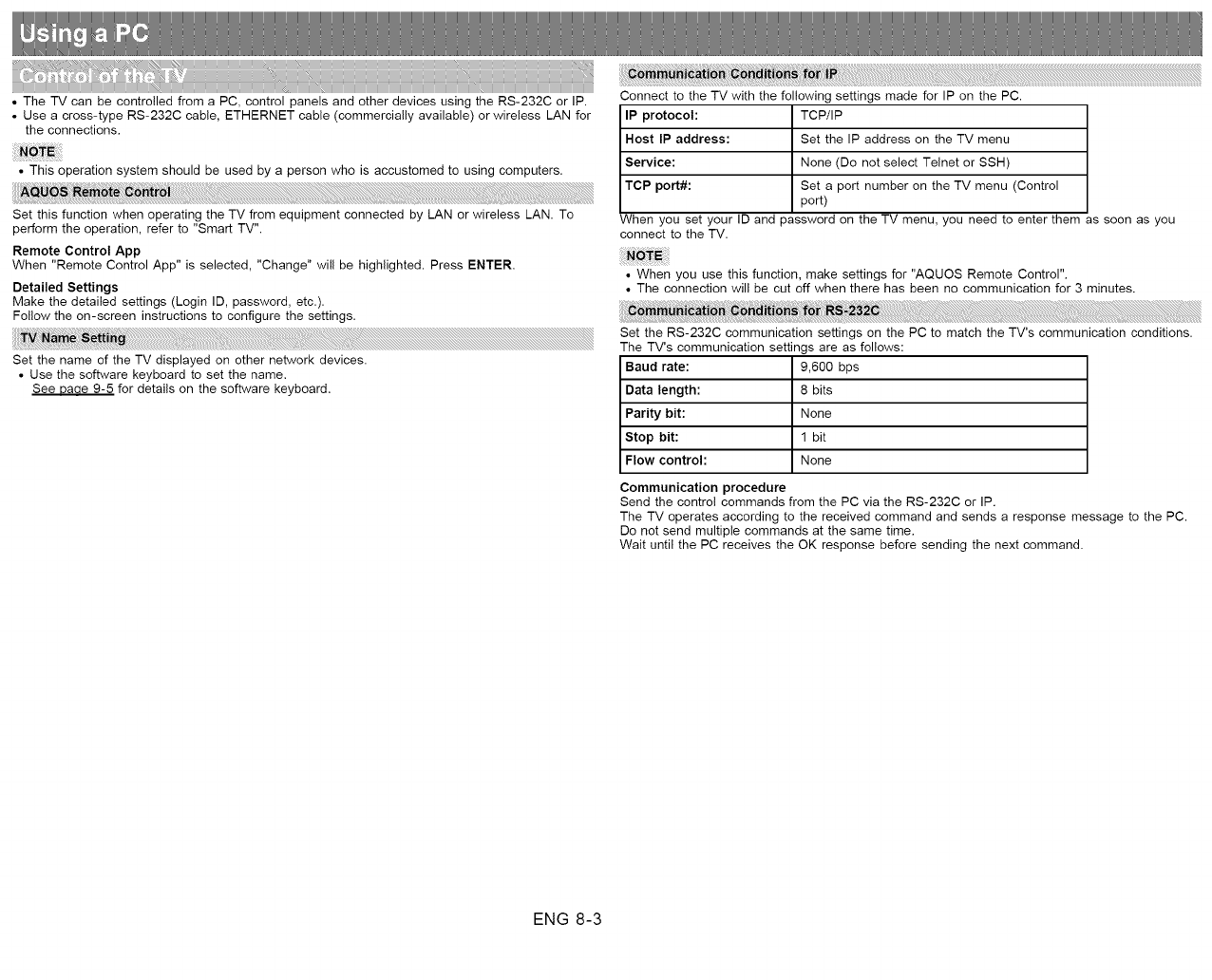

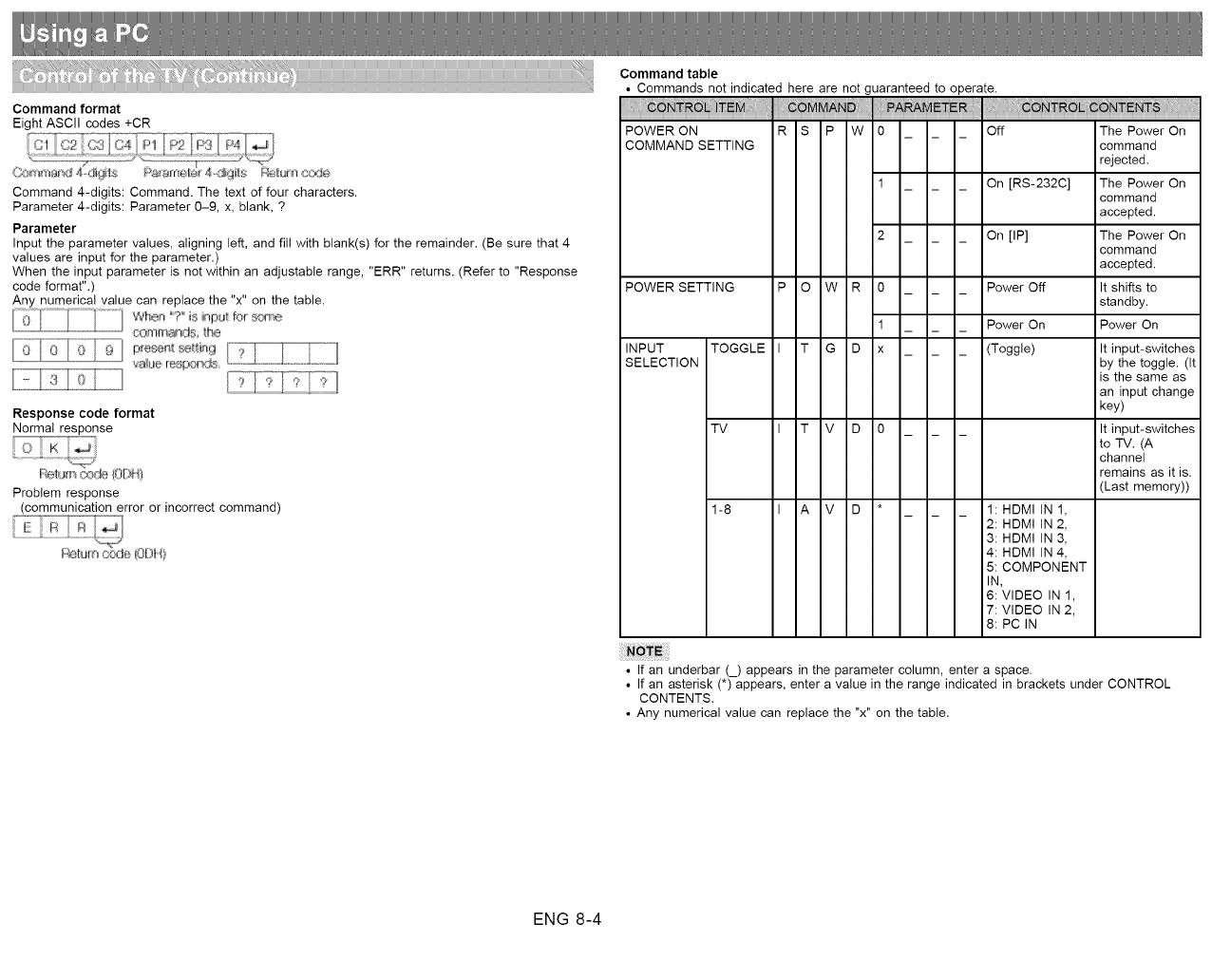

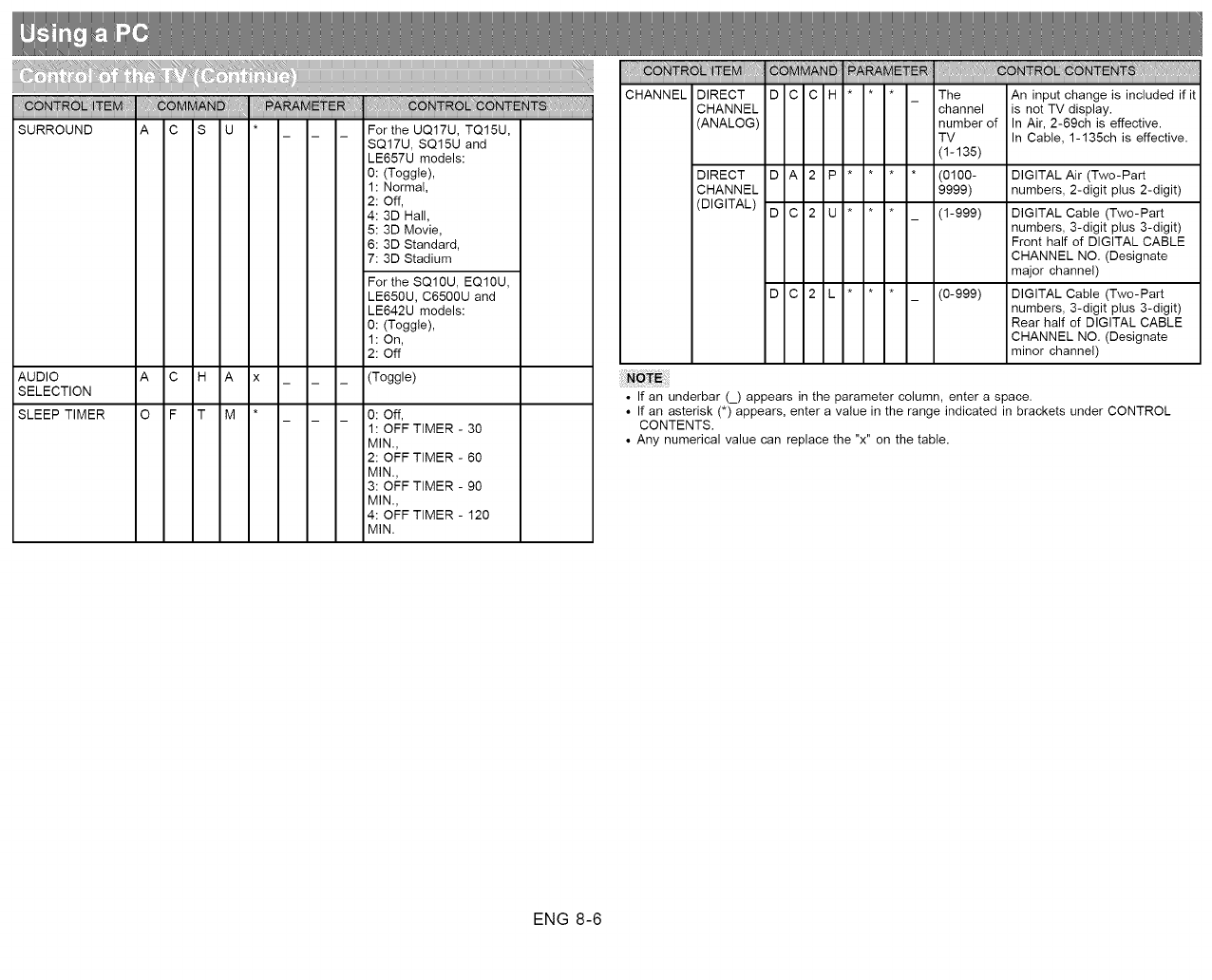

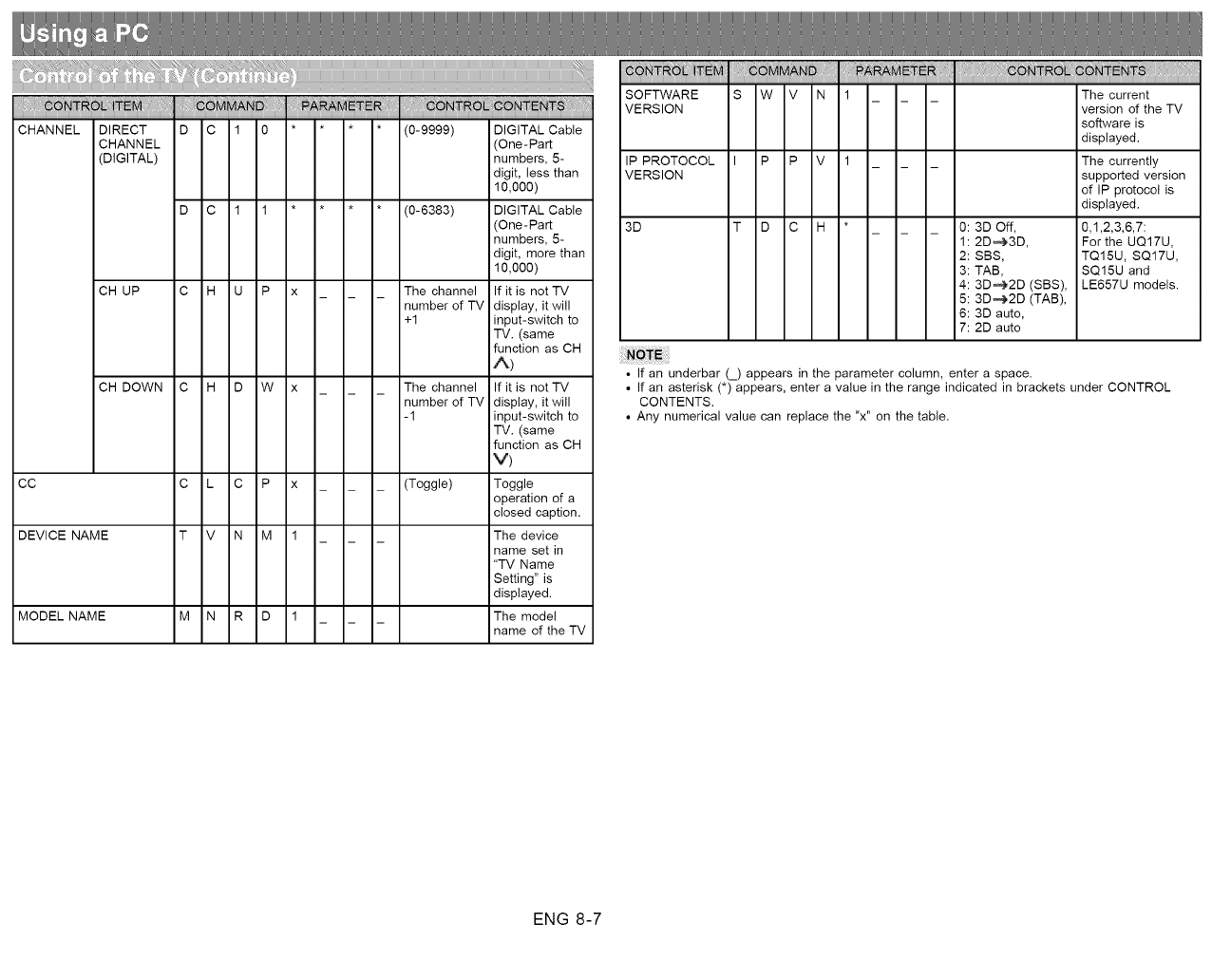

8-3. Control of the TV

8-9. PC Compatibility Chart

9. Using the Internet

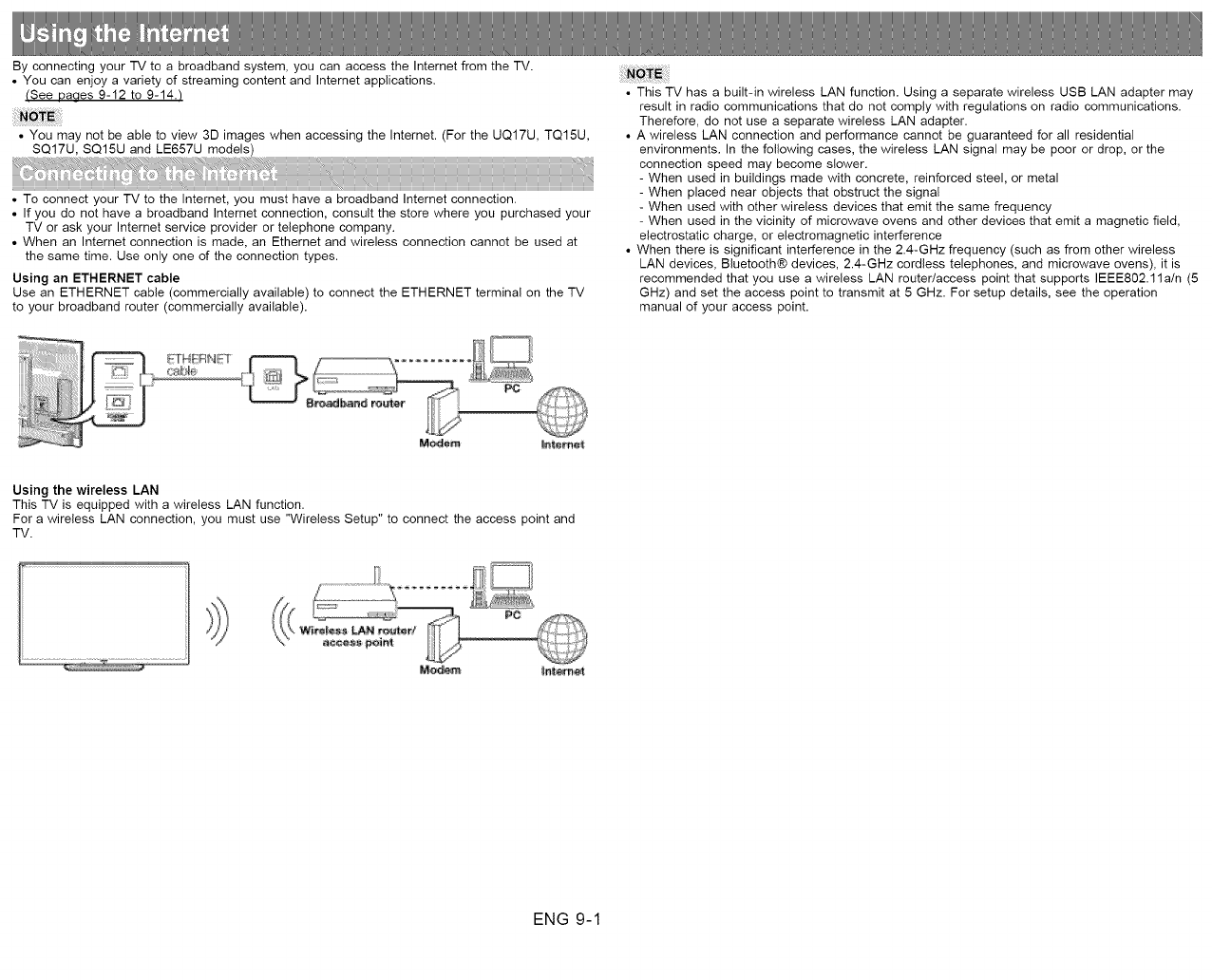

9-1. Connecting to the Internet

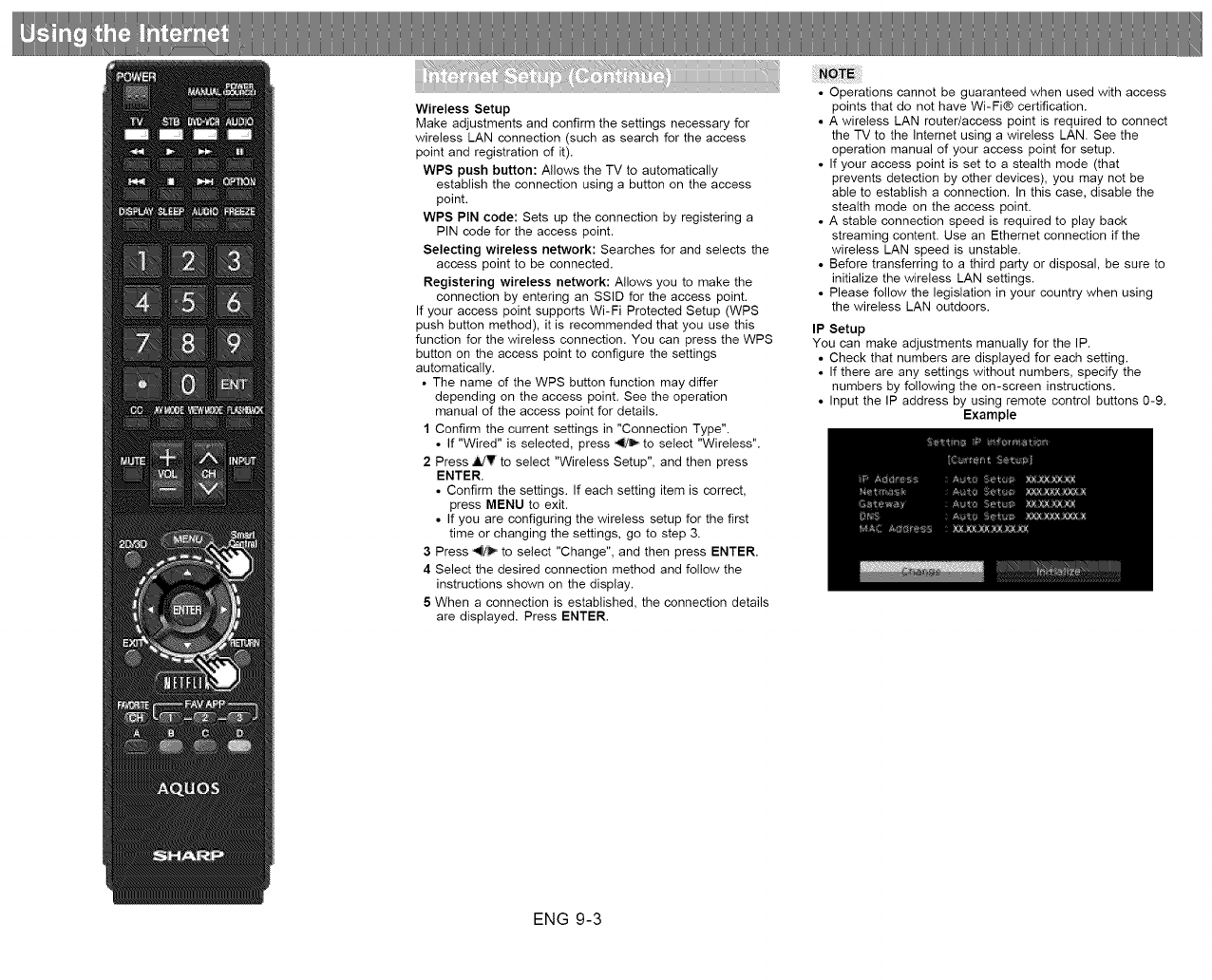

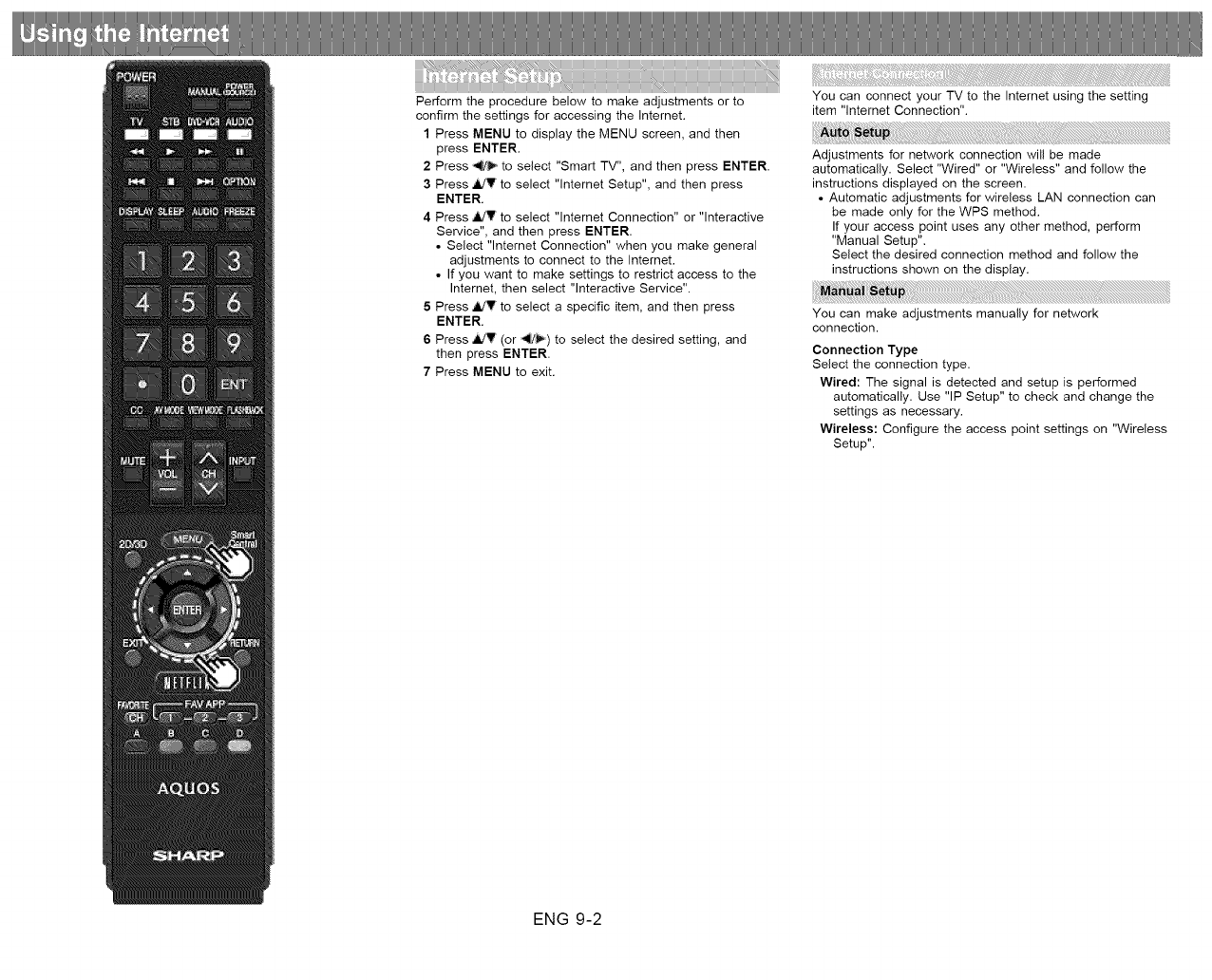

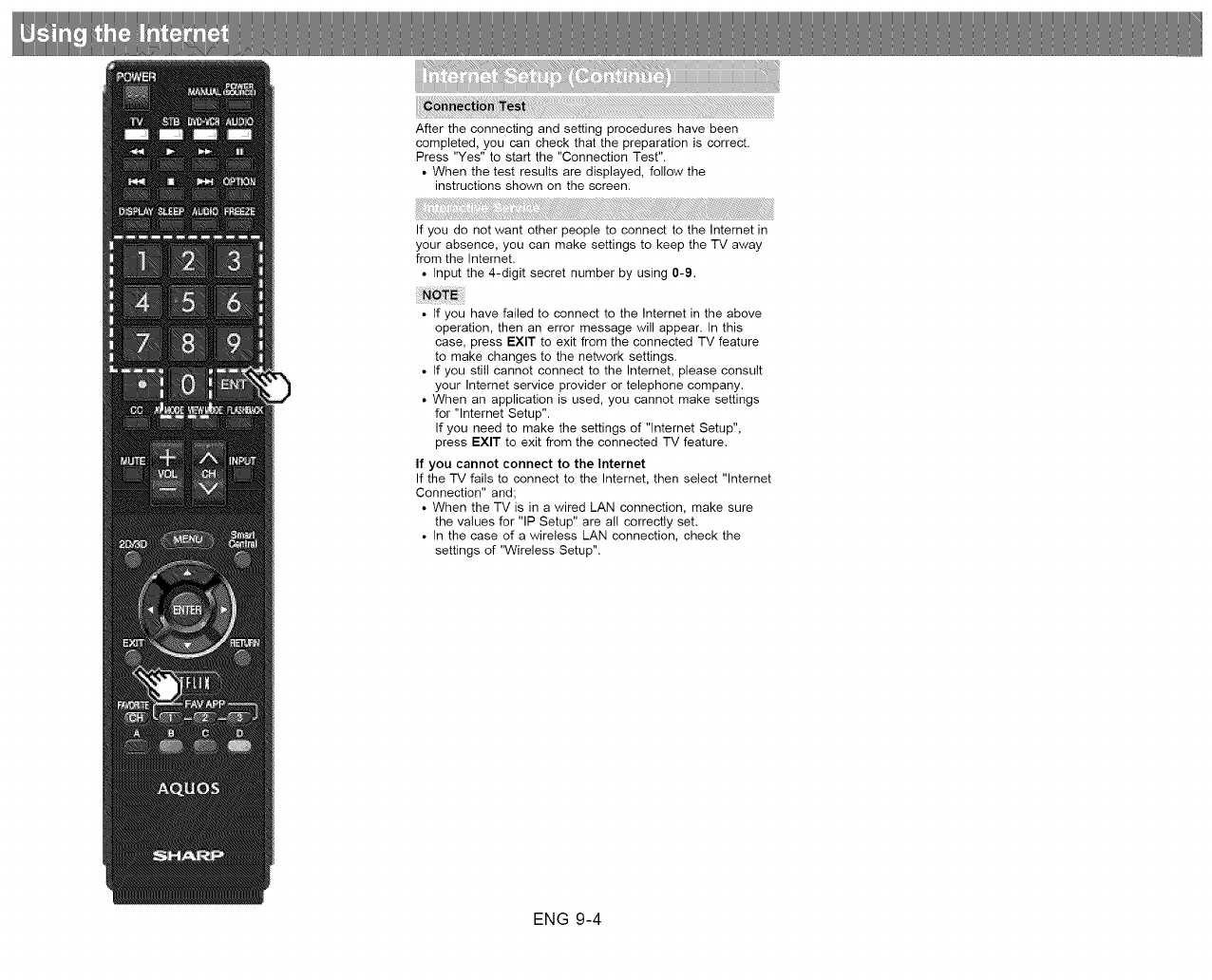

9-2. Intemet Setup

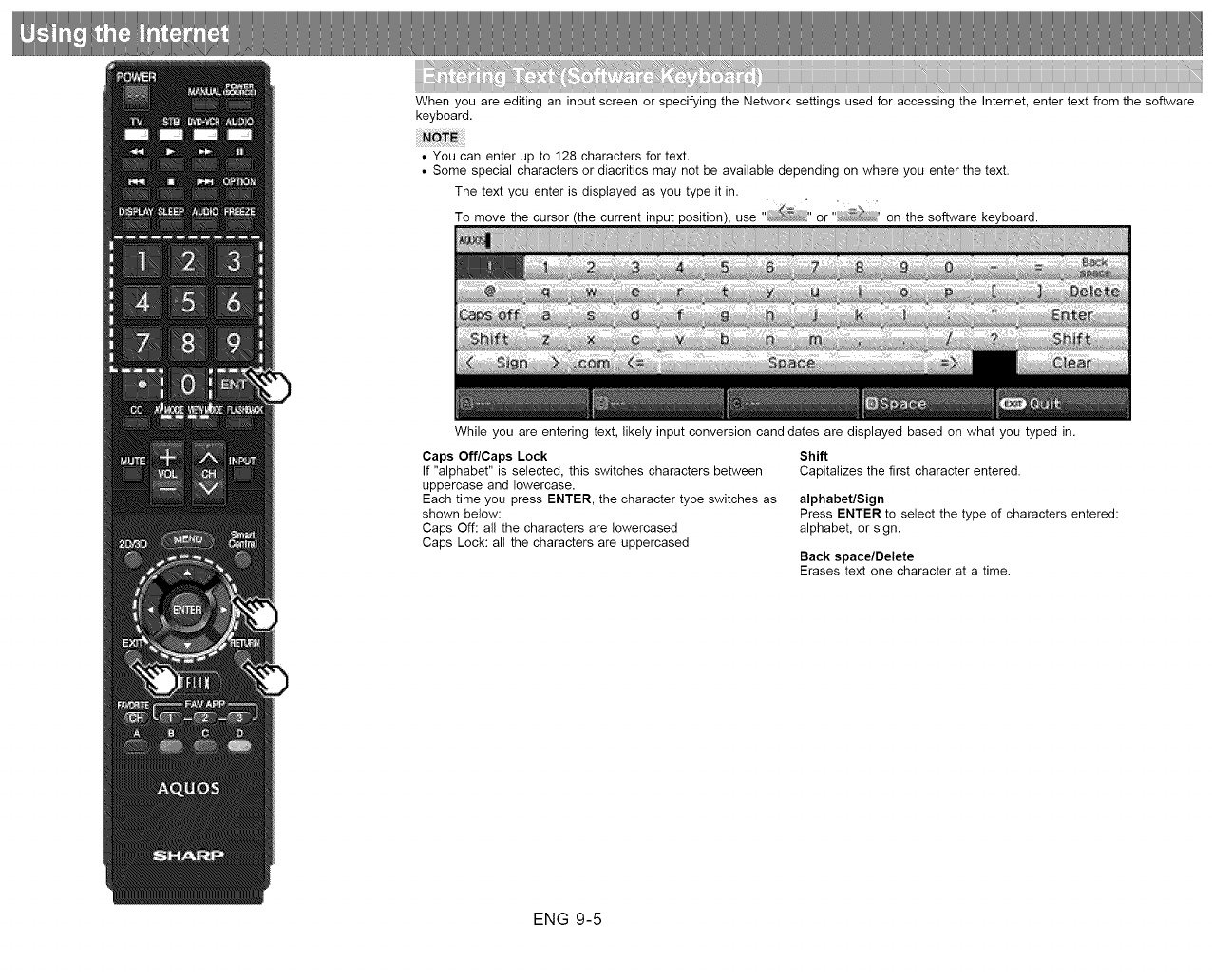

9-5. Entering Text (Software Keyboard)

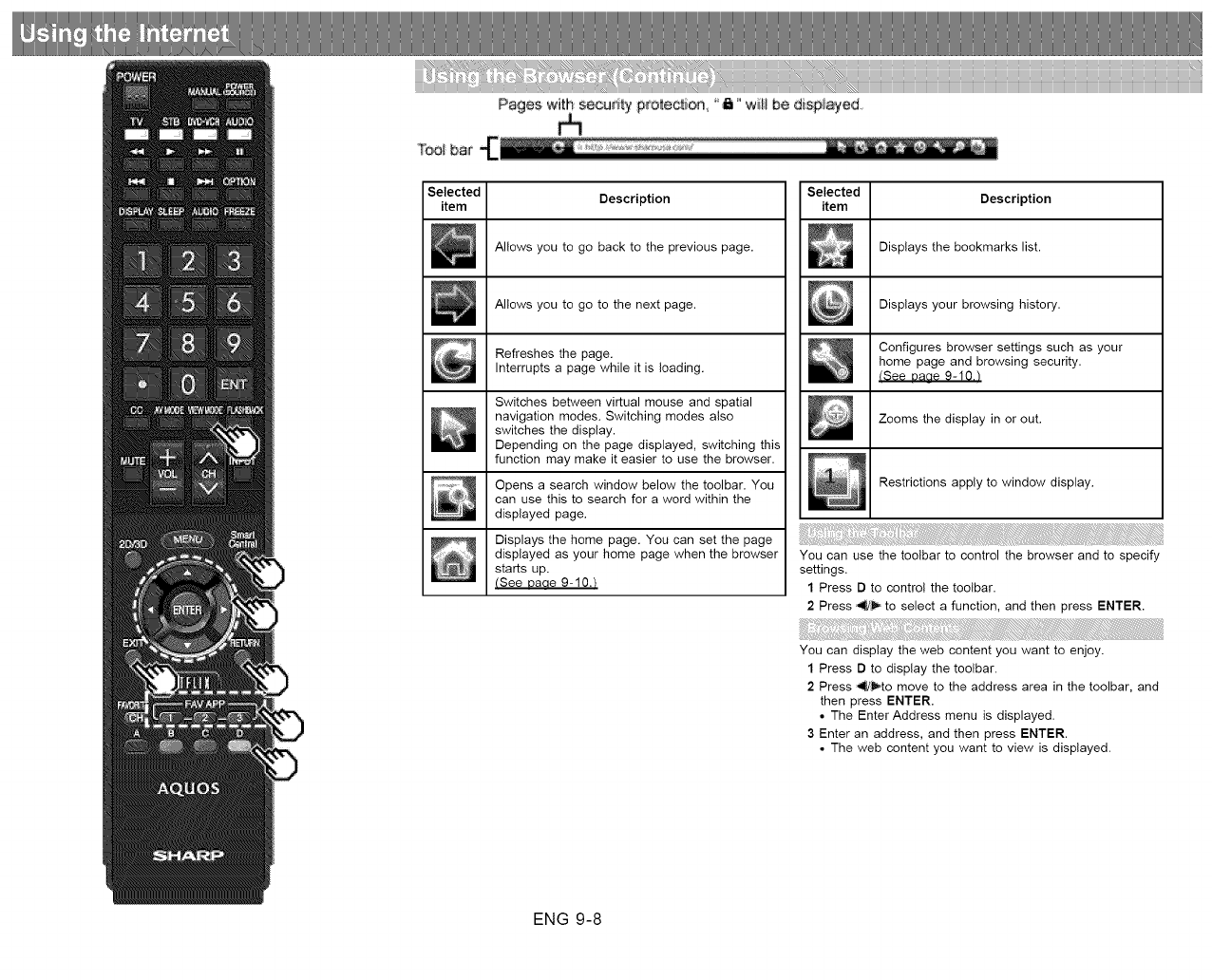

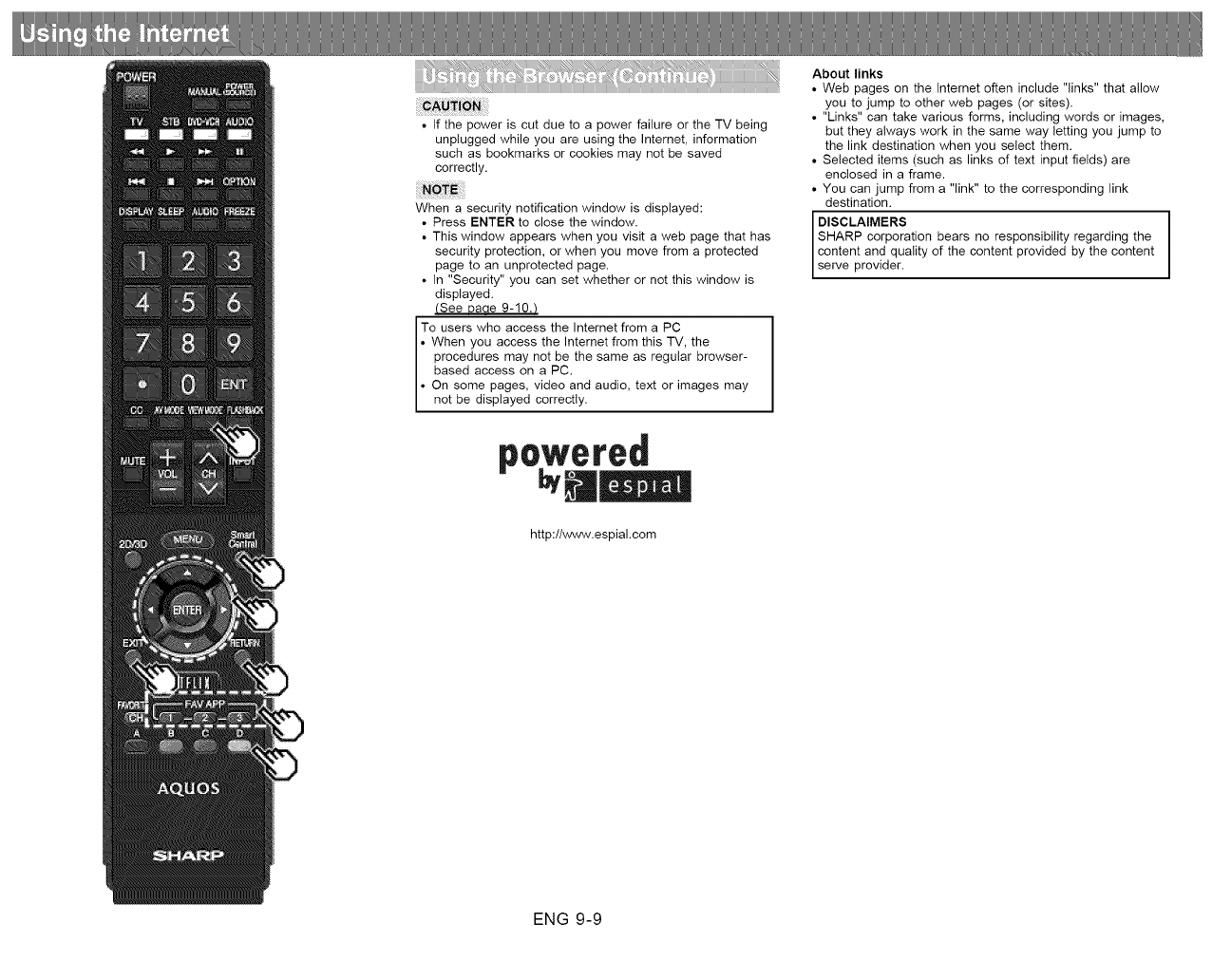

9-7. Using the Browser

9-11. Using Keyboard and Mouse

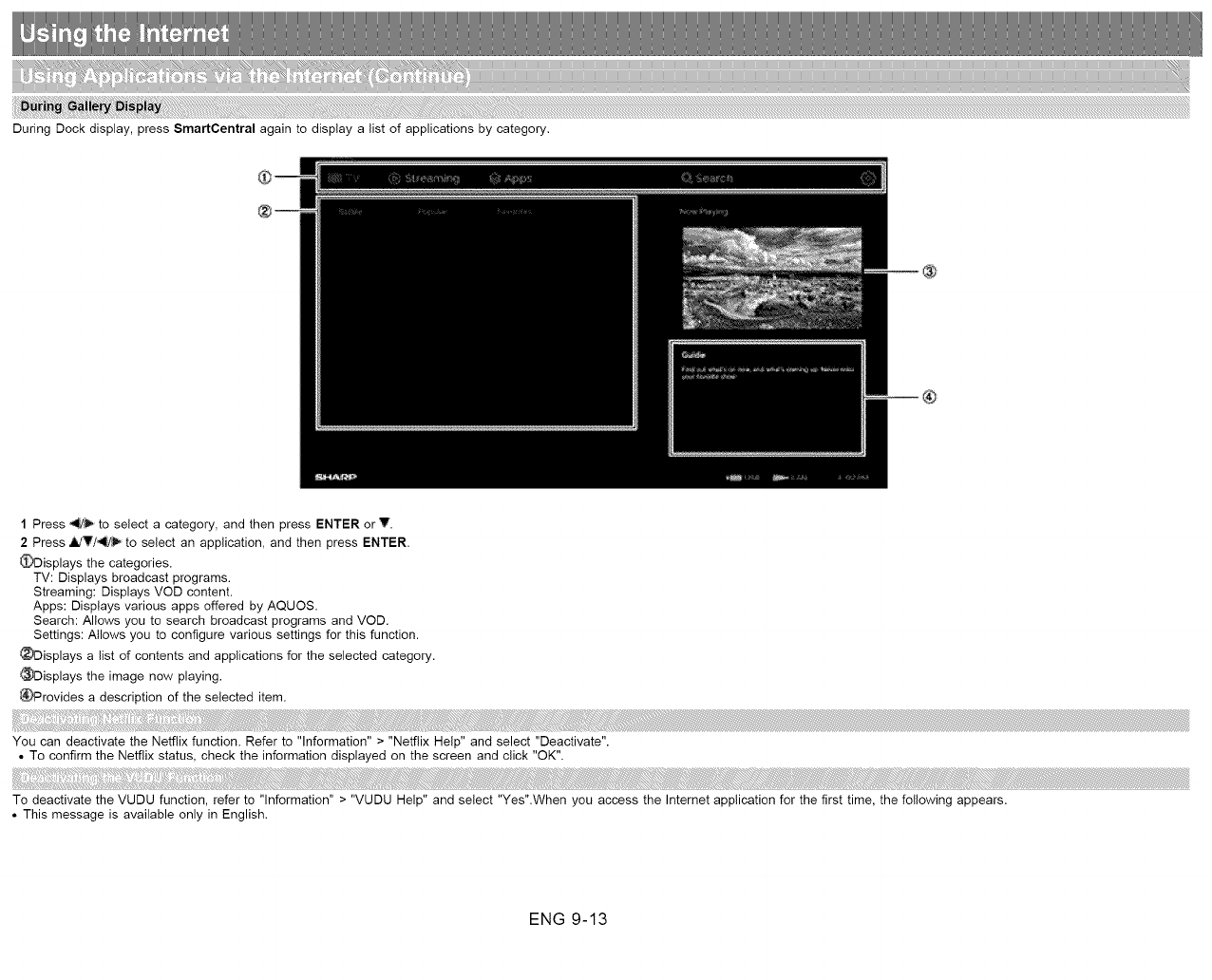

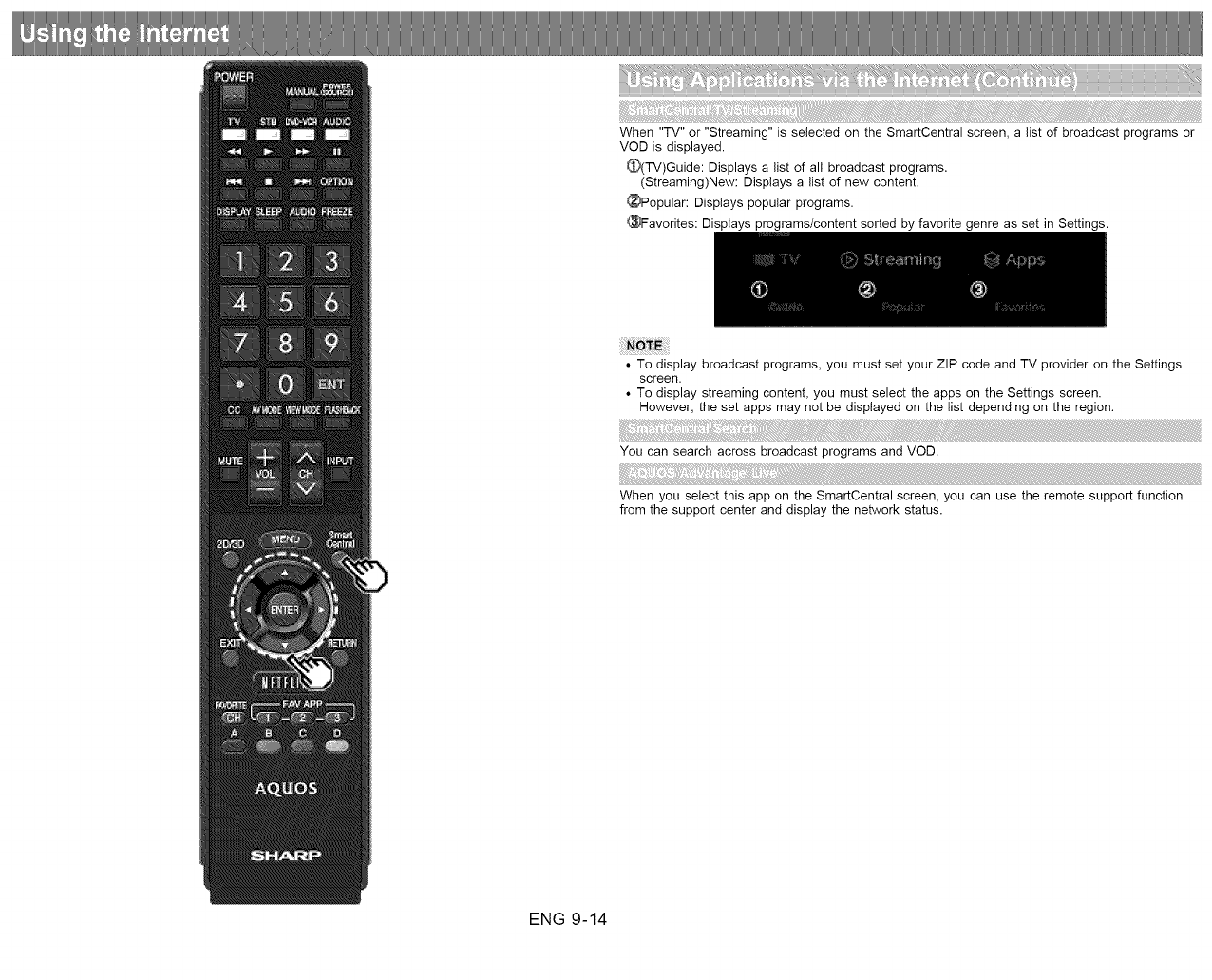

9-12. Using Applications via the Internet

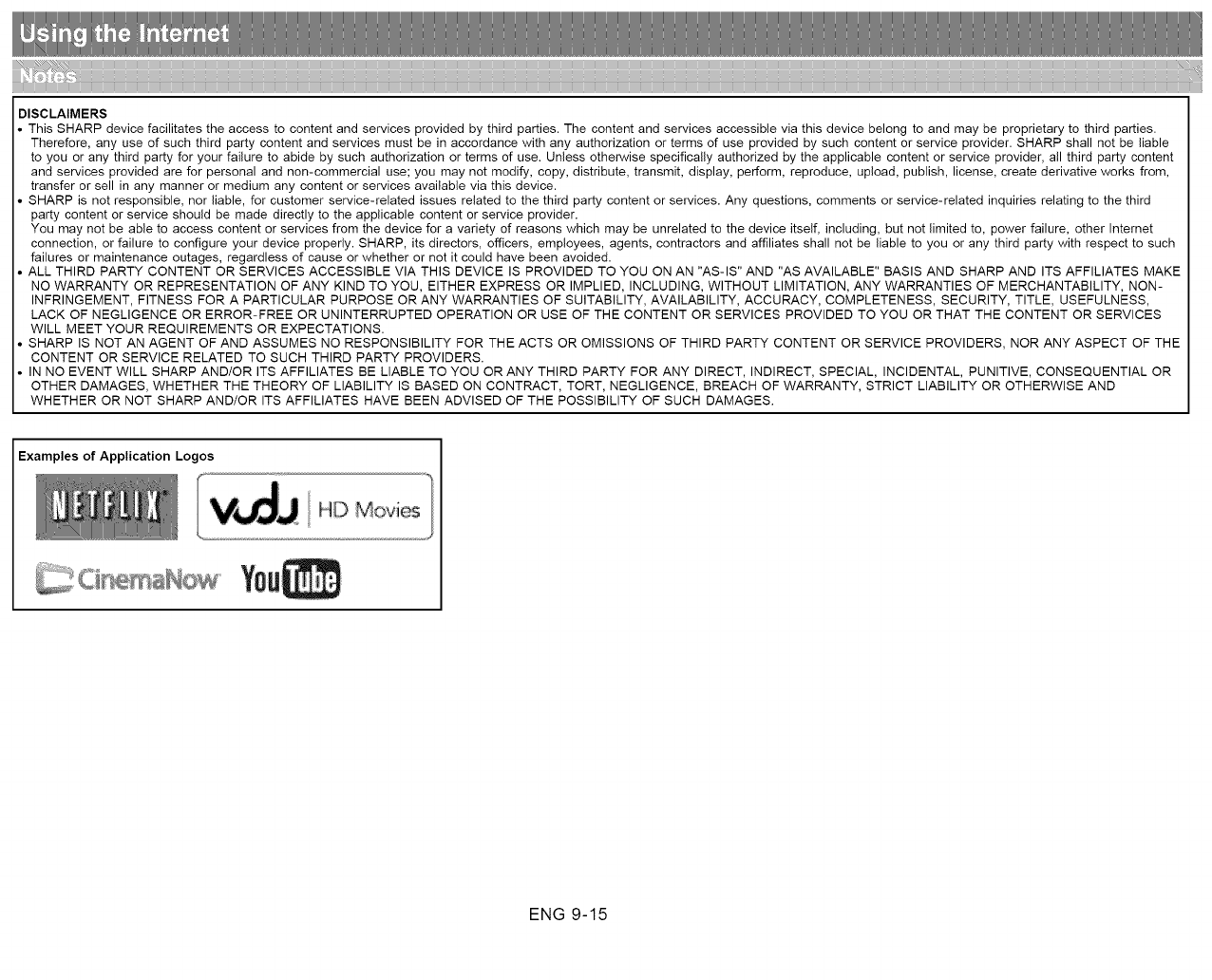

9-15. Notes

10. Using the Bluetooth (For the UQ17U, TQ15U, SQ17U,

SQ15U, SQ10U and LE657U models)/Miracast

devices(For the UQ17U, TQ15U, SQ17U, SQ15U, SQ10U

and EQ10U models)

10-1. Using the Bluetooth/Miracast devices

11. Appendix

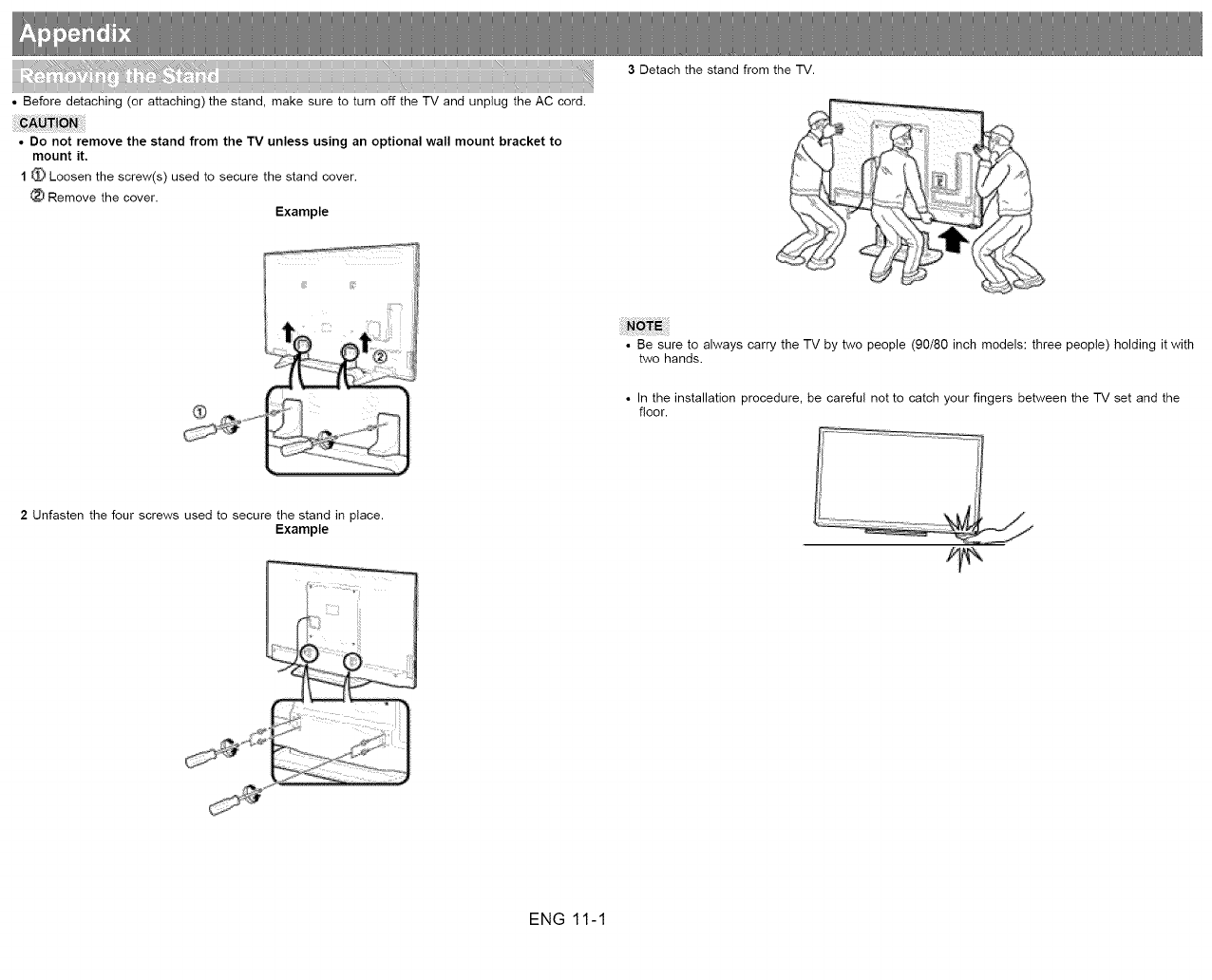

11-1. Removing the Stand

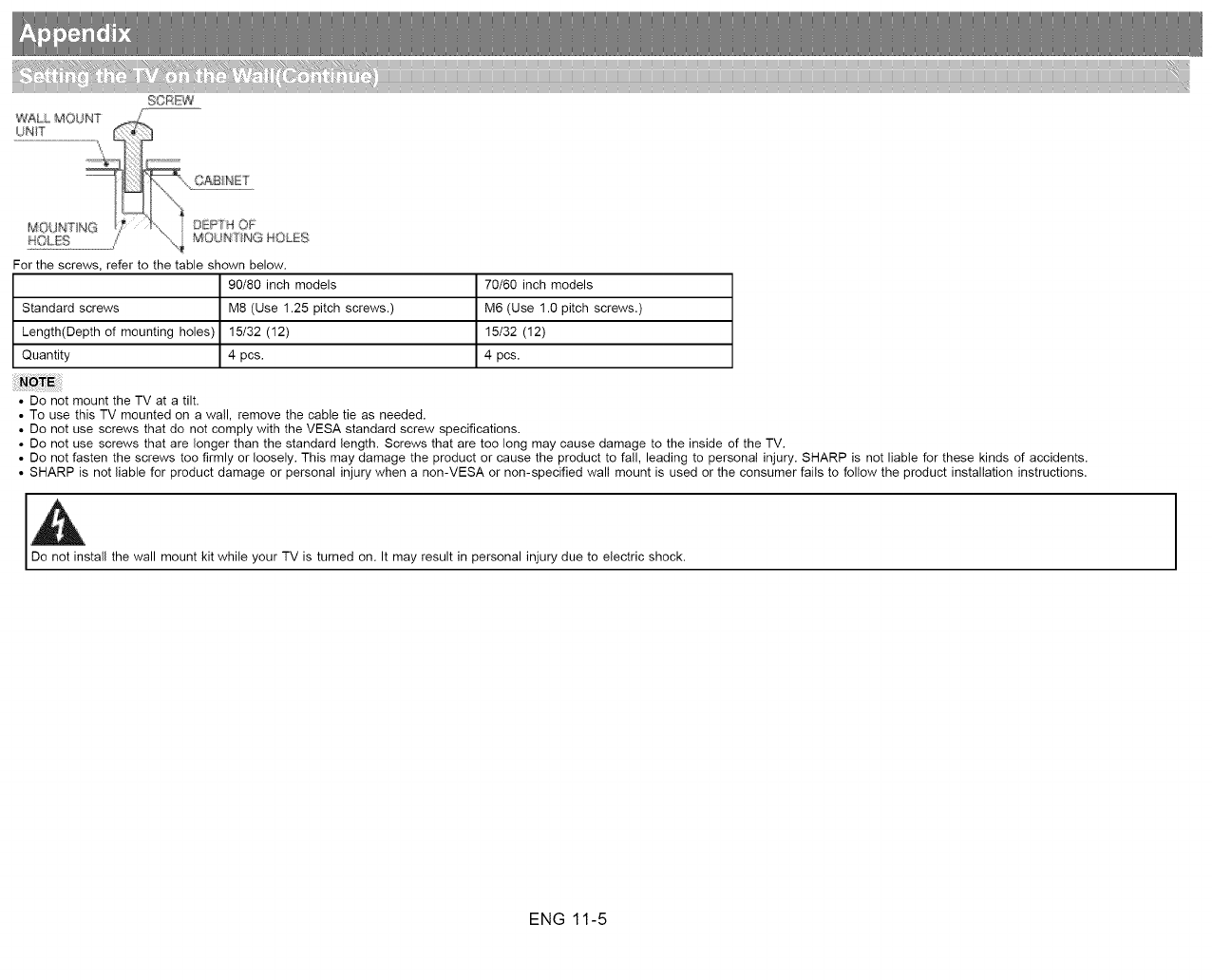

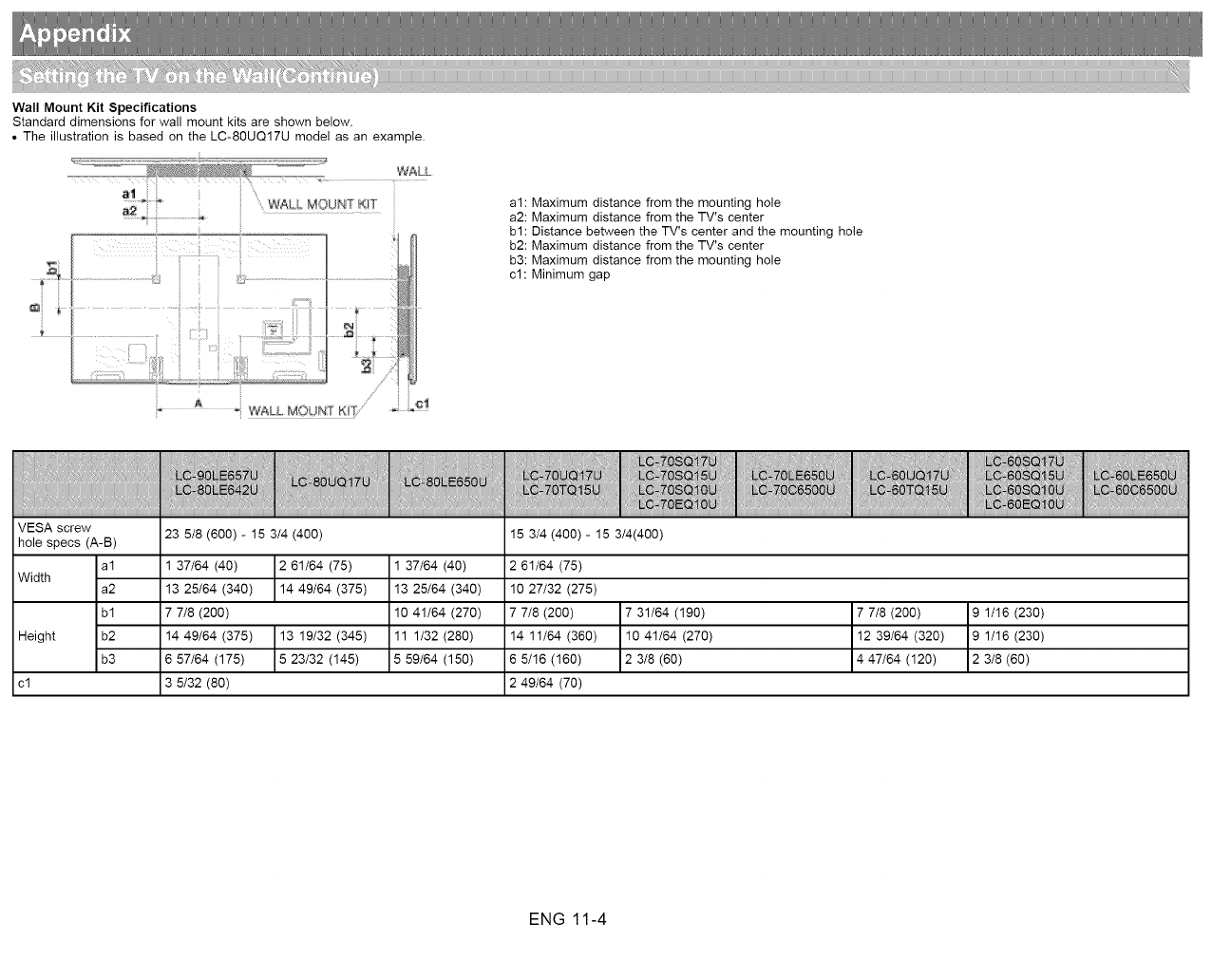

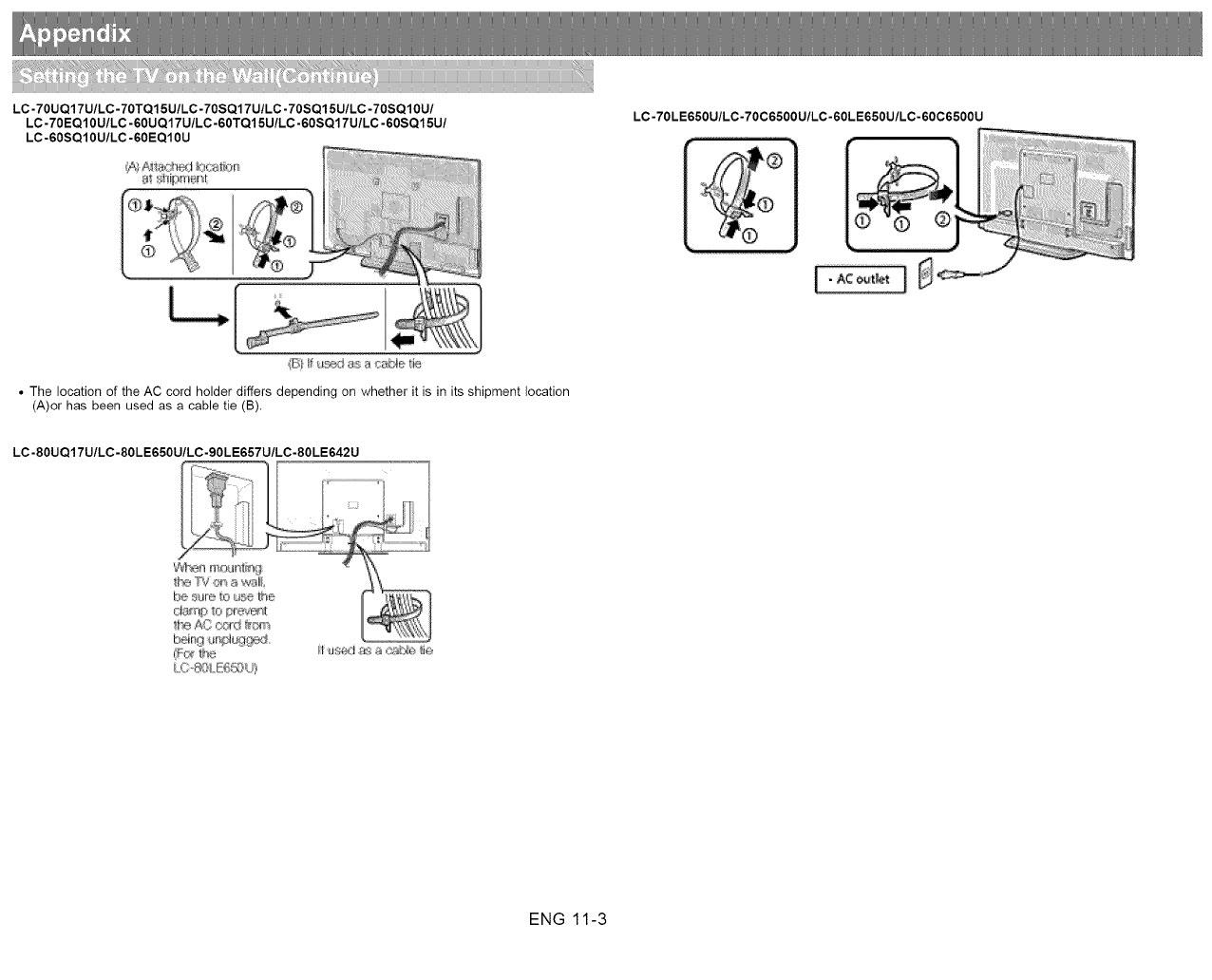

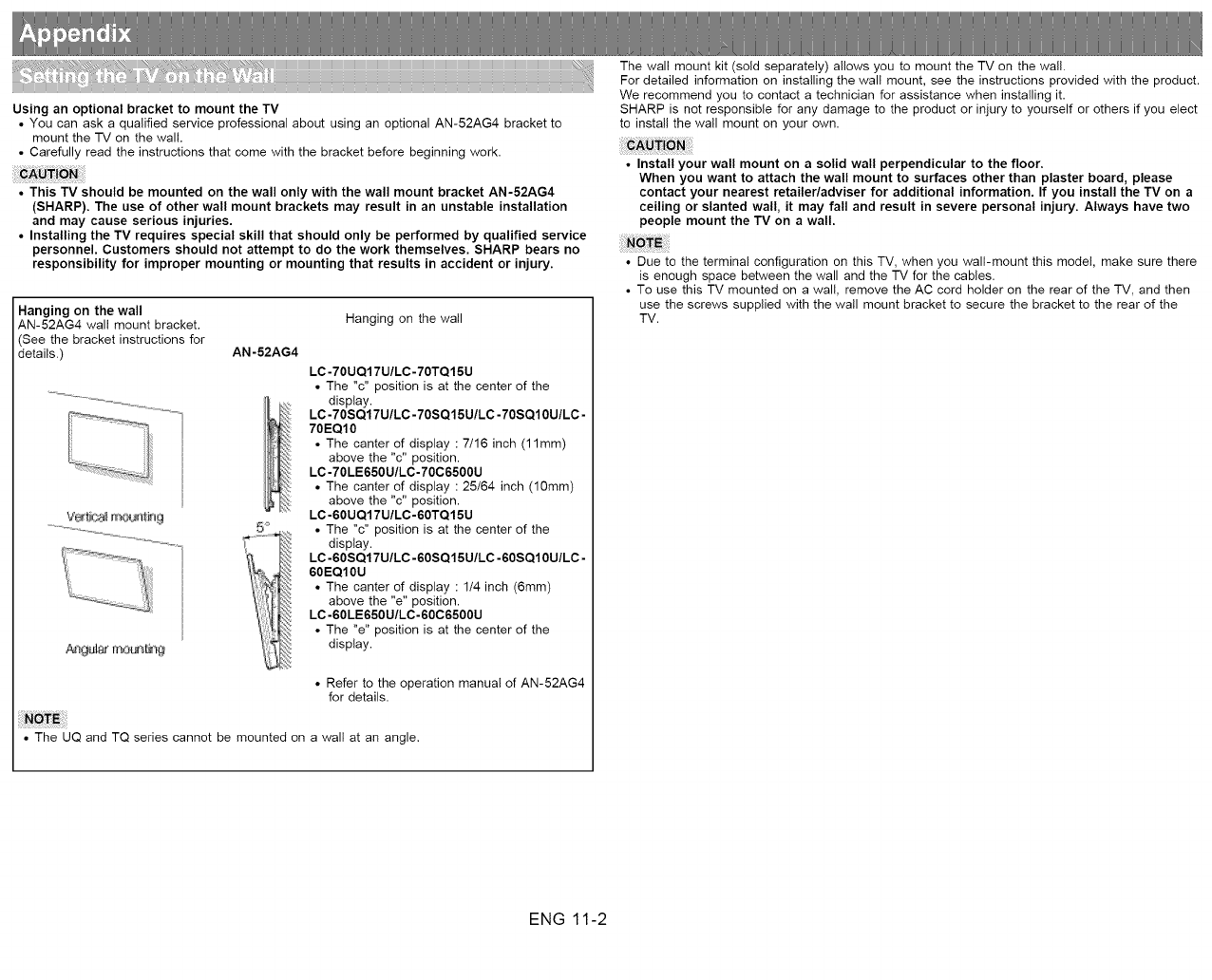

11-2. Setting the TV on the Wall

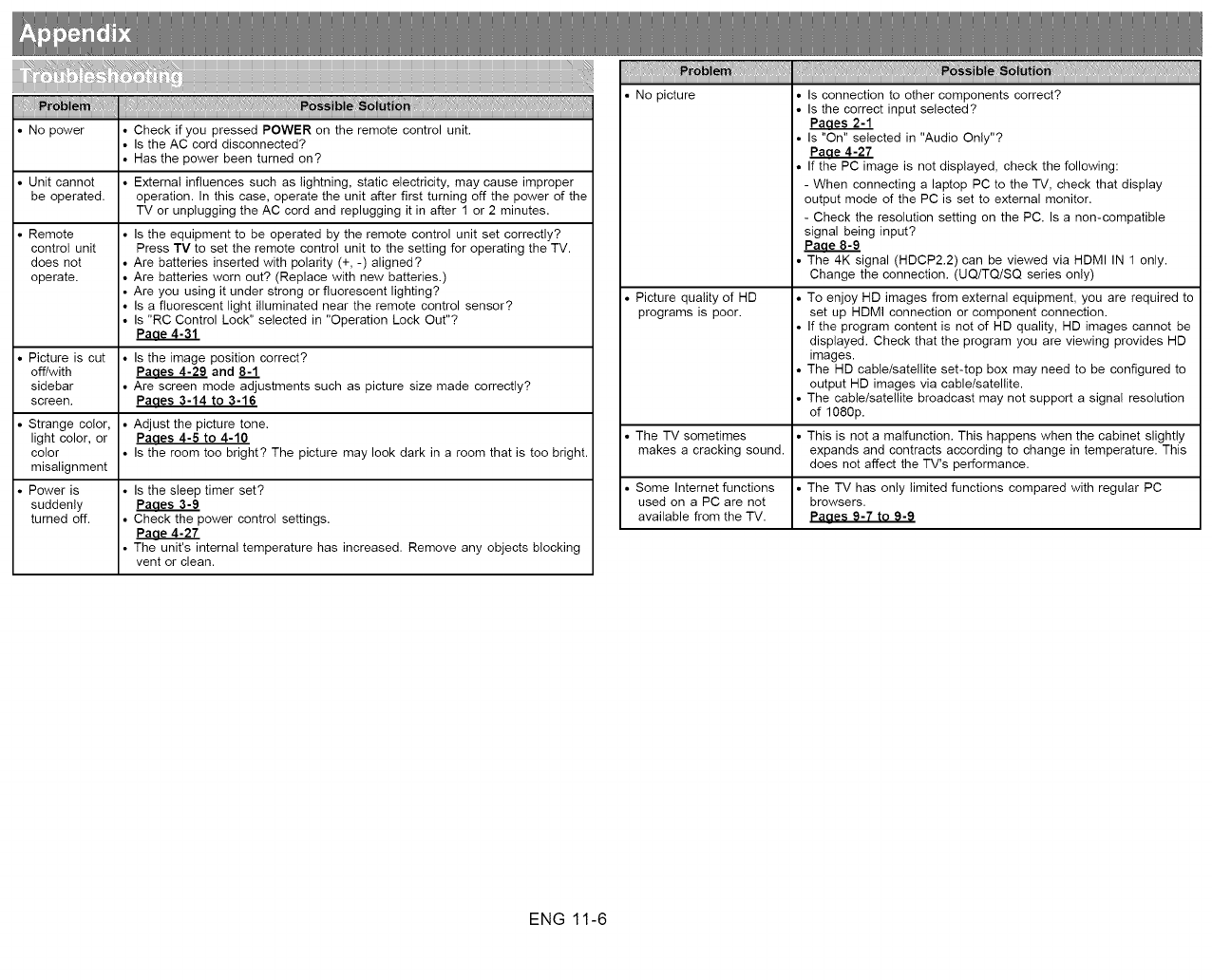

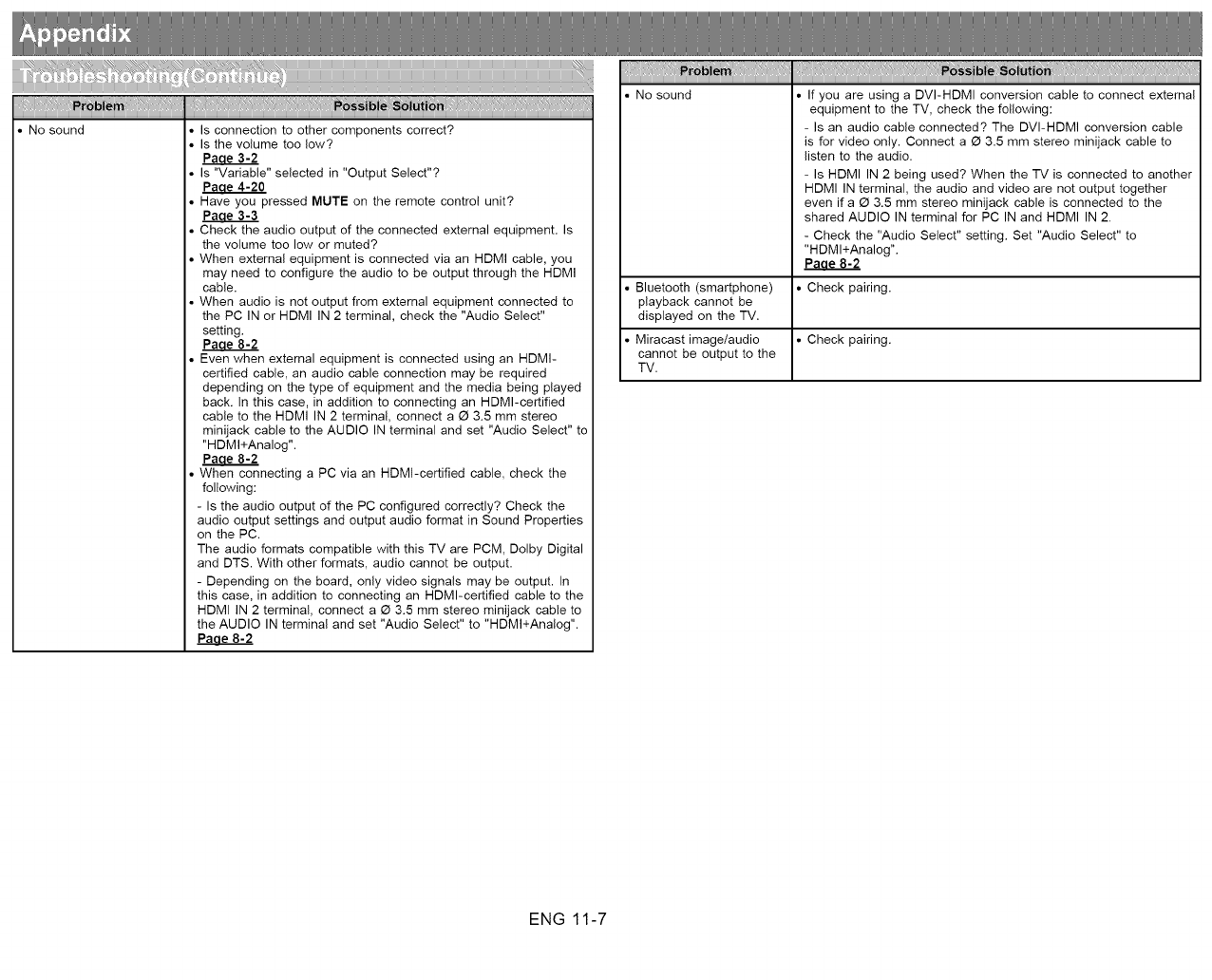

11-6. Troubleshooting

11-8. Troubleshooting - 3D Images

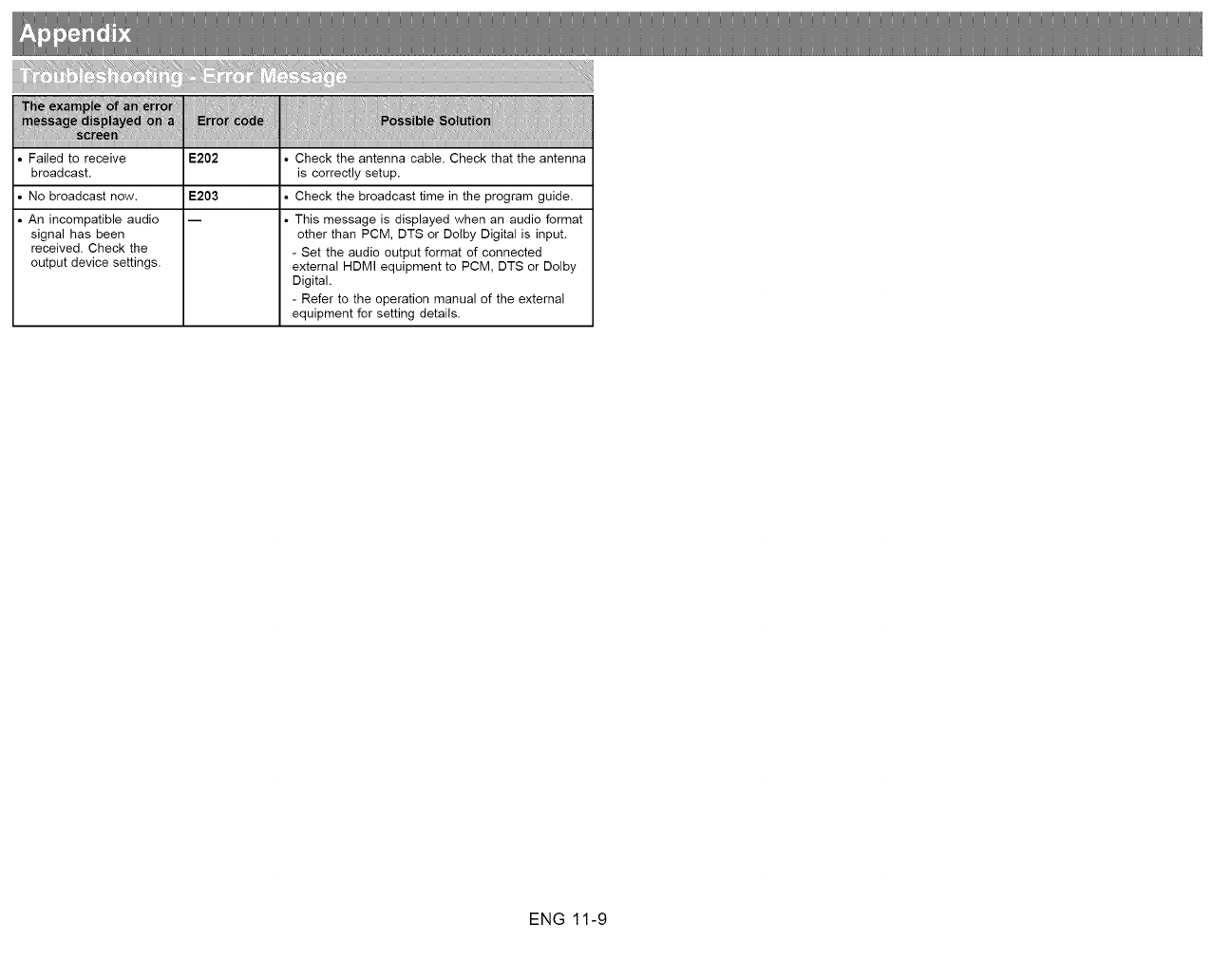

11-9. Troubleshooting - Error Message

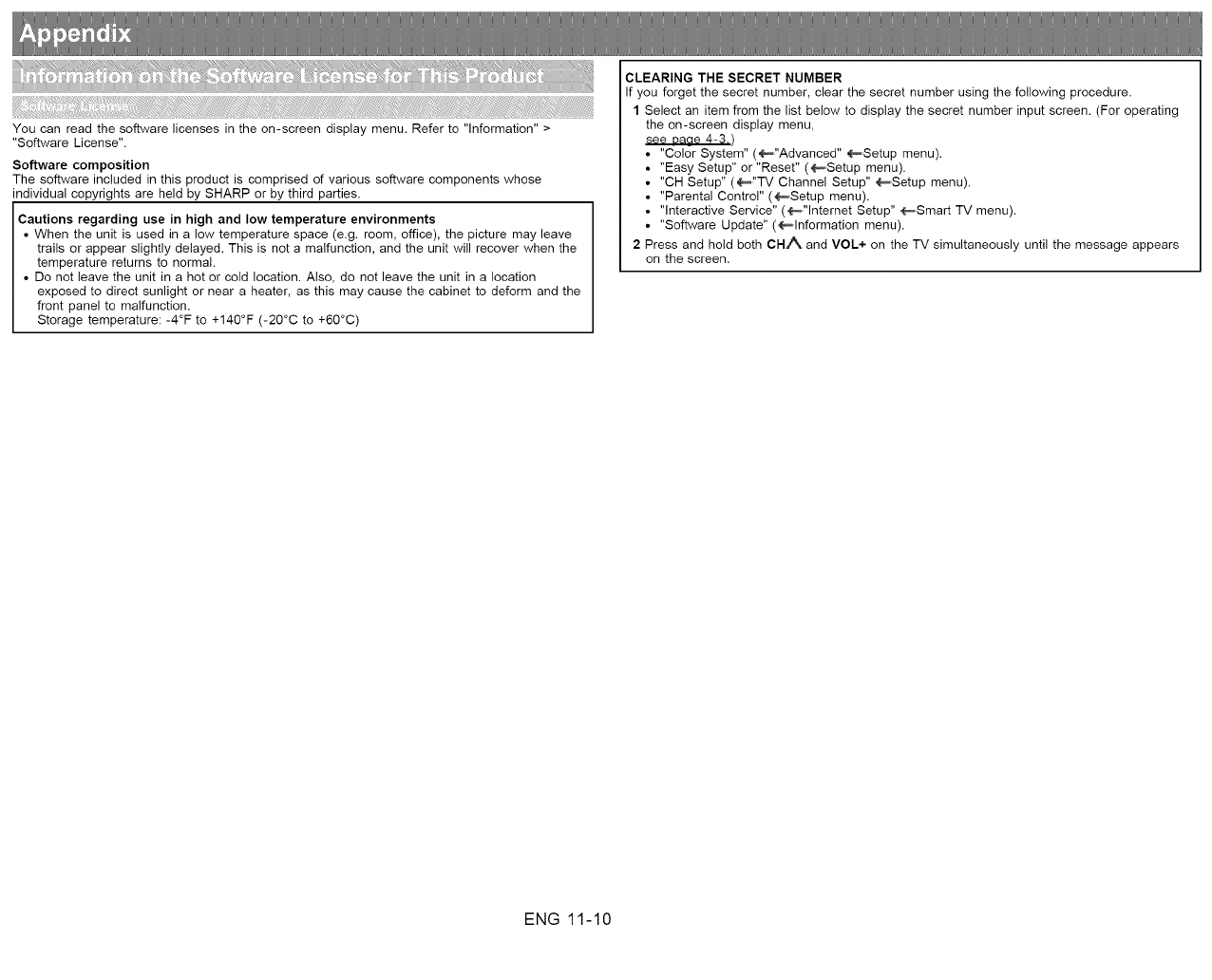

11-10. Information on the Software License for This

Product

12. Specifications

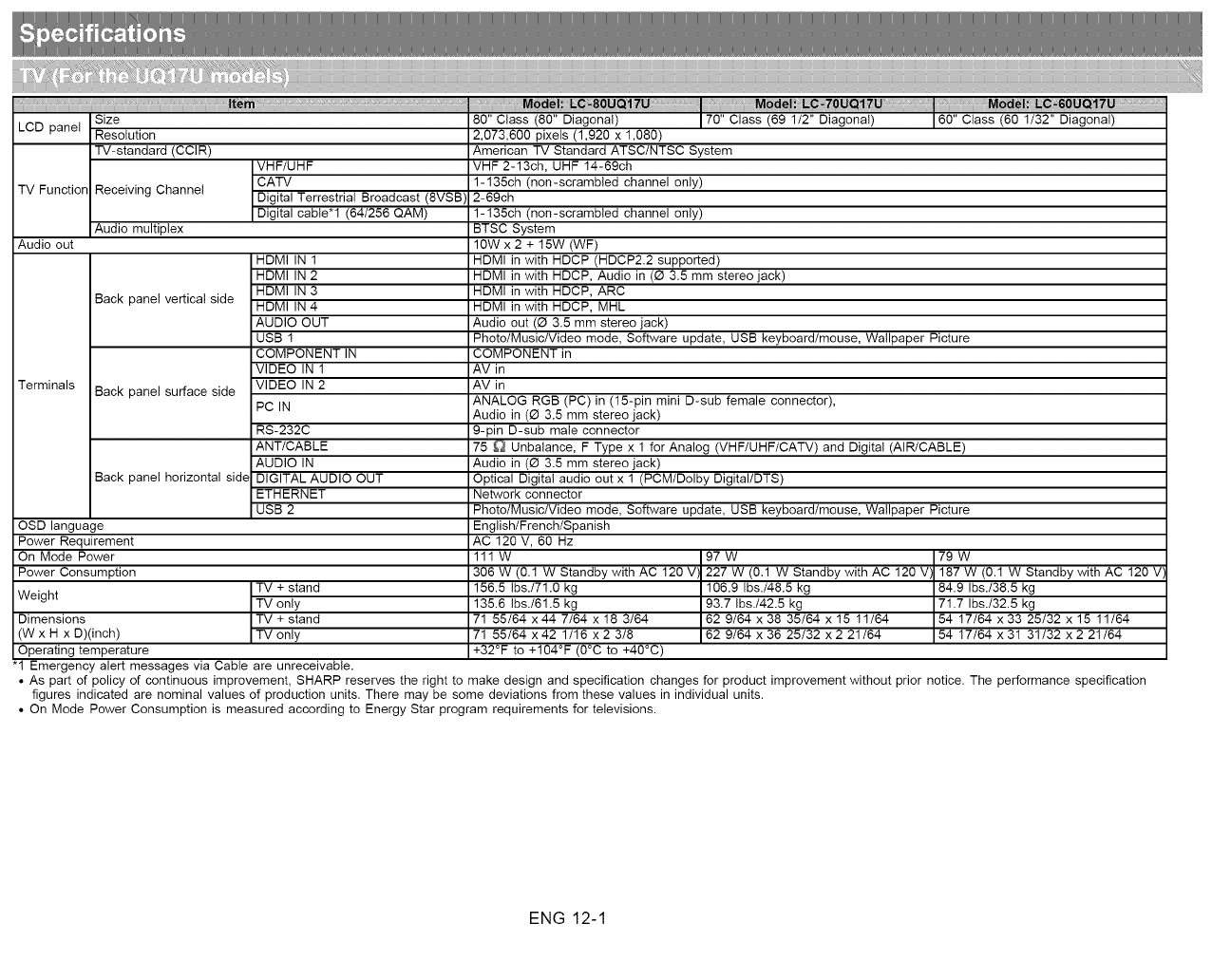

12-1. TV (For the UQ17U models)

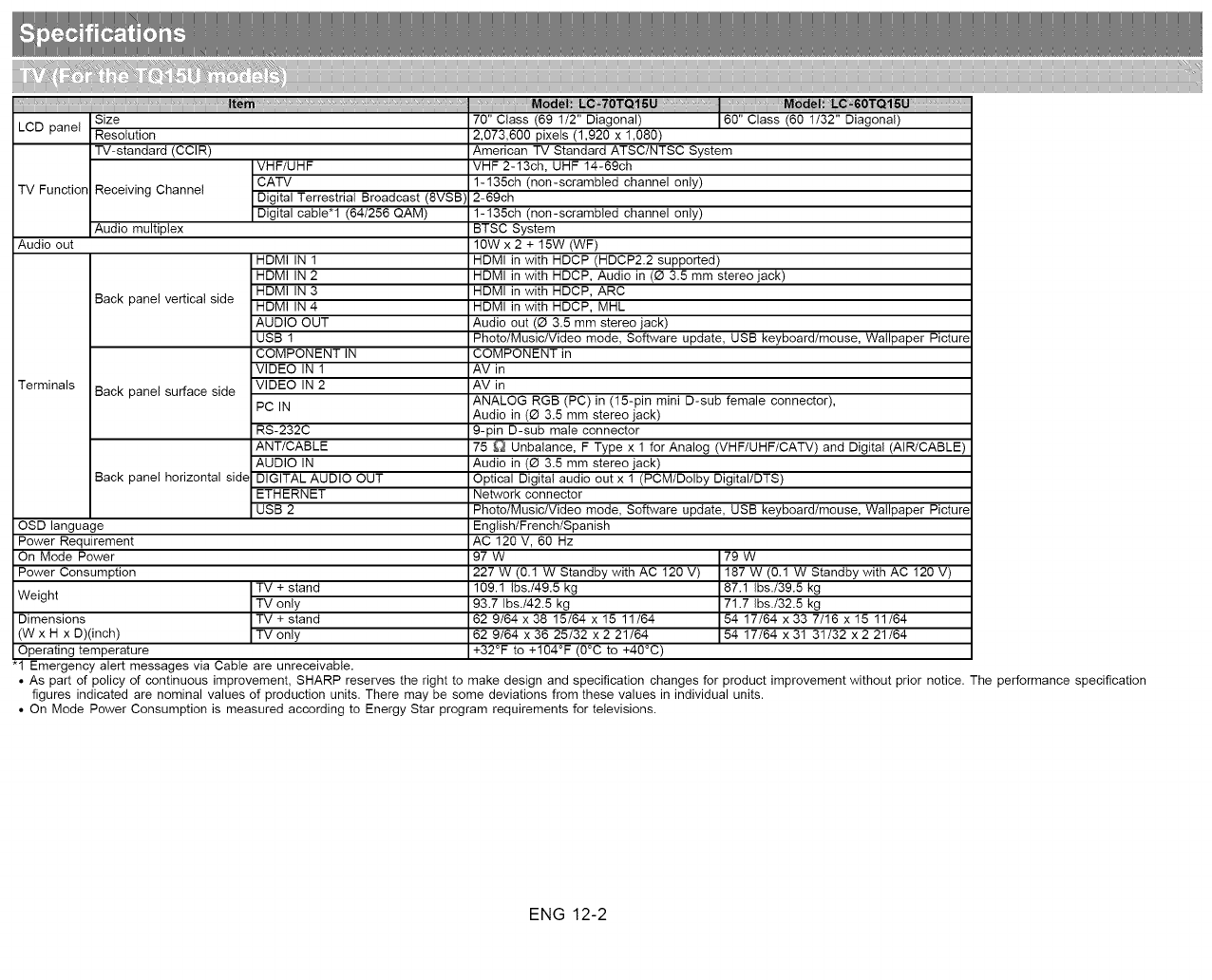

12-2. TV (For the TQ15U models)

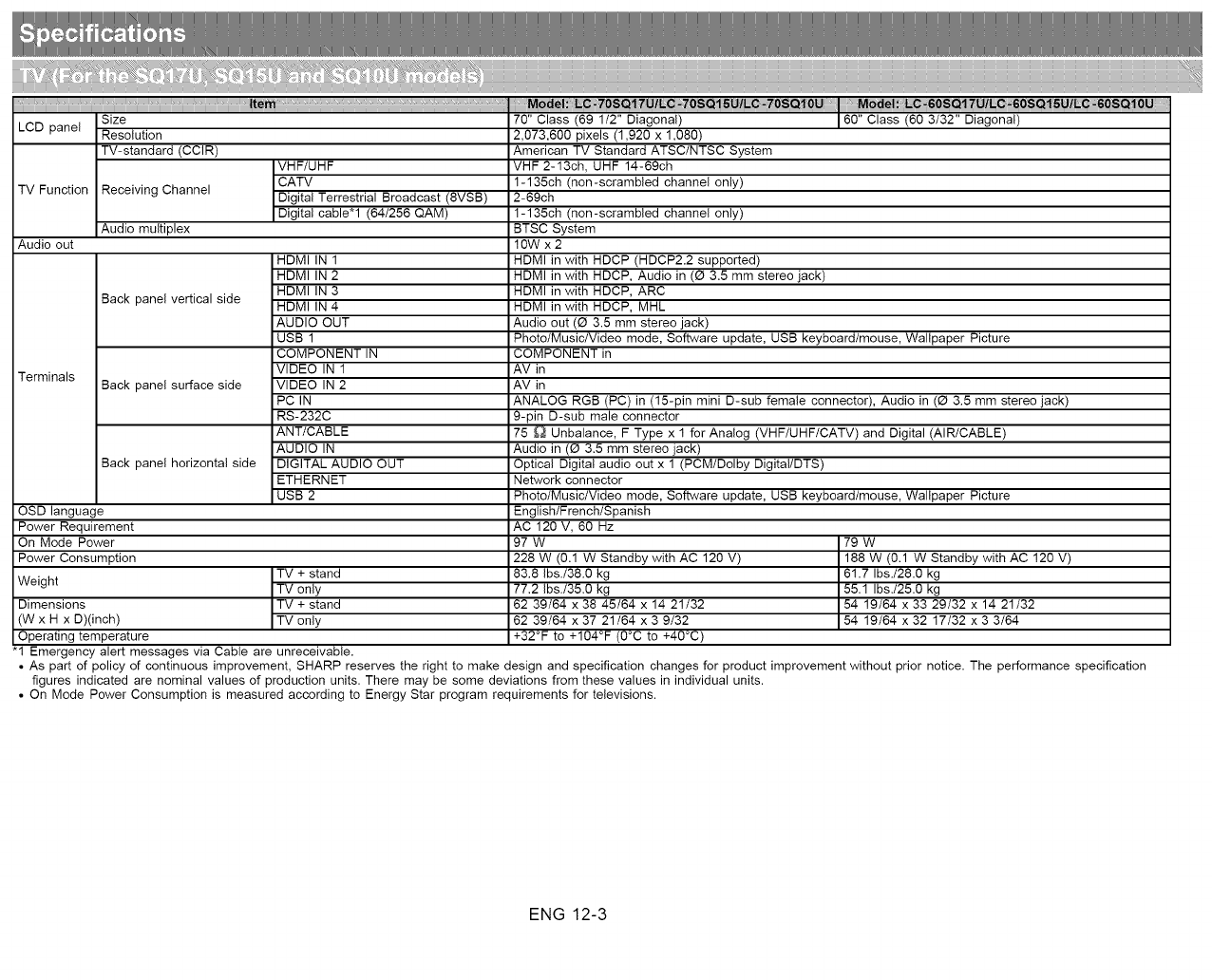

12-3. TV (For the SQ17U, SQ15U and SQ10U models)

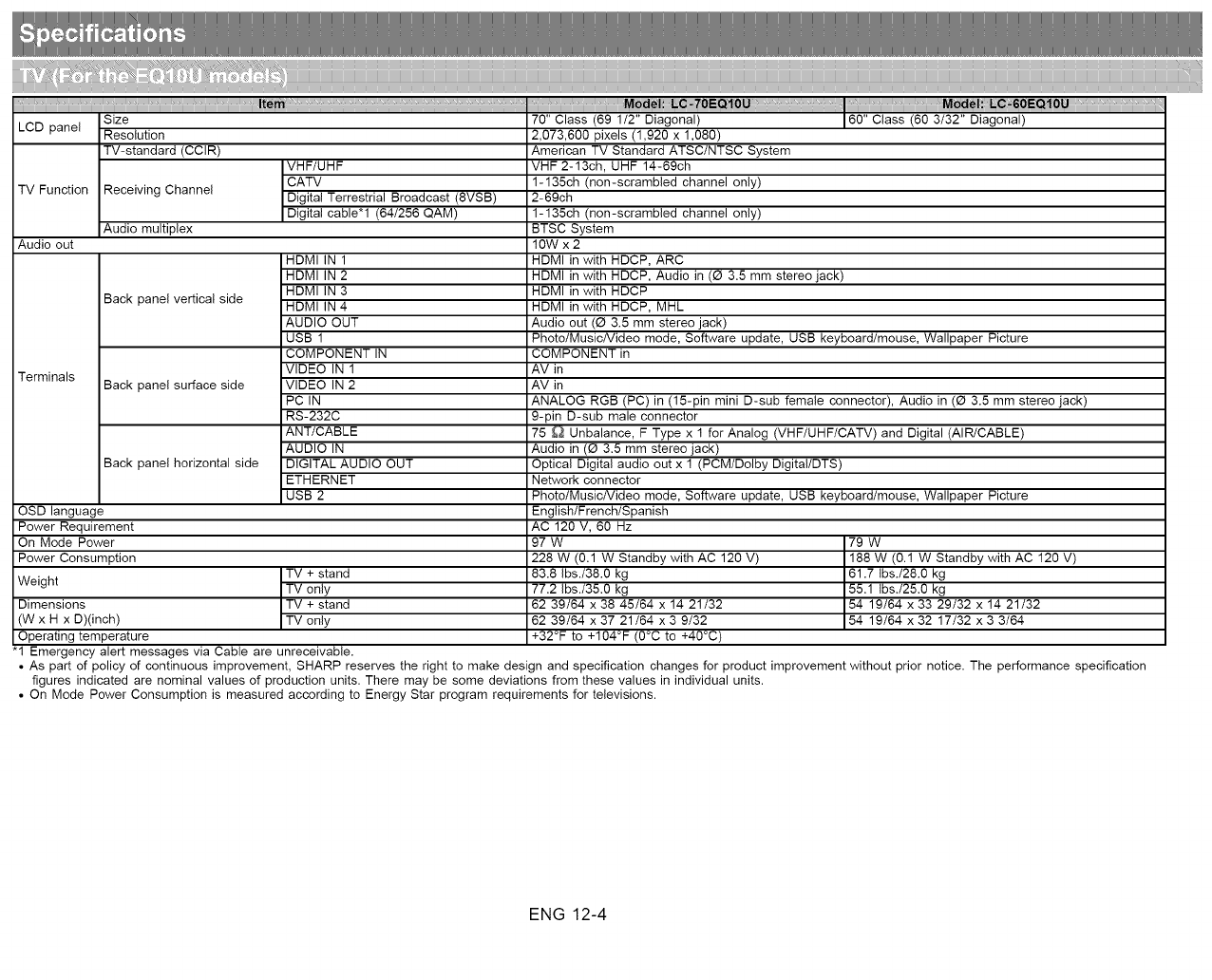

12-4. TV (For the EQ10U models)

12-5. TV (For the LE650U and C6500U models)

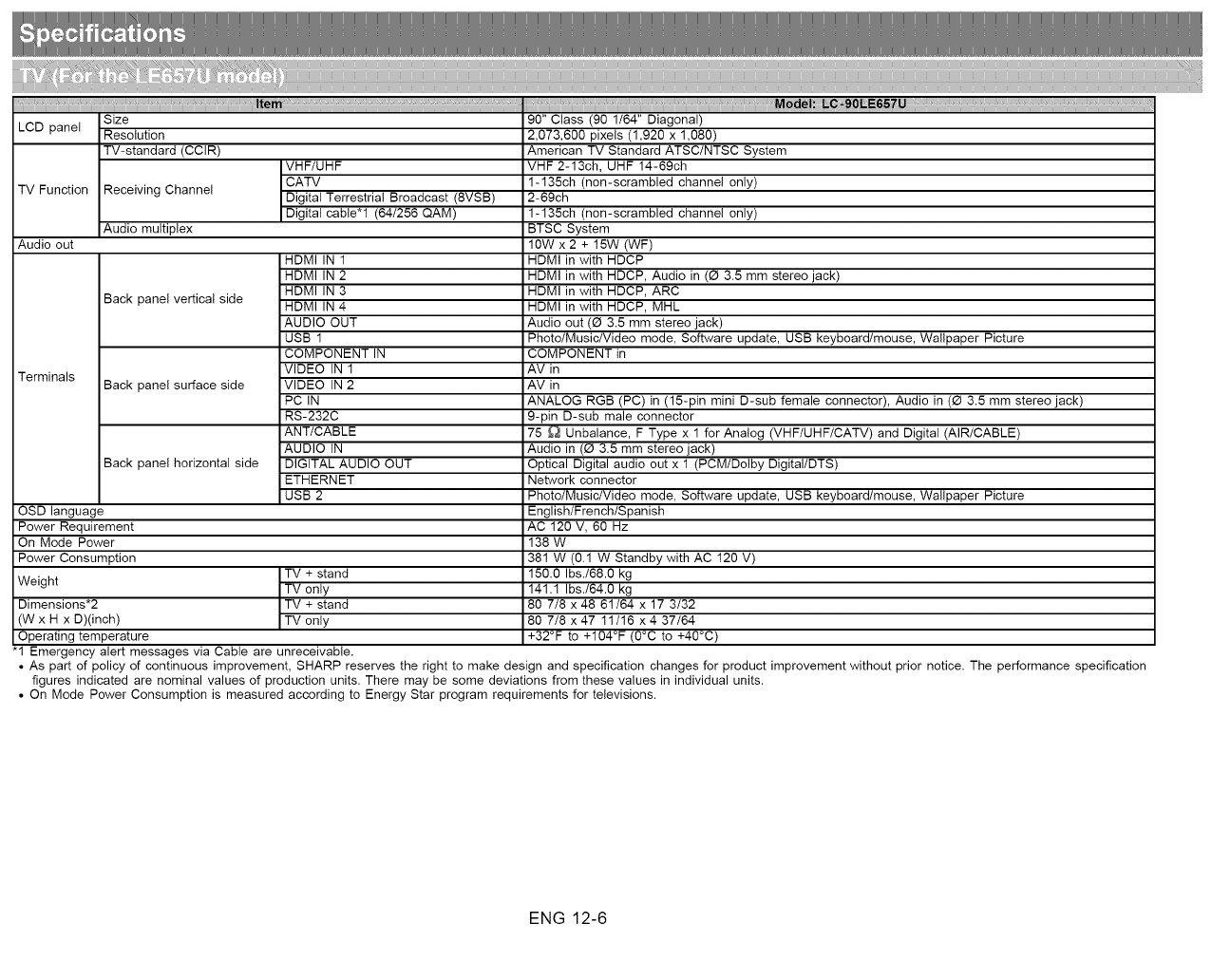

12-6. TV (For the LE657U model)

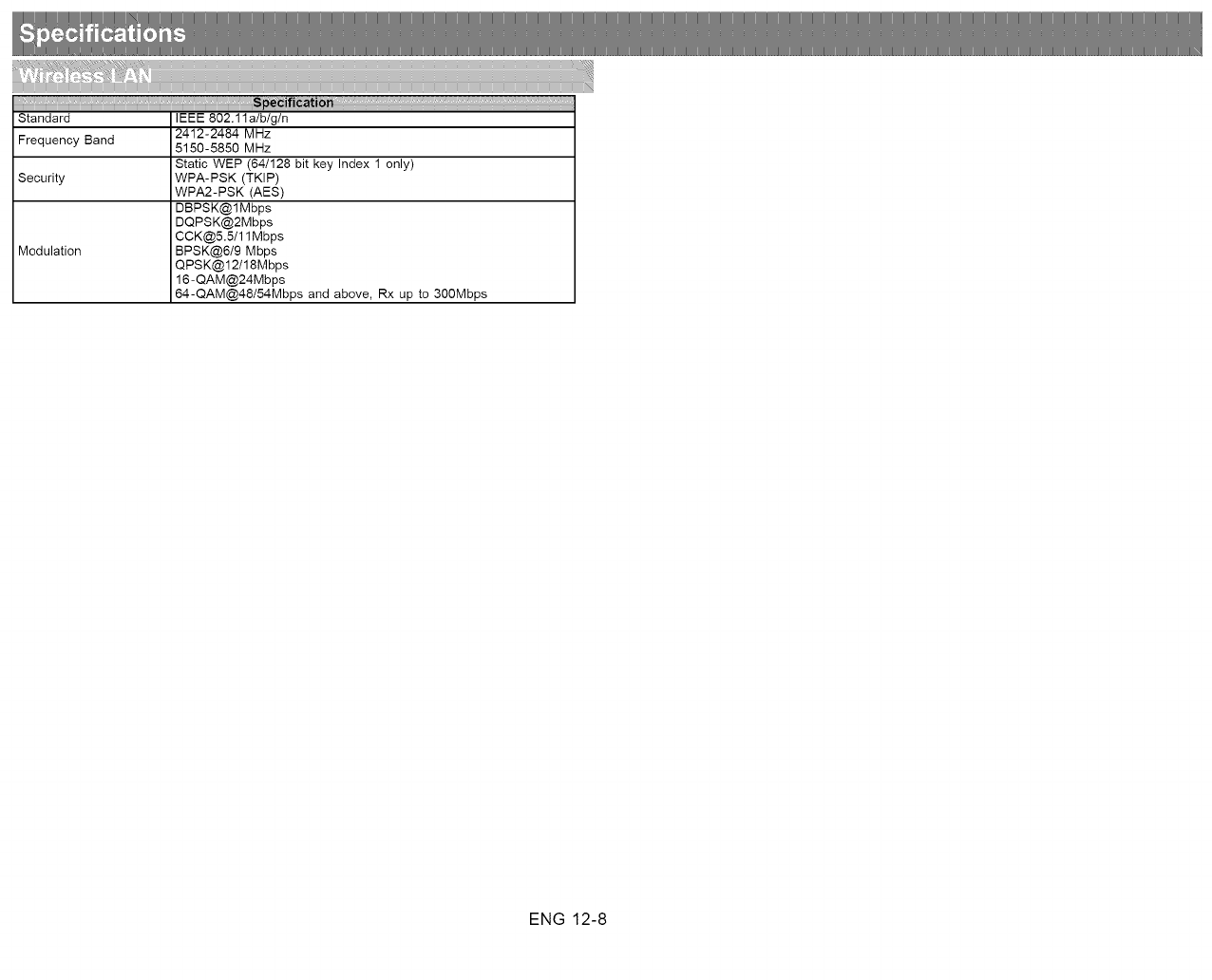

12-7. Wireless LAN

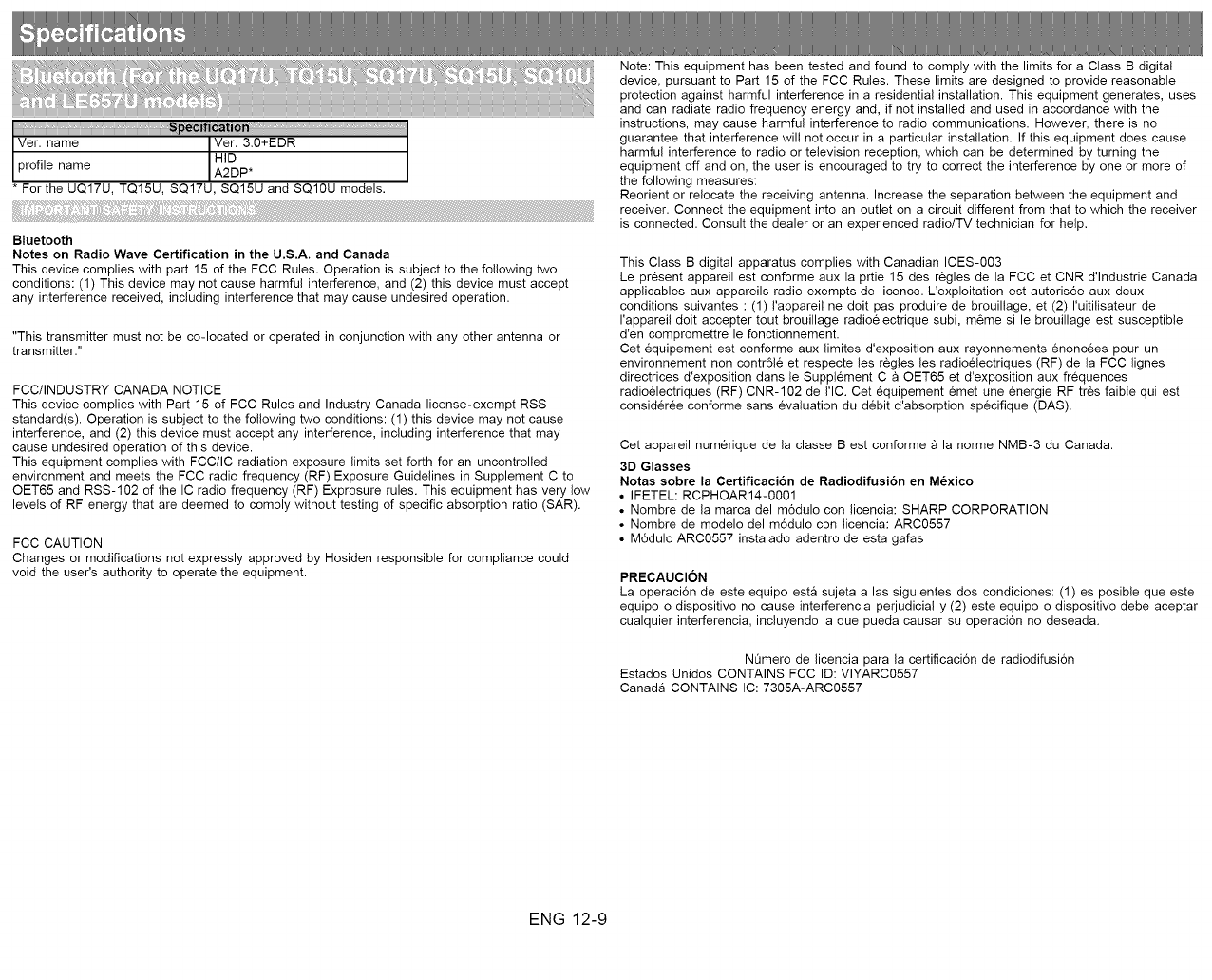

12-8. Bluetooth (For the UQ17U, TQ15U, SQ17U,

SQ15U, SQ10U and LE657U models)

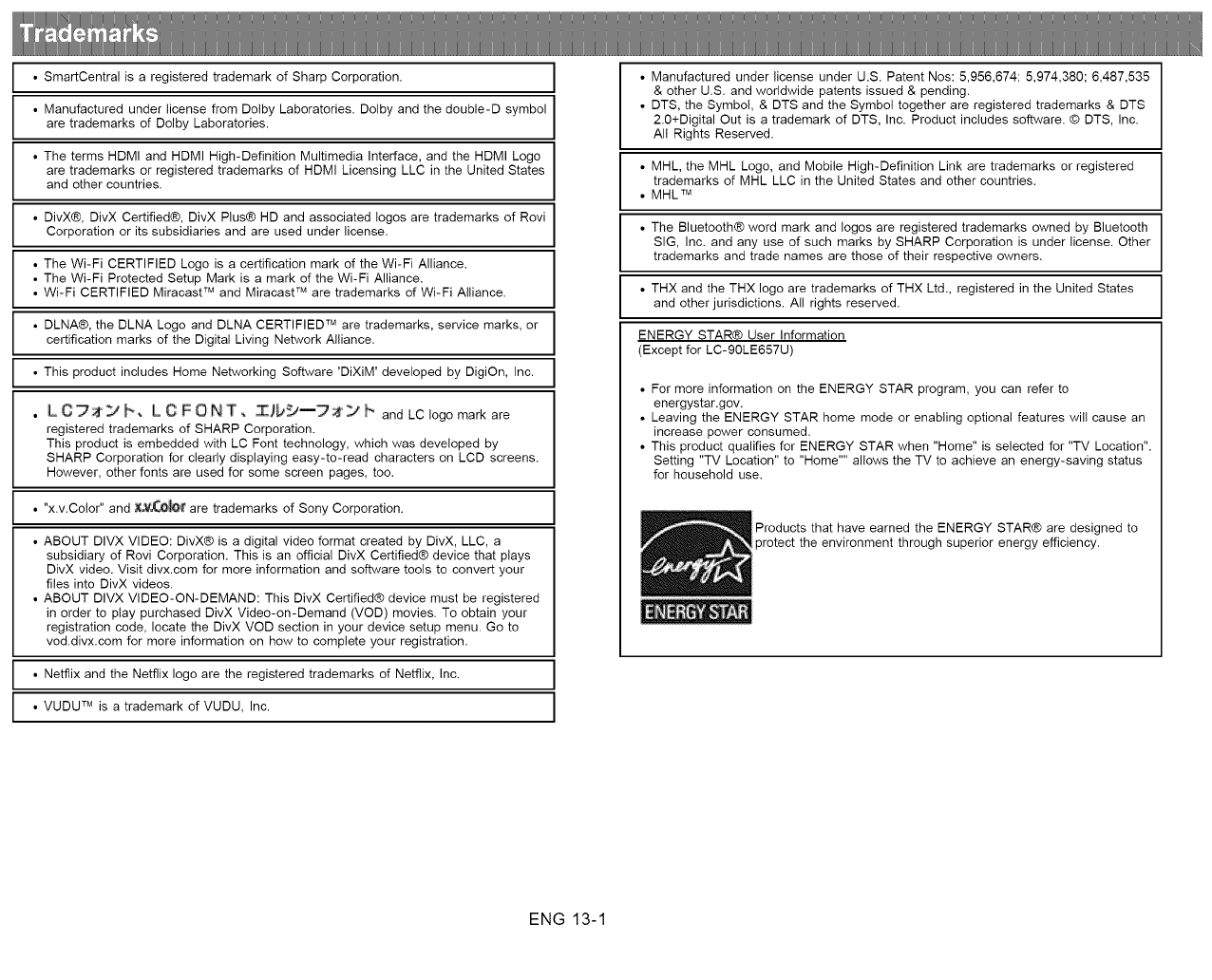

13-1. Trademarks

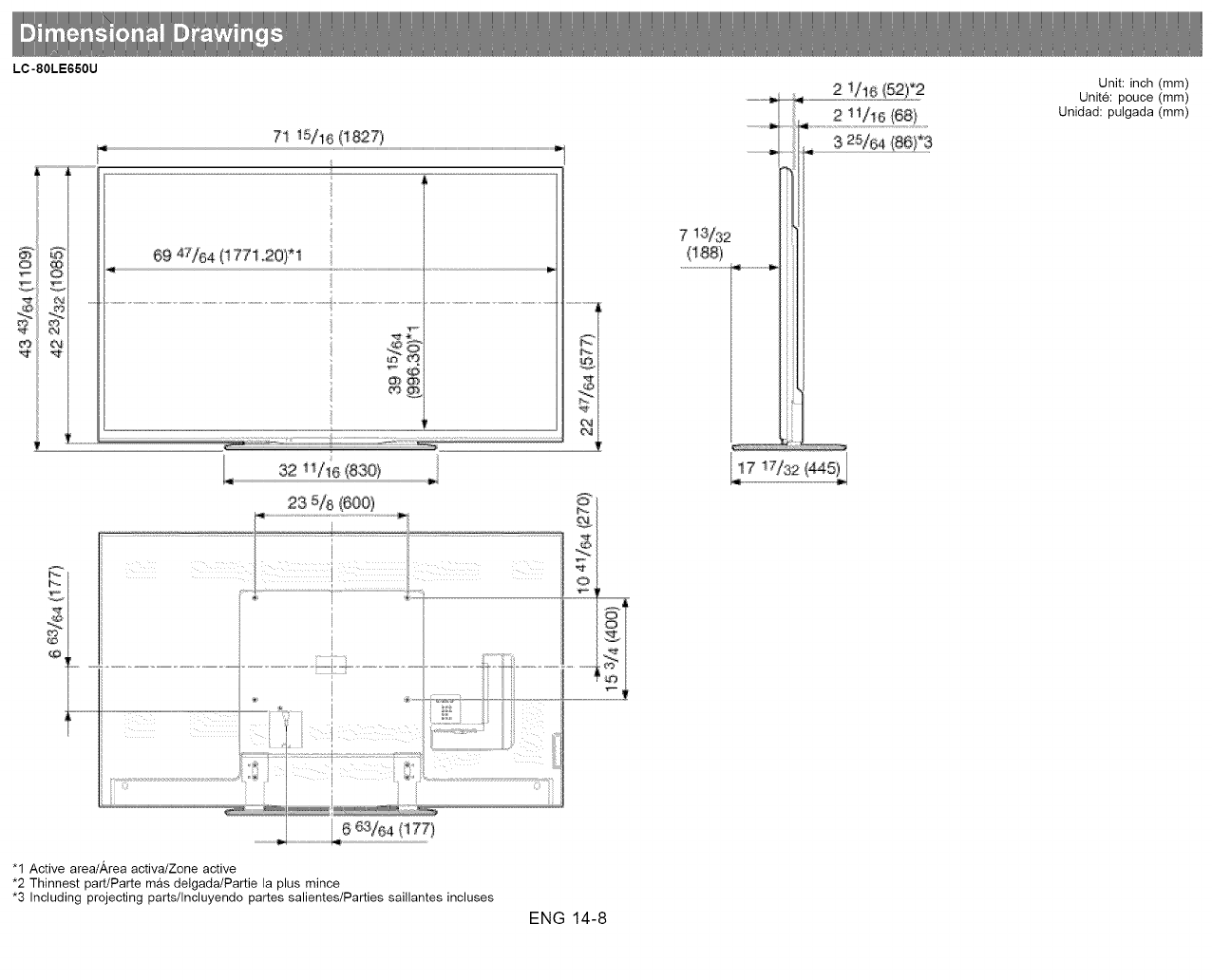

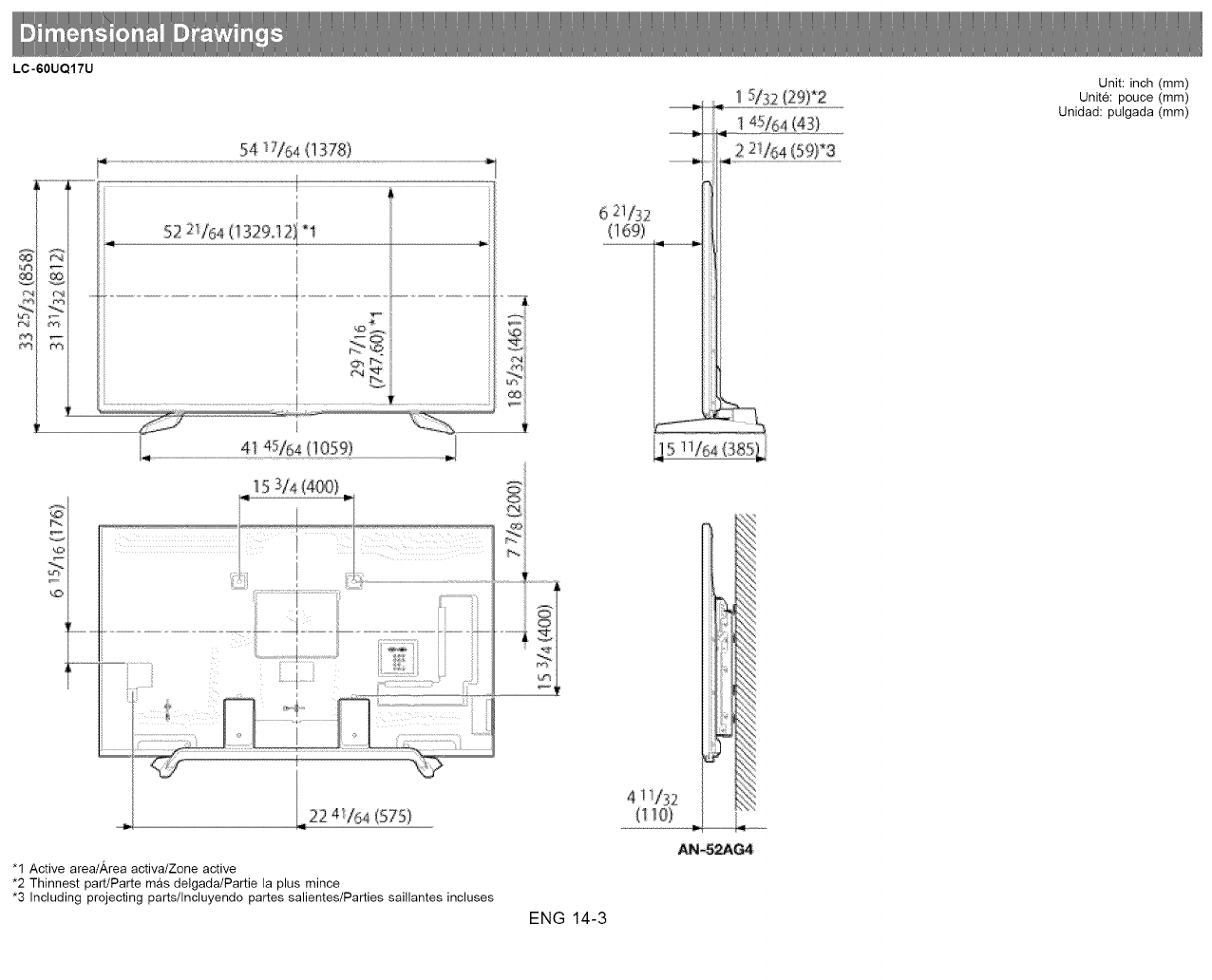

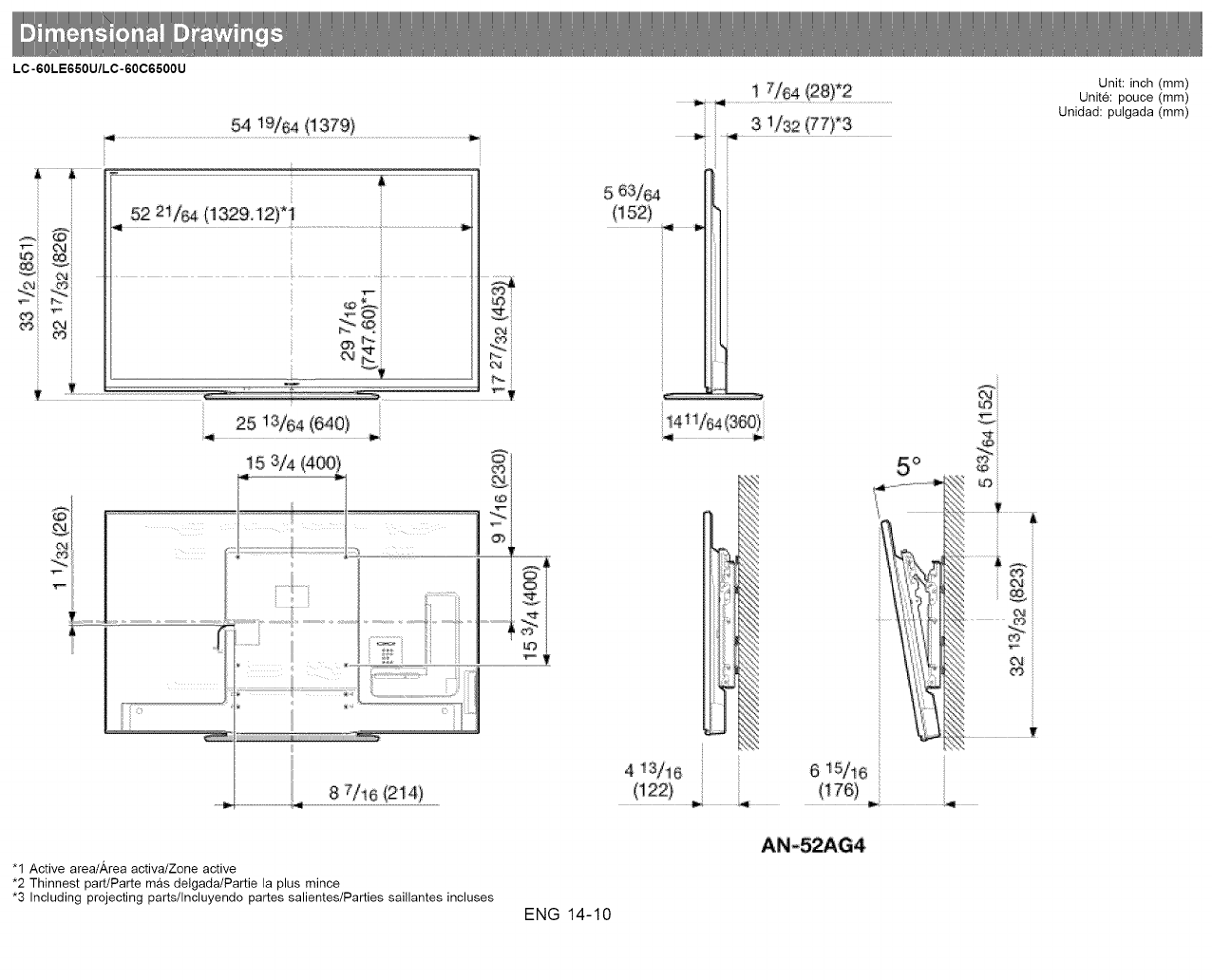

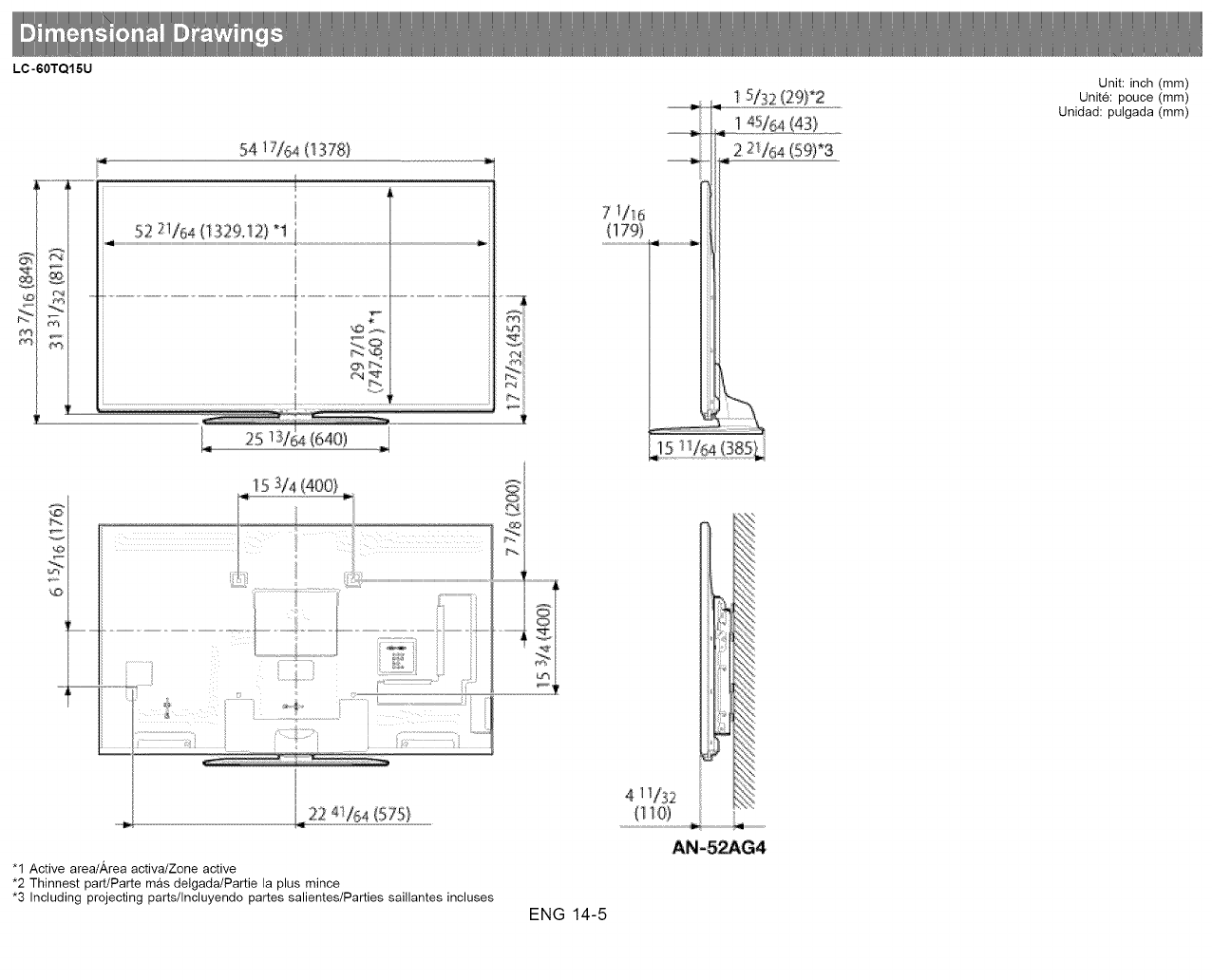

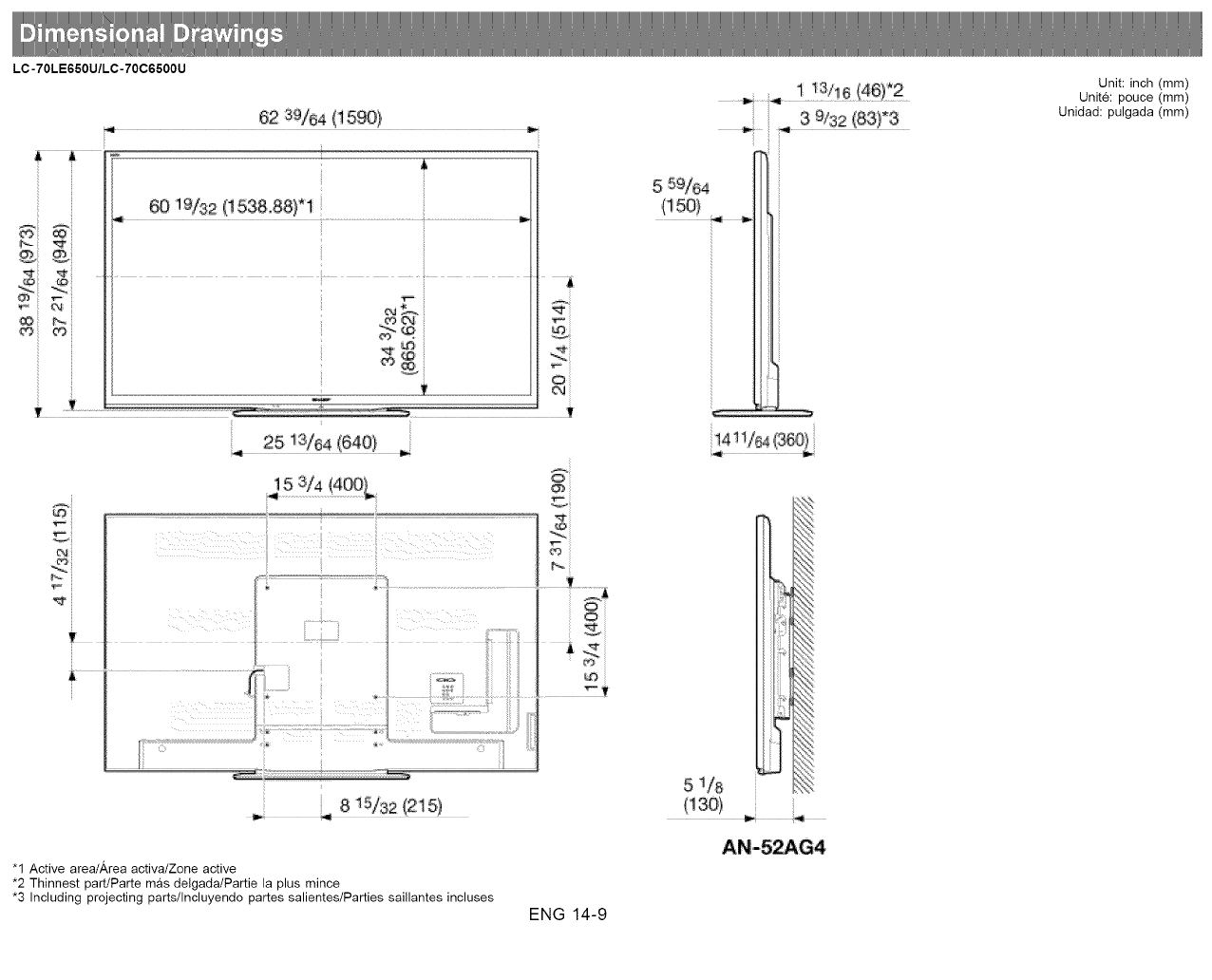

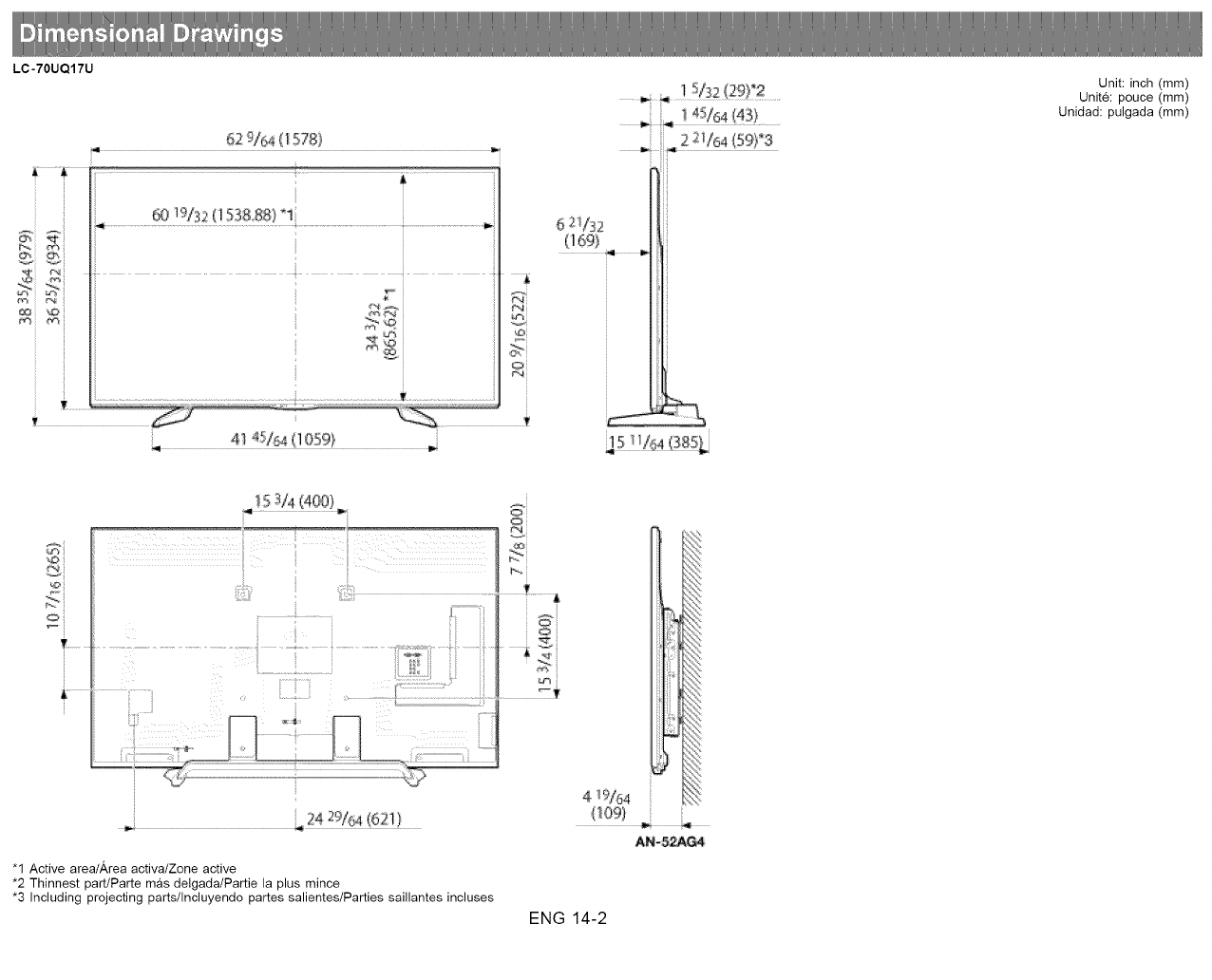

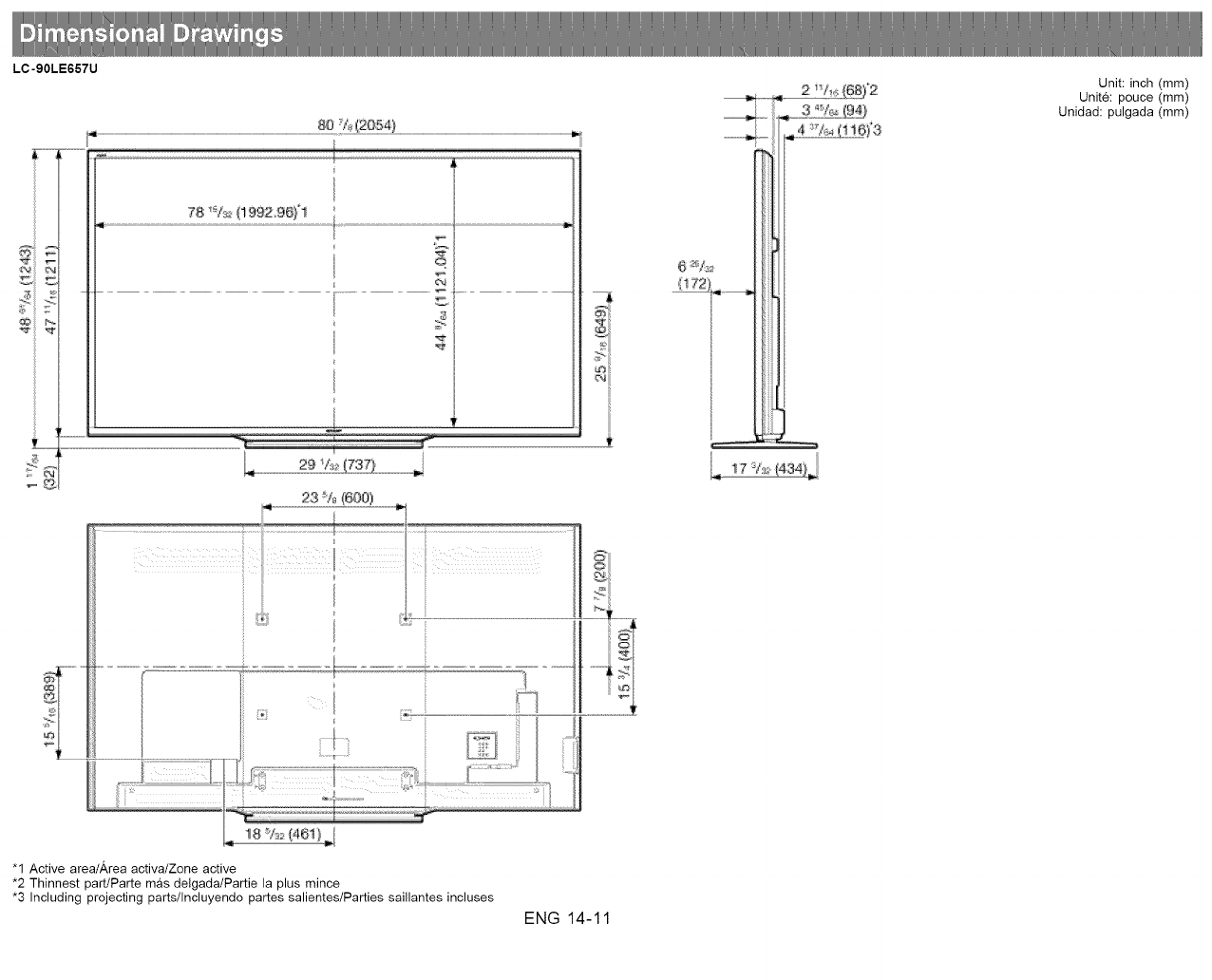

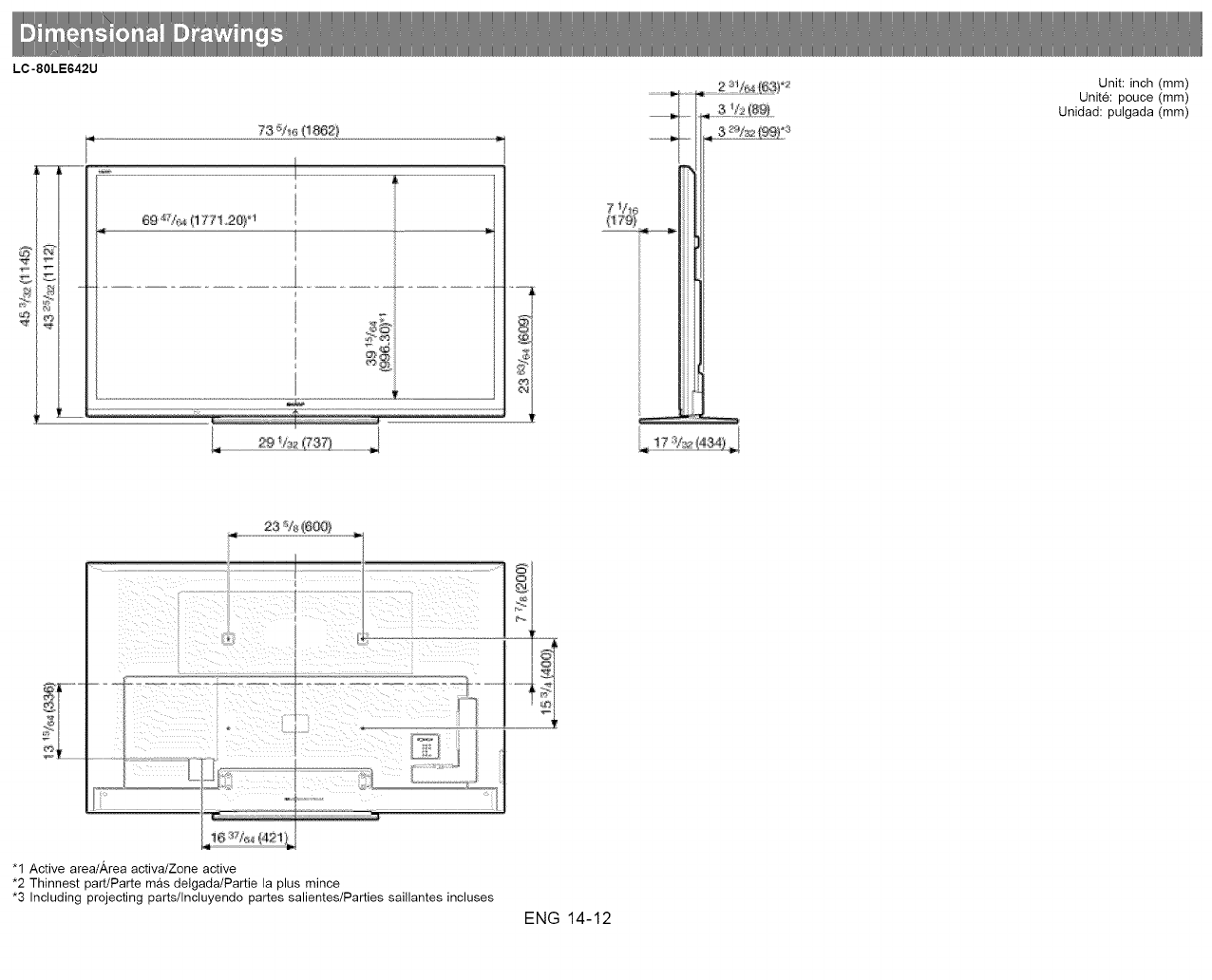

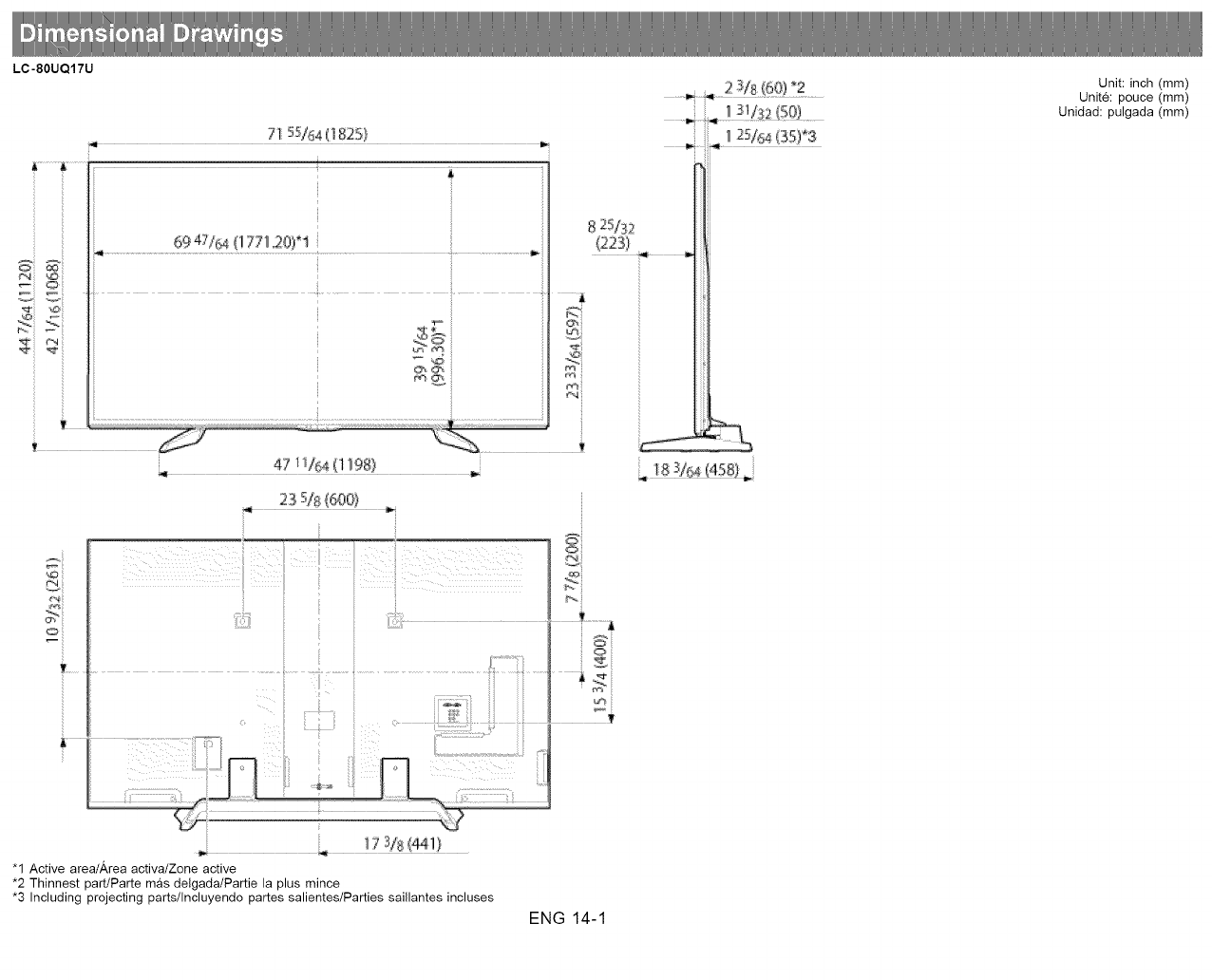

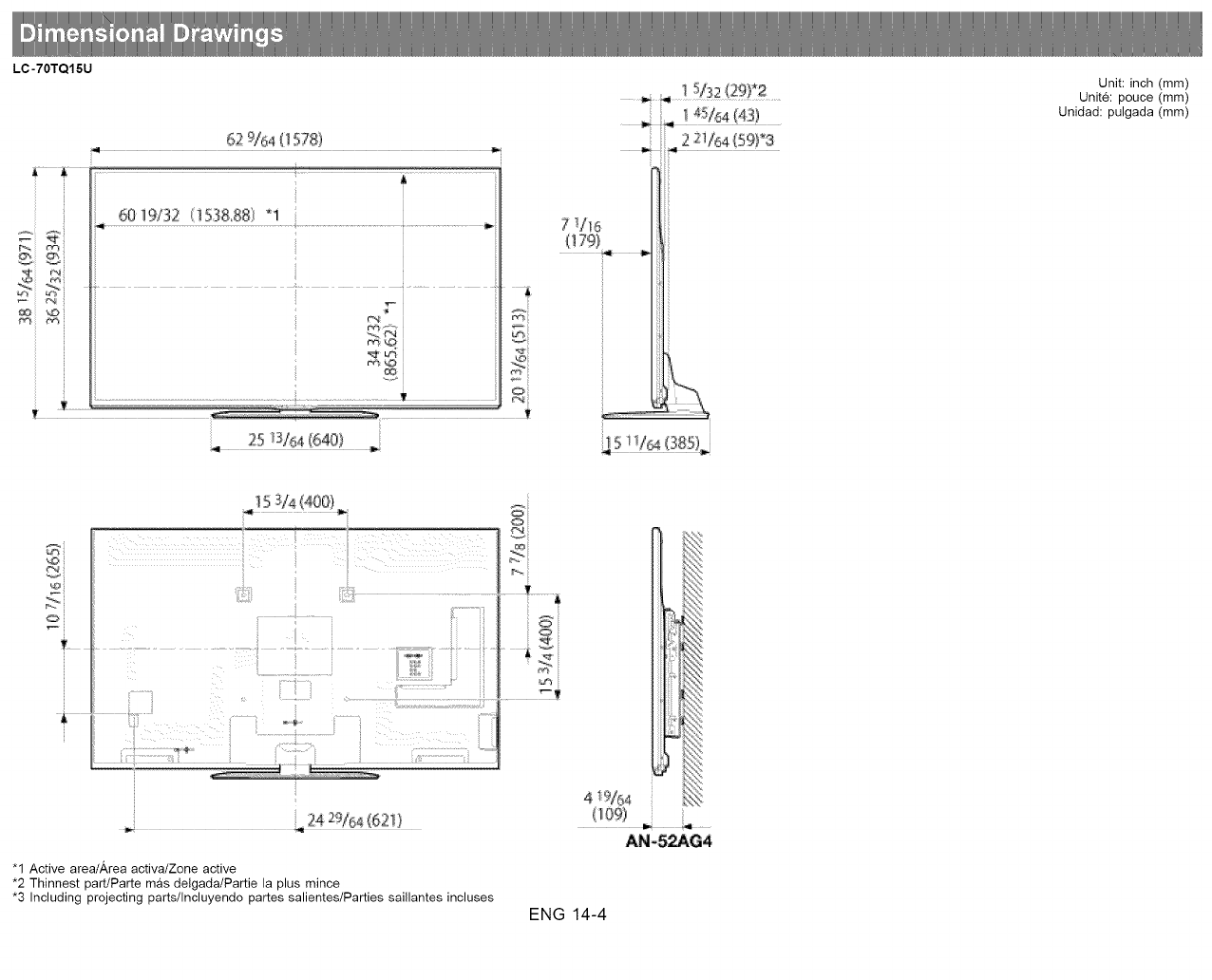

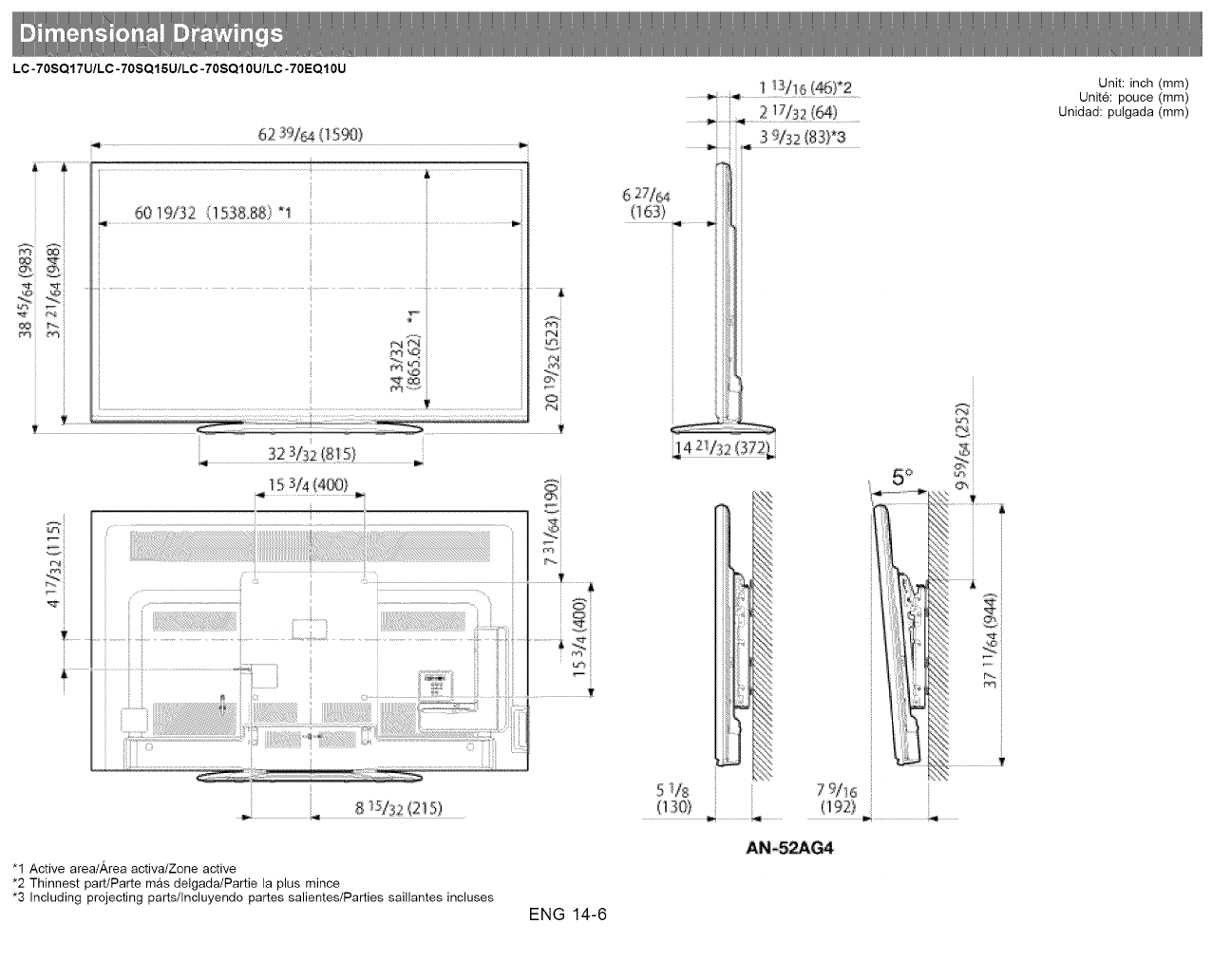

14-1. Dimensional Drawings

•The dimensional drawings for the LCD TV set are shown

on the inside back cover.

ENG Contents

(Front)

UQ!TU, TQ!5U, 80i 7U, SO1E_J, SQi0U and E©!0U m4_d_

LE6_J, LE657U, 065_U _d LE_2U m_de_s

"1 See bade 4-6.

*2 See Daae 4-31.

(Side)

(Rear)

terminus

t_Inal

"1 See the Setup Guide.

And see Daae 7-1 for external equipment connection.

*2 See Daae 8-2 for details on the Audio Select function.

*3 For EQ10U, LE650U, C6500U and LE642U models:

Use HDMI IN 1 to connect ARC-compatible equipment.

For UQ17U, TQ15U, SQ17U, SQ15U, SQ10U and LE657U models:

Use HDMI IN 3 to connect ARC-compatible equipment.

*4 For UQ17U, TQ15U, SQ17U, SQ15U and SQ10U models:

Connect 4K signals (HDCP2.2) to the HDMI IN 1 terminal.

(4K60P is not supported.)

*5 See Daae 7-6.

* See uaaes 2-1.4-4- and 4-31 for button c aerations.

• he illustrations and on-screen displays in this operation manual are for explanation purposes I

and may vary slightly from the actual operations. I

• The examples used throughout this manual are based on the LC-60LE650U model.

ENG 1-1

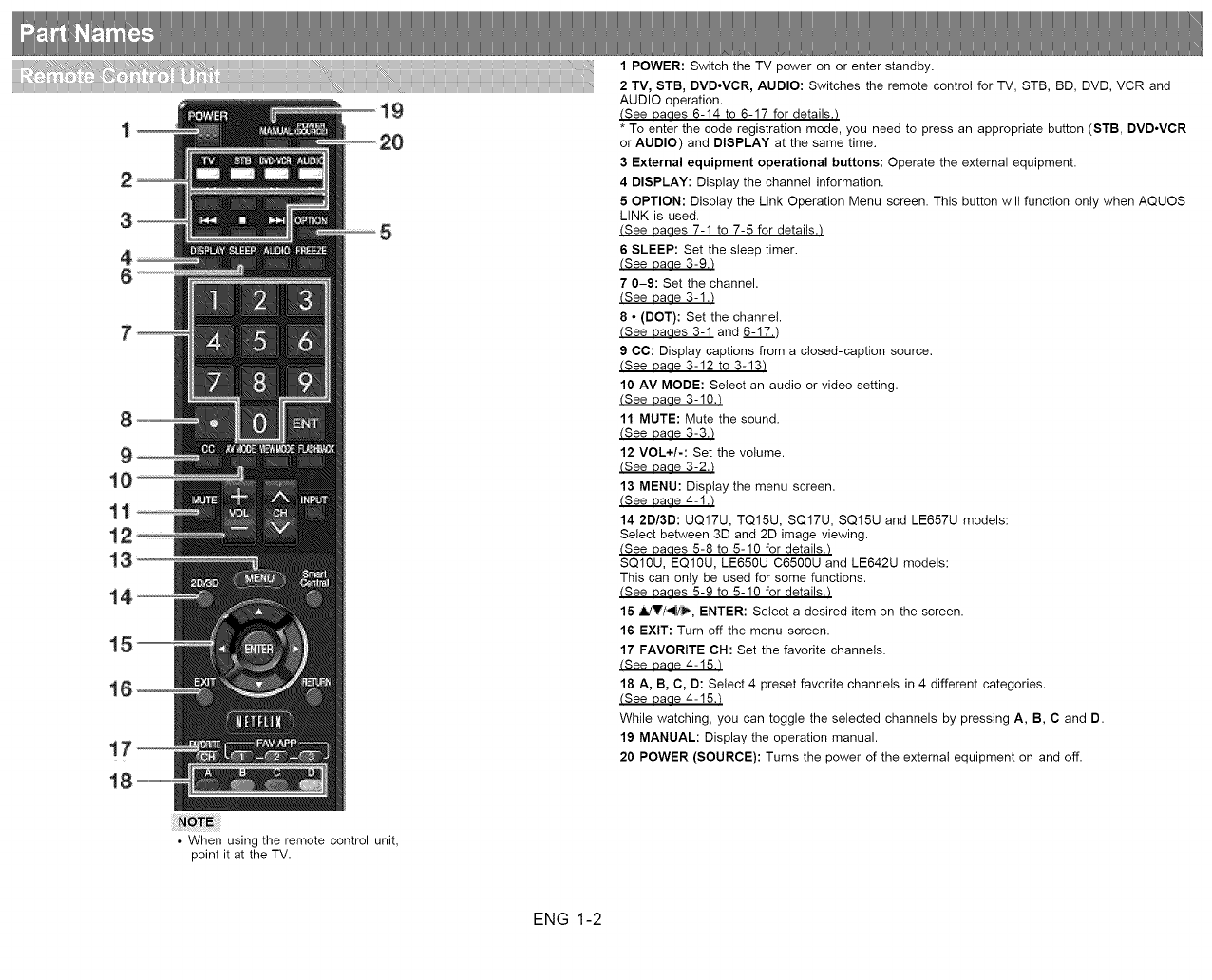

1 POWER: Switch the TV power on or enter standby.

2 TV, STB, DVD.VCR, AUDIO: Switches the remote control for TV, STB, BD, DVD, VCR and

AUDIO operation.

(See Dades 6-14 to 6-17 for details._

* To enter the code registration mode, you need to press an appropriate button (STB, DVDoVCR

or AUDIO) and DISPLAY at the same time.

3 External equipment operational buttons: Operate the external equipment.

4 DISPLAY: Display the channel information.

5OPTION: Display the Link Operation Menu screen. This button will function only when AQUOS

LINK is used.

(See Dades 7-1 to 7-5 for details._

6 SLEEP: Set the sleep timer.

(See Parle 3-9._

7 0--9: Set the channel.

(See bade 3-1._

8 ° (DOT}: Set the channel.

(See Dades 3-1 and 6-17..)

9 CC: Display captions from a closed-caption source.

(See Parle 3-12 to 3-13_

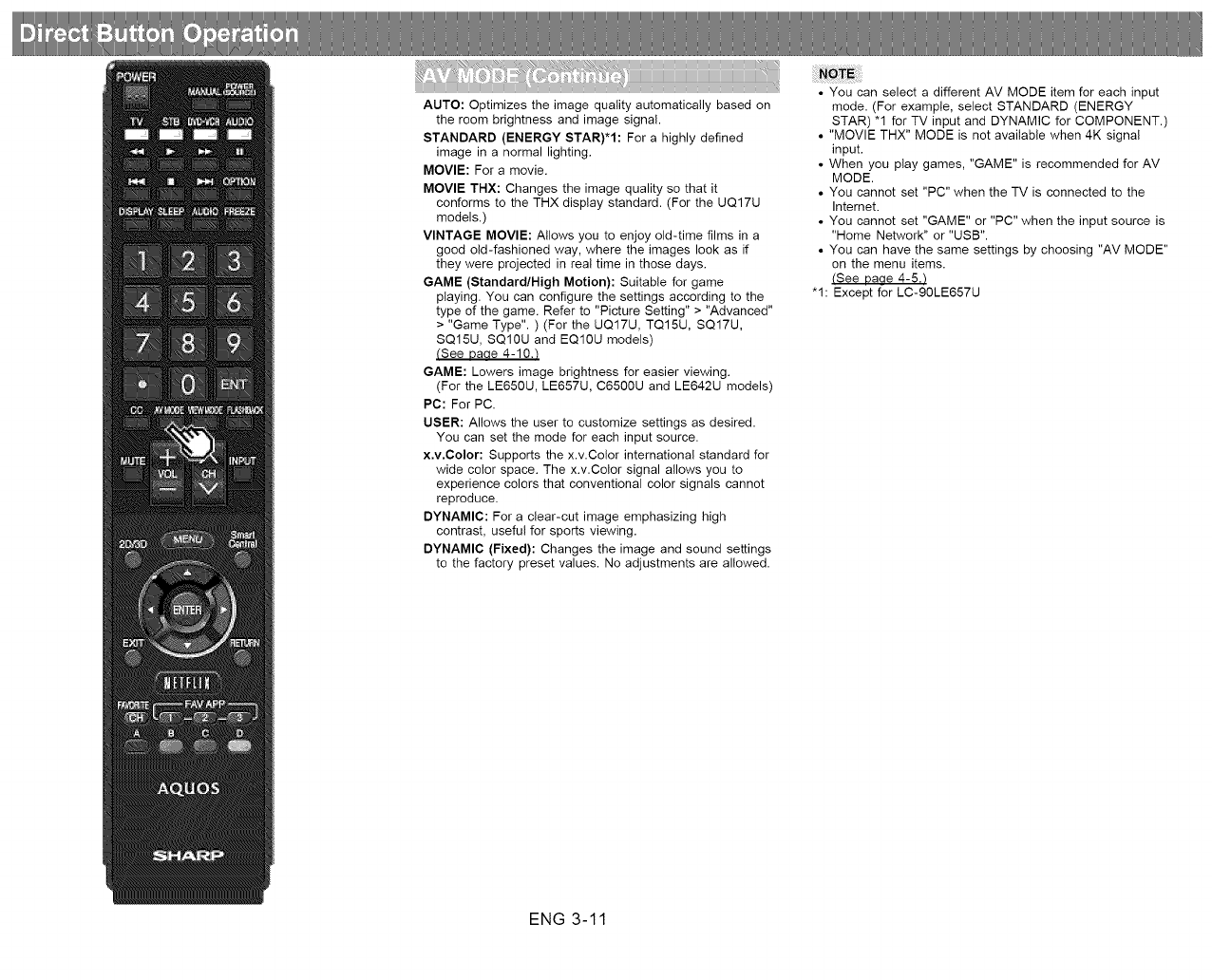

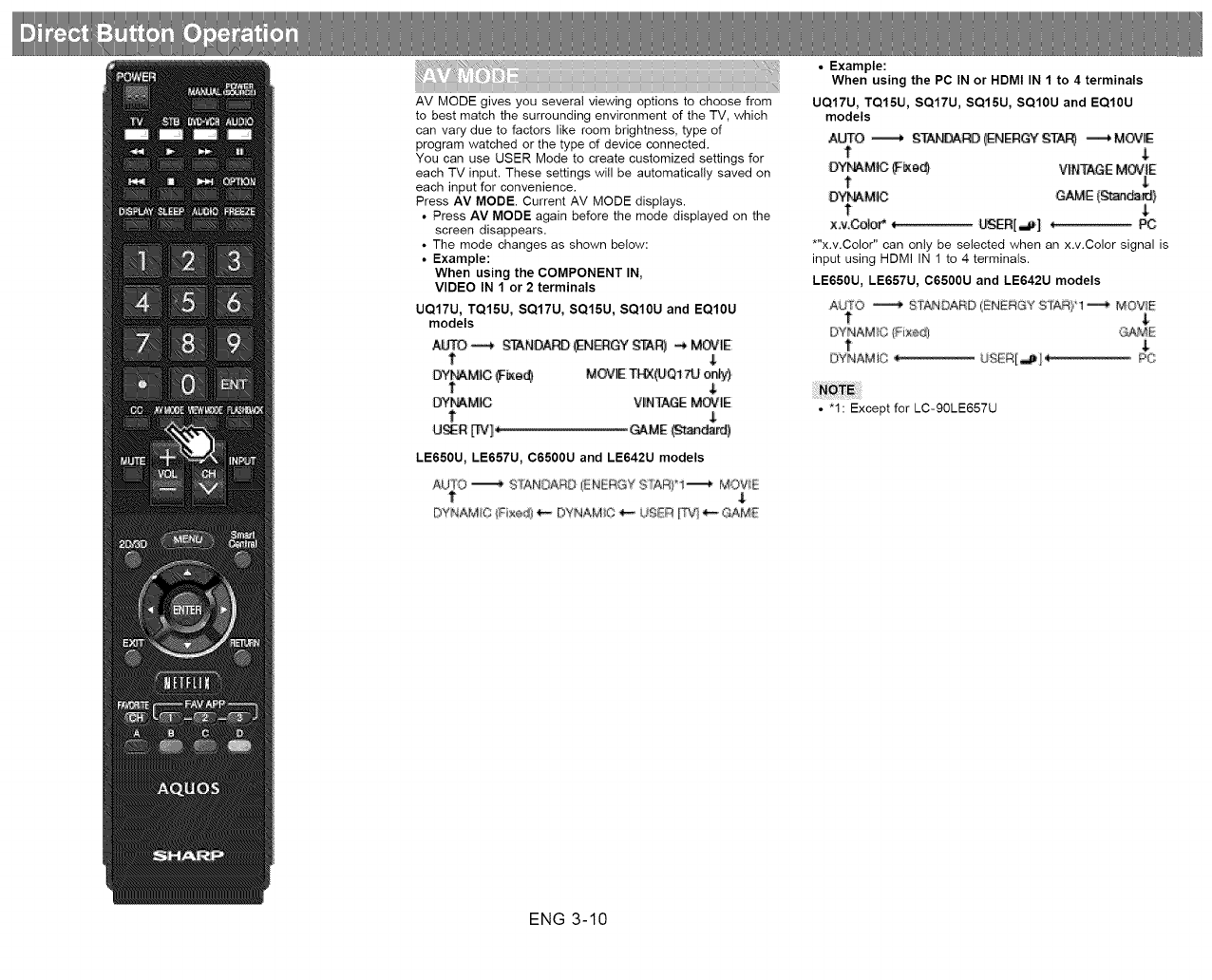

10 AV MODE: Select an audio or video setting.

(See bade 3-10._

11 MUTE: Mute the sound.

(See Daue 3-3._

12 VOL+/-: Set the volume.

(See Daue 3-2._

13 MENU: Display the menu screen.

(See Daae 4-1._

14 2D/3D: UQ17U, TQ15U, SQ17U, SQ15U and LE657U models:

Select between 3D and 2D image viewing.

(See Dades 5-8 to 5-10 for details._

SQ10U, EQ10U, LE650U C6500U and LE642U models:

This can only be used for some functions.

(See Dades 5-9 to 5-10 for details._

15 ,il,/V/_V_, ENTER: Select a desired item on the screen.

16 EXIT: Turn off the menu screen.

17 FAVORITE CH: Set the favorite channels.

(See uaae 4-15._

18 A, B, C, D: Select 4 preset favorite channels in 4 different categories.

(See uaae 4-15._

While watching, you can toggle the selected channels by pressing A, B, C and D.

19 MANUAL: Display the operation manual.

20 POWER (SOURCE): Turns the power of the external equipment on and off.

• When using the remote control unit,

point it at the TV.

ENG 1-2

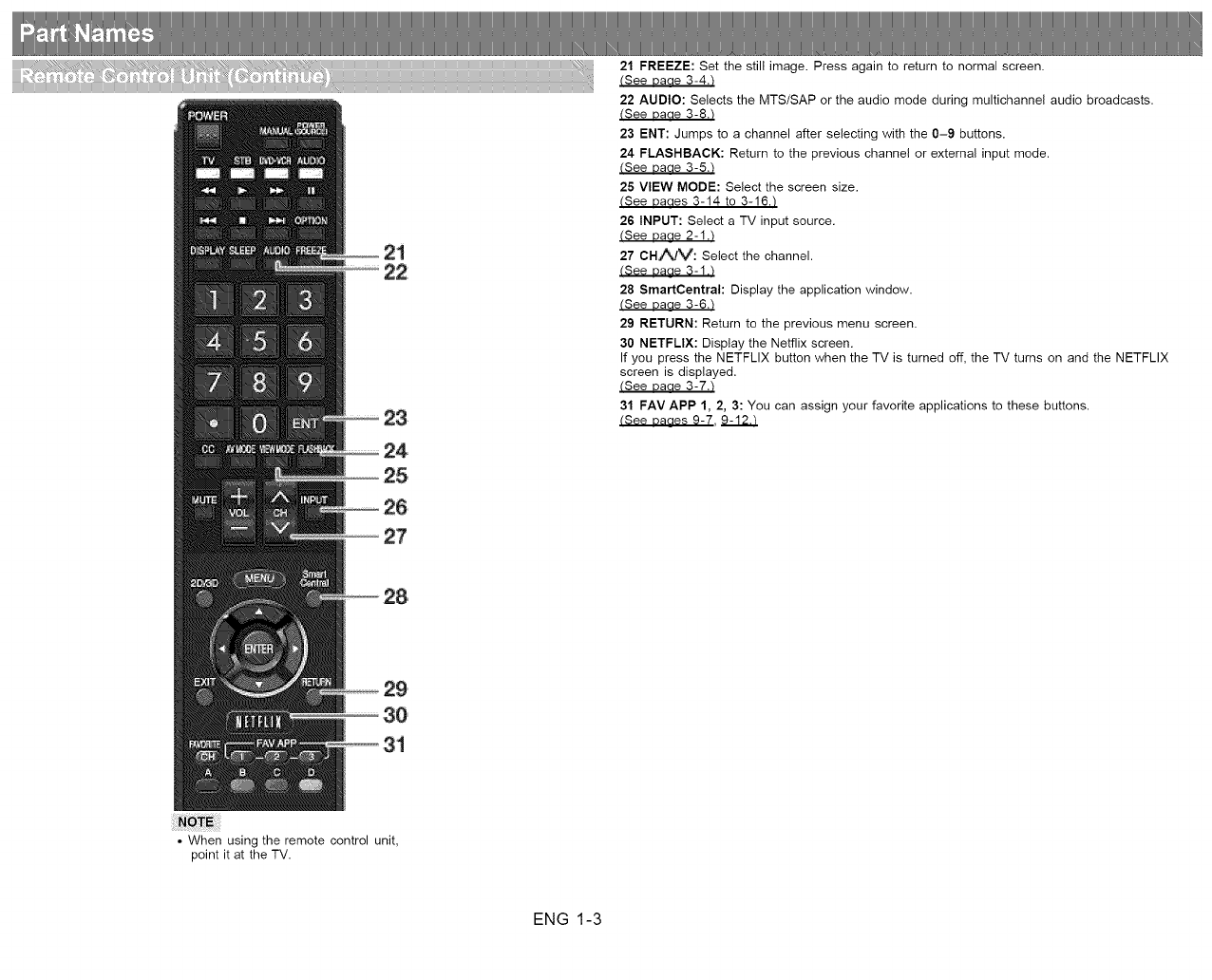

21 FREEZE: Set the still image. Press again to return to normal screen.

(See Daae 3-4.t

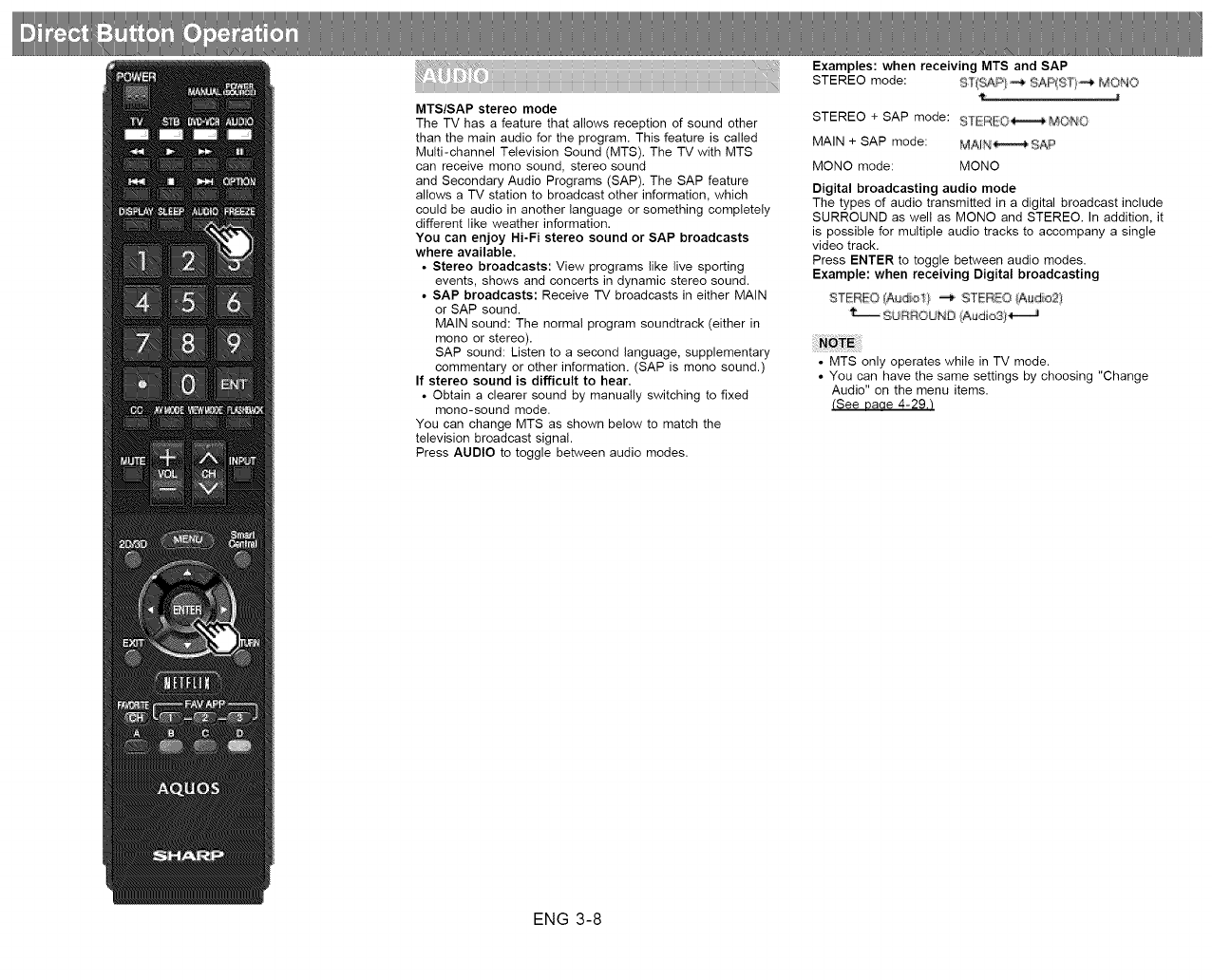

22 AUDIO: Selects the MTS/SAP or the audio mode during multichannel audio broadcasts.

(See Daae 3-8.t

23 ENT: Jumps to a channel after selecting with the 0-9 buttons.

24 FLASHBACK: Return to the previous channel or external input mode.

(See Daae 3-5.t

25 VIEW MODE: Select the screen size.

(See Daaes 3-14 to 3-16./

26 INPUT: Select a TV input source.

(See uaae 2-1.t

27 CH.AJV: Select the channel.

(See bade 3-1.t

28 SmartCentral: Display the application window.

(See Daae 3-6.t

29 RETURN: Return to the previous menu screen.

30 NETFLIX: Display the Netflix screen.

If you press the NETFLIX button when the TV is turned off, the TV turns on and the NETFLIX

screen is displayed.

(See Daae 3-7.t

31 FAV APP 1, 2, 3: You can assign your favorite applications to these buttons.

(See Daaes 9-7,

29 ¸¸

• When using the remote control unit,

point it at the TV.

ENG 1-3

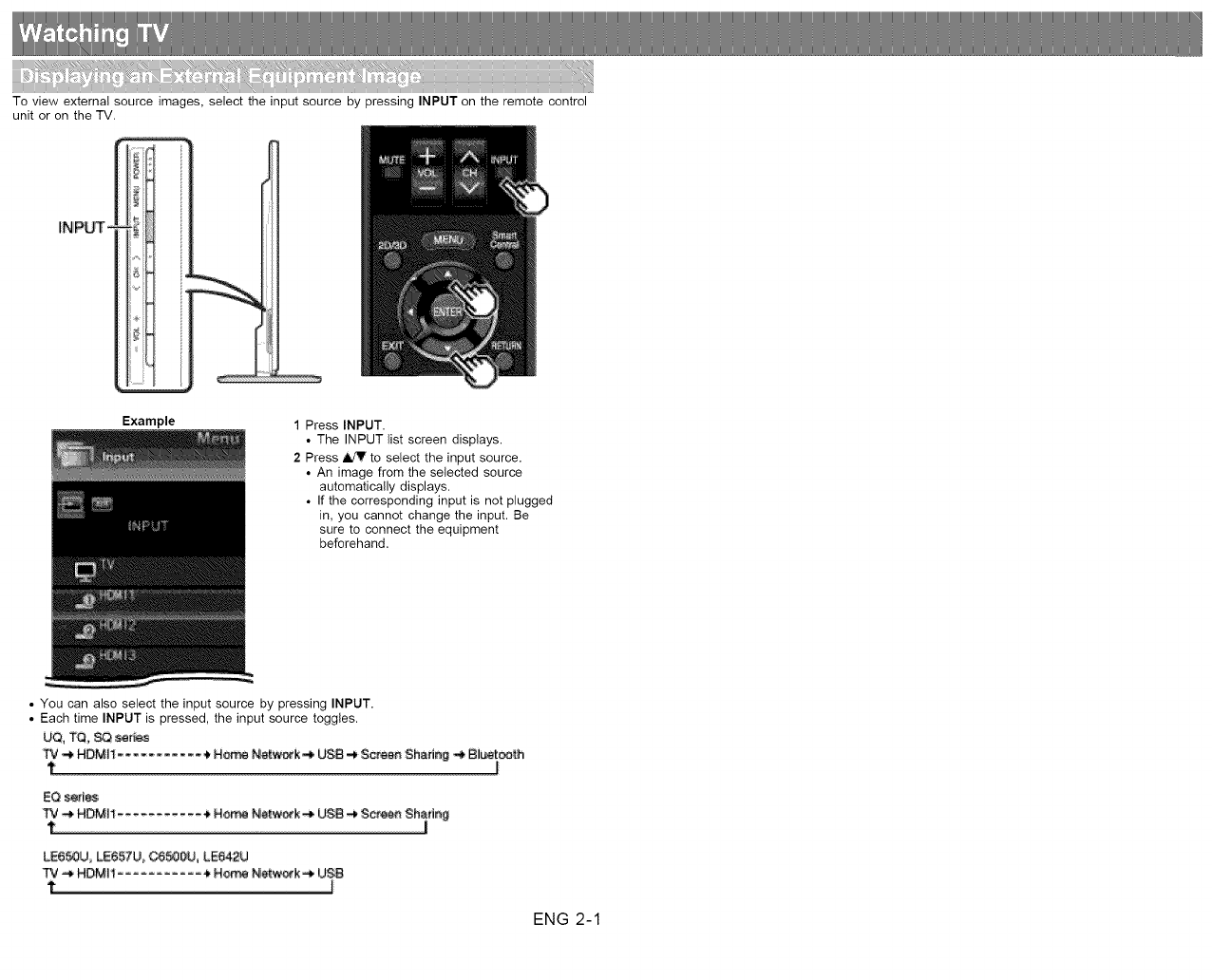

To view external source images, select the input source by pressing INPUT on the remote control

unit or on the TV.

IN_ _

i_>,_, ;i

Jlii_!iiir

Example 1 Press INPUT.

• The INPUT list screen displays.

2 Press _ldV to select the input source.

• An image from the selected source

automatically displays.

• If the corresponding input is not plugged

in, you cannot change the input. Be

sure to connect the equipment

beforehand.

• You can also select the input source by pressing INPUT.

• Each time INPUT is pressed, the input source toggles.

UQ, TQ, _ _r_s

IP# -_ HDMit ........... • H_ Ne_w_k,,_ US_,_ S_en Shari_ _ Biuetce_._h

t .......................

EQs_I_

t |

LE6_U_ LE657U,, _J, LE842U

TV _ HDMI! _ N_ Ne_k _/J_

ENG 2-1

When you turn on the TV for the first time, it will

automatically memorize the broadcasting channels available

in the region where you live. Perform the following steps

before you press POWER on the remote control unit.

1. Insert the batteries into the remote control unit.

2. Connect the antenna cable to the TV.

3. Plug in the AC cord to the AC outlet.

Language (Language setting)

Select from among 3 languages: English, French and

Spanish.

1 Press JldV to select the desired language listed on the

screen, and then press ENTER.

Location & Time

Make settings for the country, area and time zone where

you use the TV.

2 Press A/T' to select "United States", "Canada" or

"Mexico", and then press ENTER.

3Press _idV to select the time zone where you are using

the TV, and then press ENTER.

Example

• The time zone differs depending on the selected

country.

• The factory preset value is the time zone for the capital

of the selected country.

ENG 2-2

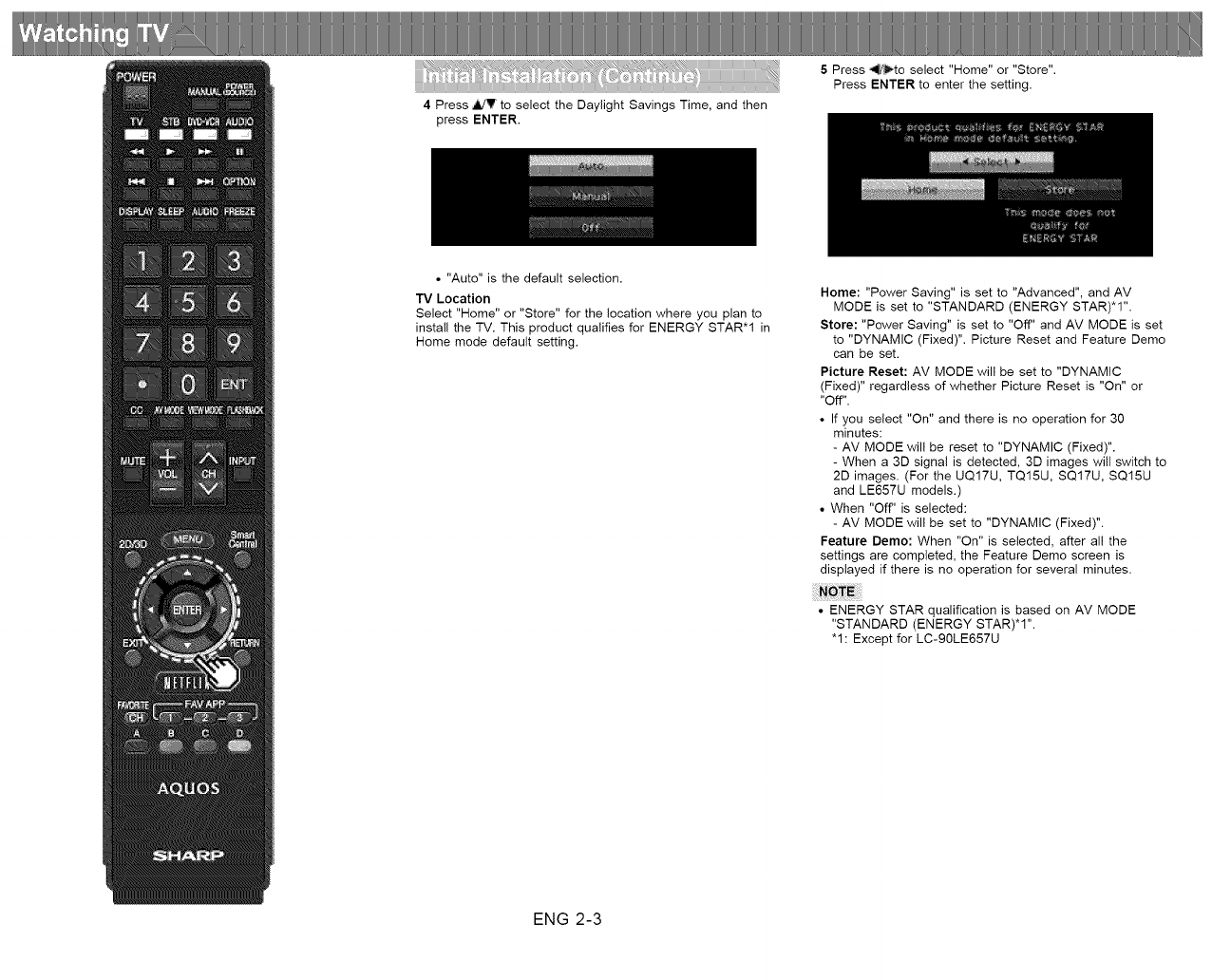

4 Press _IldV to select the Daylight Savings Time, and then

press ENTER,

5Press _{o select "Home" or "Store".

Press ENTER to enter the setting.

• "Auto" is the default selection.

TV Location

Select "Home" or "Store" for the location where you plan to

install the TV. This product qualifies for ENERGY STAR*I in

Home mode default setting.

Home: "Power Saving" is set to "Advanced", and AV

MODE is set to "STANDARD (ENERGY STAR)*1".

Store: "Power Saving" is set to "Off" and AM MODE is set

to "DYNAMIC (Fixed)". Picture Reset and Feature Demo

can be set.

Picture Reset: AV MODE will be set to "DYNAMIC

(Fixed)" regardless of whether Picture Reset is "On" or

"Off".

• If you select "On" and there is no operation for 30

minutes:

- AV MODE will be reset to "DYNAMIC (Fixed)".

- When a 3D signal is detected, 3D images will switch to

2D images. (For the UQ17U, TQ15U, SQ17U, SQ15U

and LE657U models.)

• When "Off" is selected:

- AV MODE will be set to "DYNAMIC (Fixed)".

Feature Demo: When "On" is selected, after all the

settings are completed, the Feature Demo screen is

displayed if there is no operation for several minutes.

• ENERGY STAR qualification is based on AM MODE

"STANDARD (ENERGY STAR)*1".

"1: Except for LC-90LE657U

ENG 2-3

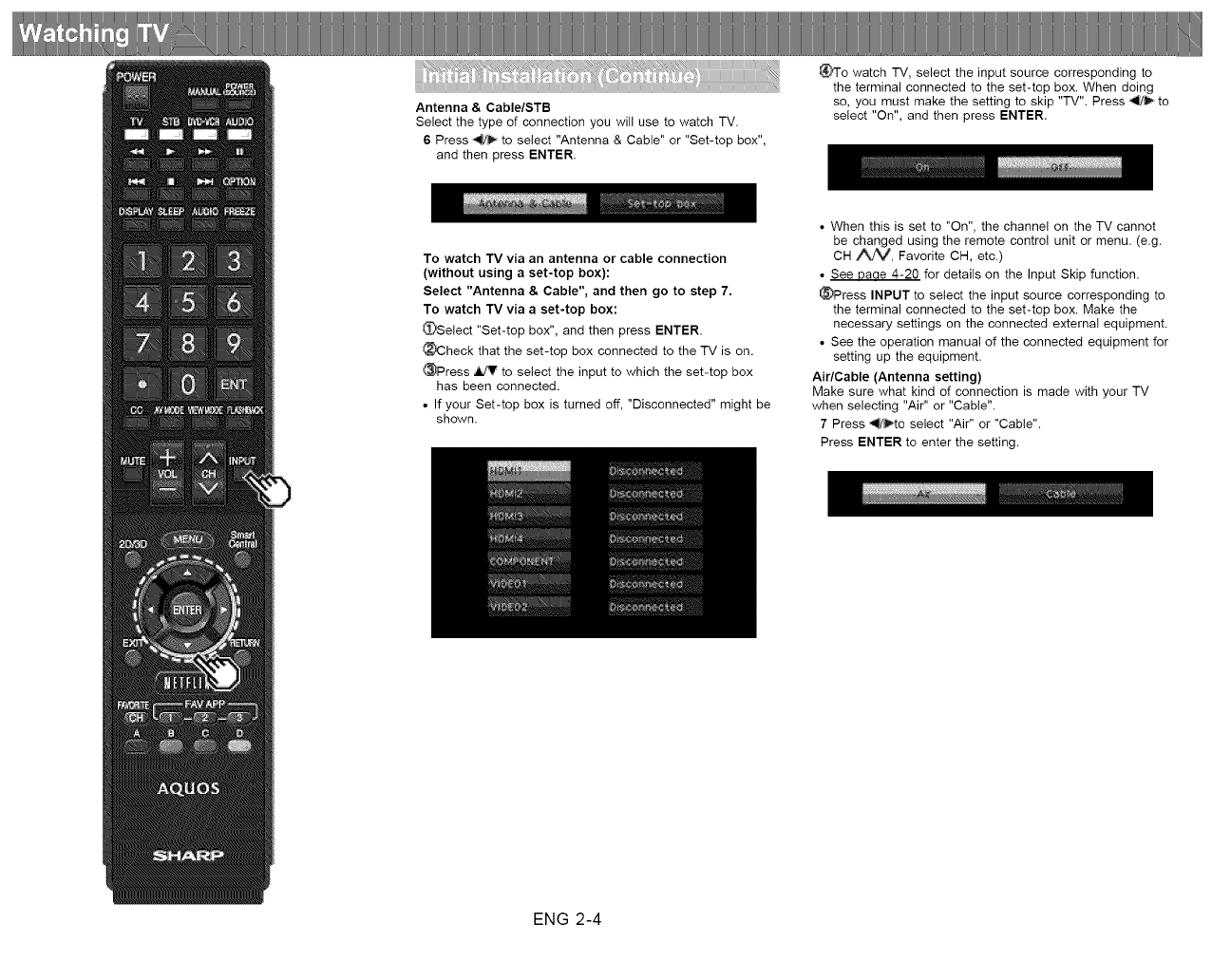

Antenna & Cable/STB

Select the type of connection you will use to watch TV.

6 Press _ to select "Antenna & Cable" or "Set-top box",

and then press ENTER.

_To watch TV, select the input source corresponding to

the terminal connected to the set-top box. When doing

so, you must make the setting to skip "TV". Press _1_/_to

select "On", and then press ENTER.

To watch TV via an antenna or cable connection

(without using a set-top box):

Select "Antenna & Cable", and then go to step 7.

To watch TV via a set-top box:

_Select "Set-top box", and then press ENTER.

_Check that the set-top box connected to the TV is on.

_Press _ to select the input to which the set-top box

has been connected.

• If your Set-top box is turned off, "Disconnected" might be

shown.

• When this is set to "On", the channel on the TV cannot

be changed using the remote control unit or menu. (e.g.

CH Z%J_M_, Favorite CH, etc.)

• See Dace 4-20 for details on the Input Skip function.

_Press INPUT to select the input source corresponding to

the terminal connected to the set-top box. Make the

necessary settings on the connected external equipment.

• See the operation manual of the connected equipment for

setting up the equipment.

Air/Cable (Antenna setting)

Make sure what kind of connection is made with your TV

when selecting "Air" or "Cable".

7 Press _to select "Air" or "Cable".

Press ENTER to enter the setting.

ENG 2-4

CH Search (Channel search)

Channel auto search makes the TV look for all channels

viewable in the set area.

8 When "Air" is selected in Antenna setting:

Press _ to select "Start", and then press ENTER.

_he Channel search results may include scrambled

channels or channels that are not viewable in the set

area. Press _ to select "Yes", and then press ENTER

to remove scrambled channels.

When "Cable" is selected in Antenna setting:

_Press _ to select "Analog & Digital Search Start" to

search both analog and digital broadcasts, or to select

"Analog Search Start" to search only analog broadcasts,

and then press ENTER.

Smart TV

When you connect to the Intemet on the TV, select the

desired connection method and follow the instructions shown

on the display.

•Wireless LAN connection is possible only when the WPS

(push button) method is used. If any other method is

used, make settings by Smart TV > Internet Setup >

Intemet Connection. (See Daaes 9-2 to 9-43

9 Press ,I!_, to select "Yes", and then press ENTER.

10 Press _ to select "Wired" or "Wireless", and then

press ENTER,

• The Channel search will start automatically.

• To exit the Channel search screen, select "Cancel", and

then press ENTER.

ENG 2-5

Connection using an ETHERNET cable:

_Select "Wired" and press ENTER.

Confirm that the TV is properly connected with the

router, and then press "Next". Follow the instructions on

the display to perform the connection test.

Wireless LAN connection by the WPS method:

Select "Wireless" and press ENTER.

Follow the instructions on the display, and finalize the

connection after testing its viability.

• After you finish configuring the network settings,

configure the "TV Name Setting", "Remote Control

App",and "Samba TV" settings.

(See Daae 4-26. 8-3.t

• The product that you have purchased may not be

equipped with "Samba TV". In this case, this feature will

be added by way of a planned future software version

update.

• When you change the network settings, refer to Smart TV

> Internet Setup > Internet Connection.

(See Daaes 9-2 to 9-4.t

Completed

11 The settings confirmation screen is displayed. Confirm

the information displayed on the screen, and then press

ENTER.

Examples of the settings confirmation screen

When one or more channel is received after "Antenna

& Cable" was selected in step 6 and a search was

carried out.

When no channel is received after "Antenna & Cable"

was selected in step 6 and a search was carried out.

ENG 2-6

• If no channel is found, confirm the type of connection

made with your TV and try "Easy Setup" again.

(See Daae 4-13.t

• To see the list of channels found during Channel search,

press INPUT, and then press _.

When "Set-top box" was selected in step 6.

• Click "OK" to display the confirmation screen for input

source switching.

Show the input list: You can check the current connection

status of external equipment. Confirm which input

terminal is connected to the set-top box.

OK: Clicking "OK" will complete the Easy Setup procedure.

• This may not display correctly depending on the

connected equipment.

• This is not displayed correctly when the connected

equipment is off.

• To watch TV using a set-top box, press INPUT after

completing the initia! settings, and select the input to

which the set-top box is connected.

• For changing the settings of the Initial Installation, perform

"Easy Setup" on the Setup menu on

Daue 4-13.

ENG 2-7

You can change channels in several ways.

Method 1

Using CHZ*\_ on the remote control unit or on the TV.

Method 2

Using remote control buttons 0-9, • (DOT).

Examples:

To select a 1 or 2-digit channel number (e. g., Channel

5):

Press 5 ENTER

To select a 3-digit channel number (e. g., Channel

115):

Press 1 1 5 -_ ENTER

To select a 4-digit channel number (e. g., Channel

22.1):

Press 2 .> 2 • (DOT) 1 ENTER

Method 3

Selecting the program from the Channel list.

1 Press INPUT on the remote control unit.

• The INPUT list displays.

2 Press _ to select "AIR" or "CABLE".

• The Channel list displays.

3 Press _V to select the desired channel, and then press

ENTER.

• When selecting a 1-digit channel number, it is not

necessary to press 0 before the number.

• When you enter 0-9 only, channel selection will be made

if there is no operation within a few seconds.

• If you push "0" by itself, nothing will happen.

• Complete the above steps within a few seconds.

• When you enter 0-9 and • (DOT), channel selection will

be made if there is no operation within a few seconds.

ENG 3-1

You can change the volume by pressing VOL+/- on the TV

or on the remote control unit.

• To increase the volume, press VOL +.

• To decrease the volume, press VOL -.

Audio status

Speaker Variable sound Mute

• When "Output Select" is set to "Variable", the indicator on

the screen changes as shown below.

• See Parle 4-20 for details on the Output Select function.

ENG 3-2

Mutes the current sound output.

Press MUTE.

• "_" will be displayed on the screen for 30 minutes, and

the sound is silenced.

• Within 30 minutes of pressing MUTE, mute can be

canceled by pressing VOL+/- or MUTE.

• Mute will be canceled after 30 minutes have passed.

However, the TV will not suddenly output a loud sound

as the volume level is set to 0 automatically.

ENG 3-3

Allows you to capture and freeze a moving image that you

are watching.

Press FREEZE.

• A moving image is captured.

• Press FREEZE again to cancel the function.

•When this function is not available, "No displaying still

image available." will display.

• The still image automatically goes out after 30 minutes.

• If you are using the freeze function and a broadcast

activates the V-CHIP BLOCK, the freeze function will be

canceled and a V-CHIP BLOCK message will appear.

• You can have the same settings by choosing "Freeze" on

the menu items.

(See Daae 4-28.t

ENG 3-4

Press FLASHBACK to switch to the previously tuned

channel or previous input mode

• Press FLASHBACK again to switch back to the currently

tuned channel,

• FLASHBACK will not work if no channel has been

changed after the TV is turned on.

ENG 3-5

Allows you to directly activate various types of applications.

1 Press SmartCentral to display the application window.

• Press $martCentral again to display a list of

applications by category.

2 Press _(or _) to select the desired application, and

then press ENTER.

• If you changed the display to the list of applications in

step 1, select a category and then an application.

See Daaes 9-12 to 9-13 for details.

• If .... is displayed after you switch to USB mode.

check the USB connection.

• If" ' or "D_" is displayed after you switch to

Home Network mode or after you connect to the

Internet, check your TV's network settings and

connection.

• See Daae 6-2. 9-7 to 9-12 for details of viewable

applications.

• You can display the application window by choosing "App

Dock" on the menu items.

(See Daae 4-28.t

• When this function is not available. "Can not operate this

function now" will display.

ENG 3-6

Displays the Netflix screen.

Press NETFLIX.

If you press the NETFLIX button when the TV is turned off,

the TV turns on and the NETFLIX screen is displayed.

• To enjoy Netflix, you need to make:

--a broadband Internet connection

(See Daoe 9-1.t

--settings of Internet Setup

(See uaaes 9-2 to 9-4./

--adjustments for Netflix

(See Daoe 9-13.t

ENG 3-7

MTS/SAP stereo mode

The TV has a feature that allows reception of sound other

than the main audio for the program. This feature is called

Multi-channel Television Sound (MTS). The "IV with MTS

can receive mono sound, stereo sound

and Secondary Audio Programs (SAP). The SAP feature

allows a TV station to broadcast other information, which

could be audio in another language or something completely

different like weather information.

You can enjoy Hi-Fi stereo sound or SAP broadcasts

where available.

• Stereo broadcasts: View programs like live sporting

events, shows and concerts in dynamic stereo sound.

• SAP broadcasts: Receive "R/ broadcasts in either MAIN

or SAP sound.

MAIN sound: The normal program soundtrack (either in

mono or stereo).

SAP sound: Listen to a second language, supplementary

commentary or other information. (SAP is mono sound.)

If stereo sound is difficult to hear.

• Obtain a clearer sound by manually switching to fixed

mono-sound mode.

You can change MTS as shown below to match the

television broadcast signal.

Press AUDIO to toggle between audio modes,

Examples: when receiving MTS and SAP

STEREO mode:

STEREO + SAP mode:

MAIN + SAP mode:

ST{p_P/_ SAP_STi_ Me;NO

£TEREO_ MONO

MAIN_ £AP

MONO mode: MONO

Digital broadcasting audio mode

The types of audio transmitted in a digital broadcast include

SURROUND as well as MONO and STEREO. In addition, it

is possible for multiple audio tracks to accompany a single

video track.

Press ENTER to toggle between audio modes.

Example: when receiving Digital broadcasting

STERFO(A_{o_} _ STERDO[Audio2}

SURROUND/AudioS:

• MTS only operates while in TV mode.

• You can have the same settings by choosing "Change

Audio" on the menu items.

(See Daae 4-29._

ENG 3-8

Allows you to set a time when the TV automatically switches

to standby.

Press SLEEP.

• The remaining time displays when the sleep timer has

been set.

• Each time you press SLEEP, the remaining time switches

as shown below.

• When set, the time automatically starts counting down.

• If you want to adjust the sleep timer, you can press

SLEEP twice then change the time setting.

• When it is 5 minutes before the time expires, the

remaining time will start to keep appearing every minute.

• Select "Off" by pressing SLEEP to cancel the sleep timer.

• The TV will enter standby when the remaining time

reaches 0.

ENG 3-9

AM MODE gives you several viewing options to choose from

to best match the surrounding environment of the TM, which

can vary due to factors like room brightness, type of

program watched or the type of device connected.

You can use USER Mode to create customized settings for

each TM input. These settings will be automaticaly saved on

each input for convenience.

Press AV MODE. Current AV MODE displays.

• Press AV MODE again before the mode displayed on the

screen disappears.

• The mode changes as shown below:

• Example:

When using the COMPONENT IN,

VIDEO IN 1 or 2 terminals

UQ17U, TQ15U, SQ17U, SQ15U, SQ10U and EQ10U

models

AUTO _ S_.N_RD SN_RGY _) _ MOVIE:

t $

DYnaMIC _e_ M@JE Tt-t_JQITLI only)

t $

OYNAM}C WNTAGE M(241E

_J_R _]_ _ME _andard)

LE650U, LE657U, C6500U and LE642U models

AU[O _ SfAN_RO IENB_GY $YARI°! -_ MOVIE

t 8

DYNAMIC (Fixetl _IYNAM/C _LIIIR IIT_ _ GAM_

•Example:

When using the PC IN or HDMt IN 1 to 4 terminals

UQ17U, TQ15U, SQ17U, SQ15U, SQ10U and EQ10U

models

AUTO ._ gTAN_ _NERGY _TAR) ---* M_IE

_'NAM_C _e_ VINTAGE M_]E

DYI_MMICT G_ (_)

xv.Color* 4 LI_ER[_] 4 PC

*"x.v.Color" can only be selected when an x.v.Color signal is

input using HDMI IN 1 to 4 terminals.

LE650U, LE657U, C6500U and LE642U models

A4J/TO _' STANDARD (ENBRGY S'iA_q) 1_ MDV]E

DYNAM C (Fixe@ GAME

DYNAMiO _ USER[_] ÷

• "1: Except for LC-90LE657U

ENG 3-10

_i_i_i_ii iiiii_i__ii_,;_ ii_ iiii_i_G_,,,iiii__ii_,,_%_¸ _i_:_:_:_:_)i_}

AUTO: Optimizes the image quality automatically based on

the room brightness and image signal.

STANDARD (ENERGY STAR)*1: For a highly defined

image in a normal lighting.

MOVIE: For a movie.

MOVIE THX: Changes the image quality so that it

conforms to the THX display standard. (For the UQ17U

models.)

VINTAGE MOVIE: Allows you to enjoy old-time films in a

good old-fashioned way, where the images look as if

they were projected in real time in those days.

GAME (Standard/High Motion): Suitable for game

playing. You can configure the settings according to the

type of the game. Refer to "Picture Setting" > "Advanced"

> "Game Type". ) (For the UQ17U, TQ15U, SQ17U,

SQ15U, SQ10U and EQ10U models)

(See Daae 4-10._

GAME: Lowers image brightness for easier viewing.

(For the LE650U, LE657U, C6500U and LE642U models)

PC: For PC.

USER: Allows the user to customize settings as desired.

You can set the mode for each input source.

x.v.Color: Supports the x.v.Color international standard for

wide color space. The x.v.Color signal allows you to

experience colors that conventional color signals cannot

reproduce.

DYNAMIC: For a clear-cut image emphasizing high

contrast, useful for sports viewing.

DYNAMIC (Fixed): Changes the image and sound settings

to the factory preset values. No adjustments are allowed.

• You can select a different AV MODE item for each input

mode. (For example, select STANDARD (ENERGY

STAR) "1 for TV input and DYNAMIC for COMPONENT.)

• "MOVIE THX" MODE is not available when 4K signal

input.

• When you play games, "GAME" is recommended for AV

MODE.

• You cannot set "PC" when the TV is connected to the

Internet.

• You cannot set "GAME" or "PC" when the input source is

"Home Network" or "USB".

• You can have the same settings by choosing "AV MODE"

on the menu items.

(See Daae 4-5._

"1: Except for LC-90LE657U

ENG 3-11

_It++_1++.+%[% i i <[?+[__%,

Your TV is equipped with an internal Closed Caption

decoder. It allows you to view conversations, narration and

sound effects as subtitles on your TV. Closed Captions are

available on some TV programs and on some VHS home

video tapes at the discretion of the program provider.

Digital Closed Caption service is a new caption service

available only on digital TV programs (also at the discretion

of the service provider). It is a more flexible system than the

original Closed Caption system, because it allows for a

variety of caption sizes and font styles. When the Digital

Closed Caption service is in use, it will be indicated by the

appearance of a 3-letter abbreviation that also indicates the

language of the Digital Closed Captions: ENG (English),

SPA (Spanish), FRA (French) or other language codes.

Not all programs and VHS videotapes offer closed captions.

Please look for the "_" symbol to ensure that captions will

be shown.

In the Closed Caption system, there can be more than one

caption service provided. Each is identified by its own

number. The "CCl" and "CC2" services display subtitles of

TV programs superimposed over the program's picture.

In the Closed Caption system, the "Text1" or "Text2"

services display text that is unrelated to the program being

viewed (e.g., weather or news). These services are also

superimposed over the program currently being viewed.

1 Press CC.

• This will present the Closed Caption information

display.

2Press CC while the Closed Caption information is still on

the screen.

• Press repeatedly until you select the desired closed

caption service.

Closed Caption information

• Depending on the number of caption services in the

signal being received, you will see information such as

1/2 or 1/4 displayed.

1/2 means "the first of two services".

Example:

If a program has three services (Digital CC(ENG), CCl

and Text1), the closed caption display will toggle in this

sequence:

• The CC button keeps a record of the last service selected

in its memory.

If the last closed caption mode (e.g. 1/3 ENG) you

selected is not available for the next program, or on

another channel, the closed caption service that is

available is automatically selected, and this service

appears in parentheses, e.g. "1/3(CCl)".

Closed Caption services that appear in parentheses will

not be stored in the CC button's memory as your last

selected service. Only services that you have selected

with the CC button are stored.

ENG 3-12

Examples:

In a case where there are two closed caption services

provided (for instance, Digital CC(ENG) and CC1), and

Digital CC(ENG) is displayed as your current selection, if

Digital CC(ENG) is not broadcast for the next program, the

other closed caption service, CC1, will be displayed in

parentheses.

A closed caption service appears in parentheses because

the service you selected is not available and a different

service is displayed on your screen. "1/1(CC1)" is displayed

instead of "I/2/ENG".

• When "Power Saving" is set to "Standard" or "Advanced",

the Power Saving leaf icon appears on the channel

information window.

See Daae 4-27 for details of Power Saving settings.

• See Daae 4-30 for detailed closed caption settings.

• When the program contains no closed caption, "--"

displays in the closed caption information.

• If the language code, e.g. "ENG", is not found on Digital

TV programs, "--" will be shown.

• Four kinds of closed caption service (CCl, CC2, Text1,

Text2) are potentially available, but a broadcast may

contain none or only some of these services at the

discretion of the program provider.

• When a web page is displayed, Closed Captions are not

available.

• You can have the same settings by choosing "Change

CC" on the menu items.

(See Daae 4-29./

ENG 3-13

You can select the screen size.

1 Press VIEW MODE.

• The View Mode menu displays.

• The menu lists the View Mode options selectable for the type of video signal currently being received.

2 Press VIEW MODE or,tildV while the View Mode menu is displayed to select a desired item on the menu.

• You can sequentially select a View Mode that has its own aspect ratio.

• You can have the same settings by choosing "View Mode" on the menu items.

(See Daae 4-28._

• Each time you press VIEW MODE when a browser screen is shown, the display pattern toggles between a website-only screen

and a TV+Web screen.

• You may not be able to change the View Mode while in 3D mode. (For the UQ17U, TQ15U, SQ17U, SQ15U and LE657U

models)

For HD programs

Suitable for viewing wide-

screen 1.78:1 aspect ratio

program, stretch mode will

still show very thin black

bands at the top and

bottom of the screen.

Dot by Dot (1080i/p only):

Detects the resolution of the

signal and displays an

image with the same

number of pixels on the

screen.

Full Screen (720p only):

You can select "Full Screen"

only when receiving a 720p

signal.

Suitable for stretching 4:3

programs to fill the screen.

Suitable for viewing wide-

screen 2.35:1 aspect-ratio

programs in full screen.

• When using Dot by Dot or Full Screen, it is possible to see noise or bars around different outer portions of the screen. Please

change view mode to correct this.

ENG 3-14

For 4:3 programs

Example: Screen size tmages

Suitable for viewing

conventional 4:3 programs in

their normal format.

Suitable for stretching 4:3

programs to fill the screen.

Suitable for viewing wide-

screen 2.35:1 anamorphic

DVDs in full screen.

This mode is useful for 1.78:1

DVDs. When viewing 1.85:1

DVDs, stretch mode will still

show very thin black bands at

the top and bottom of the

screen.

For USB-Video, Home Network Video or Internet applications

Example: Screen size tmages

Keeps the original

aspect ratio in a full

screen display.

Displays an image by

an original size.

[

An image fully fills the

screen.

ENG 3-15

For PC

Example: Screen size

I©

4:3

images

Keeps the original

aspect ratio in a full

screen display.

For viewing

widescreen programs.

The top and bottom of

the image is cropped.

I I

An image fully fills the

screen.

Detects the resolution

of the signal and

displays an image

with the same number

of pixels on the

screen.

I I

16:9

An image fully fills the

screen. Detects the resolution

of the signal and

displays an image

with the same number

of pixels on the

screen.

• Connect the PC before making adjustments. See the Setup Guide.

• Selectable screen size may vary with input signal type.

ENG 3-16

_ LCFONT embedded

_Guide display

• This indicates the buttons that can be operated on the

displayed screen. The guide display varies depending on

the menu setting screen.

• The operations for some selected items may be displayed

in the operational guide bar at the bottom of the screen.

Item displayed in blue

• This indicates the item currently selected.

• Press ENTER to go to the adjustment screen for this

item.

Item in brackets

• This indicates the current setting for the item.

_;_ Item displayed in white

• This indicates that the item can be selected.

Item displayed in gray

• This indicates that the item cannot be selected.

There are various reasons why the items cannot be

selected, but the main reasons are as follows:

-- Nothing is connected to the selected input terminal,

-- The function is not compatible with the current input

signal.

-- When this conflicts with other functions, you must change

the settings for the other functions,

ENG 4-1

About Menu Items

• When AV MODE is set to "AUTO", part of the menu may

not be displayed correctly or the setting range of the menu

may be changed.

• Some menu items may not be displayed depending on the

selected input source.

• The screens in the operation manual are for explanation

purposes (some are enlarged, others cropped) and may

vary slightly from the actual screens,

• The order of explanations for each menu item in the

following pages is not necessarily in accordance with the

alignment of the items on the screen,

LCFONT:

• This product is embedded with LC Font technology, which

was developed by SHARP Corporation for clearly

displaying easy-to-read characters on LCD screens,

ENG 4-2

Example

1Press MENU to display the MENU screen.

2_Press _ to select the desired menu.

_Press _ldT to select a specific adjustment item, and then

press ENTER.

• Additional related adjustment items may be displayed.

Press _ to select the desired item.

Adjust the item while referring to the guide display.

• Operations vary depending on the function or item.

Refer to the guide display corresponding to the menu

setting screen for button operations.

3Press MENU to exit.

• Menu options differ in the selected input modes, but the

operating procedures are the same.

ENG 4-3

Using the remote control

Use the following buttons on the remote control to operate

the menu.

MENU: Press to open or close the menu screen.

_141_: Press to select a desired item on the screen or

adjust a selected item.

ENTER: Press to go to the next step or complete the

setting.

RETURN: Press to return to the previous step.

Using the control panel of the TV

You can also operate the menu with the control panel of the

TV.

Button operations on the control panel correspond to the

ones on the remote control as shown below.

................ j

MENU: MENU on the remote control.

INPUT: ENTER on the remote control.

CH,_: Cursor ,J,/T' on the remote control.

VOL+/-: Cursor ,4/_ on the remote control.

ENG 4-4

Example Adjusts the picture to your preference with the following

picture settings.

For operating the on-screen display menu, see bade 4-3.

_i_te_ _ ira,,6_

Backlight The screen dims The screen

brightens

High/Middle/Low: Select a desired level

of 3D Brightness Boost.

Brightness

Boost

Contrast For less contrast For more contrast

Brightness For less brightness For more brightness

Color For less color For more color

intensity intensity

Tint Skin tones become Skin tones become

reddish greenish

Sharpness For less sharpness For more sharpness

You can select "3D Brightness Boost" while in 3D mode.

For resetting all Picture adjustment items to the factory

preset values, press A/V to select "Reset", press

ENTER, press __!T to select "Yes", and then press

ENTER.

The audio and video settings can be changed to suit the

program or input content being watched.

• The selectable items vary depending on the input source

and on the model of your TV.

• For details of the selectable items in 3D mode,

see Daue 5-11. (For the UQ17U, TQ15U, SQ17U,

SQ15U and LE657U models)

• You can select AV MODE by pressing AV MODE on the

remote control unit.

See Parle 3-10 for details of AV MODE settings.

(F_ tP@UQ, TQ aa_ SO #'_de_s, }

ENG 4-5

Example

Adjust the picture to room illumination or ambient brightness.

This function is available only when AV MODE is set to

"MOVIE THX".

Bright room: Select this item for a bright room.

Dark room: Select this item for a dark room.

Automatically adjusts the brightness of the screen.

Off: The brightness is fixed at the value set in "Backlight".

On: Automatically adjusts.

On:Display: Displays the Light Sensor effect on the screen

while adjusting the brightness of the screen.

• When set to "On", the Light Sensor senses the

surrounding light and automatically adjusts the backlight

brightness. Make sure nothing obstructs the Light Sensor,

which could affect its ability to sense surrounding light.

• When set to "On:Display", Light Sensor effect displays on

the screen while the Light Sensor adjusts the screen

brightness.

L_htSensoR_J_ _ _ a a a

(F_ tP@UQ, TQ aa_ SO #'_de_s, }

ENG 4-6

Example

Configures Resolution Enhanced Mode settings.

• When Resolution Enhanced Mode is set to "Mode 1" or

"Mode 2", the following modes do not work.

1. Motion enhancement (AquoMotion 960 and 240 Hz)

2. Game Type

If you want to use these modes, set Resolution Enhanced

to "Off".

• Resolution Enhanced is not available when:

The A/M960 or 240 Hz mode is selected.

"Game Type" is set to "High Motion".

3D mode is on.

Smoothes diagonal lines by detailed dot control.

Advanced: Produces smoother diagonal lines by jaggy

removal process.

Standard: Produces smooth diagonal lines.

Off: No adjustment.

• When AV MODE is set to "VINTAGE MOVIE" MODE,

"Quad Pixel Plus2" is not available.

Use Motion Enhancement to view fast-action video more

clearly.

AquoMotion960 Turn the LED backlight on or off for

240Hz drive display,

240Hz For obtaining a clearer image,

AquoMotion240 Turn the LED backlight on or off for

120Hz drive display,

For obtaining a clearer image,120Hz High

120Hz Low

Off

UQ17U models

Original image.

AquoMotion960/240Hz/AquoMotion240/

120Hz High/120Hz Low/Off

TQ15U, SQ17U, SQ15U, SQ10U, EQ10U models

240Hz/AquoMotion240/120Hz High/120Hz Low/Off

LE657U model

AquoMotion240/120Hz High/120Hz Low/Off

LE650U, C6500U and LE642U models

120Hz High/120Hz Low/Off

• "Motion Enhancement" may cause image noise. If this

occurs, turn the function "Off".

• When AV MODE is set to "VINTAGE MOVIE" MODE,

"GAME" or "PC", or PC format is being input, "Motion

Enhancement" is not available.

ENG 4-7

Example

Reduces jaggies and noise and displays a clear picture.

Processes noise included in broadcast signals to improve

picture quality.

High:Improves picture quality through Clear Picture

Processing at a level above "Standard".

Middle:Improves picture quality through Clear Picture

Processing.

Off:No adjustment.

Color tone is managed using the six-color adjustment

setting.

C.M.S.-Hue: This is a standard to adjust the color either

more reddish or more bluish in tone.

C.M.S.-Saturation: Increases or decreases the saturation

of a selected color.

C.M.S.-Value: A higher value makes the image brighter.

A lower value makes the image darker.

• For resetting all adjustment items to the factory preset

values, press _L!Y to select "Reset", and then press

ENTER.

For a better white balance, use color temperature correction.

High: White with bluish tone

Mid-High:

Middle:

Mid-Low:

Low: White with reddish tone

Low (Xenon}, Low (Carbon arc}: Available only when AV

MODE is set to "VINTAGE MOVIE" MODE. Use one of

these items to make picture color become more reddish.

White balance can be adjusted between a maximum of +30

and a minimum of -30 for each color temperature.

R Gain (LO/HI)/G Gain (LO/HI)/B Gain (LO/HI}

Fine tuning the color temperature

To fine tune the color temperature, set "10 Point Setting" to

"On".

You can adjust the "Position" setting. Adjust the set color

temperature from +1 to +10.

White balance can be adjusted between a maximum of +30

and a minimum of -30 for each color temperature.

• When "Position" is set to "10", you can adjust the white

balance between -30 and 0.

• For resetting all adjustment items to the factory preset

values, press _ to select "Reset", and then press

ENTER.

(F_ tP@UQ, TQ aa_ SO #'_de_s, }

ENG 4-8

Example

Automatically adjusts the image contrast according to the

scene.

Advanced: Produces higher contrast image especially in

dark scene.

Standard: Produces high contrast image.

Off: No adjustment.

Adjusts the differences of picture tones between bright parts

and dark parts. The adjustment range of the gamma can be

set to a maximum of +2 and a minimum of -2 by pressing 4

or _,.

This function provides high-quality playback of images

originally encoded at 24 frames/second, such as films.

Advanced: Adjusts effect to reduce judder from film

contents. You can select a desired level of judder

reduction from 0 to +10.

Standard: Plays back images with equal display time for

each frame, reproducing movie theater experience.

Off: Normal viewing mode.

• "Film Mode" does not function depending on input signal

type.

• "Film Mode" does not function when you set AV MODE to

"VINTAGE MOVIE" MODE, "GAME" or "PC".

• "Standard" does not function depending on input signal

type.

Produces a clearer video image.

Auto: Automatically adjusts the level of noise reduction.

High/Middle/Low: You can select a desired level for

viewing a clearer video image.

Off: No adjustment.

• "Digital Noise Reduction" is not available when you set

AV MODE to "PC" or PC format is being input.

• When AV MODE is set to "GAME", "AUTO" is not

available.

You can set the color gamut range.

Standard: Standard color gamut.

Expanded: More vivid colors with expanded color gamut.

• "Color Gamut Range" is only available when AV MODE

is set to "MOVIE" or "MOVIE (3D)".

(F_ t_@UQ, TQ and SO #'_dets. }

ENG 4-9

Example

Available only when AV MODE is set to "VINTAGE MOVIE"

MODE. When this function is enabled, the lamp light looks

like it is swinging. You can adjust the effect level between 0

and +3.

For viewing a video in monochrome.

You can adjust picture quality according to the type of the

game you are playing.

Standard: Optimizes picture quality for standard video

games.

High Motion: Optimizes picture quality for high motion

video games,

• "Game Type" is not available depending on the input

signal type.

• "Game Type" is only available when AV MODE is set to

"GAME" and "Resolution Enhanced" is set to "OFF".

Adjusts on-screen black level to your preferred level.

High: The black level gets brighter.

Low: The black level gets darker.

• "Black Level" is available for input signal from Composite

Video, Component 480i and analog broadcasts (air and

cable).

The brightness level range of the Light Sensor's automatic

adjustments can be set according to your preferences.

The adjustment range of the Light Sensor can be set to a

maximum of +16 and a minimum of -16.

Max.: -15 through +16

Min.: -16 through +15

• The "Light Sensor Adjustment" settings are active only

when "Automatic Light Sensor" is set to "On".

• The maximum setting cannot be set to a smaller number

than the minimum setting.

• The minimum setting cannot be set to a bigger number

than the maximum setting.

• Depending on the brightness of the surrounding light, the

Light Sensor might not operate if the adjustment range is

small.

Returns Picture Settings to their factory preset values. To

reset, select "YES" and then press ENTER.

ENG 4-10

Example You can adjust the sound quality to your preference with the

following settings.

• For operating the on-screen display menu,

see Daae 4-3.

Treble For weaker treble For stronger treble

Bass For weaker bass For stronger bass

Balance Decrease audio from Decrease audio from

the right speaker the left speaker

The surround function produces Surround effect from the

speakers.

• The Audio Settings menu is grayed out when "Output

Select" is set to "Variable".

(See uaae 4-20.)

• For some discs, setup may be required on your BD/DVD

player. In this case, please refer to the operation manual

of your BD/DVD player.

• The Audio menu is grayed out when "Output Select" is

set to "Variable".

(See Daae 4-20.)

• For resetting Audio adjustment items to the factory preset

values, press J_!'T' to select "Reset", press ENTER, press

to select "Yes", and then press ENTER.

Different sound sources sometimes do not have the same

loudness level, such as a program and its commercial

brakes, The Automatic Volume Control(Auto Volume)

reduces this problem by equalizing.

ON: Reduces the loudness gaps among different sound

source. The result is automatically adjusted according to

the sound sources.

OFF: No adjustment.

ENG 4-11

Example

I+=i:_+:i I+]+++ii+,i _:i{+ iii_:i++ii ?+1_!

The surround function produces Surround effect from the

speakers.

3D Stadium: Reproduces lifelike experience of excitements

such that live sports or concert performances in a

stadium create.

3D Hall: Reproduces concert hall experience with realistic

live surround sound using measured reverberant sound

in the concert hall.

3D Movie: Reproduces movie theater experience with

realistic live surround sound using measured reverberant

sound in the movie theater.

3D Standard: Creates 3 dimensional surround sound with

detailed control of the signal phase.

Normal: Provides mild surround sound.

Off: Outputs the normal sound.

• The Audio Settings menu is grayed out when "Output

Select" is set to "Variable".

!See Daae 4-20.)

• For some discs, setup may be required on your BDIDVD

player. In this case, please refer to the operation manual

of your BD/DVD player.

This function improves the sound quality by extending the

selected range.

All Range: The low range will be extended and the sounds

in the medium and high ranges, which have been lost

due to the data being compressed, will be restored.

This setting is effective when playing back audio through

a wireless interface such as when using Bluetooth

playback.

Low Range: The low range will be extended.

Off: No adjustment.

This function emphasizes speech against background noise

for greater clarity.

• The Audio Settings menu is grayed out when "Output

Select" is set to "Variable".

(See Daae 4-20.)

This selects the optimal audio for the program you are

currently watching even when the TV is mounted to a wall.

Returns Audio Settings to their factory preset values. To

reset, select "YES" and then press ENTER.

ENG 4-12

Example

• For operating the on-screen display menu,

see Daae 4-3.

• When you select "Easy Setup", "CH Setup", "Parental

Control" or "Reset", you can enter the 4-digit secret

number here.

See Daue 4-21 for setting a secret number.

You can also select a language from the Setup menu.

Select from among 3 languages: English, French and

Spanish.

• To change the language of the manual, select "MENU" >

"Setup" > "Language" to change the language. Then,

press MANUAL again.

You can run Easy Setup again, even after setting up the

preset channels.

Language: Select from among 3 languages (English,

French and Spanish).

Location & Time: Make settings for the country, area and

time zone where you use the TV.

Select your country: Select either "United States",

"Canada" or "Mexico".

Select your time zone: Select your time zone. The

available settings differ depending on the selected country.

Select DST (Daylight Savings Time): Select "Auto",

"Manual" or "Off".

TV Location: Select "Home" or "Store" for the location

where you plan to install the TV. This product qualifies

for ENERGY STAR*I in Home mode default setting.

Home: "Power Saving" is set to "Advanced", and AV

MODE is set to "STANDARD (ENERGY STAR)*1".

Store: "Power Saving" is set to "Off" and AV MODE is set

to "DYNAMIC (Fixed)". Picture Reset and Feature Demo

can be set.

Picture Reset: AV MODE will be set to "DYNAMIC

(Fixed)" regardless of whether Picture Reset is "On" or

"Off". If you select "On", AV MODE will be reset to

"DYNAMIC (Fixed)" if there is no operation for 30 minutes.

When "Off" is selected, AV MODE will be set to

"DYNAMIC (Fixed)".

"1: Except for LC-90LE657U

ENG 4-13

Example Feature Demo: When "On" is selected, after all the

settings are completed, the Feature Demo screen is

displayed if there is no operation for several minutes.

• ENERGY STAR qualification is based on AV MODE

"STANDARD (ENERGY STAR)*1".

Antenna & Cable/STB: Select the type of connection you

will use to watch TV.

Air/Cable: Make sure what kind of connection is made

with your TV when selecting "Air" or "Cable".

CH Search: Channel auto search makes the TM look for

all channels viewable in the set area.

• If "Cable" is selected for Antenna setting, scrambled

channels are removed after the Channel search has

been completed.

Smart TV: When you connect to the Internet on the TV,

confirm the connection method and make adjustments.

• Wireless LAN connection is possible only when the

WPS (push button) method is used. If any other

method is used, make settings by Smart TM > Internet

Setup > Intemet Connection.

(See Daaes 9-2 to 9-4.t

Completed: The settings confirmation screen is displayed.

Confirm the information displayed on the screen.

•"1: Except for LC-90LE657U

• See Initial Installation on

Daaes 2-2 to 2-7 for setting each item.

• If no channel is found, confirm the type of connection

made with your TV and try "Easy Setup" again.

• If you select "Analog Search Start" and initiate the

channel search, the CH Memory for Cable Digital will be

deleted.

If Initial Installation does not memorize all the channels in

your region, follow the instructions below to manually

memorize the channels.

Air/Cable: Make sure what kind of connection is made

with your TV when selecting "Air" or "Cable".

CH Search: Channel auto search makes the TV look for

all channels viewable in the set area,

CH Memory: You can select the channels to skip in each

ANALOG (Air), ANALOG (Cable), DIGITAL (Air) and

DIGITAL (Cable).

On: Skips channels, (Channel selection disabled using CH

A,P_'.)

Off: Does not skip channels. (Channel selection enabled

using CH/\/%,/.)

Remove Scrambled CH: This function makes the TV look

for and then delete digital cable channels that are

scrambled and so unavailable in the set area. The

process may take more than 20 minutes.

Yes: Starts to remove scrambled channels.

No: This function does not work.

• See Initial Installation on

Daaes 2-2 to 2-7 for setting each item.

• If no channel is found, confirm the type of connection

made with your TV and try channel search again.

• If you select "Analog Search Start" and initiate the

channel search, the CH Memory for Cable Digital will be

deleted.

ENG 4-14

Example

This function allows you to program 4 favorite channels, in 4

different categories. By setting the favorite channels in

advance, you can select your favorite channels easily.

To register your favorite channel:

Select "Register" and then press ENTER. Press A/V/_ to

select the position in the category, and then press ENTER

to register.

To delete your favorite channel:

Select "1 Data Clear" and then press ENTER. Press A/'T7-_I!

to select the channel you want to delete, and then

press ENTER. Select "Yes" and then press ENTER.

To delete all the favorite channels, select "All Data Clear".

In order to receive digital air broadcasts, you need a digital

broadcast antenna. You can confirm the antenna

configuration through the "Antenna Setup-DIGITAL" screen.

If necessary, adjust the direction of the antenna to obtain the

maximum signal strength.

Signal Strength: The signal strength of DIGITAL channel

is displayed. The signal information is based on the

current channel.

Channel Strength: Input the 2-digit channel number to

check the signa! strength of the selected channel. Make

sure the signal is strong enough for each channel.

• This function is available for DIGITAL (Air) only.

• Before setting the channel, select the channel you want

to register as a favorite channel.

• You can display the "Favorite CH" screen by pressing

FAVORITE CH on the remote control.

ENG 4-15

MPAA (Voluntary movie rating system)

Example Example

V-CHIP is an electronic filtering device built into your TV.

This tool gives parents a great degree of control over

broadcasts accessed by their children. It allows parents to

select programs judged suitable for child viewing while

blocking ones judged not suitable. It does so automatically

once you activate the V-CHIP feature in your TV. "V-Chip"

and "Status" will not be selectable from the menu if you do

not first configure your secret number.

• The U.S. has two rating systems for viewing content: TV

Parental Guidelines and movie ratings.

• The TV Parental Guidelines work in conjunction with the

V-CHIP to help parents screen out inappropriate

television shows from their children.

• Movie ratings are used for original movies rated by the

Motion Picture Association of America (MPAA) as

watched on cable TV and not edited for television. The

V-CHIP can also be set to block MPAA-rated movies.

• The setting automatically enters "Block" for any ratings

below your selection.

• If Status is not set to "On", the configuration settings will

not work.

Press ATV to adjust the item to your desired position.

"_" indicates the item is blocked. Press MENU to exit.

G: General audiences. All ages admitted.

PG: Parental guidance suggested. Some material may not

be suitable for children.

PG-13: Parents strongly cautioned. Some material may be

inappropriate for children under 13.

R: Restricted. Under 17 requires accompanying parent or

adult guardian (age varies in some jurisdictions).

NC-17: No one 17 and under admitted.

X: X is an older rating that is unified with NC-17 but may be

encoded in the data of older movies.

• Voluntary movie rating system only uses an age-based

rating.

ENG 4-16

Example

TV Parental Guidelines

Example

Content

FV: Fantasy violence.

V: Violence.

S: Sexual situation.

L: Adult language.

D: Sexually suggestive dialog.

Suggested age

TV-Y: All children.

TV-Y7: Directed to older children.

TV-G: General audience.

TV-PG: Parental Guidance suggested.

TV-14: Parents strongly cautioned.

TV-MA: Mature audience only.

When setting an individual content-based rating item:

1 Press _ or ENTER to access blocked content items from

the currently selected age-based rating item.

2 Press _T' to select an individual item, and then press

ENTER to unblock it ("_" is removed). Repeat the same

steps for the other items.

3 Press 4 or RETURN to register after all individual

content rating items are set.

: The content rating can be set, but this rating is not

normally broadcast by TV stations.

X : Content rating can be set.

Canadian Rating Systems (Canadian English ratings

and Canadian French ratings)

•The TV rating systems in Canada are based on the

Canadian Radio-Television and Telecommunications

Commission (CRTC) policy on violence in television

programming.

• While violence is the most important content element to

be rated, the structure developed takes into consideration

other program content like language, nudity, sexuality

and mature themes.

• When setting the V-CHIP on the Canadian system you

can choose either the Canadian English ratings or the

Canadian French ratings.

ENG 4-17

Example

Canadian English Ratings

E: Exempt: Includes news, sports, documentaries and

other information programming; talk shows, music

videos, and variety programming.

C: Children: Intended for younger children under the age of

8 years. Pays careful attention to themes that could

threaten their sense of security and well-being.

C8+: Children over 8 years old: Contains no portrayal of

violence as the preferred, acceptable, or only way to

resolve conflict; nor encourage children to imitate

dangerous acts which they may see on the screen.

G: General: Considered acceptable for a!l age groups.

Appropriate viewing for the entire family, contains very

little violence, physical, verbal or emotional.

PG: Parental Guidance: Intended for a general audience,

but may not be suitable for younger children (under the

age of 8) because it could contain controversial themes

or issues.

14+: Over 14 years: Could contain themes where violence

is one of the dominant elements of the storyline, but it

must be integral to the development of plot or character.

Language usage could be profane and nudity present

within the context of the theme.

18+: Adults: Intended for viewers 18 years and older and

might contain depictions of violence, which while related

to the development of plot, character or themes, are

intended for adult viewing. Could contain graphic

language and portrayals of sex and nudity.

Canadian French Ratings

E: Exempt programming.

G: General: All ages and children, contains minimal direct

violence, but may be integrated into the plot in a

humorous or unrealistic manner.

8ans+: General but inadvisable for young children: May be

viewed by a wide public audience, but could contain

scenes disturbing to children under 8 who cannot

distinguish between imaginary and real situations.

Recommended for viewing with parent.

13ans+: Over 13 years: Could contain scenes of frequent

violent scenes and therefore recommended for viewing

with parent.

16ans+: Over 16 years: Could contain frequent violent

scenes and intense violence.

18arts+: Over 18 years: Only for adult viewing. Could

contain frequent violent scenes and extreme violence.

How to temporarily release the V-CHIP BLOCK

When the V-CHIP BLOCK is working and censors a

broadcast, "V-CHIP HAS BEEN ACTIVATED." displays.

1 Press ENTER while the V-CHIP is working, and then the

secret number setting menu displays.

2 Input the 4-digit secret number by using 0-9. At this time

V-CHIP BLOCK temporarily releases.

ENG 4-18

Example

Reactivating the temporarily released V-CHIP BLOCK

You can reactivate the temporarily released V-CHIP BLOCK

as shown below.

• Select "Status" setting from the Parental Control menu to

reactivate BLOCK.

• Select "V-Chip" setting ("MPAA", "TV Guidelines", "Can.

English Ratings" or "Can. French Ratings") from the

Parental Control to reactivate BLOCK.

(See Daaes 4-16 to 4-18./

• Switch off the TV power.

• Performing any of the three above will activate the V-

CHIP BLOCK.

Used to enable or disable the parental control function. This

function will not be selectable from the menu if you do not

first configure your secret number.

When this function is activated, you can reduce the TV's

start-up time or even let the TV in standby mode start

displaying images and so on via the connected equipment

on the network.

• Setting "Quick Start Mode" to "On" consumes more

power.

When you view images sent from external equipment in an

HDMI connection, this function allows the image size on the

TV to automatically switch to an appropriate one.

• Refer to your external equipment operation manual for the

signal type.

• When connecting a DVI-HDMI conversion adapter/cable

to the HDMI IN terminal, the image may not come in

clearly.

You can adjust the position of the image input from a PC the

settings with "Setup" > "Advanced" > "PC input".

(See Daae 8-1.t

Lets you set the input terminal displayed when using the

INPUT list or channel display. Press JtdT/4/_ to select the

new name for the input mode.

• Using the software keyboard, you can enter up to

10 characters for text.

(See Daae 9-5._

• You cannot change labels if the input source is TV, Home

Network, USB, Screen Sharing or Bluetooth.

ENG 4-19

Example

This setting allows you to skip the TV, HDMI or PC IN Input

("TV", "PC IN", "HDMI 1", "HDMI 2", "HDMI 3" and "HDMI

4") on the Input Selection operation.

• If you connect external equipment to an HDMI IN terminal

which you have set to be skipped, a notification message

appears on the display when a signal is received from

the connected external equipment. Press "Yes" to reset

the related skipping setting so that the input terminal

becomes available.

i i!!i!i!i!ilililiiii!!il ii ii!iiiiili

You can make various settings to enhance 3D image

viewing.

(See l)aae 5-11.5-12.t

This function sets the terminal to output the computer audio.

The adjustment items vary depending on the input source.

Select the input source corresponding to the terminal

connected to the PC and then adjust the desired item.

To perform the operation, refer to "Setup" > "Advanced" >

"Audio Select".

(See Daae 8-2._

Allows you to select what controls the audio output.

Fixed: Sound via speaker is adjusted with VOL+/- on the

remote control unit or on the TV.

Sound via the AUDIO OUT terminal is not adjustable and

outputs at a consistent level.

Variable: Sound via the AUDIO OUT terminal is adjusted

with VOL+/- on the remote control unit or on the TV.

Sound via speaker is muted.

You can output digital audio to an AV amplifier or similar

device whose DIGITAL AUDI© INPUT terminal is connected

to the DIGITAL AUDIO OUT terminal on the TV. Please

select an audio output format compatible with the audio

format of the program you are watching and the equipment

connected.

PCM: For connecting to equipment that does not support

Dolby Digital and DTS. The same audio (main, sub, or

main/sub) as the audio of the program being viewed is

output.

2-channel audio with a sampling rate of 48 kHz or less is

output as linear PCM audio.

Bitstream: For connecting to an audio system that

supports Dolby Digital and DTS. Audio is output through

both the main and sub channels.

• Analog channel audio and video input audio are output in

PCM mode even when "Bitstream" is selected.

• PCM digital input signals are output in PCM mode even

when "Bitstream" is selected.

ENG 4-20

Example

Select the video signal system compatible with your

equipment from the list below:

AutolNTSCIP AL-MIP AL-N

• "Color System" can only be set for the VIDEO IN 1 or 2.

• If you have already set the Secret No., input the 4-digit

secret number here.

Make the settings to use AQUOS LINK.

Set the settings with "Setup" > "Advanced" > "AQUOS LINK

Setup".

(See Daae 7-2./

This is the function to confirm your registration code.

You need to register the code at http://www.divx.com.

(See Daae 6-12.t

Allows you to use a secret number to protect certain

settings from being accidentally changed.

IMPORTANT:

Three conditions must be met to enable the V-Chip

(see Daaes 4-16 to 4-19/:

1. Secret No. is registered.

2. V-Chip/V-Chip (DTV Only) settings have been made.

• The "V-Chip (DTV Only)" will only be selectable when

a new rating system can be downloaded via digital

broadcasting in the U.S.

3. "Status" is set to "On".

Setting Secret No.

You can set and change the secret number by using 0-9.

Yes: Changes or sets the Secret No.

No: The confirmation screen to clear the Secret No.

appears when the Secret No. has been set. When the

Secret No. has not been set, the previous screen will be

displayed.

Delete Secret No.

You can clear your secret number.

Yes: Your secret number is cleared.

No: Your secret number is not cleared.

• As a precautionary measure, make a note of your secret

number and keep it in a familiar place.

• If the secret number is cleared, the Status setting

automatically sets to "Off". "V-Chip" and "Status" will not

be selectable from the menu.

If complex adjustments are made and the settings cannot be

restored to normal, you can reset the settings to the factory

preset values.

• If you have already set the Secret No., input the 4-digit

secret number here.

• The Channel Setup settings will not be changed.

• The Language settings will not be changed.

• The Secret number settings will not be changed.

• The TV Location settings will not be changed.

ENG 4-21

Example Configures LAN and Internet settings.

You can display a list of the main Smart TV settings. You can connect your TV to the Internet using the setting

item "lnternet Connection".

(See Daae 9-2 to 9-4./

If you do not want other people to connect to the Intemet in

your absence, you can make settings to keep the TV away

from the Internet.

(See Daae 9-4.t

Switch to the SmartCentral Settings screen.

Set this function when operating the TV from equipment

connected by LAN or wireless LAN.

(See Daae 8-3.t

ENG 4-22

Example

Activating the function will display still images when the TV

is in standby mode.

Configures Wallpaper Mode settings.

Off:Nothing will be displayed.

Picture:Still images will be displayed when the TV is in

standby mode.

Clock: The clock will be displayed when the TV is in

standby mode.

Configure the clock settings. (For the UQ17U, TQ15U,

SQ17U, SQ15U, SQ10U and EQ10U models)

(See Daae 4-24.t

The clock mode can only be used when a network

connection has been established.

Finish configuring the network settings.

After you set the time once, the clock will continue to

operate even if you disconnect from the network.

However, you cannot switch the daylight saving time

setting when disconnected from the network.

For the wallpaper, you can select either the still images pre-

installed in the TV or your favorite still images stored in the

USB memory device.

Pre-lnstalled: The images pre-installed in the TV will be

displayed in a slideshow.

UBB: Your favorite images stored for the wallpaper will

appear.

If only a single still image is stored in the USB memory

device, that image will be displayed as the wallpaper.

When there are multiple still images in the memory, all

the images will be displayed in a slideshow.

Images are displayed in 3-minute intervals as a

slideshow.

When the TV is in Wallpaper mode, you can turn off the

TV by pressing and holding POWER on the TV for 5

seconds.

- Just before the TV turns off, the last image shown

when the TV was turned off appears briefly.

- Your settings may not be saved in some cases.

When you display images by using the USB memory

device:

• Create a folder named "WP" in the root directory of the

USB memory device (the first directory when the USB

memory device is opened), and store into the folder the

still images you want to display for the wallpaper.

• You must insert the USB memory device into the USB

terminal before turning off the TV.

• If there are images on the USB memory device but they

do not appear on the screen, switch to USB mode and

check whether the image files on the USB memory

device are shown correctly.

You can set the length of time the TV will remain in the

Wallpaper Mode.

3 hours/6 hours/12 hours/24 hours

• No buttons except for POWER work even while the still

images are being displayed.

• If the ready-for-use USB memory device is not inserted,

the still images pre-installed in the TV will be displayed in

a slideshow even when "Data Source" is set to "USB".

• Because the USB memory device cannot be detected

immediately after the TV is turned on from standby

mode, the wallpaper pre-installed in the TV may be

displayed even when "Data Source" is set to "USB".

• The still images will be displayed until the set time has

elapsed.

ENG 4-23

Example

Configures clock settings.

Set the type of clock to use in wallpaper mode.

SpringlSummerlFalllWinter:A clock that represents the

corresponding season will be displayed.

Random:A randomly selected clock from among the four

types will be displayed.

Set this function when using the bluetooth devices with your

TV.

See Daae 9-11.10-1 for how to use the devices.

• When you use the Bluetooth device with your TV for the

first time, you must make pairing between the device and

the TV. Once the pairing is correctly carried out, the

Bluetooth device will be registered on the TV.

You can add, delete or select Bluetooth devices in the

registration,

Other devices Setting can only be used with the UQ17U,

TQ15U, SQ17U, SQ15U, and SQ10U.

Addition of aBluetooth Device

Before making the settings, press the Connect button on the

Bluetooth device you want to connect.

1Press _1/_, to select "Search", and then press ENTER.

2Model names of the detected devices will be displayed.

Select the device with the message "New" attached, and

then press ENTER.

• When a keyboard is being paired with the TV, a PIN

code will be displayed. Enter the PIN code using the

keyboard, and then press "Enter" key on the keyboard.

• When you perform pairing operation on a mouse,

select "Yes", and then press ENTER.

3After the message indicating the pairing is complete has

been displayed, click "OK".

ENG 4-24

Example

Deletion of a Bluetooth Device

1Press _L!'_"to select the device to delete, and then press

ENTER.

2Press _L!V to select "Delete", and then press ENTER.

Selection of a Bluetooth Device

1 Press _T rto select the device to use, and then press

ENTER.

2 Press A/T' to select "Select", and then press ENTER.

• See also the instruction manual supplied with the

Bluetooth device.

• You can register up to 6 devices to the TV, but only one

keyboard and mouse can be used at a time.

• If a device for which "Selected" is displayed does not

operate properly, try searching and selecting the device

again.

• The keyboard or mouse may not operate properly

depending on the application being used.

• The Bluetooth device may not operate properly depending

on the device being used.

Other Devices Setting

• Though up to six devices (smartphones) can be

registered, only one can be used at a time.

• Repairing is required whenever you change the device

being used.

• To have TV power turn on automatically when a playback

signal is received from a paired device while TV power is

off, set "Quick Start Mode" to "ON".

Configures Connection Mode settings.

PUSH Button Mode:The push button method will be used

to establish connections.

PIN Code Mode:the PIN code method will be used to

establish connections.

Set preferred wireless channel for Miracast Connection

• Depending on the connected device, different channels

may be assigned.

• You can use the Wireless Channel setting to specify the

preferred channel. Select "Auto" to select the optimum

channel for the usage conditions.

ENG 4-25

Example

Make the settings for remote playback.

(See Daae 6-13.t

You can setting the volume of the SmartCentral sounds.

High/Medium/Low/Off: Setting the volume of SmartCentral

sounds

• If an external speaker is used, the operation sound will

not be heard.

• This setting is only valid in SmartCentral.

Set this function when operating the TV from equipment

connected by LAN or wireless LAN.

(See Daae 8-3./

You can deactivate the Netflix function. Refer to

"Information" > "Netflix Help" and select "Deactivate".

(See l)aae 9-13.t

To deactivate the VUDU function, refer to "Information" >

"VUDU Help" and select "Yes".

(See Daae 9-13.t

ENG 4-26

Example

• For operating the on-screen display menu,

see uaae 4-3.

Power control setting allows you to save energy.

When listening to music from a music program, you can

turn the screen off and enjoy audio only.

• The screen image will return to norma! when a button

(except those for audio adjustment, such as VOL,

MUTE) is pressed.

This function allows you to set the Power Saving level in

order to decrease the power consumption and increase the

backlight lifespan.

Standard: Optimizes power reduction based upon video

content. When set to "Standard", "2_" appears on the

screen.

Advanced: Optimizes power reduction based upon video

content and engages Light Sensor. When set to

"Advanced",

"_" appears on the screen.

Off: This function does not work.

• "Power Saving" does not function when you set AV

MODE to "AUTO" or "DYNAMIC (Fixed)".

• You cannot select a different Power Saving item for each

AV MODE.

When "Power Saving" is set, the "Automatic Light

Sensor" settings for all AV Modes will automatically

change.

- If you set "Automatic Light Sensor" to "On" when

"Power Saving" is set to "Standard", then the "Power

Saving" setting will change to "Advanced".

- When you change the "Power Saving" setting from

"Advanced" to "Off" or to "Standard", "Automatic Light

Sensor" will be set to "Off".

- "AUTO" and "DYNAMIC (Fixed)" will remain set to "Off".

• When "Power Saving" is set to "Standard" or "Advanced",

the Power Saving leaf icon appears to the left of

"Automatic Light Sensor" in the Picture Settings menu

screen.

• "Power Saving" is not available when the TV is in 3D

mode. (For the UQ17U, TQ15U, SQ17U, SQ15U and

LE657U models)

When this function is enabled, the TV automatically shuts

down if no signal is received for more than 15 minutes.

• When it is 5 minutes before the power shuts down, the

remaining time will start to keep appearing every minute.

• When a TV program finishes, this function may not

operate.

When you enable this function, the TV automatically shuts

down if no operation is performed for more than 3 hours.

• When it is 5 minutes before the power shuts down, the

remaining time will start to keep appearing every minute.

ENG 4-27

Example

These functions are useful for adjusting the audio and video

settings. The Shortcuts functions can be operated with the

remote control unit.

Displays the SmartCentral home screen.

The application window can be displayed by selecting "App

Dock" on the MENU screen.

• You can display the application window by pressing

SmartCentral on the remote control unit.

(See Daae 3-6._

Displays the USB Operation Panel.

Displays the Home Network Panel.

This function changes the screen size.

Select "Shortcuts" on the menu to display the View Mode

menu screen.

The View Mode menu varies depending on the input source.

• You can select View Mode by pressing VIEW MODE on

the remote control unit.

-- See Daaes 3-14 and 3-15 for adjusting the video being

input from a TV, other audiovisual equipment, USB-Video,

Home Network Video or Internet applications.

-- See Daae 3-16 for adjusting the video being input from a

PC.

Allows you to capture and freeze a moving image that you

are watching.

• You can select Freeze by pressing FREEZE on the

remote control unit.

See Daae 3-4 for details of Freeze function.

ENG 4-28

Example

Allows you to change the audio when multiple audio is

available for the program you are watching.

• You can change Audio by pressing AUDIO on the remote

control unit.

See Daae 3-8 for details of Audio function.

Allows you to change the Closed Caption display.

Select "Change CC" on the menu to display the Closed

Caption information.

• The information displayed varies depending on the

program you are watching.

• You can change Closed Caption by pressing CC on the

remote control unit.

See Daaes 3-12 to 3-13 for details of Closed Caption

function,

Configures Letter and Caption screen display settings.

Channel Changing Effect

You can select whether to use transition effects when

changing channels.

• In some cases, "Channel Changing Effect" does not work.

Program Title Display

Select the CH display when changing channels for digital

broadcasting.

Position

For adjusting a picture's horizontal and vertical position.

H-Pos.: Centers the image by moving it to the left or right.

V-Pos.: Centers the image by moving it up or down.

• For resetting adjustments to the factory preset values,

press A/V to select "Reset", and then press ENTER.

• When connecting a PC to the HDMI IN terminal, the

image position will be automatically adjusted. It cannot

be manually adjusted.

• The screen position variable ranges depend on the View

Mode or the signal type. The ranges can be seen on the

position-setting screen.

• Adjustments are stored separately according to input

source.

• "Position" does not work when USB mode, Home Network

mode or an Internet application is used.

• You may not be able to adjust the position while in 3D

mode. (For the UQ17U, TQ15U, SQ17U, SQ15U and

LE657U models)

ENG 4-29

Example

Caption Setup

This function allows you to adjust the closed caption screen

appearance to suit your preference.

Caption Size/Font Style/Foreground Color/Foreground

Opacity/Background Color/Background

Opacity/Character Edge

• For resetting adjustments to the factory preset values,

press ,_/T" to select "Reset", and then press ENTER.

• The default value depends on the broadcasting station.

With this function activated, the SHARP logo will be

displayed when you turn on the TV.

• This function is not available when the TV is set to "Quick

Start Mode".

You can select the image from several types of demo mode.

• What kinds of setting item are available depends on the

model of your TV.

• This function will be canceled when you press EXIT on

the remote control unit.

• "Demo Mode" may not be selected depending on input

signal type or application status.

• "Demo Mode" may be automatically canceled depending

on input signal type.

ENG 4-30

Example

When this function is set to "On", the LED on the front of

the TV turns on.

UQ17U, TQ15U, SQ17U, SQ15U and LE657U models

•The LED lights white in 2D mode.

• The LED lights blue in 3D mode.

• "On" is the factory preset value. If you want to turn off

the LED, set the function to "Off".System Options

This function will enable the TV to display the elapsed time

every 30 minutes, so that you do not become too absorbed

in game playing to keep track of time.

Switch AV MODE to "GAME" to activate the function.

This function locks the operation buttons on the TV and the

remote control.

Off: No adjustment.

RC Control Lock: All buttons on the remote control are

locked.

Button Control Lock: All buttons on the TV, except

POWER, are locked.

When "RC Control Lock" or "Button Control Lock" is

selected, a confirmation screen appears.

Yes: Locks the operation buttons.

No: No adjustment.

• To unlock the buttons on the remote control by using the

control panel of the TV

(see Parle 4-4_:

_Press MENU to display the MENU screen, press

VOL+/- to select "System Options", and then press

INPUT.

_'_Press CH/X._,/to select "Operation Lock Out", and

then press INPUT.

_Press CH/_./'\J to select "Off", and then press INPUT.

_Press MENU to exit.

• To unlock the buttons on the TV, press MENU on the

remote control, and then select "Off" in "Operation Lock

Out".

ENG 4-31

Example

• For operating the on-screen display menu,

see Daae 4-3.

The current version of the TV software is displayed.

This function allows viewing of digita! closed caption

information for the digital broadcast program being viewed.

• This list is not displayed for analog broadcasts or external

input audio/video.

• This information is not included in CCl, CC2, Text1, or

Text2, and is not displayed in a list.

This is used to upgrade the system software to enhance the

TV functions.

1 Press MENU to display the MENU screen, and then

press ,,tl/_ to select "Information".

2 Press italy to select "Software Update", and then press

ENTER.

• If you have already set the Secret No., go to step 3.

3 Input the 4-digit secret number by using 0-9.

4 Press _4T' to select "Manual Update" or "Auto Update

Setting", and then press ENTER.

• The operations thereafter vary depending on the

setting.

When the TV is on, or when an Internet application is being

accessed, this function enables the TV to connect to the

network and check for updates automatically.

When an update is available, a message is displayed.

Press _' to select "Yes", and then press ENTER to

display the download screen.

(See Daae 4-34,t

• This function does not work when a broadband

connection or Internet Setup is not available.

• A message may also be displayed when an application is

running.The message varies depending on the

application.

Select the method for manually updating the software.

USB Update: Updates the software using a USB memory

device containing the update file. (See "Updating the

Software with a USB Memory Device".)

Network Update: Downloads the update file via the

network and then updates the software.

(See uaae 4-34./

• A broadband connection and Internet Setup are required

to update the software using the network.

(See uaues 9-2 to 9-4./

• It may take time to access and download the update

depending on the Internet connection and other factors.

Updating the Software with a USB Memory Device

To check for the availability of a software update, visit

http://www.sharpusa.comtproducts/supportl. If you have any

questions, please

call 1-800-BE-SHARP (800-237-4277).

ENG 4-32

Example

• Do not remove the USB memory device or unplug the

AC cord while the software is being updated.

• Be sure to properly follow the whole procedure

described below, step by step. Otherwise, for

example, the TV cannot read the data in the USB

memory device and software updating will fail.

1Insert the USB memory device with the update file into

the USB 1 or USB 2 terminal on the TV.

• When you update the software, use only one USB

terminal. Either USB 1 or USB 2 is usable.

2Press _r,_!',lron the Manual Update screen to select "USB

Update", and then press ENTER.

3Press ENTER to start checking the data in the USB

memory device.

4 During the data checking, "Checking" blinks.

• The current version of the TV software and the version

of the update file on the USB memory device are

displayed.

• If the USB memory device is not properly installed or

the correct update file cannot be found on the USB

memory device, an error message is displayed.

Check the file on the USB memory device, and then

reinsert the USB memory device correctly.

ENG 4-33

Example

5To update the TV software with the update file, select

"Yes", and then press ENTER.

• Do not remove the USB memory device or unplug the

AC cord while the software is being updated.

6When the software is successfully updated, a screen is

displayed indicating that the update process is

completed.

After this screen is displayed, the TV automatically turns

off and then turns on again.

• If the update has failed, check the file in the USB

memory device and try Software Update again.

7 After the screen shown below is displayed, press

ENTER.

8 Remove the USB memory device.

Updating the Software via the Network

1Press _idVon the Manual Update screen to select

"Network Update", and then press ENTER.

•The TV connects to the network and checks for

updates.

• To cancel, press ENTER.

2 The current version of the TV and the latest version of

software are displayed. To update the TV software,

select "Yes", and then press ENTER.

• When a server connection cannot be established or an

update is not available, a message is displayed.

If a server connection cannot be established, check

the broadband connection and Intemet Setup.

3 After the update file is downloaded, the software update

process begins.

• Do not unplug the AC cord while the software is

being updated.

4 When the software is successfully updated, a screen is

displayed indicating that the update process is

completed.

A screen indicating that the update is completed is

displayed. 4 seconds later, the TV restarts automatically.

• If the software was not updated successfully, check the

broadband connection and Internet Setup, and then try

updating the software again.

Displays software version information.

Displays the built-in operation manual on the screen. You

can read information about how to use this device.

ENG 4-34

You can use special 3D Glasses to watch 3D-supported images on this TV.

• You can enjoy 3D movies on this TV by viewing the movie through SHARP 3D Glasses

supplied with the TV or through optional 3D Glasses sold separately.

• To produce 3D images, liquid crystal shutters in the 3D Glasses alternately open and close

imperceptibly fast to exactly match alternating left and right video images displayed by the TV.

• Not all consumers can experience and enjoy 3DTV. Some people suffer from stereo blindness

which prevents them from perceiving the intended depth of 3D entertainment. Also, some

people who watch 3D programming may experience initial feelings of motion sickness as they

adjust to the picture. Others may experience headaches, eye fatigue or motion sickness. Some

viewers might also experience epileptic seizures. Like a roller coaster, the experience is not for

everyone,

•The 3D Glasses are precision equipment. Handle them with care.

•Improper use of the 3D Glasses or failure to follow these instructions can result in eye

strain.

•If you experience dizziness, nausea, or other discomfort while viewing 3D images,

immediately discontinue use of the 3D Glasses. Using the 3DTV with incompatible 3D

broadcasts or software can make images appear blurry or create overlapping images.

•When viewing 3D images continuously, be sure to take a break periodically to prevent

eye strain.

•If you are nearsighted or farsighted or have astigmatism or a different level of eyesight

between the left and right eyes, you should take the necessary steps, such as wearing

eyeglasses, to correct your eyesight before viewing 3D images. The 3D Glasses can be

worn over eyeglasses.

•When viewing 3D images, keep the 3D Glasses horizontally level with the TV screen. If

you tilt the 3D Glasses with respect to the TV screen, the images viewed by the left and

right eyes may appear significantly different or images may appear overlapping.

•View 3D images at the appropriate distance from the TV screen. The recommended

distance is three times the effective height of the TV screen.

Examples of recommended distances

90-inch screen: Approx. 11.2 ft (3.4 m)

80-inch screen: Approx. 9.8 ft (3.0 m)

70-inch screen: Approx. 8.5 ft (2.6 m)

60-inch screen: Approx. 7.2 ft (2.2 m)

Viewing should not be done closer than the recommended distance.

•Be careful of your surroundings when viewing 3D images. When you view 3D images,

objects may appear closer or farther than they are. This may cause you to misjudge the

distance and possibly result in injury if you accidentally hit the screen or surrounding

objects.

•The 3D Glasses are not recommended for people aged less than 6.

•When children are viewing 3D images, be sure a parent or guardian is present. Monitor

children viewing 3D images, and if they show signs of discomfort, immediately

discontinue use of the 3D Glasses.

•People with a known history of photosensitivity and people with heart problems or poor

health should not use the 3D Glasses. This can worsen existing health conditions.

•Do not use the 3D Glasses for other purposes (such as general eyeglasses, sunglasses,

or protective goggles).

•Do not use the 3D function or 3D Glasses while walking or moving around. This may

result in injuries due to running into objects, tripping, and/or falling.

•When using the 3D Glasses, take care not to accidentally strike the TV screen or other

people. Viewing 3D images may cause you to misjudge the distance to the TV screen

and accidentally strike the screen, resulting in possible injury.

•It is recommended that you do not view 3D images if you are sleep deprived or if you

have been drinking alcohol.

ENG 5-1

Make sure the following accessories are provided with

the 3D glasses.

3D glasses x 2 Cleaning cloth x 1

• The illustrations above are for explanation purposes and

may vary slightly from the actual accessories.

1 Power button

2 LED indicator

• The power turns off automatically in the following cases:

o When pairing fails

o When the 3D glasses are not operated in standby for

15 seconds

1 Power button:

• When the power button is pressed for 2 or more seconds

with the power off, pairing with the TV starts.

• When the power button is pressed for 2 or more seconds

with the power on, the power turns off.

• When paired, the power will turn off if the power button is

pressed for 2 or more seconds.

• When the power button is pressed for less than 2

seconds with the power off, the 3D glasses will turn to

standby.

• When the 3D glasses are in 3D mode with the power on,

pressing the power button for less than 2 seconds will

turn the 3D glasses to 2D mode.

• When the 3D glasses are in 2D mode with the power on,

pressing the power button for less than two seconds will

turn the 3D glasses to 3D mode.

• When paired, the 3D glasses will be non-reactive if the

power button is pressed for less than 2 seconds.

2 LED light

• When paired with the TV, the LED light blinks in red and

green.

• When pairing is completed successfully, the LED blinks in

green for 3 seconds.

• When the power is turned on, the LED lights up in green

for 3 seconds.

•When in 3D mode, the LED blinks in green in 3-second

intervals.

• When in 2D mode, the LED blinks in red in 3-second

intervals.

• When the power is turned off, the LED blinks in green 3

times.

• When in low voltage mode:

o When in 3D mode, the LED blinks in green in 3-

second intervals.

o When in 2D mode, the LED blinks in red in 3-second

intervals.

ENG 5-2

Before using the 3D glasses for the first time, remove the

insulating sheet attached to them.

To view 3D images, it is necessary to pair the 3D glasses

and TV.

• To confirm pairing of the 3D glasses and TV, make sure

that 3D images are displayed on the TV screen.

• When the power button is pressed for 2 or more seconds

with the power off, pairing with the TV starts. When

pairing is completed successfully, the LED blinks in

green for 3 seconds.

• To switch between 2D and 3D modes, briefly press the

power button.

• When paired, make sure that the 3D glasses are kept at

a distance of 1.64-6.56 ft (50 cm-2 m) from the TV. If too

close, pairing cannot be performed.

ENG 5-3

When viewing 3D images, you can press the power button

to switch between 2D and 3D modes. This is useful when

several people are viewing 3D images on the same TV with

some people wanting to watch in 3D and some people

wanting to watch in 2D.

When you press and hold for less than 2 seconds while

viewing 3D images, the LED light blinks in red and the 3D

images switch to 2D images.

When you press and hold for less than 2 seconds while

viewing 2D images, the LED light blinks in green and the 2D

images switch to 3D images.

The 3D glasses can be used by receiving a signal sent from

the TV.

The 3D glasses turn off automatically after 15 seconds if no

signal is received from the TV.

From directly the TV: approx. 5 m (within approx. 30°

horizontally and 20 ° vertically)

The battery has an expected service life of approximately 75

hours.

• When replacing the button battery, use only the

designated battery (Maxell branded CR2025 lithium

button battery).

1 Use the tip of a ballpoint pen or similar object to press in

on the lock.

2 While pressing in on the lock, place your fingertip in the

groove and pull out the battery holder.

• Pull the battery holder all the way out.

3 Replace the battery.

_Use the tip of a ballpoint pen or similar object to

remove the battery.

_lnsert a new battery.

• Insert the battery with the negative side (-) facing up.

°' ]

4 Align the battery holder with the battery slot on the 3D

glasses and slide it back into place.

• Press it in until it locks.

• Take care not to reverse the battery poles (+) and (-)

when loading the battery.

• Used batteries should be disposed of strictly in

accordance with the applicable local laws and

regulations.

ENG 5-4

I_! ii/tiii!!/!iiliii/i,i_liliiiili/lliiiii/iillil;

__i'!!!,!!!!!!!!!!!!!!!!!!!!i!!!!!!!!!!)!!:....

_i .... _!!,!R!!!!I!!!!!!!!!!!!!!_!!!!!!!!'!!!

!!!_ ! ....

iii_!_i _ii_!____.....

3D Glasses

AN-3DG40

Liquid crystal shutter

DC3V

Lithium button battery (CR2025 x 1)

Approx. 100 hours of continuous use

171.2 x 46.0 x 162.4 mm

Approx. 31.0 g (including the lithium ion polymer rechargeable

battery)

10°C to 40°C (The 3D glasses cannot operate fully at extreme

high or low temperatures. Please use them within the specified

usage temperature range.)

2t:2

i 2

8:8

9:9

A10

B: i

O: '2

I: A: 10

2 2 [-;:: 11

::H:t?

,. :1S

1'4:22

F' : 2(_

_&'30

X :31

• Please contact your local authority for the correct method of disposal of this product and/or

packing.

ENG 5-5

illlliiil,l,iiii iiiliiliiliiliiliiliiliiliili iiiii `i iii ii ii ii ii ii ii ii ii ii ii ```` i ` `ii i ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii i i iiiiil,l,iiii iiiliiliiliiliiliiliiliiliiliiliiliiliiliiliiliil

3D images are not displayed. Is "3D auto change" set to "Off"? Press 2D/3D to switch

Images displayed in 3D mode

appear doubled while you are

wearing the 3D glasses.

Images displayed in 3D mode

appear 2D while you are wearing

the 3D glasses.

to 3D mode

(Paae 5-11_.

If "3D auto change" is set to "Model" or "Mode2" but no

3D images are displayed, check the display format of the

content being viewed. Some 3D image signals may not

be recognized as 3D images automatically. Press 2D/3D

to select the appropriate display format for the 3D image

Is the power of the 3D glasses turned on? Press the

power button for at least 2 seconds to turn on the 3D

glasses.

Are the 3D glasses set to 2D mode? Press the power

button for an amount of time that is less than 2 seconds

to switch the 3D glasses to 3D mode.

Is there an obstacle between the 3D glasses and the TV,

or is something covering the receiver on the 3D glasses?

The 3D glasses operate by receiving a signal from the

TV. Do not place anything between the 3D emitter on the

TV and the receiver on the 3D glasses.

Is the power of the 3D glasses turned on? Press the

power button for at least 2 seconds to turn on the 3D

glasses.

Are the 3D glasses set to 2D mode? Press the power

button while viewing 2D images, the LED light blinks in

green and the 2D images switch to 3D images.

• For further details, refer to the operation manual of the 3D glasses.

ENG 5-6

3D mode

(using the 3D

Glasses)

Side by Side

Top and Bottom

Creates 3D images from 3D images

displayed side by side. The image

is split into a left and right image,

and then the images are stretched

and displayed sequentially to create

a 3D image.

Creates 3D images from 3D images

displayed on the top and bottom.

The image is split into a top and

bottom image, and then the images

are stretched and displayed

sequentially to create a 3D image.

iiiliill. Creates2Oima0esfrom3Oima0es

Side by Side displayed side by side. Only the left

2D image is stretched and displayed.

2D mode The image does not appear in 3D.

(without using

the 3D • Creates 2D images from 3D images

Glasses) Top and Bottom displayed on the top and bottom.

Only the top image is stretched and

2D displayed. The image does not

appear in 3D.

These functions can also be used by the SQ10U, EQ10U, LE650U, C6500U and LE642U.

ENG 5-7

• The TV screen may temporarily become black when the

TV is trying to detect a 3D image signal and when

switching from 3D to 2D mode.

2 Turn on the 3D Glasses and place them on your head.

3 You can now view 3D images.

4 Press 2D/3D during the 3D mode.

Select "Yes" and press ENTER to switch to 2D mode.

• Take off the 3D Glasses and turn off the power.

The image signal may contain a 3D identification signal. You

can enable the TV to automatically detect the 3D image type

by selecting "Setup" > "3D Setup" > "3D Auto Change" on

the TV.

(See Daae 5-11._

1 When "3D Auto Change" is set to "Mode 1" or "Mode

• The 3D image type is detected automatically and the

appropriate 3D image is displayed.

5 Take off the 3D Glasses and turn off the power.

• If the input signal switches to 2D, 2D images are

displayed automatically.

• 3D mode is canceled automatically when the setting is

changed, input selection is changed, or the power is

turned off.

When "3D Auto Change" is set to "Off"

• The following message is displayed. Press 2D/3D.

• Press _t# to select the "Yes", and then press ENTER.

ENG 5-8

1 Press 2D/3D.

• A screen appears prompting you to select between 3D

and 2D image viewing.

2 Press _ to select "3D" or "2D", and then press

ENTER.

• To view in 3D mode: Select "3D", and then go to step

• To view in 2D mode: Select "2D", and then go to step

3 Press _ to select the 3D signal type

("2D_3D", "Side by Side" or "Top and Bottom") and

then press ENTER.

6 Press _ to select the 2D signal type ( "Side by Side"

or "Top and Bottom") and then press ENTER.

• If you select the same system as that of the input

signal, 2D images are displayed.

• Take off the 3D Glasses and turn off the power.

This function can also be used by the SQ10U, EQ1OU,

LE65OU, C6500U and LE642U.

• If you select the same system as that of the input

signal, 3D images are displayed.

4 Turn on the 3D Glasses and place them on your head.

5 You can now view 3D images.

7 Take off the 3D Glasses and turn off the power.

You can convert normal 2D images into 3D images.

1 Press 2D/3D.

2 Press ,_1/_to select "2D_3D", and then press ENTER.

3 Turn on the 3D Glasses and place them on your head.

• The TV returns to 2D mode after 1 hour has passed.

ENG 5-9

You can switch back to the previous mode by pressing

2D/3D.

1 Press 2D/3D.

• A confirmation screen is displayed.

2 Select "Yes" and then press ENTER.

• The TV returns to the previous mode.

This function can also be used by the SQ10U, EQ10U,

LE650U, C6500U and LE642U.

Pressing 2D/3D in 3D mode displays the 3D menu. Press

the colored buttons to make the necessary settings.

A: 3D Brightness Boost

B: 3D Surround

(See Daae 4-12.t

The surround mode changes each time you press B.

C: 2D_3D Convert Effect

D: 3D Setup

ENG 5-10

i_=__ i]%ii i{J!i¢ ii+i_++ii ¢i +===_iii _I;_+_/i i ;;;+iiiiiii,_[?+__++__+=1]+_i+ iiii)i%=_]+ ii+ iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii)_[_I +1iilI+_!!i

iiiii==iiiiiii_+_@_i 1ii_,,+i'!iiii_;,i_=_=_=_=_ iii_

You can adjust the 3D image to the desired image quality

and make various settings for 3D image viewing.

• Set AV MODE and "3D Brightness Boost" with "Picture

Settings".

• Set the 3D viewing settings with "Setup" > "3D Setup".

• Which items can be selected/adjusted differs depending

on whether the TV is in 2D mode or in 3D mode.

The audio and video settings can be changed to suit the

program or input content being watched.

3D: For a highly defined image in a normal lighting.

GAME (3D}: Lowers image brightness for easier viewing.

For the LE657U model

STANDARD (3D): For a highly defined image in a normal

lighting.

MOVIE (3D): For a movie.

GAME (3D): Lowers image brightness for easier viewing.

• You can select AV MODE by pressing AV MODE on the

remote control unit.

You can adjust the backlight of the TV for 3D image viewing.

High/Middle/Low: Select a desired level of 3D Brightness

Boost.

• When "High" or "Low" is selected, "Automatic Light

Sensor", "Backlight" and "Light Sensor Adjustment" are

not available.

You can make various settings to enhance 3D image

viewing.

This setting can be used to switch to 3D mode automatically

when a 3D identification signal is detected.

Set the desired mode according to the type of media you

are viewing, such as video from a connected device or video

from an internet application.

Mode 1: 3D mode is selected automatically when a 3D

signal is detected while viewing video from a VOD

service or HDMI-connected equipment.

Mode 2: 3D mode is selected automatically when, in

addition to detecting a 3D signal while viewing video

from a VOD service or HDMI-connected equipment, a

video pattern with "Side by Side" or "Top and Bottom"

format is also detected.

Off: Auto change is not performed.

• This function does not work when the input source is

Composite, Component, RGB or Analog/Digital tuner.

Select the method for adjusting the 3D depth.

Auto: The depth is adjusted automatically.

Manual: You can manually adjust the depth using the

function "Depth Change".

• This function is only available when the input signal is

3D.

• This function may not be displayed depending on the type

of 3D signal.

ENG 5-11

Adjusts the depth manually. "0" is the level where no

adjustment is made.

• This function is only available when "3D Depth Control" is

"Manual".

You can adjust the 3D effect when converting images from

2D mode to 3D mode.

Select a desired level of convert effect from +1 to +16.

• This function is only available when converting 2D

images to 3D images.

• When you use this function, image conversion on the TV

will result in some differences in the original images and

how they appear.

• 2D images that have been converted to 3D images may

be viewed only for personal use.

This displays the elapsed time of 3D image viewing.

Yes: Displays the elapsed viewing time on the screen

every hour.

No: Does not display the elapsed viewing time.

This displays 3D images for testing the 3D operation.

Clicking "Start" on the screen plays back 3D test images.

• If you press RETURN during playback, the previous

screen will be displayed.

To enable this function, set "TV Location" to "Store".

On: Switch on signals to the 3D glasses. When watching

3D images, switch this setting to "On".

Off: Switch off signals to the 3D glasses. This will stop the

TV from influencing 3D glasses that may be in that area

of the store.

• Appropriate 3D Glasses are required to view 3D images.

Purchase 3D Glasses for use with Sharp brand 3D LCD

TVs.

ENG 5-12

3D Glasses lenses

• Do not apply pressure to the lenses of the 3D Glasses.

Also, do not drop or bend the 3D Glasses.

• Do not scratch the surface of the lenses of the 3D

Glasses with a pointed instrument or other object. Doing

so may damage the 3D Glasses and reduce the quality

of the 3D image.

• Use only the cloth provided with the optional 3D Glasses

to clean the lenses.

Caution during viewing

• Do not use devices that emit strong electromagnetic

waves (such as cellular phones or wireless transceivers)

near the 3D Glasses. Doing so may cause the 3D

Glasses to malfunction.

• The 3D Glasses cannot operate fully at extreme high or

low temperatures. Please use them within the specified

usage temperature range.

• If the 3D Glasses are used in a room with fluorescent

lighting (60 Hz), the light within the room may appear to

flicker. In this case, either darken or turn off the

fluorescent lights when using the 3D Glasses.

• Wear the 3D Glasses correctly. 3D images will not be

correctly visible if the 3D Glasses are worn upside down

or back-to-front.

• Other displays (such as computer screens, digital clocks,

and calculators) may appear dark and difficult to view

while wearing the 3D Glasses. Do not wear the 3D

Glasses when watching anything other than 3D images.

• If you lie on your side while watching the TV with 3D

Glasses, the picture may look dark or may not be visible.

• Be sure to stay within the viewing angle and optimum TV

viewing distance when watching 3D images. Otherwise,

you may not be able to enjoy the full 3D effect.

• The 3D Glasses may not work properly if there is any

other 3D product or electronic devices turned on near the

glasses or TV. If this occurs, turn off the other 3D

product or electronic devices or keep the devices as far

away as possible from the 3D Glasses.

• Stop using the 3D Glasses in any of the following

situations:

- When images consistently appear doubled while you

are wearing the 3D Glasses

- When you have difficulty perceiving the 3D effect

• If the 3D Glasses are faulty or damaged, stop using them

immediately. Continued use of the 3D Glasses may

cause eye fatigue, headaches and illness.

• If you have any abnormal skin reaction, stop using the 3D

Glasses. In very rare instances, such reactions may be

due to an allergic reaction to the coating or materials

used.

• If your nose or temples become red or you experience

any pain or itchiness, stop using the 3D Glasses.

Pressure caused by long periods of use may lead to

such reactions and may result in skin irritation.

Usage range of the 3D Glasses

• The 3D Glasses can be used by receiving a signal sent

from the TV.

The 3D Glasses turn off automatically after 15 seconds if

no signal is received from the TV.

Operating range:

From directly in front of the 3D emitter on the TV:

approx. 17 ft (5 m)

(within approx. 30° horizontally and 20 ° vertically)

• For further details, refer to the operation manual of your

3D Glasses.

ENG 5-13

You can connect the TV to a USB memory device, USB hard drive or Home Network server to

enjoy viewing pictures, listening to music, and watching videos.

• Depending on the USB memory device/USB hard drive/Home Network server, the TV may not

be able to recognize the recorded data.

• It may take time to read the recorded data if the USB memory device/USB hard drive/Home

Network server contains many files or folders.

• Use only alphanumeric characters for naming files.

• File names over 80 characters (may vary depending on character set) may not be displayed.

Insert the USB memory device with recorded photos, music or videos into the USB 1 or USB 2

terminal on the TV.

• If USB memory devices are inserted into both terminals, the USB 1 terminal has priority.

•Do not use a USB extension cable when connecting a USB memory device to the USB

terminal on the TV.

•Using a USB extension cable with the USB memory device may prevent the TV from

performing correctly.

Connect the TV to the Home Network server using an ETHERNET cable.

• You can also connect a Home Network server by using a wireless LAN.

• Do not disconnect a Home Network server from the TV while transferring files, when a screen is

switching to another or before you exit "Home Network" from the INPUT list.

• Do not connect and disconnect a Home Network server from the TV repeatedly.

• When connecting a USB hard drive, be sure to use a hard drive with an AC adapter.

• Do not remove a USB memory device or memory card from the TV while transferring files, using

the slide show function, or switching screens, or before you exit "USB" from the INPUT list.

• Do not insert and remove a USB memory device/USB hard drive to and from the TV repeatedly.

• When using a card reader, be sure to insert a USB memory device first.

ENG 6-1

• To play back data on a USB memory device, insert the

USB memory device on the TV. USB mode is selected

automatically. (Go to step 2)

• Use the following procedure to switch back to USB mode

after switching from USB mode to another mode.

1 Select "USB" or "Home Network" from INPUT list screen.

2 Press D.

3 Press MY (or _) to select the drive/server where you

want to find your files, and then press ENTER.

• For USB mode, select the drive.

• When in Home Network mode, select the server.

4 Press _ to select "Photo", "Music" or "Video", and

then press ENTER.

Example

5 Press _ to select the desired folder, and then press

ENTER.

• The Media screen can be displayed even by using the

application window. To display the application window,

press SmartCentral.

(See Daae 3-6.t

• You cannot switch the input mode if a USB memory

device is not connected.

• You do not need to select the drive/server in step 3 when

there is only one drive in the connected USB memory

device or there is only one Home Network server

connected to the TV.

• 16 is the maximum number of USB drives and 10 is the

maximum number of Home Network servers that can be

displayed.

• If the TV is turned off and then on again, the number

assigned to the USB drive may change.

• "VIEW MODE" is fixed during the Photo or Music mode.

During "Video mode", you can select "Auto" or "Original".

• The key guide display disappears automatically after a

particular time has elapsed. To display the key guide

display again, press DISPLAY.

USB device USB Memory, USB card reader (Mass

Storage class), USB hard drive

File system FAT/FAT32/NTFS (USB hard drive only)

Photo file JPEG (.jpg) (DCF2.0 compliant)

format Multi-Picture Format (.mpo) (CIPA DC-

007 Compliant)

MP Type : Multi view individually image

(stereoscopic view)

Music file MP3 (.mp3)

format Bitrate: 32k, 40k, 48k, 56k, 64k, 80k, 96k,

112k, 128k, 160k, 192k, 224k, 256k,

320kbps

Sampling frequency: 32k, 44.1k, 48kHz

ENG 6-2

,avi

.mkv

.asf

.wmv

AVl

MKV

ASF

MP4

(SMP4)

.mp4

.mov

DivX

3.11/4.x/5.1/6.0

XviD

H.264

MPEG4

Motion Jpeg

DivX

3.11/4.x/5.1/6.0

XviD

H.264

MPEG4

DivX

3.11/4.x/5.1/6.0

XviD

MPEG4

VC-1

Windows Media

Video v9

H.264

MPEG4

Motion Jpeg

MP3

Dolby

Digital

LPCM

ADPCM

DTS

MP3

Dolby

Digital

LPCM

ADPCM

DTS

MP3

Dolby

Digital

LPCM

WMA

MP3

Dolby

Digital

Dolby

Digital Plus

AAC

Dolby

.mpg PS MPEG2 Digital

,mpeg MPEG1 MPEG

LPCM

• Progressive format jpeg files are not supported.

• USB 1.1 devices may not be played properly.

• Operation using USB hubs is not guaranteed.

• Some video file formats may not be played depending on

the file.

• Some images may not be displayed in the appropriate

aspect ratio depending on the file format.

Photo file format JPEG

Music file format LPCM, MP3

Video file format MPEG2-PS, MPEG2-TS,

WMV, ASF, MP4, MOV, AVI

• Progressive format jpeg files are not supported.

• Some video file formats may not be played depending on

the file or the server.

• WMV, ASF, MP4, MOV and AVl are not Home Network

contents.

ENG 6-3

• The screen images in this section are for the USB mode.

It may be slightly different in the Home Network mode.

Example

Buttons for thumbnail operations

_II#'Y/41_/_ Select a desired item.

ENTER When selecting a folder icon:

Enter this directory.

When selecting a photo thumbnail:

Enlarge the photo.

RETURN Return to the previous process.

A (red) USB mode:

Select the images to be displayed.

Press this button to add or remove a

checkmark.

Home Network mode:

Display the Media screen.

B (green)* Display the music list screen. You can

select the background music to be

played for the slide show.

C (blue) Start the slide show.

D (yellow) Display the USB MENUIHome Network

Menu screen.

*This function is available only for the USB mode.

• When there are invalid photo files, the X mark will be

displayed for the file. (USB mode only.)

• The icon "3D" appears on the thumbnails of 3D images.

(USB mode only.)

oFor the UQ17U, TQ15U, SQ17U, SQ15U and LE657U

models

If you do not switch to 3D mode for the 3D images,

they will be displayed in 2D.

oFor the SQ10U, EQ10U, LE650U, C6500U and

LE642U models 3D images are always displayed in

2D mode.

• You can see the file name, shooting date, file size and

pixel size of the selected photo in the lower-left corner of

the screen (shooting date is only available in the EXIF

file format).

ENG 6-4

• Rotating photos only applies to the temporarily selected

item and this setting is not saved.

• In 3D mode, you cannot rotate the photos. (For the

UQ17U, TQ15U, SQ17U, SQ15U and LE657U models)

• The key guide display disappears automatically after a

particular time has elapsed. To display the key guide

display again, press DISPLAY.

The photos displayed on the thumbnail selection screen are

displayed as a slide show.

Buttons for slide show operation

RETURN Return to the thumbnail selection

screen.

2D/3D* Switches between 2D and 3D modes.

D (yellow) Display the USB MENU/Home

Network Menu screen.

This function is available for the UQ17U, TQ15U, SQ17U,

SQ15U and LE657U models.

• The selected BGM is played repeatedly.

• The slide show continues until you press RETURN.

• For setting the slide show speed, select "Select Slide

Show Interval" on the USB MENU/Home Network Menu

screen.

• The key guide display disappears automatically after a

particular time has elapsed. To display the key guide

display again, press DISPLAY.

ENG 6-5

3D Display

(for the UQ17U, TQ15U, SQ17U, SQ15U and LE657U

models)

You can view photos in 3D.

• You can select "3D display" from "USB MENU" only when

the thumbnails screen for the photo mode in USB mode

is displayed on the screen.

• Depending on the file, the photos may not be displayed in

3D.

Select Slide Show Interval

Specify the length of time before the next image appears.

Press _' to select the desired length of the time, and then

press ENTER.

5sec/10sec/30sec/60sec

• For Home Network mode, follow the same procedure.

• Depending on the photo files, the length of the slide show

interval may differ from the selected interval time.

Select Slide Show BGM

The music list screen appears when you select "Select

Slide Show BGM".

You can select the music to be played in the background

while the slide show is being displayed.

1 Select the music you want to play from the music list.

• For operations on the music list screen, see "Music

Mode".

2 Press RETURN to display the thumbnail selection

screen, and then press C to start the slide show and the

background music.

• All of the music files are selected by default.

Set/Reset All Slide Show Image

Selecting "Set All Slide Show Image" or "Reset All Slide

Show Image" will display the thumbnail selection screen. On

the screen, set or reset the images to be displayed in the

slide show.

Set All Slide Show Image: Checkmarks are added to all

the images.

Reset All Slide Show Image: Removes all the

checkmarks from all the images.

Sort

You can change the way in which files are ordered.Press

V to select "new--old", "old--mew", or "File name order",

and then press ENTER.

Remove USB Media Device

To remove the USB device properly, use _ to select

"Yes" and then press ENTER.

ENG 6-6

On the menu to be displayed in USB mode, use _ to

select an item and make settings to your preferences.

Example

Buttons for music mode

_'/_" Select a desired item.

ENTER When selecting a folder icon:

Enter this directory.

When selecting a music file:

Play music.

RETURN Return to the previous process.

A (red) USB mode:

Select the music to be played back.

Press this button to add or remove a

checkmark.

Home Network mode:

Display the Media screen.

B(green) Stop music.

C (blue) Play/(Pause)* music.

D (yellow)* Display the USB MENU screen.

*This function is available only for the USB mode.

• When there are invalid music files, the X mark will be

displayed for the file. (USB mode only.)

• The displayed play time may differ slightly from the actual

play time depending on the files.

* See Daae 6-6 for details on the Remove USB Media

Device function.

Set/Reset All Auto Play

Selecting "Set All Auto Play" or "Reset Atl Auto Play" will

display the music list screen. On the screen, set or reset the

music to be played back in the slide show.

Set All Auto Play: Checkmarks are added to all the music

files.

Reset All Auto Play: Removes all the checkmarks from all

the music files.

ENG 6-7

• The key guide display disappears automatically after a

particular time has elapsed. To display the key guide

display again, press DISPLAY.

Buttons for file selecting operations

_'/_" Select a desired item.

ENTER When selecting a folder icon:

Enter this directory.

When selecting a video file: Play the

video.

RETURN Return to the previous process.

A (red) USB mode:

Selectideselect items (checkmarks

are added to the selected items).

Home Network mode:

Display the Media screen.

D (yellow)* Display the USB MENU screen.

*This function is available only for the USB mode.

ENG 6-8

Buttons for playing mode

A Go to the beginning of a file by

pressing once or to the previous file

by pressing twice.

_!' Go to the next file,

USB mode:

The fast forward speed changes

every time you press _. After playing

to the end, the TV goes to the next

file and starts to play.

Home Network mode:

Jump forward in a video. *3

USB mode:

The reverse speed changes every

time you press 4. After going back

to the beginning, the TV starts to

play the same file.

Home Network mode:

Jump back in a video. *3

ENTER USB mode:

Pause the video.

Home Network mode:

Play/Pause the video. *3

RETURN Go back to the file selection screen.

.s:

2D/3D*1 Switches between 2D and 3D modes.

A (red)*2 Jump to the scene where playback

was last stopped.

B (green) Stop a video.

C (blue) Display the USB/Home Network

operation panel.

D (yellow)*2 Display the USB MENU screen.

0-9*2 Jump to a point in the video during

playback of a file without chapters.

You can jump to a later point by

pressing a higher number.*4

"1 This function is available for the UQ17U, TQ15U, SQ17U,

SQ15U and LE657U models.

*2 These functions are available only for the USB mode.

*3 Jump forward/back and play/pause may not be available

depending on the files.

*4 During playback of a file without chapters, playback

points are set automatically. Playback points are set at

intervals of a one-tenth of playback time.

Example for a file with a playback time of 100 minutes:

Pressing 1 jumps 10 minutes forward, and pressing 2 jumps

20 minutes forward. Pressing 0 returns to the start of the file

being played back.

ENG 6-9

* See uaae 6-6 for details on the Remove USB Media

Device function.

Set/Reset All Auto Play

Selecting "Set All Auto Play" or "Reset All Auto Play" will

display the video list screen. On the screen, set or reset the

video to be played back in the slide show.

Set All Auto Play: Checkmarks are added to all the video

files.

Reset All Auto Play: Removes all the checkmarks from all

the video files.

Menu for playing mode Example

* See Daae 6-6 for details on the Remove USB Media

Device function.

Title (Edition)/Chapter

Selecting "Title (Edition)" or "Chapter" will display a list of

titles/chapters contained in the video file. Select the title or

chapter you want to play back.

• The selected title or chapter is played back.

• "0-9" is displayed for files without chapters. Playback

jumps to the playback point of the selected number.

• If there is Edition information, this screen is displayed

when the title is selected.

• If there is no title or edition, you cannot select "Title

(Edition)".

• "Chapter" cannot be selected when there is no chapter.

Show Video Information

The information of the current file is displayed.

ENG 6-10

Buttons for using the USB operation panel

Hold down to go in reverse.

Starts playback.

Hold down to fast forward.

Video without chapters: Press once

to return to the previous playback

point.* Press twice to return to the

previous file.

Video with chapters: Press once to

return to the previous chapter. Press

twice to return to the previous file.

|| Sets pauses and still pictures.

Video without chapters: Press once

to advance to the next playback

point.* Press twice to display the next

file.

Video with chapters: Press once to

advance to the next chapter. Press

twice to display the next file.

Audio Change the audio when multiple

audio is available for the video you

are watching.

m Playback stops.

CC Change the Closed Caption display.

Title Displays the title (edition).

Resume jump Jump to the scene where playback

was last stopped.

During playback of a file without chapters, playback points

are set automatically. Playback points are set at intervals of

a one-tenth of playback time.

Example for a file with a playback time of 100 minutes:

Playback points are set every 10 minutes. Pressing

one time after viewing the file for 15 minutes jumps to the

20-minute playback point.

ENG 6-11

Starts playback.

Go to the beginning of a file by

pressing once or to the previous file

by pressing twice.

|| Sets pauses and still pictures.

Go to the next file.

[] Playback stops.

Jump back in a video.

Jump forward in a video.

This is the function to confirm your registration code. You

need to register the code at http://www.divx.com.

1 Press MENU to display the MENU screen.

2 Press ,,I_/_ to select "Setup", and then press ENTER.

3 Press _' to select "DivX® Setup", and then press

ENTER.

DivX@ VOD Registration

You can find your registration code on this menu. You need

to register the TV at http://www.divx.com before playing the

DivX content.

DivX® VOD Deregistration

You can find your deregistration code on this menu. You

need to deregister the TV at http://www.divx.com to release

the registration.

• This function is available only for the USB mode.

• This function may not work while an Internet application is

being used.

ENG 6-12

With the remote playback function, you can use your

portable device to play back pictures, video, and music on

the Home Network server.

• This TV is a DLNA certified Digital Media Renderer (DMR).

To use the remote playback function, your portable device

must be a DLNA Certified Digital Media Controller.

• A wireless access point is required to use a portable

device.

Make the settings for remote playback.

1 Press ,_!/_ to select "Smart TV", and then press ENTER.

2 Press _V to select "lnternet Setup", and then press

ENTER.

3 Press ,ildV to select "Home Network", and then press

ENTER.

4 Press 4dr to select the specific adjustment item, and

then press ENTER to set each item.

Remote Control Play Settings

This setting allows the TV to perform remote playback.

Permitted/Not allowed

Timeout Setup

This sets the time until the TV returns automatically to TV

mode after remote playback ends.

10 secJ60 sec./No

• This function may not work while an Internet application is

being used.

• For information on the compatible formats, see "Home

Network Server Compatibility" on

Daae 6-3.

ENG 6-13

You can operate the connected AV products (AV receiver,

cable box, SAT tuner, DTV, VCR, BD, DVD, LD) using the

presetting manufacturer function of your remote control unit.

Presetting manufacturer codes

1 Press an appropriate button (STB, DVD-VCR or AUDIO)

to operate the connected equipment.

2 Press an appropriate button (STB, DVD-VCR or AUDIO)

and DISPLAY at the same time to enter the code

registration mode.

3 Press 0-9 to enter the manufacturer code.

• Preset mode is finished once the LED no longer lights

up.

4 After registering the code, the LED will stop blinking then

turn off after one second. (If you perform an incorrect

operation, the LED will blink quickly then turn off.)

Manufacturer codes

ANVISION 04, 05

CABLE STAR 04, 05

DISH NETWORK 39, 40

DIRECTV 41

EAGLE 05

G.INSTRUMENT 02, 03, 10, 11, 17, 20

GERROLD 17

JERROLD 02, 03, 10, 11, 12, 20, 25-34

MAGNAVOX 04, 05, 08, 12, 15, 16, 18, 19,

22, 23

MOTOROLA 38

OKA SIGMA 07

PANASONIC 14, 21

PHILIPS 04, 05, 08, 13, 15, 16, 18, 19,

22, 23

PIONEER 07

RANDTEK 04, 05

RCA 14, 36", 37*

S.ATLANTA 01, 09, 24

VIEWSTAR 04, 05, 08, 13, 15, 16, 18, 19,

22, 23

ZENITH 06, 35

• Numbers marked with * are SAT codes, all others are

STB codes.

ENG 6-14

DENON 24

JVC 31

KENWOOD 36

MAGNAVOX 26

MARANTZ 26

MITSUBISHI 28

PANASONIC 24, 37

PHILIPS 26, 38

PIONEER 30, 33, 35

PROSCAN 25

RCA 25, 39

SAMSUNG 29, 34

SHARP 23, 32, 41,42

SONY 27, 40

TOSHIBA 26

YAMAHA 24

ZENITH 26

Depending on the brand the codes of some BD players

may not be supported,

AUDIO DYNAMICS 09

BROCKSONIC 13

CANON 04

CRAIG 12

CURTIS MATHIS 04

DBX 09

EMERSON 10, 13, 14

GE 04

INSTANT REOLYA 04

JC PENNEY 04

JVC 09, 16, 17, 22

KENWOOD 09

MAGNAVOX 04, 05, 06

MAGNIN 12

MEMOREX 04

MONTGOMERY WARD 02

NEC 09

PANASONIC 04, 18, 19, 20, 21

PENTAX 05

PHILCO 04, 05

PHILIPS 04, 05, 06

QUASAR 04

REALISTIC 01, 02

SAMSUNG 11, 12

ENG 6-15

SHARP 01, 02, 03

SONY 07, 08, 15

SYLVANIA 04, 05, 06

TATUNG 09

TEAC 09

TM K 10

YAMAHA 09

ENG 6-16

i%:,_ i_ ii _iii_ ii"g:',,,_iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii:?_iii'S?_i_i_

_ _ iii¸!_;'_;;_ _ _ ;;2_2 _: :__:_: _ _ ;;;_ ;;;_: _ _:;_:_ ::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::_;;;;_1

To operate the connected equipment, press STB, DVDoVCR

or AUDIO to select your device. (STB

(cable/satellite set-top box), BD, DVD, VCR or AUDIO.) The

remote control unit button will function as follows.

• When you operate VCR, DVD or BD, press INPUT to

select the terminal connected to your device.

• CABLE and SAT cannot be selected at the same time.

1 POWER (SOURCE)

• Turns the connected equipment power on and off.

• Starts playback. (VCR, BD, DVD)

• Rewinds the tape and allows picture search. (VCR)

• Hold down to go in reverse. (BD, DVD)

411

• Stops the tape transport. (VCR)

• Playback stops when pressed. With some Blu-ray

disc/DVD players, pressing the button twice may open

the disc tray. (BD, DVD)

• Pressing quickly once takes you to the start of the

chapter currently playing. Each time you press it, you

move back to the start of the previous chapter. (BD,

DVD)

6 0-9,° (DOT)

• Press a button (or buttons) that corresponds to the

channel that you wish to watch.(STB)

7_ • Rapidly advances the tape and allows picture search.

(VCR)

• Hold down to fast forward. (BD, DVD)

811

•Sets pauses and still pictures, (VCR, BD, DVD)

• Pressing quickly once takes you to the start of the next

chapter. Each time you press it, you move ahead to

the start of the next chapter, (BD, DVD)

10 FLASHBACK

• Press to switch between the current channel and the

channel you were watching immediately before. Some

manufacturers do not preset FLASHBACK. (STB)

11 CH./VV

• Press CHA or CHV to tune in to a higher or lower

channel. (STB)

• Press to select the channel of the TV tuner on the

VCR. (VCR)

12 MENU

• When this button is pressed, the BDiDVD menu will

display. (BD, DVD)

13 .ll./V/'l#_, ENTER

• _'/_': Press the button to select items on the STB

GUIDE screen or STB MENU screen. (STB)

Press the button to select items on the BD/DVD menu

screen. (BD, DVD)

• ENTER: Press to activate the selected function. (STB,

BD, DVD)

ENG 6-17

What's AQUOS LINK?

•Using the HDMI CEC (Consumer Electronics Control) protocol, with AQUOS LINK you can

interactively operate compatible system equipment (Blu-ray disc equipment, AV amplifier, DVD).

• By connecting AQUOS LINK-compatible devices with HDMI-certified cables to the TV, you can

control a recorder or AV amplifier using the remote control of the TV.

• AQUOS LINK allows you to operate the HDMI-connected equipment with one remote control.

• (UQiTQ/SQ series) Connect 4K signals (HDCP2.2) to the HDMI IN 1 terminal. These signals

will not be displayed if connected to the HDMI iN 2, 3, or 4 terminals.

• For connecting the TV to AQUOS LINK-compatible equipment, use commercially available

cables.

• Point the remote control toward the TV, not to connected HDMI equipment.

• Video noise may occur depending on the type of HDMI cable used. Make sure to use an HDMI-

certified cable.

• Up to 3 pieces of HDMI recording equipment and one AV amplifier can be connected using this

system.

• These operations affect the HDMI equipment selected as the current input source. If the

equipment does not operate, turn on the equipment and select the appropriate input source

using INPUT.

• The AQUOS LINK feature may not operate properly when an HDMI splitter or AV selector unit

is used. These devices may cause interruptions to the image and!or sound.

Connected AQUOS LINK-compatible devices can be operated without changing the settings of the

remote control unit.

The OPTION button will function only when AQUOS LINK is used.

One Touch Play

While the TV is in standby mode, it automatically turns on and plays back the image from the

HDMI source.

Single remote control

The AQUOS LINK automatically recognizes the connected HDMI device and you can control the

TV and the devices as if using a universal remote control.

Control the AQUOS LINK-compatible audio system

Set the volume of AQUOS LINK-compatible audio system.

• The above description is an example of the AQUOS LINK function.

• The steps in "AQUOS LINK Setup" on

need to be completed beforehand.

• Refer to this operation manual and the operation manual of the AQUOS LINK device to be used

with this TV.

AOUO_ BD pl_r AQUOS LilNK-compas_

_e sys_m

_r_

ENG 7-1

Make the settings to use AQUOS LINK. Set the settings

with "Setup" > "Advanced" > "AQUOS LINK Setup".

Select AQUOS LINK Control to disable the AQUOS LINK

function even when an AQUOS LINK-compatible HDMI

device is connected to the TV. This function prevents the

device from starting to operate unexpectedly.

If this is activated, the One Touch Play function is enabied.

While the TV is in standby mode, it automatically turns on

and plays back the image from the HDMI source.

This function can be set for each input terminal.

The remote control unit of the TV can be used to select the

channel, display program information, and perform other

operations of the connected AQUOS LINK-compatible

equipment.

This function allows you to listen to the TV audio via audio

equipment without using an optical fiber cable, which

conventionally is required.

Requirements for using an ARC-compatible AV

amplifier:

• ARC-compatible AV amplifier connected to the ARC-

compatible HDMI IN terminal.

EQ/LE650U/C6500U/LE642U series:HDMI IN 1

UQ/TQ/SQ/LE657U series:HDMI IN 3

(Refer to the operation manual of the ARC-compatible

equipment for details.)

• Use of an ARC-compatible cable.

Auto: You can listen to the TV audio with ARC-compatible

audio equipment.

Off: This function does not work.

• If the TV audio cannot be output from the AV amplifier

even after making the necessary settings, connect the

TV to the AV amplifier with an optical fiber cable and

select "Off".

ENG 7-2

AQUOS LINK allows you to operate the HDMI-connected

equipment with one remote control.

Press _ to start playing back a title.

• The last played program is played back. You can use the

following buttons during broadcast viewing.

POWER Turns the power of the HDMI

(SOURCE) connected devices on and off.

Hold down this button to go in

reverse.

Starts playback.

Hold down this button to fast

forward.

m Stops playback.

Ill Sets pauses and still pictures.

Pressing quickly once takes you to

the start of the chapter currently

playing. Each time you press it, you

move back to the start of the

previous chapter.

Pressing quickly once takes you to

the start of the next chapter. Each

time you press it, you move ahead

to the start of the next chapter.

•The buttons _/_ do not function with the following

Blu-ray disc players currently available.

- BD-HP20U, BD-HP50U

ENG 7-3

You can manually turn on/off the power of the connected

AQUOS LINK-compatible equipment.

Each time you press ENTER, the connected equipment

switches on or off.

You can use the device operation panel to control playback

operations.

Press JldV/_ to select the desired operation.

• This function works only when AQUOS LINK-compatible

equipment with the Device Operation Panel function is

connected.

The Link Operation Menu allows you to make adjustments

during operation of AQUOS LINK-compatible equipment.

1 Press OPTION to display the Link Operation Menu.

2 Press ,I,/V to select the desired item, and then press

ENTER.

• Specific operations differ depending on the item you

select. Following are the basic operations for each

item.

This function allows you to display the title list for the

connected equipment and to play back the title you want to

enjoy.

Before using this function.

Power on the AQUOS LINK-compatible equipment, and

select the appropriate external input.

Select the title with _7_, and then press _ to start

playback.

• This function works only when AQUOS LINK-compatible

equipment is connected.

ENG 7-4

You can call up a setup menu from the connected AQUOS

LINK-compatible equipment.

• Depending on the status of the equipment (recording or in

standby mode, etc), the setup menu will not be

displayed.

• The setup menu will not be displayed with the player BD-

HP20U currently available.

You can switch the media (HDD or DVD) for playback or

recording on the AQUOS LINK-compatible recorder.

• The Media type toggles each time you press ENTER in

"Change Media of Device".

You can call up the AQUOS LINK-compatible recorder's

EPG and preset timer recordings using the TV's remote

control.

Select the program on the recorder's EPG.

• You can use _7_, ENTER, RETURN, EXIT and the

colored buttons.

You can select to listen to the TV sound only from the

AQUOS LINK-compatible audio system.

By AQUOS audio SP: The sound from the TV speaker is

muted and only the sound from the AQUOS LINK-

compatible audio system is audible.

• You can use VOL+/- and MUTE.

By AQUOS SP: The sound is output from the TV speaker.

You can manually change the AQUOS AUDIO speaker

system's sound mode.

The sound mode changes each time you press ENTER.

• Refer to the operation manual of the AQUOS LINK-

compatible audio system for details.

If multiple HDMI devices are connected in a daisy chain, you

can specify which device to control here.

Press _V to select the desired device from a list of

connected HDMI devices, and then press ENTER.

You can also display the AQUOS LINK Setup screen from

the Link Operation Menu.

• This function works only when an AQUOS LINK-

compatible recorder is connected.

• Refer to the operation manual of the recorder for details.

You can also use the Link Operation Menu for recording on

the connected AQUOS LINK-compatible equipment.

ENG 7-5

This function enables you to connect the TV to a

smartphone that supports Mobile High-Definition Link

(MHL TM ) using an MHL cable.

To connect the TV to your MHL-compatible smartphone, be

sure to use an MHL cable (commercially available).

• You can view pictures and video on a large screen.

• You can play back music files.

• An MHL-compatible portable device is required to use

this function. Connect the device to the HDMI IN 4

terminal.

• This product incorporates MHL 1.

Auto Power On

When an MHL-compatible device is connected to the TV,

the TV turns on automatically.

• This function operates when "AQUOS LINK Control" is

set to "On".

(See Daae 7-2.t

Auto Input Selection

When an MHL-compatible device is connected while the TV

is on, the input mode is selected automatically.

• This function operates when "AQUOS LINK Control" is

set to "On".

(See Daoe 7-2.t

Operation Using the Remote Control

The remote control of the TV can be used to operate a

portable device.

• _'/_, ENTER, EXIT, 0-9, ° (DOT), ENT, etc.

• The operations vary depending on the connected

equipment and content being viewed.

ENG 7-6

You can adjust the position of the image input from a PC the settings with "Setup" > "Input

Settings" > "PC input".

For automatically adjusting the PC image.

Yes: Auto Sync. starts and "Now adjusting the image." displays.

No: This function does not work,

• When "Auto Sync." is successful, "Completed" displays. If not, "Auto Sync." failed.

• "Auto Sync." may fail even if "Completed" displays.

• "Auto Sync." may fail if the computer image has low resolution, has unclear (black) edges, or is

moved while executing "Auto Sync.".

• Be sure to connect the PC to the TV and switch it on before starting "Auto Sync.".

Ordinarily you can easily adjust the picture as necessary to change image position using "Auto

Sync.". In some cases, however, manual adjustment is needed to optimize the image.

H-Pos.: Centers the image by moving it to the left or right.

V-Pos.: Centers the image by moving it up or down.

Clock: Adjust when the image flickers with vertical stripes.

Phase: Adjust when characters have low contrast or when the image flickers.

• For resetting all "Fine Sync." adjustment items to the factory preset values, press _ to select

"Reset", and then press ENTER.

• It is not necessary to adjust the "Clock" or "Phase" when a digital signal is being input, so it

cannot be selected.

• The default cursor position may not be in the center, because the screen position variable

ranges may be asymmetrical.

• The screen position variable ranges depend on the View Mode or the signal type. The ranges

can be seen on the position-setting screen.

ENG 8-1

This function sets the terminal to output the computer audio.

The adjustment items vary depending on the input source. Select the input source corresponding

to the terminal connected to the PC and then adjust the desired item.

To perform the operation, refer to "Setup" > "Advanced" > "Audio Select".

PC IN

Video: Select this when the TV and PC are connected using an analog RGB cable and the audio

is not input.

Video+Audio: Select this when the TV and PC are connected using an analog RGB cable and

the audio is input via a _ 3.5 mm stereo minijack.

HDMI 2

HDMl(Digital): Select this when the TV and PC are connected using an HDMI-certified cable and

audio is input via the same cable.

HDMl+Analog: Select this when the TV and PC are connected using a DVI-HDMI conversion

cable and the audio is input via a _ 3.5 mm stereo minijack.

• When "Audio Select" is set to "HDMl(Digital)", sound will not be produced if you use only an

HDMI-certified cable to connect HDMI-compatible equipment. To produce sound, you should

make an analog audio connection.

• If you want to connect HDMI-compatible equipment using only an HDMI-certified cable, set

"Audio Select" to "HDMl(Digital)".

ENG 8-2

• The TV can be controlled from a PC, control panels and other devices using the RS-232C or IP.

• Use a cross-type RS-232C cable, ETHERNET cable (commercially available) or wireless LAN for

the connections.

• This operation system should be used by a person who is accustomed to using computers.

Set this function when operating the TV from equipment connected by LAN or wireless LAN. To

perform the operation, refer to "Smart TV".

Remote Control App

When "Remote Control App" is selected, "Change" will be highlighted. Press ENTER.

Detailed Settings

Make the detailed settings (Login ID, password, etc.).

Follow the on-screen instructions to configure the settings.

Set the name of the TV displayed on other network devices.

• Use the software keyboard to set the name.

See Daae 9-5 for details on the software keyboard.

Connect to the TV with the following settings made for IP on the PC.

IP protocol: TCP/IP

Host IP address: Set the IP address on the TV menu

Service: None (Do net select Telnet or SSH)

TCP port#: Set a port number on the TV menu (Control

port)

When you set your ID and password on the TV menu, you need to enter them as soon as you

connect to the TV.

• When you use this function, make settings for "AQUOS Remote Control".

• The connection will be cut off when there has been no communication for 3 minutes.

Baud rate:

Data length:

Parity bit:

Stop bit:

Flow control:

Communication procedure

Set the RS-232C communication settings on the PC to match the TV's communication conditions.

The TV's communication settings are as follows:

9,600 bps

8 bits

None

1 bit

None

Send the control commands from the PC via the RS-232C or IP.

The TV operates according to the received command and sends a response message to the PC.

Do not send multiple commands at the same time.

Wait until the PC receives the OK response before sending the next command.

ENG 8-3

Command format

Eight ASCII codes +CR

Command 4-digits: Command. The text of four characters.

Parameter 4-digits: Parameter 0-9, x, blank, ?

Parameter

Input the parameter values, aligning left, and fill with blank(s) for the remainder. (Be sure that 4

values are input for the parameter.)

When the input parameter is not within an adjustable range, "ERR" returns. (Refer to "Response

code format".)

Any numerical value can replace the "x" on the table.

comm_qds he

iiliCii;iJ

Response code format

Normal response

Problem response

(communication error or incorrect command)

Command table

• Commands not indicated here are not guaranteed to operate.

POWER ON R S P W 0 Off

COMMAND SETTING

POWER SETTING P O W R

INPUT TOGGLE I TG D

SELECTION

TV I TV D

1-8 I A V D

On [RS-232C]

On [IP]

Power Off

Power On

(Toggle)

1: HDMI IN !,

2: HDMI IN 2,

3: HDMI IN 3,

4: HDMI IN 4,

5: COMPONENT

IN,

6: VIDEO IN 1,

7: VIDEO IN 2,

8: PC IN

The Power On

command

rejected.

The Power On

command

accepted.

The Power On

command

accepted.

It shifts to

standby.

Power On

It input-switches

by the toggle. (It

is the same as

an input change

key)

It input-switches

to TV. (A

channel

remains as it is.

(Last memory))

• If an underbar (_) appears in the parameter column, enter a space.

• If an asterisk (*) appears, enter a value in the range indicated in brackets under CONTROL

CONTENTS.

• Any numerical value can replace the "x" on the table.

ENG 8-4

AV MODE SELECTION A V M D

VOLUME V O L M * * *

POSITION H- H P O S * * *

POSITION

V- V P O S

POSITION

CLOCK C C K

PHASE P H S E

"1: Except for LC-90LE657U

0: (Toggle),

1: STANDARD

(ENERGY

STAR)*1,

2: MOVIE,

3: GAME,

4: USER,

5: DYNAMIC

(Fixed),

6: DYNAMIC,

7: PC,

8: x.v.Color,

13: VINTAGE

MOVIE,

14: STANDARD

(3D)/3D,

15: MOVIE (3D),

16: GAME (3D),

17: MOVIE THX,

100: AUTO

Volume (0-100)

Only PC mode.

(0-180)

Only PC mode.

(0-40)

Although it can

choose now, it

is toggle

operation in

inside.

8, 13: For the

UQ17U,

TQ15U,

SQ17U,

SQ15U, SQ10U

and EQ10U

models.

14, 16: For the

UQ17U,

TQ15U,

SQ17U, SQ15U

and LE657U

models.

15: For the

LE657U model.

17: For the

UQ17U models.

The screen

)osition

variable ranges

depend on the

View Mode or

the signal type.

The ranges can

be seen on the

)osition-setting

screen.

W I DVIEW MODE

MUTE M U r E

0: (Toggle) [AV],

1: Side Bar [AV],

2: S.Stretch [AV]

3: Zoom [AV],

4: Stretch [AV,

USB-Video, Home

Network Video or

Internet

applications],

5: Normal [PC]

6: Zoom [PC],

7: Stretch [PC],

8: Dot by Dot [PC]

[AV],

9: Full Screen [AV]

10: Auto [USB-

Video, Home

Network Video or

Internet

applications],

11 : Original [USB-

Video, Home

Network Video or

Internet applications]

0: (Toggle),

1: On,

2: Off

0: Although it can

choose now, it is

toggle operation

in inside.

1: Only available

when 4:3 signal

is being input.

5, 6: Only

available when

4:3 signal is

being input.

8: [PC] Available

except when

UXGA is being

input.

[AV] Only

available when

1080i/p is being

input.

9: Only available

when 720p is

being input.

10, 11: Available

when USB-

Video, Home

Network Video or

Internet

application is

used.

• If an underbar (_) appears in the parameter column, enter a space.

• If an asterisk (*) appears, enter a value in the range indicated in brackets under CONTROL

CONTENTS.

• Any numerical value can replace the "x" on the table.

ENG 8-5

SURROUND

AUDIO

SELECTION

SLEEP TIMER

C S

C H A x

For the UQ17U, TQ15U,

SQ17U, SQ15U and

LE657U models:

0: (Toggle),

1: Normal,

2: Off,

4: 3D Hall,

5: 3D Movie,

6: 3D Standard,

7: 3D Stadium

For the SQ10U, EQ10U,

LE650U, C6500U and

LE642U models:

0: (Toggle),

1: On,

2: Off

(Toggle)

F T M 0: Off,

1: OFF TIMER - 30

MIN.,

2: OFF TIMER - 60

MIN.,

3: OFF TIMER - 90

MIN.,

4: OFF TIMER - 120

MIN.

CHANNEL DIRECT D C C H * * _ The An input change is included if it

CHANNEL channel is not TV display.

(ANALOG) number of In Air, 2-69ch is effective.

TV In Cable, 1-135ch is effective.

(1-135)

DIRECT D A 2 P ....... (0100- DIGITAL Air (Two-Part

CHANNEL 9999) numbers, 2-digit plus 2-digit)

(DIGITAL) D C 2 U * * _ (1-999) DIGITAL Cable (Two-Part

numbers, 3-digit plus 3-digit)

Front half of DIGITAL CABLE

CHANNEL NO. (Designate

major channel)

D C 2 L * * _ (0-999) DIGITAL Cable (Two-Part

numbers, 3-digit plus 3-digit)

Rear half of DIGITAL CABLE

CHANNEL NO. (Designate

minor channel)

• If an underbar (_) appears in the parameter column, enter a space.

• If an asterisk (*) appears, enter a value in the range indicated in brackets under CONTROL

CONTENTS.

• Any numerical value can replace the "x" on the table.

ENG 8-6

CHANNEL

DEVICE NAME

MODELNAME

DIRECT

CHANNEL

(DIGITAL)

CH UP C

CH DOWN C

D C

1 0

1 1

U P

D W

C P

N M

R D

(0-9999)

(0-6383)

The channel

number of TV

The channel

number of TV

-1

(Toggle)

DIGITAL Cable

(One-Part

numbers, 5-

digit, less than

10,000)

DIGITAL Cable

(One-Part

numbers, 5-

digit, more than

10,000)

If it is not TV

display, it will

input-switch to

TV. (same

function as CH

If it is not TV

display, it will

input-switch to

TV. (same

function as CH

Toggle

operation of a

closed caption.

The device

name set in

"TV Name

Setting" is

displayed.

The model

name of the TV

SOFTWARE S W V N 1

VERSION

IP PROTOCOL I P P V 1

VERSION

3D T D C 0: 3D Off,

1: 2D _'3D,

2: SBS,

3: TAB,

4: 3D'_2D (SBS),

5: 3D_2D (TAB),

6: 3D auto,

7: 2D auto

The current

version of the TV

software is

displayed.

The currently

supported version

of IP protocol is

displayed.

0,1,2,3,6,7:

For the UQ17U,

TQ15U, SQ17U,

SQ15U and

LE657U models.

• If an underbar (_) appears in the parameter column, enter a space.

• If an asterisk (*) appears, enter a value in the range indicated in brackets under CONTROL

CONTENTS.

• Any numerical value can replace the "x" on the table.

ENG 8-7

REMOTE CONTROL

BUTTONS 0-9: 0-9,

10: DOT,

11: ENT,

12: POWER,

13: DISPLAY,

14: POWER

(SOURCE)

15: _,

16: _,

17: _,

18: ||,

19:_,

20: m,

21:_,

23: OPTION,

24: SLEEP,

27: CC,

28: AV MODE,

29: VIEW MODE,

30: FLASHBACK,

31: MUTE,

32: VOL -,

33: VOL +,

34: CH,A_,

35: CH V,

36: INPUT,

38: MENU,

39: SmartCentral

40: ENTER,

41:A

42:T,

43:_,

44:_,

45: RETURN,

46: EXIT,

47: FAVORITE CH,

49: AUDIO,

50: A (red),

51: B (green),

52: C (blue),

53: D (yellow),

54: FREEZE,

55: FAV APP 1,

56: FAV APP 2,

57: FAV APP 3,

58: 2D/3D,

59: NETFLIX,

60: AAL,

61 : MANUAL

• If an underbar (_) appears in the parameter column, enter a space.

• If an asterisk (*) appears, enter a value in the range indicated in brackets under CONTROL

CONTENTS.

• Any numerical value can replace the "x" on the table.

ENG 8-8

It is necessary to set the PC correctly to display XGA and WXGA signal.

VGA

SVGA

XGA

720 x 400

640 x 480

800 x 600

1024 x 768

31.5 kHz

37.9 kHz

37.5 kHz

35.1 kHz

37.9 kHz

48.1 kHz

46.9 kHz

48.4 kHz

56.5 kHz

60.0 kHz

47.7 kHz

64.0 kHz

65.3 kHz

75.0 kHz

67.5 kHz

70 Hz

60 Hz

72 Hz

75 Hz

56 Hz

60 Hz

72 Hz

75 Hz

60 Hz

70 Hz

75 Hz

60 Hz

WXGA 1360 x 768

SXGA 1280 x 1024

SXGA+ 1400 x 1050 O

UXGA 1600 x 1200 O

1080p 1920 x 1080

VGA and XGA are registered trademarks of International Business Machines Corp,

ENG 8-9

By connecting your TV to a broadband system, you can access the Internet from the TV.

• You can enjoy a variety of streaming content and Internet applications.

(See Daaes 9-12 to 9-14./

• You may not be able to view 3D images when accessing the Internet. (For the UQ17U, TQ15U,

SQ17U, SQ15U and LE657U models)

• To connect your TV to the Internet, you must have a broadband Internet connection.

• If you do not have a broadband Internet connection, consult the store where you purchased your

TV or ask your Internet service provider or telephone company.

• When an Internet connection is made, an Ethernet and wireless connection cannot be used at

the same time. Use only one of the connection types.

Using an ETHERNET cable

Use an ETHERNET cable (commercially available) to connect the ETHERNET terminal on the TV

to your broadband router (commercially available).

• This TV has a built-in wireless LAN function. Using a separate wireless USB LAN adapter may

result in radio communications that do not comply with regulations on radio communications.

Therefore, do not use a separate wireless LAN adapter.

• A wireless LAN connection and performance cannot be guaranteed for all residential

environments. In the following cases, the wireless LAN signal may be poor or drop, or the

connection speed may become slower.

- When used in buildings made with concrete, reinforced steel, or metal

- When placed near objects that obstruct the signal

- When used with other wireless devices that emit the same frequency

- When used in the vicinity of microwave ovens and other devices that emit a magnetic field,

electrostatic charge, or electromagnetic interference

• When there is significant interference in the 2.4-GHz frequency (such as from other wireless

LAN devices, Bluetooth® devices, 2.4-GHz cordless telephones, and microwave ovens), it is

recommended that you use a wireless LAN router/access point that supports IEEE802.11a/n (5

GHz) and set the access point to transmit at 5 GHz. For setup details, see the operation

manual of your access point.

F-T_H1NS T

Using the wireless LAN

This TV is equipped with a wireless LAN function.

For a wireless LAN connection, you must use "Wireless Setup" to connect the access point and

TV.

ENG 9-1

Perform the procedure below to make adjustments or to

confirm the settings for accessing the Internet.

1 Press MENU to display the MENU screen, and then

press ENTER.

2 Press _1/'_ to select "Smart TV", and then press ENTER.

3 Press _IldV to select "lnternet Setup", and then press

ENTER.

4 Press ,ildV to select "lnternet Connection" or "Interactive

Service", and then press ENTER.

• Select "lnternet Connection" when you make general

adjustments to connect to the Internet.

• If you want to make settings to restrict access to the

Internet, then select "Interactive Service".

5 Press _ to select a specific item, and then press

ENTER.

6Press ,ild_ (or _/_) to select the desired setting, and

then press ENTER.

7 Press MENU to exit.

You can connect your TV to the Internet using the setting

item "lntemet Connection".

Adjustments for network connection will be made

automatically. Select "Wired" or "Wireless" and follow the

instructions displayed on the screen.

• Automatic adjustments for wireless LAN connection can

be made only for the WPS method.

If your access point uses any other method, perform

"Manual Setup".

Select the desired connection method and follow the

instructions shown on the display.

You can make adjustments manually for network

connection.

Connection Type

Select the connection type.

Wired: The signal is detected and setup is performed

automatically. Use "IP Setup" to check and change the

settings as necessary.

Wireless: Configure the access point settings on "Wireless

Setup".

ENG 9-2

Wireless Setup

Make adjustments and confirm the settings necessary for

wireless LAN connection (such as search for the access

point and registration of it).

WPS push button: Allows the TV to automatically

establish the connection using a button on the access

point.

WPS PIN code: Sets up the connection by registering a

PIN code for the access point.

Selecting wireless network: Searches for and selects the

access point to be connected.

Registering wireless network: Allows you to make the

connection by entering an SSID for the access point.

If your access point supports Wi-Fi Protected Setup (WPS

push button method), it is recommended that you use this

function for the wireless connection. You can press the WPS

button on the access point to configure the settings

automatically.

•The name of the WPS button function may differ

depending on the access point. See the operation

manual of the access point for details.

1 Confirm the current settings in "Connection Type".

• If "Wired" is selected, press _ to select "Wireless".

2 Press _V to select "Wireless Setup", and then press

ENTER.

• Confirm the settings. If each setting item is correct,

press MENU to exit.

• If you are configuring the wireless setup for the first

time or changing the settings, go to step 3.

3 Press _ to select "Change", and then press ENTER.

4 Select the desired connection method and follow the

instructions shown on the display.

5 When a connection is established, the connection details

are displayed. Press ENTER.

• Operations cannot be guaranteed when used with access

points that do not have Wi-Fi® certification.

• A wireless LAN router/access point is required to connect

the TV to the Internet using a wireless LAN. See the

operation manual of your access point for setup.

• If your access point is set to a stealth mode (that

prevents detection by other devices), you may not be

able to establish a connection. In this case, disable the

stealth mode on the access point.

• A stable connection speed is required to play back

streaming content. Use an Ethernet connection if the

wireless LAN speed is unstable.

• Before transferring to a third party or disposal, be sure to

initialize the wireless LAN settings.

• Please follow the legislation in your country when using

the wireless LAN outdoors.

IP Setup

You can make adjustments manually for the IP.

• Check that numbers are displayed for each setting.

• If there are any settings without numbers, specify the

numbers by following the on-screen instructions.

• Input the IP address by using remote control buttons 0-9.

Example

ENG 9-3

After the connecting and setting procedures have been

completed, you can check that the preparation is correct.

Press "Yes" to start the "Connection Test".

• When the test results are displayed, follow the

instructions shown on the screen.

If you do not want other people to connect to the Internet in

your absence, you can make settings to keep the TV away

from the Internet.

• Input the 4-digit secret number by using 0-9.

• If you have failed to connect to the Internet in the above

operation, then an error message will appear. In this

case, press EXIT to exit from the connected TV feature

to make changes to the network settings.

• If you still cannot connect to the Internet, please consult

your Internet service provider or telephone company.

• When an application is used, you cannot make settings

for "lnternet Setup".

If you need to make the settings of "lnternet Setup",

press EXIT to exit from the connected TV feature.

If you cannot connect to the Internet

If the "iV fails to connect to the Internet, then select "lnternet

Connection" and;

• When the TV is in a wired LAN connection, make sure

the values for "IP Setup" are all correctly set.

• In the case of a wireless LAN connection, check the

settings of "Wireless Setup".

ENG 9-4

When you are editing an input screen or specifying the Network settings used for accessing the Internet, enter text from the software

keyboard•

• You can enter up to 128 characters for text.

• Some special characters or diacritics may not be available depending on where you enter the text.

The text you enter is displayed as you type it in.

To move the cursor (the current input position), use .... or .... on the software keyboard.

While you are entering text, likely input conversion candidates are displayed based on what you typed in.

Caps Off/Caps Lock

If "alphabet" is selected, this switches characters between

uppercase and lowercase,

Each time you press ENTER, the character type switches as

shown below:

Caps Off: all the characters are Iowercased

Caps Lock: all the characters are uppercased

Shift

Capitalizes the first character entered.

alphabet/Sign

Press ENTER to select the type of characters entered:

alphabet, or sign.

Back space/Delete

Erases text one character at a time.

ENG 9-5

Enter

Applies the entered information and closes the software

keyboard.

Space

Enters a space.

Clear

Erases the character string.

•When the cursor is somewhere in a line: the character

string to the right of the cursor will be erased.

•When the cursor is at the right end of a line: the entire

line will be erased.

Quit

Closes the software keyboard without applying the entered

information,

iHiiili_@_'i_ii_@'i' ii!__i ¸¸_,_i_i_ ti _i ¸i¸i

!!!!,!_'_!,!!!i_ _iili_,,_i!_ii,,,,,,iillliiii_,II,I,iiiiiiiiiiiiiiiiii_,l_,_',lii,i',l_i,i_l,i_,iiiiiiiiiiii'

,ll/T/_ _ Moves the focus. When moved at

the far edge, the focus moves to

the opposite edge.

ENTER Performs the processing for the

button currently in the focus.

EXIT Closes the software keyboard

without applying the original input

elements for the entered text.

RETURN When the cursor is at the end of a

sentence, this acts as a back

space.

0-9 Directly enters the single-byte

number for that button.

A, B, C When A, B or C is pressed on the

remote control while the characters

to be entered in the likely input

conversion candidate are displayed

in A, B or C on the keyboard, that

character string is entered into the

display field.

D Enters a space

ENG 9-6

1 Press SmartCentral, press _'(or _) to select the

browser icon from the application window, and then

press ENTER.

• Press SmartCentral again to display a list of

applications by category.

Buttons for Using the Browser

VIEW MODE

• Each time you press VIEW MODE when a browser

screen is shown, the display pattern toggles between a

website-only screen and a TV+Web screen.

FAV APP1, 2, 3 (TV+Web)

•You can change the screen display method when a Web

browser application is assigned to the FAV APP

buttons. Each time a FAV APP button assigned to a

browser application is pressed while a browser is open,

the screen switches between Web-site only screen and

TV+Web screen.

ENTER, ,iJT/_

• Press ,_T/_/_,to select a link that you want to jump,

and then press ENTER.

EXIT

• Press the button to return to the TV screen.

RETURN

• Press the button to return to the previous page.

• Display the toolbar.

• You cannot play audio or movies in the browser screen

while a TV+Web screen is displayed.

• When displaying TV+Web with a channel in which the V-

Chip is enabled, the cursor keys on the remote control

unit do not function.

• Restrictions apply to window display.

ENG 9-7

Pages with s_uri_y p#o_:ec_on _" will be displayed

T_i: bat !!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

Selected

item Description

Allows you to go back to the previous page.

Allows you to go to the next page.

Refreshes the page.

Interrupts a page while it is loading.

Switches between virtual mouse and spatial

navigation modes. Switching modes also

switches the display.

Depending on the page displayed, switching this

function may make it easier to use the browser.

Opens a search window below the toolbar. You

can use this to search for a word within the

displayed page.

Displays the home page. You can set the page

displayed as your home page when the browser

starts up.

(See Daae 9-10.t

Selected

item Description

Displays the bookmarks list.

Displays your browsing history.

Configures browser settings such as your

home page and browsing security.

(See Daae 9-10._

Zooms the display in or out.

Restrictions apply to window display.

You can use the toolbar to control the browser and to specify

settings.

1 Press D to contro! the toolbar.

2 Press _J_ to select a function, and then press ENTER.

You can display the web content you want to enjoy.

1 Press D to display the toolbar.

2 Press _d_to move to the address area in the toolbar, and

then press ENTER.

• The Enter Address menu is displayed.

3 Enter an address, and then press ENTER.

• The web content you want to view is displayed.

ENG 9-8

• If the power is cut due to a power failure or the TV being

unplugged while you are using the Intemet, information

such as bookmarks or cookies may not be saved

correctly.

When a security notification window is displayed:

• Press ENTER to close the window.

• This window appears when you visit a web page that has

security protection, or when you move from a protected

page to an unprotected page.

• In "Security" you can set whether or not this window is

displayed.

(See Daae 9-10._

To users who access the Internet from a PC

• When you access the Internet from this TV, the

procedures may not be the same as regular browser-

based access on a PC.

• On some pages, video and audio, text or images may

not be d spayed correct y.

About links

• Web pages on the Internet often include "links" that allow

you to jump to other web pages (or sites).

• "Links" can take various forms, including words or images,

but they always work in the same way letting you jump to

the link destination when you select them.

• Selected items (such as links of text input fields) are

enclosed in a frame.

• You can jump from a "link" to the corresponding link

destination.

DISCLAIMERS

SHARP corporation bears no responsibility regarding the

content and quality of the content provided by the content

serve provider.

http://www.espial.com

ENG 9-9

You can check or modify your browser settings from the

Browser menu.

1 Press D to display the toolbar.

2 Press _to select " _" in the toolbar, and then press

ENTER.

3 Press A/V to select and confirm the item you want to

set.

4 Press 4dT/_ to specify the required setting, and then

press ENTER.

5 Press D to exit.

Home Page: You can set the page displayed as your

home page when the browser starts up.

Encoding: You can select the desired encoding from the

list below:

Western (ISO-8859-1)/Unicode (UTF-8)

Page Information: Displays information about the currently

displayed page.

Security:

Secure sites:

When set to "Disabled", HTTPS sites cannot be

accessed.

Security warnings:

When set to "Enabled", displays warning dialogs when

going HTTP _ HTTPS.

Certificates: Display the list of certificates. You can

choose to enable/disable a certificate.

• Disable certificate are shown unticked in the certificate

list screen.

Cookies:

Accept all: Select this option to accept all cookies.

Reject all: Select this option when you do not want to

accept cookies.

Delete All Cookies: Deletes all your cookies.

ENG 9-10

You can use a keyboard or mouse for operating the TV

while using the browser.

• When you use the USB devices, connect the device to the

USB terminal on the TV.

• When you use the bluetooth device, make necessary

settings with "Bluetooth".

(See Dace 4-24._ (For the UQ17U, TQ15U, SQ17U,

SQ15U, SQ10U and LE657U models)

• The keyboard and mouse can only be used on a browser

screen.

The keyboard or mouse may not operate properly

depending on the application being used.

• The software keyboard cannot be used by the keyboard

and mouse connected via Bluetooth even on the browser

screen.

• The bluetooth device may not operate properly depending

on the device being used.

ENG 9-11

By connecting the TV to the Internet, you can enjoy a variety

of broadband content, including videos, music and photos.

Please check that the most current software is loaded on

TV by selecting "Auto Update Setting" on "Software

Update"

(see Daae 4-32_ or by visiting

http://www.sharpusa.com/products/su pport/

to check for a download of the newest software version.

Use the application window to access your favorite Internet

applications. Press SmartCentral to display the application

window.

Follow the on-screen instructions for each application.

• When using this TV to access an Internet application for

the first time, the Disclaimer appears on the screen.

Press _V to select "Agree", and then press ENTER.

(You must select "Agree" to use the application.)

• Check the web site of the provider for details on setup

and use of the functions.

• If .... or "od&!,J_" is displayed after you connect to

the Internet, check your TV's network settings and

connection.

• Additional applications will be available in the future.

• These applications are provided by content providers. The

available applications vary depending on your country or

region.

• The delivery speed of applications varies depending on

the network speed. Check the web site of the provider

for details on application setup and other information.

You can move the application icons and delete any unused

icons.

Example

1 Select an application, and then press A.

2 Press _ to select "Move App" or "Delete App", and

then press ENTER.

Move the Icons

You can move the icons of the more commonly used

applications closer to the left.

Press "ql!_ to move the icon to the desired location.

Delete an Application

Select "Delete App" to delete the icon.

Saving Favorite Applications

You can set your favorite applications to the FAV APP1,2,

and 3 buttons on the remote control for easier startup.

The applications whose icons are moved onto _), _ and

during Dock Display will be assigned to the FAV APP 1, 2

and 3 buttons respectively.

• The SmartCentral icon cannot be moved or deleted.

ENG 9-12

During Dock display, press SmartCentral again to display a list of applications by category.

1 Press _ to select a category, and then press ENTER or V.

2 Press _V/-4_/_ to select an application, and then press ENTER.

_)Displays the categories.

TV: Displays broadcast programs.

Streaming: Displays VOD content.

Apps: Displays various apps offered by AQUOS.

Search: Allows you to search broadcast programs and VOD.

Settings: Atlows you to configure various settings for this function.

_Displays a list of contents and applications for the selected category.

_Displays the image now playing.

_Provides a description of the selected item.

You can deactivate the Netfiix function. Refer to "Information" > "Netfiix Help" and select "Deactivate".

• To confirm the Netflix status, check the information displayed on the screen and click "OK".

To deactivate the VUDU function, refer to "Information" > "VUDU Help" and select "Yes".When you access the Internet application for the first time, the following appears.

• This message is available only in English.

ENG 9-13

When "TV" or "Streaming" is selected on the SmartCentral screen, a list of broadcast programs or

VOD is displayed.

_(TV)Guide: Displays a list of all broadcast programs.

(Streaming)New: Displays a list of new content.

_Popular: Displays popular programs.

_Favorites: Displays programs/content sorted by favorite genre as set in Settings.

• To display broadcast programs, you must set your ZIP code and TV provider on the Settings

screen.

• To display streaming content, you must select the apps on the Settings screen.

However, the set apps may not be displayed on the list depending on the region.

You can search across broadcast programs and VOD.

When you select this app on the SmartCentral screen, you can use the remote support function

from the support center and display the network status.

ENG 9-14

DISCLAIMERS

This SHARP device facilitates the access to content and services provided by third parties. The content and services accessible via this device belong to and may be proprietary to third parties.

Therefore, any use of such third party content and services must be in accordance with any authorization or terms of use provided by such content or service provider. SHARP shall not be liable

to you or any third party for your failure to abide by such authorization or terms of use. Unless otherwise specifica!ly authorized by the applicable content or service provider, all third party content

and services provided are for personal and non-commercial use; you may not modify, copy, distribute, transmit, display, perform, reproduce, upload, publish, license, create derivative works from,

transfer or sell in any manner or medium any content or services available via this device.

SHARP is not responsible, nor liable, for customer service-related issues related to the third party content or services. Any questions, comments or service-related inquiries relating to the third

party content or service should be made directly to the applicable content or service provider.

You may not be able to access content or services from the device for a variety of reasons which may be unrelated to the device itself, including, but not limited to, power failure, other Internet

connection, or failure to configure your device properly. SHARP, its directors, officers, employees, agents, contractors and affiliates shall not be liable to you or any third party with respect to such

failures or maintenance outages, regardless of cause or whether or not it could have been avoided.

ALL THIRD PARTY CONTENT OR SERVICES ACCESSIBLE VIA THIS DEVICE IS PROVIDED TO YOU ON AN "AS-IS" AND "AS AVAILABLE" BASIS AND SHARP AND ITS AFFILIATES MAKE

NO WARRANTY OR REPRESENTATION OF ANY KIND TO YOU, EITHER EXPRESS OR IMPLIED, INCLUDING, WITHOUT LIMITATION, ANY WARRANTIES OF MERCHANTABILITY, NON-

INFRINGEMENT, FITNESS FOR A PARTICULAR PURPOSE OR ANY WARRANTIES OF SUITABILITY, AVAILABILITY, ACCURACY, COMPLETENESS, SECURITY, TITLE, USEFULNESS,

LACK OF NEGLIGENCE OR ERROR-FREE OR UNINTERRUPTED OPERATION OR USE OF THE CONTENT OR SERVICES PROVIDED TO YOU OR THAT THE CONTENT OR SERVICES

WILL MEET YOUR REQUIREMENTS OR EXPECTATIONS.

SHARP IS NOT AN AGENT OF AND ASSUMES NO RESPONSIBILITY FOR THE ACTS OR OMISSIONS OF THIRD PARTY CONTENT OR SERVICE PROVIDERS, NOR ANY ASPECT OF THE

CONTENT OR SERVICE RELATED TO SUCH THIRD PARTY PROVIDERS.

IN NO EVENT WILL SHARP AND/OR ITS AFFILIATES BE LIABLE TO YOU OR ANY THIRD PARTY FOR ANY DIRECT, INDIRECT, SPECIAL, INCIDENTAL, PUNITIVE, CONSEQUENTIAL OR

OTHER DAMAGES, WHETHER THE THEORY OF LIABILITY IS BASED ON CONTRACT, TORT, NEGLIGENCE, BREACH OF WARRANTY, STRICT LIABILITY OR OTHERWISE AND

WHETHER OR NOT SHARP AND/OR ITS AFFILIATES HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

Examples of Application Logos

ENG 9-15

You can listen to music from your TV when you connect a smartphone or other Bluetooth music

player to your TV.

And when "Quick Start Mode" is set to "ON", you can also turn on your TV with a Bluetooth

signal. (The TV automatically goes to the Bluetooth Music playback screen)

1 Switch the TV input to "Bluetooth".

• Before using a Bluetooth device, you must pair it to the TV with "Menu" > "Smart TV" >

"Bluetooth" > "Pairing New Device" > "Other Devices Setting".

• When the Miracast device is connected to the TV over a wireless LAN, Miracast video may be

distorted and Miracast audio may be interrupted depending on the status of the Miracast

device's connection to the access point.

When you connect a device such as a Miracast-compatible smartphone or tablet to this TV, you

can enjoy video and audio from the device on the TV's large screen and speakers.

1 Switch the TV input to "Screen Sharing".

2 Enable the Miracast function on the Miracast device and connect to the TV.

(The TV screen changes according to the behavior of the device)

• When the TV is turned off or the connection is ended on the device, you must connect the

device again.

• When connecting using a PIN code, first select the corresponding menu on the "Miracast

Screen Sharing" menu, and then perform the operations from step 1.

• If you want to specify the preferred band to use with this function, select the corresponding

menu on the "Miracast Screen Sharing" menu.

• For details about the operation of the Miracast-compatible device, check the manual for that

device.

• When the Bluetooth device is connected to the TV over a wireless LAN, Bluetooth audio may

be interrupted depending on the status of the Bluetooth device's connection to the access

point.

ENG 10-1

• Before detaching (or attaching) the stand, make sure to turn off the TV and unplug the AC cord.

•Do not remove the stand from the TV unless using an optional wall mount bracket to

mount it.

1 _ Loosen the screw(s) used to secure the stand cover.

Remove the cover.

Example

3Detach the stand from the TV.

•Be sure to always carry the TV by two people (90/80 inch models: three people) holding it with

two hands.

• In the installation procedure, be careful not to catch your fingers between the TV set and the

floor.

2 Unfasten the four screws used to secure the stand in place.

Example

ENG 11-1

Using an optional bracket to mount the TV

• You can ask a qualified service professional about using an optional AN-52AG4 bracket to

mount the TV on the wall.

•Carefully read the instructions that come with the bracket before beginning work.

•This TV should be mounted on the wall only with the wall mount bracket AN-62AG4

(SHARP). The use of other wall mount brackets may result in an unstable installation

and may cause serious injuries.

• Installing the TV requires special skill that should only be performed by qualified service

personnel. Customers should not attempt to do the work themselves. SHARP bears no

responsibility for improper mounting or mounting that results in accident or injury.

Hanging on the wall

AN-52AG4 wall mount bracket.

See the bracket instructions for

details.)

...... _ ._o_ .... 5 8

AN-52AG4

Hanging on the wall

LC-70UQ17U/LC-70TQ15U

• The "c" position is at the center of the

display.

LC-70SQ17U/LC-70SQ15U/LC-70SQ10U/LC-

70EQ10

• The canter of display :7/16 inch (11mm)

above the "c" position.

LC-70LE650U/LC-70C6500U

•The canter of display :25/64 inch (10mm)

above the "c" position.

LC-60UQ17U/LC-60TQ15U

• The "c" position is at the center of the

display.

LC-60SQ17U/LC-60SQ15U/LC-60SQ10U/LC-

60EQ10U

• The canter of display : 1/4 inch (6mm)

above the "e" position.

LC-60LE650U/LC-60C6500U

• The "e" position is at the center of the

display.

• Refer to the operation manual of AN-52AG4

for details.

• The UQ and TQ series cannot be mounted on a wall at an angle.

The wall mount kit (sold separately) allows you to mount the TV on the wall.

For detailed information on installing the wall mount, see the instructions provided with the product.

We recommend you to contact a technician for assistance when installing it.

SHARP is not responsible for any damage to the product or injury to yourself or others if you elect

to install the wall mount on your own.

Install your wall mount on a solid wall perpendicular to the floor.

When you want to attach the wall mount to surfaces other than plaster board, please

contact your nearest retailer/adviser for additional information. If you install the TV on a

ceiling or slanted wall, it may fall and result in severe personal injury. Always have two

people mount the TV on a wall.

Due to the terminal configuration on this TV, when you wall-mount this model, make sure there

is enough space between the wall and the TV for the cables.

To use this TV mounted on a wall, remove the AC cord holder on the rear of the TV, and then

use the screws supplied with the wall mount bracket to secure the bracket to the rear of the

TV.

ENG 11-2

LC-70UQ17U/LC-70TQ15U/LC-70SQ17U/LC -70SQ15U/LC -70SQ10U/

LC-70EQ10U/LC-60UQ17U/LC-60TQ15U/LC-60SQ17U/LC-60SQ15U/

LC-60SQ10U/LC-60EQ10U

LC-70LE650U/LC-70C6500U/LC-60LE650U/LC-60C6500U

• The location of the AC cord holder differs depending on whether it is in its shipment location

(A)or has been used as a cable tie (B).

LC-80UQ17U/LC-80LE650U/LC-90LE657U/LC-80LE642U

_Z_}_ar_illod r_fit_J

LC S_3¢Eg@(4,

ENG 11-3

Wall Mount Kit Specifications

Standard dimensions for wall mount kits are shown below.

• The illustration is based on the LC-80UQ17U model as an example.

a2 " WA MOUNT KIT

..........

, ii 1

......_ i ¸ :_- :L

/_' i i

j L_!

al: Maximum distance from the mounting hole

a2: Maximum distance from the TV's center

bl: Distance between the TV's center and the mounting hole

b2: Maximum distance from the TV's center

b3: Maximum distance from the mounting hole

c1: Minimum gap

VESA screw

hole specs (A-B)

Width a2

Height b2

23 5/8 (600)- 15 3/4 (400)

1 37/64 (40) 2 61/64 (75)

13 25/64 (340) 14 49/64 (375)

7 7/8 (200)

14 49/64 (375) 13 19/32 (345)

6 57/64 (175) 5 23/32 (145)

3 5/32 (80)

1 37/64 (40)

13 25/64 (340)

10 41/64 (270)

11 1/32 (280)

5 59/64 (150)

15 3/4 (400)- 15 3/4(400)

2 61/64 (75)

10 27/32 (275)

7 7/8 (200)

14 11/64 (360)

6 5/16 (160)

2 49/64 (70)

7 31/64 (190)

10 41/64 (270)

2 3/8 (60)

7 7/8 (200)

12 39/64 (320)

4 47/64 (120)

9 1/16 (230)

2 3/8 (60)

ENG 11-4

9CREW

WAUL MOUNT _.

UNrT

M0 JsNTI 01_[_"H OF

HOLES _ %, _ MOde4? NG k¢OLE£

For the screws, refer to the table shown below.

90/80 inch models

Standard screws M8 (Use 1.25 pitch screws.)

Length(Depth of mounting holes) 15/32 (12)

Quantity 4 pcs.

70/60 inch models

M6 (Use 1.0 pitch screws.)

15/32 (12)

4 pcs.

• Do not mount the TV at a tilt.

• To use this TV mounted on a wail, remove the cable tie as needed.

• Do not use screws that do not comply with the VESA standard screw specifications.

• Do not use screws that are longer than the standard length. Screws that are too long may cause damage to the inside of the TV.

• Do not fasten the screws too firmly or loosely. This may damage the product or cause the product to fall, leading to personal injury. SHARP is not liable for these kinds of accidents.

• SHARP is not liable for product damage or personal injury when a non-VESA or non-specified wall mount is used or the consumer fails to follow the product installation instructions.

_stall the wall mount kit while your TV is turned on. It may result in personal injury due to electric shock.

ENG 11-5

?iiiiii_;;? _:11+ ii++ ++]++i I_7+;E'd;:i' _+ ii _;__?,,, iii;Q_+1;,, ]i];;

iii_iiiii!_ii_ _4_S ¸,,i_i_!iii:_ii_:_+_ii!______ii_

• No power • Check if you pressed POWER on the remote control unit.

• Is the AC cord disconnected?

• Has the power been turned on?

• Unit cannot * Externa! influences such as lightning, static electricity, may cause improper

be operated, operation. In this case, operate the unit after first turning off the power of the

TV or unplugging the AC cord and replugging it in after 1 or 2 minutes.

• Remote * Is the equipment to be operated by the remote control unit set correctly?

control unit Press TV to set the remote control unit to the setting for operating the TV.

does not • Are batteries inserted with polarity (+, -) aligned?

operate. * Are batteries worn out? (Replace with new batteries.)

• Are you using it under strong or fluorescent lighting?

• Is a fluorescent light illuminated near the remote control sensor?

• Is "RC Control Lock" selected in "Operation Lock Out"?

Paae4-31

• Picture is cut • Is the image position correct?

off/with _ and 8-'1

sidebar • Are screen mode adjustments such as picture size made correctly?

screen. Paaes 3-14 to 3-16

• Strange color, • Adjust the picture tone.

light color, or Paaes 4-6 to 4-10

color * Is the room too bright? The picture may look dark in a room that is too bright.

misalignment

• Power is * Is the sleep timer set?

suddenly Paaes 3-9

turned off. • Check the power control settings.

Paae 4-27

• The unit's internal temperature has increased. Remove any objects blocking

vent or clean.

• No picture • Is connection to other components correct?

• Is the correct input selected?

Paaes 2-1

• Is "On" selected in "Audio Only"?

Paae 4-27

• If the PC image is not displayed, check the following:

- When connecting a laptop PC to the TV, check that display

output mode of the PC is set to external monitor.

- Check the resolution setting on the PC. Is a non-compatible

signal being input?

Paae8-9

• The 4K signal (HDCP2.2) can be viewed via HDMI IN 1 only.

Change the connection. (UQ/TQiSQ series only)

• Picture quality of HD . To enjoy HD images from external equipment, you are required to

programs is poor. set up HDMI connection or component connection.

• If the program content is not of HD quality, HD images cannot be

displayed. Check that the program you are viewing provides HD

images.

• The HD cable/satellite set-top box may need to be configured to

output HD images via cable/satellite.

• The cable/satellite broadcast may not support a signal resolution

of 1080p.

• The TV sometimes • This is not a malfunction. This happens when the cabinet slightly

makes a cracking sound, expands and contracts according to change in temperature. This

does not affect the TV's performance.

• Some Internet functions • The TV has only limited functions compared with regular PC

used on a PC are not browsers.

available from the TV. Paaes 9-7 to 9-9

ENG 11-6

iiiiiii_z. _++;:%_iiE_"+c+.+i_!_7+.E._:++J'+_+++ii_+4__;__..._iii:_c"+;_...,i++;_J%ii_i_i)_i_ _iti)i_k_%_i%._j_;;

iliiliiililiiiii i Iii=lliillillillI;,iiilillllillillillillillillillillillilliill,b l=l=so l iliI%iiiiiiilililIilIilIilIilIilIilIilIilIilIilii

No sound Is connection to other components correct?

Is the volume too low?

Paae3-2

Is "Variable" selected in "Output Select"?

Paae 4-20

Have you pressed MUTE on the remote control unit?

Paae3-3

Check the audio output of the connected external equipment. Is

the volume too low or muted?

When external equipment is connected via an HDMI cable, you

may need to configure the audio to be output through the HDMI

cable.

When audio is not output from external equipment connected to

the PC IN or HDMI IN 2 terminal, check the "Audio Select"

setting.

Paae8-2

Even when external equipment is connected using an HDMI-

certified cable, an audio cable connection may be required

depending on the type of equipment and the media being played

back. In this case, in addition to connecting an HDMI-certified

cable to the HDMI IN 2 terminal, connect a _ 3.5 mm stereo

minijack cable to the AUDIO IN terminal and set "Audio Select" to

"HDMl+Analog".

Paae8-2

When connecting a PC via an HDMI-certified cable, check the

following:

- Is the audio output of the PC configured correctly? Check the

audio output settings and output audio format in Sound Properties

on the PC.

The audio formats compatible with this TV are PCM, Dolby Digital

and DTS. With other formats, audio cannot be output.

- Depending on the board, only video signals may be output. In

this case, in addition to connecting an HDMI-certified cable to the

HDMI IN 2 terminal, connect a _ 3.5 mm stereo minijack cable to

the AUDIO IN terminal and set "Audio Select" to "HDMl+Analog".

Paae 8-2

lllliiil,l,iii iiiliiliiliiliii ix i ` ii iii ii ii ii ii ii iiii```'`` i ` `ii i ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii i i;iii ,iiiiiliiliiliiliiliiliiliiliiliiliiliiliiliiliiliiliiliiliiliiliiliilil

• No sound • If you are using a DVI-HDMI conversion cable to connect external

equipment to the TV, check the following:

- Is an audio cable connected? The DVI-HDMI conversion cable

is for video only. Connect a _ 3.5 mm stereo minijack cable to

listen to the audio.

- Is HDMI IN 2 being used? When the TV is connected to another

HDMI IN terminal, the audio and video are not output together

even if a _ 3.5 mm stereo minijack cable is connected to the

shared AUDIO IN terminal for PC IN and HDMI IN 2.

- Check the "Audio Select" setting. Set "Audio Select" to

"HDMl+Analog".

Paae8-2

• Bluetooth (smartphone)

playback cannot be

displayed on the TV.

• Check pairing.

• Miracast image/audio • Check pairing.

cannot be output to the

TV.

ENG 11-7

iiiiiii_++_++;:++_ii_i_'+c+.+i_d++.;_._b+J'+_+++iir+4__;_.. _iii_c.+;_.._,_iijiri_+ %]_iif_tT+._;;++_x+++_i_f_)+:

i 11!$;;++.._+;:,i iiliiI_,, _

iliiliiiilili1i7i i Iii.lliillillillI;,iiillillllillillillillillillillillillilliill,b l=l=so l iliI%iiiiiiilIIilIilIilIilIilIilIilIilIilIilIilii

31 images are not Is "31 Auto Change" set to "Off"? Press 21/31 to switch to 31

displayed, mode.

PaaeS-ll

If "31 Auto Change" is set to "Mode 1" or "Mode 2" but no 31

images are displayed, check the display format of the content

being viewed. Some 31 image signals may not be recognized as

31 images automatically. Press 21/3D to select the appropriate

display format for the 31 image.

Paaes 5-8 to 5-9

Is the power of the 31 Glasses turned on?

Are the 31 Glasses set to 21 mode?

For further details, refer to the operation manual of your 31 Glasses.

ENG 11-8

• Failed to receive

broadcast.

• No broadcast now.

• An incompatible audio

signal has been

received. Check the

output device settings.

E202 • Check the antenna cable. Check that the antenna

is correctly setup.

E203 • Check the broadcast time in the program guide.

-- • This message is displayed when an audio format

other than PCM, DTS or Dolby Digital is input.

- Set the audio output format of connected

external HDMI equipment to PCM, DTS or Dolby

Digital.

- Refer to the operation manual of the external

equipment for setting details.

ENG 11-9

You can read the software licenses in the on-screen display menu. Refer to "Information" >

"Software License".

Software composition

The software included in this product is comprised of various software components whose

individual copyrights are held by SHARP or by third parties.

Cautions regarding use in high and low temperature environments

• When the unit is used in a low temperature space (e.g. room, office), the picture may leave

trails or appear slightly delayed. This is not a malfunction, and the unit will recover when the

temperature returns to normal.

• Do not leave the unit in a hot or cold location. Also, do not leave the unit in a location

exposed to direct sunlight or near a heater, as this may cause the cabinet to deform and the

front panel to malfunction.

Storage temperature: -4°F to +140°F (-20°C to +60°C)

CLEARING THE SECRET NUMBER

If you forget the secret number, clear the secret number using the following procedure.

1 Select an item from the list below to display the secret number input screen. (For operating

the on-screen display menu,

see Daae 4-3./

• "Color System" (4,_"Advanced" _Setup menu).

• "Easy Setup" or "Reset" (_Setup menu).

• "CH Setup" (_"TV Channel Setup" _Setup menu).

• "Parental Control" (_Setup menu).

• "Interactive Service" (_"lnternet Setup" _Smart TV menu).

• "Software Update" (_lnformation menu).

2 Press and hold both CHi_,,. and VOL+ on the TV simultaneously until the message appears

on the screen.

ENG 11-10

Size

LCD panel Resolution

TV-standard (CCIR)

TV Function Receiving Channel

Audio multiplex

Audio out

Terminals

Back panel vertical side

Back panel surface side

Back panel horizontal side

OSD language

Power Requirement

On Mode Power

Power Consumption

Weight

Dimensions

(W x H x D)(inch)

Operating temperature

VHF/UHF

CATV

Digital Terrestrial Broadcast (8VSB)

Digital cable*l (64t256 QAM)

HDMI IN 1

HDMI IN 2

HDMI IN 3

HDMI IN 4

AUDIO OUT

USB 1

COMPONENT IN

VIDEO IN 1

VIDEO IN 2

PC IN

RS-232C

ANT/CABLE

AUDIO IN

DIGITAL AUDIO OUT

ETHERNET

USB 2

TV + stand

TV only

TV + stand

TV only

"1 Emergency alert messages via Cable are unreceivable.

80" Class (80" Diagonal) 70" Class (69 1/2" Diagonal) 60" Class (60 1/32" Diagonal)

2,073,600 pixels (1,920 x 1,080)

American TV Standard ATSC/NTSC System

VHF 2-13ch, UHF 14-69ch

1-135ch (non-scrambled channel only)

2-69ch

1-135ch (non-scrambled channel only)

BTSC System

10W x 2 + 15W (WF)

HDMI in with HDCP (HDCP2.2 supported)

HDMI in with HDCP, Audio in (O 3.5 mm stereo jack)

HDMI in with HDCP, ARC

HDMI in with HDCP, MHL

Audio out (0 3.5 mm stereo jack)

Photo/Music/Video mode, Software update, USB keyboard/mouse, Wallpaper Picture

COMPONENT in

AV in

ANALOG RGB (PC)in (15-pin mini D-sub female connector),

Audio in (0 3.5 mm stereo jack)

9-pin D-sub male connector

75 _ Unbalance, F Type x 1 for Analog (VHF/UHF/CATV) and Digital (AIR/CABLE)

Audio in (0 3.5 mm stereo jack)

Optical Digital audio out x 1 (PCMIDolby DigitallDTS)

Network connector

Photo/Music/Video mode, Software update, USB keyboard/mouse, Wallpaper Picture

English/French/Spanish

AC 120 V, 60 Hz

111 W 97 W 79 W

306 W (0.1 W Standby with AC 120 V 227 W (0.1 W Standby with AC 120 V 187 W (0.1 W Standby with AC 120 V'

156.5 Ibs./71.0 kg 106.9 Ibs./48.5 kg 84.9 Ibs./38.5 kg

135.6 Ibs./61.5 kg 93.7 Ibs./42.5 kg 71.7 Ibs./32.5 kg

71 55/64 x44 7/64 x 18 3/64 62 9/64 x38 35/64 x 15 11/64 54 17/64 x33 25/32 x 15 11/64

71 55/64 x42 1/16 x2 3/8 62 9/64 x36 25/32 x2 21/64 54 17/64 x31 31/32 x2 21/64

+32°F to +104°F (0°C to +40°C)

• As part of policy of continuous improvement, SHARP reserves the right to make design and specification changes for product improvement without prior notice. The performance specification

figures indicated are nominal values of production units. There may be some deviations from these values in individual units.

• On Mode Power Consumption is measured according to Energy Star program requirements for televisions.

ENG 12-1

iii ......iii ....ii

Size

LCD panel Resolution

TV-standard (CCIR)

TV Function Receiving Channel

Audio multiplex

Audio out

Terminals

Back panel vertical side

VHF/UHF

CATV

Digital Terrestrial Broadcast (8VSB)

Digital cable*l (64t256 QAM)

Back panel surface side

Back panel horizontal side

OSD language

Power Requirement

On Mode Power

Power Consumption

Weight

Dimensions

(W x H x D)(inch)

Operating temperature

HDMI IN 1

HDMI IN 2

HDMI IN 3

HDMI IN 4

AUDIO OUT

USB 1

COMPONENT IN

VIDEO IN 1

VIDEO IN 2

PC IN

RS-232C

ANT/CABLE

AUDIO IN

DIGITAL AUDIO OUT

ETHERNET

USB 2

TV + stand

TV only

TV + stand

TV only

"1 Emergency alert messages via Cable are unreceivable.

70" Class (69 1/2" Diagonal) 60" Class (60 1/32" Diagonal)

2,073,600 pixels (1,920 x 1,080)

American TV Standard ATSC/NTSC System

VHF 2-13ch, UHF 14-69ch

1-135ch (non-scrambled channel only)

2-69ch

1-135ch (non-scrambled channel only)

BTSC System

10W x 2 + 15W (WF)

HDMI in with HDCP (HDCP2.2 supported)

HDMI in with HDCP, Audio in (0 3.5 mm stereo jack)

HDMI in with HDCP, ARC

HDMI in with HDCP, MHL

Audio out (0 3.5 mm stereo jack)

Photo/Music/Video mode, Software update, USB keyboard/mouse, Wallpaper Picture

COMPONENT in

AV in

ANALOG RGB (PC)in (15-pin mini D-sub female connector),

Audio in (0 3.5 mm stereo jack)

9-pin D-sub male connector

75 _ Unbalance, F Type x 1 for Analog (VHF/UHF/CATV) and Digital (AIR/CABLE)

Audio in (0 3.5 mm stereo jack)

Optical Digital audio out x 1 (PCMIDolby DigitallDTS)

Network connector

Photo/Music/Video mode, Software update, USB keyboard/mouse, Wallpaper Picture

English/French/Spanish

AC 120 V, 60 Hz

97 W 79 W

227 W (0.1 W Standby with AC 120 V) 187 W (0.1 W Standby with AC 120 V)

109.1 Ibs./49.5 kg 87.1 Ibs./39.5 kg

93.7 Ibs./42.5 kg 71.7 Ibs./32.5 kg

62 9/64 x 38 15/64 x 15 11/64 54 17/64 x 33 7/16 x 15 11/64

62 9/64 x36 25/32 x2 21/64 54 17/64 x31 31/32 x2 21/64

+32°F to +104°F (0°C to +40°C)

• As part of policy of continuous improvement, SHARP reserves the right to make design and specification changes for product improvement without prior notice. The performance specification

figures indicated are nominal values of production units. There may be some deviations from these values in individual units.

• On Mode Power Consumption is measured according to Energy Star program requirements for televisions.

ENG 12-2

LCD panel Size

Resolution

TV-standard (CCIR)

TV Function Receiving Channel

Audio out

Terminals

Audio multiplex

Back panel vertical side

Back panel surface side

Back panel horizontal side

OSD language

Power Requirement

On Mode Power

Power Consumption

Weight

Dimensions

(W x H x D)(inch)

Operating temperature

VHF/UHF

CATV

Digital Terrestrial Broadcast (8VSB)

Digital cable*l (64/256 QAM)

HDMI IN 1

HDMI IN 2

HDMI IN 3

HDMI IN 4

AUDIO OUT

USB 1

COMPONENT IN

VIDEO IN 1

VIDEO IN 2

PC IN

RS-232C

ANT/CABLE

AUDIO IN

DIGITAL AUDIO OUT

ETHERNET

USB 2

TV + stand

TV only

TV + stand

TV only

"1 Emergency alert messages via Cable are unreceivable.

70" Class (69 1/2" Diagonal) 60" Class (60 3/32" Diagonal)

2,073,600 pixels (1,920 x 1,080)

American TV Standard ATSC/NTSC System

VHF 2-13ch, UHF 14-69ch

1-135ch (non-scrambled channel only)

2-69ch

1-135ch (non-scrambled channel only)

BTSC System

10W x2

HDMI in with HDCP (HDCP2.2 supported)

HDMI in with HDCP, Audio in (_ 3.5 mm stereo jack)

HDMI in with HDCP, ARC

HDMI in with HDCP, MHL

Audio out (_i 3.5 mm stereo jack)

PhototMusic/Video mode, Software update, USB keyboard/mouse, Wallpaper Picture

COMPONENT in

AV in

ANALOG RGB (PC)in (15-pin mini D-sub female connector), Audio in (_i 3.5 mm stereo jack)

9-pin D-sub male connector

75 _ Unbalance, F Type x 1 for Analog (VHF/UHF/CATV) and Digital (AIR/CABLE)

Audio in (_i 3.5 mm stereo jack)

Optical Digital audio out x 1 (PCM/Dolby Digital/DTS)

Network connector

PhototMusic/Video mode, Software update, USB keyboard/mouse, Wallpaper Picture

English/French/Spanish

AC120V, 60 Hz

97 W 79 W

228 W (0.1 W Standby with AC 120 V) 188 W (0.1 W Standby with AC 120 V)

83.8 Ibs./38.0 kg 61.7 Ibs./28.0 kg

77.2 Ibs./35.0 kg 55.1 Ibs./25.0 kg

62 39/64 x 38 45/64 x 14 21/32 54 19/64 x 33 29/32 x 14 21/32

62 39/64 x 37 21/64 x 3 9/32 54 19/64 x 32 17/32 x 3 3/64

+32°F to +104°F (0°C to +40°C)

• As part of policy of continuous improvement, SHARP reserves the right to make design and specification changes for product improvement without prior notice. The performance specification

figures indicated are nominal values of production units. There may be some deviations from these values in individual units.

• On Mode Power Consumption is measured according to Energy Star program requirements for televisions.

ENG 12-3

LCD panel Size

Resolution

TV-standard (CCIR)

TV Function Receiving Channel

Audio out

Terminals

Audio multiplex

Back panel vertical side

Back panel surface side

Back panel horizontal side

OSD language

Power Requirement

On Mode Power

Power Consumption TV + stand

Weight TV only

Dimensions TV + stand

(W x H x D)(inch) TV only

Operating temperature

VHF/UHF

CATV

Digital Terrestrial Broadcast (8VSB)

Digital cable*l (64/256 QAM)

HDMI IN 1

HDMI IN 2

HDMI IN 3

HDMI IN 4

AUDIO OUT

USB 1

COMPONENT IN

VIDEO IN 1

VIDEO IN 2

PC IN

RS-232C

ANT/CABLE

AUDIO IN

DIGITAL AUDIO OUT

ETHERNET

USB 2

"1 Emergency alert messages via Cable are unreceivable.

70" Class (69 1/2" Diagonal) 60" Class (60 3/32" Diagonal)

2,073,600 pixels (1,920 x 1,080)

American TV Standard ATSC/NTSC System

VHF 2-13ch, UHF 14-69ch

1-135ch (non-scrambled channel only)

2-69ch

1-135ch (non-scrambled channel only)

BTSC System

10W x2

HDMI in with HDCP, ARC

HDMI in with HDCP, Audio in (_ 3.5 mm stereo jack)

HDMI in with HDCP

HDMI in with HDCP, MHL

Audio out (_i 3.5 mm stereo jack)

PhototMusic/Video mode, Software update, USB keyboard!mouse, Wallpaper Picture

COMPONENT in

AV in

ANALOG RGB (PC)in (15-pin mini D-sub female connector), Audio in (_i 3.5 mm stereo jack)

9-pin D-sub male connector

75 _ Unbalance, F Type x 1 for Analog (VHF/UHF/CATV) and Digital (AIR/CABLE)

Audio in (_i 3.5 mm stereo jack)

Optical Digital audio out x 1 (PCM/Dolby Digital/DTS)

Network connector

PhototMusic/Video mode, Software update, USB keyboard!mouse, Wallpaper Picture

English/French/Spanish

AC 120 V, 60 Hz

97 W 79 W

228 W (0.1 W Standby with AC 120 V) 188 W (0.1 W Standby with AC 120 V)

83.8 Ibs./38.0 kg 61.7 Ibs./28.0 kg

77.2 Ibs./35.0 kg 55.1 Ibs./25.0 kg

62 39/64 x38 45/64 x 14 21/32 54 19/64 x33 29/32 x 14 21/32

62 39/64 x37 21/64 x3 9/32 54 19/64 x32 17/32 x3 3/64

+32°F to +104°F (0°C to +40°C)

• As part of policy of continuous improvement, SHARP reserves the right to make design and specification changes for product improvement without prior notice. The performance specification

figures indicated are nominal values of production units. There may be some deviations from these values in individual units.

• On Mode Power Consumption is measured according to Energy Star program requirements for televisions.

ENG 12-4

Size

LCD panel Resolution

TV-standard (CCIR)

TV Function Receiving Channel

Audio out

Terminals

Audio multiplex

Back panel vertical side

Back panel surface side

Back panel horizontal side

OSD language

Power Requirement

On Mode Power

Power Consumption

Weight

Dimensions*2

(W x H x D)(inch)

Operating temperature

VHF/UHF

CATV

Digital Terrestrial Broadcast (8VSB)

Digital cable*l (64t256 QAM)

HDMI IN 1

HDMI IN 2

HDMI IN 3

HDMI IN 4

AUDIO OUT

USB 1

COMPONENT IN

VIDEO IN 1

VIDEO IN 2

PC IN

RS-232C

ANT/CABLE

AUDIO IN

DIGITAL AUDIO OUT

ETHERNET

USB 2

TV + stand

TV only

TV + stand

TV only

"1 Emergency alert messages via Cable are unreceivable.

2,073,600 pixels (1,920 x 1,080)

American TV Standard ATSC/NTSC System

VHF 2-13ch, UHF 14-69ch

1-135ch (non-scrambled channel only)

2-69ch

1-135ch (non-scrambled channel only)

BTSC System

10W x2

HDMI in with HDCP, ARC

HDMI in with HDCP, Audio in (_ 3.5 mm stereo jack)

HDMI in with HDCP

HDMI in with HDCP, MHL

Audio out (0 3.5 mm stereo jack)

Photo/Music/Video mode, Software update, USB keyboard/mouse, Wallpaper Picture

COMPONENT in

AV in

ANALOG RGB (PC) in (15-pin mini D-sub female connector), Audio in (0 3.5 mm stereo jack)

9-pin D-sub male connector

75 _ Unbalance, F Type x 1 for Analog (VHF/UHF/CATV) and Digital (AIR/CABLE)

Audio in (0 3.5 mm stereo jack)

Optical Digital audio out x 1 (PCMtDolby Digital/DTS)

Network connector

Photo/Music/Video mode, Software update, USB keyboard/mouse, Wallpaper Picture

English/French/Spanish

AC 120 V, 60 Hz

111 W

306 W (0.1 W Standby with AC 120

124.6 Ibs./56.5 kg

115.7 Ibs./52.5 kg

71 15/16 x43 43/64 x 17 17/32

71 15/16 x 42 23/32 x 3 25/64

+32°F to +104°F (0°C to +40°C)

98 W

228 W (0.1 W Standby with AC 120

82.7 Ibs./37.5 kg

76.1 Ibs./34.5 kg

62 39/64 x38 19/64 x 14 11/64

62 39/64 x 37 21/64 x 3 9/32

85 W

188 W (0.1 W Standby with AC 120

61.7 Ibs./28.O kg

55.1 Ibs./25.O kg

54 19/64 x33 1/2 x 14 11/64

54 19/64 x32 17/32 x3 1/32

• As part of policy of continuous improvement, SHARP reserves the right to make design and specification changes for product improvement without prior notice. The performance specification

figures indicated are nominal values of production units. There may be some deviations from these values in individual units.

• On Mode Power Consumption is measured according to Energy Star program requirements for televisions.

ENG 12-5

LCD panel Size

Resolution

TV-standard (CCIR)

TV Function Receiving Channel

Audio out

Terminals

Audio multiplex

Back panel vertical side

Back panelsurface side

Back panel horizontal side

OSD language

Power Requirement

On Mode Power

Power Consumption TV + stand

Weight TV only

Dimensions*2 TV + stand

(W x H x D)(inch) TV only

Operating temperature

VHF/UHF

CATV

Digital Terrestrial Broadcast (8VSB)

Digital cable*l (64/256 QAM)

HDMI IN 1

HDMI IN 2

HDMI IN 3

HDMI IN 4

AUDIO OUT

USB 1

COMPONENT IN

VIDEO IN 1

VIDEO IN 2

PC IN

RS-232C

ANT/CABLE

AUDIO IN

DIGITAL AUDIO OUT

ETHERNET

USB 2

"1 Emergency alert messages via Cable are unreceivable.

90" Class (90 1/64" Diagonal)

2,073,600 pixels (1,920 x 1,080)

American TV Standard ATSC/NTSC System

VHF 2-13ch, UHF 14-69ch

1-135ch (non-scrambled channel only)

2-69ch

1-135ch (non-scrambled channel only)

BTSC System

10W x 2 + 15W (WF)

HDMI in with HDCP

HDMI in with HDCP, Audio in (_ 3.5 mm stereo jack)

HDMI in with HDCP, ARC

HDMI in with HDCP, MHL

Audio out (0 3.5 mm stereo jack)

Photo/Music/Video mode, Software update, USB keyboard/mouse, Wallpaper Picture

COMPONENT in

AV in

ANALOG RGB (PC) in (15-pin mini D-sub female connector), Audio in (0 3.5 mm stereo jack)

9-pin D-sub male connector

75 _ Unbalance, F Type x 1 for Analog (VHF/UHF/CATV) and Digital (AIR/CABLE)

Audio in (0 3.5 mm stereo jack)

Optical Digital audio out x 1 (PCMtDolby DigitaltDTS)

Network connector

Photo/Music/Video mode, Software update, USB keyboard/mouse, Wallpaper Picture

English/French/Spanish

AC 120 V, 60 Hz

138 W

381 W (0.1 W Standby with AC 120 V)

150.0 Ibs./68.0 kg

141.1 Ibs./64.0 kg

80 7/8 x 48 61/64 x 17 3/32

80 7/8 x 47 11/16 x 4 37/64

+32°F to +104°F (0°C to +40°C)

• As part of policy of continuous improvement, SHARP reserves the right to make design and specification changes for product improvement without prior notice. The performance specification

figures indicated are nominal values of production units. There may be some deviations from these values in individual units.

• On Mode Power Consumption is measured according to Energy Star program requirements for televisions.

ENG 12-6

LCD panel Size

Resolution

TV-standard (CCIR)

TV Function Receiving Channel

Audio out

Terminals

Audio multiplex

Back panel vertical side

Back panel surface side

Back panel horizontal side

OSD language

Power Requirement

On Mode Power

Power Consumption TV + stand

Weight TV only

Dimensions*2 TV + stand

(W x H x D)(inch) TV only

Operating temperature

VHF/UHF

CATV

Digital Terrestrial Broadcast (8VSB)

Digital cable*l (64/256 QAM)

HDMI IN 1

HDMI IN 2

HDMI IN 3

HDMI IN 4

AUDIO OUT

USB 1

COMPONENT IN

VIDEO IN 1

VIDEO IN 2

PC IN

RS-232C

ANT/CABLE

AUDIO IN

DIGITAL AUDIO OUT

ETHERNET

USB 2

"1 Emergency alert messages via Cable are unreceivable.

80" Class (80" Diagonal)

2,073,600 pixels (1,920 x 1,080)

American TV Standard ATSC/NTSC System

VHF 2-13ch, UHF 14-69ch

1-135ch (non-scrambled channel only)

2-69ch

1-135ch (non-scrambled channel only)

BTSC System

10W x2

HDMI in with HDCP, ARC

HDMI in with HDCP, Audio in (_ 3.5 mm stereo jack)

HDMI in with HDCP

HDMI in with HDCP, MHL

Audio out (0 3.5 mm stereo jack)

Photo/Music/Video mode, Software update, USB keyboard/mouse, Wallpaper Picture

COMPONENT in

AV in

ANALOG RGB (PC) in (15-pin mini D-sub female connector), Audio in (0 3.5 mm stereo jack)

9-pin D-sub male connector

75 _ Unbalance, F Type x 1 for Analog (VHF/UHF/CATV) and Digital (AIR/CABLE)

Audio in (0 3.5 mm stereo jack)

Optical Digital audio out x 1 (PCMtDolby DigitaltDTS)

Network connector

Photo/Music/Video mode, Software update, USB keyboard/mouse, Wallpaper Picture

English/French/Spanish

AC 120 V, 60 Hz

111 W

307 W (0.1 W Standby with AC 120 V)

123.5 Ibs./56.0 kg

114.6 Ibs./52.0 kg

73 5/16 x 45 3/32 x 17 3/32

73 5/16 x 43 25/32 x 3 29/32

+32°F to +104°F (0°C to +40°C)

• As part of policy of continuous improvement, SHARP reserves the right to make design and specification changes for product improvement without prior notice. The performance specification

figures indicated are nominal values of production units. There may be some deviations from these values in individual units.

• On Mode Power Consumption is measured according to Energy Star program requirements for televisions.

ENG 12-7

iiiiiiiiiii,_,i_li,_,i_li,_,i_li,_,i_li,_,i_li,_,i_li,_,i_li,_,i_li,_,i_li,_,i_li,_,i_li,_,i_li,_,i_li,_,i_li,_,i_li,_,i_li,_,i_li,_,i_li,_,i_li,_,i_li,_,i_li,_,i_li,_,i_li,_,i_li,_,i_li,_,i_li,_,i_li,_,i_li,_,i_li,_,i_li,_,i_li,_,i_li,_,i_li,_,i_li,_,i_li,_,i_li,_,i_li,_,i_li,_,i_li,_,i_li,_,i_li,i_Spe_¢ifl_ati_ili _'_'_,_,_,_,_,_,_,_,_,_,_,_,_,_,_,_,_,_,_,_,_,_,_,_,_,_,_,_,_,_,_,_,_,_,_,_,_,_,_,_,_,_,_,_,_,_,_,_,_....

Standard IEEE 802.1 la!b/g/n

Frequency Band 2412-2484 MHz

5150-5850 MHz

Static WEP (64/128 bit key Index 1 only)

Security WPA-PSK (TKIP)

WPA2-PSK (AES)

DBPSK@IMbps

DQPSK@2Mbps

CCK@5.5/11Mbps

Modulation BPSK@6/9 Mbps

QPSK@12/18Mbps

16-QAM@24Mbps

64-QAM@48/54Mbps and above, Rx up to 300Mbps

ENG 12-8

Note: This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates, uses

and can radiate radio frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be determined by turning the

equipment off and on, the user is encouraged to try to correct the interference by one or more of

* For the UQ17U, TQ15U, SQ17U, SQ15U and SQ10U models, the following measures:

Reorient or relocate the receiving antenna. Increase the separation between the equipment and

receiver. Connect the equipment into an outlet one circuit different from that to which the receiver

is connected. Consult the dealer or an experienced radio/TV technician for help.

Bluetooth

Notes on Radio Wave Certification in the U.S.A. and Canada

This device complies with part 15 of the FCC Rules. Operation is subject to the following two

conditions: (1) This device may not cause harmful interference, and (2) this device must accept

any interference received, including interference that may cause undesired operation.

"This transmitter must not be co-located or operated in conjunction with any other antenna or

transmitter."

FCC/INDUSTRY CANADA NOTICE

This device complies with Part 15 of FCC Rules and Industry Canada license-exempt RSS

standard(s). Operation is subject to the following two conditions: (1) this device may not cause

interference, and (2) this device must accept any interference, including interference that may

cause undesired operation of this device.

This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled

environment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to

OET65 and RSS-102 of the IC radio frequency (RF) Exprosure rules. This equipment has very low

levels of RF energy that are deemed to comply without testing of specific absorption ratio (SAR).

FCC CAUTION

Changes or modifications not expressly approved by Hosiden responsible for compliance could

void the user's authority to operate the equipment.

This Class B digital apparatus complies with Canadian ICES-003

Le present appareil est conforme aux la prtie 15 des regles de la FCC et CNR d'lndustrie Canada

applicables aux appareils radio exempts de licence. L'exploitation est autorisee aux deux

conditions suivantes : (1) !'appareil ne dolt pas produire de brouillage, et (2) I'uitilisateur de

I'appareil dolt accepter tout brouillage radioelectrique subi, m_me si le brouillage est susceptible

d'en compromettre le fonctionnement.

Cet equipement est conforme aux limites d'exposition aux rayonnements enonc6es pour un

environnement non contr61e et respecte les regles les radioelectriques (RF) de la FCC lignes

directrices d'exposition dens te Supplement C a OET65 et d'exposition aux frequences

radioelectriques (RF) CNR-102 de I'IC. Cet equipement emet une energie RF tres faible qui est

consider6e conforme sans evaluation du debit d'absorption specifique (DAS).

Cet appareil numerique de la classe Best conforme & la norme NMB-3 du Canada.

3D Glasses

Notas sobre la Certificaci6n de Radiodifusi6n en M_xico

• IFETEL: RCPHOAR14-0001

• Nombre de la marca del m6dulo con licencia: SHARP CORPORATION

• Nombre de modelo del m6dulo con licencia: ARC0557

• M6dulo ARC0557 instalado adentro de esta gafas

PRECAUCION

La operaci6n de este equipo esta sujeta alas siguientes dos condiciones: (1) es posible que este

equipo o dispositivo no cause interferencia perjudicial y (2) este equipo o dispositivo debe aceptar

cualquier interferencia, incluyendo la que pueda causar su operaci6n no deseada.

NQmero de licencia pare la certificaci6n de radiodifusi6n

Estados Unidos CONTAINS FCC ID: VlYARC0557

Canada CONTAINS IC: 7305A-ARC0557

ENG 12-9

• SmartCentral is a registered trademark of Sharp Corporation.

• Manufactured under license from Doiby Laboratories. Dolby and the double-D symbol

are trademarks of Dolby Laboratories.

• The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo

are trademarks or registered trademarks of HDMI Licensing LLC in the United States

and other countries.

• DivX®, DivX Certified®, DivX Plus® HD and associated Iogos are trademarks of Rovi

Corporation or its subsidiaries and are used under license.

• The Wi-Fi CERTIFIED Logo is a certification mark of the Wi-Fi Alliance.

• The Wi-Fi Protected Setup Mark is a mark of the Wi-Fi Alliance.

• Wi-Fi CERTIFIED Miracast TM and Miracast TM are trademarks of Wi-Fi Alliance.

• DLNA®, the DLNA Logo and DLNA CERTIFIED TM are trademarks, service marks, or

certification marks of the Digital Living Network Alliance.

• This product includes Home Networking Software 'DiXiM' developed by DigiOn, Inc.

• L C_-_' F, L C FONT, I/b_--7__ F and LC logo mark are

registered trademarks of SHARP Corporation.

This product is embedded with LC Font technology, which was developed by

SHARP Corporation for clearly displaying easy-to-read characters on LCD screens.

However, other fonts are used for some screen pages, too.

• "x.v.Color" and _lt are trademarks of Sony Corporation.

• ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, LLC, a

subsidiary of Rovi Corporation. This is an official DivX Certified® device that plays

DivX video. Visit divx.com for more information and software tools to convert your

flies into DivX videos.

• ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered

in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your

registration code, locate the DivX VOD section in your device setup menu. Go to

vod.divx.com for more information on how to complete your registration.

• Netflix and the Netflix logo are the registered trademarks of Netflix, Inc.

• VUDU TM is a trademark of VUDU, Inc.

• Manufactured under license under U.S. Patent Nos: 5,956,674; 5,974,380; 6,487,535

& other U.S. and worldwide patents issued & pending.

• DTS, the Symbol, & DTS and the Symbol together are registered trademarks & DTS

• MHL, the MHL Logo, and Mobile High-Definition Link are trademarks or registered

trademarks of MHL LLC in the United States and other countries.

• MHL TM

• The Bluetooth® word mark and Iogos are registered trademarks owned by Bluetooth

SIG, Inc. and any use of such marks by SHARP Corporation is under license. Other

trademarks and trade names are those of their respective owners.

• THX and the THX logo are trademarks of THX Ltd., registered in the United States

ENERGY STAR® User Information

(Except for LC-90LE657U)

• For more information on the ENERGY STAR program, you can refer to

energystar.gov.

• Leaving the ENERGY STAR home mode or enabling optional features will cause an

increase power consumed.

• This product qualifies for ENERGY STAR when "Home" is selected for "TV Location".

Setting "TV Location" to "Home"" allows the TV to achieve an energy-saving status

for household use.

Products that have earned the ENERGY STAR® are designed to

)rotect the environment through superior energy efficiency.

ENG 13-1

LC-80UQ17U

7I 55/_4 (1825}

69 4.Us.a(1 Z71,20)'_

82st:3;,

(223)

r'-4

"1 Active areat,_,rea activa/Zone active

*2 Thinnest part/PaRe mas delgada/Partie la plus mince

*3 Including projecting parts/Incluyendo pares salientes/Parties saillantes incluses

ENG 14-1

Unit: inch (mm)

Unite: pouce (mm)

Unidad: pulgada (ram)

LC-70UQ17U

i i

62 D/_s4(1578}

41 _'_/_4 / 105%

6 J '177

(1691

1;U_,2{29F2

4a/64(43)

2_ f_4 (59) 3

5_!1_4¢3851,

Unit: inch (mm)

Unite: pouce (mm)

Unidad: pulgada (ram)

_ ii

*-_'h 7i

24 29/:;4 (62t)

"1 Active areat,a,rea activa/Zone active

*2 Thinnest part/PaRe mas delgada/Partie la plus mince

*3 Including projecting parts/Incluyendo pares salientes/Parties saiNantes incluses

4 9/C4

{_09)

AN-_G4

ENG 14-2

LC-60UQ17U

54 _7/64{i378)

522/64@32912]_I

422 4!(,4 (575)

"1 Active areat,&rea activa/Zone active

*2 Thinnest part/PaRe mas deigada/Partie la plus mince

*3 Including projecting parts/Incluyendo pares salientes/Parties saiilantes incluses

ENG 14-3

6 2V32

1 5/32 (29)'2

::S_<

ii::

%£

i :,%:<?

! '#<'D_

::%<

4 I/32 :<:"

(I_0)

_-52A_

Unit: inch (mm)

Unite: pouce (mm)

Unidad: pulgada (mm)

LC-70TQ15U

60 19/72

62 9!c_a{1578)

1;h3&88 q

¢-%

25 7/3/_4, (640)

/_/16

[!79}

Unit: inch (mm)

Unite: pouce (mm)

Unidad: pulgada (mm)

i.......................!7=7¸¸!::::::::::::::::::::::::::::::::::::C:::C:::::::::i!:i.......

.: .,242_/64(62i)

"1 Active areatArea aotiva/Zone aotive

*2 Thinnest part/Parte mas delgada/Partie la plus minoe

*3 Including projecting parts/Incluyendo partes salientes/Parties saillantes inoluses

4 9/54

ANoS_G4

ENG 14-4

LC-60TQ15U

54 i7164 (1378)

r_,iii

Unit: inch (mm)

Unite: pouce (mm)

Unidad: pulgada (mm)

_J 22 4V64 (575)

"1 Active areat,g,rea activa/Zone active

*2 Thinnest part/PaRe mas delgada/Partie la plus mince

*3 Including projecting parts/Incluyendo pares salientes/Parties saillantes incluses ENG 14-5

i ¸!'<%%

'> ¢';7:;

; ,?O

:_Sk!:

:@2 ')%"

4 1!I,_2 :!

AN-5_Gi4

LC-70SQ17U/LC-70SQ15U/LC-70SQ10U/LC-70EQ10U

.....

39132@3)*3

62V_

@63}

Unit: inch (ram)

Unite: pouce (ram)

Unidad: pulgada (ram)

i_i_!_i_!!_ii!!iiiiii!!!!!!_iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii!i!i!i!_:!_

..................!_!'_!:i_:_!_!i!!_i_i!i!_;Sl_II...... ii::::k:_!

"1 Active areatArea activa/Zone active

*2 Thinnest part/PaRe mas delgada/Partie la plus mince

*3 Including projecting parts/Incluyendo pares salientes/Parties saillantes incluses ENG 14-6

; ii

AN -5_G4

LC-60SQ17U/LC-60SQ15U/LC-60SQ10U/LC-60EQ10U

"1 Active areat,g,rea activa/Zone active

*2 Thinnest part/PaRe mas delgada/Partie la plus mince

*3 Including projecting parts/Incluyendo pares salientes/Parties saillantes incluses ENG 14-7

(163)

i123)

,.--L (_:76).

AN-_G4

::<A

Unit: inch (mm)

Unite: pouce (mm)

Unidad: pulgada (ram)

LC-80LE650U

71 15/16 (1827)

..............[ o-o ::: :,:_: :::: o_

"1 Active areat,_,rea activa/Zone active

*2 Thinnest part/PaRe mas delgada/Partie la plus mince

*3 Including projecting parts/Incluyendo pares salientes/Parties saillantes incluses

ENG 14-8

Unit: inch (mm)

Unite: pouce (mm)

Unidad: pulgada (ram)

LC-70LE650U/LC-70C6500U

62 39/84 (1590}

19/32 (1538,88}

4, 25 13/64 (640} ,,.

15 3/4 {4_; L

_, 3 9/32 (83}'3

:::jt!:

5 1/8

Unit: inch (mm)

Unite: pouce (mm)

Unidad: pulgada (ram)

"1 Active areat,_,rea activa/Zone active

*2 Thinnest part/PaRe mas delgada/Partie la plus mince

*3 Including projecting parts/Incluyendo pares salientes/Parties saillantes incluses ENG 14-9

LC-60LE650U/LC-60C6500U

54 i9/¢ 4 (1379}

52 2!/_ (132&12)*

8 _/1 6 i (214)

! 7/64 (28)*2

iii!

4, i3/!6 6 i5/i6

Unit: inch (mm)

Unite: pouce (mm)

Unidad: pulgada (ram)

"1 Active areat,_,rea activa/Zone active

*2 Thinnest part/PaRe mas delgada/Partie la plus mince

*3 Including projecting parts/Incluyendo pares salientes/Parties saillantes incluses ENG 14-10

LC-90LE657U

Unit: inch (mm)

Unite: pouce (mm)

Unidad: pulgada (mm)

23 _/_(600)

"1 Active areat,_,rea activa/Zone active

*2 Thinnest part/PaRe mas delgada/Partie la plus mince

*3 Including projecting parts/Incluyendo pares salientes/Parties saillantes incluses

ENG 14-11

LC-80LE642U ..............2_:!_:_6._!_ Unit: inch (mm)

Unite: pouce (mm)

Unidad: pulgada (mm)

23 ;_./{6QO)

_CC"&T

......................... L

"1 Active areat,_,rea activa/Zone active

*2 Thinnest part/Parte mas delgada/Partie la plus mince

*3 Including projecting parts/Incluyendo partes salientes/Parties saillantes incluses

ENG 14-12

SHARP ELECTRONICS CORPORATION

Sharp P_a, Mahwah New Jersey 07495-1163

SHARP CORPORATION

Sharp LC 60EQ10U User Manual LCD TELEVISION Manuals And Guides 1403513L

Navigation menu

Versions of this User Manual:

Views

Navigation
