MX-EB13
WIRELESS LAN USB ADAPTER DATA SHEET

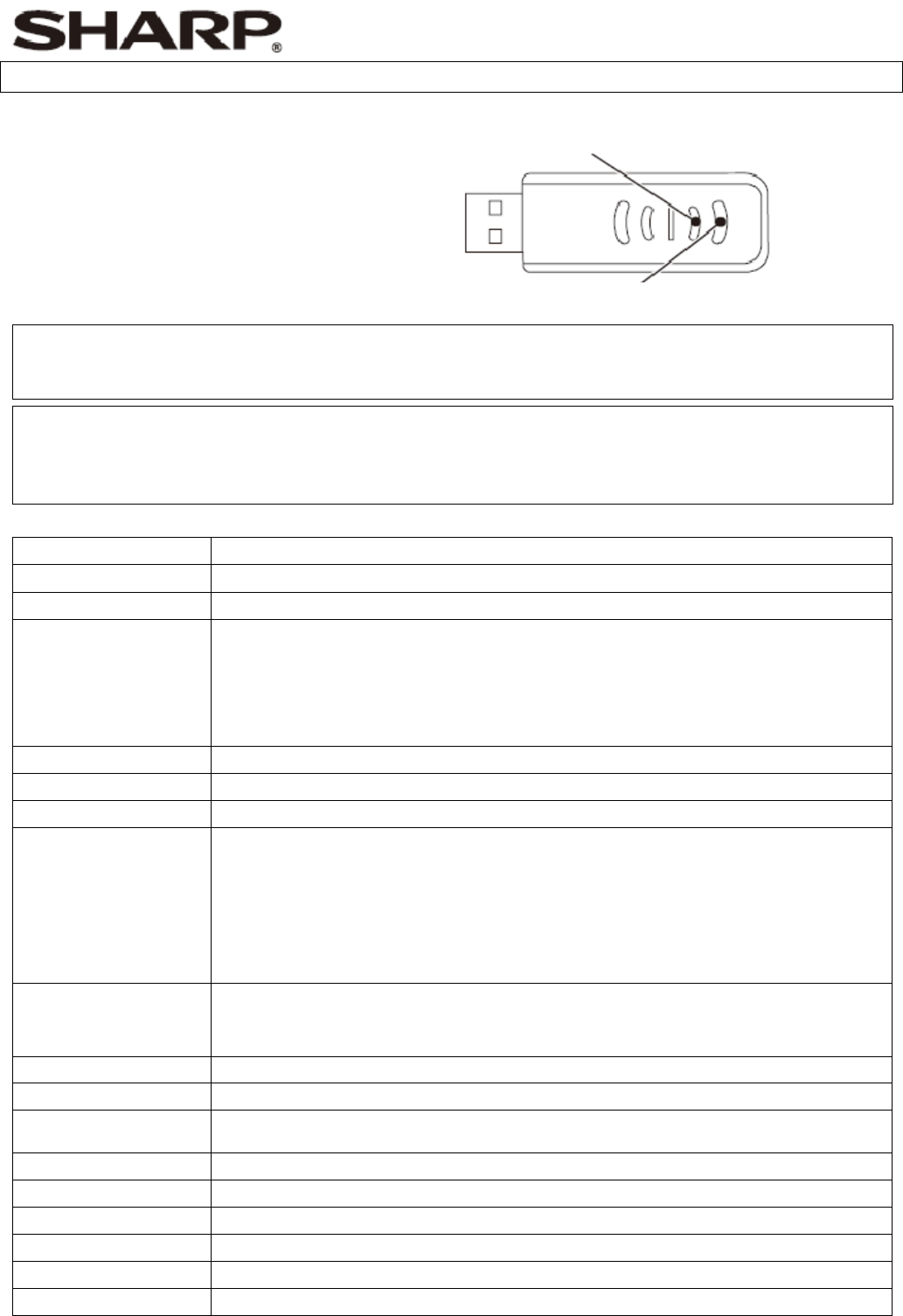

PART NAMES AND FUNCTIONS
ADAPTOR SPECIFICATIONS
Model
MX-EB13
Type
Wireless LAN USB Adapter
Standards
IEEE 802.11n/g/b
Wireless Signal Rates With
Automatic Fallback
11n: 6.5/13/19.5/26/39/52/58.5/65Mbps (20MHz BW, Long Guard interval)
7.2/14.4/21.7/28.9/43.3/57.8/65/72.2Mbps (20MHz BW, Short Guard interval)
13.5/27/40.5/54/81/108/121.5/135Mbps (40MHz BW, Long Guard interval)
15/30/45/60/90/120/135/150Mbps (40MHz BW, Short Guard interval)
11g: 6/9/12/18/24/36/48/54Mbps
11b: 1/2/5.5/11Mbps
Wireless Frequency Range
2.400GHz to 2.483.5GHz
Protocol
TCP/IP
Channel Number
Ch1-11
Receiver sensitivity
54M: -74dBm(typ) -65dBm(max)
11M: -90dBm(typ) -76dBm(max)
6M: -91dBm(typ) -82dBm(max)
1M: -95dBm(typ) -80dBm(max)
MCS 0(20MHz):-89dBm(typ) -80dBm(max)
MCS 7(20MHz):-70dBm(typ) -63dBm(max)
MCS 0(40MHz):-87dBm(typ) -77dBm(max)
MCS 7(40MHz):-68dBm(typ) -59dBm(max)
Spread Spectrum Method
Orthogonal Frequency Division Multiplexing (OFDM)
(64QAM,16QAM,DQPSK,DBPSK)
Direct Sequence Spread Spectrum(DSSS)
(CCK,DQPSK,DBPSK)
Power
5V Bus powers
Wireless Transmit Power
Max. 19dBm
Security
WPA2-PSK(AES),WPA2-EAP(AES),WPA-PSK(TKIP/AES)
WPA-EAP(TKIP/AES),WEP(128/64bit)
Bus Interface
USB 2.0
Antenna Integrated internal antenna
Emissions CE,FCC,IC
Package Content Wireless LAN Adapter , Manual
Dimensions (W x D x H) 22.5x64x9.6mm
Weight Approx.11g
LED indicator 1
When this indicator is blinking, the adaptor is communicating.
When this indicator is blinking slowly, the adaptor is not communicating or no connection is established.
LED indicator 2
When this indicator is lit, a connection is established.
When this indicator is blinking fast, the wireless setting is enabled
or no connection is established.
When this indicator is blinking slowly, the wireless setting is disabled.
LED1
LED2
Wireless LAN USB Adapter
