DIGITAL MULTIFUNCTIONAL

SYSTEM

OPERATION MANUAL

(for general information)

Page

PREPARATIONS

LOADING PAPER

MAKING COPIES

SET UP THE SOFTWARE

PRINTER/SCANNER

FUNCTIONS

USER SETTINGS

TROUBLESHOOTING AND

MAINTENANCE

CONVENIENT COPY

FUNCTIONS 26

OPTIONAL EQUIPMENT

APPENDIX

AR-168S

AR-168D

MODEL

AR-168D

AR-168S

ED IN CHINA

TINSE1205QSZZ

2003M 1

For users in the USA

Do not make copies of anything which is prohibited from copying by law. The

following items are normally prohibited from copying by national law. Other

items may be prohibited by local law.

Money Stamps Bonds Stocks Bank drafts

Checks Passports Driver's licenses

FOR YOUR RECORDS ...

To protect against loss theft, record and retain for reference the

copier's serial number located on the back of the unit.

Model Number

Serial Number

Date of Purchase

Authorized Sharp Copier

Service Department Number

NOTICE

BE SURE TO ASK YOUR AUTHORIZED SHARP DEALER ABOUT THE WARRANTY THAT YOUR

SELLING DEALER EXTENDS TO YOU. In order to assure you, the end-user, of warranty protection,

Sharp extends a limited warranty to each of its authorized dealers and, in turn, requires each of its

authorized dealers to extend its own warranty to you on terms that are no less favorable than those

given to the dealer by Sharp. You should be aware, however, that Sharp does not itself extend any

warranties, either express or implied, directly to you, the end-user, and no one is authorized to make

any representations or warranties on behalf of Sharp. Specifically, SHARP DOES NOT EXTEND TO

YOU, THE END-USER, ANY EXPRESS WARRANTY OR ANY IMPLIED WARRANTY OF

MERCHANTABILITY, FITNESS FOR USE OR FITNESS FOR ANY PARTICULAR PURPOSE IN

CONNECTION WITH THE HARDWARE, SOFTWARE OR FIRMWARE EMBODIED IN, OR USED

IN CONJUNCTION WITH THIS PRODUCT. Sharp is not responsible for any damages or loss, either

direct, incidental or consequential, which you, the end-user, may experience as a result of your

purchase or use of the hardware, software or firmware embodied in or used in conjunction with this

Product. Your sole remedy, in the event that you encounter any difficulties with this Product, is

against the authorized dealer from which you purchased the Product.

AR-168S Digital Multifunctional System

AR-168D Digital Multifunctional System

In the event that this authorized dealer does not honor its warranty commitments, please contact the

General Manager, Business Products Group, Sharp Electronics Corporation, Sharp Plaza, Mahwah,

NJ07430-2135, so that Sharp can try to help assure complete satisfaction of the warranty rights to

which you are entitled from the authorized dealer.

CAUTIONS................................................................................................................ 3

ENVIRONMENTAL INFORMATION ......................................................................... 5

INTRODUCTION....................................................................................................... 6

MAIN FEATURES ..................................................................................................... 7

1PREPARATIONS

PART NAMES ................................................................................................... 9

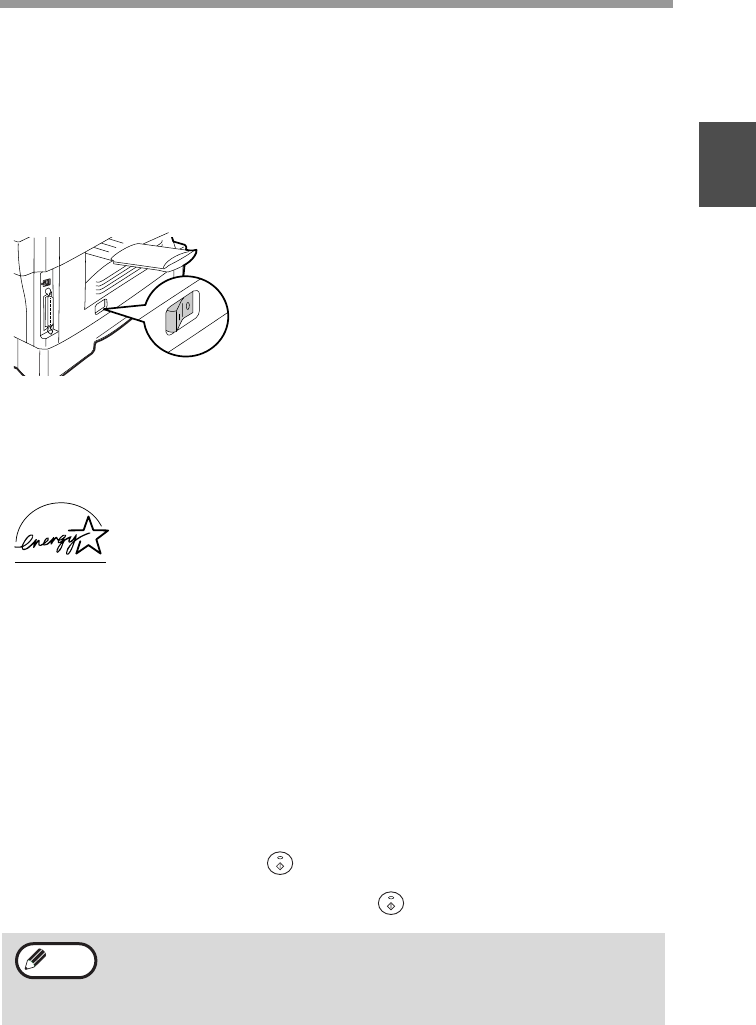

POWER ON AND OFF.................................................................................... 12

2LOADING PAPER

PAPER ............................................................................................................ 14

LOADING THE PAPER TRAY ........................................................................ 15

BYPASS FEED (including special paper)........................................................ 17

CHANGING A TRAY'S PAPER SIZE SETTING ............................................. 19

3MAKING COPIES

NORMAL COPYING........................................................................................ 20

SELECTING THE TRAY ................................................................................. 23

MAKING A COPY DARKER OR LIGHTER..................................................... 24

REDUCTION/ENLARGEMENT/ZOOM........................................................... 25

4CONVENIENT COPY FUNCTIONS

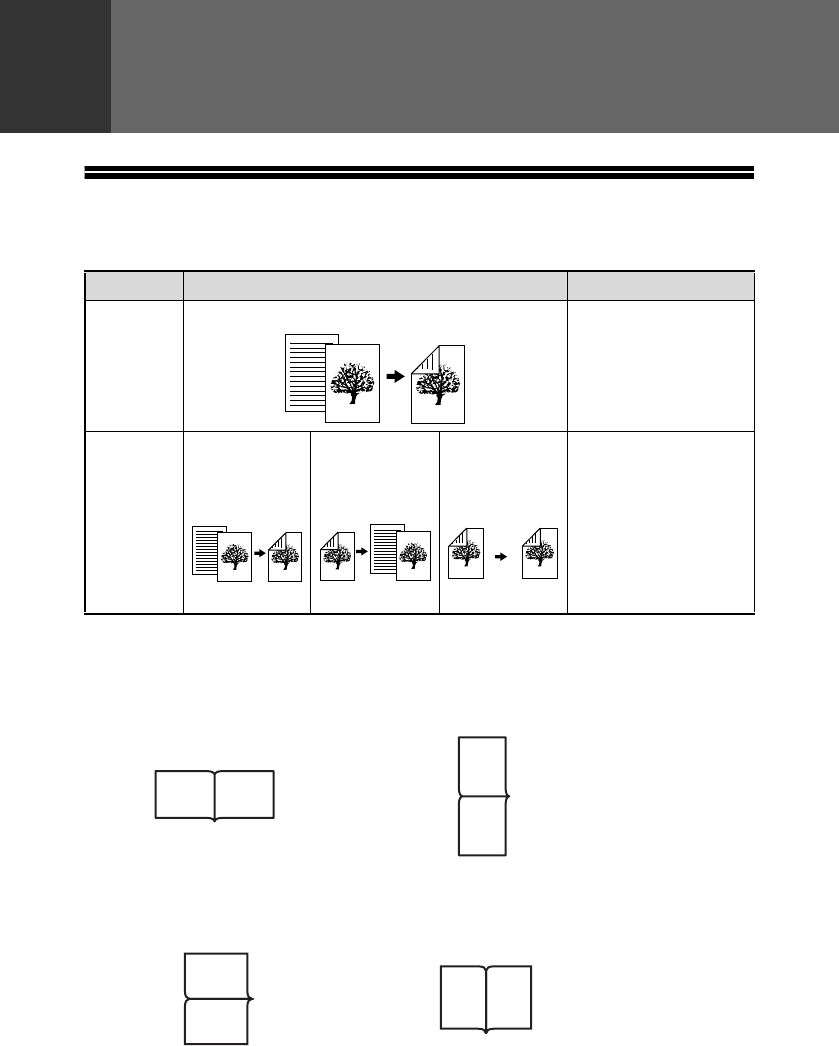

AUTOMATIC TWO-SIDED COPYING (AR-168D only) .................................. 26

SORT COPY ................................................................................................... 29

COPYING MULTIPLE ORIGINALS ONTO A SINGLE SHEET OF PAPER

(2 IN 1 copy) .................................................................................................... 31

CREATING MARGINS WHEN COPYING (Margin shift)................................. 34

5SET UP THE SOFTWARE

SOFTWARE FOR AR-168S/168D .................................................................. 36

BEFORE INSTALLATION ............................................................................... 37

INSTALLING THE SOFTWARE...................................................................... 38

SETTING UP BUTTON MANAGER................................................................ 51

CONNECTING THE MACHINE TO YOUR COMPUTER................................ 55

CONTENTS

6PRINTER/SCANNER FUNCTIONS

USING THE PRINTER MODE ........................................................................ 58

BASIC PROCEDURE FOR PRINTING ........................................................... 58

USING THE SCANNER MODE....................................................................... 59

SCANNING USING THE KEYS ON THE MACHINE ...................................... 59

SCANNING FROM YOUR COMPUTER......................................................... 60

OPERATION IN COPY, PRINTER, AND SCANNER MODES ....................... 60

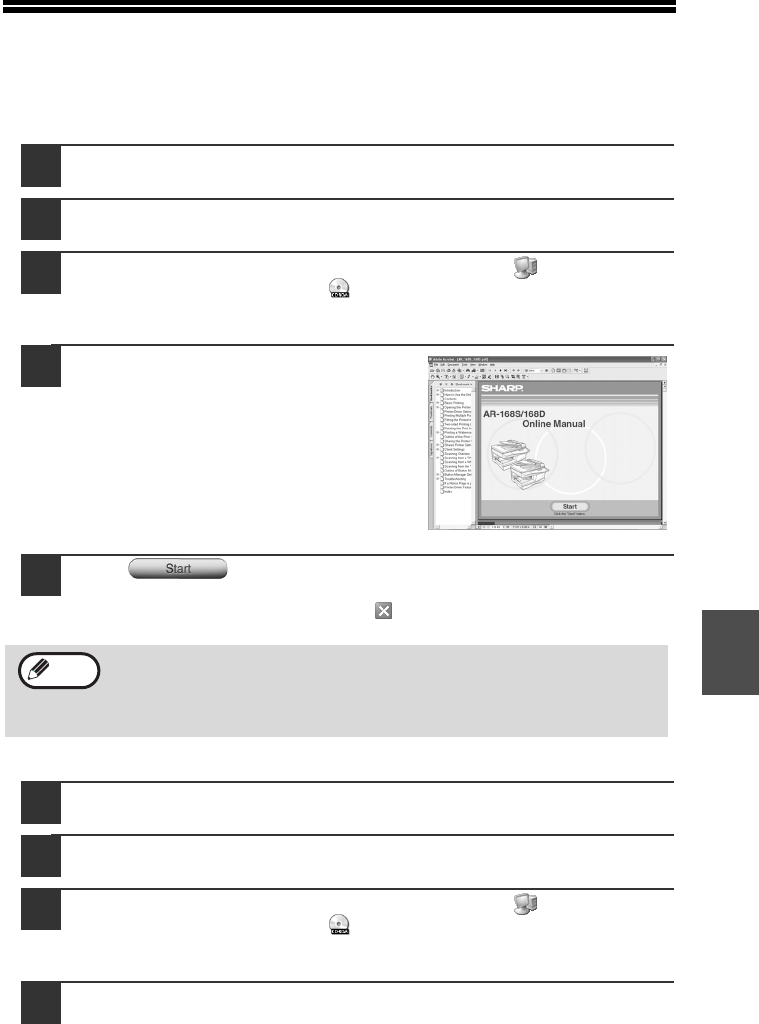

HOW TO USE THE ONLINE MANUAL........................................................... 61

7USER SETTINGS

USER PROGRAMS......................................................................................... 62

SELECTING A SETTING FOR A USER PROGRAM...................................... 67

8TROUBLESHOOTING AND MAINTENANCE

DISPLAY MESSAGES .................................................................................... 69

TROUBLESHOOTING THE MACHINE........................................................... 71

PROBLEMS DURING SETUP THE SOFTWARE........................................... 75

MISFEED REMOVAL...................................................................................... 79

TONER CARTRIDGE REPLACEMENT.......................................................... 83

SCAN HEAD LOCKING SWITCH ................................................................... 86

CHECKING THE TOTAL COUNT................................................................... 87

MAINTENANCE REQUIRED .......................................................................... 87

CLEANING THE MACHINE ............................................................................ 88

9OPTIONAL EQUIPMENT

SYSTEM CONFIGURATION........................................................................... 90

FACSIMILE EXPANSION KIT (AR-FX9)......................................................... 90

NETWORK EXPANSION KIT (AR-NB2 N) ..................................................... 90

250-SHEET PAPER FEED UNIT (AR-D16).................................................... 90

10 APPENDIX

SPECIFICATIONS........................................................................................... 92

SOFTWARE LICENSE.................................................................................... 97

MATERIAL SAFETY DATA SHEET................................................................ 99

INDEX............................................................................................................ 107

CAUTIONS

Caution label on the machine

The label ( ) in the fusing area of the machine indicates the following:

: Caution, risk of danger

: Caution, hot surface

Cautions on using the machine

Follow the cautions below when using this machine.

Warning:

• The fusing area is hot. Exercise care in this area when removing misfed paper.

• Do not look directly at the light source. Doing so may damage your eyes.

• Do not switch the machine rapidly on and off. After turning the machine off, wait 10

to 15 seconds before turning it back on.

• Machine power must be turned off before installing any supplies.

Caution:

• Place the machine on a firm, level surface.

• Do not install the machine in a humid or dusty location.

• When the machine is not used for a long time, for example for consecutive

holidays, turn the power switch off and remove the power cord from the outlet.

• When moving the machine, be sure to turn the power switch off and remove the

power cord from the outlet.

• Do not cover the machine with a dust cover, cloth or plastic film while the power is

on. Doing so may prevent heat radiation, damaging the machine.

• Use of controls or adjustments or performance of procedures other than those

specified herein may result in hazardous radiation exposure.

• The socket-outlet shall be installed near the machine and shall be easily

accessible.

Important points when selecting an installation site

Do not install your machine in areas that are:

• damp, humid, or very dusty

• exposed to direct sunlight

• poorly ventilated

• subject to extreme temperature or humidity changes, e.g., near an air conditioner

or heater.

Be sure to allow the required space around the

machine for servicing and proper ventilation. 8" (20cm)

(10cm)

Cautions on handling the machine

Be careful in handling the machine as follows to maintain the performance of this

machine.

Do not drop the machine, subject it to shock or strike it against any object.

Do not drop the unit, subject it to shock or strike it against any object.

Store spare toner cartridges in a cool dry place without removing from the

package before use.

• If they are exposed to direct sunlight or excessive heat, poor copies may result.

Do not touch the photoconductive drum (green portion).

• Scratches or smudges on the drum will cause dirty copies.

Trademark acknowledgements

•Microsoft

® Windows® operating system is a trademark or copyright of Microsoft

Corporation in the U.S.A. and other countries.

• Windows® 95, Windows® 98, Windows® Me, Windows NT® 4.0, Windows® 2000,

and Windows® XP are trademarks or copyrights of Microsoft Corporation in the

U.S.A. and other countries.

• IBM and PC/AT are trademarks of International Business Machines Corporation.

• Acrobat® Reader Copyright

1987- 2002 Adobe Systems Incorporated. All rights

reserved. Adobe, the Adobe logo, Acrobat, and the Acrobat logo are trademarks of

Adobe Systems Incorporated.

• All other trademarks and copyrights are the property of their respective owners.

ENVIRONMENTAL INFORMATION

For users in the USA

For users in Canada

As an ENERGY STAR® Partner, SHARP has determined that

this product meets the ENERGY STAR® guidelines for energy

efficiency.

Safety precautions:

This Digital Copier is rated Class 1 and complies with 21 CFR 1040.10 and

1040.11 of the CDRH standards. This means that the unit does not produce

hazardous laser radiation. For your safety, observe the precautions below.

• Do not remove the cabinet, operation panel or any other covers.

• The unit’s exterior covers contain several safety interlock switches. Do not

bypass any safety interlock by inserting wedges or other items into switch slots.

A small amount of ozone is produced within the unit during operation. The

emission level is insufficient to cause any health hazard.

Note:

The present recommended long term exposure limit for ozone is 0.1ppm

(0.2mg/m3) calculated as an 8hr. time-weighted average concentration.

However, since the small amount that is emitted may have an objectionable odor, it

is advisable to place the unit in a ventilated area.

The Environmental Choice Program guidelines are applied to

the products only in Canada. The products that meet the

Environmental Choice Program guidelines carry the logo

shown to the left. The products without the logo may not meet

the Environmental Choice Program guidelines.

USB 2.0 compatible

When connecting the machine by USB 2.0 (Hi-Speed mode),

be sure to read "System requirements for USB 2.0 (Hi-Speed

mode)" (p.57) to verify that your system and the machine

settings are configured appropriately.

INTRODUCTION

Using the manual

This machine has been designed to provide convenient copying features in a

minimum amount of office space and with maximum operational ease. To get full use

of all machine features, be sure to familiarize yourself with this manual and the

machine. For quick reference during machine use, keep this manual in a handy

location.

About the operation manuals

The operation manuals for the machine are as follows:

Operation Manual (this manual)

Explains the machine and how to use it as a copier. Also explains how to install the

software that allows the machine to be used as a printer and scanner for your

computer.

Online Manual (on the accessory CD-ROM)

This manual explains the procedures for using the machine as a printer or a

scanner.

Conventions used in this manual and online manual

• The illustrations in this manual show the AR-168D. The appearance of your

machine may be different depending on the model and options installed, however,

the basic operations are the same.

• Where "AR-XXXX" appears in this manual, please substitute the name of your

model for "XXXX". For the name of your model, see the operation panel on the

machine.

• Illustrations of driver screens and other computer screens show the screens that

appear in Windows XP Home Edition. Some of the names that appear in these

illustrations may differ slightly from the screens that appear in other operating systems.

• The explanations in this manual assume that the person who will install the product

and the users of the product have a working knowledge of Microsoft Windows.

• This operation manual refers to the Single Pass Feeder as the "SPF", and the

Reversing Single Pass Feeder as the "RSPF".

• In this manual, the following icons are used to provide the user with information

pertinent to the use of the machine.

Some model may not be available in some countries.

Warns that injury may result if the contents of the warning are

not properly followed.

Cautions that damage to the machine or one of its components may

result if the contents of the caution are not properly followed.

Notes provide useful information on the specifications, functions,

performance, and operation of the machine.

The display screens, messages, and key names shown in the manual may differ

from those on the actual machine due to product improvements and modifications.

Note

Warning

Caution

Note

Difference between models

This manual covers the following models.

MAIN FEATURES

High-speed laser copying

First-copy time*1 at 300 dpi*2 is only 9.6 seconds.

Copying speed is 16 copies per minute. This is ideal for business use and provides a

big boost to workplace productivity.

*1The copy time in the case when the power is turned on and copying using the

document glass is started immediately after the power save indicator goes off (A4,

paper fed from paper tray).

The first-copy time may vary depending on machine operating conditions and

ambient conditions such as temperature.

*2"dpi" ("dots per inch") is unit that is used to measure resolution. Resolution

indicates how much detail can be reproduced in a printed or scanned image.

High-quality digital image

• High-quality copying at 600 dpi is performed.

• In addition to automatic exposure adjustment, two original modes can be selected:

"TEXT" for text-only originals, and "PHOTO" for photographs. The exposure can

be adjusted to five levels in each mode.

• The photo mode copying function allows clear copying of delicate halftone original

images such as monochrome photos and color photos.

Model AR-168D AR-168S

Appearance

Automatic two-sided

copying/printing

Available Not available

SPF/RSPF RSPF SPF

Enhanced copying features

• Zoom copies can be made from 25% to 400% in increments of 1%. (When the

SPF/RSPF is being used, the zoom copy ratio range is 50% to 200%.)

• Continuous copying of up to 99 copies is possible.

• Sets of output can be offset from each other for easy separation (offset function).

• Sorting by sets is possible without the need for a sorter or other special device

(Sort copy).

• Includes convenient features such as margin shift, 2 IN 1 copy, and automatic two-

sided copying.

Scan once/Print many

• The machine is equipped with a memory buffer allowing the machine to scan an

original once and make up to 99 copies of the scanned image. This improves

workflow, reduces operating noise from the machine and reduces wear and tear

on the scanning mechanism, which provides for a higher reliability.

LCD panel displays messages

• The LCD panel displays messages that show function settings and the status of

the machine.

Laser printer function

• The accompanying printer driver can be installed to enable use of the machine as

a printer.

Color scanner function

• The accompanying scanner driver can be installed and the machine connected to

a computer using a USB cable to enable use as a scanner.

Fax function (option)

• The optional Facsimile Expansion Kit can be installed to enable the machine to be

used as a fax machine. (Facsimile Expansion Kit Operation Manual)

Network connection (option)

• The optional Network Expansion Kit can be installed to enable the machine to be

used as a network printer and network scanner. (Network Expansion Kit Operation

Manual)

Environment and people friendly design

• Preheat mode and auto power shut-off mode are provided to reduce power

consumption when the machine is not in use.

• A universal design has been implemented in the product whereby the height of the

operation panel and shape of the keys are designed to be usable by as many

people as possible.

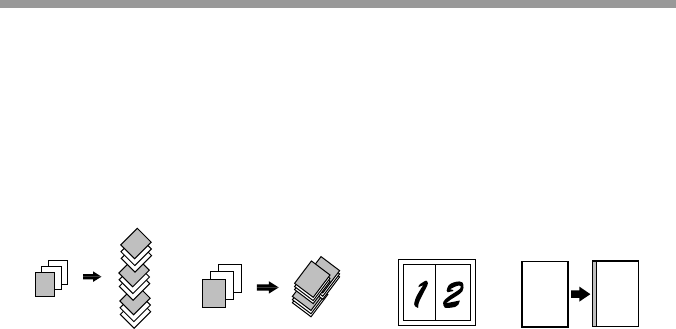

Margin shift

Sort copy Offset function 2 IN 1 copy

1Chapter 1

This chapter provides basic information that you should know before using the machine.

PART NAMES

The following illustration shows the part names of the AR-168D.

The illustrations in this manual show the AR-168D. The appearance of

your machine may be different depending on the model, however, the

basic operations are the same.

Document glass Paper output tray extension

Operation panel Power switch

Front cover Handles

Paper tray Power cord

Side cover

Fusing unit release lever

Side cover open button Transfer charger

Bypass tray paper guides Charger cleaner

Paper output tray Paper holder arm

Note

Photoconductive

drum

SPF/RSPF

Exit area

Reversing tray (RSPF only)

Bypass tray

Original guides

Document feeder tray

Document

feeder cover

Toner cartridge

Interface

USB

connector

Parallel

connector

PREPARATIONS

Operation panel

[MODE SELECT] key / Mode indicators

Press this key to select the mode. The

indicator of the selected mode lights (copy,

printer, scanner, fax mode indicators).

Display

This shows messages indicating the

machine status and any problems that

occur, as well as user programs and

function setting menus.

Numeric keys

Use these to enter the number of copies

and other numerical settings.

The keys can also be used to select

items in function setting menus.

[CLEAR] key ( )

Use this to clear the set number of

copies, as well as cancel a job that is in

progress. When a setting menu appears,

use this key to move back to the

previous menu level.

Power save indicator

This lights up when the power save

function is activated.

SPF/RSPF indicator

This lights up when an original is placed

in the SPF/RSPF.

Error indicator

This lights steadily or blinks when a

paper misfeed or other error occurs.

[TRAY SELECT] key ( )

Use to select the paper tray that has the

desired paper for copying.

Tray location indicator

Indicates the selected paper tray. The

indicator blinks when the tray is out of

paper or is not closed.

[MENU] key

Press this key to select the paper size for

copying, to configure a user program or

to display the total count.

[2-SIDED COPY] key (AR-168D only)

Press to select the automatic two-sided

copying mode.

[E-SORT/SP.FUN] key

Press to select the sort function, 2 IN 1

copy function, or margin shift function.

[ ] key ( ), [ ] key ( ),

[ENTER] key

Press the [ ] key ( ) or [ ] key

( ) to select an item in a function setting

menu.

Press the [ENTER] key to enter a selection.

[EXPOSURE] key

Use to switch from auto exposure

adjustment to text mode or photo mode.

AR-168D

6 7 8 9

10 11 12 13 14 15

1 2

PREPARATIONS

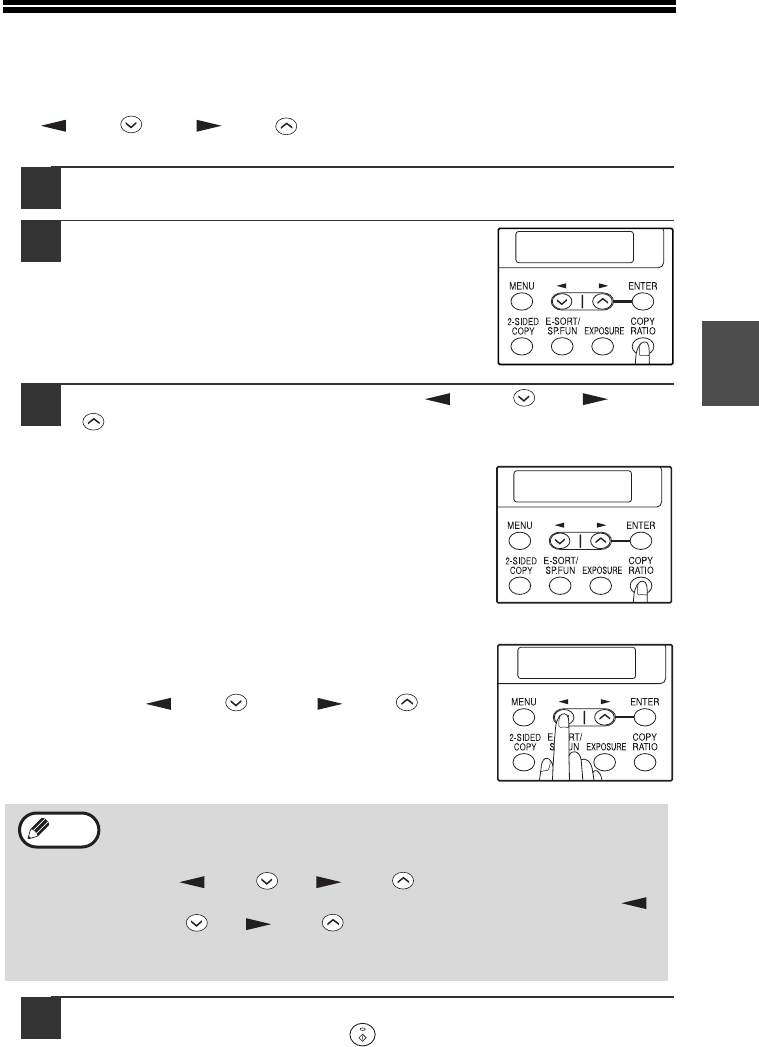

[COPY RATIO] key

Press to select an enlargement or

reduction ratio.

To select a preset ratio setting, press the

[COPY RATIO] key and select the

desired preset ratio. To select a ratio

that is not preset, press the [COPY

RATIO] key, select the preset ratio that

is closest to the desired ratio, and then

press the [ ] key ( ) or [] key

( ) to increase or decrease the ratio in

increments of 1%.

[START] key ( ) / Ready indicator

The ready indicator lights up when

copying or scanning is possible.

To begin copying, press the [START]

key ( ).

The [START] key ( ) is also pressed

to return to normal operation from auto

power shut-off mode.

[CLEAR ALL] key ( )

This returns all functions to the default

settings. When pressed in a setting

menu, this returns the settings and

display to the initial state.

Shows the current copy ratio.

Shows the selected paper size.

Shows the number of copies that has

been entered with the numeric keys.

A checkmark " " appears when the

exposure has been changed, or when

two-sided copying, sort, 2 IN 1, or

margin shift is selected.

READY TO COPY.

100% 8.5x11 0

Display

16 17 18 19 20 21

3 4 5

POWER ON AND OFF

The power switch is located on the left side of the machine.

Power on

Turn the power switch to the "ON" position.

The ready indicator will light up and other

indicators which show the initial settings of the

display will also light up to indicate the ready

condition. For the initial settings, see the

"Initial settings" (below).

You can select copy settings and press the [START] key ( ) during warm-up.

Copying will start after warm-up.

Language setting

The first time the power is turned on after shipment from the factory, a message will

appear in English in the display prompting you to select the language. Select the

language with the [ ] key ( ) or [ ] key ( ) and then press the [ENTER] key.

The language can also be changed in the user programs (p.65).

Initial settings

The machine reverts to the initial settings when it is first turned on, when the [CLEAR

ALL] key ( ) is pressed, or when no keys are pressed for the preset "AUTO

CLEAR" time following the end of a copy job. When the machine reverts to the initial

settings, all settings and functions selected to that point are canceled. The "AUTO

CLEAR" can be changed in the user programs. (p.62)

If you use the machine in a country other than the country

where the machine was purchased, you will need to make sure

that your local power supply is compatible with your model. If

you plug the machine into an incompatible power supply,

irreparable damage to the machine will result.

Only insert the power cord into a properly grounded wall socket.

Do not use extension cords or power strips.

Copy ratio: 100%, Exposure: Automatic

Copy quantity: 0, All special copier modes: Off

Warning

Caution

AR-168D

FAX

The main screen of copy mode appears.

READY TO COPY.

100% 8.5x11 0

When in the copy mode

PREPARATIONS

About the scan head

The scan head lamp remains on constantly when the machine is in the ready

condition (when the ready indicator is illuminated).

The machine adjusts the scan head lamp periodically to maintain copying quality. At

this time, the scan head moves automatically. This is normal and does not indicate

machine trouble.

Power off

Make sure that the machine is not in operation and then turn the power

switch to the "OFF" position.

If the power switch is turned off while the machine is

in operation, a misfeed may occur and the job that

was in progress will be canceled.

In cases where the machine will not be used for a

long time, turn off the power switch and remove the

power cord from the outlet.

Check the following to make sure the machine is not in operation:

•The ready indicator is lit. (Initial state)

•The power save indicator is lit. (preheat mode or auto shut-off mode)

Power save modes

Preheat mode

This function automatically switches the machine to a low power consumption state if

the set duration of time elapses without the machine being used when the power is

on. In this mode, the power save indicator lights up. Normal operation automatically

resumes when a key on the operation panel is pressed, an original is placed, a print

job is received.

Auto power shut-off mode

This function automatically switches the machine to a state that consumes even less

power than preheat mode if the set duration of time elapses without the machine being

used when the power is on. The power save indicator lights up, the display shows a

message indicating that the machine is in auto power shut-off mode. To resume normal

operation, press the [START] key ( ). Normal operation also resumes automatically

when a print job is received or scanning is begun from a computer. While in auto power

shut-off mode, no keys (except the [START] key ( )) can be used.

The machine has two power save modes to reduce overall power

consumption and thereby reduce the cost of operation. In addition,

these modes conserve natural resources and help reduce

environmental pollution. The two power save modes are preheat

mode and auto power shut-off mode.

The preheat activation time and the auto power shut-off time can be

changed with "PREHEAT MODE" and "AUTO SHUT-OFF TIME" in the

user programs. It is suggested that you set times that are appropriate

for your usage of the machine. (p.62)

Note

2Chapter 2

The tray location indicator will blink when there is no paper in the selected paper

tray, or when the selected paper tray is not installed or is improperly installed.

PAPER

For best results, use only SHARP recommended paper.

*1The number of sheets of paper that can be loaded varies depending on the weight of

the paper.

*2Do not use non-standard envelopes or envelopes that have metal clasps, plastic

snappers, strings, windows, linings, self-adhesive strips, patches or synthetic materials.

Do not use envelopes that are filled with air or envelopes that have labels or stamps

attached. These will damage the machine.

*3When loading paper larger than 8-1/2" x 11" (A4) size, do not use paper of weight

greater than 28 lbs. (105 g/m2 ).

Paper tray type Paper type Size Weight Capacity

Paper tray Standard paper

Recycled paper

5-1/2" x 8-1/2"

(Invoice)

8-1/2" x 11" (Letter)

8-1/2" x 13"

(Foolscap)

8-1/2" x 14" (Legal)

15 lbs. to 21 lbs.

(56 g/m2 to

80 g/m2)

250 sheets *1

(The paper

should not

exceed the

line on the

tray)

Bypass tray Standard paper

Recycled paper

3-1/2" x 5-1/2" to

8-1/2" x 14"

15 lbs. to 21 lbs.

(56 g/m2 to

80 g/m2)

50 sheets *1

Thick paper 14 lbs. to 34.5 lbs.

(52 g/m2 to

128 g/m2)*3

Load one

sheet at a

time in the

bypass tray.

Transparency

film/Labels

Envelopes *2Monarch

(3-7/8" x 7-1/2")

Commercial 9

(3-7/8" x 8-7/8")

Commercial 10

(4-1/8" x 9-1/2")

LOADING PAPER

Special papers

Follow these guidelines when using special papers.

●Use SHARP recommended transparency film and label sheets. Using other

than SHARP recommended paper may result in misfeeds or smudges on

the output. If other than SHARP recommended media must be used, feed

each sheet one at a time using the bypass tray (do not attempt continuous

copying or printing).

●There are many varieties of special paper available on the market, and

some cannot be used with this machine. Before using special paper,

contact a SHARP service center.

●Before using other than SHARP recommended paper, make a test copy to

see if the paper is suitable.

LOADING THE PAPER TRAY

1Raise the handle of the paper tray

and pull the paper tray out until it

stops.

2Fan the paper and insert it into the tray. Make sure that the

edges go under the corner hooks.

Make sure that the paper is not torn, is free of dust, and has no wrinkles

or curled edges.

•Do not load paper above the maximum height line ( ).

Exceeding the line will cause a paper misfeed.

•If the paper is not fanned, double-feeds or misfeeds may occur.

•Make sure the stack of paper is straight before loading it. When

adding paper, take the remaining paper out and combine it into a

single stack with the new paper.

•Make sure that all the paper in the stack is the same size and type.

•When loading paper, ensure that there is no space between the

paper and the guide, and make sure that the guide is not set too

narrow and causes the paper to bend. Incorrect loading will cause the

paper to skew or misfeed.

Note

LOADING PAPER

3Gently push the paper tray back into the machine.

•If you loaded a different size of paper than was loaded previously in

the tray, go to "CHANGING A TRAY'S PAPER SIZE SETTING"

(p.19)

•When not using the machine for an extended period, remove all

paper from the paper tray and store it in a dry place. If paper is left in

the machine for an extended period, the paper will absorb moisture

from the air, resulting in paper jams.

Note

BYPASS FEED (including special paper)

The bypass tray can be used to feed standard paper, transparency film, labels,

envelopes, and other special purpose paper.

Important points when inserting paper in the bypass tray

Up to 50 sheets of standard copy paper can be inserted in the bypass tray. (Capacity

will vary depending on the type of paper loaded.)

Be sure to place envelopes horizontally as shown in the following diagram.

•When loading envelopes, make sure that they are straight and flat and do not have

loosely glued construction flaps (not the closure flap).

•Special papers except SHARP recommended transparency film, labels, and

envelopes must be fed one sheet at a time through the bypass tray.

•When adding paper, first remove any paper remaining in the tray, combine it with

the paper to be added and then reload as a single stack. The paper to be added

must be the same size and type as the paper already in the tray.

•Do not use paper that is smaller than the original. This may cause smudges or

unclean images.

•Do not use paper that has already been printed on by a laser printer or plain paper

fax machine. This may cause smudges or unclean images.

Envelopes

Do not use the following envelopes, as misfeeds will occur.

•Envelopes with metal tabs, clasps, strings, holes, or windows.

•Envelopes with rough fibers, carbon paper, or glossy surfaces.

•Envelopes with two or more flaps.

•Envelopes with tape, film, or paper attached to the flap.

•Envelopes with a fold in the flap.

•Envelopes with glue on the flap to be moistened for sealing.

•Envelopes with labels or stamps.

•Envelopes that are slightly inflated with air.

•Envelopes with glue protruding from the seal area.

•Envelopes with part of the seal area peeled off.

•Be sure to select com9, com10 or Monarch in the paper size setting of the printer

driver. (For detailed information on the printer driver, refer to the online manual.)

Available Not

Available

LOADING PAPER

Loading paper in the bypass tray

1Open the bypass tray and extend the tray.

2Set the bypass tray paper guides to the paper width. Insert the

paper (print face down) all the way into the bypass tray.

3Press the [TRAY SELECT] key ( ) to select the bypass tray.

•Paper must be fed narrow side first into the feed slot.

•Special papers such as transparency film, labels, and envelopes

must be fed one sheet at a time through the bypass tray.

•When copying onto transparency film, remove each copy promptly.

Do not let copies stack up.

To close the bypass

tray, perform step 1

and then step 2 in

the illustration and

push the round

projections at the

right of the tray until

they click.

Note

Print face

CHANGING A TRAY'S PAPER SIZE SETTING

Follow these steps to change a tray's paper size setting.

1Press the [MENU] key.

Press the [ ] key ( ) or [ ] key ( ) until "PAPER SIZE"

appears, and then press the [ENTER] key.

2Press the [ ] key ( ) or [ ] key ( ) to

select the tray, and then press the

[ENTER] key.

3Press the [ ] key ( ) or [ ] key ( ) to

select the paper size, and then press the

[ENTER] key.

The paper size changes as follows each time the

[ ] key ( ) or [ ] key ( ) is pressed:

"8.5x14"→"8.5x13"→"8.5x11"→"5.5x8.5"

→"A4"→"B5"→"A5".

4Squeeze the lock lever of the front guide and slide the front

guide to match the width of the paper, and move the left guide

to the appropriate slot as marked on the tray.

•The front guide is a slide-type guide. Grasp the locking knob on the guide

and slide the guide to the indicator line of the paper to be loaded.

•The left guide is an insert-type guide. Remove it and then insert it at the

indicator line of the paper to be loaded.

•The paper size setting cannot be changed when the machine has

stopped temporarily due to running out of paper or a misfeed.

•During printing (even in copy mode), the paper size setting cannot be

changed.

When you have finished configuring the tray's paper size setting,

press the [MENU] key.

Note

PAPER SIZE

1:TRAY1

TRAY1

1:8.5X14

Note

Left

guide

Front

guide

2-SIDED COPY

3Chapter 3

This chapter explains basic copying functions.

NORMAL COPYING

Using the document glass

1Open the SPF/RSPF, and place the original face down on the

document glass.

[How to place the original]

Align the original with the original scale and the

centering ( ) mark.

2 Gently close the SPF/RSPF.

3Select the number of copies and other copy settings, and then

press the [START] key ( ).

Copying books or originals with folds or creases

Press down on the SPF/RSPF while copying as

shown. If the SPF/RSPF is not completely closed,

shadows may appear on the copy or it may be fuzzy.

Straight originals with folds or creases well before

placing.

• The document glass can scan up to 8-1/2" x 14" original.

• When a copy is made, the edges will not be copied (image loss). For

the image loss, see the "SPECIFICATIONS" (p.92).

• To stop copying in the middle of a run, press the [CLEAR] key ( ).

• For the copy settings, see pages 23 through 35.

Note

mark

Original scale

Note

MAKING COPIES

!03-making copies.fm 20 ページ２００３年１２月１７日　水曜日　午前９時２１分

MAKING COPIES

Using the SPF/RSPF

1Make sure that an original has not been left on the document

glass.

2Adjust the original guides to the size

of the originals.

3Set the original(s) face up in the

document feeder tray.

The SPF/RSPF indicator on the operation

panel will light up. If this indicator does not

light up, the originals are not properly set or

the SPF/RSPF is not properly closed.

4Select the number of copies and other copy settings, and then

press the [START] key ( ).

•Originals that are 5-1/2" x 8-1/2" to 8-1/2" x 14" and 14 lbs. to 24 lbs.

(52 g/m2 to 90 g/m2) can be used. A maximum of 30 pages can be

placed at once.

•Straighten curled originals before placing them in the document

feeder tray. Curled originals may cause misfeeds.

•Place originals horizontally.

•Before placing originals in the document feeder tray, be sure to

remove any staples or paper clips from them.

•When a copy is made, the edges will not be copied (image loss).

For the image loss, see the "SPECIFICATIONS" (p.92).

•When using the margin shift function, check the position of the

margins carefully. (p.34)

•To stop copying in the middle of a run, press the [CLEAR] key ( ).

•For the copy settings, see pages 23 through 35.

Note

Original face up

Note

MAKING COPIES

Originals that cannot be used in the SPF/RSPF

The following originals cannot be used. These may cause misfeeds or smudging and

unclear images.

•Transparencies, tracing paper, other transparent or translucent paper, and

photographs.

•Carbon paper, thermal paper.

•Originals that are creased, folded, or torn.

•Glued originals, cut-out originals.

•Originals with binder holes.

•Originals printed using an ink ribbon (thermal transfer printing), originals on

thermal transfer paper.

Stream feeding mode

"SET ORIGINALS FOR STREAM FEEDING" will appear in the display for five

seconds after all originals are fed. If a new original is placed in the SPF/RSPF during

this time, the original will be automatically fed in and copying will begin with the same

setting. The stream feeding mode is disabled in "STREAM FEEDING" in the user

programs (p.63).

Paper output tray extension

When copying onto paper larger than 8-1/2" x 11" size, pull out the paper output tray

extension.

Paper holder arm

The paper output tray has a paper holder arm. The paper holder arm presses gently

on the output paper to stack it (p.9).

Capacity of paper output tray

•The paper output tray can hold a maximum of 200 pages. If more

than 200 pages are allowed to accumulate, a paper jam may occur.

•After removing paper, if you need to return the paper to the paper

output tray, lift up the paper holder arm and place the paper under the

arm.

Maximum number of pages that can

be held in the tray: 200

Note

MAKING COPIES

Setting the number of copies

Press the numeric keys to set the number of copies.

The set number of copies appears in the display. A maximum of 99 copies can be set.

If you wish to make only a single copy, copying is possible with the display

showing "0".

SELECTING THE TRAY

Press the [TRAY SELECT] key ( ).

Each time, you press the [TRAY SELECT] key ( ),

the location indicated by the tray location indicator

changes in the following order : paper tray→lower

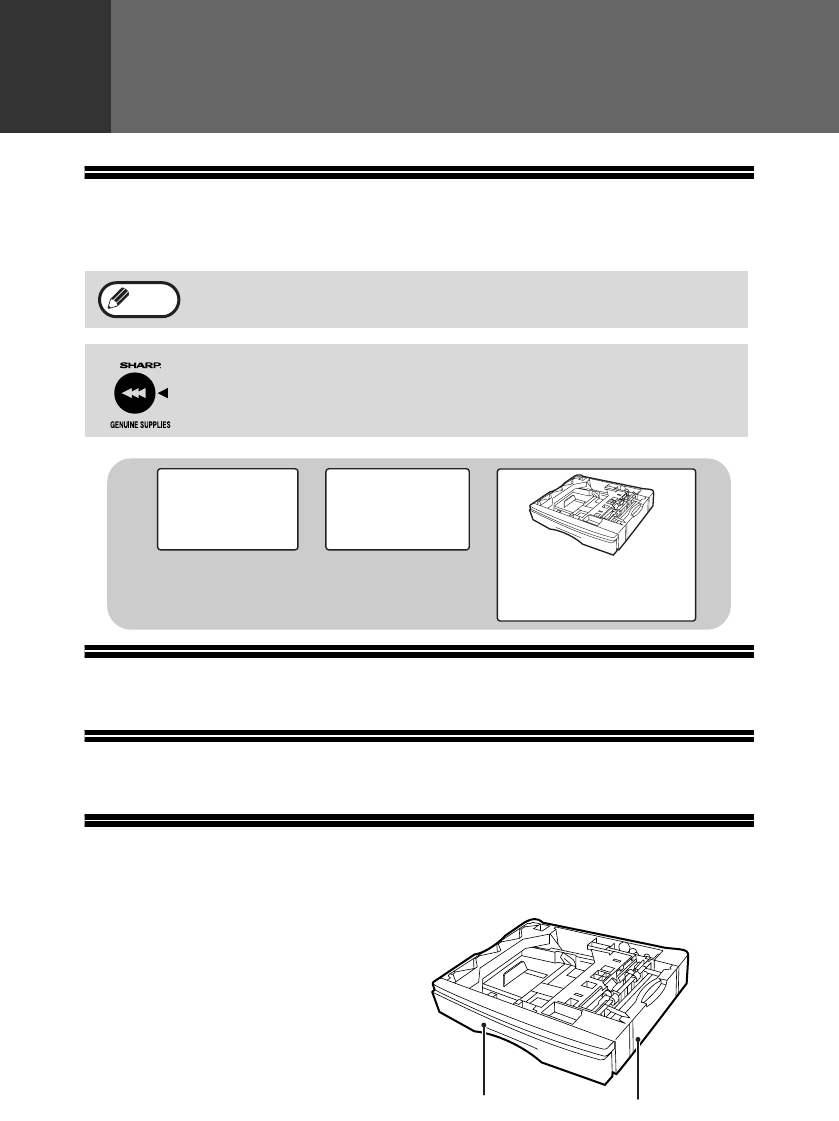

paper tray (when the 250-sheet paper feed unit is

installed.)→bypass tray.

If you enter the wrong number, press the [CLEAR] key ( ) and

enter the correct number.

The tray location indicator will blink when there is no paper in the paper

tray, or when the tray is not closed or is improperly closed.

PY.

11 55

Note

AR-168D

READY TO COPY.

100% EXTRA

Note

MAKING A COPY DARKER OR LIGHTER

Automatic exposure adjustment is initially enabled. This function automatically

adjusts the copy image according to the original being copied. If you wish to select

the exposure level yourself, follow the steps below. (Select from two original types

and five exposure levels for each original type.) The exposure level used in

automatic exposure adjustment can also be changed with "AE LEVEL ADJUST" in

the user programs (p.65).

Original types

●AUTO ......Automatic exposure adjustment is enabled and the exposure is

automatically adjusted according to the original being copied. The

exposure is lowered for colored areas and background shadows.

●TEXT.......The exposure is raised for light areas and lowered for dark

backgrounds to make text easier to read.

●PHOTO ...Halftones in the photo are reproduced with greater clarity.

1Check the original and place the original(s).

2Press the [EXPOSURE] key to select the

original type.

The original image type changes as follows each

time the [EXPOSURE] key is pressed: "AUTO" →

"TEXT" → "PHOTO".

3If needed, adjust the exposure level for

TEXT or PHOTO.

For a darker image, press the [ ] key ( ). For a

lighter image, press the [ ] key ( ).

4Press the [ENTER] key.

5Select the number of copies and any other copy settings, and

then press the [START] key ( ).

To return to auto exposure adjustment, press the [EXPOSURE] key

until "AUTO" appears.

Exposure value guidelines (When in "TEXT" setting)

TEXT

| | | | |

Note

TEXT

| | | | |

Note

Normal originals

Colored text or text written in pencil

Dark originals like newspapers

| | | | |

REDUCTION/ENLARGEMENT/ZOOM

Copies can be reduced down to 25% or enlarged up to 400%. (When the SPF/RSPF

is being used, the zoom copy ratio range is 50% to 200%.) The [COPY RATIO] key

can be pressed to quickly select a ratio from among eight preset ratios. In addition,

the [ ] key ( ) and [ ] key ( ) can be pressed to select the ratio in

increments of 1%.

1Check the original and paper size, and place the original(s).

2Press the [COPY RATIO] key.

3Press the [COPY RATIO] key and/or [ ] key ( ) or [ ] key

( ) to select the desired copy ratio and then press the

[ENTER] key.

Selecting a preset ratio

The preset ratios change as follows each time the

[COPY RATIO] key is pressed:

"100%" →

→→

→ "78%" →

→→

→ "64%" →

→ →

→ "50%" →

→→

→ "25%" →

→→

→

"400%" →

→→

→ "200%" →

→→

→ "129%".

Fine adjustment of the ratio

The ratio can be adjusted from 25% to 400% in

increments of 1%.

Use the [ ] key ( ) or the [ ] key ( ) for

fine adjustment.

4Select the number of copies and any other copy settings, and

then press the [START] key ( ).

The copy will be delivered to the paper output tray.

•To return the ratio to 100%, press the [COPY RATIO] key until 100%

appears.

•Press the [COPY RATIO] key to set the approximate ratio, then press

the [ ] key ( ) or [ ] key ( ).

•To decrease or increase the zoom ratio rapidly, hold down the [ ]

key ( ) or [ ] key ( ).

The ratio will stop changing at each of the preset ratios. To continue

changing the ratio, release the key and then hold it down again.

COPY RATIO

- 100% +

8.5x14 TO 8.5x11

- 78% +

ZOOM

- 99% +

Note

4Chapter 4

AUTOMATIC TWO-SIDED COPYING (AR-168D only)

Two originals can be automatically copied onto both sides of a single sheet of paper.

When the RSPF is used, two-sided copies of two-sided originals can easily be made.

When performing automatic two-sided copying of one-sided originals, the orientation

of the copied image can be selected according to the binding position of the paper.

SHORT EDGE: Select when binding the paper at the short edge.

LONG EDGE: Select when binding the paper at the long edge.

Original →

→→

→ Paper Usable paper

Document

glass

One-sided original →

→ →

→ Two sides

5-1/2" x 8-1/2", 8-1/2" x

11", 8-1/2" x 13",

8-1/2" x 14"

• The bypass tray

cannot be used.

RSPF

One-sided

original →

→→

→

Two sides

Two-sided

original →

→→

→

One side

Two-sided

original →

→→

→

Two sides

5-1/2" x 8-1/2", 8-1/2" x

11", 8-1/2" x 13",

8-1/2" x 14"

• Special paper cannot

be used.

• The bypass tray can

only be used when

making one-sided

copies from two-

sided originals.

(Paper orientation: Landscape) (Paper orientation: Portrait)

AB A

BAB

CONVENIENT COPY

FUNCTIONS

CONVENIENT COPY FUNCTIONS

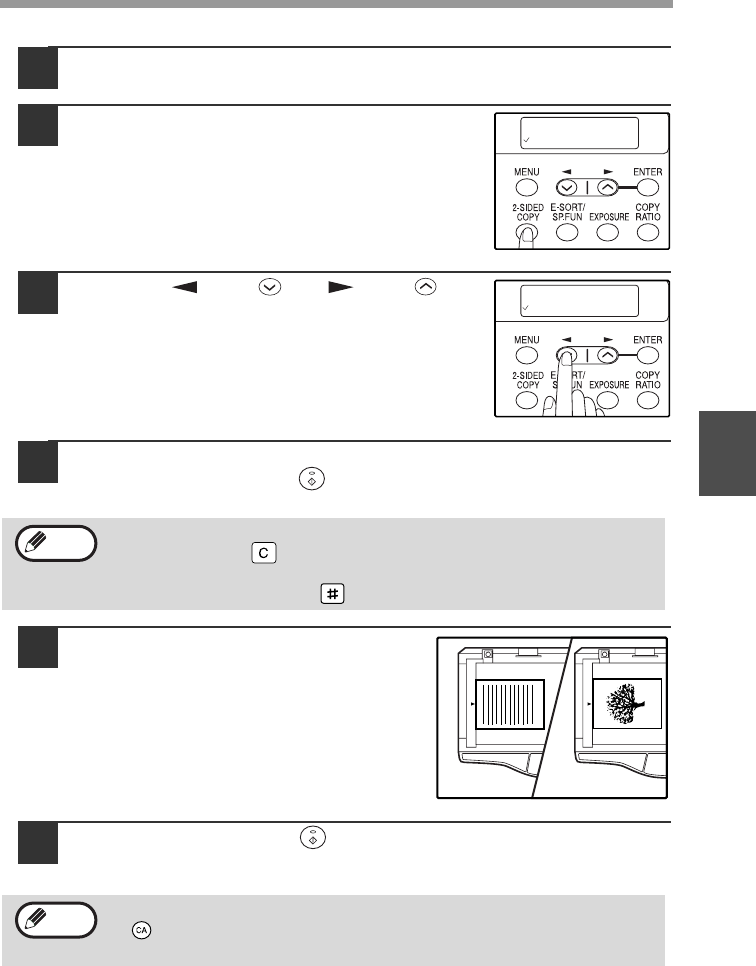

Using the document glass

1Place the original that you wish to copy onto the front side of

the paper on the document glass and close the RSPF.

2Press the [2-SIDED COPY] key until "1 TO

2" appears, and then press the [ENTER]

key.

3Press the [ ] key ( ) or [ ] key ( ) to

select the binding edge and then press the

[ENTER] key.

Select "LONG EDGE" or "SHORT EDGE".

The "LONG EDGE" and "SHORT EDGE" are

shown in the illustration on the preceding page.

4Select the number of copies and any other settings, and then

press the [START] key ( ).

The original for the front side is scanned into the memory.

5When "[START] : NEXT SCAN [#] :

START PRINT" appears, remove the

first original and then place the

original that you wish to copy onto

the back side of the paper on the

document glass. Close the RSPF.

Place the second original in the same

orientation as the first original.

6Press the [START] key ( ).

The copy will be delivered to the paper output tray.

•If you need to clear the data scanned into memory, press the

[CLEAR] key ( ).

•If you wish to cancel two-sided copying and just make a copy of the

first original, press the [ ] key.

To cancel automatic two-sided copying, press the [CLEAR ALL] key

( ) or press the [2-SIDED COPY] key, select the "1 TO 1", and then

press the [ENTER] key.

2-SIDED COPY

1 TO 2

BINDING EDGE

LONG EDGE

Note

The first original

The second original

Note

CONVENIENT COPY FUNCTIONS

Using the RSPF

1Place the original(s) in the RSPF. (p.21)

If you place an odd number of originals for one-sided to two-sided copying,

the last page will be one-sided.

2Press the [2-SIDED COPY] key and select

the two-sided copy mode that you wish to

use.

The mode changes as follows each time you press

the [2-SIDED COPY] key: "1 TO 1", "1 TO 2", "2

TO 2", "2 TO 1"

•Two-sided copies from one-sided originals: "1 TO 2"

•Two-sided copies from two-sided originals: "2 TO 2"

•One-sided copies from two-sided originals: "2 TO 1"

3Press the [ENTER] key.

If you selected "1 TO 2" in step 2, select "LONG EDGE" or "SHORT EDGE"

and press the [ENTER] key. LONG EDGE and SHORT EDGE are shown in

the illustration on page 26.

4If you selected "2 TO 1" or "2 TO 2", press

the [ ] key ( ) or [ ] key ( ) to select

the original size and then press the

[ENTER] key.

The following original sizes can be selected:

"8.5x14", "8.5x13", "8.5x11", "5.5x8.5", "A4", "B5",

"A5".

5Select the number of copies and any other settings, and then

press the [START] key ( ).

The copy will be delivered to the paper output tray.

•To cancel automatic two-sided copying, press the [CLEAR ALL] key

( ) or press the [2-SIDED COPY] key, select the "1 TO 1", and then

press the [ENTER] key.

•Do not touch the reversing tray while automatic two-sided copying is

in progress.

2-SIDED COPY

2 TO 1

ORIG. SIZE ENTER

5.5x8.5

Note

SORT COPY

Copies of multiple original pages can be sorted into sets.

Using the document glass

1Place the first original. (p.20)

2Press the [E-SORT/SP.FUN] key until

"SORT" appears and then press the

[ENTER] key.

3Press the [ ] key ( ) to move " " to

the "ON" position and then press the

[ENTER] key.

4Select the number of copies and any other settings, and then

press the [START] key ( ).

"[START] : NEXT SCAN [#] : START PRINT" appears and the original is

scanned into memory.

5Replace the original with the next original, and then press the

[START] key ( ).

Repeat step 5 until all originals have been scanned into memory.

6When all originals have been scanned, press the [ ] key.

The copies are delivered to the paper output tray.

The number of pages that can be scanned varies depending on the

original type (photo, text, etc.) and the amount of memory allocated to

the printer. The amount of memory allocated to the printer can be

changed with "MEM. FOR PRINTER" in the user programs. (p.64)

To clear the data in memory, press the [CLEAR] key ( ). When the

[CLEAR] key ( ) is pressed, the number of copies setting is also cleared.

•To cancel the sort copy job, press the [CLEAR] key ( ).

•To cancel sort copy mode, press the [CLEAR ALL] key ( ).

Note

Sort copy

SPECIAL FUNCTION

SORT

ON OFF

Note

CONVENIENT COPY FUNCTIONS

Using the SPF/RSPF

1Place the originals. (p.21)

2Press the [E-SORT/SP.FUN] key until

"SORT" appears and then press the

[ENTER] key.

3Press the [ ] key ( ) to move " " to

the "ON" position and then the [ENTER]

key.

4Select the number of copies and any other settings, and then

press the [START] key ( ).

The copies are delivered to the paper output tray.

Offset function during sort copy

The offset function shifts the position of each set of copies in the paper output tray

for easy separation.

The offset function can be changed with "OFFSET FUNCTION" in the user

programs. (p.63)

•If "SORT AUTO SELECT" is enabled in the user programs, the default output

mode for copying from the RSPF is sort mode (p.65). In this case go directly

to step 4. A checkmark " " will automatically appear in the display (p.11).

•If "SORT AUTO SELECT" is disabled, the default output mode will be non-

sort mode. Follow the steps below to select sort mode.

•To cancel the sort copy job, press the [CLEAR] key ( ).

•To cancel sort copy mode, press the [CLEAR ALL] key ( ).

If the memory becomes full

•If the memory becomes full while scanning the originals, "MEMORY FULL, PRESS

START TO RESUME" will appear in the display, and the machine will stop copying.

•To copy the originals that have been scanned up to that point, press the [START]

key ( ).

•To clear the data that has been scanned into memory, press the [CLEAR ALL] key

( ) or the [CLEAR] key ( ).

Note

SPECIAL FUNCTION

SORT

ON OFF

Note

Offset function When offset function is disabled

COPYING MULTIPLE ORIGINALS ONTO A SINGLE

SHEET OF PAPER (2 IN 1 copy)

Multiple originals can be copied onto a single sheet of paper in a selected layout

pattern.

This function is convenient for compiling multi-page reference materials into a

compact format, or for providing an overview of all pages of a document on a single

page.

Using the document glass

1Place the first original. (p.20)

2Press the [E-SORT/SP.FUN] key until

"2IN1" appears and then press the

[ENTER] key.

3Press the [ ] key ( ) to move " " to

the "ON" position and then press the

[ENTER] key.

•An appropriate ratio setting will be automatically selected based on

the size of the originals, the size of the paper. When using the

document glass, reduction is possible to 25%. When using the SPF/

RSPF, reduction is possible to 50%. Certain combinations of original

size and paper size.

•2 IN 1 copying cannot be used in combination with the margin shift

copying.

•The 2 IN 1 layout pattern can be changed with "LAYOUT IN 2IN1" in

the user programs (p.63).

•The bypass tray cannot be used for 2 IN 1 copying.

Pattern 2

Pattern 1

Note

SPECIAL FUNCTION

2IN1

ON OFF

CONVENIENT COPY FUNCTIONS

4Press the [ ] key ( ) or [ ] key ( ) to

select the original size and then press the

[ENTER] key.

The following original sizes can be selected:

"8.5x14", "8.5x13", "8.5x11", "5.5x8.5", "A4", "B5",

"A5".

5Set the number of copies and any other settings, and then

press the [START] key ( ).

"[START] : NEXT SCAN [#] : START PRINT" appears and the original is

scanned into memory.

To immediately print the scanned image, press the [ ] key.

6Replace the original with the next original, and then press the

[START] key ( ).

Repeat step 6 until all originals have been scanned.

Copies will be output each time two originals have been scanned.

If the number of original pages is odd, press the [ ] key after all pages

have been scanned.

•To clear the data in memory, press the [CLEAR] key ( ).

When the [CLEAR] key ( ) is pressed, the number of copies

setting is also cleared.

•To cancel 2 IN 1 copying, press the [CLEAR] key ( ).

•To cancel 2 IN 1 copy mode, press the [CLEAR ALL] key ( ).

ORIG. SIZE ENTER

5.5x8.5

Note

CONVENIENT COPY FUNCTIONS

Using the SPF/RSPF

1Place the originals. (p.21)

2Press the [E-SORT/SP.FUN] key until

"2IN1" appears and then press the

[ENTER] key.

3Press the [ ] key ( ) to move " " to

the "ON" position and then press the

[ENTER] key.

4Press the [ ] key ( ) or [ ] key ( ) to

select the original size and then press the

[ENTER] key.

The following original sizes can be selected:

"8.5x14", "8.5x13", "8.5x11", "5.5x8.5", "A4", "B5",

"A5".

5Select the number of copies and other settings, and press the

[START] key ( ).

The copy is delivered to the paper output tray.

•To cancel 2 IN 1 copying, press the [CLEAR] key ( ).

•To cancel 2 IN 1 copy mode, press the [CLEAR ALL] key ( ).

SPECIAL FUNCTION

2IN1

ON OFF

ORIG. SIZE ENTER

5.5x8.5

Note

CREATING MARGINS WHEN COPYING

(Margin shift)

The margin shift function is used to automatically shift the text or image or the copy

paper approximately 1/2".

As shown below, LONG EDGE or SHORT EDGE can be selected.

1Place the original(s).

2Press the [E-SORT/SP.FUN] key until

"MARGIN SHIFT" appears and then press

the [ENTER] key.

•This feature cannot be used with the 2 IN 1 feature.

•The margin width can be changed with "MARGIN WIDTH" in the user

programs. (p.64)

•Note that a margin is created by shifting the image, and thus if the

image is shifted too far, the edge of the image may be cut off.

LONG EDGESHORT EDGE

SPF/RSPF

Document glass

Margin Margin

Original

Copy

Note

SPECIAL FUNCTION

MARGIN SHIFT

CONVENIENT COPY FUNCTIONS

3Press the [ ] key ( ) to move " " to

the "ON" position and then press the

[ENTER] key.

4Press the [ ] key ( ) or [ ] key ( ) to

select the margin position and then press

the [ENTER] key.

Select "LONG EDGE" or "SHORT EDGE".

For the margin position, see the previous page.

5Select the number of copies and other settings, and then press

the [START] key ( ).

The copy is delivered to the paper output tray.

•To cancel margin shift copying, press the [CLEAR] key ( ).

•To cancel margin shift, press the [CLEAR ALL] key ( ).

MARGIN SHIFT

ON OFF

MARGIN SHIFT

LONG EDGE

Note

5Chapter 5

This chapter explains how to install and configure the software that is required for the

printer and scanner functions of the machine. The procedure for viewing the Online

Manual is also explained.

SOFTWARE FOR AR-168S/168D

The CD-ROM that accompanies the machine contains the following software:

MFP driver

Printer driver

The printer driver enables you to use the printer function of the machine.

The printer driver includes the Print Status Window*. This is a utility that monitors

the machine and informs you of the printing status, the name of the document

currently being printed, and error messages.

* When the machine is connected through the parallel port, the Print Status Window

can only be used when the parallel port is set to ECP mode. To set the parallel port

mode, refer to your computer manual or ask the manufacturer of your computer.

Scanner driver (USB only)

The scanner driver allows you to use the scanning function of the machine with

TWAIN-compliant and WIA-compliant applications.

Sharpdesk

Sharpdesk is an integrated software environment that makes it easy to manage

documents and image files, and launch applications.

Button Manager

Button Manager allows you to use the scanner menus on the machine to scan a document.

•The screen images in this manual are mainly for Windows XP. With

other versions of Windows, some screen images may be different

from those in this manual.

•Where "AR-XXXX" appears in this manual, please substitute the

name of your model for "XXXX". For the name of your model, see the

operation panel on the machine.

•This manual refers to the CD-ROM that accompanied the machine

simply as "CD-ROM".

The scanning feature can only be used with computers that are running

Windows 98/Me/2000/XP and are connected to the machine by a USB

cable. If you are running Windows 95/NT 4.0 or are connected to the

machine by a parallel connection, only the printer function can be used.

Note

SET UP THE SOFTWARE

BEFORE INSTALLATION

Hardware and software requirements

Check the following hardware and software requirements in order to install the

software.

*1The machine's USB connector will transfer data at the speed specified by the USB 2.0

(Hi-Speed) only if the Microsoft USB 2.0 driver is preinstalled in the computer, or if the

USB 2.0 driver for Windows 2000 Professional/XP that Microsoft provides through its

"Windows Update" is installed.

*2Compatible with Windows 98, Windows Me, Windows 2000 Professional, Windows XP

Professional or Windows XP Home Edition preinstalled model standardly equipped with

a USB port.

*3Printing is not available in MS-DOS mode.

*4The machine does not support printing from a Macintosh environment.

*5Administrator's rights are required to install the software using the installer.

Installation environment and usable software

The following table shows the drivers and software that can be installed for each

version of Windows and interface connection method.

*1Windows 98/Me does not support USB 2.0. A USB 2.0 connection can be used in

Windows 98/Me, however, the performance will be the same as USB 1.1. The print

speed based on USB 2.0 specifications can only be attained if your computer is running

Windows 2000/XP, you are using a cable that supports USB 2.0 (USB 1.1 or USB 2.0

certified), and the cable is connected to a USB 2.0 port on your computer. If the

connection is made through a hub, the hub must support USB 2.0.

*2The printer driver that is installed will vary depending on the type of connection

between the machine and your computer.

Although it is possible to install Button Manager and Sharpdesk on Windows

98/Me/2000/XP, neither Button Manager nor the scanner function of Sharpdesk can

actually be used.

Computer type IBM PC/AT or compatible computer equipped with a

USB2.0*1/1.1*2 or bi-directional parallel interface

(IEEE1284)

Operating system*3 *4Windows 95, Windows 98, Windows Me, Windows NT

Workstation 4.0 (ServicePack 5 or later)*5, Windows 2000

Professional*5, Windows XP Professional*5, Windows XP

Home Edition*5

Display 800 x 600 dots (SVGA) display with 256 colors (or better)

Hard disk free space 150MB or more

Other hardware

requirements

An environment on which any of the operating systems

listed above can fully operate

Cable

Operating system

MFP Driver Button

Manager

Sharpdesk

Printer

driver

Scanner

driver

USB*1Windows

98/Me/2000/XP Available*2Available

Parallel Windows 95/98/Me/

NT 4.0/2000/XP Not Available*3

INSTALLING THE SOFTWARE

The procedure for a standard installation of the software is explained below. If the

machine is connected by a USB cable, it is recommended that you use the standard

installation.

1The USB cable must not be connected to the machine. Make

sure that the cable is not connected before proceeding.

If the cable is connected, a Plug and Play window will appear. If this

happens, click the "Cancel" button to close the window and disconnect the

cable.

2Insert the CD-ROM into your computer's CD-ROM drive.

3Click the "start" button, click "My Computer" ( ), and then

double-click the CD-ROM icon ( ).

In Windows 98/Me/2000, double-click "My Computer", and then double-click

the CD-ROM icon.

4Double-click the "setup" icon ( ).

•If you need to use a different connection method after installing the

software based on a USB or parallel connection, you must first

uninstall the software (p.78) and then install it using the new

connection method.

•In the following explanations it is assumed that the mouse is

configured for right hand operation.

•The scanner feature only works when using a USB cable.

•If an error message appears, follow the instructions on the screen to

solve the problem. After the problem is solved, the installation

procedure will continue. Depending on the problem, you may have to

click the "Cancel" button to exit the installer. In this case, reinstall the

software from the beginning after solving the problem.

STANDARD INSTALLATION (USB only)

The standard installation can only be used when the machine is

connected by a USB cable. If the machine is connected by a parallel

cable, use the custom installation procedure (p.40).

The cable will be connected in step 9.

If the language selection screen appears after you double click the

"setup" icon, select the language that you wish to use and click the

"Next" button. (Normally the correct language is selected

automatically.)

Note

SET UP THE SOFTWARE

5The "SOFTWARE LICENSE" window will appear. Make sure

that you understand the contents of the software license, and

then click the "Yes" button.

6Read the "Readme First" in the "Welcome" window and then

click the "Next" button.

7Click the "Standard"

button.

"Integrated Installer is

preparing..." will appear and

then installation of the MFP

driver, Button Manager, and

Sharpdesk will begin

automatically.

Follow the on-screen

instructions.

8When the "Finish" screen appears, click the "Close" button.

A message will appear instructing you to connect the machine to your

computer. Click the "OK" button.

9Make sure that the power of the machine is turned on, and then

connect the USB cable (p.55).

Windows will detect the machine and a Plug and Play screen will appear.

If you are running Windows 2000/XP and a warning message appears

regarding the Windows logo test or digital signature, be sure to click

"Continue Anyway" or "Yes".

After the installation, a message prompting you to restart your computer

may appear. In this case, click the "Yes" button to restart your computer.

If the following message appears on your computer screen, close it.

A window regarding "HI-SPEED USB Device" will then appear. Close the window.

This message appears when the machine's USB 2.0 mode is not set to

"HI-SPEED". For information on switching the USB 2.0 mode, see

Chapter 6, "PRINTER/SCANNER FUNCTIONS".

Caution

Note

Caution

SET UP THE SOFTWARE

10 Follow the instructions in the plug and play window to install

the MFP driver.

Follow the on-screen instructions.

This completes the installation of the MFP driver.

•If you installed Button Manager, set up Button Manager as explained in "SETTING

UP BUTTON MANAGER" (p.51).

The procedure for a custom installation of the software is explained below. Use the

custom installation procedure when the machine is connected by a parallel cable,

when the machine is used as a shared printer on a network, or when you wish to

install the MFP driver, Button Manager, or Sharpdesk separately.

Windows XP (USB/Parallel)

1The USB/parallel cable must not be connected to the machine.

Make sure that the cable is not connected before proceeding.

If the cable is connected, a Plug and Play window will appear. If this

happens, click the "Cancel" button to close the window and disconnect the

cable.

2Insert the CD-ROM into your computer's CD-ROM drive.

3Click the "start" button, click "My Computer" ( ), and then

double-click the CD-ROM icon ( ).

In Windows 98/Me/2000, double-click "My Computer", and then double-click

the CD-ROM icon.

4Double-click the "setup" icon ( ).

If you are running Windows 2000/XP and a warning message appears

regarding the Windows logo test or digital signature, be sure to click

"Continue Anyway" or "Yes".

A "USB 2.0 Composite Device" installation window may appear prior to

this procedure. In this case, follow the instructions in the window to

install the USB 2.0 Composite Device.

CUSTOM INSTALLATION

The cable will be connected in step 14.

If the language selection screen appears after you double click the

"setup" icon, select the language that you wish to use and click the

"Next" button. (Normally the correct language is selected

automatically.)

Caution

Note

SET UP THE SOFTWARE

5The "SOFTWARE LICENSE" window will appear. Make sure

that you understand the contents of the software license, and

then click the "Yes" button.

6Read the "Readme First" in the "Welcome" window and then

click the "Next" button.

7Click the "Custom"

button.

8Click the "MFP Driver"

button.

To view detailed information on

the software, click the "Display

Readme" button.

9The "Welcome" window will appear. Click the "Next" button.

SET UP THE SOFTWARE

10 When you are asked how

the printer is connected,

select "Connected to this

computer" and click the

"Next" button.

If you are using the machine as

a shared printer on a network,

select "Connected via the

network". For more information

on this setting, see "Using the

machine as a shared printer"

(p.48).

Follow the on-screen

instructions.

You will return to the window of step 8. If you wish to install Button

Manager or Sharpdesk, click the "Utility Software" button.

If you do not wish to install the Utility Software, click the "Close" button and

go to step 14.

Installing the Utility Software

12 Click the "Button

Manager" button.

To view detailed information on

the software, click the "Display

Readme" button.

Follow the on-screen

instructions.

If you wish to install

Sharpdesk, click the

"Sharpdesk" button in this

window and follow the

on-screen instructions.

If you are running Windows XP and a warning message appears

regarding the Windows logo test or digital signature, be sure to click

"Continue Anyway".

After the installation, a message prompting you to restart your computer

may appear. In this case, click the "Yes" button to restart your computer.

•Button Manager can

only be used when the

machine is connected

by a USB cable.

•The scanner function

of Sharpdesk can only

be used when the

machine is connected

by a USB cable.

Caution

Note

Caution

SET UP THE SOFTWARE

13 When installation of Button Manager is finished, you will return

to the window of step 12 (p.42). Click the "Close" button.

A message will appear instructing you to connect the machine to your

computer. Click the "OK" button.

14 Make sure that the power of the machine is turned on, and then

connect the USB/parallel cable (p.55).

Windows will detect the machine and a Plug and Play screen will appear.

15 Follow the instructions in the plug and play window to install

the MFP driver.

Follow the on-screen instructions.

If the following screen appears during installation of Sharpdesk, click

the "Skip" button or the "Continue" button as appropriate to continue the

Sharpdesk installation.

If "Skip" is selected, the Sharpdesk installation will continue without

installing Sharpdesk imaging.

If "Continue" is selected, Sharpdesk Imaging will be installed. If Imaging

for Windows is installed on your computer, Sharpdesk Imaging will

overwrite Imaging for Windows.

After the installation, a message prompting you to restart your computer

may appear. In this case, click the "Yes" button to restart your computer.

If the following message appears on your computer screen, close it.

A window regarding "HI-SPEED USB Device" will then appear. Close

the window.

This message appears when the machine's USB 2.0 mode is not set to

"HI-SPEED". For information on switching the USB 2.0 mode, see

Chapter 6, "PRINTER/SCANNER FUNCTIONS".

Caution

Note

Caution

SET UP THE SOFTWARE

This completes the installation of the MFP driver.

•If you installed Button Manager, set up Button Manager as explained in "SETTING

UP BUTTON MANAGER" (p.51).

Windows 98/Me/2000 (USB)

1The USB cable must not be connected to the machine. Make

sure that the cable is not connected before proceeding.

If the cable is connected, a Plug and Play window will appear. If this

happens, click the "Cancel" button to close the window and disconnect the

cable.

2Perform steps 2 through 7 in "CUSTOM INSTALLATION" (p.40 -

p.41).

3Click the "MFP Driver"

button.

To view detailed information on

the software, click the "Display

Readme" button.

4The "Welcome" window will appear. Click the "Next" button.

If you are running Windows XP and a warning message appears

regarding the Windows logo test or digital signature, be sure to click

"Continue Anyway".

A "USB 2.0 Composite Device" installation window may appear prior to

this procedure. In this case, follow the instructions in the window to

install the USB 2.0 Composite Device.

The cable will be connected in step 9.

Caution

Note

SET UP THE SOFTWARE

5When you are asked how

the printer is connected,

select "Connected to this

computer" and click the

"Next" button.

6When the interface

selection screen appears,

7select "USB" and click the

"Next" button.

If you are using the machine as

a shared printer on a network,

select "Connected via the

network". For more information

on this setting, see "Using the

machine as a shared printer"

(p.48).

Follow the on-screen

instructions.

You will return to the window of step 3 (p.44). If you wish to install

Button Manager or Sharpdesk, click the "Utility Software" button.

To install the Utility Software, see "Installing the Utility Software" (steps 12

and 13 on page 42).

If you do not wish to install the Utility Software, click the "Close" button.

A message will appear instructing you to connect the machine to your

computer. Click the "OK" button.

9Make sure that the power of the machine is turned on, and then

connect the USB cable (p.55).

Windows will detect the machine and a Plug and Play screen will appear.

If you are running Windows 2000 and a warning message appears

regarding the Windows logo test or digital signature, be sure to click

"Yes".

After the installation, a message prompting you to restart your computer

may appear. In this case, click the "Yes" button to restart your computer.

Caution

Note

SET UP THE SOFTWARE

10 Follow the instructions in the plug and play window to install

the MFP driver

Follow the on-screen instructions.

This completes the installation of the MFP driver.

•If you installed Button Manager, set up Button Manager as explained in "SETTING

UP BUTTON MANAGER" (p.51).

Windows 95/98/Me/NT 4.0/2000 (Parallel)

1The parallel cable must not be connected to the machine. Make

sure that the cable is not connected before proceeding.

If the cable is connected, a Plug and Play window will appear. If this

happens, click the "Cancel" button to close the window and disconnect the

cable.

2Perform steps 2 through 7 in "CUSTOM INSTALLATION" (p.40 -

p.41).

3Click the "MFP Driver"

button.

To view detailed information on

the software, click the "Display

Readme" button.

4The "Welcome" window will appear. Click the "Next" button.

If you are running Windows 2000 and a warning message appears

regarding the Windows logo test or digital signature, be sure to click

"Yes".

A "USB 2.0 Composite Device" installation window may appear prior to

this procedure. In this case, follow the instructions in the window to

install the USB 2.0 Composite Device.

The cable will be connected in step 10.

In Windows 95/NT4.0,

the "Utility Software"

button does not appear

and only the printer

driver can be installed.

Caution

Note

SET UP THE SOFTWARE

5When you are asked how

the printer is connected,

select "Connected to this

computer" and click the

"Next" button.

If you are using the machine as

a shared printer on a network,

select "Connected via the

network". For more information

on this setting, see "Using the

machine as a shared printer"

(p.48).

6When the interface

selection screen appears,

select "Parallel" and click

the "Next" button.

7Select the printer port and

whether the machine is to

be used as the default

printer, make the

selections and click the

"Next" button.

Select "LPT1" for the printer

port.

•If "LPT1" does not appear, another printer or peripheral device is

using LPT1. In this case continue the installation, and after the

installation is finished, change the port setting so that the machine

can use LPT1. This procedure is explained in "Another printer is

using the parallel port (when using a parallel cable)" on page 77.

•The "Add Network port" button is used when the machine is used as

a shared printer. (p.48) Do not click this button here.

Note

SET UP THE SOFTWARE

8When the model selection window appears, select model name

of your machine and click the "Next" button.

Follow the on-screen instructions.

9You will return to the window of step 3. If you wish to install

Sharpdesk, click the "Utility Software" button.

To install the Utility Software, see "Installing the Utility Software" (steps 12

and 13 on page 42).

If you do not wish to install the Utility Software, click the "Close" button.

A message will appear instructing you to connect the machine to your

computer. Click the "OK" button.

10 Make sure that the power of the machine is turned on, and then

connect the parallel cable (p.56).

This completes the installation of the MFP driver.

Using the machine as a shared printer

If the machine will be used as a shared printer on a network, follow these steps to

install the MFP driver in the client computer.

1Perform steps 2 through 7 in "CUSTOM INSTALLATION" (p.40 -

p.41).

If you are running Windows 2000 and a warning message appears

regarding the Windows logo test or digital signature, be sure to click

"Yes".

•To configure the appropriate settings in the print server, see the

operation manual or help file of your operating system.

"Print server" as explained here is a computer that is directly

connected to the machine, and a "Client" is any other computer that

is connected to the same network.

•When the machine is used via a network connection, only the printer

function can be used; the scanner function cannot be used.

Caution

Note

SET UP THE SOFTWARE

2Click the "MFP Driver"

button.

To view detailed information on

the software, click the "Display

Readme" button.

3The "Welcome" window will appear. Click the "Next" button.

4When you are asked how

the printer is connected,

select "Connected via the

network" and click the

"Next" button.

5When you are asked to

select the printer port to

be used, click the "Add

Network Port" button.

SET UP THE SOFTWARE

6Select the network printer

that is shared and click

the "OK" button.

Ask your network administrator

for the server name and printer

name of the machine on the

network.

7In the printer port selection window, verify the network printer

that is shared and whether the machine is to be used as the

default printer, make the selections and click the "Next" button.

8When you are asked to select the model name, select the model

that you are using and click the "Next" button.

Follow the on-screen instructions.

9You will return to the window of step 2. Click the "Close"

button.

This completes the installation of the MFP driver.

If you are running Windows 2000/XP and a warning message appears

regarding the Windows logo test or digital signature, be sure to click

"Continue Anyway" or "Yes".

After the installation, a message prompting you to restart your computer

may appear. In this case, click the "Yes" button to restart your computer.

Caution

Note

!05-Setting up.fm 50 ページ２００３年１２月１７日　水曜日　午前９時２４分

SETTING UP BUTTON MANAGER

Button Manager is a software program that works with the scanner driver to enable

scanning from the machine.

To scan using the machine, Button Manager must be linked with the scan menu on

the machine. Follow the steps below to link Button Manager to scanner events.

Windows XP

1Click the "start" button, click "Control Panel", click "Printers

and Other Hardware", and then click "Scanners and Cameras".

2Click the "SHARP AR-XXXX" icon and select "Properties" from

the "File" menu.

3In the "Properties" screen, click the "Events" tab.

4Select "SC1:" from the

"Select an event"

pull-down menu.

SET UP THE SOFTWARE

5Select "Start this

program" and then select

"Sharp Button Manager

E" from the pull-down

menu.

6Click the "Apply" button.

7Repeat Steps 4 through 6 to link Button Manager to "SC2:"

through "SC6:".

Select "SC2:" from the "Select an event" pull-down menu. Select "Start this

program", select "Sharp Button Manager E" from the pull-down menu, and

then click the "Apply" button. Do the same for each ScanMenu through

"SC6:".

When the settings have been completed, click the "OK" button to close the

screen.

Button Manager is now linked to the scan menu (1 through 6).

The scan settings for each of scan menu 1 through 6 can be changed with the

setting window of Button Manager.

For the factory default settings of the scan menu and the procedures for

configuring Button Manager settings, see "Button Manager Settings" in the Online

Manual.

SET UP THE SOFTWARE

Windows 98/Me/2000

1Click the "Start" button, select "Settings", and then click

"Control Panel".

2Double-click the "Scanners and Cameras" icon.

3Select "SHARP AR-XXXX" and click the "Properties" button.

In Windows Me, right click "SHARP AR-XXXX" and click "Properties" in the

pop-up menu.

4In the "Properties" screen, click the "Events" tab.

5Select "SC1:" from the

"Scanner events"

pull-down menu.

If the "Scanners and Cameras" icon does not appear in Windows Me,

click "view all Control Panel options".

Note

SET UP THE SOFTWARE

6Select "Sharp Button

Manager E" in "Send to

this application".

7Click the "Apply" button.

8Repeat Steps 5 through 7 to link Button Manager to "SC2:"

through "SC6:".

Select "SC2:" from the "Scanner events" pull-down menu. Select "Sharp

Button Manager E" in "Send to this application" and click the "Apply" button.

Do the same for each ScanMenu through "SC6:".

When the settings have been completed, click the "OK" button to close the

screen.

Button Manager is now linked to the scan menu (1 through 6).

The scan settings for each of scan menus 1 through 6 can be changed with the

setting window of Button Manager.

For the factory default settings of the scan menu and the procedures for

configuring Button Manager settings, see "Button Manager Settings" in the Online

Manual.

If other applications are shown, deselect the checkboxes for the other

applications and leave only the Button Manager checkbox selected.

Note

CONNECTING THE MACHINE TO YOUR

COMPUTER

Connecting a USB cable

Follow the procedure below to connect the machine to your computer.

A USB cable for connecting the machine to your computer is not included with the

machine. Please purchase the appropriate cable for your computer.

1Insert the cable into the USB

connector on the machine.

2Insert the other end of the cable into your computer's USB port.

•USB is available with a PC/AT compatible computer that was

originally equipped with USB and had Windows 98, Windows Me,

Windows 2000 Professional, Windows XP Professional or Windows

XP Home Edition preinstalled.

•Do not connect the USB cable before installing the MFP driver. The

USB cable should be connected during installation of the MFP driver.

•If the machine will be connected using a USB 2.0 port of your

computer, please purchase a USB cable that supports USB 2.0.

•The machine's USB connector will transfer data at the speed

specified by the USB 2.0 (Hi-Speed) only if the Microsoft USB 2.0

driver is preinstalled in the computer, or if the USB 2.0 driver for

Windows 2000 Professional/XP that Microsoft provides through its

"Windows Update" Web page is installed.

•To obtain the fastest USB 2.0 data transfer speed, "USB2.0 MODE

SWITCH" in the machine's user programs must be set to "HI-SPEED".

For more information, see "USER PROGRAMS" (p.66).

•Use the machine's "HI-SPEED" mode only when using a computer

that is running Windows 2000/XP.

•Even when the Microsoft USB 2.0 driver is used, it may not be

possible to obtain full USB 2.0 speed if a PC card supporting USB 2.0

is used. To obtain the latest driver (which may enable a higher

speed), contact the manufacturer of your PC card.

•Connection is also possible using a USB 1.1 port on your computer.

However, the specifications will be USB 1.1 specifications

(Full-Speed).

Caution

Note

SET UP THE SOFTWARE

Connecting a parallel cable

1Obtain an IEEE1284 shielded parallel interface cable.

2Insert the cable into the parallel

interface connector located on the

rear of the unit, and fasten with

clasps.

3Insert the other end of the cable into the interface connector of

your computer.

6Chapter 6

The machine includes a USB connector and a parallel connector as standard

equipment.

When the USB connector is used, the printer and scanner functions can be used.

When the parallel connector is used, the printer function can be used.

The machine has the following features:

•High-speed data transfer (when connected to a USB 2.0 connector)

•ROPM* function

* ROPM is an acronym for "Rip Once Print Many" processing. The ROPM function stores

multiple pages of print data in memory before printing. When printing multiple copies,

this eliminates the need for the computer to repeatedly transmit the print data.

To use the machine as a printer or scanner, the printer driver or scanner driver must

first be installed as explained in the "SET UP THE SOFTWARE".

•If a problem occurs in printer or scanner mode, see the Online

Manual.

•When using USB 2.0 (Hi-Speed mode), be sure to read "System

requirements for USB 2.0 (Hi-Speed mode)" (below) to verify that

your system and the machine settings are configured appropriately.

•The scanning feature is only available when Windows 98/Me/2000/

XP and a USB connection are used. The scanning feature is not

available when Windows 95/NT 4.0 or a parallel connection is used.

System requirements for USB 2.0 (Hi-Speed mode)

The following system is required to use USB 2.0 (Hi-Speed mode):

•Your computer must be running Windows XP / Windows 2000 and the Microsoft

USB 2.0 driver must be pre-installed, or the USB 2.0 driver for Windows XP /

Windows 2000 must be installed using Microsoft's Windows Update service.

•The "USB 2.0 MODE SWITCH" setting in the machine's user programs must be

set to "Hi-Speed". To change the setting, see "USB 2.0 MODE SWITCH" in the

user programs (p.66).

* Even when the Microsoft USB 2.0 driver is installed, some USB 2.0 expansion cards

are not capable of attaining the speed stipulated by the Hi-Speed standard. This

problem can often be fixed by installing a more recent driver for the card. To obtain

the most recent driver for your card, contact the card's manufacturer.

Note

PRINTER/SCANNER

FUNCTIONS

USING THE PRINTER MODE

The procedure for loading paper for printing is the same as for loading copy paper.

See "LOADING PAPER" (p.14).

BASIC PROCEDURE FOR PRINTING

The basic procedure for printing is explained in the following. To use convenient

printer functions, see the "Online Manual" or the printer driver help file.

1Make sure that paper is loaded in the tray.

The procedure for loading paper is the same as for copying. See "LOADING

PAPER" (p.14) and make sure that the paper you wish to use is loaded.

2Open the file that you wish to print and select "Print" from the

File menu.

3Make sure that the printer driver for the machine is selected,

and select print settings in the printer driver.

For information on the settings in the printer driver, see the "Online Manual"

or the printer driver help file.

4Click the "Print" button or the "OK" button to begin printing.

The print job will be delivered to the paper output tray.

Canceling a print job

1Select printer mode with the [MODE SELECT] key on the

operation panel of the machine, and then press the [CLEAR]

key ( ) or the [CLEAR ALL] key ( ).

2"CANCEL PRINT JOB?" will appear in the display. Make sure

that a checkmark appears in front of "YES" and press the

[ENTER] key.

•Print jobs received while the machine is copying will be stored in

memory. When the copy job is finished, the print jobs will begin

printing.

•Printing is not possible when the front or side cover is opened for

machine maintenance, or when a misfeed occurs or the machine

runs out of paper or toner.

Make sure that the paper size setting on the machine is the same as the

paper size set in the printer driver.

For limitations on copying in print mode, scanner mode limitations, and

print mode limitations in copy and scanner mode, see "OPERATION IN

COPY, PRINTER, AND SCANNER MODES" (p.60).

Note

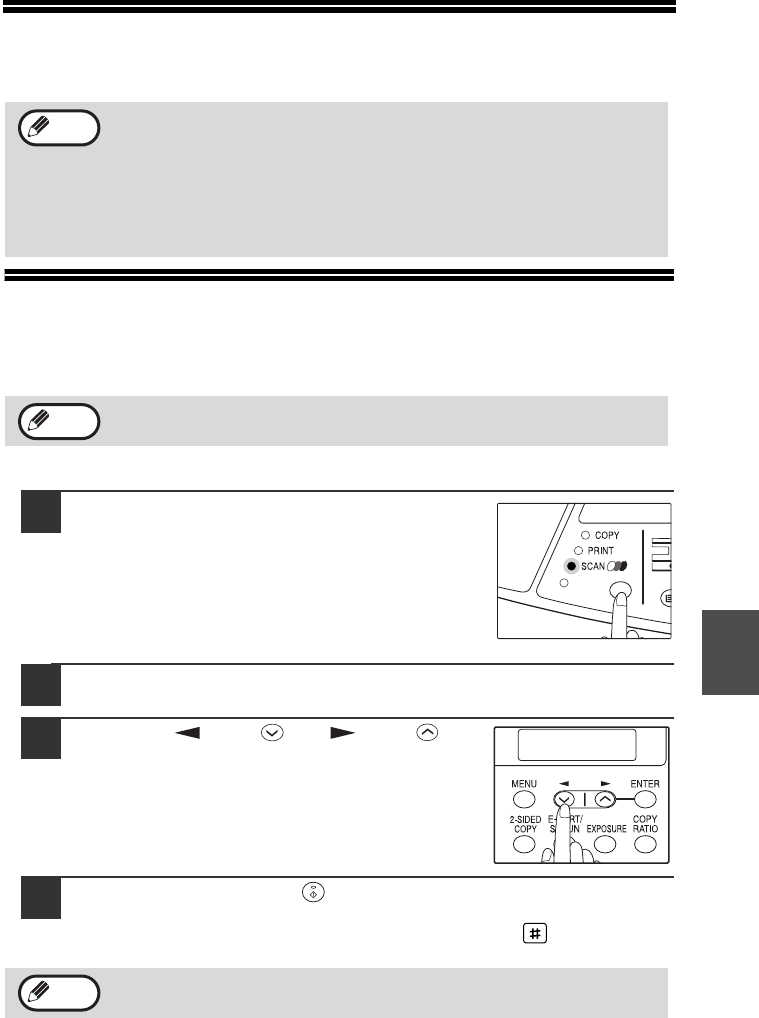

USING THE SCANNER MODE

The procedure for placing the original is the same as for copying. See "NORMAL

COPYING" (p.20).

SCANNING USING THE KEYS ON THE MACHINE

When scanning is performed by this method, the application that has been set in

Button Manager will automatically start and the scanned image will be pasted into

the application.

Scanning from the operation panel of the machine

1Press the [MODE SELECT] key to select

scanner mode.

The "SCAN" indicator lights up to indicate that

scanner mode is selected.

2Place the original. (p.20)

3Press the [ ] key ( ) or [ ] key ( ) to

select the desired Button Manager scan

menu setting.

4Press the [START] key ( ) to begin scanning.

If you are scanning from the document glass, press the [ ] key after all

pages of the original have been scanned.

Scanner mode cannot be used at the following times:

•A misfeed has occurred (paper misfeed or original misfeed in the

SPF/RSPF).

•The user programs are being used.

•The tray paper size is being set.

•The machine is being used in copy mode.

•The front cover or side cover is open.

If the machine is in copy mode, press the [MODE SELECT] key to

switch to scanner mode and clear the previously set copy settings.

Scanner mode remains selected after scanning is finished. (To change

to a different mode, use the [MODE SELECT] key.)

Note

AR-168D

FAX

SCAN USING:

SC1:

Note

PRINTER/SCANNER FUNCTIONS

Button Manager scan menu

For information on Button Manager settings, see the Button Manager help file. The

names in the Button Manager menu ("xxxx" in "SC1:xxxx", etc.) can be changed.

See the online manual.

SCANNING FROM YOUR COMPUTER

The machine supports the TWAIN standard, making it possible to scan from TWAIN-

compliant applications. The machine also supports WIA (Windows Image

Acquisition), making it possible to scan from the "Scan and Camera Wizard" in

Windows XP. See the Online Manual for the procedures for TWAIN and WIA

scanning. For information on TWAIN and WIA settings, see the help file for the

scanner driver or Windows Help.

OPERATION IN COPY, PRINTER, AND SCANNER

MODES

Some operations cannot be performed simultaneously when the machine is being

used in printer mode, copy mode, or scanner mode.

*1During two-sided printing, the copy job begins after the print job finishes.

*2Printing is possible while scanning is taking place. Printing via the parallel port

begins after scanning ends.

*3If two-sided printing via the parallel port is taking place, scanning begins after

printing ends.

Modes Copying Printing

Scanning

from a

computer

Scanning

from the

machine

Copy Copy key input Yes Yes Yes No

During copying No No No No

Printer During printing Yes*1No Yes*3Yes*3

Scanner

During scan preview/

during scanning

No Yes*2No No

HOW TO USE THE ONLINE MANUAL

The online manual provides detailed instructions for operating the unit as a printer

and scanner. It also provides methods for dealing with printing or scanner problems.

To access the online manual, your computer must have Acrobat Reader 5.0 or later.

If this is not installed, refer to "Installing Acrobat Reader" (below).

1Turn on your computer.

2Insert the supplied CD-ROM into your CD-ROM drive.

3Click the "start" button, click "My Computer" ( ), and then

double-click the CD-ROM ( ) icon.

In Windows 95/98/Me/NT 4.0/2000, double-click "My Computer" and then

double-click the CD-ROM icon.

4Double-click the "Manual" folder,

double-click the "EnglishA" folder,

and then double-click the

"AR_168S_168D.pdf" icon.

The window at right will appear.

5Click to read the online manual.

To close the online manual, click the ( ) button located at the top-right of

the window.

Installing Acrobat Reader

1Turn on your computer.

2Insert the CD-ROM into the CD-ROM drive.

3Click the "start" button, click "My Computer" ( ), and then

double-click the CD-ROM ( ) icon.

In Windows95/98/Me/NT4.0/2000, double-click "My Computer" and then

double-click the CD-ROM icon.

4Double-click the "Acrobat" folder, and then double-click the

"ar500enu.exe" icon.

Follow the on-screen instructions to install Acrobat Reader.

•The online manual can be printed out using Acrobat Reader. It is

useful to print out sections that you refer to frequently.

•Refer to Acrobat Reader "Help" for more details on the operation and

functions of Acrobat Reader.

Note

7Chapter 7

The user settings allow you to customize machine settings to better meet your

needs.

USER PROGRAMS

The user settings consist of the following items.

To change the user program settings as explained in "SELECTING A SETTING FOR

A USER PROGRAM" (p.67).

Copy mode

Program

number Program name

Setting codes

(factory default

setting appears

in bold)

Explanation

1 AUTO CLEAR

1: 10 SEC.

2: 30 SEC.

3: 60 SEC.

4: 90 SEC.

5: 120 SEC.

6: OFF

•Auto clear time automatically

returns the copy settings to

the initial settings (p.12) if no

keys are pressed for a preset

period of time following the

end of a copy job.

•This program is used to select

the period of time. Auto clear

time can also be disabled.

2 PREHEAT MODE

1: 30 SEC.

2: 1 MIN.

3: 5 MIN.

4: 30 MIN.

5: 60 MIN.

6: 120 MIN.

7: 240 MIN.

•This function automatically

switches the machine to a low

power consumption state if

the set duration of time

elapses without the machine

being used when the power is

on. The power save indicator

lights up, however, the keys

on the operation panel can be

used. Normal operation

automatically resumes when

a key on the operation panel

is pressed, an original is

placed, a print job is received.

3 AUTO SHUT-OFF 1: ON

2: OFF

•Use this setting to enable or

disable auto power shut-off

mode.

USER SETTINGS

4AUTO SHUT-OFF

TIME

1: 5 MIN.

2: 30 MIN.

3: 60 MIN.

4: 120 MIN.

5: 240 MIN.

•This function automatically

switches the machine to a state

that consumes even less power

than preheat mode if the set

duration of time elapses without

the machine being used when

the power is on. All lights

except the power save indicator

go off. To resume normal

operation, press the [START]

key ( ). Normal operation

also resumes automatically

when a print job is received or

scanning is begun from a

computer. While in auto power

shut-off mode, no keys (except

the [START] key ( )) can be

used.

5 STREAM FEEDING 1: ON

2: OFF

•When copying using the SPF/

RSPF, while "SET ORIGINALS

FOR STREAM FEEDING."

appears in the display after an

original has been scanned

(about 5 seconds), a

subsequent original can be

placed and automatically fed

into the machine.

6 LAYOUT IN 2IN1 1: PATTERN 1

2: PATTERN 2

•Use this setting to select the

layout pattern when two

original pages are copied onto

a single sheet of paper (see

page 31 for the layout

patterns).

7OFFSET

FUNCTION

1: ON

2: OFF

•When enabled, this function

offsets the position in the

paper output tray of sets of

copies during copy job, and

print jobs when using the

printer function.

Program

number Program name

Setting codes

(factory default

setting appears

in bold)

Explanation

USER SETTINGS

8ROTATE ORIG.

IMAGE*

1: ON

2: OFF

•When two-sided copying is

performed, this function

rotates the image on the back

of the original. This is

convenient when binding the

copies at the top (tablet

binding).

9AE/TEXT

RESOLUTION

1: 300dpi

2: 600dpi

•This setting is used to change

the copy resolution in AUTO

and TEXT mode from 600 x

300 dpi to 600 x 600 dpi (high-

quality mode). Scanning is

slower when high-quality

mode is used.

10 2-SIDED COPY

MODE*

1: HI-SPEED

2: NORMAL

•If the memory fills up when

two-sided copying is

performed, "NORMAL" can be

selected to make copying

possible. However,

"NORMAL" results in a slower

copying speed. Normally "HI-

SPEED" is selected to enable

fast two-sided copying.

11 MARGIN WIDTH

1: 1/4"

2: 1/2"

3: 3/4"

4: 1"

•Use this setting to set the

margin width.

12 MEM. FOR

PRINTER

1: 30%

2: 40%

3: 50%

4: 60%

5: 70%

•Use this to change the

proportion of machine

memory used for printer

mode.

13 AUTO KEY

REPEAT

1: ON

2: OFF

•Use this setting to select

whether or not holding down a

key causes repeated input of

the key. For keys that

normally cause a set value to

increase when held down (for

example, holding down the

[ ] key ( ) or [ ] key

( )), this program can be

used to have the set value not

change when the key is held

down.

Program

number Program name

Setting codes

(factory default

setting appears

in bold)

Explanation

* AR-168D only

USER SETTINGS

14 KEY PRESS TIME

1: NORMAL

2: 0.5 SEC.

3: 1.0 SEC.

4: 1.5 SEC.

5: 2.0 SEC.

•Use this setting to select how

long a key must be pressed

for the input to be accepted.

By selecting a longer time,

you can prevent settings from

being changed by the

accidental pressing of a key.

15 KEY TOUCH

SOUND

1: LOW

2: HIGH

3: OFF

•This sets the volume of beep

signals. (p.68)

16 SOUND AT

DEFAULT

1: ON

2: OFF

•Use this to sound a beep

when a base setting is

selected. (p.68)

17 TONER SAVE

MODE

1: ON

2: OFF

•This mode reduces toner

usage by about 10% when

copying. Toner save mode is

effective when the exposure

mode is AUTO or TEXT.

18 AE LEVEL ADJUST

1: SPF/RSPF

2: DOCUMENT

GLASS

•This is used to adjust the

exposure level.

•The automatic exposure level

can be adjusted separately for

the document glass and the

SPF/RSPF.

•The factory default setting for

the exposure level is "center".

19 LANGUAGE

1: AMERICAN

ENGLISH

2: FRENCH

3: SPANISH

•

•This is used to set the

language used in the display.

20 RESET FACTORY 1: YES

2: NO

•This is used to return all

settings to the factory default

settings.

21 SORT AUTO

SELECT

1: ON

2: OFF

•Use this setting to enable or

disable sort auto select mode.

Program

number Program name

Setting codes

(factory default

setting appears

in bold)

Explanation

変更：

Use this setting to select the sort 

copy as default output mode for 

copying from the SPF/RSPF.

USER SETTINGS

Print mode

*1The scanning speed increases when the USB 2.0 mode is set to "HI-SPEED",

however, the printing speed does not increase considerably.

*2When the 250-sheet paper feed unit is installed.

Program

number Program name

Setting codes

(factory default

setting appears

in bold)

Explanation

1FORCED

OUTPUT

1: ON

2: OFF

•When this function is enabled,

printing in printer mode will

automatically continue using a

different size of paper if the

specified size of paper runs

out in all trays. This feature

does not function in copy

mode.

2USB 2.0 MODE

SWITCH*1

1: FULL-SPEED

2: HI-SPEED

•This sets the USB 2.0 data

transfer speed. To obtain the

fastest speed when using the

USB 2.0 connector, first verify

that your computer meets the

system requirements

(operating system and driver),

and then use this program to

change the USB 2.0 mode to

"Hi-Speed". Note that the

setting should not be changed

while running a TWAIN driver.

(For the system requirements,

see "System requirements for

USB 2.0 (Hi-Speed mode)"

(p.57).)

3AUTO TRAY

SWITCH*21: ON

2: OFF

•If the paper runs out during

printing and there is paper of

the same size in another tray,

this function automatically

switches to that tray

(excluding the bypass tray).

The function can be disabled.

SELECTING A SETTING FOR A USER PROGRAM

1Press the [MENU] key and then press the

[ENTER] key.

In printer mode, the user programs are accessed

by simply pressing the [MENU] key.

2Press the [ ] key ( ) or [ ] key ( ) to

select the item that you wish to configure

in the USER PROGRAM items, and then

press the [ENTER] key.

•See "USER PROGRAM" (p.62 to p.66)

for the program name and program

code.

•You can also select a program by

directly entering the program number

with the numeric keys.

3Press the [ ] key ( ) or [ ] key ( ) to

change the setting of the selected item.

See "USER PROGRAM" (p.62 to p.66) for the

program code.

4Press the [ENTER] key.

Your selection appears briefly and then the previous screen appears.

•If you mistakenly select the wrong item, press the [CLEAR] key

( ) and repeat the procedure from step 2.

•To cancel a setting for a user program, press the [MENU] key.

When "AE LEVEL ADJUST" is selected in the user programs and the

[ENTER] key is pressed, the automatic exposure adjustment screen

appears. Adjust the exposure and press the [ENTER] key.

MAIN MENU

1:USER PROGRAM

USER PROGRAM

2:PREHEAT MODE

PREHEAT MODE

1:1 MIN

Note

USER SETTINGS

Audible signals (key entry beep, invalid key beep, base setting beep)

The machine sounds three different types of beep signals: a key entry beep that

sounds when a valid key is pressed, an invalid key beep that sounds when an

invalid key is pressed, and a base setting beep that sounds when a setting is the

same as the base setting (base settings are explained below). The base setting

beep is initially disabled. If you wish to enable the base setting beep, see

"SOUND AT DEFAULT" on page 65. If you wish to change the volume of the beep

signals or disable them, see "KEY TOUCH SOUND" on page 65.

The beep patterns of each type of beep signal are as follows:

Key entry beep.....................One beep

Invalid key beep................. Two beeps

Base setting beep......... Three beeps

Base settings

The base settings are preset standard selections for each copy setting. The base

settings are as follows:

Copy ratio................................... 100%

Light and Dark level .................Center

Paper feed location .................Tray 1

(Upper paper tray)

AUTO/TEXT/PHOTO ................AUTO

8Chapter 8

Problems related to general use of the machine, the copy function, and software

setup are explained here. Be sure to check the problem carefully before calling for

service, as many problems can be solved by the user.

If you are unable to solve the problem, turn off the main switch, unplug the power

cord from the outlet, and contact your dealer.

DISPLAY MESSAGES

When the following indicators light up or blink on the operation panel or the following

alphanumeric codes appear in the display, solve the problem immediately referring

to both the table below and the indicated page.

For problems related to the printer and scanner functions, see the

online manual.

Be sure to use only genuine SHARP parts and supplies.

Indication Cause and remedy Page

Lamp indicator Display

Tray

location

indicator

Blinks

BYPASS : ADD

PAPER The indicated paper tray is not

attached, is attached incorrectly, or has

run out of paper. (The tray is indicated

in <*>.)

TRAY<*> : ADD

PAPER

CLOSE PAPER

TRAY<*>

Error

indicator Blinks

CLEAR PAPER

JAM. A paper misfeed has occurred.

Remove the misfeed as explained in

"MISFEED REMOVAL".

SPF/RSPF JAM.

FRONT OR SIDE

COVER OPEN.

CLOSE COVERS.

The cover is open. Close the cover. -

CLOSE THE SPF/

RSPF COVER.

The SPF/RSPF cover is open. Close the

SPF/RSPF cover.

REPLACE THE

TONER

CARTRIDGE.

The toner cartridge is empty. Replace

the toner cartridge with a new

cartridge. (When the indicator blinks,

the machine does not operate.)

SYSTEM ERROR

[XX - XX] REFER

TO USER GUIDE

When [L1-00] appears, the scan head

locking switch is locked. Turn off the

power, release the scan head locking

switch, and turn the power back on.

The machine will not function. Turn the

power switch off, wait about 10 seconds,

and then turn on the switch again. If this

does not clear the error, remove the

power cord from the outlet, and contact

your SHARP service center.

Note

TROUBLESHOOTING AND

MAINTENANCE

TROUBLESHOOTING AND MAINTENANCE

Error

indicator

Steadily

lit

TONER

CARTRIDGE IS

NEAR EMPTY.

Replacement of toner cartridge will be

needed soon. Prepare a new cartridge. 83

MAINTENANCE

REQUIRED CALL

FOR SERVICE

Service by an authorized SHARP

service technician is required. -

MEMORY FULL, PRESS START TO

RESUME.

Data is being held in memory. Print the

data or clear it from memory. 30

NO 2-SIDED COPY FROM BYPASS

TRAY.

Two sided printing or 2 IN 1 copying is

selected when the bypass tray is

already selected ,or the bypass tray is

selected when two-sided printing or 2

IN 1 copying is already selected.

The bypass tray cannot be used. Press

the [TRAY SELECT] key ( ) to select

a paper tray.

NO 2IN1 COPY FROM

BYPASS TRAY.

NO 2IN1 COPY WITH MARGIN

SHIFT.

2 IN 1 copy and margin shift cannot be

used in combination.

COPY RATIO CAN NOT BE

CHANGED IN 2IN1.

Copy ratio can not be changed in 2 IN 1

copy.

THIS MENU IS NOT SELECTABLE

WITH DATA.

This appears if you attempt to change

a user program setting while a copy or

print job is in progress.

INSTALL A TONER CARTRIDGE. The toner cartridge is not installed

correctly. Reinstall the toner cartridge. 83

NO XXXX SIZE TRAY

There is no paper for printing. Press

the [MODE SELECT] key to switch to

printer mode and follow the instructions

in the display.

("XXXX" indicates paper size)

CHECK SPF/RSPF.

START TO RESUME.

An original remains on the document

glass, or the original is too thick to

scan. Remove the original.

If the message is no cleared when

there is not original on the document

glass, the underside of the SPF/RSPF

is dirty. Clean the underside of the

SPF/RSPF. (especially areas where

black lines appear.)

LOAD

XXXX

PAPER INTO TRAY<*>.

Printing is not possible if the paper size

setting is different from the size of

paper loaded in the tray. Load the

same size of paper as the paper size

setting and then press the [START] key

( ). Printing will begin.

XXXX

" indicates paper size. The tray

is indicated in <*>.)

NO PC COMMUNICATION; CHECK

CABLE.

The machine is not correctly connected

to the computer. Check the cable

(when using the scanner function).

Indication Cause and remedy Page

Lamp indicator Display

TROUBLESHOOTING THE MACHINE

The following problems are related to the general operation of the machine and

copying.

Problem Cause and solution Page

The machine does not

operate.

The machine is not plugged into a

power outlet.

→

→ →

→ Plug the machine into a grounded outlet.

Power switch OFF.

→

→ →

→ Turn the power switch ON. 12

The power save indicator is blinking.

Indicates that the machine is warming

up.

→

→ →

→ Copies cannot be made until the

machine has finished warming up.

The front cover or the side cover is not

completely closed.

→

→ →

→ Close the front cover or the side cover.

The machine is in auto power shut-off

mode.

→

→ →

→ In auto power shut-off mode, all lights

are off except the power save indicator.

Press the [START] key ( ) to resume

normal operation.

The scan head locking switch is locked.

→

→ →

→ Unlock the scan head locking switch. 86

Copies are too dark or

too light.

Select the correct original type for the

original.

→

→ →

→ Select AUTO with the [EXPOSURE]

key or press the [ ] key ( ) or [ ]

key ( ) to manually select an

appropriate exposure.

→

→ →

→ If the copy is too light or too dark even

though AUTO was selected with the

[EXPOSURE] key, adjust the automatic

exposure level.

Blank copies.

The original is not placed face up in the

SPF/RSPF or face down on the

document glass.

→

→ →

→ Place the original face up in the SPF/

RSPF or face down on the document

glass.

20, 21

TROUBLESHOOTING AND MAINTENANCE

Problem Cause and solution Page

Part of the image is cut

off or there is too much

blank space.

The original was not placed in the

correct position.

→

→ →

→ Place the original correctly.

20, 21

An appropriate ratio was not used for

the size of the original and the size of

the paper.

→

→ →

→ Press the [COPY RATIO] key to change

the ratio to a setting that is suitable for

the original and the copy paper.

The size of paper loaded in the tray was

changed without changing the tray's

paper size setting.

→

→ →

→ Be sure to change the tray's paper size

setting whenever you change the size

of paper loaded in the tray.

Wrinkles appear in the

paper or the image

disappears in places.

The paper is outside of the specified

size and weight range.

→

→ →

→ Use copy paper within the specified

range.

Paper curled or damp.

→

→ →

→ Do not use curled or crimped paper.

Replace with dry copy paper. During

periods when the machine is not used

for a long time, remove the paper from

the tray and store it in a dark place in a

bag to prevent moisture absorption.

Copies are smudged or

dirty.

The document glass or the underside of

the SPF/RSPF is dirty.

→

→ →

→ Clean regularly.

Original smudged or blotchy.

→

→ →

→ Use a clean original. -

TROUBLESHOOTING AND MAINTENANCE

Paper misfeed.

Misfeed occur.

→

→ →

→ To remove the misfeed, see "MISFEED

REMOVAL".

The paper is outside of the specified

size and weight range.

→

→ →

→ Use copy paper within the specified

range.

Paper curled or damp.

→

→ →

→ Do not use curled or crimped paper.

Replace with dry copy paper. During

periods when the machine is not used

for a long time, remove the paper from

the tray and store it in a dark place in a

bag to prevent moisture absorption.

Paper is not loaded properly.

→

→ →

→ Make sure that the paper is properly

loaded.

Pieces of paper inside machine.

→

→ →

→ Remove all pieces of misfed paper. 80

Too much paper is loaded in the tray.

→

→ →

→ If the stack of paper is higher than the

indicator line on the tray, remove some

of the paper and reload so that the

stack does not exceed the line.

Some sheets of paper stick together.

→

→ →

→ Fan the paper well before loading it. 21

The guides on the bypass tray do not

match the width of the paper.

→

→ →

→ Adjust the guides to match the width of

the paper.

The bypass tray extension is not pulled

out.

→

→ →

→ When loading a large size of paper, pull

out the extension.

White or black lines

appear on copies.

The scanner glass for the SPF/RSPF is

dirty.

→

→ →

→ Clean the long, narrow scanning glass.

The transfer charger is dirty.

→

→ →

→ Clean the transfer charger. 89

Problem Cause and solution Page

TROUBLESHOOTING AND MAINTENANCE

Paper size for a paper

tray cannot be set.

Copying or printing is performed.

→

→ →

→ Set the paper size after copying or

printing is complete.

The machine has stopped temporarily

due to running out of paper or a

misfeed.

→

→ →

→ Load paper or remove the misfeed, and

then set the paper size.

19, 79

A copy job stops before

it is finished.

"MEMORY FULL, PRESS START TO

RESUME." appears in the display.

→

→ →

→ The memory became full during sort

copy. Copy only the originals that have

been scanned to that point, or cancel

the job and clear the data from

memory.

The tray is out of paper.

→

→ →

→ Load paper. 15

The power save

indicator is lit.

Other indicators are lit.

→

→ →

→ If other indicators are lit, the machine is

in preheat mode. Press any key on the

operation panel to resume normal

operation.

Only the power save indicator is lit.

→

→ →

→ If only the power save indicator is lit, the

machine is in auto power shut-off

mode. Press the [START] key ( ) to

resume normal operation.

Error indicator ( ) is

lit or blinking.

See "DISPLAY MESSAGES" to check

the meaning of the error indicator and

error message in the display, and take

appropriate action.

Lighting fixture flickers.

The same power outlet is used for the

lighting fixture and the machine.

→

→ →

→ Connect the machine to a power outlet

which is not used for other electric

appliances.

Problem Cause and solution Page

PROBLEMS DURING SETUP THE SOFTWARE

If the software does not install correctly, check the following items on your computer.

To remove the software, see "Removing the software" (p.78).

MFP driver cannot be installed (Windows 2000/XP)

If the MFP driver cannot be installed in Windows 2000/XP, follow these steps to

check your computer's settings.

1Click the "start" button and then click "Control Panel".

In Windows 2000, click the "Start" button, select "Settings", and then click

"Control Panel".

2Click "Performance and Maintenance", and then click

"System".

In Windows 2000, double-click the "System" icon.

3Click the "Hardware" tab and then click the "Driver Signing"

button.

4Check "What action do you

want Windows to take?" ("File

signature verification" in

Windows 2000).

If "Block" has been selected, it will

not be possible to install the MFP

driver. Select "Warn" and then

install the MFP driver as explained

in "INSTALLING THE

SOFTWARE".

TROUBLESHOOTING AND MAINTENANCE

Plug and play screen does not appear (USB only)

If the Plug and Play screen does not appear after you connect the machine to your

computer with a USB cable and turn on the machine, follow the steps below to verify

that the USB port is available.

1Click the "start" button, click "Control Panel", and then click

"Performance and Maintenance".

In Windows 98/Me/2000, click the "Start" button, select "Settings", and then

click "Control Panel".

2Click "System", click the "Hardware" tab, and click the "Device

Manager" button.

"Universal Serial Bus controllers" will appear in the list of devices.

3Click the icon beside "Universal Serial Bus controllers".

Two items should appear: your controller chipset type and Root Hub. If

these items appear, you can use the USB port. If the "Universal Serial Bus

controllers" shows a yellow exclamation point or does not appear, you must

check your computer manual for USB troubleshooting or contact your

computer manufacturer.

4Once you have verified that the USB port is enabled, install the

software as explained in "INSTALLING THE SOFTWARE".

•In Windows 98/Me, double-click the "System" icon and click the

"Device Manager" tab.

•In Windows 2000, double-click the "System" icon, click the

"Hardware" tab, and click the "Device Manager" button.

•If the "System" icon does not appear in Windows Me, click "view all

Control Panel options".

Note

TROUBLESHOOTING AND MAINTENANCE

The MFP driver cannot be correctly installed by Plug and

Play (Windows 2000/XP) (USB only)

In Windows 2000/XP, if the MFP driver cannot be correctly installed by Plug and

Play (for example, Plug and Play takes place without copying the required files for

the MFP driver installation), follow these steps to remove unneeded devices and

then install the MFP driver as explained in "SET UP THE SOFTWARE" (p.36).

1Click the "start" button, click "Control Panel", and then click

"Performance and Maintenance".

In Windows 2000, click the "Start" button, select "Settings", and then click

"Control Panel".

2Click "System", click the "Hardware" tab, and click the "Device

Manager" button.

3Click the icon beside "Other

devices".

If "AR-XXXX" and "SHARP AR-

XXXX" appear, select and delete

both of these items.

4Install the software as explained in "INSTALLING THE

SOFTWARE".

Another printer is using the parallel port (when using a

parallel cable)

If another printer is using the parallel port and printing is not possible using the

machine, follow the steps below to change the port setting of the other printer driver,

and make sure that the port of the printer driver for the machine is set to LPT1.

1Click the "start" button, click "Control Panel", click "Printers

and Other Hardware", and then click "Printers and Faxes".

In Windows 95/98/Me/NT 4.0/2000, click the "Start" button, select

"Settings", and then click "Control Panel".

2Click the icon of the printer driver for which you wish to change

the port setting, and select "Properties" from the "File" menu.

3Click the "Ports" tab.

In Windows 95/98/Me, click the "Details" tab.

In Windows 2000, double-click the "System" icon, click the "Hardware"

tab, and click the "Device Manager" button.

If "Other devices" does not appear, close the "Device Manager"

window.

Note

TROUBLESHOOTING AND MAINTENANCE

4Select "FILE:" in the "Print to the following port" list box, and

click the "OK" button.

5Click the "SHARP AR-XXXX" printer driver icon and select

"Properties" from the "File" menu.

6Click the "Ports" tab.

In Windows 95/98/Me, click the "Details" tab.

7Select "LPT1" in the "Print to the following port" list box, and

click the "OK" button.

Removing the software

If you need to remove the software, follow these steps.

1Click the "start" button and then click "Control Panel".

In Windows 95/98/Me/NT 4.0/2000, click the "Start" button, select

"Settings", and then click "Control Panel".

2Click "Add or Remove Programs".

In Windows 95/98/Me/NT 4.0/2000, double-click the "Add/Remove

Programs" icon.

3Select "SHARP AR-M150/168 Series MFP Driver" and Button

Manager from the list, and remove the software.

For more information, refer to your operating manual or to the help files for

your operating system.

In the event that you need to use the other printer, repeat the above

steps to set the port of the machine to "FILE:", and change the port

setting of the other printer back to "LPT1".

Note

MISFEED REMOVAL

When a misfeed occurs, the error indicator blinks, "CLEAR PAPER JAM" appears in

the display, and the machine stops operating. If a misfeed occurs when using the

SPF/RSPF, "RETURN X ORIGINAL(S) START TO RESUME" will appear in the

display. ("X" indicates the number of pages to be returned.). This indicates the

number of the originals that must be returned to the document feeder tray after a

misfeed. Return the required number of originals. This number will be cleared when

copying is resumed or the [CLEAR] key ( ) is pressed. If an original misfeed

occurs in the SPF/RSPF, the machine will stop and the error indicator will blink. To

remove a misfeed from the SPF/RSPF, see "D: Misfeed in the SPF/RSPF" (p.82).

1Open the bypass tray and side cover, in that order.

To open the bypass tray, see "Loading paper in the bypass tray" (p.18). To

open the side cover, see "TONER CARTRIDGE REPLACEMENT" (p.84).

2Check the misfeed location. Remove the misfed paper

following the instructions for each location in the illustration

below. If the error indicator blinks, proceed to "A: Misfeed in

the paper feed area" (p.80).

If paper is misfed here, proceed to "A:

Misfeed in the paper feed area" (p.80).

If paper is misfed here, proceed to "B:

Misfeed in the fusing area" (p.80).

If the misfed paper is seen from

this side, proceed to "C: Misfeed

in the transport area" (p.81).

TROUBLESHOOTING AND MAINTENANCE

A: Misfeed in the paper feed area

1Gently remove the misfed paper from the paper feed area as

shown in the illustration. If the error indicator blinks and the

misfed paper is not visible in the paper feed area, pull out the

paper tray and remove the misfed paper. If the paper cannot be

removed, proceed to "B: Misfeed in the fusing area".

2Close the side cover by pressing the round projections near

the side cover open button. The error indicator will go out and

the ready indicator will light up.

B: Misfeed in the fusing area

1Lower the fusing unit release

lever.

The fusing unit is hot. Do not touch the fusing unit when

removing misfed paper. Doing so may cause a burn or other

injury.

•Do not touch the surface of the drum (green portion) of the

photoconductive drum when removing the misfed paper. Doing so

may damage the drum and cause smudges on copies.

•If the paper has been fed through the bypass tray, do not remove the

misfed paper through the bypass tray. Toner on the paper may stain

the paper transport area, resulting in smudges on copies.

Warning

Caution

Fusing unit release lever

TROUBLESHOOTING AND MAINTENANCE

2Gently remove the misfed paper

from under the fusing unit as shown

in the illustration. If the paper cannot

be removed, proceed to "C: Misfeed

in the transport area".

3Raise the fusing unit release lever and then close the side

cover by pressing the round projections near the side cover

open button. The error indicator will go out and the ready

indicator will light up.

C: Misfeed in the transport area

1Lower the fusing unit release lever.

See "B: Misfeed in the fusing area" (p.80).

2Open the front cover.

To open the front cover, see "TONER CARTRIDGE REPLACEMENT"

(p.84).

3Rotate the roller rotating

knob in the direction of the

arrow and gently remove the

misfed paper from the exit

area.

The fusing unit is hot. Do not touch the fusing unit when

removing misfed paper. Doing so may cause a burn or other

injury.

•Do not touch the surface of the drum (green portion) of the drum

cartridge when removing the misfed paper. Doing so may cause

smudges on copies.

•Do not remove the misfed paper from above the fusing unit. Unfixed

toner on the paper may stain the paper transport area, resulting in

smudges on copies.

Warning

Caution

Roller rotating

knob

TROUBLESHOOTING AND MAINTENANCE

4Raise the fusing unit release lever, close the front cover and

then close the side cover by pressing the round projections

near the side cover open button. The error indicator will go out

and the ready indicator will light up.

D: Misfeed in the SPF/RSPF

An original misfeed may occur at one of three locations: if the misfed original is

visible in the document feeder tray, (A) in the document feeder tray; if the misfed

original is not visible in the document feeder tray, (B) in the exit area or (C) under the

document feeder cover. Remove the misfed original following the instructions for

each location.

(A) Open the document feeder cover and pull the original gently to the left and

out from the document feeder tray. Close the document feeder cover. Open

and close the SPF/RSPF to clear the error indicator. If the misfed original

cannot be easily removed, proceed to (C).

(B) Open the SPF/RSPF and rotate the roller to remove the misfed original from

the exit area. If the misfed original cannot be easily removed, proceed to

(C).

With the RSPF, pull out the reversing tray to remove the misfed original.

When closing the covers, be sure to close the front cover securely and

then close the side cover. If the covers are closed in the wrong order,

the covers may be damaged.

After removing a misfed original from the exit area of the RSPF, be sure

to insert the reversing tray into the exit area until it locks in place.

Caution

Document feeder cover

Roller

Note

TROUBLESHOOTING AND MAINTENANCE

direction of the arrow while rotating the roller.

TONER CARTRIDGE REPLACEMENT

When toner is low, the error indicator will light up and "TONER CARTRIDGE IS

NEAR EMPTY." will appear in the display to alert you to purchase a new toner

cartridge. on purchasing a new toner cartridge. If copying is continued while the

indicator is lit, copies will gradually become lighter until the toner runs out. When the

toner runs out, the machine will stop operating, the error indicator will blink, and

"REPLACE THE TONER CARTRIDGE" will appear in the display. Follow the

procedure below to replace the toner cartridge.

"RETURN X ORIGINAL(S) START TO RESUME" will appear in the

display. Return the indicated number of pages to the document feeder

tray. Open and close the SPF/RSPF to clear the error indicator, and

then return the required number of originals. Press the [START] key

( ) to resume copying.

•After the machine stops, it may be possible to make a few more

copies by taking the toner cartridge out of the machine, shaking it

horizontally, then reinstalling it. If copying is not possible after this

operation, replace the toner cartridge.

•During a long copy run of a dark original, "TONER

REPLENISHMENT IN PROGRESS" appears in the display, and the

machine may stop even though toner is left. The machine will feed

toner up to 2 minutes and then the ready indicator will light up. Press

the [START] key ( ) to resume copying.

Reversing tray

Note

TROUBLESHOOTING AND MAINTENANCE

1Open the bypass tray, and

then open the side cover

while pressing the side

cover open button.

2Push gently on both sides of

the front cover to open the

cover.

3Gently pull the toner

cartridge out while pressing

the lock release lever.

•After removing the toner cartridge, do not shake it or tap on it. Doing

so may cause toner to leak from the cartridge. Put the old cartridge

immediately in the bag contained in the box of the new cartridge.

•Dispose of the old toner cartridge in accordance with local

regulations.

Toner cartridge lock release lever

Note

TROUBLESHOOTING AND MAINTENANCE

4Remove the toner cartridge from the bag. Grasp the cartridge

on both sides and shake it horizontally four or five times. After

shaking the cartridge, remove the toner seal.

5Gently insert the toner cartridge along

the guides until it locks in place while

pushing the lock release lever.

Remove the tape from the shutter. Pull

the shutter out of the toner cartridge

as shown in the illustration. Discard

the shutter.

Grasp the toner cartridge as shown in the illustration. Do not hold the

cartridge by the shutter. Be sure to only shake the cartridge before the

toner seal is removed.

4 or 5 times

Shutter

Toner seal

Note

TROUBLESHOOTING AND MAINTENANCE

6Close the front cover and

then the side cover by

pressing the round

projections near the side

cover open button. The error

indicator will go out and the

ready indicator will light up.

SCAN HEAD LOCKING SWITCH

The scan head locking switch is under the original table. If the switch is locked ( ),

the unit will not operate. Unlock the switch ( ) as shown below.

When closing the covers, be sure to close the front cover securely and

then close the side cover. If the covers are closed in the wrong order,

the covers may be damaged.

Even after a new toner cartridge is installed, the start ( ) indicator

may not light up, indicating copying cannot be restarted (toner is not

sufficiently fed). In this case, open and close the side cover. The copier

will feed toner again approximately 2 minutes and then copying can be

restarted.

Caution

Note

Lock Unlock

Grasp here and turn in

the direction of the arrow.

CHECKING THE TOTAL COUNT

You can check the total number of pages output by the machine (all pages printed by

the copy function and printer function), as well as the output counts of each function

(number of copies, number of scanned pages, number of faxes, etc.). When a count

reaches 999,999 it returns to 0.

1Press the [MENU] key.

Press the [ ] key ( ) or [ ] key ( )

until "TOTAL COUNT" appears, and then

press the [ENTER] key.

2Press the [ ] key ( ) or [ ] key ( ) to

display the count of each function.

The count of each function changes as follows each the [ ] key ( ) or

[ ] key ( )is pressed:

•"TOTAL OUTPUT": Total number of ages output by the machine

•"COPIES": Total number of copies

•"SPF/RSPF": Total number of pages scanned using the

SPF/RSPF

•"2-SIDED PRINT":*1Total number of pages printed by two-sided

•"PRINTS": Total number of pages printed the printer

function

•"FAX":*2Total number of sent and received faxes

•"FAX SEND":*2Total number of sent faxes

•"SCAN SEND": Total number of scans

•"TONER REMAINING": The remaining number of pages that can be

printed with the toner cartridge is displayed.

*1AR-168D only

*2When the optional Facsimile Expansion Kit is installed.

MAINTENANCE REQUIRED

When the error indicator will blink and "MAINTENANCE REQUIRED CALL FOR

SERVICE" will appear in the display, service by an authorized SHARP service

technician is required. Contact your service center as soon as possible.

MAIN MENU

3:TOTAL COUNT

TOTAL OUTPUT

012,345

CLEANING THE MACHINE

Proper care is essential in order to get clean, sharp copies. Be sure to take a few

minutes to clean the machine on a regular basis.

Cabinet

Wipe the cabinet with a soft, clean cloth.

Document glass and the back side of the SPF/RSPF

Stains on the glass, SPF/RSPF scanning window, cover or SPF/RSPF roller will also

be copied. Wipe the glass, SPF/RSPF scanning window, cover and SPF/RSPF roller

with a soft, clean cloth. If necessary, dampen the cloth with a glass cleaner.

Do not spray flammable cleaner gas. Gas from the spray may

come in contact with the internal electrical components or high-

temperature parts of the fusing unit, creating a risk of fire or

electrical shock.

•Before cleaning, be sure to turn the power switch off and remove

the power cord from the outlet.

•Do not use thinner, benzene or other volatile cleaning agents.

Doing so may cause deformation, discoloration, deterioration or

malfunction.

Warning

Caution

SPF/RSPF

Scanning window

SPF/RSPF roller

Document glass/scanning window SPF/RSPF

Black line

Wiped the area marked by the

black line in the illustration. If

this area is dirty, copying from

the SPF/RSPF will not be

possible.

TROUBLESHOOTING AND MAINTENANCE

Transfer charger

1Turn the power switch off. (p.13)

2Ensure that the bypass tray is open and then open the side

cover while pressing the side cover open button.

3Take the charger cleaner out by holding the tab. Set the charger

cleaner onto the right end of the transfer charger, gently slide

the cleaner to the left end, and then remove it. Repeat this

operation two or three times.

4Return the charger cleaner

to its original position.

Close the side cover by

pressing the round

projections near the side

cover open button.

5Turn the power switch on. (p.12)

Slide the charger cleaner from the right end to the left end along the

groove of the transfer charger. If the cleaner is stopped on the way,

smudges on copies may occur

Note

9Chapter 9

SYSTEM CONFIGURATION

A number of options are available for the unit which allow you to configure a system

to meet your particular needs. The options include the following.

FACSIMILE EXPANSION KIT (AR-FX9)

This allows the machine to be used as a facsimile machine.

NETWORK EXPANSION KIT (AR-NB2 N)

This allows the machine to be used as a network printer/network scanner.

250-SHEET PAPER FEED UNIT (AR-D16)

The paper feed unit provide the convenience of increased paper capacity for the unit

and a greater choice of paper size readily available for copying.

The procedures for loading paper in the

paper tray of paper feed unit, changing

the paper size, and selecting the paper

tray are same as for the paper tray in the

unit. See "LOADING THE PAPER TRAY"

(p.15) and "SELECTING THE TRAY"

(p.23).

Be sure to use only genuine SHARP parts and supplies.

For best copying results, be sure to use only SHARP Genuine Supplies

which are designed, engineered, and tested to maximize the life and

performance of SHARP copiers. Look for the Genuine Supplies label on

the toner package.

Note

250-sheet paper

feed unit

(AR-D16)

Facsimile

Expansion Kit

(AR-FX9)

Network

Expansion Kit

(AR-NB2 N)

Lower side cover

Tray

OPTIONAL EQUIPMENT

Using the AR-D16 with the printer function

To use the AR-D16 with the printer function, follow these steps to adjust the settings

in the printer driver.

1Click the "start" button.

2Click "Control Panel", select "Printer and Other Hardware", and

then click "Printer and Faxes".

On Windows 95/98/Me/NT 4.0/2000, select "Setting" and click "Printers".

3Click the "SHARP AR-XXXX" printer driver icon and from the

"File" menu select "Properties".

On Windows 95/98/Me, click the "SHARP AR-XXXX" printer driver icon,

select "Properties" from the "File" menu, and then click the "Setup" tab.

4Click the "Utility" tab.

5Select "Two trays" for "Input tray

option", and click "OK".

The printer driver closes. This completes the

settings needed to use the AR-D16.

Interface cable

Please purchase the appropriate cable for your computer.

USB interface cable

USB cable that supports USB 2.0.

Parallel interface cable

IEEE 1284-shielded type bi-directional parallel cable.

The printer driver cannot be set for use with the AR-D16 when opened

from the application.

Note

Chapter 10

SPECIFICATIONS

Model AR-168S AR-168D

Type Digital Multifunctional System, Desktop

Photoconductive

type OPC drum

Document glass

type Fixed

Copy/printing

system Dry, electrostatic transfer

Originals Sheets, bound documents

Originals size Max. 8-1/2" x 14"

Copy size

Max. 8-1/2" x 14"

Min. 3-1/2" x 5-1/2"

Image loss: Max. 5/32" (4 mm) (leading and trailing edges)

Max. 11/64" (4.5 mm) (along other edges in

total)

Max. 15/64" (6 mm)

(trailing edge of the second copy of two-sided

copying.)

Copying speed

(one-sided copying

at 100% copy ratio)

16 copies/min. (8-1/2" x 11")

Continuous copy Max. 99 copies; subtractive counter

First-copy time*1Approx. 9.6 sec.

Warm-up time*1Approx. 0 sec.

Copy ratio

Document glass:

Variable: 25% to 400% in 1% increments (total 376 steps)

Fixed preset:25%, 50%, 64%, 78%, 100%, 129%, 200%,

400%

SPF/RSPF:

Variable: 50% to 200% in 1% increments (total 151 steps)

Fixed preset:50%, 64%, 78%, 100%, 129%, 200%

Exposure system

Document glass: Moving optical source, slit exposure

(stationary platen) with automatic

exposure function

SPF/RSPF: Moving original

Paper feed One automatic feeding paper tray (250 sheets each) +

bypass tray (50 sheets)

APPENDIX

*1The copy time in the case when the power is turned on and copying using the

document glass is started immediately after the power save indicator goes off (A4,

paper fed from paper tray).

The first-copy time may vary depending on machine operating conditions and

ambient conditions such as temperature.

*2Not including toner cartridges.

Fusing system Heat rollers

Developer system Magnetic brush development

Light source

Tri-color CCD light source (CCD: 3 components; R, G, and B)

Resolution

Scan: 600 x 300 dpi Output: 600 x 600 dpi(AUTO/TEXT mode)

Scan: 600 x 600 dpi Output: 600 x 600 dpi(PHOTO mode)

Gradation Scanning: 256 Printing: 2 value

Power supply AC 120V, 60 Hz, 8A

Power consumption Max. 1.0 kW

Overall dimensions

(with bypass tray

folded)

20.4" (W) x 19.8" (D) (518 mm (W) x 503 mm (D))

Weight*2Approx. 42.3 lbs. (19.2 kg) Approx. 44.1 lbs. (20.0 kg)

Dimensions

20.4" (W) x 19.8" (D) x 15.0"

(H)

(518 mm (W) x 503 mm (D) x

380 mm (H))

20.4" (W) x 19.8" (D) x 15.0"

(H)

(518 mm (W) x 503mm (D) x

380 mm (H))

Operating

conditions

Temperature: 50°F to 86°F (10°C to 30°C), Humidity: 20%

to 85%

Noise level

Sound Power Level LwA(1B=10dB)

Copying: 6.0[B]

Standby: 3.2[B]

Sound Pressure Level LpA (bystander positions)

Copying: 46[dB(A)]

Standby: 17[dB(A)]

Sound Pressure Level LpA (operator position)

Copying: 48[dB(A)]

Standby: 18[dB(A)]

Noise emission measurement in accordance with ISO 7779.

Emission

concentration

(measured

according to RAL-

UZ62 : Edition Jan.

2002)

Ozone: 0.02 mg/m3 or less

Dust: 0.075 mg/m3 or less

Styrene: 0.07 mg/m3 or less

APPENDIX

Printer Function

Print speed 16ppm

Resolution 600 dpi

Memory Approx. 10MB

Emulation SPLC (Sharp Printer Language with Completion)

Interface IEEE 1284-compliant bi-directional parallel interface

USB 2.0 (Full-Speed/Hi-Speed compatible interface)

Interface cables

[USB cable]

USB cable that supports USB 2.0.

Please purchase a commercially available USB cable.

[Parallel cable]

Shielded type cable

Please purchase a commercially available parallel cable.

APPENDIX

Scanner Function

Type Flatbed scanner

Scanning method Document glass/SPF/RSPF

Light source Tri-color CCD light source (CCD: 3 components; R, G, and

Resolution* Basic: 600 dpi x 1200 dpi

Setting range: 50dpi - 9600dpi

Original types Sheet media, books

Effective scanning

area 8.5" (216 mm) (Lengthwise) x 14" (356 mm) (Width)

Scanning speed 2.88 msec/line

Input Data 1 bit or 12 bit

Output Data R.G.B 1 or 8 bits / pixel / A/D 16 bit

Scanning colors Black and white 2 value, Grayscale, Full color

Protocol TWAIN / WIA (Windows XP only) / STI

Interface USB 2.0 (Full-Speed/Hi-Speed compatible interface)

Drop out color Yes

Supported

operating systems

Windows98/Me

Windows 2000 Professional/Windows XP Home Edition/

Professional

(Detailed information can be found in "BEFORE

INSTALLATION" (p.37))

Void area

Top and bottom edges 5/32" (4.0 mm) due to scanner

driver

Right and left edges 11/64" (4.5 mm)

Interface cables

[USB cable]

USB cable that supports USB 2.0.

Please purchase a commercially available USB cable.

Scanner utilities Button Manager / Sharpdesk

APPENDIX

250-sheet paper feed unit (AR-D16)

Paper size 5-1/2" x 8-1/2" to 8-1/2" x 14"

Paper weight 15 lbs. to 21 lbs. (56g/m2 to 80g/m2 )

Paper capacity One paper tray with capacity for 250 sheets of 21 lbs. bond

paper

Weight 6.6 lbs. (3kg)

Dimensions 19.6" (W) x 15.6" (D) x 3.5" (H)

(498mm (W) x 395mm (D) x 88mm (H))

Power supply Drawn from the unit

As a part of our policy of continuous improvement, SHARP reserves

the right to make design and specification changes for product

improvement without prior notice. The performance specification

figures indicated are nominal values of production units. There may

be some deviations from these values in individual units.

Note

SOFTWARE LICENSE

PLEASE READ THIS LICENSE CAREFULLY BEFORE USING THE SOFTWARE. BY

USING THE SOFTWARE, YOU ARE AGREEING TO BE BOUND BY THE TERMS OF

THIS LICENSE.

1. License.

The application, demonstration, system and other software accompanying this License, whether on disk,

in read only memory, or on any other media (the "Software") and related documentation are licensed to

you by SHARP. You own the disk on which the Software is recorded but SHARP and/or SHARP'S

Licensors retain title to the Software and related documentation. This License allows you to use the

Software on one or more computers connected to a single printer and make one copy of the Software in

machine-readable form for backup purposes only. You must reproduce on such copy the SHARP

SHARP and/or its Licensors that were on the original copy of the Software. You may also transfer all

your license rights in the software, the backup copy of the Software, the related documentation and a

copy of this License to another party, provided the other party reads and agrees to the terms and

conditions of this License.

2. Restrictions.

The Software contains copyrighted material, trade secrets and other proprietary material which is owned

by SHARP and/or its Licensors and in order to protect them you may not decompile, reverse engineer,

disassemble or otherwise reduce the Software to a human-perceivable form. You may not modify,

network, rent, lease, loan, distribute or create derivative works based upon the Software in whole or in

part. You may not electronically transmit the Software from one computer to another or over a network.

3. Termination.

This license is effective until terminated. You may terminate this License at any time by destroying the

Software and related documentation and all copies thereof. This License will terminate immediately

without notice from SHARP and/or SHARP’S Licensors if you fail to comply with any provision of this

License. Upon termination you must destroy the Software and related documentation and all copies

thereof.

4. Export Law Assurances.

You agree and certify that neither the Software nor any other technical data received from SHARP, nor

the direct product thereof, will be exported outside the United States except as authorized and as

permitted by the laws and regulations of the United States. If the Software has been rightfully obtained by

you outside of the United States, you agree that you will not re-export the Software nor any other

technical data received from SHARP, nor the direct product thereof, except as permitted by the laws and

regulations of the United States and the laws and the regulation of the jurisdiction in which you obtained

the Software.

5. Government End Users.

If you are acquiring the Software on behalf of any unit or agency of the United States Government, the

following provisions apply. The Government agrees:

(i) if the Software is supplied to the Department of Defense (DoD), the Software is classified as

"Commercial Computer Software" and the Government is acquiring only "restricted rights" in the

Software and its documentation as that term is defined in Clause 252.227-7013 (c)(1) of the

DFARS; and

(ii) if the Software is supplied to any unit or agency of the United States Government other than DoD,

the Government's rights in the Software and its documentation will be as defined in Clause 52.227-

19 (c)(2) of the FAR or, in the case of NASA, in Clause 18-52.227-86 (d) of the NASA

Supplement to the FAR.

6. Limited Warranty on Media.

SHARP warrants the disks on which the Software is recorded to be free from defects in materials and

workmanship under normal use for a period of ninety (90) days from the date of purchase as evidenced

by a copy of the receipt. The entire liability of SHARP and/or its Licensors and your exclusive remedy

will be replacement of the disk which fails to meet the limited warranty provided by this Clause 6. A disk

will be replaced when it is returned to SHARP or a SHARP authorized representative with a copy of the

receipt. SHARP will have no responsibility to replace a disk damaged by accident, abuse or

misapplication.

ANY IMPLIED WARRANTIES ON THE DISKS, INCLUDING THE IMPLIED WARRANTIES OF

MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN

DURATION TO NINETY (90) DAYS FROM THE DATE OF DELIVERY. THIS WARRANTY

GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH

VARY FROM JURISDICTION TO JURISDICTION.

7. Disclaimer of Warranty on Software.

You expressly acknowledge and agree that use of the Software is at your sole risk. The software and

related documentation are provided "AS IS" and without warranty of any kind and SHARP and SHARP'S

Licensor(s) (for the purpose of provisions 7 and 8, SHARP and SHARP'S Licensor(s) shall be

collectively referred to as "SHARP") EXPRESSLY DISCLAIM ALL WARRANTIES, EXPRESS OR

IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF

MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. SHARP DOES NOT

WARRANT THAT THE FUNCTIONS CONTAINED IN THE SOFTWARE WILL MEET YOUR

REQUIREMENTS, OR THAT THE OPERATION OF THE SOFTWARE WILL BE

UNINTERRUPTED OR ERROR-FREE, OR THAT DEFECTS IN THE SOFTWARE WILL BE

CORRECTED. FURTHERMORE, SHARP DOES NOT WARRANT OR MAKE ANY

REPRESENTATIONS REGARDING THE USE OR THE RESULTS OF THE USE OF THE

SOFTWARE OR RELATED DOCUMENTATION IN TERMS OF THEIR CORRECTNESS,

ACCURACY, RELIABILITY, OR OTHERWISE. NO ORAL OR WRITTEN INFORMATION OR

ADVICE GIVEN BY SHARP OR A SHARP AUTHORIZED REPRESENTATIVE SHALL CREATE

A WARRANTY OR IN ANY WAY INCREASE THE SCOPE OF THIS WARRANTY. SHOULD

THE SOFTWARE PROVE DEFECTIVE, YOU (AND NOT SHARP OR A SHARP AUTHORIZED

REPRESENTATIVE) ASSUME THE ENTIRE COST OF ALL NECESSARY SERVICING, REPAIR

OR CORRECTION, SOME JURISDICTIONS DO NOT ALLOW THE EXCLUSION OF IMPLIED

WARRANTIES, SO THE ABOVE EXCLUSION MAY NOT APPLY TO YOU.

8. Limitation of Liability.

UNDER NO CIRCUMSTANCES INCLUDING NEGLIGENCE, SHALL SHARP BE LIABLE FOR

ANY INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES THAT RESULT FROM THE

USE OR INABILITY TO USE THE SOFTWARE OR RELATED DOCUMENTATION, EVEN IF

SHARP OR A SHARP AUTHORIZED REPRESENTATIVE HAS BEEN ADVISED OF THE

POSSIBILITY OF SUCH DAMAGES. SOME JURISDICTIONS DO NOT ALLOW THE

LIMITATION OR EXCLUSION OF LIABILITY FOR INCIDENTAL OR CONSEQUENTIAL

DAMAGES SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.

In no event shall SHARP'S total liability to you for all damages, losses, and causes of action (whether in

contract, tort (including negligence) or otherwise) exceed the amount paid by you for the Software.

9. Controlling Law and Severability.

For a portion of the Software related with Apple Macintosh and Microsoft Windows, this license shall be

governed by and construed in accordance with the laws of the state of California and Washington,

respectively. If for any reason a court of competent jurisdiction finds any provision of this License, or

portion thereof, to be unenforceable, that provision of the License shall be enforced to the maximum

extent permissible so as to effect the intent of the parties, and the remainder of this License shall continue

in full force and effect.

10. Complete Agreement.

This License constitutes the entire agreement between the parties with respect to the use of the Software and

related documentation, and supersedes all prior or contemporaneous understandings or agreements, written

or oral, regarding such subject matter. No amendment to or modification of this License will be binding

unless in writing and signed by a duly authorized representative of SHARP.

MATERIAL SAFETY DATA SHEET

Data Revised: Jan.10, 2003

Data Issued: Nov. 1, 2000

MSDS NO. F-01001

1. PRODUCT AND COMPANY IDENTIFICATION

Product Name : AR-152NT / AR-152T / AR-152ST / AR-152FT / AR-152ST-C /

AR-152NT-J (Black Toner)

Supplier Identification : Sharp Corporation

22-22 Nagaike-cho, Abeno-ku, Osaka, Japan

Local suppliers are listed below. Please contact the nearest supplier for additional information.

2. COMPOSITION/INFORMATION ON INGREDIENTS

Substance[ ] Preparation[X]

Area (Country) (Name and Telephone Number)

North

America

U.S.A. Sharp Electronics Corporation

Sharp Plaza, Mahwah, NJ

Telephone number for information : 1-800-237-4277

Emergency telephone number : 1-800-255-3924

Canada Sharp Electronics of Canada Ltd.

Telephone number for information : 905-890-2100

Emergency telephone number : 1-800-255-3924

Oceania

Australia Sharp Corporation of Australia PTY. Ltd.

No1 Huntingwood Drive Huntingwood Blacktown N.S.W.

Telephone number for information : 1300-13-50-22

Europe

Germany Sharp Electronics (Europe) GMBH

Sonninstrasse 3, 20097 Hamburg

Telephone number to access MSDS : 040-2376-2185

For more information : 040-2376-2613

United

Kingdom

Sharp Electronics (U. K.) Ltd.

Telephone number for information : 08705-274-277

France Sharp Electronics France S.A.

Telephone number for information : 01-49-90-34-00

Austria Sharp Electronics GMBH

Telephone number for information : 01-727-19-0

Italy Sharp Electronics (Italy) S.P.A.

Telephone number for information : 02895951

Spain Sharp Electronics (Espana) S.A.

Telephone number for information : 93-581-97-00

Netherlands Sharp Electronics Benelux B.V.

Telephone number for information : 30-6359500

Sweden Sharp Electronics Nordic AB

Telephone number for information : 08-634-36-00

Switzerland Sharp Electronics (Schweiz) AG

Telephone number for information : 01-846-6111

Middle

East

U.A.E. Sharp Middle East FZE

P.O.Box 17115 Jebel Ali, Dubai

Telephone number for information : 04-815311

Ingredient CAS No. Proportion OSHA PEL ACGIH TLV

MAK-TWA

NOHSC-TWA

Styrene-Acrylate

copolymer

29497-14-1 85-95% Not listed Not listed Not listed Not listed

Carbon black 1333-86-4 5-10% 3.5mg/m33.5mg/m3Not listed 3mg/m3

Iron oxide 1309-38-2 1-5% Not listed Not listed Not listed Not listed

Metal Complex dye

31714-55-3

<1% Not listed Not listed Not listed Not listed

Page: 1/4

MATERIAL SAFETY DATA SHEET

Data Revised: Jan.10, 2003

Data Issued: Nov. 1, 2000

MSDS NO. F-01001

100

3. HAZARDS IDENTIFICATION

Most Important Hazards and Effects of the Products

Human Health Effects :There are no anticipated carcinogenic effects from exposure based on

animal tests performed using toner. When used as intended according

to instructions, studies do not indicate any symptoms of fibrosis will

occur.

Environmental Effects :No data are available.

Specific hazards :Dust explosion (like most finely divided organic powders)

Directive 1999/45/EC(Europe) :Not classified as dangerous

4. FIRST-AID MEASURES

Route(s) of Entry :Inhalation? Skin? Ingestion?

Yes No Possible but very unusual.

Inhalation :Remove to fresh air. If symptoms occur, consult medical personnel.

Skin Contact :Wash with soap and water for 15 minutes or until particle is removed.

If irritation does occur, consult medical personnel.

Eye Contact :Flush eyes immediately with water for 15 minutes. If irritation does occur,

consult medical personnel.

Ingestion :Rinse with water and drink several glasses of water. If irritation or discomfort

does occur, consult medical personnel.

5. FIRE-FIGHTING MEASURES

Extinguishing Media :Water, CO2, foam and dry chemicals

Special Fire fighting Procedures :None

Fire and Explosion Hazards :Toner material, like most finely divided organic powders,

may form an explosive mixture.

6. ACCIDENTAL RELEASE MEASURES

Personal Precautions :None

Environmental Precautions :None

Methods for Cleaning Up :Wipe off with paper or cloth. Do not use vacuum cleaner when a

large amount is released. It, like most finely divided organic

powders, is capable of creating a dust explosion.

7. HANDLING AND STORAGE

Handling

Technical Measures :None

Precautions :None

Safe Handling Advice :Use of a dust mask is recommended when handling a large quantity of

toner or during long term exposure, as with any non-toxic dust. Try not

to disperse the particles.

Storage

Technical Measures :None

Storage Conditions :Keep container closed and Store in a cool and dry place.

Keep out of the reach of children.

Incompatible Products:None

Page: 2/4

MATERIAL SAFETY DATA SHEET

Data Revised: Jan.10, 2003

Data Issued: Nov. 1, 2000

MSDS NO. F-01001

101

8. EXPOSURE CONTROL / PERSONAL PROTECTION

Engineering Measures

Ventilation :None required under intended use.

Exposure limit values

OSHA-PEL (USA) :15mg/m3 (Total Dust) , 5mg/m3 (Respirable Dust)

ACGIH-TLV (USA) :10mg/m3 (Total Dust) , 3mg/m3 (Respirable Dust)

Personal Protective Equipment

Respiratory Protection :None required under intended use.

Hand Protection :None required under intended use.

Eye Protection :None required under intended use.

Skin Protection :None required under intended use.

Other Protective Equipment :Use of a dust mask and goggles are recommended when

handling a large quantity of toner or during long term exposure,

as with any non-toxic dust.

9. PHYSICAL AND CHEMICAL PROPERTIES

Appearance

Physical State : Solid Form: Powder Color: Black Odor: odorless

Ph :Not applicable

Boiling/Melting Point :Not applicable

Softening Point (°C) :100-130

Flash Point (°C ) :Not applicable

Ignition Point (°C ) :>350

Explosion Properties :No data

Density (g/cm3):1.1 (bulk density : 0.35)

Solubility in water :Negligible

10. STABILITY AND REACTIVITY

Stability :Stable

Hazardous Reactions :Dust explosion, like most finely divided organic powders.

Conditions to Avoid :Electric discharge, throwing into fire.

Materials to Avoid :Oxidizing Materials

Hazardous Decomposition Products :CO, CO2 and NOX

Further Information :None

11. TOXICOLOGICAL INFORMATION

Acute Toxicity

Ingestion (oral) :LD50>2000mg/kg (Rats)

Inhalation :No Data

Eye irritation :Not an irritant (Rabbits)

Skin irritation :Not an irritant (Rabbits)

Skin sensitizer :No sensitization

Mutagenicity :Negative (Ames Test)

Carcinogenicity

:In 1996 the IARC reevaluated carbon black as a Group 2B carcinogen (possible

human carcinogen). This classification is given to chemicals for which there is

inadequate human evidence, but sufficient animal evidence on which to base an

opinion of carcinogenicity. The classification is based upon the development of

lung tumors in rats receiving chronic inhalation exposures to free carbon black at

levels that induce particle overload of the lung. Studies performed in animal

models other than rats did not show any association between carbon black and

lung tumors. Moreover, a two-year cancer bioassay using a typical toner

preparation containing carbon black demonstrated no association between toner

exposure and tumor development in rats.

Page: 3/4

MATERIAL SAFETY DATA SHEET

Data Revised: Jan.10, 2003

Data Issued: Nov. 1, 2000

MSDS NO. F-01001

102

Chronic Effect :In a study in rats of chronic inhalation exposure to a typical toner, a mild to

moderate degree of lung fibrosis was observed in 92% of the rats in the high

concentration (16mg/m3) exposure group, and a minimal to mild degree of

fibrosis was noted in 22% of the animals in the middle (4mg/m3) exposure

group, but no pulmonary change was reported in the lowest (1mg/m3)

exposure group, the most relevant level to potential human exposures.

12. ECOLOGICAL INFORMATION

No data are available.

13. DISPOSAL CONSIDERATION

Waste from Residues :Waste material may be dumped or incinerated under conditions

which meet all federal, state and local environmental regulations.

Contaminated Packaging:Waste may be disposed or incinerated under conditions which meet

all federal, state and local environmental regulations.

14. TRANSPORT INFORMATION

UN Classification :None

Not classified as hazardous for transport.

15. REGULATORY INFORMATION

US Information

TSCA (Toxic Substances Control Act) :

All chemical substances in this product comply with all applicable rules or order under TSCA.

SARA (Superfund Amendments and Reauthorization Act) Title III

302 Extreme Hazardous Substance :None

311/312 Hazard Classification :None

EU Information

1999/45/EC and 67/548/EEC

Symbol & Indication :Not required

R-Phrase :Not required

76/769/EEC :All chemical substances in this product comply with all

applicable rules or order under 76/769/EEC.

16. OTHER INFORMATION

NFPA Rating (USA) :Health=1 Flammability=1 Reactivity=0

WHMIS Legislation (Canada) :This product is not a controlled product.

References

IARC (1996) :IARC monographs on the Evaluation of the Carcinogenic Risk of Chemicals to

Humans, Vol. 65, Printing Process And Printing Inks, Carbon Black and Some

Nitro Compounds, Lyon, pp.149-261

H.Muhle, B.Bellmann, O.Creutzenberg, C.Dasenbrock, H.Ernst, R.Kilpper, J.C.MacKenzie,

P.Morrow, U.Mohr,

S.Takenaka, and R.Mermelstein (1991) Pulmonary Response to Toner upon Chronic

Inhalation Exposure in Rats.

Fundamental and Applied Toxicology 17, pp.280-299.

The information on this data sheet represents our current data and best opinion as to the proper

use in handling of this product under normal conditions. However, all materials may present

unknown hazards and should be used with caution. Although certain hazards are described

herein, we do not guarantee that these are the only hazards which exist.

Page: 4/4

MATERIAL SAFETY DATA SHEET

Data Revised: Jul. 31, 2002

Data Issued: Nov. 1, 2000

MSDS NO. F-31001

103

1. PRODUCT AND COMPANY IDENTIFICATION

Product Name : AR-152ND / AR-152DV / AR-152SD / AR-152SD-C

(Black Developer)

Supplier Identification : Sharp Corporation

22-22 Nagaike-cho, Abeno-ku, Osaka, Japan

Local suppliers are listed below. Please contact the nearest supplier for additional information.

2. COMPOSITION/INFORMATION ON INGREDIENTS

Substance[ ] Preparation[X]

Area (Country) (Name and Telephone Number)

North

America

U.S.A. Sharp Electronics Corporation

Sharp Plaza, Mahwah, NJ

Telephone number for information : 1-800-237-4277

Emergency telephone number : 1-800-255-3924

Canada Sharp Electronics of Canada Ltd.

Telephone number for information : 905-890-2100

Emergency telephone number : 1-800-255-3924

Oceania

Australia Sharp Corporation of Australia PTY. Ltd.

No1 Huntingwood Drive Huntingwood Blacktown N.S.W.

Telephone number for information : 1300-13-50-22

Europe

Germany Sharp Electronics (Europe) GMBH

Sonninstrasse 3, 20097 Hamburg

Telephone number to access MSDS : 040-2376-2185

For more information : 040-2376-2613

United

Kingdom

Sharp Electronics (U. K.) Ltd.

Telephone number for information : 08705-274-277

France Sharp Electronics France S.A.

Telephone number for information : 01-49-90-34-00

Austria Sharp Electronics GMBH

Telephone number for information : 01-727-19-0

Italy Sharp Electronics (Italy) S.P.A.

Telephone number for information : 02895951

Spain Sharp Electronics (Espana) S.A.

Telephone number for information : 93-581-97-00

Netherlands Sharp Electronics Benelux B.V.

Telephone number for information : 30-6359500

Sweden Sharp Electronics Nordic AB

Telephone number for information : 08-634-36-00

Switzerland Sharp Electronics (Schweiz) AG

Telephone number for information : 01-846-6111

Middle

East

U.A.E Sharp Middle East FZE

P.O.Box 17115 Jebel Ali, Dubai

Telephone number for information : 04-815311

Ingredient CAS No. Proportion OSHA PEL ACGIH TLV

MAK-TWA

NOHSC-TWA

Iron powder 7439-89-6 85-95% Not listed Not listed Not listed Not listed

Styrene-Acrylate

copolymer

29497-14-1 5-10% Not listed Not listed Not listed Not listed

Carbon black 1333-86-4 < 1% 3.5mg/m33.5mg/m3Not listed 3mg/m3

Page: 1/4

MATERIAL SAFETY DATA SHEET

Data Revised: Jul. 31, 2002

Data Issued: Nov. 1, 2000

MSDS NO. F-31001

104

3. HAZARDS IDENTIFICATION

Most Important Hazards and Effects of the Products

Human Health Effects:There are no anticipated carcinogenic effects from exposure based on

animal tests performed using toner. When used as intended according

to instructions, studies do not indicate any symptoms of fibrosis will

occur.

Environmental Effects:No data are available.

Specific hazards : Dust explosion (like most finely divided organic powders)

Directive 1999/45/EC(Europe) : Not classified as dangerous

4. FIRST-AID MEASURES

Route(s) of Entry :Inhalation? Skin? Ingestion?

No No Possible but very unusual.

Inhalation :Remove to fresh air. If symptoms occur, consult medical personnel.

Skin Contact :Wash with soap and water for 15 minutes or until particle is removed.

If irritation does occur, consult medical personnel.

Eye Contact :Flush eyes immediately with water for 15 minutes. If irritation does occur,

consult medical personnel.

Ingestion :Rinse with water and drink several glasses of water. If irritation or discomfort

does occur, consult medical personnel.

5. FIRE-FIGHTING MEASURES

Extinguishing Media :Water, CO2, foam and dry chemicals

Special Fire Fighting Procedures:None

Fire and Explosion Hazards :Toner material, like most finely divided organic powders,

may form an explosive mixture.

6. ACCIDENTAL RELEASE MEASURES

Personal Precautions :None

Environmental Precautions :None

Methods for Cleaning Up :Wipe off with paper or cloth. Do not use vacuum cleaner when a

large amount is released. It, like most finely divided organic

powders, is capable of creating a dust explosion.

7. HANDLING AND STORAGE

Handling

Technical Measures :None

Precautions :None

Safe Handling Advice :Use of a dust mask is recommended when handling a large quantity of

toner or during long term exposure, as with any non-toxic dust. Try not

to disperse the particles.

Storage

Technical Measures :None

Storage Conditions :Keep container closed and Store in a cool and dry place.

Keep out of the reach of children.

Incompatible Products:None

8. EXPOSURE CONTROL / PERSONAL PROTECTION

Engineering Measures

Ventilation :None required with intended use.

Page: 2/4

MATERIAL SAFETY DATA SHEET

Data Revised: Jul. 31, 2002

Data Issued: Nov. 1, 2000

MSDS NO. F-31001

105

Exposure limit values

OSHA-PEL (USA) :15mg/m3 (Total Dust) , 5mg/m3 (Respirable Dust)

ACGIH-TLV (USA) :10mg/m3 (Total Dust) , 3mg/m3 (Respirable Dust)

Personal Protective Equipment

Respiratory Protection :None required under intended use.

Hand Protection :None required under intended use.

Eye Protection :None required under intended use.

Skin Protection :None required under intended use.

Other Protective Equipment :Use of a dust mask and goggles are recommended when

handling a large quantity of toner or during long term exposure,

as with any non-toxic dust.

9. PHYSICAL AND CHEMICAL PROPERTIES

Appearance

Physical State : Solid Form: Powder Color: Black Odor: odorless

Ph :Not applicable

Boiling/Melting Point :Not applicable

Flash Point (°C ) :Not applicable

lgnition Point(°C ) :No data

Explosion Properties :No data

Density (g/cm3):7.3 (bulk density : 2.0)

Solubility in water :Negligible

10. STABILITY AND REACTIVITY

Stability :Stable

Hazardous Reactions :Dust explosion, like most finely divided organic powders.

Conditions to Avoid :Electric discharge, throwing into fire.

Materials to Avoid :Oxidizing Materials

Hazardous Decomposition Products :CO, CO2 and NOX

Further Information :None

11. TOXICOLOGICAL INFORMATION

Acute Toxicity

Ingestion (oral) :LD50>2000mg/kg (Rats)

Inhalation :No data

Eye irritation :Not an irritant (Rabbits)

Skin irritation :Not an irritant (Rabbits)

Skin sensitizer :No sensitization

Mutagenicity :Negative (Ames Test)

Carcinogenicity :In 1996 the IARC reevaluated carbon black as a Group 2B carcinogen

(possible human carcinogen). This classification is given to chemicals for

which there is inadequate human evidence, but sufficient animal evidence

on which to base an opinion of carcinogenicity. The classification is based

upon the development of lung tumors in rats receiving chronic inhalation

exposures to free carbon black at levels that induce particle overload of the

lung. Studies performed in animal models other than rats did not show any

association between carbon black and lung tumors. Moreover, a two-year

cancer bioassay using a typical toner preparation containing carbon black

demonstrated no association between toner exposure and tumor

development in rats.

Page: 3/4

MATERIAL SAFETY DATA SHEET

Data Revised: Jul. 31, 2002

Data Issued: Nov. 1, 2000

MSDS NO. F-31001

106

Chronic Effect :In a study in rats of chronic inhalation exposure to a typical toner, a mild to

moderate degree of lung fibrosis was observed in 92% of the rats in the high

concentration (16mg/m3) exposure group, and a minimal to mild degree of

fibrosis was noted in 22% of the animals in the middle (4mg/m3) exposure

group, but no pulmonary change was reported in the lowest (1mg/m3)

exposure group, the most relevant level to potential human exposures.

12. ECOLOGICAL INFORMATION

No data are available.

13. DISPOSAL CONSIDERATION

Waste from Residues :Waste material may be dumped or incinerated under conditions

which meet all federal, state and local environmental regulations.

Contaminated Packaging:Waste may be disposed or incinerated under conditions which meet

all federal, state and local environmental regulations.

14. TRANSPORT INFORMATION

UN Classification :None

Not classified as hazardous for transport.

15. REGULATORY INFORMATION

US Information

TSCA (Toxic Substances Control Act) :

All chemical substances in this product comply with all applicable rules or order under TSCA.

SARA (Superfund Amendments and Reauthorization Act) Title III

302 Extreme Hazardous Substance :None

311/312 Hazard Classification :None

EU Information

1999/45/EC and 67/548/EEC

Symbol & Indication :Not required

R-Phrase :Not required

76/769/EEC :All chemical substances in this product comply with all applicable rules or order

under 76/769/EEC.

16. OTHER INFORMATION

NFPA Rating (USA) :Health=1 Flammability=1 Reactivity=0

WHMIS Legislation (Canada) :This product is not a controlled product.

References

IARC (1996) :IARC monographs on the Evaluation of the Carcinogenic Risk of Chemicals to

Humans, Vol. 65, Printing Process And Printing Inks, Carbon Black and Some

Nitro Compounds, Lyon, pp.149-261

H.Muhle, B.Bellmann, O.Creutzenberg, C.Dasenbrock, H.Ernst, R.Kilpper, J.C.MacKenzie,

P.Morrow, U.Mohr,

S.Takenaka, and R.Mermelstein (1991) Pulmonary Response to Toner upon Chronic

Inhalation Exposure in Rats.

Fundamental and Applied Toxicology 17, pp.280-299.

The information on this data sheet represents our current data and best opinion as to the proper

use in handling of this product under normal conditions. However, all materials may present

unknown hazards and should be used with caution. Although certain hazards are described

herein, we do not guarantee that these are the only hazards which exist.

Page: 4/4

107

INDEX

Symbols

[] key.......................... 10, 27, 29, 32

[ ] key ........................................... 10

2 IN 1 copy ....................................... 31

250-sheet paper feed unit .......... 90, 96

[2-SIDED COPY] key ........... 10, 27, 28

About the operation manuals ............. 6

Appendix .......................................... 92

Audible signals ................................. 68

Auto clear ......................................... 12

Auto power shut-off mode ................ 13

Automatic two-sided copying............ 26

Basic procedure for printing ............. 58

Before installation............................. 37

Button Manager................................ 36

Bypass feed...................................... 17

Bypass tray................. 9, 17, 18, 79, 84

Bypass tray paper guides............. 9, 18

Canceling a print job......................... 58

Capacity of paper output tray ........... 22

Caution

- Handling the machine.................... 4

- Label on the machine.................... 3

- Selecting an installation site.......... 3

- Using the machine......................... 3

Changing a tray’s paper size

setting............................................... 19

Charger cleaner............................ 9, 89

Checking the total count................... 87

Cleaning the machine

- Cabinet ........................................ 88

- Document glass........................... 88

- SPF/RSPF................................... 88

- SPF/RSPF scanning window ...... 88

- Transfer charger.......................... 89

[CLEAR ALL] key ................. 11, 12, 58

[CLEAR] key

............... 10, 20, 21, 23, 29, 30, 58, 79

Connecting the machine to your computer

- Parallel cable............................... 56

- USB cable ................................... 55

Convenient copy functions ............... 26

Conventions used in this manual and

online manual ..................................... 6

[COPY RATIO] key..................... 11, 25

Difference between models................ 7

Display.............................................. 10

Display messages ............................ 69

Document feeder cover ................ 9, 82

Document feeder tray................... 9, 21

Document glass............................ 9, 31

[ENTER] key..................................... 10

Envelopes......................................... 17

Environmental information.................. 5

Error indicator....................... 10, 69, 79

[E-SORT/SP.FUN] key

........................... 10, 29, 30, 31, 33, 34

Exit area ............................................. 9

[EXPOSURE] key....................... 10, 24

Exposure value guidelines ............... 24

Facsimile expansion kit .................... 90

Front cover ............................. 9, 81, 84

Fusing unit release lever ........ 9, 80, 81

Handles .............................................. 9

Hardware and software

requirements .................................... 37

How to place the original .................. 20

How to use the online manual .......... 61

108

Initial settings.................................... 12

Installation environment and usable

software............................................ 37

Installing Acrobat Reader ................. 61

Installing the software

- Custom installation...................... 40

- Standard installation.................... 38

Interface cable.................................. 91

Introduction......................................... 6

Language setting.............................. 12

Loading paper .................................. 14

Loading paper in the bypass tray ..... 18

Loading the paper tray ..................... 15

Long edge ........................................ 26

Main features...................................... 7

Maintenance..................................... 69

Maintenance required....................... 87

Making copies .................................. 20

Margin shift....................................... 34

Margin width ..................................... 64

[MENU] key ...................................... 10

MFP driver........................................ 36

Misfeed removal

- Fusing area ................................. 80

- Paper feed area........................... 80

- SPF/RSPF................................... 82

- Transport area............................. 81

Mode indicators ................................ 10

[MODE SELECT] key ....................... 10

Network expansion kit ...................... 90

Normal copying

- Document glass........................... 20

- SPF/RSPF................................... 21

Numeric keys.............................. 10, 23

Offset function during sort copy........ 30

Operation in copy, printer, and scanner

modes............................................... 60

Operation panel............................ 9, 10

Optional equipment .......................... 90

Original guides ............................. 9, 21

Original types ................................... 24

Paper................................................ 14

Paper holder arm.......................... 9, 22

Paper output tray................................ 9

Paper output tray extension ......... 9, 22

Paper tray..................................... 9, 15

Parallel connector......................... 9, 56

Part names......................................... 9

Photoconductive drum........................ 9

Plug and play screen does not

appear .............................................. 76

Power cord ......................................... 9

Power off .......................................... 13

Power on .......................................... 12

Power save indicator........................ 10

Power save modes........................... 13

Power switch .......................... 9, 12, 13

Preheat mode................................... 13

Preparations....................................... 9

Printer driver..................................... 36

Printer/scanner functions.................. 57

Problems during setup

the software...................................... 75

109

Ready indicator .................... 11, 12, 86

Reduction/enlargement/zoom .......... 25

Removing the software..................... 78

Reversing tray .............................. 9, 82

Roller rotating knob .......................... 81

Scan head locking switch ................. 86

Scanner driver .................................. 36

Scanning from the operation panel .. 59

Scanning from your computer .......... 60

Selecting a setting for a user

program ............................................ 67

Selecting the tray.............................. 23

Set up the software .......................... 36

Setting the number of copies............ 23

Setting up button manager ............... 51

Sharpdesk ........................................ 36

Short edge........................................ 26

Side cover .............................. 9, 79, 84

Side cover open button ...................... 9

Sort copy .......................................... 29

Special papers.................................. 15

Specifications ................................... 92

SPF/RSPF.......................................... 9

SPF/RSPF indicator ......................... 10

[START] key ......................... 11, 20, 21

Stream feeding mode ....................... 22

System configuration........................ 90

System requirements for USB 2.0 .... 57

Toner cartridge .............................. 9, 83

Toner cartridge lock release lever.... 84

Toner cartridge replacement ............ 83

Transfer charger................................. 9

Tray location indicator ................ 10, 69

[TRAY SELECT] key ............ 10, 18, 23

Troubleshooting................................ 69

USB connector ............................. 9, 55

User programs

- Copy mode.................................. 62

- Print mode................................... 66

User settings .................................... 62

Using the manual ............................... 6

Using the printer mode ..................... 58

Using the scanner mode .................. 59

110

INDEX BY PURPOSE

Preparations

Paper, loading

- Bypass tray................................... 17

- Paper tray..................................... 15

Power, turn off ................................... 13

Power, turn on ................................... 12

Scan head locking switch,

releasing............................................ 86

Tray's paper size, setting................... 19

User program, setting........................ 62

Making copies

Copying

- Document glass............................ 20

- SPF/RSPF.................................... 21

Enlarging/reducing copies ................. 25

Exposure, adjusting........................... 24

Exposure, selecting ........................... 24

Setting the number of copies............. 23

Stream feeding mode, using ............. 22

Tray, selecting ................................... 23

Using convenient copy functions

2 IN 1 copying, using

- Document glass............................ 31

- SPF/RSPF.................................... 33

Automatic two-sided copying

- Document glass............................ 27

- RSPF............................................ 28

Margin shift, using ............................. 24

Sort copying, using

- Document glass............................ 29

- SPF/RSPF.................................... 30

Connecting the computer

Acrobat Reader, installing ................. 61

Basic procedure for printing .............. 58

Button Manager, setting up

- Windows 98/Me/2000................... 53

- Windows XP................................. 51

Installing the software........................ 38

Online manual, using......................... 61

Print job, canceling............................ 58

Printer mode, using ........................... 58

Scanner mode, using ........................ 59

Scanning from your computer ........... 60

Scanning using the keys on

the machine....................................... 59

Troubleshooting and maintenance

Checking the total count.................... 87

Cleaning the machine

- Cabinet ......................................... 88

- Document glass............................ 88

- Drum cartridge.............................. 89

- SPF/RSPF.................................... 88

- Transfer charger........................... 89

Misfeeds, removing

- Fusing area .................................. 80

- SPF/RSPF.................................... 82

- Paper feed area............................ 80

- Transport area.............................. 81

Toner cartridge, replacing ................. 83

MEMO

For users in the USA

This device complies with Part 15 of the FCC rules. Operation is subject to the

following two conditions: (1) This device may not cause harmful interference,

and (2) this device must accept any interference received, including interference

that may cause undesired operation.

WARNING:

FCC Regulations state that any unauthorized changes or modifications to this

equipment not expressly approved by the manufacturer could void the user’s

authority to operate this equipment.

Note:

This equipment has been tested and found to comply with the limits for a Class

B digital device, pursuant to Part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against harmful interference in a

residential installation. This equipment generates, uses and can radiate radio

frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and

on, the user is encouraged to try to correct the interference by one or more of

the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which

the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

●

♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠

♠

♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠

♠

♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠

♠

♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠

♠

Shielded cables must be used with this equipment to maintain compliance with

standards.

This product utilizes tin-lead solder, and a fluorescent lamp containing a small

amount of mercury.

Disposal of these materials may be regulated due to environmental

considerations.

For disposal or recycling information, please contact your local authorities or

the Electronics Industries Alliance: www.eia.org

PRINTED IN CHINA

TINSE1205QSZZ

2003M

Printed on 100% post-consumer recycled paper

SHARP ELECTRONICS CORPORATION

Sharp Plaza, Mahwah, New Jersey 07430-1163.

www.sharpusa.com

SHARP ELECTRONICS OF CANADA LTD.

335 Britannia Road East, Mississauga, Ontario, L4Z 1W9

SHARP CORPORATION

Sharp Ar 168D Owners Manual 168S | Operation

Sharp-Ar-168D-Users-Manual-283923 sharp-ar-168d-users-manual-283923

Ar-168S-Ar-168D-Operation-Manual ar-168s-ar-168d-operation-manual

AR-168S cop_man_AR168S_AR168D

AR-168D to the manual 0a154d60-a841-4a1c-aeed-a7ec0438b1c4

Navigation menu

Versions of this User Manual:

Views

Navigation
