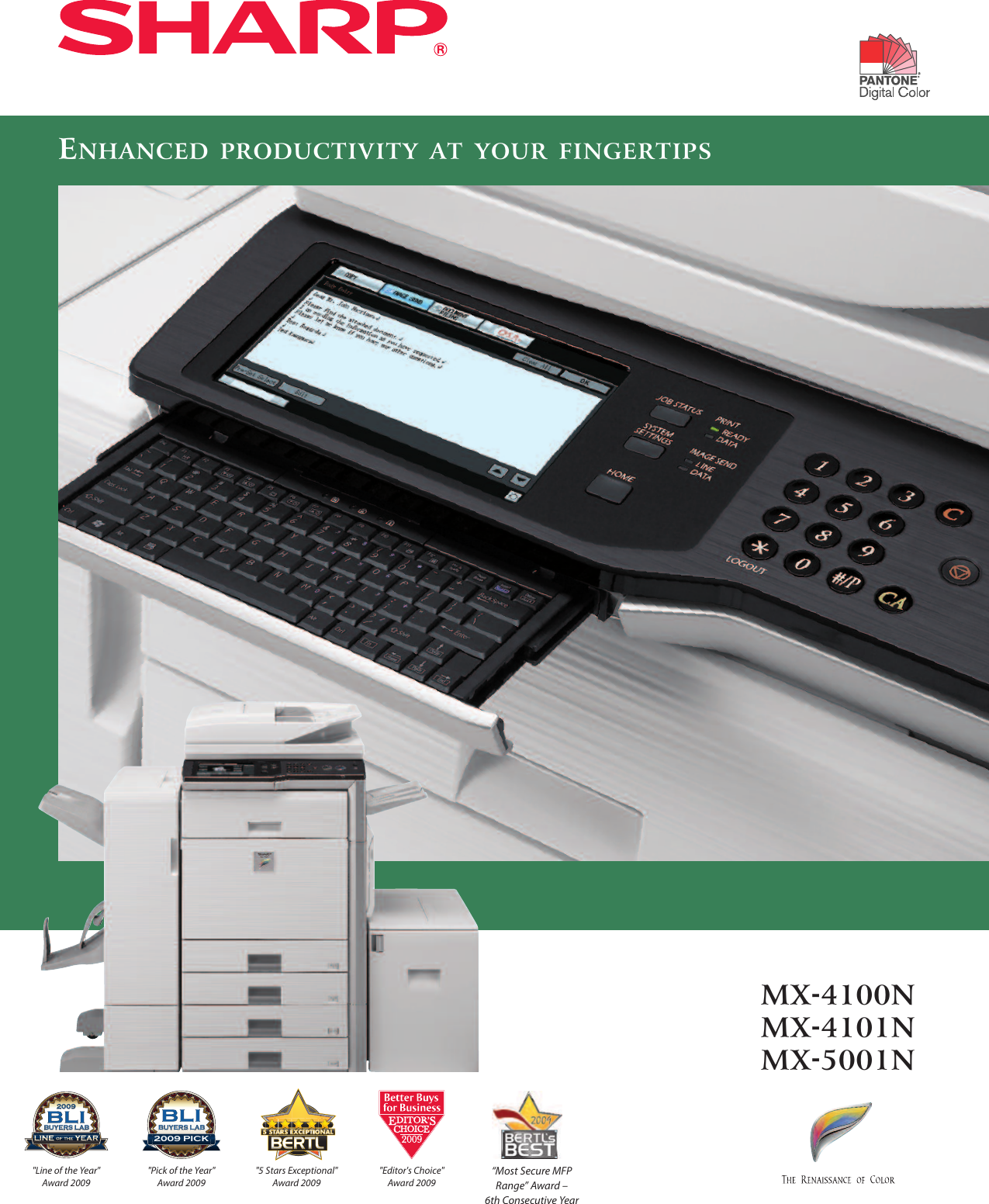

MX-4100N
MX-4101N
MX-5001N
ENHANCED PRODUCTIVITY AT YOUR FINGERTIPS
BUYERS LAB
2009
"Line of the Year"
Award 2009
BUYERS LAB
2009 PICK
"Pick of the Year"
Award 2009
"5 Stars Exceptional"
Award 2009
"Editor's Choice"
Award 2009
“Most Secure MFP
Range” Award –
6th Consecutive Year

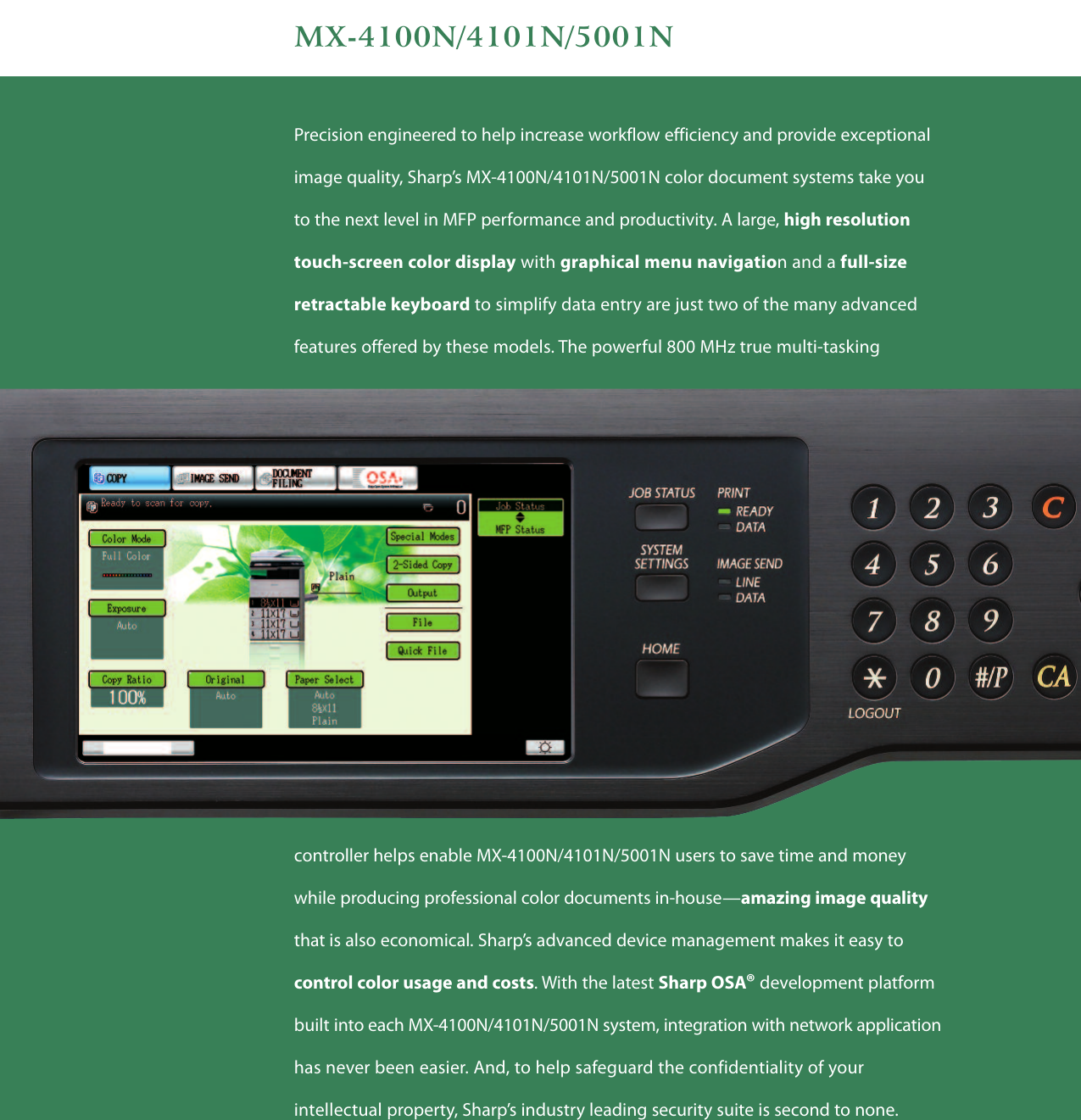

Precision engineered to help increase workflow efficiency and provide exceptional
image quality, Sharp’s MX-4100N/4101N/5001N color document systems take you
to the next level in MFP performance and productivity. A large, high resolution
touch-screen color display with graphical menu navigation and a full-size
retractable keyboard to simplify data entry are just two of the many advanced
features offered by these models. The powerful 800 MHz true multi-tasking
controller helps enable MX-4100N/4101N/5001N users to save time and money
while producing professional color documents in-house—amazing image quality
that is also economical. Sharp’s advanced device management makes it easy to
control color usage and costs. With the latest Sharp OSA®development platform
built into each MX-4100N/4101N/5001N system, integration with network application
has never been easier. And, to help safeguard the confidentiality of your
intellectual property, Sharp’s industry leading security suite is second to none.
MX-4100N/4101N/5001N
Sharp’s MX document systems are fully loaded
with advanced features to help enhance
productivity and improve document workflow
•Powerful 800 MHz true multi-tasking full-color document system
•Large, high resolution touch-screen color display with graphical navigation
•Advanced second generation micro-fine toner technology offers crisp, high
quality images page after page
•Pantone® Licensing offers unprecedented levels of color fidelity to the PANTONE
MATCHING SYSTEM®
•Standard 150-sheet duplex single pass document feeder with color Scan2TM
is available with the MX-4101N and MX-5001N
•1200 x 1200 dpi printing provides clear, crisp images, even on jobs with fine detail
•Network interface supports gigabit ethernet
•Industry leading ImageSENDTMfunction scans documents to USB devices, network
folders, e-mail and more
•Robust 38GB document filing system with thumbnail view and image
preview features
•Network ready PCL®6/PCL5c printing system with direct print function and
available Postscript®3TM and Windows®XPS options
•Supports the Sharp OSA development platform, enabling businesses to streamline
document workflow and enhance productivity*
•Industry-leading ImageSEND function with blank-page skip scans documents
to e-mail, network folders, USB devices and more
•Flexible paper handling system feeds up to 110 lb index through the paper trays
and up to 140 lb index through the bypass tray
•On-board paper storage capacity for up to 5,600 sheets with options
•Supports Sharp’s latest award-winning multi-level document and network
security suite,which conforms to the new IEEE-2600TM
- 2008 security standard
for MFP devices*
•Advanced web-based device management offers both administrator level
and user level login control
•Remote front panel feature allows users and administrators to view and
control machine operations from a PC workstation*
•Environmentally friendly design offers low power consumption, long-life
parts and is supported by Sharp’s toner recycling program
FLEXIBILITY
PRODUCTIVITY
INTEGRATION
USER-FRIENDLY
ENGINEERED FOR PERFORMANCE
* Some features require optional equipment..
Large 8.5” (diagonally measured), high-resolution
touch-screen display.
Standard retractable keyboard makes data entry
quick and easy.

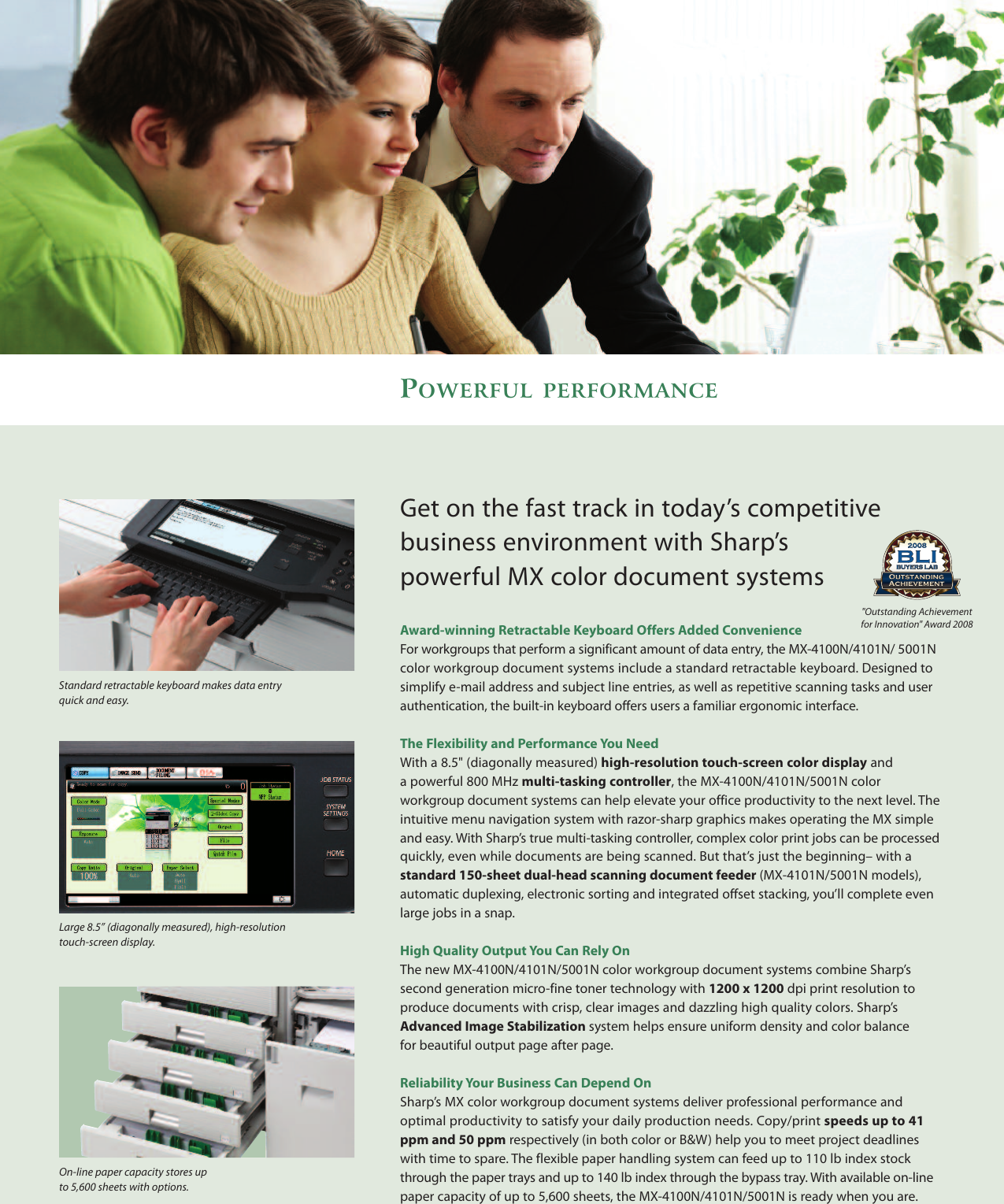

POWERFUL PERFORMANCE
Get on the fast track in today’s competitive
business environment with Sharp’s
powerful MX color document systems
Award-winning Retractable Keyboard Offers Added Convenience
For workgroups that perform a significant amount of data entry, the MX-4100N/4101N/ 5001N
color workgroup document systems include a standard retractable keyboard. Designed to
simplify e-mail address and subject line entries, as well as repetitive scanning tasks and user
authentication, the built-in keyboard offers users a familiar ergonomic interface.
The Flexibility and Performance You Need
With a 8.5" (diagonally measured) high-resolution touch-screen color display and
a powerful 800 MHz multi-tasking controller, the MX-4100N/4101N/5001N color
workgroup document systems can help elevate your office productivity to the next level. The
intuitive menu navigation system with razor-sharp graphics makes operating the MX simple
and easy. With Sharp’s true multi-tasking controller, complex color print jobs can be processed
quickly, even while documents are being scanned. But that’s just the beginning– with a
standard 150-sheet dual-head scanning document feeder (MX-4101N/5001N models),
automatic duplexing, electronic sorting and integrated offset stacking, you’ll complete even
large jobs in a snap.
High Quality Output You Can Rely On
The new MX-4100N/4101N/5001N color workgroup document systems combine Sharp’s
second generation micro-fine toner technology with 1200 x 1200 dpi print resolution to
produce documents with crisp, clear images and dazzling high quality colors. Sharp’s
Advanced Image Stabilization system helps ensure uniform density and color balance
for beautiful output page after page.
Reliability Your Business Can Depend On
Sharp’s MX color workgroup document systems deliver professional performance and
optimal productivity to satisfy your daily production needs. Copy/print speeds up to 41
ppm and 50 ppm respectively (in both color or B&W) help you to meet project deadlines
with time to spare. The flexible paper handling system can feed up to 110 lb index stock
through the paper trays and up to 140 lb index through the bypass tray. With available on-line
paper capacity of up to 5,600 sheets, the MX-4100N/4101N/5001N is ready when you are.
On-line paper capacity stores up
to 5,600 sheets with options.
"Outstanding Achievement
for Innovation" Award 2008
ADVANCED WORKFLOW MANAGEMENT
* Some features require optional equipment..
MX-5001N with 4K stacking
finisher and punch unit
MX-5001N with
saddle stitch finisher
MX-5001N with
compact inner finisher
USB 2.0 port is located on the front panel of the machine
for easy access.
For high optimum productivity, Sharp offers award-winning
Color Scan2technology.
Innovative, user-friendly features help increase
document workflow efficiency and productivity
to optimize day-to-day operations
Speed up your Workflow with Sharp’s Innovative Color Scan2technology
Sharp’s advanced 150-sheet document feeder with dual reading heads can scan 2-sided
documents in a single pass, dramatically improving productivity and reliability
(standard on MX-4101N/5001N). Now you can process even large-scale jobs
with incredible efficiency.
A True Multi-Tasking Document System
The new MX-4100N/4101N/5001N feature a high-performance,800 MHz multi-tasking
controller that delivers copy, fax and print jobs continuously for optimum efficiency. Other
controllers only perform one operation at a time. But the MX Series continually processes
incoming jobs even while existing jobs are output. The result? A workflow that virtually
never slows down—even at crunch time.
Direct USB Printing Adds Convenience and Portability
With Direct USB printing, users can print color or B&W files in a variety of popular formats
directly from USB memory devices such as a ThumbDriveTM or ClipDriveTM.*Need to print
PDF brochures in a hurry for a big meeting? It’s easy with the MX Color Series, just plug in
your portable USB memory device, select the file, and your job prints immediately.
Innovative Document Filing
Sharp’s easy-to-use Document Filing System provides up to 38GB of hard drive space to
store frequently used files such as forms, reports and other commonly used documents for
printing and distribution. Plus, with private storage features and PIN-code access, you can
store sensitive documents securely. And, with Sharp’s Quick File Folder, you can temporarily
store documents with fast, one-touch simplicity. An easy-to-use backup system helps ensure
your files are safe.
To make managing all of your stored jobs simple, the MX touch-screen display offers an
intuitive thumbnail view to allow walk-up users to easily locate stored jobs even if they
don’t know the filename. For added convenience, an advanced Image Check feature allows
selected files to be previewed on-screen—walk-up users can even zoom in, change print
attributes or move a file to another folder. With storage capacity for up to 5,500 pages, your
business can improve document workflow significantly.
Get Professional Results with Advanced Finishing
The MX-4100N/4101N/5001N offers a choice of three high-performance finishers that
can always give your documents a professional look and feel. You can save time and money
by minimizing outsourced color jobs such as proposals, presentations or newsletters.
Choose from a compact inner finisher, a floor-standing saddle-stitch finisher or a large
capacity 4K stacking finisher. All three models offer three-position stapling and an
available 3-hole punch.
Sharp’s easy-to-use document filing system with
thumbnail preview.
Sharp’s Image Check feature allows users to preview stored
documents at the device.
Robust, easy-to-use print drivers help
maximize document workflow efficiency
in any business environment
Exceptional Print Quality with Professional Output
With the MX-4100N/4101N/5001N, your business can produce brilliant, high quality color
documents, as well as razor-sharp B&W documents. Plus, with 1200 x 1200 dpi resolution,
even documents with fine detail will look great! Sharp’s easy-to-use print drivers allow users
to set up even complex jobs with just a few mouse clicks. Simple plug-n-play operation
makes it easy to take advantage of advanced feature sets in a snap. Special functions like Tab
Paper Print, Chapter Inserts and Carbon Copy Print allow you to quickly produce a variety of
document types.
The optional Postscript driver delivers extensive color control options, so you can manage
color consistency right from your desktop. Combine all this with powerful finishing features
that include three-position stapling for up to 50 sheets, saddle stitch finishing for up to 15
ledger size pages and three-hole punching.* Now you can produce professional quality
documents from your desktop that look so good, everyone will think you had them sent out
to a printer.
Advanced Job Retention Features Enhance Productivity
Sharp’s innovative printing system makes it easy for any business to store and archive
print jobs. With the ability to retain jobs on the MX hard drive, documents can be stored
and reprinted again and again by walk-up users or through the embedded web page.
Print jobs can even be sent to the MX for archiving without printing them! Need to store
sensitive documents? No problem, users can assign a password right from the print driver
or from the MX operation panel!
PANTONE®LICENSING
Professional color results without the hassle!
Get the color results as original design was intended with Pantone Licensing.
The CMYK toner values have been precisely measured and calibrated by the color
analysts at Pantone to ensure that the best reproduction of the PANTONE MATCHING
SYSTEM® is achieved with the MX-4100N, MX-4101N, and MX-5001N MFPs.
ASPECTRUM OF VERSATILE PRINT FEATURES
* Some features require optional equipment.
With Sharp’s advanced job handling features, users can
easily retain print jobs on the MX hard drive for reprinting
at a later date.
Send
to FTP
Send to
USB
Send to
Desktop
Send to
Network Folder
Send
to Fax
Send to
Internet Fax
Send to
E-mail

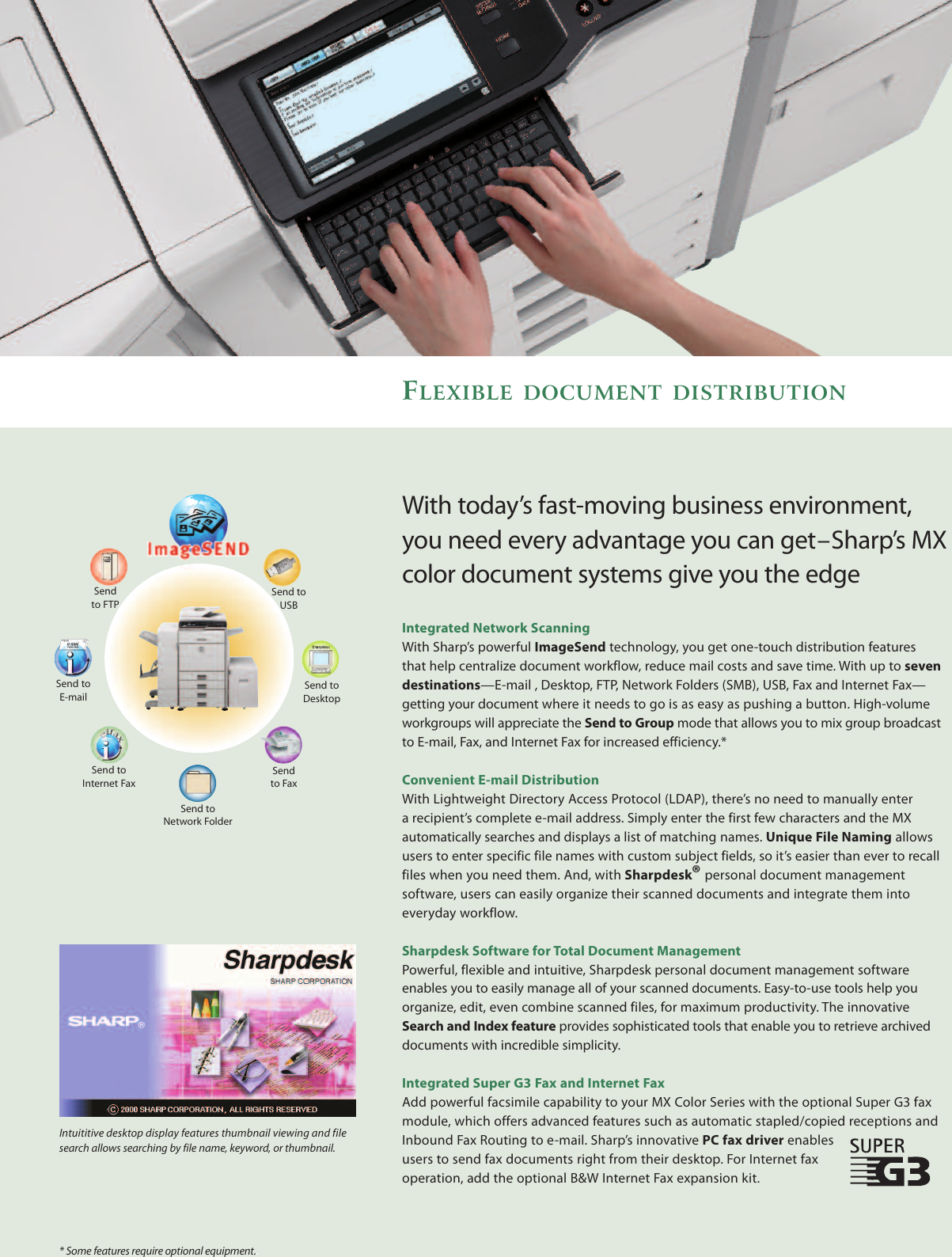

FLEXIBLE DOCUMENT DISTRIBUTION
With today’s fast-moving business environment,
you need every advantage you can get–Sharp’s MX
color document systems give you the edge
Integrated Network Scanning
With Sharp’s powerful ImageSend technology, you get one-touch distribution features
that help centralize document workflow, reduce mail costs and save time. With up to seven
destinations—E-mail , Desktop, FTP, Network Folders (SMB), USB, Fax and Internet Fax—
getting your document where it needs to go is as easy as pushing a button. High-volume
workgroups will appreciate the Send to Group mode that allows you to mix group broadcast
to E-mail, Fax, and Internet Fax for increased efficiency.*
Convenient E-mail Distribution
With Lightweight Directory Access Protocol (LDAP), there’s no need to manually enter
a recipient’s complete e-mail address. Simply enter the first few characters and the MX
automatically searches and displays a list of matching names. Unique File Naming allows
users to enter specific file names with custom subject fields, so it’s easier than ever to recall
files when you need them. And, with Sharpdesk®personal document management
software, users can easily organize their scanned documents and integrate them into
everyday workflow.
Sharpdesk Software for Total Document Management
Powerful, flexible and intuitive, Sharpdesk personal document management software
enables you to easily manage all of your scanned documents. Easy-to-use tools help you
organize, edit, even combine scanned files, for maximum productivity. The innovative
Search and Index feature provides sophisticated tools that enable you to retrieve archived
documents with incredible simplicity.
Integrated Super G3 Fax and Internet Fax
Add powerful facsimile capability to your MX Color Series with the optional Super G3 fax
module, which offers advanced features such as automatic stapled/copied receptions and
Inbound Fax Routing to e-mail. Sharp’s innovative PC fax driver enables
users to send fax documents right from their desktop. For Internet fax
operation, add the optional B&W Internet Fax expansion kit.
Intuititive desktop display features thumbnail viewing and file
search allows searching by file name, keyword, or thumbnail.
* Some features require optional equipment..
GET MORE OUT OF NETWORK APPLICATIONS
Sharp OSA® technology at a glance
•Automate tasks and save time with seamless
integration between the MX-4100N/
4101N/5001N and network applications
•Centralized applications minimize set-up and
installation on multiple Sharp products
•Virtually eliminates repetitive tasks and streamlines
workflow, increasing efficiency
•Maximize your return on investment with tighter
integration among IT assets
•Industry standard programming leads to faster
deployment of new solutions
To help streamline document workflow and
enhance productivity, the new MX-4100N/4101N/
5001N support the Sharp OSA platform
Versatile Application Integration
The MX-4100N/4101N/5001N document systems provide powerful functionality for your
business so you can immediately leverage your previous investments in data management
infrastructure.* While others are limited to a small circle of productivity, Sharp’s newest
innovation, the Sharp OSA development platform, allows users to leverage the power of their
back-end systems right from the control panel. It’s really a new way of thinking with “power
at the panel” for automation of tasks and a streamlined workflow.
Save Time, Increase Efficiency
You’ll save time and increase the efficiency of everyday tasks with Sharp OSA technology
because it can be virtually seamless to the user. Any MX-4100N/4101N/5001N anywhere in
the organization can display choices that were once only available on a desktop PC. With
one-touch access to business applications via Sharp OSA integration, you can start and
finish a document distribution task without worry.
Complement Your Infrastructure
The Sharp OSA development platform is the logical choice as a complement to your
existing infrastructure because the MX-4100N/4101N/5001N becomes the gateway to
providing fast, flexible access to documents and applications...no matter where you are
in the office. You also get the controlled access and tracking ability you require with
tighter integration capabilities for network security and accounting applications. With
such comprehensive control, you’ll be able to manage your document workflow easily,
efficiently, and more securely.
Customized Technology
Sharp OSA technology also provides customization. With the ability to personalize
applications and processes specific to your business, Sharp OSA technology can help
eliminate redundancy and streamline workflow, helping to save time and optimize
productivity. And since Sharp OSA technology utilizes industry-standard network protocols
such as SOAP, XML, and XHTML, third party software developers can deliver customized
solutions to your business faster than ever.
“Best Device Management and
Integration Technology for MFP
Series” Award 2009
* Some features require optional equipment.
Engineered with you in mind, the MX-4100N/
4101N/5001N combines easy-to-use integrated
software with robust capabilities
The Sharp Administration Utility Suite
Sharp's Administration Utility Suite takes management of your MX-4100N/4101N/5001N
to the next level. This easy-to-use software allows you to take control of the versatile system
features and simplifies installation and management.
•With Printer Status Monitor, network users can view printer conditions, check paper
levels, toner, and more—all through an easy-to-use interface.
•With Sharp’s advanced Printer Administration Utility, administrators can easily manage
the setup, configuration, device settings, cloning and more! New advanced features such as
Remote Front Panel allow administrators and support personnel to view and control the
LCD panel of the machine remotely from any PC on the network!* Plus, with event-driven,
real-time service alerts, administrators and supervisors can achieve higher productivity.
Now, it is easier than ever to view service logs, click counts, history reports and more.
•Experience the convenience of an Embedded Web Page right from your desktop! This
advanced web-based management tool allows users to create and manage their own
network scanning destinations, profiles and web-links. Administrators can access device
settings, color control, account information and security settings.
Take Charge of Color Usage and Costs
With Sharp’s device management system, administrators and supervisors can define
user groups on the MX to manage and restrict features, such as color copying, scanning or
printing. Easily set up a custom user group to manage page counts (copy, print, scan or fax
operations) for both color and B&W. The MX-4100N/4101N/5001N can store profiles for up
to 1000 users. Now, it is easier than ever to manage the costs of color imaging!
24/7 Training with My Sharp
Managing all of the advanced features of your Sharp product is simple and easy. Ask
your Authorized Sharp Dealer about My Sharp. This dedicated customer training website
is customized to your MX-4100N/4101N/5001N and allows you to locate
resources and find information specific to your configuration, truly
helping you maximize your investment.
ADVANCED DEVICE MANAGEMENT
* Some features require optional equipment.
Remote Front Panel
Printer Administration Utility
Embedded Web Page
Innovative document and device protection
helps ensure confidentiality
To help protect your data, the MX-4100N/4101N/5001N Series offers several layers of security,
making Sharp the optimum choice to protect employee privacy and intellectual property. As
the leader in office equipment security, Sharp makes it easy for any business or government
entity to safely deploy digital copying, printing, scanning and faxing.
Authority Groups and Access Control
Advanced account management enables administrators to set authority groups for access to
features of the MX-4100N/4101N/5001N Series. Administrators can control which department,
for instance, has full access to color copying, printing, scanning and/or fax. Walk up users enter
a code, Local Name and Password, or LDAP User Authentication to access their features
assigned to their group. Users can also login utilizing a human interface device (HID) such as
a Smartcard or Common Access Card (CAC).*
Data Erase and Encryption*
To help protect your data, the MX-4100N/4101N/5001N Series offers an optional data
security kit that encrypts document data using AES (Advanced Encryption Standard)
encryption. Additionally, the data security kit erases the temporary memory on the hard
drive by overwriting the encrypted data up to seven times, offering an unprecedented
level of assurance. Additionally, the data security kits for these models comply to the new
IEEE-2600-2008 security standard for MFP devices. This new standard specifies security
requirements and provides a new international reference to assess contemporary MFP security.
Network Scanning Access
To help protect your network from unauthorized e-mail communications, the MX-4100N/
MX-4101N/MX-5001N Series supports User Authentication, requiring users to login before
performing any network scanning operations.
Control Device Access Over the Network
To help restrict access to the device over the network, the MX-4100N/4101N/5001N Series
offers IPsec, SMB and extended support for SSL Encryption (Secure Sockets Layer), IP/MAC
address filtering, IEEE 802.1x authentication, protocol enable/disable and port
management for maximum security.
Documents Remain Confidential
To help protect your printed documents from unauthorized viewing, the MX-4100N/
4101N/5001N Series offers encrypted PDF files for printing and scanning as well as
Confidential Printing that requires users to enter a PIN code in order to print a queued
document. Additionally, Secure Fax Release ensures received fax documents are held in
memory until an authorized user enters a PIN code. So compliance with healthcare
regulations such as HIPAA is easier.
Tracking and Auditing Information
Legislation and industry policies require companies to be more aware of information flow from
their offices. Sharp offers both built-in and additional hardware/software which allows users to
control, access and track usage of each device on the network.
These scalable security offerings aim to protect your intellectual property, preserve confidential
information and help your business to meet regulatory requirements, such as the Health
Insurance Portability and Accountability Act (HIPAA), and the Gramm Leach Bliley Act (GLB).
For additional information visit: www.sharpusa.com/security
HEIGHTENED SECURITY
PRIVACY
AUTHORIZATION
INFORMATION
CONFIDENTIALITY
PROTECTION
“Most Secure MFP
Range” Award–6th
Consecutive Year
* Some features require optional equipment.
Sharp’s ongoing commitment and dedication
to developing eco-friendly document systems
set a high standard for the industry
Designed with a Strong Commitment to Protecting the Environment
The MX-4100N/4101N/5001N document systems utilize Sharp’s second generation
micro-fine toner technology, which offers a lower consumption rate than conventional toners.
This also results in less packaging material and longer replacement intervals. Additionally,
all Sharp supplies are packaged using fully recyclable materials. Power consumption on the
MX-4100N/4101N/5001N is among the lowest in the industry and supports two different
energy saving modes to reduce or shut off power after a set interval. All Sharp document
systems belong to the EnergyStar®program, and RoHS program.
An Economical, Low Maintenance Color Document System That Makes Sense
The MX-4100N/4101N/5001N are designed to accommodate both large and small office
environments. With a compact wingless design, the footprint of each base model is
less than 25” x 27”. Our new long-life consumable parts and supplies minimize service
intervals and down time, helping result in lower operating costs.
Sharp’s Environmental Leadership
As a testiment to our commitment to the evironment, Sharp was a former recipient of the
Excellence in Partnership Green Contractor Award and the Evergreen Award from the U.S.
Government’s General Services Administration and the Coalition for Government Procurement.
The Green Contractor Award recognizes contractors that have made the best overall
commitment to the environment by offering environmentally friendly products and services
or adhering to environmentally sound manufacturing procedures.
The Evergreen Award identifies environmentally-friendly businesses and their efforts
in recycling and waste reduction practices. Please visit www.sharpusa.com/environment to
learn more about our environmental leadership.
Toner Recycling Program
As part of our commitment to preserving the environment, Sharp offers customers a toner
recycling program for all Sharp copiers and MFP products. Sharp encourages customers to
recycle their used Sharp toner cartridges by providing a pre-paid shipping label for their
return to our facility. Please visit www.sharpusa.com/recycle to learn more.
ENVIRONMENTALLY FRIENDLY
MX-4100N/4101N/5001N SPECIFICATIONS
Main Specifications
MX-4100N/4101N/ Includes multi-tasking controller, 80 GB HDD with document filing system,
5001N PCL6 network printing/scanning, 100-sheet RSPF (MX-4100N), 150-sheet
DSPF (MX-4101N/5001N) auto-duplex, two 500-sheet paper drawers.
100-sheet bypass. Developer is included in the box.
Type Color multi-function digital document system
Functions Copy, print, network print, network scan, document filing and fax1
Copy System Dry electrostatic transfer/Dual component developer/Magnetic brush
development/OPC drums/Heat Roller fusing/Xenon lamp exposure
Originals Sheets and bound documents
Max Original Size 11" x 17"
Copy Size Min. 5 ½" x 8 ½", Max. 11 "x 17" (12" x 18" bypass tray)
Copy Speed MX-4100N/4101N: 41 ppm B&W/Color (8 ½”x 11”)
MX-5001N 50 ppm B&W/Color (8 ½” x 11”)
Multiple Copy Max. 999 copies
First Copy Time MX-4100N MX-4101N MX-5001N
(Seconds)2Black Color Black Color Black Color
Platen Glass 4.7 6.7 4.7 6.7 4.1 5.9
Doc. Feeder 10.1 13.5 9.5 15.2 8.8 15.2
Warm Up Time MX-4100N/4101N: 120 sec. or less; MX-5001N: 140 sec. or less2
Magnification 25% to 400% in 1% increments (RSPF/DSPF 25%-200%)
Original Feed MX-4100N: 100-sheet RSPF with original size detection
MX-4101N/5001N: 150-sheet DSPF with original size detection
Scan Speed RSPF Copy: Up to 50 IPM (Black) @ 600 x 400 dpi; 36 IPM (color) @ 600 x
600 dpi / DSPF Copy: Up to 70 IPM (black) @600 x 300 dpi; 41 IPM (color)
@ 600 x 600 dpi. RSPF Scan: Up to 50 IPM @ 200 x 200 dpi / DSPF Scan:
Up to 70 IPM @ 200 x 200 dpi.
Original Sizes 5 ½" x 8 ½", 8 ½" x 11", 8 ½" x 11" R, 8 ½" x 14", 11" x 17" (13-32 lb. bond)
Paper Feed System Standard: (2) 500-sheet drawers (letter/legal/ledger/statement) and
100-sheet bypass tray (letter/legal/ledger/statement/envelope).
Optional: (1) 500-sheet paper drawer (letter/legal/ledger/statement size)
or (2) 500-sheet paper drawers (letter/legal/ledger/statement size)
and 3500-sheet large capacity tray (letter size).
Paper Types Paper drawers: 16 lb. bond -110 lb. index, large capacity tray:
16-28 lb. bond. Other paper types include plain, pre-printed, recycled,
pre-punched, letterhead and color paper. Bypass Tray: 16-28 lb. bond
(plain paper), 13-16 lb. bond (thin paper), 110-140 lb. index (heavy
paper), 20-24 lb. bond (Monarch/Com-10 envelope), tab paper (letter
size only). Other types include label paper, gloss paper, pre-printed,
recycled, pre-punched, letterhead, color paper and OHP film.
Duplexing Standard automatic duplex copying and printing
CPU Power QUICCIII-MPC8533E (800MHz)
Interface RJ-45 Ethernet (10/100/1000Base-T), USB 2.0 (host port), USB 2.0 (device port)
Memory Standard 512 MB (copier); 1 GB (printer/network scanning) memory
Hard Disk Drive 80 GB; 38GB for document filing system and electronic sorting
Copy Resolution Scan: B&W/color: 600 DPI; Copy Output: B&W/color: 600 DPI
Color modes Auto Color Control (ACS), Full Color, Mono, 2 Color, Single Color
Exposure Control Modes: AutomaticText,Text/Photo, Text/Printed-Photo, Printed-Photo, Photo,
Map, Light Original, Pale-Color document. Settings: auto or 9 step manual.
Halftone 256 gradiations/2 levels (monochrome)
Copy Features Scan-Once Print-Many, electronic sorting, offset-stacking, Auto Color
Sensing (ACS), Auto Paper Sensing (APS), Auto Magnification Sensing
(AMS), auto tray switching, rotation copy, reserve copy, tandem copy, book
copy, margin shift, tab-paper insertion, edge erase, center erase, dual page
copy, cover pages, insert pages, OHP insertion, job build, card shot,
multi-page enlargement, reverse image, black-white reversal, centering,
proof copy, 2-in-1/4-in1, pamphlet, photo repeat, document filing, account
management, job programs, date/character/page stamp (color).
Account Control Up to 1000 users. Supports user-number authentication (on device), login
name/password (on device) or login name/password (on device via LDAP
server) for Copy, Print, Scan, Fax and document management.
Output Tray Main output tray (top) 500 sheets (face down); optional exit tray
Capacity (right 1 side) 100 sheets (face down)
Firmware Flash ROM with local (USB) and network update capability.
Configuration Web-based management system with user/administrator level login
Method security, cloning (1 to N) with PAU and remote front panel access
Service/Maintanence Remote front panel access, remote access to service logs and click counts
Power AC 100-127VAC, 60 HZ, 12 Amps/16 Amps (MX-5001N)
Power consumption MX-5001N: Maximum 1920 W or less
MX-4100N/4101N: Maximum 1524W or less
Weight MX-5001N/4101N: Approx. 283 lbs. (DSPF Base Model)
MX-4100N: Approx. 263 lbs. (RSPF Base Model)
Dimensions MX-4100N: 25 ½" x 27 ½" x 37 ½"
MX-5001N/4101N: 25½" x 27½" x 38"
Network PrintingSystem (standard)
PDL PCL® 6/PCL5c compatible, optional Postscript®3
TM, optional XPS
Resolution 1200 dpi x 1200 dpi
Print Speed 41/50 pages per minute (8 ½" x 11")
Print Drivers Windows® 98, Windows Me, Windows NT® 4 (with SP5 or later),
Windows 2000, Windows Server® 2003, Windows Server 2008, Windows
XP, Windows XP x64, Windows Server x64, Windows Vista™, Windows
Vista x64, MAC OS®, 9.2.2, OSX (including 10.2.8, 10.3.9, 10.4.11,
10.5-10.5.1), all MAC PPD
Features Continuous printing, duplex printing, pamphlet printing, N-up printing,
image rotation, different cover page/last page, transparency inserts, tab
printing, carbon copy print mode, fit-to-page, poster print, margin shift,
mirror image, watermarks, overlay, confidential print, confidential batch
print, print hold, proof print, bypass printing, job priority printing, print job
control, tandem printing and direct printing (Note: some features not
available on certain print drivers).
Direct Printing File Types:TIFF, JPEG, PCL, PRN, TXT, PDF, Encrypted PDF, High Compression
PDF, Postscript and XPS1Methods: FTP, Web page, E-mail and USB memory
Resident Fonts 80 outline fonts
Interface RJ-45 Ethernet 10/100/1000 Base-T
Operating Systems Windows 98/ME, NT 4.0, XP, 2003/2008 Server,Vista, Novell® Netware®
3x, 4x, 5x, MAC OS 9, OSX (including 10.5.1), Sun® OS 4.1x, Solaris® 2x,
Unix®, Linux® and Citrix® (Metaframe, Presentation Server 4, 4.5) and
Windows Terminal Services.
Network Protocols TCP/IP (IPv4, IPv6, IPSEC) SSL (HTTP, IPP, FTP), SNMPv3, 802.1x for
Windows and Unix. LPD and LPR for UNIX. IPX/SPX® (Novell environments).
EtherTalk® and NetBEUI. AppleTalk® for Macintosh® environments.
Printing Protocols LPR, IPP, IPPS, PAP, RawTCP (port 9100), FTP and Novell Pserver/Rprinter
Network Security IP/Mac address filtering, protocol filtering, port management, user
authentication and document administration.
Security Standards IEEE-2600-2008, DoD (NSTISSP) #11, DoD Directive 8500.2, DoD (DISA)1
Network ScanningSystem (standard)
Max Original Size 11" x 17"
Optical Resolution 600 DPI
Output Modes 600 dpi, 400 dpi, 300 dpi, 200 dpi, 100 dpi
Scan Modes Color, monochrome, grayscale
Image Formats Monochrome: TIFF, PDF, Encrypted PDF, XPS
Color: Grayscale, Color TIFF, JPG, PDF, Encrypted PDF, High Compression
PDF, XPS1
Image Monochrome Scanning: Uncompressed, G3 (MH), G4 (MR/MMR)
Compression Color/Grayscale: JPEG (high, middle, low)
Internet Fax mode: MH/MMR (option)
Scan Destinations E-mail, Desktop, FTP, Folder (SMB), USB, Internet/G3 fax (options)
One-touch Destinations Up to 999 (combined scan destinations)
Group Destinations Up to 500
Programs 48 (combined)
Max. Jobs in Memory Up to 94
Network Protocols TCP/IP and SSL (includes HTTP, SMTP, LDAP, FTP, POP3), SMB, ESMTP, 802.1x
Network Security E-mail server user authentication for LDAP and Active Directory
Software Sharpdesk® desktop document management software (1 user license)
B&W Super G3 Fax Kit (option)
Transmission mode Super G3, G3
Modem Speed 33.6 KBPS3
Compression Methods JBIG, MMR, MR, MH
Scanning Method Sheet fed simplex or duplex or book
Max. Transmit 400 DPI
Resolution
Transmit Speed Approximately 2 Seconds with Super G3/JBIG4
Auto Dialing Up to 999 (combined scan destinations)
Group Up to 500
Dial/Destinations
Inbound Fax Forwards received fax data to E-mail
Routing
Long length Originals Up to 31.5" (for transmission)
Programs 48 (combined)
Memory 8 (exclusive)
Halftone 256 levels
Features Quick on-line transmission, direct transmission, F-Code transmission/
reception, rotate transmission, anti-junk fax reception, automatically staple
received faxes, secure fax release, out of paper memory reception, auto
redial, 2-in-1 reception, duplex reception transaction reports, activity
reports and PC fax.
Inner Finisher (option)
Type Built-in finisher (hole-punch unit option)
Output Capacity 500 sheets (letter/statement) or 250 sheets (ledger/legal size)
Stapling Media Plain paper, (letter, legal, or ledger size)
Stapling Positions 1 front, 1 rear, or both
Power Source Supplied from main unit
Stapling Up to 50 sheets (letter size) or 30 sheets (legal, ledger or mixed)
Stapled Sets 30 bundles or 500 sheets (letter or statement size) or 30 bundles or 250
sheets (legal or ledger size)
Hole Punching Optional hole punch unit MX-PNX1B (2 holes/3 holes)
Weight Approx: 28.7 lbs.
Dimensions 25.2" (w) x 28.94" (d) x 8.1" (h) (includes extended tray)
Saddle Stitch Finisher (option)
Type Console finisher with dual exit trays (mounts on left side of host machine)
Output Trays Upper tray: Offset stack tray
Lower tray: Book tray for saddle stitch
Output Capacity 1000 sheets (letter/statement size) or 500 sheets (legal, ledger or letter-R size)
Stapling Up to 50 sheets (letter/statement) or 25 sheets (legal, ledger or mixed)
Output Delivery Face down
Stapling Media Plain paper, letter/legal/ledger size or mixed
Stapling Positions 1 front, 1 rear, or both
Saddle Stitch Function Center stitch/center folding (2 staples) letter/legal/ledger paper sizes
Saddle Stitch Up to 10 sets (11-15 sheets per set)/15 sets (6-10 sheets per set)/20 sets
Max. Sets (1-5 sheets per set)
Power Consumption 70 W or less
Hole Punching Optional hole punch unit MX-PNX5B (2 holes/3 holes)
Weight Approx: 88.18 lbs.
Dimensions 25.83" (w) x 24.84" (d) x 38.9" (h) (with tray extended)
4K StackingFinisher
Type Console stacking finisher with dual exit trays
Output Trays Fixed position upper tray and offset stacking lower tray
Output Capacity Upper tray: 1,550 sheets (letter size, non-stapled)
Lower tray: 2,450 sheets (letter size, non-stapled)
Stapling Three position; Up to 50 sheets (letter size)
Hole punching Optional punch unit MX-PNX6B (2 hole/3 hole)
Power Consumption Approx: 140W
Weight Approx: 97 lbs.
Dimensions Approx: 20 ½”x 25 ½”x 43 ½”
Optional Equipment
MX-DEX8 Stand/1 x 500 Sheet Paper Drawer
MX-DEX9 Stand/2 x 500 Sheet Paper Drawer
MX-50ABD Rolling Cabinet Base
MX-LCX1 Large Capacity Tray (requires MX-DEX8 or MX-DEX9)
MX-FNX9 Inner Finisher
MX-FN10 Saddle Stitch Finisher
MX-FN11 4K Stacking Finisher
MX-RBX3 Paper Pass Unit (Required for MX-FN10 or MX-FN11)
MX-PNX1B 3 Hole Punch Unit (for Inner Finisher)
MX-PNX5B 3 Hole Punch (for Saddle Stitch Finisher)
MX-PNX6B Punch Unit (for 4K Stacking Finisher)
MX-TRX2 Exit Tray Unit
MX-PKX1 Postscript 3 kit
MX-PUX1 XPS Expansion Kit (Requires MX-SHP1GBXPS)
MX-SHP1GBXPS 1GB Memory Upgrade (Required for MX-PUX1)
MX-EBX3 Enhanced Scanner Compression Kit
MX-FWX1 Internet Fax kit
MX-FXX2 Fax Expansion Kit
AR-PF1 Bar Code Font kit
MX-AMX1 Application Integration Module
MX-AMX2 Application Communication Module
MX-AMX3 External Accounting Module
MX-FR11U Data Security Kit (commercial version)
Supplies
MX-50NTBA Black Toner Cartridge
MX-31NTCA Cyan Toner Cartridge
MX-31NTMA Magenta Toner Cartridge
MX-31NTYA Yellow Toner Cartridge
MX-31NVBA Black Developer
MX-31NVSA Cyan/Magenta/Yellow Developer
MX-31NRSA Drum
1Some features require optional equipment.
2May vary depending on product configuration, machine settings and operating
and/or environmental conditions.
3Actual transmission time will vary based on line conditions.
4Based on Sharp StandardTest Chart with approximately 700 characters,
letter size in standard resolution.
SHARP ELECTRONICS CORPORATION
Sharp Plaza, Mahwah, NJ 07495-1163
1-800-BE-SHARP • www.sharpusa.com
Design and specifications subject to change without notice. Sharp, Sharp OSA, Sharpdesk,
My Sharp and all related trademarks are trademarks or registered trademarks of Sharp
Corporation and/or its affiliated companies. Pantone and other Pantone trademarks are the
property of Pantone LLC. Windows, Windows NT, Windows Server and Windows Vista are
trademarks or registered trademarks of Microsoft Corporation. All other trademarks are the
property of their respective owners.
©2010 Sharp Electronics Corporation. All rights reserved. Printed in U.S.A. 10/10 • CPD-3830
