DATA PROJECTOR
MODEL
XG-C455W
PG-C355W
OPERATION MANUAL
Introduction Quick Start Setup Connections Basic Operation Useful Features Appendix
IMPORTANT
•For your assistance in reporting the loss or theft of your
Projector, please record the Model and Serial Numbers
located on the bottom of the projector and retain this
information.
•Before recycling the packaging, please ensure that you
have checked the contents of the carton thoroughly

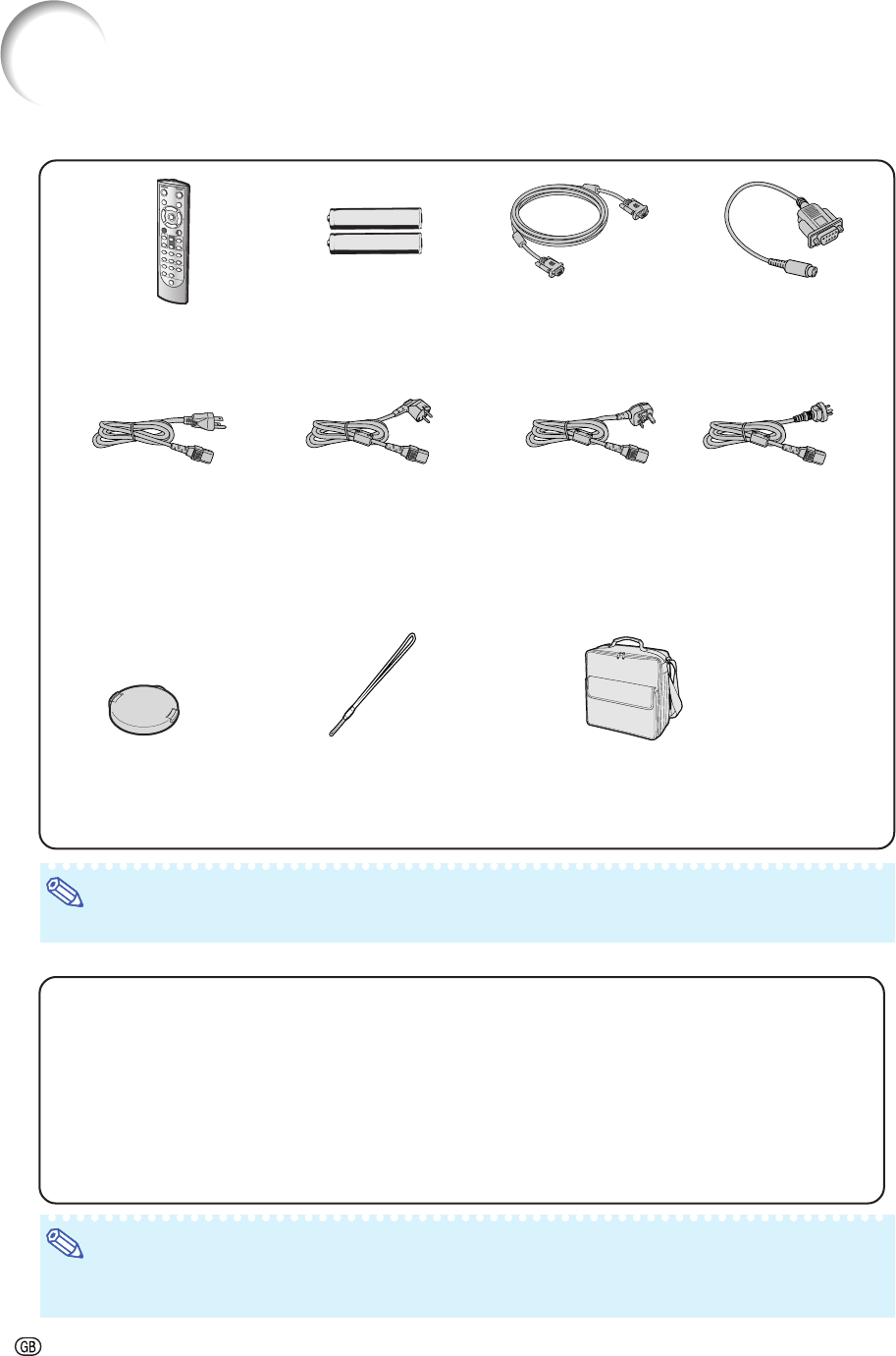

against the list of “Supplied accessories” on page 10.
Model No.:
Serial No.:
SPECIAL NOTE FOR USERS IN THE U.K.
The mains lead of this product is fitted with a non-rewireable (moulded) plug incorporating a 10A fuse. Should
the fuse need to be replaced, a BSI or ASTA approved BS 1362 fuse marked or and of the same rating as
above, which is also indicated on the pin face of the plug, must be used.
Always refit the fuse cover after replacing the fuse. Never use the plug without the fuse cover fitted.
In the unlikely event of the socket outlet in your home not being compatible with the plug supplied, cut off the
mains plug and fit an appropriate type.
DANGER:
The fuse from the cut-off plug should be removed and the cut-off plug destroyed immediately and disposed of
in a safe manner.
Under no circumstances should the cut-off plug be inserted elsewhere into a 10A socket outlet, as a serious
electric shock may occur.
To fit an appropriate plug to the mains lead, follow the instructions below:
WARNING:
THIS APPARATUS MUST BE EARTHED.
IMPORTANT:
The wires in this mains lead are coloured in accordance with the following code:
Green-and-yellow : Earth / Blue : Neutral / Brown : Live
As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings
identifying the terminals in your plug proceed as follows:
•The wire which is coloured green-and-yellow must be connected to the terminal in the plug which is marked by
the letter E or by the safety earth symbol or coloured green or green-and-yellow.
•The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black.
•The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.
IF YOU HAVE ANY DOUBT, CONSULT A QUALIFIED ELECTRICIAN.
The supplied CD-ROM contains operation instructions in English, German, French, Spanish, Italian, Dutch, Swedish,
Portuguese, Chinese and Korean. Carefully read through the operation instructions before operating the projector.
Die mitgelieferte CD-ROM enthält Bedienungsanleitungen in Englisch, Deutsch, Französisch, Spanisch, Italienisch,
Niederländisch, Schwedisch, Portugiesisch, Chinesisch und Koreanisch. Bitte lesen Sie die Bedienungsanleitung vor
der Verwendung des Projektors sorgfältig durch.
Le CD-ROM fourni contient les instructions de fonctionnement en anglais, allemand, français, espagnol, italien,
néerlandais, suédois, portugais, chinois et coréen. Veuillez lire attentivement ces instructions avant de faire
fonctionner le projecteur.
El CD-ROM suministrado contiene instrucciones de operación en inglés, alemán, francés, español, italiano,
holandés, sueco, portugués, chino y coreano. Lea cuidadosamente las instrucciones de operación antes de
utilizar el proyector.
Il CD-ROM in dotazione contiene istruzioni per l’uso in inglese, tedesco, francese, spagnolo, italiano,
olandese, svedese, portoghese, cinese e coreano. Leggere attentamente le istruzioni per l’uso prima di usare il
proiettore.
De meegeleverde CD-ROM bevat handleidingen in het Engels, Duits, Frans, Spaans, Italiaans, Nederlands,
Zweeds, Portugees, Chinees en Koreaans. Lees de handleiding zorgvuldig door voor u de projector in gebruik
neemt.
Den medföljande CD-ROM-skivan innehåller bruksanvisningar på engelska, tyska, franska, spanska, italienska,
holländska, svenska, portugisiska, kinesiska och koreanska. Läs noga igenom bruksanvisningen innan
projektorn tas i bruk.
O CD-ROM fornecido contém instruções de operação em Inglês, Alemão, Francês, Espanhol, Italiano,
Holandês, Sueco, Português, Chinês e Coreano. Leia cuidadosamente todas as instruções de operação antes
de operar o projetor.
-1
Introduction
Before using the projector, please read this operation manual carefully.
There are two important reasons for prompt warranty registration of your new SHARP Projector, using
the REGISTRATION CARD packed with the projector.
1. WARRANTY
This is to assure that you immediately receive the full benefit of the parts, service and labor
warranty applicable to your purchase.
2. CONSUMER PRODUCT SAFETY ACT
To ensure that you will promptly receive any safety notification of inspection, modification, or
recall that SHARP may be required to give under the 1972 Consumer Product Safety Act, PLEASE
READ CAREFULLY THE IMPORTANT “LIMITED WARRANTY” CLAUSE.
WARNING: High brightness light source. Do not stare into the beam of light, or view directly. Be especially
careful that children do not stare directly into the beam of light.
WARNING: To reduce the risk of fire or electric shock, do not expose this product to
rain or moisture.
WARNING: FCC Regulations state that any unauthorized changes or modifications to this equipment not
expressly approved by the manufacturer could void the user’s authority to operate this equip-
ment.
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER.
NO USER-SERVICEABLE PARTS EXCEPT LAMP UNIT.
REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
The lightning flash with arrowhead symbol,
within an equilateral triangle, is intended to
alert the user to the presence of uninsulated
“dangerous voltage” within the product’s
enclosure that may be of sufficient magnitude
to constitute a risk or electric shock to
persons.
The exclamation point within a triangle is
intended to alert the user to the presence of
important operating and maintenance
(servicing) instructions in the literature
accompanying the product.
Introduction ENGLISH
CAUTION
RISK OF ELECTRIC SHOCK.
DO NOT REMOVE SCREWS
EXCEPT SPECIFIED USER
SERVICE SCREW.
INFORMATION
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the operation manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference, in which case
the user will be required to correct the interference at his own expense.
See bottom of projector.
The enclosed computer cable must be used with the device. The cable is provided to ensure that the device
complies with FCC Class A verification.
U.S.A. ONLY
U.S.A. ONLY
U.S.A. ONLY
U.S.A. ONLY
WARNING:
This is a Class A product. In a domestic environment this product may cause radio interference in
which case the user may be required to take adequate measures.
-2
PRODUCT DISPOSAL
This product utilizes tin-lead solder, and lamp containing a small amount of mercury.
Disposal of these materials may be regulated due to environmental considerations. For
disposal or recycling information, please contact your local authorities, the Electronics
Industries Alliance: www.eiae.org, the lamp recycling organization www.lamprecycle.org,
or Sharp at 1-800-BE-SHARP. U.S.A. ONLY
This SHARP projector uses an LCD (Liquid Crystal Display) panel. This very sophisticated panel contains 1,024,000
pixels (x RGB) TFT’s (Thin Film Transistors). As with any high technology electronic equipment such as large
screen TVs, video systems and video cameras, there are certain acceptable tolerances that the equipment must
conform to.
This unit has some inactive pixels within acceptable tolerances which may result in inactive dots on the picture
screen. This will not affect the picture quality or the life expectancy of the unit.
•Microsoft® and Windows® are registered trademarks of Microsoft Corporation in the United States and/or
other countries.
•PC/AT is a registered trademark of International Business Machines Corporation in the United States.
•Adobe® Reader® is a trademark of Adobe Systems Incorporated.
•Macintosh® is a registered trademark of Apple Computer, Inc. in the United States and/or other countries.
•PJLink is a registered trademark or an application trademark in Japan, the United States and/or other
countries/regions.
•All other company or product names are trademarks or registered trademarks of their respective compa-
nies.

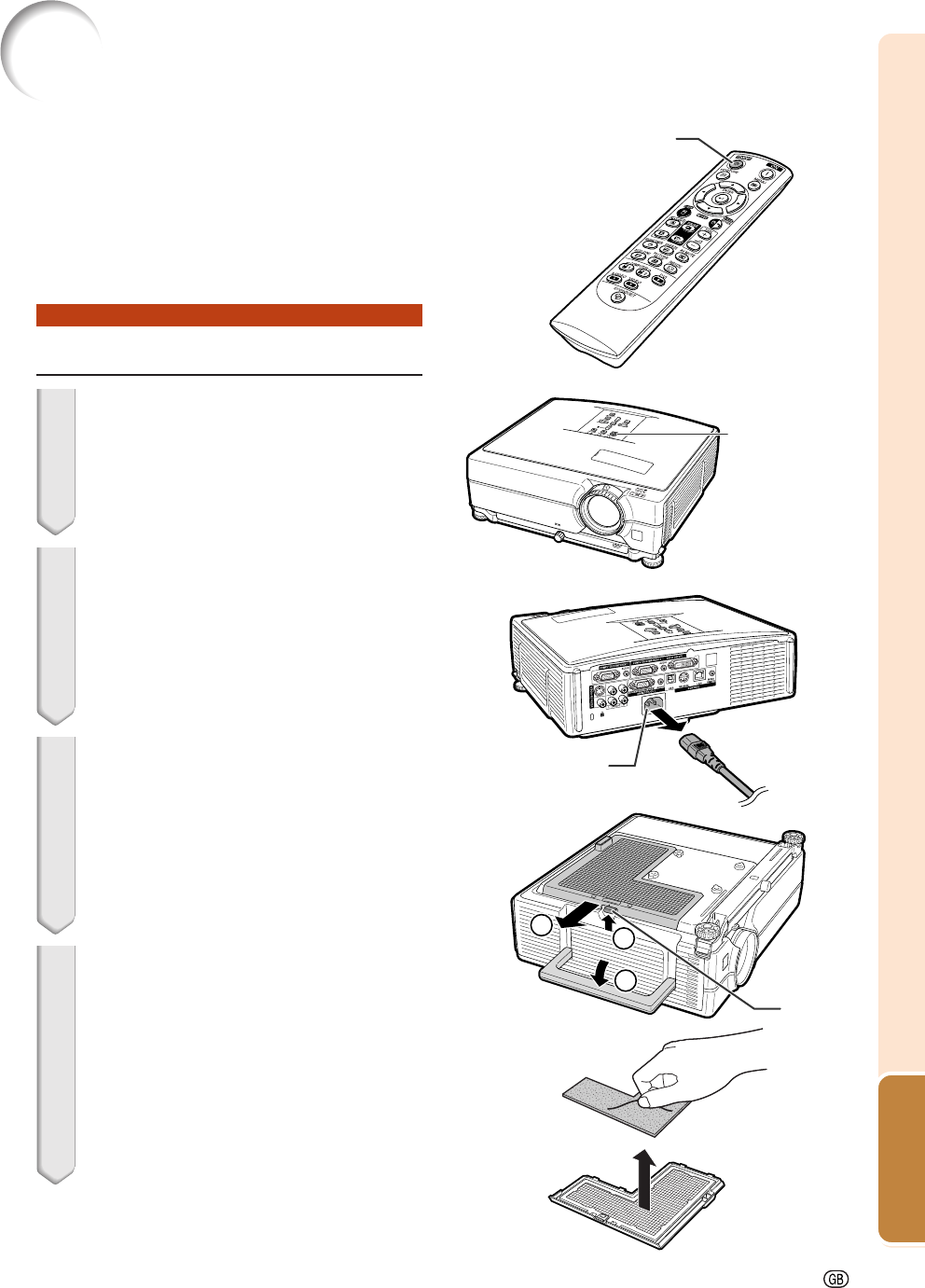

Caution Concerning Lamp Replacement

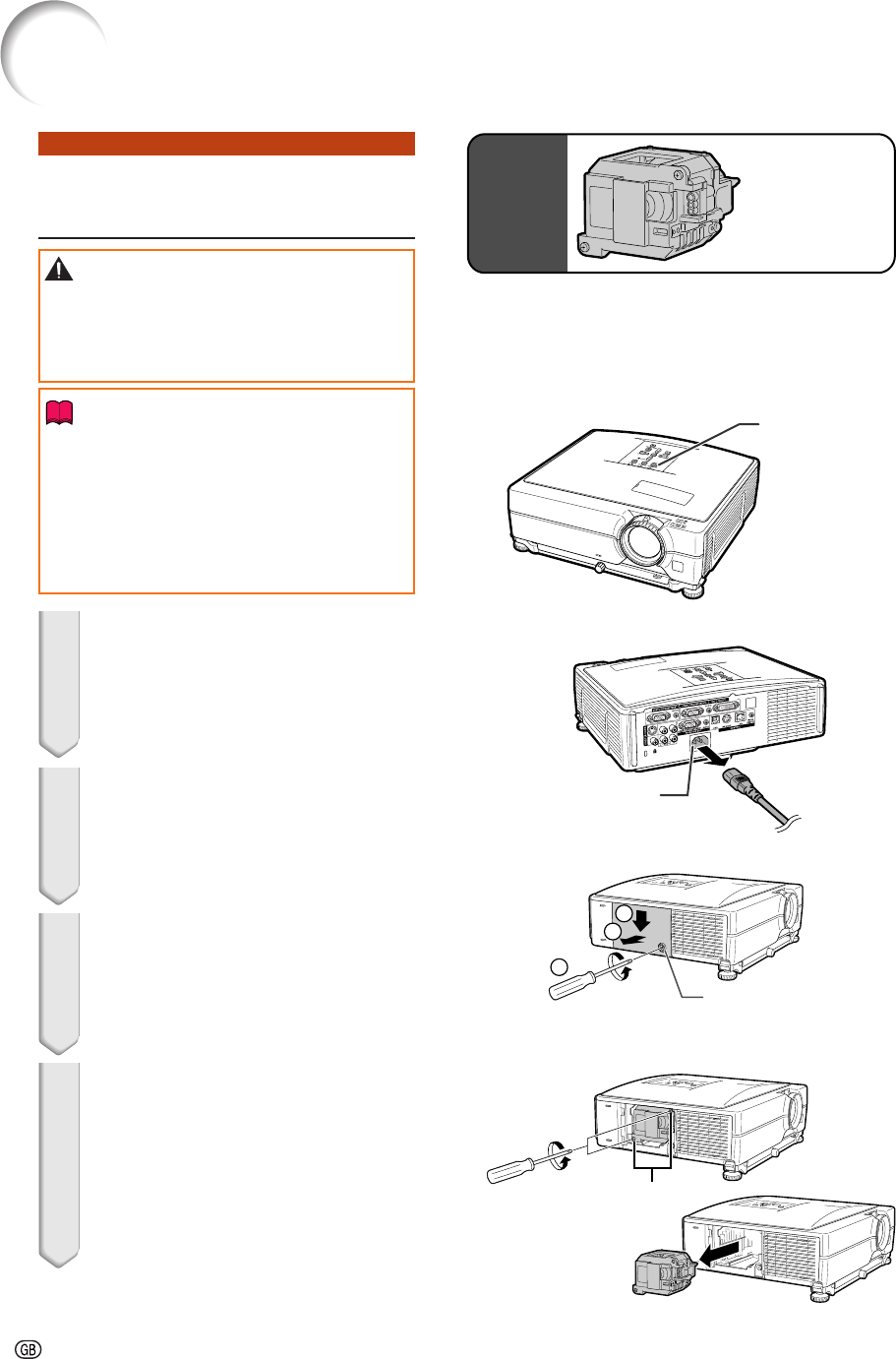

See “Replacing the Lamp” on page 61.
E.U. ONLY
Authorized representative responsible for the European Union Community Market
SHARP ELECTRONICS (Europe) GmbH
Sonninstraße 3, D-20097 Hamburg
-3
Introduction
-43
Useful Features

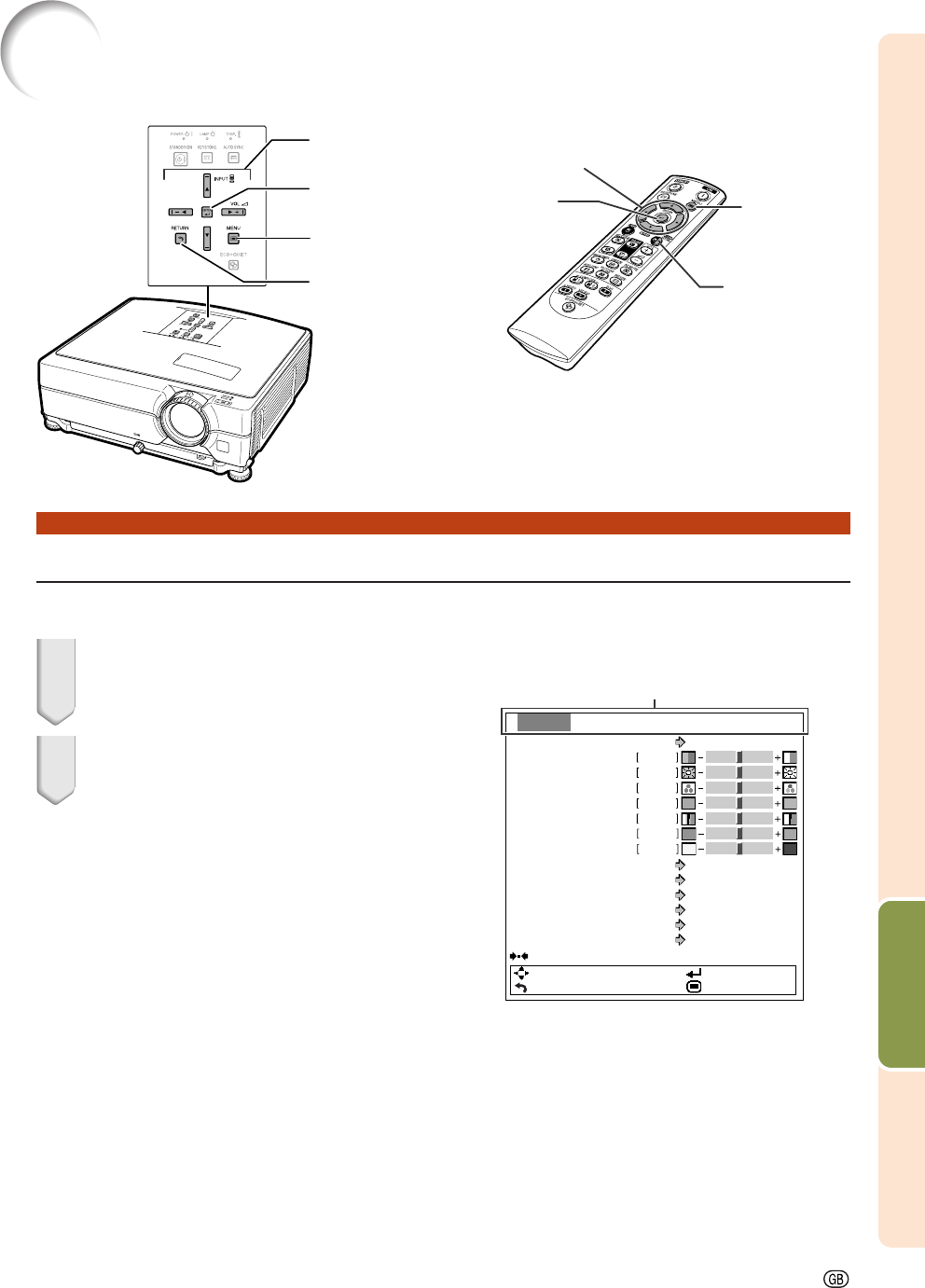

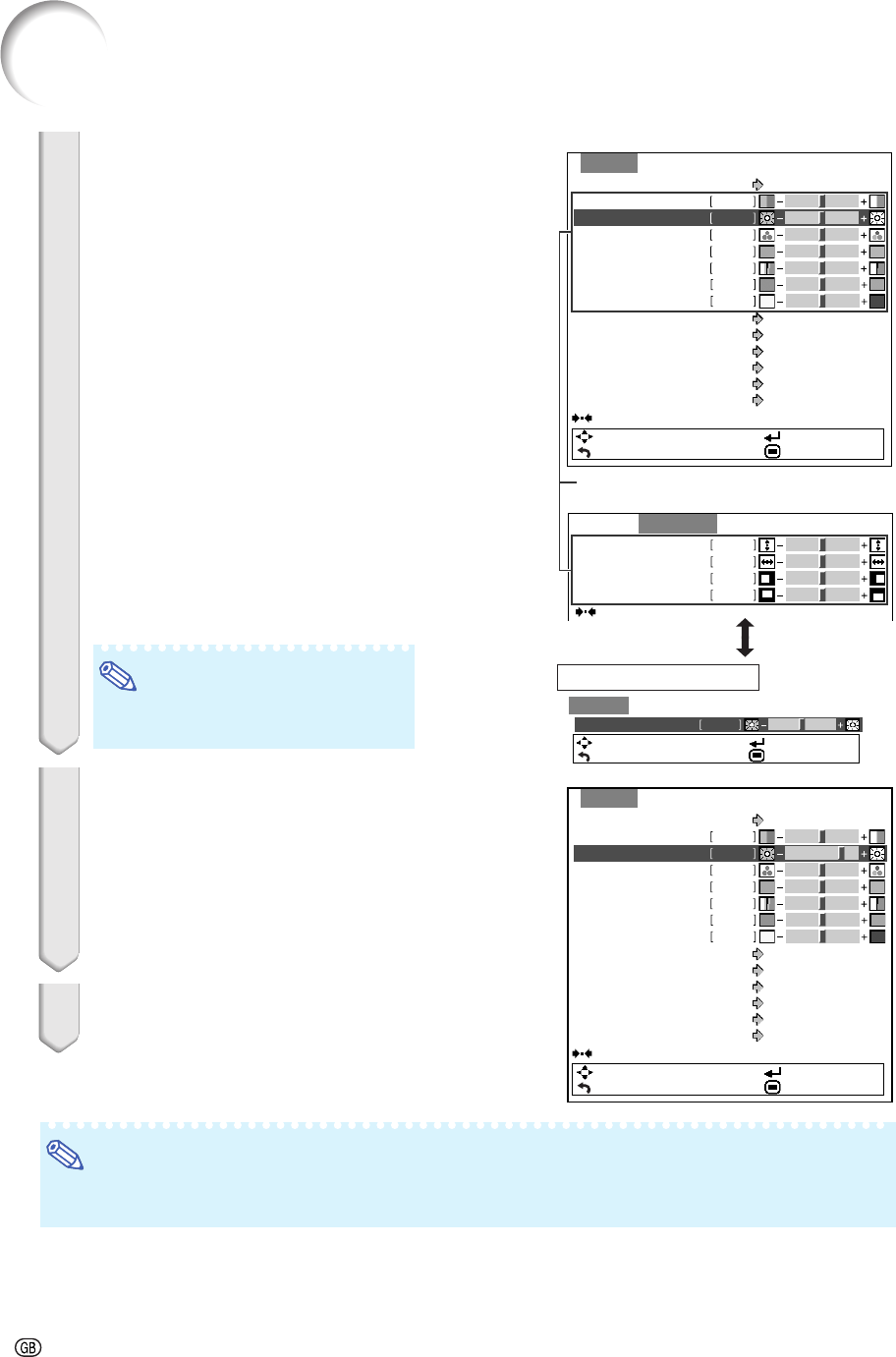

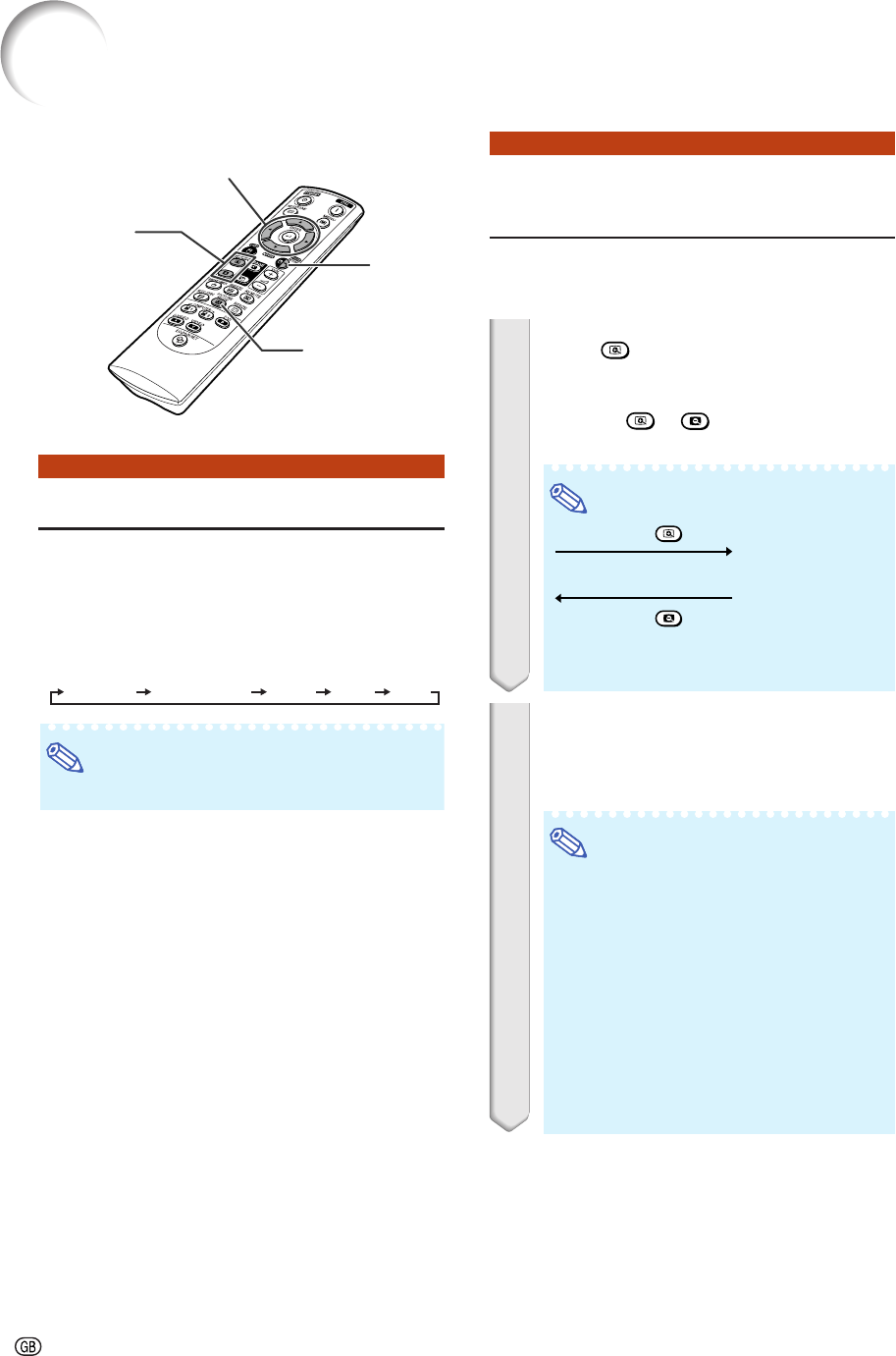

Using the Menu Screen
Menu Selections (Adjustments)
Example: Adjusting “Bright”.
•This operation can also be performed by using the buttons on the projector.
MENU button
MOUSE/Adjustment
buttons ('/"/\/|)
RETURN button
ENTER
button
• Press RETURN to
return to previous
screen when the
menu is displayed
Adjustment
buttons ('/"/\/|)
MENU button
ENTER button
RETURN button

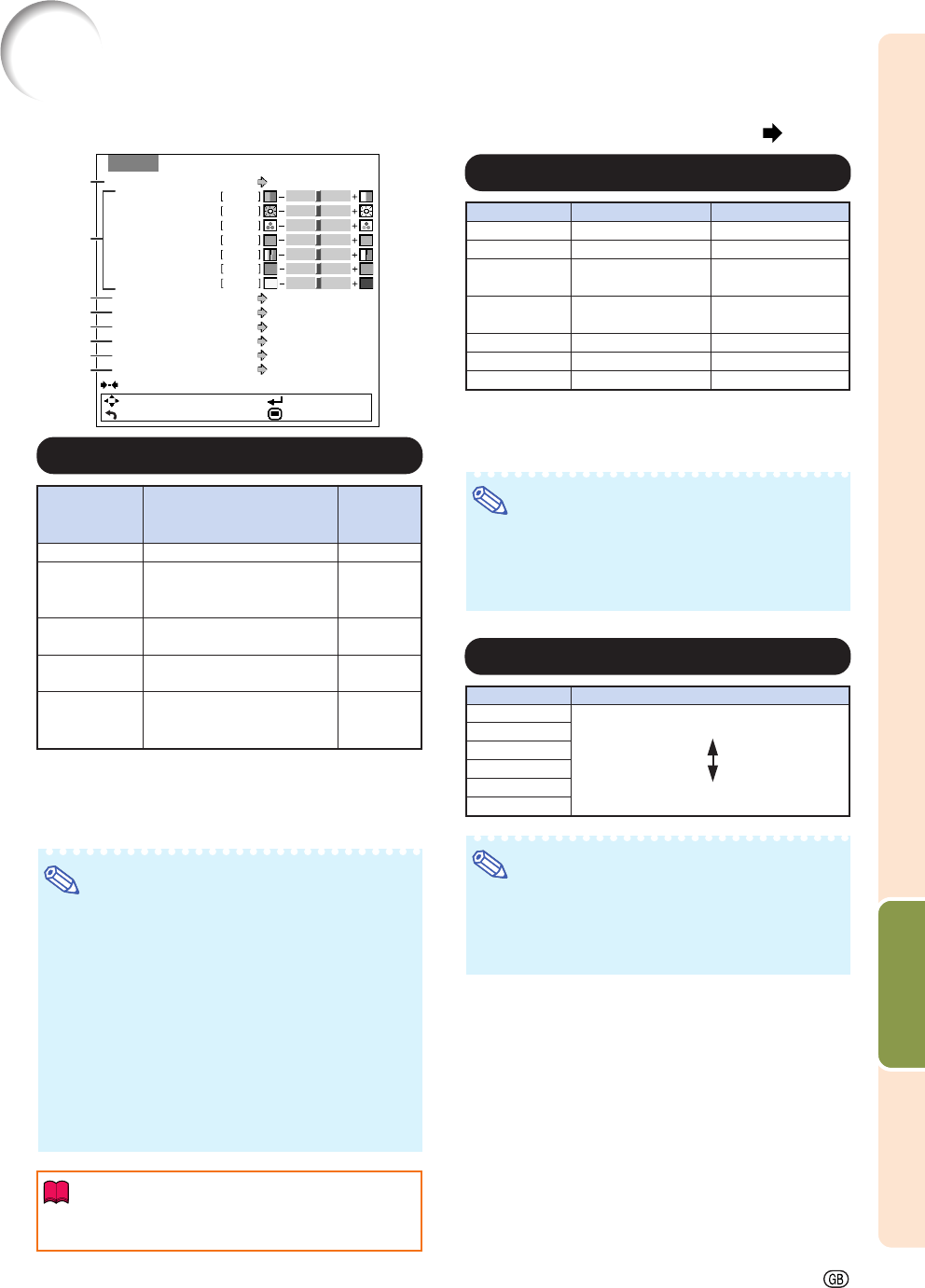

Example: “Picture” screen menu
1Press MENU.
•The “Picture” menu screen for the se-
lected input mode is displayed.
2Press ||
||
| or \\
\\
\ and select “Pic-
ture” to adjust.
Menu item
Picture Mode
Contrast 0
0
0
0
Bright
Color
Tint
0Sharp
Standard
7500K
3D Progressive
Auto
Off
Off
Off
SEL./ADJ.
RETURN
ENTER
END
Picture SIG SCR PRJ Net.
0
0
Red
Blue
CLR Temp
Progressive
Film Mode
DNR
MNR
Eco+Quiet Mode
Reset

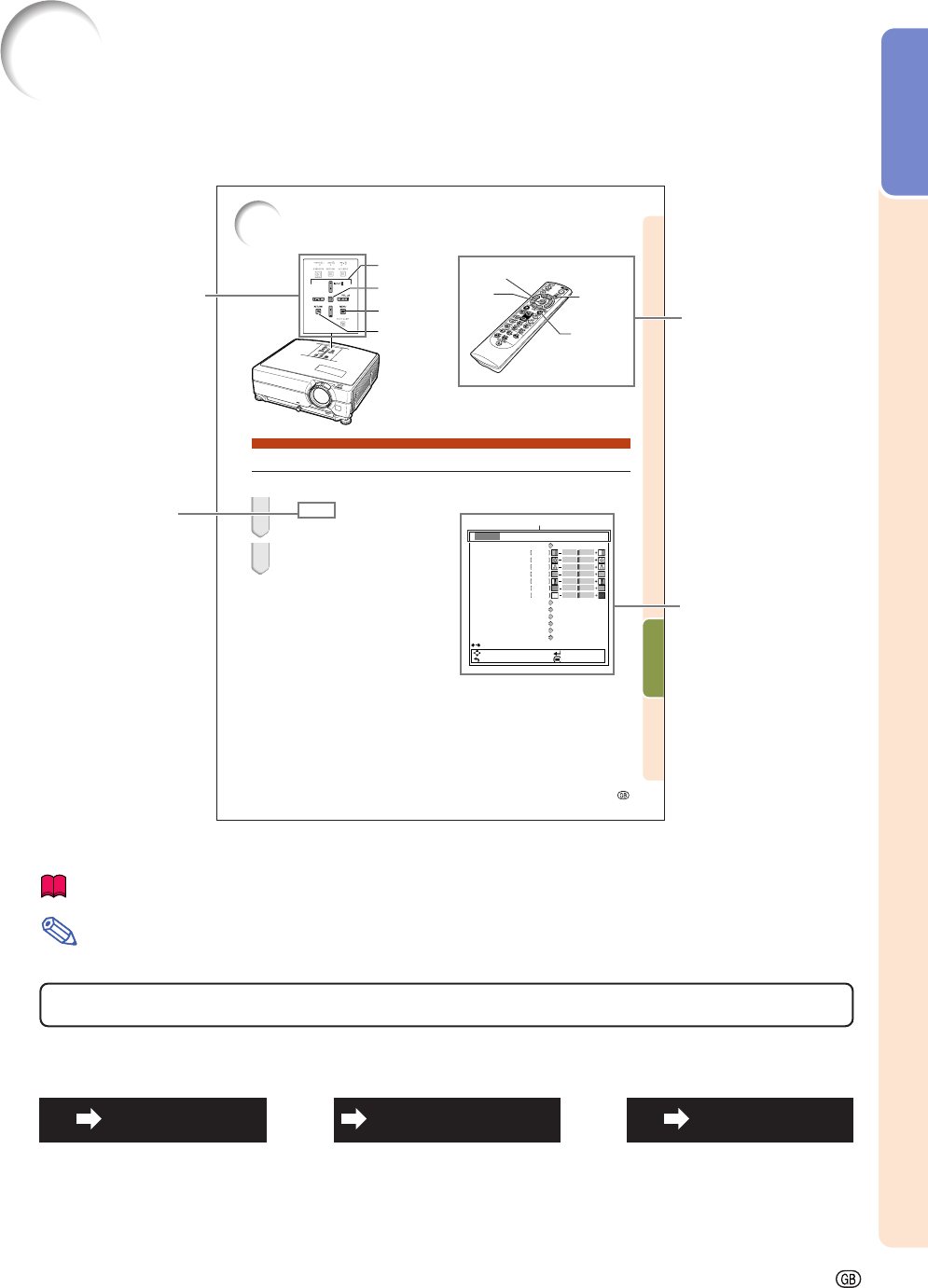

How to Read this Operation Manual
••
••
•In this operation manual, the illustrations and on-screen displays are simplified for explana-
tion. This may differ from the actual on-screen display.
Info
...........Indicates safeguards when using the projector.
For Future Reference
Maintenance Troubleshooting Index
Page 70
Pages 66 and 67
Page 56
On-screen display
Button used in
this step
Note
........Indicates additional information for setting up and operating the projector.
Buttons used in this
operation Buttons used in this
operation
-4
Contents
Preparing
Useful Features

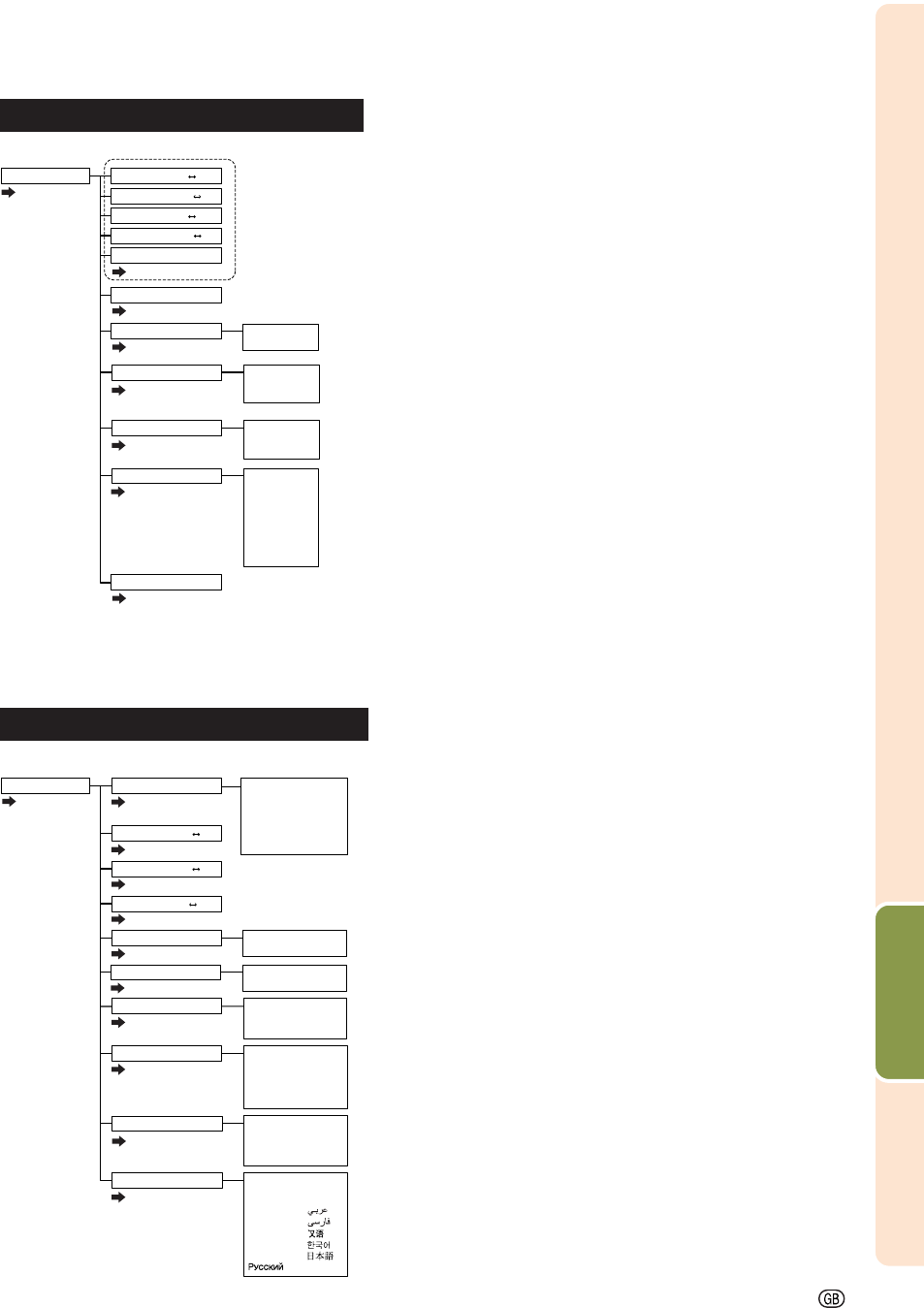

Menu Items ................................................... 40
Using the Menu Screen ............................... 43
Menu Selections (Adjustments) ......................... 43
Picture Adjustment (“Picture” menu) ........ 45
Selecting the Picture Mode ............................... 45
Adjusting the Image .......................................... 45
Adjusting the Color Temperature ....................... 45
Selecting the Progressive Mode ........................ 46
Selecting the Film Mode .................................... 46
Reducing Image Noise (DNR) ........................... 46
Mosquito Noise Reduction (MNR) ..................... 46
Eco+Quiet Mode Setting ................................... 46
Signal Adjustment (“SIG-ADJ” Menu) ........ 47
Adjusting the Computer Image ......................... 47
Resolution Setting .............................................. 47
Auto Sync Adjustment ....................................... 47
Signal Type Setting ............................................ 47
Selecting the Dynamic Range ........................... 48
Setting the Video System................................... 48
Checking the Input Signal ................................. 48

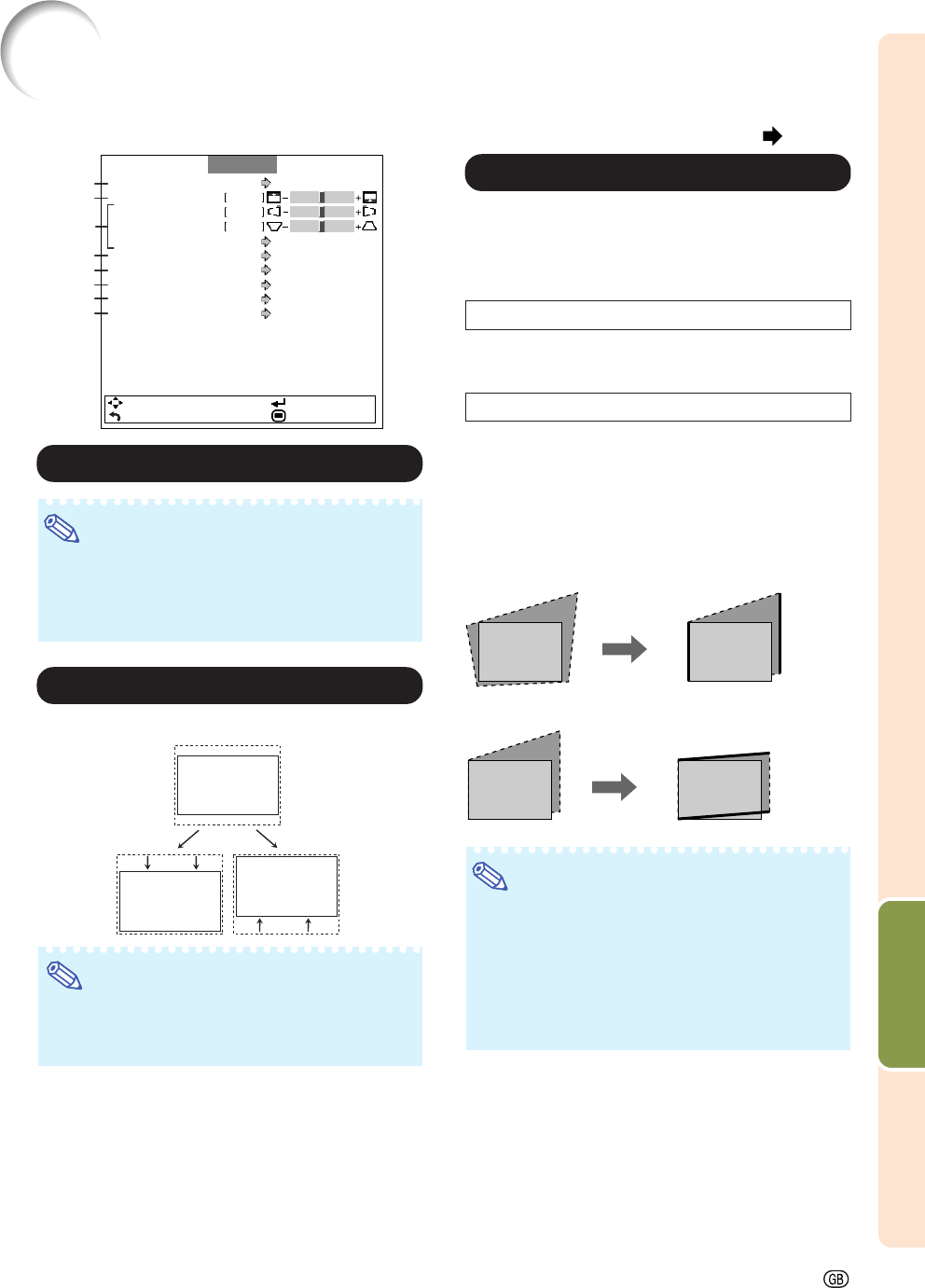

Screen Adjustment (“SCR-ADJ” Menu) ..... 49
Setting the Resize Mode ................................... 49
Adjusting the Image Position ............................. 49
Keystone Correction .......................................... 49
Setting the On-screen Display........................... 50
Selecting a Startup and Background Image ..... 50
Selecting the Menu Screen Position .................. 50
Reversing/Inverting Projected Images .............. 50
Selecting the On-screen Display Language ..... 50
Helpful Functions Set during Installation
(“PRJ-ADJ” menu) ................................. 51
Auto Power Off Function .................................... 51
Auto Restart Function ........................................ 51
Setting the Confirmation Sound
(System Sound) ........................................... 51
Speaker Setting ................................................. 51
Audio Output Type Setting ................................ 51
Monitor Output ................................................... 51
LAN/RS232C ..................................................... 51
Selecting the Transmission Speed (RS-232C) .. 52
Fan Mode Setting .............................................. 52
System Lock Function ....................................... 52
Keylock Function ............................................... 53
Returning to the Default Settings ....................... 53
Checking the Lamp Life Status ......................... 53
Setting up the Projector Network
Environment (“Network” menu) ............ 54
Setting a Password ............................................ 54
DHCP Client Setting .......................................... 55
TCP/IP Setting ................................................... 55
Confirming the Projector Information ................. 55
Introduction
How to Read this Operation Manual............. 3
Contents.......................................................... 4
How to Access the PDF Operation Manuals ....
6
IMPORTANT SAFEGUARDS .......................... 7
Accessories .................................................. 10

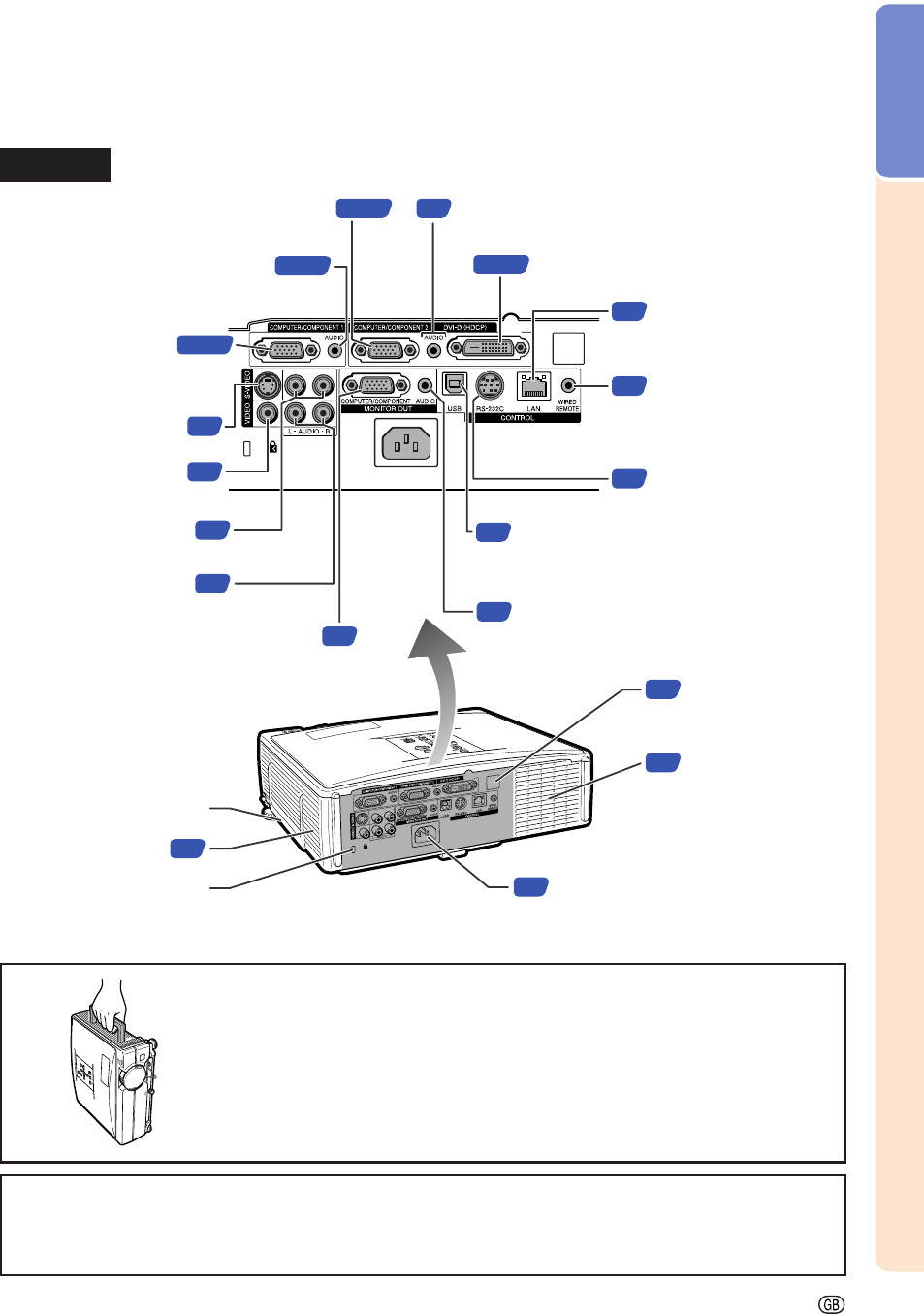

Part Names and Functions .......................... 12

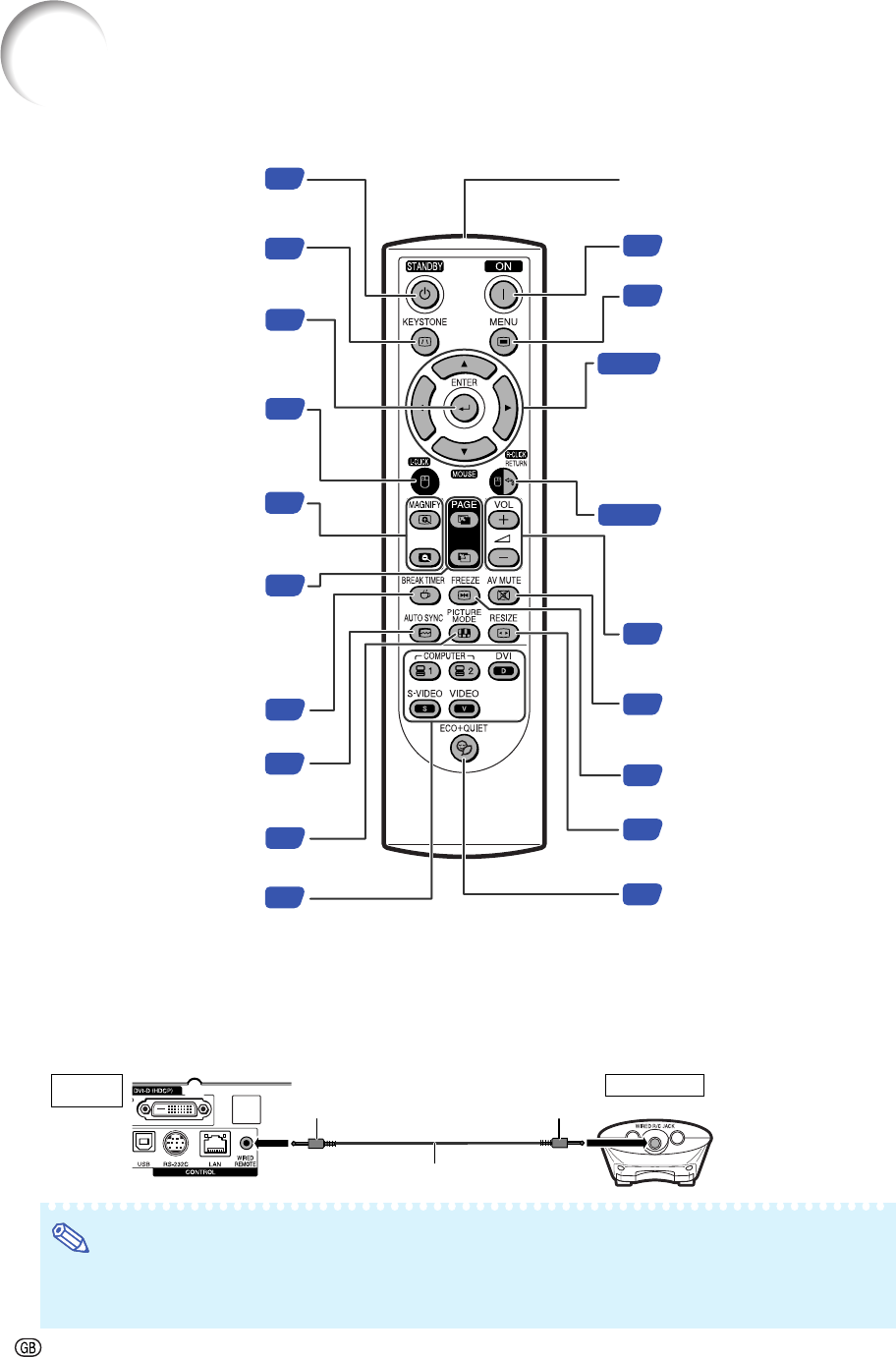

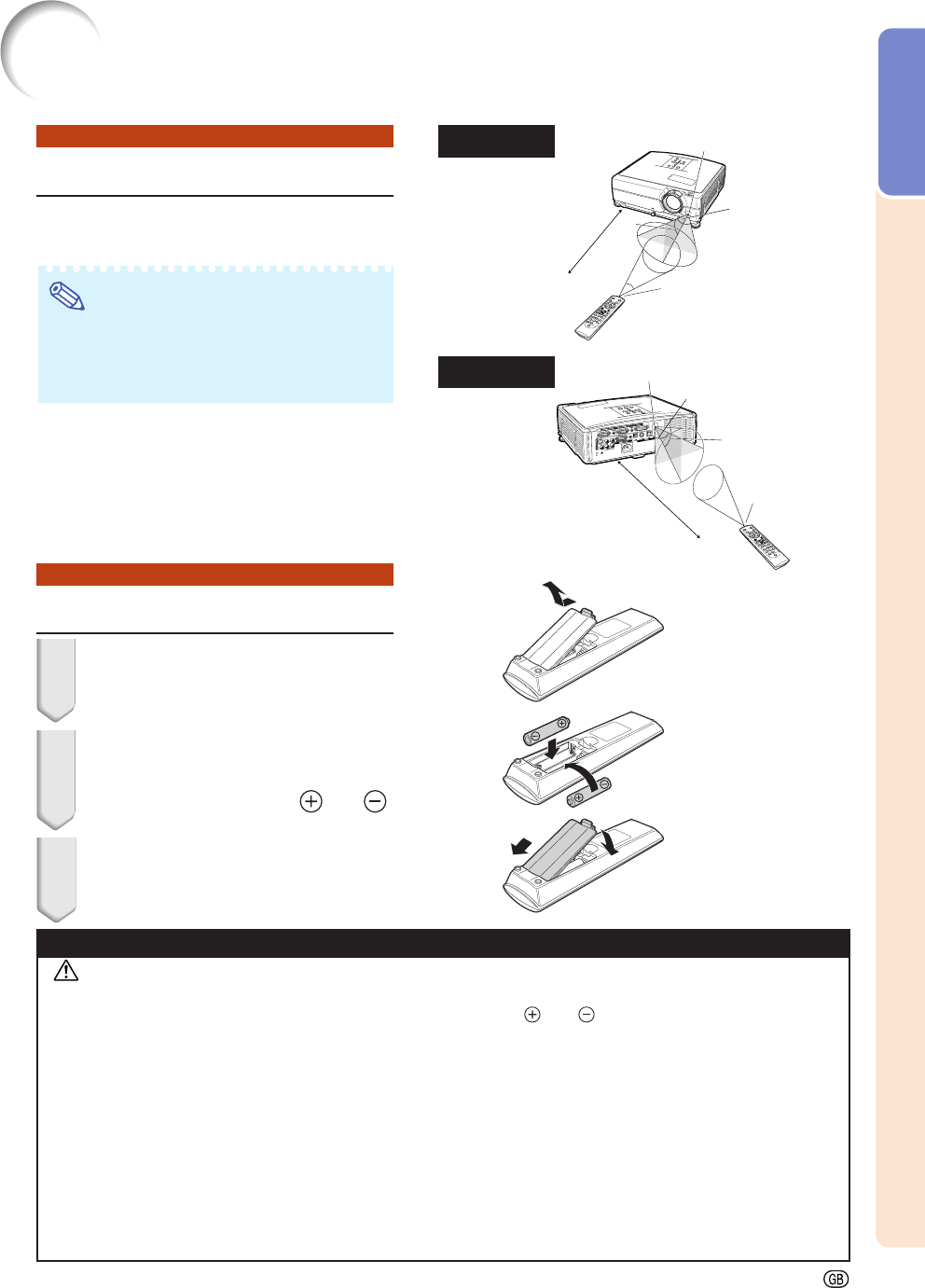

Using the Remote Control ........................... 15
Usable Range .................................................... 15
Inserting the Batteries ....................................... 15
Quick Start

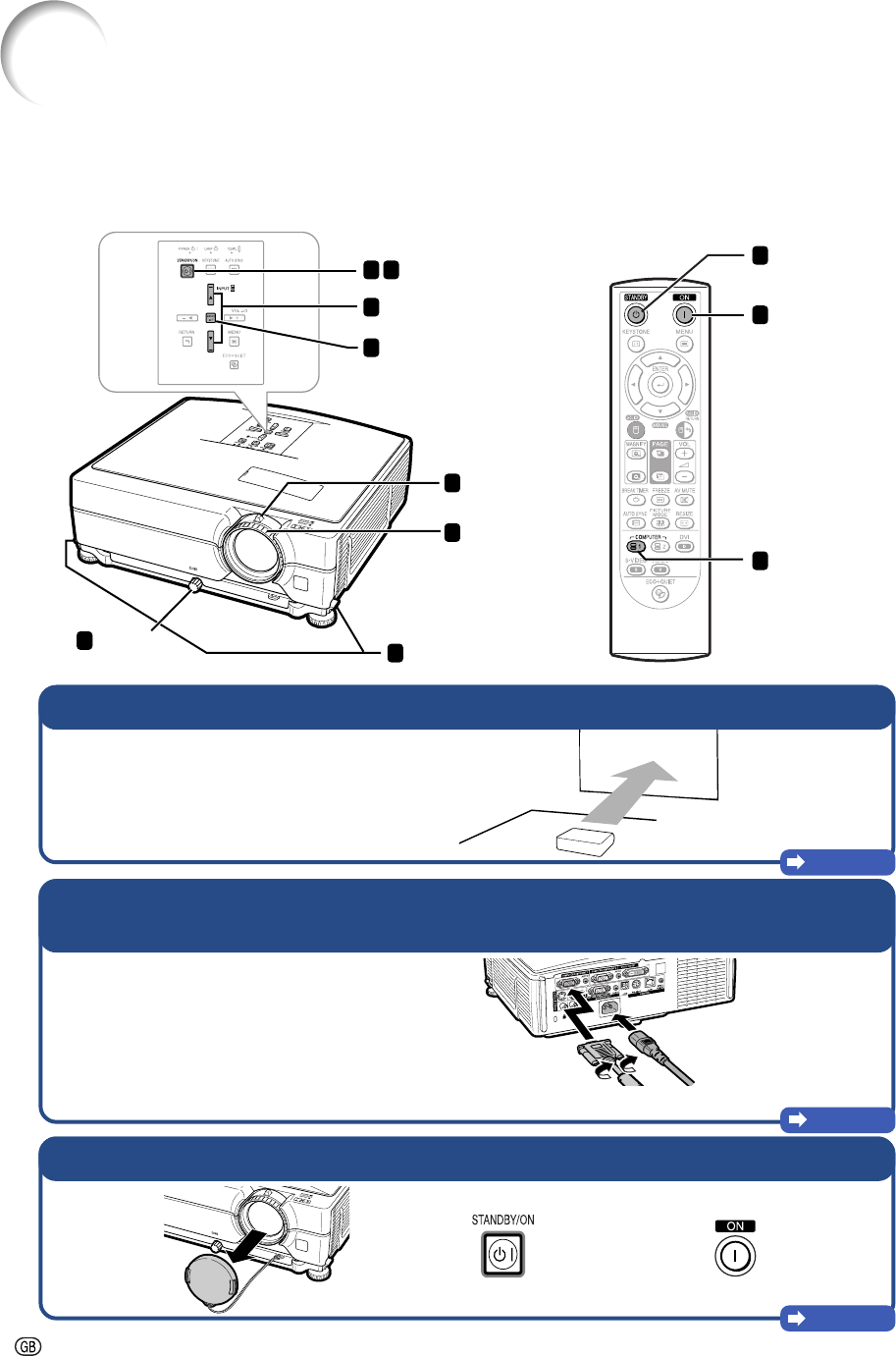

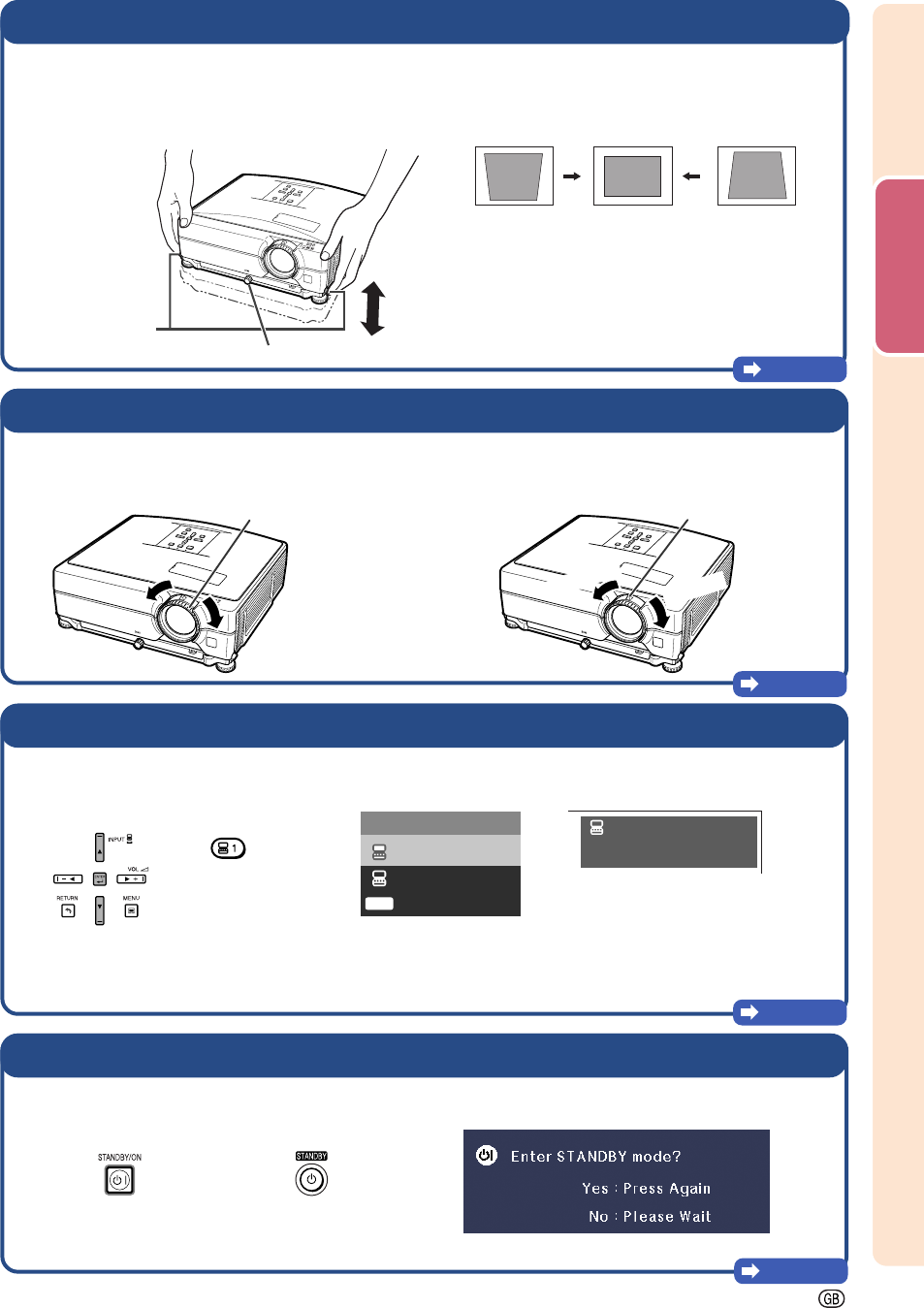

Quick Start .................................................... 16
Setup
Setting Up the Projector .............................. 18
Setting Up the Projector .................................... 18
Projection (PRJ) Mode ....................................... 19
Connections

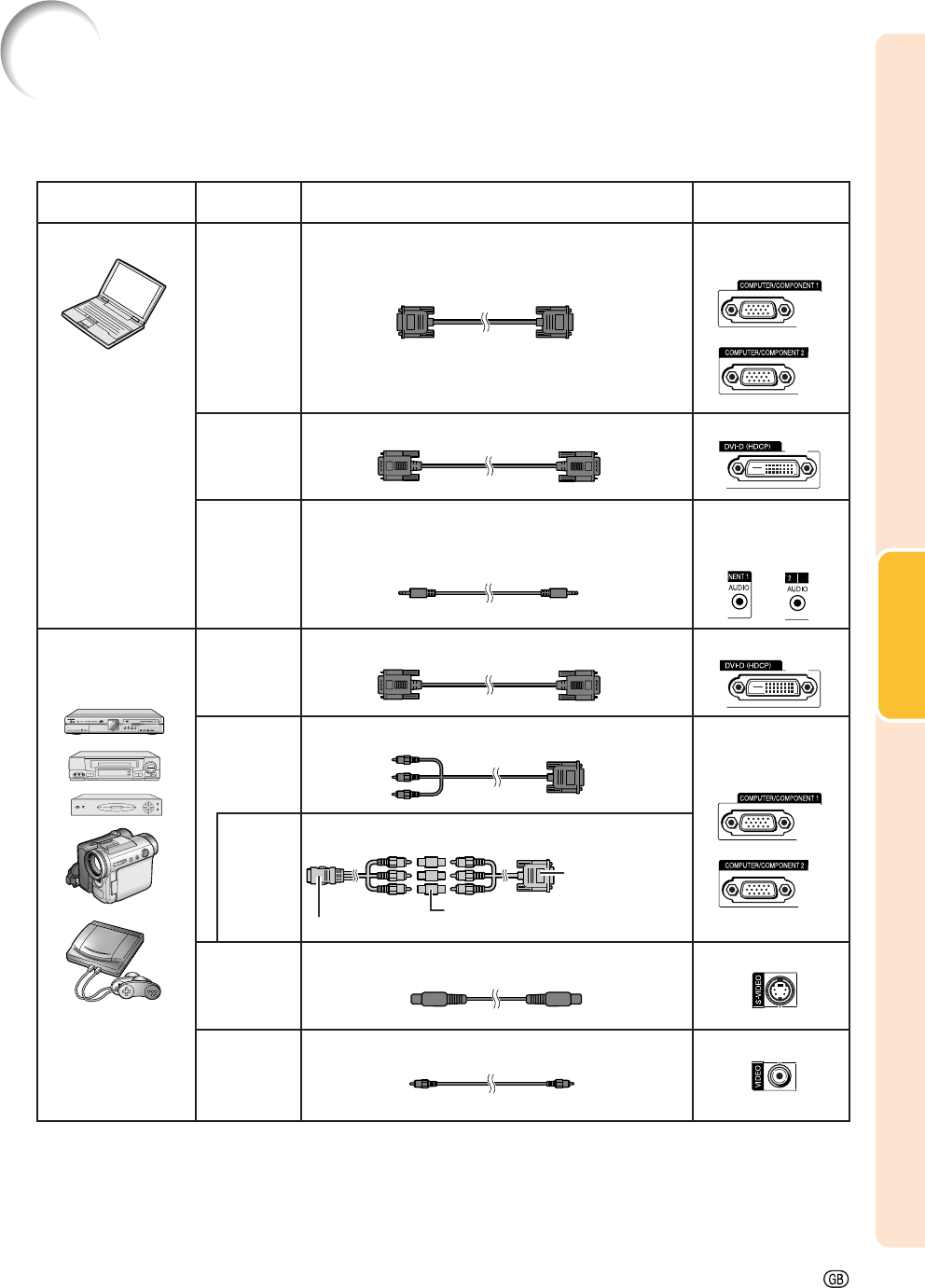

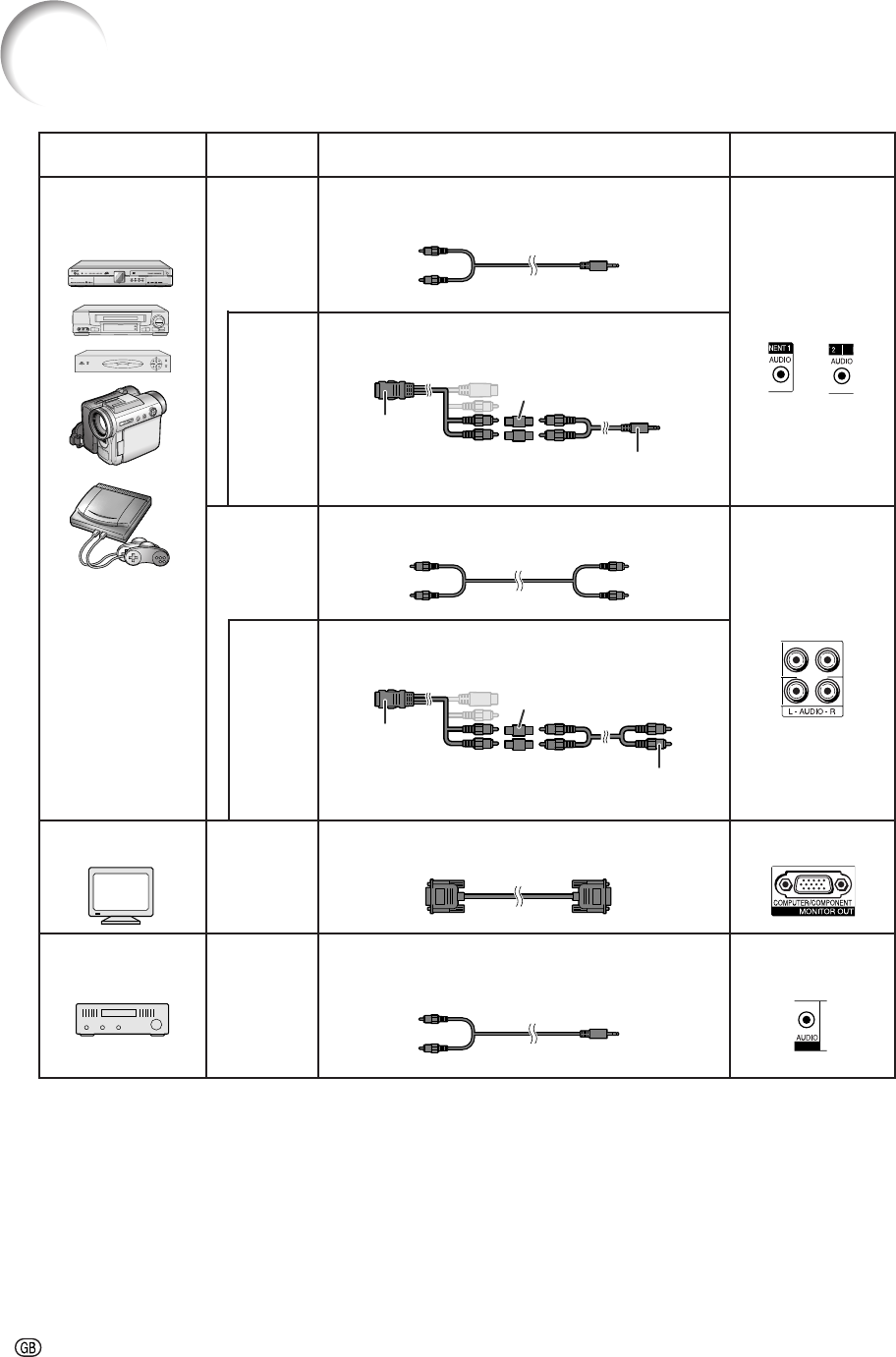

Samples of Cables for Connection............. 21

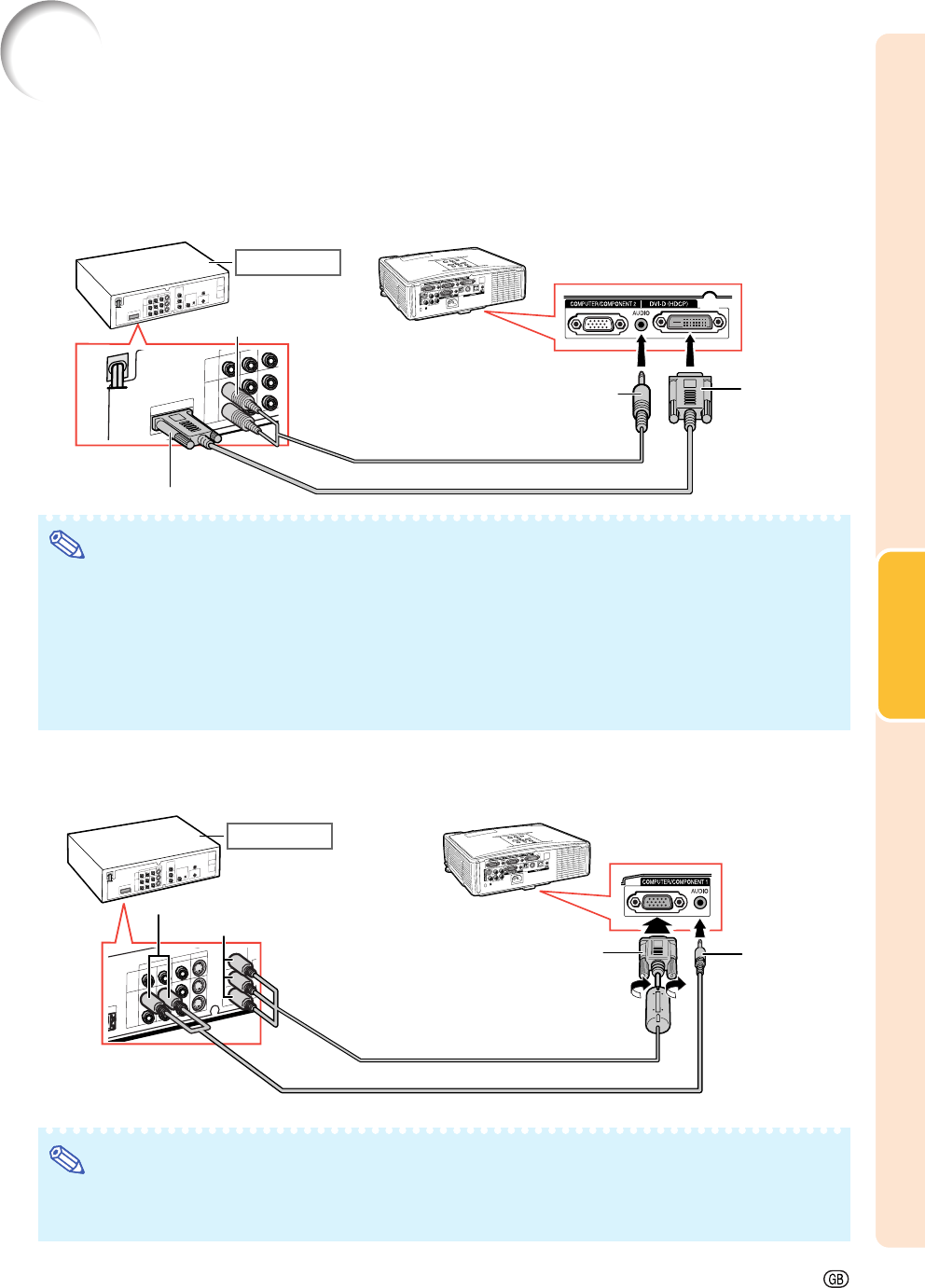

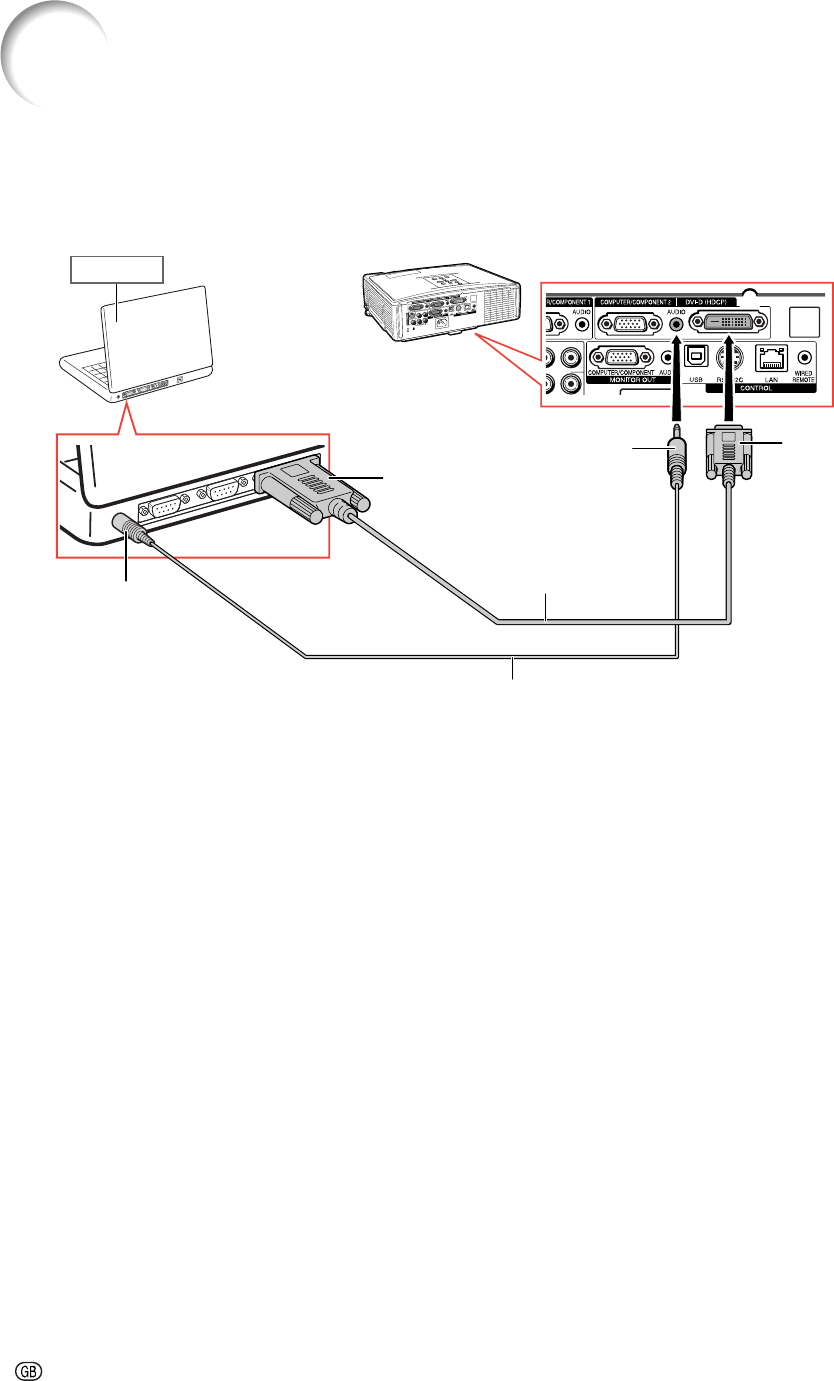

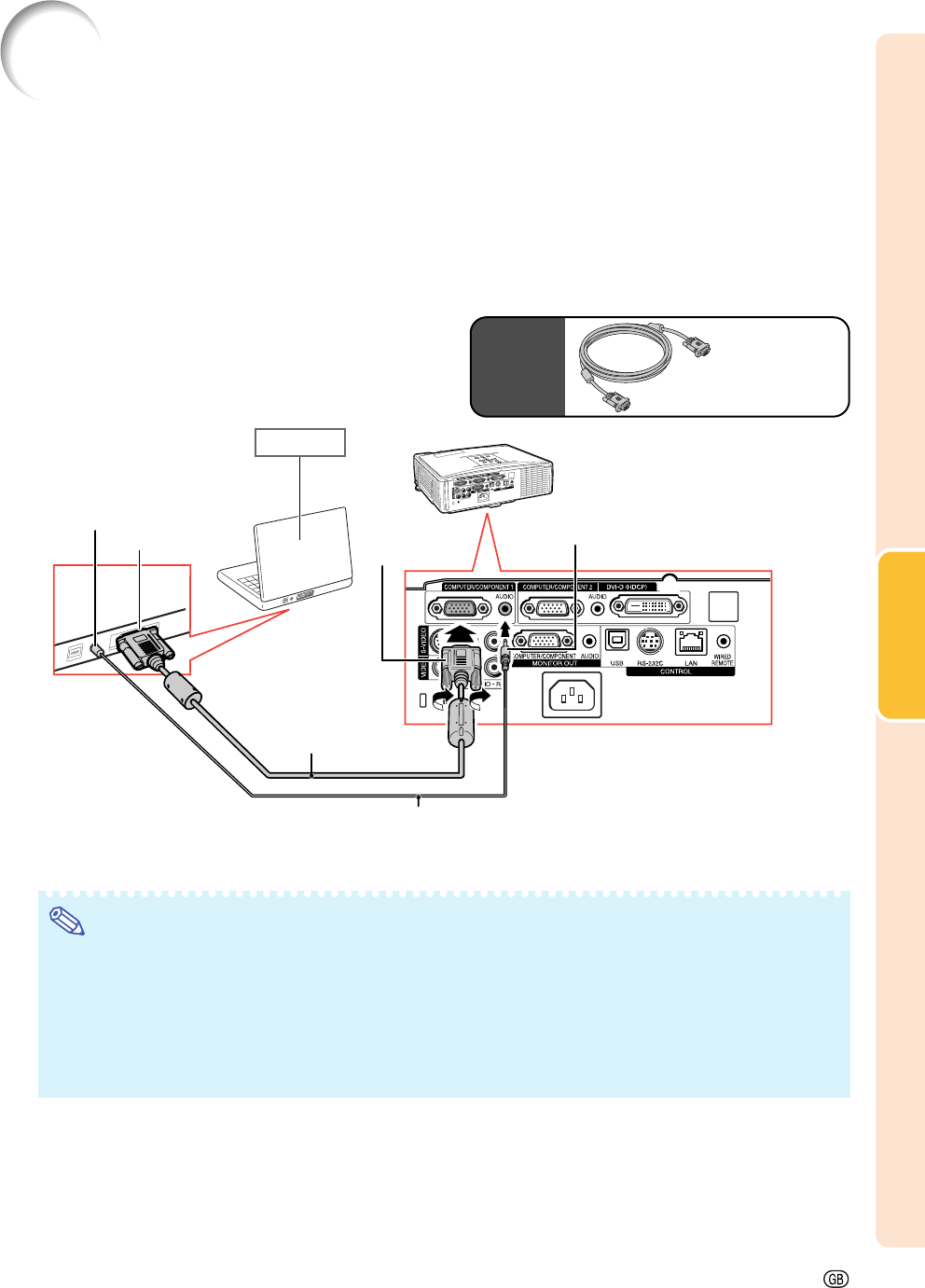

Connecting to a Computer .......................... 23

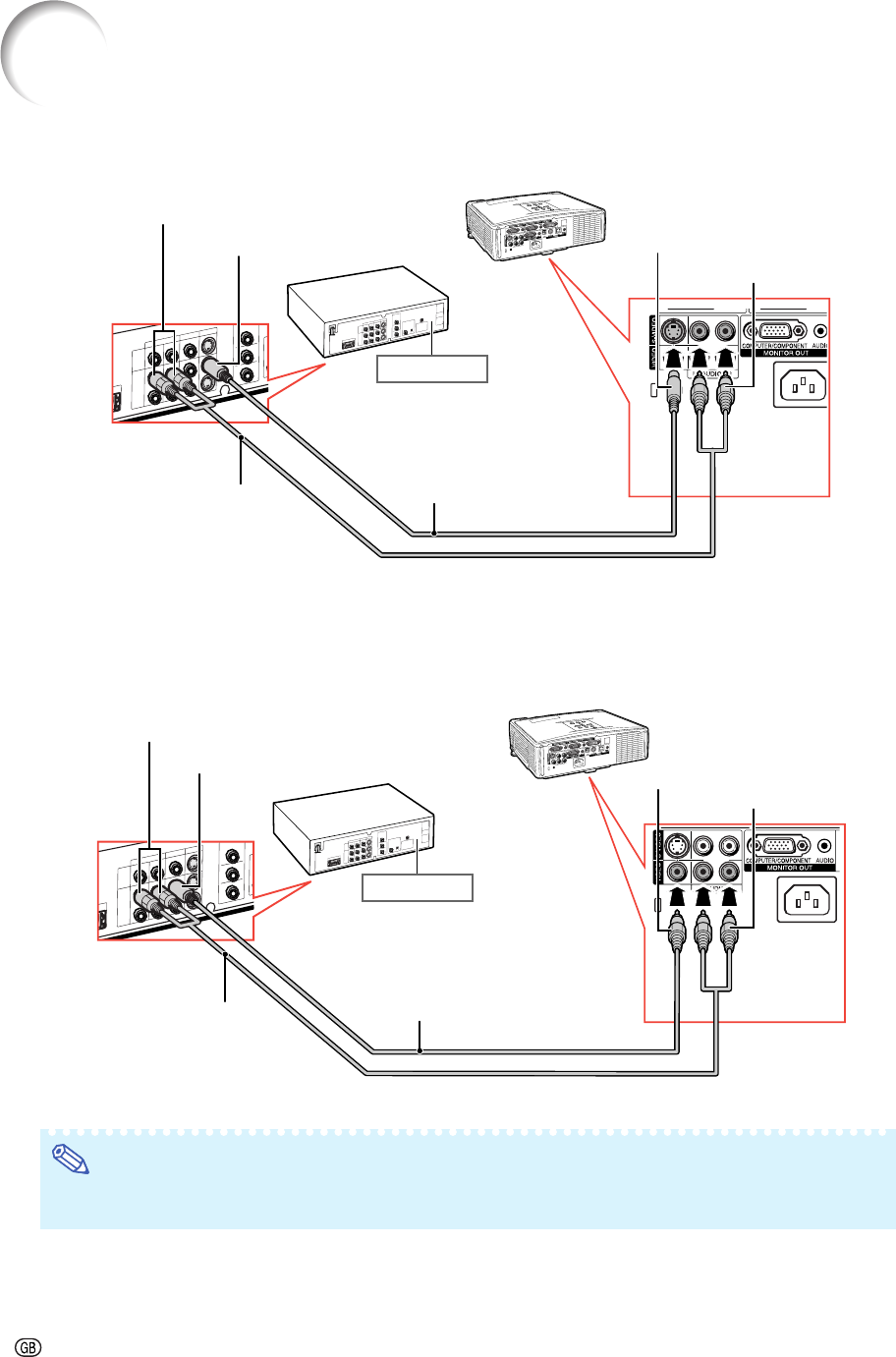

Connecting to Video Equipment ................. 25

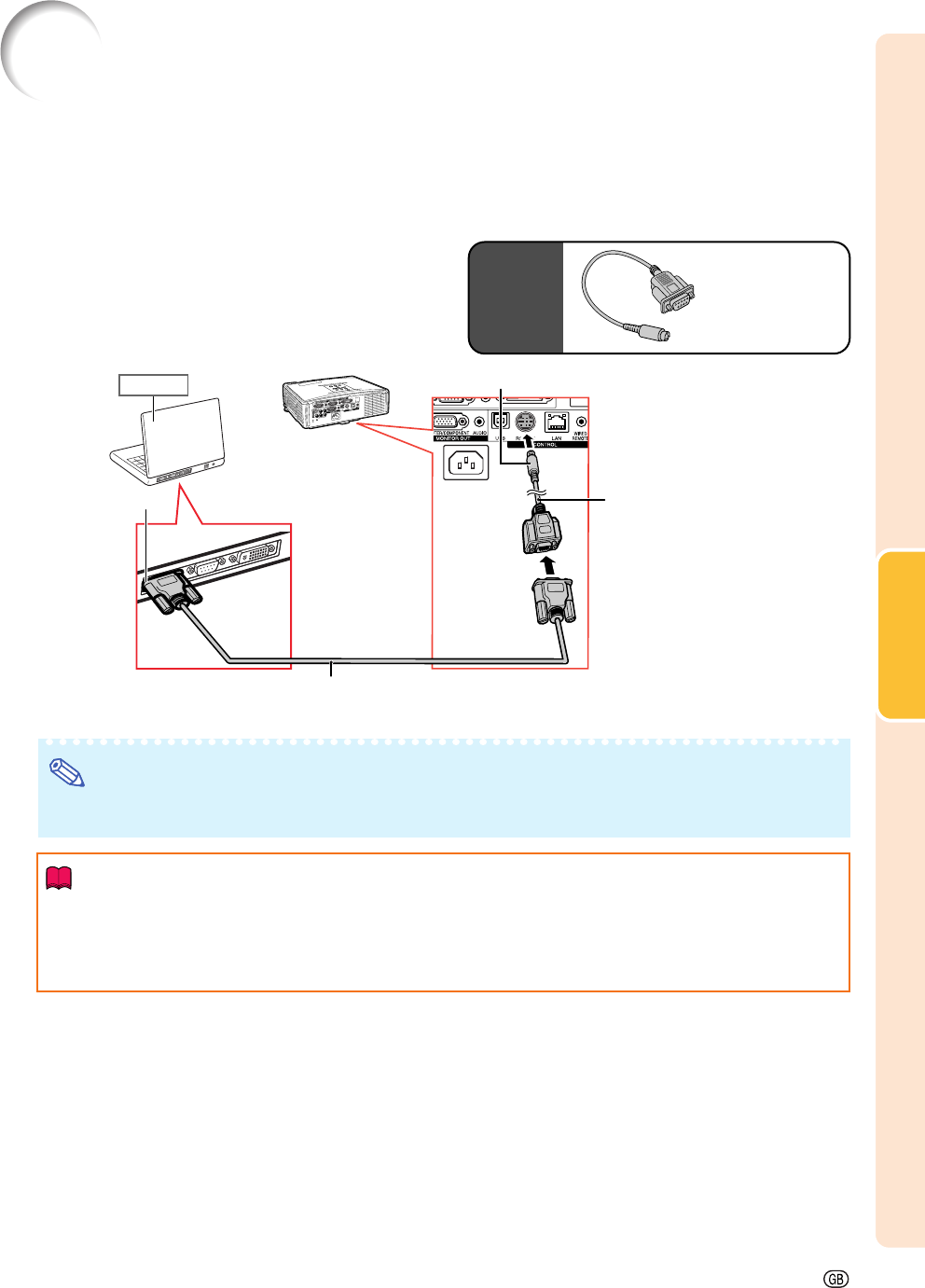

Controlling the Projector by a Computer... 27
Connecting to a Monitor with RGB
Input Terminal ......................................... 28

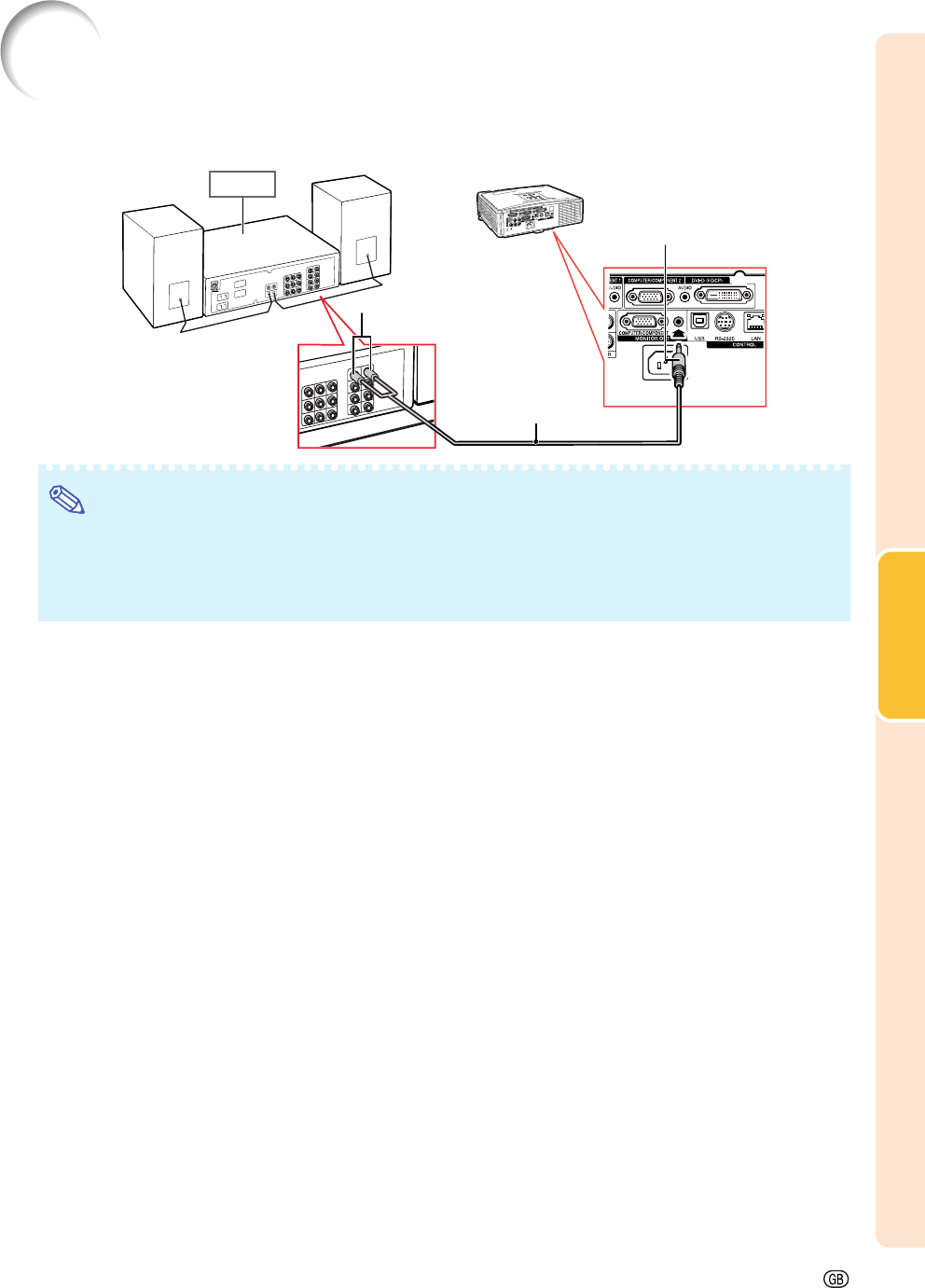

Connecting to an Amplifier or Other
Audio Equipment .................................... 29
Basic Operation

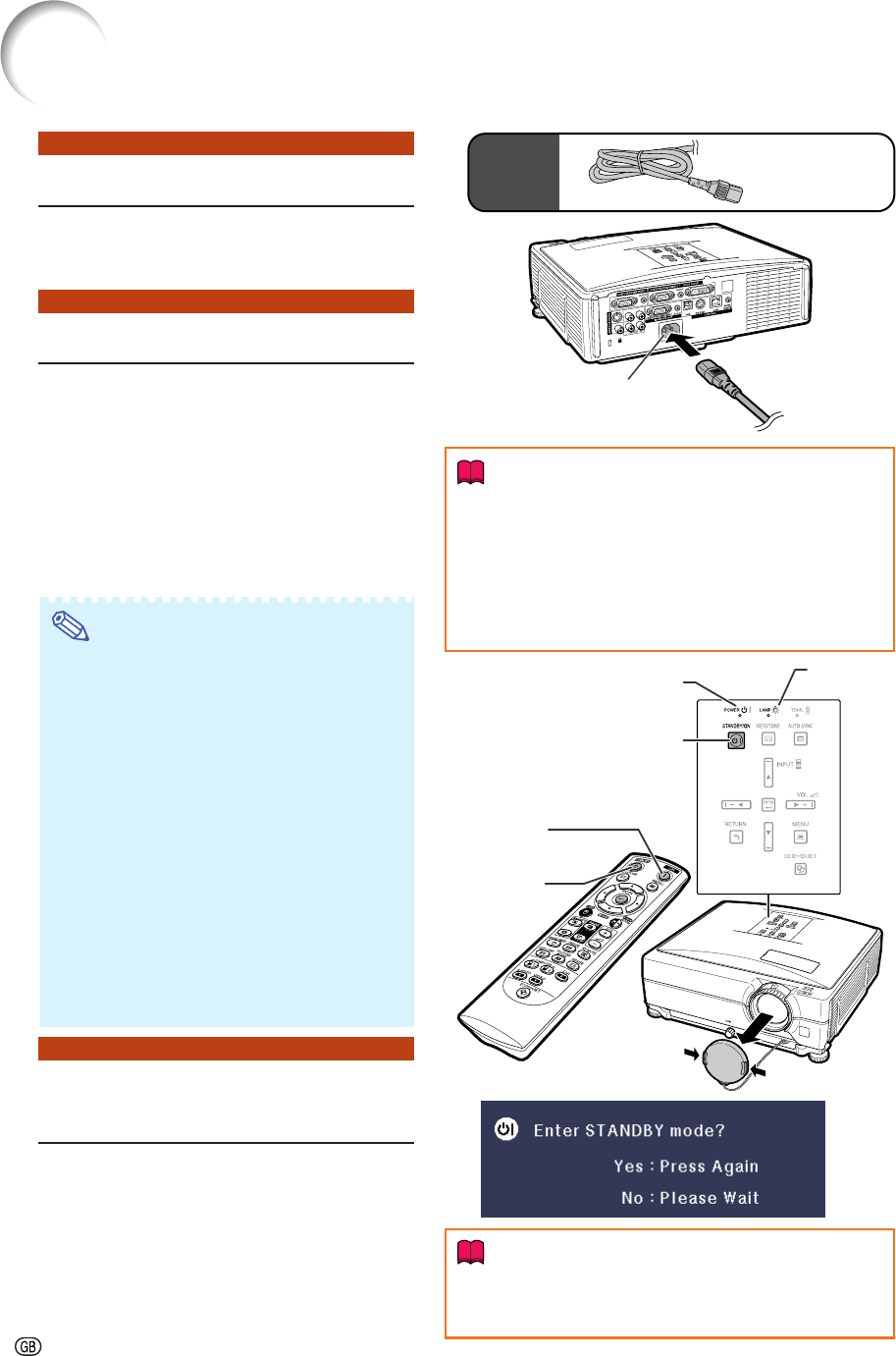

Turning the Projector On/Off ....................... 30
Connecting the Power Cord .............................. 30
Turning the Projector On .................................... 30
Turning the Power Off (Putting the Projector into
Standby Mode)............................................ 30
Image Projection .......................................... 31
Using the Adjustment Feet ................................ 31

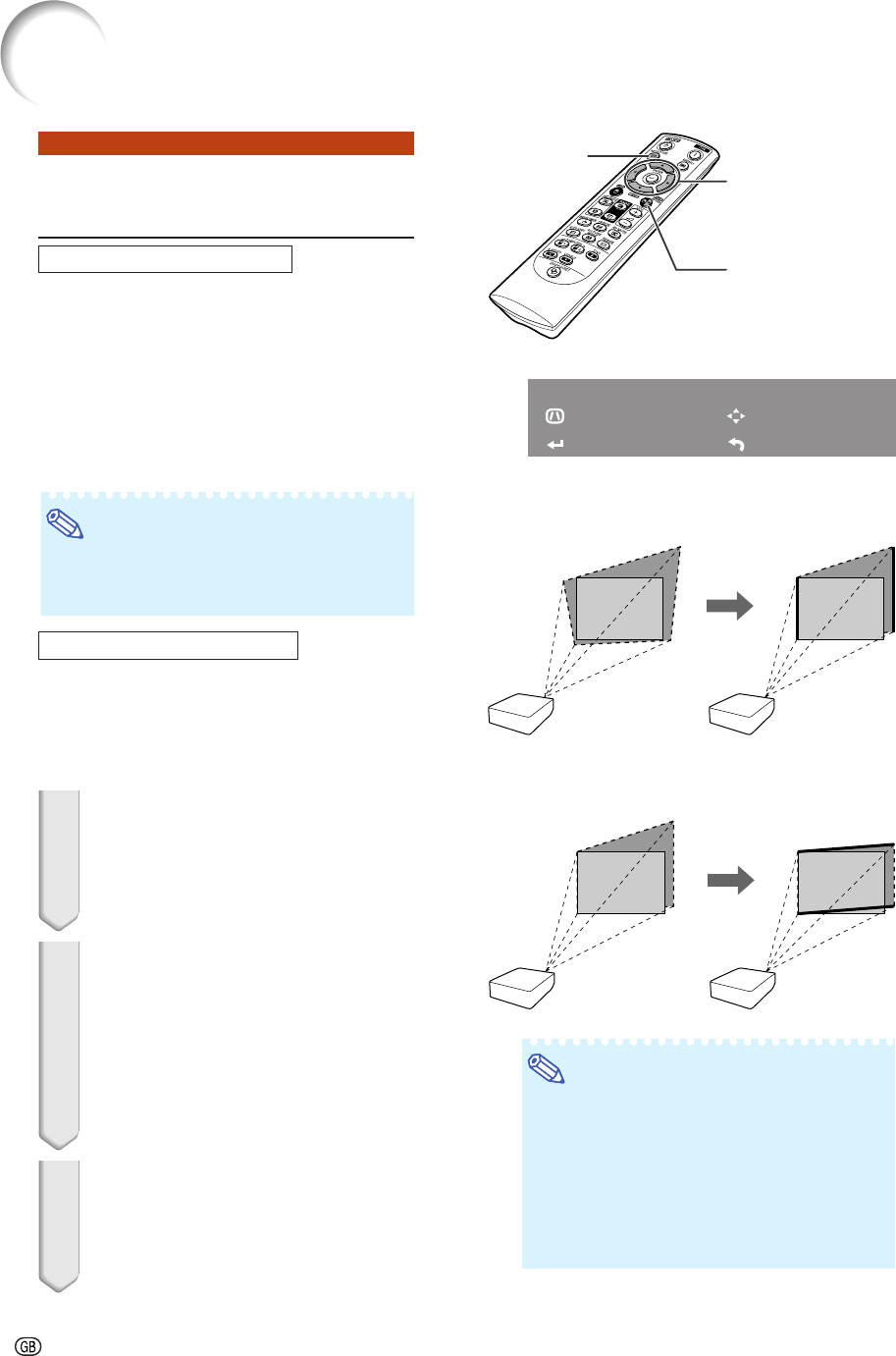

Correcting Trapezoidal Distortion ...................... 32

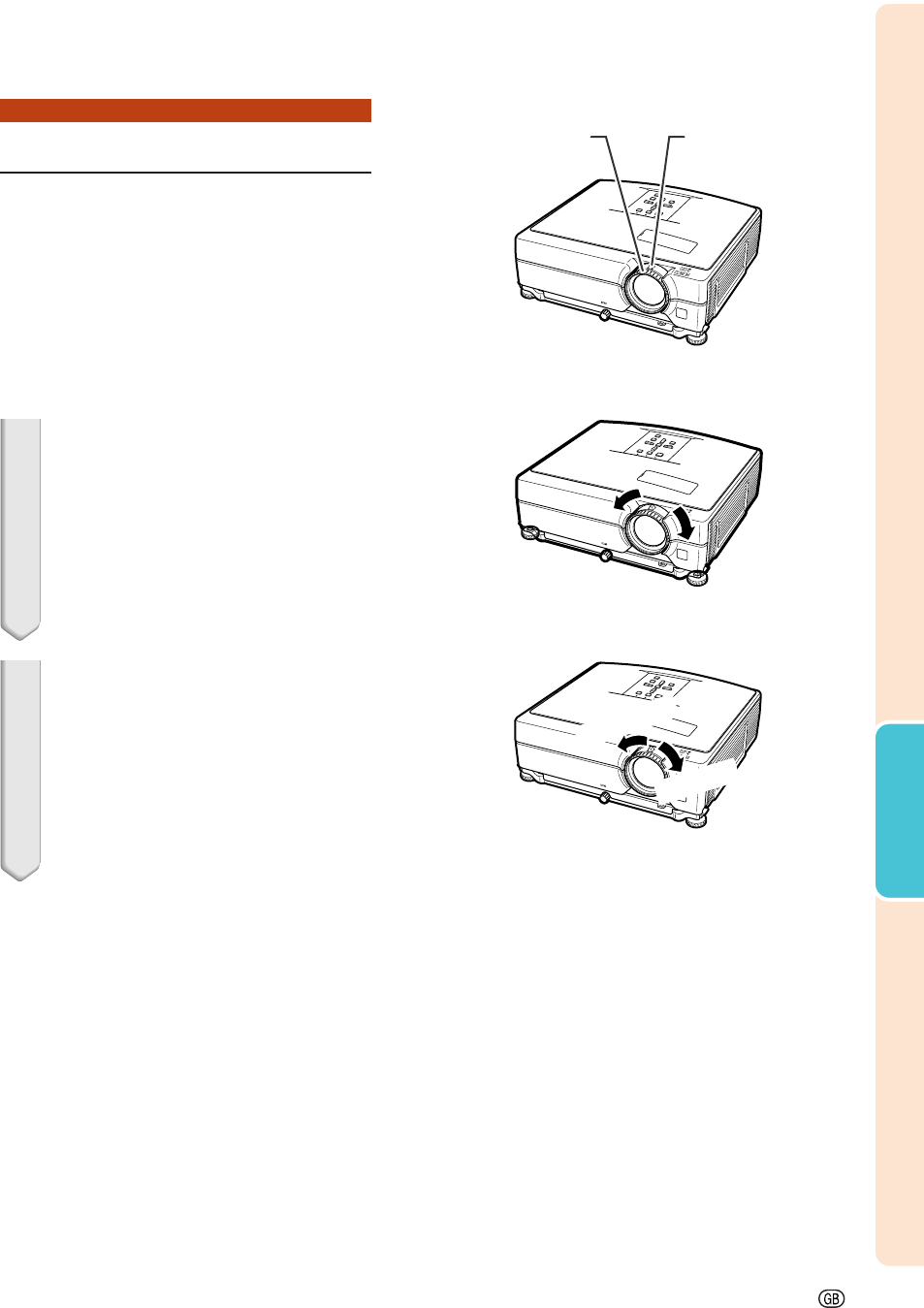

Adjusting the Lens ............................................. 33
Switching the Input Mode .................................. 34

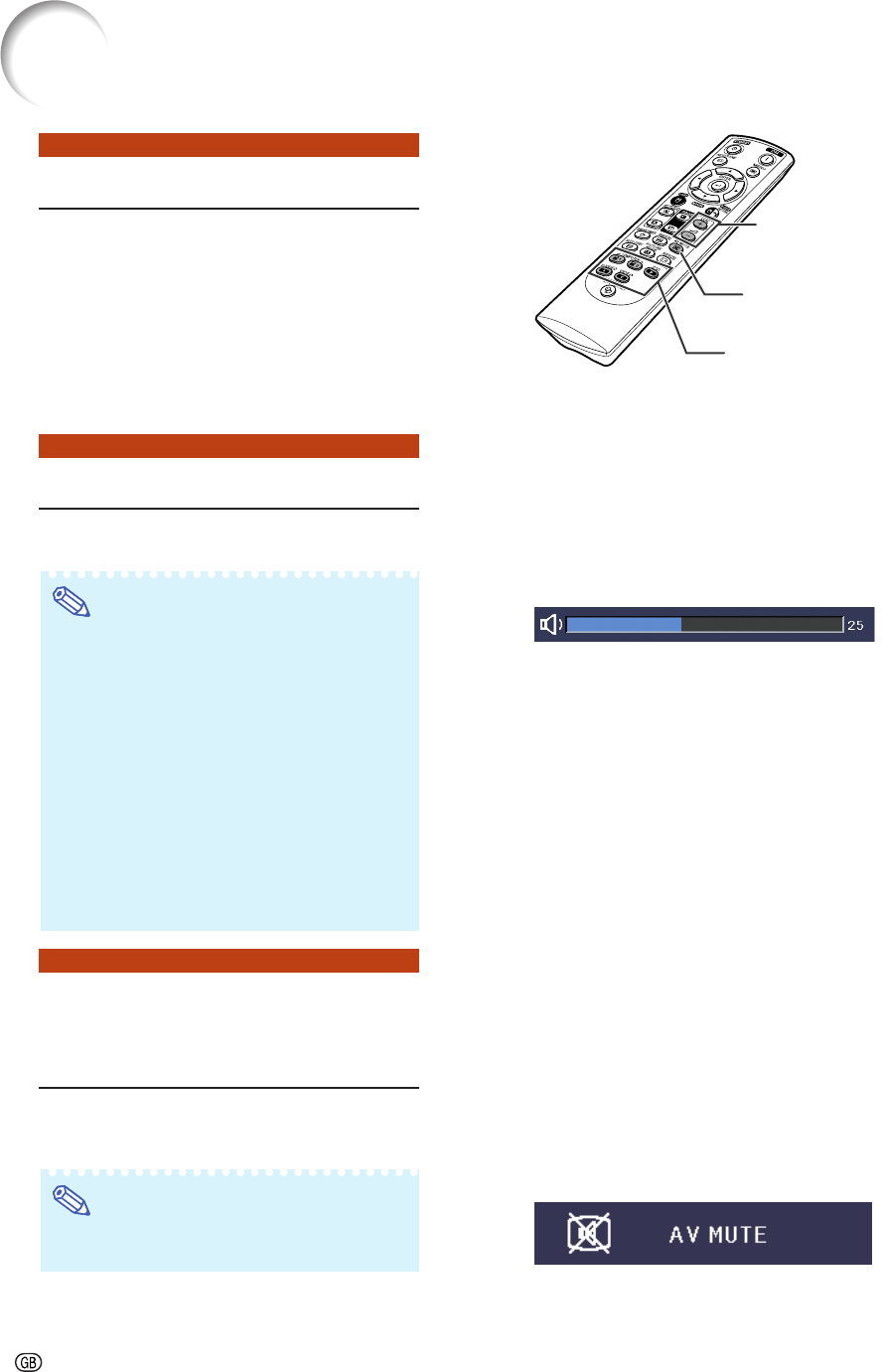

Adjusting the Volume ......................................... 34
Displaying the Black Screen and Turning off
the Sound Temporarily ................................ 34

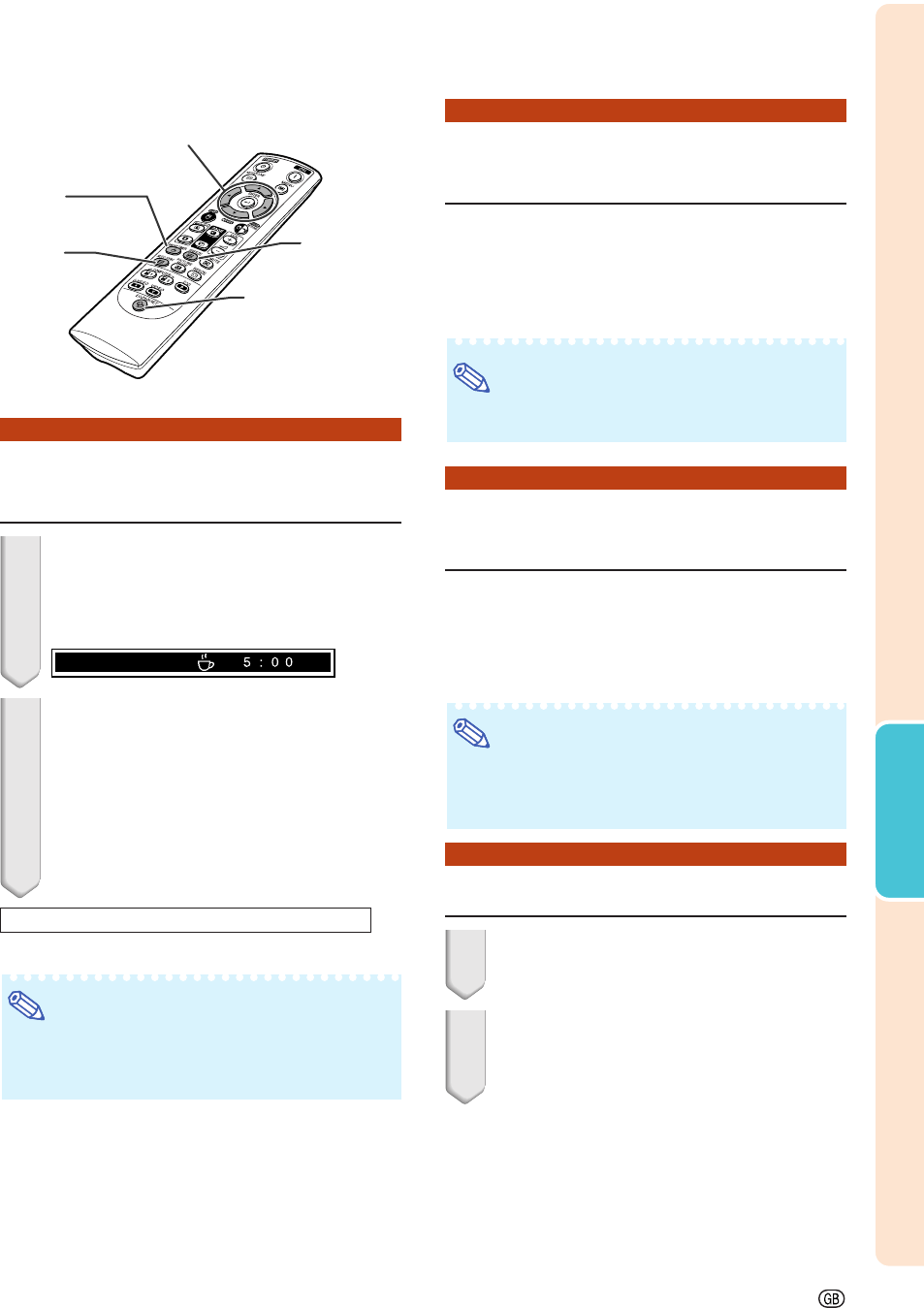

Displaying and Setting the Break Timer ............ 35
Switching the Eco+Quiet Mode ......................... 35
Auto Sync (Auto Sync Adjustment) ................... 35
Freezing a Moving Image .................................. 35
Selecting the Picture Mode ............................... 36
Displaying an Enlarged Portion of an Image .... 36

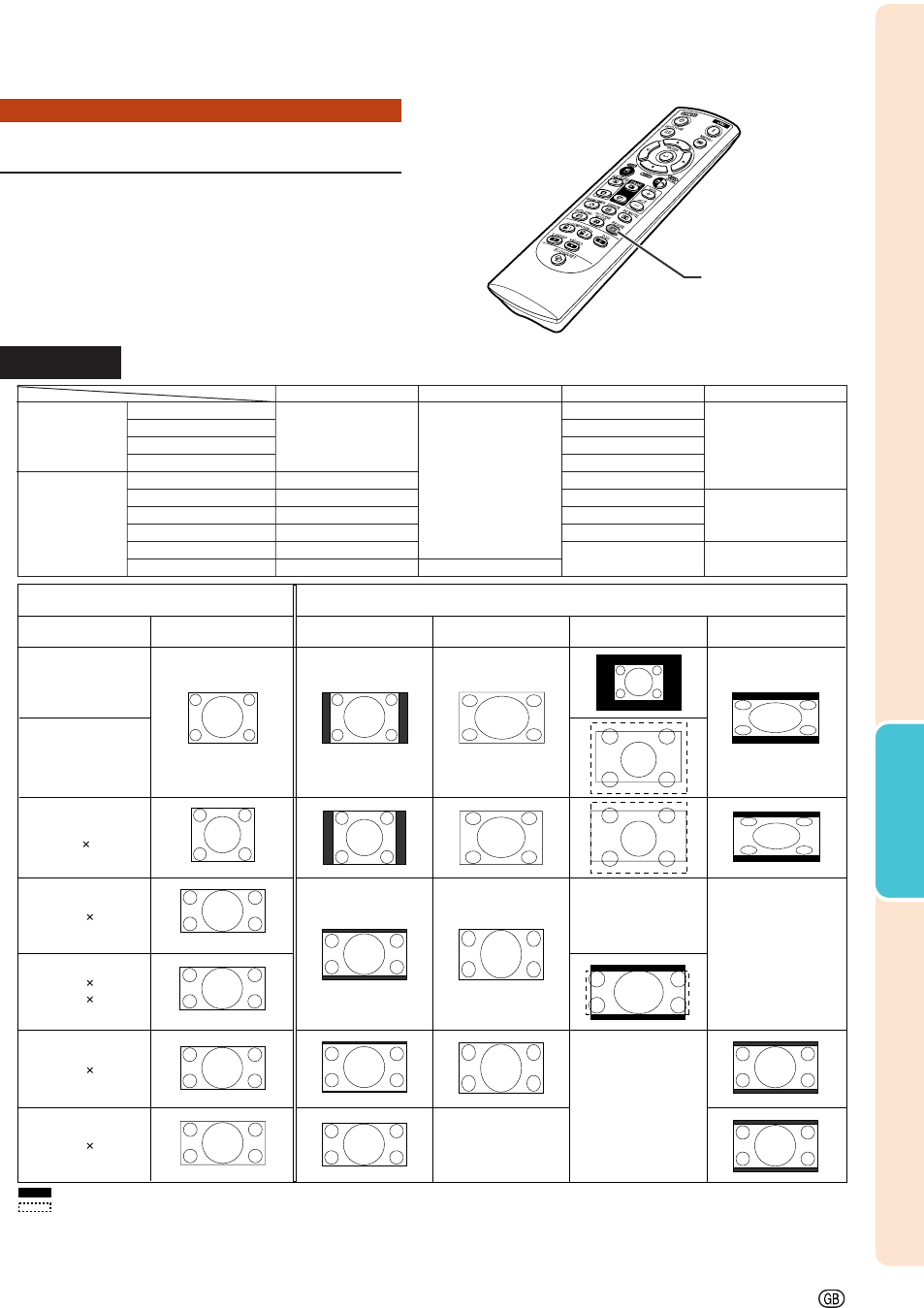

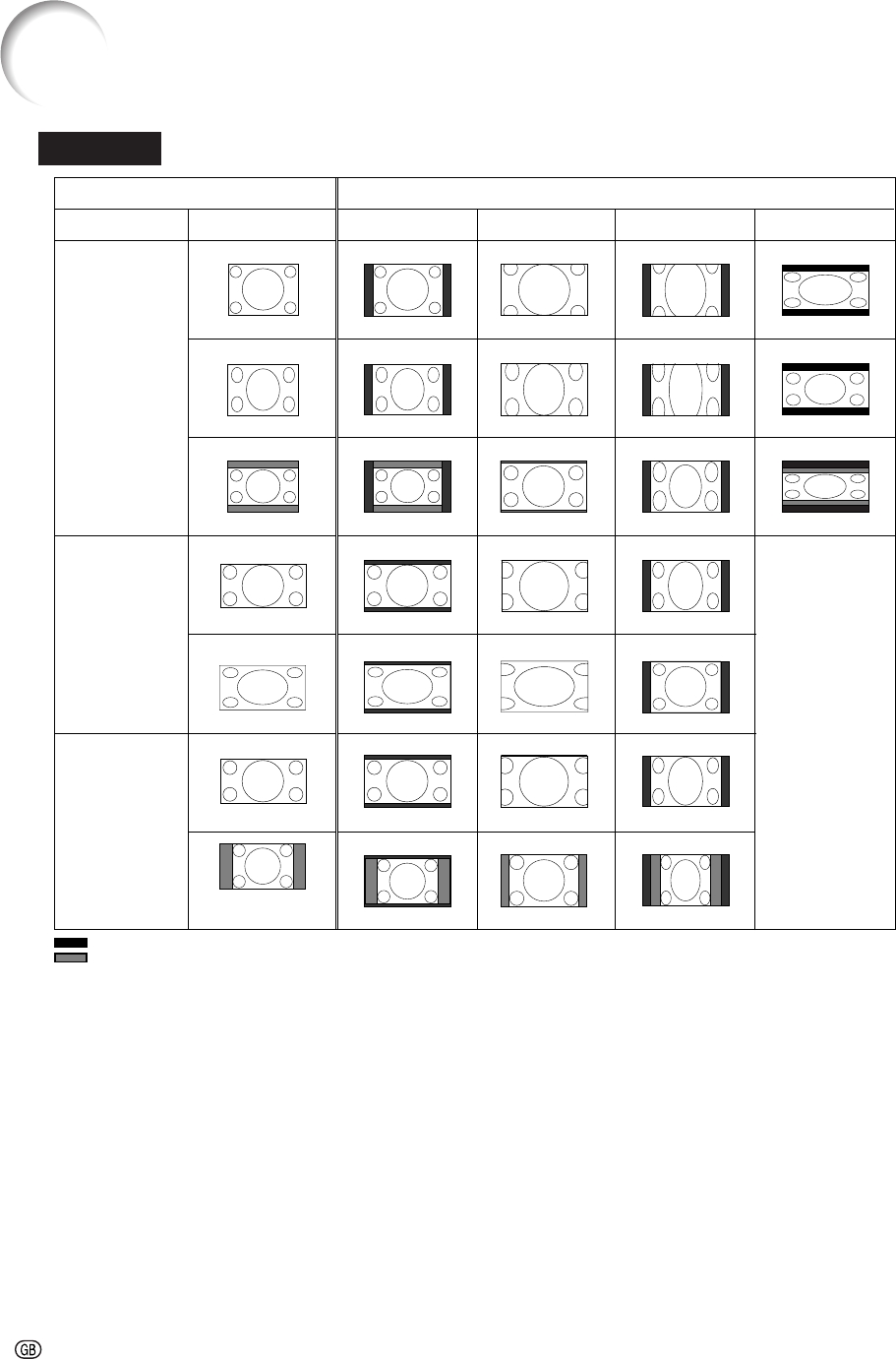

Resize Mode ...................................................... 37

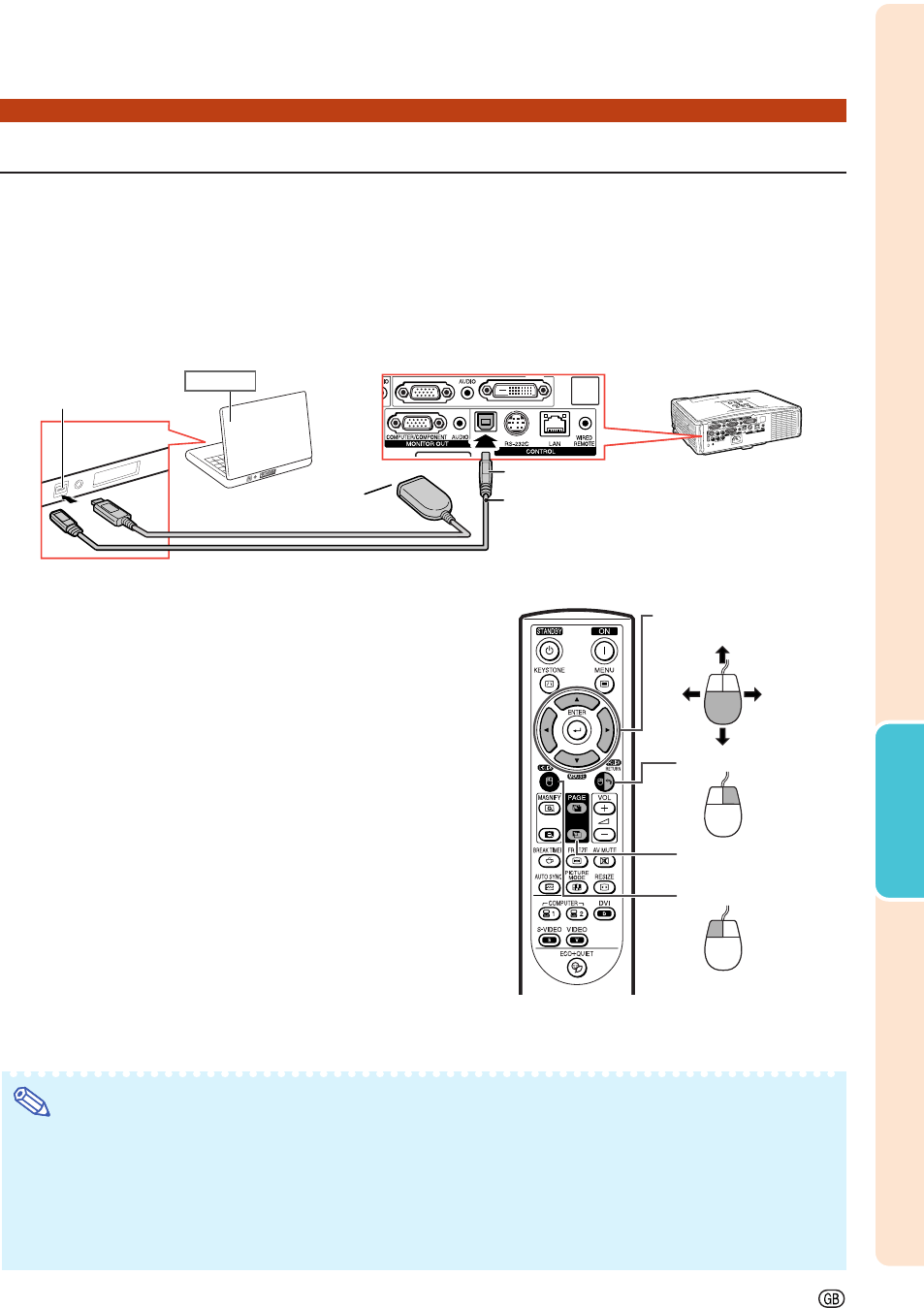

Using the Remote Control as the Wireless
Computer Mouse ........................................ 39
Using
-5
Introduction
Reference
Appendix

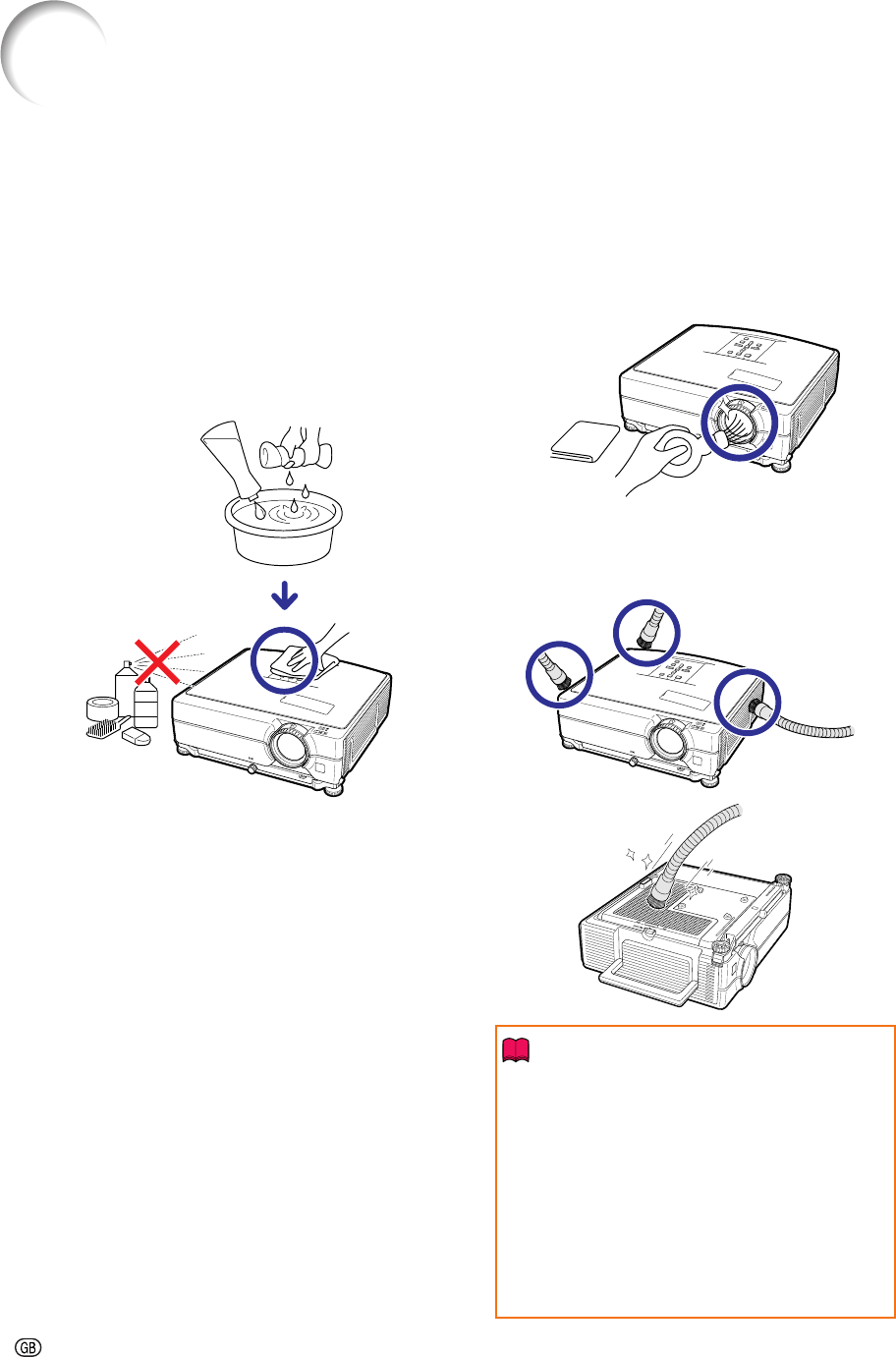

Maintenance ................................................. 56

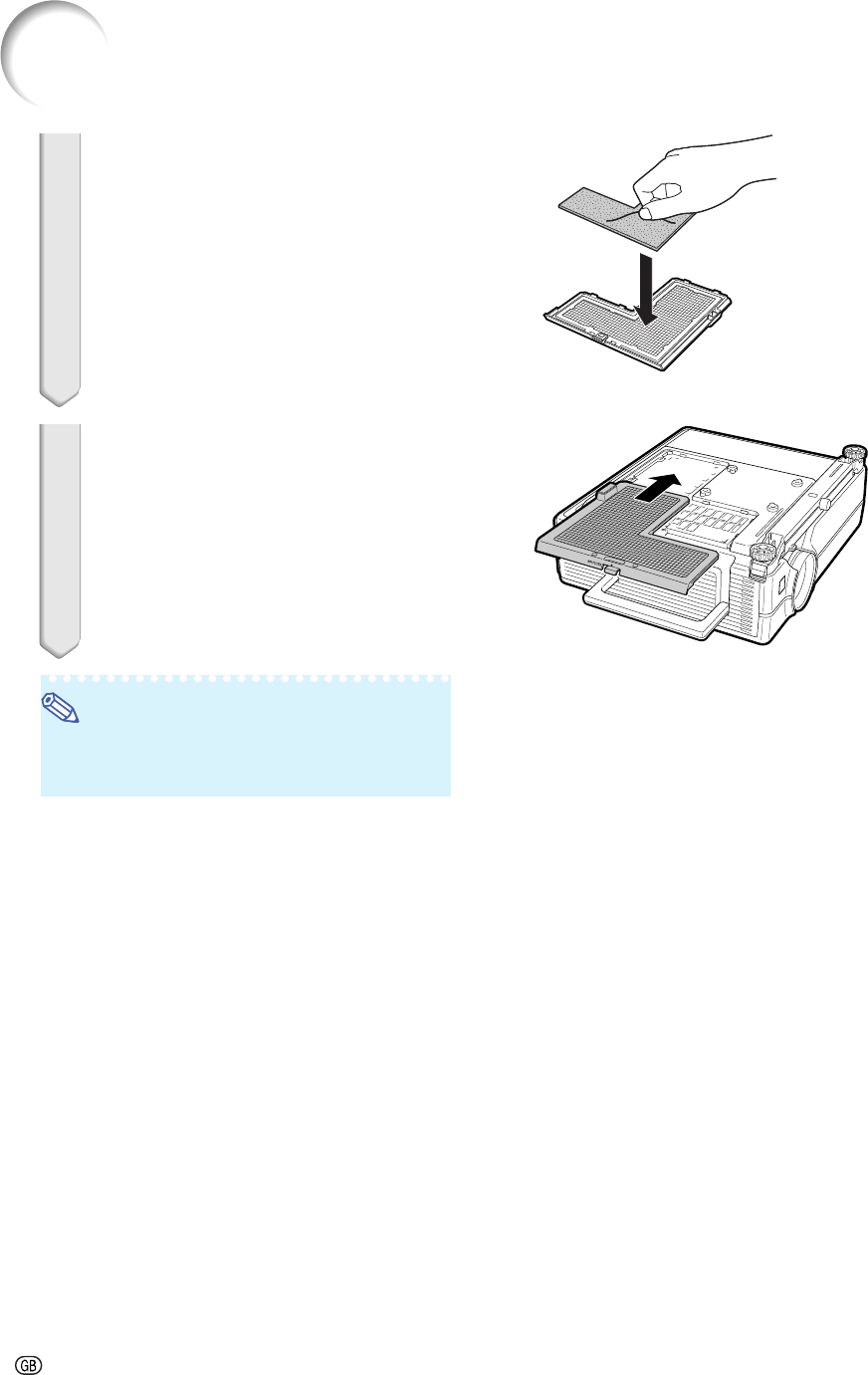

Replacing the Air Filter ................................ 57
Replacing the Air Filter ...................................... 57

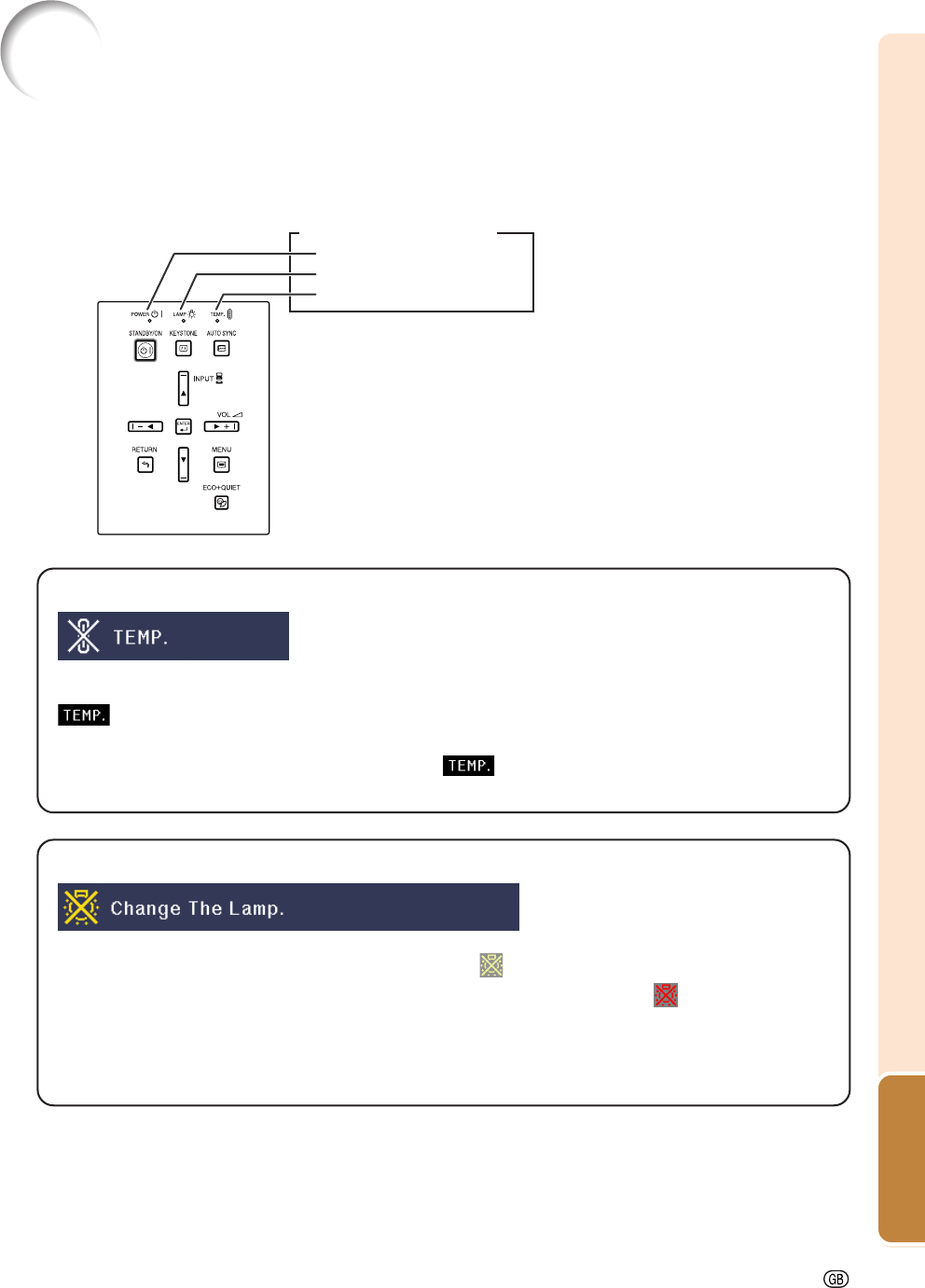

Maintenance Indicators ............................... 59
Regarding the Lamp .................................... 61
Lamp ................................................................. 61
Caution Concerning the Lamp .......................... 61
Replacing the Lamp .......................................... 61

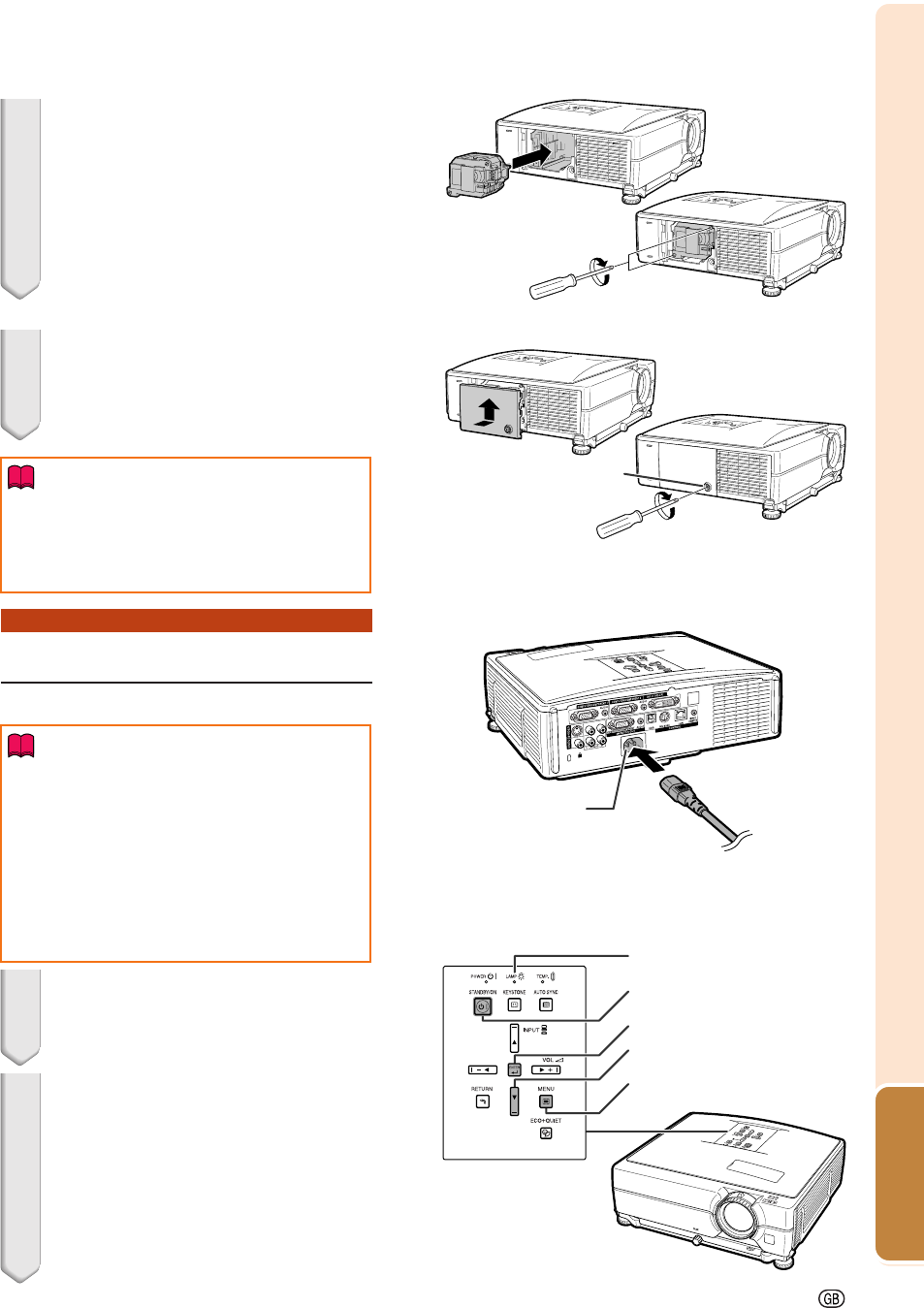

Removing and Installing the Lamp Unit ............ 62
Resetting the Lamp Timer ................................. 63
Storing the Projector ................................... 64

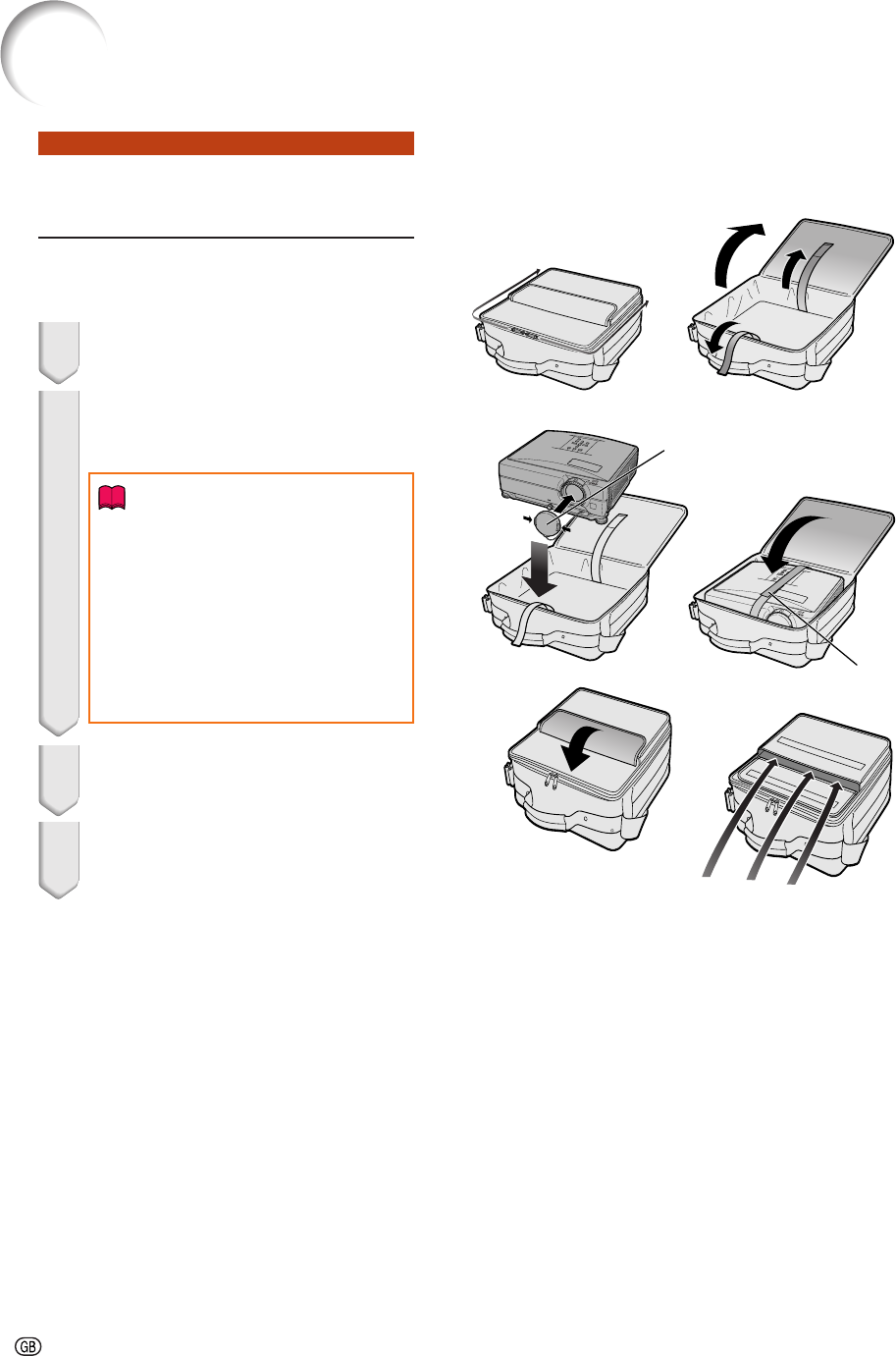

How to Use the Storage Case ........................... 64
Computer Compatibility Chart .................... 65

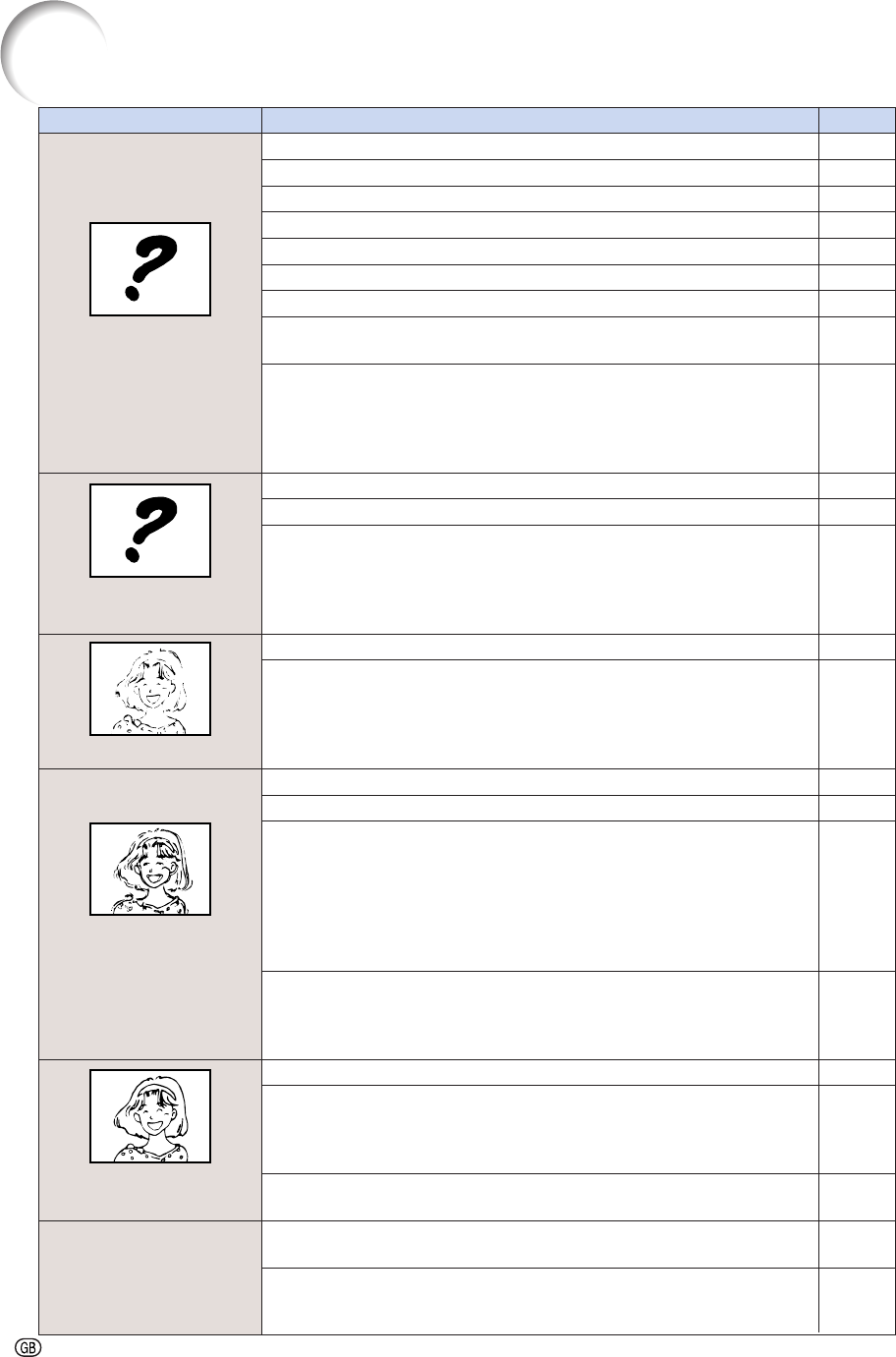

Troubleshooting ........................................... 66
For SHARP Assistance ................................ 68
Specifications ............................................... 69
Index .............................................................. 70
SETUP MANUAL
Refer to the “SETUP MANUAL”
contained on the supplied CD-
ROM for details.
Setting up the Screen .................................... 2

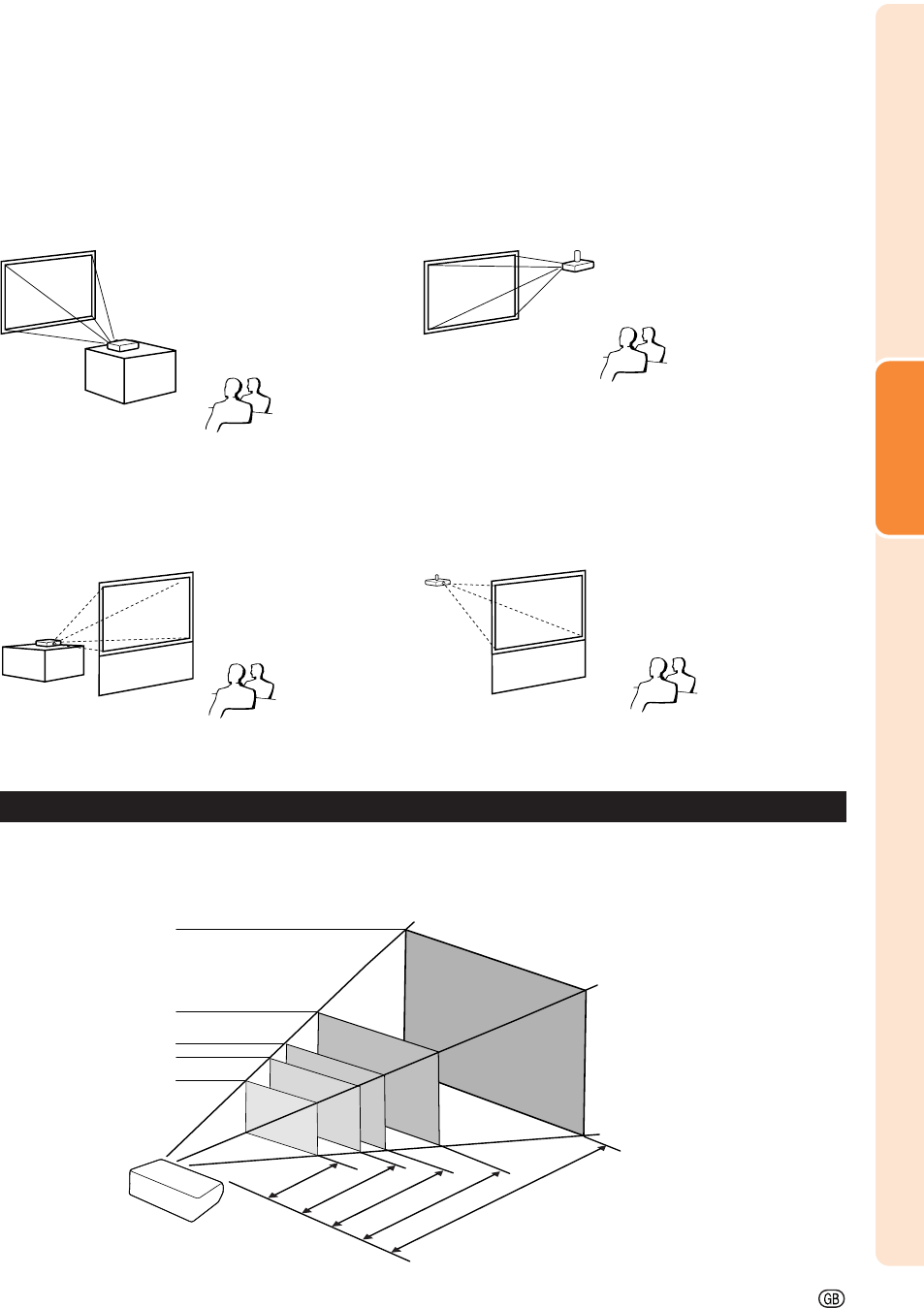

Screen Size and Projection Distance ........... 3
Changing the Lens ......................................... 9
Connecting Pin Assignments ..................... 11
RS-232C Specifications and Commands ... 13
Setting up the Projector Network
Environment ............................................ 18
Controlling the Projector via LAN .............. 24
Setting up the Projector Using
RS-232C or Telnet ................................... 29
Resetting the Lamp Timer
of the Projector via LAN......................... 39
Troubleshooting ........................................... 41
Dimensions ................................................... 44
-6
PDF operation manuals in several languages are included in the CD-ROM, so that you can
work with the projector. To utilize these manuals, you need to install Adobe® Reader® on your
computer (Windows® or Macintosh®).
Please download Adobe® Reader® from the Internet (http://www.adobe.com).
Accessing the PDF Manuals
For Windows®:
1Insert the CD-ROM in the CD-ROM drive.
2Double click the “My Computer” icon.
3Double click the “CD-ROM” drive.
4
When you want to view the operation manual
1) Double click the “MANUALS” folder.
2) Double click the language (name of the
folder) that you want to view.
3) Double click the pdf file to access the pro-
jector manuals.
When you want to view the setup manual
1) Double click the “SETUP” folder.
2) Double click the language (name of the
folder) that you want to view.
3) Double click the pdf file to access the setup
manual.
For Macintosh®:
1Insert the CD-ROM in the CD-ROM drive.
2Double click the “CD-ROM” icon.
3
When you want to view the operation manual
1) Double click the “MANUALS” folder.
2) Double click the language (name of the
folder) that you want to view.
3) Double click the pdf file to access the pro-
jector manuals.
When you want to view the setup manual
1) Double click the “SETUP” folder.
2) Double click the language (name of the
folder) that you want to view.
3) Double click the pdf file to access the setup
manual.
How to Access the PDF Operation Manuals
Info
•If the desired pdf file cannot be opened by double clicking the mouse, start Adobe® Reader® first, then
specify the desired file using the “File”, “Open” menu.
-7
Introduction
1. Read Instructions
All the safety and operating instructions should be read before
the product is operated.
2. Retain Instructions
The safety and operating instructions should be retained for
future reference.
3. Heed Warnings
All warnings on the product and in the operating instructions
should be adhered to.
4. Follow Instructions
All operating and use instructions should be followed.
5. Cleaning
Unplug this product from the wall outlet before cleaning. Do
not use liquid cleaners or aerosol cleaners. Use a damp cloth
for cleaning.
6. Attachments
Do not use attachments not recommended by the product
manufacturer as they may cause hazards.
7. Water and Moisture
Do not use this product near water–for example, near a bath
tub, wash bowl, kitchen sink, or laundry tub; in a wet
basement; or near a swimming pool; and the like.
8. Accessories
Do not place this product on an unstable cart, stand, tripod,
bracket, or table. The product may fall, causing serious injury
to a child or adult, and serious damage to the product. Use
only with a cart, stand, tripod, bracket, or table recommended
by the manufacturer, or sold with the product. Any mounting
of the product should follow the manufacturer’s instructions,
and should use a mounting accessory recommended by the
manufacturer.
9. Transportation
A product and cart combination should
be moved with care. Quick stops,
excessive force, and uneven surfaces
may cause the product and cart
combination to overturn.
10. Ventilation
Slots and openings in the cabinet are provided for ventilation
to ensure reliable operation of the product and to protect it
from overheating, and these openings must not be blocked
or covered. The openings should never be blocked by placing
the product on a bed, sofa, rug, or other similar surface. This
product should not be placed in a built-in installation such as
a bookcase or rack unless proper ventilation is provided or
the manufacturer’s instructions have been adhered to.
11. Power Sources
This product should be operated only from the type of power
source indicated on the marking label. If you are not sure of
the type of power supply to your home, consult your product
dealer or local power company. For products intended to
operate from battery power, or other sources, refer to the
operating instructions.
12. Grounding or Polarization
This product is provided with one of the following types of
plugs. If the plug should fail to fit into the power outlet,
please contact your electrician.
Do not defeat the safety purpose of the plug.
a. Two-wire type (mains) plug.
b. Three-wire grounding type (mains) plug with a
grounding terminal.
This plug will only fit into a grounding type power
outlet.
IMPORTANT SAFEGUARDS
13. Power-Cord Protection
Power-supply cords should be routed so that they are not
likely to be walked on or pinched by items placed upon or
against them, paying particular attention to cords at plugs,
convenience receptacles, and the point where they exit from
the product.
14. Lightning
For added protection for this product during a lightning storm,
or when it is left unattended and unused for long periods of
time, unplug it from the wall outlet and disconnect the cable
system. This will prevent damage to the product due to
lightning and power-line surges.
15. Overloading
Do not overload wall outlets, extension cords, or integral
convenience receptacles as this can result in a risk of fire or
electric shock.
16. Object and Liquid Entry
Never push objects of any kind into this product through
openings as they may touch dangerous voltage points or
short-out parts that could result in a fire or electric shock.
Never spill liquid of any kind on the product.
17. Servicing
Do not attempt to service this product yourself as opening or
removing covers may expose you to dangerous voltage or
other hazards. Refer all servicing to qualified service
personnel.
18. Damage Requiring Service
Unplug this product from the wall outlet and refer servicing
to qualified service personnel under the following conditions:
a. When the power-supply cord or plug is damaged.
b. If liquid has been spilled, or objects have fallen into
the product.
c. If the product has been exposed to rain or water.
d. If the product does not operate normally by following
the operating instructions. Adjust only those controls
that are covered by the operating instructions, as an
improper adjustment of other controls may result in
damage and will often require extensive work by a
qualified technician to restore the product to normal
operation.
e. If the product has been dropped or damaged in any
way.
f. When the product exhibits a distinct change in
performance, this indicates a need for service.
19. Replacement Parts
When replacement parts are required, ensure that the service
technician has used replacement parts specified by the
manufacturer or have the same characteristics as the original
part. Unauthorized substitutions may result in fire, electric
shock, or other hazards.
20. Safety Check
Upon completion of any service or repairs to this product,
ask the service technician to perform safety checks to
determine that the product is in proper operating condition.
21
.
Wall or Ceiling Mounting
This product should be mounted to a wall or ceiling only as
recommended by the manufacturer.
22. Heat
This product should be situated away from heat sources such
as radiators, heat registers, stoves, or other products
(including amplifiers) that produce heat.
CAUTION: Please read all of these instructions before you operate this product and save these
instructions for later use.
Electrical energy can perform many useful functions. This product has been engineered and manufactured to
assure your personal safety. BUT IMPROPER USE CAN RESULT IN POTENTIAL ELECTRICAL SHOCK OR
FIRE HAZARDS. In order not to defeat the safeguards incorporated in this product, observe the following basic
rules for its installation, use and servicing.
-8
Ensure that you read the following safeguards when
setting up your projector.

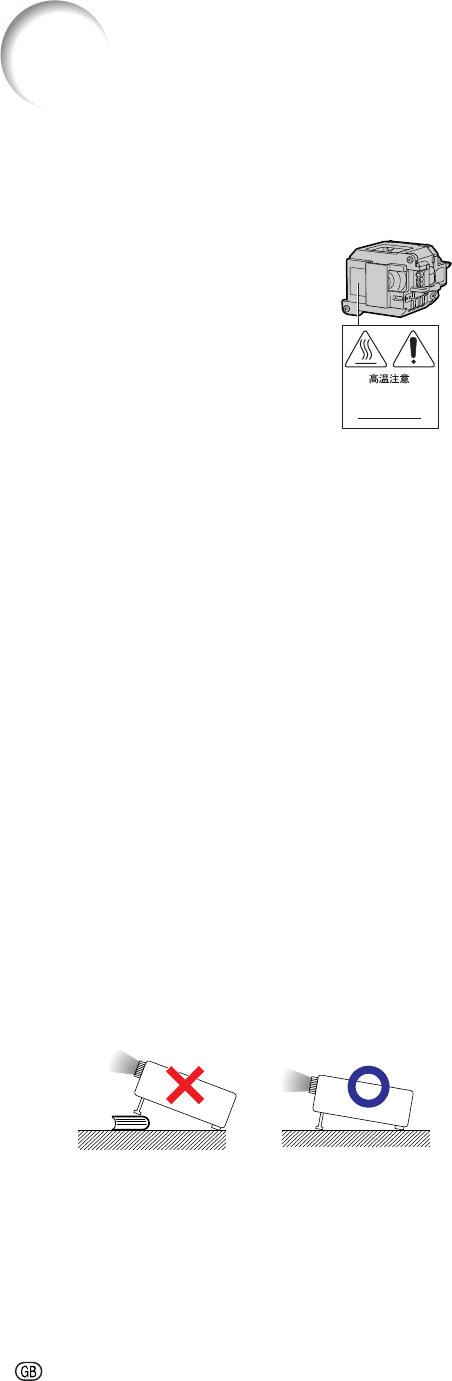

Caution concerning the lamp unit
■Potential hazard of glass par-
ticles if lamp ruptures. In case
of lamp rupture, contact your
nearest Sharp Authorized Pro-
jector Dealer or Service Cen-
ter for replacement.
See “Regarding the Lamp” on
page 61.
Caution concerning the setup of the pro-
jector
■For minimal servicing and to maintain high
image quality, SHARP recommends that this
projector be installed in an area free from hu-
midity, dust and cigarette smoke. When the
projector is subjected to these environments,
the vents and lens must be cleaned more
often. As long as the projector is regularly
cleaned, use in these environments will not
reduce the overall operation life of the unit.
Internal cleaning should only be performed
by a Sharp Authorized Projector Dealer or
Service Center.
Do not set up the projector in places ex-
posed to direct sunlight or bright light.
■Position the screen so that it is not in direct
sunlight or room light. Light falling directly on
the screen washes out the colors, making
viewing difficult. Close the curtains and dim
the lights when setting up the screen in a
sunny or bright room.
The projector may be safely tilted to a
maximum angle of 9 degrees.
■Placement should be within ±9 degrees of
horizontal.
When using the projector in high-altitude
areas such as mountains (at altitudes of
approximately 1,500 meters (4,900 feet)
or more)
■When you use the projector in high-altitude
areas with thin air, set “Fan Mode” to “High”.
Neglecting this can affect the longevity of the
optical system.
Warning about placing the projector in a
high position
■When placing the projector in a high posi-
tion, make certain it is carefully secured to
avoid personal injury caused by the projec-
tor falling down.
Do not subject the projector to hard im-
pact and/or vibration.
■Take care with the lens so as not to hit or
damage the surface of the lens.
Rest your eyes occasionally.
■Continuously watching the screen for long
hours will cause eye strain. Take regular
breaks to rest your eyes.
Avoid locations with extremes of tem-
perature.
■The operating temperature of the projector
is from 41°F to 95°F (+5°C to +35°C).
■The storage temperature of the projector is
from –4°F to 140°F (–20°C to +60°C).
Do not block the intake and exhaust
vents.
■Allow at least 7 7/8 inches (20 cm) of space
between the exhaust vent and the nearest
wall or obstruction.
■Ensure that the intake vent and the exhaust
vent are not obstructed.
■If the cooling fan becomes obstructed, a pro-
tection circuit will automatically put the pro-
jector into standby mode to prevent overheat
damage. This does not indicate a malfunc-
tion (see pages 59 and 60). Remove the pro-
jector power cord from the wall outlet and wait
at least 10 minutes. Place the projector where
the intake and exhaust vents are not blocked,
plug the power cord back in and turn on the
projector. This will return the projector to the
normal operating condition.
CAUTION
PRECAUCIÓN
PRÉCAUTION
IMPORTANT SAFEGUARDS
-9
Introduction
Caution regarding usage of the projector
■When using the projector, take care not to sub-
ject it to hard impact and/or vibration, as this
can result in damage. Take extra care with the
lens. If you are not to use the projector for a
long time, make certain you unplug the power
cord from the wall outlet, and disconnect any
other cables connected to it.
■Do not carry the projector by holding the lens.
■
When storing the projector, ensure you attach
the lens cap to the projector. (See page 12.)
■Do not expose the storage case or projector
to direct sunlight or near heat sources. The
storage case or projector may change color
or become deformed.
Other connected equipment
■When connecting a computer or other audio-
visual equipment to the projector, make the
connections AFTER unplugging the power
cord of the projector from the AC outlet and
turning off the equipment to be connected.
■Please read the operation manuals of the pro-
jector and the equipment to be connected for
instructions on how to make the connections.
Using the projector in other countries
■The power supply voltage and the shape of
the plug may vary depending on the region
or country you are using the projector in.
When using the projector overseas, make
sure you use an appropriate power cord for
the country you are in.
Temperature monitor function
■
If the projector starts to over-
heat due to setup problems
or blockage of the air vents,
“” and “ ” will illumi-
nate in the lower left corner of the picture. If the
temperature continues to rise, the lamp will turn
off, the temperature warning indicator on the
projector will blink, and after a 90-second cool-
ing-off period the projector will enter the standby
mode. Refer to “Maintenance Indicators” on
page 59 for details.
Info
•The cooling fan regulates the internal tem-
perature, and its performance is automati-
cally controlled. The sound of the fan may
change during projector operation due to
changes in the fan speed. This does not
indicate malfunction.
-10
Accessories
Remote control
<RRMCGA623WJSA>
Two R-6 batteries
(“AA” size, UM/SUM-3,
HP-7 or similar)
Power cord*
For U.S., Canada, etc.
(6' (1.8 m))
<QACCDA007WJPZ>
For Europe, except U.K.
(6' (1.8 m))
<QACCVA011WJPZ>
*Use the power cord that corresponds to the wall outlet in your country.
■Lamp unit AN-C430LP
■Ceiling-mount adaptor AN-60KT
AN-XGCM55 (for U.S.A. only)
■Universal bracket AN-JT200 (for U.S.A. only)
■Ceiling-mount unit AN-TK201 <for AN-60KT>
AN-TK202 <for AN-60KT>
AN-EP101B <for AN-XGCM55 and AN-JT200>
(for U.S.A. only)
■Remote receiver AN-MR2
■3 RCA to 15-pin D-sub cable (10' (3.0 m)) AN-C3CP2
Note
•Some of the optional accessories may not be available depending on the region. Please check with your
nearest Sharp Authorized Projector Dealer or Service Center.
(1) (2) (3) (4)
DIN-D-sub RS-232C
adaptor
(5 57/64" (15 cm))
<QCNWGA091WJPZ>
Lens cap (attached)
<PCAPHA026WJSA>
Supplied accessories
RGB cable
(10' (3.0 m))
<QCNWGA045WJPZ>
For U.K., Hong Kong
and Singapore
(6' (1.8 m))
<QACCBA036WJPZ>
For Australia, New
Zealand and Oceania
(6' (1.8 m))
<QACCLA018WJPZ>
Storage case
<GCASNA020WJSA>
Optional accessories
Lens cap strap
<UBNDTA017WJZZ>
•Operation manual (this manual <TINS-D563WJZZ> and CD-ROM <UDSKAA102WJZZ>)
Note
•Codes in “< >” are Replacement parts codes.
-11
Introduction
Optional lenses
■Lens Projection distance for 100" screen size
Wide-zoom lens (× 1.5 – 1.9) AN-C12MZ 10' 5" – 13' 1" (3.2 m – 4.0 m)
Tele-zoom lens (× 2.2 – 2.8) AN-C18MZ 15' 7" – 19' 10" (4.8 m – 6.0 m)
Tele-zoom lens (× 3.3 – 5.1) AN-C27MZ 23' 2" – 35' 8" (7.1 m – 10.9 m)
Tele-zoom lens (× 5.1 – 7.2) AN-C41MZ 36' 2" – 50' 10" (11.0 m – 15.5 m)
The standard zoom lens is attached to the projector.
The optional lenses from Sharp are also available for specialized application. Please see
your nearest Sharp Authorized Projector Dealer for details on all the lenses. (Refer to the
SETUP MANUAL on the supplied CD-ROM for details.) Also, be sure to have service person-
nel install the optional lenses.

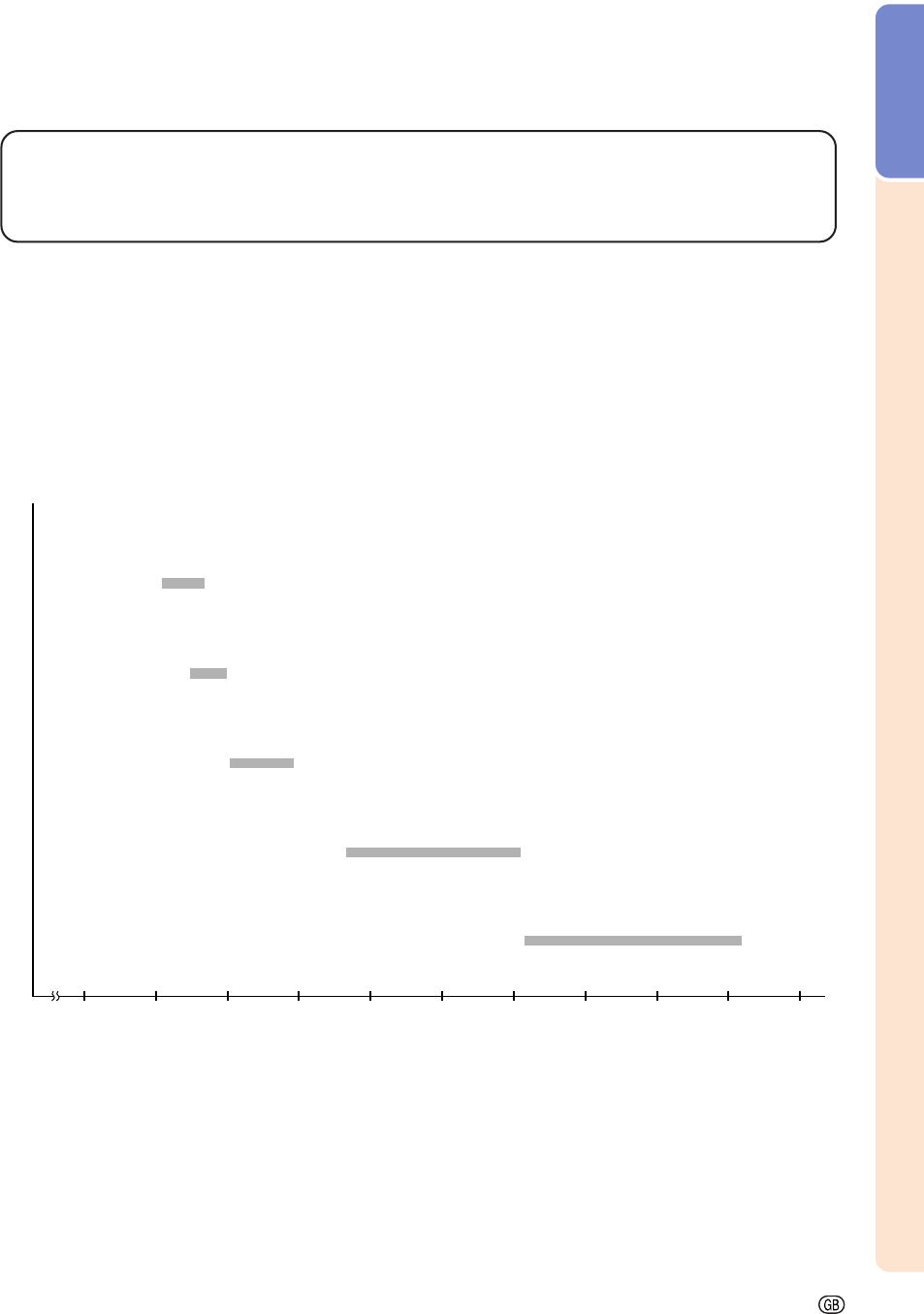

Throw Distance
The graph below is for 100 inches (254 cm) screen with 16:10 Signal Input (Normal Mode).
Screen
10 20 30 5040 55(ft)
Standard zoom lens
12'4"–14'9" (3.8 m–4.5 m)
Throw distance ratio 1:1.8–2.1
Tele-zoom lens (AN-C18MZ)
15'7"–19'10" (4.8 m–6.0 m)
Throw distance ratio 1:2.2–2.8
Tele-zoom lens (AN-C27MZ)
23'2"–35'8" (7.1 m–10.9 m)
Throw distance ratio 1:3.3–5.1
Tele-zoom lens (AN-C41MZ)
36'2"–50'10" (11.0 m–15.5 m)
Throw distance ratio 1:5.1–7.2
Wide-zoom lens (AN-C12MZ)
10'5"–13'1" (3.2 m–4.0 m)
Throw distance ratio 1:1.5–1.9
-12
43
MENU button
For displaying adjustment
and setting screens.
44
35
AUTO SYNC button
For automatically adjusting
images when connected to
a computer.
ENTER button
For setting items selected
or adjusted on the menu.
32
KEYSTONE button
For entering the Keystone
Correction mode.
30
STANDBY/ON button
For turning the power on and
putting the projector into
standby mode.
15
Remote control
sensor
43
Adjustment buttons
('/"/\/|)
For selecting and adjusting
on-screen items.
51
Speaker
33
Focus ring
For adjusting the focus.
33
Zoom knob
For enlarging/
reducing the picture.
Air filter/Intake vent
(on the bottom of the projector)
Push both sides of the lens cap to
attach or remove.
RETURN button
For returning to the previous
display.
34
INPUT buttons
For switching input mode.
34
Volume buttons
For adjusting the speaker
sound level.
59
Temperature warning
indicator
30·59 Lamp indicator
30·59
Power indicator
31
Height Adjustment
button
31
Height Adjustment
button
31
Tilt dial
31
Adjustment foot
Adjustment foot
ECO+QUIET button
For lowering the noise of the
cooling fan and extending the
lamp life.
35
43
56·57
31
Projector

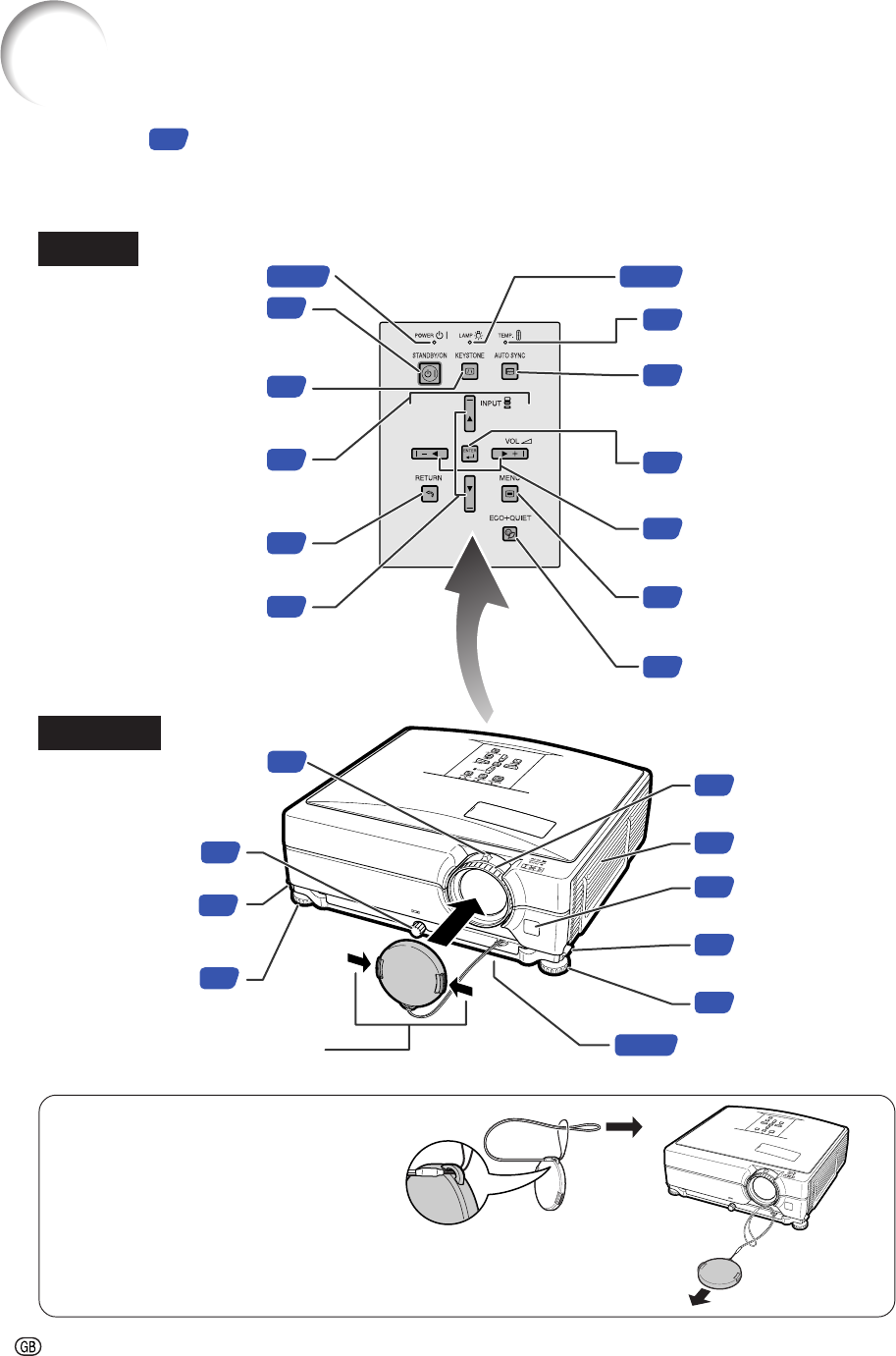

Part Names and Functions
Numbers in refer to the main pages in this operation manual where the topic is explained.
Top View
Front View
Attaching the lens cap
After putting the lens cap strap on the lens
cap, pass the other end of the strap
through the hole on the front side of the
projector, next to the lens, as shown in
the illustration.
-13
Introduction
Projector (Rear View)
* Using the Kensington Lock
•This projector has a Kensington Security Standard connector for use with a Kensington MicroSaver Security
System. Refer to the information that came with the system for instructions on how to use it to secure the
projector.
56
Intake vent
Carrying handle
15
Remote control
sensor
56
Exhaust vent
30
AC socket
Connect the supplied power cord.
* Kensington Security
Standard connector

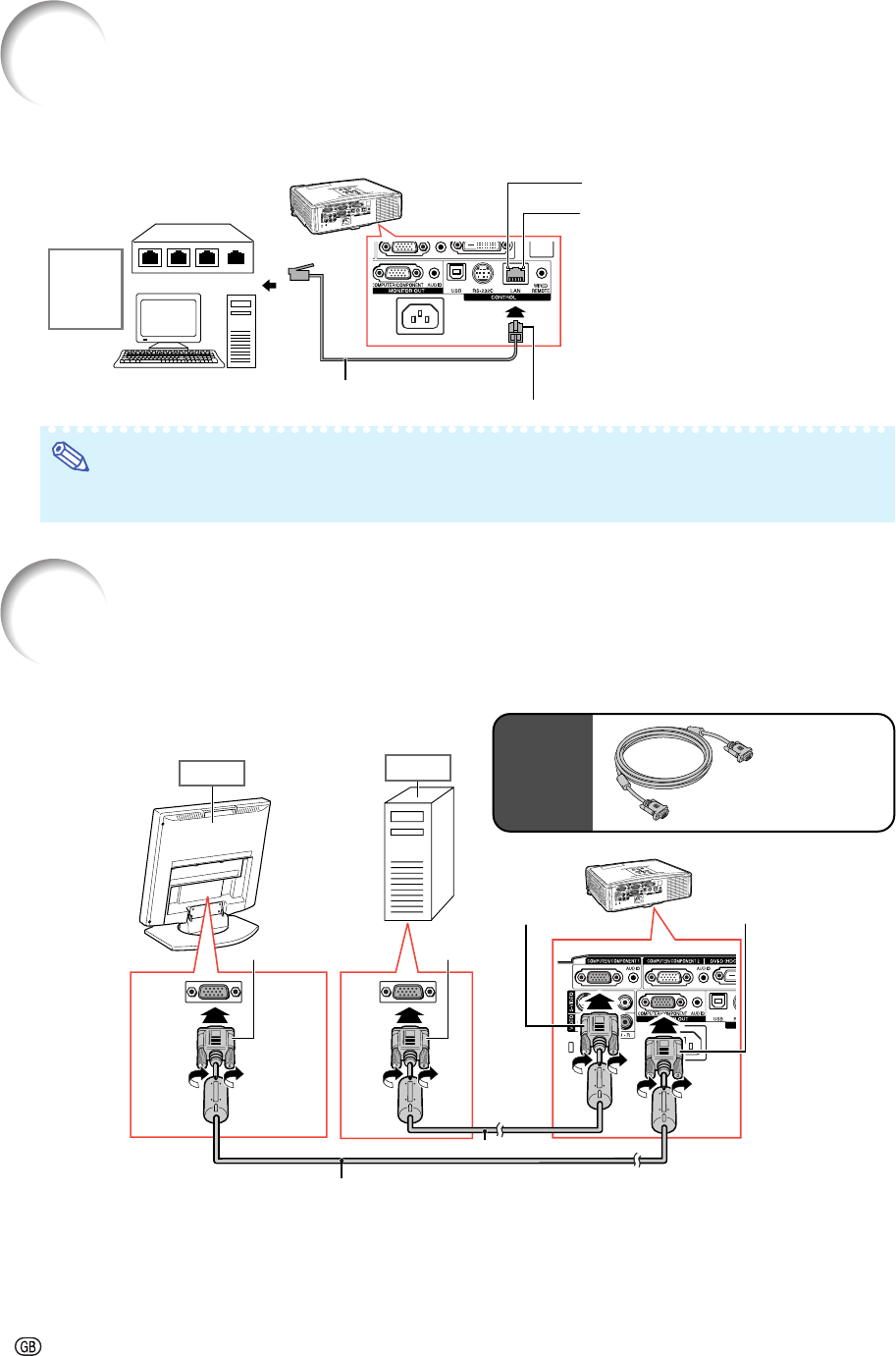

LAN terminal
Terminal for controlling the
projector using a computer
via network.
28
RS-232C terminal
Terminal for controlling the
projector using a computer.
27
USB terminal
Terminal connecting with the USB terminal on the
computer for using the supplied remote control as the
computer mouse.
39
COMPUTER/COMPONENT 2 input terminal
Terminal for Computer RGB and Component signals.
23
·
25
24
·
25
23
·
25
23
·
25
DVI-D input terminal
Terminal for DVI Digital RGB and Digital Component
signals.
WIRED REMOTE terminal
For connecting the remote control
to the projector when the signals
from the remote control cannot
reach the remote control sensor.
14
AUDIO input terminal
Shared audio input terminal for COMPUTER/COMPONENT 2 and
DVI-D.
25
AUDIO output terminal
29
COMPUTER/COMPONENT 1
input terminal
Terminal for Computer RGB
and Component signals.
AUDIO input terminal
Audio input terminal for
COMPUTER/COMPONENT 1.
S-VIDEO input terminal
26
VIDEO input terminal
26
AUDIO input terminal
for Video
26
AUDIO input terminal
for S-video
26
28
MONITOR output terminal
Output terminal for Computer RGB and
Component signals.
Shared for COMPUTER/COMPONENT 1 and 2.
Terminals
Using the Carrying Handle
When transporting the projector, carry it by the carrying handle on the side.
•Always put on the lens cap to prevent damage to the lens when transporting the
projector.
•Do not lift or carry the projector by the lens or the lens cap as this may damage
the lens.
-14
Remote Control
30
STANDBY button
For putting the projector into
standby mode.
32
KEYSTONE button
For entering the Keystone
Correction mode.
35
FREEZE button
For freezing images.
36
MAGNIFY (Enlarge/Reduce)
buttons
For enlarging/reducing part of the
image.
44
39
ENTER button
For setting items selected or
adjusted on the menu.
35
BREAK TIMER button
For displaying the break timer.
34
INPUT buttons
For switching to the respective
input modes.
35
AUTO SYNC button
For automatically adjusting images
when connected to a computer.
39
PAGE Up/Down buttons
Same as the [Page Down] and
[Page Up] keys on a computer
keyboard, when with the USB
connection (using a USB cable or
the optional remote receiver).
RESIZE button
For switching the screen size
(NORMAL, STRETCH, etc.).
37
PICTURE MODE button
For switching the picture mode.
36
Volume buttons
For adjusting the speaker sound
level.
34
AV MUTE button
For temporarily displaying the black
screen and turning off the sound.
34
MENU button
For displaying adjustment and
setting screens.
43
WIRED R/C JACK
For controlling the projector by connecting
the remote control to the projector.
ON button
For turning the power on.
30
L-CLICK button
For the Left click when with the
USB connection (using a USB
cable or the optional
remote receiver).
MOUSE/Adjustment buttons
('/"/\/|)
• For moving the computer cursor
when with the USB connection
(using a USB cable or the optional
remote receiver).
• For selecting and adjusting on-
screen items.
R-CLICK/RETURN button
• For the Right click when with the
USB connection (using a USB
cable or the optional remote receiver).
• For returning to the previous
display.
ECO+QUIET button
For lowering the noise of the cooling
fan and extending the lamp life.
35
39·43
39·43
Part Names and Functions
Using the Remote Control with a Signal Cable
When the signals from the remote control cannot be reached due to the positioning of the projector, use a
ø3.5 mm minijack cable to connect the remote control to the projector. Now you can control the projector
with the remote control.
Projector
(Rear view) Remote control
To WIRED
R/C JACK
To WIRED
REMOTE terminal
ø3.5 mm minijack cable (commercially available or
available as Sharp service part QCNWGA038WJPZ)
Note
•The wireless remote function is not possible when the ø3.5 mm minijack cable is connected to the projector.
Should the wireless remote operation be required, the ø3.5 mm minijack cable should be disconnected
from the projector.
-15
Introduction
Using the Remote Control
Inserting the Batteries
1
Pull down the tab on the cover and
remove the cover towards the di-
rection of the arrow.
2Insert the included batteries.
•Insert the batteries making sure the po-
larities correctly match the and
marks inside the battery compartment.
3Insert the lower tab of the cover
into the opening, and lower the
cover until it clicks in place.
Incorrect use of the batteries may cause them to leak or explode. Please follow the precautions below.
Caution
•Danger of explosion if battery is incorrectly replaced. Replace only with alkaline or manganese batteries.
•Insert the batteries making sure the polarities correctly match the and marks inside the battery compart-
ment.
•Batteries of different types have different properties, therefore do not mix batteries of different types.
•Do not mix new and old batteries.
This may shorten the life of new batteries or may cause old batteries to leak.
•Remove the batteries from the remote control once they have run out, as leaving them in can cause them to leak.
Battery fluid from leaked batteries is harmful to skin, therefore ensure you wipe them first and then remove them
using a cloth.
•The batteries included with this projector may run down in a short period, depending on how they are kept. Be
sure to replace them as soon as possible with new batteries.
•Remove the batteries from the remote control if you will not be using the remote control for a long time.
•Comply with the rules (ordinance) of each local government when disposing of worn-out batteries.
Usable Range
The remote control can be used to control
the projector within the ranges shown in the
illustration.
Note
•The signal from the remote control can be re-
flected off a screen for easy operation. How-
ever, the effective distance of the signal may
differ depending on the screen material.
When using the remote control:
•Take care not to drop, expose to moisture or
high temperature.
•The remote control may malfunction under a
fluorescent lamp. In this case, move the pro-
jector away from the fluorescent lamp.
Remote control sensor
Remote control
signal transmitters
Remote control
23' (7 m)
30°
30°
30°
Front View
Rear View
30°
30°
30°
Remote control sensor
23' (7 m)
Remote control
signal transmitters
Remote control
-16
Quick Start
7 STANDBY
button
3 ON button
6 COMPUTER 1
button
37 STANDBY/ON button
6 INPUT buttons
6 ENTER button
4 Height Adjustment buttons
5 Zoom knob
5 Focus ring
4 Tilt dial
Page 18
1. Place the projector facing a screen
Pages 23, 30
Page 30
On the remote controlOn the projector
This section shows the basic operation (projector connecting with the computer). For details, see the page
described below for each step.
Setup and Projection
In this section, connection of the projector and the computer is explained using one example.
2. Connect the projector to the computer and plug the power
cord into the AC socket of the projector
3. Remove the lens cap and turn the projector on
When connecting equipment other than the computer, see pages 25, 28 and 29.
-17
Quick Start
Pages 31, 32
4. Adjust the angle
5. Adjust the focus and the zoom
7. Turn the Power off
Page 30
6. Select the INPUT mode
Page 34
••
••
•
This projector is equipped with an “Auto V-Keystone
Correction” function that automatically corrects any
trapezoidal distortion within the projected image.
Bring the projected image into focus
••
••
•Bring the projected image into focus by
rotating the focus ring.
Adjust the projected image size
••
••
•Adjust the projected image size by moving the
zoom knob.
Select the “COMPUTER 1” using the INPUT buttons on the projector or the COMPUTER 1 button on the remote control.
••
••
•
When you press the INPUT buttons on the projector, the INPUT list appears.
Press ''
''
'/""
""
" to select an item on the list, and press ENTER to switch to the selected INPUT mode.
••
••
•When using the remote control, press COMPUTER1/2, DVI, S-VIDEO or VIDEO to
switch the INPUT mode.
On the remote
control
On the
projector
""
""
" INPUT list
Press the STANDBY button, then press that button again while the confirmation message is displayed, to put the projector into standby mode.
••
••
•Even if you unplug the power cord from the AC outlet, the cooling fan continues to run for a while.
On the remote controlOn the projector
""
""
" On-screen Display
Adjust the projector angle
••
••
•
Adjust the projector angle using the Height
Adjustment buttons.
••
••
•
Rotate the Tilt dial to adjust the horizontal tilt of
the projector.
Height Adjustment
buttons Tilt dial
Focus ring
Zoom knob
Zoom in
Zoom out
""
""
" On-screen Display (RGB)
RGB
1024 × 768
COMPUTER1
INPUT
COMPUTER1
COMPUTER2
DVI-D Computer
D
Page 33
-18

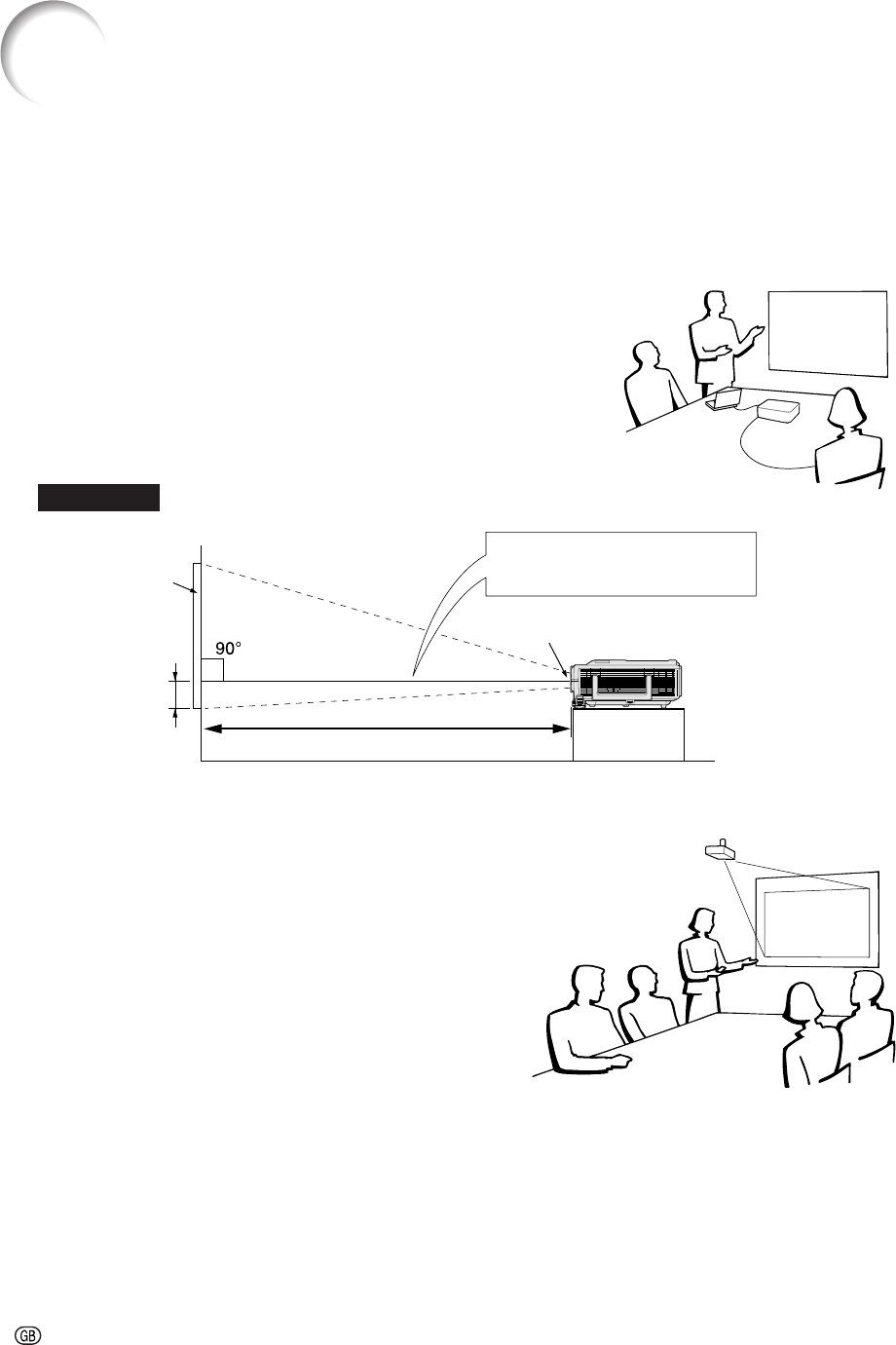

Setting Up the Projector
For optimal image quality, position the projector perpendicular to the screen with the projector’s feet flat
and level. Doing so will eliminate the need for Keystone correction and provide the best image quality. (See
page 32.)
Standard Setup (Front Projection)
■Place the projector at the required distance from the screen according
to the desired picture size. (For details, refer to the “SETUP MANUAL” con-
tained on the supplied CD-ROM.)
Example of standard setup
Setting Up the Projector
Side View
H
Screen
L: Projection distance
Lens center
Base line:
Horizontal line passing through
the lens center
Ceiling-mount Setup
■It is recommended that you use the optional Sharp ceil-
ing-mount adaptor and unit for this installation. Before
mounting the projector, contact your nearest Sharp Au-
thorized Projector Dealer or Service Center to obtain the
recommended ceiling-mount adaptor and unit (sold sepa-
rately).
-19
Setup
Projection (PRJ) Mode
The projector can use any of the 4 projection modes, shown in the diagram below. Select the mode most appro-
priate for the projection setting in use. (You can set the PRJ mode in “SCR-ADJ” menu. See page 50.)
■Table mounted, front projection ■Ceiling mounted, front projection
[Menu item ➞ “Front”] [Menu item ➞ “Ceiling + Front”]
■Table mounted, rear projection ■Ceiling mounted, rear projection
(with a translucent screen) (with a translucent screen)
[Menu item ➞ “Rear”] [Menu item ➞ “Ceiling + Rear”]
Indication of the Projection Image Size and Projection Distance
For details, refer to the “SETUP MANUAL” contained on the supplied CD-ROM.
Example: 16:10 Signal Input (Normal Mode) for standard lens
500"
200"
100"
80"
40"
424"×265"
Projection Distance
170"
×
106"
85"
×
53"
68"
×
42"
34"
×
21"
61'7
"
–
73'11
"
(18.8 m – 22.5 m)
24'8
"–
29'7
"
(7.5 m
–
9.0 m)
12'4
"–
14'9
"
(3.8 m
–
4.5 m)
9'10
"–
11'10
"
(3.0 m – 3.6 m)
4'11
"–
5'11
"
(1.5 m – 1.8 m)
Picture Size
-20
Standard Zoom Lens
F1.7-F1.9, f=28.0-33.6 mm
16:10 Signal Input (Normal Mode)
The formula for picture size and projection distance
[m/cm]
L1 (m) = 0.03755
χ
L2 (m) = 0.04507
χ
H (cm) = –0.03209
χ
[Feet/inches]
L1 (ft) = 0.03755
χ
/ 0.3048
L2 (ft) = 0.04507
χ
/ 0.3048
H (in) = –0.03209
χ
/ 2.54
χ:Picture size (diag.) (in/cm)
L: Projection distance(m/ft)
L1: Minimum projection distance (m/ft)
L2: Maximum projection distance (m/ft)
H: Distance from the lens center to the bottom of the image (cm/in)
The formula for picture size and projection distance
[m/cm]
L1 (m) = 0.04251
χ
L2 (m) = 0.05102
χ
H (cm) = –0.03633
χ
[Feet/inches]
L1 (ft) = 0.04251
χ
/ 0.3048
L2 (ft) = 0.05102
χ
/ 0.3048
H (in) = –0.03633
χ
/ 2.54
χ:Picture size (diag.) (in/cm)
L: Projection distance(m/ft)
L1: Minimum projection distance (m/ft)
L2: Maximum projection distance (m/ft)
H: Distance from the lens center to the bottom of the image (cm/in)
4:3 Signal Input (Normal Mode)
Setting Up the Projector
Picture (Screen) size Projection distance [L] Distance from the lens center
to the bottom of the image [H]
Diag. [x] Width Height Minimum [L1] Maxmum [L2]
500'' (1270 cm) 1077 cm (424'') 673 cm (265'') 18.8 m (61' 7") 22.5 m (73' 11") –16 cm (–6 5/16")
400'' (1016 cm) 862 cm (339'') 538 cm (212'') 15.0 m (49' 3") 18.0 m (59' 2") –13 cm (–5 3/64")
300'' (762 cm) 646 cm (254'') 404 cm (159'') 11.3 m (37' 0") 13.5 m (44' 4") –10 cm (–3 51/64")
250'' (635 cm) 538 cm (212'') 337 cm (132'') 9.4 m (30' 10") 11.3 m (37' 0") –8 cm (–3 5/32")
200'' (508 cm) 431 cm (170'') 269 cm (106'') 7.5 m (24' 8") 9.0 m (29' 7") –6 cm (–2 17/32")
150'' (381 cm) 323 cm (127'') 202 cm (79'') 5.6 m (18' 6") 6.8 m (22' 2") –5 cm (–1 57/64")
120'' (305 cm) 258 cm (102'') 162 cm (64'') 4.5 m (14' 9") 5.4 m (17' 9") –4 cm (–1 33/64")
100'' (254 cm) 215 cm (85'') 135 cm (53'') 3.8 m (12' 4") 4.5 m (14' 9") –3 cm (–1 17/64")
80'' (203 cm) 172 cm (68'') 108 cm (42'') 3.0 m (9' 10") 3.6 m (11' 10") –3 cm (–1 1/64")
60'' (152 cm) 129 cm (51'') 81 cm (32'') 2.3 m (7' 5") 2.7 m (8' 10") –2 cm (–49/64")
40'' (102 cm) 86 cm (34'') 54 cm (21'') 1.5 m (4' 11") 1.8 m (5' 11") –1 cm (–1/2")
Distance from the lens center
to the bottom of the image [H]
Picture (Screen) size Projection distance [L]
Diag. [x] Width Height Minimum [L1] Maxmum [L2]
400'' (1016 cm) 813 cm (320'') 610 cm (240'') 17.0 m (55' 9") 20.4 m (66' 11") –15 cm (–5 23/32")
300'' (762 cm) 610 cm (240'') 457 cm (180'') 12.8 m (41' 10") 15.3 m (50' 3") –11 cm (–4 19/64")
250'' (635 cm) 508 cm (200'') 381 cm (150'') 10.6 m (34' 10") 12.8 m (41' 10") –9 cm (–3 37/64")
200'' (508 cm) 406 cm (160'') 305 cm (120'') 8.5 m (27' 11") 10.2 m (33' 6") –7 cm (–2 55/64")
150'' (381 cm) 305 cm (120'') 229 cm (90'') 6.4 m (20' 11") 7.7 m (25' 1") –5 cm (–2 9/64")
120'' (305 cm) 244 cm (96'') 183 cm (72'') 5.1 m (16' 9") 6.1 m (20' 1") –4 cm (–1 23/32")
100'' (254 cm) 203 cm (80'') 152 cm (60'') 4.3 m (13' 11") 5.1 m (16' 9") –4 cm (–1 7/16")
80'' (203 cm) 163 cm (64'') 122 cm (48'') 3.4 m (11' 2") 4.1 m (13' 5") –3 cm (–1 9/64")
70'' (178 cm) 142 cm (56'') 107 cm (42'') 3.0 m (9' 9") 3.6 m (11' 9") –3 cm (–1")
60'' (152 cm) 122 cm (48'') 91 cm (36'') 2.6 m (8' 4") 3.1 m (10' 1") –2 cm (–55/64")
40'' (102 cm) 81 cm (32'') 61 cm (24'') 1.7 m (5' 7") 2.0 m (6' 8") –1 cm (–37/64")
Note
•Allow a margin of error in the value in the diagrams above.
•When the distance from the lens center to the bottom of the image [H] is a negative number, this indicates
that the bottom of the image is below the lens center.
•See page 18 about projection distance [L] and distance from the lens center to the bottom of the image [H].
-21
Connections
Samples of Cables for Connection
•For more details of connection and cables, refer to the operation manual of the connecting equipment.
•You may need other cables or connectors not listed below.
Terminal on the
projector
COMPUTER/
COMPONENT 1, 2
DVI-D
AUDIO
(for COMPUTER/
COMPONENT 1, 2, DVI-D)
DVI-D
COMPUTER/
COMPONENT 1, 2
S-VIDEO
VIDEO
Equipment
Computer
Audio-visual
equipment
Terminal on
connected equipment
RGB
output
terminal
DVI digital
video
output
terminal
Audio
output
terminal
DVI digital
video
output
terminal
Component
video
output
terminal
Terminal
for using
the
dedicated
cable
S-video
output
terminal
Video
output
terminal
Cable
RGB cable (supplied)
DVI Digital cable (commercially available)
ø3.5 mm stereo or mono audio cable (commercially
available or available as Sharp service part
QCNWGA038WJPZ)
DVI Digital cable (commercially available)
3 RCA to 15-pin D-sub cable (optional: AN-C3CP2)
Connect with the cable adaptor, etc.
S-video cable (commercially available)
Video cable (commercially available)
Cable adaptor (commercially available)
3 RCA to 15-pin
D-sub cable
(optional: AN-C3CP2)
Dedicated cable
-22
Terminal on the
projector
AUDIO
(for COMPUTER/
COMPONENT 1, 2, DVI-D)
AUDIO
(for VIDEO, S-VIDEO)
MONITOR OUTPUT
AUDIO
(MONITOR OUT)
Equipment
Audio-visual
equipment
Monitor
Amplifier
Terminal on
connected equipment
Audio
output
terminal
Terminal
for using
the
dedicated
cable
Audio
output
terminal
Terminal
for using
the
dedicated
cable
RGB
input
terminal
Audio
input
terminal
Cable
ø3.5 mm stereo minijack to RCA audio cable
(commercially available)
Connect with the cable adaptor, etc.
RCA audio cable (commercially available)
Connect with the cable adaptor, etc.
RGB cable (supplied or commercially available)
ø3.5 mm stereo minijack to RCA audio cable
(commercially available)
Cable adaptor
(commercially available)
ø3.5 mm stereo minijack to RCA audio
cable (commercially available)
Dedicated cable
Cable adaptor
(commercially available)
RCA audio cable
(commercially available)
Dedicated cable
Samples of Cables for Connection
-23
Connections
Connecting to a Computer
Before connecting, ensure the power cord of the projector from the AC outlet is unplugged,
and that the devices to be connected are turned off. After making all connections, turn on the
projector and then the other devices. When connecting a computer, ensure that it is the last
device to be turned on after all the connections are made.
Ensure the operation manuals of the devices to be connected have been read before making connections.
When connecting with the RGB cable
(Connecting to COMPUTER/COMPONENT 1 or 2: The illustration shown below is for the former.)
To audio output terminal
To RGB output terminal
* ø3.5 mm stereo or mono audio cable
(commercially available or available as Sharp service part QCNWGA038WJPZ)
To COMPUTER/
COMPONENT 1
input terminal
Computer
To AUDIO input terminal
RGB cable
*
When using the ø3.5 mm mono audio cable, the volume level will be half of when using the ø3.5 mm stereo audio cable.
Note
•See page 65 “Computer Compatibility Chart” for a list of computer signals compatible with the projector.
Use with computer signals other than those listed may cause some of the functions to not work.
•A Macintosh adaptor may be required for use with some Macintosh computers. Contact your nearest
Macintosh Dealer.
•Depending on the computer you are using, an image may not be projected unless the computer’s
external output port is switched on. (e.g. Press “Fn” and “F5” keys simultaneously when using a
SHARP notebook computer). Refer to the specific instructions in your computer’s operation manual to
enable your computer’s external output port.
RGB cable
Supplied
accessory
-24
When connecting with a DVI digital cable
The projector employs the DVI digital input terminal for direct input of Digital Video signals from a
computer.
*
When using the ø3.5 mm mono audio cable, the volume level will be half of when using the ø3.5 mm stereo audio cable.
Computer
* ø3.5 mm stereo or mono audio cable
(commercially available or available as
Sharp service part QCNWGA038WJPZ)
To DVI-D input terminal
DVI Digital cable
(commercially available)
To DVI digital
output terminal
To audio output
terminal
To AUDIO input terminal
(for DVI-D)
Connecting to a Computer
-25
Connections
Connecting to Video Equipment
The image quality is highest in order of the Component signal, the RGB signal, the S-video signal and the
Video signal. If your audio-visual equipment has a component output terminal or RGB output terminal, use the
COMPUTER/COMPONENT terminal 1 or 2 on the projector for video connection.
When connecting video equipment with a DVI output terminal
Note
•Select the input signal type of the video equipment. See page 47.
•While the projector is connected to video equipment that has an HDMI output terminal, only the video
signal can be input to the projector. (Connect the AUDIO input terminal for audio input.)
•Depending on specifications of video equipment or HDMI to DVI digital cable, the signal transmission
may not work property. (The HDMI specification does not support all connections to video equipment
that has HDMI digital output terminal using HDMI to DVI digital cable.)
•For details on compatibility for connection, see support information on DVI connection provided by the
video equipment manufacturer.
When connecting video equipment with component video output terminal
(Connecting to COMPUTER/COMPONENT 1 or 2: The illustration shown below is for the former.)
Note
•When you connect video equipment with a 21-pin RGB output (Euro-scart) to the projector, use a
commercially available cable that fits in the projector terminal you want to connect.
•The projector does not support RGBC signals via the Euro-scart.
DVI Digital cable (commercially available)
To audio output terminals
ø3.5 mm stereo minijack to RCA audio cable
(commercially available)
To DVI output terminal
Video Equipment
To DVI-D
input terminal
To AUDIO input terminal
(for COMPUTER/COMPONENT 2, DVI-D)
To audio output terminal
ø3.5 mm minijack to RCA audio cable (commercially available)
3 RCA (Component) to 15-pin D-sub cable
(optional: AN-C3CP2)
To component video output terminal
To COMPUTER/COMPONENT 1
input terminal
To AUDIO
input terminal
Video Equipment
-26
When connecting video equipment with S-video output terminal
When connecting video equipment with video output terminal
Note
•When you connect video equipment with a 21-pin RGB output (Euro-scart) to the projector, use a com-
mercially available cable that fits in the projector terminal you want to connect.
RCA audio cable
(commercially available)
To audio output terminal
To S-video output terminal
S-video cable (commercially available)
To S-VIDEO input terminal
To AUDIO input terminal
Video Equipment
RCA audio cable
(commercially available)
To audio output terminal
To video output terminal
Composite video cable (commercially available)
To VIDEO input terminal
To AUDIO input terminal
Video Equipment
Connecting to Video Equipment
-27
Connections
Controlling the Projector by a Computer
When the RS-232C terminal on the projector is connected to a computer, the computer can be used to control
the projector and check the status of the projector. Refer to the “SETUP MANUAL” contained on the supplied
CD-ROM for “RS-232C Specifications and Commands”.
When connecting to a computer using an RS-232C serial control cable and a DIN-D-sub RS-232C adaptor
Note
•The RS-232C function may not operate if your computer terminal is not correctly set up. Refer to the
operation manual of the computer for details.
Info
•Do not connect the RS-232C cable to a port other than the RS-232C terminal on the computer. This may
damage your computer or projector.
•Do not connect or disconnect an RS-232C serial control cable to or from the computer while it is on. This
may damage your computer.
Computer
To RS-232C terminal
To RS-232C terminal
RS-232C serial control cable (cross type, commercially available)
DIN-D-sub
RS-232C adaptor
DIN-D-sub
RS232C adaptor
Supplied
accessory
-28
To RGB input terminal
RGB cable (commercially available)
RGB cable
To RGB output
terminal
To COMPUTER/
COMPONENT 1
input terminal To MONITOR OUT terminal
Monitor
Computer
When connecting to the LAN terminal using a LAN cable
Note
•When connecting to hub, use straight-through Category 5 (CAT.5) type cable (commercially available).
•When connecting to computer, use cross-over Category 5 (CAT.5) type cable (commercially available).
TX/RX LED (yellow)
Illuminates when transmitting/receiving data.
LINK LED (green)
Illuminates when linked.
To LAN terminal
LAN cable (Category 5 type, commercially available)
HUB
or
Computer *To ensure safety, do not connect the
LAN terminal with any cables such
as a telephone line that may cause
excessive voltage.
RGB cable
Supplied
accessory
Connecting to a Monitor with RGB Input Terminal
You can display computer images on both the projector and a separate monitor using two sets of RGB cables.
Controlling the Projector by a Computer
-29
Connections
Audio signals input from equipment connected to each audio input terminal of the projector can be output to audio equipment.
Note
•Turn off the power of both the projector and audio equipment when connecting.
•When turning off the power in the case of connecting an amplifier or other audio equipment, first turn off
the power of the amplifier and then turn off the power of the projector.
•By using external audio components, the volume can be amplified for better sound.
•For details on Variable Audio Output (VAO) and Fixed Audio Output (FAO), see page 52.
Connecting to an Amplifier or Other Audio Equipment
Amplifier
To AUDIO output terminal
(MONITOR OUT)
To audio input terminal
ø3.5 mm minijack to
RCA audio cable
(commercially available)
-30
AC socket
To AC outlet
Turning the Projector On/Off
Info
•When “Auto Restart” is set to “On”:
If the power cord is unplugged from the outlet or the
breaker switch is turned off when the projector is on, then
the projector automatically turns on when the power cord
is plugged into the AC outlet or the breaker switch is turned
on. (See page 51.)
•
English is the factory preset language. If you want to
change the on-screen display to another language, change
the language according to the procedure on page 50.
▼On-screen Display
Info
•
Direct Power Off function:
You can unplug the power cord from the AC outlet
even if the cooling fan is still running.
Connecting the Power Cord
Plug the supplied power cord into the AC
socket on the rear of the projector. Then plug
into the AC outlet.
Turning the Projector On
Before performing the steps in this section,
connect any equipment that you use with the
projector. (See pages 23-29.)
Remove the lens cap and press
STANDBY/ON on the projector or ON
on the remote control.
•The power indicator illuminates green.
•After the lamp indicator illuminates, the projec-
tor is ready to start operation.
Note
•The lamp indicator illuminates or blinks, in-
dicating the status of the lamp.
Green: The lamp is on.
Blinking green: The lamp is warming up.
Red:
The lamp is shut down abnor-
mally or the lamp should be
replaced.
•
When switching on the projector, a slight flicker-
ing of the image may be experienced within the
first minute after the lamp has been illuminated.
This is normal operation as the lamp's control
circuitry is stabilizing the lamp output charac-
teristics. This does not indicate malfunction.
•If the projector is put into standby mode and
immediately turned on again, the lamp may
take some time to illuminate.
•When System Lock is set, the keycode in-
put box appears. To cancel the keycode set-
ting, input the keycode that you have already
set. See page 52 for details.
Turning the Power Off
(Put-
ting the Projector into Standby Mode)
Press STANDBY/ON on the projector or
STANDBY on the remote control, then press
that button again while the confirmation mes-
sage is displayed, to put the projector into
standby mode.
ON button
STANDBY
button
Lamp
indicator
Power indicator
STANDBY/ON button
Power cord
Supplied
accessory
-31
Basic Operation
Image Projection
Height Adjustment button
Side View
Lens
center
Top View
Using the Adjustment
Feet
The height of the projector can be adjusted
using the adjustment feet when the screen is
located higher than the projector, the screen
is inclined or when the installation site is
slightly inclined.
Install the projector so that it is as perpen-
dicular to the screen as possible.
1
Press the Height Adjustment but-
tons.
•The adjustment feet come out.
2
Lift the projector to adjust its
height and remove your hands
from the
Height Adjustment
but-
tons
.
•The projector is adjustable up to approxi-
mately 9 degrees.
3Rotate the Tilt dial to finely ad-
just the horizontal tilt of the pro-
jector.
•The inclination is adjustable within ap-
proximately 2 degrees.
•When adjusting the height of the pro-
jector, trapezoidal distortion occurs.
When “Auto V-Keystone” of the “SCR-
ADJ” menu is set to “On” (see page 49),
keystone correction functions automati-
cally to correct trapezoidal distortion.
When you want to adjust the automati-
cally corrected image, use the manual
keystone correction. (See page 32.)
Info
•Do not press the Height Adjustment button
when the adjustment feet come out without
firmly holding the projector.
•Do not hold the lens when lifting or lower-
ing the projector.
•When lowering the projector, be careful not
to get your fingers caught in the area be-
tween the adjustment foot and the projector.
Adjustment foot
Tilt dial
-32
Image Projection
END
TESTPATTERN
ADJUST
RESET
H&V KEYSTONE H: 0 V: 0
"On-screen Display (Keystone Correction mode)
KEYSTONE
button MOUSE/Adjustment
buttons ('/"/\/|)
RETURN button
Note
•Press RETURN to return to the default set-
ting.
•Straight lines or the edges of images may
appear jagged while adjusting the image.
•
The Manual Keystone Correction can be
adjusted up to an angle of approximately
±50 degrees vertically and approximately
±30 degrees horizontally.
Correcting Trapezoidal
Distortion
Auto V-Keystone Correction
When the image is projected either from the top
or from the bottom towards the screen at an angle,
the image becomes distorted trapezoidally.
The function for correcting trapezoidal distortion
is called Keystone Correction.
This projector is equipped with an “Auto V-Key-
stone Correction” function that automatically cor-
rects any trapezoidal distortion within the pro-
jected image. The correction is made automatically
provided the vertical incline or decline is within
±12 degrees.
Note
•When not using the Auto V-Keystone Cor-
rection function, set “Auto V-Keystone” on
the “SCR-ADJ” menu to “Off”.
Manual Keystone Correction
When you want to make fine adjustments after the
Auto V-Keystone Correction function has been acti-
vated, or when you want to make corrections without
using the Auto V-Keystone Correction function, you
can make corrections manually using the following
procedure.
1
Press
KEYSTONE on the remote
control to enter the Keystone Correc-
tion mode.
•You can also use KEYSTONE on the
projector.
2Press ' or " to parallelize the
left and right sides, or press
\ or | to parallelize the upper
and lower sides of the projected
image.
•You can also adjust the Keystone Cor-
rection using the ''
''
'/""
""
" and \\
\\
\/||
||
| buttons
on the projector.
3Press
KEYSTONE
.
•The on-screen display of the Keystone
Correction mode will disappear.
•You can also use KEYSTONE on the
projector.
Vertical Keystone Correction
(Adjustment with ' / ")
Horizontal Keystone Correction
(Adjustment with
\ / |
)
-33
Basic Operation
Adjusting the Lens
The image is focused and adjusted to the screen
size using the focus ring or zoom knob on the
projector.
1The focus is adjusted by rotat-
ing the focus ring.
2Zooming is adjusted by moving
the zoom knob.
Focus ring Zoom knob
Zoom in
Zoom out
-34
Image Projection
COMPUTER 1,
COMPUTER 2,
DVI, S-VIDEO,
VIDEO buttons
VOL +/–
(Volume)
buttons
AV MUTE
buttons
Switching the Input Mode
Select the appropriate input mode for the con-
nected equipment.
Press COMPUTER1/2, DVI, S-VIDEO
or VIDEO on the remote control to se-
lect the input mode.
•When you press INPUT on the projector or DVI
on the remote control, the INPUT list appears.
Press ''
''
'/""
""
" to switch the INPUT mode.
Adjusting the Volume
Press VOL +/– on the remote control or –\/
|+ on the projector to adjust the volume.
Note
•Pressing VOL–/–\\
\\
\ will lower the volume.
•Pressing VOL+/||
||
|+ will raise the volume.
•When the projector is connected to exter-
nal equipment, the volume level of the ex-
ternal equipment changes in accordance
with the volume level of the projector. Set
the projector’s volume to the lowest level
when turning the projector on/off or when
changing the input signal.
•When you do not want to output the sound
from the projector’s speaker while the pro-
jector is connected to external equipment,
set “Speaker” in “PRJ-ADJ” menu to “Off”.
(See page 51.)
Displaying the Black
Screen and Turning off
the Sound Temporarily
Press AV MUTE on the remote control to
temporarily display a black screen and turn
off the sound.
Note
•Pressing AV MUTE again will turn the pro-
jected image back on.
On-screen display
On-screen display
-35
Basic Operation
Displaying and Setting the
Break Timer
1Press BREAK TIMER.
•The timer starts to count down from 5 min-
utes.
On-screen display
2Press '/"/\/| to adjust the length
of the break time.
•Increases with ' or |
5 minutes s 6 minutes s 60 minutes
•Shortens with \ or "
4 minutes s 3 minutes s 1 minute
•The break time can be set in units of one
minute (up to 60 minutes).
Press BREAK TIMER.
Note
•Break Timer does not function while the projec-
tor is operating the “Auto Sync”, “FREEZE” or
“AV MUTE” functions.
Switching the Eco+Quiet
Mode
Press ECO+QUIET to switch the Eco+Quiet
mode between on and off.
•When the Eco+Quiet Mode is set to “ON”, the sound
of the cooling fan will turn down, the power consump-
tion will decrease, and the lamp life will extend.
Note
•Refer to “Checking the Lamp Life Status” on
page 53 for details of the Eco+Quiet mode.
Auto Sync
(Auto Sync Adjustment)
Auto Sync function works when detecting input
signal after the projector turns on.
Press AUTO SYNC to manually adjust
with Auto Sync function.
Note
•When the optimum image cannot be achieved
with Auto Sync adjustment, use manual adjust-
ments. (See page 47.)
Freezing a Moving Image
1Press FREEZE.
•The projected image is frozen.
2Press FREEZE again to return to
the moving image from the cur-
rently connected device.
MOUSE/Adjustment
buttons ('/"/\/|)
FREEZE
button
AUTO SYNC
button
BREAK TIMER
button
ECO+QUIET
button
Canceling the break timer display function
-36
Selecting the Picture Mode
You can select the appropriate picture mode for
the projected image, such as movie or video
game.
Press PICTURE MODE.
•When pressing PICTURE MODE, the picture mode
changes in the following order:
STANDARD PRESENTATION MOVIE GAME sRGB
Note
•See page 45 for details on the picture mode.
*“sRGB” is displayed only when RGB signal is input.
Displaying an Enlarged
Portion of an Image
Graphs, tables and other portions of projected
images can be enlarged. This is helpful when
providing more detailed explanations.
1Press MAGNIFY on the remote
control.
•Enlarges the image.
•Pressing or MAGNIFY enlarges or
reduces the projected image.
Note
×1×2×3×4×9
Press .
Press .
•You can change the location of the en-
larged image using ''
''
', ""
""
", \\
\\
\ and ||
||
|.
2Press RETURN on the remote con-
trol to cancel the operation.
•The magnification then returns to ×1.
Note
•The selectable magnifications differ de-
pending on the input signal.
•In the following cases, the image will re-
turn to the normal size (×1).
-When switching the INPUT mode.
-When RETURN has been pressed.
-When the input signal is changed.
-When the input signal resolution and re-
fresh rate (vertical frequency) change.
-When the Resize mode is changed.
-When the Picture mode is changed.
-When the Progressive mode is changed.
Image Projection
MOUSE/Adjustment
buttons ('/"/\/|)
RETURN
button
PICTURE MODE
button
MAGNIFY
buttons
-37
Basic Operation
Resize Mode
This function allows you to modify or customize
the resize mode to enhance the input image. De-
pending on the input signal, you can choose a
desired image.
Press RESIZE.
•See page 49 for setting on menu screen.
RESIZE button
COMPUTER
STRETCH
Output screen image
Input signal
Image Type NORMAL FULL
4:3 aspect ratio
5:4 aspect ratio
15:9 aspect ratio
16:9 aspect ratio
16:10 aspect ratio
16:9 aspect ratio
Computer
Resolution
XGA and below
Resolution
higher than
XGA
SXGA
(1280 1024)
1280 720
1280 800
1360 768
1366 768
1280 768
DOT BY DOT
*1*1
*1
*3
*1
*1
*2
—
*2
—
*2
—
*2
—
*1
*1
: Cutout area on which images cannot be projected
: Area where the signals are off screen
*1 The Image Shift function can be used for these images.
*2 Same as NORMAL mode.
*3 In case SXGA+ input.
4:3 aspect ratio
Other aspect ratios
SVGA (800 × 600)
XGA (1024 × 768)
SXGA (1152 × 864)
SXGA+ (1400 × 1050)
SXGA (1280 × 1024)
1280 × 720
1360 × 768
1366 × 768
1280 × 768
1280 × 800
1068 × 800
1000 × 800
1280 × 720
1280 × 722
1280 × 720
1280 × 768
1280 × 800
1280 × 800
—
800 × 600
1024 × 768
1152 × 864
1400 × 1050
1280 × 1024
—
1360 × 768
1366 × 768
—
1280 × 720
—
1280 × 720
NORMAL FULL STRETCHDOT BY DOT
-38
VIDEO/DTV
Image Projection
4:3 aspect ratio
Letter box
Squeeze
16:9 aspect ratio
16:9 aspect ratio
16:9 aspect ratio
(4:3 aspect ratio in 16:9)
Output screen image
Input signal
Image Type NORMALVideo/DTV
480I, 480P,
576I, 576P,
NTSC, PAL,
SECAM
720P, 1035I,
1080I, 1080P
540P
STRETCH
AREA ZOOM V-STRETCH
16:9 aspect ratio
: Cutout area on which images cannot be projected
: Area on which the image is not included in the original signals
*1 The Image Shift function can be used for these images.
*2 Same as NORMAL mode.
*1
*1
*2
—
*1
*1
*1
*1
*1
About Copyrights
•When using the RESIZE function to select an image size with a different aspect ratio to a TV program or
video image, the image will look different from its original appearance. Keep this in mind while choosing an
image size.
•The use of the Resize or Keystone Correction function to compress or stretch the image for commercial
purposes/public displays in a café, hotel, etc. may be an infringement of copyright protected by law for
copyright holders. Please use caution.
-39
Basic Operation
Using the Remote Control as the Wireless Computer Mouse
When connecting the projector and the computer with a USB cable, you can use the remote control as the
computer mouse.
If the computer is placed too far away from the projector to be connected via the USB cable, the separately
sold remote receiver (AN-MR2) makes it possible to operate the projector with the remote control. For de-
tails, see the operation manual of the receiver.
Connecting with a USB cable
The mouse pointer can be operated in the
following way after it is connected.
■When moving the cursor
Press MOUSE/Adjustment buttons ('/"/\/|).
■When left-clicking
Press L-CLICK.
■When right-clicking
Press R-CLICK.
■When your computer supports only a
one-click mouse (such as Macintosh)
Press L-CLICK or R-CLICK.
L-CLICK and R-CLICK have common function.
Note
•This function only works with the Microsoft® Windows® OS and Mac OS®. However, this function does not
work with the following operation systems that do not support USB.
•Versions earlier than Windows® 95
•Versions earlier than Windows® NT4.0
•Versions earlier than Mac OS® 8.5
•You cannot use this function when displaying the menu screen.
•Confirm that the computer recognizes the USB connection.
■When using [Page Up] or [Page Down]
Same as the [Page Up] and [Page Down] keys on a computer keyboard.
Press PAGE UP or PAGE DOWN PAGE.
To USB terminal
USB terminal
or
USB cable
(commercially available or available as Sharp service part
QCNWGA014WJPZ)
Point the remote control at
the
USB remote receiver
(AN-MR2, optional)
Computer
MOUSE/Adjustment
buttons ('/"/\/|)
R-CLICK button
L-CLICK button
PAGE Up/Down buttons
-40
Menu Items
The following shows the items that can be set in the projector.
“Picture” menu
+30-30
+30-30
+30-30
+30-30
+30-30
+30-30
Tint
Color
Reset
Sharp
Bright
+30-30
Contrast
Red
Blue
Progressive
Main Menu Sub Menu
CLR Temp
Page 45
Page 45
Page 45
Page 45
Page 46
Page 45
Picture Mode Standard
Presentation
Movie
Game
sRGB
*1
*2
*2
*2
*3
*3
3D Progressive
2D Progressive
5500K
6500K
7500K
8500K
9300K
10500K
Film Mode
Page 46
Auto
Off
Eco+Quiet Mode
Page 46
On
Off
DNR
Page 46
Off
Level 1
Level 2
Level 3
MNR
Page 46
Off
Level 1
Level 2
Level 3
*1 Item when inputting RGB signal through COMPUTER/COMPONENT 1, 2 or DVI-D
*2 Items when inputting Component signal through COMPUTER/COMPONENT 1 or 2, or when selecting VIDEO or
S-VIDEO
*3 “Progressive” and “Flim Mode” can be adjusted only when 480I, 576I, 1035I or 1080I signal is input.
-41
Useful Features
“Screen adjustment (SCR-ADJ)” menu
On
Off
On
Off
Main Menu Sub Menu
OSD Display
Background Logo
Blue
None
Normal
Full
Dot By Dot
Area Zoom
V-Stretch
Stretch
Center
Upper Right
Lower Right
Upper Left
Lower Left
Menu Position
Page 50
Resize
Page 49
Page 50
Page 50
Auto V-Keystone
Page 49
Page 49
Page 49
+40-40
Image Shift
V-Keystone
Page 49
+100-100
H-Keystone
SCR-ADJ
Page 49
Language
Page 50
Front
Ceiling + Front
Rear
Ceiling + Rear
PRJ Mode
Page 50
English
Deutsch
Español
Nederlands
Français
Italiano
Svenska
Português
polski
Magyar
Türkçe
+60-60
“Signal adjustment (SIG-ADJ)” menu
On
Off
SIG-ADJ
+30-30
+60-60
+150-150
+150-150
Clock
Phase
H-Pos
V-Pos
Reset
Signal Info
Resolution
Main Menu
Auto Sync
Page 47
Page 47
Page 47
Page 47
Page 48
*4
*4
*5
*5
*5
Signal Type
Page 47
Page 48
*6 Auto
RGB
Component
Dynamic Range *7 Auto
Standard
Enhanced
Auto
PAL
SECAM
NTSC4.43
NTSC3.58
PAL-M
PAL-N
PAL-60
Video System
Page 48
*8
*4 Item when inputting RGB signal through COMPUTER/COMPONENT 1 or 2
*5 Item when inputting COMPUTER/COMPONENT 1 or 2
*6 Item when selecting COMPUTER/COMPONENT 1, 2 or DVI-D
*7 Item when selecting DVI-D
*8 Item when selecting VIDEO or S-VIDEO
-42
“Network” menu
“Projecter adjustment (PRJ-ADJ)” menu
Main Menu
Network
Page 54
On
Off
IP Address
Subnet Mask
Gateway
Page 54
TCP/IP
Page 55
DHCP Client
Page 55
Page 55
Password Old Password
New Password
Reconfirm
MAC Address
Page 55
Projector
*2
*1
*2
On
Off
Normal
High
LAN/RS232C
Monitor Out
RS-232C
PRJ-ADJ
Enable
Disable
9600 bps
38400 bps
115200 bps
Enable
Disable
Main Menu Sub Menu
Page 51
FAO
VAO
Audio Out
Page 51
Page 52
Page 51
Page 51
Speaker
Page 51
Fan Mode
Page 52
All Reset
Page 53
On
Off
On
Off
Lamp Timer (Life)
Auto Power Off
Old Code
New Code
Reconfirm
Page 53
System Sound
Page 51
Page 51
System Lock
Pages 52 and 53
On
Off
Auto Restart
Page 51
*1 Adjustable only when DHCP Client is set to “Off”
*2 Display only
Menu Items
-43
Useful Features
Using the Menu Screen
Menu Selections (Adjustments)
Example: Adjusting “Bright”.
•This operation can also be performed by using the buttons on the projector.
MENU button
MOUSE/Adjustment
buttons ('/"/\/|)
RETURN button
ENTER
button
• Press RETURN to
return to previous
screen when the
menu is displayed
Adjustment
buttons ('/"/\/|)
MENU button
ENTER button
RETURN button
Example: “Picture” screen menu
1Press MENU.
•The “Picture” menu screen for the se-
lected input mode is displayed.
2Press ||
||
| or \\
\\
\ and select “Pic-
ture” to adjust.
Menu item
Picture Mode
Contrast 0
0
0
0
Bright
Color
Tint
0Sharp
Standard
7500K
3D Progressive
Auto
Off
Off
Off
SEL./ADJ.
RETURN
ENTER
END
Picture SIG SCR PRJ Net.
0
0
Red
Blue
CLR Temp
Progressive
Film Mode
DNR
MNR
Eco+Quiet Mode
Reset
-44
3Press ''
''
' or ""
""
" and select
“Bright” to adjust.
•The selected item is highlighted.
To adjust the pro-
jected image while
watching it
Press ENTER.
•The selected item (e.g. “Bright”) is dis-
played by itself at the bottom of the
screen.
•When pressing ''
''
' or ""
""
", the following
item (“Red” after “Bright”) will be dis-
played.
Note
•Press ENTER again to return to the
previous screen.
4Press \\
\\
\ or ||
||
| to adjust the item
selected.
•The adjustment is stored.
5Press MENU.
•The menu screen will disappear.
Note
•Menu buttons do not function while the projector is operating the “Auto Sync”, “Break Timer”, “FREEZE”,
or “AV MUTE” functions.
0Bright
SEL./ADJ.
Rtn. Menu
Rtn. Menu
END
Contrast 0
15
0
0
Bright
Color
Tint
0Sharp
Standard
7500K
3D Progressive
Auto
Off
Off
Off
SEL./ADJ.
RETURN
ENTER
END
0
0
Red
Blue
CLR Temp
Progressive
Film Mode
DNR
MNR
Eco+Quiet Mode
Reset
Picture Mode
Picture SIG SCR PRJ Net.
Items to be adjusted
The item displayed by itself
Press ENTER.
Using the Menu Screen
Clock 0
0
0
0
Phase
H-Pos
V-Pos
Reset
Pict. SIG–ADJ SCR PRJ Net.
Contrast 0
0
0
0
Bright
Color
Tint
0Sharp
Standard
7500K
3D Progressive
Auto
Off
Off
Off
SEL./ADJ.
RETURN
ENTER
END
0
0
Red
Blue
CLR Temp
Progressive
Film Mode
DNR
MNR
Eco+Quiet Mode
Reset
Picture Mode
Picture SIG SCR PRJ Net.
-45
Useful Features
Menu operation Page 43
11
11
1
Selecting the Picture Mode
Picture Adjustment (“Picture” menu)
•“sRGB” is displayed only when RGB signal is input.
•You can set or adjust each item in the “Picture”
menu to your preference. Any changes you make
are retained in memory.
Note
•You can also press PICTURE MODE on the
remote control to select the picture mode. (See
page 36.)
•*sRGB is an international standard of color re-
production regulated by the IEC (International
Electrotechnical Commission). As the fixed color
area has been decided by the IEC, the images
are displayed in a natural tint based on an origi-
nal image, when “sRGB” is selected.
For additional information about the sRGB func-
tion, visit “http://www.srgb.com/”.
You cannot set the items, “Red”, “Blue” and
“CLR Temp”, when “sRGB” is selected.
•When “sRGB” is selected, the projected image may be-
come dark, but this does not indicate a malfunction.
Info
Description
For standard image
Brightens portions of
image for more enhanced
presentations.
Gives natural tint to the
projected image.
Gives sharpness to the
projected image.
For high fidelity reproduc-
tion of images from a
computer.
Selectable items
Standard
Presentation
Movie
Game
*sRGB
22
22
2Adjusting the Image
*1 Not adjustable/selectable in the RGB input mode.
*2 Not adjustable/selectable when selecting “sRGB”
in “Picture Mode”.
Note
•“Red” and “Blue” cannot be set when selecting
“sRGB” in “Picture Mode”.
•To reset all adjustment items, select “Reset” and
press ENTER.
Adjustment items
button \\
\\
\button ||
||
|
Contrast
Bright
Color*1
Tint*1
Sharp*1
Red*2
Blue*2
For less contrast.
For less brightness.
For less color
intensity.
For making skin
tones purplish.
For less sharpness.
For weaker red.
For weaker blue.
For more contrast.
For more brightness.
For more color
intensity.
For making skin
tones greenish.
For more sharpness.
For stronger red.
For stronger blue.
Contrast 0
0
0
0
Bright
Color
Tint
0Sharp
Standard
7500K
3D Progressive
Auto
Off
Off
Off
SEL./ADJ.
RETURN
ENTER
END
0
0
Red
Blue
CLR Temp
Progressive
Film Mode
DNR
MNR
Eco+Quiet Mode
Reset
Picture Mode
Picture SIG SCR PRJ Net.
1
3
4
5
6
2
7
8
The default
settings of
CLR Temp
7500K
7500K
6500K
7500K
–
33
33
3
Adjusting the Color Temperature
Note
•Values on “CLR Temp” are only for general stan-
dard purposes.
•“CLR Temp” cannot be set when selecting
“sRGB” in “Picture Mode”.
Selectable items
5500K
6500K
7500K
8500K
9300K
10500K
Description
For lower color temperature for warmer,
reddish incandescent-like images.
For higher color temperature for cooler,
bluish, fluorescent-like images.
-46
44
44
4
Selecting the Progressive Mode
55
55
5Selecting the Film Mode
This function provides high-quality playback of
images originally projected at 24 fps, such as
movies on DVDs.
Description
Films are detected automatically.
Films are not detected.
Selectable items
Auto
Off
Note
•When using progressive inputs, “Film Mode”
cannot be selected.
•The “Film Mode” function does not work when
“2D Progressive” is selected in “Progressive
Mode”.
66
66
6
Reducing Image Noise (DNR)
Video digital noise reduction (DNR) provides high
quality images with minimal dot crawl and cross
color noise.
Description
DNR does not function.
Sets the DNR level.
Selectable items
Off
Level 1–3
Note
•Set a level so as to view a clearer picture.
Make sure to set “DNR” to “Off” in the
following cases:
•When the image is blurry.
•When the contours and colors of moving im-
ages drag.
•When TV broadcasts with weak signals are pro-
jected.
77
77
7
Mosquito Noise Reduction (MNR)
The so-called Mosquito Noise (flickering) can be
reduced.
Description
MNR does not function.
Sets the MNR level for viewing a
clearer picture.
Selectable items
Off
Level 1-3
Menu operation Page 43
Picture Adjustment (“Picture” menu)
Note
•When the image is blurred or noisy, switch to
the optimal mode.
•When using progressive inputs, inputs are di-
rectly displayed so that “2D Progressive” and
“3D Progressive” cannot be selected.
Description
Useful to display relatively slowmoving
images such as drama and documentary
more clearly.
Useful to display fast-moving images such
as sports and action films.
Selectable items
3D
Progressive
2D
Progressive
Note
•You can also use ECO+QUIET on the remote
control or on the projector to switch the Eco+Quiet
Mode. (See page 35.)
88
88
8Eco+Quiet Mode Setting
Brightness
Approx. 80%
100%
Selectable
items
On
Off
Fan
Sound
Low
Normal
Lamp life
Approx.
3,000
hours
Approx.
2,000
hours
Info
•This function is available for all signals with
VIDEO or S-VIDEO.
•This function is available for 480I, 480P, 576I
and 576P signals with COMPUTER1/2 or DVI.
Info
•This function is available for all signals with
VIDEO or S-VIDEO.
•This function is available for 480I, 480P, 576I
and 576P signals with COMPUTER1/2 or DVI.
-47
Useful Features
0
0
0
0
Phase
Clock
Pict. SIG–ADJ SCR PRJ Net.
H-Pos
V-Pos
Reset
Auto
640 x 480
On
Standard
Auto
SEL./ADJ.
RETURN
ENTER
END
Resolution
Auto Sync
Signal Type
Dynamic Range
Video System
Signal Info : 800 x 600
H 60.3 kHz / V 37.8 Hz
1
3
4
5
6
2
7
Signal Adjustment (“SIG-ADJ” Menu)
11
11
1
Adjusting the Computer Image
If the optimum image cannot be obtained with Auto
Sync adjustment, use the SIG-ADJ function.
Note
•To reset all adjustment items, select “Reset” and
press ENTER.
•The adjustable range of “H-Pos” (H-Position)
and “V-Pos” (V-Position) may vary depending
on the screen resolution of the computer.
Selectable items
Clock
Phase
H-Pos
V-Pos
Description
Adjusts vertical noise.
Adjusts horizontal noise (similar to
tracking on your VCR).
Centers the on-screen image by
moving it to the left or right.
Centers the on-screen image by
moving it up or down.
22
22
2Resolution Setting
Ordinarily, the type of input signal is detected and the
correct resolution mode is automatically selected. How-
ever, for some signals, the optimal resolution mode in
“Resolution” on the “SIG-ADJ” menu may need to be
selected to match the computer display mode.
Note
•See “Checking the Input Signal” on page 48 for
information on the currently selected input sig-
nal.
33
33
3Auto Sync Adjustment
Used to automatically adjust a computer image.
Note
•Auto Sync adjustment is also performed by
pressing AUTO SYNC on the projector or on
the remote control.
•The Auto Sync adjustment may take some time
to complete, depending on the image of the
computer connected to the projector.
Selectable items
On
Off
Description
Auto Sync adjustment will occur when
the projector is turned on or when the
input signals are switched, when
connected to a computer.
Auto Sync adjustment is not automati-
cally performed.
Menu operation Page 43
44
44
4Signal Type Setting
This function allows you to select the input sig-
nal type RGB or Component for COMPUTER/
COMPONENT 1, 2 or DVI-D.
Description
Input signals are automatically recog-
nized as RGB or component.
Set when RGB signals are received.
Set when Component signals are
received.
Selectable items
Auto
RGB
Component
-48
Menu operation Page 43
77
77
7Checking the Input Signal
This function allows you to check the current in-
put signal information.
Note
•The Video signal can only be set in VIDEO or
S-VIDEO mode.
•When “Video System” is set to “Auto”, you may
not receive a clear picture due to signal differ-
ences. Should this occur, switch to the video
system of the source signal.
*When reproducing NTSC signals in PAL video
equipment.
Selectable items
Auto
PA L
SECAM
*NTSC4.43
NTSC3.58
PAL-M
PAL-N
PAL -60
66
66
6Setting the Video System
The video input system mode is factory preset
to “Auto”; however, a clear picture from the con-
nected audio-visual equipment may not be re-
ceived, depending on the Video signal difference.
In that case, switch the Video signal.
Description
When the black levels of the image show
banding or appear faded, select the item
that results in the best picture quality. (In
most circumstances, “Standard” should
be selected.)
Selectable items
Auto
Standard
Enhanced
55
55
5
Selecting the Dynamic Range
An optimum picture may not be displayed if a
DVI-D-capable device’s output signal type and the
projector’s input signal type do not match. If this
should occur, switch “Dynamic Range”.
Note
•The Dynamic Range can be selected only when
“DVI-D” input mode is selected.
Signal Adjustment (“SIG-ADJ” Menu)
-49
Useful Features
Resize
0
0
0
Image Shift
H-Keystone
V-Keystone
Auto V-Keystone
Center
On
On
Normal
Logo
Front
English
SEL./ADJ.
RETURN
ENTER
END
OSD Display
Background
Menu Position
PRJ Mode
Language
Pict. SIG SCR-ADJ PRJ Net.
1
3
4
5
6
7
8
2
Screen Adjustment (“SCR-ADJ” Menu)
Menu operation Page 43
11
11
1Setting the Resize Mode
Note
•For details of the Resize mode, see pages 37
and 38.
•You can also press RESIZE on the remote con-
trol to set the resize mode. (See page 37.)
22
22
2
Adjusting the Image Position
You can move the projected image vertically.
Note
•This function only works in some RESIZE
modes. (See pages 37 and 38.)
•To reset this function, select “0”.
||
||
| button
\ \
\ \
\ button
33
33
3Keystone Correction
When the image is projected either from the top or from
the bottom towards the screen at an angle, the image be-
comes distorted trapezoidally. The function for correct-
ing trapezoidal distortion is called Keystone Correction.
Auto V-Keystone Correction
Set “Auto V-Keystone” on the “SCR-ADJ” screen
menu to “On”.
Manual Keystone Correction
Set “Auto V-Keystone” on the “SCR-ADJ” screen
menu to “Off”. Select “V-Keystone”, and then
press \\
\\
\ or ||
||
| to parallelize the left and right sides
of the projected image with the slide bar. To
parallelize the upper and lower sides, select “H-
Keystone” and press \\
\\
\ or ||
||
|.
Note
•
The Keystone Correction can be adjusted up to
an angle of approximately ±12 degrees with “Auto
V-Keystone” and up to an angle of approximately
±50 degrees with “V-Keystone” and approxi-
mately ±30 degrees with “H-Keystone”.
•When the screen is slanting or the image is de-
teriorated, set “Auto V-Keystone” to “Off”.
Horizontal Keystone Correction
Vertical Keystone Correction
-50
Menu operation Page 43
Selectable items
Logo
Blue
None
Description
SHARP default image
Blue screen
Black screen
55
55
5Selecting a Startup and
Background Image
Description
Displayed on the center of the image.
Displayed on the upper right of the image.
Displayed on the lower right of the image.
Displayed on the upper left of the image.
Displayed on the lower left of the image.
Selectable items
Center
Upper Right
Lower Right
Upper Left
Lower Left
66
66
6Selecting the Menu
Screen Position
Select “Menu Position” on the “SCR-ADJ” menu
and the desired position for the menu screen.
77
77
7Reversing/Inverting Pro-
jected Images
This projector is equipped with a reverse/invert
image function that allows you to reverse or in-
vert the projected image for various applications.
Note
•This function is used for the reversed image and
ceiling-mount setups. (See page 19.)
Description
Normal image (Projected from the front
of the screen)
Inverted image (Projected from the
front of the screen with an inverted
projector)
Reversed image (Projected from the
rear of the screen or with a mirror)
Reversed and inverted image (Pro-
jected with a mirror)
Selectable items
Front
Ceiling + Front
Rear
Ceiling + Rear
88
88
8Selecting the On-screen
Display Language
The projector can switch the on-screen display
language among 17 languages.
Screen Adjustment (“SCR-ADJ” Menu)
Description
All On-screen Displays are displayed.
INPUT/VOLUME/AV MUTE/FREEZE/
AUTO SYNC/MAGNIFY/ “An invalid
button has been pressed.” are not
displayed.
Selectable items
On
Off
44
44
4Setting the On-screen
Display
This function allows you to turn the on-screen
messages on or off.
-51
Useful Features
Auto Power Off
Auto Restart
System Sound
Speaker
Audio Out
9600bps
Enable
On
On
On
FAO
On
Enable
Normal
Disable
SEL./ADJ.
RETURN
ENTER
END
Monitor Out
LAN/RS232C
RS-232C
Fan Mode
System Lock
All reset
Lamp Timer (Life) [ 0]h [ 0] min ( 100%)
Pict. SIG SCR PRJ-ADJ Net.
1
2
3
4
5
6
7
8
9
0
q
w
Menu operation Page 43
Description
The projector automatically enters the
standby mode when no input signal is
detected for 15 minutes or longer.
The Auto Power Off function will be
disabled.
Selectable items
On
Off
11
11
1Auto Power Off Function
Note
•When the Auto Power Off function is set to “On”,
5 minutes before the projector enters the
standby mode, the message “Enter STANDBY
mode in X min.” will appear on the screen to
indicate the remaining minutes.
Description
If the power cord is unplugged from the
outlet or the breaker switch is turned off
when the projector is on, then the
projector automatically turns on when
the power cord is plugged into the AC
outlet or the breaker switch is turned on.
The projector does not turn on auto-
matically when the power cord is
plugged into the AC outlet or the
breaker switch is turned on.
Selectable items
On
Off
22
22
2Auto Restart Function
Description
A confirmation sound is made when the
projector turns on/off.
No confirmation sound is made.
Selectable items
On
Off
33
33
3Setting the Confirmation
Sound (System Sound)
Helpful Functions Set during Installation (“PRJ-ADJ” menu)
44
44
4Speaker Setting
This function allows you to set the audio output
of the internal speaker to “On” or “Off” such as
when the projector is connected to an external
amplifier.
Selectable items
On
Off
Description
The audio signal is output from the internal
speaker.
The audio signal is not output from the
internal speaker.
55
55
5Audio Output Type Setting
This function determines whether the audio level
output from the AUDIO output (MONITOR output)
terminal is fixed or variable by linking with VOL-
UME.
Info
•When “Audio Out” has been set to “VAO”, first make
sure to lower the volume of the projector before
turning the power on or off and when switching the
input.
Description
Audio output that does not vary in
strength with the volume level of the
source projector.
Audio output that varies in strength with
the volume level of the source projector.
Selectable items
FAO
(Fixed Audio
Output)
VAO
(Variable
Audio Output)
66
66
6
Monitor Output
77
77
7
LAN/RS232C
When set to “Enable”, the function is activated
and power is consumed even in the standby mode.
It is recommended that the function be set to “Dis-
able” when it is not connected. This reduces power
consumption when the projector is in the standby
mode.
Description
The function is activated even if the
projector is in standby mode.
The function is switched off when the
projector is in standby mode.
Selectable items
Enable
Disable
Note
•When you want to control the projector using
the LAN/RS232C function, select “Enable”.
-52
Helpful Functions Set during Installation (“PRJ-ADJ” menu)
Menu operation Page 43
Setting/Changing the keycode
1Select “System Lock”, then press
ENTER or ||
||
|.
2Select “Next”, then press ENTER.
•The screen for entering the keycode appears.
3Press the 4 buttons on the remote
control or on the projector to enter
the preset keycode in “Old Code”.
•When setting the keycode for the first time,
press " on the projector for four times.
Note
•If you input a wrong keycode, the cursor
returns to the first point of the “Old Code”.
•The preset keycode is 4 " buttons on the
projector. When you press the " button four
times, the keycord input screen disappears.
4Press the 4 buttons on the remote
control or on the projector to enter
the new keycode in “New Code”.
Note
•You cannot use the following buttons for
keycode: STANDBY/ON, ON, STANDBY,
ENTER, L-CLICK, R-CLICK/RETURN,
MENU, ECO+QUIET and BREAK TIMER
•System lock function recognizes each
button on the remote control or on the
projector as an individual button, even if
they share the same button name. If you
used the buttons on the projector in set-
ting your keycode, the keycode cannot
be canceled with the remote control.
Setting the System Lock
Old Code
New Code
Reconfirm
––––
––––
––––
PRJ-ADJ
PRJ-ADJ
Setting the System Lock
Old Code
New Code
Reconfirm
****
–––
––––
–
88
88
8Selecting the Transmis-
sion Speed (RS-232C)
Make sure that both the projector and computer
are set for the same baud rate.
Description
Transmission speed is slow.
Tr ansmission speed is rapid.
Selectable items
9600 bps
38400 bps
115200 bps
Note
•Refer to the “SETUP MANUAL” contained on
the supplied CD-ROM for RS-232C Specifica-
tions and Command Settings.
•Refer to the computer’s operation manual for
instructions for setting the computer’s baud rate.
99
99
9Fan Mode Setting
This function changes the fan rotation speed.
Description
Suitable for normal environments.
Select this when using the projector at
altitudes of approximately 1,500 meters
(4,900 feet) or more.
Selectable items
Normal
High
When “Fan Mode” is set to “High”, the fan rotation
speeds up, and the fan noise becomes louder.
00
00
0System Lock Function
This function prevents unauthorized use of the
projector. Once this function is activated, users
must enter the correct keycode each time the pro-
jector is turned on. We suggest you record the
keycode in a safe place where only autho-
rized users have access.
Info
•If you lose or forget your keycode, contact your
nearest Sharp Authorized Projector Dealer or Ser-
vice Center (see page 68). Even if the product
warranty is valid, the keycode reset will incur a
charge.
-53
Useful Features
Menu operation Page 43
5
Enter the same keycode in “Re-con-
firm”.
Note
To cancel the keycode that you have al-
ready set
•Press " on the projector for four times in steps
4 and 5 above.
When the System Lock is set
•When System Lock is set, the keycode input screen
appears after the power is turned on. When it ap-
pears, enter the right keycode to start projection.
Input screen for keycode
Info
•Keylock cannot be set while the projector is: dis-
playing the “Menu” screens, in standby mode,
warming up, changing input signals, operating
“Auto Sync” function or on the “System Lock”
screen during warming up.
System Lock ––––
Keylock Function
Locking the Operation Buttons on
the Projector
Use this function to lock the operation but-
tons on the projector.
■ Locking the Operation Buttons
Hold down ENTER on the projector for about 5 sec-
onds while the projector is being turned on.
▼On-screen Display
Keylock function ON
•The keylock function does not affect the operation
with the remote control buttons.
•You cannot use the keylock function while the pro-
jector is warming up.
■ Taking the Keylock off
Hold down ENTER on the projector for about 5 seconds.
▼On-screen Display
Keylock function OFF
•When the projector is in standby mode, you can
release the keylock by holding down ENTER and
STANDBY/ON on the projector simultaneously for
about 5 seconds.
qq
qq
q
Returning to the Default
Settings
This function allows you to initialize the settings
you have made in the projector.
Note
The following items or menu cannot be initialized.
•“SIG-ADJ” menu
Resolution
•“SCR-ADJ” menu
Language
•“PRJ-ADJ” menu
Lamp Timer (Life)
System Lock
ww
ww
wChecking the Lamp Life
Status
You can confirm the cumulative lamp usage time
and the remaining lamp life (percentage).
Note
•It is recommended that the lamp be changed
when the remaining lamp life becomes 5%.
•Remaining lamp life changes within the range
of the values shown depending on the frequency
at which “Eco+Quiet Mode” is switched to “On”
and “Off”. (See page 46.)
•The lamp life may vary depending on the us-
age condition.
Lamp usage condition
“Life”
Operated exclusively
while “Eco+Quiet Mode”
is “On”.
Operated exclusively
while “Eco+Quiet Mode”
is “Off”.
Remaining lamp life
100% 5%
Approx. Approx.
3,000 hours 150 hours
Approx. Approx.
2,000 hours 100 hours
-54
Setting up the Projector Network Environment (“Network” menu)
11
11
1
Setting a Password
If you do not want others to change the setting
for the “Network” menu, set a password.
Setting a Password
1Select “Password”, then press ||
||
|.
•The screen for entering the password ap-
pears.
2Press ''
''
' or ""
""
" to set the first digit in
“New Password”, then press ||
||
|.
3Enter the remaining 3 digits, then
press ENTER.
•To return to the previous digit, press \.
4Enter the same password in
“Reconfirm”, then press ENTER.
•The status for “Password” changes to “En-
able”.
Note
•Once after the password is set, you must enter
the password to change the “Network” menu
settings.
Changing the Password
1Select “Password”, then press ||
||
|.
•The screen for entering the password ap-
pears.
2Enter the password in “Old Pass-
word” using ''
''
', ""
""
", ||
||
| and \\
\\
\, then
press ENTER.
3Enter the password in “New Pass-
word” using ''
''
', ""
""
", ||
||
| and \\
\\
\, then
press ENTER.
4Enter the same password again in
“Reconfirm” using ''
''
', ""
""
", ||
||
| and \\
\\
\,
then press ENTER.
Note
•If you do not need the password protection for
the “Network” menu settings anymore, press
ENTER without entering new password in steps
3 and 4.
•To cancel the password settings, press RETURN.
If you forget the password
If you forget the password, perform the following
procedure to delete it, then set a new password.
On the projector, press
Note
•
If ENTER is held down for more than 5 seconds, the
operation buttons on the projector will be locked. (See
page 53.)
•
You cannot use the buttons on the remote control to
delete the password.
Menu operation Page 43
Password
DHCP Client
TCP/IP
Off
Disable
SEL./ADJ.
RETURN
ENTER
END
MAC Address XX:XX:XX:XX:XX:XX
Projector XX-XXXX
Pict. SIG SCR PRJ Network
1
3
4
2
Setting the Password
Old Password
New Password
Reconfirm
–
––––
–––
––––
Network
-55
Useful Features
22
22
2DHCP Client Setting
Connect the LAN cable before turning the pro-
jector on. If not, the DHCP Client function does
not work.
Select “On” for “DHCP Client”. “Obtaining IP
Address...” appears, then the menu screen appears.
Confirm the parameters of IP Address, Subnet Mask
and Gateway on the TCP/IP screen.
If the DHCP server is not available, “Could not
obtain IP Address.” appears.
In this case, set the TCP/IP manually. (See the item
3.)
33
33
3TCP/IP Setting
Set the TCP/IP manually.
1Select “Off” for “DHCP Client”, then
press ENTER.
2Select “TCP/IP”, then press ENTER.
3Enter “IP Address” using ''
''
', ""
""
", ||
||
|
and \, then press ENTER.
4Enter “Subnet Mask” using ''
''
', ""
""
",
||
||
| and \, then press ENTER.
5Enter “Gateway” using ''
''
', ""
""
", ||
||
| and
\, then press ENTER.
Selectable items
On
Off
Description
Obtains configuration parameters for
TCP/IP network automatically.
Sets the TCP/IP manually.
Setting the TCP/IP
Subnet Mask
IP Address
Gateway
1
55 .2
92 .
000 .
1
55 .2
68 .
000 .
1
55 .2
50 .
000 .
0
000
02
000
Network
Menu operation Page 43
Selectable items
IP Address
Subnet Mask
Gateway
Description
Factory default setting:
192.168.150.002
Enter an IP address appropriate for the
network.
Factory default setting:
255.255.255.000
Set the subnet mask to the same as
that of the computer and equipment on
the network.
Factory default setting: 000. 000. 000.
000
* When not in use, set to “000. 000.
000. 000”.
Note
•Confirm the existing network’s segment (IP ad-
dress group) to avoid setting an IP address that
duplicates the IP addresses of other network
equipment or computers. If “192.168.150.002”
is not used in a network with an IP address of
“192.168.150.XXX”, you don’t have to change
the projector IP address.
•For details about each setting, consult your
network administrator.
44
44
4Confirming the
Projector Information
You can confirm the MAC address and projector
name.
Displayed items
MAC Address
Projector
Description
The MAC address of the projector is
displayed.
The projector name is displayed.
Note
•For information on how to change the projector
name, see “SETUP MANUAL” contained in the
supplied CD-ROM.
-56
Cleaning the lens
■Use a commercially available blower or lens clean-
ing paper (for glasses and camera lenses) for clean-
ing the lens. Do not use any liquid type cleaning
agents, as they may wear off the coating film on the
surface of the lens.
■As the surface of the lens can easily get damaged,
be careful not to scrape or hit the lens.
Cleaning the exhaust and intake vents
■Use a vacuum cleaner to clean dust from the ex-
haust vent and the intake vent.
Info
•If you want to clean the air vents during projec-
tor operation, ensure you press STANDBY/ON
on the projector or STANDBY on the remote
control and put the projector into standby mode.
After the cooling fan has stopped, unplug the
power cord from the AC socket and clean the
vents.
•The air filters should be cleaned every 100
hours of use. Clean the filters more often when
the projector is used in a dusty or smoky loca-
tion.
Cleaning the projector
■Ensure the power cord is unplugged before cleaning
the projector.
■The cabinet as well as the operation panel is made
of plastic. Avoid using benzene or thinner, as these
can damage the finish on the cabinet.
■Do not use volatile agents such as insecticides on
the projector.
Do not attach rubber or plastic items to the projec-
tor for long periods.
The effects of some of the agents in the plastic may
cause damage to the quality or finish of the projector.
■Wipe off dirt gently with a soft flannel cloth.
■When the dirt is hard to remove, soak a cloth in a
mild detergent diluted with water, wring the cloth
well and then wipe the projector.
Strong cleaning detergents may discolor, warp or
damage the coating on the projector. Make sure to
test on a small, inconspicuous area on the projec-
tor before use.
Maintenance
Cleaning
Paper
Mild detergent
diluted with water
Mild detergent
Wax
Thinner
-57
Appendix
Replacing the Air Filter
•This projector is equipped with air filters
to ensure the optimal operating condition
of the projector.
•Ask your nearest Sharp Authorized Pro-
jector Dealer or Service Center to ex-
change the filter (PFILDA022WJKZ) when
it is no longer possible to clean.
Replacing the Air Filter
1Press STANDBY/ON on the pro-
jector or STANDBY on the remote
control to put the projector into the
standby mode.
•Wait until the cooling fan stops.
2Disconnect the power cord.
•Unplug the power cord from the AC socket.
3Remove the filter cover.
•Turn over the projector. Pull down the car-
rying handle (1), grab the tab (2) and slide
open the filter cover (3).
4Remove the air filter.
•Pick the air filter up with your fingers and lift
it out of the filter cover.
STANDBY button
AC socket
Tab
2
1
3
STANDBY/ON
button
-58
5Place a replacement air filter.
•Place the new air filter onto the filter cover.
6Replace the filter cover.
•Slide the filter cover in the direction of the
arrow to close it.
Note
•Ensure the filter cover is securely installed. The
power will not turn on unless it is correctly in-
stalled.
Replacing the Air Filter
-59
Appendix
Power indicator
Lamp indicator
Temperature warning indicator
Maintenance Indicators
Maintenance Indicators
■The warning lights on the projector indicate problems inside the projector.
■If a problem occurs, either the temperature indicator or the lamp indicator will illuminate red, and
the projector will enter the standby mode. After the projector has entered the standby mode, follow
the procedures given below.
About the temperature warning indicator
If the temperature inside the projector increases, due to blockage of the air vents, or the setting location,
“” will illuminate in the lower left corner of the picture. If the temperature keeps on rising, the lamp will
turn off and the temperature warning indicator will blink, the cooling fan will run for a further 90 seconds, and
then the projector will enter the standby mode. After “ ” appears, ensure you perform the measures
described on page 60.
About the lamp indicator
■When the remaining lamp life becomes 5% or less, “ ” (yellow) and “Change The Lamp.” will be
displayed on the screen. When the percentage becomes 0%, it will change to “ ” (red), the lamp will
automatically turn off and then the projector will automatically enter the standby mode. At this time,
the lamp indicator will illuminate in red.
■
If you try to turn on the projector a fourth time without replacing the lamp, the projector will not turn on.
-60
Maintenance indicator Problem Cause Possible solution
Temperature
warning
indicator
Normal Abnormal
Off Red on
(Standby)
The internal
temperature is
abnormally high.
Abnormal
• Blocked air intake
•Relocate the projector to an area
with proper ventilation (see page
8).
•Cooling fan break-
down
•Internal circuit failure
•Clogged air intake
•Take the projector to your nearest
Sharp Authorized Projector Dealer
or Service Center (see page 68)
for repair.
•Clean the exhaust and intake
vents. (See page 56.)
Lamp
indicator
Red on
(Standby)
The lamp does
not illuminate.
•Burnt-out lamp
•Lamp circuit failure
•Carefully replace the lamp. (See
page 62.)
•Take the projector to your nearest
Sharp Authorized Projector Dealer
or Service Center (see page 68)
for repair.
•Please exercise care when
replacing the lamp.
•Securely install the lamp unit cover.
Red on
Time to change
the lamp.
•Remaining lamp life
becomes 5% or less.
Green on
Green blinks
when the lamp
is warming up
Info
•If the temperature warning indicator illuminates and the projector enters the standby mode, check whether
any of the ventilation holes are blocked (see page 8) and then try turning the power back on. Wait until the
projector has cooled down completely before plugging in the power cord and turning the power back on.
(At least 10 minutes.)
•If the power is turned off for a brief moment due to power outage or some other cause while using the
projector, and the power supply recovers immediately after that, the lamp indicator will illuminate in red
and the lamp may not be lit. In this case, unplug the power cord from the AC outlet, replace the power
cord in the AC outlet and then turn the power on again.
•The cooling fan keeps the internal temperature of the projector constant and this function is controlled
automatically. The sound of the cooling fan may change during operation because the fan speed may
change and this is not a malfunction.
The lamp does
not illuminate.
•The lamp is shut
down abnormally.
•Disconnect the power cord from
the AC outlet, and then connect it
again.
Power
indicator
Green on/
Red on
Green blinks
(Cooling)
Red blinks
The power
indicator blinks
in red when the
projector is on.
•If the power indicator blinks even
when the covers are securely
installed, or if the cooling fan does
not run normally, then contact your
nearest Sharp Authorized
Projector Dealer or Service Center
(see page 68) for advice.
•The filter cover, lamp
unit cover or lens
housing cover is
open.
•Cooling fan break-
down
Maintenance Indicators
-61
Appendix
Lamp
■It is recommended that the lamp unit (optional: AN-C430LP) be replaced when the remaining lamp
life becomes 5% or less, or when you notice a significant deterioration in the picture and color
quality. The lamp life (percentage) can be checked with the on-screen display. See page 53.
■Purchase a replacement lamp unit of type AN-C430LP from your place of purchase, nearest Sharp
Authorized Projector Dealer or Service Center.
IMPORTANT NOTE TO U.S. CUSTOMERS:
The lamp included with this projector is backed by a 90-day parts and labor limited warranty. All service
of this projector under warranty, including lamp replacement, must be obtained through a Sharp Autho-
rized Projector Dealer or Service Center. For the name of the nearest Sharp Authorized Projector Dealer
or Service Center, please call toll-free: 1-888-GO-SHARP (1-888-467-4277).
Hg LAMP CONTAINS MERCURY For State Lamp Disposal Information
www.lamprecycle.org or 1-800-BE-SHARP
Caution Concerning the Lamp
■This projector utilizes a pressurized mercury lamp. A loud sound may indicate lamp failure. Lamp
failure can be attributed to numerous sources such as: excessive shock, improper cooling, surface
scratches or deterioration of the lamp due to a lapse of usage time.
The period of time up to failure largely varies depending on the individual lamp and/or the condition
and the frequency of use. It is important to note that failure can often result in the bulb cracking.
■When the lamp replacement indicator and on-screen display icon are illuminated, it is recommended
that the lamp be replaced with a new one immediately, even if the lamp appears to be operating
normally.
■Should the lamp break, the glass particles may spread inside the lamp cage or gas contained in the
lamp may be vented into the room from the exhaust vent. Because the gas in this lamp includes
mercury, ventilate the room well if the lamp breaks and avoid all exposure to the released gas. In
case of exposure to the gas, consult a doctor as soon as possible.
■Should the lamp break, there is also a possibility that glass particles may spread inside of the
projector. In such a case, it is recommended you contact your nearest Sharp Authorized Projector
Dealer or Service Center to assure safe operation.
Replacing the Lamp
Caution
•Do not remove the lamp unit from the projector right after use. The lamp will be very hot and may cause burn
or injury.
•Wait at least one hour after the power cord is disconnected to allow the surface of the lamp unit to fully cool
before removing the lamp unit.
■Carefully change the lamp by following the instructions described in this section. *If you wish, you
may have the lamp replaced at your nearest Sharp Authorized Projector Dealer or Service Center.
*If the new lamp does not illuminate after replacement, take your projector to the nearest Sharp Authorized
Projector Dealer or Service Center for repair.
Regarding the Lamp
U.S.A. ONLY
-62
Regarding the Lamp
Securing screws
Optional
accessory
Lamp unit
AN-C430LP
Removing and Installing
the Lamp Unit
Warning!
•Do not remove the lamp unit from the pro-
jector right after use. The lamp and parts
around the lamp will be very hot and may
cause burn or injury.
Info
•Do not touch the glass surface of the lamp
unit or the inside of the projector.
•To avoid injury to yourself and damage to
the lamp, make sure you carefully follow
the steps below.
•Do not loosen other screws except for the
lamp unit cover and lamp unit.
1Press STANDBY/ON on the
projector or STANDBY on the
remote control to put the projec-
tor into standby mode.
•Wait until the cooling fan stops.
2Disconnect the power cord.
•Unplug the power cord from the AC
socket.
•Leave the lamp until it has fully cooled
down (about 1 hour).
3Remove the lamp unit cover.
•Loosen the user service screw (1) that
secures the lamp unit cover. Slide down
(2) and remove the lamp unit cover
(3).
4Remove the lamp unit.
•Loosen the securing screws from the
lamp unit. Hold the lamp unit and pull it
in the direction of the arrow. At this time,
keep the lamp unit horizontal and do not
tilt it.
AC socket
1
3
2
User service screw
(for lamp unit cover)
STANDBY/ON
button
-63
Appendix
User service screw
(for lamp unit cover)
AC socket
5Insert the new lamp unit.
•Press the lamp unit firmly into the lamp
unit compartment. Fasten the securing
screws.
6Replace the lamp unit cover.
•Align the lamp unit cover and slide it to
close. Then tighten the user service
screw to secure the lamp unit cover.
Info
•If the lamp unit and lamp unit cover are not
correctly installed, the power will not turn
on, even if the power cord is connected to
the projector.
Resetting the Lamp Timer
Reset the lamp timer after replacing the lamp.
Info
•Make sure to reset the lamp timer only
when replacing the lamp. If you reset the
lamp timer and continue to use the same
lamp, this may cause the lamp to become
damaged or explode.
•You can also reset the lamp timer via the
LAN.
(Refer to the SETUP MANUAL on the sup-
plied CD-ROM for details.)
1Connect the power cord.
•Plug the power cord into the AC socket
of the projector.
2Reset the lamp timer.
•
While simultaneously holding down ",
ENTER and MENU on the projector,
press STANDBY/ON on the projector and
keep all four buttons pressed down until
the lamp indicator starts blinking green.
•“LAMP 0000H” is displayed, indicating
that the lamp timer is reset.
" button
ENTER button
STANDBY/ON button
Lamp indicator
MENU button
-64
Storing the Projector
Lens cap
Fixing band
Info
How to Use the
Storage Case
When storing the projector, attach the lens
cap to the lens, and place it in the supplied
storage case.
1Open the cover of the storage
case.
2Place the projector into the stor-
age case.
•Ensure the projector has cooled down
sufficiently before placing it in the case.
•Ensure the lens cap is attached to the
lens for protection.
•Place the projector into the storage
case with the lens facing the
handle.
•Ensure the projector is held in place
by using the fixing band.
3Close the cover of the storage
case.
4Place the accessories in the front
pocket of the storage case.
Supplied accessories
(Remote control, etc.)
-65
Appendix
Note
•This projector may not be able to display images from notebook computers in simultaneous (CRT/LCD)
mode. Should this occur, turn off the LCD display on the notebook computer and output the display data
in “CRT only” mode. Details on how to change display modes can be found in your notebook computer’s
operation manual.
•When this projector receives 640 × 350 VESA format VGA signals, “640 × 400” appears on the screen.
•When projecting the RGB interlace signal using COMPUTER/COMPONENT 1, 2 or DVI-D with “Signal Type”
set to “Auto” or “RGB”, the image may not be projected as desired. In this case, use either Video or S-Video.
•Depending on the computer you are using, the output signal may not be faithful to the “Screen resolution”
adjustment. Check the settings of the computer’s signal output. If the settings cannot be changed, it is recom-
mended that the resolution be set to the one that corresponds to “1280 × 800”.
Computer Compatibility Chart
•Multiple signal support
Horizontal Frequency: 15–110 kHz
Ver tical Frequency: 43–85 Hz
DTV
Computer
Pixel Clock: 12–170 MHz
Sync signal: Compatible with TTL level
•Compatible with sync on green signal
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
Mode Resolution VESA
Vertical Frequency
(Hz)
Analog RGB
Support
Digital RGB
Support
Horizontal Frequency
(kHz)
VGA
SVGA
XGA
WXGA
SXGA
SXGA+
UXGA
MAC 13"
MAC 16"
MAC 19"
MAC 21"
640 × 350
640 × 400
720 × 350
720 × 400
640 × 480
800 × 600
1024 × 768
1280 × 720
1280 × 768
1280 × 800
1360 × 768
1366 × 768
1152 × 864
1280 × 1024
1400 × 1050
1600 × 1200
640 × 480
832 × 624
1024 × 768
1152 × 870
27.0
31.5
37.9
27.0
31.5
37.9
27.0
31.5
27.0
31.5
37.9
26.2
31.5
34.7
37.9
37.5
43.3
31.3
35.2
37.9
46.6
48.1
46.9
53.7
40.3
48.4
56.5
60.0
68.7
45.0
47.8
49.7
62.8
47.7
47.8
55.0
66.2
67.5
64.0
80.0
64.0
65.3
75.0
34.9
49.7
60.2
68.7
60
70
85
60
70
85
60
70
60
70
85
50
60
70
72
75
85
50
56
60
70
72
75
85
50
60
70
75
85
60
60
60
75
60
60
60
70
75
60
75
60
60
60
67
75
75
75
15.7
31.5
33.8
15.6
31.3
37.5
45.0
28.1
33.8
56.3
67.5
480
I
480P
540P
576
I
576P
720P
720P
1080
I
1080
I
1080P
1080P
60
60
60
50
50
50
60
50
60
50
60
Signal Vertical Frequency (Hz) DVI SupportHorizontal Frequency (kHz)
✔
✔
✔
✔
✔
✔
✔
✔
The following is a list of modes that conform to VESA. However, this projector supports other signals
that are not VESA standards.
-66
Troubleshooting
Check
•Projector power cord is not plugged into the wall outlet.
•Power to the external connected devices is off.
•The selected input mode is wrong.
•The AV MUTE function is working.
•Cables incorrectly connected to the rear panel of the projector.
•Remote control batteries have run out.
•
External output has not been set when connecting notebook computer.
•The filter cover, lamp unit cover or lamp housing cover is not
installed correctly.
•If the connected DVI digital equipment is turned on before the
“DVI-D” input mode is selected on the projector, the image may
not be projected properly or may not be displayed at all. Ensure
that the appropriate input mode has been selected on the
projector before you turn on the connected equipment.
•Cables incorrectly connected to the rear panel of the projector.
•“Bright” is set to minimum position.
•Depending on the computer you are using, an image may not
be projected unless the signal output setting of the computer is
switched to the external output. Refer to the computer’s
operation manual for how to switch its signal output settings.
•Image adjustments are incorrectly set.
(Video, S-Video Input only)
•Video input system is incorrectly set.
(COMPUTER/COMPONENT 1, 2, DVI-D only)
•Input signal type (RGB/Component) is incorrectly set.
•Adjust the focus.
•The projection distance exceeds the focus range.
•There is fog on the lens. If the projector is carried from a cold
room into a warm room, or if it is suddenly heated,
condensation may form on the surface of the lens and the
image will become blurred. Please set up the projector at least
one hour before it is to be used. If condensation should form,
remove the power cord from the wall outlet and wait for it to
clear.
(Computer Input only)
•Perform “SIG-ADJ” Adjustments. (“Clock” Adjustment)
•Perform “SIG-ADJ” Adjustments. (“Phase” Adjustment)
•Noise may appear depending on the computer.
•Cables incorrectly connected to the rear panel of the projector.
•Volume is set to minimum.
•When the projector is connected to an external device and the
volume is set to minimum, the sound is not output even if you
turn up the volume of the external device.
•“Speaker” is set to “Off”.
•Make the necessary adjustments of each item in the “SIG-ADJ”
menu.
•Depending on the computer you are using, the output resolution
signal may be different from the one you have set. For details,
refer to the operation manual of the computer.
Problem
Data image is not
centered.
Page
30
—
34
34
23-29
15
23
60
24
23-29
45
—
45
48
47
33
19
—
47
47
—
23-29
34
51
47
—
No picture and no sound
or projector does not start.
Color is faded or poor.
Picture is blurred;
noise appears.
Sound is heard but no
picture appears.
Picture appears but no
sound is heard.
-67
Appendix
CheckProblem Page
An unusual sound is
occasionally heard
from the cabinet.
Maintenance
indicator illuminates or
blinks in red.
The projector cannot be
turned on or put into the
standby mode using the
STANDBY/ON button on
the projector.
Picture is green with
component input signals
(COMPUTER/
COMPONENT 1, 2, DVI-D)
.
Picture is pink (no green)
with RGB input signals
(COMPUTER/
COMPONENT 1, 2, DVI-D)
.
Picture is too bright and
whitish.
The black levels of the
image show banding or
appear faded when DVI-
D is selected.
The cooling fan
becomes noisy.
The lamp does not light
up even after the
projector turns on.
The lamp suddenly turns
off during projection.
The image sometimes
flickers.
The lamp takes a long
time to turn on.
Picture is dark.
The remote control
cannot be used.
•If the picture is normal, the sound is due to cabinet shrinkage
caused by room temperature changes. This will not affect
operation or performance.
•See “Maintenance Indicators”.
•The keylock is set.
If the keylock is set to ON, all the buttons are locked.
•Change the input signal type setting.
•Image adjustments are incorrectly set.
•Select the Dynamic Range setting (“Standard” or “Enhanced”)
that results in the best picture quality.
•When temperature inside the projector increases, the cooling
fan runs faster.
•The lamp indicator is illuminating in red.
Replace the lamp.
•Cables incorrectly connected to the projector or the connected
equipment works improperly.
•If this happens frequently, replace the lamp.
•The lamp will eventually need to be changed.
The lamp has reached the end of its life. Replace the lamp.
•Operate the remote control while pointing it at the projector’s
remote control sensor.
•The remote control may be too far away from the projector.
•If direct sunlight or a strong fluorescent light is shining on the
projector’s remote control sensor, place the projector where it
will not be affected by strong light.
•The batteries may be depleted or inserted incorrectly. Make
sure the batteries are inserted correctly or insert new ones.
—
59
53
47
45
48
—
59
23-29
62
62
15
15
This projector is equipped with a microprocessor. Its performance could be adversely affected by
incorrect operation or interference. If this should happen, unplug the projector and plug it in again
after more than 5 minutes.
-68
For SHARP Assistance
If you encounter any problems during setup or operation of this projector, first refer to the
“Troubleshooting” section on pages 66 and 67. If this operation manual does not answer
your question, please contact the SHARP Service departments listed below.
U.S.A. Sharp Electronics Corporation
1-888-GO-SHARP (1-888-467-4277)
lcdsupport@sharpsec.com
http://www.sharpusa.com
Canada Sharp Electronics of Canada Ltd.
(905) 568-7140
http://www.sharp.ca
Mexico Sharp Electronics Corporation Mexico
Branch
(525) 716-9000
http://www.sharp.com.mx
Latin America Sharp Electronics Corp. Latin American
Group
(305) 264-2277
www.servicio@sharpsec.com
http://www.siempresharp.com
Germany Sharp Electronics (Europe) GMBH
01805-234675
http://www.sharp.de
U.K. Sharp Electronics (U.K.) Ltd.
08705 274277
http://www.sharp.co.uk/customersupport
Italy Sharp Electronics (Italy) S.P.A.
(39) 02-89595-1
http://www.sharp.it
France Sharp Electronics France
01 49 90 35 40
hotlineced@sef.sharp-eu.com
http://www.sharp.fr
Spain Sharp Electronica Espana, S.A.
93 5819700
sharplcd@sees.sharp-eu.com
http://www.sharp.es
Switzerland Sharp Electronics (Schweiz) AG
0041 1 846 63 11
cattaneo@sez.sharp-eu.com
http://www.sharp.ch
Sweden Sharp Electronics ( Nordic ) AB
(46) 8 6343600
vision.support@sen.sharp-eu.com
http://www.sharp.se
Austria Sharp Electronics (Europe) GMBH
Branch Office Austria
0043 1 727 19 123
pogats@sea.sharp-eu.com
http://www.sharp.at
Benelux SHARP Electronics Benelux BV
0900-SHARPCE (0900-7427723)
Nederland
9900-0159 Belgium
http://www.sharp.nl
http://www.sharp.be
http://www.sharp.lu
Australia Sharp Corporation of Australia
Pty. Ltd.
1300-135-022
http://www.sharp.net.au
New Zealand Sharp Corporation of New Zealand
Phone: (09) 573-0111
Fax: (09) 573-0112
http://www.sharp.net.nz
Singapore Sharp-Roxy Sales (S) Pte. Ltd.
65-226-6556
ckng@srs.global.sharp.co.jp
http://www.sharp.com.sg
Hong Kong Sharp-Roxy (HK) Ltd.
(852) 2410-2623
dcmktg@srh.global.sharp.co.jp
http://www.sharp.com.hk
Taiwan Sharp Corporation (Taiwan)
0800-025111
http://www.sharp-scot.com.tw
Malaysia Sharp-Roxy Sales & Service Co.
(60) 3-5125678
U.A.E. Sharp Middle East Fze
971-4-81-5311
helpdesk@smef.global.sharp.co.jp
Thailand Sharp Thebnakorn Co. Ltd.
02-236-0170
svc@stcl.global.sharp.co.jp
http://www.sharp-th.com
Korea Sharp Electronics Incorporated of
Korea
(82) 2-3660-2002
lcd@sharp-korea.co.kr
http://www.sharpkorea.co.kr
India Sharp Business Systems (India)
Limited
(91) 11- 6431313
service@sharp-oa.com
-69
Appendix
Specifications
As a part of policy of continuous improvement, SHARP reserves the right to make design
and specification changes for product improvement without prior notice. The performance
specification figures indicated are nominal values of production units. There may be some
deviations from these values in individual units.
Model
Display devices
Resolution
Lens
Input terminals
Output terminals
Control and
communication
terminals
Speakers
Projection lamp
Rated voltage
Rated frequency
Input current
Power consumption (Standby)
Operation temperature
Cabinet
Dimensions (main body only) [W × H × D]
Weight (approx.)
F number
Zoom
Focus
DVI-D (Compatible with HDCP)
Computer/Component
(mini D-sub 15 pin)
S-Video (mini DIN 4 pin)
Video (RCA)
Audio (ø3.5 mm stereo minijack)
Audio (RCA)
Computer/Component
(mini D-sub 15 pin)
Audio (ø3.5 mm stereo minijack)
LAN (RJ-45)
USB (Type B)
RS-232C (mini DIN 9 pin)
Wired Remote
(ø3.5 mm stereo minijack)
XG-C455W/PG-C355W
0.74" LCD panel × 3
WXGA (1280 × 800)
F 1.7 – 1.9
Manual, ×1.2 (f = 28.0 – 33.6 mm)
Manual
×1
×2
×1
×1
×2
×2 (L/R)
×1
×1 (variable audio output)
×1
×1
×1
×1
2 W (Mono)
275 W
AC 100 – 240 V
50/60 Hz
3.6 A
360 W (3.4 W) with AC 100 V
345 W (4.4 W) with AC 240 V
41°F to 95°F (+5°C to +35°C)
Plastic
12
27
/
32
" × 4" × 11
1
/
64
"
(326 × 101.5 × 279.5 mm)
10.8 lbs. (4.9 kg)
-70
2D Progressive ......................................................... 46
3D Progressive ......................................................... 46
AC socket ................................................................. 30
Adjustment buttons ................................................... 43
All Reset ................................................................... 53
Area Zoom ................................................................ 38
Aspect ratio ......................................................... 37, 38
AUDIO input terminal ......................................... 23-26
Audio Output ............................................................. 51
AUDIO output terminal ............................................. 29
Auto V-Keystone ................................................. 32, 49
Auto Power Off ......................................................... 51
Auto Restart .............................................................. 51
Auto Sync (Auto Sync adjustment) .......................... 47
AUTO SYNC button .................................................. 35
AV MUTE button ....................................................... 34
Background ............................................................... 50
Blue ........................................................................... 45
Bright......................................................................... 45
Clock ......................................................................... 47
CLR Temp (Color Temperature) ............................... 45
Color ......................................................................... 45
COMPUTER/COMPONENT 1 input terminal .... 23, 25
COMPUTER/COMPONENT 2 input terminal .... 23, 25
Contrast .................................................................... 45
DHCP Client ............................................................. 55
DIN-D-sub RS-232C adaptor ................................... 27
DNR .......................................................................... 46
Dot By Dot ................................................................ 37
Dynamic Range ........................................................ 48
DVI-D input terminal ........................................... 24, 25
ECO+QUIET button .................................................. 35
Eco+Quiet Mode ....................................................... 46
ENTER button........................................................... 44
Exhaust vent ....................................................... 13, 56
Fan Mode .................................................................. 52
Film Mode ................................................................. 46
FREEZE button ........................................................ 35
Full ............................................................................ 37
Game ........................................................................ 45
Gateway .................................................................... 55
Height Adjustment button ......................................... 31
H-Pos ........................................................................ 47
Image Shift................................................................ 49
INPUT buttons .......................................................... 34
Intake vent .......................................................... 13, 56
IP Address ................................................................ 55
Kensington Security Standard connector ................ 13
Keycode .................................................................... 52
Keylock ..................................................................... 53
KEYSTONE button ................................................... 32
Keystone Correction ........................................... 32, 49
Lamp ......................................................................... 61
Lamp indicator .................................................... 30, 59
Lamp Timer (Life) ..................................................... 53
LAN terminal ............................................................. 28
Language (on-screen display language).................. 50
LAN/RS232C ............................................................ 51
L-CLICK button ......................................................... 39
Lens cap ................................................................... 12
Lens cap strap .......................................................... 10
MAC Address ............................................................ 55
MAGNIFY buttons .................................................... 36
MENU button ............................................................ 43
Index
Menu Position ........................................................... 50
MNR .......................................................................... 46
Monitor Output .......................................................... 51
MONITOR output terminal ........................................ 28
MOUSE/Adjustment buttons .............................. 39, 43
Movie ........................................................................ 45
Network ...............................................................42, 54
Normal ................................................................37, 38
ON button ................................................................. 30
Optional accessories ................................................ 10
OSD Display ............................................................. 50
PAGE Up/Down buttons ........................................... 39
Password .................................................................. 54
PDF ............................................................................. 6
Phase ........................................................................ 47
Picture .................................................................40, 45
Picture Mode............................................................. 45
PICTURE MODE button ........................................... 36
Power cord ................................................................ 30
Power indicator ................................................... 30, 59
Presentation.............................................................. 45
PRJ-ADJ .............................................................42, 51
PRJ mode ................................................................. 50
Progressive ............................................................... 46
Projector ................................................................... 55
R-CLICK/RETURN button .................................. 39, 43
Red ........................................................................... 45
Remote control ......................................................... 14
Remote control sensor ............................................. 15
Remote receiver ....................................................... 39
Replacing the lamp ................................................... 61
Reset ......................................................................... 45
Resize ....................................................................... 49
RESIZE button .......................................................... 37
Resolution ................................................................. 47
RGB cable ................................................................ 23
RS-232C ................................................................... 52
RS-232C terminal ..................................................... 27
SCR-ADJ ............................................................ 41, 49
Sharp ........................................................................ 45
SIG-ADJ .............................................................. 41, 47
Signal Info ................................................................. 48
Signal Type ............................................................... 47
Speaker .................................................................... 51
sRGB ........................................................................ 45
Standard ................................................................... 45
STANDBY button ...................................................... 30
Storage case............................................................. 64
Stretch ................................................................37, 38
Subnet Mask ............................................................. 55
Supplied accessories ............................................... 10
S-VIDEO input terminal ............................................ 26
System Lock ............................................................. 52
System Sound .......................................................... 51
TCP/IP ...................................................................... 55
Temperature warning indicator ................................. 59
Tilt dial ....................................................................... 31
Tint ............................................................................ 45
USB terminal............................................................. 39
VIDEO input terminal ................................................ 26
Video System ............................................................ 48
Volume buttons ......................................................... 34
V-Pos ........................................................................ 47
V-Stretch ................................................................... 38
WIRED REMOTE terminal ....................................... 14
SHARP CORPORATION

Navigation menu
