Shen Zhen MTC WR3011 300M wireless router User Manual x
Shen Zhen MTC Co., LTD 300M wireless router x
Users Manual
1
WR3011
300Mbps Wireless Router
User Guide
2
Copyright statement
Is the registered trademark of Shenzhen MTC Co., LTD. All the products and product
names mentioned herein are the trademarks or registered trademarks of their respective holders.
Copyright of the whole product as integration, including its accessories and software, belongs to
Shenzhen MTC Co., LTD. No part of this publication can be reproduced, transmitted, transcribed,
stored in a retrieval system, or translated into any language in any form or by any means without
the prior written permission of Shenzhen MTC Co., LTD. If you would like to know more about our
product information, please visit our website at http://www.szMTC.com.cn
Disclaimer
Pictures, images and product specifications herein are for references only. To improve internal
design, operational function, and/or reliability, MTC reserves the right to make changes to the
products described in this document without obligation to notify any person or organization of such
revisions or changes. MTC does not assume any liability that may occur due to the use or
application of the product or circuit layout(s) described herein. Every effort has been made in the
preparation of this document to ensure accuracy of the contents, but all statements, information
and recommendations in this document do not constitute the warranty of any kind, express or
implied.
3
ImportantSafetyInstructions
1. Do not open this product or attempt to service it; it may expose you to dangerous high voltage or
other risks.
2. Do not operate this product near water.
3. Do not place or operate this product near a radiator or a heat register.
4. Do not expose this product to dampness, dust or corrosive liquids.
5. Do not connect this product or disconnect it from a wall socket during a lightning or a
thunderstorm.
6. Do not block the ventilation slots of this product, for insufficient airflow may harm it.
7. Do not put anything on this product.
8. Plug this product directly into a wall socket (100-240V~, 50/60Hz). Do not use an extension cord
between this product and the AC power source.
9. When plugging this product into a wall socket, make sure that the electrical socket is not
damaged, and that there is no gas leakage.
10. Place the connecting cables properly so that people won’t stumble or walk on it.
11. This product should be operated from the type of power indicated on the marking label. If you
are not sure of the type of power available, consult the qualified technician.
12. Unplug this product from the mains and refer the product to qualified service personnel for the
following conditions:
1) If liquid has been spilled on the product.
2) If the product has been exposed to rain or water.
13. Unplug this product from the wall socket before cleaning. Use a damp cloth for cleaning. Do
not use liquid cleaners or aerosol cleaners.
14. The specification of the fuse is for WR3011 to avoid damage, please do not change the fuse.
15. The Operating temperature is 0ć~40ć (32̧~104̧). The Storage temperature is
-40ć~70ć (-40̧~158̧).
4
Preface
Thank you for choosing MTC! Please read this user guide before you start! This user guide
instructs you to install and configure your device. This user guide applies to PW500X, The
WR3011 is used as an example throughout this user guide.
Thisuserguideusesthefollowingformatstohighlightspecialmessages:
ICONDescription
Note
This format is used to highlight information of
importance or special interest. Ignoring this type
of note may result in ineffective configurations,
loss of data or damage to device.
Tip
This format is used to highlight a procedure that
will save time or resources.
Knowledge ExpansionDescription of fields on the device GUI.
5
Contents
ImportantSafetyInstructions..........................................................................................................................3
Preface...........................................................................................................................................................4
Contents..........................................................................................................................................................5
Chapter1Introduction....................................................................................................................................7
1.1ProductOverview..............................................................................................................................7
1.2ProductFeature.................................................................................................................................7
Chapter2ConnectingMechanism..................................................................................................................8
2.1Appearance.......................................................................................................................................8
2.1.1Theproductsfrontpanel........................................................................................................8
2.1.2Theproductrearpanel
...........................................................................................................9
2.2SystemRequirement.........................................................................................................................9
2.3ConnectionInstruction....................................................................................................................10
2.3.1GettingPrepared..................................................................................................................10
2.3.2InstallmentEnvironment......................................................................................................11
Chapter3ConfiguringtheDeviceManually.................................................................................................16

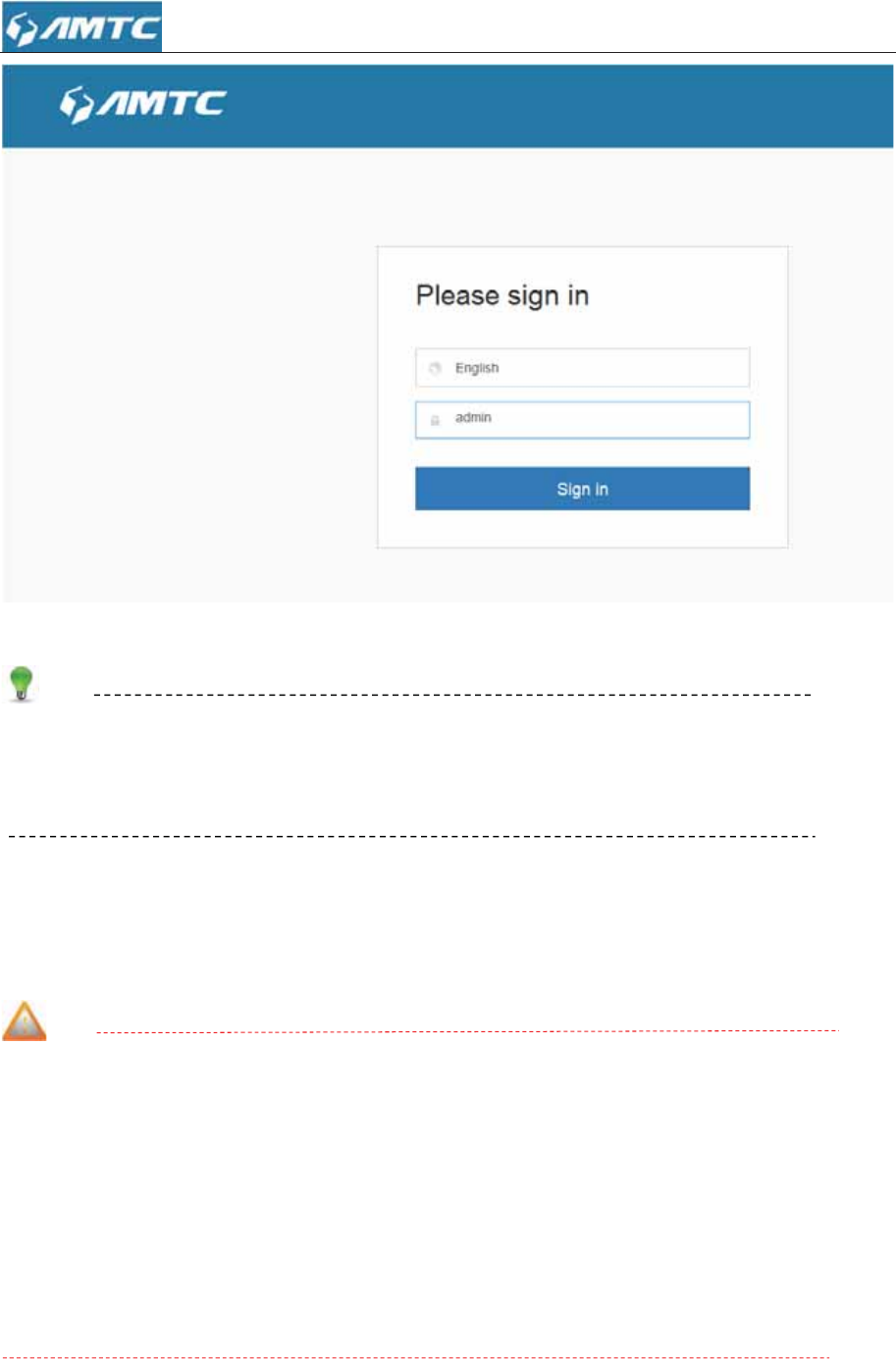

3.1LogintheRouter.............................................................................................................................16

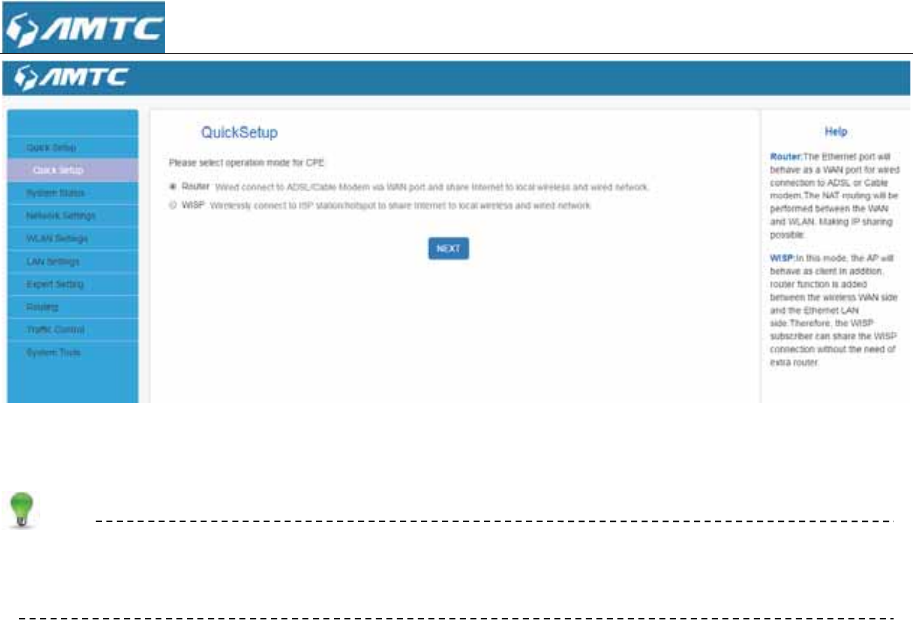

3.2QuickSetup.....................................................................................................................................20
3.3SystemStatus..................................................................................................................................22

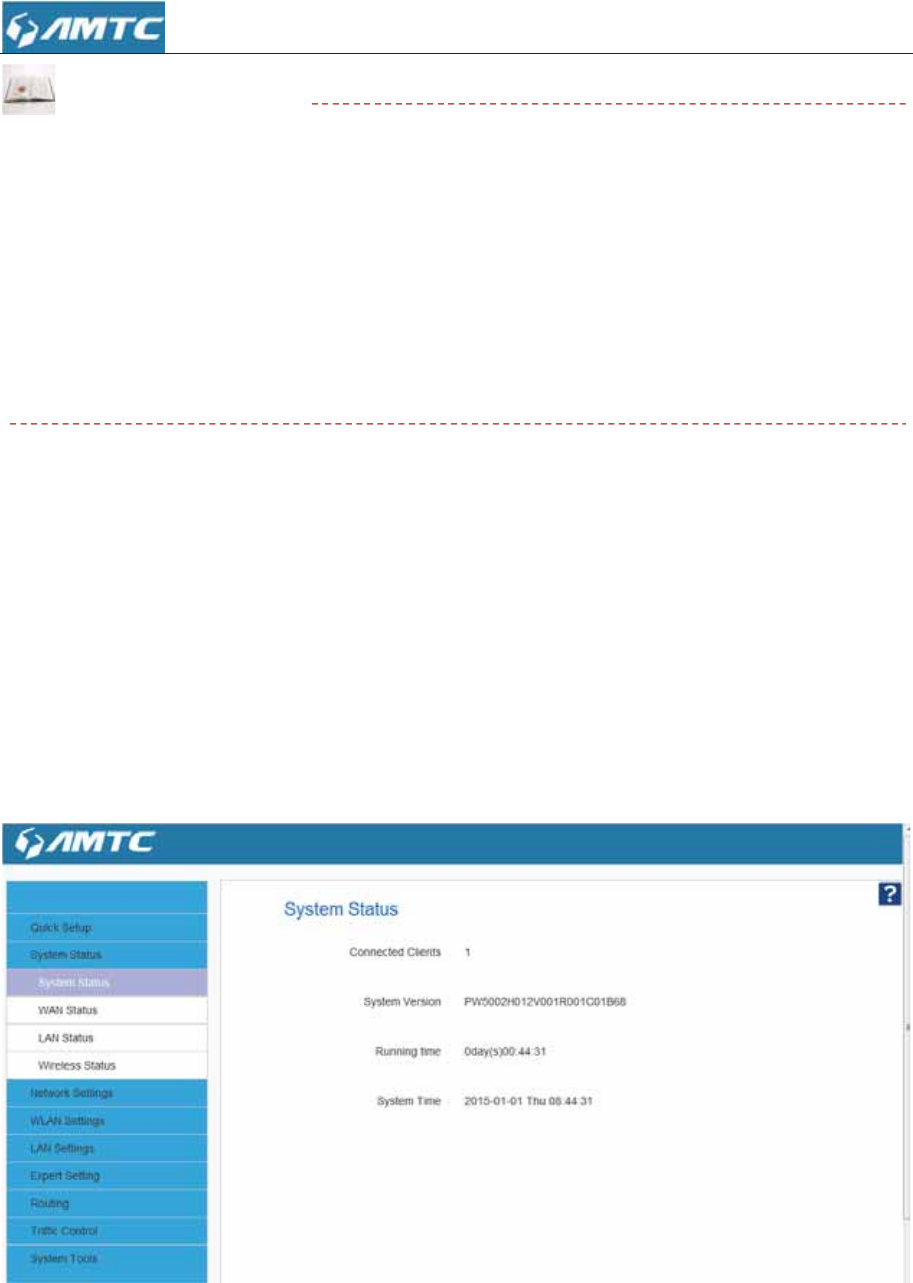

3.3.1SystemStatus.......................................................................................................................22

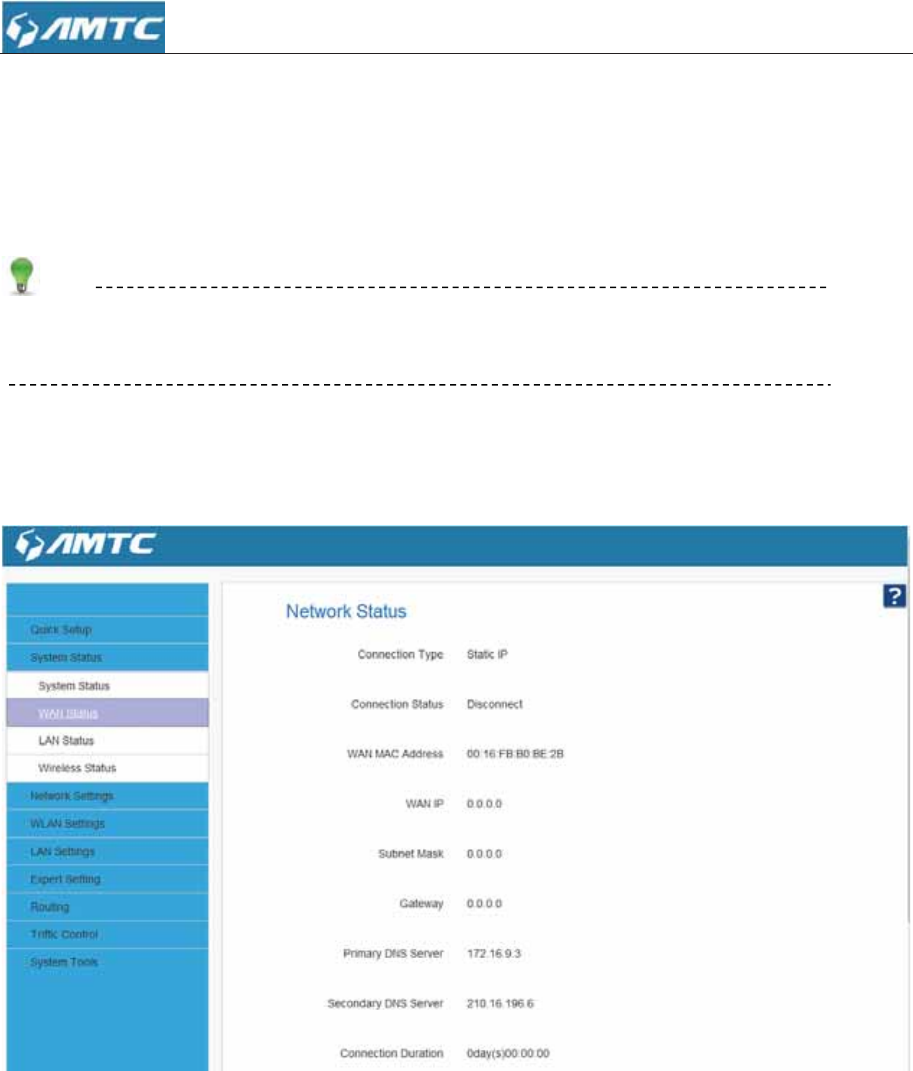

3.3.2WANStatus...........................................................................................................................23

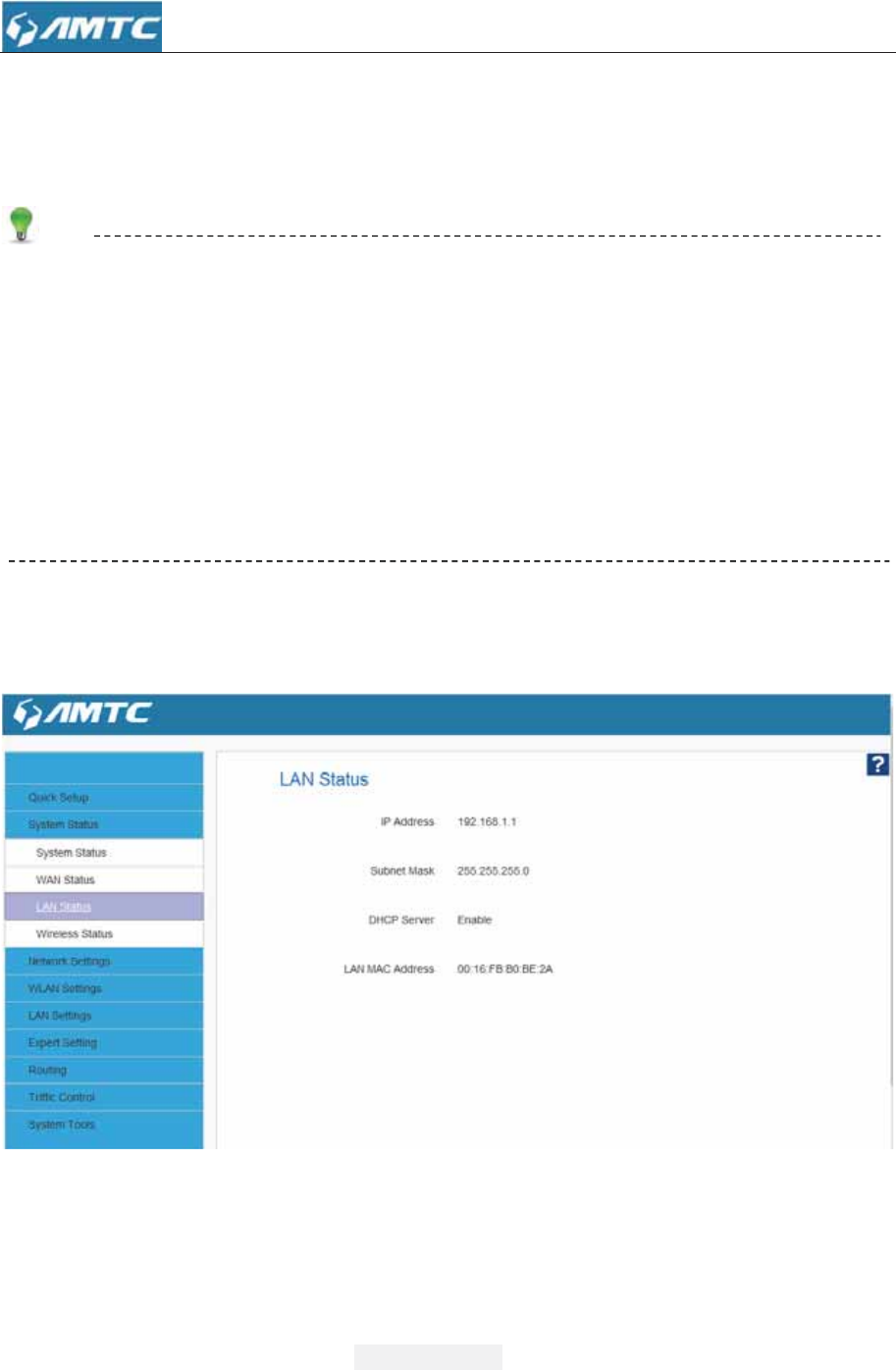

3.3.3LANStatus............................................................................................................................24

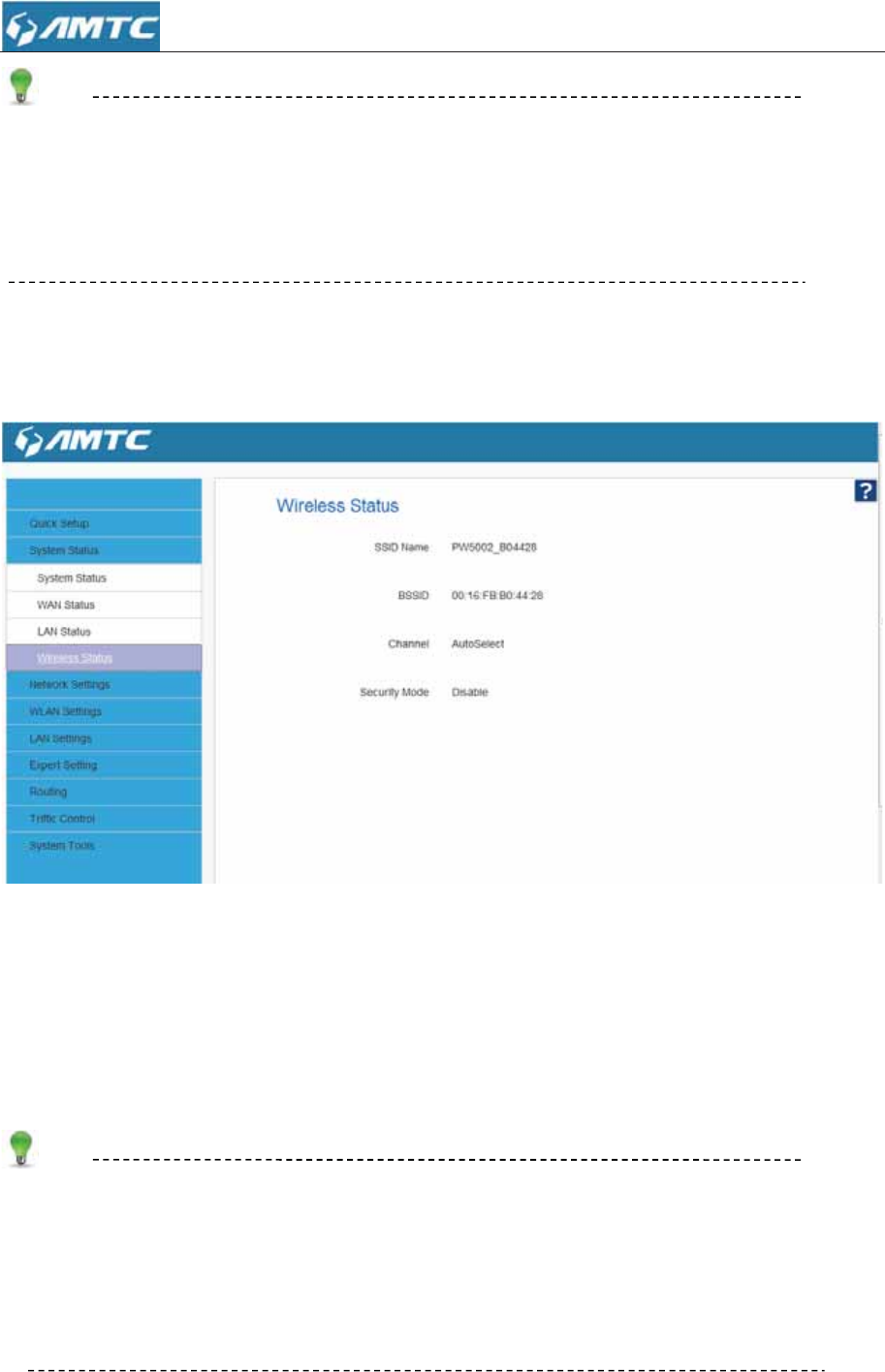

3.3.4WirelessStatus.....................................................................................................................25
3.4NetworkSettings.............................................................................................................................26

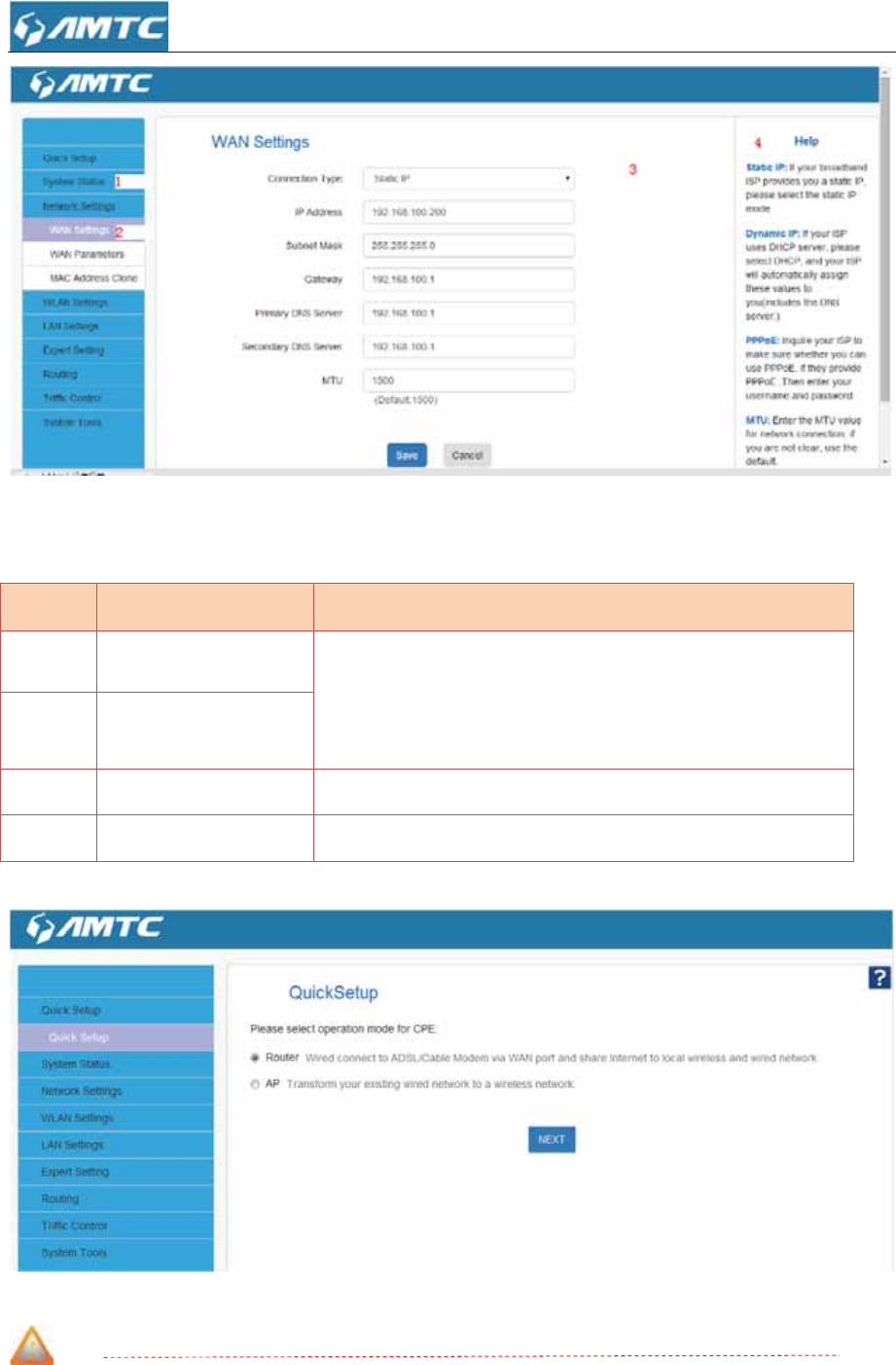

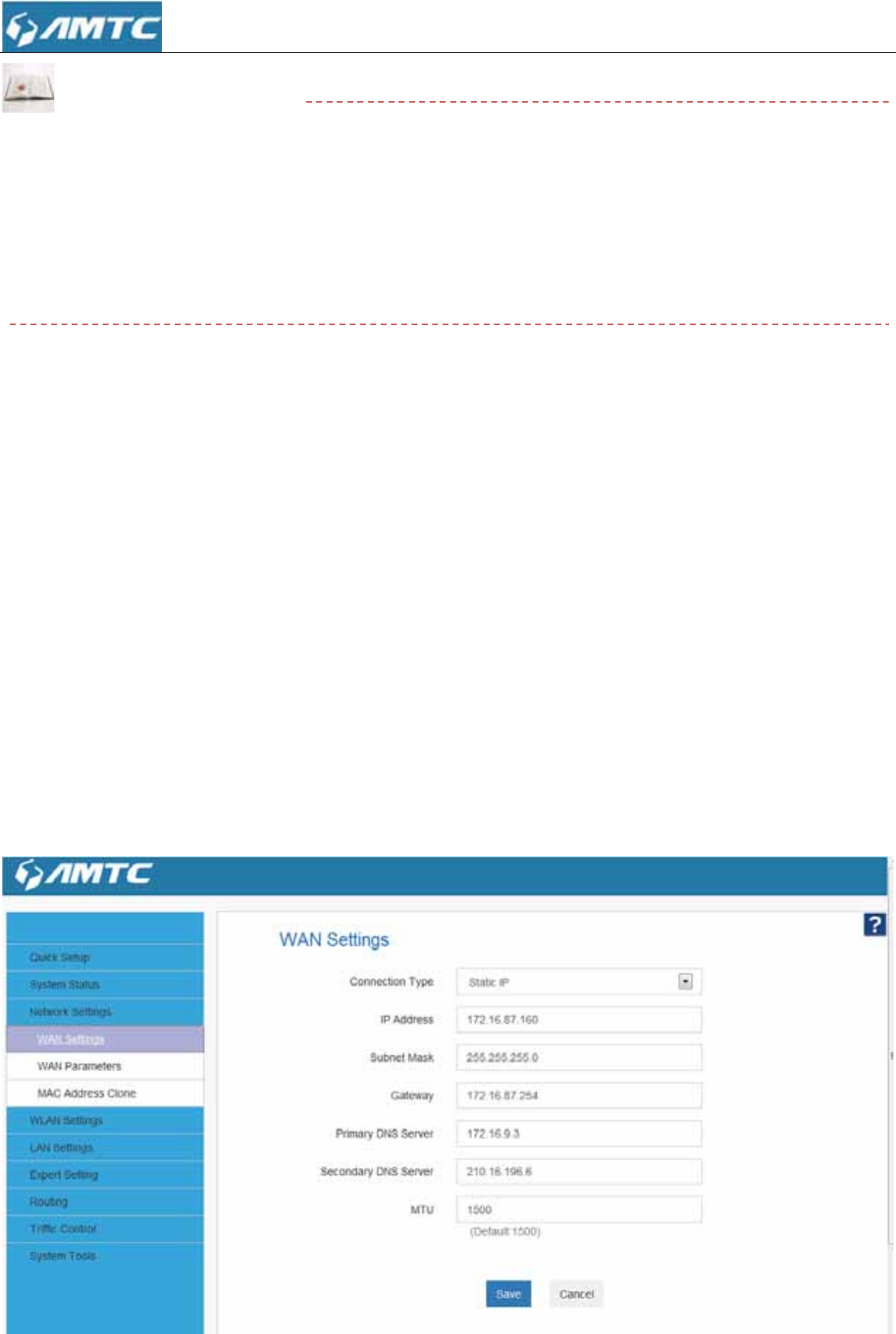

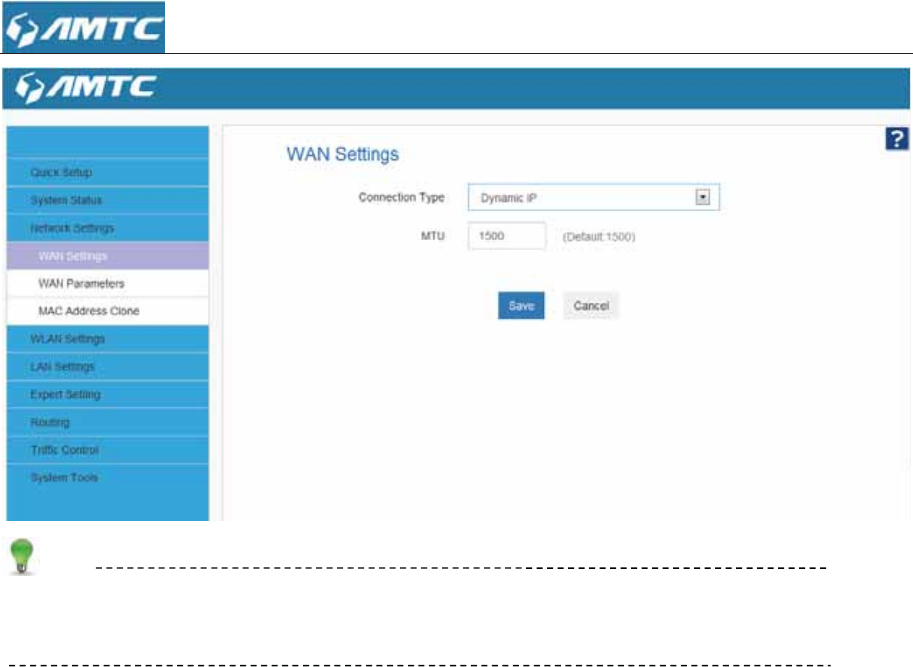

3.4.1WANSettings........................................................................................................................26

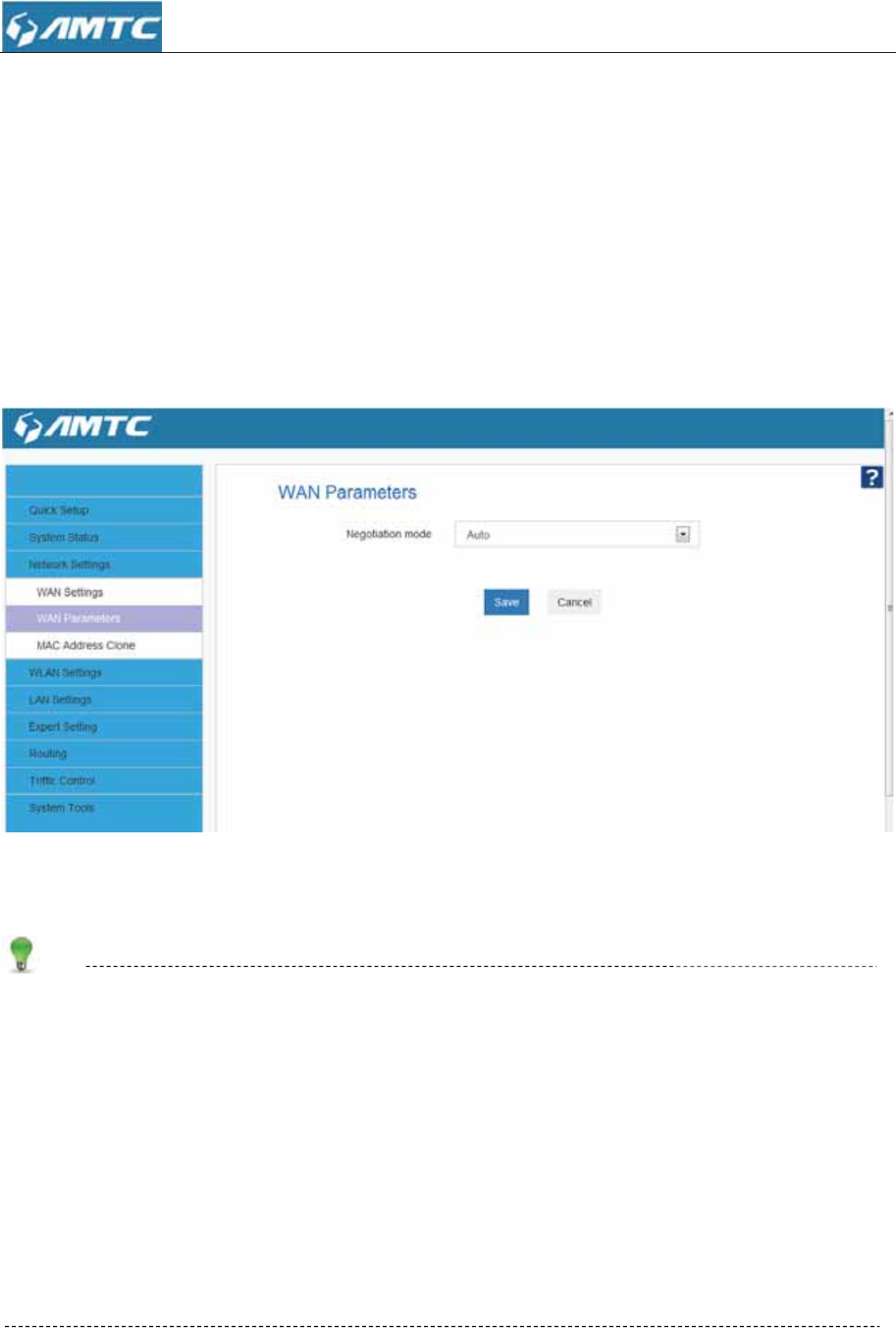

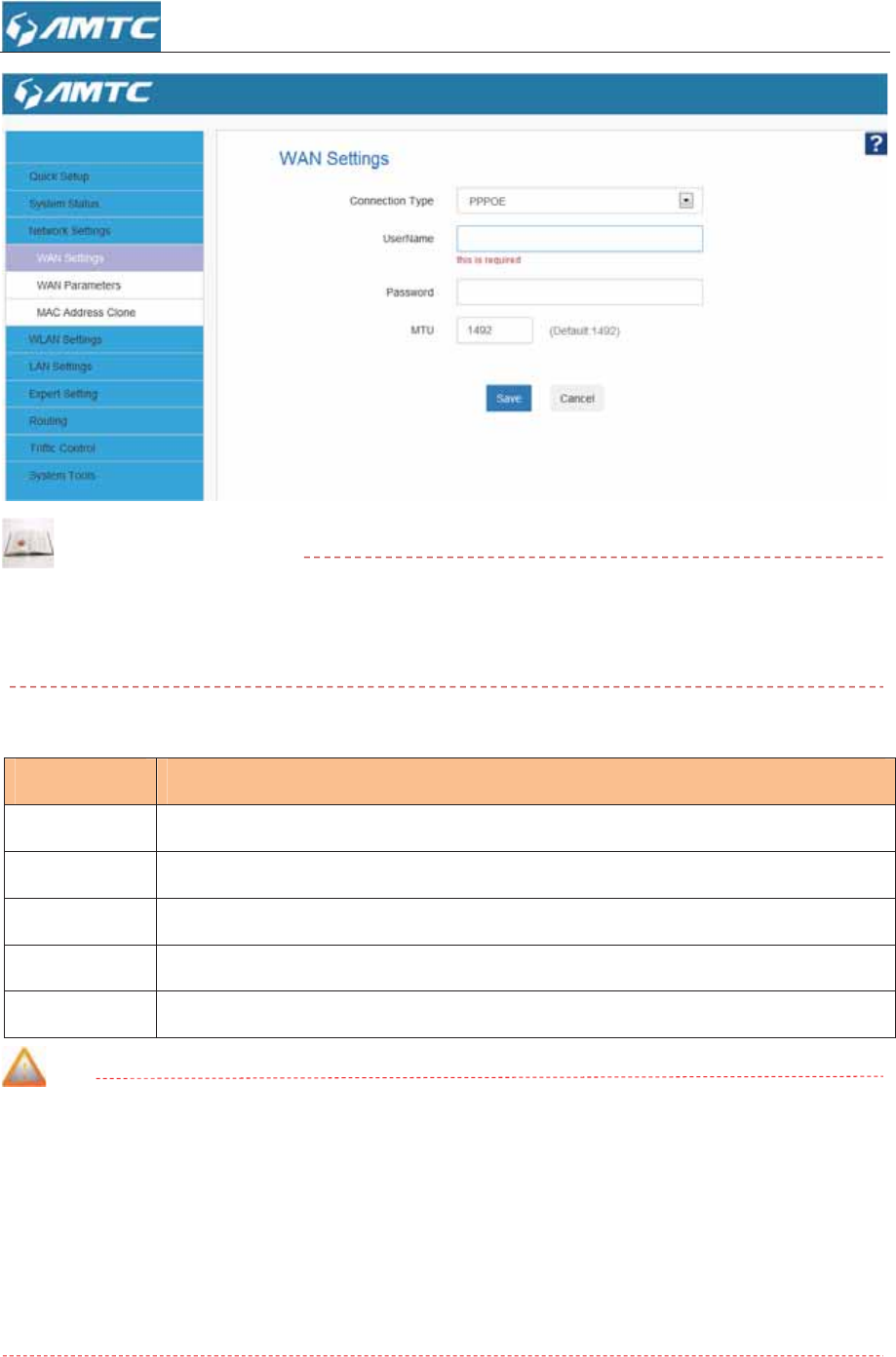

3.4.2WANParameters..................................................................................................................31

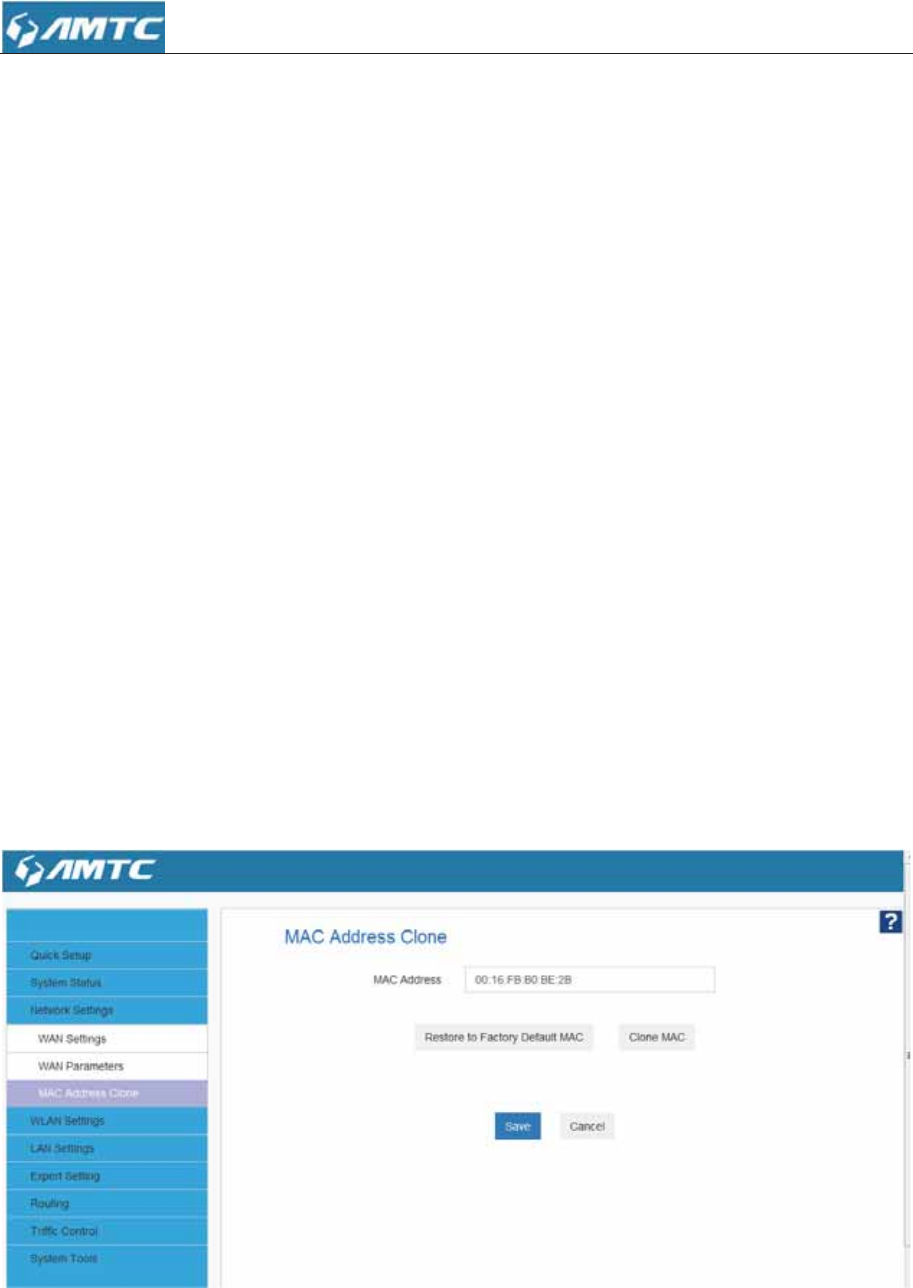

3.4.3MACAddressClone..............................................................................................................32
3.5WLANSettings.................................................................................................................................33

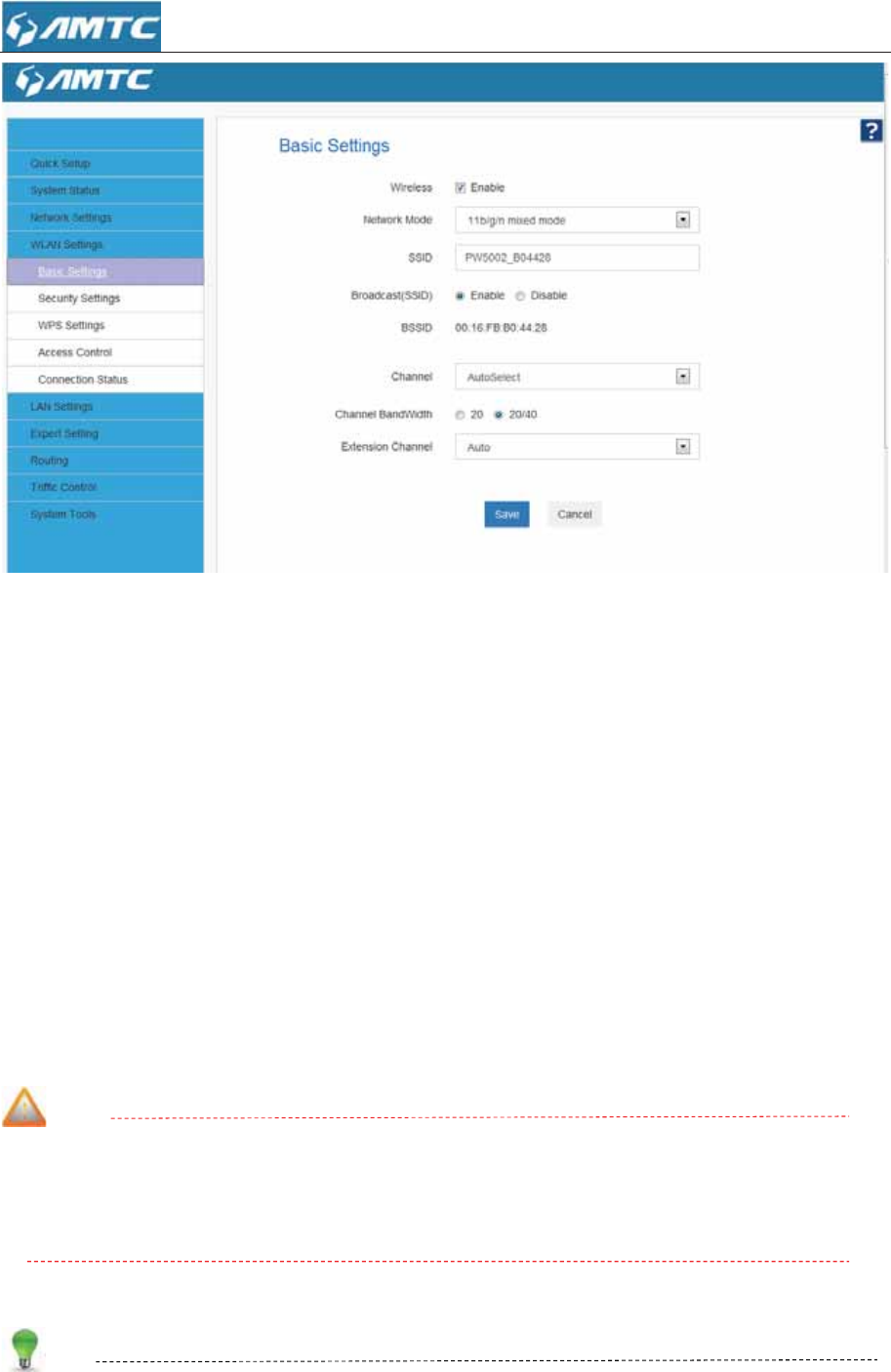

3.5.1BasicSetting.........................................................................................................................33

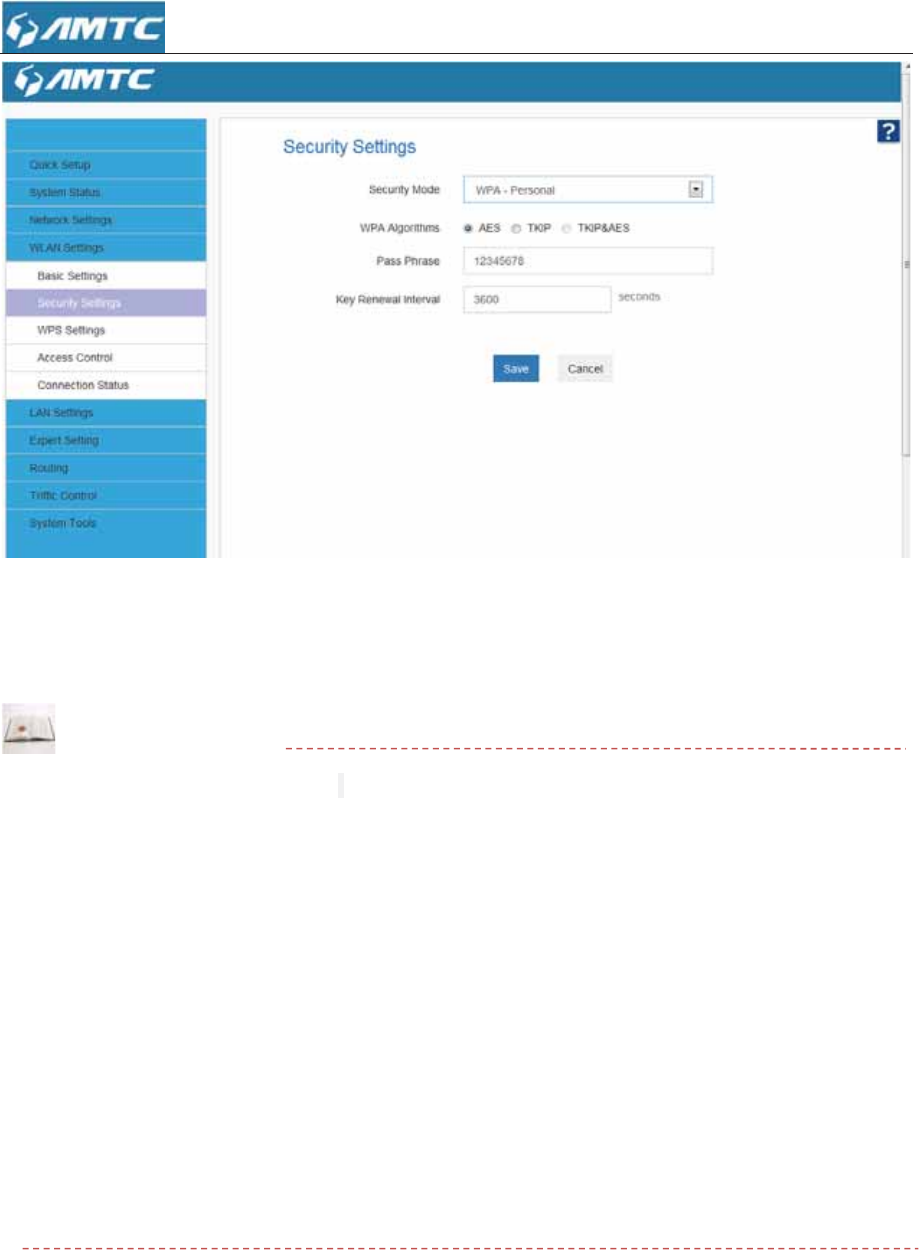

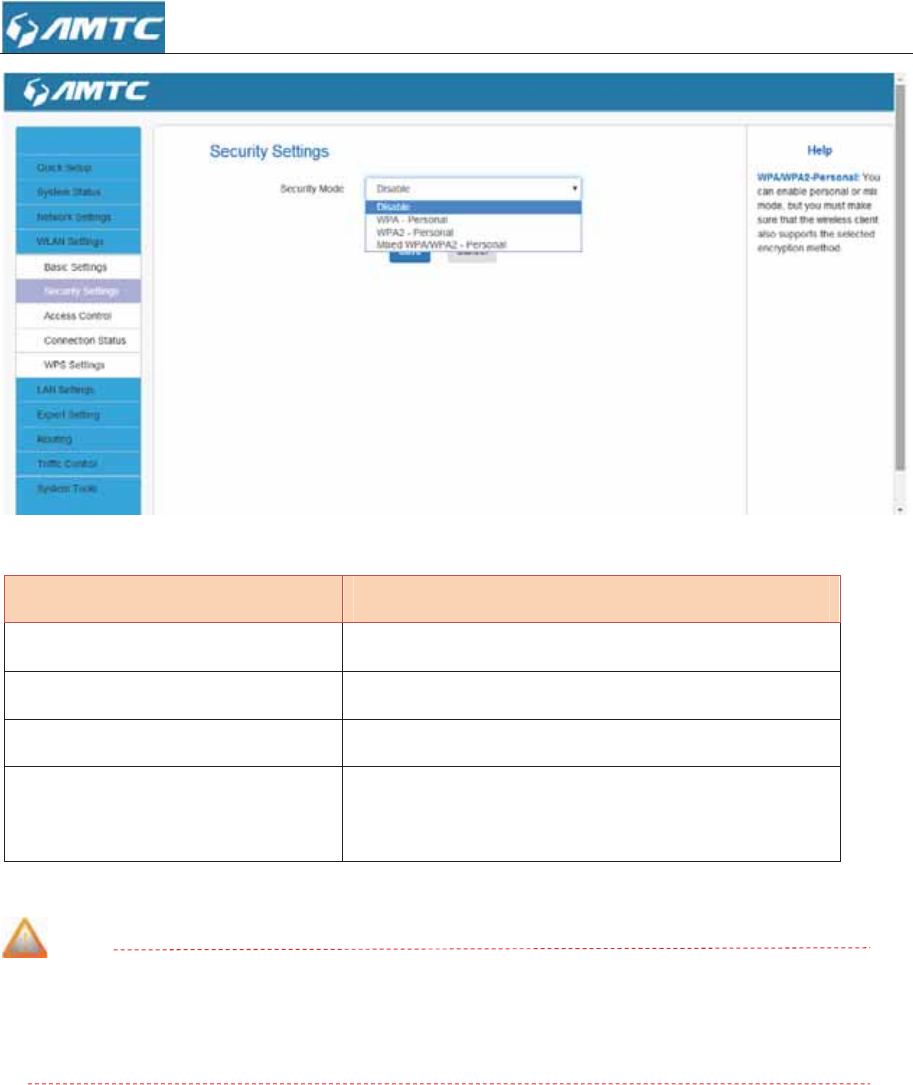

3.5.2SecuritySettings...................................................................................................................35

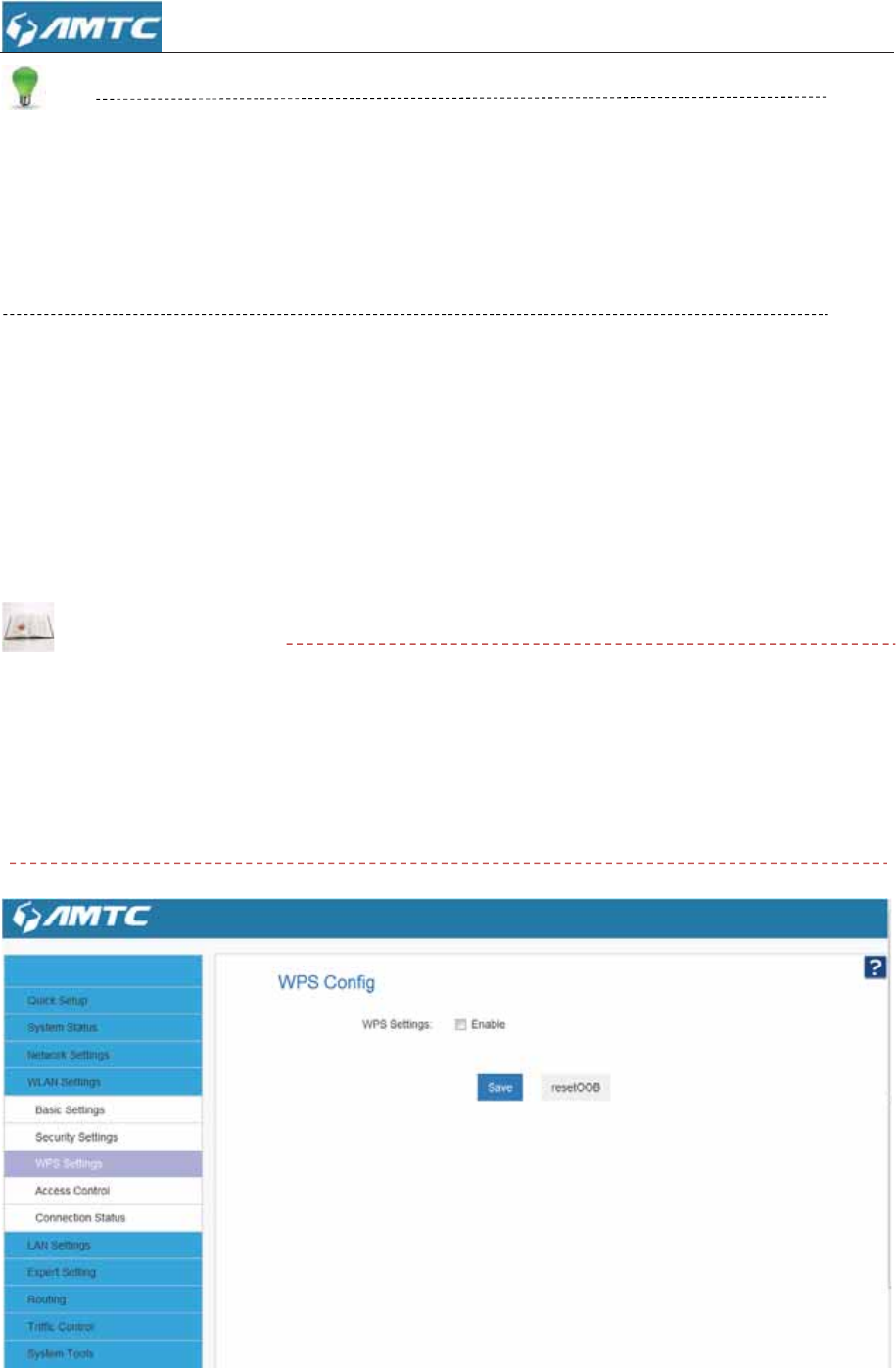

3.5.3WPSSettings.........................................................................................................................38

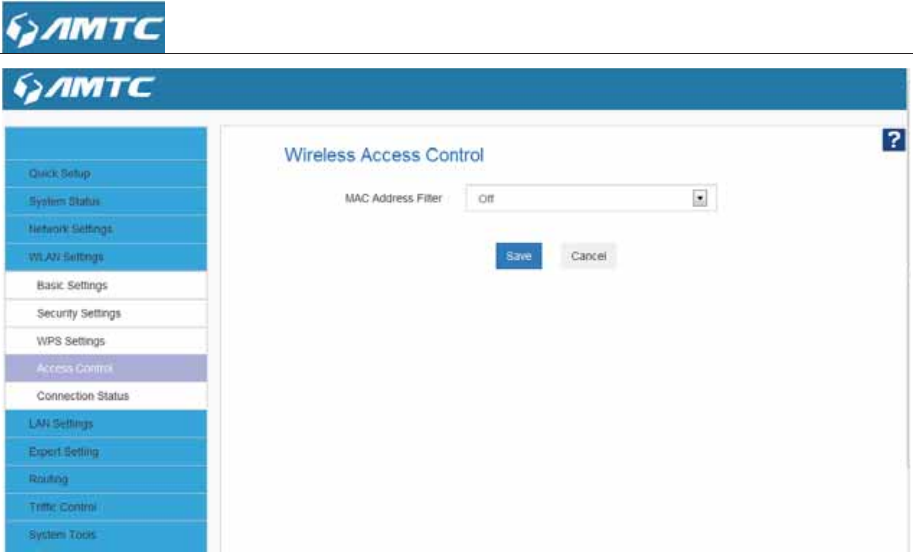

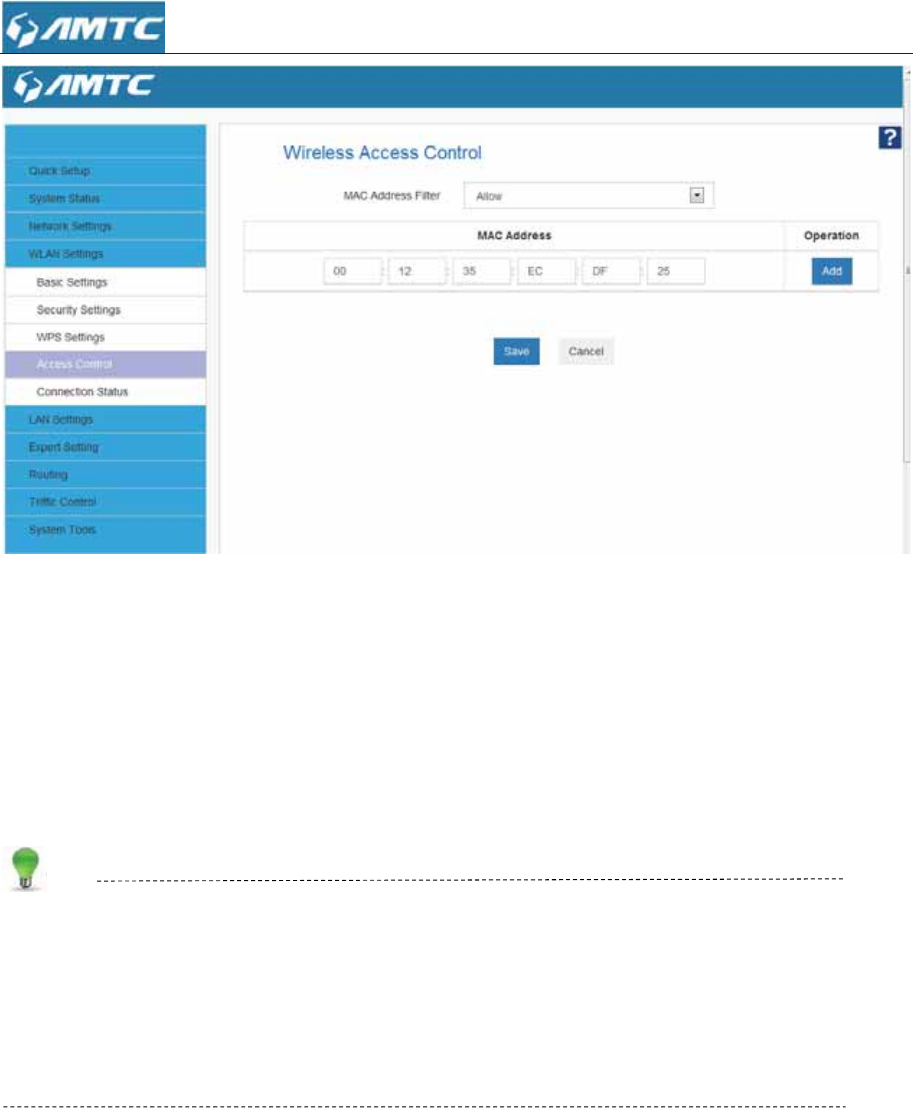

3.5.4AccessControl......................................................................................................................39

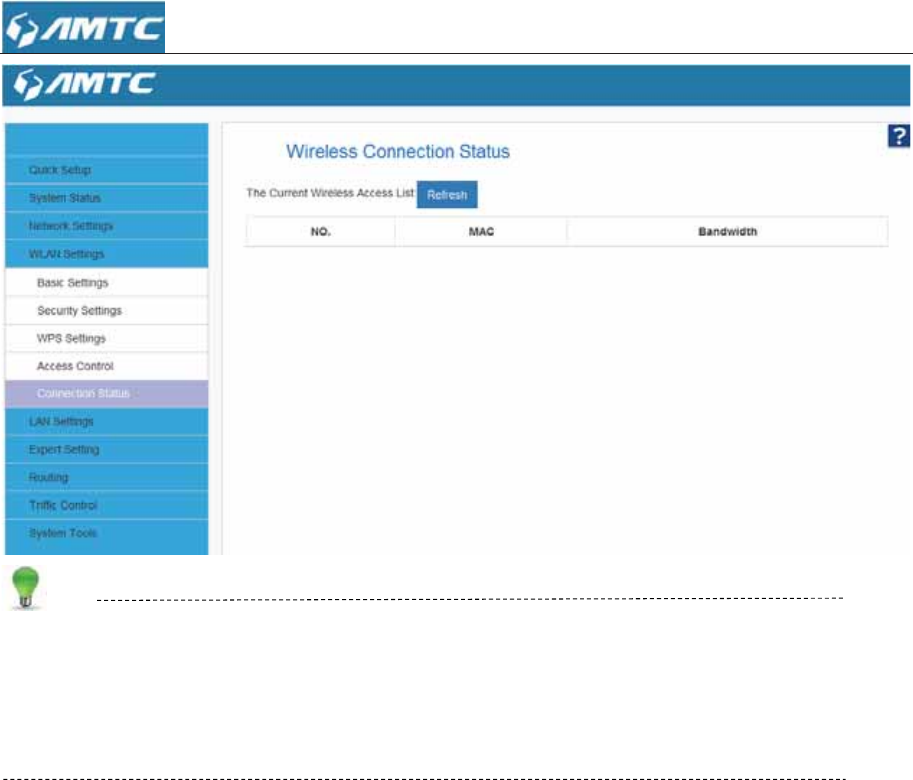

3.5.5ConnectionStatus................................................................................................................41
3.6LANSettings....................................................................................................................................42

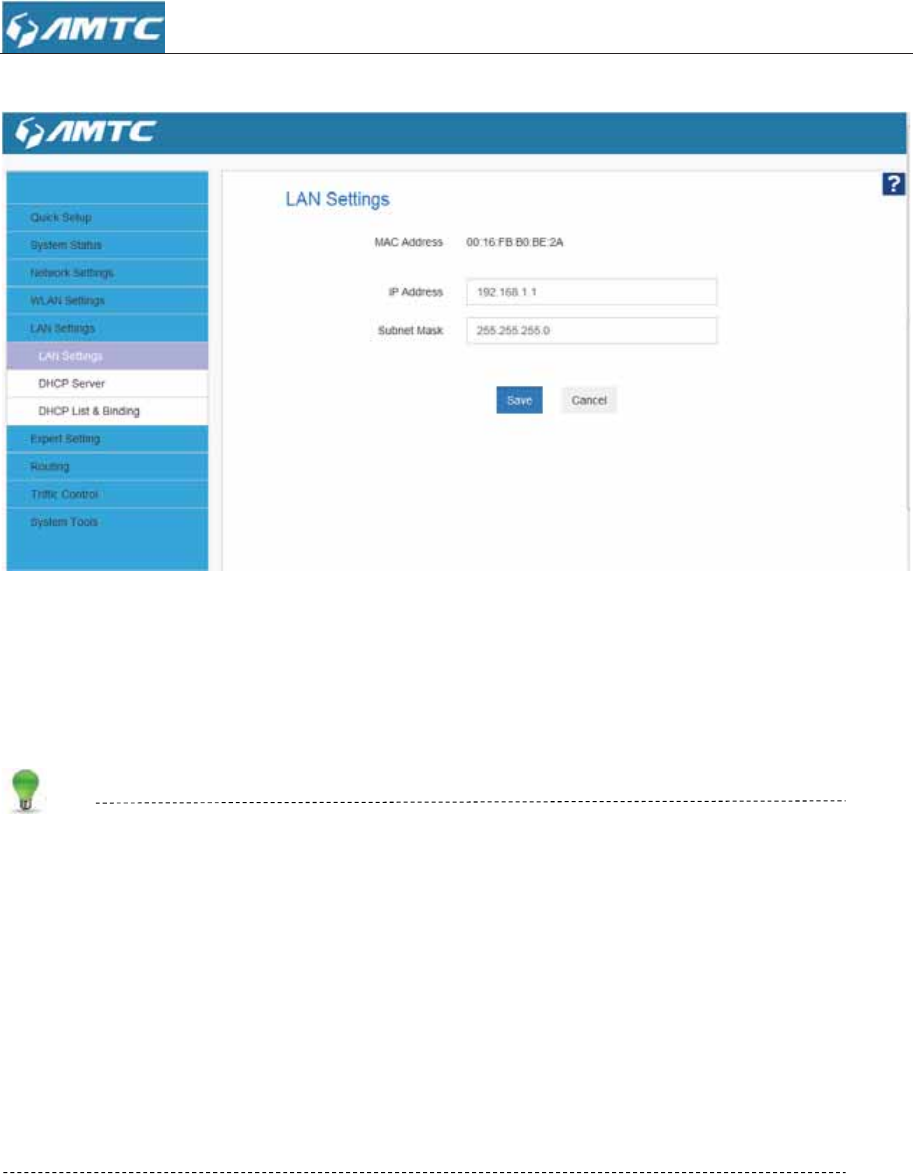

3.6.1LANSettings..........................................................................................................................42

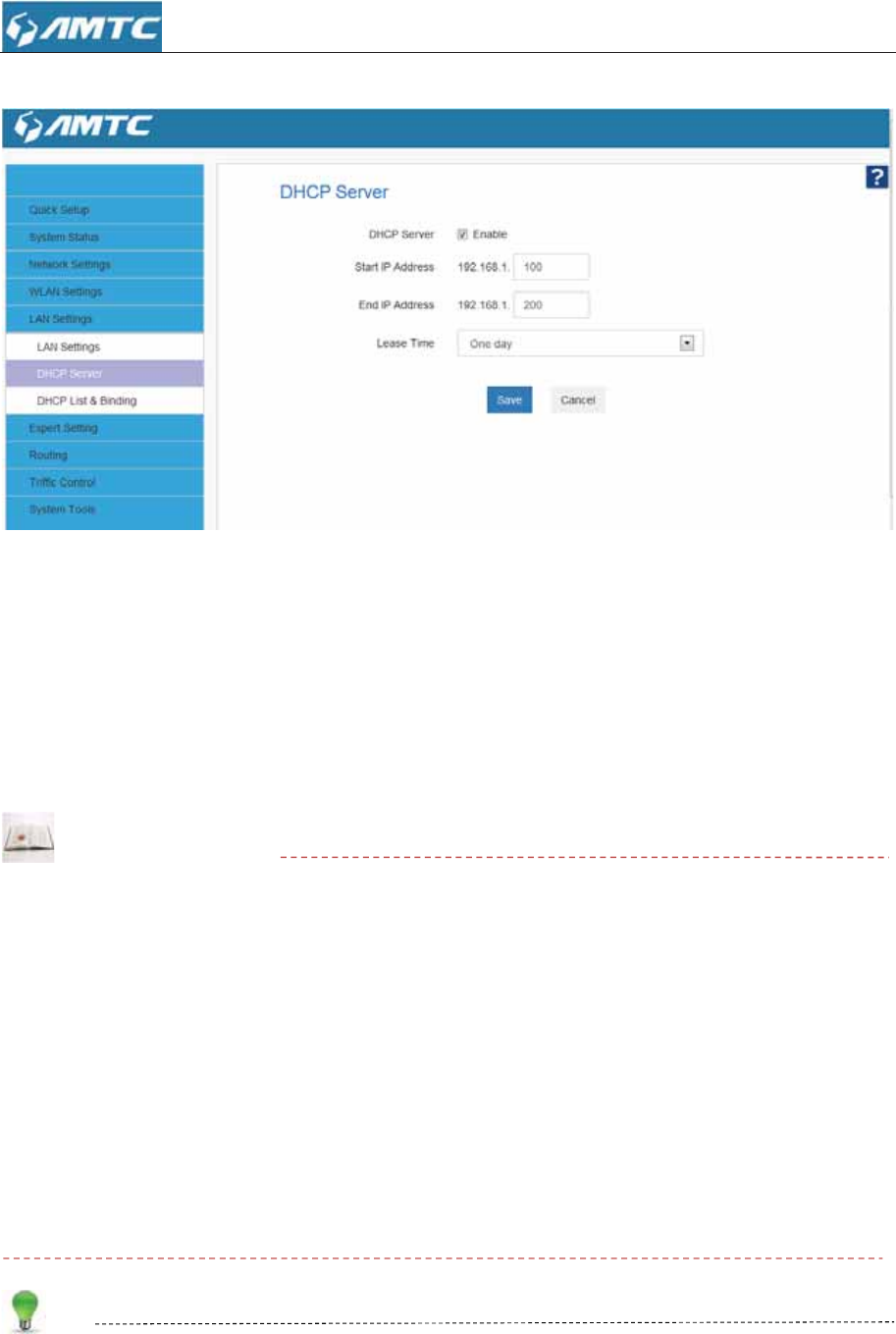

3.6.2DHCPServer..........................................................................................................................43

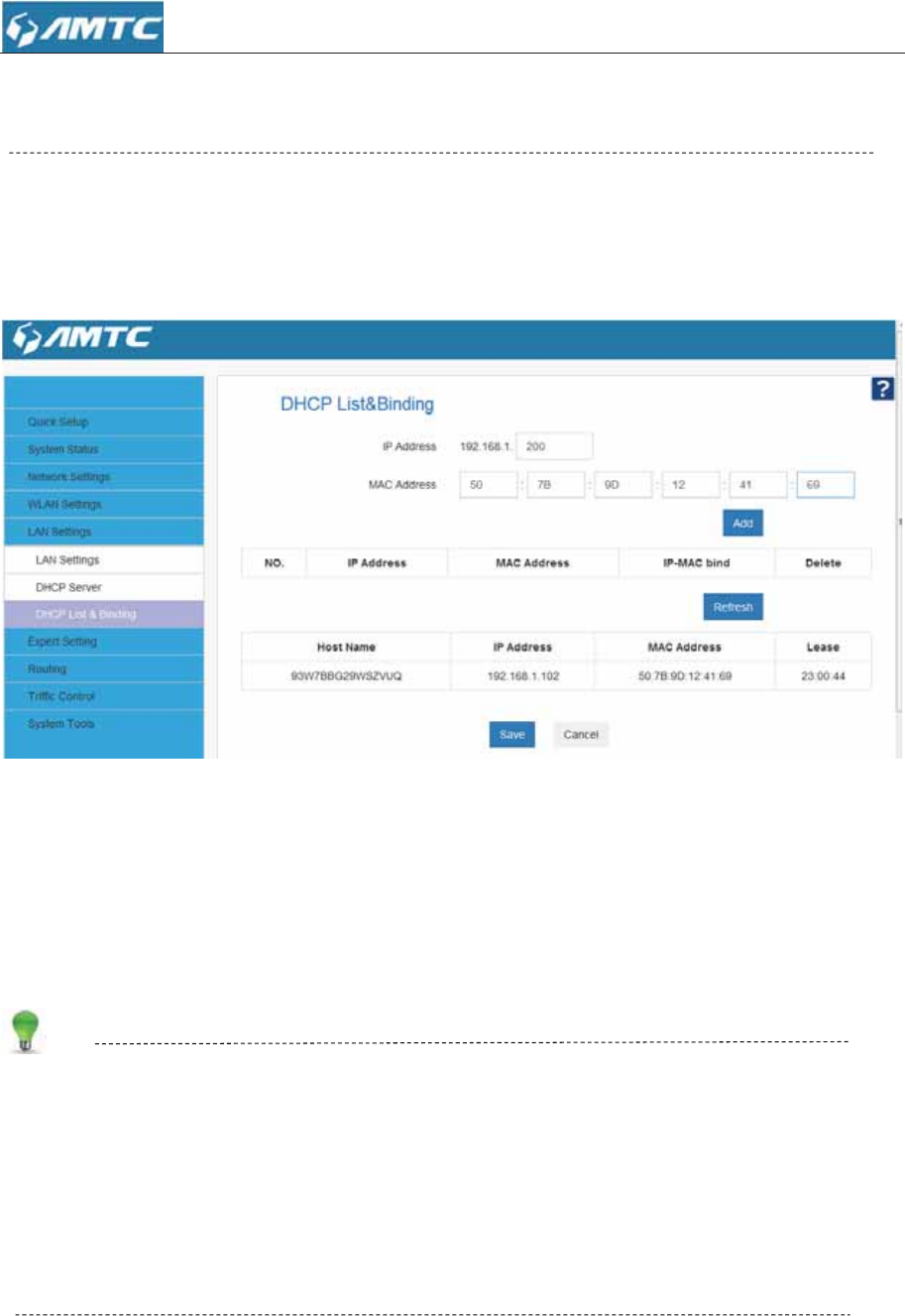

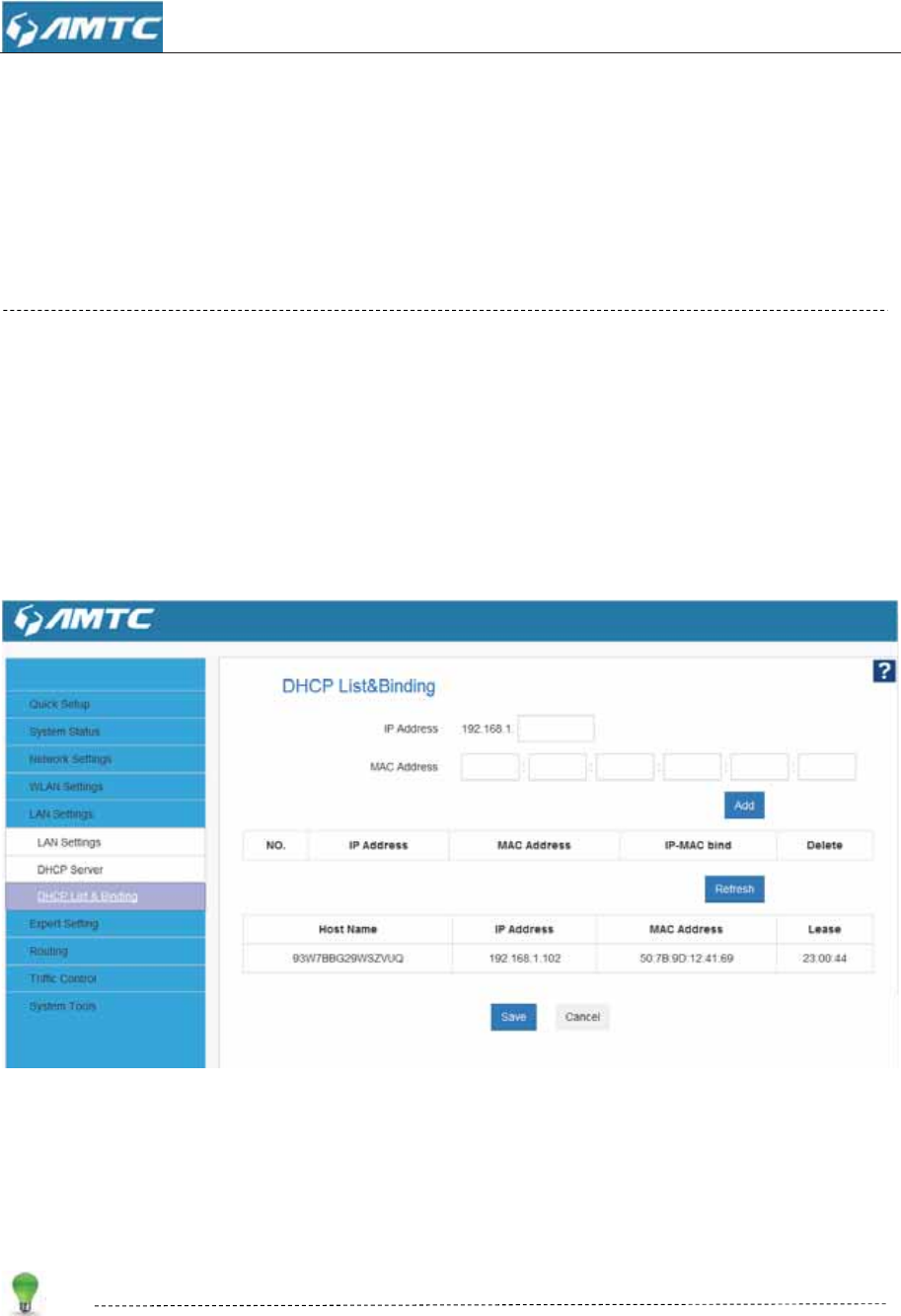

3.6.3DHCPList&Binding..............................................................................................................45
3.7ExpertSettings.................................................................................................................................47

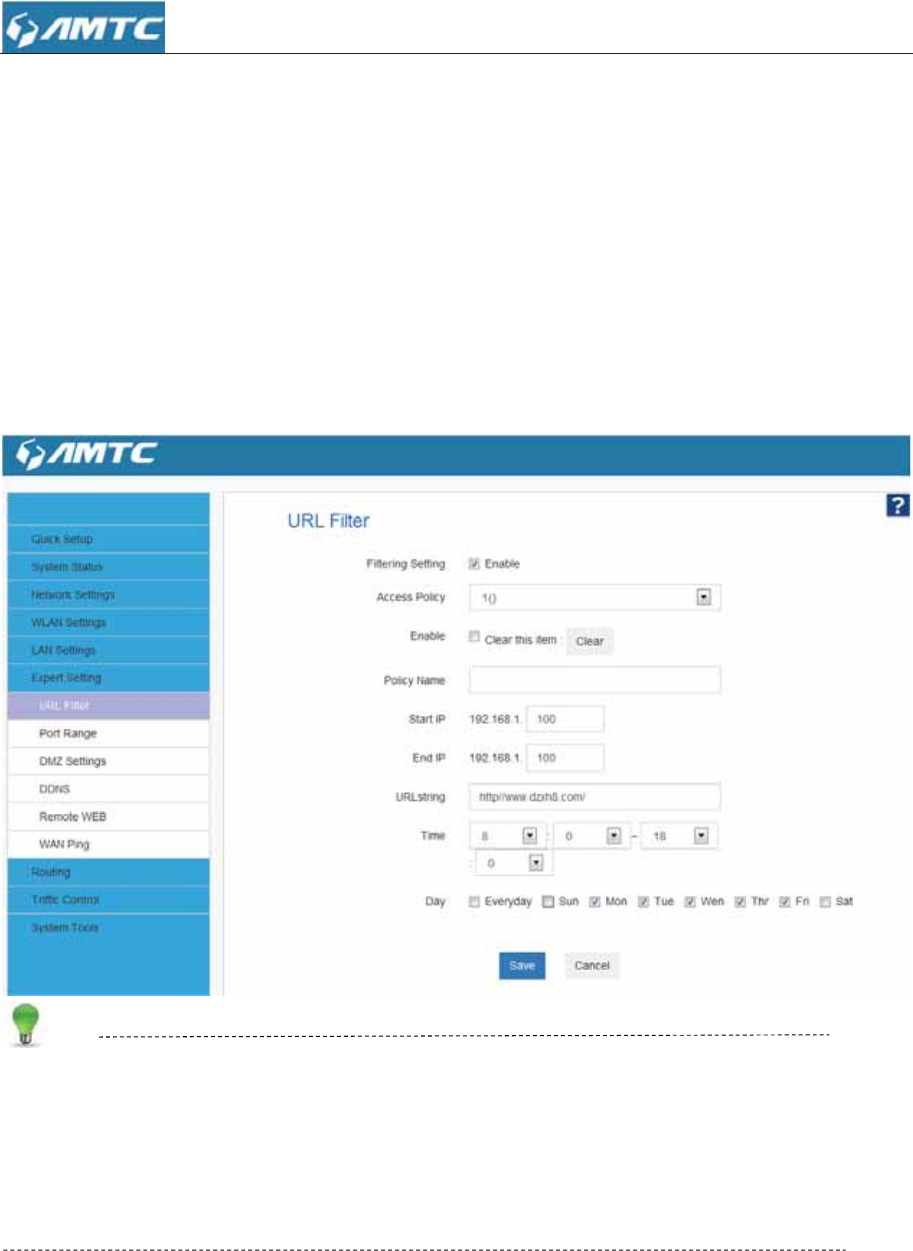

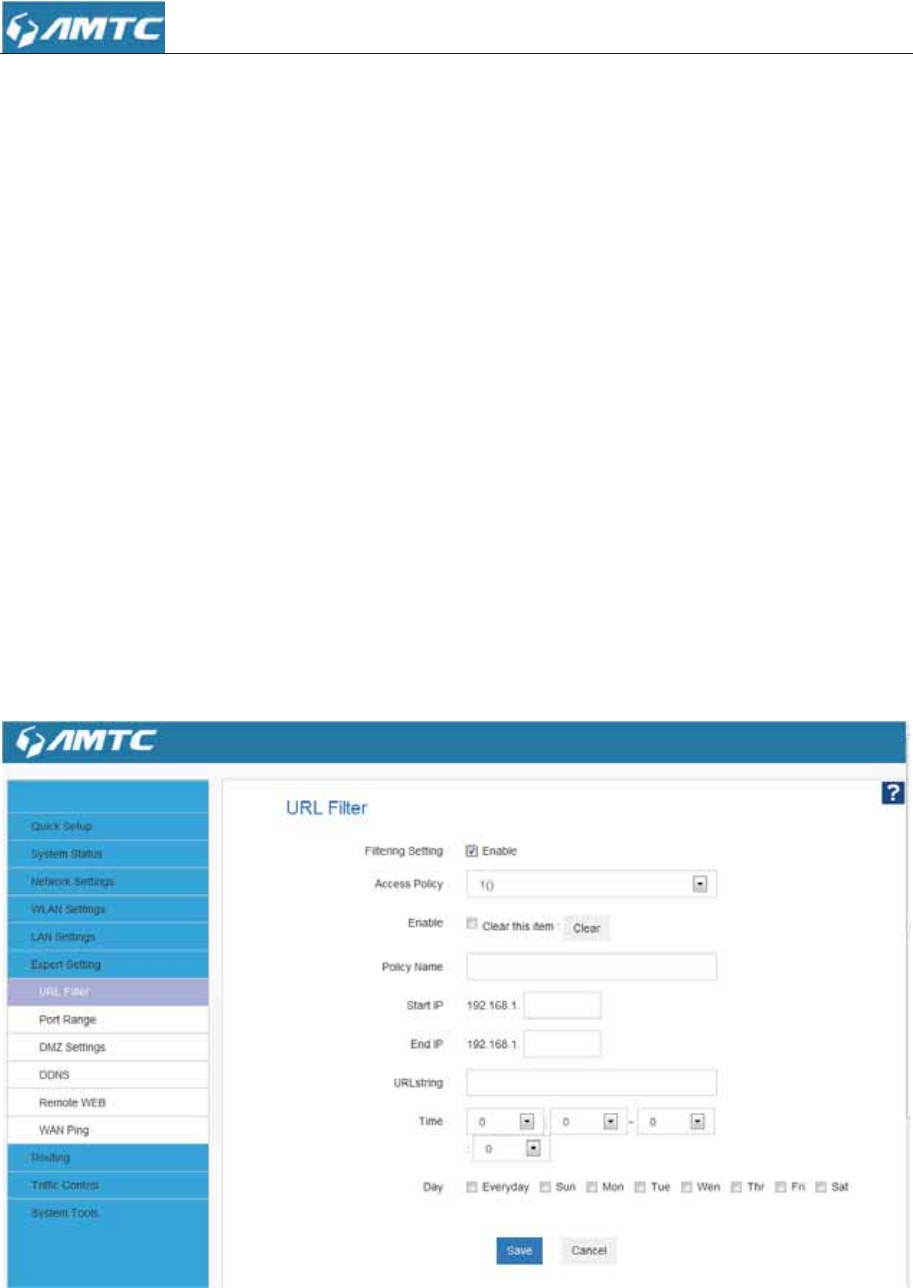

3.7.1URLFilter..............................................................................................................................47

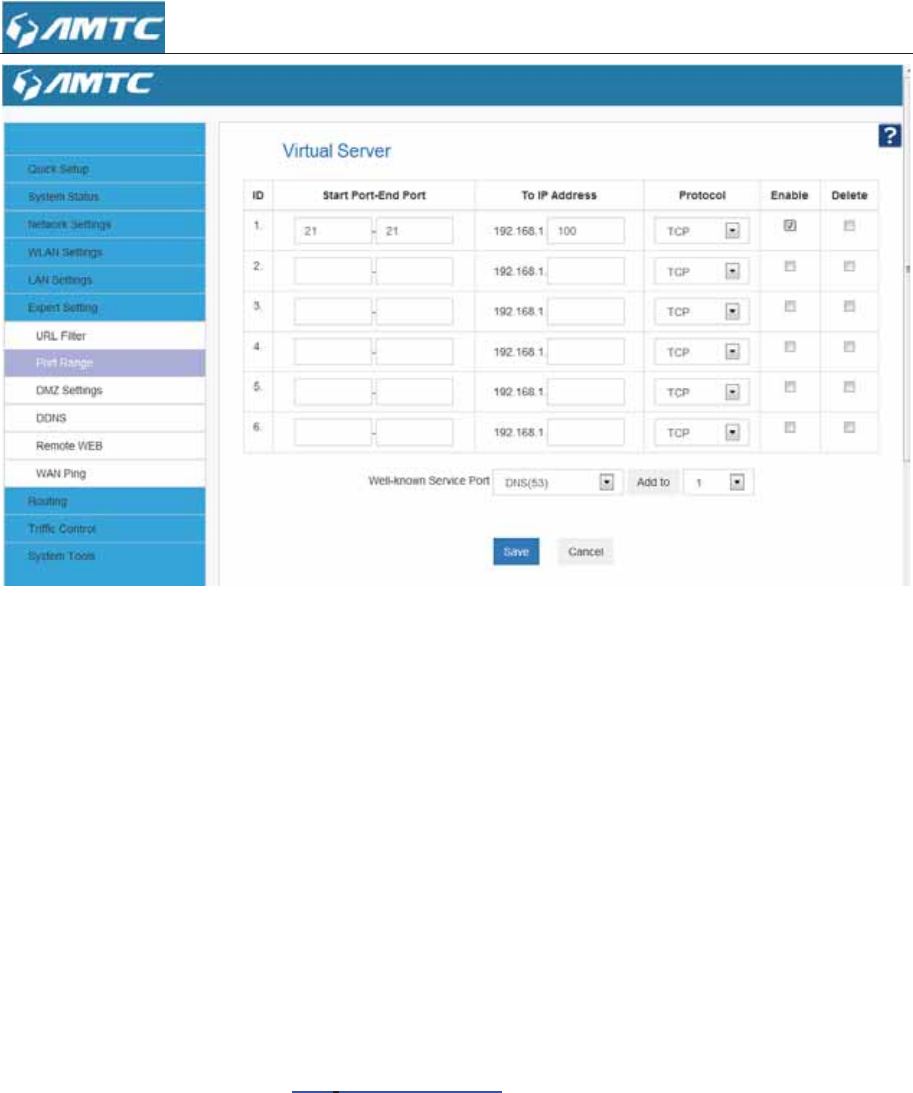

3.7.2PortRange............................................................................................................................48

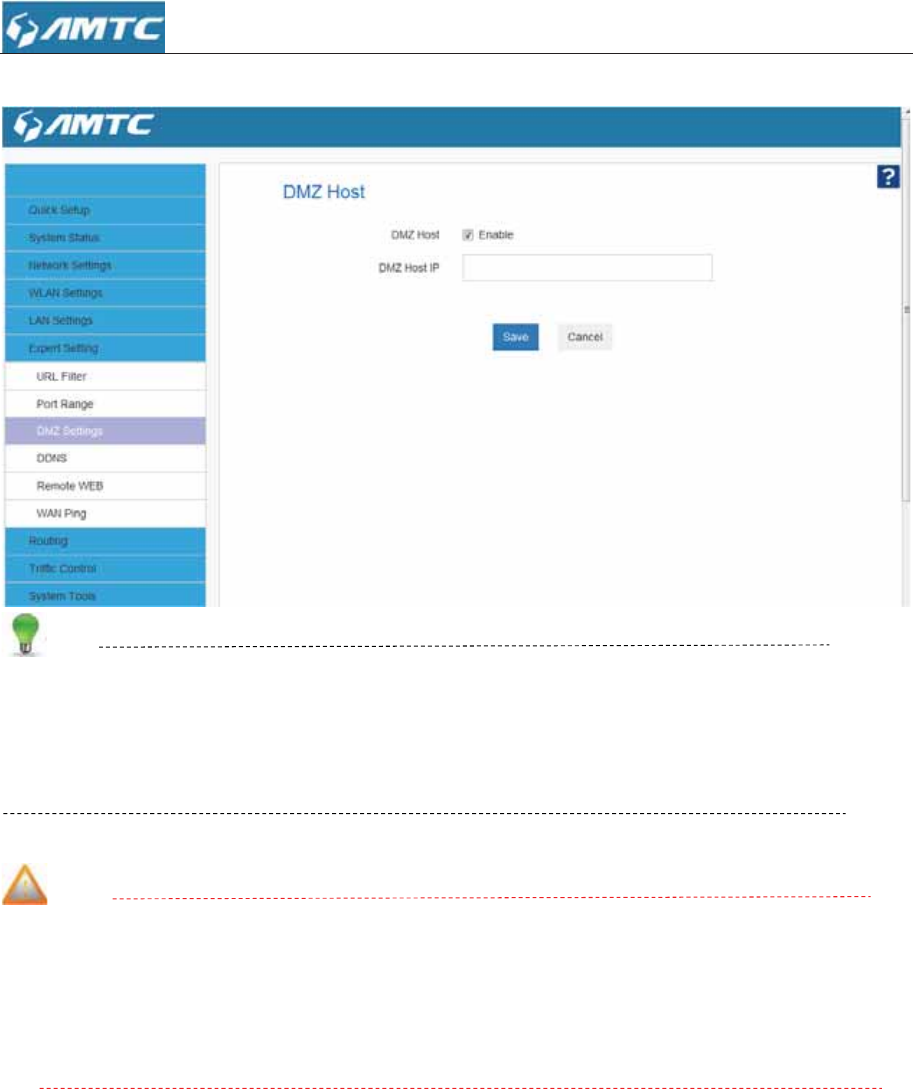

3.7.3DMZSettings........................................................................................................................50

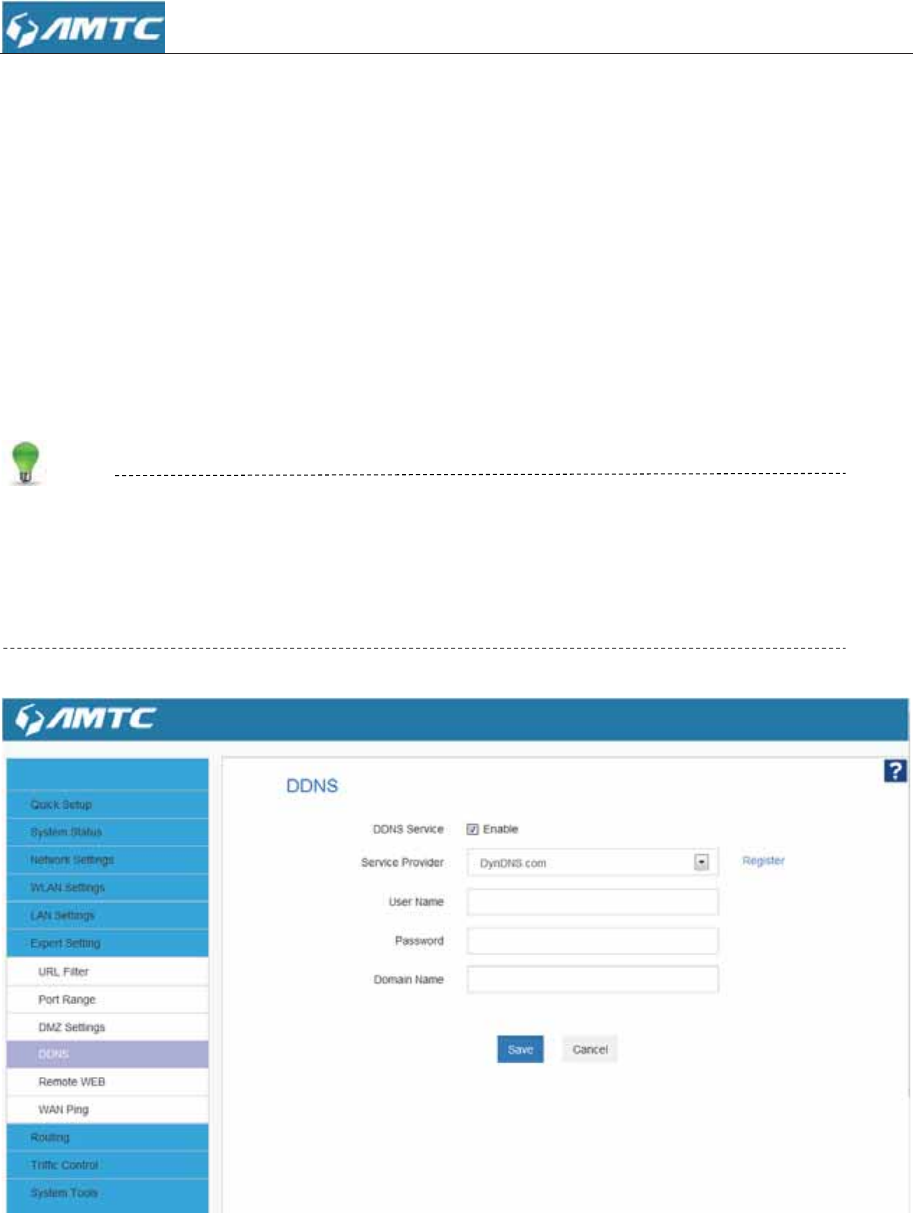

3.7.4DDNSSettings.......................................................................................................................51
6

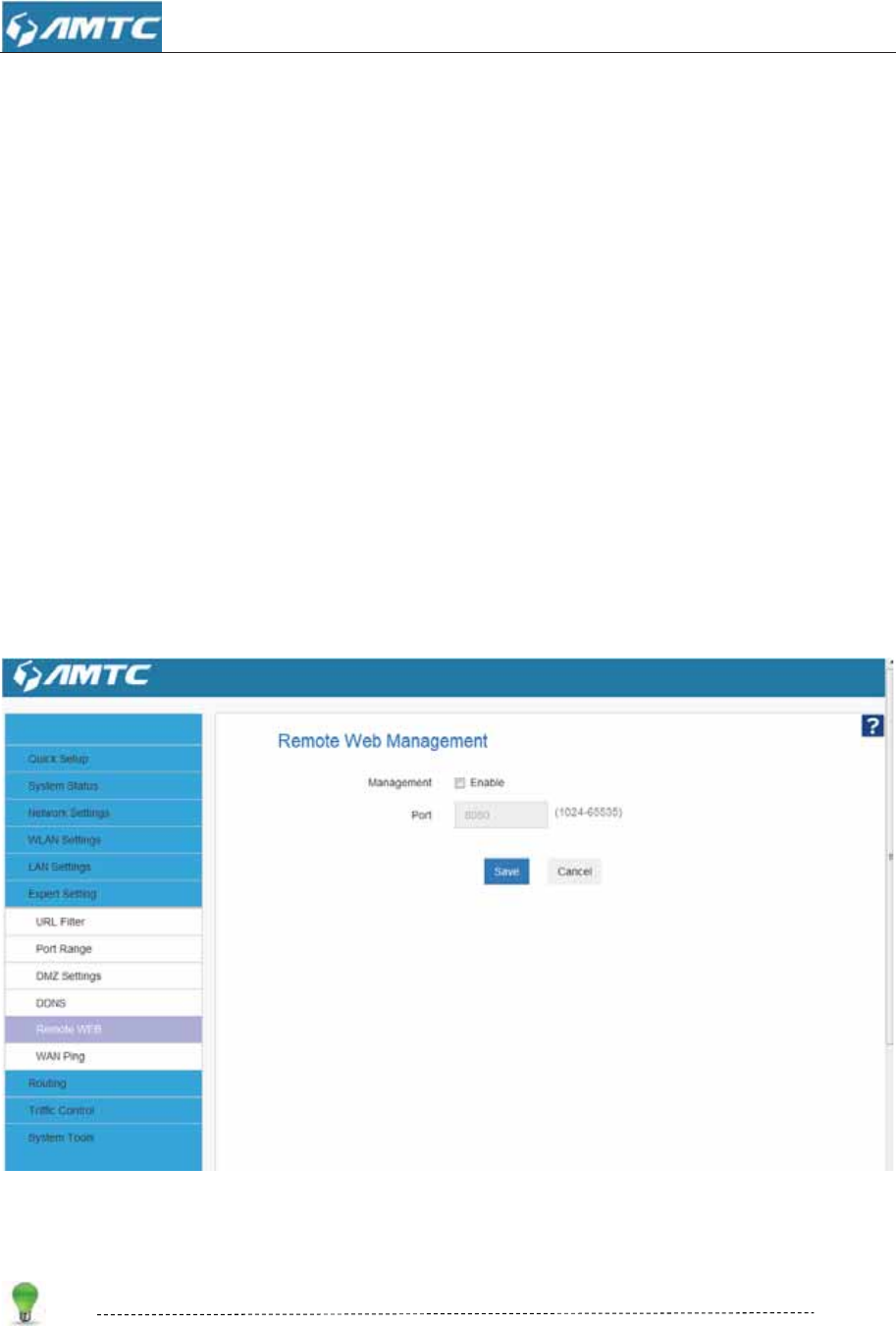

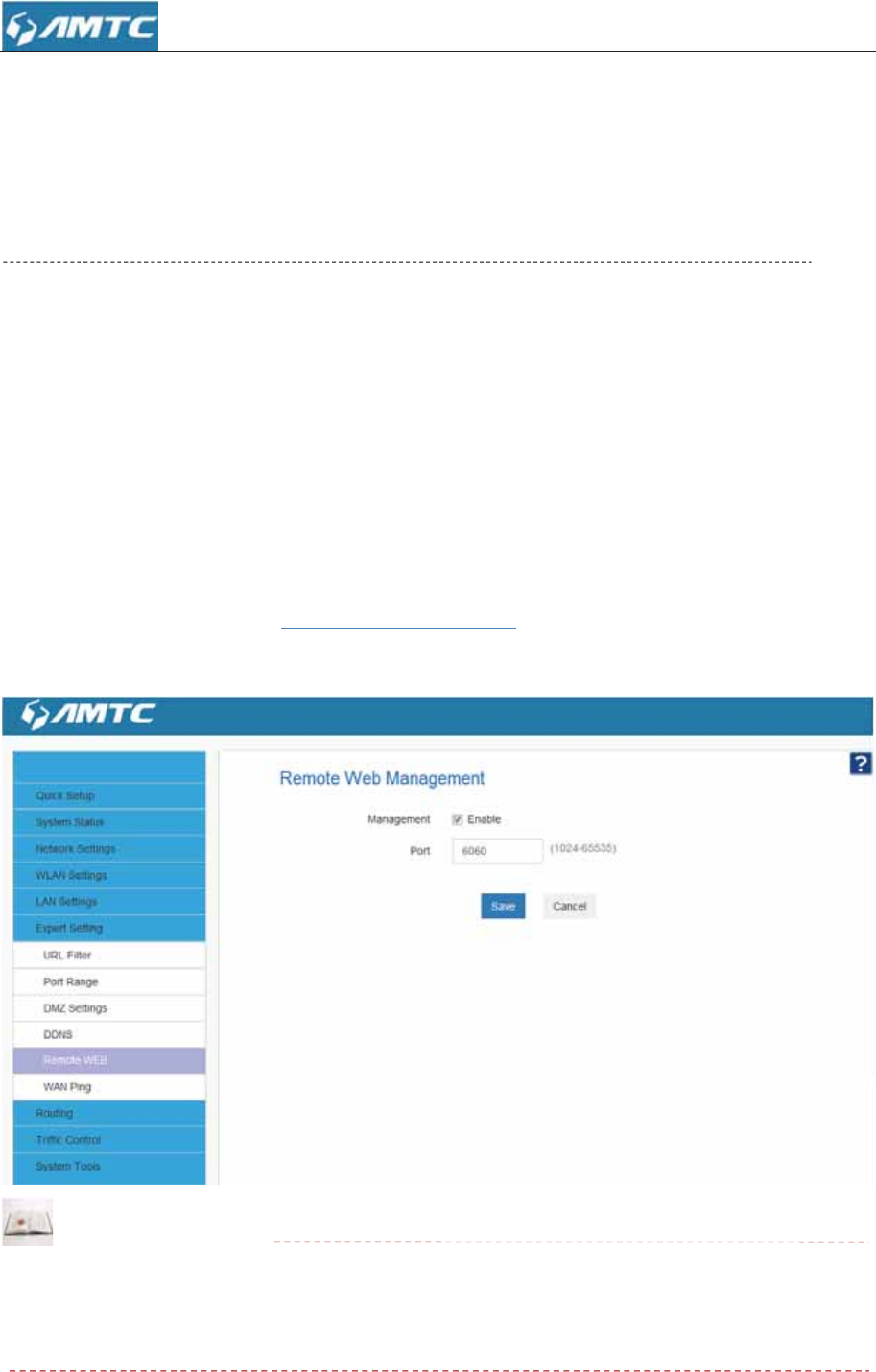

3.7.5RemoteWEB.........................................................................................................................53

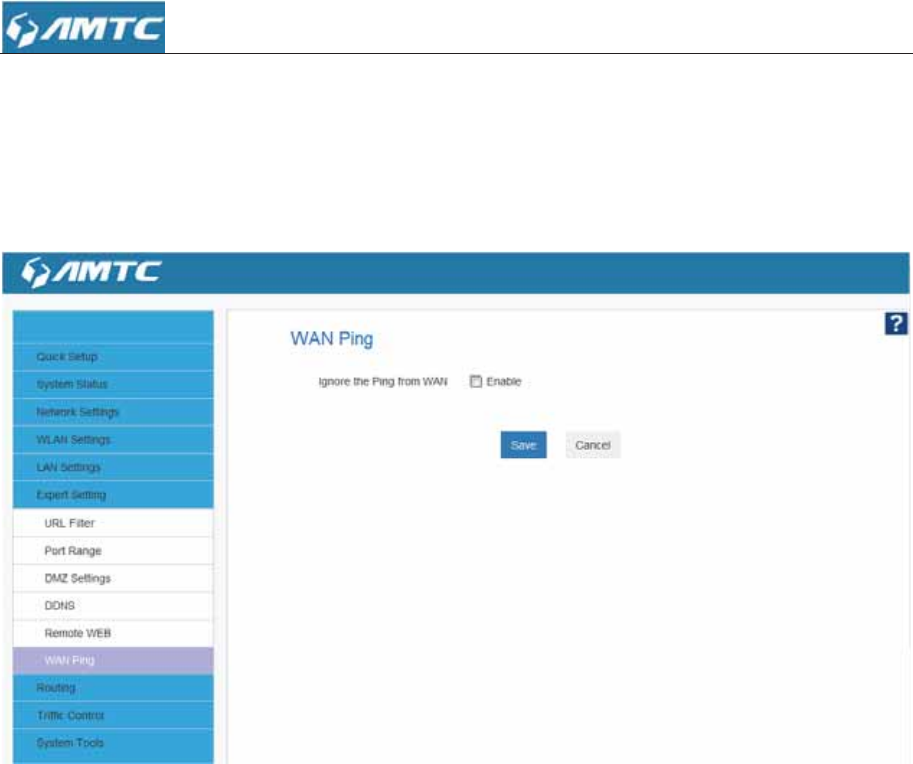

3.7.6WANPing..............................................................................................................................55

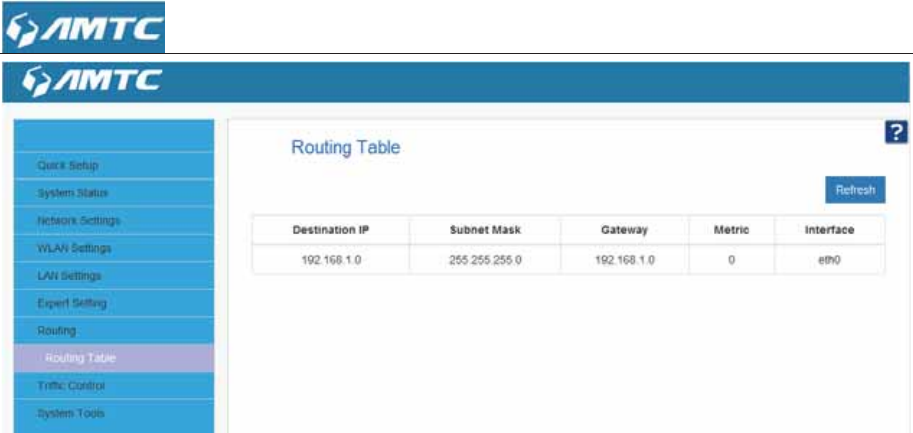

3.8Routing............................................................................................................................................55

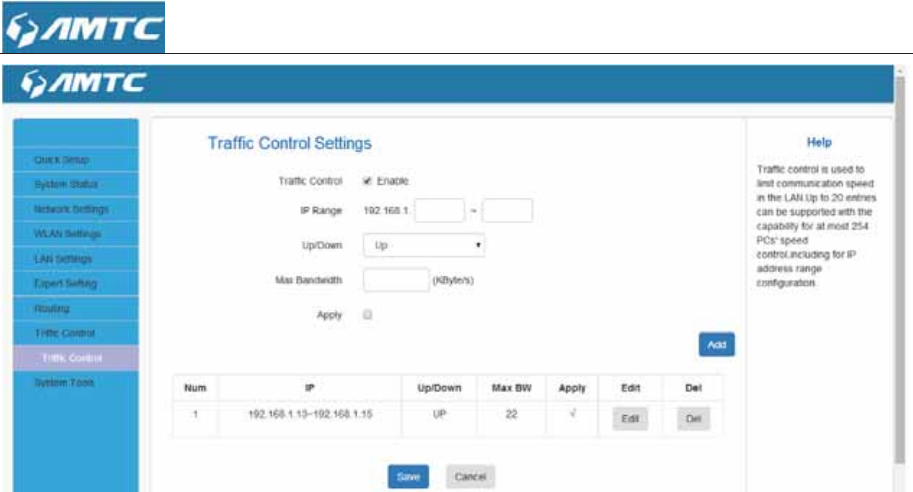

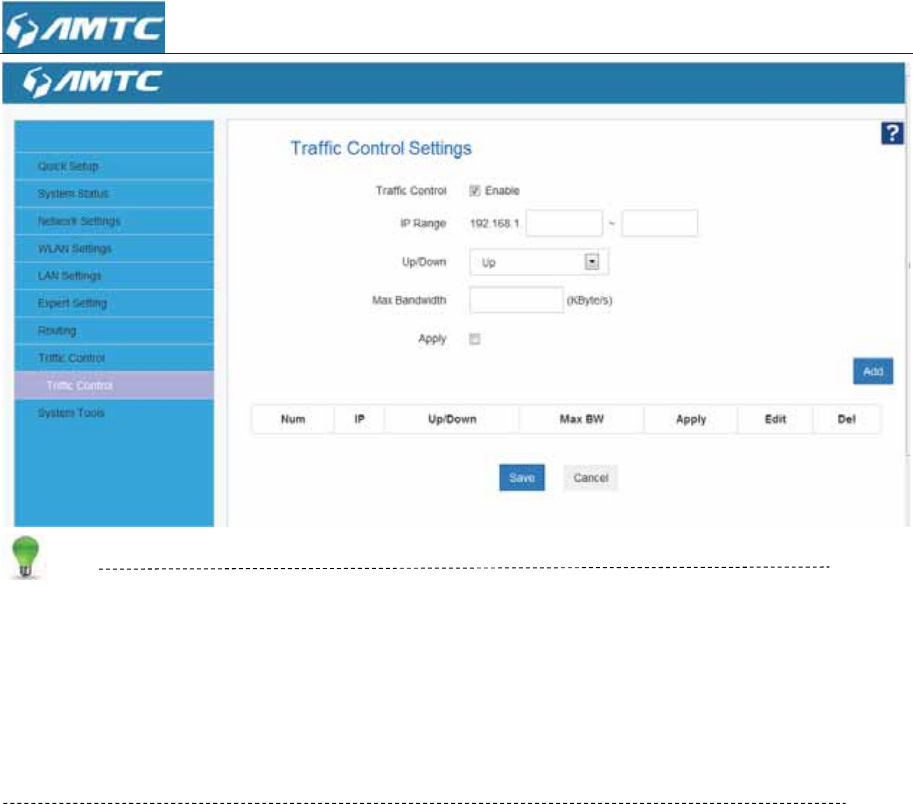

3.9TrafficControl..................................................................................................................................56
3.10SystemTools..................................................................................................................................58

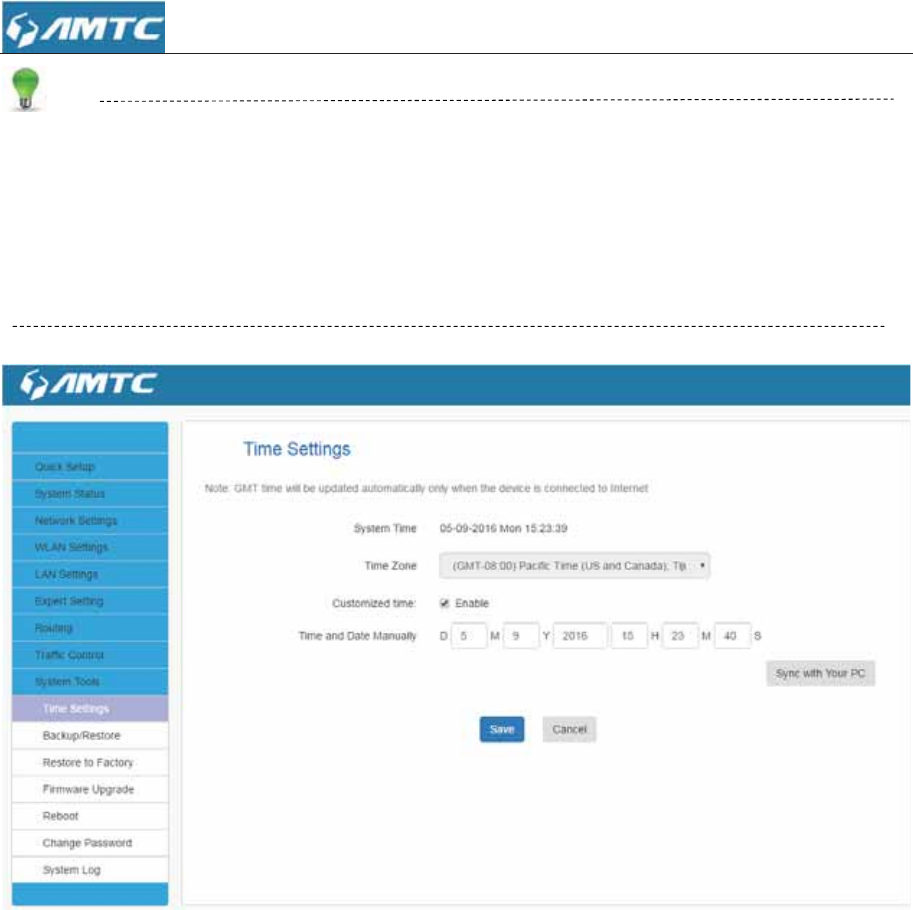

3.10.1TimeSettings......................................................................................................................58

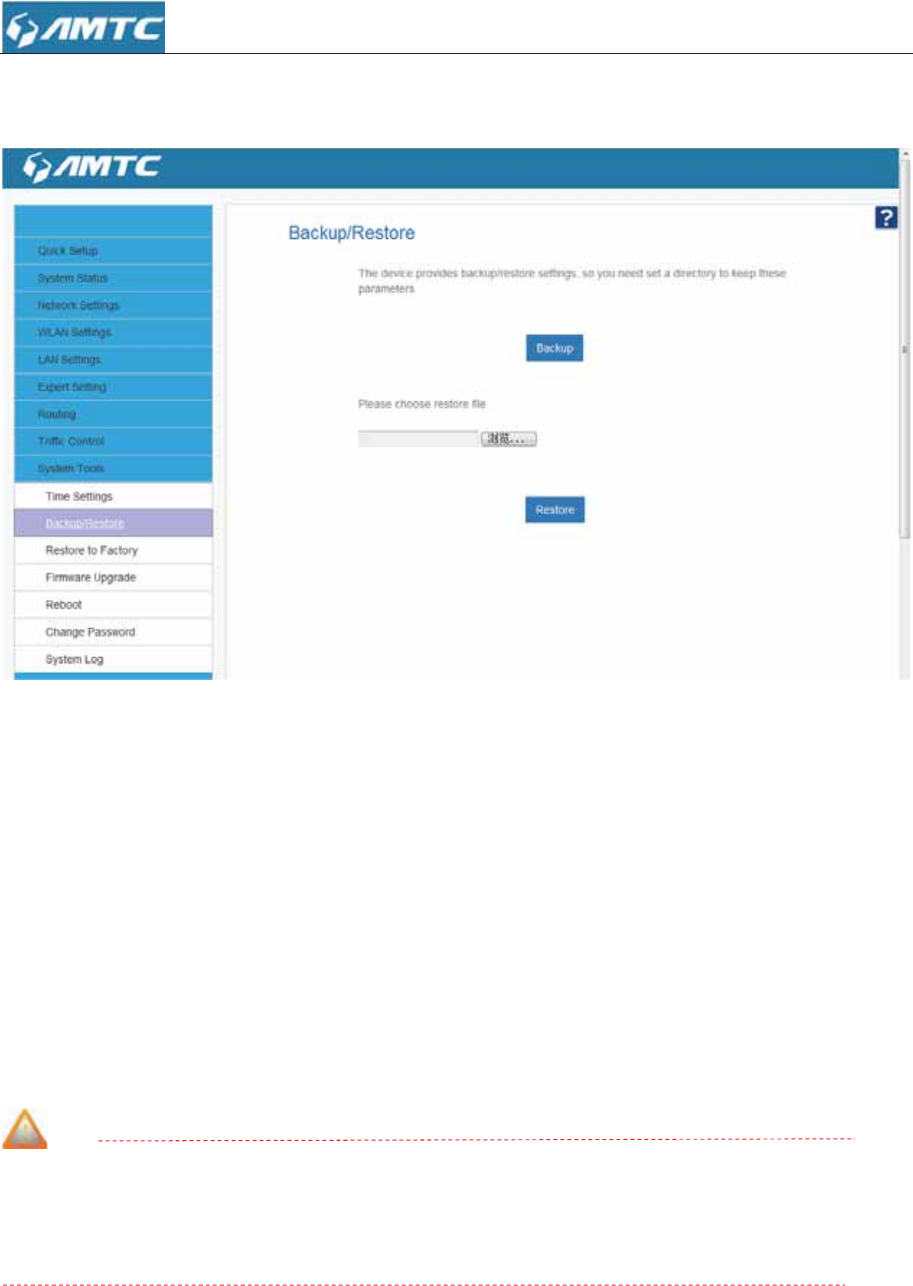

3.10.2Backup/Restore..................................................................................................................60

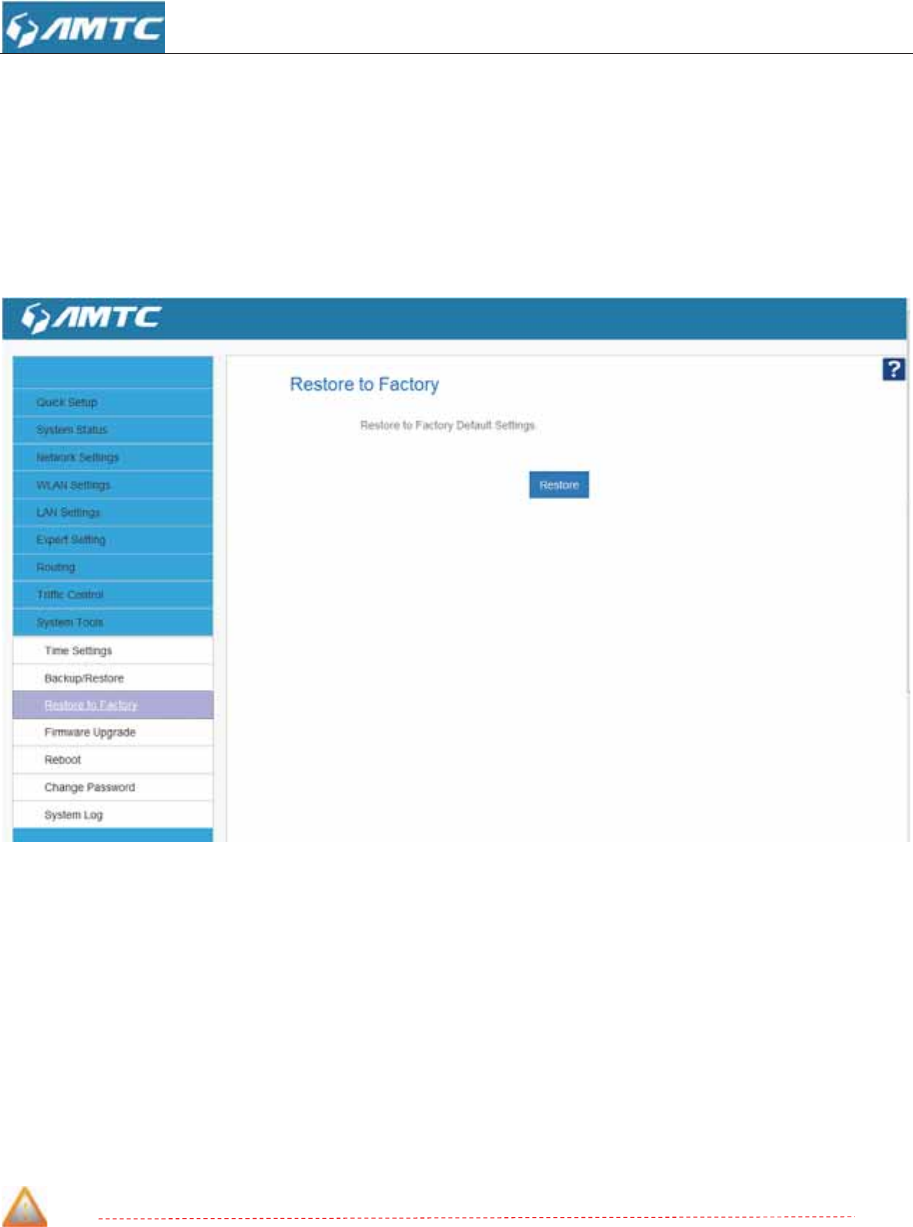

3.10.3RestoretoFactory..............................................................................................................61

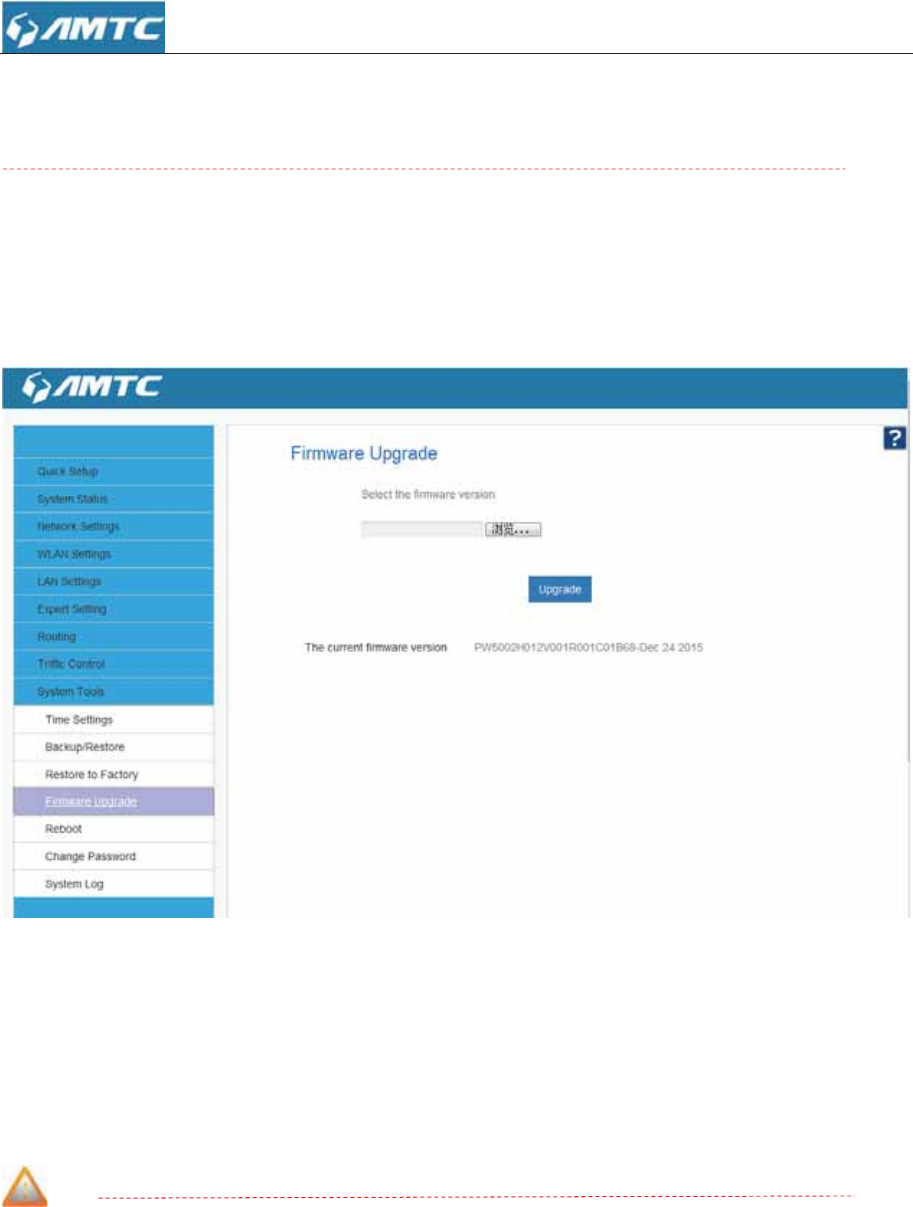

3.10.4FirmwareUpgrade..............................................................................................................62

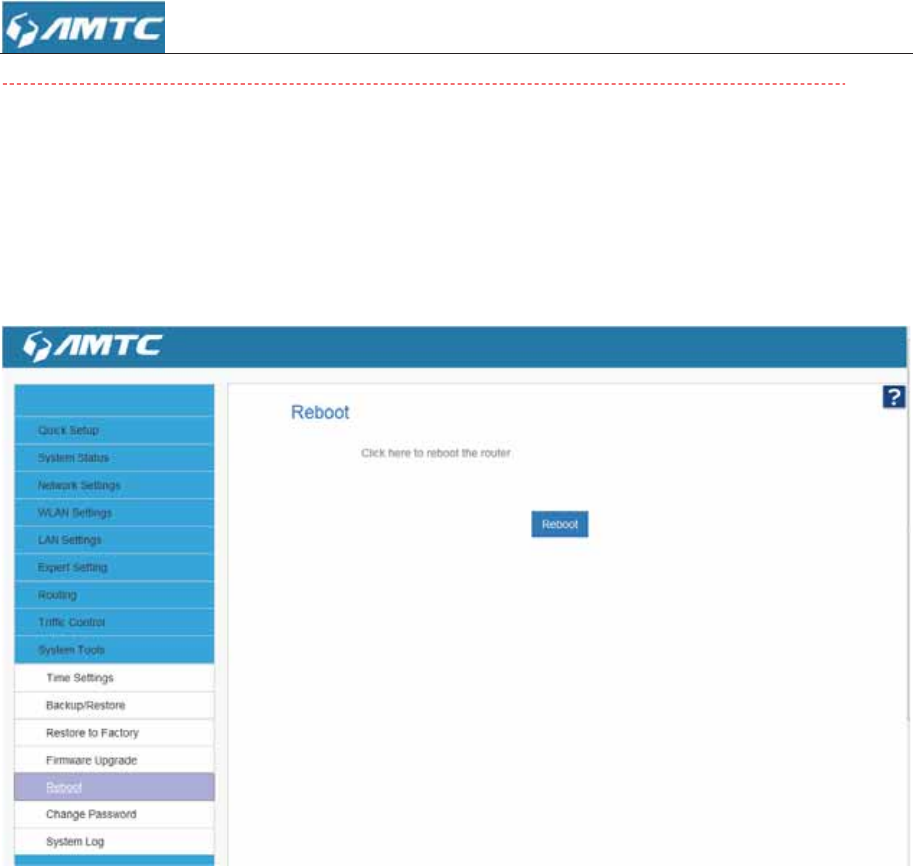

3.10.5Reboot................................................................................................................................63

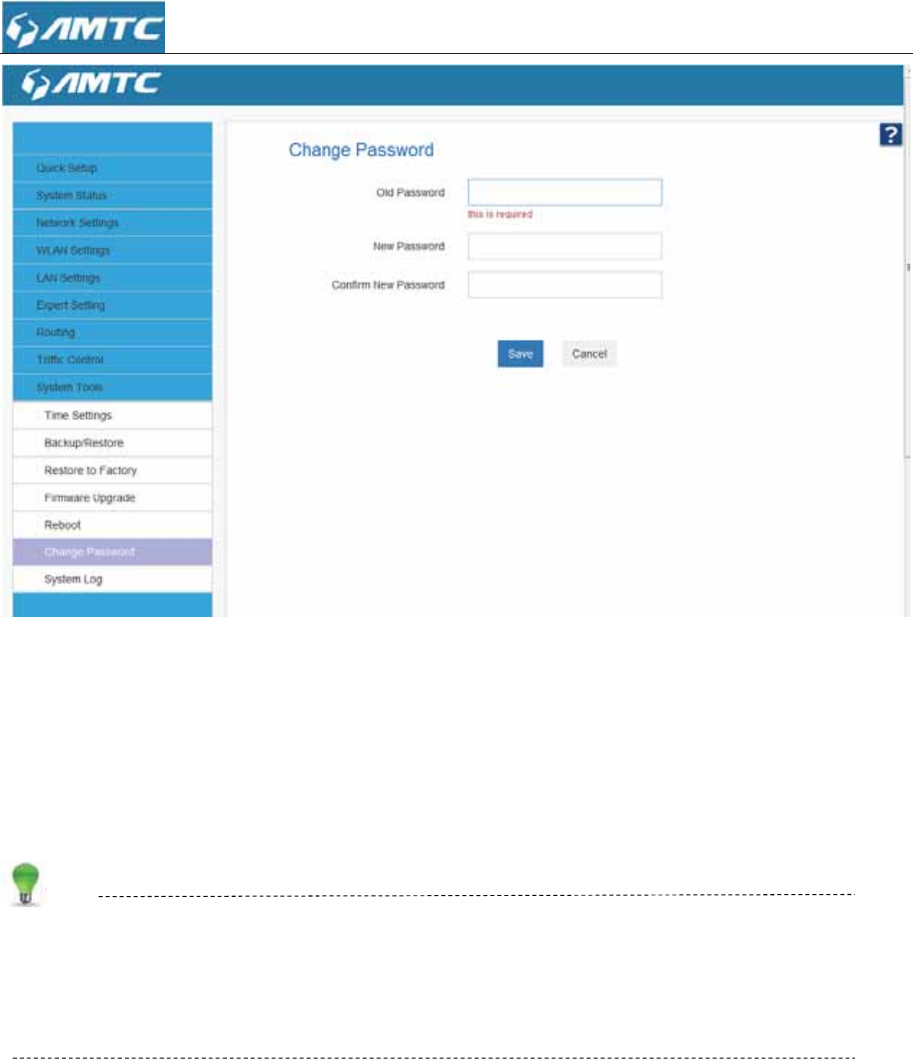

3.10.6ChangePassword................................................................................................................63

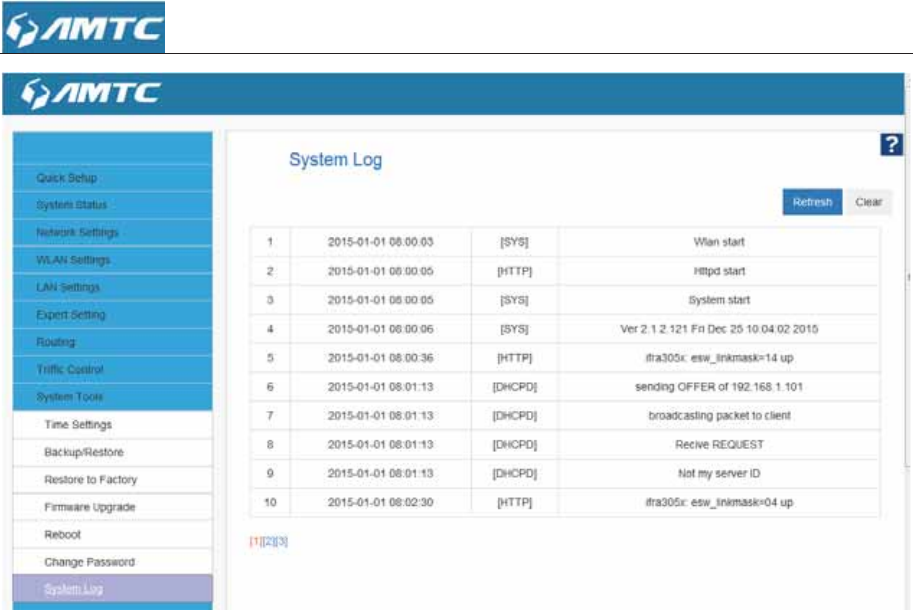

3.10.7SystemLog..........................................................................................................................64
Appendix.......................................................................................................................................................66

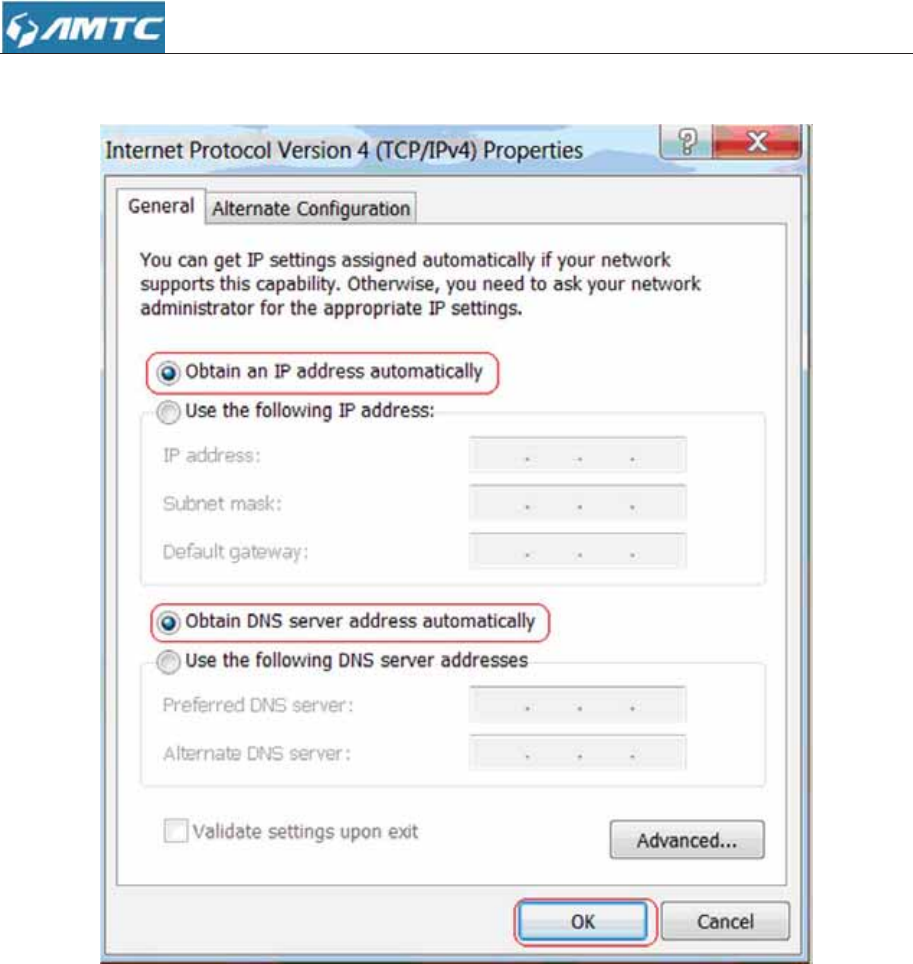

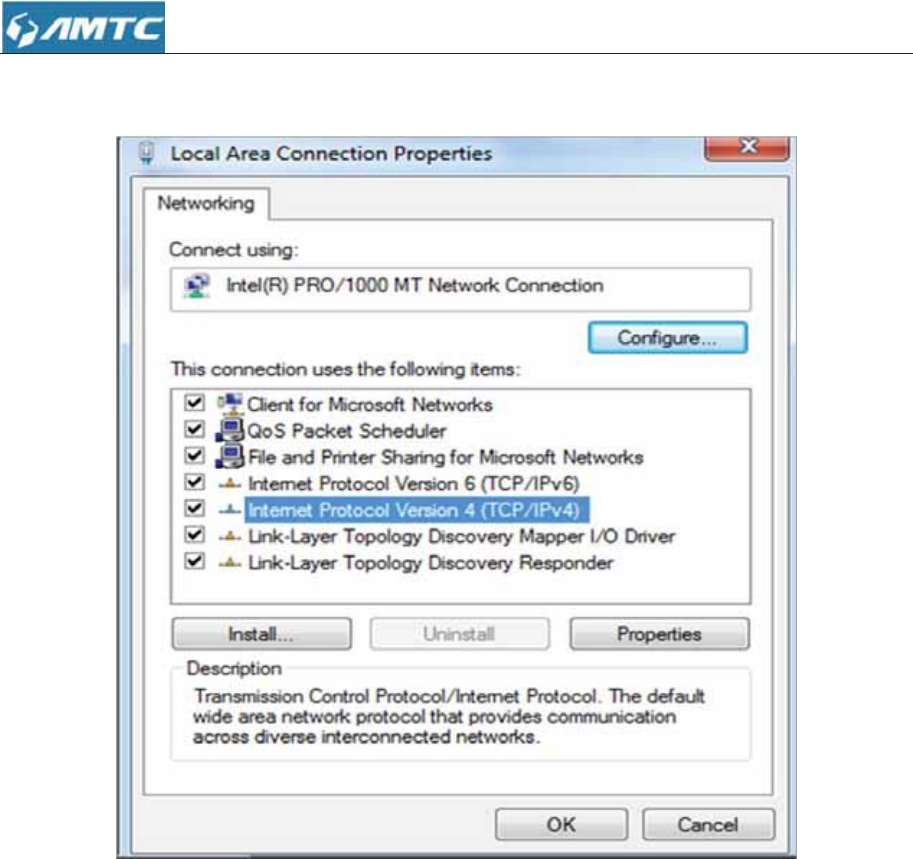

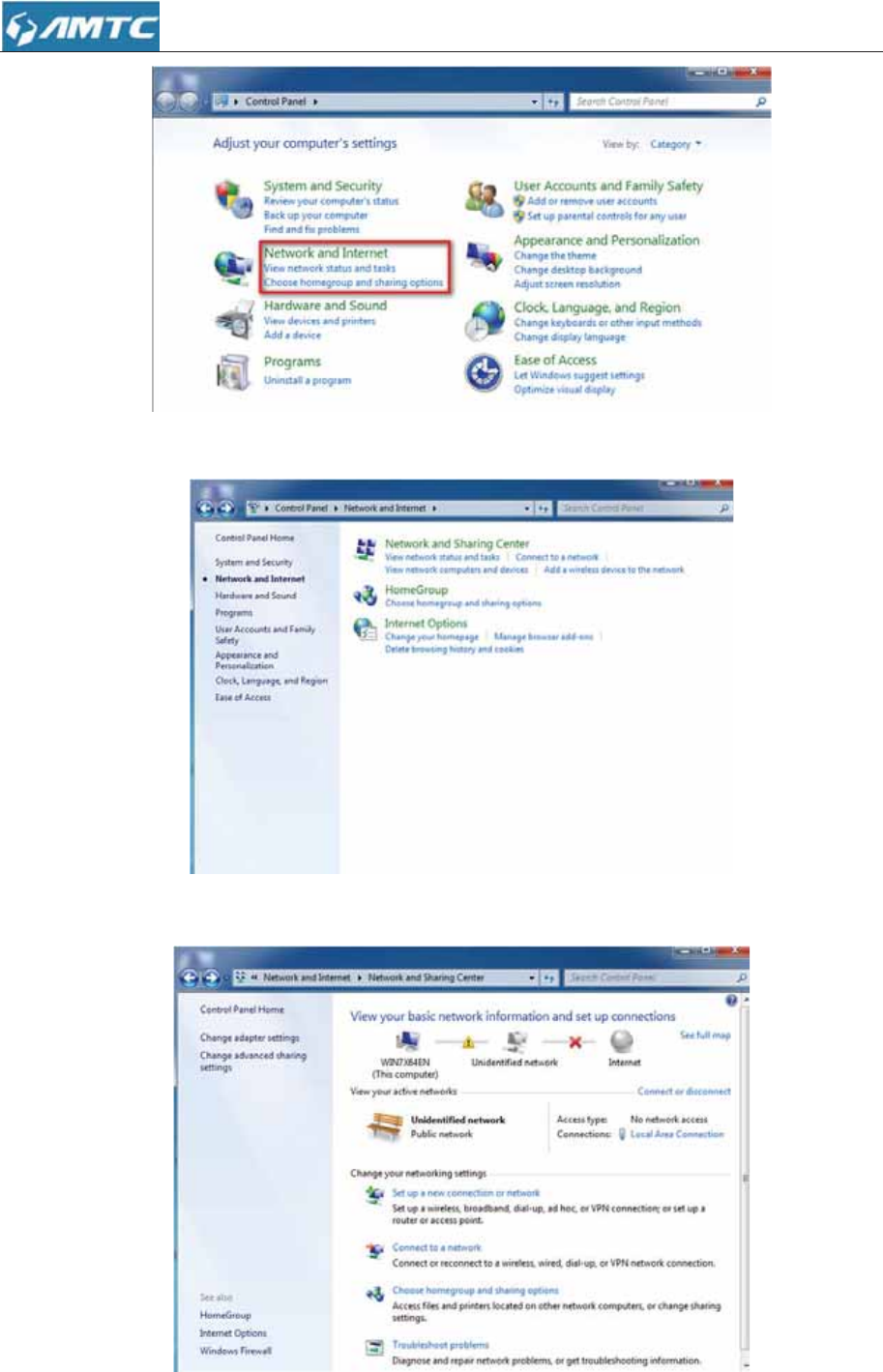

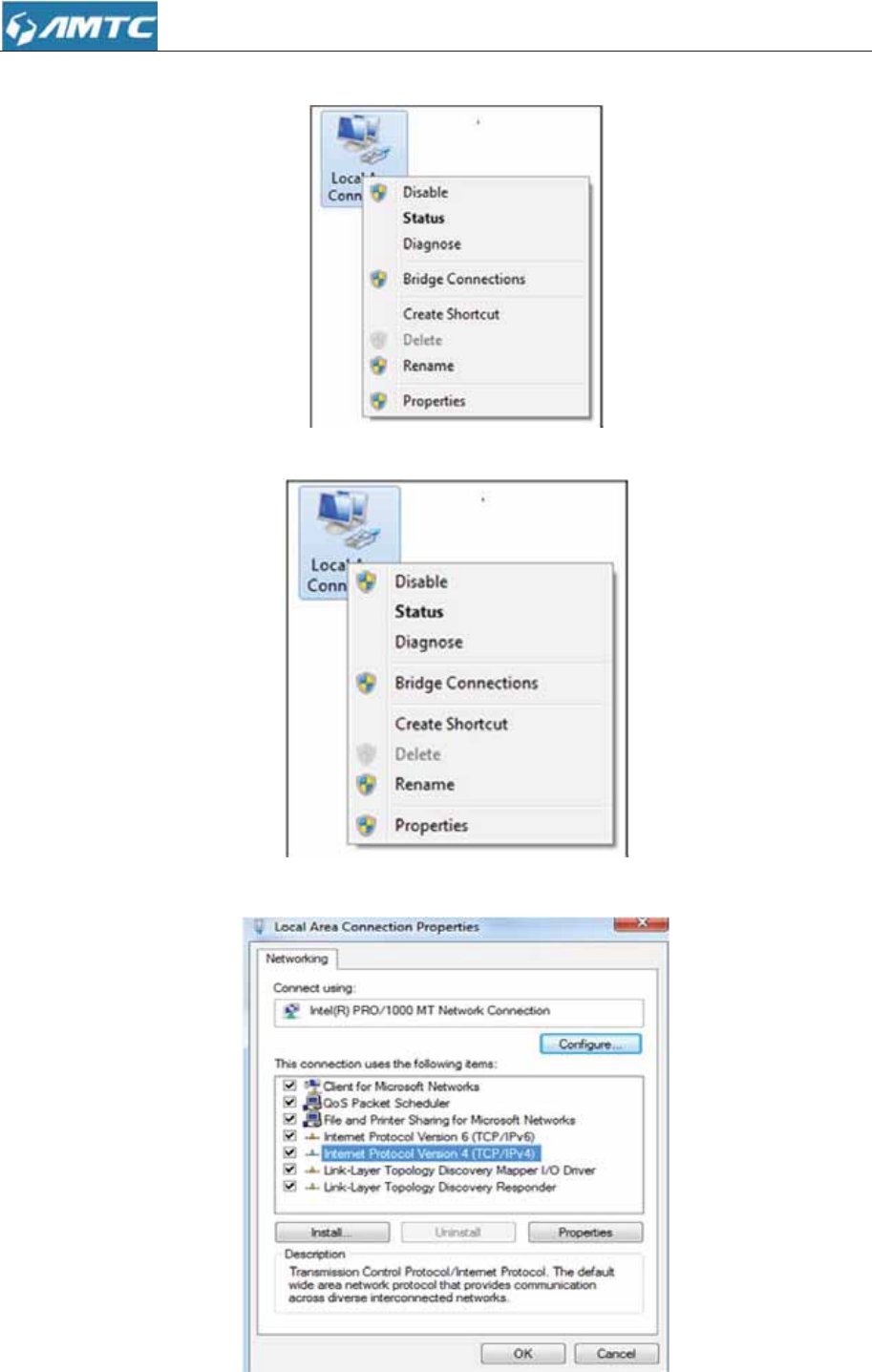

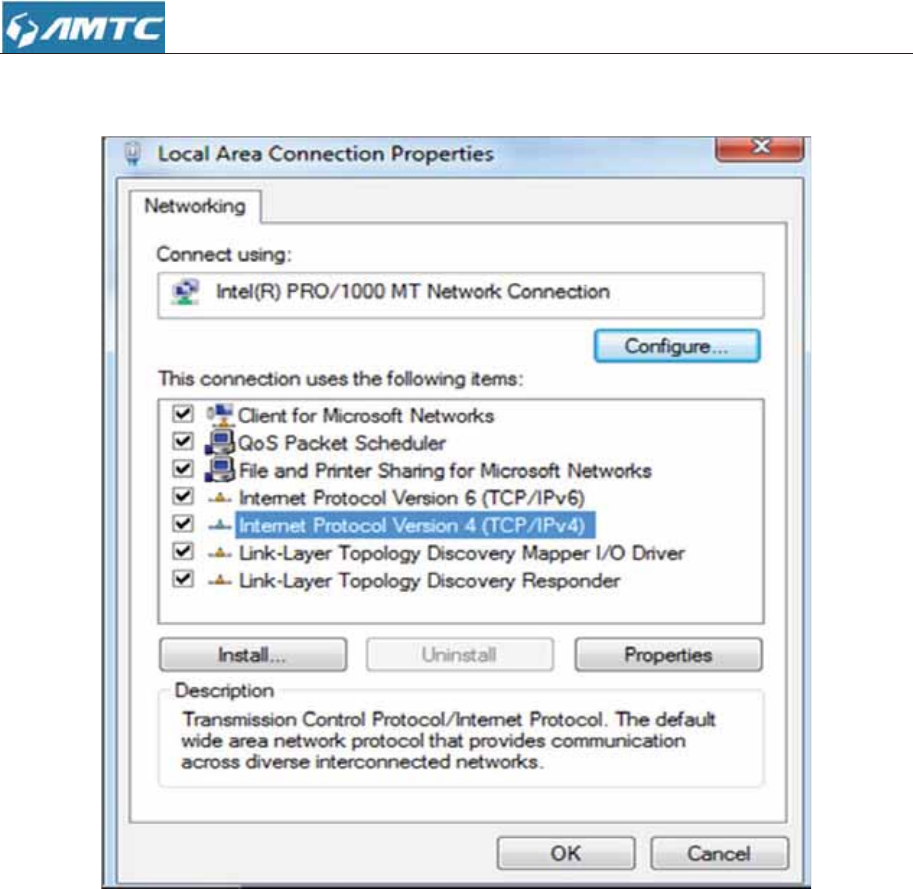

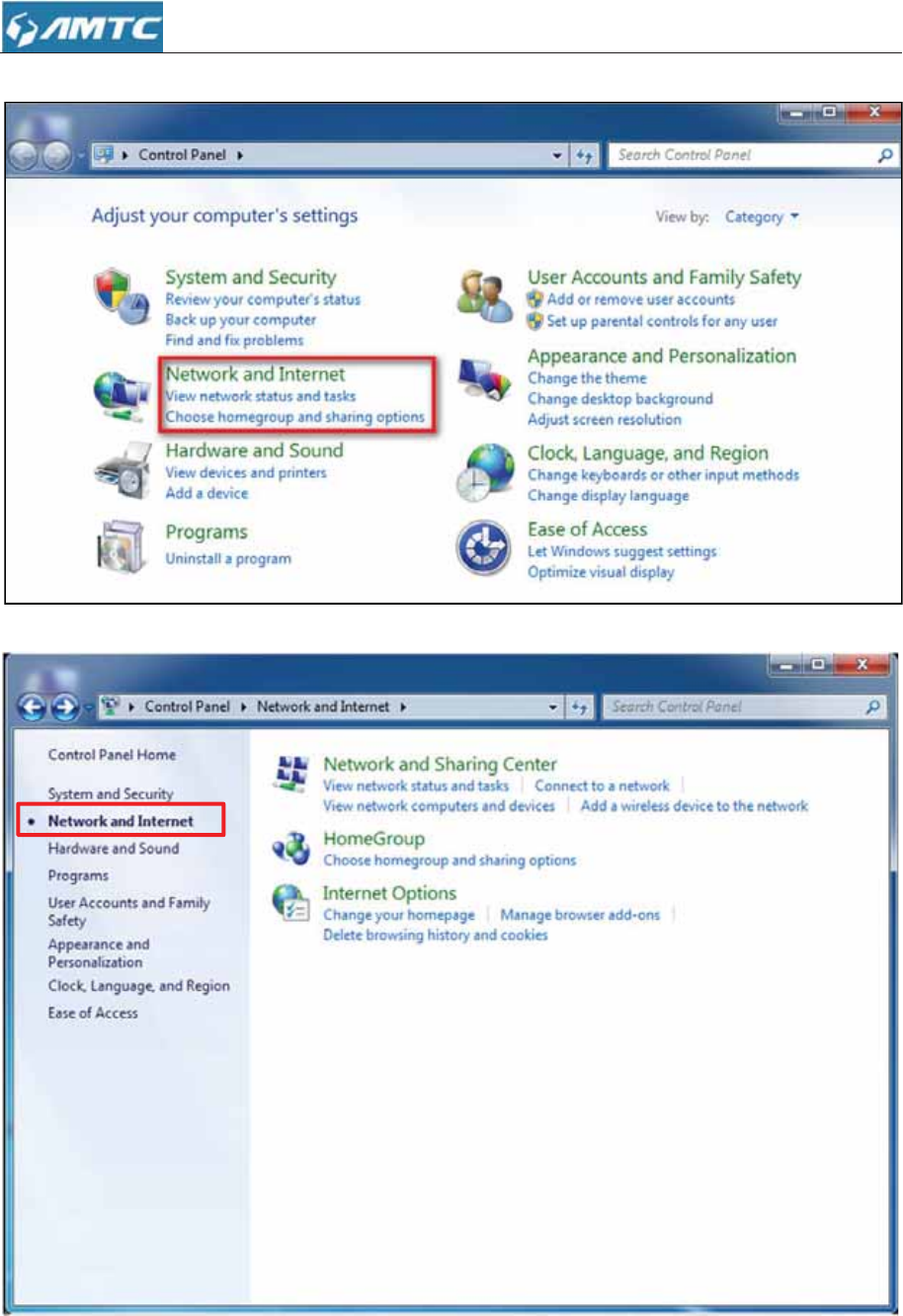

1ConfigurePCTCP/IPSettings..............................................................................................................66

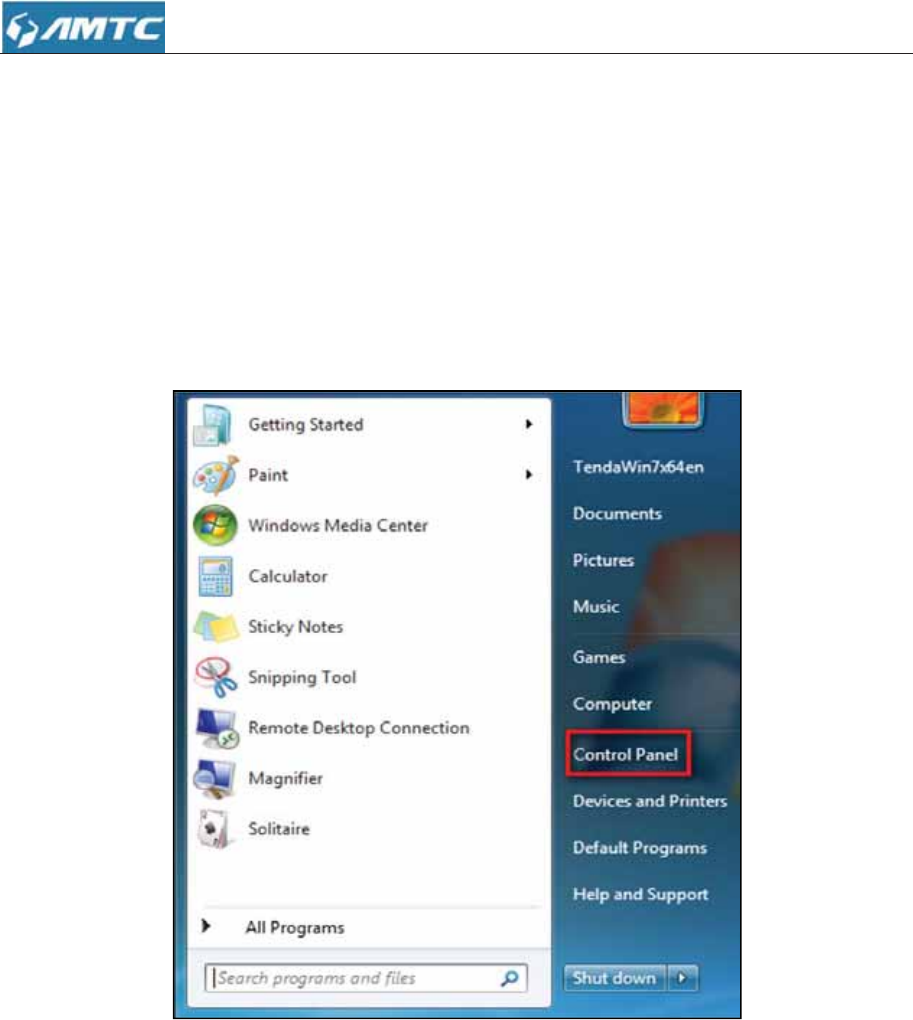

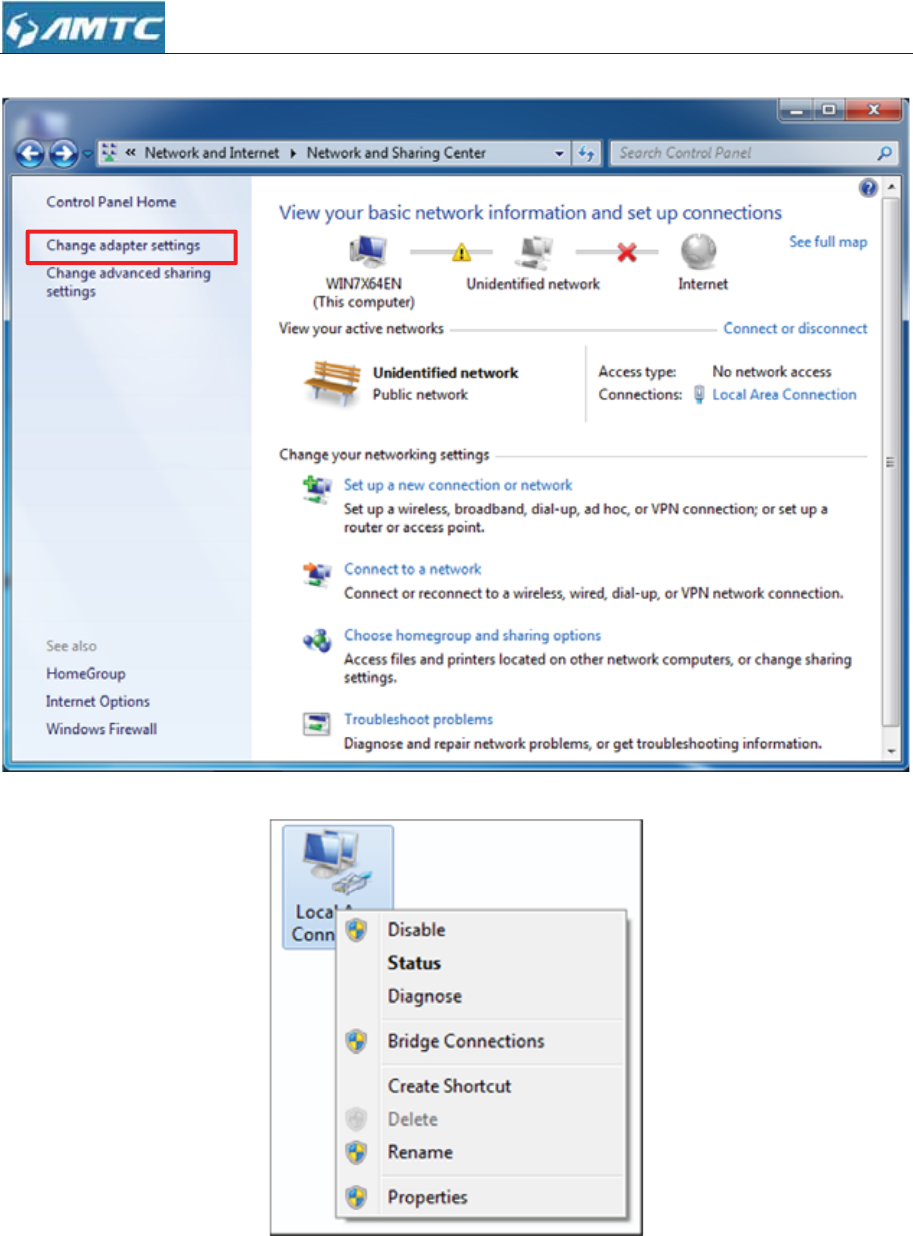

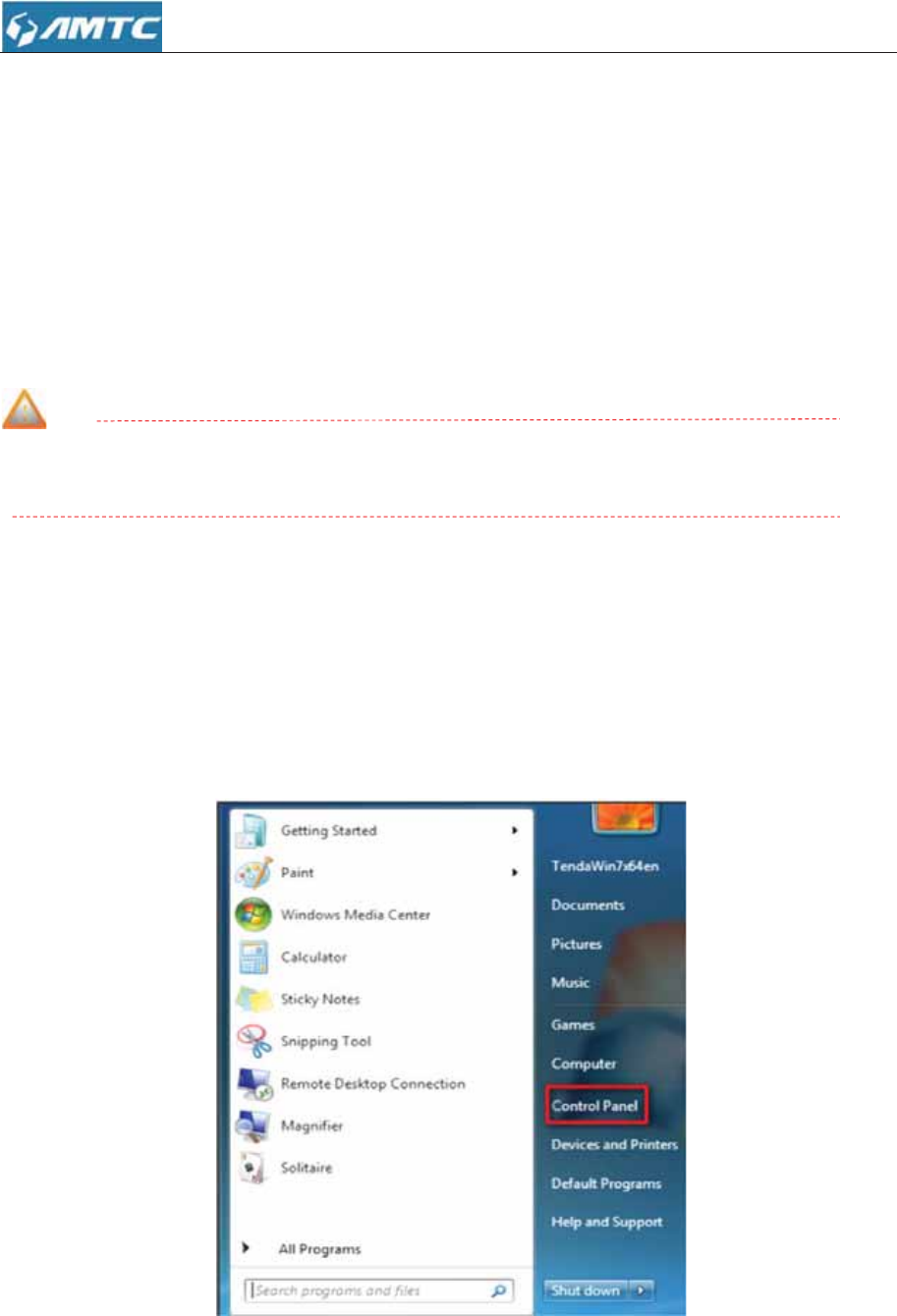

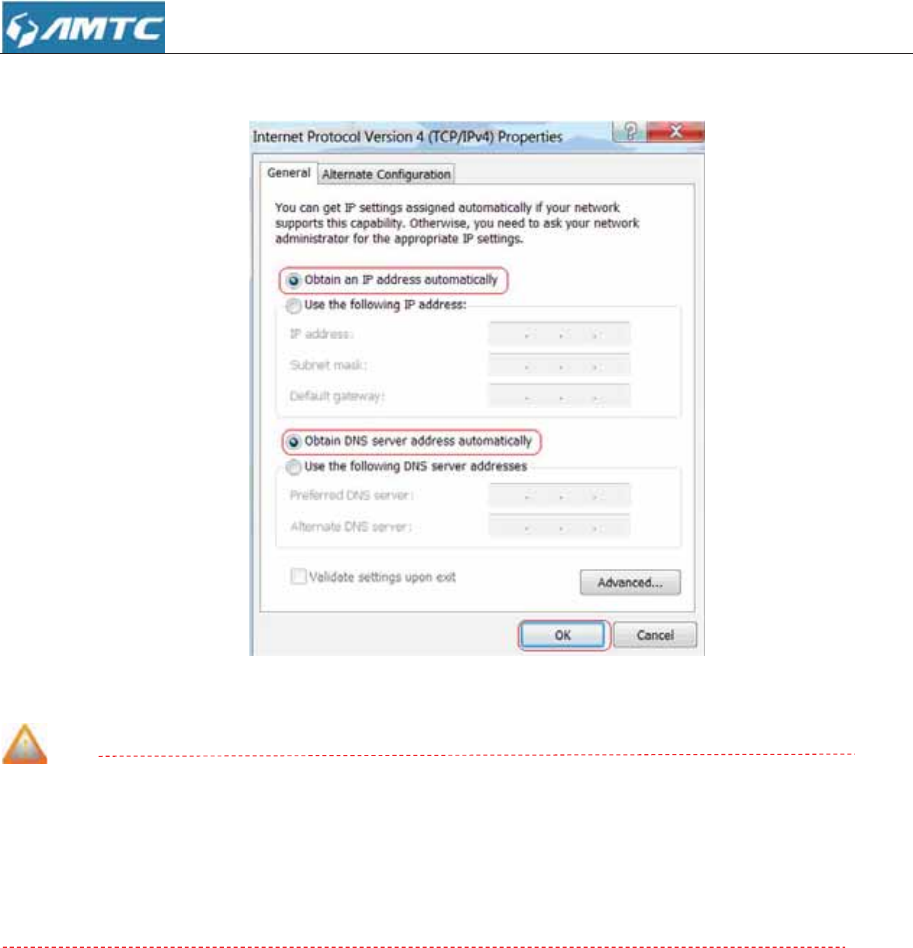

Windows7.....................................................................................................................................66

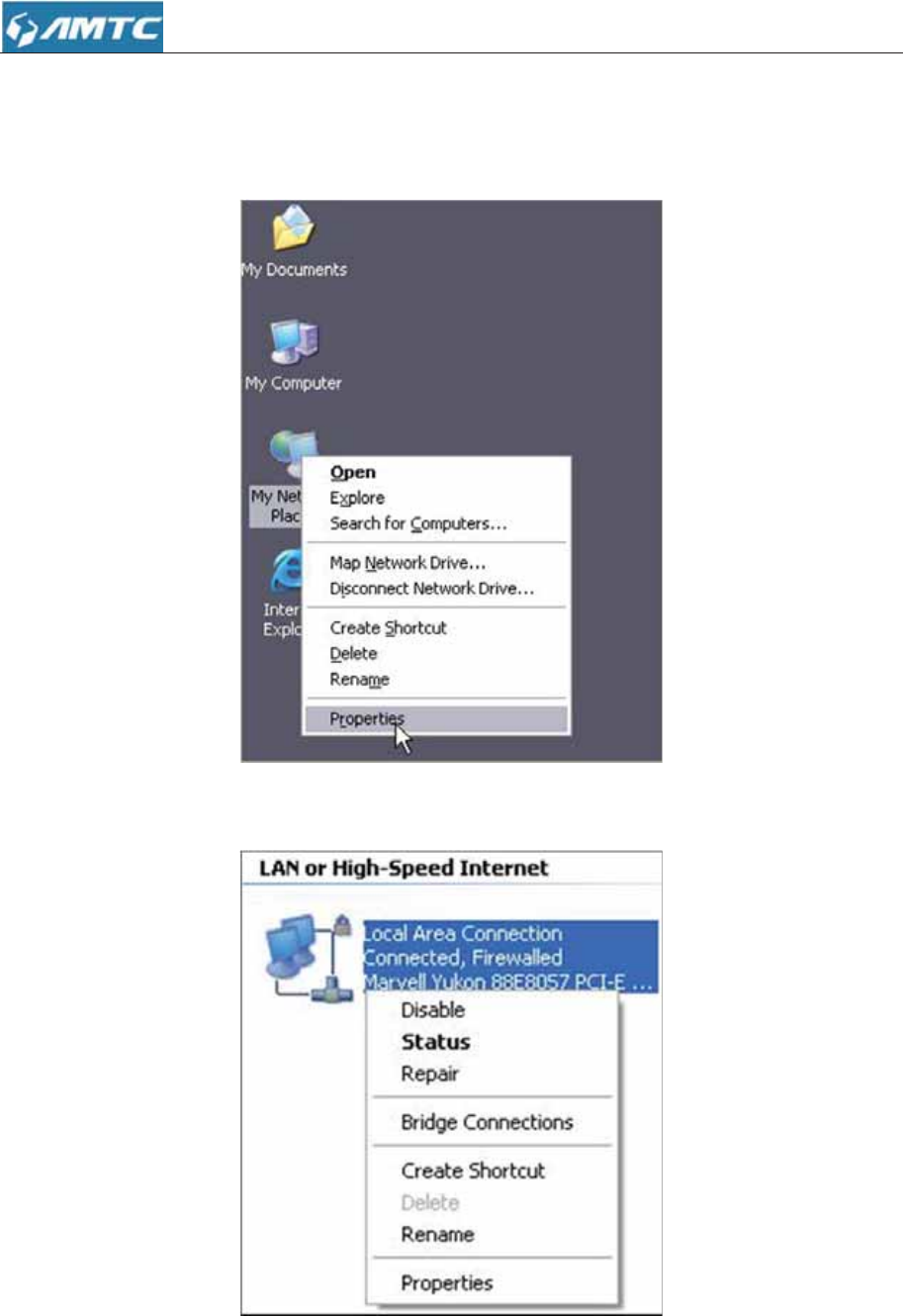

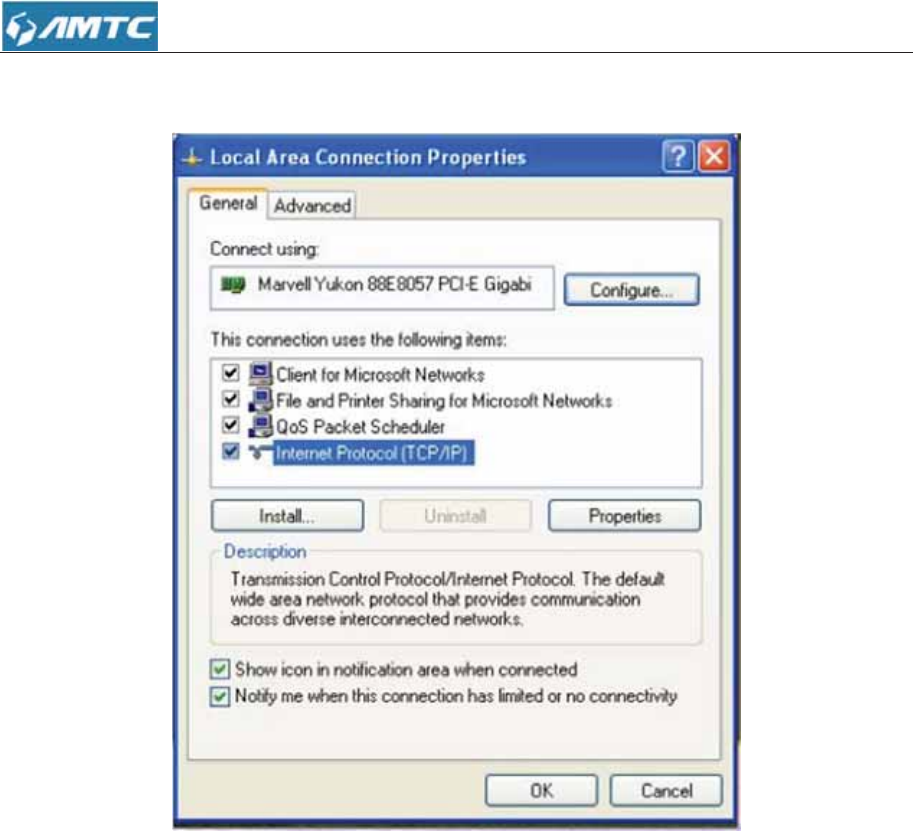

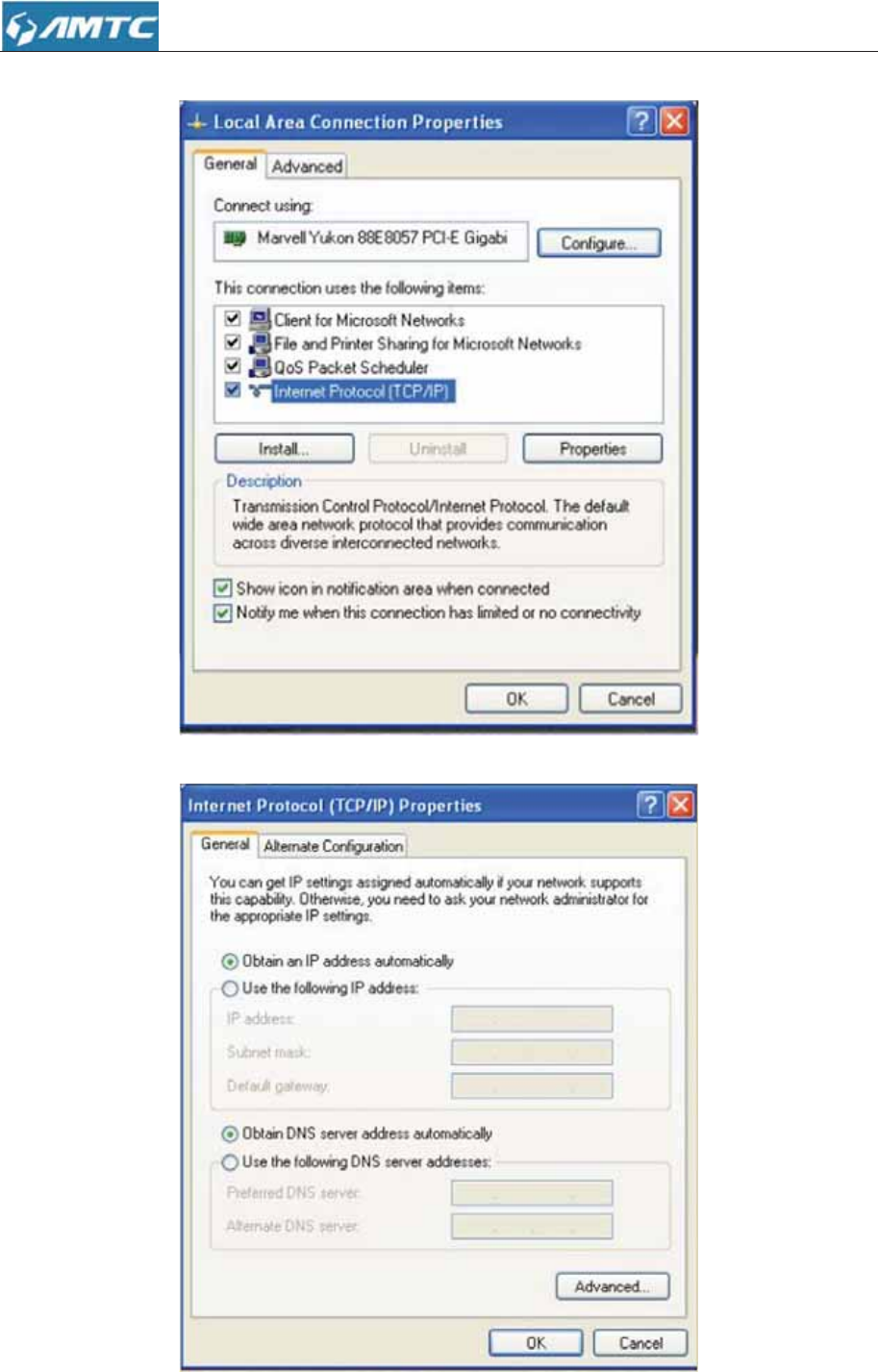

WindowsXP...................................................................................................................................72
2Troubleshooting..................................................................................................................................74
3Factorydefaultsettings......................................................................................................................75

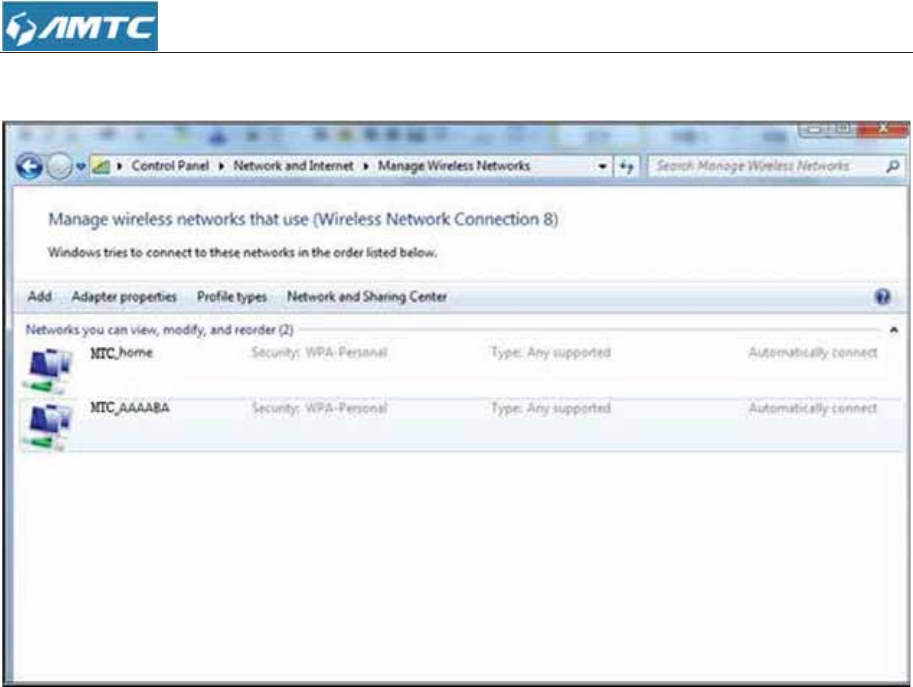

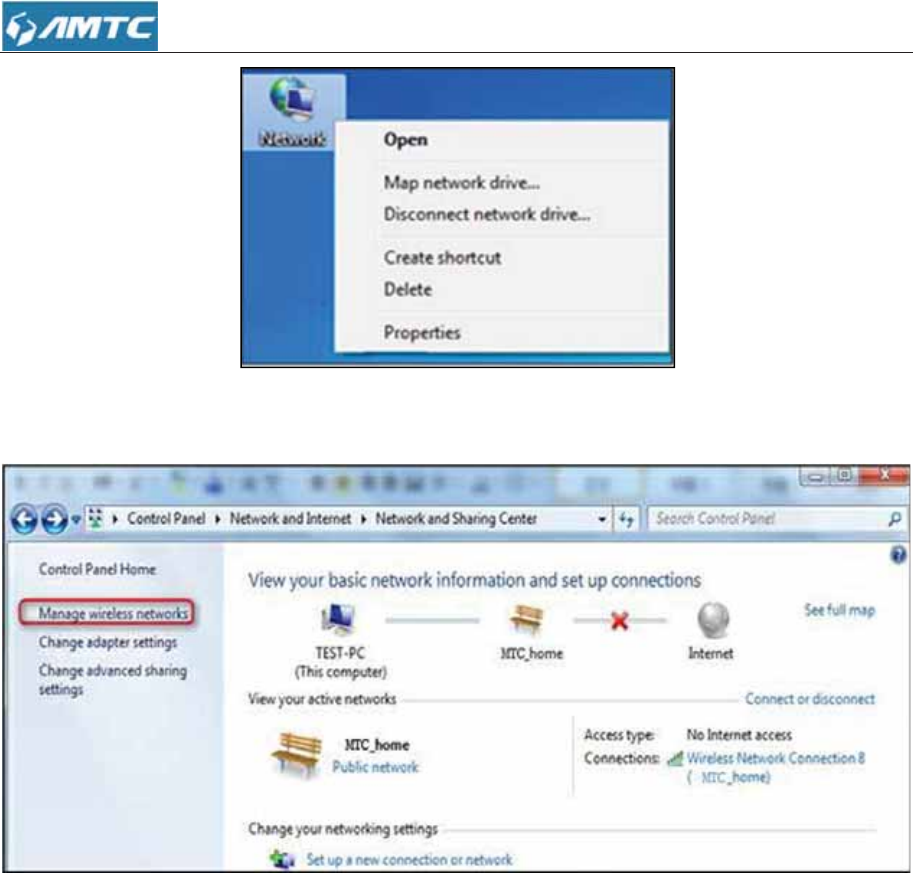

4RemoveWirelessNetworkfromYourPC...........................................................................................76
Windows7
.....................................................................................................................................76

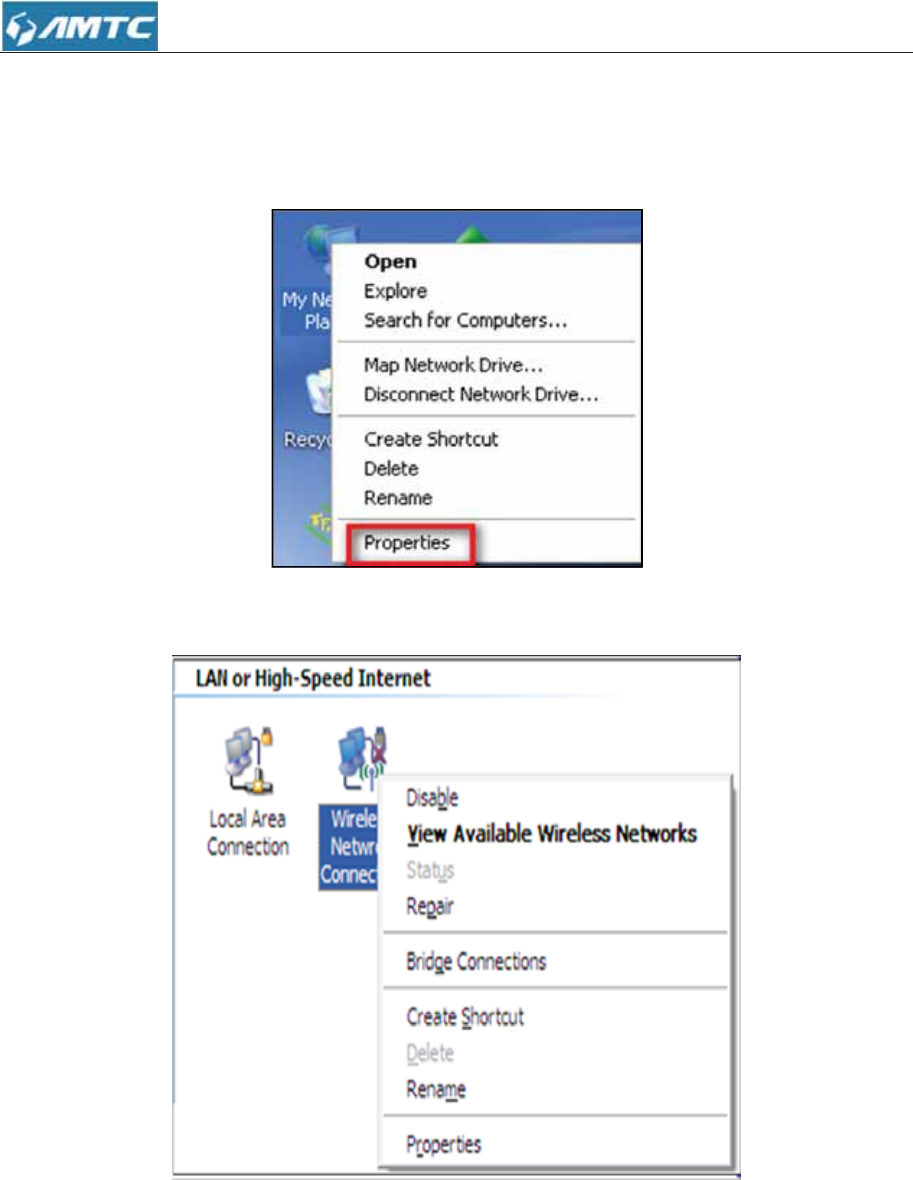

WindowsXP...................................................................................................................................79
5SafetyandEmissionStatement..........................................................................................................80
7
Chapter1Introduction
1.1ProductOverview
Congratulations on your purchase of this outstanding 300Mbps Wi-Fi router. This device is a
300Mbps Wi-Fi Access Point which creates a wireless network allowing for greater range and
mobility.
As a Wi-Fi Access Point, it can transmit wireless data at the rate of up to 300Mbps. With
multiple protection measures including SSID broadcast control, wireless LAN WEP encryption,
and Wi-Fi Protected Access (WPA2- PSK, WPA-PSK), the device delivers complete data privacy.
Conventions
The device mentioned in this User Guide stands for WR3011 300Mbps Wi-Fi Router without
any explanations. Parameters provided in the pictures are just references for setting up the
product. They may differ from the actual situation.
1.2ProductFeature
¾ Support a 100Mbps three Ports, one WAN port, two LAN ports and support port adaptive.
¾ Support Wireless up to 300Mbps transfer rate.
¾ Support IEEE 802.11b/g/n, IEEE 802.3/802.3u, IEEE 802.1X protocol.
¾ Built-in DHCP Server and support static routing.
¾ Support web page filtering, timing control on the Internet.
¾ Support system log.
¾ Support remote and web management.
8
Chapter2ConnectingMechanism
2.1Appearance

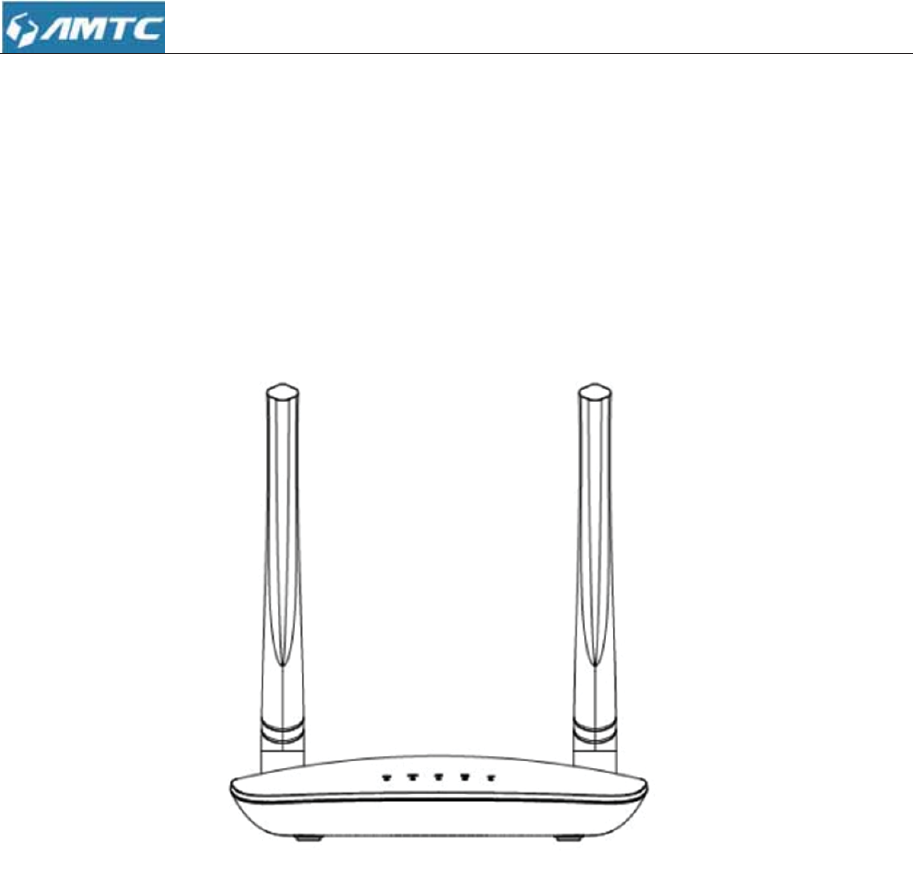

2.1.1Theproductsfrontpanel
The LED indicator displays information about the device’s status.
9
2.1.2Theproductrearpanel
2.2SystemRequirement
¾ Internet service (Internet access through Ethernet cable or via xDSL/Cable Mode).
¾ A modem with RJ45 port (use the Ethernet cable access directly do not need this equipment).
¾ Every PC Ethernet connection device (wired internet card or wireless internet card and
Ethernet cable).
¾ TCP/IP network software is supported by Window XP/Window 7/Window 8 /Window 10
LED Name Status Indication
WPS
LED
Off WPS is disabled or connected
Blinking Negotiationisinprogressthrough
WiͲFiProtectedSetup.
SYS
LED
Solid Thedeviceispoweredon
Off Thedeviceispoweredofforis
down.
WAN
LED
Solid WANconnectionsucceeds.
Off NoWANconnection.
Blinking Dataisbeingtransmitted.
Wi-Fi/
LED
Solid TheWLANconnectionhasbeen
Off TheWLANconnectionisnot
activated
Blinking Dataisbeingtransmitted.
Off
NoLANconnection.
LAN
LED Blinking Dataisbeingtransmitted.
Solid
LANconnectionsucceeds.
10
¾ Internet Explorer 8 or higher versions or Firefox
2.3ConnectionInstruction
2.3.1GettingPrepared
Before you start the installation process, you need to prepare the following things:
Item Description
Router Find it in your package.
Power adapter Find it in your package.
PC Should have installed IE8 or higher browser.
Gather ISP
Information
DHCP, PPOE or Static IP Internet Connection Type:
1. Ethernet Cable from the incoming Internet side: This is provided by your ISP
2. ISP Information: Your Internet service provider (ISP) should have provided
you with all of the information needed to connect to the Internet. If you cannot
locate this information, ask your ISP to provide it
If your ISP uses a PPOE Internet connection, you will need ISP login name
and password
z If you use a DHCP Internet connection, no information is needed

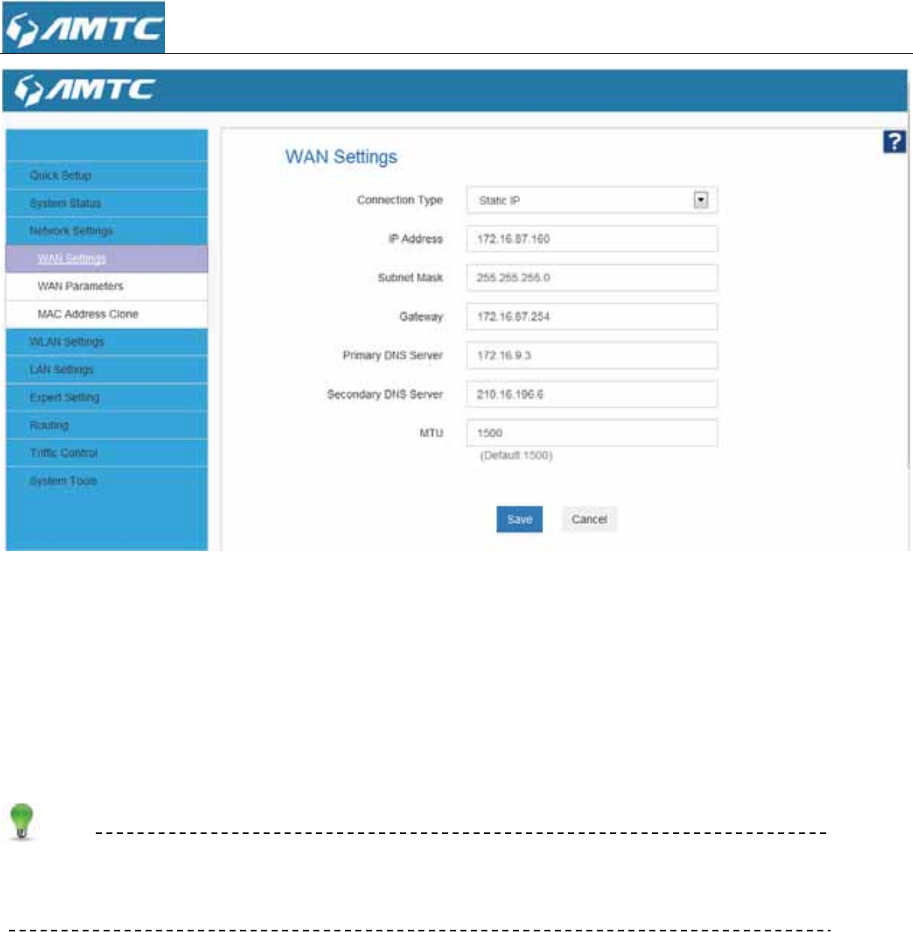

z If your ISP gives you a fixed or static IP address for Internet
connection, you will need to gather the following information:
1) IP Address
2) Subnet Mask
3) Gateway
4) DNS Server
5) Alternate DNS Server (Optional)
WISP Internet Access:
1. Remote AP's SSID, MAC address, security mode, cipher type and security
key
2. Internet connection information provided by the remote AP
11
3. Ethernet Cable: This can be found in the product package. You will need it
to connect your PC to this device
2.3.2InstallmentEnvironment
Please follow these rules when install and use:
Note
z Environmental factor will have influence on the distance of wireless transmission.

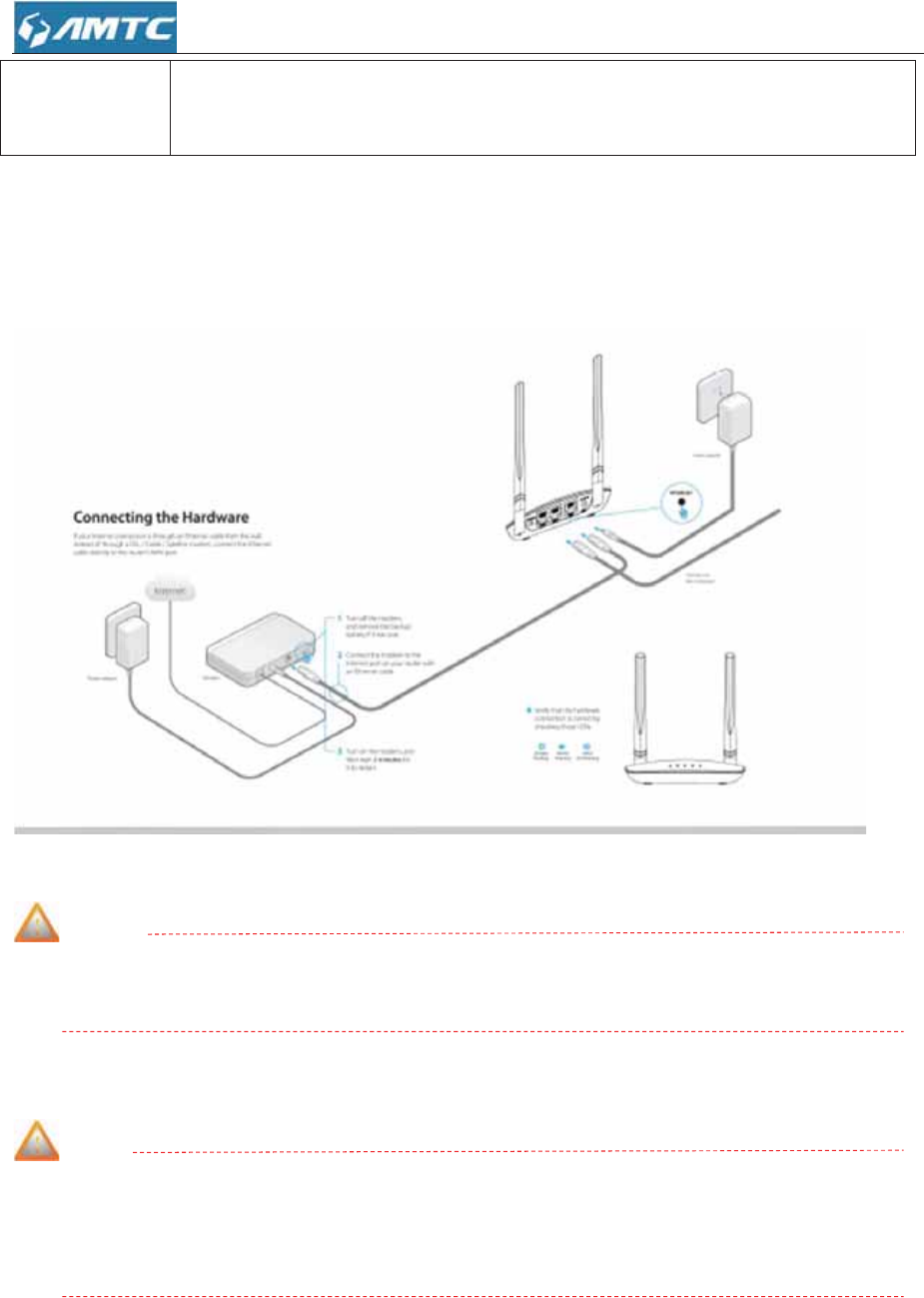

2.3.3HardwareConnection
Note
z Before connecting, please make sure that you can surf the internet in your computer to use
the reticle provided by ISP.
There are two measures to connect your device:
1) If you use ADSL connect the internet, please follow step 1-4 as graphical shown to connect
your device.
12
2) If you use Residential broadband, put the network line into the WAN port and follow the step
3-4 as graphical shown to connect your device.
Set Steps
˖
ķ
Connect the modem.
ĸ
Please connect reticle what you ever connected to the computer with the router's WAN port.
Ĺ
Use another reticle to connect your computer Ethernet port with the router’s any LAN port.
ĺ
Connect the router’s power adapter. And the hardware connection is finished.
Note
z
Please use the matched power adapter otherwise it will damage the router.
2.4ConfigurelocalPCTCP/IPSettings
Before you log in to the router, please make sure your computer set to “Obtain an IP address
automatically” and “Obtain DNS server address automatically” from the device.
ķ
Click Start -> Control Panel.
ĸ
Click Network and Internet.
13
Ĺ
Click Network and Sharing Center.
ĺ
Click Change adapter settings.
14
Ļ
Click Local Area Connection and select Properties.
ļ
Select Internet Protocol Version 4 (TCP/IPv4) and click Properties.
Ľ
Select Obtain an IP address automatically and click OK
15
ľ
Click OK on the Local Area Connection Properties window to save your settings
Note
zIf you need to configure the IP address manually, please set the PC’s IP address and router IP
address in the same subnet, because the router’s default IP is 192.168.1.1, the subnet mask
is 255.255.255.0, so your IP should set 192.168.1.XXX; XXX cannot be 1.
16
Chapter3ConfiguringtheDeviceManually
3.1LogintheRouter
1. To access the Router’s Web-based Utility, launch a web browser such as Internet Explorer or
Firefox.

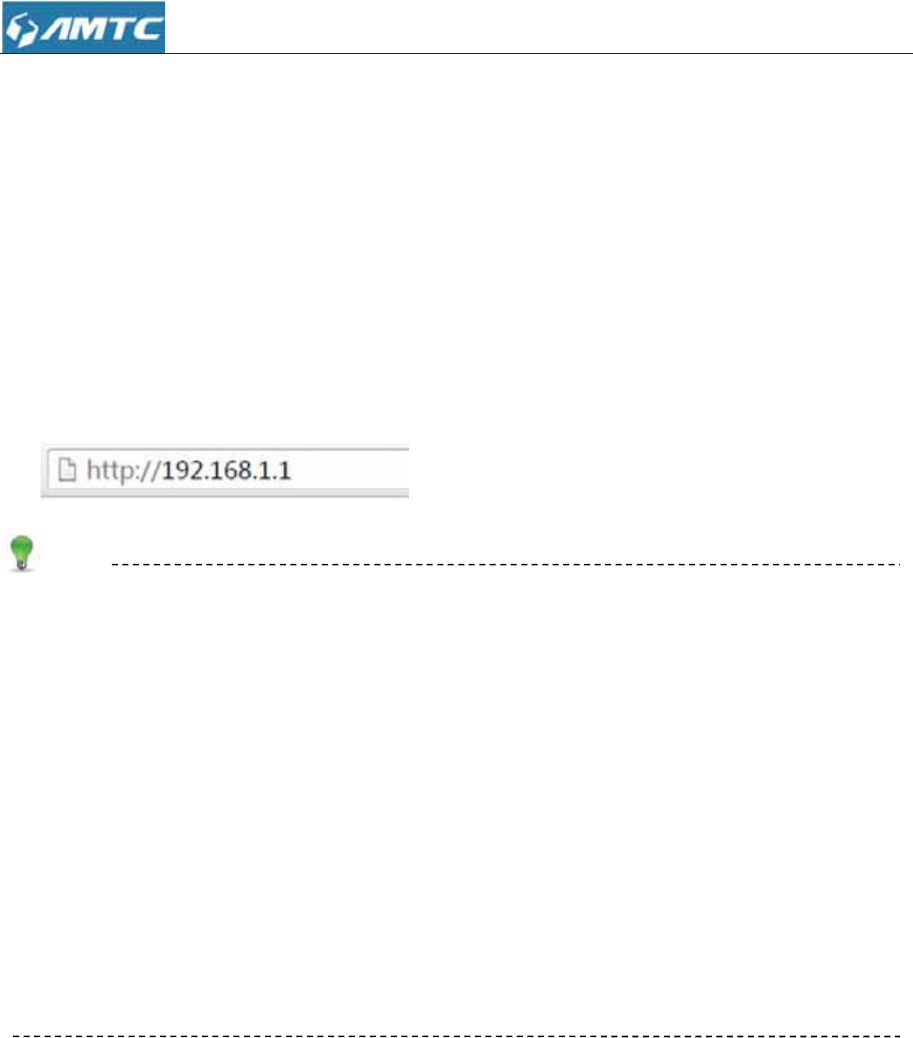

2. Enter “http://192.168.1.1”. Press “Enter”. ( You can login to the device’s page through the
following two domains: “mtc.setup.cn” or “WR3011.setup.cn”)
Tips
z WR3011 as a Wifi Router device, avoid abnormal of IP conflict in the same LAN, after this
device connected with up level router, it will adjust itself as follows:
1) If this device ’s LAN IP and the up level router’s LAN IP at the same network segment, this
device will change its LAN IP automatically. For example: the up level router’s LAN IP is:
192.168.1.1, this device ’s LAN IP will become 192.168.10.1.
2) If they are not in the same network segment, this device ’s LAN IP will unchanged.
z After this device connected with up level router, this device will get an IP from up level
through DHCP but this IP is unknown to the user (now this device has two IP addresses,
192.168.10.1 and the up level router assigned. both of them can login the web page.).
3. The system will automatically display the login page, please enter the correct password. Click
the “sign in” button or press “Enter” key.
17
Tips
z Default Password is “admin”
z The default language is EN. You can change the language between English and French.
Ô Web page layout
Web page have˖primary & secondary navigation barǃconfiguration zoneǃhelp information zone
four partsˈas shown:
Note
z Device does not support web page, function display will appear abnormal, please refer to the
actual situation of equipment software.
z Different browsers and the same browsers but different version the web page may different in
display.
z Web page displayed as gray features or parameters, display device does not support or
immutable under the current configuration.
18
Note
No Name Description
1Primary User can easily Select functions in the navigation bar
menu, Select the results displayed in the configuration
section
2Secondary
3configuration zone Configure and view area.
4help information The help information of current page
19

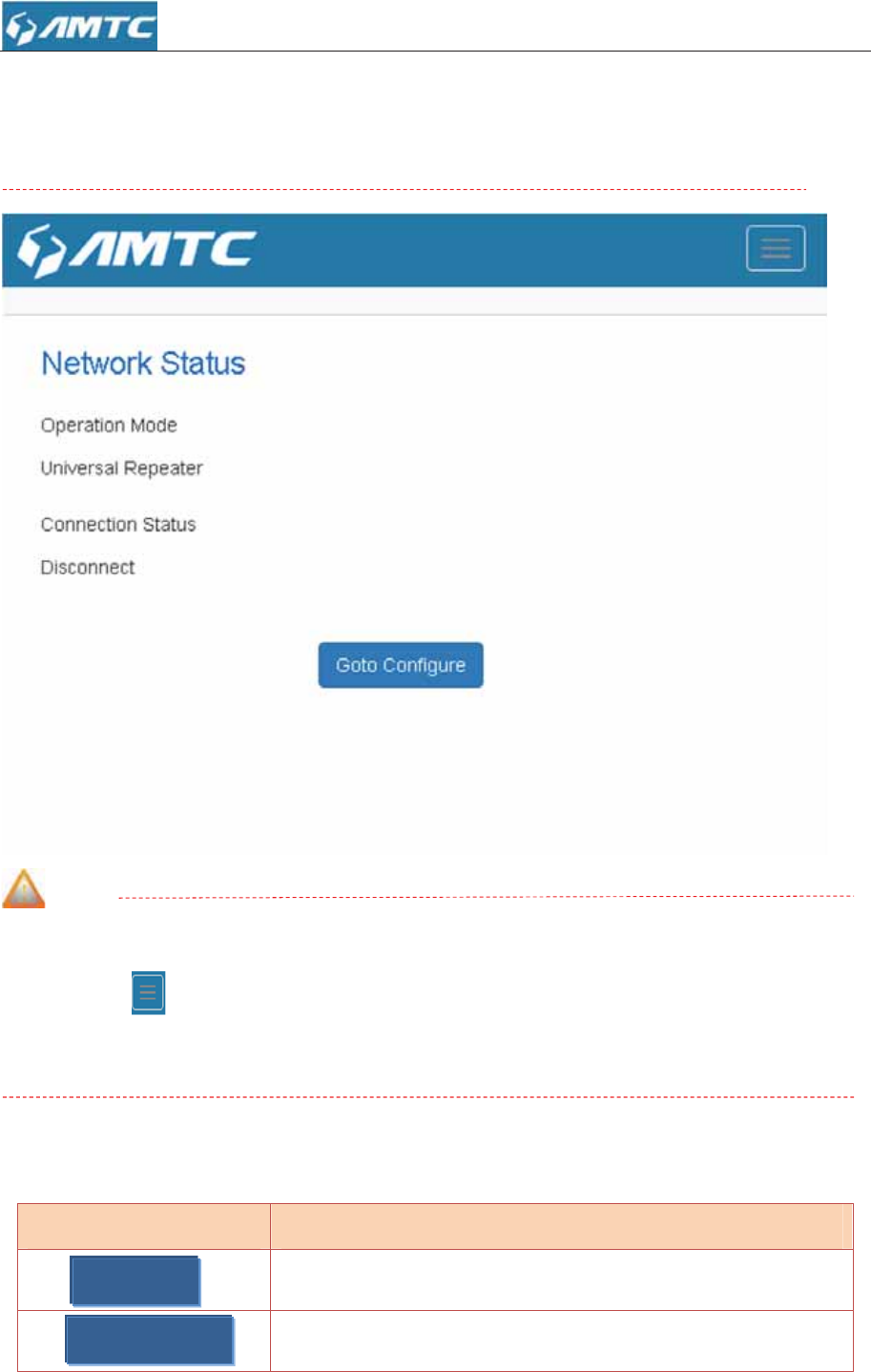

Change the resolution of the screen the help information may become “ ? ” as above shown,
if you want to refer the help information please click the symbol.
Note
Change the resolution of the screen or login by small screen terminal, the “navigation bar menu”
may become “ ” as above shown, if you want to refer the “navigation bar menu” please click
the symbol.
Ô Commonly used web page elements description
Common elements Description
Scan the information automatically
Goto the configure page directly
OpenScan
GotoConfigure
20
Close the scan function
Application current page configuration
Cancel current page configuration
Save current page configuration
Refresh current page configuration
Add item
Delete item
resumed to not configured mode
Backup current information
Upgrade current information
Reboot the device
Clear current page information
Allow connection
Disallow connection
Will go to the next step
Will back to last step
3.2QuickSetup
In this page you can configure the mode of operation.
Apply
Cancel
Save
Refresh
Add
Backu
p
Upgrade
Reboot
Clear
Delete
resetOOB
Connect
Disconnect
CloseScan
NEXT
Back
21
Here are two modes Router and WISP:
Tips
z The default mode is Router. You can change the operation mode on the quick setup page.
1) Router mode configure
Plug Internet cable to WR3011 WAN port.
Set steps:
ķ
Select “Router”.
ĸ
Click “NEXT”.
Ĺ
You can select “Dynamic IP”, “Static IP”, “PPPOE” mode.
ĺ
Click“NEXT”toconfigurethewirelessinformation.
Ļ
Click“NEXT”.
ļ
Click“Save”toconfirm.
2) WISPmodeconfigure:
Set steps:
ķ
Select “WISP” mode and click “NEXT” button.
ĸ
Click “Open Scan”to scan wifi,then choosing an usable wifi,enter it’s password.
Ĺ
Configure the wireless information.
ĺ
Click “Save” and you have setted the WISP mode
22
Knowledge Expansion
zWISP: In this mode, the AP will behave as client.In addition, router function is added between
the wireless WAN side and the Ethernet LAN side.Therefore, the WISP subscriber can share
the WISP connection without the need of extra router.
zRouter: The Ethernet port will behave as a WAN port for wired connection to ADSL or Cable
modem. The NAT routing will be performed between the WAN and WLAN. Making IP sharing
possible
3.3SystemStatus
Click “System Status”, enter the system status web page, in this page you can see the
“SystemStatus”, “WAN Status” ,” LAN Status”, “Wireless Status”.
3.3.1SystemStatus
This page displays Connected Clients, System Version, Running Time, System Time.
Parameters Specification:
¾Connection Clients: displays the number of DHCP clients.
¾System Version: Firmware Version.
23
¾Running Time: Displays the time duration indicating how long the router has been up since
startup. Up time is recounted and renewed upon power off.
¾System Time: Current system time on this device. The device automatically synchronizes the
system time with Internet time servers.
Tips
z Running time is total time the router is turned on
3.3.2WANStatus
Parameters Specification:
¾Connection Type: It displays the current access mode of WAN port.
¾Connection Status: The network connection status.
¾WAN MAC Address: MAC address of your ISP's router to see.
¾WAN IP: IP address obtained from ISP.
¾Subnet Mask: Obtained from ISP.
¾Gateway: Obtained from ISP.
¾Primary DNS Server: Obtained from ISP.
24
¾Secondary DNS Server: Obtained from ISP.
¾Connection Duration: Access method for dynamic IP or PPPOE server and router and ISP
connection is properly timed.
Tips
WAN IP/Subnet Mask/Gateway/Primary DNS Server/Secondary DNS Server: This types
of information appears only if the router successfully connects to Internet via a PPPoE or DHCP
(dynamic IP) connection. However if you connect the router to Internet with static IP settings
provided by your ISP, these fields will display the settings you entered whether the router
successfully connects to the Internet or not.
If nothing appears in the secondary DNS server field, there is no available secondary DNS server
3.3.3LANStatus
Parameters Specification:
¾IP Address: The Router’s LAN IP Address (not your PC’s IP address).
¾Subnet Mask: The Router’s LAN subnet mask.
¾DHCP Server: the status of DHCP server.
¾LAN MAC Address: The router’s physical address.
25
Tips
z The default IP address is 192.168.1.1.
z The default Subnet mask value is 255.255.255.0
z If the router as a DHCP server, here shown as enabled. Otherwise disabled
3.3.4WirelessStatus
Parameters Specification:
¾SSID Name
˖
The name of Wireless.
¾BSSID: The MAC Address of Wireless.
¾Channel
˖
The Channel of Wireless.
¾Security Mode: Encryption schemes.
Tips
z The default SSID is WR3011_XXXXXX, where XXXXXX is the last six characters in the
device's MAC address. You can find it on the label attached on the bottom of the device.
zDefault channel is AutoSelect.
z
26
Knowledge Expansion
zAutoSelect: Under the “AutoSelect” the wireless signal will choice the user number is the
least channel to improve the efficiency of the signal, it works for most cases.
z If you choice other mode, the channel will not change all the time not matter the channel is
good or bad.
3.4NetworkSettings
Click “Network Settings” enter the Network setup web pageˈin this page you can set “WAN
Settings”, “WAN Parameters”, “MAC Address Clone”.
3.4.1WANSettings
Plug Internet cable to WR3011 WAN port.
Set Steps
˖
ķ
Enter the web and Select “Network Settings”.
ĸ
Click the “WAN Settings”.
Parameters Specification:
¾Connection Type: It displays the routers mode.
27
1ǃConfiguration the Internet access
Support Static IP modeǃDynamic IP(DHCP)ǃPPOE.
WAN Connection Type Instruction
Static IP mode
If your ISP provides you with an Ethernet cable from the
incoming Internet side IP information (IP address, subnet
mask, gateway IP address, DNS server address), your ISP
uses a static IP connection.
Dynamic IP
IfyourISPprovidesyouwithanEthernetcablefromtheincoming
InternetsidebutnoISPloginaccountorIPinformation,yourISP
usesaDHCPconnection.
PPOE
If your ISP provides you with an Ethernet cable from the
incoming Internet side and ISP login account, your ISP uses a
PPOE connection.
1.1> Static IP mode
Set Steps
˖
ķ
Click “Network Settings”.
ĸ
Select “WAN Settings”.
Ĺ
Select Connection Type “Static IP”.
ĺ
Enter IP, Subnet Mask, Gateway, MTU, DNS
Ļ
Click “Save” to confirm.
28
Parameters Specification:
¾Connection Type: Select Static IP.
¾IP Address/Subnet Mask/WAN subnet mask/Gateway/Primary DNS Server/Secondary
DNS Server: Enter the ISP information you gathered in Getting Prepared.
¾ Click Save to save your settings.
Tips
z MTU better to choose the default values.
1.2> Dynamic IP mode.
Set Steps
˖
ķ
Click “Network Settings”.
ĸ
Select “WAN Settings”.
Ĺ
Select Connection Type “Dynamic IP”.
ĺ
Click “Save” to confirm.
29
Tips
z MTU better to choose the default values.
1.3> PPOE
Set Steps
˖
ķ
Click “Network Settings”.
ĸ
Select “WAN Settings”.
Ĺ
Select Connection Type “PPOE”.
ĺ
Enter the ISP login UserNameˈthe ISP login Password.
Ļ
Click “Save” to confirm.
ļ
Click “System Status”---> “WAN Status” to confirm
30
Knowledge Expansion
zMTU: Maximum Transmission Unit. It is the size of the largest data packet that can be sent
over the network. The default value is 1500.
The common MTU sizes and applications are listed in the table below.
MTU Application
1500 Typical for connections that do not use PPOE or VPN.
1492 Used in PPOE environments.
1472 Maximum size to use for pinging. (Larger packets are fragmented.)
1468 Used in some DHCP environments.
1436 Used in PPTP environments or with VPN.
Note
z A wrong/improper MTU value may cause Internet communication problems. For example, you
may be unable to access certain websites, frames within websites, secure login pages, or
FTP or POP servers.
z
Do not modify it unless necessary, but if a specific website or web application software cannot
open or be enabled, you can try to change the MTU value to 1500, 1400.
31
3.4.2WANParameters
Set Steps
˖
ķ
Click “Network Settings”.
ĸ
Select “WAN Parameters”.
Ĺ
Select Negotiation Mode type.
ĺ
Click “Save” to confirm.
Parameters Specification:
¾Negotiation mode: you can set the value to match with the status
Tips
1. The router operates in “Auto-negotiation” (or Auto) mode by default. Usually, it works for most
cases.
2. In some situations, you might need to change the port mode. For example, if the cable
connected to your router's WAN port is longer than 100m, you may need to use 10M full-duplex or
10M half-duplex for better performance. Ensure that your router's WAN port operates with the
same speed and duplex mode as the remote link partner. If not, your router's WAN port may not
receive and send data.
32
3.4.3MACAddressClone
Some ISPs (Internet Service Providers) require end-user's MAC address to access their
network. This feature copies your current PC's MAC address to the router.
Set Steps
˖
ķ
Click “Network Settings”.
ĸ
Click “MAC Address Clone”.
Ĺ
You can set this page from three methods˖
1
ǃ
To Restore to Factory Default MAC
1> Click “Restore to factory Default MAC”
2> Click Save to save your settings.
2
ǃ
To clone the MAC address of the computer that you are now using to the router:
1> Click Clone My PC’s MAC Address.
2> Click Save to save your settings.
3
ǃ
To manually enter the MAC address allowed by your ISP:
1> Enter the MAC address allowed by your ISP.
2> Click Save to save your settings.
Parameters Specification:
¾MAC Address: The computer or broadband modem authorized by your ISP.
33
Knowledge Expansion
1. Restore to Factory Default MAC: Reset the router’s WAN MAC to factory default.
2. Clone MAC: Clicking this button copies the MAC address of the computer that you are now
using to the router. Also, you can manually enter the MAC address that you want to use. You
have to use the computer whose MAC address is allowed by your ISP
3.5WLANSettings
Click “WLAN Settings” enter the configure page , here you can configure “Base Settings”,
“Security Settings”, “WPS Settings”, “Access Control”, “Connection Status”.
3.5.1BasicSetting
Here you can configure the basic wireless settings of the router
Set Steps
˖
ķ
Click “WLAN Settings”.
ĸ
Select “Basic Settings”.
Ĺ
Wireless Enable.
ĺ
Select Network Mode
Ļ
Enter SSID name (Default name is WR3011_XXXXXX).
ļ
Select “Channel”.
Ľ
Select “Channel BandWidth”.
34
Parameters Specification:
¾Wireless: wireless “Enable” or “Disable”.
¾SSID: It is the unique name of the wireless network and can be modified.
¾Broadcast (SSID): Select “Enable” to enable the router’ SSID to be scanned by wireless
devices. The default is enabled. If you disable it, the wireless devices must know the SSID for
communication.
¾BSSID: This is the MAC address of the device's wireless interface.
¾Channel: The currently used channel by the router. Select an effective channel of the
wireless network. The default is AutoSelect.
¾Channel Bandwidth: Select an appropriate channel bandwidth to enhance the wireless
performance. Select 20/40M when the network has 11b/g/n to promote its throughput
Note
z The wireless Enable.
z The SSID must be entered.
Tips
1. The SSID is WR3011_XXXXXX by default, where XXXXXX is the last six characters in the
35
device's MAC address. You can find it on the label attached on the bottom of the device.
2. If you are not an advanced user, it is advisable to only change the SSID (name of the network)
and channel and leave other items unchanged.
Knowledge Expansion
Network Mode (802.11 Mode): Select a correct mode according to your wireless clients.
z11b: This network mode delivers wireless speed up to 11Mbps and is only compatible with
11b wireless clients.
z11g: This network mode delivers wireless speed up to 54Mbps and is only compatible with
11g wireless clients.
z11b/g mixed: This network mode delivers wireless speed up to 54Mbps and is compatible
with 11b/g wireless clients.
z11b/g/n mixed: This network mode delivers wireless speed up to 300Mbps and is compatible
with 11b/g/n wireless clients
3.5.2SecuritySettings
With the wireless security function, you can prevent others from connecting to your wireless
network and using the network resources without your consent. Meanwhile, you can also block
illegal users from intercepting or intruding your wireless network
Set Steps
˖
ķ
Click “Network Settings”.
ĸ
Select “Security Settings”.
Ĺ
Select “Security Mode”.
ĺ
Click “Apply” to use you settings and click “Save” to save your settings.
36
¾Security mode: WPA – PersonalǃWPA2 – PersonalǃMixed WPA/WPA2 – Personal.
Security mode Instruction
Disable Not open this function
WPA – Personal Support AES and TKIP cipher types
WPA2 – Personal Support AES, TKIP and TKIP+AES cipher types
Mixed WPA/WPA2 – Personal Both WPA-Personal and WPA2-Personal secured
wireless clients can join your wireless network.
Note
zWPA/WPA2-Personal: You can enable personal or mix mode, but you must make sure that
the wireless client also supports the selected encryption method.
37
Parameters Specification:
¾WPA Algorithms: Wi-Fi Protected Access Algorithms.
¾Pass Phrase: The default is 12345678.
Knowledge Expansion
1. WEP: (Wired Equivalent Privacy) is the wireless transmission of data between two devices for
encryption, to prevent illegal users wiretapping or invade the wireless network.
2. AES: (Advanced encryption standard) is an iterative, symmetric key group password. If
selected, wireless speed can reach up to300Mbps.
3. TKIP: (Temporal Key Integrity Protocol) Responsible for handling the wireless encryption part of
security issues, TKIP is in WEP password outermost layer of the existing “shell” If selected,
wireless speed can reach up to 54Mbps.
4. TKIP+AES: If Selected, both AES and TKIP secured wireless clients can join your wireless
network.
5. Key Renewal Interval: Enter a valid time period for the key to be changed.
38
Tips
z Recommended that you choice “WPA-Personal” + ”AES” mode , make sure the wireless
efficiency and ensure the security of wireless network. Meanwhile, avoid some kind of
wireless network card does not support security mode, cause cannot connect the wireless
network.
3.5.3WPSSettings
Set Steps
˖
ķ
Click “WLAN Settings”.
ĸ
Select “WPS Settings”.
Knowledge Expansion
WPS provides you with two main functions:
z if your wireless network unencryptedˈWPS can quickly encryption your wireless network.
z If your wireless network encrypted, WPS can make you quickly connect your encrypted
wireless network.
Parameters Specification:
39
The WPS provides below methods:
¾PBC: Using routers and physical or logical button on a wireless device to connect WPS.
You have below methods to connect WPS:
1
ǃ
Using the router WPS button on the rear panel for the PBC connection
ķ
Click “Enable”
ĸ
Click “Save”
Ĺ
Hold the router on the rear panel of the WPS button for 3 seconds, then let go
ĺ
The router's WPS led flashes two minutes, During this time, In the wireless client devices use
the WPS/PBC connect to your wireless signal
Knowledge Expansion
resetOOB:
z The router wireless SSID, safe mode resumed to not configured mode. Make the WPS reset
the SSID, Encryption and password, after the completion of the reset, the router’s SSID is
factory default, safe mode is unencrypted.
3.5.4AccessControl
Wireless access control is actually based on the MAC address to permit or forbid specified
clients to access the wireless network
Set Steps
˖
ķ
Click “WLAN Settings”.
ĸ
Select “Access Control”
.
40
Parameters Specification:
¾ The Wireless Access Control is based on the MAC address of the wireless adapter
to determine whether it communicates with the Router or not;
1. Select “Off” to allow all wireless clients to join your wireless network.
2. Select “Allow” allow ONLY the specified wireless clients to join your wireless network.
3. Select “Block”disallow ONLY the specified wireless clients to join your wireless network.
Wireless Access Control Application Example:
To only allow your own notebook at the MAC address of 00:12:35:EC:DF:25 to join your wireless
network
41
Set Steps
˖
ķ
Select Allow.
ĸ
Enter the MAC address of the wireless device you want to restrict. Here in this example, enter
00:12:35:EC:DF:25.
Ĺ
Click Add to add the MAC address to the MAC address list.
ĺ
Click Save to save your settings.
Tips
z Up to 10 wireless MAC addresses can be configured
z If you don't want to configure the complex wireless security settings and want to disallow
others to join your wireless network, you can configure a wireless access control rule to allow
only your own wireless device
3.5.5ConnectionStatus
This page shows the current wireless access list
Click “Refresh” to update.
42
Tips
z The bandwidth here refers to the channel bandwidth instead of wireless connection rate.
z You can know whether there are unauthorized accesses to your wireless network by viewing
the wireless client list.
3.6LANSettings
Click “LAN Settings” enter the LAN Settings page, here you can configure LAN port info and
DHCP Server and DHCP List & Binding.
3.6.1LANSettings
This page is to configure the basic parameters for LAN ports. This IP address is to be used to
access the device’s settings through a web browser. Be sure to make a note of any changes you
apply to this page.
Set Steps
˖
ķ
Click “Network Settings”.
ĸ
Select “LAN Settings”.
Ĺ
Enter IP Address
ˈ
Subnet Mask.
43
ĺ
Click “Save” and wait for the router reboot automatically.
Parameters Specification:
¾MAC Address
˖
It displays the Router’s LAN MAC address.
¾IP Address
˖
It displays the Router’s LAN IP address.
¾Subnet Mask: it displays the Router’s LAN subnet mask.
Tips
1. Default IP address and subnet mask are respectively 192.168.2.1 and 255.255.255.0.
2. Be sure to make a note of any changes you apply to this page. If you change the LAN IP
address of the router, you have to open a new connection to the new IP address and log in
again. Also, you have to set the default gateway addresses of all LAN PCs to this new IP
address.
3. The router's LAN IP address and WAN IP address cannot be on the same IP segment. If not,
the router will not be able to access Internet.
3.6.2DHCPServer
Set Steps
˖
ķ
Click “LAN Settings”.
44
ĸ
Select “DHCP Server”.
Parameters Specification:
¾DHCP Server: Select whether enable or disable the DHCP server feature.
¾Start IP Address and End IP Address: You can specify the starting and ending address of
the IP address pool here. These addresses should be part of the same IP address subnet as
the router’s LAN IP address.
¾ Enter the Lease Time
Knowledge Expansion
zDHCP (Dynamic Host Configuration Protocol) assigns an IP address to each device on the
LAN/private network.
z When you enable the DHCP Server, the DHCP Server will automatically allocate an unused
IP address from the IP address pool specified in this screen to the requesting device as long
as the device is set to “Obtain an IP Address Automatically”.
z If you disable this feature, you have to manually configure the TCP/IP settings for all PCs on
your LAN to access Internet.
zLease Time: is the length of the IP address lease before it is refreshed.
Tips
By default, the router functions as a DHCP server. Do not disable the DHCP server feature
unless you want to manually configure the TCP/IP settings for all PCs on your LAN.
45
1. Lease time will be renewed automatically upon expiry. No additional configurations are
needed.
2. If you are not an advanced user, the default DHCP server settings are recommended.
In order to use the function of the router's DHCP server, LAN in the computer's TCP/IP protocol
must be set to “automatically obtain IP”.
3.6.3DHCPList&Binding
Set Steps
˖
ķ
Click “LAN Settings”.
ĸ
Select “DHCP List & Binding”.
Parameters Specification:
¾ Enter the IP Address and MAC Address
¾ Click “Add” add to the DHCP list
¾ Click “Refresh” to update the related DHCP client information.
Tips
z You can know whether there are unauthorized accesses by viewing the client list.
z Also, you can specify a reserved IP address for a PC in the LAN. That PC will always receive
46
the same IP address each time when it accesses the DHCP server. Reserved IP addresses
could be assigned to servers that require permanent IP settings.
Static Assignment Application Example:
To have a PC at the MAC address of 44:37:E6:4F:37:3B always receive the same IP address of
192.168.1.200
Parameters Specification:
¾ Enter the last number of the IP address you want to reserve, for example, 200.
¾ Enter the MAC address of 50:7B:9D:12:41:69
¾ Click “Add”.
¾ Click “Save” to save your settings.
Tips
1. If the IP address you have reserved for your PC is currently used by another client, then you will
not be able to obtain a new IP address from the device's DHCP server, instead, you must
manually specify a different IP address for your PC to access Internet.
2. For PCs that has already obtained IP addresses, you may need to perform the Repair action to
activate the configured static IP addresses
47
3.7ExpertSettings
Click “Expert Settings” enter the Virtual Server configure page ,here you can set “URL Filter”,
“Port Range”, “DMZ Settings”, “DDNS”, “Remote WEB”, “WAN Ping”.
3.7.1URLFilter
This section is to set URL filtering access. If you want to enable this function, please activate
the checkbox. Select one policy from the drop-down menu and enter a policy name in the field. Of
course, you can set the access restriction in details (e.g. the fixed IP range, URL, times and days).
Note: When time is 0:0~0:0, it express 24 hours.
Set Steps
˖
ķ
Click “Expert Settings”.
ĸ
Select “Client Filter”.
URL Filter Application Example:
To prevent your home PC (192.168.1.100) from accessing “YouTube” from 8:00 to 18:00 during
working days: Monday- Friday.
48
Set Steps
˖
ķ
Enter a Policy Name
ĸ
Enter the Start IP and End IP here for example:192.168.1.100
Ĺ
Enter part of or the entire domain name of the web site you wish to restrict. Separate different
domain names or domain name key words with a comma, for example, "YouTube,
Hollywood.com"
ĺ
Select time and day
Ļ
Click “Save” to save your settings.
Tips
1. Different URL strings must be separated with a comma. To match all websites, use * (asterisk)
2. Up to 10 filter rules can be configured.
3. If you have not set up the system time for this device, click System Tools -> Time Settings to
set up correct time and date for the rules to be effective
3.7.2PortRange
You want to share resources on your PC with your friends who are not in your LAN. But, by default,
49
the router's firewall blocks inbound traffic from the Internet to your computers except replies to
your outbound traffic. You can use the Port Forwarding feature to create exceptions to this rule so
that your friends can access these files from external networks.
When accessing your PC from Internet, type "protocol://xxx.xxx.xxx.xxx:port number" into your
browser’s address or location field. The protocol and port are the ones used by the service and
"xxx.xxx.xxx.xxx" is the WAN IP address of your router. For example, a FTP server uses the ftp
protocol and 21 (standard port number).
Set Steps
˖
ķ
Click “Expert Settings”.
ĸ
Select “PortRange”.
Application Example:
As shown in the figure above, your PC at 192.168.2.10 connects to the router and runs a FTP
server on port number 21. Your friends want to access this FTP server on your PC from external
network.
Tips
To successfully implement the port forwarding feature, note below:
1. Make sure your WAN IP address (Internet IP address) is a public IP address. Private IP
addresses are not routed on the Internet.
2. Make sure you enter correct service port numbers.
3. To ensure that your server computer always has the same IP address, assign a static IP
address to your PC.
4. Operating System built-in firewall and some anti-virus programs may block other PCs from
accessing resources on your PC. So it is advisable to disable them before using this feature.
50
Parameters Specification:
¾ Start/End Port: Enter the start/end port number which ranges the External ports used to set
the server or Internet applications. Here in this example, enter 21.
¾ IP Address: Enter the IP address of the PC where you want to set the applications. Here in
this example, enter 192.168.1.100.
¾ Protocol: Specify the protocol required for the service utilizing the port(s). Select the protocol
(TCP/UDP/Both) for the application.
¾ “Enable” to apply this function, “Delete” cancel this host configure.
¾ Click ‘Save’ to save your settings.
If your WAN IP address is 192.168.1.100 when accessing your FTP server from external network,
your friends only need to enter ftp:// 192.168.1.100:21 in their browsers.
3.7.3DMZSettings
Set Steps
˖
ķ
Click “Expert Settings”.
ĸ
Select “DMZSettings”.
Ĺ
Select “Enable”
ĺ
Add DMZ Host IP which is the LAN IP
51
Ļ
Click “Save” to confirm.
Tips
z The DMZ Settings screen allows one local computer to be exposed to the Internet for use of a
special-purpose service such as Internet gaming or videoconferencing.
z DMZ hosting forwards all the ports at the same time to one PC.
Note
1. DMZ host poses a security risk. A computer configured as the DMZ host loses much of the
protection of the firewall and becomes vulnerable to attacks from external networks.
2. Hackers may use the DMZ host computer to attack other computers on your network
3.7.4DDNSSettings
The DDNS (Dynamic Domain Name System) is supported in this Router. It is used to assign a
fixed host and domain name to a dynamic Internet IP address. Every time you access the Internet,
the dynamic domain name software installed on your host will tell the ISP’S host server its
dynamic IP address by sending messages. And the server software is responsible for providing
DNS service and implementing dynamic domain name resolution.
52
Set Steps
˖
ķ
Click “Expert Settings”
ĸ
Select “DNNS”
Ĺ
Select “Enable”
ĺ
Add “Serve provider”.
Ļ
Enter the “User name” and “Password”
ļ
Enter “Domain Name”
Ľ
Click “Save” to confirm.
Tips
1. To use the DDNS feature, you need to have an account with one of the Service Providers in the
drop-down menu first.
2. This router supports five DDNS service providers: DynDNS.com and 88ip.cn and 3322.com
Parameters Specification:
¾DDNS Service: Click the button to enable or disable the DDNS service.
¾Service provider: Select one from the drop-down list and click “Sign up” for registration.
¾Username: Enter the username that you use to register from the DDNS provider.
¾Password: Enter the password that you use to register from the DDNS provider.
53
¾Domain name: Enter the effective registered domain name.
3.7.5RemoteWEB
This section is to allow the network administrator to manage the router remotely. If you want to
access the router remotely, please select “Enable”.
Set Steps
˖
ķ
Click “Expert Settings”.
ĸ
Select “Remote WEB”.
Ĺ
Enter the Port
ĺ
Click “Save” to confirm.
Parameters Specification:
¾Port: The management port to be open to outside access.
Tips
1. For better security, configure a port number (between 1025-65535) as remote web
management interface, do not use the number of any common service port (1-1024).
54
2. Make sure your WAN IP address (Internet IP address) is a public IP address. Private IP
addresses are not routed on the Internet.
3. It is unsafe to make your router remotely accessible to all PCs on external network. For better
security, we suggest that only enter the IP address of the PC for remote management
Remote Web Management Application Example:
To access your router (WAN IP address: 172.16.87.160) at your home from the PC (210.16.87.154)
at your office via the port number 6060.
Set Steps
˖
ķ
Management “Enable”.
ĸ
Enter the Port: 6060.
Ĺ
Click “Save” to save your settings.
In the PC 210.16.87.154 Type “http:// 172.16.87.160:6060” into your browser’s address or location
field and you can access the router at your home remotely.
Knowledge Expansion
1. Port: This is the management port to be open to outside access. The default setting is 8080.
This can be changed
55
3.7.6WANPing
The ping test is to check the status of your internet connection. When disabling the test, the
system would prevent the ping test from WAN.
Set Steps:
ķ
Select the “Expert Setting”
ĸ
Select the “WAN Ping”
Ĺ
Select the “Enable”
3.8Routing
In this page you can view the routing table information.
Click “Refresh” to update
56
¾Destination IP: The IP address of the final destination. “0.0.0.0” indicates any network
segment.
¾Subnet Mask: The subnet mask for the specified destination.
¾Gateway: This is the next router on the same LAN segment as the router to reach.
¾Interface: The interface between your router and the final destination.
3.9TrafficControl
Traffic control is used to limit communication speed in the LAN. Up to 20 entries can be
supported with the capability for at most 254 PCs' speed control, including for IP address range
configuration.
57
Tips
1. 1M=128KByte/s.
2. The volume of uplink traffic/downlink traffic should not be larger than that allowed on your
router's WAN (Internet) port. You can ask your ISP to provide the volume of Internet traffic.
3. The bandwidth for ADSL/DSL line usually refers to the download bandwidth
Bandwidth Control Application Example:
You share a 4M-broadband service with your neighbor (at 192.168.1.102). He always downloads a
large volume of data from Internet, which sharply frustrates your Internet surfing experience; you
can use this feature to set limits for the volume of Internet traffic he can get. For example, you can
split the 4M into two, so your neighbor can only use up to 2M Internet traffic and you can enjoy 2M.
58
Set Steps
˖
ķ
Enable Traffic Control: Check the Enable box to enable the Traffic Control feature.
ĸ
IP Range: Enter the last number of the IP address. Here in this example, enter 101 in both
boxes.
Ĺ
Up: Set a limit to regulate upload bandwidth of PCs on the LAN. Here in this example, enter
32 in first boxes, and 256 in second box.
ĺ
Down: Set a limit to regulate download bandwidth of PCs on the LAN.
Ļ
Apply: Check to enable the current rule.
ļ
Add: Click to add current rule to the rule list.
Ľ
Click Save to save your settings.
3.10SystemTools
Click “System Tools” enter the configure page ,here you can set “Time Settings”,
“Backup/Restore”, “Restore to Factory”, “firmware Upgrade”, “Reboot”, “Change Password”,
“System Log”.
3.10.1TimeSettings
This section is to select the time zone for your location. If you turn off the router, the settings
for time
59
Tips
Configured time and date info will be lost if the device gets disconnected from power supply.
However, it will be updated automatically when the device reconnects to Internet. To activate
time-based features (e.g. firewall), the time and date info shall be set correctly first, either
manually or automatically
Set Steps
˖
ķ
Click “System Tools”.
ĸ
Select “Time Settings”.
Ĺ
The time will synchronize with the internet automatically in the default situation
ĺ
Select Time Zone
Ļ
If you can enter the time and date manually or click “Sync with your PC”, synchronize
automatically.
ļ
Click Save to save you settings.
¾Synchronize with your PC: Specify a time interval for periodic update of time and date
information from your host.
60
3.10.2Backup/Restore
Parameters Specification:
¾Backup: Click this button to back up the router's configurations.
¾Restore: Click this button to restore the router's configurations.
Set Steps
˖
ķ
Click “System Tools”.
ĸ
Select “Back/Restore”.
Ĺ
“Backup” to keep parameters.
ĺ
Click “Browse” to add an file
Ļ
Click “Save”
Note
The default configuration file name is “RouterCfm.cfg”. Do include the file name suffix of
“.cfg” when renaming the file name to avoid problem.
61
3.10.3RestoretoFactory
Set Steps
˖
ķ
Click “System Tools”.
ĸ
Select “Restore to Factory”.
Parameters Specification:
¾ This “Restore” button is to reset all configurations to the default values. It means the Range
Extender will lose all the settings you have set. So please note down the related settings if
necessary.
¾Default Password: admin
¾Subnet Mask:255.255.255.0
¾Default IP:192.168.1.1
Note
z If you enable this option, all current settings will be deleted and be restored to factory default
values. You will have to reconfigure Internet connection settings and wireless settings.
z Do not restore factory default settings unless the following happens:
1> You need to join a different network or unfortunately forget the login password.
62
2> You cannot access Internet and your ISP or our technical support asks you to reset the
router.
3.10.4FirmwareUpgrade
The router provides the firmware upgrade by clicking the “Upgrade” after browsing for the
firmware upgrade packet. After the upgrade is completed, the router will reboot automatically.
Set Steps
˖
ķ
Click “System Tools”
ĸ
Select “Firmware Upgrade”
Ĺ
Click “Browse”, select the upgrade file
ĺ
Click “Upgrade”, and wait for it to complete.
Note
1. Before you upgrade the firmware, make sure you are having a correct firmware. A wrong
firmware may damage the device.
2. It is advisable that you upgrade the device's firmware over a wired connection. DO NOT
interrupt the power to the router when the upgrade is in process otherwise the router may be
permanently damaged.
63
3.10.5Reboot
When a certain feature does not take effect or the device fails to function correctly, try
rebooting the device.
¾ Rebooting the Wifi Router is to make the settings configured go into effect or to set the Range
Extender again if setting failure happens.
3.10.6ChangePassword
You can change the password by this function
64
Set Steps
˖
ķ
Click “System Tools”
ĸ
Select “Change Password”
Ĺ
Enter “Old Password” “New Password” and “Confirm New Password”
ĺ
Click “Save” to save you settings.
Tips
z The default login password is admin.
z The valid password must be between 3~12 characters and only include letters, numbers and
underscore
3.10.7SystemLog
The section is to view the system log. Click the “Refresh” to update the log.
Click the “Clear” to clear the screen.
65
Set Steps
˖
ķ
Click “System Tools”
ĸ
Select “System Log”
Ĺ
Click “Refresh” can update the information
ĺ
Click “Clear” to clear the screen
66
Appendix
1ConfigurePCTCP/IPSettings
Windows7
ķ
Click Start -> Control Panel.
67
ĸ
Click Network and Internet.
Ĺ
Click Network and Sharing Center.
68
ĺ
Click Change adapter settings.
Ļ
Click Local Area Connection and select Properties.
69
ļ
Select Internet Protocol Version 4 (TCP/IPv4) and click Properties.
70
Ľ
Select Obtain an IP address automatically and click OK.
71
ľ
Click OK on the Local Area Connection Properties window to save your settings.
72
WindowsXP
ķ
Right-click My Network Places and select Properties.
ĸ
Right click Local Area Connection and select Properties.
73
Ĺ
Select Internet Protocol Version 4 (TCP/IPv4) and click Properties.
ĺ
Select Obtain an IP address automatically and click OK.
74
Ļ
Click OK on the Local Area Connection Properties window to save your settings.
2Troubleshooting
The Troubleshooting provides answers to common problems regarding the Router
Adapter
˖
1. The System LED does not light up.
Ans. Check the following:
a) Make sure that the Router Adapter is properly plugged into a power outlet.
b) Make sure the power outlet is active (working) by plugging another electric device into it.
c) Re-plug the Router Adapter to the power outlet. If the system LED is still failed to light up,
contact your local dealer for technical support.
2. The WAN LED does not light up.
Ans. Check the following:
75
a) Make sure that the Ethernet cable (RJ-45) is properly connected to the Router Adapter’s
Ethernet port.
b) Make sure that the other end of the Ethernet cable (RJ-45) is properly connected to the
computer LAN card or to you Cable/xDSL Ethernet port.
c) Make sure your computer LAN card is properly installed and configured.
d) Make sure your Cable/xDSL broadband access is working and configured correctly.
e) Contact your local dealer for technical support if the Ethernet LED is still failed to light up after
the above procedures.
3Factorydefaultsettings
The table below lists the factory default settings of your device.
Item Default settings
Router Login
Login IP Address 192.168.1.1
Login User Name admin
Login Password admin
Network Settings
Internet Connection Type Mode Auto-switch Enabled
MTU
1492 (PPOE)
1500 (DHCP/Dynamic and
Static IP)
WAN Speed Auto
DNS Disable
LAN Settings
˄LAN˅
IP Address 192.168.1.1
Subnet Mask 255.255.255.0
DHCP Server Enabled
IP Pool 192.168.1.100~192.168.1.200
Time Zone
(GMT+08:00)Beijing,
Chongqing, Hong Kong,
Urumqi
Wireless Wireless Enabled
76
SSID
WR3011_XXXXXX(where
XXXXXX is the last six
characters in the device's
MAC address)
You can find it on the label
attached to the device.
Network Mode 11b/g/n mixed
SSID Broadcast Enabled
Channel AutoSelect
Channel Bandwidth 20/40
Extension Channel AutoSelect
Wireless Security Disabled
Wireless Access Control Disabled
Others
Remote Web Management Disabled
Bandwidth Control Disabled
DMZ Host Disabled
UPnP Enable
Internet Access
Management Disabled
4RemoveWirelessNetworkfromYourPC
If you change wireless settings on your wireless device, you must remove them accordingly from
your PC; otherwise, you may not be able to wirelessly connect to this device. Below describes how
to remove a wireless network from your PC.
Windows7
ķ
Right-click the Network icon and select Properties.
77
ĸ
Select Manage Wireless Networks.
78
Ĺ
Select the wireless network and click Remove network.
79
WindowsXP
ķ
Right-click My Network Places and select Properties.
ĸ
Right click Wireless Network Connection and then select Properties.
80

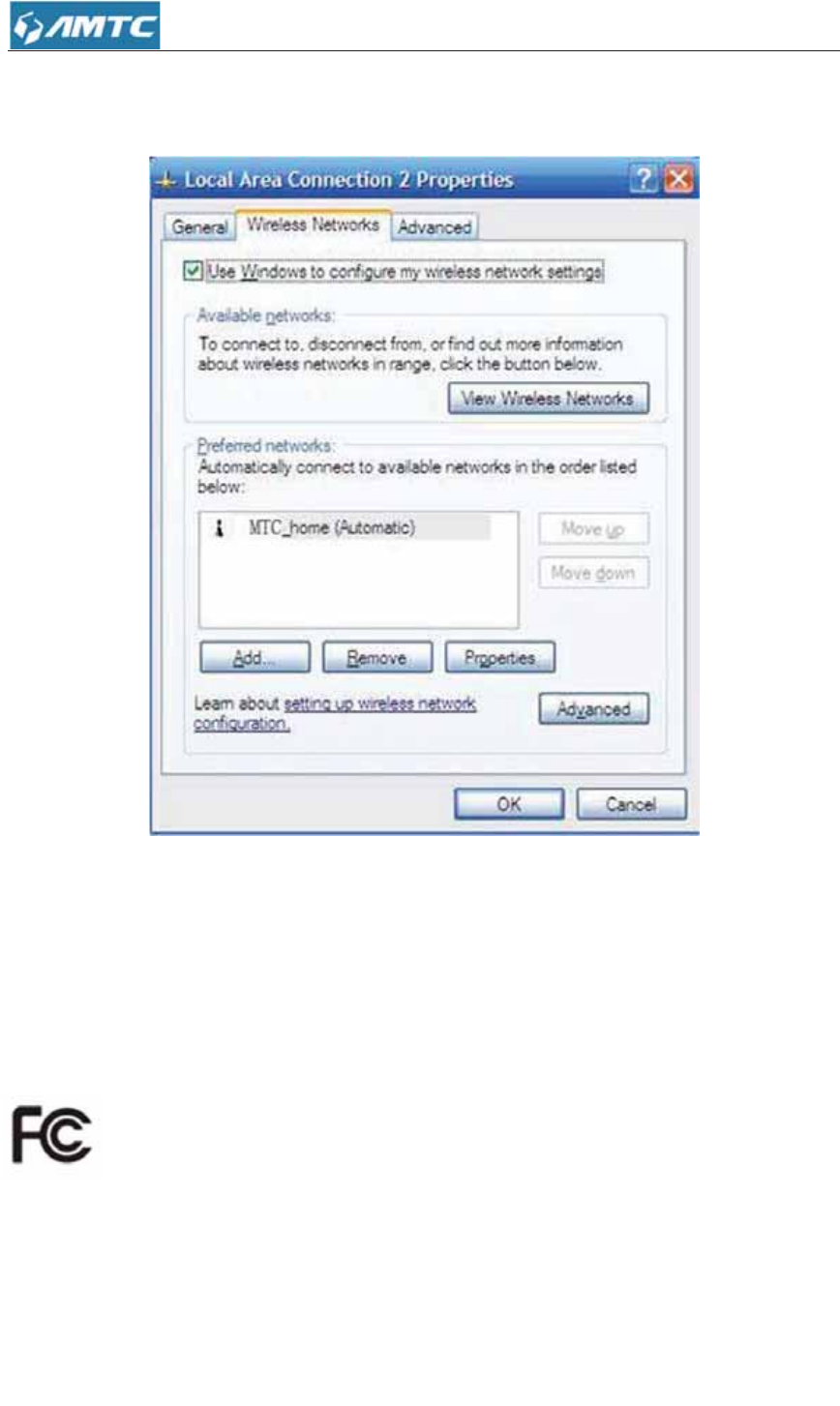

Ĺ
Click Wireless Networks, select the wireless network name under Preferred
networks and then click the Remove button.
5SafetyandEmissionStatement
Warning: Changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user’s authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
81
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
¾ Reorient or relocate the receiving antenna.
¾ Increase the separation between the equipment and receiver.
¾ Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
¾ Consult the dealer or an experienced radio/TV technician for help.
“This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with a minimum distance of
20 centimeters between the radiator and your body.”
Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
FCC ID: 2AHVHWR3011
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1)This device may not cause harmful interference, and
(2)This device must accept any interference received, including interference that may cause
undesired operation.
