Shen Zhen RDM Tag Master RDM530 DESKTOP READER User Manual

Shen Zhen RDM Tag Master Co., Ltd. DESKTOP READER

USERS MANUAL

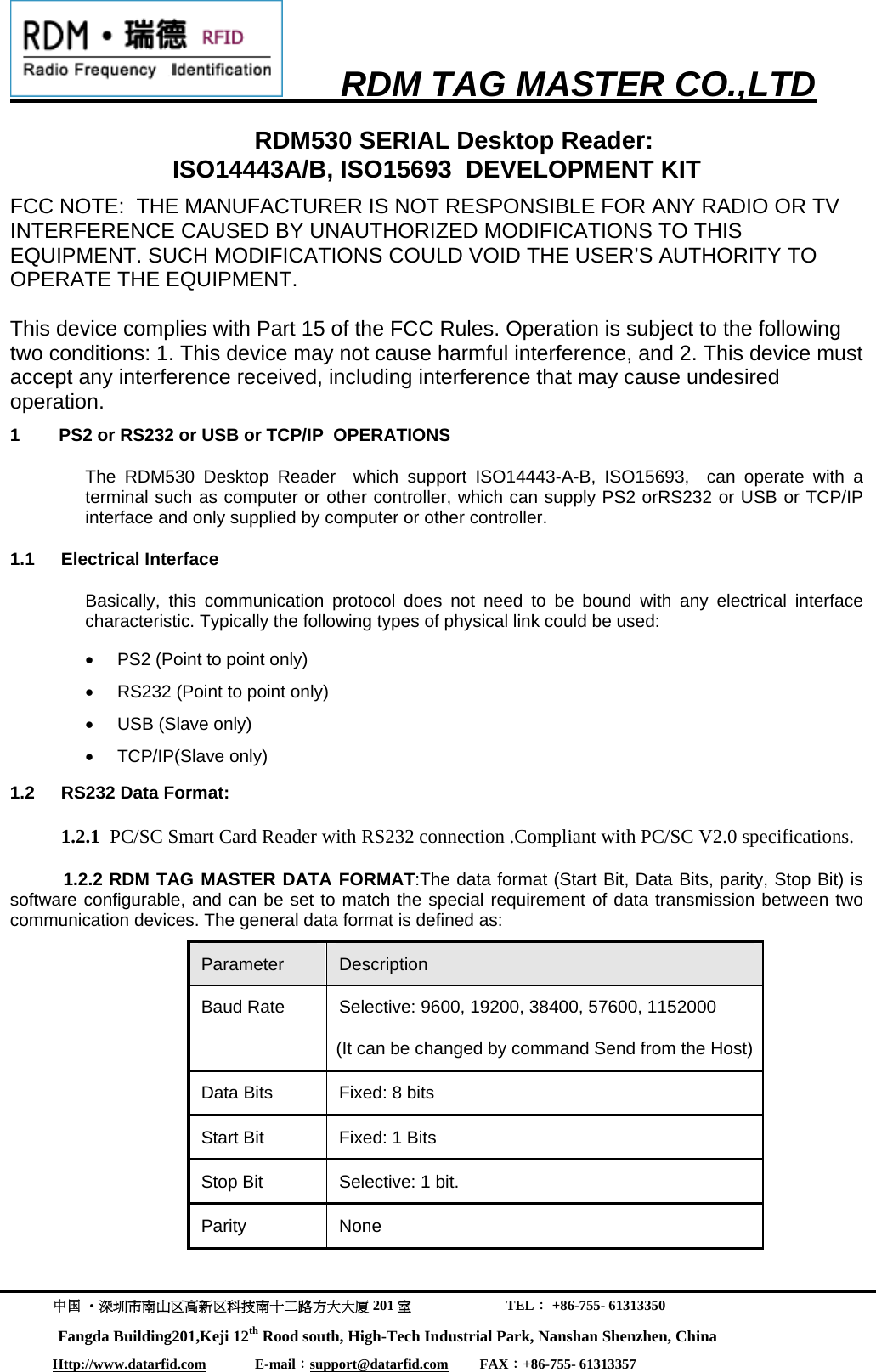

     RDM TAG MASTER CO.,LTD  中国 ·深圳市南山区高新区科技南十二路方大大厦 201 室                           TEL: +86-755- 61313350 Fangda Building201,Keji 12th Rood south, High-Tech Industrial Park, Nanshan Shenzhen, China Http://www.datarfid.com              E-mail:support@datarfid.com         FAX:+86-755- 61313357       RDM530 SERIAL Desktop Reader:                                            ISO14443A/B, ISO15693  DEVELOPMENT KIT FCC NOTE:  THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT.   This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. 1        PS2 or RS232 or USB or TCP/IP  OPERATIONS The RDM530 Desktop Reader  which support ISO14443-A-B, ISO15693,  can operate with a terminal such as computer or other controller, which can supply PS2 orRS232 or USB or TCP/IP interface and only supplied by computer or other controller. 1.1 Electrical Interface Basically, this communication protocol does not need to be bound with any electrical interface characteristic. Typically the following types of physical link could be used:  •  PS2 (Point to point only) •  RS232 (Point to point only)  •  USB (Slave only) • TCP/IP(Slave only) 1.2  RS232 Data Format: 1.2.1  PC/SC Smart Card Reader with RS232 connection .Compliant with PC/SC V2.0 specifications.  1.2.2 RDM TAG MASTER DATA FORMAT:The data format (Start Bit, Data Bits, parity, Stop Bit) is software configurable, and can be set to match the special requirement of data transmission between two communication devices. The general data format is defined as: Parameter  Description Baud Rate  Selective: 9600, 19200, 38400, 57600, 1152000 (It can be changed by command Send from the Host) Data Bits  Fixed: 8 bits Start Bit  Fixed: 1 Bits Stop Bit  Selective: 1 bit. Parity None

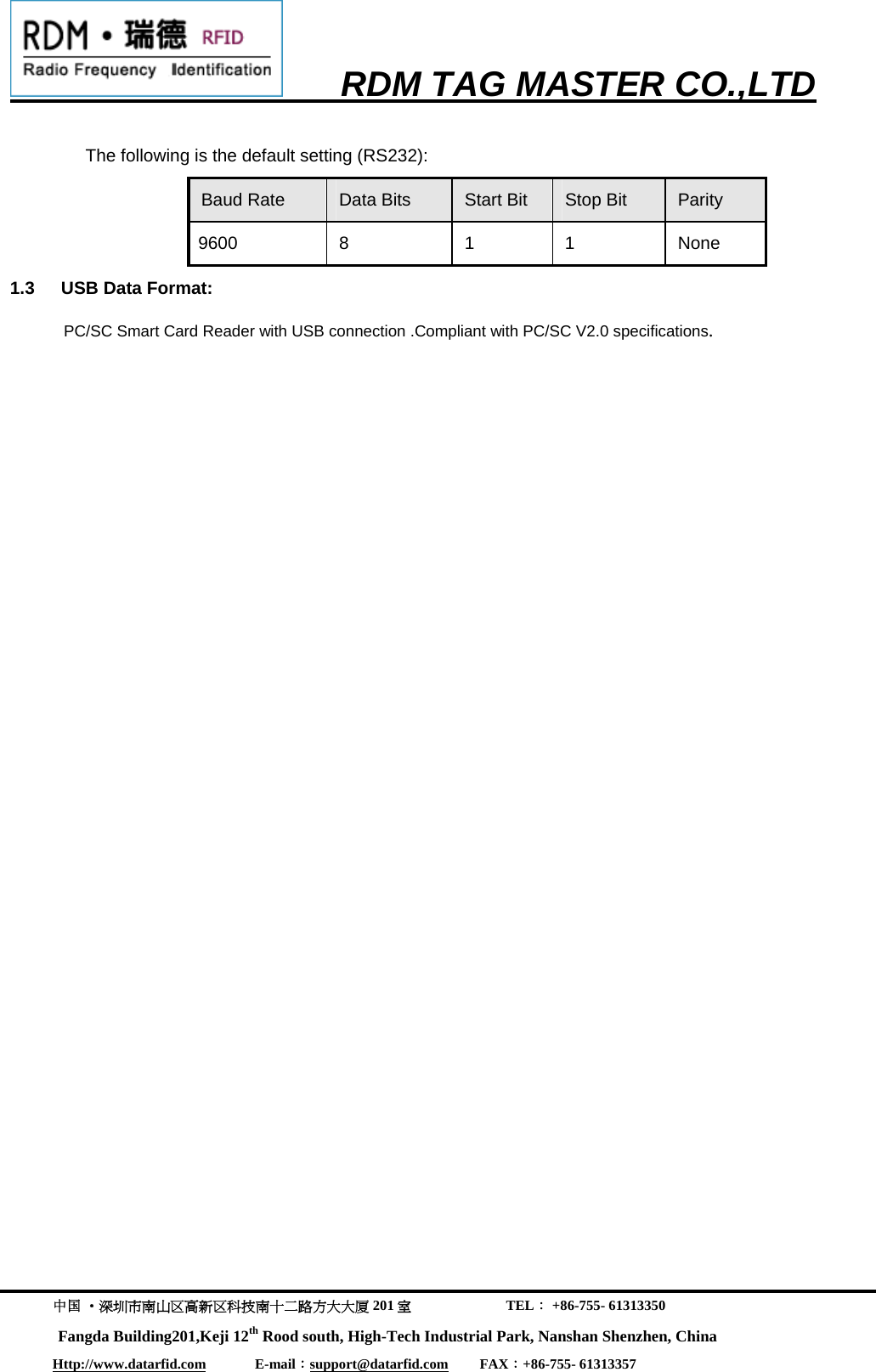

     RDM TAG MASTER CO.,LTD  中国 ·深圳市南山区高新区科技南十二路方大大厦 201 室                           TEL: +86-755- 61313350 Fangda Building201,Keji 12th Rood south, High-Tech Industrial Park, Nanshan Shenzhen, China Http://www.datarfid.com              E-mail:support@datarfid.com         FAX:+86-755- 61313357    The following is the default setting (RS232): Baud Rate  Data Bits  Start Bit  Stop Bit  Parity 9600 8  1 1 None 1.3  USB Data Format:            PC/SC Smart Card Reader with USB connection .Compliant with PC/SC V2.0 specifications.

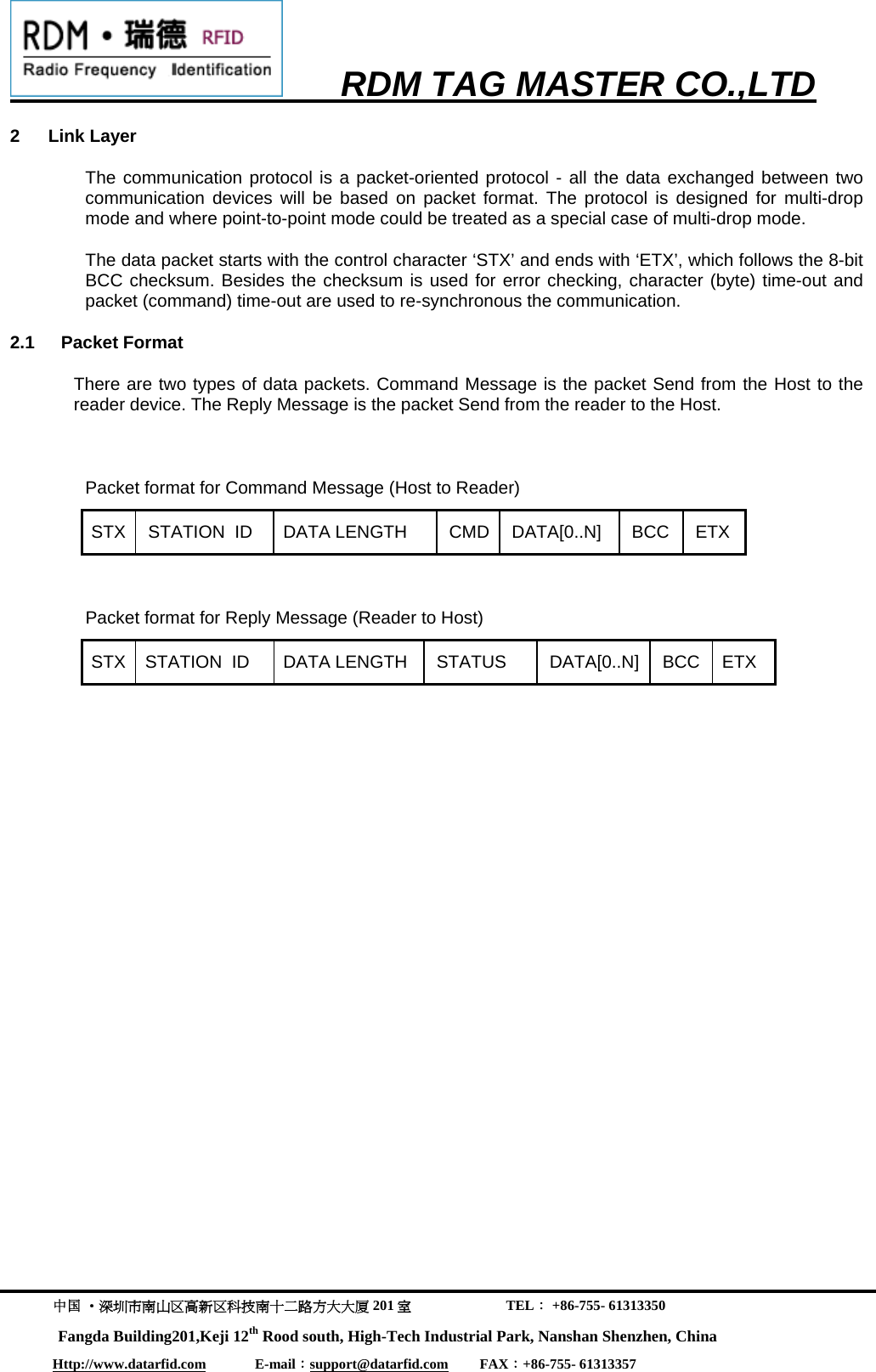

     RDM TAG MASTER CO.,LTD  中国 ·深圳市南山区高新区科技南十二路方大大厦 201 室                           TEL: +86-755- 61313350 Fangda Building201,Keji 12th Rood south, High-Tech Industrial Park, Nanshan Shenzhen, China Http://www.datarfid.com              E-mail:support@datarfid.com         FAX:+86-755- 61313357  2 Link Layer The communication protocol is a packet-oriented protocol - all the data exchanged between two communication devices will be based on packet format. The protocol is designed for multi-drop mode and where point-to-point mode could be treated as a special case of multi-drop mode. The data packet starts with the control character ‘STX’ and ends with ‘ETX’, which follows the 8-bit BCC checksum. Besides the checksum is used for error checking, character (byte) time-out and packet (command) time-out are used to re-synchronous the communication.    2.1 Packet Format There are two types of data packets. Command Message is the packet Send from the Host to the reader device. The Reply Message is the packet Send from the reader to the Host.  Packet format for Command Message (Host to Reader) STX  STATION  ID  DATA LENGTH  CMD DATA[0..N]  BCC  ETX  Packet format for Reply Message (Reader to Host) STX  STATION  ID  DATA LENGTH  STATUS  DATA[0..N] BCC  ETX

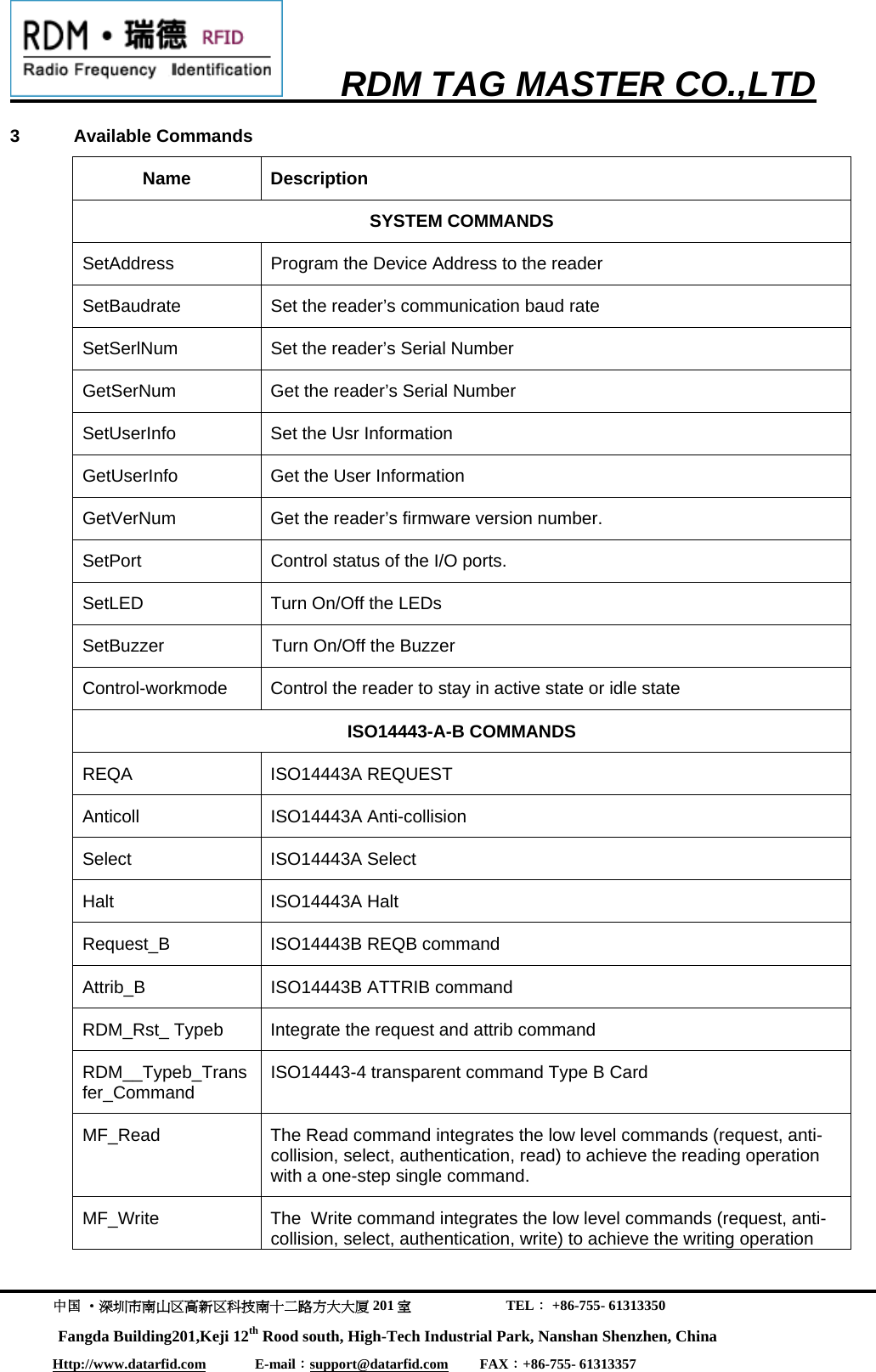

     RDM TAG MASTER CO.,LTD  中国 ·深圳市南山区高新区科技南十二路方大大厦 201 室                           TEL: +86-755- 61313350 Fangda Building201,Keji 12th Rood south, High-Tech Industrial Park, Nanshan Shenzhen, China Http://www.datarfid.com              E-mail:support@datarfid.com         FAX:+86-755- 61313357  3 Available Commands Name Description SYSTEM COMMANDS SetAddress  Program the Device Address to the reader SetBaudrate  Set the reader’s communication baud rate SetSerlNum  Set the reader’s Serial Number GetSerNum  Get the reader’s Serial Number SetUserInfo  Set the Usr Information GetUserInfo  Get the User Information GetVerNum  Get the reader’s firmware version number. SetPort  Control status of the I/O ports. SetLED  Turn On/Off the LEDs SetBuzzer    Turn On/Off the Buzzer Control-workmode    Control the reader to stay in active state or idle state ISO14443-A-B COMMANDS REQA  ISO14443A REQUEST   Anticoll   ISO14443A Anti-collision Select   ISO14443A Select Halt ISO14443A Halt Request_B  ISO14443B REQB command Attrib_B  ISO14443B ATTRIB command RDM_Rst_ Typeb  Integrate the request and attrib command RDM__Typeb_Transfer_Command  ISO14443-4 transparent command Type B Card MF_Read  The Read command integrates the low level commands (request, anti-collision, select, authentication, read) to achieve the reading operation with a one-step single command. MF_Write  The  Write command integrates the low level commands (request, anti-collision, select, authentication, write) to achieve the writing operation

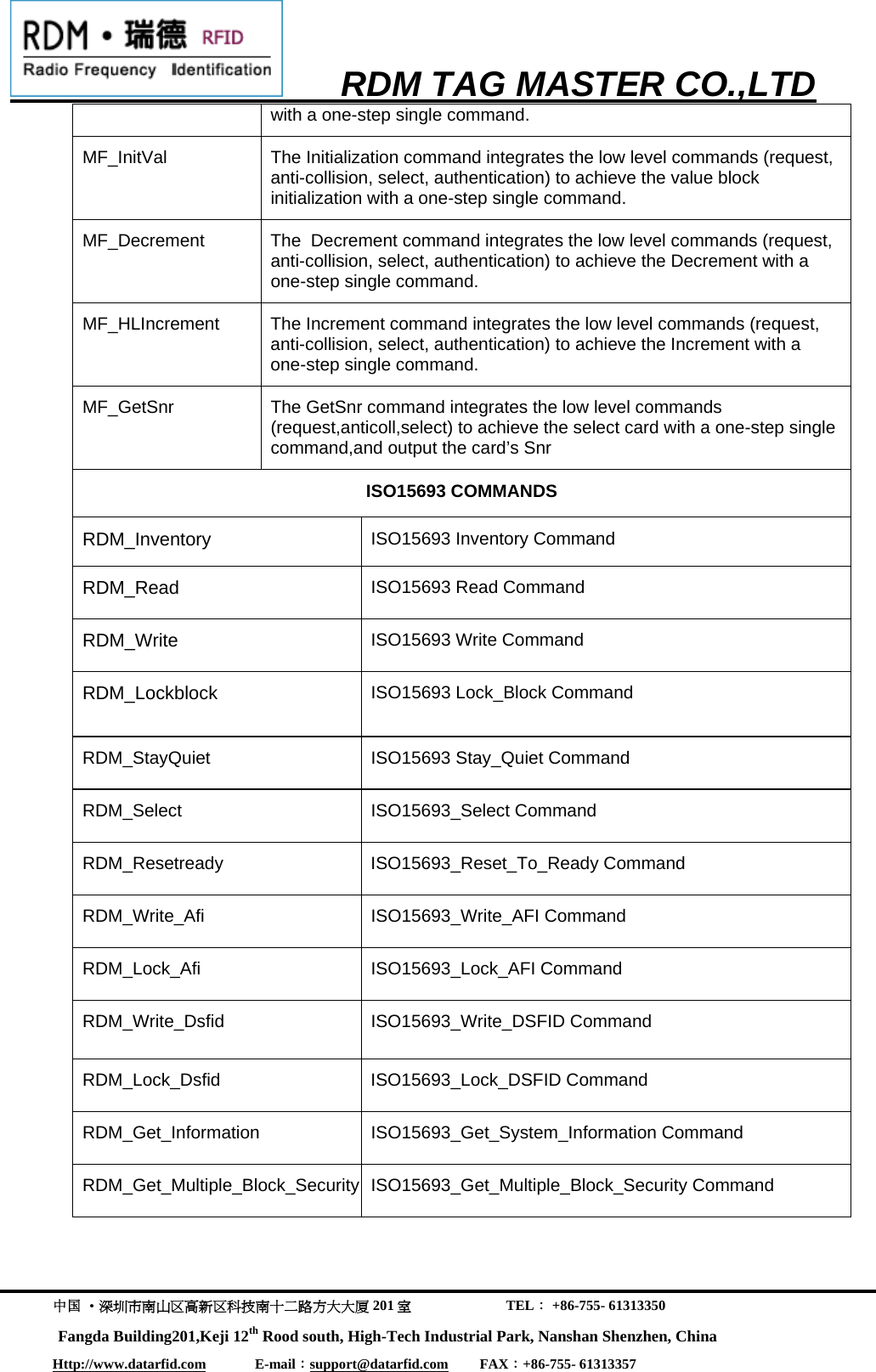

     RDM TAG MASTER CO.,LTD  中国 ·深圳市南山区高新区科技南十二路方大大厦 201 室                           TEL: +86-755- 61313350 Fangda Building201,Keji 12th Rood south, High-Tech Industrial Park, Nanshan Shenzhen, China Http://www.datarfid.com              E-mail:support@datarfid.com         FAX:+86-755- 61313357  with a one-step single command. MF_InitVal  The Initialization command integrates the low level commands (request, anti-collision, select, authentication) to achieve the value block initialization with a one-step single command. MF_Decrement  The  Decrement command integrates the low level commands (request, anti-collision, select, authentication) to achieve the Decrement with a one-step single command. MF_HLIncrement  The Increment command integrates the low level commands (request, anti-collision, select, authentication) to achieve the Increment with a one-step single command. MF_GetSnr  The GetSnr command integrates the low level commands (request,anticoll,select) to achieve the select card with a one-step single command,and output the card’s Snr ISO15693 COMMANDS RDM_Inventory  ISO15693 Inventory Command RDM_Read  ISO15693 Read Command RDM_Write  ISO15693 Write Command RDM_Lockblock  ISO15693 Lock_Block Command RDM_StayQuiet ISO15693 Stay_Quiet Command RDM_Select ISO15693_Select Command RDM_Resetready ISO15693_Reset_To_Ready Command RDM_Write_Afi ISO15693_Write_AFI Command RDM_Lock_Afi ISO15693_Lock_AFI Command RDM_Write_Dsfid ISO15693_Write_DSFID Command RDM_Lock_Dsfid ISO15693_Lock_DSFID Command RDM_Get_Information ISO15693_Get_System_Information Command RDM_Get_Multiple_Block_Security ISO15693_Get_Multiple_Block_Security Command

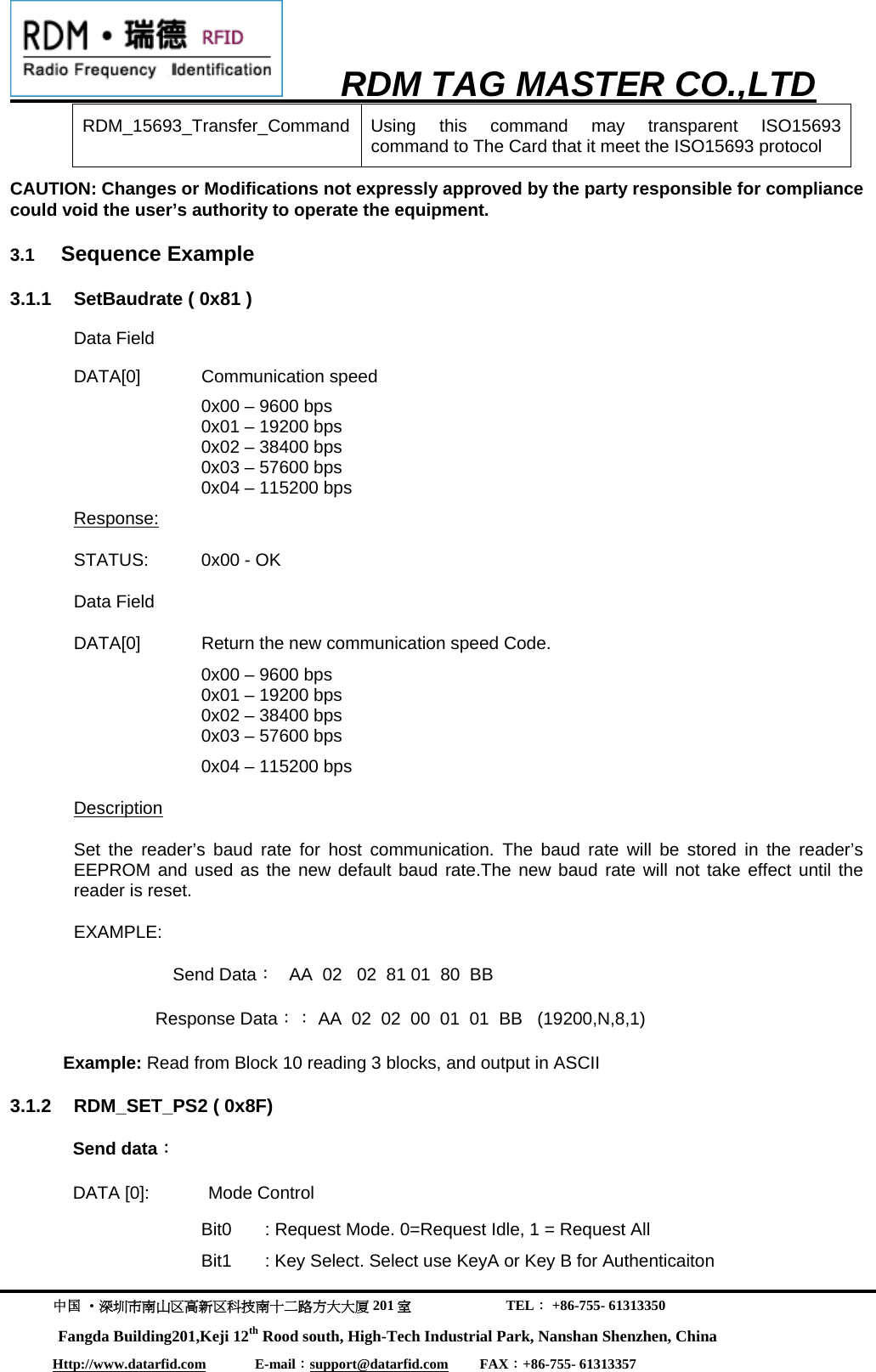

     RDM TAG MASTER CO.,LTD  中国 ·深圳市南山区高新区科技南十二路方大大厦 201 室                           TEL: +86-755- 61313350 Fangda Building201,Keji 12th Rood south, High-Tech Industrial Park, Nanshan Shenzhen, China Http://www.datarfid.com              E-mail:support@datarfid.com         FAX:+86-755- 61313357  RDM_15693_Transfer_Command Using this command may transparent ISO15693  command to The Card that it meet the ISO15693 protocol CAUTION: Changes or Modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.                                             3.1  Sequence Example  3.1.1  SetBaudrate ( 0x81 ) Data Field DATA[0] Communication speed     0x00 – 9600 bps 0x01 – 19200 bps 0x02 – 38400 bps 0x03 – 57600 bps 0x04 – 115200 bps     Response: STATUS:  0x00 - OK Data Field   DATA[0]  Return the new communication speed Code.  0x00 – 9600 bps 0x01 – 19200 bps 0x02 – 38400 bps 0x03 – 57600 bps 0x04 – 115200 bps   Description Set the reader’s baud rate for host communication. The baud rate will be stored in the reader’s EEPROM and used as the new default baud rate.The new baud rate will not take effect until the reader is reset.     EXAMPLE: Send Data:   AA  02   02  81 01  80  BB   Response Data:: AA  02  02  00  01  01  BB   (19200,N,8,1)  Example: Read from Block 10 reading 3 blocks, and output in ASCII 3.1.2  RDM_SET_PS2 ( 0x8F) Send data: DATA [0]:            Mode Control Bit0  : Request Mode. 0=Request Idle, 1 = Request All  Bit1  : Key Select. Select use KeyA or Key B for Authenticaiton

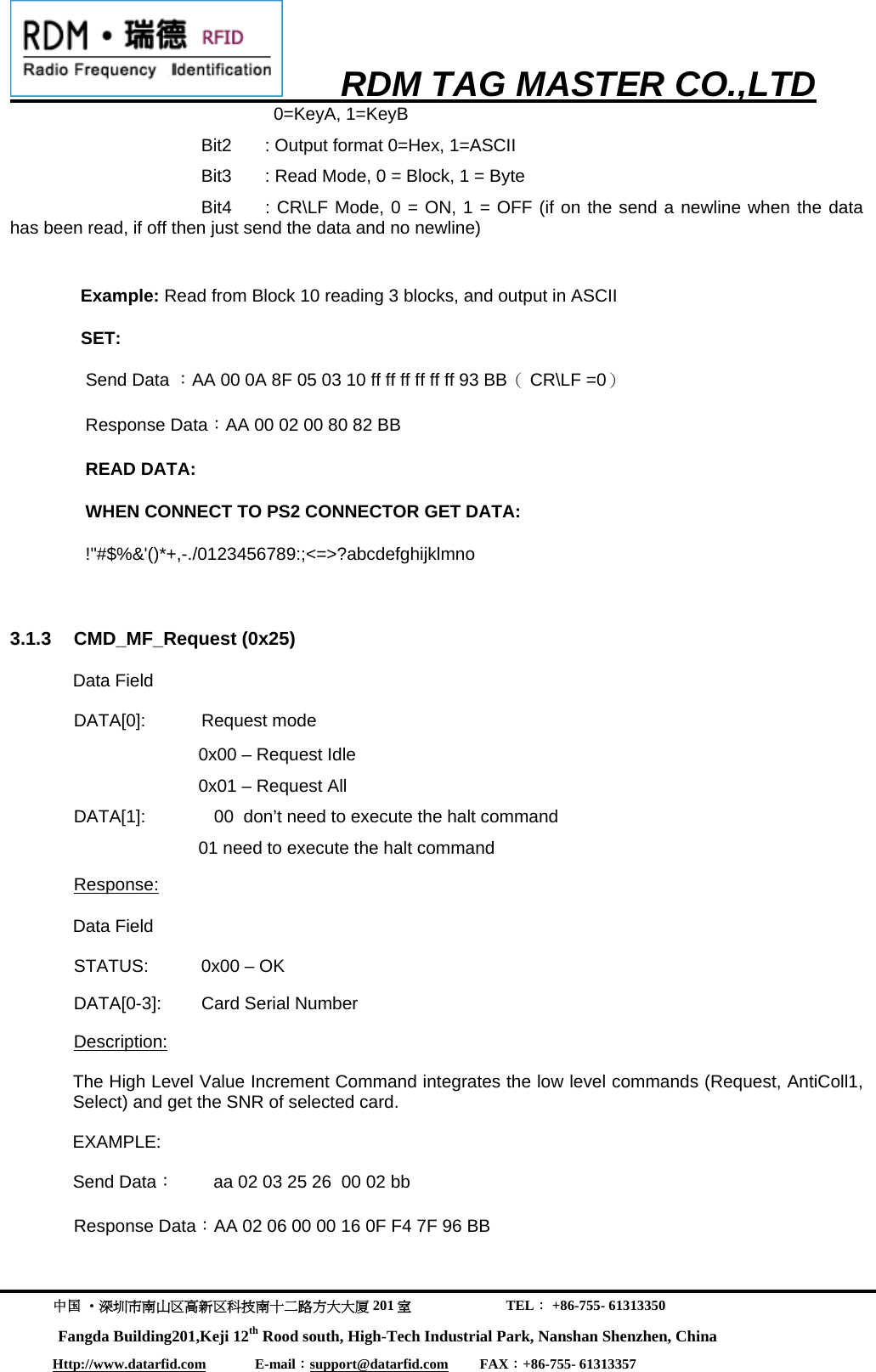

     RDM TAG MASTER CO.,LTD  中国 ·深圳市南山区高新区科技南十二路方大大厦 201 室                           TEL: +86-755- 61313350 Fangda Building201,Keji 12th Rood south, High-Tech Industrial Park, Nanshan Shenzhen, China Http://www.datarfid.com              E-mail:support@datarfid.com         FAX:+86-755- 61313357  0=KeyA, 1=KeyB     Bit2  : Output format 0=Hex, 1=ASCII     Bit3  : Read Mode, 0 = Block, 1 = Byte     Bit4  : CR\LF Mode, 0 = ON, 1 = OFF (if on the send a newline when the data has been read, if off then just send the data and no newline)  Example: Read from Block 10 reading 3 blocks, and output in ASCII SET: Send Data :AA 00 0A 8F 05 03 10 ff ff ff ff ff ff 93 BB( CR\LF =0) Response Data:AA 00 02 00 80 82 BB READ DATA: WHEN CONNECT TO PS2 CONNECTOR GET DATA:     !"#$%&'()*+,-./0123456789:;<=>?abcdefghijklmno  3.1.3 CMD_MF_Request (0x25) Data Field  DATA[0]: Request mode 0x00 – Request Idle 0x01 – Request All    DATA[1]:              00  don’t need to execute the halt command 01 need to execute the halt command Response: Data Field  STATUS:  0x00 – OK  DATA[0-3]:  Card Serial Number Description: The High Level Value Increment Command integrates the low level commands (Request, AntiColl1, Select) and get the SNR of selected card.  EXAMPLE: Send Data:        aa 02 03 25 26  00 02 bb Response Data:AA 02 06 00 00 16 0F F4 7F 96 BB

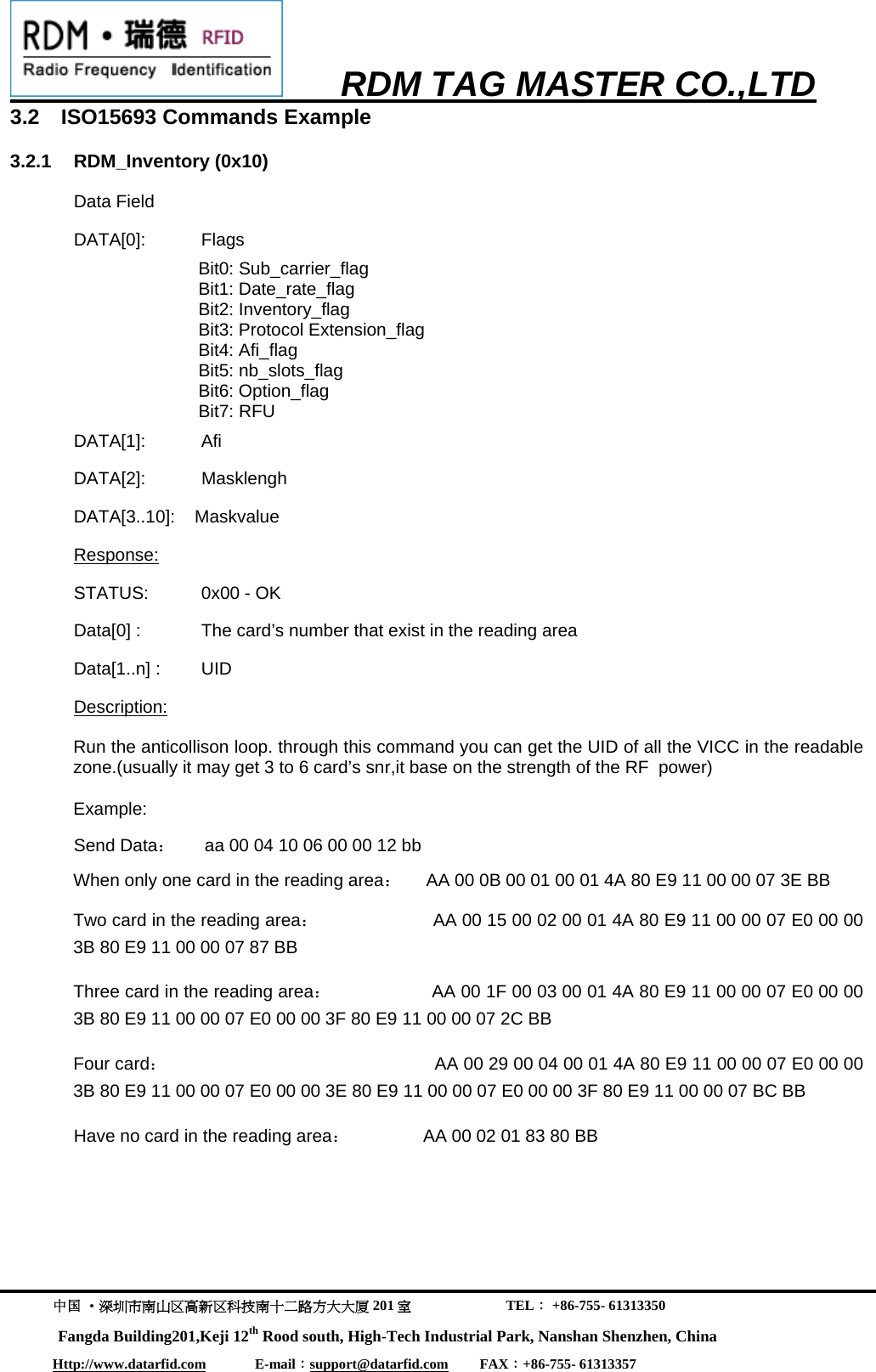

     RDM TAG MASTER CO.,LTD  中国 ·深圳市南山区高新区科技南十二路方大大厦 201 室                           TEL: +86-755- 61313350 Fangda Building201,Keji 12th Rood south, High-Tech Industrial Park, Nanshan Shenzhen, China Http://www.datarfid.com              E-mail:support@datarfid.com         FAX:+86-755- 61313357  3.2  ISO15693 Commands Example 3.2.1 RDM_Inventory (0x10) Data Field DATA[0]:      Flags Bit0: Sub_carrier_flag Bit1: Date_rate_flag Bit2: Inventory_flag Bit3: Protocol Extension_flag Bit4: Afi_flag Bit5: nb_slots_flag Bit6: Option_flag Bit7: RFU DATA[1]:      Afi DATA[2]:      Masklengh DATA[3..10]:    Maskvalue Response: STATUS:  0x00 - OK Data[0] :  The card’s number that exist in the reading area Data[1..n] :  UID Description: Run the anticollison loop. through this command you can get the UID of all the VICC in the readable zone.(usually it may get 3 to 6 card’s snr,it base on the strength of the RF  power) Example: Send Data:      aa 00 04 10 06 00 00 12 bb When only one card in the reading area:     AA 00 0B 00 01 00 01 4A 80 E9 11 00 00 07 3E BB Two card in the reading area:                      AA 00 15 00 02 00 01 4A 80 E9 11 00 00 07 E0 00 00 3B 80 E9 11 00 00 07 87 BB Three card in the reading area:                   AA 00 1F 00 03 00 01 4A 80 E9 11 00 00 07 E0 00 00 3B 80 E9 11 00 00 07 E0 00 00 3F 80 E9 11 00 00 07 2C BB Four card:                                                    AA 00 29 00 04 00 01 4A 80 E9 11 00 00 07 E0 00 00 3B 80 E9 11 00 00 07 E0 00 00 3E 80 E9 11 00 00 07 E0 00 00 3F 80 E9 11 00 00 07 BC BB Have no card in the reading area:               AA 00 02 01 83 80 BB

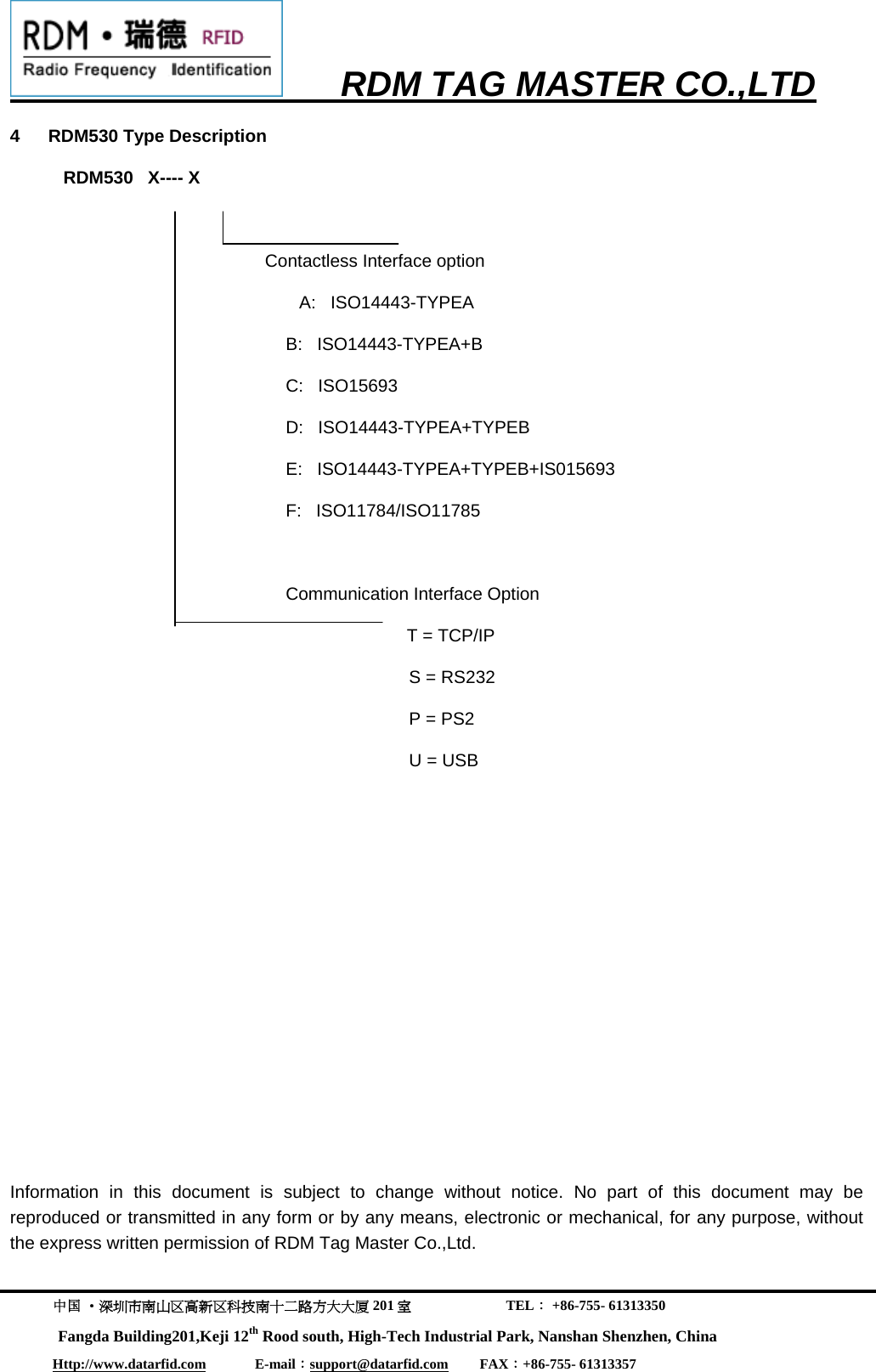

     RDM TAG MASTER CO.,LTD  中国 ·深圳市南山区高新区科技南十二路方大大厦 201 室                           TEL: +86-755- 61313350 Fangda Building201,Keji 12th Rood south, High-Tech Industrial Park, Nanshan Shenzhen, China Http://www.datarfid.com              E-mail:support@datarfid.com         FAX:+86-755- 61313357  4  RDM530 Type Description RDM530   X---- X     Contactless Interface option              A:   ISO14443-TYPEA                                          B:   ISO14443-TYPEA+B                                          C:   ISO15693                                                                                 D:   ISO14443-TYPEA+TYPEB                                           E:   ISO14443-TYPEA+TYPEB+IS015693                                          F:   ISO11784/ISO11785                                           Communication Interface Option                          T = TCP/IP S = RS232 P = PS2 U = USB          Information in this document is subject to change without notice. No part of this document may be reproduced or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the express written permission of RDM Tag Master Co.,Ltd.
