1 Overview

FOSCAM Indoor HD IP Camera is an integrated wireless IP Camera with a color CMOS sensor enabling

viewing in High Definition resolution. It combines a high quality digital video camera, with a powerful web

server, to bring clear video to your desktop and mobile devices from anywhere on your local network or

over the Internet.

FI9831EP support P2P function. Thanks to the P2P easy access technology, you don’t need to do

complicated Port Forwarding and DDNS settings, you just need to scan the QR code on the bottom of

the camera to connect it on smart phone, or input the UID on CMS software to realize remote access.

Moreover, FI9831EP supports PoE to transmits power and data via single Ethernet cable.

With flexible 300-degree pan and 120-degree tilt, FOSCAM IP Camera gives users more comprehensive

control over a monitored site. The camera supports H.264 video compression technology, dramatically

reducing file size and saving network bandwidth.

The camera is based on the TCP/IP standard. There is a WEB server inside which could support Internet

Explorer Therefore the management and maintenance of your device is simplified by using the network

to access the website of your camera.

FOSCAM provides Smart Phone APP for Android and iPhone users, please search and install Foscam

Viewer on App Store and Google Play for iOS and Android devices, then you can view your camera

anywhere, anytime on your smart mobile devices.

1.1 Key Features

 Standard H.264 video compression algorithm to satisfy the transmission of high definition video in

narrow bandwidth network

 P2P feature for easy access

 Megapixel HD video

 Pan 300 degree, tilt 120 degree

 Support IE/Firefox/Google/Safari browser

 Support WEP,WPA-PSK and WPA2-PSK Encryption

 IR night vision (Range: 8m)

 Support image snapshot

 Support dual-stream

 Support SD Card storage up to 32GB

 Support IR-Cut auto switch

 Embedded free FOSCAM DDNS(dynamic domain name service) Service

 Supporting the Third Party Domain Name Service

 Support two-way audio

 Support ONVIF protocols

www.foscam.com

Shenzhen Foscam Intelligent Technology Co., Limited

Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 2

 Multi-level users management with password protection

 Motion detection alert via email or upload image to FTP

 Providing free Android and iPhone APP for viewing live video Providing free Central Management

Software to manage and monitor multiple cameras

 Support record schedule

1.2 PoE (Power over Ethernet)

FI9831EP is PoE-compliant, allowing transmission of power and data via a single Ethernet cable. Shown

as the following picture: connect the Network Camera to a PoE-enabled Router/ switch via Ethernet

cable.

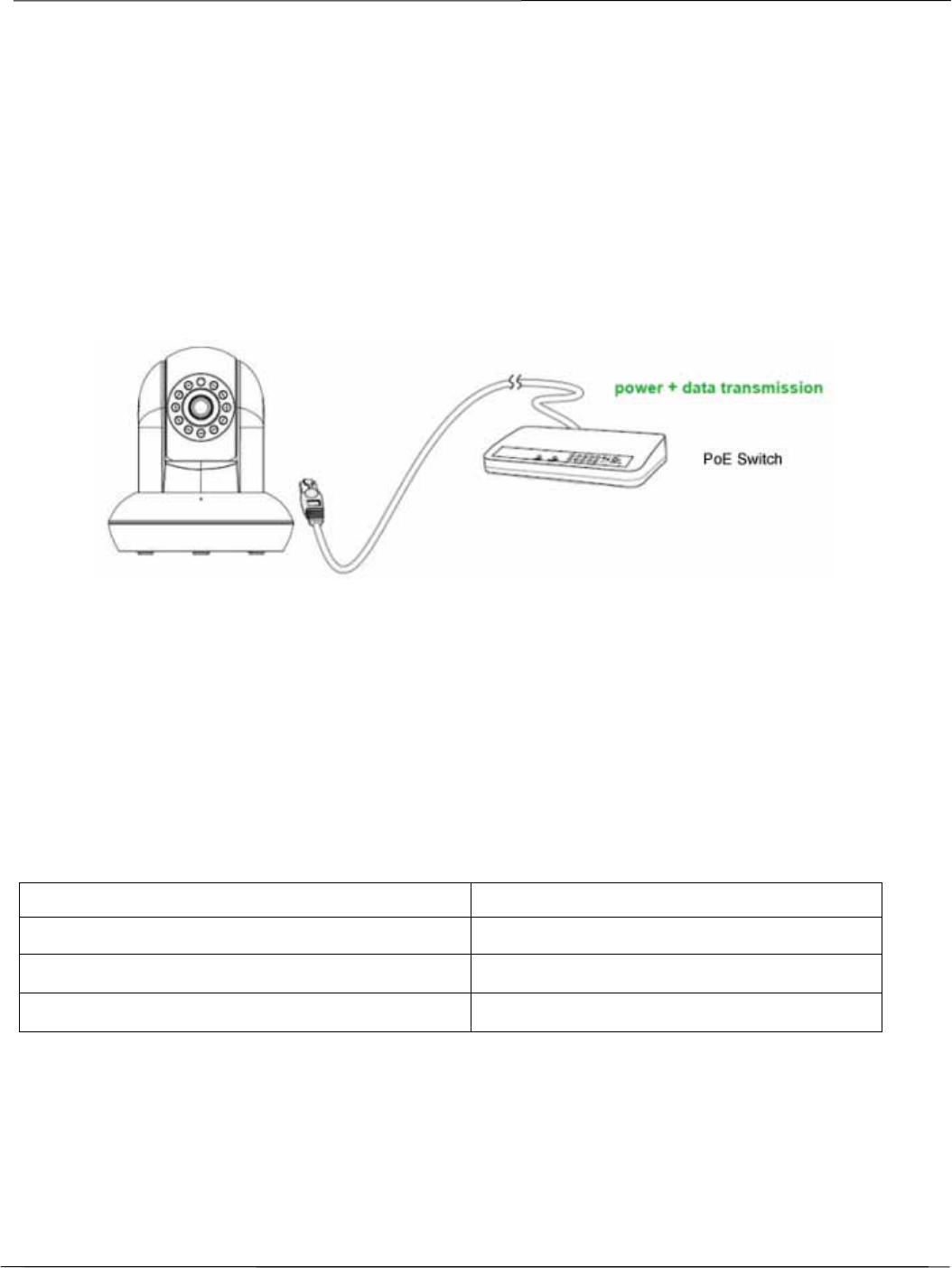

Figure 1.1

1.3 Read Before Use

Please first verify that all contents received are complete according to the Package Contents listed below.

Before the IP Camera is installed, please carefully read and follow the instructions in the Quick

Installation Guide to avoid damage due to faulty assembly and installation. This also ensures the product

is used properly as intended.

1.4 Package Contents

● IP Camera × 1 ● DC Power Adapter × 1

● Mounting bracket × 1

● Ethernet Cable × 1 ● CD×1

● Quick Installation Guide × 1 ● Warranty Card × 1

www.foscam.com

Shenzhen Foscam Intelligent Technology Co., Limited

Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 3

1.5 Physical Description

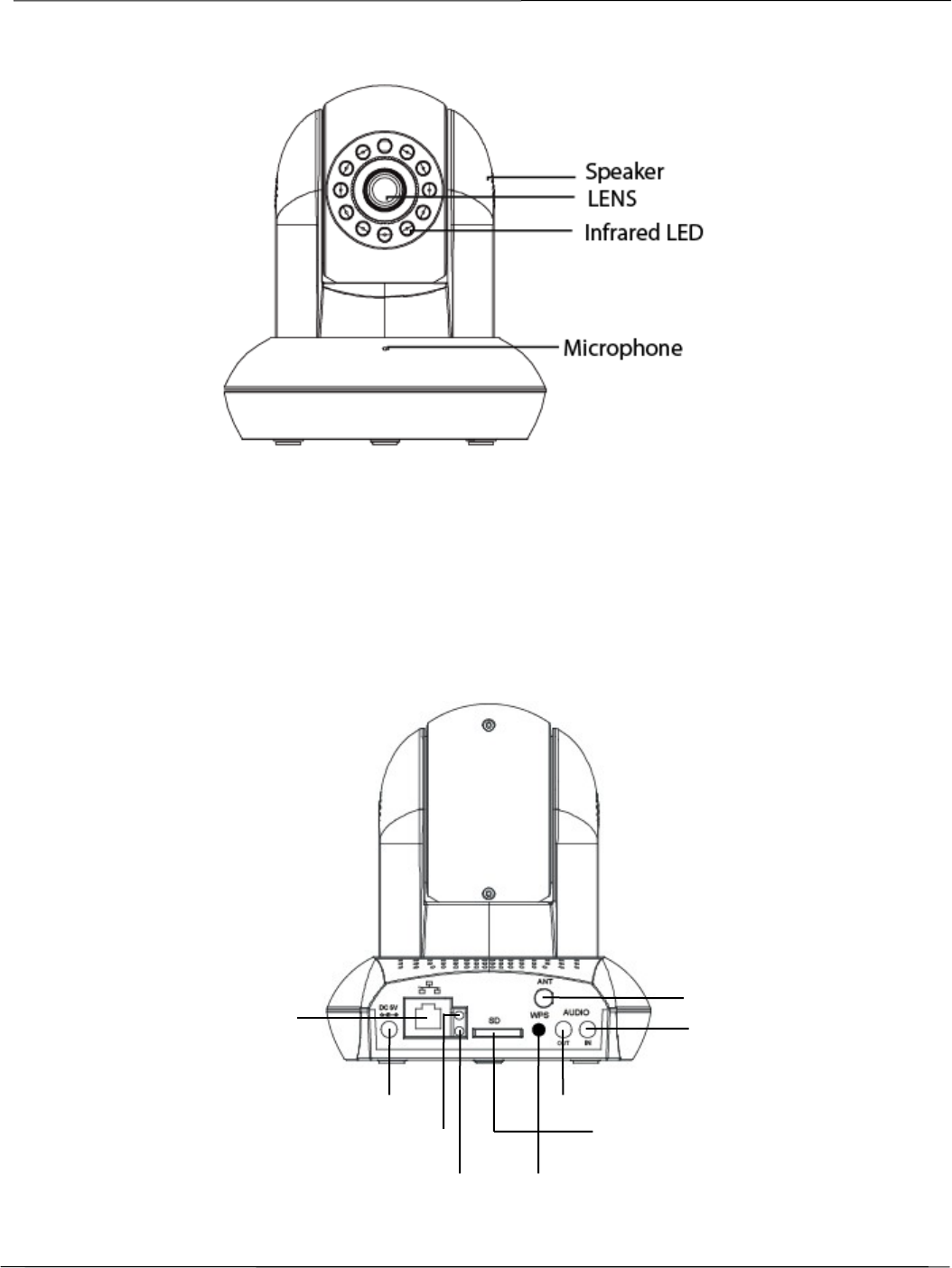

Figure 1.2

1.Speaker: Built-in speaker

2.LENS: Fixed focus lens

3.Infrared LED: Infrared LEDs for night vision

4.Microphone: Built-in microphone

5.WI-FI Antenna: Wireless Antenna

Figure 1.3

9.Antenna

8.Audio Input

7.Audio Output

2.Power

1.LAN

6. SD Card Slot

5.WPS

4.Power

3.Network light

www.foscam.com

Shenzhen Foscam Intelligent Technology Co., Limited

Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 4

1.LAN: 10/100 Mbps RJ-45 port for wired connection

2.Power: DC 5V/2A Power supply

3.Network Light: The LED will blink slowly in wired connection, blink two times faster in wireless

connection

4.Power Light: If the power supply works fine, the light will turn on

5.WPS: Push the WPS button on the camera and wireless router in 1 minutes, the camera will connect

the wireless router automatically, in WPS process, the Network Light will blink very fast

6. SD card Slot: Supports up to 32GB SD card for storing the video

7.Audio Output: This jack is used to plug an external speaker

8.Audio Input: This jack is used to plug an external microphone

9.Antenna: Used to connect external wireless antenna

Bottom View

Figure 1.4

1.Mounting Port: Port for mounting bracket

2.Reset Button: Push and hold for more than 5 seconds to set the camera to factory default

3.Product Label: There are P2P QR code, MAC address, UID, DDNS URL, default username and

password on the label

4.WI-FI Module Label: There is WI-FI MAC address and serial number of the WI-FI module on the label

5.SN Label: There is serial number of the camera on the label

6 The different features between the models involved

1.Mounting Port

2.Reset Button

3.Product Label

4.WI-FI Module Label

5.SN Label

www.foscam.com

Shenzhen Foscam Intelligent Technology Co., Limited

Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 5

2 Access the IP Camera

This chapter explains how to access the camera through browser and RTSP player.

2.1 Access the Camera in LAN

This camera supports HTTP and HTTPS protocols, you can access the camera by two ways.

(1) http:// LAN IP + HTTP Port NO.

The default HTTP port no is 88. Double click the IP Camera Tool icon to run, and it should find the

camera’s IP address automatically after you plug in the network cable.

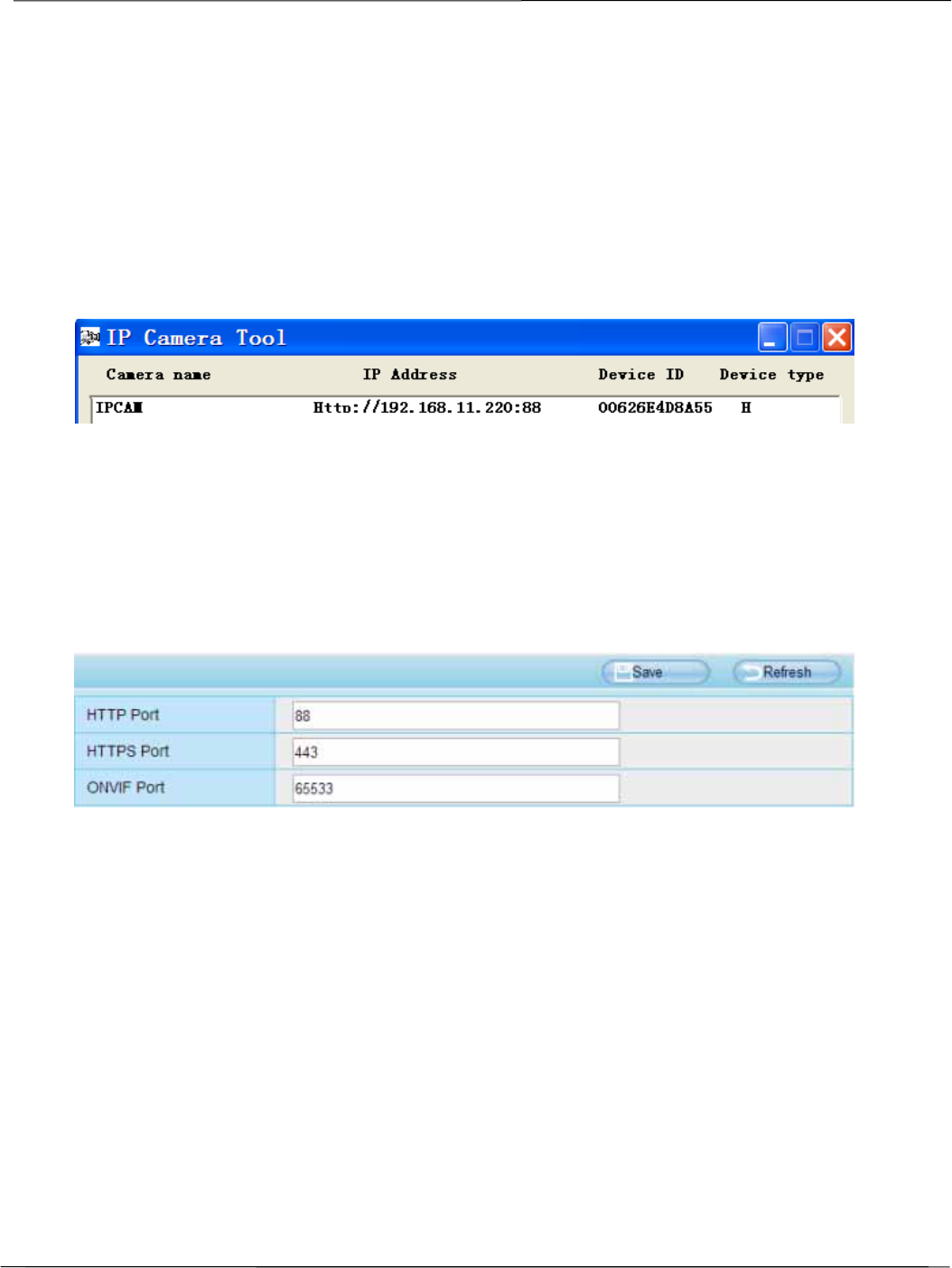

Figure 2.1

Double click the IP address of the camera; your default browser will open to the camera login page.

(2) https:// LAN IP + HTTPS Port NO.

The default Https port no. is 443. You can use the url to access the camera: https:// LAN IP + HTTPS

port.

Go to Settings - Network - Port panel , you can see and change the http and https port NO.

Figure 2.2

HTTPS ( Hypertext Transfer Protocol over Secure Socket Layer ) is a safe way to access your camera,

the data transferred on the Internet will be encrypted. Since we can not apply license for every LAN or

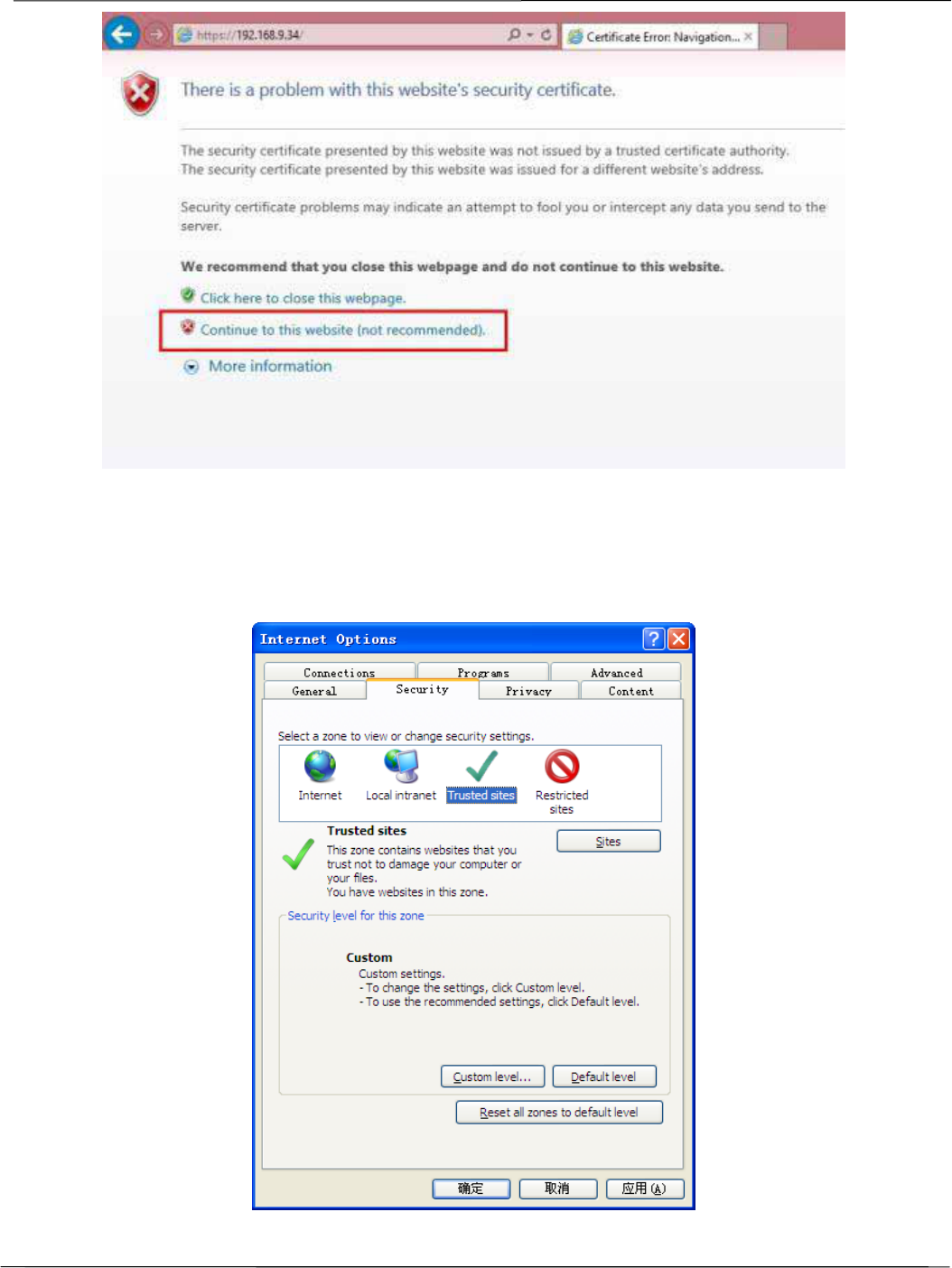

DDNS URL, the webpage may pop up a warning like the following picture, you just need to click

“Continue to this website (not recommended).”

www.foscam.com

Shenzhen Foscam Intelligent Technology Co., Limited

Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 6

Figure 2.3

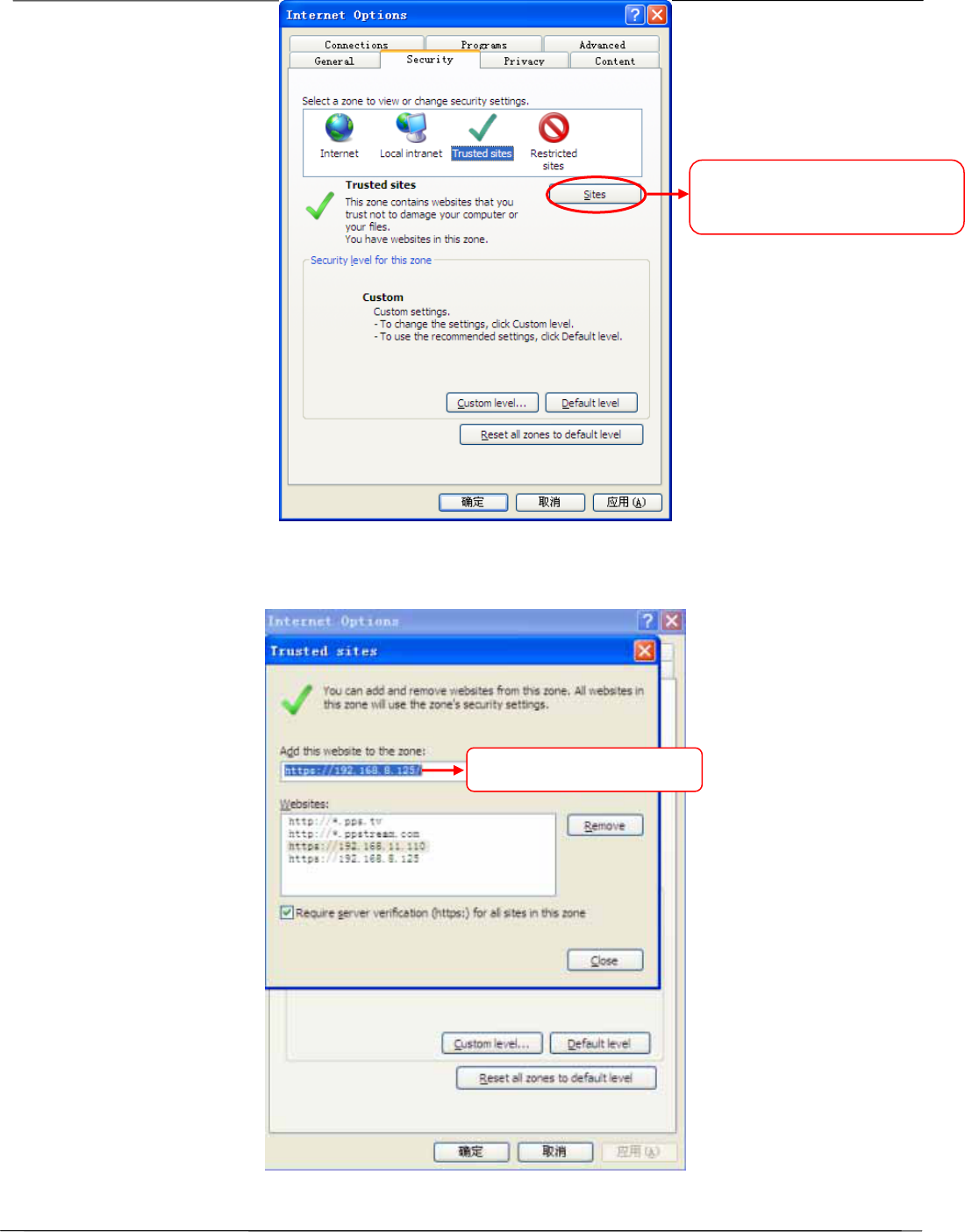

Open Internet Explorer if it is not already opened. Click on Tools, then click Internet Options.

Next, click the Security tab, then click the Trusted sites button.Finally ,click the Confirm button。

Figure 2.4

For Firefox, you can add the trusted as the following way:

www.foscam.com

Shenzhen Foscam Intelligent Technology Co., Limited

Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 7

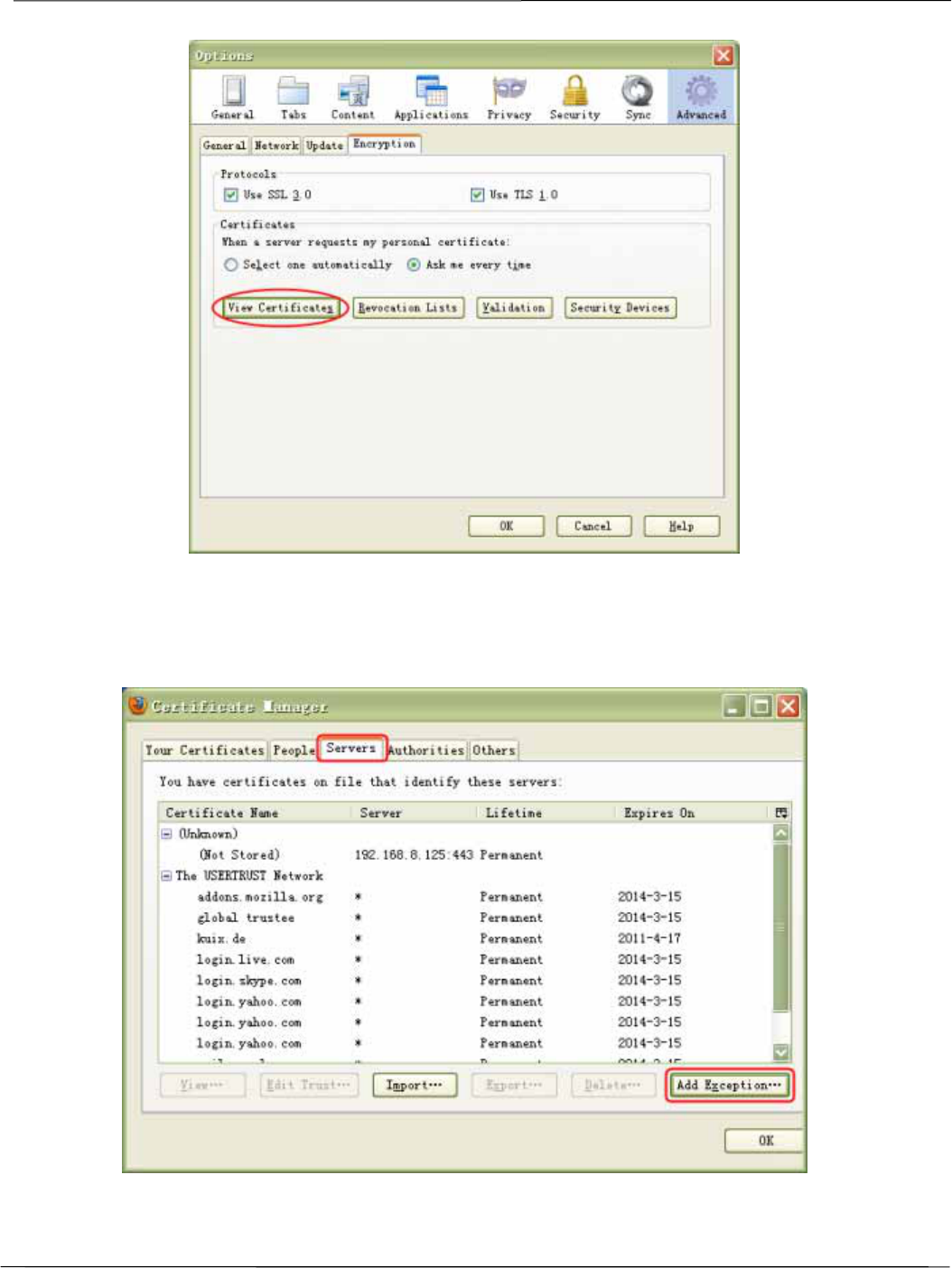

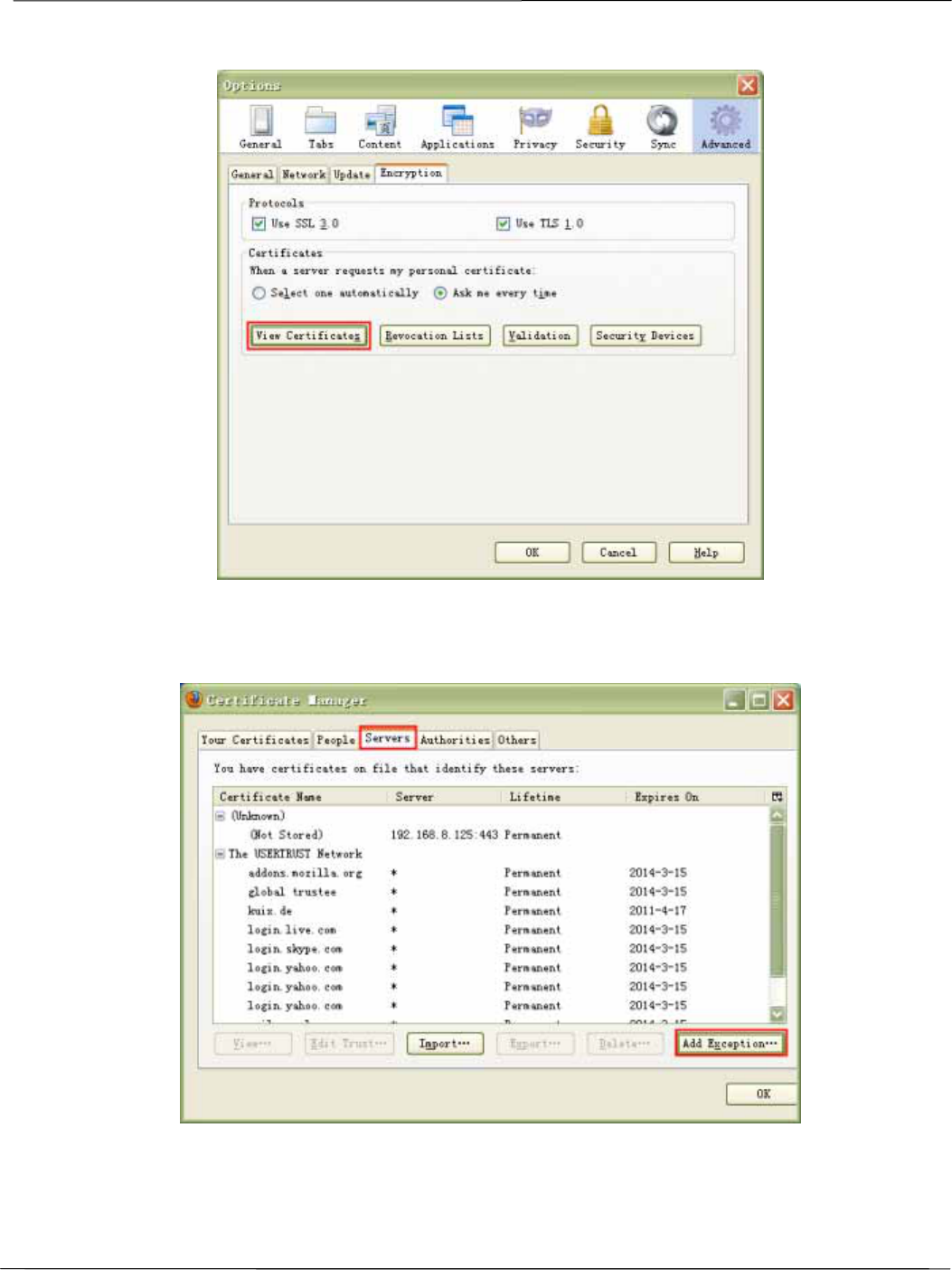

Tools --Options -- Advanced -- View Certificates -- Servers

Figure 2.5

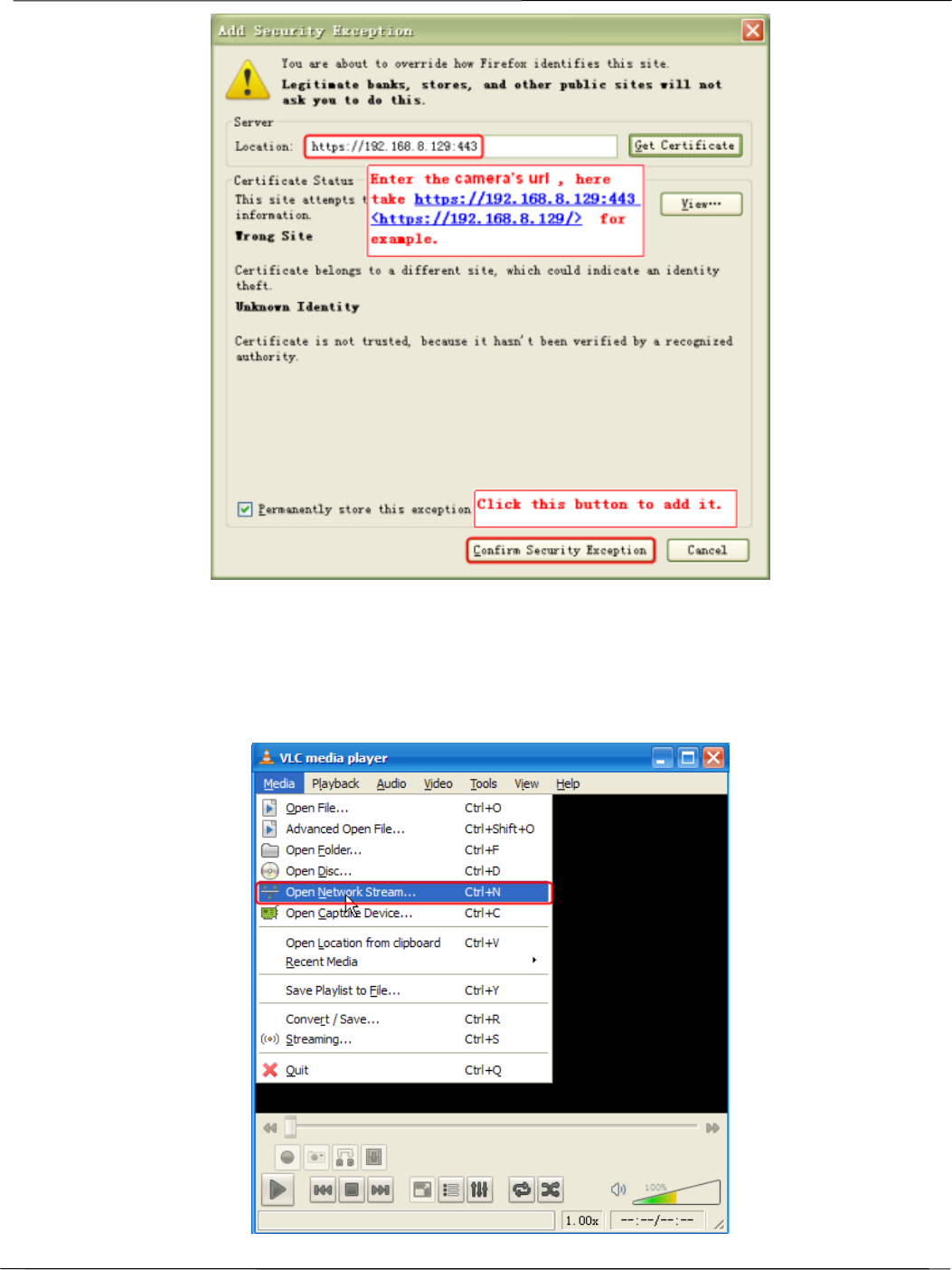

Click View Certificates, and go to Servers option.

Figure 2.6

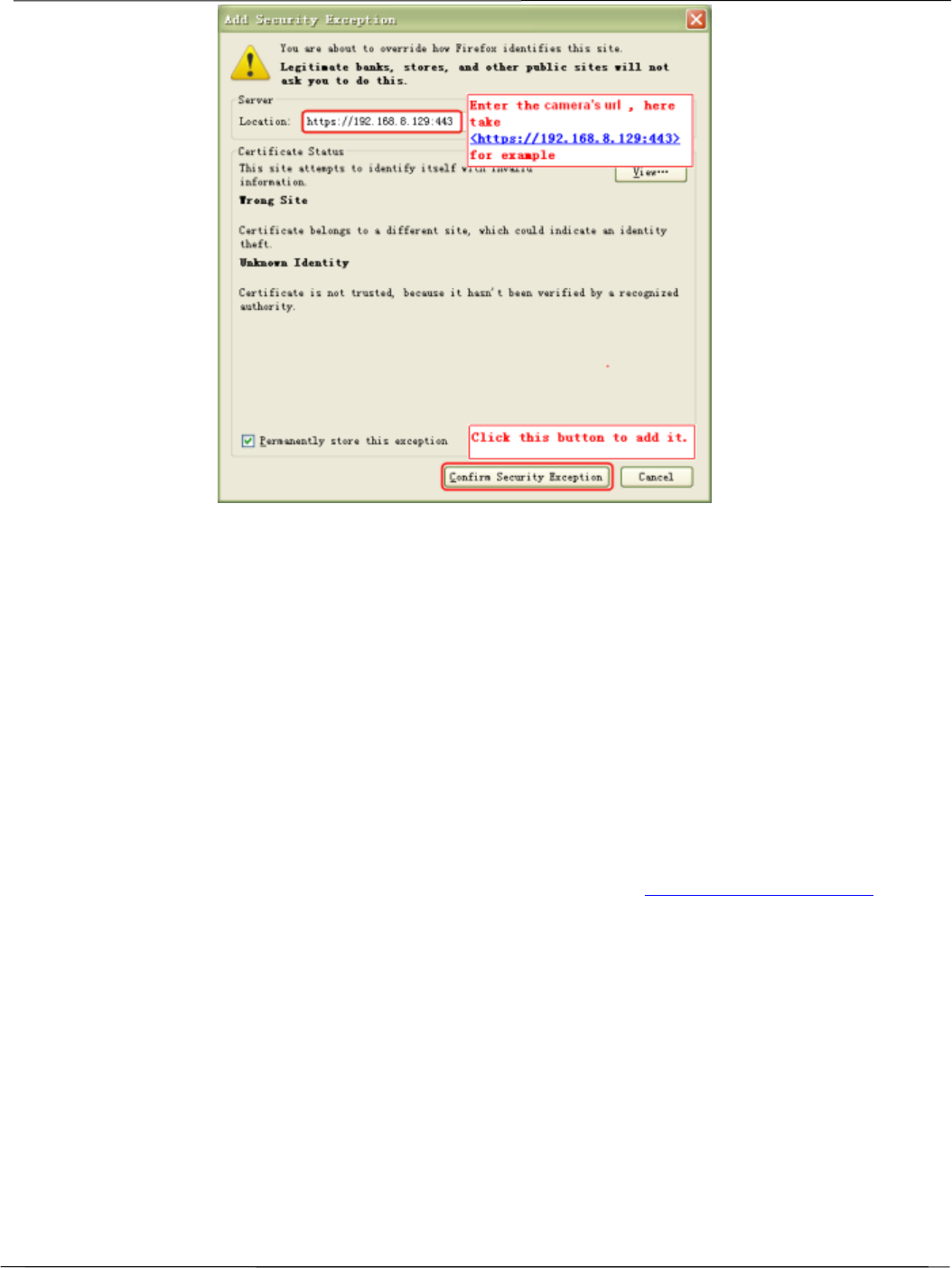

Go to Add Exception panel.

www.foscam.com

Shenzhen Foscam Intelligent Technology Co., Limited

Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 8

Figure 2.7

2.2 Access the Camera in WAN

2.2.1 Static IP Addresses

Users who have static IP addresses do not need to set DDNS service settings for remote access. When

you have finished connecting the camera using the LAN IP address and port forwarding, you can access

the camera directly from the Internet using the WAN IP address and port number.

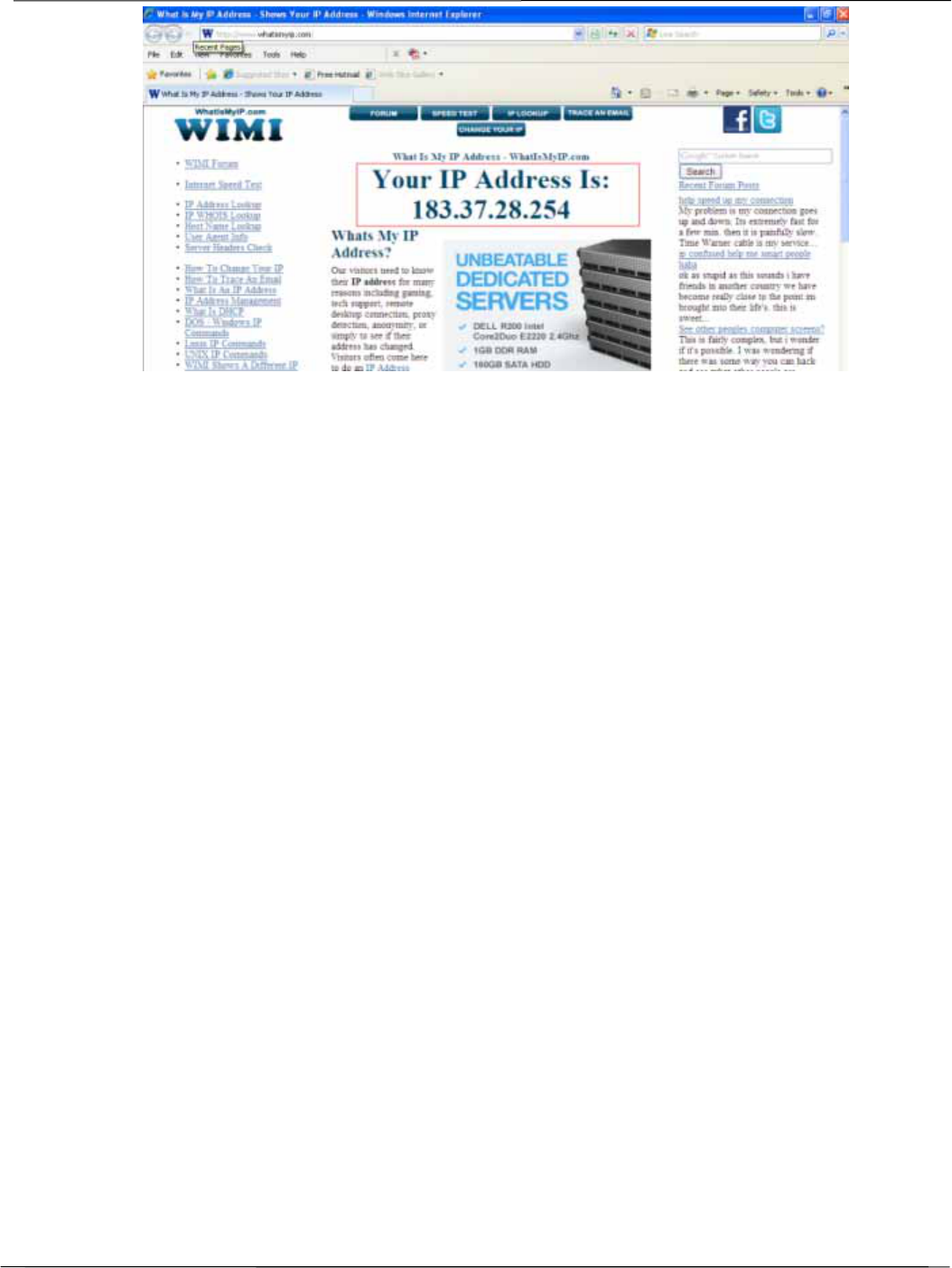

How to Obtain the WAN IP address from a public website ？

To obtain your WAN IP address, enter the following URL in your browser: http://www.whatismyip.com.

The webpage at this address will show you the current WAN IP.

www.foscam.com

Shenzhen Foscam Intelligent Technology Co., Limited

Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 9

Figure 2.8

Access your IP Camera from the Internet

You can access the IP Camera from the Internet (remote access). Enter the WAN IP address and port

number in your standard browser. For example, you would enter http:// 183.37.28.254:85

NOTE :

Make sure port forwarding is successful. You can do port forwarding two ways.

choose Network, and then choose UPnP to enable UPnP. Make sure that the status of UPnP reads

“UPnP Successful” on the Status page.

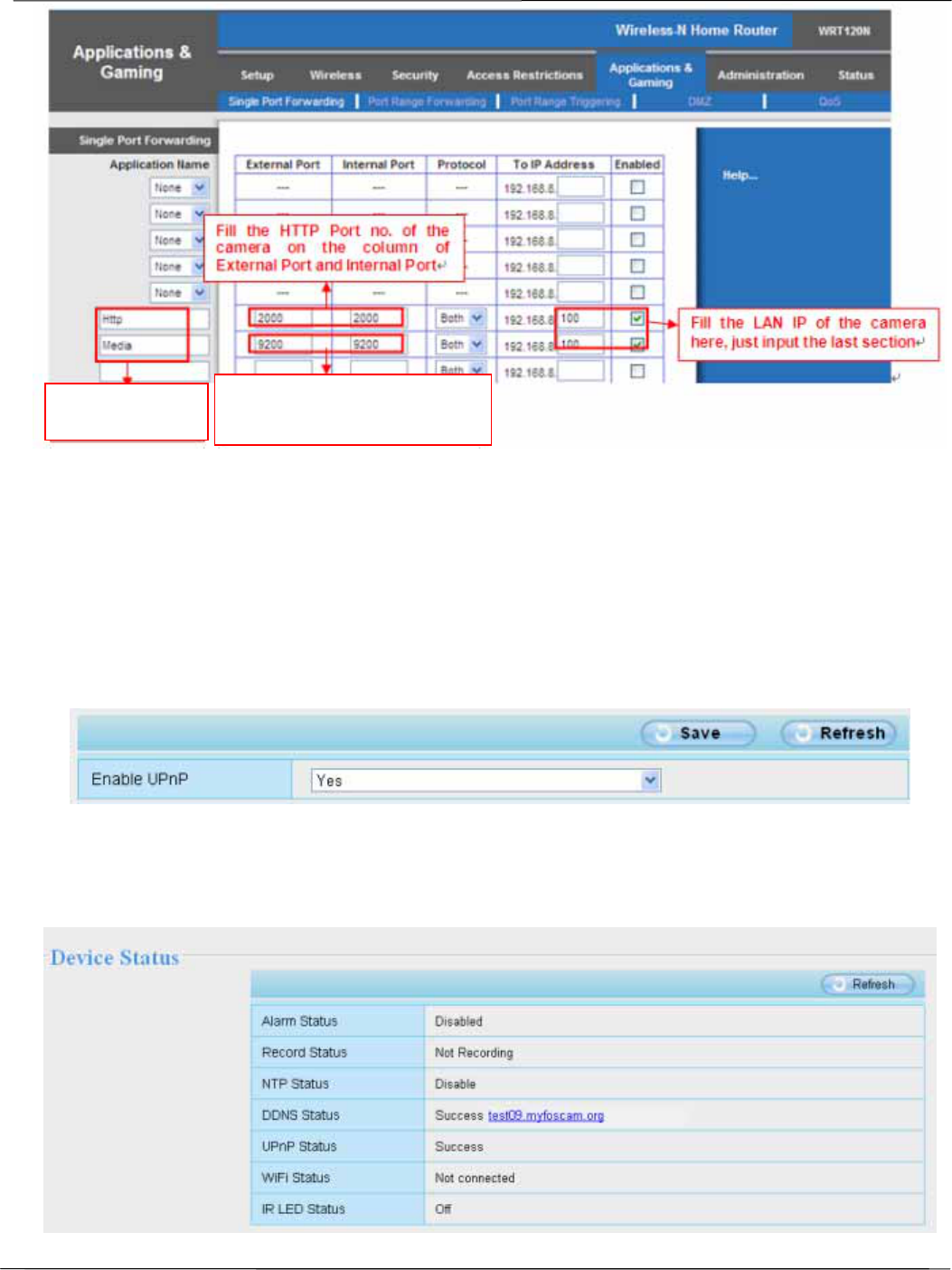

Do port (HTTP port and Media port) forwarding manually. (See Figure 2.11 for further details)

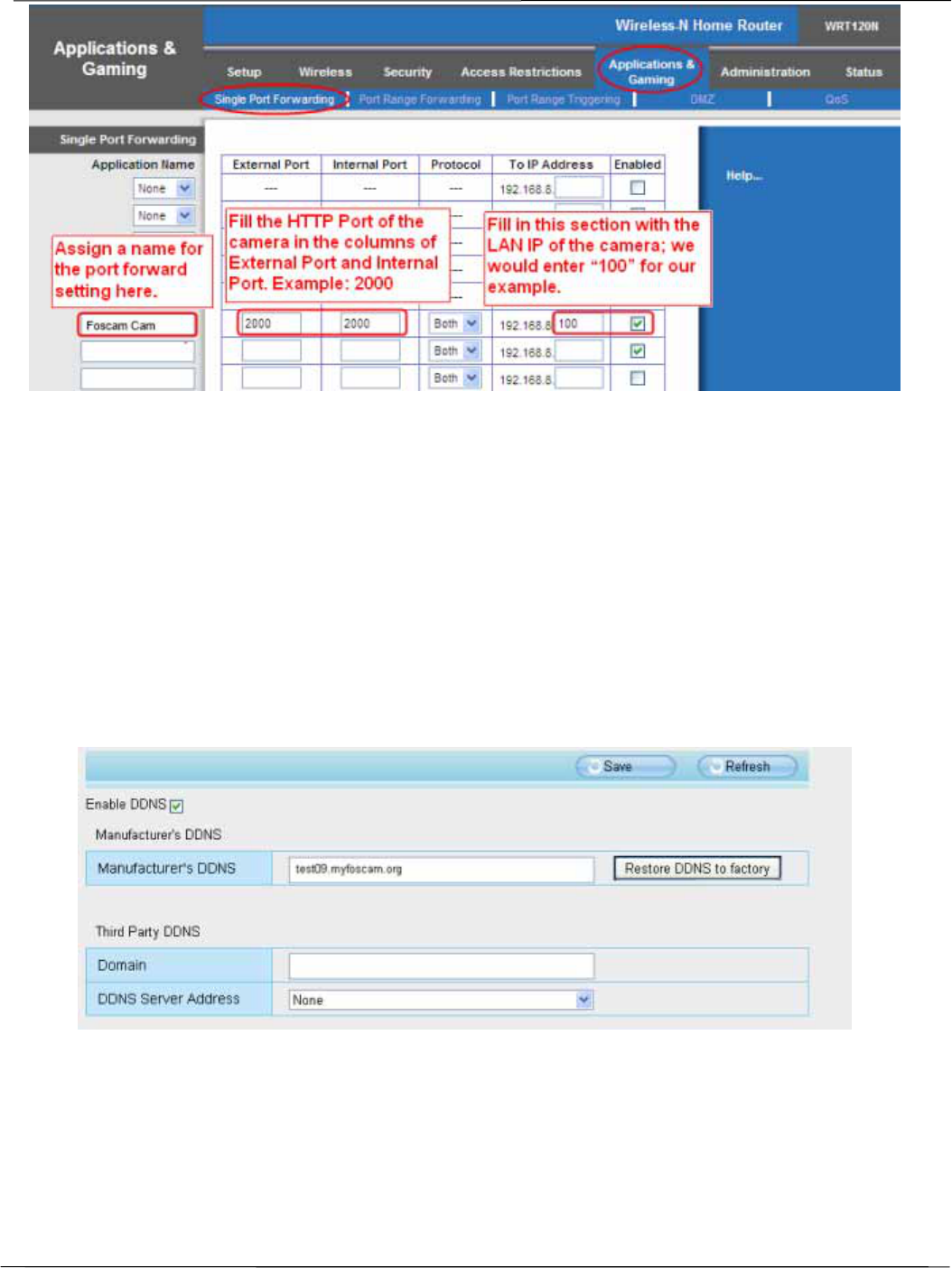

If your router has a Virtual Server, it can do port forwarding. Add the camera’s LAN IP and port which you

had set earlier to your router’s port forwarding settings.

Note: If you plug the camera into a router, it will have a dynamic IP address and you need to set DDNS

service settings to view it remotely.

2.2.2 Dynamic IP Addresses

DDNS is a service that allows your IP Camera, especially when assigned with a dynamic IP address, to

have a fixed host and domain name. This means that even though your WAN IP address is constantly

changing, you will have a fixed hostname you can use to access your cameras at all times. You can

access the camera directly from the Internet using the hostname and port number.

What is the HTTP Port NO.?

Default HTTP Port is 88

www.foscam.com

Shenzhen Foscam Intelligent Technology Co., Limited

Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 10

All cameras have the default HTTP port of 88. For example, if the LAN IP link of the camera is

http://192.168.8.102:88, this means that the camera’s HTTP port is 88. You can change port 88 to

another port if you’d like such as 2000 or 8090, which will not be conflict with other existing ports like 25,

21,10000.Here you can set the port no. between 1 and 65535.

Change the default http no.88 to another one.

How to assign a different HTTP Port No. and fixed the LAN IP of the

camera by the IP Camera Tool？

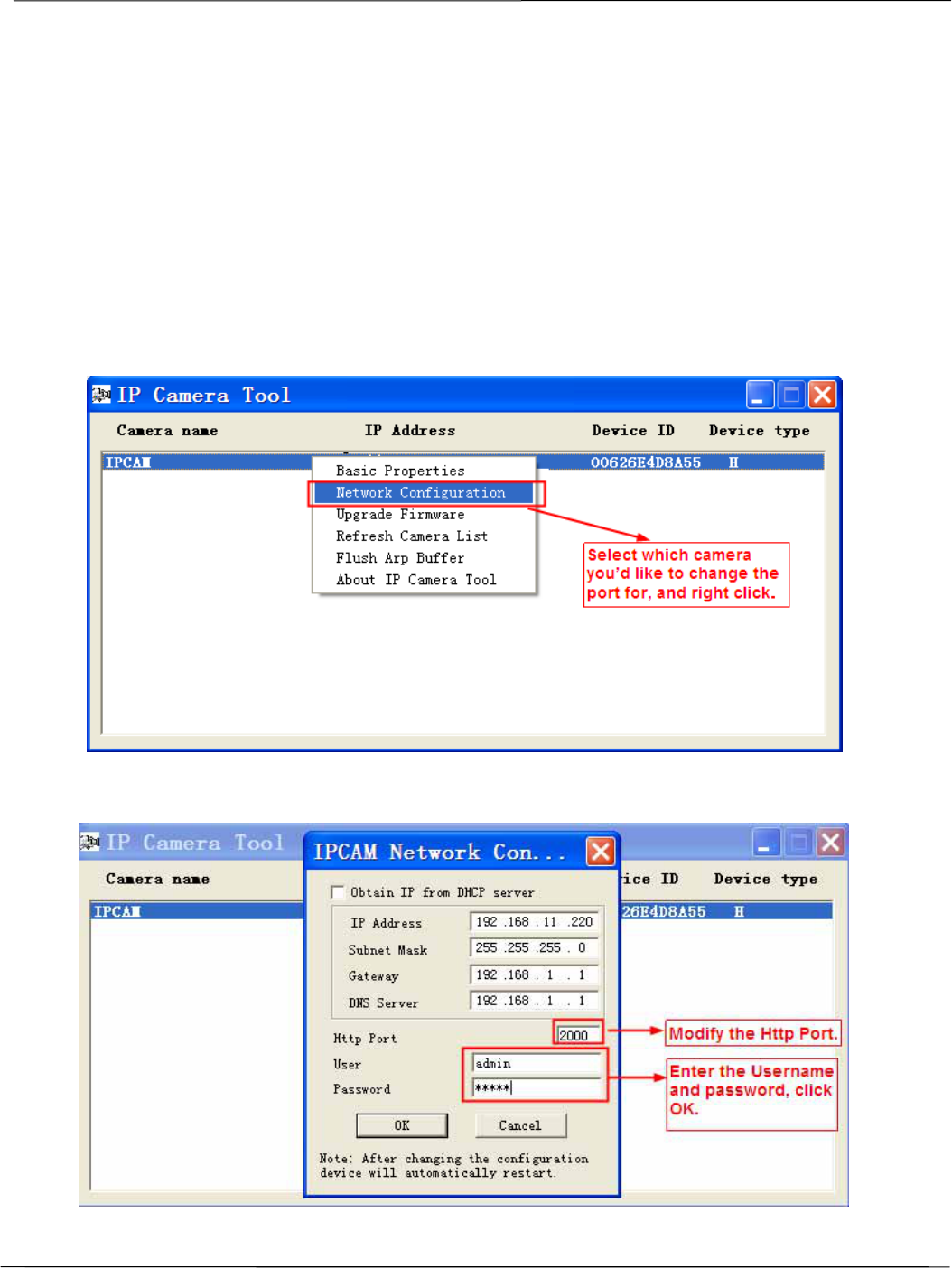

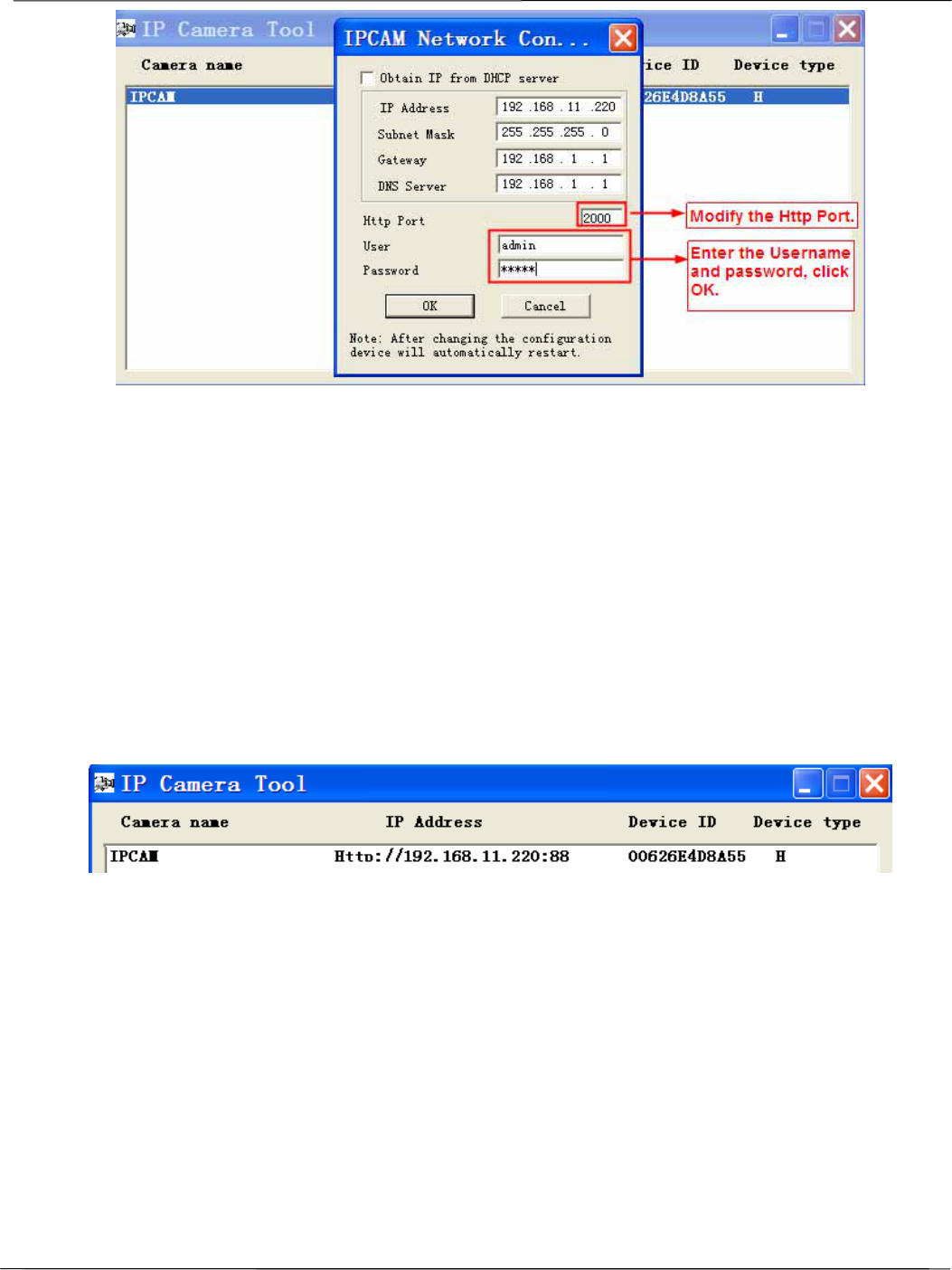

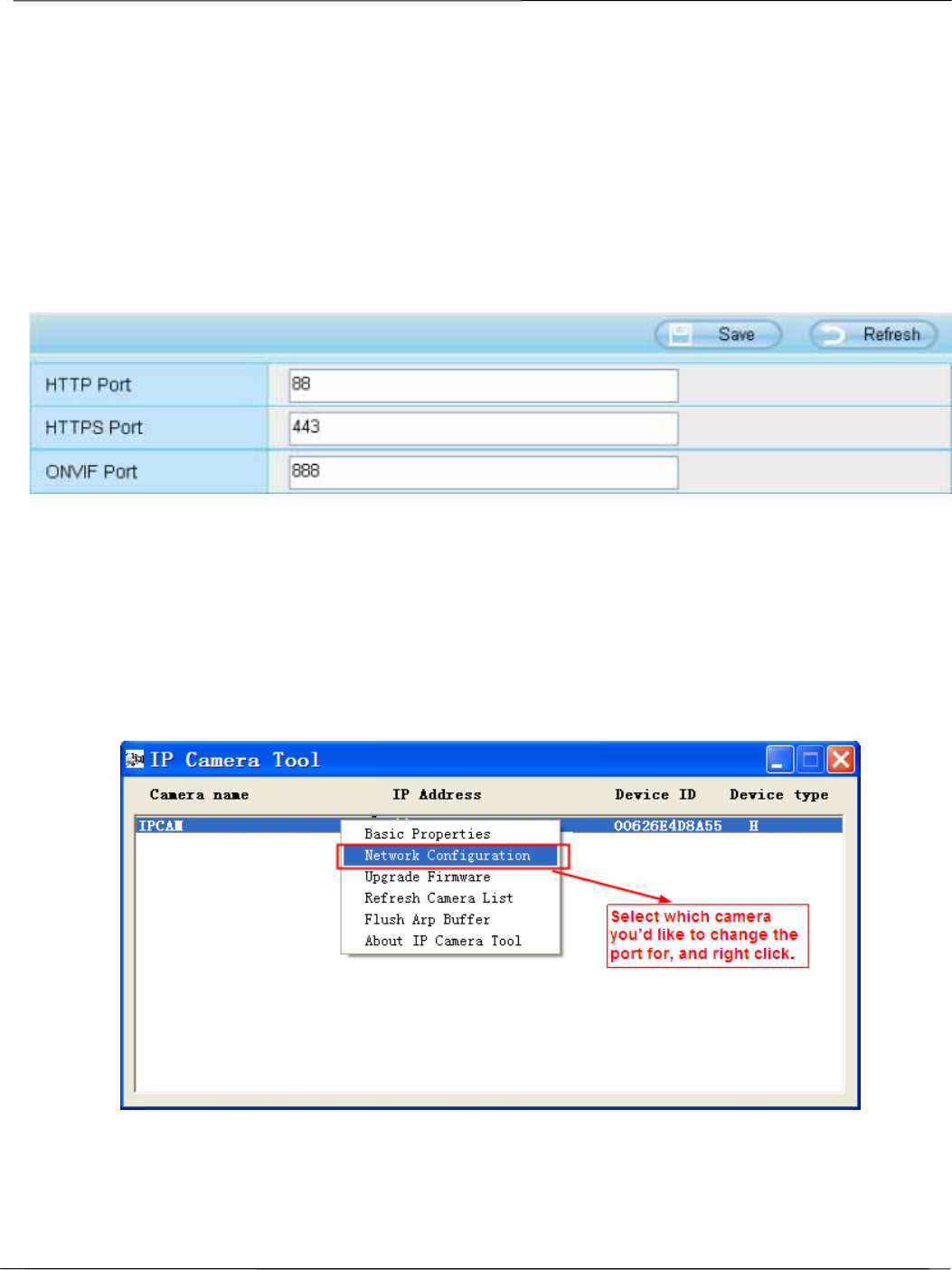

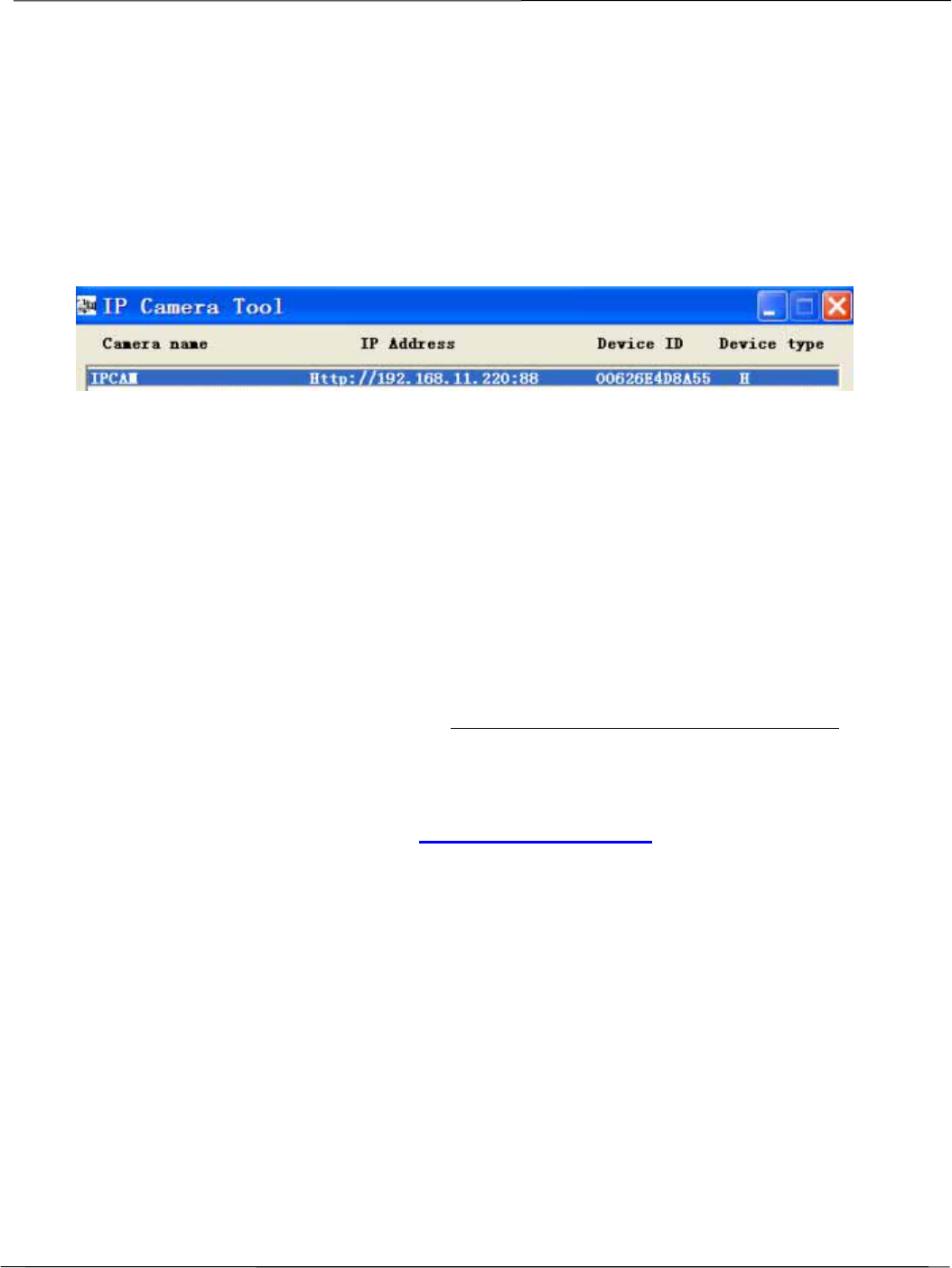

Step 1: Open the IP Camera Tool, select the camera you would like to change the port of, right click on

the IP address, and click on ”Network Configuration”, this brings up the network configuration box as

shown in Figure 2.9 and 2.10 .

Figure 2.9

Figure 2.10

www.foscam.com

Shenzhen Foscam Intelligent Technology Co., Limited

Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 11

Step 2: Enter the username and password of the Administrator (default username is admin with a blank

password), and click “OK” to apply changes.

Step 3: Wait around 10 seconds, you’ll see that the camera’s LAN IP address has changed. In our

example it was changed to 2000, so we see http://192.168.8.102:2000 in IP Camera Tool. Also, the LAN

IP address is now fixed at a static IP address of http://192.168.8.102:2000. This IP address will not

change even if the camera is powered off and back on, the camera will remain on this LAN IP address.

This is very important that a static LAN IP address is set, or you may have problems later with remote

access and seeing the camera remotely if the camera loses power and reconnects on a different LAN IP

address. Make sure you set a static LAN IP address!

Figure 2.11

What is Port forwarding?

If you have never done port forwarding before, you can open and view the following link to understand

the basic concept. Port forwarding allows for outside connections to access a specific device on your

network from anywhere in the world. Every router automatically blocks any incoming connections for

safety purposes. Using port forwarding, you are telling your router to allow a connection through a

certain port (you can think of it as a gateway) into your router. You set this port to a specific device, in our

case an IP Camera, so it can be accessed from anywhere in the world.

Click this link to learn more about port forwarding: http://portforward.com/help/portforwarding.htm

How do we configure Port Forwarding?

For this section, we will be using an example:

Let’s say the camera’s LAN IP address is http://192.168.8.100:2000

Step 1: Login to the router, and go to your router’s port forwarding or port triggering menu. Sometimes

this is also under the name of Virtual Server or NAT.

Using the Linksys brand router as an example, we would log into the router, and go to the Applications &

Gaming menu. We would then click on the “Single Port Forwarding” sub-menu.

Step 2: Create a new column using the LAN IP address & HTTP Port of the camera within the router as

shown below, then push OK or Submit to save your settings:

www.foscam.com

Shenzhen Foscam Intelligent Technology Co., Limited

Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 12

Figure 2.12

First method :

Use the embedded DDNS to access the camera via the Internet

Each Foscam camera has an embedded unique DDNS domain name, the format of this domain name is

xxxxxx.myfoscam.org. On the bottom of the camera, you can see the domain name sticker with this

information on it.

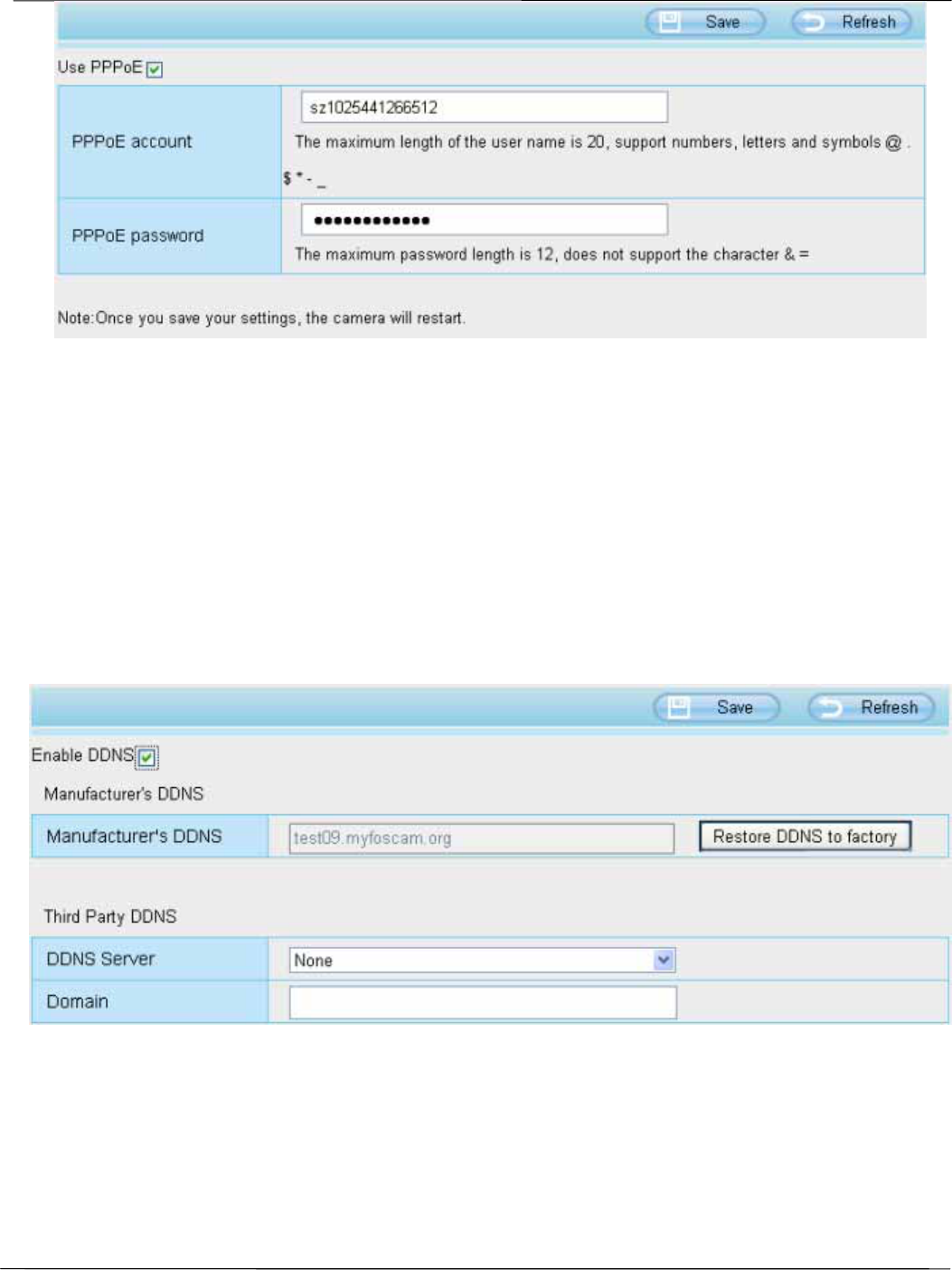

For example, we can use test09.myfoscam.org. In the camera, click Settings at the top, click “Network”

on the left, then click “DDNS” to get to the DDNS settings page. Here you can see the unique domain

name of your camera.

Figure 2.13

Now you can use “http://Domain name + HTTP Port” to access the camera via the Internet.

Take hostname test09.myfoscam.org and HTTP Port of 2000 for example, the URL link to access the

camera via the Internet would be http:// test09.myfoscam.org:2000.

Second method :

Use the Third party DDNS to access the camera via the Internet

www.foscam.com

Shenzhen Foscam Intelligent Technology Co., Limited

Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 13

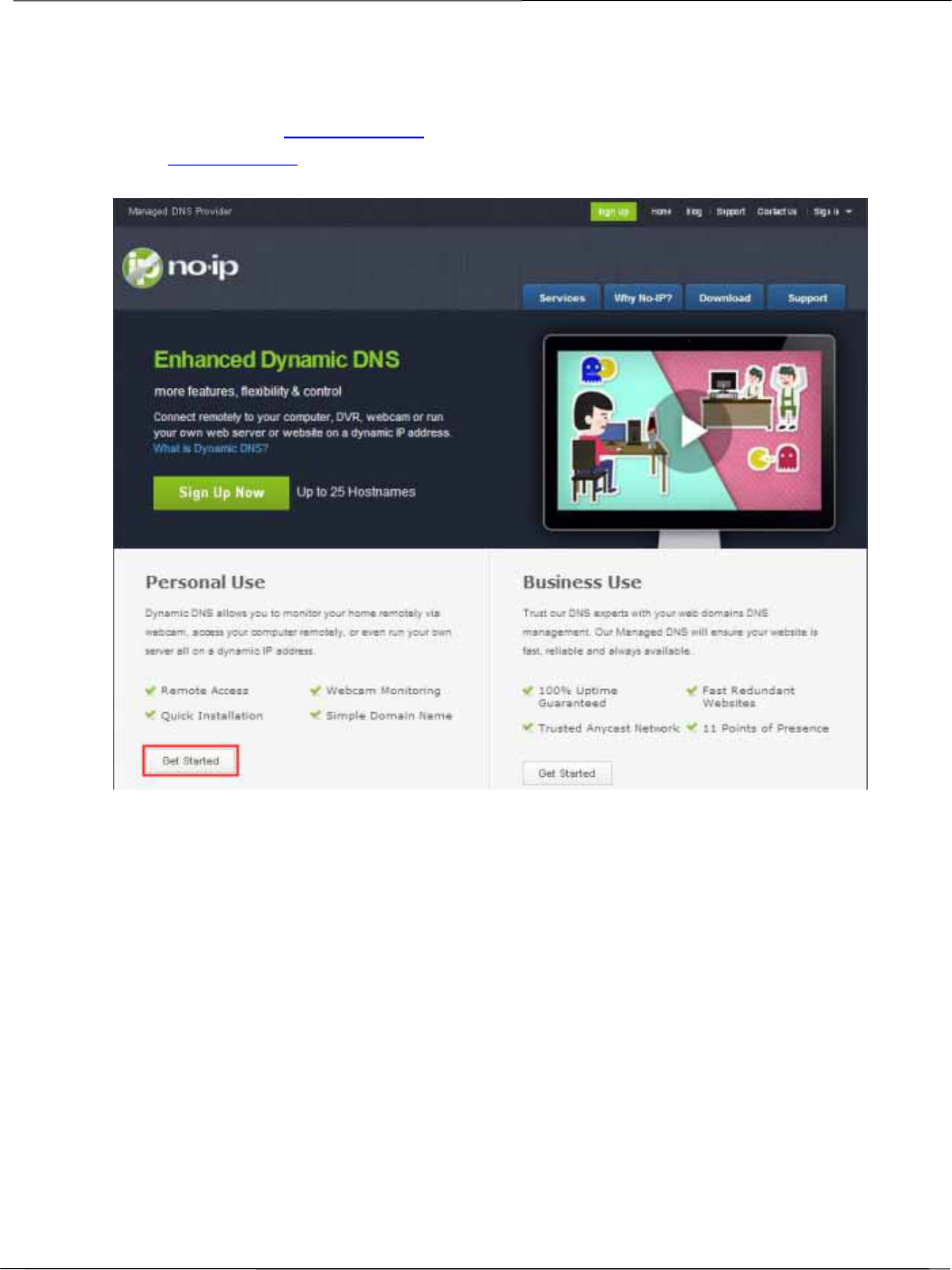

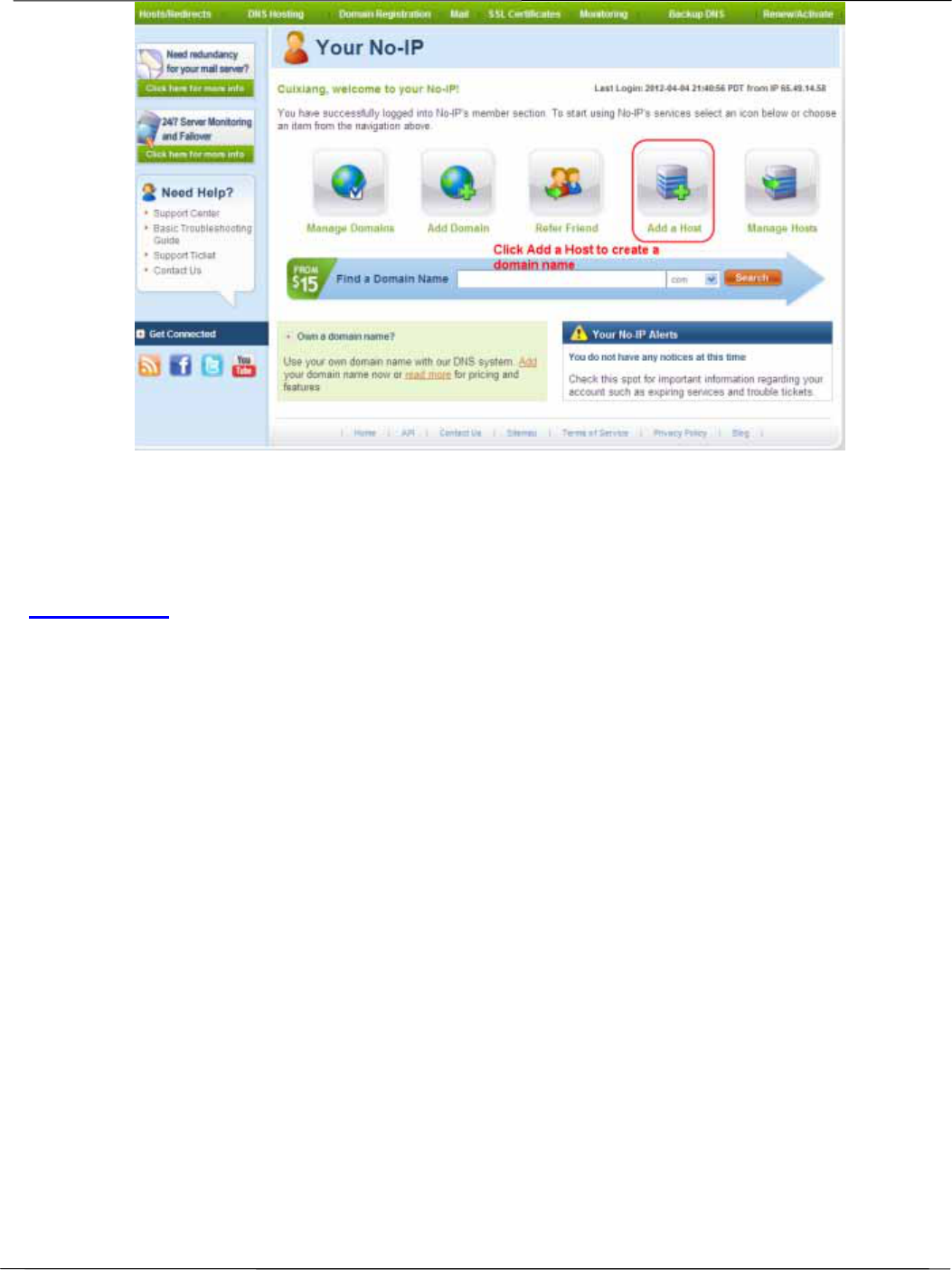

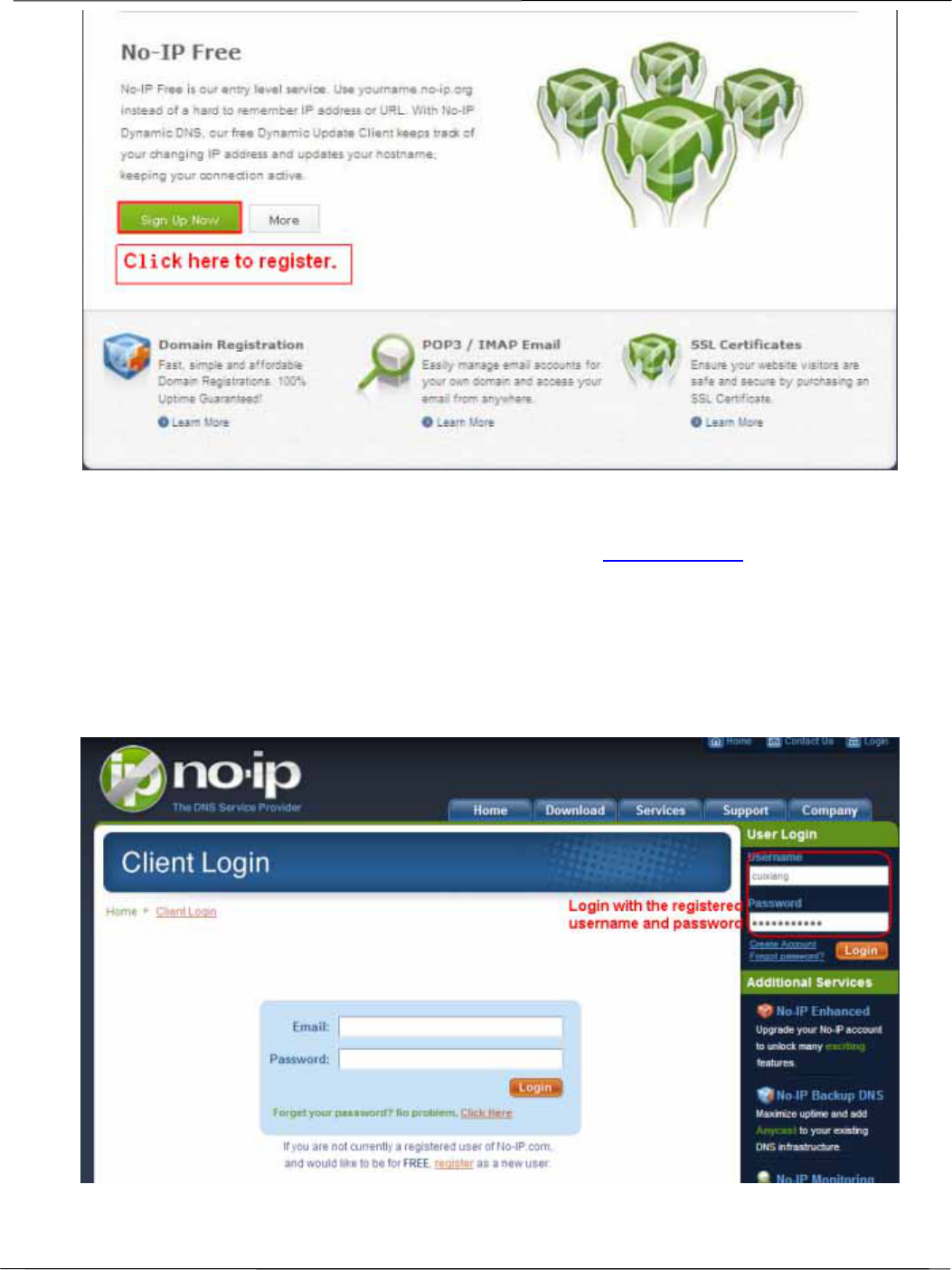

Step 1 Please go to the third party DDNS website(such as www.no-ip.com) to create a free

hostname.

Step 2 DO DDNS Service Settings within the Camera

Please set DDNS Settings within the camera by hostname, a user name and password you’ve got from

www.no-ip.com

Take hostname ycxgwp.no-ip.info, user name foscam, password foscam2012 for example.

Firstly, goes to option of DDNS Settings on the administrator panel.

Secondly, select No-Ip as a server.

Thirdly, fill foscam as DDNS user, fill password foscam2012 as DDNS password, fill ycxgwp.no-ip.info

as DDNS domain and server URL, Then click save to make effect. The camera will restart and to take

the DDNS settings effective.

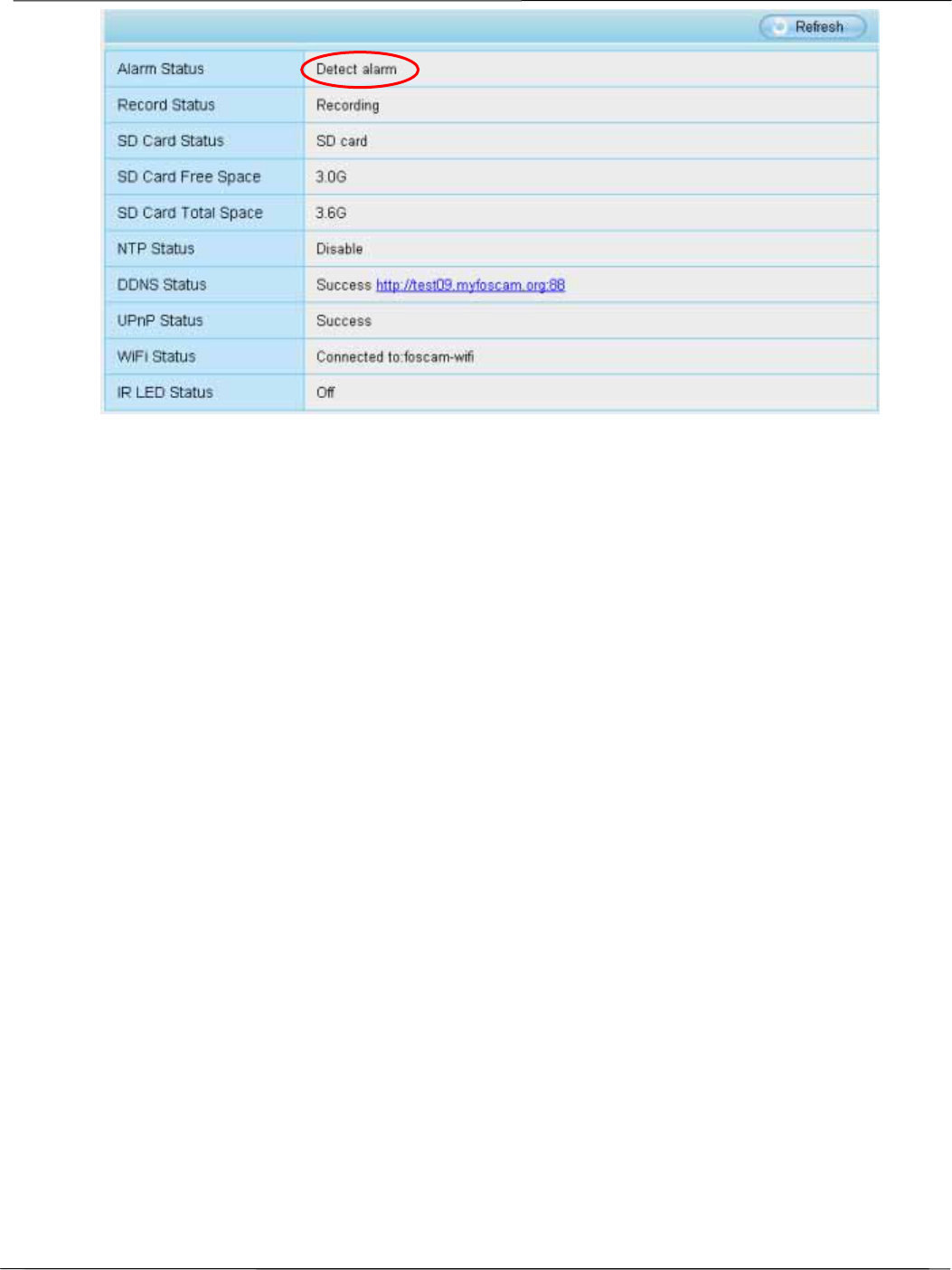

Fourthly, after the restart, login the camera, and go to option of Device Status on the administrator panel,

and check if the DDNS status is successful.

If failed, please double check if you have input the correct hostname, user name, and password, and try

to redo the settings.

NOTE :

If you have set Third Party DDNS successfully ,the Foscam Domain Name will be invalid. The Third

Party DDNS and the Foscam Domain Name cannot work at the same time, the last time you configured

will take effect.

2.3 Using the VLC player

This camera supports RTSP streaming, here you can view the camera using VLC player.

RTSP URL rtsp:// [user name][:password]@IP:HTTP port number/videosream

The part in the square brackets may be omitted.

user name & password:

The user name and password to access the camera. This part can be omitted.

IP: WAN or LAN IP address.

Videostream:Here support three mode: videoMain, videoSub and audio. When the network speed is

bad, here you had better select videoSub. If you select audio, you can only hear the sound but cannot

see the video.

For example:

IP: 192.168.1.11

HTTP Port number: 88

User name: admin

Password: 123

Here I can enter one of the following URLs in the VLC.

1．rtsp://admin:123@192.168.1.11:88/videoMain

www.foscam.com

Shenzhen Foscam Intelligent Technology Co., Limited

Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 14

2．rtsp:// @192.168.1.11:88/videoMain

3．rtsp://:123@192.168.1.11:88/videoMain

4．rtsp://admin@192.168.1.11:88/videoMain

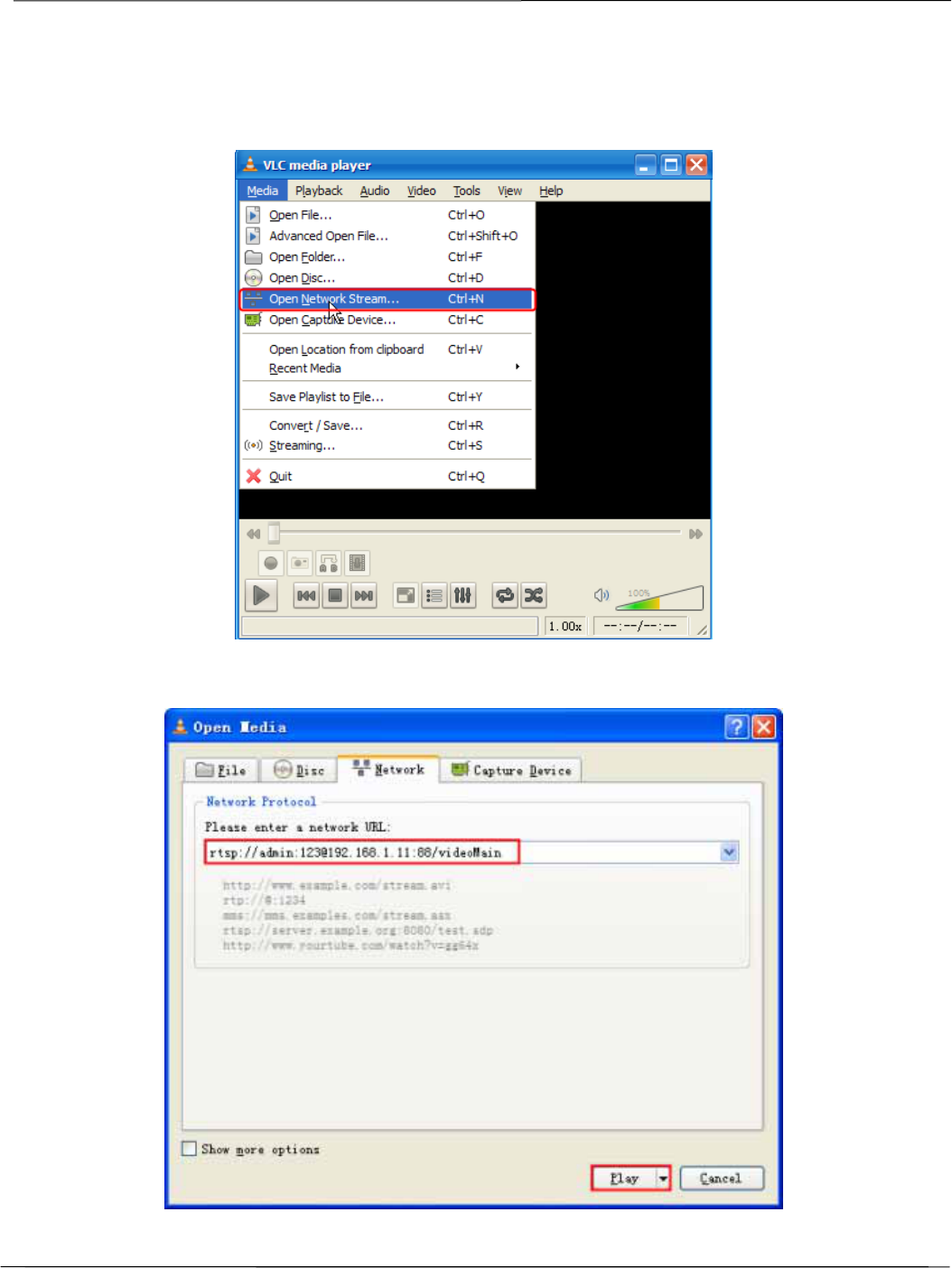

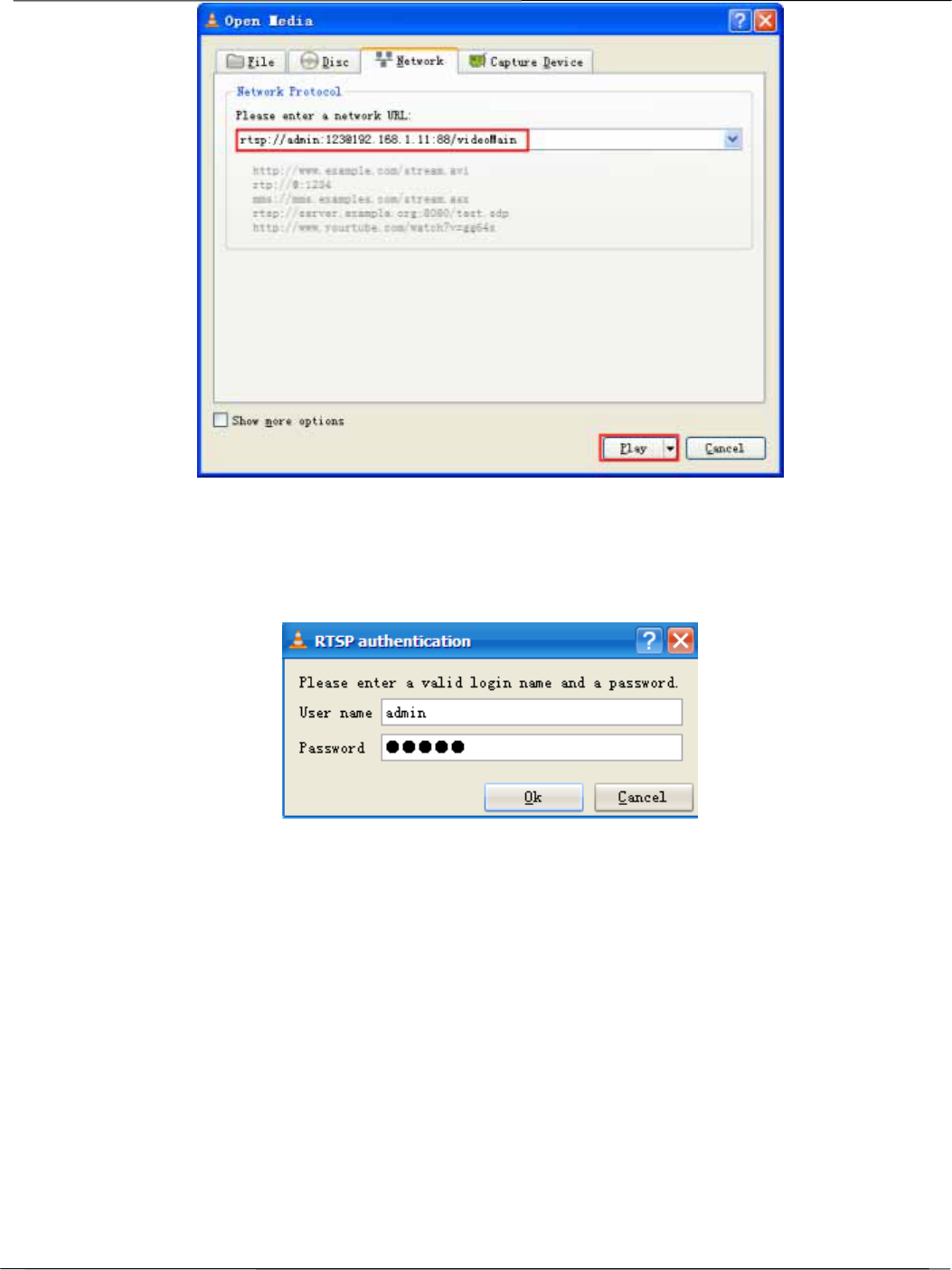

Open the VLC, and go to MediaٛOpen Network Stream option, then enter the URL into VLC.

Figure 2.14

Figure 2.15

www.foscam.com

Shenzhen Foscam Intelligent Technology Co., Limited

Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 15

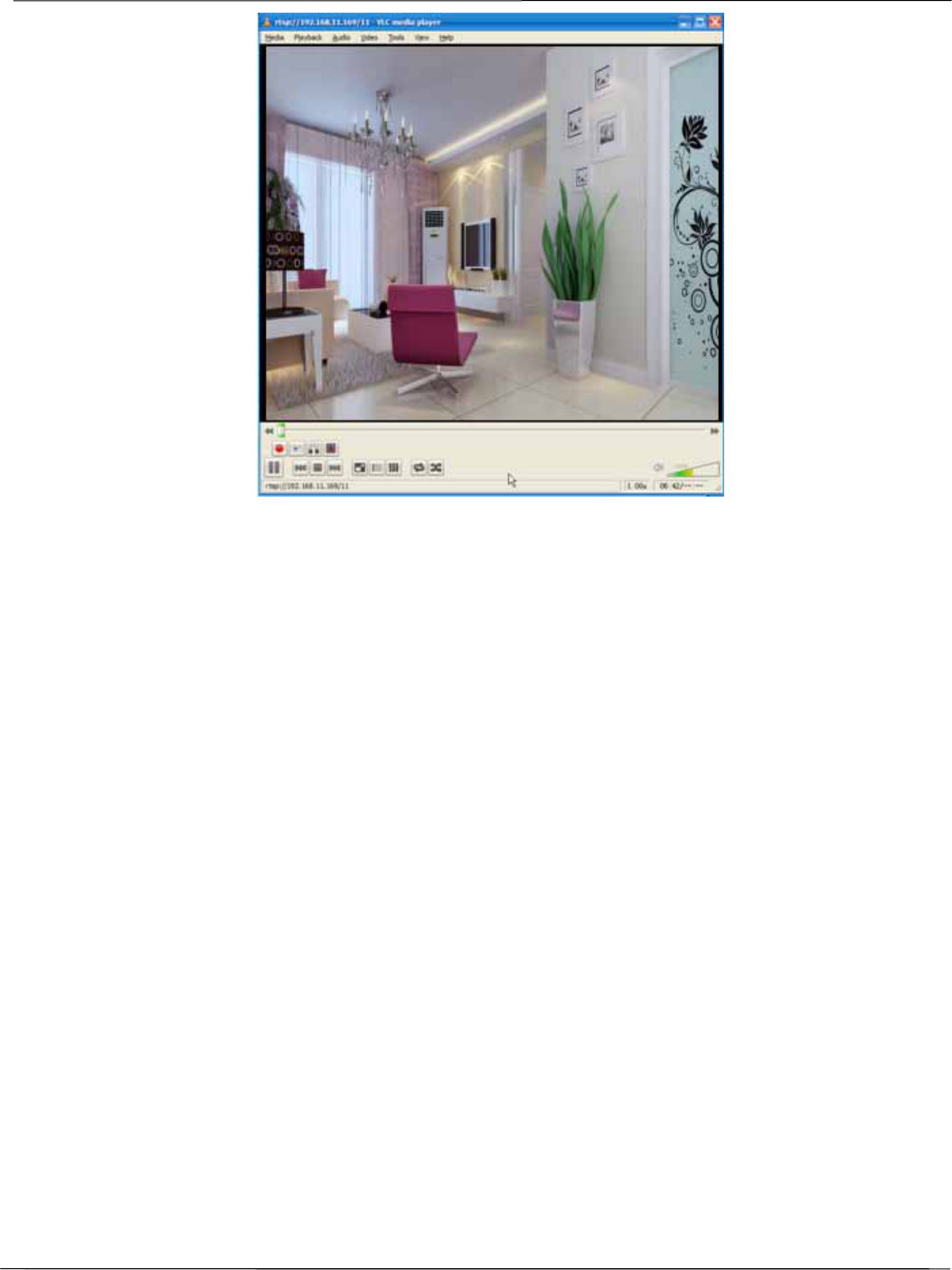

Sometimes you may need to enter the user name and password again. Click OK and you can see the

real-time preview.

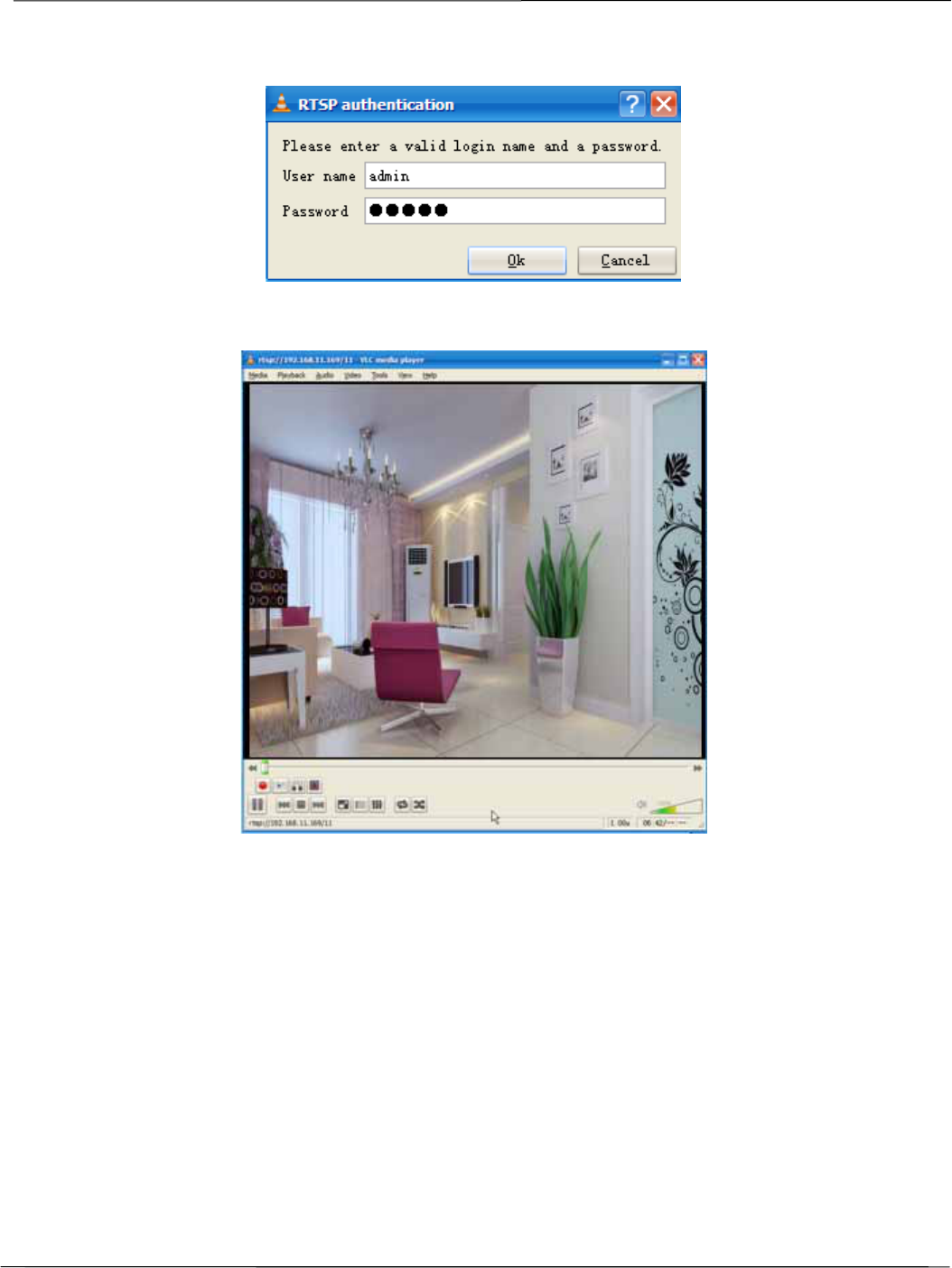

Figure 2.16

Figure 2.17

If you cannot play the video in the VLC player, please check the port mapping. You can read Quick

Installation Guide about How to configure port forwarding.

NOTE:

If you modify the camera’s username or password, you had better reboot the camera, or else the new

username and password cannot take effect when you enter the authentication in the VLC.

2.4 IP camera connection to the server

Device supports ONVIF 2.2.1 protocol, You can easily access the NVR with ONVIF or server with

ONVIF.

www.foscam.com

Shenzhen Foscam Intelligent Technology Co., Limited

Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 16

3 Surveillance Software GUI

Please refer to the Quick Installation Guide if you install the camera at first time. After finishing quick

installation, you can take time to learn the operation of the software.

3.1 Login Window

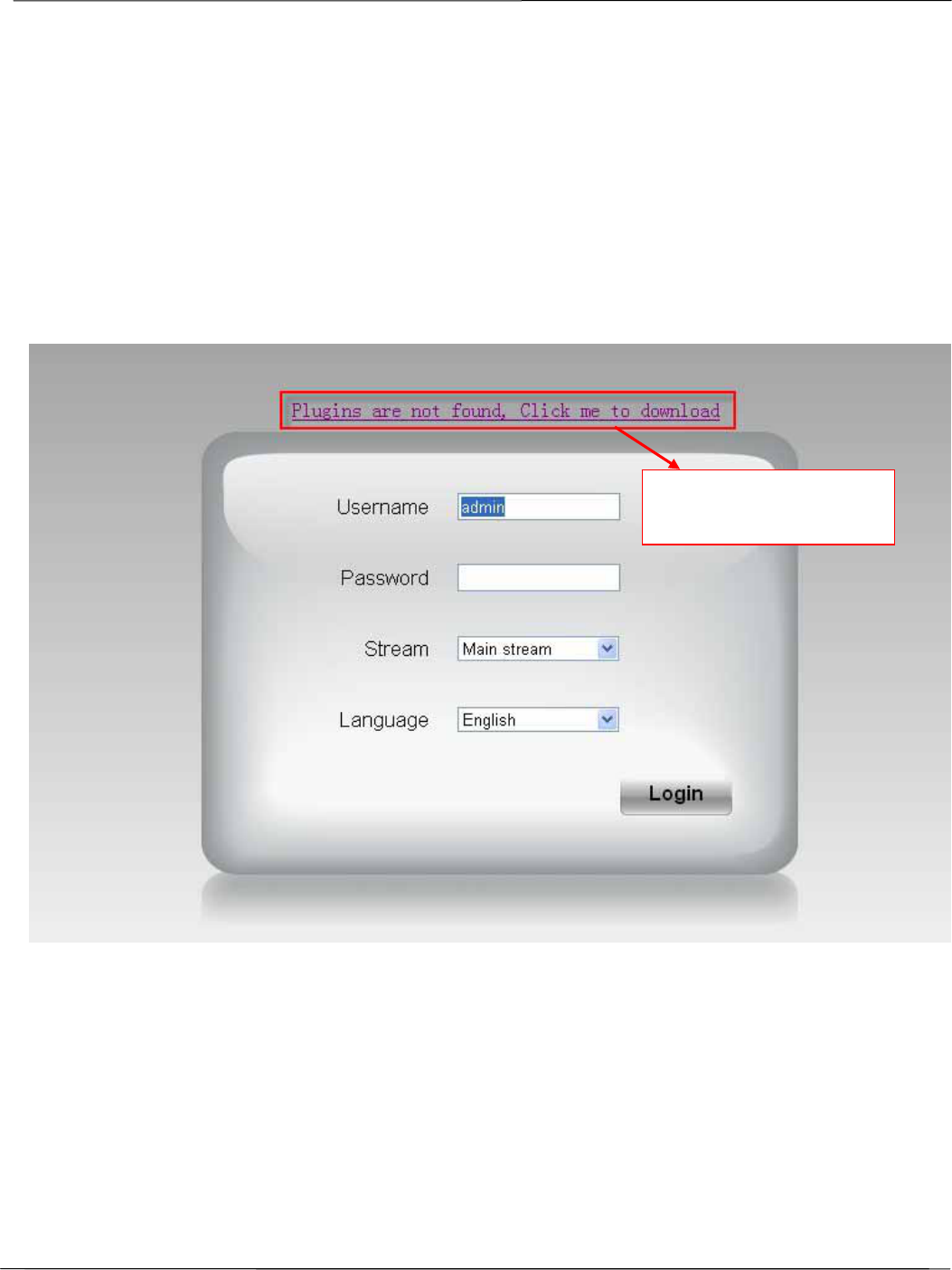

Figure 3.1

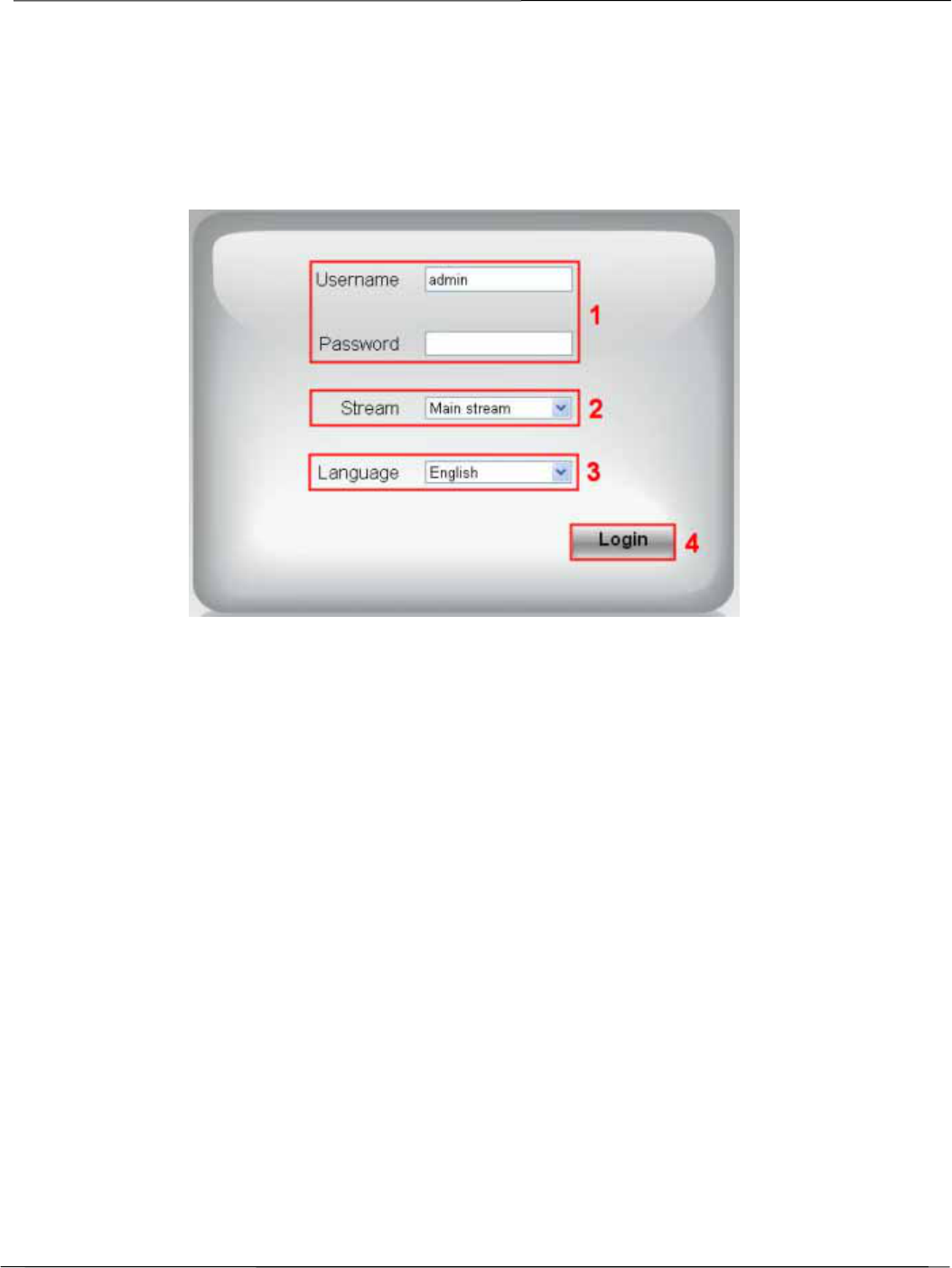

Please check the login window above, it was divided to 4 sections from no. 1 to 4.

Section1 Enter the Username and password

The default administrator username is admin with no password, please reset the password at first using

and prevent unauthorized users login the camera (read chapter 3.2.4 about how to change).

Section2 Stream

The camera supports two stream modes: Main stream and sub stream. If you want to access the camera

form LAN, here you can select Main stream. If you want to access the camera from Internet, here we

recommend sub stream.

Note: When the network bandwidth is badly you’d better select Sub Stream and the video will be more

fluency.

Section3 Select the language

You can select the language you need via click on the language dropdown list to switch.

Section4 Login the camera

Click Login button and you will see the

surveilla

www.foscam.com

Shenzhen Foscam Intelligent Technology Co., Limited

Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 17

Figure 3.2

NOTE：

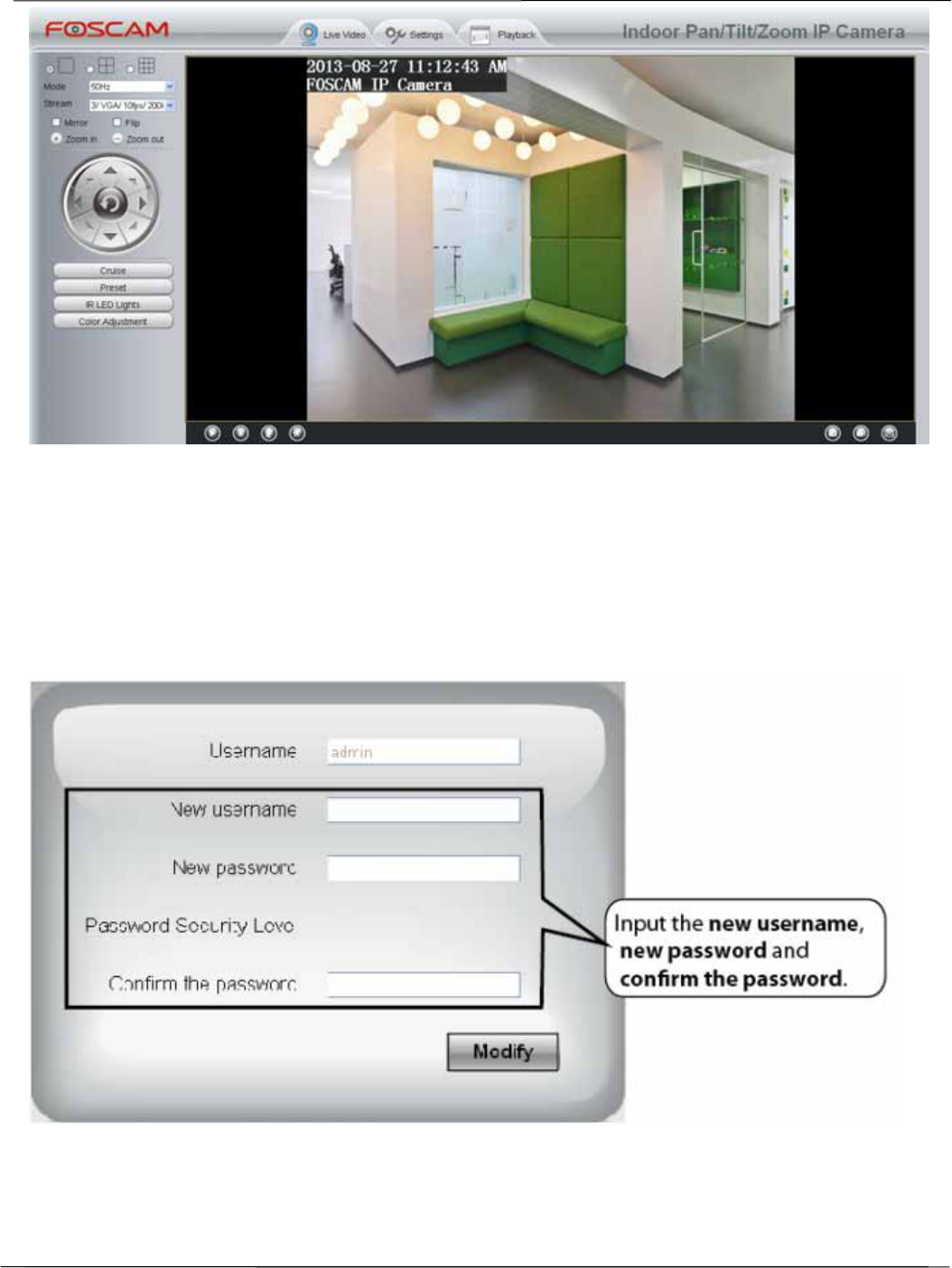

If your IP Camera is the newest software version, when setting up your camera for the first time, it will

request that you modify the default username and/or password if both are still set to default. Input the

new username and password, click "Modify" to complete the modification. You will now use the new

username and password to log in to the camera in the future.

Figure 3.3

www.foscam.com

Shenzhen Foscam Intelligent Technology Co., Limited

Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 18

3.2 Surveillance Window

Figure 3.4

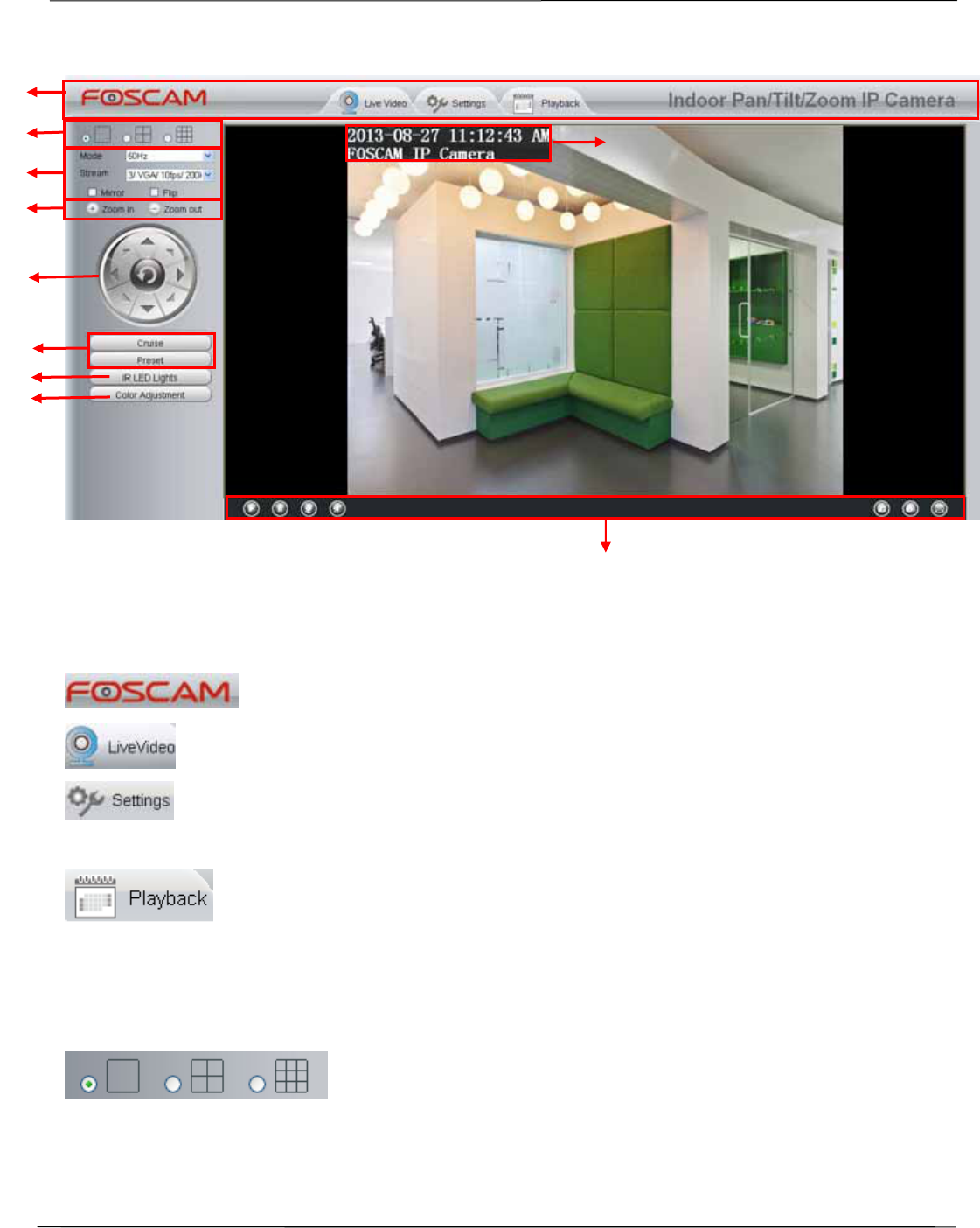

Section 1 FOSCAM Logo/ Live Video / Settings/Playback buttons

: FOSCAM LOGO

: Path to surveillance window. Click this button and back to the surveillance window

: Path to Administrator Control Panel, Click it, and it will lead to Administrator Control

Panel and do advanced settings.

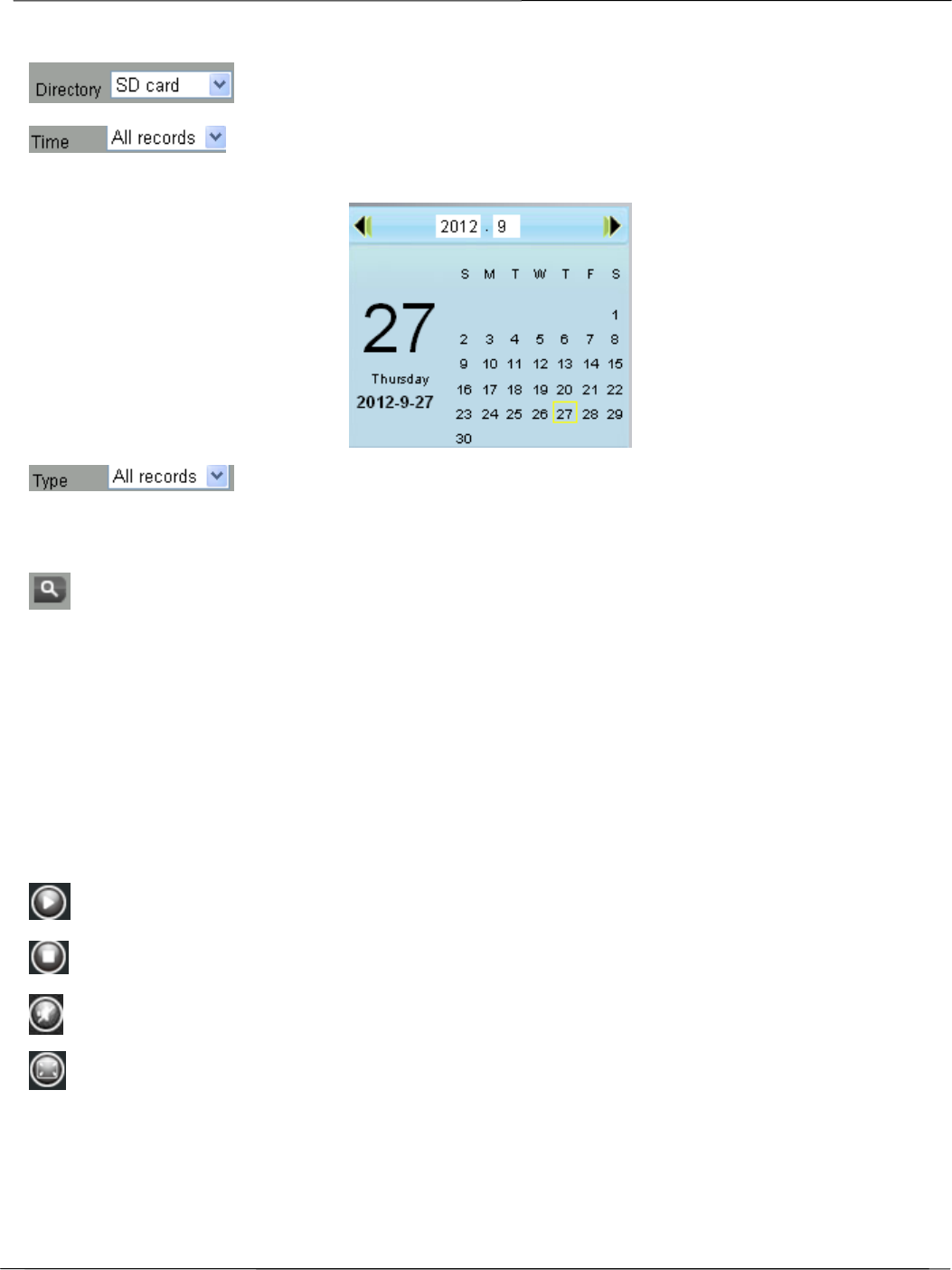

: Click this button and back to the Playback panel to view the stored audio files stored

in the SD Card.

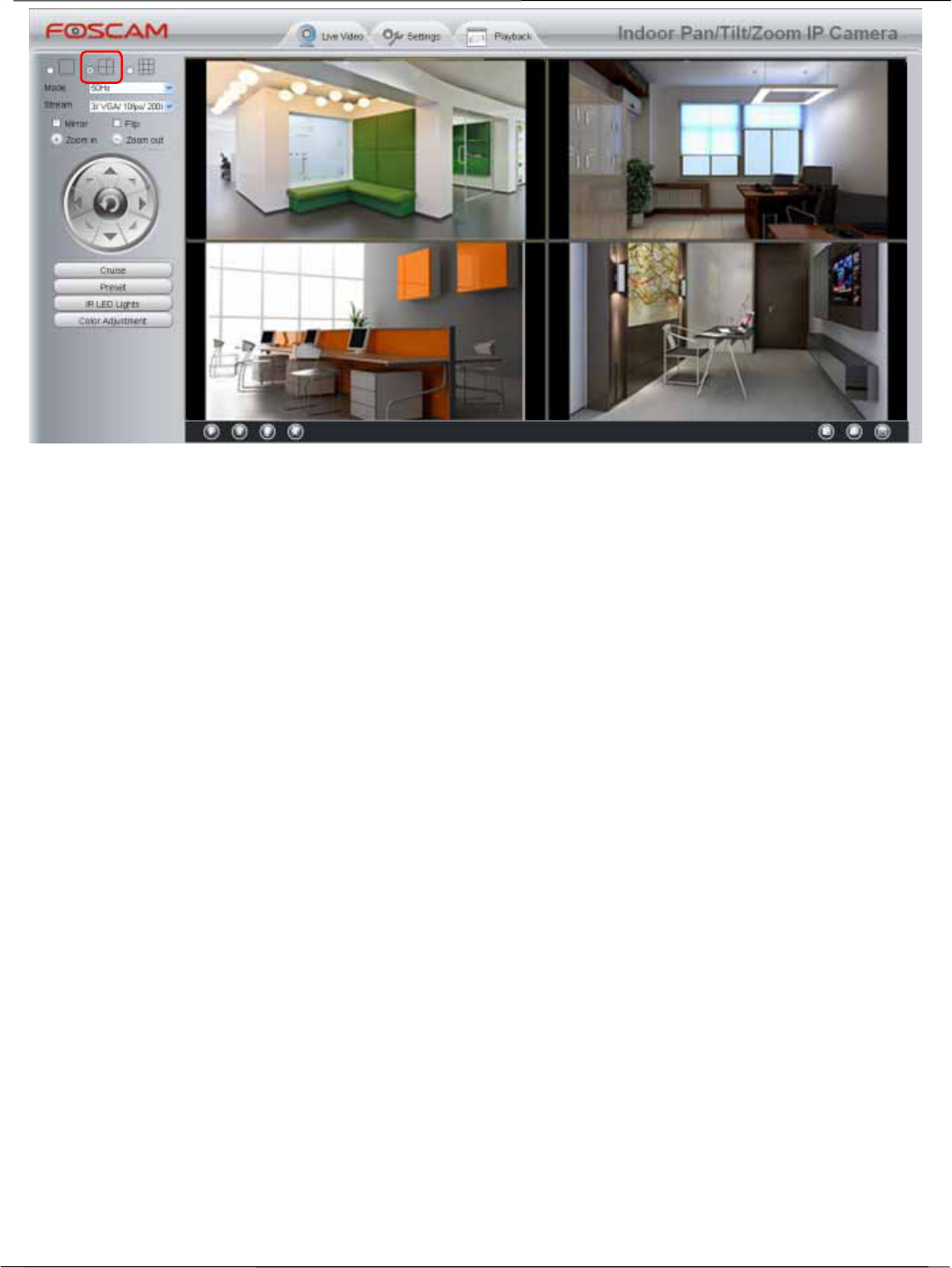

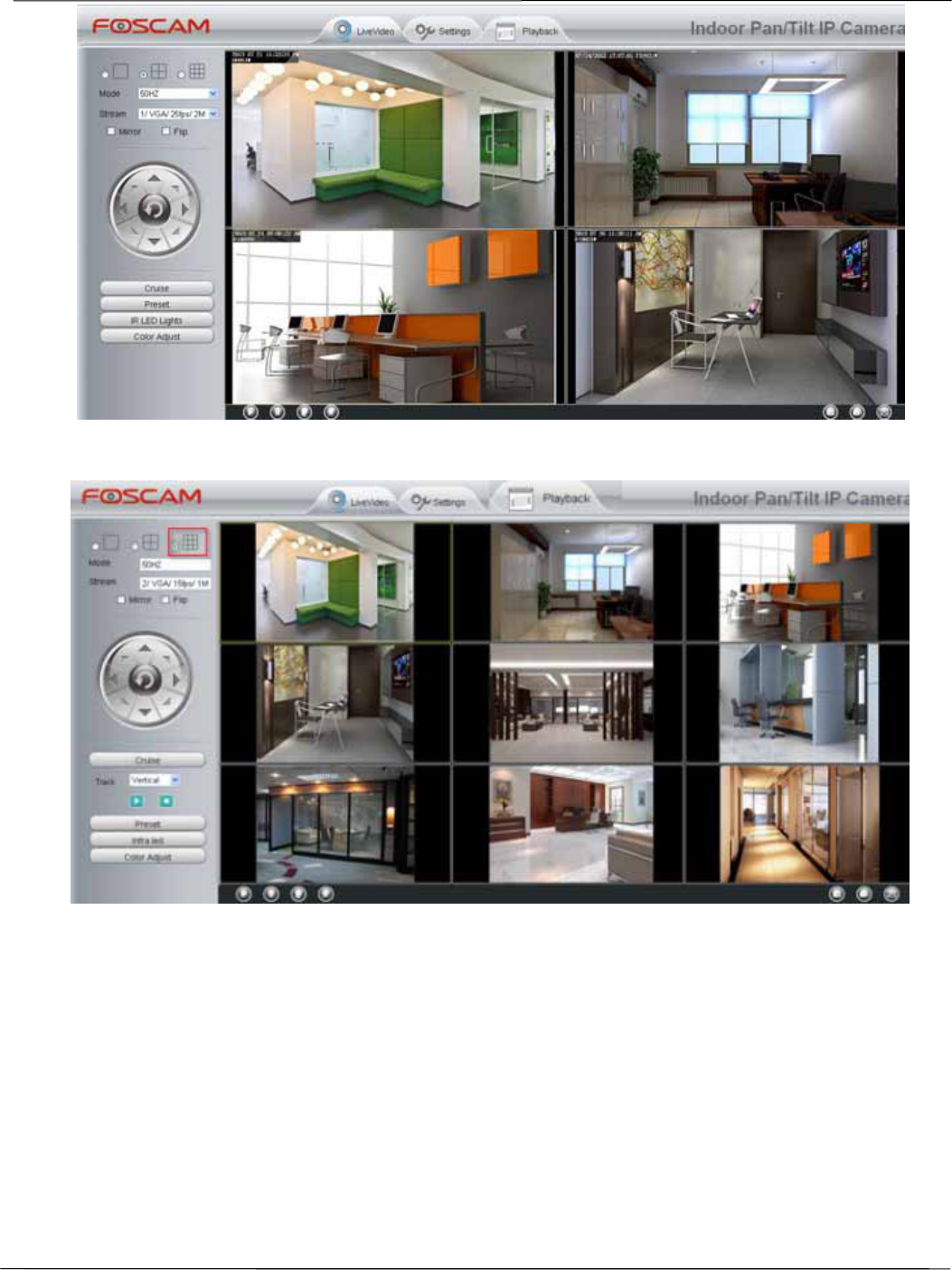

Section 2 Multi-Device Window

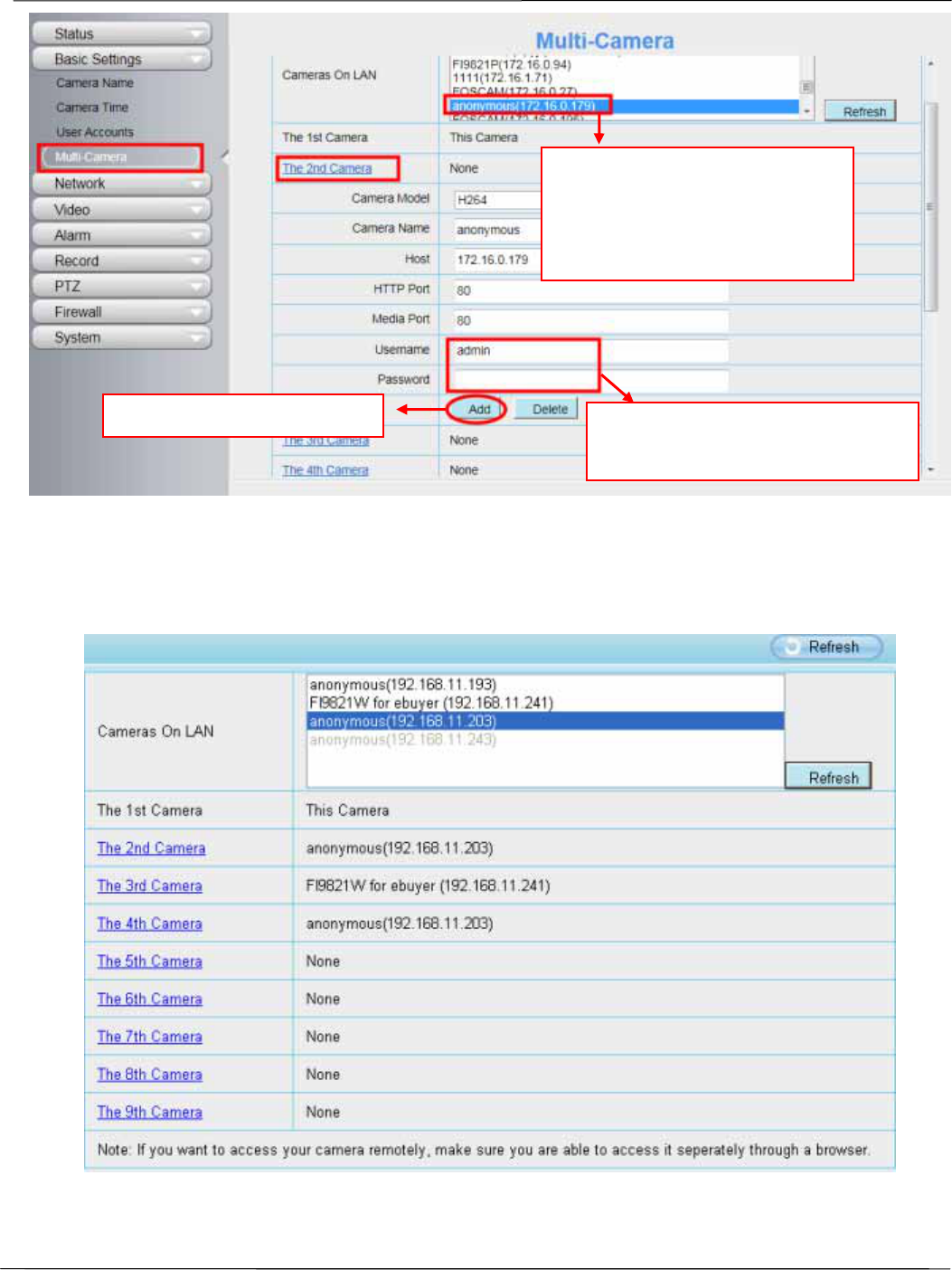

The firmware inside the camera supports up to maximum of 9 cameras being monitoring at the same

time. You can add other cameras in multi-device setting (read chapter 4.2.4).

www.foscam.com

Shenzhen Foscam Intelligent Technology Co., Limited

Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 19

Figure 3.5

Section 3 Mode/ Stream / Mirror/ Flip buttons

Mode

1) 50HZ ---------Indoor surveillance (Region: Europe, China)

2) 60HZ ---------Indoor surveillance (Region: USA, Canada)

3) Outdoor------Outdoor surveillance

Stream

The default Stream supports four modes: 0/720P/30fps/4M, 1/VGA/25fps/2M, 2/VGA/ 15fps/ 1M and 3/

VGA/10fps/200K. The format of the stream type is Stream type no. / Resolution / Maximum frame

rate/ Bit rate.

1) Stream type no. : The number is used to identify the stream type.

2) 720P/ VGA

There are two resolutions, the bigger one is 720P, and the smaller one (VGA) is 640x480 pixels. The

bigger the resolution is , the better of the image quality is. If you are accessing the camera via internet

and want to get more fluent video streaming, please select resolution VGA.

3) Maximum frame rate

When the video format is 50Hz, the maximum frame rate is 25 fps. When the video format is 60Hz, the

maximum frame rate is 30 fps. You should lower frame rate when the bandwidth is limited. Normally,

when the frame rate above 15, you can achieve fluently video.

4) Bit rate

Generally speaking, the larger the bit rate is, the clearer video will become. But the bit rate configuration

should combine well with the network bandwidth. When the bandwidth is very narrow, and bit rate is

large, that will lead to video can not play well.

www.foscam.com

Shenzhen Foscam Intelligent Technology Co., Limited

Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 20

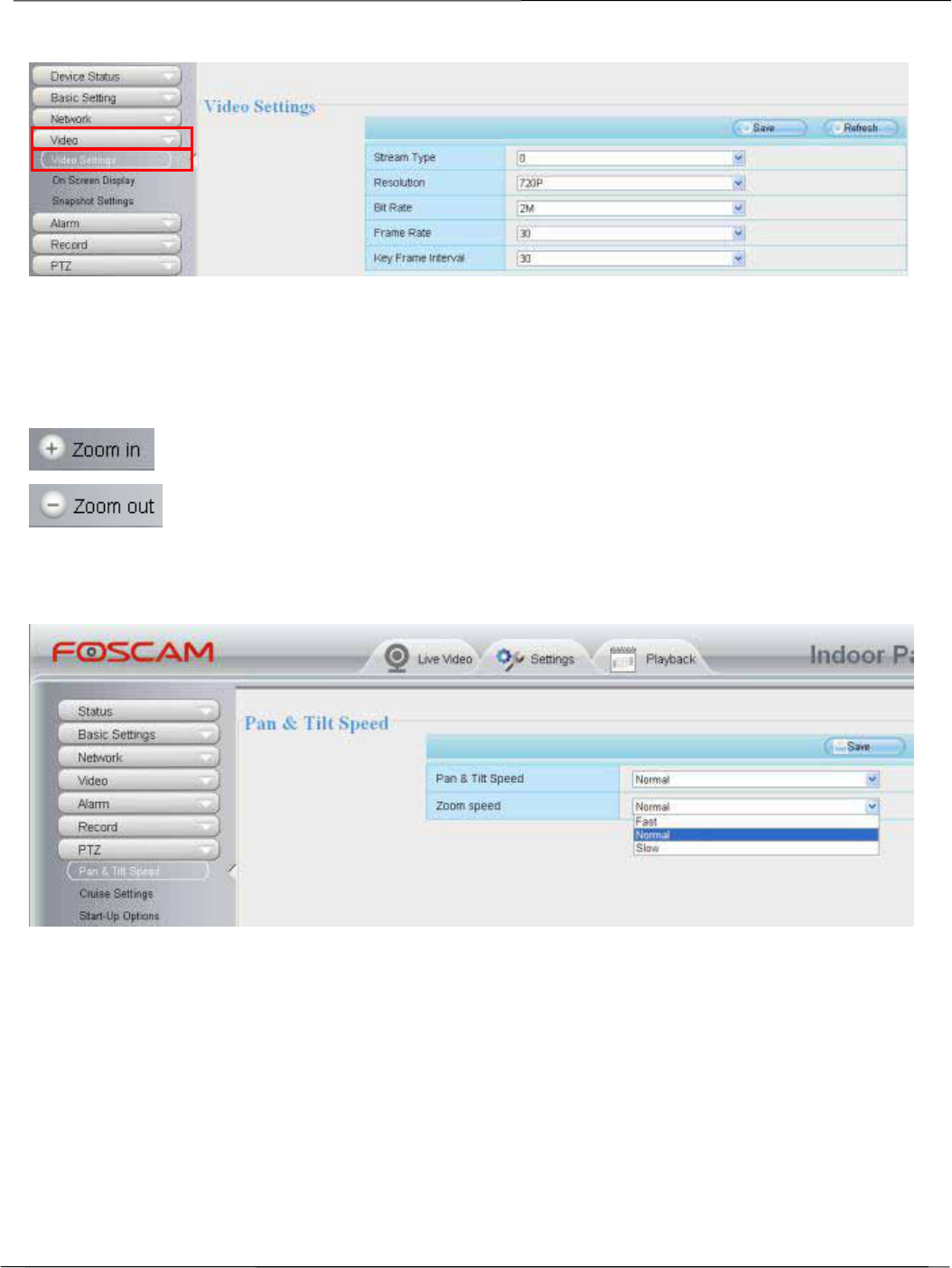

You can reset the stream type on “Settings-> Video-> Video Settings” panel.

Figure 3.6

After changing, please re-login the camera and you can see the modification.

Section 4 Zoom Control

Zoom in the camera’s lens.

Zoom out the camera’ lens.

You can adjust the speed of the lens’ zoom at Settings--PTZ--Pan & Tilt Speed--Zoom speed .

Figure 3.7

Section 5 Pan/Tilt Control

www.foscam.com

Shenzhen Foscam Intelligent Technology Co., Limited

Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 21

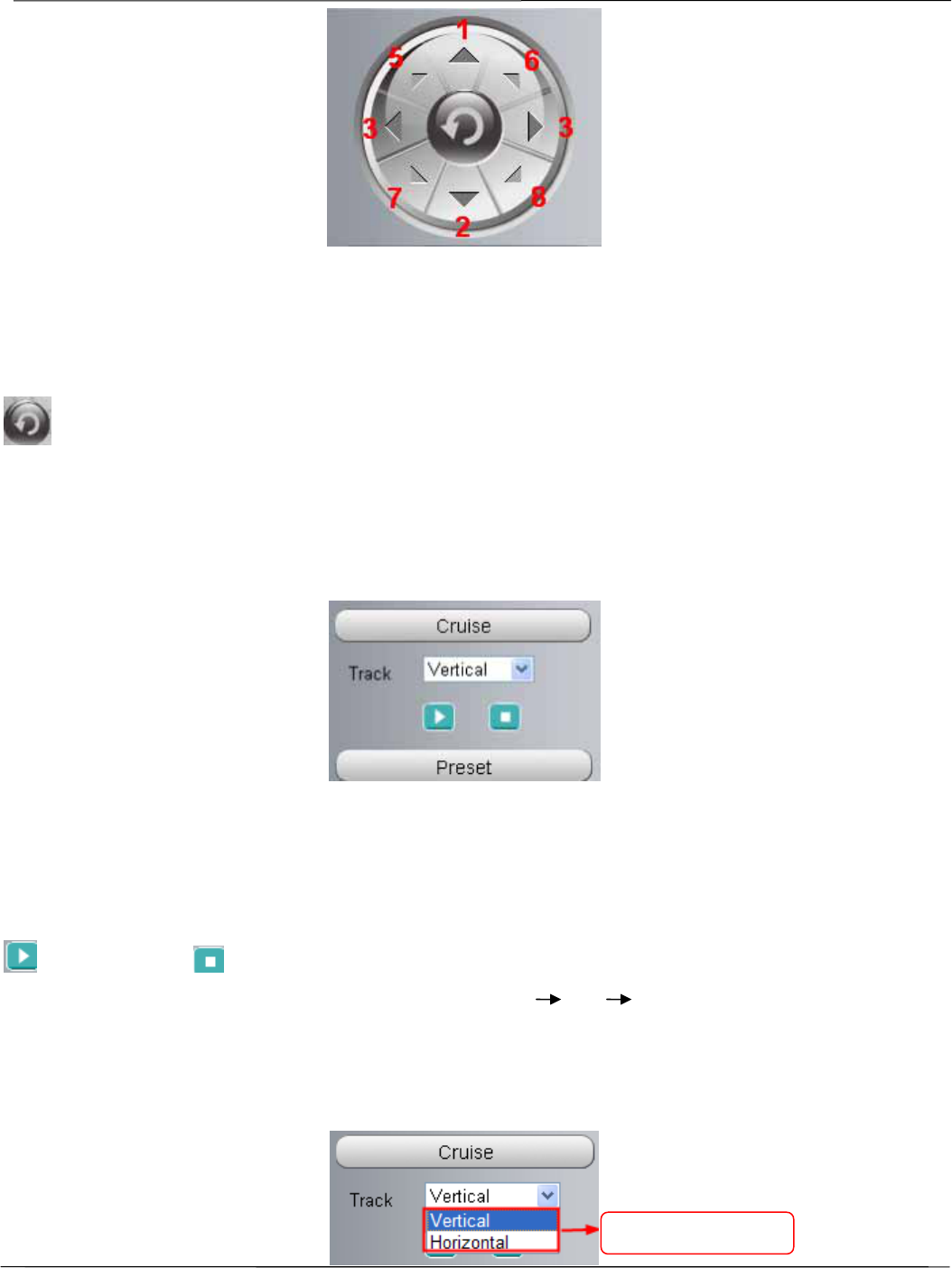

1------Up control button,

2------Down control button,

3------Left control button,

4------Right control button,

5----- Up-Left control button

6----- Up-Right control button

7----- Down-Left control button

8----- Down-Right control button

Click this button and go to center

Section 6 Cruise / Preset settings

Cruise Settings

The default cruise tracks have two types: Vertical and Horizontal.

Vertical: The camera will rotate from up to down.

Horizontal: The camera will rotate from left to right.

: Start cruise. : Stop cruise.

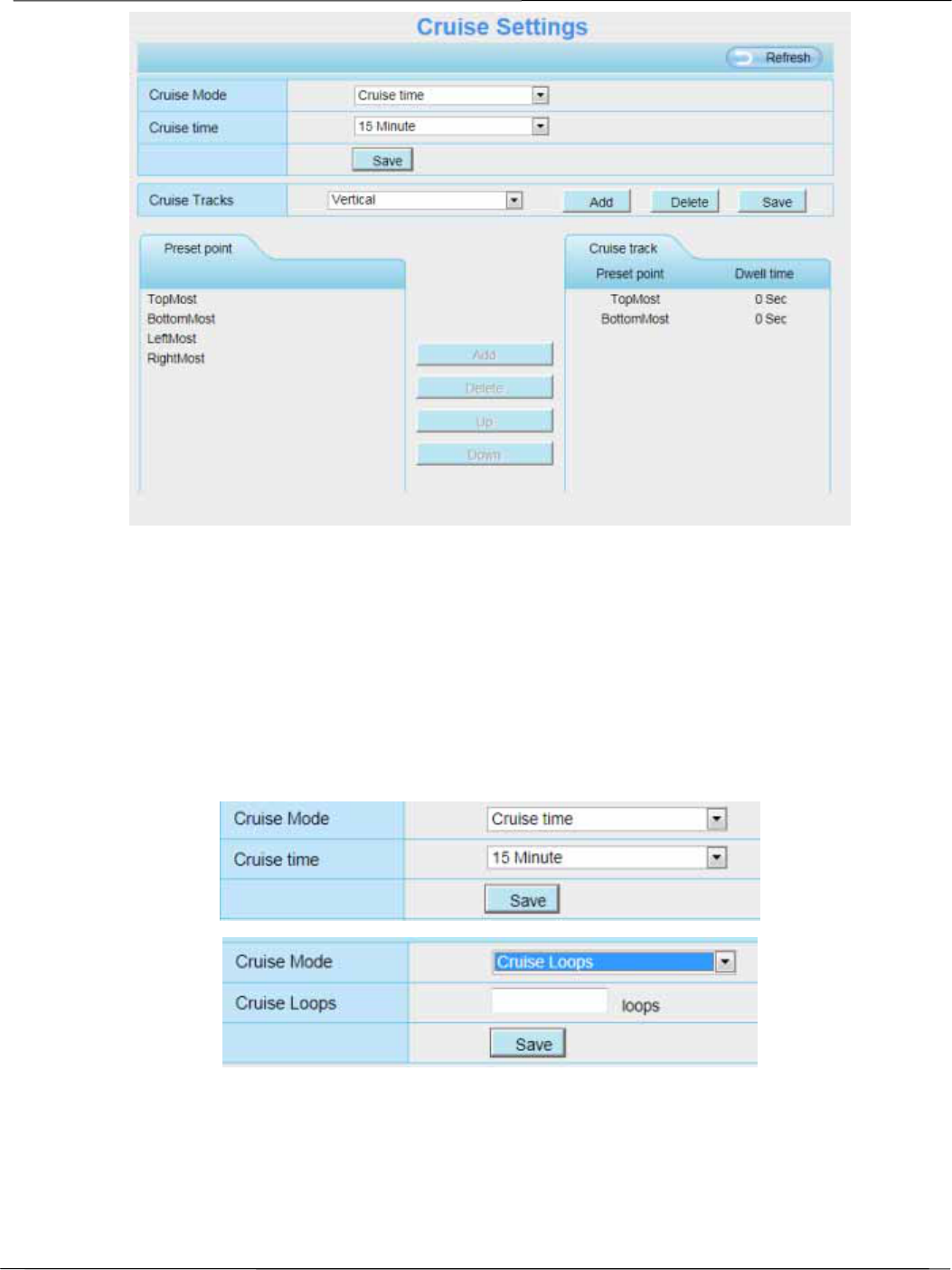

If you want to define or change the cruise trace, please go to Settings PTZ Preset Settings panel.

How to do cruise?

Firstly: Select one track in the track dropdown list

Select one of these.

www.foscam.com

Shenzhen Foscam Intelligent Technology Co., Limited

Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 22

Secondly: Click Start cruise button, the camera will cruise following the predefined path.

Thirdly: Click stop button and finish cruising.

Preset settings

IPCAM supports 16 preset positions, which is considered enough for DIY home & small business surveillance

market

The default preset position is Topmost, Bottom most, Left most, right most, you can add other preset positions.

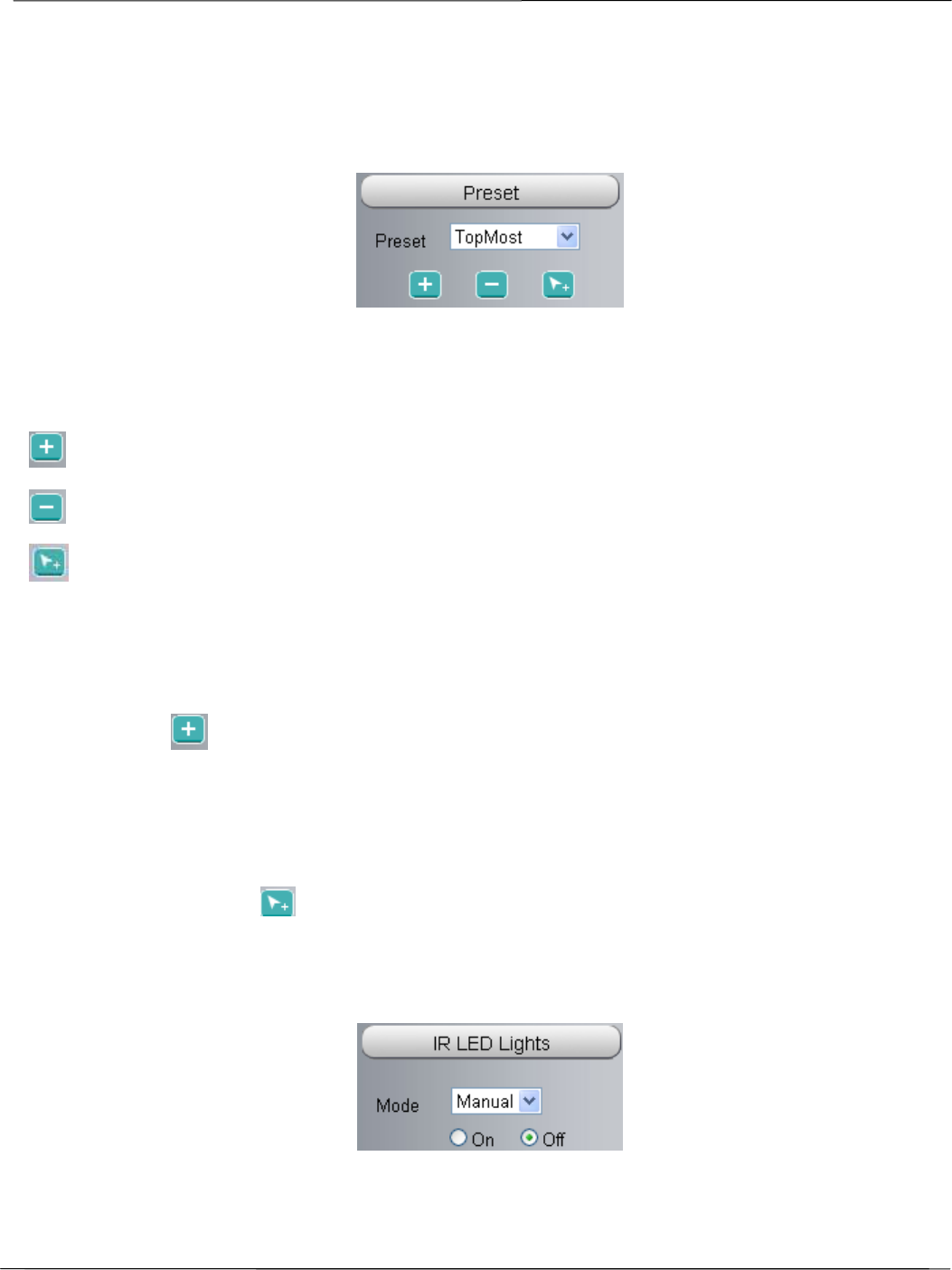

Add Click this icon to save the position you need the camera to remember

Delete Select one preset position and click this button to delete it.

GO Select one preset position in the preset dropdown list and click Go to make the camera move the

preset position

How to do preset position?

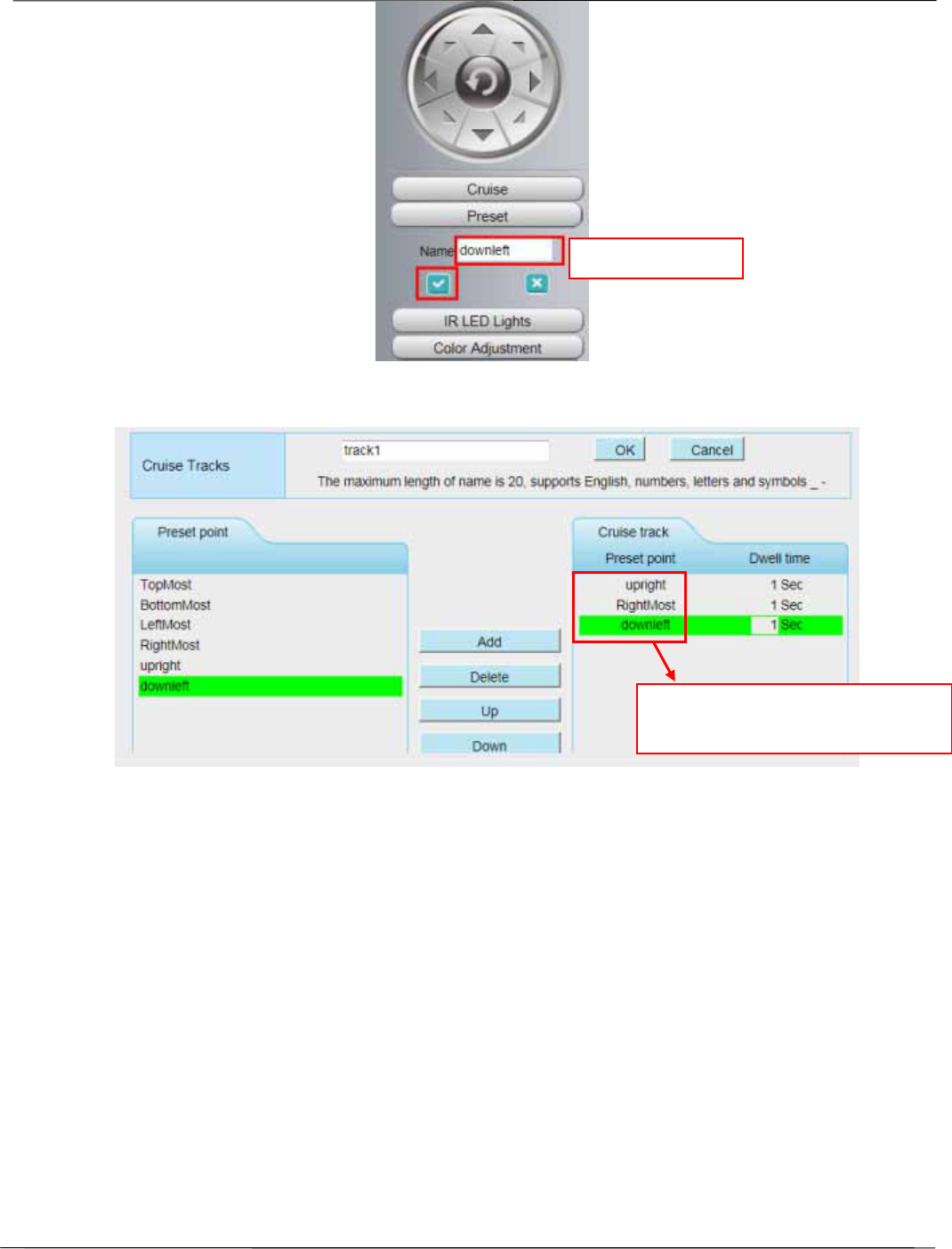

Firstly, move the camera and stop at a desired place where you want make preset position.

Secondly, click button and enter a descriptive name for the preset position. The preset position cannot

contain special characters. Then click OK to save it. If you want to reset the preset position, click Cancel.

After that, you can move the camera and stop at another place, and set another preset position. You can do all

the 16 preset positions with this method.

If you want to see one preset position you have set, only select the preset position name from the preset

dropdown list, and click go button, the camera will go to the preset position.

Section 7 IR LED Lights

Click Infra led and there are two modes to adjust the infrared led: Auto and Manual.

Auto: Select it and the camera will adjust the infra led (on or off) automatically.

Manual: Select it and you can turn on or turn off the infra led manually.

www.foscam.com

Shenzhen Foscam Intelligent Technology Co., Limited

Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 23

Section 8 Image quality settings

In this page, you can tune Hue, Brightness, Contrast, Saturation, and Sharpness to get higher quality.

Section 9 OSD

If you have added time and camera name in the video, you can see it in the live window.

Go to Settings ---Basic settings---Camera name panel, and you can change another device name. The

default device name is anonymous.

Go to Settings ---Basic settings---Camera time panel and adjust the device time.

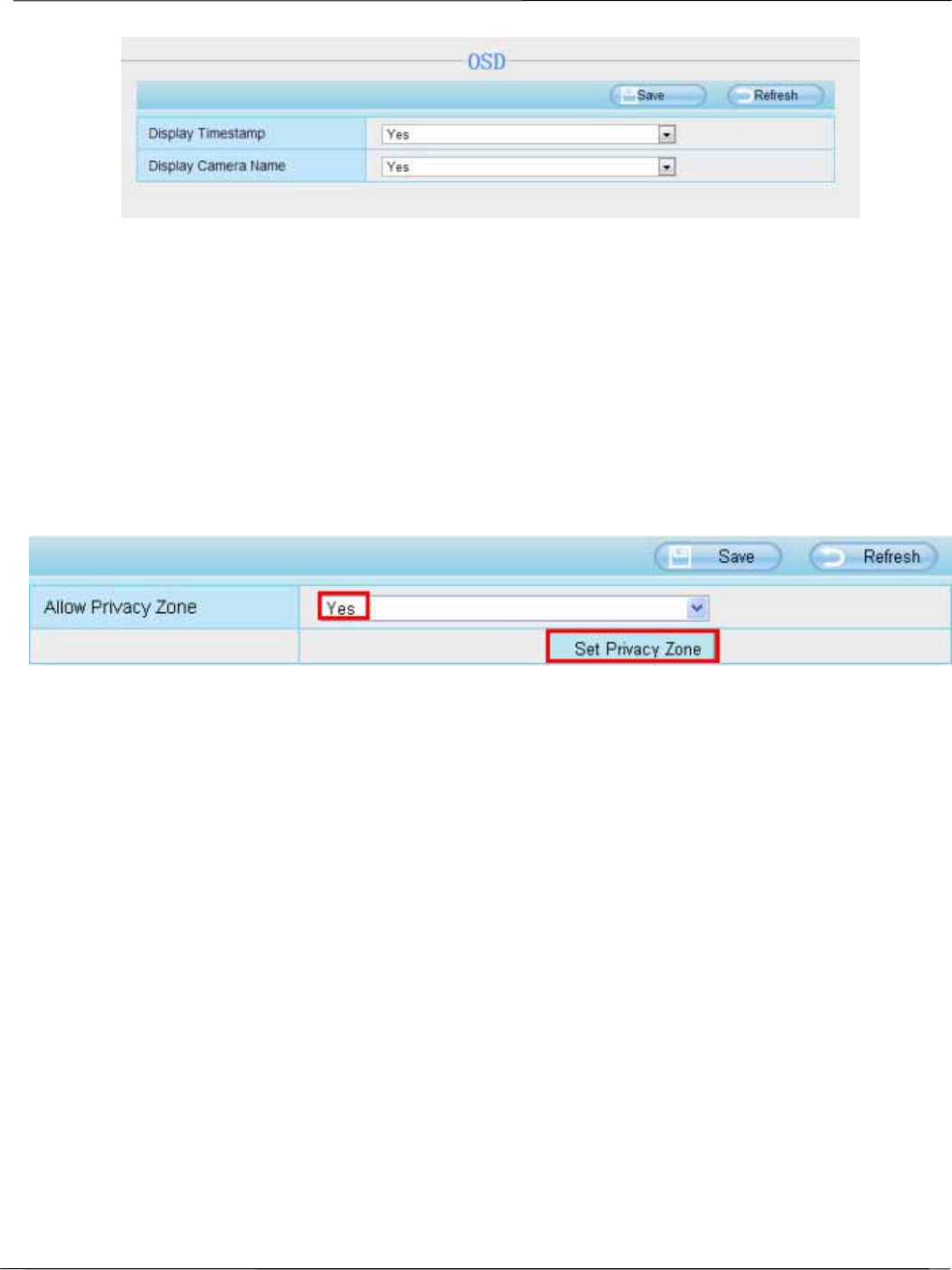

Go to Settings ---Video---On Screen Display panel, you can add or no add OSD.

Section 10 Play/Stop/ Talk/Audio/ Snap/ Record/ Full screen button

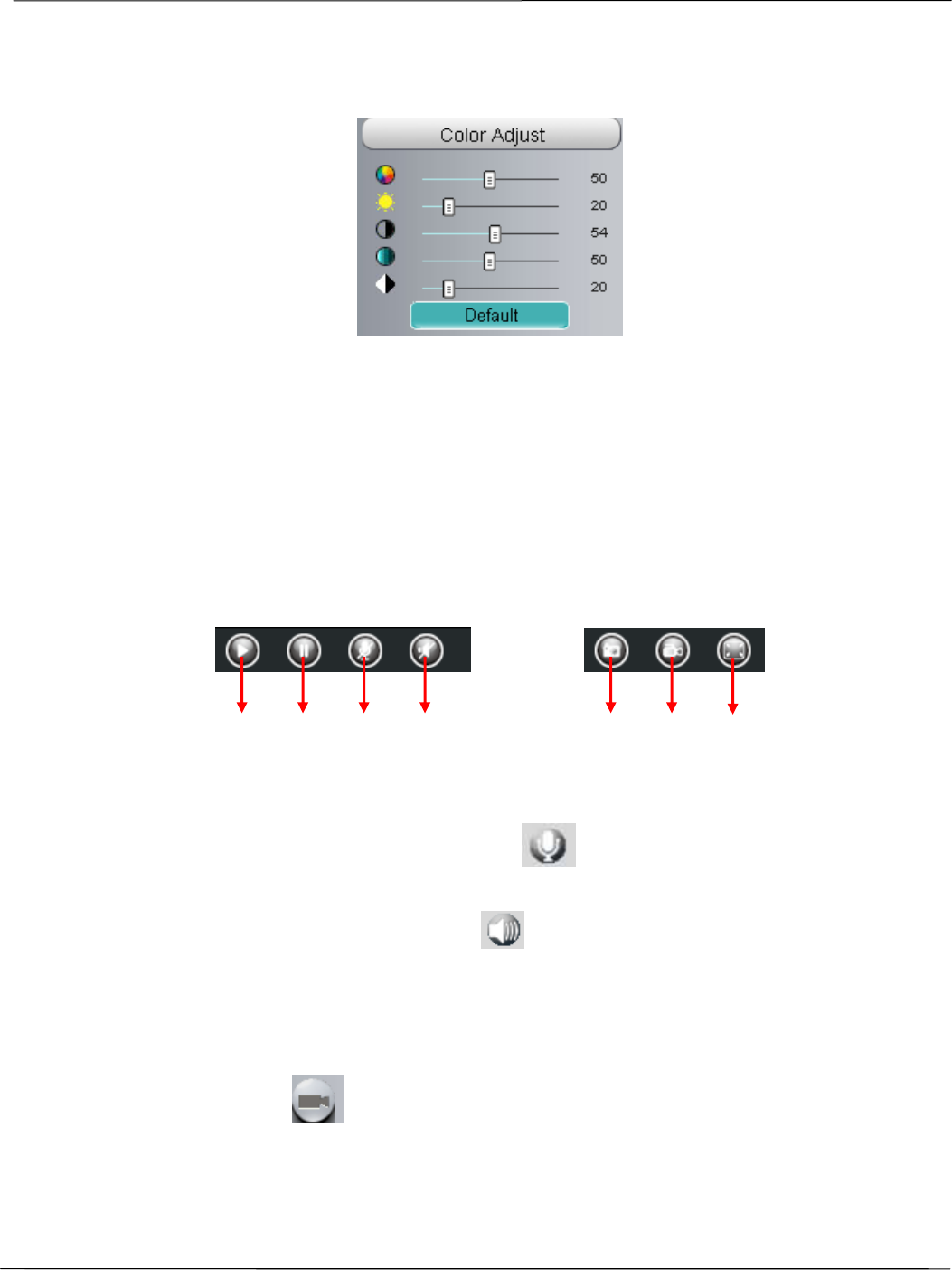

1------Play Click it to play the video of the camera

2------Stop Click it to stop the video of the camera

3------ Talk Click the button and the icon will become to , then talk to the microphone that connected

with PC, people around the camera can here your voice. Click the icon again and stop talking.

4------ Audio Click this icon, the icon will become to you can hear the sound around the camera by the

earphone or speakers that connected with PC.

5----- Snapshot Click it to make snapshot and it pop-up a window which picture you snapshot, right click in

the window and save the picture to anywhere you want.

6----- Record Click the icon and the camera start recording, you can see a green dot in the live

window. Click again and stop recording. The default storage path is C:\IPCamRecord. You can change the

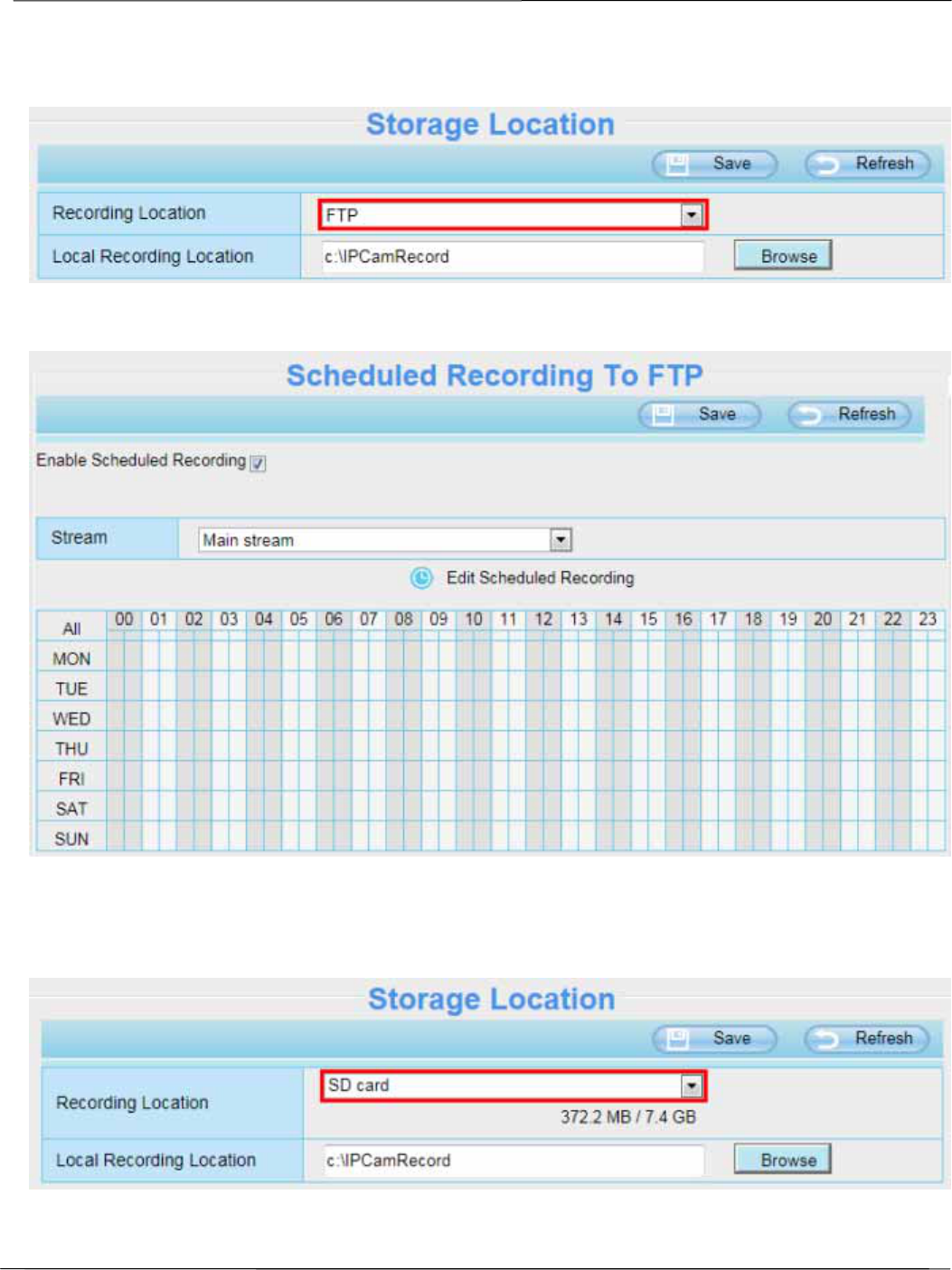

storage path: Go to Settings- >Record->Storage Location panel.

7------Full Screen Click it to make full-screen, or you can double click the surveillance screen to make

full-screen. Double click again and exit full-screen.

1 2 3 567

www.foscam.com

Shenzhen Foscam Intelligent Technology Co., Limited

Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 24

Onscreen Mouse Control

Right click the mouse and you can adjust the screen ration, full screen and Zoom up.

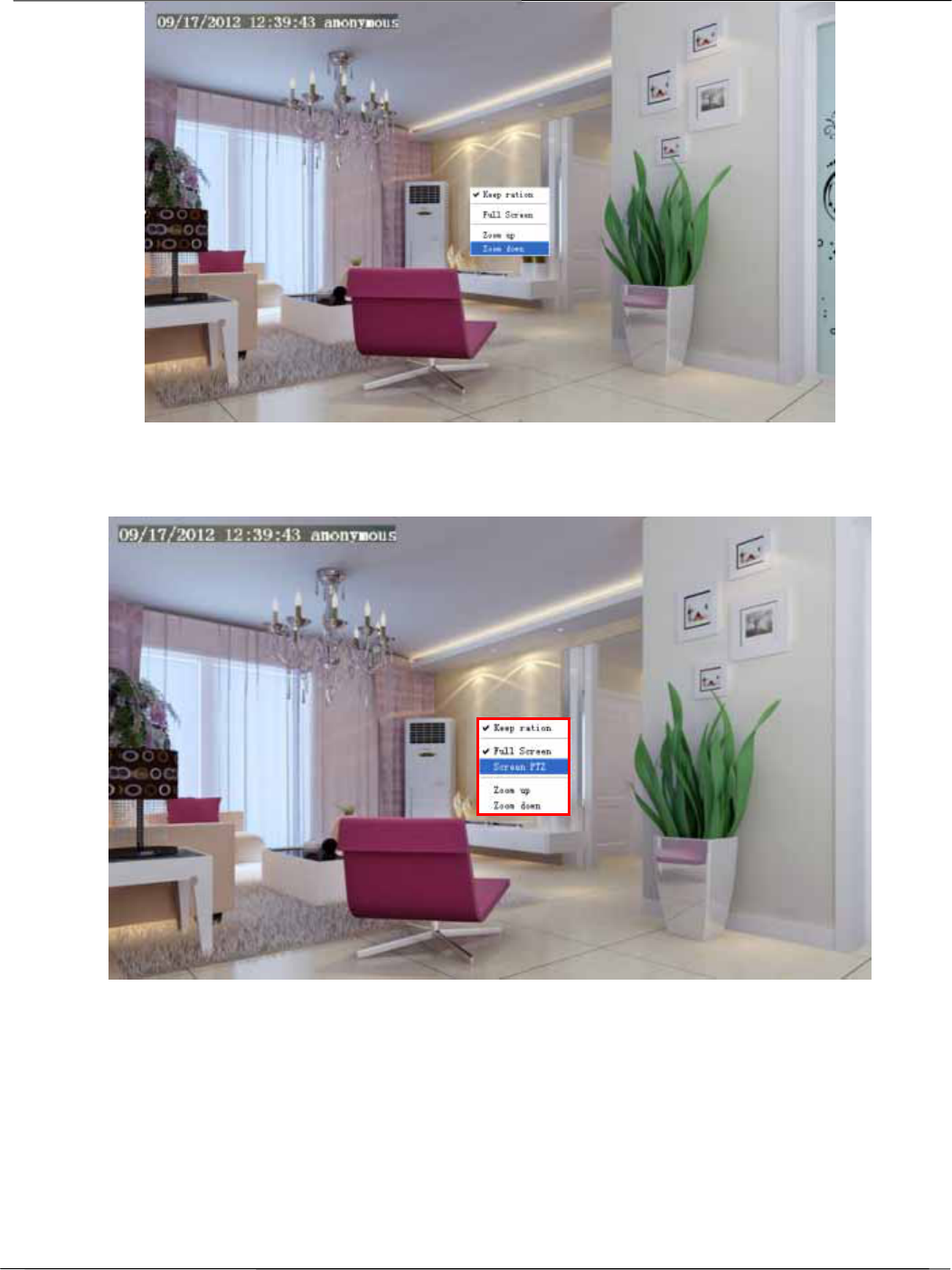

Figure 3.8

Keep ration: Select it and the camera will adjust the size of live window based on the the computer monitor

automatically. Sometimes there is a black border around the video, please select Keep ration to get a better

visual quality .

Full Screen: Select it and Click it to make full-screen, press ESC and exit full-screen.

Zoom up: Select it and you can see a bigger screen than before.

First Method: Here is a convenient and fast solution to Zoom up/down screen by Clicking Video Screen and

adjusting Mouse pulley, or by press the CTRL key and click the mouse left button.

Second Method: Click it and the live view will be digital zoomed up, then click Zoom Down and the live view

back to original size.

www.foscam.com

Shenzhen Foscam Intelligent Technology Co., Limited

Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 25

Figure 3.9

When you select the Full Screen, then click right mouse, there is a Screen PTZ button.

Figure 3.10

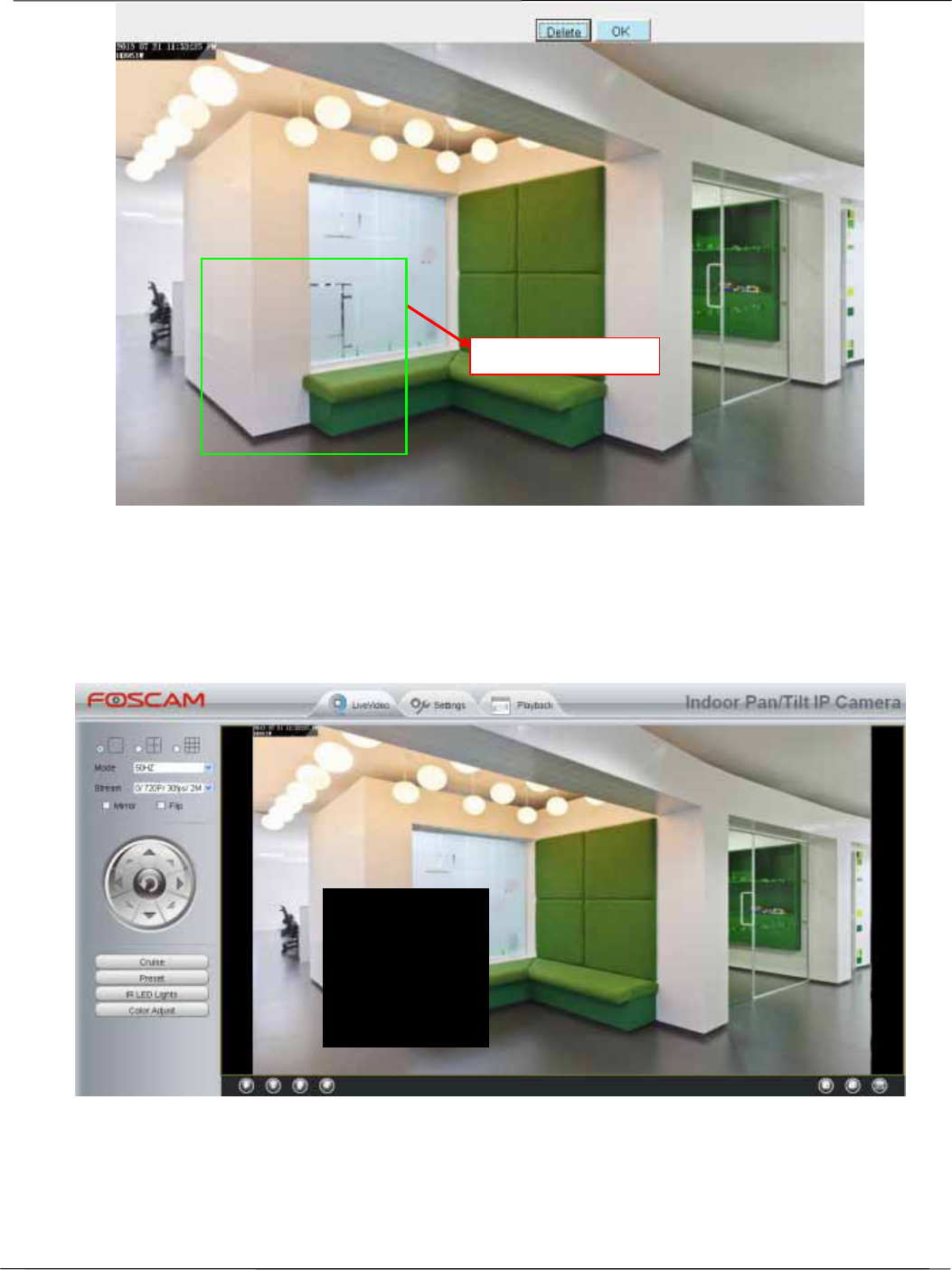

Click the Screen PTZ button and put the mouse on the screen to indicate the camera move direction you

prefer, press the left mouse, the camera will move to the corresponding direction. Loosen the mouse and stop

moving. Press Esc button or double click right mouse and cancel the function.

NOTE: For Mac OS, the plugin cannot support Onscreen Mouse Control, so you cannot allow to use it.

www.foscam.com

Shenzhen Foscam Intelligent Technology Co., Limited

Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 26

4 Advanced Camera Settings

Click the button “Settings”, goes to Administrator Control Panel to make advanced camera settings.

4.1 Status

Status contains four columns: Device Information, Device Status, Session Status and Log, it will show you

various information about your camera.

4.1.1 Device Information

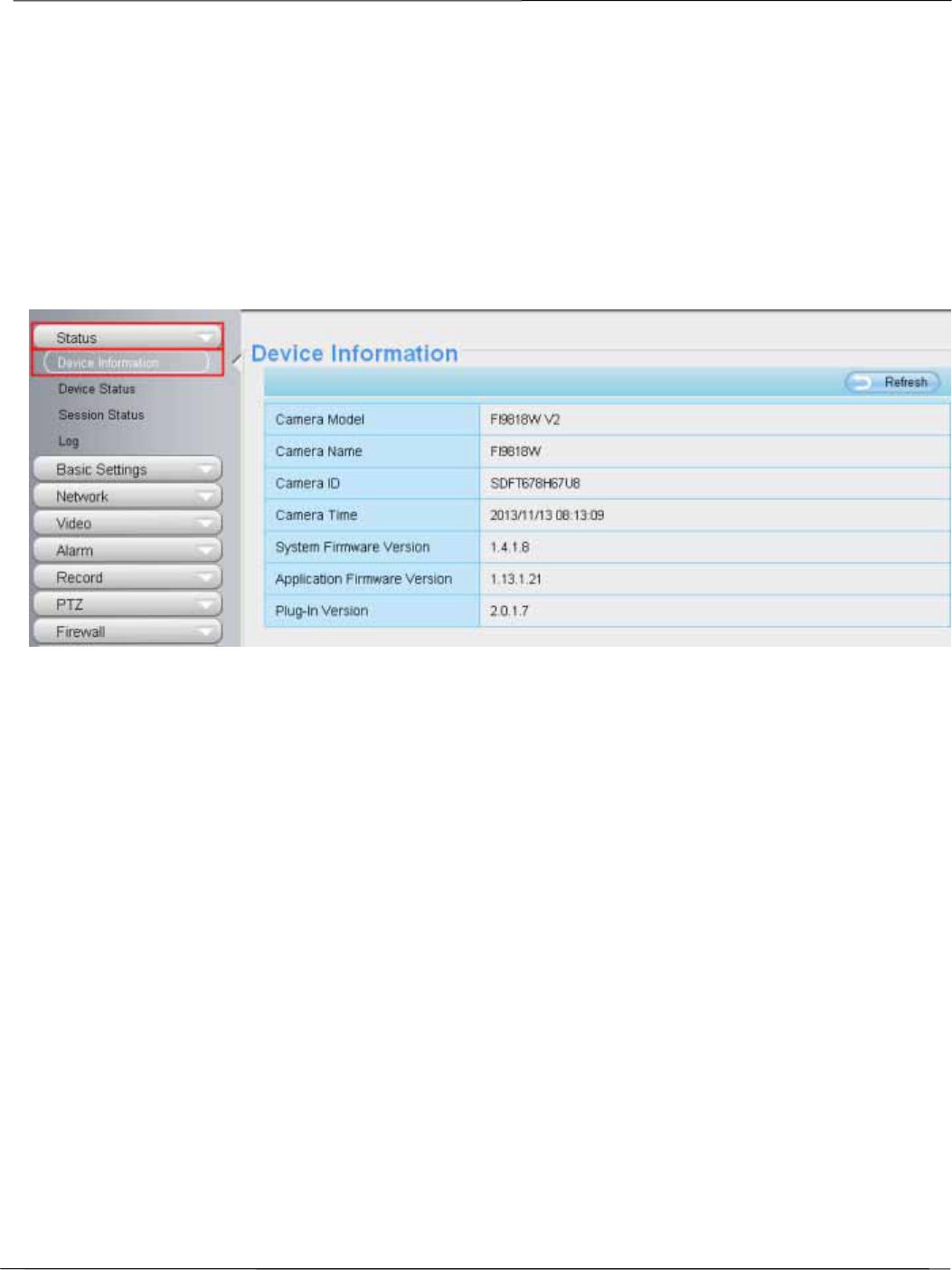

Figure 4.1

Camera Model: The camera model NO.

Camera Name: The Device Name is a unique name that you can give to your device to help you identify it.

Click Basic Settings and go to Camera name panel where you can change your camera name. The default

device name is anonymous.

Camera ID: Display the wired MAC address of your camera. For example Device ID is 000C5D00008, the

same MAC ID sticker is found at the bottom of the camera.

Camera Time: The system time of the device. Click Basic Settings and go to Camera time panel and adjust

the time.

System Firmware Version: Display the System Firmware version of your camera.

App Firmware Version: Display the application firmware version of your camera.

Plug-In Version: Display the plug-in version of your camera

4.1.2 Device Status

On this page you can see device status such as Alarm status/ Record Status ,DDNS status ,WIFI status and so

on.

www.foscam.com

Shenzhen Foscam Intelligent Technology Co., Limited

Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 27

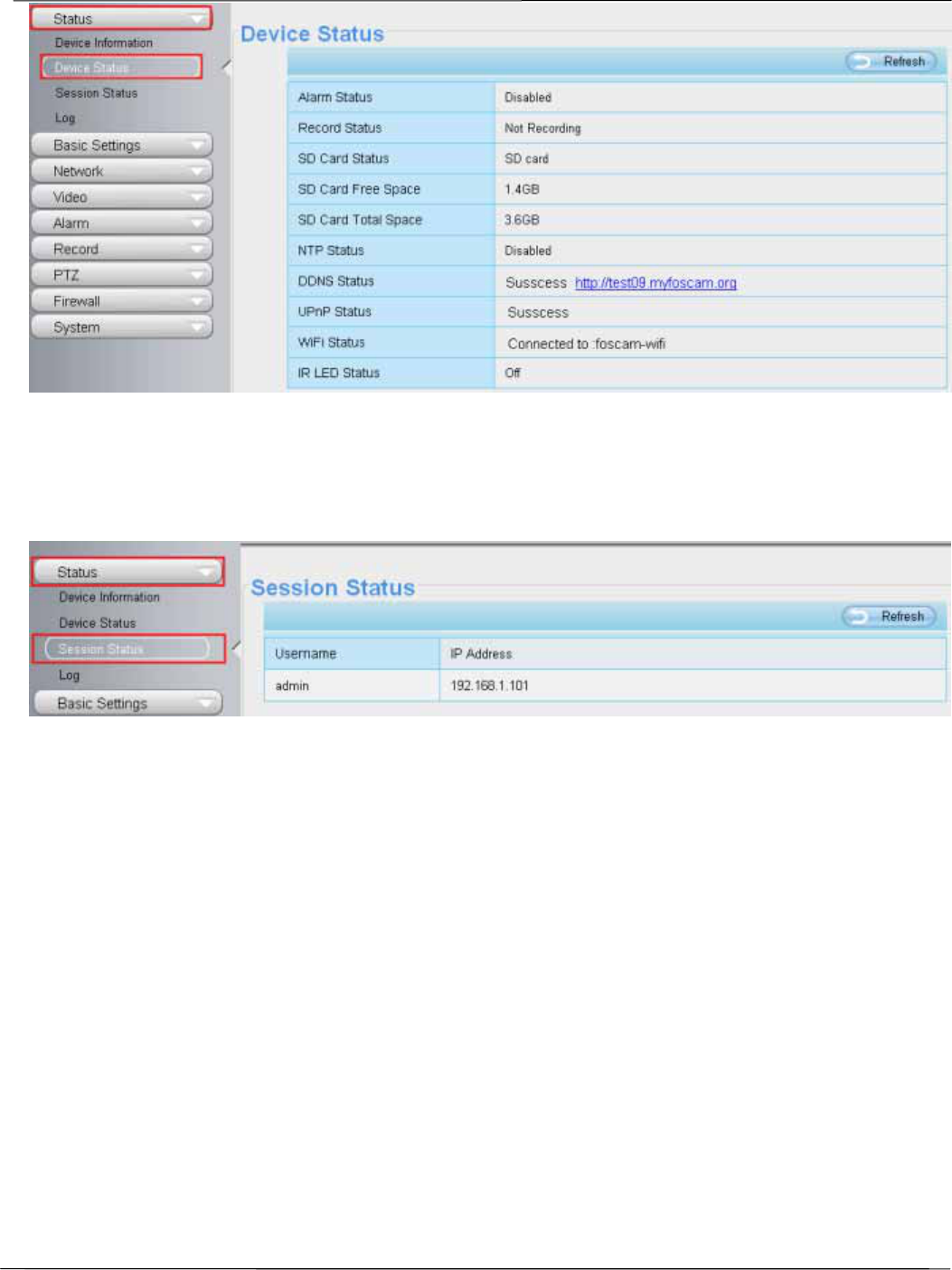

Figure 4.2

4.1.3 Session Status

Session status will display who and which IP is visiting the camera now.

Figure 4.3

4.1.4 Log

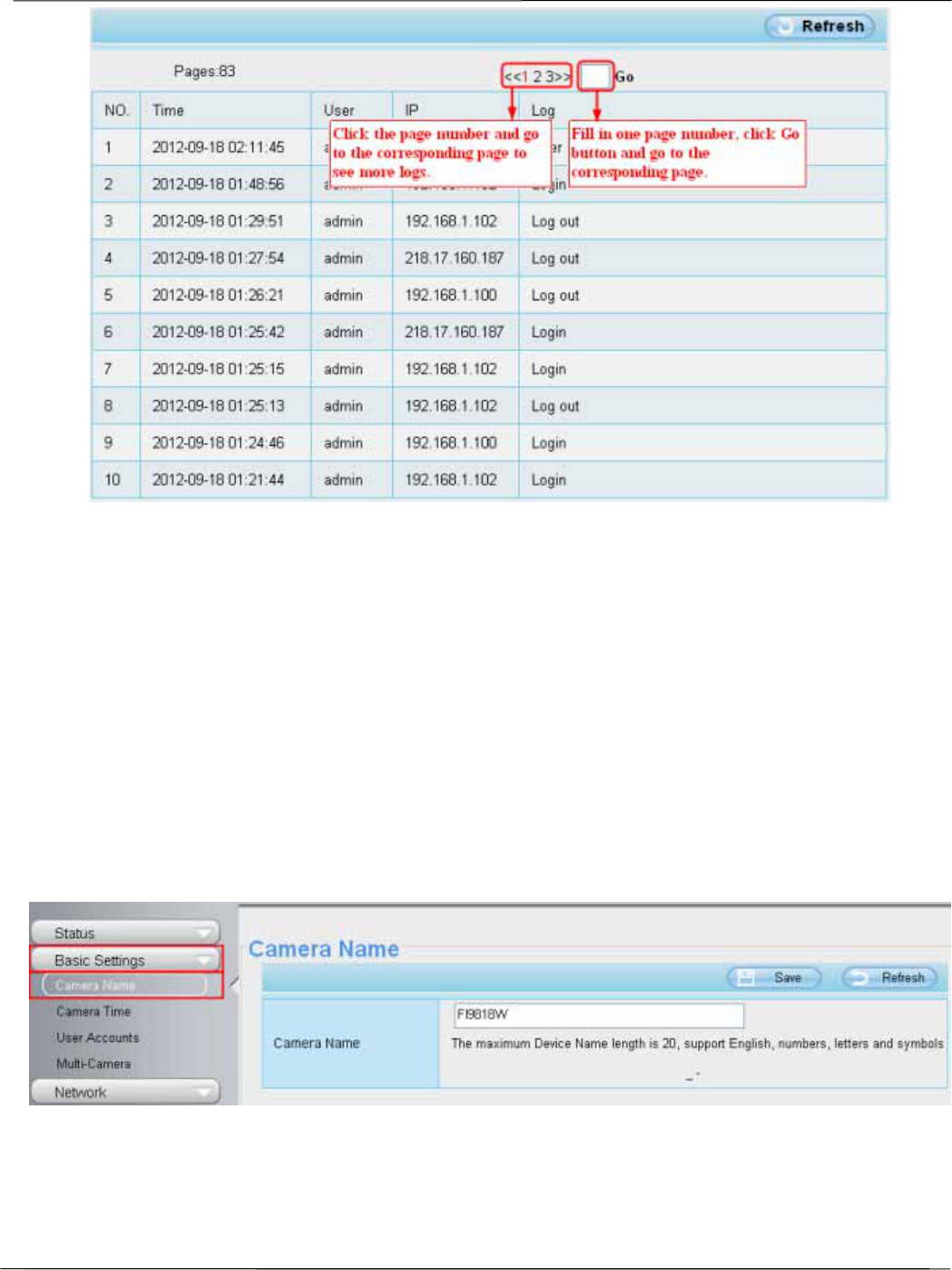

The log record shows who and which IP address accessed or logout the camera.

www.foscam.com

Shenzhen Foscam Intelligent Technology Co., Limited

Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 28

Figure 4.4

Reboot the camera and clear the log records.

4.2 Basic Settings

This section allows you to configure your camera’s Name, Time, Mail, User account and Multi-Device.

4.2.1 Camera Name

You can define a name for your camera here such as apple. Click Save to save your changes. The alias name

cannot contain special characters.

Figure 4.5

4.2.2 Camera Time

This section allows you to configure the settings of the internal system clocks for your camera.

www.foscam.com

Shenzhen Foscam Intelligent Technology Co., Limited

Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 29

Figure 4.6

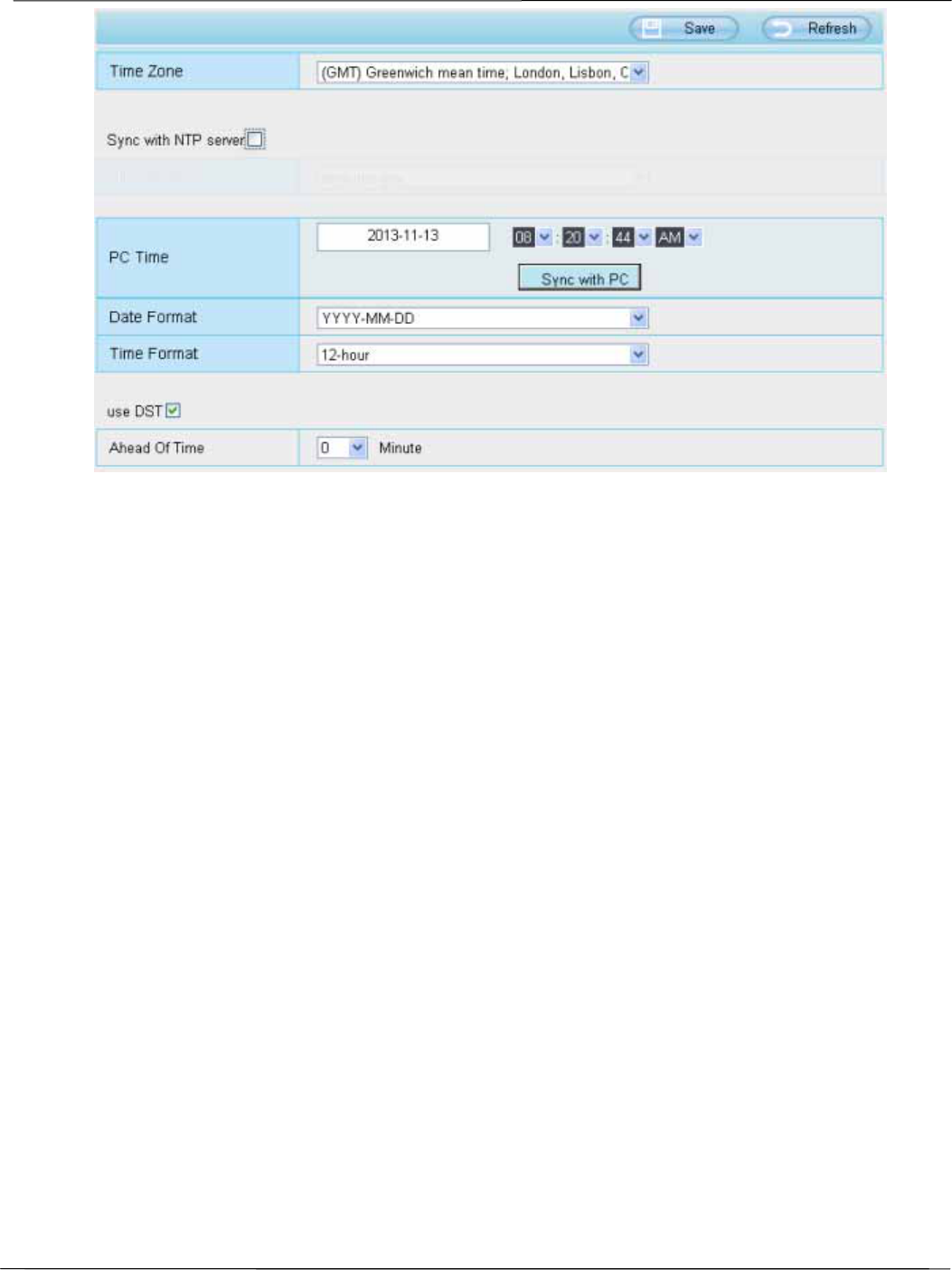

Time Zone: Select the time zone for your region from the dropdown menu.

Sync with NTP server: Network Time Protocol will synchronize your camera with an Internet time server.

Choose the one that is closest to your camera.

Sync with PC: Select this option to synchronize the date and time of the Network Camera with your computer.

Manually: The administrator can enter the date and time manually. Note select the date and time format.

use DST: Select the daylight saving time from the dropdown list.

Click Save button and submit your settings.

NOTE: If the power supply of camera is disconnect, you need set the camera’s time again.

4.2.3 User Accounts

Here you can create users and set privilege, visitor, operator or administrator. The default user account is

admin, with a blank password. You can enter the users accounts of visitor, operator and administrator

Manually.

www.foscam.com

Shenzhen Foscam Intelligent Technology Co., Limited

Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 30

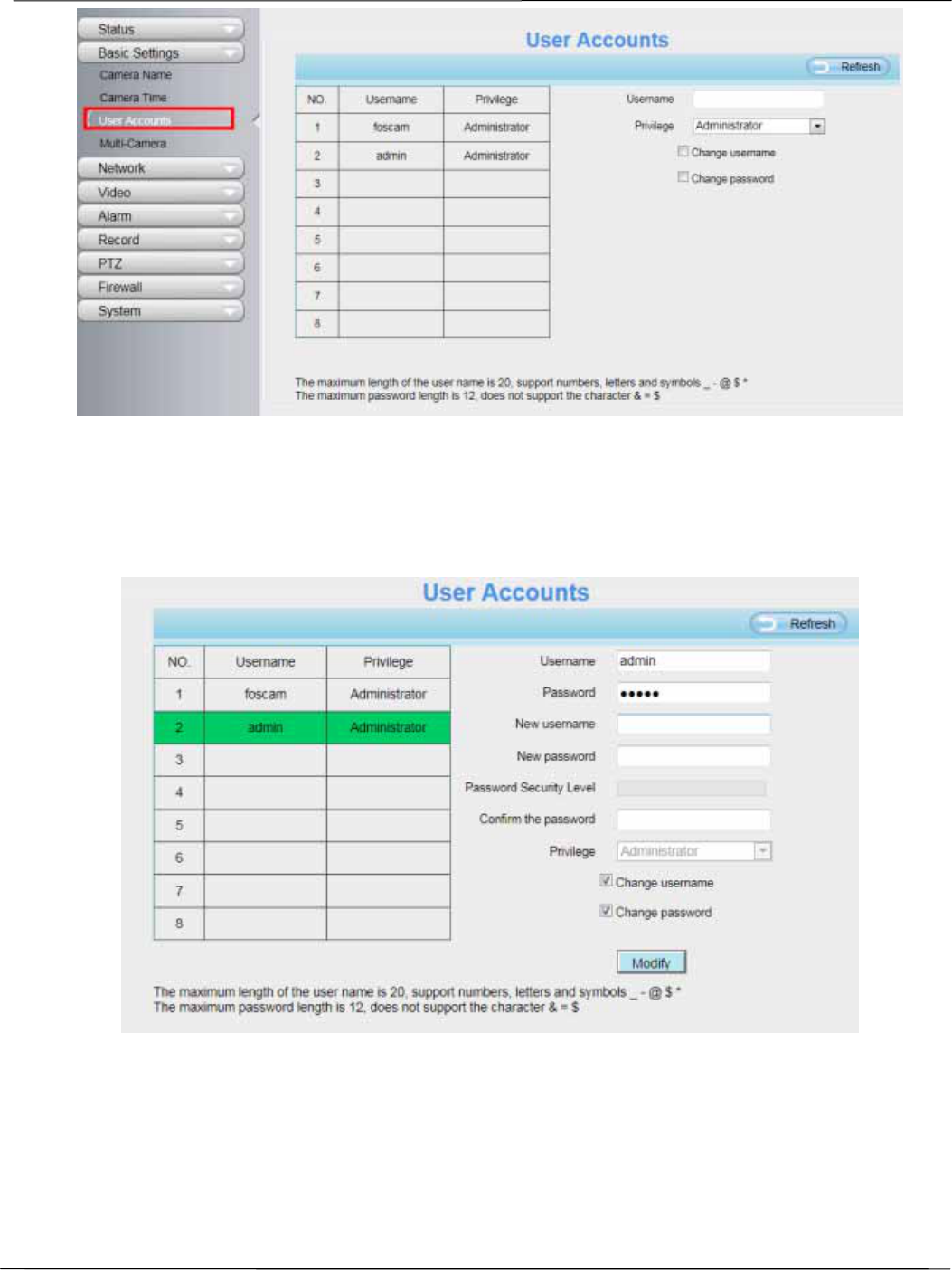

Figure 4.7

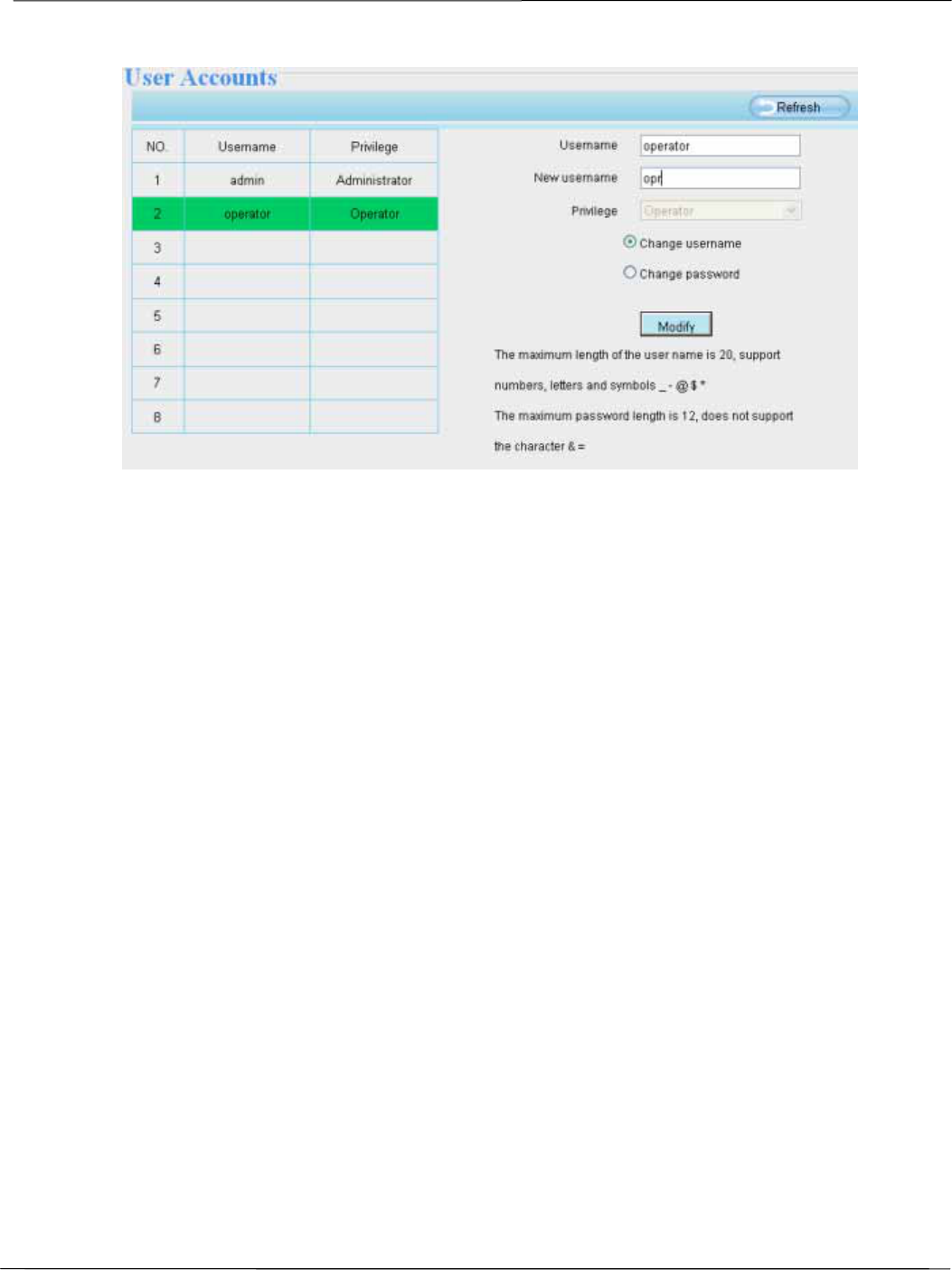

How to change the password?

Firstly, select the account which you want to change the password, then select “Change password”, enter the

old password and the new password, lastly click modify to take effect.

Figure 4.8

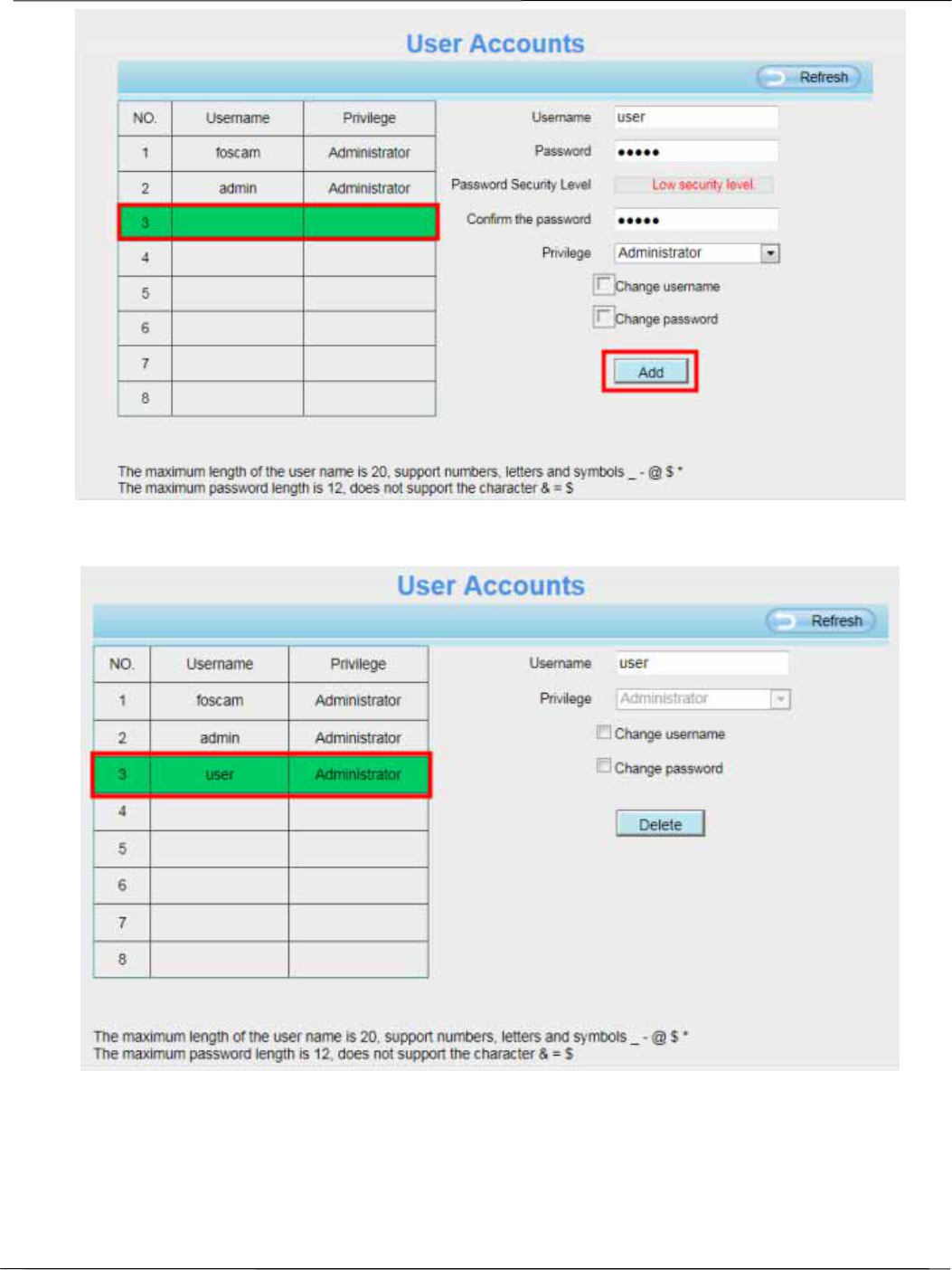

How to add account ?

Select one blank column, then enter the new user name, password and privilege, last click Add to take effect.

You can see the new added account on the Account list.

www.foscam.com

Shenzhen Foscam Intelligent Technology Co., Limited

Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 31

Figure 4.9

Figure 4.10

Delete ：Select the account which you want to delete, then click Delete button to take effect.

NOTE: The default admin account cannot be deleted, but you can add other administrator users.

How to change the username ?

Firstly, select the account which you want to change the username, then select “Change username”, enter the

www.foscam.com

Shenzhen Foscam Intelligent Technology Co., Limited

Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 32

new password, lastly click modify to take effect.

Figure 4.11

4.2.4 Multi-Camera

If you want to view multi-surveillance screens on one window, you need to login one camera, and set it as the

main device, and do Multi-Device Settings, add other cameras to the first one camera. Before you do

multi-cams settings, you need to assign different port such as 81, 82, 83, 84, 85, 86, 87, 88 to the cameras if

there is 8 cams installed.

The firmware within the camera can support a maximum of 9 devices monitoring all at the same time. This

page you can both add FOSCAM MJPEG and H.264 series cameras to the first camera and view

multi-surveillance screen on one window.

Add cameras in LAN

In Multi-Device Settings page, you can see all devices searched in LAN. The 1st Device is the default one. You

can add more cameras in the list in LAN for monitoring. The camera’s software supports up to 9 IP Cameras

online simultaneously. Click The 2nd Device and click the item in the Device List in LAN, the Alias, Host and

Http Port will be filled in the boxes below automatically. Enter the correct username and password then click

Add. Add more cameras in the same way.

www.foscam.com

Shenzhen Foscam Intelligent Technology Co., Limited

Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 33

Figure 4.12

Camera Model: Our Company produces two series cameras: MJPEG and H.264. Here will show you which

series the camera belongs to.

Figure 4.13

Back to Surveillance Windows, and click Four Windows option, you will see four cameras you added.

1 Click it, camera model, alias,

host and HTTP Port will be

filled in the following boxes

automatically.

2 Enter the User name and

password of the 2nd camera.

3 Click Add to take effect.

www.foscam.com

Shenzhen Foscam Intelligent Technology Co., Limited

Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 34

Figure 4.14

Figure 4.15

Add cameras in WAN

If you want to view all cameras via the internet(remote computer), you will need to add them using DDNS

domain name. Firstly, make sure all of the cameras you added can be accessed through the internet. (Read

How to configure DDNS settings in chapter 4.3.4)

www.foscam.com

Shenzhen Foscam Intelligent Technology Co., Limited

Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 35

Figure 4.16

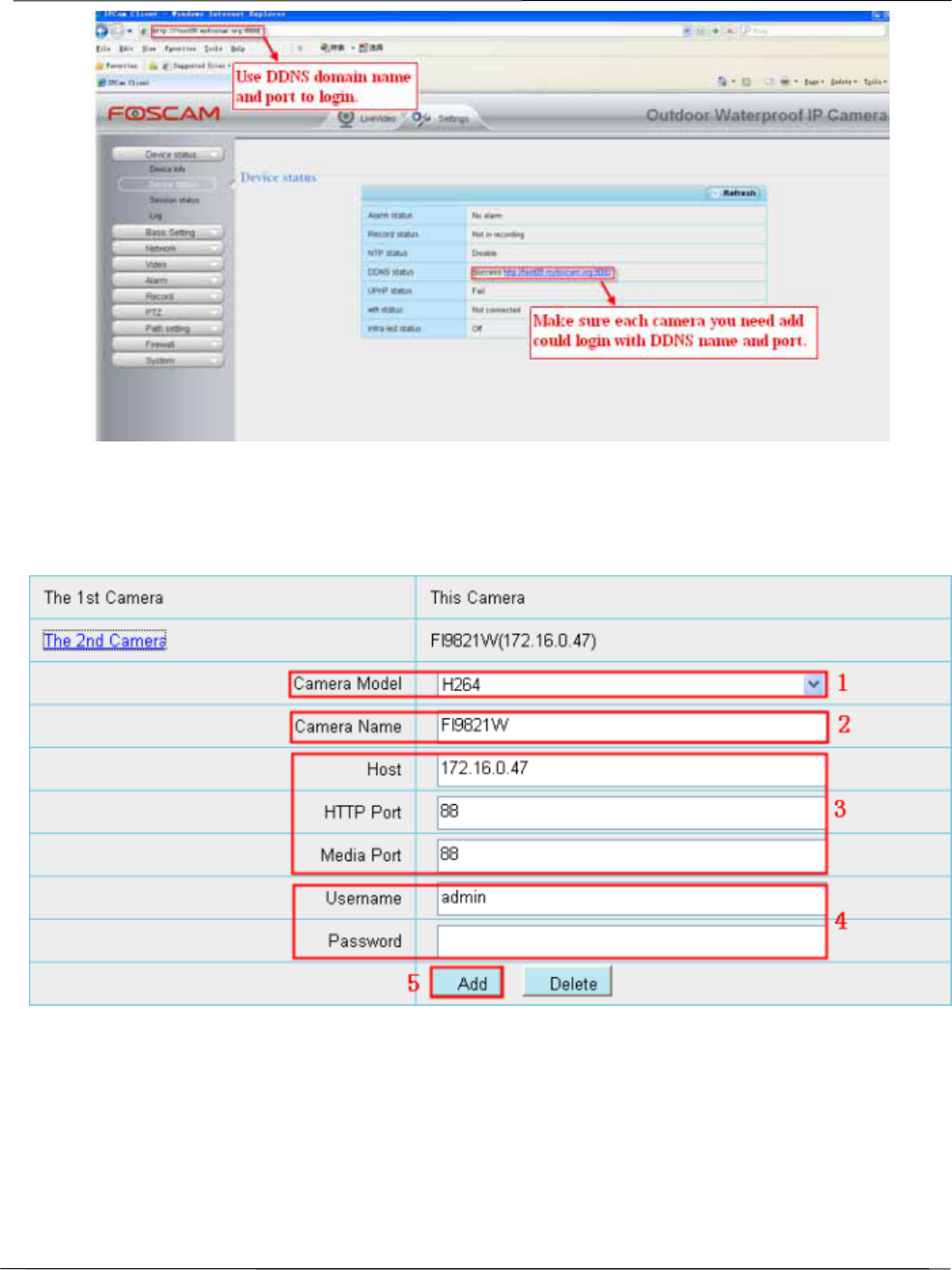

Click Multi-Device Settings. Choose The 2nd Device. Fill in the 2nd camera’s name, DDNS domain name,

port number. Enter user name and password and then choose Add. (Figure 4.16)

Figure 4.17

1----- The camera model: MJ or H264.

2----- The 2nd camera’s name

3----- Fill in the 2nd camera’s DDNS host not LAN IP

NOTE: The MJ series have the same HTTP Port NO. and Media Port NO.

4 ---- Enter the 2nd camera’s user name and password

www.foscam.com

Shenzhen Foscam Intelligent Technology Co., Limited

Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 36

5---- Click Add button and to take effect

NOTE: Here the Host must be entered as the second camera’s DDNS domain name, not its LAN IP.

Figure 4.18

Return to video window. You will see all of the cameras accessible through the internet.

When you are away from home, you can use the first camera’s DDNS domain name and port to view all the

cameras via internet.

Figure 4.19

4.3 Network

This section will allow you to configure your camera’s IP, PPPoE, DDNS, Wireless Settings, UPnP and Port.

www.foscam.com

Shenzhen Foscam Intelligent Technology Co., Limited

Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 37

4.3.1 IP Configuration

If you want to set a static IP for the camera, please go to IP Configuration page. Keep the camera in the same

subnet of your router or computer.

Figure 4.20

Changing settings here is the same as using the IP Camera Tool.

It is recommended that you use the subnet mask, gateway and DNS server from your locally attached PC. If

you don’t know the subnet mask, gateway and DNS server, you can check your computer’s local area

connection as follows:

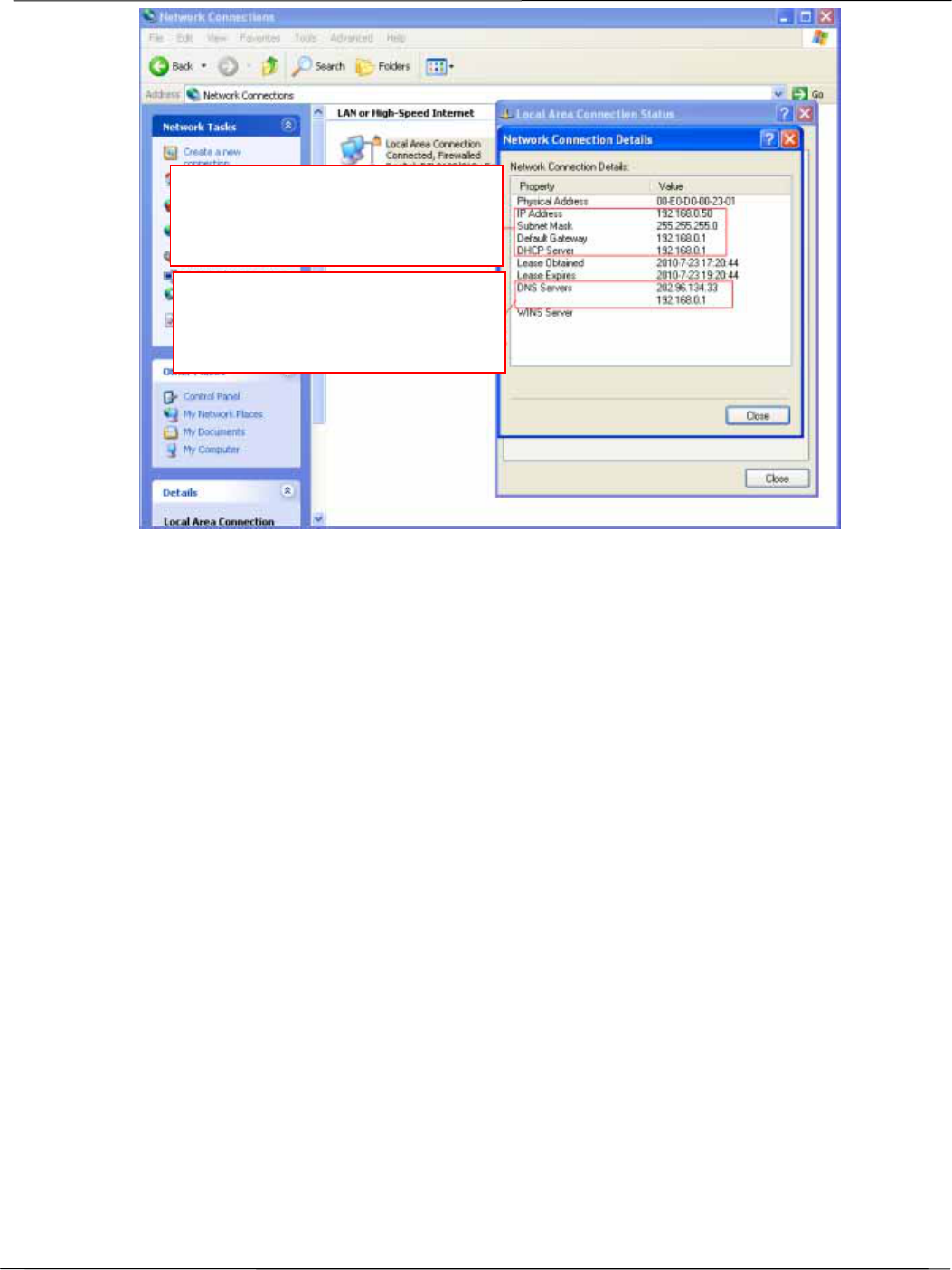

Control Panel →Network Connections →Local Area Connections →Choose Support →Details

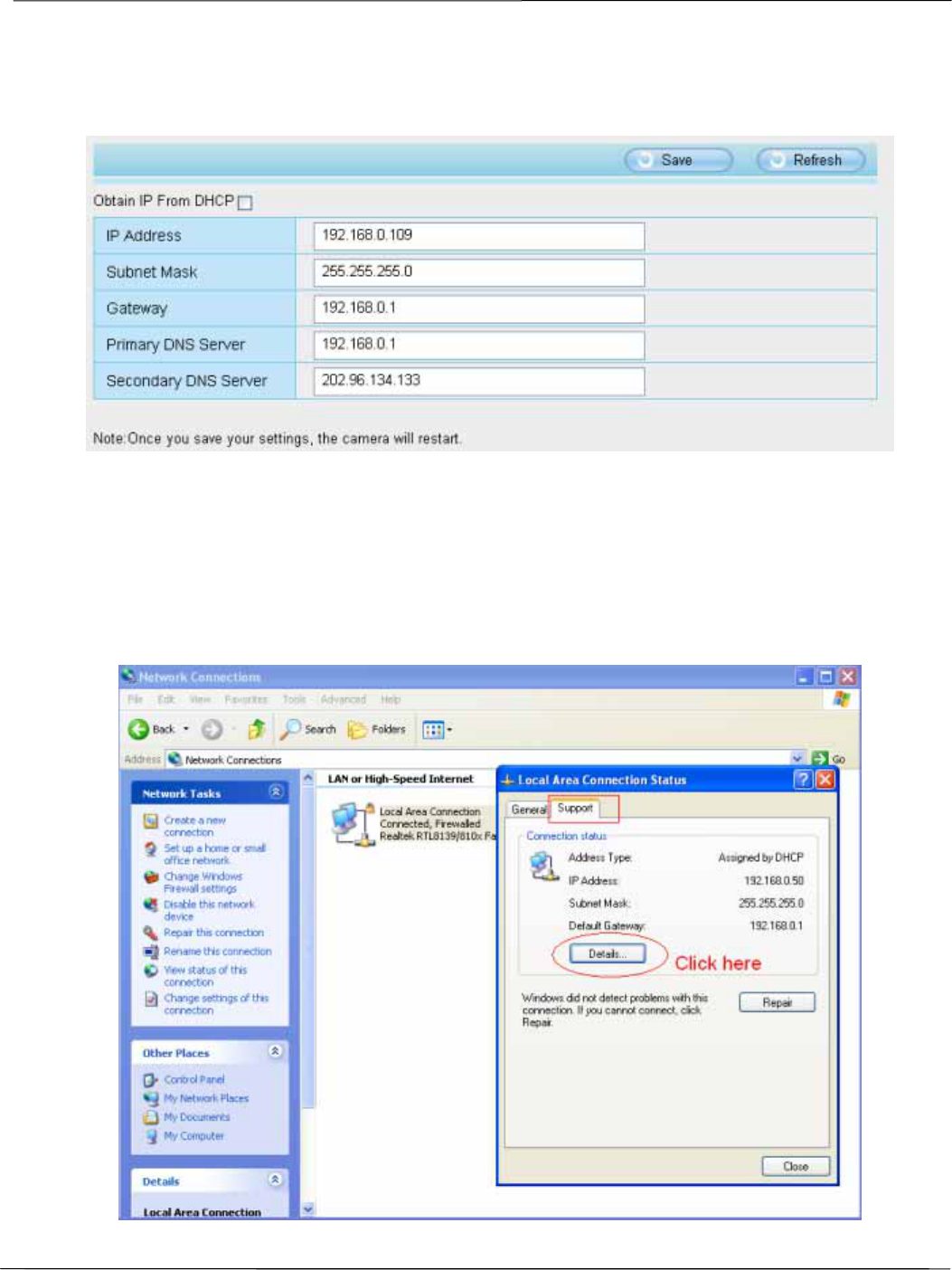

Figure 4.21

www.foscam.com

Shenzhen Foscam Intelligent Technology Co., Limited

Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 38

Figure 4.22

If you don’t know the DNS server, you can use the same settings as the Default Gateway.

4.3.2 Wireless Settings

Step 1: Choose “Settings” on the top of the camera interface, and go to the “Network” panel on the left side

of the screen, then click “Wireless Settings.”

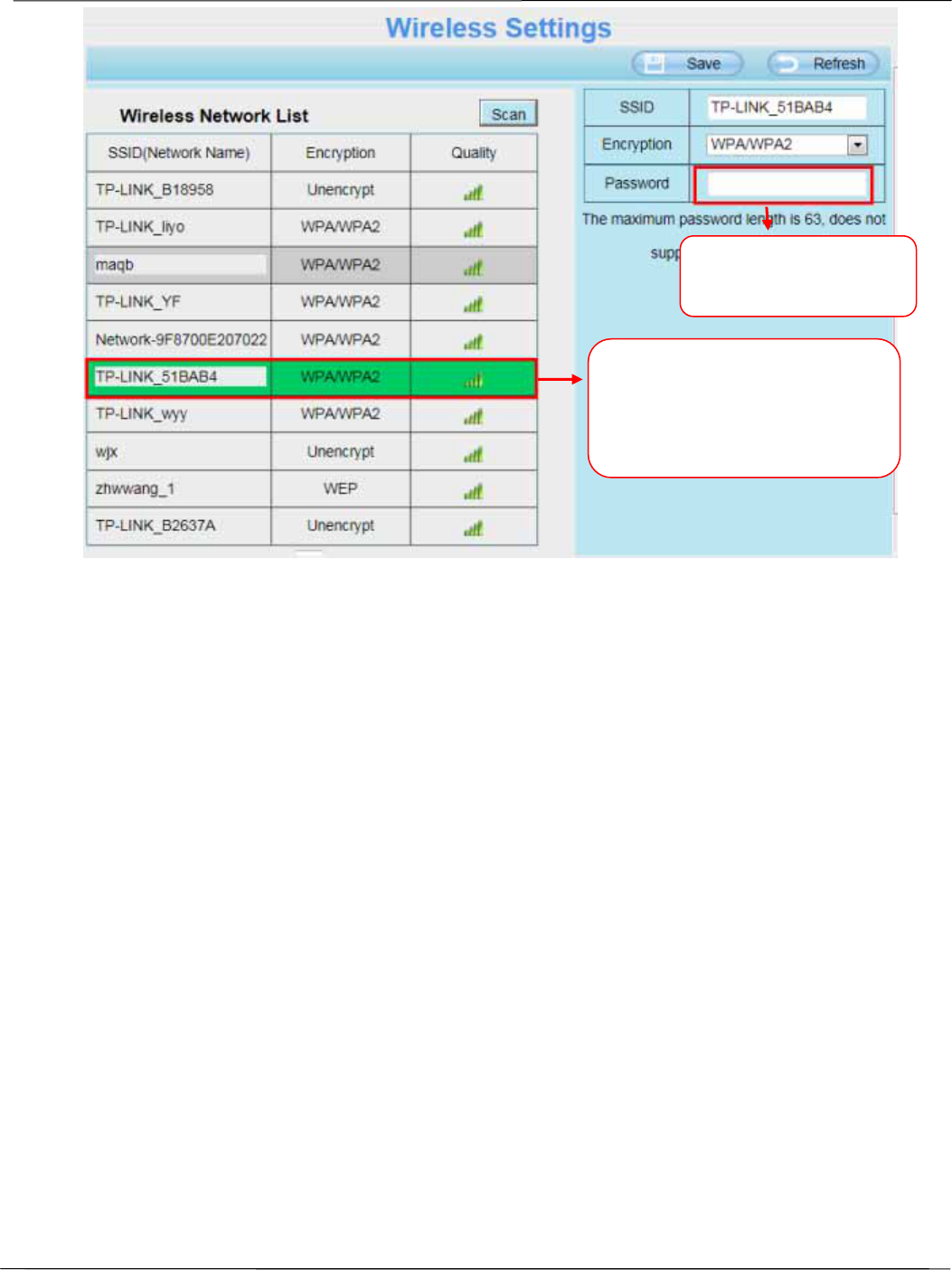

Click the Scan button and the camera will detect all wireless networks around the area. It should also display

your router in the list (Figure 4.23).

Set the same Subnet Mask and

gateway of the camera with your

PC.

There are two DNS servers. You

can set any of them. Same with

gateway is also OK.

www.foscam.com

Shenzhen Foscam Intelligent Technology Co., Limited

Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 39

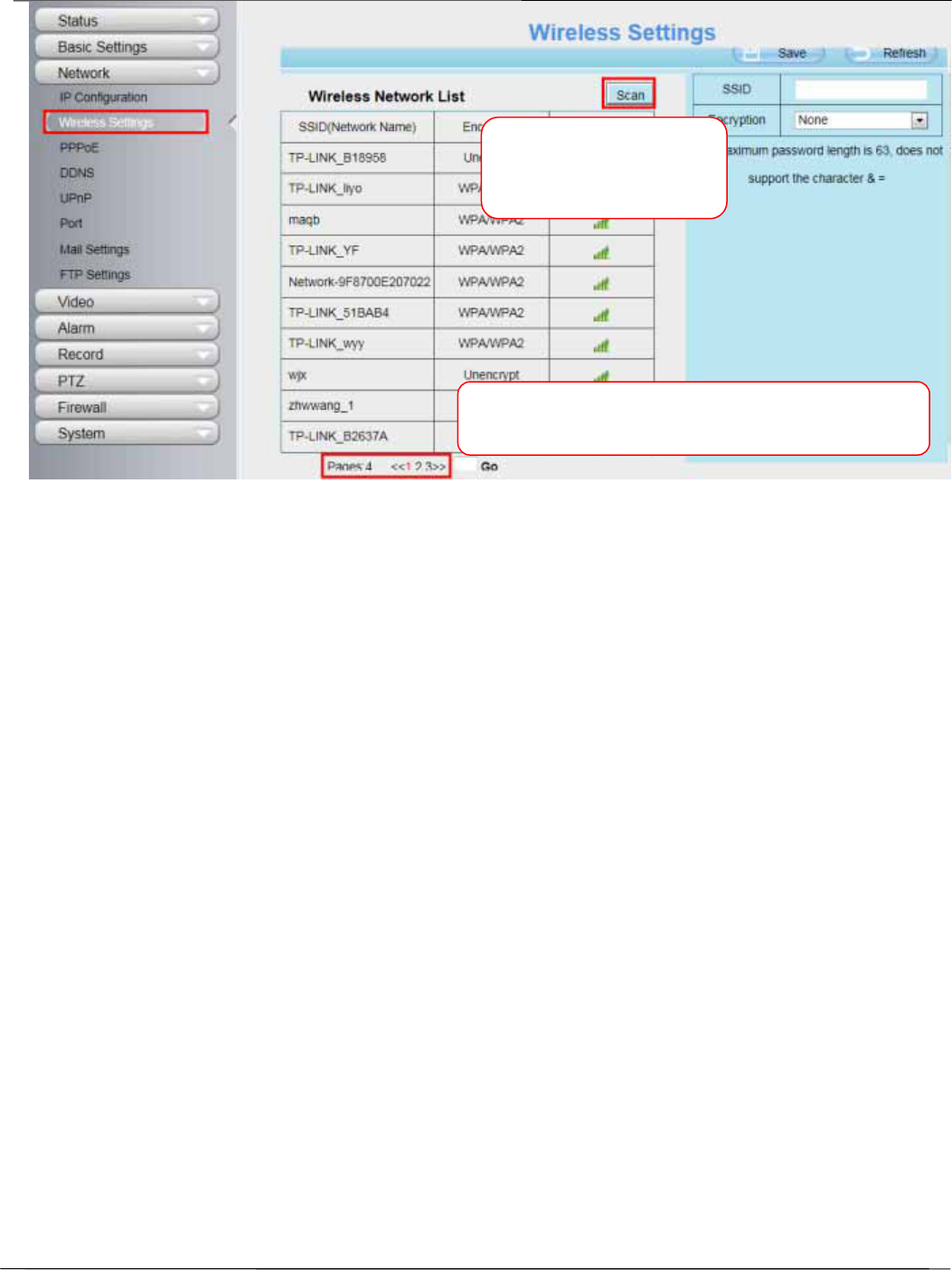

Figure 4.23

Step 2: Click the SSID (name of your router) in the list, the corresponding information related to your network,

such as the name and the encryption, will be filled into the relevant fields automatically.

You will only need to fill in the password of your network. Make sure that the SSID, Encryption and the

password you filled in are exactly the same for your router.

Click the Page number to see other wireless

networks devices if there are more than 10.

Click the Scan button

to search for wireless

networks.

www.foscam.com

Shenzhen Foscam Intelligent Technology Co., Limited

Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 40

Figure 4.24

Step 3: Please click on the Save button after all settings have been entered and disconnect the network cable.

Never shut down the power of the camera until the IP camera is able to connect to the wireless network.

The LAN IP address will disappear on the window of IP Camera Tool when the camera is configuring a wireless

connection. Wait about 1 minute, the camera should obtain a wireless connection, and the LAN IP of the

camera will show again on the window of the IP Camera Tool. The IP address may have changed after the

camera receives a wireless connection; we recommend setting a static local IP address if this IP address

changes by right clicking the camera in IP Camera Tools, setting a static IP, and pushing OK.

Congratulations! You have set up the wireless connection of the camera successfully.

NOTE :

1 . If you fail to make a wireless connection, please refer to your seller or contact us directly for

assistance.

2 . FI9821E does not support WIFI.

WPS (WI-FI Protected Set-up)

Step 1) Press and hold the WPS button for two seconds.

1 Click the SSID of your router

and the relevant information

will be filled in the fields

automatically.

2 Enter the password

of your router.

www.foscam.com

Shenzhen Foscam Intelligent Technology Co., Limited

Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 41

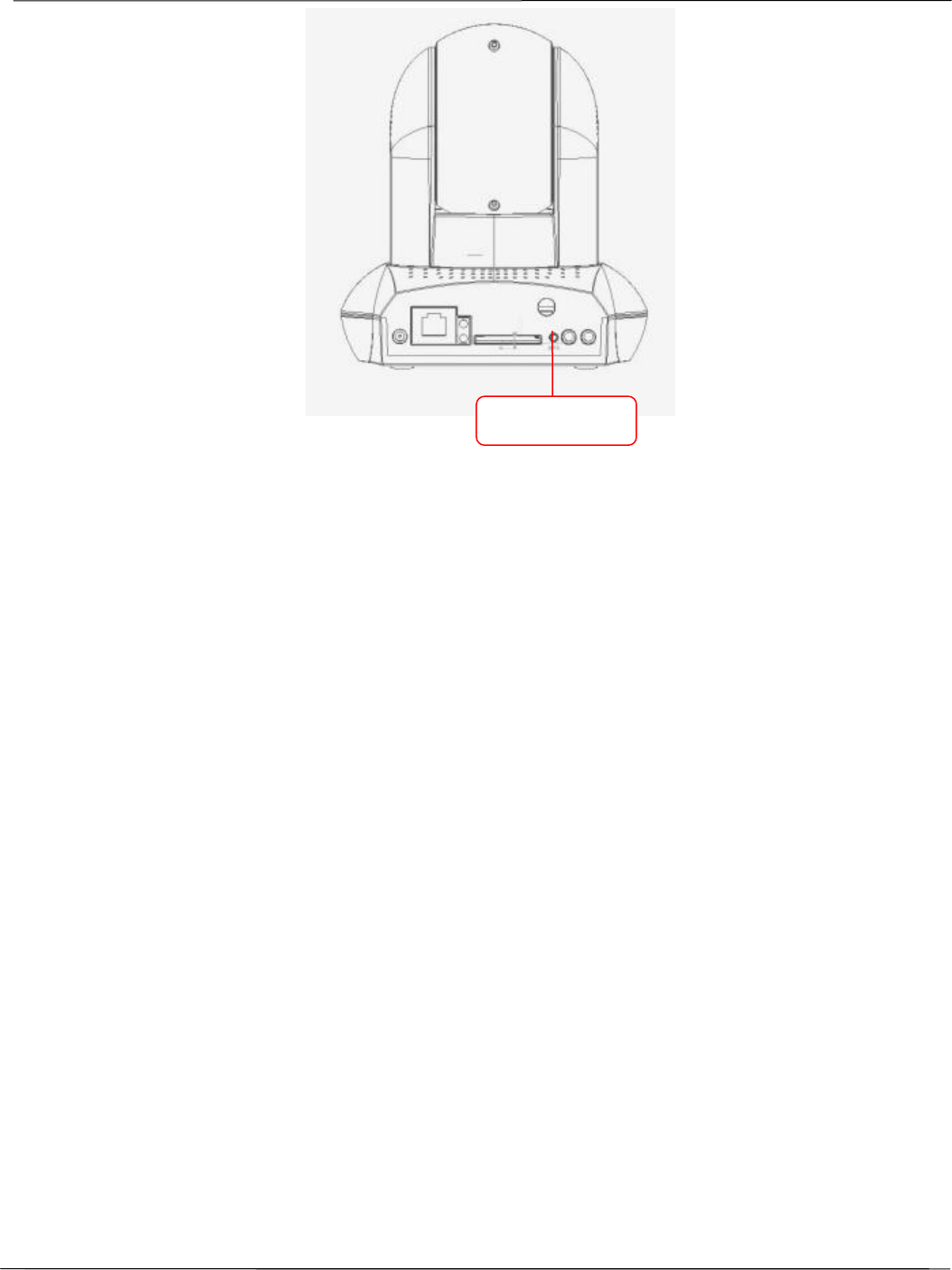

Figure 4.25

Step 2) Press the WPS button on your router within 60 seconds. The WPS button is usually on the back or

side of your router. On some routers, you may need to log in to the web interface and click on an on-screen

button to activate the WPS feature. If you are not sure where the WPS buttons is on your router, please refer to

your router’s User Manual.

The camera will automatically create a secure wireless connection to your router. If you have plugged in the

network cable, please plug it out. The IP Camera Tool will search the camera’s LAN IP. Make sure the PC and

the camera share the same subnet.

NOTE :

The security mode of router cannot be WEP, or else the WPS settings may be failed.

4.3.3 PPPoE

If you are using a PPPoE connection, enable it and enter the User Name and Password for your PPPoE

account.

WPS Button

www.foscam.com

Shenzhen Foscam Intelligent Technology Co., Limited

Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 42

Figure 4.26

4.3.4 DDNS

FOSCAM camera has embedded a unique DDNS domain name when producing, and you can directly use the

domain name, you can also use the third party domain name.

FOSCAM domain name

Here take test09.myfoscam.org for example. Go to option of DDNS on the Settings->Network panel, you

can see the domain name.

Figure 4.27

Now you can use http:// Domain name + HTTP Port to access the camera via internet.

Take hostname test09.myfoscam.org and HTTP Port no. 800 for example, the accessing link of the camera

via internet would be http:// test09.myfoscam.org:800

Restore DDNS to factory: If you have configured Third Party DDNS successfully, but you want to use

Manufacturer’s DDNS again , here click this button and start Manufacturer’s DDNS Service.

www.foscam.com

Shenzhen Foscam Intelligent Technology Co., Limited

Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 43

Third Party Domain Name Settings

User can also use third part DDNS, such as www.no-ip.com. ,www. 3322.com

Here take www.no-ip.com for example:

①Step 1, Go to the website www.no-ip.com to create a free hostname

Firstly: Login on www.no-ip.com and click No-IP Free to register.

Figure 4.28

www.foscam.com

Shenzhen Foscam Intelligent Technology Co., Limited

Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 44

Figure 4.29

Please register an account step by step according to instructions on www.no-ip.com

After registration, please login your email which used to register. You will receive an email from website, please

click the link to activate your ACCOUNT as indicated in email.

Secondly: Login the link with the registered username and password to create your domain name.

Figure 4.30

www.foscam.com

Shenzhen Foscam Intelligent Technology Co., Limited

Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 45

Figure 4.31

Please create the domain name step by step according to instructions on www.no-ip.com

Step 2, DO DDNS Service Settings within the Camera

Please set DDNS Settings within the camera by hostname, a user name and password you’ve got from

www.no-ip.com

Take hostname ycxgwp.no-ip.info, user name foscam, password foscam2012 for example.

Firstly, goes to option of DDNS Settings on the administrator panel.

Secondly, select No-Ip as a server..

Thirdly, fill foscam as DDNS user, fill password foscam2012 as DDNS password, fill ycxgwp.no-ip.info as

DDNS domain and server URL, Then click save to make effect. The camera will restart and to take the DDNS

settings effective.

Fourthly, after the restart, login the camera, and go to option of Device Status on the administrator panel, and

check if the DDNS status is successful.

If failed, please double check if you have input the correct hostname, user name, and password, and

try to redo the settings.

NOTE :

If you have set Third Party DDNS successfully ,the Foscam Domain Name will be invalid. The Third Party

DDNS and the Foscam Domain Name cannot work at the same time, the last time you configured will take

effect.

D②o port forwarding within the router

Example: The camera’s LAN IP address is http://192.168.8.100:2000 , Media port no. is 9200.

Firstly, login the router, goes to the menu of Port Forwarding or Port Trigger (or named Virtue Server on

some brands of router). Take Linksys brand router as an example, Login the router, and goes to

Applications & Gaming->Single Port Forwarding.

Secondly, Create a new column by LAN IP address & HTTP Port No. of the camera within the router showed

as below.

www.foscam.com

Shenzhen Foscam Intelligent Technology Co., Limited

Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 46

Figure 4.32

③Use domain name to access the camera via internet

After the port forwarding is finished, you can use the domain name+ http no.to access the camera via internet.

Take hostname ycxgwp.no-ip.info and http NO. 2000 for example, the accessing link of the camera via

internet would be http:// ycxgwp.no-ip.info:2000

4.3.5 UPnP

Figure 4.33

The default UPnP status is closed. You can enable UPnP, then the camera’s software will be configured for

port forwarding. Back to the “Device Status” panel, you can see the UPnP status:

Assign a name

as you like here.

Fill the Media Port no. of the

camera on the column of

External Port and Internal Port.

www.foscam.com

Shenzhen Foscam Intelligent Technology Co., Limited

Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 47

The camera’s software will be configured for port forwarding. There may be issues with your routers security

settings, and sometimes may error. We recommend you configure port forwarding manually on your router.

4.3.6 Port

This camera supports HTTP Port. HTTP Port is used to access the camera remotely. If you want to access the

camera and view the video, the HTTP Port must both be configured correctly.

HTTP port: By default, the HTTP is set to 88. Also, they can be assigned with another port number between 1

and 65535. But make sure they can not be conflict with other existing ports like 25, 21.

Figure 4.34

Another way to change the HTTP port NO.

Step 1: Open the IP Camera Tool, select the camera you would like to change the port of, right click on the IP

address, and click on ”Network Configuration”, this brings up the network configuration box as shown in Figure

4.34 and 4.35.

Figure 4.35

www.foscam.com

Shenzhen Foscam Intelligent Technology Co., Limited

Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 48

Figure 4.36

Step 2: Enter the username and password of the Administrator (default username is admin with a blank

password), and click “OK” to apply changes.

Step 3: Wait around 10 seconds, you’ll see that the camera’s LAN IP address has changed. In our example it

was changed to 2000, so we see http://192.168.8.102:2000 in IP Camera Tool. Also, the LAN IP address is

now fixed at a static IP address of http://192.168.8.102:2000. This IP address will not change even if the

camera is powered off and back on, the camera will remain on this LAN IP address. This is very important that

a static LAN IP address is set, or you may have problems later with remote access and seeing the camera

remotely if the camera loses power and reconnects on a different LAN IP address. Make sure you set a static

LAN IP address!

Figure 4.37

Note: Http port and Media port must be different.

If the camera cannot be accessed, please make sure the port forwarding is succeed.

HTTPS port: The default port is 443. You can use the url to access the camera: https:// IP + HTTPS port.

Sometimes you need to add the url to the Trusted Sites.

Open Internet Explorer if it is not already opened. Click on Tools, then click Internet Options.

Next, click the Security tab, then click the Trusted sites button.

www.foscam.com

Shenzhen Foscam Intelligent Technology Co., Limited

Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 49

Figure 4.38

Click Sites then you can add the camera’s https web site to the internet explorer.

Figure 4.39

Click here to add camera’s

url.

Enter the camera’s url.

www.foscam.com

Shenzhen Foscam Intelligent Technology Co., Limited

Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 50

For Firefox, you can add the trusted as the following way:

Tools ---- Options ---- Advanced --- View Certificates --- Servers

Figure 4.40

Click View Certificates, and go to Servers option.

Figure 4.41

Go to Add Exception panel.

www.foscam.com

Shenzhen Foscam Intelligent Technology Co., Limited

Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 51

Figure 4.42

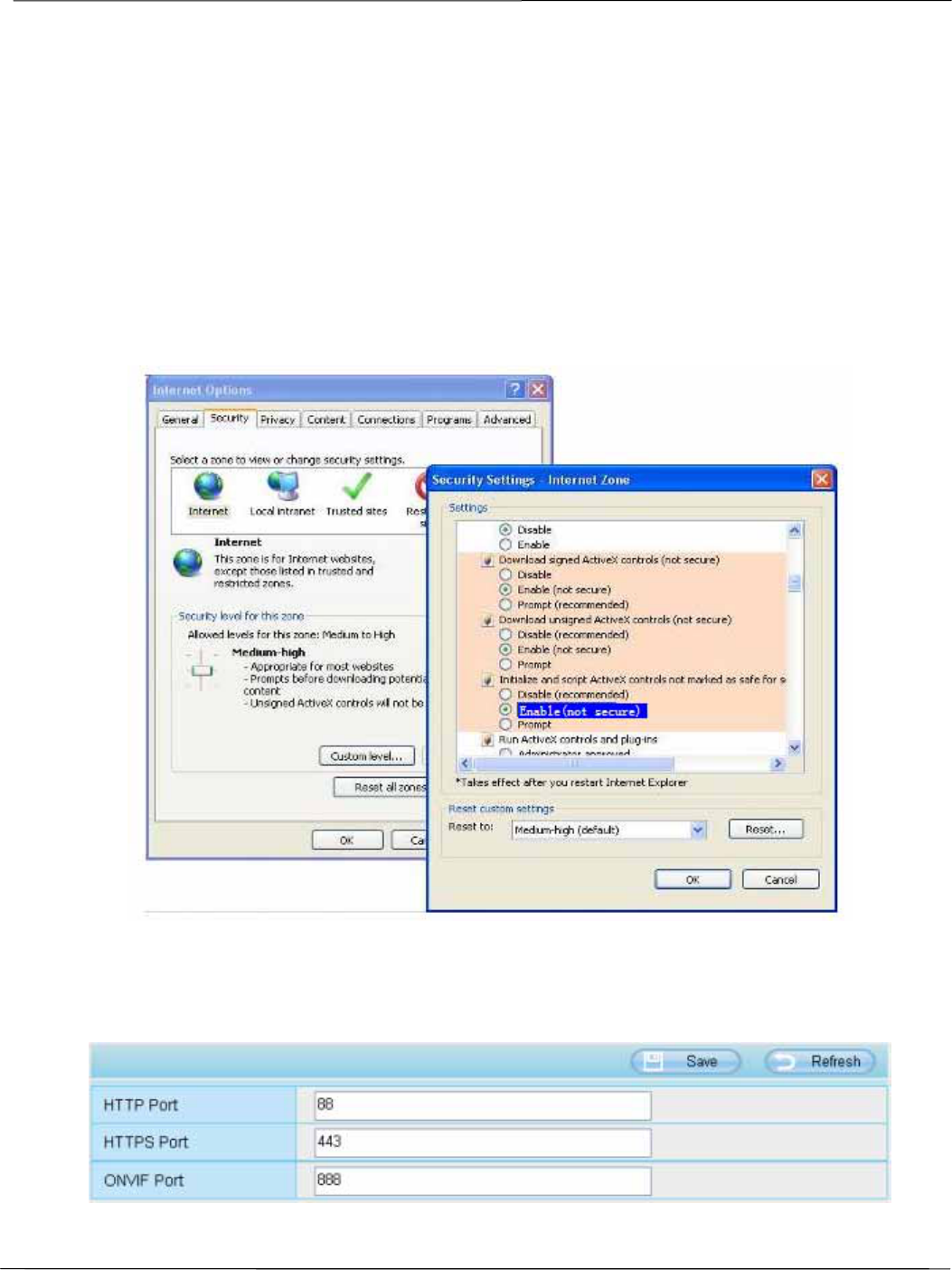

ONVIF Port: By default, the ONVIF port is set to 888. Also, they can be assigned with another port number

between 1 and 65535(except 0 and 65534). But make sure they can not be conflict with other existing ports.

Open the VLC, and go to MediaٛOpen Network Stream option, then enter the URL into VLC.

www.foscam.com

Shenzhen Foscam Intelligent Technology Co., Limited

Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 52

Figure 4.43

Sometimes you may need to enter the user name and password again. Click OK and you can see the real-time

preview.

Figure 4.44

www.foscam.com

Shenzhen Foscam Intelligent Technology Co., Limited

Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 53

Figure 4.45

If you cannot play the video in the VLC player, please check the port mapping. You can read Quick Installation

Guide about How to configure port forwarding.

NOTE:

If you modify the camera’s username or password, you had better reboot the camera, or else the

new username and password cannot take effect when you enter the authentication in the VLC.

4.3.7 Mail Settings

If you want the camera to send emails when motion has been detected, here Mail will need to be configured.

www.foscam.com

Shenzhen Foscam Intelligent Technology Co., Limited

Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 54

Figure 4.46

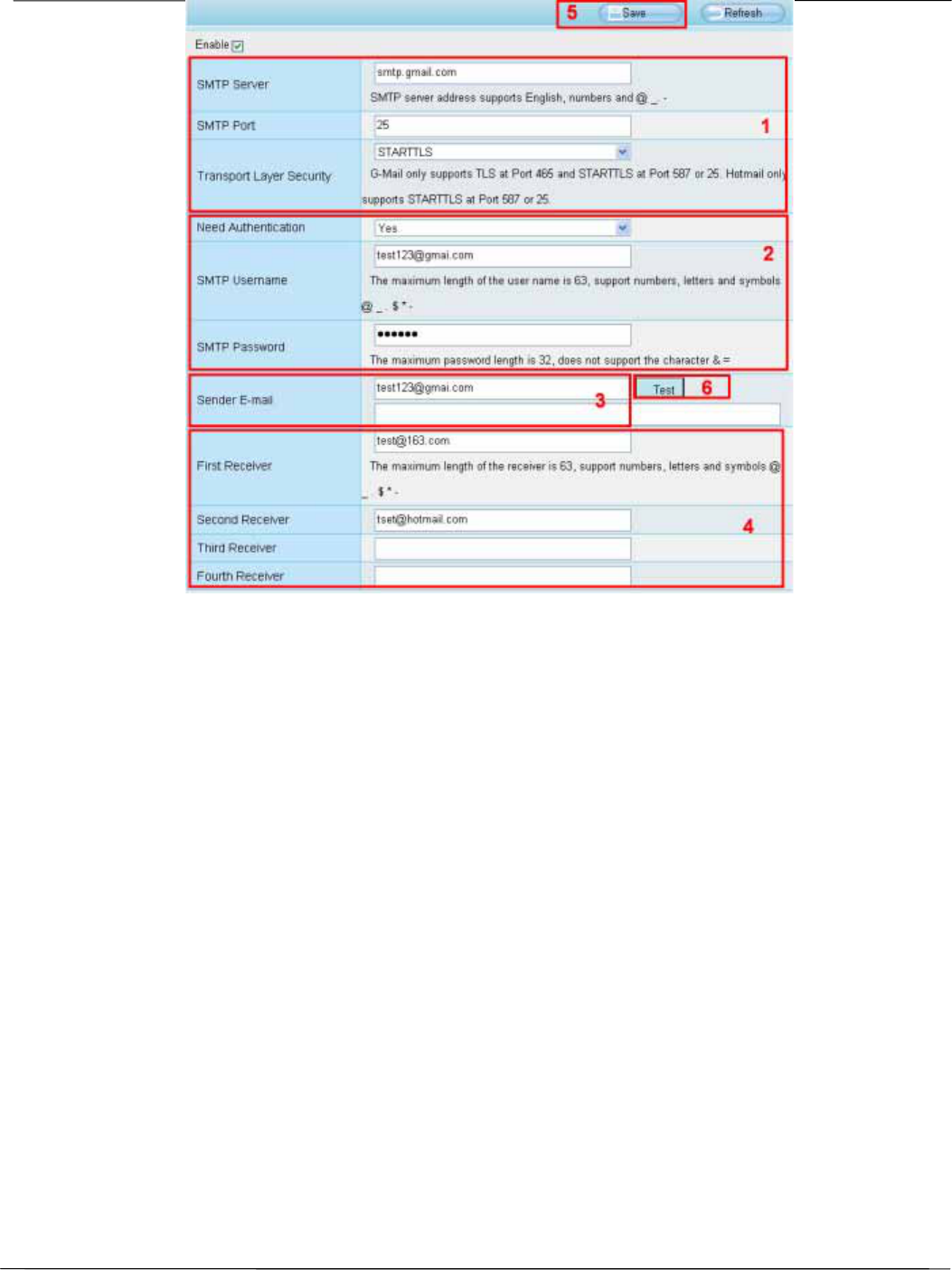

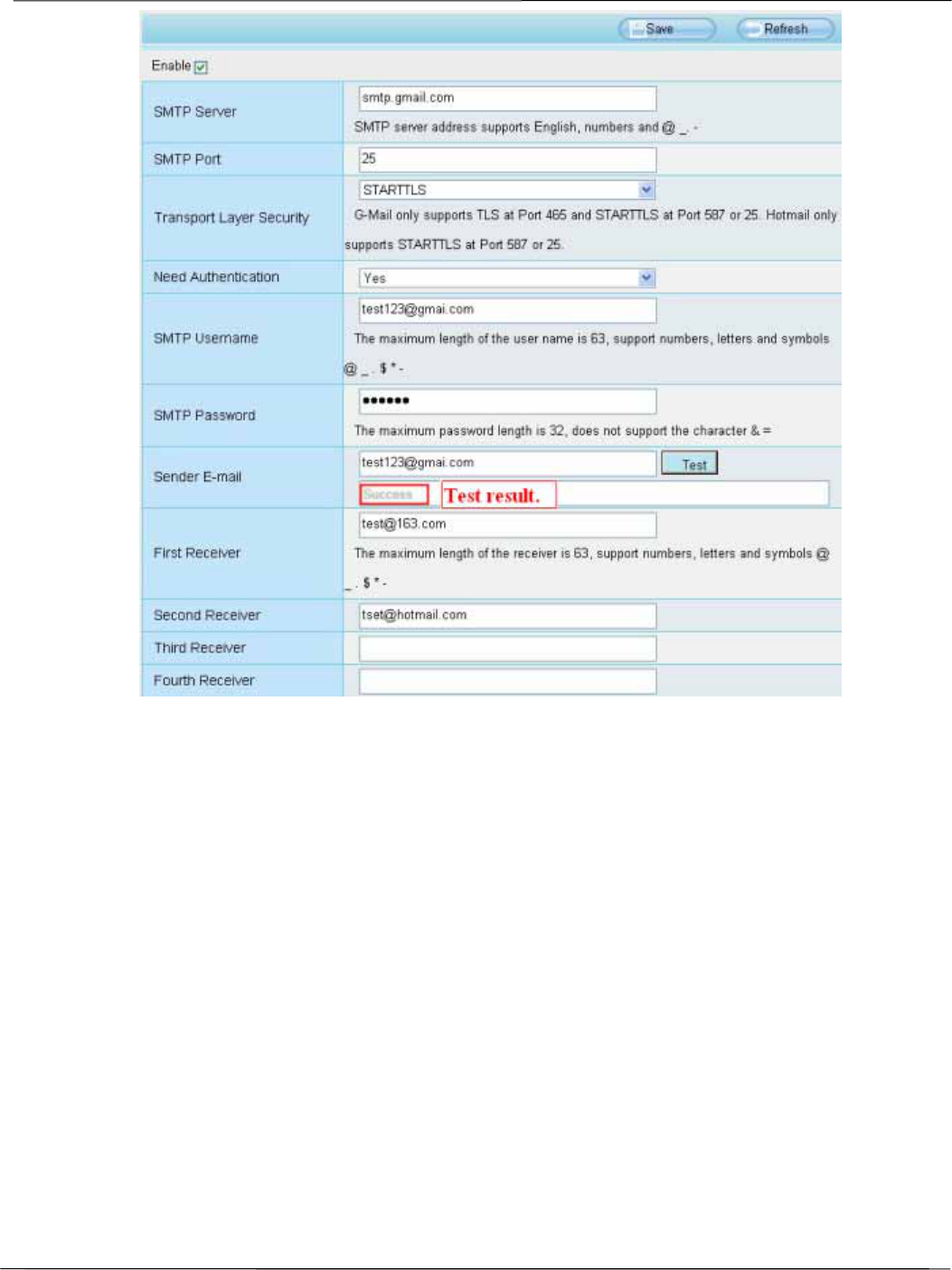

1----- SMTP Server/ Port /Transport Layer Security Enter SMTP server for sender. SMTP port is usually

set as 25. Some SMTP servers have their own port, such as 587 or 465, and Transport Layer Security usually

is None. If you use Gmail, Transport Layer Security must be set to TLS or STARTTLS and SMTP Port must be

set to 465 or 25 or 587, which port you choose should be decided by which Transport Layer Security you

select.

2-----SMTP Username/ password ID account and password of the sender email address

3----- Sender E-mail Mailbox for sender must support SMTP

4----- Receiver Mailbox for receiver need not support SMTP,you can set 4 receivers

5----Save Click Save to take effect

6----Test Click Test to see if Mail has been successfully configured.

Click Test to see if Mail has been successfully configured.

www.foscam.com

Shenzhen Foscam Intelligent Technology Co., Limited

Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 55

Figure 4.47

If the test success, you can see the Success behind the Test, at the same time the receivers will receive a test

mail.

If the test fails with one of the following errors after clicking Test, verify that the information you entered is

correct and again select Test .

1) Cannot connect to the server

2) Network Error. Please try later

3) Server Error

4) Incorrect user or password

5) The sender is denied by the server. Maybe the server need to authenticate the user, please check it and try

again

6) The receiver is denied by the server. Maybe because of the anti-spam privacy of the server

7) The message is denied by the server. Maybe because of the anti-spam privacy of the server

8) The server does not support the authentication mode used by the device

4.3.8 FTP Settings

If you want to upload record files and images to your FTP server，you can set FTP Settings.

www.foscam.com

Shenzhen Foscam Intelligent Technology Co., Limited

Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 56

Figure 4.48

Figure 4.49

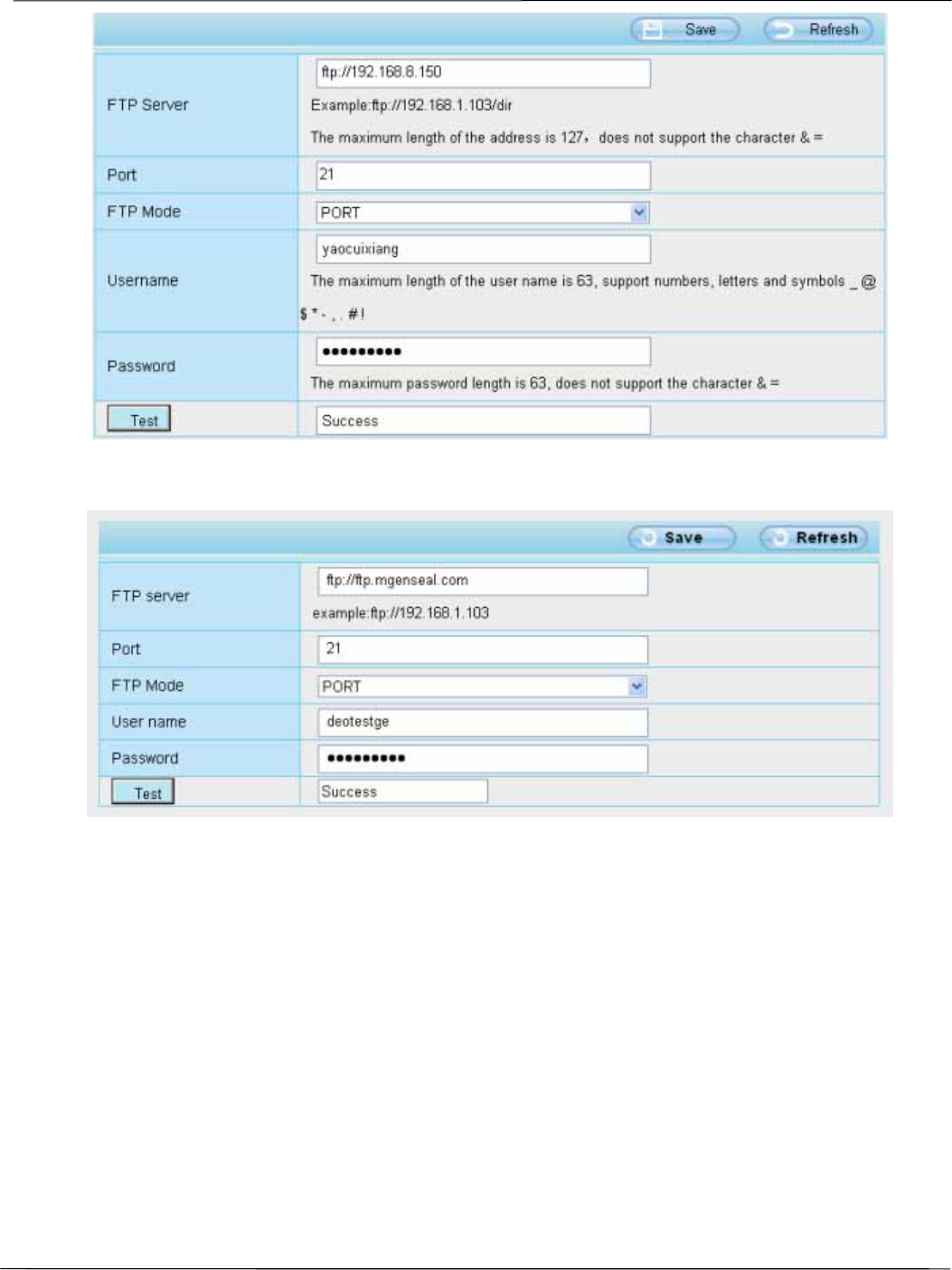

FTP server: If your FTP server is located on the LAN, you can set as Figure 3.51.

If you have an FTP server which you can access on the internet, you can set as Figure 3.52.

Port: Default is port 21. If changed, external FTP client program must change the server connection port

accordingly.

FTP Mode: Here supports two modes: PORT and PASV.

Username/password: The FTP account and password.

Click Save to take effect.

Click Test to see if FTP has been successfully configured.

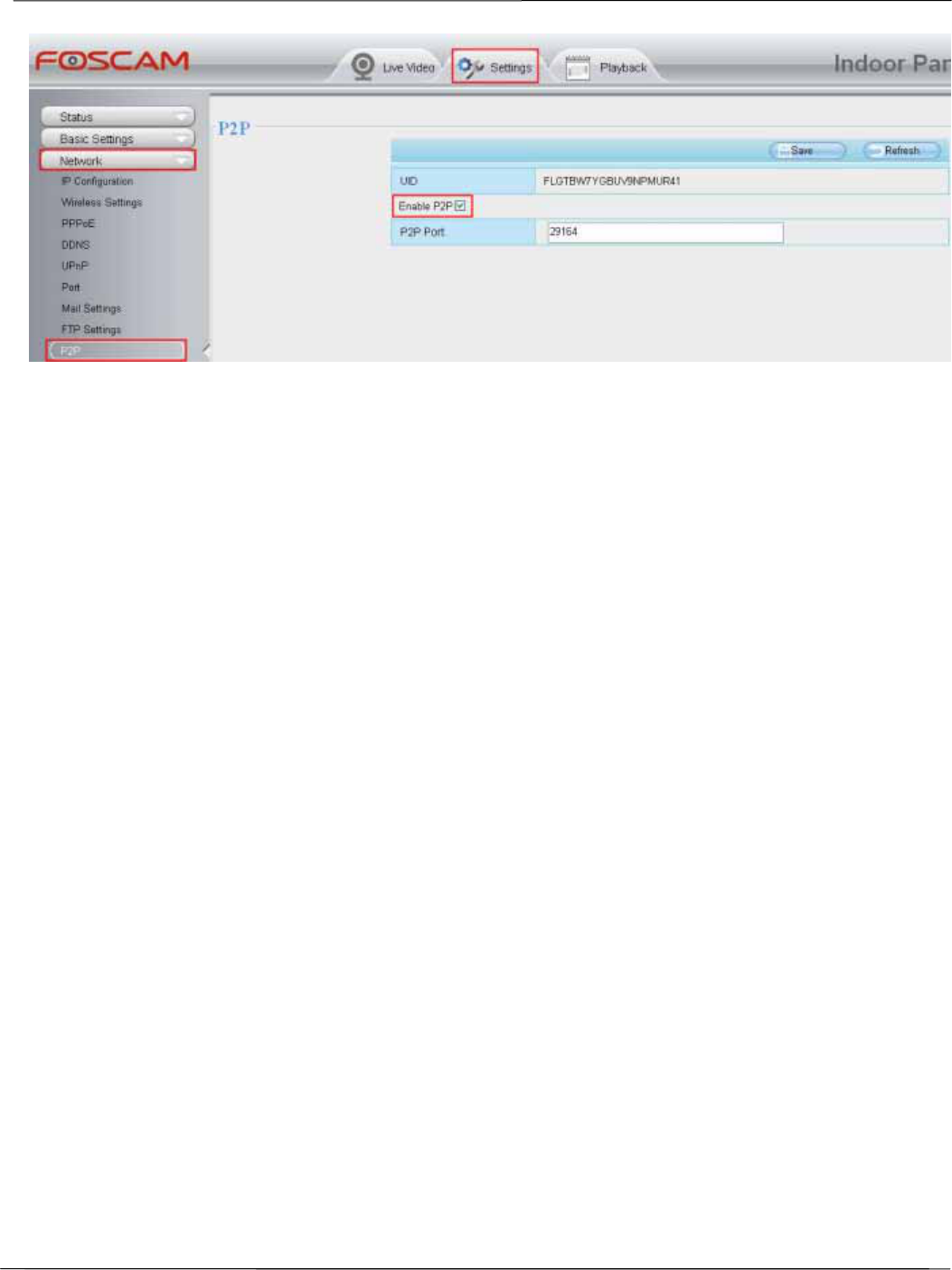

4.3.9 P2P

FI9821P, FI9821P V2, FI9826P, FI9831P, FI9808P, FI9821E

Access the IP Camera by Smart Phone (Android or iOS operating system)

www.foscam.com

Shenzhen Foscam Intelligent Technology Co., Limited

Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 57

First of all, you need to open the P2P function of the IP Camera at “Settings --> Network --> P2P.”

Figure 4.50

Search and install Foscam Viewer on Google Play and APP Store for for Android and iOS devices.

If you want to know more details of the iOS APP or Android APP, see the iOS App User Manual or Android APP

User Manual.

NOTES：

 If the QR code scanning is not successful, please input the UID on the bottom of the camera manually.

 FI9818W, FI9821W, FI9826W and FI9831W don’t support P2P function.

4.4 Video

This section allows you to configure Video stream settings, On screen display and Snapshot settings.

4.4.1 Video Settings

There are two ways to set the stream video settings. They are main stream video settings and sub stream

video settings.

www.foscam.com

Shenzhen Foscam Intelligent Technology Co., Limited

Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 58

Figure 4.51

Stream type: There are four types to identify different streams you have set.

Resolution: The camera supports two types: 720P, VG

A. The higher the resolution is, the clearer video will become. But the code flux will become larger too, and it

will take up more bandwidth.

Bit Rate: Generally speaking, the larger the bit rate is, the clearer video will become. But the bit rate

configuration should combine well with the network bandwidth. When the bandwidth is very narrow, and bit rate

is large, that will lead to video can not play well.

Frame Rate: Note that a larger frame size takes up more bandwidth. When the video format is 50Hz, the

maximum frame rate is 25 fps. When the video format is 60Hz, the maximum frame rate is 30 fps. You should

lower frame rate when the bandwidth is limited. Normally, when the frame rate above 15, you can achieve

fluently video.

Key Frame Interval: The time between last key frame and next key frame. The shorter the duration, the more

likely you will get a better video quality, but at the cost of higher network bandwidth consumption.

4.4.2 On Screen Display

This page is used to add timestamp and device name on the video.

www.foscam.com

Shenzhen Foscam Intelligent Technology Co., Limited

Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 59

Figure 4.52

Display Timestamp: There are two options: Yes or NO. Select Yes and you can see the system date on the

video,

Display Camera Name: There are two options: Yes or NO. Select Yes and you can see the device name on

the video.

4.4.3 Privacy Zone

This page is used to set some mask as privacy zone on the video.

Figure 4.53

Allow On Screen Display Mask: There are two options: Yes or NO. Select yes and draw a mask area on the

video, the mask area will be black on the video.

www.foscam.com

Shenzhen Foscam Intelligent Technology Co., Limited

Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 60

Figure 4.54

Click OK button and return to the OSD page, click Save to take effect.

Back to the surveillance window, you can see the mask area as the following picture:

Figure 4.55

4.4.4 Snapshot Settings

On this page you can set the snapshot pictures’ image quality and the storage path.

The mask area

www.foscam.com

Shenzhen Foscam Intelligent Technology Co., Limited

Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 61

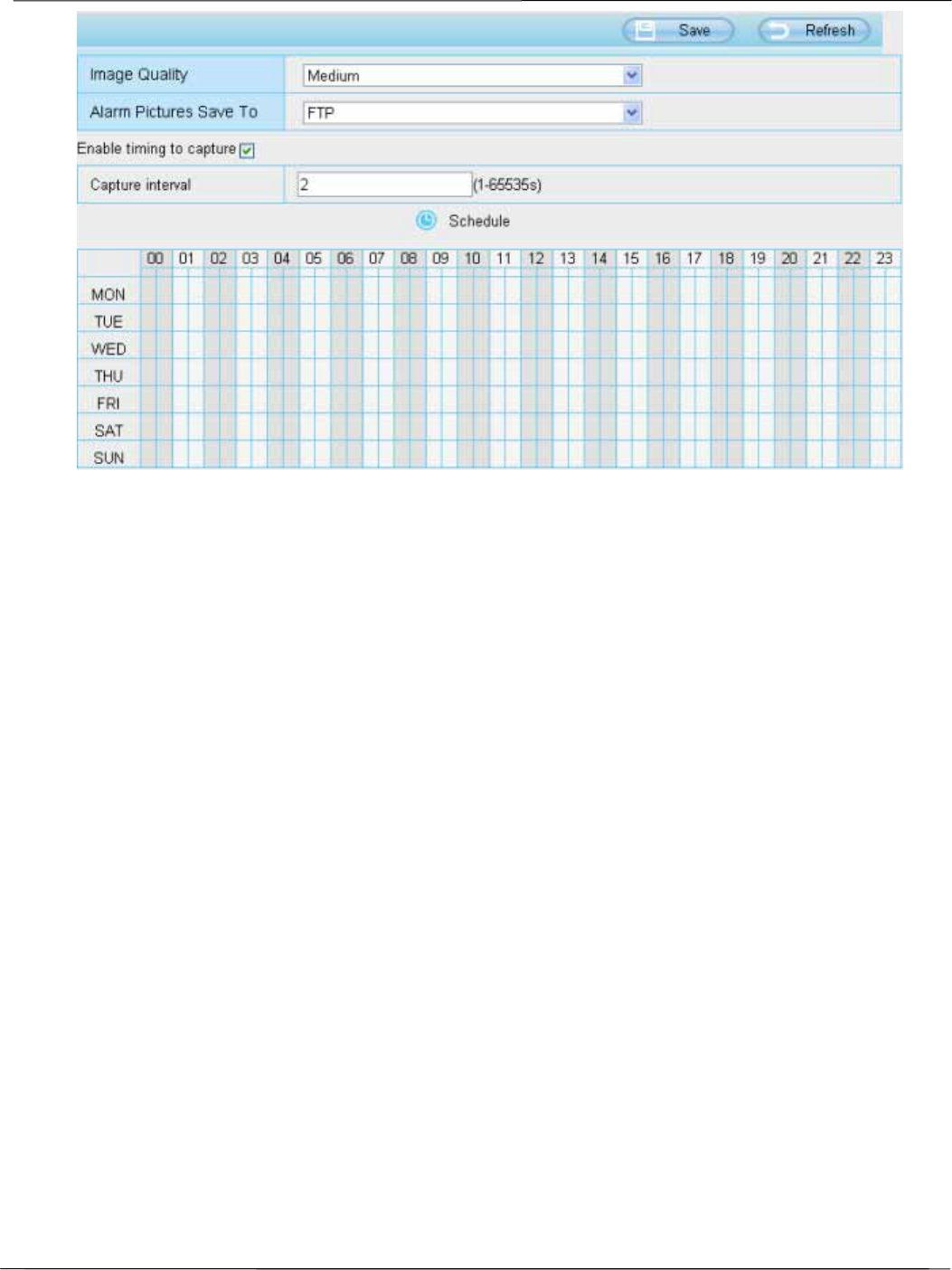

Figure 4.56

Image Quality: Low, Middle and High. The higher the quality, the picture will be clearer.

Save Path: FTP. If you have done FTP and Alarm settings, when alarming, the camera will snap pictures to the

FTP automatically.

Enable timing to capture

To enable capture interval, follow the steps below:

1 Select Enable Motion detection

2 Capture interval:The interval time between two captures.

3 Select the capture time

 Capture anytime

Click the black button up the MON, you will see all time range turn red. When something moving in the

detection area at anytime, the camera will capture.

 Specify an capture schedule

Click the week day words, the corresponding column will be selected. For example, click TUE, the all

column of TUE turns to red, that means during Tuesday whole day, the camera will capture.

 Press the left mouse and drag it on the time boxes, you can select the serial area,

4 Click Save button to take effect.

4.5 Alarm

IP Camera supports Motion Detection Alarm, when the motion has been detected, it will send emails or

upload images to FTP.

www.foscam.com

Shenzhen Foscam Intelligent Technology Co., Limited

Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 62

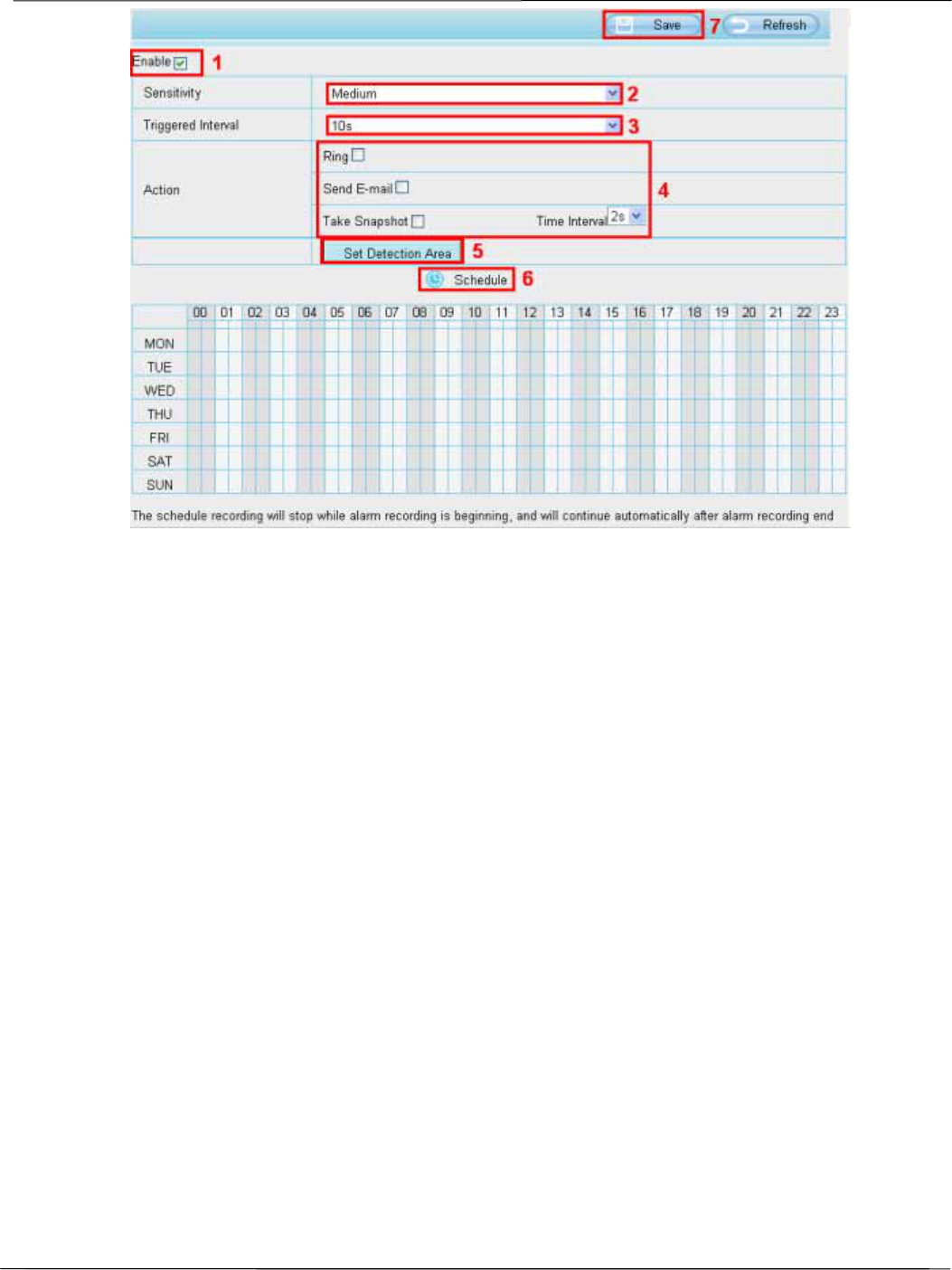

Figure 4.57

To enable motion detection, follow the steps below:

1 Enable Motion detection

2 Sensitivity---- It supports three modes: Low, Middle and High. The higher the sensitivity, the camera will be

more easily alarmed. Select one motion sensitivity.

3 Trigger interval--- The interval time between two motion detections. Here supports

5s/6s/7s/8s/9s/10s/11s/12s/13s/14s/15s. Select one interval time.

4 Select the alarm indicators

When the motion has been detected, the alarm status will turn to Detect alarm.

www.foscam.com

Shenzhen Foscam Intelligent Technology Co., Limited

Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 63

Figure 4.58

There are four alarm indicators:

A Ring

There is an embedded speaker inside the camera, so if you select Ring, when the motion has been detected,

the people around the camera will hear beep alarm sound.

B Send E-mail

If you want to receive alarm emails when motion is detected, you must select Send E-mail and set Mail

Settings first. The alarm email cannot contain the alarm picture if you have not selected Take Snapshot.

C Take Snapshot

If you select this checkbox, when the motion has been detected, the camera will snap the live view window as

a still picture and load it to the FTP. Make sure you have set FTP and set FTP as the storage path in

Video->Snapshot settings panel.

If you select Send Email, at the same time the picture will be send to you as an attachment.

Capture interval: The interval time between two pictures.

D Record

If you select this checkbox, when the motion has been detected, the camera will record automatically and store

the record files to the SD Card. Make sure the camera has inserted SD card and you have set the SD card as

the Alarm record files storage path, please go to Record—> Storage location page to verify this settings.

The default alarm record time is 30s and pre-alarm record time is 5s, please go to Record—> Alarm Record

page and change the alarm time settings.( FI9818W and FI9808P haven’t SD card.)

Step 05: Set detect area

Click set detect area and it pop up a window, then you can draw the detection area. Click Back button after

settings. When something moving in the detection area, the camera will alarm.

www.foscam.com

Shenzhen Foscam Intelligent Technology Co., Limited

Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 64

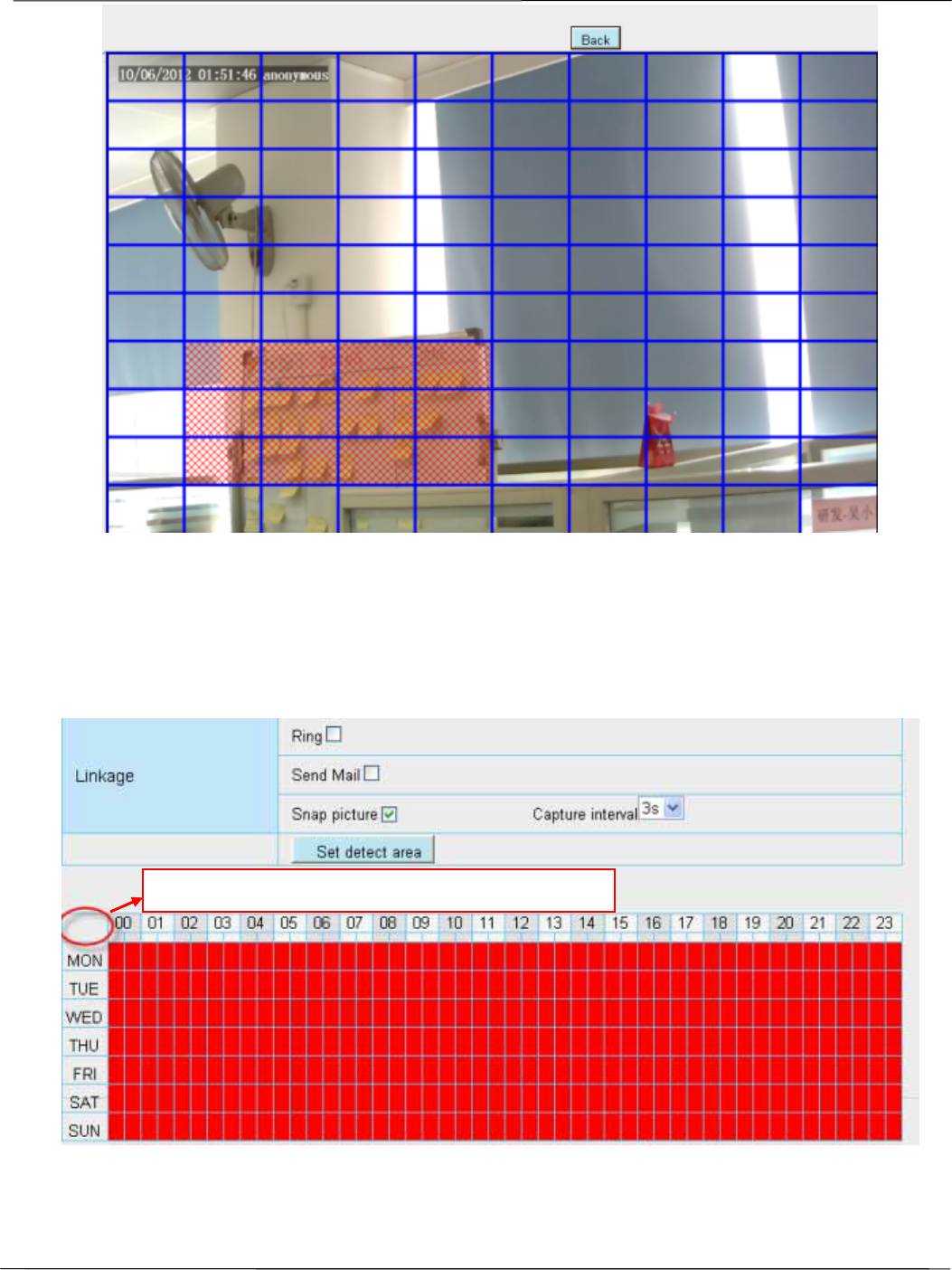

Figure 4.59

Step 06: Alarm Schedule

Alarm anytime when motion is detected①

Click the black button up the MON, you will see all time range turn red. When something moving in the

detection area at anytime, the camera will alarm.

Figure 4.60

Specify an alarm schedule②

Click the week day words, the corresponding column will be selected. For example, click TUE, the all column

Click this button and select all time range

www.foscam.com

Shenzhen Foscam Intelligent Technology Co., Limited

Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 65

of TUE turns to red, that means during Tuesday whole day, when something moving in the detection area, the

camera will alarm.

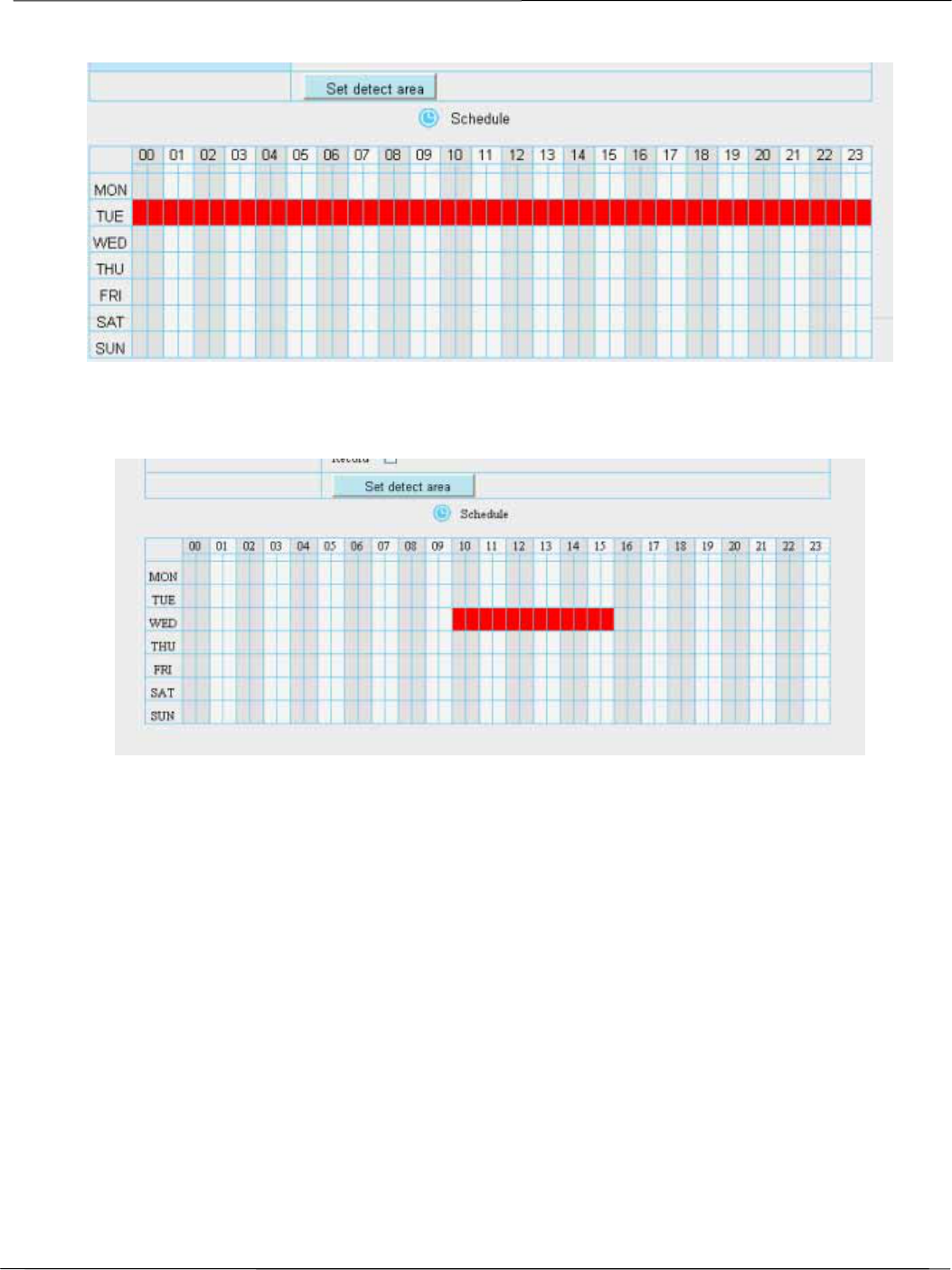

Figure 4.61

Press the left mouse and drag it on the time b③oxes, you can select the serial area.

Figure 4.62

Step 07: Click Save button to take effect.

When the motion has been detected during the detection time in the detection area, the camera will alarm and

adopt the corresponding alarm indicators.

NOTE: You must set the detection area and detection schedule, or else there is no alarm anywhere and

anytime.

4.6 Record

This section will allow you to change the record files storage path and the record time.

4.6.1 Storage Location

On this page you can change the alarm and manually recording storage path.

www.foscam.com

Shenzhen Foscam Intelligent Technology Co., Limited

Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 66

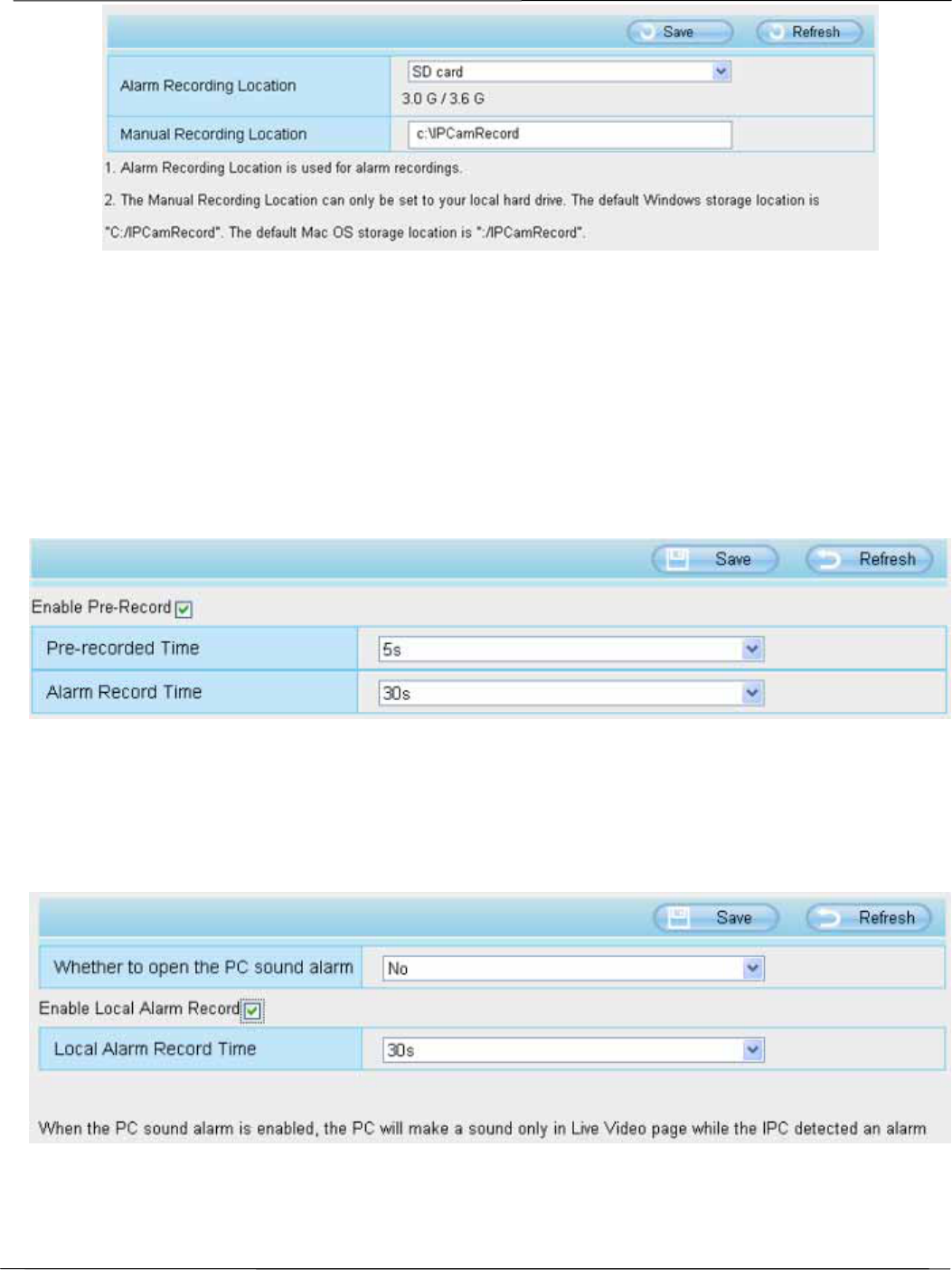

Figure 4.63

Alarm Recording Location : SD card or FTP. Make sure the camera has been inserted the SD card. On

this page, you can see the available space of the SD card. (FI9818W and FI9808P haven’t SD card.)

Manual Recording Location: For Windows OS, the manual recording path is C:/ IPCamRecord, you can

change another one. For MAC OS, the manual recording path is: / IPCamRecord.

4.6.2 Alarm Record

Figure 4.64

4.6.3 Local Alarm Record

This page you can enable the local alarm record and Local Alarm record time.

Figure 4.65

www.foscam.com

Shenzhen Foscam Intelligent Technology Co., Limited

Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 67

4.6.4 Record Schedule

When the video is selected as FTP, the device supports scheduled recording.

Figure 4.66

Figure 4.67

When the video is selected as SD card, the device supports pumping frame recording.

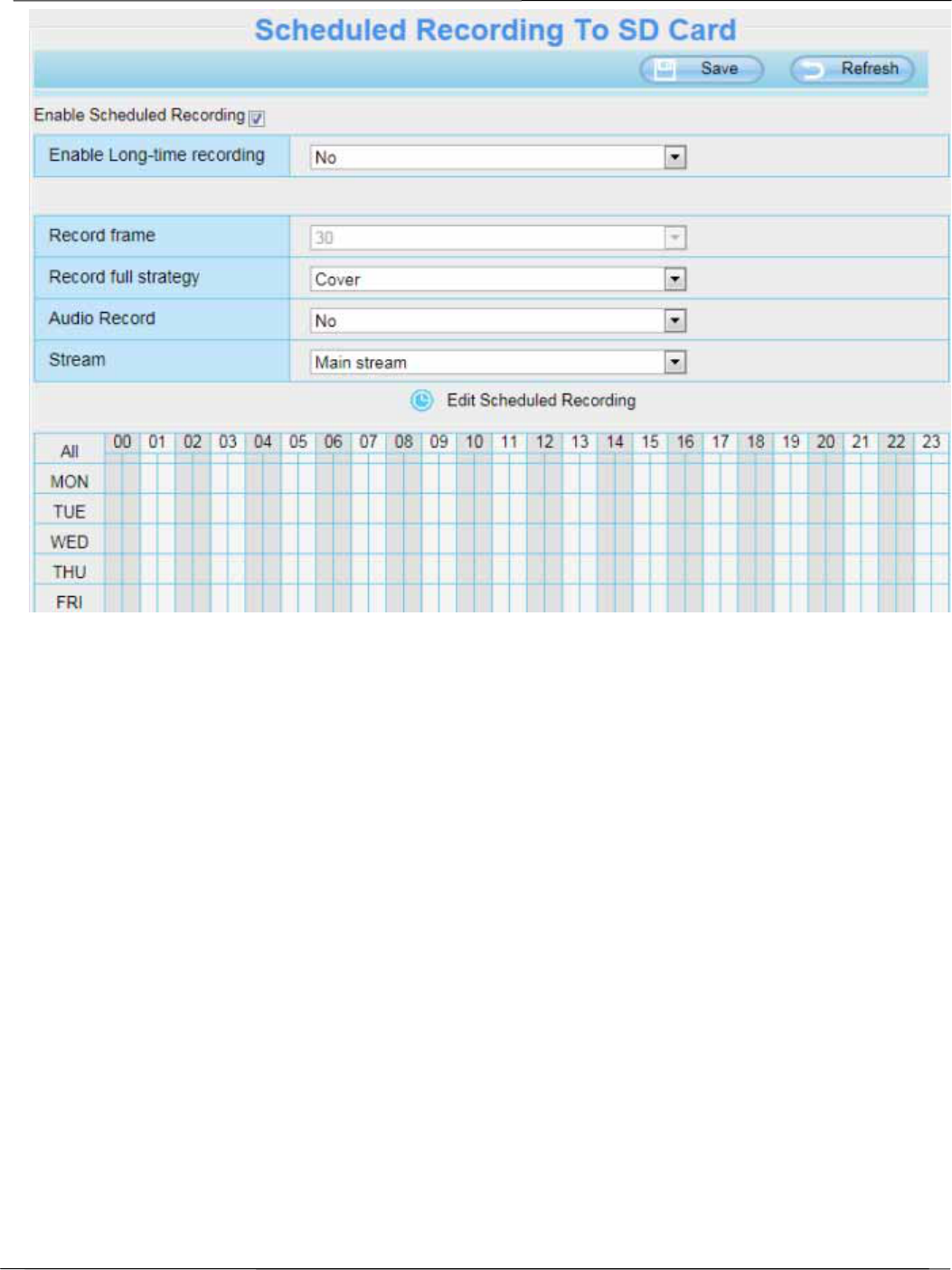

Figure 4.68

www.foscam.com

Shenzhen Foscam Intelligent Technology Co., Limited

Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 68

Figure 4.69

Record frame: There are six frame selections, such as 1/30, 4/30, 8/30, 15/30, 24/30, 30/30. Recommended

default is 4/30. The greater the Frame rate is, the sharper picture quality is, and the greater of storage space is,

the shorter the storage time is.

Record full strategy: When the SD card is full, you can choose to cover the previous recording, or stop

recording.

Audio Record: You can choose "yes" or "no".

NOTES:

 Scheduled recording only supports video saved to the SD card or FTP server. (FI9818w and FI9808P

have not SD card.)

 The schedule recording will stop while alarm recording is beginning ,and it will continue automatically after

alarm recording end.

 You can refer to "alarm schedule." in " 4.5 Alarm" about editing the time of recording Schedule.

4.6.5 SD Card Management

This camera supports SD Card and the max size of SD card must be under 32G.

When you plug in the SD card during the camera work process, please reboot the camera again, or else the

SD Card may be cannot work well.

www.foscam.com

Shenzhen Foscam Intelligent Technology Co., Limited

Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 69

Go to the SettingsStatusDevice Status page, you can see the SD card status.

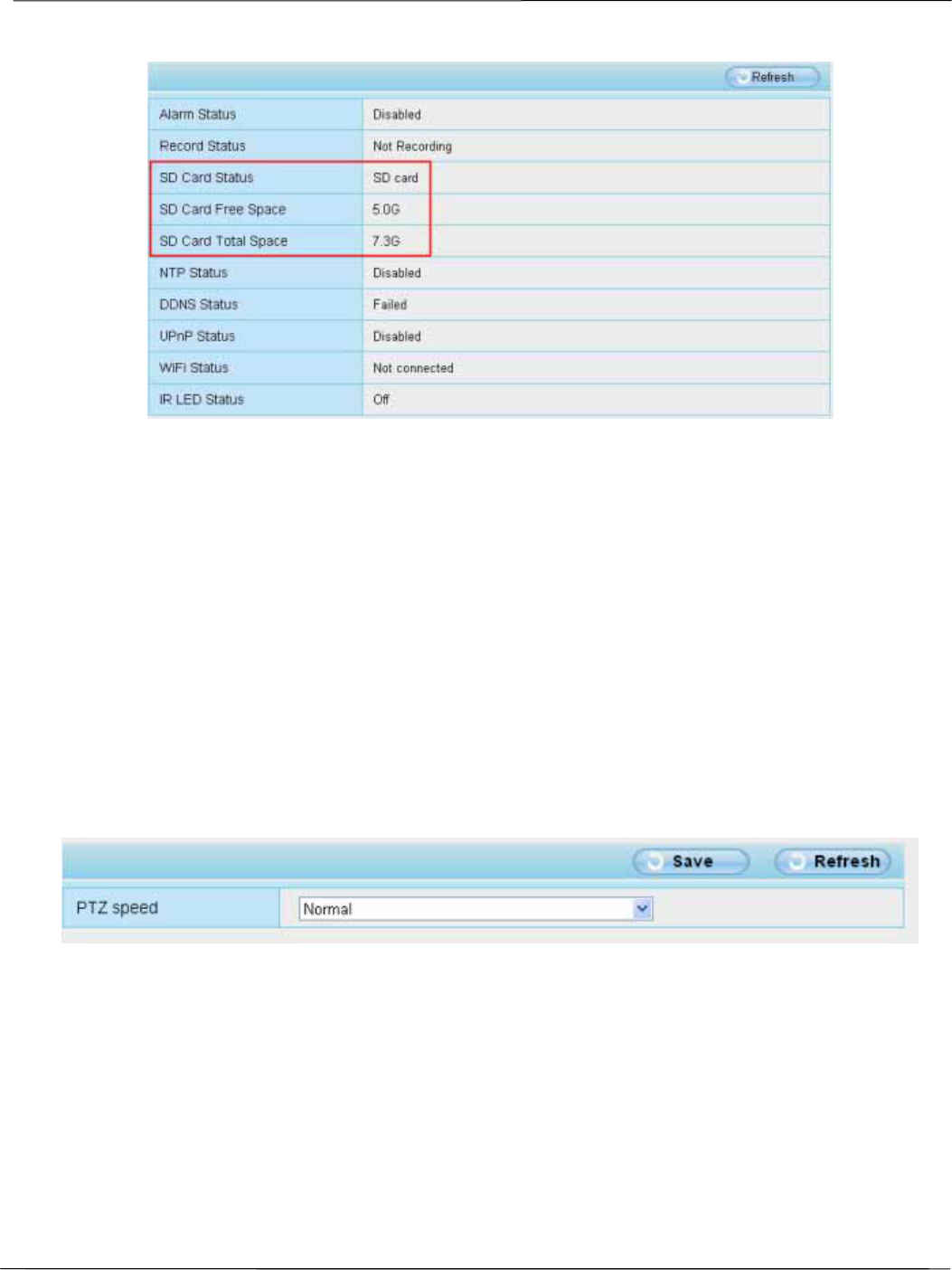

Figure 4.70

The default storage path of alarm record files is SD card, when the available size of SD card is less than 256M,

the old record files will be deleted automatically.

NOTE: FI9818W and FI9808P haven’t SD card.

4.7 PTZ

This page will allow you to change the pan/tilt speed and do cruise tracks settings.

4.7.1 Pan & Tilt Speed

There are five Pt speed types: very fast, fast, normal, slow and very slowly. Select the desired PTZ speed type

and click save button.

Figure 4.71

4.7.2 Cruise Settings

This section explains how to add/ delete/ alter one cruise track.

www.foscam.com

Shenzhen Foscam Intelligent Technology Co., Limited

Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 70

Figure 4.72

Setting the Cruise Mode

There are two cruise mode: Cruise time and Cruise Loops.

Cruise time: Select Cruise time from Cruise Mode dropdown, then you can set the Cruise time of the

camera.

Cruise Loops:Select Cruise Loops from Cruise Mode dropdown, you can set the Cruise Loops of the

camera.

Click Save to take effect.

Figure 4.73

Manage the Cruise Track

There are two default cruise tracks: Vertical and Horizontal.

Vertical: The camera will rotate from up to down

Horizontal: The camera will rotate form left to right.

www.foscam.com

Shenzhen Foscam Intelligent Technology Co., Limited

Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 71

Add: Add one cruise track, then click save button.

Delete: Select one cruise track and delete it.

Save: After you modify the Dwell time, you should click Save button to take effect.

Example

How to do add cruise tracks ?

Firstly, Click Add button and enter a descriptive name to identify the cruise track.

Secondly: On the lower left of the page, you can see all preset points you have added. Select one preset point

and click Add button, you can see the preset point has been added to the cruise track on the cruise track page.

You need to add two or more preset points to the cruise track.

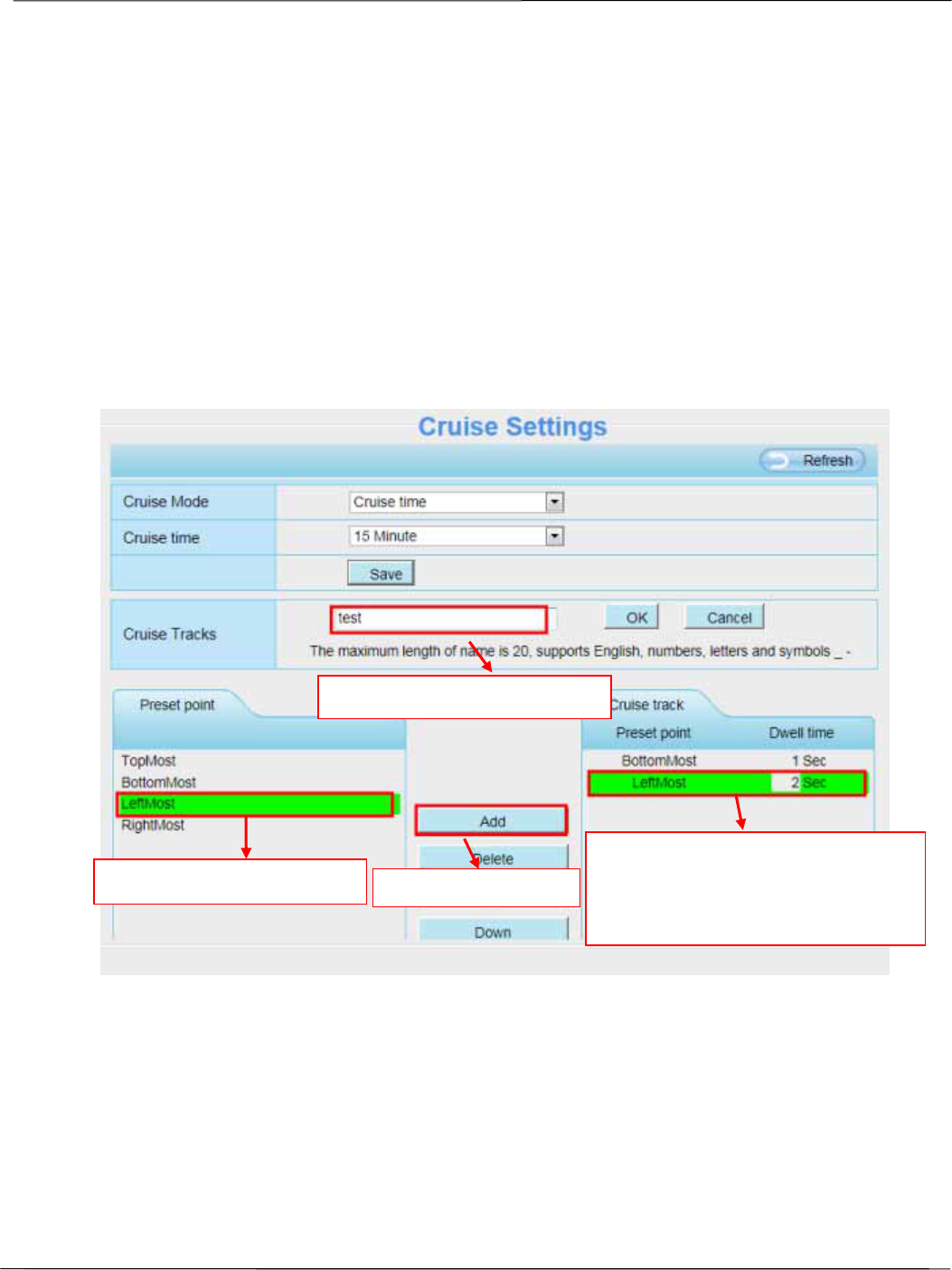

Figure 4.74

Thirdly: Click OK button and the cruise track will take effect.

You can add other cruise track as the same method.

For example: I have added three preset points to the “track 1”, that means : When I select the “track 1” on the

surveillance window, the camera moves as the following track: upright then Right Most last downleft.

You can add preset on the left of the surveillance window.

The new added track name.

1 Select one preset point. 2 Click Add button.

Here you can see the preset point

has been added to one track. And

you can set the stay time.

www.foscam.com

Shenzhen Foscam Intelligent Technology Co., Limited

Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 72

Figure 4.75

Figure 4.76

After add the cruise track, back to the surveillance window, click Cruise, her you can see all cruise tracks you

have added.

After add the cruise track, back to the surveillance window, click Cruise, her you can see all cruise tracks you

have added.

The cruise tracks have added to

the “track 1”.

Add the preset.

www.foscam.com

Shenzhen Foscam Intelligent Technology Co., Limited

Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 73

Figure 4.77

There are other buttons between the Preset points and Cruise track, you can use these buttons to adjust the

order of preset points or add/delete one preset points in one cruise track.

Figure 4.78

Add: Select one preset points and add it to the selected cruise track.

Delete: Select one preset points you have added to one cruise track, click delete.

Move up/ down: Select one cruise track, adjust the order of preset points in one cruise track.

Attention:

Considering the life time and thermal issue of the motor, it’s not recommend to do long-time cruise.

4.7.3 Start-Up Options

Here section will allow you to set the stop position after the camera reboots.

It supports three modes: No self test, Goto home position and Goto preset point.

No self test: When rebooting, the camera will not pan / tilt.

Goto home position: When rebooting, the camera will pa Providing Central Management Software to

www.foscam.com

Shenzhen Foscam Intelligent Technology Co., Limited

Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 74

manage or monitor multi-cameras n / tilt and stops at center.

Goto Preset point: Select one preset position and save it. When rebooting, the camera will pan/ tilt and stops

at the preset position you have set.

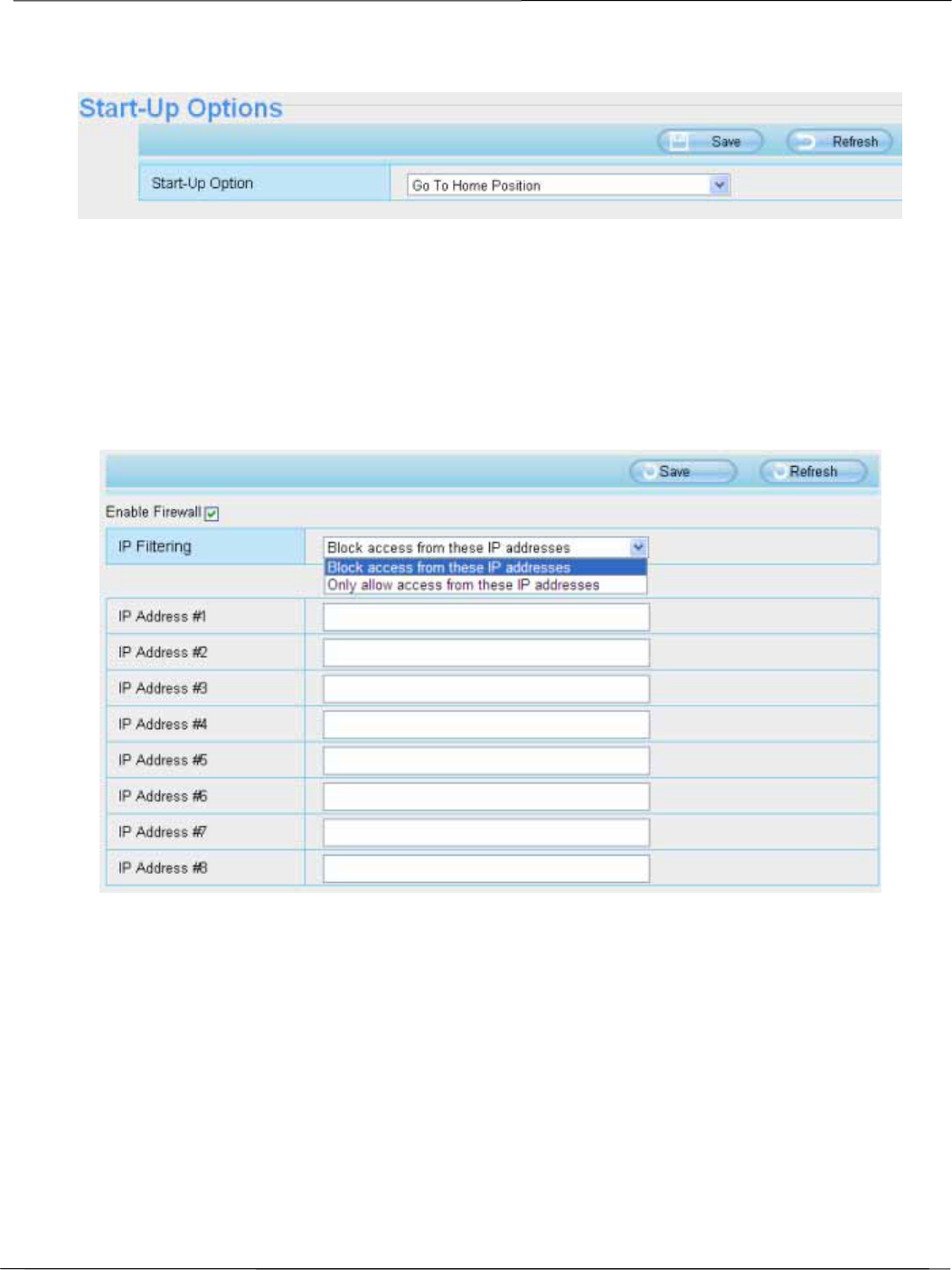

Figure 4.79

4.8 Firewall

This section explains how to control the access permission by checking the client PC’s IP addresses. It is

composed of the following columns: Block access from these IP addresses and Only allow access from

these IP addresses.

Figure 4.80

Enable firewall, If you select Only allow access from these IP addresses and fill in 8 IP addresses at most, only

those clients whose IP addresses listed in the Only allow access from these IP addresses can access the

Network Camera. If you select Block access from these IP addresses, only those clients whose IP

addresses are in the IP list cannot access the Network Camera.

Click Save to take effect.

4.9 System

In this panel, you can backup/restore your camera settings, upgrade the firmware to the latest version, restore

the camera to default settings and reboot the device.

www.foscam.com

Shenzhen Foscam Intelligent Technology Co., Limited

Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 75

4.9.1 Back-up& Restore

Click Backup to save all the parameters you have set. These parameters will be stored in a bin file for future

use.

Click Browse and select the parameters file you have stored, then click Submit to restore the restore the

parameters.

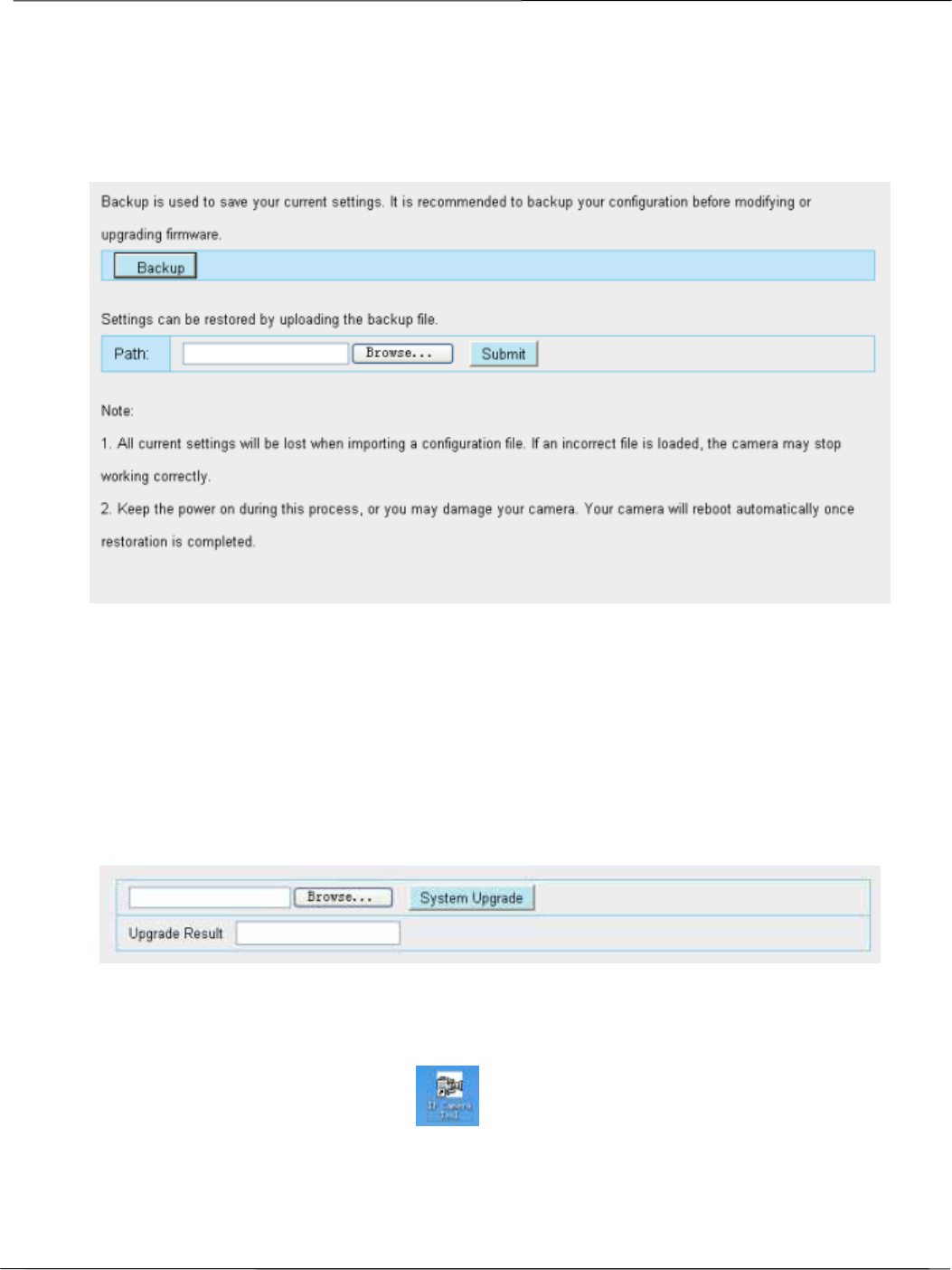

Figure 4.81

4.9.2 System Upgrade

Your current firmware version will be displayed on your screen. You may go to the Status Device

Information Page to check for the latest firmware versions available.

Click Browse, choose the correct bin file and then click System upgrade. Make sure you have unplugged the

SD card.

Don’t shut down the power during upgrade. After upgrading, you can see the upgrade result.

Figure 4.82

Upgrade Firmware by IP Camera Tool

Double click the IP Camera Tool shot icon , select the Camera IP that you want to upgrade the

firmware. Then select Upgrade Firmware and enter the username and password, choose the firmware file, and

upgrade.

www.foscam.com

Shenzhen Foscam Intelligent Technology Co., Limited

Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 76

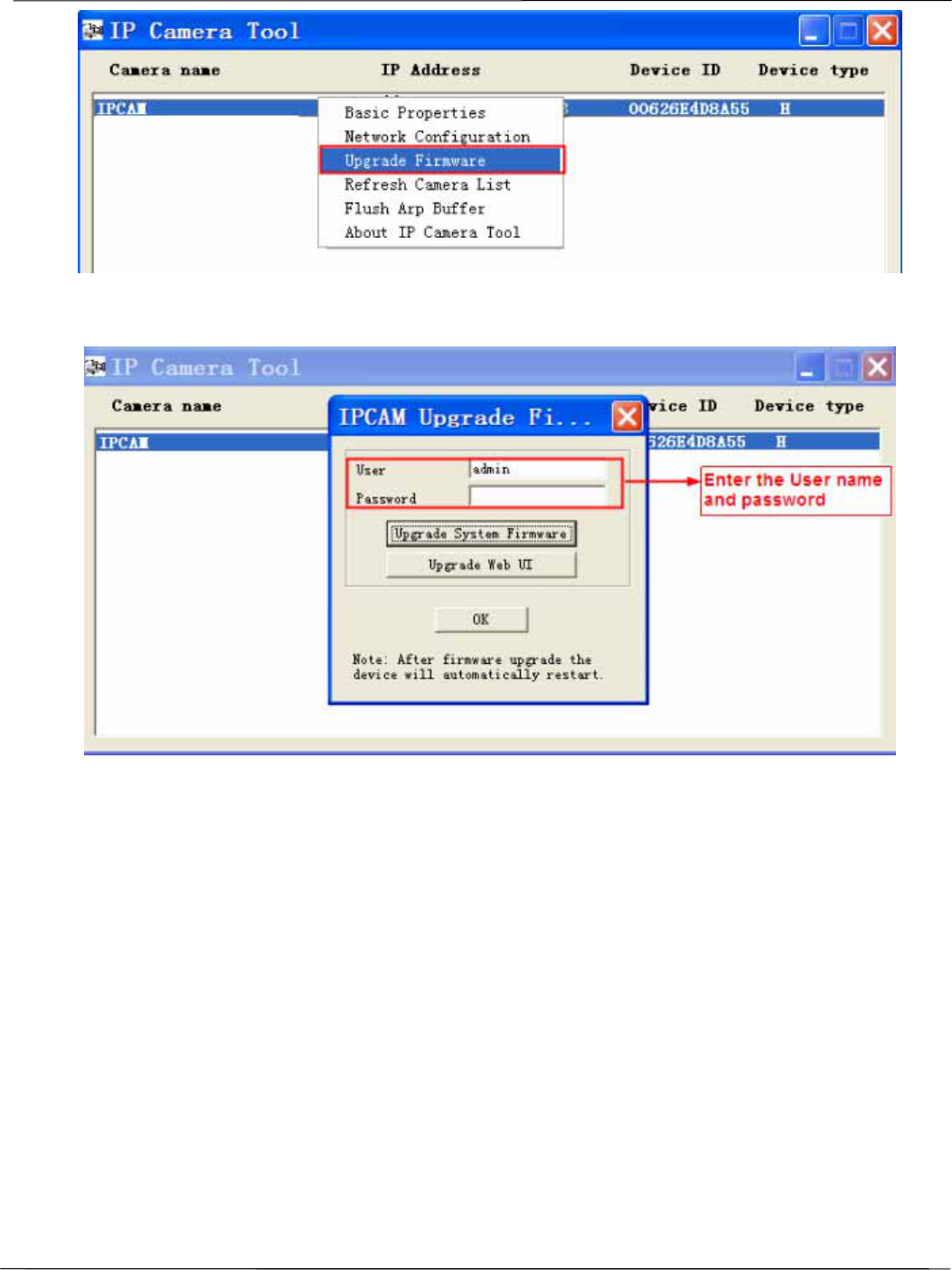

Figure 4.83

Figure 4.84

CAUTION: If your camera works well with the current firmware, we recommend not upgrading. Please don’t

upgrade the firmware unnecessarily. Your camera may be damaged if misconfigured during an upgrade.

NOTE:

Before upgrade the firmware, please unplug the SD card and reboot the camera, don’t upgrade the firmware in

WAN through the web UI, or else the upgrade process may be failed.

Please ensure you have download the correct firmware package for your camera before upgrading. Read the

upgrade documentation (readme.txt file) in the upgrade package before you upgrade.

Upon downloading the firmware check the sizes of the bin files. They must match the size in the readme.txt

file. If not, please download the firmware again until the sizes are the same. Your camera will not function

correctly if a corrupt .bin file is used.

Normally, only Device WEB UI need to be upgrade, please do not try to upgrade the Device System Firmware.

1) Never shut down the power of the camera during upgrade until the IP camera restart and get connected.

2) After upgrade successfully, please uninstall the old plugin and re-install it, then reset the camera to the

default factory settings before using the camera.

www.foscam.com

Shenzhen Foscam Intelligent Technology Co., Limited

Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 77

4.9.3 Factory Reset

Click All reset and all parameters will return to factory settings if selected. This is similar to press the Reset

button on the bottom of the camera.

Figure 4.85

4.9.4 Reboot

Click Reboot System to reboot the camera. This is similar to unplugging the power to the camera.

Figure 4.86

5 Playback

On this page you can view the record files stored in the SD card.

www.foscam.com

Shenzhen Foscam Intelligent Technology Co., Limited

Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 78

Section 1 Define the Record files time and Type

: The storage path of record files

: Here supports three types: current day, current month and All records. Another way,

select the time on the time&date manually.

: The type of records files, Here supports two typs: Normal record, Alarm record and

All records.

: Click this button to search all record files satisfy the conditions you selected.

Section 2 Search record files

On this panel you can see all record files satisfy the conditions you set.

Section 3 Play/Stop/Audio/Full screen buttons

Please select one record file before use these buttons.

Click this button to play the record files

Click this button to stop the record files

Open or stop audio

Click this button to make full screen, and double click left mouse to exit full screen.

NOTE：FI9818W and FI9808P don’t support this function.

www.foscam.com

Shenzhen Foscam Intelligent Technology Co., Limited

Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 79

6 APPENDIX

6.1 Frequently Asked Questions

NOTE: Any questions you would meet, please check Network connections firstly. Check the working status

revealed by the indicators on the network server, hub, exchange and network card. If abnormal, check the

network connections.

6.1.1 How to download and installl the ActiveX for Firefox users

For the first time login the camera, it may prompt you to download plugin.

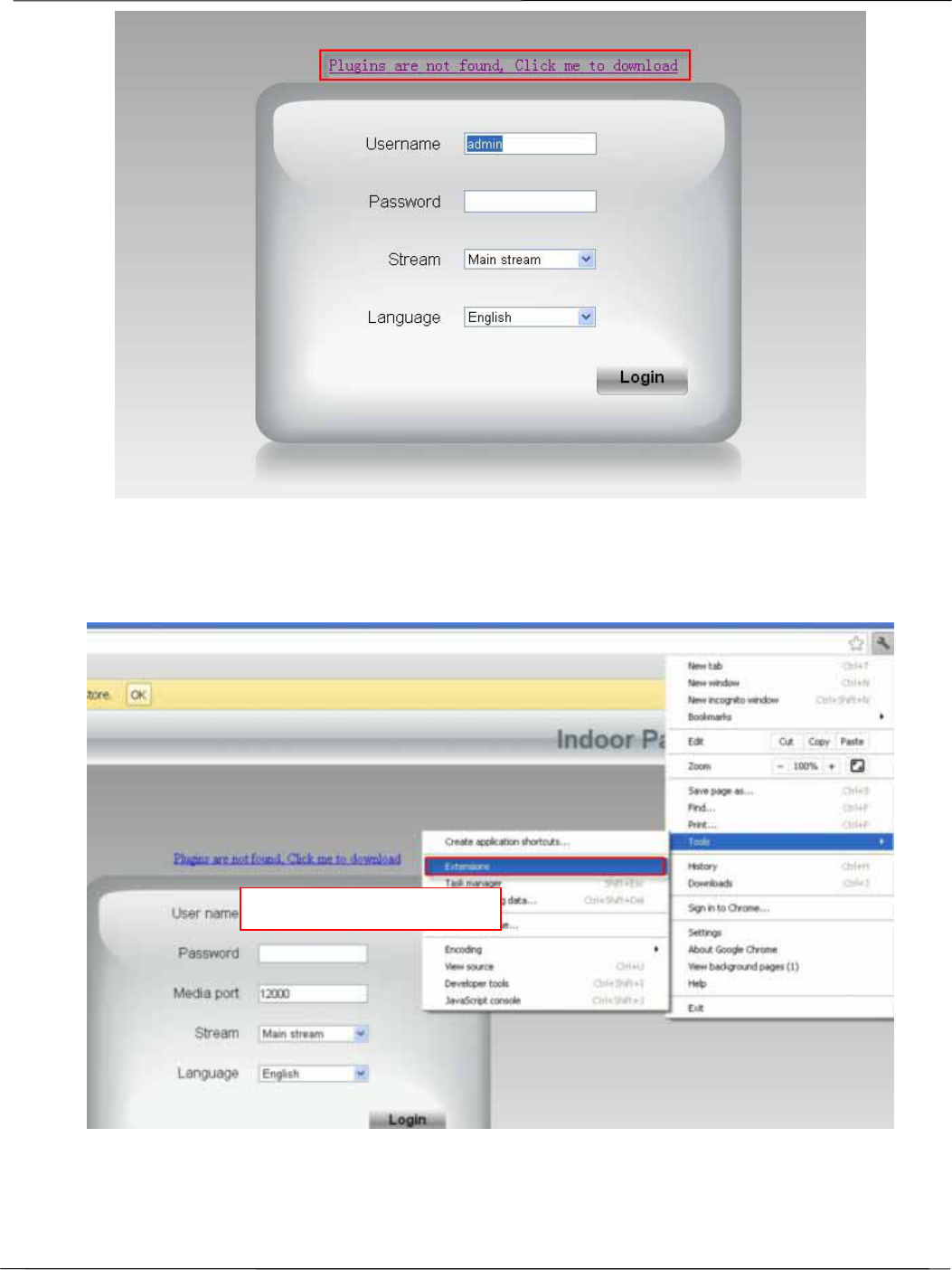

Figure 6.1

Drag the download file to Firefox web page and it will prompt you to Install it.

Click here to download

the plugin.

www.foscam.com

Shenzhen Foscam Intelligent Technology Co., Limited

Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 80

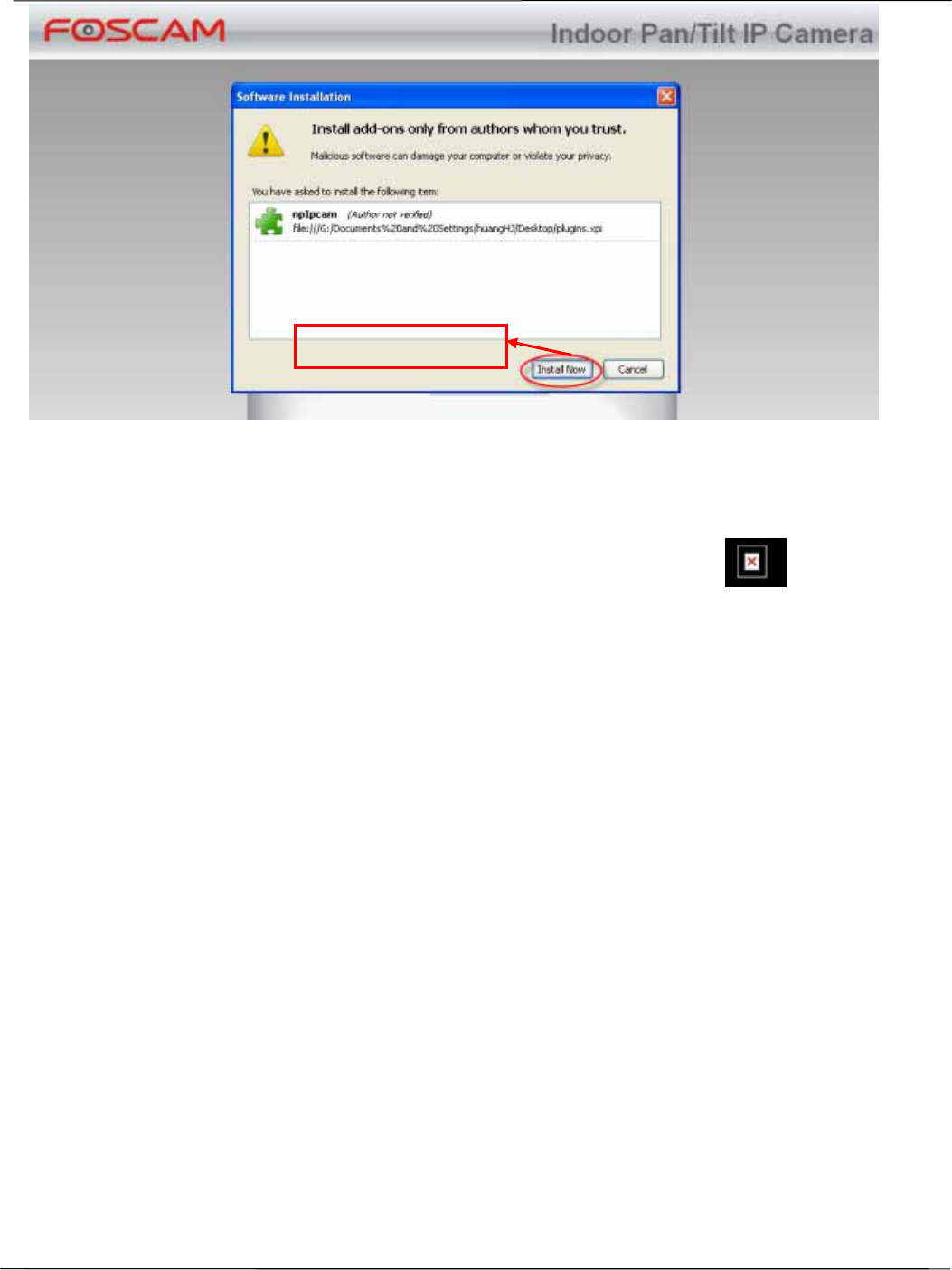

Figure 6.2

Reboot the Firefox after the plugin installation is successfully completely, then relogin the camera again, you

can see the surveillance window

NOTE: If you could not view living video after running the ActiveX, only a red cross in the center of the

video or just a black screen. Please change another port number to try.

Make sure all firewall or antivirus software on your computer does not block the active download and

installation. If you are unable to run the ActiveX control, try shutting down the firewall or antivirus program.

6.1.2 How to download and install the ActiveX for Google Chrome users ?

For the first time login the camera, it will prompt you to download the ActiveX..

Click Install Now.

www.foscam.com

Shenzhen Foscam Intelligent Technology Co., Limited

Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 81

Figure 6.3

Download the plugin and drag it to the Extensions page of Google Chrome.

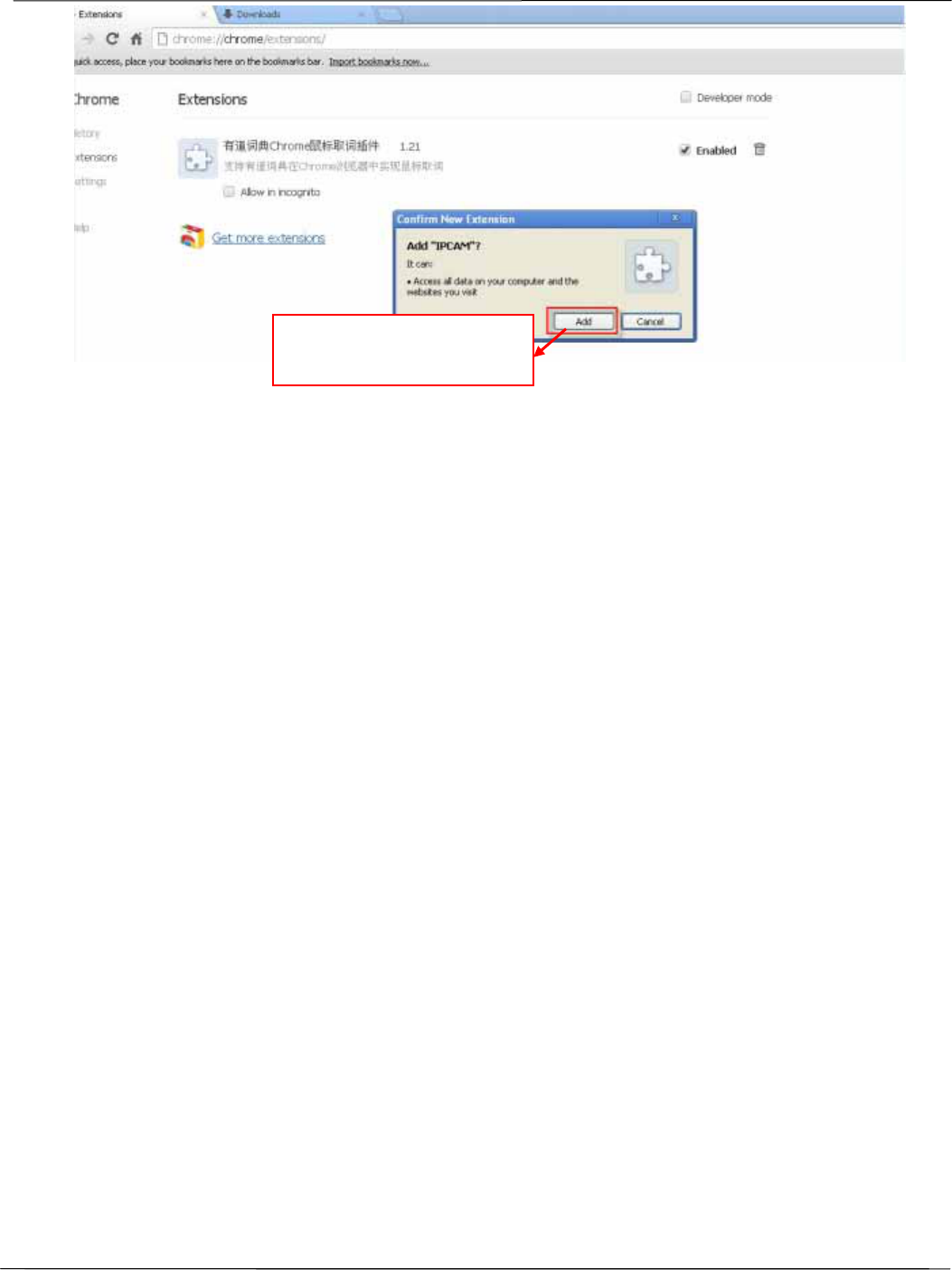

Figure 6.4

Click Add button to install the Plugins.

Go to Extensions page

www.foscam.com

Shenzhen Foscam Intelligent Technology Co., Limited

Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 82

Figure 6.5

Reboot the browser and relogin the camera, you will see the surveillance window.

6.1.3 I have forgotten the administrator password

To reset the administrator username and password, press and hold down the RESET BUTTON for 5 seconds.

Upon releasing the reset button, wait for 20 seconds, the camera will reboot and the username and password

will return to the factory default administrator username and password. Please power on the camera before

reset

Default administrator username: admin

Default administrator password: No password

6.1.4 Camera can not record when I click Record button or I can’t change the

manually record path

When you use Windows7 or Vista, you may be not able to do manually record or change the record path

because of the security settings of computer.

There are two ways to resolve this problem:

Please add the camera as a trusted site to resolve this issue. The steps are ：

IE browserToolInternet PropertiesSecurityTrusted sitesSitesAdd

Open IE browser, then right click, select “Run as administrator”

6.1.5 Subnet doesn’t match

Check whether your ipcamera in the same subnet of your computer. The step is Control PanelNetwork

ConnectionsDbclick Local Area Connections  Choose GeneralProperties.Check subnet mask, IP

Click Add button to install

the plugin

www.foscam.com

Shenzhen Foscam Intelligent Technology Co., Limited

Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 83

address and gateways. When you set IP address please make sure they are in the same subnet. Otherwise

you can't access camera.

6.1.6 No Pictures Problems

The video streaming is transmitted by the ActiveX controller. If ActiveX controller isn’t installed correctly you will

see no video image. You can resolve this problem by this way:

Download ActiveX controller and set the safety property of IE in the PC when you view it first time: IE

browserToo lInternet ProperSecurityCustom LevelActiveX control and Plug-ins. Three options of

front should be set to be “Enable”, The ActiveX programs read by the computer will be stored. As follows:

Enable: Download unsigned ActiveX controls

Enable: Initialize and script ActiveX controls not marked as safe

Enable: Run ActiveX controls and plug-ins

Figure 6.6

If you allow the ActiveX running, but still could not see living video. Please change another port number to try.

Don’t use port 88.

Figure 6.7

NOTE: Make sure that your firewall or anti-virus software does not block the camera or ActiveX. If you could

www.foscam.com

Shenzhen Foscam Intelligent Technology Co., Limited

Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 84

not see video, please shut down firewall or anti-virus software to try again.

6.1.7 Can’t access IP camera in internet

There are some reasons:

1、ActiveX controller is not installed correctly

2、The port which camera used is blocked by Firewall or Anti-virus software. Please change another port

number and try again.

3、Port forwarding is not successful

Check these settings and make sure they are correct.

6.1.8 UPnP always failed

UPnP only contains port forwarding in our recent software. Sometimes, it may be failed to do port forwarding

automatically because of firewall or anti-virus software. It also has much relation with router’s security settings.

So we recommend you do port forwarding manually. You can view your camera in internet successfully after

you do port forwarding manually in your router (Figure 4.30).

6.1.9 Camera can not connect wireless

If your camera could not connect wireless after you set wireless settings and plug out the cable. Please check

whether your settings are correct or not.

Normally, camera can’t connect wireless mainly because of wrong settings.

Make sure broadcast your SSID; use the same encryption for router and camera.

6.1.10 Can’t see other cameras listed in multi-device when using remote access

If you want to view all the cameras via the WAN, verify that each camera added in the multi-device settings can

be accessed by using the DDNS name and port number. Use the DDNS domain name not the camera’s LAN

IP. (For more details see: How to add cameras in WAN)

6.2 Default Parameters

Default network Parameters

IP address: obtain dynamically

Subnet mask: obtain dynamically

Gateway: obtain dynamically

DDNS: Embedded FOSCAM domain name

Username and password

Default admin username: admin with a blank password

www.foscam.com

Shenzhen Foscam Intelligent Technology Co., Limited

Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 85

6.3 Specifications

ITEMS FI9831EP

Image Sensor

Sensor High Definition Color CMOS Sensor

Display Resolution 1280 x 720 (1Megapixel)

Min. Illumination 0 Lux (With IR Illuminator)

Lens

Lens Type Glass Lens

focal length f:2.8mm

Aperture F:2.4

Angle of View 70°

Video

Image Compression H.264

Image Frame Rate 30fps maxmium, downward adjustable

Resolution 720P(1280 x 720), VGA(640 x 480), VGA(640 x 360),

QVGA(320 x 240), QVGA(320 x 180)

Stream dual stream

Image adjustment The hue, brightness, contrast, saturation, sharpness are

adjustable

Flip image flip and mirror

Infrared mode Automatic or manual

Pan/Tilt Angle Horizontal:300° & Vertical: 120°

Night visibility 11pcs IR-LEDs, night vision range up to 8 metres

Audio

Input/Output Supports two-way audio

Built-in Mic & Speaker

3.5mm audio jack for external Mic & Speaker

Audio Compression PCM/G.726

Network

Ethernet One 10/100Mbps RJ45 port

Remote Access P2P, DDNS

Network Protocol IP, TCP, UDP, HTTP, HTTPS, SMTP, FTP, DHCP, DDNS, UPnP,

RTSP, ONVIF

System

Requirements

Operating System Microsoft Windows 2000/XP, Vista, 7, 8;

Mac OS

iOS、Android

Browser Microsoft IE7 and above version or compatible browser;

Mozilla Firefox;

Google Chrome;

Apple Safari.

Other Features

Motion Detection Alarm via E-Mail, upload alarm snapshot to FTP

Privacy Zone Set privacy zone manually

User Accounts Three levels user role

Firewall Supports IP Filtering

Storage SD card and local storage

www.foscam.com

Shenzhen Foscam Intelligent Technology Co., Limited

Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 86

Reset Reset button is available

Power

Power Supply PoE, DC 5V/2.0A

Power Consumption 8.0 Watts (Max.)

Physical

Dimension(LxWxH) 117(L)*114(W)*129(H) mm

Gross Weight 680g

Net Weight 350g

Environment

Operate Temper. 0° ~ 40°C (32°F ~ 104°F)

Operating Humidity 20% ~ 85% non-condensing

Storage Temper. -10°C ~ 60° (14°F ~ 140°F)

Storage Humidity 0% ~ 90% non-condensing

Certification CE, FCC, RoHS

Warranty Limited 2-year warranty

Attention: Power adapter should be used between 0℃-40 , and 5%℃-90% relative humidity.

6.4 CE & FCC

Electromagnetic Compatibility (EMC)

FCC Statement

Any Changes or modifications not expressly approved by the party responsible for compliance could void the

user's authority to operate the equipment.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)

This device may not cause harmful interference, and (2) this device must accept any interference received,

including interference that may cause undesired operation.

CE Mark Warning

This is a Class B product. In a domestic environment, this product may cause radio interference, in which case

the user may be required to take adequate measures.

6.5 WARRANTY

ShenZhen FOSCAM Intelligent Technology Limited.("FOSCAM") values your business and always attempts to

provide you the very best of service.

No limited hardware warranty is provided by FOSCAM unless your FOSCAM product ("product") was

purchased from an authorized distributor or authorized reseller. Distributors may sell products to resellers who

then sell products to end users. No warranty service is provided unless the product is returned to an authorized

www.foscam.com

Shenzhen Foscam Intelligent Technology Co., Limited

Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 87

return center in the region where the product was first shipped by FOSCAM or to the point-of-purchase, which

may have regional specific warranty implications.

If you purchase your FOSCAM product from online store, please contact the point-of-purchase and ask

for return/replacement/repair service.

Hardware Warranty Information

FOSCAM provide 2-year limited warranty for naked product and 6-month limited warranty for accessories.

Limited Hardware Warranty

 FOSCAM products are warranted to be free from manufacturing defects in materials and workmanship

starting from the shipping date of FOSCAM.

This limited hardware warranty does not cover:

 Software, including the software added to the products through our factory-integration system, software

that included in the CD,etc.

 Usage that is not in accordance with product instructions.

 Failure to follow the product instructions.

 Abuse firmware upgrade without the authorized technician’s guidance.

 Normal wear and tear.

Return Procedures

 Please read FOSCAM warranty policy & policy of your reseller first before sending items back to

point-of-purchase.

 Customer must first contact point-of-purchase to obtain a Return Merchandise Authorization (RMA)

number before returning the product. If the product you received is suspected to be defective and the

product warranty has not expired, The RMA number will allow your reseller to track your return much

easier and help them expedite processing your request.

 After receiving your RMA case number, pack the item(s) very well with the original box and all the original

accessories included such as power adapters, brackets, cables, manuals, and driver CD disks.

 Write your RMA number and the return reason (the problem of the product) on the warranty card along

with the complete package to send them back.

Replacement Services

 If customers ask for replacement service, please contact point-of-purchase and follow their policy.

 Our technicians will inspect all items returned for replacement requests. If the retuned product is found in

working order, we will return the same item received. However customers shall be responsible for all

shipping & handling charges incurred for getting the units back to customers.

 If returned products are found defective, we will replace the product and assume the shipping cost for

sending back the replacement unit to customers.

 If for any reason, we are unable to provide a replacement of the original returned item(s). You will have a

choice for a “Substitute” item at the same equal value.

 We do not provide exchange and replacement due to normal hardware upgrade according the market

www.foscam.com

Shenzhen Foscam Intelligent Technology Co., Limited

Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 88

after 14 days after the product is delivered.

 Our technicians will test the product before send out the replacement, any other demand for more than

two times replacement for the same product during replacement limit will be rejected.

 Replaced products are warranted from the balance of the former warranty period.

Warranty Forfeiture

 Warranty is void if purchase from unauthorized distributor or reseller.

 Warranty is void if trade-mark, serial tags, product stickers have been removed, altered or tampered with.

 Warranty is void for mishandling, improper use, or defacing the product.

 Abuse firmware upgrade without the authorized technician’s guidance.

 Warranty is void for physical damage, altered, either internally or externally, improper or inadequate

packaging when returned for RMA purposes.

 Warranty is void if damage has resulted from accident, dismantle, abuse, or service or modification by

someone other than the appointed vendor, souse, fission or the spare part has been over the period of

warranty.

 Warranty is void if product is damaged due to improper working environment or operation. (For example,

improper temperature, humidity, unusual physical or electrical stress or interference, failure or fluctuation

of electrical power, static electricity, using wrong power adapter, etc.)

 Warranty is void if damaged by the use of parts not manufactured or sold by FOSCAM.

 Damage caused by improper installation of third-party products.

 Warranty is void if damaged for irresistible cause, such as earthquake, fire, lightning, flood, etc.

 Product beyond limited warranty.

Shipping Fee

 If products are defective or damaged under normal use or operation in the replacement limit, distributors

or resellers are responsible for the shipping cost the product back to customers, customers should

assume the shipping cost send the product to the point-of-purchase.

 During replacement limit, if customers ask for replacement due to the product does not fit for customer’s

personal expectation, customers should responsible for both shipping fee.

 Customers shall be responsible for both shipping fee if their product beyond the replacement limit but still

in warranty limit.

Repair Service Out Of Warranty

 FOSCAM provide extra repair service for product that out of warranty, it is chargeable. The total fee

contains device cost and service fee. Device cost (including accessories) is the standard uniform price

provide by FOSCAM.

 Different region may have different service fee, please contact the point-of-purchase to confirm that before

you ask for this service.

 Our technicians will quote the total price after detect the product, If customers refused to repair after the

quotation, customers need pay for the test fee, $3.5/hour. If agree with the quotation, test will be free.

 Repaired product out of warranty will obtains 3-month warranty from the date of the product back to

customers.

www.foscam.com

Shenzhen Foscam Intelligent Technology Co., Limited

Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 89

Limitation of Liability

 FOSCAM is not responsible for other extra warranty or commitment promised by resellers, if your reseller

promised some extra commitment or warranty; please ask for written documents to protect your rights and

interests.

 FOSCAM does not offer refunds under any circumstances. Please contact the point-of-purchase and

follow their refund/return policy.

 FOSCAM shall not be liable under any circumstances for any consequential, incidental, special or

exemplary damages arising out of or in any connection with this agreement or the products, including but

not limited to lost profits, or any claim based on indemnity or contribution, or the failure of any limited or

exclusive remedy to achieve its essential purpose or otherwise. Purchaser's exclusive remedy, as against

FOSCAM, shall be the repair or replacement of defective parts. If FOSCAM lists a product on its website

specification in error or that is no longer available for any reason, FOSCAM reserves the right to explain it

without incurring any liability.

Intelligent Technology Limited., registered in the U.S. and other countries.

7 OBTAINING TECHNICAL SUPPORT

While we hope your experience with the IPCAM network camera is enjoyable and easy to use, you may

experience some issues or have questions that this User’s Guide has not answered.

If you have problem with FOSCAM IP camera, please first contact FOSCAM reseller for solving the problems.

If our reseller cannot provide service, please contact our service department: tech@foscam.com

ShenZhen Foscam Intelligent Technology FI9831EP HD PoE IP Camera User Manual

ShenZhen Foscam Intelligent Technology Co., Ltd. HD PoE IP Camera

Users Manual

Navigation menu

Namespaces

Views

Navigation
