ShenZhen Foscam Intelligent Technology FI9851P HD Wireless IP Camera User Manual 1
ShenZhen Foscam Intelligent Technology Co., Ltd. HD Wireless IP Camera 1
Users Manual
User
User Manual
Manual
HD Wireless IP Camera
Model: FI9851P
Table of Contents
1Overviews........................................................................................................................................................................... 1
1.1 Key Features...........................................................................................................................................................1
1.2 Read Before Use....................................................................................................................................................1
1.3 Packing Contents................................................................................................................................................... 2
1.4 Physical Description.............................................................................................................................................. 2
1.4.1 Front Panel.................................................................................................................................................. 2
1.4.2 BottomView .................................................................................................................................................3
2 Accessing the Network Camera......................................................................................................................................4
2.1 Access the Camera in LAN.................................................................................................................................. 4
2.2 Access the Camera in WAN.................................................................................................................................5
2.2.1 Static IP Addresses.................................................................................................................................... 5
2.2.2 Dynamic IP Addresses...............................................................................................................................7

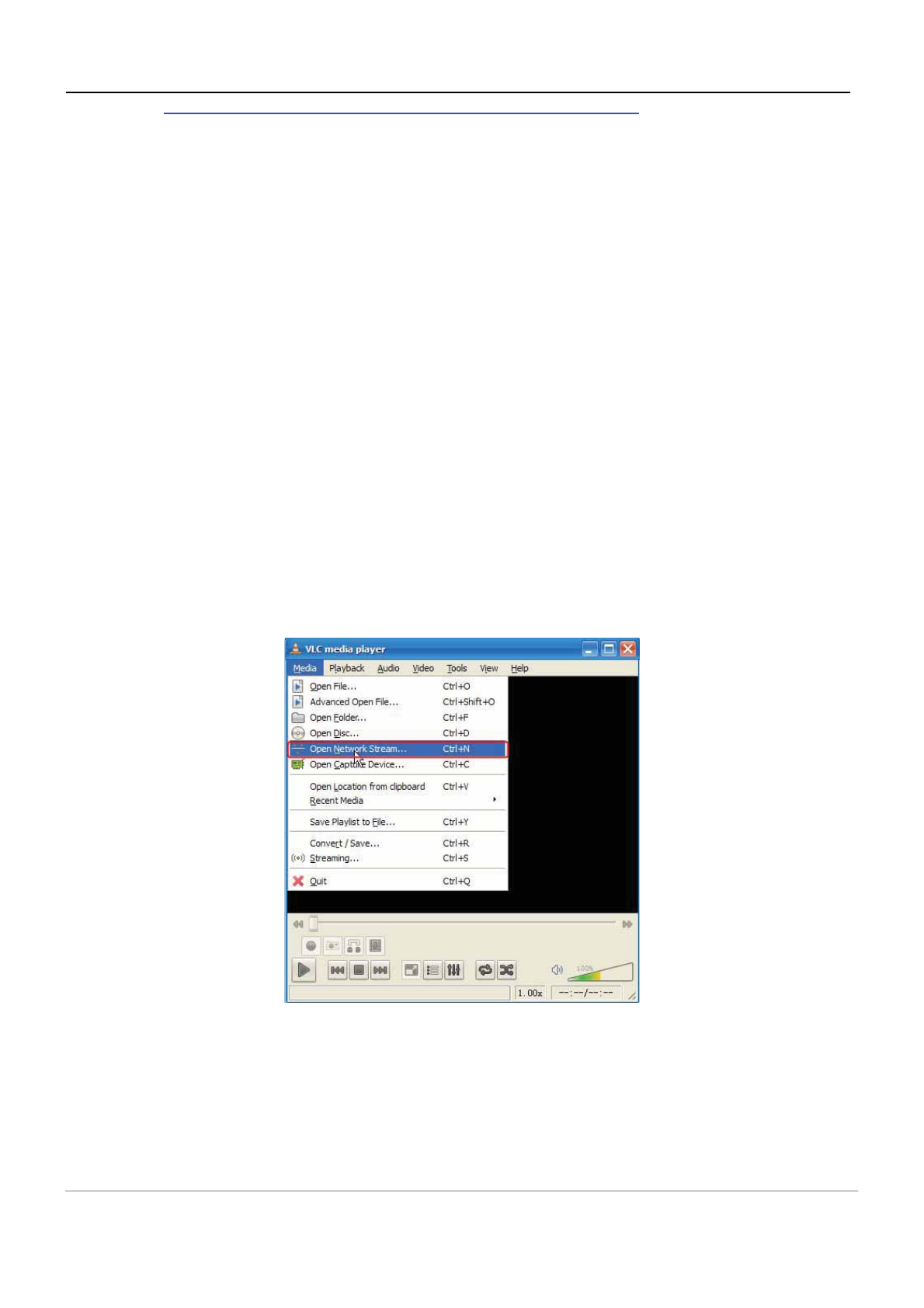

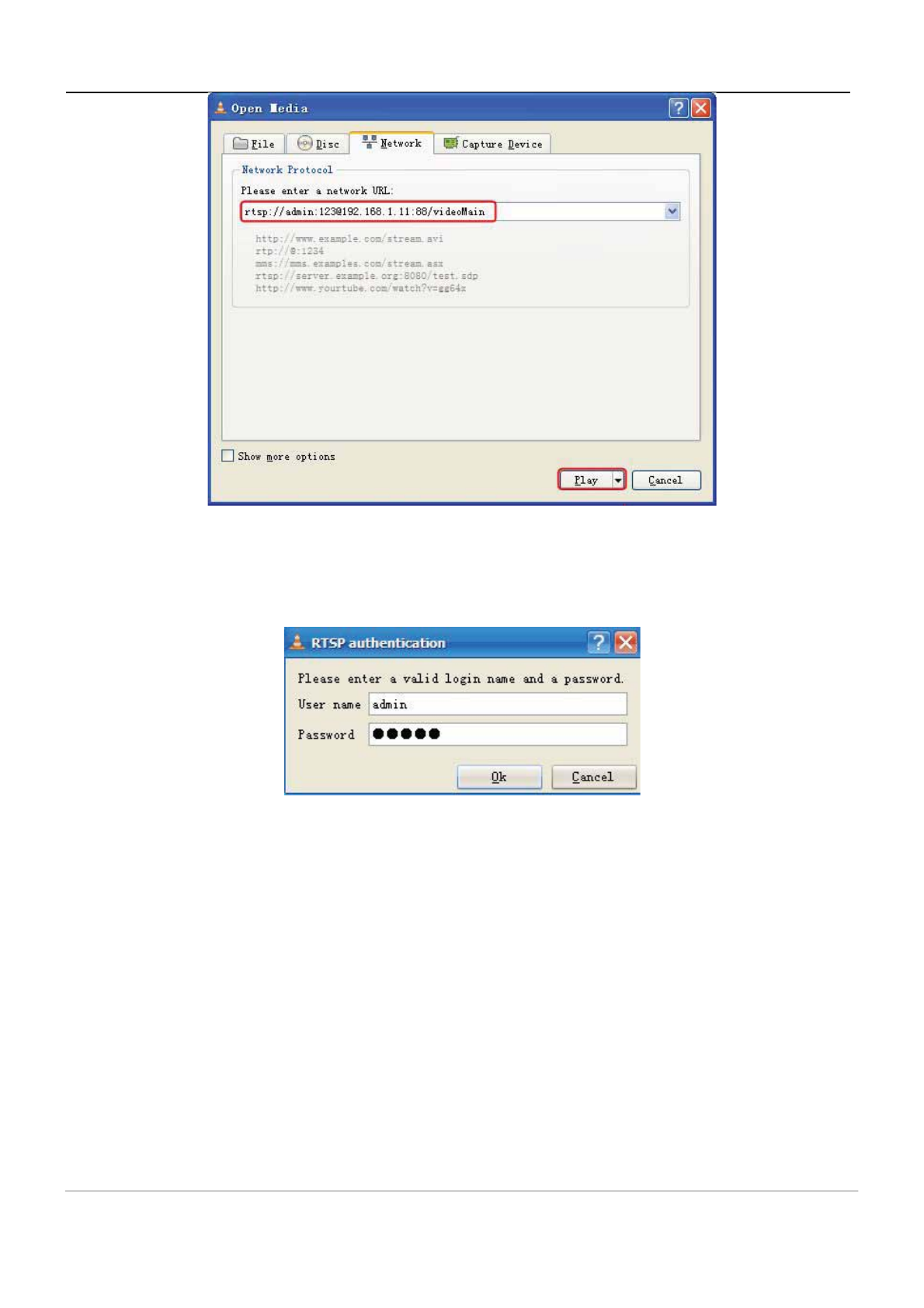

2.3 Using the VLC player.......................................................................................................................................... 10
3 Surveillance Software GUI.............................................................................................................................................12
3.1 Login Window....................................................................................................................................................... 13

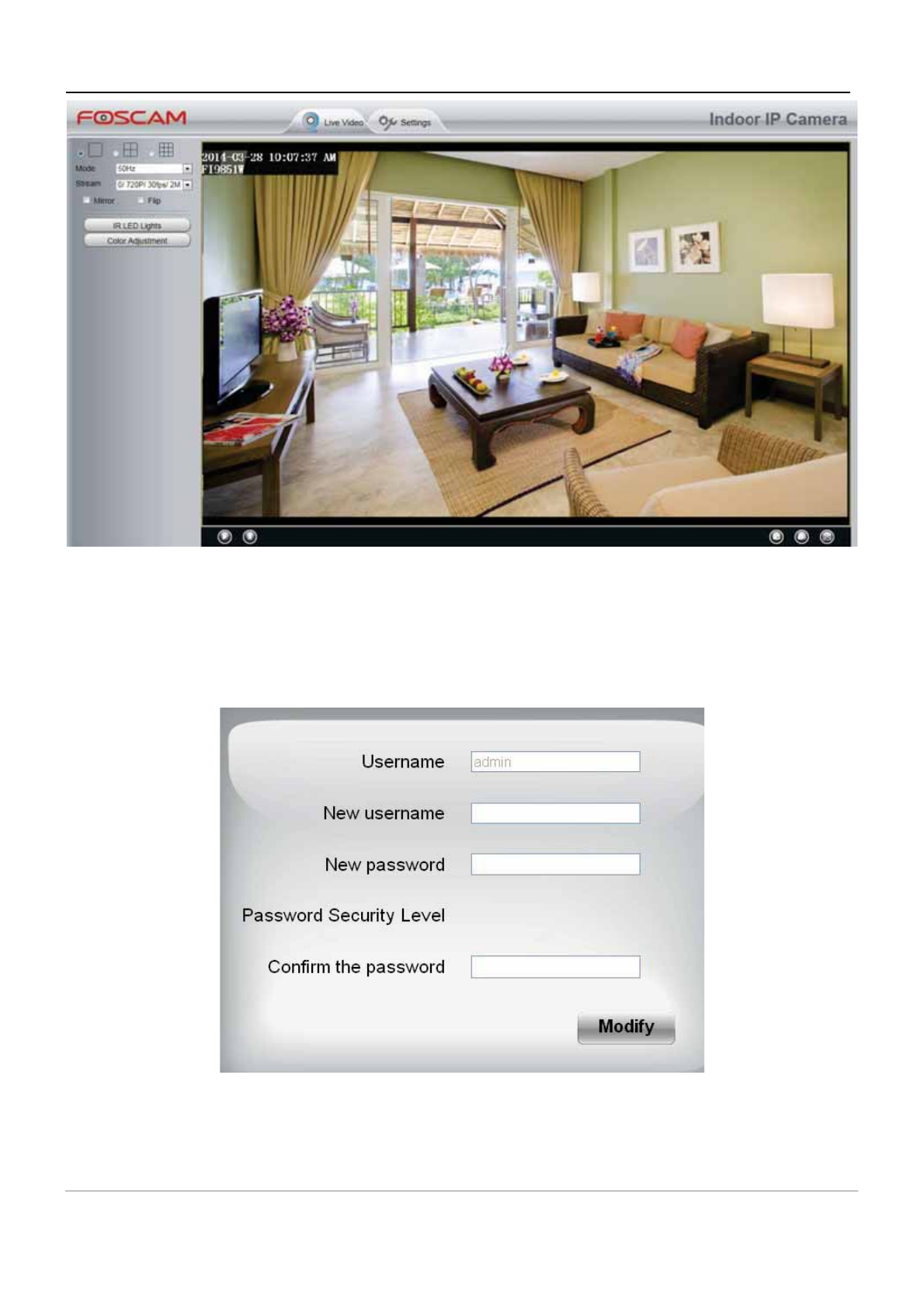

3.2 Modify the Username and Password............................................................................................................... 14

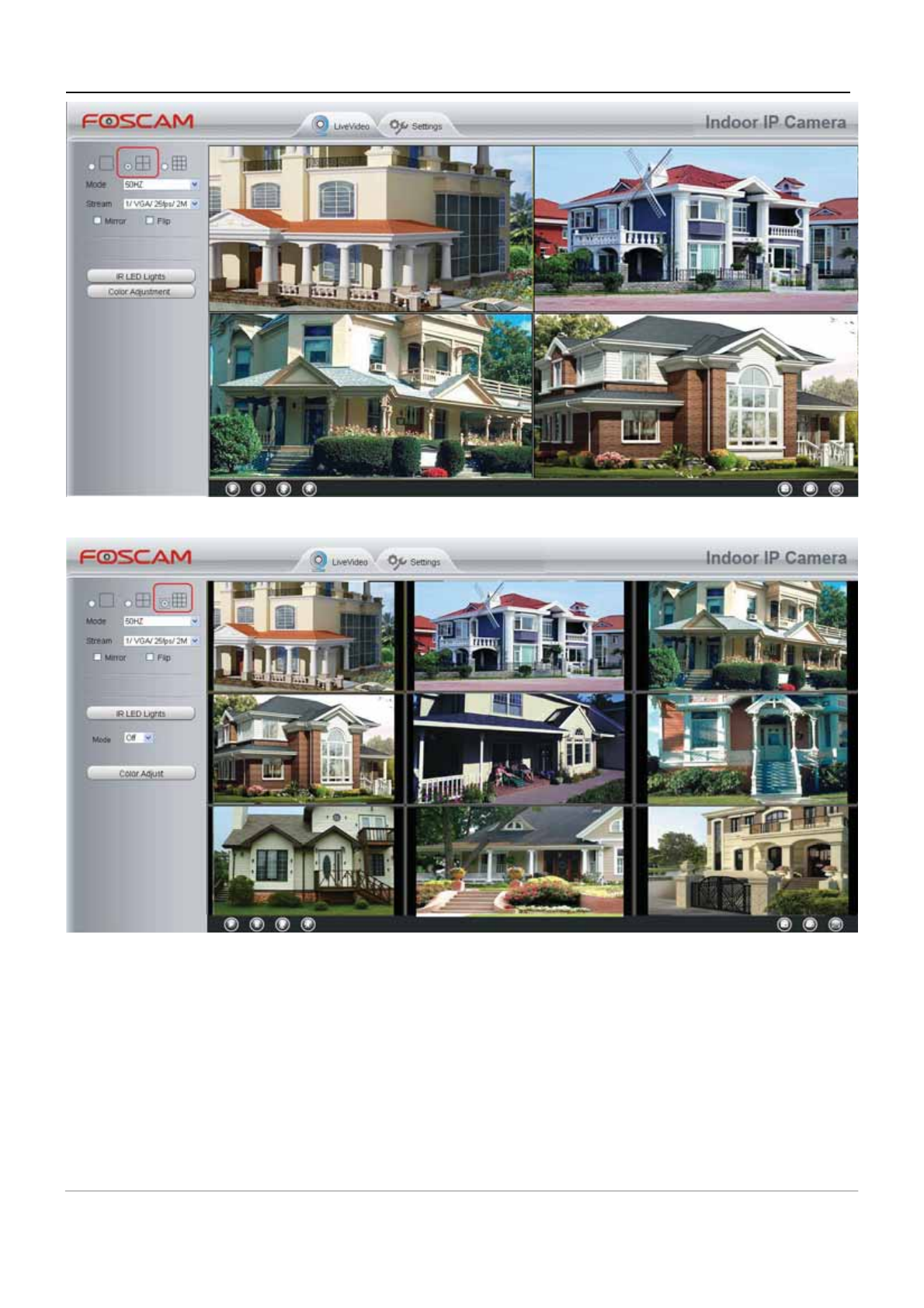

3.3 Surveillance Window........................................................................................................................................... 15
4 Advanced Camera Settings........................................................................................................................................... 20
4.1 Device Status........................................................................................................................................................20
4.1.1 Device Information................................................................................................................................... 20

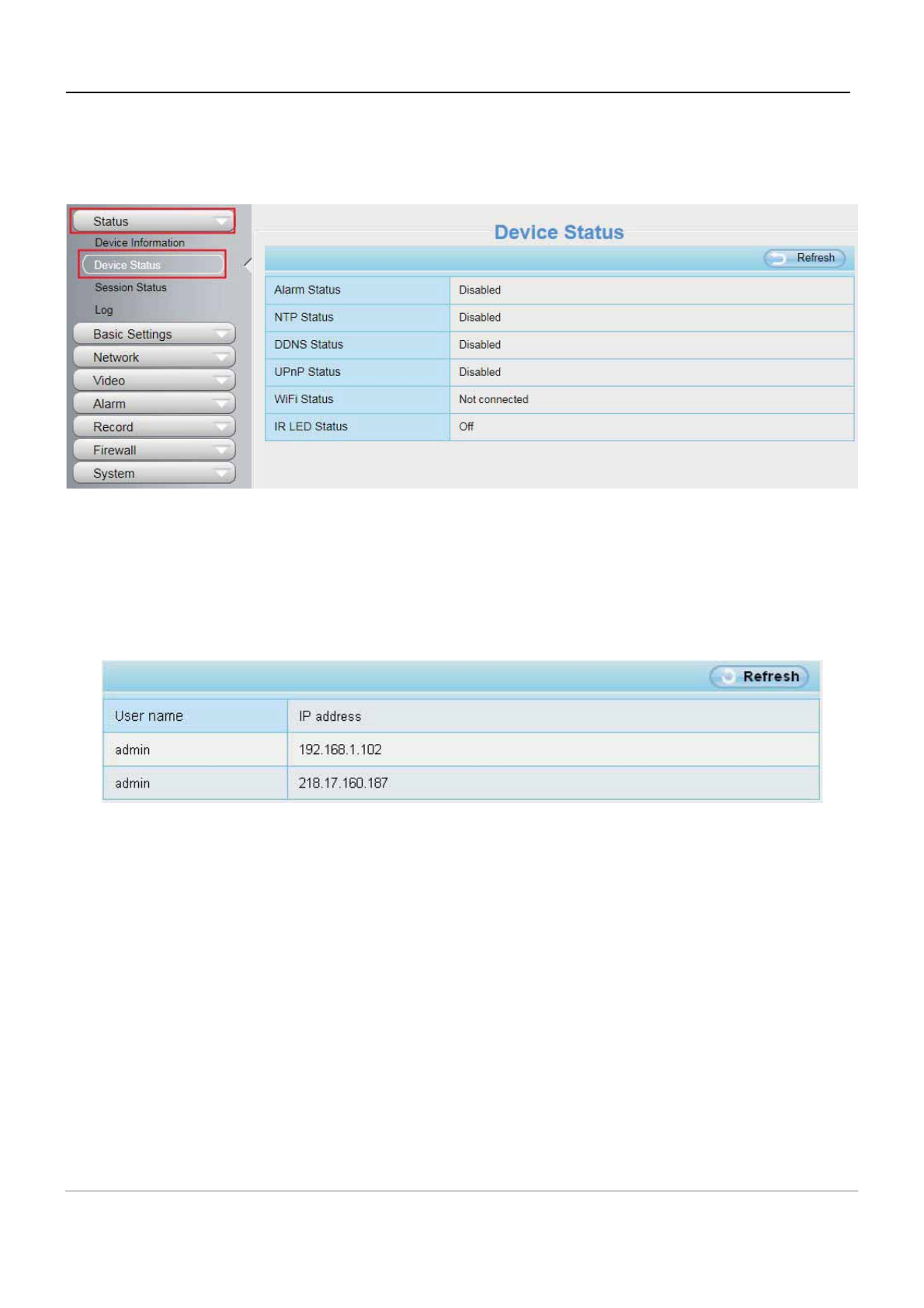

4.1.2 Device Status............................................................................................................................................ 21
4.1.3 Session status...........................................................................................................................................21
4.1.4 Log.............................................................................................................................................................. 21
4.2 Basic Settings.......................................................................................................................................................22
4.2.1 Camera Name...........................................................................................................................................22
4.2.2 Camera Time.............................................................................................................................................22

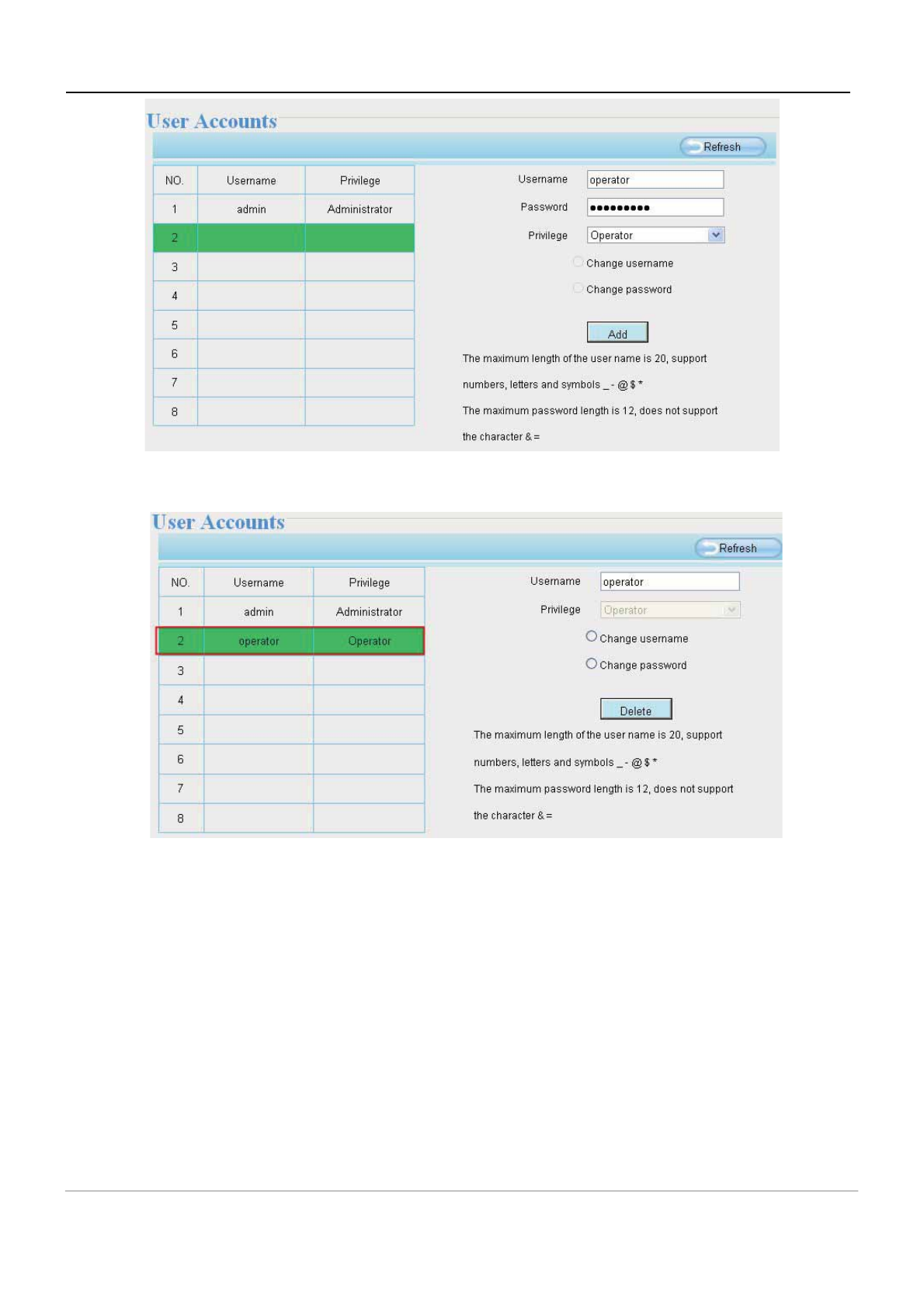

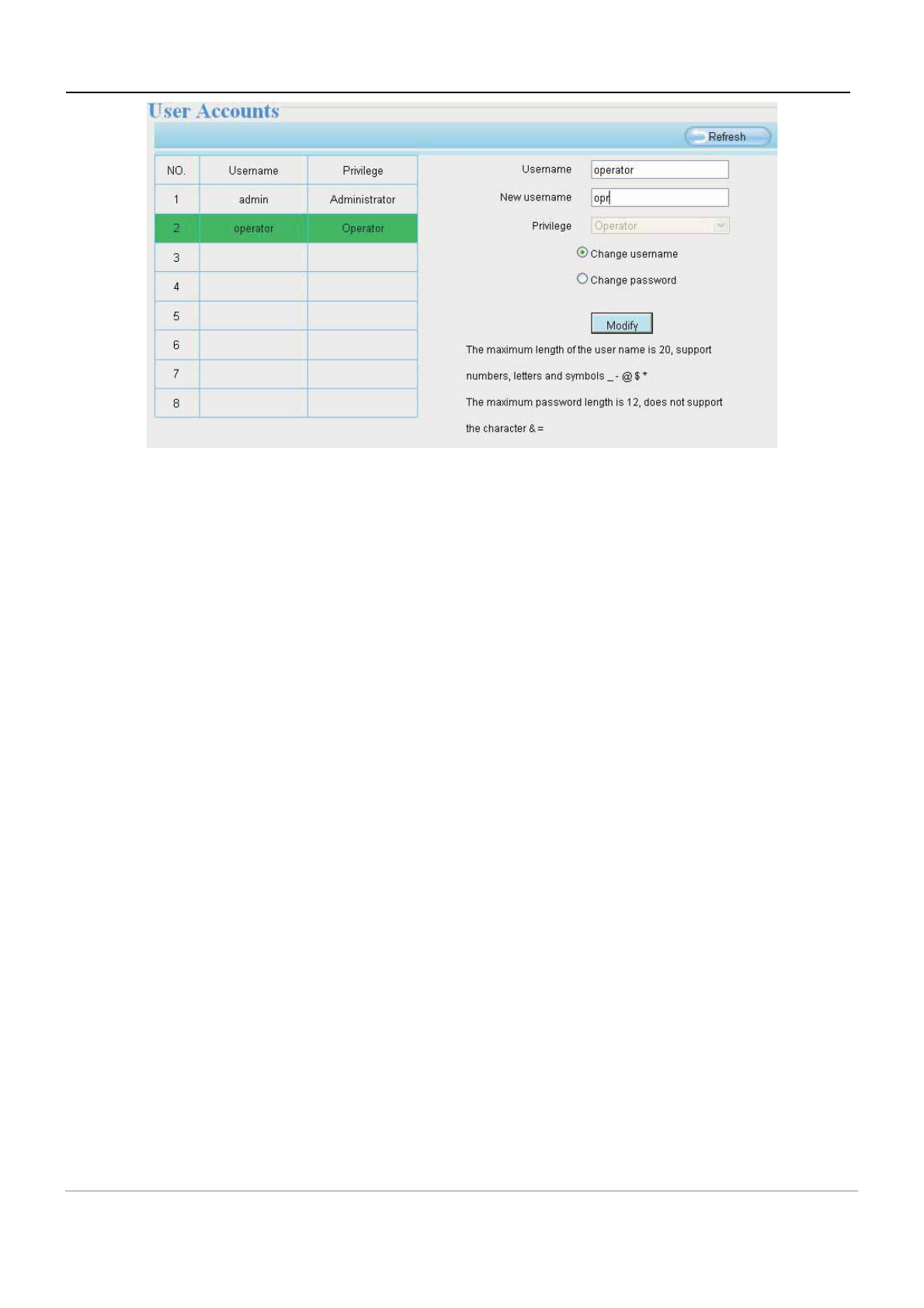

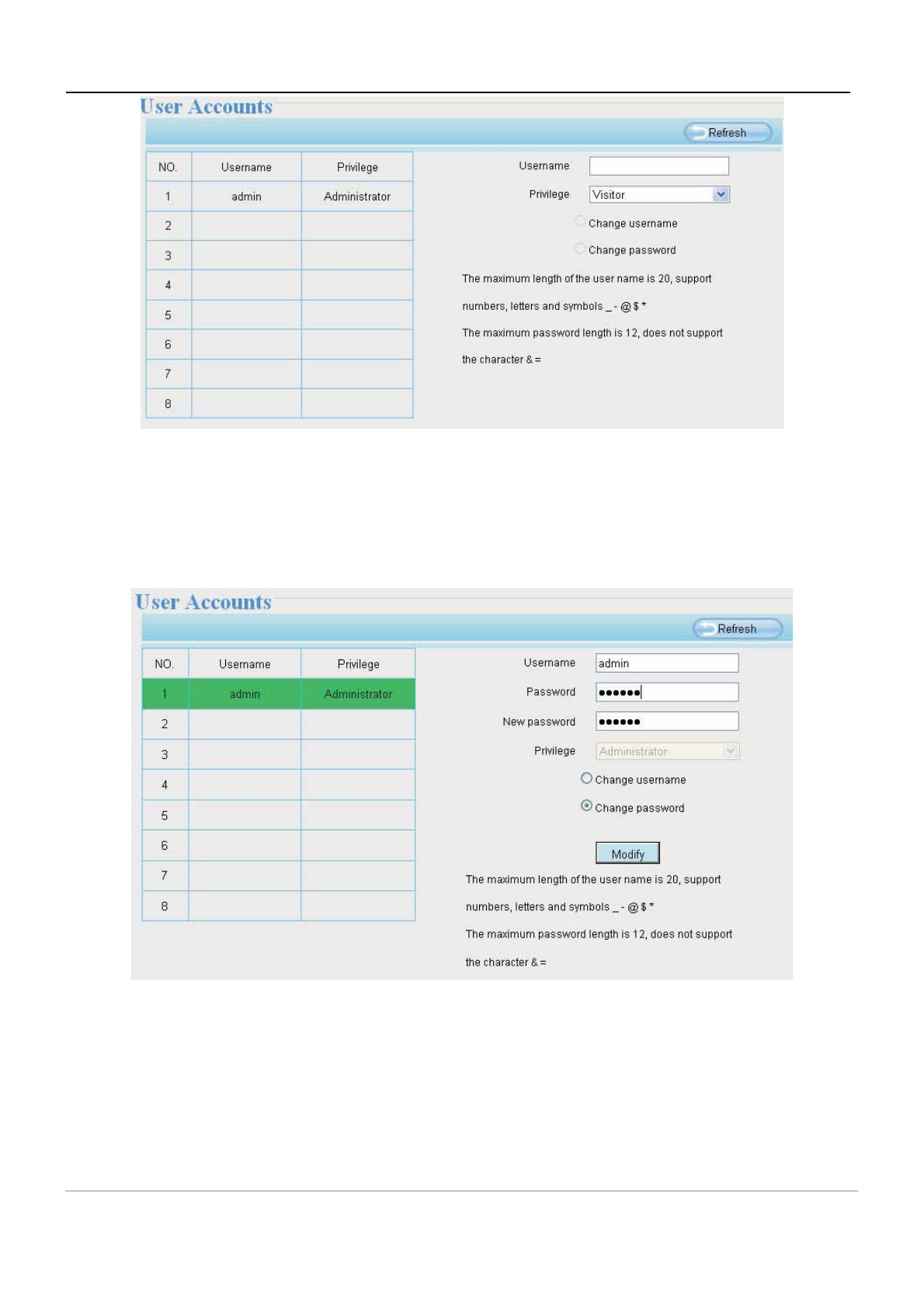

4.2.3 User Accounts........................................................................................................................................... 23

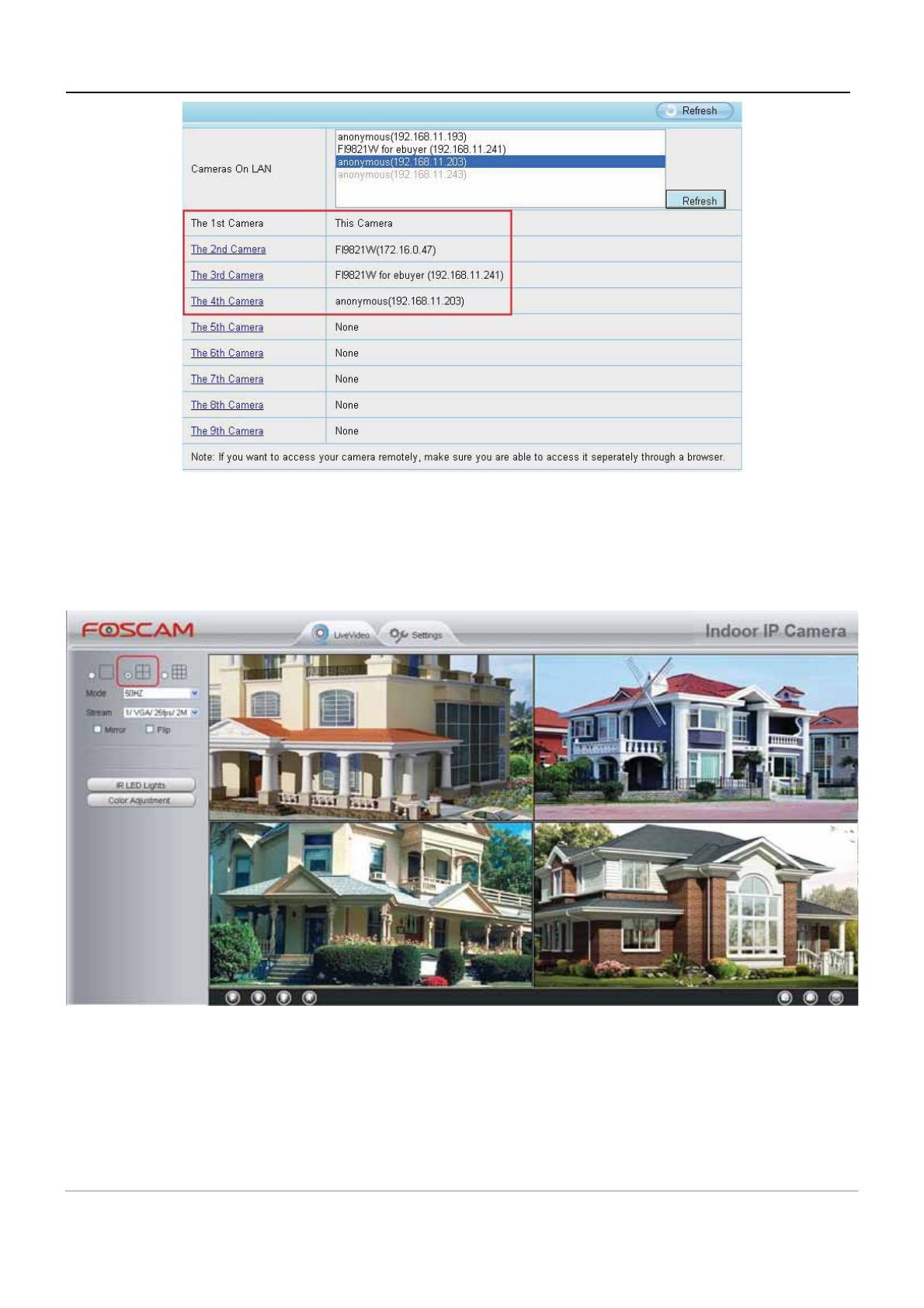

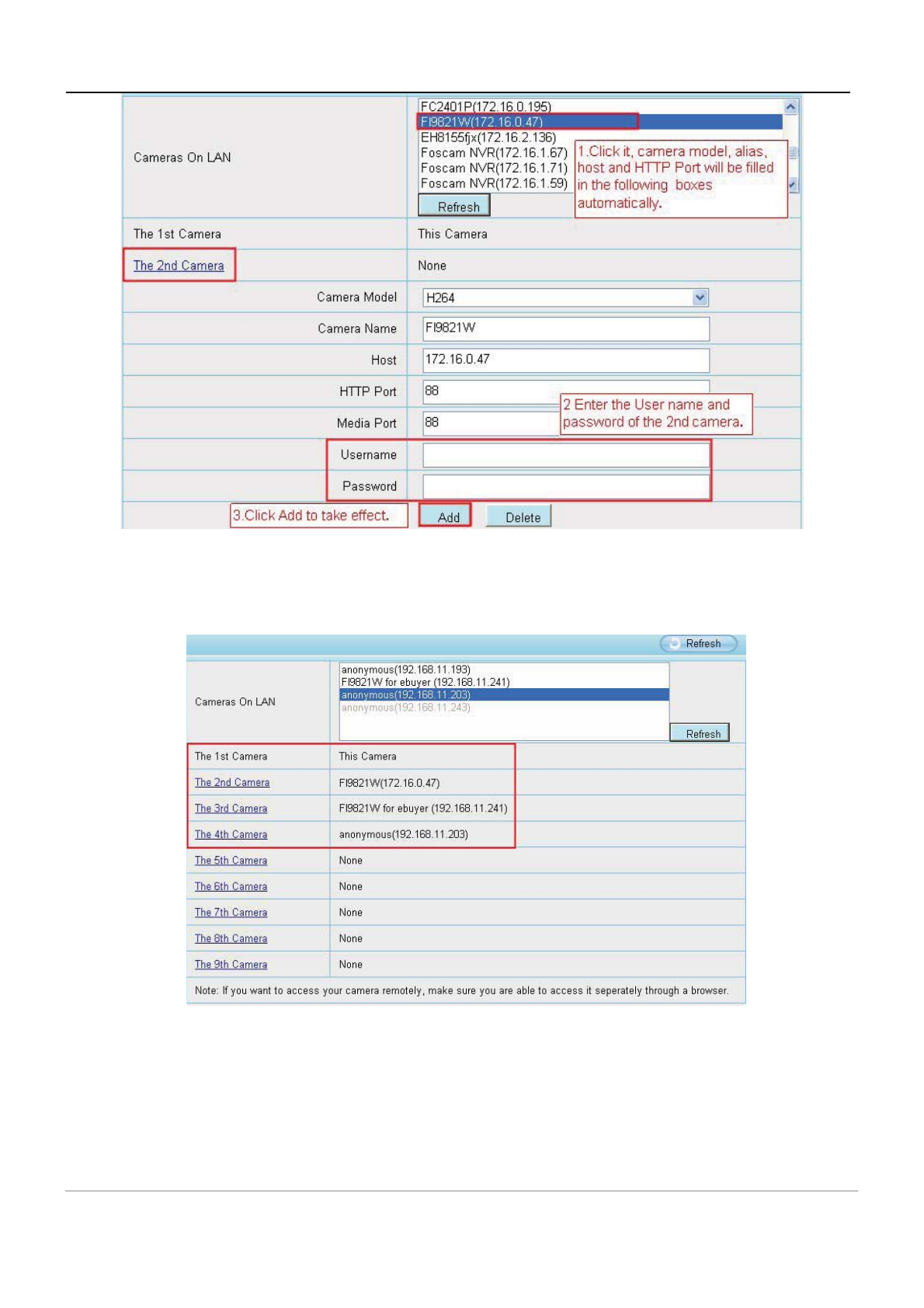

4.2.4 Multi-Camera.............................................................................................................................................26
4.3 Network..................................................................................................................................................................30
4.3.1 IP Configuration........................................................................................................................................ 31

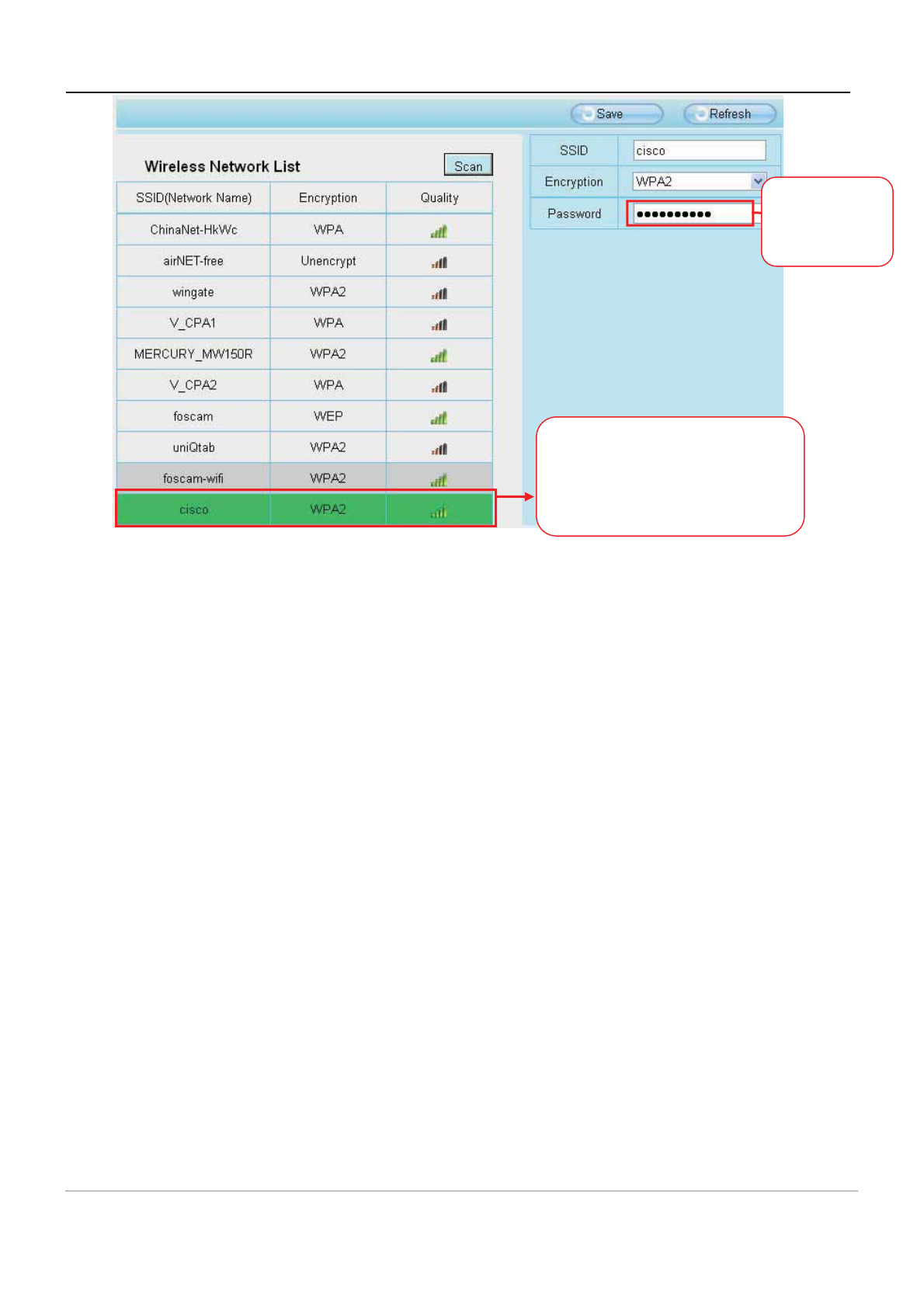

4.3.2 Wireless Settings......................................................................................................................................32

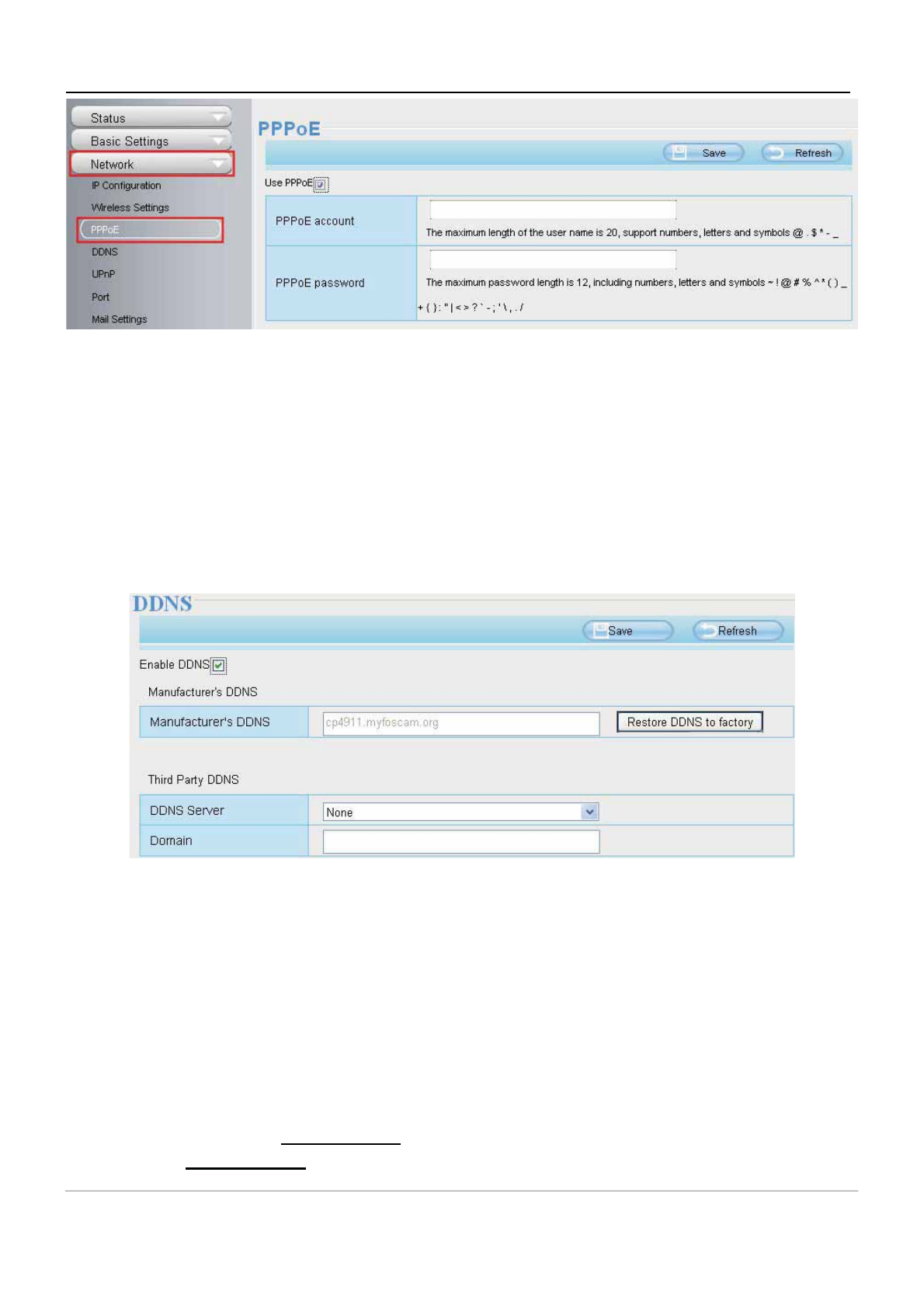

4.3.3 PPPoE........................................................................................................................................................ 34
4.3.4 DDNS..........................................................................................................................................................35
4.3.5 UPnP.......................................................................................................................................................... 38
4.3.6 Port..............................................................................................................................................................39

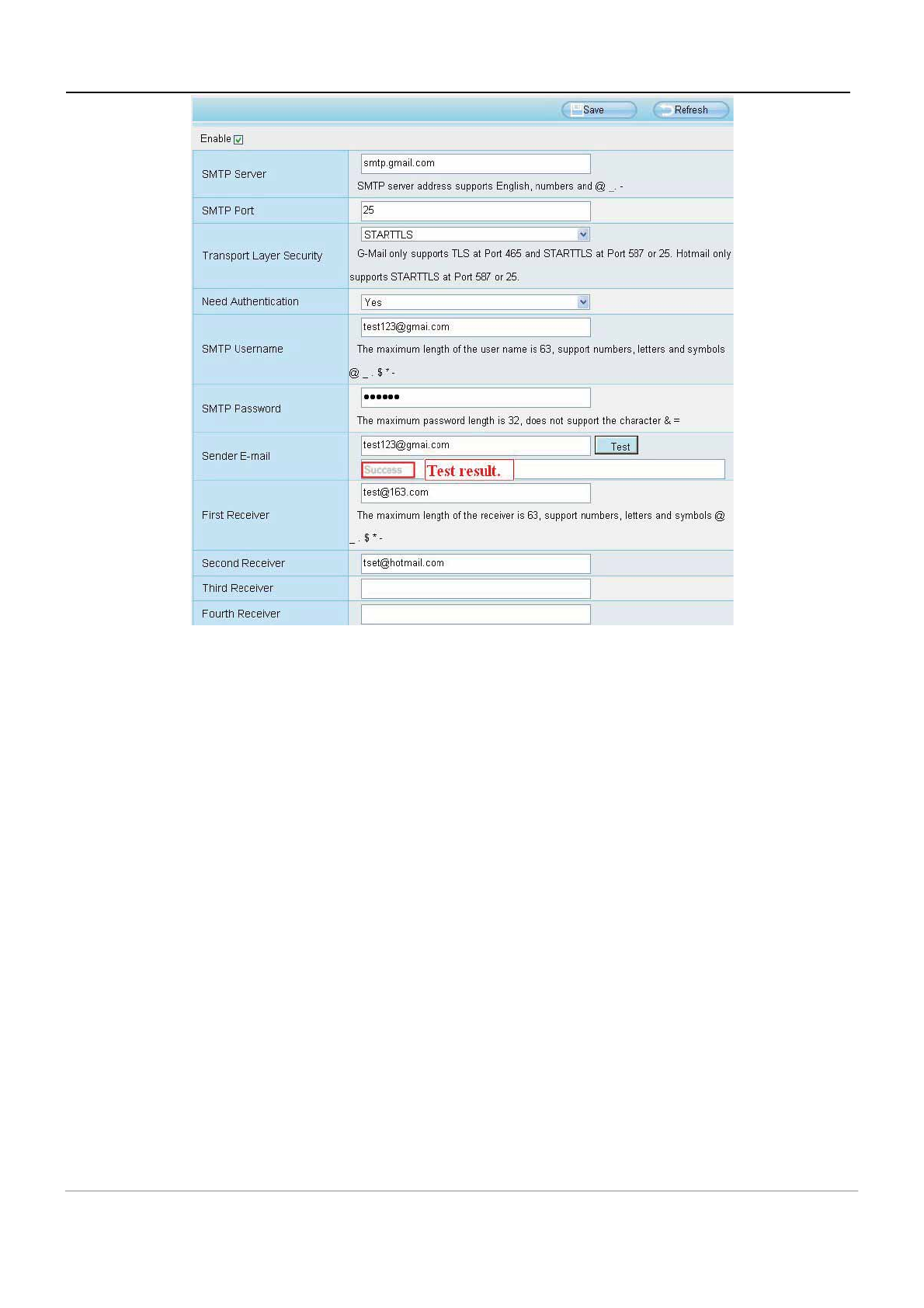

4.3.7 Mail Settings..............................................................................................................................................44

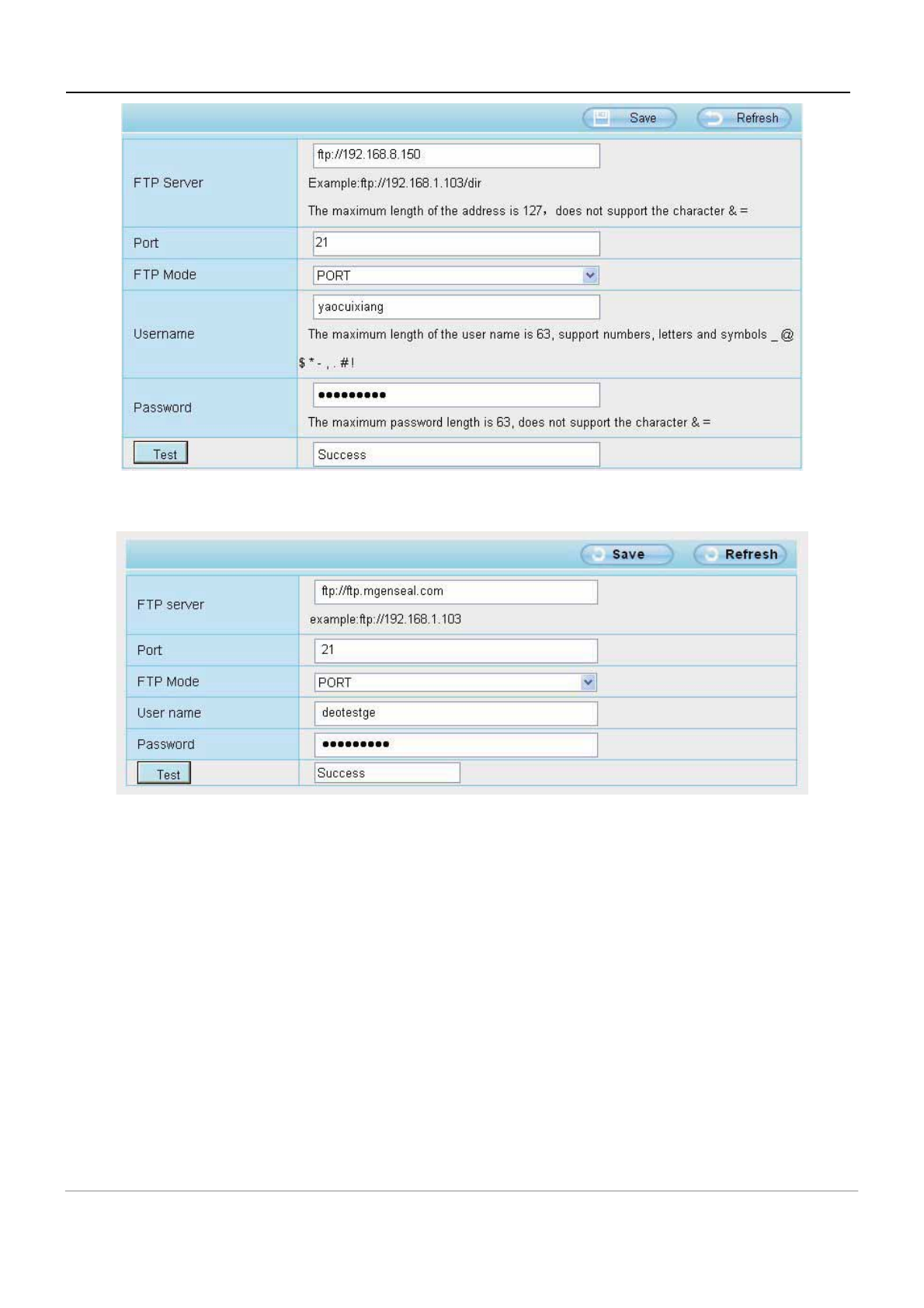

4.3.8 FTP Settings..............................................................................................................................................46

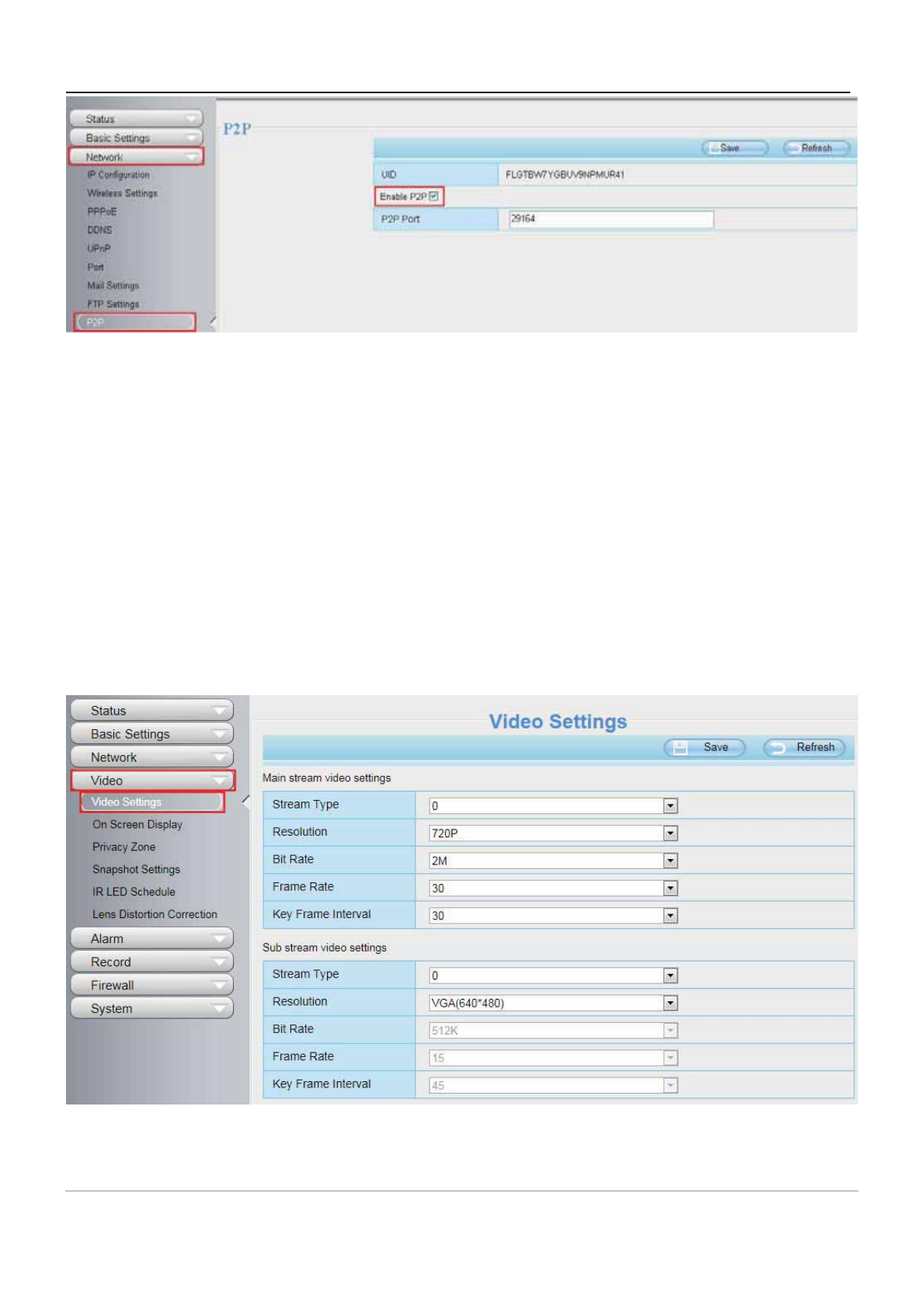

4.3.9 P2P............................................................................................................................................................. 47
4.4 Video...................................................................................................................................................................... 48
4.4.1 Video Settings........................................................................................................................................... 48

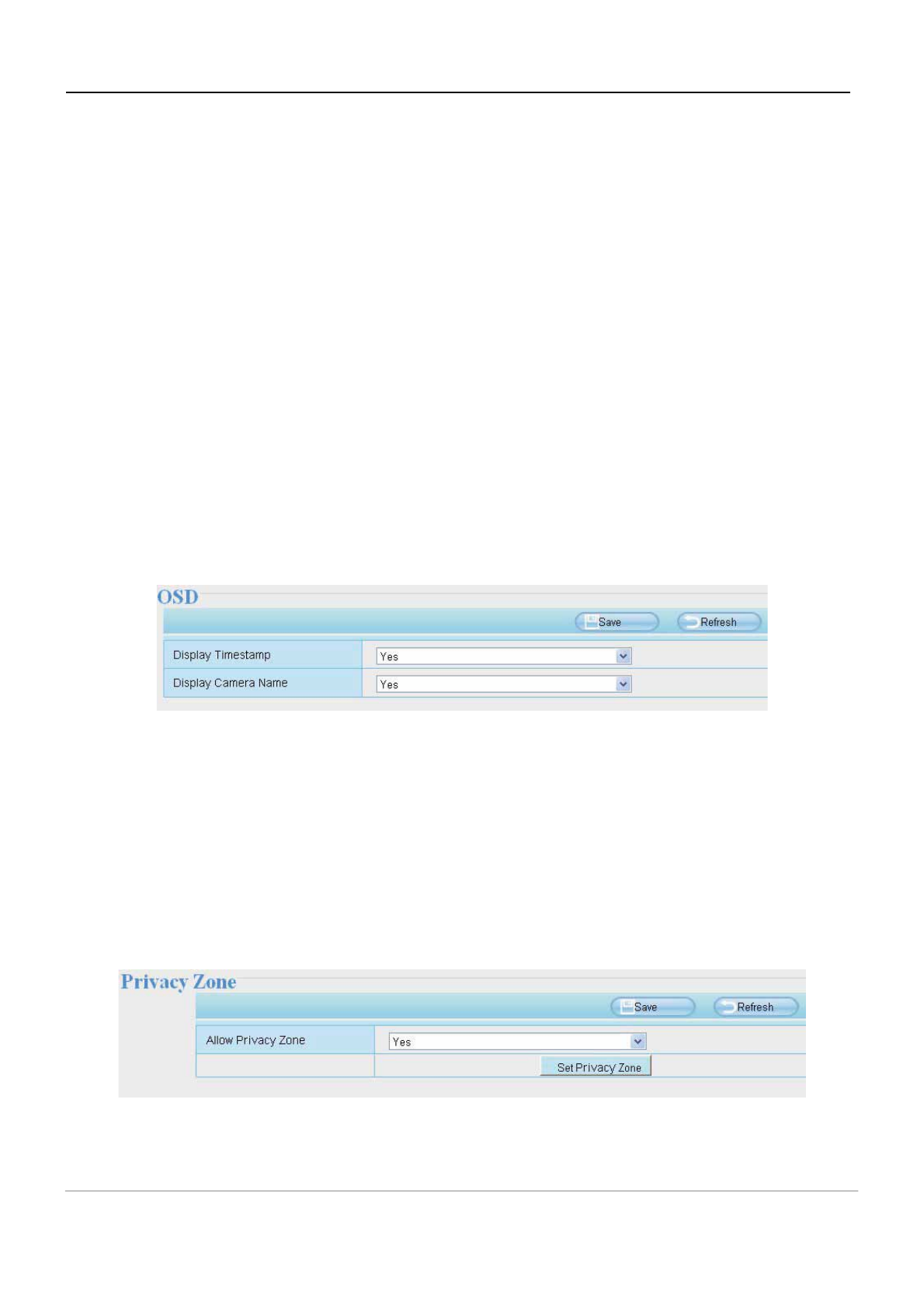

4.4.2 On Screen Display................................................................................................................................... 49
4.4.3 Privacy Zone............................................................................................................................................. 49
www.foscam.com

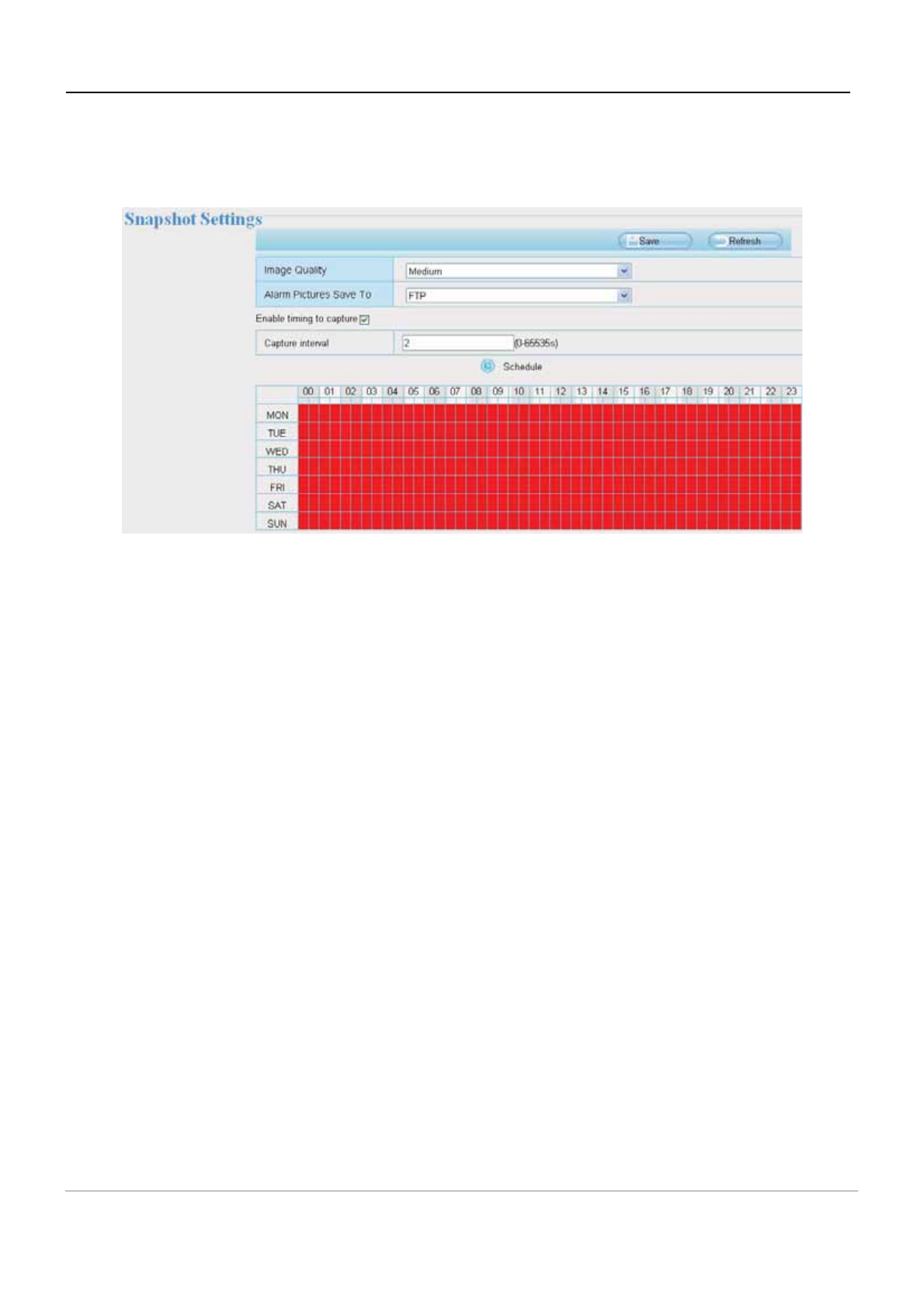

4.4.4 Snapshot Settings.................................................................................................................................... 51

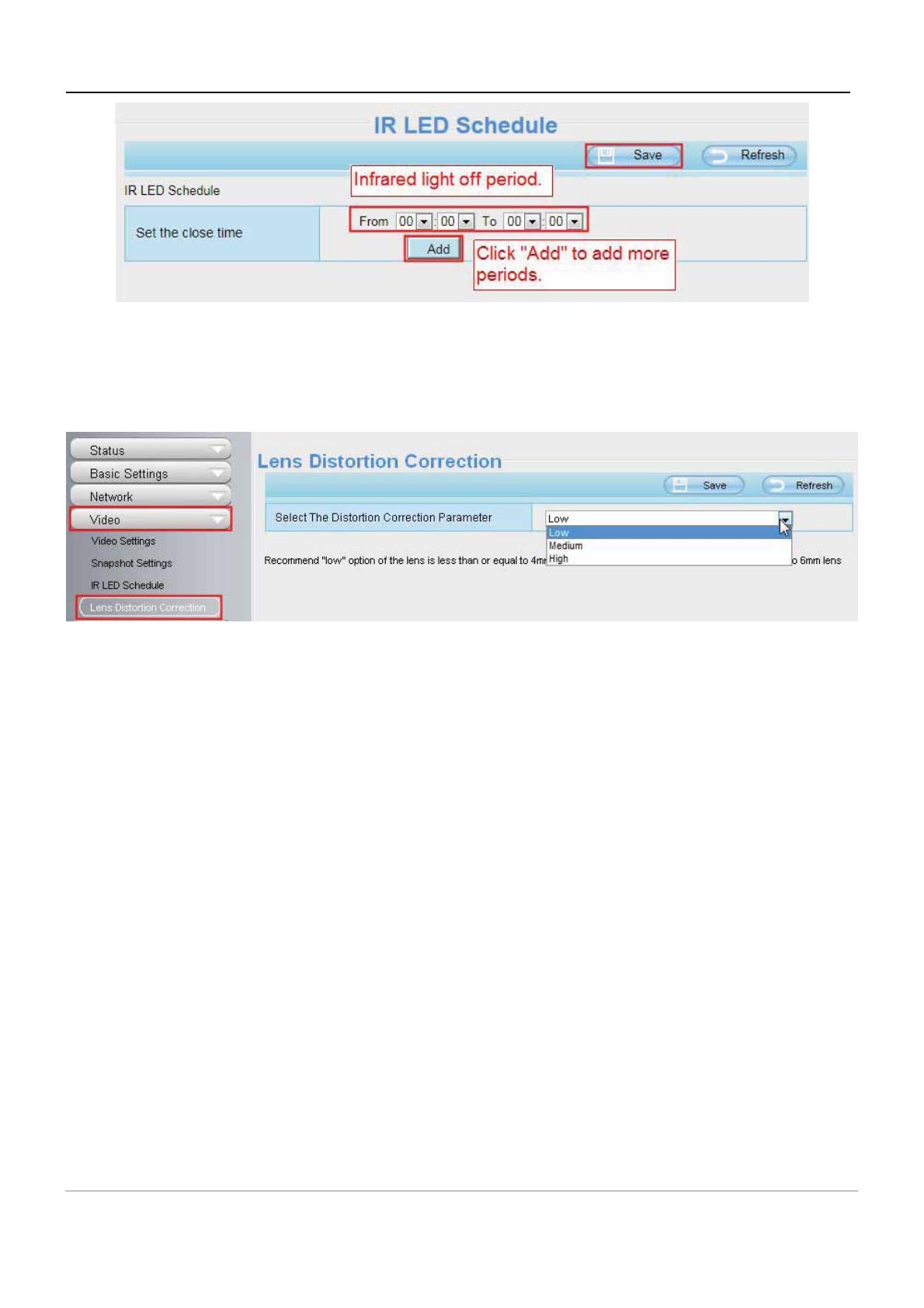

4.4.5 IR LED Schedule...................................................................................................................................... 51
4.4.6 Lens Distortion Correction...................................................................................................................... 52
4.5 Alarm...................................................................................................................................................................... 52

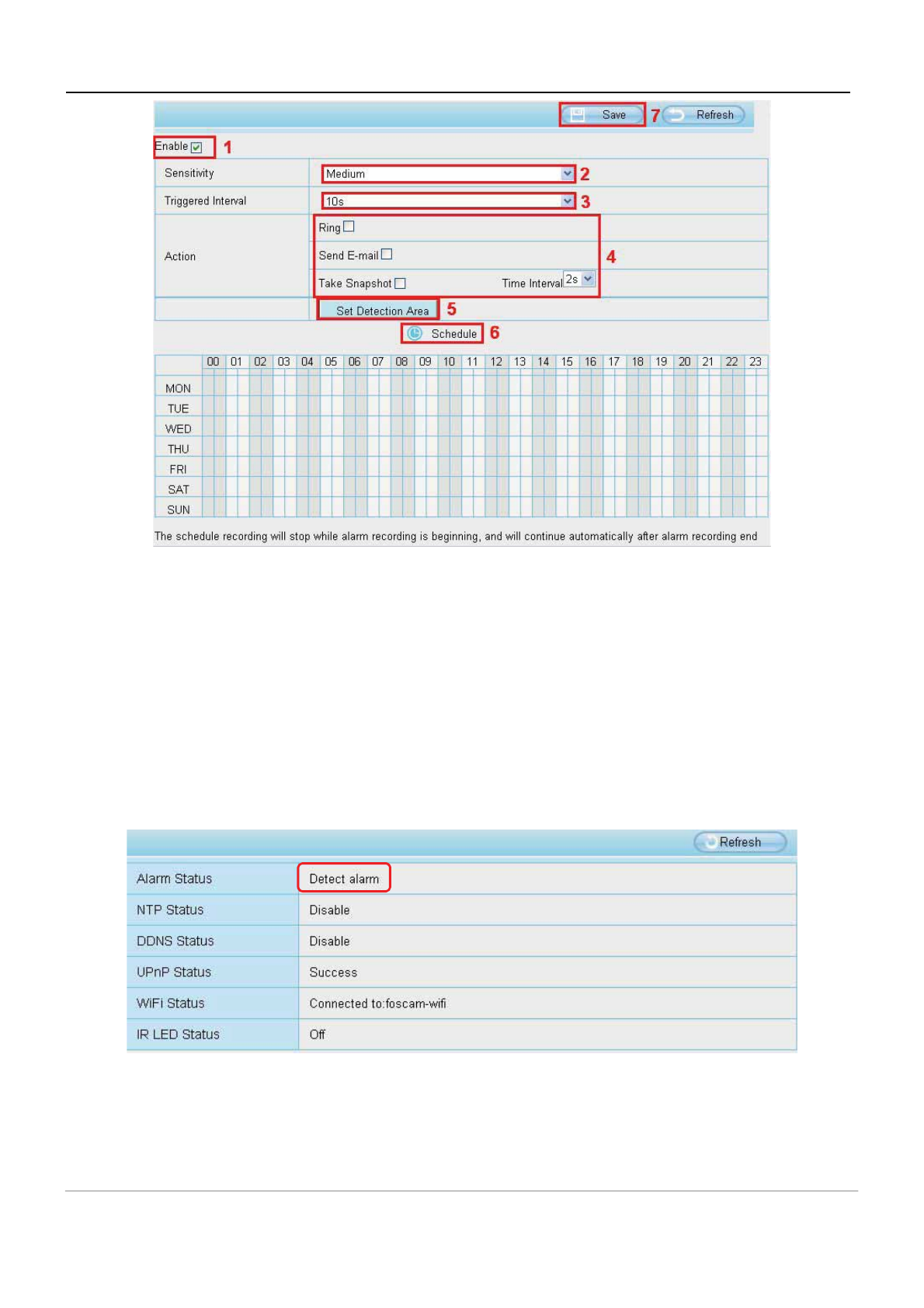

Motion Detection.................................................................................................................................................52
4.6 Record................................................................................................................................................................... 56

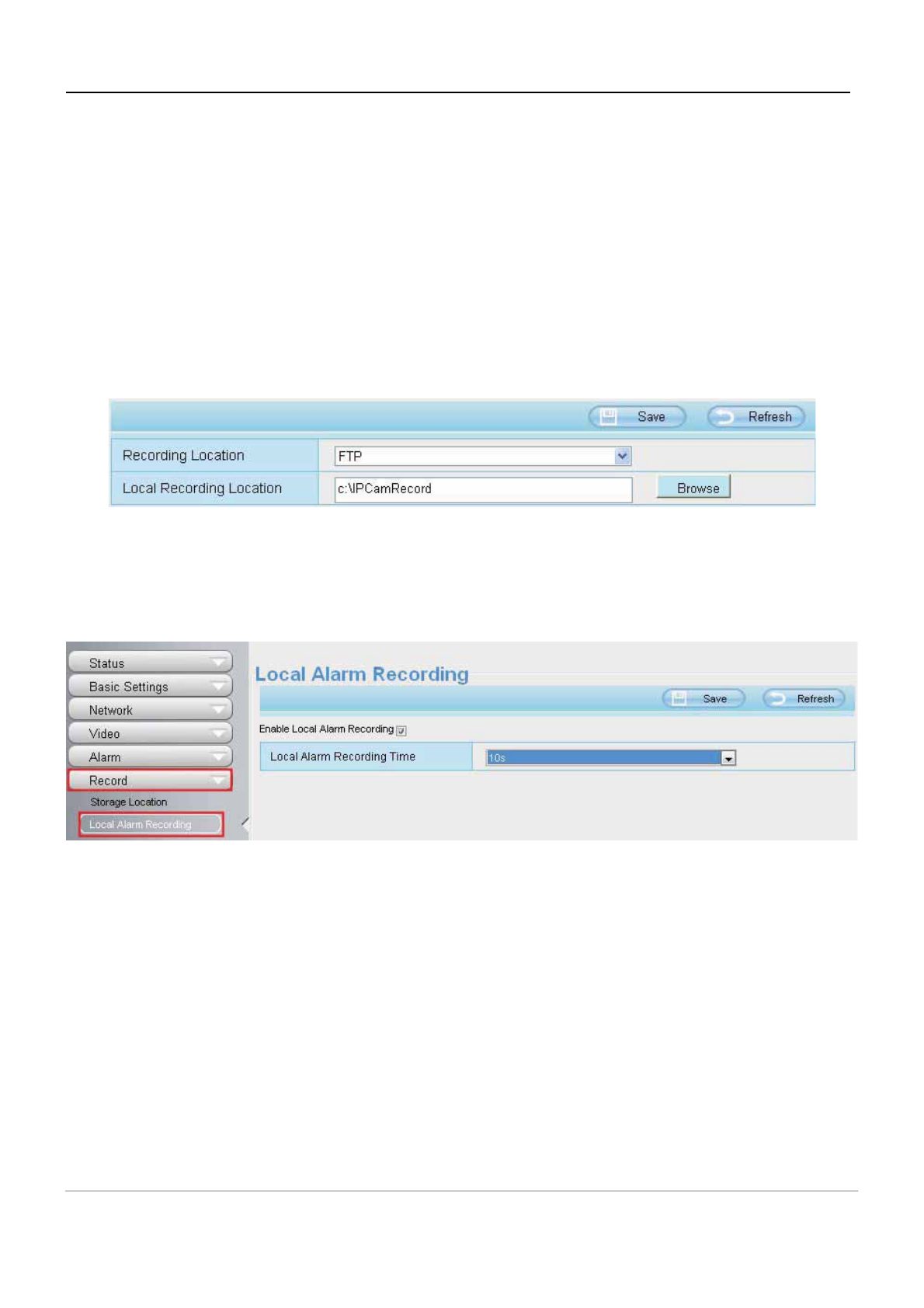

4.6.1 Storage Location...................................................................................................................................... 56
4.6.2 Local Alarm Recording............................................................................................................................ 56

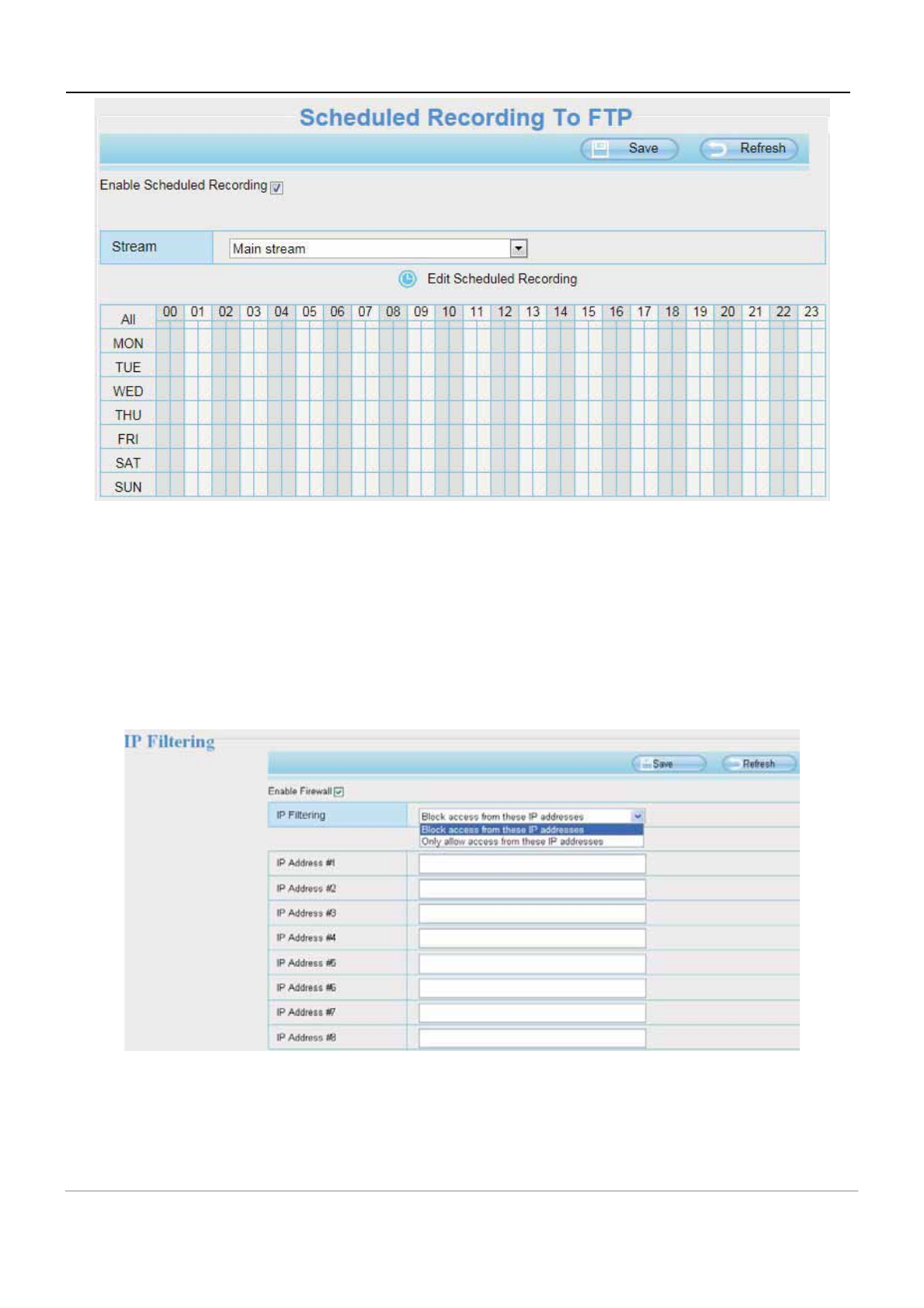

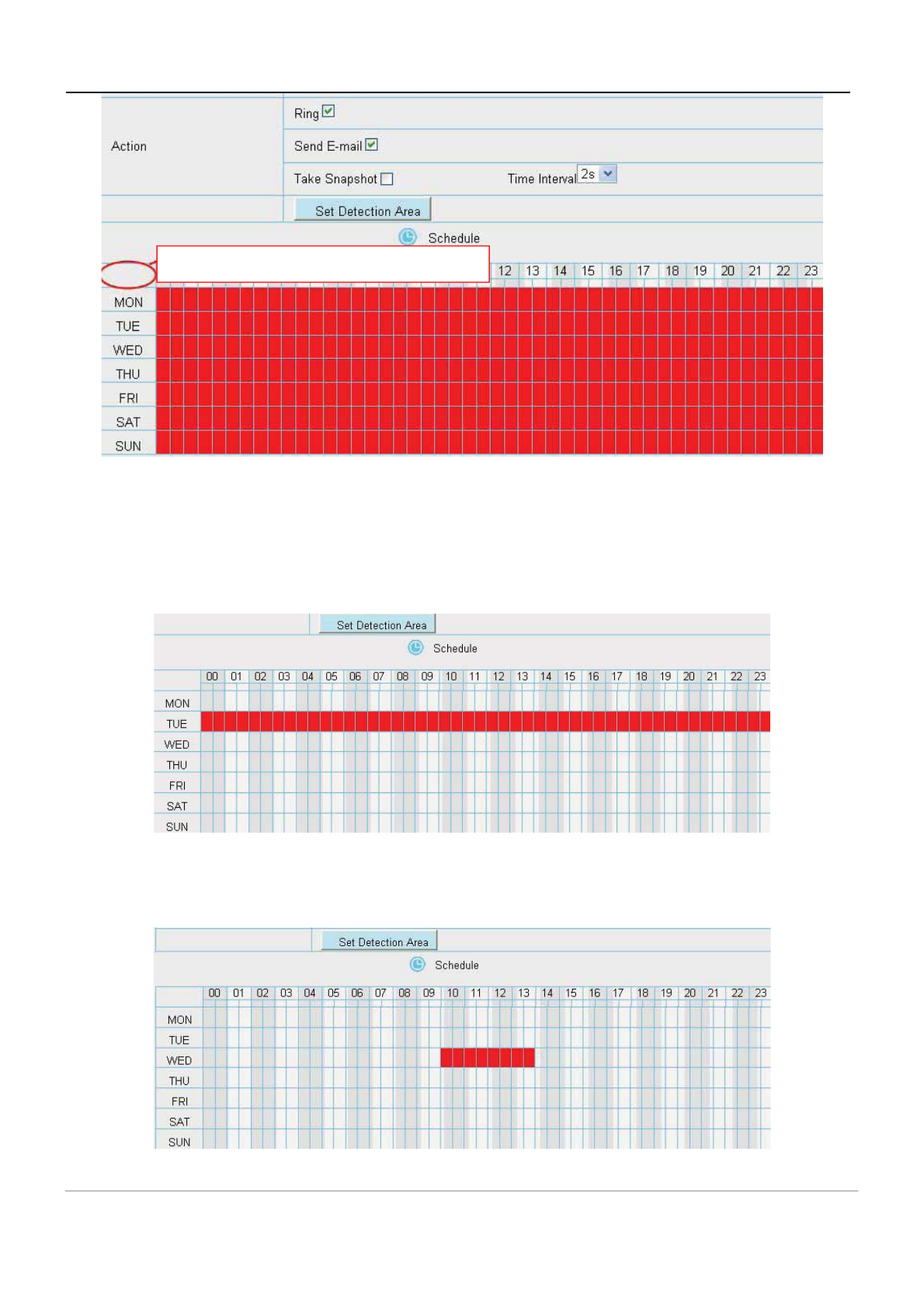

4.6.3 Schedule Recording.................................................................................................................................56
4.7 Firewall...................................................................................................................................................................57
4.8 System................................................................................................................................................................... 58

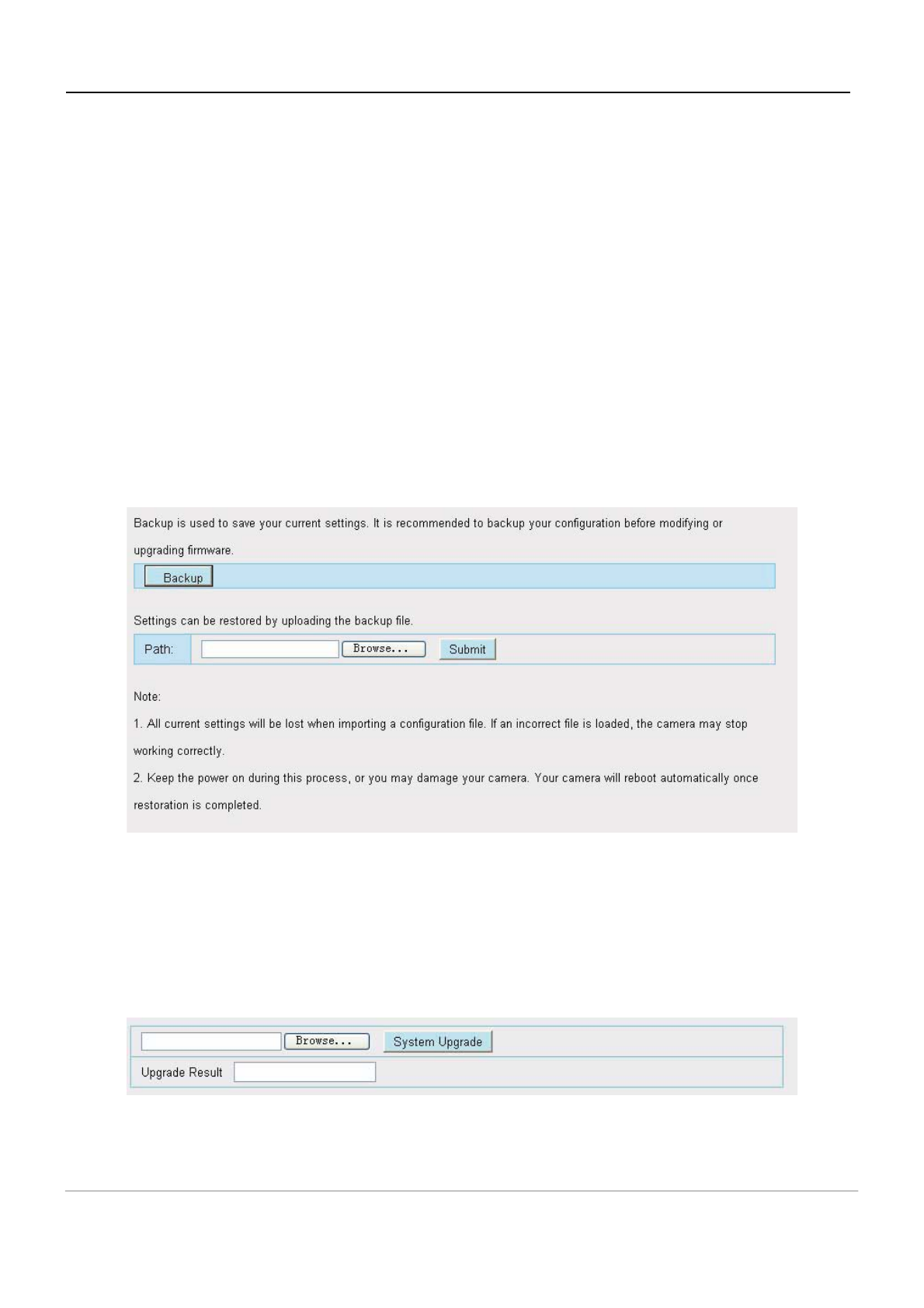

4.8.1 Back-up& Restore.................................................................................................................................... 58
4.8.2 System Upgrade....................................................................................................................................... 58

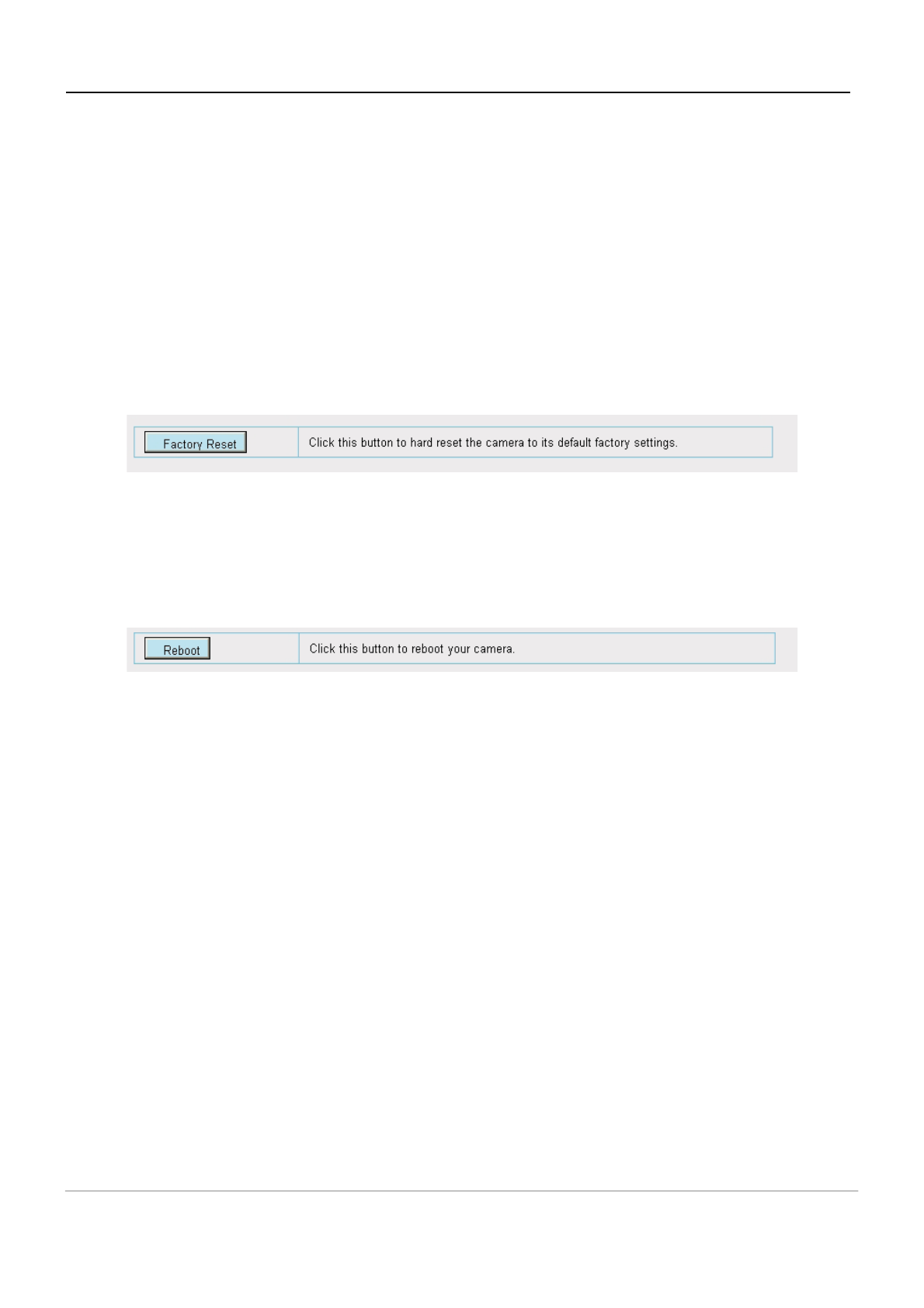

4.8.3 Factory Reset............................................................................................................................................60
4.8.4 Reboot........................................................................................................................................................ 60
5 Appendix........................................................................................................................................................................... 60
5.1 Frequently Asked Questions..............................................................................................................................60

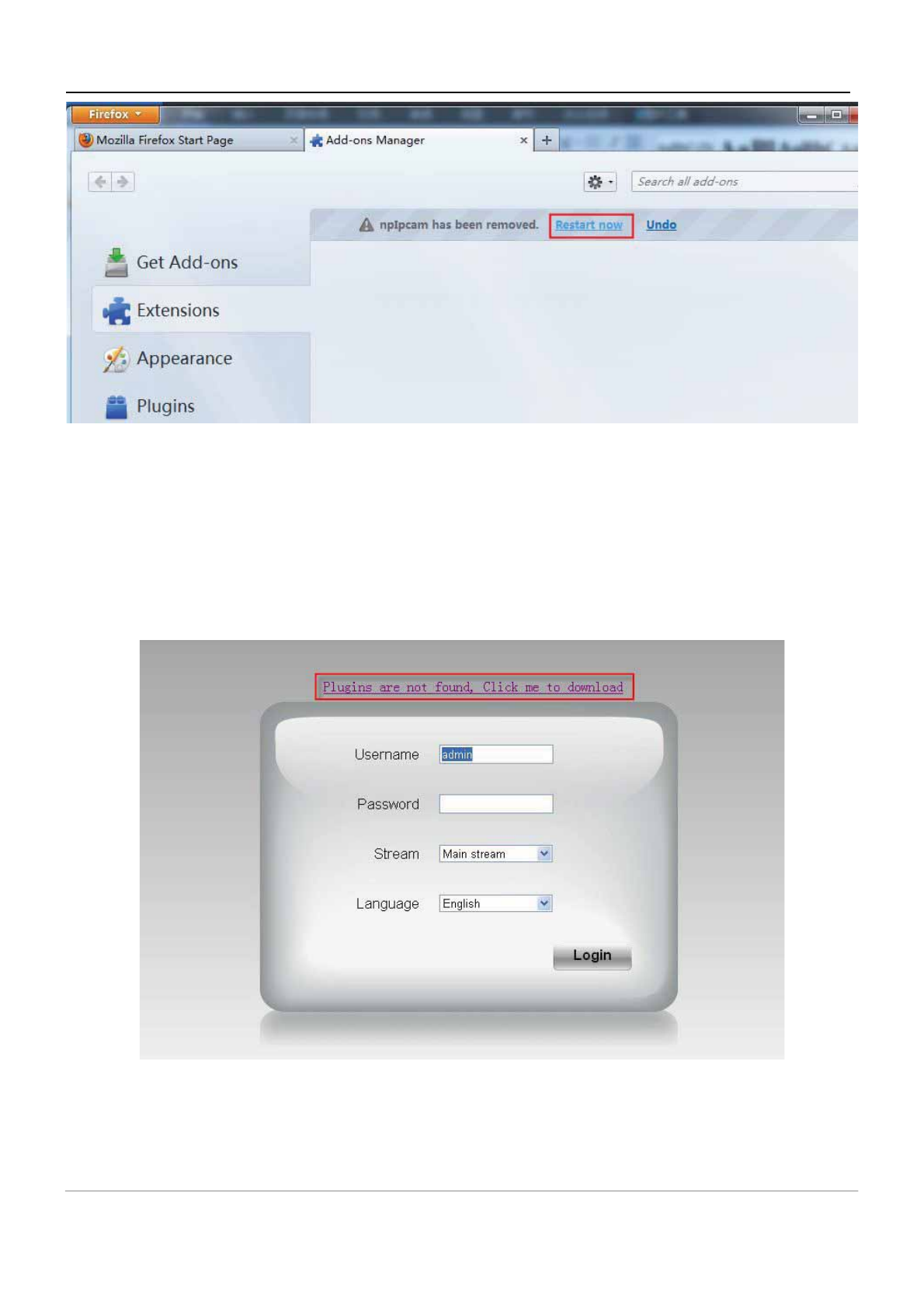

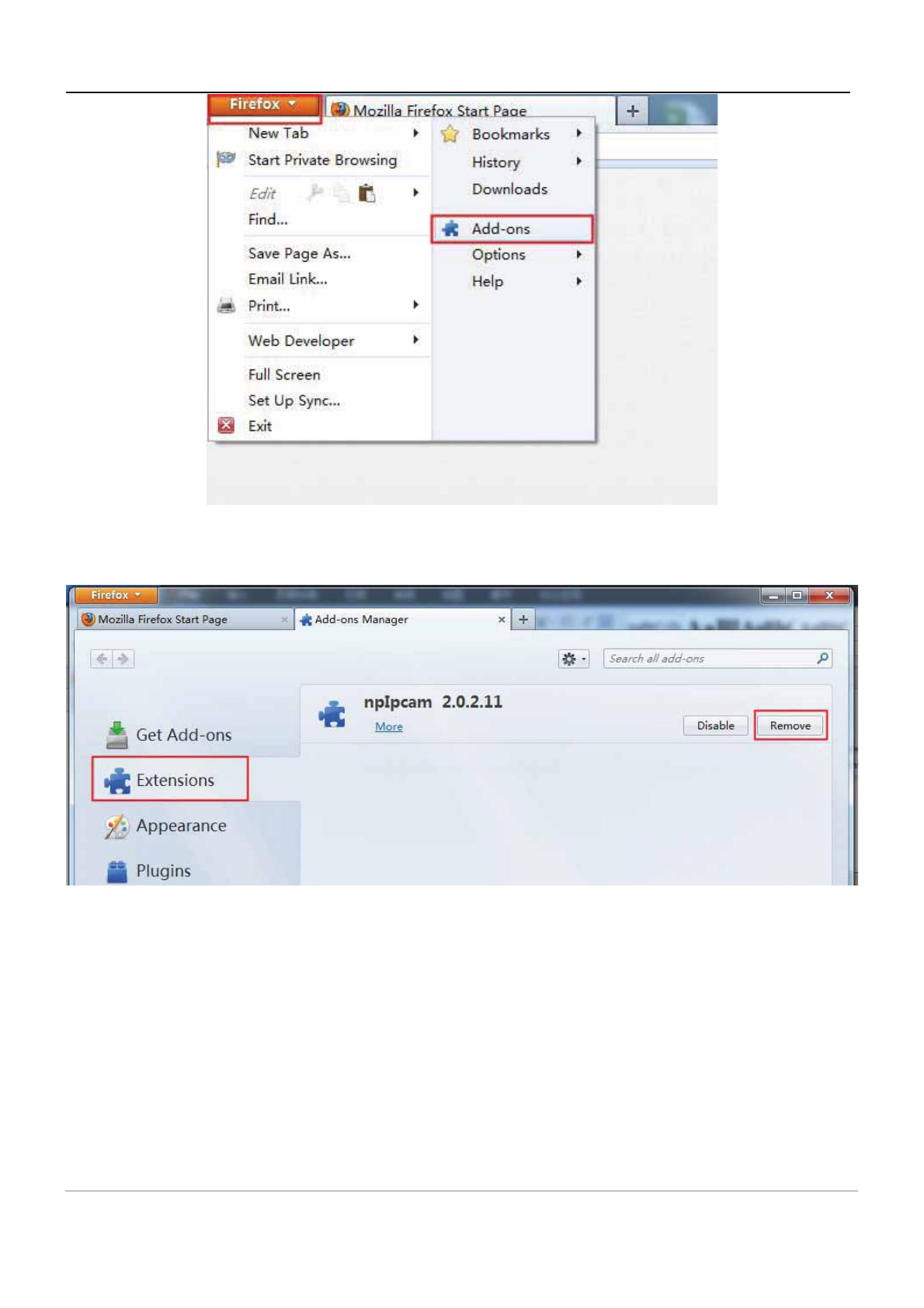

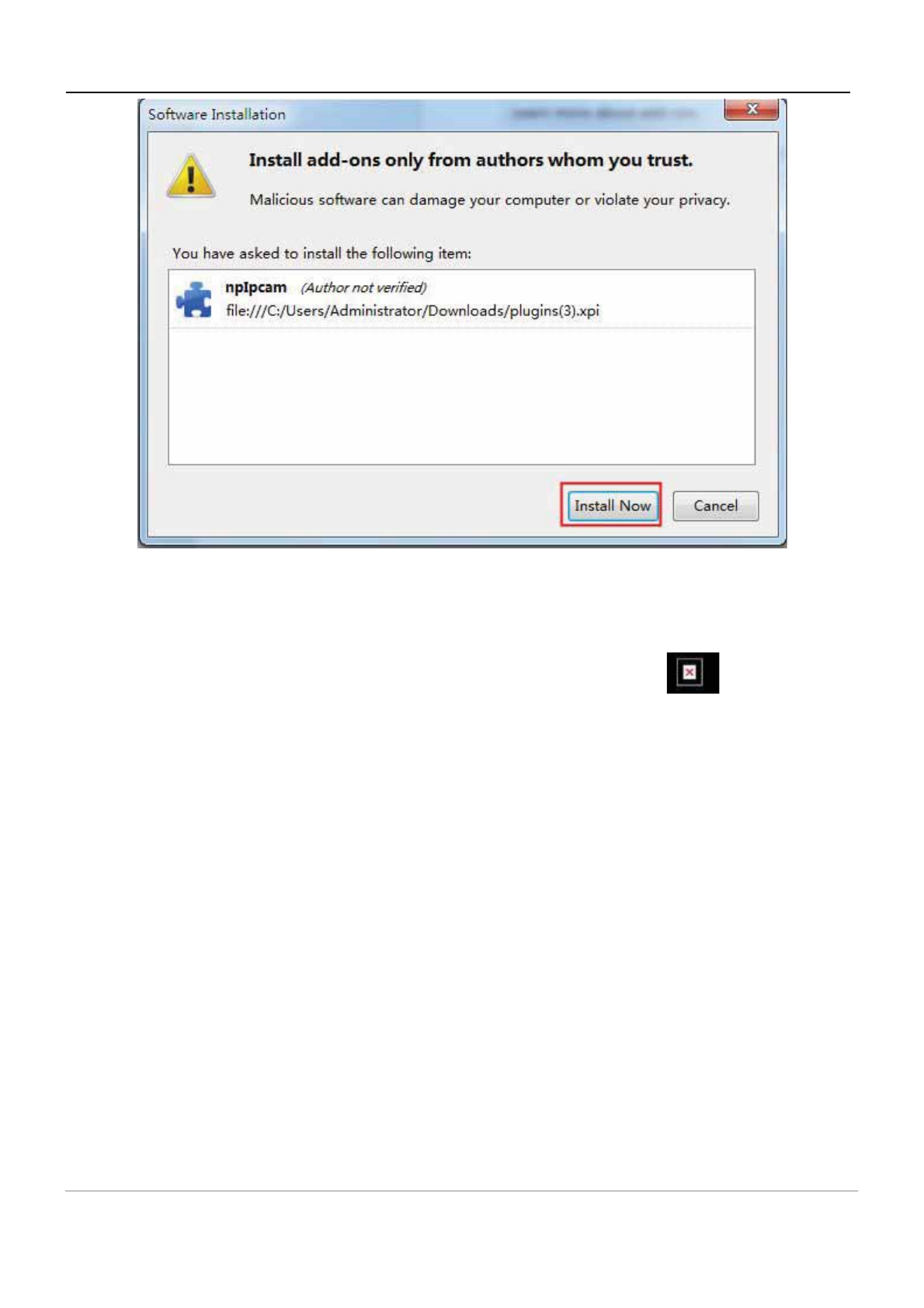

5.1.1 Install / uninstall the ActiveX of Firefox browser...............................................................................60

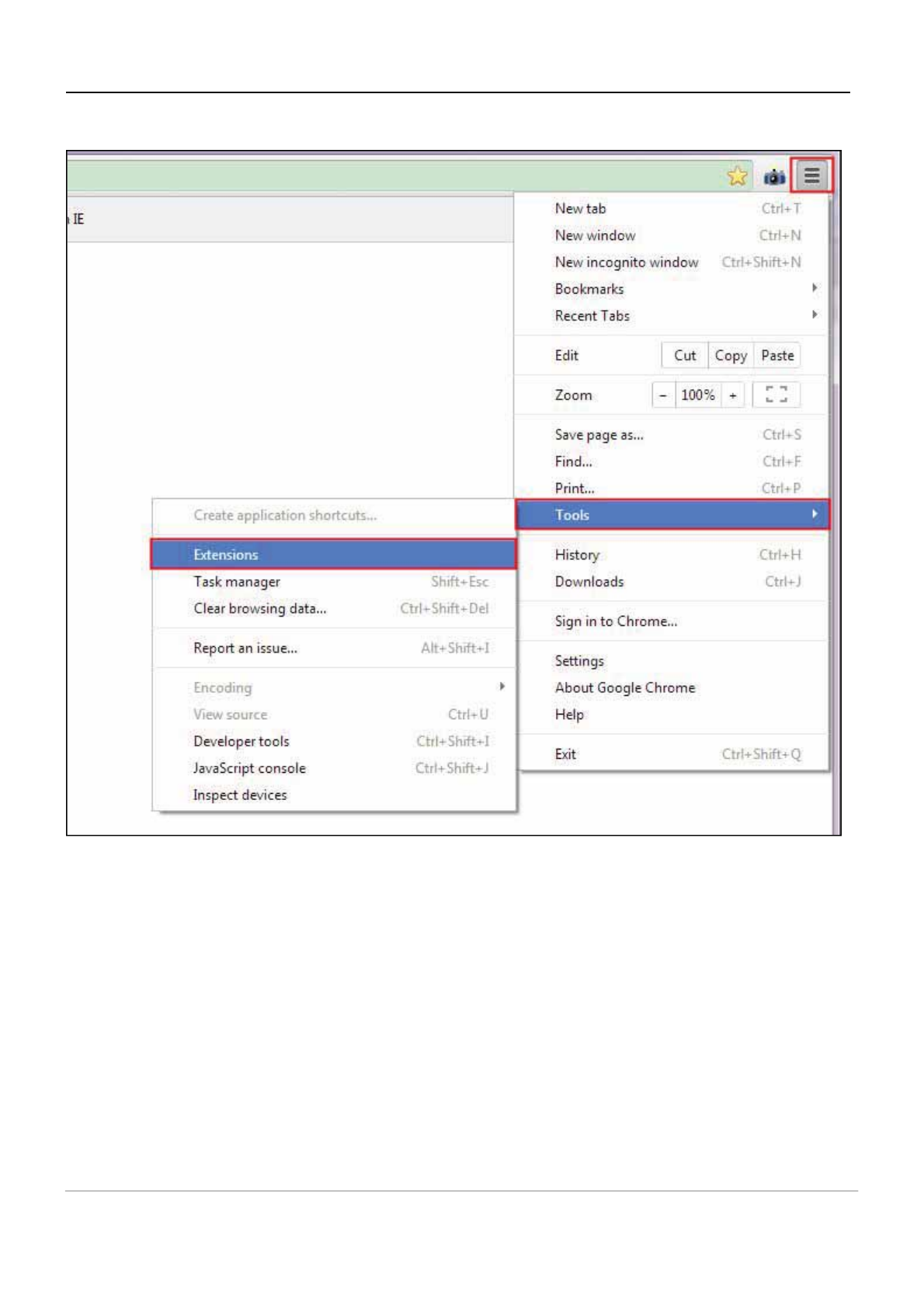

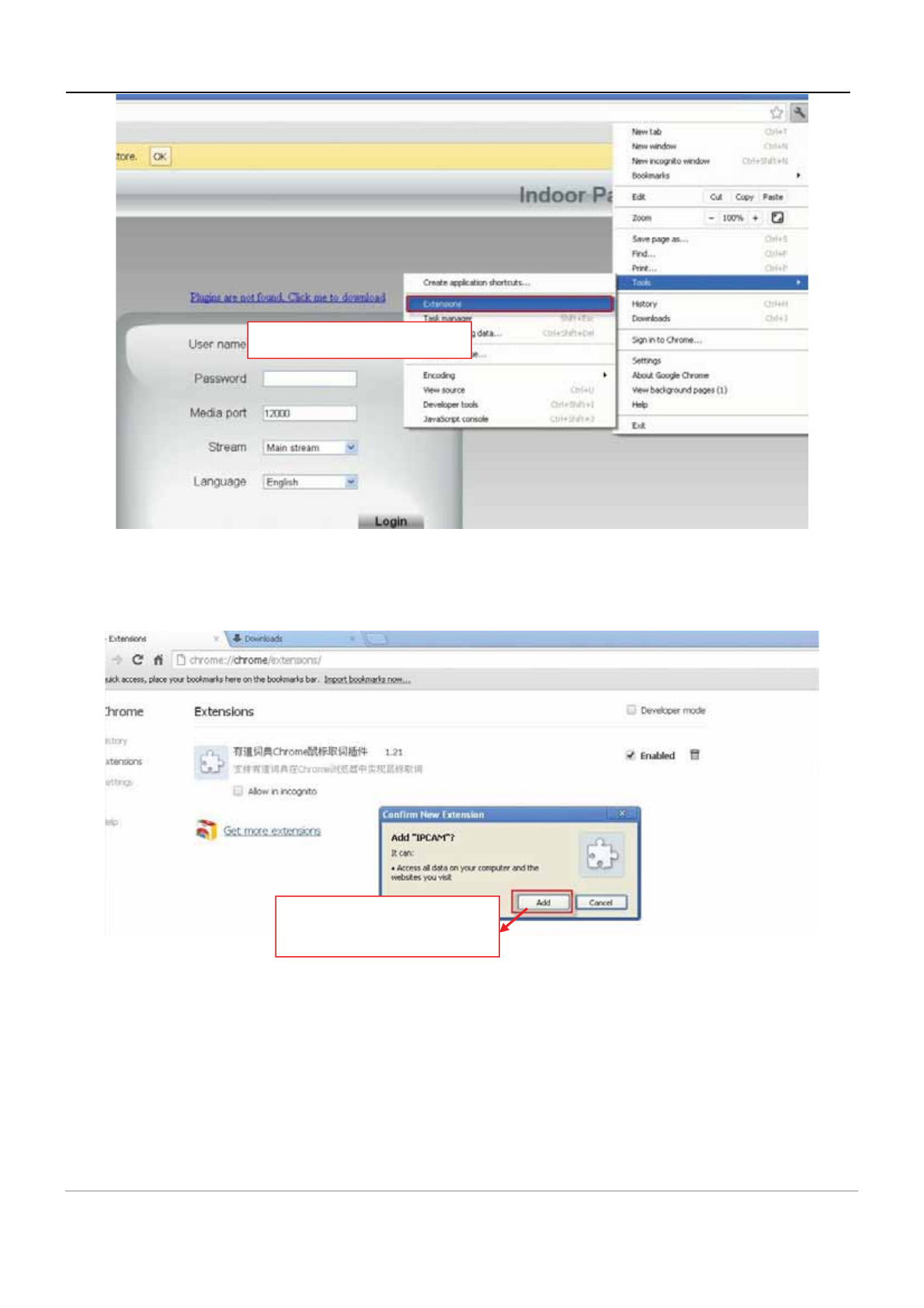

5.1.2 Install / uninstall the ActiveX of Google Chrome..............................................................................65

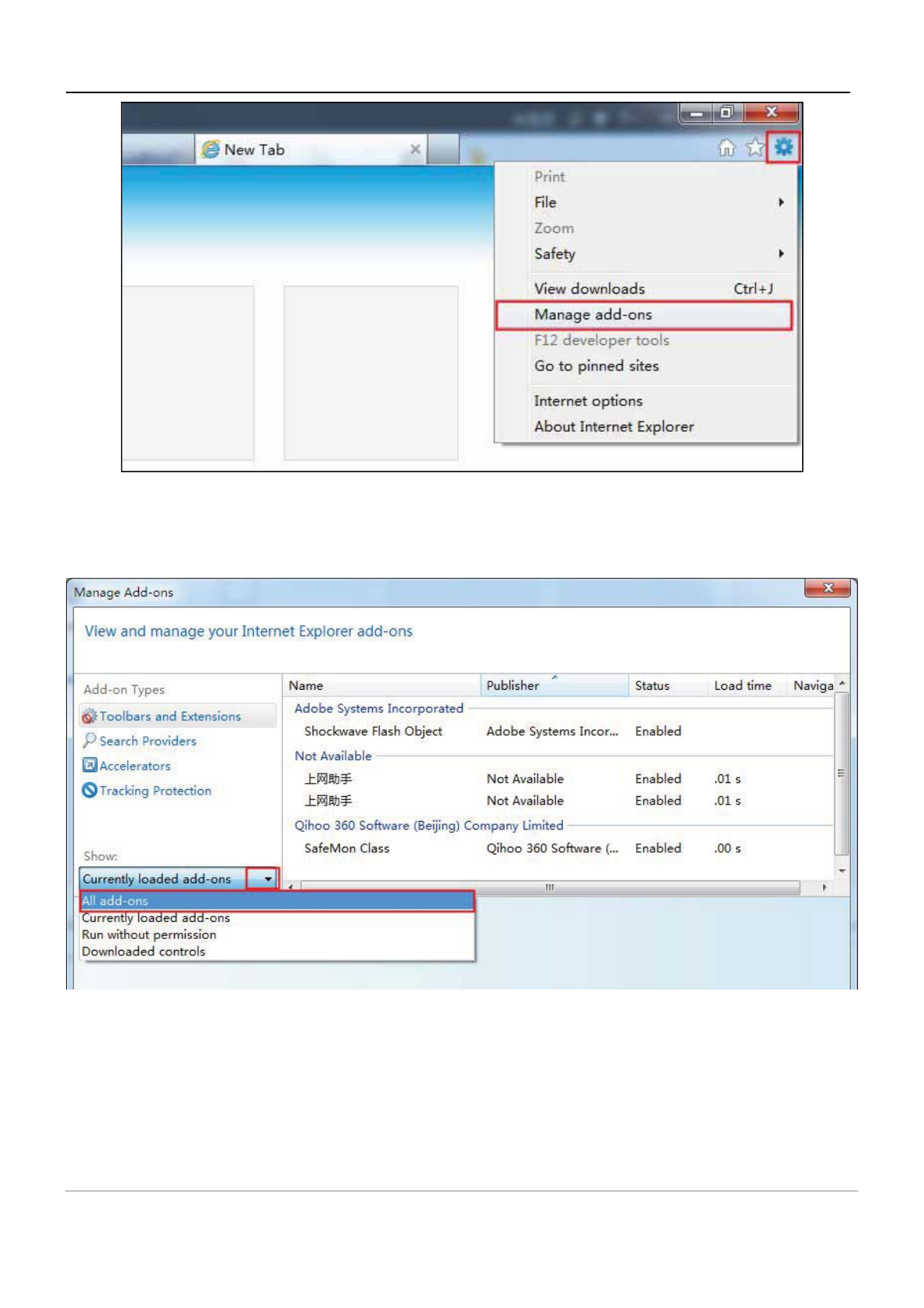

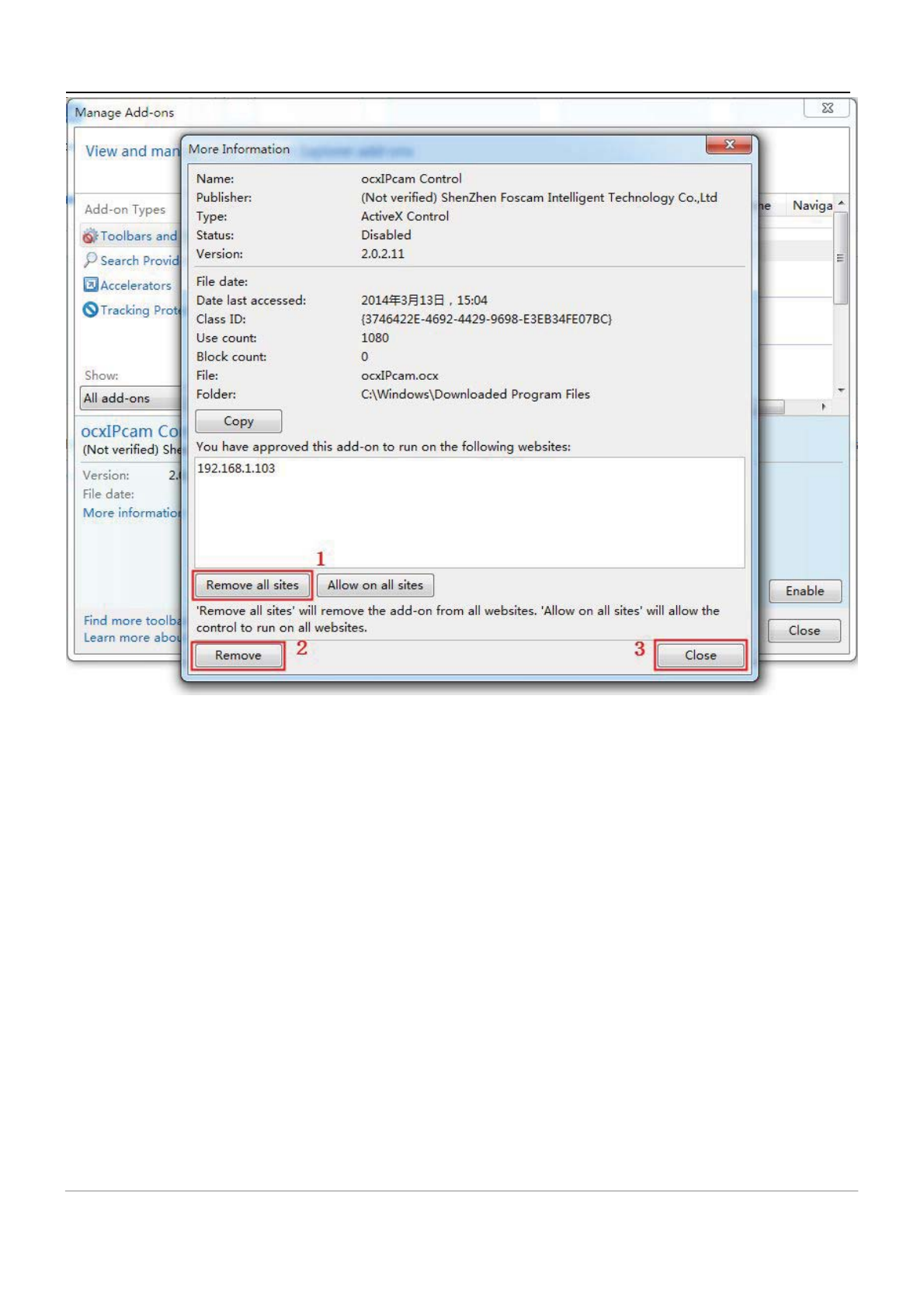

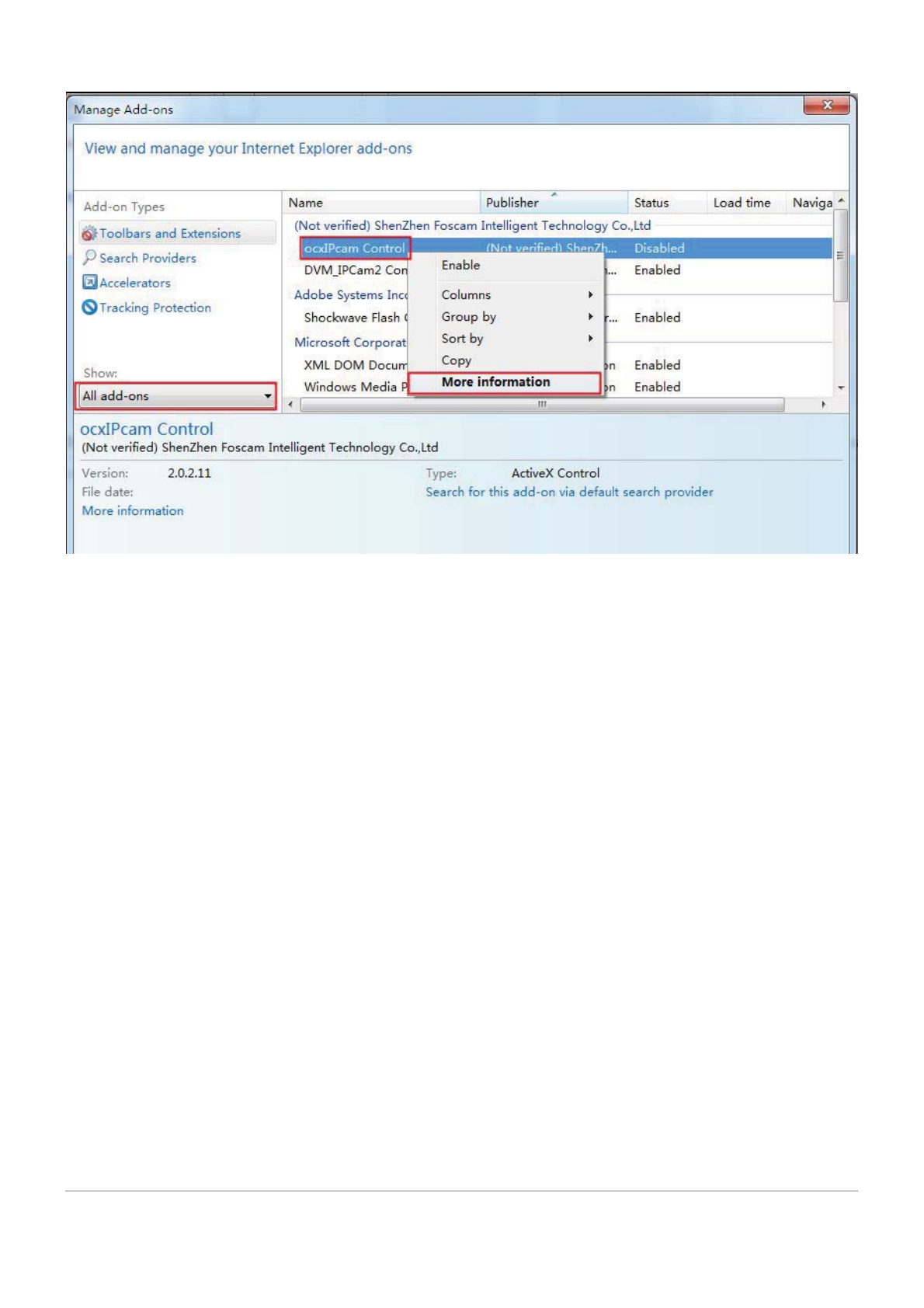

5.1.3 Install / Uninstall the ActiveX of IE Browser...................................................................................... 68
5.1.4 I have forgotten the administrator password.................................................................................... 72
5.1.5 Camera can not record.........................................................................................................................72
5.1.6 Subnet doesn’t match........................................................................................................................... 73
5.1.7 No Pictures Problems........................................................................................................................... 73
5.1.8 Can’t access IP camera in internet.....................................................................................................74
5.1.9 UPnP always failed............................................................................................................................... 74
5.1.10 Camera can not connect wireless.................................................................................................... 74
5.1.11 Can’t see other cameras listed in multi-device when using remote access..............................74
5.2 Default Parameters..............................................................................................................................................74
5.3 Specification..........................................................................................................................................................75
5.4CE&FCC..............................................................................................................................................................76
5.5 Warranty................................................................................................................................................................ 77
6 Obtaining Technical Support......................................................................................................................................... 79
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 1
1 Overviews
FI9851P is integrated IP Camera with a color CMOS sensor enabling viewing resolution 1280*720. It combines
a high quality digital video camera, with a powerful web server, to bring clear video to your desktop from
anywhere on your local network or over the Internet.
They support the industry-standard H.264 compression technology, drastically reducing file sizes and
conserving valuable network bandwidth.
The IPCAM is based on the TCP/IP standard. There is a WEB server inside which could support Internet
Explorer. Therefore the management and maintenance of your device is simplified by using the network to
achieve the remote configuration and start-up.
The camera is designed for outdoor and indoor surveillance applications such as courtyards, supermarket, and
school. Controlling the IPCAM and managing images are simplified by using the provided web interface across
the network utilizing wireless connectivity.
FOSCAM provides Phone Apps for Android and iPhone users, please search Foscam Viewer and install it
through APP Store, then you can view your camera directly as a computer.
1.1 Key Features
Standard H.264 video compression algorithm to satisfy the transmission of high definition video in narrow
bandwidth network
1.0 Mega-Pixel
Supports IE/Firefox/Google/Safari browser or any other standard browsers
Supports WEP, PA and WPA2 Encryption
IR night vision , Range:10m
Supports image snapshot
Supports dual-stream
Supports IR-Cut and the filter change automatically
Embedded FOSCAM DDNS(dynamic domain name service) Service
Supports remote viewing & record from anywhere anytime
Multi-level users management with password protection
Motion detection alert via email or upload image to FTP
Supporting Third Party Domain name
Providing Phone APPs for Android and iPhone users
Supports multiple network protocols: HTTP/HTTPS/RTSP/TCP/IP/UDP/FTP/DHCP/DDNS/UPNP/ONVIF
Providing Central Management Software to manage or monitor multi-camera
1.2 Read Before Use
Please first verify that all contents received are complete according to the Package Contents listed below.
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 2
Before the Network Camera is installed, please carefully read and follow the instructions in the Quick
Installation Guide to avoid damage due to faulty assembly and installation. This also ensures the product is
used properly as intended.
1.3 Packing Contents
● IPCAM×1 ● CD×1
● DC Power Supply×1 ● Quick Installation Guide ×1
● Network Cable×1 ● Warranty Card×1
1.4 Physical Description

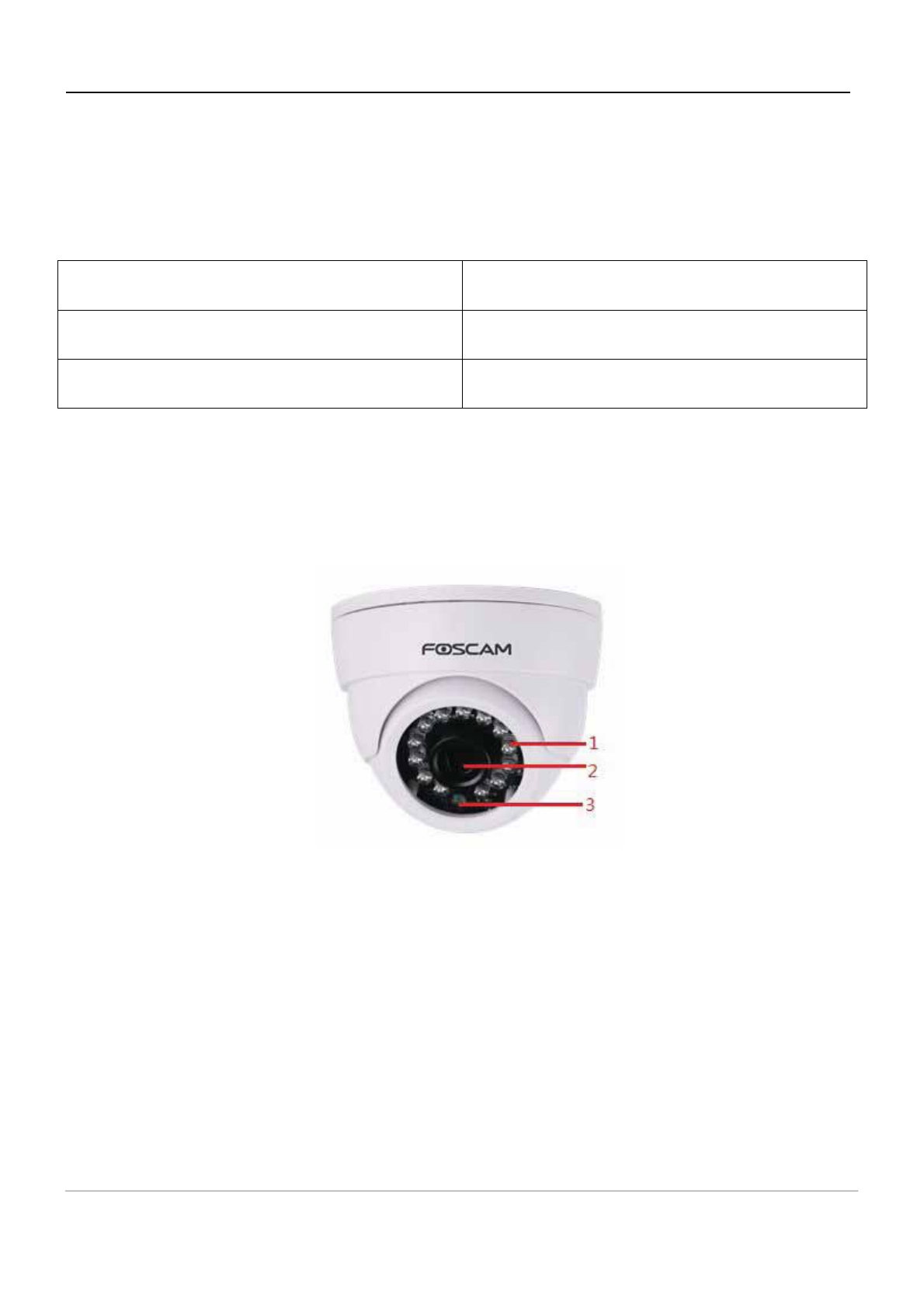

1.4.1 Front Panel
Figure 1.1
1 Infrared Lamp
2LENS:CMOS sensor with fixed focus lens
3 Induction IC
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 3
1.4.2 BottomView
There are two labels located at the bottom of the camera; this is an important feature of original Foscam
cameras. If your camera does not have labels as shown in Figure 1.3, it may be a clone. Cloned Foscam
cameras can not use original firmware and are not eligible for warranty or technical services.
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 4
2 Accessing the Network Camera
This chapter explains how to access the network camera through web browsers and RTSP players.
2.1 Access the Camera in LAN
This camera support HTTP and HTTPS protocols, so here will allow you to use HTTP and HTTPS port No.
(1) Http:// LAN IP + Http Port No.

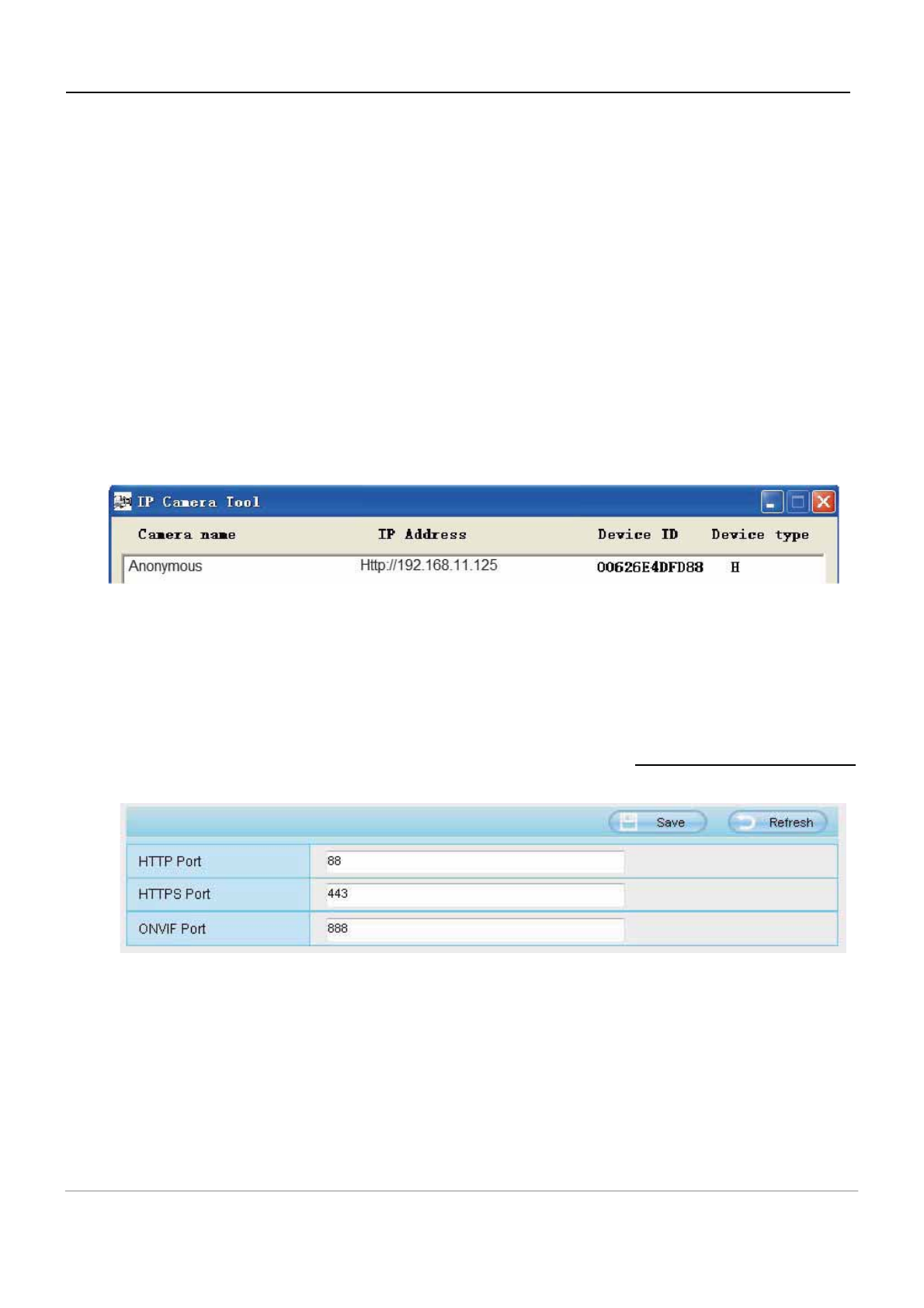

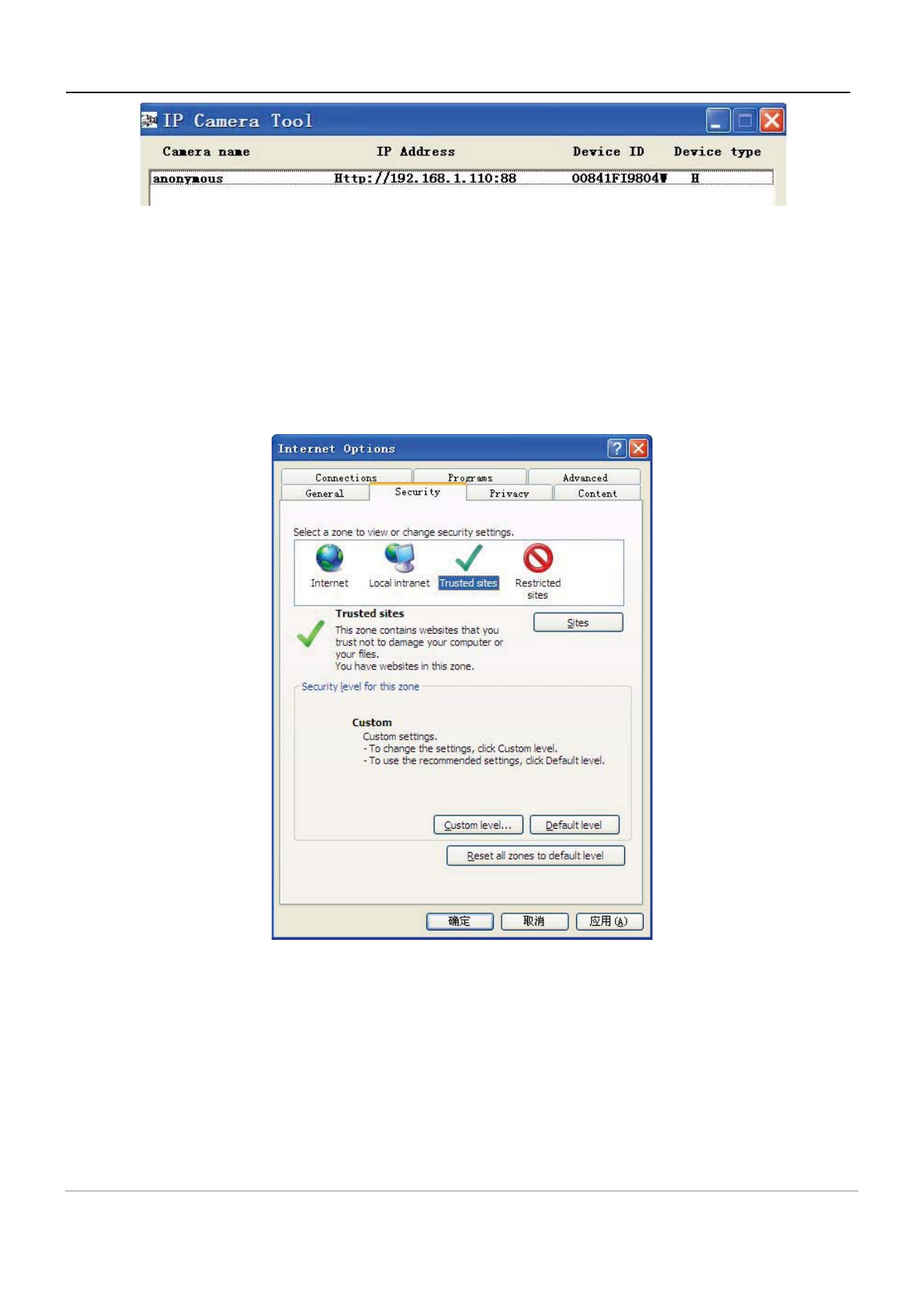

Double click the IP Camera Tool icon and it should find the camera’s IP address automatically after you plug in
the network cable.
Figure 2.1

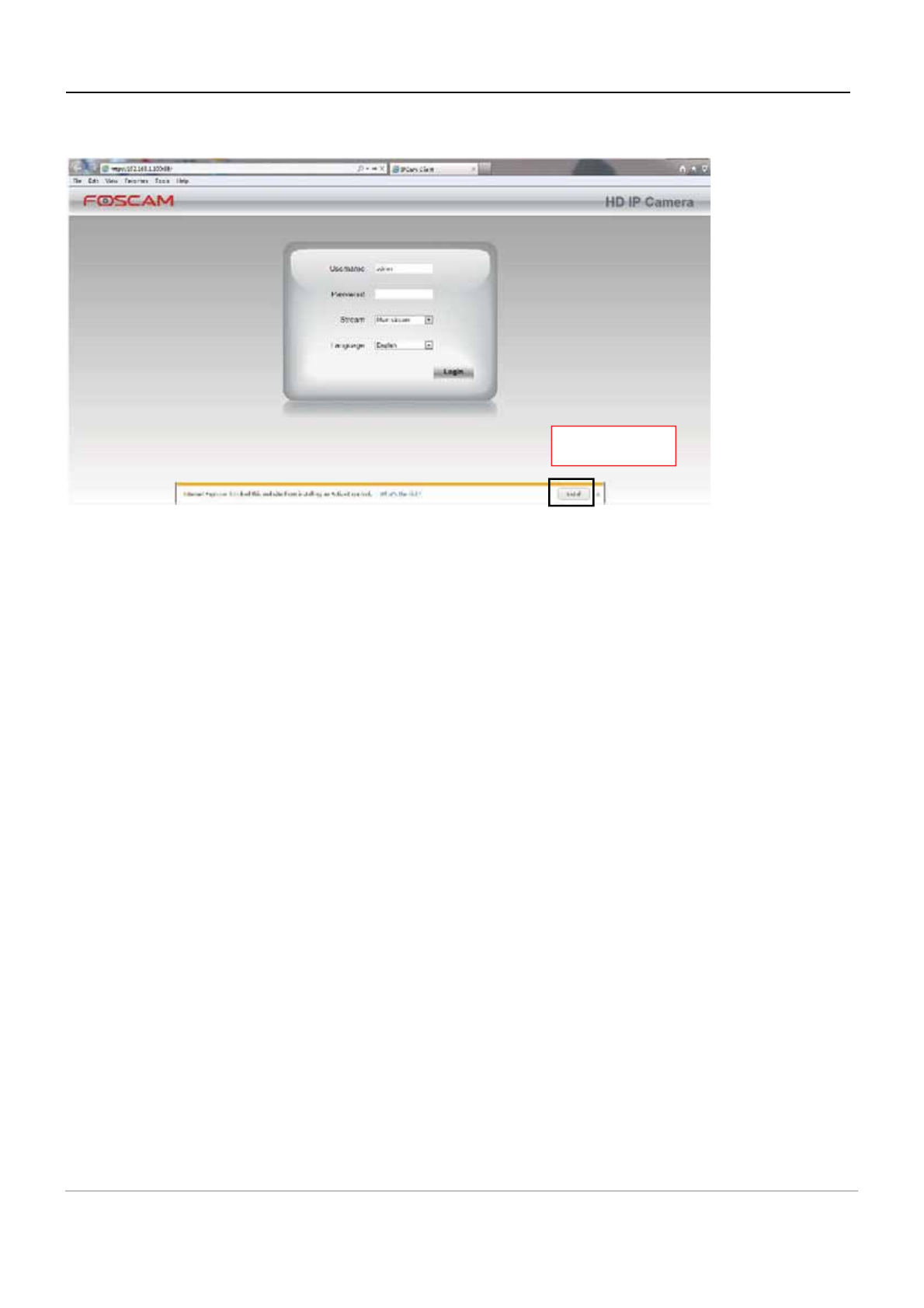

Double click the IP address of the camera; your default browser will open to the camera login page.
(2) Https:// LAN IP + Https Port NO.
The default Https port no. is 443. You can use the url to access the camera: https:// LAN IP + HTTPS port.

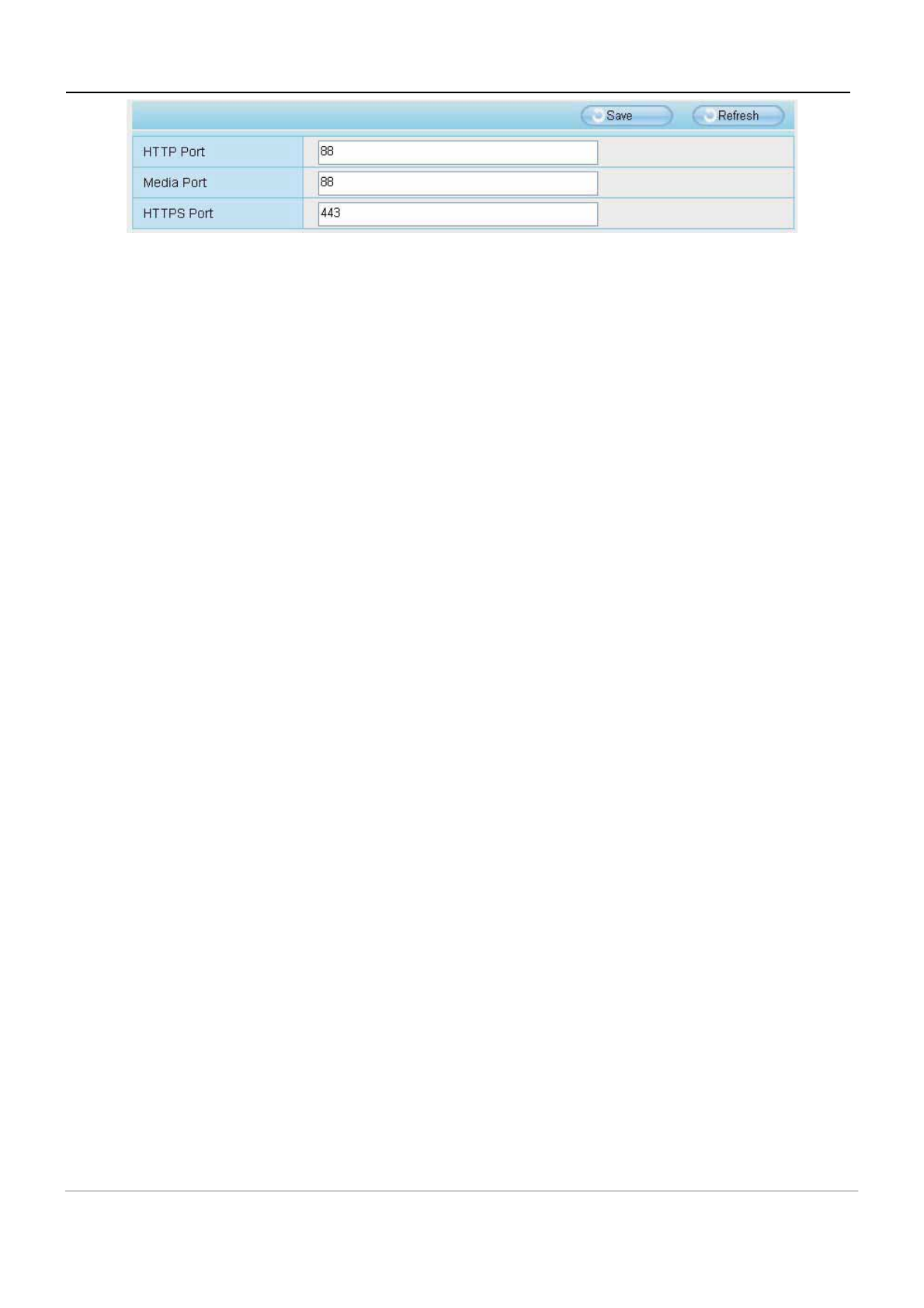

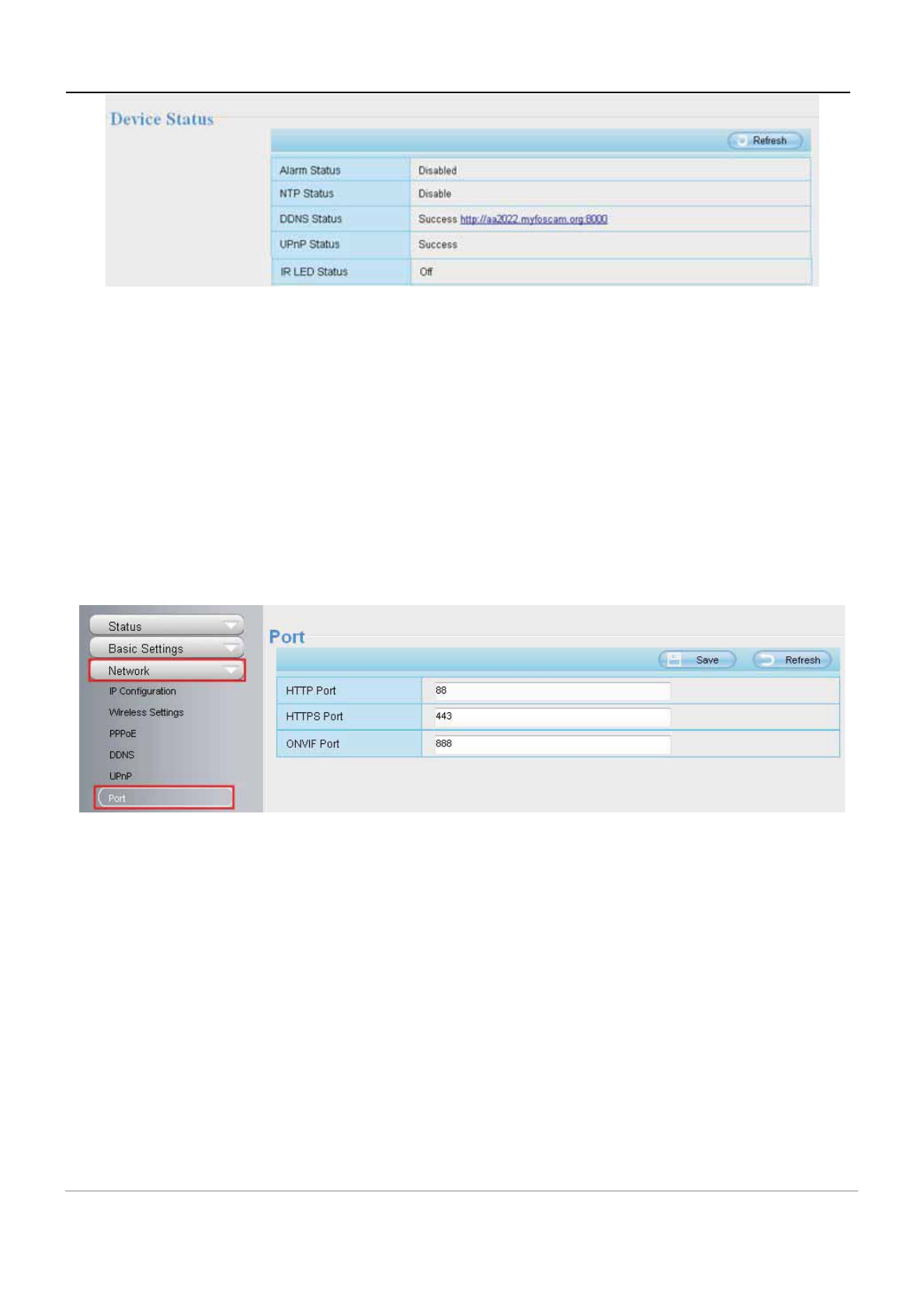

Go to Settings - Network - Port panel , you can see and change the https port NO.
Figure 2.2
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 5
2.2 Access the Camera in WAN
2.2.1 Static IP Addresses
Users who have static IP addresses do not need to set DDNS service settings for remote access. When you
have finished connecting the camera using the LAN IP address and port forwarding, you can access the
camera directly from the Internet using the WAN IP address and port number.

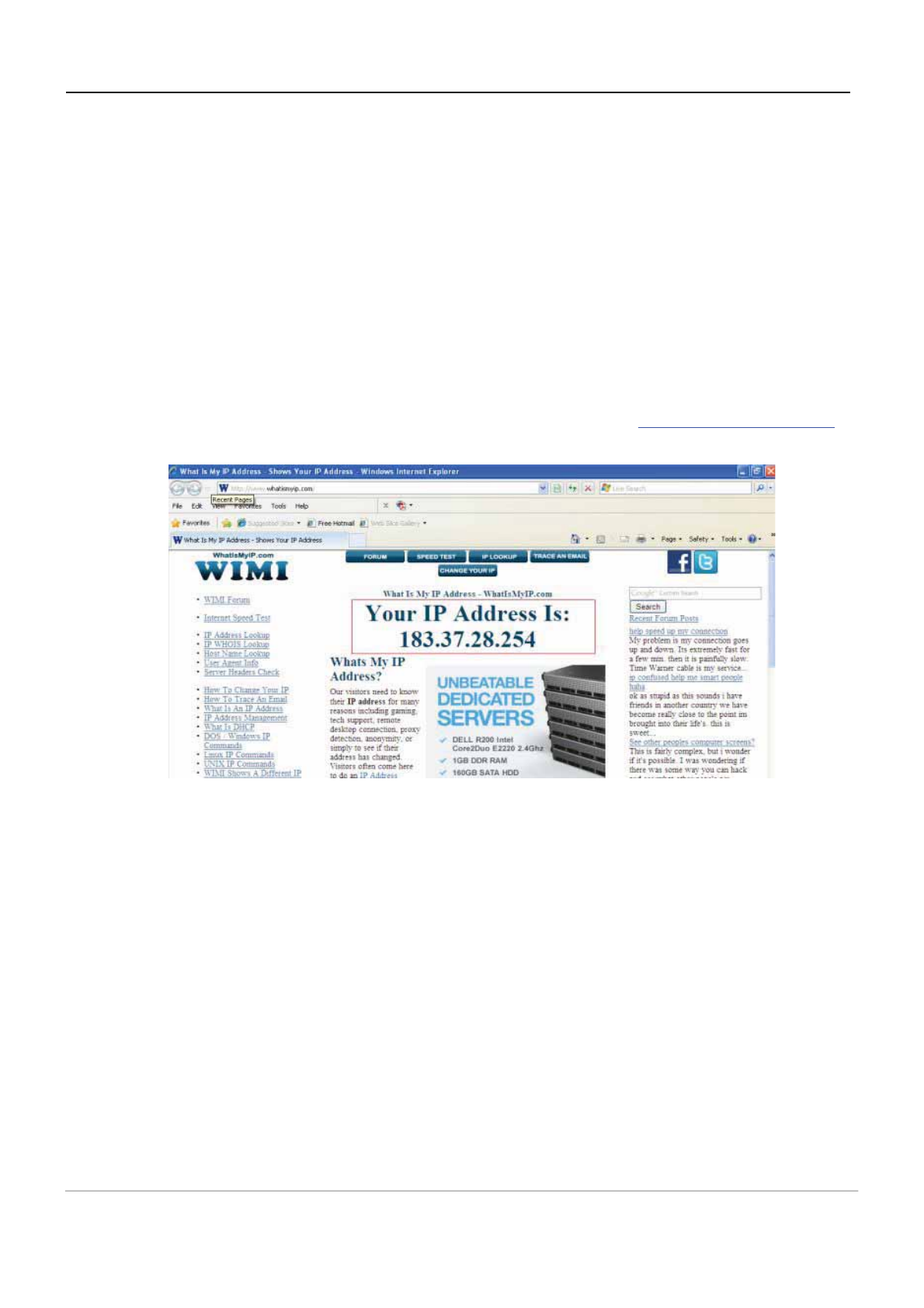

How to Obtain the WAN IP address from a public website ?
To obtain your WAN IP address, enter the following URL in your browser: http://www.whatismyip.com.The
webpage at this address will show you the current WAN IP.
Figure 2.3
Access your IP Camera from the Internet
You can access the IP Camera from the Internet (remote access). Enter the WAN IP address and port number
in your standard browser. For example, you would enter http:// 183.37.28.254:85
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 6
NOTE :
Make sure port forwarding is successful. You can do port forwarding two ways.
1. Login to your router to enable the “UPNP” function. You can then login to the camera as administrator,
choose Network, and then choose UPnP to enable UPnP. Make sure that the status of UPnP reads “UPnP
Successful” on the Device Status page.

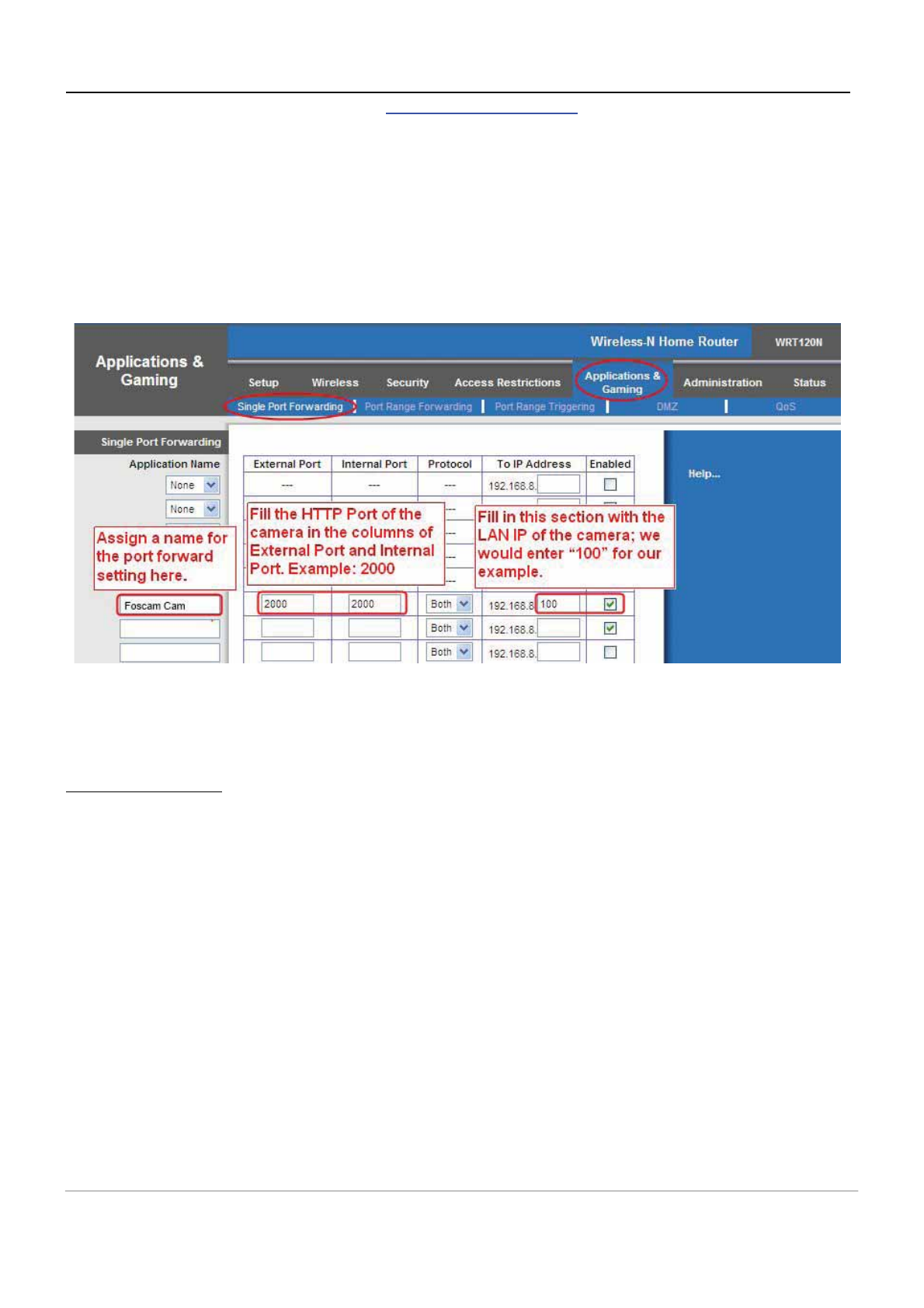

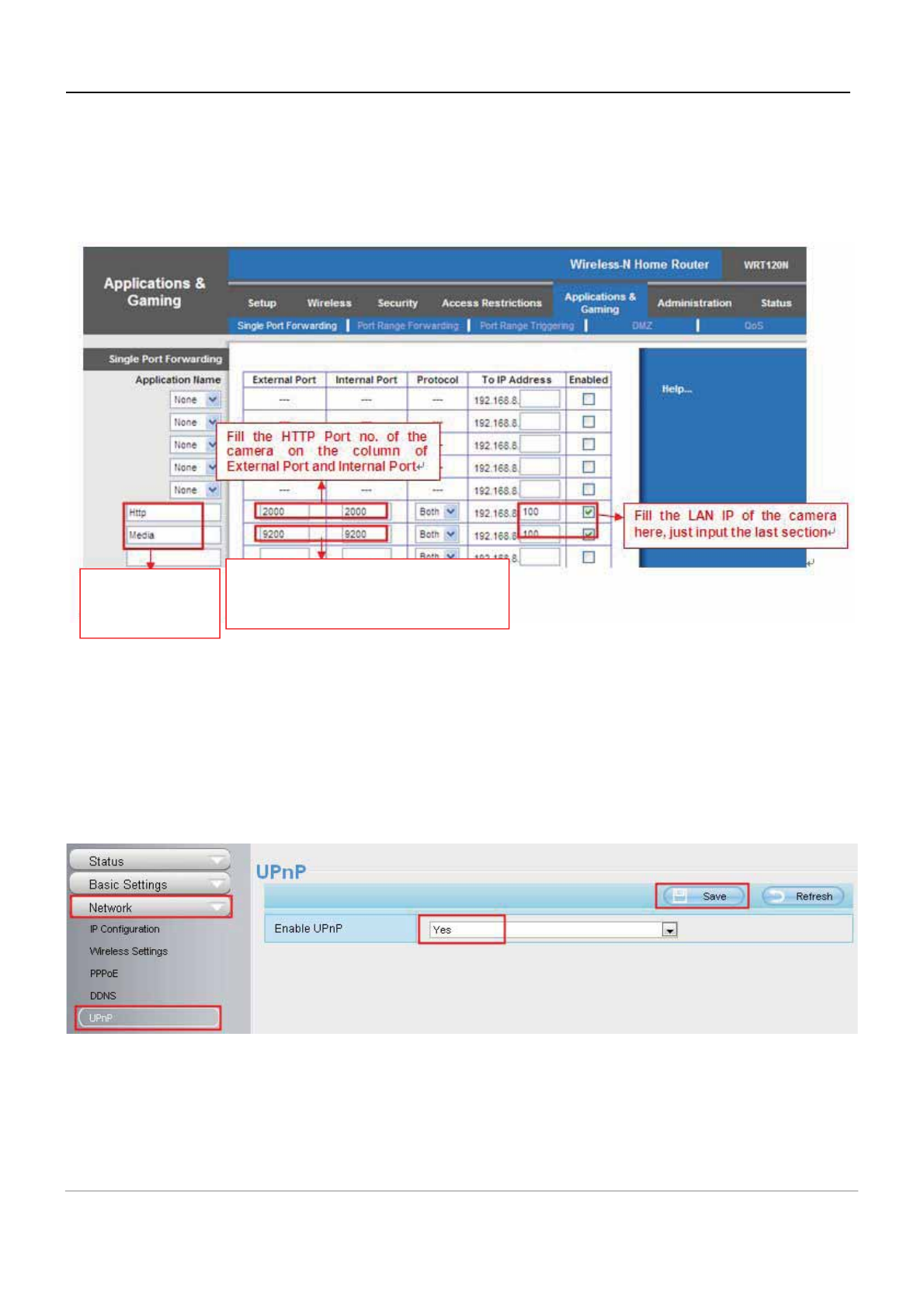

2. Do port (HTTP port) forwarding manually. (See Figure 2.11 for further details)
If your router has a Virtual Server, it can do port forwarding. Add the camera’s LAN IP and port which you had
set earlier to your router’s port forwarding settings.
NOTE: If you plug the camera into a router, it will have a dynamic IP address and you need to set DDNS
service settings to view it remotely.

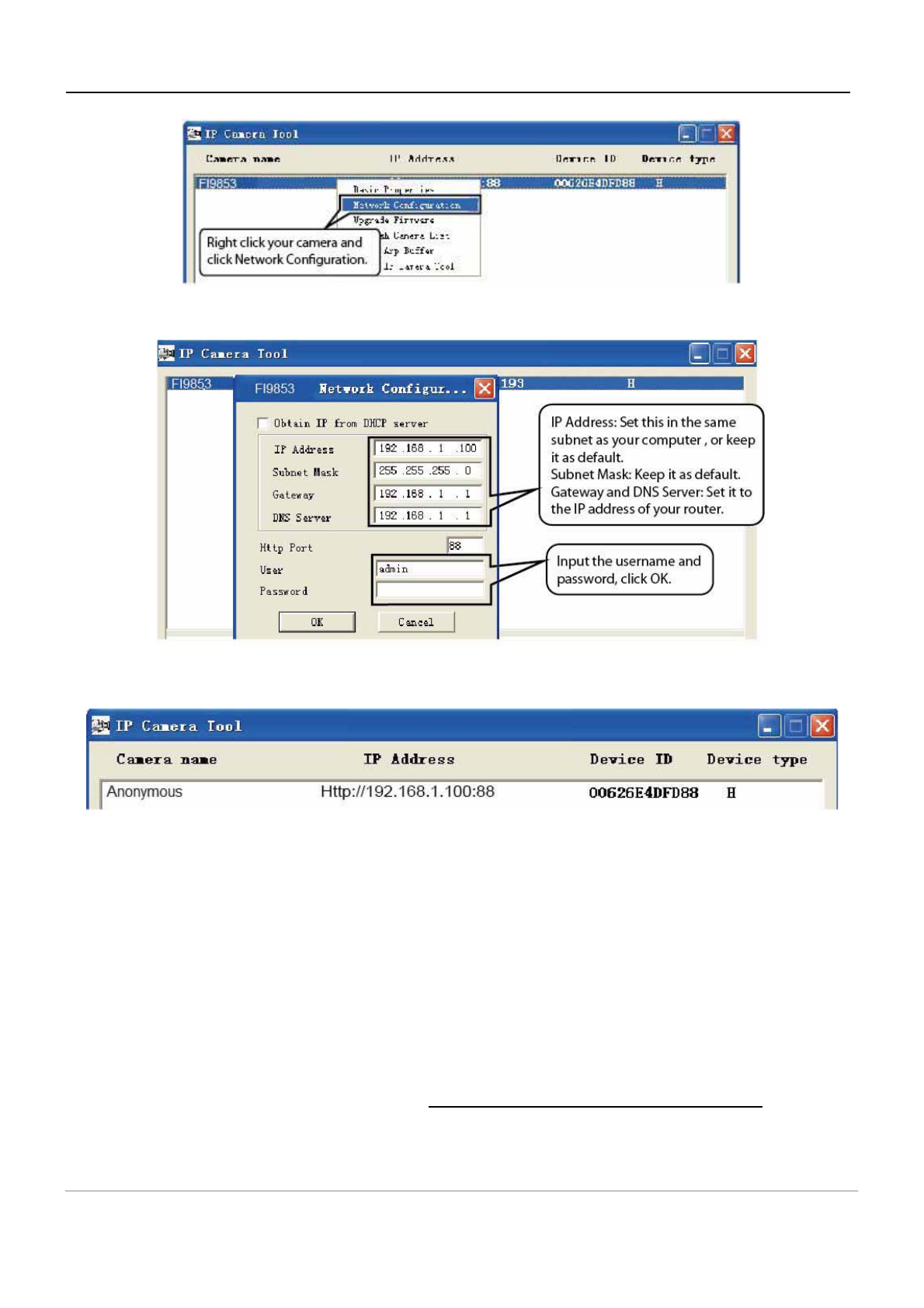

Step 1: Enter the username and password of the Administrator (default username is admin with a blank
password), and click “OK” to apply changes.
Step 2: Wait around 10 seconds, you’ll see that the camera’s LAN IP address has changed. In our example it
was changed to 2000, so we see http://192.168.8.102:2000 in IP Camera Tool. Also, the LAN IP address is
now fixed at a static IP address of http://192.168.8.102:2000. This IP address will not change even if the
camera is powered off and back on, the camera will remain on this LAN IP address. This is very important that
a static LAN IP address is set, or you may have problems later with remote access and seeing the camera
remotely if the camera loses power and reconnects on a different LAN IP address. Make sure you set a static
LAN IP address!

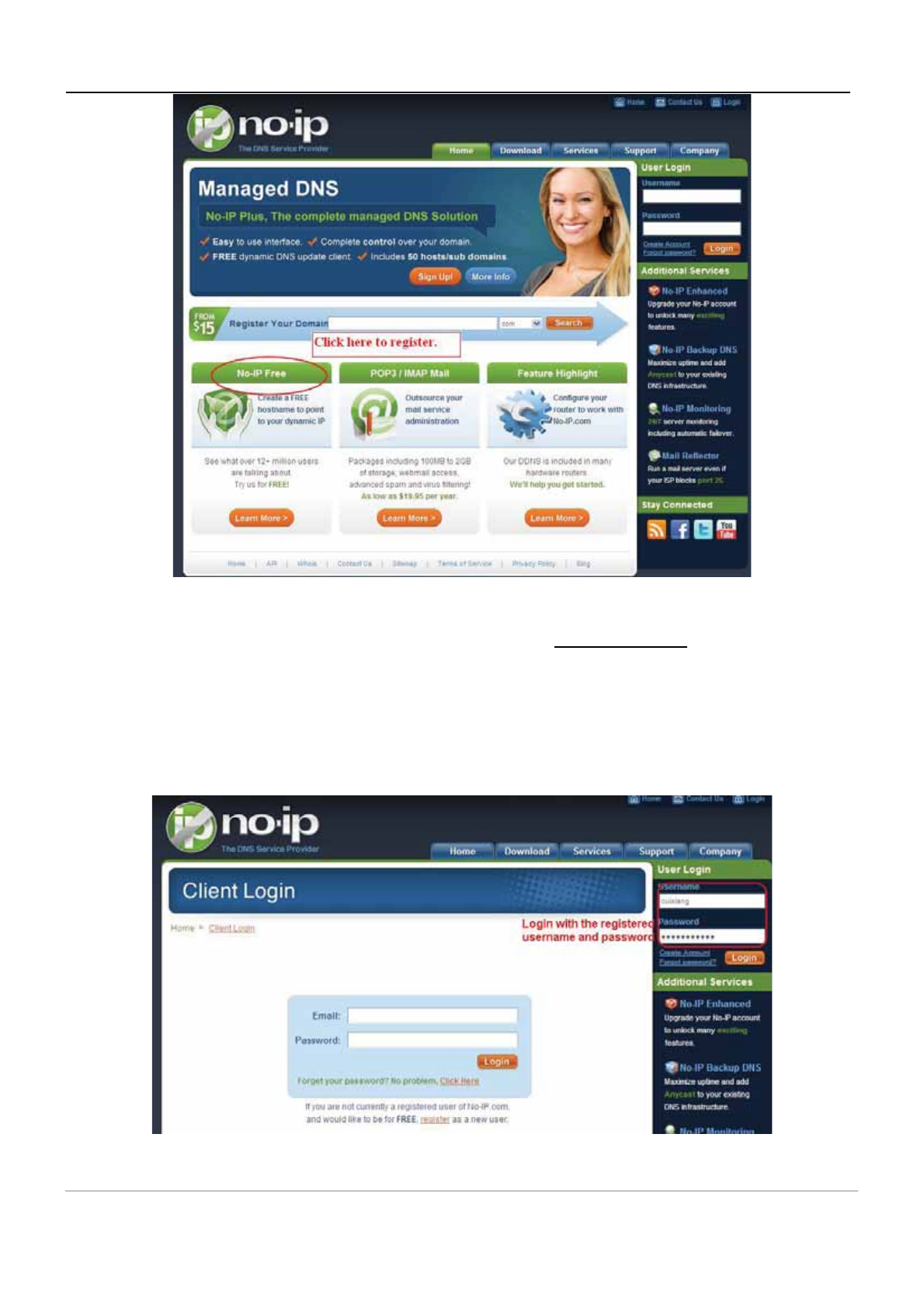

2.2.2 Dynamic IP Addresses

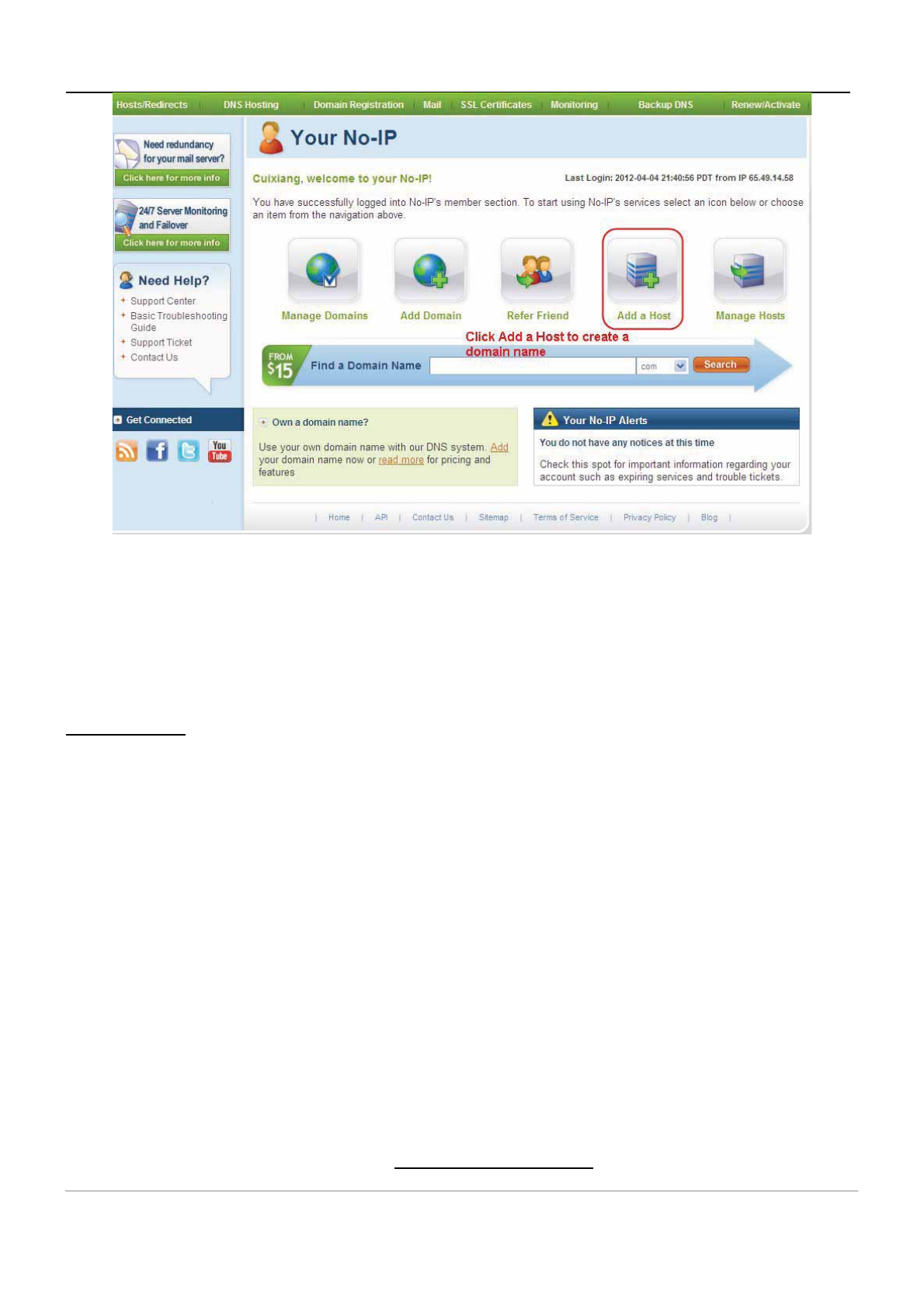

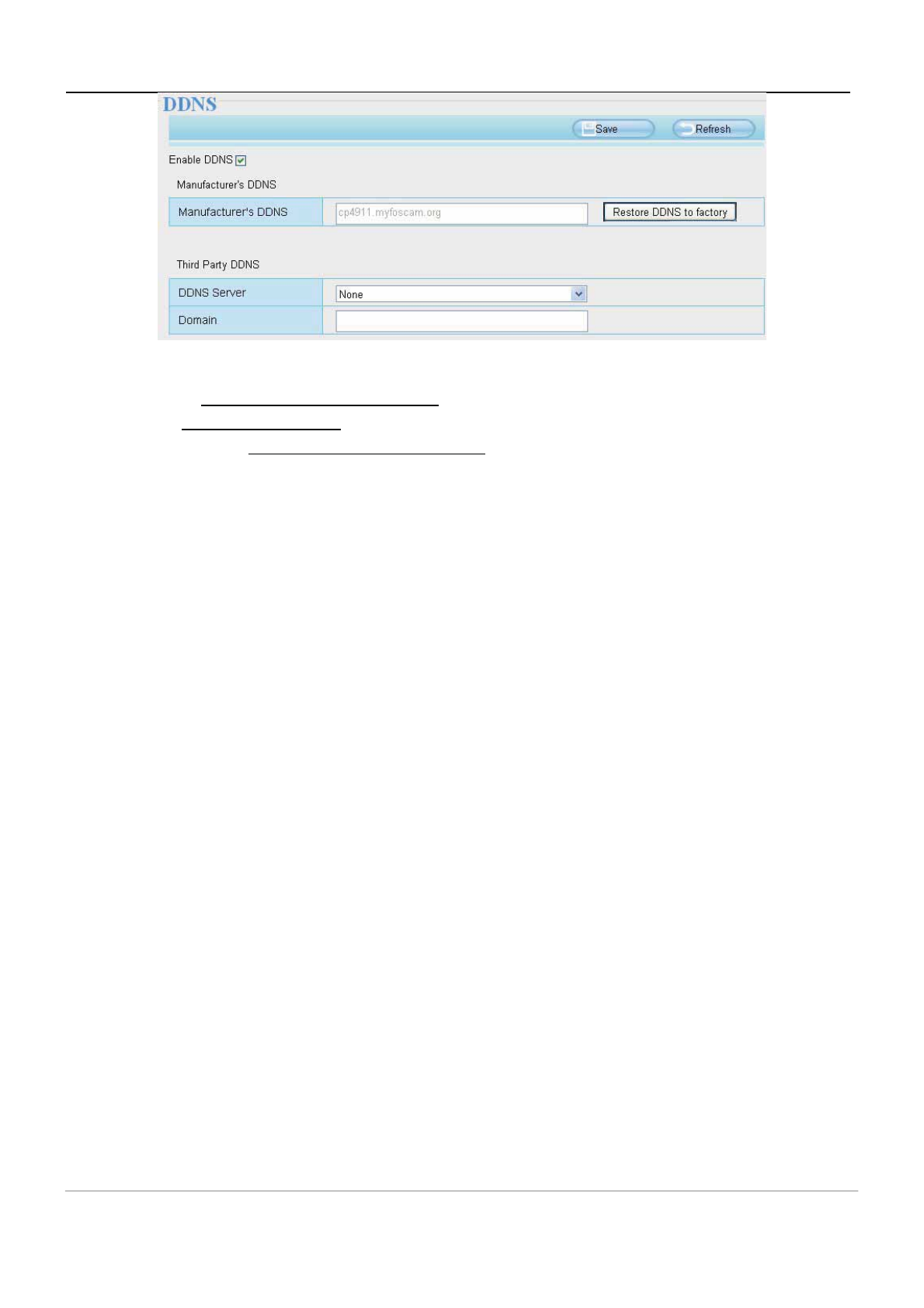

DDNS is a service that allows your IP Camera, especially when assigned with a dynamic IP address, to have a
fixed host and domain name. This means that even though your WAN IP address is constantly changing, you
will have a fixed hostname you can use to access your cameras at all times. You can access the camera
directly from the Internet using the hostname and port number.
What is the HTTP Port NO.?
1) Default HTTP Port is 88
All cameras have the default HTTP port of 88. For example, if the LAN IP link of the camera is
http://192.168.8.102:88, this means that the camera’s HTTP port is 88. You can change port 88 to another port
if you’d like such as 2000 or 8090, which will not be conflict with other existing ports like 25, 21,10000.Here you
can set the port no. between 1 and 65535.
2) Change the default http no.88 to another one.
How to assign a different HTTP Port No. and fixed the LAN IP of the camera by the IP Camera
Tool？
？

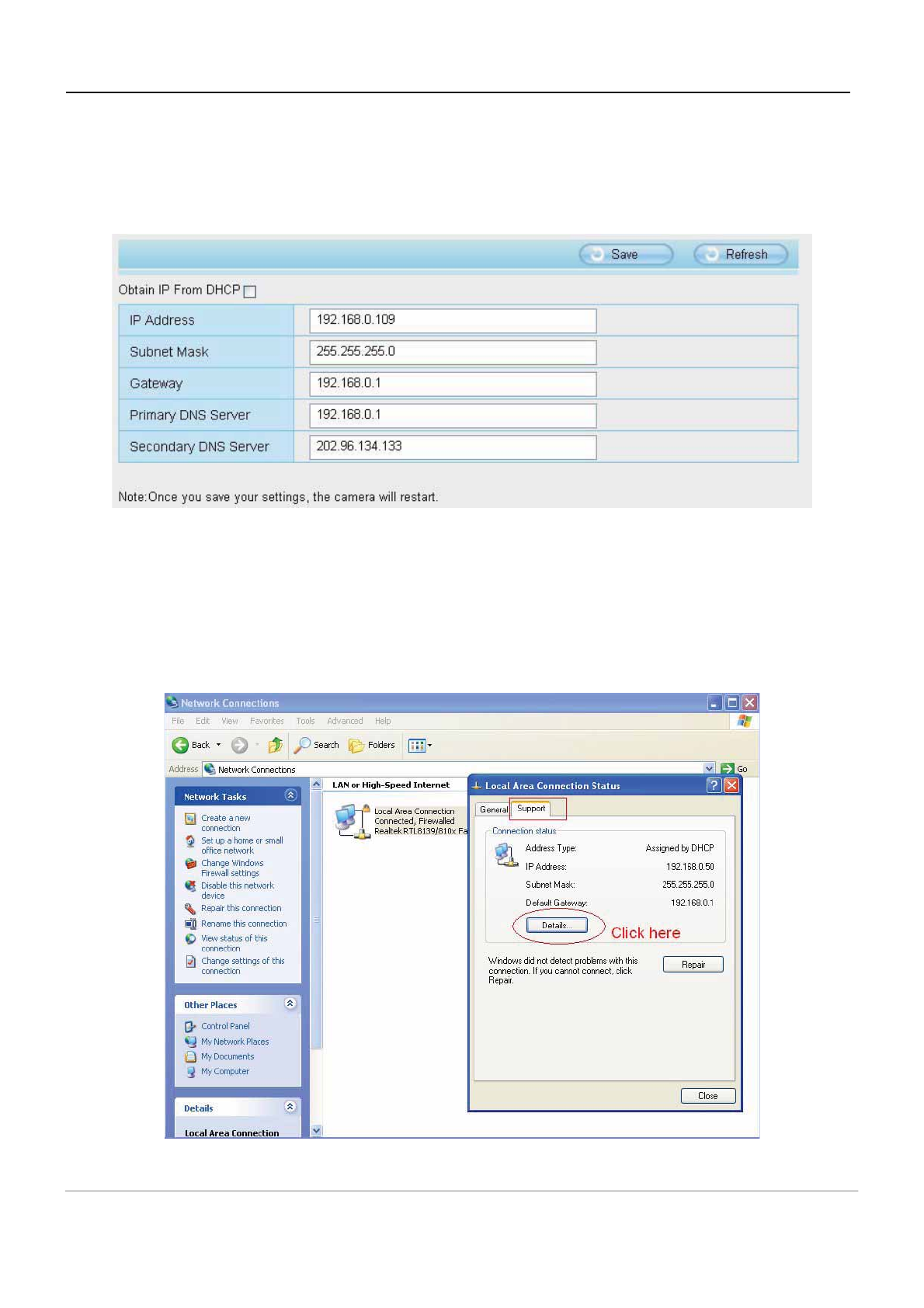

Step 1: Open the IP Camera Tool, select the camera you would like to change the port of, right click on the IP
address, and click on ”Network Configuration”, this brings up the network configuration box as shown in Figure
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 7
2.4 and 2.5.
Figure 2.4
Figure 2.5
Figure 2.6
What is Port forwarding ?
If you have never done port forwarding before, you can open and view the following link to understand the
basic concept. Port forwarding allows for outside connections to access a specific device on your network from
anywhere in the world. Every router automatically blocks any incoming connections for safety purposes. Using
port forwarding, you are telling your router to allow a connection through a certain port (you can think of it as a
gateway) into your router. You set this port to a specific device, in our case an IP Camera, so it can be
accessed from anywhere in the world.
Click this link to learn more about port forwarding: http://portforward.com/help/portforwarding.htm
How do we configure Port Forwarding ?
For this section, we will be using an example:
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 8
Let’s say the camera’s LAN IP address is http://192.168.8.100:2000
Step 1: Login to the router, and go to your router’s port forwarding or port triggering menu. Sometimes this is
also under the name of Virtual Server or NAT.
Using the Linksys brand router as an example, we would log into the router, and go to the Applications
& Gaming menu. We would then click on the “Single Port Forwarding” sub-menu.
Step 2: Create a new column using the LAN IP address & HTTP Port of the camera within the router as shown
below, then push OK or Submit to save your settings:
Figure 2.12
First method :
Use the embedded DDNS to access the camera via the Internet
Each Foscam camera has an embedded unique DDNS domain name, the format of this domain name is
xxxxxx.myfoscam.org. On the bottom of the camera, you can see the domain name sticker with this
information on it.
For example, we can use cp4911.myfoscam.org. In the camera, click Settings at the top, click “Network” on
the left, then click “DDNS” to get to the DDNS settings page. Here you can see the unique domain name of
your camera.
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 9
Figure 2.13

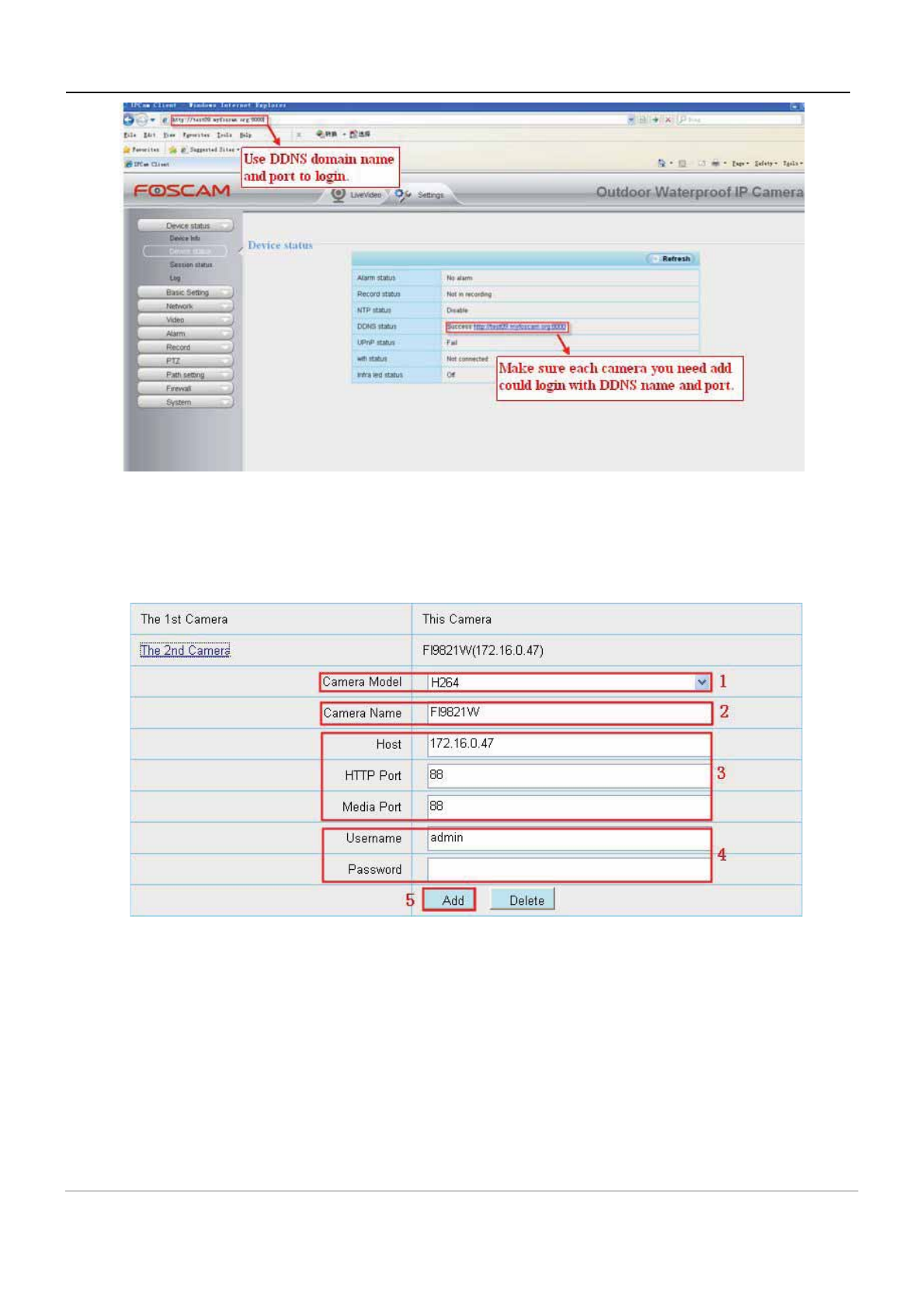

Now you can use “http://Domain name + HTTP Port” to access the camera via the Internet.
Take hostname cp4911.myfoscam.org and HTTP Port of 2000 for example, the URL link to access the camera
via the Internet would be http:// test09.myfoscam.org:2000.
Second method :
Use the Third party DDNS to access the camera via the Internet
Step 1, Please go to the third party DDNS website(such as www.no-ip.com) to create a free hostname.
Step 2, DO DDNS Service Settings within the Camera
Please set DDNS Settings within the camera by hostname, a user name and password you’ve got from
www.no-ip.com
Take hostname ycxgwp.no-ip.info, user name foscam, password foscam2012 for example.
Firstly, goes to option of DDNS Settings on the administrator panel.
Secondly, select No-Ip as a server.
Thirdly, fill foscam as DDNS user, fill password foscam2012 as DDNS password, fill ycxgwp.no-ip.info as
DDNS domain and server URL, Then click save to make effect. The camera will restart and to take the DDNS
settings effective.
Fourthly, after the restart, login the camera, and go to option of Device Status on the administrator panel, and
check if the DDNS status is successful.
If failed, please double check if you have input the correct hostname, user name, and password, and
try to redo the settings.
NOTE :
If you have set Third Party DDNS successfully ,the Foscam Domain Name will be invalid. The Third Party
DDNS and the Foscam Domain Name cannot work at the same time, the last time you configured will take
effect.
2.3 Using the VLC player
This camera supports RTSP streaming, here you can view the camera using VLC player.
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 10
RTSP URL rtsp:// [user name][:password]@IP:HTTP port number/videosream
The part in the square brackets may be omitted.
user name & password:
The user name and password to access the camera. This part can be omitted.
IP: WAN or LAN IP address.
Videostream:Here support three modes: videoMain, videoSub and audio. When the network speed is bad,
here you had better select videoSub. If you select audio, you can only hear the sound but cannot see the
video.
For example:
IP: 192.168.1.11
HTTP Port number: 88
User name: admin
Password: 123
Here I can enter one of the following URLs in the VLC.
1．rtsp://admin:123@192.168.1.11:88/videoMain
2．rtsp:// @192.168.1.11:88/videoMain
3．rtsp://:123@192.168.1.11:88/videoMain
4．rtsp://admin@192.168.1.11:88/videoMain

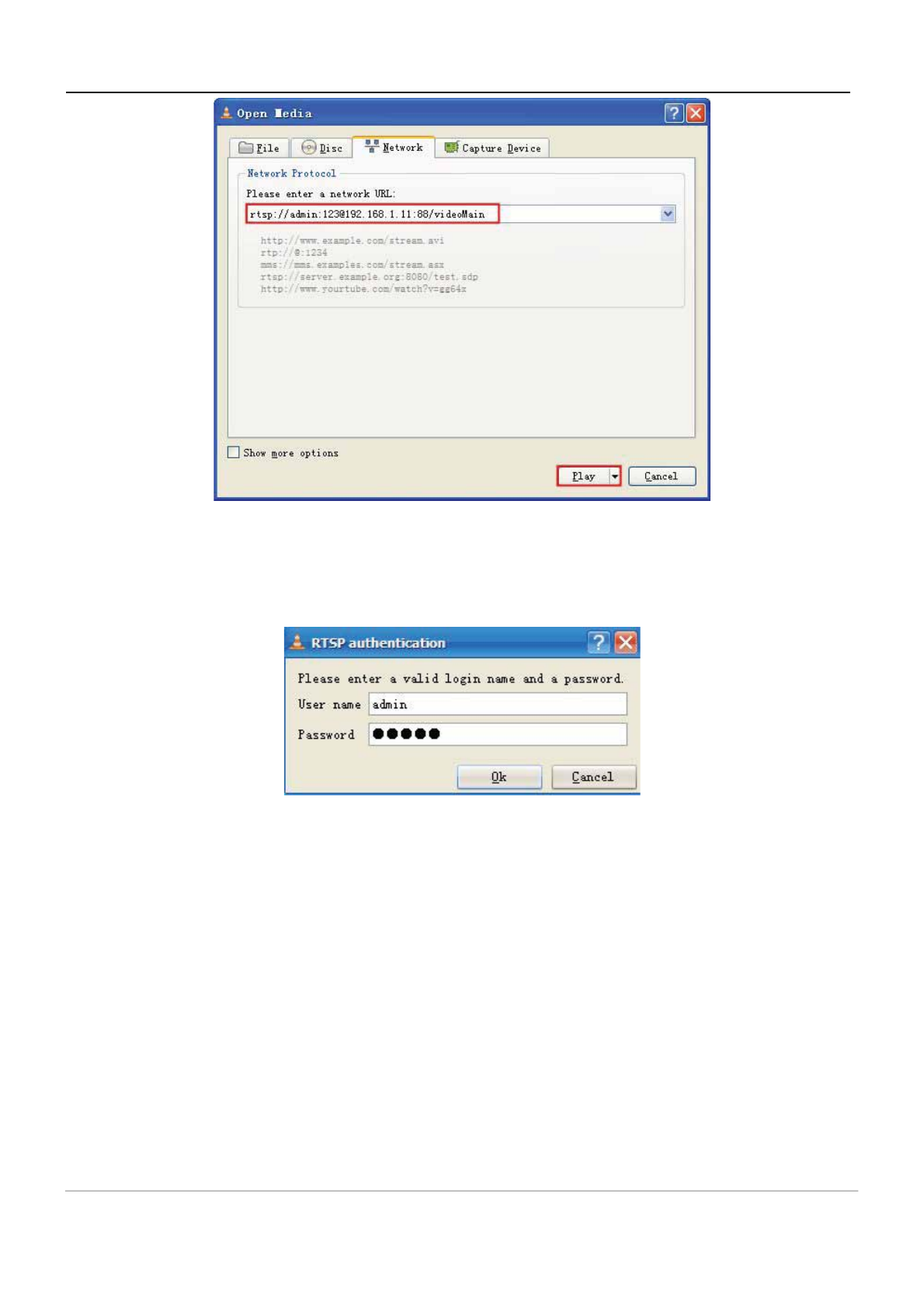

Open the VLC, and go to Media(Open Network Stream option, then enter the URL into VLC.
Figure 2.14
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 11
Figure 2.15

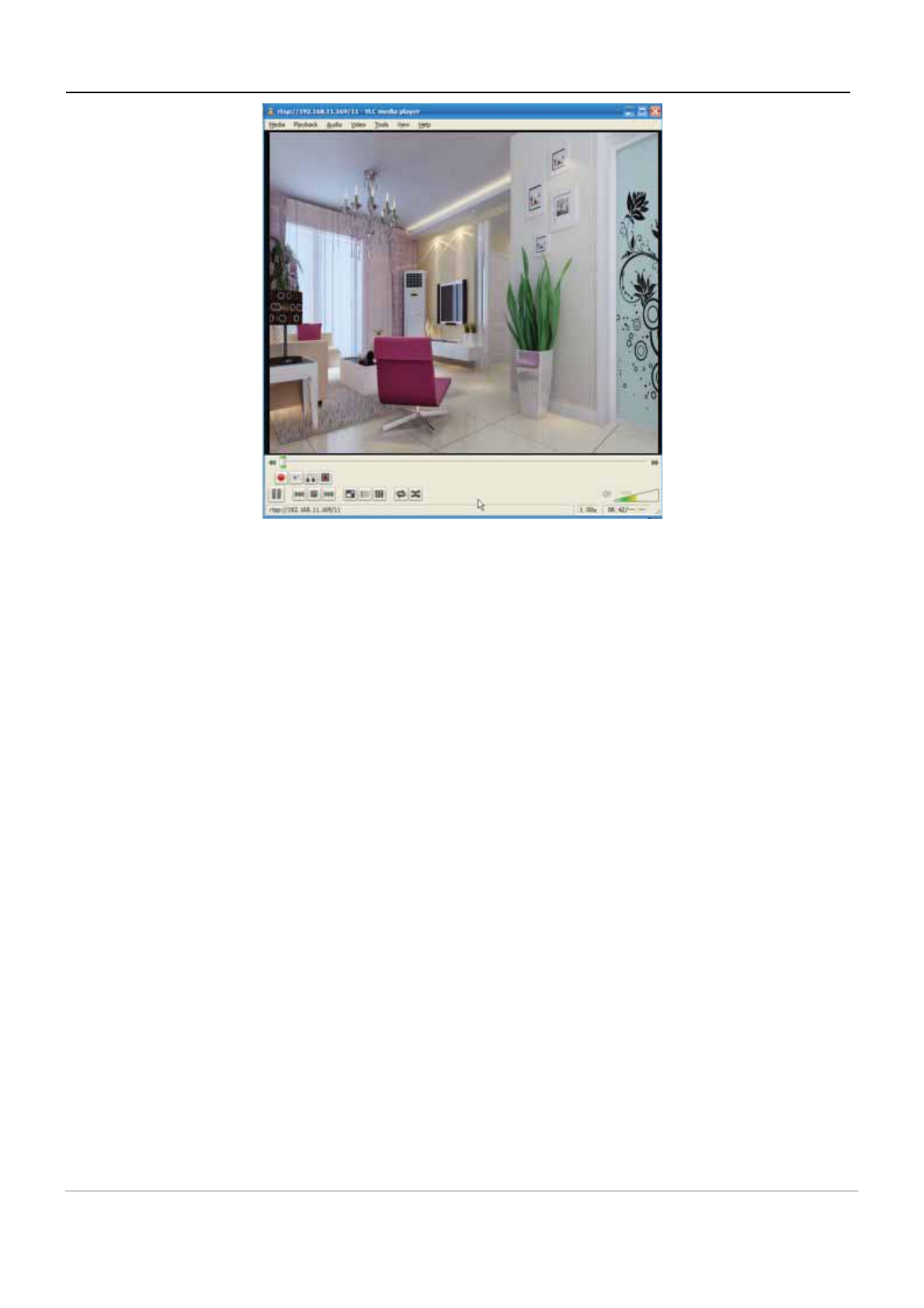

Sometimes you may need to enter the user name and password again. Click OK and you can see the real-time
preview.
Figure 2.16
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 12
Figure 2.17
If you cannot play the video in the VLC player, please check the port mapping. You can read Quick Installation
Guide about How to configure port forwarding.
NOTE:
If you modify the camera’s username or password, you had better reboot the camera, or else the new
username and password cannot take effect when you enter the authentication in the VLC.
3 Surveillance Software GUI
Please refer to the Quick Installation Guide if you install the camera at first time. After finishing quick
installation, you can take time to learn the operation of the software.
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 13

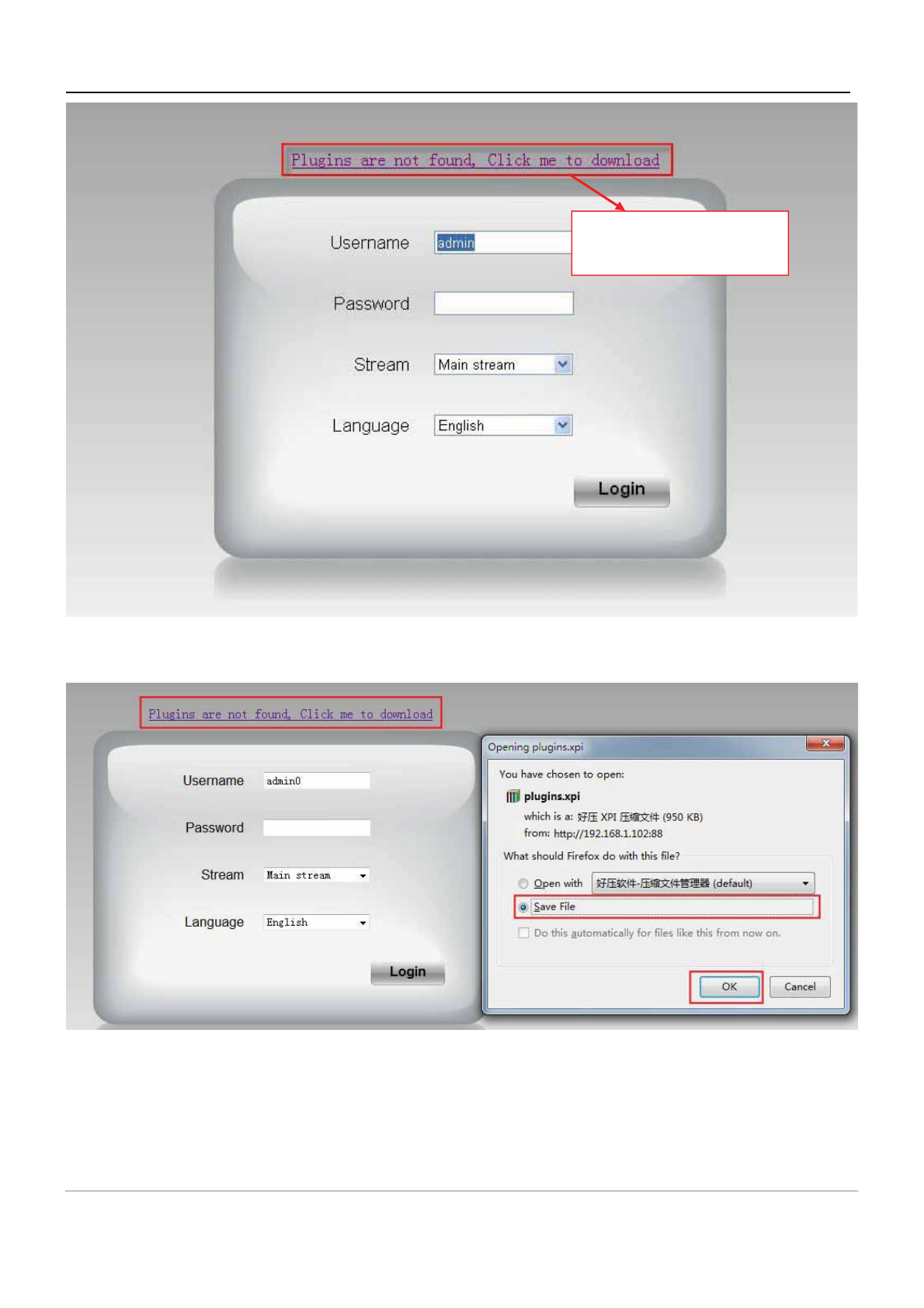

3.1 Login Window
Figure 3.1
Please check the login window above, it was divided to 4 sections from no. 1 to 4.
Section1 Enter the Username and password
The default administrator username is admin with no password, please reset the password at first using and
prevent unauthorized users login the camera (read chapter 3.2.4 about how to change).
Section2 Stream
The camera supports two stream modes: Main stream and sub stream. If you want to access the camera form
LAN, here you can select Main stream. If you want to access the camera from Internet, here we recommend
sub stream.
NOTE:When the network bandwidth is badly you’d better select Sub Stream and the video will be more
fluency.
Section3 Select the language
You can select the language you need via click on the language dropdown list to switch.
Section4 Login the camera
Click Login button and you will see the surveillance windows.
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 14
Figure 3.2
3.2 Modify the Username and Password
When you log in for the first time, it will come to the operating of modify the username and password
automatically.
Figure 3.2
Enter the New Username, New password and Confirm the password.
Click Modify button, you will see the login page again.
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 15

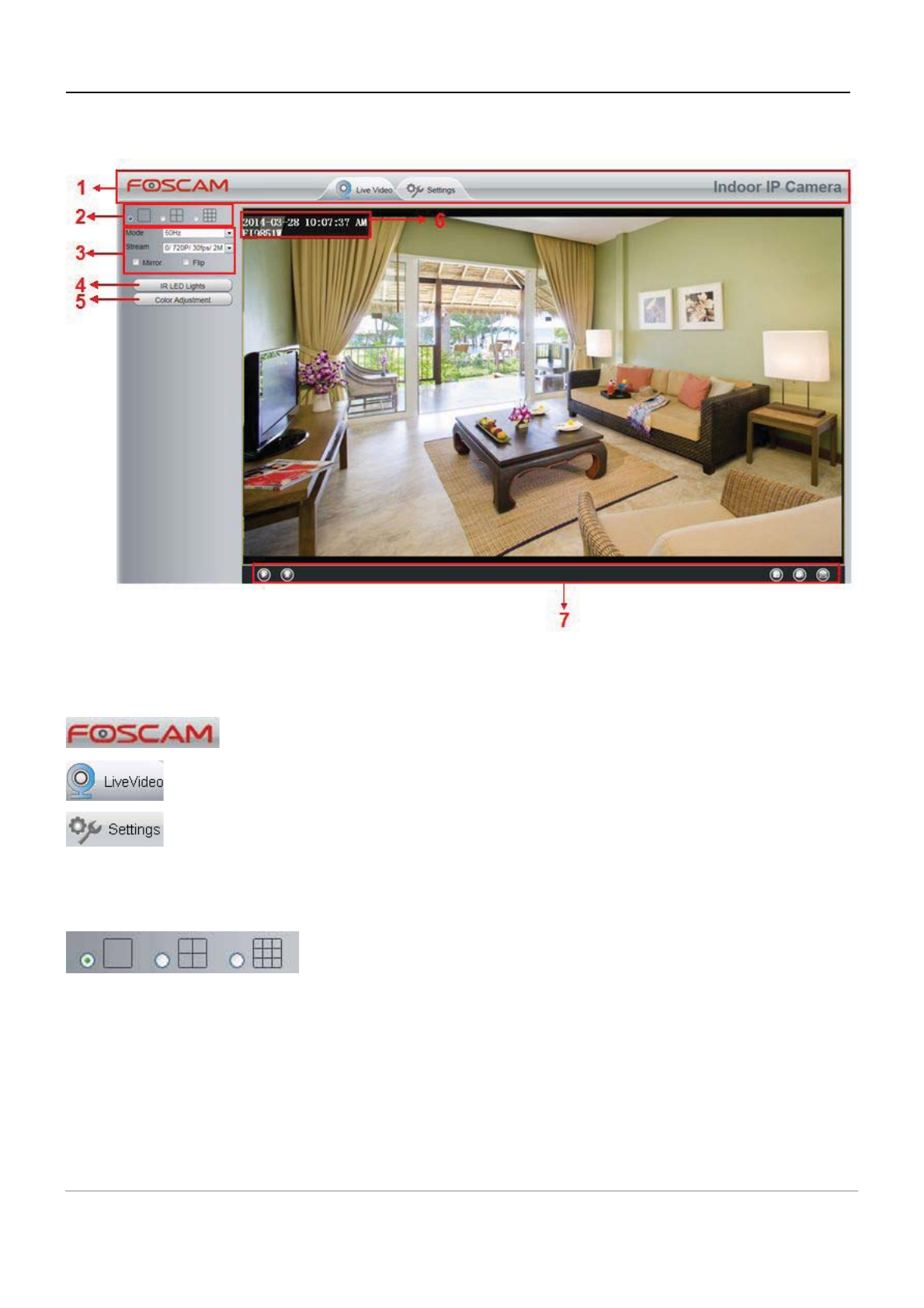

3.3 Surveillance Window
Figure 3.3
Section1 FOSCAM Logo/ LiveVideo / Settings buttons
: FOSCAM LOGO
: Path to surveillance window. Click this button and back to the surveillance window
: Path to Administrator Control Panel, Click it, and it will lead to Administrator Control Panel and
do advanced settings.

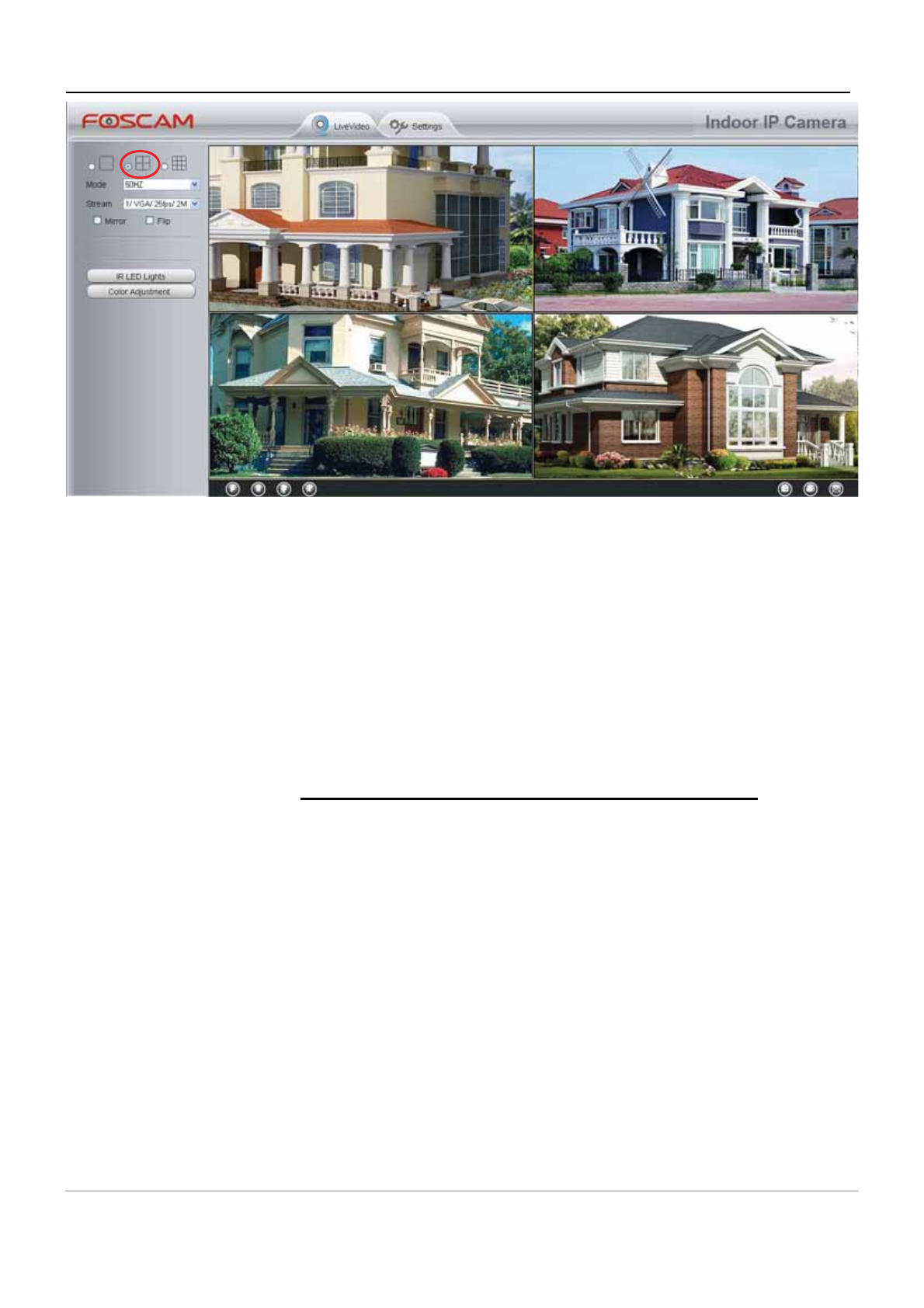

Section2 Multi-Device Window
The firmware inside the camera supports up to maximum of 9 cameras being monitoring at the same time. You
can add other cameras in multi-camera panel (read chapter 4.2.5).
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 16
Figure 3.4
Section3 Mode/ Stream / Mirror/ Flip buttons
Mode
1) 50Hz ---------Indoor surveillance (Region: Europe, China)
2) 60Hz ---------Indoor surveillance (Region: USA, Canada)
3) Outdoor Mode------Outdoor surveillance
Stream
The default Stream supports four modes:
0/720P/30fps/2M, 1/VGA/25fps/4M, 2/VGA/15fps/1M and 3/VGA/10fps/200K
The format of the stream type is Stream type no. / Resolution / Maximum frame rate/ Bit rate
1) Stream type no. : The number is used to identify the stream type.
2) 720P/ VGA
There are two resolutions, the bigger one is 720P, and the smaller one (VGA) is 640x480 pixels. The bigger the
resolution, the better of the image quality is. If you are accessing the camera via internet and want to get more
fluent video streaming, please select resolution VGA.
3) Maximum frame rate
When the video format is 50Hz, the maximum frame rate is 25 fps. When the video format is 60Hz, the
maximum frame rate is 30 fps. You should lower frame rate when the bandwidth is limited. Normally, when the
frame rate above 15, you can achieve fluently video.
4) Bit rate
Generally speaking, the larger the bit rate is, the clearer video will become. But the bit rate configuration should
combine well with the network bandwidth. When the bandwidth is very narrow, and bit rate is large, that will
lead to video cannot play well.
You can reset the stream type on Settings-> Video-> Settings panel( chapter 4.4.1).
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 17
After changing, please re-login the camera and you can see the modification.
Section4 IR LED Lights
Click IR LED Lights and there are two modes to adjust the infrared led: Auto and Off . The default mode is
Auto.
Auto: Select it and the camera will adjust the infra led (on or off) automatically.
Manual: Select it and turn off the infra led manually.
Section5 Image quality settings
In this page, you can tune Hue, Brightness, Contrast, Saturation, and Sharpness to get higher quality.
Section6 OSD
If you have added time and camera name in the video, you can see it in the live window.

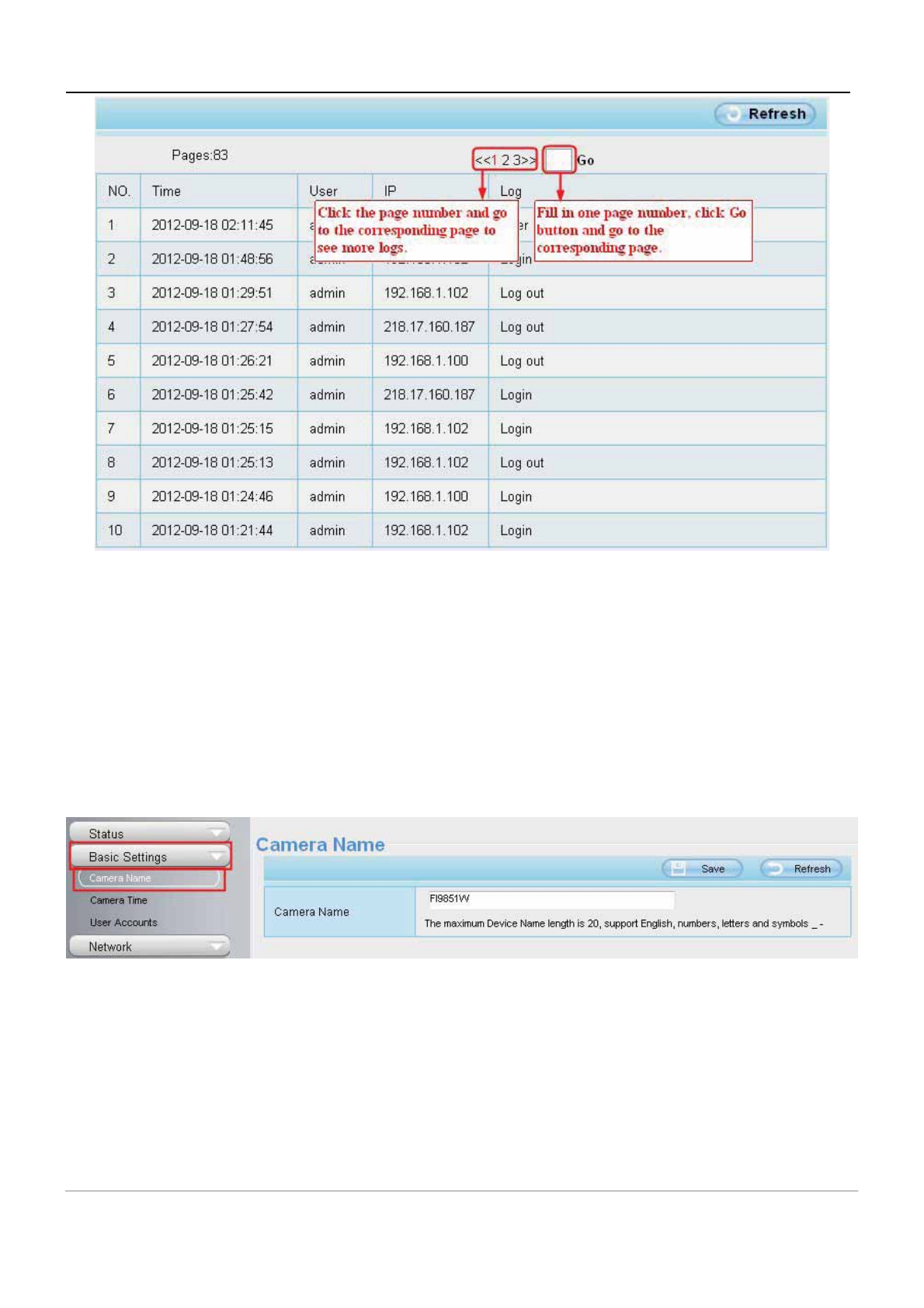

Go to Settings ---Basic settings---Camera name panel, and you can change another device name. The
default device name is anonymous.

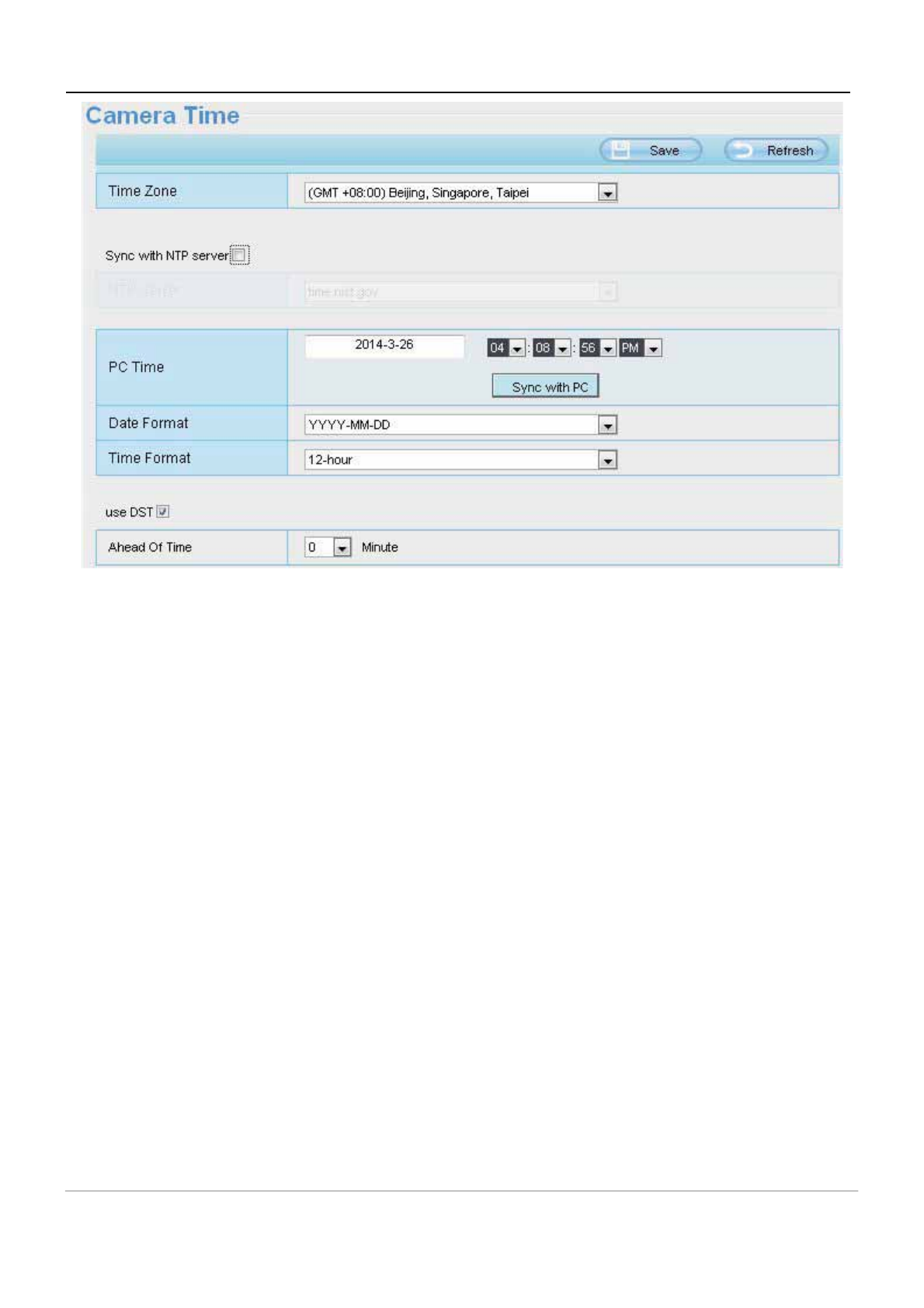

Go to Settings ---Basic settings---Camera time panel and adjust the device time.
Go to Settings ---Video---On Screen Display panel, you can add or no add OSD.
Section7 Play/Stop/ Talk/Audio/ Snap/ Record/ Full screen button
1------Play Click it to play the video of the camera
2------Stop Click it to stop the video of the camera
3------ Talk: Click the button and the icon will become to , then talk to the microphone that connected
with PC, people around the camera can hear your voice if the camera has connected with audio output device.
123567
4
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 18
Click the icon again and stop talking.
4------ Audio Click the button and the icon will become to , you can hear the sound around the camera if
the camera has connected with other audio input device through the Audio Input port of the camera, Click the
icon again and stop audio.
5----- Snap: Click it to make snapshot and it pop up a window which picture you snapshot, right click in the
window and save the picture to anywhere you want.
6----- Record: Click the icon and the camera start recording, you can see a green dot in the live window.
Click again and stop recording. The default storage path is C:\IPCamRecord. You can change the storage path:
Go to Settings- >Record-> Storage Location panel.
7------Full Screen Click it to make full-screen, or you can double click the surveillance screen to make
full-screen. Double click again and exit full-screen.

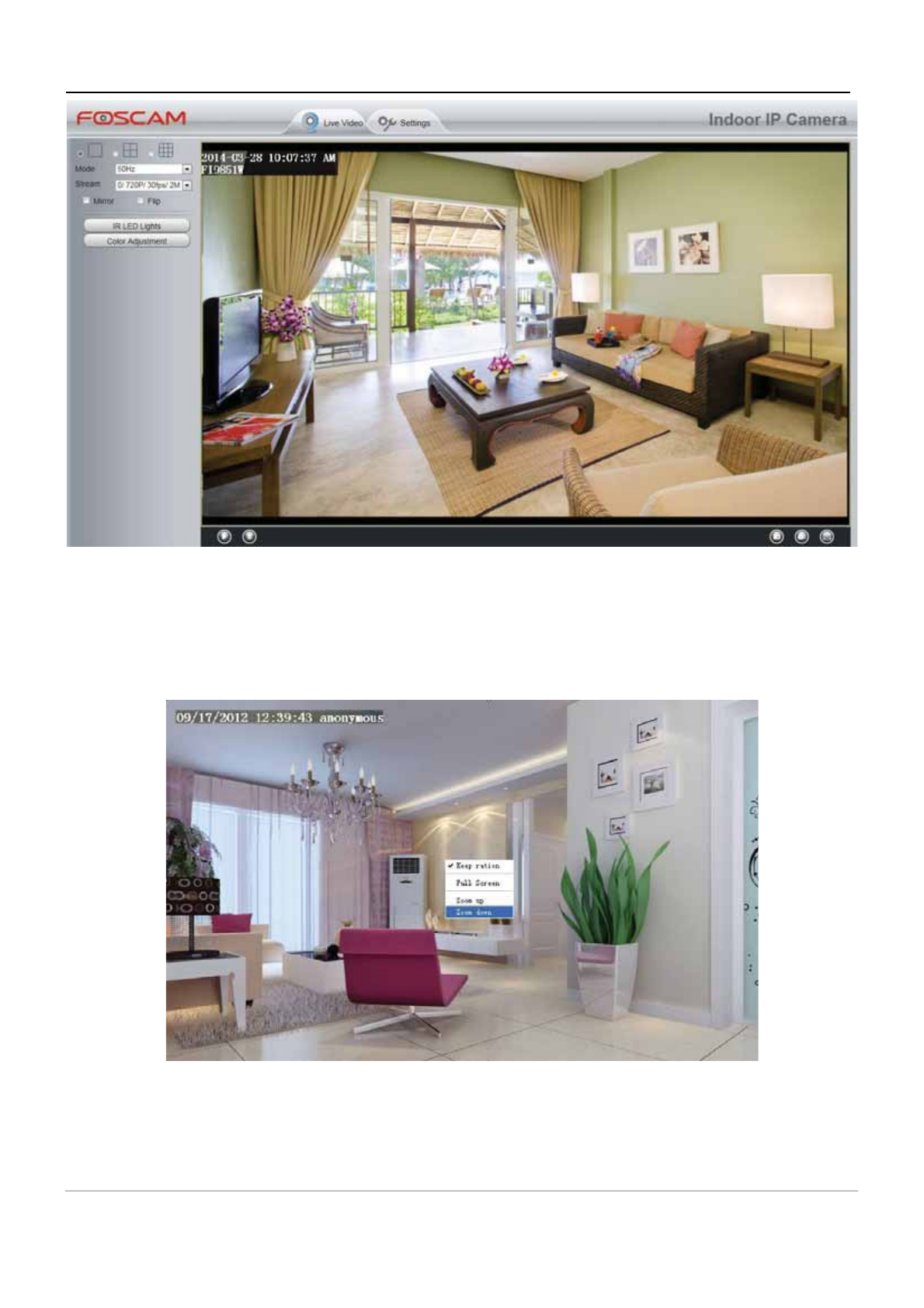

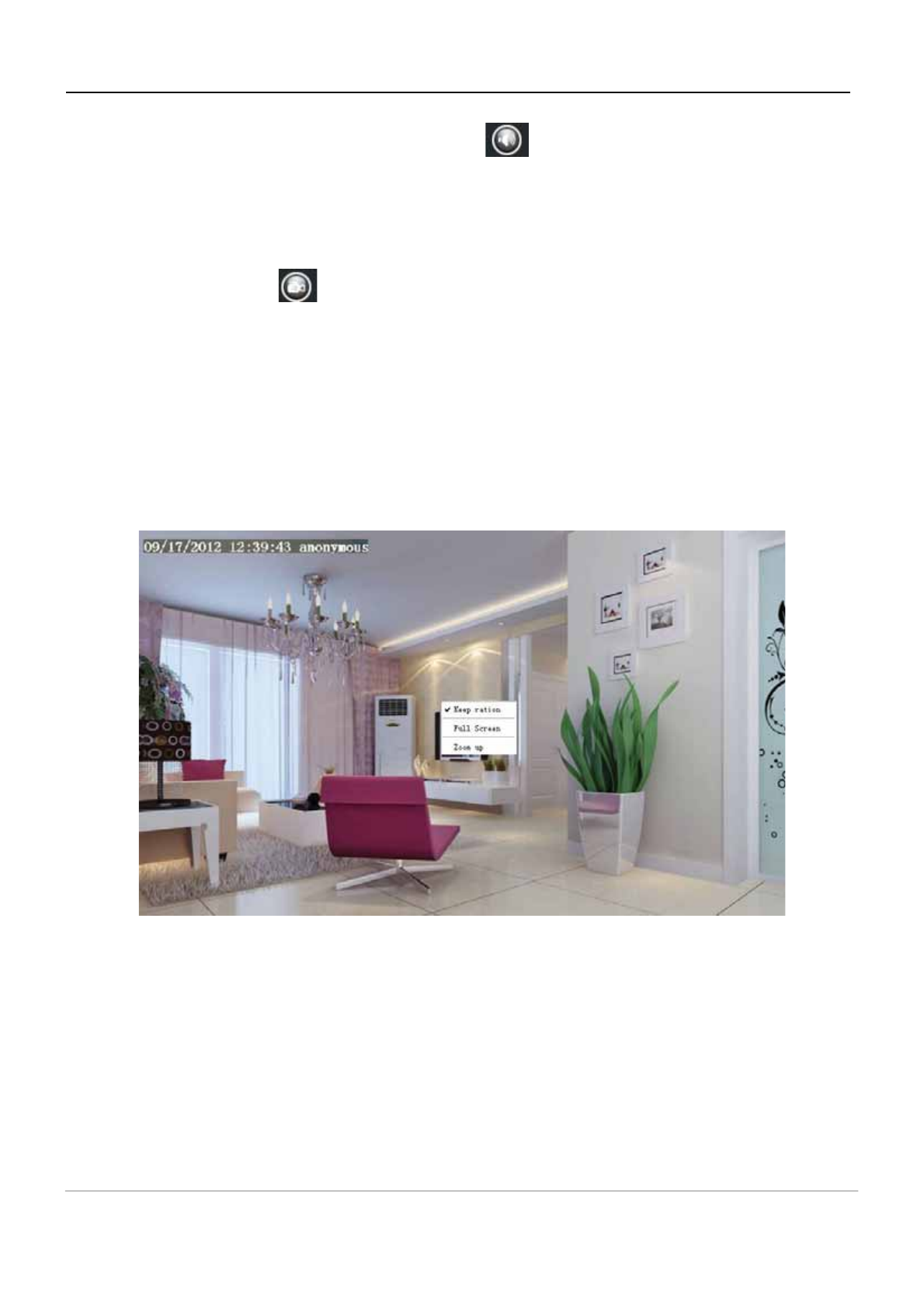

Onscreen Mouse Control
Right click the mouse and you can adjust the screen ration, full screen and Zoom up.
Figure 3.5
Keep ration: Select it and the camera will adjust the size of live window based on the computer monitor
automatically.
Sometimes there is a black border around the video (Figure 3.7), please select Keep ration to get a better
visual quality (Figure3.3).
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 19
Figure 3.6
Full Screen: Select it and Click it to make full-screen, press ESC and exit full-screen.
Zoom up/down: Click it and the live view will be digital zoomed up, then click Zoom Down and the live view
back to original size.
Figure 3.7
NOTE:
For Mac OS, the plugin cannot support Onscreen Mouse function, so you cannot allow to use it.
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 20
4 Advanced Camera Settings
Click the button “Settings”, goes to Administrator Control Panel to make advanced camera settings.
4.1 Device Status
Device Status contains four columns: Device Information, Device Status, Session Status and Log, it will show
you various information about your camera.
4.1.1 Device Information
Figure 4.1
Camera Model: The model of the device.
Camera Name: The Device Name is a unique name that you can give to your device to help you identify it.
Click Basic Settings and go to Device Name panel where you can change your camera name. The default
device name is anonymous.
Camera ID: Display the MAC address of your camera. For example Device ID is 008414350787, the same
MAC ID sticker is found at the bottom of the camera.
Camera Time: The system time of the device. Click Basic Settings and go to Camera Time panel and adjust
the time.
System Firmware version: Display the System Firmware version of your camera.
App Firmware version: Display the application firmware version of your camera.
Plug-in version: Display the plug-in version of your camera
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 21
4.1.2 Device Status
On this page you can see device status such as Alarm status, NTP/DDNS status and so on.
Figure 4.2
4.1.3 Session status
Session status will display who and which IP is visiting the camera now.
Figure 4.3
4.1.4 Log
The log record shows who and which IP address accessed or logout the camera.
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 22
Figure 4.4
4.2 Basic Settings
This section allows you to configure your Camera Name, Camera Time, Mail, User Accounts and Multi-Device.
4.2.1 Camera Name
Default alias is anonymous. You can define a name for your camera here such as apple. Click Save to save
your changes. The alias name cannot contain special characters.
Figure 4.5
4.2.2 Camera Time
This section allows you to configure the settings of the internal system clocks for your camera.
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 23
Figure 4.6
Time Zone: Select the time zone for your region from the dropdown menu.
Sync with NTP server: Network Time Protocol will synchronize your camera with an Internet time server.
Choose the one that is closest to your camera.
Sync with PC: Select this option to synchronize the date and time of the Network Camera with your computer.
Manually: The administrator can enter the date and time manually. Note select the date and time format.
use DST: Select the daylight saving time from the dropdown list.
Click Save button and submit your settings.
4.2.3 User Accounts
Here you can create users and set privilege, visitor,operator or administrator. The default administrator
user accounts are admin with a blank password.
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 24
Figure 4.7
How to change the password?
Firstly, select the account which you want to change the password, then select “Change password”, enter the
old password and the new password, lastly click modify to take effect.
Figure 4.8
How to add account ?
Select one blank column, then enter the new user name, password and privilege, last click Add to take effect.
You can see the new added account on the Account list.
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 25
Figure 4.9
Figure 4.10
Delete : Select the account which you want to delete, then click Delete button to take effect.
NOTE:The default administrator account cannot be deleted, but you can add other administrator users.
How to change the username ?
Firstly, select the account which you want to change the username, then select “Change username”, enter the
new password, lastly click modify to take effect.
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 26
Figure 4.11
4.2.4 Multi-Camera
If you want to view multi-surveillance screens on one window, you need to login one camera, and set it as the
main device, and do Multi-Device Settings, add other cameras to the first one camera. Before you do
multi-cams settings, you need to assign different port such as 81, 82, 83, 84, 85, 86, 87, 88 to the cameras if
there is 8 cams installed.
The firmware within the camera can support a maximum of 9 devices monitoring all at the same time. This
page you can both add FOSCAM MJPEG and H.264 series cameras to the first camera and view
multi-surveillance screen on one window.
Add cameras in LAN
In Multi-Device Settings page, you can see all devices searched in LAN. The 1st Device is the default one. You
can add more cameras in the list in LAN for monitoring. The camera’s software supports up to 9 IP Cameras
online simultaneously. Click The 2nd Device and click the item in the Device List in LAN, the Alias, Host and
Http Port will be filled in the boxes below automatically. Enter the correct username and password then click
Add. Add more cameras in the same way.
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 27
Figure 4.12
Camera Model: Our Company produces two series cameras: MJPEG and H.264. Here will show you which
series the camera belongs to.
Figure 4.13
Back to Surveillance Windows, and click Four Windows option, you will see four cameras you added.
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 28
Figure 4.14
Figure 4.15
Add cameras in WAN
If you want to view all cameras via the internet(remote computer), you will need to add them using DDNS
domain name. Firstly, make sure all of the cameras you added can be accessed through the internet. (Read
How to configure DDNS settings in chapter 4.3.3)
Login to the first camera using a DDNS domain name and port.
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 29
Figure 4.16
Click Multi-Device Settings. Choose The 2nd Device. Fill in the 2nd camera’s name, DDNS domain name, port
number. Enter user name and password and then choose Add.
Figure 4.17
1----- The camera model: MJ or H264.
2----- The 2nd camera’s name
3----- Fill in the 2nd camera’s DDNS host not LAN IP
NOTE: The MJ series have the same HTTP Port NO. and Media Port NO.
4 ---- Enter the 2nd camera’s user name and password
5---- Click Add button and to take effect
NOTE:Here the Host must be entered as the second camera’s DDNS domain name, not its LAN IP.
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 30
Figure 4.18
Return to video window. You will see all of the cameras accessible through the internet.
When you are away from home, you can use the first camera’s DDNS domain name and port to view all the
cameras via internet.
Figure 4.19
4.3 Network
This section will allow you to configure your camera’s IP, PPOE, DDNS, UPnP, Port, Mail Settings and FTP
Settings.
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 31
4.3.1 IP Configuration
If you want to set a static IP for the camera, please go to IP Configuration page. Keep the camera in the same
subnet of your router or computer.
Figure 4.20
Changing settings here is the same as using the IP Camera Tool. (Figure 4.23/4.24)
It is recommended that you use the subnet mask, gateway and DNS server from your locally attached PC. If
you don’t know the subnet mask, gateway and DNS server, you can check your computer’s local area
connection as follows:
Control Panel--Network Connections--Local Area Connections --Choose Support--Details.
Figure 4.21
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 32

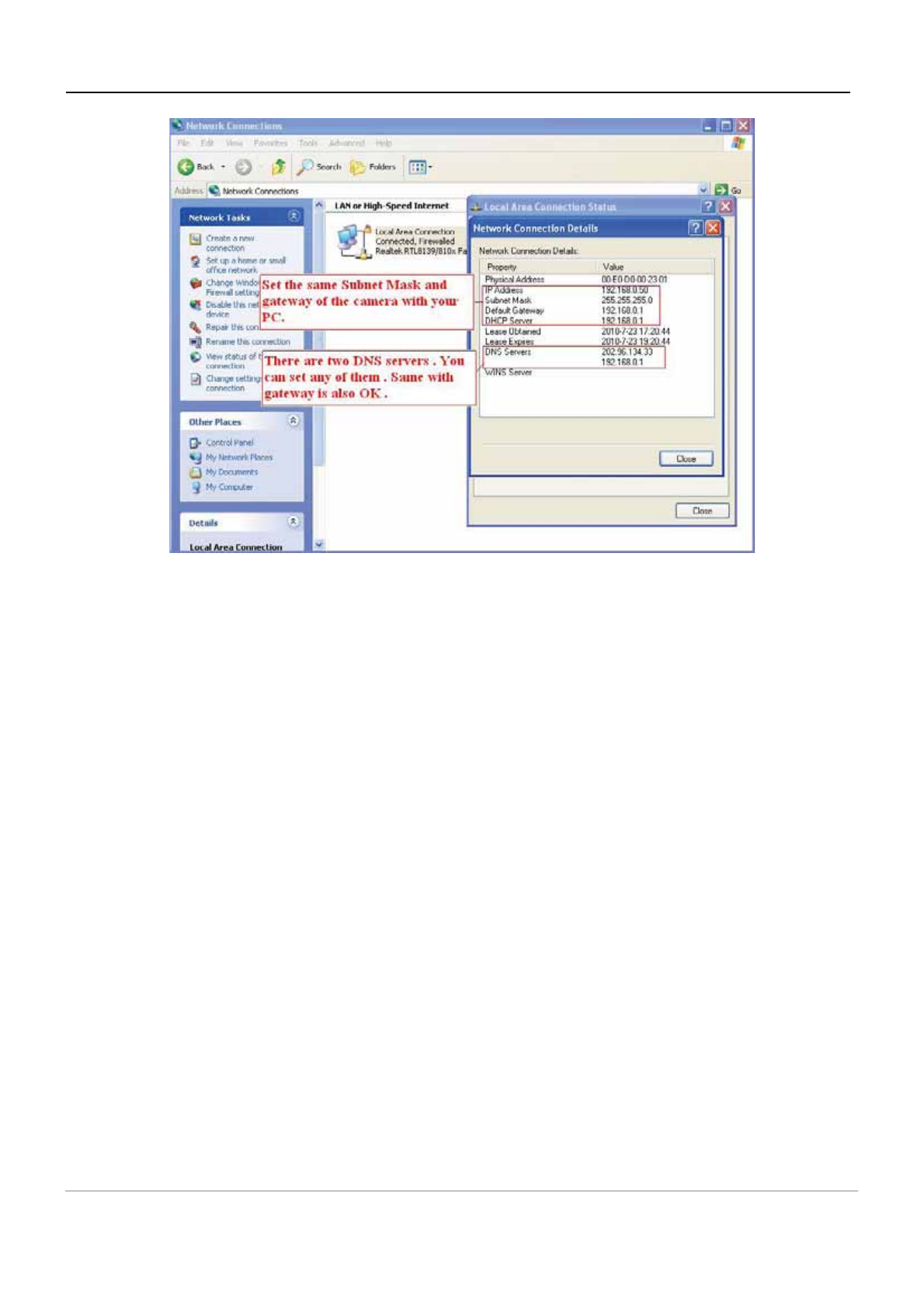

Figure 4.22
If you don’t know the DNS server, you can use the same settings as the Default Gateway.
4.3.2 Wireless Settings
Step 1: Choose “Settings” on the top of the camera interface, and go to the “Network” panel on the left side of
the screen, then click “Wireless Settings.”
Click the Scan button and the camera will detect all wireless networks around the area. It should also display
your router in the list (Figure 4.30).
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 33
Figure 4.23
Step 2: Click the SSID (name of your router) in the list, the corresponding information related to your network,
such as the name and the encryption, will be filled into the relevant fields automatically.
You will only need to fill in the password of your network. Make sure that the SSID, Encryption and the
password you filled in are exactly the same for your router.
Click the Page number to see other wireless
networks devices if there are more than 10.
Click the Scan button
to search for wireless
networks.
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 34
Figure 4.24
Step 3: Please click on the Save button after all settings have been entered and disconnect the network cable.
Never shut down the power of the camera until the IP camera is able to connect to the wireless network.
The LAN IP address will disappear on the window of IP Camera Tool when the camera is configuring a wireless
connection. Wait about 1 minute, the camera should obtain a wireless connection, and the LAN IP of the
camera will show again on the window of the IP Camera Tool. The IP address may have changed after the
camera receives a wireless connection; we recommend setting a static local IP address if this IP address
changes by right clicking the camera in IP Camera Tools, setting a static IP, and pushing OK.
Congratulations! You have set up the wireless connection of the camera successfully.
4.3.3 PPPoE
If you are using a PPPoE connection, enable it and enter the User Name and Password for your PPPoE
account.
1 Click the SSID of your router
and the relevant information
will be filled in the fields
automatically.
2 Enter the
password of
y
our router.
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 35
Figure 4.25
4.3.4 DDNS
FOSCAM camera has embedded a unique DDNS domain name when producing, and you can directly use the
domain name, you can also use the third party domain name.
FOSCAM domain name
Here take cp4911.myfoscam.org for example. Go to option of DDNS on the Settings->Network panel, you
can see the domain name.
Figure 4.26
Now you can use http:// Domain name + HTTP Port to access the camera via internet.
Take hostname cp4911.myfoscam.org and HTTP Port no. 8000 for example, the accessing link of the camera
via internet would be http://cp4911.myfoscam.org:8000
Restore DDNS to factory: If you have configured Third Party DDNS successfully, but you want to use
Manufacturer’s DDNS again , here click this button and start Manufacturer’s DDNS Service.
Third Party Domain Name Settings
User can also use third part DDNS, such as www.no-ip.com. ,www. 3322.com
Here take www.no-ip.com for example :
①
①
Step 1 Go to the website www.no-ip.com to create a free hostname
Firstly: Login on www.no-ip.com and click No-IP Free to register.
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 36
Figure 4.27
Please register an account step by step according to instructions on www.no-ip.com
After registration, please login your email which used to register. You will receive an email from website, please
click the link to activate your ACCOUNT as indicated in email.
Secondly: Login the link with the registered username and password to create your domain name.
Figure 4.28
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 37
Figure 4.29
Please create the domain name step by step according to instructions on www.no-ip.com
Step 2 DO DDNS Service Settings within the Camera
Please set DDNS Settings within the camera by hostname, a user name and password you’ve got from
www.no-ip.com
Take hostname ycxgwp.no-ip.info, user name foscam, password foscam2012 for example.
Firstly, goes to option of DDNS Settings on the administrator panel.
Secondly, select No-Ip as a server.
Thirdly, fill foscam as DDNS user, fill password foscam2012 as DDNS password, fill ycxgwp.no-ip.info as
DDNS domain and server URL, Then click save to make effect. The camera will restart and to take the DDNS
settings effective.
Fourthly, after the restart, login the camera, and go to option of Device Status on the administrator panel, and
check if the DDNS status is successful.
If failed, please double check if you have input the correct hostname, user name, and password, and try to
redo the settings.
NOTE :
If you have set Third Party DDNS successfully ,the Foscam Domain Name will be invalid. The Third Party
DDNS and the Foscam Domain Name cannot work at the same time, the last time you configured will take
effect.
②
Do port forwarding within the router
Example: The camera’s LAN IP address is http://192.168.8.100:2000
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 38
Firstly, login the router, goes to the menu of Port Forwarding or Port Trigger (or named Virtue
Server on some brands of router). Take Linksys brand router as an example, Login the router, and goes to
Applications & Gaming->Single Port Forwarding.
Secondly, Create a new column by LAN IP address & HTTP Port No. of the camera within the router showed
as below.
Figure 4.30
③
③
Use domain name to access the camera via internet
After the port forwarding is finished, you can use the domain name+ http no. to access the camera via
internet. Take hostname ycxgwp.no-ip.info and http no. 2000for example, the accessing link of the camera via
internet would be http:// ycxgwp.no-ip.info:2000
4.3.5 UPnP
Figure 4.31
The default UPnP status is closed. You can enable UPnP, then the camera’s software will be configured for
port forwarding. Back to the “Device Status” panel, you can see the UPnP status:
Assign a name
as you like
here.
Fill the Media Port no. of the
camera on the column of
External Port and Internal Port.
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 39
Figure 4.32
The camera’s software will be configured for port forwarding. There may be issues with your routers security
settings, and sometimes may error. We recommend you configure port forwarding manually on your router
(Figure 4.30).
4.3.6 Port
This camera supports HTTP Port / HTTPS Port/ ONVIF Port. HTTP Port is used to access the camera
remotely.
HTTP port : By default, the HTTP is set to 88. Also, they can be assigned with another port number between 1
and 65535. But make sure they can not be conflict with other existing ports like 25, 21.
Figure 4.33
Another way to change the HTTP port NO.
Step 1: Open the IP Camera Tool, select the camera you would like to change the port of, right click on the IP
address, and click on ”Network Configuration”, this brings up the network configuration box as shown in Figure
4.32 and 4.33.
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 40
Figure 4.34
Figure 4.35
Step 2: Enter the username and password of the Administrator (default username is admin with a blank
password), and click “OK” to apply changes.
Step 3: Wait around 10 seconds, you’ll see that the camera’s LAN IP address has changed. In our example it
was changed to 2000, so we see http://192.168.8.102:2000 in IP Camera Tool. Also, the LAN IP address is
now fixed at a static IP address of http://192.168.8.102:2000. This IP address will not change even if the
camera is powered off and back on, the camera will remain on this LAN IP address. This is very important that
a static LAN IP address is set, or you may have problems later with remote access and seeing the camera
remotely if the camera loses power and reconnects on a different LAN IP address. Make sure you set a static
LAN IP address!
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 41
Figure 4.36
NOTE: If the camera cannot be accessed, please make sure the port forwarding is succeed.
HTTPS port: The default port is 443. You can use the url to access the camera: https:// IP + HTTPS port.

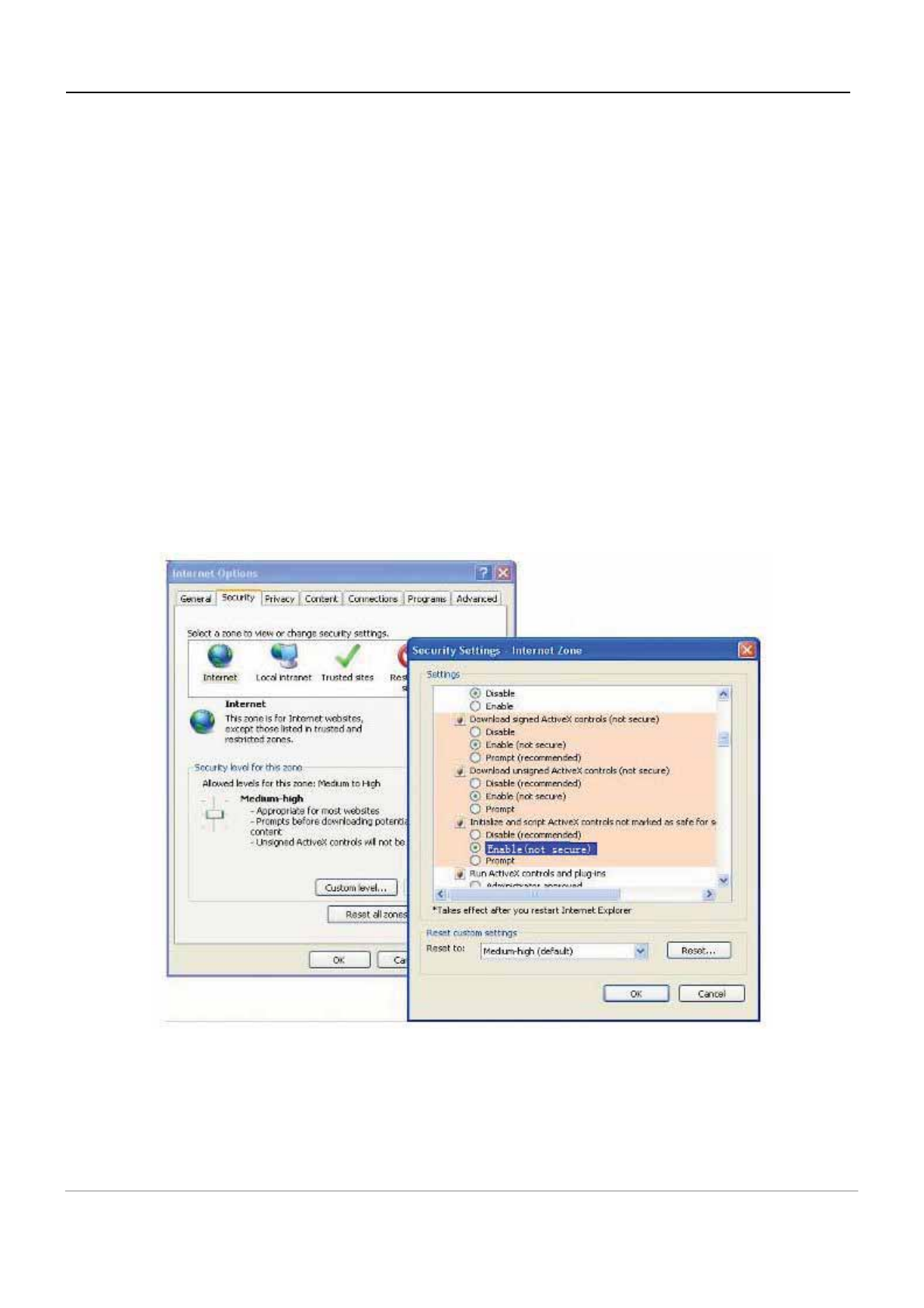

Sometimes you need to add the url to the Trusted Sites,
Open Internet Explorer if it is not already opened. Click on Tools, then click Internet Options.
Next, click the Security tab, then click the Trusted sites button.
Figure 4.37
ONVIF port: By default, the ONVIF port is set to 888. Also, they can be assigned with another port number
between 1 and 65535(except 0 and 65534). But make sure they can not be conflict with other existing ports.
RTSP function
RTSP URL rtsp:// [user name][:password]@IP:HTTP port number/videosream
The part in the square brackets may be omitted.
user name & password: The user name and password to access the camera. This part can be omitted.
IP: WAN or LAN IP address.
Videostream: Here support three mode: videoMain, videoSub and audio. When the network speed is bad,
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 42
here you had better select videoSub. If you select audio, you can only hear the sound but cannot see the
video.
For example:
IP: 192.168.1.11
HTTP Port number: 88
User name: admin
Password: 123
Here I can enter one of the following URLs in the VLC.
1．rtsp://admin:123@192.168.1.11:88/videoMain
2．rtsp:// @192.168.1.11:88/videoMain
3．rtsp://:123@192.168.1.11:88/videoMain
4．rtsp://admin@192.168.1.11:88/videoMain
Open the VLC, and go to Media(Open Network Stream option, then enter the URL into VLC.
Figure 4.38
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 43
Figure 4.39
Sometimes you may need to enter the user name and password again. Click OK and you can see the real-time
preview.
Figure 4.40
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 44
Figure 4.41
If you cannot play the video in the VLC player, please check the port mapping. You can read Quick Installation
Guide about How to configure port forwarding.
NOTE:
If you modify the camera’s username or password, you had better reboot the camera, or else the new
username and password cannot take effect when you enter the authentication in the VLC.
4.3.7 Mail Settings
If you want the camera to send emails when motion has been detected, here Mail will need to be configured.
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 45
Figure 4.42

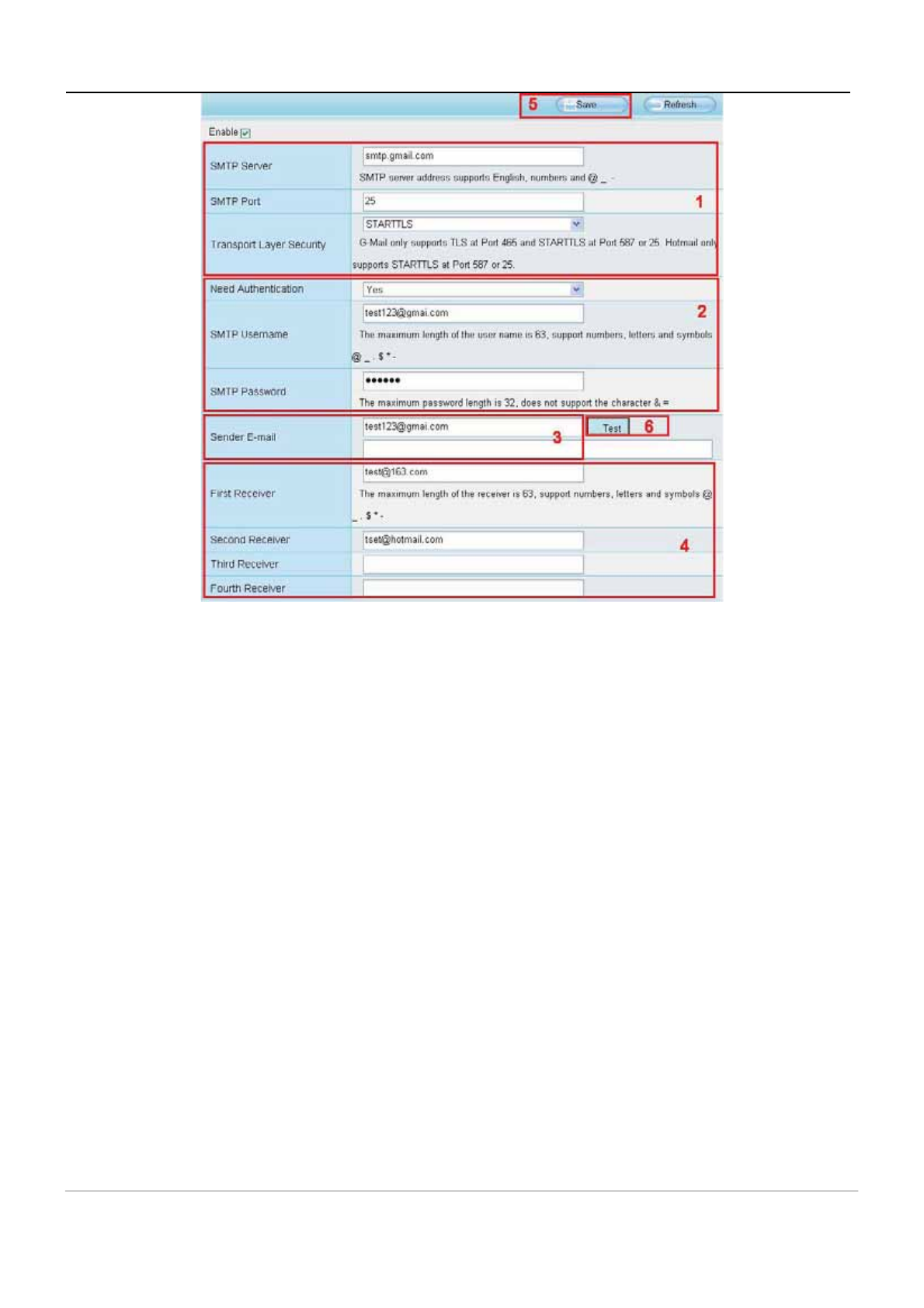

1----- SMTP Server/ Port /Transport Layer Security Enter SMTP server for sender. SMTP port is usually
set as 25. Some SMTP servers have their own port, such as 587 or 465, and Transport Layer Security usually
is None. If you use Gmail, Transport Layer Security must be set to TLS or STARTTLS and SMTP Port must be
set to 465 or 25 or 587, which port you choose should be decided by which Transport Layer Security you
select.
2-----SMTP Username/ password: ID account and password of the sender email address
3----- Sender E-mail Mailbox for sender must support SMTP
4----- Receiver Mailbox for receiver need not support SMTP, you can set 4 receivers
5----- Save Click Save to take effect
6----- Test Click Test to see if Mail has been successfully configured.
Click Test to see if Mail has been successfully configured.
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 46
Figure 4.43
If the test success, you can see the Success behind the Test, at the same time the receivers will receive a test
mail.
If the test fails with one of the following errors after clicking Test, verify that the information you entered is
correct and again select Test .
1) Cannot connect to the server
2) Network Error. Please try later
3) Server Error
4) Incorrect user or password
5) The sender is denied by the server. Maybe the server need to authenticate the user, please check it and try
again
6) The receiver is denied by the server. Maybe because of the anti-spam privacy of the server
7) The message is denied by the server. Maybe because of the anti-spam privacy of the server
8) The server does not support the authentication mode used by the device
4.3.8 FTP Settings
If you want to upload record images to your FTP server，you can set FTP Settings.
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 47
Figure 4.44
Figure 4.45
FTP server: If your FTP server is located on the LAN, you can set as Figure 4.43.
If you have an FTP server which you can access on the internet, you can set as Figure 4.44.
Port: Default is port 21. If changed, external FTP client program must change the server connection port
accordingly.
FTP Mode: Here supports two modes: PORT and PASV.
Username/password: The FTP account and password.
Click Save to take effect.
Click Test to see if FTP has been successfully configured.
4.3.9 P2P
Access the camera by smart phone (Android or iOS operating system)
First of all, you need to open the P2P function of the camera at “Settings-->Network-->P2P.”
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 48
Figure 4.46
Search and install Foscam Viewer on Google Play and App Store for for Android and iOS devices.
If you want to know more details of the iOS APP or Android APP, see the iOS App User Manual or Android App
User Manual.
4.4 Video
This section allows you to configure Video stream settings, On screen display and Snapshot settings.
4.4.1 Video Settings
There are two ways to set the stream video settings. They are main stream video settings and sub stream
video settings.
Figure 4.47
Stream type: There are four types to identify different streams you have set.
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 49
Resolution: The camera supports two types: 720P, VGA. The higher the resolution is, the clearer video will
become. But the code flux will become larger too, and it will take up more bandwidth.
Bit Rate: Generally speaking, the larger the bit rate is, the clearer video will become. But the bit rate
configuration should combine well with the network bandwidth. When the bandwidth is very narrow, and bit rate
is large, that will lead to video can not play well.
Frame Rate: Note that a larger frame size takes up more bandwidth. When the video format is 50Hz, the
maximum frame rate is 25 fps. When the video format is 60Hz, the maximum frame rate is 30 fps. You should
lower frame rate when the bandwidth is limited. Normally, when the frame rate above 15, you can achieve
fluently video.
Key Frame Interval: The time between last key frame and next key frame. The shorter the duration, the more
likely you will get a better video quality, but at the cost of higher network bandwidth consumption.
4.4.2 On Screen Display
This page is used to add timestamp and device name on the video.
Figure 4.48
Display Timestamp: There are two options: Yes or NO. Select Yes and you can see the system date on the
video,
Display Camera Name: There are two options: Yes or NO. Select Yes and you can see the device name on
the video.
4.4.3 Privacy Zone
This page is used to add privacy zone on the video.

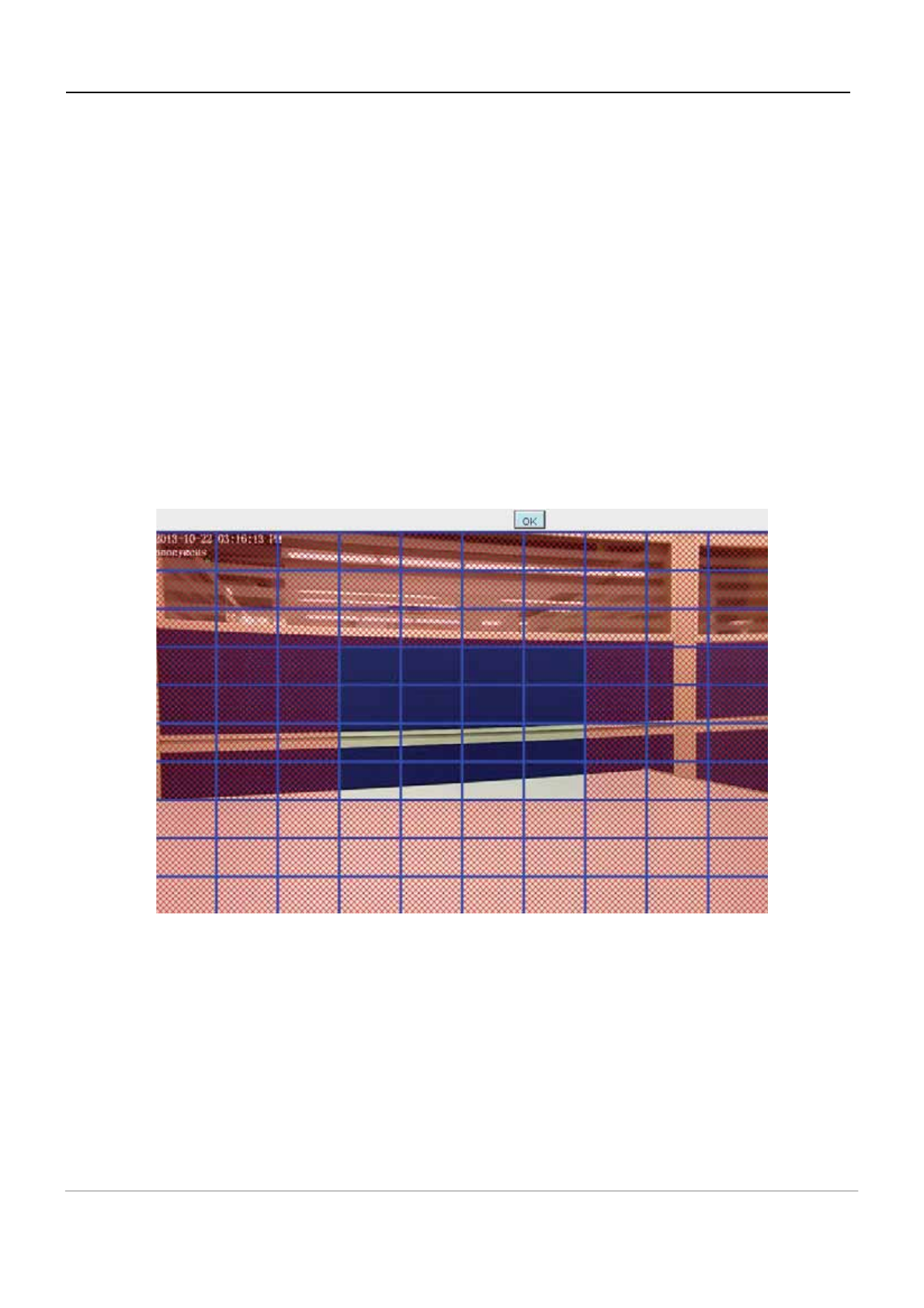

There are two options: Yes or NO. Select Yes, then click “Set Privacy Zone” and draw a privacy area on the
video, the privacy area will be black on the video.
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 50
Figure 4.49
Click OK button and return to the Privacy Zone page, click Save to take effect.
Back to the surveillance window, you can see the privacy area as the following picture:
Figure 4.50
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 51
4.4.4 Snapshot Settings
On this page you can set the snapshot pictures’ image quality and the storage path.
Figure 4.51
Image Quality: Low, Middle and High. The higher the quality, the picture will be clearer.
Alarm Pictures Save Path: FTP. If you have done FTP and Alarm settings, when alarming, the camera will
snap pictures to the FTP automatically.
Enable timing to capture
To enable capture interval, follow the steps below:
1Select Enable timing to capture
2 Capture interval:The interval time between two captures.
3 Select the capture time
Capture anytime
Click the black button up the MON, you will see all time range turn red. When something moving in the
detection area at anytime, the camera will capture.
Specify an capture schedule
Click the week day words, the corresponding column will be selected. For example, click TUE, the all
column of TUE turns to red, that means during Tuesday whole day, the camera will capture.
Press the left mouse and drag it on the time boxes, you can select the serial area,
4Click Save button to take effect.
4.4.5 IR LED Schedule
You can set the period of time during which the infrared lamp is turned off to prevent your baby from being
influenced during sleep. You can also turn off the infrared lamp on the video preview page at any time.
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 52
Figure 4.52
4.4.6 Lens Distortion Correction
Figure 4.53
4.5 Alarm
Motion Detection
IP Camera supports Motion Detection Alarm, when the motion has been detected, it will send emails or
upload images to FTP.
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 53
Figure 4.54
To enable motion detection, follow the steps below:
1 Enable Motion detection
2 Sensitivity---- It supports three modes: Low, Middle and High. The higher the sensitivity, the camera will be
more easily alarmed. Select one motion sensitivity.
3 Trigger interval--- The interval time between two motion detections. Here supports
5s/6s/7s/8s/9s/10s/11s/12s/13s/14s/15s. Select one interval time.
4 Select the alarm indicators
When the motion has been detected, the alarm status will turn to Detect alarm.
Figure 4.55
There are three alarm indicators:
A Ring
If the camera has connected with a speaker or other audio output device, if you select Ring, when the motion
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 54
has been detected, the people around the camera will hear beep alarm sound.
BSendMail
If you want to receive alarm emails when motion is detected, you must select Send Mail and set Mail Settings
first. The alarm email cannot contain the alarm picture if you have not selected Snap picture.
C Snap picture
If you select this checkbox, when the motion has been detected, the camera will snap the live view window as
a still picture and load it to the FTP. If you select Send Email, at the same time the picture will be send to you as
an attachment. Make sure you have set FTP and set FTP as the storage path in Video->Snapshot Settings
panel.
Time interval: The interval time between two pictures.
5 Set Detection Area
Click set Detection Area and it pop up a window, then you can draw the detection area. Click OK button after
settings. When something moving in the detection area, the camera will alarm.
Figure 4.56
6 Alarm Schedule
①Alarm anytime when motion is detected
Click the black button up the MON, you will see all time range turn red. When something moving in the
detection area at anytime, the camera will alarm.
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 55
Figure 4.57
②Specify an alarm schedule
Click the week day words, the corresponding column will be selected. For example, click TUE, the all column
of TUE turns to red, that means during Tuesday whole day, when something moving in the detection area, the
camera will alarm.
Figure 4.58
③Press the left mouse and drag it on the time boxes, you can select the serial area,
Figure 4.59
Click this button and select all time range.
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 56
7 Click Save button to take effect. When the motion is detected during the detection time in the detection area,
the camera will alarm and adopt the corresponding alarm indicators.
NOTE:You must set the detection area and detection schedule, or else there is no alarm anywhere and
anytime.
4.6 Record
4.6.1 Storage Location
On this page you can change the manually recording storage path, the default storage path is
c:\IPCamRecord.
Figure 4.60
4.6.2 Local Alarm Recording
On this page you can enable local alarm record, and select the local alarm record time.
Figure 4.61
4.6.3 Schedule Recording
On this page you can enable schedule record.
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 57
Figure 4.62
4.7 Firewall
This section explains how to control the access permission by checking the client PC’s IP addresses. It is
composed of the following columns: Block access from these IP addresses and Only allow access from these
IP addresses.
Figure 4.63
Enable firewall, If you select Only allow access from these IP addresses and fill in 8 IP addresses at most, only
those clients whose IP addresses listed in the Only allow access from these IP addresses can access the
Network Camera. If you select Block access from these IP addresses, only those clients whose IP addresses
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 58
are in the IP list cannot access the Network Camera.
Click Save to take effect.
4.8 System
In this panel, you can back up/restore your camera settings, upgrade the firmware to the latest version, restore
the camera to default settings and reboot the device.
4.8.1 Back-up& Restore
Click Backup to save all the parameters you have set. These parameters will be stored in a bin file for future
use.
Click Browse and select the parameters file you have stored, then click Submit to restore the restore the
parameters.
Figure 4.64
4.8.2 System Upgrade
Click Browse, choose the correct bin file( System firmware or Web UI) and then click System upgrade.
Don’t shut down the power during upgrade. After upgrading, you can see the upgrade result.
Figure 4.65
If you want to verify the firmware version of you camera, please go to Device Status-> Device Information
Page to check.
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 59

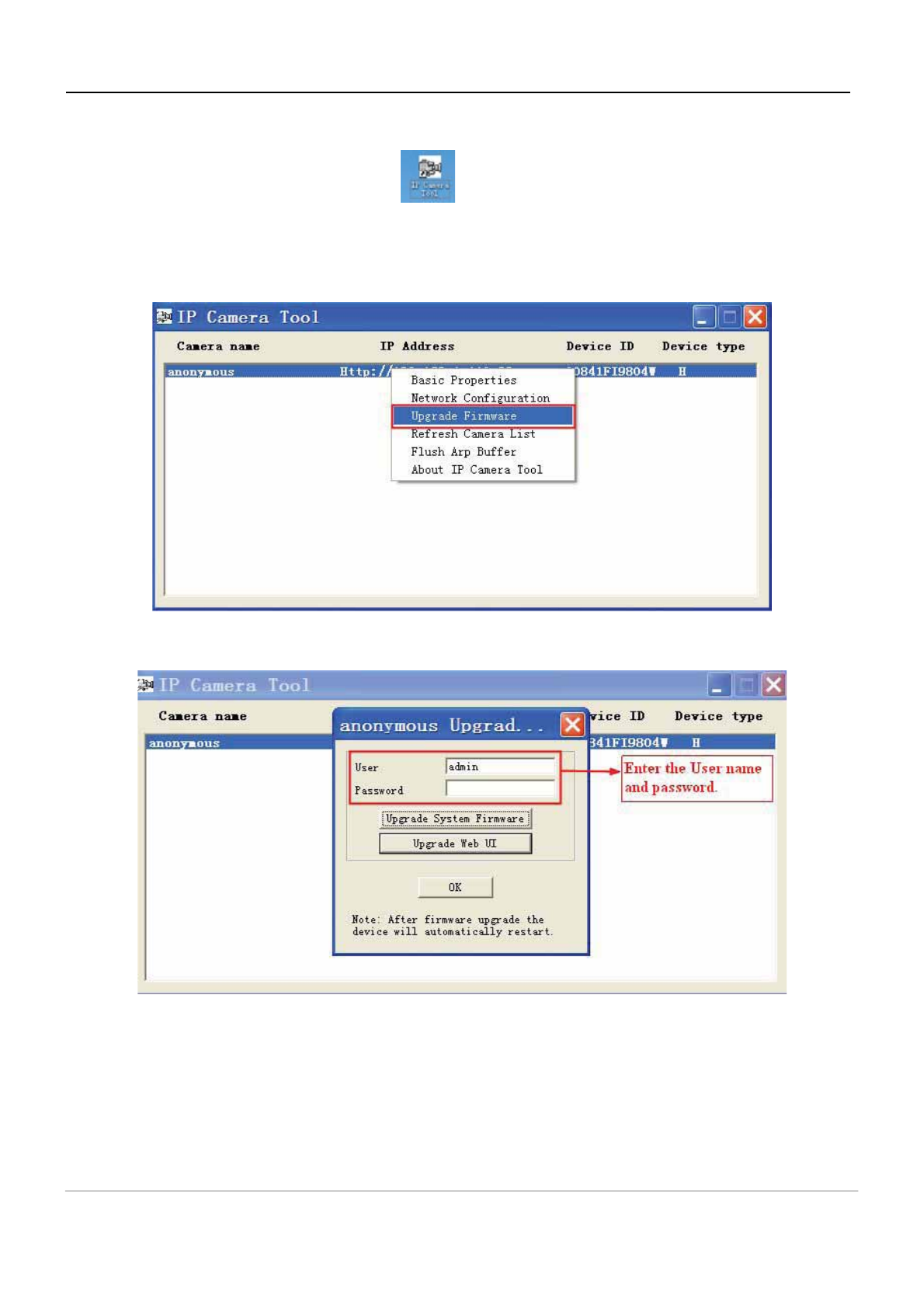

Upgrade Firmware by IP Camera Tool
Double click the IP Camera Tool shot icon , select the Camera IP that you want to upgrade the
firmware. Then select Upgrade Firmware and enter the username and password, choose the firmware file, and
upgrade.
Figure 4.66
Figure 4.67
CAUTION: If your camera works well with the current firmware, we recommend not upgrading. Please don’t
upgrade the firmware unnecessarily. Your camera may be damaged if misconfigured during an upgrade.
NOTE:
1) Don’t upgrade the firmware through the web UI in WAN, or else the upgrade may be failed.
2) Please ensure you have download the correct firmware package for your camera before upgrading. Read
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 60
the upgrade documentation (readme.txt file) in the upgrade package before you upgrade.
3) Upon downloading the firmware check the sizes of the .bin files. They must match the size in the readme.txt
file. If not, please download the firmware again until the sizes are the same. Your camera will not function
correctly if a corrupt .bin file is used.
4) Normally, only Device WEB UI need to be upgrade, please do not try to upgrade the Device Firmware.
5) Never shut down the power of the camera during upgrade until the IP camera restart and get connected.
6) After upgrade successfully, please clear the cache of browser, uninstall the old plugin and re-install it, then
reset the camera to the default factory settings before using the camera.
4.8.3 Factory Reset
Click Factory Reset button and all parameters will return to factory settings if selected.
Figure 4.68
4.8.4 Reboot
Click Reboot to reboot the camera. This is similar to unplugging the power to the camera.
Figure 4.69
5 Appendix
5.1 Frequently Asked Questions
NOTE: Any questions you would meet, please check Network connections firstly. Check the working status
revealed by the indicators on the network server, hub, exchange and network card. If abnormal, check the
network connections.
5.1.1 Install / uninstall the ActiveX of Firefox browser.
5.1.1.1 Install the ActiveX of Firefox browser.
For the first time login the camera, it may prompt you to download plugin.
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 61
Figure 5.1
Figure 5.2
Click here to download
the plugin.
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 62
Figure 5.3
Figure 5.4
Drag the download file to Firefox web page and it will prompt you to Install it.
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 63
Figure 5.5
Reboot the Firefox after the plugin installation is successfully completely, then relogin the camera again, you
can see the surveillance window
NOTE: If you could not view living video after running the ActiveX, only a red cross in the center of the
video or just a black screen. Please change another port number to try.
Make sure all firewall or antivirus software on your computer does not block the active download and
installation. If you are unable to run the ActiveX control, try shutting down the firewall or antivirus program.
5.1.1.2 Uninstall the ActiveX of Firefox browser.
After upgrading the camera’s software version, in order to experience the new version better, you may need to
uninstall the old ActiveX before, and then install a new one. TO uninstall the old ActiveX, you could do as
follows:
1. Click on the top left of the Firefox browser menu bar, and then click "Add-ons".
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 64
Figure 5.6
2. Click “Remove”.
Figure 5.7
3. After the ActiveX is removed, click “Restart now”.
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 65
Figure 5.8
5.1.2 Install / uninstall the ActiveX of Google Chrome.
5.1.2.1 Install the ActiveX of Google Chrome.
For the first time login the camera, it will prompt you to download the ActiveX.
Figure 5.9
Download the plugin and drag it to the Extensions page of Google Chrome.
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 66
Figure 5.10
Click Add button to install the Plugins.
Figure 5.11
Reboot the browser and login the camera again, you will see the surveillance window.
5.1.2.2 Uninstall the ActiveX of Google Chrome.
After upgrading the camera’s software version, in order to experience the new version better, you may need to
uninstall the old ActiveX before, and then install a new one. TO uninstall the old ActiveX, you could do as
follows:
Go to Extensions page
Click Add button to install
the plugin.
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 67
5．Click on the top right corner of the Google browser menu bar, it will pop-up the drop-down menu, then
click "Tools" -->”Extensions”.
Figure 5.12
2. Select “ IPCAM ”, and click the trash canon on the right side.
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 68
Figure 5.13
3. Click “Remove”, then restart the browser.
Figure 5.14
5.1.3 Install / Uninstall the ActiveX of IE Browser.
When logging in for the first time, you need to download and install the ActiveX add-on.
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 69
5.1.3.1 Install the ActiveX of IE browser.
Figure 5.15
5.1.3.2 Uninstall the ActiveX of IE browser.
After upgrading the camera’s software version, in order to experience the new version better, you may need to
uninstall the old ActiveX before, and then install a new one. TO uninstall the old ActiveX, you could do as
follows:
1. Close the IE browser, and then re-open it, making sure the IE does not load ActiveX (The IE browser will
automatically load the ActiveX when using it to open the IPC website.)
2. Click the settings icon in the top right of the IE browser, find and click "Manage add-ons."
Click Install
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 70
Figure 5.16
3. Click “All add-ons”.
Figure 5.17
4. Click “ocxIPcam Control”, then Right-click, select “More information” (or double-click “ocxIPcam Control”).
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 71
Figure 5.18
5. Click “Remove all sites—> Remove—>Close”. Then restart the IE browser.
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 72
Figure 5.19
5.1.4 I have forgotten the administrator password
To reset the administrator username and password, press and hold down the RESET BUTTON for 5 seconds.
Upon releasing the reset button, wait for 20 seconds, the camera will reboot and the username and password
will return to the factory default administrator username and password. Please power on the camera before
reset
Default administrator username: admin
Default administrator password: No password
5.1.5 Camera can not record
Camera can not record when I click Record button or I can’t change the manually record path.
When you use Windows7 or Vista, you may be not able to do manually record or change the record path
because of the security settings of computer.
There are two ways to resolve this problem:
(1) Please add the camera as a trusted site to resolve this issue. The steps are
IE browserToolInternet PropertiesSecurityTrusted sitesSitesAdd
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 73
(2) Open IE browser, then right click, select “Run as administrator”
5.1.6 Subnet doesn’t match
Check whether your ipcamera in the same subnet of your computer. The step is Control Panel(Network
Connections (Dbclick Local Area Connections (Choose General(Properties. Check subnet mask, IP address
and gateways. When you set IP address please make sure they are in the same subnet. Otherwise you can't
access camera.
5.1.7 No Pictures Problems
The video streaming is transmitted by the ActiveX controller. If ActiveX controller isn’t installed correctly you
will see no video image. You can resolve this problem by this way:
Download ActiveX controller and set the safety property of IE in the PC when you view it first time: IE
browser ToolInternet ProperSecurityCustom LevelActiveX control and Plug-ins. Three options of
front should be set to be “Enable”, The ActiveX programs read by the computer will be stored. As follows:
Enable: Download unsigned ActiveX controls
Enable: Initialize and script ActiveX controls not marked as safe
Enable: Run ActiveX controls and plug-ins
Figure 5.20
If you allow the ActiveX running, but still could not see living video. Please change another port number to try.
Don’t use port 8000.
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 74
Figure 5.21
NOTE: Make sure that your firewall or anti-virus software does not block the camera or ActiveX. If you could
not see video, please shut down firewall or anti-virus software to try again.
5.1.8 Can’t access IP camera in internet
There are some reasons:
1、ActiveX controller is not installed correctly
2、The port which camera used is blocked by Firewall or Anti-virus software. Please change another port
number and try again.
3、Port forwarding is not successful
Check these settings and make sure they are correct.
5.1.9 UPnP always failed
UPnP only contains port forwarding in our recent software. Sometimes, it may be failed to do port forwarding
automatically because of firewall or anti-virus software. It also has much relation with router’s security settings.
So we recommend you do port forwarding manually. You can view your camera in internet successfully after
you do port forwarding manually in your router(Figure 4.30).
5.1.10 Camera can not connect wireless
If your camera could not connect wireless after you set wireless settings and plug out the cable. Please check
whether your settings are correct or not.
Normally, camera can’t connect wireless mainly because of wrong settings.
Make sure broadcast your SSID; use the same encryption for router and camera.
5.1.11 Can’t see other cameras listed in multi-device when using
remote access
If you want to view all the cameras via the WAN, verify that each camera added in the multi-device settings can
be accessed by using the DDNS name and port number. Use the DDNS domain name not the camera’s LAN
IP. (For more details see: How to add cameras in WAN)
5.2 Default Parameters
Default network Parameters
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 75
IP address: obtain dynamically
Subnet mask: obtain dynamically
Gateway: obtain dynamically
DDNS: Embedded FOSCAM domain name
Username and password
Default admin username: admin with a blank password
5.3 Specification
ITEMS FI9851P
Image Sensor
Sensor High Definition Color CMOS Sensor
Display Resolution 1280 x 720 (1.0M Pixels)
Min. Illumination 0 Lux (With IR Illuminator)
Lens
Lens Type Glass Lens
focal length f:2.8mm，3.6mm/4mm/6mm/8mm Opention
Aperture F1.2
Angle of View 70°
Video
Image Compression H.264
Image Frame Rate 30fps(60Hz), 25fps(50Hz), downward adjustable
Resolution 720P(1280 x 720), VGA(640 x 480), QVGA(320 x 240)
Stream dual stream
Image adjustment
The hue, brightness, contrast, saturation, sharpness are
adjustable
Flip image flip and mirror
Infrared mode Automatic or manual
Night visibility With 13pcs IR-LEDs, Night Vision Range up to 10m
Network
Ethernet One 10/100Mbps RJ45 port
Wireless Standard IEEE802.11b/g/n
Data Rate
IEEE802.11b: 11Mbps(Max.);
IEEE802.11g: 54Mbps(Max.);
IEEE802.11n: 150Mbps(Max.).
Wireless Security P2P, WEP, WPA, WPA2
Network Protocol
IP、
TCP、
UDP、
HTTP、
HTTPS、
SMTP、
FTP、
DHCP、
DDNS、
UPnP、RTSP、ONVIF
System
Requirements
Operating System Microsoft Windows 2000/XP, Vista, 7,8;
Mac OS
Browser
Microsoft IE6 and above version or compatible browser;
Mozilla Firefox;
Google Chrome;
Apple Safari.
Other Features Motion Detection Alarm via E-Mail, upload alarm snapshot to FTP
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 76
Privacy Block Set privacy area manually
User Accounts Three levels user role
Firewall Supports IP Filtering
Reset Reset button is available
Power Power Supply DC 12V/1.0A
Power Consumption 4.2 Watts (Max.)
Physical Dimension(LxWxH) 93(L)x 93W)x 82(H)
Net Weight 290g
Environment
Operating Temperature -20° ~ 55°C (-4°F ~ 131°F)
Operating Humidity 10% ~ 80% non-condensing
Storage Temperature -20°C ~ 60° (-4°F ~ 140°F)
Storage Humidity 0% ~ 90% non-condensing
Certification CE, FCC, RoHS
Warranty Limited 2-year warranty
Attention: Power adapter should be used between -20℃-40℃, and 20%-90% relative humidity.
5.4 CE & FCC
Electromagnetic Compatibility (EMC)
FCC Statement
CE Mark Warning
Any Changes or modifications not expressly approved by the party responsible for compliance coulde void the
user's authority to operate the equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:(1)
This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment
should be installed and operated with minimum distance 20cm between the radiator & your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial
environment.This equipment generates,uses,and can radiate radio frequency energy and,if not
installed and used in accordance with the instruction manual,may cause harmful interferece to
radio communications.Operation of this equipment in a residential area is lik ely to cause
harmful interference in which case the user will be required to correct the interference at his
own expense.
Note: This equipment has been tested and found to comply with the limits for a Class A digital
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 77
This is a Class A product. In a domestic environment, this product may cause radio interference, in which case
the user may be required to take adequate measures.
5.5 Warranty
ShenZhen FOSCAM Intelligent Technology Limited.("FOSCAM") values your business and always attempts to
provide you the very best of service.
No limited hardware warranty is provided by FOSCAM unless your FOSCAM product ("product") was
purchased from an authorized distributor or authorized reseller. Distributors may sell products to resellers who
then sell products to end users. No warranty service is provided unless the product is returned to an authorized
return center in the region where the product was first shipped by FOSCAM or to the point-of-purchase, which
may have regional specific warranty implications.
If you purchase your FOSCAM product from online store, please contact the point-of-purchase and ask
for return/replacement/repair service.
Hardware Warranty Information
FOSCAM provide 2-year limited warranty for naked product and 6-month limited warranty for accessories.
Limited Hardware Warranty
FOSCAM products are warranted to be free from manufacturing defects in materials and workmanship starting
from the shipping date of FOSCAM.
This limited hardware warranty does not cover:
Software, including the software added to the products through our factory-integration system, software
that included in the CD,etc.
Usage that is not in accordance with product instructions.
Failure to follow the product instructions.
Abuse firmware upgrade without the authorized technician’s guidance.
Normal wear and tear.
Return Procedures
Please read FOSCAM warranty policy & policy of your reseller first before sending items back to
point-of-purchase.
Customer must first contact point-of-purchase to obtain a Return Merchandise Authorization (RMA)
number before returning the product. If the product you received is suspected to be defective and the
product warranty has not expired, The RMA number will allow your reseller to track your return much
easier and help them expedite processing your request.
After receiving your RMA case number, pack the item(s) very well with the original box and all the original
accessories included such as power adapters, brackets, cables, manuals, and driver CD disks.
Write your RMA number and the return reason (the problem of the product) on the warranty card along
with the complete package to send them back.
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 78
Replacement Services
If customers ask for replacement service, please contact point-of-purchase and follow their policy.
Our technicians will inspect all items returned for replacement requests. If the retuned product is found in
working order, we will return the same item received. However customers shall be responsible for all
shipping & handling charges incurred for getting the units back to customers.
If returned products are found defective, we will replace the product and assume the shipping cost for
sending back the replacement unit to customers.
If for any reason, we are unable to provide a replacement of the original returned item(s). You will have a
choice for a “Substitute” item at the same equal value.
We do not provide exchange and replacement due to normal hardware upgrade according the market
after 14 days after the product is delivered.
Our technicians will test the product before send out the replacement, any other demand for more than
two times replacement for the same product during replacement limit will be rejected.
Replaced products are warranted from the balance of the former warranty period.
Warranty Forfeiture
Warranty is void if purchase from unauthorized distributor or reseller.
Warranty is void if trade-mark, serial tags, product stickers have been removed, altered or
tampered with.
Warranty is void for mishandling, improper use, or defacing the product.
Abuse firmware upgrade without the authorized technician’s guidance.
Warranty is void for physical damage, altered, either internally or externally, improper or inadequate
packaging when returned for RMA purposes.
Warranty is void if damage has resulted from accident, dismantle, abuse, or service or modification by
someone other than the appointed vendor, souse, fission or the spare part has been over the period of
warranty.
Warranty is void if product is damaged due to improper working environment or operation. (For example,
improper temperature, humidity, unusual physical or electrical stress or interference, failure or fluctuation
of electrical power, static electricity, using wrong power adapter, etc.)
Warranty is void if damaged by the use of parts not manufactured or sold by FOSCAM.
Damage caused by improper installation of third-party products.
Warranty is void if damaged for irresistible cause, such as earthquake, fire, lightning, flood, etc.
Product beyond limited warranty.
Shipping Fee
If products are defective or damaged under normal use or operation in the replacement limit, distributors
or resellers are responsible for the shipping cost the product back to customers, customers should
assume the shipping cost send the product to the point-of-purchase.
During replacement limit, if customers ask for replacement due to the product does not fit for customer’s
personal expectation, customers should responsible for both shipping fee.
Customers shall be responsible for both shipping fee if their product beyond the replacement limit but still
in warranty limit.
Repair Service Out Of Warranty
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 79
FOSCAM provide extra repair service for product that out of warranty, it is chargeable. The total fee
contains device cost and service fee. Device cost (including accessories) is the standard uniform price
provide by FOSCAM.
Different region may have different service fee, please contact the point-of-purchase to confirm that before
you ask for this service.
Our technicians will quote the total price after detect the product, If customers refused to repair after the
quotation, customers need pay for the test fee, $3.5/hour. If agree with the quotation, test will be free.
Repaired product out of warranty will obtains 3-month warranty from the date of the product back to
customers.
Limitation of Liability
FOSCAM is not responsible for other extra warranty or commitment promised by resellers, if your reseller
promised some extra commitment or warranty; please ask for written documents to protect your rights and
interests.
FOSCAM does not offer refunds under any circumstances. Please contact the point-of-purchase and
follow their refund/return policy.
FOSCAM shall not be liable under any circumstances for any consequential, incidental, special or
exemplary damages arising out of or in any connection with this agreement or the products, including but
not limited to lost profits, or any claim based on indemnity or contribution, or the failure of any limited or
exclusive remedy to achieve its essential purpose or otherwise. Purchaser's exclusive remedy, as against
FOSCAM, shall be the repair or replacement of defective parts. If FOSCAM lists a product on its website
specification in error or that is no longer available for any reason, FOSCAM reserves the right to explain it
without incurring any liability.
All rights reserved. FOSCAM and the FOSCAM logo are trademarks of ShenZhen FOSCAM
Intelligent Technology Limited., registered in the U.S. and other countries.
6 Obtaining Technical Support
While we hope your experience with the IPCAM network camera is enjoyable and easy to use, you may
experience some issues or have questions that this User’s Guide has not answered.
If you have problem with FOSCAM IP camera, please first contact FOSCAM reseller for solving the problems.
If our reseller cannot provide service, please contact our service department: tech@foscam.com.
