ShenZhen Foscam Intelligent Technology FOSBABYP1 Wireless HD Baby Monitor User Manual
ShenZhen Foscam Intelligent Technology Co., Ltd. Wireless HD Baby Monitor Users Manual
Users Manual
U
Us
se
er
r
M
Ma
an
nu
ua
al
l
Wireless HD Baby Monitor
FosBaby P1
V1.4
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168
1
Table of Contents
Table of Contents ............................................................................................................................................... 1
1 Overview ....................................................................................................................................................... 1
1.1 Key Features ...................................................................................................................................... 1
1.2 Read Before Use ................................................................................................................................ 2
1.3 Package Contents .............................................................................................................................. 2
1.4 Physical Description ........................................................................................................................... 2
1.5 Micro-SD Card .................................................................................................................................... 4
2 Access the Camera ...................................................................................................................................... 4
2.1 Access the Camera in LAN ................................................................................................................ 4
2.2 Access the FosBaby in WLAN .......................................................................................................... 10

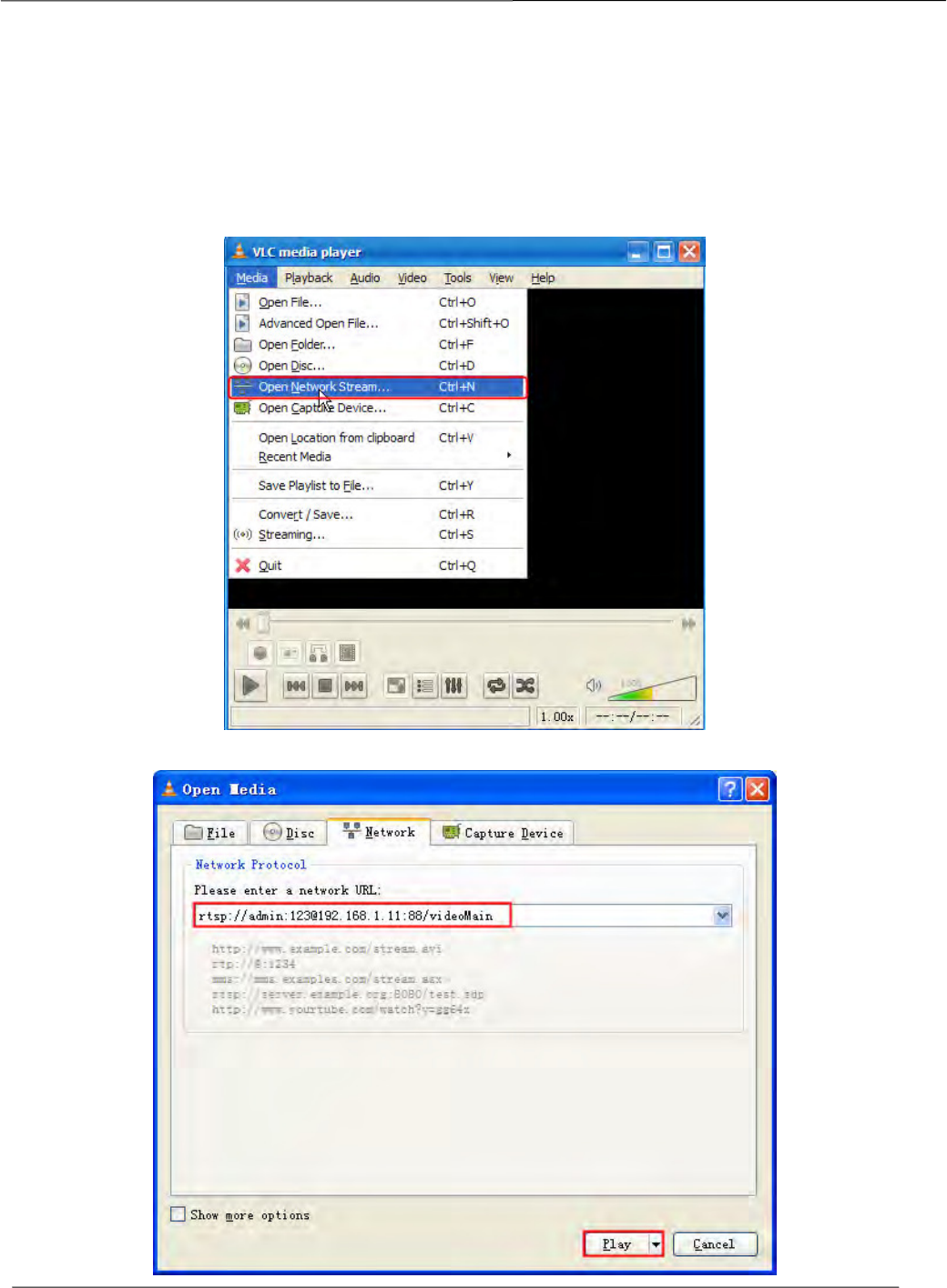

2.3 Using the VLC player .......................................................................................................................... 14
2.4 Camera Connection to the Server .................................................................................................... 16
2.5 CMS Client Monitor .......................................................................................................................... 16
3 Surveillance Software GUI .......................................................................................................................... 17
3.1 Login Window ................................................................................................................................... 17
3.2 Surveillance Window ........................................................................................................................ 19
4 Advanced Settings ...................................................................................................................................... 25
4.1 Setup Wizard .................................................................................................................................... 25
4.2 Status ............................................................................................................................................... 26
4.3 Basic Settings ................................................................................................................................... 29
4.4 Network ............................................................................................................................................ 38
4.5 Video ................................................................................................................................................ 51
4.6 Detector ............................................................................................................................................ 56
4.7 Record .............................................................................................................................................. 63
4.8 Lullabies ........................................................................................................................................... 66
4.9 PTZ (For FosBaby P1) ..................................................................................................................... 67
4.10 Firewall ........................................................................................................................................... 73
4.11 System ............................................................................................................................................ 73
5 Playback ..................................................................................................................................................... 76
6 Appendix ..................................................................................................................................................... 78
6.1 Frequently Asked Questions ............................................................................................................. 78
6.2 Default Parameters ........................................................................................................................... 85
6.3 Specifications ................................................................................................................................... 86
6.4 CE & FCC ......................................................................................................................................... 87
6.5 Warranty ........................................................................................................................................... 88
7 Obtaining Technical Support ....................................................................................................................... 91
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168
1
1 Overview
HD Wireless Baby Monitor is an integrated wireless camera with a color CMOS sensor enabling viewing
in High Definition resolution. It combines a high quality digital video camera, with a powerful web server,
to bring clear video to your desktop and mobile devices from anywhere on your local network or over the
Internet.
It supports P2P function. Thanks to the P2P easy access technology, you don’t need to do complicated
Port Forwarding and DDNS settings, you just need to scan the QR code on the side of the camera to
connect it on smart phone, or input the UID on CMS software to realize remote access.
The camera supports H.264 video compression technology, dramatically reducing file size and saving
network bandwidth.
The camera is based on the TCP/IP standard. There is a WEB server inside which could support Internet
Explorer Therefore the management and maintenance of your device is simplified by using the network
to access the website of your camera.
This model is specially designed for your baby. It is applicable to the baby's room. Besides, Foscam
provides a mobile phone App for real-time monitoring, enabling you to see your baby anytime and
anywhere. Please search and install Foscam App named Foscam on App Store and Google Play for
iOS and Android devices, then you can view your camera anywhere, anytime on your smart mobile
devices.
1.1 Key Features
Standard H.264 video compression algorithm to satisfy the transmission of high definition video in
narrow bandwidth network
P2P feature for easy access
1 Megapixel HD video
Pan 320 degree, tilt 100 degree (only FosBaby P1)
Support IE/Firefox/Google/Safari browser
Support WEP,WPA-PSK and WPA2-PSK Encryption
Wireless connection is compliant with IEEE 802.11b/g/n WI-FI, up to 150Mbps
IR night vision (FosBaby Range: 5m FosBaby P1 Range: 8m)
Support image snapshot
Support dual-stream
Support IR-Cut auto switch
Support two-way audio
Multi-level users management with password protection
Providing free Android and iPhone APP for viewing live video Providing free Central Management
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168
2
Software to manage and monitor multiple cameras
Support record schedule
Support Playing Lullabies
Motion, sound, temperature and humidity Detection via FTP and Email
Support Cloud Service, Remote access your Baby Monitor without port forwarding
Support EZlink, Link to WiFi network easily
1.2 Read Before Use
Please first verify that all contents received are complete according to the Package Contents listed below.
Before the camera is installed, please carefully read and follow the instructions in the Quick Installation
Guide to avoid damage due to faulty assembly and installation. This also ensures the product is used
properly as intended.
1.3 Package Contents
● Camera × 1 ● Mounting Bracket×1
● Temperature Detection Sensor × 1 ● Watch strap × 1
● Power Adapter × 1 ● Power Line × 1
● Resource CD × 1 ● Quick Installation Guide × 1
● Warning Sticker × 1 ● Warranty Card × 1
1.4 Physical Description
FosBaby
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168
3
FosBaby P1
The Information of Wi-Fi Status Light (Blue):
Wi-Fi Status Light Description
Off No Wi-Fi connection
Flashing every 0.1 seconds Soft AP takes effect
Flashing every 0.2 seconds EZLink takes effect (default)
Flashing every 0.4 seconds WPS is connecting
Slow Flash once per second Wi-Fi connected
The Information of System Status Light (Yellow):
System Status Light Description
off Power outages
Constant Power ups

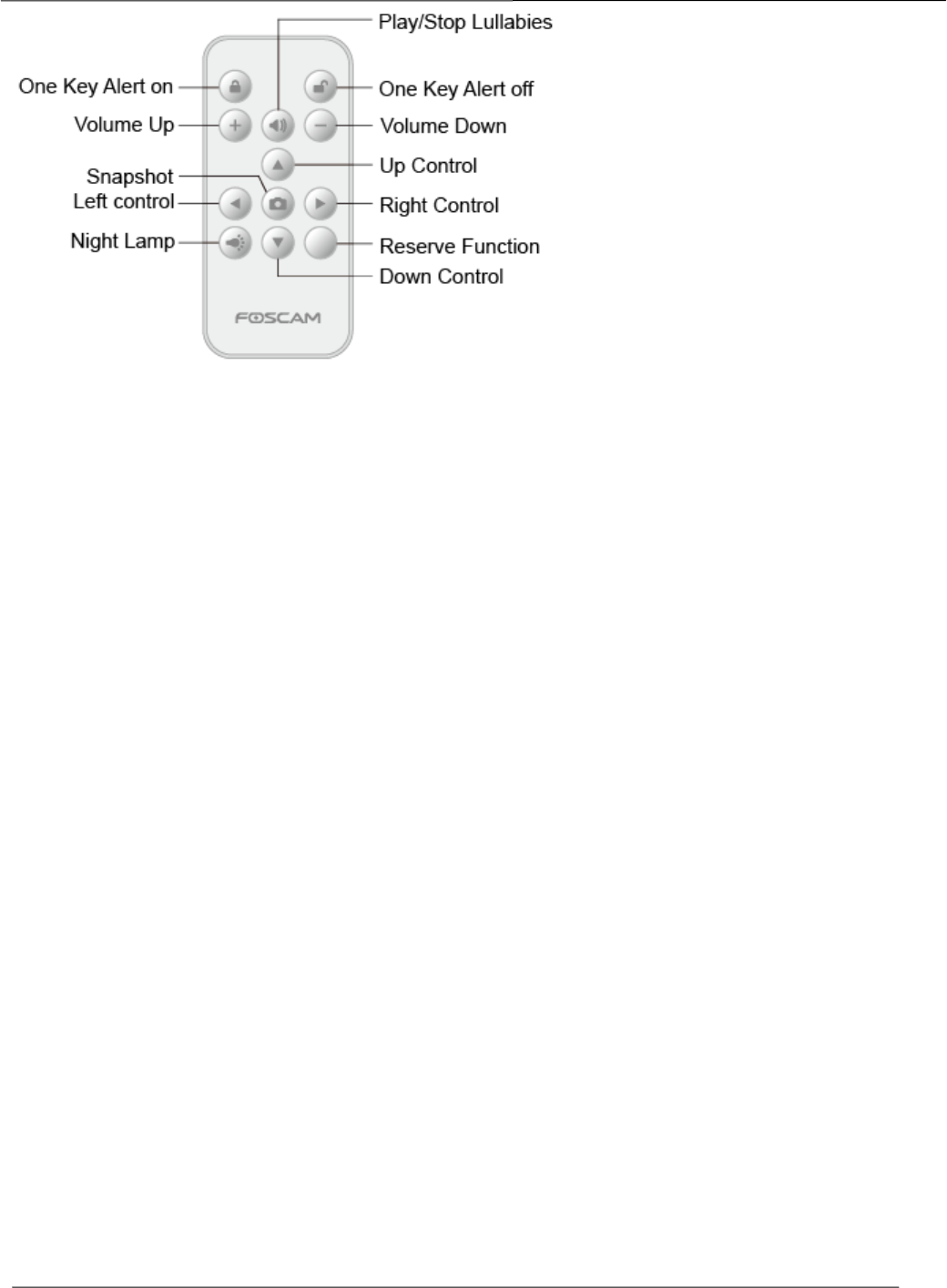

Remote Controller Unit of FosBaby P1 (Optional)
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168
4
Note:
The default storage path of snapshot and alarm files is FTP.
1.5 Micro-SD Card
This camera supports SD Card and the max size of SD card must be under 32G.
When you plug in the SD card during the camera work process, please reboot the camera again, or else
the SD Card may be cannot work well.

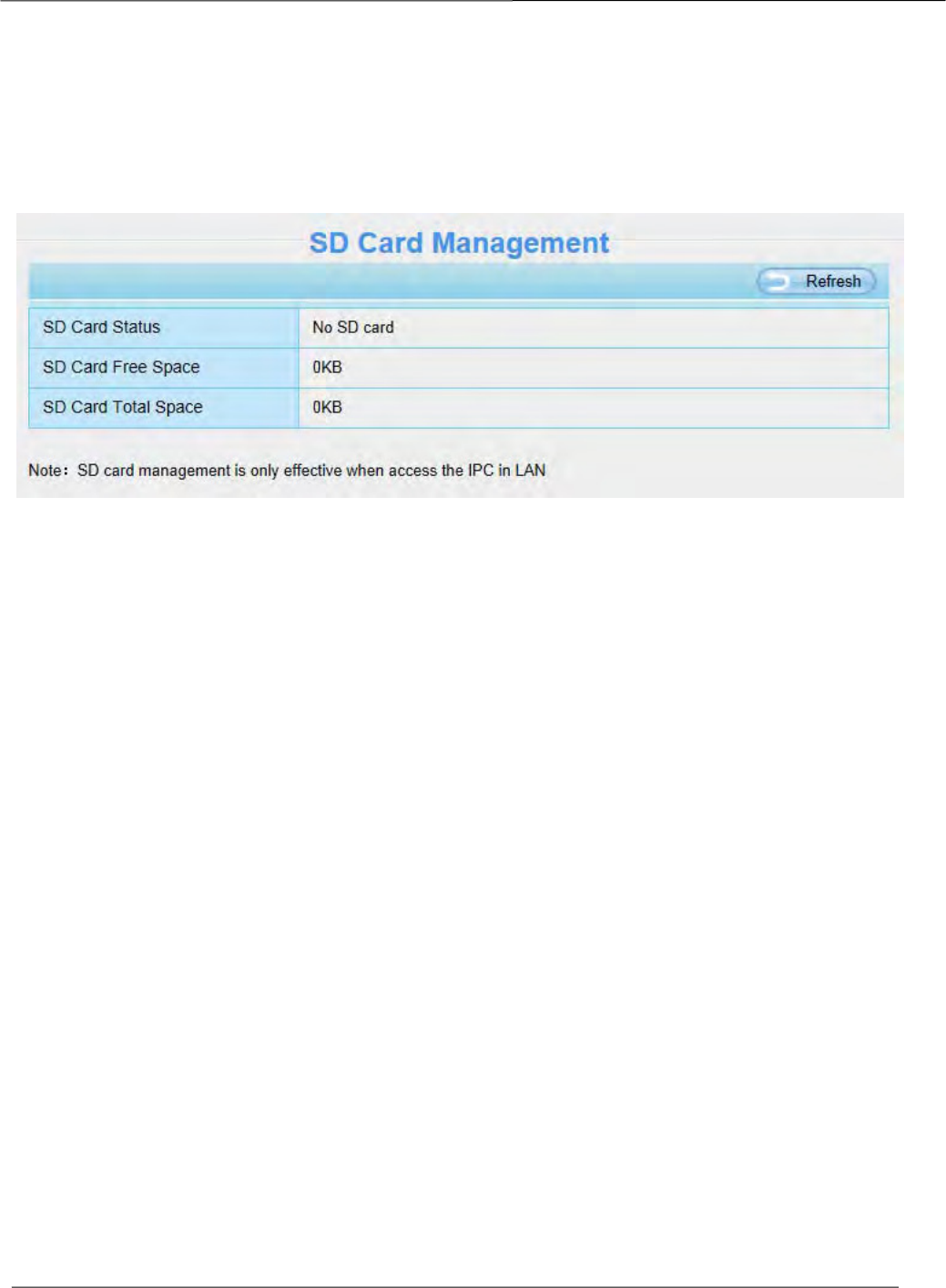

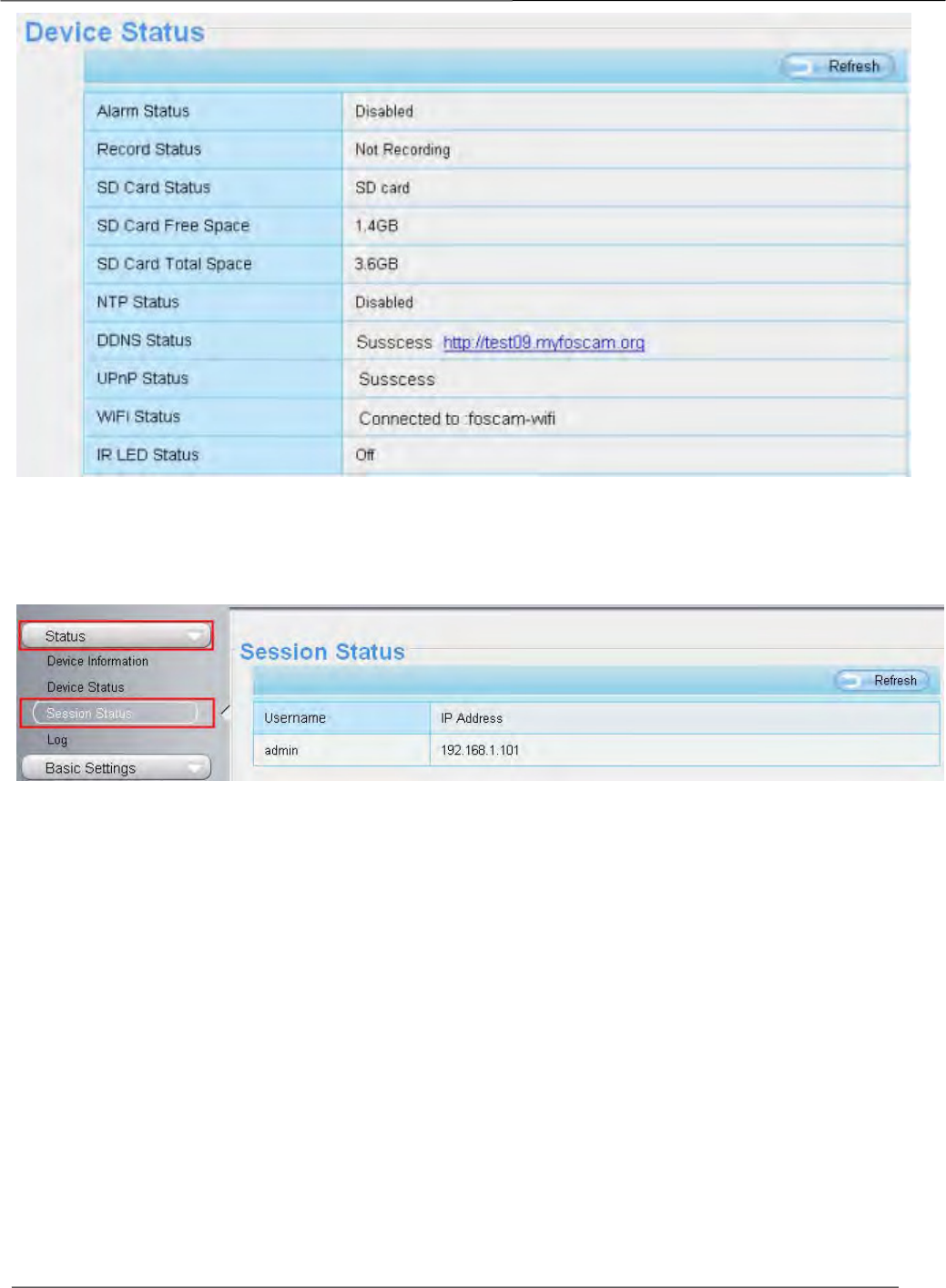

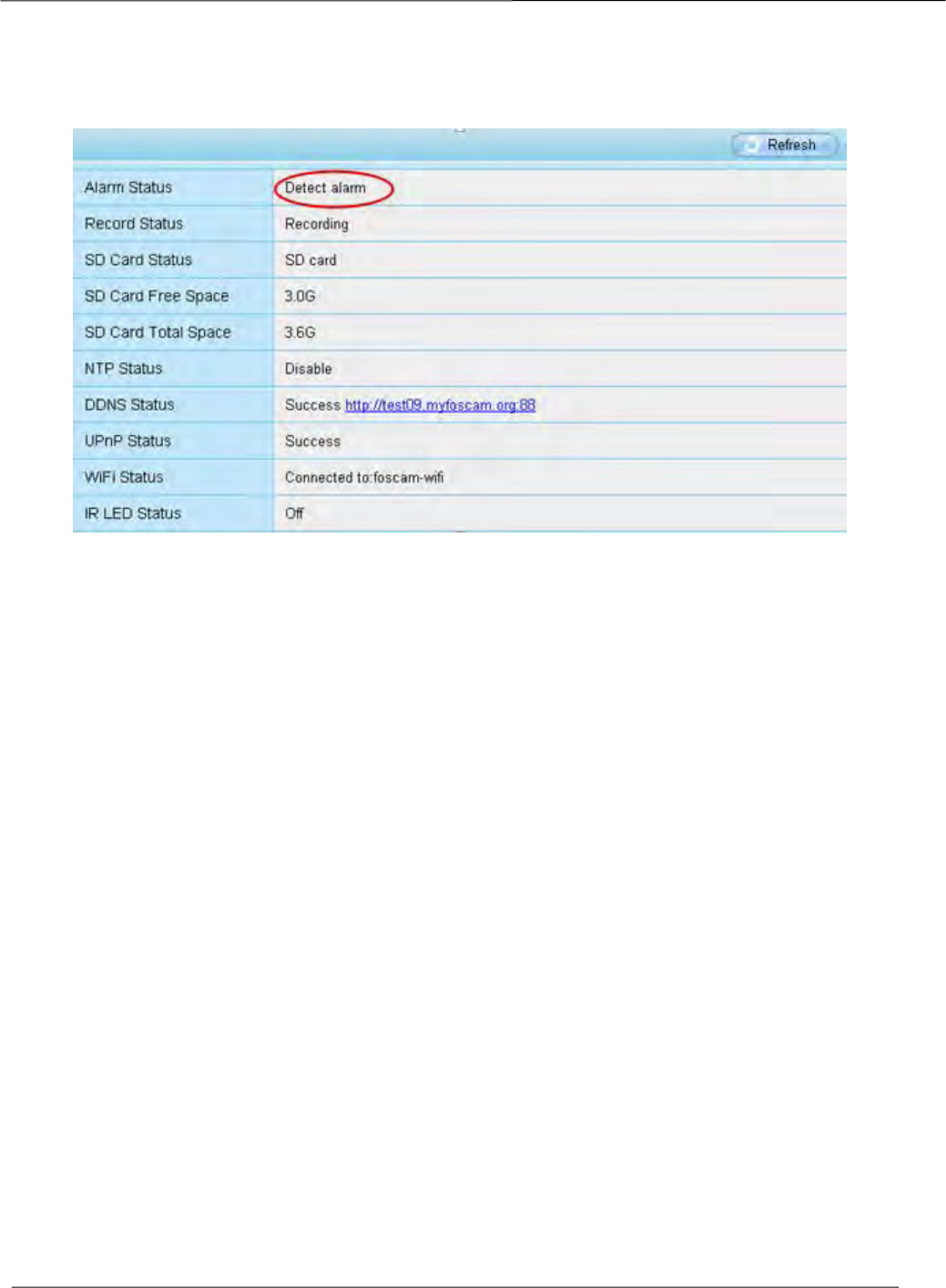

Go to the SettingsDevice StatusDevice Status page, you can see the SD card status.
2 Access the Camera
2.1 Access the Camera in LAN
There are some ways of wireless connection: EZLink connection, soft AP connection and WPS
connection.
EZLink connection: Use the mobile phones or other mobile devices to download APP, then
connect the camera and the wireless router via the APP. The procedure of the EZLink connection,
please refer to the Quick Installation Guide.
Soft AP connection: Use the mobile device which can search for the wireless network, Then use
the web browser to visit http://192.168.1.1:88 by the mobile device. Follow the Setup Wizard to
finish the settings.
WPS connection: WI-FI Protected Set-up, Press and hold the WPS button on your wireless router
and your camera within 60 seconds. So that your camera and wireless router connect successfully.
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168
5

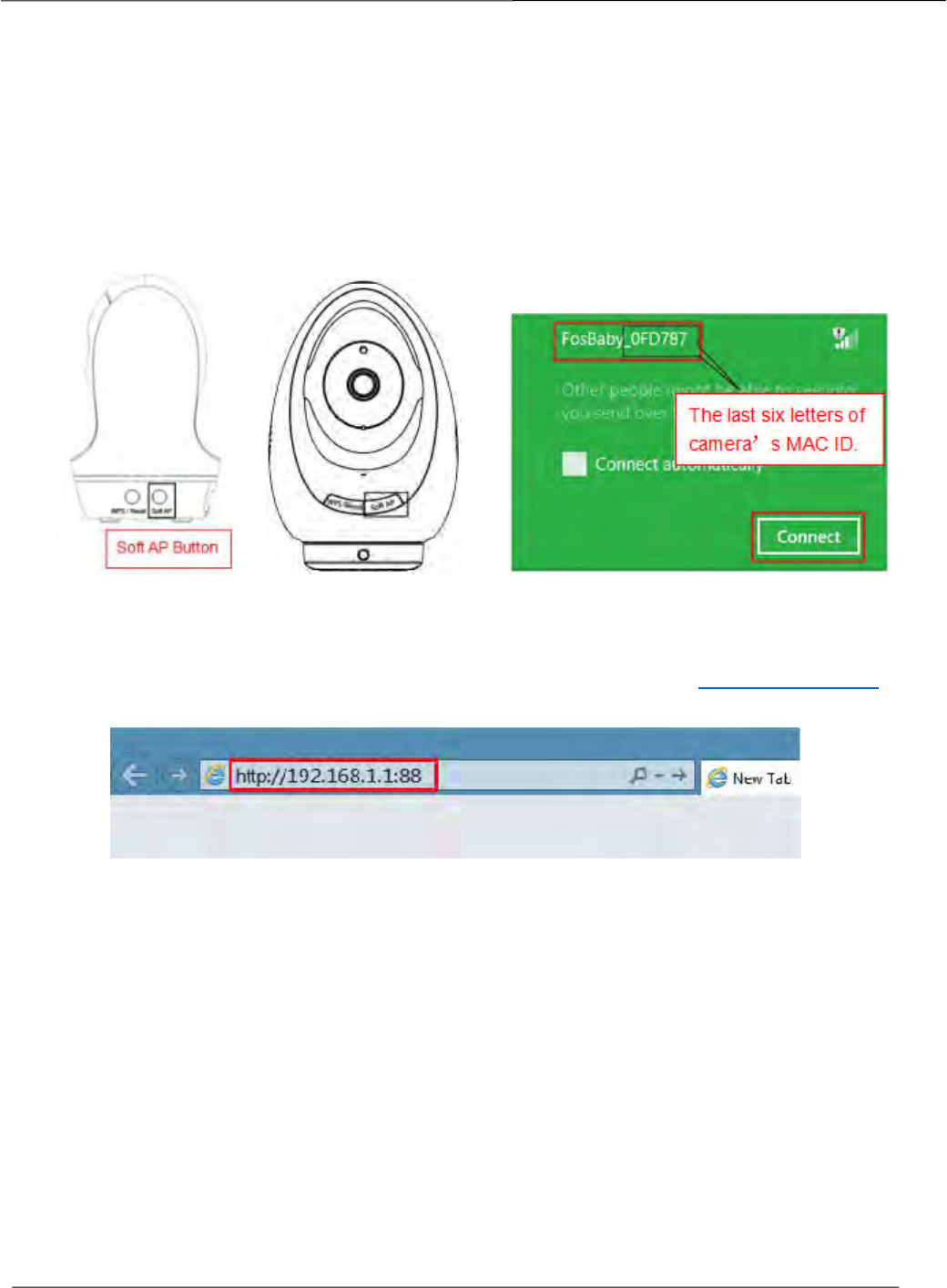

2.1.1 Soft AP Connection
1. Start camera: power on, the indicator light of camera will light on, and a short musical tone indicates
that the startup is completed.
2. Press the Soft AP button for 3-5 seconds. The indicator begins to twinkle at very high frequency.
3. Use a terminal which could search the WLAN (desktop, laptop, mobile phone, or pad. This part takes
laptop as an example.) to search for the AP named "FosBaby_******" or "FosBaby P1_******" for
connection.
4. After finishing Soft AP connection, use the web browser of the terminal to visit http://192.168.1.1:88.

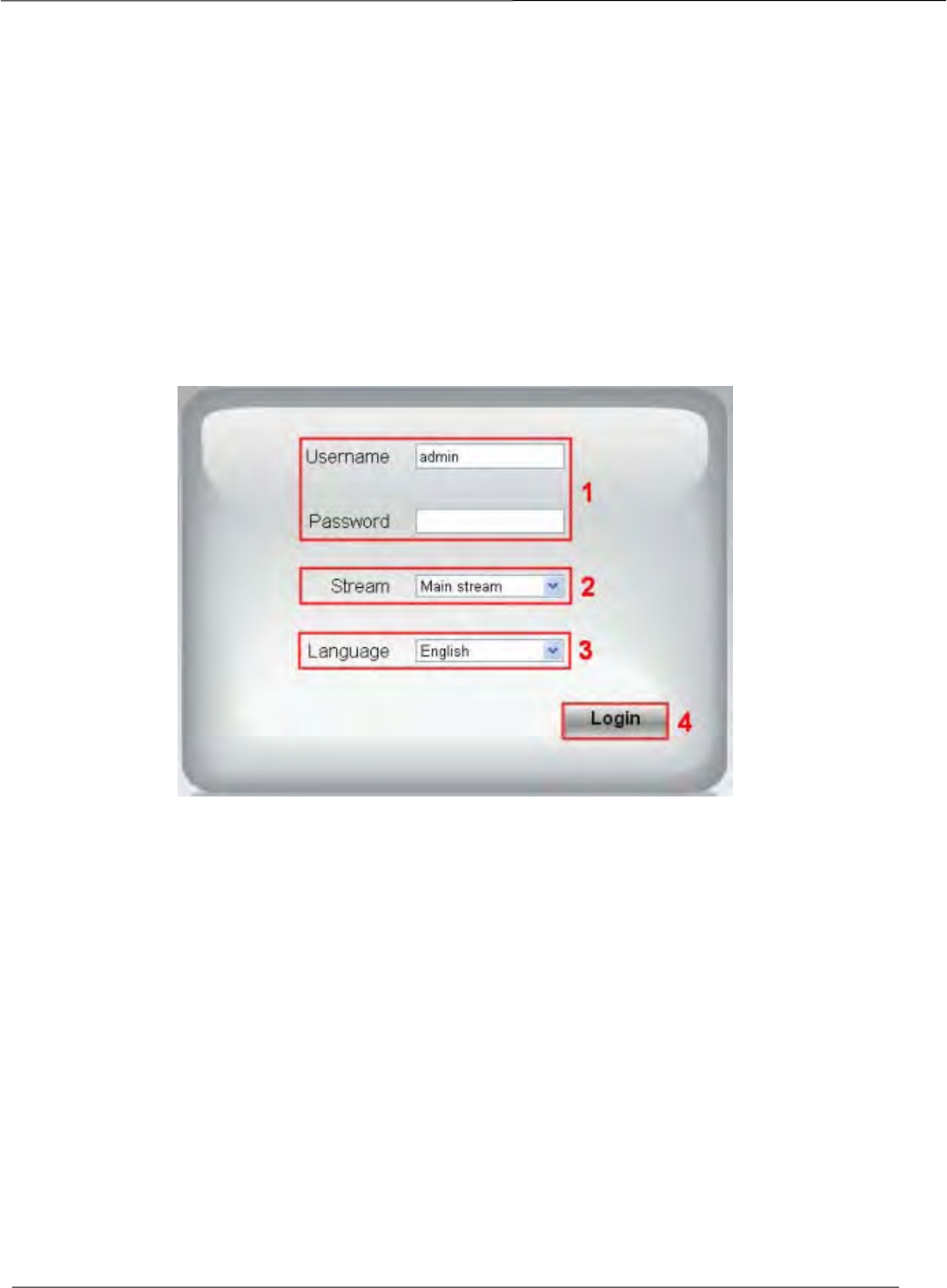

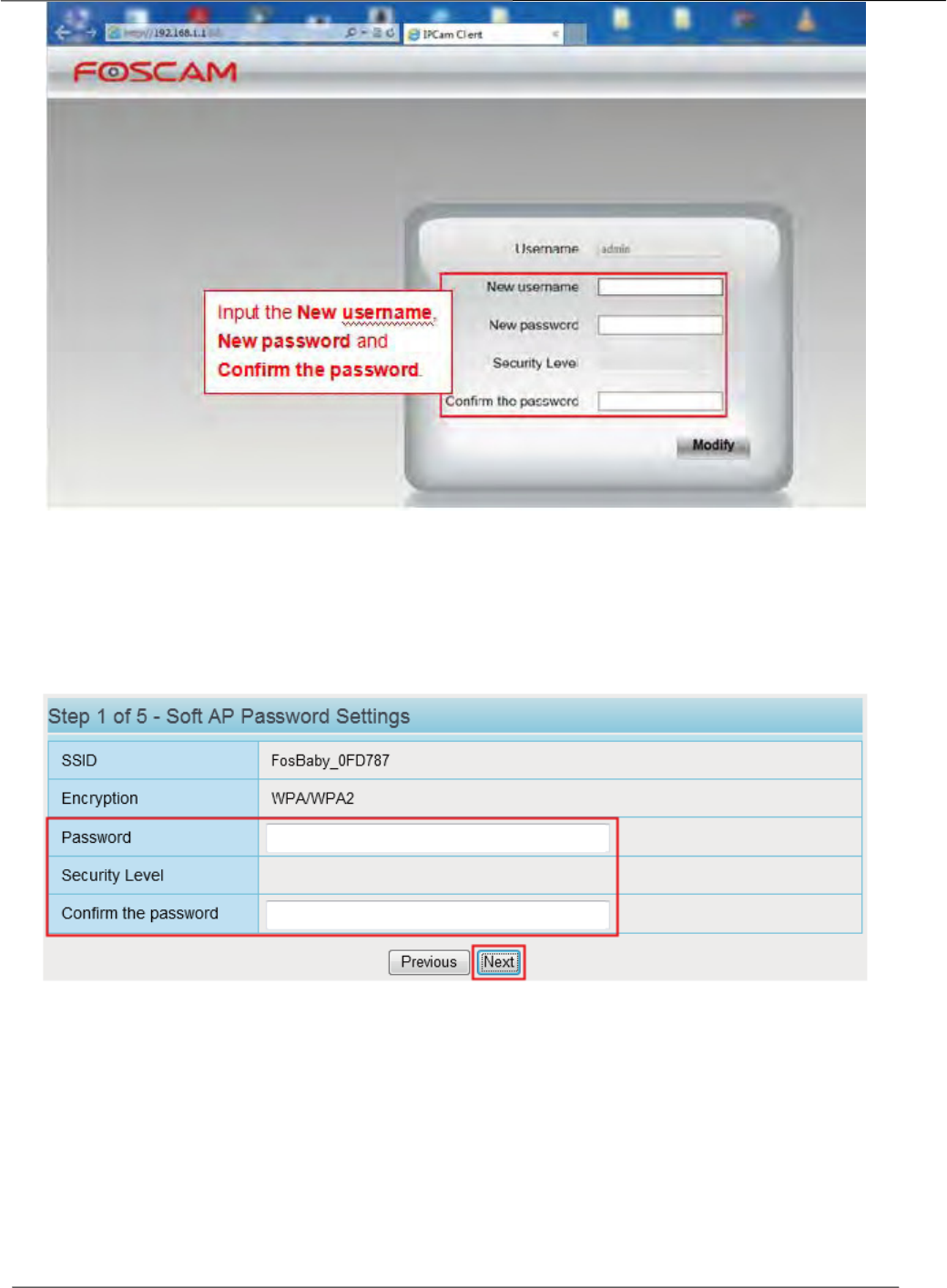

5. Log in the camera ( Default username is admin with no password ). When log in for the first time, you
need to change the username and password.
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168
6

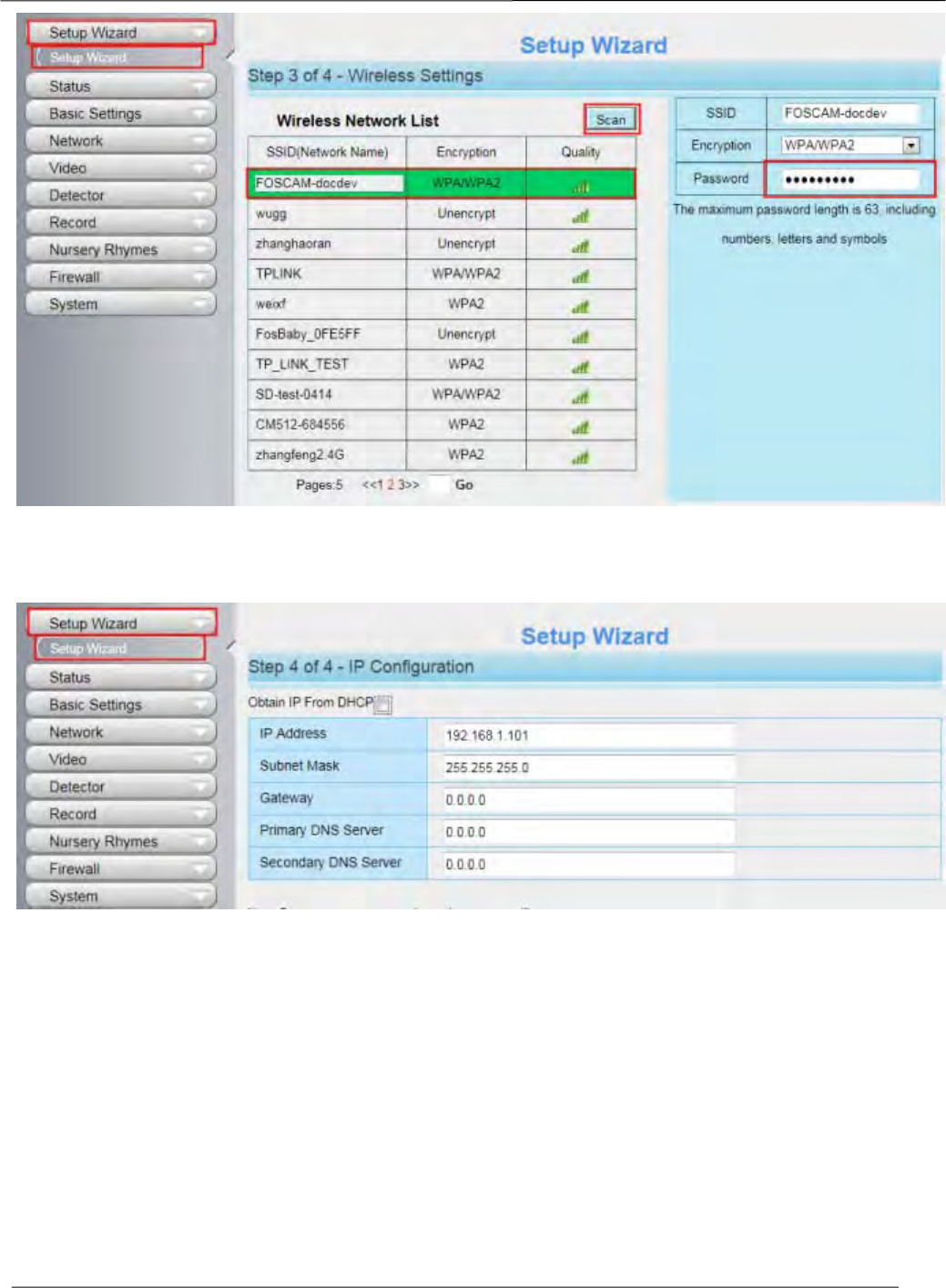

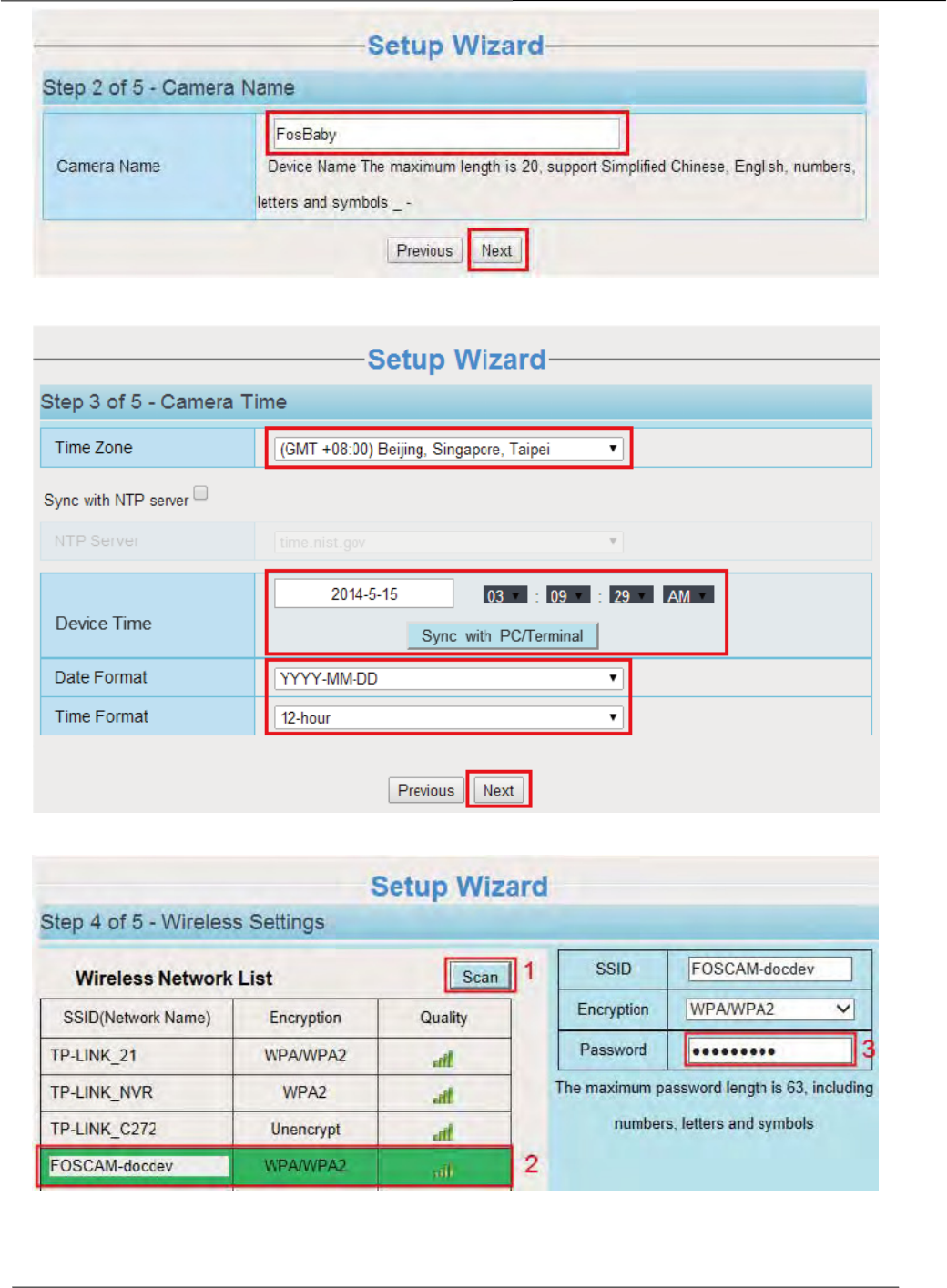

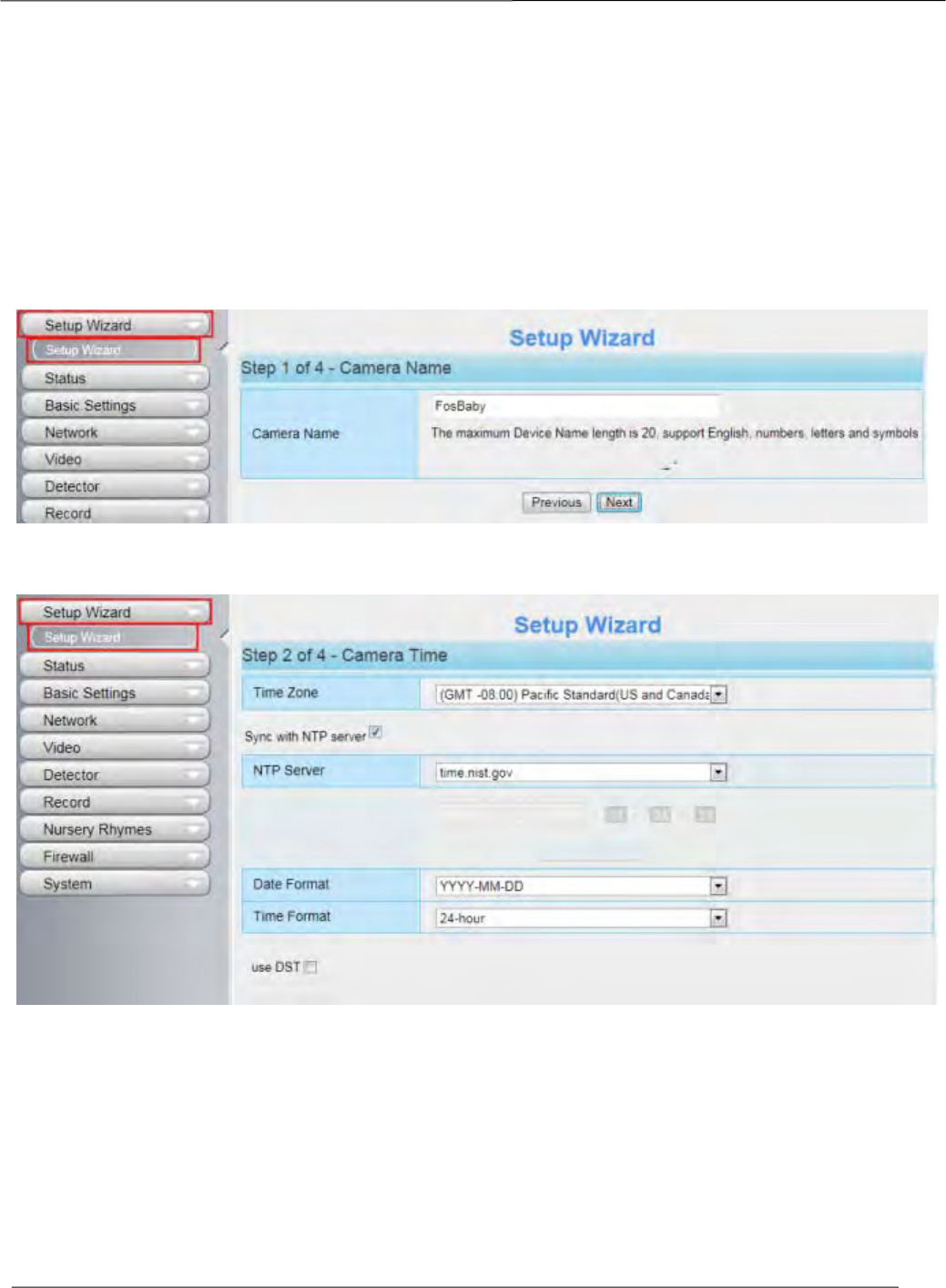

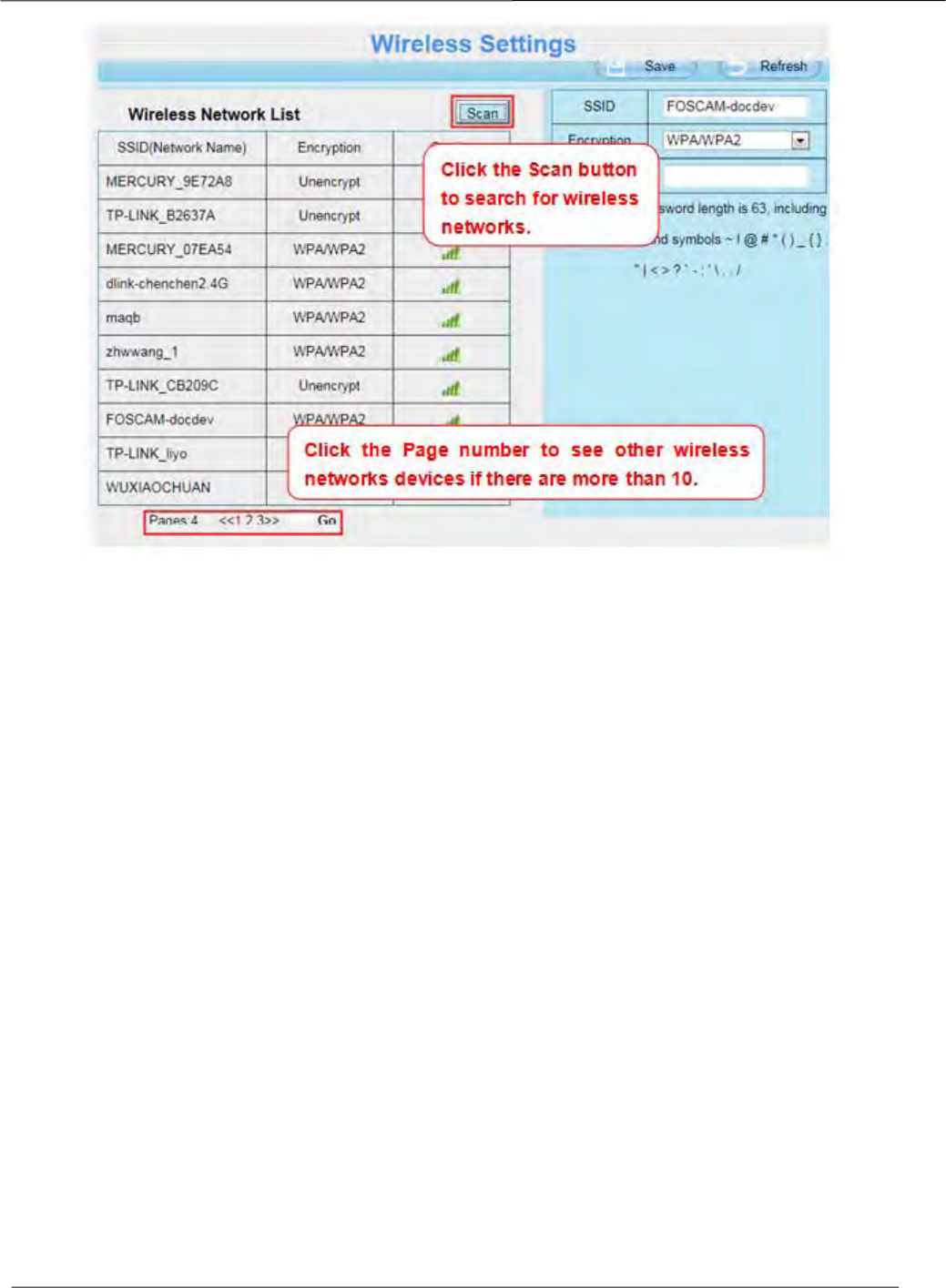

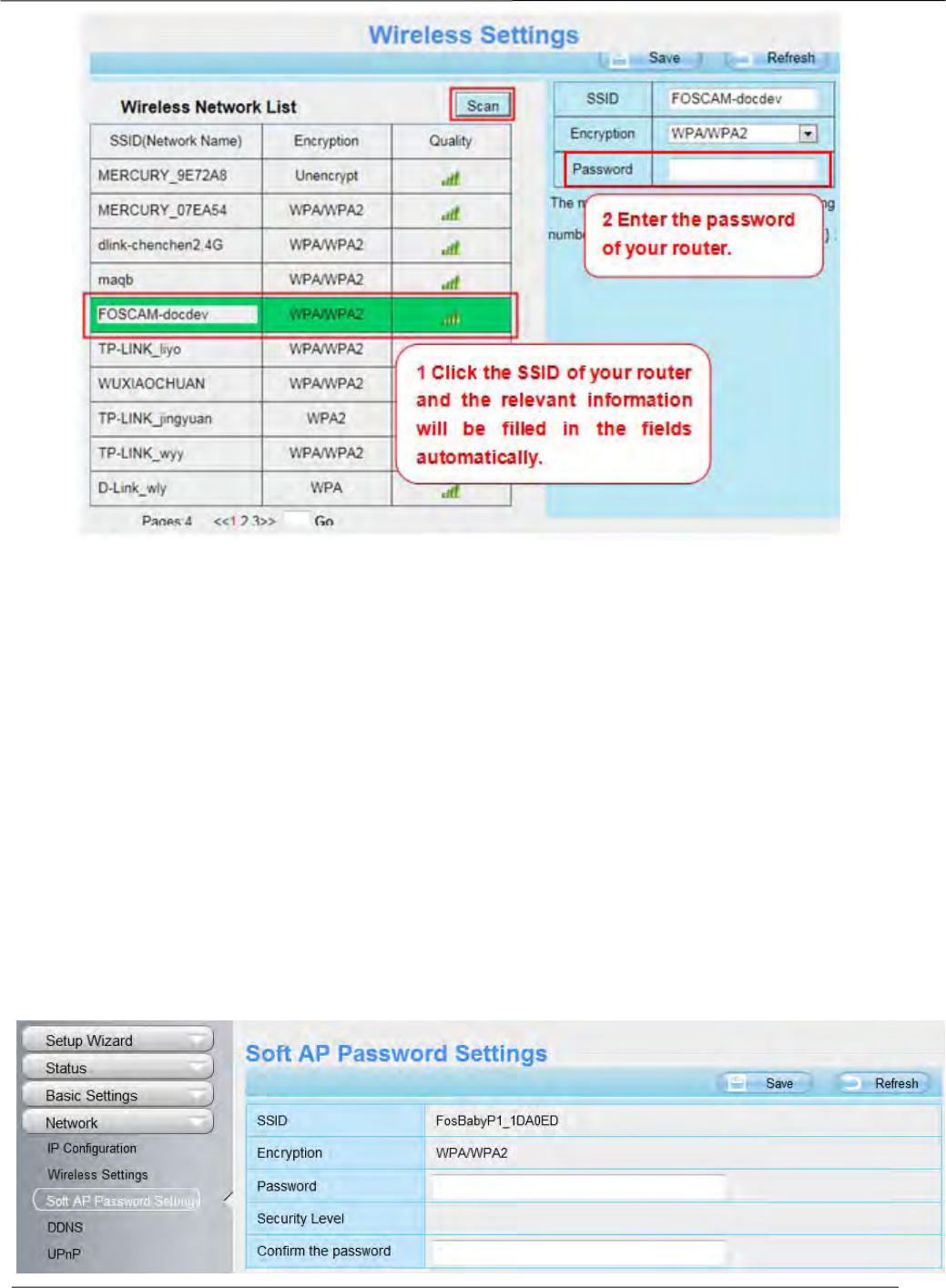

6. After logging in for the first time, it will go to "Setup Wizard” automatically. Please set the basic
parameters of the camera, such as camera name, camera time, wireless settings (The camera connect
to your wireless router: Wireless Network List - enter the password of your wireless router ), IP
configuration.
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168
7
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168
8
Notes:

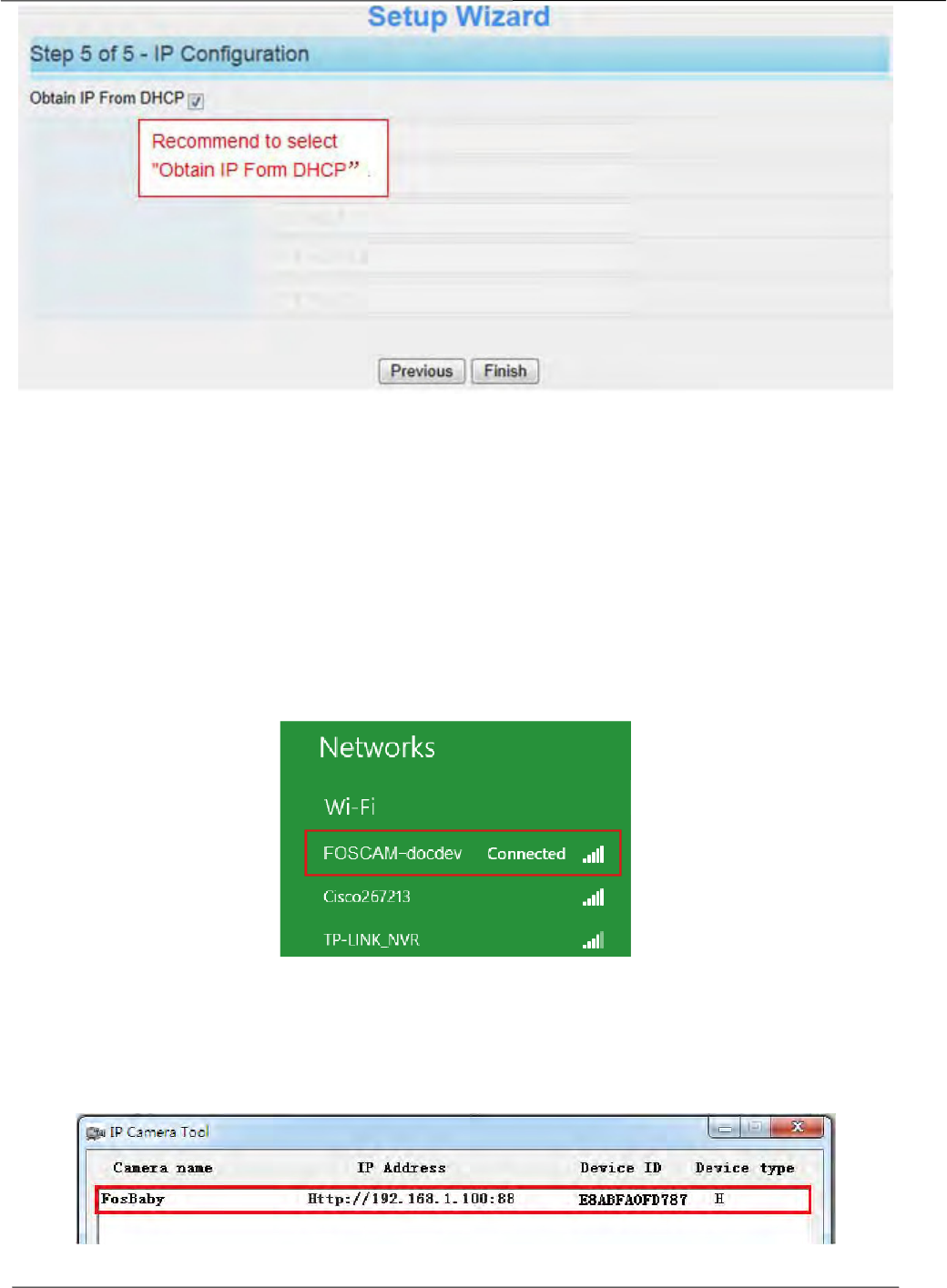

We recommend you to choose to manually set the IP when you know some knowledge of the
network.
It needs about 1 minute to connect the camera to your router.

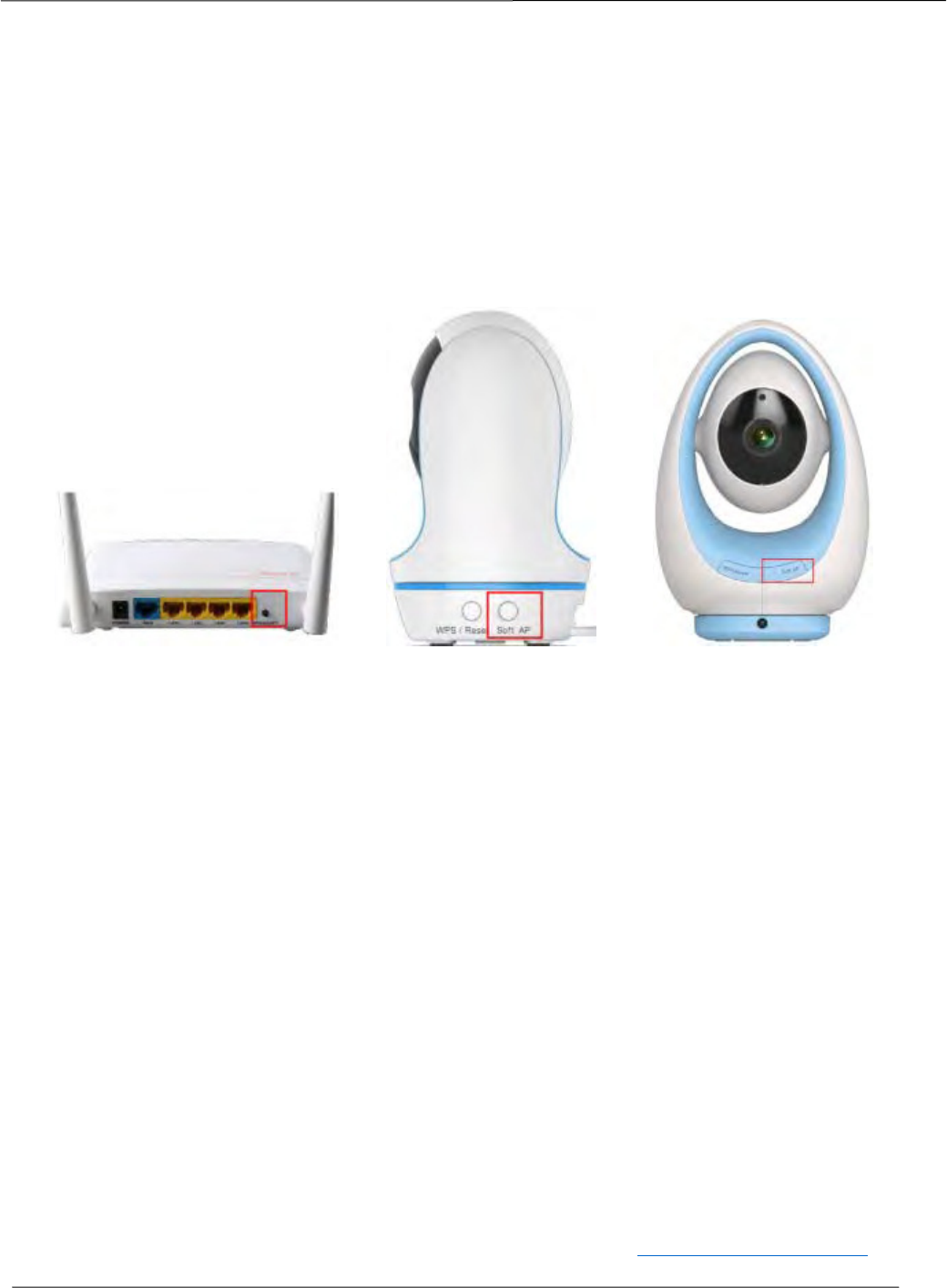

7. After completing the setup wizard, you should press the Soft AP button for 3-5 seconds to cancel the
Soft AP connection mode, this is located on the back of your camera. The Network light begins to slowly
flash(once per second), it indicates that the wireless connection is successful. (Only Fosbaby P1)
8. Please connect your PC to the router which your camera has connected to.

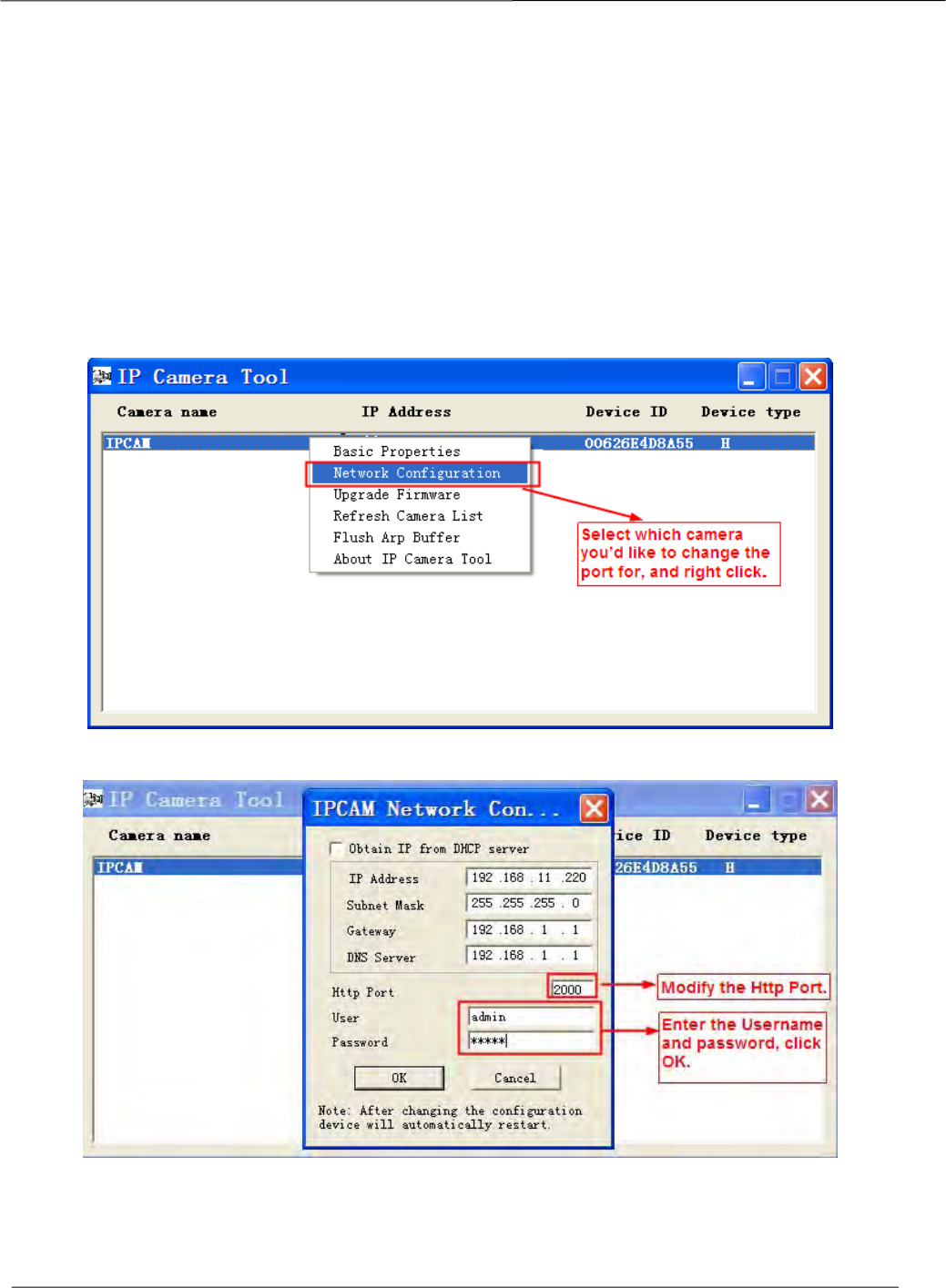

9. Open the CD named “FOSCAM”, go to the folder “IP Camera Search Tool” and find the folder “For
Windows OS” or “For Mac OS”. Copy and paste the IP camera tool file to your computer, or drag it onto
your desktop.
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168
9
Notes:
You could also download the IP camera tool from our website www.foscam.com for free.
If you have multiple cameras and you cannot determine which camera you are going to log in.
Please match the "Device MAC address" on the search tool with the MAC address on the label
pasted of each camera.

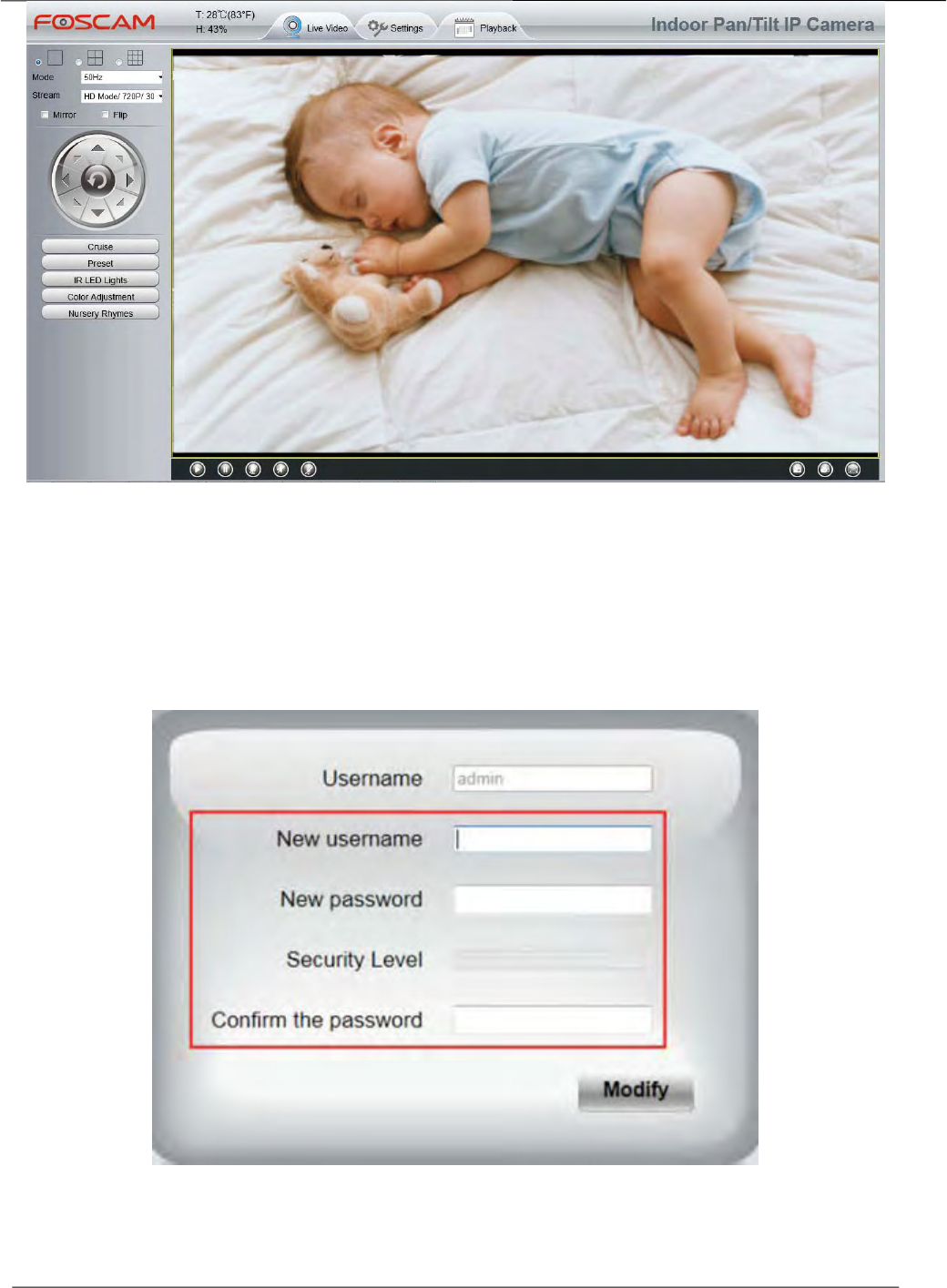

10. Double-click the camera list here, and your default browser will open up to the login page. Input the
username and password you has changed. Then, you will see the live video of your baby on the
interface.
Now, you could use your camera in LAN.
Main stream offers the
highest quality video while
Sub stream offers less
quality, but also less delay
when viewing.
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168
10
Note:
64-bit browser is not supported.
2.1.2 WPS (WI-FI Protected Set-up)
Before using WPS wireless connection, you need to:
Make sure that your wireless router has the WPS function, and has been properly connected to the
Internet. WPS button on the wireless router is typically located on the front panel or rear panel. TP-LINK
router's WPS button is called QSS (Quick Security Setup).
(1) Press and hold the WPS button for three seconds. The blue indicator on the side of the camera
begins to twinkle at high frequency. (You can press and hold this button for more than 10s to reset
the camera. After the reset, the settings of the camera are restored to factory defaults.)
(2) Press and hold the WPS button for three seconds on your wireless router within 60 seconds. Then
the camera will automatically create a secure wireless connection to your router in about 60
seconds.
2.2 Access the FosBaby in WLAN
First of all, you need to connect the camera to your wireless router.

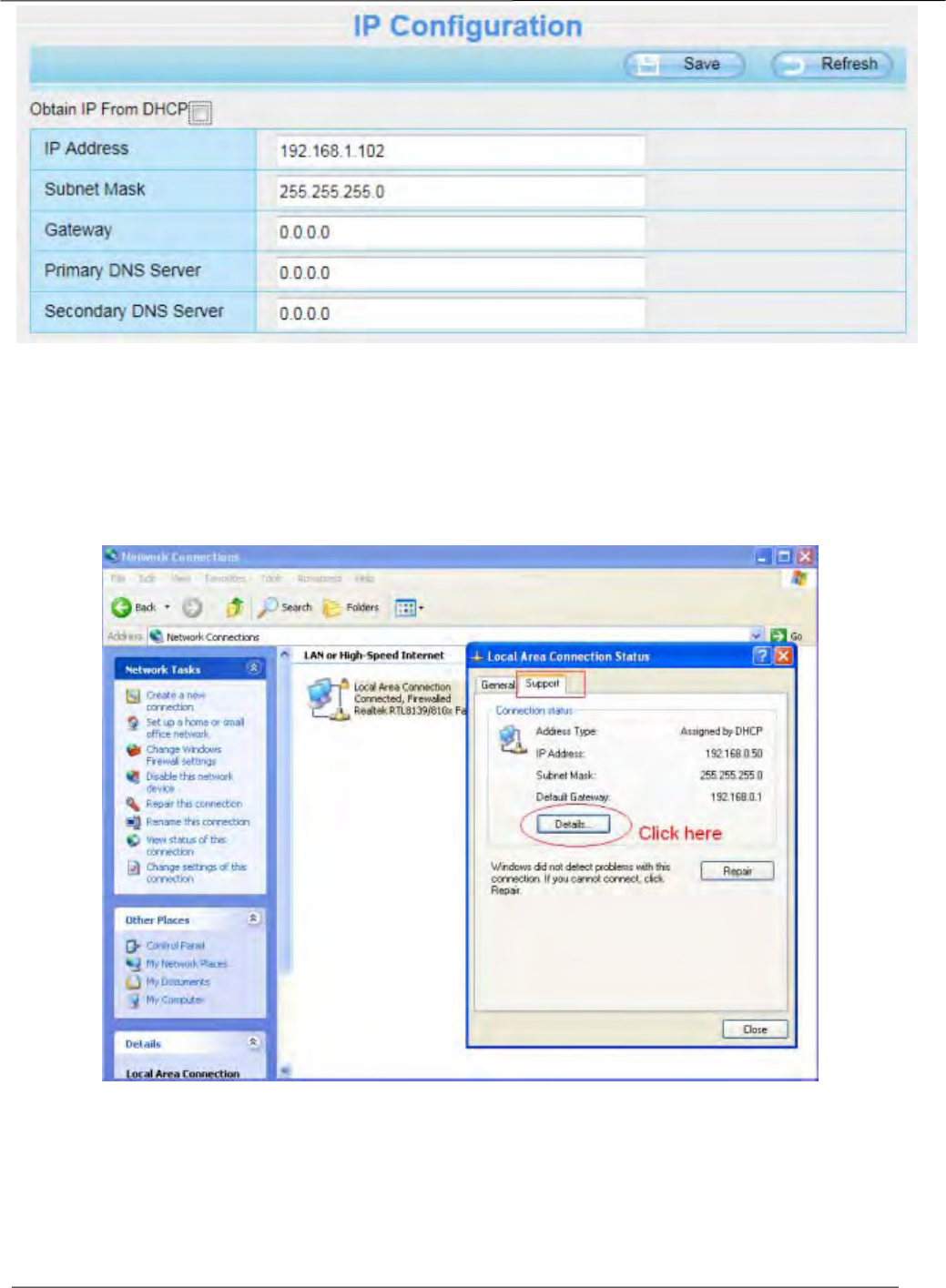

2.2.1 Static IP Addresses
Users who have static IP addresses do not need to set DDNS service settings for remote access. When
you have finished connecting the camera using the IP address and port forwarding, you can access the
camera directly from the Internet using the WAN IP address and port number.

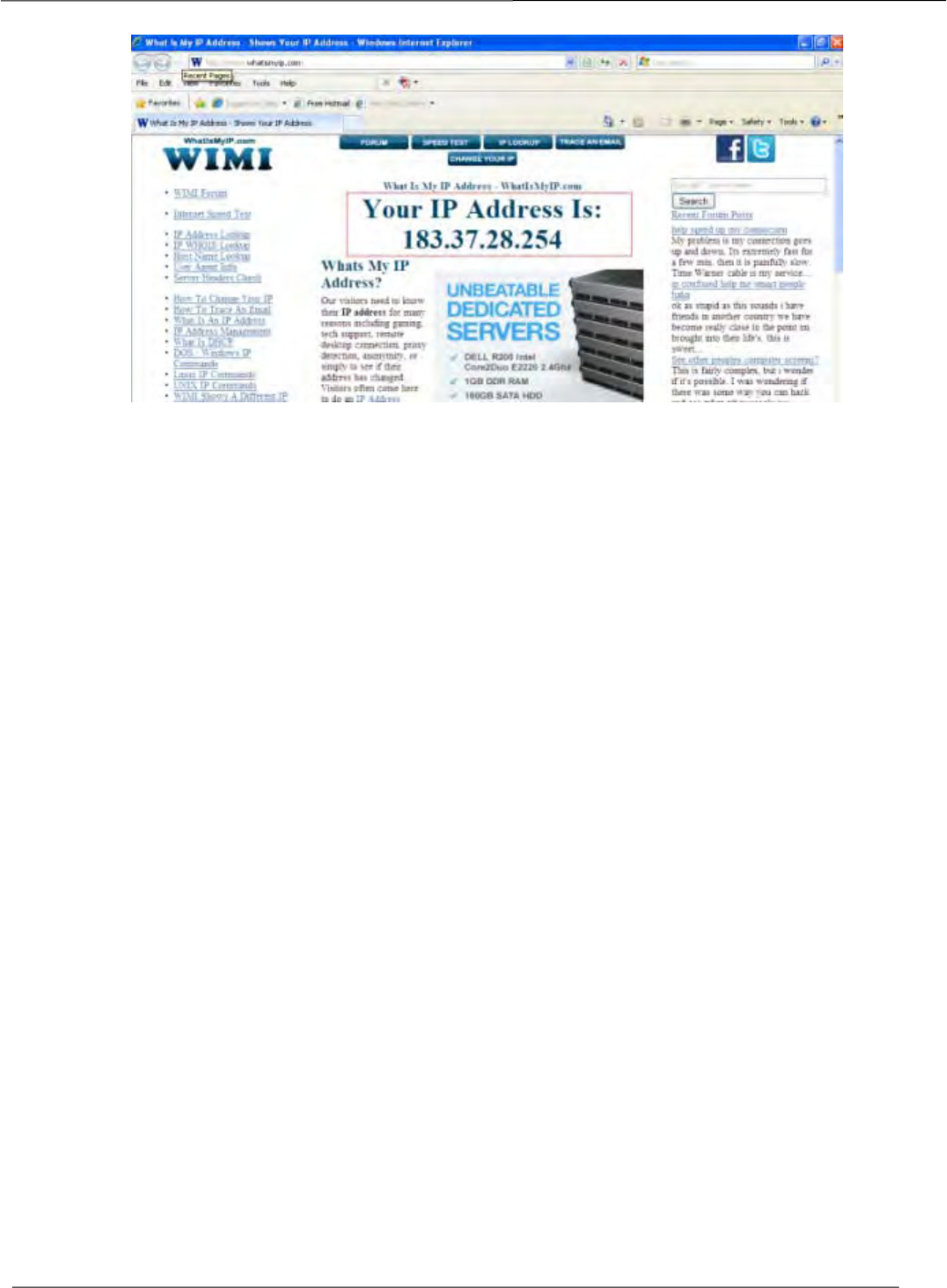

How to Obtain the WAN IP address from a public website ？
To obtain your WAN IP address, enter the following URL in your browser: http://www.whatismyip.com.
The web page at this address will show you the current WAN IP.
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168
11
Access your Camera from the Internet
You can access the Camera from the Internet (remote access). Enter the WAN IP address and port
number in your standard browser. For example, you would enter http:// 183.37.28.254:85
NOTE :
Make sure port forwarding is successful. You can do port forwarding two ways.
Login to your router to enable the “UPNP” function. You can then login to the camera as administrator,
choose Network, and then choose UPnP to enable UPnP. Make sure that the status of UPnP reads
“UPnP Successful” on the Status page.

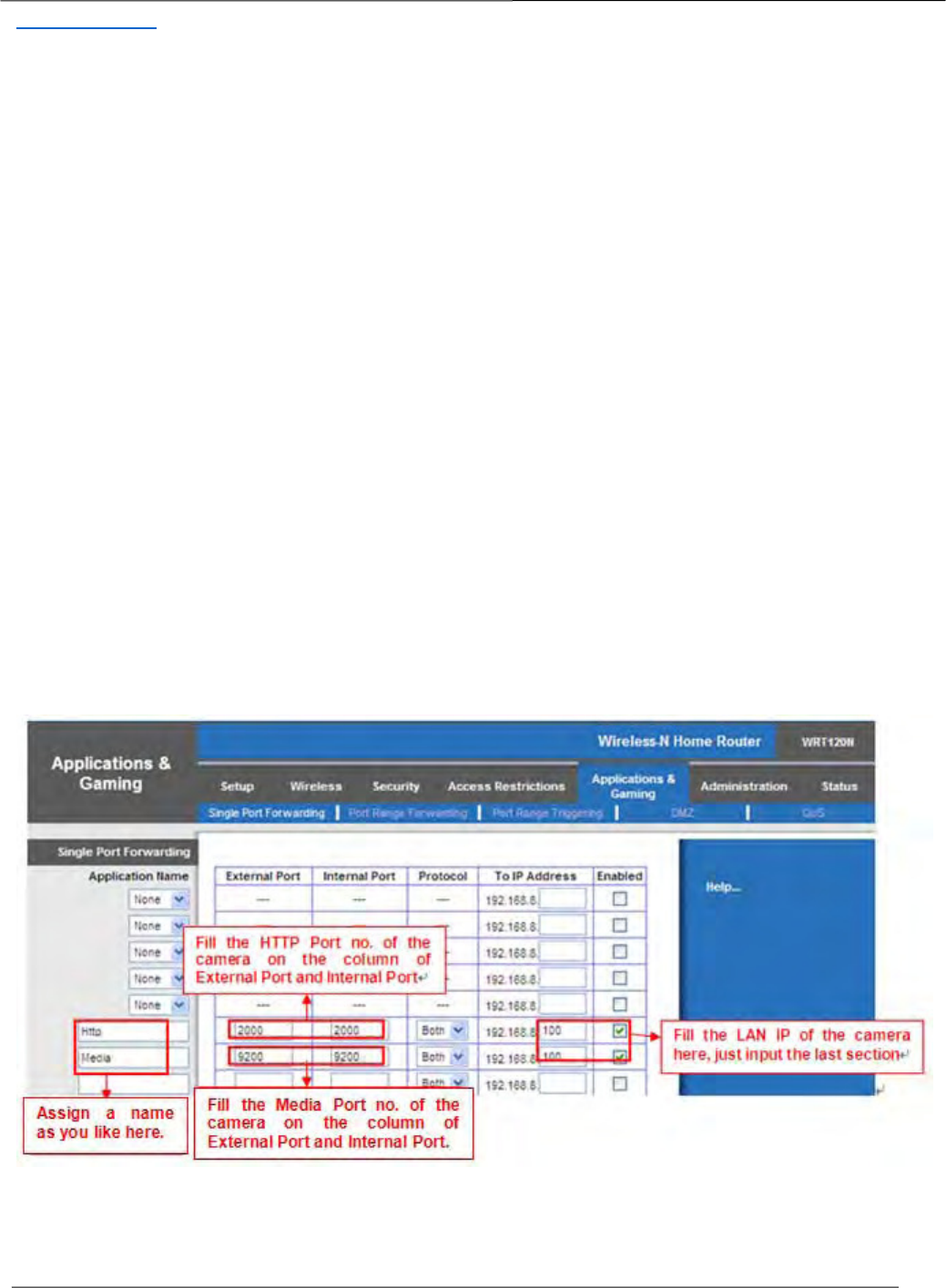

Do port (HTTP port and Media port) forwarding manually.
If your router has a Virtual Server, it can do port forwarding. Add the camera’s IP and port which you had
set earlier to your router’s port forwarding settings.
Note: If you plug the camera into a router, it will have a dynamic IP address and you need to set DDNS
service settings to view it remotely.
2.2.2 Remote Access
If you want to access your camera by web browser outside of your LAN, you need to configure following
configurations.

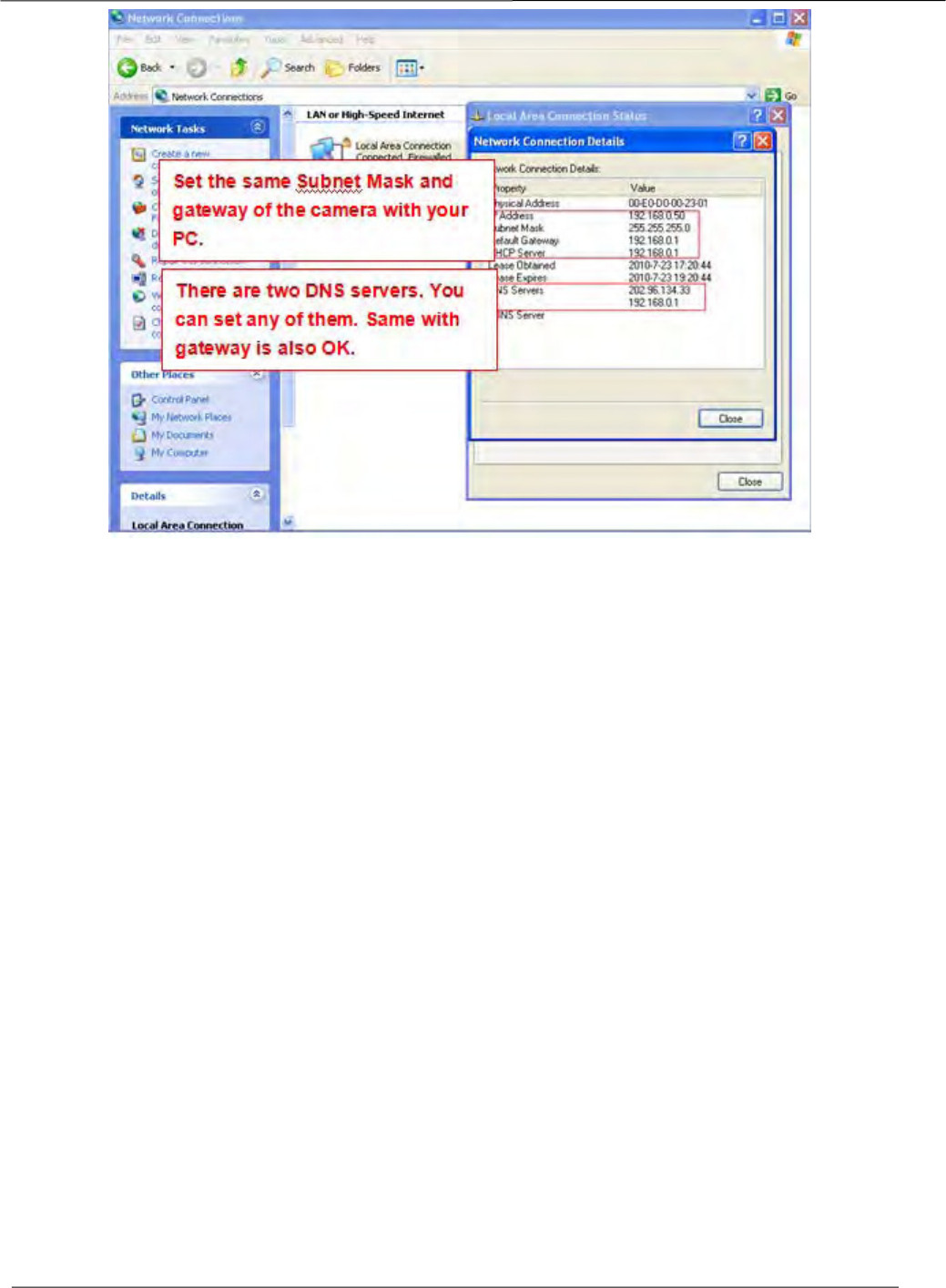

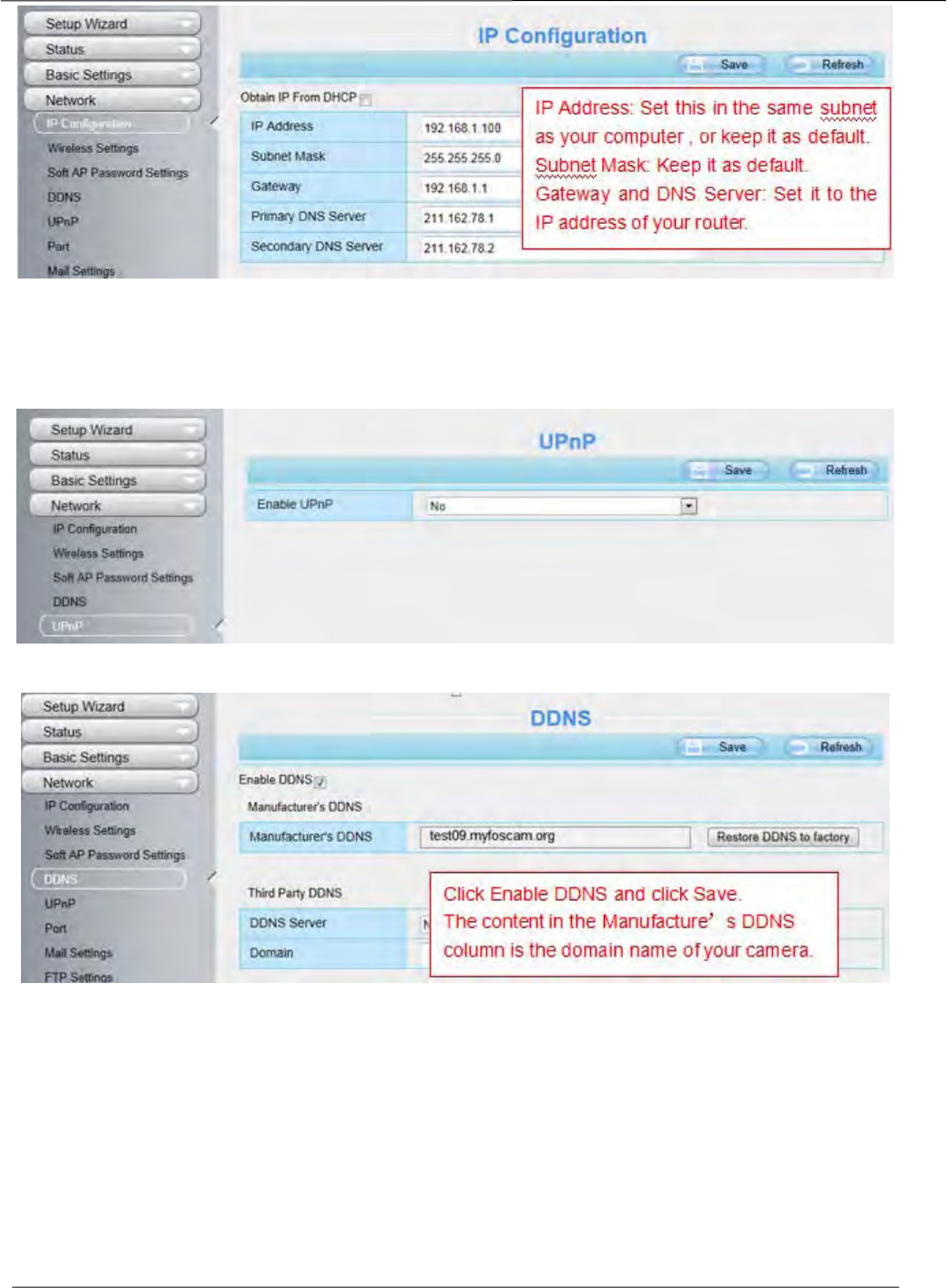

1. Choose “Settings” on the top of the camera web page, then go to the “Network > IP Configuration”
section on the left side of the screen, then uncheck the Obtain IP DHCP.
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168
12

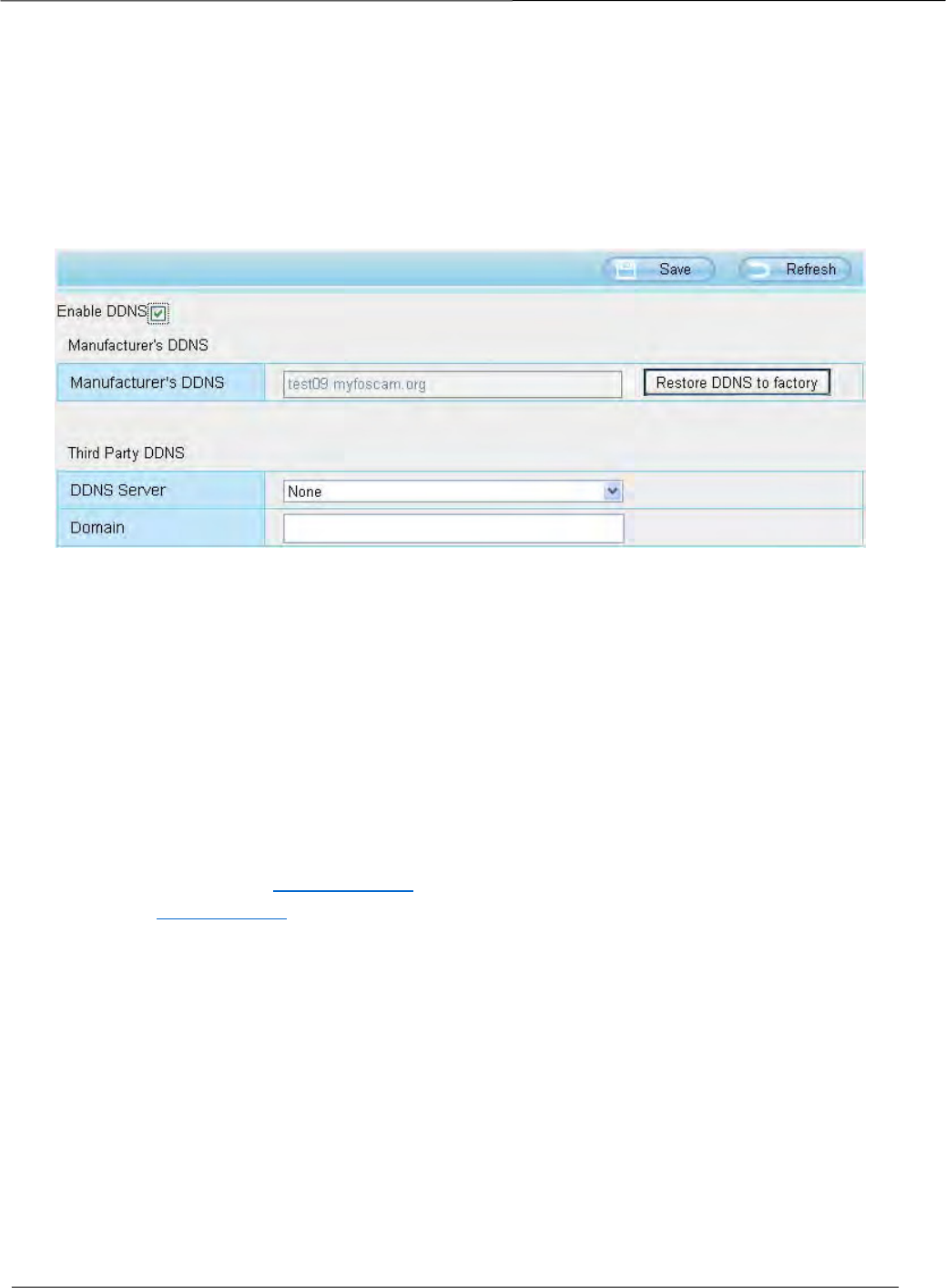

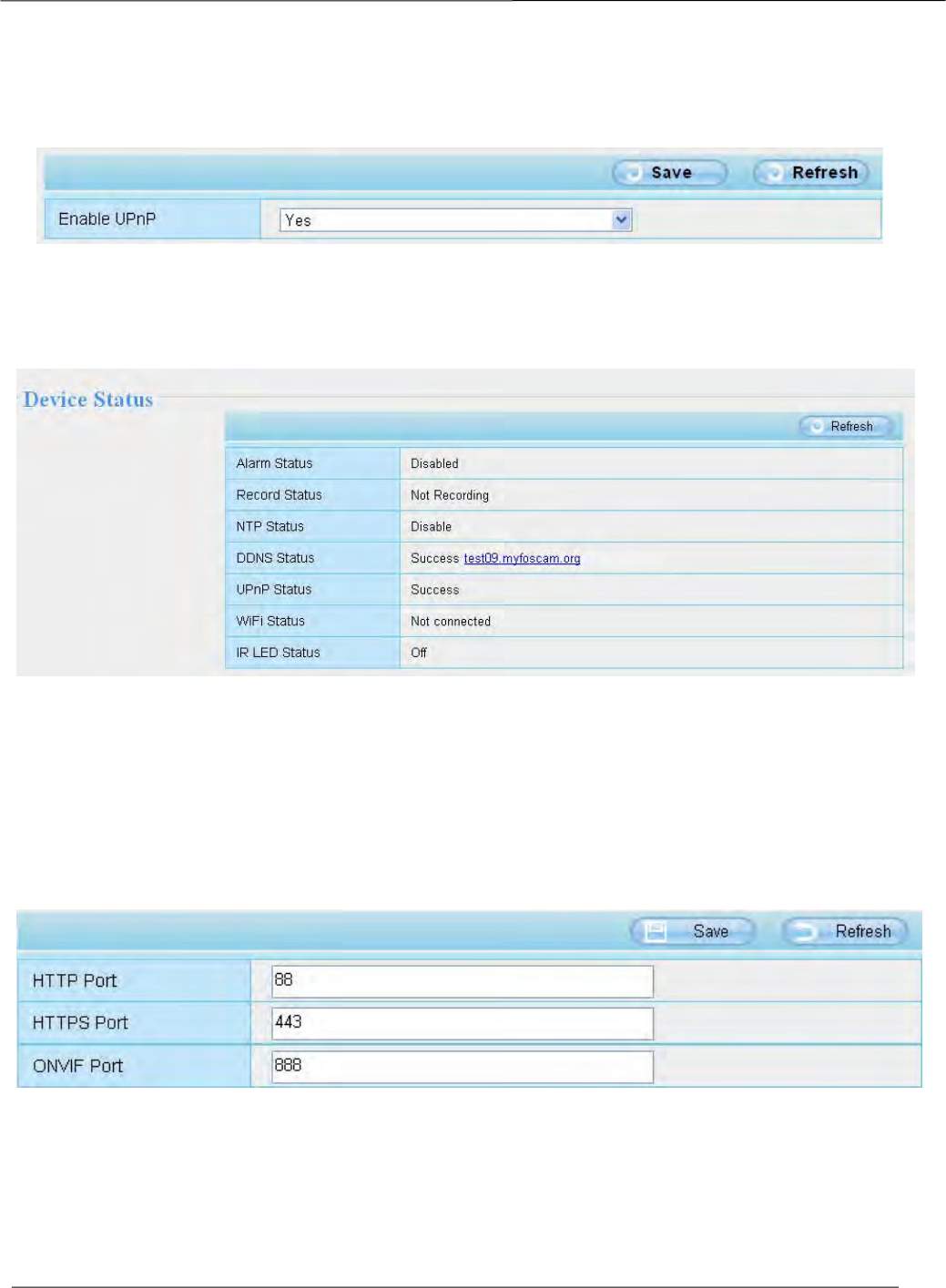

2. Enable UPnP and DDNS in the camera’s settings page. We recommend you to use the DDNS by
factory default.

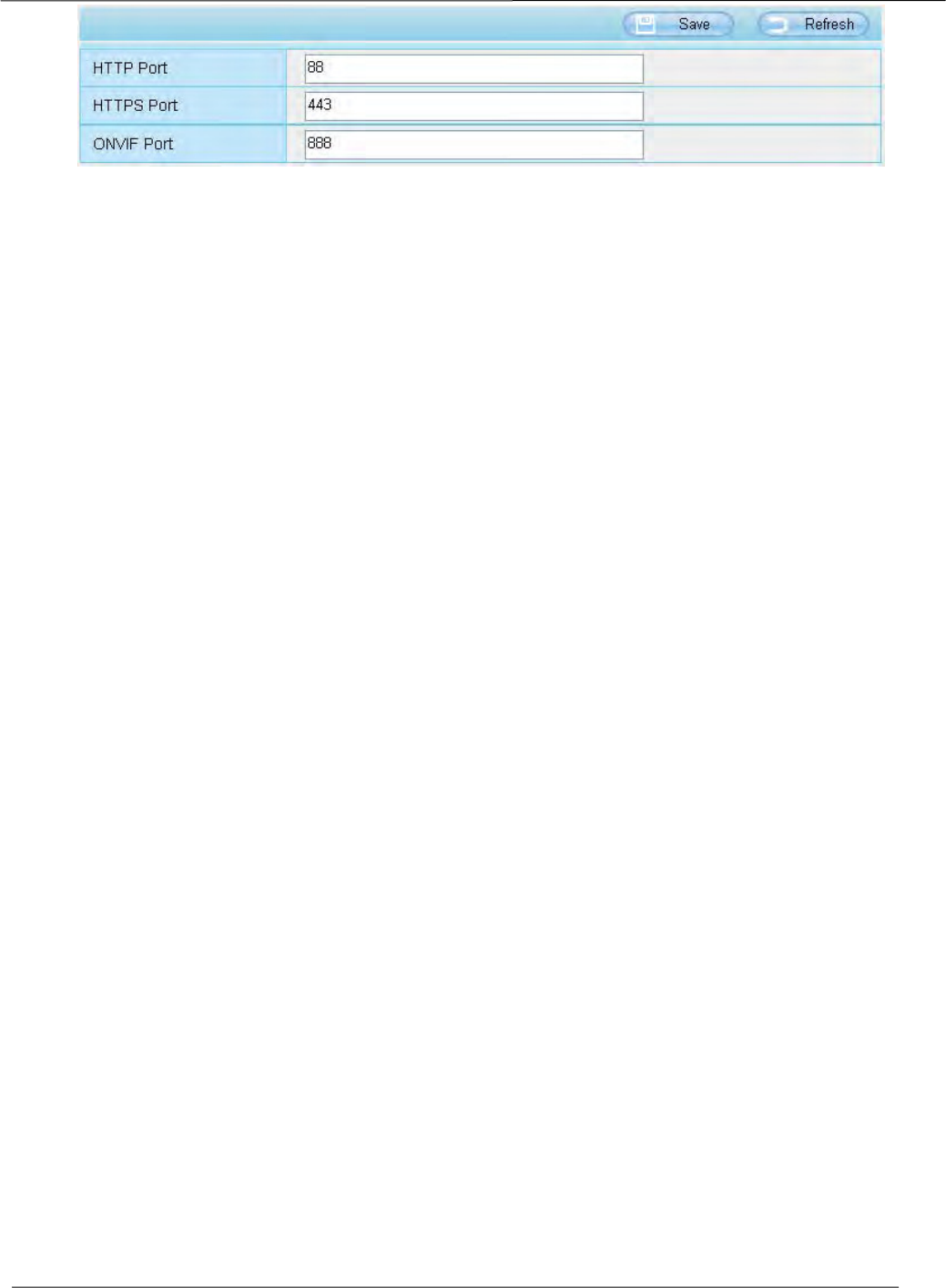

3. You can see the port of your camera here. If you want to set Remote Access for several cameras on
the same network, you will need to change the HTTPS port for each camera.
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168
13

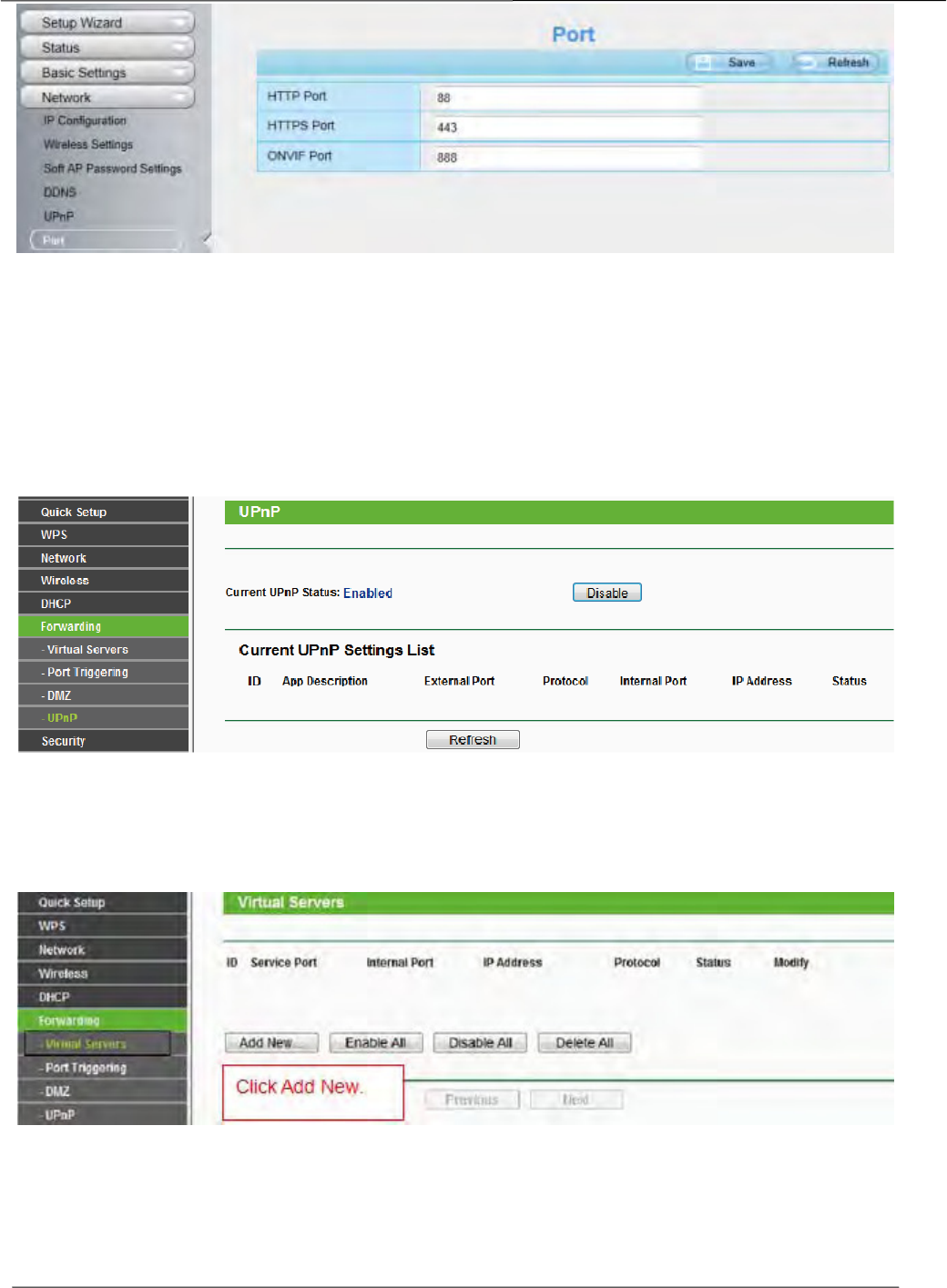

4. If the UPnP of the router has been enable, you do not need to perform following steps. Otherwise,
you need to select one of the following methods to configure port forwarding on your router. For these
steps, we will be using the TP-LINK brand wireless router as an example.
If there is a UPnP function in your router：
Choose “Forwarding > UPnP”, make sure that the Current UPnP Status is Enabled.
If there is no UPnP function in your router：

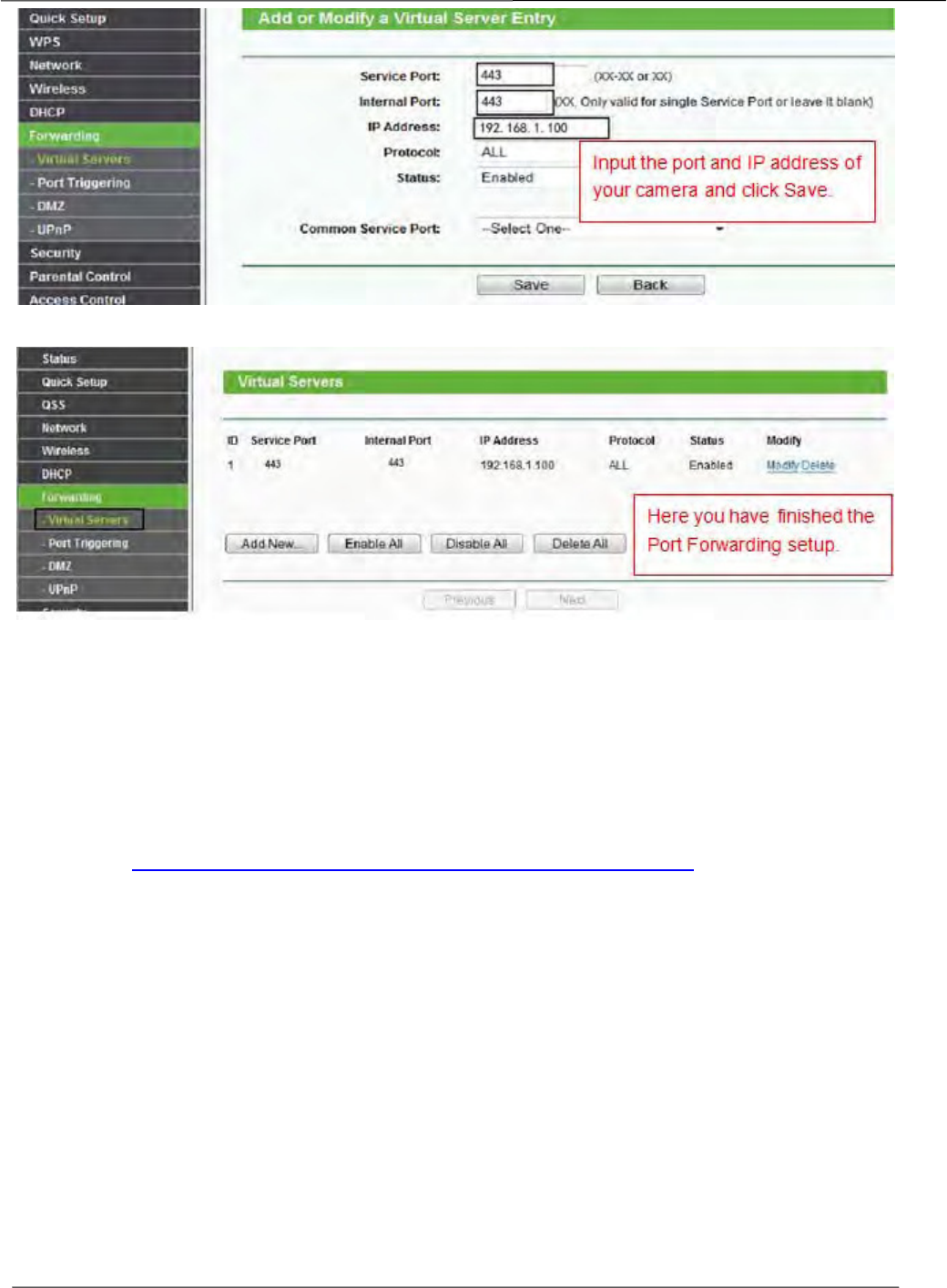

You need to manually add port(HTTPS port) forwarding, refer to the following steps. You need go to the
“Forwarding > Virtual Servers” panel for setup.
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168
14
5. Now you can access your IP camera by https://domain name: HTTPS port via the Internet.
2.3 Using the VLC player
The camera supports RTSP streaming, here you can view the camera by VLC player.
RTSP URL rtsp:// [user name][:password]@IP:HTTP port number/videostream
The part in the square brackets can be omitted.
user name & password: The user name and password to access the camera. This part can be
omitted.
IP: WAN or LAN IP address.
Video stream: Three modes are supported: video Main, video Sub and audio. Video Sub is a better
choice in bad network condition. If you select audio, you can only hear sound without seeing picture.
For example:
IP: 192.168.1.11
HTTP Port number: 88
User name: admin
Password: 123
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168
15
Enter either one of the following four URLs in the VLC
rtsp://admin:123@192.168.1.11:88/videoMain
rtsp:// @192.168.1.11:88/videoMain
rtsp://:123@192.168.1.11:88/videoMain
rtsp://admin@192.168.1.11:88/videoMain
Open the VLC, and go to “Media”--”Open Network Stream” option, then enter the URL in VLC.
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168
16
Sometimes you may need to enter the user name and password for another time. Click OK and you can
see the real-time preview.
If you cannot play the video in the VLC player, please check the port mapping. You can read Quick
Installation Guide about how to configure port forwarding.
NOTE:
If you modify the camera’s username or password, you had better reboot the camera to apply the new
username and password in authentication in the VLC.
2.4 Camera Connection to the Server
Device supports ONVIF 2.2.1 protocol,You can easily access the NVR with ONVIF or server with ONVIF.
2.5 CMS Client Monitor
FOSCAM offers the most comprehensive central management software IP Camera Client, designed for
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168
17
managing all FOSCAM IP surveillance cameras with numerous features.
It supports management or monitoring multiple cameras for monitoring, recording, playback, and alarm
management with efficient control. You could refer to the CMS user manual in the CD.
3 Surveillance Software GUI
Please refer to the Quick Installation Guide if you install the camera at first time. After finishing quick
installation, you can take time to learn the operation of the software.
3.1 Login Window
Section1 Enter the Username and password
The default administrator username is admin with no password, please reset the password at first using
and prevent unauthorized users login the camera.
Section2 Stream
The camera supports two stream modes: Main stream and sub stream. If you want to access the camera
form WLAN, here you can select Main stream. If you want to access the camera from Internet, here we
recommend sub stream.
Note: When the network bandwidth is badly you’d better select Sub Stream and the video will be more
fluency.
Section3 Select the language
You can select the language you need via click on the language drop down list to switch.
Section4 Login the camera
Click Login button and you will see the surveil video.
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168
18
FosBaby P1

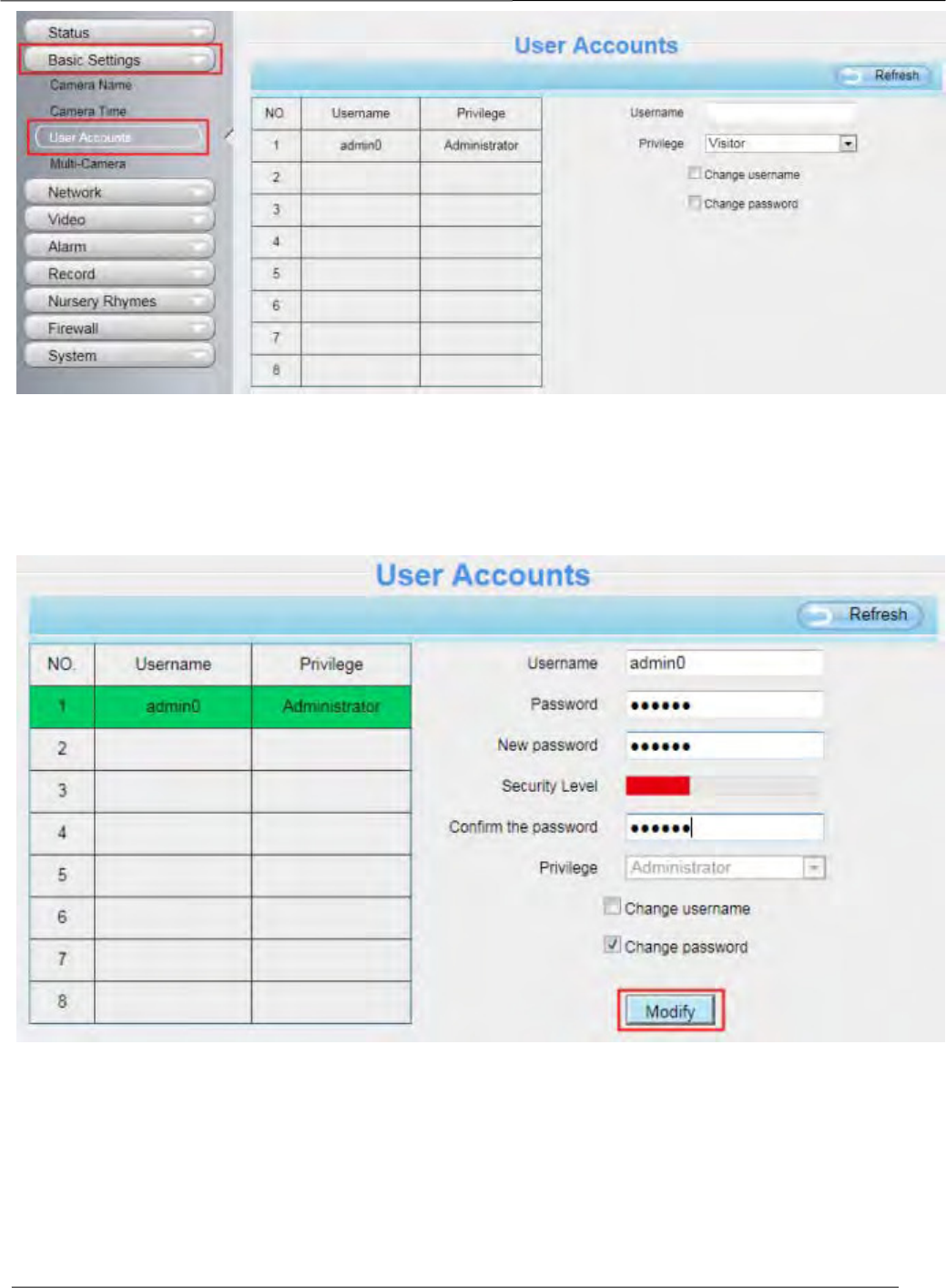

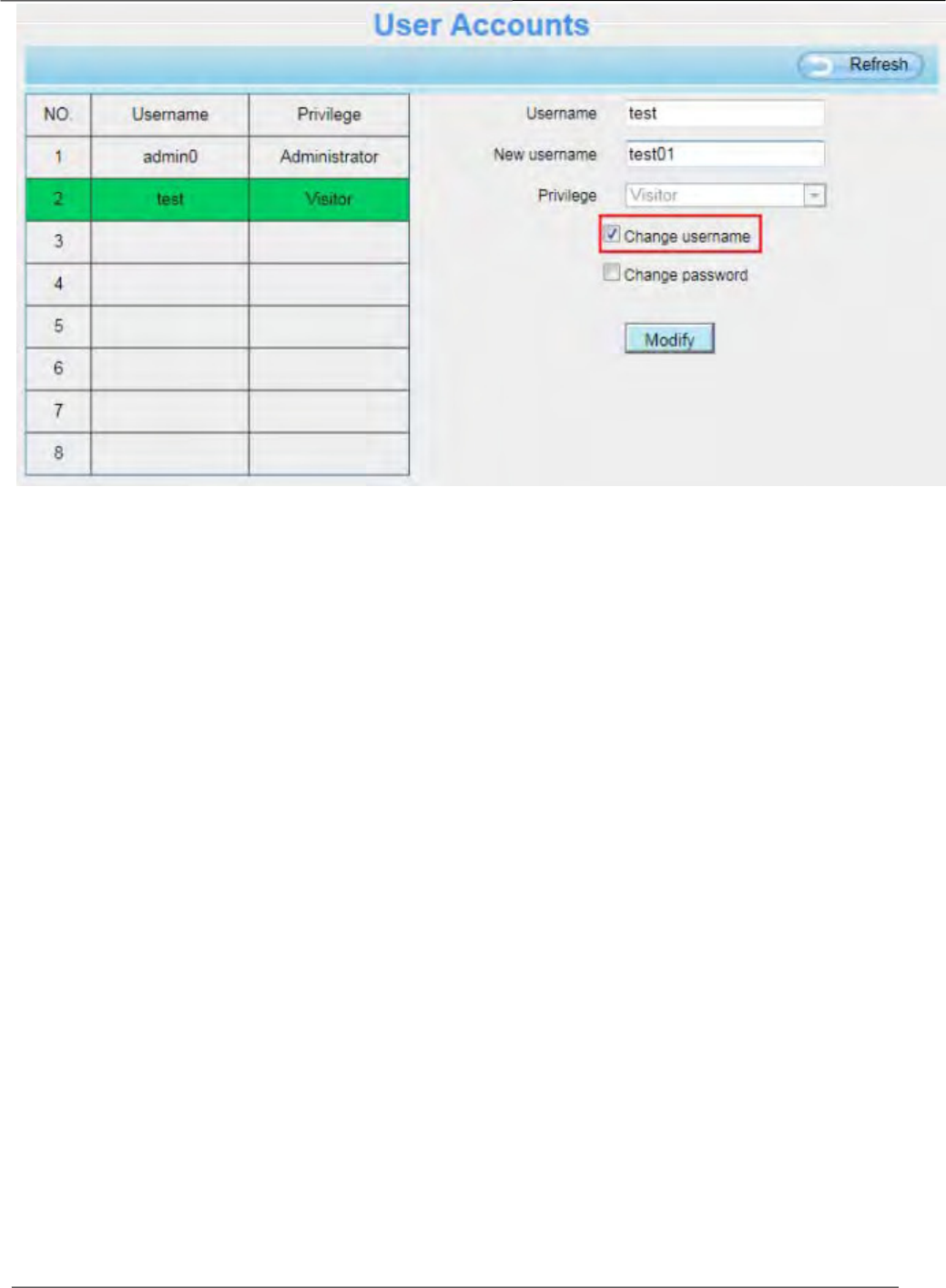

NOTE：
When setting up your camera for the first time, it will request that you modify the default username
and/or password if both are still set to default. Input the new username and password, click "Modify" to
complete the modification. You will now use the new username and password to log in to the camera in
the future.
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168
19

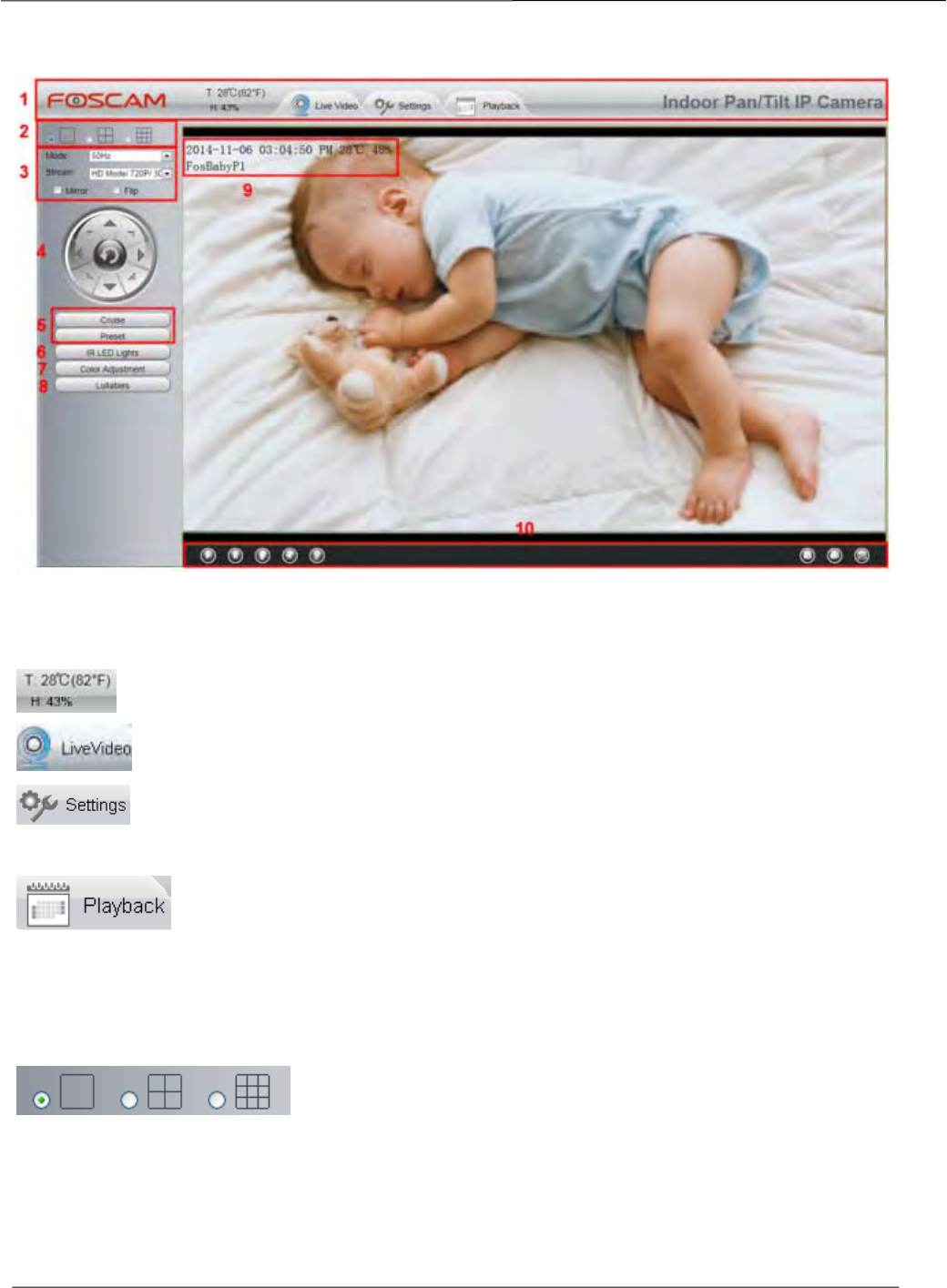

3.2 Surveillance Window
Section 1 Live Video/ Settings/ Playback buttons
: Real-time temperature and humidity display.
: Path to surveillance window. Click this button and back to the surveillance window.
: Path to Administrator Control Panel, Click it, and it will lead to Administrator Control
Panel and do advanced settings.

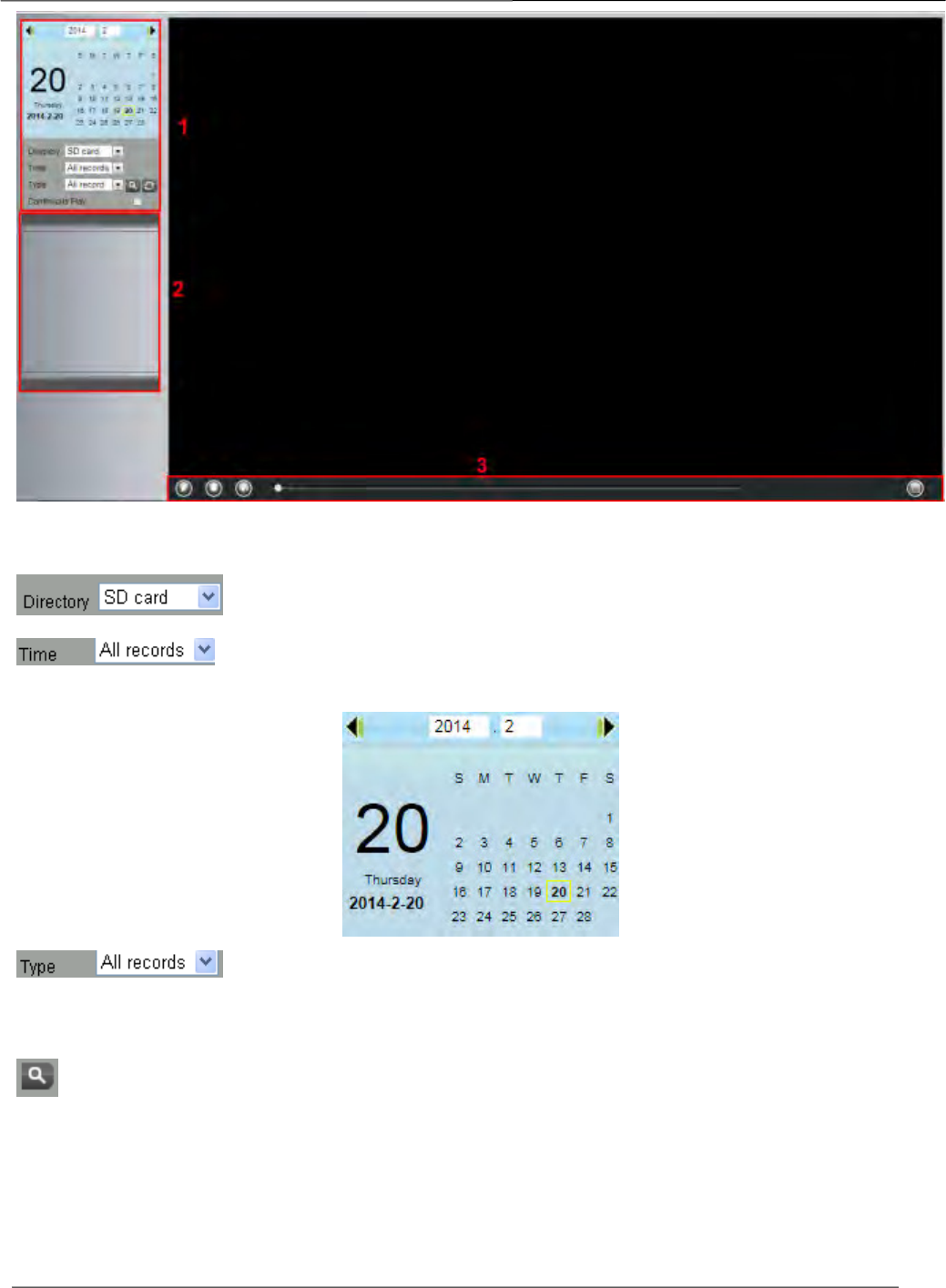

: Click this button and back to the Playback panel to view the stored audio files stored
in the SD Card.

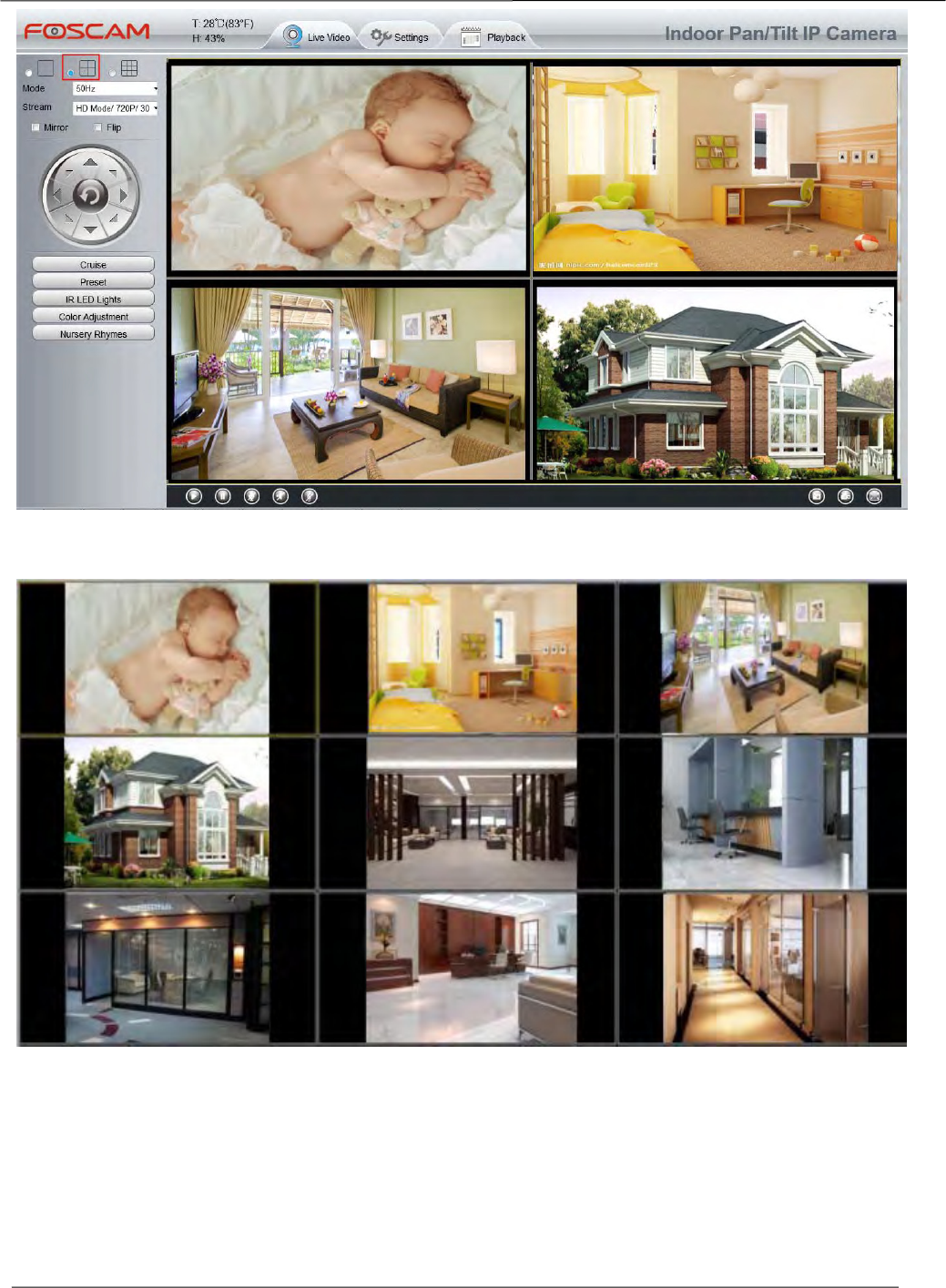

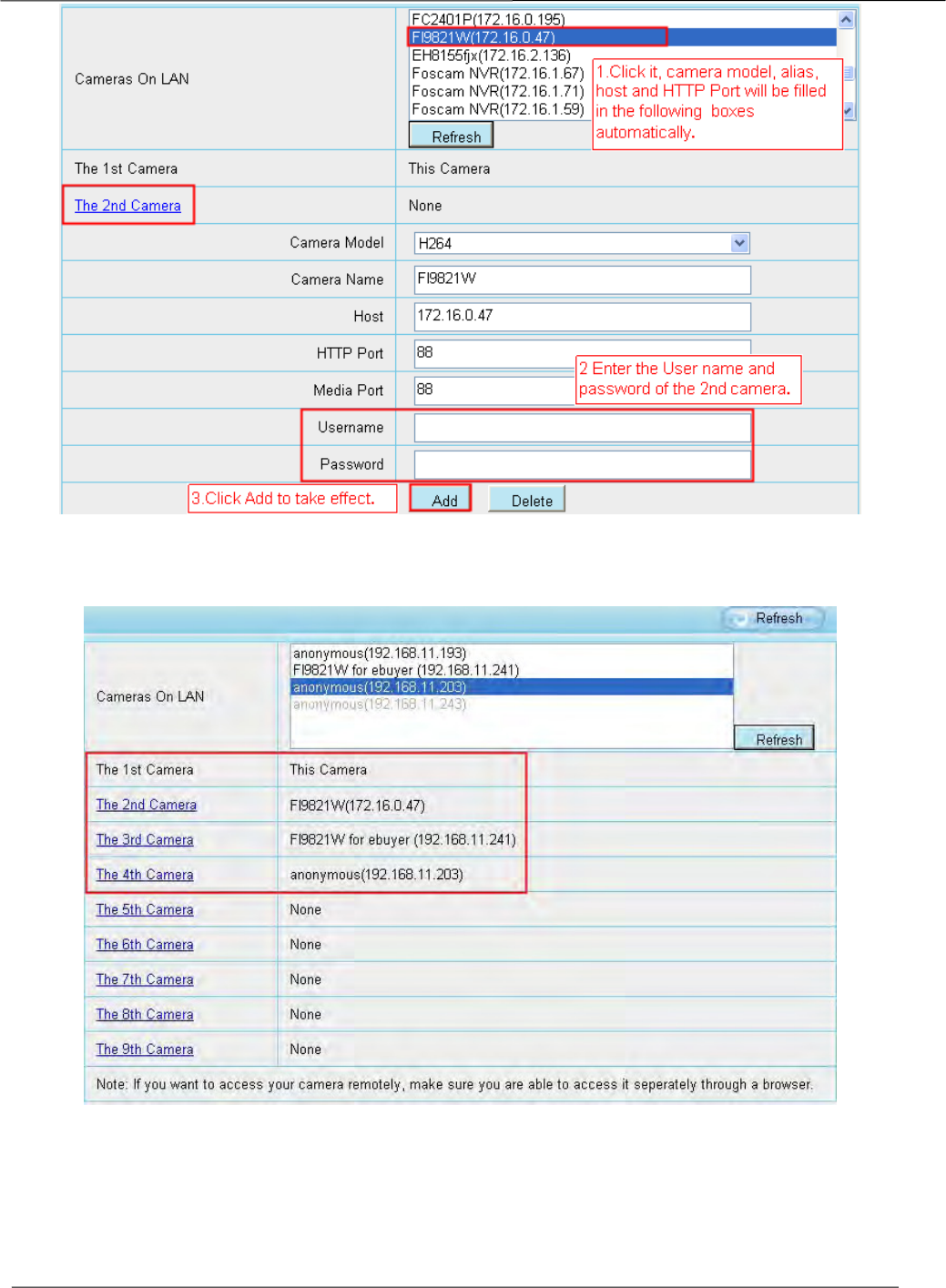

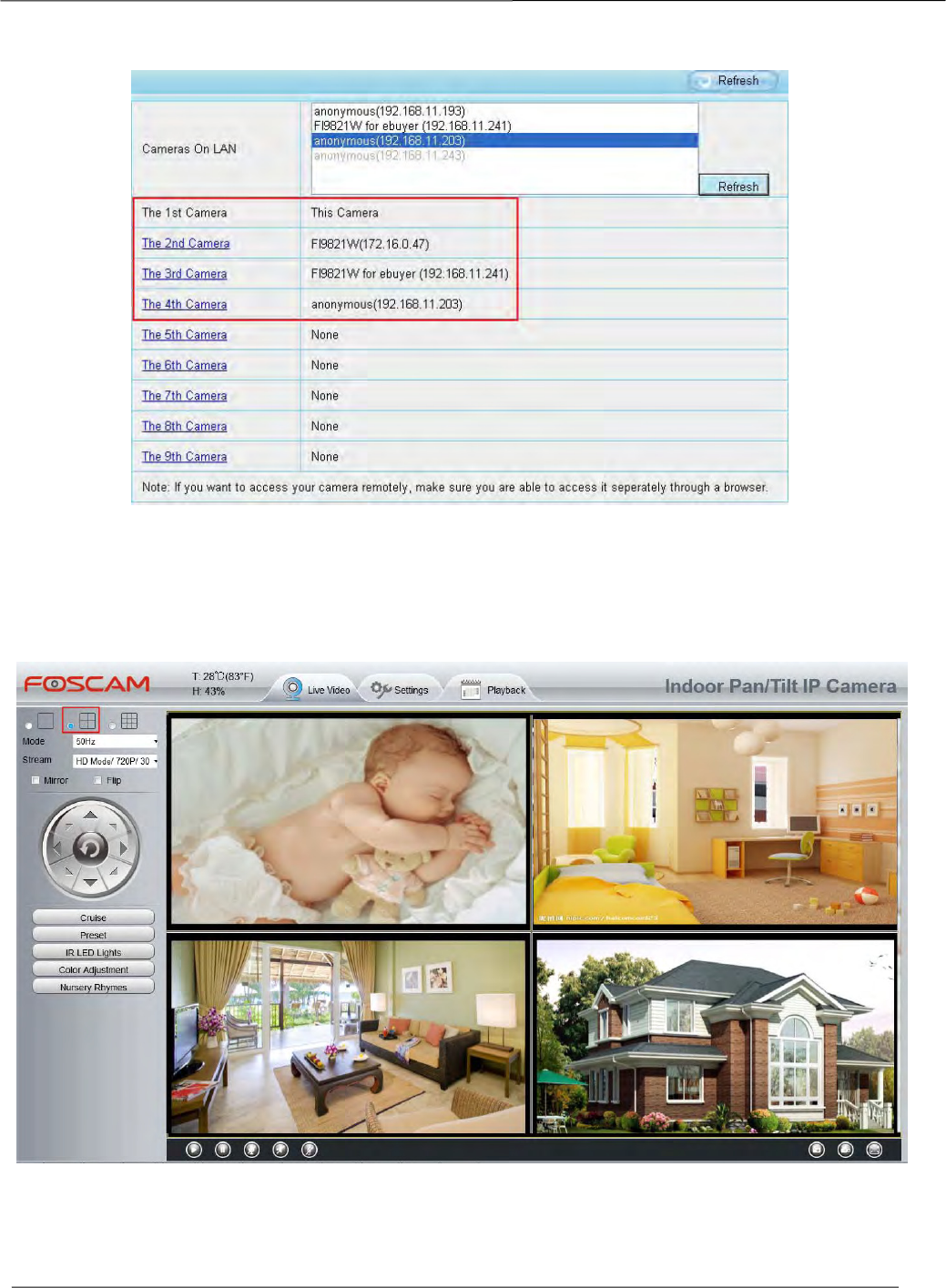

Section 2 Multi-Device Window

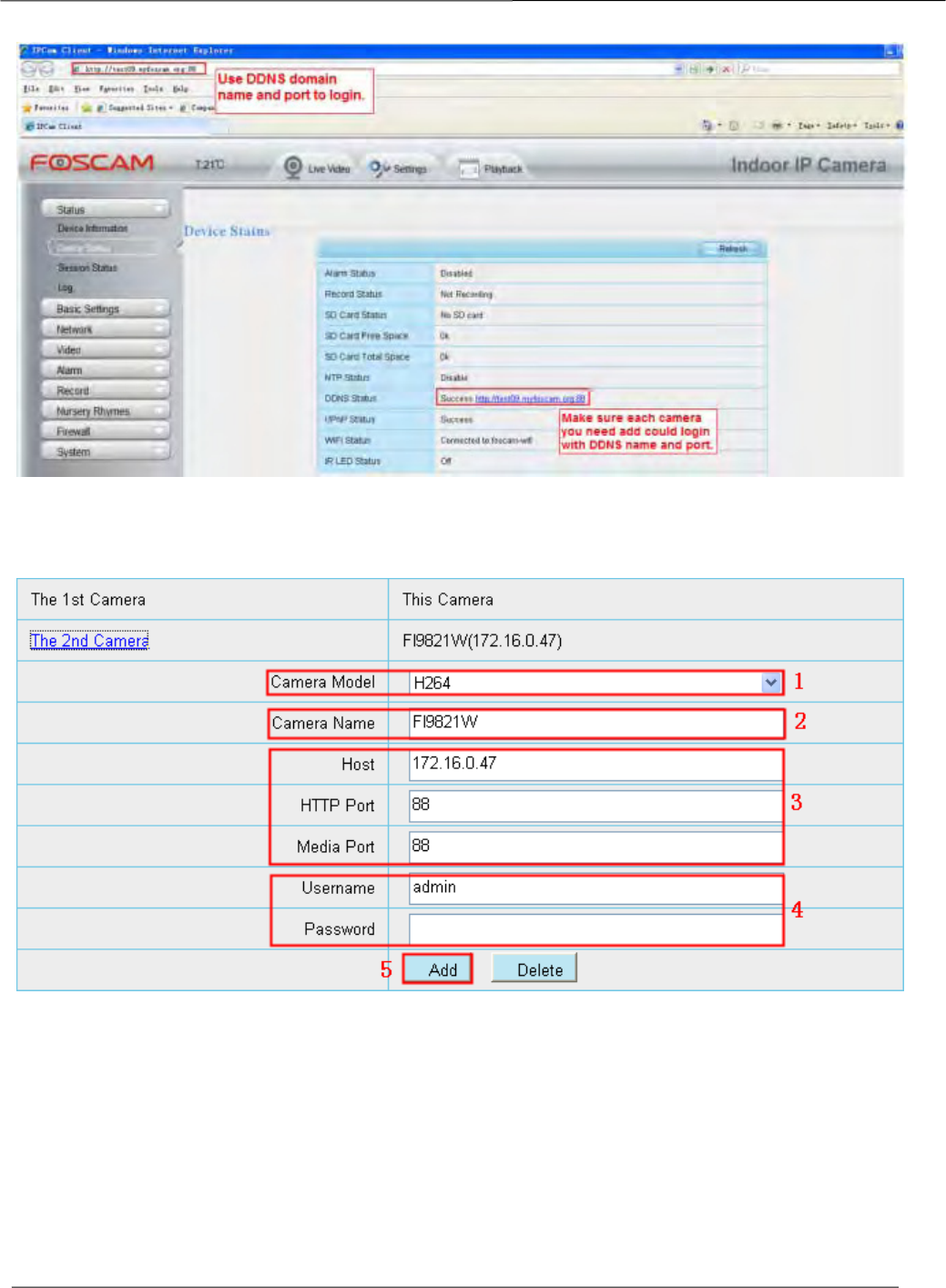

The firmware inside the camera supports up to maximum of 9 cameras being monitoring at the same
time. You can add other cameras in multi-device setting.
Section 3 Mode/ Stream / Mirror/ Flip buttons
Mode
1) 50HZ ---------Indoor surveillance (Region: Europe, China)
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168
20
2) 60HZ ---------Indoor surveillance (Region: USA, Canada)
3) Outdoor------Outdoor surveillance
Stream
The default stream supports multiple modes, For example: HD Mode/720P/23fps/2M meanings: Stream
type / Resolution / Maximum frame rate/ Bit rate.
1) Stream type : It is used to identify the stream type.
2) 720P/ VGA
There are three resolutions, the bigger one is 1280*720P, and the smaller one is VGA (640*480) pixels.
The bigger the resolution is , the better of the image quality is. If you are accessing the camera via
internet and want to get more fluent video streaming, please select resolution VGA.
3) Maximum frame rate
You should lower frame rate when the bandwidth is limited. Normally, when the frame rate above 15, you
can achieve fluently video.
4) Bit rate
Generally speaking, the larger the bit rate is, the clearer video will become. But the bit rate configuration
should combine well with the network bandwidth. When the bandwidth is very narrow, and bit rate is
large, that will lead to video can not play well.

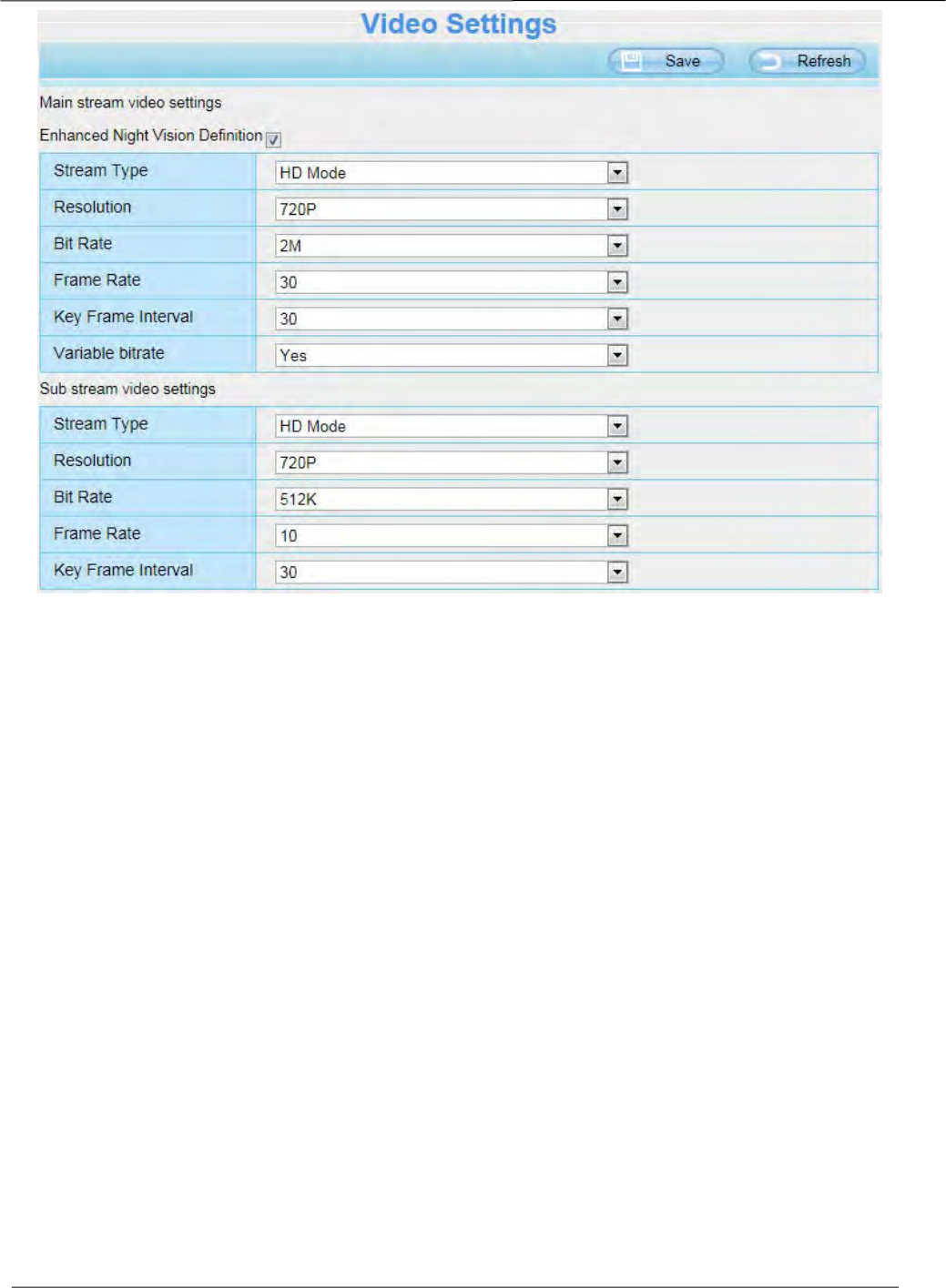

You can reset the stream type on “Settings-> Video-> Video Settings” panel.
After changing, please re-login the camera and you can see the modification.

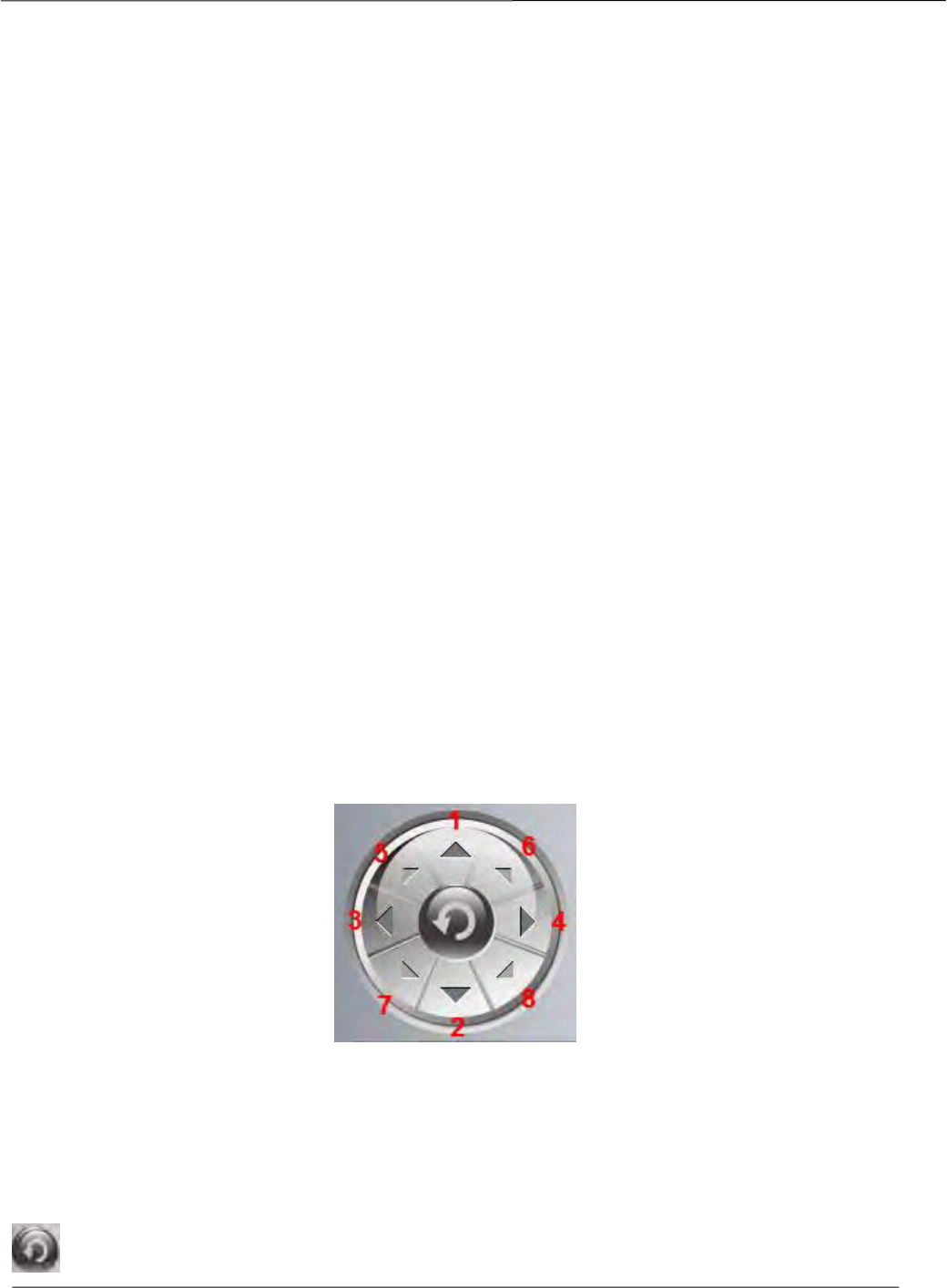

Section 4 Pan/Tilt Control
1----- Up control button 2----- Down control button,
3----- Left control button 4----- Right control button,
5----- Up-Left control button 6----- Up-Right control button
7----- Down-Left control button 8----- Down-Right control button
Click this button and go to center
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168
21

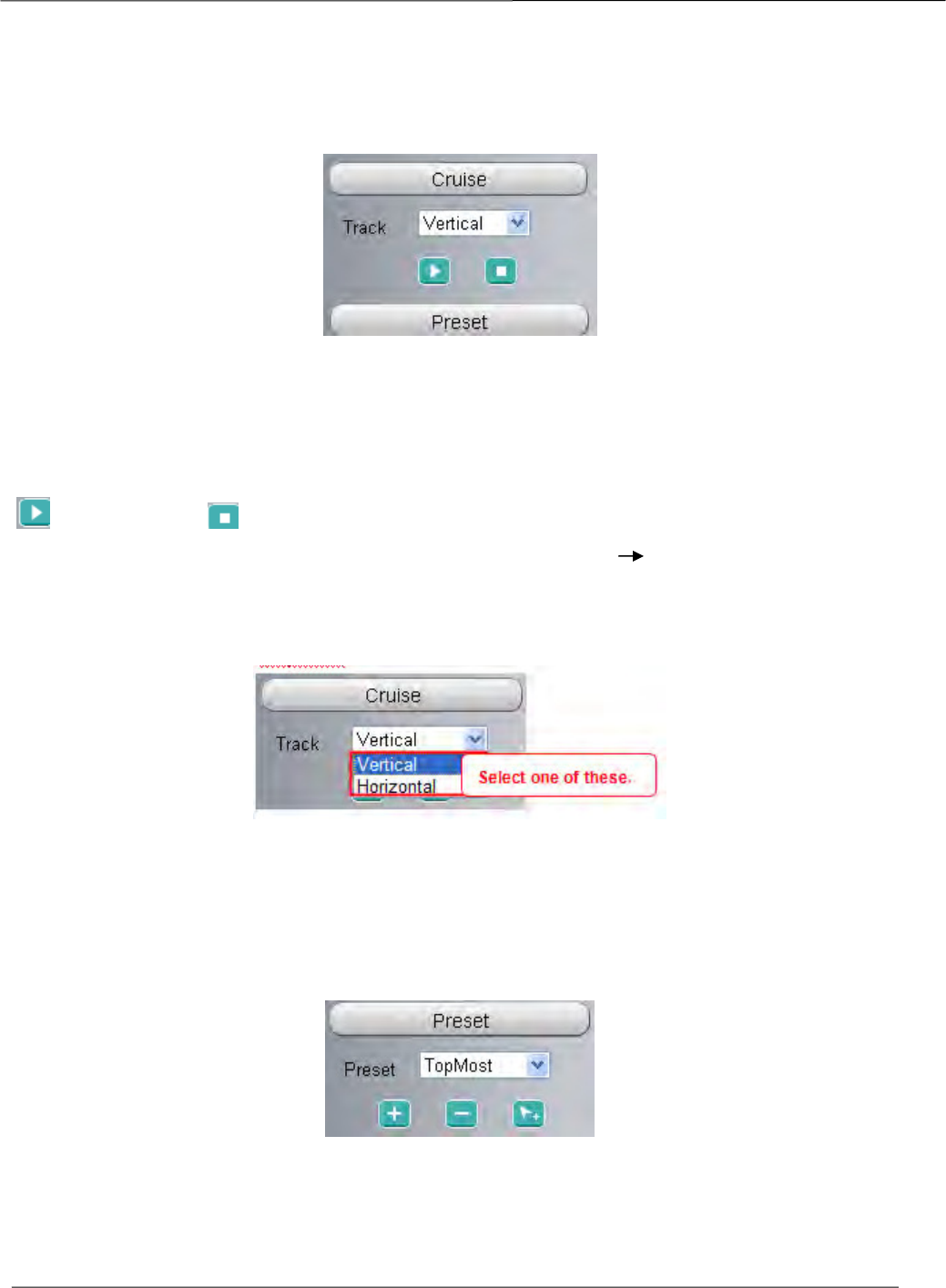

Section 5 Cruise / Preset settings
Cruise Settings
The default cruise tracks have two types: Vertical and Horizontal.
Vertical: The camera will rotate from up to down.
Horizontal: The camera will rotate from left to right.
: Start cruise. : Stop cruise.

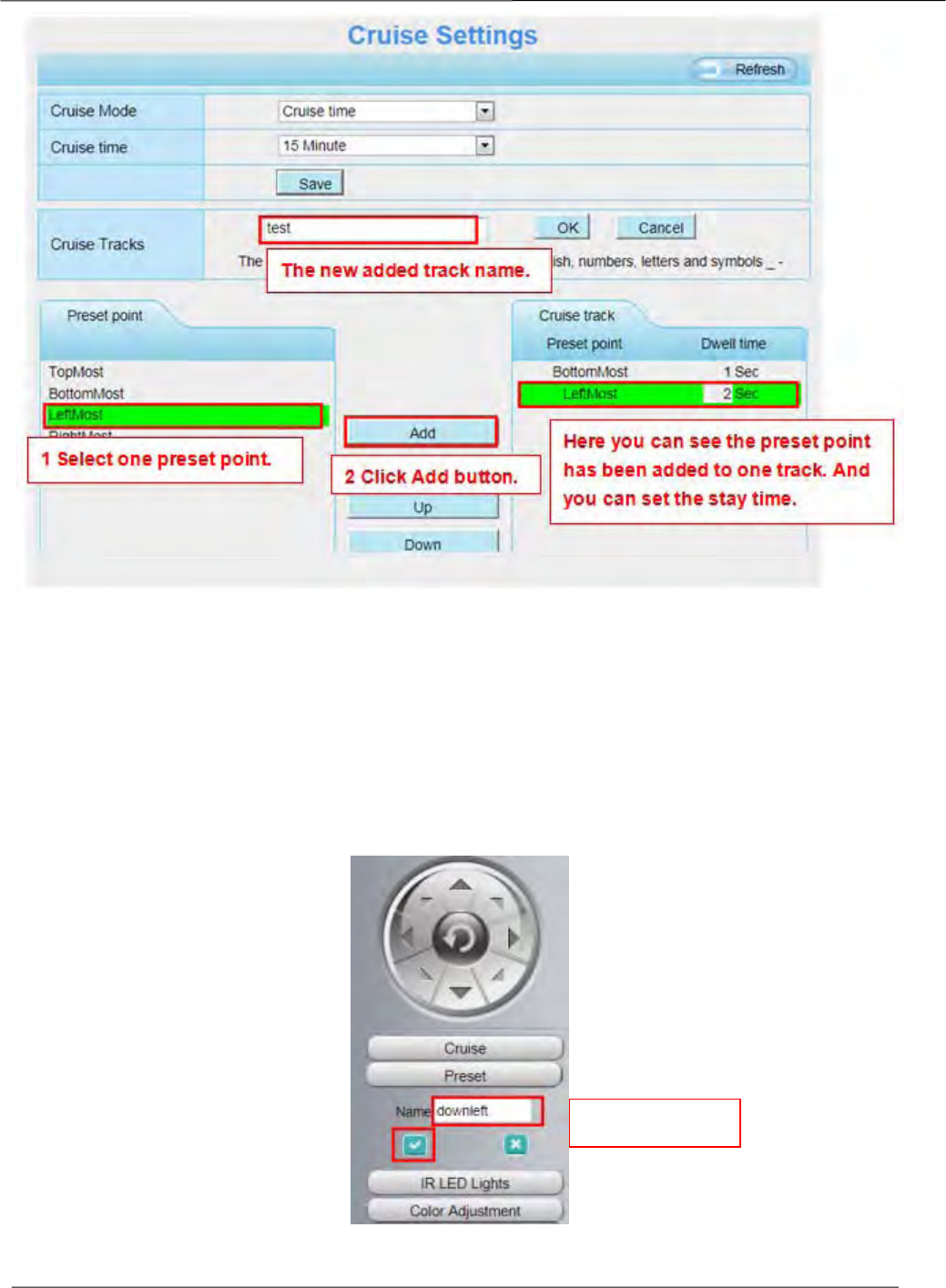

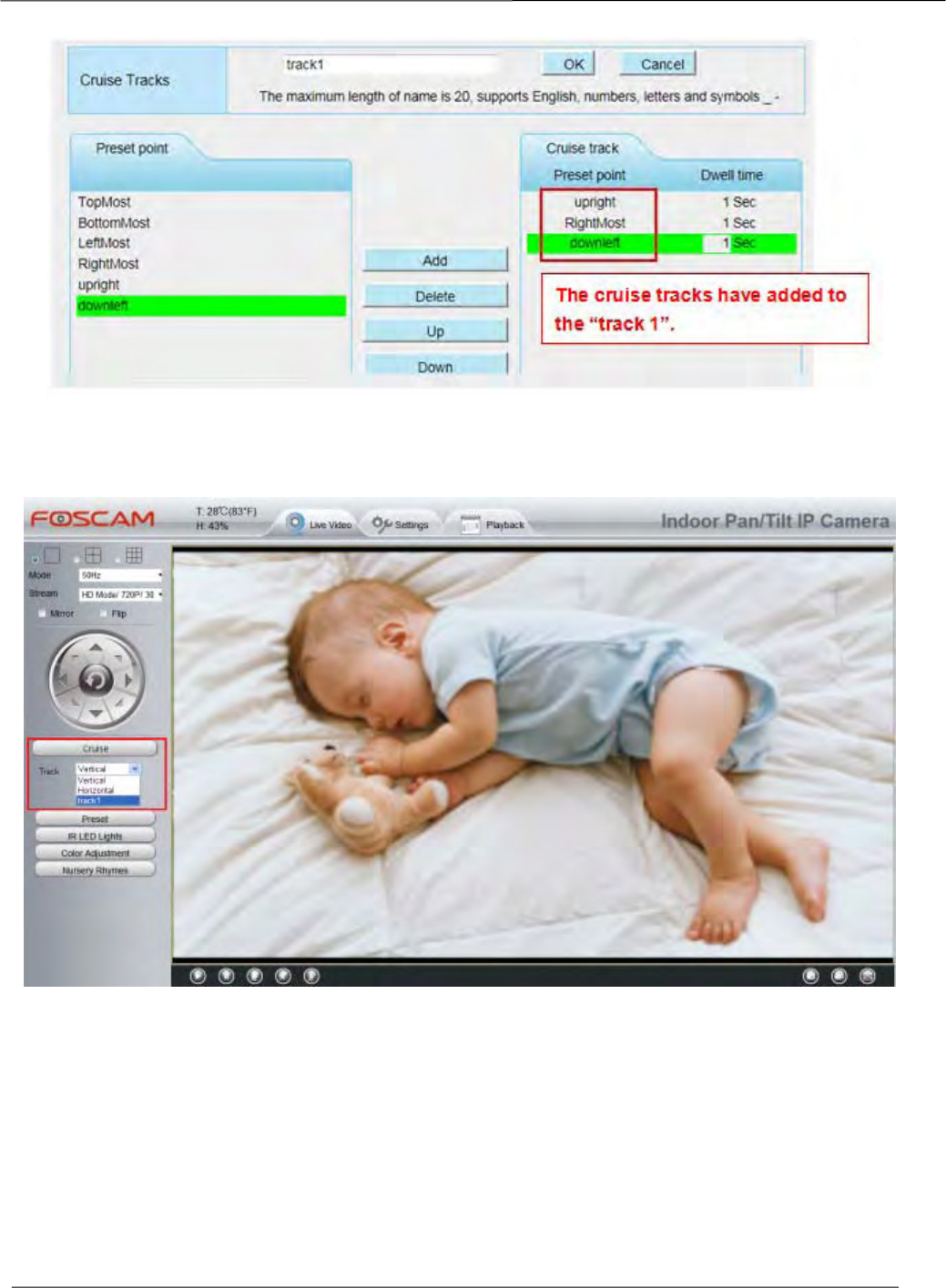

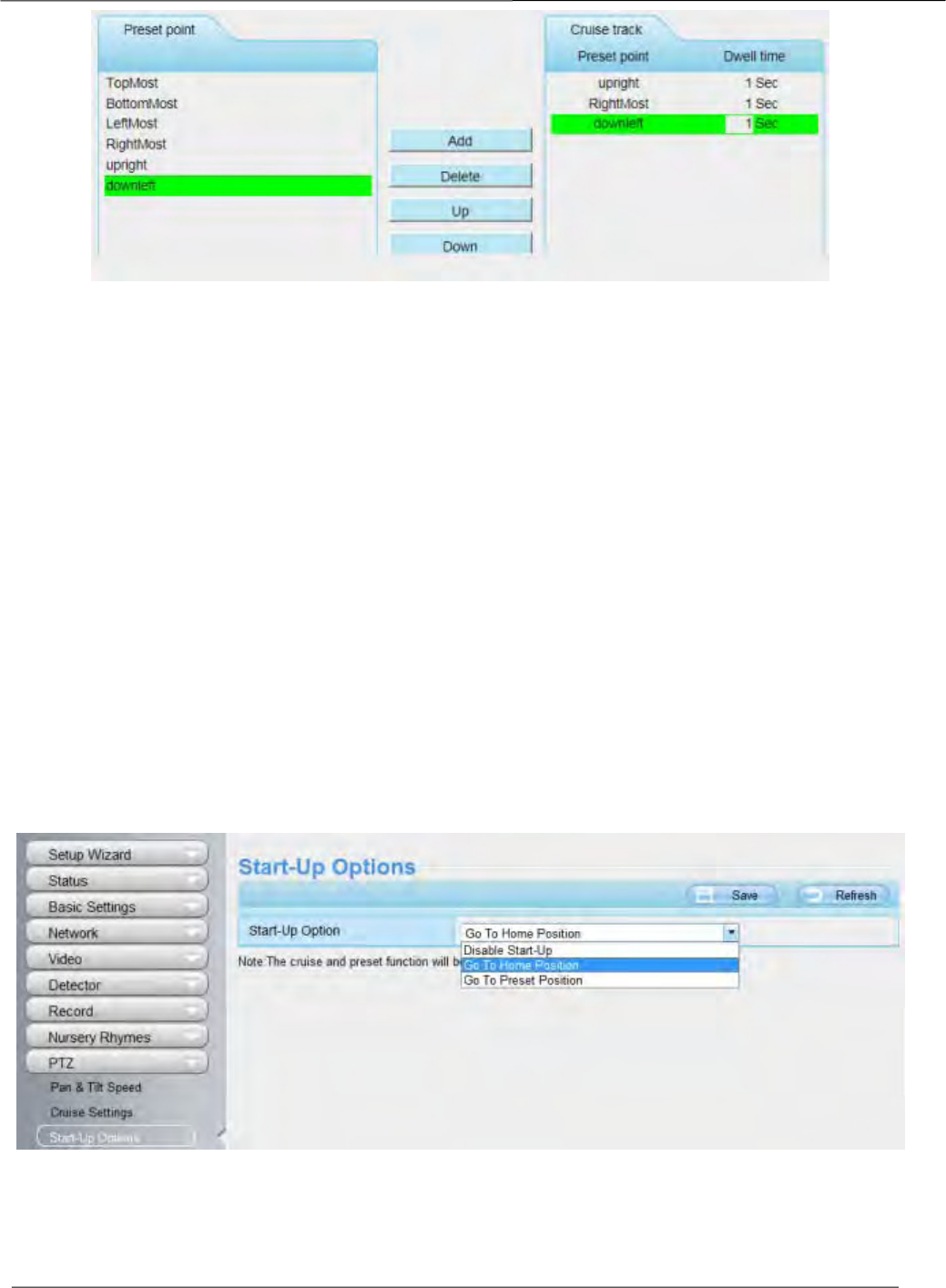

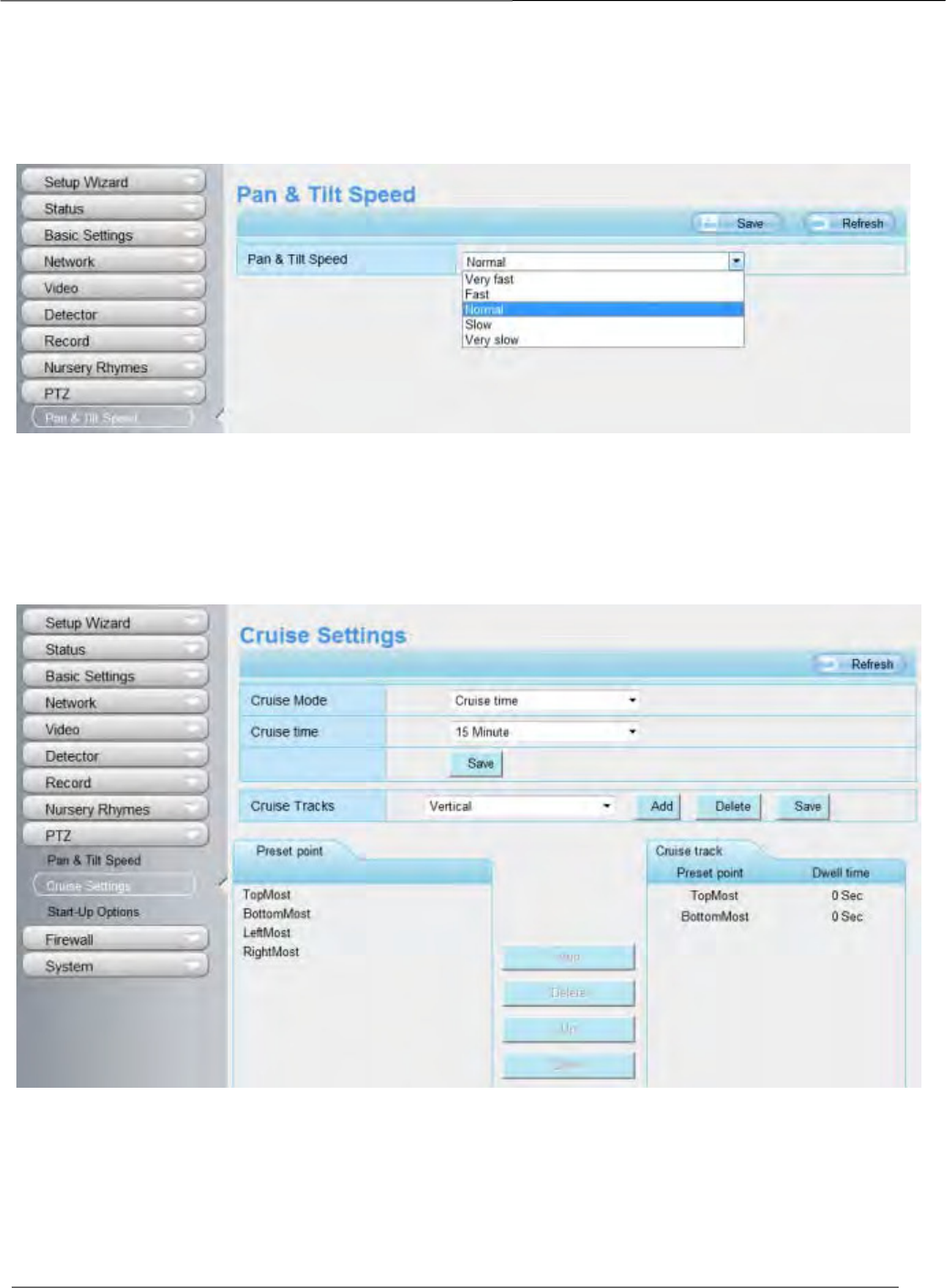

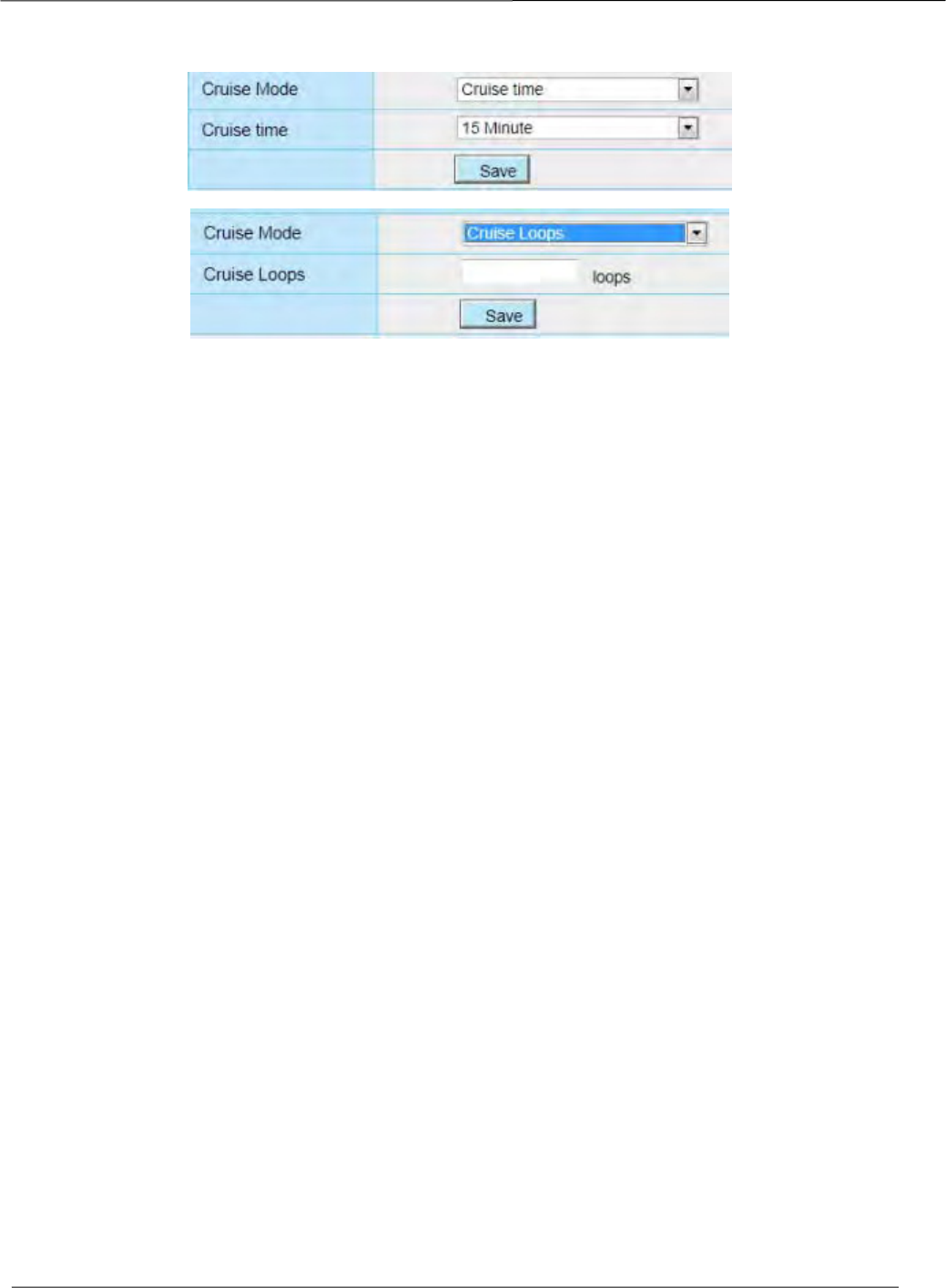

If you want to define or change the cruise trace, please go to Settings PTZ Preset Settings panel.
How to do cruise?
Firstly: Select one track in the track dropdown list.
Secondly: Click Start cruise button, the camera will cruise following the predefined path.
Thirdly: Click stop button and finish cruising.
Preset settings
IPCam supports 16 preset positions, which is considered enough for DIY home & small business
surveillance market
The default preset position is Topmost, Bottom most, Left most, right most, you can add other preset
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168
22
positions.

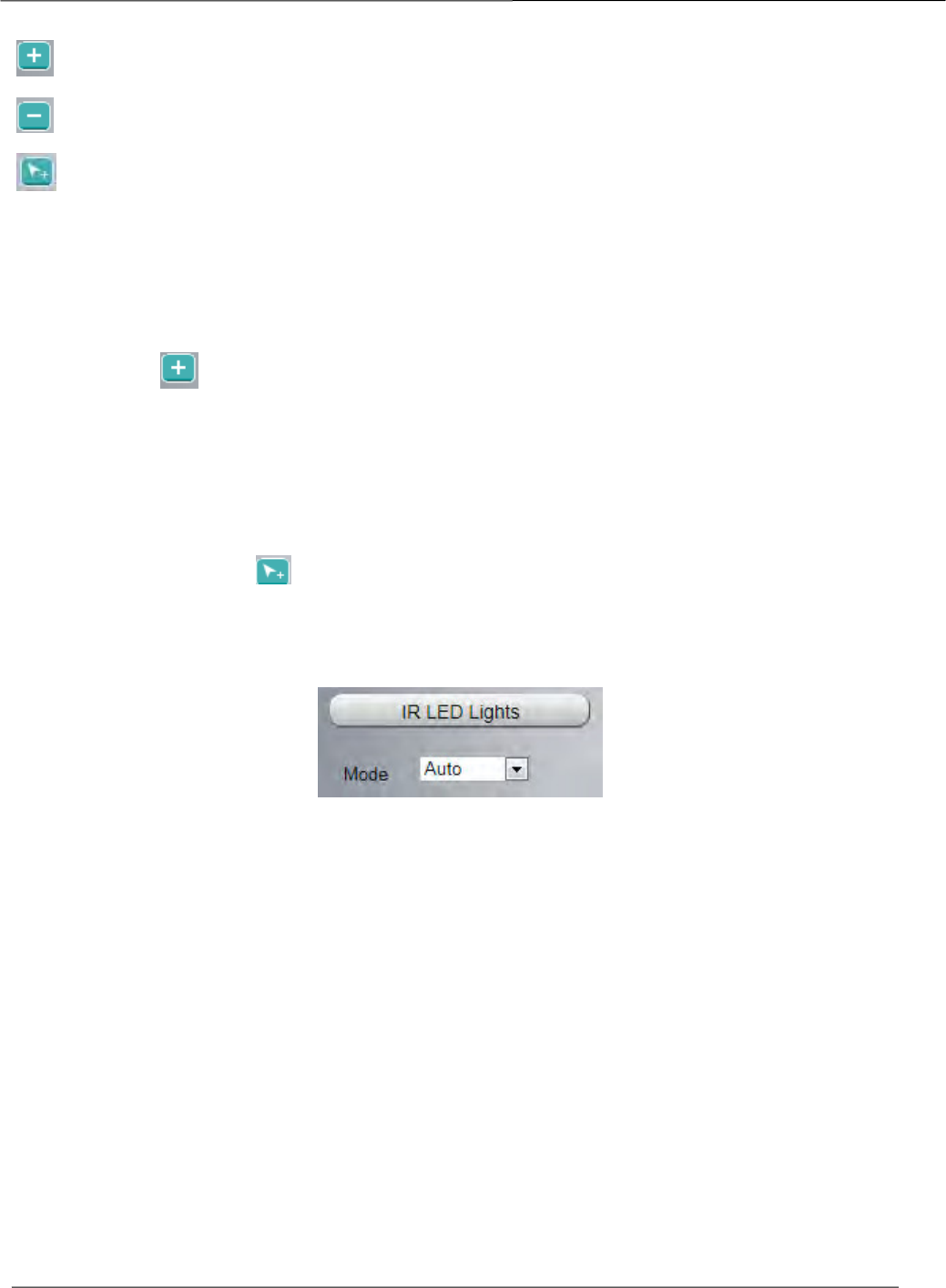

Add Click this icon to save the position you need the camera to remember
Delete Select one preset position and click this button to delete it.
GO Select one preset position in the preset drop-down list and click Go to make the camera move
the preset position
How to do preset position?
Firstly, move the camera and stop at a desired place where you want make preset position.
Secondly, click button and enter a descriptive name for the preset position. The preset position
cannot contain special characters. Then click OK to save it. If you want to reset the preset position, click
Cancel.
After that, you can move the camera and stop at another place, and set another preset position. You can
do all the 16 preset positions with this method.
If you want to see one preset position you have set, only select the preset position name from the preset
drop-down list, and click go button, the camera will go to the preset position.
Section 6 IR LED Lights
Click Infra led and there are three modes to adjust the infrared led: Auto, Manual and Schedule.
Auto: Select it and the camera will adjust the infra led (on or off) automatically.
Manual: Select it and you can turn on or turn off the infra led manually.

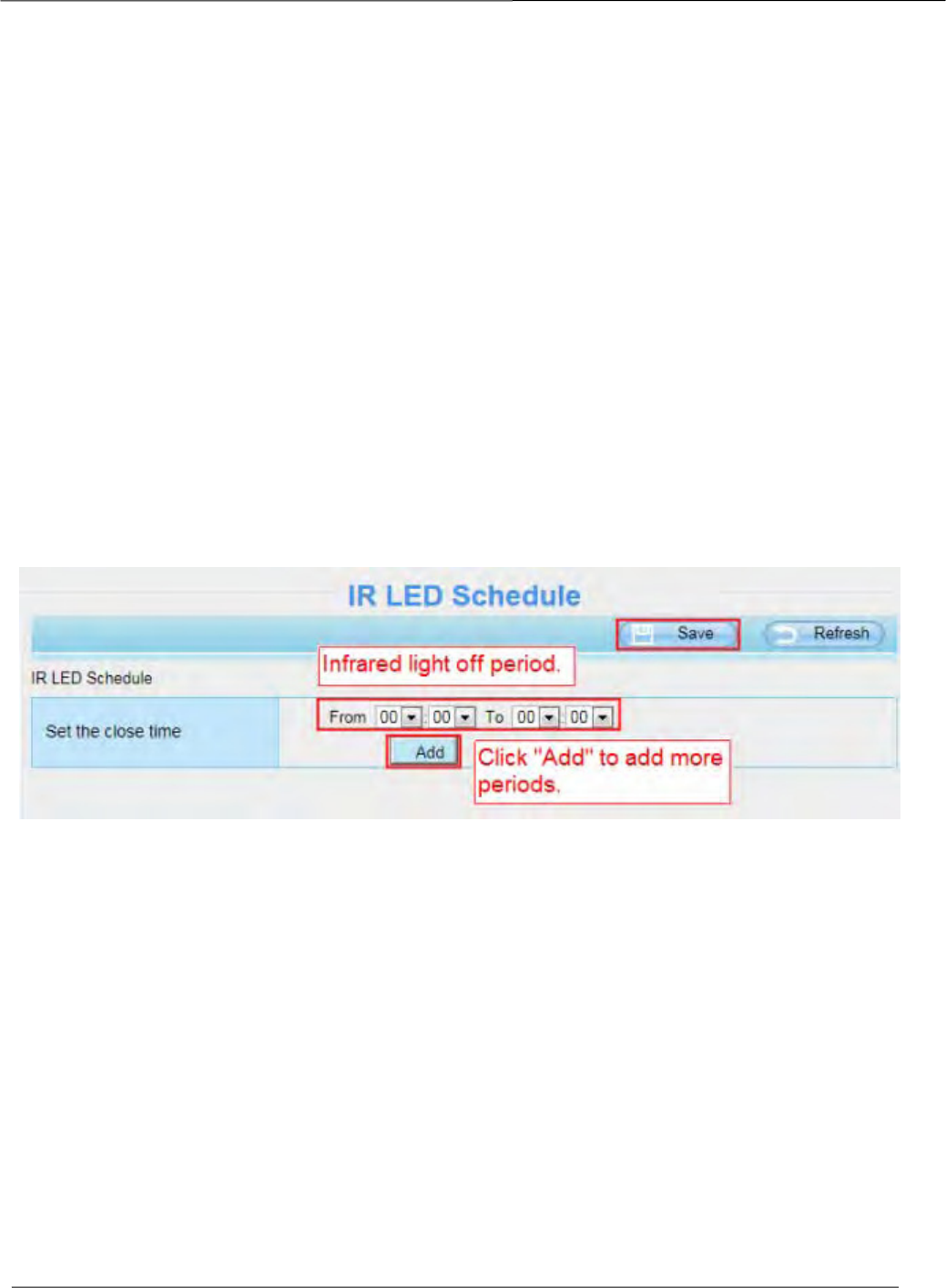

Schedule: Scheduled control. When it is selected, the function of switching on/off the infrared lamp as
scheduled is enabled (Settings> Video > IR LED Schedule ).
Section 7 Image quality settings

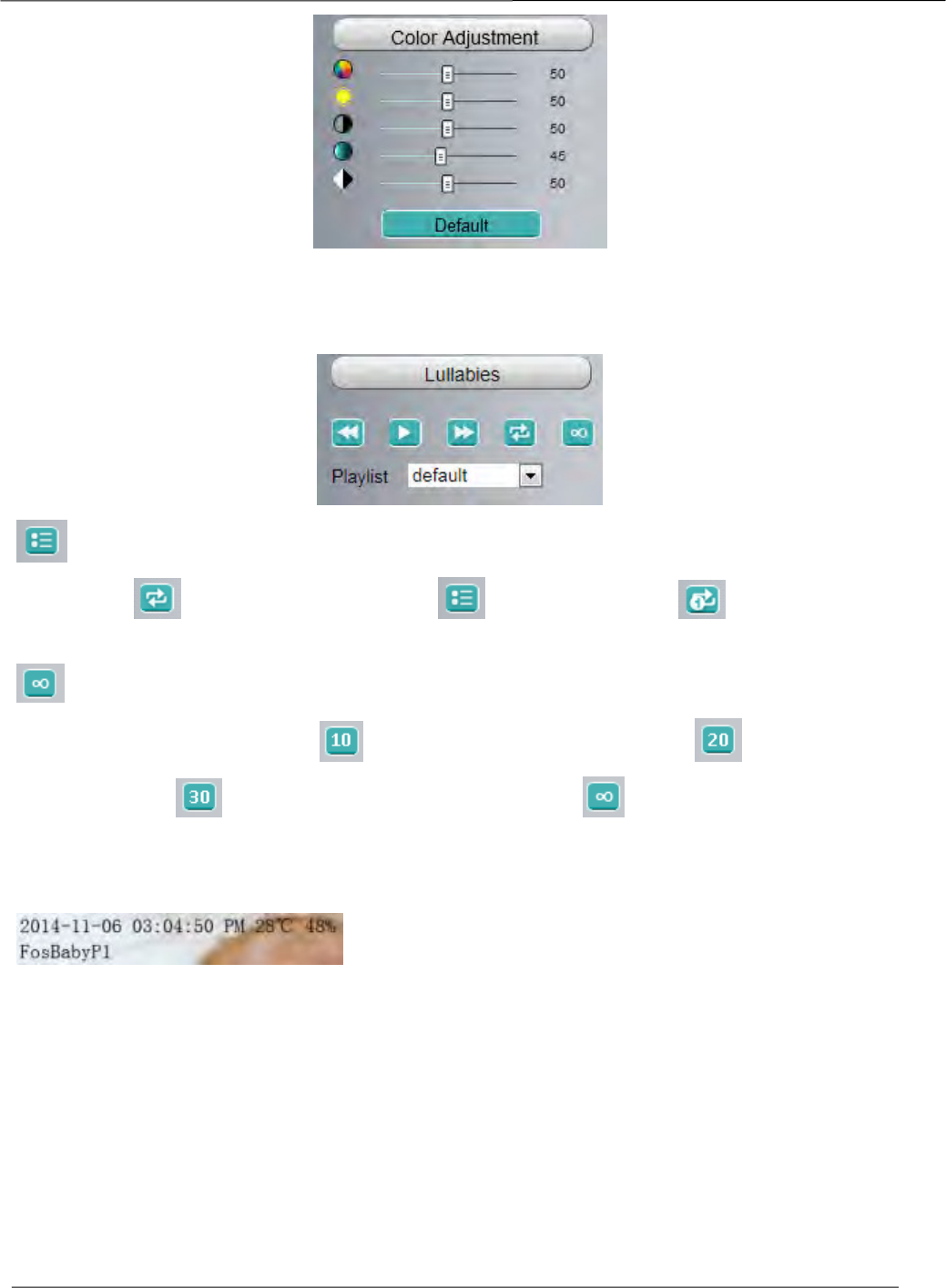

In this page, you can tune Hue, Brightness, Contrast, Saturation, and Sharpness to get higher quality.
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168
23

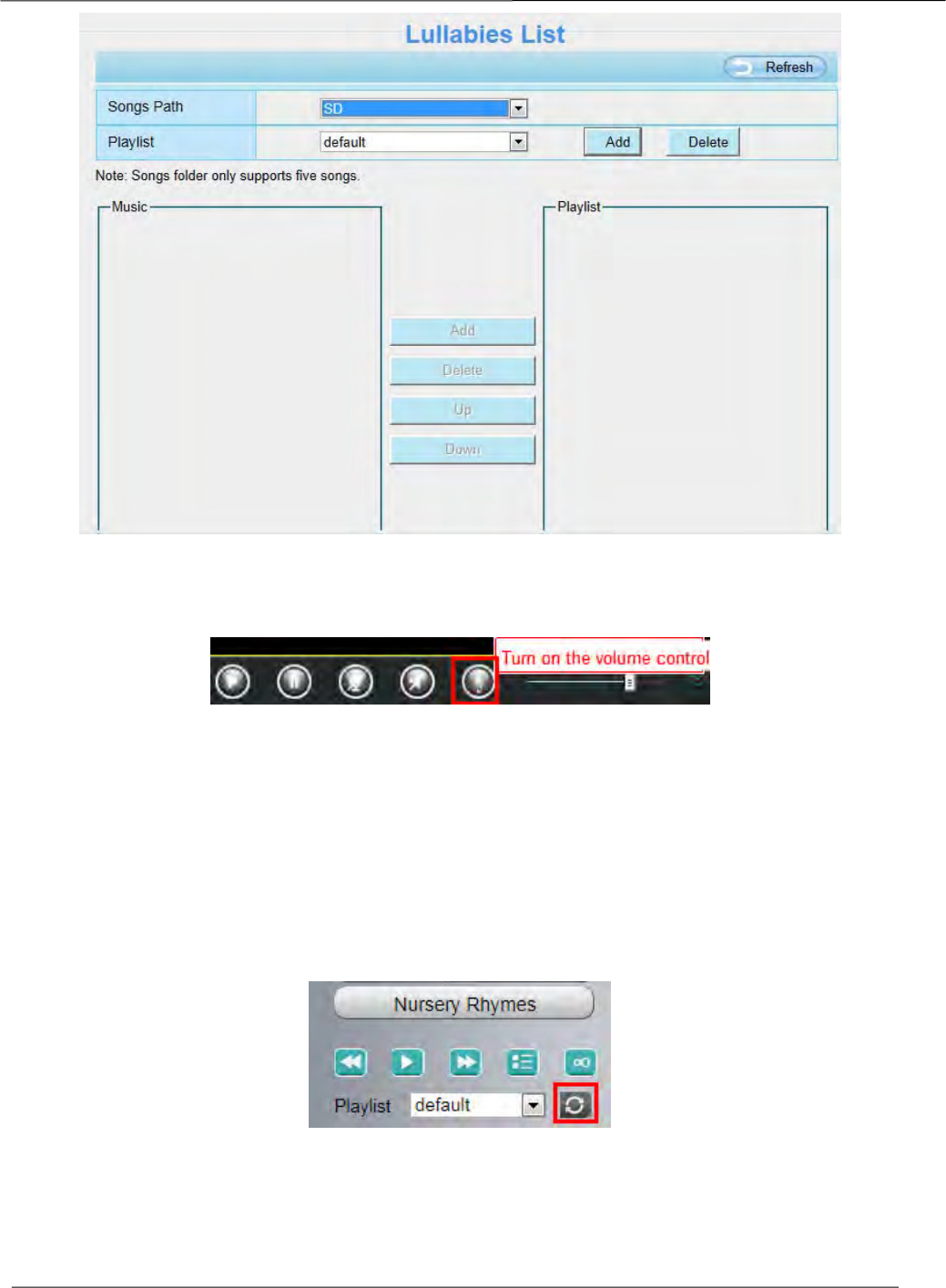

Section 8 Lullabies
: You can click this button to adjust the playing mode of songs. Three playing modes are available
for selection: Circular playing of all songs, In-order playing, and Circular playing of a
single song.
: You can click this button to set the duration before the camera enters the standby state. Four
options are available for selection: Enter the standby state 10 min later, Enter the standby
state 20 min later, Enter the standby state 30 min later, and Not enter the standby state.
Section 9 OSD
Temperature & Humidity Detection

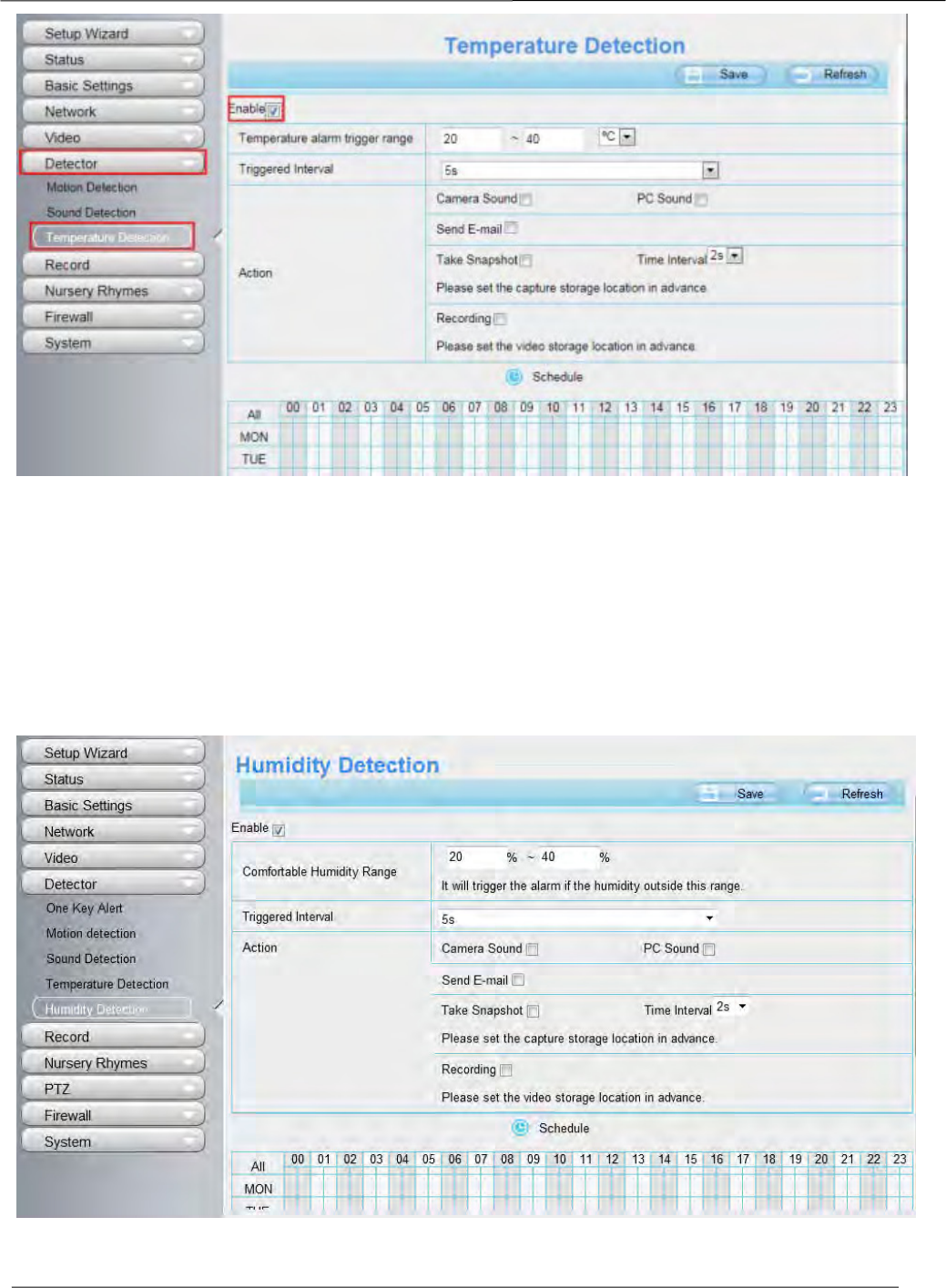

Go to Detector--Temperature Detection & Humidity Detection to set Temperature & Humidity
Detection
If you have added time and camera name in the video, you can see it in the live window.

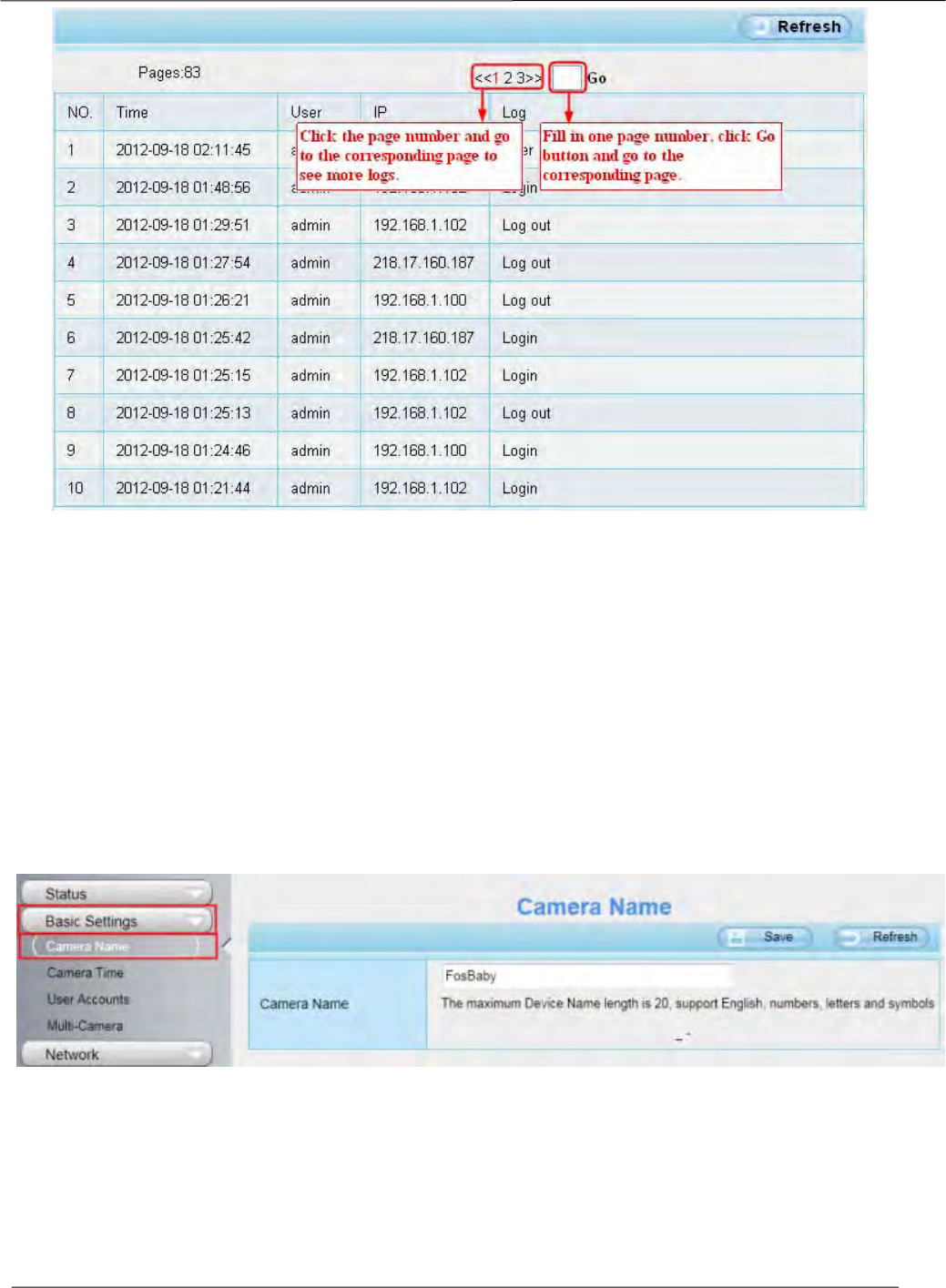

Go to Settings --- Basic settings--- Camera name panel, and you can change another device name.
The default device name is anonymous.

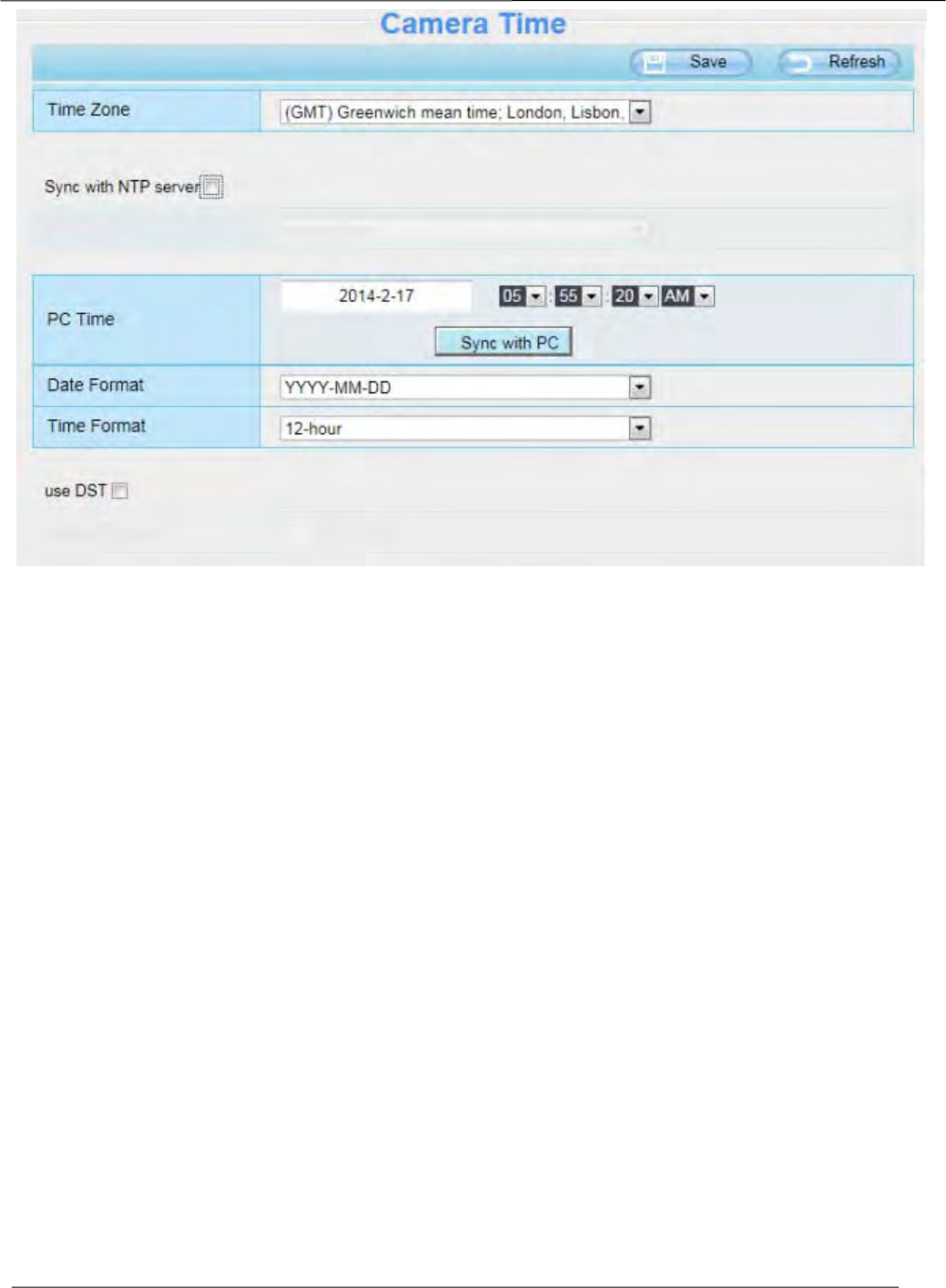

Go to Settings --- Basic settings--- Camera time panel and adjust the device time.

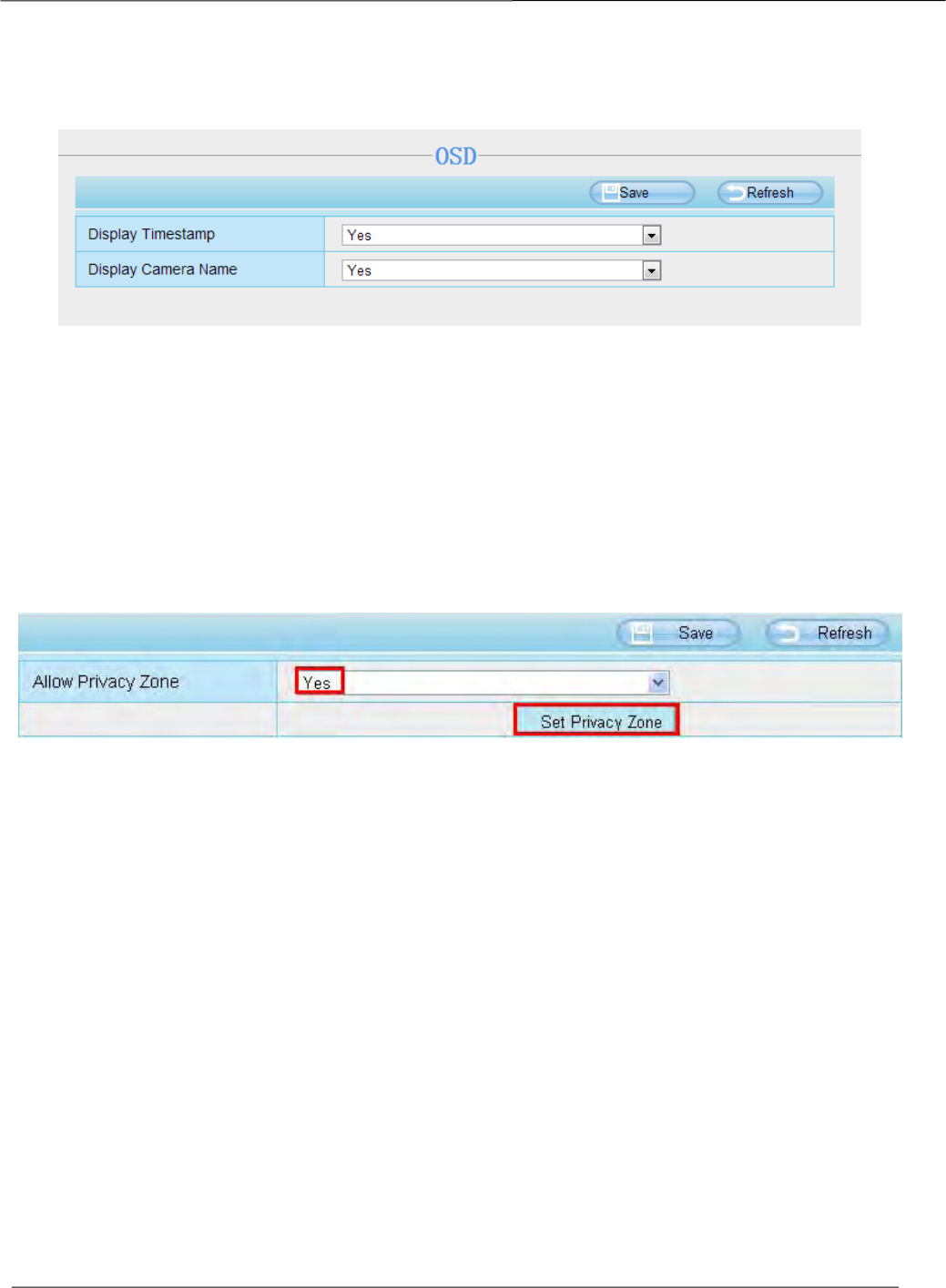

Go to Settings --- Video--- On Screen Display panel, you can add or no add OSD.

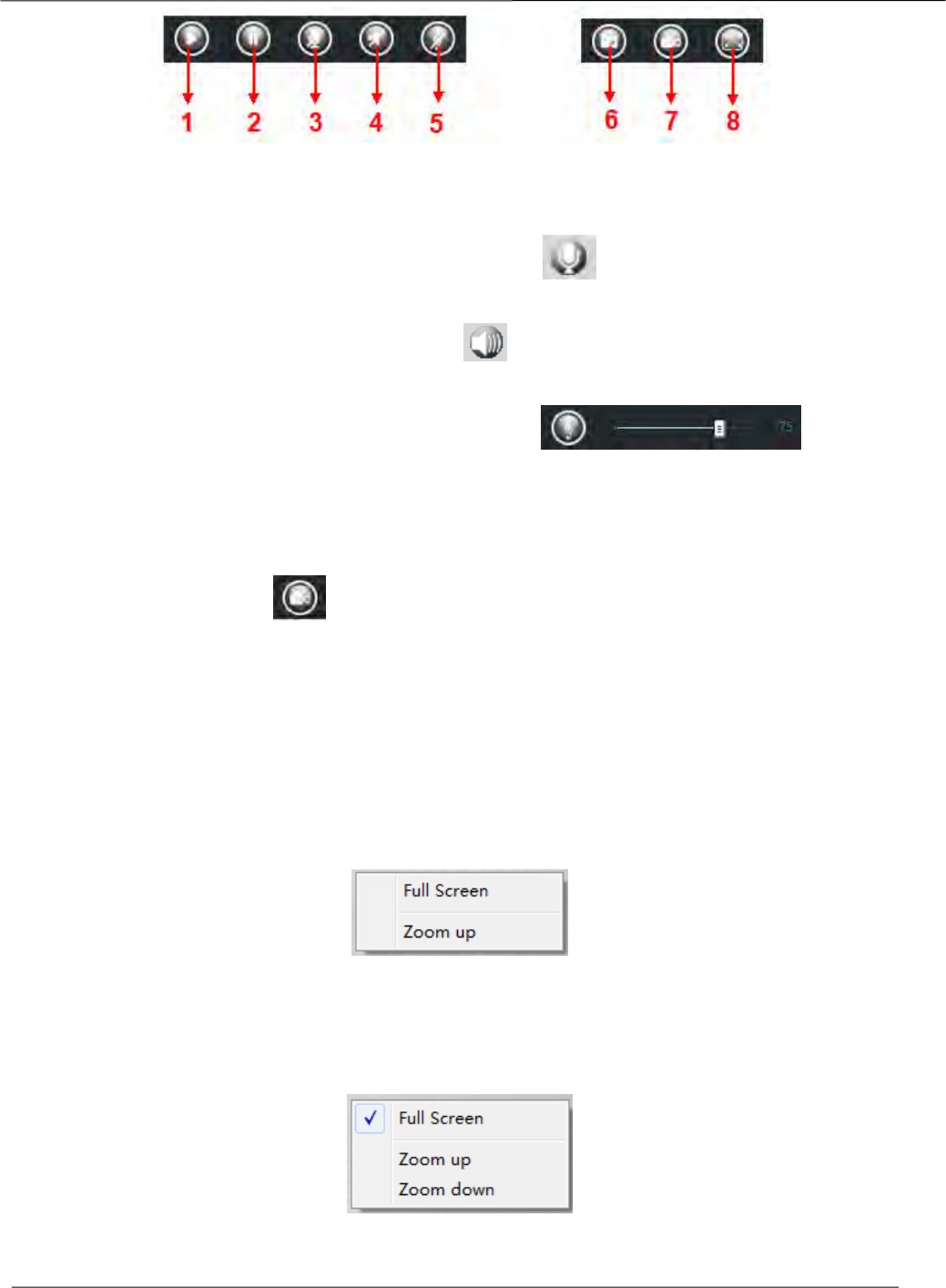

Section 10 Play/Stop/ Talk/Audio/ Snap/ Record/ Full screen button
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168
24
1----- Play Click it to play the video of the camera
2----- Stop Click it to stop the video of the camera
3----- Talk Click the button and the icon will become to , then talk to the microphone that
connected with PC, people around the camera can here your voice. Click the icon again and stop talking.
4----- Audio Click this icon, the icon will become to you can hear the sound around the camera by
the earphone or speakers that connected with PC.
5----- Play lullabies Click this icon, the icon will become to ,camera will
play nursery rhymes.
6----- Snapshot Click it to make snapshot and it pop-up a window which picture you snapshot, right click
in the window and save the picture to anywhere you want.
7----- Record Click the icon and the camera start recording, you can see a green dot in the live
window. Click again and stop recording. The default storage path is C:\IPCamRecord of Windows OS and

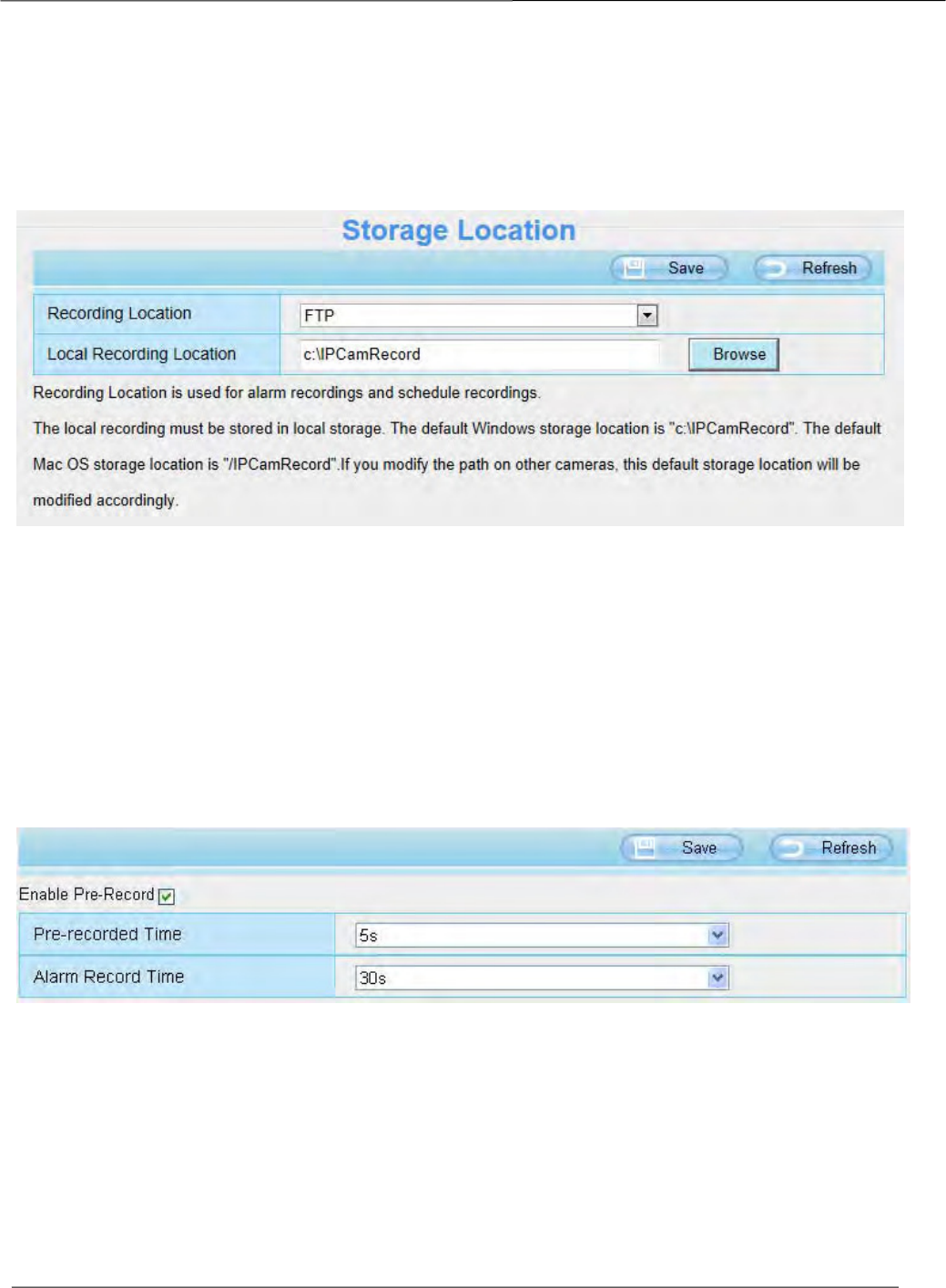

the default storage path is \IPCamRecord of Mac OS. You can change the storage path: Go to

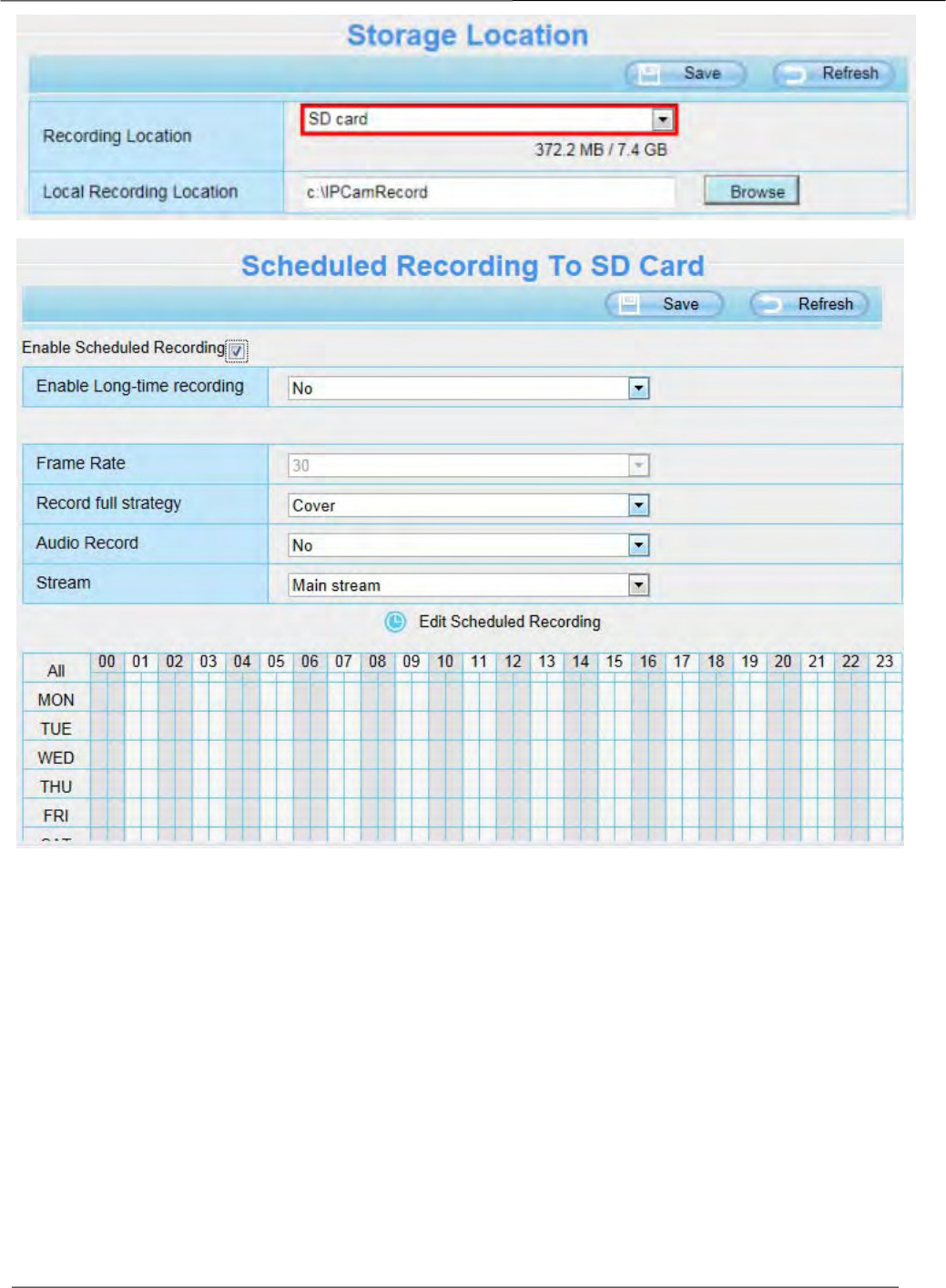

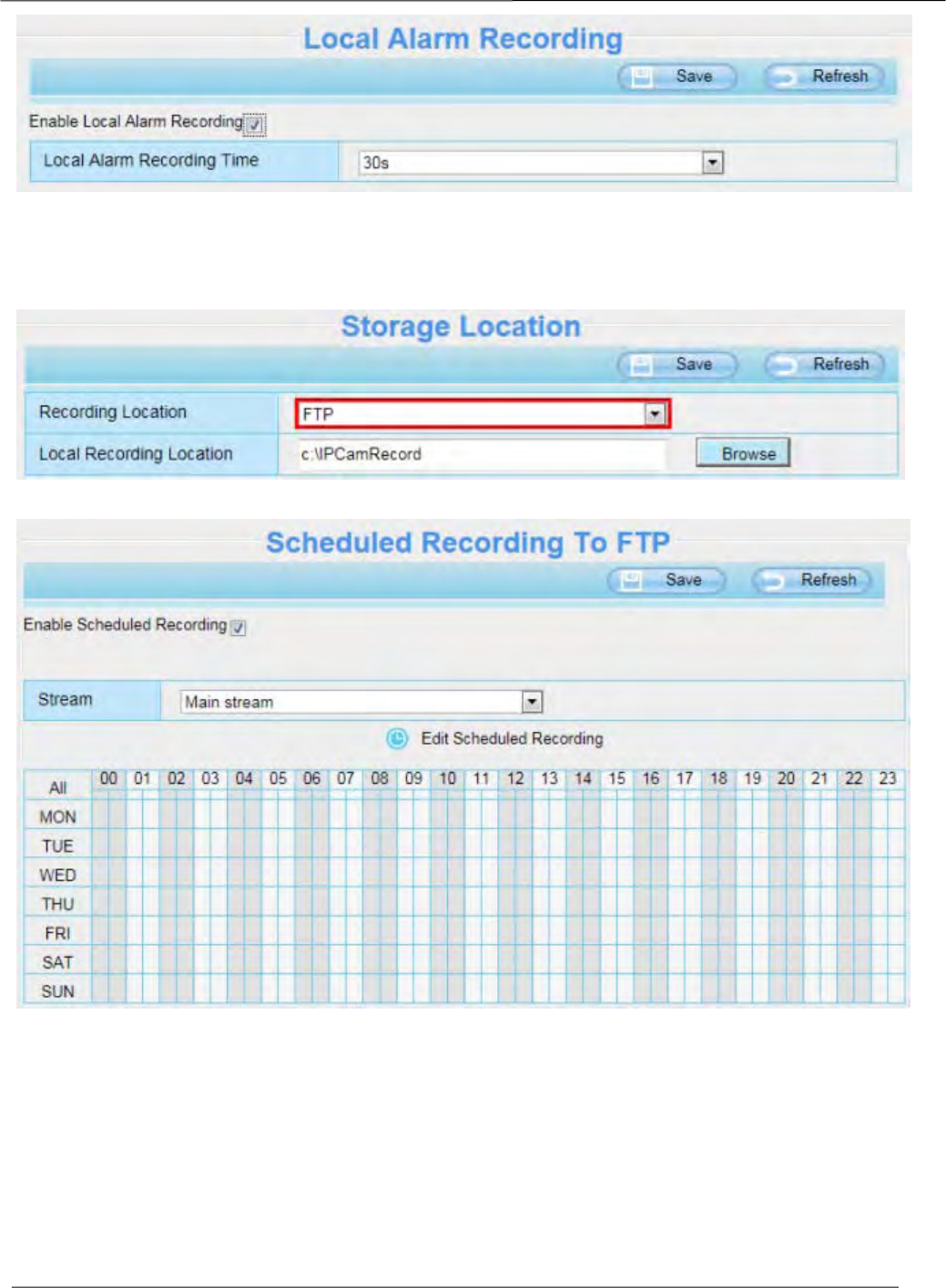

Settings- >Record->Storage Location panel.
8----- Full Screen Click it to make full-screen, or you can double click the surveillance screen to make
full-screen. Double click again and exit full-screen.
Onscreen Mouse Control
Right click the mouse and you can adjust the screen ration, full screen and Zoom up.
Full Screen: Select it and Click it to make full-screen, press ESC and exit full-screen.
Zoom up: Select it and you can see a bigger screen than before.
When you select the Full Screen, then click right mouse, there is a Screen PTZ button.
NOTE: For Mac OS, the plugin cannot support Onscreen Mouse Control, so you cannot allow to use it.
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168
25
4 Advanced Settings
Click the button “Settings”, goes to Administrator Control Panel to make advanced camera settings.
4.1 Setup Wizard
In the Setup Wizard page, you could complete the basic parameters FosBaby, such as device
name,system time,wireless networks, IP address, etc.follow the prompts.
Device Name: You could name yourself for your camera.
System Time: Select the time zone you need to set the date, time,format, etc.
Wireless networks: to be completed FosBaby with your router wireless connection here. Click Scan, find
the SSID MO. of your wireless router, select and enter the password. Then restart FosBaby or press the
Soft AP button for 2-3 seconds again.
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168
26
IP: Set IP address of FosBaby. You could choose to obtain an IP automatically or set the IP address
according to your needs.
4.2 Status
Status contains four columns: Device Information, Device Status, Session Status and Log, it will show you
various information about your camera.
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168
27
4.2.1 Device Information
Camera Model: The camera model NO.
Camera Name: The Device Name is a unique name that you can give to your device to help you identify it.
Click Basic Settings and go to Camera name panel where you can change your camera name. The
default device name is anonymous.
Camera ID: Display the wired MAC address of your camera. For example Device ID is 000C5D000088,
the same MAC ID sticker is found at the bottom of the camera.
Camera Time: The system time of the device. Click Basic Settings and go to Camera time panel and
adjust the time.
System Firmware Version: Display the System Firmware version of your camera.
Application Firmware Version: Display the application firmware version of your camera.
Plug-In Version: Display the plug-in version of your camera
4.2.2 Device Status
On this page you can see device status such as Alarm status/Record Status, DDNS status, WIFI status
and so on.
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168
28
4.2.3 Session Status
Session status will display who and which IP is visiting the camera now.
4.2.4 Log
The log record shows who and which IP address accessed or logout the camera.
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168
29
Reboot the camera and clear the log records.
4.3 Basic Settings
This section allows you to configure your camera’s Name, Time, Mail, User account and Multi-Device.
4.3.1 Camera Name
You can define a name for your camera here such as apple. Click Save to save your changes. The alias
name cannot contain special characters.
4.3.2 Camera Time
This section allows you to configure the settings of the internal system clocks for your camera.
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168
30
Time Zone: Select the time zone for your region from the drop-down list.
Sync with NTP server: Network Time Protocol will synchronize your camera with an Internet time server.
Choose the one that is closest to your camera.
Sync with PC: Select this option to synchronize the date and time of the Network Camera with your
computer.
Manually: The administrator can enter the date and time manually. Note select the date and time format.
use DST: Select the daylight saving time from the drop-down list.
Click Save button and submit your settings.
NOTE: If the power supply of camera is disconnect, you need set the camera’s time again.
4.3.3 User Accounts
Here you can create users and set privilege, visitor, operator or administrator. The default user
account is admin, with a blank password. You can enter the users accounts of visitor, operator and
administrator Manually.
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168
31
How to change the password?
Firstly, select the account which you want to change the password, then select “Change password”, enter
the old password and the new password, lastly click modify to take effect.

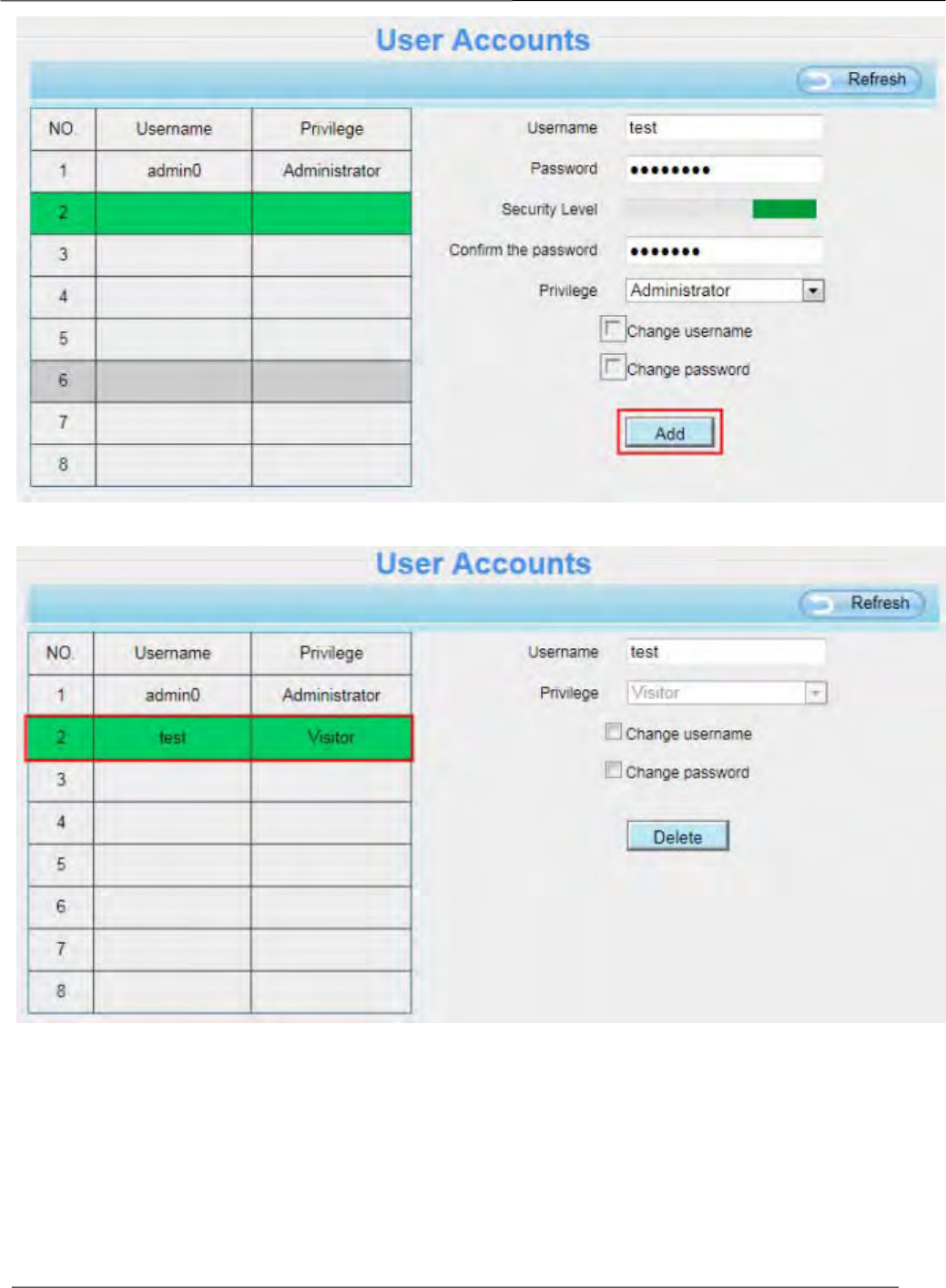

How to add account ?
Select one blank column, then enter the new user name, password and privilege, last click Add to take
effect. You can see the new added account on the Account list.
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168
32
Delete ：Select the account which you want to delete, then click Delete button to take effect.
NOTE: The default admin account cannot be deleted, but you can add other administrator users.
How to change the username ?
Firstly, select the account which you want to change the username, then select “Change username”, enter
the new password, lastly click modify to take effect.
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168
33
4.3.4 Multi-Camera
If you want to view multi-surveillance screens on one window, you need to login one camera, and set it as
the main device, and do Multi-Device Settings, add other cameras to the first one camera. Before you do
multi-cams settings, you need to assign different port such as 81, 82, 83, 84, 85, 86, 87, 88 to the
cameras if there is 8 cams installed.
The firmware within the camera can support a maximum of 9 devices monitoring all at the same time. This
page you can both add FOSCAM MJPEG and H.264 series cameras to the first camera and view
multi-surveillance screen on one window.
Add cameras in WLAN
In Multi-Device Settings page, you can see all devices searched in WLAN. The 1st Device is the default
one. You can add more cameras in the list in WLAN for monitoring. The camera’s software supports up to
9 IP Cameras online simultaneously. Click The 2nd Device and click the item in the Device List in WLAN,
the Alias, Host and Http Port will be filled in the boxes below automatically. Enter the correct username
and password then click Add. Add more cameras in the same way.
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168
34
Camera Model: Our Company produces two series cameras: MJPEG and H.264. Here will show you
which series the camera belongs to.
Back to Surveillance Windows, and click Four Windows option, you will see four cameras you added.
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168
35
Using the same method, you could to add other cameras continue. It can add up to 9 road equipment.
Add cameras in WAN
If you want to view all cameras via the internet (remote computer), you will need to add them using DDNS
domain name. Firstly, make sure all of the cameras you added can be accessed through the internet.
(Read How to configure DDNS settings)
Login to the first camera using a DDNS domain name and port.
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168
36
Click Multi-Device Settings. Choose The 2nd Device. Fill in the 2nd camera’s name, DDNS domain
name, port number. Enter user name and password and then choose Add.
1----- The camera model: MJ or H264.
2----- The 2nd camera’s name
3----- Fill in the 2nd camera’s DDNS host not IP
NOTE: The MJ series have the same HTTP Port NO. and Media Port NO.
4 ---- Enter the 2nd camera’s user name and password
5---- Click Add button and to take effect
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168
37
NOTE: Here the Host must be entered as the second camera’s DDNS domain name, not its IP.
Return to video window. You will see all of the cameras accessible through the internet.
When you are away from home, you can use the first camera’s DDNS domain name and port to view all
the cameras via internet.
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168
38

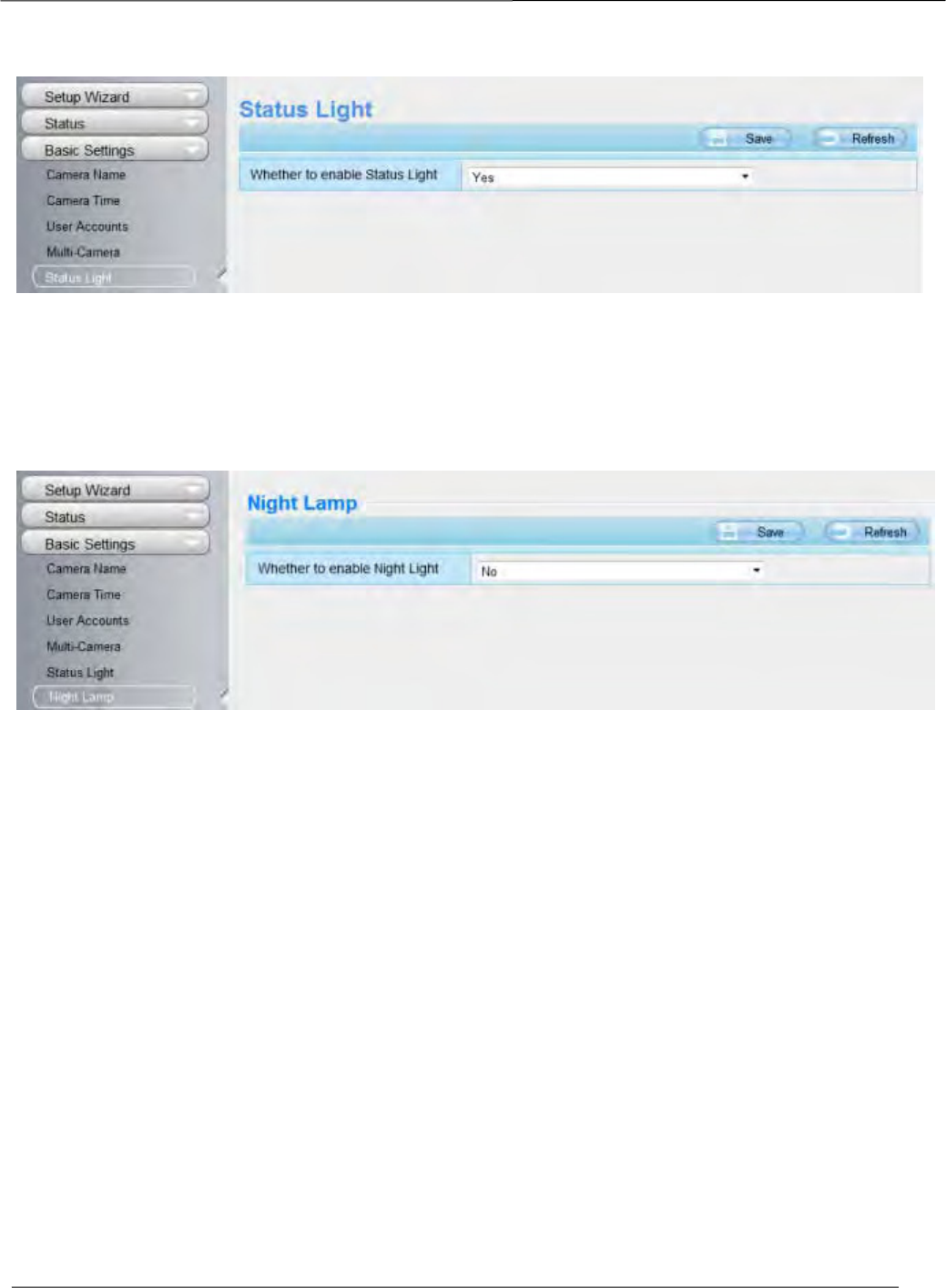

4.3.5 Status Light
4.3.6 Night Lamp (For FosBaby P1)
You can turn on / off the night light manually.
4.4 Network
This section will allow you to configure your camera’s IP, DDNS, Wireless Settings, UPnP and Port.
4.4.1 IP Configuration
If you want to set a static IP for the camera, please go to IP Configuration page. Keep the camera in the
same subnet of your router or computer.
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168
39
Changing settings here is the same as using the IP Camera Tool.
It is recommended that you use the subnet mask, gateway and DNS server from your locally attached PC.
If you don’t know the subnet mask, gateway and DNS server, you can check your computer’s local area
connection as follows:

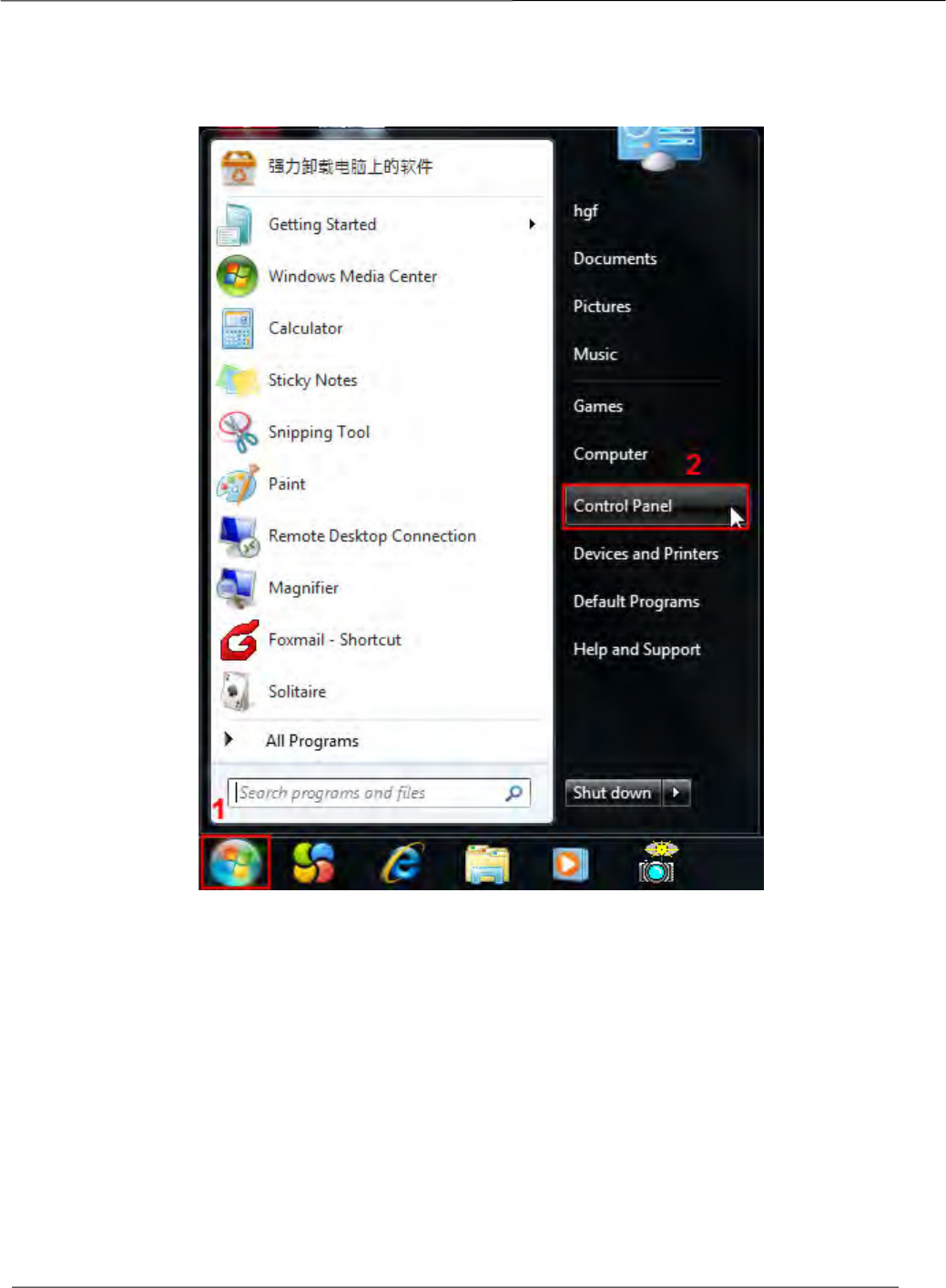

Control Panel →Network Connections →Local Area Connections →Choose Support →Details
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168
40
If you don’t know the DNS server, you can use the same settings as the Default Gateway.
4.4.2 Wireless Settings
Step 1: Choose “Settings” on the top of the camera interface, and go to the “Network” panel on the left
side of the screen, then click “Wireless Settings.”
Click the Scan button and the camera will detect all wireless networks around the area. It should also
display your router in the list.
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168
41
Step 2: Click the SSID (name of your router) in the list, the corresponding information related to your
network, such as the name and the encryption, will be filled into the relevant fields automatically.
You will only need to fill in the password of your network. Make sure that the SSID, Encryption and the
password you filled in are exactly the same for your router.
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168
42
Step 3: Please click on the Save button after all settings have been entered and disconnect the network
cable. Never shut down the power of the camera until the camera is able to connect to the wireless
network.
The IP address will disappear on the window of IP Camera Tool when the camera is configuring a wireless
connection. Wait about 1 minute, the camera should obtain a wireless connection, and the IP of the
camera will show again on the window of the IP Camera Tool. The IP address may have changed after the
camera receives a wireless connection; we recommend setting a static local IP address if this IP address
changes by right clicking the camera in IP Camera Tools, setting a static IP, and pushing OK.
Congratulations! You have set up the wireless connection of the camera successfully.
4.4.3 Soft AP Password Settings
For the safety of your camera, we recommend you change the Soft AP password.
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168
43
4.4.4 DDNS
FOSCAM camera has embedded a unique DDNS domain name when producing, and you can directly
use the domain name, you can also use the third party domain name.
FOSCAM domain name
Here take test09.myfoscam.org for example. Go to option of DDNS on the Settings->Network panel,
you can see the domain name.
Now you can use http:// Domain name + HTTP Port to access the camera via internet.
Take hostname test09.myfoscam.org and HTTP Port NO. 800 for example, the accessing link of the
camera via internet would be http:// test09.myfoscam.org:800
Restore DDNS to factory: If you have configured Third Party DDNS successfully, but you want to use
Manufacturer’s DDNS again , here click this button and start Manufacturer’s DDNS Service.
Third Party Domain Name Settings
User can also use third part DDNS, such as www.no-ip.com. ,www. 3322.com
Here take www.no-ip.com for example:
Step 1, Go to the website www.no-ip.com to create a free hostname
Firstly: Login on www.no-ip.com and click No-IP Free to register.
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168
44
Please register an account step by step according to instructions on www.no-ip.com
After registration, please login your email which used to register. You will receive an email from website,
please click the link to activate your ACCOUNT as indicated in email.
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168
45

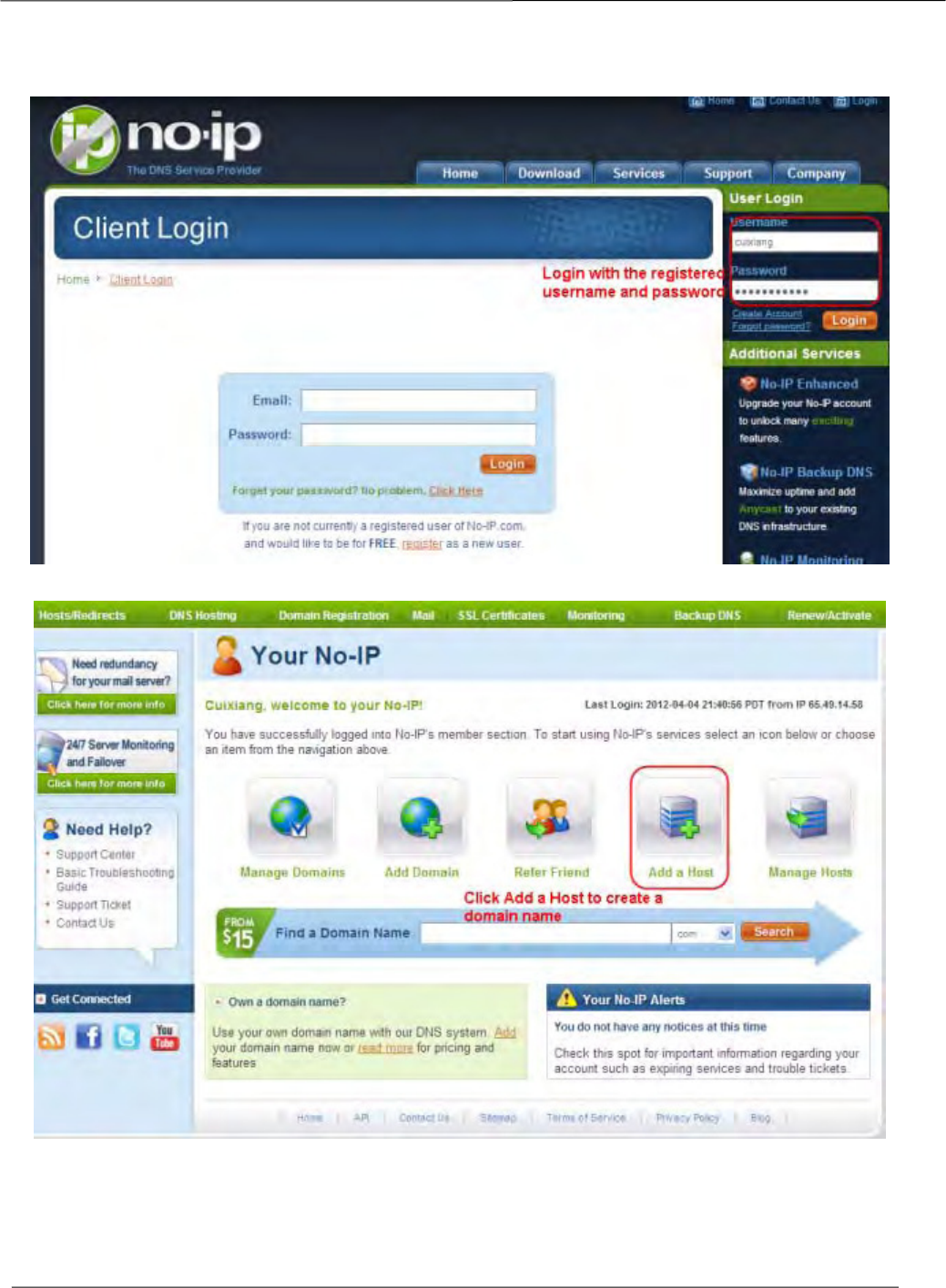

Secondly: Login the link with the registered username and password to create your domain name.
Please create the domain name step by step according to instructions on www.no-ip.com
Step 2, DO DDNS Service Settings within the Camera
Please set DDNS Settings within the camera by host name, a user name and password you’ve got from
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168
46
www.no-ip.com
Take host name ycxgwp.no-ip.info, user name foscam, password foscam2012 for example.
Firstly, goes to option of DDNS Settings on the administrator panel.
Secondly, select No-Ip as a server.
Thirdly, fill foscam as DDNS user, fill password foscam2012 as DDNS password, fill ycxgwp.no-ip.info
as DDNS domain and server URL, Then click save to make effect. The camera will restart and to take the
DDNS settings effective.
Fourthly, after the restart, login the camera, and go to option of Device Status on the administrator panel,
and check if the DDNS status is successful.
If failed, please double check if you have input the correct host name, user name, and password,
and try to redo the settings.
NOTE :
If you have set Third Party DDNS successfully ,the Foscam Domain Name will be invalid. The Third Party
DDNS and the Foscam Domain Name cannot work at the same time, the last time you configured will take
effect.
D
o port forwarding within the router
Example: The camera’s IP address is http://192.168.8.100:2000 , Media port no. is 9200.
Firstly, login the router, goes to the menu of Port Forwarding or Port Trigger (or named Virtue Server
on some brands of router). Take TP-Link brand router as an example, Login the router, and goes to
Applications & Gaming->Single Port Forwarding.
Secondly, Create a new column by IP address & HTTP Port No. of the camera within the router showed
as below.
Use domain name to access the camera via internet
After the port forwarding is finished, you can use the domain name+ http no.to access the camera via
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168
47
internet. Take hostname ycxgwp.no-ip.info and http NO. 2000 for example, the accessing link of the
camera via internet would be http:// ycxgwp.no-ip.info:2000
4.4.5 UPnP
The default UPnP status is closed. You can enable UPnP, then the camera’s software will be configured
for port forwarding. Back to the “Device Status” panel, you can see the UPnP status:
The camera’s software will be configured for port forwarding. There may be issues with your routers
security settings, and sometimes may error. We recommend you configure port forwarding manually on
your router .
4.4.6 Port
This camera supports HTTP Port, HTTPS and ONVIF.
HTTP port: By default, the HTTP and Media are set to 88. Also, they can be assigned with another port
number between 1 and 65535. But make sure they can not be conflict with other existing ports like 25, 21.
HTTP Port is used to access the camera remotely. If you want to access the camera and view the video,
the HTTP Port must both be configured correctly.
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168
48
HTTPS port: The default port is 443. You can use the url to access the camera: https:// IP + HTTPS port.
ONVIF Port: By default, the ONVIF port is set to 888. Also, they can be assigned with another port
number between 1 and 65535(except 0 and 65534). But make sure they can not be conflict with other
existing ports.
Another way to change the HTTP port NO.
Step 1: Open the IP Camera Tool, select the camera you would like to change the port of, right click on the
IP address, and click on ”Network Configuration”, this brings up the network configuration box as shown :
Step 2: Enter the username and password of the Administrator (default username is admin with a blank
password), and click “OK” to apply changes.
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168
49
Step 3: Wait around 10 seconds, you’ll see that the camera’s IP address has changed. In our example it
was changed to 2000, so we see http://192.168.8.102:2000 in IP Camera Tool. Also, the IP address is
now fixed at a static IP address of http://192.168.8.102:2000. This IP address will not change even if the
camera is powered off and back on, the camera will remain on this IP address. This is very important that
a static IP address is set, or you may have problems later with remote access and seeing the camera
remotely if the camera loses power and reconnects on a different IP address. Make sure you set a static
IP address!
Note: Http port and Https port must be different.
If the camera cannot be accessed, please make sure the port forwarding is succeed.
4.4.7 Mail Settings
If you want the camera to send emails when motion has been detected, here Mail will need to be
configured.
1---- SMTP Server/ Port /Transport Layer Security Enter SMTP server for sender. SMTP port is
usually set as 25. Some SMTP servers have their own port, such as 587 or 465, and Transport Layer
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168
50
Security usually is None. If you use Gmail, Transport Layer Security must be set to TLS or STARTTLS
and SMTP Port must be set to 465 or 25 or 587, which port you choose should be decided by which
Transport Layer Security you select.
2---- SMTP Username/ password ID account and password of the sender email address
3---- Sender E-mail Mailbox for sender must support SMTP
4---- Receiver Mailbox for receiver need not support SMTP,you can set 4 receivers
5---- Save Click Save to take effect
6---- Test Click Test to see if Mail has been successfully configured.
Click Test to see if Mail has been successfully configured.
If the test success, you can see the Success behind the Test, at the same time the receivers will receive a
test mail.

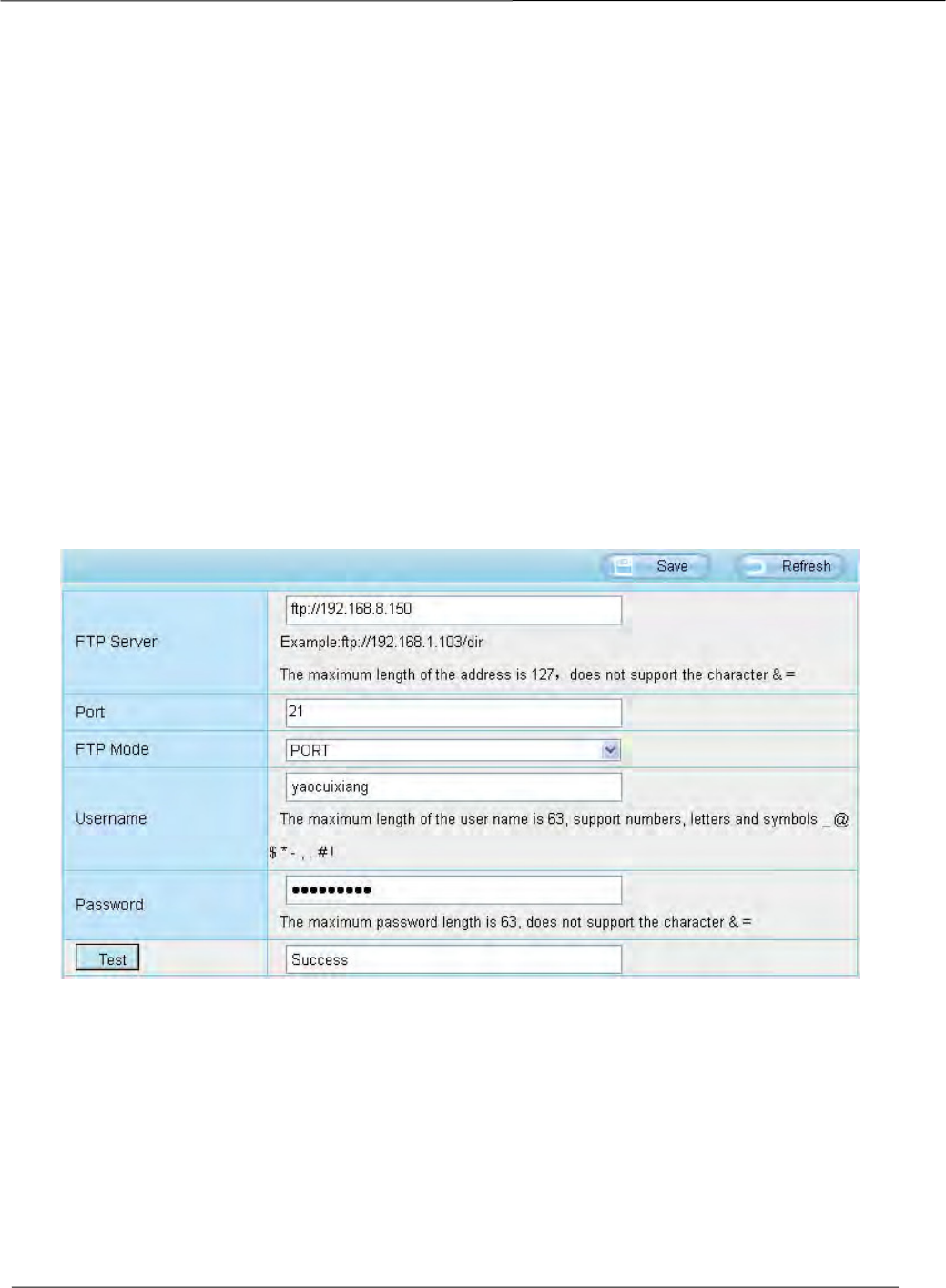

4.4.8 FTP Settings
If you want to upload record files and images to your FTP server，you can set FTP Settings.
Figure a
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168
51
Figure b
FTP server: If your FTP server is located on the WLAN, you can set as Figure a.
If you have an FTP server which you can access on the internet, you can set as Figure b.
Port: Default is port 21. If changed, external FTP client program must change the server connection port
accordingly.
FTP Mode: Here supports two modes: PORT and PASV.
Username/password: The FTP account and password.
Click Save to take effect.
Click Test to see if FTP has been successfully configured.
4.4.9 P2P
Access the camera by smart phone (Android or iOS operating system)
First of all, you need to open the P2P function of the camera at “Settings-->Network-->P2P.”
Please search and install Foscam App named Foscam on App Store and Google Play for iOS and
Android devices, then you can view your camera anywhere, anytime on your smart mobile devices.
4.5 Video
This section allows you to configure Video stream settings, On screen display and Snapshot settings.
4.5.1 Video Settings
There are two ways to set the stream video settings. They are main stream video settings and sub stream
video settings.
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168
52
Stream type: There are four types to identify different streams you have set.
Resolution: The camera supports multiple types, For example: 720P, VGA. The higher the resolution is
the clearer video will become. But the code flux will become larger too, and it will take up more bandwidth.
Bit Rate: Generally speaking, the larger the bit rate is, the clearer video will become. But the bit rate
configuration should combine well with the network bandwidth. When the bandwidth is very narrow, and
bit rate is large, that will lead to video can not play well.
Frame rate: Note that a larger frame size takes up more bandwidth. When the video format is 50Hz, the
maximum frame rate is 25 fps. When the video format is 60Hz, the maximum frame rate is 30 fps. You
should lower frame rate when the bandwidth is limited. Normally, when the frame rate above 15, you can
achieve fluently video.
Key Frame Interval: The time between last key frame and next key frame. The shorter the duration, the
more likely you will get a better video quality, but at the cost of higher network bandwidth consumption.
Variable Bitrate: The two options are Yes and NO. Select Yes the bit rate is variable, and the highest
value isn't higher than Bit Rate Value (2Mbps). Select NO and the bit rate is constant with Bit Rate Value
(2Mbps).
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168
53
4.5.2 On Screen Display
This page is used to add timestamp and device name on the video.
Display Timestamp: There are two options: Yes or NO. Select Yes and you can see the system date on
the video.
Display Camera Name: There are two options: Yes or NO. Select Yes and you can see the device name
on the video.
4.5.3 Privacy Zone
This page is used to set some mask as privacy zone on the video.
Allow On Screen Display Mask: There are two options: Yes or NO. Select yes and draw a mask area on
the video, the mask area will be black on the video.
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168
54

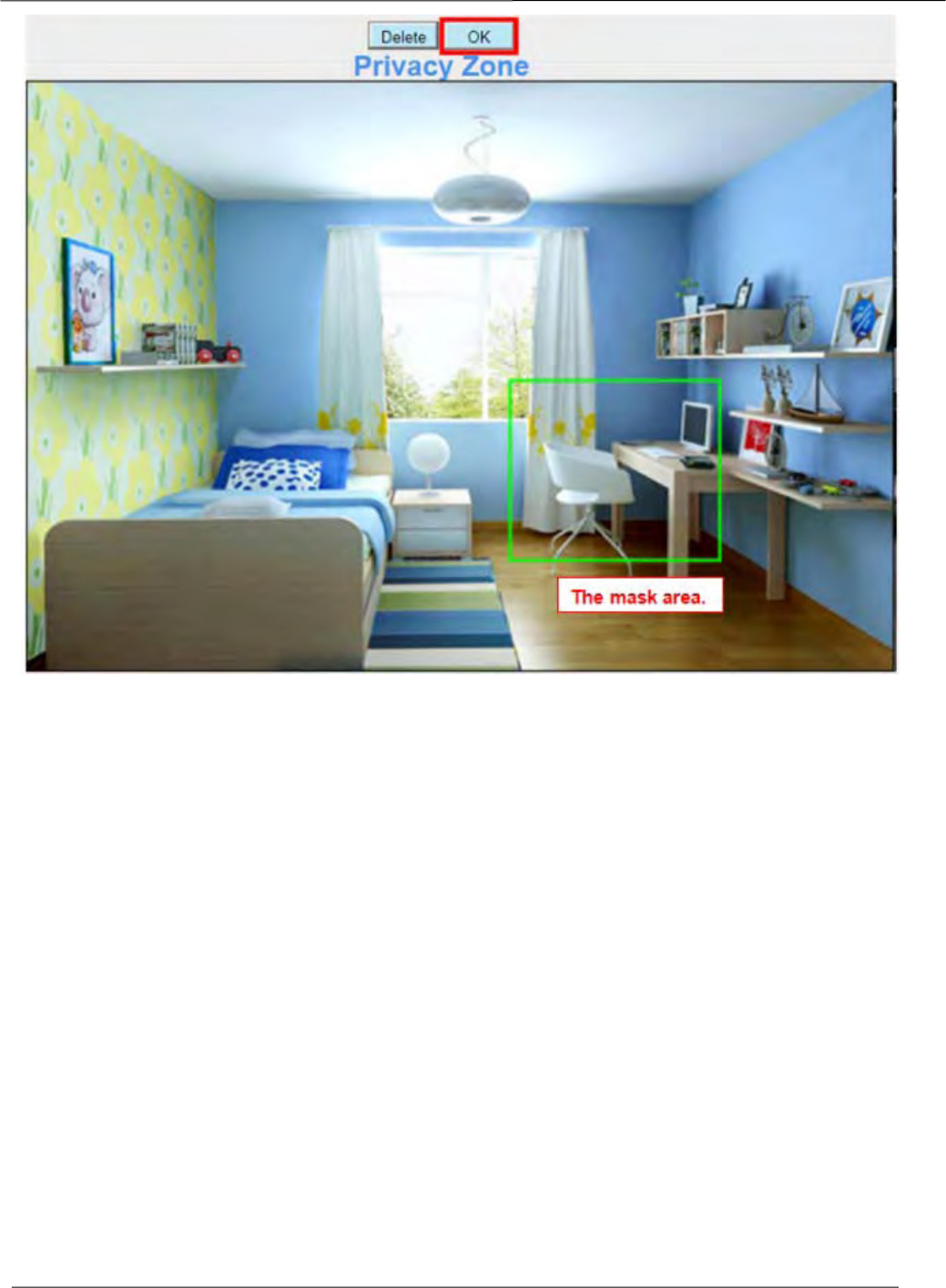

Click OK button and return to the OSD page, click Save to take effect.

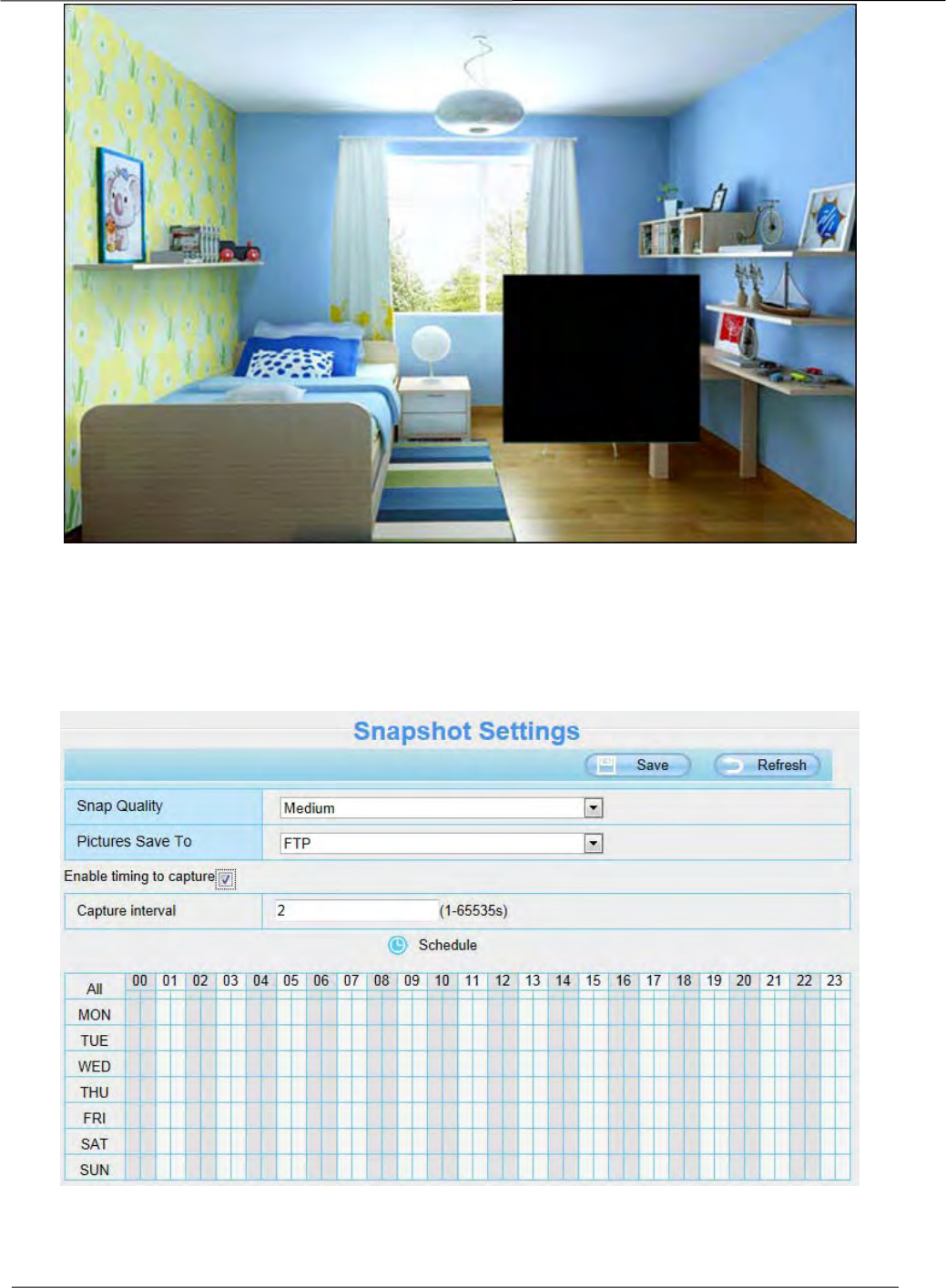

Back to the surveillance window, you can see the mask area as the following picture:
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168
55
4.5.4 Snapshot Settings
On this page you can set the snapshot pictures’ image quality and the storage path.
Snap Quality: Low, Middle and High. The higher the quality, the picture will be clearer.
Pictures Save To: FTP or SD card. If you have done FTP and Alarm settings, when alarming, the camera
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168
56
will snap pictures to the FTP automatically.
Enable timing to capture
To enable capture interval, follow the steps below:
1 Select Enable Motion detection
2 Capture interval:The interval time between two captures.
3 Select the capture time
Capture anytime
Click the black button up the MON, you will see all time range turn red. When something moving in
the detection area at anytime, the camera will capture.

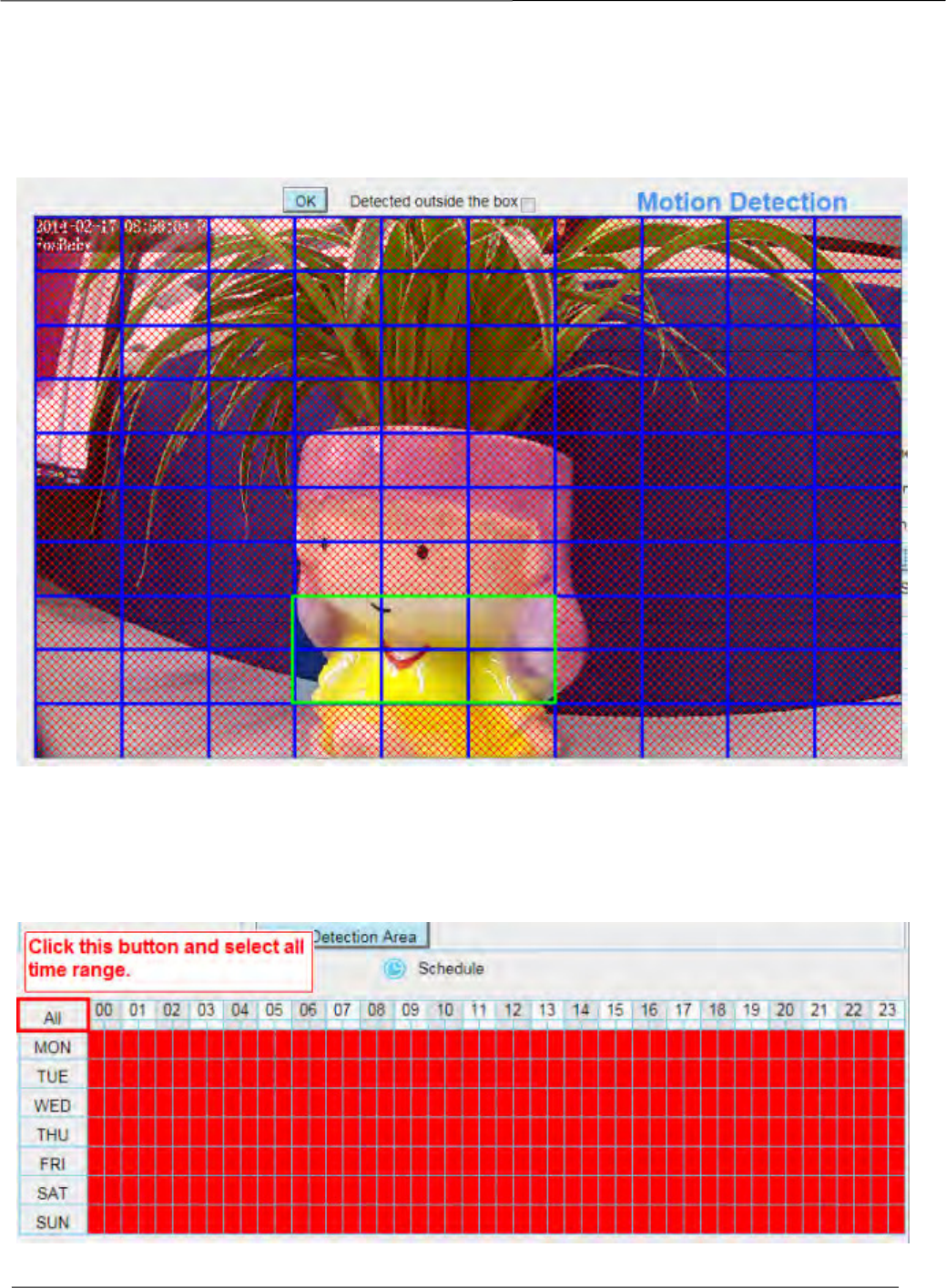

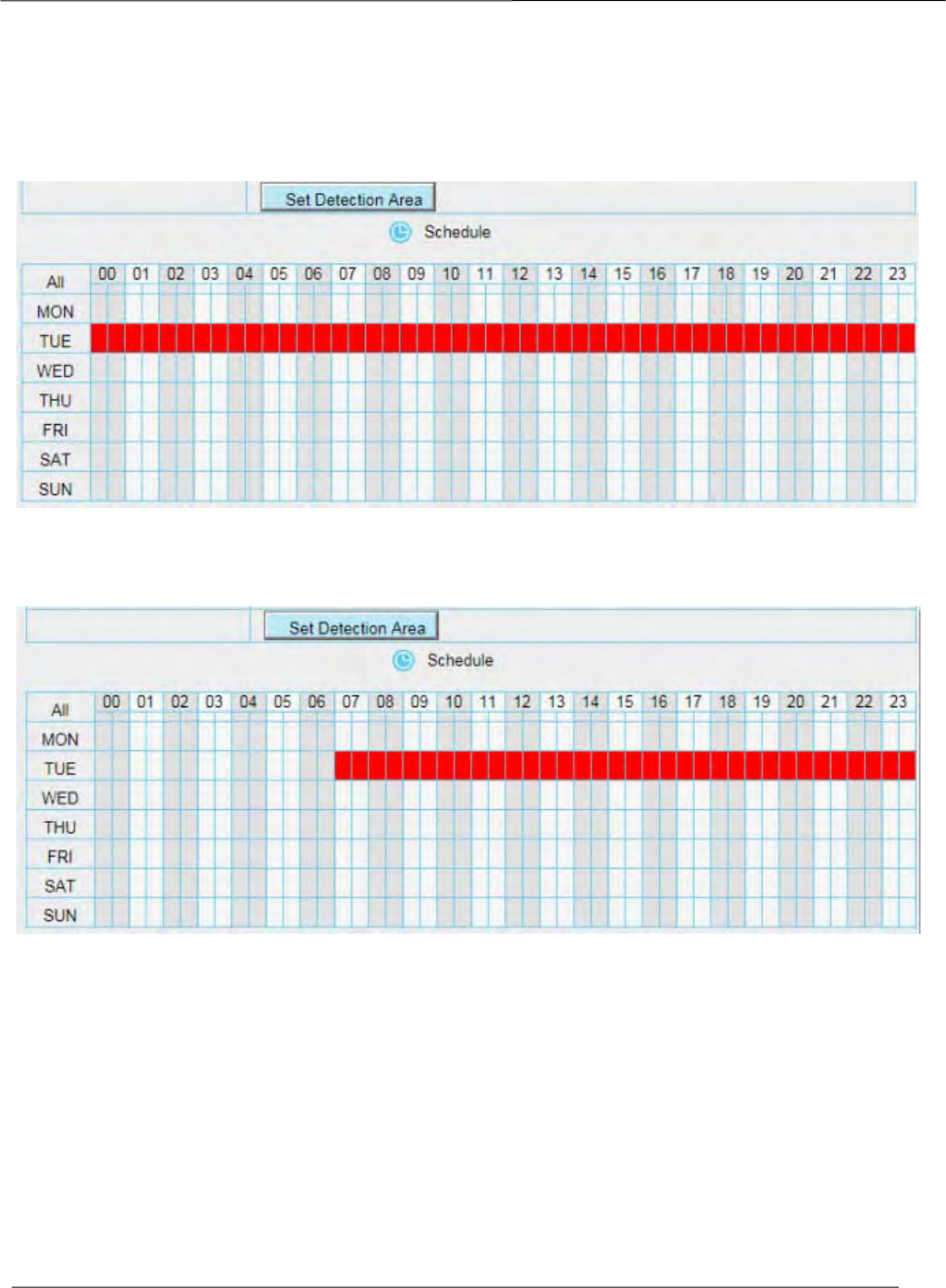

Specify an capture schedule
Click the week day words, the corresponding column will be selected. For example, click TUE, the all
column of TUE turns to red, that means during Tuesday whole day, the camera will capture.
Press the left mouse and drag it on the time boxes, you can select the serial area,
4 Click Save button to take effect.
4.5.5 IR LED Schedule
You can set the period of time during which the infrared lamp is turned off to prevent your baby from being
influenced during sleep. You can also turn off the infrared lamp on the video preview page at any time.
4.6 Detector
4.6.1 One Key Alert
On this page, you can turn on or off the alarm function you need.
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168
57
4.6.2 Motion Detection
The camera supports Motion Detection Alarm, when the motion has been detected, it will send emails or
upload images to FTP.
To enable motion detection, follow the steps below:
To enable motion detection, follow the steps below:
Step 01: Enable Motion detection
Step 02: Sensitivity---- It supports five modes: Lowest, Lower, Low, Medium, and High. The higher the
sensitivity, the camera will be more easily alarmed. Select one motion sensitivity.
Step 03: Trigger interval--- The interval time between two motion detections. Here supports
5s/6s/7s/8s/9s/10s/11s/12s/13s/14s/15s. Select one interval time.
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168
58
Step 04: Select the alarm indicators
When the motion has been detected, the alarm status will turn to Detect alarm.
There are four alarm indicators:
A Camera Sound
There is an embedded speaker inside the camera, so if you select Ring, when the motion has been
detected, the people around the camera will hear beep alarm sound.
B PC Sound
Click it, when the alarm is triggered in FosBaby, your PC opportunity to sound the alarm.
C Send E-mail
If you want to receive alarm emails when motion is detected, you must select Send E-mail and set Mail
Settings first.
D Take Snapshot
If you select this check box, when the motion has been detected, the camera will snap the live view
window as a still picture and load it to the FTP. Make sure you have set FTP and set FTP as the storage
path in Video->Snapshot settings panel.
Capture interval: The interval time between two pictures.
E Record
If you select this check-box, when the motion has been detected, the camera will record automatically and
store the record files to the SD Card. Make sure the camera has inserted SD card and you have set the
SD card as the Alarm record files storage path, please go to Record—> Storage location page to verify
this settings.
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168
59
The default alarm record time is 30s and pre-alarm record time is 5s, please go to Record—> Alarm
Record page and change the alarm time settings.
Step 05: Set detect area
Click set detect area and it pop up a window, then you can draw the detection area. Click Back button
after settings. When something moving in the detection area, the camera will alarm.
Step 06: Alarm Schedule
Alarm anytime when motion is detected
Click the black button up the MON, you will see all time range turn red. When something moving in the
detection area at anytime, the camera will alarm.
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168
60
Specify an alarm schedule
Click the week day words, the corresponding column will be selected. For example, click TUE, the all
column of TUE turns to red, that means during Tuesday whole day, when something moving in the
detection area, the camera will alarm.
Press the left mouse and drag it on the time boxes, you can select the serial area.
Step 07: Click Save button to take effect.
When the motion has been detected during the detection time in the detection area, the camera will alarm
and adopt the corresponding alarm indicators.
NOTE: You must set the detection area and detection schedule, or else there is no alarm anywhere and
anytime.
4.6.3 Sound Detection
When the ambient sound over a certain decibel ,the sound alarm will be triggered.
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168
61
If the Sensitivity is set to “High”, the camera will detect the sound whose more than 55db.
If the Sensitivity is set to “Medium”, the camera will detect the sound whose more than 65db.
If the Sensitivity is set to “Low”, the camera will detect the sound whose more than 75db.
If the Sensitivity is set to “Lower”, the camera will detect the sound whose more than 85db.
If the Sensitivity is set to “Lowest”, the camera will detect the sound whose more than 95db.
4.6.4 Temperature Detection
An alarm is triggered when the temperature exceeds the defined safe temperature range. The safe
temperature range can be defined by you. However, the lower limit of the safe temperature range must be
set to 0ºC or higher, the upper limit must be set to 40ºC or lower, and the upper limit shall at least be 5ºC
higher than the lower limit.
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168
62
The way to set is the same to set motion detection.
4.6.5 Humidity Detection(For FosBaby P1)
It monitors the humidity in the environment, once it exceeds the range you set up, the camera will send
message. However, the lower limit of the safe humidity range must be set to 0% or higher, the upper limit
must be set to 100% or lower, and the upper limit shall at least be 5% higher than the lower limit.
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168
63
4.7 Record
This section will allow you to change the record files storage path and the record time.
4.7.1 Storage Location
On this page you can change the alarm and manually recording storage path.
Alarm Recording Location : SD card, FTP.
Check “SD card” : The video will be saved in SD card. Make sure the camera has been inserted the SD
card. On this page, you can see the available space of the SD card.
Check “FTP” : The video will be saved in FTP. Please refer to "FTP settings."
Manual Recording Location: For Windows OS, the manual recording path is C:/ IPCamRecord, you can
change another one. For MAC OS, the manual recording path is: / IPCamRecord.
4.7.2 Alarm Recording
4.7.3 Local Alarm Recording
This page you can enable the local alarm record and Local Alarm record time.
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168
64
4.7.4 Scheduled Recording
When the video is selected as FTP, the device supports scheduled recording.
When the video is selected as SD card, the device supports pumping frame recording.
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168
65
Frame Rate: There are six frame selections, such as 1/30, 4/30, 8/30, 15/30, 24/30, 30/30.
Recommended default is 4/30. The greater the Frame rate is, the sharper picture quality is, and the
greater of storage space is, the shorter the storage time is.
Record full strategy: When the SD card is full, you can choose to cover the previous recording, or stop
recording.
Audio Record: You can choose "yes" or "no".
NOTES:
Scheduled recording only supports video saved to the SD card or FTP server.
The schedule recording will stop while alarm recording is beginning ,and it will continue automatically
after alarm recording end.
You can refer to "alarm schedule." in " 4.5 Alarm" about editing the time of recording Schedule.
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168
66
4.7.5 SD Card Management
This camera supports SD Card and the max size of SD card must be under 32G.
When you plug in the SD card during the camera work process, please reboot the camera again, or else
the SD Card may be cannot work well.
Go to the SettingsStatusDevice Status page, you can see the SD card status.
The default storage path of alarm record files is SD card, when the available size of SD card is less than
256M, the old record files will be deleted automatically.
4.8 Lullabies
The only nursery rhyme on the machine and the lullabies of a specified coding mode in the SD card can
be played (two lullabies is stored in the Flash for playing when no SD card is available).
When the Songs Path is set to SD, the IP camera only display five songs in the Music list.
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168
67
Simple playing control is available: Play/stop, previous/next song, in-order playing, circular playing of a
single song, circular playing of all songs, and volume control (on the lower part of the video preview
page).
Two ways are available for storing the rhyme into an SD card:
1. Remove the SD card from the machine, connect the SD card to the computer using a card reader, and
import songs to the card.
2. Insert the SD card into the machine and import songs on the SD card management page.
Note:
Import songs to the SD card and insert the SD card into the camera. If you restart the camera, the songs
can be played directly. If you do not restart the camera, you must click the Synchronize button on the
Real-time preview page to play the songs.
4.9 PTZ (For FosBaby P1)
This page will allow you to change the pan/tilt speed and do cruise tracks settings.
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168
68
4.9.1 Pan & Tilt Speed
There are five PT speed types: very fast, fast, normal, slow and very slowly. Select the desired PTZ speed
type and click save button.
4.9.2 Cruise Settings
This section explains how to add/ delete one cruise track.
Setting the Cruise Mode
There are two cruise mode: Cruise time and Cruise Loops.
Cruise time: Select Cruise time from Cruise Mode drop-down, then you can set the Cruise time of the
camera.
Cruise Loops:Select Cruise Loops from Cruise Mode drop-down, you can set the Cruise Loops of the
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168
69
camera.
Click Save to take effect.
Manage the Cruise Track
There are two default cruise tracks: Vertical and Horizontal.
Vertical: The camera will rotate from up to down
Horizontal: The camera will rotate form left to right.
Add: Add one cruise track, then click save button.
Delete: Select one cruise track and delete it.
Save: After you modify the Dwell time, you should click Save button to take effect.
Example: How to do add cruise tracks ?
Firstly, Click Add button and enter a descriptive name to identify the cruise track.
Secondly: On the lower left of the page, you can see all preset points you have added. Select one preset
point and click Add button, you can see the preset point has been added to the cruise track on the cruise
track page. You need to add two or more preset points to the cruise track.
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168
70
Thirdly: Click OK button and the cruise track will take effect.
You can add other cruise track as the same method.
For example: I have added three preset points to the “track 1”, that means : When I select the “track 1” on
the surveillance window, the camera moves as the following track: upright then Right Most last downleft.
You can add preset on the left of the surveillance window.
Add the preset.
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168
71
After add the cruise track, back to the surveillance window, click Cruise, here you can see all cruise tracks
you have added.
There are other buttons between the Preset points and Cruise track, you can use these buttons to adjust
the order of preset points or add/delete one preset points in one cruise track.
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168
72
Add: Select one preset points and add it to the selected cruise track.
Delete: Select one preset points you have added to one cruise track, click delete.
Move up/ down: Select one cruise track, adjust the order of preset points in one cruise track.
Attention: Considering the life time and thermal issue of the motor, it’s not recommend to do long-time
cruise.
4.9.3 Start-Up Options
Here section will allow you to set the stop position after the camera reboots.
It supports three modes: Disable Start-Up, Go To Home Position and Go To Preset Position.
Disable Start-Up: When rebooting, the camera will not pan / tilt.
Go To Home Position: When rebooting, the camera will pa Providing Central Management Software to
manage or monitor multi-cameras n / tilt and stops at center.
Go To Preset Position: Select one preset position and save it. When rebooting, the camera will pan/ tilt
and stops at the preset position you have set.
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168
73
4.10 Firewall
This section explains how to control the access permission by checking the client PC’s IP addresses. It is
composed of the following columns: Block access from these IP addresses and Only allow access
from these IP addresses.
Enable firewall, If you select Only allow access from these IP addresses and fill in 8 IP addresses at most,
only those clients whose IP addresses listed in the Only allow access from these IP addresses can
access the Network Camera. If you select Block access from these IP addresses, only those clients
whose IP addresses are in the IP list cannot access the Network Camera.
Click Save to take effect.
4.11 System
In this panel, you can backup/restore your camera settings, upgrade the firmware to the latest version,
restore the camera to default settings and reboot the device.
4.11.1 Back-up & Restore
Click Backup to save all the parameters you have set. These parameters will be stored in a bin file for
future use.
Click Browse and select the parameters file you have stored, then click Submit to restore the restore the
parameters.
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168
74
4.11.2 System Upgrade
Your current firmware version will be displayed on your screen. You may go to the Status Device
Information Page to check for the latest firmware versions available.
Click Browse, choose the correct bin file and then click System upgrade. Make sure you have
unplugged the SD card.
Don’t shut down the power during upgrade. After upgrading, you can see the upgrade result.
Upgrade Firmware by IP Camera Tool
Double click the IP Camera Tool shot icon , select the Camera IP that you want to upgrade the
firmware. Then select Upgrade Firmware and enter the username and password, choose the firmware file,
and upgrade.
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168
75
CAUTION: If your camera works well with the current firmware, we recommend not upgrading. Please
don’t upgrade the firmware unnecessarily. Your camera may be damaged if miscon figured during an
upgrade.
NOTE:
Before upgrade the firmware, please unplug the SD card and reboot the camera, don’t upgrade the
firmware in WAN through the web UI, or else the upgrade process may be failed.
Please ensure you have download the correct firmware package for your camera before upgrading. Read
the upgrade documentation in the upgrade package before you upgrade.
Upon downloading the firmware check the sizes of the bin files. They must match the size in the read
me.txt file. If not, please download the firmware again until the sizes are the same. Your camera will not
function correctly if a corrupt .bin file is used.
Normally, only Device WEB UI need to be upgrade, please do not try to upgrade the Device System
Firmware.
1) Never shut down the power of the camera during upgrade until the IP camera restart and get
connected.
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168
76
2) After upgrade successfully, please uninstall the old plugin and re-install it, then reset the camera to the
default factory settings before using the camera.
4.11.3 Patch Installation
4.11.4 Factory Reset
Click All reset and all parameters will return to factory settings if selected. This is similar to press the
Reset button on the bottom of the camera.
4.11.5 Reboot
Click Reboot System to reboot the camera. This is similar to unplugging the power to the camera.
5 Playback
On this page you can view the record files stored in the SD card.
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168
77
Section 1 Define the Record files time and Type
: The storage path of record files
: Here supports three types: current day, current month and All records. Another way,
select the time on the time&date manually.
: The type of records files, Here supports two typs: Normal record, Alarm record and
All records.
: Click this button to search all record files satisfy the conditions you selected.
Continuous Play: Select the checkbox to play continuously all the record files.
Section 2 Search record files
On this panel you can see all record files satisfy the conditions you set.
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168
78
Section 3 Play/Stop/Audio/Full screen buttons
Please select one record file before use these buttons.
Click this button to play the record files
Click this button to stop the record files
Open or stop audio
Click this button to make full screen, and double click left mouse to exit full screen.
6 Appendix
6.1 Frequently Asked Questions
NOTE: Any questions you would meet, please check Network connections firstly. Check the working status
revealed by the indicators on the network server, hub, exchange and network card. If abnormal, check the
network connections.
6.1.1 Install the add-on of Firefox browser, Google Chrome and IE Chrome.
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168
79
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168
80
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168
81
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168
82
6.1.2 Uninstall the add-on of Firefox browser, Google Chrome and IE
Chrome.
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168
83
6.1.3 I have forgotten the administrator password
To reset the administrator username and password, press and hold down the RESET BUTTON for 5 seconds.
Upon releasing the reset button, wait for 20 seconds, the camera will reboot and the username and password
will return to the factory default administrator username and password. Please power on the camera before
reset
Default administrator username: admin
Default administrator password: No password
6.1.4 Camera can not record
When you use Windows7 or Vista, you may be not able to do manually record or change the record path
because of the security settings of computer.
There are two ways to resolve this problem:
Please add the camera as a trusted site to resolve this issue. The steps are ：
IE browserToolInternet PropertiesSecurityTrusted sitesSitesAdd
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168
84
Open IE browser, then right click, select “Run as administrator”
6.1.5 Subnet does not match
Check whether your ipcamera in the same subnet of your computer. The step is Control PanelNetwork
ConnectionsDbclick Local Area Connections Choose GeneralProperties.Check subnet mask, IP
address and gateways. When you set IP address please make sure they are in the same subnet. Otherwise
you can't access camera.
6.1.6 No Pictures Problems
The video streaming is transmitted by the ActiveX controller. If ActiveX controller isn’t installed correctly you will
see no video image. You can resolve this problem by this way:
Download ActiveX controller and set the safety property of IE in the PC when you view it first time: IE
browserToolInternet ProperSecurityCustom LevelActiveX control and Plug-ins. Three options of
front should be set to be “Enable”, The ActiveX programs read by the computer will be stored. As follows:
Enable: Download unsigned ActiveX controls
Enable: Initialize and script ActiveX controls not marked as safe
Enable: Run ActiveX controls and plug-ins
If you allow the ActiveX running, but still could not see living video. Please change another port number to try.
Don’t use port 88.
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168
85
NOTE: Make sure that your firewall or anti-virus software does not block the camera or ActiveX. If you could
not see video, please shut down firewall or anti-virus software to try again.
6.1.7 Can’t access IP camera in internet
There are some reasons:
1、ActiveX controller is not installed correctly
2、The port which camera used is blocked by Firewall or Anti-virus software. Please change another port
number and try again.
3、Port forwarding is not successful
Check these settings and make sure they are correct.
6.1.8 UPnP always failed
UPnP only contains port forwarding in our recent software. Sometimes, it may be failed to do port forwarding
automatically because of firewall or anti-virus software. It also has much relation with router’s security settings.
So we recommend you do port forwarding manually. You can view your camera in internet successfully after
you do port forwarding manually in your router.
6.1.9 Camera can not connect wireless
If your camera could not connect wireless after you set wireless settings and plug out the cable. Please check
whether your settings are correct or not.
Normally, camera can’t connect wireless mainly because of wrong settings.
Make sure broadcast your SSID; use the same encryption for router and camera.
6.1.10 Can’t see other cameras listed in multi-device when using remote
access
If you want to view all the cameras via the WAN, verify that each camera added in the multi-device settings can
be accessed by using the DDNS name and port number. Use the DDNS domain name not the camera’s IP.
(For more details see: How to add cameras in WAN)
6.2 Default Parameters
Default network Parameters
IP address: obtain dynamically
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168
86
Subnet mask: obtain dynamically
Gateway: obtain dynamically
DDNS: Embedded FOSCAM domain name
Username and password
Default admin username: admin with a blank password
6.3 Specifications
ITEMS Fosbaby P1
Image Sensor
Sensor High Definition Color CMOS Sensor
Display Resolution 1.0M Pixels(1280*720)
Min. Illumination 0 Lux (With IR Illuminator)
Lens
Lens Type M12 interface f 2.5mm F=1.8
focal length f 2.5mm
Aperture F=1.8
Angle of View (horizontal) 90°
Video
Image Compression H.264
Image Frame Rate 30fps(60Hz), 25fps(50Hz), downward adjustable
Resolution 720P(1280 x 720), VGA(640 x 480) & (640 x 360), QVGA(320 x
240) & (320 x 180)
Stream dual stream
Image adjustment The hue, brightness, contrast, saturation, sharpness are
adjustable
Flip image flip and mirror
Infrared mode Automatic or manual
Pan/Tilt Angle Horizontal:320° & Vertical: 100°
Night visibility Invisible Infrared LEDs, Night Vision Range up to 8m
Network
Ethernet N/A
Wi-Fi IEEE 802.11 b/g/n
Modulation Mode OFDM /CCK
Frequency 2.412-2.472MHz
Antenna All directional
EZlink Link to WiFi network easily
Soft AP Connect to Clients Directly via Wi-Fi
WPS One button push wireless connection
Network Protocol IP、
TCP、
UDP、
HTTP、
HTTPS、
SMTP、
FTP、
DHCP、
DDNS、
UPnP、RTSP、WPS
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168
87
System
Requirements
Operating System Microsoft Windows 2000/XP, Vista, 7,8;
Mac OS
Browser
Microsoft IE8 and above version or compatible browser;
Mozilla Firefox;
Google Chrome;
Apple Safari.
Other
Features
Motion Detection
Alarm via E-Mail, upload alarm snapshot to FTP
Sound Detection
Temperature Detection
Humidity Detection
Playing lullabies Playing lullabies via Smartphone App or Web Client, new
lullaby required to be put into Micro SD card
Two-way Audio Supports Two-way Audio via Smartphone App or Web Client
Cloud Service Synchronously manage all your cameras, watch live videos
Night Lamp Supports turn on/off via Smartphone App or Web Client
WiFi and System LEDs Supports turn on/off via Smartphone App or Web Client
Privacy Block Set privacy area manually
External Card Slot Micro-SD up to 32G
User Accounts Three levels user role
Firewall Supports IP Filtering
Reset Reset button is available
Power
Power Supply DC 5V/2A
Power Consumption <9 Watts
Physical
Dimension(LxWxH) 83(L)x 65(W)x 128(H)mm
Net Weight 200g
Environment
Operating Temperature -10°C ~ 55°C (14°F ~ 131°F)
Operating Humidity 10% ~ 80% non-condensing
Storage Temperature -20°C ~ 60°C (-4°F ~ 140°F)
Storage Humidity 0% ~ 90% non-condensing
Certification CE, FCC, RoHS, WEEE
Warranty Limited 2-year warranty (Not including US and China Mainland)
Attention: Power adapter should be used between 0℃-40 , and 5%℃-90% relative humidity.
6.4 CE & FCC
Electromagnetic Compatibility (EMC)
FCC Statement
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168
88
This device compiles with FCC Rules Part 15. Operation is subject to the following two conditions.
This device may not cause harmful interference
This device must accept any interference received, including interference that may cause undesired
operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed and used in accordance with the installation
manual, may cause harmful interference to radio communications. Operation of this equipment in a residential
area is like to cause harmful interference, in which case the user will be required to correct the interference at
his own expense.
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
FCC Caution
Any changes or modification not expressly approved by the party responsible for compliance could void the
user’s authority to operate this equipment.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with minimum distance 20cm between the radiator& your
body.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
CE Mark Warning
This is a Class B product. In a domestic environment, this product may cause radio interference, in which case
the user may be required to take adequate measures.
6.5 Warranty
ShenZhen FOSCAM Intelligent Technology Limited.("FOSCAM") values your business and always attempts to
provide you the very best of service.
No limited hardware warranty is provided by FOSCAM unless your FOSCAM product ("product") was
purchased from an authorized distributor or authorized reseller. Distributors may sell products to resellers who
then sell products to end users. No warranty service is provided unless the product is returned to an authorized
return center in the region where the product was first shipped by FOSCAM or to the point-of-purchase, which
may have regional specific warranty implications.
If you purchase your FOSCAM product from online store, please contact the point-of-purchase and ask
for return/replacement/repair service.
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168
89
Hardware Warranty Information
FOSCAM provide 2-year limited warranty for naked product and 6-month limited warranty for accessories.
Limited Hardware Warranty
FOSCAM products are warranted to be free from manufacturing defects in materials and workmanship
starting from the shipping date of FOSCAM.
This limited hardware warranty does not cover:
Software, including the software added to the products through our factory-integration system, software
that included in the CD,etc.
Usage that is not in accordance with product instructions.
Failure to follow the product instructions.
Abuse firmware upgrade without the authorized technician’s guidance.
Normal wear and tear.
Return Procedures
Please read FOSCAM warranty policy & policy of your reseller first before sending items back to
point-of-purchase.
Customer must first contact point-of-purchase to obtain a Return Merchandise Authorization (RMA)
number before returning the product. If the product you received is suspected to be defective and the
product warranty has not expired, The RMA number will allow your reseller to track your return much
easier and help them expedite processing your request.
After receiving your RMA case number, pack the item(s) very well with the original box and all the original
accessories included such as power adapters, brackets, cables, manuals, and driver CD disks.
Write your RMA number and the return reason (the problem of the product) on the warranty card along
with the complete package to send them back.
Replacement Services
If customers ask for replacement service, please contact point-of-purchase and follow their policy.
Our technicians will inspect all items returned for replacement requests. If the retuned product is found in
working order, we will return the same item received. However customers shall be responsible for all
shipping & handling charges incurred for getting the units back to customers.
If returned products are found defective, we will replace the product and assume the shipping cost for
sending back the replacement unit to customers.
If for any reason, we are unable to provide a replacement of the original returned item(s). You will have a
choice for a “Substitute” item at the same equal value.
We do not provide exchange and replacement due to normal hardware upgrade according the market
after 14 days after the product is delivered.
Our technicians will test the product before send out the replacement, any other demand for more than
two times replacement for the same product during replacement limit will be rejected.
Replaced products are warranted from the balance of the former warranty period.
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168
90
Warranty Forfeiture
Warranty is void if purchase from unauthorized distributor or reseller.
Warranty is void if trade-mark, serial tags, product stickers have been removed, altered or tampered with.
Warranty is void for mishandling, improper use, or defacing the product.
Abuse firmware upgrade without the authorized technician’s guidance.
Warranty is void for physical damage, altered, either internally or externally, improper or inadequate
packaging when returned for RMA purposes.
Warranty is void if damage has resulted from accident, dismantle, abuse, or service or modification by
someone other than the appointed vendor, souse, fission or the spare part has been over the period of
warranty.
Warranty is void if product is damaged due to improper working environment or operation. (For example,
improper temperature, humidity, unusual physical or electrical stress or interference, failure or fluctuation
of electrical power, static electricity, using wrong power adapter, etc.)
Warranty is void if damaged by the use of parts not manufactured or sold by FOSCAM.
Damage caused by improper installation of third-party products.
Warranty is void if damaged for irresistible cause, such as earthquake, fire, lightning, flood, etc.
Product beyond limited warranty.
Shipping Fee
If products are defective or damaged under normal use or operation in the replacement limit, distributors
or resellers are responsible for the shipping cost the product back to customers, customers should
assume the shipping cost send the product to the point-of-purchase.
During replacement limit, if customers ask for replacement due to the product does not fit for customer’s
personal expectation, customers should responsible for both shipping fee.
Customers shall be responsible for both shipping fee if their product beyond the replacement limit but still
in warranty limit.
Repair Service Out Of Warranty
FOSCAM provide extra repair service for product that out of warranty, it is chargeable. The total fee
contains device cost and service fee. Device cost (including accessories) is the standard uniform price
provide by FOSCAM.
Different region may have different service fee, please contact the point-of-purchase to confirm that before
you ask for this service.
Our technicians will quote the total price after detect the product, If customers refused to repair after the
quotation, customers need pay for the test fee, $3.5/hour. If agree with the quotation, test will be free.
Repaired product out of warranty will obtains 3-month warranty from the date of the product back to
customers.
Limitation of Liability
FOSCAM is not responsible for other extra warranty or commitment promised by resellers, if your reseller
promised some extra commitment or warranty; please ask for written documents to protect your rights and
interests.
www.foscam.com
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168
91
FOSCAM does not offer refunds under any circumstances. Please contact the point-of-purchase and
follow their refund/return policy.
FOSCAM shall not be liable under any circumstances for any consequential, incidental, special or
exemplary damages arising out of or in any connection with this agreement or the products, including but
not limited to lost profits, or any claim based on indemnity or contribution, or the failure of any limited or
exclusive remedy to achieve its essential purpose or otherwise. Purchaser's exclusive remedy, as against
FOSCAM, shall be the repair or replacement of defective parts. If FOSCAM lists a product on its website
specification in error or that is no longer available for any reason, FOSCAM reserves the right to explain it
without incurring any liability.
All rights reserved. FOSCAM and the FOSCAM logo are trademarks of ShenZhen FOSCAM
Intelligent Technology Limited., registered in the U.S. and other countries.
7 Obtaining Technical Support
While we hope your experience with the IPCAM network camera is enjoyable and easy to use, you may
experience some issues or have questions that this User’s Guide has not answered.
If you have problem with FOSCAM IP camera, please first contact FOSCAM reseller for solving the problems.
If our reseller cannot provide service, please contact our service department: tech@foscam.com
Warning :
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is
subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired
operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio
exempts de licence.
L'exploitation est autorisée aux deux conditions suivantes :
(1) l'appareil ne
doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le
brouillage est susceptible d'en compromettre le fonctionnement
This Class B digital apparatus complies with Canadian ICES-003.Cet appareil numérique de la
classe B est conforme à la norme NMB-003 du Canada.
IC Radiation Exposure Statement:
This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment
This equipment should be installed and operated with minimum
distance 20cm between the radiator& your body.
