Mini Boom Box
1. Main Functions
2. Panel Control
3. Pairing with Mobile Phone, Mp3 and GPS
4. Pair with (FreedConn) L2 Adaptor
5. Matching with (FreedConn) L3 Remote Control
6. Pairing between Two BM2

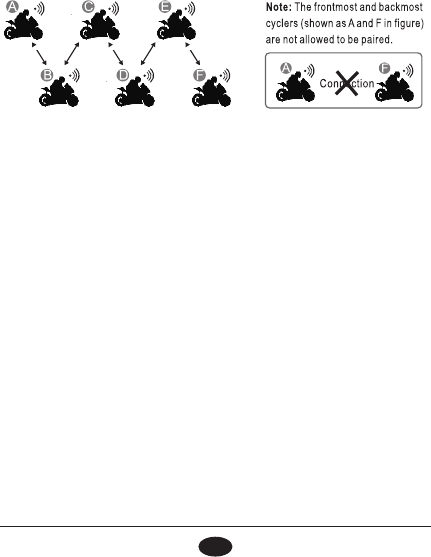

7. Group Intercom Settings(Take a group of 6 people as example)
8. Operations Mode for Cases When Someone Receives a Call during Group Intercom
9. Function and Operation
10. Battery Introduction
11.Warranty Card
12. Maintenance

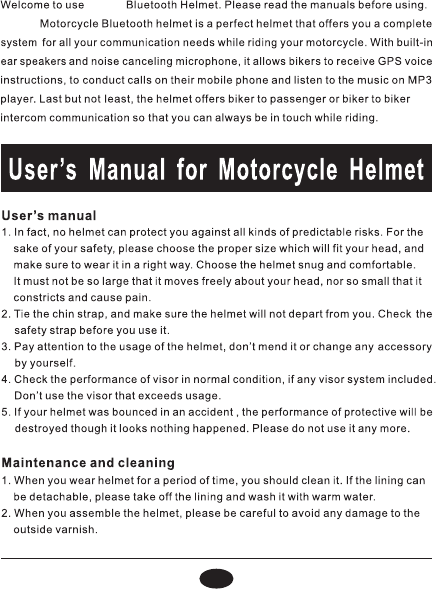

Uaers Manual For Motorcycle Helmet
1. Users Manual
2. Maintenance and Cleaning
Users Manual for Bluetooth Intercom System
3
3
3
4
4
4
5
5
6
6
7
7
8
9
10
10
BM2
3
BM2
1. Main Functions
BM2

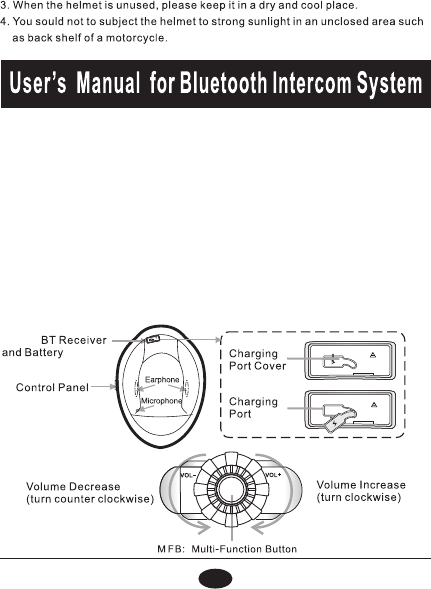

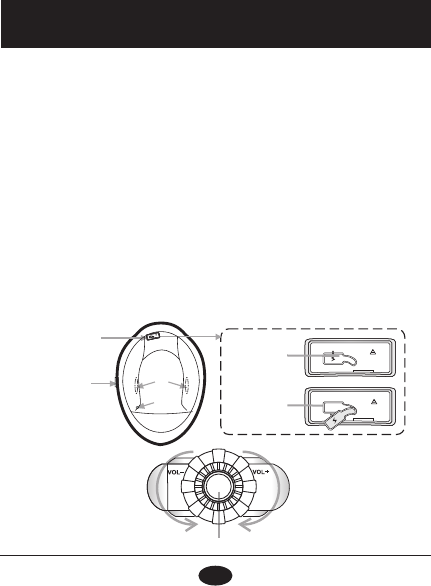

2. Panel Control
4
(1) 500m Bluetooth Intercom
(2) Group Intercom
(3) Two cell phones can be connected at the same time
(4) Voice prompt for all operations
(5) Software update port
(6) Voice prompt for the battery status
(7) Can be used with FreddConn handle remote control L3
(8) Can be used with two-way radio through FreedConn adaptor L2
(9) Battey status icon on telephone
(10) Built-in FM radio

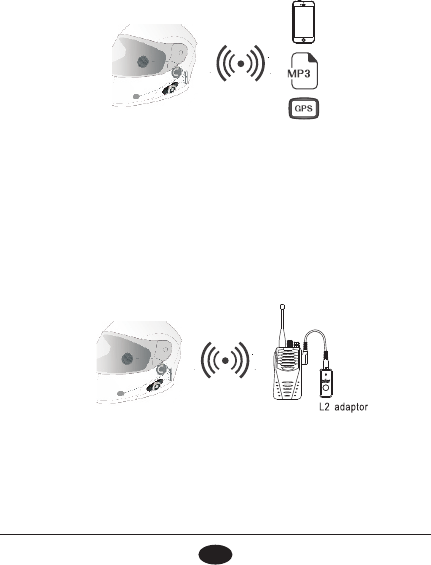

4. Pair with (FreedConn) L2 Adaptor
Step 1: Ensure BM2 is off and within 1 m range of the device to be paired.
Step 2: Press down the BM2 MFB. for 6 seconds until you hear "Pairing" prompt,
when the red light and blue light flash alternatively, BM2 enters pairing status. Step 3:
Press down the On/Off button of L2 adaptor for 6 seconds to enter pairing status
and automatically search for pairing. Pairing is successful when
he indicator lights of BM2 and L2 all flash blue regularly.

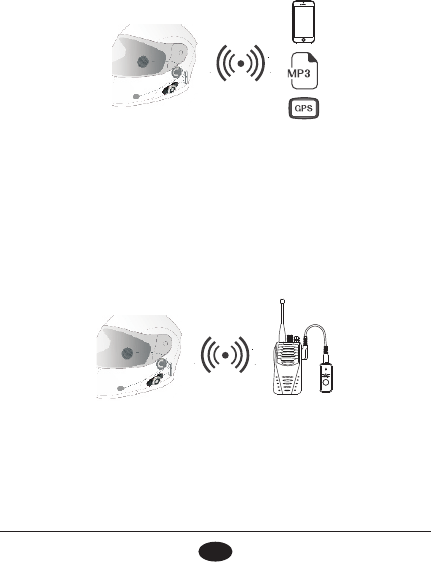

Step 1: Turn on your cellphoneGPS or other devices and turn into BT search mode.
Step 2: Press and hold the MFB. (for about 6s) until blue&red indicator flashes
alternatively.
Step 3: Choose "add new device" or "BM2-S" on your phoneGPS or other devices.
Step 4: Original code is "0000" if required.
Step 5: After paired with other devices successfully,they can be paired automatically
next time.
3. Pairing with Mobile Phone, Mp3 and GPS
5

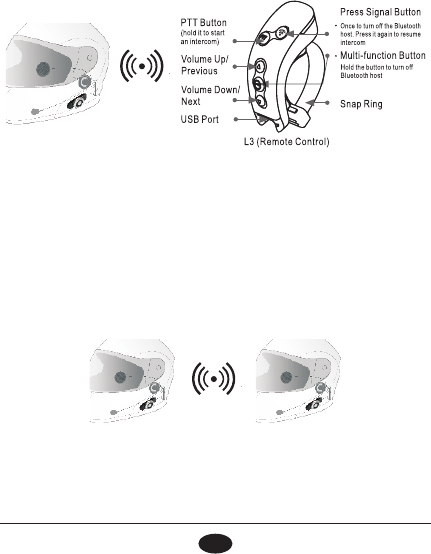

5. Matching with (FreedConn) L3 Remote Control
BM2 3 times quickly to switch it into matching aode,and the indicator red light
keeps on and blue indicator light flashes under such mode.
Step 2: (Operations on the emitting end of remote control):First press and hold the MFB.
of remote control,then press and hold the signal button.When you see the green
indicator light of remote control flashes 3 times quickly,let go of the two buttons.
BM2’s red indicator light will go off,indicating matching is successful.
Step 1: (Operations on receiving end of BM2-S):When BM2 is on,press the MFB. of
6.

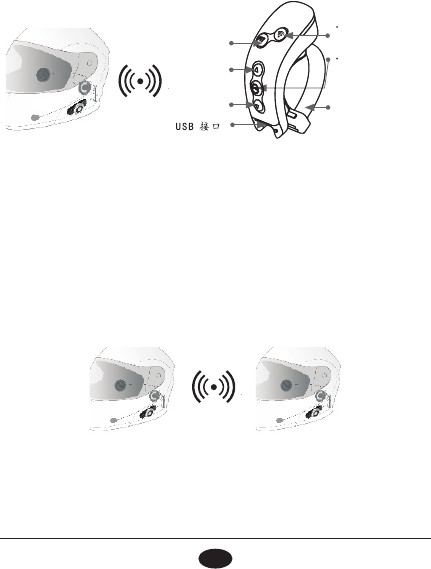

Pairing between Two BM2
Step 1:
Step 2: Press and hold MFB. (for about 6s) until turning into pairing status under"off"
status,this time blue&red indicator flashes.
Step 3: Press one of MFB. to finish pairing. After successfully paired,there will be a short
tone "di" and the flashing blue&red indicator will only remains blue light.
Make sure there is no other active BT devices when pairing with the target device
6
3.1 For D,press the MFB. to connect with E;
3.2 For C,press the MFB. to connect with D;
3.3 For B,press the MFB. to connect with C;
3.4 For A,press the MFB. to connect with B;
(Now A,B,C,D,E and F are all matched successfully, you can erter group talk.)
2.1 Match A and B, and turn off B after match is completed
(Note:Just turn it off.Do not clear the matching record)
2.2 Match B and C, and turn off Cafter match is completed
2.3 Match C and D, and turn off Cafter match is completed
2.2 Match D and E, and turn off Cafter match is completed
2.2 Match E and F
(At this moment,A,B,C,D,E and F are all turned on).
Step 2: Refer to the matching operations in 6 for following operations.
Step 3: Connect A,B,C,D and F in series.

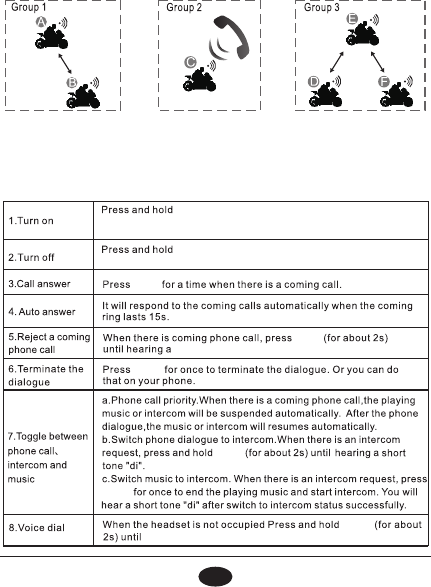

8. Operations Mode for Cases When Someone Receives a Call
during Group Intercom

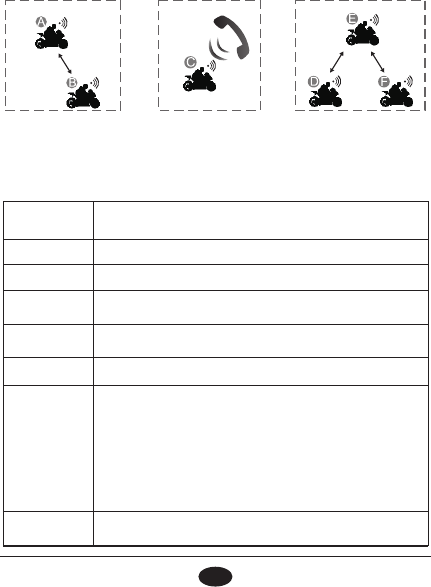

During 6 people group intercom, if C receives a call, he or she will be disconnected from
other group members (A pairs with B to form a group, C forms its own group, DEF form a
group).
Step 1: Clear the matching record between A and F
Press and hold the MFB. of A and F for 8s until you hear prompt tone
Power off, then hold them for another 3s.

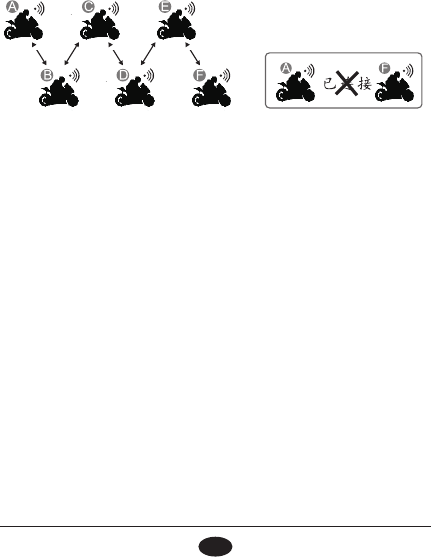

7. Group Intercom Settings(Take a group of 6 people as example)
7
MFB. 3 seconds until hear “Welcome to use
FreedConn product” voice prompt.The blue light will flash 3 times
swiftly and then turn into regular flashing.
MFB.
MFB. 5 seconds until hear “Power off ” voice prompt,
the blue light will fade.
MFB.
voice prompt “Call rejected” .
MFB.
MFB.
MFB.
MFB.
After C's call is over, he or she will be automatically reconnected into the group intercom
and the 6 people group intercom resumes.

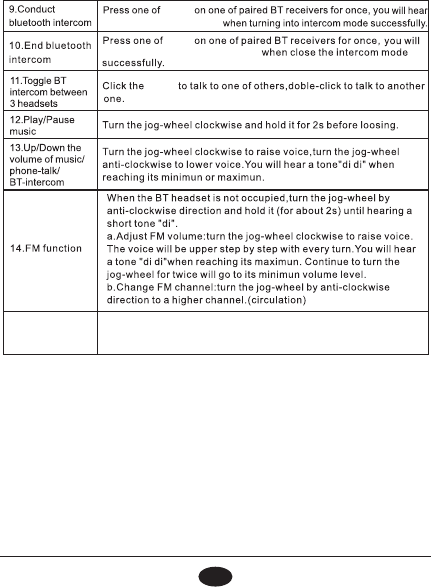

9. Function and Operation
8
hear “Voice dial ” voice prompt.
MFB.
a voice promptConnected
MFB.
hear a voice promptDisconnected
MFB.
10. Technical Parameters of Product
9
Battery Type: 500mAh Stand by: 120h
Travel Adaptor:DC 5V 500mA Talking Time: 10h of Bluetooth
12h of Mobile Phone
Charging Time:2.5h
15.Clear the
pairing record
Press and hold the MFB. of A and F for 8s until you hear prompt tone
Power off, then hold them for another 3s.
11. Indication of Battery Volume
(1) After the battery is fully charged,the blue light will flash every 2s under "ON"
status;
(2) When the battery reaches a certain voltage level,the red-light will flash every
15s,you will hear voice promptBattery Low.This time you should charge your
headset.If you continue to use,it will turn off automatically.
(3)The red-light will flash every 2s when it is being charged.
(4)The red-light will quickly flash a time when charge again under the fully
charged status.
12. Maintenance
(1)Don’t keep BM2 in the too hot or too cold place, the suitable temprature should
be between -40 and +60.
(2)Don’t put BM2
into fire,there is explosion danger.
(3)Don’t keep BM2 close sharp objects.
(4)Don’t try to open BM2.
(5)Keep BM2 in a dry and cool place when not used. And for better use please
charge it regularly.
10
12
12
12
13
13
13
14
14
15
15
16
16
17
18
19
目 录
使
1.使
2.保养与清洁
使
1.主要功能
2.面板介绍
3.与手机、MP3GPS
4.(FreedConn)L2 适配器配对
5.(FreedConn)L3遥控器配对
6.BM2-S之间配对
7. 群组通话设置(6人对讲为例)
8. 群对讲时一方有来电操作方式
9. 功能及操作方法
10. 产品技术参数
11. 电池电量指示功能
12.日
19
12
欢迎使用BM2
摩托车蓝牙头盔,使用本产品请先阅读此说明书。
无线蓝牙技术可以使安装在头盔上的BM2与你的手机或者其它设备配对,塑造了自
由方便的形象。配对成功后,就可以通过安装在头盔BM2上的控制器来处理来电和
拨打电话,听音乐和GPS的导航播音,调整音量等。它还可以与可以使用蓝牙功能
的移动电话、MP3GPS等设备进行配对使用。它可以和另一安装在头盔上的BM2
行交互式的通信。
摩 托 车 头 盔 使 用 说 明
使
1.头盔不能保证您避免所有可预见的危险。为了您的安全,请选择大小合适
穿 穿
穿 穿
2.扣 使
3.注 使
4.如有安装遮阳板装置,请在常规环境下检查后在使用遮阳板。
5.如果在事故中,头盔有被撞击、摔到过,尽管外观看起来没有损坏,也请
使
1.使用头盔一段时间之后,应该对其进行清洗。如果内衬可以拆卸下来,请
2.安
3.不使用头盔时,就将其放在通风干燥处。
4.不要随手把头盔放在有阳光的地方,如摩托车的后座等等。
1.
1.500
2.多
3.可同时连接两台手机
4.全部操作语音提示
5.软件升级接口
6.开机语音报电量
7.可配合FreedConn手把遥L3使
8.可通过FreedConnL2适配器连接对讲机
9.手机上显示电池电量图标
10.内置收音机功能
2.
蓝 牙 系 统 使 用 说 明
BM2元器盒与
蓝牙主机
量 顺
多功能键
麦克风
13
3. MP3GPS
红蓝指示灯交替闪烁
第三步:在手机、GPS或其他设备上点击“添加新设备”或者选择“BM2” 第四步:
如有要求,输入初始密码“0000”
第五步:配对成功后,有提示音“Connected”。(不清除配对记录,以
后每次使用会自动连接上,无需再次配对
第一步:打开手机、GPS或其他设备的搜索BT设备模式
第二步:在BM2关机状态下,长按其多功能键6秒,听见提示音“Pairing
4. (FreedConn)L2
L2 适配器
键 秒
此时,指示灯红蓝灯交替闪烁,BM2进入配对状态。
第三步:按住L2适配器开关机键6秒,L2进入自动搜索配对状态,BM2
L2的指示灯都为蓝灯有规律的闪烁后,表示配对已成功。
第一步:确保BM2为关机状态,BM2L2放在1米可视范围内。
第二步:按住BM2 6Pairing
14
5. (FreedConn)L3
第一步(BM2接收端操作):
BM2开机状态,快速连续按三下BM2的开关机按键,BM2会进入配对状态,配
对模式下指示灯红灯为常亮,指示灯蓝灯闪烁。
步(L 3遥控发射端操作)
先按住遥控器多功能键后,再按住信号键,当您看到遥控器指示灯
绿 3 T-Rex指示灯红灯熄灭,表示配对
6.
两个BM2之间配对
第一步:
第二步:关机状态下,同时长按两个蓝牙对讲耳机的多功能键6秒,听到提
Pairing”,进 式 (红
第三步:短按其中任意一个多功能键,听到提示音“Connected”后完成
PT T键(按
住后对讲)
加/上
减/下
信号键
长按可关闭蓝牙主机
L3
15
7. 6
AF
AF 8 Power off”继续按住3
秒,看到红灯快闪3下,清除成功。
第二步:以下操作参考“6.两个BM2之间配对的操作方式。
1.AB B关机;(注意:只是关机,不要清
2.BC C关机;
3.CD D关机;
4.DE E关机;
5.EF配对。
ABCDEF都为开机状态。)
第三步:将ABCDEF进行串连。
1.D E,会听到一串对讲提示音;
2.C D,会听到一串对讲提示音;
3.B C,会听到一串对讲提示音;
4.A B,会听到一串对讲提示音;
(此时,ABCDEF配对成功,可以进入群组通话。)
8.
在 人 , 成 从 成( 和 连
C单独成一组,DEF
6 C C A B
16
C 6成员结束通话后,自动连入群对讲队伍中, 人群对讲恢复正常。
123
9.
长按多功能键约3 W elcome t o u s e
FreedConn product
长按多功能键5秒,听到提示音“Power Off”松手。
时,按
当来电响铃15
2秒,听 Call
Rejected”松手。
时,按 使
3.接
2.关
1.开
4.自
5.拒
6.终
7.电话、对讲、
a.
b. 2秒,听
c. 键,听
8.语
时,按 2
V oice Dia l
17
9.启
讲通话
其中任意一个的多功能键,听到提示音“Connected
即可开始对讲。
10.结
讲通话
键,听 Disconnected
11.对
开机时或对讲断开,单击和双击多功能键。
12.音放/
顺时针扭转 2
13.音乐/通话/
增/减
乐/通话/对
14.FM
无通话无对讲时,逆时针扭转多功能键2秒,松开前有提示
音“嘀”。
FM
a. FM音量调节:顺时针方向每旋转一次音量变化一下,最
音(最
小) (循 环)。
b. FM 节: 逆 MFB FM
道(循环)。
10.
电池容量:500mAh 待机时间:120h
工作时间:连接蓝牙对讲机1 0h ;
连接手机12h
充电时间:2.5h
电源适配器:直流电5500
15.清
按住BM2的多功能键8秒,听到语音提示“Power off 继续按
3秒,看到红灯快闪3下,清除成功。
18
(1). 方, 最 为- 4 0
+60度, 否 使寿 命;
(2).切勿将本产品暴露在明火之中,避免爆炸危险;
(3).切勿将本产品接触尖锐对象,会造成划痕或损坏;
(4).
(5).如长时间不使用本产品,请确保放置在干燥的地方,若放置超过一个
电, 以
12.
使
时给予充电,以保证产品的使用寿命。
1.电 21
2.低 15 Batte r y
Low 1 51次),使 机 ;
3.充 21
3.充
11. 电池电量指示功能
19

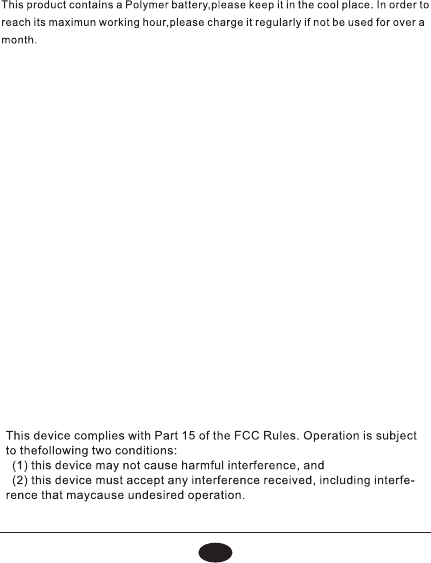

NOTE: This equipment has been tested and found to comply with the limits for a
