ShenZhen Fujikam Industry Development IPC01 Cloud Camera User Manual IP Camera
ShenZhen Fujikam Industry Development Co., Ltd Cloud Camera IP Camera
User Manual
Cloud ip camera web client user manual
812 USER MANUAL
IP Camera
(HD Cloud IP Camera)
User Manual for WEB Client
Cloud ip camera web client user manual
MODEL: 812
Note: To protect your privacy, please change the initial password after login.
Please keep your user name and password safely.
812 USER MANUAL
Contents
1.Introduction......................................................................................
2.Installation.........................................................................................
2.1. Camera installation and login..............................................................................1
2.2. Wireless Installation guide................................................................................... 3
3.Home page............................................................................................................................4
3.1. Camera guide..........................................................................................................4
3.2 Camera status.........................................................................................................6
3.3 Account settings..................................................................................................... 7
3.4 Image setting & PTZ control................................................................................8
3.5 Mode selection......................................................................................................12
1
1
...........................
...........................
Cloud ip camera web client user manual
3.6 Interface button..................................................................................................9
3.7 Playback..............................................................................................................9
4.Information......................................................................................
4.1 Alarm information review.....................................................................................15
5. Settings...............................................................................................................................16
5.1 About........................................................................................................................ 16

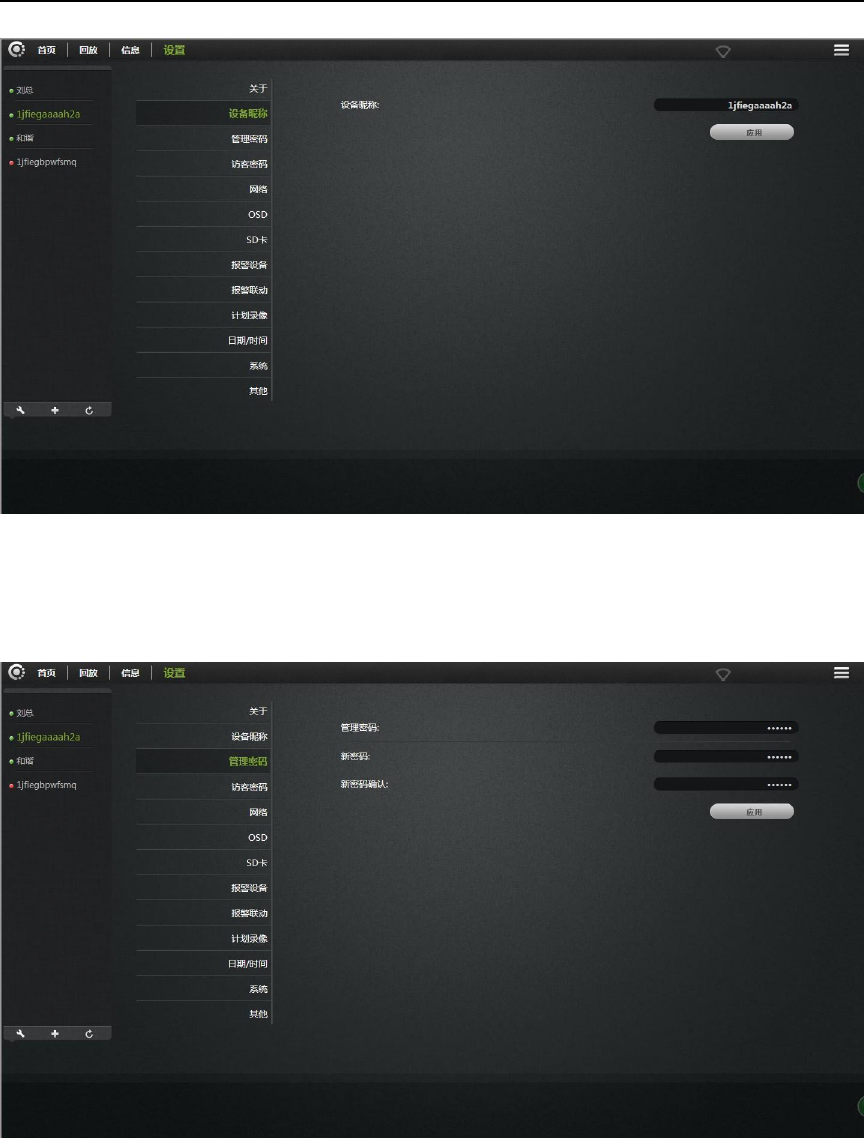

5.2 Nickname.................................................................................................................12
5.3 Admin password.................................................................................................... 18

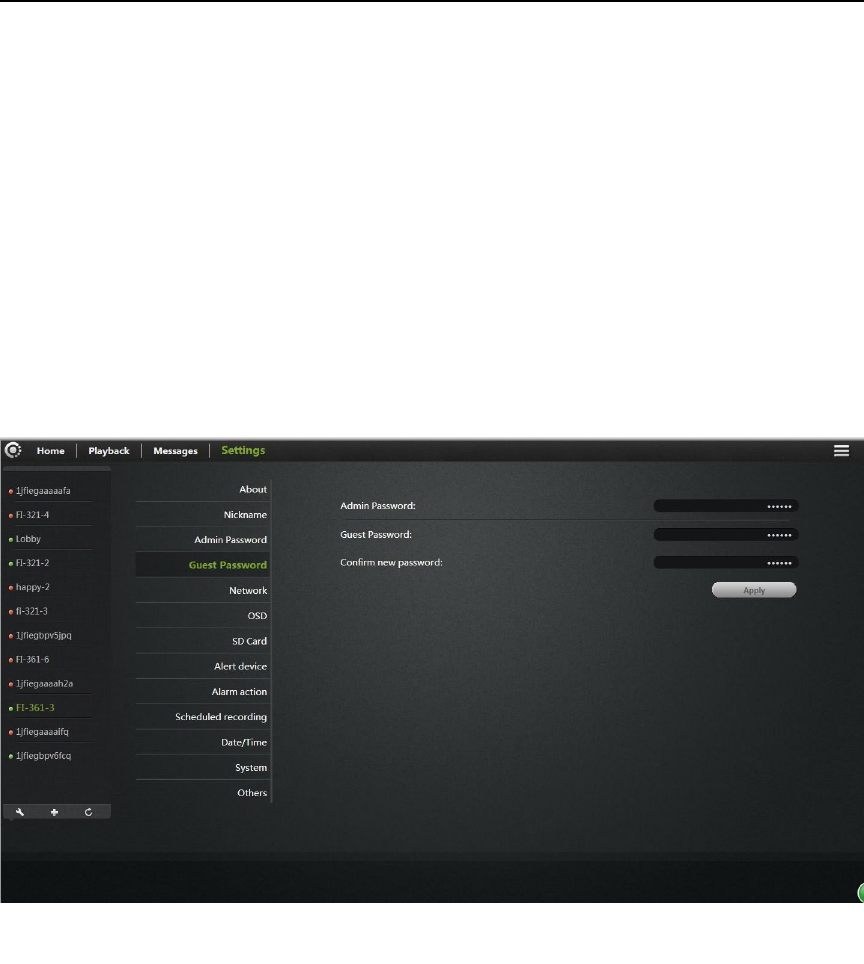

5.4 Guest password.....................................................................................................19
5.5 Network....................................................................................................................20

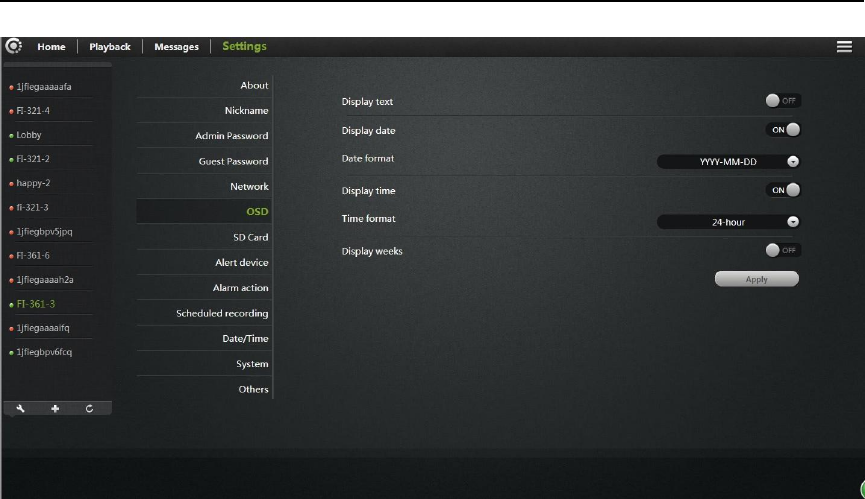

5.6 OSD.......................................................................................................................... 23

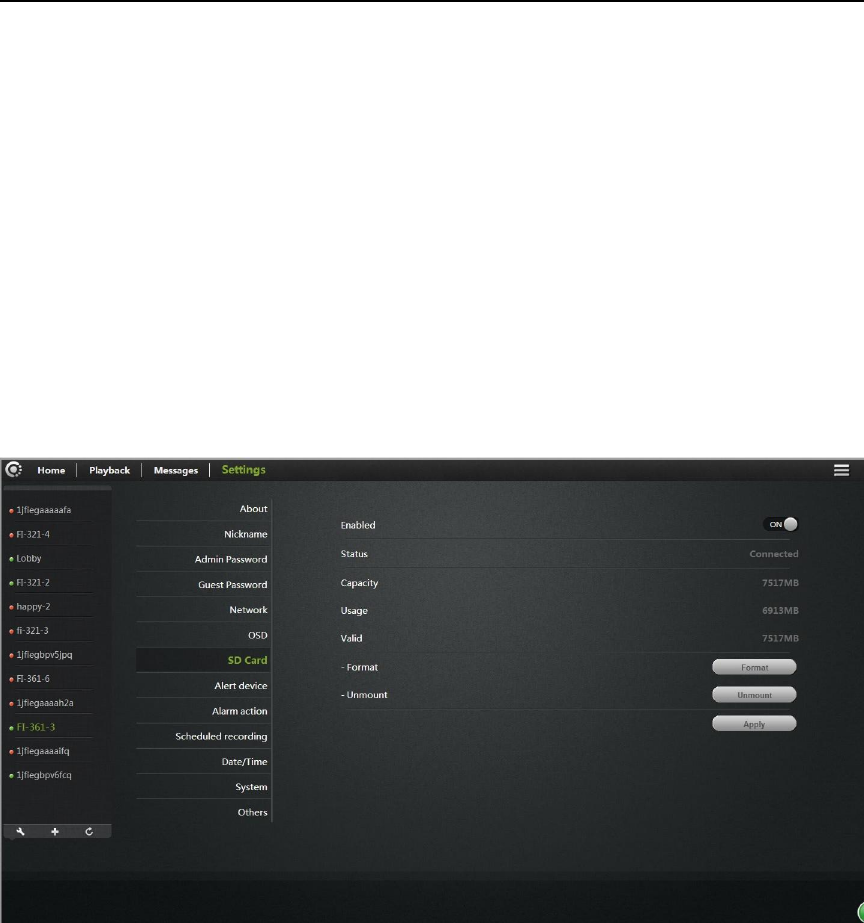

5.7 Micro SD card.........................................................................................................18
5.8 Camera alarm settings.........................................................................................19

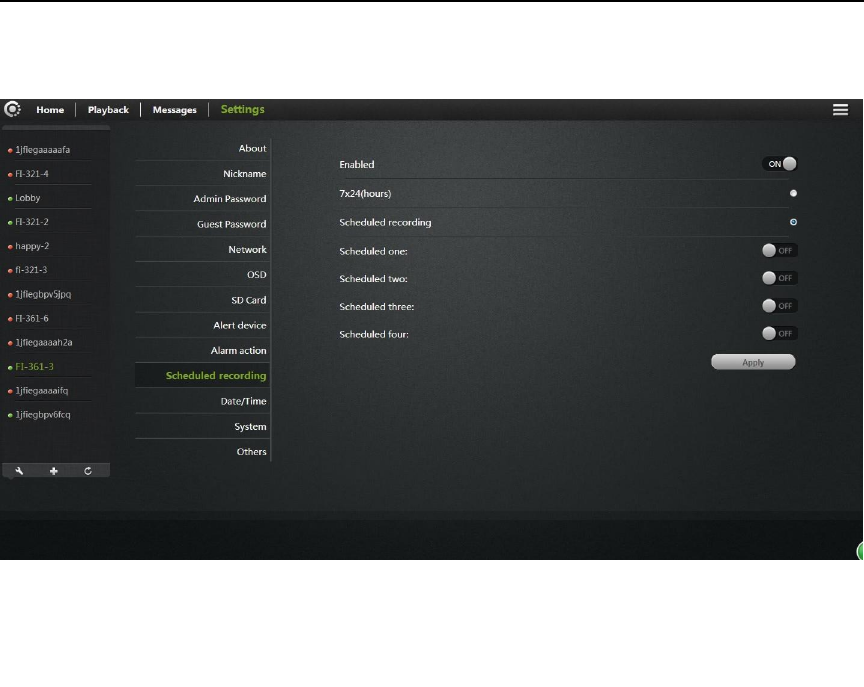

5.9 Scedule recording................................................................................................. 20

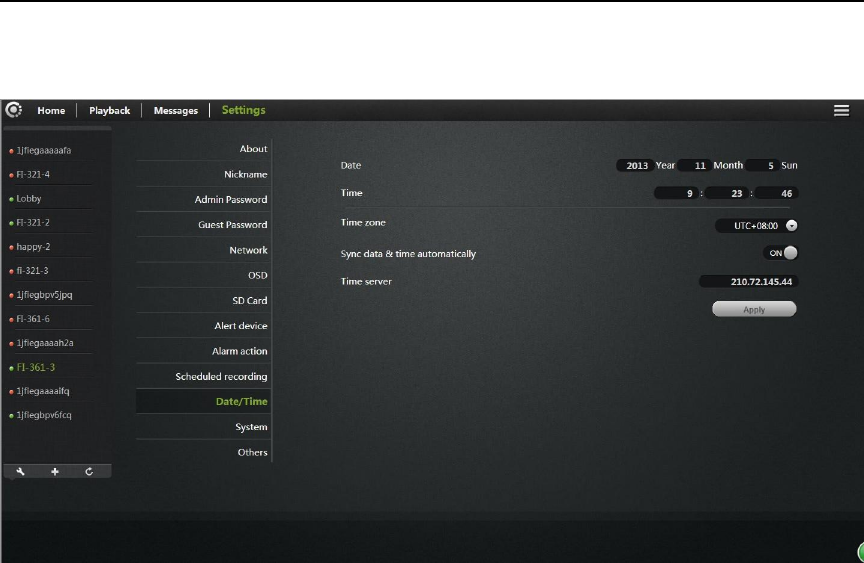

5.10 Date/Time..............................................................................................................21

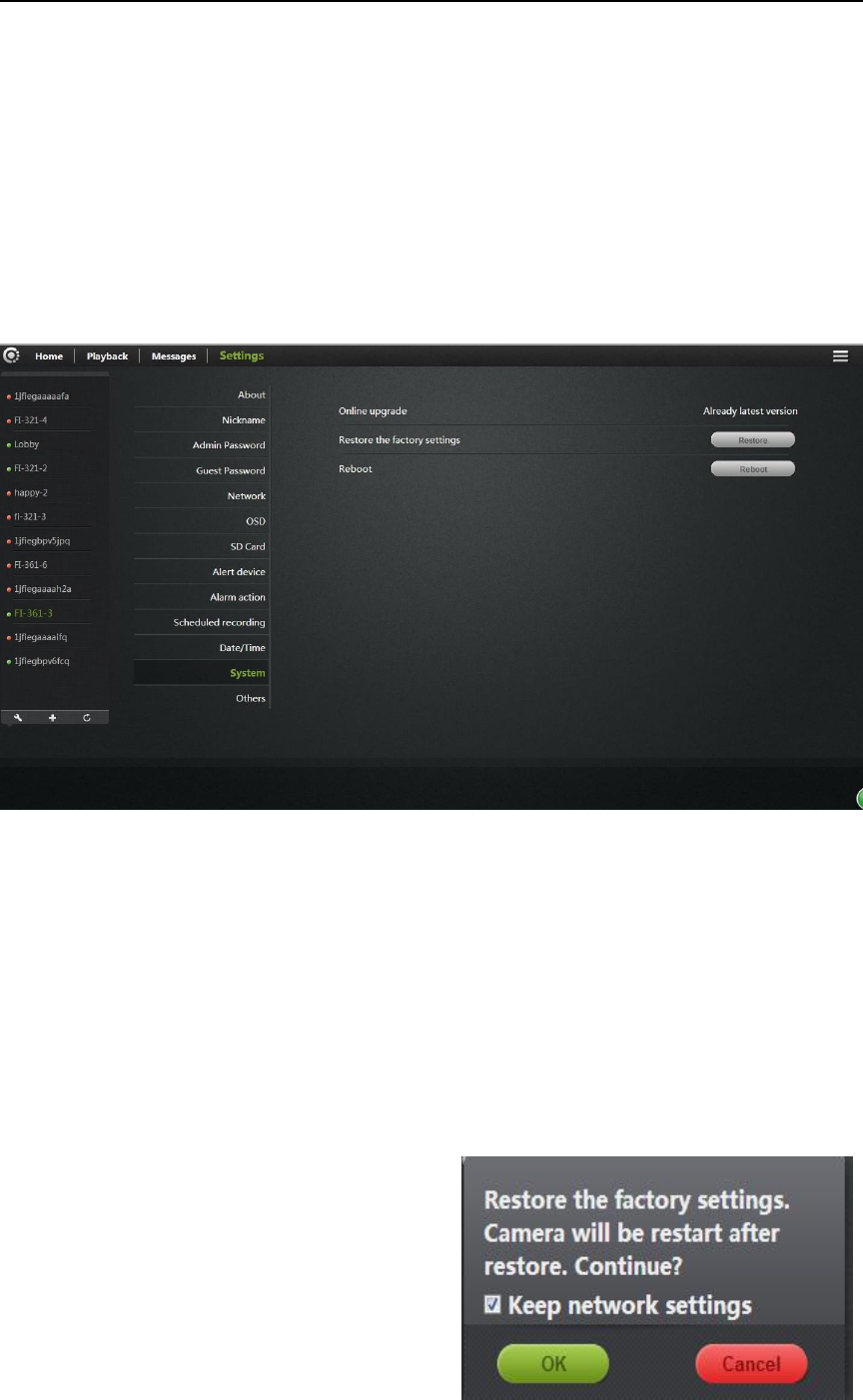

5.11 System...................................................................................................................21

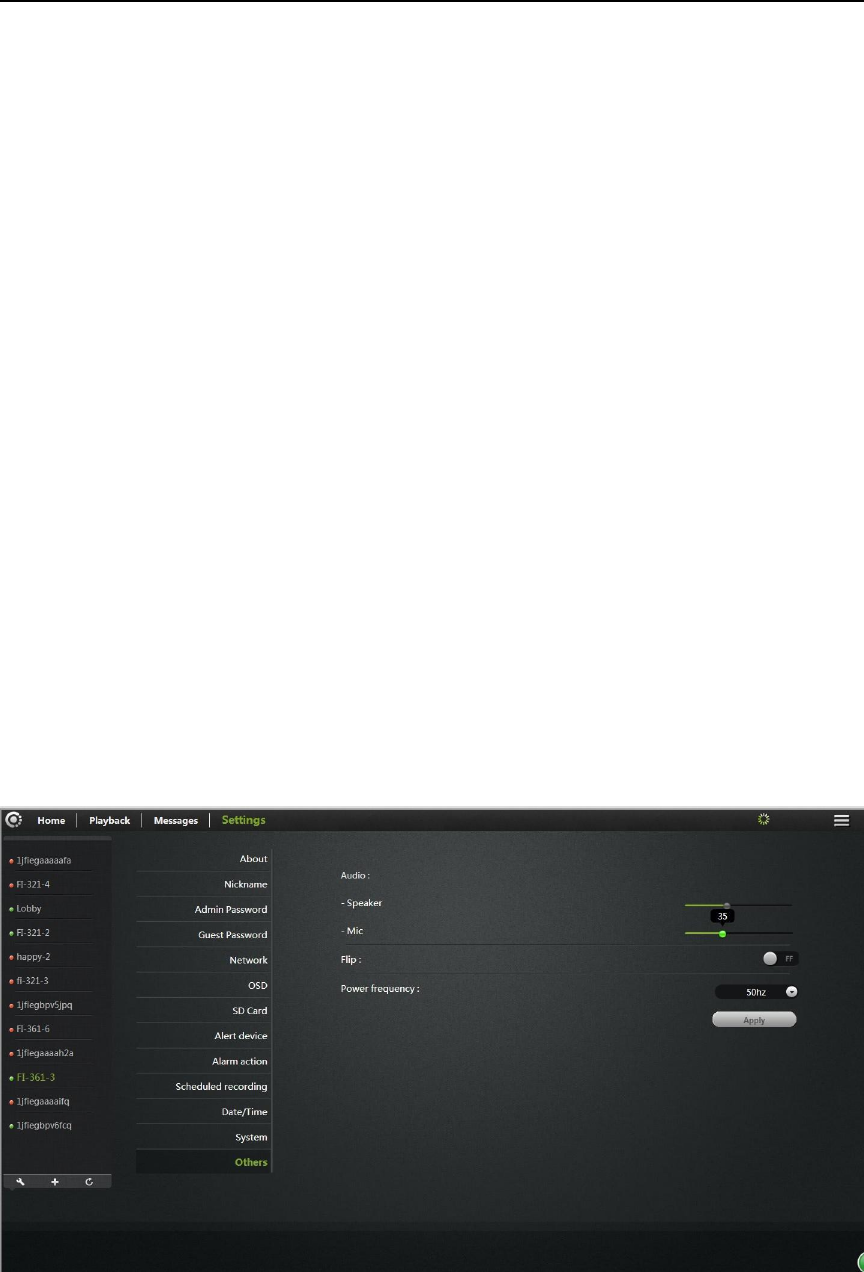

5.12 Other...................................................................................................................... 22
6. Problem solutions.............................................................................................................23
7. Wireless basis...................................................................................................................26
8. Wireless security.............................................................................................................. 29
..................................15
...
Cloud ip camera web client user manual
1
812 USER MANUA
1. Introduction
Thanks for buying our products. Cloud IP camera has a variety of functions,
which dedicates to the office and home solutions. Unlike traditional IP Camera,
cloud camera uses P2P technology, plug and play (no need to do port forwarding,
DNS, or IP address setting). By using WIFI remote monitoring ， Cloud
Camera realizes real-time control at any where and any time. 720P HD makes
image clear and smooth. Cloud IP camera also has motion detection function,
making it cost-effective for home and public places security.
This manual is only for reference, any update please open www.mipcm.com
to download newest manual version.
2. Installation
2.1. Camera installation and Login
Step 1: Connect power and network
Please refer to "Quick Installation Guide” for installation
Step two: Login
1: Open www.mipcm.com on browser, and put in camera ID and password (each
IPCAM have a unique ID number and password).
Cloud ip camera web client user manual
2
812 USER MANUA
Note: To protect your privacy, please change the initial password after first time
login.
Note: The user can click on the login screen of the "Register" button to register a
user account, login to add / manage multiple cameras.
2: On the video viewing screen.
Language Registeratio
n
Enter the ID number
or registered account
Password Login
ID login page
Download
Cloud ip camera web client user manual
3
812 USER MANUA
3: Install the plug-in:
Note: If the image blurs when you watch, probably run the focal during
transportations or human factors of the camera lens, the focal length of the lens
caused by out of focus, the user can put the camera on the 3 meters for
Registered account
login page
Play
Install video plug
Account
settings
Real-time viedo
Live view
shoot
Ima
g
e
p
la
y
back shortcuts
Cloud ip camera web client user manual
4
812 USER MANUA
reference, swing the camera lens back and forth a few times till the image in best
performance.
2.2. Wireless Installation Considerations
Wireless Camera promises you in the wireless network coverage area to use
wireless connection to access the network. However, the wireless signals need
to pass through walls, ceilings and other objects, thickness and location of limits
Wi-Fi range. The network ranges depending on your room or office types of
materials and radio frequency noise. Please follow these basic guidelines to
maximize wireless range:
1. Make sure the walls, ceilings between routers and your IP Cameras have
as fewer as you can, - each wall or ceiling can weaken adapter 3-90 feet (1-
30 meters) of the wireless transmission range.
2. Please pay attention to the straight-line distance between the devices. 1.5
feet thick (0.5 meters) of the wall at a 45degree appears to be almost 3 feet
(1 meter) thick. When turning to the 2degree, the thickness of the wall will
reach 42 feet (14 meters). Put the machine straight through a wall or ceiling
(instead of at an angle) for better reception.
3. Building Materials make a difference. Metal door or aluminum studs may
weaken the wireless signal. The access points, wireless routers and other
Cloud ip camera web client user manual
5
networking devices where the signal passes through drywall or not open
doorways. Materials and objects such as glass, steel, metal, band insulator,
water (fish tanks), mirrors, file cabinets, brick, and concrete will degrade
your wireless signal.
4. Keep your product away from the electronic devices that generate RF noise
and appliances at least 3-6 feet or 1-2 meters from the outside position.
5. If you are using 2.4GHz cordless phones or other radio transmitting source
devices (such as microwave ovens), your wireless connection may degrade
dramatically or drop completely. Make sure your 2.4GHz phone base is as far
away from wireless devices. Even if the phone is not in use, the base will still
transmit signals.
3. Homepage
3.1 Add Camera Wizard
Cloud ip camera web client user manual
6
After registered users login, the user can add, delete and manage multiple cloud
cameras.
812 USER MANUA
1. Add online
cameras
2. Add Camera ID
Cloud ip camera web client user manual
7
812 USER MANUA
3. Enter Cloud IP
Cam password and
click add device.
4. Enter Cloud IP
Cam password and
click revise button.
Cloud ip camera web client user manual
8
812 USER MANUA
Attention: 1. the 4th step is based on the Cam’s initial password, if the initial
password is not “admin”, this step can be cancelled.
5. After choosing Wi-Fi,
enter the password and
click apply.
6. Add IP Cam
Successfully.
Cloud ip camera web client user manual
9
812 USER MANUA
2. The 5th step, after choosing Wi-Fi and enter password, when applying,
please check the STATE1 ( ) light flashing status. Before pulling the cable
please make sure the STATE1 ( ) flash 3 times for every 3 seconds.
3.2 Camera status
1. You can see the online status of every camera you added, which can be
divided into 3 statuses.
•Green color indicates that your camera is online.
•Yellow color means the camera online; however,
password has been changed. You need to
enter the new password to access the camera.
•Red indicates the camera is offline and not able to
access remotely.
If the camera is offline, please try the following methods:
• Make sure the camera's network connection is normal.
• Try to restart your network router.
• Please check the camera's cable connections to ensure they are connected.
• Make sure the camera STATE2 ( )the green light flashes every 3 times
every 3 seconds.
Cloud ip camera web client user manual
10
If you still can not access your camera, please restart the camera or press the
RESET shortly backing to the factory settings.
812 USER MANUA
2. : Add or delete online cameras.
3. : Show or hide the status bar.
3.3 Account settings
1. Set video size:User can choose the resolution of the images.
2. Password: User can modify the admin account (The visitors login the account
by administrator password can modify the information of the account).
3. Guest Password: The visitors who login the account by guest password can
only watch and rotating screen, which can't modify the information of the
account.
4. Exit: Exit Video Interface.
Cloud ip camera web client user manual
11
812 USER MANUA

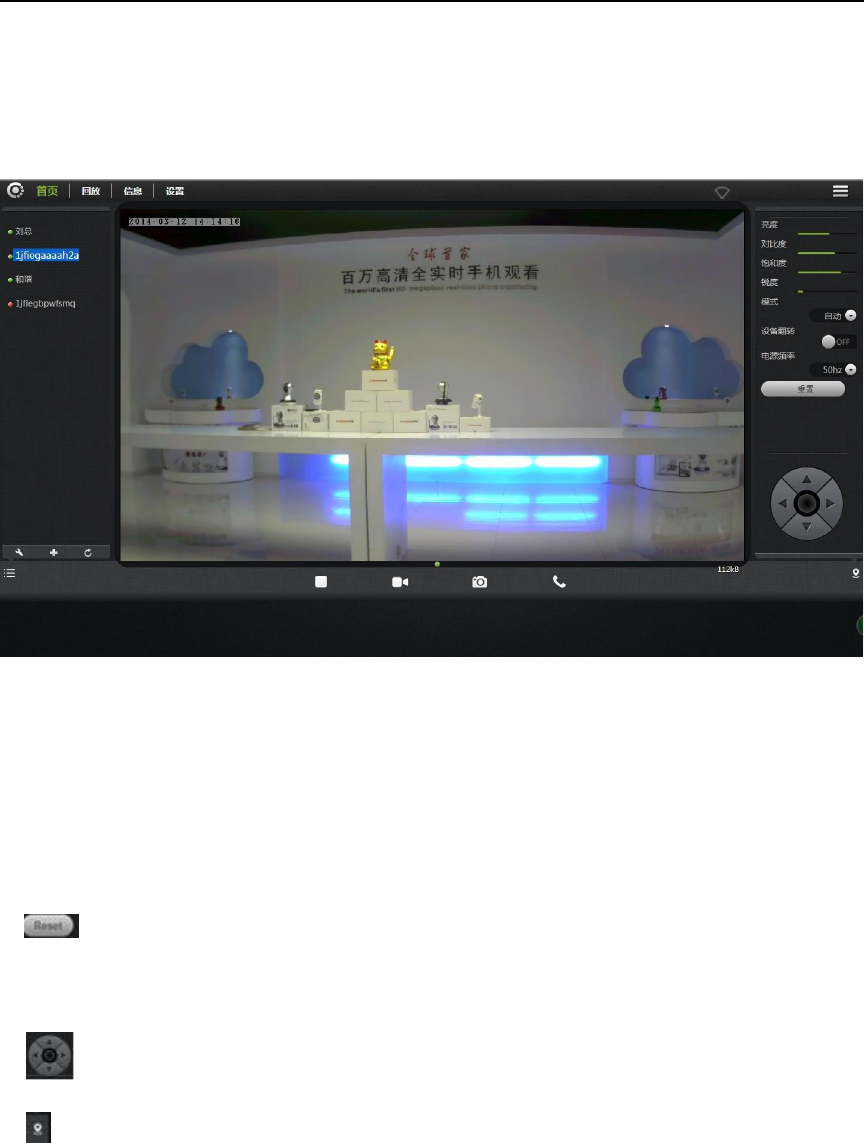

3.4 Image settings and PTZ control
1. Brightness / Contrast / Saturation / Sharpness: video images can adjust the
parameters of the corresponding
(Such as the right to adjust these parameters will result in poor image quality
display we may not recommend users adjust of these parameters).
2. : Click "Reset", you can restore brightness / contrast / saturation / sharpness
back to the factory settings.
3. : IP CAM can control PTZ up / down / left / right rotation.
4. : Display and hide the status bar icons.
5. Machine Turnover: When the machine is hosting, the picture is turnover, when
choosing Machine Turnover, the picture will turn back.
Cloud ip camera web client user manual
12
6. Supply frequency: Please choose the right Supply frequency based on the
local area. (China rated frequency is 50Hz).
812 USER MANUA

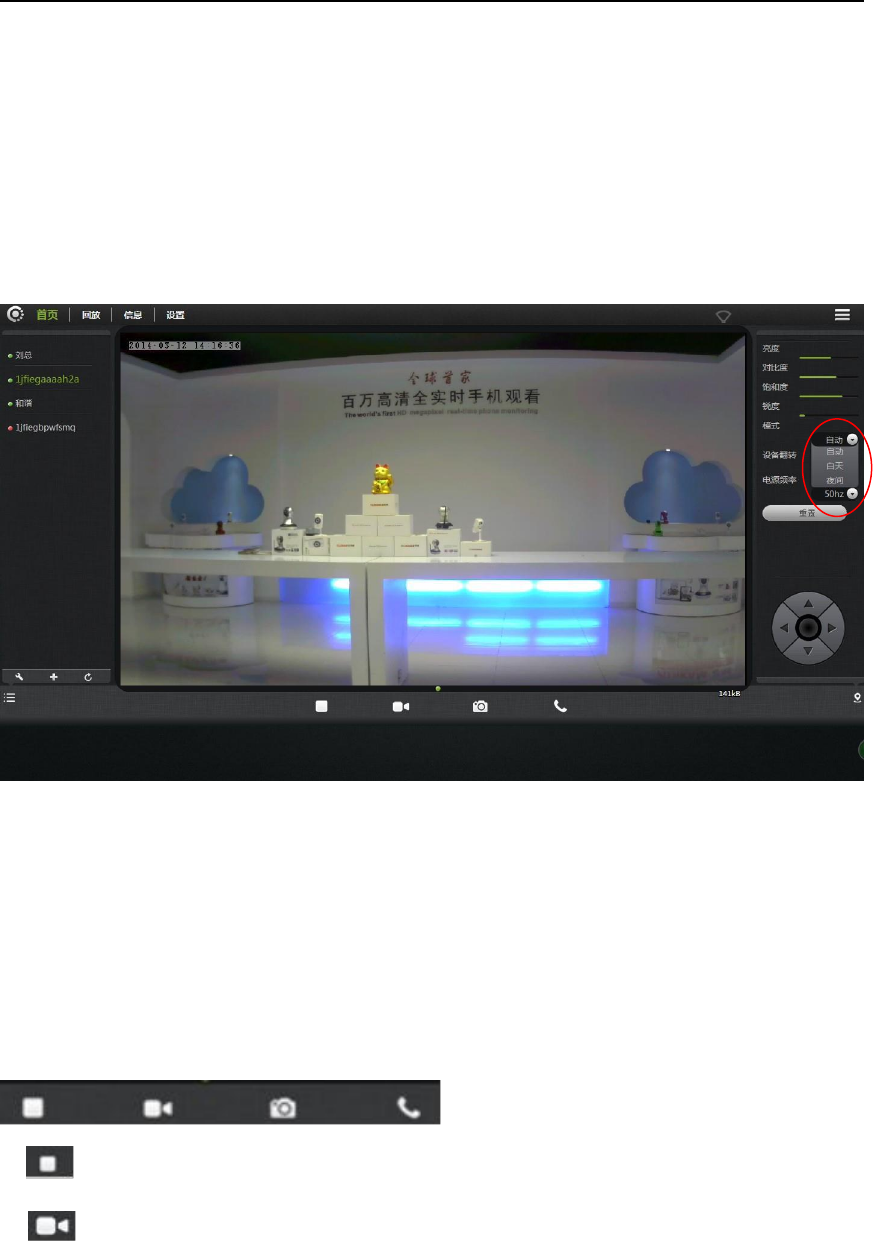

3.5 Mode selections
1. Automatically: Infrared lamp’s on and off is based on the environment around
the photosensitive sensor.
2. Daytime: IP camera is switch into daytime mode, infrared lamp is off.
3. Night: IP camera is switch into night mode, infrared lamp is on.
3.6 Button page
1. Video Play / Stop: Click buttons to play or stop the video.
2. Temporary manual recording button (the file recorded to micro SD card):
Click the buttons on the audio / video recording, recording icon indicates
Cloud ip camera web client user manual
13
.NOTE: This video button function applies only to temporary manually
recording.
812 USER MANUA
3.Snapshot button: Click the button for playing video capture pictures.
4. Voice intercom: Click buttons, camera and computer microphone /
speakers are turned on; the two sides’ voices can be heard.

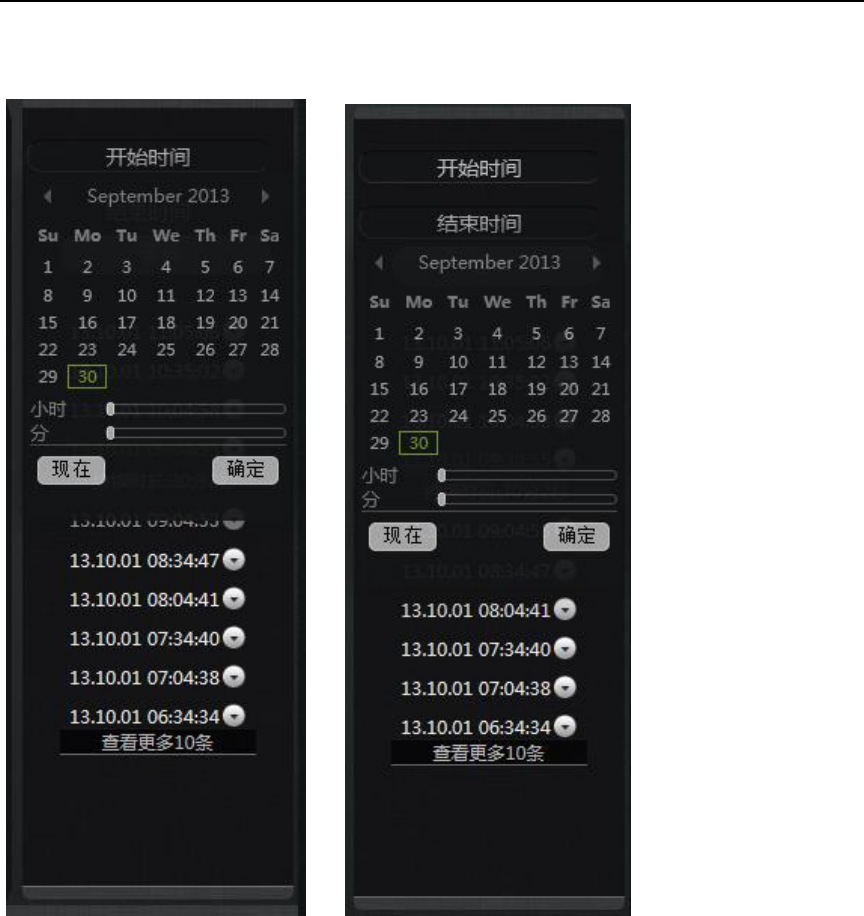

3.7. Playback
Micro SD card stores the video files.
1. Select the camera in the camera list.
2. In the image on the right can find more information. Video files and file details.
2. Video
files and
catalog
1. Camera
list
Play/Stop
Cloud ip camera web client user manual
14
812 USER MANUA
Cloud ip camera web client user manual
15
812 USER MANUA
4. Information
4.1 Alarm Information Checking
1. Information
checking
Cloud ip camera web client user manual
16
812 USER MANUA
5.Management
This section shows the configuration of the IP Cam.

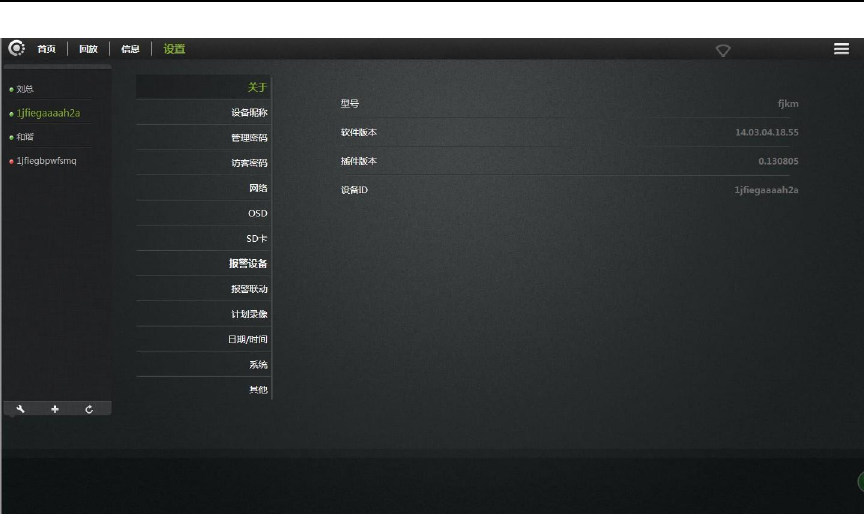

5.1 About
Basic information about the camera is displayed.
2. Open the
3. Save as
Cloud ip camera web client user manual
17
Model: The camera version number.
Software Version: Camera current software version number.
Plug-in version: watch current video cameras plug-in version number.
Device ID: camera ID.
812 USER MANUA
5.2 Nickname
Modify the current camera name.
Cloud ip camera web client user manual
18
Nickname: User can modify the name of the camera.
5.3 Admin Password
812 USER MANUA
Admin Password: Enter the current login password (default password is admin).
New Password: Enter the new admin password.
Cloud ip camera web client user manual
19
(To protect your privacy, please change the initial password after logging. Please
keep the user name and password.)
New Password confirmation: Re-enter the current camera modified login
password.
Click "Apply" to save your changes.
5.4 Guest Password
Admin Password: Enter the administrator password of the current camera.
Guest Password: Enter guest password (Default password is admin).
New Password Confirmation: Re-enter the new guest password again.
Click "Apply" to save your changes.
Cloud ip camera web client user manual
20
812 USER MANUA
5.5 Network
NIC: Ethernet (wired) or wireless networks.
1. Ethernet:
Effective when connected to a wired network.
Start Status: The current Ethernet situation is
enable or disable.
Mac Address: The current Ethernet Mac address.
Automatically obtain an IP address (cameras
default): When selected, the camera
Automatically get to the router connected to it is
automatically assigned to
Cloud ip camera web client user manual
21
Its associated IP address / gateway / subnet mask information.
812 USER MANUA
Obtain DNS Service Address automatically: After clicking, IP Cam will
automatically obtain DNS by router.
By using DNS server address underneath: After clicking, the camera
will manually access with DNS connected to the Cam (user may not need to set
it).
2. Wireless Network: (wireless network configuration)
Select the wireless network card
after.
Wireless Mode: Hot / Terminal
A.Hot spots: As a searching
device, the default mode is
wireless hot spot. By using PC
or iPhone can search the hot
spot, IP cam hot spot is realize
as ID number. For example:
ipc1jfiegaaaah2a.
By connected with hot spot can realize the WIFI P2P connections.
Choose
WI-FI
Cloud ip camera web client user manual
22
A. Terminal: As an searched devices, can realize network
Camera connected with WIFI router.
812 USER MANUA
Note:
After setting up WIFI
click Applications,, WIFI
Surface does not
immediately refresh the
page information, the
user wants to quit
"Network", and then enter, you can see no
Line connection
status display: After a
successful connection,
IP
Address and gateway
information will get to.
Meanwhile
STATE1 flashes
Choose
Client
Choose
router
Cloud ip camera web client user manual
23
green 3 times every 3 seconds.
812 USER MANUA
5.6 OSD
Menu settings
Cloud ip camera web client user manual
24
812 USER MANUA
Display text: After tickled, the upper left corner of the screen will display the
name of the camera. The user can modify the display name of the camera (Can
not have Chinese or symbols, only English and numbers).
Display date: After tickled, upper left corner of the screen will display the date.
Date format: The user can select Year / Month / Day or Month / Day / Year two
date formats.
Display time: After tickled, the screen will display the time.
Time format: User selectable for 24-hour or 12-hour format clock.
Cloud ip camera web client user manual
25
Display week: After tickled, the screen will display weeks.
Click “Apply” to save your changes.
5.7 SD card:
Display Camera SD card status.
812 USER MANUA
.
Format: The Micro SD (T-FLASH) card is formatted; the existing micro SD card
contents will be cleared.
Cloud ip camera web client user manual
26
Repair: If "Playback" cannot see video file or view the alarm information, can
repair the micro SD card. (Note: The repair function may cause part of the micro
SD card contents lost)
Uninstall: put micro SD card from the camera release
Click Apply to save your changes.
812 USER MANUA
5.8Camera alarm arming settings:
I / O Alarm input: When normally open, alarm input port connect with an external
alarm sensor (such as door sensor, infrared, smoke alarm detector, etc.) must be
a normally open alarm probes. When alarm occurs, the probe switch is closed;
network cameras generate alarm triggers, alarm calls according to user settings.
Adjust the
sensitivity
Apply
Cloud ip camera web client user manual
27
I / O Alarm output: When normally open, alarm output port corresponding
external alarm devices (such as alarm loudspeakers, sound and light alarm
equipment, etc.) must be a normally open type, when an event has occurred, the
user sets the Alarm I / O port output , camera alarm output switch is closed,
trigger external alarm devices.
Sensitivity: To set the sensitivity of motion detection, the greater the value the
higher the sensitivity, relatively the probability of false alarms generated will be
higher, generally we recommend user to choose the default values, the user also
can set up sensitivity based on their will.
I/O on/off
Take photo
Pre - recorded
time
Alarm on
Apply
Choose motion
Cloud ip camera web client user manual
28
5.9 Scheduled recording:
812 USER MANUA
In this option you can choose the 7* 24 hour video or scheduled recording.
Note: video files will be stored in SD card, when content is full, it will overridden.
Cloud ip camera web client user manual
29
5.10 Date / Time:
Time Server address: Users can manually enter in the online search to fill the
local country time zone server address (default time server address is China
time).
Sync data & time automatically: When Opening, the cam will automatically
synchronize the time displayed on the address bar time server address with
corresponding time.
Time zone: Users can choose the time zone of the camera.
812 USER MANUA
Date: When “time server automatically" turned off, users can manually modify the
cam’s date.
Cloud ip camera web client user manual
30
Time: When "time server automatically" turned off, users can manually modify
the camera’s time.
Click “Apply” to save your changes.
5.11System:
Online Upgrade: If you have the latest software, there will be tips <Update> click
update, the camera will be online software upgrade, after the upgrade is
successful will re-start the Camera.
812 USER MANUA
Restore the factory settings: The user
can click the "Restore" button, will pop up
on the right
Cloud ip camera web client user manual
31
Diagram tips. When the "Save network device" checked, the point is determined,
in addition to
Network setup parameters retained, the other parameters are restored to the
factory settings back;
When the "Save Network Device" is not checked, the point is determined, all
camera parameters
Few are restored to factory settings back, equivalent to click the RESET button.
Reboot: Click the reset button after the restart of the camera.
812 USER MANUA
5.12 Other:
Audio:
Cloud ip camera web client user manual
32
Speaker: Set the size of the camera's speaker sound, use the mouse to drag the
slider to set, the greater the value, the greater the sound from the speaker.
Mac: Sets the camera microphone sensitivity, drag the slider with the mouse
settings, the greater the value, the more sensitive the microphone receiving
sound external environment more, the computer listens to the voice of the larger
end, the corresponding listening to ambient noise is greater.
Flip: To turn upside down.
Power Frequency: 50Hz and 60Hz with two frequencies selected the user
machine installation area under power frequency to choose.
Click Apply to save your changes.
812 USER MANUA
6. Troubleshooting
This chapter provides solutions for questions or problems in camera installation
and operation.
If you encounter problems, please follow solutions below. (Below we take
Windows ® Vista ™ and XP as example. Different operation systems have the
similar operation.)
1). what is Remote Access? How to do that?
Cloud ip camera web client user manual
33
Remote access means that you can access a camera from a web on any PC
trough internet. So even if you are not at home, you can access a camera, view
live video and manage its settings.
How to do that? Please follow the Quick Installation Manual in the packing box.
If your camera does not work, please check whether the following things are
right.
....STATE2 ( ) on the camera flashes green 3 times every 3 seconds
....Internet connection is working properly
... The router's LAN & WAN connection are working properly.
... Router UPNP and DHCP are on
... Routers can get a public IP.
... Router has been upgraded to the latest firmware version
812 USER MANUA
... Restore your camera to factory settings by press “RESET” key one time on
camera bottom
... Disconnect router power supply and connect it again to restart
Try again to make your camera work after the above checking.
2). Why is network connection unstable?
Cloud ip camera web client user manual
34
Network cable may get a problem. You can PING the address of a existing
device in the same network. If network cable connects right and network connect
right, you should get a reply like bytes = 32 time = 2 ms.
Another possibility is that the network equipments like hubs and switches may
have problems. Ensure all network equipments connect and work well.
3). Why does the APP show camera not online?
This may be caused by firewall protection (such as MAC addresses filtering,
MAC address binding with the IP address). In this situation, please contact your
system administrator to check firewall. Firewall may need some configuration
changes. For more information, please refer to camera installation.
Ensure STATE1 ( ) or STATE2 ( ) flashes 3 times every 3 seconds.
Router default settings may have a problem. Ensure router DHCP server is on.
If there are multi-level routers, each should connect the other trough WAN (for
example, the 1rs router LAN connects the 2nd router LAN by a network cable). If
problem still exists, connect your camera with power, and then press “RESET”
key on the bottom to restore to factory settings.
4). Why are there vertical white lines in image?
CMOS sensor being exposed to strong light (such as direct exposure to sunlight
or halogen light) may cause this problem. CMOS sensor is behind the lens. It is
to measure the optical signal and converts it to a digital format, then the
Cloud ip camera web client user manual
35
computer will convert digital format to images to users. If the CMOS sensor has
been in high night for a long time remember not to move it to dark places for it
may damage the sensor.
5). Blur image. What to do?
When camera works in dark places, its image may get blur.
Or, your camera does not focus properly. Rotate the lens till you see a clear
image.
Web viewing on a computer may get a blur image. Because a computer has
much larger screen than a phone, and same resolution image will be amplified.
6). Image quality is poor, how to improve it?
Open www.mipcm.com and login. Find image quality configuration to adjust the
parameters to improve image quality (e.g.: brightness, contrast, color saturation).
7). When I view on a web, there is no image. Why?
If you are using Internet Explorer, please make sure ActiveX is on. You may
need to modify the browser's security settings to allow ActiveX plug-in installed.
If you are using Internet Explorer versions earlier than 7.0, you need to upgrade
your Web browser.
8). Troubleshooting, LED status indication:
Indicator
LED
status
Status Description
Troubleshooting
Cloud ip camera web client user manual
36
POWER
(power
indicator)
Red light
Normally on
Power supply is
normal
If light is not lit, check the power
supply is damaged or the camera
hardware failure, requiring repair.
STATE1/STA1
( )
(OFF
Wifi was disabled by
the user or wifi
hardware failure
1. Press RESET for 5 seconds to
restore the factory settings.
2.Make camera with wired Ethernet
connection, after landing, in the
"Manage" -> "Network" ,make WIFI
enabled;
3. Camera hardware failure, requiring
repair.
Red light
Normally on
WIFI router is trying
to connect
1. Verify WIFI router is good;
2. Try the camera placed from
somewhere near WIFI router and
then reconnect the power.
3. Restart WIFI routers and cameras;
4. Camera hardware failure, requiring
repair.
Red
Flashing 2
times
Is connected to the
router, is trying to
obtain an IP address
through DHCP
1. Please make sure your router's
DHCP server is enabled.
2. Try to restart the router.
3. Manually assign a WIFI router to
the same gateway IP address.
Red light
flashing 3
times
Ip address has been
obtained or the user
to configure a static ip
address, is trying to
communicate with the
gateway
1. Confirm the router is good.
2. Camera hardware failure, requiring
repair.
Green
light
Normally on
And gateway
communication is
normal, is trying to
communicate with the
internet
1. User can check whether the
network can access the Internet.
2. Check whether there are two
routers connected (first level router
network cable will need to receive a
Cloud ip camera web client user manual
37
second-class router's WAN port on
the job).
3. Try the camera placed from
somewhere near WIFI router and
then reconnect the power.
4. Check the router is turned on the
firewall to do MAC address filtering.
Green
flashing 2
times
Internet traffic is
normal, is trying to
communicate with the
cloud server
1. Restart the machine or the
machine on again to restart.
2. Try running the camera, based
on the press camera base
RESET button hole 6 seconds,
set the camera to restore the
factory tune.
Green
light
flashing 3
times
Normal
communication with
the cloud server, you
can access the
camera via cloud
services
Normal
Red \
green
lights
flashing
alternately
Wi-Fi for adhoc mode
(Wi-Fi did not
configure the router /
router connection
failed / DHCP fails to
enter this mode), you
can Wi-Fi terminal
(mobile phone / pad /
notebook computers)
connected to the
wireless network, and
then access the
camera through
192.168.188.254.
References Cloud Camera Quick
Installation Guide
Cloud ip camera web client user manual
38
STATE2/STA2
( )
(OFF
Ethernet is disabled
by the user or the
network cable is not
connected or
Ethernet card
hardware failure
1. Users press RESET 5 seconds to
restore the factory settings.
2. Check \ replace the camera and
connect the network cable between
the routers.
3. Camera hardware failure, requiring
repair.
Red light
Network cable is
connected, the IP
address is obtained
1. Please make sure your routers
DHCP server is enabled.
2. Try to restart the router.
3. Manually assign a letter to the
Ethernet IP address of the router the
same gateway.
Flashing
red
IP address has been
obtained or the user
to configure a static
IP address, is trying
to communicate with
the gateway
1. Confirm whether the router is good.
2. Camera hardware failure, requiring
repair.
Green
light
And gateway
communication is
normal, is trying to
communicate with the
internet
1. The user to check whether the
network can access the Internet.
2. Check whether there are two
routers connected (first level router
network cable will need to receive a
second-class router's WAN port on
the job).
3. Check the router is turned on the
firewall to do MAC address filtering.
Green
flashing 2
times
Internet traffic is
normal, is trying to
communicate with the
cloud server
1. Restart the machine or the
machine on again to restart.
2. Try running the machine,
based on the press machine
base RESET button hole 6
seconds, set the machine to
Cloud ip camera web client user manual
39
restore the factory tune.
Green
light
flashing 3
times
Normal
communication with
the cloud server, you
can access the
camera via cloud
services
Normal
Red \
green
lights
flashing
alternately
DHCP fails, use a
temporary IP address
192.168.187.254,
Users can access the
same computer and
webcam LAN, set
different segments IP
(192.168.187.xxx),
and then access the
camera through
192.168.187.254
References << >> Cloud Camera
Quick Installation Guide.
7.Wireless Infrastructure
IP CAMERA wireless products are based on industry standards for your home,
business or public access wireless networks to provide easy and compatible
high-speed wireless connection. IP CAMERA strictly follows the IEEE standard.
Wireless LAN (WLAN) is network that transmits and receives data trough
wireless signal not electrical wiring. WLAN is increasingly used in home, office,
Cloud ip camera web client user manual
40
airport, coffee shop, and other public places. WLAN needs no electrical wiring or
other base equipments. It helps people to work and communicate easier and
more efficient with its mobility.
Tips:
When you use a wireless network, please note the following:
Put your router or access point at center area
Put the router / access point at the highest point of the room, so the signal
can be distributed to whole room space. If you have a two-story house, you
need to install a repeater to extend signal coverage.
Eliminate interference
Make sure home appliances such as cordless telephones, microwaves, and
televisions are far from the router / access point, which helps reduce
interface.
Safety
Prevent your next door neighbors or others connecting to your wireless network.
Open WPA or WEP in the router to protect your wireless network. Please refer to
the product manual for more information on this feature.
Cloud ip camera web client user manual
41
8. Wireless Security
This section introduces different levels of security to protect your data from
invasion.
IPCAM provides the following security types:
• WPA-PSK (pre-shared key)
• WEP (Wired Equivalent Privacy)
What is WEP?
WEP is Wired Equivalent Privacy. It is based on the IEEE 802.11 standard
and uses the RC4 encryption algorithm. WEP provides security by data
encryption on your wireless network, so that to ensure secure transitions from
one wireless device to the other.
To access a WEP network, you must know the key. Key is a code string. When
using WEP, you must specify the level of encryption. Type of encryption
determines the key length.128-bit encryption requires a longer key than 64-bit
encryption. Key id defined by HEX (16 hex -0-9, AF) or ASCII (American
Standard Code for Information Interchange - alphanumeric characters) format.
Cloud ip camera web client user manual
42
ASCII format allows you to enter a string that is easy to remember. ASCII is
converted into HEX when used on the internet. Four keys can be defined for
easy changing if needed.
What is WPA?
WPA or Wi-Fi Protected Access is a Wi-Fi standard, designed to improve WEP
(Wired Equivalent Privacy) security features.
There are two major improvements over WEP:
It improved data encryption through the Temporal Key Integrity
Protocol (TKIP). TKIP messes the keys using a hash algorithm, and
ensures that the keys are not changed by adding integrity-checking
feature. Based on 802.11i, WPA2 replaces TKIP with Advanced
Encryption Standard (AES) instead of TKIP.
User authentication through EAP gets missed in WEP.WEP is easily to be
sniffed or stolen for it accesses wireless network trough computer MAC
address. EAP is built on a more secure public key encryption system to
ensure that only authorized network users can access the network.
WPA-PSK/WPA2-PSK uses a pass phrase or key to authenticate your wireless
connection. Key is an alpha-numeric password between 8 and 63 characters
long. Password can include symbols and spaces. This key must be the same
with your wireless router key or access point key.
Cloud ip camera web client user manual
43
After camera installation as the Quick Installation guides, you can use the
assigned IP address of the camera. Because you share the same network with
one or more computers trough a router, the assigned IP address is a local
address. Then you can view your camera in local network.
1
FCCStatement：
1.ThisdevicecomplieswithPart15oftheFCCRules.Operationissubjecttothe
followingtwoconditions:
(1)Thisdevicemaynotcauseharmfulinterference.
and(2)Thisdevicemustacceptanyinterferencereceived,includinginterferencethat
maycauseundesiredoperation.
2.Changesormodificationsnotexpresslyapprovedbythepartyresponsiblefor
compliancecouldvoidtheuser'sauthoritytooperatetheequipment.
NOTE:
ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassB
digitaldevice,pursuanttoPart15oftheFCCRules.Theselimitsaredesignedto
providereasonableprotectionagainstharmfulinterferenceinaresidential
installation.
Thisequipmentgeneratesusesandcanradiateradiofrequencyenergyand,ifnot
installedandusedinaccordancewiththeinstructions,maycauseharmful
interferencetoradiocommunications.However,thereisnoguaranteethat
interferencewillnotoccurinaparticularinstallation.Ifthisequipmentdoescause
harmfulinterferencetoradioortelevisionreception,whichcanbedeterminedby
turningtheequipmentoffandon,theuserisencouragedtotrytocorrectthe
interferencebyoneormoreofthefollowingmeasures:
Reorientorrelocatethereceivingantenna.
Increasetheseparationbetweentheequipmentandreceiver.
Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthe
receiverisconnected.
Consultthedealeroranexperiencedradio/TVtechnicianforhelp.
The distance between user and products should be no less than 20cm
