ShenZhen Fujikam Industry Development OIPC Cloud Camera User Manual
ShenZhen Fujikam Industry Development Co., Ltd Cloud Camera
User Manual
831 USER MANUAL

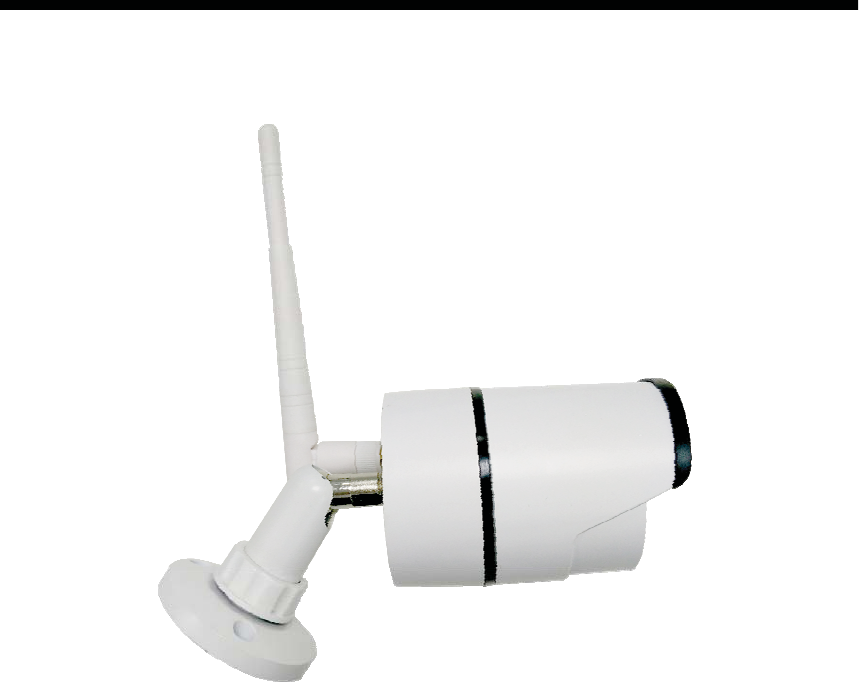

Cloud Camera
User Manual
MODEL: 831
Note: To protect your privacy, please change the initial password after login.
Please keep your user name and password safely.
831 USER MANUAL
Contents
1. Introduction..................................................................................................................... 1
2. Installation....................................................................................................................... 1
2.1. Camera installation and Login............................................................................. 1
2.2. Wireless Installation Considerations.................................................................... 3
3. Homepage ....................................................................................................................... 4
3.2 Camera status........................................................................................................ 8
3.3 Account settings.................................................................................................... 9
3.4 Image settings and PTZ control ............................................................................ 9
3.5 Mode selections .................................................................................................. 10
3.6 Button page ......................................................................................................... 11
4. Information ................................................................................................................... 13
4.1 Alarm Information Checking.............................................................................. 13
5. Management.................................................................................................................. 14
5.1 About................................................................................................................... 14
5.2 Nickname ............................................................................................................ 14
5.3 Admin Password ................................................................................................. 15
5.4 Guest Password................................................................................................... 16
5.5 Network............................................................................................................... 16

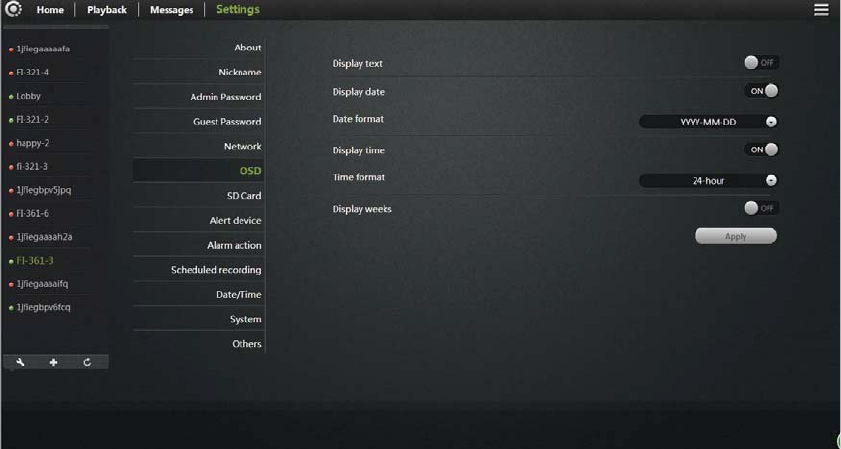

5.6 OSD..................................................................................................................... 19
5.7 SD card: .............................................................................................................. 20
5.8 Camera alarm arming settings: ........................................................................... 21
5.9 Scheduled recording: .......................................................................................... 22
5.10 Date / Time: ...................................................................................................... 23
5.11 System:.............................................................................................................. 24
5.12 Other: ................................................................................................................ 25
6. Troubleshooting ............................................................................................................ 25
7. Wireless Infrastructure.................................................................................................. 31
8. Wireless Security .......................................................................................................... 32
9. Specifications................................................................................................................ 34
831 USER MANUAL
1
1. Introduction
Thanks for buying our products. Cloud IP camera has a variety of functions,
which dedicates to the office and home solutions. Unlike traditional IP Camera,
cloud camera uses P2P technology, plug and play (no need to do port forwarding,
DNS, or IP address setting). By using WIFI/3G remote monitoring ˈCloud
Camera realizes real-time control at any where and any time. 720P HD makes
image clear and smooth. Cloud IP camera also has motion detection function,
making it cost-effective for home and public places security.
This manual is only for reference, any update please open www.mipcm.com
to download newest manual version.
2. Installation
2.1. Camera installation and Login
Step 1: Connect power and network
Please refer to "Quick Installation Guide” for installation
Step two: Login
1: Open www.mipcm.com on browser, and put in camera ID and password (each
IPCAM have a unique ID number and password).
Note: To protect your privacy, please change the initial password after first time
login.
Language Registeratio
Enter the ID number
or registered account
Password Login
Download
831 USER MANUAL
2
Note: The user can click on the login screen of the "Register" button to register a
user account, login to add / manage multiple cameras.
2: On the video viewing screen.
3: Install the plug-in:
ID login page
Registered account
login page
Play
Account
settings
Real-time viedo
Live view
shoot
Image playback shortcuts
831 USER MANUAL
3
Note: If the image blurs when you watch, probably run the focal during
transportations or human factors of the camera lens, the focal length of the lens
caused by out of focus, the user can put the camera on the 3 meters for
reference, swing the camera lens back and forth a few times till the image in best
performance.
2.2. Wireless Installation Considerations
Wireless Camera promises you in the wireless network coverage area to use
wireless connection to access the network. However, the wireless signals need
to pass through walls, ceilings and other objects, thickness and location of limits
Wi-Fi range. The network ranges depending on your room or office types of
materials and radio frequency noise. Please follow these basic guidelines to
maximize wireless range:
1. Make sure the walls, ceilings between routers and your IP Cameras have
as fewer as you can, - each wall or ceiling can weaken adapter 3-90 feet (1-
30 meters) of the wireless transmission range.
2. Please pay attention to the straight-line distance between the devices. 1.5
feet thick (0.5 meters) of the wall at a 45degree appears to be almost 3 feet
(1 meter) thick. When turning to the 2degree, the thickness of the wall will
reach 42 feet (14 meters). Put the machine straight through a wall or ceiling
(instead of at an angle) for better reception.
Install video plug
831 USER MANUAL
4
3. Building Materials make a difference. Metal door or aluminum studs may
weaken the wireless signal. The access points, wireless routers and other
networking devices where the signal passes through drywall or not open
doorways. Materials and objects such as glass, steel, metal, band insulator,
water (fish tanks), mirrors, file cabinets, brick, and concrete will degrade
your wireless signal.
4. Keep your product away from the electronic devices that generate RF noise
and appliances at least 3-6 feet or 1-2 meters from the outside position.
5. If you are using 2.4GHz cordless phones or other radio transmitting source
devices (such as microwave ovens), your wireless connection may degrade
dramatically or drop completely. Make sure your 2.4GHz phone base is as far
away from wireless devices. Even if the phone is not in use, the base will still
transmit signals.
3. Homepage
3.1 Add Camera Wizard
After registered users login, the user can add, delete and manage multiple cloud
cameras.
31 USER MANUAL
5
1. Add online
cameras
2. Add Camera ID
831 USER MANUAL
6
3. Enter Cloud IP
Cam password and
click add device.
4. Enter Cloud IP
Cam password and
click revise button.
831 USER MANUAL
7
Attention: 1. the 4th step is based on the Cam’s initial password, if the initial
password is not “admin”, this step can be cancelled.
2. The 5th step, after choosing Wi-Fi and enter password, when
applying, please check the STATE1 ( ) light flashing status. Before pulling the
cable please make sure the STATE1 ( ) flash 3 times for every 3 seconds.
5. After choosing Wi-Fi,
enter the password and
click apply.
6. Add IP Cam
Successfully.
831 USER MANUAL
8

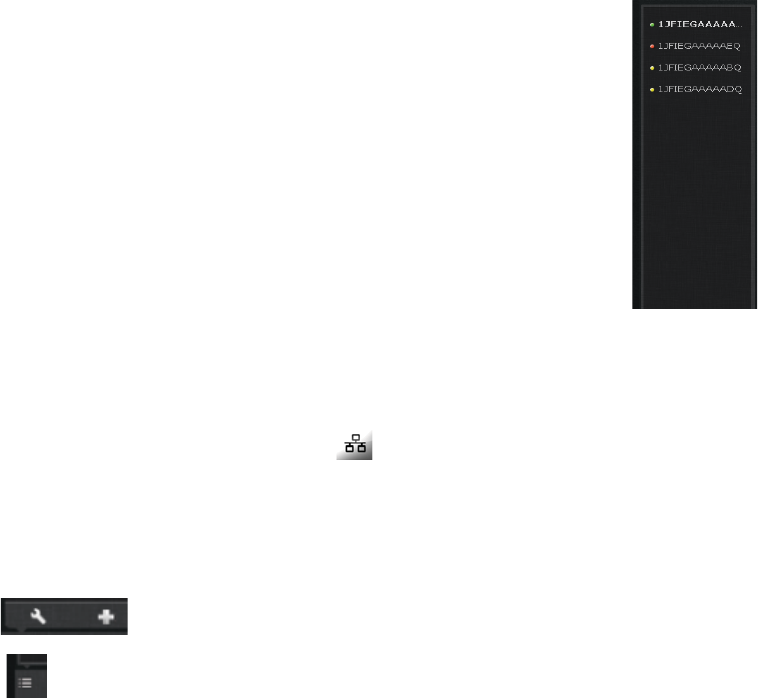

3.2 Camera status
1. You can see the online status of every camera you added, which can be
divided into 3 statuses.
• Green color indicates that your camera is online.
• Yellow color means the camera online; however,
password has been changed. You need to
enter the new password to access the camera.
• Red indicates the camera is offline and not able to
access remotely.
If the camera is offline, please try the following methods:
• Make sure the camera's network connection is normal.
• Try to restart your network router.
• Please check the camera's cable connections to ensure they are connected.
• Make sure the camera STATE2 ( ) the green light flashes every 3 times
every 3 seconds.
If you still can not access your camera, please restart the camera or press the
RESET shortly backing to the factory settings.
2. : Add or delete online cameras.
3. : Show or hide the status bar.
831 USER MANUAL
9
3.3 Account settings
1. Set video size: User can choose the resolution of the images.
2. Password: User can modify the admin account (The visitors login the account
by administrator password can modify the information of the account).
3. Guest Password: The visitors who login the account by guest password can
only watch and rotating screen, which can't modify the information of the
account.
4. Exit: Exit Video Interface.

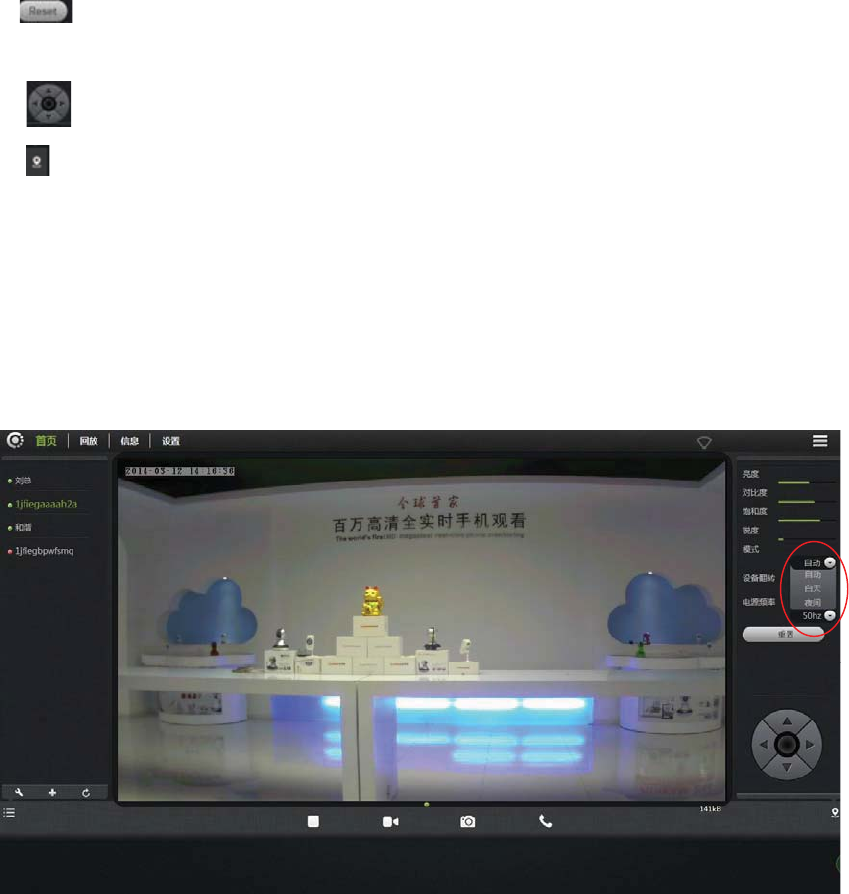

3.4 Image settings and PTZ control
831 USER MANUAL
10
1. Brightness / Contrast / Saturation / Sharpness: video images can adjust the
parameters of the corresponding
(Such as the right to adjust these parameters will result in poor image quality
display we may not recommend users adjust of these parameters).
2. : Click "Reset", you can restore brightness / contrast / saturation / sharpness
back to the factory settings.
3. : IP CAM can control PTZ up / down / left / right rotation.
4. : Display and hide the status bar icons.
5. Machine Turnover: When the machine is hosting, the picture is turnover, when
choosing Machine Turnover, the picture will turn back.

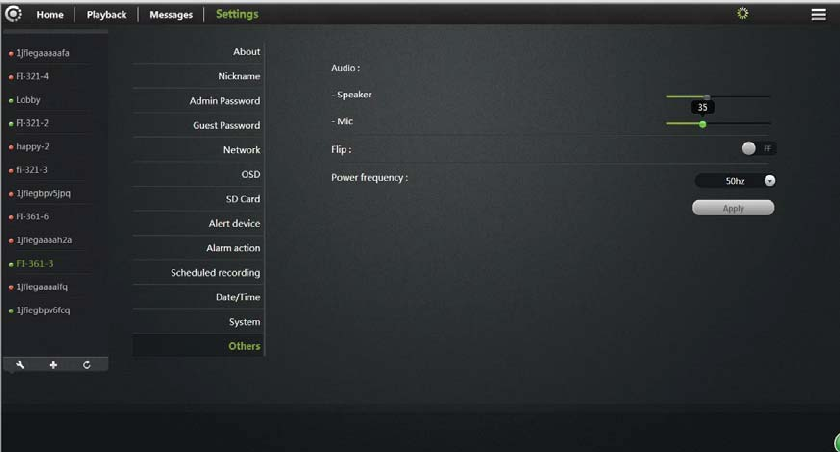

6. Supply frequency: Please choose the right Supply frequency based on the
local area. (China rated frequency is 50Hz).
3.5 Mode selections
1. Automatically: Infrared lamp’s on and off is based on the environment around
the photosensitive sensor.
2. Daytime: IP camera is switch into daytime mode, infrared lamp is off.
3. Night: IP camera is switch into night mode, infrared lamp is on.
831 USER MANUAL
11
3.6 Button page
1. Video Play / Stop: Click buttons to play or stop the video.
2. Temporary manual recording button (the file recorded to micro SD
card): Click the buttons on the audio / video recording, recording icon indicates
.NOTE: This video button function applies only to temporary manually
recording.
3.Snapshot button: Click the button for playing video capture pictures.
4. Voice intercom: Click buttons, camera and computer microphone /
speakers are turned on; the two sides’ voices can be heard.

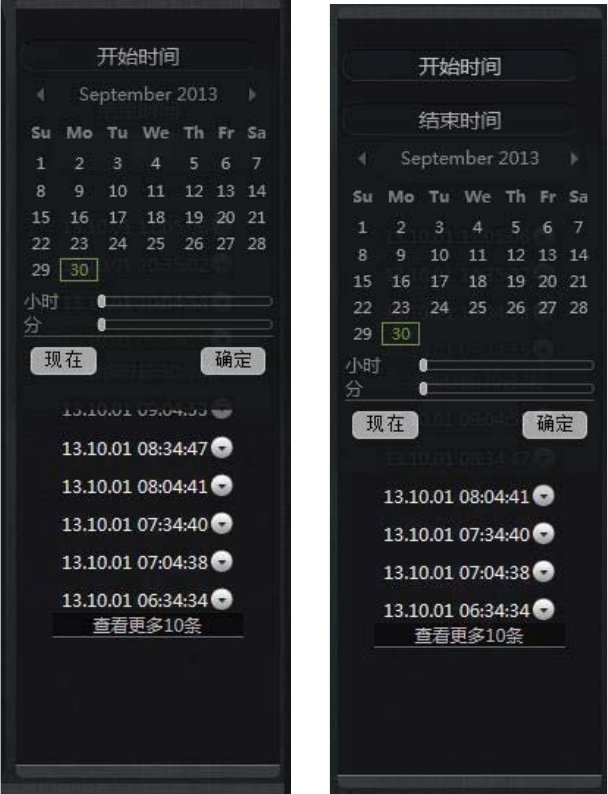

3.7. Playback
Micro SD card stores the video files.
1. Select the camera in the camera list.
2. In the image on the right can find more information. Video files and file details.
2. Video
files and
catalog
1. Camera
Play/Stop
831 USER MANUAL
12
831 USER MANUAL
13
4. Information
4.1 Alarm Information Checking
1. Information
checking
2. Open the
3. Save as
831 USER MANUAL
14
5.Management
This section shows the configuration of the IP Cam.
5.1 About
Basic information about the camera is displayed.
Model: The camera version number.
Software Version: Camera current software version number.
Plug-in version: watch current video cameras plug-in version number.
Device ID: camera ID.

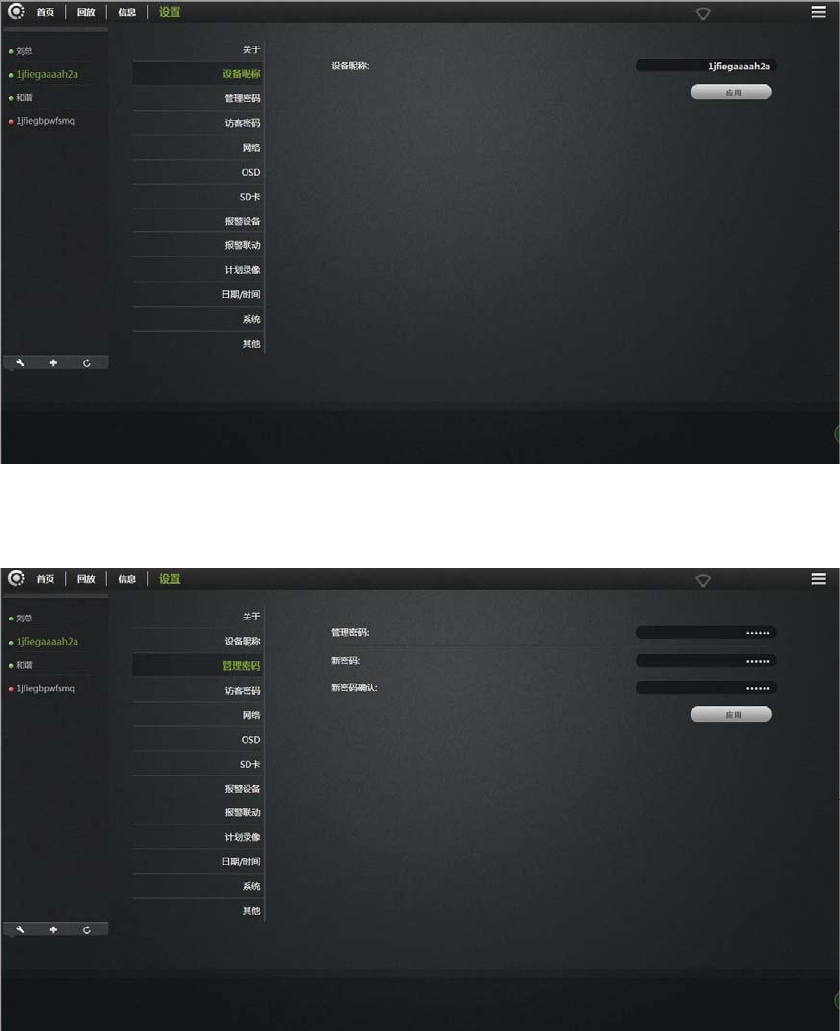

5.2 Nickname
Modify the current camera name.
831 USER MANUAL
15
Nickname: User can modify the name of the camera.
5.3 Admin Password
Admin Password: Enter the current login password (default password is admin).
New Password: Enter the new admin password.
(To protect your privacy, please change the initial password after logging. Please
keep the user name and password.)
New Password confirmation: Re-enter the current camera modified login
password.
831 USER MANUAL
16
Click "Apply" to save your changes.

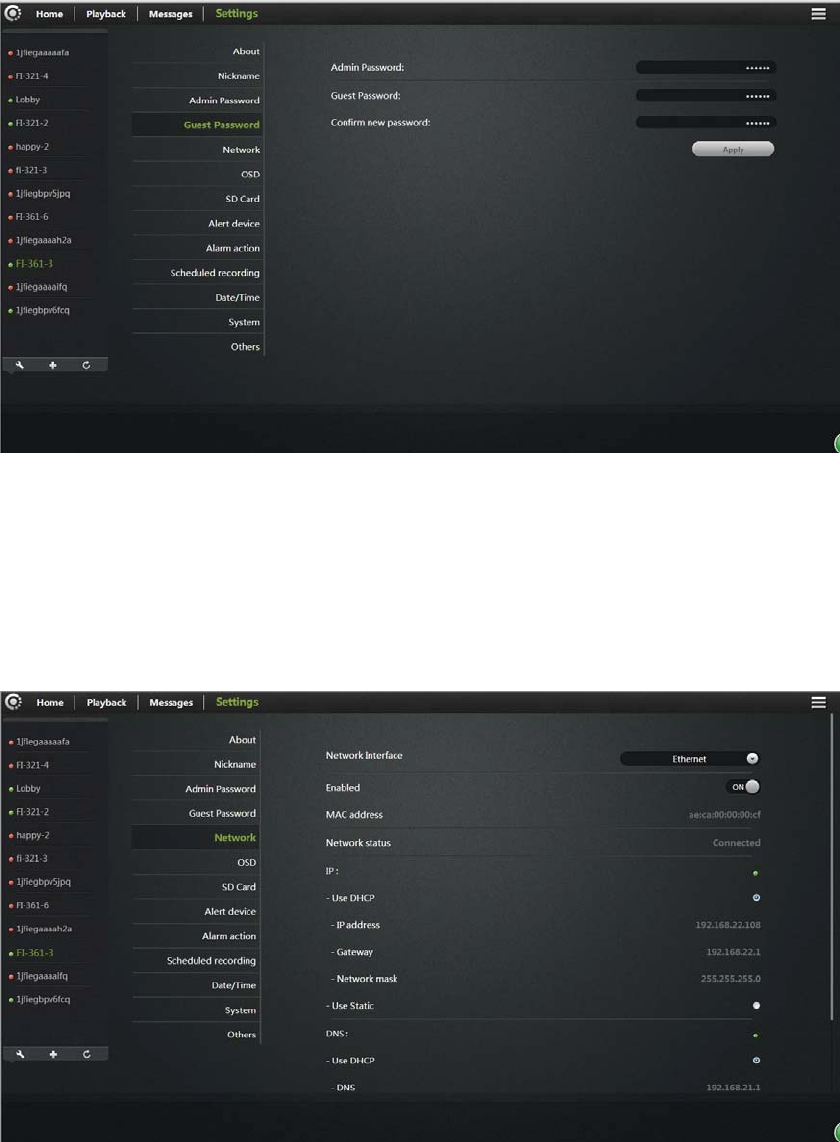

5.4 Guest Password
Admin Password: Enter the administrator password of the current camera.
Guest Password: Enter guest password (Default password is admin).
New Password Confirmation: Re-enter the new guest password again.
Click "Apply" to save your changes.
5.5 Network
831 USER MANUAL
17
NIC: Ethernet (wired) or wireless networks.
1. Ethernet:
Effective when connected to a wired network.
Start Status: The current Ethernet situation is
enable or disable.
Mac Address: The current Ethernet Mac address.
Automatically obtain an IP address (cameras
default): When selected, the camera
Automatically get to the router connected to it is
automatically assigned to
Its associated IP address / gateway / subnet mask
information.
Obtain DNS Service Address automatically:
After clicking, IP Cam will automatically obtain DNS by router.
By using DNS server address underneath: After clicking, the camera
will manually access with DNS connected to the Cam (user may not need to set
it).
2. Wireless Network: (wireless network configuration)
Select the wireless network card after.
Wireless Mode: Hot / Terminal
A.Hot spots: As a searching
device, the default mode is
wireless hot spot. By using PC
or iPhone can search the hot
spot, IP cam hot spot is realize
as ID number. For example:
ipc1jfiegaaaah2a.
Choose
WI-FI
831 USER MANUAL
18
By connected with hot spot can realize the WIFI P2P connections.
A. Terminal: As an searched devices, can realize network
Camera connected with WIFI router.
Note:
After setting up WIFI
click Applications,, WIFI
Surface does not
immediately refresh the
page information, the
user wants to quit
"Network", and then
enter, you can see no
Line connection
status display: After a
successful connection,
IP
Address and gateway
information will get to.
Meanwhile
STATE1 flashes
green 3 times every 3
seconds.
Choose
Client
Choose
router
831 USER MANUAL
19
5.6 OSD
Menu settings
Display text: After tickled, the upper left corner of the screen will display the
name of the camera. The user can modify the display name of the camera (Can
not have Chinese or symbols, only English and numbers).
Display date: After tickled, upper left corner of the screen will display the date.
Date format: The user can select Year / Month / Day or Month / Day / Year two
date formats.
831 USER MANUAL
20
Display time: After tickled, the screen will display the time.
Time format: User selectable for 24-hour or 12-hour format clock.
Display week: After tickled, the screen will display weeks.
Click “Apply” to save your changes.

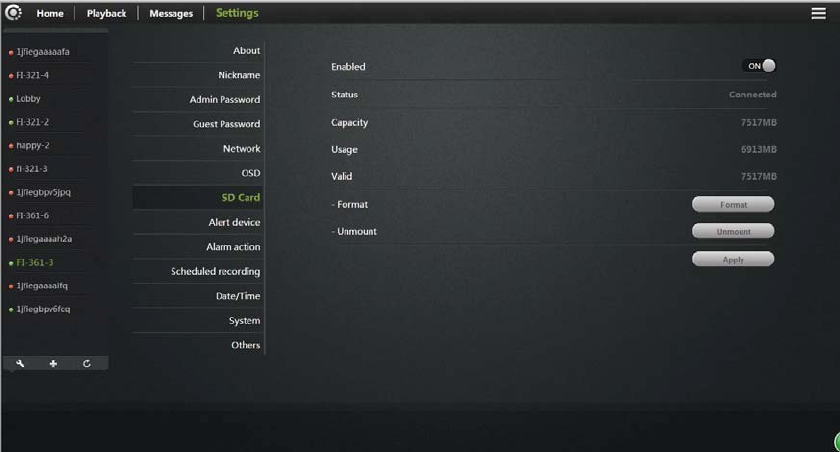

5.7 SD card:
Display Camera SD card status.
.
Format: The Micro SD (T-FLASH) card is formatted; the existing micro SD card
contents will be cleared.
Repair: If "Playback" cannot see video file or view the alarm information, can
repair the micro SD card. (Note: The repair function may cause part of the micro
SD card contents lost)
Uninstall: put micro SD card from the camera release
Click Apply to save your changes.
831 USER MANUAL
21
5.8 Camera alarm arming settings:
I / O Alarm input: When normally open, alarm input port connect with an
external alarm sensor (such as door sensor, infrared, smoke alarm detector, etc.)
must be a normally open alarm probes. When alarm occurs, the probe switch is
closed; network cameras generate alarm triggers, alarm calls according to user
settings.
I / O Alarm output: When normally open, alarm output port corresponding
external alarm devices (such as alarm loudspeakers, sound and light alarm
equipment, etc.) must be a normally open type, when an event has occurred, the
user sets the Alarm I / O port output , camera alarm output switch is closed,
trigger external alarm devices.
Sensitivity: To set the sensitivity of motion detection, the greater the value the
higher the sensitivity, relatively the probability of false alarms generated will be
higher, generally we recommend user to choose the default values, the user also
can set up sensitivity based on their will.
Adjust the
sensitivity
Apply
831 USER MANUAL
22
5.9 Scheduled recording:
In this option you can choose the 7* 24 hour video or scheduled recording.
Note: video files will be stored in SD card, when content is full, it will overridden.
I/O on/off
Take photo
Pre - recorded
time
Alarm on Apply
Choose motion
831 USER MANUAL
23

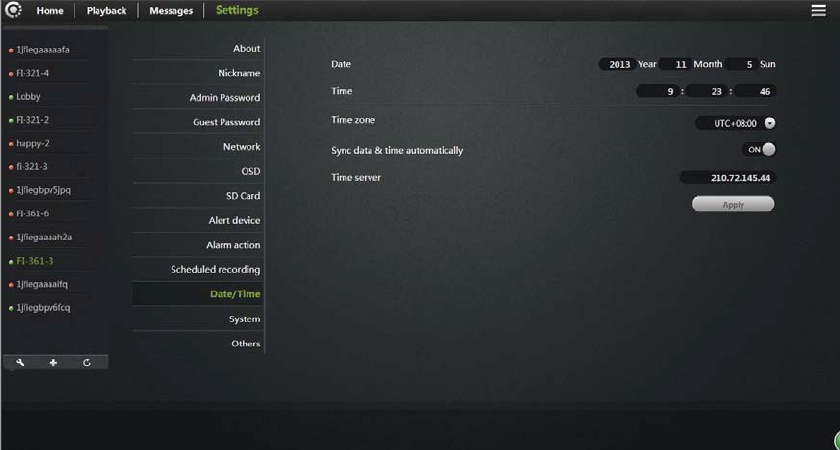

5.10 Date / Time:
Time Server address: Users can manually enter in the online search to fill the
local country time zone server address (default time server address is China
time).
Sync data & time automatically: When Opening, the cam will automatically
synchronize the time displayed on the address bar time server address with
corresponding time.
Time zone: Users can choose the time zone of the camera.
Date: When “time server automatically" turned off, users can manually modify the
cam’s date.
Time: When "time server automatically" turned off, users can manually modify
the camera’s time.
Click “Apply” to save your changes.
831 USER MANUAL
24

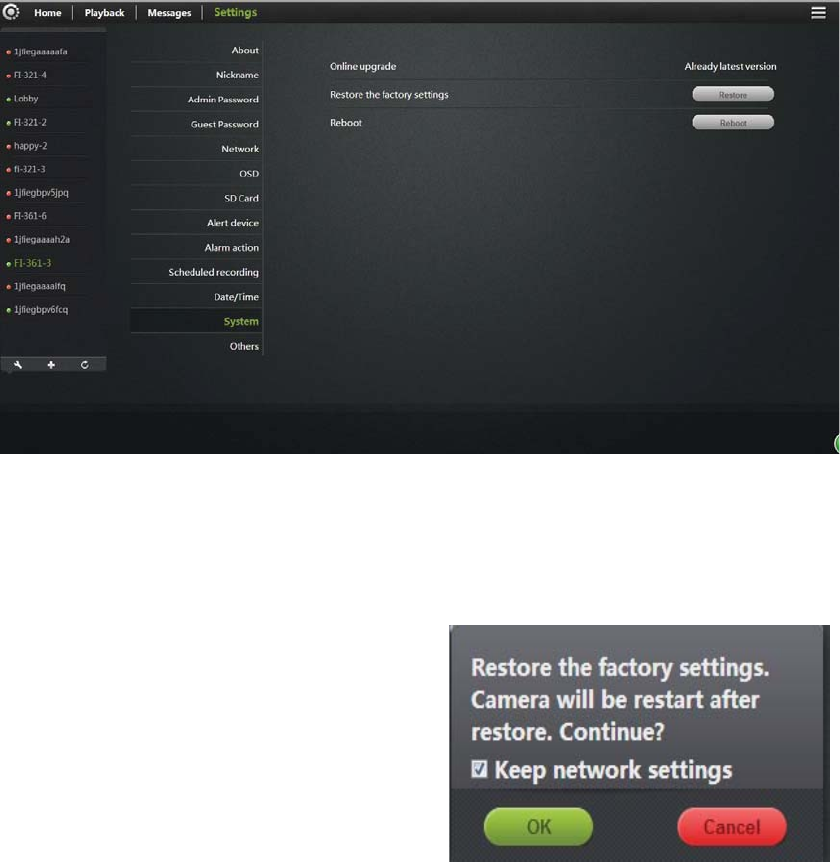

5.11 System:
Online Upgrade: If you have the latest software, there will be tips <Update> click
update, the camera will be online software upgrade, after the upgrade is
successful will re-start the Camera.
Restore the factory settings: The user
can click the "Restore" button, will pop up
on the right
Diagram tips. When the "Save network
device" checked, the point is determined,
in addition to
Network setup parameters retained, the
other parameters are restored to the factory settings back;
When the "Save Network Device" is not checked, the point is determined, all
camera parameters
Few are restored to factory settings back, equivalent to click the RESET button.
Reboot: Click the reset button after the restart of the camera.
831 USER MANUAL
25
5.12 Other:
Audio:
Speaker: Set the size of the camera's speaker sound, use the mouse to drag the
slider to set, the greater the value, the greater the sound from the speaker.
Mac: Sets the camera microphone sensitivity, drag the slider with the mouse
settings, the greater the value, the more sensitive the microphone receiving
sound external environment more, the computer listens to the voice of the larger
end, the corresponding listening to ambient noise is greater.
Flip: To turn upside down.
Power Frequency: 50Hz and 60Hz with two frequencies selected the user
machine installation area under power frequency to choose.
Click Apply to save your changes.
6. Troubleshooting
This chapter provides solutions for questions or problems in camera installation
and operation.
If you encounter problems, please follow solutions below. (Below we take
Windows ® Vista ™ and XP as example. Different operation systems have the
similar operation.)
831 USER MANUAL
26
1). what is Remote Access? How to do that?
Remote access means that you can access a camera from a web on any PC
trough internet. So even if you are not at home, you can access a camera, view
live video and manage its settings.
How to do that? Please follow the Quick Installation Manual in the packing box.
If your camera does not work, please check whether the following things are
right.
....STATE2 ( ) on the camera flashes green 3 times every 3 seconds
....Internet connection is working properly
... The router's LAN & WAN connection are working properly.
... Router UPNP and DHCP are on
... Routers can get a public IP.
... Router has been upgraded to the latest firmware version
... Restore your camera to factory settings by press “RESET” key one time on
camera bottom
... Disconnect router power supply and connect it again to restart
Try again to make your camera work after the above checking.
2). Why is network connection unstable?
Network cable may get a problem. You can PING the address of a existing
device in the same network. If network cable connects right and network connect
right, you should get a reply like bytes = 32 time = 2 ms.
Another possibility is that the network equipments like hubs and switches may
have problems. Ensure all network equipments connect and work well.
3). Why does the APP show camera not online?
This may be caused by firewall protection (such as MAC addresses filtering,
MAC address binding with the IP address). In this situation, please contact your
system administrator to check firewall. Firewall may need some configuration
changes. For more information, please refer to camera installation.
Ensure STATE1 ( ) or STATE2 ( ) flashes 3 times every 3 seconds.
Router default settings may have a problem. Ensure router DHCP server is on.
831 USER MANUAL
27
If there are multi-level routers, each should connect the other trough WAN (for
example, the 1rs router LAN connects the 2nd router LAN by a network cable). If
problem still exists, connect your camera with power, and then press “RESET”
key on the bottom to restore to factory settings.
4). Why are there vertical white lines in image?
CMOS sensor being exposed to strong light (such as direct exposure to sunlight
or halogen light) may cause this problem. CMOS sensor is behind the lens. It is
to measure the optical signal and converts it to a digital format, then the
computer will convert digital format to images to users. If the CMOS sensor has
been in high night for a long time remember not to move it to dark places for it
may damage the sensor.
5). Blur image. What to do?
When camera works in dark places, its image may get blur.
Or, your camera does not focus properly. Rotate the lens till you see a clear
image.
Web viewing on a computer may get a blur image. Because a computer has
much larger screen than a phone, and same resolution image will be amplified.
6). Image quality is poor, how to improve it?
Open www.mipcm.com and login. Find image quality configuration to adjust the
parameters to improve image quality (e.g.: brightness, contrast, color saturation).
7). When I view on a web, there is no image. Why?
If you are using Internet Explorer, please make sure ActiveX is on. You may
need to modify the browser's security settings to allow ActiveX plug-in installed.
If you are using Internet Explorer versions earlier than 7.0, you need to upgrade
your Web browser.
8). Troubleshooting, LED status indication:
Indicator LED
status
Status Description Troubleshooting
POWER
(power
Red light
Normally on
Power supply is
normal
If light is not lit, check the power
supply is damaged or the camera
831 USER MANUAL
28
indicator) hardware failure, requiring repair.
(OFF
Wifi was disabled by
the user or wifi
hardware failure
1. Press RESET for 5 seconds to
restore the factory settings.
2.Make camera with wired Ethernet
connection, after landing, in the
"Manage" -> "Network" ,make WIFI
enabled;
3. Camera hardware failure, requiring
repair.
Red light
Normally on
WIFI router is trying
to connect
1. Verify WIFI router is good;
2. Try the camera placed from
somewhere near WIFI router and
then reconnect the power.
3. Restart WIFI routers and cameras;
4. Camera hardware failure, requiring
repair.
Red
Flashing 2
times
Is connected to the
router, is trying to
obtain an IP address
through DHCP
1. Please make sure your router's
DHCP server is enabled.
2. Try to restart the router.
3. Manually assign a WIFI router to
the same gateway IP address.
Red light
flashing 3
times
Ip address has been
obtained or the user
to configure a static ip
address, is trying to
communicate with the
gateway
1. Confirm the router is good.
2. Camera hardware failure, requiring
repair.
STATE1/STA1
()
Green
light
Normally on
And gateway
communication is
normal, is trying to
communicate with the
internet
1. User can check whether the
network can access the Internet.
2. Check whether there are two
routers connected (first level router
network cable will need to receive a
second-class router's WAN port on
the job).
831 USER MANUAL
29
3. Try the camera placed from
somewhere near WIFI router and
then reconnect the power.
4. Check the router is turned on the
firewall to do MAC address filtering.
Green
flashing 2
times
Internet traffic is
normal, is trying to
communicate with the
cloud server
1. Restart the machine or the
machine on again to restart.
2. Try running the camera, based
on the press camera base
RESET button hole 6 seconds,
set the camera to restore the
factory tune.
Green
light
flashing 3
times
Normal
communication with
the cloud server, you
can access the
camera via cloud
services
Normal
Red \
green
lights
flashing
alternately
Wi-Fi for adhoc mode
(Wi-Fi did not
configure the router /
router connection
failed / DHCP fails to
enter this mode), you
can Wi-Fi terminal
(mobile phone / pad /
notebook computers)
connected to the
wireless network, and
then access the
camera through
192.168.188.254.
References Cloud Camera Quick
Installation Guide
831 USER MANUAL
30
(OFF
Ethernet is disabled
by the user or the
network cable is not
connected or
Ethernet card
hardware failure
1. Users press RESET 5 seconds to
restore the factory settings.
2. Check \ replace the camera and
connect the network cable between
the routers.
3. Camera hardware failure, requiring
repair.
Red light
Network cable is
connected, the IP
address is obtained
1. Please make sure your routers
DHCP server is enabled.
2. Try to restart the router.
3. Manually assign a letter to the
Ethernet IP address of the router the
same gateway.
Flashing
red
IP address has been
obtained or the user
to configure a static
IP address, is trying
to communicate with
the gateway
1. Confirm whether the router is good.
2. Camera hardware failure, requiring
repair.
Green
light
And gateway
communication is
normal, is trying to
communicate with the
internet
1. The user to check whether the
network can access the Internet.
2. Check whether there are two
routers connected (first level router
network cable will need to receive a
second-class router's WAN port on
the job).
3. Check the router is turned on the
firewall to do MAC address filtering.
STATE2/STA2
()
Green
flashing 2
times
Internet traffic is
normal, is trying to
communicate with the
cloud server
1. Restart the machine or the
machine on again to restart.
2. Try running the machine,
based on the press machine
base RESET button hole 6
seconds, set the machine to
restore the factory tune.
831 USER MANUAL
31
Green
light
flashing 3
times
Normal
communication with
the cloud server, you
can access the
camera via cloud
services
Normal
Red \
green
lights
flashing
alternately
DHCP fails, use a
temporary IP address
192.168.187.254,
Users can access the
same computer and
webcam LAN, set
different segments IP
(192.168.187.xxx),
and then access the
camera through
192.168.187.254
References << >> Cloud Camera
Quick Installation Guide.
7.Wireless Infrastructure
IP CAMERA wireless products are based on industry standards for your home,
business or public access wireless networks to provide easy and compatible
high-speed wireless connection. IP CAMERA strictly follows the IEEE standard.
Wireless LAN (WLAN) is network that transmits and receives data trough
wireless signal not electrical wiring. WLAN is increasingly used in home, office,
airport, coffee shop, and other public places. WLAN needs no electrical wiring or
other base equipments. It helps people to work and communicate easier and
more efficient with its mobility.
Tips:
When you use a wireless network, please note the following:
Put your router or access point at center area
831 USER MANUAL
32
Put the router / access point at the highest point of the room, so the signal
can be distributed to whole room space. If you have a two-story house, you
need to install a repeater to extend signal coverage.
Eliminate interference
Make sure home appliances such as cordless telephones, microwaves, and
televisions are far from the router / access point, which helps reduce
interface.
Safety
Prevent your next door neighbors or others connecting to your wireless network.
Open WPA or WEP in the router to protect your wireless network. Please refer to
the product manual for more information on this feature.
8. Wireless Security
This section introduces different levels of security to protect your data from
invasion.
IPCAM provides the following security types:
• WPA-PSK (pre-shared key)
• WEP (Wired Equivalent Privacy)
What is WEP?
WEP is Wired Equivalent Privacy. It is based on the IEEE 802.11 standard
and uses the RC4 encryption algorithm. WEP provides security by data
encryption on your wireless network, so that to ensure secure transitions from
one wireless device to the other.
831 USER MANUAL
33
To access a WEP network, you must know the key. Key is a code string. When
using WEP, you must specify the level of encryption. Type of encryption
determines the key length.128-bit encryption requires a longer key than 64-bit
encryption. Key id defined by HEX (16 hex -0-9, AF) or ASCII (American
Standard Code for Information Interchange - alphanumeric characters) format.
ASCII format allows you to enter a string that is easy to remember. ASCII is
converted into HEX when used on the internet. Four keys can be defined for
easy changing if needed.
What is WPA?
WPA or Wi-Fi Protected Access is a Wi-Fi standard, designed to improve WEP
(Wired Equivalent Privacy) security features.
There are two major improvements over WEP:
It improved data encryption through the Temporal Key Integrity
Protocol (TKIP). TKIP messes the keys using a hash algorithm, and
ensures that the keys are not changed by adding integrity-checking
feature. Based on 802.11i, WPA2 replaces TKIP with Advanced
Encryption Standard (AES) instead of TKIP.
User authentication through EAP gets missed in WEP.WEP is easily to be
sniffed or stolen for it accesses wireless network trough computer MAC
address. EAP is built on a more secure public key encryption system to
ensure that only authorized network users can access the network.
WPA-PSK/WPA2-PSK uses a pass phrase or key to authenticate your wireless
connection. Key is an alpha-numeric password between 8 and 63 characters
long. Password can include symbols and spaces. This key must be the same
with your wireless router key or access point key.
After camera installation as the Quick Installation guides, you can use the
assigned IP address of the camera. Because you share the same network with
one or more computers trough a router, the assigned IP address is a local
address. Then you can view your camera in local network.
831 USER MANUAL
34
9.Specifications
Image sensor 1/4 "color CMOS sensor
Display resolution 1280 * 720 (720P)
Lens CS 6mm
Image sensor
Minimum
illumination
0.5Lux˄IR LED OFF˅
Input/output / Audio
Audio compression AAC(Advanced Audio Coding)
Video compression H.264
Lighting frequency 50Hz, 60Hz
Image frame rate 25fps
Image resolution HD720P(1280*720),
640*360 ,320*180,160*90
Image adjustment Brightness, Contrast ratio, Color
Saturation, Sharpness
White balance, BLC Automatically
Night vision 27 infrared LEDs, IR distance: 30
meters
Video
Vision Angle 35e
831 USER MANUAL
35
Wireless networks WiFi(IEEE802.11b),External
antenna
Ethernet one 10/100Mbps RJ-45 self-adaptive
interface
Protocols TCP/IP ǃUDP/IP ǃHTTP ǃDHCP ǃ
RTSPǃRTMPǃMUTP
Internet
IP address Static IP address & Dynamic IP
address
Alarm detection Motion detection
Alarm linkage Snapshot, audio/video record, external
I/O output trigger
Alarm
Alarm notification Real-time App push notifications
Power 1 DC 12V / 2A , power consumptionζ
10W
Audio I/O connector /
Buttons One reset button
Alarm I/O /
Interface
Network interface One 10/100Mbps RJ-45 self-adaptive
interface
Others Video storage Cloud and cloud storage
Work temperature -10eC ~ 55eC (14eF ~ 131eF)
Work humidity 10% ~ 80% (No condensation)
Storage
temperature
-10eC ~ 60eC (14eF ~ 140eF)
Storage humidity 0% ~ 90%(No condensation)
Environment
Protection grade IP66
Specifications Size(L*W*H) 170mm(L)*65mm(M)*65mm(H)˗
831 USER MANUAL
36
Weight About 500g
Certification Certificate RoHS,CE,FCC
1
FCCStatement
˖
1.ThisdevicecomplieswithPart15oftheFCCRules.Operationissubjecttothe
followingtwoconditions:
(1)Thisdevicemaynotcauseharmfulinterference.
and(2)Thisdevicemustacceptanyinterferencereceived,includinginterferencethat
maycauseundesiredoperation.
2.Changesormodificationsnotexpresslyapprovedbythepartyresponsiblefor
compliancecouldvoidtheuser'sauthoritytooperatetheequipment.
NOTE:
ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassB
digitaldevice,pursuanttoPart15oftheFCCRules.Theselimitsaredesignedto
providereasonableprotectionagainstharmfulinterferenceinaresidential
installation.
Thisequipmentgeneratesusesandcanradiateradiofrequencyenergyand,ifnot
installedandusedinaccordancewiththeinstructions,maycauseharmful
interferencetoradiocommunications.However,thereisnoguaranteethat
interferencewillnotoccurinaparticularinstallation.Ifthisequipmentdoescause
harmfulinterferencetoradioortelevisionreception,whichcanbedeterminedby
turningtheequipmentoffandon,theuserisencouragedtotrytocorrectthe
interferencebyoneormoreofthefollowingmeasures:
Reorientorrelocatethereceivingantenna.
Increasetheseparationbetweentheequipmentandreceiver.
Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthe
receiverisconnected.
Consultthedealeroranexperiencedradio/TVtechnicianforhelp.
Ｔｈｅ ｄｉｓｔａｎ ｃｅ ｂｅｔｗ ｅｅｎ ｕｓｅｒ ａｎｄ ｐｒｏｄｕｃｔｓ ｓｈ ｏ ｕ ｌｄ ｂｅ ｎｏ ｌｅｓｓ ｔｈ ａ ｎ ２０ｃｍ
The distance between user and products should be no less than 20cm
