ShenZhen Jumper Medical Equipment JPD200S Fetal Doppler User Manual

ShenZhen Jumper Medical Equipment Co.,Ltd Fetal Doppler Users Manual

User manual

User Manual FetalDoppler  Model:JPD-200S Manual Ver.: 1.0 Issuing Date: November,2016 Thank you for purchasing the Fetal Doppler JPD-200S made by Jumper Medical. Before using the product, read this manual carefully and operate the product as specified in this manual. SECTION 1: INTRODUCTION 1.1 PACKING LIST Main unit X 1; Earphone X 1; Audio cable for recording X 1; User manual X 1. 1.2 PRODUCT DESCRIPTION The product is a lightweight, portable detector. It is designed to meet your detecting and hearing needs by providing advanced detecting functions and a full range of sound of the fetal heartbeat. 1.3 INTENDED USE The product is mainly intended used to detect the sound of the fetal heartbeat (SFH). The growth and development of a fetus can be found out through examination of these indices. It is applicable for department of gynecology and obstetrics and clinic daily. In accordance with classification criteria in Annex IX on “Medical Device Directive 93/42/EEC”, the product is class IIa based on rule 10, “Devices for Direct Diagnosis or Detection on physiological process”. The product is powered by an internal battery. 1.4 OPERATING PRINCIPLE Fetal Doppler consists of probe (transmitter and receiver) and signal process unit. Ultrasonic wave is transmitted from one piezoelectric ceramic at the front of the probe to the uterus of the pregnant women. Echo is received by the other piezoelectric ceramic at the front of the probe when ultrasonic wave reaches the fatal heart. Then it is converted into voltage. This Doppler signal is detected and demodulated from the received signal. And the Doppler frequency is consistent with the rhythm of the fetal systole and diastole. Once cardiac valves vibrate and a Doppler frequency excursion is formed. It is transmitted an output signal of cardiac valves vibrating, and it is sent to the loudspeaker for getting a rhythmical sound with the fetal heartbeat. SECTION 2: SAFETY GUIDANCE 2.1 INDICATIONS FOR USE The product is normally applied to fetus above 16 weeks growth, difference in pregnant mater. ● Listen to SFH: Operator can listen to the sound of fetal heartbeat from the loudspeaker or earphone. ● Audio record: The sound of fetal heartbeat can be recorded by a smartphone which is connected with the product via audio cable. 2.2 CONTRAINDICATIONS FOR USE Normally none, as a particular case, please consult your doctor. 2.3 NOTE FOR HOME USE Please consult your doctor. 2.4 SAFETY TERMS AND CONDITIONS The signal words shown below, left, identify the potential hazard categories. The definition of each category is as follows: DANGER: This alert identifies hazards that will cause serious personal injury or death. WARNING: This alert identifies hazards that may cause serious personal injury or death. CAUTION: This alert identifies hazards that may cause minor personal injury, product damage, or property damage. 2.5 SAFETY ALERT DESCRIPTIONS The following is a list of product safety alerts that appear in this section and throughout this manual. You must read, understand, and pay heed to these safety alerts before attempting to operate the product. DANGER: The product should not be used in life supporting or life sustaining applications. DANGER: Fire and Explosion Hazard Do not operate the Product in the presence of flammable gases to avoid possible explosion or fire hazard. WARNING:Strangulation resulting from baby or child entanglement in monitoring cables. WARNING: Do not modify this equipment without authorization of the manufacturer. WARNING:Dust, light may affect the safety and performance of the instrument. WARNING:Degraded sensors and electrodes, or loosened electrodes, that can degrade performance or cause other problems. WARNING:The effects caused by pets, pests or children WARNING: Use only Approved accessories Do not use other accessories that are not approved by the manufacturer.suck as batteries, gel, cables, or optional equipment.Otherwise it will cause the product function is not normal. WARNING: Adjacent and/or Stacked Equipment The Product should not be used adjacent to or stacked with other equipment. If adjacent or stacked use is necessary, the Product should be observed to verify normal operation in the configuration in which it will be used. CAUTION:Temperature/Humidity/Pressure xtremes Exposing the Product to extreme environmental conditions outside of its operating parameters may compromise the ability of the Product to function properly. CAUTION: Battery Disposal Recycle or dispose of the battery in accordance with all federal, state and local laws. To avoid fire and explosion hazard, do not burn or incinerate the battery. CAUTION: Radio Frequency (RF) Electromagnetic interference RF susceptibility from cellular phones, CB radios and FM 2-way radio may cause interference with the product. Do not operate radiotelephones in the vicinity of the Product – turn off the radiotelephone and other wireless equipment near the Product. CAUTION: Systems Statement Equipment connected to the product must be certified to the respective IEC Standards (i.e. IEC 60950 for data processing equipment and IEC 60601-1 for medical equipment). CAUTION: Cleaning Solutions When disinfecting the case, use a non-oxidizing disinfectant, such as ammonium salts or glutaraldehyde based cleaning solution, to avoid damage to the metal connectors. CAUTION: Environment of use The product is designed for indoor use. Operator must confirm that the environment of use meets the required operating environmental specifications before using. CAUTION: Cold Environments If the product is stored in an environment with a temperature below the operating temperature, the product should be allowed to warm up to the needed operating temperature before using. 2.6 SYMBOL DESCRIPTIONS The following symbols may appear in this manual, on the product, or on its accessories. Some of the symbols represent standards and compliances associated with the product and its use. Consult instructions for use of the product and/or its accessories. Warning Information Authorized Representative in the European Community CE Mark: The Product system conforms to essential requirements of the Medical Device Directive 93/42/EEC. Date of manufacture. Manufacturer information. Type BF applied part Specifies serial number of the Product Batch code The environmental protection use period is 5 years. IP22 Degree of protection against ingress of water and particulate matter. It indicates that the equipment should be sent to the special agencies according to local regulation for separate collection after its useful life. SECTION 3: USING THE PRODUCT This section provides the description for operation. 3.1 PRODUCT STRUCTURE 1. Power on/off & Volume Knob 2. Loudspeaker 3. Working indicator light 4. Transducer 5. Battery compartment cover 6. Earphone socket 7. Recording socket

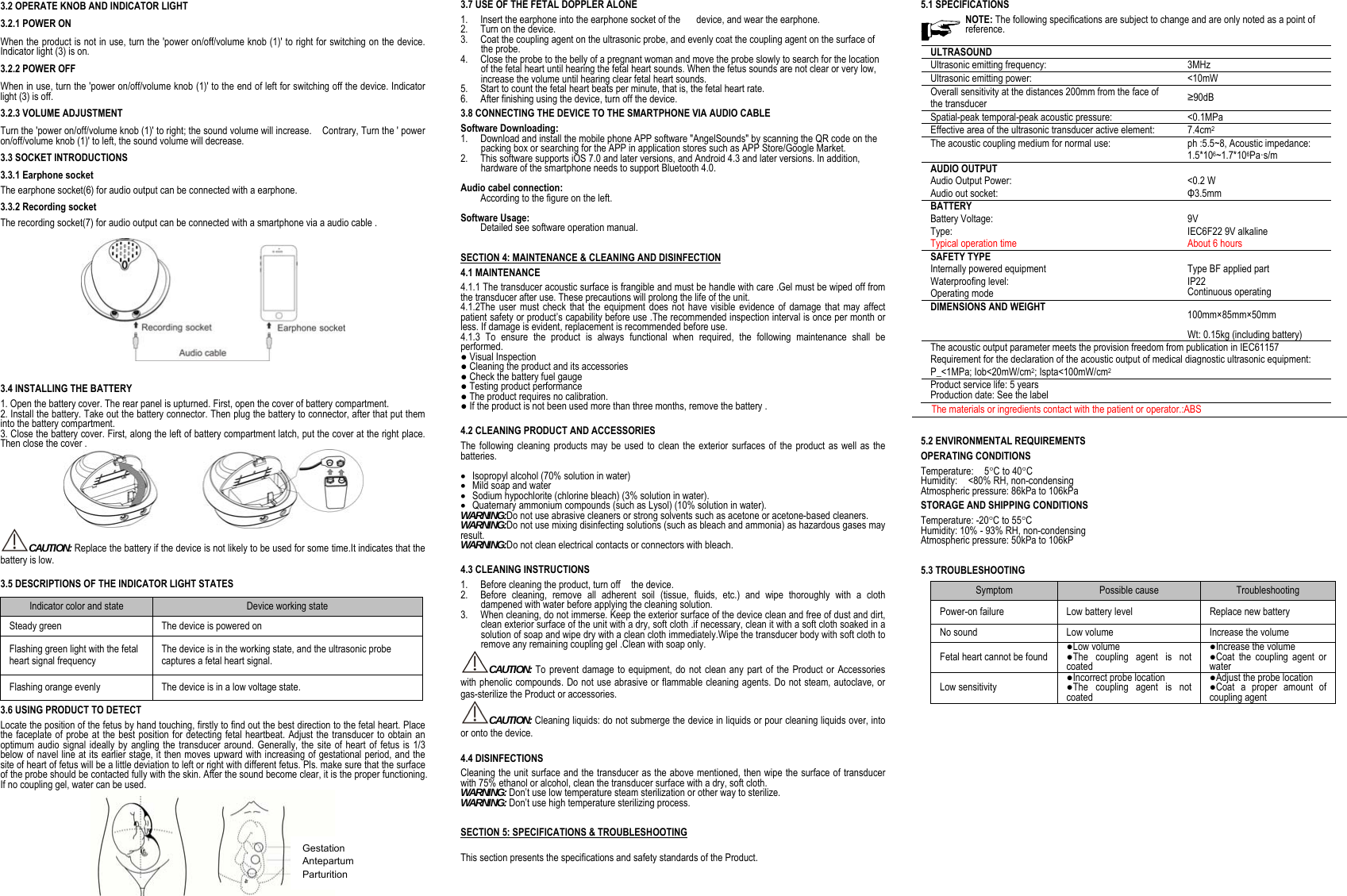

3.2 OPERATE KNOB AND INDICATOR LIGHT 3.2.1 POWER ON When the product is not in use, turn the 'power on/off/volume knob (1)' to right for switching on the device. Indicator light (3) is on. 3.2.2 POWER OFF When in use, turn the 'power on/off/volume knob (1)' to the end of left for switching off the device. Indicator light (3) is off. 3.2.3 VOLUME ADJUSTMENT Turn the 'power on/off/volume knob (1)' to right; the sound volume will increase. Contrary, Turn the ' power on/off/volume knob (1)' to left, the sound volume will decrease. 3.3 SOCKET INTRODUCTIONS 3.3.1 Earphone socket The earphone socket(6) for audio output can be connected with a earphone. 3.3.2 Recording socket The recording socket(7) for audio output can be connected with a smartphone via a audio cable . 3.4 INSTALLING THE BATTERY 1. Open the battery cover. The rear panel is upturned. First, open the cover of battery compartment. 2. Install the battery. Take out the battery connector. Then plug the battery to connector, after that put them into the battery compartment. 3. Close the battery cover. First, along the left of battery compartment latch, put the cover at the right place. Then close the cover . CAUTION: Replace the battery if the device is not likely to be used for some time.It indicates that the battery is low. 3.5 DESCRIPTIONS OF THE INDICATOR LIGHT STATES Indicator color and state Device working state Steady green The device is powered on Flashing green light with the fetal heart signal frequency The device is in the working state, and the ultrasonic probe captures a fetal heart signal. Flashing orange evenly The device is in a low voltage state. 3.6 USING PRODUCT TO DETECT Locate the position of the fetus by hand touching, firstly to find out the best direction to the fetal heart. Place the faceplate of probe at the best position for detecting fetal heartbeat. Adjust the transducer to obtain an optimum audio signal ideally by angling the transducer around. Generally, the site of heart of fetus is 1/3 below of navel line at its earlier stage, it then moves upward with increasing of gestational period, and the site of heart of fetus will be a little deviation to left or right with different fetus. Pls. make sure that the surface of the probe should be contacted fully with the skin. After the sound become clear, it is the proper functioning. If no coupling gel, water can be used. 3.7 USE OF THE FETAL DOPPLER ALONE 1. Insert the earphone into the earphone socket of the device, and wear the earphone. 2. Turn on the device. 3. Coat the coupling agent on the ultrasonic probe, and evenly coat the coupling agent on the surface of the probe. 4. Close the probe to the belly of a pregnant woman and move the probe slowly to search for the location of the fetal heart until hearing the fetal heart sounds. When the fetus sounds are not clear or very low, increase the volume until hearing clear fetal heart sounds. 5. Start to count the fetal heart beats per minute, that is, the fetal heart rate. 6. After finishing using the device, turn off the device. 3.8 CONNECTING THE DEVICE TO THE SMARTPHONE VIA AUDIO CABLE Software Downloading: 1. Download and install the mobile phone APP software "AngelSounds" by scanning the QR code on the packing box or searching for the APP in application stores such as APP Store/Google Market. 2. This software supports iOS 7.0 and later versions, and Android 4.3 and later versions. In addition, hardware of the smartphone needs to support Bluetooth 4.0. Audio cabel connection: According to the figure on the left. Software Usage: Detailed see software operation manual. SECTION 4: MAINTENANCE & CLEANING AND DISINFECTION 4.1 MAINTENANCE 4.1.1 The transducer acoustic surface is frangible and must be handle with care .Gel must be wiped off from the transducer after use. These precautions will prolong the life of the unit. 4.1.2The user must check that the equipment does not have visible evidence of damage that may affect patient safety or product’s capability before use .The recommended inspection interval is once per month or less. If damage is evident, replacement is recommended before use. 4.1.3 To ensure the product is always functional when required, the following maintenance shall be performed. ● Visual Inspection ● Cleaning the product and its accessories ● Check the battery fuel gauge ● Testing product performance ● The product requires no calibration. ● If the product is not been used more than three months, remove the battery . 4.2 CLEANING PRODUCT AND ACCESSORIES The following cleaning products may be used to clean the exterior surfaces of the product as well as the batteries.  Isopropyl alcohol (70% solution in water)  Mild soap and water  Sodium hypochlorite (chlorine bleach) (3% solution in water).  Quaternary ammonium compounds (such as Lysol) (10% solution in water). WARNING:Do not use abrasive cleaners or strong solvents such as acetone or acetone-based cleaners. WARNING:Do not use mixing disinfecting solutions (such as bleach and ammonia) as hazardous gases may result. WARNING:Do not clean electrical contacts or connectors with bleach. 4.3 CLEANING INSTRUCTIONS 1. Before cleaning the product, turn off the device. 2. Before cleaning, remove all adherent soil (tissue, fluids, etc.) and wipe thoroughly with a cloth dampened with water before applying the cleaning solution. 3. When cleaning, do not immerse. Keep the exterior surface of the device clean and free of dust and dirt, clean exterior surface of the unit with a dry, soft cloth .if necessary, clean it with a soft cloth soaked in a solution of soap and wipe dry with a clean cloth immediately.Wipe the transducer body with soft cloth to remove any remaining coupling gel .Clean with soap only. CAUTION: To prevent damage to equipment, do not clean any part of the Product or Accessories with phenolic compounds. Do not use abrasive or flammable cleaning agents. Do not steam, autoclave, or gas-sterilize the Product or accessories. CAUTION: Cleaning liquids: do not submerge the device in liquids or pour cleaning liquids over, into or onto the device. 4.4 DISINFECTIONS Cleaning the unit surface and the transducer as the above mentioned, then wipe the surface of transducer with 75% ethanol or alcohol, clean the transducer surface with a dry, soft cloth. WARNING: Don’t use low temperature steam sterilization or other way to sterilize. WARNING: Don’t use high temperature sterilizing process. SECTION 5: SPECIFICATIONS & TROUBLESHOOTING This section presents the specifications and safety standards of the Product. 5.1 SPECIFICATIONS NOTE: The following specifications are subject to change and are only noted as a point of reference. ULTRASOUND Ultrasonic emitting frequency: 3MHz Ultrasonic emitting power: <10mW Overall sensitivity at the distances 200mm from the face of the transducer ≥90dB Spatial-peak temporal-peak acoustic pressure: <0.1MPa Effective area of the ultrasonic transducer active element: 7.4cm2 The acoustic coupling medium for normal use: ph :5.5~8, Acoustic impedance: 1.5*106~1.7*106Pa·s/m AUDIO OUTPUT Audio Output Power: <0.2 W Audio out socket: Φ3.5mm BATTERY Battery Voltage: 9V Type: Typical operation time IEC6F22 9V alkaline About 6 hours SAFETY TYPE Internally powered equipment Type BF applied part Waterproofing level: IP22 Operating mode Continuous operating DIMENSIONS AND WEIGHT 100mm×85mm×50mm Wt: 0.15kg (including battery) The acoustic output parameter meets the provision freedom from publication in IEC61157 Requirement for the declaration of the acoustic output of medical diagnostic ultrasonic equipment: P_<1MPa; Iob<20mW/cm2; Ispta<100mW/cm2 Product service life: 5 years Production date: See the label The materials or ingredients contact with the patient or operator.:ABS 5.2 ENVIRONMENTAL REQUIREMENTS OPERATING CONDITIONS Temperature: 5C to 40C Humidity: <80% RH, non-condensing Atmospheric pressure: 86kPa to 106kPa STORAGE AND SHIPPING CONDITIONS Temperature: -20C to 55C Humidity: 10% - 93% RH, non-condensing Atmospheric pressure: 50kPa to 106kP 5.3 TROUBLESHOOTING Symptom Possible cause Troubleshooting Power-on failure Low battery level Replace new battery No sound Low volume Increase the volume Fetal heart cannot be found ●Low volume ●The coupling agent is not coated ●Increase the volume ●Coat the coupling agent or water Low sensitivity ●Incorrect probe location ●The coupling agent is not coated ●Adjust the probe location ●Coat a proper amount of coupling agent Gestation Antepartum Parturition

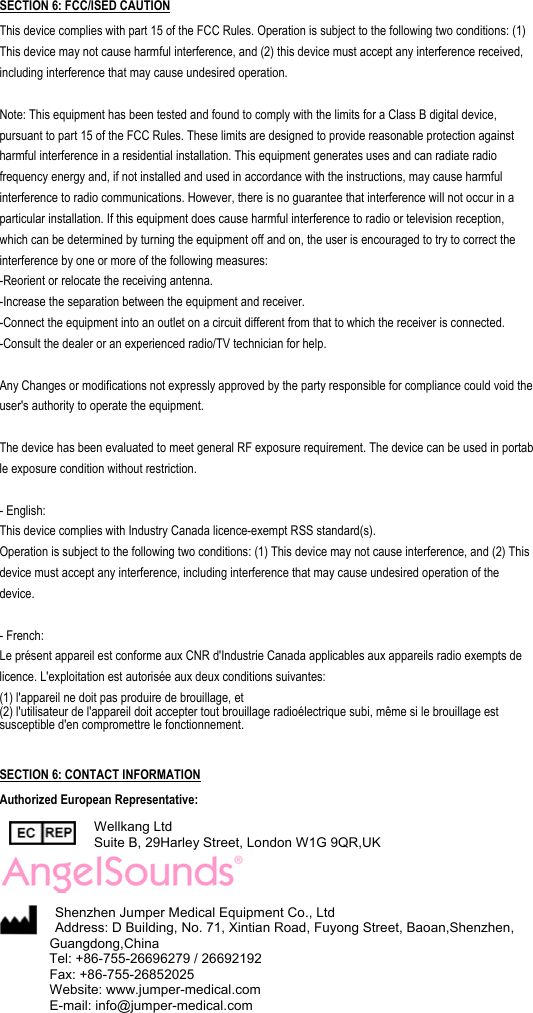

SECTION 6: FCC/ISED CAUTION This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. - English: This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference, including interference that may cause undesired operation of the device. - French: Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. SECTION 6: CONTACT INFORMATION Authorized European Representative: Wellkang Ltd Suite B, 29Harley Street, London W1G 9QR,UK Shenzhen Jumper Medical Equipment Co., Ltd Address: D Building, No. 71, Xintian Road, Fuyong Street, Baoan,Shenzhen, Guangdong,China Tel: +86-755-26696279 / 26692192 Fax: +86-755-26852025 Website: www.jumper-medical.com E-mail: info@jumper-medical.com
