User Instructions
Thank you for choosing the infrared thermometer produced by
Jumper Medical Equipment Co., Ltd. For proper use of the
product, please read this manual before using the product, and
follow this manual when operating the product .
Before using the product, please read and follow Safety
Precautions.
Please keep this manual with the product, so that you can refer
to this manual in case of need.
Contents
Standard Packing List .................................................................... 1
Safety Precautions ......................................................................... 2
Warning ......................................................................................... 4
Symbol Conventions ...................................................................... 5
Product Introduction ....................................................................... 6
Functions and Features ................................................................. 7
Schematic Diagram of Appearance ................................................ 9
Measurement Method .................................................................... 9
Connecting the Thermometer to an APP Application of a Mobile
Phone .......................................................................................... 12
Display and Operation Instructions ............................................... 13
Battery Replacing Method ............................................................ 17
Cleaning and Disinfection ............................................................ 18
Maintenance ................................................................................ 20
Troubleshooting ........................................................................... 21
Technical Specifications ............................................................... 24
Safety Class ................................................................................ 25
Transportation and Storage Conditions ......................................... 25
Appendix I：Manufacturer’s Declaration of the EUT ..................... 26
FCC Statement
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions:
（1）this device may not cause harmful interference.
（2）this device must accept any interference received, including
interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on,the user is
encouraged to try to correct the interference by one or more of the
following measures:
●Reorient or relocate the receiving antenna.
●Increase the separation between the equipment and receiver.
●Connect the equipment into an outlet on a circuit different from that
to which the recerver is connected.
●Consult the dealer or an experienced radio/TV technician for help.
Warning:Changes or modiflcations to this unit not expressly
approved by the party responsible for compliance could void the
user’s authorty to operate the equipment.
ISED Statement
- English:
This device complies with Industry Canada licence-exempt RSS
standard(s). Operation is subject to the following two conditions: (1)
This device may not cause interference, and (2) This device must a
ccept any interference, including interference that may cause undes
ired operation of the device.
- French:
Le présent appareil est conforme aux CNR d'Industrie Canada
applicables aux appareils radio exempts de licence. L'exploitation
est autorisée aux deux conditions suivantes:
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage
radioélectrique subi, même si le brouillage est susceptible d'en
compromettre le fonctionnement.
The device has been evaluated to meet general RF exposure requi
rement. The device can be used in portable
exposure condition without restriction
1
Unpacking Check
Please open the package carefully before use, check that all
accessories are contained. Check whether any component is
damaged due to improper transportation, and perform installation
and operation following this user manual. If any damage or
operation problem exists, please contact the dealer or directly
contact Jumper Medical Equipment Co., Ltd. When contacting us,
please provide the following information: device model, serial
number, purchase date, and your contact information and address.
Standard Packing List
No.
Name
Remarks
1
Infrared thermometer x 1
2
Earcap box x 1
3
Dry battery x 2
Battery specification： AAAx 2
4
Pouch x 1
5
User manual x 1
2
Safety Precautions
Before using the thermometer, please carefully read the
following precautions:
Caution
This product cannot be used to replace a monitoring instrument
that continuously monitors the body temperature.
The temperature probe is a sensitive component of the infrared
thermometer, and keep it carefully.
Do not discard the exhausted battery at will; take it to a specified
environmental protection place for processing, so as to avoid
environmental pollution.
Remove the battery if the product has not been used for more
than two months.
Never put the product into water or under the sun; otherwise,
the product may be damaged or suffer accelerated aging.
Do not acutely vibrate the product or collide it with other things;
otherwise, it may be damaged.
The normal body temperature varies from person to person. You
are advised to record daily measurement values and use them
as reference values to determine whether you have a fever.
Your body temperature rises when you are taking exercise or
have emotional outbursts. In this case, you are not advised to
measure your body temperature. After exercise, take a
20-minutes rest before making measurement.
3
After using the product, clean it and keep it in a dust-free, dry,
and ventilated place.
When using the product, note the safety precautions below:
The product is not waterproof, and do not put it into water or
other liquid. For the cleaning and disinfection method, see
Cleaning and Disinfection.
Do not directly contact the top of the temperature probe, where
there is a precise temperature sensor at the top.
Keep the temperature probe clean, and clear away dirt or
cerumen, which may affect the measurement result.
When there is dirt in the auditory meatus, use a cotton ball to
clean it before making measurement.
The measurement environmental temperature should not be too
low or too high. After the instrument enters the measurement
environment from the storage environment, make measurement
30 minutes later.
Do not make measurement at a temperature higher than 40C
(104F) or lower than 10C (50.0F) because the temperature in
this case is beyond the normal working temperature of the
thermometer.
Do not use the thermometer for unexpected purposes, and
follow the safety precautions when making measurement for a
child.
4
Warning
Warning
During measurement, do not forcibly insert the temperature
probe into the auditory meatus, which may hurt the auditory
meatus.
The thermometer is not a diagnostic instrument, and the
measurement result is only used as reference for a doctor.
It is risky to perform auto-diagnosis and treatment according to
the measurement result; follow the doctor's diagnosis.
Do not refit the product without permission of the manufacturer,
which may damage the product or cause safety problems.
The thermometer can be used cooperatively with a dedicated
earcap. When no earcap is used, you are advised to use the
thermometer for only one person, so as to avoid cross infection.
Do not charge or put the common alkaline dry battery into the
fire, so as to avoid a risk of explosion.
Do not disassemble or repair the thermometer if you are not
professional, so as to avoid causing irreparable damage.
During measurement, do not use a mobile phone or another
device with strong electromagnetic field interference.
Do not use the thermometer in an environment where there is a
gas mixture of inflammable anesthetizing gas and air, or a gas
mixture of oxygen and nitrous oxide.
5
Do not use the thermometer to make measurement for any part
of the body except the ear; the measurement result may be
incorrect.
Keep out of reach of children.
Symbol Conventions
Symbol
IPX0
Warning
6
Caution
Product Introduction
(1) Overview
The JPD-FR302 infrared thermometer (referred to as thermometer
in the following) is a measurement instrument that uses the infrared
receiving principle to measure the temperature in the tympanic
membrane of the earhole. You only need to insert the temperature
probe into the earhole and place it at the correct position, and press
the measurement key to quickly and correctly measure the ear
temperature.
(2) Product Structure
This product mainly consists of a casing, a liquid crystal display, a
press key, a buzzer, an infrared sensor, and a microprocessor.

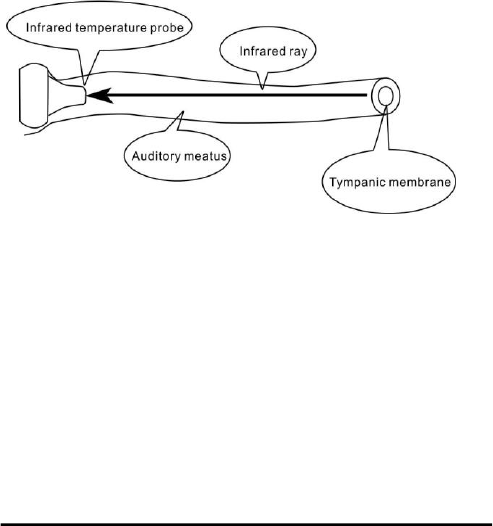

(3) Measurement Principle
The infrared thermometer uses the infrared temperature sensor to
receive infrared energy emitted by heat generated in the tympanic
membrane of the earhole. The energy penetrates through the lens
and becomes concentrated, and is further converted into a
temperature value by using the thermopile and measurement circuit.
7
(4) Expected Usage
This product intends to be used by a medical department or a family
to measure the body temperature.
(5) Scope of Application
The temperature of a measured object is displayed by measuring
thermal radiation of the thermal radiation of the earhole.
(6) Contraindications
Do not use this instrument for an individual having diseases such as
otitis media and ear fester.
Functions and Features
1. High Safety
Passive infrared receiving technology without radiation
Disposable earcaps that avoid cross infection
2. Easy Operations
8
Conforming to ergonomic design
One-key measurement and automatic temperature
measurement
No interference to daily life, where measurement may be made
when a child is asleep
3. Fast Measurement
One-second measurement and no waiting
4. High Accuracy
Advanced infrared temperature sensing component with high
sensitivity
Temperature correction program that ensures precise
calculation, where the measurement result truly reflects the
body temperature
5. Practical Functions
Function of memorizing 20 groups of measurement data that
helps effectively track a change status of the temperature
Function of measuring the temperature of the ear
Function of reminding a fever by using audio
Function of Celsius degree/Fahrenheit degree conversion
Automatic power-off function, consuming less power
Bluetooth tethering function and APP program application
6. Wide Target Users
Applicable to individuals older than three months
9

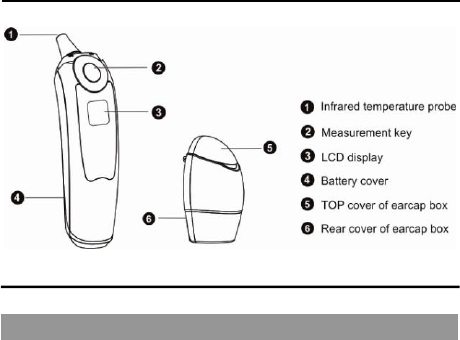

Schematic Diagram of Appearance
Measurement Method
1. Precautions before Use
1) This thermometer is applicable to indoor environments. There
should be no strong cross-ventilation between the instrument
and a measured object during measurement (for example, a fan,
an air-conditioner, and a heater blow against each other).
2) This thermometer is sensitive to the environment temperature;
do not hold the thermometer for a long time.
3) Keep the temperature probe clean and unblocked before using
the thermometer.
4) Before measuring the temperature of the ear, keep the auditory
meatus clean; otherwise, the measurement result may be
incorrect.
10
5) Do not have emotional outbursts or take acute exercise before
measurement.
6) Make measurement 30 minutes later after taking the
thermometer into the measurement environment, if there is a
temperature difference between the storage environment and
the measurement environment.
7) The measured individual is advised to take a more than 10
minutes rest before measurement, if the individual enters the
measurement environment from an environment and there is a
temperature difference between the two.
2. How to Measure the Temperature of the Ear
1) Cover the temperature probe with an earcap
Put the earcap into the earcap box, open the top
cover of the earcap box, pull out one earcap,
place it at the hole on the top, and keep it flat,
and press downwards the temperature probe of
the thermometer in the transparent film direction
in the middle of the earcap until the earcap fully
covers the temperature probe. Take out the
temperature probe and close the earcap box cover.

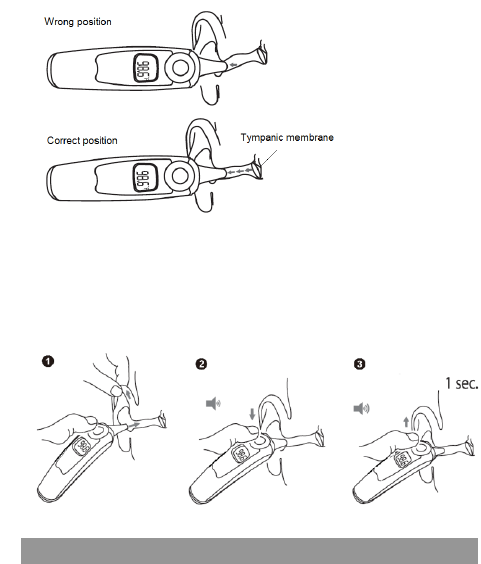

2) Insert the temperature probe into the auditory meatus and place
it at the correct position (shown in the following figure)
When making measurement for an adult, lift the ear slightly upwards;
when making measurement for a child, lift the ear slightly backwards
11
to make the auditory meatus straight and the temperature probe aim
at the tympanic membrane direction.
3) When measuring the temperature of the ear, press and release
the measurement key. The buzzer beeps once, and the display
screen displays the measurement value about 1s later.
3. End of Measurement
12
1) After the measurement is completed, in the power-off state, long
press the measurement key for more than 4s but less than 6s to
enter the memory query mode, in which you can view previous
measurement records. For detailed operations, see Query of 20
Groups of Memory Data in the following table.
2) After the measurement is completed, use a dry, soft cloth to
wipe the thermometer, and keep the thermometer in a dry and
ventilated place.
3) The thermometer is automatically powered off if no key is
operated for 10s.
Connecting the Thermometer to an APP Application
of a Mobile Phone
The thermometer has a built-in Bluetooth module and can be
connected to a smartphone by using the Bluetooth 4.0 wireless
technology. View the measurement data in real time by using mobile
phone software "MyThermo". The software automatically saves the
measurement data and draws a temperature curve graph, which
helps view the temperature change status in real time.
For a method for connecting the thermometer to the mobile phone,
see Operation Instruction.
13

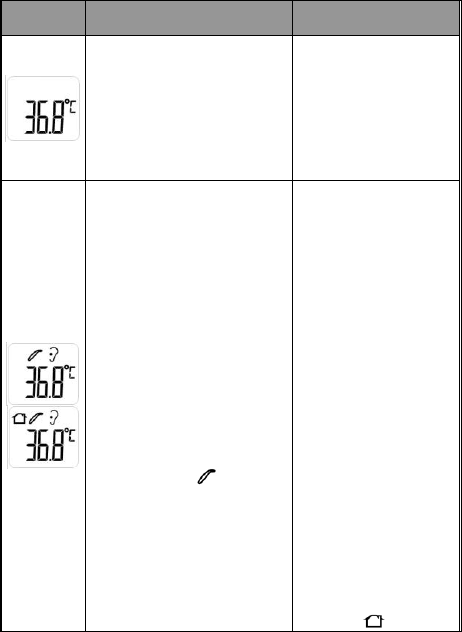

Display and Operation Instructions
LCD
Display
Operation Method and
Display Instructions
Sound and Backlight
In the power-off state, press
the measurement key for less
than 4s. Then, the
thermometer displays the
measurement value and starts
up.
One long buzzing sound
and 3s green backlight
After the backlight dies out,
the thermometer enters the
ready-for-measurement state,
and a symbol of a
corresponding mode appears.
In this case, the measurement
prompt symbol blinks.
1. When 32.0C < T <
37.6C, one long
buzzing sound and
3s bright green
backlight
2. When 37.6C T
42.2C, seven rapid
short buzzing
sounds and 3s bright
green backlight
When the temperature
of the surrounding
object or environment
during measurement is
within the following
range: 0C T 32.0C
or 42.2C T 100.0C,
a symbol appears,
14
and it is automatically
identified as the
temperature of the
object.
When the measured
temperature is higher than
100C (212F)
Three short buzzing
sounds and 3s green
backlight
When the measured
temperature is lower than 0C
(32F)
Three short beeps and
3s green backlight
Query of 20 Groups of Memory Data
LCD
Display
Operation Method and
Display Instructions
Sound and Backlight

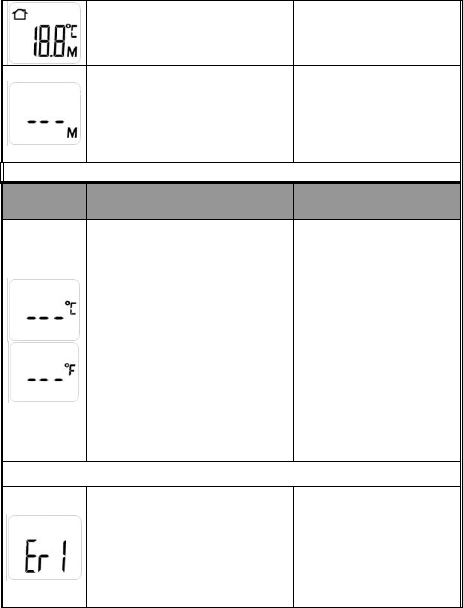

In the power-off state, press
the measurement key for
more than 4s but less than 6s.
Then, the LCD displays "- - - ",
and the M symbol blinks.
No sound is emitted.
Press the measurement key
again. Then, the LCD displays
the first memory value, and
the M symbol blinks. Each
time you press the
measurement key once, the
LCD displays a memory
number for 1s and then
displays the memory
measurement value, where
No sound is emitted.
15
there are 20 groups of
memory data in total.
If there is no measurement
data, the LCD displays only "-
- - " and the M symbol, and the
M symbol blinks.
No sound is emitted.
C/F Conversion
LCD
Display
Operation Steps
Sound and Backlight
In the power-off state, press
the measurement key for
more than 6s but less than 8s
to enter the temperature unit
conversion mode. Within 5s
after releasing the
measurement key, press the
measurement key again, and
then, the temperature unit is
converted once, until the
measurement key is released
for more than 5s and the
thermometer is automatically
powered off.
No sound is emitted.

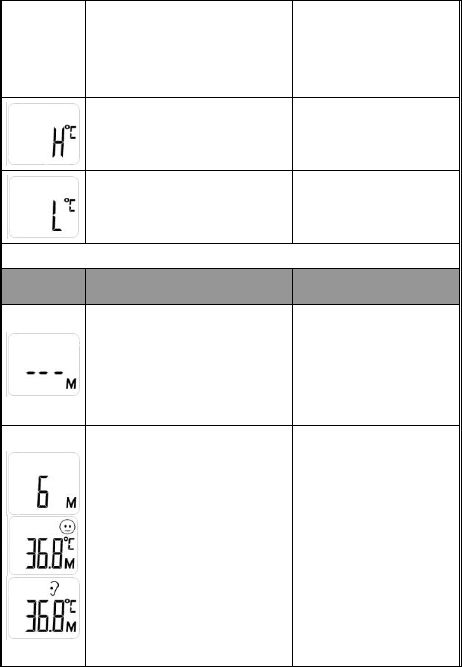

Display of Incorrect Information
When the environment
temperature is higher than
40.0C (104F) or lower than
10.0C (50.0F), "Er1" is
displayed.
Three short buzzing
sounds and 3s green
backlight
16

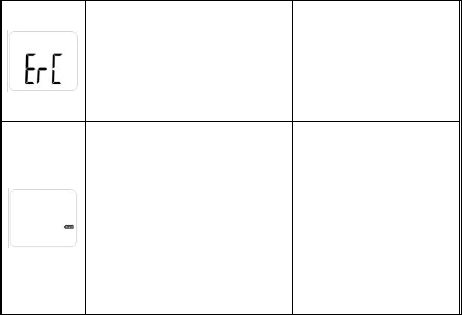

When there is a read/write
error in the EEPROM data or
correction is not completed,
"ErC" is displayed. In this
case, contact the supplier.
Three short buzzing
sounds and 3s green
backlight
When the voltage of the
battery is lower than
2.51V±0.15V, a low voltage
symbol (not blinking) is
displayed after the
thermometer is powered on.
In this case, replace the
battery.
No sound is emitted.
17
Battery Replacing Method

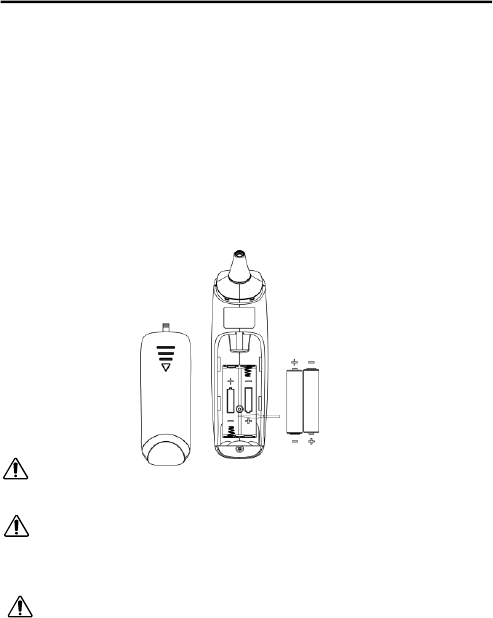

1) When replacing the battery, press and hold the upward sign on
the battery cover, take off the battery cover, put two AAA
batteries into the battery holder according to electrode signs,
and close the battery cover.
2) After the thermometer has been used for a period of time, if the
display screen displays the low voltage symbol after the
thermometer is powered on, replace the batteries with new ones
before normally using the thermometer.
When installing the battery, install it according to the electrode
signs; otherwise, the instrument may be damaged.
Use batteries of the same type or specifications; do not
randomly discard the exhausted batteries, but process the
exhausted batteries according to local environmental requirements.
Batteries are built in at the time of factory delivery, and you only
need to take out the insulation strip.
18
Cleaning and Disinfection
Device Cleaning:
Recommended detergent:
* Medical detergent
* Household neutral detergent
Cleaning steps:
1) Take out the battery before cleaning.
2) If the instrument body is dirty, use a soft and clean cloth to soak
neutral detergent or water, wring the cloth and then wipe the
instrument body, and immediately use tissue or dry cloth to wipe
the instrument body.
3) Use a clean and soft cloth to wipe the temperature probe of the
thermometer, and use a cotton ball to clean the lens.
4) After the cleaning, place the thermometer in a dust-free, dry,
and ventilated place.
During cleaning, keep the lens of the temperature probe away
from water; otherwise, the temperature probe may be damaged.
The lens of the temperature probe may be scratched if tissue is
used to wipe the lens, and the measurement result may be incorrect.
Do not use corrosive detergent or acidic or alkaline detergent.
During cleaning, do not use a stiff object to contact the lens of
the temperature probe, do not put any part of the thermometer into
liquid, and prevent liquid from flowing into the instrument.
19
You are advised to clean the thermometer weekly, finish
cleaning within 3 minutes each time, and clean the thermometer not
more than three times each time.
Disinfection:
Recommended sanitizer:
* Isopropanol solution of 70% concentration
* Medicinal alcohol of 75% concentration
* Sodium hypochlorite solution of 3% concentration
Disinfection steps:
1) Use a clean soft cloth to soak a small amount of disinfectant to
wipe the instrument body, and immediately dry it.
2) Use a clean cloth to soak a small amount of medicinal alcohol of
75% concentration to wipe and disinfect the periphery of the
temperature probe.
Do not disinfect the instrument by means of high-temperature
steam or ultraviolet irradiation, which may damage the instrument or
accelerate aging of the instrument.
You are advised to disinfect the thermometer before and after
using it each time, finish disinfection with 1 minute each time, and
disinfect the thermometer not more than two times each time.
Perform cleaning and disinfection in the following environment:
temperature: +10C to +40C(50F to 104F); humidity 15% to 85%
RH without condensation; barometric pressure: 86kPa to 106kPa.
20
Maintenance
1) Each time finishing using the instrument, clean the instrument
body and the temperature probe and perform operations
following Cleaning and Disinfection.
2) Keep the thermometer in a dry, ventilated, dust-free, and
pollution-free place, prevent the thermometer from direct solar
radiation, and store and transport the thermometer according to
corresponding environment requirements.
3) Regularly check the thermometer to determine whether there is
a potential safety hazard, so as to ensure safe use.
4) If the thermometer has not been used for a long time (more than
two months), take out the battery for storage.
21
Troubleshooting
Fault
Symptom
Possible Cause
Solution
Failing to start
up
The battery level is
extremely low.
Use new batteries of
the same type or
specifications.
The batteries are
installed according to
wrong positive and
negative electrodes.
Check whether the
batteries are installed
in the battery holder
according to the
electrode signs.
The instrument is
damaged.
If the instrument is
within the warranty
period, contact the
after-service
department of the
manufacturer for free
repairing.
Only the
battery
symbol is
displayed
after the
instrument is
powered on.
The battery level is low.
Use new batteries of
the same type or
specifications.
Only "Er1" is
displayed
The environment
temperature is higher
Make measurement at
an environment
22
Fault
Symptom
Possible Cause
Solution
after the
instrument is
powered on
than 40C or lower than
10C.
temperature of 10C
to 40C.
"ErC" is
displayed
after the
instrument is
powered on
There is a read/write
error in internal storage
data or temperature
correction is not
completed.
Contact the
manufacturer for
processing.
The
measurement
result is lower
than a normal
value
The lens of the
temperature probe is
dirty.
Use a cotton ball to
clean the lens of the
temperature probe, to
ensure that the lens is
not blocked.
The measurement
method is incorrect that
the temperature probe is
too far away from the
measured position.
Make measurement
according to the
correct method, and
shorten the
measurement
distance.
After entering the
measurement environment
from a colder environment,
the thermometer is not
placed for more than 30
minutes.
Place the
thermometer in the
measurement
environment for more
than 30 minutes.
23
Fault
Symptom
Possible Cause
Solution
The
measurement
result is
higher than a
normal value
The temperature probe is
damaged.
There is direct incidence
of strong light.
Contact the
manufacturer for
repairing.
Do not make
measurement under
strong light.
24
Technical Specifications
Product Name
Infrared thermometer
Model
JPD-FR302
Battery Working
Mode
Internal power supply
Working Voltage
DC 3V
Battery
Specifications
AAA×2
Battery Life
Alkaline dry battery, about 20000 times
Running Mode
Short-time continuous running
Input Power
Less than 60mW
Display Mode
Segment LCD
Measurement Time
About 1 second
Emissivity
0.95
Temperature Unit
C/F can be set.
Measurement
Range
Temperature: 32.0C to 42.2C (89.6F to
107.9F)
Precision
±0.2C/±0.4F
Display Resolution
0.1C/0.1F
Memory Storage
Twenty groups of measurement data
Low-voltage
Prompt
Lower than 2.51V ± 0.15V, where the low
voltage symbol is displayed when the
instrument is powered on
Automatic
Power-off Time
10s±1s
Dimension (mm)
150 × 40 × 38
Weight (g)
Instrument body: 85.0 g (excluding batteries);
earcap box: 37.5 g
Quantity of
Earcaps in Earcap
Box for Standard
Configuration
30 pieces
Work Environment
Temperature: +10C to +40C (50F to 104F)
Humidity: 15% to 85% RH, without
condensation
25
Barometric pressure: 86kPa to 106kPa
Accuracy of Clinical
Diagnosis Test

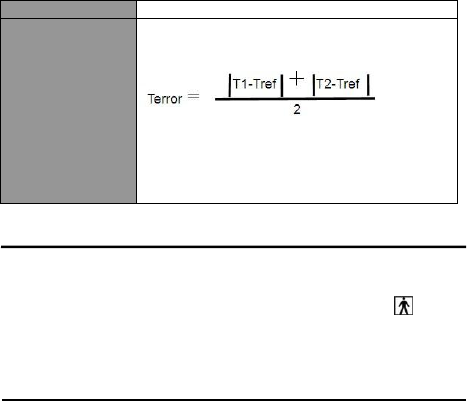

The maximum permissible error of the
accuracy of clinical diagnosis test is specified
by using the formula below:
0.3C/0.6F (for 95%)
where, T1 and T2 are two temperature reading
values of two times of measurement of the
tested thermometer, and Tref is a fixed
reference temperature.
Safety Class
Anti-electric-shock type: internal power supply device
Anti-electric-shock level: BF-type application part; symbol:
Fluid-proof level: IPX0, non-water-proof
Transportation and Storage Conditions
1) Transportation
Use general transportation tools, and prevent the instrument from
strong shocks, vibration, and water.
2) Storage
Store the packed infrared thermometer in a ventilated indoor place
where an environment temperature is -10C to + 50C, relative
humidity is less than 93% without condensation, the barometric
pressure is 50kPa to 106kPa, and no corrosive gas exists.
T2-Tref
+
2
26
Appendix I：Manufacturer’s Declaration of the EUT
Guidance and manufacturer’s declaration – Electromagnetic
emissions – for all equipment and systems
The Infrared Thermometer JPD-FR302 is intended for use in the
electromagnetic environment specifiled below. The customer or the
user of the Infrared Thermometer JPD-FR302 should assure that it is
used in such an environment.
Emissions
test
Compliance
Electromagnetic environment -
guidance
RF
emissions
CISPR 11
Group1
The Infrared Thermometer
JPD-FR302 uses RF energy only for
its internal function. Therefore, its RF
emissions are very low and are not
likely to cause any interference in
nearby electronic equipment.
RF
emissions
CISPR 11
Class B
The Infrared Thermometer
JPD-FR302 is suitable for use in all
establishments, including domestic
establishments and those directly
connected to the public low-voltage
power supply connected to the public
low-voltage power supply network that
supplies buildings used for domestic
purposes.
Harmonic
emissions
IEC
61000-3-2
N/A
Voltage
fluctuations /
flicker
emissions
IEC
61000-3-3
N/A
27
Guidance and manufacturer’s declaration – Electromagnetic
immunity – for all equipment and systems
The Infrared Thermometer JPD-FR302 is intended for use in
the electromagnetic environment specifiled below. The
customer or the user of the Infrared Thermometer JPD-FR302
should assure that it is used in such an environment.
Immunity
test
IEC 60601
Test Leve
Complian
ce level
Electromagnet
ic environment
-guidance
Electrostatic
discharge
(ESD)
IEC
61000-4-2
6 kV
contact
8 kV air
6 kV
contact
8 kV air
Floors should
be wood,
concrete or
ceramic tile. If
floors are
covered
with synthetic
material, the
relative
humidity
should be at
least 30 %.
Electrostatic
transient /
burst
IEC
61000-4-4
2 kV for
power
supply lines
1 kV for
input /
output lines
N/A
Surge
IEC
61000-4-5
1 kV
differentia
mode
2 kV
common
mode
N/A
Voltage
<5 % UT
N/A
28
dips, short
interruption
s and
voltage
variations
on power
supply
input lines
IEC
61000-4-11
(>95% dip in
UT) for 0.5
cycle
40 % UT
(60 % dip in
UT)
for 5 cycles
70 % UT
(30 % dip in
UT)
for 25 cycles
<5 % UT
(>95 % dip
in UT)
for 5 sec
Power
frequency
(50/60Hz)
magnetic
field
IEC
61000-4-8
3 A/m
Power
frequency
magnetic ields
should be at
levels
characteristic
of a typical
location in a
typical
commercial or
hospital
environment
Guidance and manufacturer’s declaration – Electromagnetic
immunity – for equipment and systems that are not life-supporting
29
The Infrared Thermometer JPD-FR302 is intended for use in
the electromagnetic environment specifiled below. The
customer or the user of the Infrared Thermometer JPD-FR302
should assure that it is used in such an environment.
Immunity
test
IEC 60601
Test
Level
Compliance
level
Electromagnetic
environment-
guidance
Conducted
RF
IEC
61000-4-3
Radiated
RF
IEC
61000-4-3
3 Vrms
150 kHz to
80 MHz
3 V/m
80MHz To
2,5 GHz
N/A
3 V/m
Portable and
mobile RF
communications
equipment
should be used
no closer 10 any
part of Ihe
JPD-FR302，
including
cables，than the
recommended
separation
distance
calculaled from
the equation
applicable to the
frequency of the
transmitter.
Recommended
separation
distance
d =
p][ 1
5.3
E
80 MHz to 800
MHz
d =
p][ 1
7
E
800 MHz to 2.5
GHz
30
where P is Ihe
maximum oulput
power rating of
the transmitter in
watts (W)
according to the
transmitter
manufacturer and
d is the
recommended
separation
distance in
metres (m).
Field strengths
from fixed RF
transmitters ， as
determined by an
electromagnetic
site survey,a
should
be less than the
compliance level
in each frequency
range.b
lnterference may
occur in the
vicinity of
equipment
marked with the
following symbol:
NOTE 1 At 80 MHz and 800 MHz，the higher frequency range
applies.
31
NOTE 2 These guidelines may not apply in all siluations.
Eleclromagnetic propagation is affected by absorption and
reflection from slructures, objecls and people.
Field strengths from fixed transmitters，such as base stations
for radio (cellular/cordless) telephones and land mobile radios,
amateur radio, AM and FM radio broadcast and TV broadcast
cannot be predicted theoretically with accuracy. To assess the
electromagnetic environment due to fixed RF transmitters, an
electromagnetic site survey should be considered. If the
measured field strength in the location in which the JPD-FR302
is used exceeds the applicable RF compliance level above，the
JPD-FR302 should be observed to verify normal operation. If
abnormal performance is observed，additional measures may
be necessary，such as re-orienting or relocating JPD-FR302.
Over the frequency range 150 kHz to 80 MHz，field slrengths
should be less than 3V/m.
Recommended separation distances between portable and mobile
RF communications equipment and the ME EQUIPMENT or ME
SYSTEM - for ME EQUIPMENT and ME SYSTEMS that are not
LIFE-SUPPORTING
The Infrared Thermometer JPD-FR302 is intended for use in an
electromagnetic environment in which radiated RF
disturbances are controlled. The customer or the user of the
Infrared Thermometer JPD-FR302 can help prevent
electromagnetic interference by maintaining a minimum
32
distance between portable and mobile RF communications
equipment (transmitters) and The Infrared Thermometer
JPD-FR302 as recommended below ，according to the
maximum output power of the communications equipment.
Rated
maximum
output
power of
transmitter
W
Separation distance according to frequency of
transmitter
m
80 MHz to 800 MHz
800 MHz to 2.5 GHz
d=
p][ 1
5.3
E
d =
p][ 1
7
E
0.01
0.12
0.23
0.1
0.38
0.73
1
1.2
2.3
10
3.8
7.3
100
12
23
For transmitters rated at a maximum output power not listed
above, the recommended separation distance d in metres (m)
can be estimated using the equation applicable to the
frequency of the transmitter, where P is the maximum output
power rating of the transmitter in watts (W) according to the
transmitter manufacturer.
NOTE 1 At 80 MHz and 800 MHz，the separation distance for the
higher frequency range applies.
NOTE 2 These guidelines may not apply in all situations.
Electromagnetic propagation is affected by absorption and
reflection from structures, objects and people.
Wellkang Ltd
Suite B, 29Harley Street, LONDON, W1G9QR,U.K.
Shenzhen Jumper Medical Equipment Co., Ltd
5th Floor Building No.34,Baoyuan lndustrial
Zone,Xixiang Street,Baoan
District,Shenzhen,Guangdong 518102 .P.R. China
Phone: +86-755-26696279 Fax:+86-755-26852025
Mail:info@jumper-medical.com

Navigation menu
