ShenZhen SHIDU Digital Technolgy SDVP3450 GoSpeak Duet User Manual

ShenZhen SHIDU Digital Technolgy Co.,Ltd GoSpeak Duet Users Manual

User manual

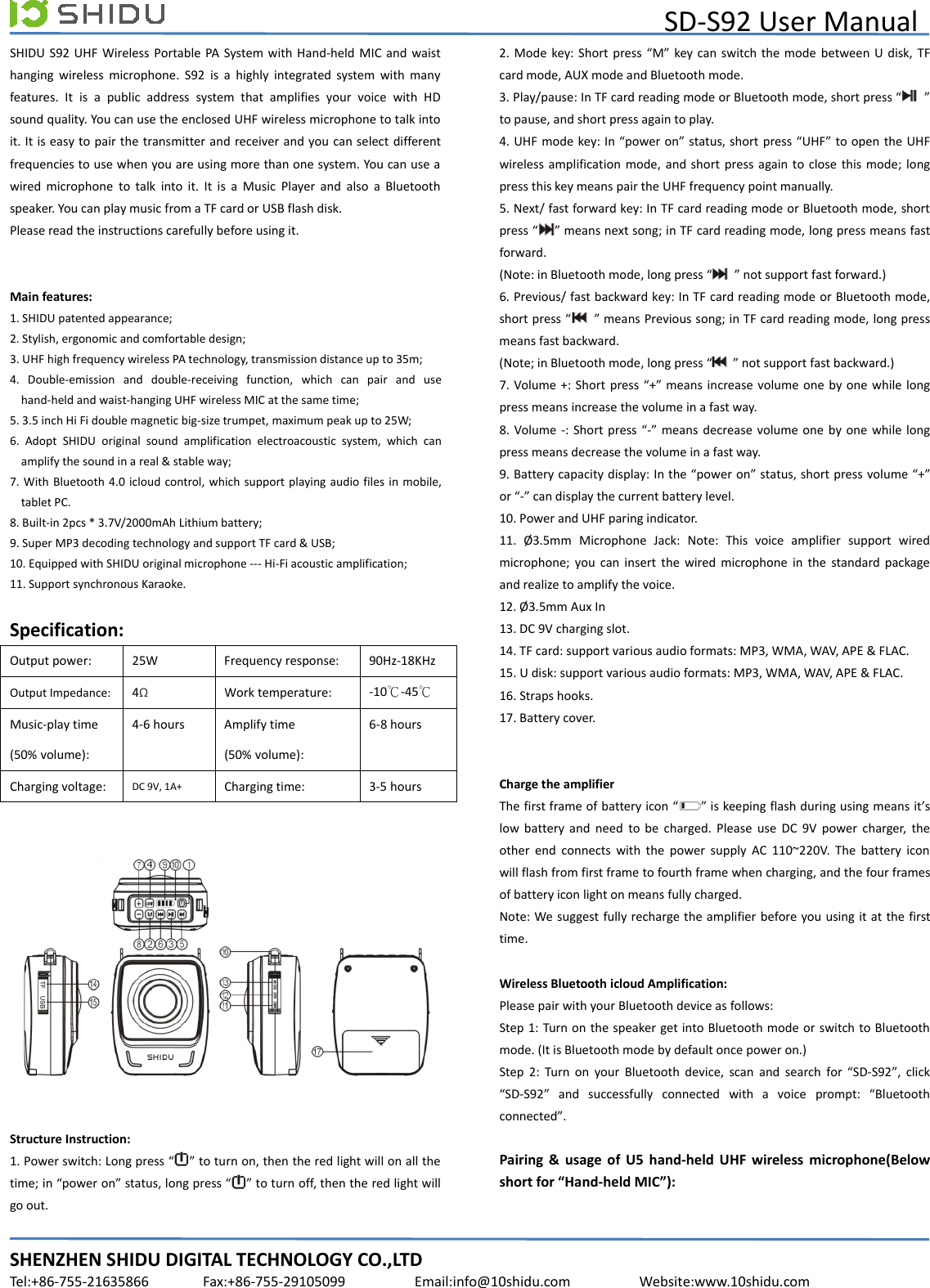

SD-S92 User ManualSHENZHEN SHIDU DIGITAL TECHNOLOGY CO.,LTDTel:+86-755-21635866 Fax:+86-755-29105099 Email:info@10shidu.com Website:www.10shidu.comSHIDU S92 UHF Wireless Portable PA System with Hand-held MIC and waisthanging wireless microphone. S92 is a highly integrated system with manyfeatures. It is a public address system that amplifies your voice with HDsound quality. You can use the enclosed UHF wireless microphone to talk intoit. It is easy to pair the transmitter and receiver and you can select differentfrequencies to use when you are using more than one system. You can use awired microphone to talk into it. It is a Music Player and also a Bluetoothspeaker. You can play music from a TF card or USB flash disk.Please read the instructions carefully before using it.Main features:1. SHIDU patented appearance;2. Stylish, ergonomic and comfortable design;3. UHF high frequency wireless PA technology, transmission distance up to 35m;4. Double-emission and double-receiving function, which can pair and usehand-held and waist-hanging UHF wireless MIC at the same time;5. 3.5 inch Hi Fi double magnetic big-size trumpet, maximum peak up to 25W;6. Adopt SHIDU original sound amplification electroacoustic system, which canamplify the sound in a real & stable way;7. With Bluetooth 4.0 icloud control, which support playing audio files in mobile,tablet PC.8. Built-in 2pcs * 3.7V/2000mAh Lithium battery;9. Super MP3 decoding technology and support TF card & USB;10. Equipped with SHIDU original microphone --- Hi-Fi acoustic amplification;11. Support synchronous Karaoke.Specification:Output power: 25W Frequency response: 90Hz-18KHzOutput Impedance: 4ΩWork temperature: -10℃-45℃Music-play time(50% volume):4-6 hours Amplify time(50% volume):6-8 hoursCharging voltage: DC 9V, 1A+ Charging time: 3-5 hoursStructure Instruction:1. Power switch: Long press “ ” to turn on, then the red light will on all thetime; in “power on” status, long press “ ” to turn off, then the red light willgo out.2. Mode key: Short press “M” key can switch the mode between U disk, TFcard mode, AUX mode and Bluetooth mode.3. Play/pause: In TF card reading mode or Bluetooth mode, short press “ ”to pause, and short press again to play.4. UHF mode key: In “power on” status, short press “UHF” to open the UHFwireless amplification mode, and short press again to close this mode; longpress this key means pair the UHF frequency point manually.5. Next/ fast forward key: In TF card reading mode or Bluetooth mode, shortpress “ ” means next song; in TF card reading mode, long press means fastforward.(Note: in Bluetooth mode, long press “ ” not support fast forward.)6. Previous/ fast backward key: In TF card reading mode or Bluetooth mode,short press “ ” means Previous song; in TF card reading mode, long pressmeans fast backward.(Note; in Bluetooth mode, long press “ ” not support fast backward.)7. Volume +: Short press “+” means increase volume one by one while longpress means increase the volume in a fast way.8. Volume -: Short press “-” means decrease volume one by one while longpress means decrease the volume in a fast way.9. Battery capacity display: In the “power on” status, short press volume “+”or “-” can display the current battery level.10. Power and UHF paring indicator.11. Ø3.5mm Microphone Jack: Note: This voice amplifier support wiredmicrophone; you can insert the wired microphone in the standard packageand realize to amplify the voice.12. Ø3.5mm Aux In13. DC 9V charging slot.14. TF card: support various audio formats: MP3, WMA, WAV, APE & FLAC.15. U disk: support various audio formats: MP3, WMA, WAV, APE & FLAC.16. Straps hooks.17. Battery cover.Charge the amplifierThefirstframeofbatteryicon“ ” is keeping flash during using means it’slow battery and need to be charged. Please use DC 9V power charger, theother end connects with the power supply AC 110~220V. The battery iconwill flash from first frame to fourth frame when charging, and the four framesof battery icon light on means fully charged.Note: We suggest fully recharge the amplifier before you using it at the firsttime.Wireless Bluetooth icloud Amplification:Please pair with your Bluetooth device as follows:Step 1: Turn on the speaker get into Bluetooth mode or switch to Bluetoothmode. (It is Bluetooth mode by default once power on.)Step 2: Turn on your Bluetooth device, scan and search for “SD-S92”, click“SD-S92” and successfully connected with a voice prompt: “Bluetoothconnected”.Pairing & usage of U5 hand-held UHF wireless microphone(Belowshort for “Hand-held MIC”):

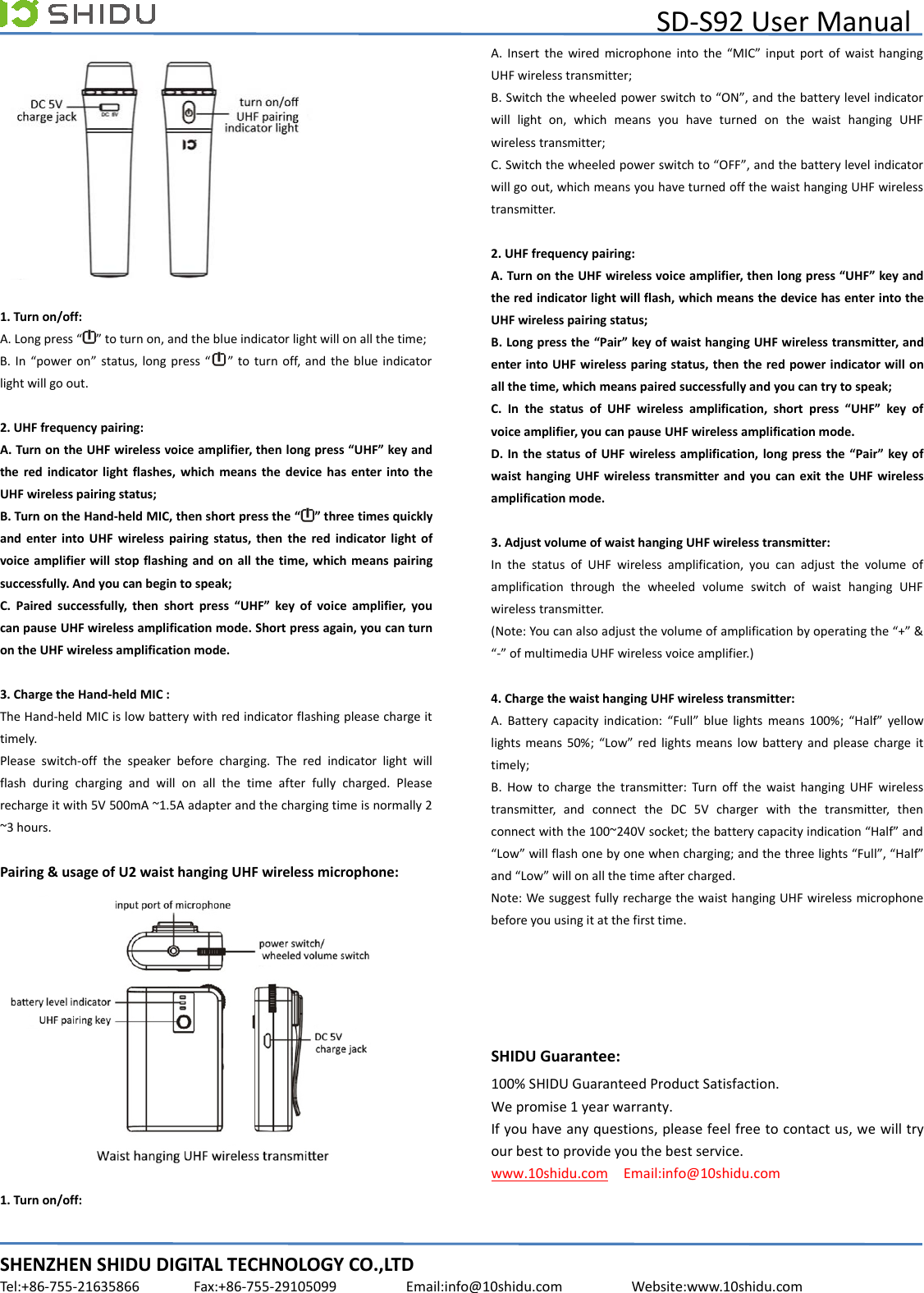

SD-S92 User ManualSHENZHEN SHIDU DIGITAL TECHNOLOGY CO.,LTDTel:+86-755-21635866 Fax:+86-755-29105099 Email:info@10shidu.com Website:www.10shidu.com1. Turn on/off:A. Long press “ ” to turn on, and the blue indicator light will on all the time;B. In “power on” status, long press “ ” to turn off, and the blue indicatorlight will go out.2. UHF frequency pairing:A. Turn on the UHF wireless voice amplifier, then long press “UHF” key andthe red indicator light flashes, which means the device has enter into theUHF wireless pairing status;B. Turn on the Hand-held MIC, then short press the “ ” three times quicklyand enter into UHF wireless pairing status, then the red indicator light ofvoice amplifier will stop flashing and on all the time, which means pairingsuccessfully. And you can begin to speak;C. Paired successfully, then short press “UHF” key of voice amplifier, youcan pause UHF wireless amplification mode. Short press again, you can turnon the UHF wireless amplification mode.3. Charge the Hand-held MIC :The Hand-held MIC is low battery with red indicator flashing please charge ittimely.Please switch-off the speaker before charging. The red indicator light willflash during charging and will on all the time after fully charged. Pleaserecharge it with 5V 500mA ~1.5A adapter and the charging time is normally 2~3 hours.Pairing & usage of U2 waist hanging UHF wireless microphone:1. Turn on/off:A. Insert the wired microphone into the “MIC” input port of waist hangingUHF wireless transmitter;B. Switch the wheeled power switch to “ON”, and the battery level indicatorwill light on, which means you have turned on the waist hanging UHFwireless transmitter;C. Switch the wheeled power switch to “OFF”, and the battery level indicatorwill go out, which means you have turned off the waist hanging UHF wirelesstransmitter.2. UHF frequency pairing:A. Turn on the UHF wireless voice amplifier, then long press “UHF” key andthe red indicator light will flash, which means the device has enter into theUHF wireless pairing status;B. Long press the “Pair” key of waist hanging UHF wireless transmitter, andenter into UHF wireless paring status, then the red power indicator will onall the time, which means paired successfully and you can try to speak;C. In the status of UHF wireless amplification, short press “UHF” key ofvoice amplifier, you can pause UHF wireless amplification mode.D. In the status of UHF wireless amplification, long press the “Pair” key ofwaist hanging UHF wireless transmitter and you can exit the UHF wirelessamplification mode.3. Adjust volume of waist hanging UHF wireless transmitter:In the status of UHF wireless amplification, you can adjust the volume ofamplification through the wheeled volume switch of waist hanging UHFwireless transmitter.(Note: You can also adjust the volume of amplification by operating the “+” &“-” of multimedia UHF wireless voice amplifier.)4. Charge the waist hanging UHF wireless transmitter:A. Battery capacity indication: “Full” blue lights means 100%; “Half” yellowlights means 50%; “Low” red lights means low battery and please charge ittimely;B. How to charge the transmitter: Turn off the waist hanging UHF wirelesstransmitter, and connect the DC 5V charger with the transmitter, thenconnect with the 100~240V socket; the battery capacity indication “Half” and“Low” will flash one by one when charging; and the three lights “Full”, “Half”and “Low” will on all the time after charged.Note: We suggest fully recharge the waist hanging UHF wireless microphonebefore you using it at the first time.SHIDU Guarantee:100% SHIDU Guaranteed Product Satisfaction.We promise 1 year warranty.If you have any questions, please feel free to contact us, we will tryour best to provide you the best service.www.10shidu.com Email:info@10shidu.com

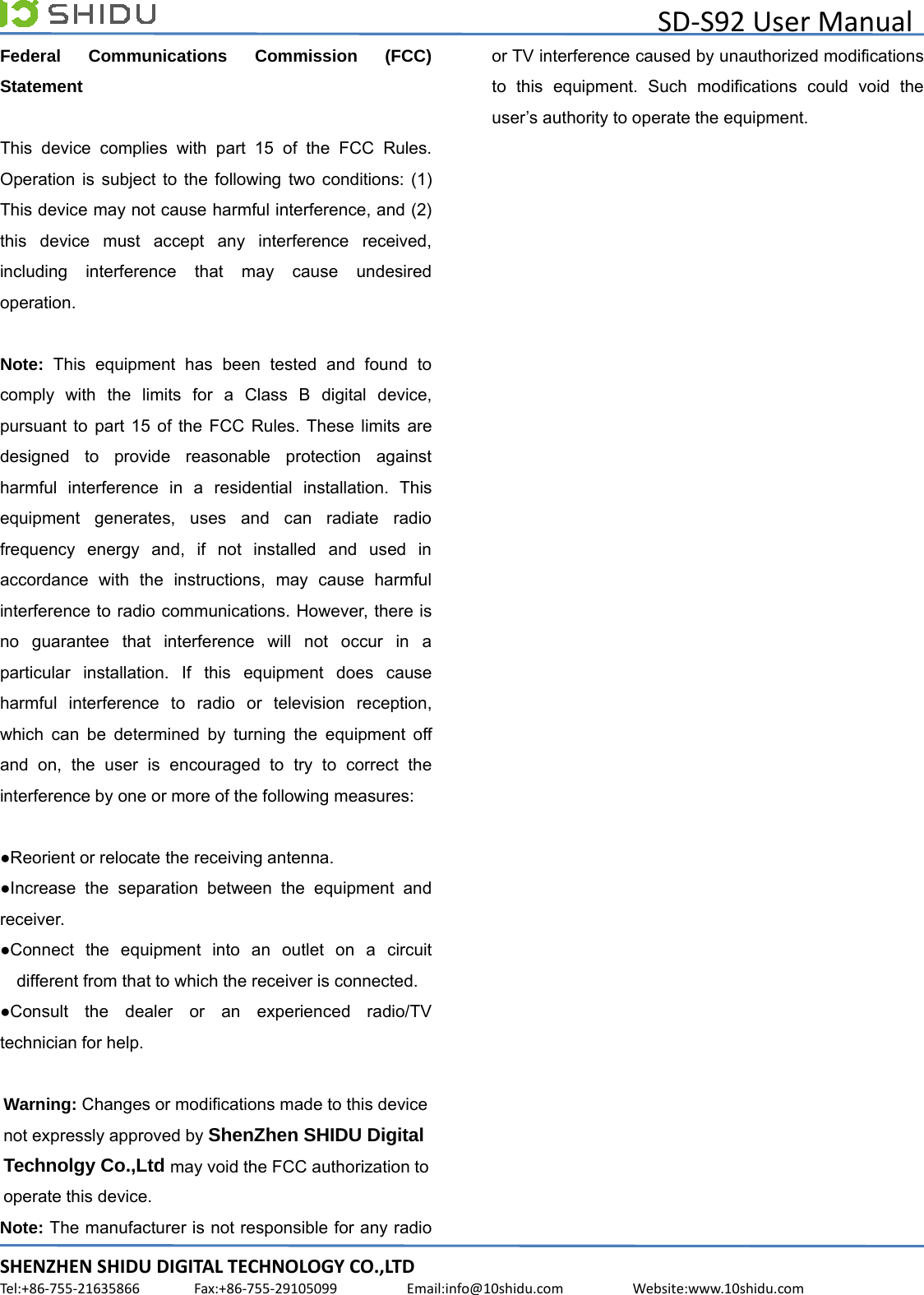

SD-S92 User ManualSHENZHEN SHIDU DIGITAL TECHNOLOGY CO.,LTDTel:+86-755-21635866 Fax:+86-755-29105099 Email:info@10shidu.com Website:www.10shidu.comFederal Communications Commission (FCC)StatementThis device complies with part 15 of the FCC Rules.Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2)this device must accept any interference received,including interference that may cause undesiredoperation.Note: This equipment has been tested and found tocomply with the limits for a Class B digital device,pursuant to part 15 of the FCC Rules. These limits aredesigned to provide reasonable protection againstharmful interference in a residential installation. Thisequipment generates, uses and can radiate radiofrequency energy and, if not installed and used inaccordance with the instructions, may cause harmfulinterference to radio communications. However, there isno guarantee that interference will not occur in aparticular installation. If this equipment does causeharmful interference to radio or television reception,which can be determined by turning the equipment offand on, the user is encouraged to try to correct theinterference by one or more of the following measures:●Reorient or relocate the receiving antenna.●Increase the separation between the equipment andreceiver.●Connect the equipment into an outlet on a circuitdifferent from that to which the receiver is connected.●Consult the dealer or an experienced radio/TVtechnician for help.Warning: Changes or modifications made to this devicenot expressly approved by ShenZhen SHIDU DigitalTechnolgy Co.,Ltd may void the FCC authorization tooperate this device.Note: The manufacturer is not responsible for any radioor TV interference caused by unauthorized modificationsto this equipment. Such modifications could void theuser’s authority to operate the equipment.
