Bluetooth Speaker User Manual
-----------------------------------------------
Thank you for purchasing our Bluetooth speaker. Please read this manual carefully
and keep it for future reference.
Features of the speaker:
1. Support wireless control through Bluetooth device
2. Support rugged, water resistant and splash proof: IP65
3. Support plug and play for Micro SD card/TF card
4. 3.5mm line-in jack for wired devices
5. Built in rechargeable battery supports up to 10 hours playback (medium volume)
6. Two 6W speakers deliver deep and rich sound
7. Built-in Microphone for phone calls
8. Support MP3, WAV, WMA, FLAC format of audio file Micro SD card / TF card,
Control panel diagram:
2
Operating Instructions:
1. Charging
With the speaker turned off, connect the Micro-USB connector of the charging
cable to the DC5V input socket at the rear side of the speaker, and plug the USB
connector of the charging cable to an external USB power supply socket with a
minimum supply current of 1A. The external USB power supply can be the USB
socket in your computer/laptop, the USB adaptor of most cellphone USB chargers
with DC5V output, or the 5V USB port of a power socket etc.
When charging, the power indicator will be flashing
2. On/Off
The On/Off slide button is at the rear side of the speaker. Slide to the on or off
position to turn the speaker on or off
3. Bluetooth
Paring – 1. Turn on speaker to enter Bluetooth mode directly. Then turn on your
Bluetooth device (such as a mobile phone, laptop, PDA etc), search for Bluetooth
equipment “F4”, and then pair up with the speaker. There will be a sound from the
speaker when Bluetooth connection is established

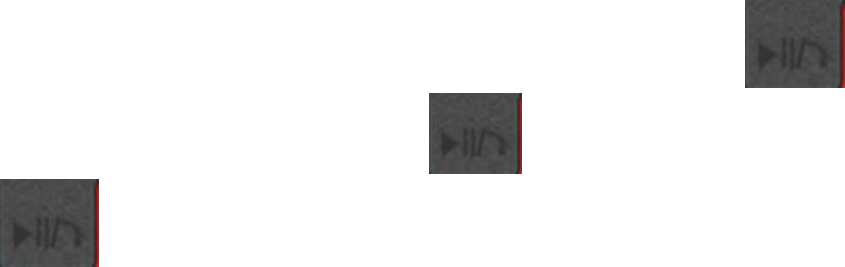

Bluetooth phone call - When paired to your phone, press the button to
answer incoming calls, and press the button again to end the call. Press
the button twice will call back to the last incoming call number.
Note: Please talk close to the microphone when making phone calls.
3

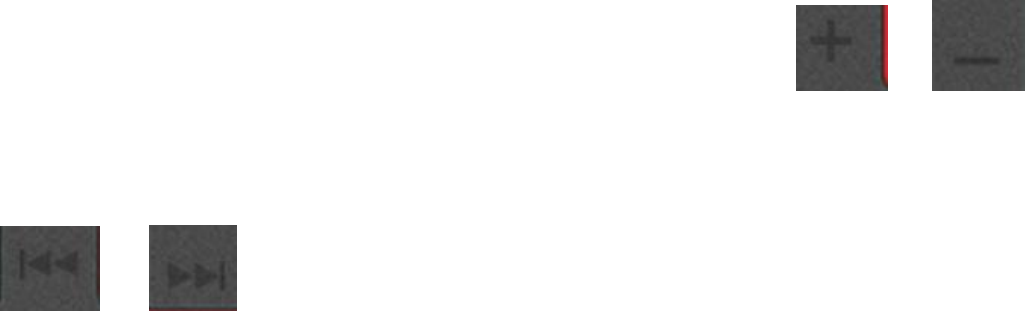

Volume adjustment – When playing music and when making a phone call under
Bluetooth mode, the volume can be adjusted by pressing the /
button. The volume can also be controlled from your Bluetooth device (cellphone,
laptop, PDA etc.)
Track selection – When playing music in Bluetooth mode, a short press of
/ button will jump to the previous track or next track. Track
selection can also be done from your Bluetooth device.
4. AUX / Line in:
Insert the audio cable into the 3.5mm jack of speaker and connect the other side to
your laptop / mobile phone / mp3 / mp4/CD player etc to play music file from
AUX/Line in.
5. Micro SD Card:
The speaker supports plug and play for Micro SD card. Just plug in your Micro
SD Card into the speaker’s Card slot and the speaker will play the music files
automatically.
6. Reset - If the speaker is not working normally, please turn on or powered on the
speaker then speaker will reset.
Note:
1 If speaker is in lower power, machine will play warning tone for three times and
then turn to sleep mode, please charge it then can work normally again
4
2. Due to the 2.4G radio interference, if the speaker can not paired or play music
well, please turn on the speaker again or reconnected the Bluetooth device again.
7. Technical data
Trouble shooting:
1. Can’t turn the speaker on:
Check if the battery is in low. Recharge and then try to turn on again
2. Can’t charge the speaker:
Check the power supply is working and that the output of the power supply to the
charge cable is 5V and > 1A.
Check that the charge cable and connectors of the cable are not damaged.
3. No sound:
Check the speaker is paired with the right Bluetooth device. If not, disconnect
the Bluetooth connection and pair again to the right device.
Check the music format in the TF card.
Power
Built-in 5200mA Li battery
External USB 5V supply
Working voltage : 3.5V-4.2V
Charging voltage: 5V 1000mA
Technical
Frequency
80HZ-18KHZ
SNR
≥90db
Sensitivity Rate
85db
THD
≤0.3%
Speaker
Φ52mm 4Ω20 corn
RMS
6W*2
Proofing
IP65
Music format
MP3、WMA、WAV、FLAC
Speaker size
200*60*72mm
Weight
560g
5
