D06   True Wireless Stereo Bluetooth Headset   User Manual (Binaural calls)   Preface Thank you for purchasing the D06 True Wireless Stereo Bluetooth Headset. This manual will help you how to use your Bluetooth headset. Before  using  a  Bluetooth  headset,  you  must  first  understand  and  become familiar with the Bluetooth capabilities of your phone.  Product parameters Bluetooth Protocol: A2DP/HFP/AVRCP/SPP Bluetooth distance: 10 meters Rechargeable battery capacity: 400 mA Headphone battery capacity: 50 mA Headphone charging time: 1 hour Charger output voltage: 5V Transmission frequency band: 2.4GHz----2.48GHz  Parts List:   Product illustration: 1: Charger 2: Micro USB 3: Charger LED indicator 4: Headphone charging case 5: Hidden button 6: Headphone LED indicator 7: Microphone 8: Charging metal contacts  Wear illustration For the best audio experience, please do try each different size earbuds, When worn properly, feel tight, comfortable and stable inside the ear. When

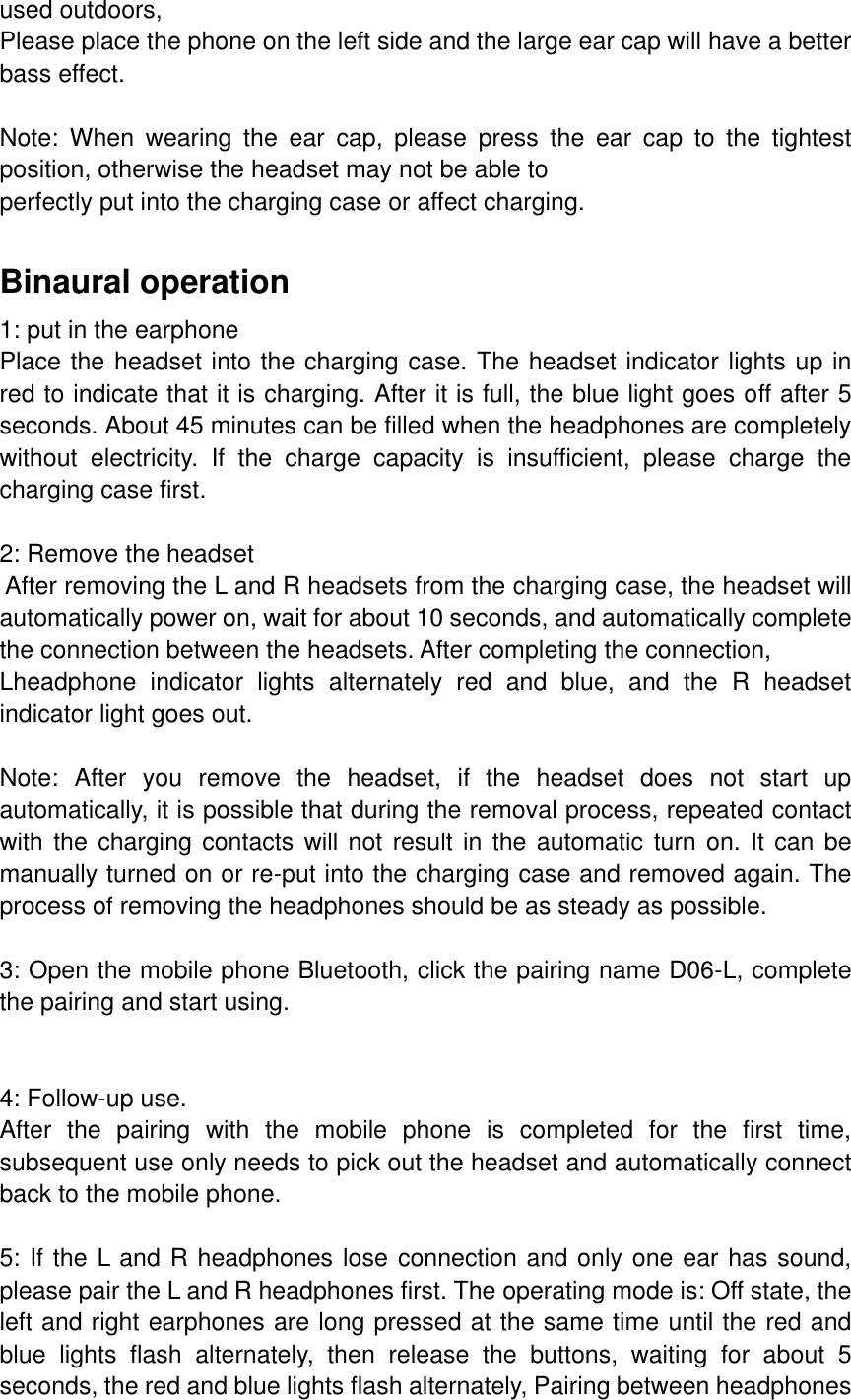

used outdoors, Please place the phone on the left side and the large ear cap will have a better bass effect.  Note:  When  wearing  the  ear  cap,  please  press  the  ear  cap  to  the  tightest position, otherwise the headset may not be able to perfectly put into the charging case or affect charging.  Binaural operation 1: put in the earphone Place the headset into the charging case. The headset indicator lights up in red to indicate that it is charging. After it is full, the blue light goes off after 5 seconds. About 45 minutes can be filled when the headphones are completely without  electricity.  If  the  charge  capacity  is  insufficient,  please  charge  the charging case first.  2: Remove the headset  After removing the L and R headsets from the charging case, the headset will automatically power on, wait for about 10 seconds, and automatically complete the connection between the headsets. After completing the connection, Lheadphone  indicator  lights  alternately  red  and  blue,  and  the  R  headset indicator light goes out.  Note:  After  you  remove  the  headset,  if  the  headset  does  not  start  up automatically, it is possible that during the removal process, repeated contact with the charging contacts will not result in the automatic  turn on. It can be manually turned on or re-put into the charging case and removed again. The process of removing the headphones should be as steady as possible.  3: Open the mobile phone Bluetooth, click the pairing name D06-L, complete the pairing and start using.   4: Follow-up use. After  the  pairing  with  the  mobile  phone  is  completed  for  the  first  time, subsequent use only needs to pick out the headset and automatically connect back to the mobile phone.  5: If the L and R headphones lose connection and only one ear has sound, please pair the L and R headphones first. The operating mode is: Off state, the left and right earphones are long pressed at the same time until the red and blue  lights  flash  alternately,  then  release  the  buttons,  waiting  for  about  5 seconds, the red and blue lights flash alternately, Pairing between headphones

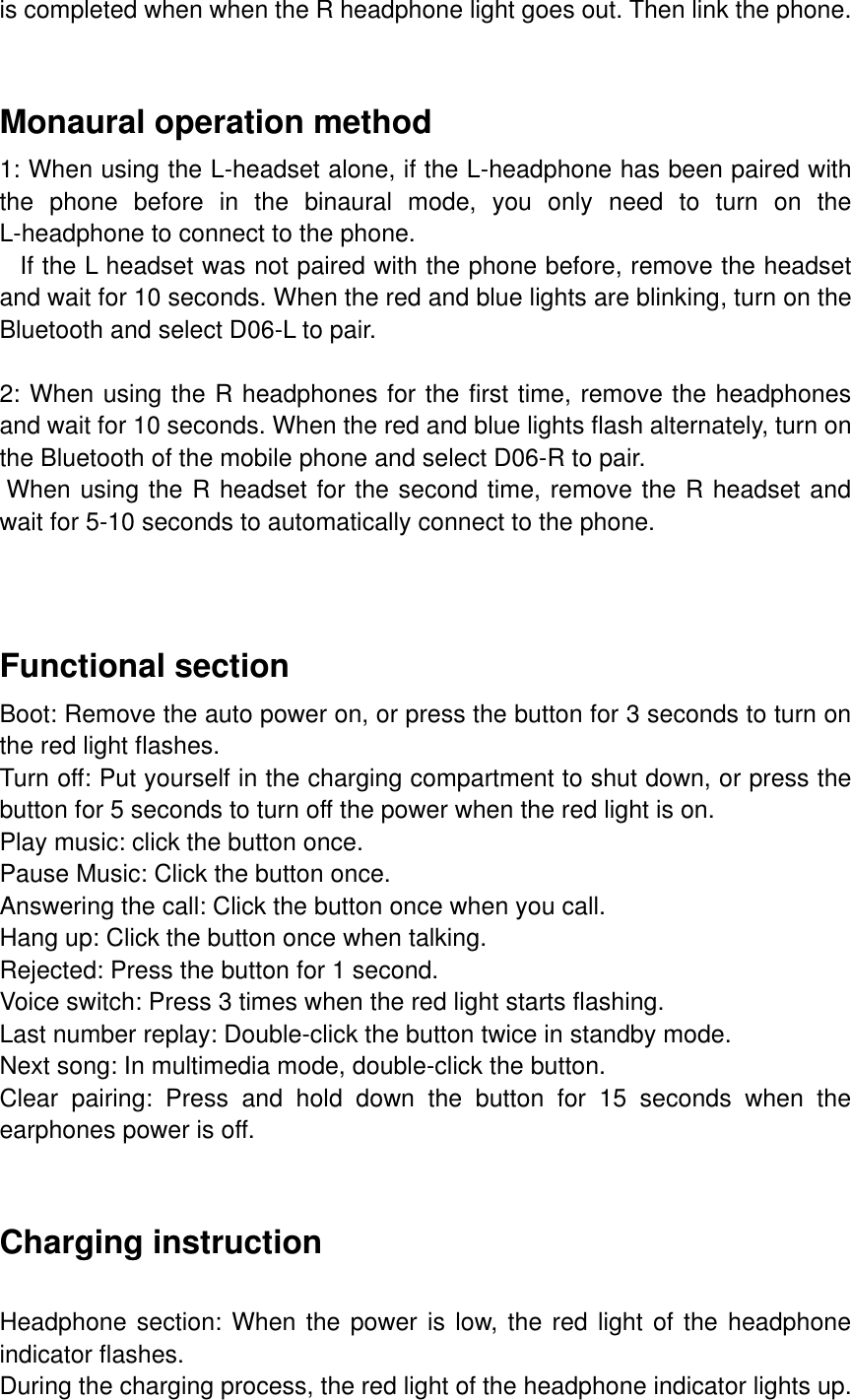

is completed when when the R headphone light goes out. Then link the phone.   Monaural operation method 1: When using the L-headset alone, if the L-headphone has been paired with the  phone  before  in  the  binaural  mode,  you  only  need  to  turn  on  the L-headphone to connect to the phone.    If the L headset was not paired with the phone before, remove the headset and wait for 10 seconds. When the red and blue lights are blinking, turn on the Bluetooth and select D06-L to pair.  2: When using the R headphones for the first time, remove the headphones and wait for 10 seconds. When the red and blue lights flash alternately, turn on the Bluetooth of the mobile phone and select D06-R to pair.  When using the R headset for the second time, remove the R headset and wait for 5-10 seconds to automatically connect to the phone.    Functional section Boot: Remove the auto power on, or press the button for 3 seconds to turn on the red light flashes. Turn off: Put yourself in the charging compartment to shut down, or press the button for 5 seconds to turn off the power when the red light is on. Play music: click the button once. Pause Music: Click the button once. Answering the call: Click the button once when you call. Hang up: Click the button once when talking. Rejected: Press the button for 1 second. Voice switch: Press 3 times when the red light starts flashing. Last number replay: Double-click the button twice in standby mode. Next song: In multimedia mode, double-click the button. Clear  pairing:  Press  and  hold  down  the  button  for  15  seconds  when  the earphones power is off.   Charging instruction  Headphone section: When the power is low, the red light of the headphone indicator flashes. During the charging process, the red light of the headphone indicator lights up.

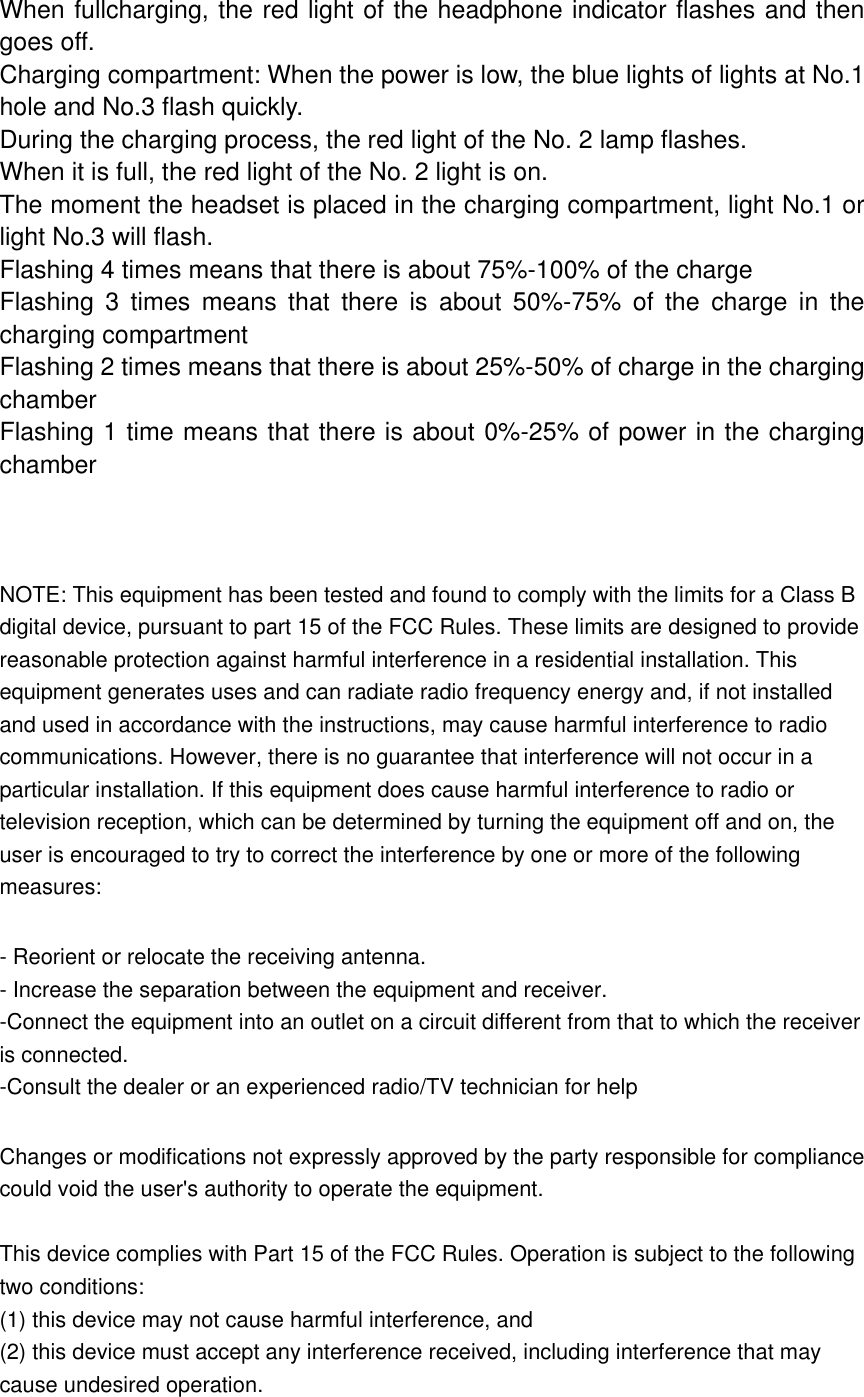

When fullcharging, the red light of the headphone indicator flashes and then goes off. Charging compartment: When the power is low, the blue lights of lights at No.1 hole and No.3 flash quickly. During the charging process, the red light of the No. 2 lamp flashes. When it is full, the red light of the No. 2 light is on. The moment the headset is placed in the charging compartment, light No.1 or light No.3 will flash. Flashing 4 times means that there is about 75%-100% of the charge Flashing  3  times  means  that  there  is  about  50%-75%  of  the  charge  in  the charging compartment Flashing 2 times means that there is about 25%-50% of charge in the charging chamber Flashing 1 time means that there is about 0%-25% of power in the charging chamber    NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help  Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.  This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
