ShenZhen Targetever Technology EG-C3054Y 2.4G Wireless Gamepad User Manual
ShenZhen Targetever Technology Co.,Ltd. 2.4G Wireless Gamepad
User Manual
Product Specifications
EG-CS3054Y http://www.targetever.com Page 1of 6
ShenZhen Targetever Technology Co.,Ltd
Floor 11-12,Building 8,LianHua Industrial Park,LongYuan Road,LongHua New
District,ShenZhen,China
TEL:86-755-33805986 FAX:86-755-33805852
Email: sales@targetever.hk http://www.targetever.com
Product Specifications
Product Name
2.4G Wireless Gamepad
Product Model
EG-CS3054Y
Customer
Revision
V0.1
Prepare By:
XiaoLin Huang
2014-02-26
Approve BY:
Product Specifications
EG-CS3054Y http://www.targetever.com Page 3of 6
Content
REVISION HISTORY.............................................................................................................................. 2
Content............................................................................................................................................... 3
Preface................................................................................................................................................ 4
Product Specifications.........................................................................................................................4
Characteristics:....................................................................................................................................4
Product appearance............................................................................................................................5
Operation............................................................................................................................................ 5
LED indication..................................................................................................................................... 6
Product Specifications
EG-CS3054Y http://www.targetever.com Page 4of 6
Preface
The purpose of this product specification is to provide technical information for the Gamepad
EG-CS3054Y, Product Design, manufactured and supplied by ShenZhen Targetever Technology Co., LTD.
Product Specifications
Connect：2.4G
Operating Frequency Band: 2.4GHz~2.48GHz unlicensed ISM Band
Power consumption: connected 15mA ,Vibration 110mA, Standby current:200uA
Battery Used: 600mAh Rechargeable lithium-ion battery, 3.7V DC
Usage time: 6~40 hours
Weight: 161g Size:157×99×60mm
Characteristics:
Compatible Systems:Android/PS3/Windows/Linux system
2.4G Wireless game controller
Twin game controller mode is available if game support
Connect via 2.4G, with charger, convenience to use
12 buttons
2 high-precision analog joysticks, offers 360 degree control
Effective distance: about 10m
Bursts design of Turbo
Double vibration
Automatic-update
Press the Mode button for 6s,turn to X-input Mode work for PC;
Product Specifications
EG-CS3054Y http://www.targetever.com Page 5of 6

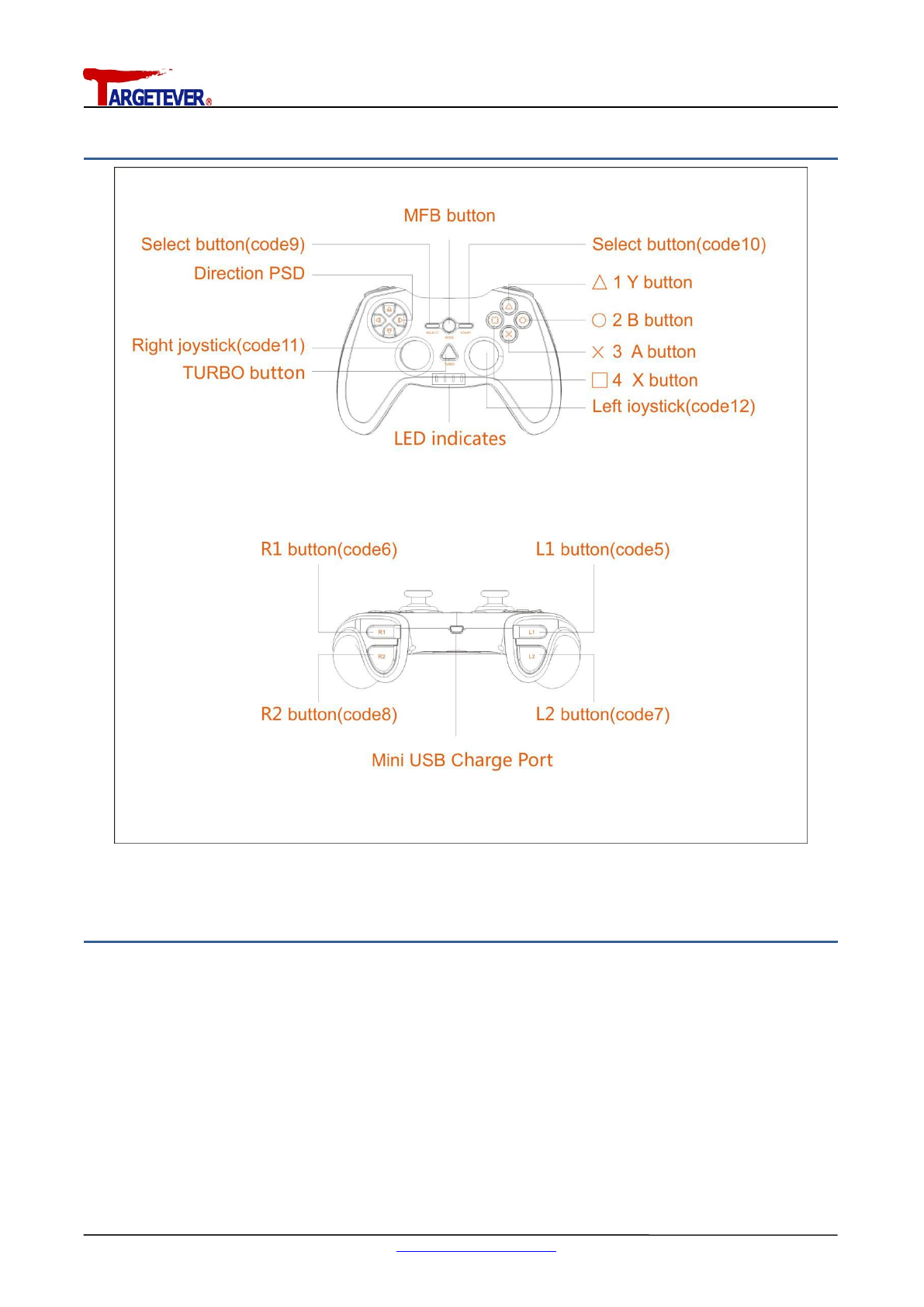

Product appearance
Operation
1. Power on
Press MFB button to power on the gamepad.
2. Power off
Press and hold MFB button 10 seconds to power off.
3. Pairing
The receiver is inserted into the equipment’s USB interface , gamepad will automatically connect after
power on.
Product Specifications
EG-CS3054Y http://www.targetever.com Page 6of 6
4. Low power indication
When the battery voltage is lower than 3.3V, the red LED begins to flash will automatically shut
down.
5. charging
Please fully charged before the first time using.
6. Function of Buttons
Direction Button
Up/Down/Left/Right
Action Button
1
2
3
4
5
6
7
8
11
12
Select Button
SELECT 9
Offer action command
Start Button
START 10
Chose single mode/double mode or materials and tools
Left Joystick
Control move direction of role (Have function when
press down, can be set)
Right Joystick
FCC Information and Copyright
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
—Consult the dealer or an experienced radio/TV technician for help.
15.19 Labelling requirements.
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1)This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation.
changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment.
FCC RF warning statement: the device has been evaluated to meet general RF exposure
requirement , The device can be used in portable exposure condition without restriction.
