TP4-022 PS4 Controller Bluetooth Keyboard
Product Name:PS4 Controller Bluetooth Keyboard No.:20151029
Model: TP4-022 Version:A1.0
Product Features:
1.Designed for PS4 controller, It is compatible with PS4 controller perfectly, and it can
input letters and symbols easily and conveniently.
2.The wireless keyboard can be used to input letters and symbols so as to have a better
experience of chatting, voice function, surfing, searching games, playing games and so on.
This product is compatible with any versions of PS4 controller, and easy to install and
dismantle.
3.While charging the wireless keyboard, the PS4 controller can be charged too.

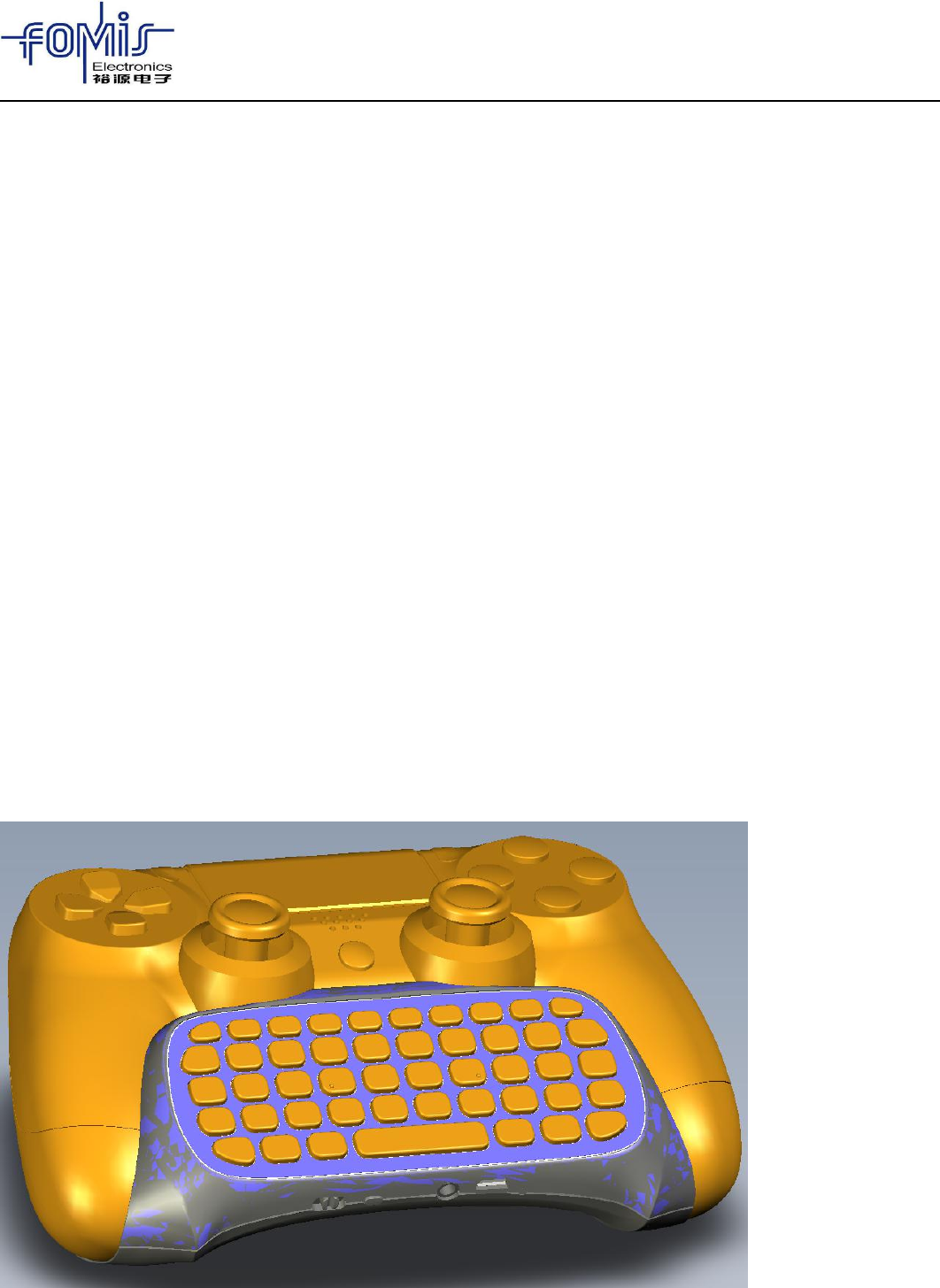

Images：
图1
Measure:
深圳市裕源欣电子科技有限公司
1
140*70*46mm

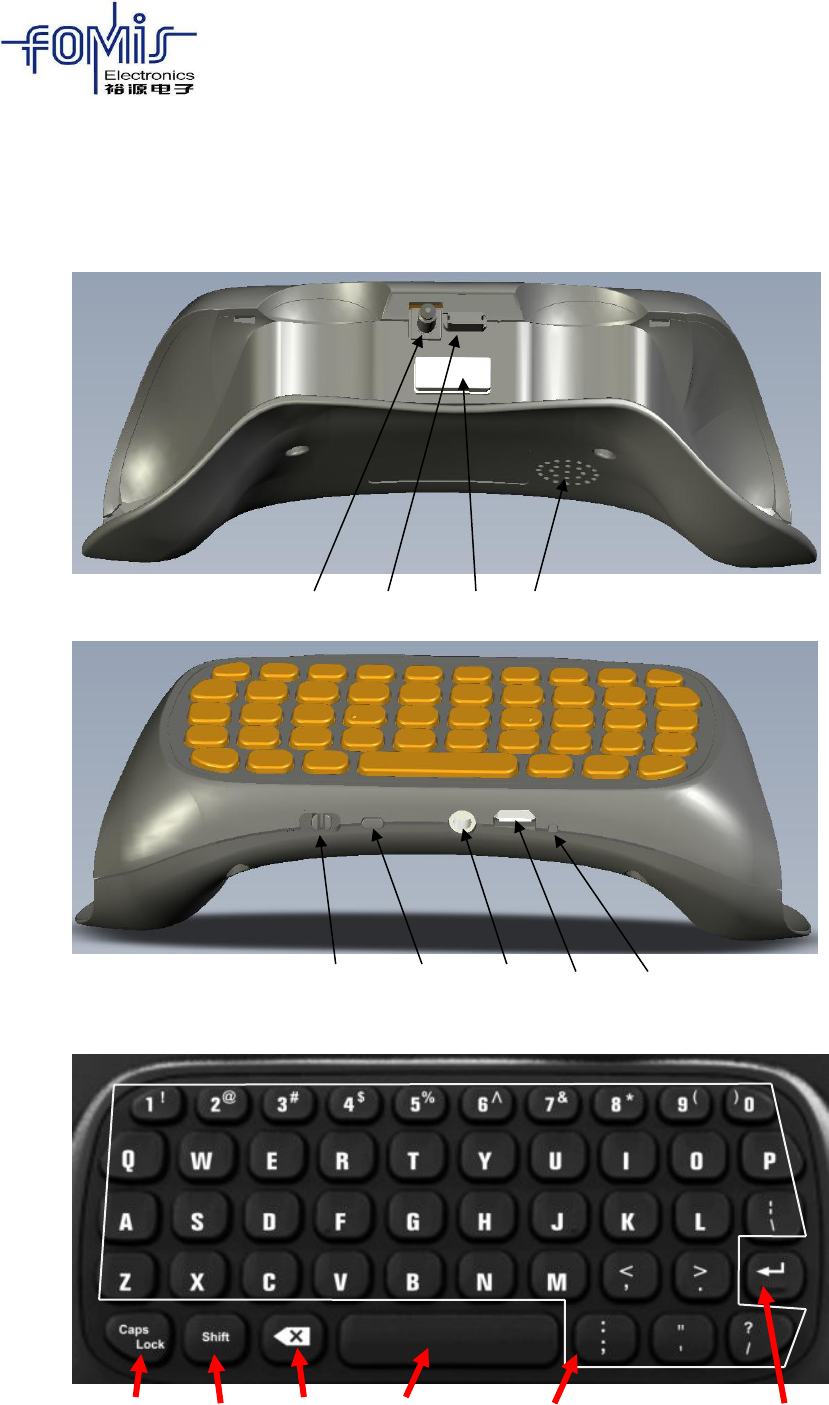

Function sketch map：
The relevant function of different parts are as follows.
1 2 3 4
5 6 7 8 9
10 11 12 13 14 15
1、Controller audio connector 2、controller charging port
3、2.4G receiver port 4、loudspeaker
深圳市裕源欣电子科技有限公司
2
5、3 in 1 gear voice-on-off 6、Match code key
7、3.5 audio output port 8、MICRO USB charging port
9、Red/Blue indicator 10、Caps lock
11、Shift key 12、Delete key
13、Space key 14、alphabetic characters key
15、Enter key
Guideline:
1、Firstly, connect the PS4 console to power supply, and connect HDMI cable with screen.
Then turn on the PS4 console and the power light will be on.
2、Adjust the switch of keyboard to “ON” to turn on the wireless keyboard, the blue LED
will twinkle once.
3、After putting the keyboard together with the PS4 controller, please insert the 2.4G
receiver into the PS4 console USB port, and press the match code key within 15
seconds. At this time the match code blue light will flash and match
automatically.(Note: Make sure the matching distance is within 0.5m; if match failed,
please repeat the steps.)
4、When pairing successfully, the blue light will be off.
5、Once the wireless keyboard is connected to the 2.4 G receiver, the wireless keyboard
can be used directly next time when turn on it and do not need to reconnect them
again.
6、The controller’s sound can be played by the Bluetooth keyboard’s loudspeaker when
connect the keyboard to PS4 original controller by the 3.5 audio jack, and put the
power key at the station of Speaker. .
7、When the connection is broken, the keyboard will enter into sleeping mode automatically,
by pressing any key, it will reconnect again; if automatic connection failed, please restart the
keyboard and reconnect them again.
深圳市裕源欣电子科技有限公司
3
8、Press the key of shift and the needed symbol key at the same time, you can key the
relevant symbols you want.
9、Press the key of Caps Lock one time, lock in the capital input; then it will back to
lowercase input when press it again.
10、When the blue light continuous flash slowly, it means the built-in lithium battery is in
lower power, please charge the bluetooth keyboard; while charging, the red light will be on
all the time, then the light will be off when charging finished.
11、Please turn off the product if do not use the it, so as to save power.
12、If do not use the product for a long time, please charge it at least once every two months, so as to
prolong the battery’s life.
Technical Parameters:
1. Applicable scope: PS4 controller
2. Wireless Protocol: 2.4G
3. Working Range: 8-10m
4. Working Current: 0.8mA(when a key was pressed)
5. Working current: 8uA(at the gear of ON, but do not press the keys)
6. Weight:
7. Product Size: 140*70*46mm
8. Material: ABS
precautions:
In order to help users operate this product properly and make sure the product is in good
condition, please read and follow with the following notes:
深圳市裕源欣电子科技有限公司
4
●Do not seriously bump the product.
●Keep the product away from benzene, thinner and other chemicals.
●Keep away from strong magnetic field, electric field.
●Please keep away from the direct ray or heating apparatus.
●Do not dismantle, repair or remould it by yourself.
●Discarded package, battery, disused electronic products shall be classified
properly.
