Shenyang Tongfang Multimedia Technology ELSFS422 LED TV User Manual

Shenyang Tongfang Multimedia Technology Co., Limited LED TV Users Manual

Users Manual

ELSFS422
INSTRUCTION MANUAL
Please read all the instructions carefully before using this TV,
and keep the manual for future reference.
42" FHD Digital LED TV
1
CONTENTS
CONTENTS
Important Safety Instructions 2
Additional Safety Information 3
Preparations 4
What's Included 4
Front View 5
Rear View 6
Wall Mounting 6
Remote Control 7
Connecting External Devices 8
Customizing TV Settings 9
Turning On/Off Your TV 9
Setup Wizard 9
Navigating The On-screen Display 11
Streaming 12
Media 13
Viewing Photos 13
Listening To Music 14
Selecting The Input Source 15
Channel Selection 15
Volume Adjustment 15
Setup 16
Settings 16
Audio Settings 17
Picture Settings 18
Channel Settings 19
Time Settings 19
Network Settings 20
Lock Settings 22
Parental Control 23
Troubleshooting 25
FCC Notes 28
Specications 28
OTT APP Service 29
2
IMPORTANT SAFETY INSTRUCTIONS
• Read these instructions – All the safety
and operating instructions should be read
before this product is operated.
• Keep these instructions – The safety
and operating instructions should be
retained for future reference.
• Heed all warnings – All warnings on
the appliance and in the operating
instructions should be adhered to.
• Follow all instructions – All operating
and use instructions should be followed.
• Do not use this apparatus near water
– The appliance should not be used near
water or moisture – for example, in a wet
basement or near a swimming pool, and
the like.
• Clean only with dry cloth.
• Do not block any ventilation openings.
Install in accordance with the
manufacturer’s instructions.
• Do not install near any heat sources such
as radiators, heat registers, stoves, or
otherapparatus(includingampliers)that
produce heat.
• Do not defeat the safety purpose of
the polarized or grounding-type plug. A
polarized plug has two blades with one
wider than the other. A grounding-type
plug has two blades and a third grounding
prong. The wide blade or the third
prong are provided for your safety. If the
providedplugdoesnottintoyouroutlet,
consult an electrician for replacement of
the obsolete outlet.
• Protect the power cord from being walked
on or pinched particularly at plugs,
convenience receptacles, and the point
where they exit from the apparatus.
• Only use attachments/accessories
speciedbythemanufacturer.
• Use only with the cart, stand, tripod,
bracket, or table specified by the
manufacturer, or sold with the apparatus.
When a cart is used, use caution when
moving the cart/apparatus combination to
avoid injury from tip-over.
• Unplug this apparatus during lightning
storms or when unused for long periods
of time.
• Refer all servicing to qualified service
personnel. Servicing is required when
the apparatus has been damaged in any
way, such as the power-supply cord or
plug is damaged, liquid has been spilled
or objects have fallen into the apparatus,
the apparatus has been exposed to rain
or moisture, does not operate normally, or
has been dropped.
• Please keep the unit in a well-ventilated
environment.
WARNING:Toreducetheriskofreorelectric
shock, do not expose this apparatus to rain
or moisture. The apparatus should not be
exposed to dripping or splashing. Objects
lledwithliquids,suchasvasesshouldnotbe
placed on apparatus.
WARNING: The batteries shall not be exposed
toexcessiveheatsuchassunshine,reorthe
like.
WARNING: The mains plug is used as
disconnect device, the disconnect device shall
remain readily operable.
WARNING: To reduce the risk of electric
shock,donotremovecover(orback)asthere
are no user-serviceable parts inside. Refer
servicingtoqualiedpersonnel.
This lightning flash with arrowhead
symbol within an equilateral triangle
is intended to alert the user to
the presence of non-insulated “dangerous voltage”
within the product’s enclosure that may be of
sufficient magnitude to constitute a risk of electric
shock.
The exclamation point within an
equilateral triangle is intended to
alert the user to the presence of
important operating and maintenance instructions in
the literature accompanying the appliance.
This equipment is a Class II or double
insulated electrical appliance. It
has been designed in such a way
that it does not require a safety connection to
electrical earth.
This product meets ENERGY
STAR® guidelines for energy
efficiency. ENERGY STAR
and the ENERGY STAR® mark
are registered U.S. marks.
ENERGY STAR® is a registered
mark owned by the U.S.
government.
RISQUE DE CHOC ELECTRIQUE NE
PAS OUVRIR
3
ADDITIONAL SAFETY INFORMATION
To ensure reliable and safe operation of this equipment, please read carefully all the
instructions in this user guide, especially the safety information below.
Electrical Safety
• The TV set should only be connected to a main power supply with voltage that
matches the label at the rear of the product.
• To prevent overload, do not share the same power supply socket with too many other
electronic components.
• Do not place any connecting wires where they may be stepped on or tripped over.
• Do not place heavy items on them, which may damage the leads.
• Hold the main plug, not the wires, when removing from a socket.
• During a thunderstorm, or when not using the television for extended period of time,
turn off the power switch on the back of the television.
• Do not allow water or moisture to enter the TV or power adapter. Do NOT use in wet,
moist areas, such as bathrooms, steamy kitchens or near swimming pools.
• Pull the plug out immediately, and seek professional help if the main plug or cable
is damaged, liquid is spilt onto the set, if accidentally exposed to water or moisture,
if anything accidentally penetrates the ventilation slots or if the set does not work
normally.
• Do not remove the safety covers. There are no user serviceable parts inside. Trying
to service the unit yourself is dangerous and may invalidate the product’s warranty.
Qualiedpersonnelmustonlyservicethisapparatus.
• To avoid battery leakage, remove exhausted batteries from the remote control, or
when not using for long period.
• Donotbreakopenorthrowexhaustedbatteriesonare.
Physical Safety
• Do not block ventilation slots in the back cover. You may place the TV in a cabinet,
butensureatleast5cm(2'')clearanceallaround.
• Do not tap or shake the TV screen, or you may damage the internal circuits. Take
good care of the remote control.
• TocleantheTVuseasoftdrycloth.Donotusesolventsorpetroleumbaseduids.
• Do not install near any heat sources such as radiators, heat registers, stoves or other
apparatus(includingampliers)thatproduceheat.
• Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized
plug has two blades with one wider than the other. A grounding type plug has two
blades and a third grounding prong, the wide blade, or the third prong is provided for
yoursafety.Iftheprovidedplugdoesnottintoyouroutlet,consultanelectricianfor
replacement of the obsolete outlet.
• Protect the power cord from being walked on or pinched particularly at plugs.
• Unplug the apparatus during lightning storms or when unused for long periods.
• Referallservicingtoaqualiedservicepersonnel.Servicing isrequiredwhenthe
apparatus has been damaged in any way, such as power-supply cord or plug is
damaged, liquid has been spilled, or objects have fallen into the apparatus, has been
exposed to rain or moisture, does not operate normally, or has been dropped.
• Please always connect your television to a power outlet with protective ground
connection.
4

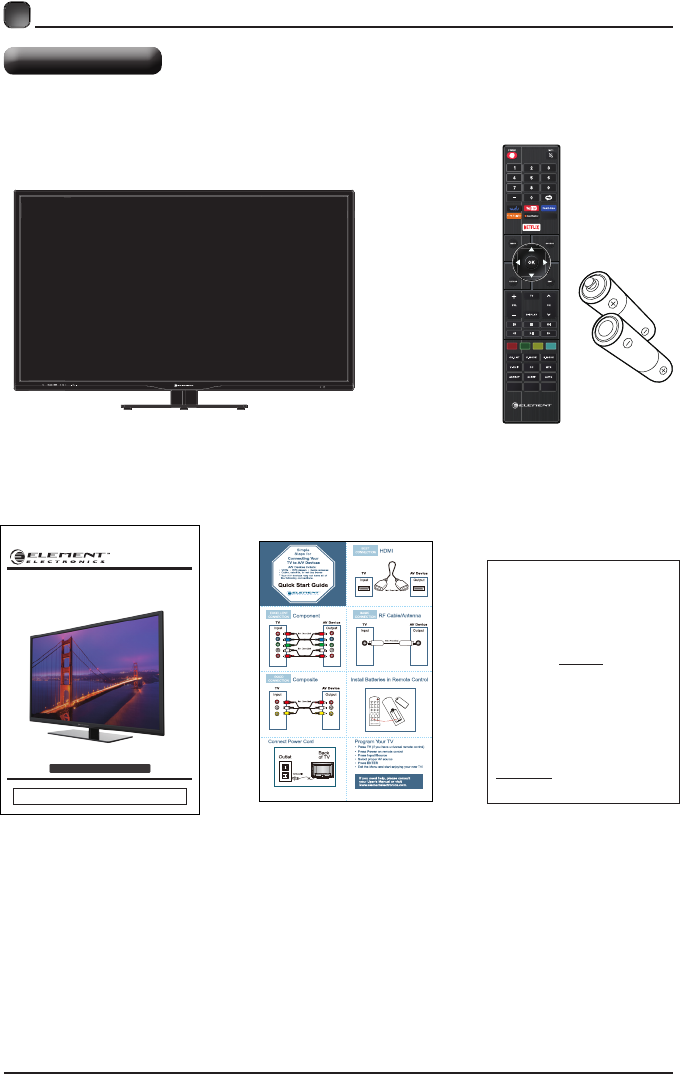

What is Included?
PREPARATIONS
TV Set Remote Control with Batteries
User Manual Quick Start Guide Warranty Card
ELSFS422
INSTRUCTION MANUAL
Please read all the instructions carefully before using this TV,
and keep the manual for future reference.
42" FHD Digital LED TV
Element LCD TV’s LIMITED WARRANTY TO ORIGINAL CONSUMER
LCD TV (CCFL or LED Backlight) – 42 inches and above Screen Size Models (the “Product”)
This Product (including any accessories included in the original packaging) as supplied and distributed in new condion, is warranted by
Element Electronics Corp. (Element) to the original consumer purchaser against defects in material and workmanship (“Warranty”) as follows:
1. PARTS AND LABOR: For a period of one (1) year from date of original consumer purchase, if this P
roduct or any funconal part is determined
by Element, or a Element authorized customer service provider, to be defecve, Element will (i) supply, at no charge to the original consumer,
new or rebuilt replacement funconal parts in exchange for defecve funconal parts, and/or (ii) repair or replace the Product, with new or
refurbished product of similar or beer quality, at E lement’s opon,at no charge to the original consumer, or pay the labor charges to any
Element authorized service provider. Aer the applicable Warranty periods, the consumer must pay for all parts and labor costs.
2. IN-HOME SERVICE: During the Warranty period described above, this Warranty includes “in-home” service (subject to availability) which
includes an authorized service provider repairing the Product in the original consumer’s home or removal of the Product for repairs at a
Element authorized service provider and returning the Product to the original consumer’s home.“In-home” service is NOT available in all
areas. In order for a consumer to receive “in-home” service, the Product must be accessible to the Element authorized service provider. If
“in-home” service is unavailable, or the repair cannot be completed, Element may el ect to (i) request that the customer transport their
product to an Element authorized service center, with the customer being responsible for any transportaon charges incurred to ship the
Product or part(s) to El ement for diagnosis, repair or replacement, or (ii) replace the Product with new or refurbished product of similar or
beer quality,all at Element’s opon.
To obtain Warranty Service and Troubleshoong informaon, please call the Toll Free Customer Service Line at:
1-888-338-5666
Please have your model and serial number available along with your date of purchase. You can also visit us online at:
www.elementelectronics.com
To receive Warranty service, the original consumer purchaser must contact Element for problem determinaon and service procedures.Proof
of purchase in the form of a bill of sale or receipted invoice, evidencing that the Product is within the applicable Warranty period(s), MUST
be presented to Element, or an authorized customer service provider,in order to obtain the requested service.
Exclusions and Limitaons
This Warranty covers manufacturing defects in materials and workmanship encountered in the normal,non-commercial use of the Product, and
does not cover (a) damage or failure caused by or aributable to abuse, misuse, failure to follow instrucons, improper installaon or mainte-
nance, alteraon, accident, or excess voltage or current; (b) improper or incorrectly performed repairs by non-authorized service facilies; (c)
onsite consumer instrucon or adjustments; (d) transportaon, shipping, delivery, i nsurance, installaon or set-up costs; (e) costs of product
removal, transportaon or reinstallaon costs; (f) ordinary wear and tear, cosmec damage or damage due to acts of nature, accident; (g)
commercial use of the Product; (h) modificaon of, or to any part of the Product. In addion, this Warranty does not cover images “burnt”
into the screen. This Warranty applies to the original consumer only and does not cover products sold AS IS or WITH ALL FAULTS, or consum-
ables (e.g., fuses, baeries, bulbs etc.), and the Warranty is invalid if the factory-applied serial number has been altered or removed from the
Product. This Warranty is valid only in the United States and Canada, and only applies to products purchased and serviced in the United States
and Canada. All replaced parts and products, and products on which a refund is made, become the property of the Warrantor.
NO WARRANTIES, WHETHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURPOSE, OTHER THAN THOSE EXPRESSLY DESCRIBED ABOVE SHALL APPLY. THE WARRANTOR FURTHER
DISCLAIMS ALL WARRANTIES AFTER THE EXPRESS WARRANTY PERIOD STATED ABOVE. NO OTHER EXPRESS WARRANTY
OR GUARANTY
GIVEN BY ANY PERSON, FIRM OR ENTITY WITH RESPECT TO THE PRODUCT SHALL BE BINDING ON THE WARRANTOR. REPAIR, REPLACEMENT,
OR REFUND OF THE ORIGINAL PURCHASE PRICE AT THE WARRANTOR’S SOLE DISCRETION ARE THE EXCLUSIVE REMEDIES OF THE
CONSUMER. THE WARRANTOR SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES CAUSED BY THE USE, MISUSE OR
INABILITY TO USE THE PRODUCT. NOT WITH STANDING THE FOREGOING, CONSUMER’S RECOVERY SHALL NOT EXCEED THE PURCHASE PRICE
OF THE PRODUCT SOLD BY Element. THIS WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE ORIGINAL CONSUMER WHO
PURCHASED THE PRODUCT AND IS NOT TRANSFERABLE.
Some states do not allow the exclusion or limitaon of incidental or consequenal damages, or allow limitaons on warranes, so the above
limitaons or exclusions may not apply to you. This Warranty gives you specific rights, and you may have other rights, which vary from state to
state.
Please send all correspondence to:
Element Electronics Corp. Customer Service
15930 Valley Blvd., City of Industry, CA 91744
customerservice@elementelectronics.com
DO NOT SHIP PRODUCT TO THIS ADDRESS. PLEASE CONTACT THE CUSTOMER SERVICE TO CONFIRM SHIPPING ADDRESSES FOR SERVICE.
5
PREPARATIONS

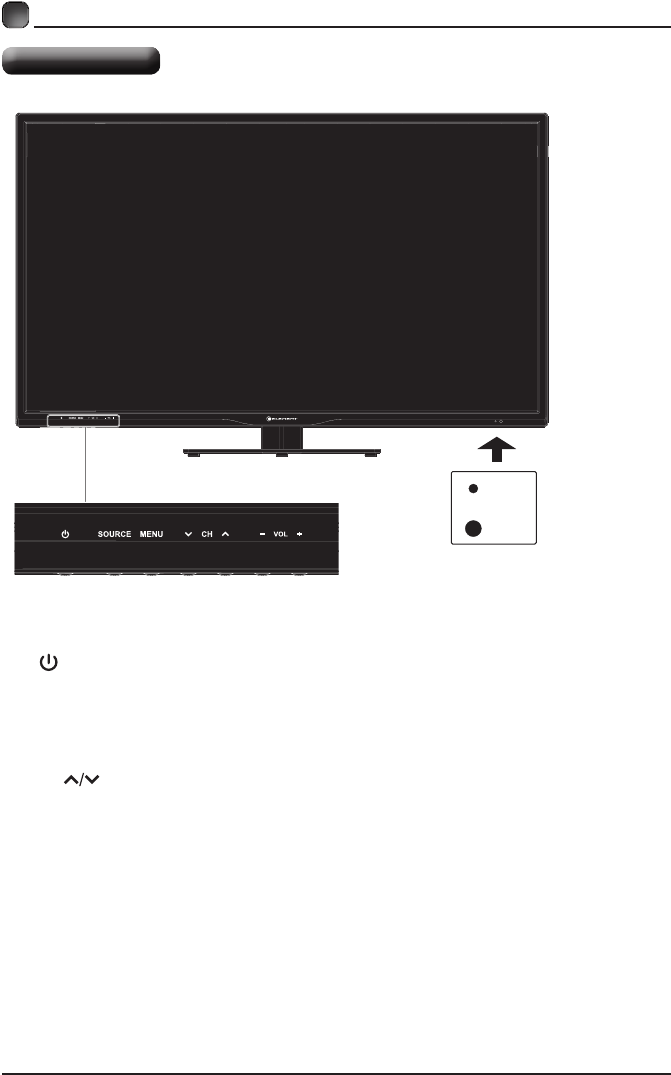

Front View
•
Switch the TV between On / Standby mode.
• SOURCE
Press to select among different input signal sources.
• MENU
DisplaytheOSD(onscreendisplay)menu.
• CH
Press to select a channel.
• VOL +/-
Press to adjust the volume.
• LED
The LED light indicates when the TV is activated.
• IR
Infrared Receiver
LED
IR
6
Your new TV is heavy, please consult with professional
wallmount installer to perform this installation.
PREPARATIONS
Rear View
Wall Mounting
1. Headphone output
Connect to the Headphones.
2. USB Input
Connect to a USB storage device to
playcompatibleaudioandphotoles.
3. LAN
Network connection port.
4. HDMI Inputs
ConnecttoaHigh-Denition(HD)signal
input device.
5. VGA Input
Connect to a computer or other devices
with a VGA interface.
6. PC Audio Input
Connect to a computer audio output.
7. Antenna Input (75Ω VHF/UHF)
Connecttotheantenna(75ΩVHF/UHF)
socket with the RF coaxial cable.
8. Optical Output
Connect a digital sound system to this
jack.
9. COMPONENT/AV Input
Connect to AV devices with composite/
component(Y/Pb/Pr)videoandaudio
output sockets. COMPOSITE VIDEO and
COMPONENT(Y/PB/PR)sharewithAUDIO
IN(L/R).
The TV is provided with mounting holes for a VESA approved wall mounting bracket (Not
Supplied).Removethescrewsholdingthebasetothebasebracketandliftthebaseaway
(donotremovethebasemountingbrackets).MounttheVESAbracketusing4*M6isometric
threadedscrews(NotSupplied).
7
PREPARATIONS
Remote Control
8
CONNECTING EXTERNAL DEVICES
RF Cable(not included)
Audio Cable
(not included)
Composite/Component Cable
(not included)
Video Camera
Game Console
Blu-ray Player / Recorder
VCR Satellite Receiver
Satellite
Antenna Cable
OR
HDMI Device
Computer
Digital Audio System
VGACable
(not included)
Audio Cable
(not included)
Headphones
Cable
(not included)
HDMI Cable(not included)
Optical Cable
(not included)
WIFI
Network Cable
(not included)
AV IN/COMPONENT
9
Turning On/Off Your TV
• Connect the power cord to the power socket after you have completed all the
physical connections. At this stage, the TV will enter Standby Mode and the red
LED indicator will illuminate.
• In Standby Mode, press the button on the main unit or on the remote control to
turn the TV on. The red LED indicator will turn blue.
The POWER button on the main unit or on the remote control can only
switch the TV into standby. To completely turn off the TV, please disconnect
the power cord from the power socket.
Exit
HomeMode(EnergySaving)isthedefaultas-shippedtelevisioncongurationandsettings.
AndHomeMode(EnergySaving)isthesettinginwhichtheproductqualiesforENERGY
STAR®. Any changes to default as-shipped television configuration and settings would
changethe energy consumption. And enabling certain optional features and functionalities
may increase energy consumption beyond the limits required for ENERGY STAR®
qualication,asapplicable.
Retail Mode:Select Retail Mode if you would like your picture to be brighter.At times this
mode may use more energy to operate the Volume/Sound mode and the Picture Mode.
In this setting, the power consumption may possibly exceed the limited requirement of the
ENERGY STAR®qualication.
ENERGY STAR®is a joint program of the U.S. Environmental Protection Agency and the U.S.
Department of Energy helping us all save money and protect the environment through
energyefcientproductsandpratices.
The On-MODE Power under Home Mode should be less than 64.8 W.
The SLEEP-MODE Power should be less than 1 W.
Setup Wizard
• ThersttimeyouturntheTVon;itwill
go into the Setup Wizard. Press the
buttons to select your desired
modeandpressOKbuttontoconrm.
CUSTOMIZING TV SETTINGS
10
Menu Language
Select your desired language to be displayed on the
menu. The default on-screen menu language is set
as English.
Air/Cable Select antenna between Air and Cable.
Cable Select Cable system: Auto, STD, IRC, HRC.
Auto Scan Search and store the available
channels automatically.
Note: If you want change the modes between
HomeMode(EnergySaving) andRetail Mode,
you can change the setting in the Setup Menu
under Display Mode.
• Press the buttons to select
your desired mode and press OK
buttontoconrm.
• Press the buttons to select your
desired mode and press OK button to
conrm.
Setup Wizard
• PressYestoconrm.
CUSTOMIZING TV SETTINGS
.
.
.
11
CUSTOMIZING TV SETTINGS
• Press the MENU button to display the main menu.
• Press the buttons to navigate and select the available menus.
PCM
Navigating The On-screen Display
12
CUSTOMIZING TV SETTINGS
Streaming
• Press the MENU button on the main unit or on the remote control to display the
STREAMING. Then press buttons to select the desired APP and press OK
button to view what you want. Or press the hotkey on the remote control to enter
the APP directly.
Note:After the TV connects to network, the status Unconnected will alter to
Connected.
NETFLIX Enjoys TV shows & movies streamed instantly over the
Internet.
YouTube YouTube your way on the best screen in your house.
VUDU
Discover, watch and collect the latest movies and
TV shows in high quality 1080p. Free to sign up. No
subscriptions, late fees or commitments.
Toongoggles
A subscription video on-demand platform that offers
animated, fun and educational cartoons, engaging
games and songs from all over the world and in many
different languages to children.
Pandora
Free personalized radio that offers effortless and
endless music enjoyment and discovery. Just start with
the name of one of your favorite artists, songs, genres
or composers and Pandora will do the rest. It’s easy to
create personalized stations that play only music you’ll
love.
AccuWeather
Displays the current weather conditions and the
temperature anywhere in the world in centigrade or
Fahrenheit.
13
CUSTOMIZING TV SETTINGS
Media
NOTE:Portable storage devices( USB disk or Hard disk) should be inserted.
• Press the MENU button on the main unit or on the remote control and then press
buttons to select the MEDIA, and then press OK button to enter.
Viewing Photos
Return WMAW MV WMEW MB WMC
WMDW MN WMTW MY WMU
Device :
1 Directories:10 Files:0 Total:101 /1
MEDIA
• After entering MEDIA, press buttons to select PHOTOS and then select the
disk type to enter. Then use / buttons to navigate in the picture folder
and then press OK button enter.
Note: File format supported: JPEG.
14
CUSTOMIZING TV SETTINGS
Listening To Music
Return WMAW MV WMEW MB WMC
WMDW MN WMTW MY WMU
Device :
1 Directories:10 Files:0 Total:101 /1
MEDIA
Note: File format supported: MP3.
• After entering MEDIA, press buttons to select MUSIC and then select the
disk type to enter. Then use / buttons to navigate in the music folder
and then press OK button enter.
15
CUSTOMIZING TV SETTINGS
Channel Selection
Selecting The Input Source
• Press the SOURCE button on the main unit or on the remote control to display
the Input Source list.
• Press the buttons to select your desired input source among: TV/AV/
Component/HDMI1/HDMI2/HDMI3/VGA and then press OKbuttontoconrm.
• Press the CH /CH buttons on the main unit or on the remote control repeatedly
to select the channel.
• Press the 0-9 buttons on the remote control to select the channel directly.
Press "4", and then press OK button to select channel 4.
Press "4" and "5", and then press OK button to select channel 45.
Press "1", "2" and "3", and then press OK button to select channel 123.
• Press the VOL+/- buttons on the main unit or on the remote control to adjust the
volume.
• If you wish to switch the sound off, press the MUTE button again or the VOL+
button to resume the sound.
Volume Adjustment
16
CUSTOMIZING TV SETTINGS
Setup
Settings
• Press the MENU button on the main unit or on the remote control to display the
main interface. Then press buttons to select SETUP menu and press
button to select the desired option.
• Press buttons to select
SETTINGS menu and then press
OK button to enter. Press
buttons to select the following
setting options and then press
buttons to adjust each
option’s setting.
Menu Language Select menu language : English, French or Spanish.
The default on-screen menu language is English.
Transparency Select to turn On/Off transparency function.
Zoom Mode
Select zoom mode : Wide/Wide Zoom/Zoom/Standard.
Note: Different input source, the zoom mode options
may
differ.
Noise Reduction Reduce the noise level of the connected device: Off/
Weak/Middle/Strong.
17
CUSTOMIZING TV SETTINGS
Audio Settings
• Press the MENU button on the main
unit or on the remote control then
press the buttons to select
AUDIO menu and then press the or
the OK button to enter.
• Press the buttons to select
the following audio options and then
press the buttons to adjust each
option’s setting.
Advanced Adjust advanced option’s setting: H-POS, V-POS,
Clock, Phase or Auto. (VGA source mode only)
Closed Caption
CC Mode Select CC mode : On, Off or CC on Mute.
Basic
Selection
Basic Selection: CC1, CC2, CC3, CC4,
Text1, Text2, Text3, Text4.
Advanced
Selection
Advanced Selection: Service1, Service2,
Service3, Service4, Service5, and
Service6.
Option
Options: Mode, Font, Size, Edge Effect,
Edge Color, Text Color, Background Color,
Text Opacity, Background Opacity.
DLC Select to turn On/Off the dynamic luminance control.
Restore Default Restore the TV to factory default settings.
Sound Mode
Allow the selection of an audio-enhancement technique:
Standard/Music/Movie/User
Alternative: you may press the S.MODE button to
select the sound mode directly.
Bass Control the relative intensity of lower-pitched sounds.
(For User mode)
Treble Control the relative intensity of higher-pitched sounds.
(For User mode)
Balance Adjust the relative volume of the speaker in a multiple
speaker system.
SPDIF Mode Select the digital audio output mode between RAW/
PCM.
Surround Sound Provide an enhanced listening experience.
Auto Volume Volume levels are automatically controlled.
Audio Language Select audio language among: English, French, Spanish
18
Picture Settings
CUSTOMIZING TV SETTINGS
• Press the MENU button on the main
unit or on the remote control then
press the buttons to select
PICTURE menu and then press the
or the OK button to enter.
• Press the buttons to select the
following picture options and then
press the buttons to adjust each
option’s setting.
Picture Mode
Cycle among picture mode: Dynamic/Movie/Energy
Saving/User/Standard.
Alternative: you may press the P.MODE button to
select the picture mode directly.
Blue Screen Allow the blue background to turn On/Off during weak
or no signal conditions.
Brightness Increase or decrease the amount of white in the
picture. (For User mode)
Contrast Adjust the difference between light and dark levels in
the pictures. (For User mode)
Color Control the color intensity. (For User mode)
Sharpness Adjust the level of crispness in the edges between
light and dark areas of the picture. (For User mode)
Tint Adjust the balance between red and green levels.
Color Temp. Cycle among color temperatures: Cool/Normal/Warm.
19
CUSTOMIZING TV SETTINGS
Channel Settings
Time SettingsTime Settings
• Press the MENU button on the main
unit or on the remote control then
press the buttons to select
TIME menu and then press the or
the OK button to enter.
• Press the buttons to select
the following time options and then
press the button to adjust each
option’s setting.
• Press the MENU button on the main
unit or on the remote control and
then press the buttons to select
CHANNEL menu.
• Press buttons to select the
following channel options and then
press the buttons to adjust each
option’s setting.
Air/Cable Select antenna between Air and Cable.
Auto Scan
First, select your cable system from Auto/STD/IRC/HRC.
Next, select the Auto Scan feature to scan your available
cable channels. It will perform the auto scan if the Air
antenna is selected.
Favorite Set the selected channel as favorite channels.
Show/Hide Show/Hide the selected channel.
Channel Name Display the current channel name.
Label Display the current channel label.
Signal Information Display the information of current signal.
Sleep Timer
Select a period of time after which the TV automatically
switches to standby mode: Off/5/10/…/180/240 min.
Alternative: You may press the SLEEP button repeatedly
to select the number of minutes directly.
Time Zone Select a Time Zone: Hawaii/ Alaska/ Pacific/ Mountain/
Central/ Eastern/ Atlantic/ Newfoundland.
Daylight Saving
Time Select to turn On/Off daylight saving time.
20
CUSTOMIZING TV SETTINGS
Network Settings
• Press buttons to select
NETWORK menu and then press OK
button to enter.
• Press buttons to select the
following network options and then
press buttons to adjust each
option’s setting.
Network Type Select two types of network: Wireless or Lan.
Lan Connect the TV to the wired Lan: Auto Get IP/Manual
Get IP.
Wireless Connect the TV to the wireless network through
searchingtheavailableWi.
IP Address Display the current IP information.
Network Upgrade Upgrade the TV software through the network.
Deactivate Netix DeactivateNetixandcleartheaccountinformation.
Deactivate Vudu Deactivate Vudu and clear the account information.
ESN Electronic Serial Number
• After the TV connects to network, the system will automatically detect software
version.
Auto Upgrade
21
• If there is a new version, it will be downloaded in the background. When you want
to enter the app, a menu bar will pop up reminding you that upgrade software is
downloading. Please try later...
CUSTOMIZING TV SETTINGS
• After the download completed, it can upgrade automatically after users press the
standby button.
Note: This procedure is fully automatic, and remember not to cut off the power.
Manual Upgrade
• After the TV connects to network, users can detect whether there is a new version
through network manual option.
• Below occasions are possible while your internet is connected to enjoy your OTT
services.
• 1.Please check your internet signal strength while internet is connected, signal
strength below 50 may result bad connection and non-smooth picture.
• 2.To enter OTT services, 30 second may be required for internet connection.
Reminder for internet connection:
Recommended 10Mb above internet speed
22
CUSTOMIZING TV SETTINGS
• Press the MENU button on the main
unit or on the remote control and
then press the buttons to select
LOCK menu.
• Use the 0-9 buttons to input 4-digit
password to enter the LOCK menu.
• Press the buttons to select the
following options and then press the
buttons to adjust each option’s
setting.
The default password is "0000".
Lock Settings
Change Password
Use 0-9 buttons to input the old password and then
input the new 4-digit password. Re-enter new password
forconrmation.
System Lock
Select to turn On/Off system lock. The following options
(USA,Canada,RRTSettingandResetRRT)willonly
be accessible when you turn the system lock on.
USA
TV TV RATING: Press OK button to lock or
unlock TV rating.
MPAA Select MPAA rating : N/A,G, PG, PG-13, R,
NC-17,or X.
Canada
Canada
English
Select MPAA rating for English-speaking
Canada : E, C, C8+, G, PG, 14+, 18+.
Canada
French
Select MPAA rating for Quebec Canada : E,
G, 8 ans+, 13 ans+, 16 ans+, 18 ans+.
RRT Setting Set Rating Region Table.
Reset RRT Select to reset the RRT setting.
Clear Lock Clear all lock settings.
23
Press the MENU button on the main unit or on the remote control and then press the
buttons to select LOCK menu. Use the 0-9 buttons to input 4-digit password to enter
the LOCK menu. If used, this option feature can "block'' undesirable programming from
appearing on the TV. Parental Control offers the user a wide variety of options and settings
that restrict or "block'' the programming that can appear on the TV. Parental Control allows
the user the capability of defining which program rating they consider acceptable to the
younger more sensitive viewer. It can be preset and turned either on or off by the user
whospeciesthesecret 4-numbercode,thepassword.Thenumber ofhoursblocked are
specified. General audiences and children blocks should be both programmed into the
TV'smemory.ViewerratingsarespeciedforbothTVandthemotionpictureIndustry;both
rating systems should be used, for complete coverage. The ratings are based on the ages
of children.
Overview
ToensurecompletecoverageforallTVprograms,(moviesandregularTVshows)choose
a rating for MPAA, from the selections below,as well as ratings from the TV Parental
Guidelines Rating Systems below, using the Age Block option for General Audiences, and
for children. In addition to those, you may wish to add additional restrictions from the content
block menu, and submenus examples below.
Things to Consider before Setting up Parental Control
Determine which rating you consider acceptable to the viewer. (For example,if you choose
TV-PG,morerestrictiveratingswillbeautomaticallyblocked;theviewerwillnotbeableto
see:TV-PG,TV-14,orTV-MAratedprogramming.)Doyouwanttoblocktheauxiliaryvideo
source entirely? (Blocks the signal sent by the equipment, such as VCR, connected to the
TVAudio/VIdeoInputJacks)Orleaveunblocked,thenchooseallowableratings.Block
program "Content" based on individual parameters such as: Strong Dialog, Bad Language,
SexScenes,ViolenceScenes, orFantasy.ViolentScenes;inContentBlkoption.Selecta
secret password, in the Set Password option, using the numbers keys on the remote control.
Do not forget the password, it is the only way you can access the Parental Control menu
and change rating selections, or turn Parental Control off.Do you want the Parental Control
to be active at all times? If not, you can turn it on or off with the Lock On/Off option.
• You can set different Parental Control viewing restrictions for general audiences and for
children, both can be active at the same time.
• Simply specifying one content block such as Sex Scenes, will not automatically restrict
the programming that appears from the video sources.
• Even If you choose to leave the AUX Inputs unblocked, the ratings you specify will
automatically restrict the programming that appears from the video sources.
• You can not disable Parental Control by disconnecting the TV from power. Block hours will
beautomaticallyresettotheoriginalblocktimesettingspeciedifpowerisdisconnected.
CUSTOMIZING TV SETTINGS
Parental Control
24
Motion Picture Association of America (MPAA) Rating System
Grade Meaning
GGeneral Audiences Content not offensive to most viewers.
PG Parental Guidance
Suggested
Content is such that parents may not want
their children to view the program.
PG-13 Parents Strongly
Cautioned
Program is inappropriate for preteens, with a
greater degree of offensive material suggested
than a PG rated program.
RRestricted Not for children under 17, strong element of
sex and/or violence.
NC-17 No children under
age 17
Not for children under 17 under any
circumstances. Strong sexual content.
XHard Core Films Same as NC-17 rating.
No Rating No Rating MPAA Not Rated
TV Parental Guideline Rating System
Grade Meaning
TV-Y All Children Content not offensive to most viewers.
TV-Y7 Directed to Older
Children
Considered suitable for children over 7, may
contain fantasy violence scenes.
TV-G General Audience Consideredsuitablefor allaudience;children
may watch unattended.
TV-PG Parental Guidance
Suggested
Suggested unsuitable for younger children,
may contain suggestive language, bad
language, sex and violence scenes.
TV-14 Parents Strongly
Cautioned
unsuitable for children under 14, may contain
strong language, bad language, sex and
violence scenes.
TV-MA Mature Audience
Only
Adults only, may contain strong language, bad
language, sex and violence scenes.
Canadian Rating:
• Canadian English is used throughout all English-speaking Canada (C, C8+,G, PG,14+, 18+).
• Canadian French is used in Quebec (G,8 ans+, 13 ans+,16 ans+, 18 ans+).
CUSTOMIZING TV SETTINGS
The V-Chip will automatically block certain categories that are "more
restrictive".If you block TV-Y category,then TV-Y7 will be automatically
blocked. Similarly,if you block TV-G category, then allthe categories in the
"youngadult"willbeblocked(TV-G,TV-PG,TV-14,andTV-MA).
25
TROUBLESHOOTING
If your TV does not operate normally or cannot be turned on, please check
the following troubleshooting questions. Remember also to check any other
connected electronic device, such as DVD or blu-ray player to pinpoint the
problem. If the TV still fails to operate normally, please contact technical support
(RefertoWarratypage).
SYMPTOM POSSIBLE CAUSE REMEDY
Dead. No LED lit No power to the TV. • Check all connections to the
TV's AC socket.
Dead. No LED lit red Set in standby mode.
• Press either the Power button
or the Standby button on the
remote control.
Blue screen
No signal. • Press the SOURCE button to
select the correct source.
Incorrect
source selected.
Noisy, snowy, ghosting
picture(TV) Poor antenna signal.
• If using an indoor antenna, try
adjusting the antenna position.
Check antenna connections.
No sound
Sound "Mute". • Turn sound "Mute" off.
Volume set too low. • Check volume settings.
External leads
not connected "if used".
• Check that all external leads
are connected properly.
26
Before contacting the service technician, perform the following simple checks. If
any problem still persists, unplug the LED TV and call for assistance.
PROBLEM POSSIBLE SOLUTIONS
No sound and picture
• Check that the main plug has been connected to a
wall outlet.
• Check that you have pressed the POWER on the
front of the TV set.
• Check the picture contrast and the brightness
setting.
Red LED indicator lights • Set in standby mode. Press either the Power button
or the Standby button on the remote control.
Normal picture but no sound
• Check the volume.
• Sound muted? Press the MUTE button.
• Try another channel, the problem may be with the
broadcast.
• Are the audio cables installed properly?
The remote control does not
work
• Check to see if there are any objects between the
TV and remote control causing obstruction.
• Arebatteriesinstalledwithcorrectpolarity(+/-)?
• Correct remote operating mode set: TV, VCR, etc?
• Install new batteries.
Power suddenly turns off
• Is the sleep timer set?
• Check the power connection, power may be
interrupted.
• No broadcast on the station tuned.
Picture appears slowly after
switching on
• This is normal, the image is muted during the product
start up process. Please contact a service provider if
the picture has not appeared after 5 minutes.
Poor color or picture
• Adjust the color in Menu option.
• Keepasufcientdistancebetween theproductand
the VCR.
• Try another channel, the problem may be with the
broadcast.
• Are the VIDEO cables installed properly?
• Activate any function to restore the brightness of the
picture.
Horizontal/vertical bars or
picture shaking
• Check for local interference, such as an electrical
appliance or power tool.
Blue screen • Press the SOURCE button to select correct source.
Poor reception on
some channels
• Station or cable experiencing problems. Tune to
another station.
• Station signal is weak, reorient antenna for better
reception.
• Check for sources of possible interference.
Lines or streaks in pictures • Check the antenna (change the direction of the
antenna).
No output from one of the
speakers • Adjust balance in the Menu option.
TROUBLESHOOTING
27
TROUBLESHOOTING
Note:WhenthereisaprobleminVGAmode(onlywhenVGAmodeisapplied).
PROBLEM POSSIBLE SOLUTIONS
The signal is out of range
• Adjust resolution, horizontal or vertical
frequency.
• Check whether the signal cable is connected or
loose.
• Check the input source.
Vertical bar or strip on the
background, horizontal noise
and incorrect position
• Settheautocongureoradjustclock,phase, or
H/V position.
Screen color is unstable or is a
single color
• Check the signal cable.
• Reinstall the PC video card.
Maintenance
Early malfunction can be prevented. Careful and regular cleaning can extend
the amount of time you will have with your new TV. Be sure to turn the power off
and unplug the power cord before you begin any cleaning.
Do not use your TV in areas that are too hot or too cold, because the cabinet
may warp or the screen may malfunction. Your TV works best in temperatures
that are comfortable to you.
Storagetemperaturesare32°to122°F(0°to50°C).
Workingtemperaturesare32°to95°F(0°to35°C).
Do not place your TV in direct sunlight or near a heat source.
Clean the screen
A great tip to dust off your screen: wet a soft cloth in a mixture of lukewarm
water and a little fabric softener or dish washing detergent. Wring the cloth until
it’s almost dry, and then use to wipe the screen.
Make sure the excess water is off the screen, then let air-dry before you turn on
the TV.
Cleaning the cabinet
To remove dirt or dust, wipe the cabinet with a soft, dry, line-free cloth. Please
be sure not to use a wet cloth.
28
FCC NOTES
SPECIFICATIONS
Panel Size 42 inches diagonally
Display Type LED
Panel Technology TFT
Panel 60 Hz Vs. 120 Hz 60 Hz
Display Resolution 1080P
HDMI & Component Support Up to 1080P
Panel Resolution 1920 x 1080
Aspect Ratio 16:9
Dynamic Contrast Ratio-Panel 4000:1
Brightness(CentreTyp.)Cd/M² 200~250
ResponseTime(GToG) 6.5 ms
LampLife(Typ.Hours) 30,000 hours
HorizontalViewingAngle(AtCR>10) 178
VerticalViewingAngle(AtCR>10) 178
TV System ATSC/NTSC
Channel Range VHF/UHF
Designandspecicationsaresubjectstochangewithoutpriornotice.
FCC STATEMENT
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1)Thisdevicemaynotcauseharmfulinterference,and
(2)Thisdevicemustacceptanyinterferencereceived,includinginterferencethatmaycause
undesired operation.
Changesormodicationsnotexpresslyapprovedbythepartyresponsibleforcompliancecould
void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
FCC Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator & your body.
29
OTT APP SERVICE
If you want to know about these APP information or get more service. Please refer to following
content.
• Netix
You can call the following telephone for more help: 866-579-7172
If your matter is regarding customer service, please refer to https://contactus.netix.com/help for
alternative contact information.
• YouTube
You can browse the following website for more help:
https://productforums.google.com/forum/#!categories/youtube/smart-tvs
• VUDU
You can call the following telephone for more help: 888-554-8838
• TG
You can call the following telephone for more help: 888-874-5411
• Pandora
You can send E-mail to Pandora for more help: pandora-support@pandora.com
• AccuWeather
You can send E-mail to AccuWeather for more help: CustomerService@AccuWeather.com
OTT APP SERVICE
This product contains electrical or electronic materials. The presence of these materials may, if
not disposed of properly, have potential adverse effects on the environment and human health.
Presence of this label on the product means it should not be disposed of as unsorted waste
and must be collected separately. As a consumer, you are responsible for ensuring that this
product is disposed of properly.

Navigation menu
