User manual

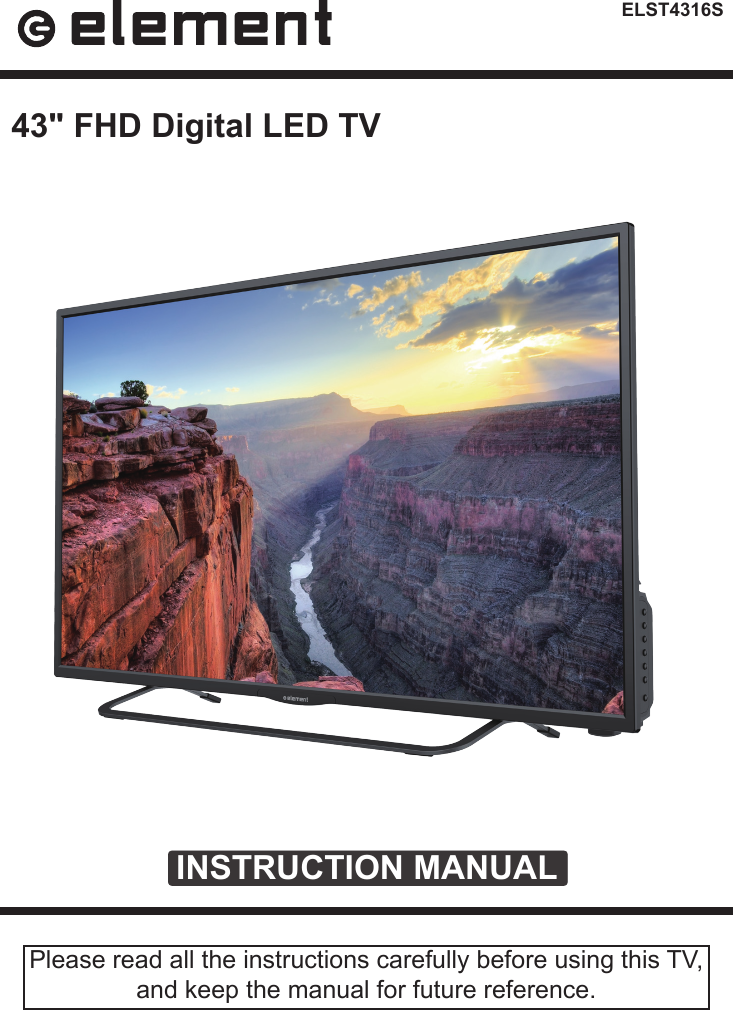

ELST4316SINSTRUCTION MANUALPlease read all the instructions carefully before using this TV,and keep the manual for future reference.43" FHD Digital LED TV

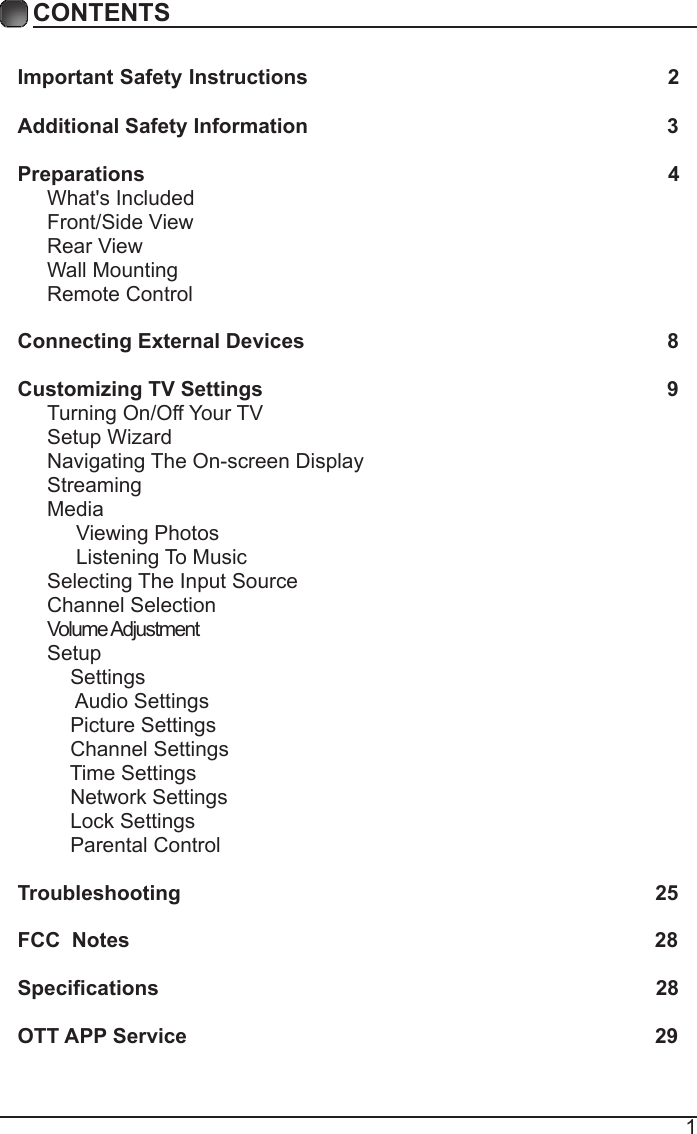

1CONTENTSCONTENTSImportant Safety Instructions 2Additional Safety Information 3Preparations 4What's Included Front/Side View Rear View Wall Mounting Remote Control Connecting External Devices 8Customizing TV Settings 9Turning On/Off Your TV Setup Wizard Navigating The On-screen Display Streaming Media Viewing Photos Listening To Music Selecting The Input Source Channel Selection Volume Adjustment Setup Settings Audio Settings Picture Settings Channel Settings Time Settings Network Settings Lock Settings Parental Control Troubleshooting 25FCC Notes 28Specications 28OTT APP Service 29

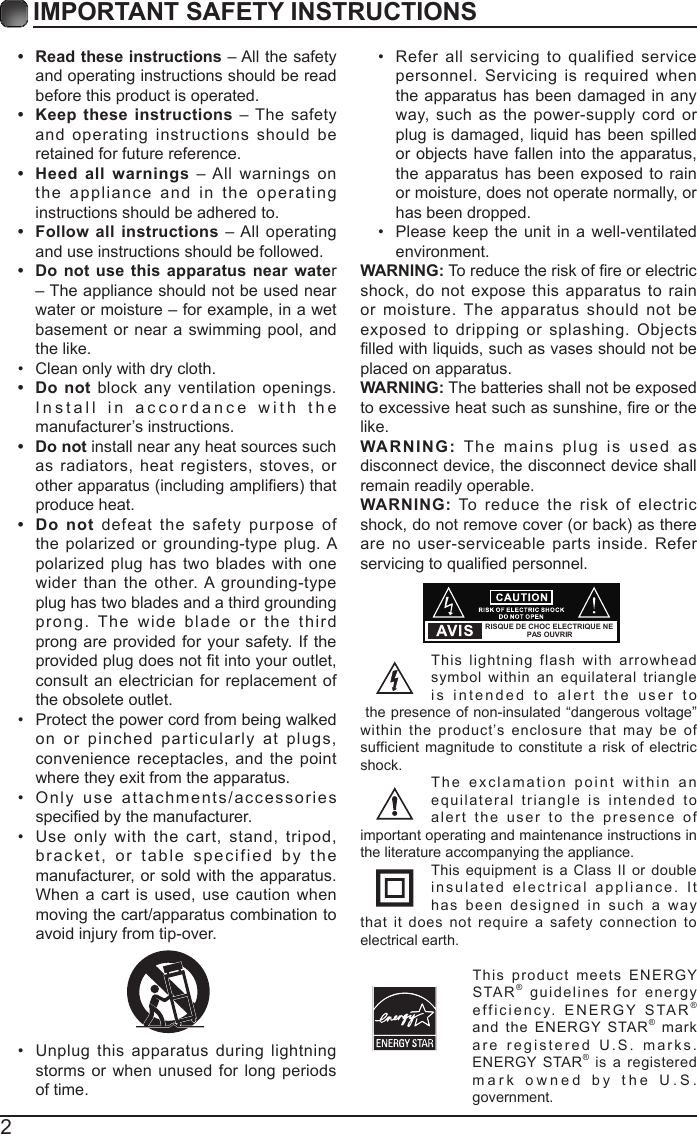

2IMPORTANT SAFETY INSTRUCTIONS• Read these instructions – All the safety and operating instructions should be read before this product is operated. • Keep these instructions – The safety and operating instructions should be retained for future reference. • Heed all warnings – All warnings on the appliance and in the operating instructions should be adhered to. • Follow all instructions – All operating and use instructions should be followed. • Do not use this apparatus near water – The appliance should not be used near water or moisture – for example, in a wet basement or near a swimming pool, and the like.• Clean only with dry cloth.• Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.• Do not install near any heat sources such as radiators, heat registers, stoves, or otherapparatus(includingampliers)thatproduce heat. • Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the providedplugdoesnottintoyouroutlet,consult an electrician for replacement of the obsolete outlet.• Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.• Only use attachments/accessories speciedbythemanufacturer.• Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. • Unplug this apparatus during lightning storms or when unused for long periods of time.• Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as the power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.• Please keep the unit in a well-ventilated environment.WARNING:Toreducetheriskofreorelectricshock, do not expose this apparatus to rain or moisture. The apparatus should not be exposed to dripping or splashing. Objects lledwithliquids,suchasvasesshouldnotbeplaced on apparatus. WARNING: The batteries shall not be exposed toexcessiveheatsuchassunshine,reorthelike.WARNING: The mains plug is used as disconnect device, the disconnect device shall remain readily operable.WARNING: To reduce the risk of electric shock,donotremovecover(orback)asthereare no user-serviceable parts inside. Refer servicingtoqualiedpersonnel.This lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of non-insulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock.The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance instructions in the literature accompanying the appliance. This equipment is a Class II or double insulated electrical appliance. It has been designed in such a way that it does not require a safety connection to electrical earth.This product meets ENERGY STAR® guidelines for energy efficiency. ENERGY STAR® and the ENERGY STAR® markare registered U.S. marks. ENERGY STAR® is a registered mark owned by the U.S. government.RISQUE DE CHOC ELECTRIQUE NE PAS OUVRIR

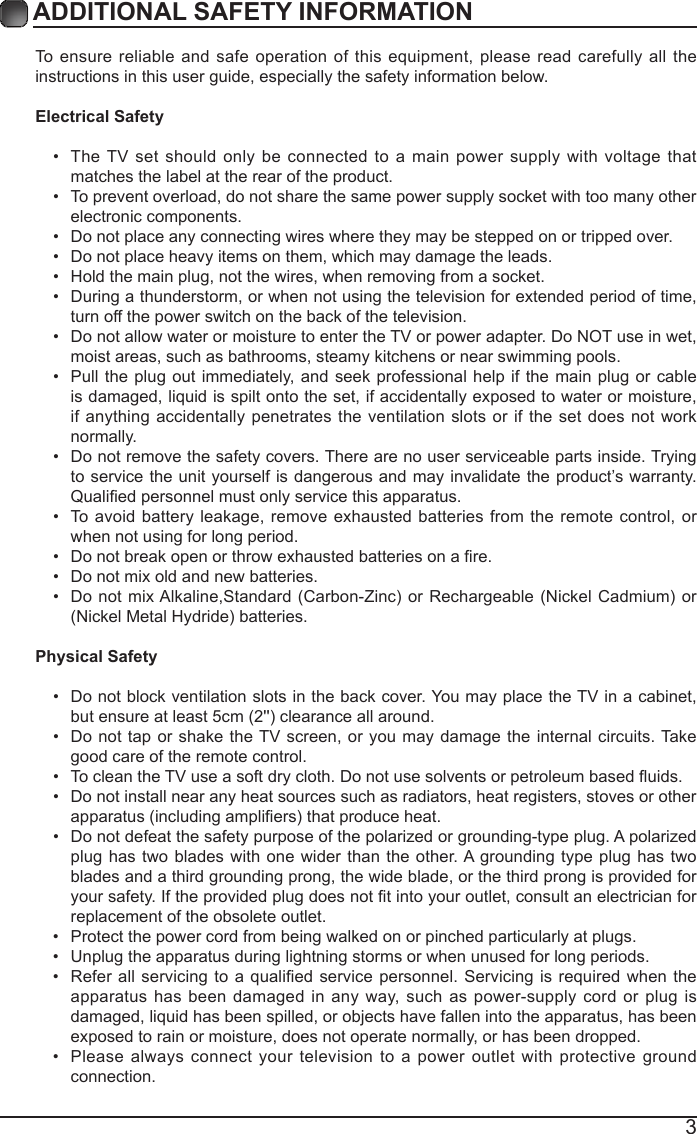

3ADDITIONAL SAFETY INFORMATION To ensure reliable and safe operation of this equipment, please read carefully all the instructions in this user guide, especially the safety information below.Electrical Safety • The TV set should only be connected to a main power supply with voltage that matches the label at the rear of the product.• To prevent overload, do not share the same power supply socket with too many other electronic components.• Do not place any connecting wires where they may be stepped on or tripped over.• Do not place heavy items on them, which may damage the leads.• Hold the main plug, not the wires, when removing from a socket.• During a thunderstorm, or when not using the television for extended period of time, turn off the power switch on the back of the television.• Do not allow water or moisture to enter the TV or power adapter. Do NOT use in wet, moist areas, such as bathrooms, steamy kitchens or near swimming pools.• Pull the plug out immediately, and seek professional help if the main plug or cable is damaged, liquid is spilt onto the set, if accidentally exposed to water or moisture, if anything accidentally penetrates the ventilation slots or if the set does not work normally.• Do not remove the safety covers. There are no user serviceable parts inside. Trying to service the unit yourself is dangerous and may invalidate the product’s warranty. Qualiedpersonnelmustonlyservicethisapparatus.• To avoid battery leakage, remove exhausted batteries from the remote control, or when not using for long period.• Donotbreakopenorthrowexhaustedbatteriesonare.• Do not mix old and new batteries.• DonotmixAlkaline,Standard(Carbon-Zinc) or Rechargeable (Nickel Cadmium) or(NickelMetalHydride)batteries.Physical Safety • Do not block ventilation slots in the back cover. You may place the TV in a cabinet, butensureatleast5cm(2'')clearanceallaround.• Do not tap or shake the TV screen, or you may damage the internal circuits. Take good care of the remote control.• TocleantheTVuseasoftdrycloth.Donotusesolventsorpetroleumbaseduids.• Do not install near any heat sources such as radiators, heat registers, stoves or other apparatus(includingampliers)thatproduceheat.• Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong, the wide blade, or the third prong is provided for yoursafety.Iftheprovidedplugdoesnottintoyouroutlet,consultanelectricianforreplacement of the obsolete outlet. • Protect the power cord from being walked on or pinched particularly at plugs. • Unplug the apparatus during lightning storms or when unused for long periods.• Referallservicingtoaqualiedservicepersonnel.Servicingisrequiredwhentheapparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled, or objects have fallen into the apparatus, has been exposed to rain or moisture, does not operate normally, or has been dropped. • Please always connect your television to a power outlet with protective ground connection.

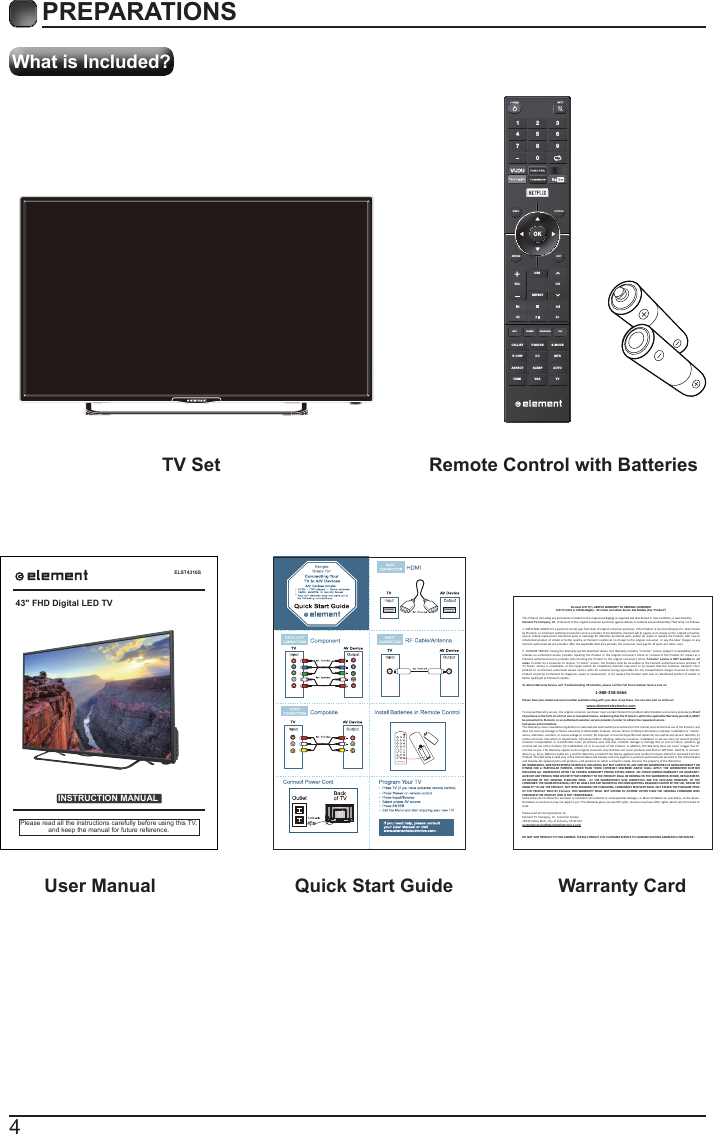

4What is Included?PREPARATIONS TV Set Remote Control with Batteries User Manual Quick Start Guide Warranty CardELST4316SINSTRUCTION MANUALPlease read all the instructions carefully before using this TV,and keep the manual for future reference.43" FHD Digital LED TVElement LCD TV’s LIMITED WARRANTY TO ORIGINAL CONSUMERLCD TV (CCFL or LED Backlight) – 42 inches and above Screen Size Models (the “Product”) This Product (including any accessories included in the original packaging) as supplied and distributed in new condion, is warranted byElement TV Company, LP. (Element) to the original consumer purchaser against defects in material and workmanship (“Warranty”) as follows: 1. PARTS AND LABOR: For a period of one (1) year from date of original consumer purchase, if this Product or any funconal part is determined by Element, or a Element authorized customer service provider, to be defecve, Element will (i) supply, at no charge to the original consumer, new or rebuilt replacement funconal parts in exchange for defecve funconal parts, and/or (ii) repair or replace the Product, with new or refurbished product of similar or beer quality, at Element’s opon,at no charge to the original consumer, or pay the labor charges to any Element authorized service provider. Aer the applicable Warranty periods, the consumer must pay for all parts and labor costs.2. IN-HOME SERVICE: During the Warranty period described above, this Warranty includes “in-home” service (subject to availability) which includes an authorized service provider repairing the Product in the original consumer’s home or removal of the Product for repairs at a Element authorized service provider and returning the Product to the original consumer’s home.“In-home” service is NOT available in all areas. In order for a consumer to receive “i n-home” service, the Product must be accessible to the Element authorized service provider. If “in-home” service i s unavailable, or the repair cannot be completed, Element may elect to (i) request that the customer transport their product to an Element authorized service center, with the customer being responsible for any transportaon charges incurred to ship the Product or part(s) to E lement for diagnosis, repair or replacement, or (ii) replace the Product with new or refurbished product of similar or beer quality,all at Element’s opon.To obtain Warranty Service and Troubleshoong informaon, please call the Toll Free Customer Service Line at: Please have your model and serial number available along with your date of purchase. You can also visit us online at: To receive Warranty service, the original consumer purchaser must contact Element for problem determinaon and service procedures.Proof of purchase in the form of a bill of sale or receipted invoice, evidencing that the Product is within the applicable Warranty period(s), MUST be presented to Element, or an authorized customer service provider,in order to obtain the requested service. Exclusions and Limitaons This Warranty covers manufacturing defects in materials and workmanship encountered in the normal,non-commercial use of the Product, and does not cover (a) damage or failure caused by or aributable to abuse, misuse, failure to follow instrucons, improper installaon or mainte-nance, alteraon, accident, or excess voltage or current; (b) improper or incorrectly performed repairs by non-authorized service facilies; (c) onsite consumer instrucon or adjustments; (d) transportaon, shipping, delivery, insurance, installaon or set-up costs; (e) costs of product removal, transportaon or reinstallaon costs; (f) ordinary wear and tear, cosmec damage or damage due to acts of nature, accident; (g) commercial use of the Product; (h) modificaon of, or to any part of the Product. In addion, this Warranty does not cover images “burnt” into the screen. This Warranty applies to the original consumer only and does not cover products sold AS IS or WITH ALL FAULTS, or consum-ables (e.g., fuses, baeries, bulbs etc.), and the Warranty is invalid if the factory-applied serial number has been altered or removed from the Product. This Warranty is valid only in the United States and Canada, and only applies to products purchased and serviced in the United States and Canada. All replaced parts and products, and products on which a refund is made, become the property of the Warrantor. NO WARRANTIES, WHETHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, OTHER THAN THOSE EXPRESSLY DESCRIBED ABOVE SHALL APPLY. THE WARRANTOR FURTHER DISCLAIMS ALL WARRANTIES AFTER THE EXPRESS WARRANTY PERIOD STATED ABOVE. NO OTHER EXPRESS WARRANTY OR GUARANTY-GIVEN BY ANY PERSON, FIRM OR ENTITY WITH RESPECT TO THE PRODUCT SHALL BE BINDING ON THE WARRANTOR. REPAIR, REPLACEMENT, OR REFUND OF T HE ORIGINAL PURCHASE PRICE - AT THE WARRANTOR’S SOLE DISCRETION -ARE THE EXCLUSIVE REMEDIES OF THE CONSUMER. THE WARRANTOR SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES CAUSED BY THE USE, MISUSE OR INABILITY TO USE THE PRODUCT. NOT WITH STANDING THE FOREGOING, CONSUMER’S RECOVERY SHALL NOT EXCEED THE PURCHASE PRICE OF THE PRODUCT SOLD BY Element. THIS WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE ORIGINAL CONSUMER WHO PURCHASED THE PRODUCT AND IS NOT TRANSFERABLE.Some states do not allow the exclusion or limitaon of incidental or consequenal damages, or allow limitaons on warranes, so the above-limitaons or exclusions may not apply to you. This Warranty gives you specific rights, and you may have other rights, which vary from state to state.Please send all correspondence to:Element TV Company, LP. Customer Service15930 Valley Blvd., City of Industry, CA 91744customerservice@elementelectronics.comDO NOT SHIP PRODUCT TO THIS ADDRESS. PLEASE CONTACT THE CUSTOMER SERVICE TO CONFIRM SHIPPING ADDRESSES FOR SERVICE. 1-888-338-5666www.elementelectronics.comOKMENU SOURCERETURN EXITVOLUSBREPEATCHCH.LISINFO FREEZE ADD/ERASE FAVT P.MODE S.MODEV-CHIP CC MTSASPECTHDMI VGA TVSLEEP AUTO1 4 7 2 5 8 0 3 6 9

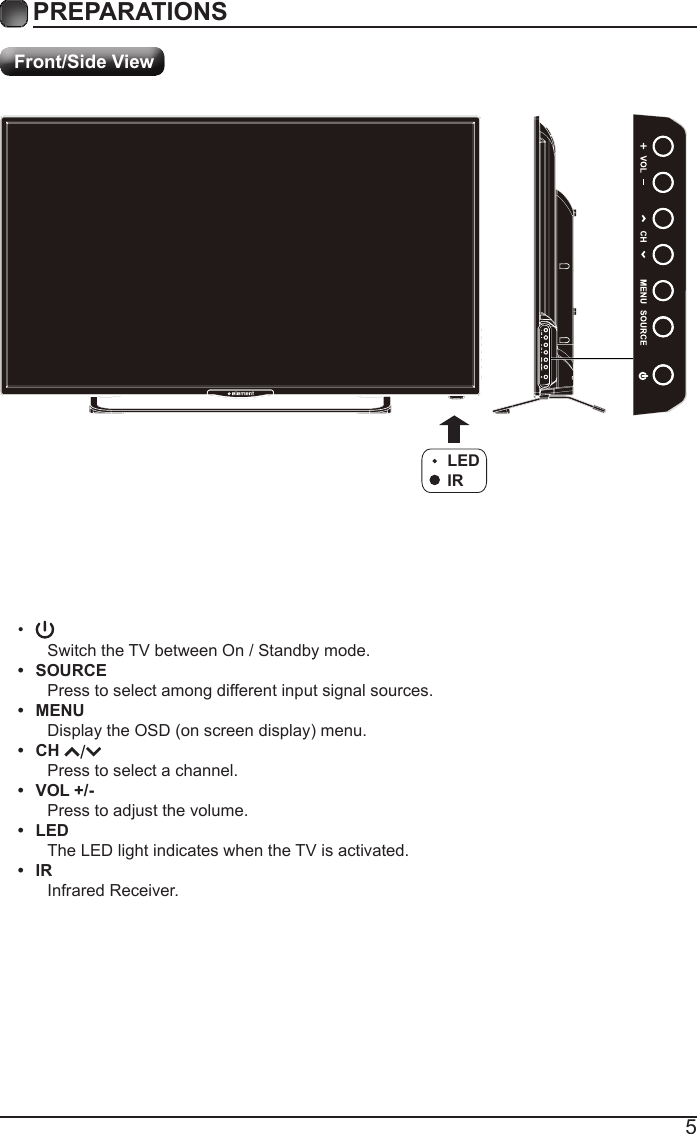

5•Switch the TV between On / Standby mode.• SOURCEPress to select among different input signal sources.• MENUDisplaytheOSD(onscreendisplay)menu.• CH Press to select a channel.• VOL +/-Press to adjust the volume.• LEDThe LED light indicates when the TV is activated.• IRInfrared Receiver.PREPARATIONS Front/Side ViewLEDIR

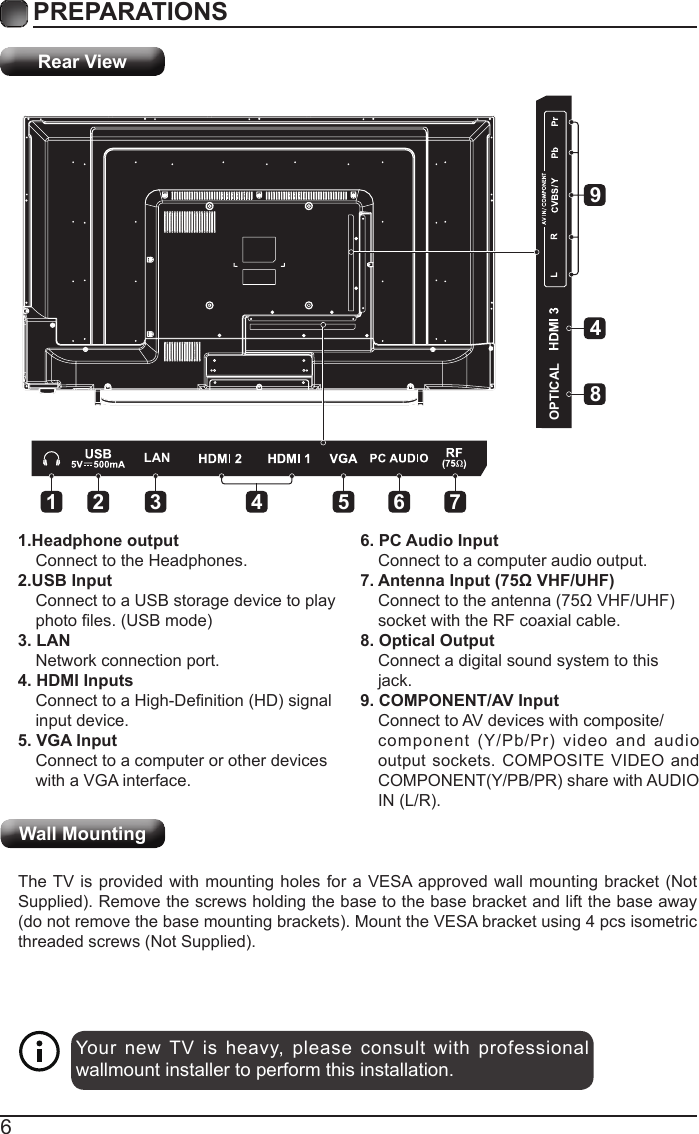

6Your new TV is heavy, please consult with professional wallmount installer to perform this installation. PREPARATIONS Rear ViewWall Mounting1.Headphone outputConnect to the Headphones.2.USB InputConnect to a USB storage device to play photoles.(USBmode)3. LANNetwork connection port.4. HDMI InputsConnecttoaHigh-Denition(HD)signalinput device.5. VGA InputConnect to a computer or other deviceswith a VGA interface.6. PC Audio InputConnect to a computer audio output.7. Antenna Input (75Ω VHF/UHF)Connecttotheantenna(75ΩVHF/UHF)socket with the RF coaxial cable.8. Optical OutputConnect a digital sound system to thisjack.9. COMPONENT/AV InputConnect to AV devices with composite/component(Y/Pb/Pr)videoand audiooutput sockets. COMPOSITE VIDEO and COMPONENT(Y/PB/PR)sharewithAUDIO IN(L/R).The TV is provided with mounting holes for a VESA approved wall mounting bracket (Not Supplied).Removethescrewsholdingthebasetothebasebracketandliftthebaseaway(donotremovethebasemountingbrackets).MounttheVESAbracketusing4pcsisometricthreadedscrews(NotSupplied).LANOPTICAL18492 3 5 6 74

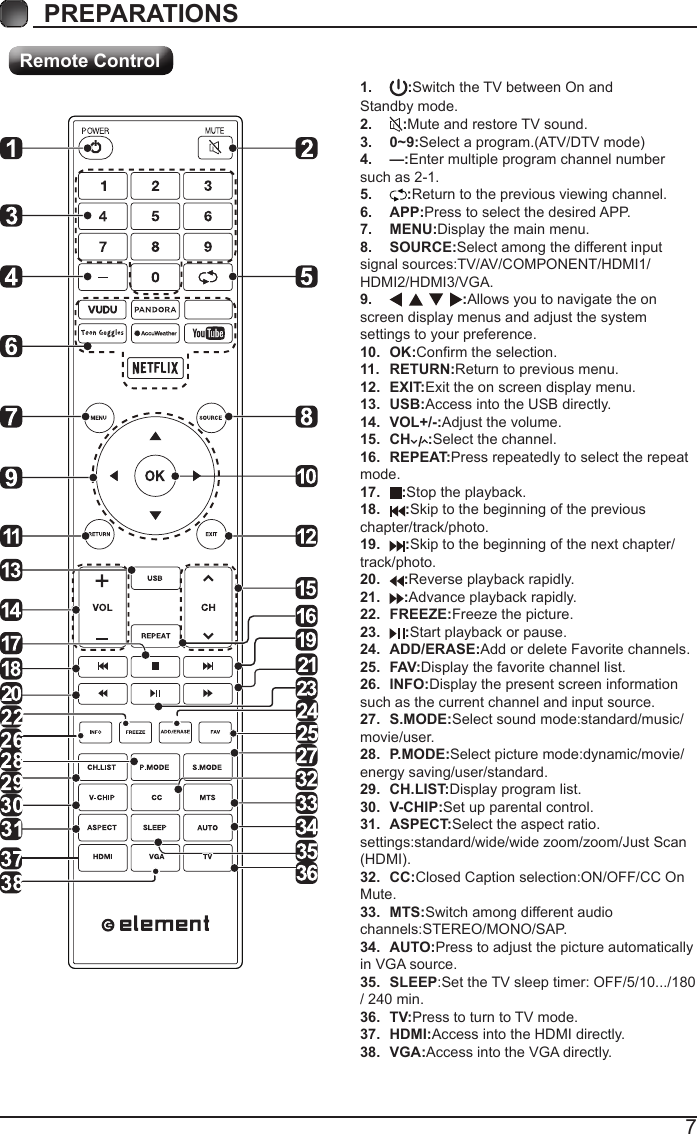

7PREPARATIONS Remote Control1. :Switch the TV between On and Standby mode.2. :Mute and restore TV sound.3. 0~9:Selectaprogram.(ATV/DTVmode)4. —:Enter multiple program channel number such as 2-1.5. :Return to the previous viewing channel.6. APP:Press to select the desired APP.7. MENU:Display the main menu.8. SOURCE:Select among the different input signal sources:TV/AV/COMPONENT/HDMI1/HDMI2/HDMI3/VGA.9. :Allows you to navigate the on screen display menus and adjust the system settings to your preference.10. OK:Conrmtheselection.11. RETURN:Return to previous menu.12. EXIT:Exit the on screen display menu.13. USB:Access into the USB directly.14. VOL+/-:Adjust the volume.15. CH :Select the channel.16. REPEAT:Press repeatedly to select the repeat mode.17. :Stop the playback.18. :Skip to the beginning of the previous chapter/track/photo.19. :Skip to the beginning of the next chapter/ track/photo.20. :Reverse playback rapidly.21. :Advance playback rapidly.22. FREEZE:Freeze the picture.23. :Start playback or pause.24. ADD/ERASE:Add or delete Favorite channels.25. FAV:Display the favorite channel list.26. INFO:Display the present screen information such as the current channel and input source.27. S.MODE:Select sound mode:standard/music/movie/user.28. P.MODE:Select picture mode:dynamic/movie/energy saving/user/standard.29. CH.LIST:Display program list.30. V-CHIP:Set up parental control.31. ASPECT:Select the aspect ratio. settings:standard/wide/wide zoom/zoom/Just Scan (HDMI).32. CC:Closed Caption selection:ON/OFF/CC On Mute.33. MTS:Switch among different audio channels:STEREO/MONO/SAP.34. AUTO:Press to adjust the picture automatically in VGA source.35. SLEEP:Set the TV sleep timer: OFF/5/10.../180 / 240 min.36. TV:Press to turn to TV mode.37. HDMI:Access into the HDMI directly.38. VGA:Access into the VGA directly.

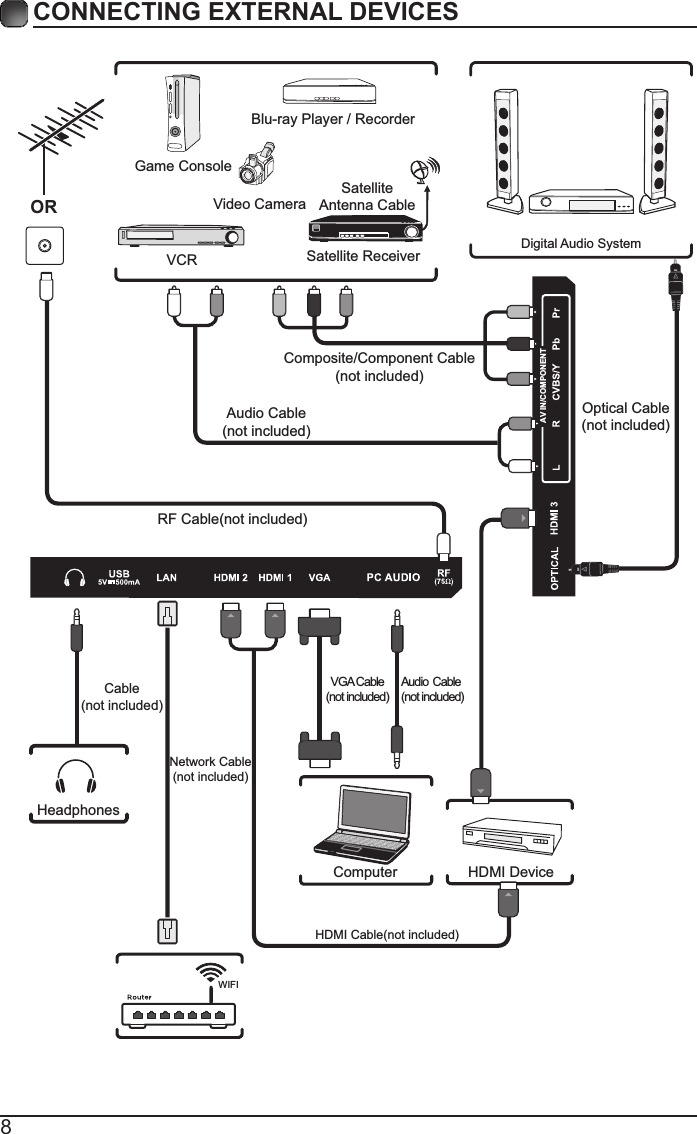

8CONNECTING EXTERNAL DEVICESRF Cable(not included)Audio Cable(not included)Composite/Component Cable(not included)Video CameraGame ConsoleBlu-ray Player / RecorderVCR Satellite ReceiverSatelliteAntenna CableORHDMI DeviceComputerDigitalAudio SystemVGACable(not included)Audio Cable (not included)HeadphonesCable(not included)HDMI Cable(not included)Optical Cable(not included)WIFINetwork Cable(not included)AV IN/COMPONENT

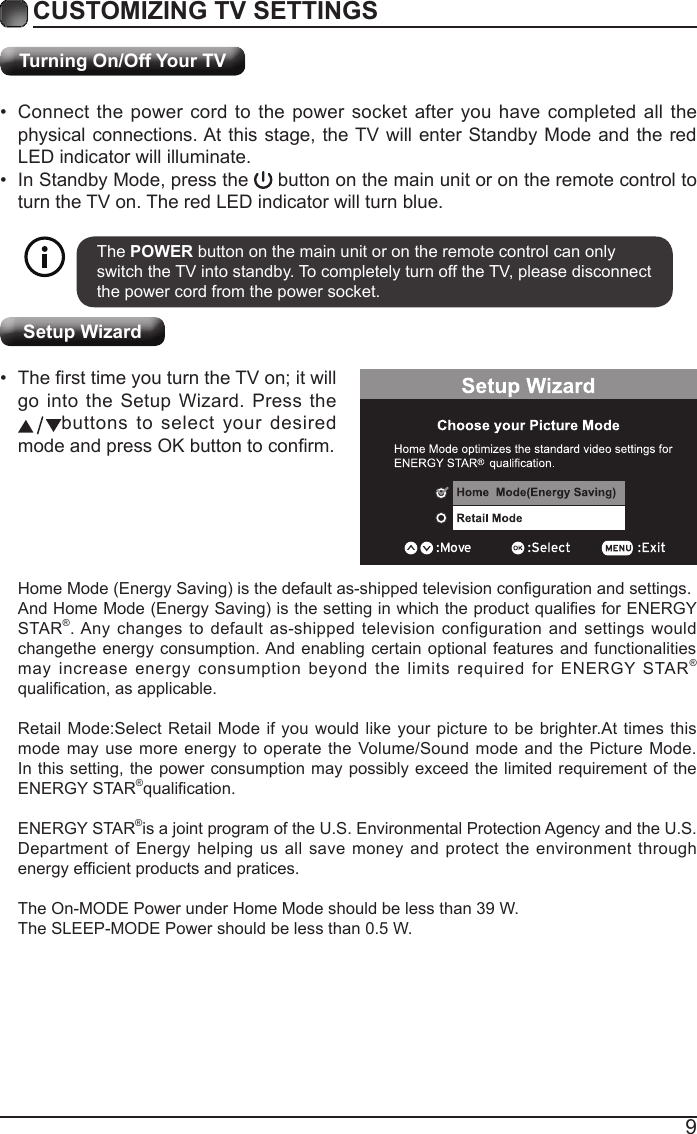

9Turning On/Off Your TV• Connect the power cord to the power socket after you have completed all the physical connections. At this stage, the TV will enter Standby Mode and the red LED indicator will illuminate. • In Standby Mode, press the button on the main unit or on the remote control to turn the TV on. The red LED indicator will turn blue.The POWER button on the main unit or on the remote control can only switch the TV into standby. To completely turn off the TV, please disconnect the power cord from the power socket. ExitHomeMode(EnergySaving)isthedefaultas-shippedtelevisioncongurationandsettings.AndHomeMode(EnergySaving)isthesettinginwhichtheproductqualiesforENERGYSTAR®. Any changes to default as-shipped television configuration and settings would changethe energy consumption. And enabling certain optional features and functionalities may increase energy consumption beyond the limits required for ENERGY STAR® qualication,asapplicable.Retail Mode:Select Retail Mode if you would like your picture to be brighter.At times this mode may use more energy to operate the Volume/Sound mode and the Picture Mode. In this setting, the power consumption may possibly exceed the limited requirement of the ENERGY STAR®qualication.ENERGY STAR®is a joint program of the U.S. Environmental Protection Agency and the U.S.Department of Energy helping us all save money and protect the environment through energyefcientproductsandpratices.The On-MODE Power under Home Mode should be less than 39 W.The SLEEP-MODE Power should be less than 0.5 W.Setup Wizard• ThersttimeyouturntheTVon;itwillgo into the Setup Wizard. Press the buttons to select your desired modeandpressOKbuttontoconrm.CUSTOMIZING TV SETTINGS
10Menu LanguageSelect your desired language to be displayed on the menu. The default on-screen menu language is set as English.Air/Cable Select antenna between Air and Cable.Cable Select Cable system: Auto, STD, IRC, HRC. Auto Scan Search and store the available channels automatically. Note: If you want change the modes between HomeMode(Energy Saving)andRetail Mode, you can change the setting in the Setup Menu under Display Mode.• Press the buttons to select your desired mode and press OK buttontoconrm.• Press the buttons to select your desired mode and press OK button to conrm.Setup Wizard• PressYestoconrm.CUSTOMIZING TV SETTINGS...

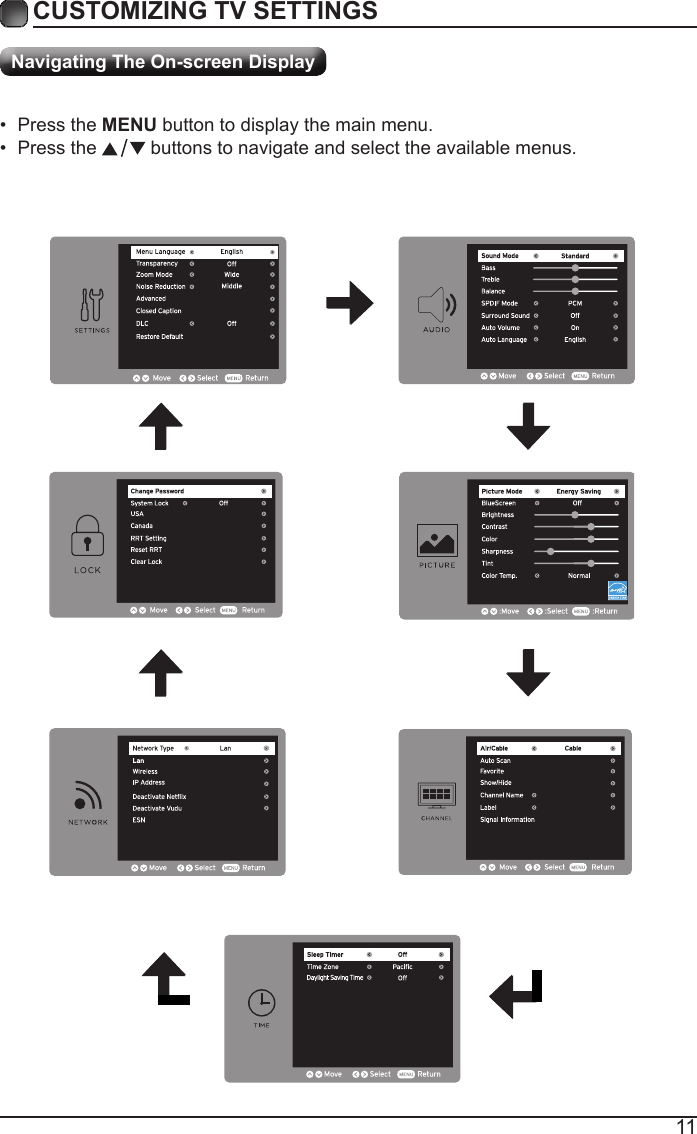

11CUSTOMIZING TV SETTINGS• Press the MENU button to display the main menu. • Press the buttons to navigate and select the available menus.PCMNavigating The On-screen Display

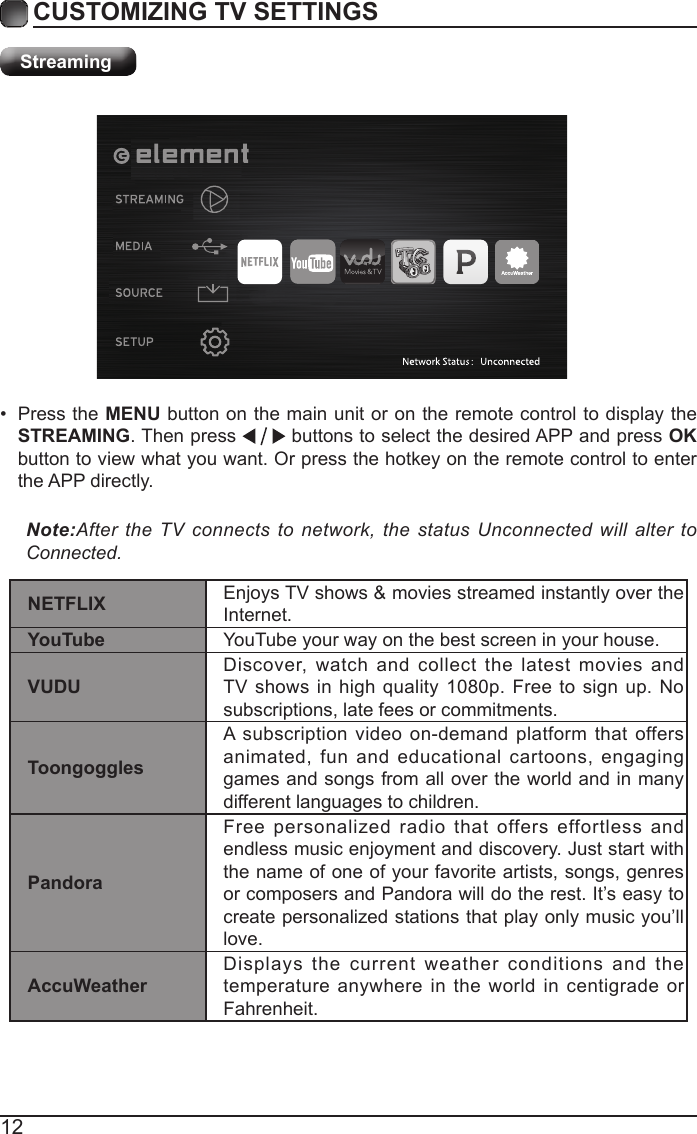

12CUSTOMIZING TV SETTINGSStreaming• Press the MENU button on the main unit or on the remote control to display the STREAMING. Then press buttons to select the desired APP and press OK button to view what you want. Or press the hotkey on the remote control to enter the APP directly.Note:After the TV connects to network, the status Unconnected will alter to Connected.NETFLIX Enjoys TV shows & movies streamed instantly over the Internet.YouTube YouTube your way on the best screen in your house.VUDUDiscover, watch and collect the latest movies and TV shows in high quality 1080p. Free to sign up. No subscriptions, late fees or commitments. ToongogglesA subscription video on-demand platform that offers animated, fun and educational cartoons, engaging games and songs from all over the world and in many different languages to children.PandoraFree personalized radio that offers effortless and endless music enjoyment and discovery. Just start with the name of one of your favorite artists, songs, genres or composers and Pandora will do the rest. It’s easy to create personalized stations that play only music you’ll love.AccuWeatherDisplays the current weather conditions and the temperature anywhere in the world in centigrade or Fahrenheit.

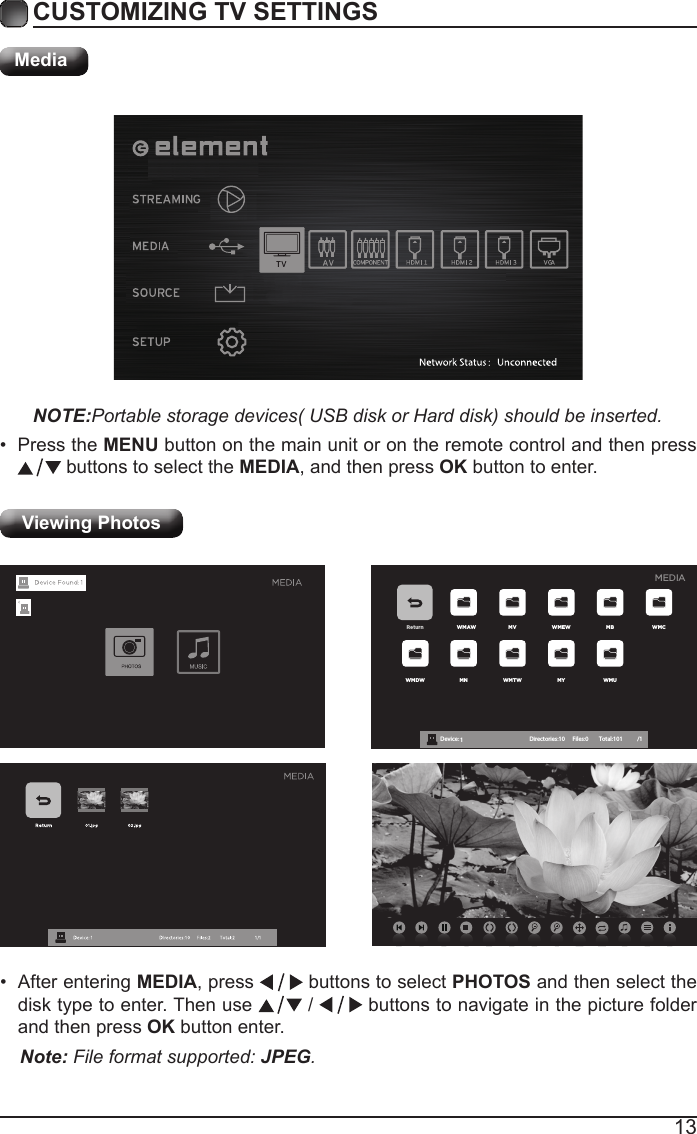

13CUSTOMIZING TV SETTINGSMediaNOTE:Portable storage devices( USB disk or Hard disk) should be inserted.• Press the MENU button on the main unit or on the remote control and then press buttons to select the MEDIA, and then press OK button to enter.Viewing Photos Return WMAW MV WMEW MB WMCWMDW MN WMTW MY WMUDevice : 1 Directories:10 Files:0 Total:101 /1MEDIA• After entering MEDIA, press buttons to select PHOTOS and then select the disk type to enter. Then use / buttons to navigate in the picture folder and then press OK button enter.Note: File format supported: JPEG.

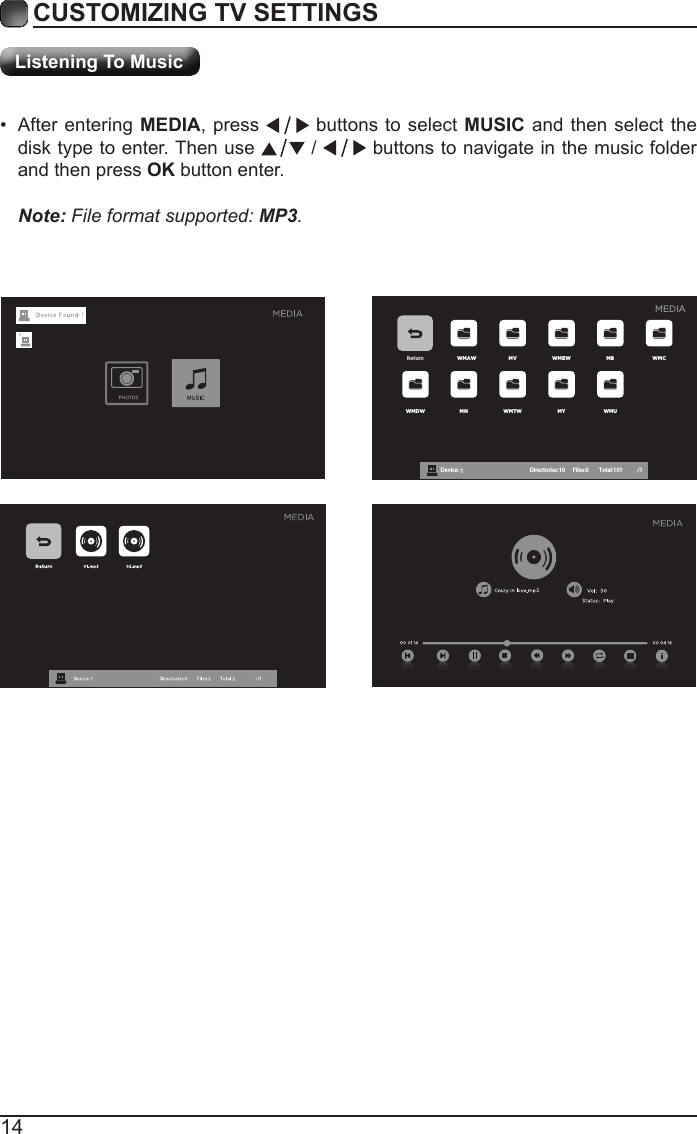

14CUSTOMIZING TV SETTINGSListening To MusicReturn WMAW MV WMEW MB WMCWMDW MN WMTW MY WMUDevice : 1 Directories:10 Files:0 Total:101 /1MEDIANote: File format supported: MP3. • After entering MEDIA, press buttons to select MUSIC and then select the disk type to enter. Then use / buttons to navigate in the music folder and then press OK button enter.

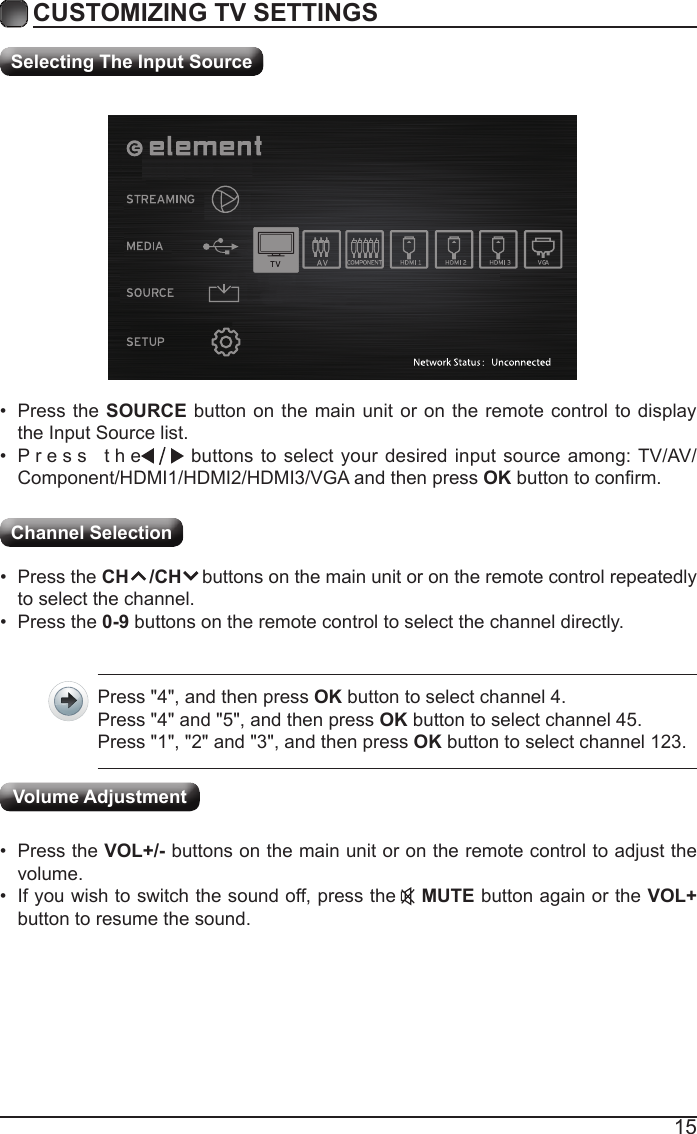

15CUSTOMIZING TV SETTINGSChannel Selection Selecting The Input Source• Press the SOURCE button on the main unit or on the remote control to display the Input Source list.• Press the buttons to select your desired input source among: TV/AV/Component/HDMI1/HDMI2/HDMI3/VGA and then press OKbuttontoconrm.• Press the CH /CH buttons on the main unit or on the remote control repeatedly to select the channel.• Press the 0-9 buttons on the remote control to select the channel directly.Press "4", and then press OK button to select channel 4.Press "4" and "5", and then press OK button to select channel 45.Press "1", "2" and "3", and then press OK button to select channel 123.• Press the VOL+/- buttons on the main unit or on the remote control to adjust the volume.• If you wish to switch the sound off, press the MUTE button again or the VOL+ button to resume the sound.Volume Adjustment

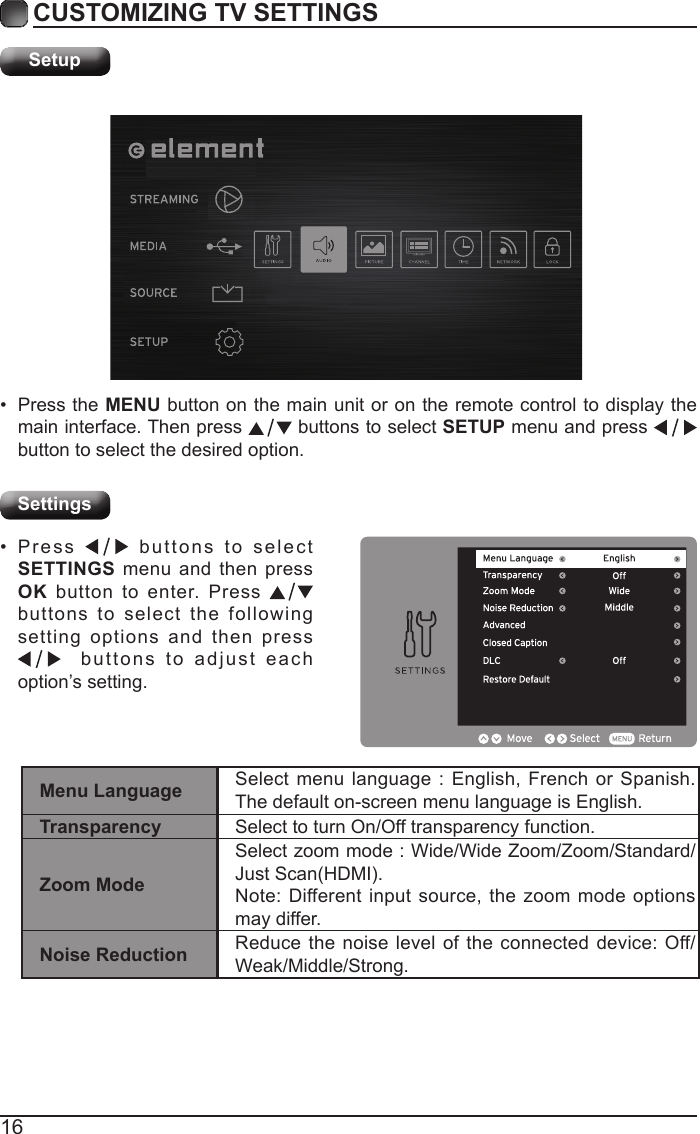

16CUSTOMIZING TV SETTINGSSetupSettings• Press the MENU button on the main unit or on the remote control to display the main interface. Then press buttons to select SETUP menu and press button to select the desired option. • Press buttons to select SETTINGS menu and then press OK button to enter. Press buttons to select the following setting options and then press buttons to adjust each option’s setting. Menu Language Select menu language : English, French or Spanish. The default on-screen menu language is English.Transparency Select to turn On/Off transparency function.Zoom ModeSelect zoom mode : Wide/Wide Zoom/Zoom/Standard/JustScan(HDMI).Note: Different input source, the zoom mode options may differ.Noise Reduction Reduce the noise level of the connected device: Off/Weak/Middle/Strong.

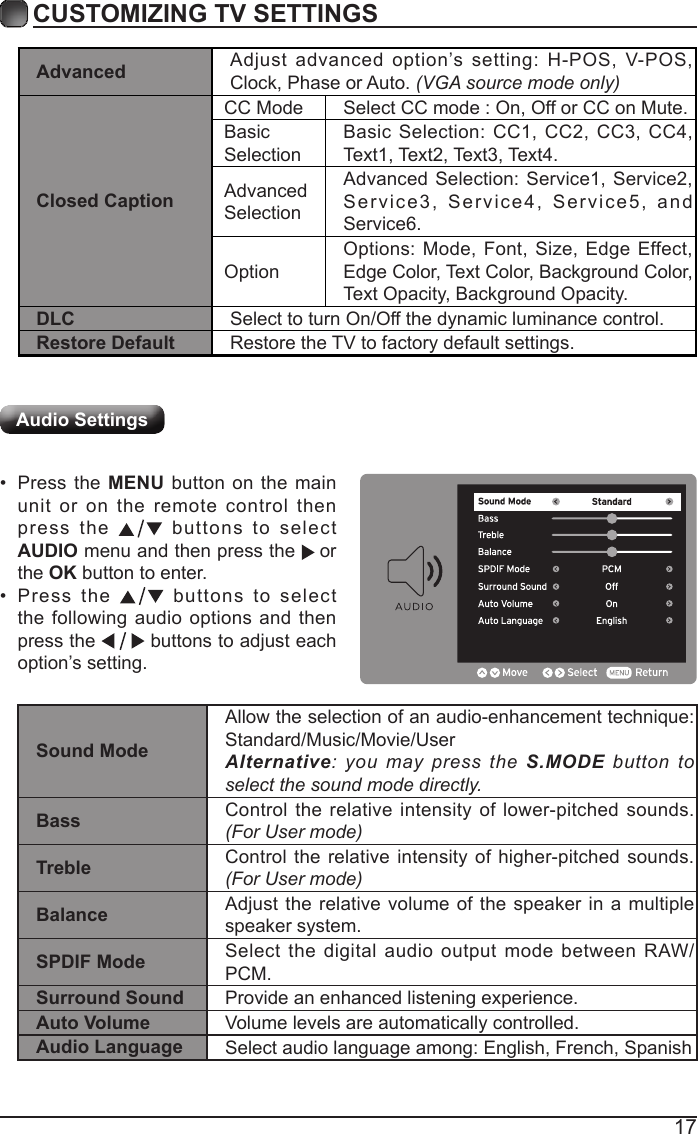

17CUSTOMIZING TV SETTINGSAudio Settings• Press the MENU button on the main unit or on the remote control then press the buttons to select AUDIO menu and then press the or the OK button to enter.• Press the buttons to select the following audio options and then press the buttons to adjust each option’s setting.Advanced Adjust advanced option’s setting: H-POS, V-POS, Clock, Phase or Auto. (VGA source mode only)Closed CaptionCC Mode Select CC mode : On, Off or CC on Mute.Basic SelectionBasic Selection: CC1, CC2, CC3, CC4, Text1, Text2, Text3, Text4.Advanced SelectionAdvanced Selection: Service1, Service2, Service3, Service4, Service5, and Service6.OptionOptions: Mode, Font, Size, Edge Effect, Edge Color, Text Color, Background Color, Text Opacity, Background Opacity.DLC Select to turn On/Off the dynamic luminance control.Restore Default Restore the TV to factory default settings.Sound ModeAllow the selection of an audio-enhancement technique: Standard/Music/Movie/UserAlternative: you may press the S.MODE button to select the sound mode directly.Bass Control the relative intensity of lower-pitched sounds. (For User mode)Treble Control the relative intensity of higher-pitched sounds. (For User mode)Balance Adjust the relative volume of the speaker in a multiple speaker system.SPDIF Mode Select the digital audio output mode between RAW/PCM.Surround Sound Provide an enhanced listening experience.Auto Volume Volume levels are automatically controlled.Audio Language Select audio language among: English, French, Spanish

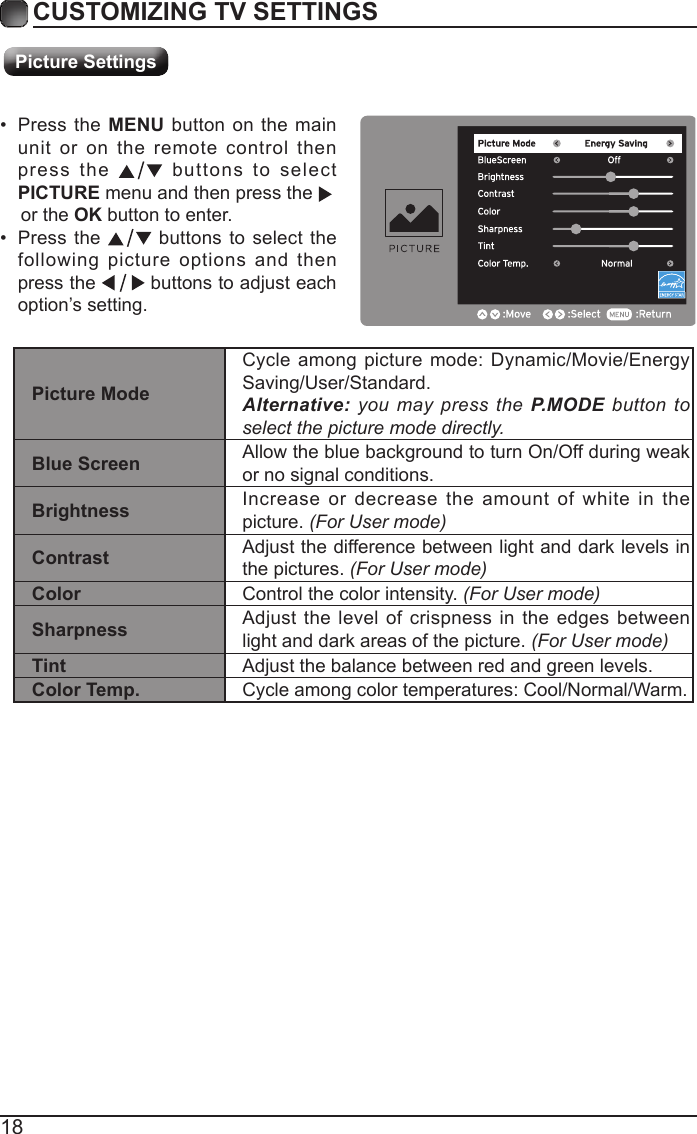

18Picture SettingsCUSTOMIZING TV SETTINGS• Press the MENU button on the main unit or on the remote control then press the buttons to select PICTURE menu and then press the or the OK button to enter.• Press the buttons to select the following picture options and then press the buttons to adjust each option’s setting.Picture ModeCycle among picture mode: Dynamic/Movie/Energy Saving/User/Standard.Alternative: you may press the P.MODE button to select the picture mode directly.Blue Screen Allow the blue background to turn On/Off during weak or no signal conditions.Brightness Increase or decrease the amount of white in the picture. (For User mode)Contrast Adjust the difference between light and dark levels in the pictures. (For User mode)Color Control the color intensity. (For User mode)Sharpness Adjust the level of crispness in the edges between light and dark areas of the picture. (For User mode)Tint Adjust the balance between red and green levels.Color Temp. Cycle among color temperatures: Cool/Normal/Warm.

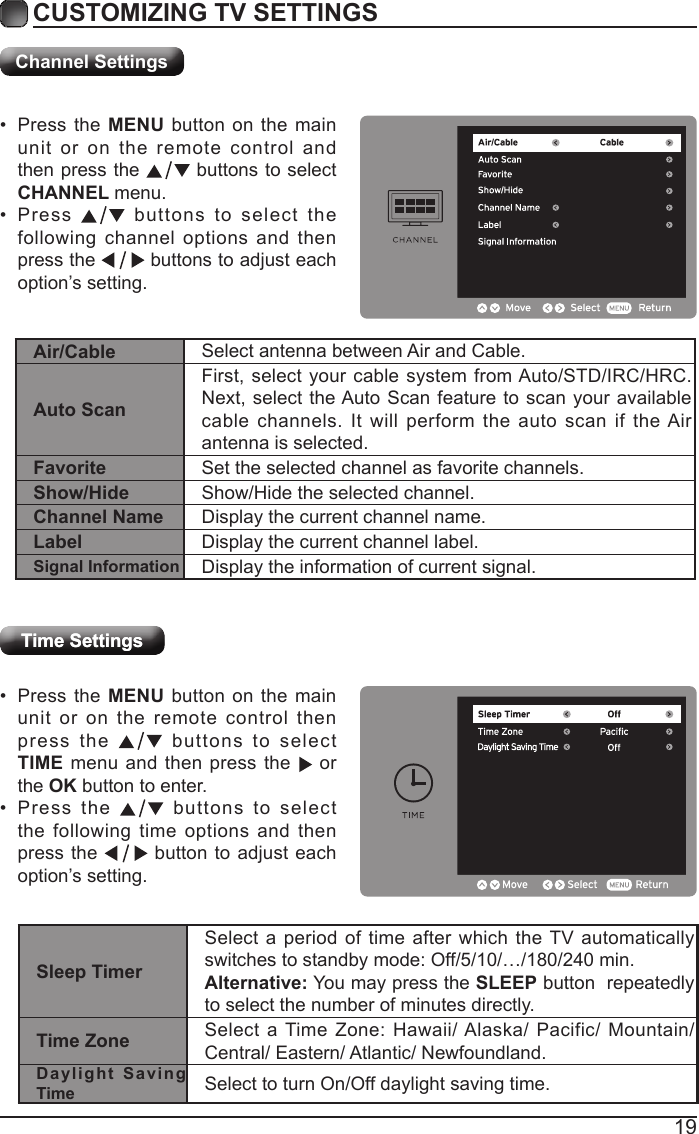

19CUSTOMIZING TV SETTINGSChannel SettingsTime SettingsTime Settings• Press the MENU button on the main unit or on the remote control then press the buttons to select TIME menu and then press the or the OK button to enter.• Press the buttons to select the following time options and then press the button to adjust each option’s setting.• Press the MENU button on the main unit or on the remote control and then press the buttons to select CHANNEL menu.• Press buttons to select the following channel options and then press the buttons to adjust each option’s setting.Air/Cable Select antenna between Air and Cable. Auto ScanFirst, select your cable system from Auto/STD/IRC/HRC. Next, select the Auto Scan feature to scan your available cable channels. It will perform the auto scan if the Air antenna is selected.Favorite Set the selected channel as favorite channels.Show/Hide Show/Hide the selected channel.Channel Name Display the current channel name.Label Display the current channel label.Signal Information Display the information of current signal.Sleep TimerSelect a period of time after which the TV automatically switches to standby mode: Off/5/10/…/180/240 min.Alternative: You may press the SLEEP button repeatedly to select the number of minutes directly. Time Zone Select a Time Zone: Hawaii/ Alaska/ Pacific/ Mountain/ Central/ Eastern/ Atlantic/ Newfoundland.Daylight Saving Time Select to turn On/Off daylight saving time.

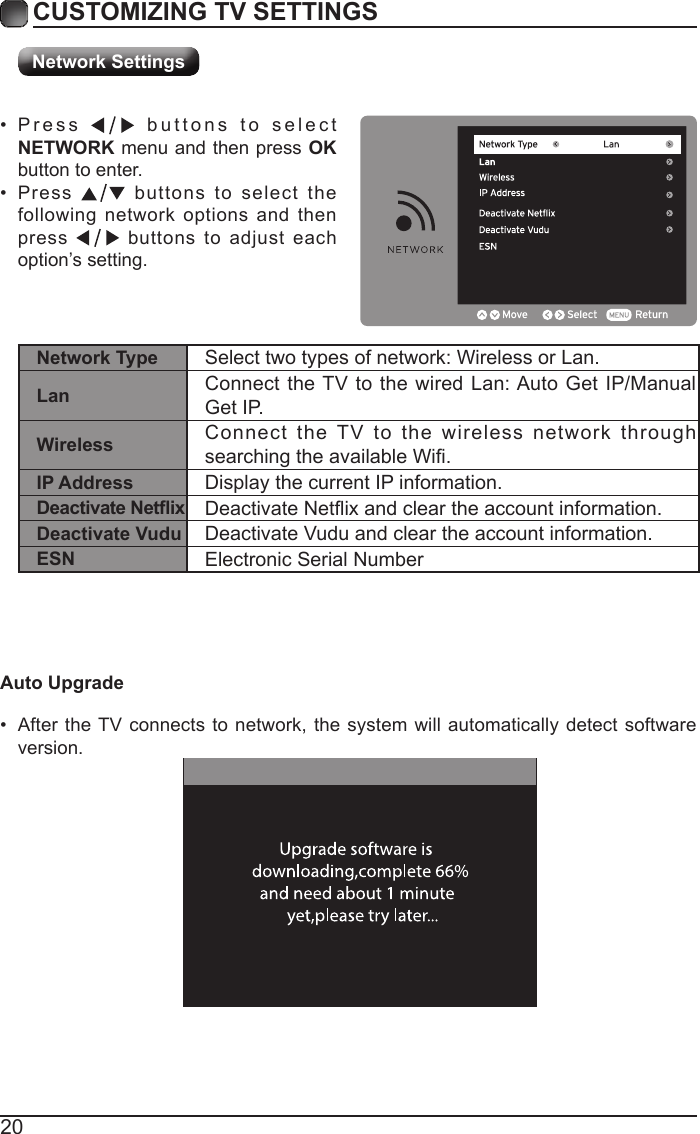

20CUSTOMIZING TV SETTINGSNetwork Settings• Press buttons to select NETWORK menu and then press OK button to enter. • Press buttons to select the following network options and then press buttons to adjust each option’s setting. Network Type Select two types of network: Wireless or Lan.Lan Connect the TV to the wired Lan: Auto Get IP/Manual Get IP. Wireless Connect the TV to the wireless network through searchingtheavailableWi.IP Address Display the current IP information.Deactivate Netix DeactivateNetixandcleartheaccountinformation.Deactivate Vudu Deactivate Vudu and clear the account information.ESN Electronic Serial Number• After the TV connects to network, the system will automatically detect software version. Auto Upgrade

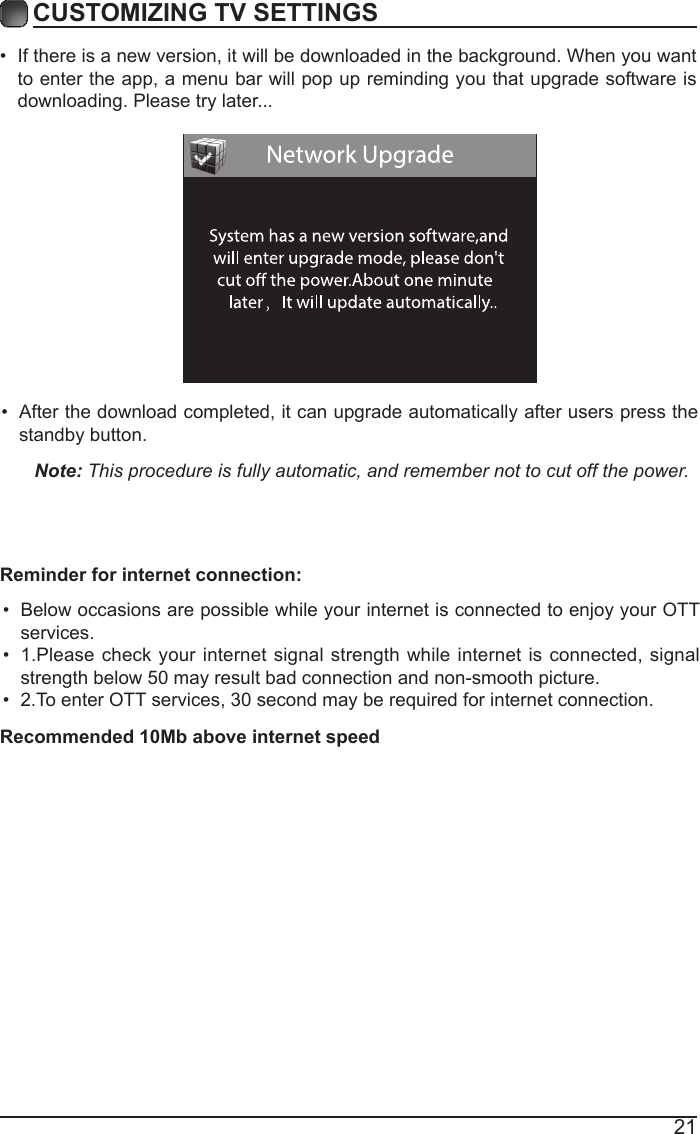

21• If there is a new version, it will be downloaded in the background. When you want to enter the app, a menu bar will pop up reminding you that upgrade software is downloading. Please try later...CUSTOMIZING TV SETTINGS• After the download completed, it can upgrade automatically after users press the standby button.Note: This procedure is fully automatic, and remember not to cut off the power. • Below occasions are possible while your internet is connected to enjoy your OTT services.• 1.Please check your internet signal strength while internet is connected, signal strength below 50 may result bad connection and non-smooth picture.• 2.To enter OTT services, 30 second may be required for internet connection.Reminder for internet connection:Recommended 10Mb above internet speed

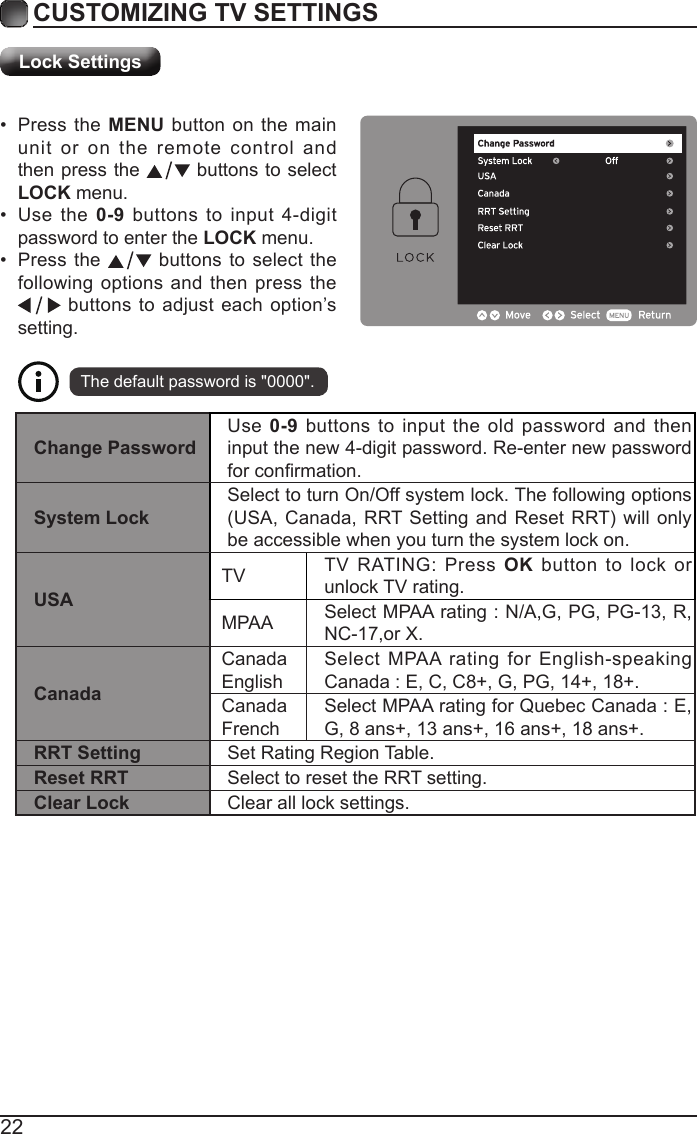

22CUSTOMIZING TV SETTINGS• Press the MENU button on the main unit or on the remote control and then press the buttons to select LOCK menu.• Use the 0-9 buttons to input 4-digit password to enter the LOCK menu.• Press the buttons to select the following options and then press the buttons to adjust each option’s setting.The default password is "0000".Lock SettingsChange PasswordUse 0-9 buttons to input the old password and then input the new 4-digit password. Re-enter new password forconrmation.System LockSelect to turn On/Off system lock. The following options (USA,Canada,RRTSettingandResetRRT)will onlybe accessible when you turn the system lock on.USATV TV RATING: Press OK button to lock or unlock TV rating.MPAA Select MPAA rating : N/A,G, PG, PG-13, R, NC-17,or X.CanadaCanada EnglishSelect MPAA rating for English-speaking Canada : E, C, C8+, G, PG, 14+, 18+.Canada FrenchSelect MPAA rating for Quebec Canada : E, G, 8 ans+, 13 ans+, 16 ans+, 18 ans+.RRT Setting Set Rating Region Table.Reset RRT Select to reset the RRT setting.Clear Lock Clear all lock settings.

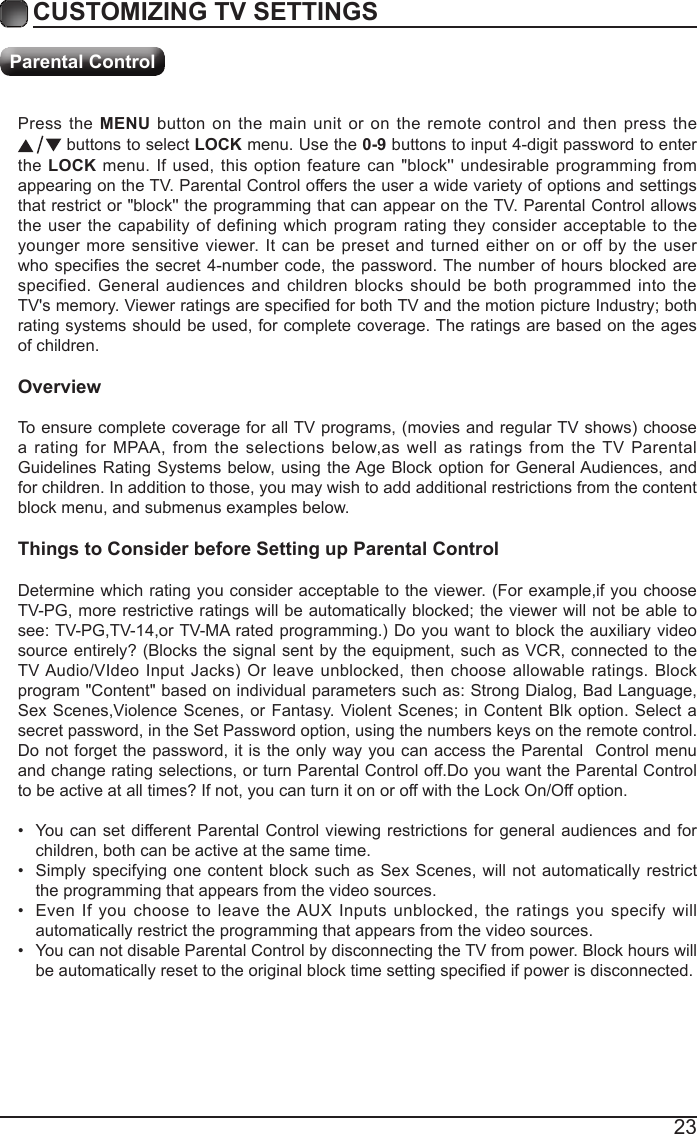

23Press the MENU button on the main unit or on the remote control and then press the buttons to select LOCK menu. Use the 0-9 buttons to input 4-digit password to enter the LOCK menu. If used, this option feature can "block'' undesirable programming from appearing on the TV. Parental Control offers the user a wide variety of options and settings that restrict or "block'' the programming that can appear on the TV. Parental Control allows the user the capability of defining which program rating they consider acceptable to the younger more sensitive viewer. It can be preset and turned either on or off by the user whospeciesthesecret4-numbercode,thepassword.Thenumberofhoursblockedarespecified. General audiences and children blocks should be both programmed into the TV'smemory.ViewerratingsarespeciedforbothTVandthemotionpictureIndustry;bothrating systems should be used, for complete coverage. The ratings are based on the ages of children.OverviewToensurecompletecoverageforallTVprograms,(moviesandregularTVshows)choosea rating for MPAA, from the selections below,as well as ratings from the TV Parental Guidelines Rating Systems below, using the Age Block option for General Audiences, and for children. In addition to those, you may wish to add additional restrictions from the content block menu, and submenus examples below.Things to Consider before Setting up Parental ControlDetermine which rating you consider acceptable to the viewer. (For example,if you choose TV-PG,morerestrictiveratingswillbeautomaticallyblocked;theviewerwillnotbeabletosee:TV-PG,TV-14,orTV-MAratedprogramming.)Doyouwanttoblocktheauxiliaryvideosource entirely? (Blocks the signal sent by the equipment, such as VCR, connected to the TVAudio/VIdeoInputJacks)Orleaveunblocked,thenchooseallowableratings.Blockprogram "Content" based on individual parameters such as: Strong Dialog, Bad Language, SexScenes,ViolenceScenes,orFantasy.ViolentScenes;inContent Blk option. Selectasecret password, in the Set Password option, using the numbers keys on the remote control.Do not forget the password, it is the only way you can access the Parental Control menu and change rating selections, or turn Parental Control off.Do you want the Parental Control to be active at all times? If not, you can turn it on or off with the Lock On/Off option.• You can set different Parental Control viewing restrictions for general audiences and for children, both can be active at the same time.• Simply specifying one content block such as Sex Scenes, will not automatically restrict the programming that appears from the video sources.• Even If you choose to leave the AUX Inputs unblocked, the ratings you specify will automatically restrict the programming that appears from the video sources.• You can not disable Parental Control by disconnecting the TV from power. Block hours will beautomaticallyresettotheoriginalblocktimesettingspeciedifpowerisdisconnected.CUSTOMIZING TV SETTINGSParental Control

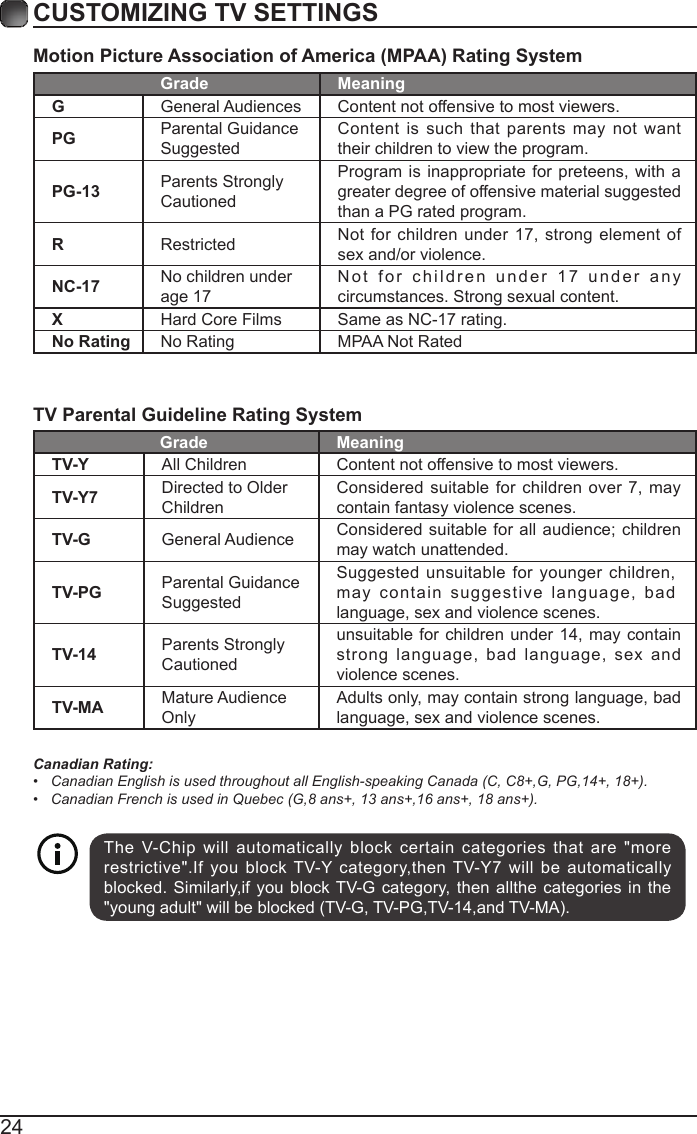

24Motion Picture Association of America (MPAA) Rating SystemGrade MeaningGGeneral Audiences Content not offensive to most viewers.PG Parental Guidance SuggestedContent is such that parents may not want their children to view the program.PG-13 Parents Strongly CautionedProgram is inappropriate for preteens, with a greater degree of offensive material suggested than a PG rated program.RRestricted Not for children under 17, strong element of sex and/or violence.NC-17 No children under age 17Not for children under 17 under any circumstances. Strong sexual content.XHard Core Films Same as NC-17 rating.No Rating No Rating MPAA Not RatedTV Parental Guideline Rating System Grade MeaningTV-Y All Children Content not offensive to most viewers.TV-Y7 Directed to Older ChildrenConsidered suitable for children over 7, may contain fantasy violence scenes.TV-G General Audience Consideredsuitableforallaudience;childrenmay watch unattended.TV-PG Parental Guidance SuggestedSuggested unsuitable for younger children, may contain suggestive language, bad language, sex and violence scenes.TV-14 Parents Strongly Cautionedunsuitable for children under 14, may contain strong language, bad language, sex and violence scenes.TV-MA Mature Audience OnlyAdults only, may contain strong language, bad language, sex and violence scenes.Canadian Rating:• Canadian English is used throughout all English-speaking Canada (C, C8+,G, PG,14+, 18+).• Canadian French is used in Quebec (G,8 ans+, 13 ans+,16 ans+, 18 ans+).CUSTOMIZING TV SETTINGSThe V-Chip will automatically block certain categories that are "more restrictive".If you block TV-Y category,then TV-Y7 will be automatically blocked. Similarly,if you block TV-G category, then allthe categories in the "youngadult"willbeblocked(TV-G,TV-PG,TV-14,andTV-MA).

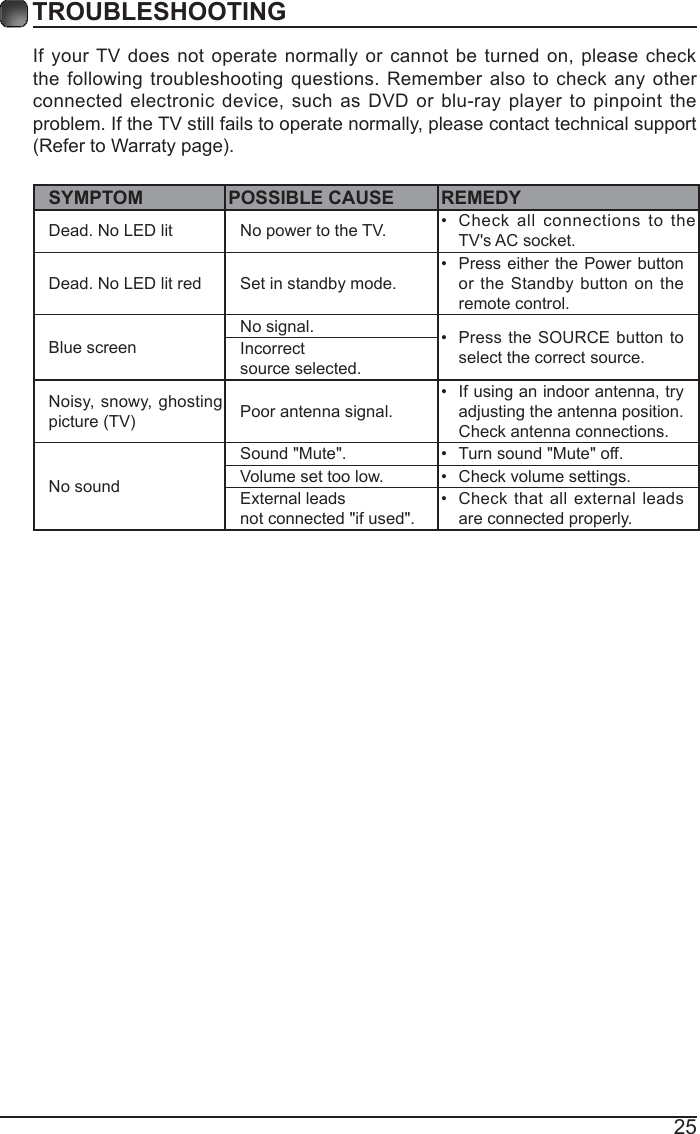

25TROUBLESHOOTING If your TV does not operate normally or cannot be turned on, please check the following troubleshooting questions. Remember also to check any other connected electronic device, such as DVD or blu-ray player to pinpoint the problem. If the TV still fails to operate normally, please contact technical support (RefertoWarratypage).SYMPTOM POSSIBLE CAUSE REMEDYDead. No LED lit No power to the TV. • Check all connections to the TV's AC socket.Dead. No LED lit red Set in standby mode.• Press either the Power button or the Standby button on the remote control. Blue screen No signal. • Press the SOURCE button to select the correct source.Incorrect source selected.Noisy, snowy, ghosting picture(TV) Poor antenna signal.• If using an indoor antenna, try adjusting the antenna position. Check antenna connections.No soundSound "Mute". • Turn sound "Mute" off.Volume set too low. • Check volume settings.External leads not connected "if used".• Check that all external leads are connected properly.

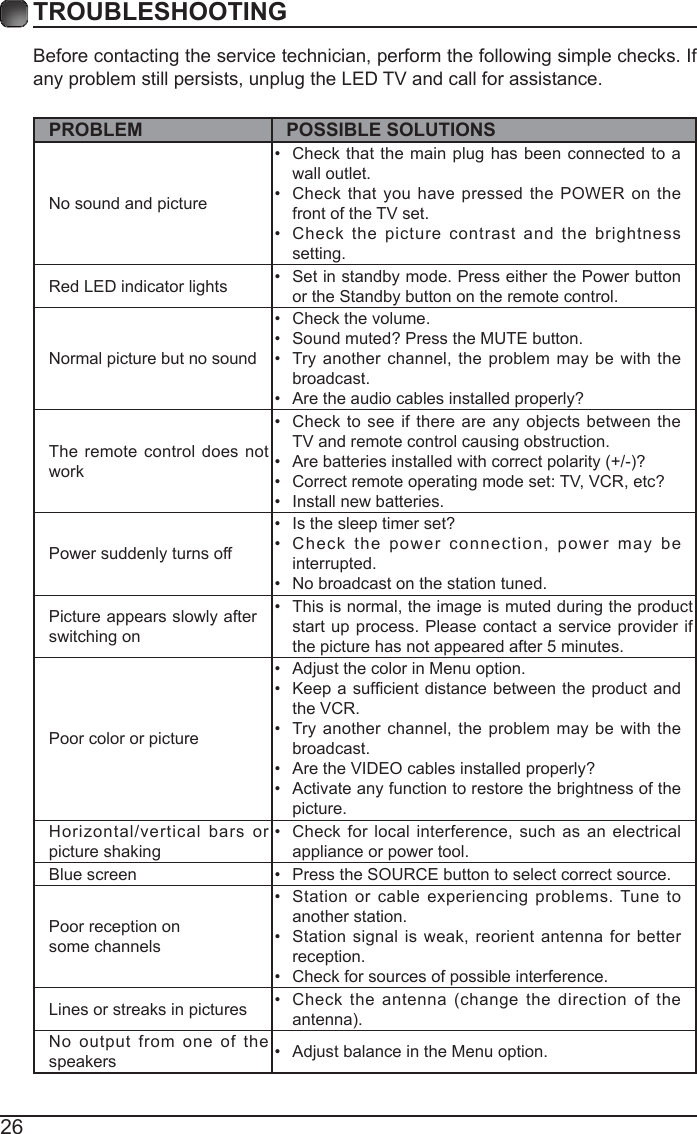

26Before contacting the service technician, perform the following simple checks. If any problem still persists, unplug the LED TV and call for assistance.PROBLEM POSSIBLE SOLUTIONSNo sound and picture• Check that the main plug has been connected to a wall outlet.• Check that you have pressed the POWER on the front of the TV set.• Check the picture contrast and the brightness setting.Red LED indicator lights • Set in standby mode. Press either the Power button or the Standby button on the remote control. Normal picture but no sound• Check the volume.• Sound muted? Press the MUTE button. • Try another channel, the problem may be with the broadcast. • Are the audio cables installed properly? The remote control does not work• Check to see if there are any objects between the TV and remote control causing obstruction. • Arebatteriesinstalledwithcorrectpolarity(+/-)?• Correct remote operating mode set: TV, VCR, etc?• Install new batteries. Power suddenly turns off • Is the sleep timer set?• Check the power connection, power may be interrupted. • No broadcast on the station tuned. Picture appears slowly after switching on • This is normal, the image is muted during the product start up process. Please contact a service provider if the picture has not appeared after 5 minutes. Poor color or picture• Adjust the color in Menu option.• Keepasufcientdistancebetweentheproductandthe VCR.• Try another channel, the problem may be with the broadcast.• Are the VIDEO cables installed properly?• Activate any function to restore the brightness of the picture.Horizontal/vertical bars or picture shaking• Check for local interference, such as an electrical appliance or power tool.Blue screen • Press the SOURCE button to select correct source.Poor reception on some channels• Station or cable experiencing problems. Tune to another station.• Station signal is weak, reorient antenna for better reception.• Check for sources of possible interference. Lines or streaks in pictures • Check the antenna (change the direction of the antenna).No output from one of the speakers • Adjust balance in the Menu option.TROUBLESHOOTING

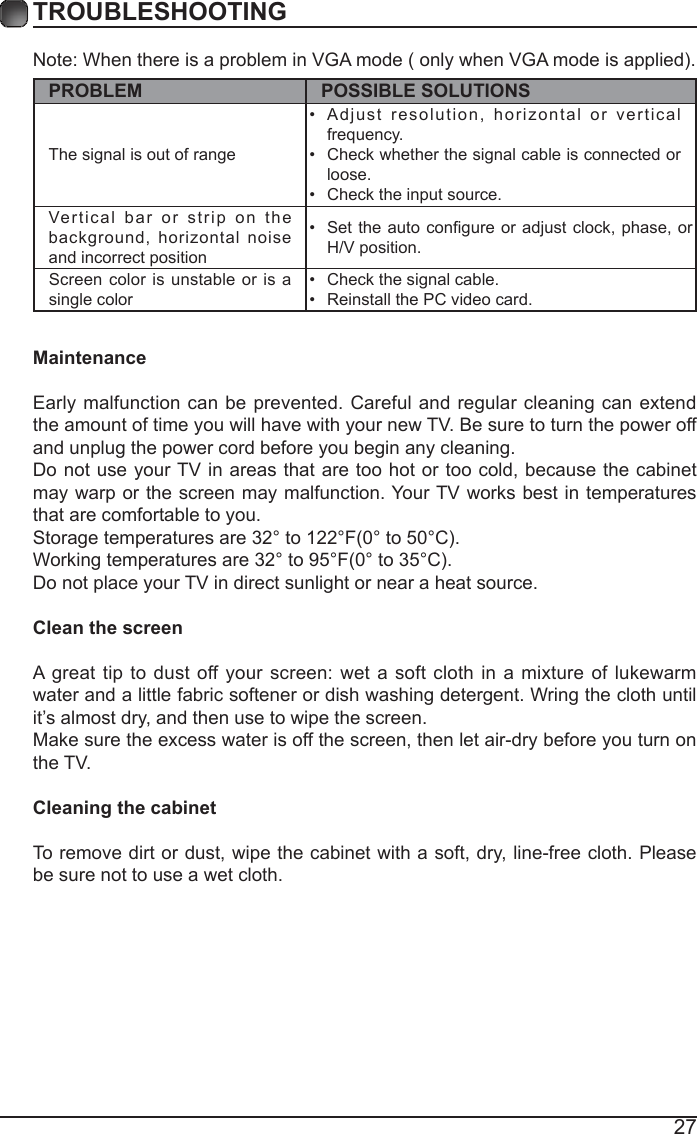

27TROUBLESHOOTINGNote:WhenthereisaprobleminVGAmode(onlywhenVGAmodeisapplied).PROBLEM POSSIBLE SOLUTIONSThe signal is out of range • Adjust resolution, horizontal or vertical frequency.• Check whether the signal cable is connected or loose.• Check the input source. Vertical bar or strip on the background, horizontal noise and incorrect position • Settheautocongureor adjustclock,phase,orH/V position. Screen color is unstable or is a single color • Check the signal cable.• Reinstall the PC video card. MaintenanceEarly malfunction can be prevented. Careful and regular cleaning can extend the amount of time you will have with your new TV. Be sure to turn the power off and unplug the power cord before you begin any cleaning.Do not use your TV in areas that are too hot or too cold, because the cabinet may warp or the screen may malfunction. Your TV works best in temperatures that are comfortable to you.Storagetemperaturesare32°to122°F(0°to50°C).Workingtemperaturesare32°to95°F(0°to35°C).Do not place your TV in direct sunlight or near a heat source.Clean the screenA great tip to dust off your screen: wet a soft cloth in a mixture of lukewarm water and a little fabric softener or dish washing detergent. Wring the cloth until it’s almost dry, and then use to wipe the screen.Make sure the excess water is off the screen, then let air-dry before you turn on the TV. Cleaning the cabinetTo remove dirt or dust, wipe the cabinet with a soft, dry, line-free cloth. Please be sure not to use a wet cloth.

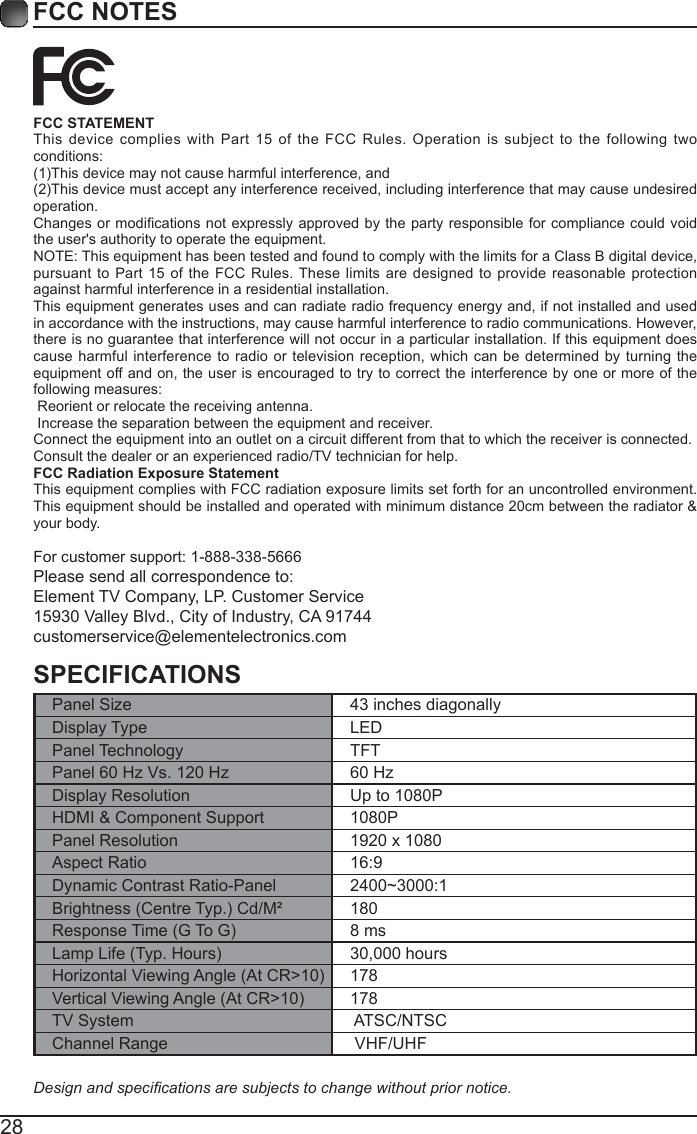

28FCC NOTESSPECIFICATIONSPanel Size 43 inches diagonally Display Type LEDPanel Technology TFTPanel 60 Hz Vs. 120 Hz 60 HzDisplay Resolution Up to 1080PHDMI & Component Support 1080PPanel Resolution 1920 x 1080Aspect Ratio 16:9Dynamic Contrast Ratio-Panel 2400~3000:1Brightness(CentreTyp.)Cd/M² 180ResponseTime(GToG) 8 msLampLife(Typ.Hours) 30,000 hoursHorizontalViewingAngle(AtCR>10) 178VerticalViewingAngle(AtCR>10) 178TV System ATSC/NTSCChannel Range VHF/UHFDesignandspecicationsaresubjectstochangewithoutpriornotice.FCC STATEMENTThis device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1)Thisdevicemaynotcauseharmfulinterference,and(2)Thisdevicemustacceptanyinterferencereceived,includinginterferencethatmaycauseundesiredoperation. Changesor modicationsnotexpressly approvedbythepartyresponsibleforcompliancecouldvoidthe user's authority to operate the equipment.NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver.Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.Consult the dealer or an experienced radio/TV technician for help.FCC Radiation Exposure StatementThis equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.For customer support: 1-888-338-5666Please send all correspondence to:Element TV Company, LP. Customer Service15930 Valley Blvd., City of Industry, CA 91744customerservice@elementelectronics.com

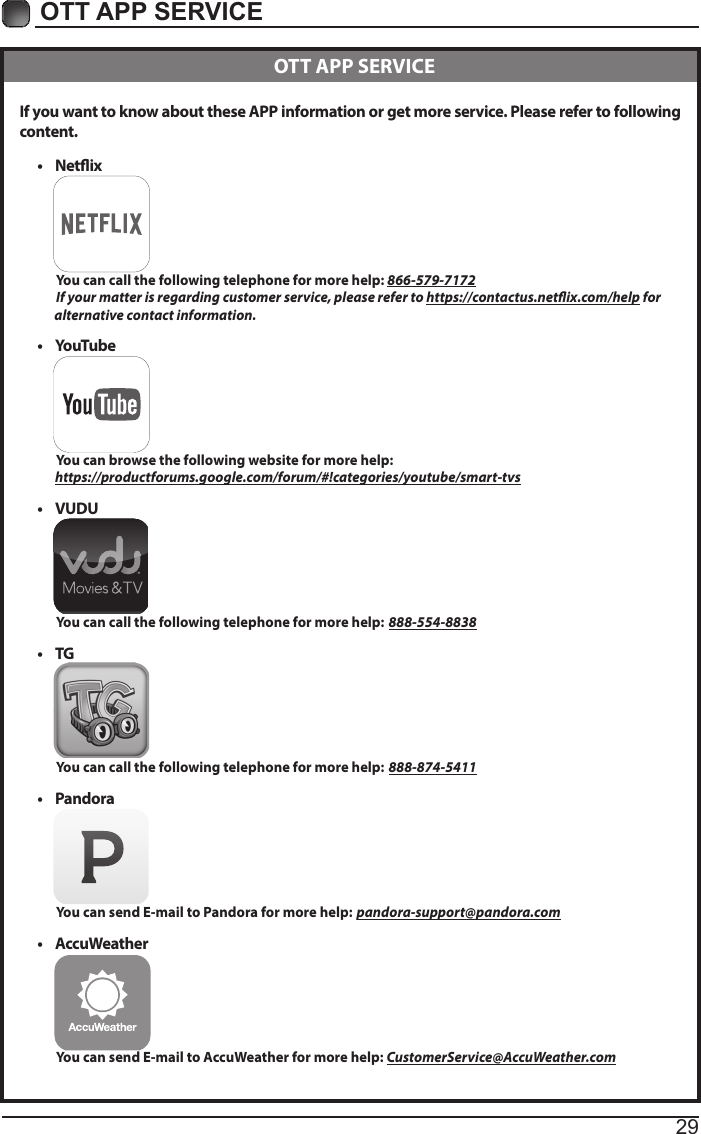

29OTT APP SERVICE If you want to know about these APP information or get more service. Please refer to following content.• Netix You can call the following telephone for more help: 866-579-7172 If your matter is regarding customer service, please refer to https://contactus.netix.com/help for alternative contact information.• YouTube You can browse the following website for more help: https://productforums.google.com/forum/#!categories/youtube/smart-tvs• VUDU You can call the following telephone for more help: 888-554-8838• TG You can call the following telephone for more help: 888-874-5411• Pandora You can send E-mail to Pandora for more help: pandora-support@pandora.com• AccuWeather You can send E-mail to AccuWeather for more help: CustomerService@AccuWeather.com OTT APP SERVICE

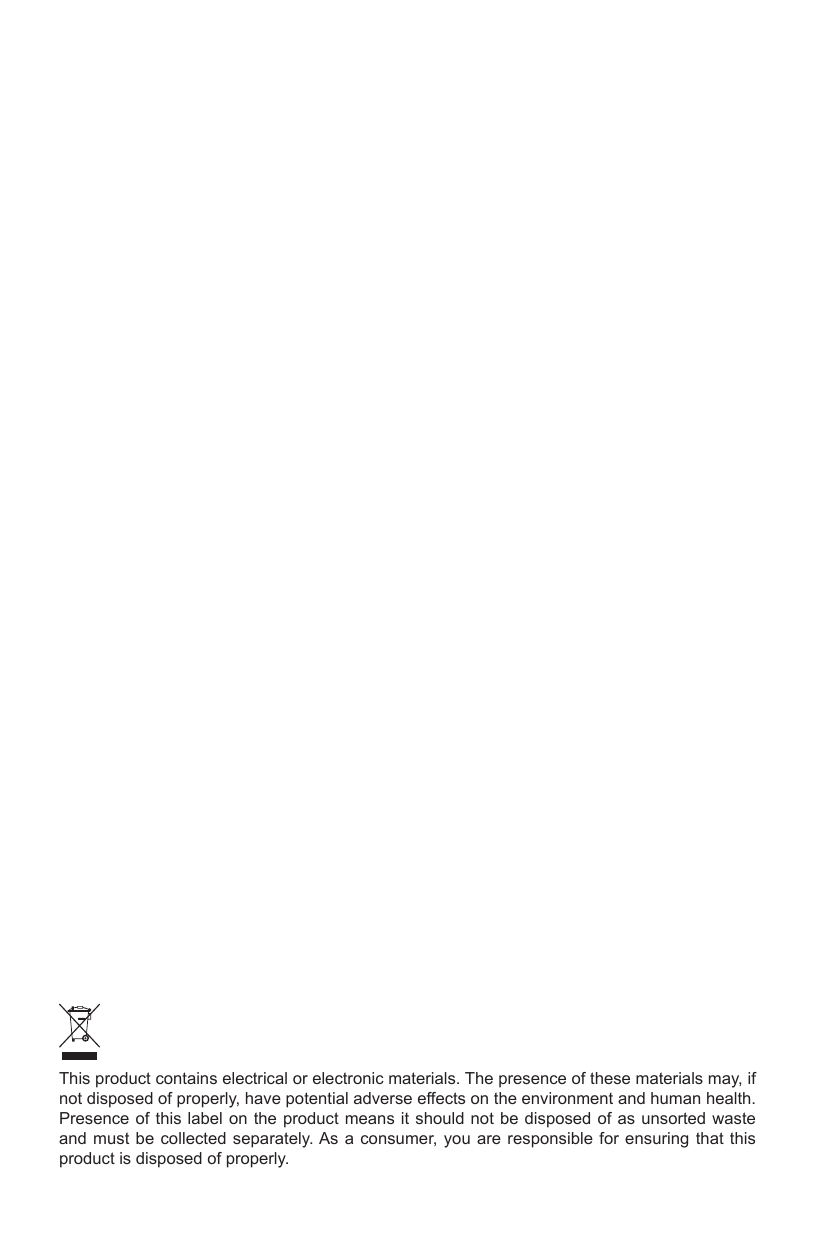

This product contains electrical or electronic materials. The presence of these materials may, if not disposed of properly, have potential adverse effects on the environment and human health.Presence of this label on the product means it should not be disposed of as unsorted waste and must be collected separately. As a consumer, you are responsible for ensuring that this product is disposed of properly.
