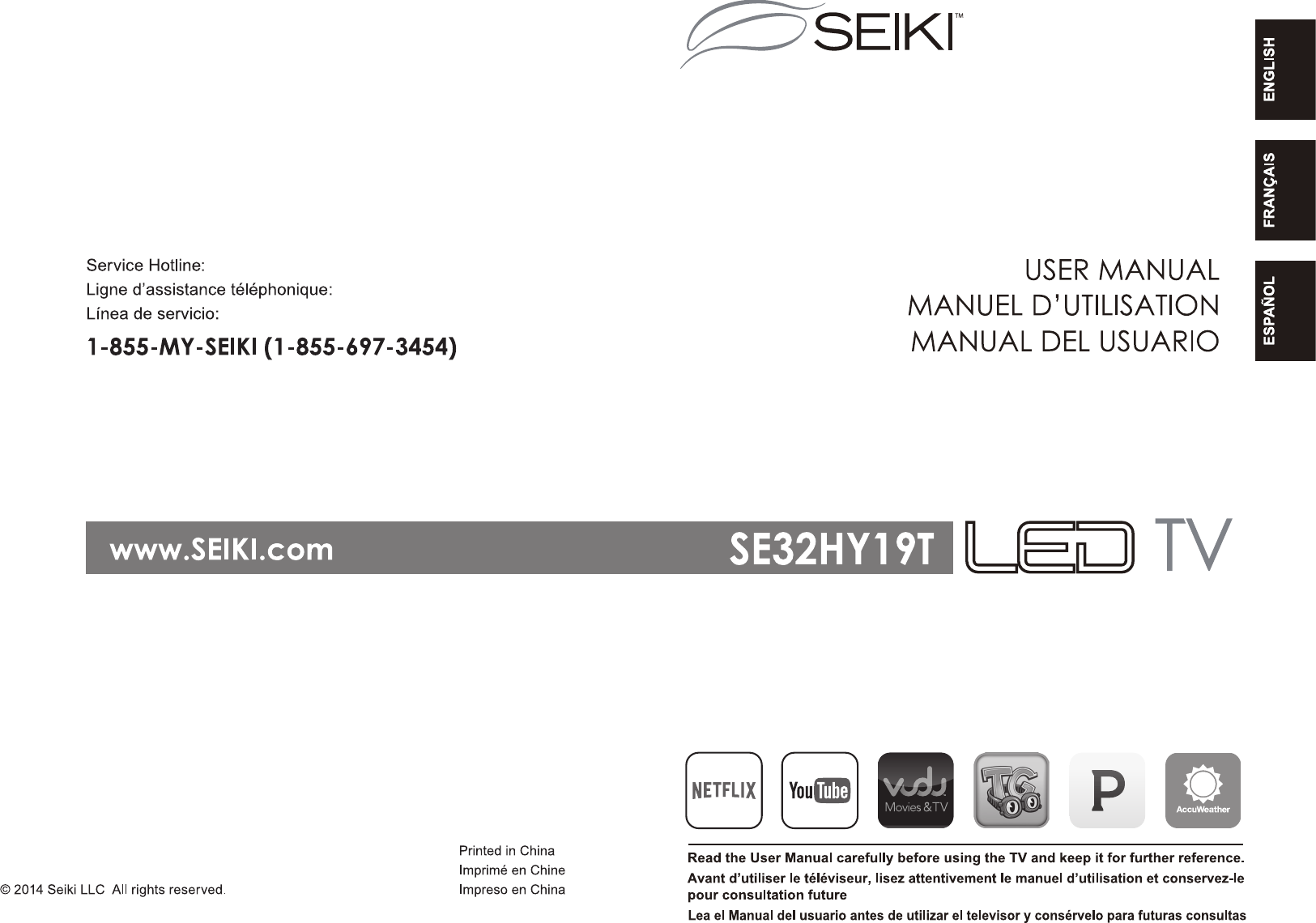

Shenyang Tongfang Multimedia Technology SE32HY19C LED TV User Manual

Shenyang Tongfang Multimedia Technology Co., Limited LED TV Users Manual

Users Manual

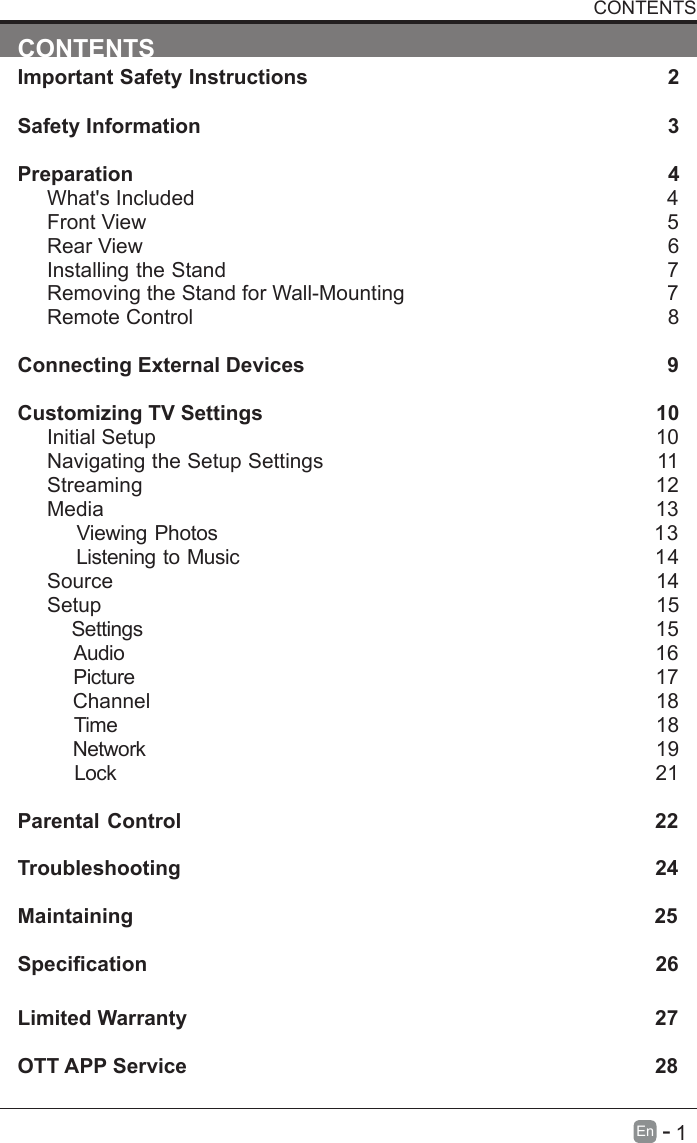

1En - CONTENTSImportant Safety Instructions 2Safety Information 3Preparation 4What's Included 4Front View 5Rear View 6Installing the Stand 7Removing the Stand for Wall-Mounting 7Remote Control 8Connecting External Devices 9Customizing TV Settings 10Initial Setup 10Navigating the Setup Settings 11Streaming 12Media 13 Viewing Photos 13 Listening to Music 14 Source 14Setup 15 Settings 15 Audio 16 Picture 17 Channel 18 Time 18 Network 19 Lock 21 Parental Control 22Troubleshooting 24Maintaining 25Specication26Limited Warranty 27OTT APP Service 28CONTENTS

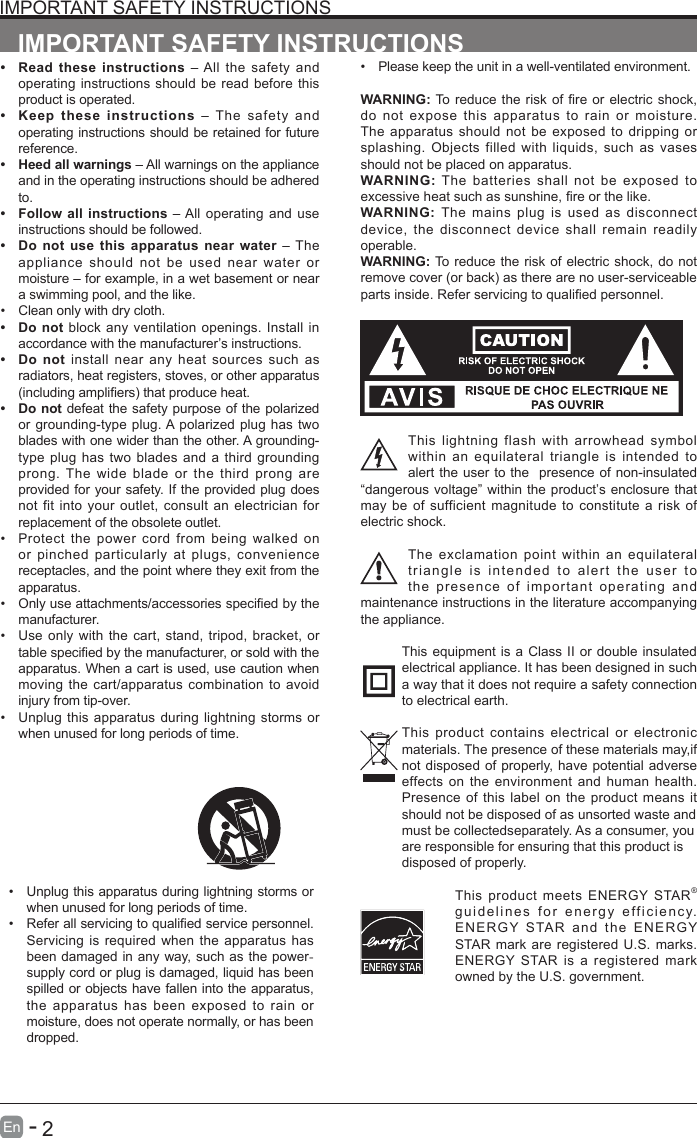

2En - IMPORTANT SAFETY INSTRUCTIONS• Read these instructions – All the safety and operating instructions should be read before this product is operated. • Keep these instructions – The safety and operating instructions should be retained for future reference. • Heed all warnings – All warnings on the appliance and in the operating instructions should be adhered to. • Follow all instructions – All operating and use instructions should be followed. • Do not use this apparatus near water – The appliance should not be used near water or moisture – for example, in a wet basement or near a swimming pool, and the like.• Clean only with dry cloth.• Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.• Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (includingampliers)thatproduceheat.• Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.• Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.• Onlyuseattachments/accessoriesspeciedbythemanufacturer.• Use only with the cart, stand, tripod, bracket, or tablespeciedbythemanufacturer,orsoldwiththeapparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. • Unplug this apparatus during lightning storms or when unused for long periods of time.IMPORTANT SAFETY INSTRUCTIONS• Unplug this apparatus during lightning storms or when unused for long periods of time.• Referallservicingtoqualiedservicepersonnel.Servicing is required when the apparatus has been damaged in any way, such as the power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.• Please keep the unit in a well-ventilated environment.WARNING:Toreduce theriskofreorelectricshock,do not expose this apparatus to rain or moisture. The apparatus should not be exposed to dripping or splashing. Objects filled with liquids, such as vases should not be placed on apparatus. WARNING: The batteries shall not be exposed to excessiveheatsuchassunshine,reorthelike.WARNING: The mains plug is used as disconnect device, the disconnect device shall remain readily operable.WARNING: To reduce the risk of electric shock, do not removecover(orback)astherearenouser-serviceablepartsinside.Referservicingtoqualiedpersonnel.This lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of non-insulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock.The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance instructions in the literature accompanying the appliance. This equipment is a Class II or double insulated electrical appliance. It has been designed in such a way that it does not require a safety connection to electrical earth.This product contains electrical or electronic materials. The presence of these materials may,if not disposed of properly, have potential adverse effects on the environment and human health. Presence of this label on the product means it should not be disposed of as unsorted waste andmust be collectedseparately. As a consumer, youare responsible for ensuring that this product isdisposed of properly.This product meets ENERGY STAR® guidelines for energy efficiency. ENERGY STAR and the ENERGY STAR mark are registered U.S. marks. ENERGY STAR is a registered mark owned by the U.S. government.

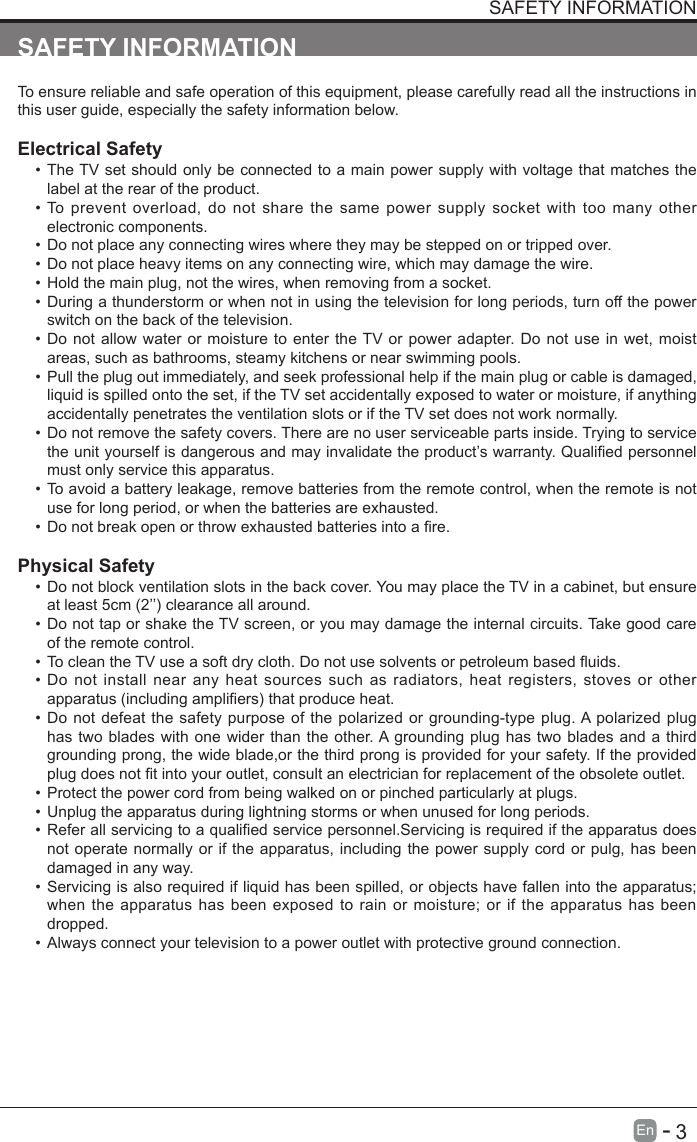

3En - SAFETY INFORMATIONTo ensure reliable and safe operation of this equipment, please carefully read all the instructions in this user guide, especially the safety information below.Electrical Safety • The TV set should only be connected to a main power supply with voltage that matches the label at the rear of the product.• To prevent overload, do not share the same power supply socket with too many other electronic components.• Do not place any connecting wires where they may be stepped on or tripped over.• Do not place heavy items on any connecting wire, which may damage the wire.• Hold the main plug, not the wires, when removing from a socket.• During a thunderstorm or when not in using the television for long periods, turn off the power switch on the back of the television.• Do not allow water or moisture to enter the TV or power adapter. Do not use in wet, moist areas, such as bathrooms, steamy kitchens or near swimming pools.• Pull the plug out immediately, and seek professional help if the main plug or cable is damaged, liquid is spilled onto the set, if the TV set accidentally exposed to water or moisture, if anything accidentally penetrates the ventilation slots or if the TV set does not work normally.• Do not remove the safety covers. There are no user serviceable parts inside. Trying to service theunityourselfisdangerousandmayinvalidatetheproduct’swarranty.Qualiedpersonnelmust only service this apparatus.• To avoid a battery leakage, remove batteries from the remote control, when the remote is not use for long period, or when the batteries are exhausted.• Donotbreakopenorthrowexhaustedbatteriesintoare.Physical Safety • Do not block ventilation slots in the back cover. You may place the TV in a cabinet, but ensure atleast5cm(2’’)clearanceallaround.• Do not tap or shake the TV screen, or you may damage the internal circuits. Take good care of the remote control.• TocleantheTVuseasoftdrycloth.Donotusesolventsorpetroleumbaseduids.• Do not install near any heat sources such as radiators, heat registers, stoves or other apparatus(includingampliers)thatproduceheat.• Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding plug has two blades and a third grounding prong, the wide blade,or the third prong is provided for your safety. If the provided plugdoesnottintoyouroutlet,consultanelectricianforreplacementoftheobsoleteoutlet.• Protect the power cord from being walked on or pinched particularly at plugs. • Unplug the apparatus during lightning storms or when unused for long periods.• Referallservicingtoaqualiedservicepersonnel.Servicingisrequirediftheapparatusdoesnot operate normally or if the apparatus, including the power supply cord or pulg, has been damaged in any way.• Servicing is also required if liquid has been spilled, or objects have fallen into the apparatus; when the apparatus has been exposed to rain or moisture; or if the apparatus has been dropped.• Always connect your television to a power outlet with protective ground connection. SAFETY INFORMATION

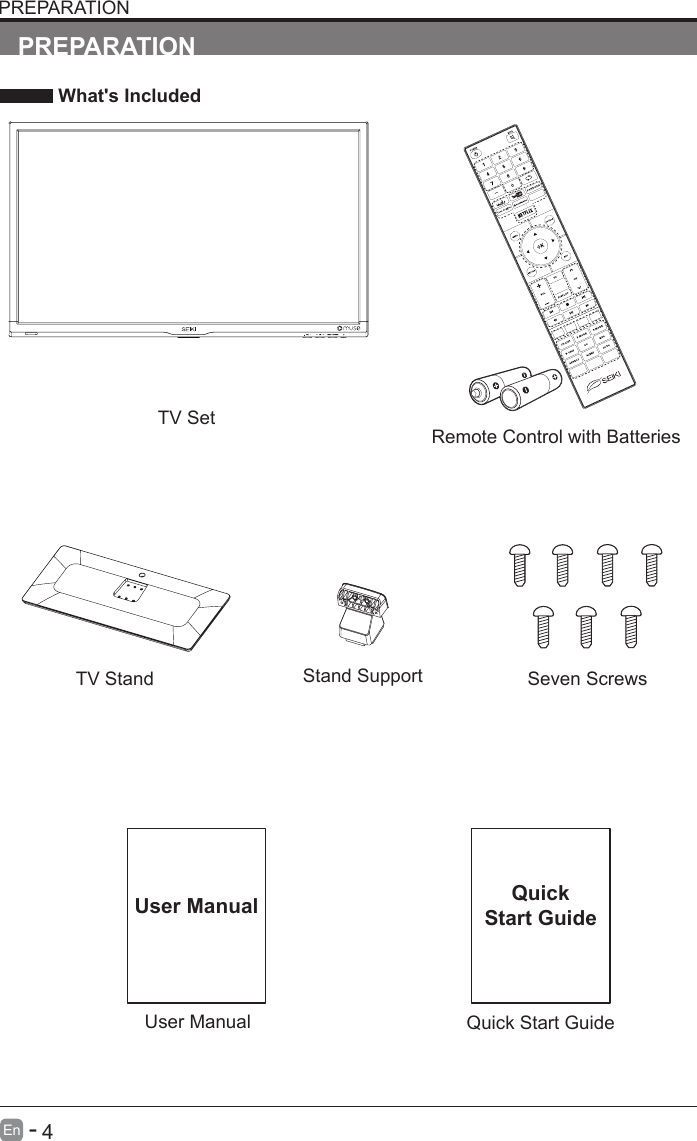

4En - User ManualUser ManualPREPARATION What's IncludedRemote Control with BatteriesTV SetQuick Start GuideQuickStart GuidePREPARATIONTV Stand Seven ScrewsStand Support

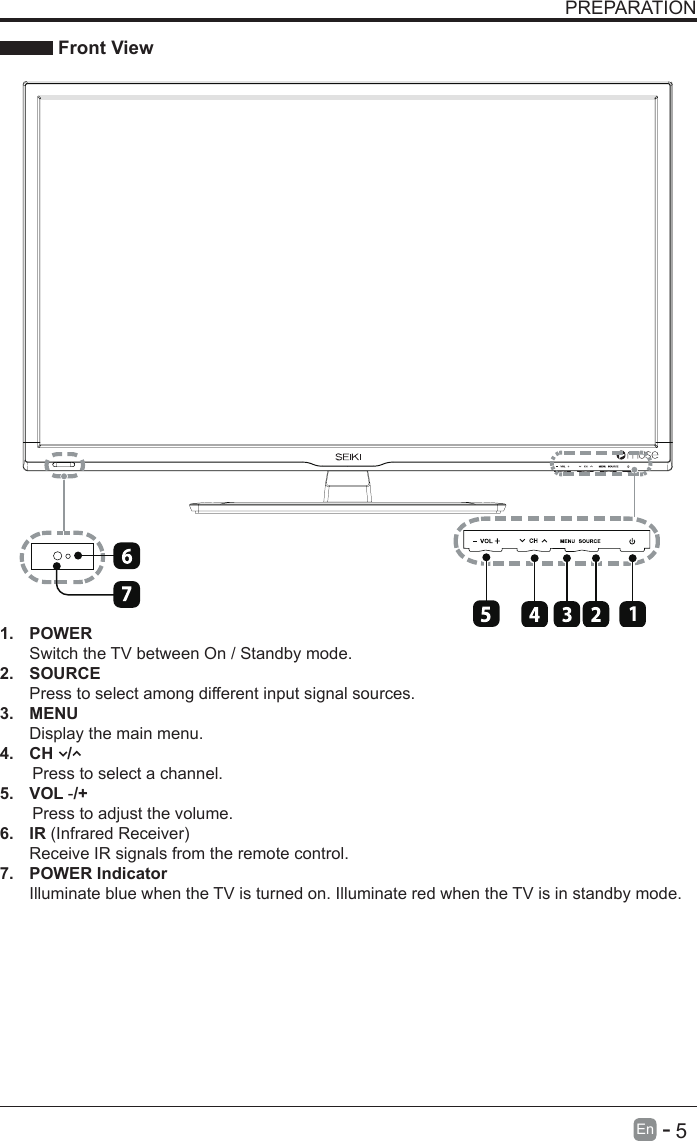

5En - PREPARATION Front View1. POWER Switch the TV between On / Standby mode.2. SOURCEPress to select among different input signal sources.3. MENUDisplay the main menu.4. CH / Press to select a channel.5. VOL -/+ Press to adjust the volume.6. IR(InfraredReceiver)Receive IR signals from the remote control.7. POWER IndicatorIlluminate blue when the TV is turned on. Illuminate red when the TV is in standby mode.

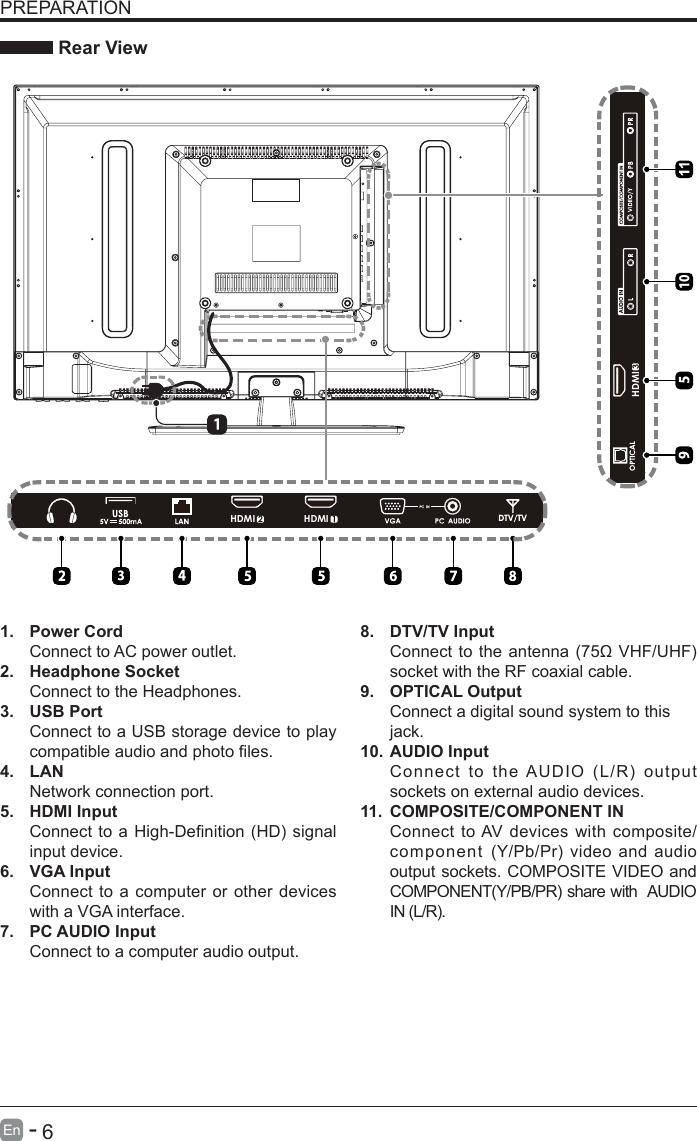

6En - PREPARATION Rear View1. Power CordConnect to AC power outlet.2. Headphone SocketConnect to the Headphones.3. USB PortConnect to a USB storage device to play compatibleaudioandphotoles.4. LANNetwork connection port.5. HDMI InputConnecttoaHigh-Denition(HD) signalinput device.6. VGA InputConnect to a computer or other devices with a VGA interface.7. PC AUDIO InputConnect to a computer audio output.8. DTV/TV Input Connecttotheantenna(75ΩVHF/UHF)socket with the RF coaxial cable.9. OPTICAL OutputConnect a digital sound system to thisjack.10. AUDIO InputConnecttotheAUDIO(L/R)outputsockets on external audio devices.11. COMPOSITE/COMPONENT IN Connect to AV devices with composite/component (Y/Pb/Pr) videoand audiooutput sockets. COMPOSITE VIDEO and COMPONENT(Y/PB/PR)share withAUDIOIN(L/R). 2HDMI 1HDMI3HDMI10

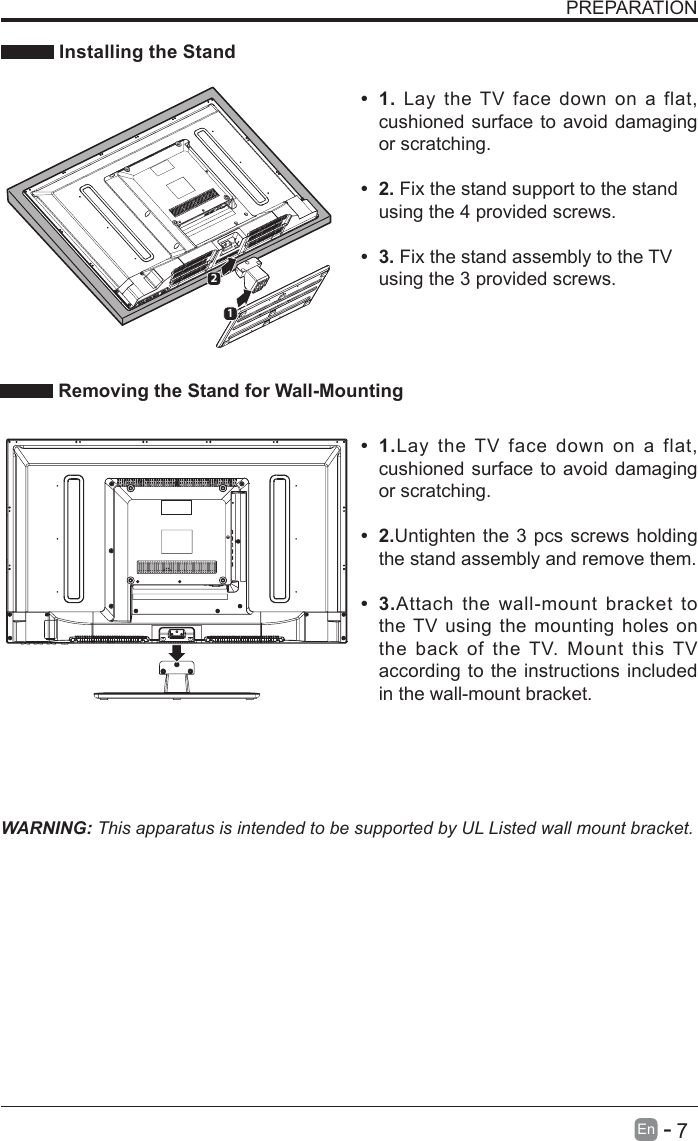

7En - PREPARATION Installing the Stand• 1. Lay the TV face down on a flat, cushioned surface to avoid damaging or scratching. • 2.Fix the stand support to the stand using the 4 provided screws. • 3.Fix the stand assembly to the TV using the 3 provided screws. WARNING: This apparatus is intended to be supported by UL Listed wall mount bracket.• 1.Lay the TV face down on a flat, cushioned surface to avoid damaging or scratching.• 2.Untighten the 3 pcs screws holding the stand assembly and remove them. • 3.Attach the wall-mount bracket to the TV using the mounting holes on the back of the TV. Mount this TV according to the instructions included in the wall-mount bracket. Removing the Stand for Wall-Mounting12

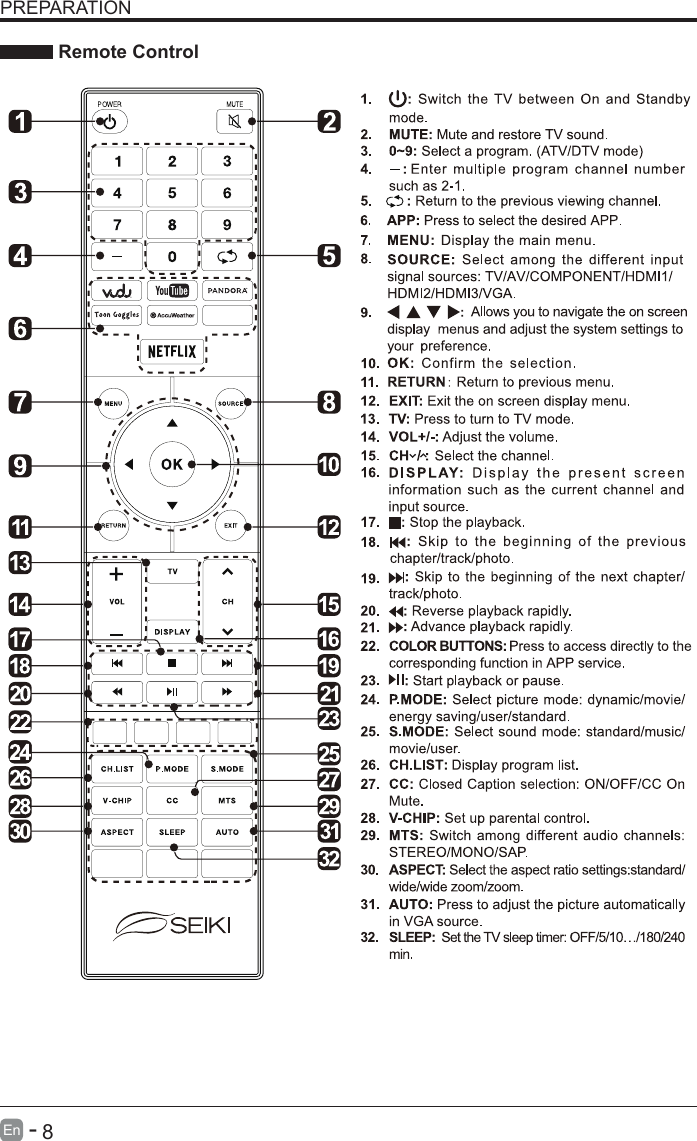

8En - PREPARATION Remote Control

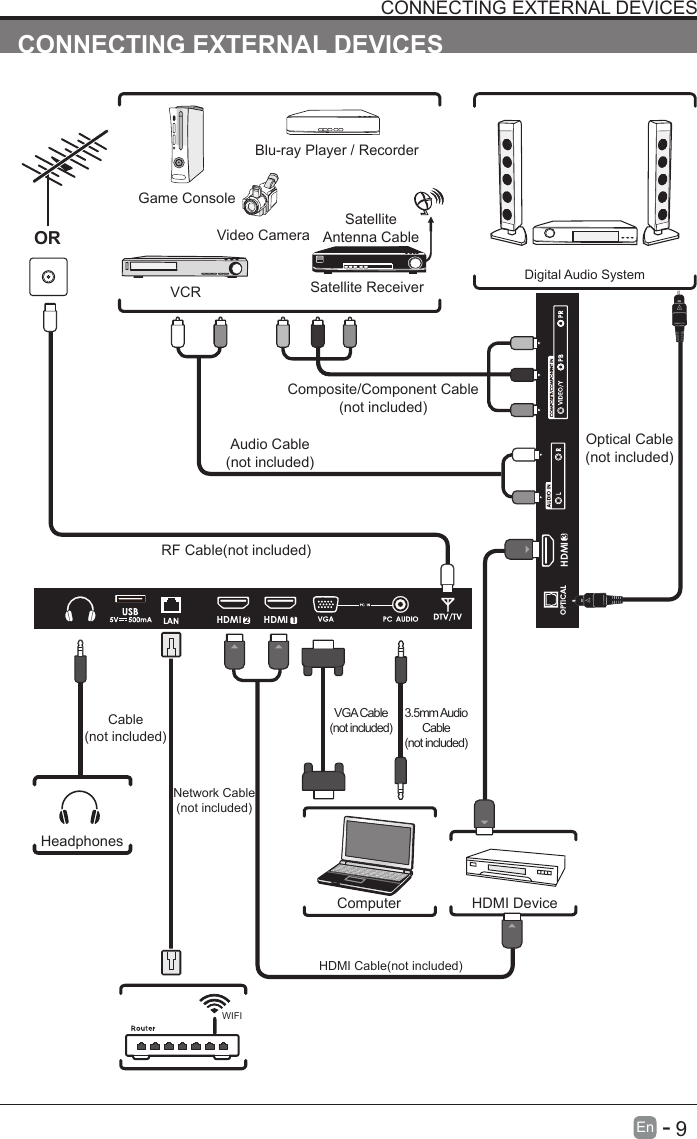

9En - CONNECTING EXTERNAL DEVICESCONNECTING EXTERNAL DEVICESRFCable(notincluded)Audio Cable(notincluded)Composite/Component Cable(notincluded)Video CameraGame ConsoleBlu-ray Player / RecorderVCR Satellite ReceiverSatelliteAntenna CableORHDMI DeviceComputerDigital Audio SystemVGA Cable(notincluded)3.5mm Audio Cable(notincluded)HeadphonesCable(notincluded)HDMICable(notincluded)Optical Cable(notincluded)2HDMI 1HDMI3HDMIWIFINetwork Cable(notincluded)
10En - CUSTOMIZING TV SETTINGS Initial Setup• Connect the power cord to the power socket after you have completed all the physical connections. At this stage, the TV will enter Standby Mode and the red LED indicator will illuminate. • In Standby Mode, press the button on the main unit or on the remote control to turn the TV on. The red LED indicator will turn blue.• The first time you turn the TV on, it will go into the Setup Wizard. Press buttons to select your desired mode and press OKtoconrm.CUSTOMIZING TV SETTINGSOK :NextHome Mode (Energy Saving) is the default as-shipped television configuration and settings. And Home Mode (Energy Saving) is the setting in which the product qualifies for ENERGY STAR®. Any changes to default as-shipped television configuration and settings would change the energy consumption. And enabling certain optional features and functionalities may increase energy consumption beyond the limits required for ENERGY STAR® qualication, as applicable. Retail Mode : Select Retail Mode if you would like your picture to be brighter. At times this mode may use more energy to operate the Volume/Sound Mode and the Picture Mode. In this setting, the power consumption may possibly exceed the limited requirement of the ENERGY STAR®qualication.ENERGY STAR® is a set of power-saving guidelines issued by the U.S. Environmental Protection Agency(EPA).ENERGY STAR® is a joint program of the U.S. Environmental Protection Agency and the U.S. Department of Energy helping us all save money and protect the environment through energy efcient products and pratices.• The ON-MODE Power under Home Mode should be less than 42.6 W• The SLEEP-MODE Power should be less than 0.5 W.5

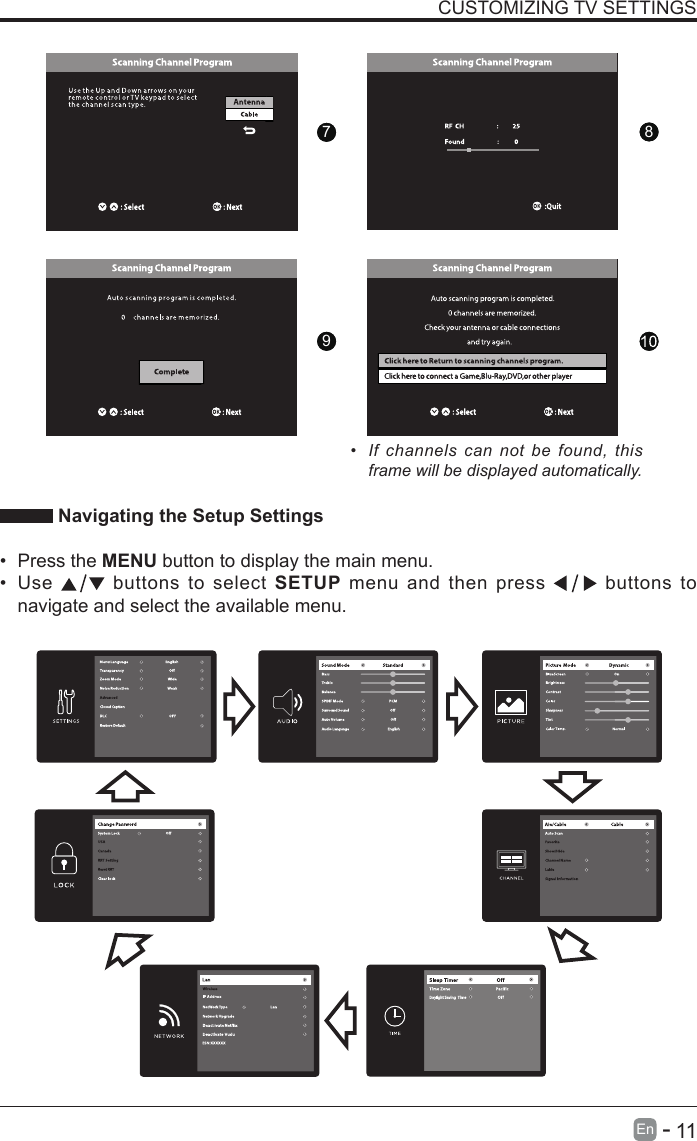

11En - CUSTOMIZING TV SETTINGS• If channels can not be found, this frame will be displayed automatically. Navigating the Setup Settings• Press the MENU button to display the main menu. • Use buttons to select SETUP menu and then press buttons to navigate and select the available menu.9876789

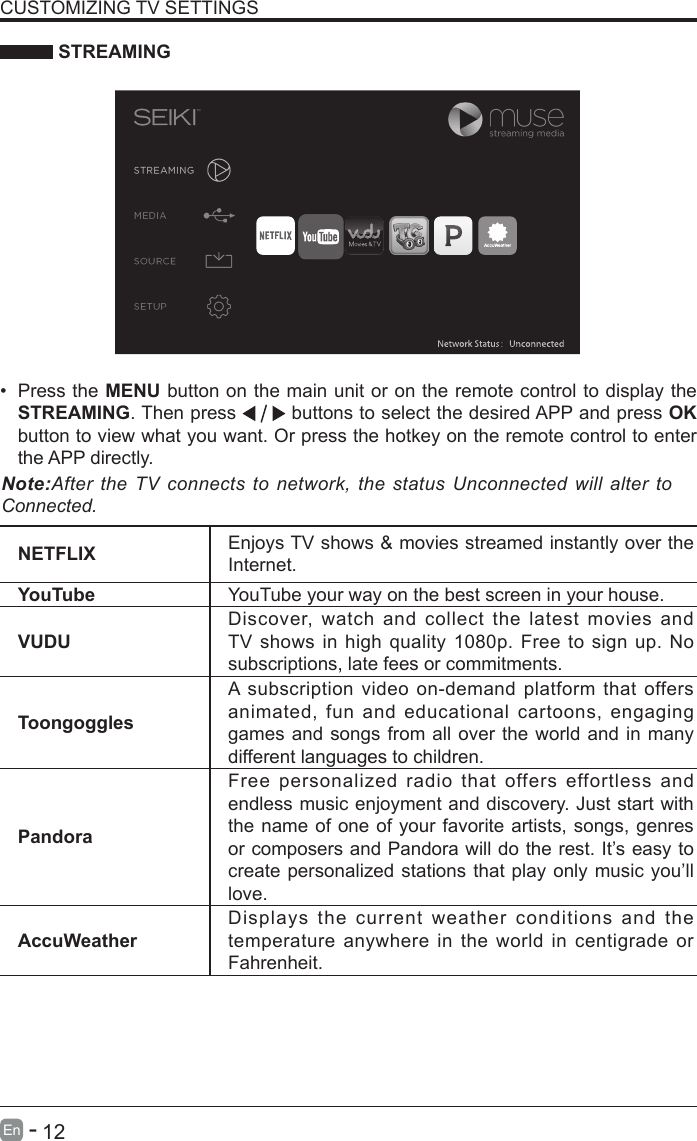

12En - STREAMINGNETFLIX Enjoys TV shows & movies streamed instantly over the Internet.YouTube YouTube your way on the best screen in your house.VUDUDiscover, watch and collect the latest movies and TV shows in high quality 1080p. Free to sign up. No subscriptions, late fees or commitments. ToongogglesA subscription video on-demand platform that offers animated, fun and educational cartoons, engaging games and songs from all over the world and in many different languages to children.PandoraFree personalized radio that offers effortless and endless music enjoyment and discovery. Just start with the name of one of your favorite artists, songs, genres or composers and Pandora will do the rest. It’s easy to create personalized stations that play only music you’ll love.AccuWeatherDisplays the current weather conditions and the temperature anywhere in the world in centigrade or Fahrenheit.CUSTOMIZING TV SETTINGS• Press the MENU button on the main unit or on the remote control to display the STREAMING. Then press buttons to select the desired APP and press OK button to view what you want. Or press the hotkey on the remote control to enter the APP directly.Note:After the TV connects to network, the status Unconnected will alter to Connected.

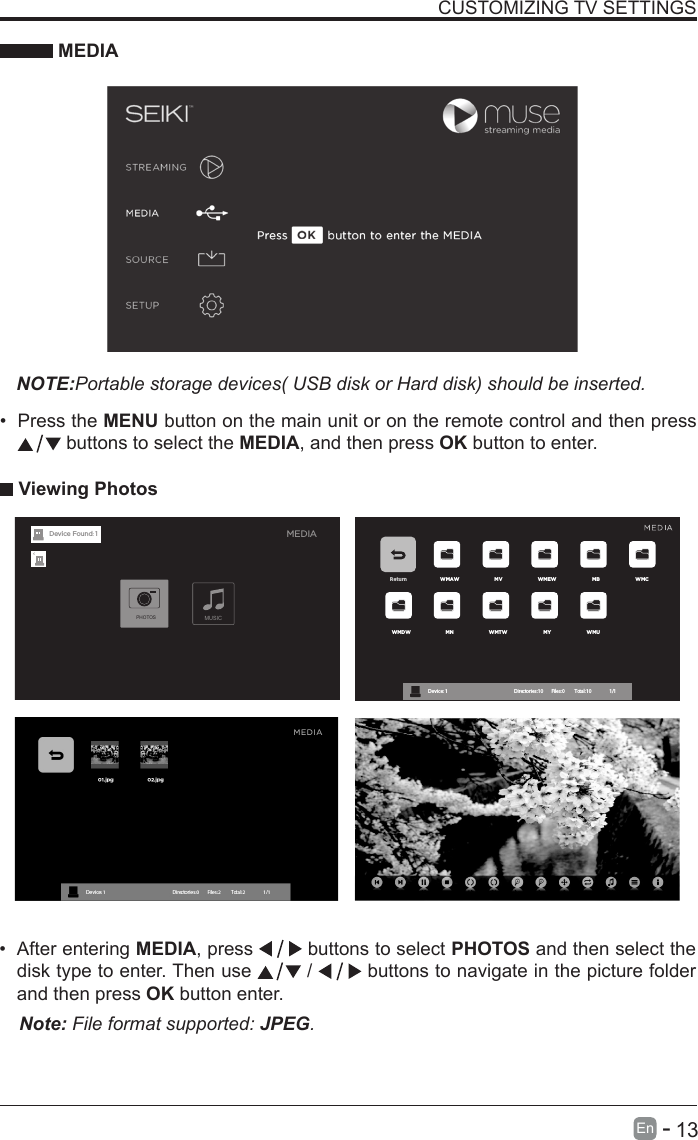

13En - • After entering MEDIA, press buttons to select PHOTOS and then select the disk type to enter. Then use / buttons to navigate in the picture folder and then press OK button enter.CUSTOMIZING TV SETTINGS MEDIANOTE:Portable storage devices( USB disk or Hard disk) should be inserted.• Press the MENU button on the main unit or on the remote control and then press buttons to select the MEDIA, and then press OK button to enter. Viewing PhotosNote: File format supported: JPEG. Return WMAW MV WMEW MB WMCWMDW MN WMTW MY WMUDevice : 1 Directories:10 Files:0 Total:10 1/1MEDIAMUSICPHOTOSDevice Found: 1

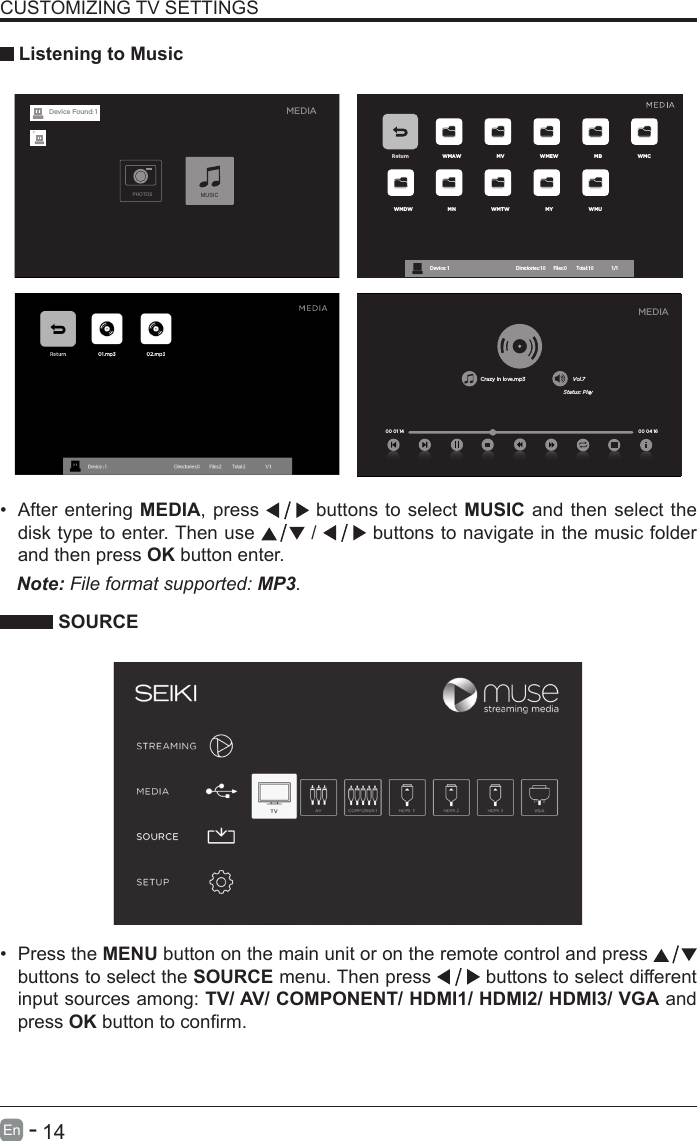

14En - • After entering MEDIA, press buttons to select MUSIC and then select the disk type to enter. Then use / buttons to navigate in the music folder and then press OK button enter. CUSTOMIZING TV SETTINGS Listening to MusicNote: File format supported: MP3. SOURCE• Press the MENU button on the main unit or on the remote control and press buttons to select the SOURCE menu. Then press buttons to select different input sources among: TV/ AV/ COMPONENT/ HDMI1/ HDMI2/ HDMI3/ VGA and press OKbuttontoconrm. Return WMAW MV WMEW MB WMCWMDW MN WMTW MY WMUDevice : 1 Directories:10 Files:0 Total:10 1/1Crazy in love.mp3 Vol.7Status: Play00 04 16MEDIA00 01 14MEDIAPHOTOSMUSICDevice Found: 1

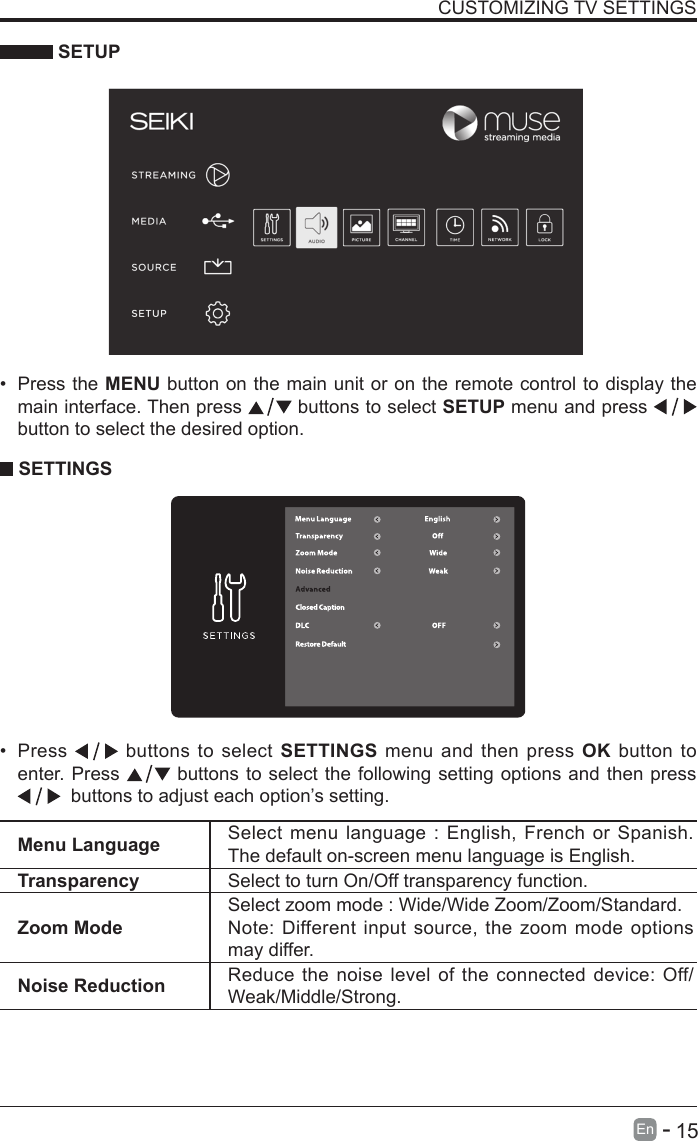

15En - SETUPCUSTOMIZING TV SETTINGS• Press the MENU button on the main unit or on the remote control to display the main interface. Then press buttons to select SETUP menu and press button to select the desired option. SETTINGS• Press buttons to select SETTINGS menu and then press OK button to enter. Press buttons to select the following setting options and then press buttons to adjust each option’s setting. Menu Language Select menu language : English, French or Spanish. The default on-screen menu language is English.Transparency Select to turn On/Off transparency function.Zoom ModeSelect zoom mode : Wide/Wide Zoom/Zoom/Standard.Note: Different input source, the zoom mode options may differ.Noise Reduction Reduce the noise level of the connected device: Off/Weak/Middle/Strong.

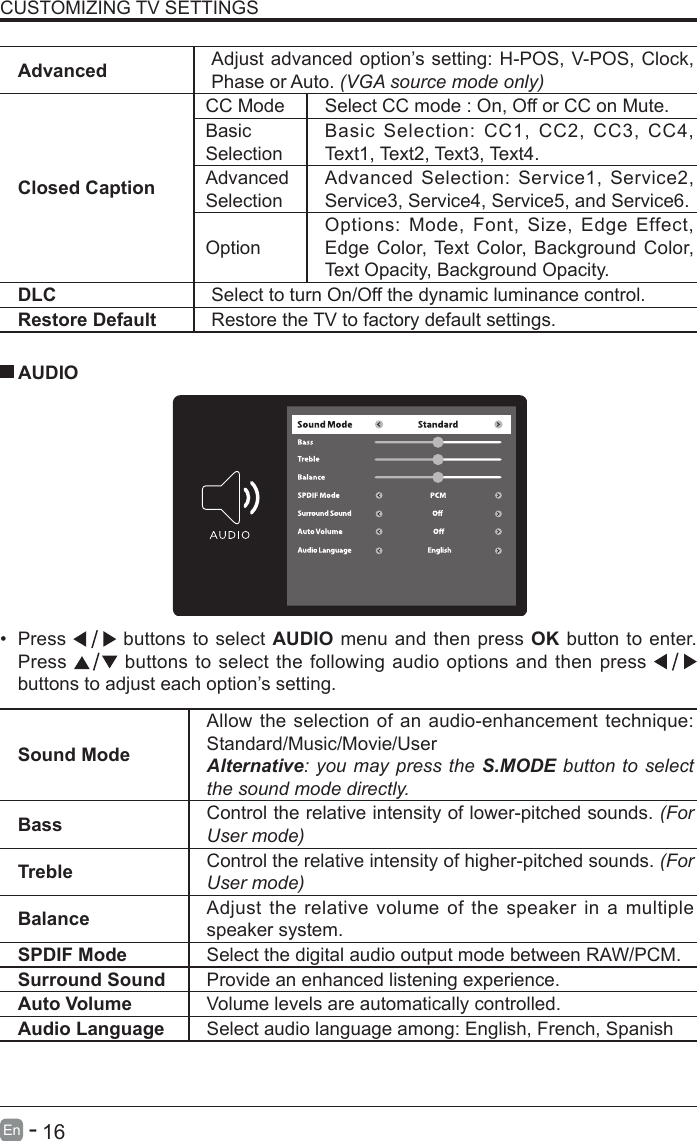

16En - CUSTOMIZING TV SETTINGSAdvanced Adjust advanced option’s setting: H-POS, V-POS, Clock, Phase or Auto. (VGA source mode only)Closed CaptionCC Mode Select CC mode : On, Off or CC on Mute.Basic SelectionBasic Selection: CC1, CC2, CC3, CC4, Text1, Text2, Text3, Text4.Advanced SelectionAdvanced Selection: Service1, Service2, Service3, Service4, Service5, and Service6.OptionOptions: Mode, Font, Size, Edge Effect, Edge Color, Text Color, Background Color, Text Opacity, Background Opacity.DLC Select to turn On/Off the dynamic luminance control.Restore Default Restore the TV to factory default settings.• Press buttons to select AUDIO menu and then press OK button to enter. Press buttons to select the following audio options and then press buttons to adjust each option’s setting. AUDIOSound ModeAllow the selection of an audio-enhancement technique: Standard/Music/Movie/UserAlternative: you may press the S.MODE button to select the sound mode directly.Bass Control the relative intensity of lower-pitched sounds. (For User mode)Treble Control the relative intensity of higher-pitched sounds. (For User mode)Balance Adjust the relative volume of the speaker in a multiple speaker system.SPDIF Mode Select the digital audio output mode between RAW/PCM.Surround Sound Provide an enhanced listening experience.Auto Volume Volume levels are automatically controlled.Audio Language Select audio language among: English, French, Spanish

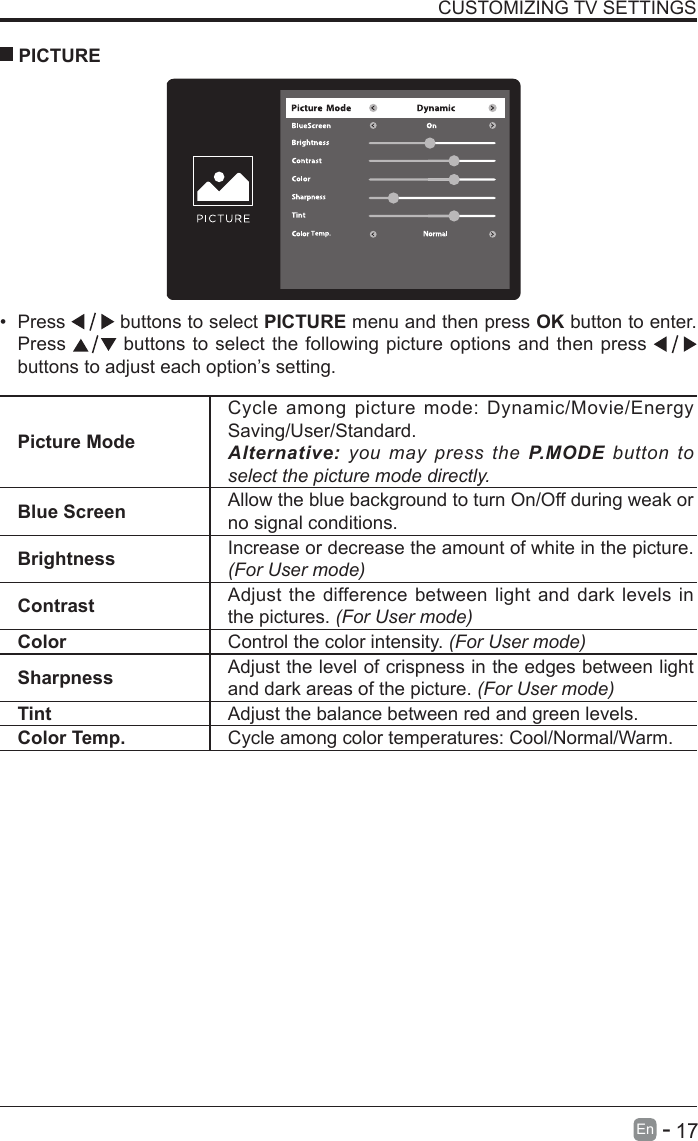

17En - CUSTOMIZING TV SETTINGS• Press buttons to select PICTURE menu and then press OK button to enter. Press buttons to select the following picture options and then press buttons to adjust each option’s setting. PICTUREPicture ModeCycle among picture mode: Dynamic/Movie/Energy Saving/User/Standard.Alternative: you may press the P.MODE button to select the picture mode directly.Blue Screen Allow the blue background to turn On/Off during weak or no signal conditions.Brightness Increase or decrease the amount of white in the picture. (For User mode)Contrast Adjust the difference between light and dark levels in the pictures. (For User mode)Color Control the color intensity. (For User mode)Sharpness Adjust the level of crispness in the edges between light and dark areas of the picture. (For User mode)Tint Adjust the balance between red and green levels.Color Temp. Cycle among color temperatures: Cool/Normal/Warm.

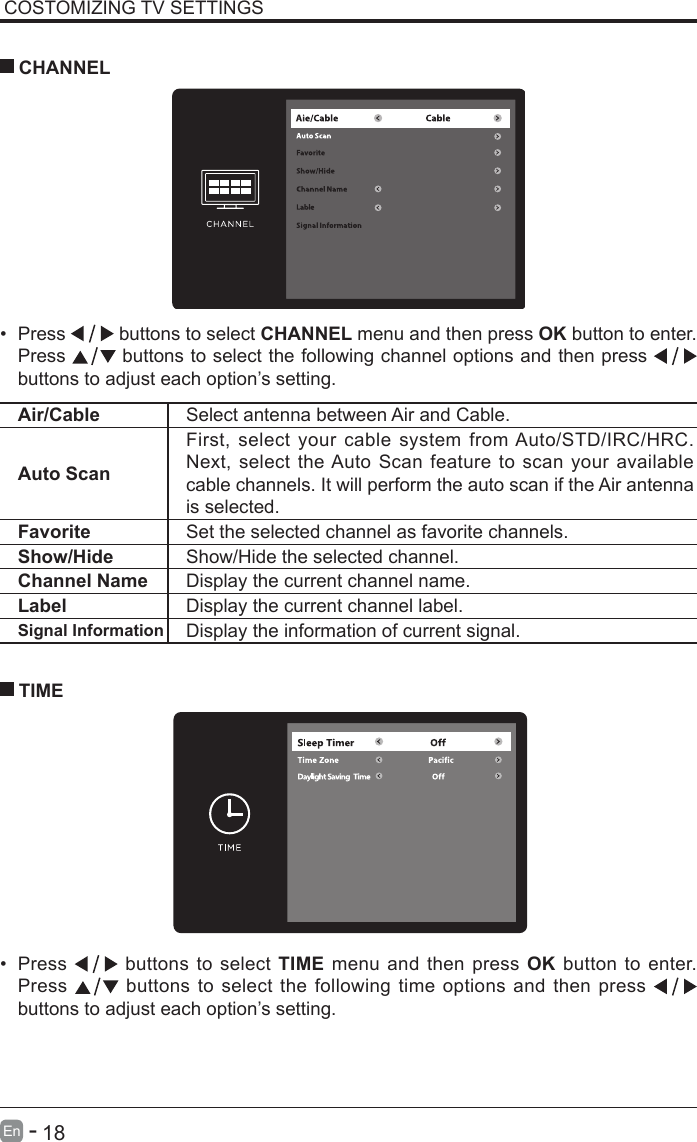

18En - COSTOMIZING TV SETTINGS• Press buttons to select CHANNEL menu and then press OK button to enter. Press buttons to select the following channel options and then press buttons to adjust each option’s setting. CHANNELAir/Cable Select antenna between Air and Cable. Auto ScanFirst, select your cable system from Auto/STD/IRC/HRC. Next, select the Auto Scan feature to scan your available cable channels. It will perform the auto scan if the Air antenna is selected.Favorite Set the selected channel as favorite channels.Show/Hide Show/Hide the selected channel.Channel Name Display the current channel name.Label Display the current channel label.Signal Information Display the information of current signal.• Press buttons to select TIME menu and then press OK button to enter. Press buttons to select the following time options and then press buttons to adjust each option’s setting. TIME

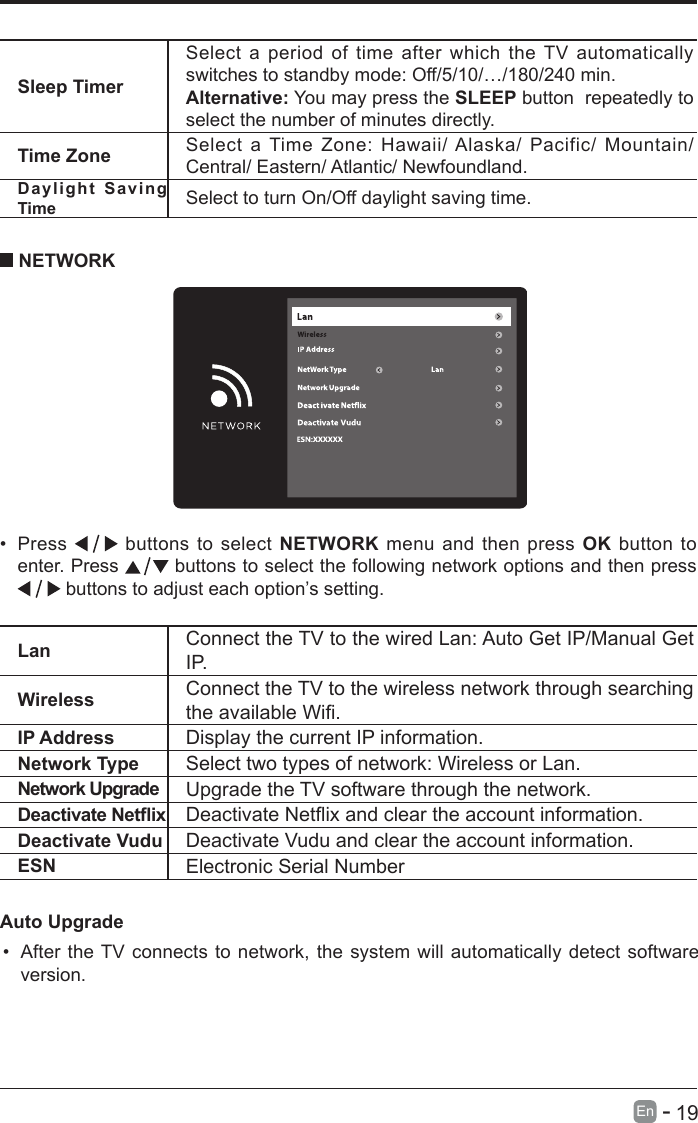

19En - Sleep TimerSelect a period of time after which the TV automatically switches to standby mode: Off/5/10/…/180/240 min.Alternative: You may press the SLEEP button repeatedly to select the number of minutes directly. Time Zone Select a Time Zone: Hawaii/ Alaska/ Pacific/ Mountain/ Central/ Eastern/ Atlantic/ Newfoundland.Daylight Saving Time Select to turn On/Off daylight saving time.• Press buttons to select NETWORK menu and then press OK button to enter. Press buttons to select the following network options and then press buttons to adjust each option’s setting. NETWORKLan Connect the TV to the wired Lan: Auto Get IP/Manual Get IP. Wireless Connect the TV to the wireless network through searching theavailableWi.IP Address Display the current IP information.Network Type Select two types of network: Wireless or Lan.Network Upgrade Upgrade the TV software through the network.DeactivateNetix DeactivateNetixandcleartheaccountinformation.Deactivate Vudu Deactivate Vudu and clear the account information.ESN Electronic Serial NumberAuto Upgrade• After the TV connects to network, the system will automatically detect software version.
20En - • If there is a new version, it will be downloaded in the background. When you want to enter the app, a menu bar will pop up reminding you that upgrade software is downloading. Please try later...• After the download completed, it can upgrade automatically after users press the standby button.Note: This procedure is fully automatic, and remember not to cut off the power. Manual Upgrade• After the TV connects to network, users can detect whether there is a new version through network manual option. • Below occasions are possible while your internet is connected to enjoy your OTT services.• 1.Please check your internet signal strength while internet is connected, signal strength below 50 may result bad connection and non-smooth picture.• 2.To enter OTT services, 30 second may be required for internet connection.Reminder for internet connection:Recommended 10Mb above internet speed

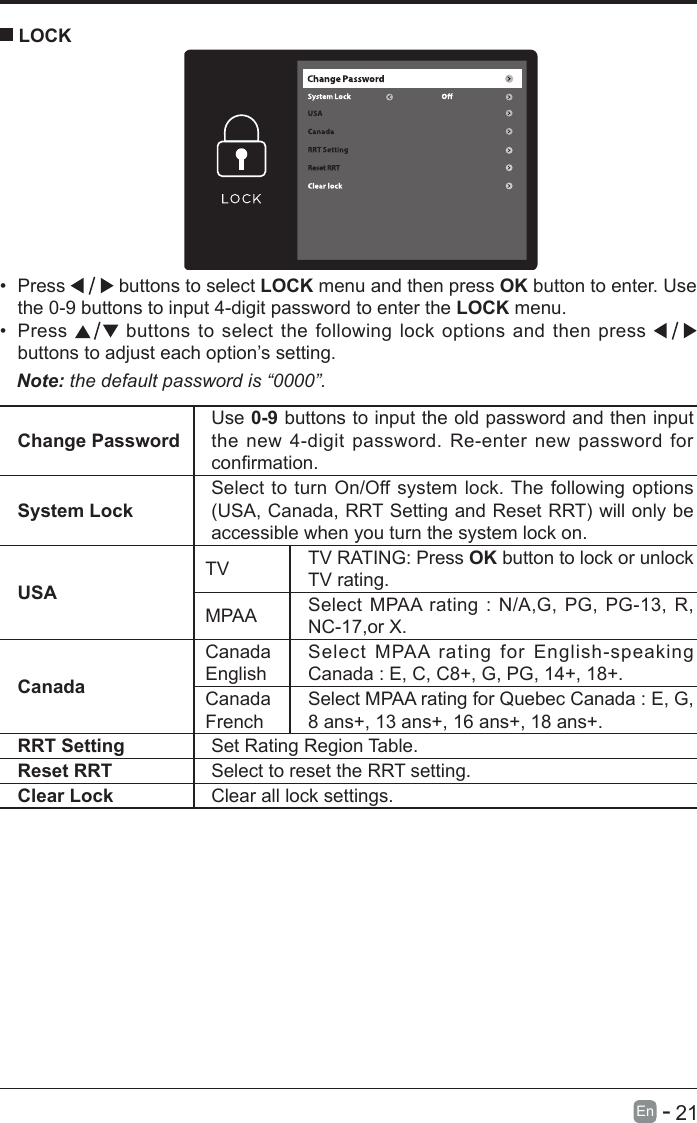

21En - • Press buttons to select LOCK menu and then press OK button to enter. Use the 0-9 buttons to input 4-digit password to enter the LOCK menu.• Press buttons to select the following lock options and then press buttons to adjust each option’s setting. LOCKNote: the default password is “0000”. Change PasswordUse 0-9 buttons to input the old password and then input the new 4-digit password. Re-enter new password for conrmation.System LockSelect to turn On/Off system lock. The following options (USA,Canada,RRTSettingandResetRRT)willonlybeaccessible when you turn the system lock on.USATV TV RATING: Press OK button to lock or unlock TV rating.MPAA Select MPAA rating : N/A,G, PG, PG-13, R, NC-17,or X.CanadaCanada EnglishSelect MPAA rating for English-speaking Canada : E, C, C8+, G, PG, 14+, 18+.Canada FrenchSelect MPAA rating for Quebec Canada : E, G, 8 ans+, 13 ans+, 16 ans+, 18 ans+.RRT Setting Set Rating Region Table.Reset RRT Select to reset the RRT setting.Clear Lock Clear all lock settings.

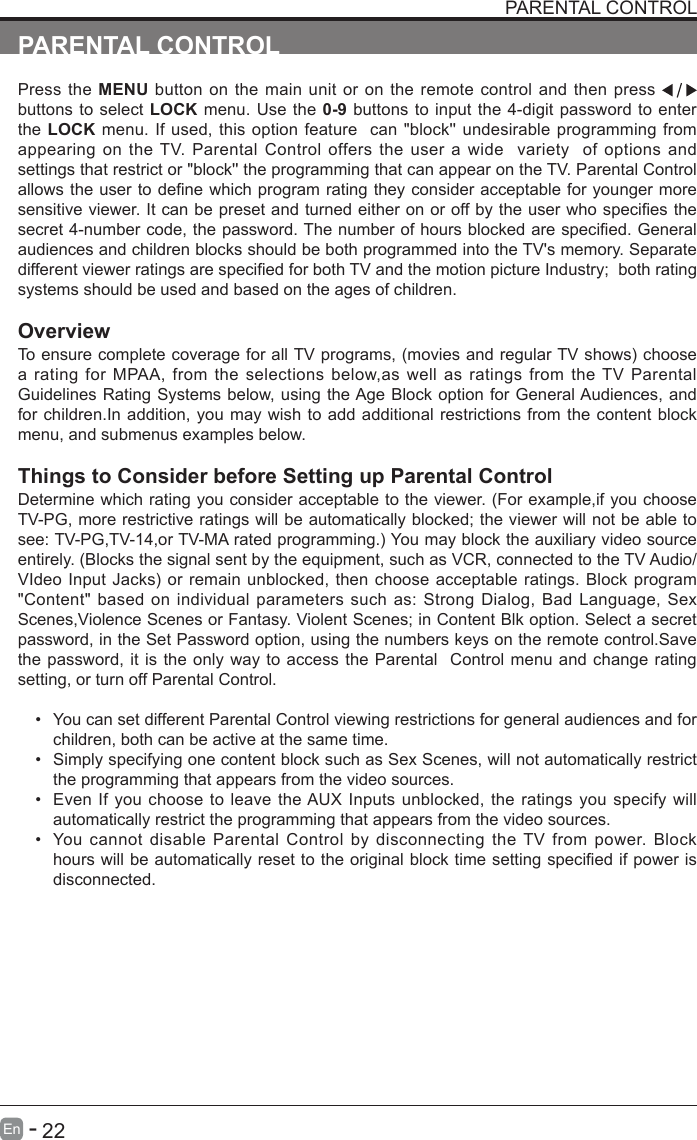

22En - PARENTAL CONTROLPress the MENU button on the main unit or on the remote control and then press buttons to select LOCK menu. Use the 0-9 buttons to input the 4-digit password to enter the LOCK menu. If used, this option feature can "block'' undesirable programming from appearing on the TV. Parental Control offers the user a wide variety of options and settings that restrict or "block'' the programming that can appear on the TV. Parental Control allowstheusertodenewhichprogramratingtheyconsideracceptableforyoungermoresensitiveviewer.Itcanbepresetandturnedeitheronoroffbytheuserwhospeciesthesecret4-numbercode,thepassword.Thenumberofhoursblockedarespecied.Generalaudiences and children blocks should be both programmed into the TV's memory. Separate differentviewerratingsarespeciedforbothTVandthemotionpictureIndustry;bothratingsystems should be used and based on the ages of children.OverviewToensurecompletecoverageforallTVprograms,(moviesandregularTVshows)choosea rating for MPAA, from the selections below,as well as ratings from the TV Parental Guidelines Rating Systems below, using the Age Block option for General Audiences, and for children.In addition, you may wish to add additional restrictions from the content block menu, and submenus examples below.Things to Consider before Setting up Parental ControlDetermine which rating you consider acceptable to the viewer. (For example,if you choose TV-PG, more restrictive ratings will be automatically blocked; the viewer will not be able to see:TV-PG,TV-14,orTV-MAratedprogramming.)Youmayblocktheauxiliaryvideosourceentirely. (Blocks the signal sent by the equipment, such as VCR, connected to the TV Audio/VIdeoInputJacks)orremainunblocked,thenchooseacceptableratings.Block program"Content" based on individual parameters such as: Strong Dialog, Bad Language, Sex Scenes,Violence Scenes or Fantasy. Violent Scenes; in Content Blk option. Select a secret password, in the Set Password option, using the numbers keys on the remote control.Save the password, it is the only way to access the Parental Control menu and change rating setting, or turn off Parental Control.• You can set different Parental Control viewing restrictions for general audiences and for children, both can be active at the same time.• Simply specifying one content block such as Sex Scenes, will not automatically restrict the programming that appears from the video sources.• Even If you choose to leave the AUX Inputs unblocked, the ratings you specify will automatically restrict the programming that appears from the video sources.• You cannot disable Parental Control by disconnecting the TV from power. Block hourswillbeautomaticallyresettotheoriginalblocktimesettingspeciedifpowerisdisconnected.PARENTAL CONTROL PARENTAL CONTROL

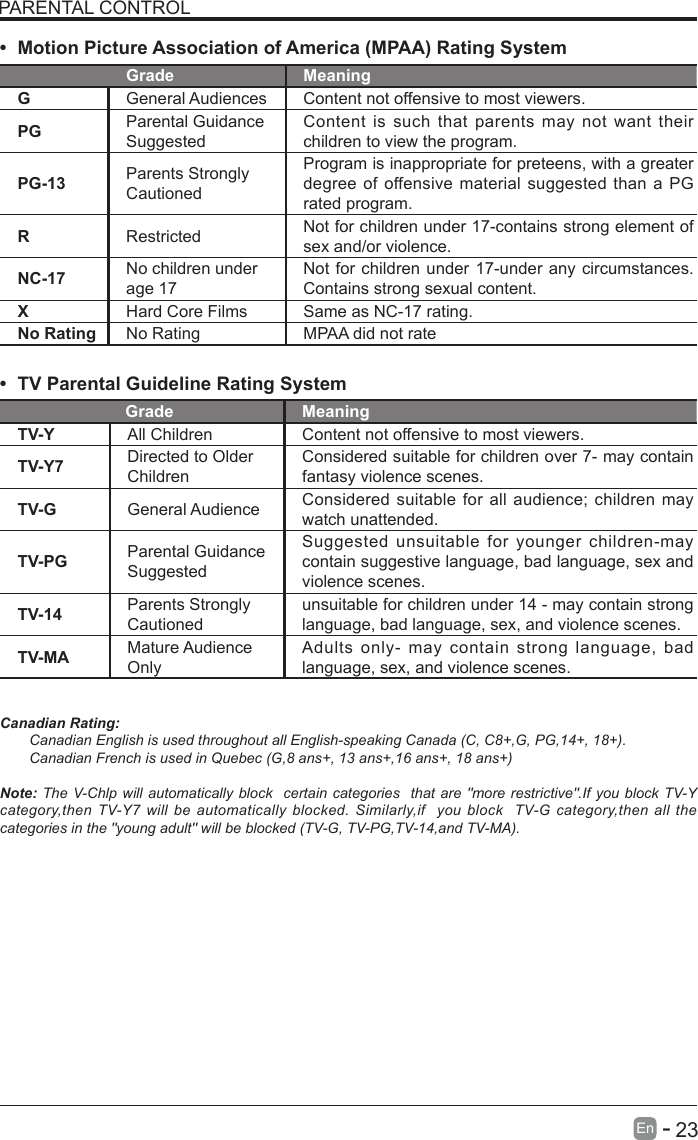

23En - PARENTAL CONTROL• Motion Picture Association of America (MPAA) Rating SystemGrade MeaningGGeneral Audiences Content not offensive to most viewers.PG Parental Guidance SuggestedContent is such that parents may not want their children to view the program.PG-13 Parents Strongly CautionedProgram is inappropriate for preteens, with a greater degree of offensive material suggested than a PG rated program.RRestricted Not for children under 17-contains strong element of sex and/or violence.NC-17 No children under age 17Not for children under 17-under any circumstances. Contains strong sexual content.XHard Core Films Same as NC-17 rating.No Rating No Rating MPAA did not rate• TV Parental Guideline Rating System Grade MeaningTV-Y All Children Content not offensive to most viewers.TV-Y7 Directed to Older ChildrenConsidered suitable for children over 7- may contain fantasy violence scenes.TV-G General Audience Considered suitable for all audience; children may watch unattended.TV-PG Parental Guidance SuggestedSuggested unsuitable for younger children-may contain suggestive language, bad language, sex and violence scenes.TV-14 Parents Strongly Cautionedunsuitable for children under 14 - may contain strong language, bad language, sex, and violence scenes.TV-MA Mature Audience OnlyAdults only- may contain strong language, bad language, sex, and violence scenes.Canadian Rating:Canadian English is used throughout all English-speaking Canada (C, C8+,G, PG,14+, 18+).Canadian French is used in Quebec (G,8 ans+, 13 ans+,16 ans+, 18 ans+)Note: The V-Chlp will automatically block certain categories that are "more restrictive".If you block TV-Y category,then TV-Y7 will be automatically blocked. Similarly,if you block TV-G category,then all the categories in the "young adult" will be blocked (TV-G, TV-PG,TV-14,and TV-MA).

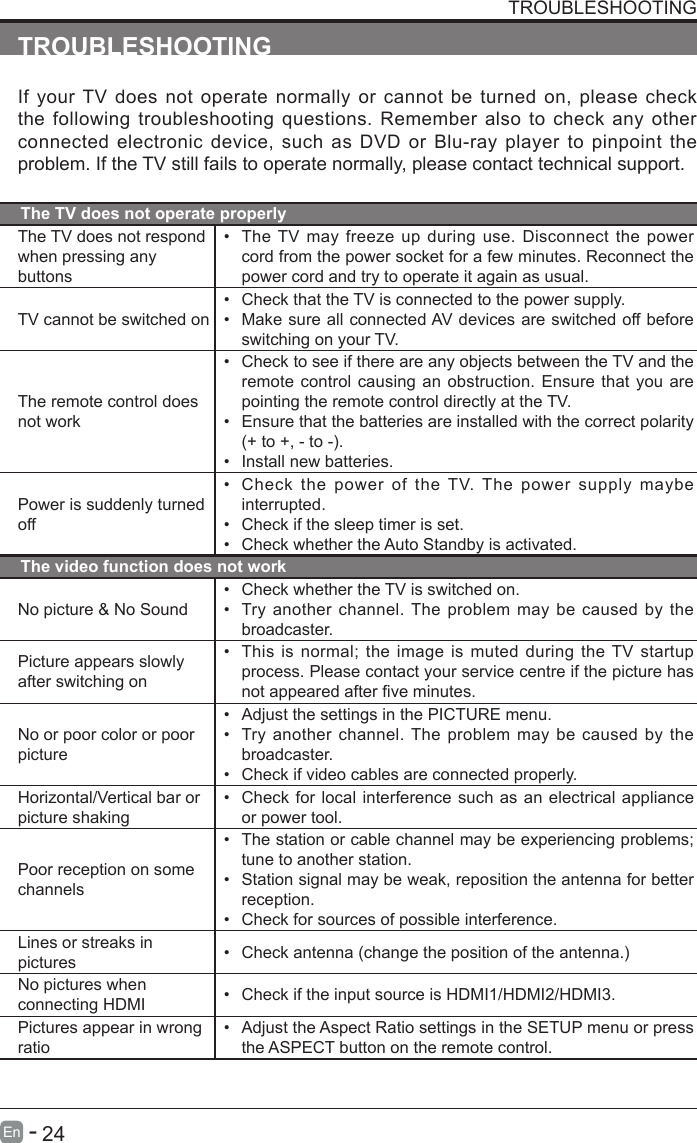

24En - TROUBLESHOOTINGIf your TV does not operate normally or cannot be turned on, please check the following troubleshooting questions. Remember also to check any other connected electronic device, such as DVD or Blu-ray player to pinpoint the problem. If the TV still fails to operate normally, please contact technical support.The TV does not operate properlyThe TV does not respond when pressing any buttons• The TV may freeze up during use. Disconnect the power cord from the power socket for a few minutes. Reconnect the power cord and try to operate it again as usual.TV cannot be switched on• Check that the TV is connected to the power supply.• Make sure all connected AV devices are switched off before switching on your TV.The remote control does not work• Check to see if there are any objects between the TV and the remote control causing an obstruction. Ensure that you are pointing the remote control directly at the TV.• Ensure that the batteries are installed with the correct polarity (+to+,-to-).• Install new batteries. Power is suddenly turned off• Check the power of the TV. The power supply maybe interrupted.• Check if the sleep timer is set.• Check whether the Auto Standby is activated. The video function does not workNo picture & No Sound• Check whether the TV is switched on.• Try another channel. The problem may be caused by the broadcaster.Picture appears slowly after switching on• This is normal; the image is muted during the TV startup process. Please contact your service centre if the picture has notappearedafterveminutes.No or poor color or poor picture• Adjust the settings in the PICTURE menu.• Try another channel. The problem may be caused by the broadcaster.• Check if video cables are connected properly.Horizontal/Vertical bar or picture shaking• Check for local interference such as an electrical appliance or power tool.Poor reception on some channels• The station or cable channel may be experiencing problems; tune to another station.• Station signal may be weak, reposition the antenna for better reception.• Check for sources of possible interference.Lines or streaks in pictures • Checkantenna(changethepositionoftheantenna.)No pictures when connecting HDMI • Check if the input source is HDMI1/HDMI2/HDMI3.Pictures appear in wrong ratio• Adjust the Aspect Ratio settings in the SETUP menu or press the ASPECT button on the remote control.TROUBLESHOOTING

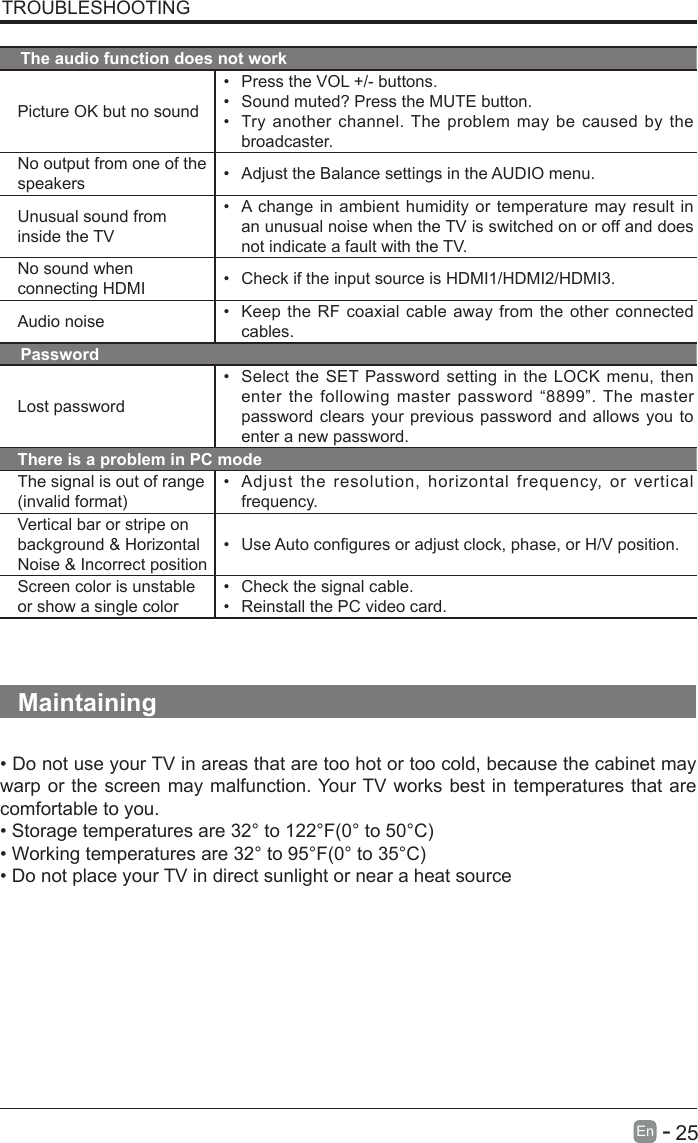

25En - TROUBLESHOOTINGThe audio function does not workPicture OK but no sound• Press the VOL +/- buttons.• Sound muted? Press the MUTE button.• Try another channel. The problem may be caused by the broadcaster.No output from one of the speakers • Adjust the Balance settings in the AUDIO menu.Unusual sound from inside the TV• A change in ambient humidity or temperature may result in an unusual noise when the TV is switched on or off and does not indicate a fault with the TV. No sound when connecting HDMI • Check if the input source is HDMI1/HDMI2/HDMI3.Audio noise • Keep the RF coaxial cable away from the other connected cables.PasswordLost password• Select the SET Password setting in the LOCK menu, then enter the following master password “8899”. The master password clears your previous password and allows you to enter a new password.There is a problem in PC modeThe signal is out of range (invalidformat)• Adjust the resolution, horizontal frequency, or vertical frequency.Vertical bar or stripe on background & Horizontal Noise & Incorrect position• UseAutoconguresoradjustclock,phase,orH/Vposition.Screen color is unstable or show a single color• Check the signal cable.• Reinstall the PC video card.Maintaining•DonotuseyourTVinareasthataretoohotortoocold,becausethecabinetmaywarp or the screen may malfunction. Your TV works best in temperatures that are comfortable to you.•Storagetemperaturesare32°to122°F(0°to50°C)•Workingtemperaturesare32°to95°F(0°to35°C)•DonotplaceyourTVindirectsunlightornearaheatsource

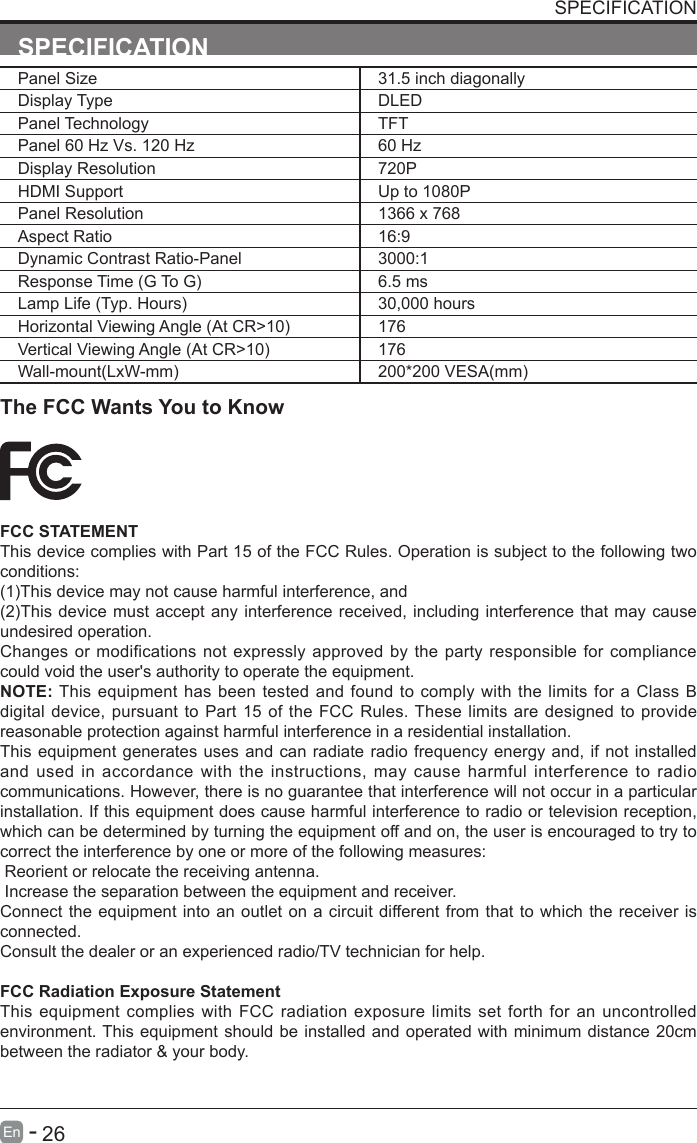

26En - SPECIFICATIONPanel Size 31.5 inch diagonally Display Type DLEDPanel Technology TFTPanel 60 Hz Vs. 120 Hz 60 HzDisplay Resolution 720PHDMI Support Up to 1080PPanel Resolution 1366 x 768Aspect Ratio 16:9Dynamic Contrast Ratio-Panel 3000:1ResponseTime(GToG) 6.5 msLampLife(Typ.Hours) 30,000 hoursHorizontalViewingAngle(AtCR>10) 176VerticalViewingAngle(AtCR>10) 176Wall-mount(LxW-mm) 200*200VESA(mm)SPECIFICATIONThe FCC Wants You to KnowFCC STATEMENTThis device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1)Thisdevicemaynotcauseharmfulinterference,and(2)Thisdevicemust acceptanyinterferencereceived,includinginterferencethat maycauseundesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver.Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.Consult the dealer or an experienced radio/TV technician for help.FCC Radiation Exposure StatementThis equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.
27En - 52 inches and Under Screen Size Models (the “Product”) This Product (including any accessories included in the original packaging) as supplied and distributed in new condition, is warranted by SEIKI LLC (SEIKI) to the original consumer purchaser against defects in material and workmanship (“Warranty”) as follows:1. REPLACEMENT : For a period of one (1) year from date of original consumer purchase, if this Product or any part is determined by SEIKI, or a SEIKI authorized service provider, to be defective, SEIKI will replace the Product with new or re-certied product of similar or better specication, at SEIKI’s option, at no charge to the original consumer. After the one (1) year Warranty period, you must pay for all cost of Product replacement charges. Once the Product is replaced, the warranty resume one (1) year period from the date of original consumer purchase; and will not be extended for the replacement process. Advanced Replacement option is available only with a valid US credit card for guarantee purpose.2. PARTS : For a period of one (1) year from the date of original consumer purchase, SEIKI will supply, at no charge to the original consumer, new, rebuilt or refurbished replacement parts in exchange for defective parts. After the one (1) year Warranty period, you must pay for the costs of all parts. 3. SHIPPING COSTS : Notwithstanding the foregoing, the original consumer is responsible for any shipping charges incurred to ship the Product or part(s) to SEIKI or to an SEIKI authorized customer service provider, for diagnosis, repair or replacement. The consumer is responsible for securely packing the Product and utilizing a reliable carrier to transport to SEIKI authorized service provider. To obtain Warranty Service and Troubleshooting information call our toll free customer service line at:1‐855‐MY‐SEIKI (1‐855‐697‐3454) Please have your model and serial number available along with your date of purchase.You can also visit us online and REGISTER your SEIKI product at: www.SEIKI.com To receive Warranty service, the original consumer purchaser must contact SEIKI for problem determination and service procedures. Proof of purchase in the form of a bill of sale or receipted invoice, evidencing that the Product is within the applicable Warranty period(s), MUST be presented to SEIKI, or an authorized customer service provider, in order to obtain the requested service. Exclusions and Limitations This Warranty covers manufacturing defects in materials and workmanship encountered in the normal, non‐commercial use of the Product, and does not cover (a) damage or failure caused by or attributable to abuse, misuse, failure to follow instructions, improper installation or maintenance, alteration, accident, or excess voltage or current; (b) improper or incorrectly performed repairs by non-authorized service facilities; (c) onsite consumer instruction or adjustments; (d) transportation, shipping, delivery, insurance, installation or set‐up costs; (e) costs of product removal, transportation or reinstallation costs; (f) ordinary wear and tear, cosmetic damage or damage due to acts of nature, accident; (g) commercial use of the Product; (h) modication of, or to any part of the Product. In addition, this Warranty does not cover images “burnt” into the screen. This Warranty applies to the original consumer only and does not cover products sold AS IS or WITH ALL FAULTS, or consumables (e.g., fuses, batteries, bulbs etc.), and the Warranty is invalid if the factory-applied serial number has been altered or removed from the Product. This Warranty is valid only in the United States and Canada, and only applies to products purchased and serviced in the United States and Canada. All replaced parts and products, and products on which a refund is made, become the property of the Warrantor. NO WARRANTIES, WHETHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, OTHER THAN THOSE EXPRESSLY DESCRIBED ABOVE SHALL APPLY. THE WARRANTOR FURTHER DISCLAIMS ALL WARRANTIES AFTER THE EXPRESS WARRANTY PERIOD STATED ABOVE. NO OTHER EXPRESS WARRANTY OR GUARANTY GIVEN BY ANY PERSON, FIRM OR ENTITY WITH RESPECT TO THE PRODUCT SHALL BE BINDING ON THE WARRANTOR. REPAIR, REPLACEMENT, OR REFUND OF THE ORIGINAL PURCHASE PRICE ‐ AT THE WARRANTOR’S SOLE DISCRETION ‐ ARE THE EXCLUSIVE REMEDIES OF THE CONSUMER. THE WARRANTOR SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES CAUSED BY THE USE, MISUSE OR INABILITY TO USE THE PRODUCT. NOTWITHSTANDING THE FOREGOING, CONSUMER’S RECOVERY SHALL NOT EXCEED THE PURCHASE PRICE OF THE PRODUCT SOLD BY SEIKI. THIS WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE ORIGINAL CONSUMER WHO PURCHASED THE PRODUCT AND IS NOT TRANSFERABLE. Some states do not allow the exclusion or limitation of incidental or consequential damages, or allow limitations on warranties, so the above limitations or exclusions may not apply to you. This Warranty gives you specic rights, and you may have other rights, which vary from state to state. SEIKI LLCc/o SEIKI Digital Customer Service6880 Commerce Blvd., Canton, MI 48187 USAcustomerservice@seikidigital.comDO NOT SHIP PRODUCT TO THIS ADDRESS. PLEASE CONTACT CUSTOMER SERVICE TO OBTAIN SHIPPING ADDRESSES FOR SERVICE.SEIKI LED TV’s LIMITED WARRANTY TO ORIGINAL CONSUMER

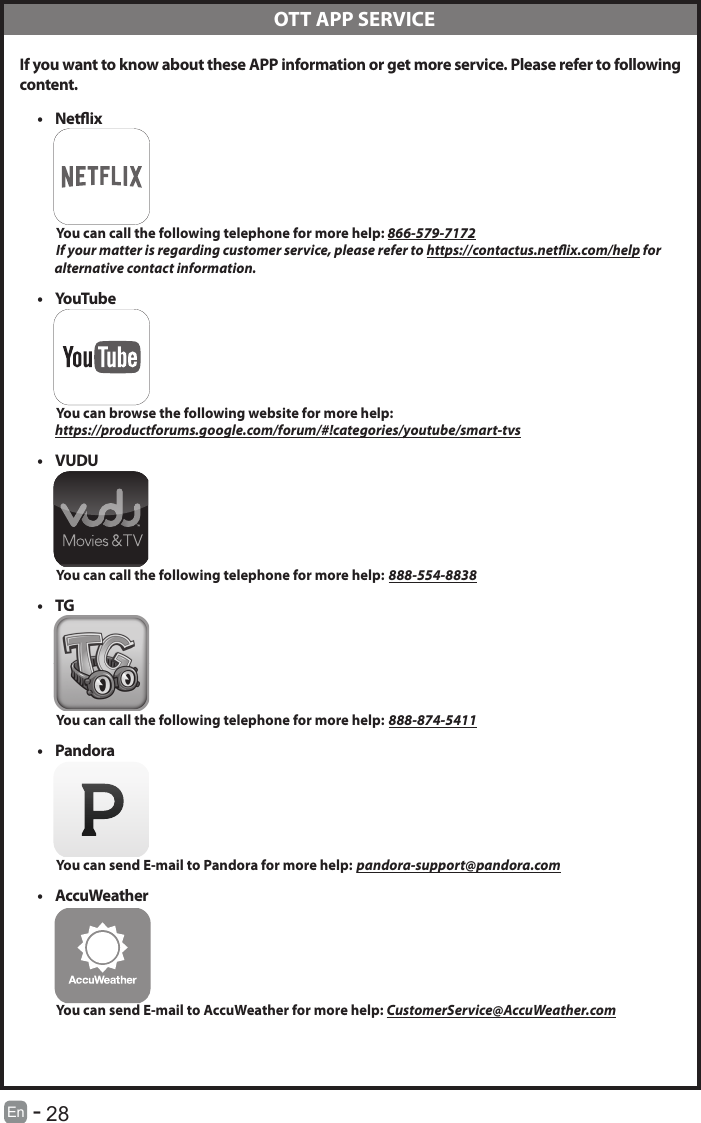

28En - If you want to know about these APP information or get more service. Please refer to following content.• Netix You can call the following telephone for more help: 866-579-7172 If your matter is regarding customer service, please refer to https://contactus.netix.com/help for alternative contact information.• YouTube You can browse the following website for more help: https://productforums.google.com/forum/#!categories/youtube/smart-tvs• VUDU You can call the following telephone for more help: 888-554-8838• TG You can call the following telephone for more help: 888-874-5411• Pandora You can send E-mail to Pandora for more help: pandora-support@pandora.com• AccuWeather You can send E-mail to AccuWeather for more help: CustomerService@AccuWeather.com OTT APP SERVICE
