Shenyang Tongfang Multimedia Technology SE55UET LED TV User Manual

Shenyang Tongfang Multimedia Technology Co., Limited LED TV

User Manual

SE55UETRead the User Manual carefully before using the TV and keep it for further reference.USER MANUAL

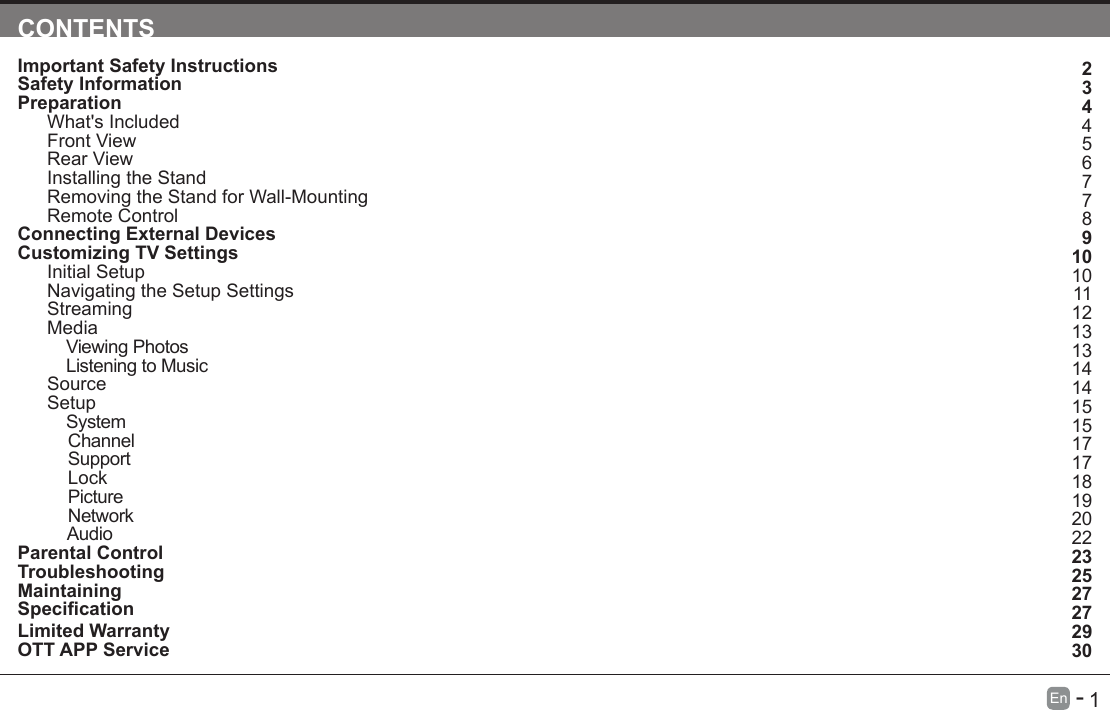

1En - CONTENTSImportant Safety Instructions Safety Information Preparation What's Included Front View Rear View Installing the Stand Removing the Stand for Wall-Mounting Remote Control Connecting External Devices Customizing TV Settings Initial Setup Navigating the Setup Settings Streaming Media Viewing Photos Listening to Music Source Setup System Channel Support Lock Picture Network Audio Parental Control Troubleshooting Maintaining Specication Limited Warranty OTT APP Service 23445677891010111213131414151517171819202223252727 2930

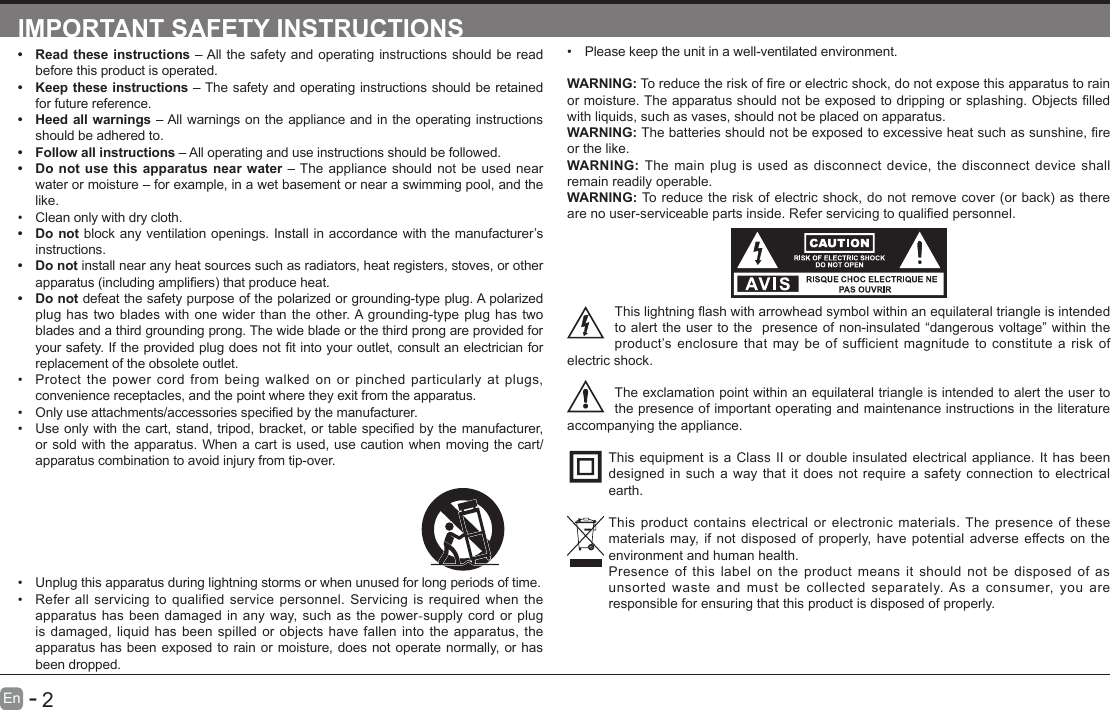

2En - IMPORTANT SAFETY INSTRUCTIONS• Read these instructions – All the safety and operating instructions should be read before this product is operated. • Keep these instructions – The safety and operating instructions should be retained for future reference. • Heed all warnings – All warnings on the appliance and in the operating instructions should be adhered to. • Follow all instructions – All operating and use instructions should be followed. • Do not use this apparatus near water – The appliance should not be used near water or moisture – for example, in a wet basement or near a swimming pool, and the like.• Clean only with dry cloth.• Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.• Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus(includingampliers)thatproduceheat.• Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for yoursafety.Iftheprovidedplugdoesnottintoyouroutlet,consultanelectricianforreplacement of the obsolete outlet.• Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.• Onlyuseattachments/accessoriesspeciedbythemanufacturer.• Useonlywiththecart,stand,tripod,bracket,ortablespeciedbythemanufacturer,or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. • Please keep the unit in a well-ventilated environment.WARNING:Toreducetheriskofreorelectricshock,donotexposethisapparatustorainormoisture.Theapparatusshouldnotbeexposedtodrippingorsplashing.Objectslledwith liquids, such as vases, should not be placed on apparatus. WARNING:Thebatteriesshouldnotbeexposedtoexcessiveheatsuchassunshine,reor the like.WARNING: The main plug is used as disconnect device, the disconnect device shall remain readily operable.WARNING:Toreducetheriskofelectricshock,donotremovecover(orback)astherearenouser-serviceablepartsinside.Referservicingtoqualiedpersonnel.Thislightningashwitharrowheadsymbolwithinanequilateraltriangleisintendedto alert the user to the presence of non-insulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock.The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance instructions in the literature accompanying the appliance. This equipment is a Class II or double insulated electrical appliance. It has been designed in such a way that it does not require a safety connection to electrical earth.This product contains electrical or electronic materials. The presence of these materials may, if not disposed of properly, have potential adverse effects on the environment and human health. Presence of this label on the product means it should not be disposed of as unsorted waste and must be collected separately. As a consumer, you are responsible for ensuring that this product is disposed of properly.• Unplug this apparatus during lightning storms or when unused for long periods of time.• Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as the power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

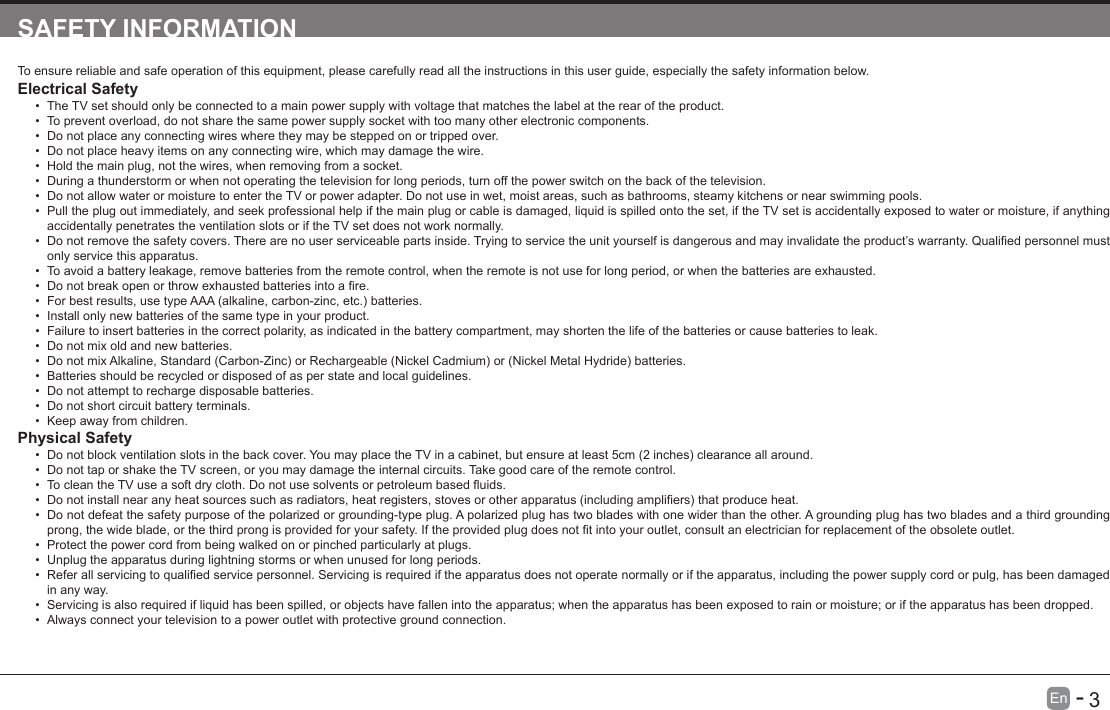

3En - SAFETY INFORMATIONTo ensure reliable and safe operation of this equipment, please carefully read all the instructions in this user guide, especially the safety information below.Electrical Safety • The TV set should only be connected to a main power supply with voltage that matches the label at the rear of the product.• To prevent overload, do not share the same power supply socket with too many other electronic components.• Do not place any connecting wires where they may be stepped on or tripped over.• Do not place heavy items on any connecting wire, which may damage the wire.• Hold the main plug, not the wires, when removing from a socket.• During a thunderstorm or when not operating the television for long periods, turn off the power switch on the back of the television.• Do not allow water or moisture to enter the TV or power adapter. Do not use in wet, moist areas, such as bathrooms, steamy kitchens or near swimming pools.• Pull the plug out immediately, and seek professional help if the main plug or cable is damaged, liquid is spilled onto the set, if the TV set is accidentally exposed to water or moisture, if anything accidentally penetrates the ventilation slots or if the TV set does not work normally.• Donotremovethesafetycovers.Therearenouserserviceablepartsinside.Tryingtoservicetheunityourselfisdangerousandmayinvalidatetheproduct’swarranty.Qualiedpersonnelmustonly service this apparatus.• To avoid a battery leakage, remove batteries from the remote control, when the remote is not use for long period, or when the batteries are exhausted.• Donotbreakopenorthrowexhaustedbatteriesintoare.• Forbestresults,usetypeAAA(alkaline,carbon-zinc,etc.)batteries.• Install only new batteries of the same type in your product.• Failure to insert batteries in the correct polarity, as indicated in the battery compartment, may shorten the life of the batteries or cause batteries to leak.• Do not mix old and new batteries.• DonotmixAlkaline,Standard(Carbon-Zinc)orRechargeable(NickelCadmium)or(NickelMetalHydride)batteries.• Batteries should be recycled or disposed of as per state and local guidelines.• Do not attempt to recharge disposable batteries.• Do not short circuit battery terminals.• Keep away from children.Physical Safety • Donotblockventilationslotsinthebackcover.YoumayplacetheTVinacabinet,butensureatleast5cm(2inches)clearanceallaround.• Do not tap or shake the TV screen, or you may damage the internal circuits. Take good care of the remote control.• TocleantheTVuseasoftdrycloth.Donotusesolventsorpetroleumbaseduids.• Donotinstallnearanyheatsourcessuchasradiators,heatregisters,stovesorotherapparatus(includingampliers)thatproduceheat.• Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding plug has two blades and a third grounding prong,thewideblade,orthethirdprongisprovidedforyoursafety.Iftheprovidedplugdoesnottintoyouroutlet,consultanelectricianforreplacementoftheobsoleteoutlet.• Protect the power cord from being walked on or pinched particularly at plugs. • Unplug the apparatus during lightning storms or when unused for long periods.• Referallservicingtoqualiedservicepersonnel.Servicingisrequirediftheapparatusdoesnotoperatenormallyoriftheapparatus,includingthepowersupplycordorpulg,hasbeendamagedin any way.• Servicing is also required if liquid has been spilled, or objects have fallen into the apparatus; when the apparatus has been exposed to rain or moisture; or if the apparatus has been dropped.• Always connect your television to a power outlet with protective ground connection.

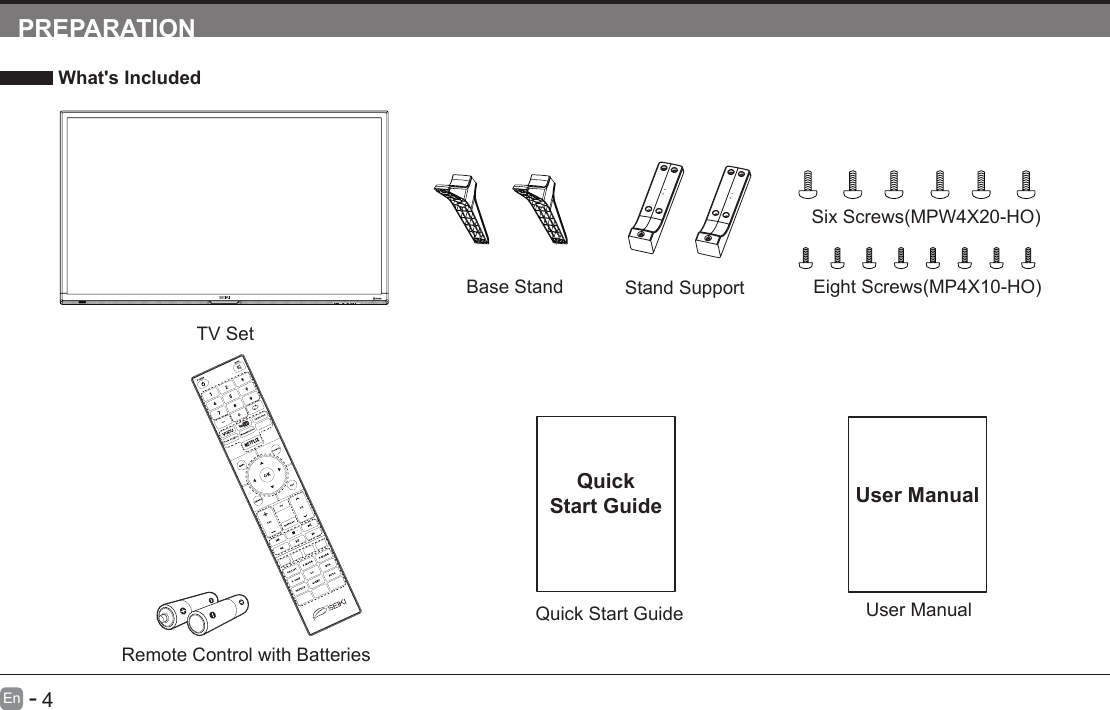

4En - PREPARATION What's IncludedTV SetQuick Start GuideQuickStart GuideRemote Control with BatteriesBase Stand Stand SupportSixScrews(MPW4X20-HO)EightScrews(MP4X10-HO) User ManualUser Manual

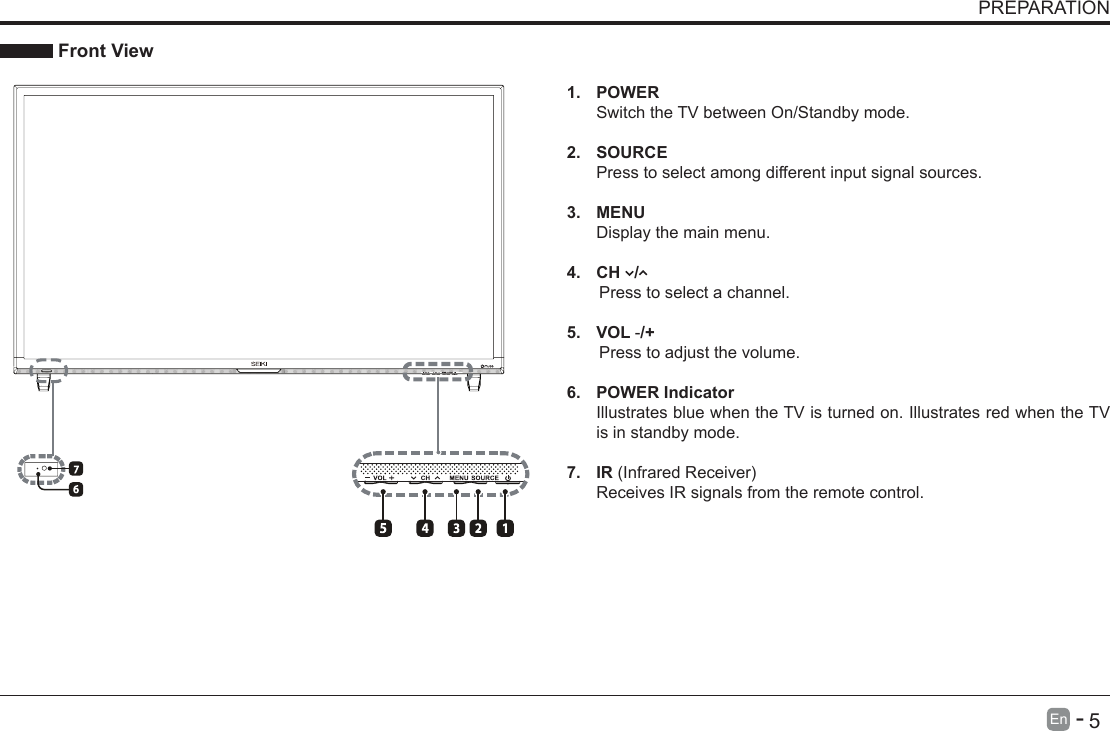

5En - Front View1. POWER Switch the TV between On/Standby mode.2. SOURCEPress to select among different input signal sources.3. MENUDisplay the main menu.4. CH / Press to select a channel.5. VOL -/+ Press to adjust the volume.6. POWER IndicatorIllustrates blue when the TV is turned on. Illustrates red when the TV is in standby mode.7. IR(InfraredReceiver)Receives IR signals from the remote control.PREPARATION

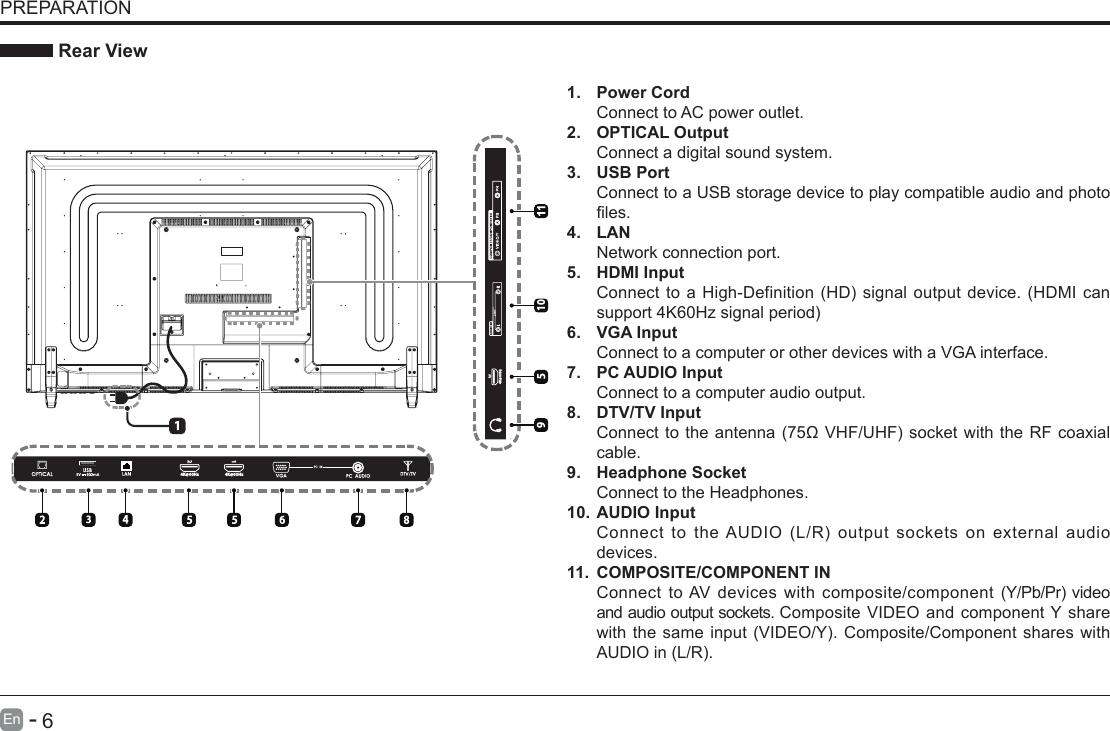

6En - PREPARATION Rear View1. Power CordConnect to AC power outlet.2. OPTICAL OutputConnect a digital sound system.3. USB PortConnect to a USB storage device to play compatible audio and photo les.4. LANNetwork connection port.5. HDMI InputConnecttoaHigh-Definition(HD)signaloutputdevice.(HDMIcansupport4K60Hzsignalperiod)6. VGA InputConnect to a computer or other devices with a VGA interface.7. PC AUDIO InputConnect to a computer audio output.8. DTV/TV Input Connecttotheantenna(75ΩVHF/UHF)socketwiththeRFcoaxialcable.9. Headphone SocketConnect to the Headphones.10. AUDIO InputConnecttotheAUDIO(L/R)outputsocketsonexternalaudiodevices.11. COMPOSITE/COMPONENT IN ConnecttoAVdeviceswithcomposite/component(Y/Pb/Pr)videoand audio output sockets. Composite VIDEO and component Y share withthesameinput(VIDEO/Y).Composite/ComponentshareswithAUDIOin(L/R).5V 900mA4K@60Hz34K@60Hz24K@60Hz110

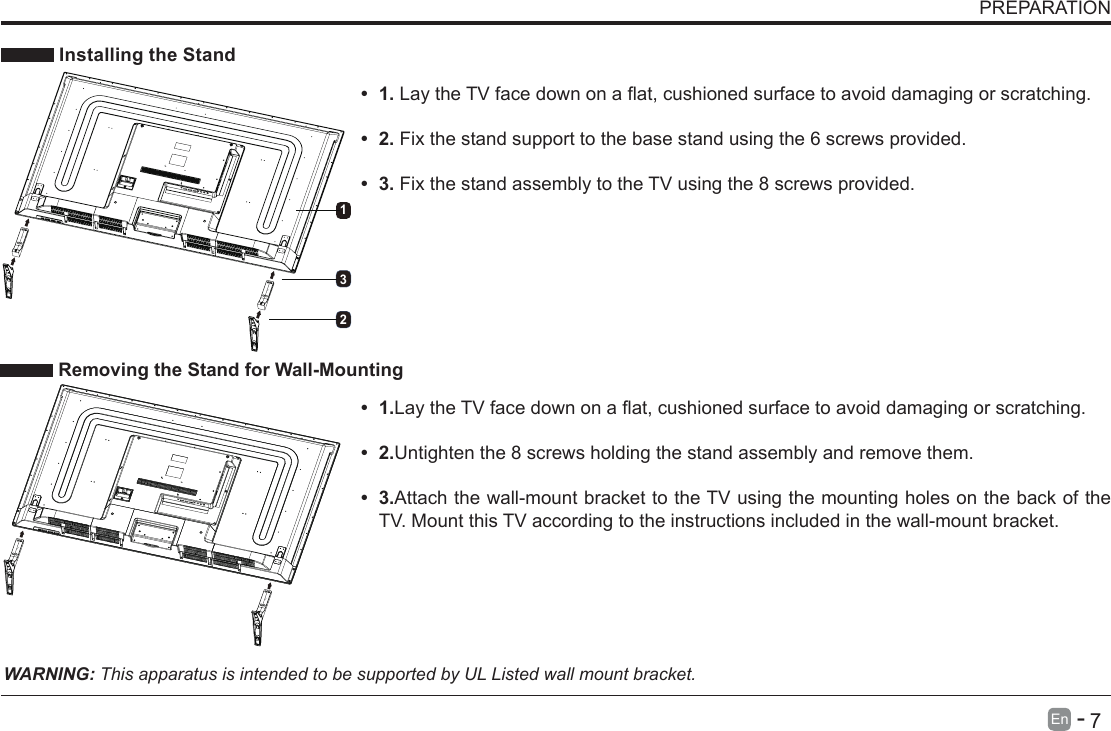

7En - Installing the Stand• 1.LaytheTVfacedownonaat,cushionedsurfacetoavoiddamaging or scratching. • 2.Fix the stand support to the base stand using the 6 screws provided. • 3.Fix the stand assembly to the TV using the 8 screws provided. WARNING: This apparatus is intended to be supported by UL Listed wall mount bracket.• 1.LaytheTVfacedownonaat,cushionedsurfacetoavoiddamaging or scratching.• 2.Untighten the 8 screws holding the stand assembly and remove them. • 3.Attach the wall-mount bracket to the TV using the mounting holes on the back of the TV. Mount this TV according to the instructions included in the wall-mount bracket. Removing the Stand for Wall-MountingPREPARATION321

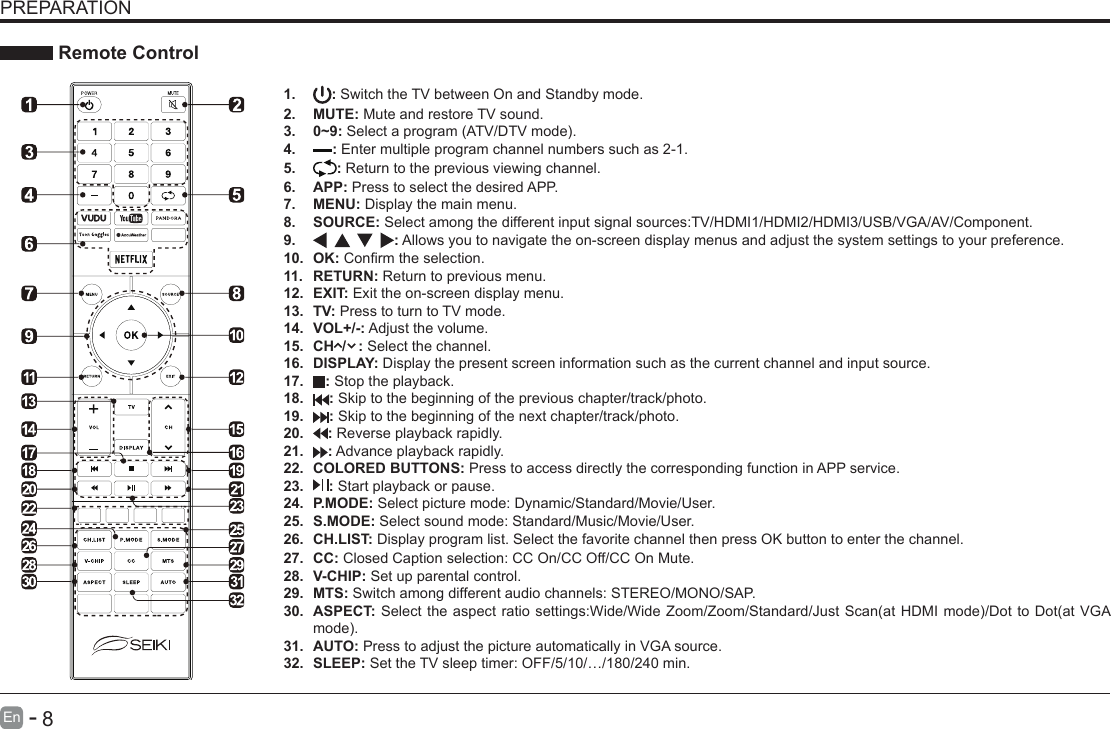

8En - PREPARATION Remote Control1. : Switch the TV between On and Standby mode.2. MUTE: Mute and restore TV sound.3. 0~9:Selectaprogram(ATV/DTVmode).4. : Enter multiple program channel numbers such as 2-1.5. : Return to the previous viewing channel.6. APP: Press to select the desired APP.7. MENU: Display the main menu.8. SOURCE: Select among the different input signal sources:TV/HDMI1/HDMI2/HDMI3/USB/VGA/AV/Component.9. : Allows you to navigate the on-screen display menus and adjust the system settings to your preference.10. OK:Conrmtheselection.11. RETURN: Return to previous menu.12. EXIT: Exit the on-screen display menu.13. TV: Press to turn to TV mode.14. VOL+/-: Adjust the volume.15. CH / : Select the channel.16. DISPLAY: Display the present screen information such as the current channel and input source. 17. : Stop the playback. 18. : Skip to the beginning of the previous chapter/track/photo. 19. : Skip to the beginning of the next chapter/track/photo.20. : Reverse playback rapidly. 21. : Advance playback rapidly. 22. COLORED BUTTONS: Press to access directly the corresponding function in APP service.23. : Start playback or pause.24. P.MODE: Select picture mode: Dynamic/Standard/Movie/User.25. S.MODE: Select sound mode: Standard/Music/Movie/User.26. CH.LIST: Display program list. Select the favorite channel then press OK button to enter the channel.27. CC: Closed Caption selection: CC On/CC Off/CC On Mute.28. V-CHIP: Set up parental control.29. MTS: Switch among different audio channels: STEREO/MONO/SAP.30. ASPECT: Select the aspect ratio settings:Wide/WideZoom/Zoom/Standard/JustScan(atHDMImode)/DottoDot(atVGAmode).31. AUTO: Press to adjust the picture automatically in VGA source.32. SLEEP: Set the TV sleep timer: OFF/5/10/…/180/240 min.

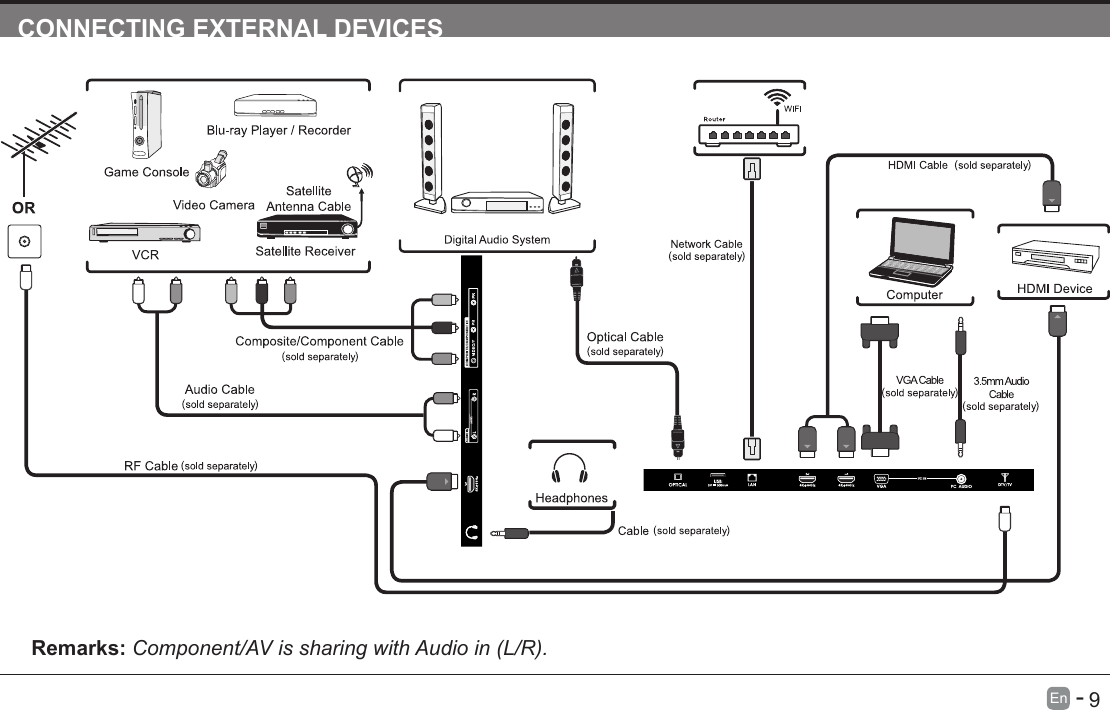

9En - CONNECTING EXTERNAL DEVICESRemarks: Component/AV is sharing with Audio in (L/R).

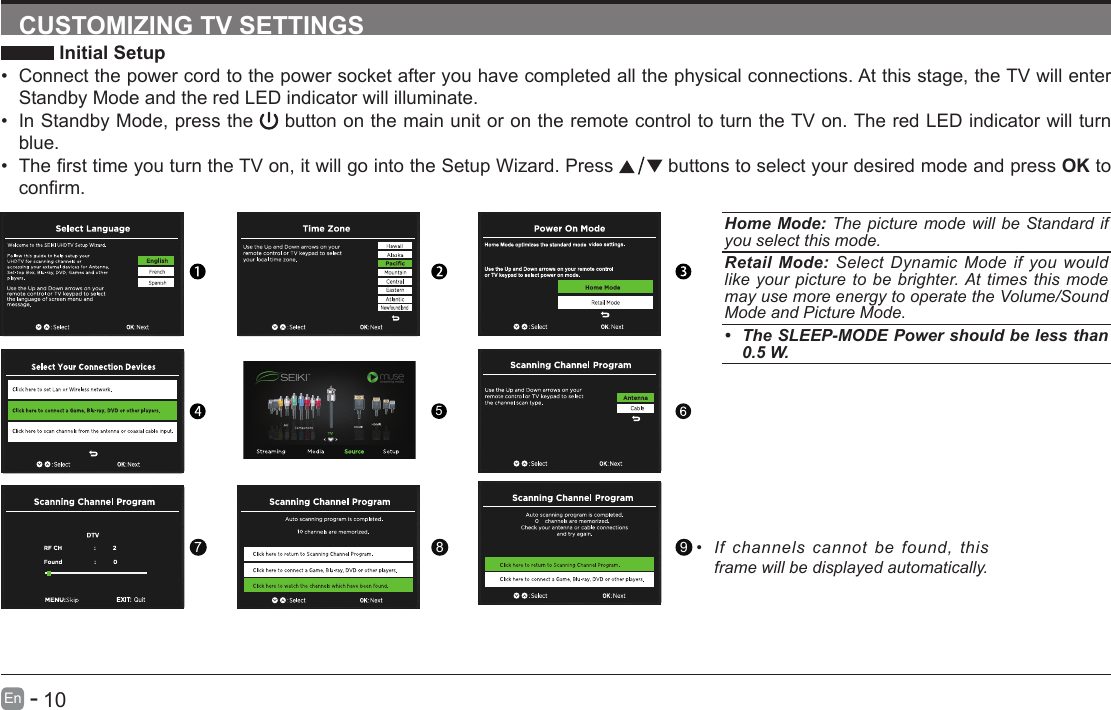

10En - CUSTOMIZING TV SETTINGS Initial Setup• Connect the power cord to the power socket after you have completed all the physical connections. At this stage, the TV will enter Standby Mode and the red LED indicator will illuminate. • In Standby Mode, press the button on the main unit or on the remote control to turn the TV on. The red LED indicator will turn blue.• ThersttimeyouturntheTVon,itwillgointotheSetupWizard.Press buttons to select your desired mode and press OK to conrm.Home Mode: The picture mode will be Standard if you select this mode.Retail Mode: Select Dynamic Mode if you would like your picture to be brighter. At times this mode may use more energy to operate the Volume/Sound Mode and Picture Mode.• The SLEEP-MODE Power should be less than 0.5 W.5789• If channels cannot be found, this frame will be displayed automatically.
11En - Navigating the Setup Settings• Press the MENU button to display the main menu. • Use buttons to select Setup menu and press button to enter sub-menu, then use buttons to navigate and press OK button to enter the desired sub-menu. CUSTOMIZING TV SETTINGS

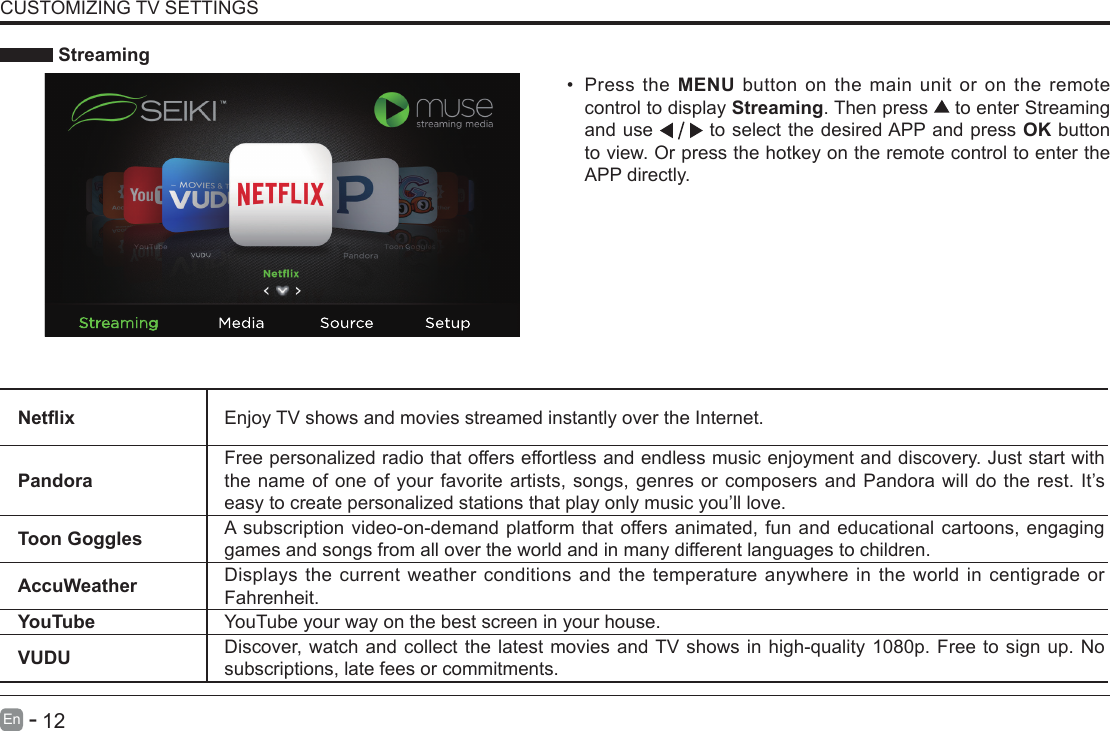

12En - CUSTOMIZING TV SETTINGS Streaming• Press the MENU button on the main unit or on the remote control to display Streaming. Then press to enter Streaming and use to select the desired APP and press OK button to view. Or press the hotkey on the remote control to enter the APP directly.Netix Enjoy TV shows and movies streamed instantly over the Internet.PandoraFree personalized radio that offers effortless and endless music enjoyment and discovery. Just start with the name of one of your favorite artists, songs, genres or composers and Pandora will do the rest. It’s easy to create personalized stations that play only music you’ll love.Toon Goggles A subscription video-on-demand platform that offers animated, fun and educational cartoons, engaging games and songs from all over the world and in many different languages to children. AccuWeather Displays the current weather conditions and the temperature anywhere in the world in centigrade or Fahrenheit.YouTube YouTube your way on the best screen in your house.VUDU Discover, watch and collect the latest movies and TV shows in high-quality 1080p. Free to sign up. No subscriptions, late fees or commitments.

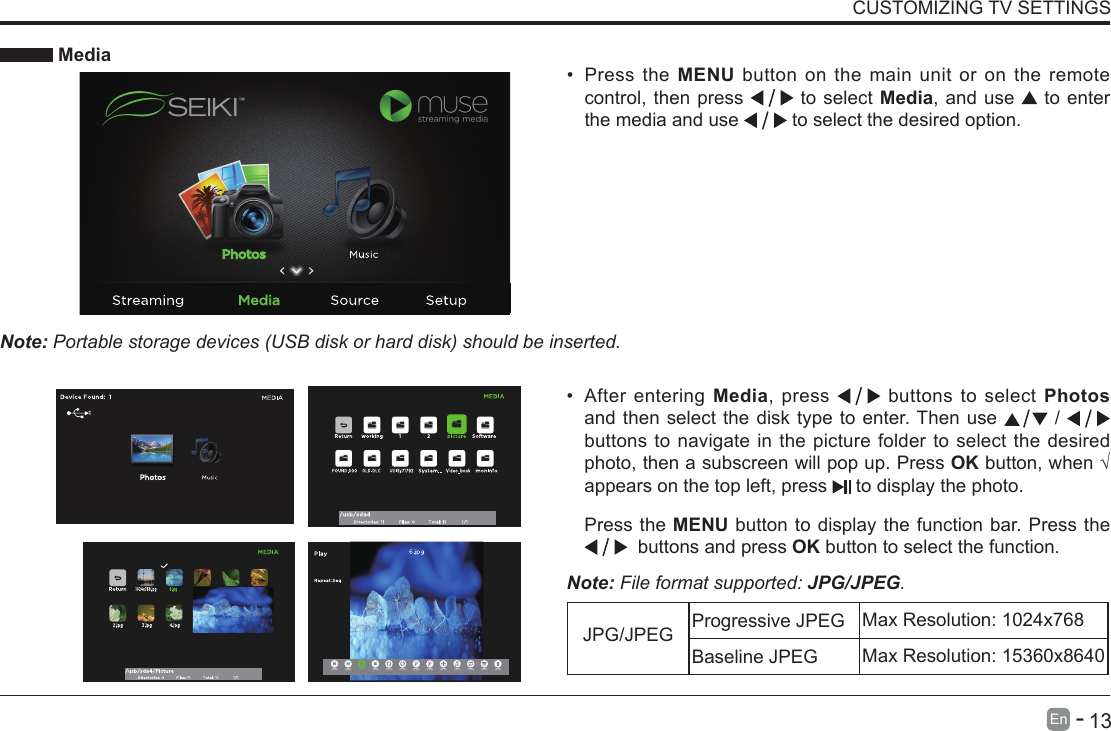

13En - MediaNote: Portable storage devices (USB disk or hard disk) should be inserted.• Press the MENU button on the main unit or on the remote control, then press to select Media, and use to enter the media and use to select the desired option.CUSTOMIZING TV SETTINGS• After entering Media, press buttons to select Photos and then select the disk type to enter. Then use / buttons to navigate in the picture folder to select the desired photo, then a subscreen will pop up. Press OKbutton,when√appears on the top left, press to display the photo.Note: File format supported: JPG/JPEG. Press the MENU button to display the function bar. Press the buttons and press OK button to select the function.JPG/JPEG Progressive JPEG Max Resolution: 1024x768Baseline JPEG Max Resolution: 15360x8640

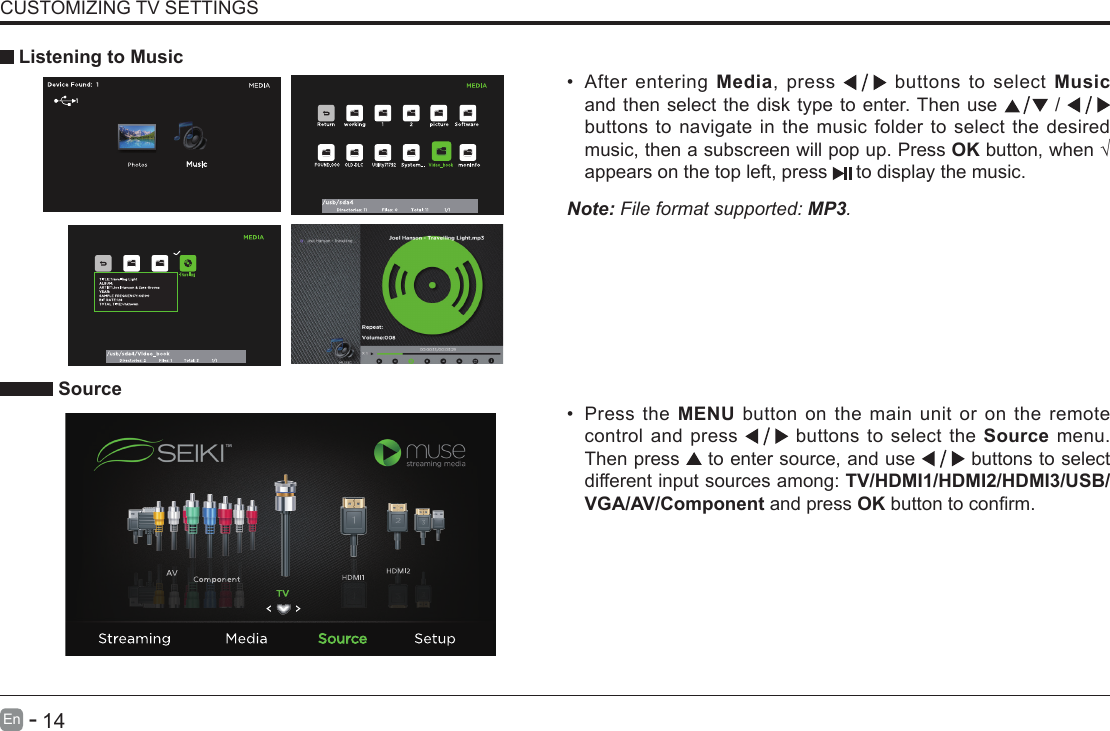

14En - CUSTOMIZING TV SETTINGS• After entering Media, press buttons to select Music and then select the disk type to enter. Then use / buttons to navigate in the music folder to select the desired music, then a subscreen will pop up. Press OKbutton,when√appears on the top left, press to display the music. Listening to MusicNote: File format supported: MP3. Source• Press the MENU button on the main unit or on the remote control and press buttons to select the Source menu. Then press to enter source, and use buttons to select different input sources among: TV/HDMI1/HDMI2/HDMI3/USB/ VGA/AV/Component and press OKbuttontoconrm.

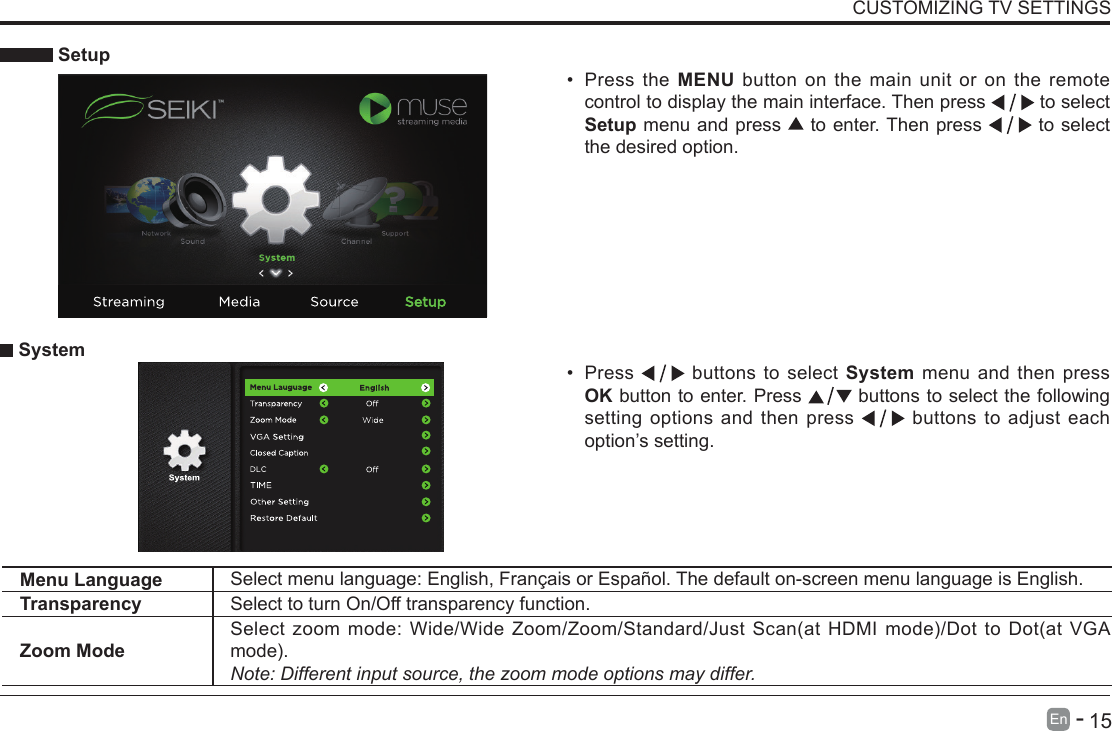

15En - Setup• Press the MENU button on the main unit or on the remote control to display the main interface. Then press to select Setup menu and press to enter. Then press to select the desired option. System• Press buttons to select System menu and then press OK button to enter. Press buttons to select the following setting options and then press buttons to adjust each option’s setting. CUSTOMIZING TV SETTINGSMenu Language Select menu language: English, Français or Español. The default on-screen menu language is English.Transparency Select to turn On/Off transparency function.Zoom ModeSelectzoommode:Wide/WideZoom/Zoom/Standard/JustScan(atHDMImode)/DottoDot(atVGAmode).Note: Different input source, the zoom mode options may differ.

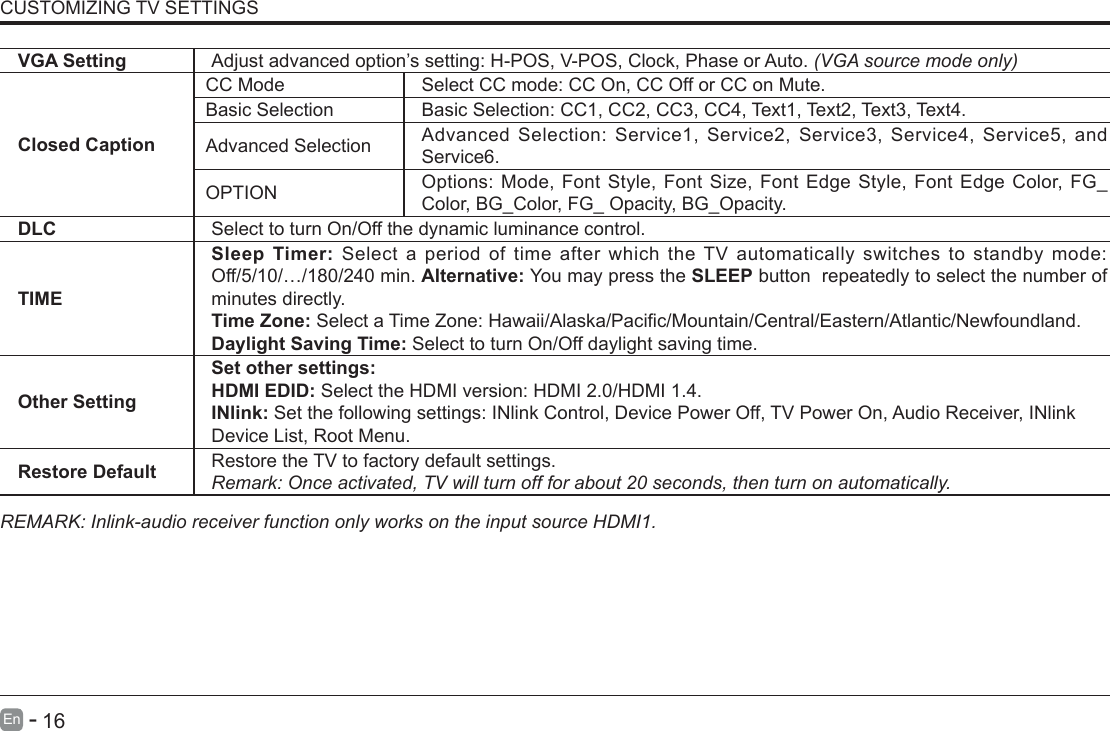

16En - VGA Setting Adjust advanced option’s setting: H-POS, V-POS, Clock, Phase or Auto. (VGA source mode only)Closed CaptionCC Mode Select CC mode: CC On, CC Off or CC on Mute.Basic Selection Basic Selection: CC1, CC2, CC3, CC4, Text1, Text2, Text3, Text4.Advanced Selection Advanced Selection: Service1, Service2, Service3, Service4, Service5, and Service6.OPTION Options: Mode, Font Style, Font Size, Font Edge Style, Font Edge Color, FG_Color, BG_Color, FG_ Opacity, BG_Opacity.DLC Select to turn On/Off the dynamic luminance control.TIMESleep Timer: Select a period of time after which the TV automatically switches to standby mode: Off/5/10/…/180/240 min. Alternative: You may press the SLEEP button repeatedly to select the number of minutes directly.Time Zone: SelectaTimeZone:Hawaii/Alaska/Pacic/Mountain/Central/Eastern/Atlantic/Newfoundland.Daylight Saving Time: Select to turn On/Off daylight saving time.Other SettingSet other settings:HDMI EDID: Select the HDMI version: HDMI 2.0/HDMI 1.4.INlink: Set the following settings: INlink Control, Device Power Off, TV Power On, Audio Receiver, INlinkDevice List, Root Menu.Restore Default Restore the TV to factory default settings.Remark: Once activated, TV will turn off for about 20 seconds, then turn on automatically.CUSTOMIZING TV SETTINGSREMARK: Inlink-audio receiver function only works on the input source HDMI1.

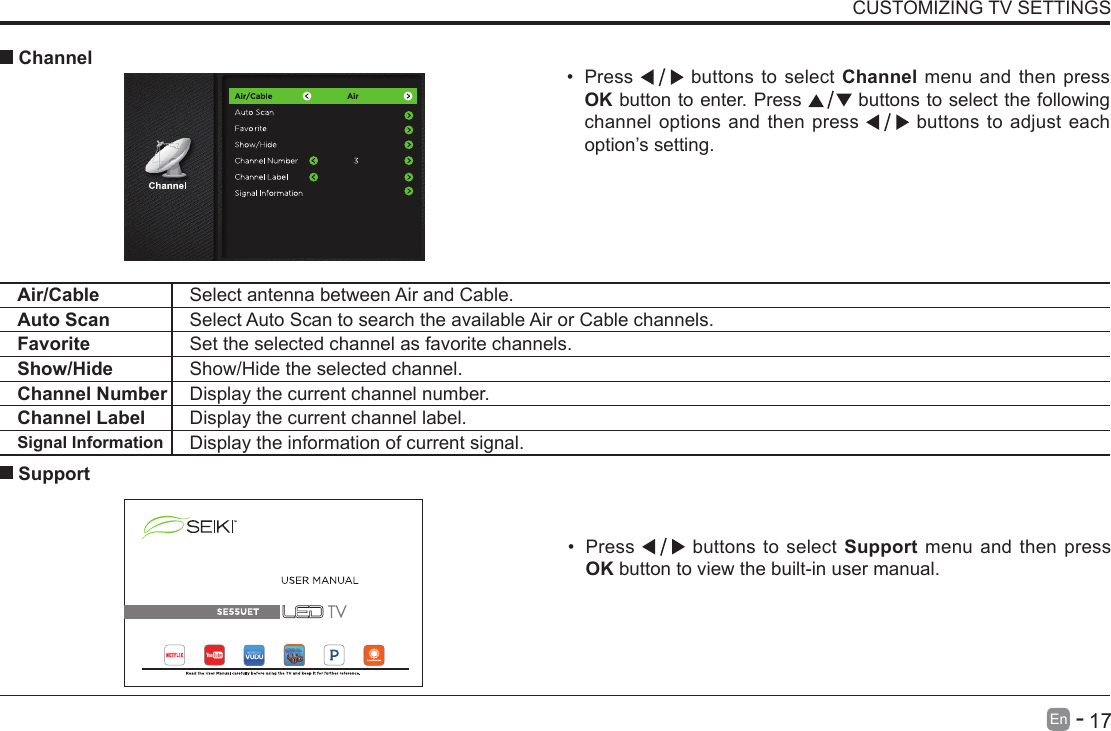

17En - • Press buttons to select Support menu and then press OK button to view the built-in user manual. SupportAir/Cable Select antenna between Air and Cable. Auto Scan Select Auto Scan to search the available Air or Cable channels.Favorite Set the selected channel as favorite channels.Show/Hide Show/Hide the selected channel.Channel Number Display the current channel number.Channel Label Display the current channel label.Signal Information Display the information of current signal.CUSTOMIZING TV SETTINGS• Press buttons to select Channel menu and then press OK button to enter. Press buttons to select the following channel options and then press buttons to adjust each option’s setting. Channel

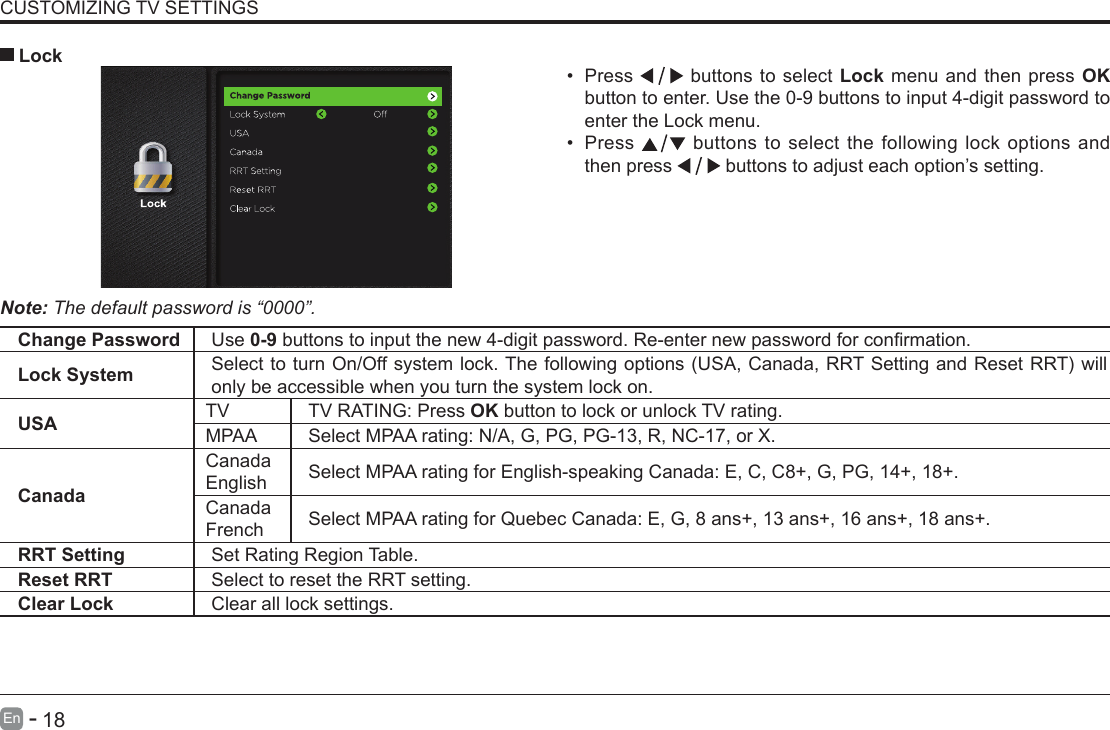

18En - CUSTOMIZING TV SETTINGS• Press buttons to select Lock menu and then press OK button to enter. Use the 0-9 buttons to input 4-digit password to enter the Lock menu.• Press buttons to select the following lock options and then press buttons to adjust each option’s setting. LockNote: The default password is “0000”. Change Password Use 0-9buttonstoinputthenew4-digitpassword.Re-enternewpasswordforconrmation.Lock System SelecttoturnOn/Offsystemlock.Thefollowingoptions(USA,Canada,RRTSettingandResetRRT)willonly be accessible when you turn the system lock on.USA TV TV RATING: Press OK button to lock or unlock TV rating.MPAA Select MPAA rating: N/A, G, PG, PG-13, R, NC-17, or X.CanadaCanada English Select MPAA rating for English-speaking Canada: E, C, C8+, G, PG, 14+, 18+.Canada French Select MPAA rating for Quebec Canada: E, G, 8 ans+, 13 ans+, 16 ans+, 18 ans+.RRT Setting Set Rating Region Table.Reset RRT Select to reset the RRT setting.Clear Lock Clear all lock settings.

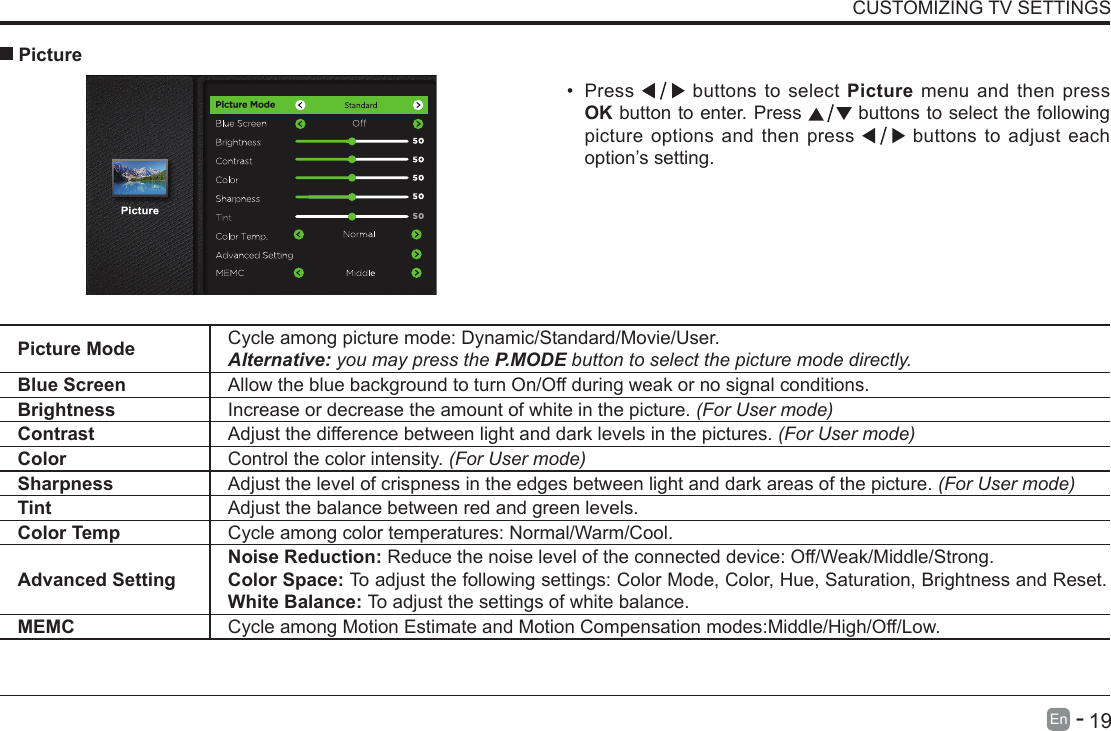

19En - • Press buttons to select Picture menu and then press OK button to enter. Press buttons to select the following picture options and then press buttons to adjust each option’s setting. PicturePicture Mode Cycle among picture mode: Dynamic/Standard/Movie/User.Alternative: you may press the P.MODE button to select the picture mode directly.Blue Screen Allow the blue background to turn On/Off during weak or no signal conditions.Brightness Increase or decrease the amount of white in the picture. (For User mode)Contrast Adjust the difference between light and dark levels in the pictures. (For User mode)Color Control the color intensity. (For User mode)Sharpness Adjust the level of crispness in the edges between light and dark areas of the picture. (For User mode)Tint Adjust the balance between red and green levels.Color Temp Cycle among color temperatures: Normal/Warm/Cool.Advanced SettingNoise Reduction: Reduce the noise level of the connected device: Off/Weak/Middle/Strong.Color Space: To adjust the following settings: Color Mode, Color, Hue, Saturation, Brightness and Reset.White Balance: To adjust the settings of white balance.MEMC Cycle among Motion Estimate and Motion Compensation modes:Middle/High/Off/Low.CUSTOMIZING TV SETTINGS

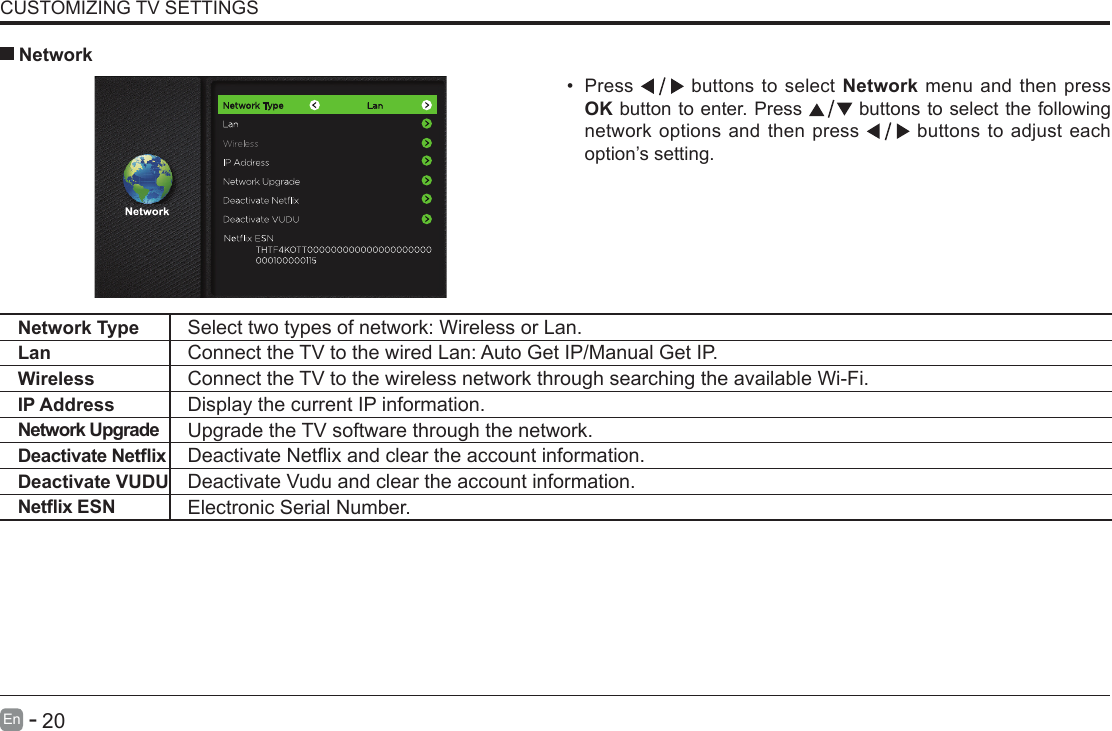

20En - • Press buttons to select Network menu and then press OK button to enter. Press buttons to select the following network options and then press buttons to adjust each option’s setting. NetworkCUSTOMIZING TV SETTINGSNetwork Type Select two types of network: Wireless or Lan.Lan Connect the TV to the wired Lan: Auto Get IP/Manual Get IP. Wireless Connect the TV to the wireless network through searching the available Wi-Fi.IP Address Display the current IP information.Network Upgrade Upgrade the TV software through the network.DeactivateNetix DeactivateNetixandcleartheaccountinformation.Deactivate VUDU Deactivate Vudu and clear the account information.NetixESN Electronic Serial Number.

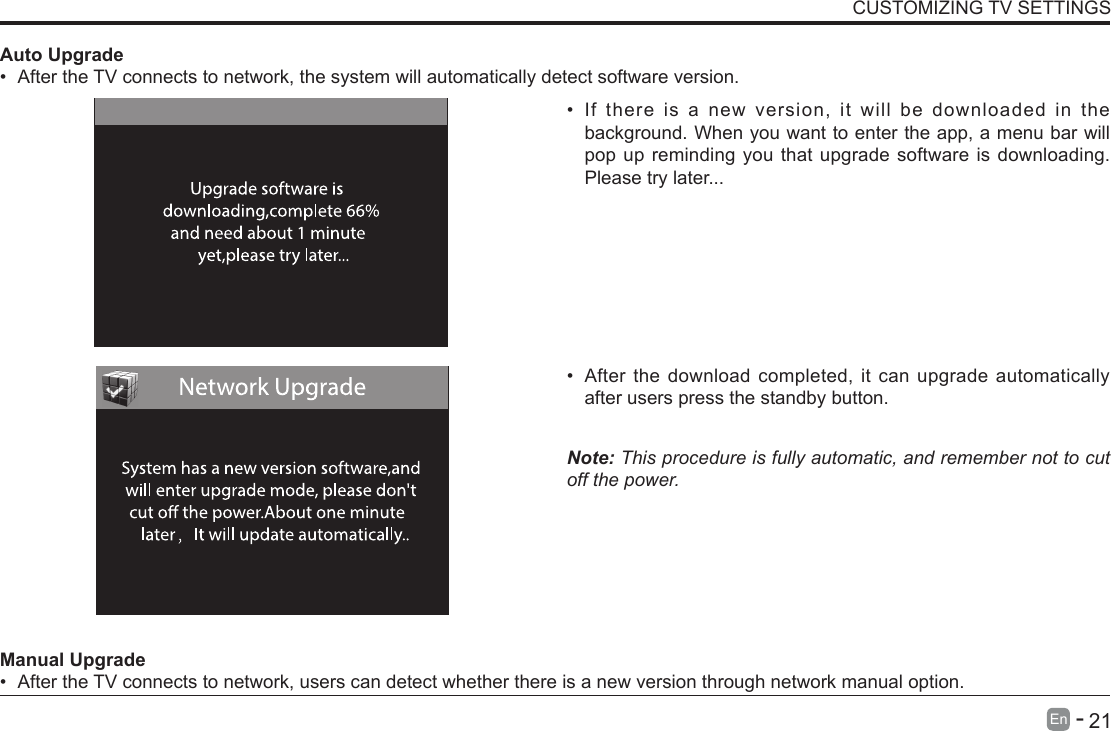

21En - • If there is a new version, it will be downloaded in the background. When you want to enter the app, a menu bar will pop up reminding you that upgrade software is downloading. Please try later...• After the download completed, it can upgrade automatically after users press the standby button.Note: This procedure is fully automatic, and remember not to cut off the power. Manual Upgrade• After the TV connects to network, users can detect whether there is a new version through network manual option. Auto Upgrade• After the TV connects to network, the system will automatically detect software version. CUSTOMIZING TV SETTINGS

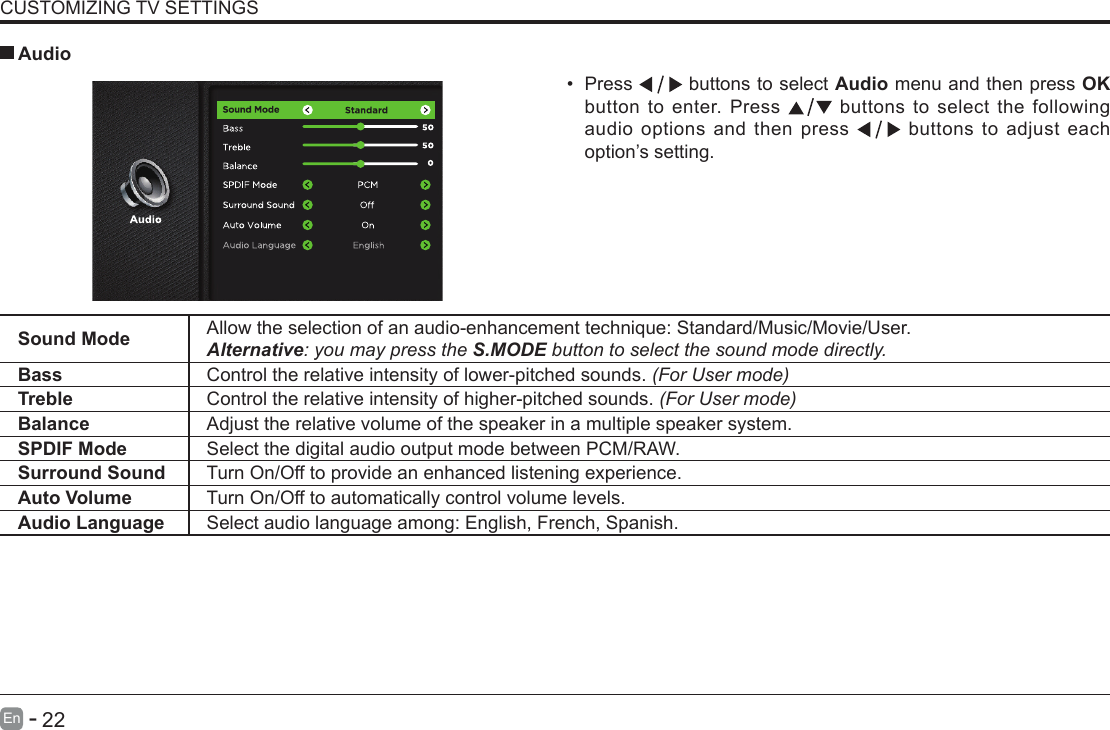

22En - • Press buttons to select Audio menu and then press OK button to enter. Press buttons to select the following audio options and then press buttons to adjust each option’s setting. AudioSound Mode Allow the selection of an audio-enhancement technique: Standard/Music/Movie/User.Alternative: you may press the S.MODE button to select the sound mode directly.Bass Control the relative intensity of lower-pitched sounds. (For User mode)Treble Control the relative intensity of higher-pitched sounds. (For User mode)Balance Adjust the relative volume of the speaker in a multiple speaker system.SPDIF Mode Select the digital audio output mode between PCM/RAW.Surround Sound Turn On/Off to provide an enhanced listening experience.Auto Volume Turn On/Off to automatically control volume levels.Audio Language Select audio language among: English, French, Spanish.CUSTOMIZING TV SETTINGS
23En - PARENTAL CONTROLPress the MENU button on the main unit or on the remote control and then press buttons to select Lock menu. Use the 0-9 buttons to input the 4-digit password to enter the Lock menu. If used, this option feature can "block'' undesirable programming from appearing on the TV. Parental Control offers the user a wide variety of options and settings that restrict or "block'' the programming that can appear on the TV. Parental Control allowstheusertodenewhichprogramratingtheyconsideracceptableforyoungermoresensitiveviewer.Itcanbepresetandturnedeitheronoroffbytheuserwhospeciesthesecret4-numbercode,thepassword.Thenumberofhoursblockedarespecied.GeneralaudiencesandchildrenblocksshouldbebothprogrammedintotheTV'smemory.SeparatedifferentviewerratingsarespeciedforbothTVandthemotionpictureIndustry;both rating systems should be used and based on the ages of children.OverviewToensurecompletecoverageforallTVprograms,(moviesandregularTVshows)choosearatingforMPAA,fromtheselectionsbelow,aswellasratings from the TV Parental Guidelines Rating Systems below, using the Age Block option for General Audiences, and for children. In addition, you may wish to add additional restrictions from the content block menu, and submenus examples below.Things to Consider before Setting up Parental ControlDetermine which rating you consider acceptable to the viewer. (For example, if you choose TV-PG, more restrictive ratings will be automatically blocked;theviewerwillnotbeabletosee:TV-PG,TV-14,orTV-MAratedprogramming.)Youmayblocktheauxiliaryvideosourceentirely.(Blocksthesignalsentbytheequipment,suchasVCR,connectedtotheTVAudio/VIdeoInputJacks)orremainunblocked,thenchooseacceptableratings.Block program "Content" based on individual parameters such as: Strong Dialog, Bad Language, Sex Scenes, Violence Scenes or Fantasy. Violent Scenes; in Content Blk option. Select a secret password, in the Set Password option, using the numbers keys on the remote control. Save the password, it is the only way to access the Parental Control menu and change rating setting, or turn off Parental Control.• You can set different Parental Control viewing restrictions for general audiences and for children, both can be active at the same time.• Simply specifying one content block such as Sex Scenes, will not automatically restrict the programming that appears from the video sources.• Even If you choose to leave the AUX Inputs unblocked, the ratings you specify will automatically restrict the programming that appears from the video sources.• You cannot disable Parental Control by disconnecting the TV from power. Block hours will be automatically reset to the original block time settingspeciedifpowerisdisconnected.

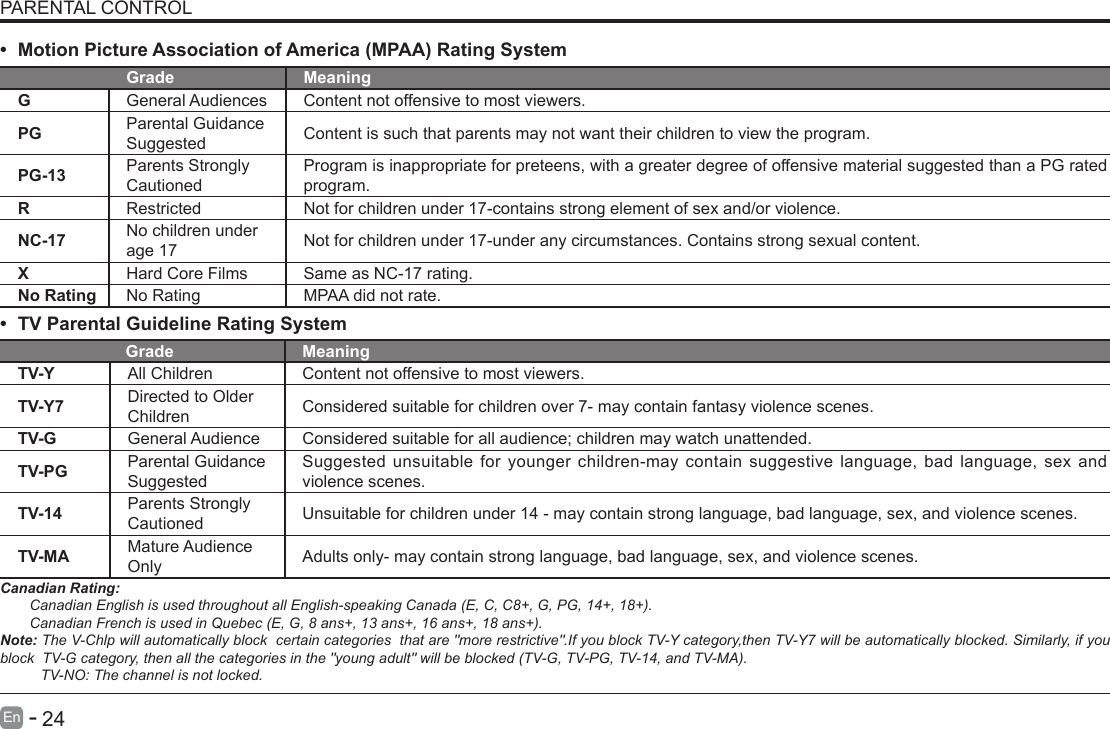

24En - PARENTAL CONTROL• Motion Picture Association of America (MPAA) Rating SystemGrade MeaningGGeneral Audiences Content not offensive to most viewers.PG Parental Guidance Suggested Content is such that parents may not want their children to view the program.PG-13 Parents Strongly CautionedProgram is inappropriate for preteens, with a greater degree of offensive material suggested than a PG rated program.RRestricted Not for children under 17-contains strong element of sex and/or violence.NC-17 No children under age 17 Not for children under 17-under any circumstances. Contains strong sexual content.XHard Core Films Same as NC-17 rating.No Rating No Rating MPAA did not rate.• TV Parental Guideline Rating System Grade MeaningTV-Y All Children Content not offensive to most viewers.TV-Y7 Directed to Older Children Considered suitable for children over 7- may contain fantasy violence scenes.TV-G General Audience Considered suitable for all audience; children may watch unattended.TV-PG Parental Guidance SuggestedSuggested unsuitable for younger children-may contain suggestive language, bad language, sex and violence scenes.TV-14 Parents Strongly Cautioned Unsuitable for children under 14 - may contain strong language, bad language, sex, and violence scenes.TV-MA Mature Audience Only Adults only- may contain strong language, bad language, sex, and violence scenes.Canadian Rating:Canadian English is used throughout all English-speaking Canada (E, C, C8+, G, PG, 14+, 18+).Canadian French is used in Quebec (E, G, 8 ans+, 13 ans+, 16 ans+, 18 ans+).Note: The V-Chlp will automatically block certain categories that are "more restrictive".If you block TV-Y category,then TV-Y7 will be automatically blocked. Similarly, if you block TV-G category, then all the categories in the "young adult" will be blocked (TV-G, TV-PG, TV-14, and TV-MA). TV-NO: The channel is not locked.

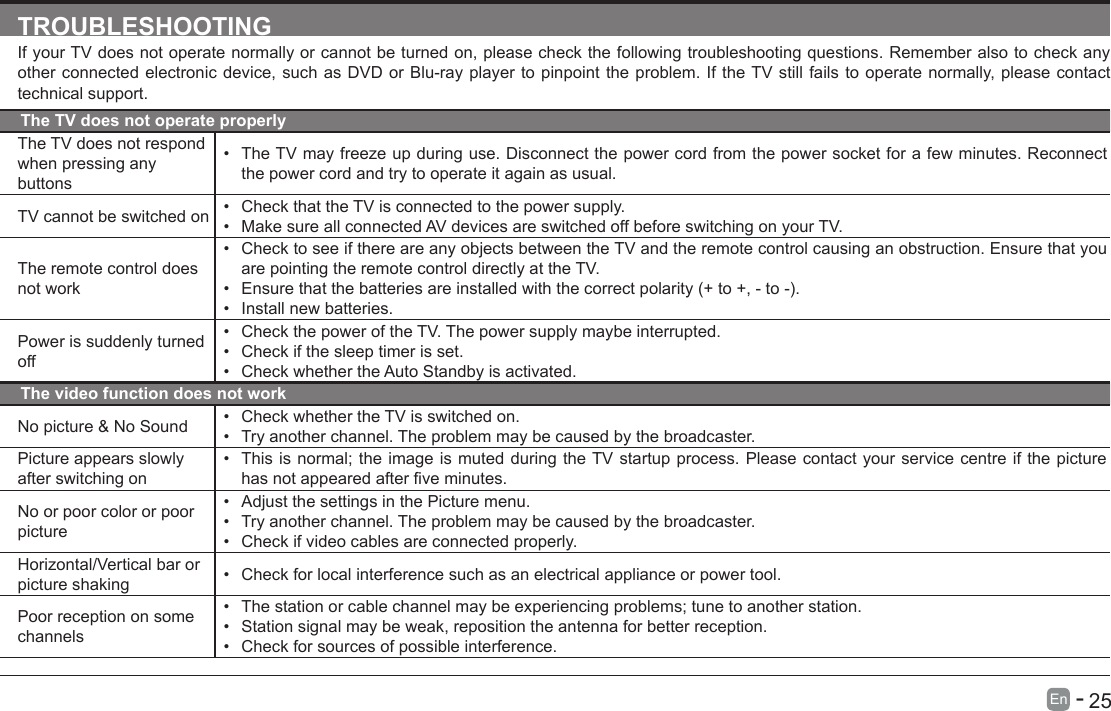

25En - TROUBLESHOOTINGIf your TV does not operate normally or cannot be turned on, please check the following troubleshooting questions. Remember also to check any other connected electronic device, such as DVD or Blu-ray player to pinpoint the problem. If the TV still fails to operate normally, please contact technical support.The TV does not operate properlyThe TV does not respond when pressing any buttons• The TV may freeze up during use. Disconnect the power cord from the power socket for a few minutes. Reconnect the power cord and try to operate it again as usual.TV cannot be switched on • Check that the TV is connected to the power supply.• Make sure all connected AV devices are switched off before switching on your TV.The remote control does not work• Check to see if there are any objects between the TV and the remote control causing an obstruction. Ensure that you are pointing the remote control directly at the TV.• Ensurethatthebatteriesareinstalledwiththecorrectpolarity(+to+,-to-).• Install new batteries. Power is suddenly turned off• Check the power of the TV. The power supply maybe interrupted.• Check if the sleep timer is set.• Check whether the Auto Standby is activated. The video function does not workNo picture & No Sound • Check whether the TV is switched on.• Try another channel. The problem may be caused by the broadcaster.Picture appears slowly after switching on• This is normal; the image is muted during the TV startup process. Please contact your service centre if the picture hasnotappearedafterveminutes.No or poor color or poor picture• Adjust the settings in the Picture menu.• Try another channel. The problem may be caused by the broadcaster.• Check if video cables are connected properly.Horizontal/Vertical bar or picture shaking • Check for local interference such as an electrical appliance or power tool.Poor reception on some channels• The station or cable channel may be experiencing problems; tune to another station.• Station signal may be weak, reposition the antenna for better reception.• Check for sources of possible interference.

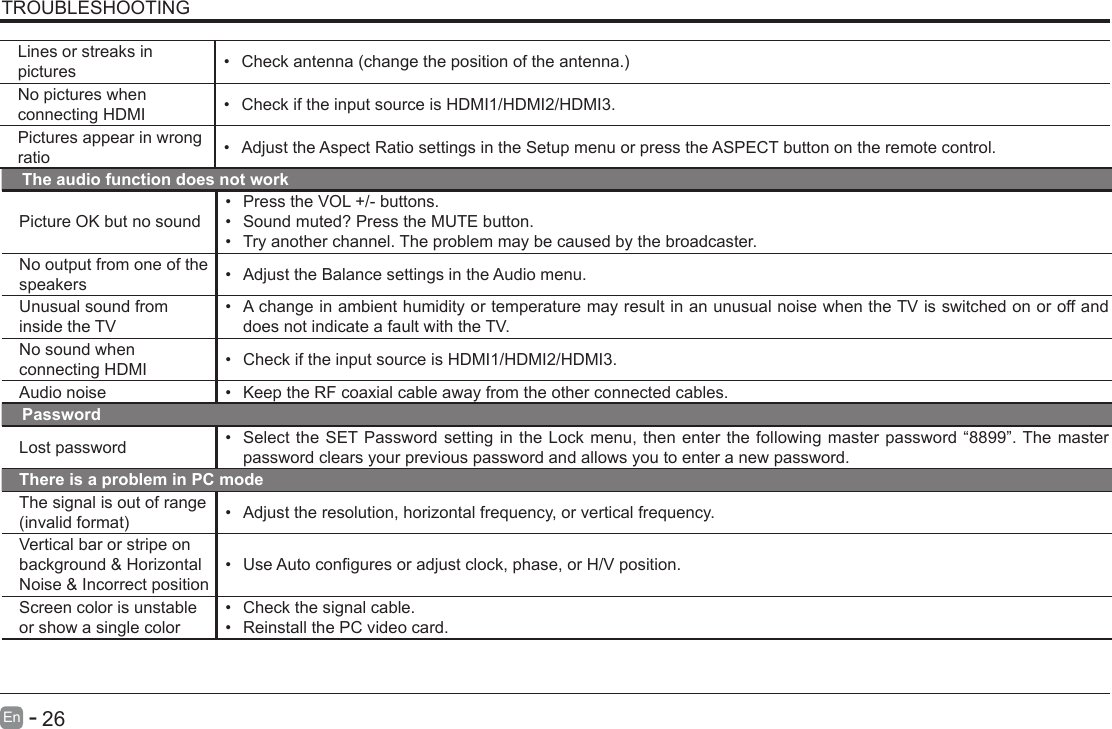

26En - TROUBLESHOOTINGThe audio function does not workPicture OK but no sound• Press the VOL +/- buttons.• Sound muted? Press the MUTE button.• Try another channel. The problem may be caused by the broadcaster.No output from one of the speakers • Adjust the Balance settings in the Audio menu.Unusual sound from inside the TV• A change in ambient humidity or temperature may result in an unusual noise when the TV is switched on or off and does not indicate a fault with the TV. No sound when connecting HDMI • Check if the input source is HDMI1/HDMI2/HDMI3.Audio noise • Keep the RF coaxial cable away from the other connected cables.PasswordLost password • Select the SET Password setting in the Lock menu, then enter the following master password “8899”. The master password clears your previous password and allows you to enter a new password.There is a problem in PC modeThe signal is out of range (invalidformat) • Adjust the resolution, horizontal frequency, or vertical frequency.Vertical bar or stripe on background & Horizontal Noise & Incorrect position• UseAutoconguresoradjustclock,phase,orH/Vposition.Screen color is unstable or show a single color• Check the signal cable.• Reinstall the PC video card.Lines or streaks in pictures • Checkantenna(changethepositionoftheantenna.)No pictures when connecting HDMI • Check if the input source is HDMI1/HDMI2/HDMI3.Pictures appear in wrong ratio • Adjust the Aspect Ratio settings in the Setup menu or press the ASPECT button on the remote control.

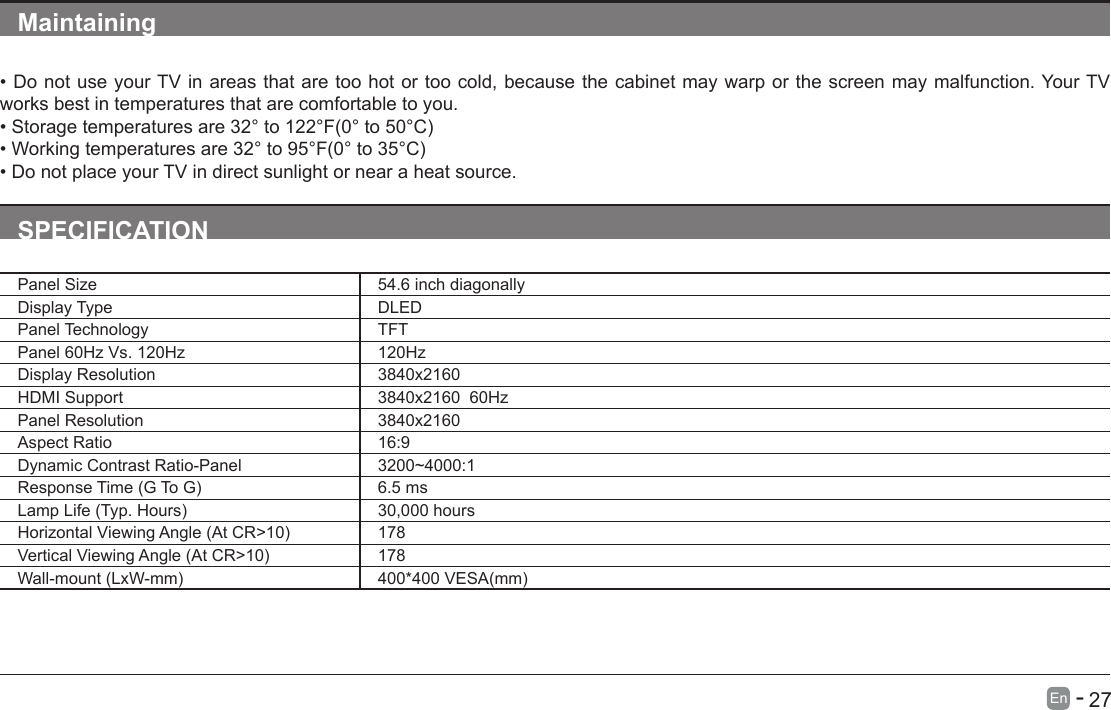

27En - Maintaining•DonotuseyourTVinareasthataretoohotortoocold,becausethecabinetmaywarporthescreenmaymalfunction.YourTVworks best in temperatures that are comfortable to you.•Storagetemperaturesare32°to122°F(0°to50°C)•Workingtemperaturesare32°to95°F(0°to35°C)•DonotplaceyourTVindirectsunlightornearaheatsource.SPECIFICATIONPanel Size 54.6 inch diagonally Display Type DLEDPanel Technology TFTPanel 60Hz Vs. 120Hz 120HzDisplay Resolution 3840x2160HDMI Support 3840x2160 60HzPanel Resolution 3840x2160Aspect Ratio 16:9Dynamic Contrast Ratio-Panel 3200~4000:1ResponseTime(GToG) 6.5 msLampLife(Typ.Hours) 30,000 hoursHorizontalViewingAngle(AtCR>10) 178VerticalViewingAngle(AtCR>10) 178Wall-mount(LxW-mm) 400*400VESA(mm)

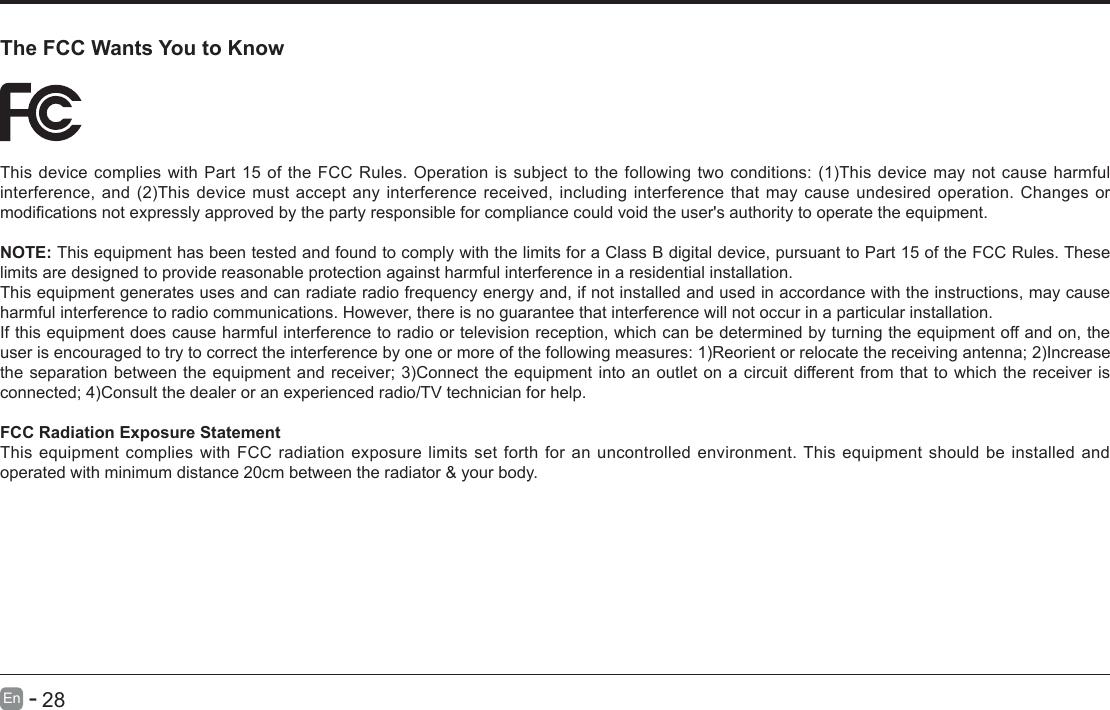

28En - The FCC Wants You to KnowThisdevicecomplieswithPart15oftheFCCRules.Operationissubjecttothefollowingtwoconditions:(1)Thisdevicemaynotcauseharmfulinterference,and(2)Thisdevicemustacceptanyinterferencereceived,includinginterferencethatmaycauseundesiredoperation.Changesormodicationsnotexpresslyapprovedbythepartyresponsibleforcompliancecouldvoidtheuser'sauthoritytooperatetheequipment.NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the userisencouragedtotrytocorrecttheinterferencebyoneormoreofthefollowingmeasures:1)Reorientorrelocatethereceivingantenna;2)Increasetheseparationbetweentheequipmentandreceiver;3)Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiverisconnected;4)Consultthedealeroranexperiencedradio/TVtechnicianforhelp.FCC Radiation Exposure StatementThis equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

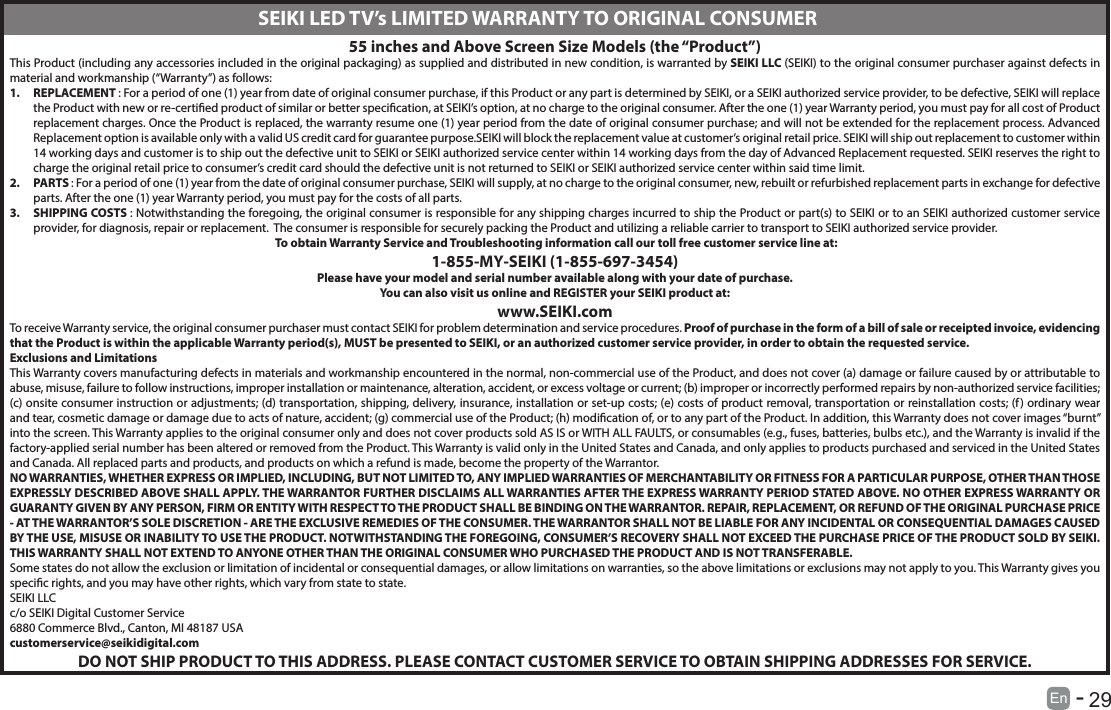

29En - 55 inches and Above Screen Size Models (the “Product”)This Product (including any accessories included in the original packaging) as supplied and distributed in new condition, is warranted by SEIKI LLC (SEIKI) to the original consumer purchaser against defects in material and workmanship (“Warranty”) as follows:1. REPLACEMENT : For a period of one (1) year from date of original consumer purchase, if this Product or any part is determined by SEIKI, or a SEIKI authorized service provider, to be defective, SEIKI will replace the Product with new or re-certied product of similar or better specication, at SEIKI’s option, at no charge to the original consumer. After the one (1) year Warranty period, you must pay for all cost of Product replacement charges. Once the Product is replaced, the warranty resume one (1) year period from the date of original consumer purchase; and will not be extended for the replacement process. Advanced Replacement option is available only with a valid US credit card for guarantee purpose.SEIKI will block the replacement value at customer’s original retail price. SEIKI will ship out replacement to customer within 14 working days and customer is to ship out the defective unit to SEIKI or SEIKI authorized service center within 14 working days from the day of Advanced Replacement requested. SEIKI reserves the right to charge the original retail price to consumer’s credit card should the defective unit is not returned to SEIKI or SEIKI authorized service center within said time limit.2. PARTS : For a period of one (1) year from the date of original consumer purchase, SEIKI will supply, at no charge to the original consumer, new, rebuilt or refurbished replacement parts in exchange for defective parts. After the one (1) year Warranty period, you must pay for the costs of all parts. 3. SHIPPING COSTS : Notwithstanding the foregoing, the original consumer is responsible for any shipping charges incurred to ship the Product or part(s) to SEIKI or to an SEIKI authorized customer service provider, for diagnosis, repair or replacement. The consumer is responsible for securely packing the Product and utilizing a reliable carrier to transport to SEIKI authorized service provider. To obtain Warranty Service and Troubleshooting information call our toll free customer service line at:1‐855‐MY‐SEIKI (1‐855‐697‐3454) Please have your model and serial number available along with your date of purchase.You can also visit us online and REGISTER your SEIKI product at: www.SEIKI.comTo receive Warranty service, the original consumer purchaser must contact SEIKI for problem determination and service procedures. Proof of purchase in the form of a bill of sale or receipted invoice, evidencing that the Product is within the applicable Warranty period(s), MUST be presented to SEIKI, or an authorized customer service provider, in order to obtain the requested service.Exclusions and Limitations This Warranty covers manufacturing defects in materials and workmanship encountered in the normal, non‐commercial use of the Product, and does not cover (a) damage or failure caused by or attributable to abuse, misuse, failure to follow instructions, improper installation or maintenance, alteration, accident, or excess voltage or current; (b) improper or incorrectly performed repairs by non-authorized service facilities; (c) onsite consumer instruction or adjustments; (d) transportation, shipping, delivery, insurance, installation or set‐up costs; (e) costs of product removal, transportation or reinstallation costs; (f) ordinary wear and tear, cosmetic damage or damage due to acts of nature, accident; (g) commercial use of the Product; (h) modication of, or to any part of the Product. In addition, this Warranty does not cover images “burnt” into the screen. This Warranty applies to the original consumer only and does not cover products sold AS IS or WITH ALL FAULTS, or consumables (e.g., fuses, batteries, bulbs etc.), and the Warranty is invalid if the factory-applied serial number has been altered or removed from the Product. This Warranty is valid only in the United States and Canada, and only applies to products purchased and serviced in the United States and Canada. All replaced parts and products, and products on which a refund is made, become the property of the Warrantor. NO WARRANTIES, WHETHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, OTHER THAN THOSE EXPRESSLY DESCRIBED ABOVE SHALL APPLY. THE WARRANTOR FURTHER DISCLAIMS ALL WARRANTIES AFTER THE EXPRESS WARRANTY PERIOD STATED ABOVE. NO OTHER EXPRESS WARRANTY OR GUARANTY GIVEN BY ANY PERSON, FIRM OR ENTITY WITH RESPECT TO THE PRODUCT SHALL BE BINDING ON THE WARRANTOR. REPAIR, REPLACEMENT, OR REFUND OF THE ORIGINAL PURCHASE PRICE ‐ AT THE WARRANTOR’S SOLE DISCRETION ‐ ARE THE EXCLUSIVE REMEDIES OF THE CONSUMER. THE WARRANTOR SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES CAUSED BY THE USE, MISUSE OR INABILITY TO USE THE PRODUCT. NOTWITHSTANDING THE FOREGOING, CONSUMER’S RECOVERY SHALL NOT EXCEED THE PURCHASE PRICE OF THE PRODUCT SOLD BY SEIKI. THIS WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE ORIGINAL CONSUMER WHO PURCHASED THE PRODUCT AND IS NOT TRANSFERABLE. Some states do not allow the exclusion or limitation of incidental or consequential damages, or allow limitations on warranties, so the above limitations or exclusions may not apply to you. This Warranty gives you specic rights, and you may have other rights, which vary from state to state.SEIKI LLCc/o SEIKI Digital Customer Service6880 Commerce Blvd., Canton, MI 48187 USAcustomerservice@seikidigital.comDO NOT SHIP PRODUCT TO THIS ADDRESS. PLEASE CONTACT CUSTOMER SERVICE TO OBTAIN SHIPPING ADDRESSES FOR SERVICE.SEIKI LED TV’s LIMITED WARRANTY TO ORIGINAL CONSUMER

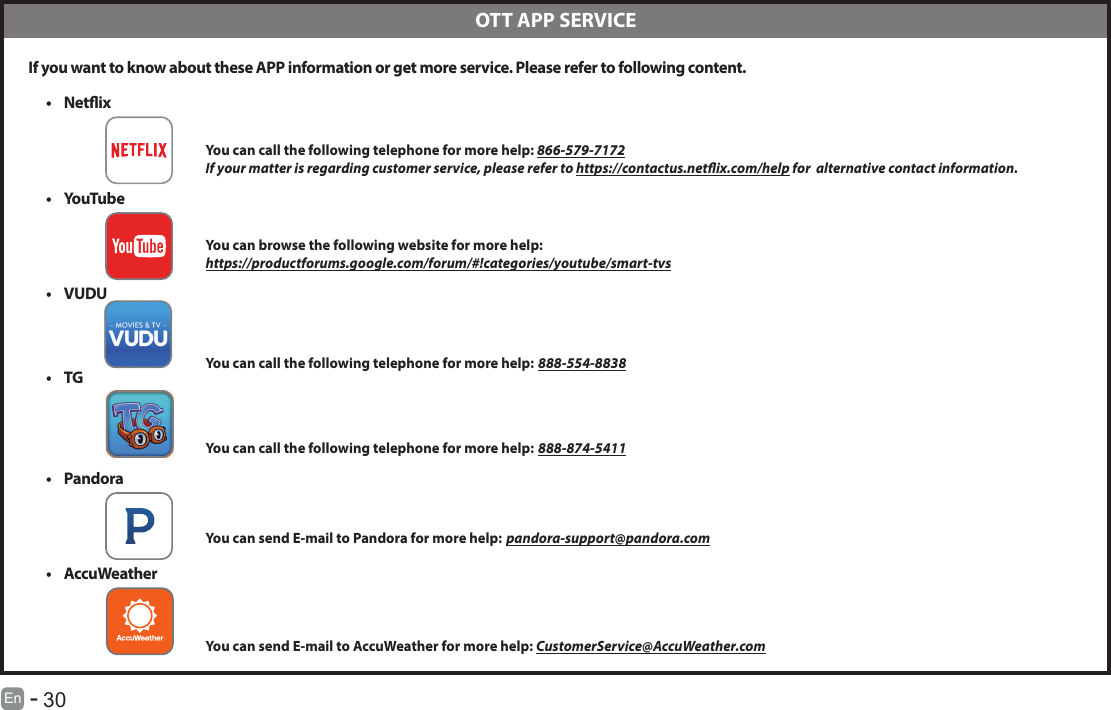

30En - If you want to know about these APP information or get more service. Please refer to following content.• Netix You can call the following telephone for more help: 866-579-7172If your matter is regarding customer service, please refer to https://contactus.netix.com/help for alternative contact information.• YouTube You can browse the following website for more help:https://productforums.google.com/forum/#!categories/youtube/smart-tvs• VUDU You can call the following telephone for more help: 888-554-8838• TG You can call the following telephone for more help: 888-874-5411• Pandora You can send E-mail to Pandora for more help: pandora-support@pandora.com• AccuWeather You can send E-mail to AccuWeather for more help: CustomerService@AccuWeather.com OTT APP SERVICE
www.SEIKI.com© 2015 Seiki LLC All rights reserved. Printed in ChinaService Hotline:1-855-MY-SEIKI(1-855-697-3454)
