Shenyang Tongfang Multimedia Technology SE60FYP1T LED TV User Manual

Shenyang Tongfang Multimedia Technology Co., Limited LED TV

User Manual

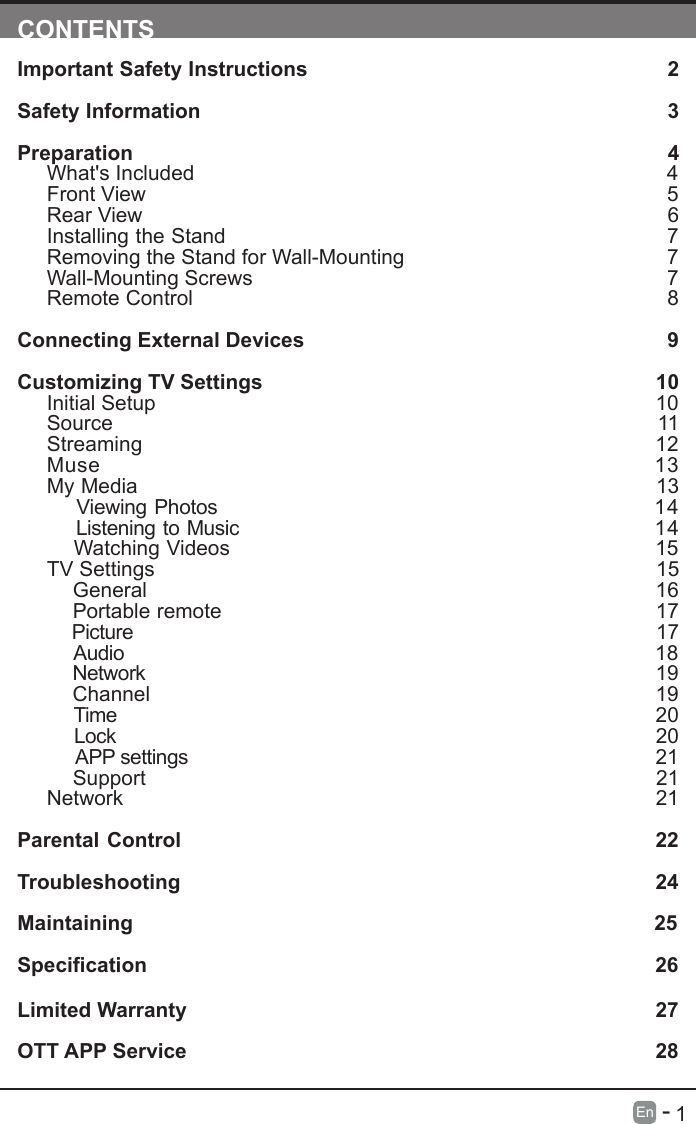

1En - CONTENTSImportant Safety Instructions 2Safety Information 3Preparation 4What's Included 4Front View 5Rear View 6Installing the Stand 7Removing the Stand for Wall-Mounting 7Wall-Mounting Screws 7Remote Control 8Connecting External Devices 9Customizing TV Settings 10Initial Setup 10Source 11Streaming 12Muse 13My Media 13 Viewing Photos 14 Listening to Music 14 Watching Videos 15 TV Settings 15 General 16 Portable remote 17 Picture 17 Audio 18 Network 19 Channel 19 Time 20 Lock 20 APP settings 21 Support 21Network 21 Parental Control 22Troubleshooting 24Maintaining 25Specication26Limited Warranty 27OTT APP Service 28

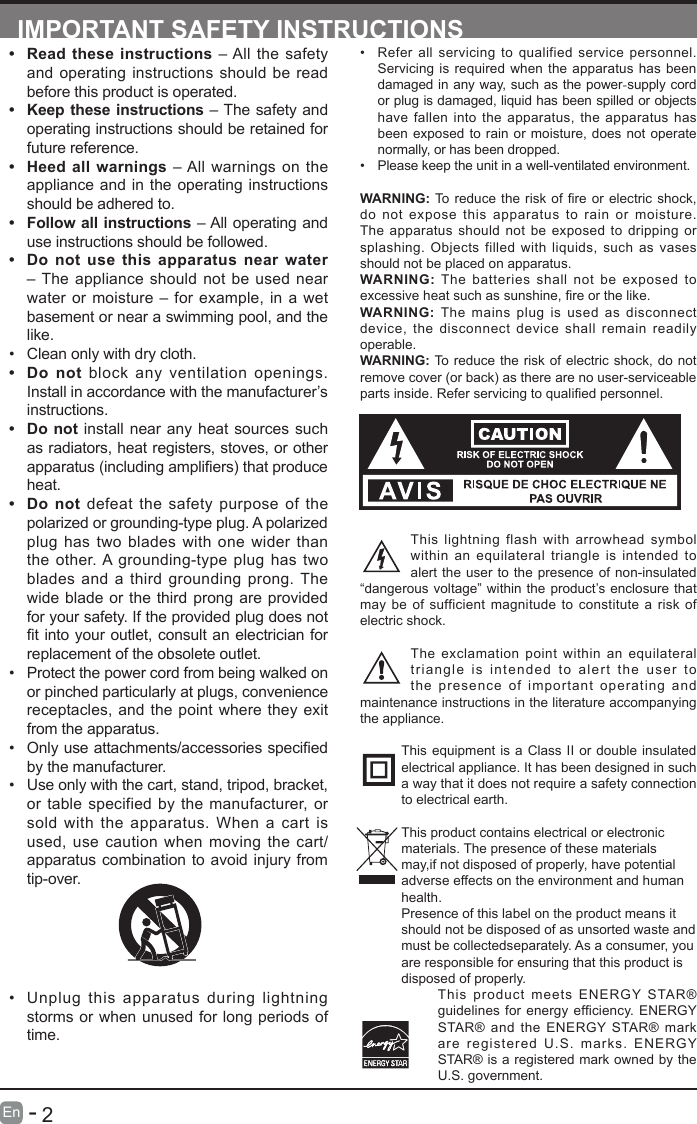

2En - IMPORTANT SAFETY INSTRUCTIONS• Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as the power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.• Please keep the unit in a well-ventilated environment.WARNING:Toreducetheriskofreorelectricshock,do not expose this apparatus to rain or moisture. The apparatus should not be exposed to dripping or splashing. Objects filled with liquids, such as vases should not be placed on apparatus. WARNING: The batteries shall not be exposed to excessiveheatsuchassunshine,reorthelike.WARNING: The mains plug is used as disconnect device, the disconnect device shall remain readily operable.WARNING: To reduce the risk of electric shock, do not remove cover (or back) as there are no user-serviceable partsinside.Referservicingtoqualiedpersonnel.This lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of non-insulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock.The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance instructions in the literature accompanying the appliance. This equipment is a Class II or double insulated electrical appliance. It has been designed in such a way that it does not require a safety connection to electrical earth.This product contains electrical or electronicmaterials. The presence of these materialsmay,if not disposed of properly, have potentialadverse effects on the environment and humanhealth.Presence of this label on the product means itshould not be disposed of as unsorted waste andmust be collectedseparately. As a consumer, youare responsible for ensuring that this product isdisposed of properly.This product meets ENERGY STAR® guidelinesforenergyefciency.ENERGYSTAR® and the ENERGY STAR® mark are registered U.S. marks. ENERGY STAR® is a registered mark owned by the U.S. government.• Read these instructions – All the safety and operating instructions should be read before this product is operated. • Keep these instructions – The safety and operating instructions should be retained for future reference. • Heed all warnings – All warnings on the appliance and in the operating instructions should be adhered to. • Follow all instructions – All operating and use instructions should be followed. • Do not use this apparatus near water – The appliance should not be used near water or moisture – for example, in a wet basement or near a swimming pool, and the like.• Clean only with dry cloth.• Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.• Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus(includingampliers)thatproduceheat. • Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not tintoyour outlet,consultanelectricianforreplacement of the obsolete outlet.• Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.• Onlyuseattachments/accessoriesspeciedby the manufacturer.• Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. • Unplug this apparatus during lightning storms or when unused for long periods of time.

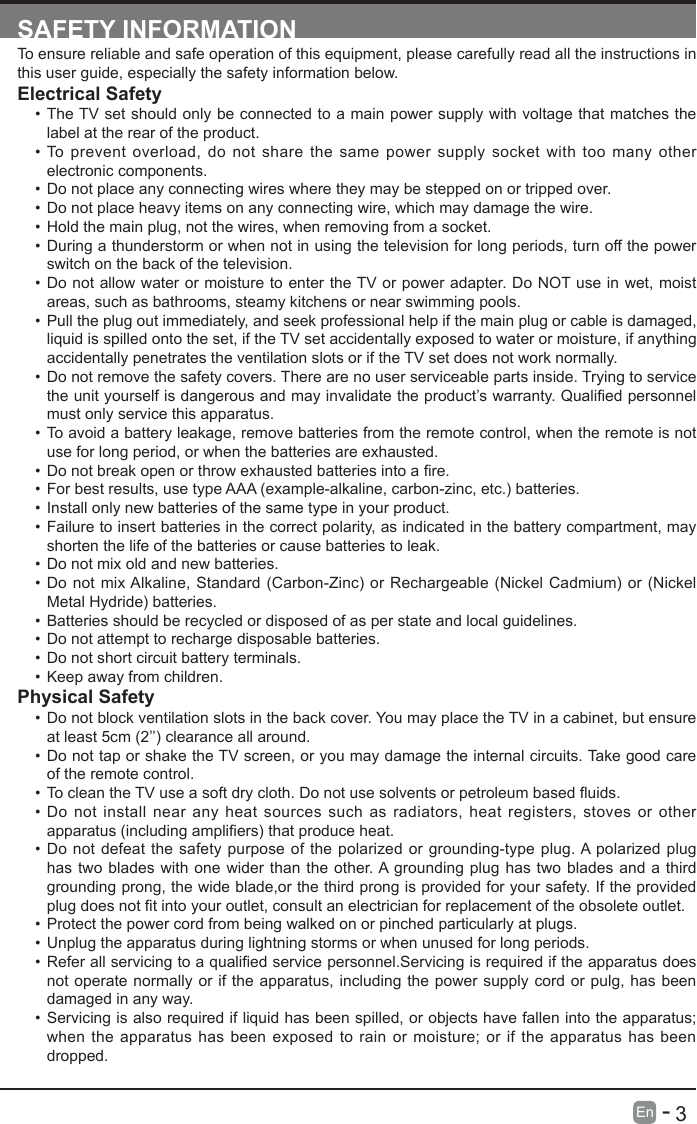

3En - SAFETY INFORMATIONTo ensure reliable and safe operation of this equipment, please carefully read all the instructions in this user guide, especially the safety information below.Electrical Safety • The TV set should only be connected to a main power supply with voltage that matches the label at the rear of the product.• To prevent overload, do not share the same power supply socket with too many other electronic components.• Do not place any connecting wires where they may be stepped on or tripped over.• Do not place heavy items on any connecting wire, which may damage the wire.• Hold the main plug, not the wires, when removing from a socket.• During a thunderstorm or when not in using the television for long periods, turn off the power switch on the back of the television.• Do not allow water or moisture to enter the TV or power adapter. Do NOT use in wet, moist areas, such as bathrooms, steamy kitchens or near swimming pools.• Pull the plug out immediately, and seek professional help if the main plug or cable is damaged, liquid is spilled onto the set, if the TV set accidentally exposed to water or moisture, if anything accidentally penetrates the ventilation slots or if the TV set does not work normally.• Do not remove the safety covers. There are no user serviceable parts inside. Trying to service theunityourselfisdangerousandmayinvalidatetheproduct’swarranty.Qualiedpersonnelmust only service this apparatus.• To avoid a battery leakage, remove batteries from the remote control, when the remote is not use for long period, or when the batteries are exhausted.• Donotbreakopenorthrowexhaustedbatteriesintoare.• For best results, use type AAA (example-alkaline, carbon-zinc, etc.) batteries.• Install only new batteries of the same type in your product.• Failure to insert batteries in the correct polarity, as indicated in the battery compartment, may shorten the life of the batteries or cause batteries to leak.• Do not mix old and new batteries.• Do not mix Alkaline, Standard (Carbon-Zinc) or Rechargeable (Nickel Cadmium) or (Nickel Metal Hydride) batteries.• Batteries should be recycled or disposed of as per state and local guidelines.• Do not attempt to recharge disposable batteries.• Do not short circuit battery terminals.• Keep away from children.Physical Safety • Do not block ventilation slots in the back cover. You may place the TV in a cabinet, but ensure at least 5cm (2’’) clearance all around.• Do not tap or shake the TV screen, or you may damage the internal circuits. Take good care of the remote control.• TocleantheTVuseasoftdrycloth.Donotusesolventsorpetroleumbaseduids.• Do not install near any heat sources such as radiators, heat registers, stoves or other apparatus(includingampliers)thatproduceheat.• Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding plug has two blades and a third grounding prong, the wide blade,or the third prong is provided for your safety. If the provided plugdoesnottintoyouroutlet,consultanelectricianforreplacementoftheobsoleteoutlet.• Protect the power cord from being walked on or pinched particularly at plugs. • Unplug the apparatus during lightning storms or when unused for long periods.• Referallservicingtoaqualiedservicepersonnel.Servicingisrequirediftheapparatusdoesnot operate normally or if the apparatus, including the power supply cord or pulg, has been damaged in any way.• Servicing is also required if liquid has been spilled, or objects have fallen into the apparatus; when the apparatus has been exposed to rain or moisture; or if the apparatus has been dropped.

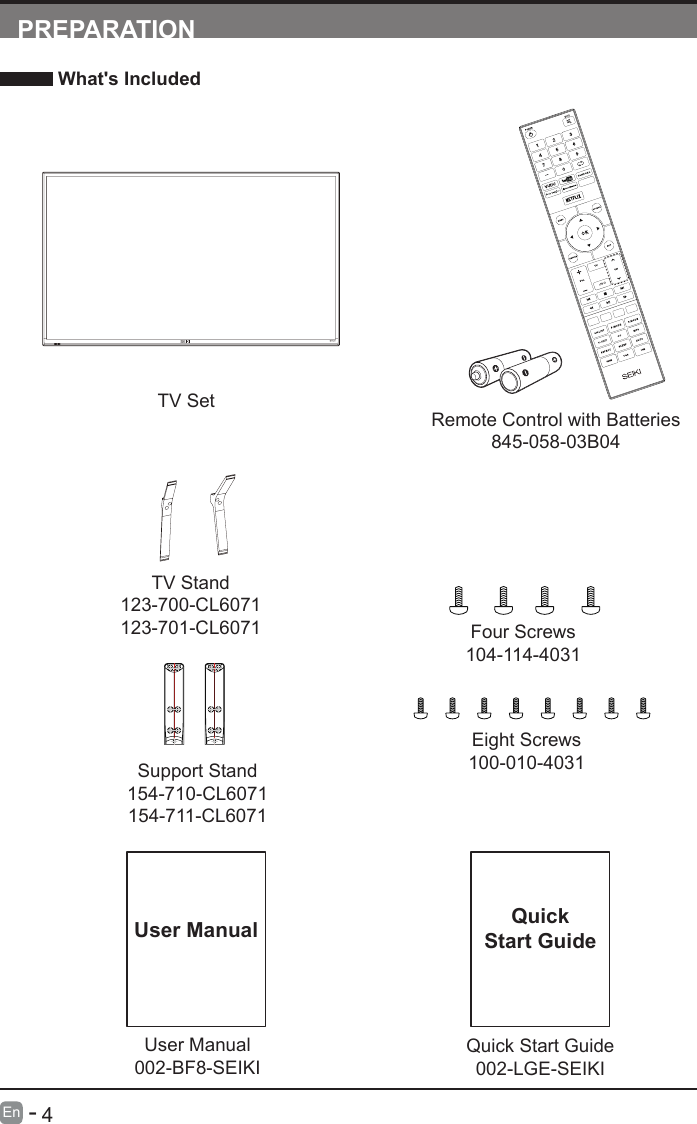

4En - User Manual002-BF8-SEIKIUser ManualPREPARATION What's IncludedRemote Control with Batteries845-058-03B04TV SetQuick Start Guide002-LGE-SEIKIQuickStart GuideTV Stand123-700-CL6071123-701-CL6071Support Stand154-710-CL6071154-711-CL6071Four Screws104-114-4031Eight Screws100-010-4031INFO

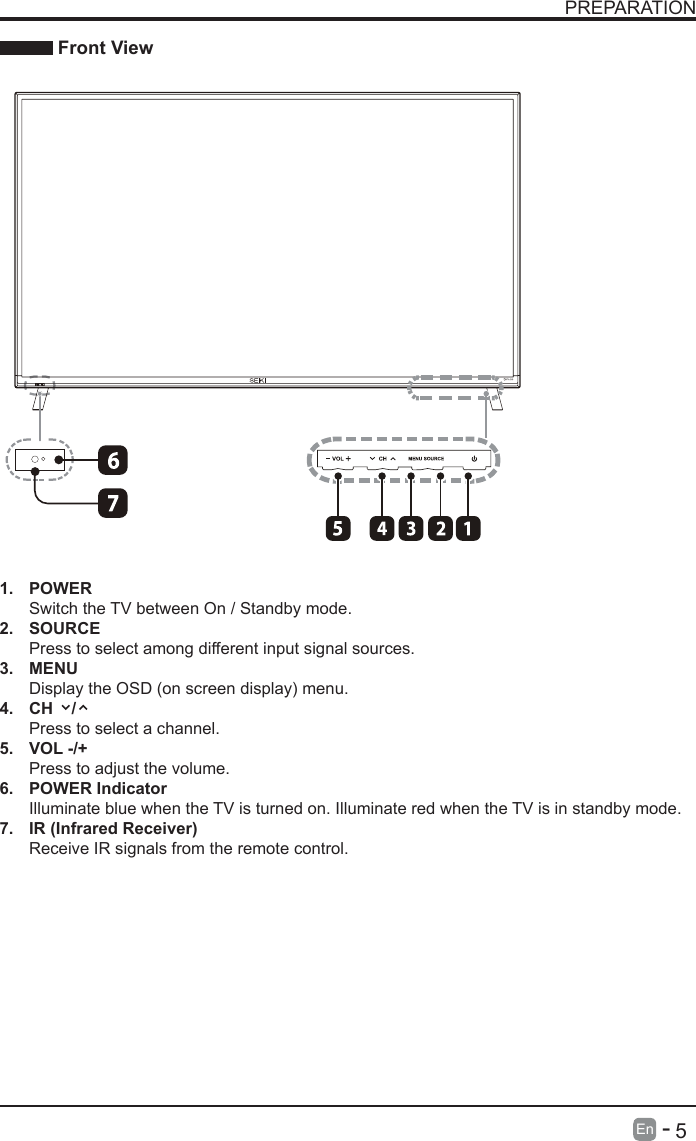

5En - PREPARATION Front View1. POWER Switch the TV between On / Standby mode.2. SOURCEPress to select among different input signal sources.3. MENUDisplay the OSD (on screen display) menu.4. CH /Press to select a channel.5. VOL -/+Press to adjust the volume.6. POWER IndicatorIlluminate blue when the TV is turned on. Illuminate red when the TV is in standby mode.7. IR (Infrared Receiver)Receive IR signals from the remote control.

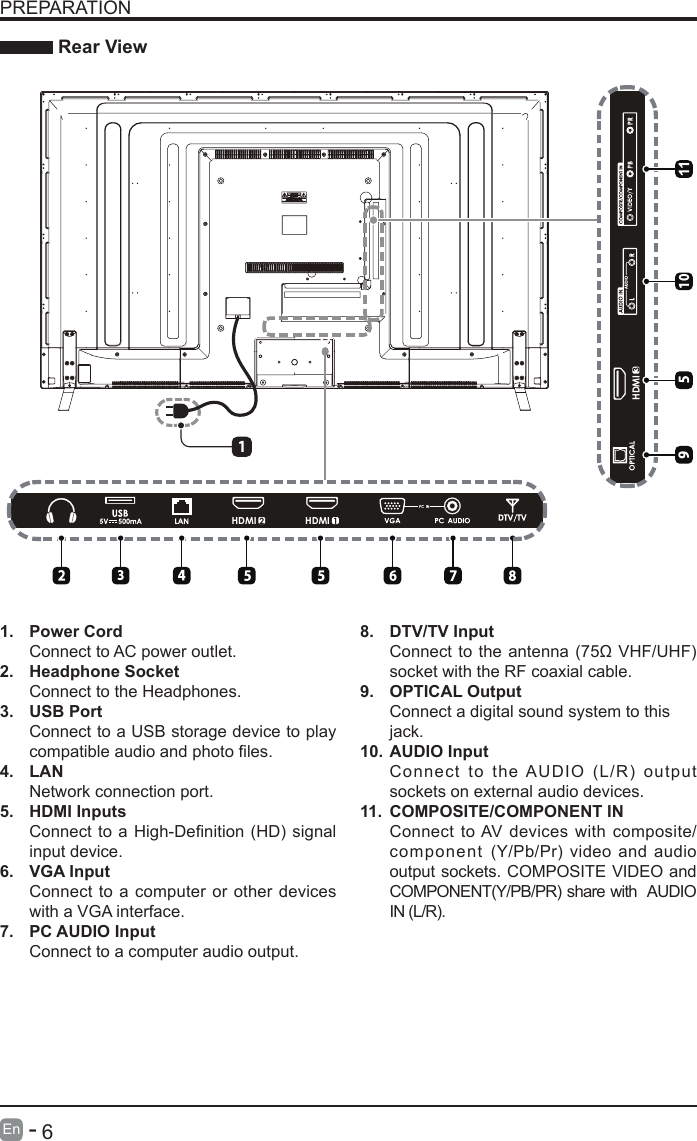

6En - PREPARATION Rear View1. Power CordConnect to AC power outlet.2. Headphone SocketConnect to the Headphones.3. USB PortConnect to a USB storage device to play compatibleaudioandphotoles.4. LANNetwork connection port.5. HDMI InputsConnecttoaHigh-Denition(HD) signalinput device.6. VGA InputConnect to a computer or other devices with a VGA interface.7. PC AUDIO InputConnect to a computer audio output.8. DTV/TV Input Connecttotheantenna(75ΩVHF/UHF)socket with the RF coaxial cable.9. OPTICAL OutputConnect a digital sound system to thisjack.10. AUDIO InputConnect to the AUDIO (L/R) output sockets on external audio devices.11. COMPOSITE/COMPONENT IN Connect to AV devices with composite/component (Y/Pb/Pr) video and audio output sockets. COMPOSITE VIDEO and COMPONENT(Y/PB/PR) share with AUDIO IN (L/R). 102HDMI 1HDMI3HDMI

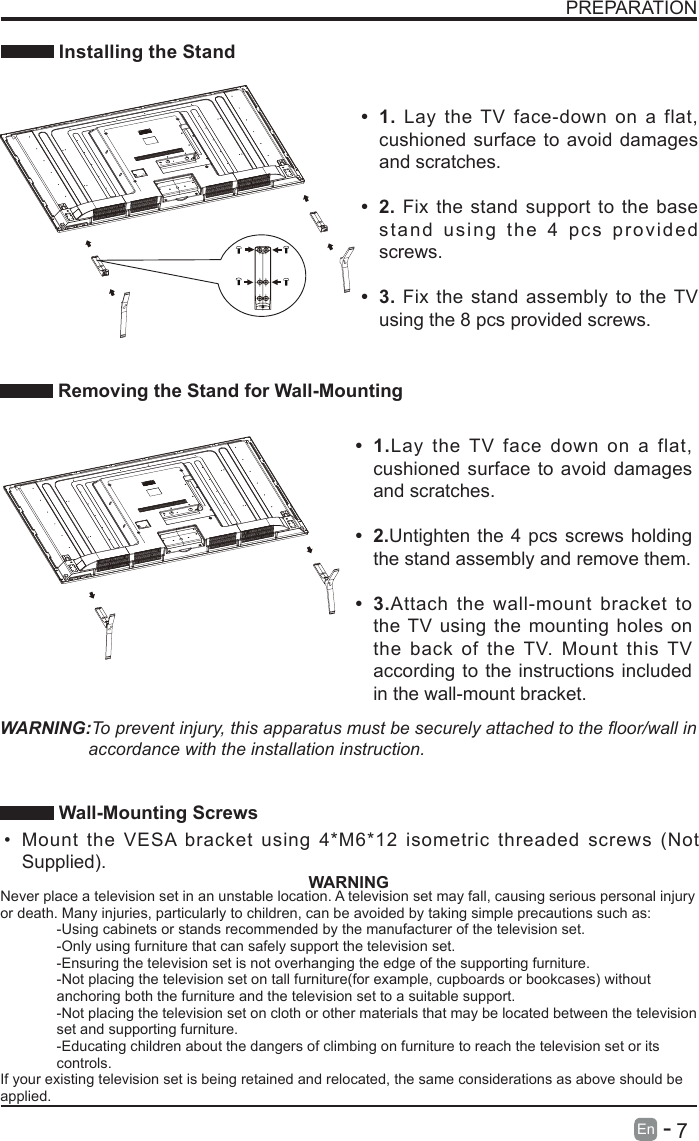

7En - PREPARATION Installing the Stand Removing the Stand for Wall-Mounting• 1.Lay the TV face down on a flat, cushioned surface to avoid damages and scratches.• 2.Untighten the 4 pcs screws holding the stand assembly and remove them. • 3.Attach the wall-mount bracket to the TV using the mounting holes on the back of the TV. Mount this TV according to the instructions included in the wall-mount bracket. • 1. Lay the TV face-down on a flat, cushioned surface to avoid damages and scratches.• 2. Fix the stand support to the base stand using the 4 pcs provided screws.• 3. Fix the stand assembly to the TV using the 8 pcs provided screws.WARNING:To prevent injury, this apparatus must be securely attached to the oor/wall in accordance with the installation instruction. Wall-Mounting Screws • Mount the VESA bracket using 4*M6*12 isometric threaded screws (Not Supplied). WARNINGNever place a television set in an unstable location. A television set may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as:-Using cabinets or stands recommended by the manufacturer of the television set.-Only using furniture that can safely support the television set.-Ensuring the television set is not overhanging the edge of the supporting furniture.-Not placing the television set on tall furniture(for example, cupboards or bookcases) without anchoring both the furniture and the television set to a suitable support.-Not placing the television set on cloth or other materials that may be located between the television set and supporting furniture.-Educating children about the dangers of climbing on furniture to reach the television set or its controls.If your existing television set is being retained and relocated, the same considerations as above should be applied.

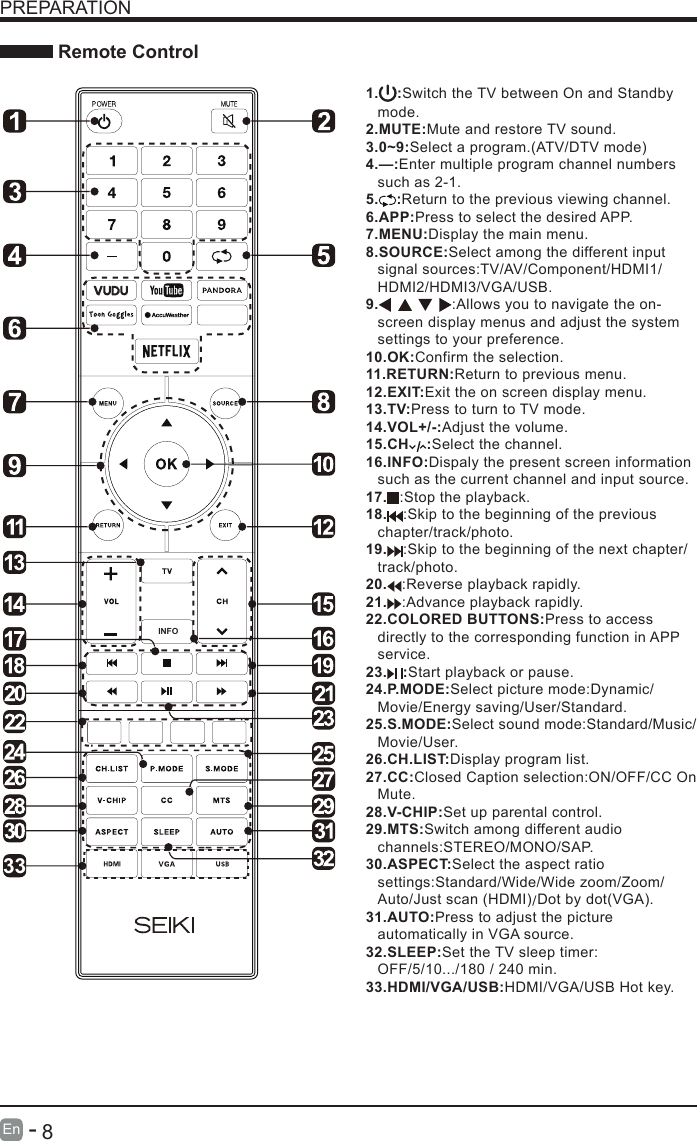

8En - PREPARATION Remote ControlINFO331. :Switch the TV between On and Standby mode.2.MUTE:Mute and restore TV sound.3.0~9:Select a program.(ATV/DTV mode)4.—:Enter multiple program channel numbers such as 2-1.5. :Return to the previous viewing channel.6.APP:Press to select the desired APP.7.MENU:Display the main menu.8.SOURCE:Select among the different input signal sources:TV/AV/Component/HDMI1/HDMI2/HDMI3/VGA/USB.9. :Allows you to navigate the on- screen display menus and adjust the system settings to your preference.10.OK:Confirm the selection.11.RETURN:Return to previous menu.12.EXIT:Exit the on screen display menu.13.TV:Press to turn to TV mode.14.VOL+/-:Adjust the volume.15.CH :Select the channel.16.INFO:Dispaly the present screen information such as the current channel and input source.17. :Stop the playback.18. :Skip to the beginning of the previous chapter/track/photo.19. :Skip to the beginning of the next chapter/ track/photo.20. :Reverse playback rapidly.21. :Advance playback rapidly.22.COLORED BUTTONS:Press to access directly to the corresponding function in APP service.23. :Start playback or pause.24.P.MODE:Select picture mode:Dynamic/Movie/Energy saving/User/Standard.25.S.MODE:Select sound mode:Standard/Music/Movie/User.26.CH.LIST:Display program list.27.CC:Closed Caption selection:ON/OFF/CC On Mute.28.V-CHIP:Set up parental control.29.MTS:Switch among different audio channels:STEREO/MONO/SAP.30.ASPECT:Select the aspect ratio settings:Standard/Wide/Wide zoom/Zoom/Auto/Just scan (HDMI)/Dot by dot(VGA).31.AUTO:Press to adjust the picture automatically in VGA source.32.SLEEP:Set the TV sleep timer: OFF/5/10.../180 / 240 min.33.HDMI/VGA/USB:HDMI/VGA/USB Hot key.

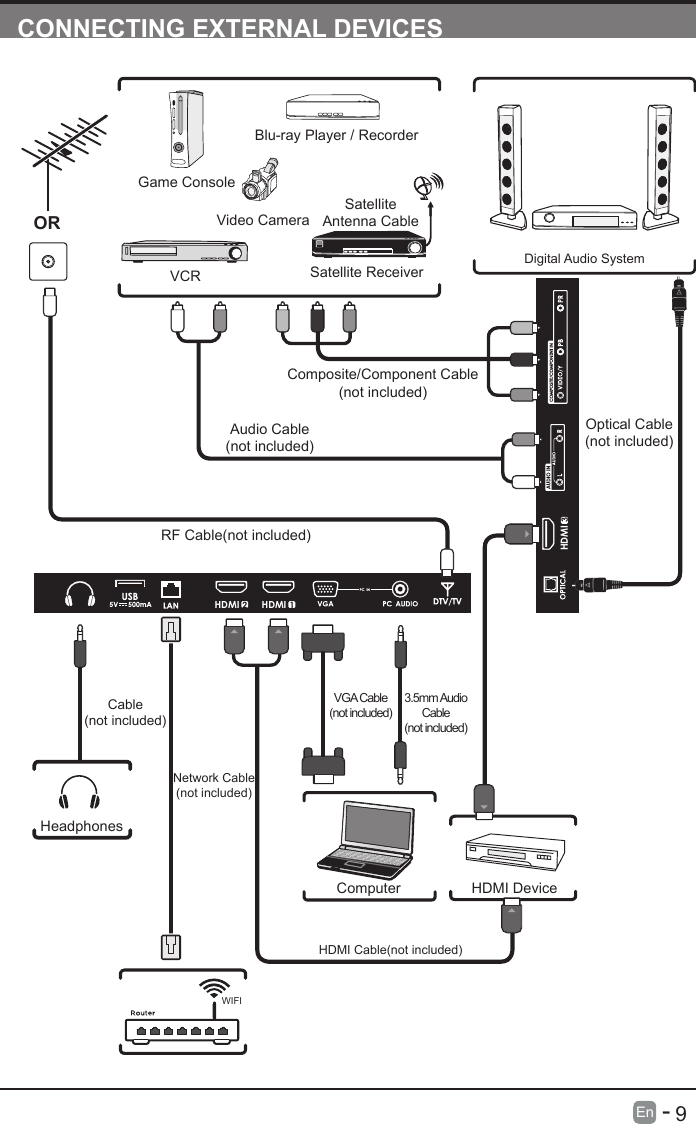

9En - CONNECTING EXTERNAL DEVICESRF Cable(not included)Audio Cable(not included)Composite/Component Cable(not included)Video CameraGame ConsoleBlu-ray Player / RecorderVCR Satellite ReceiverSatelliteAntenna CableORHDMI DeviceComputerDigital Audio SystemVGA Cable(not included)3.5mm Audio Cable(not included)HeadphonesCable(not included)HDMI Cable(not included)Optical Cable(not included)WIFINetwork Cable(not included)2HDMI 1HDMI3HDMI

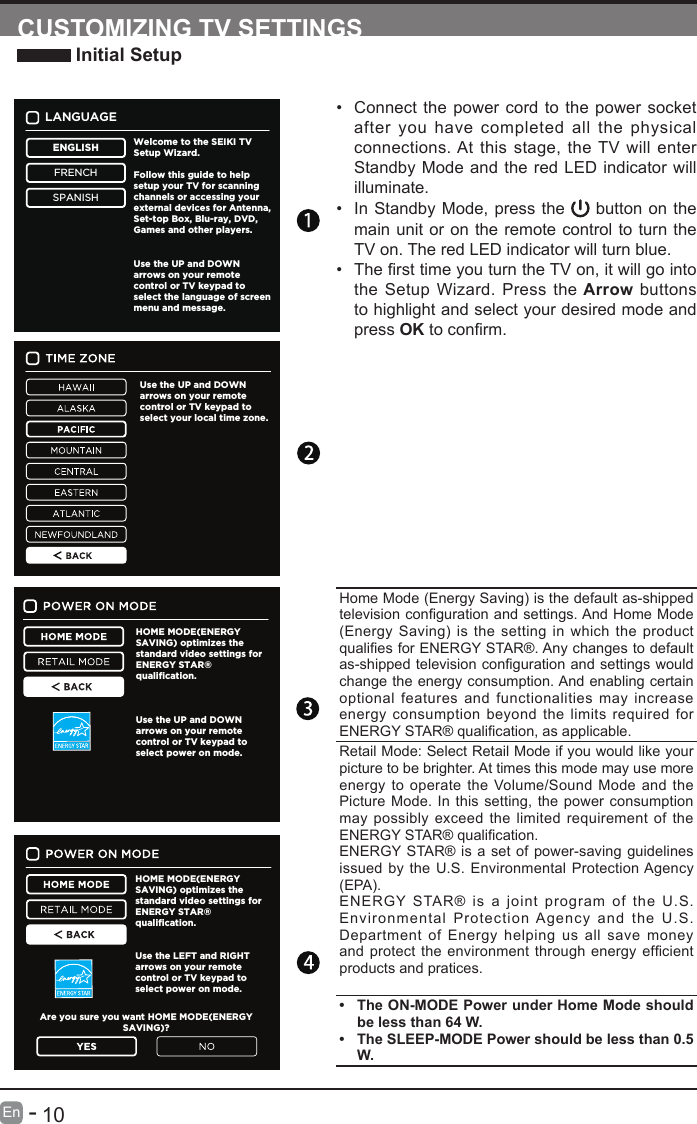

10En - • Connect the power cord to the power socket after you have completed all the physical connections. At this stage, the TV will enter Standby Mode and the red LED indicator will illuminate. • In Standby Mode, press the button on the main unit or on the remote control to turn the TV on. The red LED indicator will turn blue.• ThersttimeyouturntheTVon,itwillgointothe Setup Wizard. Press the Arrow buttons to highlight and select your desired mode and press OKtoconrm.CUSTOMIZING TV SETTINGS Initial SetupHome Mode (Energy Saving) is the default as-shipped televisioncongurationandsettings.AndHomeMode(Energy Saving) is the setting in which the product qualiesforENERGYSTAR®.Anychangestodefaultas-shippedtelevisioncongurationandsettingswouldchange the energy consumption. And enabling certain optional features and functionalities may increase energy consumption beyond the limits required for ENERGYSTAR®qualication,asapplicable.Retail Mode: Select Retail Mode if you would like your picture to be brighter. At times this mode may use more energy to operate the Volume/Sound Mode and the Picture Mode. In this setting, the power consumption may possibly exceed the limited requirement of the ENERGYSTAR®qualication.ENERGY STAR® is a set of power-saving guidelines issued by the U.S. Environmental Protection Agency (EPA).ENERGY STAR® is a joint program of the U.S. Environmental Protection Agency and the U.S. Department of Energy helping us all save money andprotect theenvironmentthroughenergy efcientproducts and pratices. • The ON-MODE Power under Home Mode should belessthan64W.• The SLEEP-MODE Power should be less than 0.5 W.LANGUAGEENGLISHFRENCHSPANISHWelcome to the SEIKI TV Setup Wizard.Follow this guide to helpsetup your TV for scanningchannels or accessing yourexternal devices for Antenna,Set-top Box, Blu-ray, DVD,Games and other players. Use the UP and DOWN arrows on your remote control or TV keypad to select the language of screen menu and message.Use the UP and DOWN arrows on your remote control or TV keypad to select your local time zone.HOME MODE(ENERGYSAVING) optimizes the standard video settings for ENERGY STAR®qualification.Use the UP and DOWNarrows on your remote control or TV keypad to select power on mode.HOME MODE(ENERGYSAVING) optimizes the standard video settings for ENERGY STAR®qualification.Use the LEFT and RIGHTarrows on your remote control or TV keypad to select power on mode.Are you sure you want HOME MODE(ENERGYSAVING)?
11En - CUSTOMIZING TV SETTINGS• If channels cannot be found, this frame will be displayed automatically. SOURCEHome Mode (Energy Saving) is the default as-shipped televisioncongurationandsettings.AndHomeMode(Energy Saving) is the setting in which the product qualiesforENERGYSTAR®.Anychangestodefaultas-shippedtelevisioncongurationandsettingswouldchange the energy consumption. And enabling certain optional features and functionalities may increase energy consumption beyond the limits required for ENERGYSTAR®qualication,asapplicable.Retail Mode: Select Retail Mode if you would like your picture to be brighter. At times this mode may use more energy to operate the Volume/Sound Mode and the Picture Mode. In this setting, the power consumption may possibly exceed the limited requirement of the ENERGYSTAR®qualication.ENERGY STAR® is a set of power-saving guidelines issued by the U.S. Environmental Protection Agency (EPA).ENERGY STAR® is a joint program of the U.S. Environmental Protection Agency and the U.S. Department of Energy helping us all save money andprotect theenvironmentthroughenergy efcientproducts and pratices. • The ON-MODE Power under Home Mode should belessthan64W.• The SLEEP-MODE Power should be less than 0.5 W.• Press SOURCE on the remote control or on the main unit to display the source menu, then use the Arrow buttons to cycle among the different input sources: TV/AV/COMPONENT/HDMI1/HDMI2/HDMI3/VGA/USB, then use the Arrow buttons to highlight the desired source and press OKtoconrm.SOURCETVAVCOMPONENTHDMI 1HDMI 2HDMI 3VGAUSBUse the UP and DOWN arrows on your remote control or TV keypad to select the channel scan type.RETURN TO SCAN CHANNELS PROGRAMCONNECT A GAME, BLU-RAY, DVD OR OTHER PLAYERSQUITFOUND785

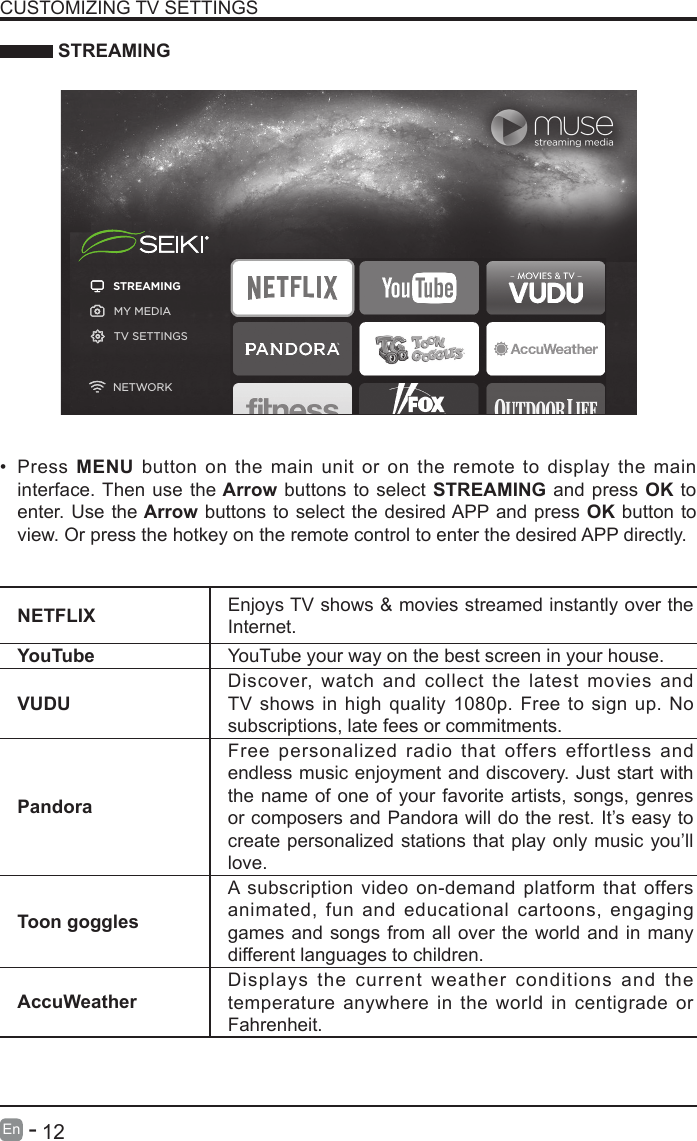

12En - STREAMINGNETFLIX Enjoys TV shows & movies streamed instantly over the Internet.YouTube YouTube your way on the best screen in your house.VUDUDiscover, watch and collect the latest movies and TV shows in high quality 1080p. Free to sign up. No subscriptions, late fees or commitments. PandoraFree personalized radio that offers effortless and endless music enjoyment and discovery. Just start with the name of one of your favorite artists, songs, genres or composers and Pandora will do the rest. It’s easy to create personalized stations that play only music you’ll love.Toon gogglesA subscription video on-demand platform that offers animated, fun and educational cartoons, engaging games and songs from all over the world and in many different languages to children.AccuWeatherDisplays the current weather conditions and the temperature anywhere in the world in centigrade or Fahrenheit.CUSTOMIZING TV SETTINGS• Press MENU button on the main unit or on the remote to display the main interface. Then use the Arrow buttons to select STREAMING and press OK to enter. Use the Arrow buttons to select the desired APP and press OK button to view. Or press the hotkey on the remote control to enter the desired APP directly.STREAMINGMY MEDIATV SETTINGSNETWORK

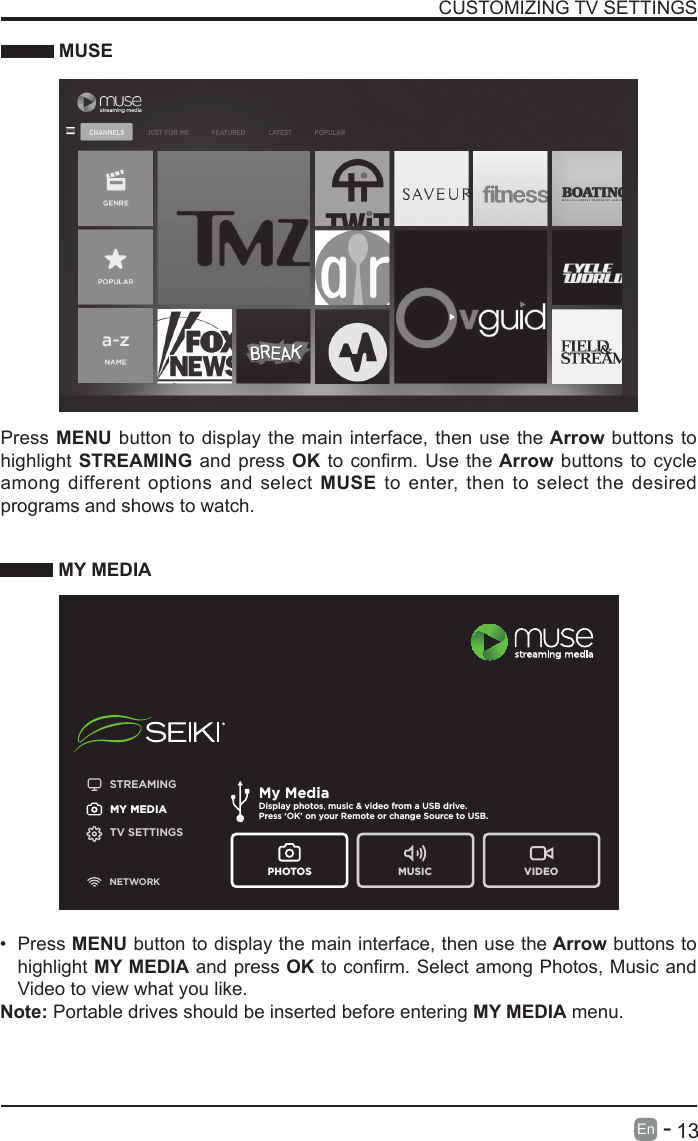

13En - CUSTOMIZING TV SETTINGS MUSEPress MENU button to display the main interface, then use the Arrow buttons to highlight STREAMING and press OKtoconrm.Usethe Arrow buttons to cycle among different options and select MUSE to enter, then to select the desired programs and shows to watch. MY MEDIA• Press MENU button to display the main interface, then use the Arrow buttons to highlight MY MEDIA and press OKtoconrm.SelectamongPhotos,MusicandVideo to view what you like. Note: Portable drives should be inserted before entering MY MEDIA menu.STREAMINGMY MEDIATV SETTINGSNETWORKMy MediaDisplay photos, music & video from a USB drive.Press ‘OK’ on your Remote or change Source to USB. PHOTOS MUSIC VIDEO

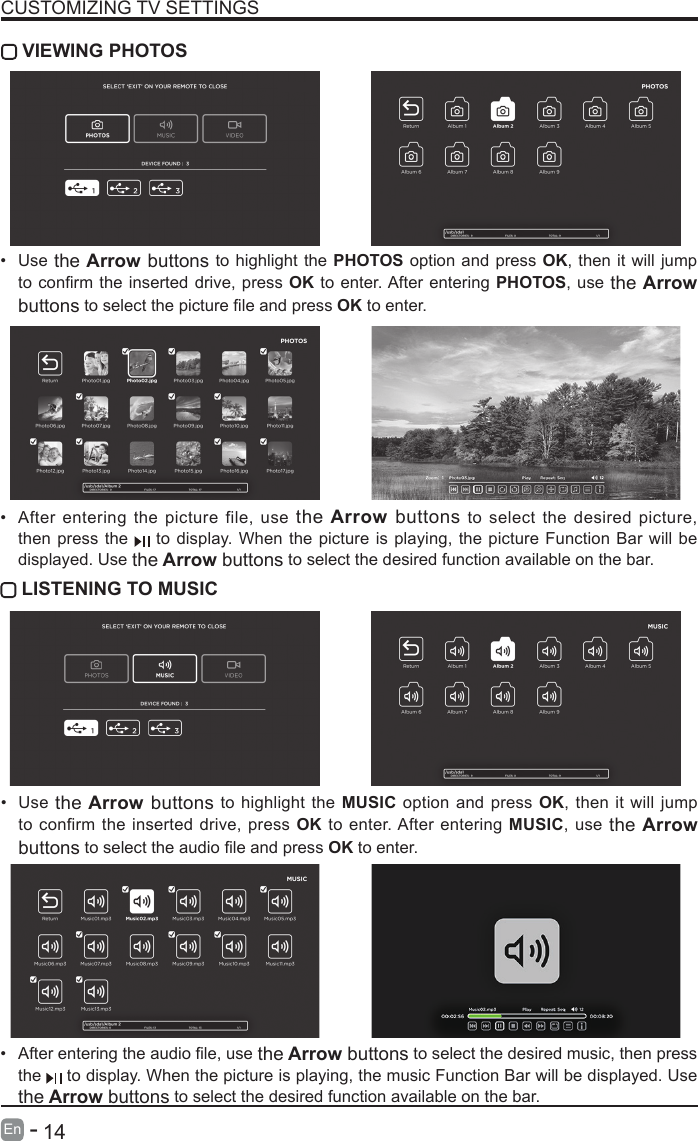

14En - CUSTOMIZING TV SETTINGS• After entering the picture file, use the Arrow buttons to select the desired picture, then press the to display. When the picture is playing, the picture Function Bar will be displayed. Use the Arrow buttons to select the desired function available on the bar. VIEWING PHOTOS• Afterenteringtheaudiole,usethe Arrow buttons to select the desired music, then press the to display. When the picture is playing, the music Function Bar will be displayed. Use the Arrow buttons to select the desired function available on the bar. LISTENING TO MUSIC• Use the Arrow buttons to highlight the PHOTOS option and press OK, then it will jump toconrmtheinserteddrive,pressOK to enter. After entering PHOTOS, use the Arrow buttonstoselectthepictureleandpressOK to enter.• Use the Arrow buttons to highlight the MUSIC option and press OK, then it will jump to confirm the inserted drive, press OK to enter. After entering MUSIC, use the Arrow buttonstoselecttheaudioleandpressOK to enter.

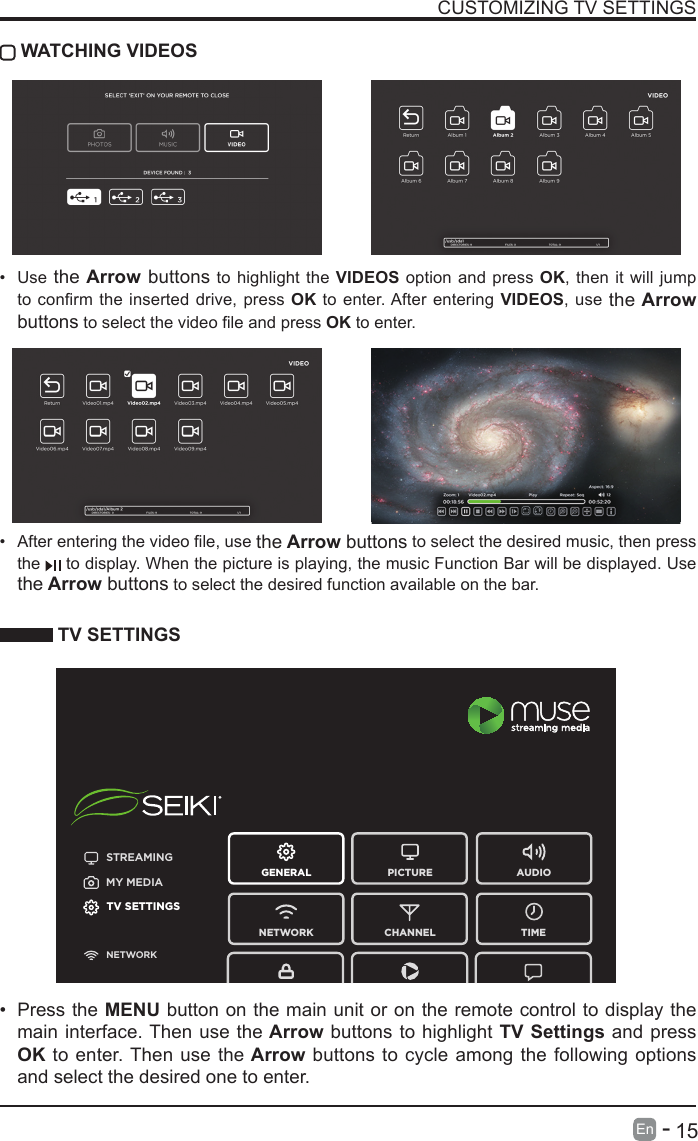

15En - CUSTOMIZING TV SETTINGS TV SETTINGS• Press the MENU button on the main unit or on the remote control to display the main interface. Then use the Arrow buttons to highlight TV Settings and press OK to enter. Then use the Arrow buttons to cycle among the following options and select the desired one to enter. • Afterenteringthevideole,usethe Arrow buttons to select the desired music, then press the to display. When the picture is playing, the music Function Bar will be displayed. Use the Arrow buttons to select the desired function available on the bar. WATCHING VIDEOSSTREAMINGGENERAL PICTURENETWORK CHANNEL TIMEAUDIOMY MEDIATV SETTINGSNETWORK• Use the Arrow buttons to highlight the VIDEOS option and press OK, then it will jump toconrmtheinserteddrive,pressOK to enter. After entering VIDEOS, use the Arrow buttonstoselectthevideoleandpressOK to enter.AB

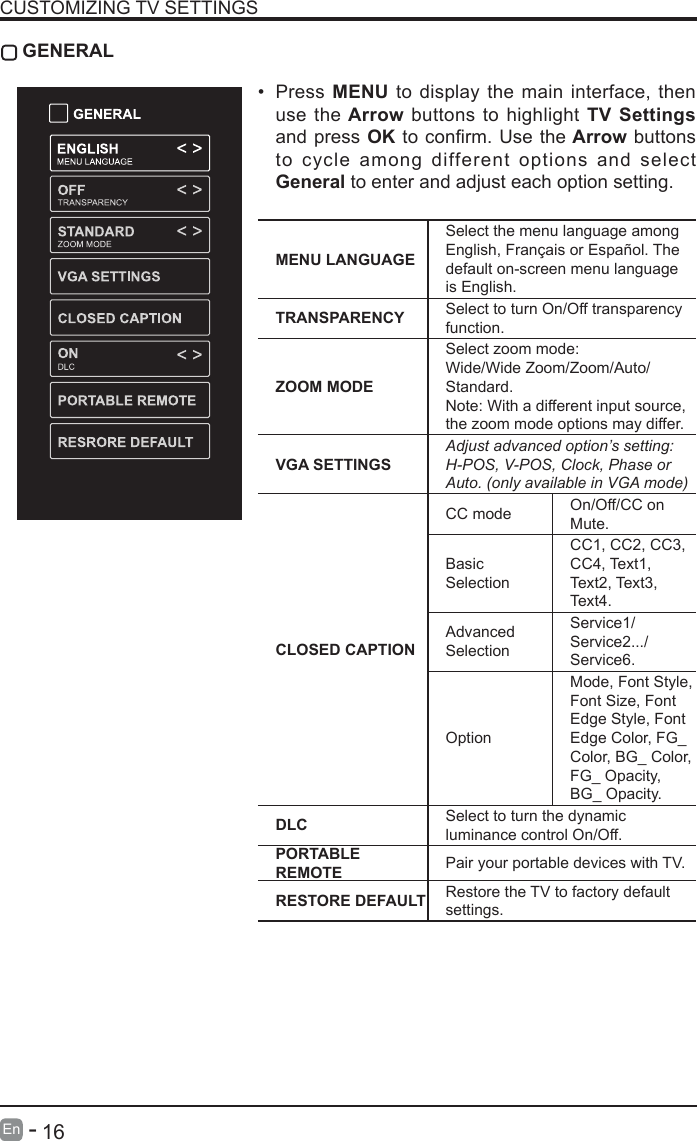

16En - CUSTOMIZING TV SETTINGS GENERAL• Press MENU to display the main interface, then use the Arrow buttons to highlight TV Settings and press OKtoconrm.Usethe Arrow buttons to cycle among different options and select General to enter and adjust each option setting. MENU LANGUAGESelect the menu language among English, Français or Español. The default on-screen menu language is English.TRANSPARENCY Select to turn On/Off transparency function.ZOOM MODESelect zoom mode: Wide/Wide Zoom/Zoom/Auto/Standard.Note: With a different input source, the zoom mode options may differ.VGA SETTINGSAdjust advanced option’s setting: H-POS, V-POS, Clock, Phase or Auto. (only available in VGA mode)CLOSED CAPTIONCC mode On/Off/CC on Mute.Basic SelectionCC1, CC2, CC3, CC4, Text1, Text2, Text3, Text4.Advanced SelectionService1/Service2.../Service6.OptionMode, Font Style, Font Size, Font Edge Style, Font Edge Color, FG_ Color, BG_ Color, FG_ Opacity, BG_ Opacity.DLC Select to turn the dynamic luminance control On/Off.PORTABLE REMOTE Pair your portable devices with TV.RESTORE DEFAULT Restore the TV to factory default settings.

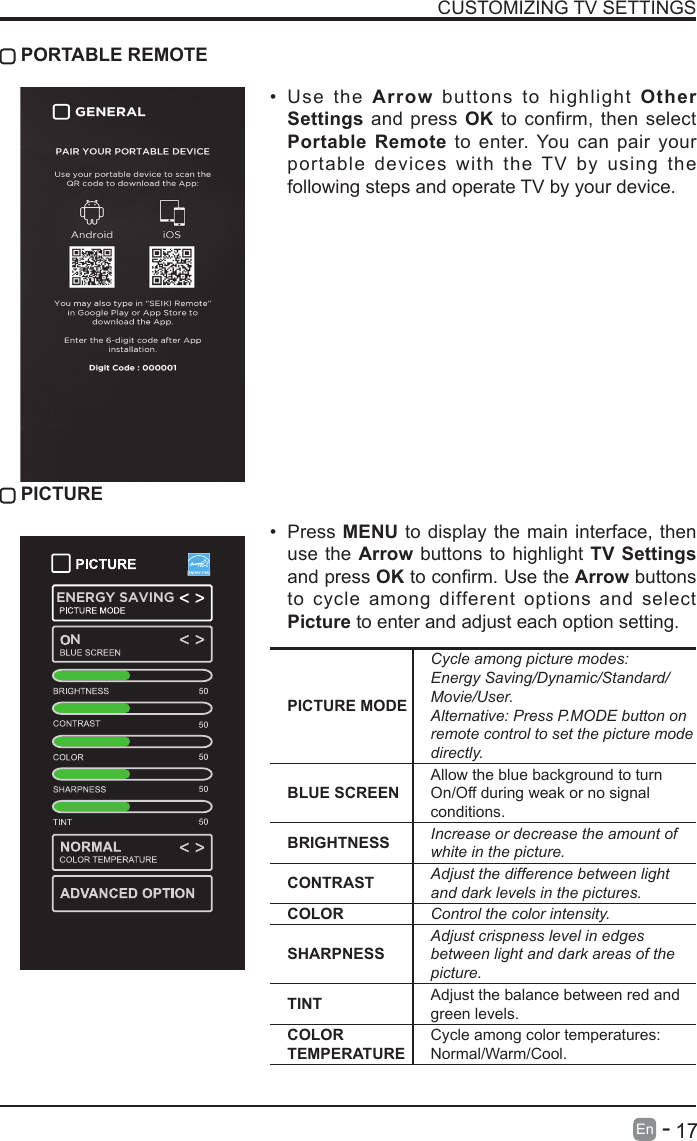

17En - CUSTOMIZING TV SETTINGS• Use the Arrow buttons to highlight Other Settings and press OK to confirm, then select Portable Remote to enter. You can pair your portable devices with the TV by using the following steps and operate TV by your device. PORTABLE REMOTE PICTUREPICTURE MODECycle among picture modes:Energy Saving/Dynamic/Standard/Movie/User.Alternative: Press P.MODE button on remote control to set the picture mode directly.BLUE SCREENAllow the blue background to turn On/Off during weak or no signal conditions.BRIGHTNESS Increase or decrease the amount of white in the picture.CONTRAST Adjust the difference between light and dark levels in the pictures.COLOR Control the color intensity.SHARPNESSAdjust crispness level in edges between light and dark areas of the picture.TINT Adjust the balance between red and green levels.COLOR TEMPERATURECycle among color temperatures: Normal/Warm/Cool.• Press MENU to display the main interface, then use the Arrow buttons to highlight TV Settings and press OKtoconrm.UsetheArrow buttons to cycle among different options and select Picture to enter and adjust each option setting. ENERGY SAVINGENERGY SAVINGENERGY SAVINGN

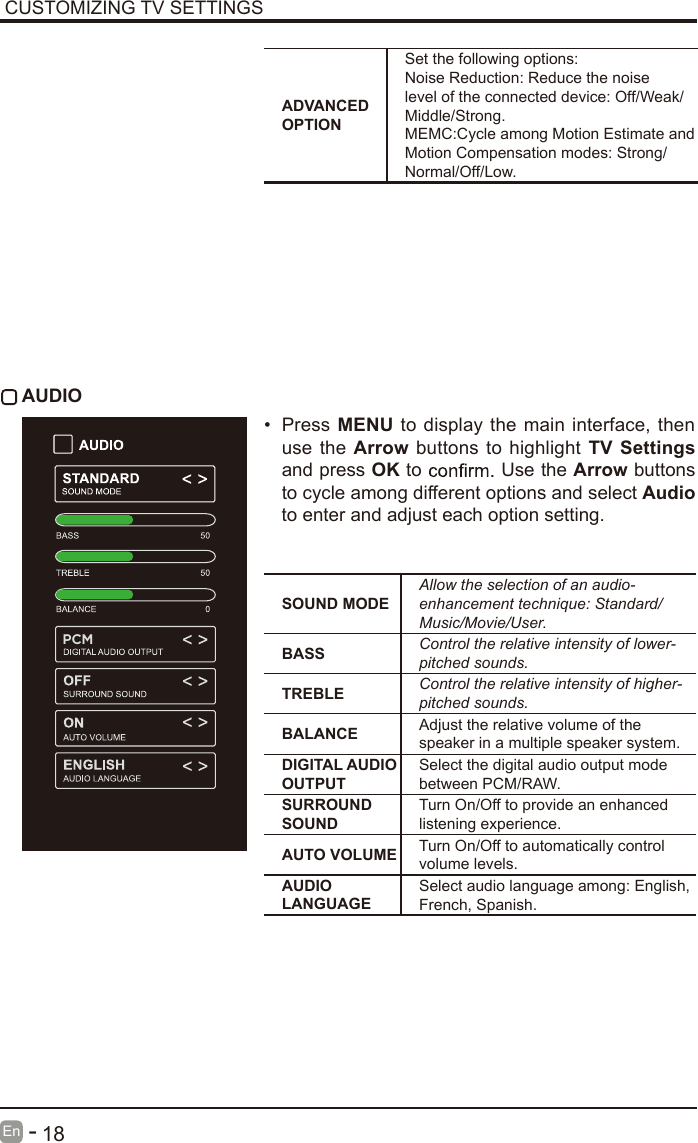

18En - AUDIOSOUND MODEAllow the selection of an audio-enhancement technique: Standard/Music/Movie/User.BASS Control the relative intensity of lower-pitched sounds.TREBLE Control the relative intensity of higher-pitched sounds.BALANCE Adjust the relative volume of the speaker in a multiple speaker system.DIGITAL AUDIO OUTPUTSelect the digital audio output mode between PCM/RAW.SURROUND SOUNDTurn On/Off to provide an enhanced listening experience.AUTO VOLUME Turn On/Off to automatically control volume levels.AUDIO LANGUAGESelect audio language among: English, French, Spanish.• Press MENU to display the main interface, then use the Arrow buttons to highlight TV Settings and press OK to Use the Arrow buttons to cycle among different options and select Audio to enter and adjust each option setting.CUSTOMIZING TV SETTINGSADVANCED OPTIONSet the following options:Noise Reduction: Reduce the noise level of the connected device: Off/Weak/Middle/Strong.MEMC:Cycle among Motion Estimate and Motion Compensation modes: Strong/ Normal/Off/Low.PCM

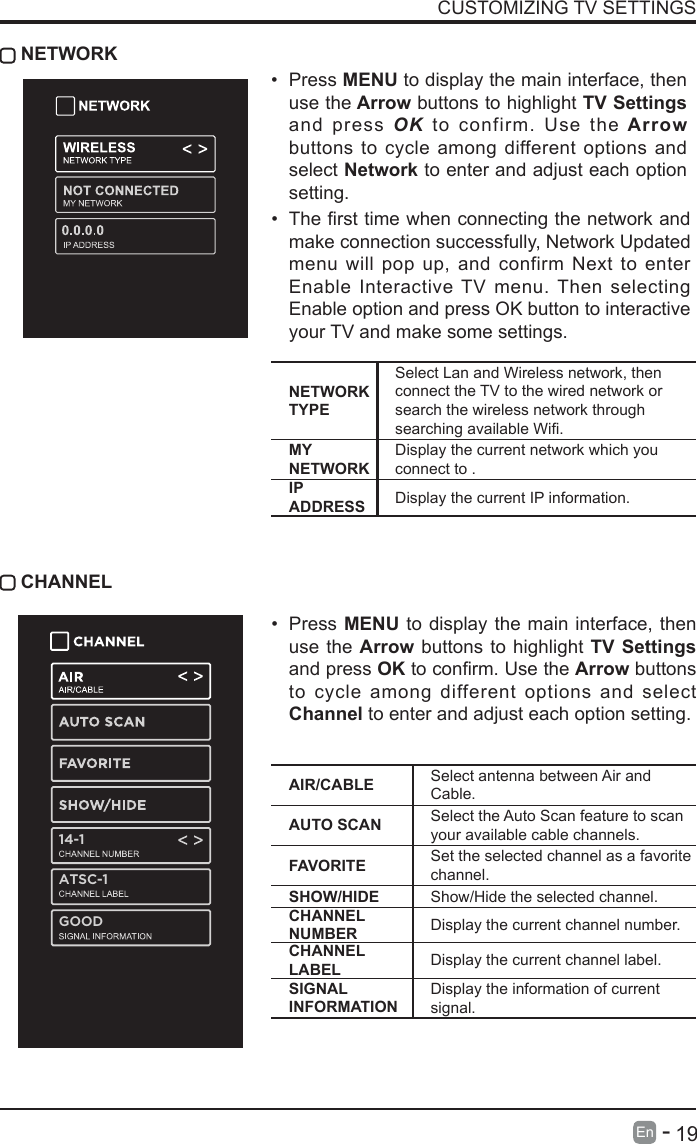

19En - CHANNELAIR/CABLE Select antenna between Air and Cable.AUTO SCAN Select the Auto Scan feature to scan your available cable channels.FAVORITE Set the selected channel as a favorite channel.SHOW/HIDE Show/Hide the selected channel.CHANNEL NUMBER Display the current channel number.CHANNEL LABEL Display the current channel label.SIGNAL INFORMATIONDisplay the information of current signal. NETWORKNETWORK TYPESelect Lan and Wireless network, then connect the TV to the wired network or search the wireless network through searchingavailableWi.MY NETWORKDisplay the current network which you connect to .IP ADDRESS Display the current IP information.• Press MENU to display the main interface, then use the Arrow buttons to highlight TV Settings and press OK to confirm. Use the Arrow buttons to cycle among different options and select Network to enter and adjust each option setting.• Press MENU to display the main interface, then use the Arrow buttons to highlight TV Settings and press OKtoconrm.UsetheArrow buttons to cycle among different options and select Channel to enter and adjust each option setting.• Thersttimewhenconnectingthenetworkandmake connection successfully, Network Updated menu will pop up, and confirm Next to enter Enable Interactive TV menu. Then selecting Enable option and press OK button to interactive your TV and make some settings.CUSTOMIZING TV SETTINGS14-1ATSC-1GOOD

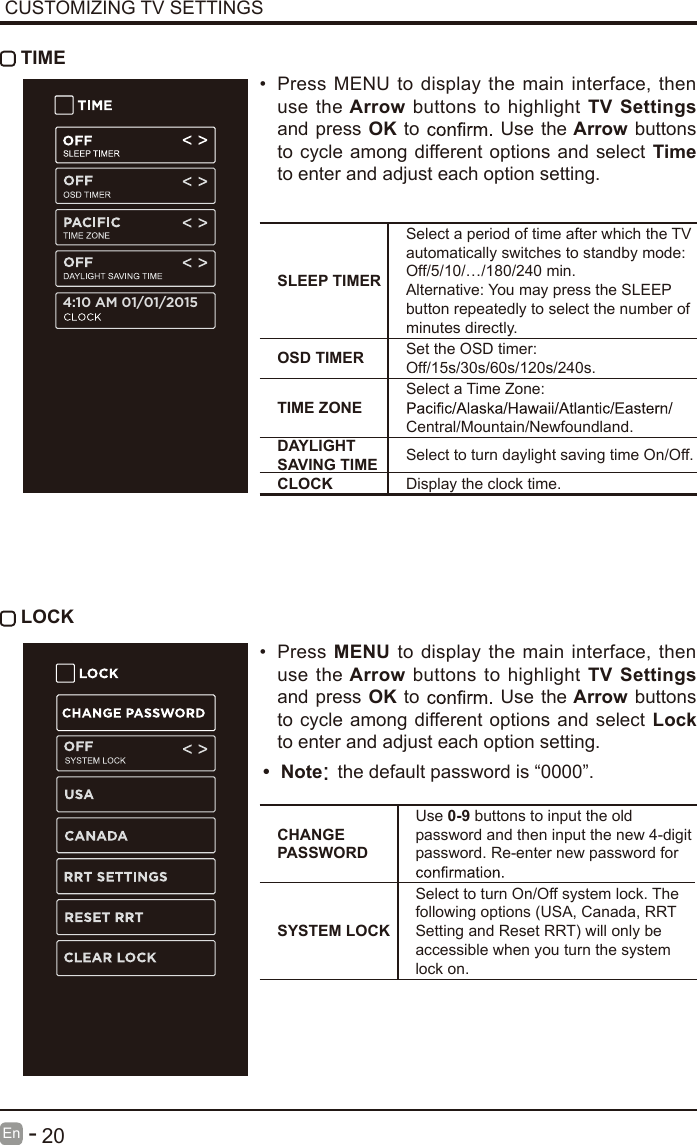

20En - LOCKCUSTOMIZING TV SETTINGS TIME• Press MENU to display the main interface, then use the Arrow buttons to highlight TV Settings and press OK to Use the Arrow buttons to cycle among different options and select Time to enter and adjust each option setting.SLEEP TIMERSelect a period of time after which the TV automatically switches to standby mode:Off/5/10/…/180/240 min. Alternative: You may press the SLEEP button repeatedly to select the number of minutes directly.OSD TIMER Set the OSD timer: Off/15s/30s/60s/120s/240s.TIME ZONESelect a Time Zone: Central/Mountain/Newfoundland.DAYLIGHT SAVING TIME Select to turn daylight saving time On/Off.CLOCK Display the clock time.• Press MENU to display the main interface, then use the Arrow buttons to highlight TV Settings and press OK to Use the Arrow buttons to cycle among different options and select Lock to enter and adjust each option setting.CHANGE PASSWORDUse 0-9 buttons to input the old password and then input the new 4-digit password. Re-enter new password for SYSTEM LOCKSelect to turn On/Off system lock. The following options (USA, Canada, RRT Setting and Reset RRT) will only be accessible when you turn the system lock on.4:10 AM 01/01/2015• Note: the default password is “0000”.

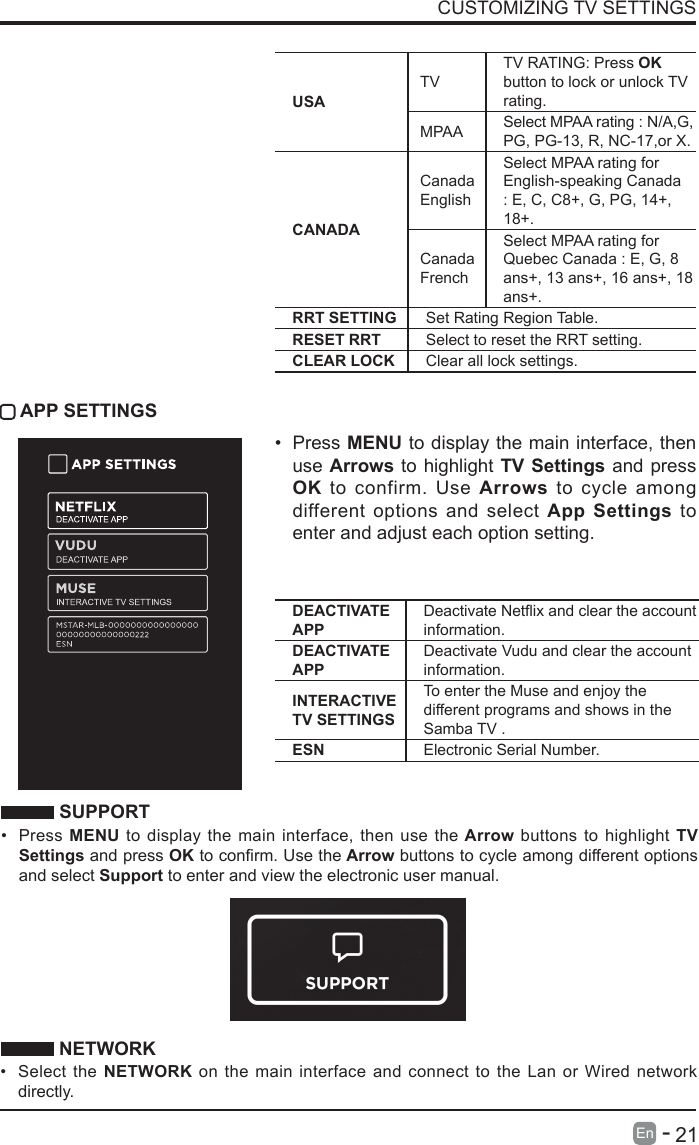

21En - USATVTV RATING: Press OK button to lock or unlock TV rating.MPAA Select MPAA rating : N/A,G, PG, PG-13, R, NC-17,or X.CANADACanada EnglishSelect MPAA rating for English-speaking Canada : E, C, C8+, G, PG, 14+, 18+.Canada FrenchSelect MPAA rating for Quebec Canada : E, G, 8 ans+, 13 ans+, 16 ans+, 18 ans+.RRT SETTING Set Rating Region Table.RESET RRT Select to reset the RRT setting.CLEAR LOCK Clear all lock settings. CUSTOMIZING TV SETTINGS APP SETTINGS• Press MENU to display the main interface, then use Arrows to highlight TV Settings and press OK to confirm. Use Arrows to cycle among different options and select App Settings to enter and adjust each option setting.DEACTIVATE APPDeactivateNetixandcleartheaccountinformation.DEACTIVATE APPDeactivate Vudu and clear the account information.INTERACTIVE TV SETTINGSTo enter the Muse and enjoy the different programs and shows in the Samba TV .ESN Electronic Serial Number. SUPPORT• Press MENU to display the main interface, then use the Arrow buttons to highlight TV Settings and press OKtoconrm.Usethe Arrow buttons to cycle among different options and select Support to enter and view the electronic user manual. NETWORK• Select the NETWORK on the main interface and connect to the Lan or Wired network directly.

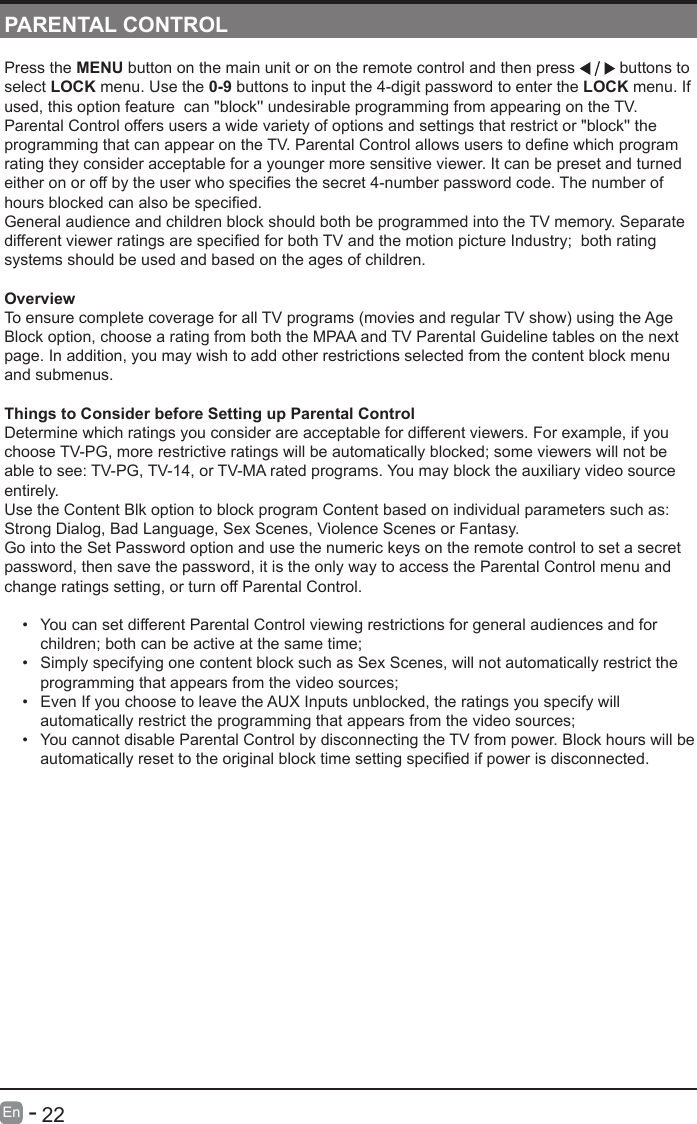

22En - PARENTAL CONTROLPress the MENU button on the main unit or on the remote control and then press buttons to select LOCK menu. Use the 0-9 buttons to input the 4-digit password to enter the LOCK menu. If used, this option feature can "block'' undesirable programming from appearing on the TV. Parental Control offers users a wide variety of options and settings that restrict or "block'' the programmingthatcanappearontheTV.ParentalControlallowsuserstodenewhichprogramrating they consider acceptable for a younger more sensitive viewer. It can be preset and turned eitheronoroffbytheuserwhospeciesthesecret4-numberpasswordcode.Thenumberofhoursblockedcanalsobespecied.General audience and children block should both be programmed into the TV memory. Separate differentviewerratingsarespeciedforbothTVandthemotionpictureIndustry;bothratingsystems should be used and based on the ages of children.OverviewTo ensure complete coverage for all TV programs (movies and regular TV show) using the Age Block option, choose a rating from both the MPAA and TV Parental Guideline tables on the next page. In addition, you may wish to add other restrictions selected from the content block menu and submenus. Things to Consider before Setting up Parental ControlDetermine which ratings you consider are acceptable for different viewers. For example, if you choose TV-PG, more restrictive ratings will be automatically blocked; some viewers will not be able to see: TV-PG, TV-14, or TV-MA rated programs. You may block the auxiliary video source entirely. Use the Content Blk option to block program Content based on individual parameters such as: Strong Dialog, Bad Language, Sex Scenes, Violence Scenes or Fantasy.Go into the Set Password option and use the numeric keys on the remote control to set a secret password, then save the password, it is the only way to access the Parental Control menu and change ratings setting, or turn off Parental Control.• You can set different Parental Control viewing restrictions for general audiences and for children; both can be active at the same time;• Simply specifying one content block such as Sex Scenes, will not automatically restrict the programming that appears from the video sources;• Even If you choose to leave the AUX Inputs unblocked, the ratings you specify will automatically restrict the programming that appears from the video sources;• You cannot disable Parental Control by disconnecting the TV from power. Block hours will be automaticallyresettotheoriginalblocktimesettingspeciedifpowerisdisconnected.

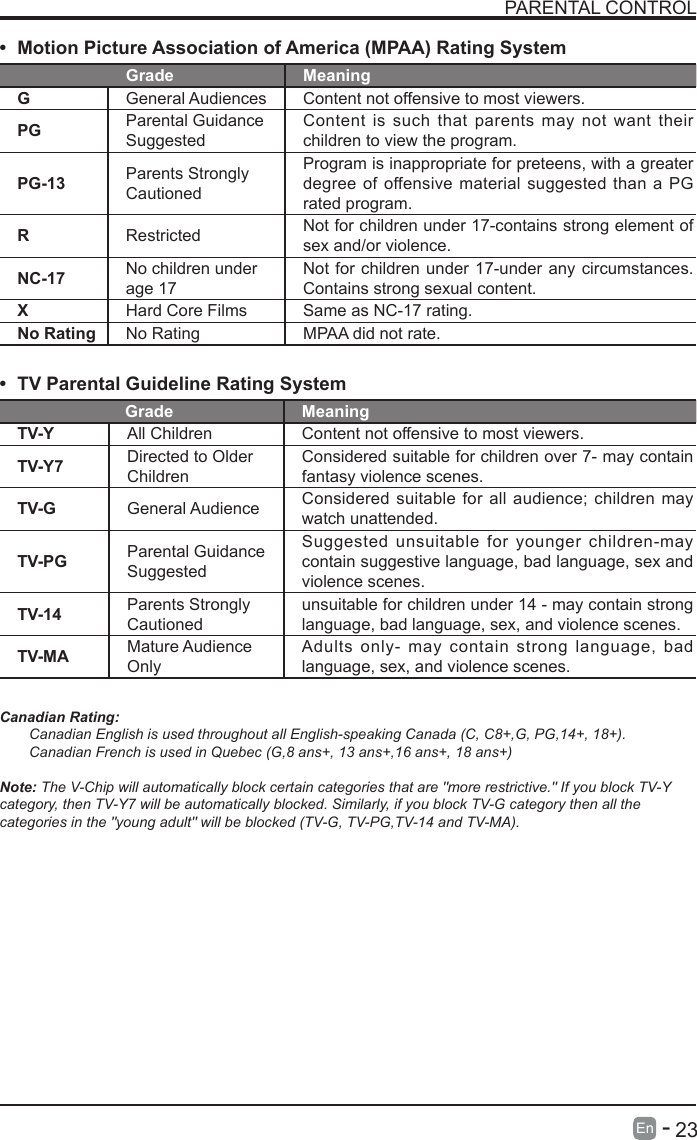

23En - PARENTAL CONTROL• Motion Picture Association of America (MPAA) Rating SystemGrade MeaningGGeneral Audiences Content not offensive to most viewers.PG Parental Guidance SuggestedContent is such that parents may not want their children to view the program.PG-13 Parents Strongly CautionedProgram is inappropriate for preteens, with a greater degree of offensive material suggested than a PG rated program.RRestricted Not for children under 17-contains strong element of sex and/or violence.NC-17 No children under age 17Not for children under 17-under any circumstances. Contains strong sexual content.XHard Core Films Same as NC-17 rating.No Rating No Rating MPAA did not rate.• TV Parental Guideline Rating System Grade MeaningTV-Y All Children Content not offensive to most viewers.TV-Y7 Directed to Older ChildrenConsidered suitable for children over 7- may contain fantasy violence scenes.TV-G General Audience Considered suitable for all audience; children may watch unattended.TV-PG Parental Guidance SuggestedSuggested unsuitable for younger children-may contain suggestive language, bad language, sex and violence scenes.TV-14 Parents Strongly Cautionedunsuitable for children under 14 - may contain strong language, bad language, sex, and violence scenes.TV-MA Mature Audience OnlyAdults only- may contain strong language, bad language, sex, and violence scenes.Canadian Rating:Canadian English is used throughout all English-speaking Canada (C, C8+,G, PG,14+, 18+).Canadian French is used in Quebec (G,8 ans+, 13 ans+,16 ans+, 18 ans+)Note: The V-Chip will automatically block certain categories that are "more restrictive." If you block TV-Ycategory, then TV-Y7 will be automatically blocked. Similarly, if you block TV-G category then all thecategories in the "young adult" will be blocked (TV-G, TV-PG,TV-14 and TV-MA).

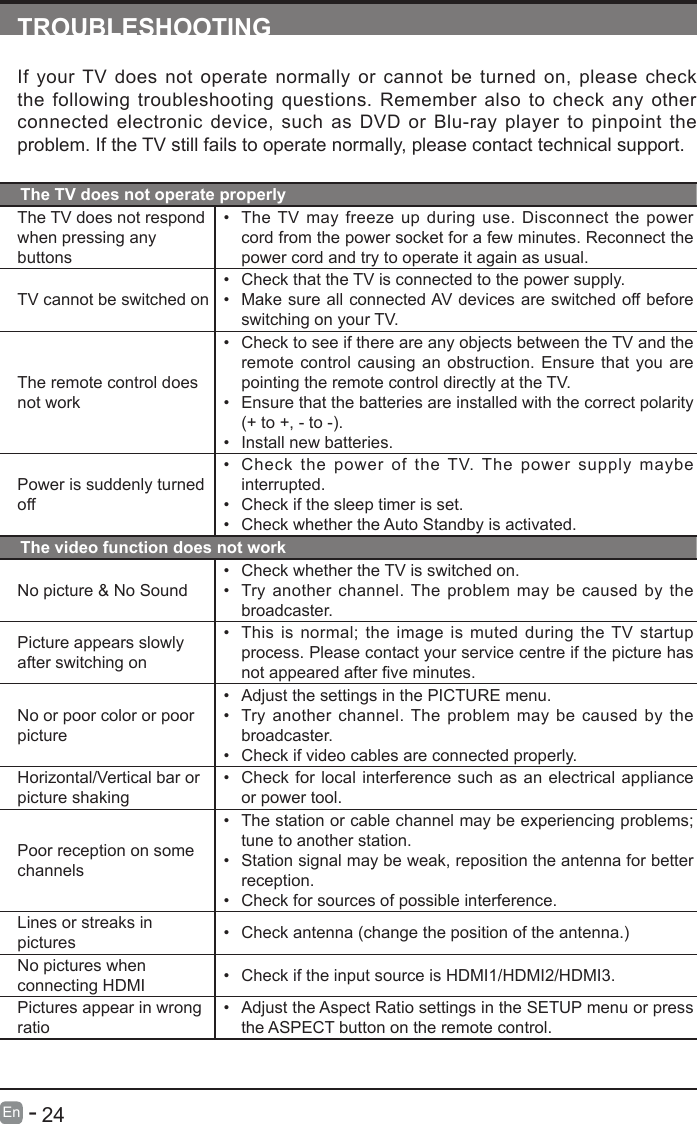

24En - TROUBLESHOOTINGIf your TV does not operate normally or cannot be turned on, please check the following troubleshooting questions. Remember also to check any other connected electronic device, such as DVD or Blu-ray player to pinpoint the problem. If the TV still fails to operate normally, please contact technical support.The TV does not operate properlyThe TV does not respond when pressing any buttons• The TV may freeze up during use. Disconnect the power cord from the power socket for a few minutes. Reconnect the power cord and try to operate it again as usual.TV cannot be switched on• Check that the TV is connected to the power supply.• Make sure all connected AV devices are switched off before switching on your TV.The remote control does not work• Check to see if there are any objects between the TV and the remote control causing an obstruction. Ensure that you are pointing the remote control directly at the TV.• Ensure that the batteries are installed with the correct polarity (+ to +, - to -). • Install new batteries. Power is suddenly turned off• Check the power of the TV. The power supply maybe interrupted.• Check if the sleep timer is set.• Check whether the Auto Standby is activated. The video function does not workNo picture & No Sound• Check whether the TV is switched on.• Try another channel. The problem may be caused by the broadcaster.Picture appears slowly after switching on• This is normal; the image is muted during the TV startup process. Please contact your service centre if the picture has notappearedafterveminutes.No or poor color or poor picture• Adjust the settings in the PICTURE menu.• Try another channel. The problem may be caused by the broadcaster.• Check if video cables are connected properly.Horizontal/Vertical bar or picture shaking• Check for local interference such as an electrical appliance or power tool.Poor reception on some channels• The station or cable channel may be experiencing problems; tune to another station.• Station signal may be weak, reposition the antenna for better reception.• Check for sources of possible interference.Lines or streaks in pictures • Check antenna (change the position of the antenna.)No pictures when connecting HDMI • Check if the input source is HDMI1/HDMI2/HDMI3.Pictures appear in wrong ratio• Adjust the Aspect Ratio settings in the SETUP menu or press the ASPECT button on the remote control.

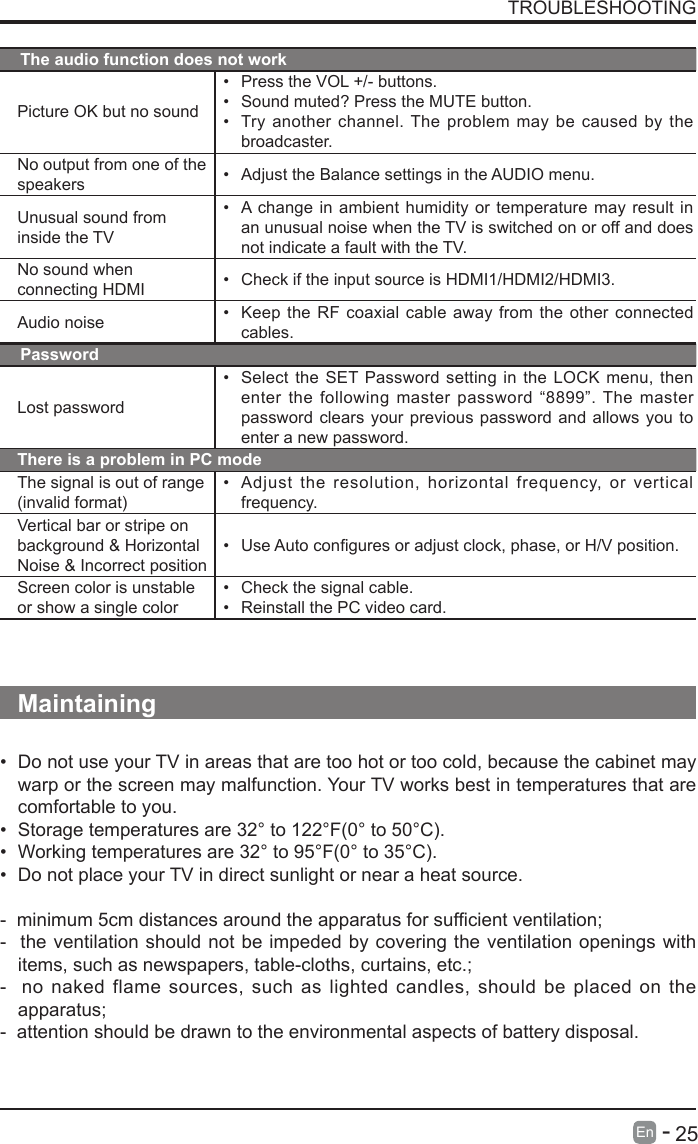

25En - TROUBLESHOOTINGThe audio function does not workPicture OK but no sound• Press the VOL +/- buttons.• Sound muted? Press the MUTE button.• Try another channel. The problem may be caused by the broadcaster.No output from one of the speakers • Adjust the Balance settings in the AUDIO menu.Unusual sound from inside the TV• A change in ambient humidity or temperature may result in an unusual noise when the TV is switched on or off and does not indicate a fault with the TV. No sound when connecting HDMI • Check if the input source is HDMI1/HDMI2/HDMI3.Audio noise • Keep the RF coaxial cable away from the other connected cables.PasswordLost password• Select the SET Password setting in the LOCK menu, then enter the following master password “8899”. The master password clears your previous password and allows you to enter a new password.There is a problem in PC modeThe signal is out of range (invalid format)• Adjust the resolution, horizontal frequency, or vertical frequency.Vertical bar or stripe on background & Horizontal Noise & Incorrect position• UseAutoconguresoradjustclock,phase,orH/Vposition.Screen color is unstable or show a single color• Check the signal cable.• Reinstall the PC video card.Maintaining• Do not use your TV in areas that are too hot or too cold, because the cabinet may warp or the screen may malfunction. Your TV works best in temperatures that are comfortable to you.• Storage temperatures are 32° to 122°F(0° to 50°C).• Working temperatures are 32° to 95°F(0° to 35°C).• Do not place your TV in direct sunlight or near a heat source.-minimum5cmdistancesaroundtheapparatusforsufcientventilation;- the ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, table-cloths, curtains, etc.;- no naked flame sources, such as lighted candles, should be placed on the apparatus;- attention should be drawn to the environmental aspects of battery disposal.

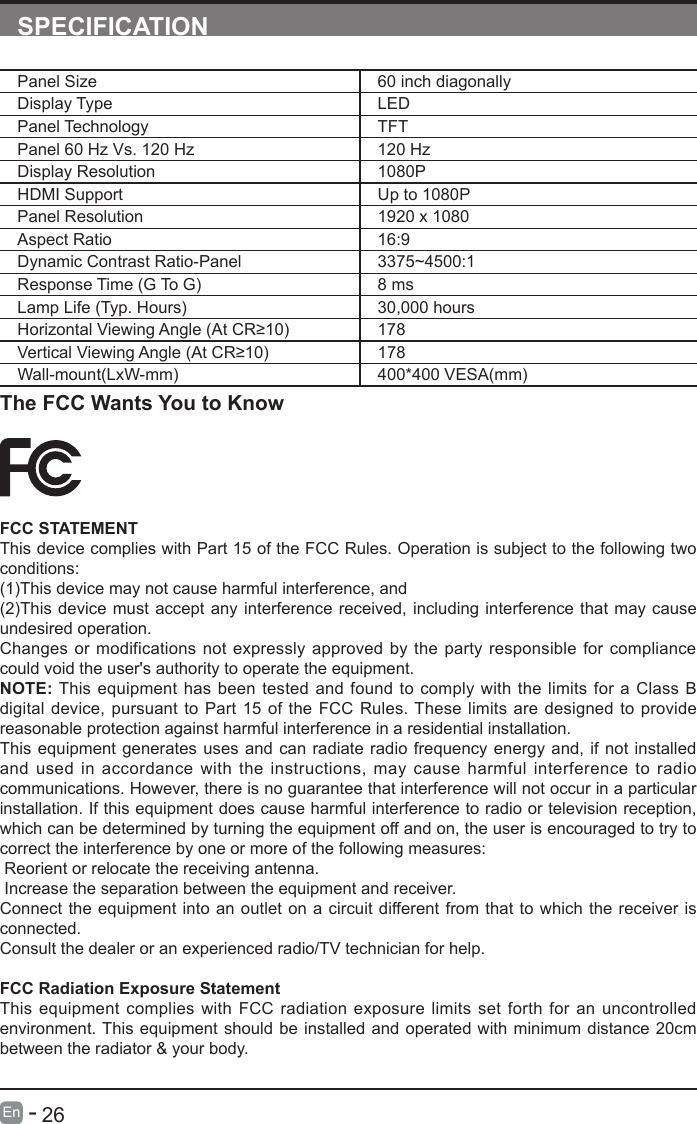

26En - SPECIFICATIONPanel Size 60 inch diagonally Display Type LEDPanel Technology TFTPanel 60 Hz Vs. 120 Hz 120 HzDisplay Resolution 1080PHDMI Support Up to 1080PPanel Resolution 1920 x 1080Aspect Ratio 16:9Dynamic Contrast Ratio-Panel 3375~4500:1 Response Time (G To G) 8 msLamp Life (Typ. Hours) 30,000 hoursHorizontalViewingAngle(AtCR≥10) 178VerticalViewingAngle(AtCR≥10) 178Wall-mount(LxW-mm) 400*400 VESA(mm)The FCC Wants You to KnowFCC STATEMENTThis device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1)This device may not cause harmful interference, and(2)This device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver.Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.Consult the dealer or an experienced radio/TV technician for help.FCC Radiation Exposure StatementThis equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

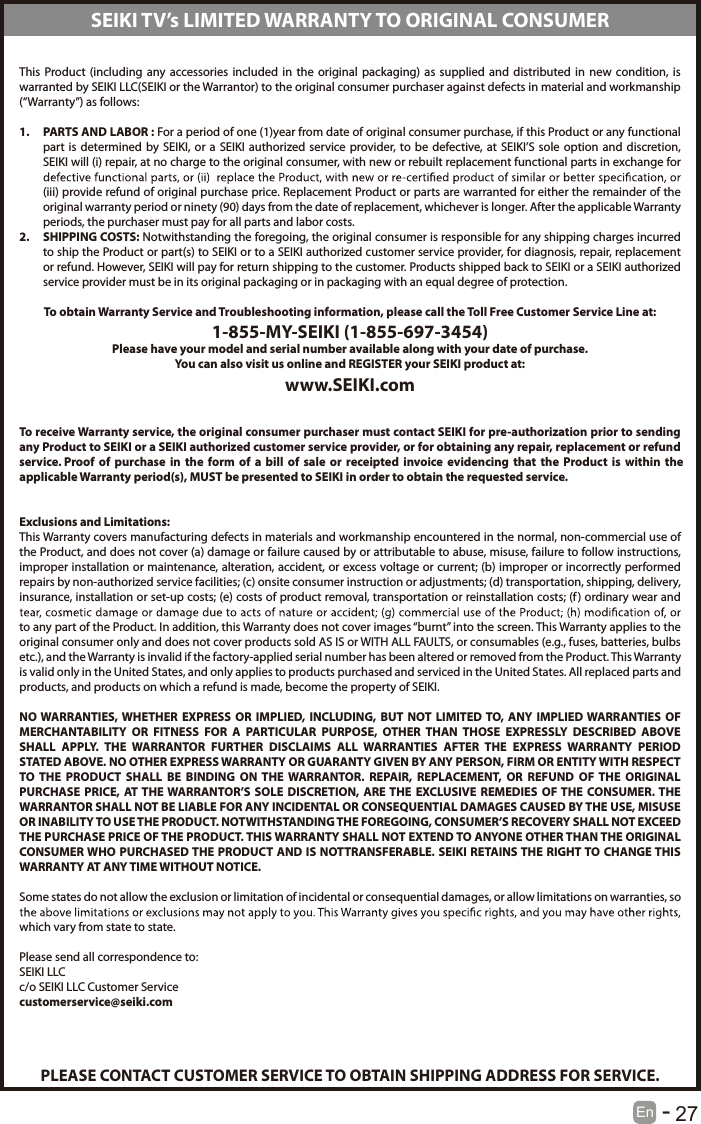

27En - This Product (including any accessories included in the original packaging) as supplied and distributed in new condition, is warranted by SEIKI LLC(SEIKI or the Warrantor) to the original consumer purchaser against defects in material and workmanship (“Warranty”) as follows:1. PARTS AND LABOR : For a period of one (1)year from date of original consumer purchase, if this Product or any functional part is determined by SEIKI, or a SEIKI authorized service provider, to be defective, at SEIKI’S sole option and discretion, SEIKI will (i) repair, at no charge to the original consumer, with new or rebuilt replacement functional parts in exchange for (iii) provide refund of original purchase price. Replacement Product or parts are warranted for either the remainder of the original warranty period or ninety (90) days from the date of replacement, whichever is longer. After the applicable Warranty periods, the purchaser must pay for all parts and labor costs.2. SHIPPING COSTS: Notwithstanding the foregoing, the original consumer is responsible for any shipping charges incurred to ship the Product or part(s) to SEIKI or to a SEIKI authorized customer service provider, for diagnosis, repair, replacement or refund. However, SEIKI will pay for return shipping to the customer. Products shipped back to SEIKI or a SEIKI authorized service provider must be in its original packaging or in packaging with an equal degree of protection. To obtain Warranty Service and Troubleshooting information, please call the Toll Free Customer Service Line at:1-855-MY-SEIKI (1-855-697-3454)Please have your model and serial number available along with your date of purchase.You can also visit us online and REGISTER your SEIKI product at:www.SEIKI.com To receive Warranty service, the original consumer purchaser must contact SEIKI for pre-authorization prior to sending any Product to SEIKI or a SEIKI authorized customer service provider, or for obtaining any repair, replacement or refund service. Proof of purchase in the form of a bill of sale or receipted invoice evidencing that the Product is within the applicable Warranty period(s), MUST be presented to SEIKI in order to obtain the requested service. Exclusions and Limitations:This Warranty covers manufacturing defects in materials and workmanship encountered in the normal, non-commercial use of the Product, and does not cover (a) damage or failure caused by or attributable to abuse, misuse, failure to follow instructions, improper installation or maintenance, alteration, accident, or excess voltage or current; (b) improper or incorrectly performed repairs by non-authorized service facilities; (c) onsite consumer instruction or adjustments; (d) transportation, shipping, delivery, insurance, installation or set-up costs; (e) costs of product removal, transportation or reinstallation costs; (f) ordinary wear and to any part of the Product. In addition, this Warranty does not cover images “burnt” into the screen. This Warranty applies to the original consumer only and does not cover products sold AS IS or WITH ALL FAULTS, or consumables (e.g., fuses, batteries, bulbs etc.), and the Warranty is invalid if the factory-applied serial number has been altered or removed from the Product. This Warranty is valid only in the United States, and only applies to products purchased and serviced in the United States. All replaced parts and products, and products on which a refund is made, become the property of SEIKI. NO WARRANTIES, WHETHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, OTHER THAN THOSE EXPRESSLY DESCRIBED ABOVE SHALL APPLY. THE WARRANTOR FURTHER DISCLAIMS ALL WARRANTIES AFTER THE EXPRESS WARRANTY PERIOD STATED ABOVE. NO OTHER EXPRESS WARRANTY OR GUARANTY GIVEN BY ANY PERSON, FIRM OR ENTITY WITH RESPECT TO THE PRODUCT SHALL BE BINDING ON THE WARRANTOR. REPAIR, REPLACEMENT, OR REFUND OF THE ORIGINAL PURCHASE PRICE, AT THE WARRANTOR’S SOLE DISCRETION, ARE THE EXCLUSIVE REMEDIES OF THE CONSUMER. THE WARRANTOR SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES CAUSED BY THE USE, MISUSE OR INABILITY TO USE THE PRODUCT. NOTWITHSTANDING THE FOREGOING, CONSUMER’S RECOVERY SHALL NOT EXCEED THE PURCHASE PRICE OF THE PRODUCT. THIS WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE ORIGINAL CONSUMER WHO PURCHASED THE PRODUCT AND IS NOTTRANSFERABLE. SEIKI RETAINS THE RIGHT TO CHANGE THIS WARRANTY AT ANY TIME WITHOUT NOTICE. Some states do not allow the exclusion or limitation of incidental or consequential damages, or allow limitations on warranties, so which vary from state to state. Please send all correspondence to:SEIKI LLCc/o SEIKI LLC Customer Servicecustomerservice@seiki.comPLEASE CONTACT CUSTOMER SERVICE TO OBTAIN SHIPPING ADDRESS FOR SERVICE.SEIKI TV’s LIMITED WARRANTY TO ORIGINAL CONSUMER

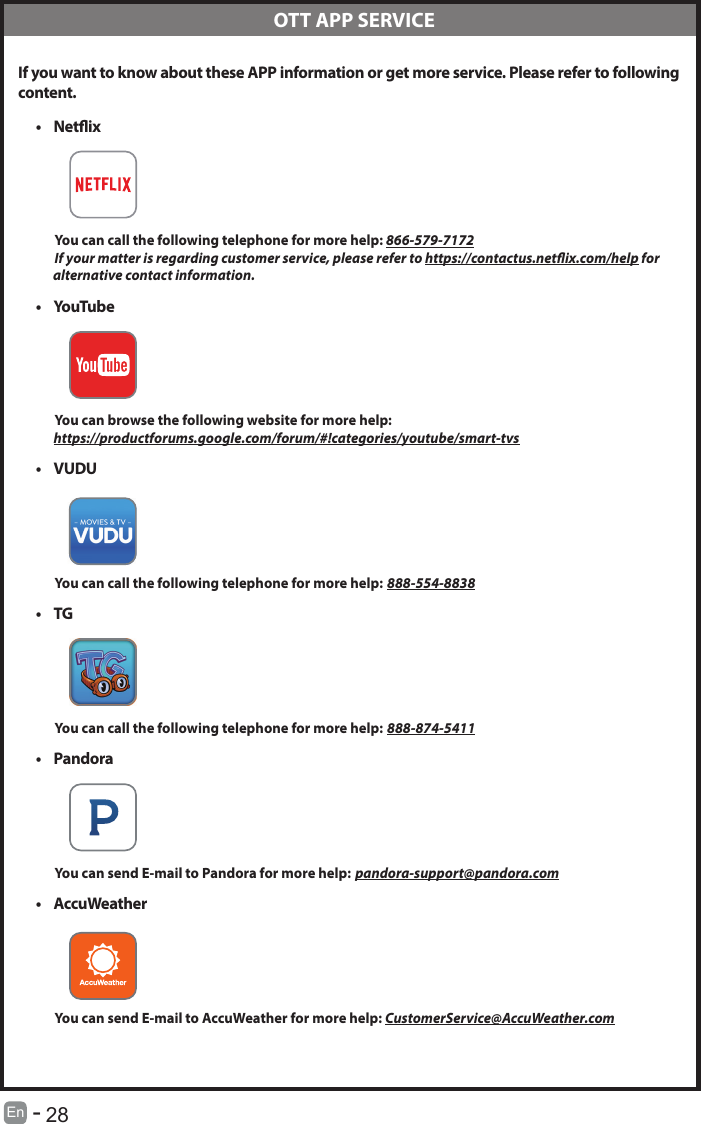

28En - OTT APP SERVICE If you want to know about these APP information or get more service. Please refer to following content.• Netix You can call the following telephone for more help: 866-579-7172 If your matter is regarding customer service, please refer to https://contactus.netix.com/help for alternative contact information.• YouTube You can browse the following website for more help: https://productforums.google.com/forum/#!categories/youtube/smart-tvs• VUDU You can call the following telephone for more help: 888-554-8838• TG You can call the following telephone for more help: 888-874-5411• Pandora You can send E-mail to Pandora for more help: pandora-support@pandora.com• AccuWeather You can send E-mail to AccuWeather for more help: CustomerService@AccuWeather.com
