Shenyang Tongfang Multimedia Technology SE65UPC4T LED TV User Manual

Shenyang Tongfang Multimedia Technology Co., Limited LED TV Users Manual

Users Manual

1
En -
CONTENTS
Important Safety Instructions 2
Safety Information 3
Preparation 4
What's Included 4
Front View 5
Rear View 6
Installing the Stand 7
Removing the Stand for Wall-Mounting 7
Wall-Mounting Screws 7
Remote Control 8
Connecting External Devices 9
Customizing TV Settings 10
Initial Setup 10
Source 11
Streaming 12
Muse 13
My Media 13
Viewing Photos 14
Listening to Music 14
Watching Videos 15
TV Settings 15
General 16
Portable remote 17
Picture 17
Audio 18
Network 19
Channel 19
Time 20
Lock 20
APP settings 21
Support 21
Network 21
Parental Control 22
Troubleshooting 24
Maintaining 25
Specication26
Limited Warranty 27
OTT APP Service 28
2
En -
IMPORTANT SAFETY INSTRUCTIONS
• Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as the power-supply cord
or plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has
been exposed to rain or moisture, does not operate
normally, or has been dropped.
• Please keep the unit in a well-ventilated environment.
WARNING:Toreducetheriskofreorelectricshock,
do not expose this apparatus to rain or moisture.
The apparatus should not be exposed to dripping or
splashing. Objects filled with liquids, such as vases
should not be placed on apparatus.
WARNING: The batteries shall not be exposed to
excessiveheatsuchassunshine,reorthelike.
WARNING: The mains plug is used as disconnect
device, the disconnect device shall remain readily
operable.
WARNING: To reduce the risk of electric shock, do not
remove cover (or back) as there are no user-serviceable
partsinside.Referservicingtoqualiedpersonnel.
This lightning flash with arrowhead symbol
within an equilateral triangle is intended to
alert the user to the presence of non-insulated
“dangerous voltage” within the product’s enclosure that
may be of sufficient magnitude to constitute a risk of
electric shock.
The exclamation point within an equilateral
triangle is intended to alert the user to
the presence of important operating and
maintenance instructions in the literature accompanying
the appliance.
This equipment is a Class II or double insulated
electrical appliance. It has been designed in such
a way that it does not require a safety connection
to electrical earth.
This product contains electrical or electronic
materials. The presence of these materials
may,if not disposed of properly, have potential
adverse effects on the environment and human
health.
Presence of this label on the product means it
should not be disposed of as unsorted waste and
must be collectedseparately. As a consumer, you
are responsible for ensuring that this product is
disposed of properly.
• Read these instructions – All the safety
and operating instructions should be read
before this product is operated.
• Keep these instructions – The safety and
operating instructions should be retained for
future reference.
• Heed all warnings – All warnings on the
appliance and in the operating instructions
should be adhered to.
• Follow all instructions – All operating and
use instructions should be followed.
• Do not use this apparatus near water
– The appliance should not be used near
water or moisture – for example, in a wet
basement or near a swimming pool, and the
like.
• Clean only with dry cloth.
• Do not block any ventilation openings.
Install in accordance with the manufacturer’s
instructions.
• Do not install near any heat sources such
as radiators, heat registers, stoves, or other
apparatus(includingampliers)thatproduce
heat.
• Do not defeat the safety purpose of the
polarized or grounding-type plug. A polarized
plug has two blades with one wider than
the other. A grounding-type plug has two
blades and a third grounding prong. The
wide blade or the third prong are provided
for your safety. If the provided plug does not
tintoyour outlet,consultanelectricianfor
replacement of the obsolete outlet.
• Protect the power cord from being walked on
or pinched particularly at plugs, convenience
receptacles, and the point where they exit
from the apparatus.
• Onlyuseattachments/accessoriesspecied
by the manufacturer.
• Use only with the cart, stand, tripod, bracket,
or table specified by the manufacturer, or
sold with the apparatus. When a cart is
used, use caution when moving the cart/
apparatus combination to avoid injury from
tip-over.
• Unplug this apparatus during lightning
storms or when unused for long periods of
time.
3
En -
SAFETY INFORMATION
To ensure reliable and safe operation of this equipment, please carefully read all the instructions in
this user guide, especially the safety information below.
Electrical Safety
• The TV set should only be connected to a main power supply with voltage that matches the
label at the rear of the product.
• To prevent overload, do not share the same power supply socket with too many other
electronic components.
• Do not place any connecting wires where they may be stepped on or tripped over.
• Do not place heavy items on any connecting wire, which may damage the wire.
• Hold the main plug, not the wires, when removing from a socket.
• During a thunderstorm or when not in using the television for long periods, turn off the power
switch on the back of the television.
• Do not allow water or moisture to enter the TV or power adapter. Do NOT use in wet, moist
areas, such as bathrooms, steamy kitchens or near swimming pools.
• Pull the plug out immediately, and seek professional help if the main plug or cable is damaged,
liquid is spilled onto the set, if the TV set accidentally exposed to water or moisture, if anything
accidentally penetrates the ventilation slots or if the TV set does not work normally.
• Do not remove the safety covers. There are no user serviceable parts inside. Trying to service
theunityourselfisdangerousandmayinvalidatetheproduct’swarranty.Qualiedpersonnel
must only service this apparatus.
• To avoid a battery leakage, remove batteries from the remote control, when the remote is not
use for long period, or when the batteries are exhausted.
• Donotbreakopenorthrowexhaustedbatteriesintoare.
• For best results, use type AAA (example-alkaline, carbon-zinc, etc.) batteries.
• Install only new batteries of the same type in your product.
• Failure to insert batteries in the correct polarity, as indicated in the battery compartment, may
shorten the life of the batteries or cause batteries to leak.
• Do not mix old and new batteries.
• Do not mix Alkaline, Standard (Carbon-Zinc) or Rechargeable (Nickel Cadmium) or (Nickel
Metal Hydride) batteries.
• Batteries should be recycled or disposed of as per state and local guidelines.
• Do not attempt to recharge disposable batteries.
• Do not short circuit battery terminals.
• Keep away from children.
Physical Safety
• Do not block ventilation slots in the back cover. You may place the TV in a cabinet, but ensure
at least 5cm (2’’) clearance all around.
• Do not tap or shake the TV screen, or you may damage the internal circuits. Take good care
of the remote control.
• TocleantheTVuseasoftdrycloth.Donotusesolventsorpetroleumbaseduids.
• Do not install near any heat sources such as radiators, heat registers, stoves or other
apparatus(includingampliers)thatproduceheat.
• Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug
has two blades with one wider than the other. A grounding plug has two blades and a third
grounding prong, the wide blade,or the third prong is provided for your safety. If the provided
plugdoesnottintoyouroutlet,consultanelectricianforreplacementoftheobsoleteoutlet.
• Protect the power cord from being walked on or pinched particularly at plugs.
• Unplug the apparatus during lightning storms or when unused for long periods.
• Referallservicingtoaqualiedservicepersonnel.Servicingisrequirediftheapparatusdoes
not operate normally or if the apparatus, including the power supply cord or pulg, has been
damaged in any way.
• Servicing is also required if liquid has been spilled, or objects have fallen into the apparatus;
when the apparatus has been exposed to rain or moisture; or if the apparatus has been
dropped.
4
En -
User Manual
002-BF7-SEIKI
User Manual
PREPARATION
What's Included
Remote Control with Batteries
845-058-03B04
TV Set
Quick Start Guide
002-LGF-SEIKI
Quick
Start Guide
TV Stand
151-704-W065
151-703-W065
Four Screws
100-020-5037
INFO
5
En -
PREPARATION
Front View
1. POWER
Switch the TV between On / Standby mode.
2. SOURCE
Press to select among different input signal sources.
3. MENU
Display the OSD (on screen display) menu.
4. CH /
Press to select a channel.
5. VOL +/-
Press to adjust the volume.
6. POWER Indicator
Illuminate blue when the TV is turned on. Illuminate red when the TV is in standby mode.
7. IR (Infrared Receiver)
Receive IR signals from the remote control.
6
En -
PREPARATION

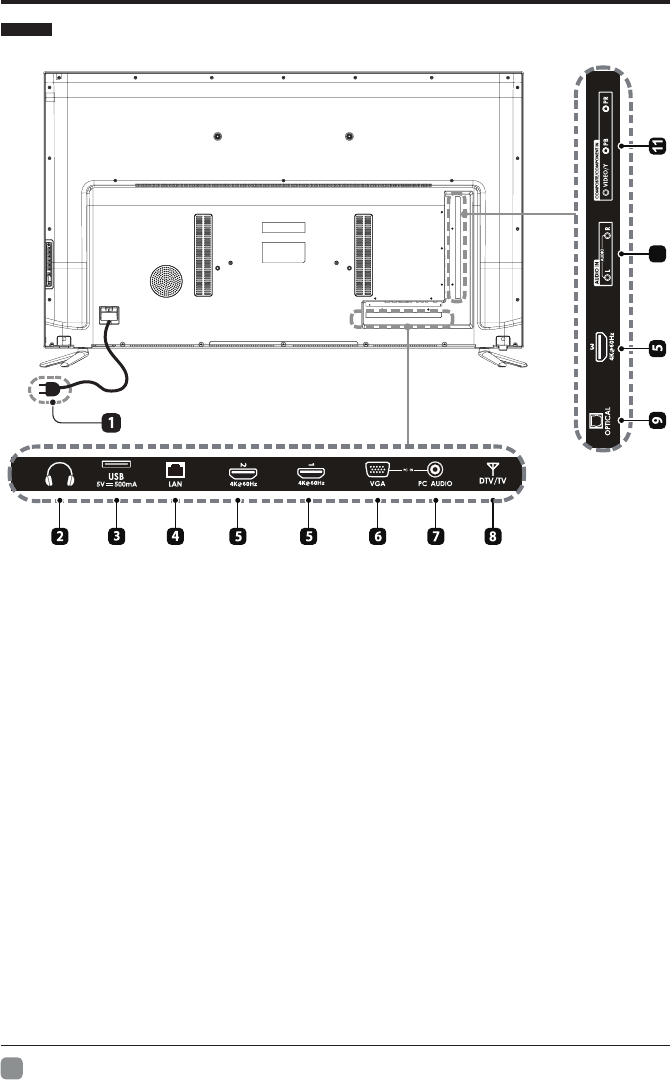

Rear View
1. Power Cord
Connect to AC power outlet.
2. Headphone Socket
Connect to the Headphones.
3. USB Port
Connect to a USB storage device to play
compatibleaudioandphotoles.
4. LAN
Network connection port.
5. HDMI Inputs
ConnecttoaHigh-Denition(HD) signal
input device.
6. VGA Input
Connect to a computer or other devices
with a VGA interface.
7. PC AUDIO Input
Connect to a computer audio output.
8. DTV/TV Input
Connecttotheantenna(75ΩVHF/UHF)
socket with the RF coaxial cable.
9. OPTICAL Output
Connect a digital sound system to this
jack.
10. AUDIO Input
Connect to the AUDIO (L/R) output
sockets on external audio devices.
11. COMPOSITE/COMPONENT IN
Connect to AV devices with composite/
component (Y/Pb/Pr) video and audio
output sockets. COMPOSITE VIDEO and
COMPONENT(Y/PB/PR) share with AUDIO
IN (L/R).
10
7
En -
PREPARATION
Installing the Stand
Removing the Stand for Wall-Mounting
• 1.Lay the TV face down on a flat,
cushioned surface to avoid damages
and scratches.
• 2.Untighten the 4 pcs screws holding
the stand assembly and remove them.
• 3.Attach the wall-mount bracket to
the TV using the mounting holes on
the back of the TV. Mount this TV
according to the instructions included
in the wall-mount bracket.
• 1. Lay the TV face-down on a flat,
cushioned surface to avoid damages
and scratches.
• 2. Fix one stand to the TV using the 2
• screws provided.
• 3. Fix the other stand to the TV using
• the 2 screws provided.
WARNING:To prevent injury, this apparatus must be securely attached to the oor/wall in
accordance with the installation instruction.
Wall-Mounting Screws
• Mount the VESA bracket using 4*M8*12 isometric threaded screws (Not
Supplied).
WARNING
Never place a television set in an unstable location. A television set may fall, causing serious personal injury
or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as:
-Using cabinets or stands recommended by the manufacturer of the television set.
-Only using furniture that can safely support the television set.
-Ensuring the television set is not overhanging the edge of the supporting furniture.
-Not placing the television set on tall furniture(for example, cupboards or bookcases) without
anchoring both the furniture and the television set to a suitable support.
-Not placing the television set on cloth or other materials that may be located between the television
set and supporting furniture.
-Educating children about the dangers of climbing on furniture to reach the television set or its
controls.
If your existing television set is being retained and relocated, the same considerations as above should be
applied.
8
En -
PREPARATION
Remote Control
INFO
33
1. :Switch the TV between On and Standby
mode.
2.MUTE:Mute and restore TV sound.
3.0~9:Select a program.(ATV/DTV mode)
4.—:Enter multiple program channel numbers
such as 2-1.
5. :Return to the previous viewing channel.
6.APP:Press to select the desired APP.
7.MENU:Display the main menu.
8.SOURCE:Select among the different input
signal sources:TV/AV/Component/HDMI1/
HDMI2/HDMI3/VGA/USB.
9. :Allows you to navigate the on-
screen display menus and adjust the system
settings to your preference.
10.OK:Confirm the selection.
11.RETURN:Return to previous menu.
12.EXIT:Exit the on screen display menu.
13.TV:Press to turn to TV mode.
14.VOL+/-:Adjust the volume.
15.CH :Select the channel.
16.INFO:Dispaly the present screen information
such as the current channel and input source.
17. :Stop the playback.
18. :Skip to the beginning of the previous
chapter/track/photo.
19. :Skip to the beginning of the next chapter/
track/photo.
20. :Reverse playback rapidly.
21. :Advance playback rapidly.
22.COLORED BUTTONS:Press to access
directly to the corresponding function in APP
service.
23. :Start playback or pause.
24.P.MODE:Select picture mode:Dynamic/
Movie/User/Standard.
25.S.MODE:Select sound mode:Standard/Music/
Movie/User.
26.CH.LIST:Display program list.
27.CC:Closed Caption selection:ON/OFF/CC On
Mute.
28.V-CHIP:Set up parental control.
29.MTS:Switch among different audio
channels:STEREO/MONO/SAP.
30.ASPECT:Select the aspect ratio
settings:Standard/Wide/Wide zoom/Zoom/
Auto/Just scan (HDMI)/Dot by dot(VGA).
31.AUTO:Press to adjust the picture
automatically in VGA source.
32.SLEEP:Set the TV sleep timer:
OFF/5/10.../180 / 240 min.
33.HDMI/VGA/USB:HDMI/VGA/USB Hot key.
9
En -
CONNECTING EXTERNAL DEVICES
RF Cable(not included)
Audio Cable
(not included)
Composite/Component Cable
(not included)
Video Camera
Game Console
Blu-ray Player / Recorder
VCR Satellite Receiver
Satellite
Antenna Cable
OR
HDMI Device
Computer
Digital Audio System
VGA Cable
(not included)
3.5mm Audio
Cable
(not included)
Headphones
Cable
(not included)
HDMI Cable(not included)
Optical Cable
(not included)
3
WIFI
Network Cable
(not included)
10
En -
• Connect the power cord to the power socket
after you have completed all the physical
connections. At this stage, the TV will enter
Standby Mode and the red LED indicator will
illuminate.
• In Standby Mode, press the button on the
main unit or on the remote control to turn the
TV on. The red LED indicator will turn blue.
• ThersttimeyouturntheTVon,itwillgointo
the Setup Wizard. Press the Arrow buttons
to highlight and select your desired mode and
press OKtoconrm.
CUSTOMIZING TV SETTINGS
Initial Setup
Home Mode :The picture mode will be Standard if you
select this mode.
Retail Mode:Select Dynamic Mode if you would like
your picture to be brighter. At times this mode may use
more energy to operate the Volume/Sound Mode and
Picture Mode.
The SLEEP-MODE power consumption should be less
than 0.5W.
• Follow the next screens. Use the arrow keys on
the remote control and then press OK button to
customize your TV channel conguration.
• After the channel scan, your TV channels will be set
up.
11
En -
CUSTOMIZING TV SETTINGS
• If channels cannot be found, this frame
will be displayed automatically.
SOURCE
• Press SOURCE on the remote control or on
the main unit to display the source menu, then
use the Arrow buttons to cycle among the
different input sources: TV/AV/COMPONENT/
HDMI1/HDMI2/HDMI3/VGA/USB, then use the
Arrow buttons to highlight the desired source
and press OKtoconrm.
SOURCE
TV
AV
COMPONENT
HDMI 1
HDMI 2
HDMI 3
VGA
USB
Use the UP and DOWN
arrows on your remote
control or TV keypad to
select the channel scan type.
RETURN TO SCAN CHANNELS PROGRAM
CONNECT A GAME, BLU-RAY, DVD OR OTHER PLAYERS
QUIT
FOUND
7
5
12
En -
STREAMING
NETFLIX Enjoys TV shows & movies streamed instantly over the
Internet.
YouTube YouTube your way on the best screen in your house.
VUDU
Discover, watch and collect the latest movies and
TV shows in high quality 1080p. Free to sign up. No
subscriptions, late fees or commitments.
Pandora
Free personalized radio that offers effortless and
endless music enjoyment and discovery. Just start with
the name of one of your favorite artists, songs, genres
or composers and Pandora will do the rest. It’s easy to
create personalized stations that play only music you’ll
love.
Toon goggles
A subscription video on-demand platform that offers
animated, fun and educational cartoons, engaging
games and songs from all over the world and in many
different languages to children.
AccuWeather
Displays the current weather conditions and the
temperature anywhere in the world in centigrade or
Fahrenheit.
CUSTOMIZING TV SETTINGS
• Press MENU button on the main unit or on the remote to display the main
interface. Then use the Arrow buttons to select STREAMING and press OK to
enter. Use the Arrow buttons to select the desired APP and press OK button to
view. Or press the hotkey on the remote control to enter the desired APP directly.
STREAMING
MY MEDIA
TV SETTINGS
NETWORK
13
En -
CUSTOMIZING TV SETTINGS
MUSE
Press MENU button to display the main interface, then use the Arrow buttons to
highlight STREAMING and press OKtoconrm.Usethe Arrow buttons to cycle
among different options and select MUSE to enter, then to select the desired
programs and shows to watch.
MY MEDIA
• Press MENU button to display the main interface, then use the Arrow buttons to
highlight MY MEDIA and press OKtoconrm.SelectamongPhotos,Musicand
Video to view what you like.
Note: Portable drives should be inserted before entering MY MEDIA menu.
STREAMING
MY MEDIA
TV SETTINGS
NETWORK
My Media
Display photos, music & video from a USB drive.
Press ‘OK’ on your Remote or change Source to USB.
PHOTOS MUSIC VIDEO
14
En -
CUSTOMIZING TV SETTINGS
• After entering the picture file, use the Arrow buttons to select the desired picture,
then press the to display. When the picture is playing, the picture Function Bar will be
displayed. Use the Arrow buttons to select the desired function available on the bar.
VIEWING PHOTOS
• Afterenteringtheaudiole,usethe Arrow buttons to select the desired music, then press
the to display. When the picture is playing, the music Function Bar will be displayed. Use
the Arrow buttons to select the desired function available on the bar.
LISTENING TO MUSIC
• Use the Arrow buttons to highlight the PHOTOS option and press OK, then it will jump
toconrmtheinserteddrive,pressOK to enter. After entering PHOTOS, use the Arrow
buttonstoselectthepictureleandpressOK to enter.
• Use the Arrow buttons to highlight the MUSIC option and press OK, then it will jump
to confirm the inserted drive, press OK to enter. After entering MUSIC, use the Arrow
buttonstoselecttheaudioleandpressOK to enter.
15
En -
CUSTOMIZING TV SETTINGS
TV SETTINGS
• Press the MENU button on the main unit or on the remote control to display the
main interface. Then use the Arrow buttons to highlight TV Settings and press
OK to enter. Then use the Arrow buttons to cycle among the following options
and select the desired one to enter.
• Afterenteringthevideole,usethe Arrow buttons to select the desired music, then press
the to display. When the picture is playing, the music Function Bar will be displayed. Use
the Arrow buttons to select the desired function available on the bar.
WATCHING VIDEOS
STREAMING
GENERAL PICTURE
NETWORK CHANNEL TIME
AUDIO
MY MEDIA
TV SETTINGS
NETWORK
A
B
• Use the Arrow buttons to highlight the VIDEOS option and press OK, then it will jump
toconrmtheinserteddrive,pressOK to enter. After entering VIDEOS, use the Arrow
buttonstoselectthevideoleandpressOK to enter.
16
En -
CUSTOMIZING TV SETTINGS
GENERAL
• Press MENU to display the main interface, then
use the Arrow buttons to highlight TV Settings
and press OKtoconrm.Usethe Arrow buttons
to cycle among different options and select
General to enter and adjust each option setting.
OTHER SETTINGS
MENU LANGUAGE
Select the menu language among
English, Français or Español. The
default on-screen menu language is
English.
TRANSPARENCY Select to turn On/Off transparency
function.
ZOOM MODE
Select zoom mode:
Wide/Wide Zoom/Zoom/Auto/Just
Scan/Standard/Dot by Dot.
Note: With a different input source,
the zoom mode options may differ.
VGA SETTINGS
Adjust advanced option’s setting:
H-POS, V-POS, Clock, Phase or Auto.
(only available in VGA mode)
CLOSED CAPTION
CC mode On/Off/CC on Mute.
Basic
Selection
CC1/CC2/CC3 CC4/
Text1/.../Text4.
Advanced
Selection
Select from Service 1 to
Service 6.
Option
Mode, Font Style, Font
Size, Font Edge Style,
Font Edge Color, FG_
Color, BG_Color, FG_
Opacity, BG_Opacity.
DLC Select to turn the dynamic luminance
control On/Off.
PORTABLE REMOTE Pair your portable devices with TV.
OTHER SETTINGS
HDMI EDID: Select the HDMI version:
Mode 1(HDMI 1.4)/Mode 2(HDMI 2.0).
Inlink: Set the options: Inlink Control,
Device Power Off, TV Power On,
Audio Receive, Inlink Device List,
Root Menu.
RESTORE DEFAULT Restore the TV to factory default
settings.
17
En -
CUSTOMIZING TV SETTINGS
• Use the Arrow buttons to highlight Other
Settings and press OK to confirm, then select
Portable Remote to enter. You can pair your
portable devices with the TV by using the
following steps and operate TV by your device.
PORTABLE REMOTE
• Press MENU to display the main interface, then
use the Arrow buttons to highlight TV Settings
and press OK to Use the Arrow buttons
to cycle among different options and select
Picture to enter and adjust each option setting.
STANDARD
PICTURE MODE
ON
BLUE SCREEN
< >
< >
< >
< >
BRIGHTNESS
CONTRAST
COLOR
SHARPNESS
TINT
50
50
50
50
50
NORMAL
MIDDLE
ADVANCED OPTION
COLOR TEMPERATURE
MEMC
PICTURE MODE
Cycle among picture modes:
Energy Saving/Dynamic/Standard/Movie/PC
mode/User.
BLUE SCREEN Allow the blue background to turn On/Off
during weak or no signal conditions.
BRIGHTNESS Increase or decrease the amount of white in
the picture.
CONTRAST Adjust the difference between light and dark
levels in the pictures.
COLOR Control the color intensity.
SHARPNESS Adjust crispness level in edges between light
and dark areas of the picture.
TINT Adjust the balance between red and green levels.
COLOR
TEMPERATURE
Cycle among color temperatures: Normal/
Warm/Cool.
18
En -
AUDIO
SOUND MODE
Allow the selection of an audio-
enhancement technique: Standard/
Music/Movie/User.
BASS Control the relative intensity of lower-
pitched sounds.
TREBLE Control the relative intensity of higher-
pitched sounds.
BALANCE Adjust the relative volume of the
speaker in a multiple speaker system.
DIGITAL AUDIO
OUTPUT
Select the digital audio output mode
between PCM/RAW.
SURROUND
SOUND
Turn On/Off to provide an enhanced
listening experience.
AUTO VOLUME Turn On/Off to automatically control
volume levels.
AUDIO
LANGUAGE
Select audio language among: English,
French, Spanish.
• Press MENU to display the main interface, then
use the Arrow buttons to highlight TV Settings
and press OK to Use the Arrow buttons
to cycle among different options and select Audio
to enter and adjust each option setting.
CUSTOMIZING TV SETTINGS
PCM
MEMC Cycle among Motion Estimate and Motion
Compensation modes: Middle/High/Off/Low.
ADVANCED
OPTION
Set the following options:
Noise Reduction: Reduce the noise
level of the connected device: Off/Weak/
Middle/Strong.
MEMC:Cycle among Motion Estimate and
Motion Compensation modes: Strong/
Normal/Off/Low.
19
En -
CHANNEL
AIR/CABLE Select antenna between Air and
Cable.
AUTO SCAN Select the Auto Scan feature to scan
your available cable channels.
FAVORITE Set the selected channel as a favorite
channel.
SHOW/HIDE Show/Hide the selected channel.
CHANNEL
NUMBER Display the current channel number.
CHANNEL
LABEL Display the current channel label.
SIGNAL
INFORMATION
Display the information of current
signal.
NETWORK
NETWORK
TYPE
Select Lan and Wireless network, then
connect the TV to the wired network or
search the wireless network through
searchingavailableWi.
MY
NETWORK
Display the current network which you
connect to .
IP
ADDRESS Display the current IP information.
• Press MENU to display the main interface, then
use the Arrow buttons to highlight TV Settings
and press OK to confirm. Use the Arrow
buttons to cycle among different options and
select Network to enter and adjust each option
setting.
• Press MENU to display the main interface, then
use the Arrow buttons to highlight TV Settings
and press OKtoconrm.UsetheArrow buttons
to cycle among different options and select
Channel to enter and adjust each option setting.
• Thersttimewhenconnectingthenetworkand
make connection successfully, Network Updated
menu will pop up, and confirm Next to enter
Enable Interactive TV menu. Then selecting
Enable option and press OK button to interactive
your TV and make some settings.
CUSTOMIZING TV SETTINGS
14-1
ATSC-1
GOOD
20
En -
LOCK
CUSTOMIZING TV SETTINGS
TIME
• Press MENU to display the main interface, then
use the Arrow buttons to highlight TV Settings
and press OKtoconrm.Usethe Arrow buttons
to cycle among different options and select Time
to enter and adjust each option setting.
SLEEP TIMER
Select a period of time after which the TV
automatically switches to standby mode:
Off/5/10/…/180/240 min.
Alternative: You may press the SLEEP
button repeatedly to select the number of
minutes directly.
OSD TIMER Set the OSD timer:
Off/15s/30s/60s/120s/240s.
TIME ZONE
Select a Time Zone:
Pacic/Alaska/Hawaii/Atlantic/Eastern/
Central/Mountain/Newfoundland.
DAYLIGHT
SAVING TIME Select to turn daylight saving time On/Off.
CLOCK Display the clock time.
• Press MENU to display the main interface, then
use the Arrow buttons to highlight TV Settings
and press OKtoconrm.Usethe Arrow buttons
to cycle among different options and select Lock
to enter and adjust each option setting.
4:10 AM 01/01/2015
• Note: the default password is “0000”.
CHANGE
PASSWORD
Use 0-9 buttons to input the old
password and then input the new 4-digit
password. Re-enter new password for
SYSTEM LOCK
Select to turn On/Off system lock. The
following options (USA, Canada, RRT
Setting and Reset RRT) will only be
accessible when you turn the system
lock on.
21
En -
USA
TV
TV RATING: Press OK
button to lock or unlock TV
rating.
MPAA Select MPAA rating : N/A,G,
PG, PG-13, R, NC-17,or X.
CANADA
Canada
English
Select MPAA rating for
English-speaking Canada
: E, C, C8+, G, PG, 14+,
18+.
Canada
French
Select MPAA rating for
Quebec Canada : E, G, 8
ans+, 13 ans+, 16 ans+, 18
ans+.
RRT SETTING Set Rating Region Table.
RESET RRT Select to reset the RRT setting.
CLEAR LOCK Clear all lock settings.
CUSTOMIZING TV SETTINGS
APP SETTINGS
• Press MENU to display the main interface, then
use Arrows to highlight TV Settings and press
OK to confirm. Use Arrows to cycle among
different options and select App Settings to
enter and adjust each option setting.
DEACTIVATE
APP
DeactivateNetixandcleartheaccount
information.
DEACTIVATE
APP
Deactivate Vudu and clear the account
information.
INTERACTIVE
TV SETTINGS
To enter the Muse and enjoy the
different programs and shows in the
Samba TV .
ESN Electronic Serial Number.
SUPPORT
• Press MENU to display the main interface, then use the Arrow buttons to highlight TV
Settings and press OKtoconrm.Usethe Arrow buttons to cycle among different options
and select Support to enter and view the electronic user manual.
NETWORK
• Select the NETWORK on the main interface and connect to the Lan or Wired network
directly.
22
En -
PARENTAL CONTROL
Press the MENU button on the main unit or on the remote control and then press buttons to
select LOCK menu. Use the 0-9 buttons to input the 4-digit password to enter the LOCK menu. If
used, this option feature can "block'' undesirable programming from appearing on the TV.
Parental Control offers users a wide variety of options and settings that restrict or "block'' the
programmingthatcanappearontheTV.ParentalControlallowsuserstodenewhichprogram
rating they consider acceptable for a younger more sensitive viewer. It can be preset and turned
eitheronoroffbytheuserwhospeciesthesecret4-numberpasswordcode.Thenumberof
hoursblockedcanalsobespecied.
General audience and children block should both be programmed into the TV memory. Separate
differentviewerratingsarespeciedforbothTVandthemotionpictureIndustry;bothrating
systems should be used and based on the ages of children.
Overview
To ensure complete coverage for all TV programs (movies and regular TV show) using the Age
Block option, choose a rating from both the MPAA and TV Parental Guideline tables on the next
page. In addition, you may wish to add other restrictions selected from the content block menu
and submenus.
Things to Consider before Setting up Parental Control
Determine which ratings you consider are acceptable for different viewers. For example, if you
choose TV-PG, more restrictive ratings will be automatically blocked; some viewers will not be
able to see: TV-PG, TV-14, or TV-MA rated programs. You may block the auxiliary video source
entirely.
Use the Content Blk option to block program Content based on individual parameters such as:
Strong Dialog, Bad Language, Sex Scenes, Violence Scenes or Fantasy.
Go into the Set Password option and use the numeric keys on the remote control to set a secret
password, then save the password, it is the only way to access the Parental Control menu and
change ratings setting, or turn off Parental Control.
• You can set different Parental Control viewing restrictions for general audiences and for
children; both can be active at the same time;
• Simply specifying one content block such as Sex Scenes, will not automatically restrict the
programming that appears from the video sources;
• Even If you choose to leave the AUX Inputs unblocked, the ratings you specify will
automatically restrict the programming that appears from the video sources;
• You cannot disable Parental Control by disconnecting the TV from power. Block hours will be
automaticallyresettotheoriginalblocktimesettingspeciedifpowerisdisconnected.
23
En -
PARENTAL CONTROL
• Motion Picture Association of America (MPAA) Rating System
Grade Meaning
GGeneral Audiences Content not offensive to most viewers.
PG Parental Guidance
Suggested
Content is such that parents may not want their
children to view the program.
PG-13 Parents Strongly
Cautioned
Program is inappropriate for preteens, with a greater
degree of offensive material suggested than a PG
rated program.
RRestricted Not for children under 17-contains strong element of
sex and/or violence.
NC-17 No children under
age 17
Not for children under 17-under any circumstances.
Contains strong sexual content.
XHard Core Films Same as NC-17 rating.
No Rating No Rating MPAA did not rate.
• TV Parental Guideline Rating System
Grade Meaning
TV-Y All Children Content not offensive to most viewers.
TV-Y7 Directed to Older
Children
Considered suitable for children over 7- may contain
fantasy violence scenes.
TV-G General Audience Considered suitable for all audience; children may
watch unattended.
TV-PG Parental Guidance
Suggested
Suggested unsuitable for younger children-may
contain suggestive language, bad language, sex and
violence scenes.
TV-14 Parents Strongly
Cautioned
unsuitable for children under 14 - may contain strong
language, bad language, sex, and violence scenes.
TV-MA Mature Audience
Only
Adults only- may contain strong language, bad
language, sex, and violence scenes.
Canadian Rating:
Canadian English is used throughout all English-speaking Canada (C, C8+,G, PG,14+, 18+).
Canadian French is used in Quebec (G,8 ans+, 13 ans+,16 ans+, 18 ans+)
Note: The V-Chip will automatically block certain categories that are "more restrictive." If you block TV-Y
category, then TV-Y7 will be automatically blocked. Similarly, if you block TV-G category then all the
categories in the "young adult" will be blocked (TV-G, TV-PG,TV-14 and TV-MA).
24
En -
TROUBLESHOOTING
If your TV does not operate normally or cannot be turned on, please check
the following troubleshooting questions. Remember also to check any other
connected electronic device, such as DVD or Blu-ray player to pinpoint the
problem. If the TV still fails to operate normally, please contact technical support.
The TV does not operate properly
The TV does not respond
when pressing any
buttons
• The TV may freeze up during use. Disconnect the power
cord from the power socket for a few minutes. Reconnect the
power cord and try to operate it again as usual.
TV cannot be switched on
• Check that the TV is connected to the power supply.
• Make sure all connected AV devices are switched off before
switching on your TV.
The remote control does
not work
• Check to see if there are any objects between the TV and the
remote control causing an obstruction. Ensure that you are
pointing the remote control directly at the TV.
• Ensure that the batteries are installed with the correct polarity
(+ to +, - to -).
• Install new batteries.
Power is suddenly turned
off
• Check the power of the TV. The power supply maybe
interrupted.
• Check if the sleep timer is set.
• Check whether the Auto Standby is activated.
The video function does not work
No picture & No Sound
• Check whether the TV is switched on.
• Try another channel. The problem may be caused by the
broadcaster.
Picture appears slowly
after switching on
• This is normal; the image is muted during the TV startup
process. Please contact your service centre if the picture has
notappearedafterveminutes.
No or poor color or poor
• Adjust the settings in the PICTURE menu.
• Try another channel. The problem may be caused by the
broadcaster.
• Check if video cables are connected properly.
Horizontal/Vertical bar or
picture shaking
• Check for local interference such as an electrical appliance
or power tool.
Poor reception on some
channels
• The station or cable channel may be experiencing problems;
tune to another station.
• Station signal may be weak, reposition the antenna for better
reception.
• Check for sources of possible interference.
Lines or streaks in
pictures • Check antenna (change the position of the antenna.)
No pictures when
connecting HDMI • Check if the input source is HDMI1/HDMI2/HDMI3.
Pictures appear in wrong
ratio
• Adjust the Aspect Ratio settings in the SETUP menu or press
the ASPECT button on the remote control.
25
En -
TROUBLESHOOTING
The audio function does not work
Picture OK but no sound
• Press the VOL +/- buttons.
• Sound muted? Press the MUTE button.
• Try another channel. The problem may be caused by the
broadcaster.
No output from one of the
speakers • Adjust the Balance settings in the AUDIO menu.
Unusual sound from
inside the TV
• A change in ambient humidity or temperature may result in
an unusual noise when the TV is switched on or off and does
not indicate a fault with the TV.
No sound when
connecting HDMI • Check if the input source is HDMI1/HDMI2/HDMI3.
Audio noise • Keep the RF coaxial cable away from the other connected
cables.
Password
Lost password
• Select the SET Password setting in the LOCK menu, then
enter the following master password “8899”. The master
password clears your previous password and allows you to
enter a new password.
There is a problem in PC mode
The signal is out of range
(invalid format)
• Adjust the resolution, horizontal frequency, or vertical
frequency.
Vertical bar or stripe on
background & Horizontal
Noise & Incorrect position
• UseAutoconguresoradjustclock,phase,orH/Vposition.
Screen color is unstable
or show a single color
• Check the signal cable.
• Reinstall the PC video card.
Maintaining
• Do not use your TV in areas that are too hot or too cold, because the cabinet may
warp or the screen may malfunction. Your TV works best in temperatures that are
comfortable to you.
• Storage temperatures are 32° to 122°F(0° to 50°C).
• Working temperatures are 32° to 95°F(0° to 35°C).
• Do not place your TV in direct sunlight or near a heat source.
-minimum5cmdistancesaroundtheapparatusforsufcientventilation;
- the ventilation should not be impeded by covering the ventilation openings with
items, such as newspapers, table-cloths, curtains, etc.;
- no naked flame sources, such as lighted candles, should be placed on the
apparatus;
- attention should be drawn to the environmental aspects of battery disposal.
26
En -
SPECIFICATION
Panel Size 65 inch diagonally
Display Type LED
Panel Technology TFT
Panel 60 Hz Vs. 120 Hz 120 Hz
Display Resolution 3840 x 2160
HDMI Support 3840 x 2160 120 HZ
Panel Resolution 3840 x 2160
Aspect Ratio 16:9
Dynamic Contrast Ratio-Panel 3200~4000:1
Response Time (G To G) 5.5 ms
Lamp Life (Typ. Hours) 30,000 hours
HorizontalViewingAngle(AtCR≥20) 178
VerticalViewingAngle(AtCR≥20) 178
Wall-mount(LxW-mm) 400*400 VESA(mm)
The FCC Wants You to Know
FCC STATEMENT
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1)This device may not cause harmful interference, and
(2)This device must accept any interference received, including interference that may cause
undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
FCC Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator & your body.
27
En -
This Product (including any accessories included in the original packaging) as supplied and distributed in new condition, is
warranted by SEIKI LLC(SEIKI or the Warrantor) to the original consumer purchaser against defects in material and workmanship
(“Warranty”) as follows:
1. PARTS AND LABOR : For a period of one (1)year from date of original consumer purchase, if this Product or any functional
part is determined by SEIKI, or a SEIKI authorized service provider, to be defective, at SEIKI’S sole option and discretion,
SEIKI will (i) repair, at no charge to the original consumer, with new or rebuilt replacement functional parts in exchange for
(iii) provide refund of original purchase price. Replacement Product or parts are warranted for either the remainder of the
original warranty period or ninety (90) days from the date of replacement, whichever is longer. After the applicable Warranty
periods, the purchaser must pay for all parts and labor costs.
2. SHIPPING COSTS: Notwithstanding the foregoing, the original consumer is responsible for any shipping charges incurred
to ship the Product or part(s) to SEIKI or to a SEIKI authorized customer service provider, for diagnosis, repair, replacement
or refund. However, SEIKI will pay for return shipping to the customer. Products shipped back to SEIKI or a SEIKI authorized
service provider must be in its original packaging or in packaging with an equal degree of protection.
To obtain Warranty Service and Troubleshooting information, please call the Toll Free Customer Service Line at:
1-855-MY-SEIKI (1-855-697-3454)
Please have your model and serial number available along with your date of purchase.
You can also visit us online and REGISTER your SEIKI product at:
www.SEIKI.com
To receive Warranty service, the original consumer purchaser must contact SEIKI for pre-authorization prior to sending
any Product to SEIKI or a SEIKI authorized customer service provider, or for obtaining any repair, replacement or refund
service. Proof of purchase in the form of a bill of sale or receipted invoice evidencing that the Product is within the
applicable Warranty period(s), MUST be presented to SEIKI in order to obtain the requested service.
Exclusions and Limitations:
This Warranty covers manufacturing defects in materials and workmanship encountered in the normal, non-commercial use of
the Product, and does not cover (a) damage or failure caused by or attributable to abuse, misuse, failure to follow instructions,
improper installation or maintenance, alteration, accident, or excess voltage or current; (b) improper or incorrectly performed
repairs by non-authorized service facilities; (c) onsite consumer instruction or adjustments; (d) transportation, shipping, delivery,
insurance, installation or set-up costs; (e) costs of product removal, transportation or reinstallation costs; (f) ordinary wear and
to any part of the Product. In addition, this Warranty does not cover images “burnt” into the screen. This Warranty applies to the
original consumer only and does not cover products sold AS IS or WITH ALL FAULTS, or consumables (e.g., fuses, batteries, bulbs
etc.), and the Warranty is invalid if the factory-applied serial number has been altered or removed from the Product. This Warranty
is valid only in the United States, and only applies to products purchased and serviced in the United States. All replaced parts and
products, and products on which a refund is made, become the property of SEIKI.
NO WARRANTIES, WHETHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, OTHER THAN THOSE EXPRESSLY DESCRIBED ABOVE
SHALL APPLY. THE WARRANTOR FURTHER DISCLAIMS ALL WARRANTIES AFTER THE EXPRESS WARRANTY PERIOD
STATED ABOVE. NO OTHER EXPRESS WARRANTY OR GUARANTY GIVEN BY ANY PERSON, FIRM OR ENTITY WITH RESPECT
TO THE PRODUCT SHALL BE BINDING ON THE WARRANTOR. REPAIR, REPLACEMENT, OR REFUND OF THE ORIGINAL
PURCHASE PRICE, AT THE WARRANTOR’S SOLE DISCRETION, ARE THE EXCLUSIVE REMEDIES OF THE CONSUMER. THE
WARRANTOR SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES CAUSED BY THE USE, MISUSE
OR INABILITY TO USE THE PRODUCT. NOTWITHSTANDING THE FOREGOING, CONSUMER’S RECOVERY SHALL NOT EXCEED
THE PURCHASE PRICE OF THE PRODUCT. THIS WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE ORIGINAL
CONSUMER WHO PURCHASED THE PRODUCT AND IS NOTTRANSFERABLE. SEIKI RETAINS THE RIGHT TO CHANGE THIS
WARRANTY AT ANY TIME WITHOUT NOTICE.
Some states do not allow the exclusion or limitation of incidental or consequential damages, or allow limitations on warranties, so
which vary from state to state.
Please send all correspondence to:
SEIKI LLC
c/o SEIKI LLC Customer Service
customerservice@seiki.com
PLEASE CONTACT CUSTOMER SERVICE TO OBTAIN SHIPPING ADDRESS FOR SERVICE.
SEIKI TV’s LIMITED WARRANTY TO ORIGINAL CONSUMER
28
En -
OTT APP SERVICE
If you want to know about these APP information or get more service. Please refer to following
content.
• Netix
You can call the following telephone for more help: 866-579-7172
If your matter is regarding customer service, please refer to https://contactus.netix.com/help for
alternative contact information.
• YouTube
You can browse the following website for more help:
https://productforums.google.com/forum/#!categories/youtube/smart-tvs
• VUDU
You can call the following telephone for more help: 888-554-8838
• TG
You can call the following telephone for more help: 888-874-5411
• Pandora
You can send E-mail to Pandora for more help: pandora-support@pandora.com
• AccuWeather
You can send E-mail to AccuWeather for more help: CustomerService@AccuWeather.com

Navigation menu
