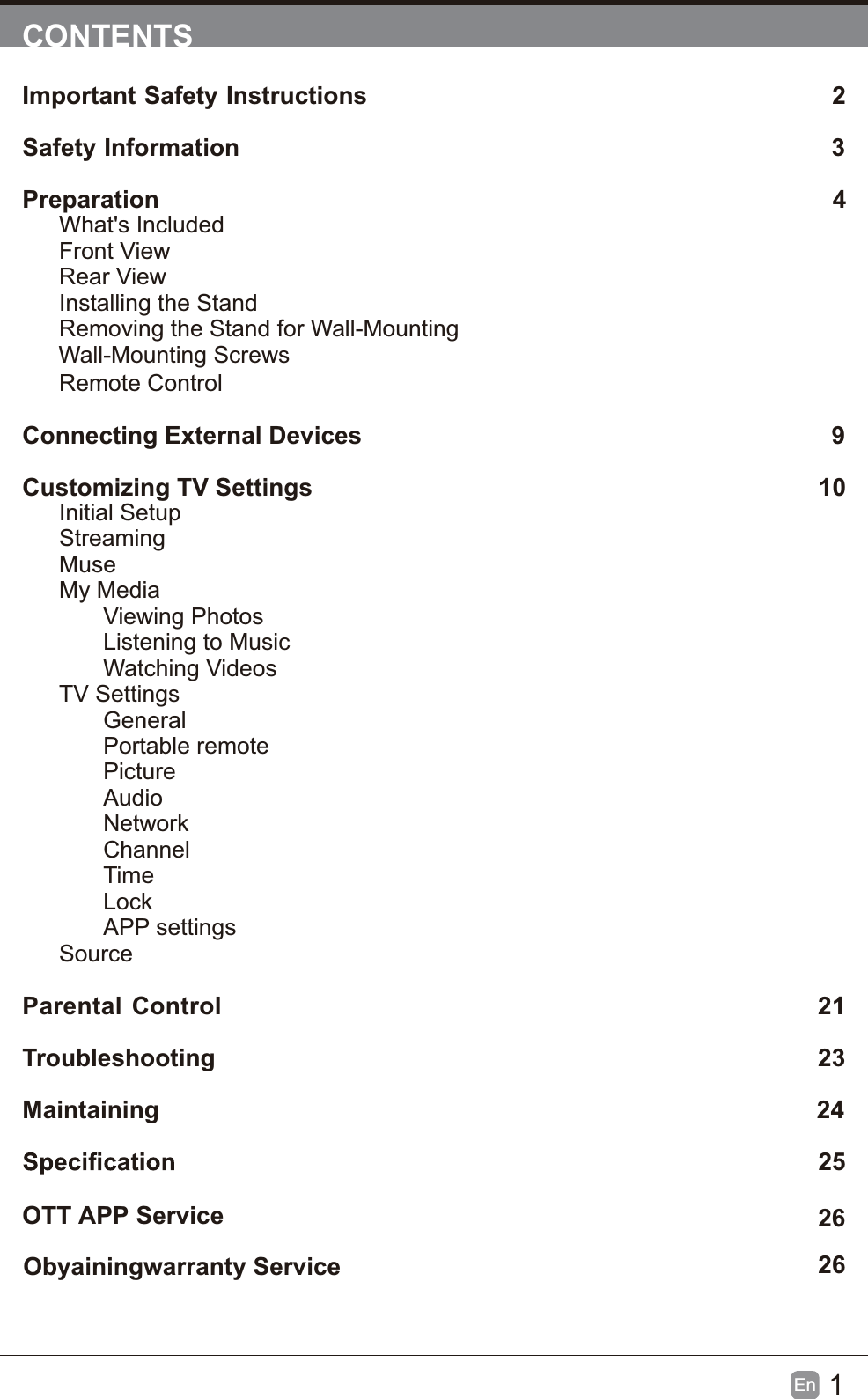

1En CONTENTSImportant Safety Instructions 2Safety Information 3Preparation 4What's IncludedFront ViewRear ViewInstalling the StandRemoving the Stand for Wall-Mounting Wall-Mounting ScrewsRemote ControlConnecting External Devices 9Customizing TV Settings 10Initial SetupStreamingMuseMy MediaViewing PhotosListening to MusicWatching VideosTV SettingsGeneralPortable remotePictureAudioNetworkChannelTimeLockAPP settingsSourceParental Control 21Troubleshooting 23Maintaining 24 25 2626OTT Obyainingwarranty Service APP Service

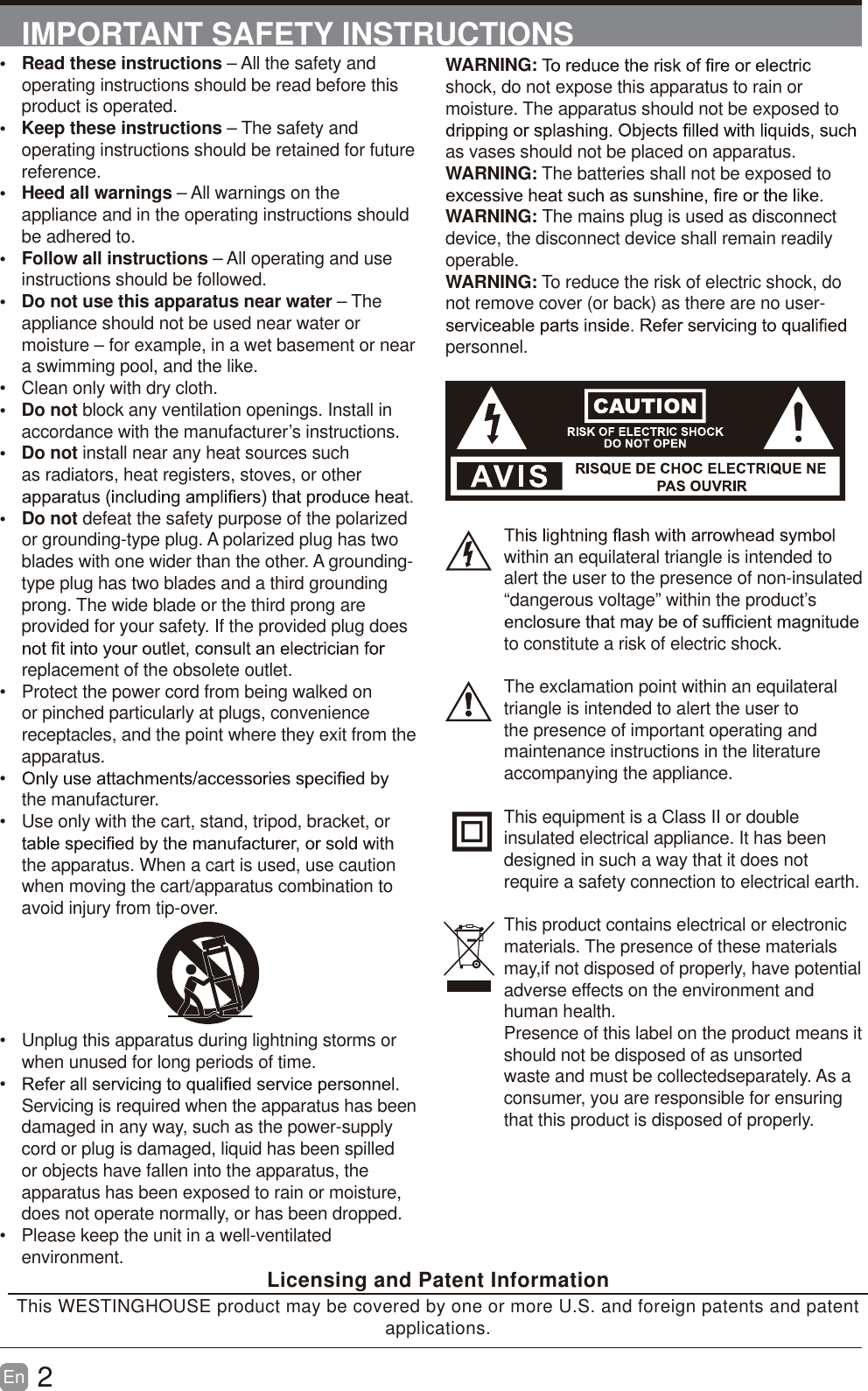

2En IMPORTANT SAFETY INSTRUCTIONSWARNING:shock, do not expose this apparatus to rain or moisture. The apparatus should not be exposed to as vases should not be placed on apparatus. WARNING: The batteries shall not be exposed to WARNING: The mains plug is used as disconnect device, the disconnect device shall remain readily operable.WARNING: To reduce the risk of electric shock, do not remove cover (or back) as there are no user-personnel.within an equilateral triangle is intended to alert the user to the presence of non-insulated “dangerous voltage” within the product’s to constitute a risk of electric shock.The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance instructions in the literature accompanying the appliance. This equipment is a Class II or double insulated electrical appliance. It has been designed in such a way that it does not require a safety connection to electrical earth.This product contains electrical or electronicmaterials. The presence of these materialsmay,if not disposed of properly, have potentialadverse effects on the environment and human health.Presence of this label on the product means itshould not be disposed of as unsorted waste and must be collectedseparately. As a consumer, you are responsible for ensuring that this product is disposed of properly.• Read these instructions – All the safety and operating instructions should be read before this product is operated. • Keep these instructions – The safety and operating instructions should be retained for future reference. • Heed all warnings – All warnings on the appliance and in the operating instructions should be adhered to. • Follow all instructions – All operating and use instructions should be followed. • Do not use this apparatus near water – The appliance should not be used near water or moisture – for example, in a wet basement or near a swimming pool, and the like.• Clean only with dry cloth.• Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.• Do not install near any heat sources such as radiators, heat registers, stoves, or other • Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does replacement of the obsolete outlet.• Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.• the manufacturer.• Use only with the cart, stand, tripod, bracket, or the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. • Unplug this apparatus during lightning storms or when unused for long periods of time.• Servicing is required when the apparatus has beendamaged in any way, such as the power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.• Please keep the unit in a well-ventilated environment. Licensing and Patent InformationThis WESTINGHOUSE product may be covered by one or more U.S. and foreign patents and patent applications.

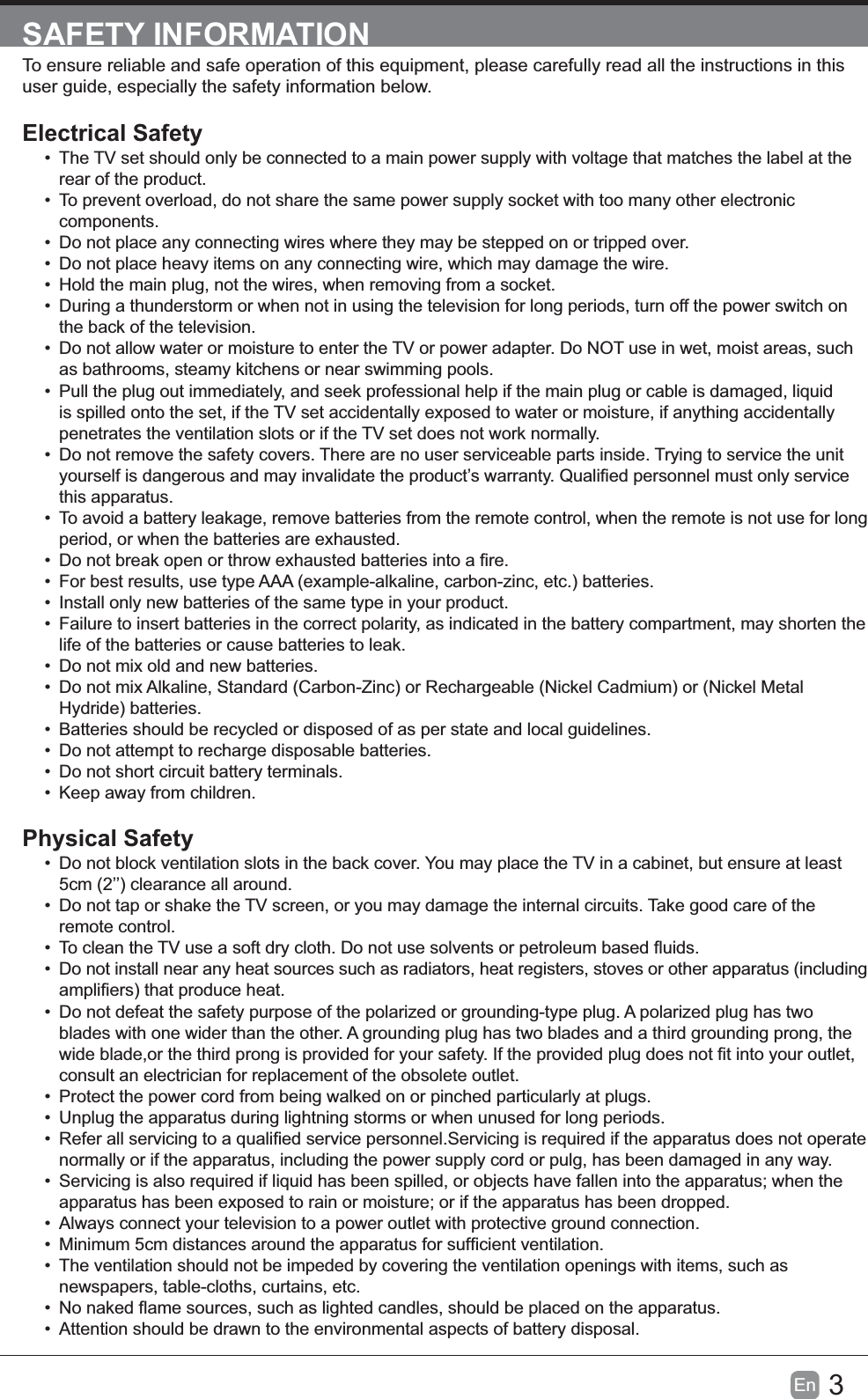

3EnSAFETY INFORMATIONuser guide, especially the safety information below.Electrical Safety• The TV set should only be connected to a main power supply with voltage that matches the label at the rear of the product.• To prevent overload, do not share the same power supply socket with too many other electronic components.• Do not place any connecting wires where they may be stepped on or tripped over.• Do not place heavy items on any connecting wire, which may damage the wire.• Hold the main plug, not the wires, when removing from a socket.• During a thunderstorm or when not in using the television for long periods, turn off the power switch on the back of the television.• Do not allow water or moisture to enter the TV or power adapter. Do NOT use in wet, moist areas, such as bathrooms, steamy kitchens or near swimming pools.• is spilled onto the set, if the TV set accidentally exposed to water or moisture, if anything accidentally penetrates the ventilation slots or if the TV set does not work normally.• Do not remove the safety covers. There are no user serviceable parts inside. Trying to service the unit this apparatus.• To avoid a battery leakage, remove batteries from the remote control, when the remote is not use for long period, or when the batteries are exhausted.• • For best results, use type AAA (example-alkaline, carbon-zinc, etc.) batteries.• Install only new batteries of the same type in your product.• Failure to insert batteries in the correct polarity, as indicated in the battery compartment, may shorten the life of the batteries or cause batteries to leak.• Do not mix old and new batteries.• Do not mix Alkaline, Standard (Carbon-Zinc) or Rechargeable (Nickel Cadmium) or (Nickel Metal Hydride) batteries.• Batteries should be recycled or disposed of as per state and local guidelines.• Do not attempt to recharge disposable batteries.• Do not short circuit battery terminals.• Keep away from children.Physical Safety• Do not block ventilation slots in the back cover. You may place the TV in a cabinet, but ensure at least 5cm (2’’) clearance all around.• Do not tap or shake the TV screen, or you may damage the internal circuits. Take good care of the remote control.• • Do not install near any heat sources such as radiators, heat registers, stoves or other apparatus (including • Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding plug has two blades and a third grounding prong, the consult an electrician for replacement of the obsolete outlet. • Protect the power cord from being walked on or pinched particularly at plugs. • Unplug the apparatus during lightning storms or when unused for long periods.• normally or if the apparatus, including the power supply cord or pulg, has been damaged in any way.• • Always connect your television to a power outlet with protective ground connection. • • The ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, table-cloths, curtains, etc.• • Attention should be drawn to the environmental aspects of battery disposal.

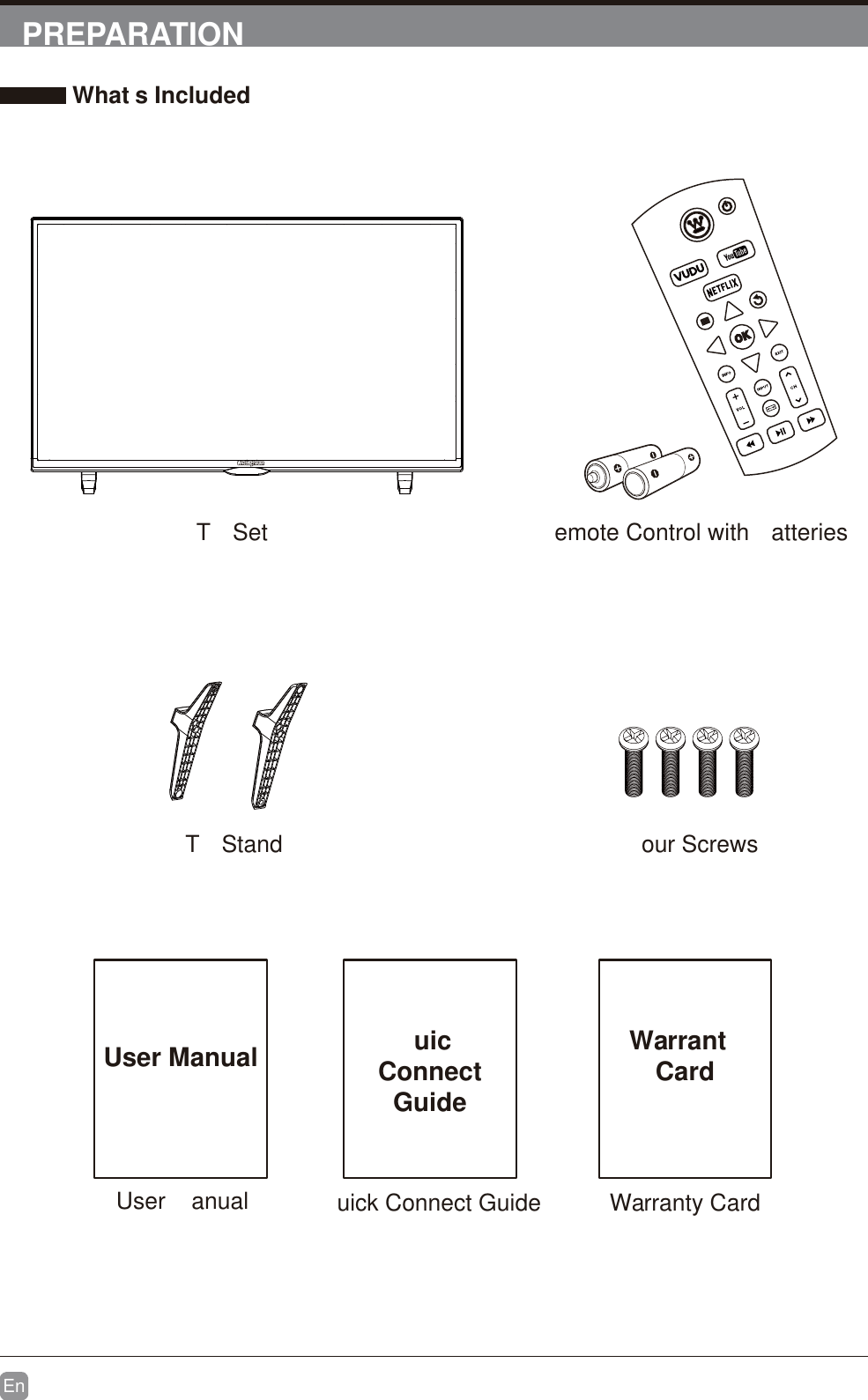

En PREPARATION What s Includedemote Control with atteriesT StandT Setour ScrewsUser anualUser Manualuick Connect GuideuicConnect GuideWarranty CardWarrantCard

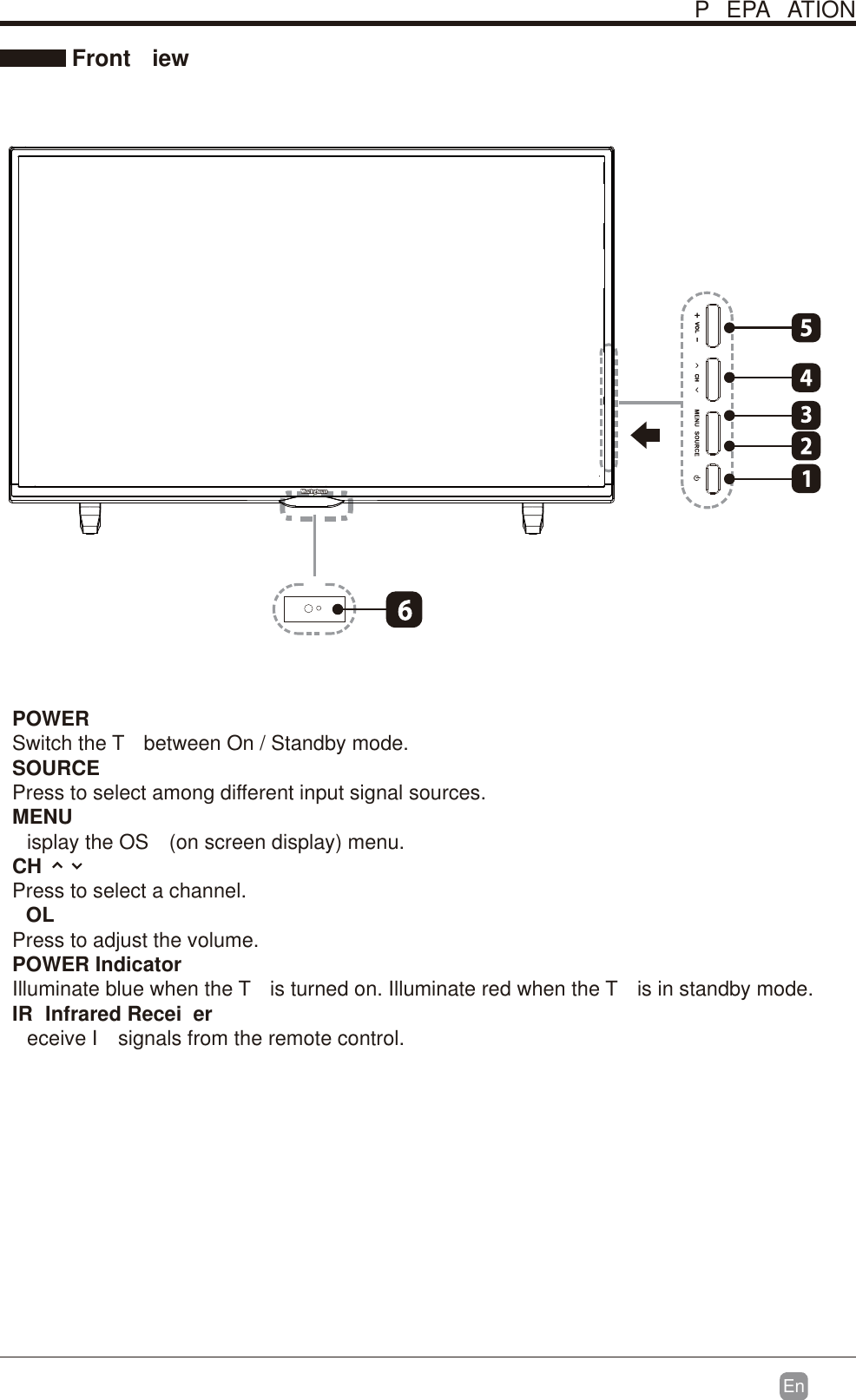

En P EPA ATION Front iew POWERSwitch the T between On / Standby mode. SOURCEPress to select among different input signal sources. MENUisplay the OS (on screen display) menu. CH Press to select a channel. OL Press to adjust the volume. POWER IndicatorIlluminate blue when the T is turned on. Illuminate red when the T is in standby mode.IR Infrared Recei ereceive I signals from the remote control.

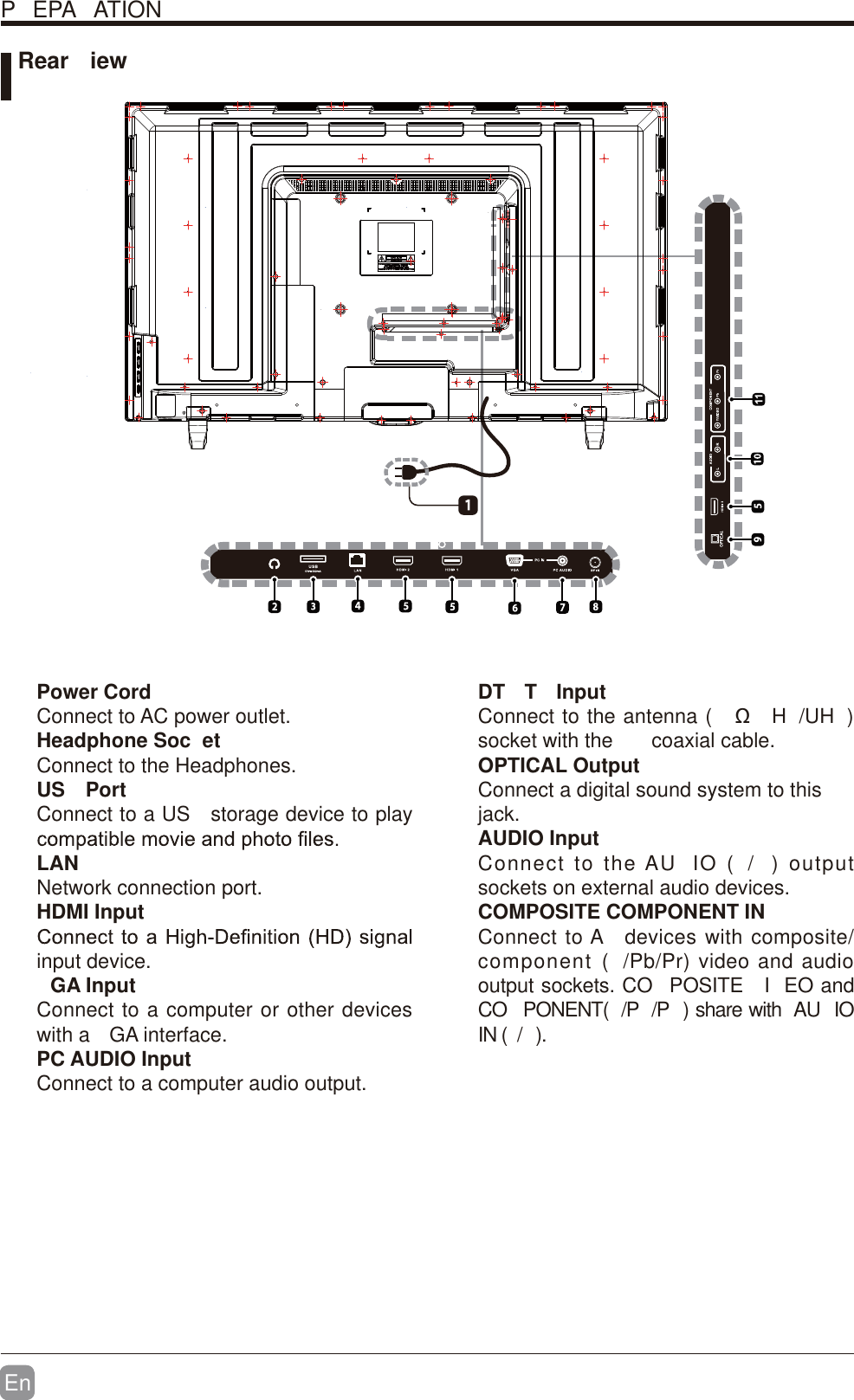

En P EPA ATION Power CordConnect to AC power outlet. Headphone Soc etConnect to the Headphones. US PortConnect to a US storage device to play LANNetwork connection port. HDMI Inputinput device. GA InputConnect to a computer or other devices with a GA interface. PC AUDIO InputConnect to a computer audio output. DT T InputConnect to the antenna (  H/UH) socket with the coaxial cable. OPTICAL OutputConnect a digital sound system to thisjack. AUDIO InputConnect to the AU IO ( / ) output sockets on external audio devices. COMPOSITE COMPONENT IN Connect to A devices with composite/component ( /Pb/Pr) video and audio output sockets. CO POSITE I EO and CO PONENT( /P /P ) share with AU IO IN ( / ). Rear iew1.

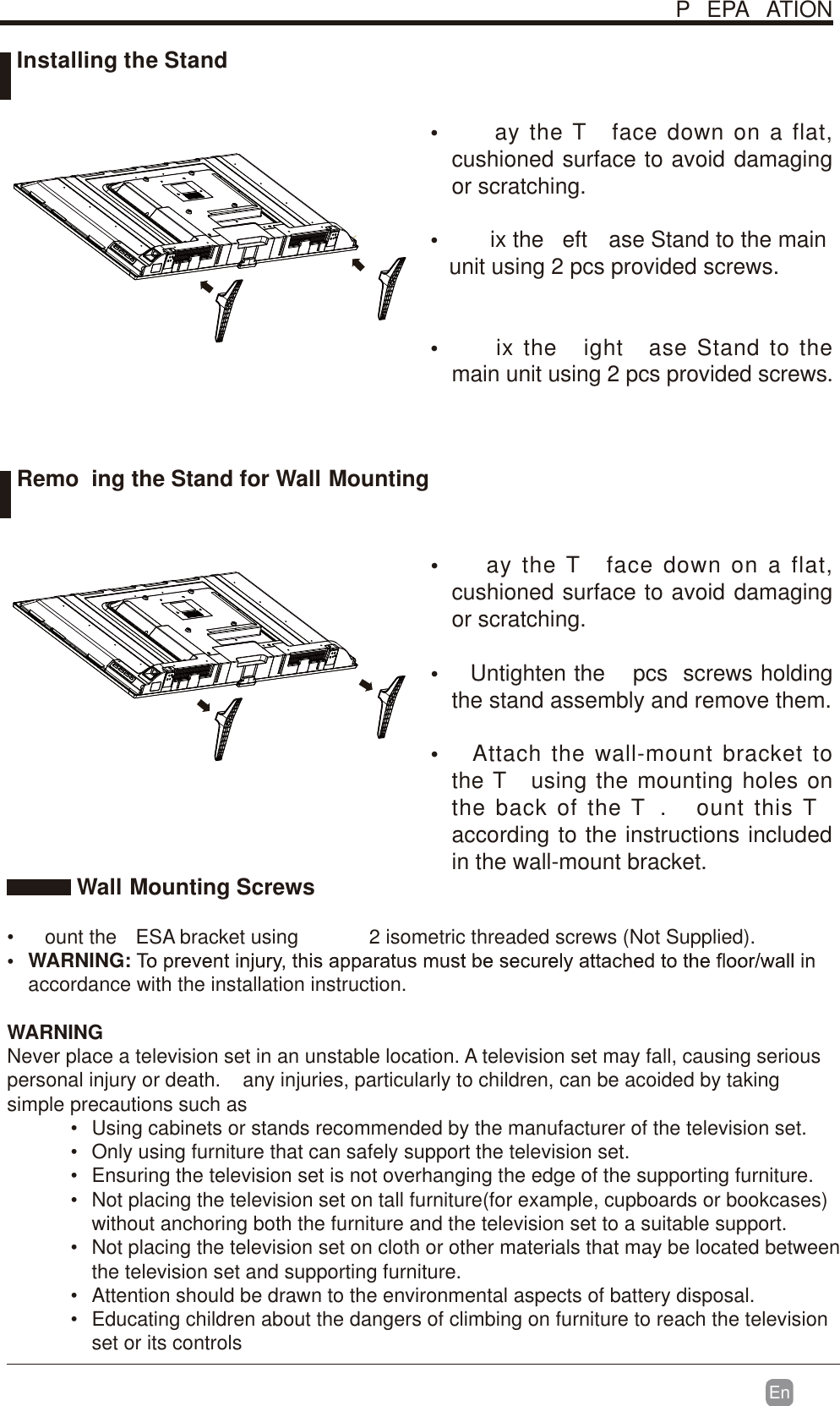

En Wall Mounting Screws• ount the ESA bracket using 2 isometric threaded screws (Not Supplied).• WARNING:accordance with the installation instruction. WARNINGNever place a television set in an unstable location. A television set may fall, causing serious personal injury or death. any injuries, particularly to children, can be acoided by taking simple precautions such as• Using cabinets or stands recommended by the manufacturer of the television set.• Only using furniture that can safely support the television set.• Ensuring the television set is not overhanging the edge of the supporting furniture.• Not placing the television set on tall furniture(for example, cupboards or bookcases) without anchoring both the furniture and the television set to a suitable support. • Not placing the television set on cloth or other materials that may be located between the television set and supporting furniture.• Attention should be drawn to the environmental aspects of battery disposal.• Educating children about the dangers of climbing on furniture to reach the television set or its controlsP EPA ATION• ay the T face down on a flat, cushioned surface to avoid damaging or scratching.• ix the eft ase Stand to the main unit using 2 pcs provided screws.• ix the ight ase Stand to the main unit using 2 pcs provided screws.• ay the T face down on a flat, cushioned surface to avoid damaging or scratching.• Untighten the pcs screws holding the stand assembly and remove them. • Attach the wall-mount bracket to the T using the mounting holes on the back of the T . ount this T according to the instructions included in the wall-mount bracket. Installing the StandRemo ing the Stand for Wall Mounting

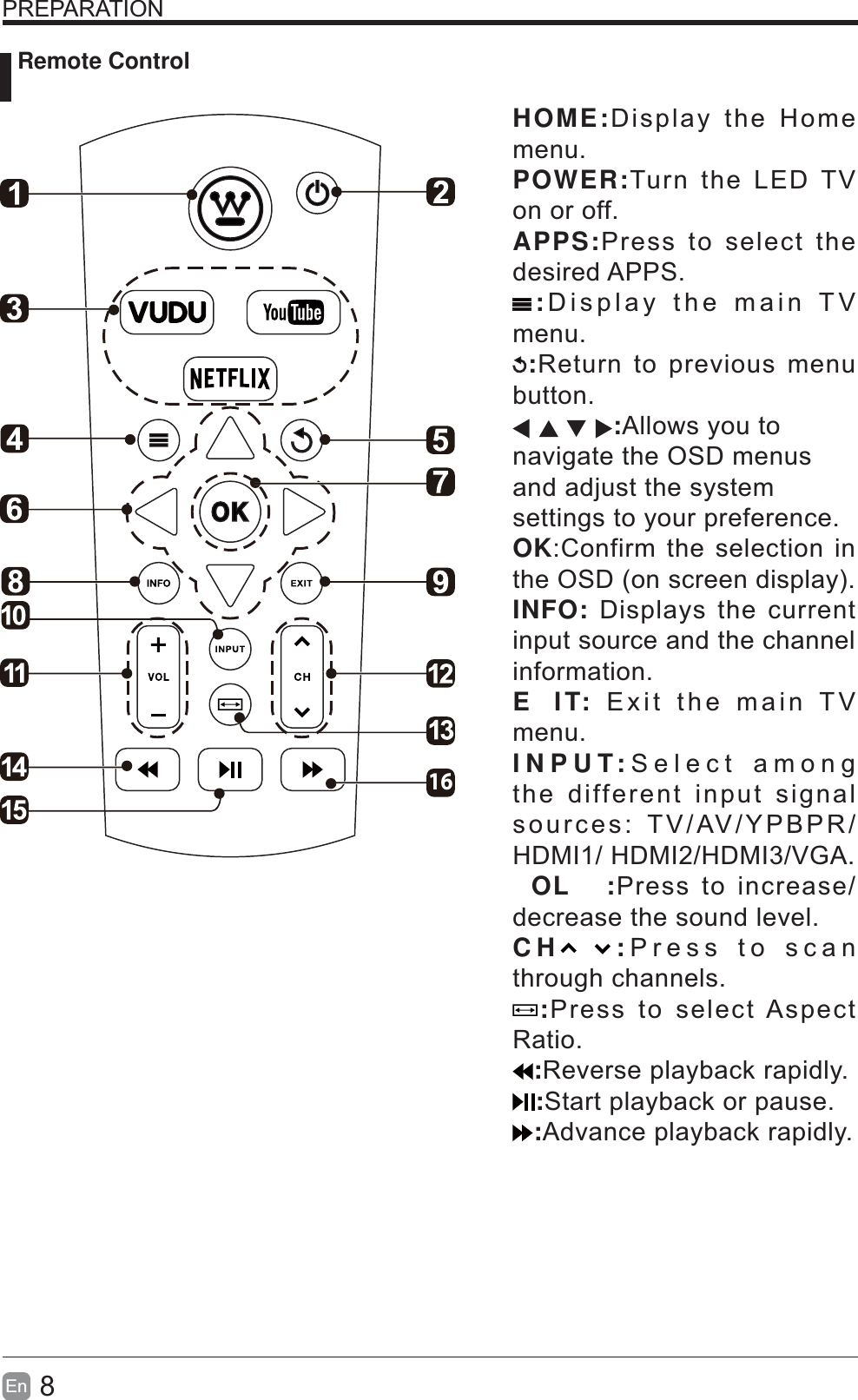

8En PREPARATION Remote Control16 HOME:Display the Home menu. POWER:Turn the LED TV on or off. APPS:Press to select the desired APPS. :Display the main TV menu. :Return to previous menu button. :Allows you to navigate the OSD menus and adjust the systemsettings to your preference. OK:Confirm the selection in the OSD (on screen display). INFO: Displays the current input source and the channel information. EIT: Exit the main TV menu. INPUT:Select among the different input signal sources: TV/AV/YPBPR/HDMI1/ HDMI2/HDMI3/VGA. OL :Press to increase/decrease the sound level. CH :Press to scan through channels. :Press to select Aspect Ratio. :Reverse playback rapidly. :Start playback or pause. :Advance playback rapidly.

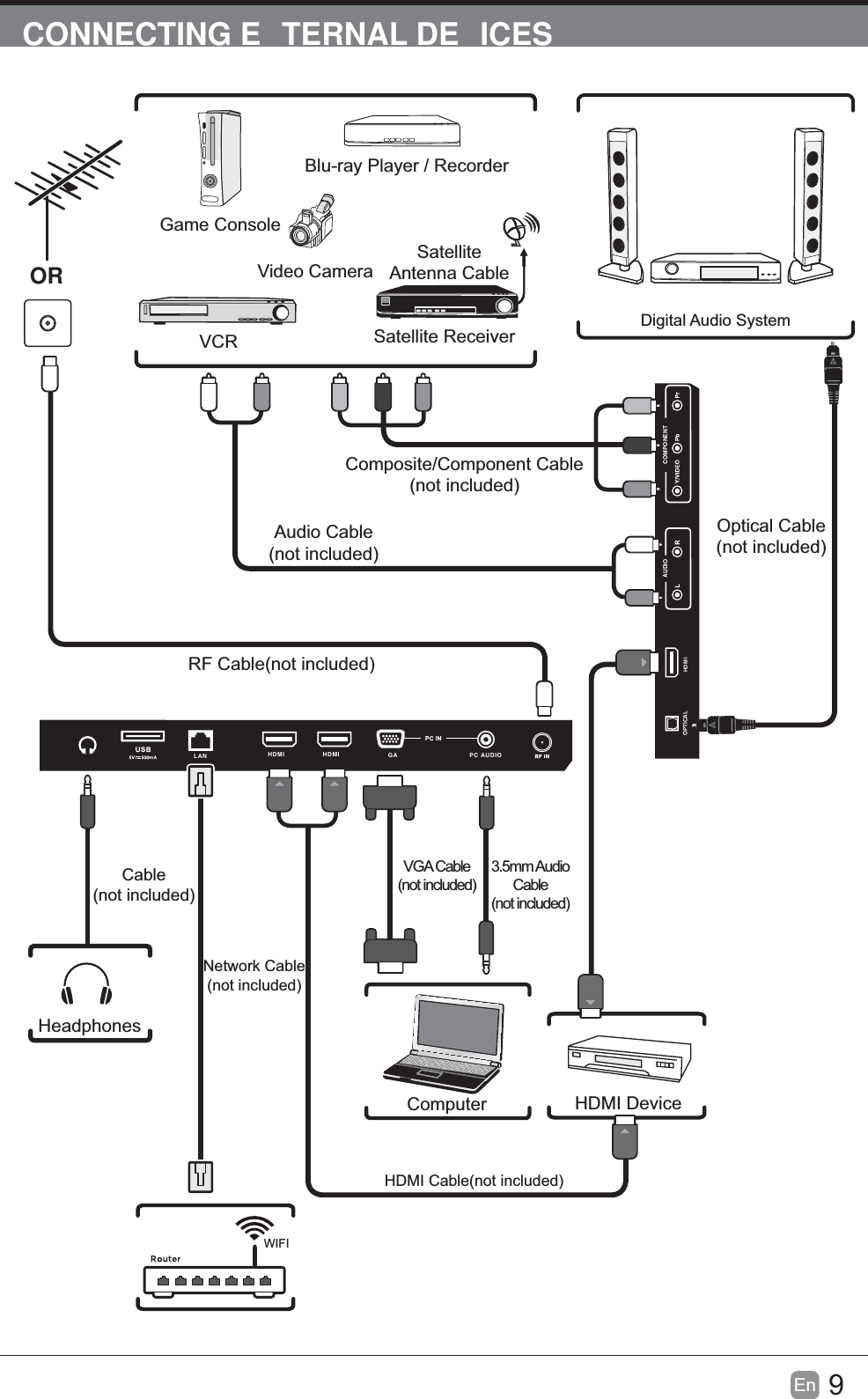

9En CONNECTING E TERNAL DE ICESCOMPONENTAUDIOHDMI OPTICALHDMI HDMI PC AUDIOGALANRF Cable(not included)Audio Cable(not included)Composite/Component Cable(not included)Video CameraGame ConsoleBlu-ray Player / RecorderVCR Satellite ReceiverSatelliteAntenna CableORHDMI DeviceComputerDigital Audio SystemVGA Cable(not included)3.5mm Audio Cable(not included)HeadphonesCable(not included)HDMI Cable(not included)Optical Cable(not included)WIFINetwork Cable(not included)

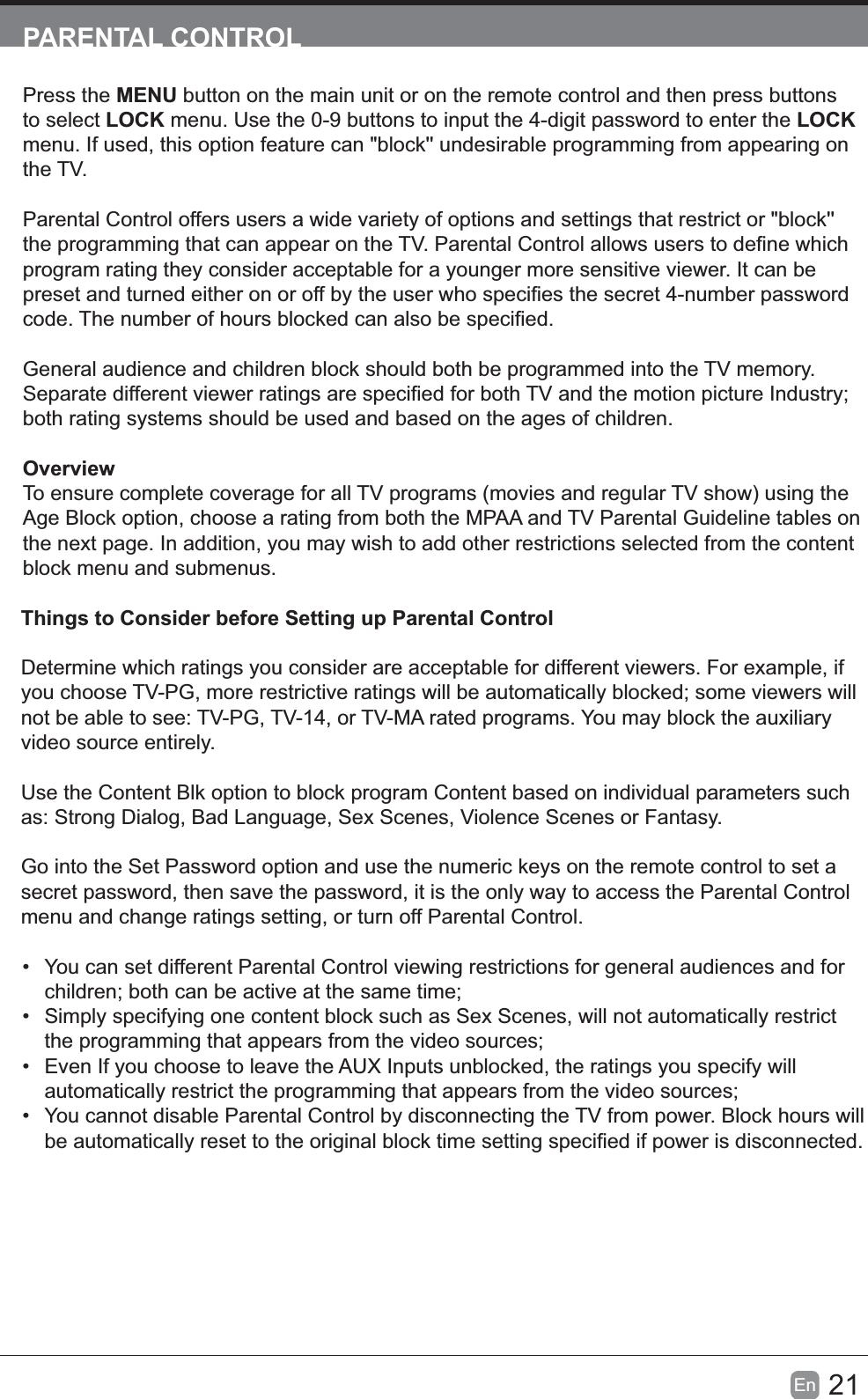

21EnPARENTAL CONTROLPress the MENU button on the main unit or on the remote control and then press buttons to select LOCK menu. Use the 0-9 buttons to input the 4-digit password to enter the LOCKmenu. If used, this option feature can "block'' undesirable programming from appearing on the TV.Parental Control offers users a wide variety of options and settings that restrict or "block'' program rating they consider acceptable for a younger more sensitive viewer. It can be General audience and children block should both be programmed into the TV memory. both rating systems should be used and based on the ages of children.OverviewTo ensure complete coverage for all TV programs (movies and regular TV show) using the Age Block option, choose a rating from both the MPAA and TV Parental Guideline tables on the next page. In addition, you may wish to add other restrictions selected from the content block menu and submenus.Things to Consider before Setting up Parental ControlDetermine which ratings you consider are acceptable for different viewers. For example, if not be able to see: TV-PG, TV-14, or TV-MA rated programs. You may block the auxiliary video source entirely.Use the Content Blk option to block program Content based on individual parameters such as: Strong Dialog, Bad Language, Sex Scenes, Violence Scenes or Fantasy.Go into the Set Password option and use the numeric keys on the remote control to set a secret password, then save the password, it is the only way to access the Parental Control menu and change ratings setting, or turn off Parental Control.• You can set different Parental Control viewing restrictions for general audiences and for • Simply specifying one content block such as Sex Scenes, will not automatically restrict • Even If you choose to leave the AUX Inputs unblocked, the ratings you specify will • You cannot disable Parental Control by disconnecting the TV from power. Block hours will 

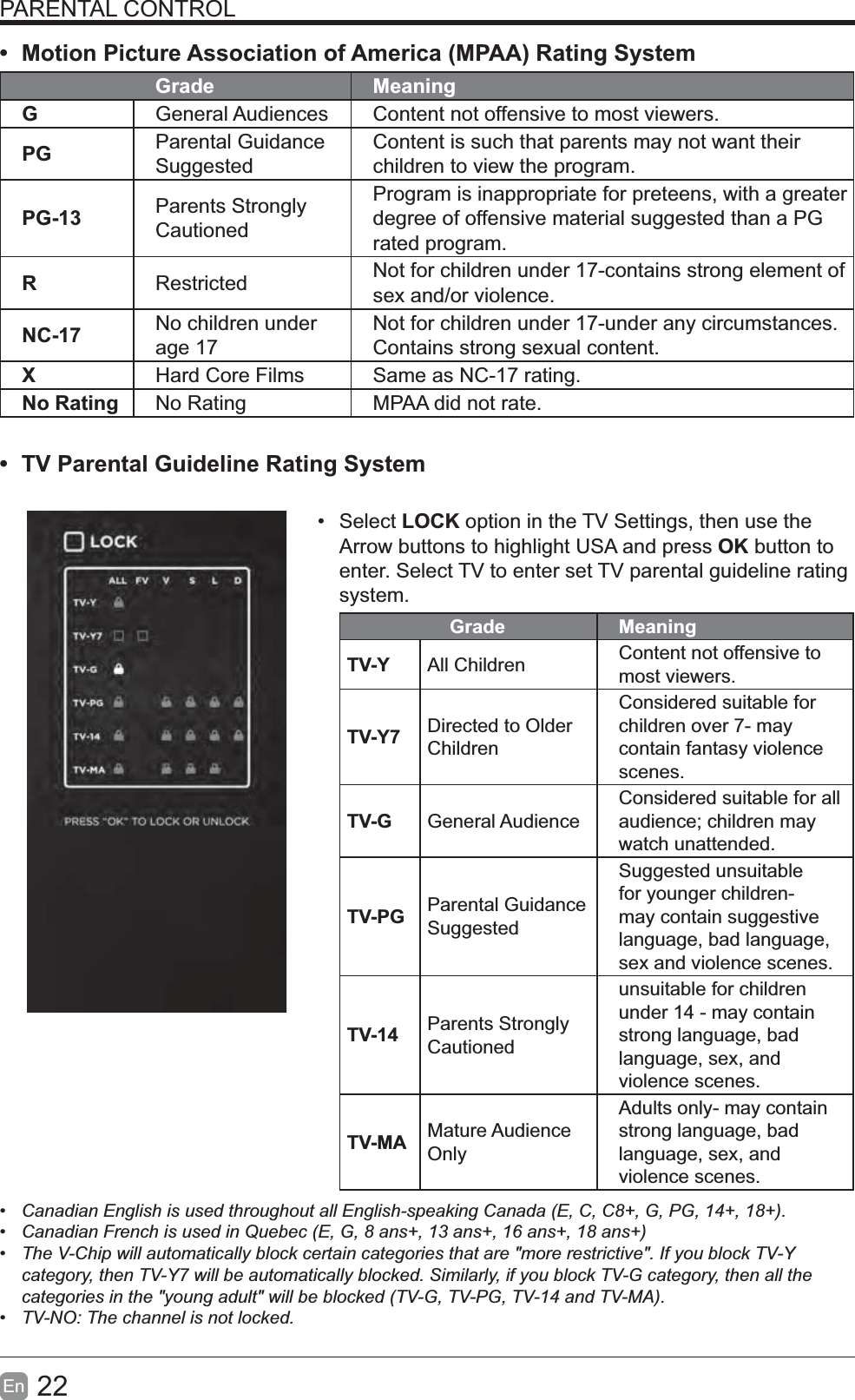

22EnPARENTAL CONTROL• Motion Picture Association of America (MPAA) Rating SystemGrade MeaningGGeneral Audiences Content not offensive to most viewers.PG Parental Guidance SuggestedContent is such that parents may not want their children to view the program.PG-13 Parents Strongly CautionedProgram is inappropriate for preteens, with a greater degree of offensive material suggested than a PG rated program.RRestricted Not for children under 17-contains strong element of sex and/or violence.NC-17 No children under age 17Not for children under 17-under any circumstances. Contains strong sexual content.XHard Core Films Same as NC-17 rating.No Rating No Rating MPAA did not rate.• TV Parental Guideline Rating System• Select LOCK option in the TV Settings, then use the Arrow buttons to highlight USA and press OK button to enter. Select TV to enter set TV parental guideline rating system.Grade MeaningTV-Y All Children Content not offensive to most viewers.TV-Y7 Directed to Older ChildrenConsidered suitable for children over 7- may contain fantasy violence scenes.TV-G General AudienceConsidered suitable for all watch unattended.TV-PG Parental Guidance SuggestedSuggested unsuitable for younger children-may contain suggestive language, bad language, sex and violence scenes.TV-14 Parents Strongly Cautionedunsuitable for children under 14 - may contain strong language, bad language, sex, and violence scenes.TV-MA Mature Audience OnlyAdults only- may contain strong language, bad language, sex, and violence scenes.• Canadian English is used throughout all English-speaking Canada (E, C, C8+, G, PG, 14+, 18+). • Canadian French is used in Quebec (E, G, 8 ans+, 13 ans+, 16 ans+, 18 ans+) • The V-Chip will automatically block certain categories that are "more restrictive". If you block TV-Y category, then TV-Y7 will be automatically blocked. Similarly, if you block TV-G category, then all the categories in the "young adult" will be blocked (TV-G, TV-PG, TV-14 and TV-MA).• TV-NO: The channel is not locked.

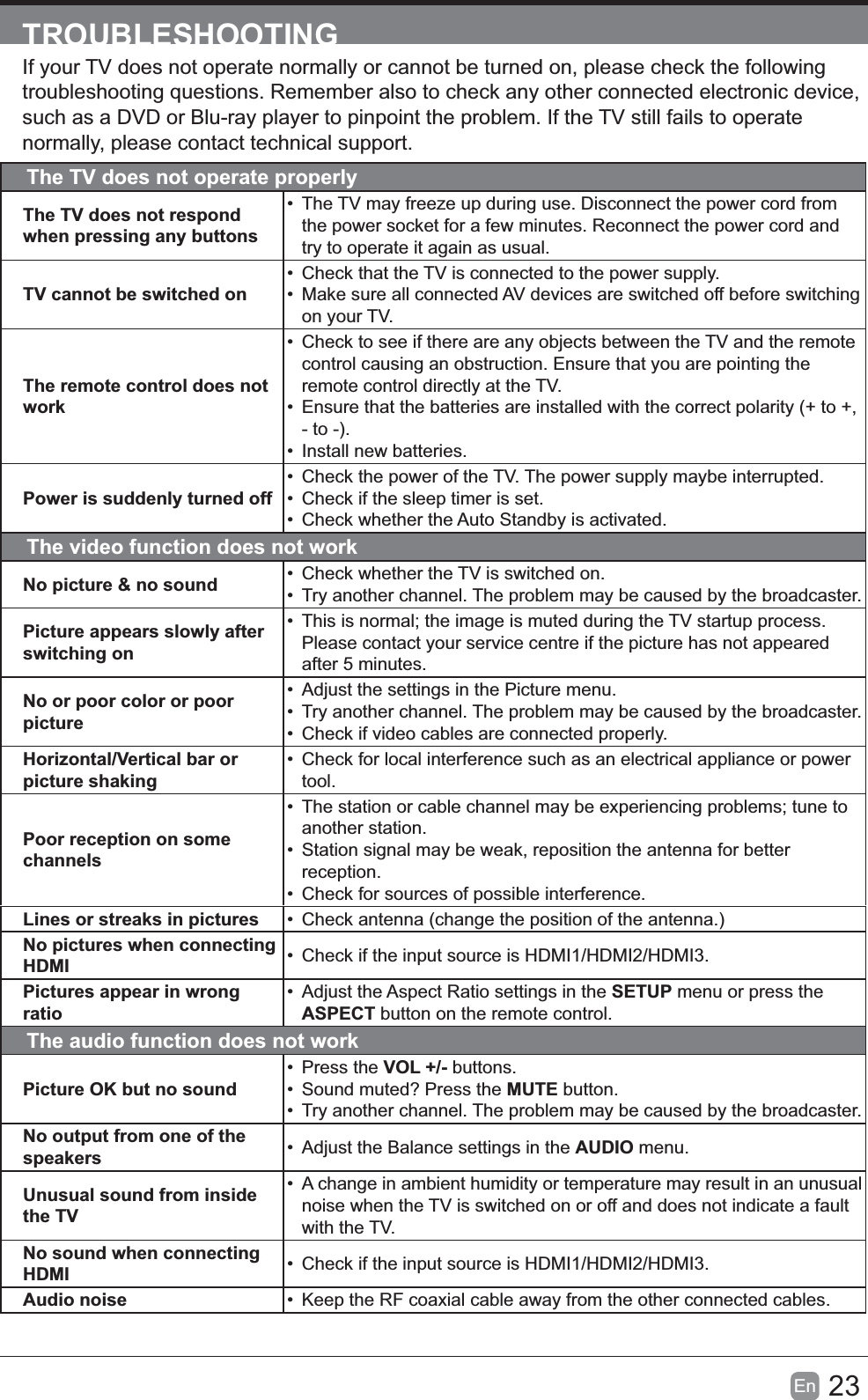

23EnTROUBLESHOOTINGIf your TV does not operate normally or cannot be turned on, please check the following such as a DVD or Blu-ray player to pinpoint the problem. If the TV still fails to operate normally, please contact technical support.The TV does not operate properlyThe TV does not respond when pressing any buttons• The TV may freeze up during use. Disconnect the power cord from the power socket for a few minutes. Reconnect the power cord and try to operate it again as usual.TV cannot be switched on• Check that the TV is connected to the power supply.• Make sure all connected AV devices are switched off before switching on your TV.The remote control does not work• Check to see if there are any objects between the TV and the remote control causing an obstruction. Ensure that you are pointing the remote control directly at the TV.• Ensure that the batteries are installed with the correct polarity (+ to +, - to -).• Install new batteries. Power is suddenly turned off• Check the power of the TV. The power supply maybe interrupted.• Check if the sleep timer is set.• Check whether the Auto Standby is activated. The video function does not workNo picture & no sound • Check whether the TV is switched on.• Try another channel. The problem may be caused by the broadcaster.Picture appears slowly after switching on• Please contact your service centre if the picture has not appeared after 5 minutes.No or poor color or poor picture• Adjust the settings in the Picture menu.• Try another channel. The problem may be caused by the broadcaster. • Check if video cables are connected properly.Horizontal/Vertical bar or picture shaking• Check for local interference such as an electrical appliance or power tool.Poor reception on some channels• another station.• Station signal may be weak, reposition the antenna for better reception.• Check for sources of possible interference.Lines or streaks in pictures • Check antenna (change the position of the antenna.)No pictures when connecting HDMI • Check if the input source is HDMI1/HDMI2/HDMI3.Pictures appear in wrong ratio• Adjust the Aspect Ratio settings in the SETUP menu or press the ASPECT button on the remote control.The audio function does not workPicture OK but no sound• Press the VOL +/- buttons. • Sound muted? Press the MUTE button.• Try another channel. The problem may be caused by the broadcaster.No output from one of the speakers • Adjust the Balance settings in the AUDIO menu.Unusual sound from inside the TV• A change in ambient humidity or temperature may result in an unusual noise when the TV is switched on or off and does not indicate a fault with the TV.No sound when connecting HDMI • Check if the input source is HDMI1/HDMI2/HDMI3.Audio noise • Keep the RF coaxial cable away from the other connected cables.

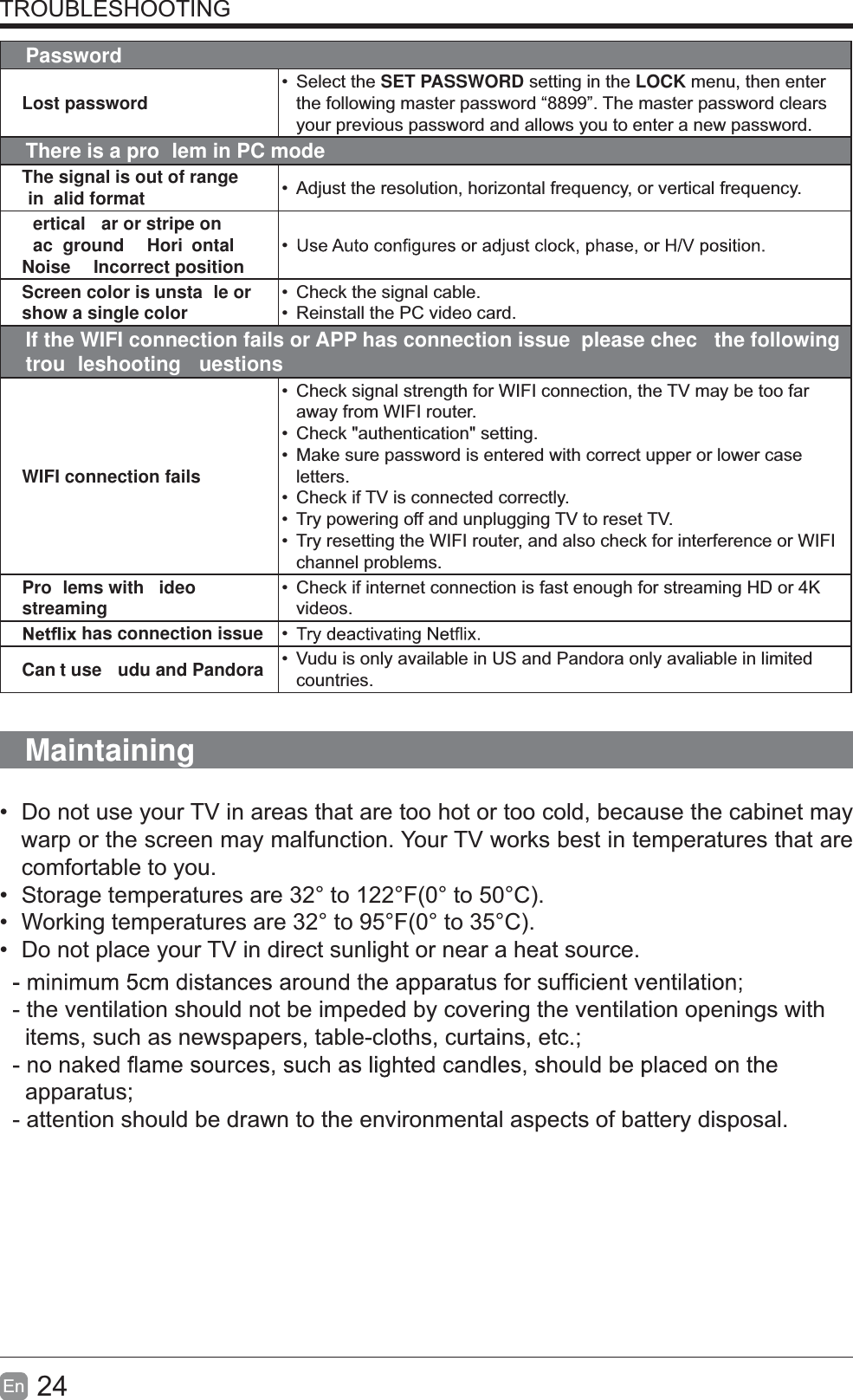

24En TROUBLESHOOTINGPasswordLost password• Select the SET PASSWORD setting in the LOCK menu, then enter the following master password “8899”. The master password clears your previous password and allows you to enter a new password.There is a pro lem in PC modeThe signal is out of range in alid format • Adjust the resolution, horizontal frequency, or vertical frequency.ertical ar or stripe on ac ground Hori ontal Noise Incorrect position•Screen color is unsta le or show a single color• Check the signal cable.• Reinstall the PC video card.If the WIFI connection fails or APP has connection issue please chec the following trou leshooting uestionsWIFI connection fails• Check signal strength for WIFI connection, the TV may be too far away from WIFI router.• Check "authentication" setting.• Make sure password is entered with correct upper or lower case letters.• Check if TV is connected correctly.• Try powering off and unplugging TV to reset TV.• Try resetting the WIFI router, and also check for interference or WIFI channel problems.Pro lems with ideo streaming• Check if internet connection is fast enough for streaming HD or 4K videos. has connection issue •Can t use udu and Pandora • Vudu is only available in US and Pandora only avaliable in limited countries.Maintaining• Do not use your TV in areas that are too hot or too cold, because the cabinet may warp or the screen may malfunction. Your TV works best in temperatures that are comfortable to you.• Storage temperatures are 32° to 122°F(0° to 50°C).• Working temperatures are 32° to 95°F(0° to 35°C).• Do not place your TV in direct sunlight or near a heat source.- the ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, table-cloths, curtains, etc.; apparatus;- attention should be drawn to the environmental aspects of battery disposal.

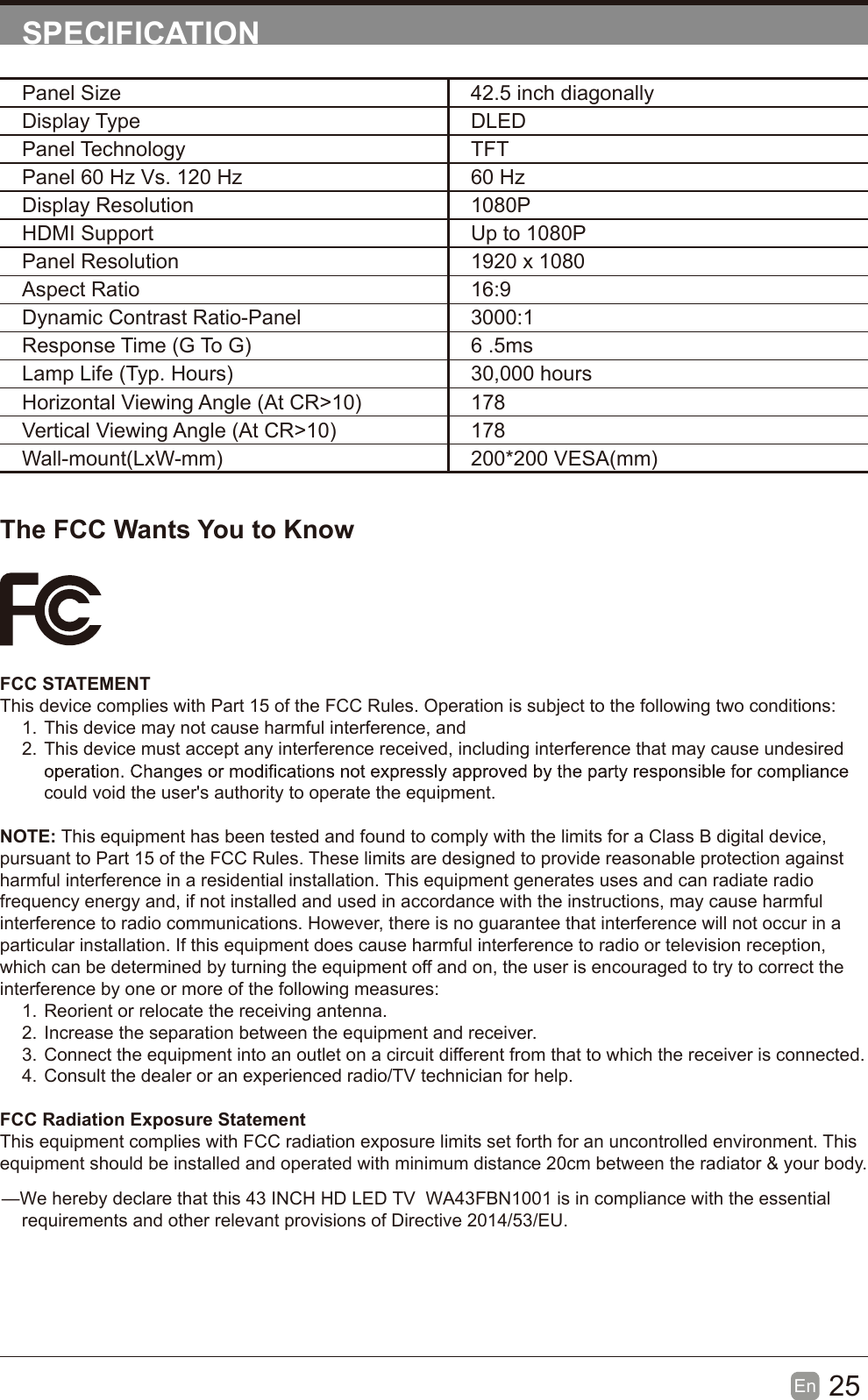

25En SPECIFICATIONThe FCC Wants You to KnowFCC STATEMENTThis device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:1. This device may not cause harmful interference, and2. This device must accept any interference received, including interference that may cause undesired could void the user's authority to operate the equipment.NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:1. Reorient or relocate the receiving antenna.2. Increase the separation between the equipment and receiver.3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.4. Consult the dealer or an experienced radio/TV technician for help.FCC Radiation Exposure StatementThis equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.Panel Size 42.5 inch diagonally Display Type DLEDPanel Technology TFTPanel 60 Hz Vs. 120 Hz 60 HzDisplay Resolution 1080PHDMI Support Up to 1080PPanel Resolution 1920 x 1080Aspect Ratio 16:9Dynamic Contrast Ratio-Panel 3000:1Response Time (G To G) 6 .5msLamp Life (Typ. Hours) 30,000 hoursHorizontal Viewing Angle (At CR>10) 178Vertical Viewing Angle (At CR>10) 178Wall-mount(LxW-mm) 200*200 VESA(mm)—We hereby declare that this 43 INCH HD LED TV WA43FBN1001 is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU.

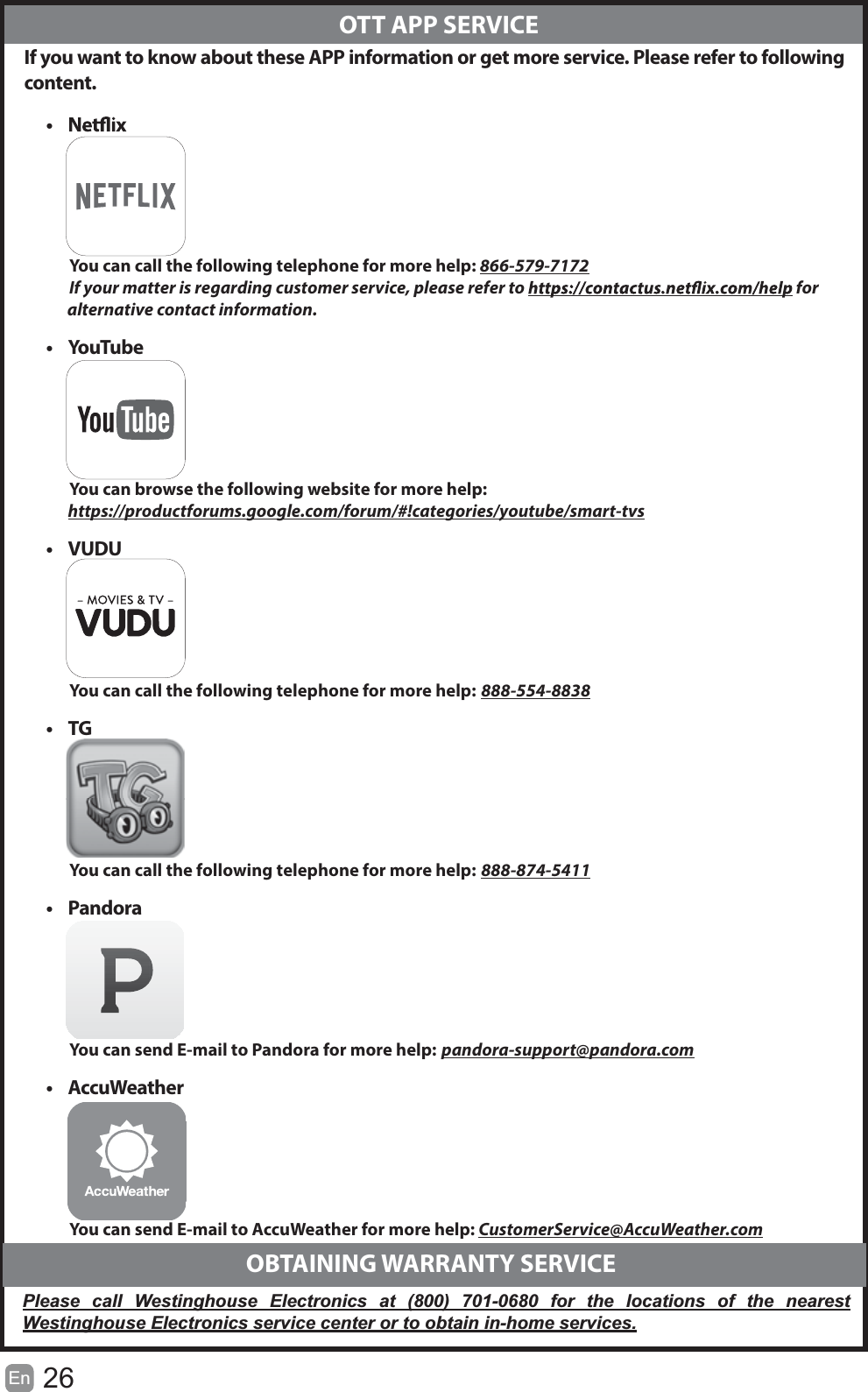

26En If you want to know about these APP information or get more service. Please refer to following content.• You can call the following telephone for more help: 866-579-7172If your matter is regarding customer service, please refer to for alternative contact information.• YouTubeYou can browse the following website for more help: https://productforums.google.com/forum/#!categories/youtube/smart-tvs• VUDUYou can call the following telephone for more help: 888-554-8838• TGYou can call the following telephone for more help: 888-874-5411• PandoraYou can send E-mail to Pandora for more help: pandora-support@pandora.com• AccuWeatherYou can send E-mail to AccuWeather for more help: CustomerService@AccuWeather.com OTT APP SERVICE OBTAINING WARRANTY SERVICEPlease call Westinghouse Electronics at (800) 701-0680 for the locations of the nearest Westinghouse Electronics service center or to obtain in-home services.
