Shenyang Tongfang Multimedia Technology WA55UF LED TV User Manual

Shenyang Tongfang Multimedia Technology Co., Limited LED TV

User Manual

User ManualMANUAL DEL USUARIOWA43UFA1001WA50UFA1001WA55UFA1001WA65UFA1001

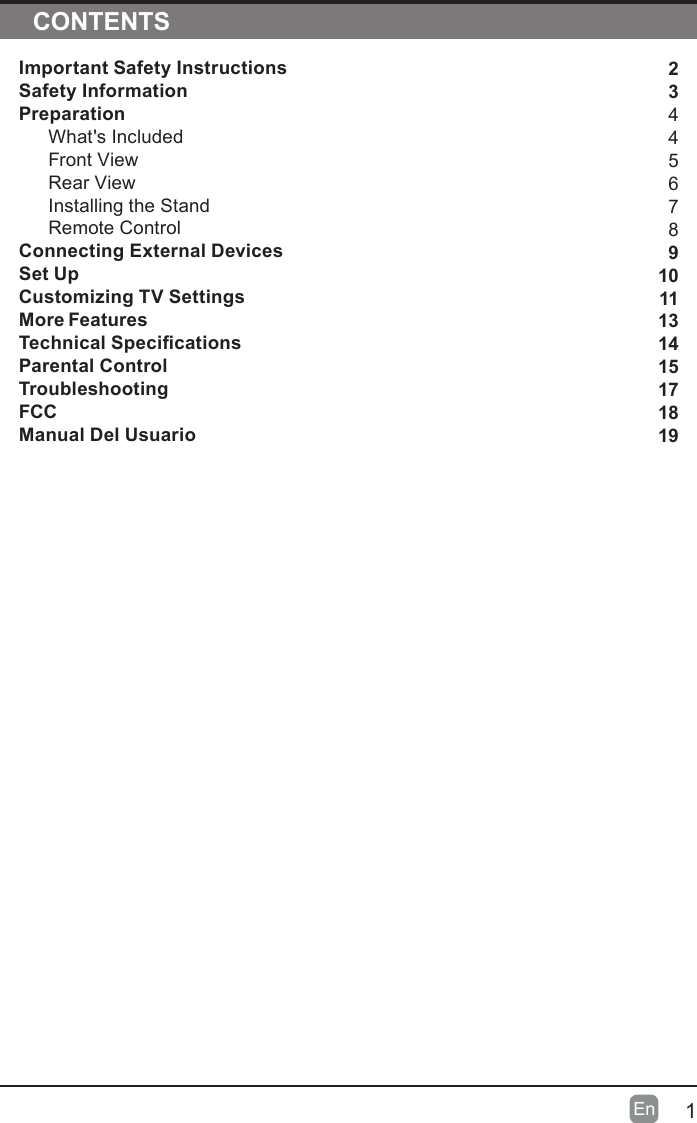

1En CONTENTSImportant Safety InstructionsSafety InformationPreparationWhat's IncludedFront ViewRear ViewInstalling the StandRemote ControlConnecting External DevicesSet UpCustomizing TV SettingsMore FeaturesTechnical SpecicationsParental ControlTroubleshootingFCCManual Del Usuario 2344567891011131415171819

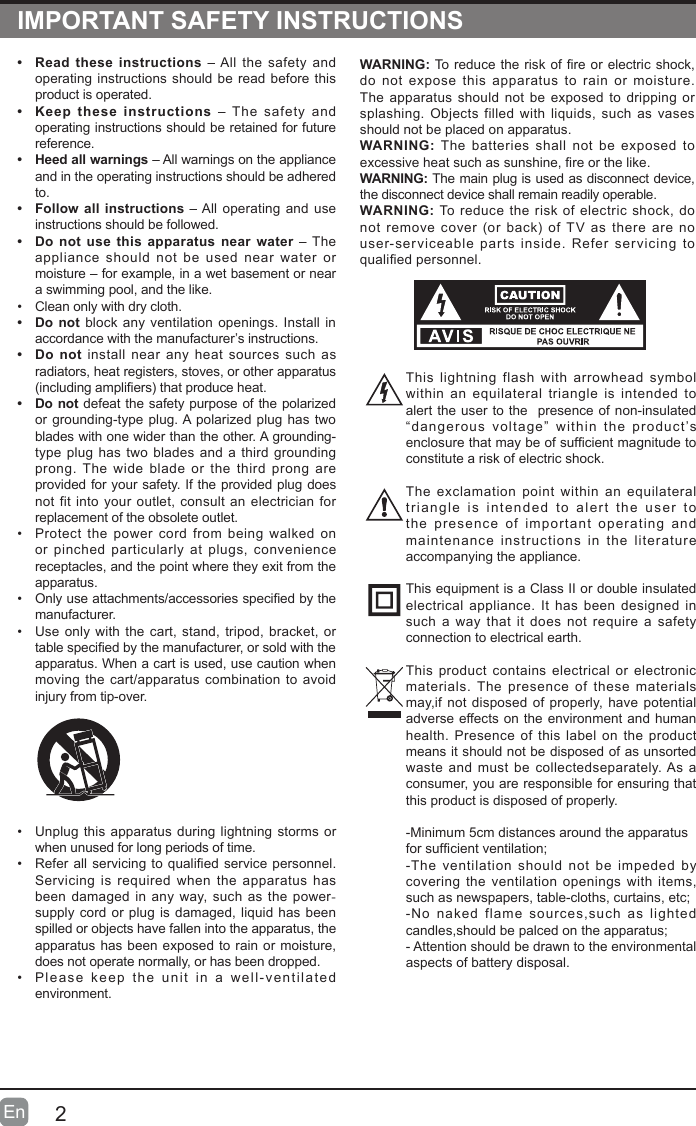

2En IMPORTANT SAFETY INSTRUCTIONS• Read these instructions – All the safety and operating instructions should be read before this product is operated. • Keep these instructions – The safety and operating instructions should be retained for future reference. • Heed all warnings – All warnings on the appliance and in the operating instructions should be adhered to. • Follow all instructions – All operating and use instructions should be followed. • Do not use this apparatus near water – The appliance should not be used near water or moisture – for example, in a wet basement or near a swimming pool, and the like.• Clean only with dry cloth.• Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.• Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (includingampliers)thatproduceheat.• Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.• Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.• Onlyuseattachments/accessoriesspeciedbythemanufacturer.• Use only with the cart, stand, tripod, bracket, or tablespeciedbythemanufacturer,orsoldwiththeapparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. WARNING:Toreducetheriskofreorelectric shock,do not expose this apparatus to rain or moisture. The apparatus should not be exposed to dripping or splashing. Objects filled with liquids, such as vases should not be placed on apparatus. WARNING: The batteries shall not be exposed to excessiveheatsuchassunshine,reorthelike.WARNING: The main plug is used as disconnect device, the disconnect device shall remain readily operable.WARNING: To reduce the risk of electric shock, do not removecover(orback)of TVas thereare no user-serviceable parts inside. Refer servicing to qualiedpersonnel.• Unplug this apparatus during lightning storms or when unused for long periods of time.• Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as the power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.• Please keep the unit in a well-ventilated environment.This lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of non-insulated “dangerous voltage” within the product’s enclosurethatmaybeofsufcientmagnitudetoconstitute a risk of electric shock.The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance instructions in the literature accompanying the appliance. This equipment is a Class II or double insulated electrical appliance. It has been designed in such a way that it does not require a safety connection to electrical earth.This product contains electrical or electronic materials. The presence of these materials may,if not disposed of properly, have potential adverse effects on the environment and human health. Presence of this label on the product means it should not be disposed of as unsorted waste and must be collectedseparately. As a consumer, you are responsible for ensuring that this product is disposed of properly.-Minimum 5cm distances around the apparatusforsufcientventilation;-The ventilation should not be impeded by covering the ventilation openings with items, suchasnewspapers,table-cloths,curtains,etc;-No naked flame sources,such as lighted candles,shouldbepalcedontheapparatus;- Attention should be drawn to the environmental aspects of battery disposal.

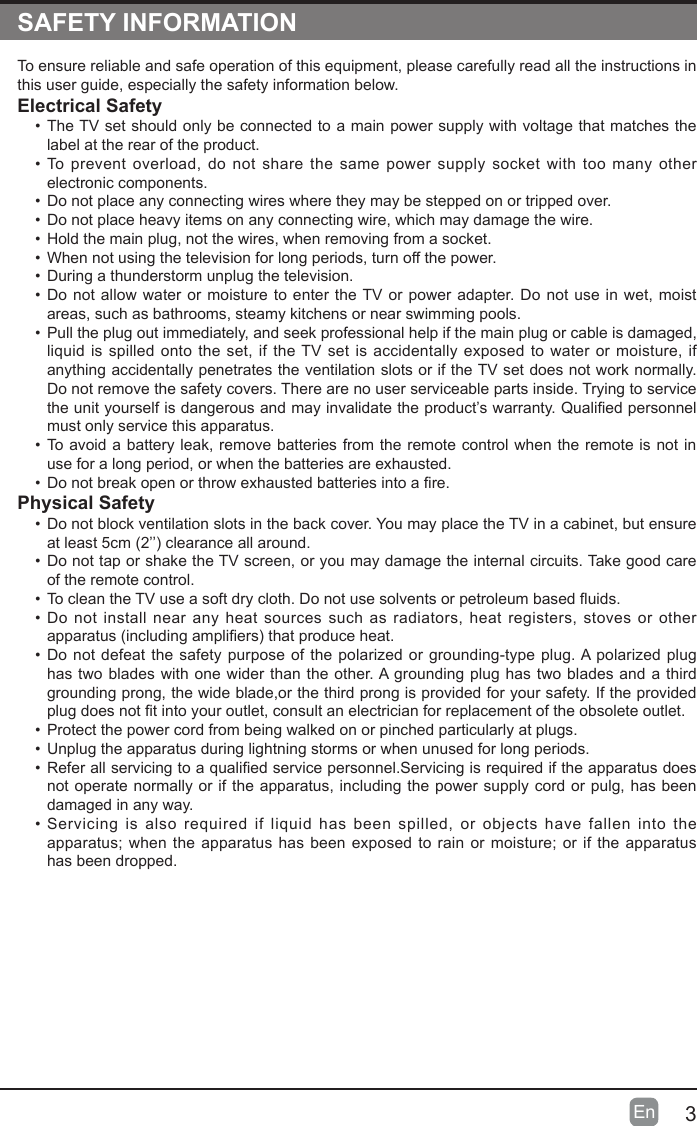

3En SAFETY INFORMATIONTo ensure reliable and safe operation of this equipment, please carefully read all the instructions in this user guide, especially the safety information below.Electrical Safety • The TV set should only be connected to a main power supply with voltage that matches the label at the rear of the product.• To prevent overload, do not share the same power supply socket with too many other electronic components.• Do not place any connecting wires where they may be stepped on or tripped over.• Do not place heavy items on any connecting wire, which may damage the wire.• Hold the main plug, not the wires, when removing from a socket.• When not using the television for long periods, turn off the power.• During a thunderstorm unplug the television.• Do not allow water or moisture to enter the TV or power adapter. Do not use in wet, moist areas, such as bathrooms, steamy kitchens or near swimming pools.• Pull the plug out immediately, and seek professional help if the main plug or cable is damaged, liquid is spilled onto the set, if the TV set is accidentally exposed to water or moisture, if anything accidentally penetrates the ventilation slots or if the TV set does not work normally.Do not remove the safety covers. There are no user serviceable parts inside. Trying to service theunityourselfisdangerousandmayinvalidatetheproduct’swarranty.Qualiedpersonnelmust only service this apparatus.• To avoid a battery leak, remove batteries from the remote control when the remote is not in use for a long period, or when the batteries are exhausted.• Donotbreakopenorthrowexhaustedbatteriesintoare.Physical Safety • Do not block ventilation slots in the back cover. You may place the TV in a cabinet, but ensure atleast5cm(2’’)clearanceallaround.• Do not tap or shake the TV screen, or you may damage the internal circuits. Take good care of the remote control.• TocleantheTVuseasoftdrycloth.Donotusesolventsorpetroleumbaseduids.• Do not install near any heat sources such as radiators, heat registers, stoves or other apparatus(includingampliers)thatproduceheat.• Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding plug has two blades and a third grounding prong, the wide blade,or the third prong is provided for your safety. If the provided plugdoesnottintoyouroutlet,consultanelectricianforreplacementoftheobsoleteoutlet.• Protect the power cord from being walked on or pinched particularly at plugs. • Unplug the apparatus during lightning storms or when unused for long periods.• Referallservicingtoaqualiedservicepersonnel.Servicingisrequirediftheapparatusdoesnot operate normally or if the apparatus, including the power supply cord or pulg, has been damaged in any way.• Servicing is also required if liquid has been spilled, or objects have fallen into the apparatus;when theapparatushasbeenexposed torainormoisture;or iftheapparatus has been dropped.
4En PREPARATION What's IncludedstandUser ManualScrews AAA BatteriesVoice Remote with Amazon AlexaQuick Start Guidescrews in kind prevail

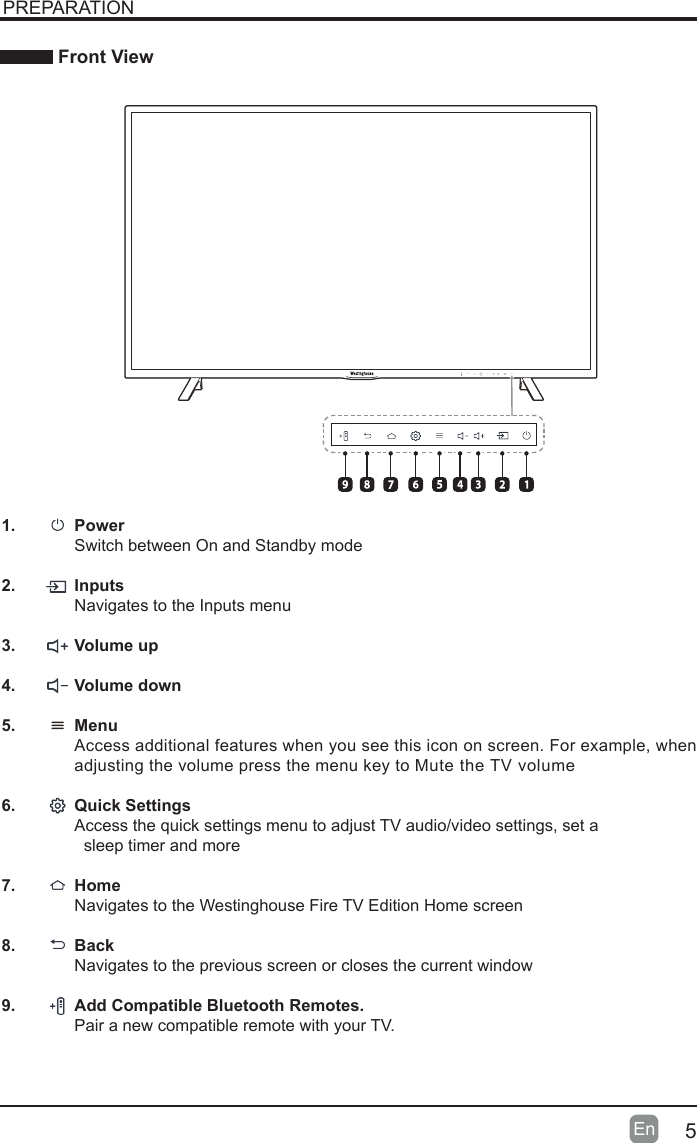

1. Power Switch between On and Standby mode2. Inputs Navigates to the Inputs menu3. Volume up4. Volume down5. Menu Access additional features when you see this icon on screen. For example, when adjusting the volume press the menu key to Mute the TV volume6. Quick Settings Access the quick settings menu to adjust TV audio/video settings, set a sleep timer and more7. Home Navigates to the Westinghouse Fire TV Edition Home screen8. Back Navigates to the previous screen or closes the current window9. Add Compatible Bluetooth Remotes. Pair a new compatible remote with your TV.5En PREPARATION Front View

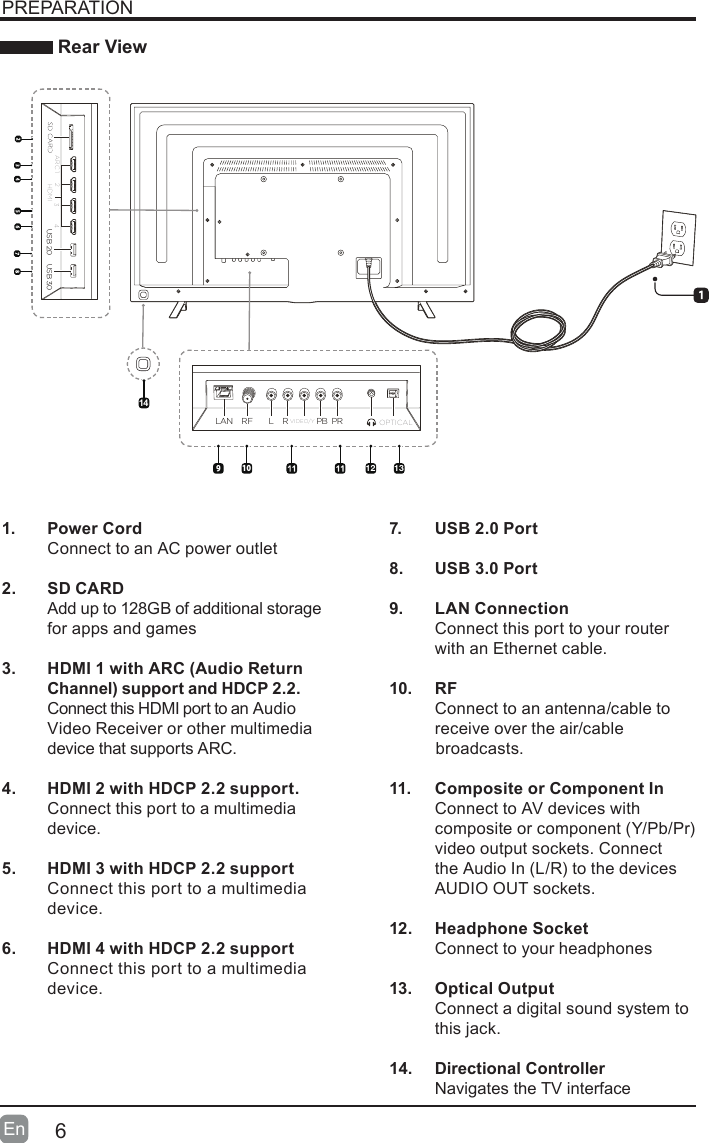

6En PREPARATION Rear ViewUSB 2.0 USB 3.0LAN LRPB PRRF1. Power Cord Connect to an AC power outlet2. SD CARD Add up to 128GB of additional storage for apps and games3. HDMI 1 with ARC (Audio Return Channel) support and HDCP 2.2. Connect this HDMI port to an Audio Video Receiver or other multimedia device that supports ARC. 4. HDMI 2 with HDCP 2.2 support. Connect this port to a multimedia device.5. HDMI 3 with HDCP 2.2 support Connect this port to a multimedia device.6. HDMI 4 with HDCP 2.2 support Connect this port to a multimedia device.7. USB 2.0 Port8. USB 3.0 Port9. LAN Connection Connect this port to your router with an Ethernet cable.10. RF Connect to an antenna/cable to receive over the air/cable broadcasts.11. Composite or Component In Connect to AV devices with  compositeorcomponent(Y/Pb/Pr) video output sockets. Connect  theAudioIn(L/R)tothedevices AUDIO OUT sockets.12. Headphone Socket Connect to your headphones13. Optical Output Connect a digital sound system to this jack.14. Directional Controller Navigates the TV interface1012 1314VIDEO/YHDMIARC 1 23 4OPTICAL

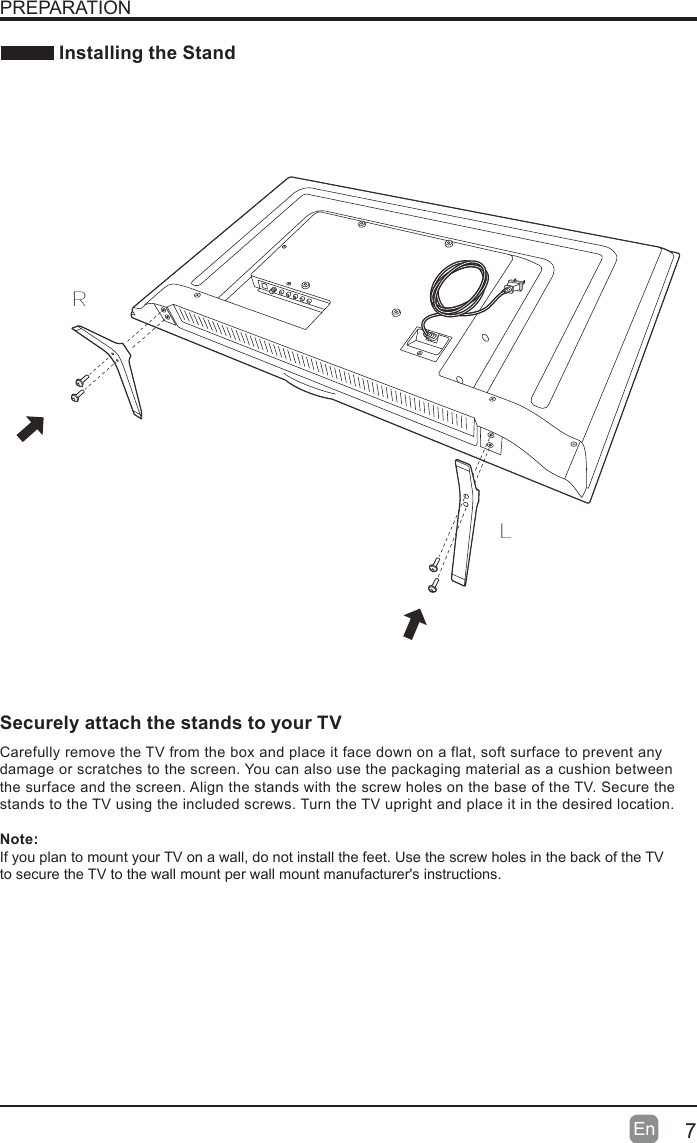

7En Installing the StandPREPARATIONLRCarefully remove the TV from the box and place it face down on a flat, soft surface to prevent any damage or scratches to the screen. You can also use the packaging material as a cushion between the surface and the screen. Align the stands with the screw holes on the base of the TV. Secure the stands to the TV using the included screws. Turn the TV upright and place it in the desired location.Note:If you plan to mount your TV on a wall, do not install the feet. Use the screw holes in the back of the TV to secure the TV to the wall mount per wall mount manufacturer's instructions.Securely attach the stands to your TV Voice Remotewith Amazon Alexa

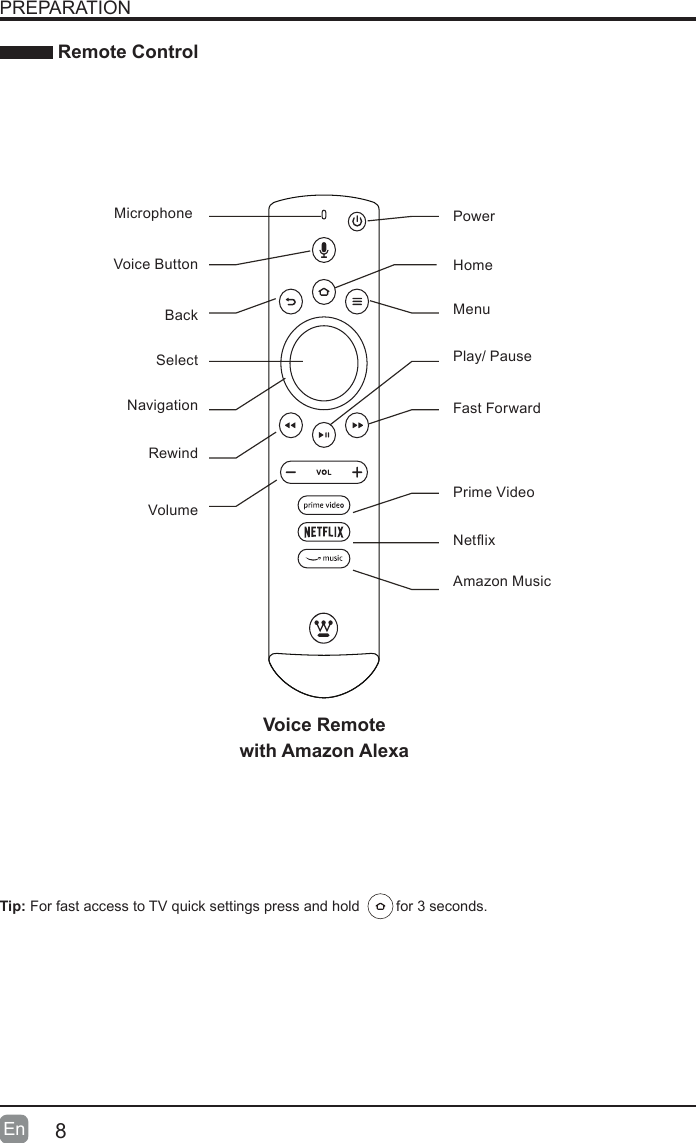

8En PREPARATION Remote ControlMicrophone PowerHomeMenuPlay/ PauseFast ForwardPrime VideoNetixAmazon MusicVoice ButtonBackSelectNavigationRewindVolumeVoice Remotewith Amazon AlexaTip: For fast access to TV quick settings press and hold for 3 seconds.

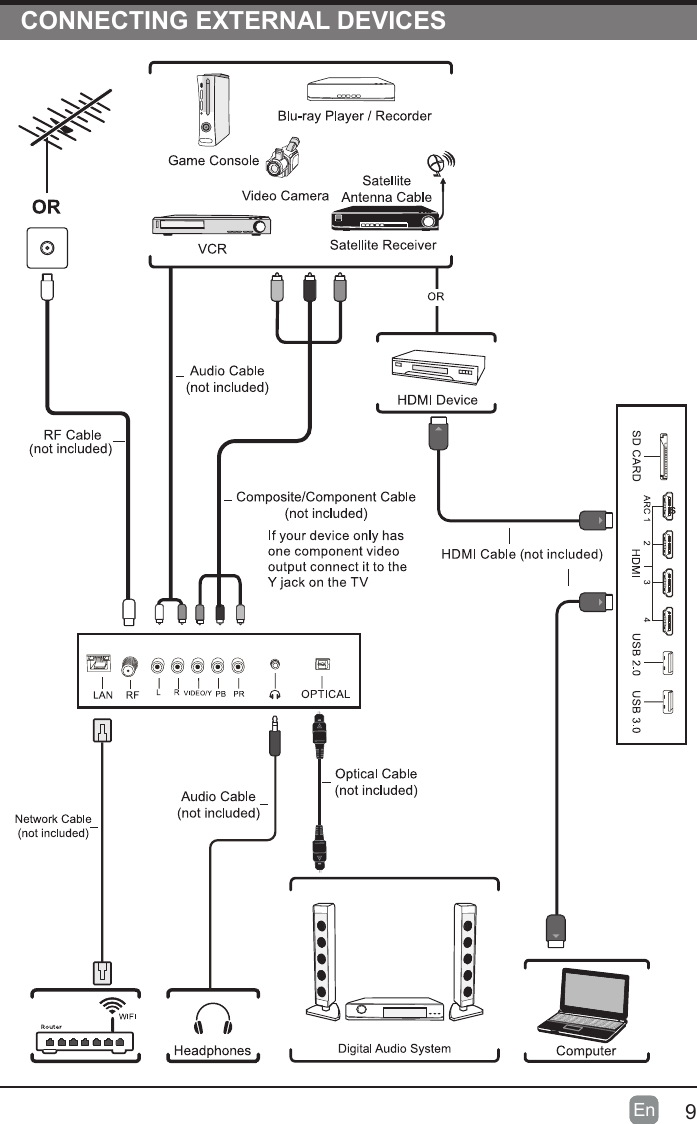

9En En CONNECTING EXTERNAL DEVICES

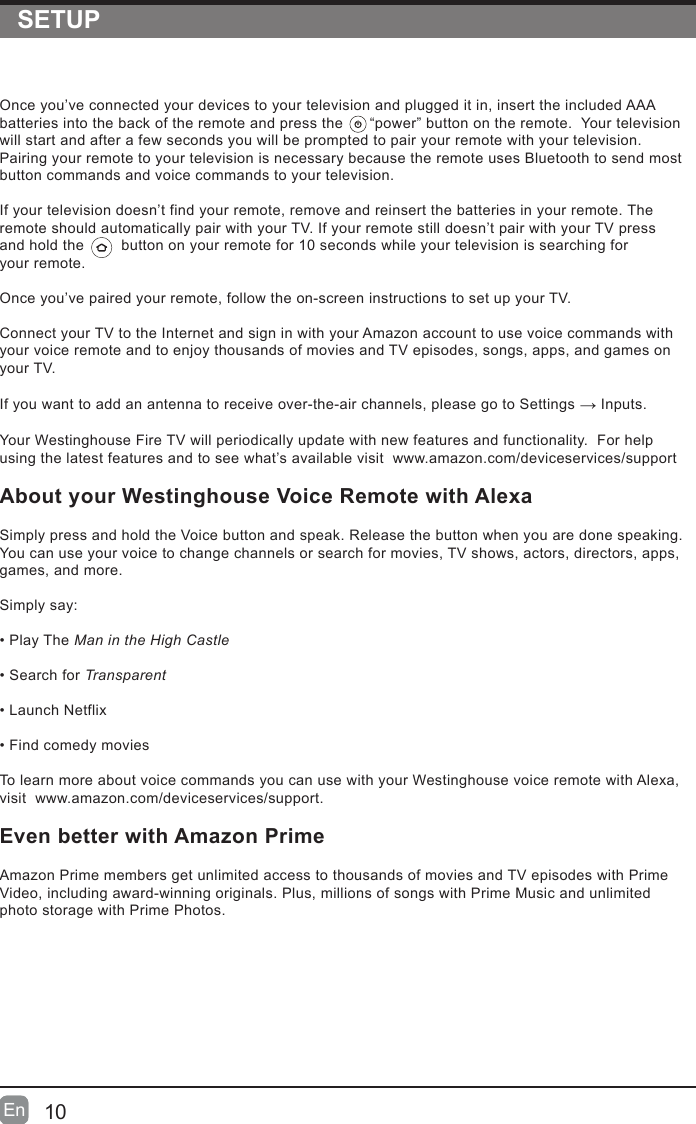

SETUP10En En Once you’ve connected your devices to your television and plugged it in, insert the included AAA batteries into the back of the remote and press the “power” button on the remote. Your television will start and after a few seconds you will be prompted to pair your remote with your television. Pairing your remote to your television is necessary because the remote uses Bluetooth to send most button commands and voice commands to your television.If your television doesn’t find your remote, remove and reinsert the batteries in your remote. The remote should automatically pair with your TV. If your remote still doesn’t pair with your TV press and hold the button on your remote for 10 seconds while your television is searching for your remote.Once you’ve paired your remote, follow the on-screen instructions to set up your TV. Connect your TV to the Internet and sign in with your Amazon account to use voice commands with your voice remote and to enjoy thousands of movies and TV episodes, songs, apps, and games on your TV. If you want to add an antenna to receive over-the-air channels, please go to Settings → Inputs.Your Westinghouse Fire TV will periodically update with new features and functionality. For help using the latest features and to see what’s available visit www.amazon.com/deviceservices/supportAbout your Westinghouse Voice Remote with Alexa Simply press and hold the Voice button and speak. Release the button when you are done speaking. You can use your voice to change channels or search for movies, TV shows, actors, directors, apps, games, and more. Simply say: •PlayTheMan in the High Castle •SearchforTransparent •LaunchNetflix •Findcomedymovies To learn more about voice commands you can use with your Westinghouse voice remote with Alexa, visit www.amazon.com/deviceservices/support.Even better with Amazon Prime Amazon Prime members get unlimited access to thousands of movies and TV episodes with Prime Video, including award-winning originals. Plus, millions of songs with Prime Music and unlimited photo storage with Prime Photos.

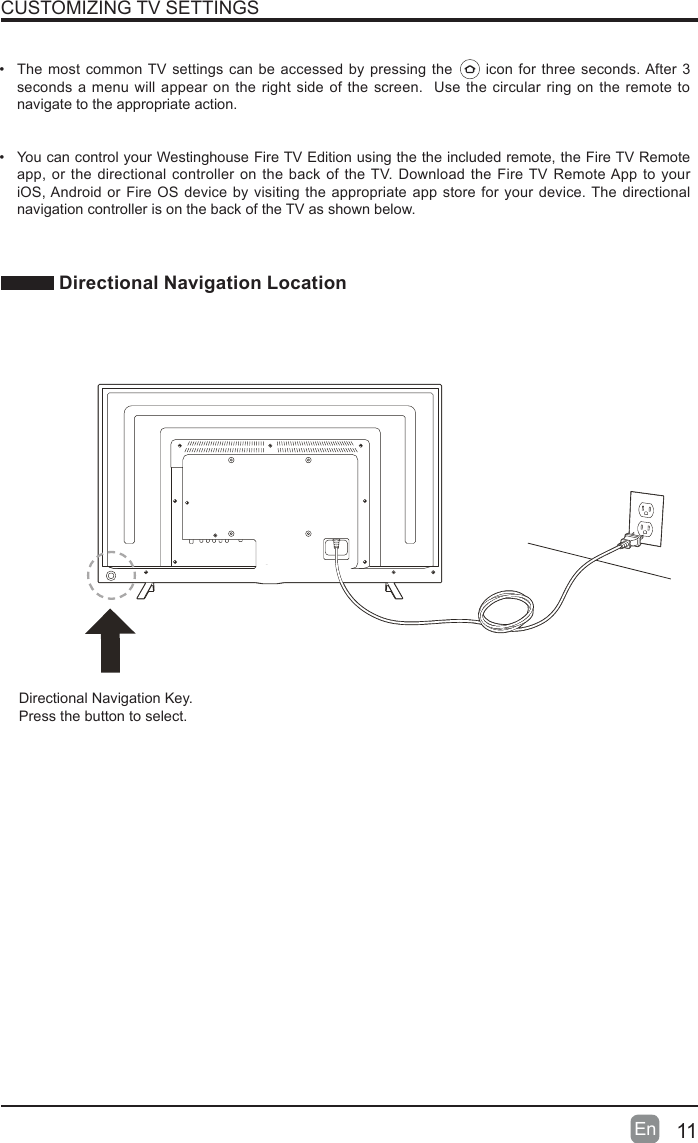

11En CUSTOMIZING TV SETTINGS• The most common TV settings can be accessed by pressing the icon for three seconds. After 3 seconds a menu will appear on the right side of the screen. Use the circular ring on the remote to navigate to the appropriate action.• You can control your Westinghouse Fire TV Edition using the the included remote, the Fire TV Remote app, or the directional controller on the back of the TV. Download the Fire TV Remote App to your iOS, Android or Fire OS device by visiting the appropriate app store for your device. The directional navigation controller is on the back of the TV as shown below. Directional Navigation LocationQUICK START GUIDEAAA batteriesPilasAAAUser ManualManual del usuarioWhat’s in the boxQuick Start GuideGuía de inicio rápidoScrewsTornillosStandsSoportes4. Coloque las pilas en el control remoto por voz y presione el botón de encendido para prender el televisorAbra la parte trasera del control remoto, como se ilustra, e inserte las pilasAAA incluidas. Presione el botón de encendido en el control remoto para prender el televisor.5. Complete la configuración en pantallaCon el control remoto, siga las instrucciones que aparecen en pantalla.Nota: Si más tarde desea agregar otros dispositivos multimedia, simplemente diríjase a Configuración > Entradas > Agregar.4. Insert batteries into your voice remote and press the power button to turn on your TVSD Card HDMI USB 2.0 USB 3.0 LAN L R Y PB PR OpticalRFLRVoice Remotewith Amazon AlexaControl remoto por voz con AmazonAlexaMicrophone Voice ButtonBackSelectNavigationRewindVolumePowerHomeMenu/MutePlay/PauseFast ForwardPrime VideoNetflixAmazon MusicPrime VideoAmazon MusicTip: For fast access to TVsettings press and hold for 3 secondsMicrófonoBotón de vozSeleccionarRetrocederNavegaciónRebobinarVolumenInicioMenú/SilenciarReproducir/PausarPrimeVideoPara obtener acceso rápido a la configuración del televisor, mantenga presionado durante 3segundosAprovecha al máximo tu televisor Westinghouse – Fire TV EditionConéctese a Internet e ingrese con su cuenta de AmazonConecte su televisor a Internet e ingrese con su cuenta de Amazon para usar los comandos de voz con tu control remoto de voz y disfrutar de miles de películas y episodios de series de televisión, canciones, aplicaciones y juegos en tu televisor.Acerca de su control remoto por voz Westinghouse conAlexaSimplemente mantenga presionado el botón Voz y hable. Cuando termine de hablar, suelte el botón. Puede usar su voz para cambiar los canales o buscar películas, programas de televisión, actores, directores, aplicaciones, juegos, etc.• Simplemente diga lo siguiente:• Reproducir “El hombre en el castillo”• Buscar “Transparente”• Abrir Netflix• Encontrar comediasPara aprender más acerca de los comandos de voz que puede usar con su control remoto de voz Westinghouse con Alexa, visite www.amazon.com/help/firetv/alexa. Mucho mejor con AmazonPrimeLos miembros de AmazonPrime obtienen acceso ilimitado a miles de películas y episodios de programas de televisión con PrimeVideo, incluso programas originales premiados. Además, millones de canciones con PrimeMusic y almacenamiento de fotos ilimitado con PrimePhotos.You can control your Westinghouse Fire TV Edition using the Fire TV Remote app. Download the Fire TV Remote App to your iOS, Android or Fire OS device by visiting the appropriate app store for your device. You can also use the directional navigation keys on the back of the TV.QUICK START GUIDEAAA batteriesUser ManualQuick Start GuideVoice Remotewith Amazon AlexaScrewsStandsMicrophoneBackSelectNavigationRewindVolumePowerHomeMenu/MutePlay/PauseFast ForwardPrime VideoNetflixAmazon MusicPrime VideoAmazon MusicTip: For fast access to TVsettings press and hold for 3 seconds1. Securely attach the stands to your TV Carefully remove the TV from the box and place it face down on a flat, soft surface to prevent any damage or scratches to the screen. You can also use the packaging material as a cushion between the surface and the screen. Align the stands with the screw holes on the base of the TV. Secure the stands to the TV using the included screws. Turn the TV upright and place it in the desired location. your Wi-Fi network password to complete the connection. Your Wi-Fi password may be displayed on your router. Please note, this password is not your Amazon account password. Alternatively, you can connect your TV to the Internet using an Ethernet cable (sold separately).• Ensure your Internet is working properly. Restarting your router and modem will solve most Wi-Fi network issues.Remote PairingHaving trouble with your remote? First, remove and reinsert the batteries in your remote. The remote should automatically pair with your TV. If your remote isn't discovered, press and hold the Home button for 10 seconds.For more troubleshooting and information, go to http://westinghouseelectronics.com/support/.Important Product Information Regarding your Westinghouse - Fire TV EditionFor safety, compliance, recycling, and other important information regarding your TV, please refer to included user manual.You can also find the TV Warranty, User Manual, Customer Service contact information at http://westinghouseelectronics.com/support/Amazon Terms & PoliciesBefore using Westinghouse – Fire TV Edition, please read the terms located at www.amazon.com/deviceservices/support. Please also read all terms and policies for services related to Westinghouse – Fire TV Edition, including but not limited to the Amazon privacy notice located at www.amazon.com/privacy and any other terms or usage provisions accessible through the www.amazon.com website. All terms, notices, policies and provisions are, collectively, the “Agreements”.3. Plug in your TVPlug the TV power cable into a nearby power outlet.4. Insert batteries into your voice remote and Directional Navigation Key.Press the button to select.1. Securely attach the stands to your TV Carefully remove the TV from the box and place it face down on a flat, soft surface to prevent any damage or scratches to the screen. You can also use the packaging material as a cushion between the surface and the screen. Align the stands with the screw holes on the base of the TV. Secure the stands to the TV using the included screws. Turn the TV upright and place it in the desired location. Note: Tips & TroubleshootingWi-Fi• If your Wi-Fi network displays a lock icon next to it, you will need to enter your Wi-Fi network password to complete the connection. Your Wi-Fi password may be displayed on your router. Please note, this password is not your Amazon account password. Alternatively, you can connect your TV to the Internet using an Ethernet cable (sold separately).• Ensure your Internet is working properly. Restarting your router and modem will solve most Wi-Fi network issues.Remote PairingHaving trouble with your remote? First, remove and reinsert the batteries in your remote. The remote should automatically pair with your TV. If your remote isn't discovered, press and hold the Home button for 10 seconds.For more troubleshooting and information, go to http://westinghouseelectronics.com/support/.Important Product Information Regarding your Westinghouse - Fire TV EditionFor safety, compliance, recycling, and other important information regarding your TV, please refer to included user manual.You can also find the TV Warranty, User Manual, Customer Service contact information at http://westinghouseelectronics.com/support/.Amazon Terms & PoliciesBefore using Westinghouse – Fire TV Edition, please read the terms located at www.amazon.com/deviceservices/support. Please also read all terms and policies for services related to Westinghouse – Fire TV Edition, including but not limited to the Amazon privacy notice located at www.amazon.com/privacy and any other terms or usage provisions accessible through the www.amazon.com website. All terms, notices, policies and provisions are, collectively, the “Agreements”.By using Westinghouse – Fire TV Edition you agree to be bound by the terms of the Agreements.Get the most out of your Westinghouse – Fire TV EditionConnect to the Internet and sign in with your Amazon accountConnect your TV to the Internet and sign in with your Amazon account to use voice commands with your voice remote and to enjoy thousands of movies and TV episodes, songs, apps, and games on your TV.About your Westinghouse Voice Remote with AlexaSimply press and hold the Voice button and speak. Release the button when you are done speaking. You can use your voice to change channels or search for movies, TV shows, actors, directors, apps, games, and more.Simply say:• Play The Man in the High Castle• Search for Transparent• Launch Netflix• Find comedy moviesTo learn more about voice commands you can use with your Westinghouse voice remote with Alexa, visit www.amazon.com/deviceservices/support. Even better with Amazon PrimeAmazon Prime members get unlimited access to thousands of movies and TV episodes with Prime Video, including award-winning originals. Plus, millions of songs with Prime Music and unlimited photo storage with Prime Photos.3. Plug in your TVPlug the TV power cable into a nearby power outlet.2. Connect TV antenna and multimedia devices If you are using an antenna with your TV, connect the coaxial cable from your antenna to the RF input on the back of the TV. Use HDMI cables to connect multimedia devices such as your cable or satellite set-top box, DVD player, or a game console to your TV. Use an optical or HDMI ARC compatible cable in HDMI input 1 to connect your TV to an AV receiver or digital sound bar for multichannel sound output. Open the back of the remote, as shown, and insert the included AAA batteries. Press the Power button on the remote to turn the TV on.5. Complete the on-screen setupUsing your remote, follow the on-screen instructions.Note: If you want to add other multimedia devices later, simply go to Settings > Inputs > Add.Amazon, Prime, Fire, Alexa, and all related logos are trademarks of Amazon.com, Inc. or its affiliates. Note: If you plan to mount your TV on a wall, do not install the feet. Use the screw holes in the back of the TV to secure the TV to the wall mount per wall mount manufacturer's instructions.You may also skip this step and connect your antenna and devices at a later time.Westinghouse Warranty And Westinghouse Hardware Compliance InfoThis Product (including any accessories included in the original packaging) as supplied and distributed in new condition, is warranted by Westinghouse (Westinghouse or the Warrantor) to the original consumer purchaser against defects in material and workmanship ("Warranty") as follows:1. PARTS AND LABOR : For a period of one (1) year from date of original consumer purchase, if this Product or any functional part is determined by Westinghouse, or a Westinghouse authorized service provider, to be defective, at Westinghouse’s sole option and discretion, Westinghouse will (i) repair, at no charge to the original consumer, with new or rebuilt replacement functional parts in exchange for defective functional parts, or (ii) replace the Product, with new or re-certified product of similar or better specification, or (iii) provide refund of original purchase price. Replacement Product or parts are warranted for either the remainder of the original warranty period or ninety (90) days from the date of replacement, whichever is longer. After the applicable Warranty periods, the purchaser must pay for all parts and labor costs.2. SHIPPING COSTS: Notwithstanding the foregoing, the original consumer is responsible for any shipping charges incurred to ship the Product or part(s) to Westinghouse or to a Westinghouse authorized customer service provider, for diagnosis, repair, replacement or refund. However, Westinghouse will pay for return shipping to the customer. Products shipped back to Westinghouse or a Westignhouse authorized service provider must be in its original packaging or in packaging with an equal degree of protection.To obtain Warranty Service and Troubleshooting information, please call the Toll Free Customer Service Line at: (1-855-697-3454)Please have your model and serial number available along with your date of purchase.You can also visit us online and REGISTER your Westinghouse product at:www.westinghouse.comProof of purchase in the form of a bill of sale or receipted invoice evidencing that the Product is within the applicable Warranty period(s), MUST be presented to Westinghouse in order to obtain the requested service.Exclusions and Limitations:This Warranty covers manufacturing defects in materials and workmanship encountered in the normal, non-commercial use of the Product, and does not cover (a) damage or failure caused by or attributable to abuse, misuse, failure to follow instructions, improper installation or maintenance, alteration, accident, or excess voltage or current; (b) improper or incorrectly performed repairs by non-authorized service facilities; (c) onsite consumer instruction or adjustments; (d) transportation, shipping, delivery, insurance, installation or set-up costs; (e) costs of product removal, transportation or reinstallation costs; (f) ordinary wear and tear, cosmetic damage or damage due to acts of nature or accident; (g) commercial use of the Product; (h) modification of, or to any part of the Product. In addition, this Warranty does not cover images "burnt" into the screen. This Warranty applies to the original consumer only and does not cover products sold AS IS or WITH ALL FAULTS, or consumables (e.g., fuses, batteries, bulbs etc.), and the Warranty is invalid if the factory-applied serial number has been altered or removed from the Product. This Warranty is valid only in the United States, and only applies to products purchased and serviced in the United States. All replaced parts and products, and products on which a refund is made, become the property of Westinghouse.NO WARRANTIES, WHETHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, OTHER THAN THOSE EXPRESSLY DESCRIBED ABOVE SHALL APPLY. THE WARRANTOR FURTHER DISCLAIMS ALL WARRANTIES AFTER THE EXPRESS WARRANTY PERIOD STATED ABOVE. NO OTHER EXPRESS WARRANTY OR GUARANTY GIVEN BY ANY PERSON, FIRM OR ENTITY WITH RESPECT TO THE PRODUCT SHALL BE BINDING ON THE WARRANTOR. REPAIR, REPLACEMENT, OR REFUND OF THE ORIGINAL PURCHASE PRICE, AT THE WARRANTOR'S SOLE DISCRETION, ARE THE EXCLUSIVE REMEDIES OF THE CONSUMER. THE WARRANTOR SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES CAUSED BY THE USE, MISUSE OR INABILITY TO USE THE PRODUCT. NOTWITHSTANDING THE FOREGOING, CONSUMER'S RECOVERY SHALL NOT EXCEED THE PURCHASE PRICE OF THE PRODUCT. THIS WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE ORIGINAL CONSUMER WHO PURCHASED THE PRODUCT AND IS NOT TRANSFERABLE. WESTINGHOUSE RETAINS THE RIGHT TO CHANGE THIS WARRANTY AT ANY TIME WITHOUT NOTICE.Some states do not allow the exclusion or limitation of incidental or consequential damages, or allow limitations on warranties, so the above limitations or exclusions may not apply to you. This Warranty gives you specific rights, and you may have other rights, which vary from state to state.Please send all correspondence to:Westinghouse c/o Westinghouse LLC Customer Service customerservice@westinghousecom1-800-701-06802. Conecte la antena de televisión y los dispositivos multimedia Si usa una antena con el televisor, conecte el cable coaxial de la antena a la entrada RF en la parte posterior del televisor. Use los cables HDMI para conectar al televisor dispositivos multimedia como el decodificador de televisión satelital o por cable, el reproductor de DVD o una consola de juegos. Use un cable óptico o HDMI compatible con ARC en la entrada HDMI 1 para conectar su televisor a un receptor AV o parlante soundbar de sonido digital para obtener una salida de sonido multicanal.Nota: Puede saltarse este paso y conectar la antena y los dispositivos más tarde.1. Ajuste los soportes al televisor de manera segura Saca el televisor de la caja con cuidado y colócalo con el frente hacia abajo sobre una superficie plana y suave para evitar que se dañe o raye la pantalla. También puede usar el material de empaquetado como colchón entre la superficie y la pantalla. Alinee los soportes con los agujeros para tornillos que se encuentran en la base del televisor. Fije los soportes al televisor con los tornillos incluidos. Pare el televisor y colóquelo en la ubicación deseada.Nota: Si desea montar su televisor en una pared, no instale los pies. Use los agujeros para tornillos en la parte posterior del televisor para fijarlo al montaje en la pared según las instrucciones del fabricante del montaje.3. Enchufe el televisorEnchufe el cable de alimentación del televisor a una toma eléctrica cercana.OUTSIDE INSIDEBACKSIDEPANTONE BLACK CMATTE AQ DIELINEDATE BYWestinghouse QSG dieline.aiAI FILE 22-000810-01_RIT_QSG_US_S5.ai12.15.16 JWRIT QSG S5SEE BOM TAB FOR MATERIAL SPECFRONTSIDEPANTONE BLACK CMATTE AQDirectional Navigation Key.Press the button to select.

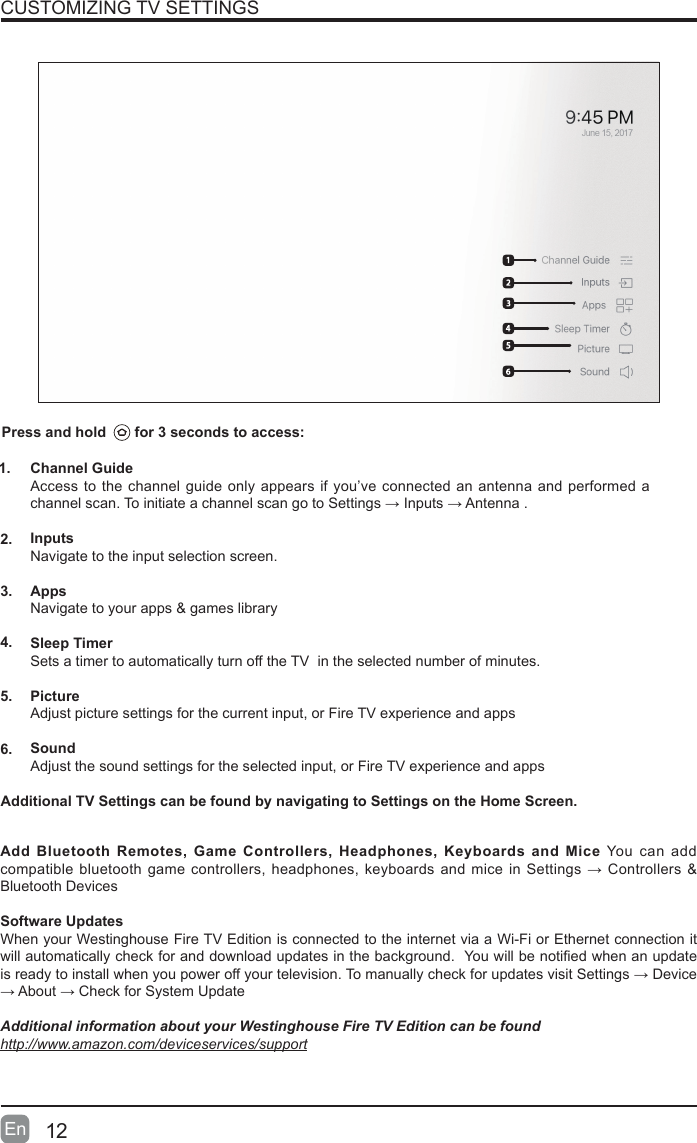

12En CUSTOMIZING TV SETTINGSChannel GuideAccess to the channel guide only appears if you’ve connected an antenna and performed a channelscan.ToinitiateachannelscangotoSettings→Inputs→Antenna.InputsNavigate to the input selection screen.AppsNavigate to your apps & games librarySleep TimerSets a timer to automatically turn off the TV in the selected number of minutes.PictureAdjust picture settings for the current input, or Fire TV experience and appsSoundAdjust the sound settings for the selected input, or Fire TV experience and appsAdd Bluetooth Remotes, Game Controllers, Headphones, Keyboards and Mice You can add compatiblebluetooth gamecontrollers,headphones,keyboards andmicein Settings→Controllers &Bluetooth Devices Software UpdatesWhen your Westinghouse Fire TV Edition is connected to the internet via a Wi-Fi or Ethernet connection it willautomaticallycheckforanddownloadupdatesinthebackground.Youwillbenotiedwhenanupdateisreadytoinstallwhenyoupoweroffyourtelevision.TomanuallycheckforupdatesvisitSettings→Device→About→CheckforSystemUpdateAdditional information about your Westinghouse Fire TV Edition can be found http://www.amazon.com/deviceservices/support1.2.3.4.5.6.Additional TV Settings can be found by navigating to Settings on the Home Screen.Press and hold for 3 seconds to access:

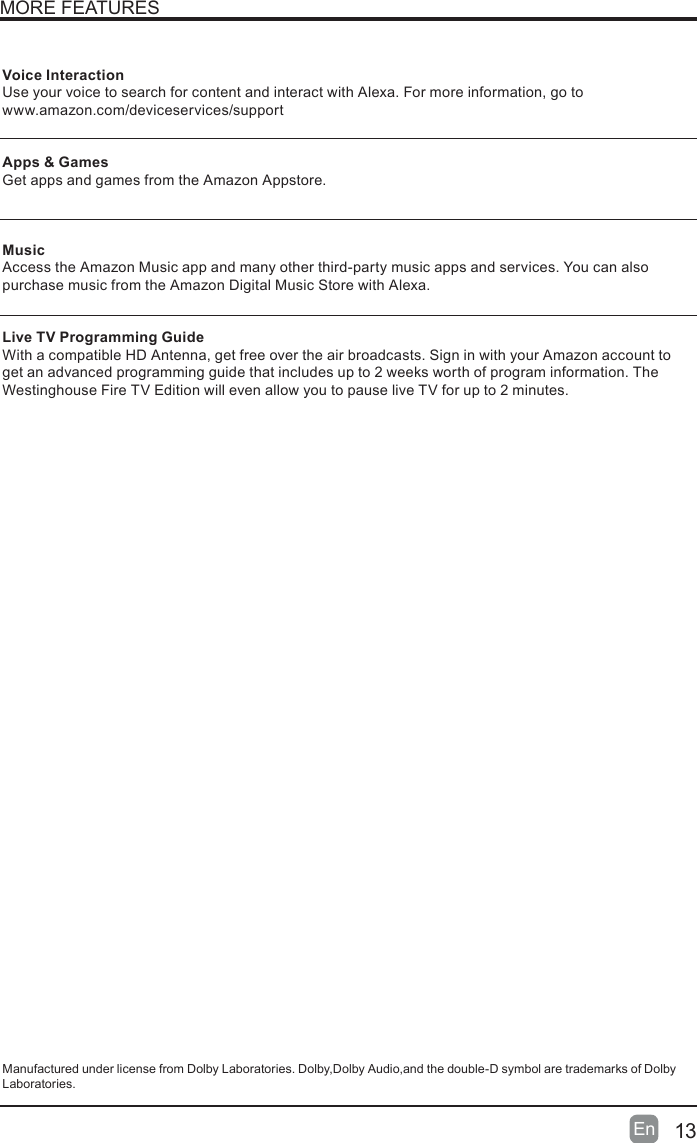

13En MORE FEATURESVoice InteractionUse your voice to search for content and interact with Alexa. For more information, go to www.amazon.com/deviceservices/supportApps & GamesGet apps and games from the Amazon Appstore. MusicAccess the Amazon Music app and many other third-party music apps and services. You can also purchase music from the Amazon Digital Music Store with Alexa. Live TV Programming GuideWith a compatible HD Antenna, get free over the air broadcasts. Sign in with your Amazon account to get an advanced programming guide that includes up to 2 weeks worth of program information. The Westinghouse Fire TV Edition will even allow you to pause live TV for up to 2 minutes.Manufactured under license from Dolby Laboratories. Dolby,Dolby Audio,and the double-D symbol are trademarks of Dolby Laboratories.

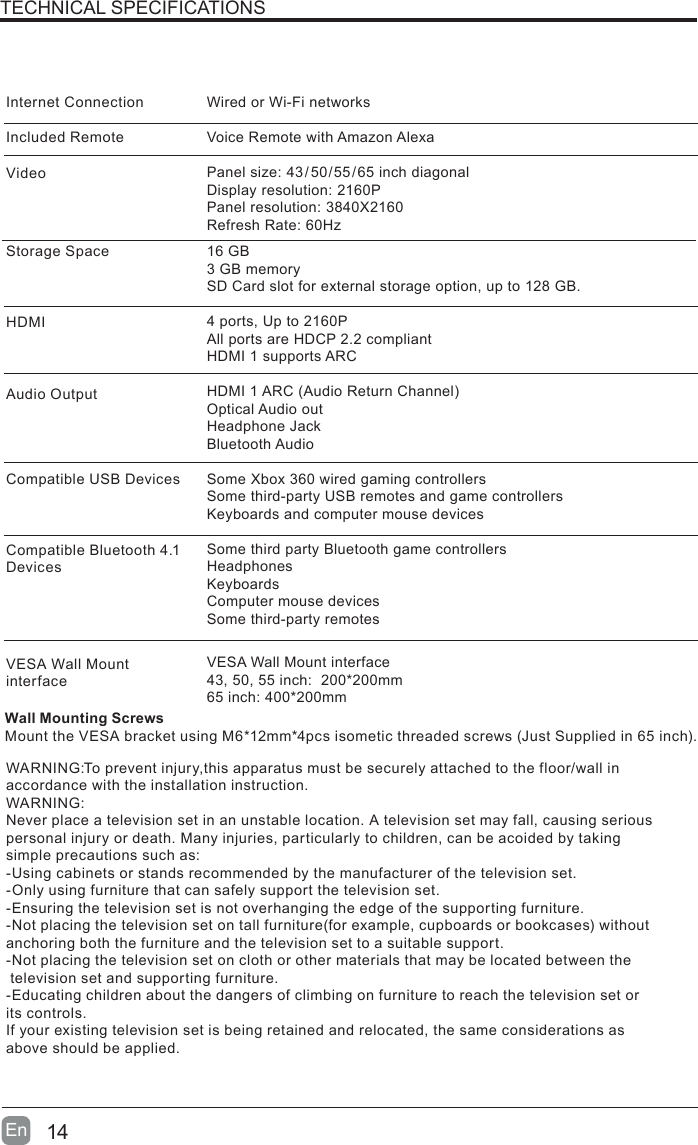

14En TECHNICAL SPECIFICATIONSWired or Wi-Fi networksVoice Remote with Amazon Alexa Panel size: 43/50/55/65 inch diagonalDisplay resolution: 2160PPanel resolution: 3840X2160Refresh Rate: 60Hz16 GB 3 GB memorySD Card slot for external storage option, up to 128 GB. 4 ports, Up to 2160PAll ports are HDCP 2.2 compliantHDMI 1 supports ARCHDMI1ARC(AudioReturnChannel)Optical Audio outHeadphone JackBluetooth AudioSome Xbox 360 wired gaming controllersSome third-party USB remotes and game controllersKeyboards and computer mouse devicesSome third party Bluetooth game controllersHeadphonesKeyboardsComputer mouse devicesSome third-party remotesVESA Wall Mount interface43, 50, 55 inch: 200*200mm65 inch: 400*200mmInternet ConnectionIncluded RemoteVideoStorage SpaceHDMIAudio OutputCompatible USB DevicesCompatible Bluetooth 4.1 DevicesVESA Wall Mount interfaceWARNING:To prevent injury,this apparatus must be securely attached to the floor/wall in accordance with the installation instruction.WARNING:Never place a television set in an unstable location. A television set may fall, causing serious personal injury or death. Many injuries, particularly to children, can be acoided by taking simple precautions such as:-Using cabinets or stands recommended by the manufacturer of the television set.-Only using furniture that can safely support the television set.-Ensuring the television set is not overhanging the edge of the supporting furniture.-Notplacingthetelevisionsetontallfurniture(forexample,cupboardsorbookcases)withoutanchoring both the furniture and the television set to a suitable support.-Not placing the television set on cloth or other materials that may be located between the television set and supporting furniture.-Educating children about the dangers of climbing on furniture to reach the television set or its controls.If your existing television set is being retained and relocated, the same considerations as above should be applied.Wall Mounting ScrewsMounttheVESAbracketusingM6*12mm*4pcsisometicthreadedscrews(JustSuppliedin65inch).

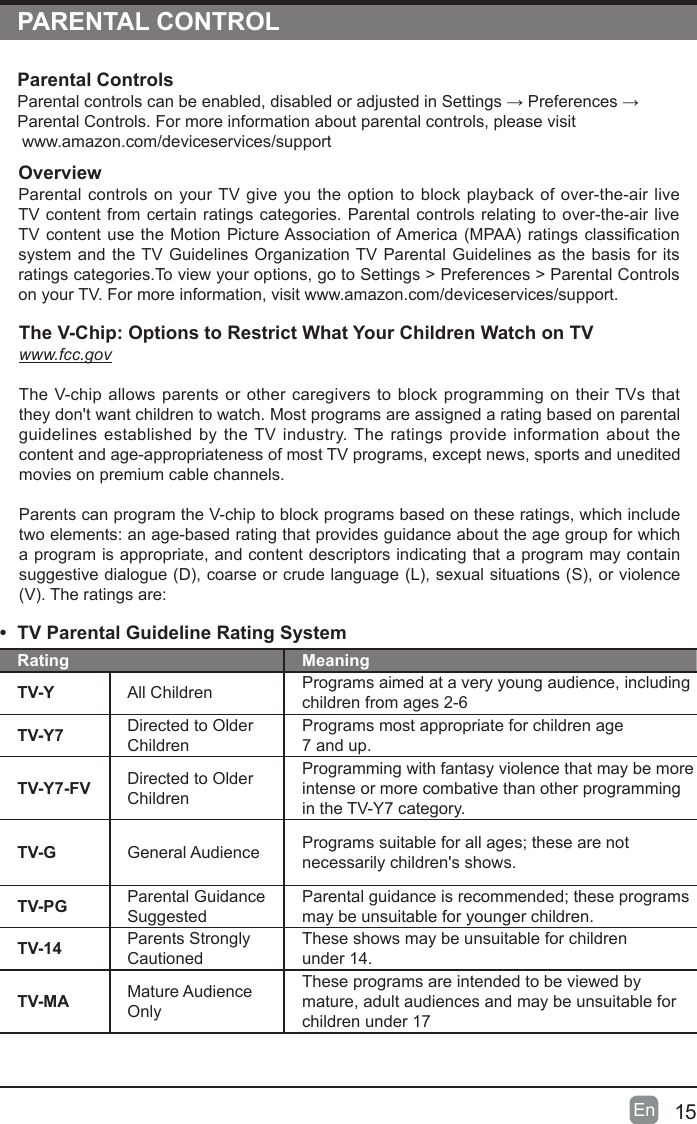

15En PARENTAL CONTROLOverviewParental controls on your TV give you the option to block playback of over-the-air live TV content from certain ratings categories. Parental controls relating to over-the-air live TVcontentusetheMotionPictureAssociationofAmerica(MPAA)ratingsclassicationsystem and the TV Guidelines Organization TV Parental Guidelines as the basis for its ratings categories.To view your options, go to Settings > Preferences > Parental Controls on your TV. For more information, visit www.amazon.com/deviceservices/support.Parental ControlsParentalcontrolscanbeenabled,disabledoradjustedinSettings→Preferences→Parental Controls. For more information about parental controls, please visit www.amazon.com/deviceservices/support• TV Parental Guideline Rating System Rating MeaningTV-Y All Children Programs aimed at a very young audience, including children from ages 2-6TV-Y7 Directed to Older ChildrenPrograms most appropriate for children age 7 and up.TV-Y7-FV Directed to Older ChildrenProgramming with fantasy violence that may be more intense or more combative than other programming in the TV-Y7 category.TV-G General Audience Programssuitableforallages;thesearenotnecessarily children's shows.TV-PG Parental Guidance SuggestedParentalguidanceisrecommended;theseprogramsmay be unsuitable for younger children.TV-14 Parents Strongly CautionedThese shows may be unsuitable for children under 14.TV-MA Mature Audience OnlyThese programs are intended to be viewed by mature, adult audiences and may be unsuitable for children under 17The V-Chip: Options to Restrict What Your Children Watch on TVwww.fcc.govThe V-chip allows parents or other caregivers to block programming on their TVs that they don't want children to watch. Most programs are assigned a rating based on parental guidelines established by the TV industry. The ratings provide information about the content and age-appropriateness of most TV programs, except news, sports and unedited movies on premium cable channels.Parents can program the V-chip to block programs based on these ratings, which include two elements: an age-based rating that provides guidance about the age group for which a program is appropriate, and content descriptors indicating that a program may contain suggestivedialogue(D),coarseorcrudelanguage(L),sexualsituations(S),orviolence(V).Theratingsare:

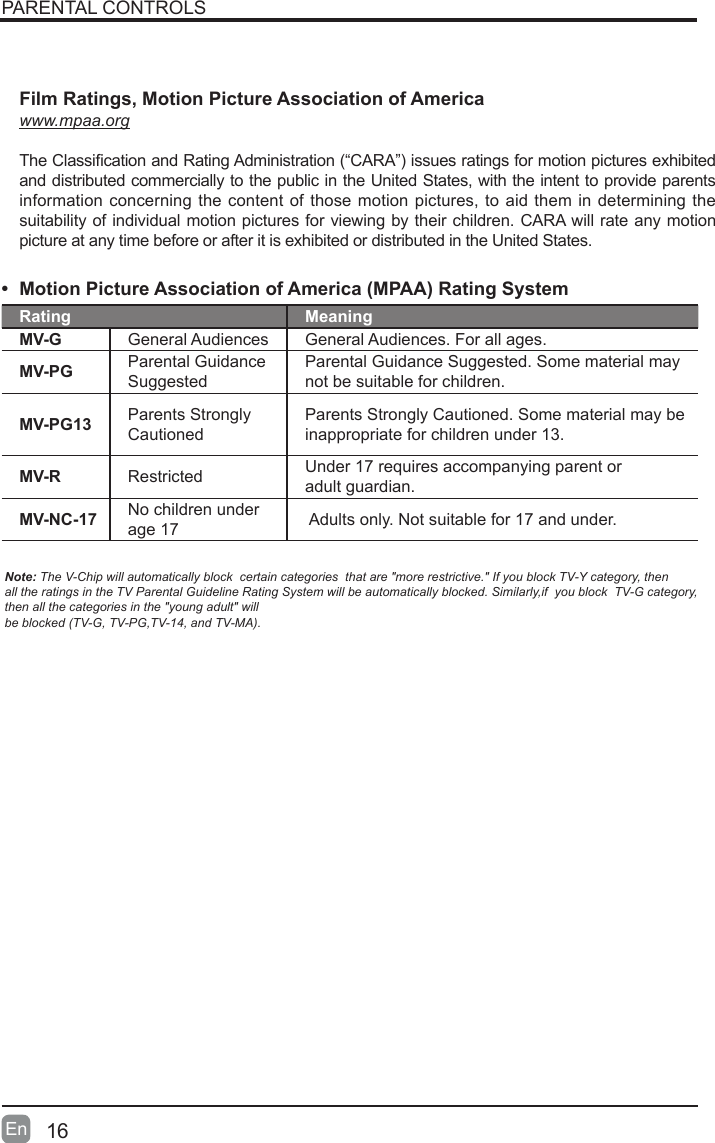

16En • Motion Picture Association of America (MPAA) Rating SystemRating MeaningMV-G General Audiences General Audiences. For all ages.MV-PG Parental Guidance SuggestedParental Guidance Suggested. Some material may not be suitable for children.MV-PG13 Parents Strongly CautionedParents Strongly Cautioned. Some material may be inappropriate for children under 13.MV-R Restricted Under 17 requires accompanying parent or adult guardian.MV-NC-17 No children under age 17 Adults only. Not suitable for 17 and under.Note: The V-Chip will automatically block certain categories that are "more restrictive." If you block TV-Y category, then all the ratings in the TV Parental Guideline Rating System will be automatically blocked. Similarly,if you block TV-G category, then all the categories in the "young adult" will be blocked (TV-G, TV-PG,TV-14, and TV-MA).Film Ratings, Motion Picture Association of Americawww.mpaa.orgTheClassicationandRatingAdministration(“CARA”)issuesratingsformotionpicturesexhibitedand distributed commercially to the public in the United States, with the intent to provide parents information concerning the content of those motion pictures, to aid them in determining the suitability of individual motion pictures for viewing by their children. CARA will rate any motion picture at any time before or after it is exhibited or distributed in the United States.PARENTAL CONTROLS

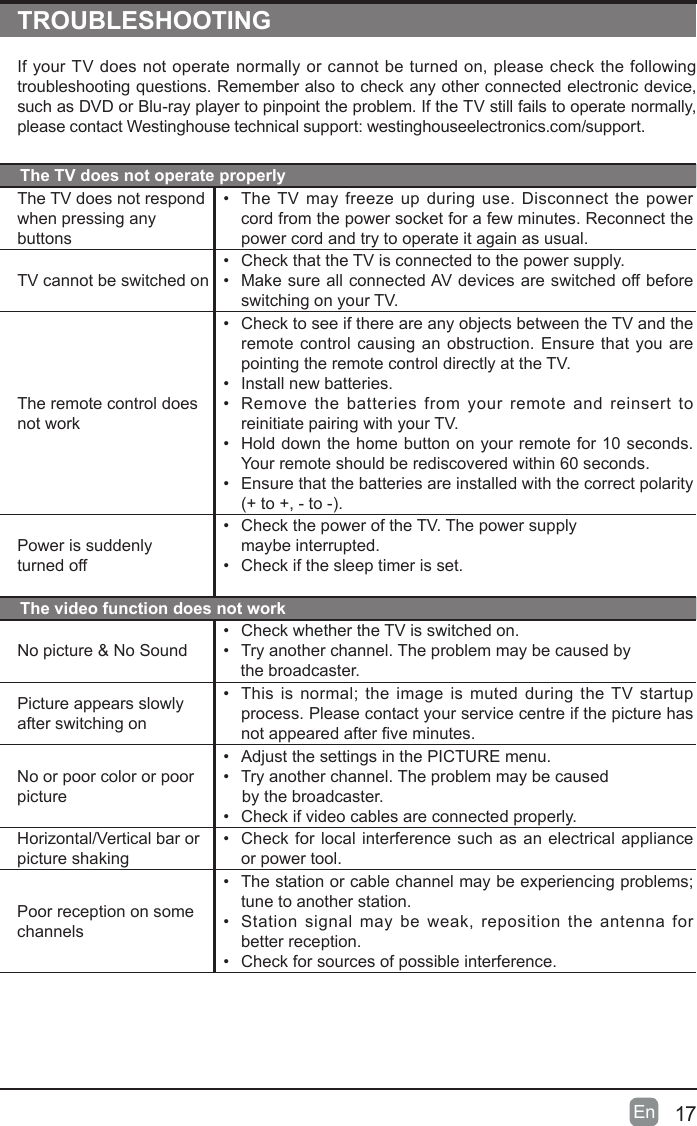

17En TROUBLESHOOTINGIf your TV does not operate normally or cannot be turned on, please check the following troubleshooting questions. Remember also to check any other connected electronic device, such as DVD or Blu-ray player to pinpoint the problem. If the TV still fails to operate normally, please contact Westinghouse technical support: westinghouseelectronics.com/support.The TV does not operate properlyThe TV does not respond when pressing any buttons• The TV may freeze up during use. Disconnect the power cord from the power socket for a few minutes. Reconnect the power cord and try to operate it again as usual.TV cannot be switched on• Check that the TV is connected to the power supply.• Make sure all connected AV devices are switched off before switching on your TV.The remote control does not work• Check to see if there are any objects between the TV and the remote control causing an obstruction. Ensure that you are pointing the remote control directly at the TV.• Install new batteries. • Remove the batteries from your remote and reinsert to reinitiate pairing with your TV.• Hold down the home button on your remote for 10 seconds. Your remote should be rediscovered within 60 seconds.• Ensure that the batteries are installed with the correct polarity (+to+,-to-).Power is suddenly turned off• Check the power of the TV. The power supply maybe interrupted.• Check if the sleep timer is set.The video function does not workNo picture & No Sound• Check whether the TV is switched on.• Try another channel. The problem may be caused by the broadcaster.Picture appears slowly after switching on• Thisisnormal;theimageismutedduringtheTV startupprocess. Please contact your service centre if the picture has notappearedafterveminutes.No or poor color or poor picture• Adjust the settings in the PICTURE menu.• Try another channel. The problem may be caused by the broadcaster.• Check if video cables are connected properly.Horizontal/Vertical bar or picture shaking• Check for local interference such as an electrical appliance or power tool.Poor reception on some channels• Thestationorcablechannelmaybeexperiencingproblems;tune to another station.• Station signal may be weak, reposition the antenna for better reception.• Check for sources of possible interference.

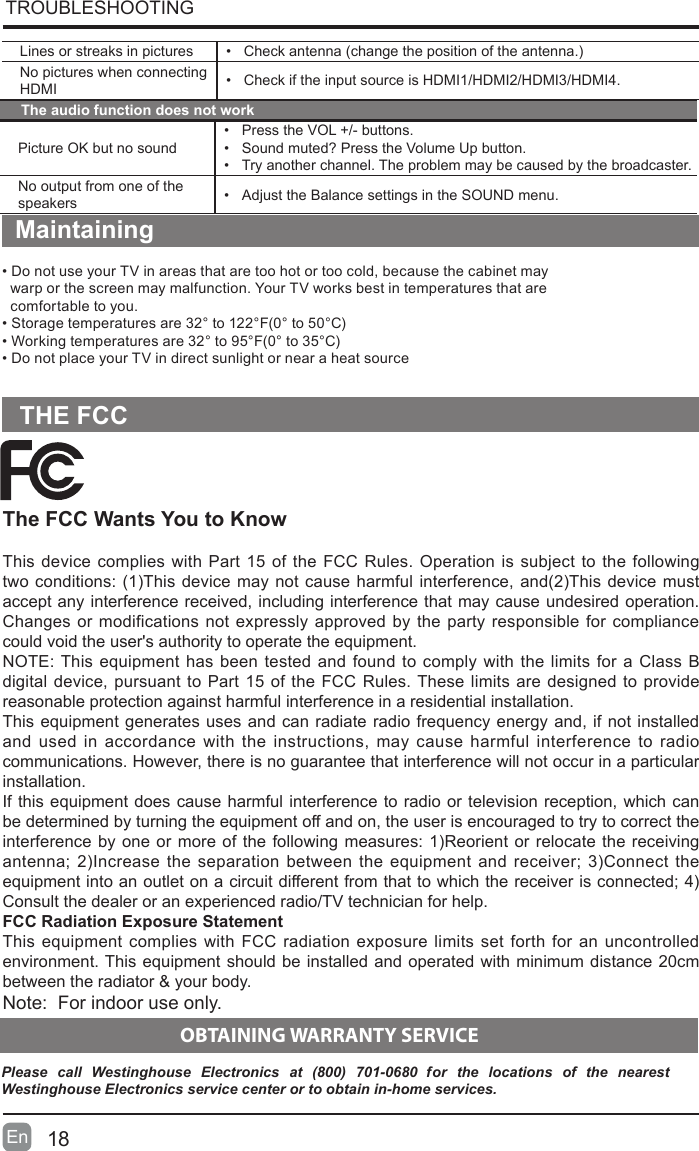

Lines or streaks in pictures • Checkantenna(changethepositionoftheantenna.)No pictures when connecting HDMI • Check if the input source is HDMI1/HDMI2/HDMI3/HDMI4.TROUBLESHOOTING The audio function does not workPicture OK but no sound• Press the VOL +/- buttons.• Sound muted? Press the Volume Up button.• Try another channel. The problem may be caused by the broadcaster.No output from one of the speakers • Adjust the Balance settings in the SOUND menu.Maintaining•DonotuseyourTVinareasthataretoohotortoocold,becausethecabinetmay warp or the screen may malfunction. Your TV works best in temperatures that are comfortable to you.•Storagetemperaturesare32°to122°F(0°to50°C)•Workingtemperaturesare32°to95°F(0°to35°C)•DonotplaceyourTVindirectsunlightornearaheatsourceThe FCC Wants You to KnowThis device complies with Part 15 of the FCC Rules. Operation is subject to the following twoconditions:(1)Thisdevicemaynotcauseharmfulinterference,and(2)Thisdevicemustaccept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interferencebyoneormoreofthefollowingmeasures:1)Reorientorrelocatethe receivingantenna;2)Increasetheseparationbetweentheequipmentandreceiver;3)Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiverisconnected;4)Consult the dealer or an experienced radio/TV technician for help.FCC Radiation Exposure StatementThis equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.Note: For indoor use only.THE FCC18En OBTAINING WARRANTY SERVICEPlease call Westinghouse Electronics at (800) 701-0680 for the locations of the nearest Westinghouse Electronics service center or to obtain in-home services.
