Shenyang Tongfang Multimedia Technology WD40FE221 LED TV User Manual WD40FE2210 UM
Shenyang Tongfang Multimedia Technology Co., Limited LED TV WD40FE2210 UM
User Manual
1
En
CONTENTS
Important Safety Instructions 2
Safety Information 3
Preparation 4
What's Included
Front View
Rear View
Installing the Stand
Removing the Stand for Wall-Mounting
Wall-Mounting Screws
Remote Control

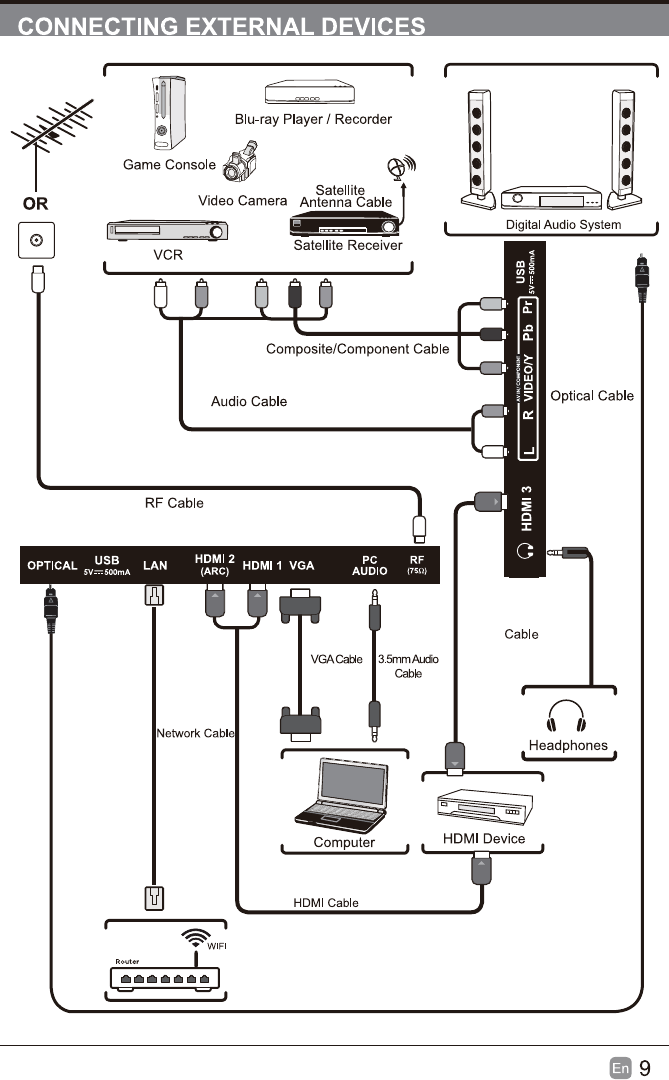

Connecting External Devices 9
Customizing TV Settings 10
Initial Setup
Source
Streaming
My Media
Viewing Photos
Listening to Music
Watching Videos
TV Settings
General
Audio
Network
Channel
Time
Lock
APP settings
Parental Control 21
Troubleshooting 23
Maintaining 24
25
OTT APP Service 26
4
5
6
7
7
7
10
10
11
12
13
13
14
14
15
16
17
17
18
19
19
20
8
2
En
IMPORTANT SAFETY INSTRUCTIONS
WARNING:
shock, do not expose this apparatus to rain or
moisture. The apparatus should not be exposed to
as vases should not be placed on apparatus.
WARNING: The batteries shall not be exposed to
WARNING: The mains plug is used as disconnect
device, the disconnect device shall remain readily
operable.
WARNING: To reduce the risk of electric shock, do
not remove cover (or back) as there are no user-
personnel.
within an equilateral triangle is intended to
alert the user to the presence of non-insulated
“dangerous voltage” within the product’s
to constitute a risk of electric shock.
The exclamation point within an equilateral
triangle is intended to alert the user to
the presence of important operating and
maintenance instructions in the literature
accompanying the appliance.
This equipment is a Class II or double
insulated electrical appliance. It has been
designed in such a way that it does not
require a safety connection to electrical earth.
This product contains electrical or electronic
materials. The presence of these materials
may,if not disposed of properly, have potential
adverse effects on the environment and
human health.
Presence of this label on the product means it
should not be disposed of as unsorted
waste and must be collectedseparately. As a
consumer, you are responsible for ensuring
that this product is disposed of properly.
Read these instructions – All the safety and
operating instructions should be read before this
product is operated.
Keep these instructions – The safety and
operating instructions should be retained for future
reference.
Heed all warnings – All warnings on the
appliance and in the operating instructions should
be adhered to.
Follow all instructions – All operating and use
instructions should be followed.
Do not use this apparatus near water – The
appliance should not be used near water or
moisture – for example, in a wet basement or near
a swimming pool, and the like.
Clean only with dry cloth.
Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
Do not install near any heat sources such
as radiators, heat registers, stoves, or other
Do not defeat the safety purpose of the polarized
or grounding-type plug. A polarized plug has two
blades with one wider than the other. A grounding-
type plug has two blades and a third grounding
prong. The wide blade or the third prong are
provided for your safety. If the provided plug does
replacement of the obsolete outlet.
Protect the power cord from being walked on
or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the
apparatus.
the manufacturer.
Use only with the cart, stand, tripod, bracket, or
the apparatus. When a cart is used, use caution
when moving the cart/apparatus combination to
avoid injury from tip-over.
Unplug this apparatus during lightning storms or
when unused for long periods of time.
Servicing is required when the apparatus has been
damaged in any way, such as the power-supply
cord or plug is damaged, liquid has been spilled
or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture,
does not operate normally, or has been dropped.
Please keep the unit in a well-ventilated
environment.
Licensing and Patent Information
This WESTINGHOUSE product may be covered by one or more U.S. and foreign patents and patent
applica tions.
This TV incorporates
Multimedia Interface (HDMI®)
technology. HDMI, the HDMI logo and High-Definition
Multimedia Interface are trademarks or registered
trademarks of HDMI Licensing LLC.
3
En
SAFETY INFORMATION
To ensure reliable and safe operation of this equipment, please carefully read all the instructions in this
user guide, especially the safety information below.
Electrical Safety
The TV set should only be connected to a main power supply with voltage that matches the label at the
rear of the product.
To prevent overload, do not share the same power supply socket with too many other electronic
components.
Do not place any connecting wires where they may be stepped on or tripped over.
Do not place heavy items on any connecting wire, which may damage the wire.
Hold the main plug, not the wires, when removing from a socket.
During a thunderstorm or when not in using the television for long periods, turn off the power switch on
the back of the television.
Do not allow water or moisture to enter the TV or power adapter. Do NOT use in wet, moist areas, such
as bathrooms, steamy kitchens or near swimming pools.
Pull the plug out immediately, and seek professional help if the main plug or cable is damaged, liquid
is spilled onto the set, if the TV set accidentally exposed to water or moisture, if anything accidentally
penetrates the ventilation slots or if the TV set does not work normally.
Do not remove the safety covers. There are no user serviceable parts inside. Trying to service the unit
this apparatus.
To avoid a battery leakage, remove batteries from the remote control, when the remote is not use for long
period, or when the batteries are exhausted.
For best results, use type AAA (example-alkaline, carbon-zinc, etc.) batteries.
Install only new batteries of the same type in your product.
Failure to insert batteries in the correct polarity, as indicated in the battery compartment, may shorten the
life of the batteries or cause batteries to leak.
Do not mix old and new batteries.
Do not mix Alkaline, Standard (Carbon-Zinc) or Rechargeable (Nickel Cadmium) or (Nickel Metal
Hydride) batteries.
Batteries should be recycled or disposed of as per state and local guidelines.
Do not attempt to recharge disposable batteries.
Do not short circuit battery terminals.
Keep away from children.
Physical Safety
Do not block ventilation slots in the back cover. You may place the TV in a cabinet, but ensure at least
5cm (2’’) clearance all around.
Do not tap or shake the TV screen, or you may damage the internal circuits. Take good care of the
remote control.
Do not install near any heat sources such as radiators, heat registers, stoves or other apparatus (including
Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two
blades with one wider than the other. A grounding plug has two blades and a third grounding prong, the
consult an electrician for replacement of the obsolete outlet.
Protect the power cord from being walked on or pinched particularly at plugs.
Unplug the apparatus during lightning storms or when unused for long periods.
s required if the apparatus does not operate
normally or if the apparatus, including the power supply cord or pulg, has been damaged in any way.
Servicing is also required if liquid has been spilled, or objects have fallen into the apparatus; when the
apparatus has been exposed to rain or moisture; or if the apparatus has been dropped.
4
En
PREPARATION
What's Included
TV Set
TV Stand Four Screws
User Manual Quick
Connect
Guide
User Manual Quick Connect Guide
Warranty
Card
Warranty Card
Remote Control with Batteries
Only for USA
'96+):
92++6
).2
I
9:
5
En
PREPARATION
Front View
1. POWER
Switch the TV between On / Standby mode.
2. SOURCE
Press to select among different input signal sources.
3. MENU
Display the OSD (on screen display) menu.
4. CH /
Press to select a channel.
5. VOL +/-
Press to adjust the volume.
6.
7.
POWER Indicator
Illuminate blue when the TV is turned on. Illuminate red when the TV is in standby mode.
IR (Infrared Receiver)
Receive IR signals from the remote control.
7
6
En
PREPARATION
Rear View
1. Power Cord
Connect to AC power outlet.
2.
3. USB Port
Connect to a USB storage device to play
4. LAN
Network connection port.
5. HDMI Inputs
output device.
6. VGA Input
Connect to a computer or other devices
with a VGA interface.
7. PC AUDIO Input
Connect to a computer audio output.
8. Antenna Input
&RQQHFWWRWKHDQWHQQDȍ9+)8+)
socket with the RF coaxial cable.
9.
OPTICAL Output
Connect a digital sound system to this
jack.
10
10. COMPONENT/AV Input
Connect to AV devices with Component/
AV output sockets.
Component Y input is sharing with
composite video input (AV).
Component/AV shares with Audio in (L/R).
,video and photo files.
Headphone Socket
Connect to the Headphones.
7
En
PREPARATION
Installing the Stand
1. surface to avoid damages and scratches.
2. Fix one Stand to the TV using 2 pcs
provided screws.
3. Fix the other Stand to the TV using
2 pcs provided screws.
Removing the Stand for Wall-Mounting
1. surface to avoid damages and scratches.
2. Untighten the 4 pcs screws holding the
stand assembly and remove them.
3. Attach the wall-mount bracket to the TV
using the mounting holes on the back of
the TV. Mount this TV according to the
instructions included in the wall-mount
bracket.
Wall-Mounting Screws
Mount the VESA bracket using 4*M6*10（" 4 " means Flour Screws; " M6 " means Thread Size;
WARNING:
accordance with the installation instruction.
WARNING
Never place a television set in an unstable location. A television set may fall, causing serious
personal injury or death. Many injuries, particularly to children, can be acoided by taking
simple precautions such as:
Using cabinets or stands recommended by the manufacturer of the television set.
Only using furniture that can safely support the television set.
Ensuring the television set is not overhanging the edge of the supporting furniture.
Not placing the television set on tall furniture(for example, cupboards or bookcases)
without anchoring both the furniture and the television set to a suitable support.
Not placing the television set on cloth or other materials that may be located between
the television set and supporting furniture.
Educating children about the dangers of climbing on furniture to reach the television
set or its controls.
If your existing television set is being retained and relocated,the same considerations as above
should be applied.
" 10 " means Length of Screws.） isometric threaded screws (Not Supplied).
8
En
PREPARATION
Remote Control
1. :Switch the TV between On and Standby
mode.
2. :Mute and restore TV sound.
3. 0~9:Select a program.(ATV/DTV mode)
4. :Enter multiple program channel number
such as 2-1.
5. :Return to the previous viewing
channel.
6. APP:Press to select the desired APP.
7. MENU:Display the main menu.
8. SOURCE:Select among the different input
signal sources:TV/AV/COMPONENT/HDMI1/
HDMI2/HDMI3/VGA/USB.
9. :Allows you to navigate the on
screen display menus and adjust the system
settings to your preference.
10. OK:
11. RETURN:Return to previous menu.
12. EXIT:Exit the on screen display menu.
13. ASPECT:Select the aspect ratio.
settings:standard/wide/wide zoom/zoom/Just Scan
(HDMI)/Dot by Dot(VGA)/auto.
14. VOL+/-:Adjust the volume.
15. CH :Select the channel.
16. TV:
17. :Start playback or pause.
18. :Reverse playback rapidly.
19. :Advance playback rapidly.
20. :Skip to the beginning of the previous
chapter/track/photo.
21. :Skip to the beginning of the next chapter/
track/photo.
22. FREEZE:Freeze the picture.
23. :Stop the playback.
24. ADD/ERASE:Add or delete Favorite channels.
25. FAV:Display the favorite channel list.
26. INFO:Display the present screen information
such as the current channel and input source.
27. MTS:Switch among different audio
channels:STEREO/MONO/SAP.
28. CC:Closed Caption selection:ON/OFF/CC On
Mute.
29. V-CHIP:Set up parental control.
30. P.MODE:Select picture mode:dynamic/movie/
user/standard.
31. S.MODE:Select sound mode:standard/music/
movie/user.
32. CH.LIST:Display program list.
Press to turn to TV mode.
'96+):
92++6
).2
I
9:
(sold separately)
(sold separately)
(sold separately)
(sold separately)
(sold separately)
(sold separately)
(sold separately)
(sold separately)
(sold separately)
10
En
CUSTOMIZING TV SETTINGS
Initial Setup
Connect the power cord to the power socket after you have completed all the physical
connections. At this stage, the TV will enter Standby Mode and the red LED indicator will
illuminate.
In Standby Mode, press the button on the main unit or on the remote control to turn the TV
on. The red LED indicator will turn blue.
the Arrow buttons to
highlight and select your desired mode and press OK
5
7
Ifchannelscannotbe
found,thisframewillbe
displayedautomatically.
Home Mode :The picture mode will be Standard if you select this mode.
Retail Mode: Select Dynamic Mode if you would like your picture to be brighter. At times this
mode may use more energy to operate the Volume/Sound Mode and the Picture Mode.
The SLEEP-MODE Power should
be
less
than
0.5
W.
Westinghouse
SOURCE
Press SOURCE on the remote control or on the main unit to
display the source menu, then use the Arrow buttons to cycle
among the different input sources: TV/AV/COMPONENT/HDMI1/
HDMI2/HDMI3/VGA/USB, then use the Arrow buttons to highlight
and press OK/SOURCE to confirm.
SCAN CHANNELS FROM THE ANTENNA OR COAXIAL CABLE
INPUT
CONNECT A BLU-RAY, DVD, OR OTHER DEVICES
When this television is connected to the internet, it will
collect limited, non-personally identifiable information
which will be sent to MStar Semiconductor Inc. (“MStar“)
and its service providers. Certain of this information may
be aggregated and shared with third party partners for
business and product analysis purposes. By clicking
“Accept” you acknowledge and agree to the collection
and shareing of this information as described in more
detail in the “ View Additional Details ” section, as well as
the automatic download of essential firmware/software
updates.
DATA COLLECTION AND FIRMWARE UPDATES
NOTICE
[ ACCEPT ][ VIEW ADDITIONAL DETAILS ]
Welcome to the Westinghouse
TV Setup Wizard.
Follow this guide to help setup
your TV to scan channels or
access your external devices
like your Antenna,Set-Top Box,
Blu-ray,DVD,Gaming systems
or other devices.
Use the UP or DOWN arrows on
your remote control or TV
keypad to select the language
on screen menu.
Use the UP and DOWN arrows
on your remote control or TV
keypad to select your local time
zone.
WESTINGHOUSE
11
En
CUSTOMIZING TV SETTINGS
STREAMING
Press MENU to display the main interface, then use the Arrow buttons to highlight
STREAMING and press OK
and select desired apps to enter.
MUSE
Muse TV provides numerous channels and thousands of online
videos on your smart TV.
Note:Media streaming performance (include all Muse channels) will be affected by the speed
and bandwidth of the internet connection and also the location and hardware configuration
of the WiFi router in case of wireless network is being used.
12
En
CUSTOMIZING TV SETTINGS
MY MEDIA
Press MENU button to display the main interface, then use the Arrow buttons to highlight MY
MEDIA and press OK
like.
Note: Portable drives should be inserted before entering MY MEDIA menu.
Media playback is subject to compatible file format.
13
En
CUSTOMIZING TV SETTINGS
VIEWING PHOTOS
Use the Arrow buttons to highlight the PHOTOS option
and press OK
drive, press OK to enter.
After entering PHOTOS, use the Arrow buttons to select
OK to enter.
select the desired picture, then press the button
to display.
When the picture is playing, the picture Function Bar
will be displayed. Use the Arrow buttons to select the
desired function available on the bar.
LISTENING TO MUSIC
Use the Arrow buttons to highlight the MUSIC option
and press OK, then it will jump to confirm the inserted
drive, press OK to enter.
After entering MUSIC, use the Arrow buttons to select
the music file and press OK to enter.
After entering the music file, use the Arrow buttons
to select the desired music, then press the
button to display.
When the music is playing, the music Function Bar
will be displayed. Use the Arrow buttons to select the
desired function available on the bar.
14
En
CUSTOMIZING TV SETTINGS
WATCHING VIDEOS
Use the Arrow buttons to highlight the VIDEO option and
press OK
press OK to enter.
After entering VIDEO, use the Arrow buttons to select
OK to enter.
select the desired video, then press the button to
display.
When the video is playing, the video Function Bar will be
displayed. Use the Arrow buttons to select the desired
function available on the bar.
TV SETTINGS
Press the MENU button on the main unit or on the remote control to display the main interface.
Then use the Arrow buttons to highlight TV Settings and press OK to enter. Then use the
Arrow buttons to cycle among the following options and select the desired one to enter.
Note: The FUNCTION BAR will display or disappear by pressing the MENU key on remote
or base unit at audio, video and photo mode.
15
En
CUSTOMIZING TV SETTINGS
MENU LANGUAGE
TRANSPARENCY Select to turn On/Off transparency
function.
ZOOM MODE
Select zoom mode:
Note: Withadifferentinputsource,
the]oommodeoptionsmaydiffer.
VGA SETTINGS
Adjust advanced option’s setting:
H-POS, V-POS, Clock, Phase or Auto.
(only available in VGA mode)
CLOSED CAPTION
CC mode On/Off/CC on Mute.
Basic
Selection CC1/CC2/CC3 CC4/
Text1/.../Text4.
Advanced
Selection Select from Service 1 to
Service 6.
Option
Mode, Font Style, Font
Size, Font Edge Style,
Font Edge Color, FG_
Color, BG_Color, FG_
Opacity, BG_Opacity.
DLC Select to turn the dynamic luminance
control On/Off.
RESTORE DEFAULT Restore the TV to factory default
settings.
GENERAL
Press MENU to display the main interface, use the
Arrow buttons to highlight TV SETTINGS and press
OK to Then use the Arrow buttons to select
GENERAL to enter and adjust each option setting.
Select the menu language among
English, Français or Español. The
default on-screen menu language is
English.
Wide/Wide Zoom/Zoom/Standard
/Just scan(HDMI)/Dot by dot(VGA).
OTHER SETTINGS
INLINK: LINLINK
CONTROL,DEVICE POWER
OFF,TV Auto Power On,AUDIO
RECEIVER,LINLINK DEVICE
LIST,ROOT MENU.
Accessibility TTS ：Voice
Guide,VERBOISITY,RATE
SUPPORT,PITCH
SUPPORT,VOICE,Video
Description
DLC:Select to turn On/Off DLC.
RESTORE DEFAULT Restore the TV to factory default
settings.
SOFTWARE
UPDATE (USB)
Software Update In the case of a
USB device.
VIEW END-USER
LINCENSE
AGREEMENT
Choose "I have read the user
agreement" to select Accept or
Decline .
SOFTWARE _
UPDATE
(NETWORK)
Software Update In the case of a
NETWORK device.
SOFTWARE
INFORMATION
Check Module Software Version
NetReady Device ID.
How to turn the Text-to-Speech (TTS)
voice guide on or off?
Press “MENU” key on the remote control
Turn the GENERAL menu.
Select “OTHER SETTING”
Select “Accessibility”
Select “Voice Guide” and turn it on or off.
16
En
CUSTOMIZING TV SETTINGS
Press MENU to display the main interface, use the Arrow
buttons to highlight TV SETTINGS and press OK to
Then use the Arrow buttons to select PICTURE
to enter and adjust each option setting.
PICTURE MODE
Cycle among picture modes:
Dynamic/Standard/Movie/User.
BRIGHTNESS Increase or decrease the amount of white in
the picture.（For user mode）
CONTRAST Adjust the difference between light and dark
levels in the pictures.（For user mode）
COLOR Control the color intensity.（For user mode）
SHARPNESS Adjust crispness level in edges between light
and dark areas of the picture.（For user mode）
TINT Adjustthe balancebetween red and green levels.
COLOR
TEMPERATURE
Cycle among color temperatures: Normal/
Warm/Cool.
ADVANCED
OPTION
Set the following options:
Noise Reduction: Reduce the noise level of
the connected device: Off/Weak/Middle/Strong.
Alternative: Press P.MODE button on remote
control to set the picture mode directly.
ON
17
En
CUSTOMIZING TV SETTINGS
AUDIO
Press MENU to display the main interface, use the
Arrow buttons to highlight TV SETTINGS and press OK
AUDIO
to enter and adjust each option setting.
SOUND MODE
Allow the selection of an audio-
enhancement technique: Standard/
Music/Movie/User.
BASS Control the relative intensity of lower-
pitched sounds.（For user mode）
TREBLE Control the relative intensity of higher-
pitched sounds.（For user mode）
BALANCE Adjust the relative volume of the
speaker in a multiple speaker system.
DIGITAL AUDIO
OUTPUT
Select the digital audio output mode
between PCM/RAW.
SURROUND SOUND Turn On/Off to provide an enhanced
listening experience.
AUTO VOLUME Turn On/Off to automatically control
volume levels.
AUDIO LANGUAGE Select audio language among:
English, French, Spanish.
NETWORK
Press MENU to display the main interface, use the
Arrow buttons to highlight TV SETTINGS and press
OK
NETWORK then press OK to enter and adjust each
NETWORK TYPE
Select Lan and Wireless network, then
connect the TV to the wired network or
search the wireless network through
MY NETWORK Display the current network which you
connect to.
IP ADDRESS Display the current IP address
information.
option setting.
Alternative: you may press the S.MODE
button to select the sound mode directly.
18
En
CUSTOMIZING TV SETTINGS
CHANNEL
Press MENU to display the main interface, use the
Arrow buttons to highlight TV SETTINGS and press
OK
CHANNEL to enter and adjust each option setting.
AIR/CABLE Select antenna between Air and
Cable.
AUTO SCAN Select the Auto Scan feature to scan
your available cable channels.
FAVORITE Set the selected channel as a favorite
channel.
SHOW/HIDE Show/Hide the selected channel.
CHANNEL NUMBER Display the current channel number.
CHANNEL LABEL Display the current channel label.
SIGNAL
INFORMATION
Display the information of current
signal.
19
En
CUSTOMIZING TV SETTINGS
TIME
Press MENU to display the main interface, use the
Arrow buttons to highlight TV SETTINGS and press OK
TIME to
enter and adjust each option setting.
SLEEP TIMER
Select a period of time after which the
TV automatically switches to standby
mode:
Off/5/10/…/180/240 min.
Alternative: You may press the SLEEP
button repeatedly to select the number
of minutes directly.
OSD TIMER Set the OSD timer:
Off/15s/30s/60s/120s/240s.
TIME ZONE
Select a Time Zone:
Central/Mountain/Newfoundland.
DAYLIGHT SAVING
TIME
Select to turn daylight saving time On/
Off.
CLOCK Display the clock time.
LOCK
Press MENU to display the main interface, use the
Arrow buttons to highlight TV SETTINGS and press OK
LOCK
to enter and adjust each option setting.
Note:thedefaultpasswordis"0000".
CHANGE
PASSWORD
Use 0-9 buttons to input the old password
and then input the new 4-digit password.
SYSTEM LOCK
Select to turn system lock On/Off. The
following options (USA, Canada, RRT Setting
and Reset RRT) will only be accessible when
you turn the system lock on.
USA
TV TV Rating: Press OK button to
lock or unlock TV rating.
MPAA Set the MPAA: N/A, G, PG, PG-
13,R, NC-17, X.
CANADA
Canada
English
Select MPAA rating for English-
speaking Canada : E, C, C8+, G,
PG, 14+, 18+.
Canada
French
Select MPAA rating for Quebec
Canada : E, G, 8 ans+, 13 ans+,
16 ans+, 18 ans+.
RRT SETTING Set Rating Region Table.
RESET RRT Select to reset the RRT setting.
CLEAR LOCK Clear all lock settings.
20
En
CUSTOMIZING TV SETTINGS
APP SETTINGS
Press MENU to display the main interface, use the
Arrow buttons to highlight TV SETTINGS and press OK
APP
SETTINGS to enter and adjust each option setting.
ESN Electronic Serial Number.
NETFLIX
VERSION Show Version
21
En
PARENTAL CONTROL
Press the MENU button on the main unit or on the remote control and then press / buttons
to select LOCK menu. Use the 0-9 buttons to input the 4-digit password to enter the LOCK
menu. If used, this option feature can "block'' undesirable programming from appearing on
the TV.
Parental Control offers users a wide variety of options and settings that restrict or "block''
program rating they consider acceptable for a younger more sensitive viewer. It can be
General audience and children block should both be programmed into the TV memory.
both rating systems should be used and based on the ages of children.
Overview
To ensure complete coverage for all TV programs (movies and regular TV show) using the
Age Block option, choose a rating from both the MPAA and TV Parental Guideline tables on
the next page. In addition, you may wish to add other restrictions selected from the content
block menu and submenus.
Things to Consider before Setting up Parental Control
Determine which ratings you consider are acceptable for different viewers. For example, if
you choose TV-PG, more restrictive ratings will be automatically blocked; some viewers will
not be able to see: TV-PG, TV-14, or TV-MA rated programs. You may block the auxiliary
video source entirely.
Use the Content Blk option to block program Content based on individual parameters such
as: Strong Dialog, Bad Language, Sex Scenes, Violence Scenes or Fantasy.
Go into the Set Password option and use the numeric keys on the remote control to set a
secret password, then save the password, it is the only way to access the Parental Control
menu and change ratings setting, or turn off Parental Control.
You can set different Parental Control viewing restrictions for general audiences and for
children; both can be active at the same time;
Simply specifying one content block such as Sex Scenes, will not automatically restrict
the programming that appears from the video sources;
Even If you choose to leave the AUX Inputs unblocked, the ratings you specify will
automatically restrict the programming that appears from the video sources;
You cannot disable Parental Control by disconnecting the TV from power. Block hours will
22
En
PARENTAL CONTROL
Motion Picture Association of America (MPAA) Rating System
Grade Meaning
GGeneral Audiences Content not offensive to most viewers.
PG Parental Guidance
Suggested Content is such that parents may not want their
children to view the program.
PG-13 Parents Strongly
Cautioned
Program is inappropriate for preteens, with a greater
degree of offensive material suggested than a PG
rated program.
RRestricted Not for children under 17-contains strong element of
sex and/or violence.
NC-17 No children under
age 17 Not for children under 17-under any circumstances.
Contains strong sexual content.
XHard Core Films Same as NC-17 rating.
No Rating No Rating MPAA did not rate.
TV Parental Guideline Rating System
CanadianEnglishisusedthroughoutallEnglish-speakingCanada(E,C,C8+,G,PG,14+,18+).
CanadianFrenchisusedinQuebec(E,G,8ans+,13ans+,16ans+,18ans+)
TheV-Chipwillautomaticallyblockcertaincategoriesthatare"morerestrictive".IfyoublockTV-Y
category,then TV-Y,TV-G,TV-PG,TV-14andTV-M$willbeautomaticallyblocked.
Grade Meaning
TV-Y All Children Content not offensive to most viewers.
TV-Y7 Directed to Older
Children Considered suitable for children over 7, may
contain fantasy violence scenes.
TV-G General Audience Considered suitable for all audience; children
may watch unattended.
TV-PG Parental Guidance
Suggested
Suggested unsuitable for younger children,
may contain suggestive language, bad
language, sex and violence scenes.
TV-14 Parents Strongly
Cautioned
unsuitable for children under 14, may contain
strong language, bad language, sex and
violence scenes.
TV-MA Mature Audience
Only Adults only, may contain strong language, bad
language, sex and violence scenes.
23
En
TROUBLESHOOTING
If your TV does not operate normally or cannot be turned on, please check the following
troubleshooting questions. Remember also to check any other connected electronic device,
such as a DVD or Blu-ray player to pinpoint the problem. If the TV still fails to operate
normally, please contact technical support.
The TV does not operate properly
The TV does not respond
when pressing any buttons
The TV may freeze up during use. Disconnect the power cord from
the power socket for a few minutes. Reconnect the power cord and
try to operate it again as usual.
TV cannot be switched on
Check that the TV is connected to the power supply.
Make sure all connected AV devices are switched off before switching
on your TV.
The remote control does not
work
Check to see if there are any objects between the TV and the remote
control causing an obstruction. Ensure that you are pointing the
remote control directly at the TV.
Ensure that the batteries are installed with the correct polarity (+ to +,
- to -).
Install new batteries.
Power is suddenly turned off
Check the power of the TV. The power supply maybe interrupted.
Check if the sleep timer is set.
Check whether the Auto Standby is activated.
The video function does not work
No picture & no sound Check whether the TV is switched on.
Try another channel. The problem may be caused by the broadcaster.
Picture appears slowly after
switching on
This is normal; the image is muted during the TV startup process.
Please contact your service centre if the picture has not appeared
after 5 minutes.
No or poor color or poor
Adjust the settings in the Picture menu.
Try another channel. The problem may be caused by the broadcaster.
Check if video cables are connected properly.
Horizontal/Vertical bar or
picture shaking
Check for local interference such as an electrical appliance or power
tool.
Poor reception on some
channels
The station or cable channel may be experiencing problems; tune to
another station.
Station signal may be weak, reposition the antenna for better
reception.
Check for sources of possible interference.
Lines or streaks in pictures Check antenna (change the position of the antenna.)
No pictures when connecting
HDMI Check if the input source is HDMI1/HDMI2/HDMI3.
Pictures appear in wrong
ratio
Adjust the Aspect Ratio settings in the SETUP menu or press the
ASPECT button on the remote control.
The audio function does not work
Picture OK but no sound
Press the VOL +/- buttons.
Sound muted? Press the MUTE button.
Try another channel. The problem may be caused by the broadcaster.
No output from one of the
speakers Adjust the Balance settings in the AUDIO menu.
Unusual sound from inside
the TV
A change in ambient humidity or temperature may result in an unusual
noise when the TV is switched on or off and does not indicate a fault
with the TV.
No sound when connecting
HDMI Check if the input source is HDMI1/HDMI2/HDMI3.
Audio noise Keep the RF coaxial cable away from the other connected cables.
24
En
TROUBLESHOOTING
Password
Lost password
Select the SET PASSWORD setting in the LOCK menu, then enter
the following master password “8899”. The master password clears
your previous password and allows you to enter a new password.
There is a problem in PC mode
The signal is out of range
(invalid format) Adjust the resolution, horizontal frequency, or vertical frequency.
Vertical bar or stripe on
background & Horizontal
Noise & Incorrect position
Screen color is unstable or
show a single color
Check the signal cable.
Reinstall the PC video card.
If the WIFI connection fails or APP has connection issue, please check the following
troubleshooting questions.
WIFI connection fails
Check signal strength for WIFI connection, the TV may be too far
away from WIFI router.
Check "authentication" setting.
Make sure password is entered with correct upper or lower case
letters.
Check if TV is connected correctly.
Try powering off and unplugging TV to reset TV.
Try resetting the WIFI router, and also check for interference or WIFI
channel problems.
Problems with video
streaming
Check if internet connection is fast enough for streaming HD or 4K
videos.
has connection issue
Can't use Vudu and Pandora Vudu is only available in US and Pandora only avaliable in limited
countries.
Maintaining
Do not use your TV in areas that are too hot or too cold, because the cabinet may
warp or the screen may malfunction. Your TV works best in temperatures that are
comfortable to you.
Storage temperatures are 32° to 122°F(0° to 50°C).
Working temperatures are 32° to 95°F(0° to 35°C).
Do not place your TV in direct sunlight or near a heat source.
Always connect your television to a power outlet with protective ground connection.
Minimum 5cm distances around the apparatus for sufficient ventilation.
The ventilation should not be impeded by covering the ventilation openings with items,
such as newspapers, table-cloths, curtains, etc.
No naked flame sources,such as lighted candles,should be placed on the apparatus.
Attention should be drawn to the environmental aspects of battery disposal.
25
En
SPECIFICATION
The FCC Wants You to Know
FCC STATEMENT
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired
the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
1. Reorient or relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
4. Consult the dealer or an experienced radio/TV technician for help.
FCC Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This
equipment should be installed and operated with minimum distance 20cm between the radiator & your body.
could void
Panel Size 40 inch diagonally
Display Type LED
Panel Technology FHD
Panel 60 Hz Vs. 120 Hz 60 Hz
Display Resolution 1920 x 1080
HDMI Support Up to 1080P
Panel Resolution 1920 x 1080
Aspect Ratio 16:9
Dynamic Contrast Ratio-Panel 3000~4000:1
Response Time (G To G) 8 ms
Lamp Life (Typ. Hours) 30,000 hours
Horizontal Viewing $QJOH$W&5 178
Vertical Viewing $QJOH$W&5 178
Wall-mount(LxW-mm) 200*200 VESA(mm)
Brightness(Centre Typ.) Cd/M² 170~200
26
En
If you want to know about these APP information or get more service. Please refer to following
content.
OTT APP SERVICE
t
You can call the following telephone for more help: 866-579-7172
If your matter is regarding customer service, please refer to for
alternative contact information.
t YouTu be
You can browse the following website for more help:
https://productforums.google.com/forum/#!categories/youtube/smart-tvs
t VUDU
You can call the following telephone for more help: 888-554-8838
t TG
You can call the following telephone for more help: 888-874-5411
t Pandora
You can send E-mail to Pandora for more help: pandora-support@pandora.com
t AccuWeather
You can send E-mail to AccuWeather for more help: CustomerService@AccuWeather.com
OBTAINING WARRANTY SERVICE
Please call Westinghouse Electronics at (800) 701-0680 for the locations of the nearest
Westinghouse Electronics service center or to obtain in-home services.
