Shenyang Tongfang Multimedia Technology WD50UK4550 LED TV User Manual

Shenyang Tongfang Multimedia Technology Co., Limited LED TV

Users Manual

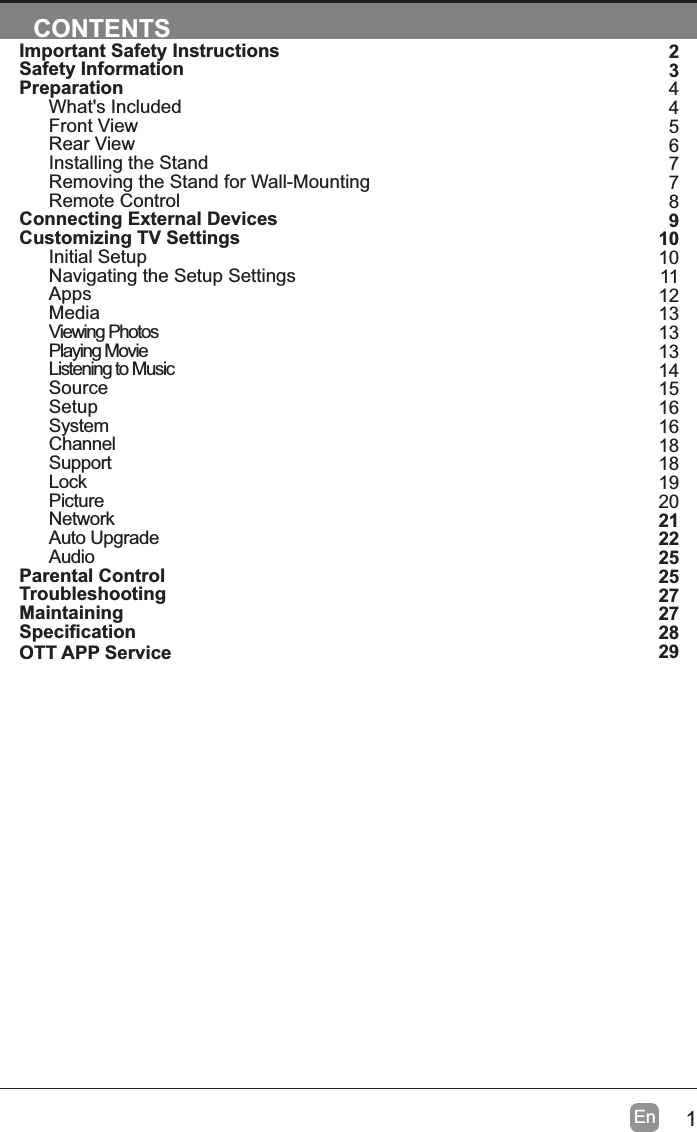

1EnCONTENTSImportant Safety InstructionsSafety InformationPreparationWhat's IncludedFront ViewRear ViewInstalling the StandRemoving the Stand for Wall-MountingRemote ControlConnecting External DevicesCustomizing TV SettingsInitial SetupNavigating the Setup SettingsAppsMediaViewing PhotosPlaying MovieListening to MusicSourceSetupSystemChannelSupportLockPictureNetworkAuto UpgradeAudioParental ControlTroubleshootingMaintaining6SHFL¿FDWLRQOTT APP Service23445677891010111213131314151616181819202122252527272829

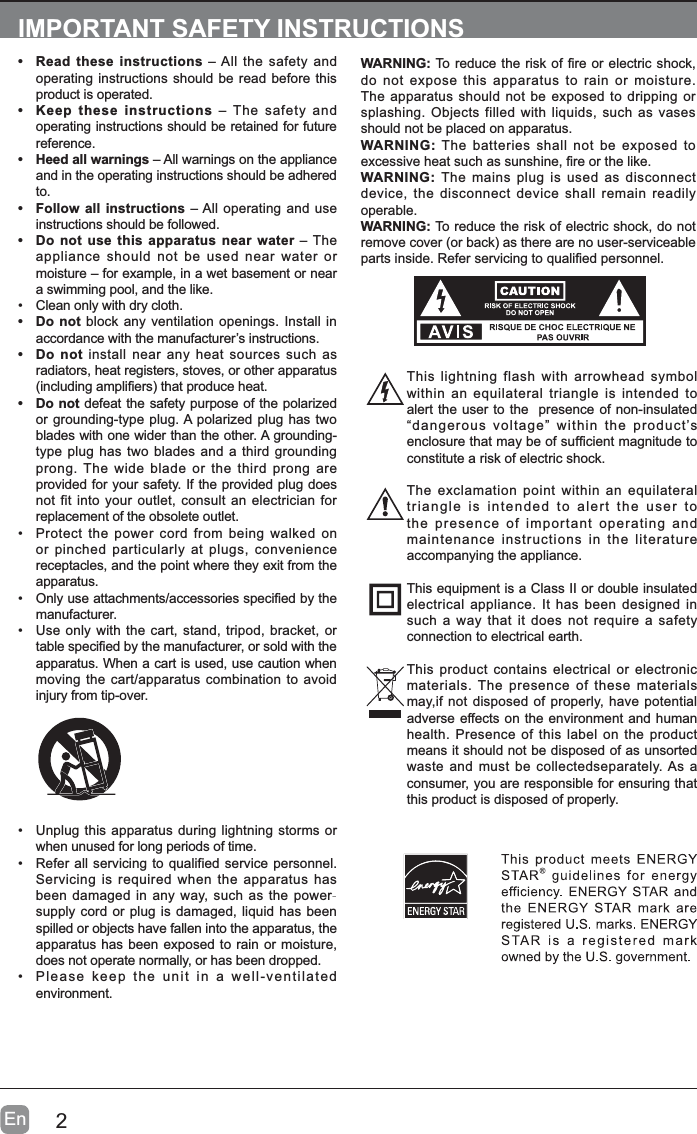

2EnIMPORTANT SAFETY INSTRUCTIONS• Read these instructions – All the safety and operating instructions should be read before this product is operated. • Keep these instructions – The safety and operating instructions should be retained for future reference.• Heed all warnings – All warnings on the appliance and in the operating instructions should be adhered to.• Follow all instructions – All operating and use instructions should be followed. • Do not use this apparatus near water – The appliance should not be used near water or moisture – for example, in a wet basement or near a swimming pool, and the like.• Clean only with dry cloth.• Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.• Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus LQFOXGLQJDPSOL¿HUVWKDWSURGXFHKHDW• Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.• Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.•2QO\XVHDWWDFKPHQWVDFFHVVRULHVVSHFL¿HGE\WKHmanufacturer.• Use only with the cart, stand, tripod, bracket, or WDEOHVSHFL¿HGE\WKHPDQXIDFWXUHURUVROGZLWKWKHapparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. WARNING:7RUHGXFHWKHULVNRI¿UHRUHOHFWULFVKRFNdo not expose this apparatus to rain or moisture. The apparatus should not be exposed to dripping or splashing. Objects filled with liquids, such as vases should not be placed on apparatus. WARNING: The batteries shall not be exposed to H[FHVVLYHKHDWVXFKDVVXQVKLQH¿UHRUWKHOLNHWARNING: The mains plug is used as disconnect device, the disconnect device shall remain readily operable.WARNING: To reduce the risk of electric shock, do not UHPRYHFRYHURUEDFNDVWKHUHDUHQRXVHUVHUYLFHDEOHSDUWVLQVLGH5HIHUVHUYLFLQJWRTXDOL¿HGSHUVRQQHO• Unplug this apparatus during lightning storms or when unused for long periods of time.• Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as the power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.• Please keep the unit in a well-ventilated environment.This lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of non-insulated “dangerous voltage” within the product’s HQFORVXUHWKDWPD\EHRIVXI¿FLHQWPDJQLWXGHWRconstitute a risk of electric shock.The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance instructions in the literature accompanying the appliance. This equipment is a Class II or double insulated electrical appliance. It has been designed in such a way that it does not require a safety connection to electrical earth.This product contains electrical or electronic materials. The presence of these materials may,if not disposed of properly, have potential adverse effects on the environment and human health. Presence of this label on the product means it should not be disposed of as unsorted waste and must be collectedseparately. As a consumer, you are responsible for ensuring that this product is disposed of properly.

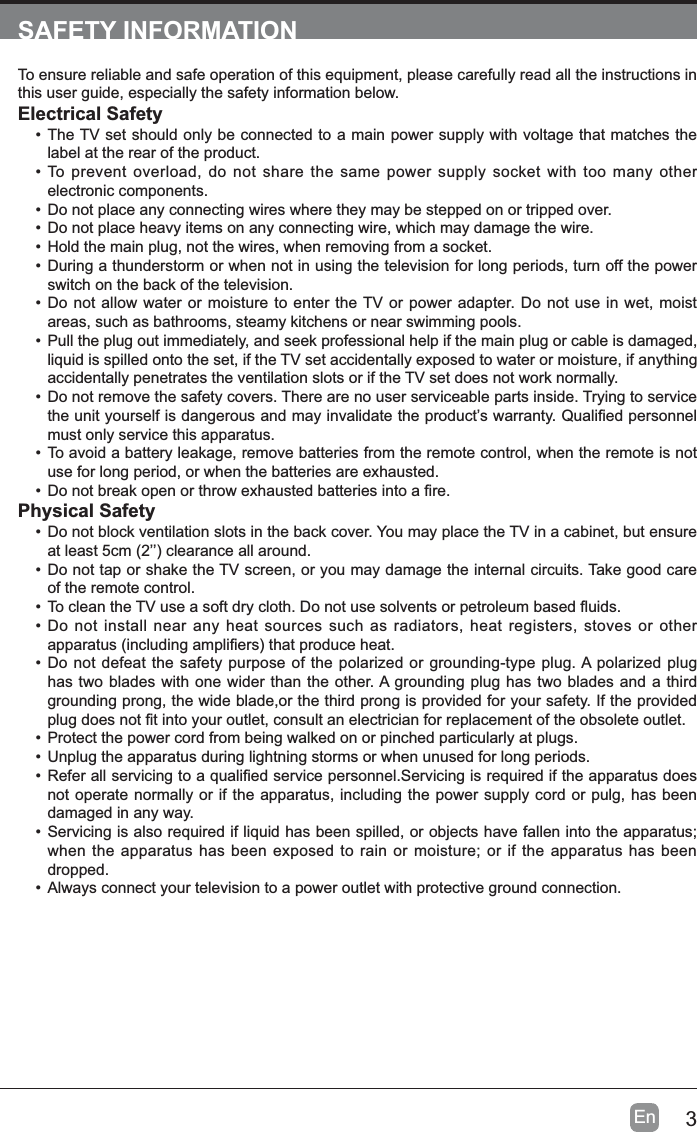

3EnSAFETY INFORMATIONTo ensure reliable and safe operation of this equipment, please carefully read all the instructions in this user guide, especially the safety information below.Electrical Safety• The TV set should only be connected to a main power supply with voltage that matches the label at the rear of the product.• To prevent overload, do not share the same power supply socket with too many other electronic components.• Do not place any connecting wires where they may be stepped on or tripped over.• Do not place heavy items on any connecting wire, which may damage the wire.• Hold the main plug, not the wires, when removing from a socket.• During a thunderstorm or when not in using the television for long periods, turn off the power switch on the back of the television.• Do not allow water or moisture to enter the TV or power adapter. Do not use in wet, moist areas, such as bathrooms, steamy kitchens or near swimming pools.• Pull the plug out immediately, and seek professional help if the main plug or cable is damaged, liquid is spilled onto the set, if the TV set accidentally exposed to water or moisture, if anything accidentally penetrates the ventilation slots or if the TV set does not work normally.• Do not remove the safety covers. There are no user serviceable parts inside. Trying to service WKHXQLW\RXUVHOILVGDQJHURXVDQGPD\LQYDOLGDWHWKHSURGXFW¶VZDUUDQW\4XDOL¿HGSHUVRQQHOmust only service this apparatus.• To avoid a battery leakage, remove batteries from the remote control, when the remote is not use for long period, or when the batteries are exhausted.•'RQRWEUHDNRSHQRUWKURZH[KDXVWHGEDWWHULHVLQWRD¿UHPhysical Safety• Do not block ventilation slots in the back cover. You may place the TV in a cabinet, but ensure DWOHDVWFP¶¶FOHDUDQFHDOODURXQG• Do not tap or shake the TV screen, or you may damage the internal circuits. Take good care of the remote control.•7RFOHDQWKH79XVHDVRIWGU\FORWK'RQRWXVHVROYHQWVRUSHWUROHXPEDVHGÀXLGV• Do not install near any heat sources such as radiators, heat registers, stoves or other DSSDUDWXVLQFOXGLQJDPSOL¿HUVWKDWSURGXFHKHDW• Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding plug has two blades and a third grounding prong, the wide blade,or the third prong is provided for your safety. If the provided SOXJGRHVQRW¿WLQWR\RXURXWOHWFRQVXOWDQHOHFWULFLDQIRUUHSODFHPHQWRIWKHREVROHWHRXWOHW• Protect the power cord from being walked on or pinched particularly at plugs. • Unplug the apparatus during lightning storms or when unused for long periods.•5HIHUDOOVHUYLFLQJWRDTXDOL¿HGVHUYLFHSHUVRQQHO6HUYLFLQJLVUHTXLUHGLIWKHDSSDUDWXVGRHVnot operate normally or if the apparatus, including the power supply cord or pulg, has been damaged in any way.• Servicing is also required if liquid has been spilled, or objects have fallen into the apparatus; when the apparatus has been exposed to rain or moisture; or if the apparatus has been dropped.• Always connect your television to a power outlet with protective ground connection.

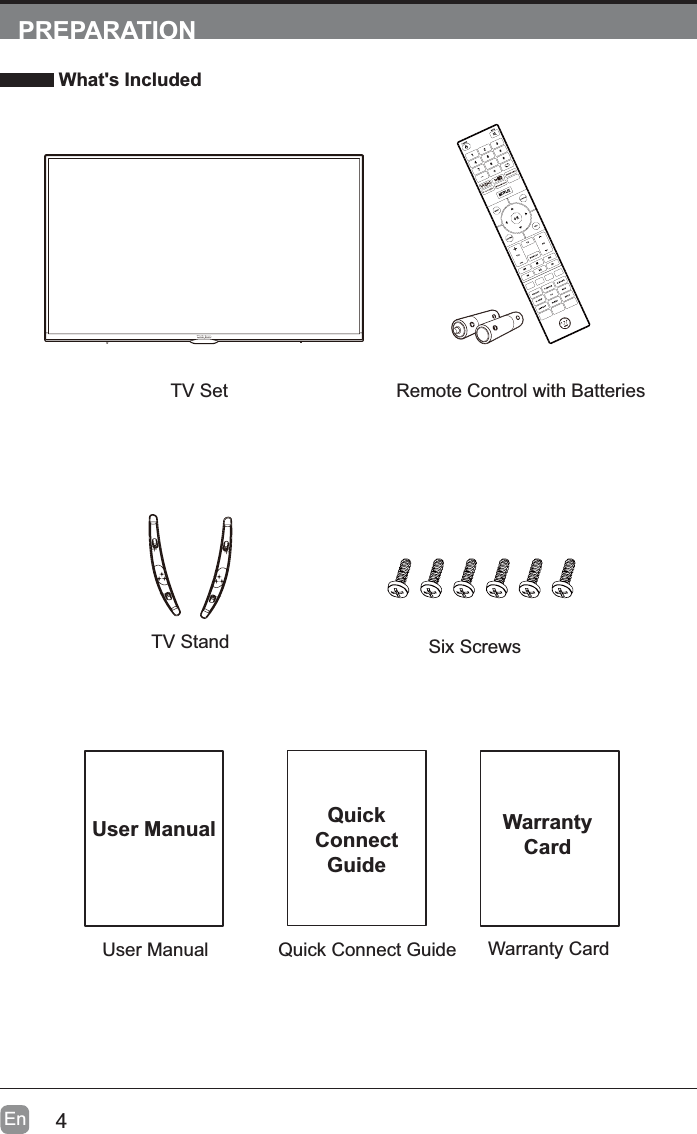

4EnPREPARATION What's IncludedQuick Connect GuideQuickConnectGuideUser ManualUser ManualRemote Control with BatteriesWarranty CardWarranty CardTV SetTV Stand Six Screws

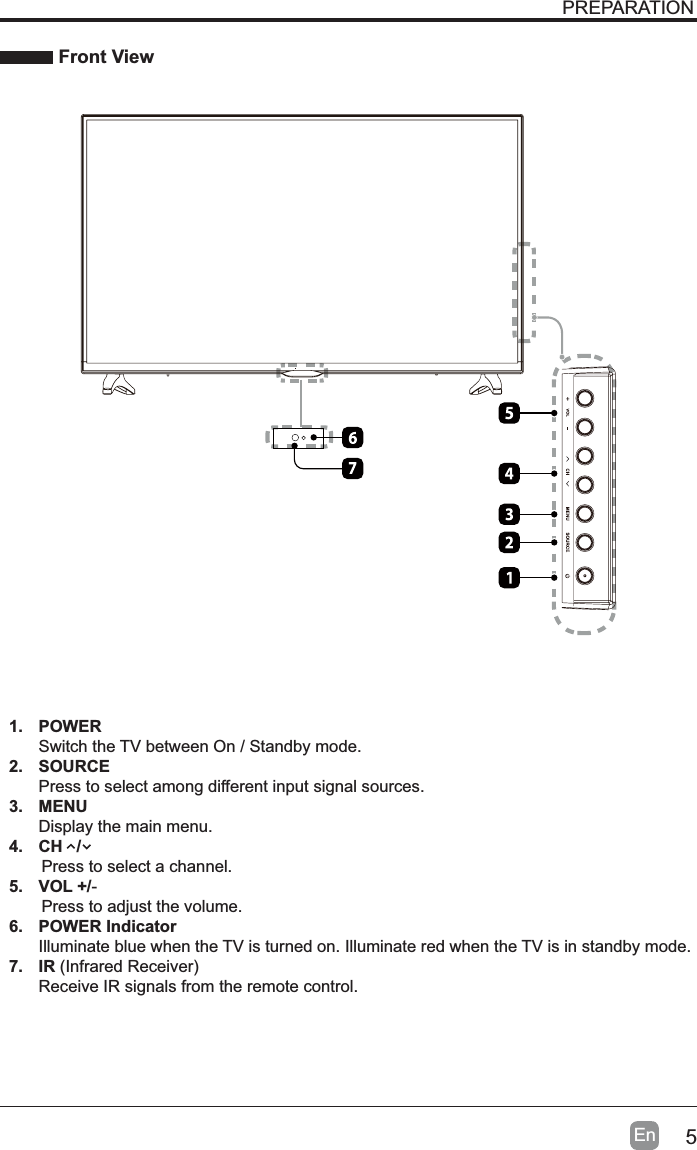

5En1. POWERSwitch the TV between On / Standby mode.2. SOURCEPress to select among different input signal sources.3. MENUDisplay the main menu.4. CH / Press to select a channel.5. VOL +/-Press to adjust the volume.6. POWER IndicatorIlluminate blue when the TV is turned on. Illuminate red when the TV is in standby mode.7. IR,QIUDUHG5HFHLYHUReceive IR signals from the remote control.PREPARATION Front View

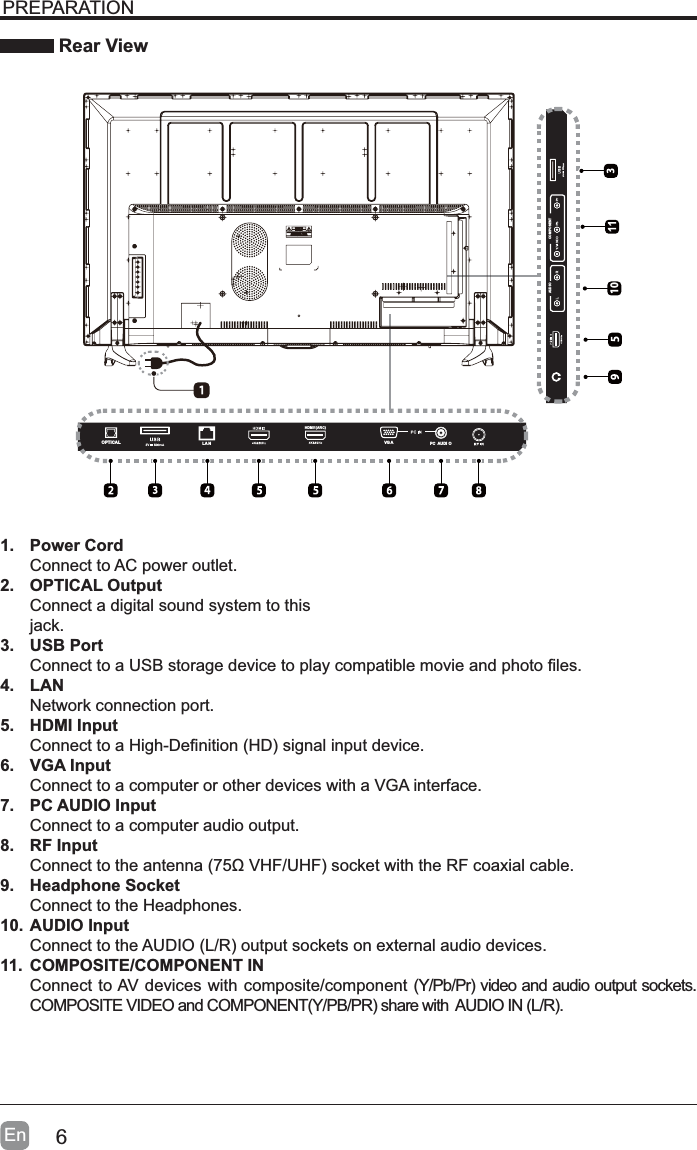

6EnPREPARATION Rear View1. Power CordConnect to AC power outlet.2. OPTICAL OutputConnect a digital sound system to thisjack.3. USB Port&RQQHFWWRD86%VWRUDJHGHYLFHWRSOD\FRPSDWLEOHPRYLHDQGSKRWR¿OHV4. LANNetwork connection port.5. HDMI Input&RQQHFWWRD+LJK'H¿QLWLRQ+'VLJQDOLQSXWGHYLFH6. VGA InputConnect to a computer or other devices with a VGA interface.7. PC AUDIO InputConnect to a computer audio output.8. RF Input&RQQHFWWRWKHDQWHQQDȍ9+)8+)VRFNHWZLWKWKH5)FRD[LDOFDEOH9. Headphone SocketConnect to the Headphones.10. AUDIO Input&RQQHFWWRWKH$8',2/5RXWSXWVRFNHWVRQH[WHUQDODXGLRGHYLFHV11. COMPOSITE/COMPONENT IN&RQQHFWWR$9GHYLFHVZLWKFRPSRVLWHFRPSRQHQW<3E3UYLGHRDQGDXGLRRXWSXWVRFNHWV&20326,7(9,'(2DQG&20321(17<3%35VKDUHZLWK$8',2,1/5LA NOPTICAL PC AUDI OVG A10COMPONENTAUDIO900HDMI1(ARC)

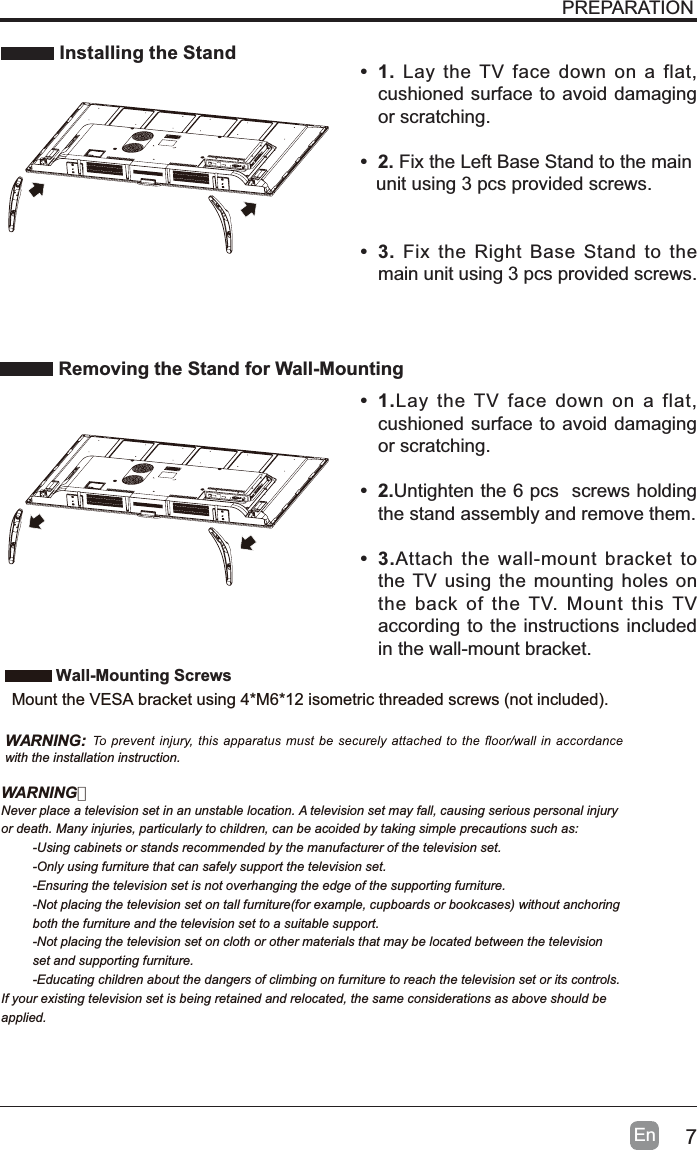

7En Installing the StandRemoving the Stand for Wall-MountingPREPARATION•1. Lay the TV face down on a flat, cushioned surface to avoid damaging or scratching.•2.Fix the Left Base Stand to the main unit using 3 pcs provided screws.•3.Fix the Right Base Stand to the main unit using 3 pcs provided screws.•1.Lay the TV face down on a flat, cushioned surface to avoid damaging or scratching.•2.Untighten the 6 pcs screws holding the stand assembly and remove them. •3.Attach the wall-mount bracket to the TV using the mounting holes on the back of the TV. Mount this TV according to the instructions included in the wall-mount bracket. Wall-Mounting Screws0RXQWWKH9(6$EUDFNHWXVLQJ0LVRPHWULFWKUHDGHGVFUHZVQRWLQFOXGHGWARNING:with the installation instruction.WARNING：Never place a television set in an unstable location. A television set may fall, causing serious personal injuryor death. Many injuries, particularly to children, can be acoided by taking simple precautions such as:-Using cabinets or stands recommended by the manufacturer of the television set.-Only using furniture that can safely support the television set.-Ensuring the television set is not overhanging the edge of the supporting furniture.-Not placing the television set on tall furniture(for example, cupboards or bookcases) without anchoring both the furniture and the television set to a suitable support.-Not placing the television set on cloth or other materials that may be located between the television set and supporting furniture.-Educating children about the dangers of climbing on furniture to reach the television set or its controls.If your existing television set is being retained and relocated, the same considerations as above should be applied.

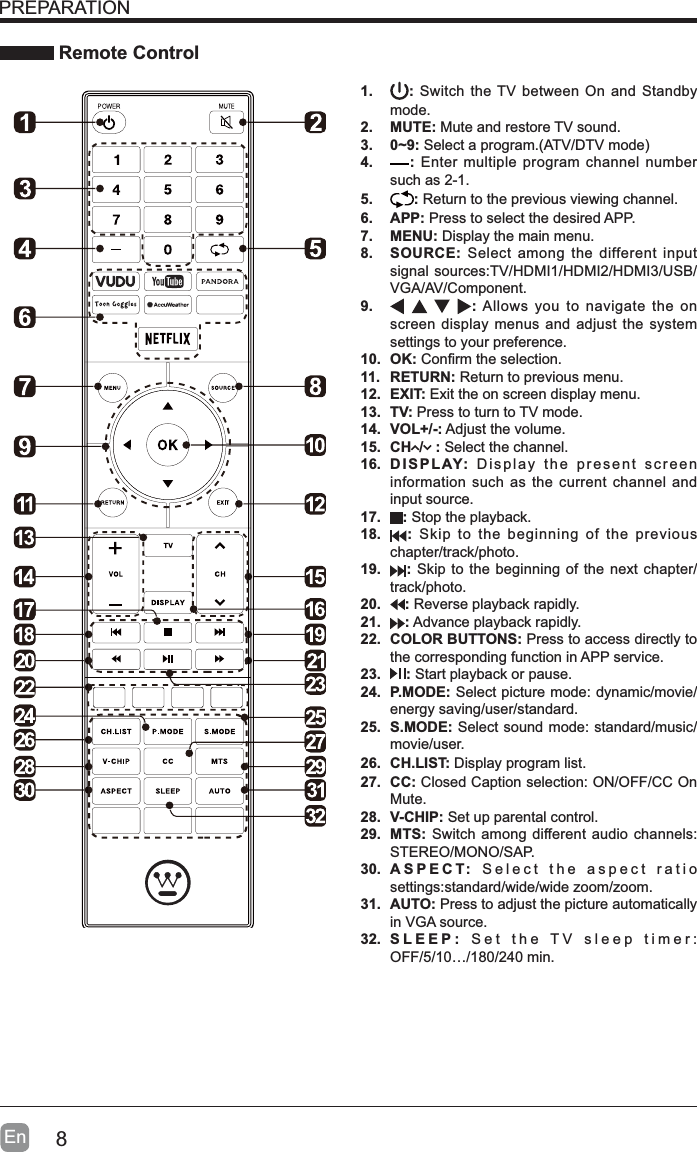

8EnPREPARATION Remote Control1. : Switch the TV between On and Standby mode.2. MUTE: Mute and restore TV sound.3. 0~9:6HOHFWDSURJUDP$79'79PRGH4. : Enter multiple program channel number such as 2-1.5. :Return to the previous viewing channel.6. APP: Press to select the desired APP.7. MENU: Display the main menu.8. SOURCE: Select among the different input signal sources:TV/HDMI1/HDMI2/HDMI3/USB/VGA/AV/Component.9. : Allows you to navigate the on screen display menus and adjust the system settings to your preference.10. OK:&RQ¿UPWKHVHOHFWLRQ11. RETURN: Return to previous menu.12. EXIT: Exit the on screen display menu.13. TV: Press to turn to TV mode.14. VOL+/-: Adjust the volume.15. CH / : Select the channel.16. DISPLAY: Display the present screen information such as the current channel and input source. 17. : Stop the playback. 18. : Skip to the beginning of the previous chapter/track/photo.19. : Skip to the beginning of the next chapter/track/photo.20. : Reverse playback rapidly. 21. : Advance playback rapidly. 22. COLOR BUTTONS: Press to access directly to the corresponding function in APP service.23. : Start playback or pause.24. P.MODE: Select picture mode: dynamic/movie/energy saving/user/standard.25. S.MODE: Select sound mode: standard/music/movie/user.26. CH.LIST: Display program list.27. CC: Closed Caption selection: ON/OFF/CC On Mute.28. V-CHIP: Set up parental control.29. MTS: Switch among different audio channels: STEREO/MONO/SAP.30. ASPECT: Select the aspect ratio settings:standard/wide/wide zoom/zoom.31. AUTO: Press to adjust the picture automatically in VGA source.32. SLEEP: Set the TV sleep timer: OFF/5/10…/180/240 min.

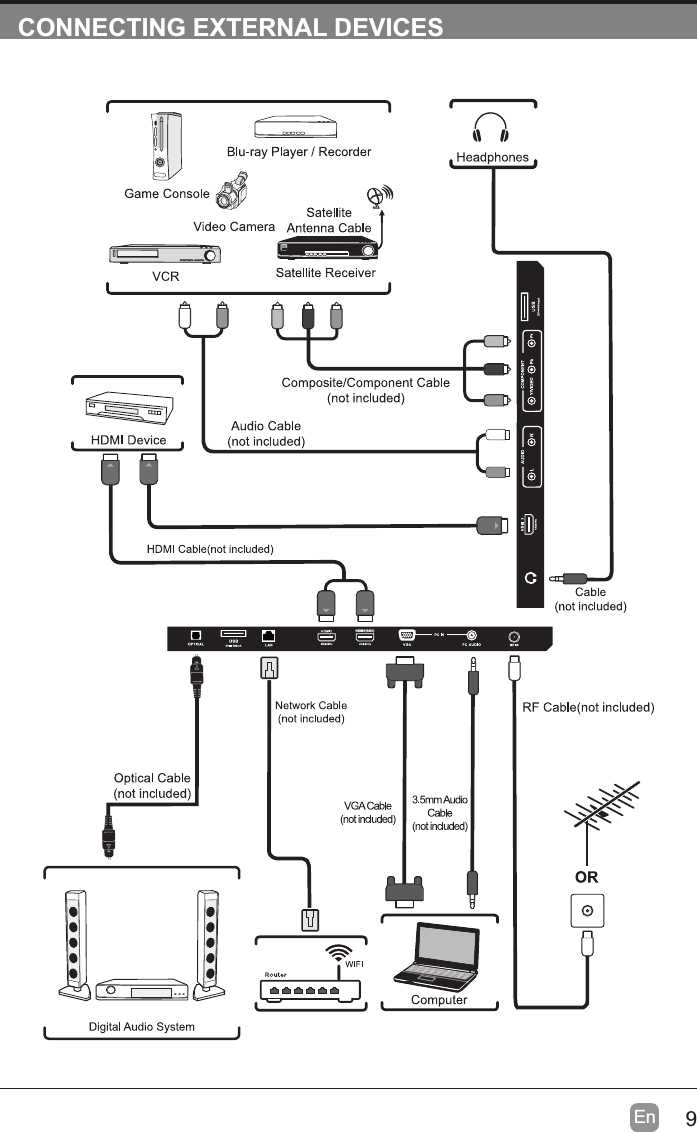

9EnCONNECTING EXTERNAL DEVICESHDMI1(ARC)

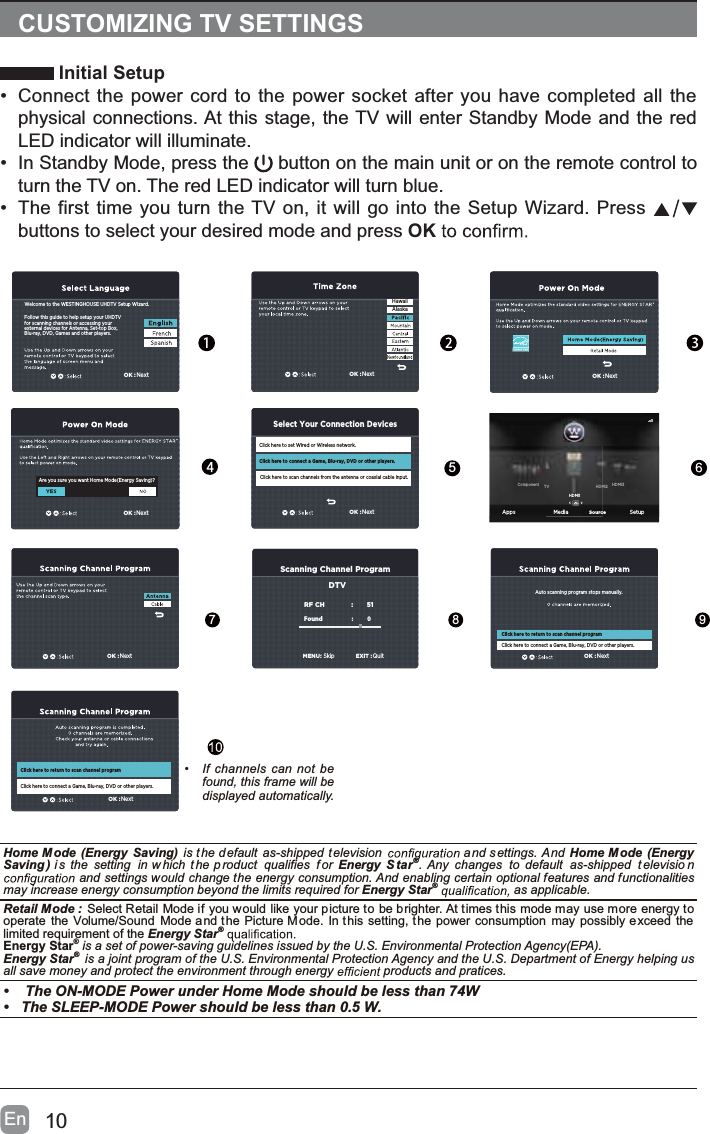

10EnCUSTOMIZING TV SETTINGS Initial Setup• Connect the power cord to the power socket after you have completed all thephysical connections. At this stage, the TV will enter Standby Mode and the redLED indicator will illuminate. • In Standby Mode, press the button on the main unit or on the remote control toturn the TV on. The red LED indicator will turn blue.• The first time you turn the TV on, it will go into the Setup Wizard. Pressbuttons to select your desired mode and press OK• If channels can not befound, this frame will bedisplayed automatically.5789Follow this guide to help setup your UHDTV for scanning channels or accessing your external devices for Antenna, Set-top Box,Blu-ray, DVD, Games and other players.Welcome to the WESTINGHOUSE UHDTV Setup Wizard.OK :NextFollow this guide to help setup your UHDTV for scanning channels or accessing yourexternal devices for Antenna, Set-top Box,Blu-ray, DVD, Games and other players.Welcome to the WESTINGHOUSE UHDTV Setup Wizard.Are you sure you want Home Mode(Energy Saving)?Click here to set Wired or Wireless network.Click here to scan channels from the antenna or coaxial cable input.Click here to connect a Game, Blu-ray, DVD or other players.Select Your Connection DevicesOK :NextOK :NextOK :NextOK :NextHawaiiAlaskaOK :NextOK :NextOK :NextClick here to connect a Game, Blu-ray, DVD or other players.Scanning Channel ProgramRF CH : 51Found : 0MENU:SkipEXIT :QuitDTVAuto scanning program stops manually.Click here to return to scan channel programClick here to connect a Game, Blu-ray, DVD or other players.Click here to return to scan channel programHome Mode optimizes the standard video settingsOK :NextAre you sure you want Home Mode(Energy Saving)?OK :NextHome M ode (Energy Saving) is t he d efault as-shipped t elevision and s ettings. And Home M ode (EnergySaving ) i s the setting in w hich t he p roduct qualifies f or Energy S tar®. Any changes to default as-shipped t elevisio nand settings would change the energy consumption. And enabling certain optional features and functionalitiesmay increase energy consumption beyond the limits required for Energy Star® as applicable.Retail Mode : Select Retail Mode if you would like your picture to be brighter. At times this mode may use more energy tooperate the Volume/Sound Mode and the Picture Mode. In this setting, t he power consumption may possibly e xceed thelimited requirement of the Energy Star®Energy Star® is a set of power-saving guidelines issued by the U.S. Environmental Protection Agency(EPA).Energy Star® is a joint program of the U.S. Environmental Protection Agency and the U.S. Department of Energy helping usall save money and protect the environment through energy products and pratices.• The ON-MODE Power under Home Mode should be less than 74W• The SLEEP-MODE Power should be less than 0.5 W.Apps Media SetupSourceHDMI1HDMI2Component TV HDMI3

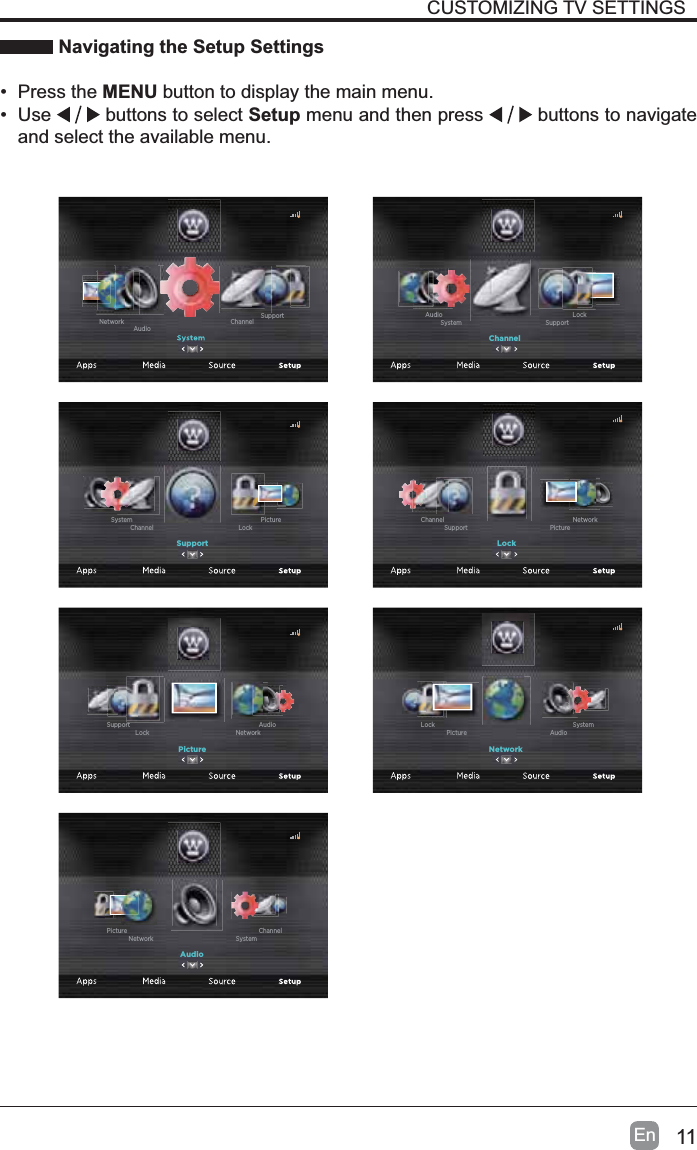

11EnCUSTOMIZING TV SETTINGS Navigating the Setup Settings• Press the MENU button to display the main menu. • Use buttons to select Setup menu and then press buttons to navigate and select the available menu.Channel SupportAudioNetworkChannelSupportSystemLockAudioSupportLockChannelPictureSystemLockPictureSupportNetworkChannelPictureNetworkLockAudioSupportNetworkAudioPictureSystemLockAudioSystemNetworkChannelPicture

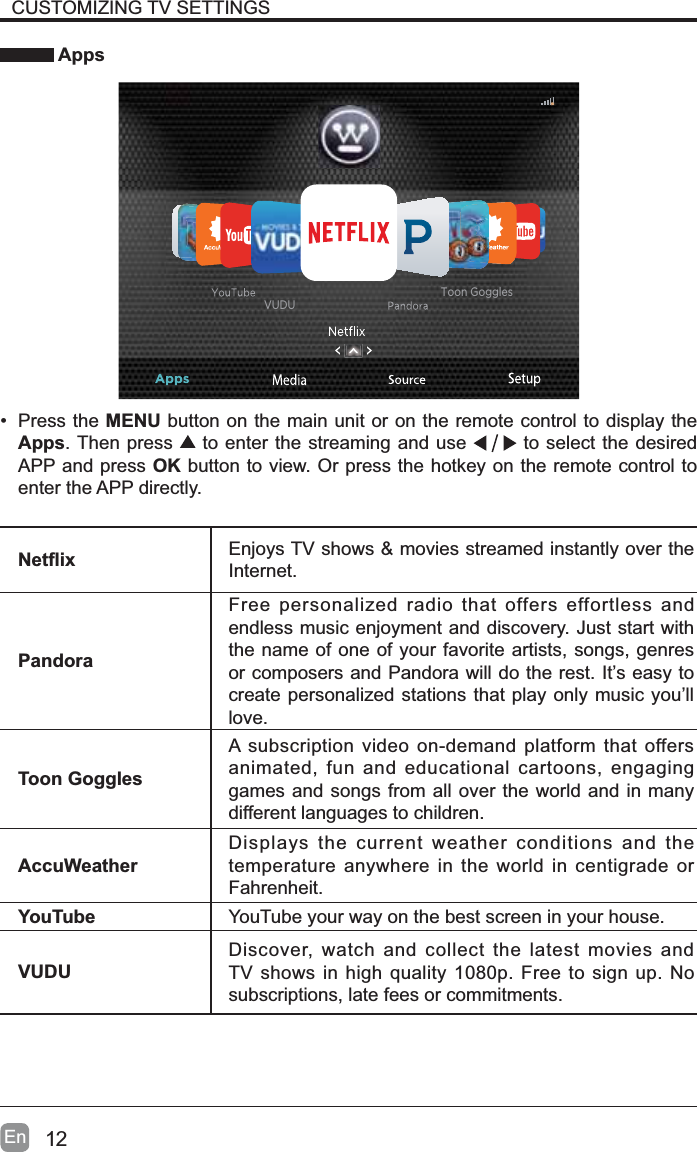

12En Apps• Press the MENU button on the main unit or on the remote control to display the Apps. Then press to enter the streaming and use to select the desired APP and press OK button to view. Or press the hotkey on the remote control to enter the APP directly.1HWÀL[ Enjoys TV shows & movies streamed instantly over the Internet.PandoraFree personalized radio that offers effortless and endless music enjoyment and discovery. Just start with the name of one of your favorite artists, songs, genres or composers and Pandora will do the rest. It’s easy to create personalized stations that play only music you’ll love.Toon GogglesA subscription video on-demand platform that offers animated, fun and educational cartoons, engaging games and songs from all over the world and in many different languages to children. AccuWeatherDisplays the current weather conditions and the temperature anywhere in the world in centigrade or Fahrenheit.YouTube YouTube your way on the best screen in your house.VUDUDiscover, watch and collect the latest movies and TV shows in high quality 1080p. Free to sign up. No subscriptions, late fees or commitments.CUSTOMIZING TV SETTINGSVUDUToon Goggles

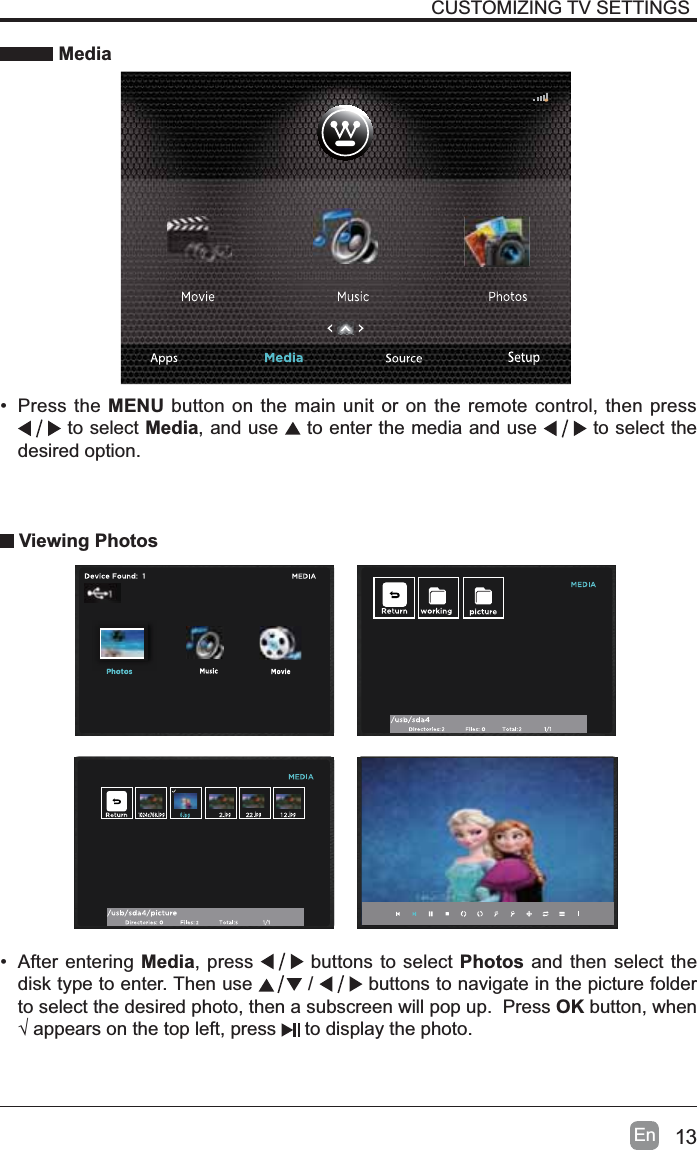

13EnCUSTOMIZING TV SETTINGS Media• Press the MENU button on the main unit or on the remote control, then press to select Media, and use to enter the media and use to select the desired option. Viewing Photos• After entering Media, press buttons to select Photos and then select the disk type to enter. Then use / buttons to navigate in the picture folder to select the desired photo, then a subscreen will pop up. Press OK button, when ¥DSSHDUVRQWKHWRSOHIWSUHVV to display the photo.

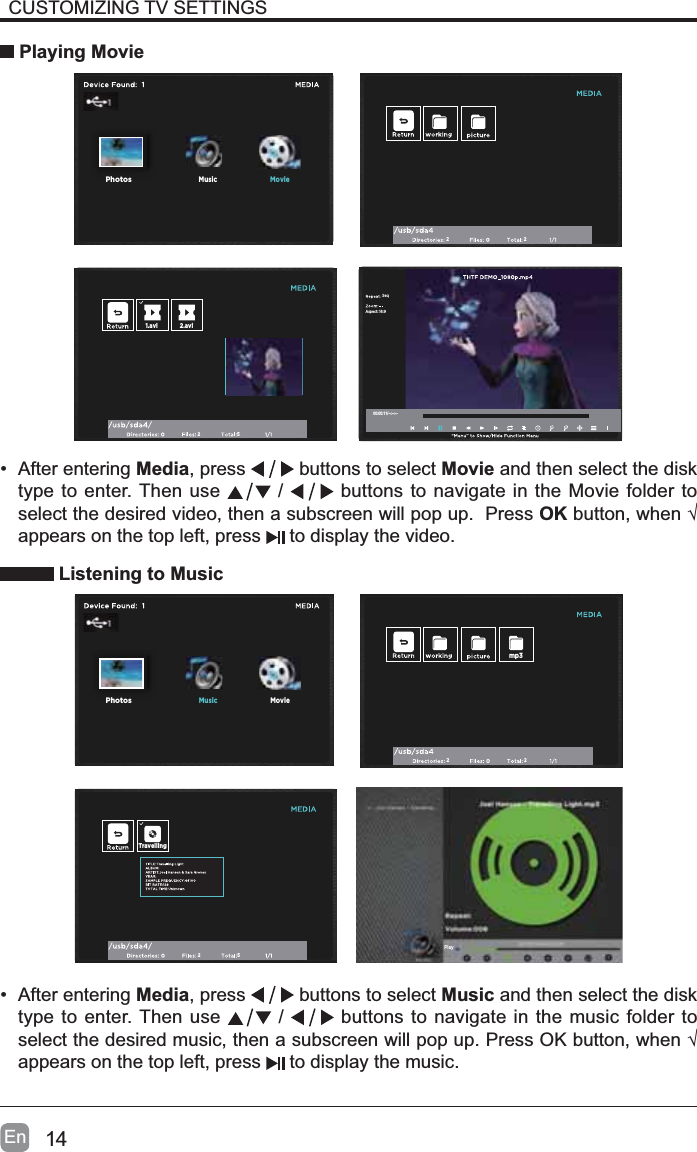

14EnCUSTOMIZING TV SETTINGS Playing Movie• After entering Media, press buttons to select Movie and then select the disk type to enter. Then use / buttons to navigate in the Movie folder to select the desired video, then a subscreen will pop up. Press OKEXWWRQZKHQ¥appears on the top left, press to display the video. Listening to Music22251.avi 2.aviAspect: 16:9Seq00:00:11/--:--:--MusicPhotosMoviePhotosMovi2225TravellingMoviePhotosMusicmp3Play• After entering Media, press buttons to select Music and then select the disk type to enter. Then use / buttons to navigate in the music folder to VHOHFWWKHGHVLUHGPXVLFWKHQDVXEVFUHHQZLOOSRSXS3UHVV2.EXWWRQZKHQ¥appears on the top left, press to display the music.

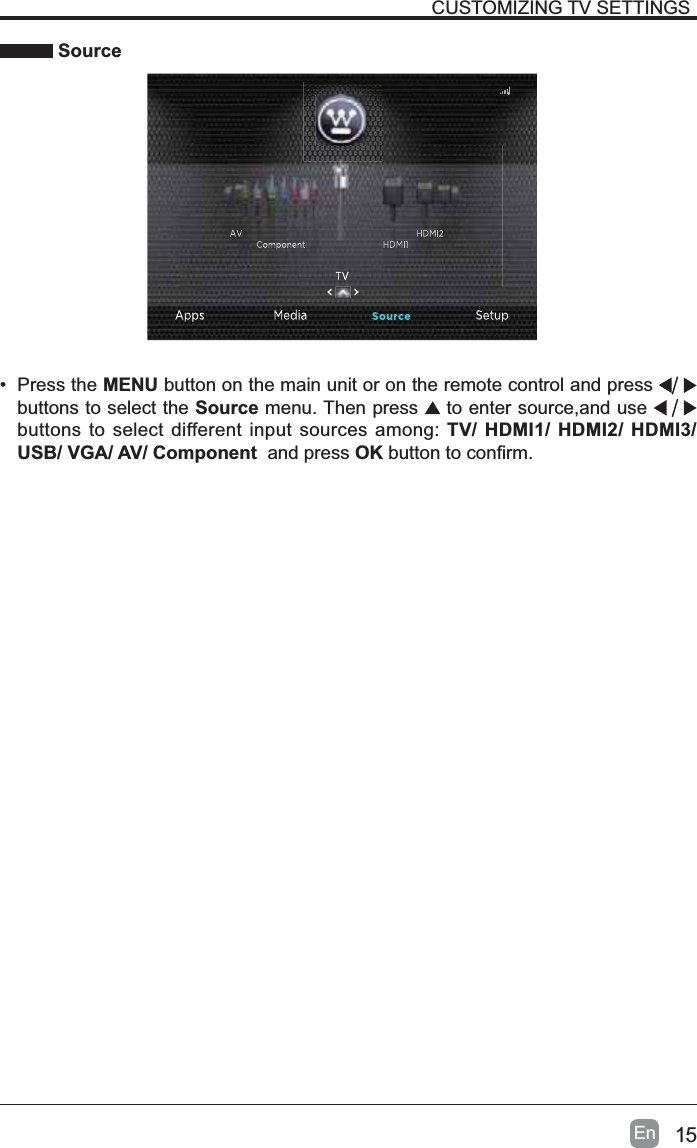

15EnCUSTOMIZING TV SETTINGS Source• Press the MENU button on the main unit or on the remote control and press buttons to select the Source menu. Then press to enter source,and use buttons to select different input sources among: TV/ HDMI1/ HDMI2/ HDMI3/ USB/ VGA/ AV/ Component and press OKEXWWRQWRFRQ¿UP

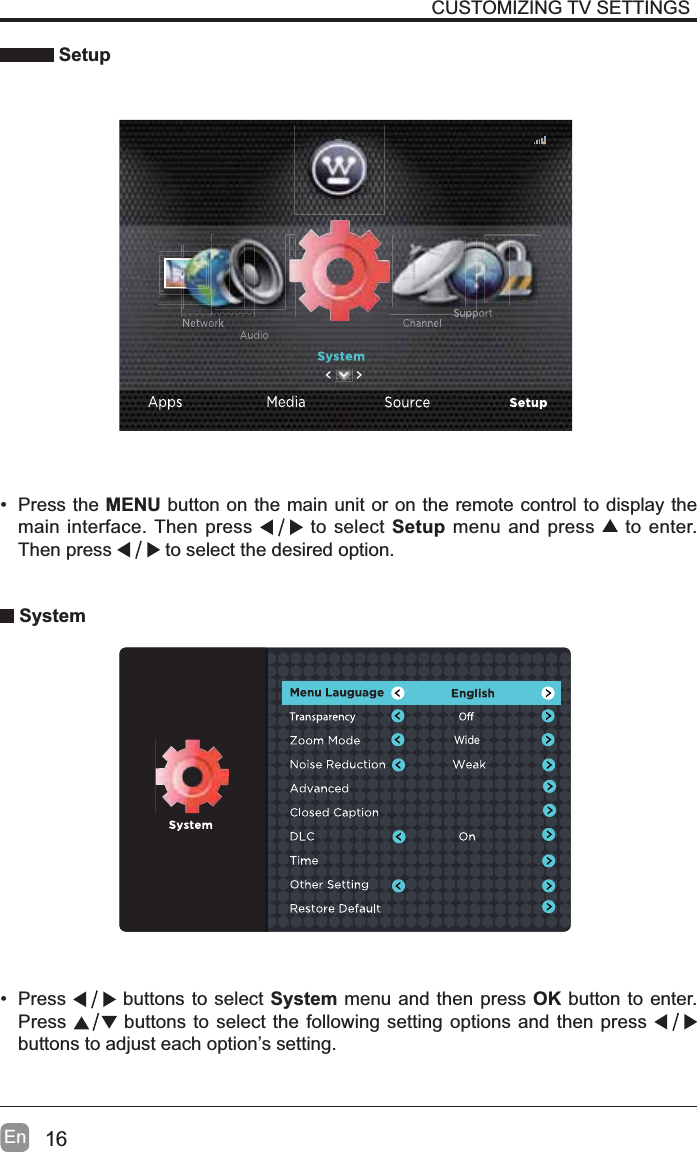

16En Setup• Press the MENU button on the main unit or on the remote control to display the main interface. Then press to select Setup menu and press to enter. Then press to select the desired option. System• Press buttons to select System menu and then press OK button to enter. Press buttons to select the following setting options and then press buttons to adjust each option’s setting. CUSTOMIZING TV SETTINGSWide

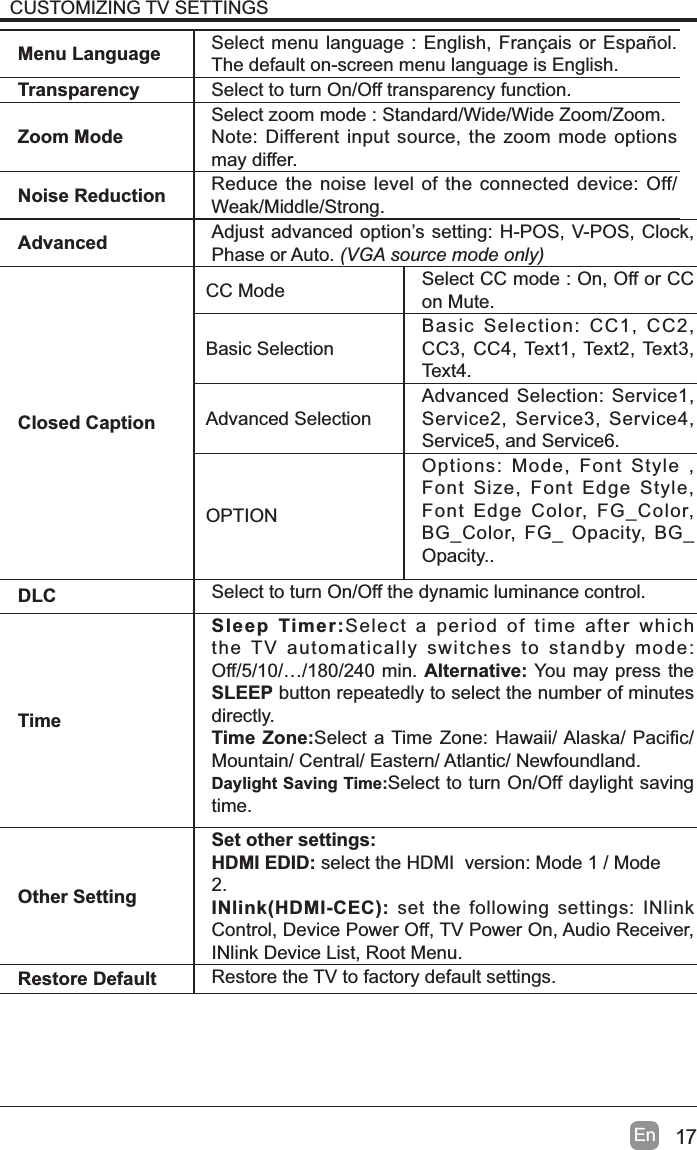

17EnCUSTOMIZING TV SETTINGSAdvanced Adjust advanced option’s setting: H-POS, V-POS, Clock, Phase or Auto. (VGA source mode only)Closed CaptionCC Mode Select CC mode : On, Off or CC on Mute.Basic SelectionBasic Selection: CC1, CC2, CC3, CC4, Text1, Text2, Text3, Text4.Advanced SelectionAdvanced Selection: Service1, Service2, Service3, Service4, Service5, and Service6.OPTIONOptions: Mode, Font Style , Font Size, Font Edge Style, Font Edge Color, FG_Color, BG_Color, FG_ Opacity, BG_Opacity..DLC Select to turn On/Off the dynamic luminance control.TimeSleep Timer:Select a period of time after which the TV automatically switches to standby mode: Off/5/10/…/180/240 min. Alternative: You may press the SLEEP button repeatedly to select the number of minutes directly.Time Zone:6HOHFWD7LPH=RQH+DZDLL$ODVND3DFL¿FMountain/ Central/ Eastern/ Atlantic/ Newfoundland.Daylight Saving Time:Select to turn On/Off daylight saving time.Other SettingSet other settings:HDMI EDID: select the HDMI version: Mode 1 / Mode2.INlink(HDMI-CEC): set the following settings: INlink Control, Device Power Off, TV Power On, Audio Receiver, INlink Device List, Root Menu.Restore Default Restore the TV to factory default settings.Menu Language Select menu language : English, Français or Español. The default on-screen menu language is English.Transparency Select to turn On/Off transparency function.Zoom ModeSelect zoom mode : Standard/Wide/Wide Zoom/Zoom.Note: Different input source, the zoom mode options may differ.Noise Reduction Reduce the noise level of the connected device: Off/Weak/Middle/Strong.

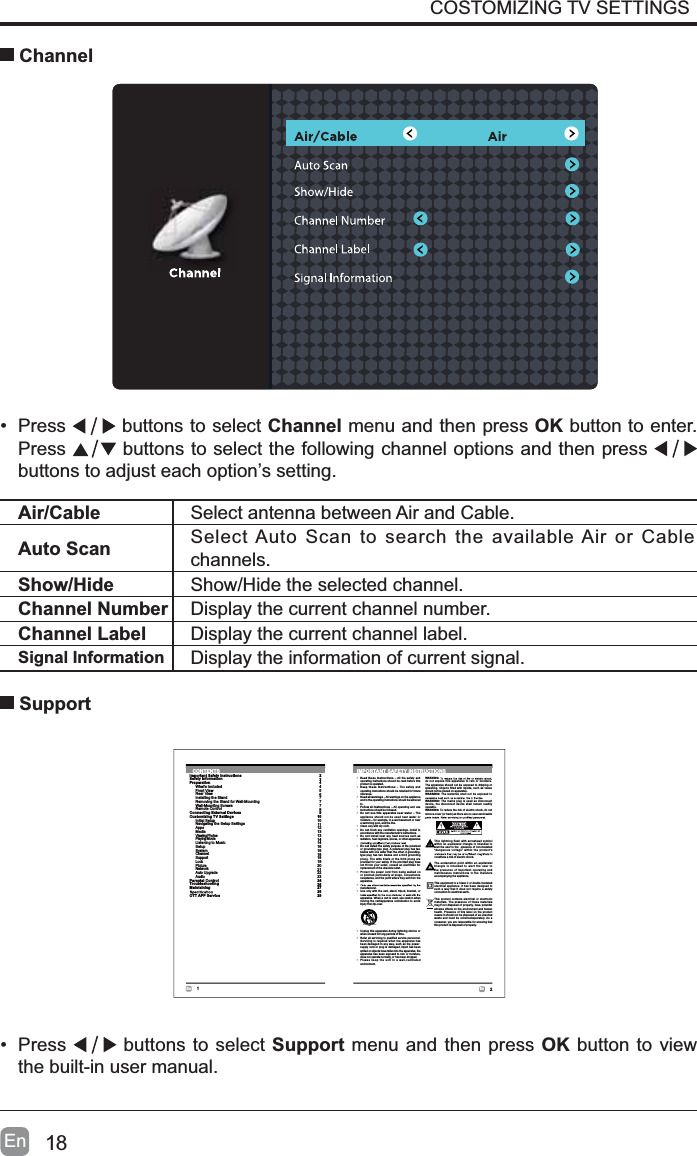

18EnCOSTOMIZING TV SETTINGS Channel• Press buttons to select Channel menu and then press OK button to enter. Press buttons to select the following channel options and then press buttons to adjust each option’s setting. Air/Cable Select antenna between Air and Cable. Auto Scan Select Auto Scan to search the available Air or Cable channels.Show/Hide Show/Hide the selected channel.Channel Number Display the current channel number.Channel Label Display the current channel label.Signal Information Display the information of current signal.• Press buttons to select Support menu and then press OK button to view the built-in user manual. Support2En1EnCONTENTSImportant Safety InstructionsSafety InformationPreparationWhat's IncludedFront ViewRear ViewInstalling the StandRemoving the Stand for Wall-MountingWall-Mounting ScrewsRemote ControlConnecting External DevicesCustomizing TV SettingsInitial SetupNavigating the Setup SettingsAppsMediaViewing PhotosPlaying MovieListening to MusicSetupSystemChannelSupportLockPictureNetworkAuto UpgradeAudioParental ControlTroubleshootingMaintainingOTT APP Service2344567778910101112131314141616181819202122232426272829IMPORTANT SAFETY INSTRUCTIONS• Read these instructions – All the safety andoperating instructions should be read before thisproduct is operated. • Keep these instructions – The safety andoperating instructions should be retained for futurereference.• Heed all warnings – All warningson the applianceand in the operating instructions should be adheredto.• Follow all instructions – All operating and useinstructions should be followed.• Do not use this apparatus near water – Theappliance should not be used near water ormoisture – for example, in a wet basement or neara swimming pool, and the like.• Clean only with dry cloth.• Do not block any ventilation openings. Install inaccordance with the manufacturer’s instructions.•Donot install near any heat sources such asradiators, heat registers, stoves, or other apparatus• Do not defeat the safety purpose of the polarizedor grounding-type plug. A polarized plug has twoblades with one wider than the other. A grounding-type plug has two blades and a third groundingprong. The wide blade or the third prong areprovided for your safety. If the provided plug doesnot fit into your outlet, consult an electrician forreplacement of the obsolete outlet.• Protect the power cord from being walked onor pinched particularly at plugs, conveniencereceptacles, and the point where they exit from theapparatus.•manufacturer.• Use only with the cart, stand, tripod, bracket, orapparatus. When a cart is used, use caution whenmoving the cart/apparatus combination to avoidinjury from tip-over.WARNING:do not expose this apparatus to rain or moisture.The apparatus should not be exposed to dripping orsplashing. Objects filled with liquids, such as vasesshould not be placed on apparatus.WARNING: The batteries shall not be exposed toWARNING: The mains plug is used as disconnectdevice, the disconnect device shall remain readilyoperable.WARNING: Toreduce the risk of electric shock, do notUHPRYHFRYHURUEDFNDVWKHUHDUHQRXVHUVHUYLFHDEOH• Unplug this apparatus during lightning storms orwhen unused for long periods of time.• Refer all servicing to qualified service personnel.Servicing is required when the apparatus hasbeen damaged in any way, such as the power-supply cord or plug is damaged, liquid has beenspilled or objects have fallen into the apparatus, theapparatus has been exposed to rain or moisture,does not operate normally, or has been dropped.• Please keep the unit in a well-ventilatedenvironment.This lightning flash with arrowhead symbolwithin an equilateral triangle is intended toalert the user to the presence of non-insulated“dangerous voltage” within the product’sconstitute a risk of electric shock.The exclamation point within an equilateraltriangle is intended to alert the user tothe presence of important operating andmaintenance instructions in the literatureaccompanying the appliance.This equipment is a Class II or double insulatedelectrical appliance. It has been designed insuch a way that it does not require a safetyconnection to electrical earth.This product contains electrical or electronicmaterials. The presence of these materialsmay,if not disposed of properly, have potentialadverse effects on the environment and humanhealth. Presence of this label on the productmeans it should not be disposed of as unsortedwaste and must be collectedseparately. As aconsumer, you are responsible for ensuring thatthis product is disposed of properly.

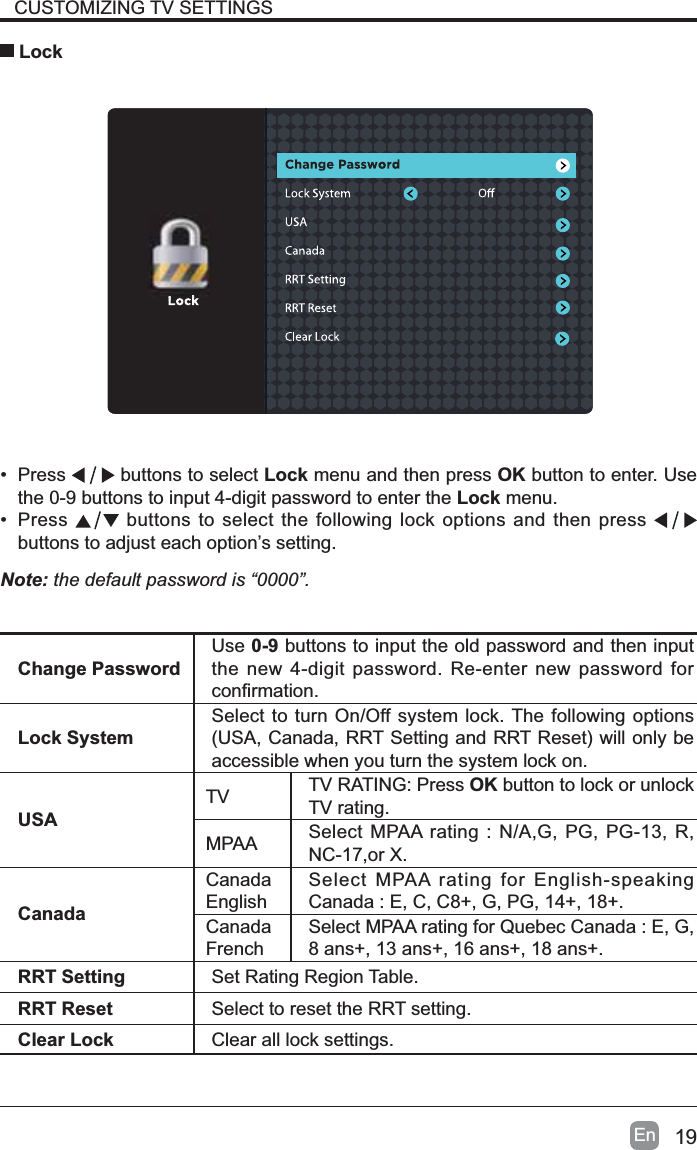

19EnCUSTOMIZING TV SETTINGS Lock• Press buttons to select Lock menu and then press OK button to enter. Use the 0-9 buttons to input 4-digit password to enter the Lock menu.• Press buttons to select the following lock options and then pressbuttons to adjust each option’s setting.Note: the default password is “0000”. Change PasswordUse 0-9 buttons to input the old password and then input the new 4-digit password. Re-enter new password for FRQ¿UPDWLRQLock SystemSelect to turn On/Off system lock. The following options 86$&DQDGD5576HWWLQJDQG5575HVHWZLOORQO\EHaccessible when you turn the system lock on.USATV TV RATING: Press OK button to lock or unlock TV rating.MPAA Select MPAA rating : N/A,G, PG, PG-13, R, NC-17,or X.CanadaCanadaEnglishSelect MPAA rating for English-speaking Canada : E, C, C8+, G, PG, 14+, 18+.CanadaFrenchSelect MPAA rating for Quebec Canada : E, G, 8 ans+, 13 ans+, 16 ans+, 18 ans+.RRT Setting Set Rating Region Table.RRT Reset Select to reset the RRT setting.Clear Lock Clear all lock settings.

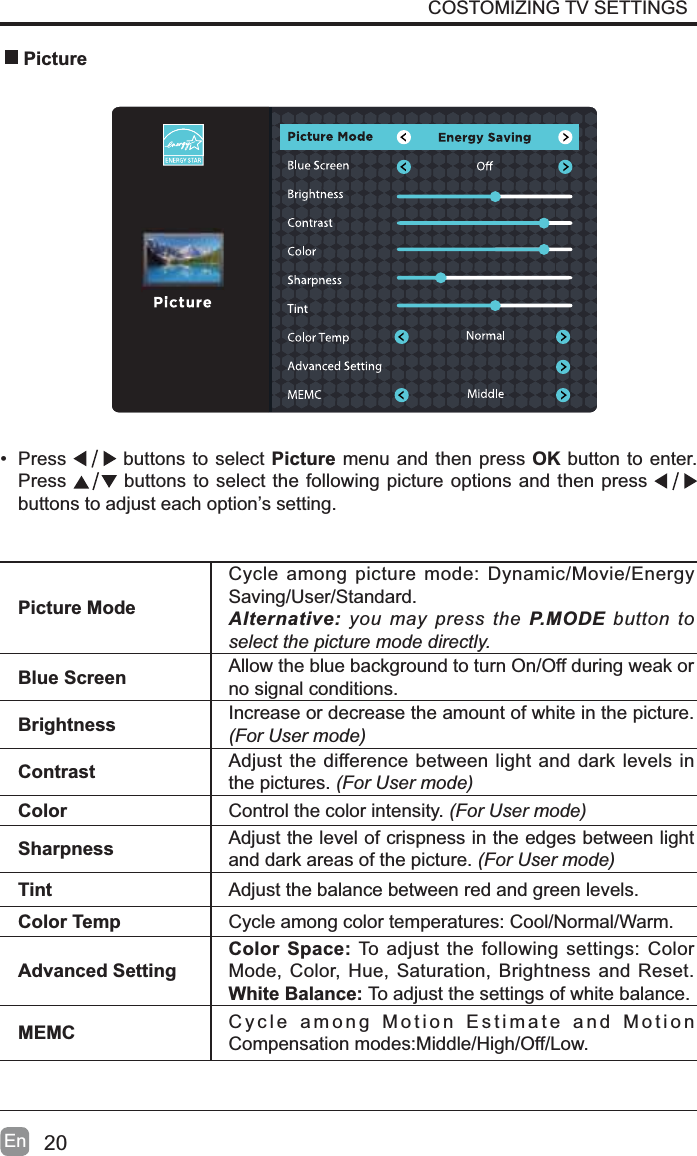

20En• Press buttons to select Picture menu and then press OK button to enter. Press buttons to select the following picture options and then press buttons to adjust each option’s setting. PicturePicture ModeCycle among picture mode: Dynamic/Movie/Energy Saving/User/Standard.Alternative: you may press the P.MODE button to select the picture mode directly.Blue Screen Allow the blue background to turn On/Off during weak or no signal conditions.Brightness Increase or decrease the amount of white in the picture. (For User mode)Contrast Adjust the difference between light and dark levels in the pictures. (For User mode)Color Control the color intensity. (For User mode)Sharpness Adjust the level of crispness in the edges between light and dark areas of the picture. (For User mode)Tint Adjust the balance between red and green levels.Color Temp Cycle among color temperatures: Cool/Normal/Warm.Advanced SettingColor Space: To adjust the following settings: Color Mode, Color, Hue, Saturation, Brightness and Reset.White Balance: To adjust the settings of white balance.MEMC Cycle among Motion Estimate and Motion Compensation modes:Middle/High/Off/Low.COSTOMIZING TV SETTINGS

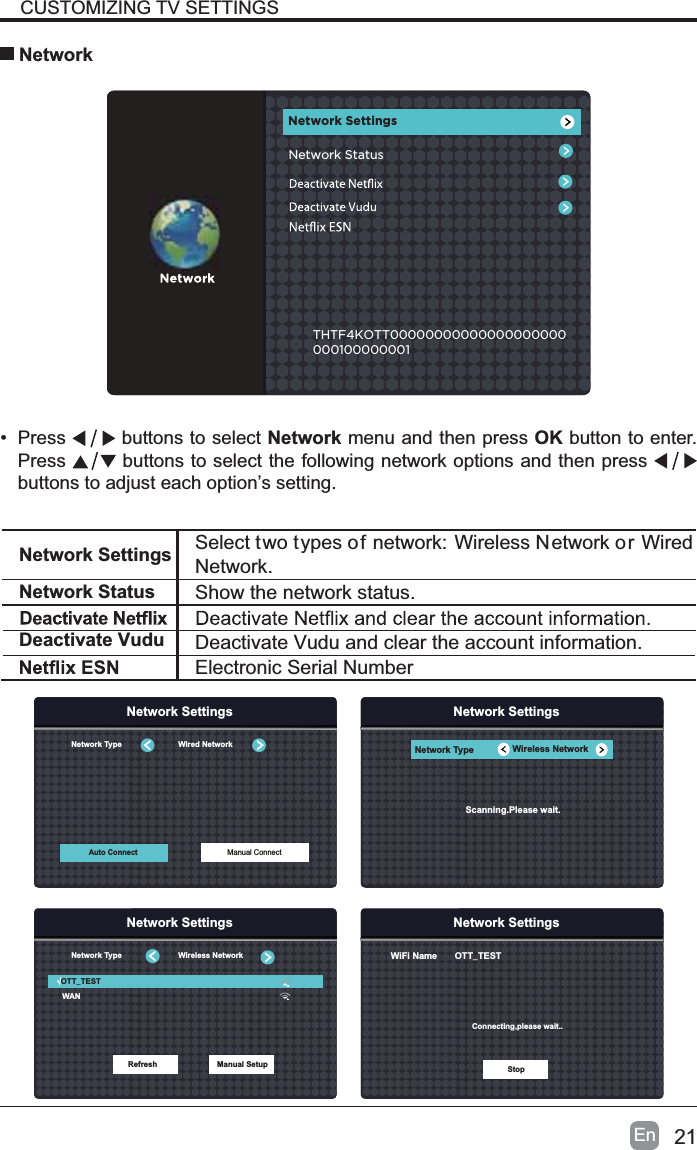

21En• Press buttons to select Network menu and then press OK button to enter. Press buttons to select the following network options and then press buttons to adjust each option’s setting. NetworkCUSTOMIZING TV SETTINGSTHTF4KOTT00000000000000000000000100000001Network SettingsNetwork StatusNetwork Settings Select two types of network: Wireless Network or WiredNetwork.Network Status Show the network status.Electronic Serial NumberDeactivate Vudu Deactivate Vudu and clear the account information.Network SettingsNetwork Type Wireless NetworkScanning.Please wait.Network SettingsWiFi Name OTT_TESTConnecting,please wait..StopNetwork SettingsRefresh Manual SetupNetwork Type Wireless NetworkWANOTT_TESTNetwork SettingsAuto Connect Manual ConnectNetwork Type Wired Network

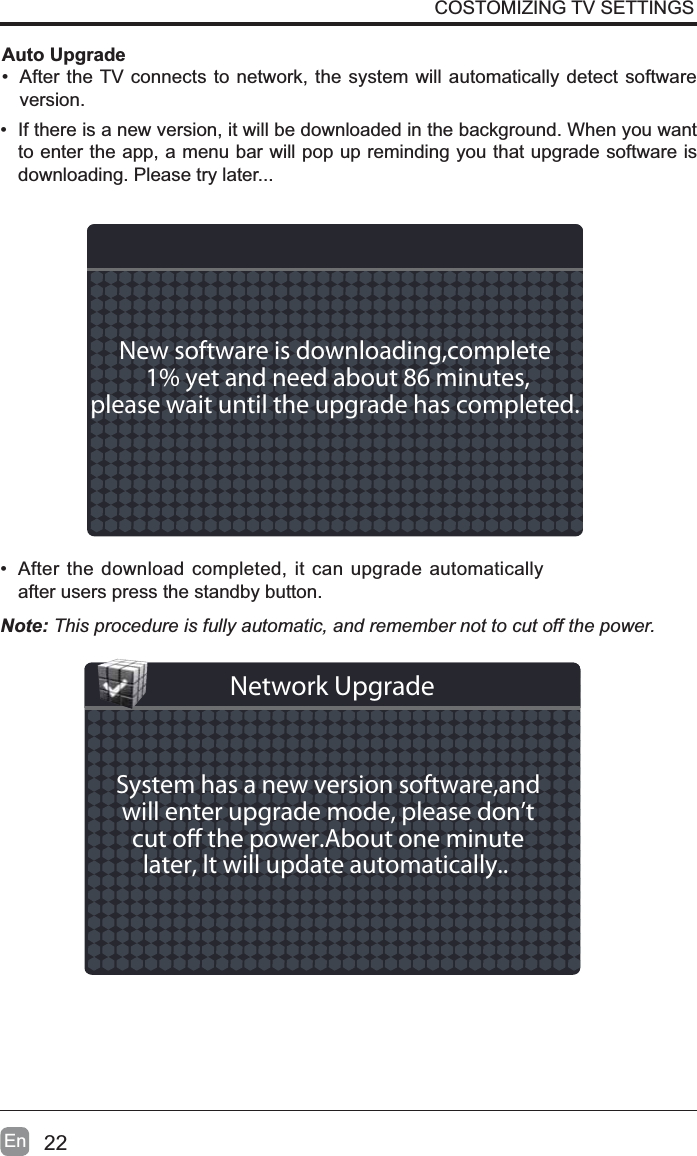

22En• If there is a new version, it will be downloaded in the background. When you want to enter the app, a menu bar will pop up reminding you that upgrade software is downloading. Please try later...• After the download completed, it can upgrade automatically after users press the standby button.Auto Upgrade• After the TV connects to network, the system will automatically detect software version.COSTOMIZING TV SETTINGSNote: This procedure is fully automatic, and remember not to cut off the power. New software is downloading,complete 1% yet and need about 86 minutes,please wait until the upgrade has completed. System has a new version software,andwill enter upgrade mode, please don’tcut o the power.About one minutelater, lt will update automatically.. Network Upgrade

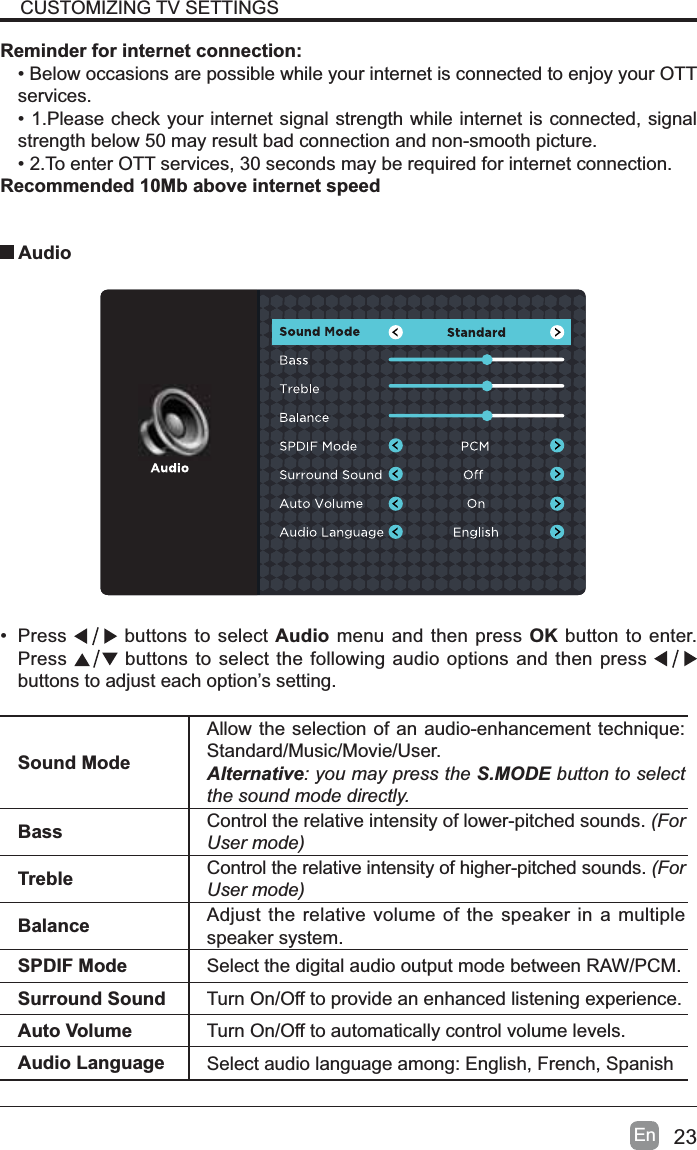

23En• Press buttons to select Audio menu and then press OK button to enter. Press buttons to select the following audio options and then press buttons to adjust each option’s setting. AudioCUSTOMIZING TV SETTINGSReminder for internet connection:• Below occasions are possible while your internet is connected to enjoy your OTT services.• 1.Please check your internet signal strength while internet is connected, signal strength below 50 may result bad connection and non-smooth picture.• 2.To enter OTT services, 30 seconds may be required for internet connection.Recommended 10Mb above internet speedSound ModeAllow the selection of an audio-enhancement technique: Standard/Music/Movie/User.Alternative: you may press the S.MODE button to select the sound mode directly.Bass Control the relative intensity of lower-pitched sounds. (For User mode)Treble Control the relative intensity of higher-pitched sounds. (For User mode)Balance Adjust the relative volume of the speaker in a multiple speaker system.SPDIF Mode Select the digital audio output mode between RAW/PCM.Surround Sound Turn On/Off to provide an enhanced listening experience.Auto Volume Turn On/Off to automatically control volume levels.Audio Language Select audio language among: English, French, Spanish

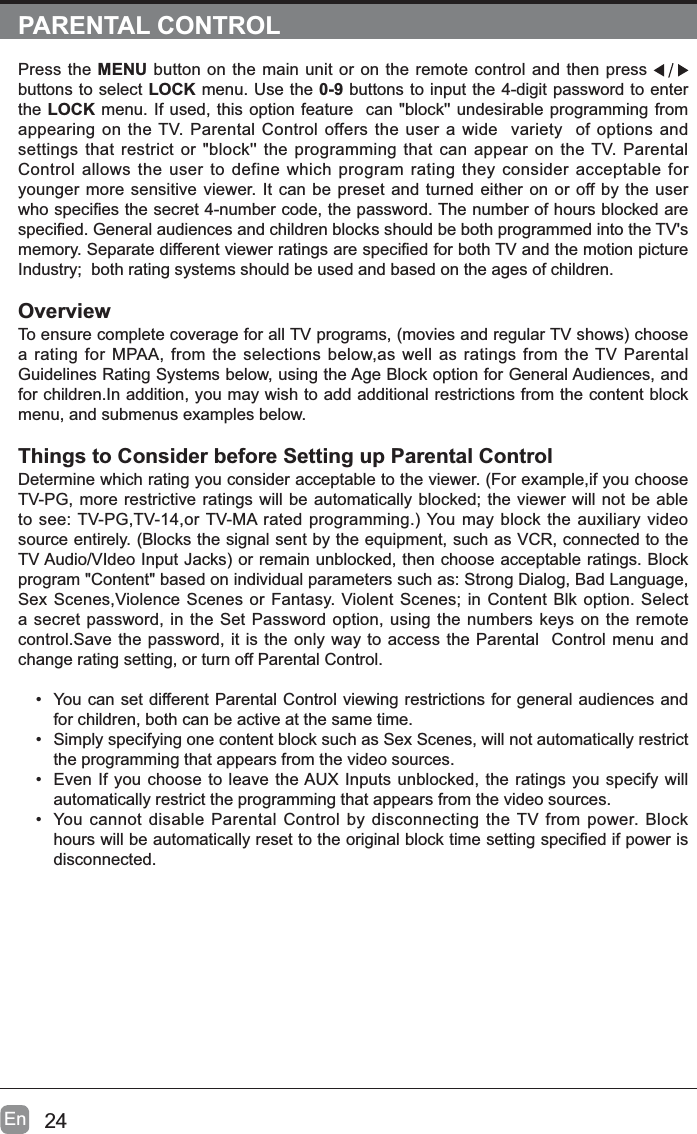

24EnPARENTAL CONTROLPress the MENU button on the main unit or on the remote control and then press buttons to select LOCK menu. Use the 0-9 buttons to input the 4-digit password to enter the LOCK menu. If used, this option feature can "block'' undesirable programming from appearing on the TV. Parental Control offers the user a wide variety of options and settings that restrict or "block'' the programming that can appear on the TV. Parental Control allows the user to define which program rating they consider acceptable for younger more sensitive viewer. It can be preset and turned either on or off by the user ZKRVSHFL¿HVWKHVHFUHWQXPEHUFRGHWKHSDVVZRUG7KHQXPEHURIKRXUVEORFNHGDUHVSHFL¿HG*HQHUDODXGLHQFHVDQGFKLOGUHQEORFNVVKRXOGEHERWKSURJUDPPHGLQWRWKH79VPHPRU\6HSDUDWHGLIIHUHQWYLHZHUUDWLQJVDUHVSHFL¿HGIRUERWK79DQGWKHPRWLRQSLFWXUHIndustry; both rating systems should be used and based on the ages of children.Overview7RHQVXUHFRPSOHWHFRYHUDJHIRUDOO79SURJUDPVPRYLHVDQGUHJXODU79VKRZVFKRRVHa rating for MPAA, from the selections below,as well as ratings from the TV Parental Guidelines Rating Systems below, using the Age Block option for General Audiences, and for children.In addition, you may wish to add additional restrictions from the content block menu, and submenus examples below.Things to Consider before Setting up Parental ControlDetermine which rating you consider acceptable to the viewer. (For example,if you choose TV-PG, more restrictive ratings will be automatically blocked; the viewer will not be able WRVHH793*79RU790$UDWHGSURJUDPPLQJ<RXPD\EORFNWKHDX[LOLDU\YLGHRsource entirely. (Blocks the signal sent by the equipment, such as VCR, connected to the 79$XGLR9,GHR,QSXW-DFNVRUUHPDLQXQEORFNHGWKHQFKRRVHDFFHSWDEOHUDWLQJV%ORFNprogram "Content" based on individual parameters such as: Strong Dialog, Bad Language, Sex Scenes,Violence Scenes or Fantasy. Violent Scenes; in Content Blk option. Select a secret password, in the Set Password option, using the numbers keys on the remote control.Save the password, it is the only way to access the Parental Control menu and change rating setting, or turn off Parental Control.• You can set different Parental Control viewing restrictions for general audiences and for children, both can be active at the same time.• Simply specifying one content block such as Sex Scenes, will not automatically restrict the programming that appears from the video sources.• Even If you choose to leave the AUX Inputs unblocked, the ratings you specify will automatically restrict the programming that appears from the video sources.• You cannot disable Parental Control by disconnecting the TV from power. Block KRXUVZLOOEHDXWRPDWLFDOO\UHVHWWRWKHRULJLQDOEORFNWLPHVHWWLQJVSHFL¿HGLISRZHULVdisconnected.

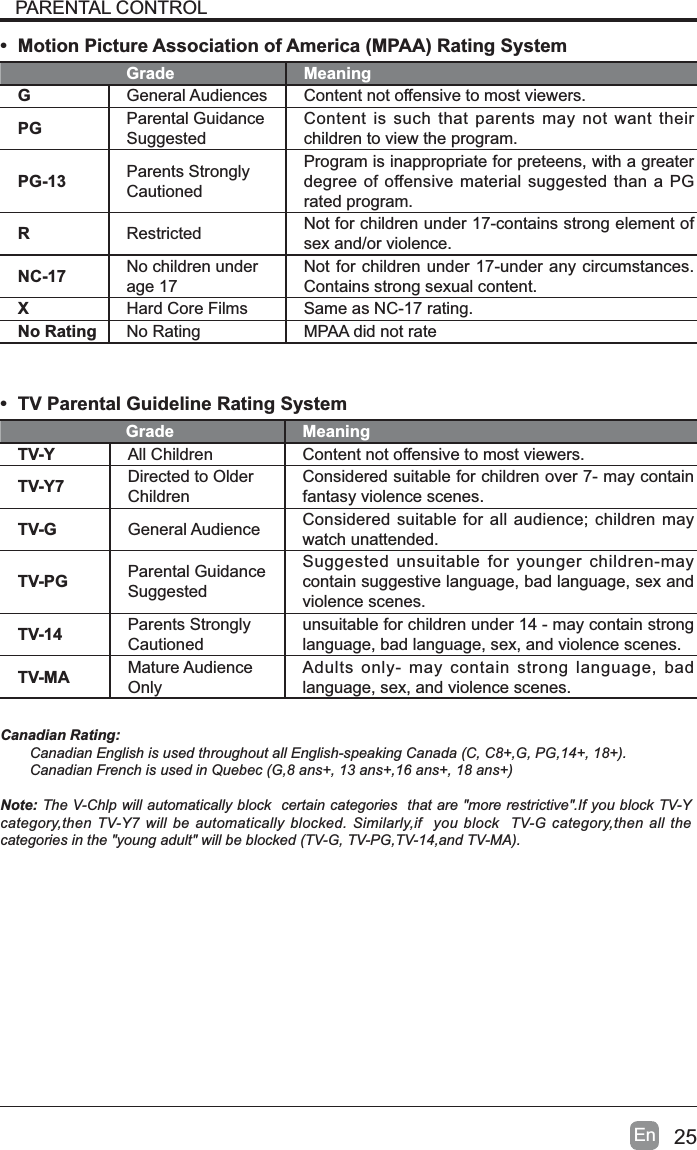

25En• Motion Picture Association of America (MPAA) Rating SystemGrade MeaningGGeneral Audiences Content not offensive to most viewers.PG Parental Guidance SuggestedContent is such that parents may not want their children to view the program.PG-13 Parents Strongly CautionedProgram is inappropriate for preteens, with a greater degree of offensive material suggested than a PG rated program.RRestricted Not for children under 17-contains strong element of sex and/or violence.NC-17 No children under age 17Not for children under 17-under any circumstances. Contains strong sexual content.XHard Core Films Same as NC-17 rating.No Rating No Rating MPAA did not rate• TV Parental Guideline Rating SystemGrade MeaningTV-Y All Children Content not offensive to most viewers.TV-Y7 Directed to Older ChildrenConsidered suitable for children over 7- may contain fantasy violence scenes.TV-G General Audience Considered suitable for all audience; children may watch unattended.TV-PG Parental Guidance SuggestedSuggested unsuitable for younger children-may contain suggestive language, bad language, sex and violence scenes.TV-14 Parents Strongly Cautionedunsuitable for children under 14 - may contain strong language, bad language, sex, and violence scenes.TV-MA Mature Audience OnlyAdults only- may contain strong language, bad language, sex, and violence scenes.Canadian Rating:Canadian English is used throughout all English-speaking Canada (C, C8+,G, PG,14+, 18+).Canadian French is used in Quebec (G,8 ans+, 13 ans+,16 ans+, 18 ans+)Note: The V-Chlp will automatically block certain categories that are "more restrictive".If you block TV-Y category,then TV-Y7 will be automatically blocked. Similarly,if you block TV-G category,then all the categories in the "young adult" will be blocked (TV-G, TV-PG,TV-14,and TV-MA).PARENTAL CONTROL

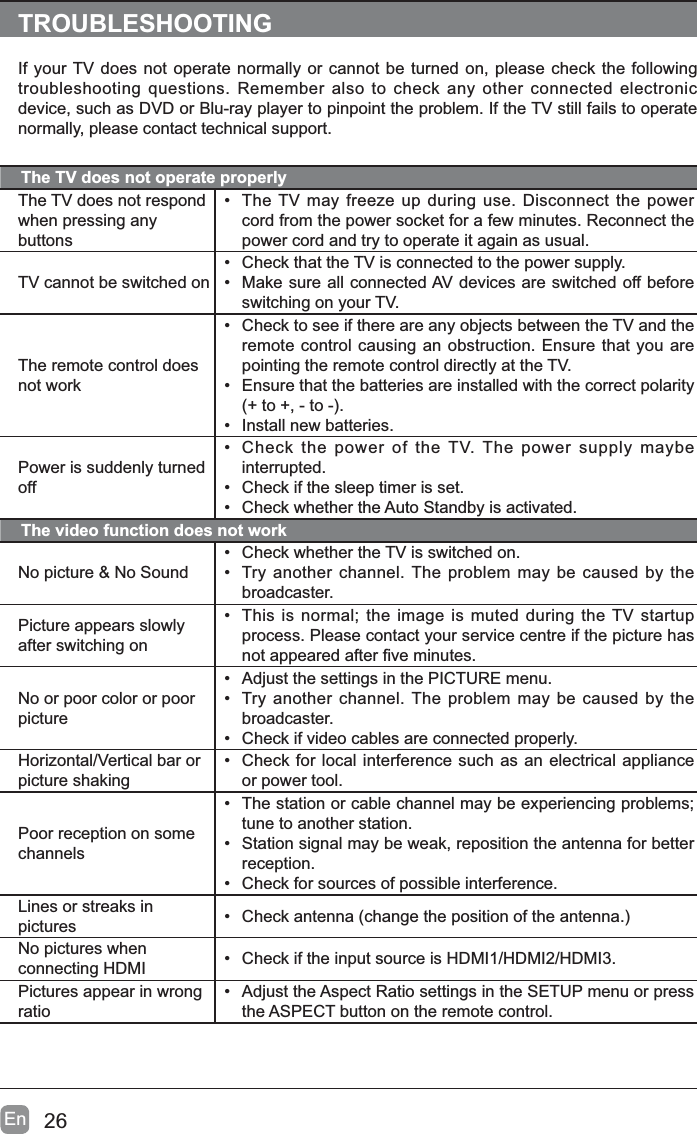

26EnTROUBLESHOOTINGIf your TV does not operate normally or cannot be turned on, please check the following troubleshooting questions. Remember also to check any other connected electronic device, such as DVD or Blu-ray player to pinpoint the problem. If the TV still fails to operate normally, please contact technical support.The TV does not operate properlyThe TV does not respond when pressing any buttons• The TV may freeze up during use. Disconnect the power cord from the power socket for a few minutes. Reconnect the power cord and try to operate it again as usual.TV cannot be switched on• Check that the TV is connected to the power supply.• Make sure all connected AV devices are switched off before switching on your TV.The remote control does not work• Check to see if there are any objects between the TV and the remote control causing an obstruction. Ensure that you are pointing the remote control directly at the TV.• Ensure that the batteries are installed with the correct polarity WRWR• Install new batteries. Power is suddenly turned off• Check the power of the TV. The power supply maybe interrupted.• Check if the sleep timer is set.• Check whether the Auto Standby is activated. The video function does not workNo picture & No Sound• Check whether the TV is switched on.• Try another channel. The problem may be caused by the broadcaster.Picture appears slowly after switching on• This is normal; the image is muted during the TV startup process. Please contact your service centre if the picture has QRWDSSHDUHGDIWHU¿YHPLQXWHVNo or poor color or poor picture• Adjust the settings in the PICTURE menu.• Try another channel. The problem may be caused by the broadcaster.• Check if video cables are connected properly.Horizontal/Vertical bar or picture shaking• Check for local interference such as an electrical appliance or power tool.Poor reception on some channels• The station or cable channel may be experiencing problems; tune to another station.• Station signal may be weak, reposition the antenna for better reception.• Check for sources of possible interference.Lines or streaks in pictures •&KHFNDQWHQQDFKDQJHWKHSRVLWLRQRIWKHDQWHQQDNo pictures when connecting HDMI • Check if the input source is HDMI1/HDMI2/HDMI3.Pictures appear in wrong ratio• Adjust the Aspect Ratio settings in the SETUP menu or press the ASPECT button on the remote control.

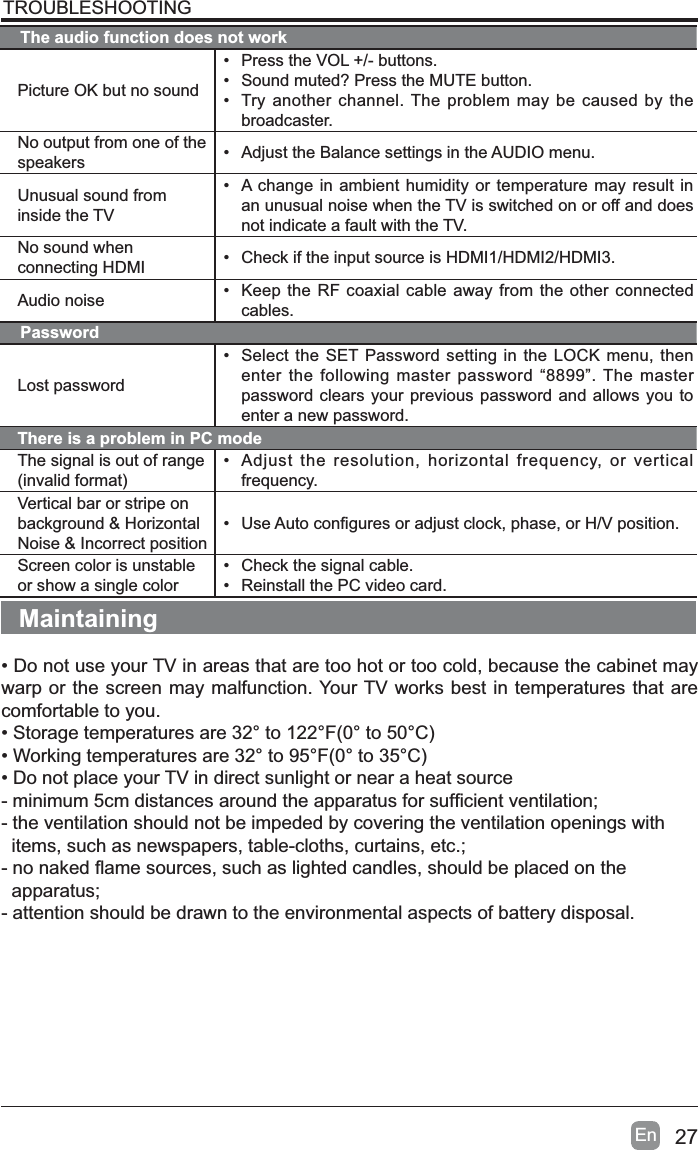

27EnTROUBLESHOOTINGThe audio function does not workPicture OK but no sound• Press the VOL +/- buttons.• Sound muted? Press the MUTE button.• Try another channel. The problem may be caused by the broadcaster.No output from one of the speakers • Adjust the Balance settings in the AUDIO menu.Unusual sound from inside the TV• A change in ambient humidity or temperature may result in an unusual noise when the TV is switched on or off and does not indicate a fault with the TV. No sound when connecting HDMI • Check if the input source is HDMI1/HDMI2/HDMI3.Audio noise • Keep the RF coaxial cable away from the other connected cables.PasswordLost password• Select the SET Password setting in the LOCK menu, then enter the following master password “8899”. The master password clears your previous password and allows you to enter a new password.There is a problem in PC modeThe signal is out of range LQYDOLGIRUPDW• Adjust the resolution, horizontal frequency, or vertical frequency.Vertical bar or stripe on background & Horizontal Noise & Incorrect position•8VH$XWRFRQ¿JXUHVRUDGMXVWFORFNSKDVHRU+9SRVLWLRQScreen color is unstable or show a single color• Check the signal cable.• Reinstall the PC video card.Maintaining• Do not use your TV in areas that are too hot or too cold, because the cabinet may warp or the screen may malfunction. Your TV works best in temperatures that are comfortable to you.6WRUDJHWHPSHUDWXUHVDUHWR)WR&:RUNLQJWHPSHUDWXUHVDUHWR)WR&• Do not place your TV in direct sunlight or near a heat sourcePLQLPXPFPGLVWDQFHVDURXQGWKHDSSDUDWXVIRUVXI¿FLHQWYHQWLODWLRQ- the ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, table-cloths, curtains, etc.;QRQDNHGÀDPHVRXUFHVVXFKDVOLJKWHGFDQGOHVVKRXOGEHSODFHGRQWKH apparatus;- attention should be drawn to the environmental aspects of battery disposal.

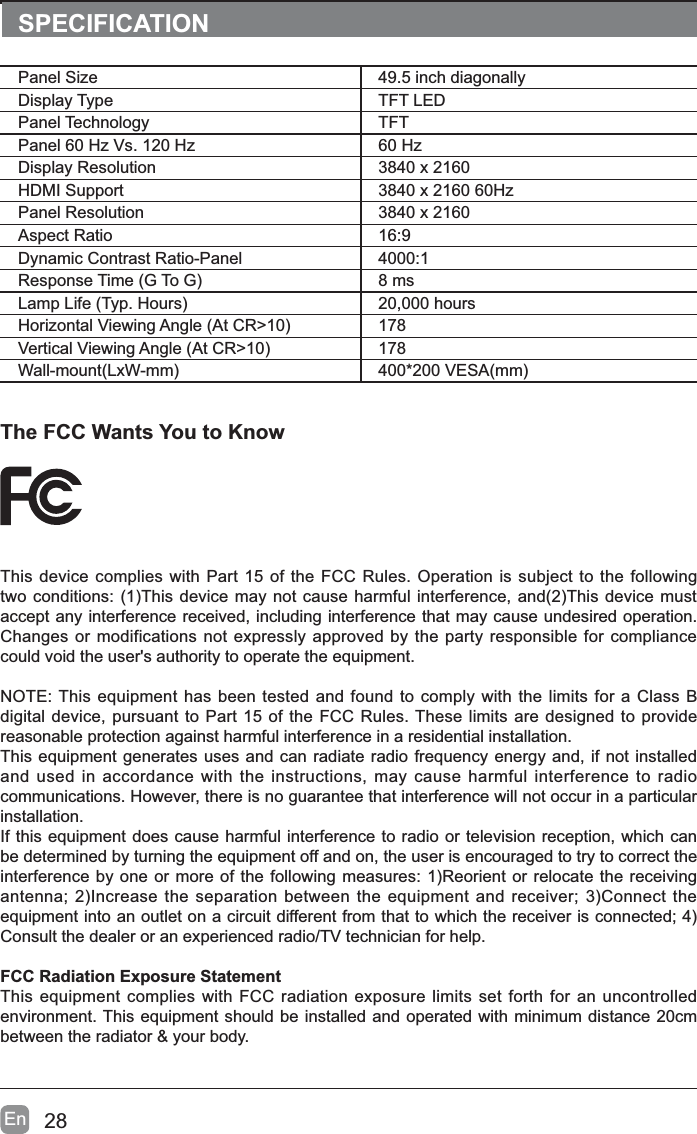

28EnThe FCC Wants You to KnowThis device complies with Part 15 of the FCC Rules. Operation is subject to the following WZRFRQGLWLRQV7KLVGHYLFHPD\QRWFDXVHKDUPIXOLQWHUIHUHQFHDQG7KLVGHYLFHPXVWaccept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the LQWHUIHUHQFHE\RQHRUPRUHRIWKHIROORZLQJPHDVXUHV5HRULHQWRUUHORFDWHWKHUHFHLYLQJDQWHQQD,QFUHDVHWKHVHSDUDWLRQEHWZHHQWKHHTXLSPHQWDQGUHFHLYHU&RQQHFWWKHHTXLSPHQWLQWRDQRXWOHWRQDFLUFXLWGLIIHUHQWIURPWKDWWRZKLFKWKHUHFHLYHULVFRQQHFWHGConsult the dealer or an experienced radio/TV technician for help.FCC Radiation Exposure StatementThis equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.SPECIFICATIONPanel Size 49.5 inch diagonally Display Type TFT LEDPanel Technology TFTPanel 60 Hz Vs. 120 Hz 60 HzDisplay Resolution 3840 x 2160HDMI Support 3840 x 2160 60HzPanel Resolution 3840 x 2160Aspect Ratio 16:9Dynamic Contrast Ratio-Panel 4000:15HVSRQVH7LPH*7R* 8 ms/DPS/LIH7\S+RXUV 20,000 hours+RUL]RQWDO9LHZLQJ$QJOH$W&5! 1789HUWLFDO9LHZLQJ$QJOH$W&5! 178:DOOPRXQW/[:PP 9(6$PP

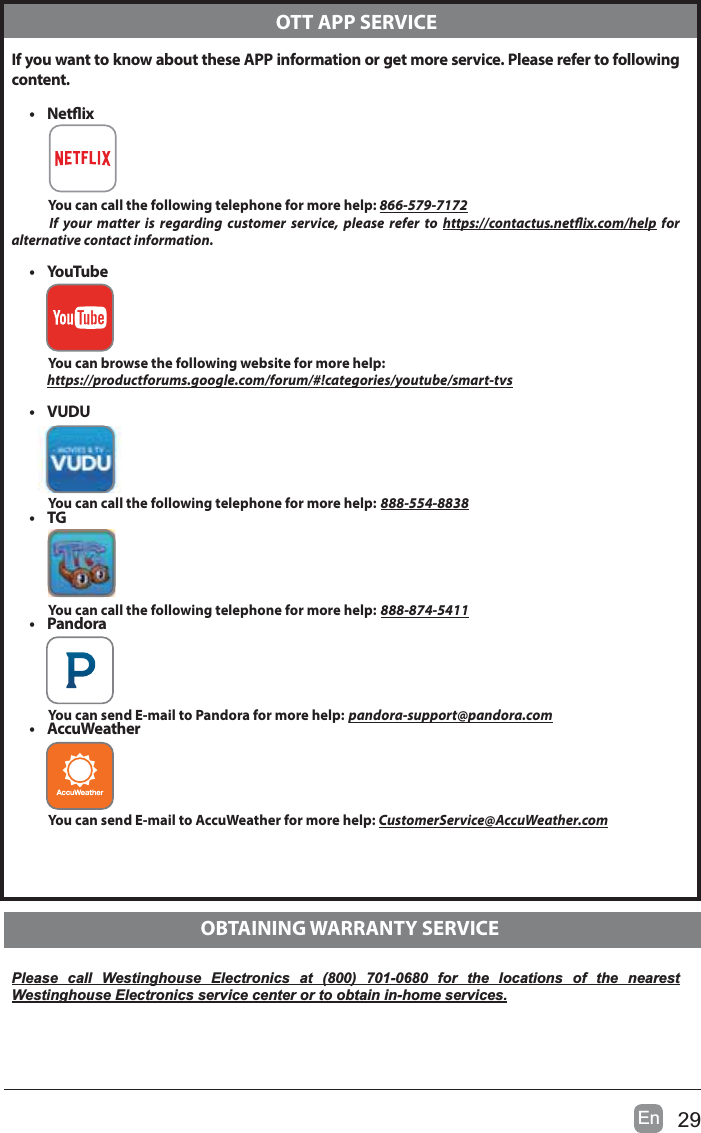

29EnIf you want to know about these APP information or get more service. Please refer to following content.• NetixYou can call the following telephone for more help: 866-579-7172If your matter is regarding customer service, please refer to https://contactus.netix.com/help for alternative contact information.•YouTubeYou can browse the following website for more help:https://productforums.google.com/forum/#!categories/youtube/smart-tvs• VUDUYou can call the following telephone for more help: 888-554-8838•TGYou can call the following telephone for more help: 888-874-5411• PandoraYou can send E-mail to Pandora for more help: pandora-support@pandora.com• AccuWeatherYou can send E-mail to AccuWeather for more help: CustomerService@AccuWeather.comPlease call Westinghouse Electronics at (800) 701-0680 for the locations of the nearest Westinghouse Electronics service center or to obtain in-home services. OTT APP SERVICE OBTAINING WARRANTY SERVICE
