USER’S MANUAL
MANUEL DE L’UTILISATEUR
MANUAL DEL USUARIO
WD60MB2240
www.westinghouseelectronics.com
Westinghouse Electronics, LLC
Diamond Bar, CA SE-UM-6001-1501
S/N:
1
En
TABLE OF CONTENTS
1Important Safety
Instructions 2
2 Safety Information 3
3 Preparation
What's Included 4
Front View 5
Rear View 6
Installing the Stand 7
Removing the Stand
for Wall-Mounting 7
Remote Control 8

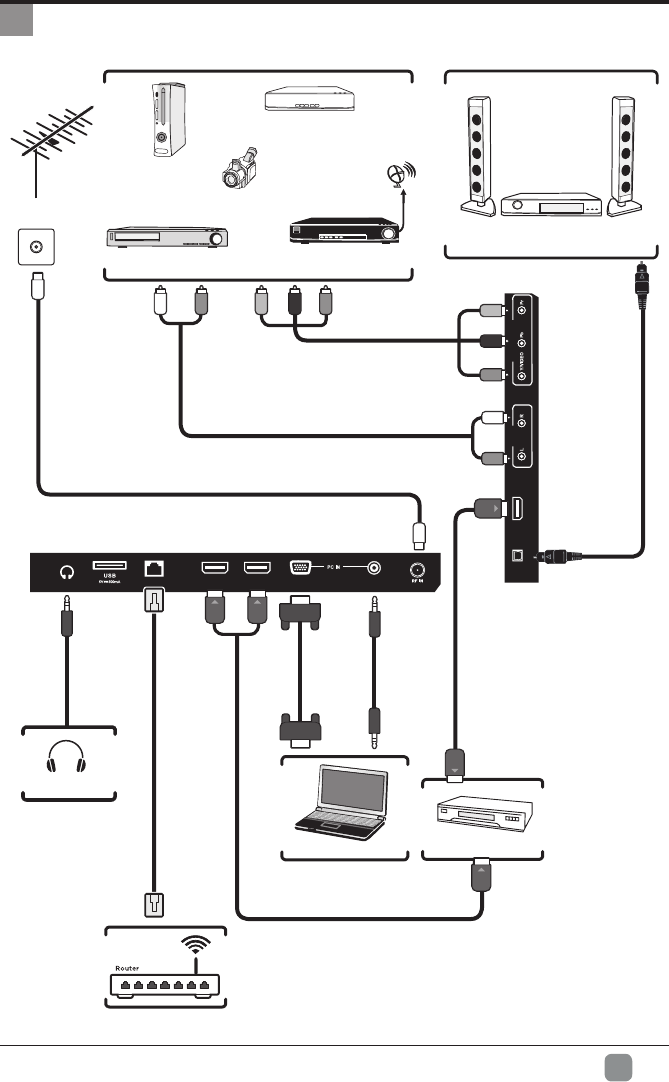

4Connecting
External Devices 9
5Customizing TV
Settings

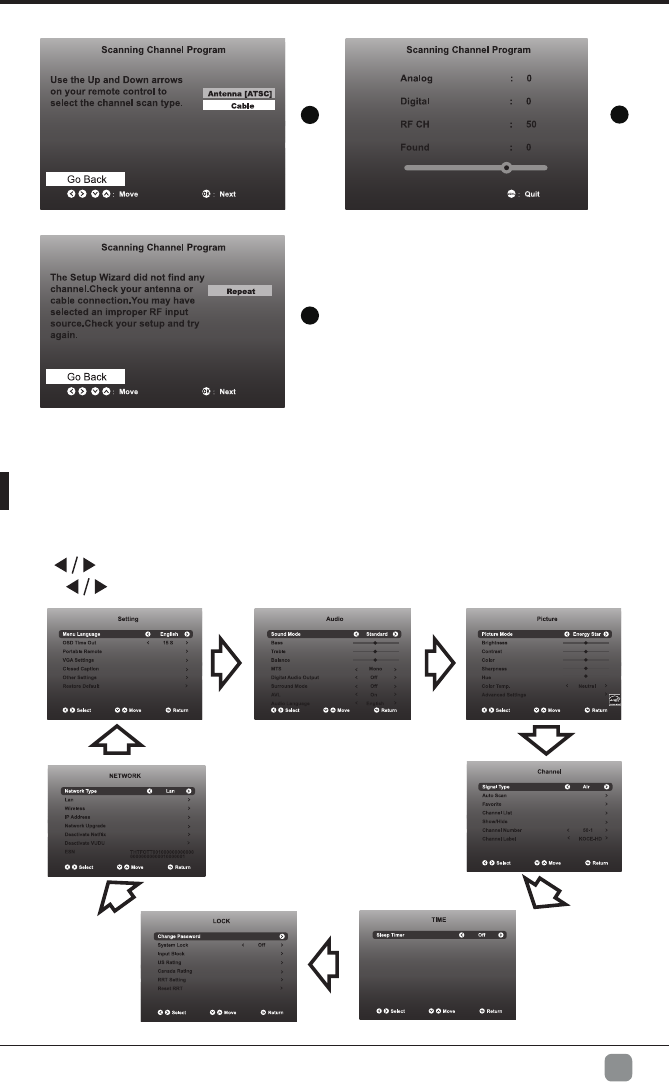

Initial Setup 10
Navigating the Setup
Settings 11
APPS 12

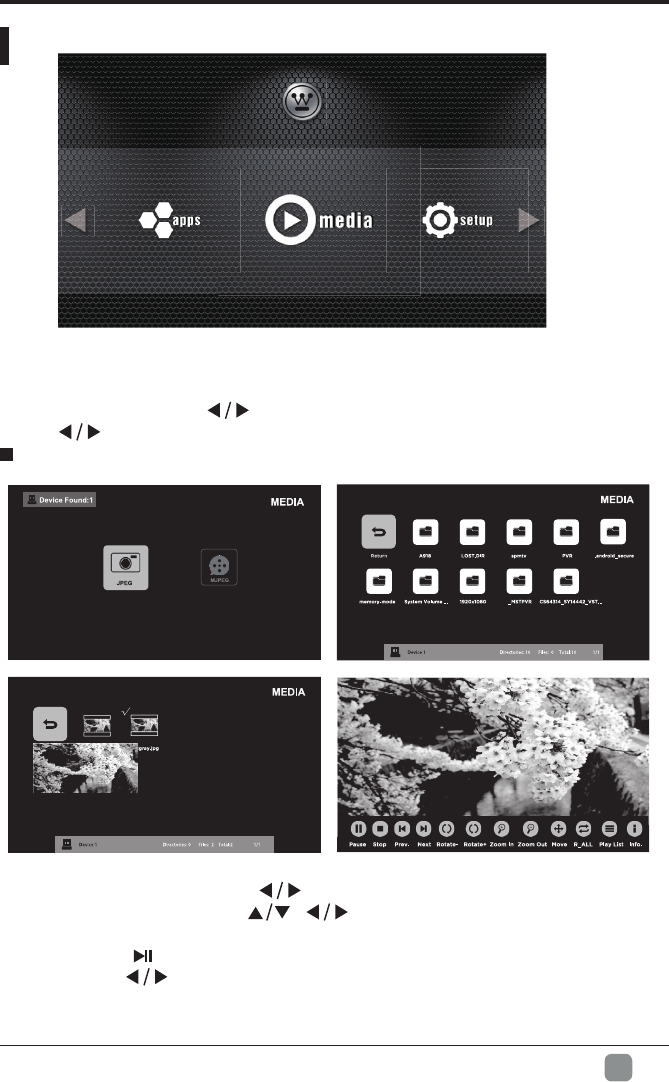

Media 13

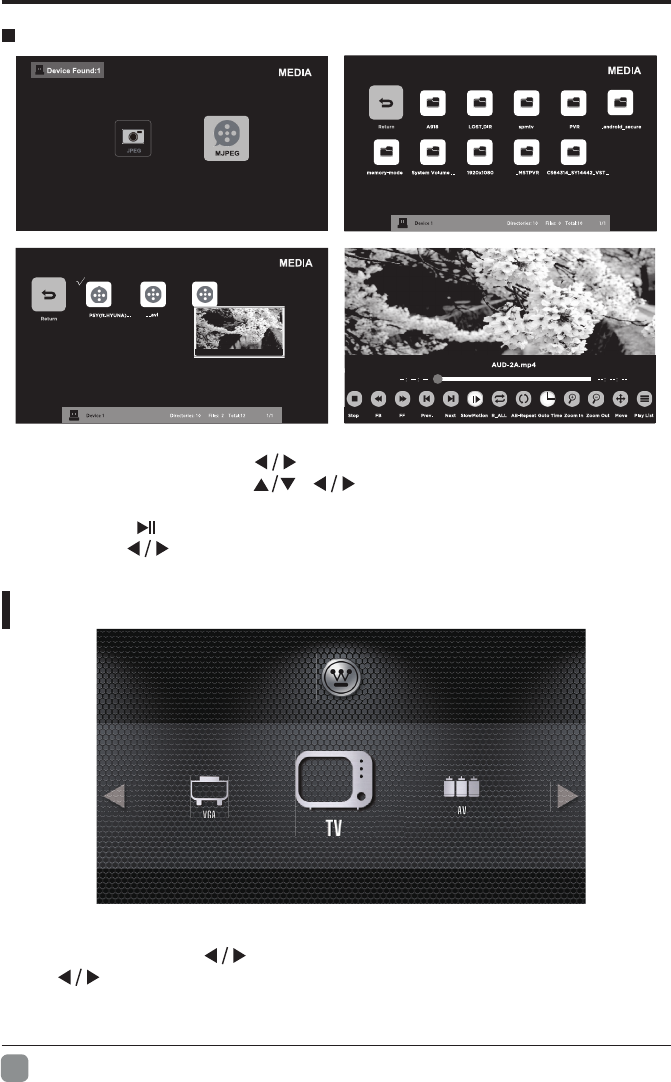

Viewing JPEG 13
Viewing MJPEG 14
Source 14
Setup 15
Settings 15
Audio 16
Picture 17
Channel 18
Time 18
Lock 19
Network 20
6 Parental Control 22
7 Troubleshooting 24
8 Maintaining 25
9Specication 26
10 OTT APP Service 27
2
En
• Read these instructions – All the safety and
operating instructions should be read before this
product is operated.
• Keep these instructions – The safety and operating
instructions should be retained for future reference.
• Heed all warnings – All warnings on the appliance
and in the operating instructions should be adhered to.
• Follow all instructions – All operating and use
instructions should be followed.
• Do not use this apparatus near water – The
appliance should not be used near water or moisture
– for example, in a wet basement or near a swimming
pool, and the like.
• Clean only with dry cloth.
• Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
• Do not install near any heat sources such as
radiators, heat registers, stoves, or other apparatus
(includingampliers)thatproduceheat.
• Do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two blades
with one wider than the other. A grounding-type plug
has two blades and a third grounding prong. The wide
blade or the third prong are provided for your safety. If
theprovidedplugdoesnottintoyouroutlet,consult
an electrician for replacement of the obsolete outlet.
• Protect the power cord from being walked on or
pinched particularly at plugs, convenience receptacles,
and the point where they exit from the apparatus.
• Only use attachments/accessories specified by the
manufacturer.
• Use only with the cart, stand, tripod, bracket, or
tablespeciedbythemanufacturer,orsoldwiththe
apparatus. When a cart is used, use caution when
moving the cart/apparatus combination to avoid injury
from tip-over.
• Unplug this apparatus during lightning storms or when
unused for long periods of time.
• Unplug this apparatus during lightning storms or when
unused for long periods of time.
• Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as the power-supply cord
or plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has
been exposed to rain or moisture, does not operate
normally, or has been dropped.
• Please keep the unit in a well-ventilated environment.
WARNING:Toreducetheriskofreorelectricshock,
do not expose this apparatus to rain or moisture.
The apparatus should not be exposed to dripping or
splashing. Objects filled with liquids, such as vases
should not be placed on apparatus.
WARNING: The batteries shall not be exposed to
excessiveheatsuchassunshine,reorthelike.
WARNING: The mains plug is used as disconnect
device, the disconnect device shall remain readily
operable.
WARNING: To reduce the risk of electric shock, do not
removecover(orback)astherearenouser-serviceable
partsinside.Referservicingtoqualiedpersonnel.
This lightning flash with arrowhead symbol
within an equilateral triangle is intended to
alert the user to the presence of non-insulated
“dangerous voltage” within the product’s
enclosurethatmaybeofsufcientmagnitude
to constitute a risk of electric shock.
The exclamation point within an equilateral
triangle is intended to alert the user to
the presence of important operating and
maintenance instructions in the literature
accompanying the appliance.
This equipment is a Class II or double
insulated electrical appliance. It has been
designed in such a way that it does not require
a safety connection to electrical earth.
This product contains electrical or electronic
materials. The presence of these materials
may,if not disposed of properly, have
potential adverse effects on the environment
and human health. Presence of this label
on the product means it should not be
disposed of as unsorted waste and must be
collectedseparately. As a consumer, you are
responsible for ensuring that this product is
disposed of properly.
This product meets ENERGY STAR®
guidelines for energy efficiency.
ENERGY STAR and the ENERGY
STAR mark are registered U.S. marks.
ENERGY STAR is a registered mark
owned by the U.S. government.
IMPORTANT SAFETY INSTRUCTIONS
Licensing and Patent Information
This WESTINGHOUSE product may be covered by one or more U.S. and foreign patents and patent
applications.
3
En
To ensure reliable and safe operation of
this equipment, please carefully read all the
instructions in this user guide, especially the
safety information below.
Electrical Safety
• The TV set should only be connected
to a main power supply with voltage
that matches the label at the rear of the
product.
• To prevent overload, do not share the
same power supply socket with too many
other electronic components.
• Do not place any connecting wires where
they may be stepped on or tripped over.
• Do not place heavy items on any
connecting wire, which may damage the
wire.
• Hold the main plug, not the wires, when
removing from a socket.
• During a thunderstorm or when not in using
the television for long periods, turn off the
power switch on the back of the television.
• Do not allow water or moisture to enter the
TV or power adapter. Do not use in wet,
moist areas, such as bathrooms, steamy
kitchens or near swimming pools.
• Pull the plug out immediately, and seek
professional help if the main plug or cable
is damaged, liquid is spilled onto the
set, if the TV set accidentally exposed to
water or moisture, if anything accidentally
penetrates the ventilation slots or if the TV
set does not work normally.
• Do not remove the safety covers. There
are no user serviceable parts inside. Trying
to service the unit yourself is dangerous
and may invalidate the product’s warranty.
Qualiedpersonnelmustonlyservicethis
apparatus.
• To avoid a battery leakage, remove
batteries from the remote control, when the
remote is not use for long period, or when
the batteries are exhausted.
• Do not break open or throw exhausted
batteriesintoare.
Physical Safety
• Do not block ventilation slots in the back
cover. You may place the TV in a cabinet,
butensureatleast5cm(2’’)clearanceall
around.
• Do not tap or shake the TV screen, or you
may damage the internal circuits. Take
good care of the remote control.
• To clean the TV use a soft dry cloth. Do not
usesolventsorpetroleumbaseduids.
• Do not install near any heat sources such
as radiators, heat registers, stoves or
otherapparatus(includingampliers)that
produce heat.
• Do not defeat the safety purpose of
the polarized or grounding-type plug. A
polarized plug has two blades with one
wider than the other. A grounding plug has
two blades and a third grounding prong, the
wide blade,or the third prong is provided
for your safety. If the provided plug does
nottintoyouroutlet,consultanelectrician
for replacement of the obsolete outlet.
• Protect the power cord from being walked
on or pinched particularly at plugs.
• Unplug the apparatus during lightning
storms or when unused for long periods.
• Refer all servicing to a qualified service
personnel.Servicing is required if the
apparatus does not operate normally or if
the apparatus, including the power supply
cord or pulg, has been damaged in any
way.
• Servicing is also required if liquid has
been spilled, or objects have fallen into
the apparatus; when the apparatus has
been exposed to rain or moisture; or if the
apparatus has been dropped.
• Always connect your television to a power
outlet with protective ground connection.
SAFETY INFORMATION
4
En
User Manual
User Manual
What's Included
Remote Control with Batteries
TV Stand Support Stand
TV Set
Six Screws
Eight Screws
Quick Connect Guide
Quick
Connect
Guide
PREPARATION
Warranty Card
Warranty
Card
5
En
Front View
PREPARATION
1. POWER
Switch the TV between On / Standby mode.
2. SOURCE
Press to select among different input signal sources.
3. MENU
Display the main menu.
4. CH /
Press to select a channel.
5. VOL -/+
Press to adjust the volume.
6. POWER Indicator
Illuminate blue when the TV is turned on. Illuminate red when the TV is in standby mode.
7. IR(InfraredReceiver)
Receive IR signals from the remote control.
6
En
PREPARATION
1. Power Cord
Connect to AC power outlet.
2. Headphone Socket
Connect to the Headphones.
3. USB Port
Connect to a USB storage device to play
compatiblemovieandphotoles.
4. LAN
Network connection port.
5. HDMI Input
ConnecttoaHigh-Denition(HD)signal
input device.
6. VGA Input
Connect to a computer or other devices
with a VGA interface.
7. PC AUDIO Input
Connect to a computer audio output.
8. DTV/TV Input
Connecttotheantenna(75ΩVHF/UHF)
socket with the RF coaxial cable.
9. OPTICAL Output
Connect a digital sound system to this
jack.
10. AUDIO Input
ConnecttotheAUDIO(L/R)output
sockets on external audio devices.
11. COMPOSITE/COMPONENT IN
Connect to AV devices with composite/
component (Y/Pb/Pr)videoandaudio
output sockets. COMPOSITE VIDEO and
COMPONENT(Y/PB/PR)sharewithAUDIO
IN(L/R).
Rear View
7
En
PREPARATION
• 1. Lay the TV face down on a flat,
cushioned surface to avoid damaging
or scratching.
• 2.Fix the stand support to the base
stand using the 6 pcs provided
screws.
• 3.Fix the stand assembly to the TV
using the 8 pcs provided screws.
WARNING: This apparatus is intended to be supported by UL Listed wall mount bracket.
• 1.Lay the TV face down on a flat,
cushioned surface to avoid damaging
or scratching.
• 2.Untighten the 8 pcs screws holding
the stand assembly and remove them.
• 3.Attach the wall-mount bracket to
the TV using the mounting holes on
the back of the TV. Mount this TV
according to the instructions included
in the wall-mount bracket.
Installing the Stand
Removing the Stand for Wall-Mounting
8
En
PREPARATION
Remote Control
1. HOME:Display the Home
menu.
2. POWER:Turn the LED TV
on or off.
3. APPS:Press to select the
desired APPS.
4. :Display the main TV
menu.
5. :Return to previous menu
button.
6. :Allows you to
navigate the OSD menus
and adjust the system
settings to your preference.
7. OK:Confirm the selection in
theOSD(onscreendisplay).
8. INFO: Displays the current
input source and the channel
information.
9. EXIT: Exit the main TV
menu.
10. INPUT:Select among
the different input signal
sources: TV/AV/YPBPR/
HDMI1/ HDMI2/HDMI3/VGA.
11. VOL+/-:Press to increase/
decrease the sound level.
12. CH / : Press to scan
through channels.
13. :Press to select Aspect
Ratio.
14. :Reverse playback rapidly.
15. :Start playback or pause.
16. :Advance playback rapidly.
16
9
En
CONNECTING EXTERNAL DEVICES
COMPONENTAUDIO
HDMI 3
OPTICAL
HDMI 2 HDMI 1 PC AUDIO
VGA
LAN
RF Cable(not included)
Audio Cable
(not included)
Composite/Component Cable
(not included)
Video Camera
Game Console
Blu-ray Player / Recorder
VCR Satellite Receiver
Satellite
Antenna Cable
OR
HDMI Device
Computer
Digital Audio System
VGA Cable
(not included)
3.5mm Audio
Cable
(not included)
Headphones
Cable
(not included)
HDMI Cable(not included)
Optical Cable
(not included)
WIFI
Network Cable
(not included)
10
En
Initial Setup
• Connect the power cord to the power socket after you have completed all the
physical connections. At this stage, the TV will enter Standby Mode and the red
LED indicator will illuminate.
• In Standby Mode, press the button on the main unit or on the remote control to
turn the TV on. The red LED indicator will turn blue.
• The first time you turn the TV on, it will go into the Setup Wizard. Press
buttons to select your desired mode and press OKtoconrm.
OK :Next
Home Mode (Energy Saving) is the default as-shipped television configuration
and settings. And Home Mode (Energy Saving) is the setting in which the product
qualifies for ENERGY STAR®. Any changes to default as-shipped television
configuration and settings would change the energy consumption. And enabling
certain optional features and functionalities may increase energy consumption
beyond the limits required for ENERGY STAR® qualication, as applicable.
Retail Mode : Select Retail Mode if you would like your picture to be brighter. At
times this mode may use more energy to operate the Volume/Sound Mode and the
Picture Mode. In this setting, the power consumption may possibly exceed the limited
requirement of the ENERGY STAR®qualication.
ENERGY STAR® is a set of power-saving guidelines issued by the U.S.
Environmental Protection Agency(EPA).
ENERGY STAR® is a joint program of the U.S. Environmental Protection Agency
and the U.S. Department of Energy helping us all save money and protect the
environment through energy efcient products and pratices.
• The ON-MODE Power under Home Mode should be less than
98.7 W
• The SLEEP-MODE Power should be less than 0.5 W.
CUSTOMIZING TV SETTINGS
5
Network Status:Unconnected
11
En
CUSTOMIZING TV SETTINGS
• If channels can not be found, this
frame will be displayed automatically.
Navigating the Setup Settings
• Press the MENU button to display the main menu.
• Use buttons to select setup menu and then press OK buttons to enter, then
press to navigate and select the available menu.
8
7
6
12
En
APPS
NETFLIX Enjoys TV shows & movies streamed instantly over the
Internet.
YouTube YouTube your way on the best screen in your house.
VUDU
Discover, watch and collect the latest movies and
TV shows in high quality 1080p. Free to sign up. No
subscriptions, late fees or commitments.
Toongoggles
A subscription video on-demand platform that offers
animated, fun and educational cartoons, engaging
games and songs from all over the world and in many
different languages to children.
Pandora
Free personalized radio that offers effortless and
endless music enjoyment and discovery. Just start with
the name of one of your favorite artists, songs, genres
or composers and Pandora will do the rest. It’s easy to
create personalized stations that play only music you’ll
love.
AccuWeather
Displays the current weather conditions and the
temperature anywhere in the world in centigrade or
Fahrenheit.
CUSTOMIZING TV SETTINGS
• Press the MENU button on the main unit or on the remote control to display the
main menu. Then use to select the apps and press OK button to enter. Use
to select the desired app. Or press the hotkey on the remote control to enter
the APP directly.
Note:After the TV connects to network, the status Unconnected will alter to
Connected.
Network Status:Connected(weak)
13
En
CUSTOMIZING TV SETTINGS
MEDIA
NOTE:Portable storage devices( USB disk or Hard disk) should be inserted.
Viewing JPEG
• After entering MEDIA, press buttons to select JPEG and then select the
disk type to enter. Then use / buttons to navigate in the picture folder
and then select the desired picture and press OKbutton,when√appearsonthe
top-left, press to play the picture, or press menu button to display the control
bar, then use to select Play to display the picture.
• Press the MENU button on the main unit or on the remote control to display the
main menu. Then use to select the media and press OK button to enter.
Use to select the desired option.
Network Status:Unconnected
14
En
CUSTOMIZING TV SETTINGS
Viewing MJPEG
SOURCE
• Press the menu button on the main unit or on the remote control to display the
main menu. Then use to select the source and press OK button to enter.
Use to select the desired input sources among:TV/ AV/ YPBPR/ HDMI1/
HDMI2/ HDMI3/ VGA and press OKbuttontoconrm.
• After entering MEDIA, press buttons to select MJPEG and then select the
disk type to enter. Then use / buttons to navigate in the video folder
and then select the desired video and press OKbutton,when√appearsonthe
top-left, press to play the video, or press menu button to display the control
bar, then use to select Play to display the video.
Network Status:Unconnected
15
En
SETUP
CUSTOMIZING TV SETTINGS
Menu Language Select menu language : English, Français or Español. The
default on-screen menu language is English.
OSD Time Out Select OSD time among 15s/30s/45s/60s.
Portable Remote
Firstly, use your portable device to scan the QR code
to download the APP(Make sure the protable device and
the TV in the same network), or you may also type in
"Westinghouse Remote" in Google Play or APP store to
download the APP. Secondly, enter the 6 digits code after
app installation. 6 digits code: N/A(You can nd the 6 digits
code under the QR code).
VGA Settings To adjust the VGA settings:H-Pos, V-Pos, Clock, Phase,
Auto.
• Press the menu button on the main unit or on the remote control to display the
main menu. Then use to select the setup and press OK button to enter. Use
to select the desired option.
SETTING
• Press buttons to select SETTING menu and then press OK button to enter.
Press buttons to select the following setting options and then press
buttons to adjust each option’s setting.
Network Status:Unconnected
16
En
CUSTOMIZING TV SETTINGS
Closed Caption
CC Mode Select CC mode :CC On, CC Off or CC On
Mute.
Analog CC Basic Selection: CC1, CC2, CC3, CC4,
Text1, Text2, Text3, Text4.
Digital CC Advanced Selection: Service1, Service2,
Service3, Service4, Service5, and Service6.
Option
Mode, Font Style, Font Size, Font Edge
Style, Font Edge Color, FG Color, BG Color,
FG Opacity, BG Opacity.
Other Settings Turn On or Off the Audio Only.
Restore Default Restore the TV to factory default settings.
• Press buttons to select AUDIO menu and then press OK button to enter.
Press buttons to select the following audio options and then press
buttons to adjust each option’s setting.
AUDIO
Sound Mode Allow the selection of an audio-enhancement technique:
Standard/Music/Movie/Sports/User.
Bass Control the relative intensity of lower-pitched sounds.
(For User mode)
Treble Control the relative intensity of higher-pitched sounds.
(For User mode)
Balance Adjust the relative volume of the speaker in a multiple
speaker system.
MTS Press button to select MTS, then press button
to adjust.
Digital Audio Output Select the digital audio output mode between RAW/
PCM/Off.
Surround Mode Turn On or Off the surround mode.
AVL Volume levels are automatically controlled to On or Off.
Audio Language Select audio language among: English, Français or
Español.
17
En
CUSTOMIZING TV SETTINGS
• Press buttons to select PICTURE menu and then press OK button to enter.
Press buttons to select the following picture options and then press
buttons to adjust each option’s setting.
Picture Mode Cycle among picture mode: Energy Star/User/Retail/
Movie.
Brightness Increase or decrease the amount of white in the picture.
(For User mode)
Contrast Adjust the difference between light and dark levels in
the pictures. (For User mode)
Color Control the color intensity. (For User mode)
Sharpness Adjust the level of crispness in the edges between light
and dark areas of the picture. (For User mode)
Hue Adjust the hue intensity.
Color Temp. Cycle among color temperatures: Neutral/Warm/User/
Cool.
Advanced Settings
Select and adjust the following settings.
1) Aspect Ratio:Choose to view the TV picture in
various formats among:Standard/Fill.
2) Noise Reduction:Reduces the noise level of the
connected device: Off/Weak/Medium/Strong.
3) Dynamic Contrast:Set dynamic contrast to On/Off.
4) White Balance:To adjust the white balance.
5) MEMC:Cycle among Motion E s t i m a t e and
Motion Compensation modes:Medium/Strong/Off/Low.
18
En
COSTOMIZING TV SETTINGS
• Press buttons to select CHANNEL menu and then press OK button to enter.
Press buttons to select the following channel options and then press
buttons to adjust each option’s setting.
CHANNEL
Signal Type Select antenna between Air and Cable.
Auto Scan
Cable: Select your cable system from: Auto/STD/IRC/HRC.
Auto Scan: Select the Auto Scan feature to scan your
available cable channels.
Favorite Set the selected channel as favorite channels.
Channel List Display the current channel list.
Show/Hide Show/Hide the selected channel.
Channel Number Display the current channel number.
Channel Label Display the current channel label.
• Press buttons to select TIME menu and then press OK button to enter.
Press buttons to select the following time options and then press
buttons to adjust each option’s setting.
TIME
19
En
Sleep Timer Select a period of time after which the TV automatically
switches to standby mode: Off/5/10/…/180/240 min.
• Press buttons to select LOCK menu and then press OK button to enter. Use
the 0-9 buttons to input 4-digit password to enter the LOCK menu.
• Press buttons to select the following lock options and then press
buttons to adjust each option’s setting.
LOCK
Note: the default password is “0000”.
Change Password Use 0-9 buttons to input the new 4-digit password and re-
entertoconrmthenewpassword.
System Lock
Select to turn On/Off system lock. The following options
(US,Canada,ResetRRT)willonlybeaccessiblewhen
you turn the system lock on.
Input Block To block or unblock the different input sources.
US Rating
TV TV RATING: Press OK button to lock or unlock
TV rating.
MPAA Select MPAA rating : N/A,G, PG, PG-13, R,
NC-17,or X.
Canada Rating
Canada
English
Select MPAA rating for English-speaking
Canada : E, C, C8+, G, PG, 14+, 18+.
Canada
French
Select MPAA rating for Quebec Canada : E, G,
8 ans+, 13 ans+, 16 ans+, 18 ans+.
RRT Setting Set Rating Region Table.
Reset RRT Select to reset the RRT setting.
CUSTOMIZING TV SETTINGS
20
En
• Press buttons to select NETWORK menu and then press OK button to
enter. Press buttons to select the following network options and then press
buttons to adjust each option’s setting.
NETWORK
Network Type Select two types of network: Wireless or Lan.
Lan Connect the TV to the wired Lan: Auto Get IP/Manual Get
IP.
Wireless Connect the TV to the wireless network through searching
theavailableWi.
IP Address Display the current IP information.
Network Upgrade Upgrade the TV software through the network.
DeactivateNetix DeactivateNetixandcleartheaccountinformation.
Deactivate Vudu Deactivate Vudu and clear the account information.
ESN Electronic Serial Number
Auto Upgrade
• After the TV connects to network, the system will automatically detect software
version.
COSTOMIZING TV SETTINGS
21
En

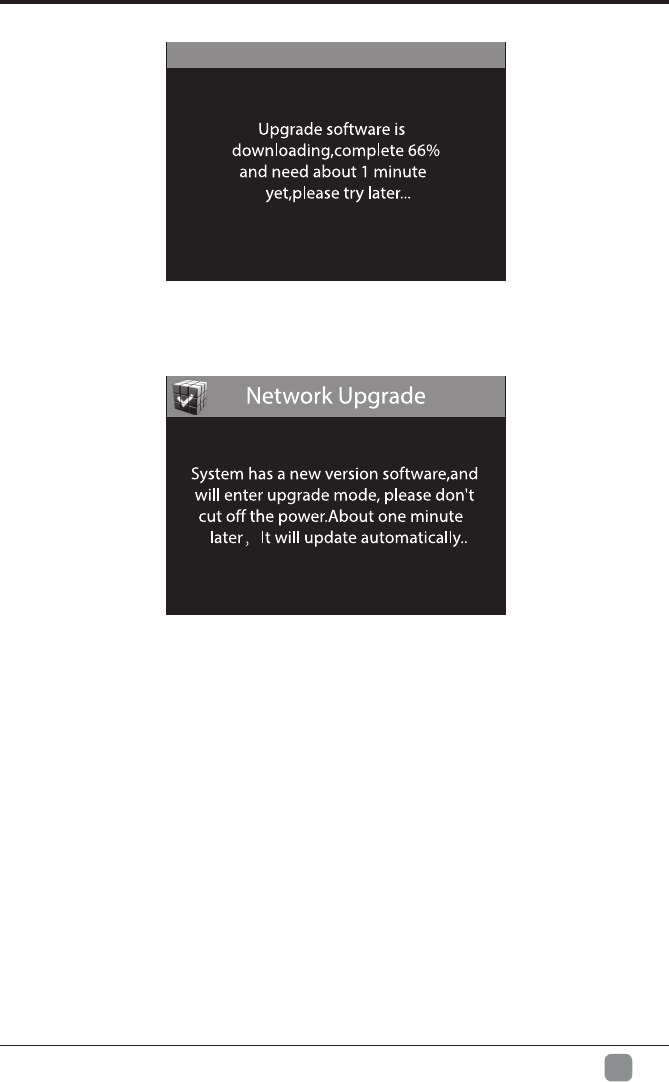

• If there is a new version, it will be downloaded in the background. When you want
to enter the app, a menu bar will pop up reminding you that upgrade software is
downloading. Please try later...
• After the download completed, it can upgrade automatically after users press the
standby button.
Note: This procedure is fully automatic, and remember not to cut off the power.
Manual Upgrade
• After the TV connects to network, users can detect whether there is a new version
through network manual option.
CUSTOMIZING TV SETTINGS
• Below occasions are possible while your internet is connected to enjoy your OTT
services.
• 1.Please check your internet signal strength while internet is connected, signal
strength below 50 may result bad connection and non-smooth picture.
• 2.To enter OTT services, 30 second may be required for internet connection.
Reminder for internet connection:
Recommended 10Mb above internet speed
22
En
Press the MENU button on the main unit or on the remote control and then press
buttons to select LOCK menu. Use the 0-9 buttons to input the 4-digit password to enter
the LOCK menu. If used, this option feature can "block'' undesirable programming from
appearing on the TV. Parental Control offers the user a wide variety of options and
settings that restrict or "block'' the programming that can appear on the TV. Parental Control
allowstheusertodenewhichprogramratingtheyconsideracceptableforyoungermore
sensitiveviewer.Itcanbepresetandturnedeitheronoroffbytheuserwhospeciesthe
secret4-numbercode,thepassword.Thenumberofhoursblockedarespecied.General
audiences and children blocks should be both programmed into the TV's memory. Separate
differentviewerratingsarespeciedforbothTVandthemotionpictureIndustry;bothrating
systems should be used and based on the ages of children.
Overview
ToensurecompletecoverageforallTVprograms,(moviesandregularTVshows)choose
a rating for MPAA, from the selections below,as well as ratings from the TV Parental
Guidelines Rating Systems below, using the Age Block option for General Audiences, and
for children.In addition, you may wish to add additional restrictions from the content block
menu, and submenus examples below.
Things to Consider before Setting up Parental Control
Determine which rating you consider acceptable to the viewer. (For example,if you choose
TV-PG, more restrictive ratings will be automatically blocked; the viewer will not be able to
see:TV-PG,TV-14,orTV-MAratedprogramming.)Youmayblocktheauxiliaryvideosource
entirely. (Blocks the signal sent by the equipment, such as VCR, connected to the TV Audio/
VIdeoInputJacks)orremainunblocked,thenchooseacceptableratings.Blockprogram
"Content" based on individual parameters such as: Strong Dialog, Bad Language, Sex
Scenes,Violence Scenes or Fantasy. Violent Scenes; in Content Blk option. Select a secret
password, in the Set Password option, using the numbers keys on the remote control.Save
the password, it is the only way to access the Parental Control menu and change rating
setting, or turn off Parental Control.
• You can set different Parental Control viewing restrictions for general audiences and for
children, both can be active at the same time.
• Simply specifying one content block such as Sex Scenes, will not automatically restrict
the programming that appears from the video sources.
• Even If you choose to leave the AUX Inputs unblocked, the ratings you specify will
automatically restrict the programming that appears from the video sources.
• You cannot disable Parental Control by disconnecting the TV from power. Block
hourswillbeautomaticallyresettotheoriginalblocktimesettingspeciedifpoweris
disconnected.
PARENTAL CONTROL
PARENTAL CONTROL
23
En
PARENTAL CONTROL
• Motion Picture Association of America (MPAA) Rating System
Grade Meaning
GGeneral Audiences Content not offensive to most viewers.
PG Parental Guidance
Suggested
Content is such that parents may not want their
children to view the program.
PG-13 Parents Strongly
Cautioned
Program is inappropriate for preteens, with a greater
degree of offensive material suggested than a PG
rated program.
RRestricted Not for children under 17-contains strong element of
sex and/or violence.
NC-17 No children under
age 17
Not for children under 17-under any circumstances.
Contains strong sexual content.
XHard Core Films Same as NC-17 rating.
No Rating No Rating MPAA did not rate
• TV Parental Guideline Rating System
Grade Meaning
TV-Y All Children Content not offensive to most viewers.
TV-Y7 Directed to Older
Children
Considered suitable for children over 7- may contain
fantasy violence scenes.
TV-G General Audience Considered suitable for all audience; children may
watch unattended.
TV-PG Parental Guidance
Suggested
Suggested unsuitable for younger children-may
contain suggestive language, bad language, sex and
violence scenes.
TV-14 Parents Strongly
Cautioned
unsuitable for children under 14 - may contain strong
language, bad language, sex, and violence scenes.
TV-MA Mature Audience
Only
Adults only- may contain strong language, bad
language, sex, and violence scenes.
Canadian Rating:
Canadian English is used throughout all English-speaking Canada (C, C8+,G, PG,14+, 18+).
Canadian French is used in Quebec (G,8 ans+, 13 ans+,16 ans+, 18 ans+)
Note: The V-Chlp will automatically block certain categories that are "more restrictive".If you block TV-Y
category,then TV-Y7 will be automatically blocked. Similarly,if you block TV-G category,then all the
categories in the "young adult" will be blocked (TV-G, TV-PG,TV-14,and TV-MA).
24
En
If your TV does not operate normally or cannot be turned on, please check
the following troubleshooting questions. Remember also to check any other
connected electronic device, such as DVD or Blu-ray player to pinpoint the
problem. If the TV still fails to operate normally, please contact technical support.
The TV does not operate properly
The TV does not respond
when pressing any
buttons
• The TV may freeze up during use. Disconnect the power
cord from the power socket for a few minutes. Reconnect the
power cord and try to operate it again as usual.
TV cannot be switched on
• Check that the TV is connected to the power supply.
• Make sure all connected AV devices are switched off before
switching on your TV.
The remote control does
not work
• Check to see if there are any objects between the TV and the
remote control causing an obstruction. Ensure that you are
pointing the remote control directly at the TV.
• Ensure that the batteries are installed with the correct polarity
(+to+,-to-).
• Install new batteries.
Power is suddenly turned
off
• Check the power of the TV. The power supply maybe
interrupted.
• Check if the sleep timer is set.
• Check whether the Auto Standby is activated.
The video function does not work
No picture & No Sound
• Check whether the TV is switched on.
• Try another channel. The problem may be caused by the
broadcaster.
Picture appears slowly
after switching on
• This is normal; the image is muted during the TV startup
process. Please contact your service centre if the picture has
notappearedafterveminutes.
No or poor color or poor
• Adjust the settings in the PICTURE menu.
• Try another channel. The problem may be caused by the
broadcaster.
• Check if video cables are connected properly.
Horizontal/Vertical bar or
picture shaking
• Check for local interference such as an electrical appliance
or power tool.
Poor reception on some
channels
• The station or cable channel may be experiencing problems;
tune to another station.
• Station signal may be weak, reposition the antenna for better
reception.
• Check for sources of possible interference.
Lines or streaks in
pictures • Checkantenna(changethepositionoftheantenna.)
No pictures when
connecting HDMI • Check if the input source is HDMI1/HDMI2/HDMI3.
Pictures appear in wrong
ratio
• Adjust the Aspect Ratio settings in the SETUP menu or press
the ASPECT button on the remote control.
TROUBLESHOOTING
TROUBLESHOOTING
25
En
TROUBLESHOOTING
The audio function does not work
Picture OK but no sound
• Press the VOL +/- buttons.
• Sound muted? Press the MUTE button.
• Try another channel. The problem may be caused by the
broadcaster.
No output from one of the
speakers • Adjust the Balance settings in the AUDIO menu.
Unusual sound from
inside the TV
• A change in ambient humidity or temperature may result in
an unusual noise when the TV is switched on or off and does
not indicate a fault with the TV.
No sound when
connecting HDMI • Check if the input source is HDMI1/HDMI2/HDMI3.
Audio noise • Keep the RF coaxial cable away from the other connected
cables.
Password
Lost password
• Select the SET Password setting in the LOCK menu, then
enter the following master password “8899”. The master
password clears your previous password and allows you to
enter a new password.
There is a problem in PC mode
The signal is out of range
(invalidformat)
• Adjust the resolution, horizontal frequency, or vertical
frequency.
Vertical bar or stripe on
background & Horizontal
Noise & Incorrect position
• UseAutoconguresoradjustclock,phase,orH/Vposition.
Screen color is unstable
or show a single color
• Check the signal cable.
• Reinstall the PC video card.
Maintaining
•DonotuseyourTVinareasthataretoohotortoocold,becausethecabinetmay
warp or the screen may malfunction. Your TV works best in temperatures that are
comfortable to you.
•Storagetemperaturesare32°to122°F(0°to50°C)
•Workingtemperaturesare32°to95°F(0°to35°C)
•DonotplaceyourTVindirectsunlightornearaheatsource
26
En
Panel Size 60 inch diagonally
Display Type DLED
Panel Technology TFT
Panel 60 Hz Vs. 120 Hz 120 Hz
Display Resolution 1080P
HDMI Support Up to 1080P
Panel Resolution 1920 x 1080
Aspect Ratio 16:9
Dynamic Contrast Ratio-Panel 4500:1
ResponseTime(GToG) 4 ms
LampLife(Typ.Hours) 30,000 hours
HorizontalViewingAngle(AtCR>10) 176
VerticalViewingAngle(AtCR>10) 176
Wall-mount(LxW-mm) 400*400VESA(mm)
The FCC Wants You to Know
FCC STATEMENT
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1)Thisdevicemaynotcauseharmfulinterference,and
(2)Thisdevicemustacceptanyinterferencereceived,includinginterferencethatmaycause
undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
FCC Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator & your body.
SPECIFICATION
27
En
If you want to know about these APP information or get more service. Please refer to following
content.
• Netix
You can call the following telephone for more help: 866-579-7172
If your matter is regarding customer service, please refer to https://contactus.netix.com/help for
alternative contact information.
• YouTube
You can browse the following website for more help:
https://productforums.google.com/forum/#!categories/youtube/smart-tvs
• VUDU
You can call the following telephone for more help: 888-554-8838
• TG
You can call the following telephone for more help: 888-874-5411
• Pandora
You can send E-mail to Pandora for more help: pandora-support@pandora.com
• AccuWeather
You can send E-mail to AccuWeather for more help: CustomerService@AccuWeather.com
OTT APP SERVICE

Navigation menu
