antenna information
Antenna Specifications
2.4GHz 1/2 Wave Whip Antenna
NK-012
(SNB-2.4G-2500)
903-5 Suna Kawagoe-city Saitama Japan
NATEC Corporation
Tel +81-49-247-1181
Specifications

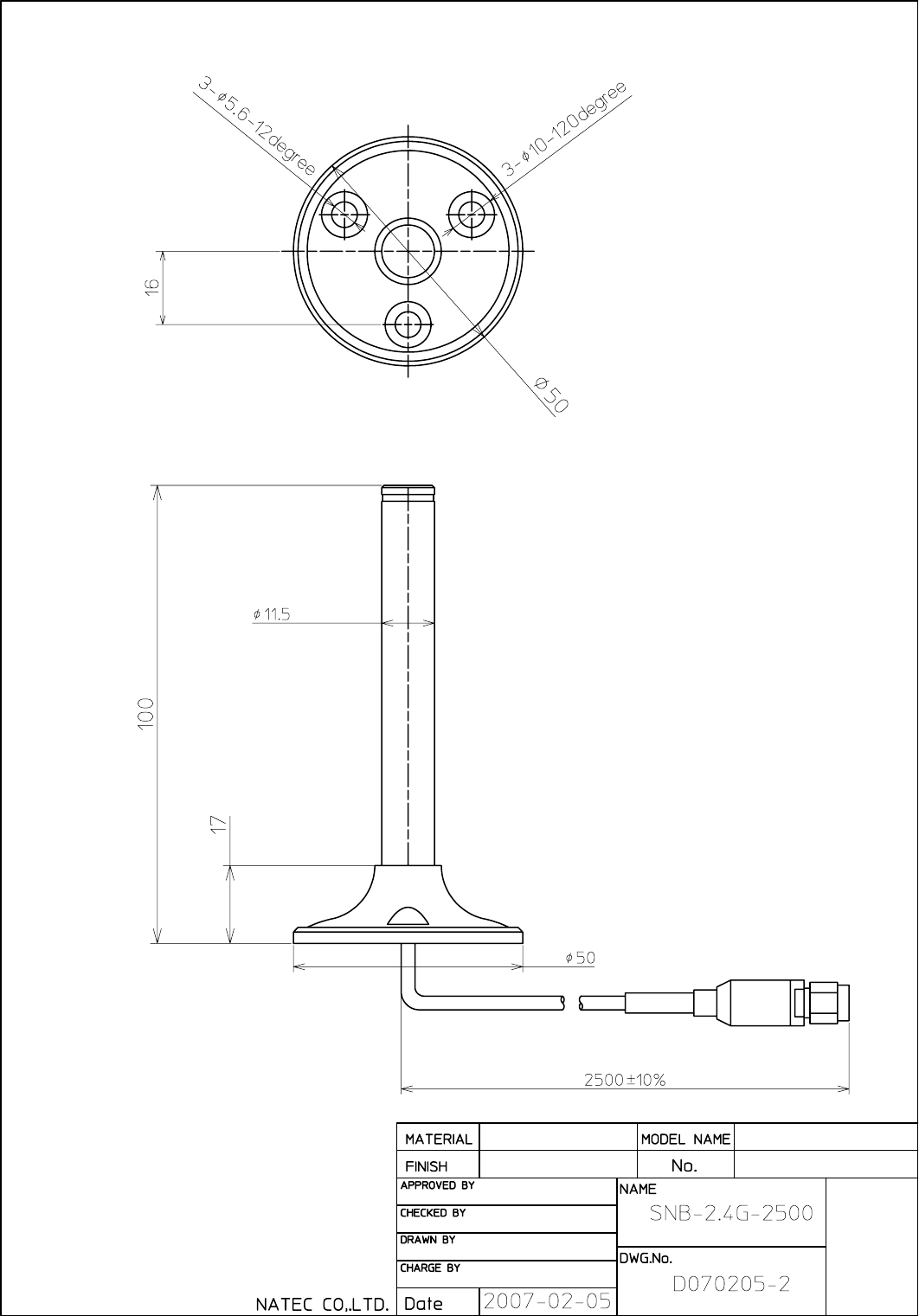

Model NK-012 (SNB-2.4G-2500)
Frequency 2450MHz±50MHz
Gain -2.6dBi（Cable Loss included）
impedance 50Ω

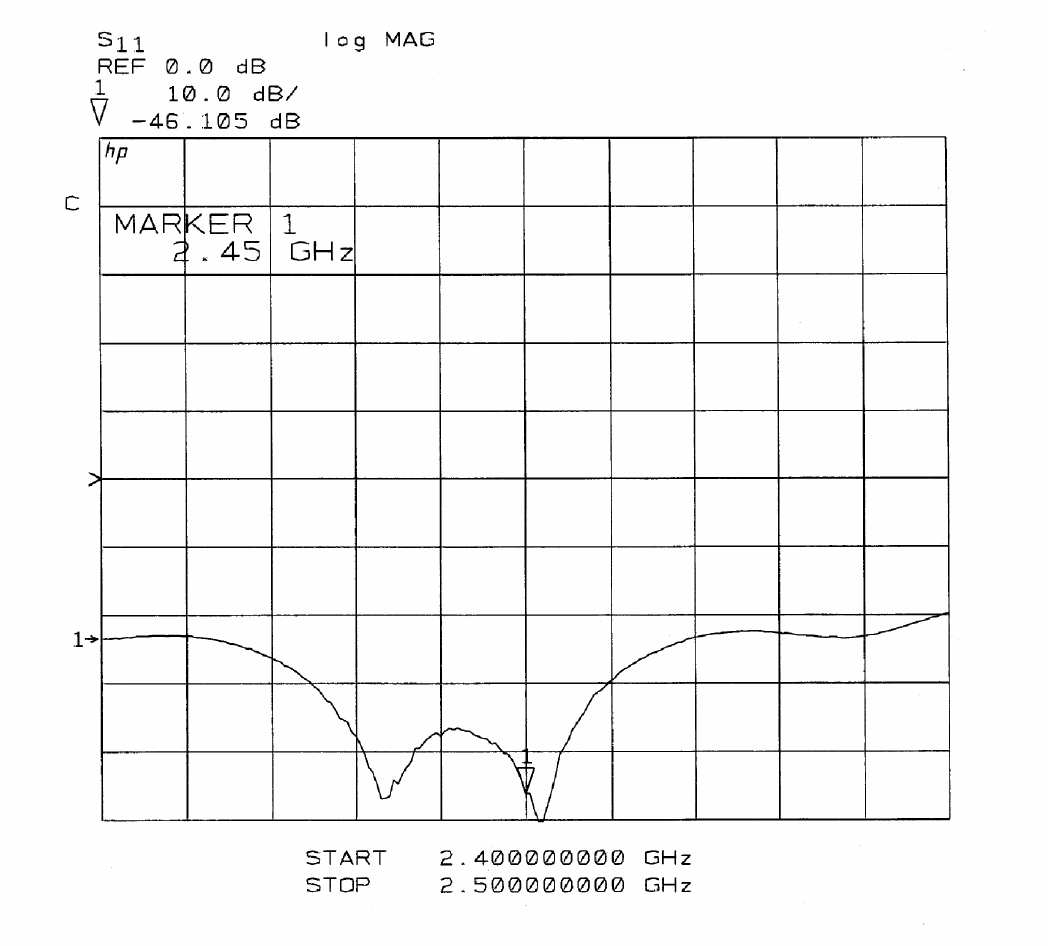

V.SWR < 2.0 : 1
Length 100ｍｍ
MAX W 5W
Connector SMA-P（1.5D-QEV 2.5ｍ）
Weight 65ｇ
Type 1/2 WAVE WHIP
-
-
-
Note
