Shure orporated ADX2FDX55 Wireless Microphone Transmitter User Manual Exhibit D Users Manual per 2 1033 b3
Shure Incorporated Wireless Microphone Transmitter Exhibit D Users Manual per 2 1033 b3
Contents
- 1. Exhibit D Users Manual per 2 1033 c3
- 2. Exhibit D Users Manual per 2 1033 b3
Exhibit D Users Manual per 2 1033 b3
ADX2FD Axient Digital Handheld Transmitter
USER GUIDE
© 2018 Shure Incorporated
27A36586 (Rev. 1)
Printed in U.S.A.
AXIENT® DIGITAL
Le Guide de l’Utilisateur
Guia del Usuario
Manual do Usuário
DRAFT 8.9.18
DRAFT 8.9.18
CONSIGNES DE SÉCURITÉ IMPORTANTES
1. LIRE ces consignes.
2. CONSERVER ces consignes.
3. OBSERVER tous les avertissements.
4. SUIVRE toutes les consignes.
5. NE PAS utiliser cet appareil à proximité de l'eau.
6. NETTOYER UNIQUEMENT avec un chiffon sec.
7. NE PAS obstruer les ouvertures de ventilation. Laisser des distances suffisantes pour
permettre une ventilation adéquate et effectuer l'installation en respectant les instructions
du fabricant.
8. NE PAS installer à proximité d'une source de chaleur telle qu'une flamme nue, un
radiateur, une bouche de chaleur, un poêle ou d'autres appareils (dont les amplificateurs)
produisant de la chaleur. Ne placer aucune source à flamme nue sur le produit.
9. NE PAS détériorer la sécurité de la fiche polarisée ou de la fiche de terre. Une fiche
polarisée comporte deux lames dont l'une est plus large que l'autre. Une fiche de terre
comporte deux lames et une troisième broche de mise à la terre. La lame la plus large ou
la troisième broche assure la sécurité de l'utilisateur. Si la fiche fournie ne s'adapte pas à
la prise électrique, demander à un électricien de remplacer la prise hors normes.
10. PROTÉGER le cordon d'alimentation afin que personne ne marche dessus et que rien ne
le pince, en particulier au niveau des fiches, des prises de courant et du point de sortie
de l'appareil.
11. UTILISER UNIQUEMENT les accessoires spécifiés par le fabricant.
12. UTILISER uniquement avec un chariot, un pied, un trépied, un support ou
une table spécifié par le fabricant ou vendu avec l'appareil. Si un chariot
est utilisé, déplacer l'ensemble chariot-appareil avec précaution afin de ne
pas le renverser, ce qui pourrait entraîner des blessures.
13. DÉBRANCHER l'appareil pendant les orages ou quand il ne sera pas utilisé pendant
longtemps.
14. CONFIER toute réparation à du personnel qualifié. Des réparations sont nécessaires
si l'appareil est endommagé d'une façon quelconque, par exemple : cordon ou prise
d'alimentation endommagé, liquide renversé ou objet tombé à l'intérieur de l'appareil,
exposition de l'appareil à la pluie ou à l'humidité, appareil qui ne marche pas normale-
ment ou que l'on a fait tomber.
15. NE PAS exposer cet appareil aux égouttures et aux éclaboussements. NE PAS poser
des objets contenant de l'eau, comme des vases, sur l'appareil.
16. La prise SECTEUR ou un coupleur d’appareil électrique doit rester facilement utilisable.
17. Le bruit aérien de l'appareil ne dépasse pas 70 dB (A).
18. L'appareil de construction de CLASSE I doit être raccordé à une prise SECTEUR dotée
d'une protection par mise à la terre.
19. Pour réduire les risques d'incendie ou de choc électrique, ne pas exposer cet appareil à
la pluie ou à l'humidité.
20. Ne pas essayer de modifier ce produit. Cela risque de causer des blessures et/ou la
défaillance du produit.
21. Utiliser ce produit dans sa plage de températures de fonctionnement spécifiée.
Ce symbole indique la présence d'une tension dangereuse dans
l'appareil constituant un risque de choc électrique.
Ce symbole indique que la documentation fournie avec l'appareil con-
tient des instructions d'utilisation et d'entretien importantes.
IMPORTANT SAFETY INSTRUCTIONS
1. READ these instructions.
2. KEEP these instructions.
3. HEED all warnings.
4. FOLLOW all instructions.
5. DO NOT use this apparatus near water.
6. CLEAN ONLY with dry cloth.
7. DO NOT block any ventilation openings. Allow sufficient distances for adequate ventila-
tion and install in accordance with the manufacturer’s instructions.
8. DO NOT install near any heat sources such as open flames, radiators, heat registers,
stoves, or other apparatus (including amplifiers) that produce heat. Do not place any open
flame sources on the product.
9. DO NOT defeat the safety purpose of the polarized or groundingtype plug. A polarized
plug has two blades with one wider than the other. A grounding type plug has two blades
and a third grounding prong. The wider blade or the third prong are provided for your
safety. If the provided plug does not fit into your outlet, consult an electrician for replace-
ment of the obsolete outlet.
10. PROTECT the power cord from being walked on or pinched, particularly at plugs, conve-
nience receptacles, and the point where they exit from the apparatus.
11. ONLY USE attachments/accessories specified by the manufacturer.
12. USE only with a cart, stand, tripod, bracket, or table specified by the manu-
facturer, or sold with the apparatus. When a cart is used, use caution when
moving the cart/apparatus combination to avoid injury from tip-over.
13. UNPLUG this apparatus during lightning storms or when unused for long
periods of time.
14. REFER all servicing to qualified service personnel. Servicing is required when the ap-
paratus has been damaged in any way, such as power supply cord or plug is damaged,
liquid has been spilled or objects have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally, or has been dropped.
15. DO NOT expose the apparatus to dripping and splashing. DO NOT put objects filled with
liquids, such as vases, on the apparatus.
16. The MAINS plug or an appliance coupler shall remain readily operable.
17. The airborne noise of the Apparatus does not exceed 70dB (A).
18. Apparatus with CLASS I construction shall be connected to a MAINS socket outlet with a
protective earthing connection.
19. To reduce the risk of fire or electric shock, do not expose this apparatus to rain or
moisture.
20. Do not attempt to modify this product. Doing so could result in personal injury and/or
product failure.
21. Operate this product within its specified operating temperature range.
This symbol indicates that dangerous voltage constituting a risk of
electric shock is present within this unit.
This symbol indicates that there are important operating and mainte-
nance instructions in the literature accompanying this unit.
WARNING: This product contains a chemical known to the State of California to cause cancer and birth
defects or other reproductive harm.
DRAFT 8.9.18
INSTRUCCIONES IMPORTANTES DE SEGURIDAD
1. LEA estas instrucciones.
2. CONSERVE estas instrucciones.
3. PRESTE ATENCION a todas las advertencias.
4. SIGA todas las instrucciones.
5. NO utilice este aparato cerca del agua.
6. LIMPIE UNICAMENTE con un trapo seco.
7. NO obstruya ninguna de las aberturas de ventilación. Deje espacio suficiente para
proporcionar ventilación adecuada e instale los equipos según las instrucciones del
fabricante.
8. NO instale el aparato cerca de fuentes de calor tales como llamas descubiertas, radiad-
ores, registros de calefacción, estufas u otros aparatos (incluyendo amplificadores) que
produzcan calor. No coloque artículos con llamas descubiertas en el producto.
9. NO anule la función de seguridad del enchufe polarizado o con clavija de puesta a tierra.
Un enchufe polarizado tiene dos patas, una más ancha que la otra. Un enchufe con pu-
esta a tierra tiene dos patas y una tercera clavija con puesta a tierra. La pata más ancha
o la tercera clavija se proporciona para su seguridad. Si el tomacorriente no es del tipo
apropiado para el enchufe, consulte a un electricista para que sustituya el tomacorriente
de estilo anticuado.
10. PROTEJA el cable eléctrico para evitar que personas lo pisen o estrujen, particularmente
en sus enchufes, en los tomacorrientes y en el punto en el cual sale del aparato.
11. UTILICE únicamente los accesorios especificados por el fabricante.
12. UTILICE únicamente con un carro, pedestal, trípode, escuadra o mesa del
tipo especificado por el fabricante o vendido con el aparato. Si se usa un
carro, el mismo debe moverse con sumo cuidado para evitar que se vuelque
con el aparato.
13. DESENCHUFE el aparato durante las tormentas eléctricas, o si no va a ser utilizado por
un lapso prolongado.
14. TODA reparación debe ser llevada a cabo por técnicos calificados. El aparato requiere
reparación si ha sufrido cualquier tipo de daño, incluyendo los daños al cordón o enchufe
eléctrico, si se derrama líquido sobre el aparato o si caen objetos en su interior, si ha sido
expuesto a la lluvia o la humedad, si no funciona de modo normal, o si se ha caído.
15. NO exponga este aparato a chorros o salpicaduras de líquidos. NO coloque objetos
llenos con líquido, tales como floreros, sobre el aparato.
16. El enchufe de alimentación o un acoplador para otros aparatos deberá permanecer en
buenas condiciones de funcionamiento.
17. El nivel de ruido transmitido por el aire del aparato no excede de 70 dB(A).
18. Los aparatos de fabricación CLASE I deberán conectarse a un tomacorriente de ALI-
MENTACION con clavija de puesta a tierra protectora.
19. Para reducir el riesgo de causar un incendio o sacudidas eléctricas, no exponga este
aparato a la lluvia ni a humedad.
20. No intente modificar este producto. Hacerlo podría causar lesiones personales y/o la falla
del producto.
21. Utilice este producto únicamente dentro de la gama de temperaturas de funcionamiento
especificadas.
Este símbolo indica que la unidad contiene niveles de voltaje peligrosos
que representan un riesgo de choques eléctricos.
Este símbolo indica que la literatura que acompaña a esta unidad con-
tiene instrucciones importantes de funcionamiento y mantenimiento.
IMPORTANTES INSTRUÇÕES DE SEGURANÇA
1. LEIA estas instruções.
2. GUARDE estas instruções.
3. PRESTE ATENÇÃO a todas as instruções.
4. SIGA todas as instruções.
5. NÃO use este aparelho perto de água.
6. LIMPE SOMENTE com um pano seco.
7. NÃO bloqueie nenhuma das aberturas de ventilação. Deixe distâncias suficientes para
ventilação adequada e instale de acordo com as instruções do fabricante.
8. NÃO instale próximo de nenhuma fonte de calor, tais como fogo aceso, radiadores,
bocais de aquecimento, fornos ou outros aparelhos que produzam calor (inclusive ampli-
ficadores). Não coloque fontes de chamas sobre o produto.
9. NÃO inutilize as características de segurança do conector polarizado ou com pino de
aterramento. Um conector polarizado possui duas lâminas com uma mais larga do que a
outra. Um conector com pino de aterramento possui duas lâminas e um terceiro pino de
aterramento. É fornecida uma lâmina mais larga ou o terceiro pino para a sua segurança.
Se por acaso o conector não se encaixar na tomada, chame um eletricista para substituir
a tomada obsoleta.
10. PROTEJA o cabo de alimentação, evitando que seja pisado ou que enrosque, especial-
mente nos conectores, nas tomadas elétricas de emprego geral e no ponto onde elas
saem do aparelho.
11. USE SOMENTE acessórios/apetrechos especificados pelo fabricante.
12. USE somente com um carrinho, pedestal, tripé, suporte ou mesa espe-
cificados pelo fabricante ou vendidos com o aparelho. Quando utilizar um
carrinho, tenha cuidado ao movimentar o conjunto aparelho/carrinho para
evitar danos com a queda do mesmo.
13. DESLIGUE este aparelho da tomada elétrica durante tempestades com relâmpagos ou
quando não seja utilizado por longo período.
14. DEIXE toda a manutenção sob a responsabilidade de uma equipe de manutenção
qualificada. É necessário realizar a manutenção quando por algum motivo o aparelho
tiver sido danificado de alguma forma, como por exemplo por dano do cabo de alimen-
tação elétrica ou do seu conector, por derramamento de líquido ou queda de objetos no
aparelho, se o aparelho tiver sido exposto à chuva ou à umidade, não esteja operando
normalmente ou tenha sofrido queda.
15. NÃO exponha o aparelho a respingos ou goteiras. NÃO coloque objetos cheios de
líquidos, tais como vasos, sobre o aparelho.
16. O plugue MAINS (rede elétrica) ou um acoplador de aparelho deve estar sempre pronto
para operação.
17. O ruído aéreo do Aparelho não ultrapassa 70 dB (A).
18. O aparelho com construção CLASSE I deve estar conectado à tomada da rede elétrica
com ligação à terra.
19. Para reduzir o risco de incêndio ou choque elétrico, não exponha este aparelho à chuva
ou umidade.
20. Não tente alterar este produto. Isso poderá resultar em lesão pessoal e/ou falha do
produto.
21. Opere este produto dentro da faixa de temperatura de operação especificada.
Este símbolo indica que existe nesta unidade tensão perigosa que
apresenta risco de choque elétrico.
Este símbolo indica que existem instruções operação e manutenção
importantes na literatura que acompanha esta unidade.
DRAFT 8.9.18
WARNING
• Battery packs may explode or release toxic materials. Risk of fire or burns. Do not open, crush, modify, disassemble, heat above 140°F (60°C), or
incinerate.
• Follow instructions from manufacturer
• Only use Shure charger to recharge Shure rechargeable batteries
• WARNING: Danger of explosion if battery incorrectly replaced. Replace only with same or equivalent type.
• Never put batteries in mouth. If swallowed, contact your physician or local poison control center
• Do not short circuit; may cause burns or catch fire
• Do not charge or use battery packs other than Shure rechargeable batteries
• Dispose of battery packs properly. Check with local vendor for proper disposal of used battery packs.
• Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like
Note: Use only with the included power supply or a Shure-approved equivalent.
Please follow your regional recycling scheme for batteries, packaging, and electronic waste.
WARNING: This product contains a chemical known to the State of California to cause cancer and birth defects or other reproductive harm.
低功率電波輻射性電機管理辦法
第十二條
經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻率、加大功率或變更原設計之特性及功能。 第十四條
低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停用，並改善至無干擾時方得繼續使用。前項合法通信，指依電
信法規定作業之無線電通信。低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。
AVERTISSEMENT
• Les accus risquent d’exploser ou d’émettre des matières toxiques. Risque d’incendie ou de brûlures. Ne pas ouvrir, écraser, altérer, démonter,
chauffer au-dessus de 60 °C (140 °F) ou incinérer.
• Suivre les instructions du fabricant
• Utiliser uniquement un chargeur Shure pour recharger les accus rechargeables Shure
• AVERTISSEMENT : Danger d’explosion si l’accu est mal placé. Remplacer uniquement avec le même type ou un type équivalent.
• Ne jamais mettre les accus dans la bouche. En cas d’ingestion, contacter un médecin ou le centre anti-poison local
• Ne pas court-circuiter ; cela risque de causer des brûlures ou un incendie
• Ne pas charger ou utiliser des accus autres que les accus rechargeables Shure
• Mettre les accus au rebut de manière appropriée. Vérifier auprès du fournisseur local la manière appropriée de mettre au rebut les accus usagés.
• Les accus (bloc accu ou accus installés) ne doivent pas être exposés à une chaleur excessive, p. ex. lumière du soleil, feu ou similaire
Remarque : Utiliser exclusivement avec le bloc d’alimentation inclus ou un produit équivalent approuvé par Shure.
Suivre le plan de recyclage régional en vigueur pour les accus, l’emballage et les déchets électroniques.
AVERTISSEMENT : Ce produit contient un produit chimique reconnu par l’État de Californie comme pouvant entraîner le cancer, des malformations
congénitales ou d’autres troubles de l’appareil reproducteur.
低功率電波輻射性電機管理辦法
第十二條
經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻率、加大功率或變更原設計之特性及功能。 第十四條
低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停用，並改善至無干擾時方得繼續使用。前項合法通信，指依電
信法規定作業之無線電通信。低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。
DRAFT 8.9.18
ADVERTENCIA
• Los conjuntos de baterías pueden estallar o soltar materiales tóxicos. Riesgo de incendio o quemaduras. No abra, triture, modifique, desarme, cali-
ente a más de 60°C (140°F) ni incinere.
• Siga las instrucciones del fabricante
• Utilice únicamente el cargador Shure para cargar las baterías recargables Shure.
• ADVERTENCIA: Si se sustituye la batería incorrectamente, se crea el riesgo de causar una explosión. Sustitúyala únicamente por otra igual o de tipo
equivalente.
• Nunca ponga baterías en la boca. Si se tragan, acuda al médico o a un centro local de control de envenenamiento
• No ponga en cortocircuito; esto puede causar quemaduras o incendios
• No cargue ni utilice baterías diferentes de las baterías recargables Shure.
• Deseche los conjuntos de baterías de forma apropiada. Consulte al vendedor local para el desecho adecuado de conjuntos de baterías usados.
• Las baterías (conjuntos de baterías o baterías instaladas) no deben exponerse al calor excesivo causado por la luz del sol, las llamas o condiciones
similares.
Nota: Use solo con la fuente de alimentación incluida o una equivalente aprobada por Shure.
Se recomienda respetar las normas de reciclado de la región relativas a desechos electrónicos, empaquetado y baterías.
ADVERTENCIA: Este producto contiene una sustancia química conocida en el Estado de California como causante del cáncer y de defectos congénitos
y otros tipos de toxicidad reproductiva.
低功率電波輻射性電機管理辦法
第十二條
經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻率、加大功率或變更原設計之特性及功能。 第十四條
低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停用，並改善至無干擾時方得繼續使用。前項合法通信，指依電
信法規定作業之無線電通信。低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。
ATENÇÃO
• Baterias podem explodir ou liberar materiais tóxicos. Risco de incêndio ou queimaduras. Não abra, esmague, modifique, desmonte, aqueça acima de
60 °C (140 °F) ou incinere.
• Siga as instruções do fabricante
• Use somente carregador Shure para recarregar baterias Shure recarregáveis
• ATENÇÃO: Perigo de explosão se a bateria for substituída incorretamente. Substitua somente pelo mesmo tipo ou por um equivalente.
• Nunca ponha baterias na boca. Se engolida, procure um médico ou centro local de controle de veneno
• Não provoque curto-circuito; isto pode causar queimaduras ou incêndios
• Não carregue nem use baterias que não sejam baterias recarregáveis Shure
• Descarte as baterias apropriadamente. Verifique com o fornecedor local a forma correta de descarte de baterias usadas.
• Baterias (a embalagem ou as baterias instaladas) não devem ser expostas a calor excessivo como luz do sol, fogo etc.
Observação: Use somente com a fonte de alimentação inclusa ou uma equivalente aprovada pela Shure.
Siga o esquema de reciclagem de sua região para baterias, embalagem e resíduos eletrônicos.
ATENÇÃO: De acordo com o Estado da Califórnia, este produto contém um produto químico que causa câncer e defeitos de nascimento ou outros
danos reprodutivos.
低功率電波輻射性電機管理辦法
第十二條
經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻率、加大功率或變更原設計之特性及功能。 第十四條
低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停用，並改善至無干擾時方得繼續使用。前項合法通信，指依電
信法規定作業之無線電通信。低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。
DRAFT 8.9.18
7
ADXFD2 Handheld Transmitter
ADX series transmitters deliver impeccable audio quality and RF performance, and are equipped with ShowLink® remote control for real-time parameter adjust-
ments and interference avoidance. This transmitter additionally features Frequency Diversity for seamless audio in even the most challenging environments. Light-
weight aluminum construction, SB920 rechargeable power options (with dockable charging).
Optional Accessories
SB920 Shure Rechargeable Battery 95A25763
AD651B Talk Switch Button (black) 90A37347B
Microphone stand adapter WA371
Shure Networked Docking Charger
2-Up
SBC240
Optional Shure microphone cartridges:
SM58 (RPW112)
SM86 (RPW114)
SM87A (RPW116)
BETA 58A (RPW118)
BETA 87A (RPW120)
BETA 87C (RPW122)
VP68 (RPW124)
KSM9 Nickel (RPW188)
KSM9HS Nickel (RPW190)
KSM9 Black (RPW184)
KSM9HS Black (RPW186)
Features
Performance
• 184 MHz tuning range
• Frequency Diversity enables simultaneous transmission on two independent fre-
quencies to ensure seamless, uninterrupted audio for mission-critical applications.
Single carrier mode is available if Frequency Diversity is not required.
• 20 Hz to 20 kHz range with flat frequency response
• Automatic input staging optimizes gain setting
• Diversity ShowLink-enabled for remote transmitter control and automatic interfer-
ence avoidance
• AES 256-bit encryption-enabled for secure transmission
• >120 dB, A-weighted, System Gain @ +10
• Digital output: >125dB, A-weighted (Dante, AES3, AES67)
• 100 meter (300 feet) line-of-sight operating range
• Selectable modulation modes optimize performance for spectral efficiency or audio
quality:
- Standard – optimal coverage, low latency
- High density – dramatic increase in max system channel count
• Switchable Power Levels (region dependent):
- 2/10/50 mW (single carrier mode)
- 2 x 20 mW (Frequency Diversity mode)
• Built-in tone generator and RF markers to facilitate range-testing
Design
• Interchangeable Shure microphone cartridges
• Backlit LCD with easy to navigate menu and controls
• Rugged metal construction
• Menu and power lockout
Power
• Shure SB920 rechargeable batteries offer precision metering and zero
memory effect
• External charging contacts for docked charging
• Battery Runtime with Shure SB920:
- Up to 9 hours in single carrier mode @ 10 mW
- Up to 6.5 hours in Frequency Diversity mode @ 10 mW x 10 mW
- Up to 5 hours in single carrier, high-power mode @ 50 mW
Included Components
SB920 Shure Rechargeable Battery
(2)
95A25763
Zipper Bag 95B2313
Battery Contact Cover (part number
varies by frequency range)
WA619-A (470-636 MHz), WA619-B
(606-810 MHz), WA619-C (750-960
MHz)
Threaded Adapter 31B1856
Swivel Adapter, black 90F4046
Choice of (1) of the following Shure microphone
cartridges:
SM58 (RPW112) KSM9 Nickel (RPW188)
BETA 87C (RPW122) BETA 87A (RPW120)
BETA 58A (RPW 118) KSM9 Black (RPW184)
KSM8 Black (RPW174) KSM8 Nickel (RPW170)
KSM9HS Black (RPW186) KSM9HS Nickel (RPW190)
DRAFT 8.9.18
8

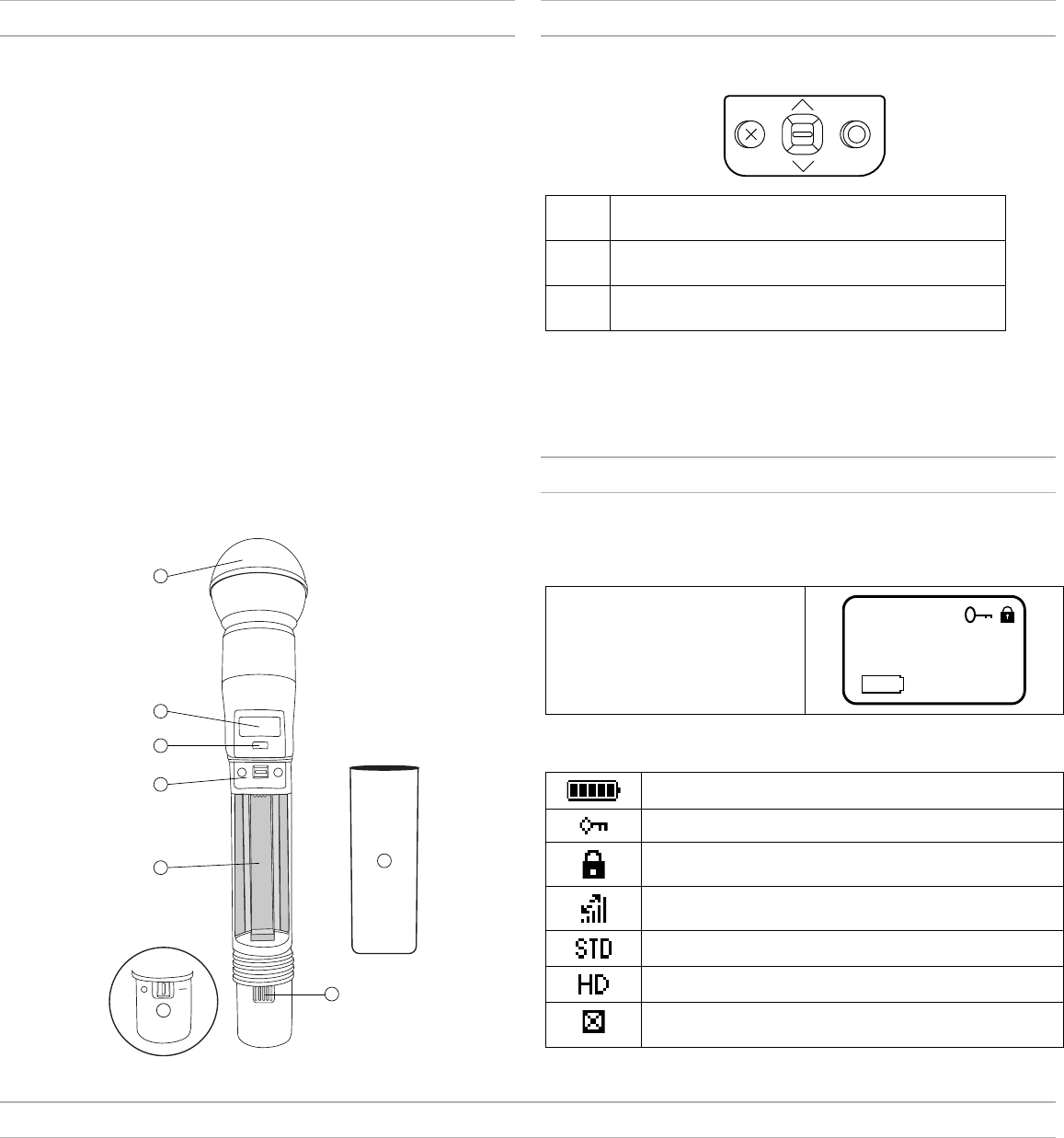

ADX2FD Transmitter Overview
① Microphone Cartridge
See Optional Accessories for a list of compatible cartridges.
② Display
View menu screens and settings. Press any control button to activate the
backlight.
③ Infrared (IR) Port
Align with the receiver IR port during an IR Sync for automated transmitter
programming.
④ Control Buttons
Use to navigate through parameter menus and change values.
⑤ Battery Compartment
Requires Shure rechargeable battery.
⑥ On/Off Switch
Powers the unit on or off.
⑦ Handle
Unscrew to access controls and batteries.
⑧ Battery Charging Contacts
Charging contacts for use with docking battery chargers.
1
2
3
4
5
8
6
7
Transmitter Controls
Use to navigate through parameter menus and change values.
XExit: Acts as a 'back' button to return to previous menus or
parameters without confirming a value change
OEnter: Selects menu screens and confirms parameter
changes
∨∧ Use to scroll through menu screens and to change param-
eter values
Tip: Use the following control shortcuts for quick set up:
•Hold the ∧ button while powering-on to lock or unlock the transmitter controls
• Hold the X button while powering-on to set the transmitter RF output to mute
Home Screen Display
The home screen shows transmitter information and status.
Tip: There are four options to choose the information shown on the home
screen. Use the arrow buttons to select one of the following choices:
• Name
• F1 and F2 Frequency Settings
• F1 and F2 Group (G) and Channel
(C)
• Device ID
Shure
470.200MHz
7:45
The following icons appear to indicate transmitter settings:
Battery runtime in hours and minutes or bar display
Key: Displayed when encryption is enabled
Displayed when controls are locked. Icon will flash if access is
attempted to a locked control (power or menu).
ShowLink signal strength displays 0 to 5 bars
STD: Standard Transmission Mode
HD: High Density Transmission Mode
Box: When the box has an "x", Mute Mode is on and engaged.
If the box is empty, Mute Mode is on, but not engaged.
Locking the Interface
Lock transmitter interface controls to prevent accidental or unauthorized changes to parameters. The lock icon appears on the home screen when the interface
lock is enabled.
1. From the Utilities menu, navigate to Locks and select one of the following lock options:
- None: The controls are unlocked
- Power: The power switch is locked
- Menu: The menu parameters are locked
- All: The power switch and menu parameters are locked
2. Press O to save.
Tip: To quickly unlock a transmitter: Press O twice, select None, and press O.
DRAFT 8.9.18
9
Shure Rechargeable Batteries
Shure lithium-ion batteries offer a rechargeable option for powering the transmitters. Batteries quickly charge to 50% capacity in one hour and reach full charge
within three hours.
Single chargers and multiple bay chargers are available to recharge the Shure batteries.
Caution: Only charge Shure rechargeable batteries with a Shure battery charger.
Checking Battery Info
When using a Shure rechargeable battery, the receiver and transmitter home
screens display the number of hours and minutes remaining.
Detailed information for the battery is displayed Battery menu of the transmit-
ter: Utilities > Battery
• Battery: The chemistry type of for the installed battery (Shure, Alkaline,
Lithium, NiMH)
• Bars: Indicates the number of bars displayed
• Time: Battery runtime
• Charge: Percentage of charge capacity
• Health: Percentage of current battery health
• Cycle Count: Total of the number of charging cycles for the installed battery
• Temperature: Battery temperature reported in Celsius and Fahrenheit
Charge
85%

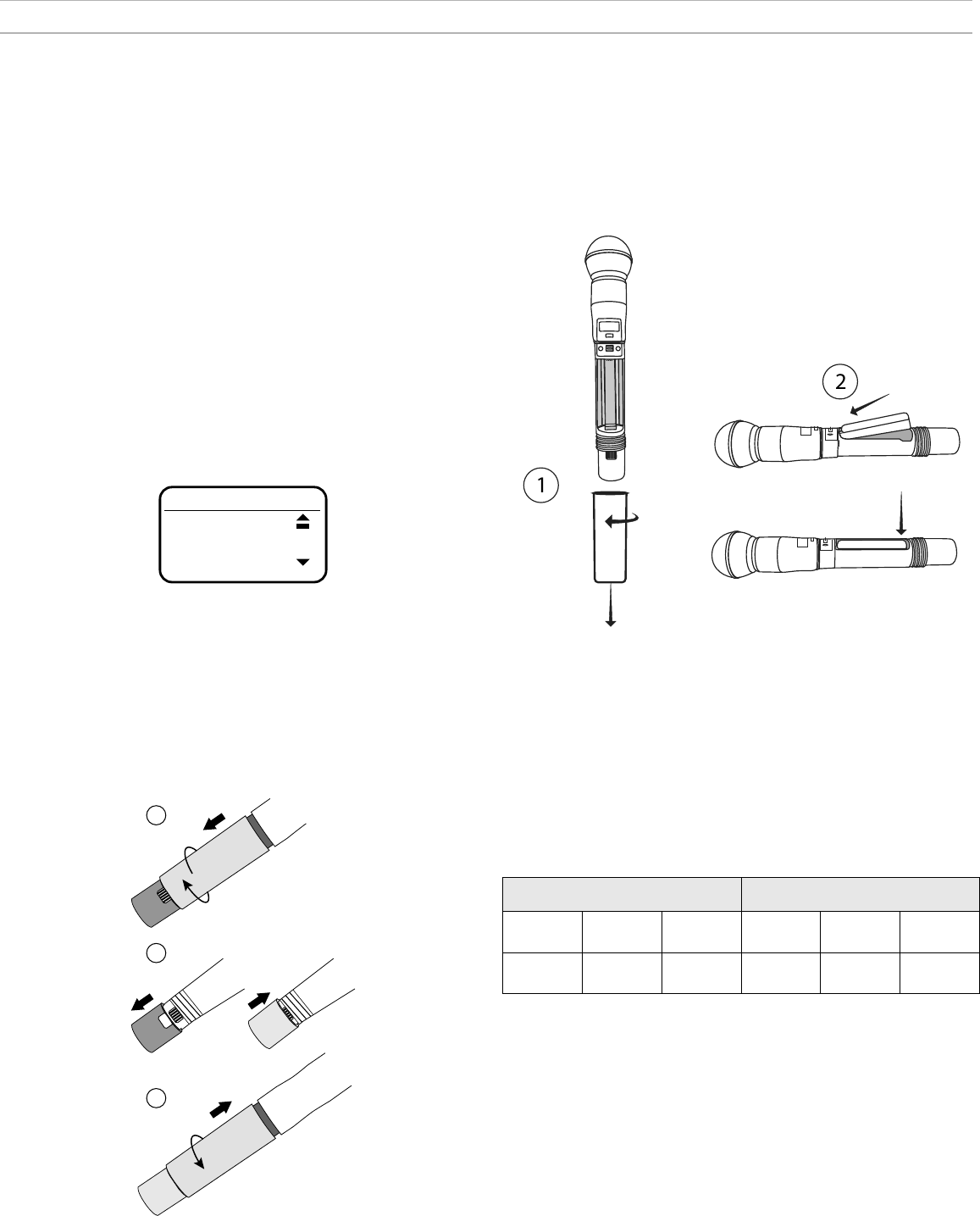

Battery Installation
① Accessing the Battery Compartment
Unscrew and remove the handle as shown.
② Inserting the Battery
Insert the battery, contracts first into the battery compartment. Press down
on the tab to fully seat the battery, and then reinstall the handle.
Tip: To remove the battery, pull up on the tab on the bottom of the battery.
Important Tips for Care and Storage of Shure
Rechargeable Batteries
Proper care and storage of Shure batteries results in reliable performance and
ensures a long lifetime.
• Always store batteries and transmitters at room temperature
• Ideally, batteries should be charged to approximately 40% of capacity for
long-term storage
• Periodically clean the battery contacts with alcohol to maintain ideal contact
• During storage, check batteries every 6 months and recharge to 40% of ca-
pacity as needed
For additional rechargeable battery information, visit www.shure.com.
Installing the Battery Contact Cover
Use battery contact covers to prevent reflections from the battery contacts
during broadcasts or live performances.
1. Remove the transmitter handle.
2. Pull gently on the antenna cover to remove. Install
a battery contact cover in its place.
3. Reinstall the transmitter handle.
1
2
3
ADX2FD SB920 Battery Runtime
Note: Higher RF power levels decrease battery runtime. Battery runtime varies
with battery age and environmental conditions.
Signal Carrier Mode Frequency Diversity Mode
2 mW 10 mW 50 mW 2 mW x 2
mW
10 mW x
10 mW
20 mW x
20 mW
8.5 to 10.5
hours
7.5 to 9.5
hours
5.0 to 7.0
hours
5.5 to 7.5
hours
5.0 to 7.0
hours
4.5 to 6.5
hours
DRAFT 8.9.18
10
Menu Map
Utilities Device ID
Locks
Marker
About
Battery
Identify
Talk Sw
Reset All
Main Menu Radio
F2 Ctrl
F2 Freq
F1 Freq
Power
Output
Audio Oset
Mute
Tone Gen
Link Info
SL Test
The Main menu organizes the available transmitter parameters into three
categories:
• Radio
• Audio
• Utilities
Main
Radio
Tips for Editing Menu Parameters
• To access the menu options from the home screen, press O . Use the arrow
buttons to access additional menus and parameters.
• A menu parameter will blink when editing is enabled
• To increase, decrease or change a parameter, use the arrow buttons
• To save a menu change, press O
• To exit a menu without saving a change, press X
Menu Parameter Descriptions
Radio Menu
F1 Freq
Press the enter button to enable editing of a group
(G:) channel (C:) or frequency (MHz). Use the arrow
buttons to adjust the values. To edit the frequency,
press the O button once to edit the first 3 digits, or
twice to edit the second 3 digits.
F2 Freq
Press the enter button to enable editing of a group
(G:) channel (C:) or frequency (MHz). Use the arrow
buttons to adjust the values. To edit the frequency,
press the O button once to edit the first 3 digits, or
twice to edit the second 3 digits.
F2 Ctrl
Turns F2 (F2 Freq) On or Off.
Power
Higher power settings can extend the range of the
transmitter.
Note: Higher RF power settings decrease battery runtime.
Output
- On: RF signal is active
- Mute: RF signal is inactive
Audio Menu
Offset
Adjust Offset level to balance mic levels when
using two transmitters or when assigning multiple
transmitters to receiver slots. Adjustment range: -12
dB to +21 dB.
Mute
When enabled, the power switch is configured as a
mute switch for the audio:
- Power switch on: audio signal on
- Power switch off: audio signal muted
Tone Gen
Transmitter will generate a continuous test tone:
- Freq: The tone can be set to 400 Hz or 1000 Hz.
- Level: Allows for adjustment of the output level of the
test tone.
Utilities Menu
Device ID
Assign a device ID of up to 9 letters or numbers.
Locks
Locks the transmitter controls and power switch.
- None: The controls are unlocked
- Power: The power switch is locked
- Menu: The menu parameters are locked
- All: The power switch and menu parameters are locked
Link Info
Displays the following information about the link between a transmitter and receiver:
- Not Linked: The transmitter is not linked to a receiver
- Linked: The transmitter is linked to a receiver. Select Unlink? to free the transmitter from the receiver link.
- Unlinked: The transmitter is not linked to a receiver
SL Test
ShowLink test tool to measure the boundaries of ShowLink coverage.
Marker
When enabled, press the enter button to drop a marker in Wireless Workbench.
Battery
Displays battery information:
- Battery Life: Runtime reported in bar display and time (hours:minutes)
- Charge: Percentage of charge capacity
- Health: Percentage of current battery health
- Cycle Count: Total of the number of charging cycles for the installed battery
- Temperature: Battery temperature reported in Celsius and Fahrenheit
Talk Sw
Press ENTER to add control from a talk switch. Press the button on the talk switch twice to
complete the link.
Identify
When enabled, Identify flashes the transmitter icon in Wireless Workbench Inventory or Monitor
tabs.
About
Displays the following transmitter information:
- Model: Displays the model number
- Band: Displays the tuning band of the transmitter
- FW Version: Installed firmware
- HW Version: Hardware version
- Serial Num: Serial number
Reset All
Restores all transmitter parameters to factory settings.
Menu Parameters
DRAFT 8.9.18
11

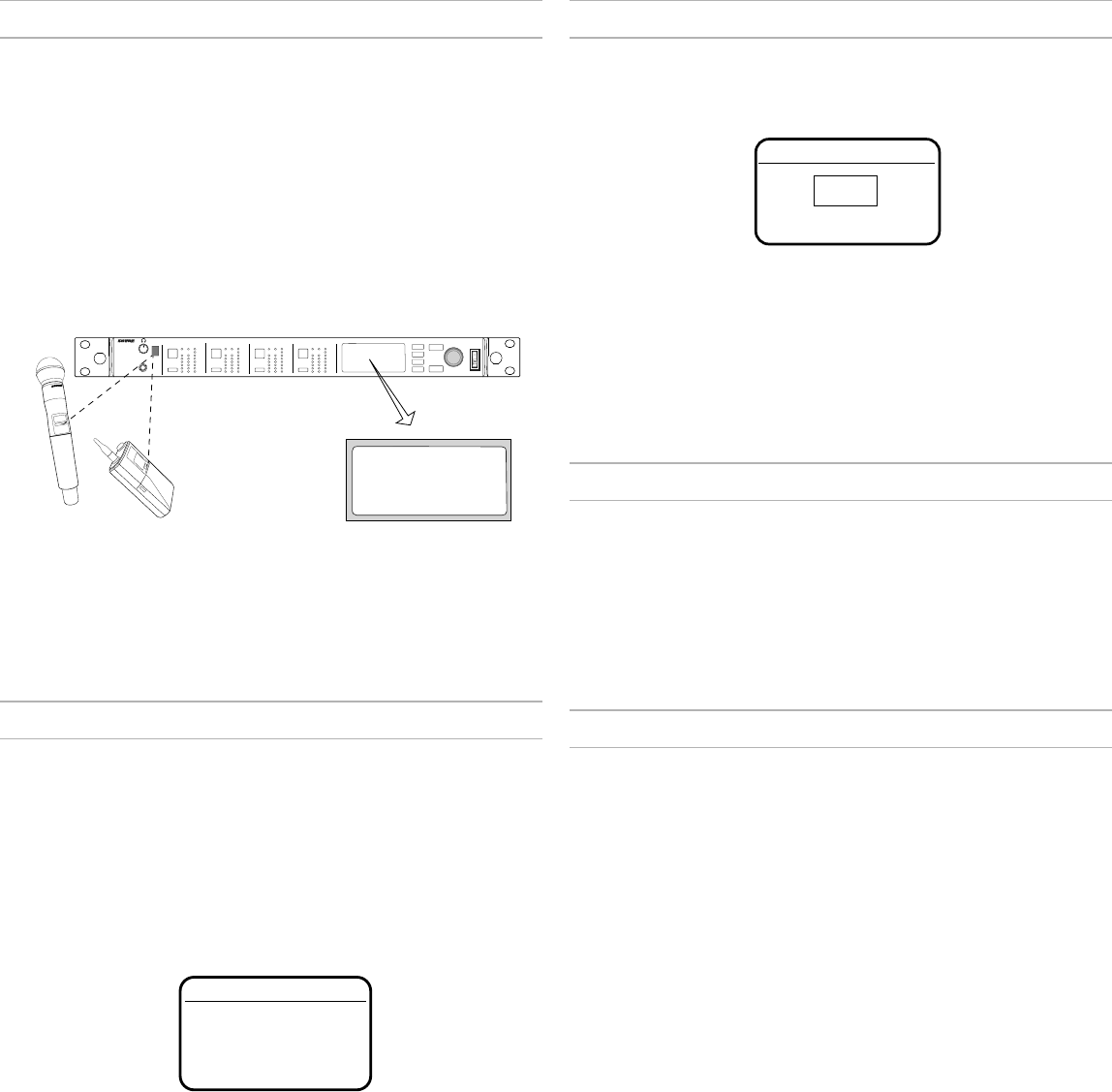

IR Sync
Use IR Sync to form an audio channel between the transmitter and receiver.
Note: The receiver band must match the band of the transmitter.
1. Select a receiver channel.
2. Tune the channel to an available frequency using group
scan or manually turn to an open frequency.
3. Power on the transmitter.
4. Press the SYNC button on the receiver.
5. Align the IR windows between the transmitter and the receiver so that
the IR LED illuminates red. When complete, Sync Success! appears.
The transmitter and receiver are now tuned to the same frequency.
<15 cm (6 in.)
AD4Q
Axient Digital
Wireless Receiver
POWER
PUSH
CONTROL
NAVIGATE
IR RF
A B
OL
AUDIO
SYNC
4
RX 4RF
A B
OL
AUDIO
SYNC
3
RX 3RF
A B
OL
AUDIO
SYNC
2
RX 2RF
A B
OL
AUDIO
SYNC
1
RX 1
ULXD4
Digital Wireless Receiver
sync
Sync Success!
Note:
Any change to the encryption status on the receiver (enabling/disabling encryp-
tion) requires a sync to send the settings to the transmitter. New encryption
keys for the transmitter and receiver channel are generated on every IR sync,
so to request a new key for a transmitter, perform an IR sync with the desired
receiver channel.
Setting the Frequency Manually
The transmitter can be manually tuned to a specific frequency, group, or
channel.
1. Navigate to the Radio menu and select F1 Freq or F2 Freq.
2. Scroll to select G: and C: to edit the group and channel, or select the
frequency parameter (MHz). When editing the frequency, press O one to
enable editing of the first three digits, or twice to edit the last three digits.
3. Use the ∧∨ buttons to adjust the group, channel, or frequency.
4. Press O to save, and then press X when finished.
F1 Freq
G: 1 C:1
470.450 MHz
RF Mute
RF Mute prevents transmission of the audio by suppressing the RF signal,
while allowing the transmitter to remain powered-on. The home screen displays
RF MUTED in this mode.
RF Output
Mute
1. From the Radio menu, navigate to Output.
2. Choose one of the following options:
- On: RF signal is active
- Mute: RF signal is disabled
3. Press O to save.
Turning the transmitter off and on, or replacing the battery will restore Output
to On.
Power-on RF Mute
Power-on RF Mute places the transmitter in RF Mute mode immediately when
turned on.
• Starting with the transmitter off, press and hold the X button, and then switch
on the power
• Continue to hold the X button until the RF Muted message appears on the
home screen
Tip: To turn the RF Output on, navigate to Radio > Output and select On.
Operating in Frequency Diversity Mode
Operating the AXDFD2 in frequency diversity mode with an Axient Digital
receiver enables simultaneous transmission of audio on 2 independent
frequencies.
1. Select a channel and navigate to the Frequency Diversity
setting: Advanced > Frequency Diversity .
2. Use the control wheel to select the Combining option.
3. Press ENTER to confirm and save.
4. Perform an IR sync to link the transmitter to the receiver.
In Frequency Diversity, the transmitter will operate on two adjacent receiver
channels (1 and 2 or 3 and 4).
Turning Off Frequency 2 (Freq 2)
If a problem develops with one of the frequencies being used by the transmitter,
you can lock on to a single frequency by turning off frequency 2. Turning off
one frequency allows the transmitter to continue passing audio while a clear
frequency can be found for the second channel.
1. From the Radio menu navigate to F2 Ctrl.
2. Use the controls to set F2 to On or Off. When set to On,
the transmitter will pass audio using Freq 2.
DRAFT 8.9.18
12
Input Overload
The OVERLOAD message appears when the audio input experiences a high-lev-
el signal. The power LED turns red as an additional indicator of an overload.
Reduce the input signal or enable the input pad to remove the overload
condition.
Tip: To enable the input pad, navigate to Audio > Pad and select -12 dB.
Shure
OVERLOAD
7:45
Tone Generator
The transmitter contains an internal tone generator that produces a continuous
audio signal. The tone is helpful when conducting a sound check or for trouble-
shooting the audio signal chain. The level of the tone is adjustable from -60 dB
to 0 dB and the frequency can be set to 400 Hz or 1000 Hz.
Tip: Always start with the level set to -60 dB to avoid overloading speakers or
headphones.
1. From the Audio menu select Tone Gen.
2. Set the frequency to 400 Hz or 1000 Hz.
3. Select Level and use the arrow buttons ad-
just the value between -60 dB and 0 dB.
Turn off the tone by selecting Off from the menu or by cycling the transmitter
power.
Tone Gen
Tone: 400Hz
Level: -60db
Matching Audio Levels with Mic Offset
When linking two or more transmitters to a receiver, there may be a difference
in volume levels between microphones or instruments. If this occurs, use the
Offset function to match the audio levels and eliminate audible volume differ-
ences between transmitters. If using a single transmitter, set Offset to 0 dB.
1. Turn on the first transmitter and perform a sound check to test
the audio level. Turn off the transmitter when finished.
2. Turn on the second transmitter and perform a sound check to
test the audio level. Repeat for any additional transmitters.
3. If there is an audible difference in the sound level between the transmit-
ters, navigate to the Offset menu (Audio > Offset) in the transmitter to
increase or decrease the Offset in realtime to match the audio levels.
Mic Offset
+3 dB
ShowLink Test
The ShowLink Test is a tool to find the boundaries of the ShowLink coverage
area. When the ShowLink test is activated, a five-bar display indicating the link
quality is shown on the screen. As the transmitter moves away from the access
point, the number of bars will decrease. ShowLink control is maintained as long
as 1 bar is displayed.
If the transmitter is beyond the coverage range, ShowLink control will not be
possible. However, the audio signal will not be affected or interrupted as long
as the transmitter is within range of the RF signal.
To improve coverage, adjust the location of your access points or place addi-
tional access points to extend coverage.
To activate the ShowLink Test:
1. From the Utilities menu, navigate to SL Test.
2. Press the O button to start the test and walk the transmitter around
the coverage area. Monitor the number of bars displayed and
the state of the ShowLink icon. Coverage boundaries are indi-
cated by 0 bars displayed or the ShowLink icon is empty.
3. Press the X button to exit the ShowLink test.
Tip: During a ShowLink test, press O (enter) to drop a marker in Wireless
Workbench.
Updating Firmware
Firmware is embedded software in each component that controls functionality.
Periodically, new versions of firmware are developed to incorporate additional
features and enhancements. To take advantage of design improvements, you
can upload and install new versions of the firmware by using the Shure Update
Utility. The Shure Update Utility is available for download from http://www.
shure.com/.
Firmware Versioning
When performing an update, first download firmware to the receiver, and
then update transmitters to the same firmware version to ensure consistent
operation.
The firmware numbering for Shure devices uses the following format: MAJOR.
MINOR.PATCH (e.g., 1.2.14). At a minimum, all devices on the network (in-
cluding transmitters), must have the same MAJOR and MINOR firmware ver-
sion numbers (e.g., 1.2.x).
Updating the Transmitter
1. Download the firmware to the receiver.
2. Access the following menu from the receiver:
Device Conguration > Tx Firmware Update.
3. Align the IR ports between the transmitter and the receiver. IR ports must
be aligned for the entire download, which can take 50 seconds or longer.
Tip: The red alignment LED will turn on when the alignment is correct.
4. Press ENTER on the receiver to begin the download to the transmitter.
The receiver will display the progress of the update as a percentage.
DRAFT 8.9.18
13
Specifications
Mic Offset Range
-12 to 21 dB (In 1 dB steps)
Battery Type
Shure SB920 Rechargeable Li-Ion
Battery Runtime
Shure SB920 @ 10 mW
Single Carrier Mode Up to 9 hours
Frequency Diversity Up to 6.5 hours
Dimensions
254 mm x 51 mm (10.0 in. x 2.0 in.) L x Dia.
Weight
179 g (6.3 oz.), Without Battery
Housing
Cast Aluminum
Operating Temperature Range
-18°C (0°F) to 50°C (122°F)
Note: Battery characteristics may limit this range.
Storage Temperature Range
-29°C (-20°F) to 74°C (165°F)
Note: Battery characteristics may limit this range.
Audio Input
Configuration
Unbalanced
Maximum Input Level
1 kHz at 1% THD
145 dB SPL (SM58), typical
Note: Dependent on microphone type
RF Output
Antenna Type
Integrated Dual Band Helical
Occupied Bandwidth
<200 kHz
Channel-to-Channel Spacing
Standard Mode 350 kHz
High Density Mode 125 kHz
varies by region
Modulation Type
Shure Axient Digital Proprietary
Power
See Frequency Range and Output Power table, varies by region
Single Carrier Mode 2 mW, 10 mW, 50 mW
Frequency Diversity 2x20 mW
ShowLink
Network Type
IEEE 802.15.4
Antenna Type
Zigbee Dual Conformal
Frequency Range
2.40 to 2.4835 GHz (24 Channels)
RF Output Power
10 dBm (ERP)
varies by region
Frequency Bands and Transmitter RF Power
Band Frequency Range
(MHz)
RF Power Single
Carrier (mW)***
RF Power
Frequency Diversity
(mW per channel)***
G53 470 to 510 2/10/50 2/10/20
G54 479 to 565 2/10/20 2/10/20
G55† 470 to 636 2/10/50 2/10/20
G56◇ 470 to 636 2/10/50 2/10/20
G57 470 to 608 2/10/50 2/10/20
G62 510 to 530 2/10/50 2/10/20
K53† 606 to 698 2/10/50 2/10/20
K55 606 to 694 2/10/50 2/10/20
K56 606 to 714 2/10/50 2/10/20
K57 606 to 790 2/10/50 2/10/20
K58 622 to 698 2/10/50 2/10/20
L54 630 to 787 2/10/50 2/10/20
R52† 794 to 806 2/10/50 2/10/20
X55 941 to 960 2/10/50 2/10
Note: ***power delivered to the antenna port.
Note: †operation mode varies according to region. In Brazil, High Density mode is used.
Note: ◇Korea defines power as conducted (ERP) which is 1dB less then declared in table.
DRAFT 8.9.18
14
K55 606-694 MHz
Country Code
Code de Pays
Codice di paese
Código de país
Länder-Kürzel
Frequency Range
Gamme de frequences
Gamme di frequenza
Gama de frequencias
Frequenzbereich
A, B, BG, CH, CY, CZ, D, DK, EST, F *
FIN, GB, GR, H, HR, I, IRL, IS, L, LT *
M, N, NL, P, PL, RO, S, SK, SLO, TR *
all other countries *
* This equipment may be capable of operating on some frequencies not authorized in your region. See Licensing
Information.
G56 470-636 MHz
Country Code
Code de Pays
Codice di paese
Código de país
Länder-Kürzel
Frequency Range
Gamme de frequences
Gamme di frequenza
Gama de frequencias
Frequenzbereich
A, B, BG, CH, CY, CZ, D, DK, EST, F *
FIN, GB, GR, H, HR, I, IRL, IS, L, LT *
M, N, NL, P, PL, RO, S, SK, SLO, TR *
all other countries *
* This equipment may be capable of operating on some frequencies not authorized in your region. See Licensing
Information.
K57 606-790 MHz
Country Code
Code de Pays
Codice di paese
Código de país
Länder-Kürzel
Frequency Range
Gamme de frequences
Gamme di frequenza
Gama de frequencias
Frequenzbereich
A, B, BG, CH, CY, CZ, D, DK, EST, F *
FIN, GB, GR, H, HR, I, IRL, IS, L, LT *
M, N, NL, P, PL, RO, S, SK, SLO, TR *
all other countries *
* This equipment may be capable of operating on some frequencies not authorized in your region. See Licensing
Information.
DRAFT 8.9.18
15
Certifications
Certified under FCC Part 15 and FCC Part 74.
FCC ID: DD4ADX2FDG57, DD4ADX2FDX55.
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation of this device is subject to the following two conditions: (1) this de-
vice may not cause interference, and (2) this device must accept any interfer-
ence, including interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux
appareils radio exempts de licence. L'exploitation est autorisée aux deux condi-
tions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisa-
teur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le
brouillage est susceptible d'en compromettre le fonctionnement.
Meets essential requirements of the following European Directives:
• WEEE Directive 2002/96/EC, as amended by 2008/34/EC
• RoHS Directive 2011/65/EU
Note: Please follow your regional recycling scheme for batteries and electronic waste
This product meets the Essential Requirements of all relevant European direc-
tives and is eligible for CE marking.
Hereby, Shure Incorporated declares that the radio equipment is in compliance
with Directive 2014/53/EU. The full text of the EU declaration of conformity
is available at the following internet address: http://www.shure.com/europe/
compliance
Authorized European representative:
Shure Europe GmbH
Headquarters Europe, Middle East & Africa
Department: EMEA Approval
Jakob-Dieffenbacher-Str. 12
75031 Eppingen, Germany
Phone: +49-7262-92 49 0
Fax: +49-7262-92 49 11 4
Email: EMEAsupport@shure.de
LICENSING INFORMATION
Licensing: A ministerial license to operate this equipment may be required
in certain areas. Consult your national authority for possible requirements.
Changes or modifications not expressly approved by Shure Incorporated could
void your authority to operate the equipment. Licensing of Shure wireless mi-
crophone equipment is the user’s responsibility, and licensability depends on
the user’s classification and application, and on the selected frequency. Shure
strongly urges the user to contact the appropriate telecommunications authority
concerning proper licensing, and before choosing and ordering frequencies.
Information to the user
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instruc-
tions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television recep-
tion, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment to an outlet on a circuit different from that to which
the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
This device operates on frequencies shared with other devices. Consult the
Federal Communications Commission White Space Database Administration
website to determine available channels in your area prior to operation.
No user-operated control of power, frequency, or other parameters are avail-
able beyond those specified in this operating manual.
Australia Warning for Wireless
This device operates under an ACMA class licence and must comply with
all the conditions of that licence including operating frequencies. Before 31
December 2014, this device will comply if it is operated in the 520-820 MHz
frequency band. WARNING: After 31 December 2014, in order to comply, this
device must not be operated in the 694-820 MHz band.
