AXT200 Axient Handheld Transmitter
The AXT200 Handheld Frequency Diversity Transmitter is a rechargeable, remotely controllable handheld transmitter with Frequency Diversity for
seamless, uninterrupted audio in even the most challenging RF environments. In addition to Frequency Diversity, the AXT200 delivers ultra-linear
RF performance for more channels on-air and superb audio quality. Its advanced power management supports extended battery life
and highly accurate status metering. ShowLink™ Remote Control enables comprehensive real-time remote control of all transmitter parameters,
including real-time frequency adjustments.
Features
Transmitter Overview
Included Components
Handheld Rechargeable
Battery (2)
AXT920 or AXT920SL
Transmitter Carrying Case 95A15475
Zipper Bag 26A14
Microphone Stand Adaptor WA371
Choice of (1) Shure Microphone
Cartridge from the following list:
SM58 RPW112 BETA 87C RPW122
BETA 58A RPW118 KSM9 Champagne RPW180
BETA 87A RPW120 KSM9 Black RPW184
• Frequency Diversity enables simultaneous transmission on two
independent frequencies to ensure seamless, uninterrupted audio
for mission-critical transmitters. Single carrier mode is available if
Frequency Diversity is not required.
• Ultra-linear RF performance enables more channels on-air
• IR Sync function automatically tunes transmitter to the
receiver frequency
• Comprehensive real-time remote control of all transmitter parameters
when a Linked transmitter is within range of a ShowLink Access Point
• Shure lithium-ion rechargeable battery delivers up to 9 hours of runtime
from a single charge
• Advanced control menu to adjust frequency and audio settings
from the transmitter
• 42 dB of adjustable gain for optimal audio quality
• Lockable user interface prevents accidental or inadvertent changes to
controls once settings are made

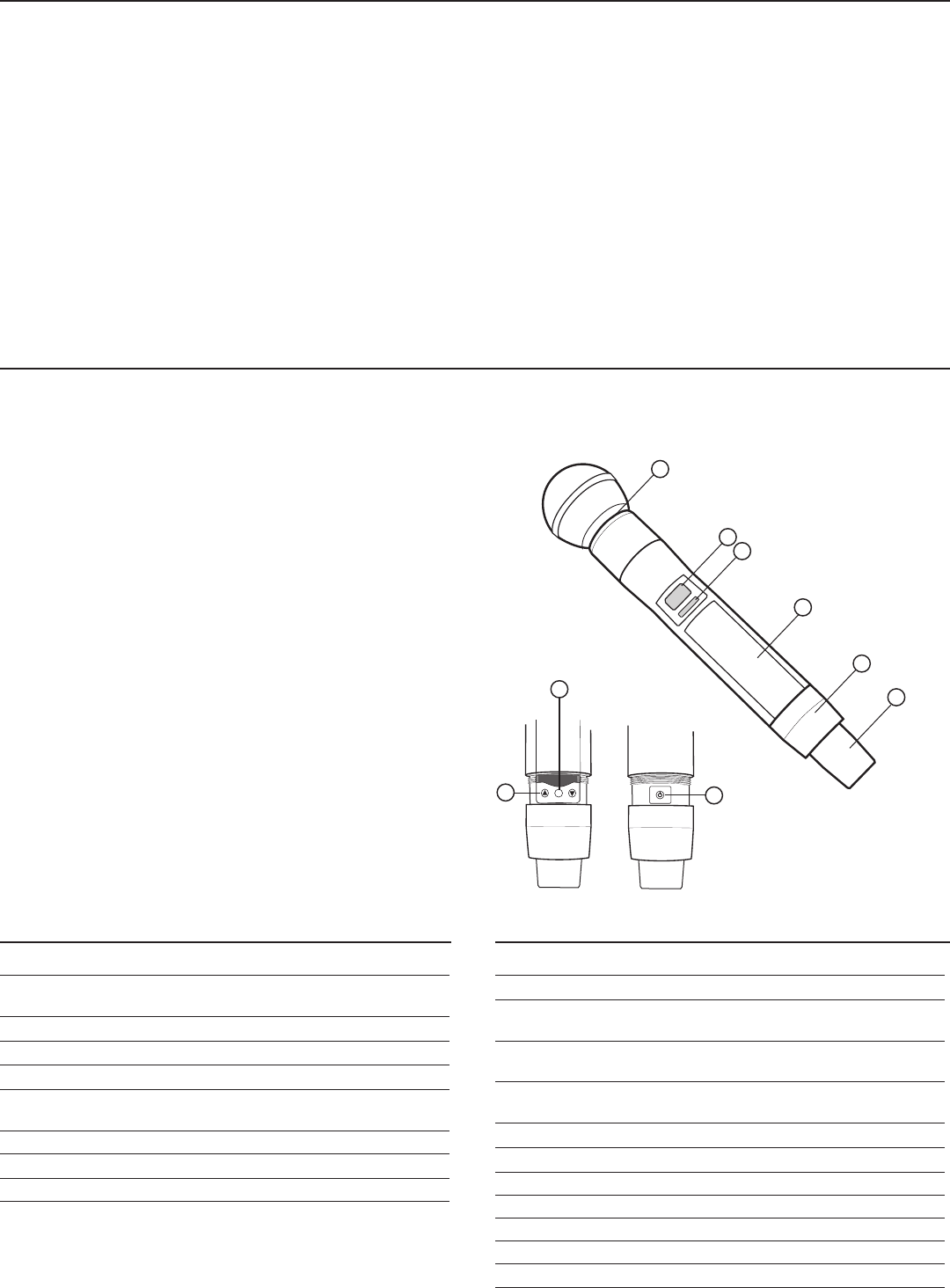

① Microphone Cartridge
Interchangeable with a variety of Shure cartridges
② LCD Display
View menu screens and settings. Momentarily press power button
to activate backlight.
③ Infrared (IR) Port
Use for automated transmitter programming. Links transmitter to
AXT400 Receiver
④ Shure Rechargeable Lithium-ion Battery
Delivers up to 9 hours of runtime from a single charge
⑤ Locking Ring
Secures the battery and protects the control buttons
⑥ Dual-Band Antenna
Covers UHF tuning range and 2.4 GHz ShowLink signal
⑦ Arrow Buttons
Use to scroll through menu screens and to change parameter
values
⑧ Set Button
Enables parameter editing. After editing is complete, press to
save changes and return to the main menu screen
⑨ Power Button
Hold for 1 second to turn the transmitter on. To power off, press
and hold for 2 seconds until the display reads “Powering Off”.
When editing parameters, acts as an exit button to cancel changes
and return to a previous parameter or to the main
menu screen.
1
set
2
4
5
6
79
8
3
1
6
Remove the battery
Unscrew the
locking ring
Batteries
Axient transmitters are powered by a Shure lithium-ion
rechargeable battery.
Caution: Turn off the transmitter before changing batteries.
Note: Refer to your battery charger manual for charging instructions.
Battery Runtime
Battery runtime varies according to the transmitter’s operating mode.
High power settings or operating in Frequency Diversity mode will
reduce battery runtime.
Remaining battery runtime is shown on the display in hours and minutes
(accurate to within 15 minutes).
The times shown in the table represent a battery with a minimum of 5
charge cycles, fully charged, at 100% health.
RF Power Mode Runtime
10 mW Single Carrier 9:45
Frequency Diversity 6:40
50 mW Single Carrier 8:00
Frequency Diversity 4:40
1
1
<Unlinked>
F1: 525.725
F2: 585.625
}
|
9:25
4 5
6
6
2
1
7
8
3

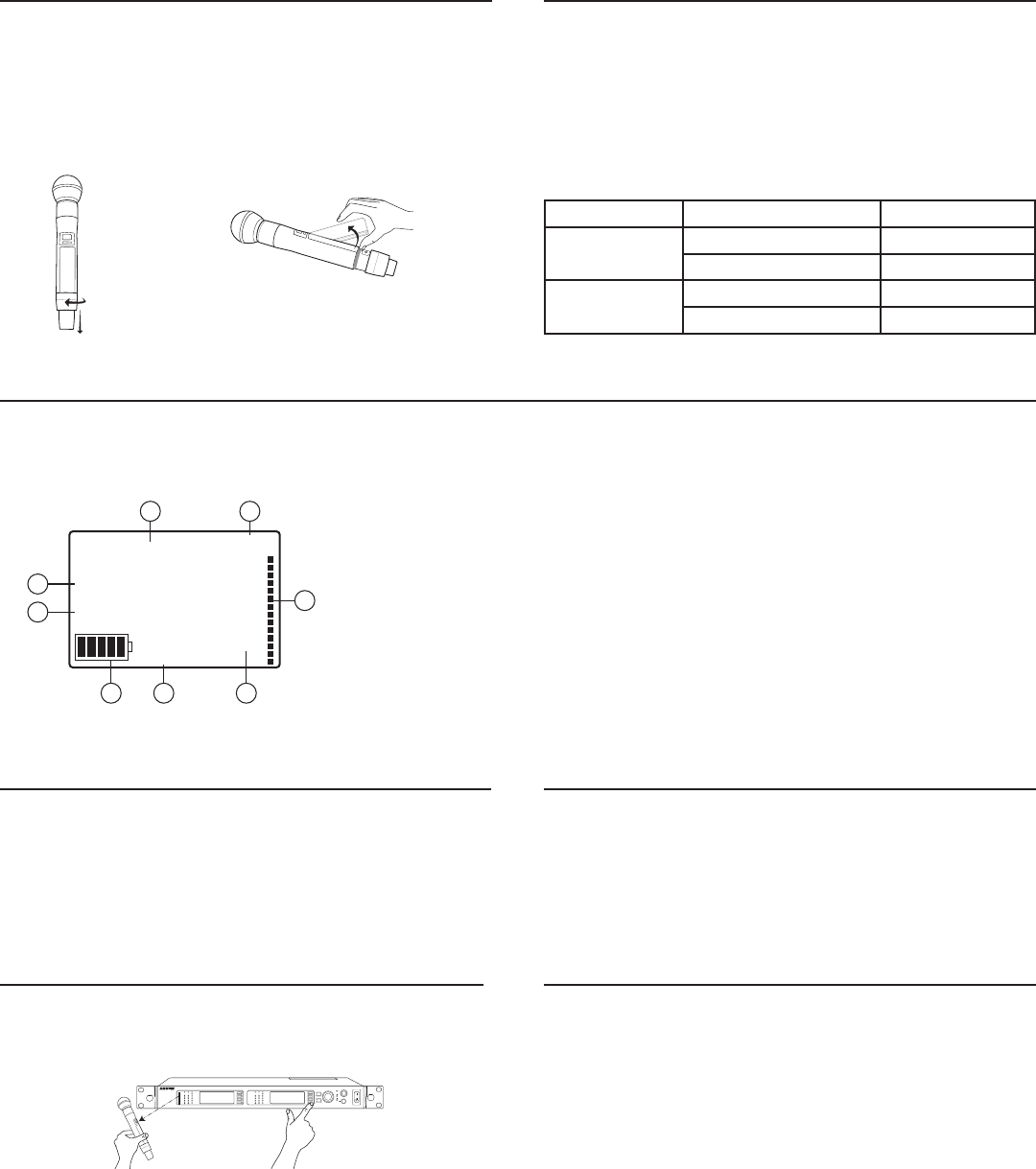

Main Menu Screen
The main menu screen displays the following transmitter parameters:
① Link Status
• Linked : Displays Linked receiver
channel name
• Unlinked : Not Linked to a receiver
② Frequency 1
Tuned frequency 1 of the transmitter
③ Frequency 2
Tuned frequency 2 of the transmitter
(Frequency Diversity mode enabled)
④ Battery Charge Indicator
5-segment icon visually indicates battery life
⑤ Remaining Battery Life
Displays remaining battery life in hours and
minutes
⑥ Showlink Icon
Indicates remote control of transmitter
possible via ShowLink is possible
⑦ Audio Meter
Indicates the audio signal level
⑧ Control Lock Icon
Displayed when buttons are locked
Locking the Buttons
Lock the buttons of the transmitter to prevent accidental or unauthorized
parameter changes.
Press and hold the ▼ and ▲ buttons for 2 seconds to lock.
Repeat to unlock.
Power-on RF Mute
The transmitter can be powered-on in RF Mute mode to prevent
transmission of the audio signal.
Press and hold the ▼ button during power-on until the RF Muted
message is displayed.
Linking a Transmitter using IR Sync
The IR Sync function forms a Link and sets the frequency between the
transmitter and an AXT400 Receiver.
Using an AXT200 for Frequency Diversity
Operating an AXT200 in Frequency Diversity mode with an AXT400
receiver enables simultaneous transmission of audio on 2 independent
frequencies.
1. From the AXT400 Receiver menu: Radio > Options > Diversity
2. Use the control wheel to set the mode to On-Handheld.
3. Use the IR Sync function to Link the transmitter to the receiver.
navigate navigate control monitor power
clip
push
1
2
push
enter
exit
audioRF
audioRF
sync
AXT40 0
A 470-698 MHz
Dual Wireless Receiver
A B
OL
A B
OL
1. Align the IR Sync ports of the transmitter and the receiver. The red IR
Sync LED on the front panel of the receiver will illuminate to indicate
correct alignment.
2. Access the IR Sync function in the AXT400 Receiver menu: Tx > Sync
3. The receiver display indicates if the IR Sync is successful.
Check the transmitter alignment and select Retry if a failure occurs.
The transmitter device ID will be shown in the receiver Tx menu and
the receiver channel name and frequency will be shown on the
transmitter display, indicating a successful IR Sync.
7
Group (G) and Channel (Ch)
A group is a set of compatible frequencies. A
single frequency within a group is a channel.
Navigate to the F1 or F2 group and channel
menus to make changes.
G: Change the group
Ch: Change the channel
Frequency
Navigate to the F1 menu to edit frequency 1
or to the F2 menu to edit frequency 2.
Use the set and arrow keys to change the
frequency in 25 kHz increments.
F2: ON or OFF
ON: Frequency Diversity mode
OFF: single carrier mode
Note: This function is available in the F2:
frequency menu and the F2 group and
channel menu.
Gain
Adjust the gain to set the input sensitivity
level. Gain range is -10 to +32 dB in 1 dB
steps.
Firmware
Displays the firmware version installed
in the transmitter
Device ID
The Device ID identifies the transmitter on a
network in WWB software or when Linked to
a receiver.
• ID length can be up to 8 characters
• Use arrow buttons to scroll through
characters
• Use set button to save and move to the
next character
AA Type
Sets the AA battery type (Alkaline, NiMH,
Lithium) to ensure accurate battery metering
when using the optional AXT921 Battery
Carrier. The AA menu is only displayed when
the transmitter is powered by the carrier.
ShowLink Test
Activates the ShowLink test 5-bar display
to measure the remote control range of a
ShowLink Access Point.
• 5 bars indicate the center of the
coverage area
• 1 bar indicates the outer boundary of the
coverage area
• If bars are not displayed, ShowLink control
is not available
RF PWR
From the main menu screen, press and hold
the set button and the ▼ button to edit the
RF power level.
Use lower power settings to conserve battery
life and to prevent RF overload
at the receiver.
Note: A password is required in
some regions.
PCB Serial Number
Use this menu to view the serial number of
the printed circuit board (PCB) installed in
the unit.
1. From the main menu screen, press and
hold the ▼ and “set” buttons to enter the
RF Power screen.
2. Press the▲ button to access the serial
number.
3. Momentarily press the power button to
return to the home menu screen.
Troubleshooting
No ShowLink Alert
This alert appears when frequency is edited on a linked transmitter that
is beyond the range of an active ShowLink access point. Choose OK to
unlink the transmitter and complete the frequency change, or Cancel to
return to the home screen.
Input Overload
The Input Overload message indicates an excessive signal level
at the transmitter input. To prevent overload, reduce the gain setting.
Firmware Updates
Firmware is embedded software used to control features and the user interface. Periodically, new versions of firmware are available for download from
www.shure.com/wwb to incorporate additional features and enhancements. New versions of the firmware can be downloaded to AXT400 Receiver using
the Firmware Update Manager tool available in WWB6 software and installed on the transmitter using the infrared ports on the transmitter and receiver.
To access the AXT400 receiver firmware update menu: Tx > IR Presets > FW Update
Parameter Menus
To adjust transmitter settings, use the arrow buttons to access and edit the parameter menus.
RF Mute
Disables or enables the RF carrier signal.
TX On: RF signal enabled
TX Off: RF signal disabled
Unlink
The Unlink command ends the Linking
relationship between a transmitter and a
receiver.
YES: Ends the Link between a transmitter
and a receiver.
NO: Preserves the Link between a transmitter
and a receiver.
Note: When a transmitter is Unlinked, the
channel name will revert to Unlinked.
Deeply Discharged Batteries
Deep discharge occurs when a battery is discharged to less than 3.0
volts. The battery chargers have a Recovery mode designed to restore
charge to a deeply discharged battery.
When the charger detects a deeply discharged battery, it automatically
enters Recovery mode which supplies reduced current to the battery
for up to 30 minutes.
If recovery is successful, the charger will exit Recovery mode and
charge the battery to capacity. If the battery cannot be recharged,
charging stops and the battery must be replaced.
8
Specifications- AXT200 Handheld Transmitter
RF Carrier
Frequency Range
470–814 MHz
Note: varies by region
Working Range Under typical
conditions:
150 m (500 ft)
Line of Sight, outdoors
for a single system:
500 m (1600 ft)
Note: Actual range depends on RF signal absorption, reflection
and interference.
Audio Frequency
Response
40 – 18 kHz (+1, -3 dB)
Note: Dependent on microphone type
RF Tuning Step
Size
25 kHz
Modulation
45 kHz max.
deviation
FM, Audio Reference Companding with pre-
and de-emphasis
Dynamic Range >113 dB, A-weighted (referenced at 0 dB set-
ting on the transmitter)
Total Harmonic
Distortion
45 kHz max.
deviation
<0.3%, A-weighted, typical
System Audio
Polarity
Positive pressure on microphone diaphragm
(or positive voltage applied to tip of WA302
phone plug) produces positive voltage on pin 2
(with respect to pin 3 of low-impedance output)
and the tip of the high impedance 1/4-inch
output.
AXT200
Gain Adjustment
Range
-10 to +32 dB (in 1 dB steps)
Battery Type Shure AXT920/920SL (Rechargeable Li-Ion)
Battery Life up to 9 hours (low power mode, Single
Carrier Mode)
Dimensions 261 mm x 37 mm (10.3 in. x 2.6 in.) L x Dia.
Weight 395 g (13.9 oz.), with batteries
Housing Machined aluminum
Operating
Temperature
Range
-18°C (0°F) to 63°C (145°F)
Note: Battery characteristics may limit this range.
Storage
Temperature
Range
-29°C (-20°F) to 74°C (165°F)
Note: Battery characteristics may limit this range.
Audio Input
Configuration Unbalanced
Impedance >30 kΩ
Maximum Input
Level
1 kHz at 1% THD
Gain
Setting:
−10 to +11 dB: 5.5 dBu
+12 to +32 dB: −6.5 dBu
RF Output
Connector SMA (UHF and ShowLink); Shell=Ground,
Center=Signal
Antenna Type Integrated Dual Band Helical
Power See Frequency Range and Ouput Power table
Mode Frequency Diversity: Dual Carrier
Single Carrier: Single Carrier
Impedance 50 Ω
ShowLink
Network Type IEEE 802.15.4
Frequency Range 2.40 to 2.4835 GHz (16 Channels)
RF Output Power 10 dBm (ERP)
Tables and Diagrams
Frequency Range and Transmitter Output Power
Band Frequency Range ( MHz) Power ( mW)
G1 470 to 530 10/50
G1E 470 to 530 10/50
H4 518 to 578 10/50
H4E 518 to 578 10/50
J5 578 to 638 10/50
J5E 578 to 638 10/50
K4E 606 to 666 10/50
L3 638 to 698 10/50
L3E 638 to 698 10/50
L3HK 638 to 698 10
M8 666 to 730 10/50
P8 710 to 790 10/50
P9 710 to 787 10/50
Q5 740 to 814 10/50
Q5HK 740 to 814 10
MA24 779 to 806 10
MJBX 806 to 810 10
9
Certifications
Meets essential requirements of European R&TTE Directive 99/5/EC,
eligible to bear the CE mark:
WEEE Directive 2002/95/EC as amended by 2008/34/EC.
RoHS Directive 2002/95/EC as amended by 2008/35/EC.
Meets requirements of EMC standards EN 300 328, EN 300 422 Parts 1
and 2, and EN 301 489 Parts 1 and 9.
Certified under FCC Part 15 and FCC Part 74.
Certified in Canada by IC to RSS-123 and RSS-210.
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-
003 du Canada.
FCC ID: DD4AXT200. IC: 616A-AXT200.
Operation of this device is subject to the following two conditions: (1)
this device may not cause interference, and (2) this device must accept
any interference, including interference that may cause undesired
operation of the device.
The CE Declaration of Conformity can be obtained from Shure
Incorporated or any of its European representatives. For contact
information please visit www.shure.com
The CE Declaration of Conformity can be obtained from: www.shure.
com/europe/compliance
Authorized European representative:
Shure Europe GmbH
Headquarters Europe, Middle East & Africa
Department: EMEA Approval
Wannenacker Str. 28
D-74078 Heilbronn, Germany
Phone: +49 7131 72 14 0
Fax: +49 7131 72 14 14
Email: EMEAsupport@shure.de
Transmitter
AXT100 Bodypack
gain = 0dB
AXT200 Handheld
gain = 0dB
UR1 Bodypack
gain = 0dB
sens = 0dB
UR1M Bodypack
gain = 0dB
sens = 0dB
UR2 Handheld
gain = 0dB
Receiver
gain setting = 0dB
AXT400 +10dB gain +15dB gain +15dB gain +15dB gain +15dB gain
UR4 N/A N/A +18dB gain +18dB gain +18dB gain
System Gain
System gain from transmitter input to Receiver XLR output (line) when transmitter gain = 0 dB
Information to the user
This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates uses
and can radiate radio frequency energy and, if not installed and used
in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment to an outlet on a circuit different from that to
which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Licensing Information
Licensing: A ministerial licence to operate this equipment may be
required in certain areas. Consult your national authority for possible
requirements.
Changes or modification not expressly approved by Shure Incorporated
could void your authority to operate the equipment. Licensing of
Shure wireless microphone equipment is the user’s responsibility, and
licensability depends on the user’s classification and application, and
on the selected frequency. Shure strongly urges the user to contact the
appropriate telecommunications authority concerning proper licensing,
and before choosing and ordering frequencies.
www.shure.com ©2011 Shure Incorporated
Europe, Middle East, Africa:
Shure Europe GmbH
Wannenäckestr. 28,
74078 Heilbronn, Germany
Phone: 49-7131-72140
Fax: 49-7131-721414
Email: info@shure.de
Asia, Pacific:
Shure Asia Limited
22/F, 625 King’s Road
North Point, Island East
Hong Kong
Phone: 852-2893-4290
Fax: 852-2893-4055
Email: info@shure.com.hk
United States, Canada, Latin
America, Caribbean:
Shure Incorporated
5800 West Touhy Avenue
Niles, IL 60714-4608 USA
Phone: 847-600-2000
Fax: 847-600-1212 (USA)
Fax: 847-600-6446
Email: info@shure.com

Navigation menu
